Wistron NeWeb SWA6 Wireless Audio Embedded Module User Manual AVMD7540 SWA6 datasheet 20100920
Wistron NeWeb Corporation Wireless Audio Embedded Module AVMD7540 SWA6 datasheet 20100920
Contents
- 1. User Manual
- 2. User Manual OEM
User Manual OEM
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
1
Product Specification
Model Name: AVMD7540-SWA6
(AV7540 +16dBm module with Printing Antenna)
Revision: 1.0
Issue Date: 2010/09/20
This document and the information contained herein is the property of Wistron NeWeb
Corporation and reproduction by any means (including, but not limited to, xerographic,
chemical, electronic) and distribution is expressly prohibited without prior written consent
from Wistron NeWeb Corporation. The document and information contained herein are
confidential and may not be divulged without express written consent from Wistron NeWeb
Corporation, located at 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan,
R.O.C.
Copyright 2010 by Wistron NeWeb Corporation / All rights reserved.
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
2
Revision History
Edition #
Reason for revision Issue date
Author
0.1 Draft (Initial Revision)
2010/07/23
Amy Tu
1.0
Add FC
C Descripti
2010/9/20
Amy Tu
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
3
1. General Description
The AVMD7540-SWA6 module is a complete radio module solution containing all the necessary HW
and FW to provide a system-integration ready, multichannel wireless HD audio solution.
The module is comprised of a AV7540 IC combined with RF front-end circuits (RF PA + balun + filter
+ RF switch), flash memory, crystal, and passive components. The module provides a convenient set
of digital I/O interfaces for digital audio through an I2S port, host MCU control through an SPI or I2C
interface and optional GPIO for various control and indicator functions.
The module is a card edge style using the 36 pin PCIe card edge connection method to save space
and cost in connecting to the main board.
FCC & IC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment and meets the exemption from the routine evaluation limits in section 2.5 of RSS
102.
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters from user and bystanders.
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
4
2. Features
Complete, Integrated Wireless Module
o AV7540 IC
o RF front-end
o Flash memory
High Performance Audio and RF solution
o 16 bit, 48kHz to 24 bit, 96kHz digital audio
o 120dB SNR Digital Audio Path
o Fixed Low Latency solution
o +16dBm transmit RF output power
o -82dBm receive RF sensitivity
o Support for 30m/100m range NLOS/LOS
Digital interfaces and Audio
o 8 channel digital audio I/O (4 I2S ports)
Configurable as input or output
o Stereo audio DAC output
o 4-wire SPI slave interface or 2-wire I2C-compatible communication with the host MCU
Package and connections
o Compact size
o 36 pin (2x18) PCIe card edge connector
o diversity antenna capability
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
5

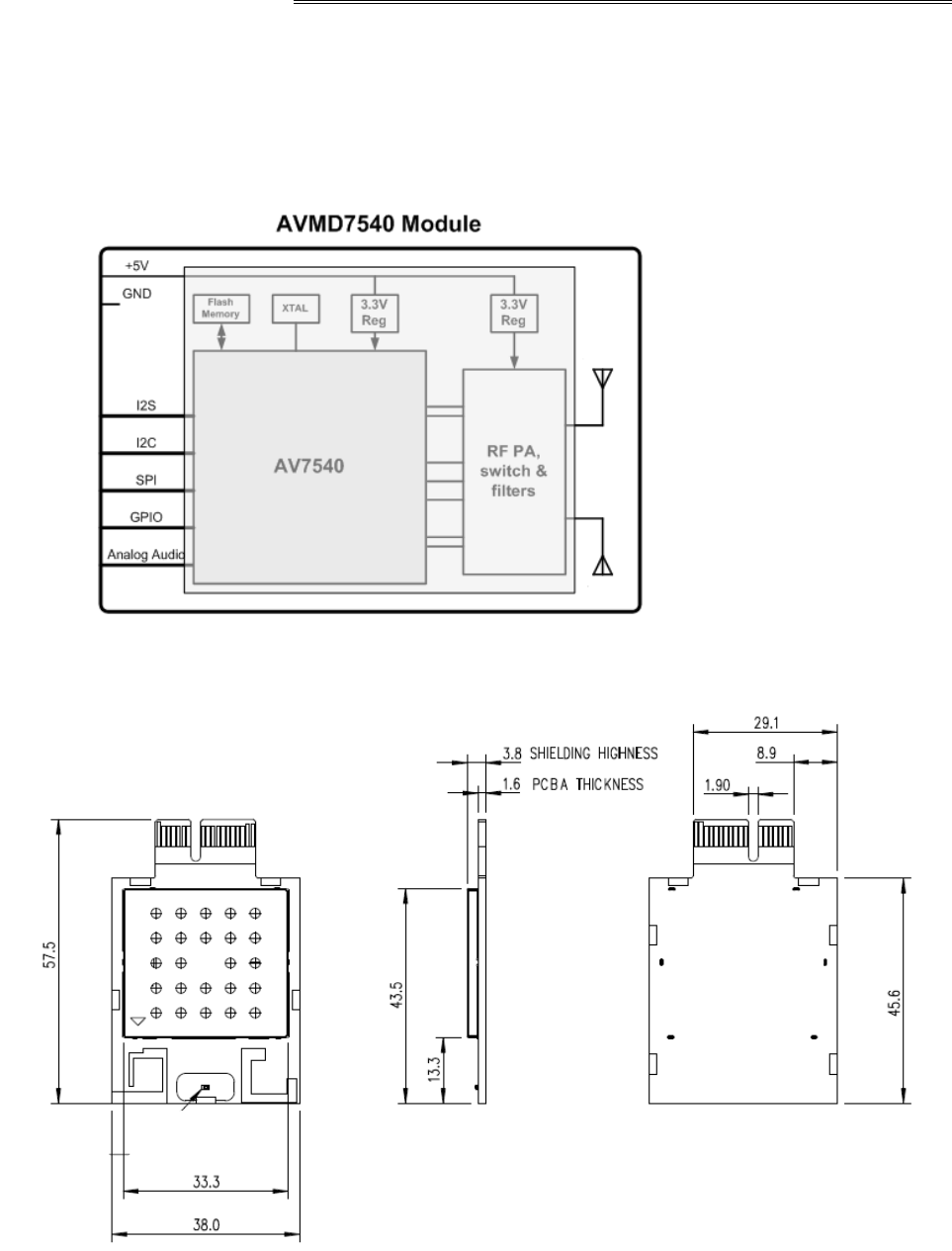

3. Block Diagram
/
4. Module Outline
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
6

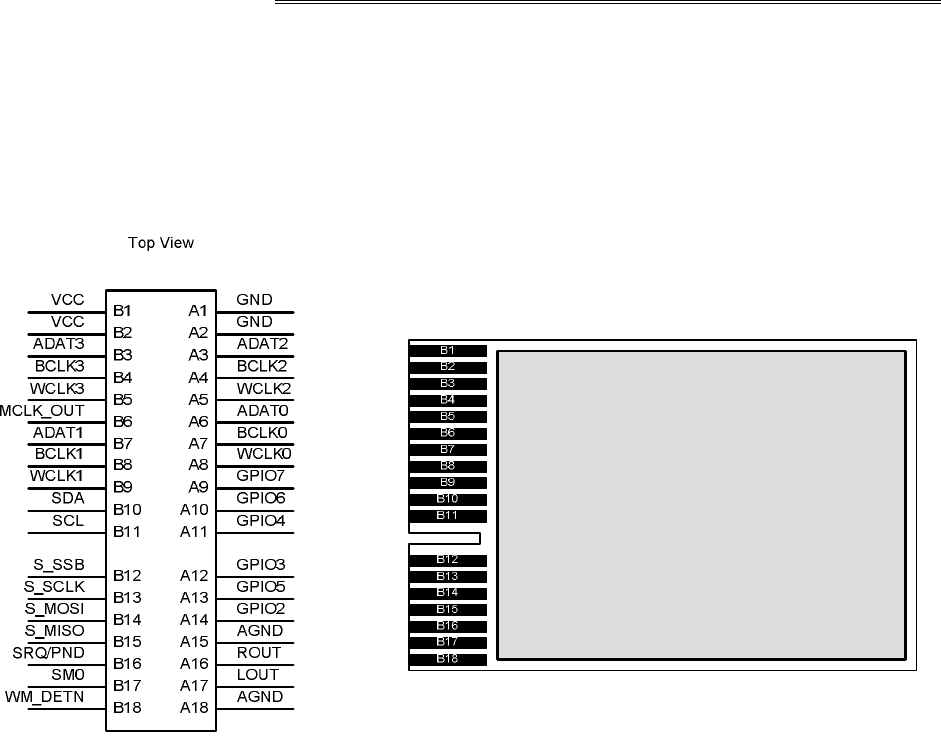

5. Pin Configuration and Definition
Figure 1-1 – AVMD7540-SWA6 module pin configuration
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
7
Table ᙑᎄ! ࢬ ਐ ࡳ ऱ ᑌ ڤ ऱ ֮ ڗ լ ژ ڇ ֮ ٙ խ Ζ-1 AVMD7540-SWA6 pin description
# Pin Name Pin Type Description
A1
GND Analog Module ground
A2
GND Analog Module ground
A3
WCLK2 Digital I/O I2S Word clock, AV75xx physical I2S I/O # 2 – input/output
A4
BCLK2 Digital I/O I2S Bit clock, AV75xx physical I2S I/O # 2 – input/output
A5
ADAT2 Digital I/O I2S audio data, AV75xx physical I2S I/O #2 – input/output
A6
WCLK0 Digital I/O I2S Word clock, AV75xx physical I2S I/O # 0 – input/output
A7
BCLK0 Digital I/O I2S Bit clock, AV75xx physical I2S I/O # 0 – input/output
A8
ADAT0 Digital I/O I2S audio data, AV75xx physical I2S I/O # 0 – input/output
A9
SPI/TWI_SEL Digital I/O SPI / TWI interface selection (SPI = 0, TWI = 1)
A10
GPIO6 Digital I/O GPIO #6
A11
GPIO4 Digital I/O GPIO #4
A12
GPIO3 Digital I/O GPIO #3
A13
GPIO5 Digital I/O GPIO #5
A14
reserved Digital I/O reserved
A15
AGND Analog Audio ground
A16
ROUT Analog Audio DAC right channel output
A17
LOUT Analog Audio DAC left channel output
A18
AGND Analog Audio ground
B1
VCC Analog +5V supply voltage input
B2
VCC Analog +5V supply voltage input
B3
ADAT3 Digital I/O I2S audio data, AV75xx physical I2S I/O # 3 – input/output
B4
BCLK3 Digital I/O I2S Bit clock, AV75xx physical I2S I/O # 3 – input/output
B5
WCLK3 Digital I/O I2S Word clock, AV75xx physical I2S I/O # 3 – input/output
B6
MCLK_OUT Digital Output MCLK for I2S audio data
B7
ADAT1 Digital I/O I2S audio data, AV75xx physical I2S I/O # 1 – input/output
B8
BCLK1 Digital I/O I2S Bit clock, AV75xx physical I2S I/O # 1 – input/output
B9
WCLK1 Digital I/O I2S Word clock, AV75xx physical I2S I/O # 1 – input/output
B10
SDA Digital I/O I2C compatible serial data I/O
B11
SCL Digital I/O I2C compatible serial clock I/O
B12
S_SSB Digital I/O SPI Slave – slave select (active low)
B13
S_SCLK Digital I/O SPI Slave – serial clock
B14
S_MOSI Digital I/O SPI Slave – master out slave in
B15
S_MISO Digital I/O SPI Slave – master in slave out
B16
SRQ/PND Digital Output Notification signal to host (pending notification)
B17
SM0 Digital Input Serial Mux control (for flash programming) and module reset (active low)
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
8
6. Electrical Specifications
6.1. Absolute Maximum Ratings
The Absolute Maximum Rating (AMR) corresponds to the maximum value that can be applied without leading
to instantaneous or very short-term unrecoverable hard failure (destructive breakdown). Absolute Maximum
Ratings are stress ratings only. Permanent damage to the device may be caused by continuously operating at
or beyond these limits. Device functional operating limits and guaranteed performance specifications are given
under Electrical Characteristics at the test conditions specified.
Table 6-1 6-2 AVMD7540-SWA6 Absolute Maximum Ratings
CONDITION MIN MAX Units
Supply (relative to GND)
+5V -0.3 6.0 V
Input Voltage Range – Digital Inputs -0.3 3.6V V
Short circuit to GND (any pin) --- continuous
Storage Temperature -40 +100 ºC
Lead Temperature (10s) -- +225 ºC
ESD Voltage Rating – Human Body Model test 2000 V
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
9
6.2. DC Electrical Characteristics
Operating Conditions: +5V_IN = 5.0V ±10%, T
A
=0ºC to +50 ºC; RF Chan. Freq. = 2412MHz to 2462MHz. All
specifications are referenced to the AVMD7540-SWA6 edge connector pins and RF connectors, unless
otherwise specified. Typical specifications at 5.0V and 25 ºC.
Table 6-2
6
-3 AVMD7540-SWA6 DC Electrical Characteristics
PARAMETER CONDITIONS MIN TYP MAX UNIT
Input supply voltage Driven by an external regulator 4.5 5.5 V
Supply Current – (Note 1) RESET 10 mA
RX mode: 1 stereo output I2S 100 mA
CMOS I/O Logic Levels – 3.3V I/O
Input Voltage Logic Low, V
IL
Internal regulator
= 3.3V 0.6 V
Input Voltage Logic High, V
IH
Internal regulator
= 3.3V 2.0 V
Output Voltage Logic Low, V
OL
Internal regulator
= 3.3V; I
LOAD
=1mA 0.4 V
Output Voltage Logic High, V
OH
Internal regulator
= 3.3V; I
LOAD
=1mA 2.9 V
Note 1: The operating states are defined as:
RESET = AVMD7540-SWA6 is held in reset by holding SM0 low
RX mode: AVMD7540-SWA6 is operating in a link as a client node receiving 1 stereo channel of 16bit,
48kHz audio.
6.3. Electrical Characteristics – RF Receiver
Operating Conditions: +5V_IN = 5.0V ±10%, T
A
=0ºC to +50 ºC; RF Chan. Freq. = 2412MHz to 2462MHz. All
specifications are referenced to the AVMD7540-SWA6 edge connector pins and RF connectors, unless
otherwise specified. Typical specifications at 5.0V and 25 ºC.
Table 6-3 -4 AVMD7540-SWA6 Electrical Characteristics – RF Receiver
PARAMETER CONDITIONS MIN TYP
MAX
UNIT
RF Channel Frequency Range 2412
2462
MHz
Sensitivity (Note 1) T
A
=25ºC -80 dBm
Max Input Signal (Note 1) -5 dBm
Spurious RF outputs
2400-2483.5 MHz
<2400 MHz
>2483.5 MHz
-47
-60
-60
dBm
dBm
dBm
LO leakage -47 dBm
Note 1: Sensitivity and max signal level are defined as the onset of 1% BLER Block Error Rate.
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
10
6.4. Electrical Characteristics – RF Transmitter
Operating Conditions: +5V_IN = 5.0V ±10%, T
A
=0ºC to +50 ºC; RF Chan. Freq. = 2412MHz to 2462MHz. All
specifications are referenced to the AVMD7540-SWA6 edge connector pins and RF connectors, unless
otherwise specified. Typical specifications at 5.0V and 25 ºC.
Table 6-5 -5 AVMD7540-SWA6 Electrical Characteristics – RF Transmitter
PARAMETER CONDITIONS MIN TYP MAX
UNIT
RF Performance
RF Channel Frequency Range 2412
2462
MHz
Output Power T
A
=25ºC, OFDM signal, 16MHz channel BW +16 dBm
Harmonics (Note 1) 2
nd
harmonic
3
rd
harmonic
-45
-45
dBm
dBm
Conducted RF Spurious signals
800-1000MHz
2000-2390MHz
2483.5- 3000MHz; RBW=1MHz
3000-4000MHz ; RBW=1MHz
4.0-26.5GHz; RBW=1MHz
-45
-45
-45
dBm
dBm
dBm
Radiated Spurious RF signals 30-88MHz,
88-216MHz
216-960MHz
>960MHz
34
37
40
48
dBuV/
m
dBuV/
m
dBuV/
m
dBuV/
m
LO leakage Relative to power in a 100kHz BW **, after DC
offset correction -20 dBc
Note 1: Measured at TX output power = +16dBm
Note 1: Measured at TX output power = +16dBm
6.5. Electrical Characteristics – RF Channel Frequency
Operating Conditions: +5V_IN = 5.0V ±10%, T
A
=0ºC to +50 ºC; RF Chan. Freq. = 2412MHz to 2462MHz. All
specifications are referenced to the AVMD7540-SWA6 edge connector pins and RF connectors, unless
otherwise specified. Typical specifications at 5.0V and 25 ºC.
Table 6-5 -6 AVMD7540-SWA6 Electrical Characteristics – RF Transmitter
PARAMETER CONDITIONS MIN TYP MAX UNIT
RF Performance
Channel Frequency
AM2G system channel 1
AM2G system channel 2
AM2G system channel 3
2412
2438
2462
MHz
MHz
MHz
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
11
PARAMETER CONDITIONS MIN TYP MAX UNIT
Frequency Error 16MHz crystal
+/- 20
ppm
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
12
6.6. Electrical Characteristics – End-to-end Audio Characteristics
Operating Conditions: +5V_IN = 5.0V ±10%, TA=0ºC to +50 ºC; RF Chan. Freq. = 2412MHz to 2462MHz. All
specifications are referenced to the AVMD7540-SWA6 edge connector pins and RF connectors, unless
otherwise specified. Typical specifications at 5.0V and 25 ºC.
Table 6-6 -7 AVMD7540-SWA6 Electrical Characteristics – End-to-end Audio Characteristics
PARAMETER CONDITIONS MIN TYP MAX UNITS
End-to-end SNR I2S in to I2S out, no interference;
16bit / 48kHz mode
24bit / 48kHz mode
16bit / 96kHz mode
24bit / 96kHz mode
96
120
97
120
dB
dB
dB
dB
Latency 48kHz, interleaving level = 0
48kHz, interleaving level = 1
48kHz, interleaving level = 2
11
15
19
ms
ms
ms
Bandwidth +/-0.5dB flatness, 48Khz modes
+/-0.5dB flatness, 96Khz modes
20
20
20k
40k
Hz
Hz
6.7. Electrical Characteristics – MCLK Characteristics
Operating Conditions: +5V_IN = 5.0V ±10%, TA=0ºC to +50 ºC; RF Chan. Freq. = 2412MHz to 2462MHz. All
specifications are referenced to the AVMD7540-SWA6 edge connector pins and RF connectors, unless
otherwise specified. Typical specifications at 5.0V and 25 ºC.
Table 6-7 AVMD7540-SWA6 Electrical Characteristics – MCLK Characteristics
PARAMETER CONDITIONS MIN TYP MAX UNITS
MCLK frequency “24MHz” mode (256MHz divide by 10.5)
“12MHz” mode (256MHz divide by 21) 24.38
12.19
MHz
MHz
MCLK output duty cycle 40 60 %
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
13

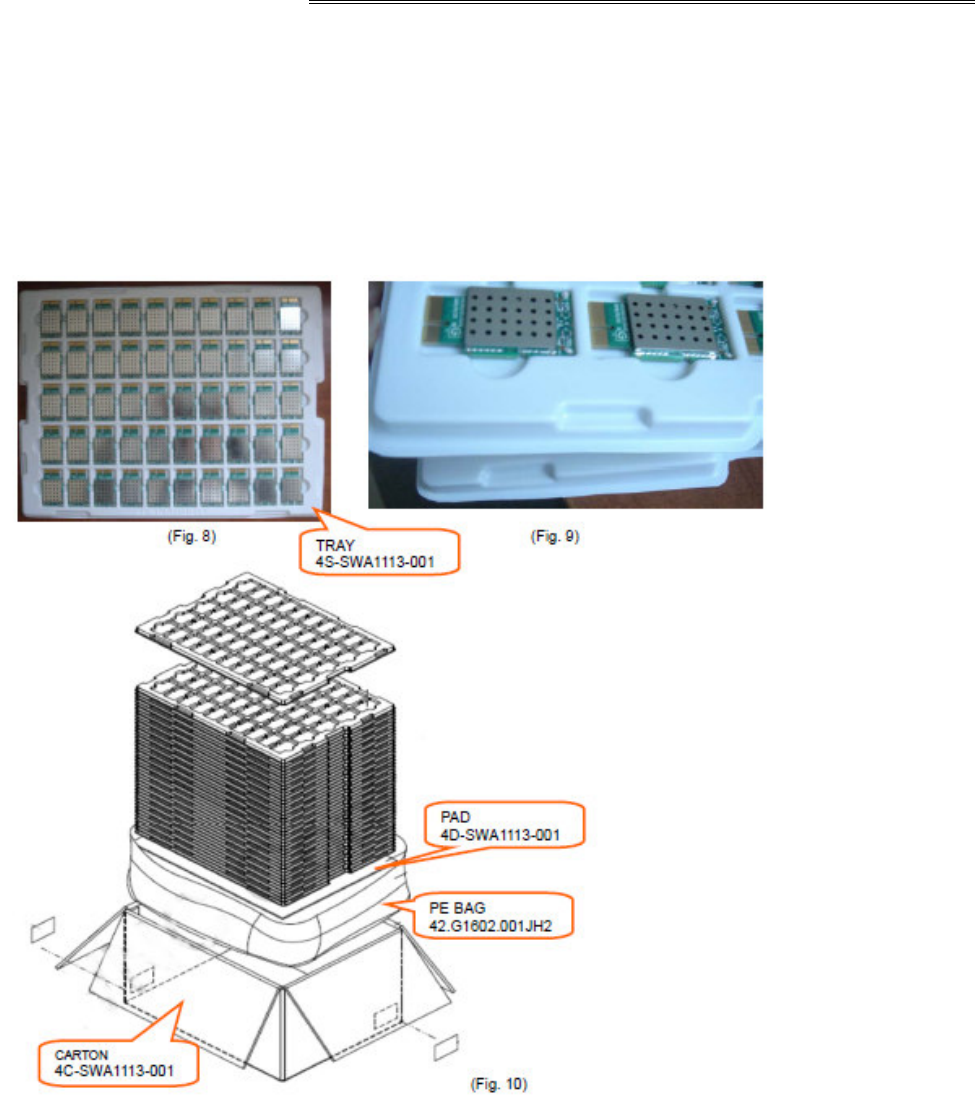

7. Package Information
To OEM installer:

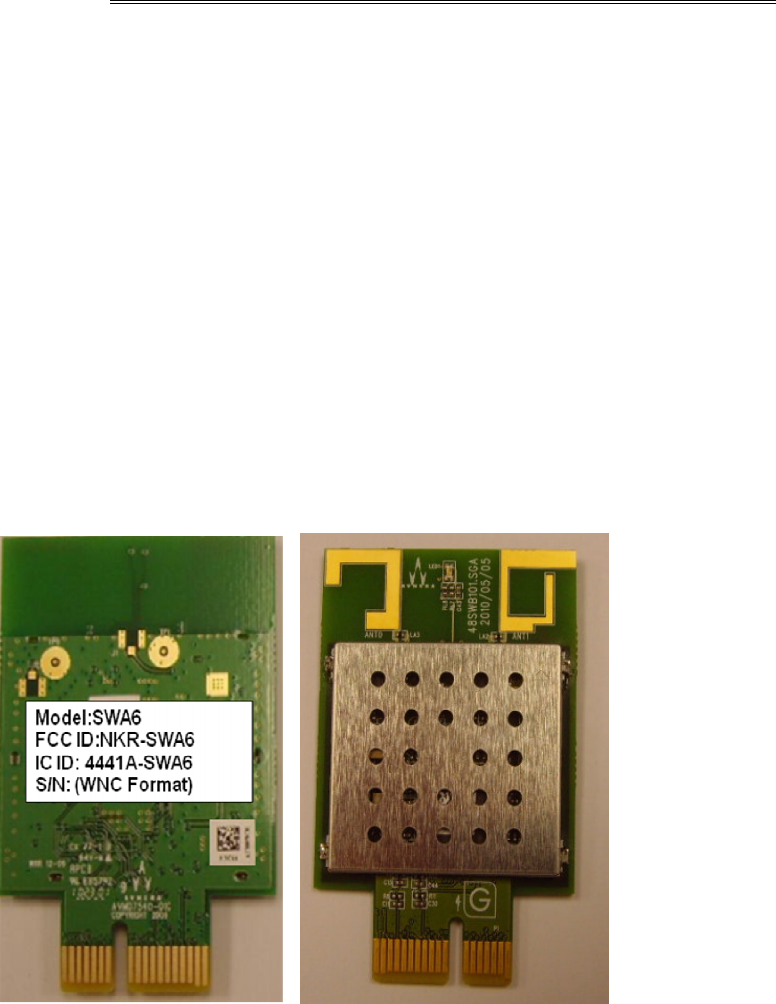

1a. FCC ID label on the final system must be labeled with "Contains FCC ID:
NKR-SWA6" or "Contains transmitter module FCC ID: NKR-SWA6".
1b. IC Canada label on the final system must be labeled with “Contains
Module WNC SWA6 IC: 4441A-SWA6”
2.In the user manual, final system integrator must be ensured that there is no
instruction provided in the user manual to install or remove the transmitter
module.
3. Transmitter module must be installed and used in strict accordance with the
manufacturer is instructions as described in the user documentation that
comes with the product. This device complies with the following radio
frequency and safety standards.
4. To inherit the modular approval, the antennas for this transmitter must be
installed to provide a separation distance of at least 20 cm from all persons
and must not be co-located or operating in conjunction with any other antenna
or transmitter.
The user manual of the final host system must contain the following
statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
The changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
To comply with the FCC RF exposure compliance requirements, this device
and its antenna must not be co-located or operating to conjunction with any
other antenna or transmitter.
