Wistron BT3 BT module User Manual

Wistron Corporation BT module

User Manual

CONFIDENTIAL
Wistron Corporation
PRODUCT SPECIFICATION
MODEL BlueSlim2
PRODUCT DESCRIPTION Bluetooth USB module compliant with BT
2.1+EDR / 3.0+HS / 4.0 and LE
TYPE 6pin connector
DIMENSION 6.5mm*30mm*2mm
MAIN CHIPSET CSR8510A10
Revision: V0.93
   
COPYRIGHT © 2014 Wistron Corporation, ALL RIGHTS RESERVED.
REVISION HISTORY
Revision Issue Date Change Note
0.90 Aug.28, 2014 Preliminary release
0.91 Sep.01, 2014 Correct Chapter 3.4 pin assignment: pin5,6 are unused.
0.92 Mar.19, 2015 Correct Q’TY/TRAY.
0.93 Jan.23, 2017 Add Halogen free/ROHS compliance.
Software ver: to be confirmed.
   
COPYRIGHT © 2014 Wistron Corporation, ALL RIGHTS RESERVED.
TABLE OF CONTENTS
1. INTRODUCTION 
1.1 APPEARANCE 
1.2 BLOCK DIAGRAM
2. FEATURES
3. SPECIFICATIONS 
3.1 GENERAL SPECIFICATIONS
3.2 ELECTRICAL CHARACTERISTICS
3.3 POWER MEASUREMENT 
3.4 MODULE PIN ASSIGNMENT 
3.5 Module Dimension
3.6 ENVIRONMENTAL 
3.7 SOFTWARE 
3.8 FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT 
4. PACKAGE 
   
COPYRIGHT © 2014 Wistron Corporation, ALL RIGHTS RESERVED.
1. INTRODUCTION
BlueSlim2 is a USB Bluetooth module from official CSR reference design; it is fully compatible with the
Bluetooth v3.0 + High Speed and Bluetooth v4.0 standards, offering high-speed data transfer and Bluetooth low
energy for PC products. Through products based on BlueSlim2, consumers can take full advantage of the
Bluetooth low energy ecosphere, connecting peripherals such as mice and keyboards and benefiting from
Bluetooth low energy’s enormous power efficiency.
BlueSlim2 utilizes USB, the dominant standard interface for most PC platforms, so it can be easily connected to
a vast range of PC devices. The applications can be Laptops, Tablet, All-in-one, digital TV, set-top box, and
versatility of consumer products.

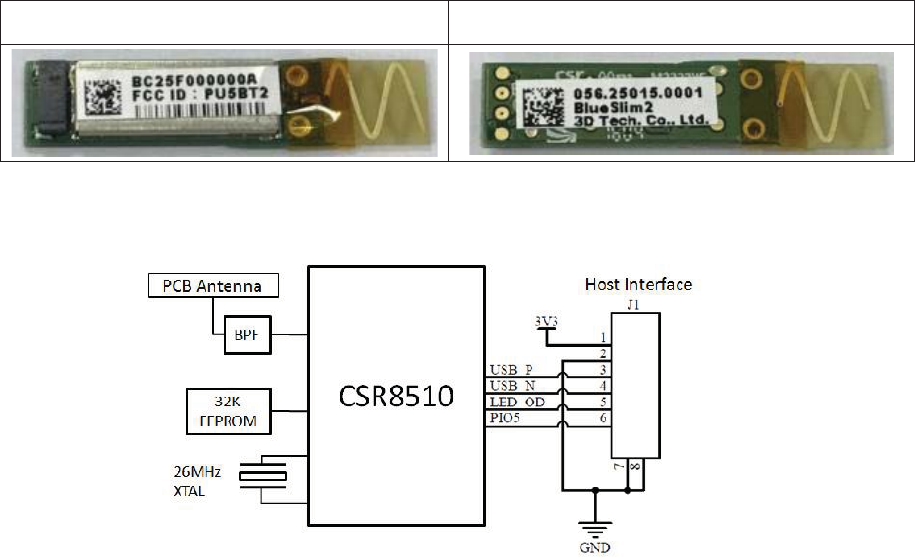

1.1 APPEARANCE
Top view Bottom view
1.2 BLOCK DIAGRAM
2. FEATURES
6 pin connector.
HCI mode operation with USB2.0 full speed (12Mbps).
Fully qualified Bluetooth® spec v2.1/2.1+EDR/3.0/3.0+HS/4.0, and LE.
Dual-mode Bluetooth/Bluetooth Low Energy operation.
Support for Bluetooth basic rate / EDR and low energy connection.
   
COPYRIGHT © 2014 Wistron Corporation, ALL RIGHTS RESERVED.
Powered by +3.3V.
Onboard Printed antenna.
Class1, Class2, Class3 supported.
Measured Max. TX output power up to 6dBm, max. distance range 30 meters (Class1).
Halogen free / ROHS compliance.
3. SPECIFICATIONS
3.1 GENERAL SPECIFICATIONS
Model Name BlueSlim2
Main Chipset BlueCore® CSR8510A10
EEPROM 32Kbit
Standard Bluetooth spec v2.1, v2.1+EDR, v3.0, v3.0+HS, v4.0, LE(Low Energy)
Bus Interface USB2.0 full speed
Connector 6 pins,
pitch=0.6
ACES (5037600601001) 1*6 P=0.6mm R/A SMD HF ,
or equivalent.
Antenna Printed antenna
Shielding case Yes
Dimensions (L*W*H) 6.5mm*30mm*2mm
Surface mount single side Surface Mount
Operating voltage 3.3 V ±10%
   
COPYRIGHT © 2014 Wistron Corporation, ALL RIGHTS RESERVED.
Integrated linear regulators:
USB: USB bus supply to 3.3V
High-voltage: 2.3V to 4.8V input to 1.85V
Low-voltage: VDD_DIG, VDD_RADIO and
VDD_AUX regulators
Power-on-reset cell detects low supply voltage
Arbitrary sequencing of power supplies is permitted
3.2 ELECTRICAL CHARACTERISTICS
Frequency Range 2.402GHz to 2.480GHz, ISM band
Radio Technology FHSS (Frequency Hopping Speed Spectrum)
Basic Data Rate 1Mbps (GFSK)
Enhanced Data Rate 2Mbps (DQPSK); 3Mbps (8-DPSK)
Channel Number 79 Channels, 1MHz bandwidth
3.3 POWER MEASUREMENT
Supply voltage +3,3V (Min. 3.0V; Max. 3.6V)
Continuous TX supply current 57mA
Continuous RX supply current 46mA
Bluetooth Power ON (RF off) 14mA
   
COPYRIGHT © 2014 Wistron Corporation, ALL RIGHTS RESERVED.

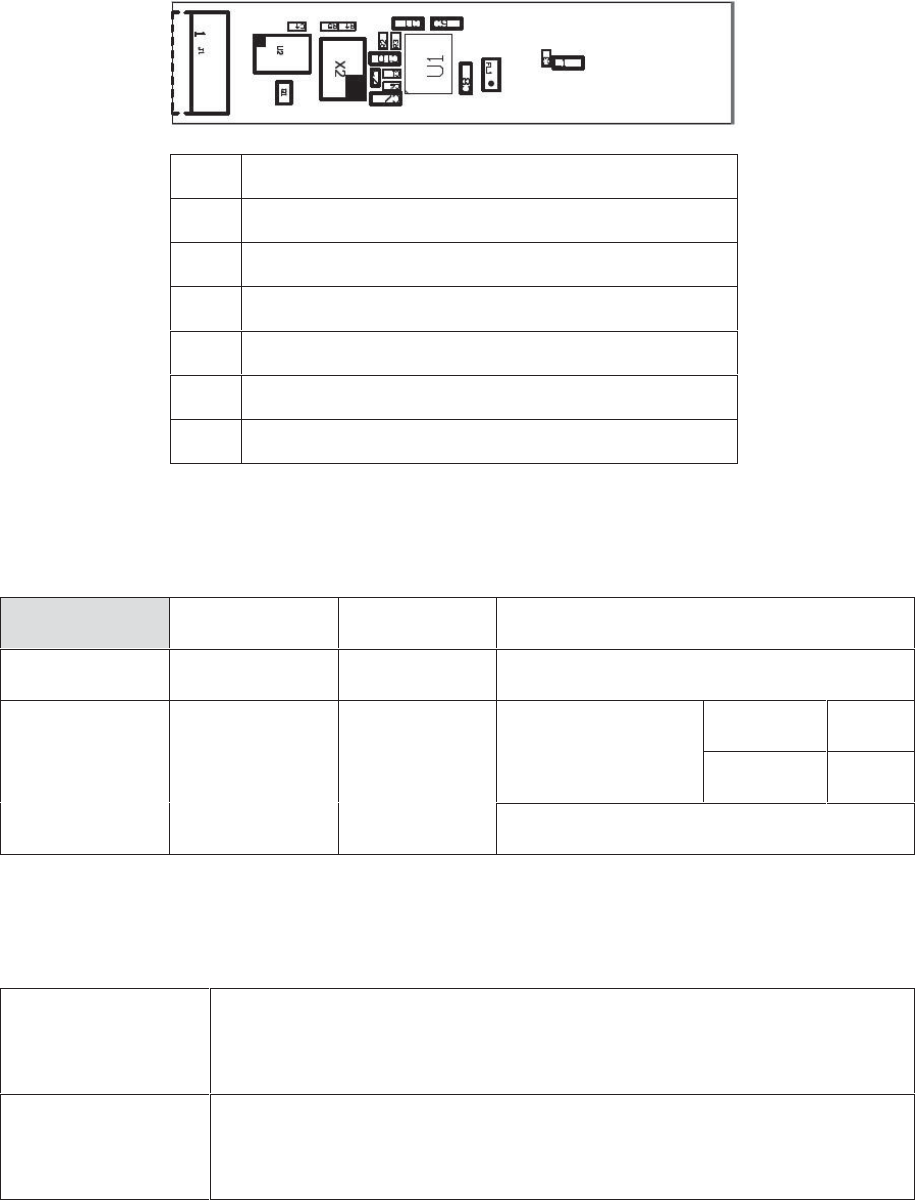

3.4 MODULE PIN ASSIGNMENT
PIN
1VCC 3.3V
2GND
3USB D+
4USB D-
5Reserved; unused.
6Reserved; unused.
3.5 Module Dimension
BlueSlim2 Length Width Height
PCB Dimension 6.5mm (±1.5%) 30mm (±1.5%) 0.8mm (±1.5%)
Module
Dimension
6.5mm (±1.5%) 30mm (±1.5%) Max. height of
Shielding Case
TOP 1.15mm
BOTTOM 0
Total height = 2mm (Max. 2mm)
3.6 ENVIRONMENTAL
Operating Operating Temperature: 0°C to +70 °C
Relative Humidity: 5-90% (non-condensing)
Storage Temperature: -20°C to +85°C (non-operating)
Relative Humidity: 5-95% (non-condensing)
   
COPYRIGHT © 2014 Wistron Corporation, ALL RIGHTS RESERVED.
3.7 SOFTWARE
OS supported: Linux / Android/ Windows
BT Stack: Please check the 3
rd
-party BT software utility or what stack which your OS has supported.
3.8 FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT
15.21
You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could
void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) this device may not cause harmful interference and
2) this device must accept any interference received, including interference that may cause undesired operation of the
device.

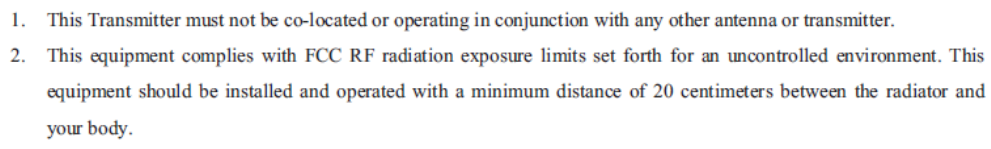

FCC RF Radiation Exposure Statement:
   
COPYRIGHT © 2014 Wistron Corporation, ALL RIGHTS RESERVED.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be
maintained between the antenna and users.
The final end product must be labeled in a visible area with the following: “Contains FCC ID: PU5BT3
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this
RF module in the users manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warming as shown in this manual.
The end product may also subject to fulfill FCC part 15B (un-intentional emission) requirement while module is being
installed.
3.10 根據 NCC 低功率電波輻射性電機管理辦法規定
第十二條 經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自變更
頻率、加大功率或變更原設計之特性及功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應
立即停用,並改善至無干擾時方得繼續使用。前項合法通信,指依電信法規定作業之無線電通
信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
此模組於取得認證後將依規定於模組本體標示審驗合格標籤,並要求平台廠商於平台上標示。
「本產品內含射頻模組:ID 編號 XXXXX」字樣
3.9 IC Statement
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions:
This device may not cause interference
This device must accept any interference, including interference that may cause undesired operation of the
device
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence.L'exploitation est autorisée aux deux conditions suivantes:
l'appareil ne doit pas produire de brouillage, et
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Caution: Exposure to Radio Frequency Radiation.
To comply with RSS 102 RF exposure compliance requirements, a separation distance of at least 20 cm
must be maintained between the antenna of this device and all persons.
Pour se conformer aux exigences de conformité CNR 102 RF exposition, une distance de séparation d'au
moins 20 cm doit être maintenue entre l'antenne de cet appareil et toutes les personnes.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such that
20cm may be maintained between the antenna and users. The final end product must be labeled in a visible
area with the following: "Contains IC: 4182A-Z01C"
   
COPYRIGHT © 2014 Wistron Corporation, ALL RIGHTS RESERVED.

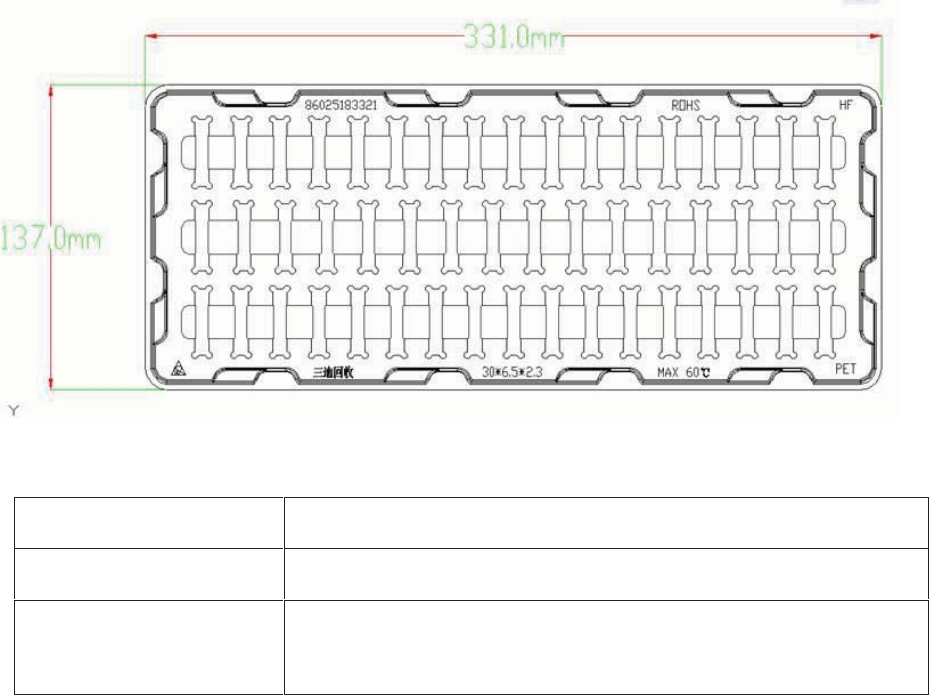

4. PACKAGE
TRAY SPECIFICATION Dimension: 331*137*97mm
CARTON SPECIFICATION Dimension: 350*143*77mm
Q’TY/TRAY 800pcs/16+1 tray ,
TOTAL: 800pcs /Carton
