Wonde Proud Technology WPBT55S BLUETOOTH GPS RECEIVER User Manual USERS MANUAL
Wonde Proud Technology Co., Ltd. BLUETOOTH GPS RECEIVER USERS MANUAL
USERS MANUAL
*** USER’S MANUAL ***
FCC ID : SRKWPBT55S
The Federal Communication Commission Statement
This equipment has been tested and found to comply with the limits for a Class B Digital Device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction, may
cause harmful interference to radio communication. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of more of the following
measures: -
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced Radio/TV technician for help.
Use only shielded cables to connect I/O devices to this equipment. You are cautioned that change
or modifications not expressly approved by the party responsible for compliance could void your
authority to operate the equipment.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO
THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERECE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause
undesired operation.
User’s Guide
GPS-BT55S
GPS BT-55S
User’s Guide
User’s Guide
GPS BT-55S
Table of Contents
1. Read Me First………………………………………………………………………………….. p.3
2. Box Contents…………………………………………………………………………………… p.3
3. Getting Started…………………………………………………………………………………. p.3
4. Hardware Description…………………………………………………………………………. p.7
5. LED Indicator…………………………………………………………………………………... p.8
6. Specification……………………………………………………………………………………. p.9
2
User’s Guide
GPS BT-55S
1. Read Me First
1. The battery must be charged for at least 8 hours for the ‘INITIAL’ use. The LED2 (ORANGE) will turn
off after 3 hours’ charging, please keep on charging for 5 more hours. Thereafter, for each time’s
battery charging please fully charge for 3 hours.
2. We strongly recommend that remove the battery if the device will not be used for over 2 weeks. Do
not remove the battery within 2 weeks.
3. For fast data tracking purpose staying still before get fixed is recommended. (FIX then GOES!!)
4. Please note that the device will only receive the signal under the open sky. In this case, putting the
device under the windshield is recommended.
2. Box Contents
1. GPS Bluetooth receiver
2. Lithium-ion rechargeable battery
3. Car charger
4. Power adapter
5. Document CD
3. Getting Started
1. Install the battery
3

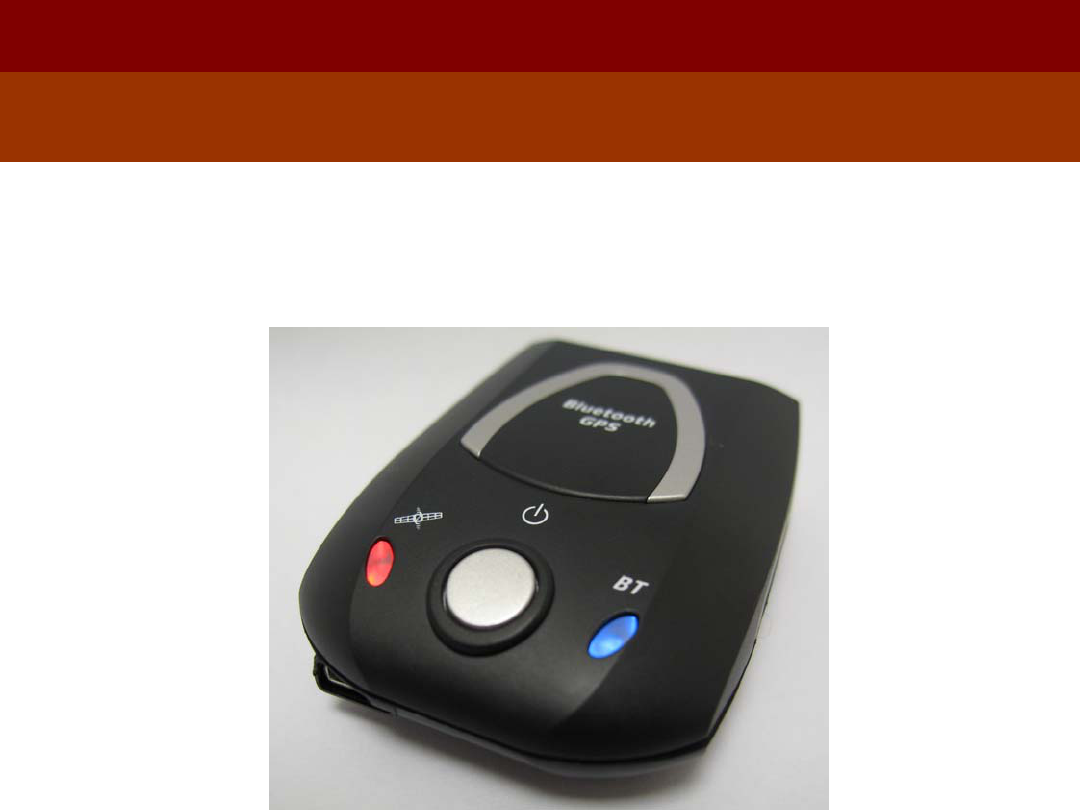

2. Turn on the GPS Bluetooth receiver.
Press the power button for 3 seconds or until the LED1 (GPS Fix Status) turns into RED and LED2
(Bluetooth Status) turns into Blue.
3. Activate Bluetooth function of your PDA / PC
Prior to activating the Bluetooth function of your PDA / PC, please make sure the device is equipped
with Bluetooth function, and the driver software has been installed.
4. Activate Bluetooth Manager & Established New Connections.

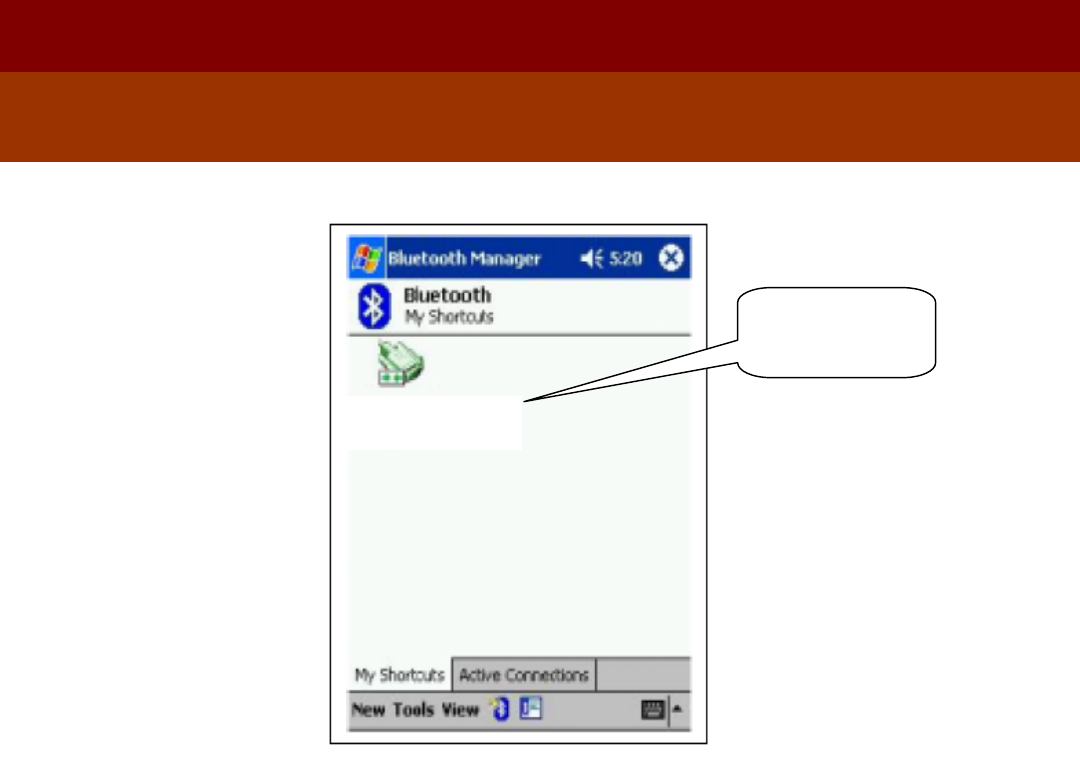

Illustrations using HP 2100 PDA as follows:

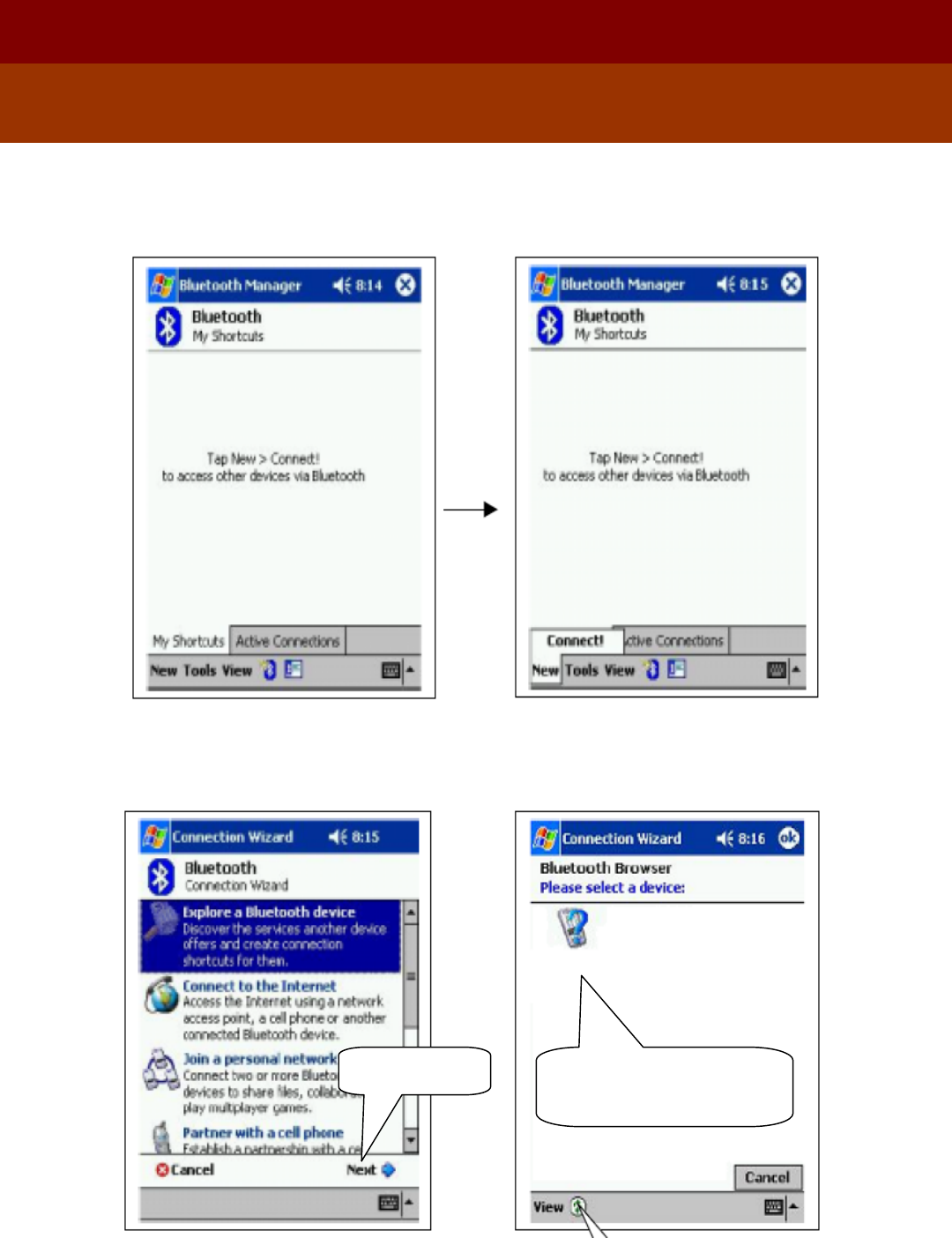

1. First, find the device with which you wish to establish connection.
2. Open “Bluetooth Manager” on your pocket PC.
3. Press “New”.
4. Press "Connect”.
User’s Guide
GPS BT-55S
Click here Click here to select
installation
BTGPS
4
User’s Guide
GPS BT-55S
BTGPS
****

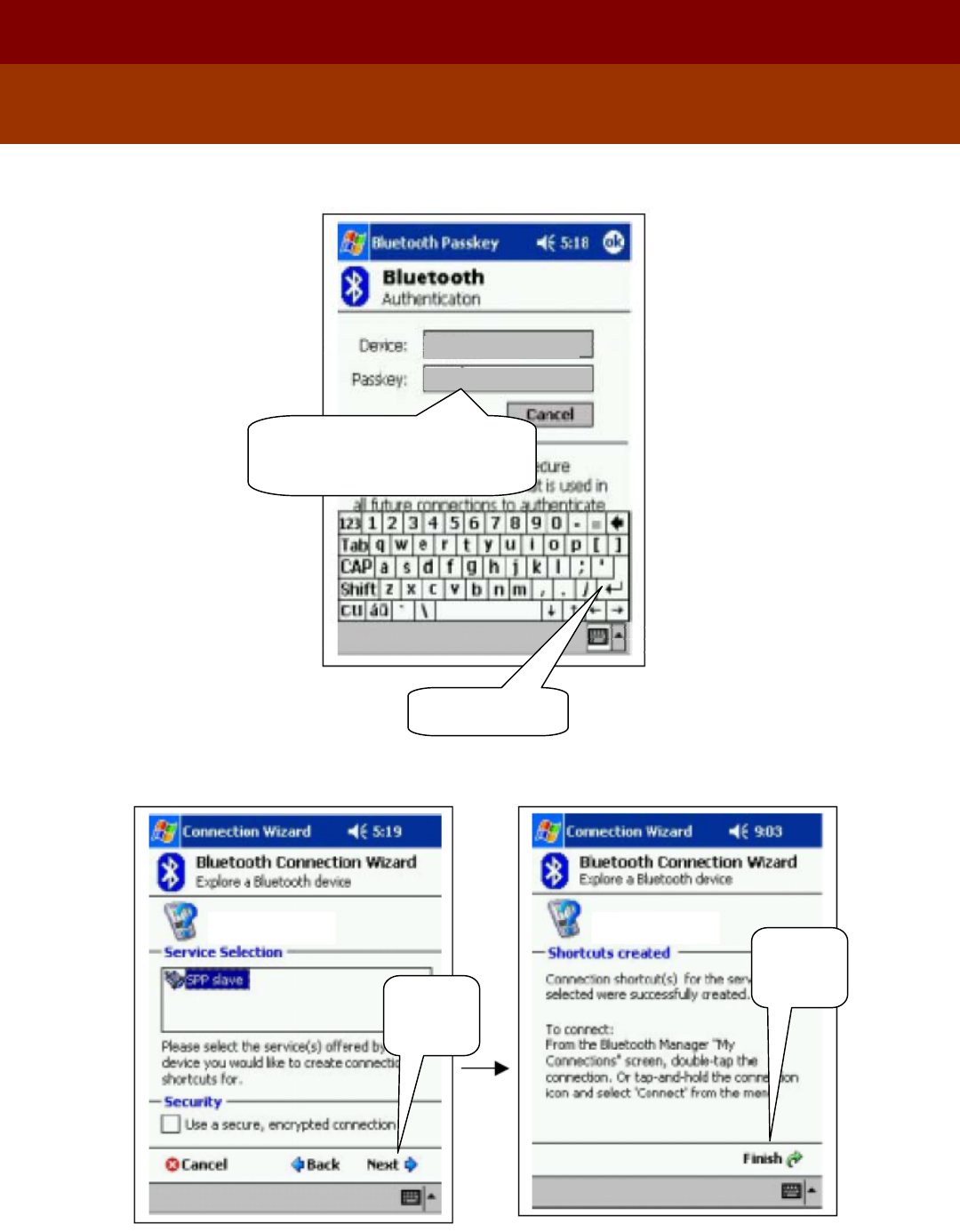

Enter Pass Key "
0000",
then Press “Enter”
Enter key
Click
here
Click
here
BTGPS BTGPS
5
User’s Guide
GPS BT-55S
Connection
established
BTGPS: SPP slave
The connection between GPS Bluetooth receiver and PDA has been successfully established
5. Turn off the GPS Bluetooth receiver
Press the power button for 3 seconds, all LEDs will goes off.
We recommend that close the E-map before turning off the GPS Bluetooth receiver, in order to
avoid any possible PDA /PC freeze.
6
User’s Guide
GPS BT-55S

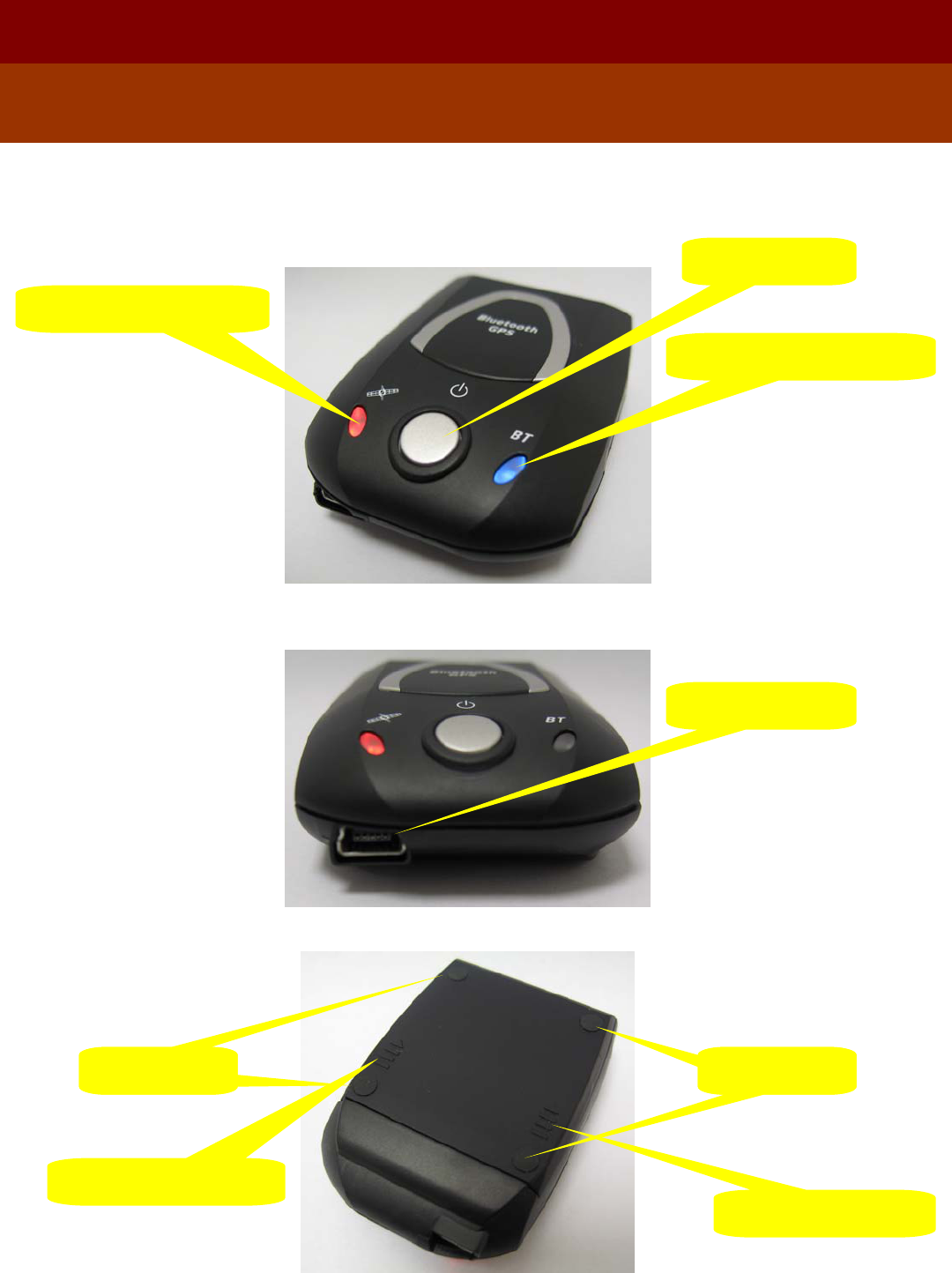

4. Hardware Description
LED2: Bluetooth Status
Power Button
LED1: GPS Fix Status
Charge Socket
Push here to open
Slip-resistant Slip-resistant
Push here to open
7
User’s Guide
GPS BT-55S

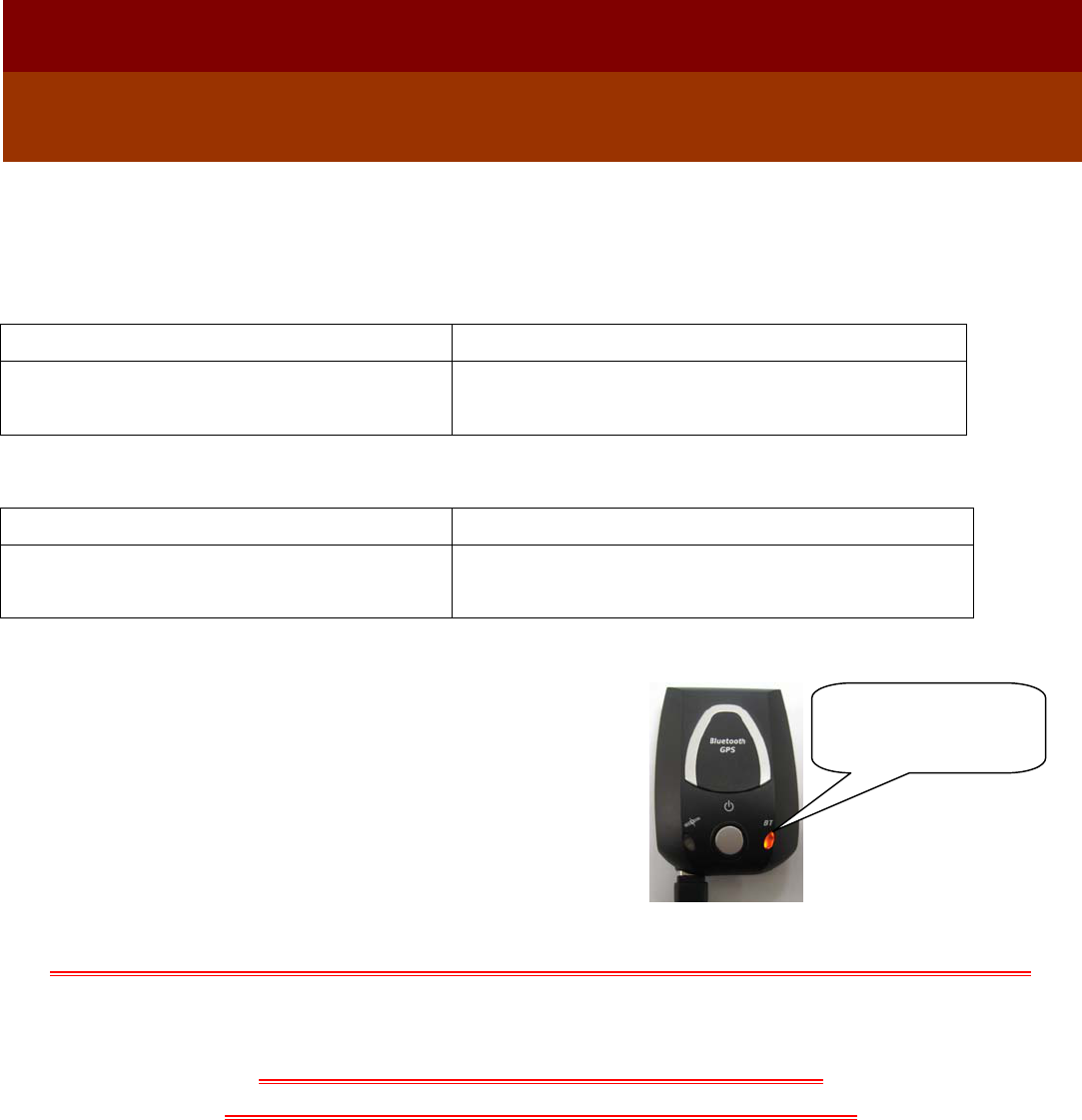

5. LED Indicator
Power on:
LED1: GPS Fix Status LED2: Bluetooth Status
Red (ON)
GPS not fixed yet!
Blue (ON)
Blinking for every 3 seconds (in paring mode)
GPS get fixed/Bluetooth connected:
LED1: GPS Fix Status LED2: Bluetooth Status
Red
Blinking for every 1 seconds
Blue
Blinking quickly
Low battery: LED1 (GREEN) blinking for every 1 second
Charging: LED2
(ORANGE) ON
Charging: LED2 (ORANGE) ON
Battery is fully charged: LED2 (ORANGE) turns off
GPS Bluetooth operates on OS with Bluetooth function that supports SPP
In order to avoid any unexpected problem,
DO NOT attempt to change the default baudrate
8
User’s Guide
GPS BT-55S
6. Specification
GPS Features Datum
Chipset SiRF Star III WGS-84
Frequency L1, 1575.42MHz Dynamic Conditions
C/A Code 1.023MHz chip rate Altitude <18,000m (60,000feet)
Channels Supports 20 channels Velocity <515m/s (1000 knots)
Antenna (Internal) Built-in low noise antenna Acceleration <4G
Motional Jerk 20m/sec3 max.
Sensitivity Interface
To – 159dBm Tracking, Superior Urban Canyon Performance Communication Protocol: Communicate with host platform
Time to First Fix (TTFF) via Bluetooth (class 2) serial port profile
Cold Start 42 sec, average Bluetooth communication distance 10meters (Typical)
Warm Start 38 sec, average GPS Protocol: Default: NMEA-0183 - GGA, GSA, GSV, RMC
Hot Start 1 sec, average Data bit: 8, stop bit: 1(Default)
Reacquisition 0.1 sec
Update rate 1 Hz (max.)
Accuracy Device Size and Weight
Position 5 – 25m CEP without SA 61.5 (L) X 43.5 (W) X 20.5 (H) mm
Velocity 0.1m/sec, without SA 2.42 (L) X 1.71 (W) X 0.80 (H) inch
Time 1μs synchronized to GPS time 51.4g (battery included)
Power Accessories
Built-in rechargeable 710mAh Li-ion battery and 5V DC input Car charger (12V in, 5V output)
Operation Current <75mA (Typical) AC adaptor (5.3V output, 500mA)
Operation Time 10hrs, fully charged, in continuous mode
Charging time 3.0hrs. (Typical)
Environmental Characteristics
Operating Temperature - 10°C to + 60°C
Storage Temperature - 20°C to + 85°C
9
