1. PACKAGE CONTENT

2. DEVICE OVERVIEW



RP‐10KeyButtons&InterfacePorts(Figure1):

Figure1

FRONTAREA1 2.4” Display

2 Rubber Keypad

3 Magnetic Strip Reader (MSR) slot

4 Smart Card Reader (SCR) slot

REARAREA5 USB cable (type A)

6 Battery Compartment



FRONTREAR

 RP-10  Privacy Shield

(Optional)

■ RP-10 power spec:

Input:5VDC,0.5A



 OperatingTemperature:0oCto40oC



3. POWER ON/OFF THE DEVICE



Topoweronthedevice,pleaseplugtheUSBcableintotheUSBportofyourhostterminalor

POS.

Note:WhenthereisnoactiononRP‐10after60seconds,thedevicewillenterpowersaving

mode.Pleaseshortpressanybuttononkeypadtowakeupthedevice.



4. USING THE MAGNETIC CARD READER



Swipethecardthroughtheslotwithmagneticstripesidefacingthesamedirectionasthe

display.(Figure3)

Figure3

5. USING THE IC CARD READER



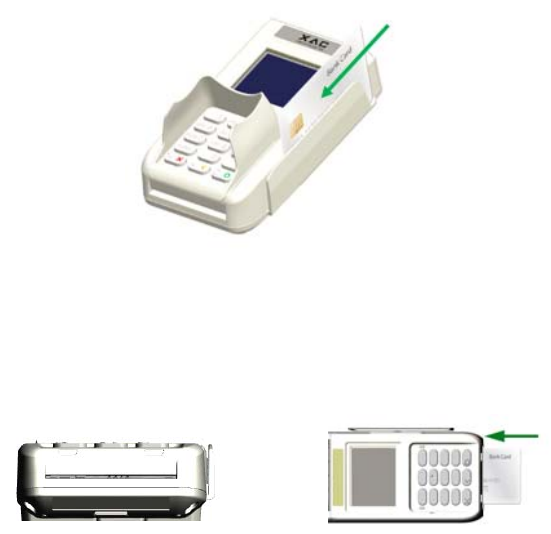

InsertanICcardintotheslot(Figure4)withthechipsidefacingthesamedirectionasthe

touchpanel(Figure5).

Figure4Figure5



6. USING THE KEY PAD



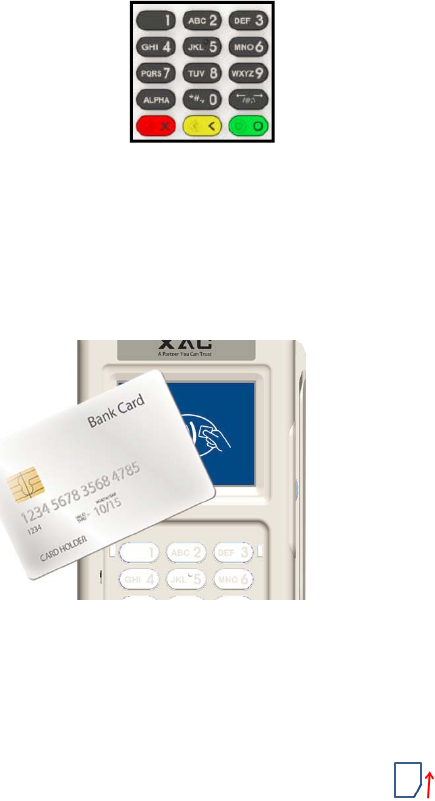

Afterinsertingthechipcard,Pressthenumerickeyasbelowkeypad(Figure6)toenterthe

desirablenumbers.PressCancel(X)keytoterminateanycurrentfunctionandpresstheEnter

(O)keytoconfirmavalueoranoption.

Figure6

7. USING THE CONTACTLESS CARD READER



Tapthecontactlesscardontopofthecontactlesslogo(Figure7).



Figure7

9. INSERT SIM & SAM CARD

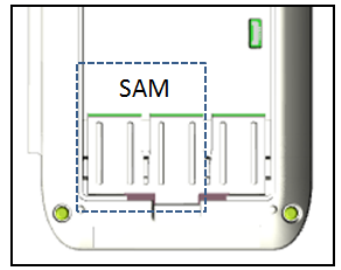

Afterremovingthebatterycover,theusercanfindSAM*2slotsatthebottomsideofdevice.

Pleaseinsertthecardcorrectlyastheiconshownonthecover:

Figure10
