Overview
Overview

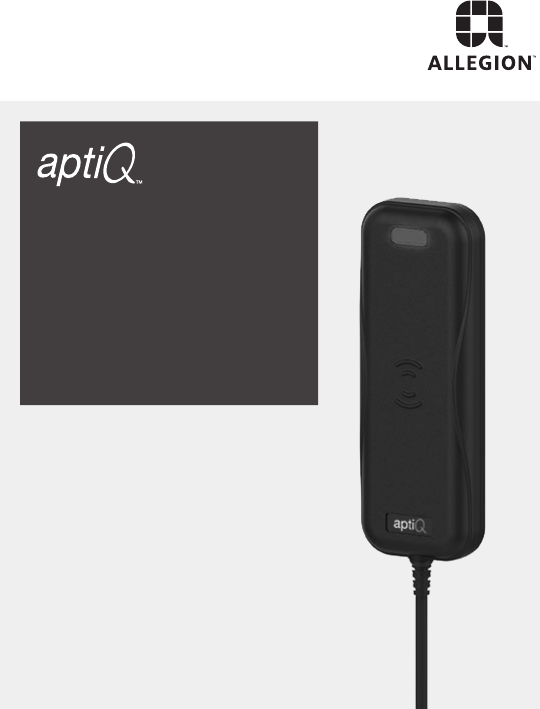

The aptiQ MT20w multi-technology enrollment reader is designed to
simplify the enrollment of proximity and smart credentials by using a
computer’s USB connection. The MT20w does not require software to
operate, and will function on any operating system.
The MT20w is an ISO14443 and ISO15963 contactless credential
reader, and is compatible with aptiQ smart credentials (MIFARE
Classic and MIFARE DESFire EV1), aptiQmobile credentials, PIV
credentials, and most proximity credentials up to 37-bits.
Connect the reader’s USB to your operating system. You will see a
series of green/red LED ashes and beeps:
2 green LED ashes.
1 red LED ash, followed by a beep.
3 red LED ashes, with each ash followed by a beep.
The LED will then turn red and stay on, indicating that the reader is
ready. If the LED and the beeper do not respond, check the cable
connections.
Put the cursor in the desired eld to receive the output and present a
valid credential. You will see a series of green/red LED ashes, along
with a beep:
Red LED will ash to green, followed by a beep.
Green LED will ash back to red and stay on, indicating the reader is
again ready for the next valid credential.
The enrollment reader output will place the information from the
credential to the cursor’s location on the screen. If a non-valid
credential is presented to the enrollment reader, the red LED will not
change, and there will be no beep.
Spanish and French translations are online at www.allegion.com/us.
AptiQ • MT20w Enrollment Reader User Guide • 5
Operational Behavior
Operational Behavior
Communication
The MT20w Enrollment Reader communicates over USB.
Output
The USB connection uses Human Interface Device (HID) Keyboard
Interface that requires the user to put the cursor in the desired eld to
receive the output. The default output is (Hexadecimal) for the NDE
“ENGAGE” product. There are other outputs available and they can be
ordered when ordering the enrollment reader. If you ordered the default
output and now require a different output, please contact Allegion
Technical Support at 1-877-671-7011, option 2. The following are the
outputs available.
Output Examples:
The examples provided were read from a 26 bit card FC 55, BID 1546
Default Conguration - CE-401-073
For use with ENGAGEv Web Application
Example - 26E0C15;26A;55;1546;
Octal Output - CE-401-061
For use with Schlage Express
Example - 0000000633406025
FC/BID Output - CE-401-060 (SUSB89 default)
For use as Keystroke Emulator
Example - 55000001546
BID Only - CE-401-069
For use as Keystroke Emulator
Example - 000001546
Note: Please proceed to the following link to nd a list of card
formats supported by the ENGAGE (NDE) Web app.
www.allegionengage.com
6 • AptiQ • MT20w Enrollment Reader User Guide
Configuration CardOperational Behavior
Configuration Card
Using a Conguration Card to change enrollment readers output
To change the enrollment reader output you will need a conguration
card.
Power cycle the reader
After reader has powered up and within 60 seconds present the
conguration card to the reader.
The reader will conrm the conguration change by:
2 short beeps
2 ashes of Red LED
The reader will then reset itself
2 green LED ashes + beeps
1 red LED ash + beep
3 Red LED ashes + 3 beeps
The LED will then turn red and stay on, indicating that the reader is
ready.
RF Field
Every 100ms the RF eld turns on and the reader polls for cards. The
13.56 MHZ eld is on for approximately 42 ms in the default reader
conguration, which is maximum complexity. The 125 kHZ eld is on
for approximately 20 ms in the default reader conguration, which is
maximum complexity.
AptiQ • MT20w Enrollment Reader User Guide • 7
Reader SpecificationsSpecifications
Specifications
Reader Specifications
Physical Dimensions (L x W x H) 5.56” x 2.00” x .695”
Operating Temperatures 0 to 40 C
Frequency 125 kHz & 13.56 MHz
Weight 4.1 oz
Power Supply Connect to powered USB port or via USB power
Interface USB
Current Requirement 110 mA
Max Current Requirement 275 mA
Card Specifications
Card Read Ranges
Card Frequency Card Type Read Range
125 kHz ASK, FSK Up to 2.5” (6.3 cm)
13.56 MHz ISO 15693 Up to 3.0” (7.6 cm)
13.56 MHz ISO 14443A MIFARE® Standard Up to 2.0” (5.1 cm)
13.56 MHz ISO 14443A MIFARE® DESFire EV1 Up to 1” (2.5 cm)
8 • AptiQ • MT20w Enrollment Reader User Guide
Card SpecificationsCard Technologies Supported
Card Technologies Supported
125kHz Technologies
GE®/CASI® Proximity
HID® Proximity (up to 37-bits)
AWID® Proximity
LenelProx®
13.56MHz Technologies
ISO14443 MIFARE DESFire EV1 with PACSA enabled
ISO14443 Secure MIFARE Classic:
XCeedID MIFARE app enabled
OESM (dormant - ready to be enabled by end-user)
ISO14443 PIV enabled 75-bit format (other formats available)
iClass/CSN enabled 64-bit format
ISO15693 CSN enabled 64-bit format
