Xiamen Tongren IOT Technology US-SC201 Smart Surveillance Camera User Manual

Xiamen Tongren IOT Technology Co.,Ltd. Smart Surveillance Camera

User Manual

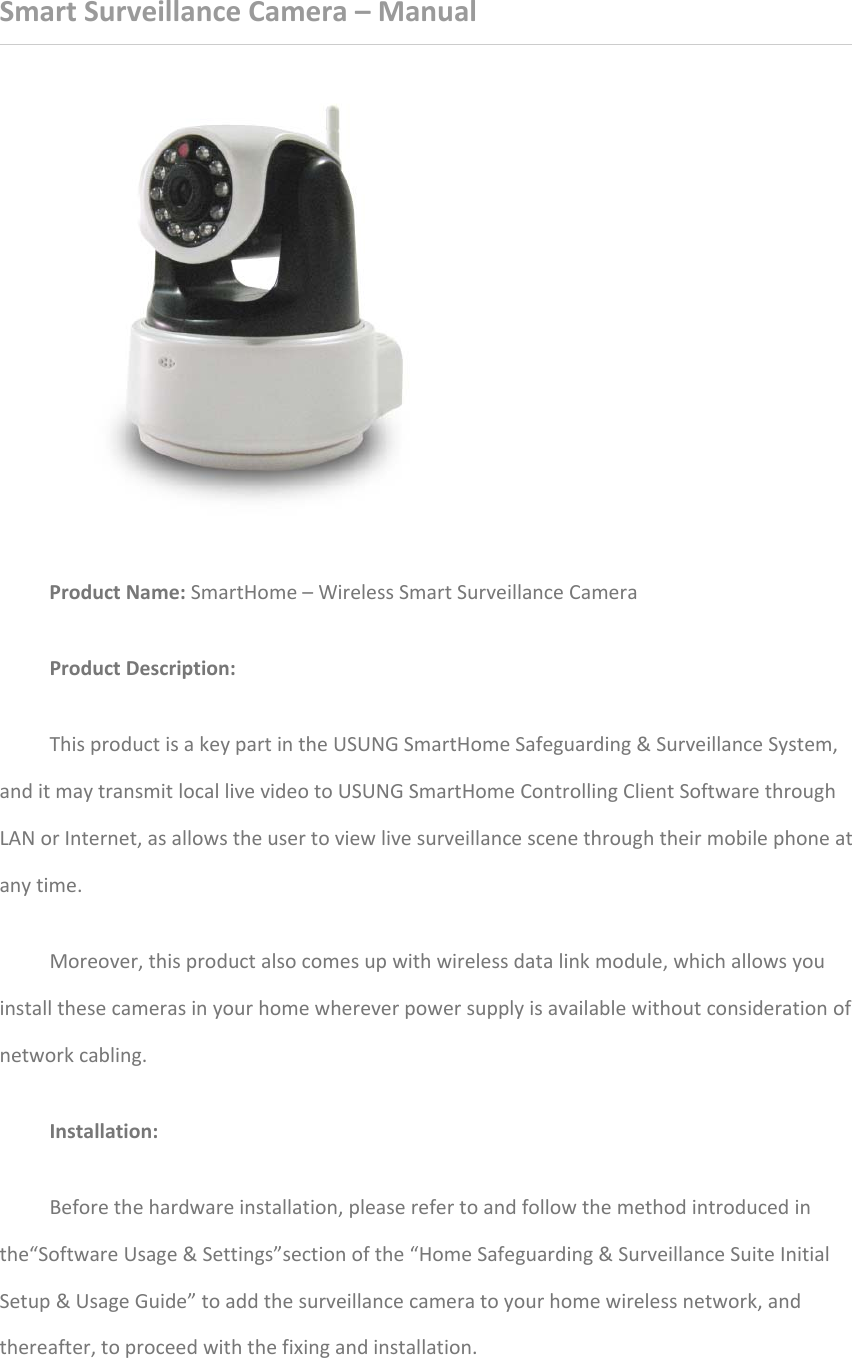

SmartSurveillanceCamera–ManualProductName:SmartHome–WirelessSmartSurveillanceCameraProductDescription:ThisproductisakeypartintheUSUNGSmartHomeSafeguarding&SurveillanceSystem,anditmaytransmitlocallivevideotoUSUNGSmartHomeControllingClientSoftwarethroughLANorInternet,asallowstheusertoviewlivesurveillancescenethroughtheirmobilephoneatanytime.Moreover,thisproductalsocomesupwithwirelessdatalinkmodule,whichallowsyouinstallthesecamerasinyourhomewhereverpowersupplyisavailablewithoutconsiderationofnetworkcabling.Installation:Beforethehardwareinstallation,pleaserefertoandfollowthemethodintroducedinthe“SoftwareUsage&Settings”sectionofthe“HomeSafeguarding&SurveillanceSuiteInitialSetup&UsageGuide”toaddthesurveillancecameratoyourhomewirelessnetwork,andthereafter,toproceedwiththefixingandinstallation.

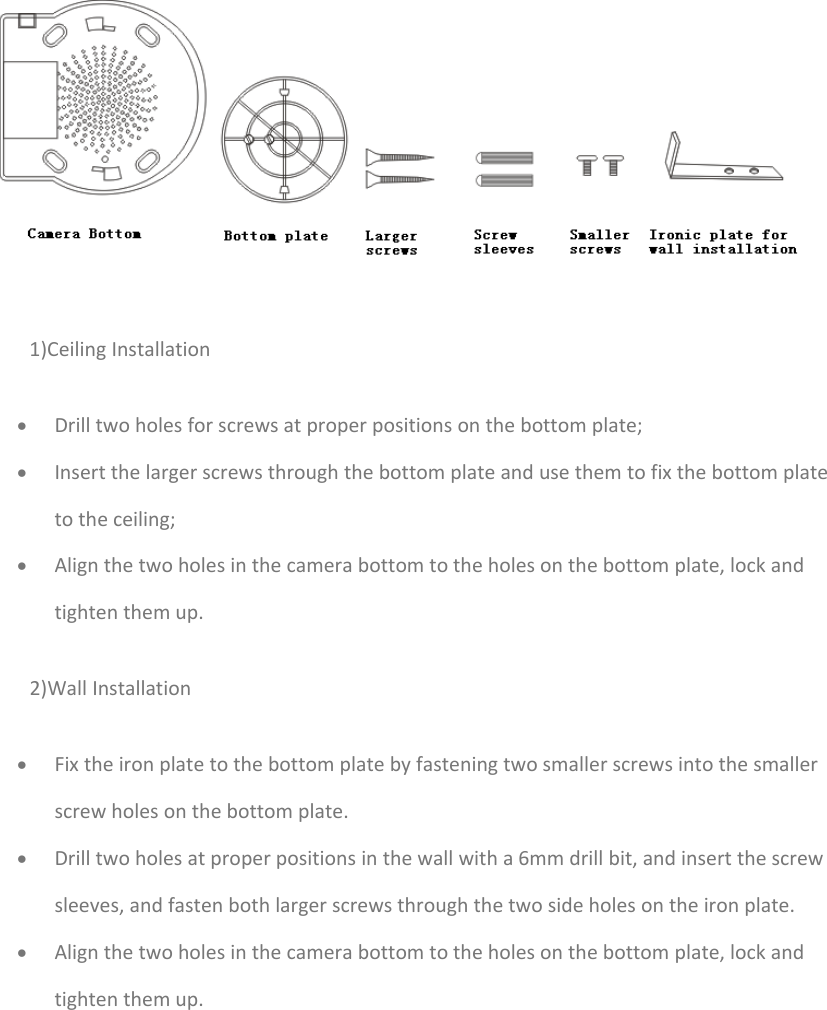

1)CeilingInstallation• Drilltwoholesforscrewsatproperpositionsonthebottomplate;• Insertthelargerscrewsthroughthebottomplateandusethemtofixthebottomplatetotheceiling;• Alignthetwoholesinthecamerabottomtotheholesonthebottomplate,lockandtightenthemup.2)WallInstallation• Fixtheironplatetothebottomplatebyfasteningtwosmallerscrewsintothesmallerscrewholesonthebottomplate.• Drilltwoholesatproperpositionsinthewallwitha6mmdrillbit,andinsertthescrewsleeves,andfastenbothlargerscrewsthroughthetwosideholesontheironplate.• Alignthetwoholesinthecamerabottomtotheholesonthebottomplate,lockandtightenthemup.
ConnecttoNetworkWiredConnection:ConnectoneoftheRJ45jacksofaTwistedPairCable(NetworkCable)totheEthernetinterfaceontherearofthecamera,andanothertoarouteroraswitch(notethattwistedpaircableusuallycannotexceed100meters,otherwisemayleadtounstablecommunicationorconnectionfailure.Fordistanceexceeding100meters,aswitchisrecommendedasrelay;Wirelessconnection:usinghomeWIFInetworktoestablishdataconnections(forwirelessconfigurationfortheSurveillanceCamera,pleasereferto“USUNGHomeSafeguarding&SurveillanceSuiteInitialSetupandUsageGuide”fordetails.Power‐onConnectthepowercablejacktothecameraandthepoweradaptertoapowersourceoutlet.Dopleaseusetheoriginalin‐packagepoweradapter,otherwisemaypossiblycausehardwaredamage.ChecktheNetworkIndicatorAfterpoweron,thecamerastartstowork,undernormalcase,thegreenlightonthebackoftheSurveillanceCamerawillbesteadilyon,andtheyellowlightwillbeflashing.

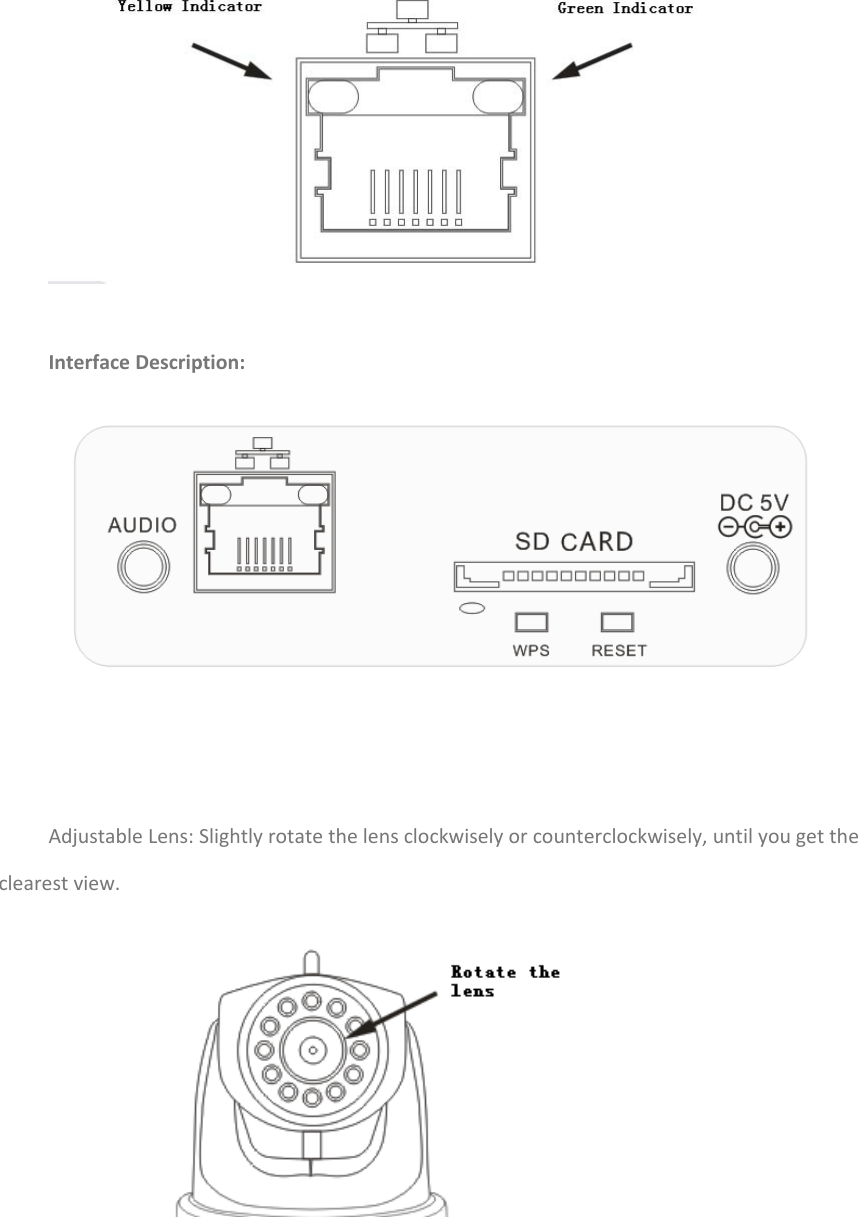

InterfaceDescription:AdjustableLens:Slightlyrotatethelensclockwiselyorcounterclockwisely,untilyougettheclearestview.

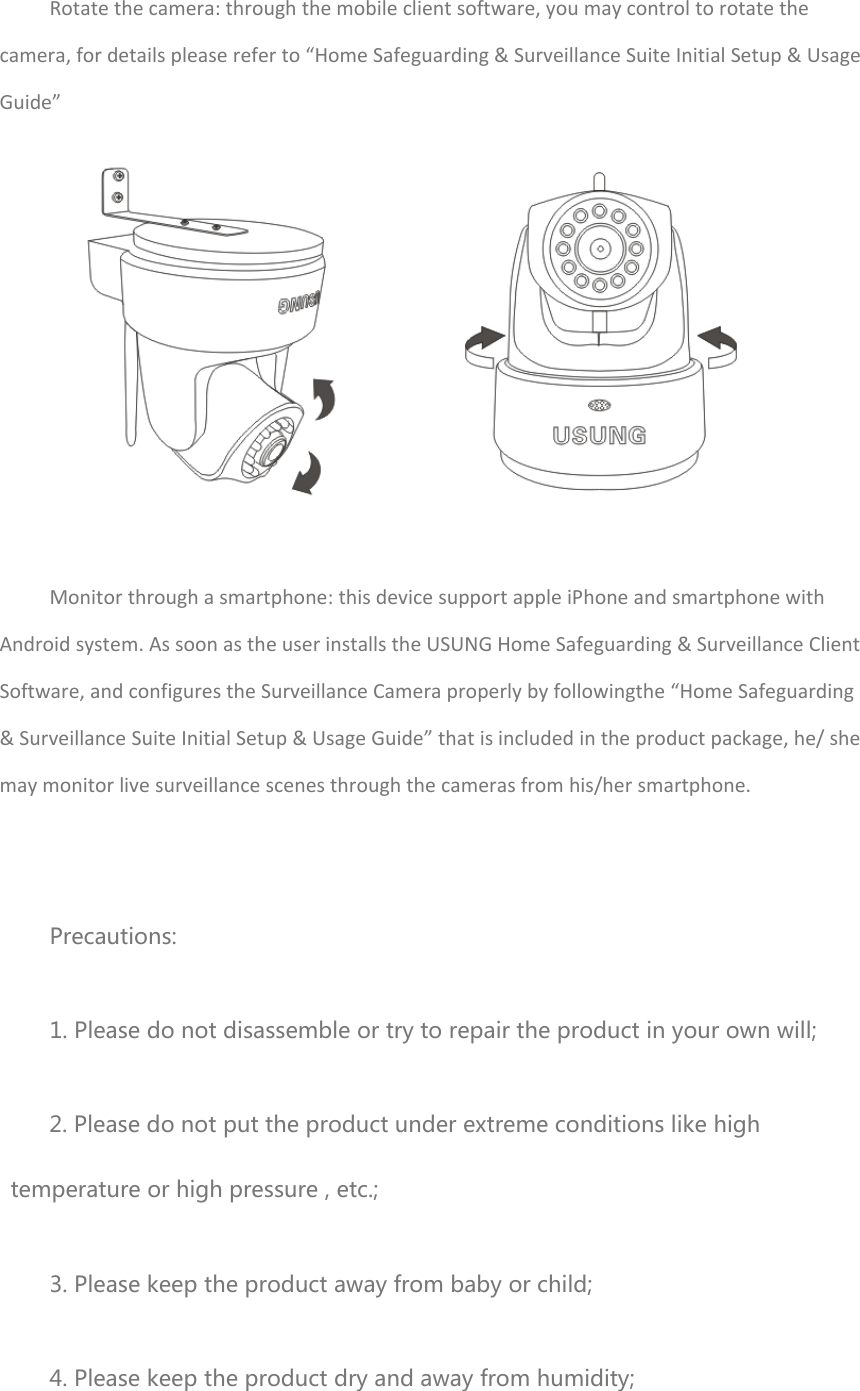

Rotatethecamera:throughthemobileclientsoftware,youmaycontroltorotatethecamera,fordetailspleasereferto“HomeSafeguarding&SurveillanceSuiteInitialSetup&UsageGuide”Monitorthroughasmartphone:thisdevicesupportappleiPhoneandsmartphonewithAndroidsystem.AssoonastheuserinstallstheUSUNGHomeSafeguarding&SurveillanceClientSoftware,andconfigurestheSurveillanceCameraproperlybyfollowingthe“HomeSafeguarding&SurveillanceSuiteInitialSetup&UsageGuide”thatisincludedintheproductpackage,he/shemaymonitorlivesurveillancescenesthroughthecamerasfromhis/hersmartphone.Precautions: 1. Please do not disassemble or try to repair the product in your own will; 2. Please do not put the product under extreme conditions like high temperature or high pressure , etc.; 3. Please keep the product away from baby or child; 4. Please keep the product dry and away from humidity;

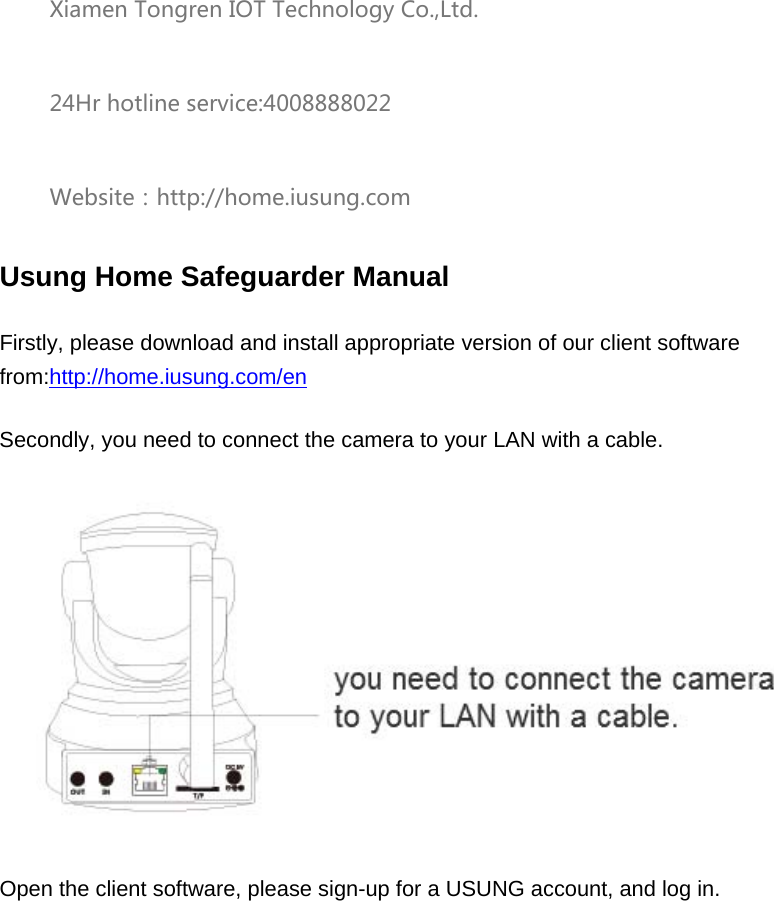

Xiamen Tongren IOT Technology Co.,Ltd. 24Hr hotline service:4008888022 Website:http://home.iusung.com Usung Home Safeguarder Manual Firstly, please download and install appropriate version of our client software from:http://home.iusung.com/en Secondly, you need to connect the camera to your LAN with a cable.  Open the client software, please sign-up for a USUNG account, and log in.

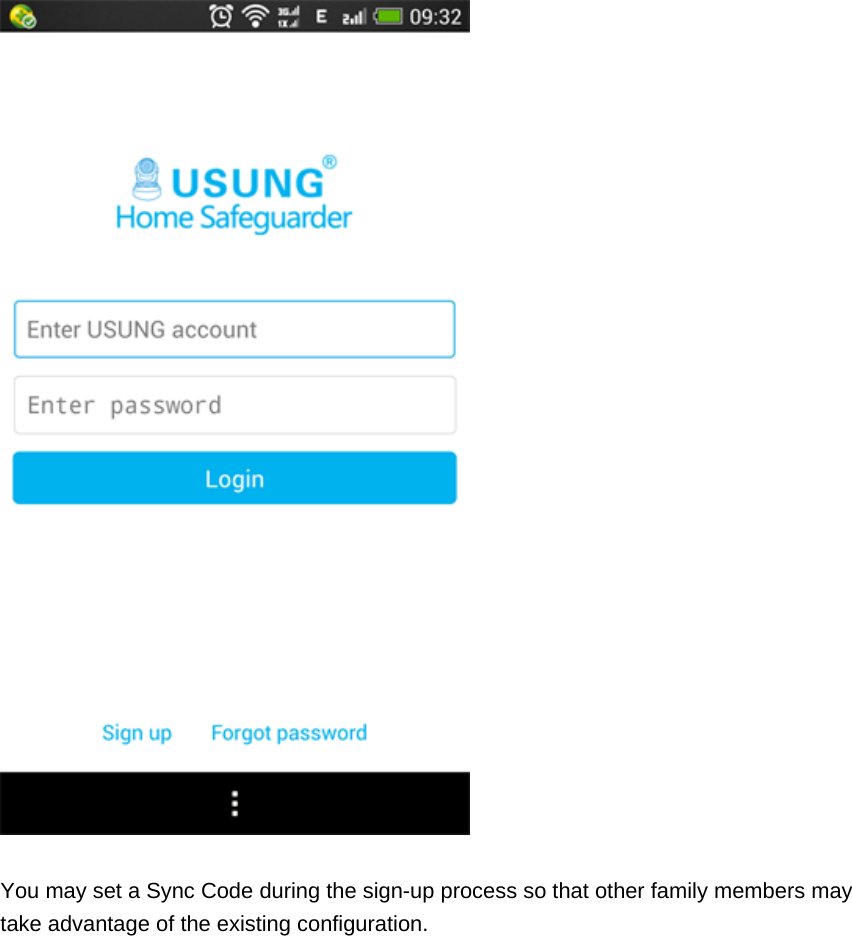

 You may set a Sync Code during the sign-up process so that other family members may take advantage of the existing configuration.

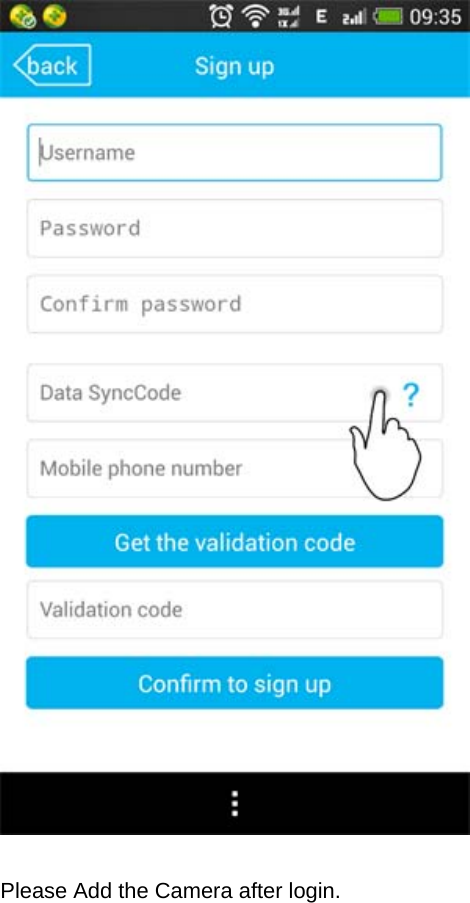

 Please Add the Camera after login.

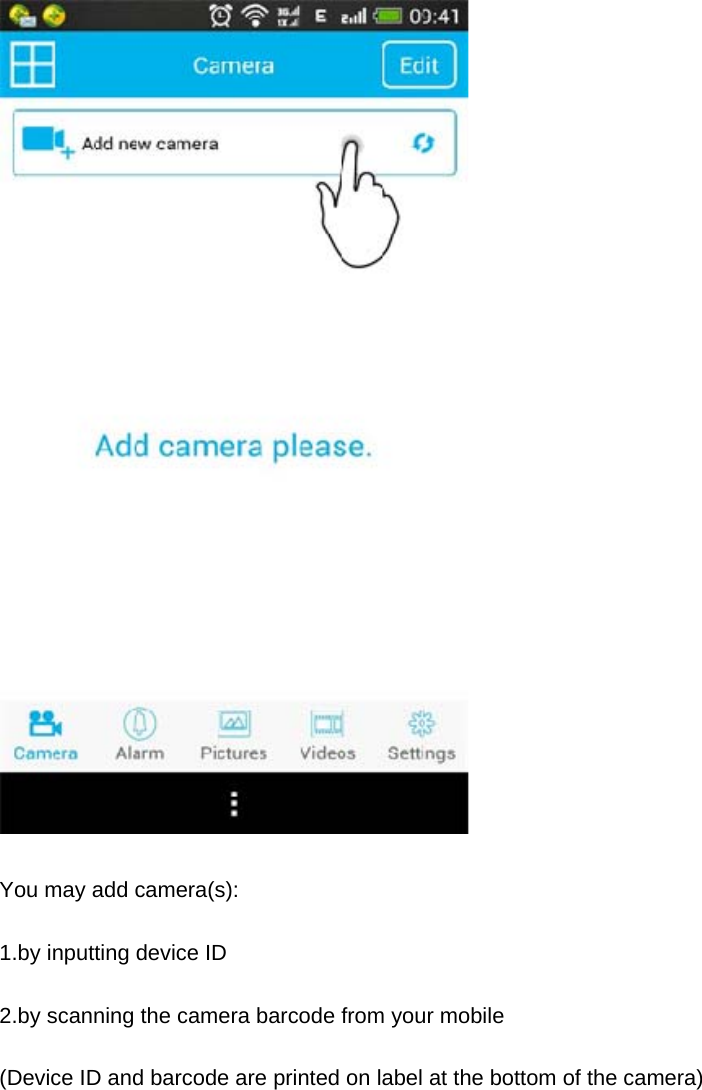

 You may add camera(s): 1.by inputting device ID 2.by scanning the camera barcode from your mobile (Device ID and barcode are printed on label at the bottom of the camera)

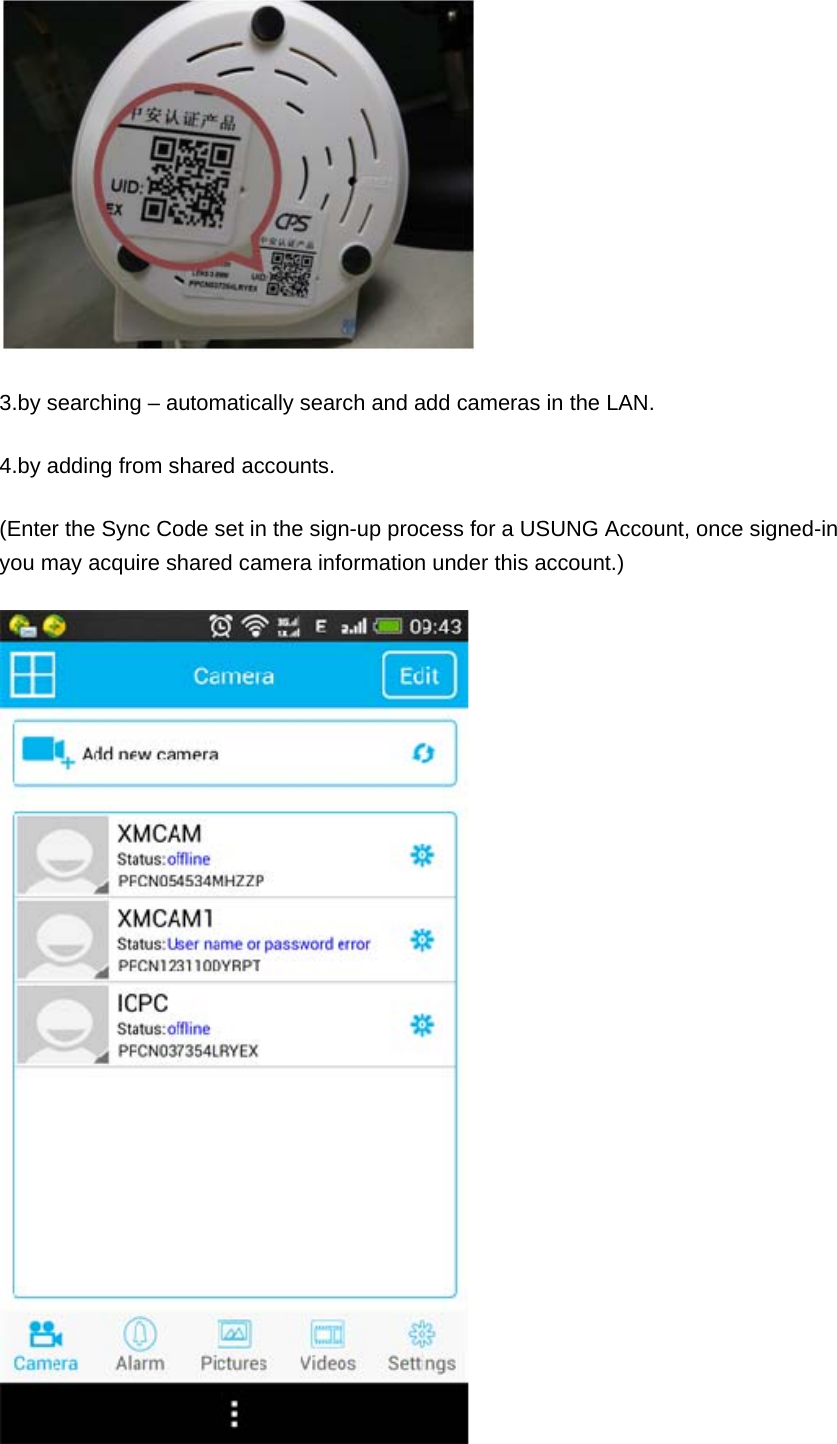

 3.by searching – automatically search and add cameras in the LAN. 4.by adding from shared accounts. (Enter the Sync Code set in the sign-up process for a USUNG Account, once signed-in you may acquire shared camera information under this account.)

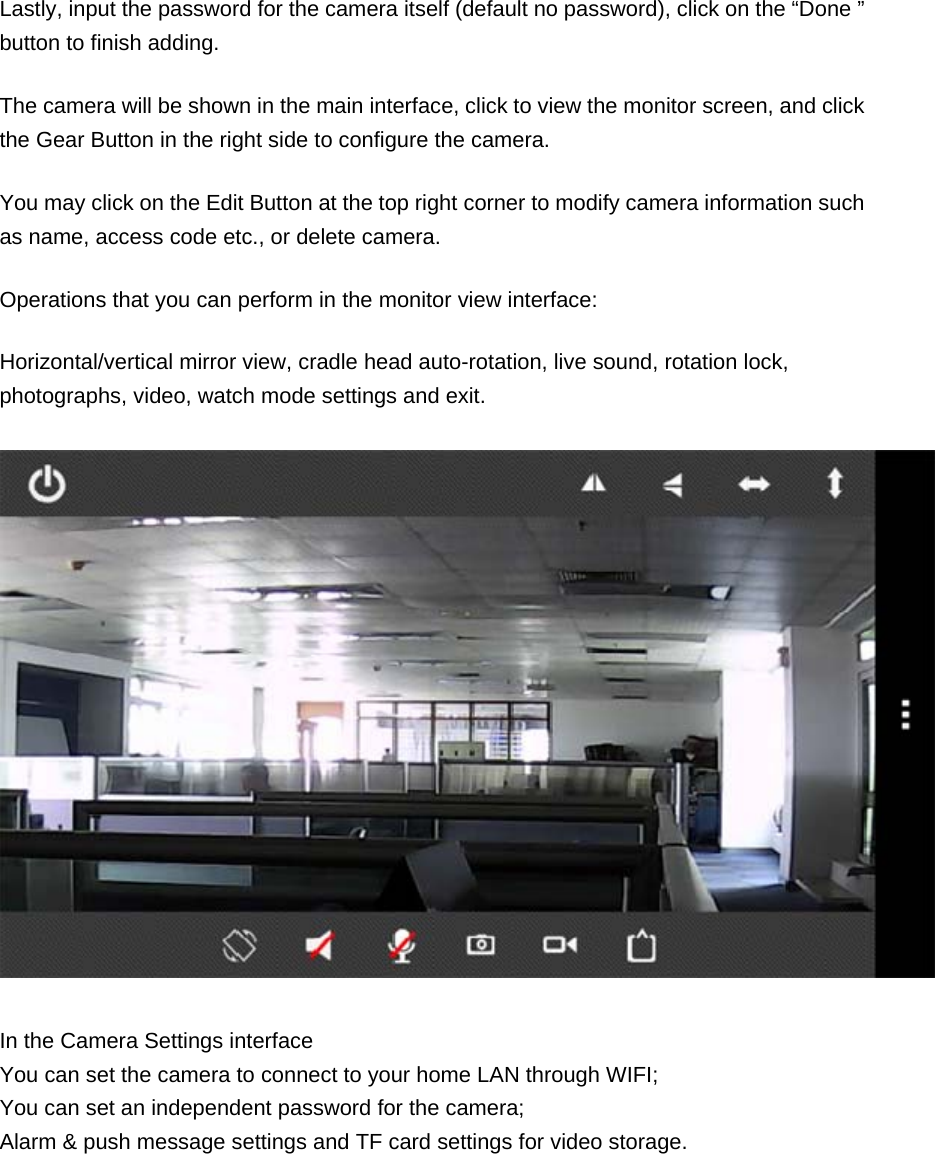

Lastly, input the password for the camera itself (default no password), click on the “Done ” button to finish adding. The camera will be shown in the main interface, click to view the monitor screen, and click the Gear Button in the right side to configure the camera. You may click on the Edit Button at the top right corner to modify camera information such as name, access code etc., or delete camera. Operations that you can perform in the monitor view interface: Horizontal/vertical mirror view, cradle head auto-rotation, live sound, rotation lock, photographs, video, watch mode settings and exit.  In the Camera Settings interface You can set the camera to connect to your home LAN through WIFI; You can set an independent password for the camera; Alarm & push message settings and TF card settings for video storage.

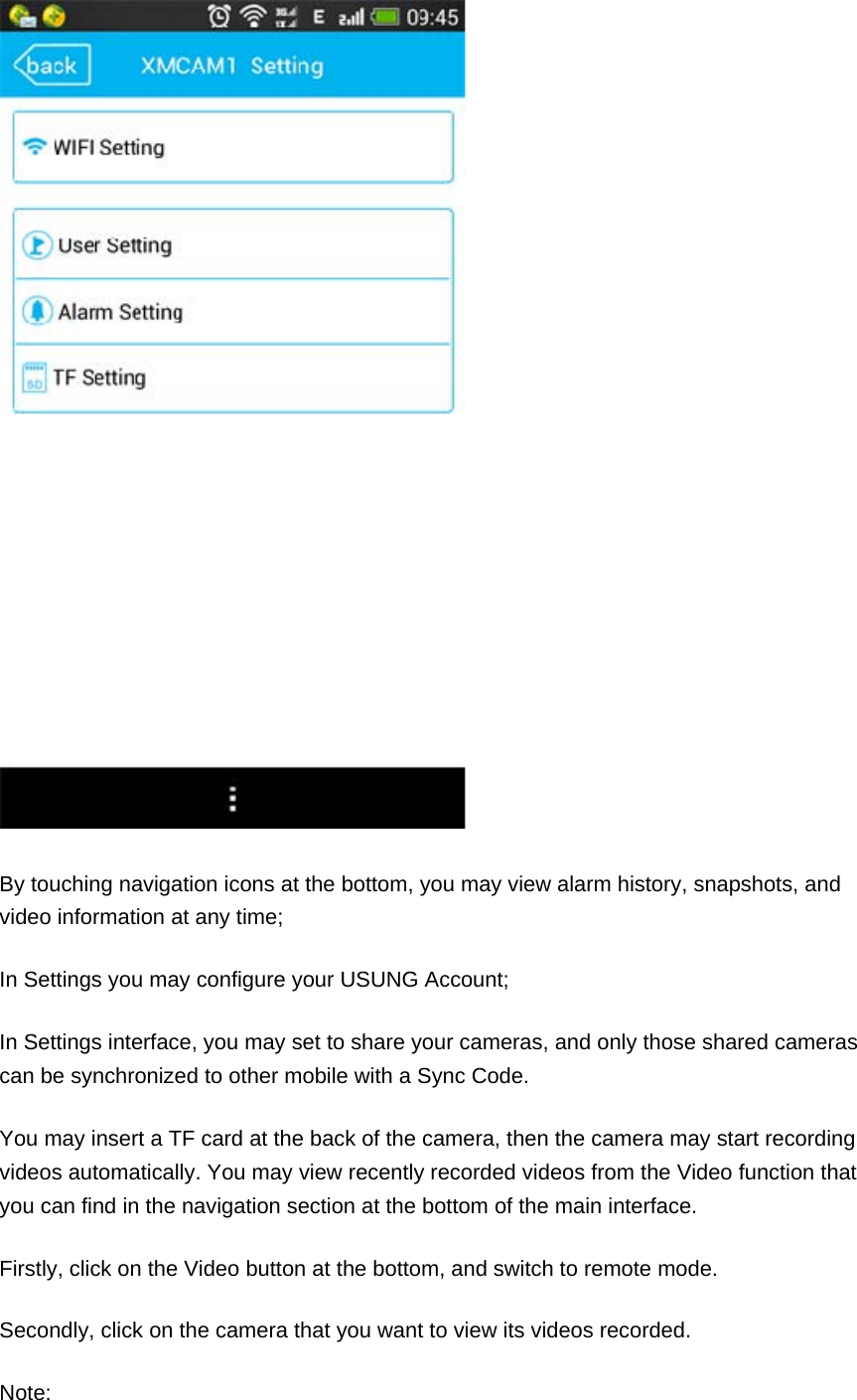

 By touching navigation icons at the bottom, you may view alarm history, snapshots, and video information at any time; In Settings you may configure your USUNG Account; In Settings interface, you may set to share your cameras, and only those shared cameras can be synchronized to other mobile with a Sync Code. You may insert a TF card at the back of the camera, then the camera may start recording videos automatically. You may view recently recorded videos from the Video function that you can find in the navigation section at the bottom of the main interface. Firstly, click on the Video button at the bottom, and switch to remote mode. Secondly, click on the camera that you want to view its videos recorded. Note:

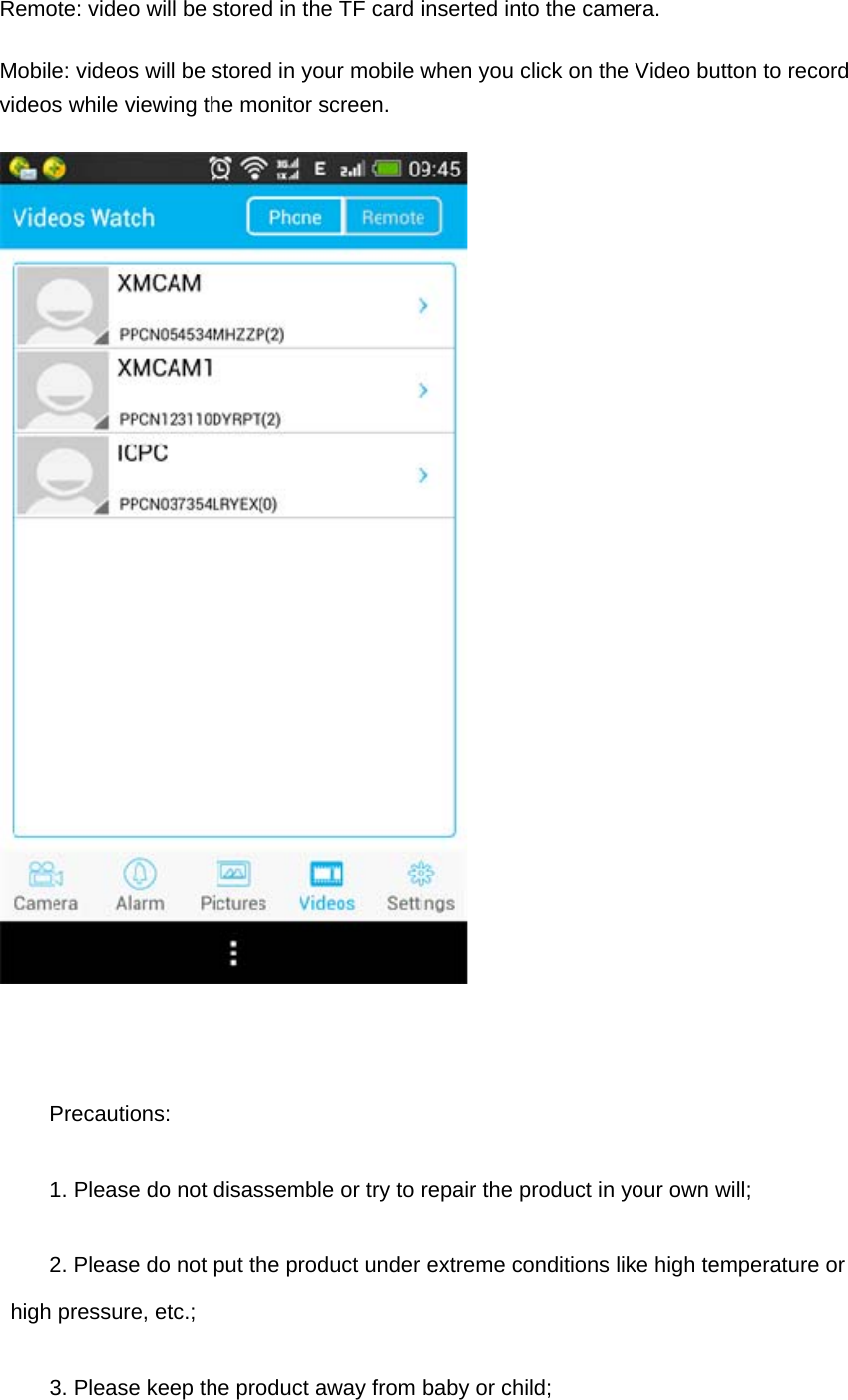

Remote: video will be stored in the TF card inserted into the camera. Mobile: videos will be stored in your mobile when you click on the Video button to record videos while viewing the monitor screen.  Precautions: 1. Please do not disassemble or try to repair the product in your own will; 2. Please do not put the product under extreme conditions like high temperature or high pressure, etc.; 3. Please keep the product away from baby or child;

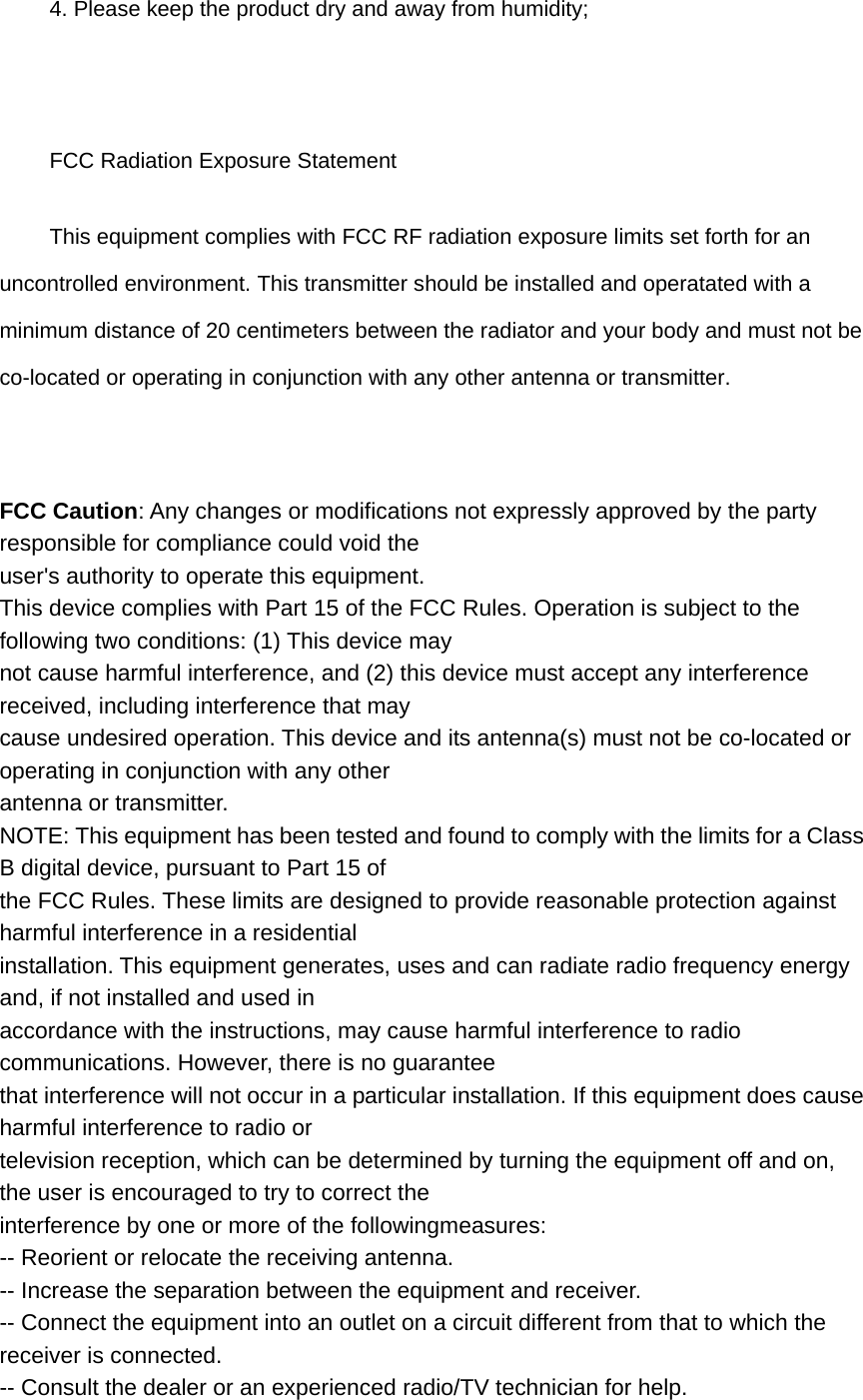

4. Please keep the product dry and away from humidity;  FCC Radiation Exposure Statement       This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter should be installed and operatated with a minimum distance of 20 centimeters between the radiator and your body and must not be co-located or operating in conjunction with any other antenna or transmitter.  FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followingmeasures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.
