Xmark ITG International Hugs Tag 806A5201 User Manual 806U5201 Rev01 indd

Xmark Corporation International Hugs Tag 806A5201 806U5201 Rev01 indd

Contents

user manual

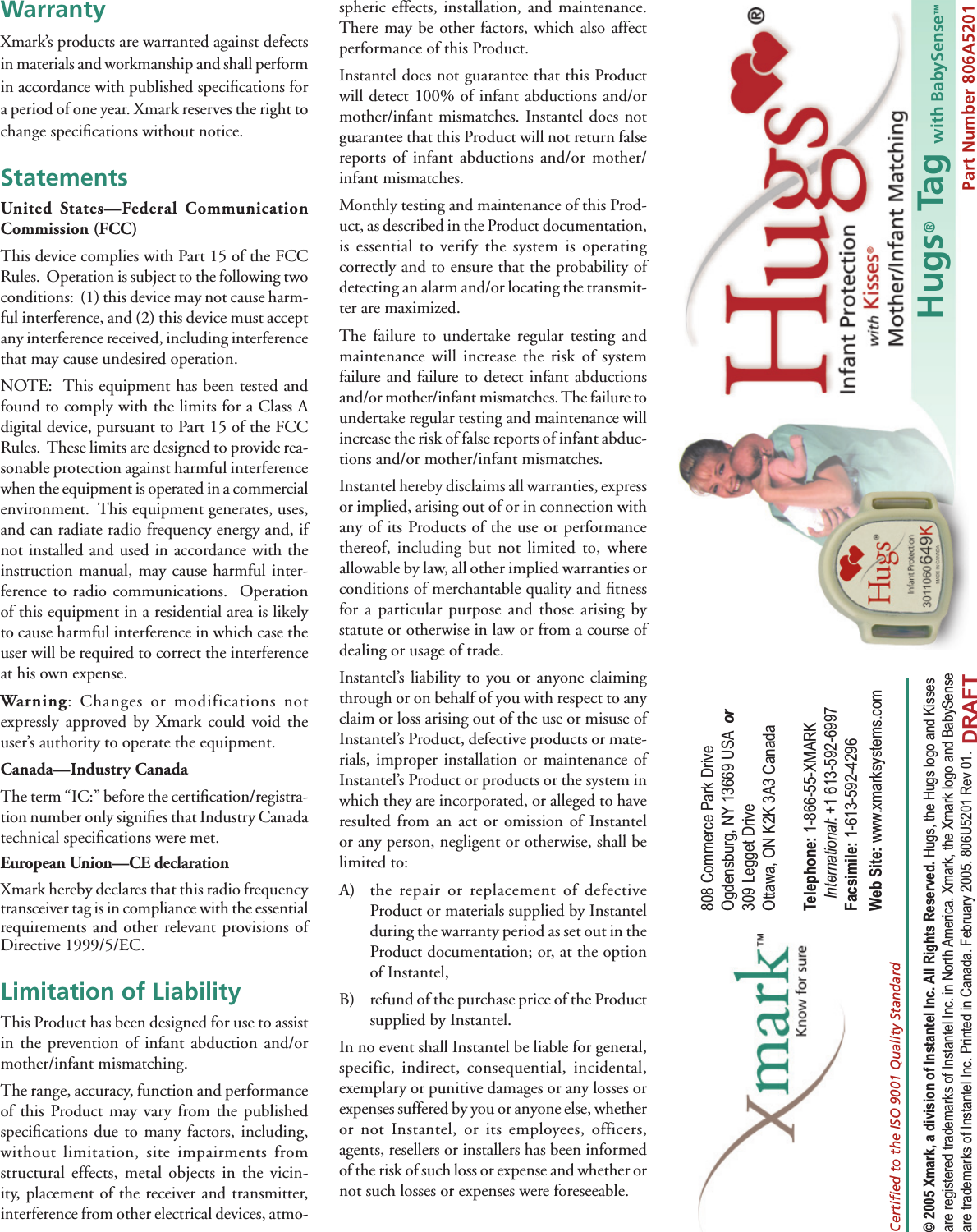

WarrantyXmark’s products are warranted against defects in materials and workmanship and shall perform in accordance with published specifi cations for a period of one year. Xmark reserves the right to change specifi cations without notice.StatementsUnited States—Federal Communication Commission (FCC)This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harm-ful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea-sonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful inter-ference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Warning: Changes or modifications not expressly approved by Xmark could void the user’s authority to operate the equipment.Canada—Industry CanadaThe term “IC:” before the certifi cation/registra-tion number only signifi es that Industry Canada technical specifi cations were met.European Union—CE declarationXmark hereby declares that this radio frequency transceiver tag is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.Limitation of LiabilityThis Product has been designed for use to assist in the prevention of infant abduction and/or mother/infant mismatching.The range, accuracy, function and performance of this Product may vary from the published specifi cations due to many factors, including, without limitation, site impairments from structural effects, metal objects in the vicin-ity, placement of the receiver and transmitter, interference from other electrical devices, atmo-spheric effects, installation, and maintenance. There may be other factors, which also affect performance of this Product. Instantel does not guarantee that this Product will detect 100% of infant abductions and/or mother/infant mismatches. Instantel does not guarantee that this Product will not return false reports of infant abductions and/or mother/infant mismatches. Monthly testing and maintenance of this Prod-uct, as described in the Product documentation, is essential to verify the system is operating correctly and to ensure that the probability of detecting an alarm and/or locating the transmit-ter are maximized. The failure to undertake regular testing and maintenance will increase the risk of system failure and failure to detect infant abductions and/or mother/infant mismatches. The failure to undertake regular testing and maintenance will increase the risk of false reports of infant abduc-tions and/or mother/infant mismatches.Instantel hereby disclaims all warranties, express or implied, arising out of or in connection with any of its Products of the use or performance thereof, including but not limited to, where allowable by law, all other implied warranties or conditions of merchantable quality and fi tness for a particular purpose and those arising by statute or otherwise in law or from a course of dealing or usage of trade.Instantel’s liability to you or anyone claiming through or on behalf of you with respect to any claim or loss arising out of the use or misuse of Instantel’s Product, defective products or mate-rials, improper installation or maintenance of Instantel’s Product or products or the system in which they are incorporated, or alleged to have resulted from an act or omission of Instantel or any person, negligent or otherwise, shall be limited to:A) the repair or replacement of defective Product or materials supplied by Instantel during the warranty period as set out in the Product documentation; or, at the option of Instantel,B) refund of the purchase price of the Product supplied by Instantel.In no event shall Instantel be liable for general, specific, indirect, consequential, incidental, exemplary or punitive damages or any losses or expenses suffered by you or anyone else, whether or not Instantel, or its employees, officers, agents, resellers or installers has been informed of the risk of such loss or expense and whether or not such losses or expenses were foreseeable.Hugs® Tag with BabySense™© 2005 Xmark, a division of Instantel Inc. All Rights Reserved. Hugs, the Hugs logo and Kisses are registered trademarks of Instantel Inc. in North America. Xmark, the Xmark logo and BabySense are trademarks of Instantel Inc. Printed in Canada. February 2005. 806U5201 Rev 01.Certifi ed to the ISO 9001 Quality Standard808 Commerce Park Drive Ogdensburg, NY 13669 USA or309 Legget Drive Ottawa, ON K2K 3A3 Canada Telephone: 1-866-55-XMARK International: +1 613-592-6997 Facsimile: 1-613-592-4296 Web Site: www.xmarksystems.comPart Number 806A5201DRAFT

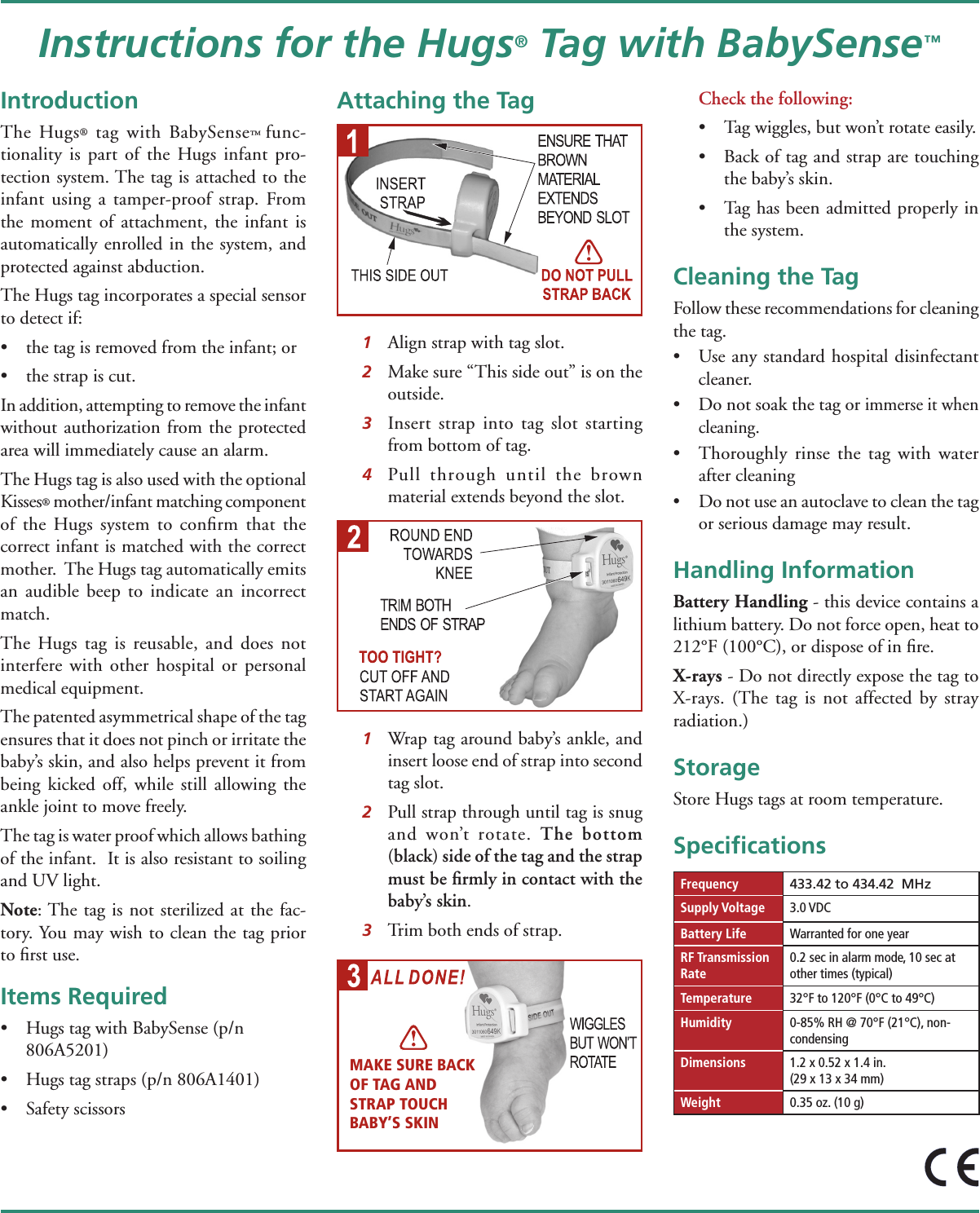

IntroductionThe Hugs® tag with BabySense™ func-tionality is part of the Hugs infant pro-tection system. The tag is attached to the infant using a tamper-proof strap. From the moment of attachment, the infant is automatically enrolled in the system, and protected against abduction. The Hugs tag incorporates a special sensor to detect if:• the tag is removed from the infant; or• the strap is cut.In addition, attempting to remove the infant without authorization from the protected area will immediately cause an alarm. The Hugs tag is also used with the optional Kisses® mother/infant matching component of the Hugs system to confi rm that the correct infant is matched with the correct mother. The Hugs tag automatically emits an audible beep to indicate an incorrect match.The Hugs tag is reusable, and does not interfere with other hospital or personal medical equipment. The patented asymmetrical shape of the tag ensures that it does not pinch or irritate the baby’s skin, and also helps prevent it from being kicked off, while still allowing the ankle joint to move freely. The tag is water proof which allows bathing of the infant. It is also resistant to soiling and UV light. Note: The tag is not sterilized at the fac-tory. You may wish to clean the tag prior to fi rst use.Items Required• Hugs tag with BabySense (p/n 806A5201)• Hugs tag straps (p/n 806A1401)• Safety scissorsAttaching the Tag1 Align strap with tag slot.2 Make sure “This side out” is on the outside.3 Insert strap into tag slot starting from bottom of tag. 4 Pull through until the brown material extends beyond the slot.1 Wrap tag around baby’s ankle, and insert loose end of strap into second tag slot. 2 Pull strap through until tag is snug and won’t rotate. The bottom (black) side of the tag and the strap must be fi rmly in contact with the baby’s skin.3 Trim both ends of strap.Check the following:• Tag wiggles, but won’t rotate easily.• Back of tag and strap are touching the baby’s skin. • Tag has been admitted properly in the system.Cleaning the TagFollow these recommendations for cleaning the tag.• Use any standard hospital disinfectant cleaner.• Do not soak the tag or immerse it when cleaning. • Thoroughly rinse the tag with water after cleaning• Do not use an autoclave to clean the tag or serious damage may result.Handling InformationBattery Handling - this device contains a lithium battery. Do not force open, heat to 212°F (100°C), or dispose of in fi re.X-rays - Do not directly expose the tag to X-rays. (The tag is not affected by stray radiation.)StorageStore Hugs tags at room temperature.Specifi cationsInstructions for the Hugs® Tag with BabySense™MAKE SURE BACKOF TAG AND STRAP TOUCH BABY’S SKINFrequency 433.42 to 434.42 MHzSupply Voltage 3.0 VDCBattery Life Warranted for one yearRF Transmission Rate0.2 sec in alarm mode, 10 sec at other times (typical)Temperature 32°F to 120°F (0°C to 49°C)Humidity 0-85% RH @ 70°F (21°C), non-condensingDimensions 1.2 x 0.52 x 1.4 in. (29 x 13 x 34 mm)Weight 0.35 oz. (10 g)
