Shutter release function

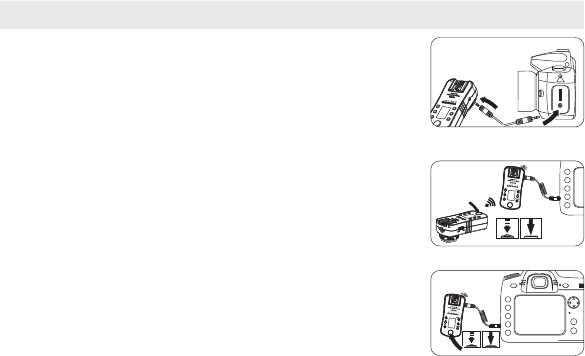

Connect the shutter connecting cable: need to use(or

purchase additional)the corresponding type of the LS-2.5

series shutter connecting cable. As the picture 1 shown, use

the shutter connecting cable to connect between the camera

shutter socket and transceivers.

1.RF-602 mode: Supports wireless shutter release, the

transmitter set to “TX”stauts,the receiver set to “RX”.

2.RF-603 mode: Supports wired shutter/wireless shutter

release, all transceivers set to “TRX”stauts.

As the picture 2 shown, half press the multifunction button

on the transceiver(transmitter), the camera will focus. The

focus light bright (Green),full press the button, the camera

will shoot, meanwhile the shutter indicator light bright (Red).

In RF-603 mode, single transceiver can be used as wired

shutter release (as the picture 3 shown).




Function extension

2.Wireless remote shooting and sync trigger the flash: Multiple RF605

combination, it need LS-2.5 shutter connecting cable and multiple RF605 transmitters.

To realize this function, all the transceivers need to set in RF-603"TRX" status.

1).Install one transceiver on the hot shoe of the

camera, and connect the shutter socket with the

shutter connecting cable to the camera.

2).Fix and install the receivers and flash.

3).Handhold one transceiver as remote control

transmitter, full press the multifunction button

to remote shooting, the flash will sync flash in

triggering.

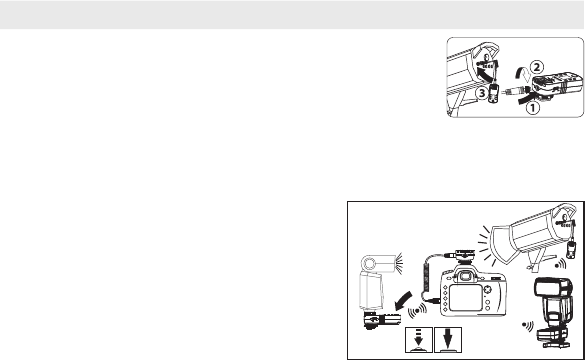

1.Use the PC interface to trigger other types of flashes:

realize the function need to additional purchase the Yongnuo

LS-PC series connecting cable according to different interfaces.

As the picture shown, connect the receiver and flash

through the PC cable, the flash will sync flash in triggering.

1.Unable to power on or wireless trigger the flash

FMake sure the equipment with adequate power, the transceiver use the same

channel and communication mode.

FWhen set in TX status , press the testing button to test flash, in RX and TRX status

could not test flash.

FMake sure the flash is ready and the flash has set in manual (M) mode.

FMake sure the transceiver, camera and flash in normal contact, or it will lead to

triggering problem.

2.Unable to awake the flash

FWhen using the non specialized transmitter, it need to half press the button of

transmitter to awake the flash when the transmitter set in TX state. If the flash could

not be awaken, it need to manual awake the flash or turn off the power saving mode.

3. The shutter could not be released

FWhen part of the cameras could not find the focus, it could not proceed to shoot

even if receiving the shooting signal. The focus mode of camera should be adjusted to

“M”.

Troubleshooting

Type: FSK 2.4GHz wireless remote control system

Transmission distance: 100m

Channels:16 channels

Group:6 Groups

Shutter release: half-press, full-press

Shutter interface: 2.5mm socket

Studio flash light interface: standard PC socket

Max Sync Speed: 1/320 second

Battery: AAA×2(3V )

Stand-by time: about 90 hours in TX status, about 30 hours in TRX (RX) status.

Size : 85MM x 41MM x 35MM

The functions of this user manual are based on test conditions of our company.

Further notice will not be given if the design and specifications change.

The YONGNUO logo in this manual includes the registered trademark or trademark of

Shenzhen Yongnuo Photography Equipment Co.,Ltd in China or/and other

countries(regions).All other trademarks are the property of their respective owners.

Specification



FCCID:2ACYP‐RF605C



ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustaccept

anyinterferencereceived,includinginterference



Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould

voidtheuser'sauthoritytooperatetheequipment。Note:Thisequipmenthasbeentestedand

foundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules.

Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceina

residentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergy

and,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterference

toradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurina

particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevision

reception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouraged

totrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:



—Reorientorrelocatethereceivingantenna.

—Increasetheseparationbetweentheequipmentandreceiver.

—Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.


