VXR-9000V-H / VXR-9000U-H FM REPEATER OPERATING MANUAL
VXR-9000V-H
VXR-9000U-H
OPERATING MANUAL
RACK MOUNT REPEATER
VXR-9000V-H / VXR-9000U-H FM REPEATER OPERATING MANUAL
VXR-9000V-H / VXR-9000U-H FM REPEATER OPERATING MANUAL

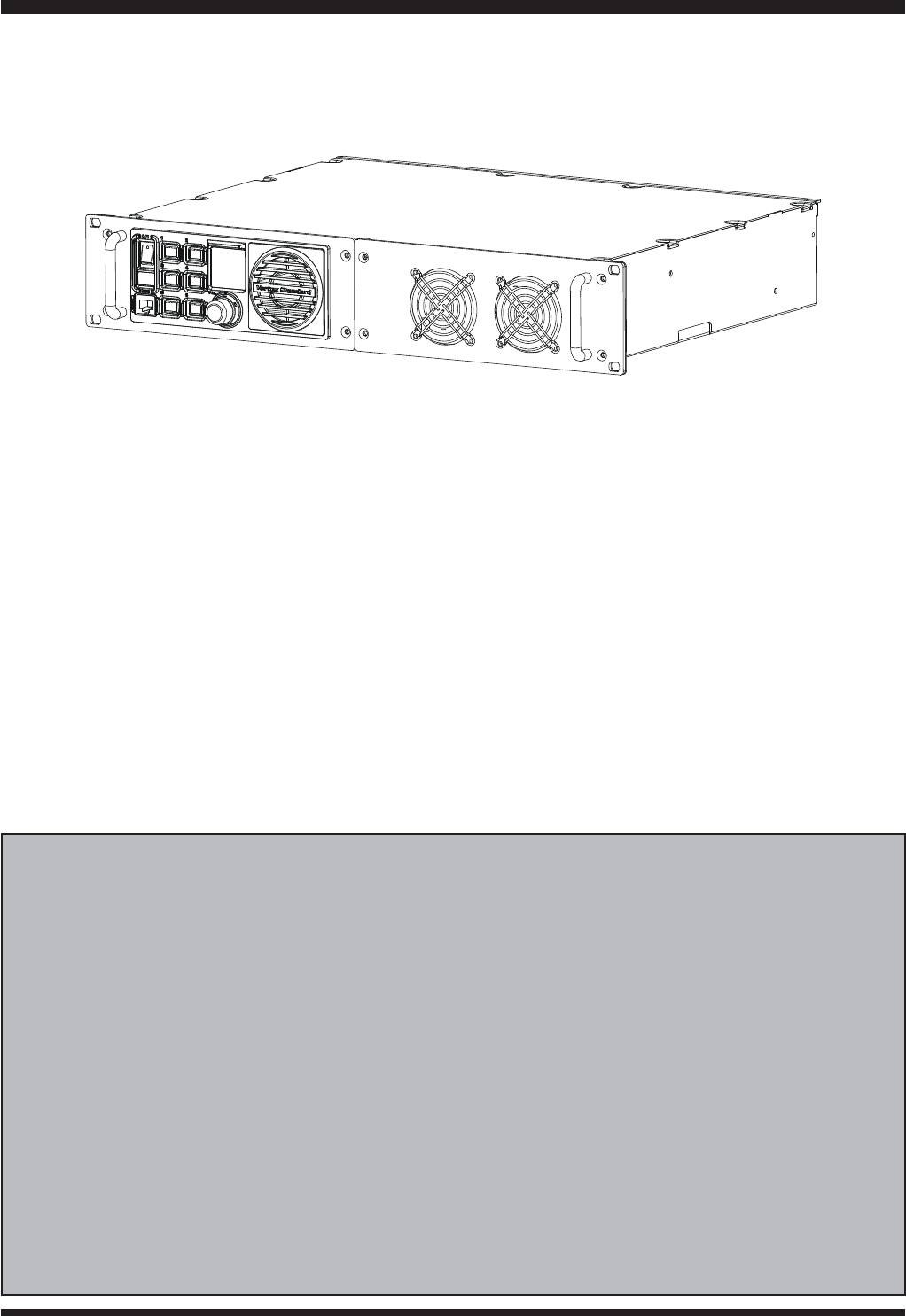

The VXR-9000x-H is commercial-grade 100-watt FM repeater designed to provide reliable two-way full-duplex com-
munications over a wide range of environmental conditions.
Designed to mount in a standard 19-inch rack, the VXR-9000x-H is crafted using the latest computer-aided design
and manufacturing processes, to ensure a high level of reliability to users. Important channel frequency data is stored
in EEPROM, and is easily programmable by a Servicing Technician or Dealer using an IBM compatible personal
computer and the VPL-1 Programming Cable and CE60 Software.
Please take a few minutes to read this manual carefully. The information presented here will allow you to derive
maximum performance from your VXR-9000x-H. After reading it, keep this manual handy for quick reference, in
case questions arise later on.
Important Note: Internal service work, programming, and accessory installations should only be performed by your
authorized Vertex Standard Dealer. Dangerous conditions and/or possibly illegal operation may result from im-
proper setup, programming, or internal modifications.
SAFETY / WARNING INFORMATION
The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures with a
separation distance of at least 1.98 m (VXR-9000V-H) or 1.62 m (VXR-9000U-H) from all persons during
normal operation and must not exceed an antenna gain of 0 dBd. This device must be restricted to work
related operations in an Occupational/Controlled RF exposure Environment, not exceeding a maximum trans-
mitting duty factor of 50%. The antenna(s) used with this device must satisfy the antenna co-location require-
ments of 47 C.F.R. 1.1307(b)(3).
NOTICE!
Do not modify this repeater for any reason.
Refer service of this repeater to qualified technicians only.
When the repeater become abnormal, such as the overheating, smoke smell of burning, etc., turn the main
power switch off and disconnect the Main Power Source connector from the rear of the VXR-9000x-H
immediately. Also disconnect any backup power source you may have connected to the rear of the VXR-
9000x-H.
Do not place any combustible material near the repeater.
Do not spray any liquid over the repeater.
Ensure that the power and antenna connections are securely made, using cables with excess capacity for
the power being utilized.
INTRODUCTION
Page 1
VXR-9000V-H / VXR-9000U-H FM REPEATER OPERATING MANUAL

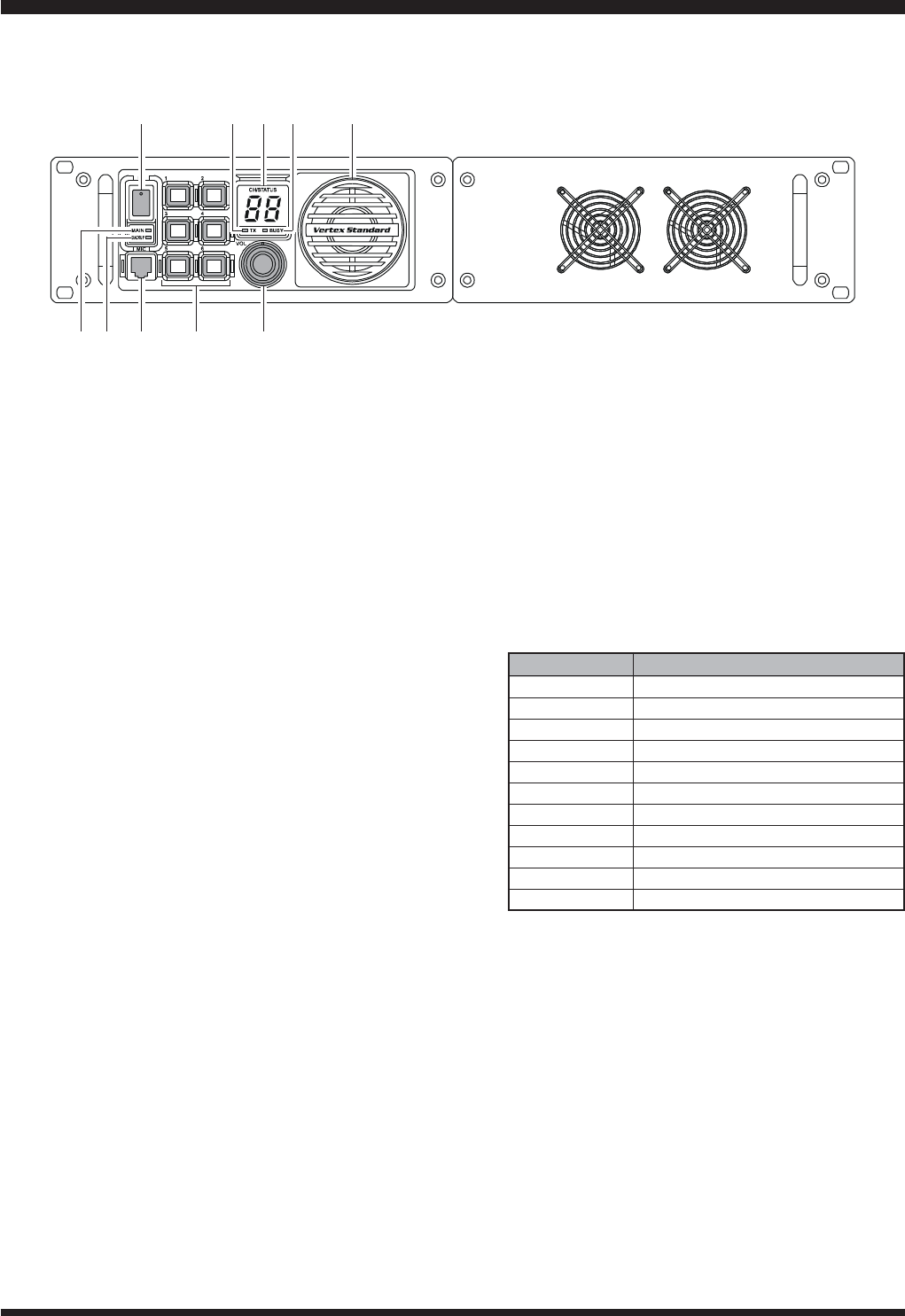

FRONT PANEL CONTROLS & CONNECTORS
POWER (O/I) Switch
This is the main power switch for the repeater.
Power Indicator (MAIN)
This LED glows green when the main power source
is used.
Power Indicator (BACKUP)
This LED glows red when the backup power source
is used.
MIC Jack
Connect the microphone plug to this jack. This jack
is also used for writing and reading channel fre-
quency or other configurations via the COM Port of
the PC on which the clone editor (CE60) is running.
Programmable Function (PF) Key
Six pushbuttons on the front panel are program-
mable function (PF) keys, each with an orange in-
dicator inside. Each key can be programmed with
two functions, one for a “long” press and one for a
“momentary” press. The PF key functions may be
customized, via programming by your VERTEX
STANDARD dealer, to meet your communications
network requirements. Note that some functions
may require the purchase of optional internal ac-
cessories.
VOL Knob
This control knob adjusts the output level of the front
speaker and external speaker jack on the back panel.
TX Indicator
This LED glows red when the repeater is transmit-
ting.
Numeric Display
This display consists of two 7-segment LEDs, indi-
cating the channel number during normal operation.
If an abnormal condition arises, an error code will be
displayed:
Page 2
DISPLAY DESCRIPTION
0101
0101
01
-
3232
3232
32
Channel Number
PCPC
PCPC
PC
Clone Active
ULUL
ULUL
UL
PLL Unlock
HIHI
HIHI
HI
High temperature in PA Unit
SCSC
SCSC
SC
Scan Active
LCLC
LCLC
LC
Front Panel Keys are Locked
E1E1
E1E1
E1
PTT key is Disabled
E2E2
E2E2
E2
Cooling Fan is Disabled
E5E5
E5E5
E5
Low Voltage in Backup Battery
E7E7
E7E7
E7
PA Unit Abnormality
E3E3
E3E3
E3
,
E4E4
E4E4
E4
,
E6E6
E6E6
E6
,
E9E9
E9E9
E9
Contact your Dealer
BUSY Indicator
This LED glows green when the receiving channel
is busy.
Speaker
The internal speaker is located here.
 
 
VXR-9000V-H / VXR-9000U-H FM REPEATER OPERATING MANUAL

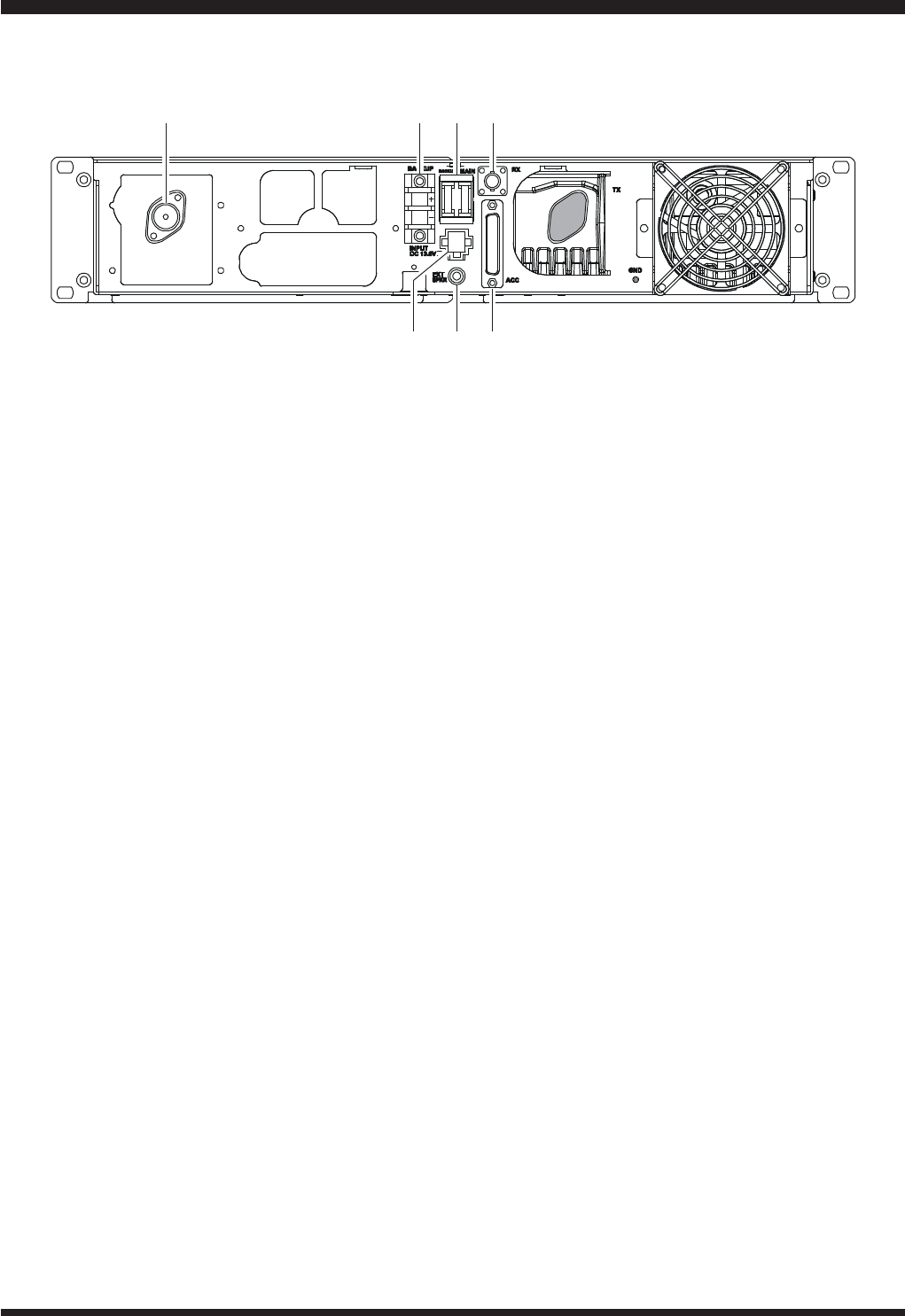

REAR PANEL CONNECTORS
TX Antenna Jack
This N-type coaxial jack provides the transmitter
output signal, for connection to the transmitting an-
tenna, or the “TX” jack on the duplexer. The output
impedance requirement is 50 Ohms.
Backup Power Source Terminals
If available, a backup 13.6 Volt power source, such
as a rechargeable battery, may be connected here.
When the Battery Charge switch (located on the
100W PA Unit) is set to “ON,” a “trickle” charge
current is present here while the repeater is operat-
ing from the “Main Power Source.”
Circuit Protection Fuse
Two 40-Amp blade fuses, for the “Main” and
“Backup” power sources, are installed here.
RX Antenna Jack
This BNC-type coaxial jack accepts the receiver in-
put signal, for connection to the receiving antenna,
or the “RX” jack on the duplexer. The input imped-
ance requirement is 50 Ohms.
Main Power Source Connector
The primary DC power source should be connected
here. The power requirements are 13.6 V DC at 30
Amps, continuous duty.
External Speaker Jack
This 3.5-mm, 2-pin jack provides variable audio
output for an external speaker. The audio output
impedance at this jack is 4 to 16 Ohms, and the level
varies according to the setting of the front panel's
VOL knob.
DSUB 25-pin Accessory Connector
This DB-25F connector allows the repeater to be re-
mote-controlled by an external controller. Analog I/
O signals, such as TX Audio In, Discriminator Out-
put, RSSI, etc. are available. Moreover, the VXR-
9000x-H provides eight ports that can be pro-
grammed for various input or output signals, or for
control functions. Each port may be programmed
as to its function, its status (input or output), and its
logic (for output ports only).
Page 3


VXR-9000V-H / VXR-9000U-H FM REPEATER OPERATING MANUAL
Antenna Considerations
Repeater operation requires two antennas, one for re-
ceiving and one for transmitting, so that the receiving
antenna does not absorb energy from the transmitting
antenna. There are a number of ways to do this, depend-
ing on the TX/RX frequency separation, and on the lo-
cations available for antenna mounting.
Regardless of the above choice, it is of paramount im-
portance that the antenna(s) be mounted as high and in
the clear as possible, preferably within line-of-sight to
all repeater users. Furthermore, losses in the feedline(s)
must be minimized, so the feedline(s) should be high
quality, and as short as possible. If a long feedline is
necessary, use coaxial “hardline” cable to reduce losses.
Repeater antennas should have an impedance of 50
at the operating frequency. When separate receive and
transmit antennas are used, high-Q narrow-band types
may serve to minimize interaction.
NEVER TRANSMIT WITHOUT HAVING A
TRANSMIT ANTENNA CONNECTED TO THE
TX ANTENNA JACK OF THE REPEATER.
Equipment Location
The VXR-9000x-H must be installed in a 19-inch Mount-
ing Rack, which will allow for free air flow around the
heat sink of the 100 W PA Unit at all times. In warm
climates, the repeater should not be sealed in a small,
closed room without air conditioning.
While the operating temperature range of the VXR-
9000x-H is quite broad, the best location is one in which
the air temperature does not approach the extremes of
the specified range, and one that does not change rap-
idly.
Protect the VXR-9000x-H (Mounting Rack) from wind
and rain, and extremes in temperature or humidity that
may shorten the useful life of the equipment. Try to lo-
cate the VXR-9000x-H (Mounting Rack) in an environ-
ment that is also comfortable for service personnel, if
possible.
INSTALLATION
Page 4
VXR-9000V-H / VXR-9000U-H FM REPEATER OPERATING MANUAL
Power Supply
Operation of the VXR-9000x-H requires a power source
capable of providing at least 30 Amps continuously at
13.6 Volts DC. Please prepare the regulated power sup-
ply which satisfies the above voltage and current speci-
fications.
Use the DC power cable (VXSTD P/N: T9207279) sup-
plied with your repeater for making power connections
to the power supply. Connect the RED power cable lead
to the POSITIVE (+) power supply terminal, and con-
nect the BLACK power cable lead to the NEGATIVE (–
) power supply terminal.
INSTALLATION
Backup Power Supply
For uninterrupted operation during power failures, a
12-volt rechargeable type battery (55-Ah or more rec-
ommended) may be connected to the BACKUP termi-
nal posts on the rear panel. While the repeater is oper-
ating from the Main Power Source a slight charging
current will maintain battery charge. In the event of an
unexpected interruption of the Main Power Source, the
automatic power control circuit will automatically
switch the repeater to the backup battery, and opera-
tion will not be interrupted.
After prolonged operation from the battery, (Backup
Power Source), it should be disconnected from the re-
peater and recharged separately before re-connecting,
as the trickle charge is not sufficient for recharging a
completely discharged battery.
Never reapply the Main Power Source to the repeater
with a discharged battery connected as backup, as the
DC startup current can damage the repeater and bat-
tery.
Never short the “Backup Power Sorce” Terminals,
when the Battery Charge switch (located on the
Relay Unit) is set to “ON.”

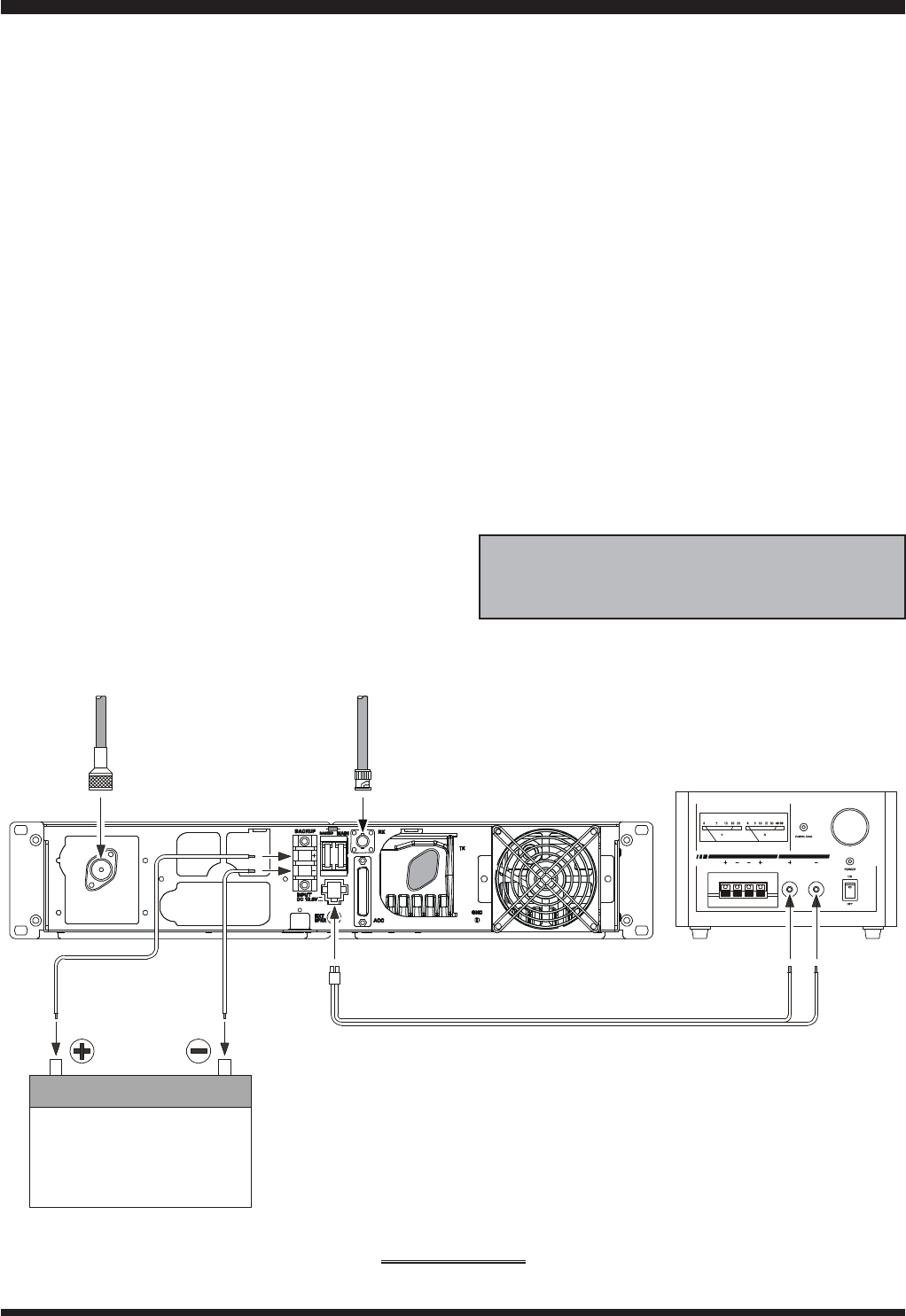

TYPICALLY SETUP
Page 5
To TX Antenna
To RX Antenna
Supplied DC Power Code
(T9207279)
RED
BLACK
RED
BLACK
Backup Battery
(12 V, 55 Ah)
Power Supply
(13.6 V, 40 ~ 50 A)
VXR-9000V-H / VXR-9000U-H FM REPEATER OPERATING MANUAL
NOTE
Page 6
VXR-9000V-H / VXR-9000U-H FM REPEATER OPERATING MANUAL
NOTE
Page 7
VXR-9000V-H / VXR-9000U-H FM REPEATER OPERATING MANUAL
NOTE
Page 8
VXR-9000V-H / VXR-9000U-H FM REPEATER OPERATING MANUAL
Part 15.21: Changes or modifications to this device not expressly approved
by Vertex Standard could void the user’s authorization to operate this device.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2)
l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d’en compromettre le fonctionnement.
VXR-9000V-H / VXR-9000U-H FM REPEATER OPERATING MANUAL
Copyright 2011
VERTEX STANDARD CO., LTD.
All rights reserved.
No portion of this manual may be
reproduced without the permission of
VERTEX STANDARD CO., LTD.
Printed in Japan
EAE21N100
VERTEX STANDARD CO., LTD.
4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan

Navigation menu
