Revised User Manual
HX370S
VHF/FM Marine
Handheld Transceiver
Owner's Manual
HX370S
TABLE OF CONTENTS
FCC LICENSE INFORMATION ...... 3
FCC NOTICE .................................. 4
1. GENERAL INFORMATION ........ 5
2. ACCESSORIES .......................... 6
2.1 PACKING LIST ........................................ 6

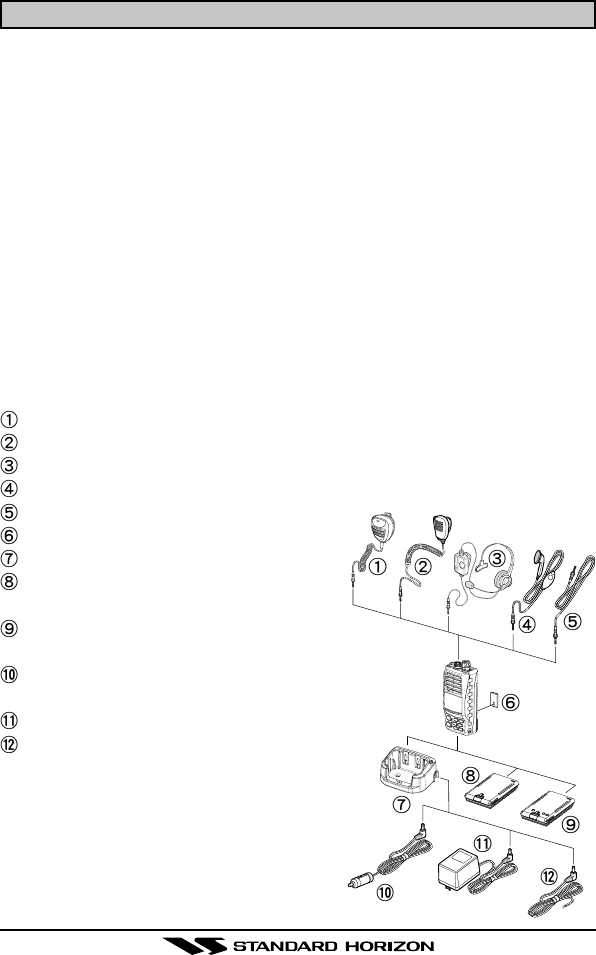

2.2 OPTIONS ................................................ 6
3. BATTERY ................................... 7

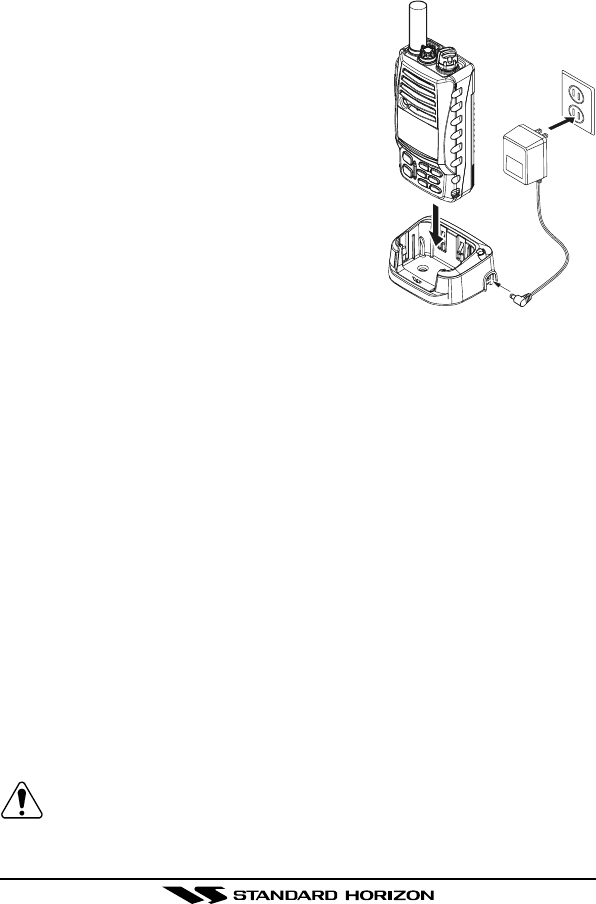

3.1 BATTERY CHARGING ........................... 7
3.2 BATTERY REMOVAL/INSTALLATION ... 7
3.3 USING THE NC-88
BATTERY CHARGER ..... 8
3.4 FBA-25A ALKALINE BATTERY CASE .... 8
3.5 BATTERY SAFETY ................................. 9
4.
CONTROLS AND INDICATORS ...
10

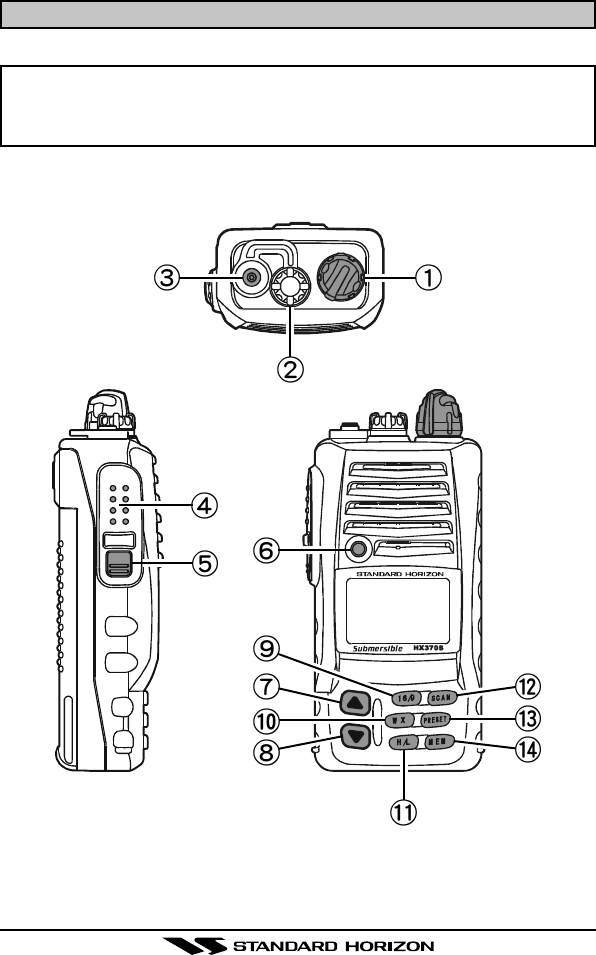

4.1 CONTROLS and CONNECTIONS ....... 11

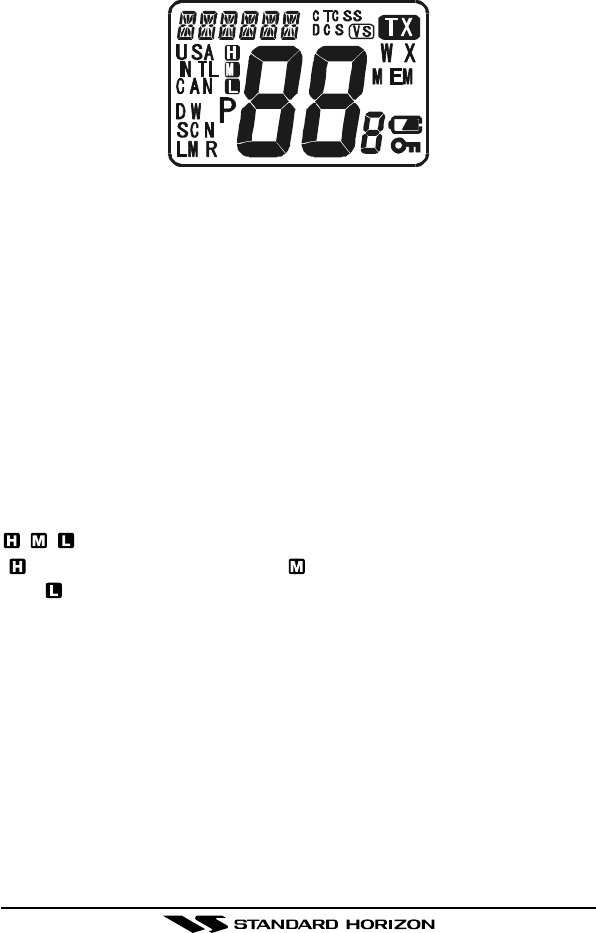

4.2 INDICATORS ........................................ 13
5. OPERATION ............................. 15
5.1 INITIAL SETUP ..................................... 15
5.2 RECEPTION ......................................... 16
5.3 TRANSMISSION ................................... 17
5.4 TRANSMIT TIME-OUT TIMER (TOT) ... 17
5.5 USA, CANADIAN, AND
INTERNATIONAL BANDS .... 18
5.6 NOAA WEATHER CHANNELS ............. 18
5.7 SCAN .................................................... 20
5.8 PROGRAMMABLE PRIORITY SCAN .. 21
5.9 DUAL WATCH ....................................... 21
5.10 EMERGENCY (CHANNEL 16 USE) ... 22
5.11 CALLING ANOTHER VESSEL
(CHANNEL 16 OR 9) ... 22
5.12 OPERATING ON CHANNEL 13 .......... 23
5.13 OPERATING ON CHANNEL 67 .......... 23
5.14 PRESET CHANNELS (1 ~ 8):
INSTANT ACCESS .... 24
5.15 SIMPLEX/DUPLEX CHANNEL USE ... 25
5.16 ENABLING S.O.S
STROBE OPERATION ..... 25
5.17 VOICE SCRAMBLER UNIT ................ 26

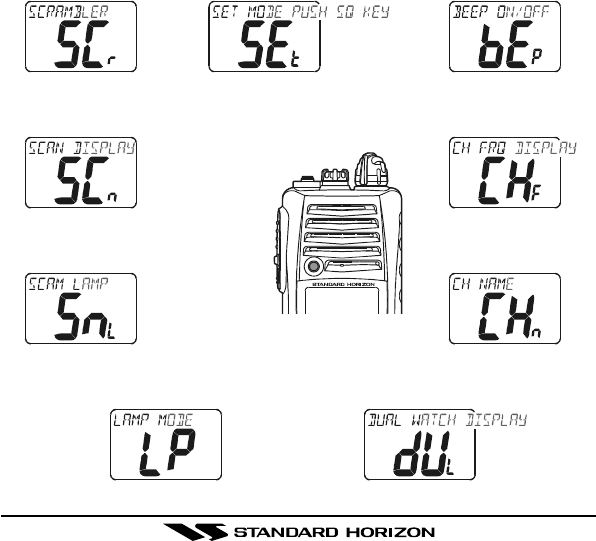

5.18 SETUP MODE .................................... 27
5.19 CLONING ............................................ 30
5.20 RESETTING THE TRANSCEIVER’S
MICROPROCESSOR .... 31
6. MAINTENANCE ........................ 32
7.
PRODUCT SUPPORT INQUIRIES ..
33
8. CHANNEL ASSIGNMENTS ..... 33
9. WARRANTY ............................. 40
10. SPECIFICATIONS .................. 43
HX370S
RF Exposure Safety Statement
This Radio has been tested and complies with the Federal Communications
Commission (FCC) RF exposure limits for Occupational Use/Controlled expo-
sure environment. In addition, it complies with the following Standards and Guide-
lines:
❍FCC@96-326, Guidelines for Evaluating the Environmental Effects of Radio-
Frequency Radiation.
❍FCC OET Bulletin 65 Edition 97-01 (1997) Supplement C, Evaluating Compli-
ance with FCC Guidelines for Human Exposure to Radio Frequency Electro-
magnetic Fields.
❍ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to
Human Exposure to Radio Frequency Electromagnetic Fields, 3kHz to 300
GHz.
❍ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement
of Potentially Hazardous Electromagnetic Fields-RF and Microwave.
WARNING
This radio generates RF electromagnetic energy during transmit mode. This
radio is designed for and classified as Occupational Use Only, meaning it
must be used only during the course of employment by individuals aware of
the hazards, and the ways to minimize such hazards. This radio is not in-
tended for use by the General Population in an uncontrolled environment.
CAUTION
To ensure that your expose to RF electromagnetic energy is within the FCC
allowable limits for occupational use, always adhere to the following guidelines:
SAFETY INFORMATION
This radio is NOT approved for use by the general population in an uncon-
trolled environment. This radio is restricted to occupational use, work re-
lated operations only where the radio operator must have the knowledge to
control its RF exposure conditions.
❍When transmitting, hold the radio in a vertical position with its microphone
1 to 2 inches (2.5 to 5 cm) away from your mouth and keep the antenna at
least 1 inch (2.5cm) away from your head and body.
❍The radio must be used with a maximum operating duty cycle not exceed-
ing 50 %, in typical Push-to-Talk (Manual PTT or VOX) configurations.
DO NOT transmit for more than 50 % of total radio use time (50 % duty
cycle). Transmitting more than 50 % of the time can cause FCC RF expo-
sure compliance requirements to be exceeded.
The radio is transmitting when the red LED on the front panel of the radio
is illuminated. You can cause the radio to transmit by pressing the PTT
button or by speaking into the microphone if using the optional VC-24
VOX accessory.
❍Only use the Standard Horizon accessories designed for this product de-
tailed on Page 6.
Page 1
HX370S
Congratulations on your purchase of the HX370S! Whether this is your first
portable marine VHF transceiver, or if you have other STANDARD HORIZON
equipment, the STANDARD HORIZON organization is committed to ensur-
ing your enjoyment of this high-performance transceiver, which should pro-
vide you with many years of satisfying communications even in the harshest
of environments. STANDARD HORIZON technical support personnel stand
behind every product we sell, and we invite you to contact us, should you
require technical advice or assistance, at (800)767-2450.
We appreciate your purchase of the HX370S, and encourage you to read
this manual thoroughly, so as to learn and understand the capabilities of the
HX370S fully.
Page 2
ABOUT VHF MARINE RADIO
The radio frequencies used in the VHF marine band lie between 156
and 158 MHz with some shore stations available between 161 and 163
MHz. The marine VHF band provides communications over distances
that are essentially “line of sight” (VHF signals do not travel well through
objects such as buildings, hills or trees). Actual transmission range de-
pends much more on antenna type, gain and height than on the power
output of the transmitter. The approximate distance a portable 5W radio
may communicate is about 5 miles in if there are no obstructions (build-
ings, hills etc.) restricting line of sight transmission.
ABOUT LMR CHANNELS
The HX370S is capable of PC programming 40 LMR (Land Mobile Ra-
dio) channels by a dealer. The frequency range is 137 to 174MHz which
may be setup for 25kHz (wide) or 12.5kHz (narrow) channel stepping
with CTCSS and DCS signaling. Contact your dealer or Standard Horizon
Product Support (800-767-2450) for further details.
HX370S
FCC RADIO LICENSE INFORMATION
Standard Horizon radios comply with the Federal Communication Commis-
sion (FCC) requirements that regulate the Maritime Radio Service.
PROHIBITED COMMUNICATIONS
The FCC prohibits the following communications:
❍ False distress or emergency messages:
❍ Messages to “any boat” except in emergencies and radio tests;
❍ Messages to or from a vessel on land;
❍ Transmission while on land;
❍ Obscene, indecent, or profane language (potential fine of $10,000).
STATION LICENSE
An FCC ship station license is no longer required for any vessel traveling in
U.S. waters which uses a VHF marine radio, RADAR or EPIRB, and which is
not required to carry radio equipment. FCC license forms, including applica-
tions for ship (506) and land station licenses can be downloaded via the
Internet at www.fcc.gov/formpage.html. To obtain a form from the FCC, call
(888) 225-5322.
RADIO CALL SIGN
Currently the FCC does not require recreational boaters to have a Ship Radio
Station License. The USCG recommends the boat’s registration number and
the state to be used.
CANADIAN SHIP STATION LICENSING
You may need a license when traveling in Canada. If you do need a license
contact their nearest field office or regional office or write:
Industry Canada
Radio Regulatory Branch
Attn: DOSP
300 Slater Street
Ottawa, Ontario
Canada, KIA 0C8
Page 3
HX370SPage 4
FCC/INDUSTRY CANADA INFORMATON
The following data pertaining to the transceiver is necessary to fill out the
license application.
FCC Type Accepted .............................................................. Part 80/Part 90
Output Power with FNB-83/-V57IS ...
1 W (Low), 2.5 W (Mid), and 5 W (High)
Emission ............................................................... 16K0G3E (Marine: Wide)
16K0F3E (LMR: Wide)
11K0F3E (LMR: Narrow)
Frequency Range ................................. 156 to 163.275 MHz (Marine Band)
137 to 174 MHz (LMR Band)
FCC Type Number ..................................................................K6630083220
Industry Canada Type Approval ...........................................511B-30083220
FCC NOTICE
Unauthorized changes or modifications to this equipment may void
compliance with FCC Rules. Any change or modification must be
approved in writing by STANDARD HORIZON, the Marine Division of
VERTEX STANDARD.
NOTICE
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be de-
termined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced marine electronics technician
for help.
HX370S Page 5
1. GENERAL INFORMATION
1.1 INTRODUCTION
The HX370S is a submersible, miniature 5-Watt portable two-way VHF ma-
rine transceiver. The transceiver has all allocated USA, international, or
Canadian channels. It has an emergency channel 16 which can be immedi-
ately selected from any channel by pressing the 16/9 key. NOAA weather
channels can also be accessed immediately by pressing the WX key.
Besides VHF marine transceiver operation, the HX370S provides LMR (Land
Mobile Radio) transceiver operation.
The transceiver includes the following features: Memory Scanning, Program-
mable Priority Scanning, NOAA Weather Alert, Battery Saver, easy-to-read
large LCD display, EEPROM memory back-up, Battery Life displayed on
LCD, and a transmit Time-Out Timer (TOT).
The transmitter provides a maximum of 5 Watts output, and has the selection
of 2.5 Watts and 1 Watt to assist the user in ensuring maximum battery life.
The optional FVP-31 Voice Scrambler can be installed to permit secure voice
communications with other STANDARD HORIZON radios with the FVP-31
scramblers installed.
HX370S
2. ACCESSORIES
2.1 PACKING LIST
When the package containing the transceiver is first opened, please check
it for the following contents:
• HX370S Transceiver
• FNB-837.2 V, 1400 mAh Ni-MH Battery Pack
• FNB-V57IS7.2 V, 1100 mAh Ni-Cd Battery Pack
Depends on the transceiver version.
• NC-88B 120 VAC Overnight Charger
• CD-26 Charger Cradle
• FBA-25A Alkaline Battery Case (Except for IS version)
• CAT460 Antenna
• E-DC-19A
DC Cable with 12 V Cigarette Lighter Plug (Except for IS version)
• CLIP-14 Belt Clip with screw
• Owner’s Manual
2.2 OPTIONS
CMP460 Noise-canceling Waterproof Speaker/Microphone
MH-57A4B Mini Speaker/Microphone (Except for IS version)
VC-24 VOX Headset
VC-27 Earpiece/Microphone (Except for IS version)
CT-32 Clone Cable
FVP-31 Voice Scrambler
CD-26 Charger Cradle
FBA-25A Alkaline Battery Case
(Except for IS version)
FNB-83 7.2 V, 1400 mAh Ni-MH
Battery Pack
E-DC-19A DC Cable with 12 V
Cigarette Lighter Plug
(Except for IS version)
NC-88B 120 VAC Overnight Charger
E-DC-6 DC Cable; plug and wire only
CE68 PPS Software
CT-111 Cable SET for CE68
CAW230 Radio-to-Ship’s-Antenna Adapter
Note: Before operating the HX370S for the
first time, it is recommended that the bat-
tery be charged.
Page 6
HX370S
3. BATTERY
The FNB-83 and FNB-V57IS (intrinsically Safe Version) are high perfor-
mance rechargeable battery providing high capacity in a compact package.
Note: FNB-83 is supplied with the HX370S and the FNB-V57IS is supplied
with the HX370AS only.
CAUTION
To avoid risk of explosion and injury, FNB-83/FNB-V57IS battery pack
should only be removed, charged or recharged in non-hazardous envi-
ronments.
3.1 BATTERY CHARGING
If the radio has never been used, or its charge is depleted, it may be charged
by connecting the NC-88 battery charger (see figure 2 on page 8). If 12V DC
power is available, the optional E-DC-6 or the E-DC-19A DC adapter with
cigarette plug may be used for charging the battery. The NC-88, E-DC-6 and
E-DC-19A will charge a completely discharged FNB-83/FNB-V57IS battery
pack in about 10 hours.

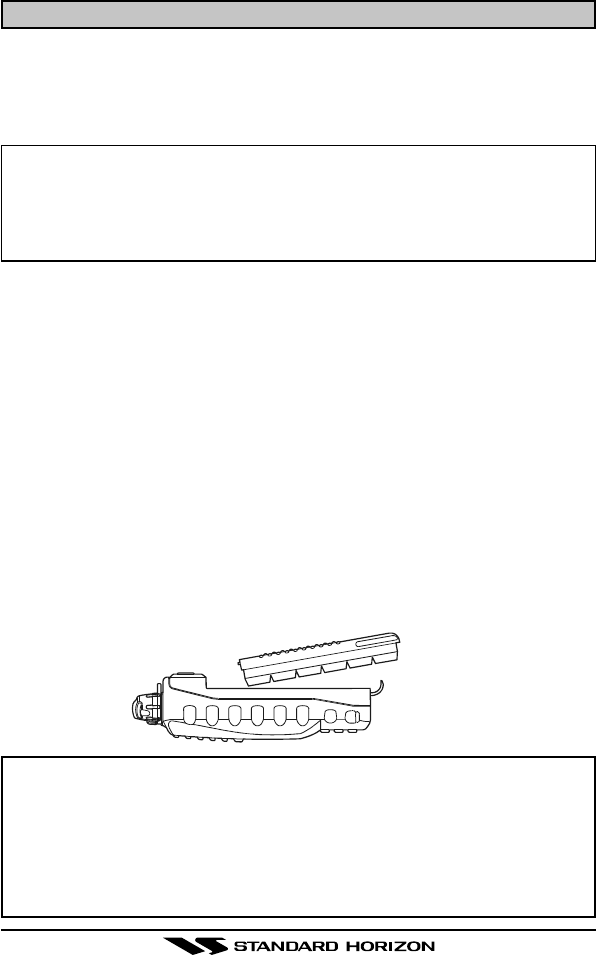

3.2 BATTERY REMOVAL/INSTALLATION
1. Turn the transceiver off.
2. To remove, open the Battery Pack Latch on the bottom of the trans-
ceiver, then slide the battery downward and out from the transceiver.
3. To install, insert the battery pack into the battery compartment on the
back of the transceiver, then close the Battery Pack Latch until it locks in
place with a “click.”
Page 7
Figure 1
Install the Battery Pack
Close the
Battery Pack Latch
➠
➠
Important Notice
To avoid the ingress of water between the transceiver body and battery
pack/case, close the Battery Pack Latch until it locks in place with a
“click” while pressing and holding the battery pack/case in to ward the
top panel (secure the upper edge of the battery pack/case snugly against
the upper edge of the battery nest).
HX370S
3.3 USING THE NC-88 BATTERY CHARGER
1. Install the supplied FNB-83/FNB-V57IS battery pack on the rear of the
HX370S. Ensure that the transceiver is
switched off.
2. Plug the NC-88 Overnight Charger into the
AC line outlet, then insert the cable plug
into the jack located on the side panel of
the CD-26 Charger Cradle.
3. Insert the transceiver and battery pack into
the CD-26; the antenna jack should be at
the left side when viewing the charger from
the front.
4. If the transceiver and battery pack are in-
serted correctly, the Red indicator on the
CD-26 will glow. A fully-discharged pack will
be charged completely in 10 hours.
Important Notes:
❍The NC-88 is not designed to power the transceiver for operation (re-
ception or transmission).
❍Do not leave the charger connected to the transceiver for continuous
periods in excess of 24 hours. Long term overcharging can degrade the
Ni-MH battery pack and significantly shorten its useful life.
❍If using a charger other than the NC-88/CD-26, or if using a battery pack
other than the FNB-83/FNB-V57IS, follow the appropriate instructions
provided with the charger/battery. Contact your Dealer if you have any
doubts about the appropriateness of the particular charger or battery
pack you intend to use.
3.4 FBA-25A Waterproof Alakline Battery Tray
FBA-25A is a battery case that holds six alkaline batteries and is used with the
HX370S transceiver.
When installing batteries, insert the (–) end first, then press in the (+) end so
the battery snaps into place. Always replace all six batteries at the same
time, paying attention to the polarity indicated inside the case.
The FBA-25A must not be used with rechargeable cells. The FBA-
25A does not contain the thermal and over-current protection
circuits (provided in the "FNB" series of Ni-MH Battery Packs) required
when utilizing Ni-Cd and Ni-MH cells.
Figure 2
Page 8
HX370S
3.5 BATTERY SAFETY
Battery packs for your transceiver contain Ni-MH/Ni-Cd batteries. This type
of battery stores a charge powerful enough to be dangerous if misused or
abused, especially when removed from the transceiver. Please observe the
following precautions:
DO NOT SHORT BATTERY PACK TERMINALS
Shorting the terminals that power to the transceiver can cause sparks, se-
vere overheating, burns, and battery cell damage. If the short is of sufficient
duration, it is possible to melt battery components. Do not place a loose
battery pack on or near metal surfaces or objects such as paper clips, keys,
tools, etc. When the battery pack is installed on the transceiver, the termi-
nals that transfer current to the transceiver are not exposed.
DO NOT INCINERATE
Do not dispose of any battery in a fire or incinerator. The heat of fire may
cause battery cells to explode and/or release dangerous gases.
Page 9
Caution
Never short-circuit the connection terminals on the bat-
tery or charger !
CONTAINS NICKEL-METAL-HYDRIDE BATTERY.
MUST BE RECYCLED OR DISPOSED OF PROP-
ERLY.
Ni-MH
CONTAINS NICKEL-CADMIUM BATTERY.
MUST BE RECYCLED OR DISPOSED OF
PROPERLY
HX370S
Figure 3
Controls and Connectors
4. CONTROLS AND INDICATORS
NOTE
This section defines each control of the transceiver. For detailed oper-
ating instructions, refer to section 5 of this manual. Refer to Figure 3 for
the location of the following controls, indicators, and connections.
Page 10
HX370S Page 11
4.1 CONTROLS AND CONNECTIONS
POWER SWITCH/VOLUME CONTROL
Turns the transceiver on and off, and adjusts the volume.
MIC/SP JACK
Accepts the optional CMP460, MH-57A4B speaker microphone or VC-24
VOX Headset. When this jack is used, the internal speaker is disabled.
Do not allow the HX370S to become submerged in water while
the plastic cover over the MIC/SP jack is removed.
Antenna Connector
The supplied CAT460 flexible antenna is attached here.
PUSH-TO-TALK (PTT) SWITCH
Activates transmission.
SQUELCH (SQL) SWITCH
Sets the point at which random noise on the channel does not activate
the audio circuits but a received signal does. This point is called the
Squelch threshold. Further adjustment of the squelch control will de-
grade the reception of wanted transmissions.
BUSY/TX INDICATOR
This indicator glows green when a signal is being received and red when
transmitting.
When the Emergency feature is activated, this indicator blinks the inter-
nationally-recognized Morse Code “S.O.S” message.
UP () KEY
Used to select a desired channel. Each press increases the channel
number. When held down, the channels increase continuously.
DOWN () KEY
Used to select a desired channel. Each press decreases the channel
number. When held down, the channels decrease continuously.
16/9 KEY
Immediately recalls channel 16 from any channel location. Holding down
this key recalls channel 9. The 16/9 key is also used to revert to the
channel selected before pressing the 16/9 key.
Example: select Ch68, press 16/9 key (Ch16 appears), press the 16/9
key again and Ch68 is shown.
HX370SPage 12
WX KEY
Immediately recalls the last-used NOAA Weather Channel from any chan-
nel location. Recalls the previously- selected working channel when the
WX key is pressed again.
Secondary use: When the 16/9 key is held and the WX key is pressed,
the radio will change modes between the USA, International, and Cana-
dian channel bands.

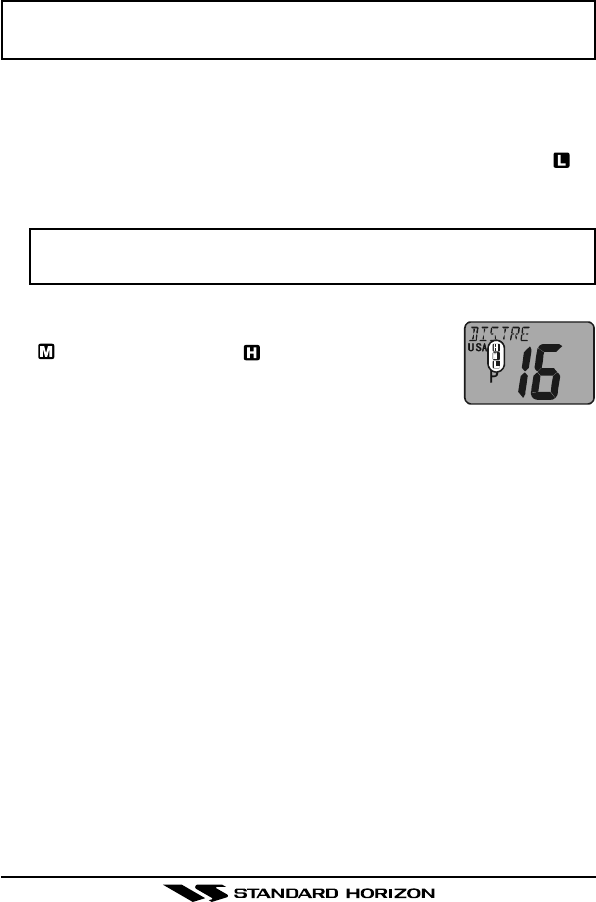

H/L KEY
Toggles the transmitter power level between High (5 Watts), Medium
(2.5 Watts), and Low (1 Watt) of output. Does not operate on “low power
only” and transmission-inhibit channels.
When operating on Canadian channel 13, or USA channels 13 or 67,
pressing this key momentarily toggles the power level from Low power
to Medium or High power.
Hold down this key to lock the displayed channel functions (except the
H/L, PTT, and SQL keys) so that they are not accidentally changed. The
key lock symbol “ ” will appear, to indicate that the functions are locked.
Hold down until the key lock symbol “ ” disappears to unlock the ra-
dio.
SCAN KEY
Starts scanning and Priority scanning of programmed channels. When
scanning, press and hold this key to turn on and off Priority scan (P is
shown on the left side of the display during Priority scanning).
PRESET KEY
Immediately recalls one of up to eight user preset memories for opera-
tion (shown as 1-8 on the LCD). Pressing this key repeatedly scrolls
through the preset memory channels.

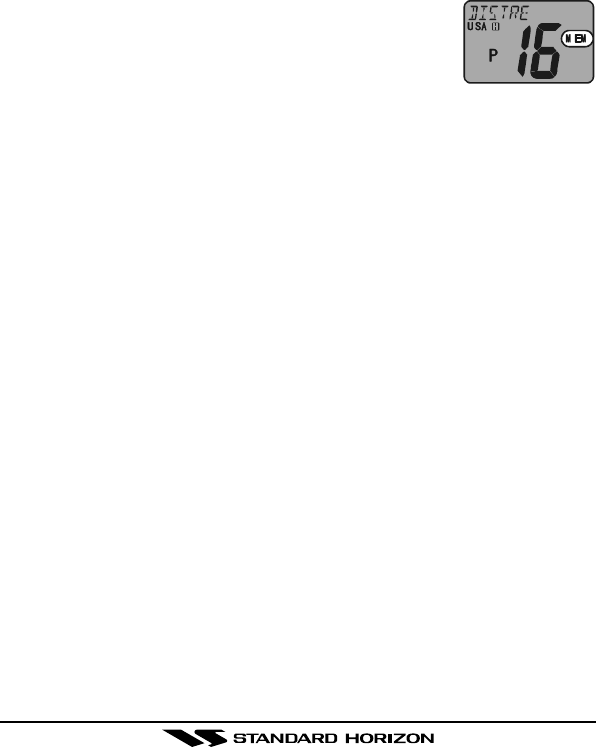

MEM KEY
Press to select a channel for scanning. Press this key again to delete a
memorized channel. (“MEM” appears on the LCD display during memory
operation).
HX370S Page 13
4.2 INDICATORS
Figure 4
Indicators

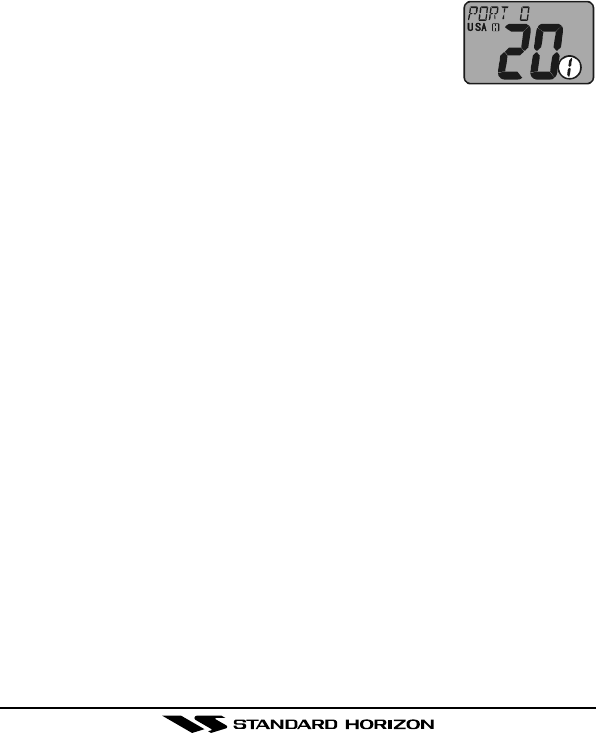

Channel Display
The operating channel is shown on the LCD in both the transmission and
reception modes.
A Indicator
Signifies ship-to-ship channels in USA or Canadian mode (whose counter-
part in the International mode is a public correspondence (marine operator)
channel).
USA/INTL/CAN Indicator
Denotes the “band” of operation for the particular channel. “USA” indicates
the USA band; “CAN” indicates the Canadian band; and “INTL” indicates
the International band.
/ / Indicators
“” indicates High power (5 Watts); “ ” indicates Medium power (2.5 Watts);
and “ ” is for Low power (1 Watt). “Blank” in this location indicates a re-
ceive-only channel.
P Indicator
Ch16 Priority Scan is activated.

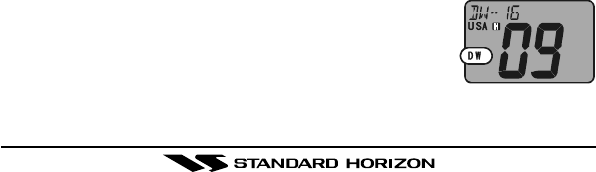

DW Indicator
Dual watch is activated.
SCN Indicator
Scan is activated.
TX Indicator
Appears during transmission.
HX370SPage 14
WX Indicator
A NOAA weather channel is selected.
MEM Indicator
The channel is in the transceiver’s “Scan Memory.”
Battery Indicator
When the battery charge is almost depleted, a “ ” icon will appear on the
display. When this icon appears, it is recommended that you charge the
battery soon.
No Icon Enough battery power
Lower battery power
Nearing depletion
(Blinking) Prepare to charge the battery
NOTE: The battery indicator should be used only as a guide in charging the
FNB-83/FNB-V57IS battery.

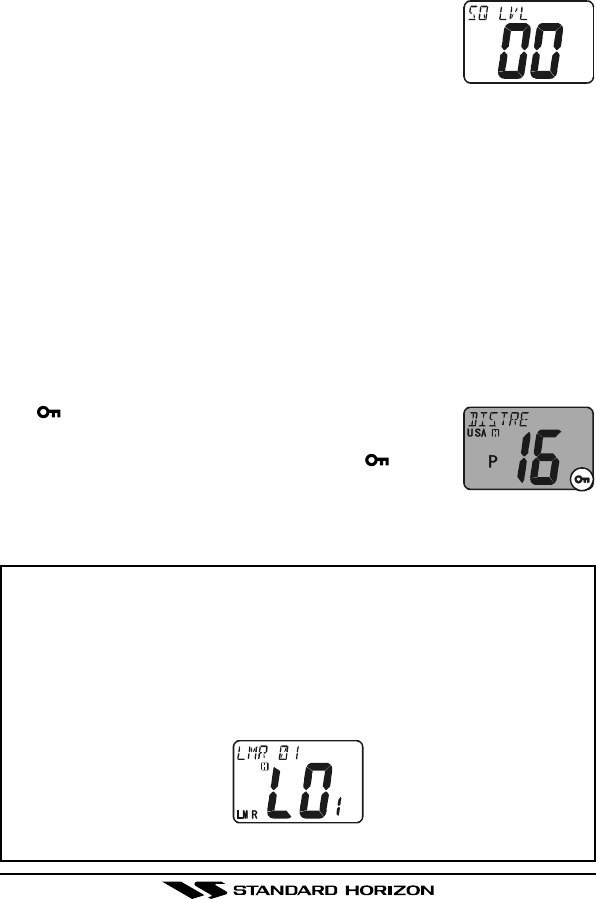

KEY Lock Indicator
When the “ ” symbol is shown on the LCD, all keys are disabled except
for the H/L, PTT and SQL keys.
HX370S

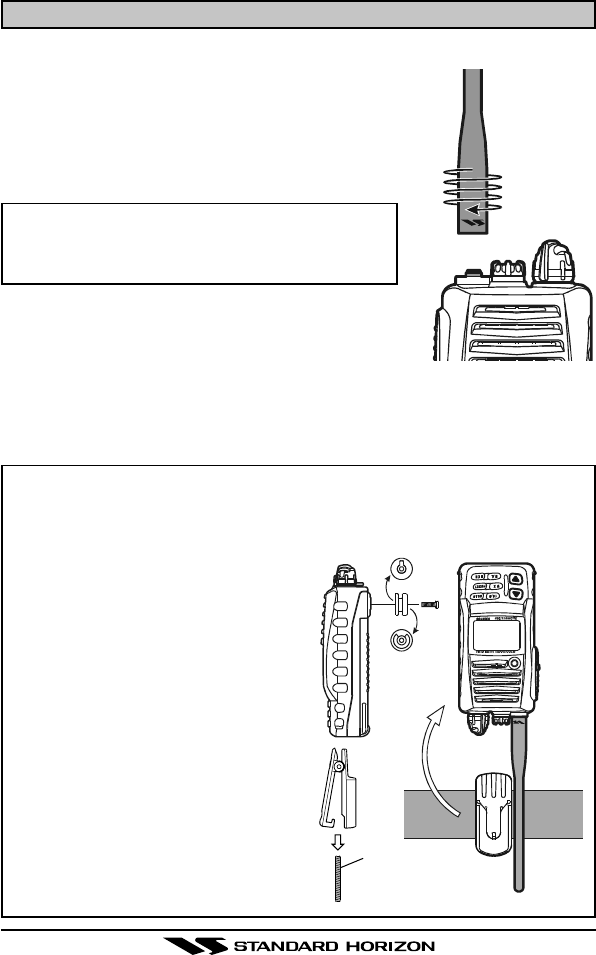

Installing the Quick Draw Belt Clip
1. Connect the hanger to the rear of the HX370S, with the notch point-
ing directly up, using the supplied screw (Figure 6-a).
Use only the screw included
with the clip to mount the clip
to the back of the transceiver!
2. Clip the Quick Draw Belt Clip to
your belt (Figure 6-b).
3. To install the HX370S into the
Quick Draw Belt Clip, align the
hanger with the Quick Draw Belt
Clip and slide the HX370S into
its slot until a click is heard.
4. To remove the HX370S from the
Quick Draw Belt Clip, Rotate the
HX370S 180 degrees, then slide
the transceiver out from the Quick
Draw Belt Clip (Figure 6-c).
Page 15
5. OPERATION
5.1 INITIAL SETUP
1. Install the belt clip on the transceiver, if desired.
2. Install the battery pack on the transceiver (see
figure 1 and section 3.2).
3. Install the antenna onto the transceiver.
NOTE
Water resistance of the transceiver is assured
only when the battery pack and antenna are
attached to the transceiver.
Figure 5
Antenna Installation
Figure 6
(a)
(b)
(c)
belt
➠
HX370SPage 16
5.2 RECEPTION
1. Turn the POWER/VOLUME CONTROL knob clockwise to turn the trans-
ceiver on.
2. Press the SQL key, then press the [] key until the
SQL level is 00.
3. Turn up the POWER/VOLUME CONTROL knob un-
til the noise or audio from the speaker is at a comfortable level.
4. Select a channel that has no signal being received (no one is transmit-
ting on the channel) and where only noise is heard.
5. Press the SQL key, then press the [] key and stop immediately after
the noise disappears. This condition is known as the “Squelch Thresh-
old.” If the squelch is set to a higher level, weak signals may not be
received.
6. To change channels, press the [] or [] key.
7. The LCD and keypad are illuminated for 5 seconds when any key is
pressed. The lamp automatically turns off in 5 seconds.
8. To “lock” the channel so that it is not accidentally changed, hold down
the H/L key for about one second. This locks the [] and [] buttons
and all the front panel controls except the H/L, PTT and SQL keys. The
“” symbol will appear on the display to indicate
that the keypad is locked. Hold down the H/L key for
about one second to unlock the keys. The “ ” sym-
bol will disappear from the display.
LMR (Land Mobile Radio) Channels
The HX370S is capable of PC programming 40 LMR (Land Mobile Ra-
dio) channels by a dealer.
Contact your dealer or Standard Horizon Product Support (800-767-
2450) for further details.
Typical display of LMR operation.
HX370S
5.3 TRANSMISSION
NOTE
Never key the transceiver without an antenna connected, as this may
cause damage to the transceiver.
1. Perform steps 1 through 7 of the RECEPTION discussion above.
2. Before transmitting, monitor the channel and make sure it is clear.
THIS IS AN FCC REQUIREMENT!
3. For communications over short distances, press the H/L key until “ ” is
displayed on the LCD. This indicates Low power (approximately 1 Watt).
NOTE
Transmitting on 1 Watt prolongs battery life. Low power (1 Watt)
should be selected whenever possible.
4. If using Low power is not effective, select Medium power (2.5 Watts) or
High power (5 Watts) by pressing the H/L key until
“” (Medium power) or “ ” (High power) is dis-
played.
5. When receiving a signal, wait until the incoming signal stops before trans-
mitting. The transceiver cannot transmit and receive simultaneously.
6. Press the PTT (Push-To-Talk) switch to transmit. The “TX” indicator is
displayed during transmission.
7. Speak slowly and clearly into the microphone. Hold the microphone about
½ to 1 inch away from your mouth.
8. When the transmission is finished, release the PTT switch.
5.4 TRANSMIT TIME - OUT TIMER (TOT)
While the PTT switch is held down, transmission time is limited to 5 minutes.
This prevents prolonged (unintentional) transmissions. About 10 seconds
before automatic transmitter shutdown, a warning beep sounds from the
speaker. The transceiver automatically switches to the receiving mode, even
if the PTT switch is held down. Before transmitting again, the PTT switch
must first be released, then pressed again. This Time-Out Timer (TOT) pre-
vents a continuous transmission that would result from an accidentally stuck
PTT switch.
Page 17
HX370SPage 18
5.5 USA, CANADIAN, AND INTERNATIONAL BANDS
1. To change the operating band (channel set) of the transceiver, hold down
the 16/9 key and press the WX key. The band will change from USA, to
International, and to Canadian with each press.
2. “USA” appears on the LCD for the USA band, “INTL”
appears for the International band, and “CAN” ap-
pears for the Canadian band.
5.6 NOAA WEATHER CHANNELS
1. To receive a NOAA weather channel, press the WX key. The transceiver
changes to the weather channel mode. This mode consists of a special
pre-set memory bank containing the standard NOAA weather channels.
2. The transceiver will be set to the last-used NOAA weather channel. Press
the [] or [] key to change to other weather channels.
3. To exit from the weather channel mode, press the
WX key. The transceiver will revert to the channel
you were using prior to switching to the weather chan-
nel mode.
5.6.1 NOAA WEATHER ALERT
In the event of extreme weather disturbances such as storms and hurri-
canes, NOAA (National Oceanic and Atmospheric Administration) sends a
“weather alert” consisting of a 1050 Hz tone, followed by weather reports on
the weather channels. The transceiver is capable of receiving this alert if the
following is performed:
1. Program your area’s weather channels into the transceiver’s scan
memory. Follow the same procedure as for regular channels under Sec-
tion 5.7.
2. Press the SCAN key to start the scan.
3. The memorized weather channels are scanned along with the regular
memorized channels. Scanning will not stop, however, on the (continu-
ous) weather broadcast channels unless the weather alert tone is re-
ceived.
4. When an alert is received on a weather channel, scanning stops and the
transceiver emits a beeping tone that will stay on for 5 minutes or until
the user presses the WX key to listen to the Weather Alert.
HX370S Page 19
5.6.2 NOAA WEATHER ALERT TESTING
In the event of a major storm or other appreciable weather condition requir-
ing vessels at sea or other bodies of water to be notified, the NOAA (Na-
tional Oceanographic and Atmospheric Administration) broadcasts a 1050
Hz tone that the HX370S can detect. (Refer to section 5.6.1 “NOAA WEATER
ALERT” on how to use this feature.) This tone, when detected, will produce
a loud beep from the radio speaker to signal that a weather alert is being
broadcast.
In order to test this system, the NOAA broadcasts the 1050 Hz tone every
Wednesday, sometime between 11 AM and 1 PM. Any marine VHF radio
that can detect the weather alert tone, may use this test to verify that this
feature is functioning properly.
NOTICE
Take care not to damage your hearing when operating with the optional
VC-24 VOX Headset or Earpiece. The NOAA Weather Alert Tone will be
emitted at full volume, irrespective of the setting of the POWER/VOL-
UME CONTROL knob.
HX370SPage 20
5.7 SCAN
This transceiver provides a special “Scanning Memory Bank” which allows
you to designate certain channels for inclusion in a “loop” which will be
scanned at high speed. If an incoming signal is detected on one of the chan-
nels in the scanning loop, the radio will pause on that channel, allowing you
to listen to the incoming transmission.
1. Select the desired channel to be included in the scanning loop using the
[] or [] key.
2. Press the MEM key to store the channel into the
transceiver’s scanning memory. “MEM” will be dis-
played on the LCD.
3. Repeat steps 1 and 2 for all the channels to be scanned.
4. To delete a channel from the transceiver’s scan memory, press the MEM
key again while the memorized channel is displayed. “MEM” will disap-
pear from the display.
5. All channels programmed remain in the transceiver’s scan memory even
if the power is turned off. See section 5.20: “RESETTING THE
TRANSCEIVER’S MICROPROCESSOR” to clear all channels from the
transceiver’s scan memory.
6. Press the SQL key, then press the [] or [] key until background noise
is eliminated.
7. To start scanning, press the SCAN key. The scan proceeds from the
lowest to the highest programmed channel number and stops on chan-
nels when a transmission is received. Scanning will resume when the
squelch closes after the incoming signal disappears at the end of the
transmission.
8. To stop the scan, press the SCAN, 16/9, or WX key.
HX370S Page 21
5.8 PROGRAMMABLE PRIORITY SCAN
The priority scanning feature allows the radio to scan while also keeping
watch on a particularly important “priority channel.” The following channels
can be set as the priority channel: 16, 09, and Preset Channels 1 through 8
(Preset Channels are described in section 5.14).
1. To set the priority channel, hold down the 16/9 key and press the MEM
key. The channel will change from 16 to 09 to Preset 1 to Preset 2 to
Preset 3 to Preset 4 to Preset 5 to Preset 6 to Preset 7 to Preset 8 with
each press of the MEM key. The displayed channel will be set as the
priority channel when the 16/9 key is released.
2. For priority scanning, hold down the SCAN key during normal scanning.
Scanning will proceed between the memorized channels and the priority
channel. The priority channel will be scanned after each programmed
channel. “P” is shown on the left side of the channel number during pri-
ority scanning.
3. As an example of priority scanning, let us say that channels 06, 07, and
08 are memorized in the transceiver’s scan memory. Priority scanning
will proceed in the following sequence:
[CH06] [Priority Channel] [CH07] [Priority Channel]
[CH08] [Priority Channel] [CH06] [Priority Channel] ……
4. Even when the transceiver stops and listens to the signal of a programmed
channel, the transceiver will “dual watch” between this channel and the
priority channel.
Therefore, your priority watching of the designated chan-
nel is not compromised when the scanner has paused on an active channel.
5.9 DUAL WATCH
The Dual Watch feature allows the radio to watch for a transmission on the
priority channel and another selected Marine channel until a signal is re-
ceived. The priority channel is determined per the discussion in section 5.8
“PROGRAMMABLE PRIORITY SCAN” as described previously.
1. To start the Dual Watch feature, select a channel to be dual watched
with the priority channel and press and hold in the
SCAN key. The radio checks the priority channel for
voice traffic every one second. A small “DW” icon
will be shown blinking on the left of the display dur-
ing scanning.
2. To cancel the Dual Watch feature, press the SCAN key.
HX370SPage 22
5.10 EMERGENCY (CHANNEL 16 USE)
Channel 16 is known as the Hail and Distress Channel. An emergency may
be defined as a threat to life or property. In such instances, be sure the
transceiver is on and set to CHANNEL 16. Then use the following proce-
dure:
1. Press the microphone push-to-talk switch and say “Mayday, Mayday,
Mayday. This is , , ” (your vessel's name).
2. Then repeat once: “Mayday, ” (your vessel's name).
3. Now report your position in latitude/longitude, or by giving a true or mag-
netic bearing (state which) to a well-known landmark such as a naviga-
tion aid or geographic feature such as an island or harbor entry.
4. Explain the nature of your distress (sinking, collision, aground, fire, heart
attack, life-threatening injury, etc.).
5. State the kind of assistance your desire (pumps, medical aid, etc.).
6. Report the number of persons aboard and condition of any injured.
7. Estimate the present seaworthiness and condition of your vessel.
8. Give your vessel’s description: length, design (power or sail), color and
other distinguishing marks. The total transmission should not exceed 1
minute.
9. End the message by saying “OVER”. Release the microphone button
and listen.
10. If there is no answer, repeat the above procedure. If there is still no
response, try another channel.
11. To recall the previously-selected channel, press the 16/9 key again.
5.11 CALLING ANOTHER VESSEL (CHANNEL 16 OR 9)
Channel 16 may be used for initial contact (hailing) with another vessel.
However, its most important use is for emergency messages. This channel
must be monitored at all times except when actually using another channel.
It is monitored by the U.S. and Canadian Coast Guards and by other ves-
sels. Use of channel 16 for hailing must be limited to initial contact only.
Calling should not exceed 30 seconds, but may be repeated 3 times at 2-
minute intervals. In areas of heavy radio traffic, congestion on channel 16
resulting from its use as a hailing channel can be reduced significantly in
U.S. waters by using Channel 9 as the initial contact (hailing) channel for
non-emergency communications. Here, also, calling time should not exceed
30 seconds but may be repeated 3 times at 2-minute intervals.
HX370S Page 23
Prior to making contact with another vessel, refer to the channel charts in
this manual, and select an appropriate channel for communications after
initial contact. For example, Channels 68 and 69 of the U.S. VHF Charts are
some of the channels available to non-commercial (recreational) boaters.
Monitor your desired channel in advance to make sure you will not be inter-
rupting other traffic, and then go back to either channel 16 or 9 for your initial
contact.
When the hailing channel (16 or 9) is clear, state the name of the other
vessel you wish to call and then “this is” followed by the name of your
vessel and your Station License (Call Sign). When the other vessel returns
your call, immediately request another channel by saying “go to,” the num-
ber of the other channel, and "over." Then switch to the new channel. When
the new channel is not busy, call the other vessel.
After a transmission, say “over,” and release the microphone's push-to-talk
(PTT) switch. When all communication with the other vessel is completed,
end the last transmission by stating your Call Sign and the word “out.” Note
that it is not necessary to state your Call Sign with each transmission, only
at the beginning and end of the contact.
Remember to return to Channel 16 when not using another channel. Some
radios automatically monitor Channel 16 even when set to other channels
or when scanning; see your Owner's Manual.
5.12 OPERATING ON CHANNEL 13
Channel 13 is used at docks, bridges and for maneuvering in port. Mes-
sages on this channel must concern navigation only, such as meeting and
passing in restricted waters. In emergencies and when approaching blind
river bends, High power is allowed. Pressing the H/L key will change the
power output from 1 Watt () to 5 Watts ( ); if pressed again, 2.5 Watts
() will be selected. When the PTT switch is released, the transceiver will
revert to Low power. Press the H/L key again if you need High power on a
subsequent transmission.
5.13 OPERATING ON CHANNEL 67
When channel 67 is used for navigational bridge-to-bridge traffic between
ships, High or Medium power may be used temporarily (in the USA band) by
pressing the H/L key. When the PTT switch released, the transceiver will
revert to low power.
HX370SPage 24
5.14 PRESET CHANNELS (1 ~ 8): INSTANT ACCESS
Eight user-assigned channels can be programmed for instant access.
5.14.1 Programming
1. Hold down the PRESET key, and press the [] or [] key (repeatedly, if
necessary) until the desired channel number (from among the regular
operating channels) is displayed.
2. With the desired channel number displayed, release the PRESET key.
The “1” notation will appear on the LCD display for 1 second, indicating
that the displayed channel is now saved in the Pre-
set Channel “1” position. Then the preset channel
number will disappear and the display comes back
to the normal channel display.
Repeat steps 1 and 2 to program the desired channels into Preset Channels
1 ~ 8.
To delete a Preset Channel, hold down the PRESET key and press the []
or [] key until the Preset Channel number to be deleted is displayed, then
release the PRESET key.
5.14.2 Operation
Pressing the PRESET key toggles between Preset Channel 1, 2, 3, 4, 5, 6,
7, 8 and the last selected “regular” channel. Preset Channel 1 is repre-
sented by “1” to the right of the channel number on the LCD for 1 second,
and channel 2 is represented by “2,” and so forth. Then the preset channel
numberr will disappear and the display comes back to the normal channel
display.
HX370S Page 25
5.15 SIMPLEX/DUPLEX CHANNEL USE
All channels are factory-programmed in accordance with FCC (USA), In-
dustry Canada and International regulations. The mode of operation cannot
be altered from simplex to duplex or vice-versa. Simplex or duplex mode is
automatically activated, depending on the channel and whether the USA,
International or Canadian operating band is selected.
5.16 ENABLING S.O.S STROBE OPERATION
The S.O.S. STROBE feature utilizes the high-intensity strobe LED on the
front of the HX370S as a visual distress beacon. When enabled, the LED
blinks the internationally-recognized Morse Code “S.O.S.” message
(•••–––•••
) at a rate of 5 words per minute. This can be very useful in
summoning help from rescuers who may not be able to communicate with
you via radio.
1. Hold down the MEM key while turning the radio on to activate the emer-
gency S.O.S. Strobe. Once the radio comes on, the BUSY/TX LED will
flash the Morse Code S.O.S. message repeatedly.
2. The S.O.S strobe will not operate if the squelch is turned off (Squelch
must be set to threshold), the radio is receiving a transmission or trans-
mitting.
3. To disable the S.O.S. strobe function, turn the radio off and back on
again.
HX370SPage 26
5.17 VOICE SCRAMBLER UNIT
The optional FVP-31 Voice Scrambler Unit permits secure voice communica-
tions with stations within your network, which prevents others from listening
using normal communication equipment.
To activate the Voice Scrambler:
1. Turn the radio off.
2. Hold down the SQL key, then turn on the transceiver while still holding
down the SQL key to enter the Setup Mode.
3. Press the SQL key momentarily to select the Menu item (SCr).
4. Press the [] or [] key momentarily select the scramble code (SC1,
SC2, SC3, or SC4).
5. When you have completed your selection, press the SQL key to save
the new setting, and then press the PTT switch to exit to normal operation.
6. To disable the Voice Scrambler, select “oFF” in step 4 above.

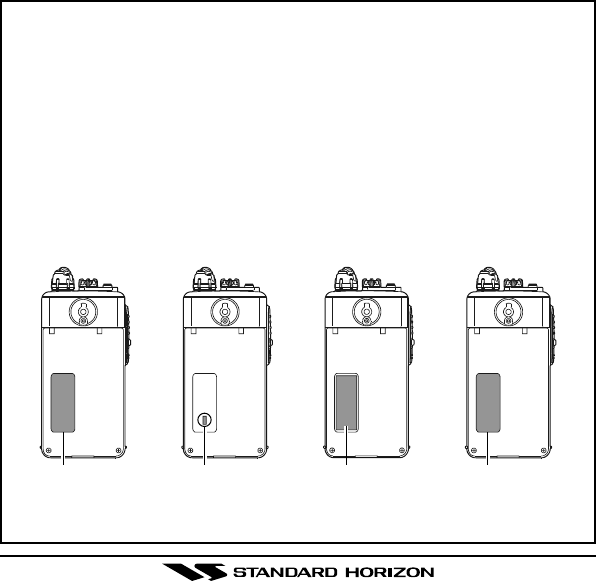

Installation of the FVP-31
1. Make sure that the transceiver is off. Remove the hard or soft case, if
used. Remove the battery pack.
2. Locate the connector for the FVP-31 under the seal in the battery
compartment on the back of the transceiver, just peel off the seal.
3. Align the connector on the FVP-31 with the transceiver’s connector
and gently press the unit into place.
4. Place the Sponge Sheet (supplied with the HX370S) on the FVP-31.
5. Affix the new (supplied with the FVP-31) seal, and replace the bat-
tery. Installation is now complete.
Figure 5
Peel off the Seal Locate Connector Affix the new Seal
➠➠➠
Sponge Sheet
HX370S Page 27
5.18 SETUP MODE
The HX370S’s Setup Mode allows a number of the HX370S operating pa-
rameters to be custom-configured for your operating requirements.
The Setup Mode is easy to activate and set, using the following procedure:
1. Turn the radio off.
2. Hold down the SQL key, then turn on the transceiver while still holding
down the SQL key.
3. “SEt” will appear on the display, indicating that the Setup Mode has been
activated.
4. Press the SQL key to select the Menu item to be adjusted (see below).
5. Press the [] or [] key select the status or value of the Menu item.
6. After completing your adjustment, press the SQL key to save the new
setting, and then press the PTT switch to exit to normal operation.
Key Beep
Channel Frequency
Channel Name
DW DisplayLamp Mode
Scan Lamp
Scan Display
Voice Scrambler
➠➠
➠➠
➠
➠
➠➠
➠
➡
“SQL” Key
HX370SPage 28
5.18.1 bEP (KEY BEEP)
Function: Enable/Disable the Keypad beeper.
Available Values: ON/OFF
Default: ON
5.18.2 CHF (CHANNEL FREQUENCY)
Function: Enable/Disables the Channel Frequency display.
Available Values: ON/OFF
Default: OFF

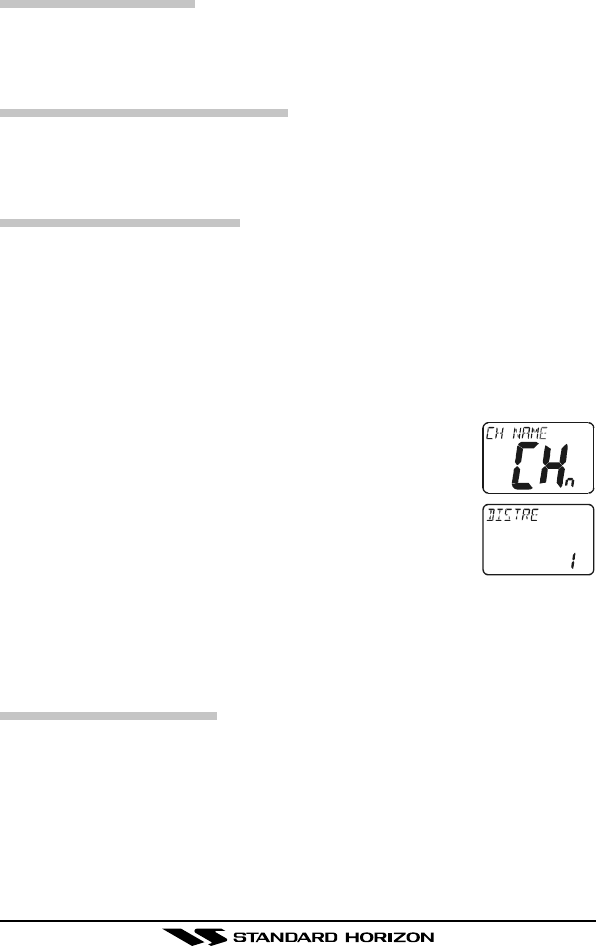

5.18.3 CHn (CHANNEL NAME)
Function: Changes the channel name shown on the display.
1. Select the channel on which you wish to change the name before recall-
ing this Menu item.
2. Turn the radio off.
3. Hold down the SQL key, then turn on the transceiver while still holding
down the SQL key.
4. “SEt” will appear on the display, indicating that the Setup Mode has been
activated.
5. Press the SQL key to select this Menu item “CHn.”
6. Press the [] or [] key to select the first character
(letter, number, or symbol) in the name you wish to
change, then press the MEM key to move to the next
character.
7. Repeat step 6 as many times as necessary to complete the name tag
(up to 12 characters).
8. After completing your adjustment, press the SQL key then PTT switch to
save the new setting and exit to normal operation.
5.18.4 dUL (DW DISPLAY)
Function: Selects the Dual Watch scanning display mode.
Available Values: Normal/Special
Default: Special
When “Special” is selected, channel number which is the LCD shows re-
ceived channel.
HX370S
5.18.5 LP (LAMP MODE)
Function: Select the LCD/Keypad Lamp mode.
Available Values: KEY/Cnt (Continue)/OFF
Default: KEY
KEY: Illuminates the LCD/Keypad for 5 seconds when any key is
pressed.
Cnt (Continue): Illuminates the LCD/Keypad continuously.
oFF: Disables the LCD/Keypad illumination.
5.18.6 SnL (SCAN LAMP)
Function: Enable/Disable the Scan lamp while scanning is paused.
Available Values: ON/OFF
Default: ON
5.18.7 SCn (SCAN DISPLAY)
Function: Select the display mode while scanning.
Available Values: nor (Normal)/SPL (Special)
Default: nor (Normal)
nor (Normal): The channel number changes when scanning.
SPL (Special): The channel number only changes when the radio receives
a transmission. This lets you see the last channel on which
someone called.
Page 29
Key Continue Off
5.18.8 SCr (VOICE SCRAMBLER) [Requires optional FVP-31]
Function: Enable/Disable the Voice Scrambler.
Available Values: OFF/SC0/SC1/SC2/SC3
Default: OFF
Normal Special
Off Code “SC1” Code “SC2” Code “SC3”
HX370SPage 30
5.19 CLONING
The HX370S includes a convenient “Clone” feature, which allows the memory
and configuration data from one transceiver to be transferred to another
HX370S.
1. Turn both radios off.
2. Connect the (optional) CT-32 Clone Cable between the MIC/SP jacks of
the two transceivers.
3. Hold down the PRESET key and then turn on the
transceiver. Do this for both transceivers (the order
of switching the radios on does not matter); “CLn”
will appear on the display on both transceivers.
4. On the Destination transceiver, press the PRESET
key (“Cr” will appear on the LCD).
5. Press the 16/9 key on the Source transceiver; “CS”
will appear on the Source radio, and the data will
now be transferred.
6. If there is a problem during the cloning process, “CEr”
will displayed. Check your cable connections and
battery voltage, and try again.
7. If the data transfer is successful, the Destination transceiver will return
to normal operation; Turn both transceivers off and disconnect the Clone
cable. You can then turn the transceivers back on, and begin normal
operation.
HX370S Page 31
5.20 RESETTING THE TRANSCEIVER’S MICROPROCESSOR
Resetting the microprocessor restores the initial, factory-supplied conditions
in the transceiver. These are called the “default” conditions. To reset the
microprocessor, first turn the transceiver off. Then, while pressing and hold-
ing in the WX and SCAN keys, turn the transceiver on. The default condi-
tions are:
• No channel numbers are in scan memory.
• Channel 16 is the priority channel.
• Channel 16 will be selected when the transceiver is turned on.
• WX channel 01 will be recalled when the WX key is pressed.
• Preset Channels are unassigned.
NOTE
The above procedure also resets the microprocessor. Perform this pro-
cedure if an operational problem occurs which cannot be solved by nor-
mal operating procedures.
HX370S
TROUBLESHOOTING CHART
6. MAINTENANCE
To receive warranty service, the purchaser must deliver the Product, trans-
portation and insurance prepaid, to STANDARD HORIZON Marine Repair
Department (a division of VERTEX STANDARD), 10900 Walker Street Cy-
press, CA 90630. Include proof of purchase indicating model. serial num-
ber, and date of purchase. STANDARD HORIZON will return the Product to
the purchaser freight prepaid. For general troubleshooting, refer to this
Troubleshooting Chart.
SYMPTOM
The SCAN key
does not start the
scan.
The USA/INTL/
CAN modes do not
function.
Press and holding
the SQL key does
not eliminate back-
ground noise.
Cannot change
any function.
Key Lock does not
function.
Indicator does not
light when charg-
ing a battery.
PROBABLE
CAUSE
No channels
memorized.
Squelch is not ad-
justed.
Proper operation
not followed.
Low battery.
Key Lock is on.
Proper operation
not followed.
Defective battery
FNB-83/-V57IS or
corroded contacts
on battery or
charger.
REMEDY
Use the MEM key to enter
desired channels into the
transceiver’s memory.
Adjust the squelch to thresh-
old or to the point where noise
just disappears. Further ad-
justment of the squelch con-
trol may eliminate incoming
signals.
HOLD down the 16/9 key and
press the WX key.
Charge battery. Refer to sec-
tion 3 of this manual.
Turn Key Lock off. Refer to
section 4.1. .
Hold down the H/L key for 1
second.
Contact your Standard
Horizon dealer.
Page 32
HX370S Page 33
7. PRODUCT SUPPORT INQUIRIES
If you have any questions or comments regarding the use of the HX370S,
you can visit the STANDARD HORIZON Web site
(www.standardhorizon.com),
send an E-mail marinetech@vxstdusa.com, or contact the Product Support
team at (800)767-2450 M-F 7:00-5:00PST.
8. CHANNEL ASSIGNMENTS
Tables on the following columns list the VHF Marine Channel assignments
for U.S.A. and International use. Below are listed some data about the charts.
1. VTS. Where indicated, these channels are part of the U.S. Coast Guard’s
Vessel Traffic System.
2. Alpha channel numbers, that is, channel numbers followed by the letter
A (such as Channel 07A) are simplex channels on the U.S.A. or Cana-
dian channel assignments whose counterparts in the International as-
signments are duplex channels. International channels do not use “Al-
pha” numbers. If you call the Coast Guard on Channel 16, they will some-
times ask you to “go to channel 22 Alpha.” This is a channel assigned
to U.S.A, and Canadian Coast Guards for handling distress and other
calls. If your radio is set for International operation you will go to Chan-
nel 22 instead of 22A, and will not be able to communicate with the
Coast Guard. To use Channel 22A, your radio must be set for USA or
Canada operation, usually by a U/I/C (USA/International/Canada) con-
trol or combination of controls. Channel 22 (without an “A” is an Interna-
tional duplex channel for port operations. Some radios indicate an “A”
adjacent to the alpha channels on the display; on others “Alpha” is not
indicated but the proper channel is selected based on the U/I/C setting.
3. Bridge-to-Bridge channels (for example, Channel 13) are for use by bridge
operators on intercoastal waterways and rivers. It is also used by marine
vessels in the vicinity of these bridges for navigation and for communi-
cating with the bridge operators. Note that a limit of 1 Watt is specified
for these channels. See page 23 for additional information.
4. The S/D column on the chart indicates either S (simplex) or D (duplex).
Simplex means transmitting and receiving on the same frequency. Only
one party at a time can talk, unlike a telephone. Be sure to say “over”
and release your microphone push-to-talk switch at the end of each trans-
mission. Duplex operation involves the use of one frequency for trans-
mitting and a separate frequency for receiving. On channels specified
HX370SPage 34
VHF MARINE CHANNEL CHART
CH U C I S/D TX RX CHANNEL USE
01 X X D 156.050 160.650 Public Correspondence (Marine Operator)
01A X S 156.050 Port Operation and Commercial. VTS in selected areas
02 X X D 156.100 160.700 Public Correspondence (Marine Operator)
03 X X D 156.150 160.750 Public Correspondence (Marine Operator)
03A X S 156.150 US Government only, Coast Guard
04 X D 156.200 160.800 Public Correspondence (Marine Operator),
Port operation, ship movement
04A X S 156.200 Pacific coast: Coast Guard, East Coast:
Commercial fishing
05 X D 156.250 160.850 Public Correspondence (Marine Operator),
Port operation, ship movement
05A X X S 156.250 Port operation. VTS in Seattle
06 X X X S 156.300 Inter-ship Sefety
07 X D 156.350 160.950 Public Correspondence (Marine Operator),
Port operation, ship movement
07A X X S 156.350 Commercial
08 X X X S 156.400 Commercial (Inter-ship only)
09 X X X S 156.450 Boater Calling channel, Commercial & Non-commercial
(Recreational)
10 X X X S 156.500 Commercial
11 X X X S 156.550 Commercial. VTS in selected areas.
12 X X X S 156.600 Port operation. VTS in selected areas.
13 X X X S 156.650 Inter-ship Navigation Safety (Bridge-to-bridge)
14 X X X S 156.700 Port operation. VTS in selected areas.
15 X S - - - 156.750 Environmental (Receive only)
15 X X S 156.750 Commercial, non-commercial, ship movement (1 W)
16 X X X S 156.800 International Distress, Safety and Calling
17 X X X S 156.850 State Controlled (1 W)
18 X D 156.900 161.500 Port operation, ship movement
18A X X S 156.900 Commercial
19 X D 156.950 161.550 Port operation, ship movement
19A X S 156.950 US: Commercial
19A X S 156.950 Coast Guard
as duplex on the charts, correct mode of operation is established auto-
matically by your radio when you select a channel; you cannot change
the mode. And you still must release the push-to-talk switch after each
transmission in order to listen to the radio.
5. Channels normally used by recreational boaters are those that include
the term “non-commercial” in the Channel Use column of the chart. Some
of these are shared with other users and some are used only in certain
geographic regions.
6. Marine vessels equipped with VHF radios are required to monitor
Channel 16.
VHF Marine Channel
HX370S Page 35
VHF MARINE CHANNEL CHART
CH U C I S/D TX RX CHANNEL USE
20 X X X D 157.000 161.600 Canadian Coast Guard Only,
International: port operations and shipment
20A X S 157.000 Port operation
21 X D 157.050 161.650 Port operation, ship movement
21A X X S 157.050 U.S. Government Only, Canadian Coast Guard
22 X D 157.100 161.700 Port operation, ship movement
22A X X S 157.100 US and Canadian Coast Guard Liaison and Maritime
Safety Information Broadcasts announced on channel 16
23 X X D 157.150 161.750 Public Correspondence (Marine Operator)
23A X S 157.150 U.S. Government Only
24 X X X D 157.200 161.800 Public Correspondence (Marine Operator)
25 X X X D 157.250 161.850 Public Correspondence (Marine Operator)
26 X X X D 157.300 161.900 Public Correspondence (Marine Operator)
27 X X X D 157.350 161.950 Public Correspondence (Marine Operator)
28 X X X D 157.400 162.000 Public Correspondence (Marine Operator)
60 X X D 156.025 160.625 Public Correspondence (Marine Operator)
61 X D 156.075 160.675 Public Correspondence (Marine Operator),
Port operation, ship movement
61A X X S 156.075 U.S. Government Only, Canadian Coast Guard-
Pacific Coast, Commercial Fishing-East Coast
62 X D 156.125 160.725 Public Correspondence (Marine Operator),
Port operation, ship movement
62A X S 156.125 Public Coast: Coast Guard;
East Coast: commercial fishing only
63 X D 156.175 160.775 Public Correspondence (Marine Operator),
Port operation, ship movement
63A X S 156.175 Port Operation and Commercial. VTS in selected areas.
64 X X D 156.225 160.825 Public Correspondence (Marine Operator),
Port operation, ship movement
64A X X S 156.225 U.S. Government Only, Canadian Commercial Fishing
65 X D 156.275 160.875 Public Correspondence (Marine Operator),
Port operation, ship movement
65A X X S 156.275 Port Opeations
66 X D 156.325 160.925 Public Correspondence (Marine Operator),
Port operation, ship movement
66A X X S 156.325 Port Operations
67 X X X S 156.375 US: Commercial. Used for Bridge-to-bridge communi-
cations in lower Mississippi River. Inter-ship only,
Canada: Commercial fishing, S&R
68 X X X S 156.425 Non-commercial (Recreational)
69 X X X S 156.475 US: Non-commercial (Recreational),
Canada: Commercial fishing only,
International: Inter-ship, Port opertions and Ship movement
70 X X X S 156.525 Digital selective calling (voice communications not allowed)
71 X X X S 156.575 US, Canada: Non-commercial (Recreational),
International: Port opertions and Ship movement
72 X X X S 156.625 Non-commercial (Inter-ship only)
73 X X X S 156.675 US: Port Operations, Canada: Commercial fishing only,
International: Inter-ship, Port opertions and Ship movement
HX370SPage 36
VHF MARINE CHANNEL CHART
CH U C I S/D TX RX CHANNEL USE
74 X X X S 156.725 US: Port Operations, Canada: Commercial fishing only,
International: Inter-ship, Port opertions and Ship movement
75 X S 156.775 Port Operations (Inter-ship only) (1W)
76 X S 156.825 Port Operations (Inter-ship only) (1W)
77 X X S 156.875 Port Operations (Inter-ship only) (1W)
77 X S 156.875 Port Operations (Inter-ship only)
78 X D 156.925 161.525 Public Correspondence (Marine Operator),
Port operation, ship-movement
78A X X S 156.925 Non-commercial (Recreational)
79 X D 156.975 161.575 Port operation and Ship movement
79A X X S 156.975 Commercial
80 X D 157.025 161.625 Port operation, ship movement
80A X X S 157.025 Commercial
81 X D 157.075 161.675 Port operation, ship movement
81A X X S 157.075 U.S. Government Only -
Environmental protection operations.
82 X D 157.125 161.725 Public Correspondence (Marine Operator),
Port operation, ship movement
82A X X S 157.125 U.S. Government Only, Canadian Coast Guard Only
83 X X D 157.175 161.775 Canadian Coast Guard Only
83A X X S 157.175 U.S. Government Only, Canadian Coast Guard Only
83 X X D 157.175 161.775 Public Correspondence (Marine Operator)
84 X X X D 157.225 161.825 Public Correspondence (Marine Operator)
85 X X X D 157.275 161.875 Public Correspondence (Marine Operator)
86 X X X D 157.325 161.925 Public Correspondence (Marine Operator)
87 X X X D 157.375 161.975 Public Correspondence (Marine Operator)
88 X X X D 157.425 162.025 Public Correspondence (ship-to-coast)
88A X S 157.425 Commercial, Inter-ship Only
WX01
X X X D - - - 162.550 Weather (receive only)
WX02
X X X D - - - 162.400 Weather (receive only)
WX03
X X X D - - - 162.475 Weather (receive only)
WX04
X X X D - - - 162.425 Weather (receive only)
WX05
X X X D - - - 162.450 Weather (receive only)
WX06
X X X D - - - 162.500 Weather (receive only)
WX07
X X X D - - - 162.525 Weather (receive only)
WX08
X X X D - - - 161.650 Weather (receive only)
WX09
X X X D - - - 161.775 Weather (receive only)
WX10
X X X D - - - 163.275 Weather (receive only)
The above BOLD channels are not for use of the general public in U.S. waters,
unless proper authorization is given.
HX370S Page 37
Port Operations
01A1156.050 156.050
63A1156.175 156.175
05A2156.250 156.250
65A 156.275 156.275
66A 156.325 156.325
123156.600 156.600
73 156.675 156.675
143156.700 156.700
74 156.725 156.725
774156.875 Intership only.
20A12 157.000 Intership only.
Navigational (Bridge-to-Bridge)5
136156.650 156.650
677156.375 156.375
Commercial
01A1156.050 156.050
63A1156.175 156.175
07A 156.350 156.350
677156.375 Intership only.
08 156.400 ........ Do.
09 156.450 156.450
10 156.500 156.500
113156.550 156.550
18A 156.900 156.900
19A 156.950 156.950
79A 156.975 156.975
80A 157.025 157.025
88A8157.425 ........ Intership only.
7214 156.625 ........ Internship only.
Digital Selective Calling
7015 156.525 156.525
Noncommercial
6817 156.425 156.425
0916 156.450 156.450
69 156.475 156.475
71 156.575 156.575
72 156.625 ........ Intership only.
78A 156.925 156.925
79A 156.975 156.975 Great Lakes only.
80A 157.025 157.025 Do.
6714 156.375 ....... Internship only.
Distress, Safety and Calling
16 156.800 156.800 EPRIB
Intership Safety
06 156.300 ........ a. Intership, or b.
For SAR: Ship and
aircraft for the U.S.
Coast Guard.
Environmental
1513 ........ 156.750 Coast to ship only.
Maritime Control
179,10 156.850 156.850
Liaison, U.S. Coast Guard
22A11 157.100 157.100 Ship, aircraft, and
coast stations of
the U.S. Coast
Guard and at Lake
Mead, Nev., ship
and coast stations
of the National
Park Service, U.S.
Department of the
Interior.
Public Correspondence
(Marine Operator) channels
24 157.200 161.800
84 157.225 161.825
25 157.250 161.850
85 157.275 161.875
26 157.300 161.900
86 157.325 161.925
27 157.350 161.950
87 157.375 161.975
28 157.400 162.000
888157.425 162.025
Ship
transmit
Channel
designator
Carrier frequency
(MHz)
Points of communica-
tion (Intership and be-
tween coast and ship
unless otherwise indi-
cated)
Coast
transmit
Ship
transmit
Channel
designator
Carrier frequency
(MHz)
Points of communica-
tion (Intership and be-
tween coast and ship
unless otherwise indi-
cated)
Coast
transmit
HX370SPage 38
1. 156.050 MHz and 156.175 MHz are available for port operations and commercial
communications purposes when used only within the U.S. Coast Guard desig-
nated Vessel Traffic Services (VTS) area of New Orleans, on the lower Missis-
sippi River from the various pass entrances in the Gulf of Mexico to Devil’s Swamp
Light at River Mile 242.4 above head of passes near Baton Rouge.
2. 156.250 MHz is available for port operations communications use only within the
U.S. Coast Guard designated VTS radio protection areas of New Orleans and
Houston described in Sec. 80.383. 156.250 MHz is available for intership port
operations communications used only within the area of Los Angeles and Long
Beach harbors, within a 25- nautical mile radius of Point Fermin, California.
3. 156.550 MHz, 156.600 MHz and 156.700 MHz are available in the U.S. Coast
Guard designated port areas only for VTS communications and in the Great Lakes
available primarily for communications relating to the movement of ships in sec-
tors designated by the St. Lawrence Seaway Development Corporation or the
U.S. Coast Guard. The use of these frequencies outside VTS and ship move-
ment sector protected areas is permitted provided they cause no interference to
VTS and ship movement communications in thier respective designated sectors.
4. Use of 156.875 MHz is limited to communications with pilots regarding the move-
ment and docking of ships. Normal output power must not exceed 1 watt.
5. 156.375 MHz and 156.650 MHz are available primarily for intership navigational
communications. These frequencies are available between coast and ship on a
secondary basis when used on or in the vicinity of locks or drawbridges. Normal
output power must not exceed 1 watt. Maximum output power must not exceed
10 watts for coast stations or 25 watts for ship stations.
6. On the Great Lakes, in addition to bridge-to-bridge communications, 156.650
MHz is available for vessel control purposes in established vessel traffic sys-
tems. 156.650 MHz is not available for use in the Mississippi River from South
Pass Lighted Whistle Buoy “2” and Southwest Pass entrance Midchannel Lighted
Whistle Buoy to mile 242.4 above Head of Passes near Baton Rouge. Addition-
ally it is not available for use in the Mississippi River-Gulf Outlet, the Mississippi
River-Gulf Outlet Canal, and the Inner Harbor Navigational Canal, except to aid
the transition from these areas.
7. Use of 156.375 MHz is available for navigational communications only in the
Mississippi River from South Pass Lighted Whistle Buoy “2” and Southwest Pass
entrance Mid-channel Lighted Whistle Buoy to mile 242.4 above head of Passes
near Baton Rouge, and in addition over the full length of the Mississippi River-
Gulf Outlet Canal from entrance to its junction with the Inner Harbor Navigation
Canal, and over the ull length of the Inner Harbor Navigation Canal from its junc-
tion with the Mississippi River to its entry to Lake Pontchartrain at the New Seabrook
vehicular bridge.
HX370S
8. Within 120 km (75 miles) of the United States/Canada border, in the area of the
Puget Sound and the Strait of Juan de Fuca and its approaches, 157.425 MHz is
half of the duplex pair designated as Channel 88. In this area, Channel 88 is
available to ship stations for communications with public coast stations only. More
than 120 km (75 miles) from the United States/Canada border in the area of the
Puget Sound and the Strait of Juan de Fuca, its approaches, the Great Lakes,
and the St. Lawrence Seaway, 157.425 MHz is available for intership and com-
mercial communications. Outside Puget Sound area and its approaches and the
Great Lakes, 157.425 MHz is also available for communications between com-
mercial fishing vessels and associated aircraft while engaged in commercial fish-
ing activities.
9. When the frequency 156.850 MHz is authorized, it may be used additionally for
search and rescue training exercises conducted by state or local governments.
10. The frequency 156.850 MHz is additionally available to coast stations on the
Great Lakes for transmission of scheduled Coded Marine Weather Forecasts
(MAFOR), Great Lakes Weather Broadcast (LAWEB) and scheduled Notices to
Mariners or Bulletins. F3C and J3C emissions are permitted. Coast Stations on
the Great Lakes must cease weather broadcasts which cause interference to
stations operating on 156.800 MHz until the interference problem is resolved.
11. The frequency 157.100 MHz is authorized for search and rescue training exer-
cises by state or local government in conjunction with U.S. Coast Guard stations.
Prior U.S. Coast Guard approval is required. Use must cease immediately on
U.S. Coast Guard request.
12. The duplex pair for channel 20 (157.000/161.600 MHz) may be used for ship to
coast station communications.
13. Available for assignment to coast stations, the use of which is in accord with an
agreed program, for the broadcast of information to ship stations concerning the
environmental conditions in which vessels operate, i.e., weather; sea conditions;
time signals; notices to mariners; and hazards to navigation.
14. Available only in the Puget Sound and the Strait of Juan de Fuca.
15. The frequency 156.525 MHz is to be used exclusively for distress, safety and
calling using digital selective calling techniques. No other uses are permitted.
16. The frequency 156.450 MHz is available for intership, ship and coast general
purpose calling by noncommercial vessels, such as recreational boats and pri-
vate coast stations.
17. The frequency 156.425 MHz is assigned by rule to private coast stations in Alaska
for facsimile transmissions as well as voice communications.
Page 39
HX370S
9. WARRANTY
Marine Products Limited Warranty
STANDARD HORIZON (a division of VERTEX STANDARD) warrants, to the
original purchaser only, each new Marine Communications Product (“Prod-
uct”) manufactured and/or supplied by STANDARD HORIZON against de-
fects in materials and workmanship under normal use and service for a
period of time from the date of purchase as follows:
3 years Waterproof - if purchased after 01/01/94
Associated Chargers
3 years - if purchased after 01/01/91
Associated Batteries - 1 year. Note: Batteries will be deemed deflec-
tive only if storage capacity drops below 80%
of rated capacity or if leakage develops.
Associated Accessories - 1 year. Includes: Microphones/Handsets, Ex-
ternal Speakers, Antennas, Carrying Accesso-
ries, Power Supplies, and Signaling Boards.
In the event of a defect, malfunction or failure of the Product during the
warranty period, STANDARD HORIZON’s liability for any breach of contract
or any breach of express or implied warranties in connection with the sale of
Products shall be limited solely to repair or replacement, at its option, of the
Product or part(s) therein which, upon examination by STANDARD HORIZON,
appear to be defective or not up to factory specifications. STANDARD
HORIZON may, at its option, repair or replace parts or subassemblies with
new or reconditioned parts and subassemblies. Parts thus repaired or re-
placed are warranted for the balance of the original applicable warranty.
STANDARD HORIZON will not warrant installation, maintenance or service
of the Products. In all instances, STANDARD HORIZON’s liability for dam-
ages shall not exceed the purchase price of the defective Product.
This warranty only extends to Products sold within the 50 States of the United
States of America and the District of Columbia.
STANDARD HORIZON will pay all labor to repair the product and replace-
ment parts charges incurred in providing the warranty service except where
purchaser abuse or other qualifying exceptions exist. The purchaser must
pay any transportation expenses incurred in returning the Product to
STANDARD HORIZON for service.
Page 40
HX370S
This limited warranty does not extend to any Product which has been sub-
jected to misuse, neglect, accident, incorrect wiring by anyone other than
STANDARD HORIZON, improper installation, or subjected to use in viola-
tion of instructions furnished by STANDARD HORIZON, nor does this war-
ranty extend to Products on which the serial number has been removed,
defaced, or changed. STANDARD HORIZON cannot be responsible in any
way for ancillary equipment not furnished by STANDARD HORIZON which
is attached to or used in connection with STANDARD HORIZON’s Products,
or for the operation of the Product with any ancillary equipment and all such
equipment is expressly excluded from this warranty. STANDARD HORIZON
disclaims liability for range, coverage, or operation of the Product and ancil-
lary equipment as a whole under this warranty. STANDARD HORIZON re-
serves the right to make changes or improvements in Products, during sub-
sequent production, without incurring the obligation to install such changes
or improvements on previously manufactured Products.
The implied warranties which the law imposes on the sale of this Product
are expressly LIMITED, in duration, to the time period specified above. STAN-
DARD HORIZON shall not be liable under any circumstances for conse-
quential damages resulting from the use and operation of this Product, or
from the breach of this LIMITED WARRANTY, any implied warranties, or
any contract with STANDARD HORIZON. IN CONNECTION WITH THE
SALE OF ITS PRODUCTS, STANDARD HORIZON MAKES NO WARRAN-
TIES, EXPRESS OR IMPLIED AS TO THE MERCHANTABILITY OR FIT-
NESS FOR A PARTICULAR PURPOSE OR OTHERWISE, EXCEPT AS
EXPRESSLY SET FORTH HEREIN.
Some states do not allow the exclusion or limitation of incidental or conse-
quential damages, or limitation on how long an implied warranty lasts, so
the above limitations or exclusions may not apply. This warranty gives spe-
cific legal rights, and there may be other rights which may vary from state to
state.
ONLY PRODUCTS SOLD ON OR AFTER JANUARY 1, 1991 ARE COV-
ERED UNDER THE TERMS OF THIS LIMITED WARRANTY.
In addition to the warranty, STANDARD HORIZON includes a lifetime “flat
rate” program to provide service after the warranty period has expired. If you
wish to obtain the flat rate price for out-of-warranty repair, you must include
the information on the Owner's Record with the unit when you return it to
STANDARD HORIZON.
Page 41
HX370S
Note: The flat rate amount is payable by the Owner only if STANDARD
HORIZON or the STANDARD HORIZON Dealer determines that a repair is
needed. After the repair, a 90-day warranty will be in effect from the date of
return of the unit to the Owner.
This service program is not available for equipment which has failed as a
result of neglect, accident, breakage, misuse, improper installation or modi-
fication.
Page 42
ON-LINE WARRANTY REGISTRATION
Please visit www.standardhorizon.com to register the HX370S Marine
VHF. It should be noted that visiting the Web site from time to time may
be beneficial to you, as new products are released they will appear on
the STANDARD HORIZON Web site.
HX370S Page 43
10. SPECIFICATIONS
7.1 General
Frequency range: 156 MHz - 163.275 MHz (
Marine Band + WX Band
)
Channel Steps: 25 kHz
137 MHz - 174 MHz (LMR)
Channel Steps: 12.5 / 25 kHz
Frequency stability: ± 2.5 ppm (–22 °F to +140 °F [–30 °C to +60 °C])
Emission type: 16K0G3E, 16K0F3E, 11K0F3E
Antenna impedance: 50 Ohms
Supply voltage: 7.2 VDC
Current consumption: 200 mA (Receive)
40 mA (Standby, Saver Off)
TX: 1.4 A (H)/0.9 A (M)/0.5 A (L)
Operating Temperature: –22 °F to +140 °F (–30 °C to +60 °C)
Waterproof rating: 30 minutes @ 1 meter depth (JIS 7)
Case Size (W x H x D): 2.3” x 4.7” x 1.2” (58 x 120 x 30.5 mm)
Weight (Approx): 13.4 oz (380 g) with FNB-83
7.2 Transmitter
RF output power: 5 W/2.5 W/1 W @7.2 V
Modulation Type: Variable Reactance
Max deviation: ±5 kHz (Wide)
±12.5 kHz (Narrow)
Spurious emissions: At least 73 dB down
Microphone impedance: 2 k-Ohm
7.3 Receiver
Circuit type: Double-conversion superheterodyne
Intermediate Frequencies: 1st: 21.7 MHz
2nd: 450 kHz
Sensitivity: 0.25 µV 12 dB SINAD
Adjacent channel selectivity
: 70 dB
Intermodulation response
: 70 dB
Selectivity: 12 kHz / 25 kHz (–6 dB/–60 dB) (Wide)
6 kHz / 18 kHz (–6 dB/–60 dB) (Narrow)
AF output: 600 mW @ 16 Ohm for 10 % THD (@7.2V)
HX370SPage 44
MEMO
HX370S
This device complies with part 15 of the FCC rules. Operation is subject
to the condition that this device does not cause harmful interference.
Part 15.21: Changes or modifications to this device not expressly ap-
proved by Vertex Standard could void the User’s authorization to oper-
ate this device.
Copyright 2004
VERTEX STANDARD CO., LTD.
All rights reserved.
No portion of this manual
may be reproduced
without the permission of
VERTEX STANDARD CO., LTD.
Printed in Japan
Marine Division of VERTEX STANDARD
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
www.standardhorizon.com
EM008N101
