Page 42 CPV350
7. USING FIND SERVICES & MORE FUNCTION
With a C-MAP NT+/MAX C-CARD installed the GPS chartplotter allows you to search for
a Port Service, Port, Tide Stations, Wrecks, Obstructions, POIs, Lakes, User Points, or
GPS Coordinates.
7.0 PORT SERVICES
1. Press [MENU]. Move the ShuttlePoint knob to highlight FIND SERVICES and press
[ENT].
2. Move the ShuttlePoint knob to highlight PORT SERVICE and press [ENT] or move the
ShuttlePoint knob to the right.
3. A popup window will be shown with the Port Services.
4. Move the ShuttlePoint knob to highlight the desired Service and press [ENT].
5. Another popup window will show the name, distance and position of the Services closest
to your location.
6. Using the ShuttlePoint knob, highlight the desired Service and press [ENT] which will
show the name and phone number of the Service.
7. Press [CLR] which will show the available Services at the location.
8. Press [CLR] to show the actual position of the Services.
Figure 7.0 - Port Services
7.1 OTHER AVAILABLE SEARCHES
PORT BY NAME Searches and shows on the Chart page the list of all ports stored on the C-CARD in alphabetic
order
PORT BY DISTANCE Searches and shows the list of all ports stored on the C-CARD in distance order
TIDE STATIONS Searches for the closest Tide Station and shows the information of the tide station
WRECKS Searches and shows on the Chart page for the closest Wrecks
OBSTRUCTIONS Searches and shows on the Chart page for the closest Obstructions
USER POINTS Searches and shows on the Chart page for the closest User Points (Marks or Waypoints)
COORDINATES Searches and shows on the Chart page for GPS Coordinates
POIs Searches and shows information on the selected Point Of Interest
LAKES Searches and shows information on the selected Lake
INFORMATION Searches and shows information on the selected point
Page 43CPV350
7.2 INFO ON LAKES (WITH OPTIONAL C-MAP LAKES CARTOGRAPHY)
7.2.0 Quick Info On Lakes
Upon viewing the chart of a lake, you will click on to query the available information
immediately displayed with many details. For example, see the following picture:
Lakes Info icon

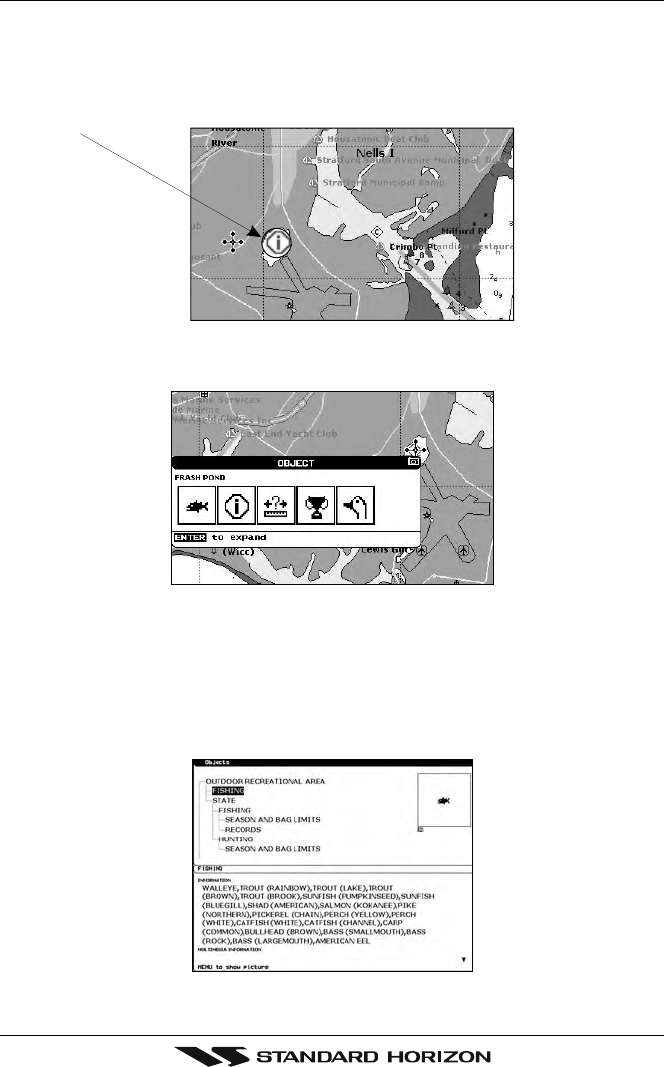

Figure 7.2.0 - Example of Lakes info
When the cursor is placed over the icon, the icons of the available services are shown:
Figure 7.2.0a - Quick Info: available services
If you press [ENT] all available information about the cartographic point under the cursor
will be shown. See the next paragraph.
7.2.1 Full Info On Lakes
The following is an example of Full Info on Lakes:
Figure 7.2.1 - Example of Full Info page
Page 44 CPV350
To see the “Fishing” object press [MENU] (when the “Fishing” object is highlighted). On the
screen appears:

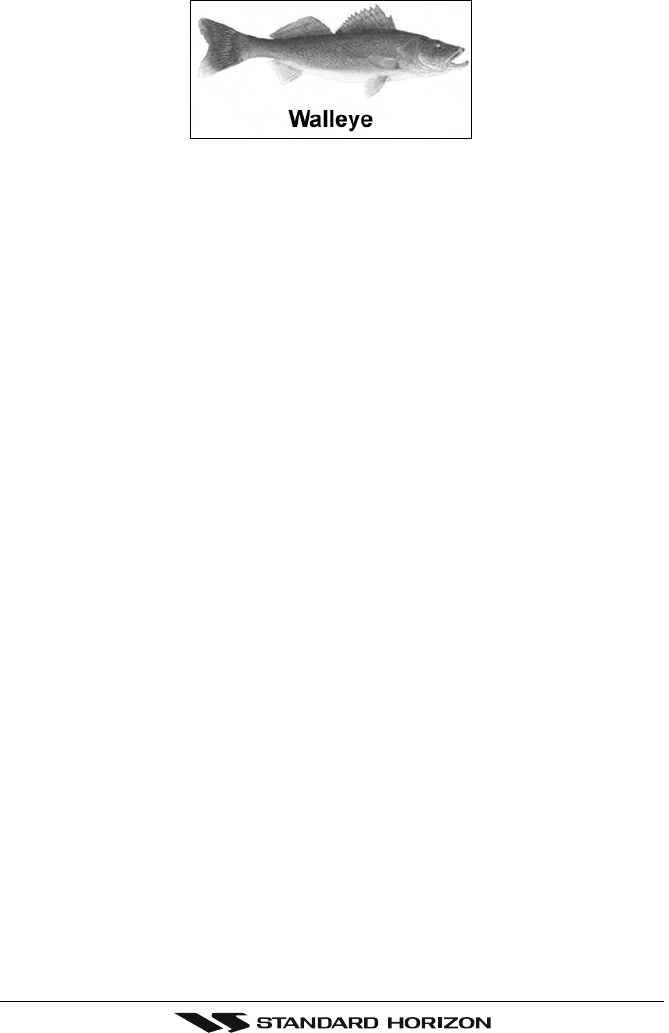

Figure 7.2.1a - Example of picture associated to the Fishing object
Page 45CPV350
8. CREATING MARKS
MARK
Can be a stand alone position or be linked to a Route. A Mark is placed on the Chart page
using [MARK/MOB] or by entering in information in the Mark/Wpt List NEW MARK
selection.
WAYPOINTS
Always linked to a Route. Are placed on the Chart page using [RTE].
NOTE
The difference between a Mark and a Waypoint is
a. When a Route is created using WAYPOINTS and the ROUTE is deleted the WAYPOINTs are
also deleted.
b. If a Route is created using MARKS and the ROUTE is deleted the MARKs remain.
8.0 CREATING A NEW MARK USING THE CHART PAGE
1. Move the ShuttlePoint knob to the desired or approx. Lat/Lon and press [MARK/MOB].
2. You will notice a Mark is placed under the location of the Cursor and a popup window
is shown with the exact Lat/Lon of the Mark.
3. If the position is incorrect press [EDIT] that will allow you to change the position, Mark
name, icon type and color of the icon.
Vessel location
Mark placed under Cursor
Lat/Lon of Mark, DST/BRG
from vessel location
2
1
4
Press Soft Key to show the
Marks/Waypoint List, to edit,
to move or to delete Mark
3
1
2
4
3
Figure 8.0 - Mark creation
8.1 EDITING A MARK
If a Mark has previously been created and you wish to Edit it, move Cursor over the top of the Mark.
Figure 8.1 - Mark editing
1. After a Mark is created, press [EDIT] to show the edit popup window.
2. Use the ShuttlePoint knob to change to the desired Mark Icon, when finished press
[ENT].
3. Move the ShuttlePoint knob to the right to select the Mark Name. Press [ENT] an the
Page 46 CPV350
first digit in the name will be highlighted.
4. Move the ShuttlePoint knob up or down to select the first character.
5. Move the ShuttlePoint knob to the right to select the next character.
6. Repeat steps 4 and 5 until the Mark name is shown. Press [ENT].
7. Move the ShuttlePoint knob to the right and press [ENT] to change the Mark Icon’s
Color.
8. Move the ShuttlePoint knob to up/down, left/right to select the Mark Icon’s Color. When
finished press [ENT].
9. Move the ShuttlePoint knob to the right to select the Lat/Lon and press [ENT].
10. Move the ShuttlePoint knob up or down to select the first character.
11. Move the ShuttlePoint knob to the right to select the next character.
12. Repeat steps 10 and 11 until the desired position is shown. Press [ENT] and [CLR] to
store the Mark.
8.1.0 Deleting a Mark or Waypoint
Move the cursor over the Mark or Waypoint to delete. Press [DELETE]. A Warning popup
window will be shown. Select YES and press [ENT].
8.1.1 Moving a Mark or Waypoint
Place the cursor over the Mark or Waypoint which you want to move. Press [MOVE]. Use
the ShuttlePoint knob to move the cursor. A dotted line, connecting the previous Waypoint
position to the new position, is shown:
Figure 8.1.1 - Moving Mark or Waypoint (I)
Press [ENT] ([CLR] to abort the move), the Waypoint appears in the new position.
Figure 8.1.1a - Moving Mark or Waypoint (II)
Page 47CPV350
8.2 MARKS/WAYPOINTS LIST
The Marks/Wpt List shows all the Marks and Waypoints that have been stored into the GPS
chartplotter. This page also allows you to:
ICON Allows sorting by icon type
FIND Searches through the Marks or Waypoints to find a point by name using the ShuttlePoint knob
LOCATE Shows the position of a Mark or Waypoint on the Chart page
EDIT Allows you to edit a previous stored Mark or Waypoint
SORT Sort the name of the Mark or Waypoint in ascending or descending order
NEW MARK Allows entering in Marks, editing icon type and position
MODE This selection controls how the Marks or Waypoints are shown on the Chart page. Selections are:
a. SHOW - icon and name are shown
b. ICON - only icon (no name) is shown
c. HIDE - Mark or Waypoint is hidden
d. SHOW ALL - All Marks or Waypoints are shown
e. ICON ALL - All Icons are shown without name
f. HIDE ALL - All Marks or Waypoints are hidden
DELETE Delete the selected point
DEL ALL Delete all stored points
SEND Sends the stored points to a external device (PC) capable of listening to NMEA WPL sentence.
RECEIVE Receive the points from an external device (PC) that is capable of sending NMEA WPL
sentence.
NOTE
The SEND and RECEIVE functions are usually used by navigation programs running on a Personal
Computer example Nobeltech.
Figure 8.2 - Marks/Waypoints List
8.3 CREATING A NEW MARK WITH THE MARKS/WAYPOINTS LIST
NOTE
This function is very useful if you have a list of Marks that you want to enter into the GPS chartplotter.
1. Press [MENU]. Move the ShuttlePoint knob to highlight USER POINTS and press
[ENT].
2. Move the ShuttlePoint knob to highlight Marks/Wpt and press [ENT].
3. The Marks/Wpt List page will be shown (see previous picture).
4. To create a New Mark, move the ShuttlePoint knob to the right to highlight NEW MARK
and press [ENT].
5. Press [ENT] to change to show the Icon popup window.
6. Move the ShuttlePoint knob to highlight the desired Icon and press [ENT].
7. Move the ShuttlePoint knob to the right to select the Mark name. Press [ENT] and the
Page 48 CPV350
first digit in the name will be highlighted.
8. Move the ShuttlePoint knob up or down to select the first character.
9. Move the ShuttlePoint knob to the right to select the next character.
10. Repeat steps 8 and 9 until the Mark name is shown. Press [ENT].
11. Move the ShuttlePoint knob to the right to select the Lat/Lon and press [ENT].
12. Move the ShuttlePoint knob up or down to select the first character.
13. Move the ShuttlePoint knob to the right to select the next character.
14. Repeat steps 12 and 13 until the desired position is shown. Press [ENT] and [CLR], a
WARNING “Save the new Mark?” popup window will be shown, move the ShuttlePoint
knob to the right or left to select YES or NO and press [ENT].
8.4 GOTO CURSOR
The GPS chartplotter allows you to quickly start navigating to the Cursor, Mark or Route.
GOTO CURSOR
1. Move the ShuttlePoint knob to the exact position you want to navigate to.
2. Press [GOTO] and a GOTO popup window will be shown
Figure 8.4 - GO TO menu
3. Move the ShuttlePoint knob to highlight CURSOR and press [ENT].
4. The GPS chartplotter is now navigating from your current position to the location
selected at step 1.
Figure 8.4a - Navigating to Cursor Example
5. Now the GPS chartplotter shows a navigation line between the vessels location and the
destination point. A popup window shows the Distance (DST) and Bearing (BRG) from
the vessels location to the destination point.
6. The GPS chartplotter is in Cursor mode, to switch to Home mode press [CLR] to so the
vessel stay in the center of the page.
7. Two Soft Keys are also shown that allow you to quickly switch to the HIGHWAY page
or to stop navigation.
8. To STOP Navigation, press [GOTO] and the WARNING page is shown. Select STOP
and press [ENT].
Page 49CPV350
8.5 GOTO MARK
1. Move the ShuttlePoint knob to an open position (no buoy, warning etc. under the cursor)
on the Chart page.
2. Press [GOTO] to show the GOTO popup window.
3. Move the ShuttlePoint knob to highlight MARK and press [ENT] to show the Marks/Wpt
List.
4. Move the ShuttlePoint to the highlight the desired Mark or Waypoint and press [GOTO].
5. You will notice a circle is drawn around the Icon Symbol. This means the GPS
chartplotter is now navigating to the point.
6. Press [CLR] to switch to the Chart page or Highway page to start navigating to the point.
Page 50 CPV350
9. MAN OVER BOARD (MOB) FUNCTION
During navigation, the “MOB” feature provides a one-touch method of storing a location
(such as a point were a crew member fell overboard). In this mode, the GPS chartplotter
places a MOB point on the Chart page and all the navigation data shown is related to
navigating back to this point, allowing you to retrace your path to the MOB point efficiently.
1. On the Chart page, press [MARK/MOB] to start navigating back to the point.
2. You will notice a MOB Mark will be laid on the Chart page and all navigation is referring
back to this point.
3. If the cursor is moved over the MOB Icon, popup windows over Soft Keys will be shown
allowing quick access to the Navigation or Highway pages.
9.0 DELETING A MOB POINT
1. Move the ShuttlePoint knob until the cursor is over the top of the MOB icon.
2. Press [DELETE], a popup window will be shown to confirm deleting the MOB point.
3. Move the ShuttlePoint knob to highlight YES and press [ENTER].
Page 51CPV350
10. ROUTES
The GPS chartplotter has the capability to store 20 Routes with a maximum of 50 Waypoints
each.
A Route can consist of Waypoints or Marks. The difference is when a Route is made using
Waypoints and the Route is deleted the Waypoints are also deleted. However if a Route is
made of Marks and the Route is deleted the Marks stay in memory.
10.0 CREATING A ROUTE USING WAYPOINTS
1. On the Chart page move the ShuttlePoint knob to the Lat/Lon of the starting Waypoint
in the Route.
2. Press [RTE], you will notice the Starting Waypoint will be placed under the cursor.
3. Move the ShuttlePoint knob to the second Lat/Lon of the next leg in the Route.
4. Press [RTE]. You will notice another Waypoint is shown under the cursor and a line joins
the starting Waypoint to the Second Waypoint.
Figure 10.0 - Creating a Route using Waypoints
5. Repeat steps 3 and 4 until all Waypoints are entered into the Route.
NOTE
At this point the Route is saved as ROUTE01. If you would like to save the Route under a specific
name follow the remaining steps.
6. To name the Route press [MENU]. Move the ShuttlePoint knob to highlight USER
POINTS and press [ENT].
7. Move the ShuttlePoint knob to highlight ROUTE and press [ENT].
8. Move the ShuttlePoint knob to highlight REPORT and press [ENT] or move the
ShuttlePoint knob to the right.
9. Move the ShuttlePoint knob to highlight NAME and press [ENT]. A popup window will
be shown.
10. Move the ShuttlePoint knob up/down to change the characters and left/right to select
a different character in the Routes Name.
Page 52 CPV350
Figure 10.0 - Route Report
11. When finished press [ENT] to save.
12. Press [CLR] to show the Chart page.
10.1 MAKING ADDITIONAL ROUTES
To create another Route the GPS chartplotter must be told that you want to create a second
Route.
1. Press [MENU]. Move the ShuttlePoint knob to highlight USER POINTS and press
[ENT].
2. Move the ShuttlePoint knob to highlight ROUTE and press [ENT].
3. Move the ShuttlePoint knob to highlight SELECT and press [ENT] or move the
ShuttlePoint knob to the right.
4. Move the ShuttlePoint knob to an open Route number example Route 2.
5. Press [ENT] or move the ShuttlePoint knob to the right.
6. Press [CLR] or move the ShuttlePoint knob to the left until the Chart page is shown.
7. To create the new Route, follow the steps in Creating a Route using Waypoints or Marks
sections.
10.2 CREATING A ROUTE USING MARKS ON THE CHART PAGE
To create a Route containing Marks you first must create the Marks and show them on the
Chart page.
1. Move the ShuttlePoint knob over the top of a Mark that you wish to be the starting point
in the Route and press [RTE].
2. Next move the ShuttlePoint knob until the cursor is over the Mark that you want to be
the next leg in the Route.
3. Press [RTE]. You will notice a bearing line joins the first and second Mark which means
these Marks are selected into the Route.
4. Repeat steps 3 and 4 until all Marks are entered into the Route.
NOTE
At this point the Route is saved as ROUTE01. If you would like to save the Route under a specific
name follow the remaining steps.
5. To name the Route press [MENU]. Move the ShuttlePoint knob to highlight USER
POINTS and press [ENT].
6. Move the ShuttlePoint knob to highlight ROUTE and press [ENT].
Page 53CPV350
7. Move the ShuttlePoint to highlight REPORT and press [ENT] or move the ShuttlePoint
knob to the right.
8. Move the ShuttlePoint knob to highlight NAME and press [ENT] or move the Shuttle-
Point knob to the right. A popup window will be shown.
9. Move the ShuttlePoint knob up/down to change the characters and left/right to select
a different character in the Routes Name.
10. When finished press [ENT] to save.
11. Press [CLR] to show the Chart page is shown.
10.3 INSERTING A WAYPOINT INTO A ROUTE
Place the cursor on the navigation line between two points and press [RTE]. Move the
ShuttlePoint knob to the desired location of the Waypoint and press [ENT].
10.4 GOTO A ROUTE
10.4.0 By select Route
1. Move the ShuttlePoint knob to an open position (no buoy, warning etc. under the cursor)
on the Chart page.
2. Press [GOTO] to show the GOTO popup window.
3. Move the ShuttlePoint knob to highlight ROUTE and press [ENT].
4. The SELECT ROUTE popup window will be shown.
5. Move the ShuttlePoint knob to the highlight the desired Route and press [ENT].
6. On the Chart page a circle with a Flag is shown on the first leg of the Route and a navigation
line is shown, indicating the GPS chartplotter is navigating to the first Waypoint in the
Route.

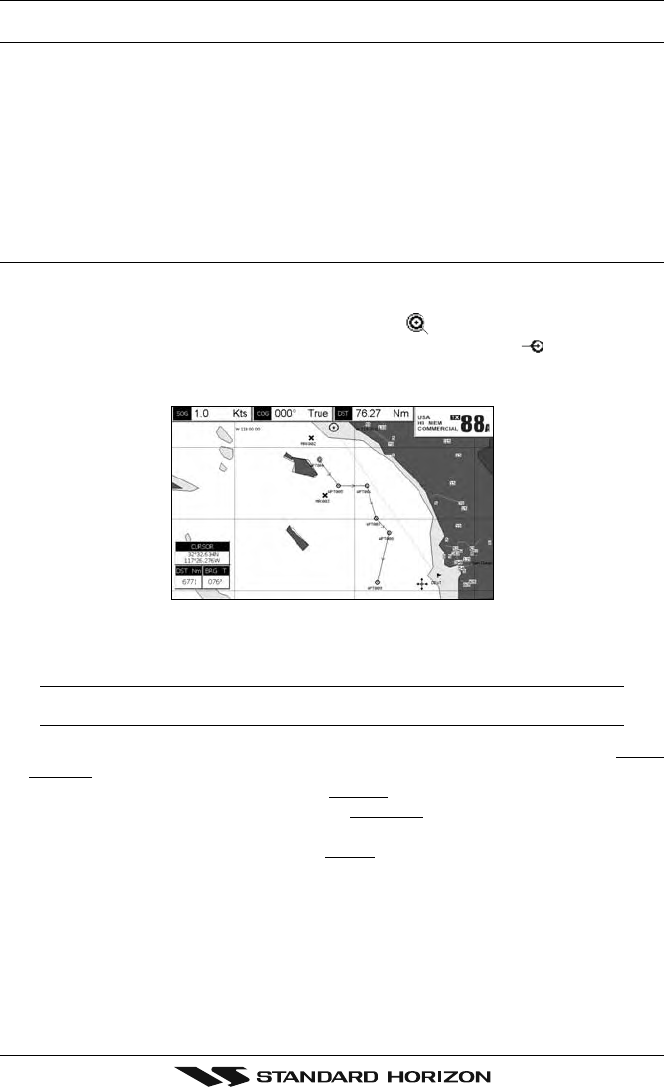

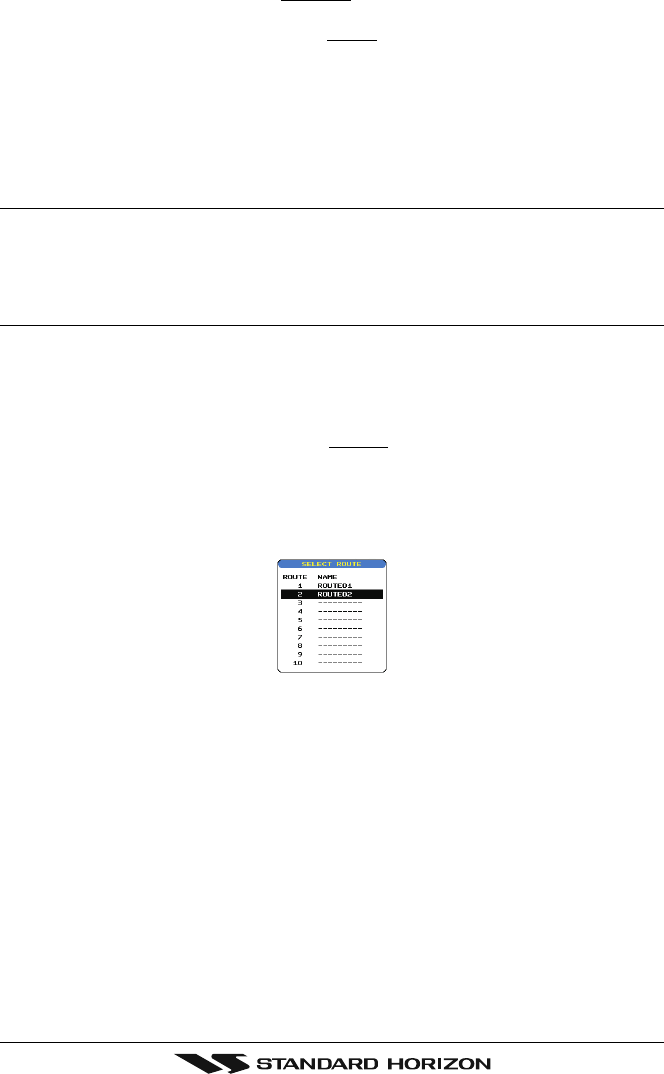

Figure 10.4.0 - Select a Route
10.4.1 By Cursor key
1. On the Chart page move the ShuttlePoint knob until the cursor reaches the starting point
of the Route.
2. Press [GOTO] to start following the Route.
3. Press [CLR] twice to revert to Home mode.
Page 54 CPV350
10.5 OTHER SETTINGS IN ROUTE MENU
You will notice the ROUTE menu has other selections.
SELECT Choose an available Route to create or choose a stored Route to show and follow on the Chart page.
DELETE Deletes the Route when shown in the above SELECT menu.
REVERSE Reverses the Route, when chosen Starting point is at the end of the Route.
COLOR Allows changing the color of the navigation lines between in leg in the Route.
REPORT The Route Report menu is useful to show details of the Waypoints contained within the Route. This menu
also allows you to enter in your average speed and fuel consumption and calculate the approximate fuel
used when following the Route.
SEND Sends the stored points to a external device (PC) capable of listening to NMEA RTE sentence.
RECEIVE Receive the points from an external device (PC) capable of sending NMEA RTE sentence.
Page 55CPV350
11. TRACKS
The GPS chartplotter has the capability to store 5 individual and record up to 3000 Track
Points.
Before using the Track function you will need to setup the Track function that suits your boat.
The Track function tracks your vessels location as it moves through the water. The Track
function can be setup to lay down a Track for a predetermined time or distance interval. If
you have a fast moving boat you may want to setup the GPS chartplotter to record a Track
point every 0.5 NM or if you have a sail boat you may want to setup to lay down a Track point
once ever 1 minute.
NOTE
Pls note the Track point memory is 3000 points. This means for a long journey you may have to adjust
the time or distance to be able to track your journey. It should be noted when the 3000 Track points
are used up the first Track point layed down will be deleted when a new point is placed on the chart.
1. Press [MENU]. Move the ShuttlePoint knob to highlight USER POINTS and press
[ENT].
2. Move the ShuttlePoint knob to highlight TRACK and press [ENT].
3. Move the ShuttlePoint knob to highlight STEP UNIT and press [ENT] or move the
ShuttlePoint knob to the right.
4. Move the ShuttlePoint knob to highlight Dist or Time and press [ENT] or move the
ShuttlePoint knob to the right.

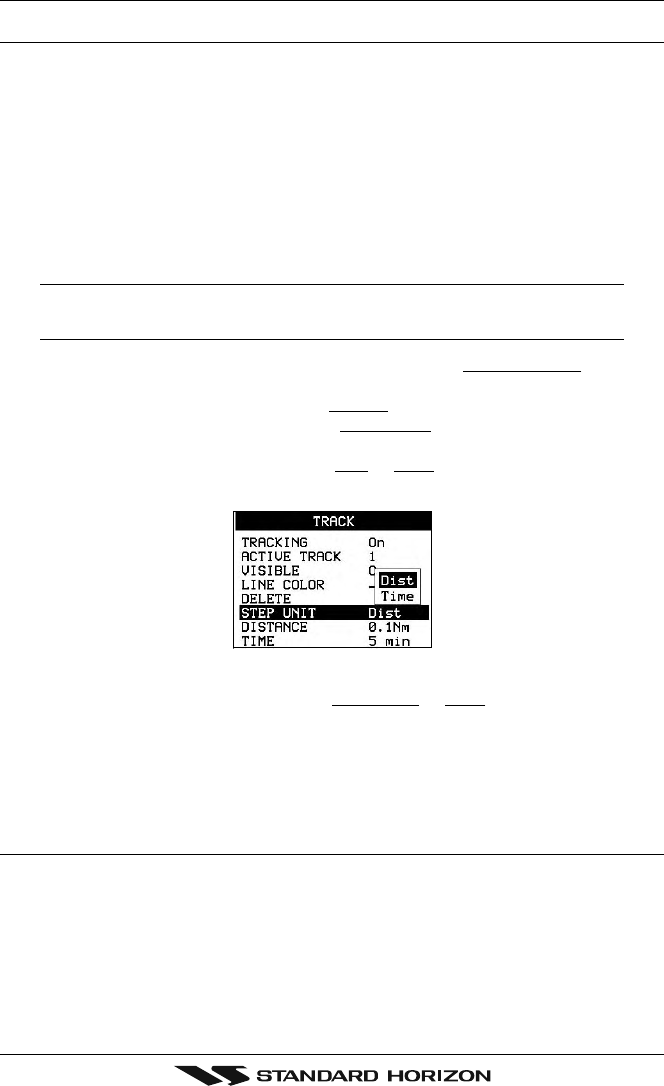

Figure 11 - Distance Units and Time Units
5. Move the ShuttlePoint knob to highlight DISTANCE or TIME step interval and press
[ENT] or move the ShuttlePoint knob to the right.
6. Move the ShuttlePoint knob up/down to the desired step value and press [ENT] or move
the ShuttlePoint knob to the right.
7. Press [CLR] or move the ShuttlePoint knob to the left until the Chart page is shown.
11.0 TRACKING
You may have to take a few trips to see how you like the Distance or Time Interval setup
on the previous step. However when using the tracking feature you will notice every time
a Track Point is layed down on the Chart page a small filled in circle is shown on the Track
line. If you move the cursor over the top of the circle a popup window will be shown with the
Time, Water Temperature, Speed and Course Over Ground (COG) this is very useful if you
are fishing and want to review the conditions where the fish were being caught.
Page 56 CPV350

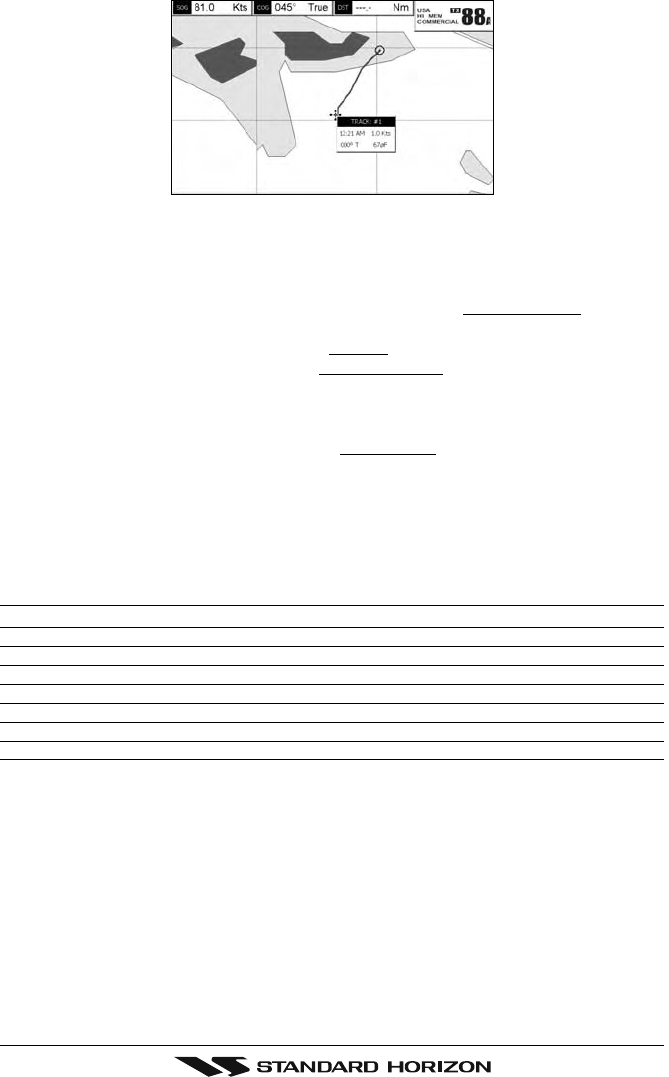

Figure 11.0 - Tracking
11.0.0 Saving and starting a new Track
A Track is automatically saved to memory. To start a new Track:
1. Press [MENU]. Move the ShuttlePoint knob to highlight USER POINTS and press
[ENT].
2. Move the ShuttlePoint knob to highlight TRACK and press [ENT].
3. Move the ShuttlePoint knob to highlight ACTIVE TRACK and press [ENT] or move the
ShuttlePoint knob to the right.
4. Move the ShuttlePoint knob up/down to select the next available open Track and press
[ENT] or move the ShuttlePoint knob to the right.
5. Move the ShuttlePoint knob to highlight TRACKING and press [ENT] or move the
ShuttlePoint knob to the right to set On.
6. Press [CLR] or move the ShuttlePoint knob to the left until the Chart page is shown.
7. A new Track now will be laid down.
11.0.1 Other Settings in Track Menu
You will notice the Track menu has other selections
TRACKING Allows turning on or off the tracking function
ACTIVE TRACK This selection allows you to save a Track to one of the 5 Tracks available
VISIBLE Shows or hides a Track shown in ACTIVE TRACK menu
LINE COLOR Selects the color of the Track line
DELETE Deletes a Track selected in the ACTIVE TRACK menu
STEP UNIT Allowable selection are Distance or Time
DISTANCE Setup the Distance interval the Track point is placed on the Chart page
TIME Setup the TIME interval the Track point is placed on the Chart page
Page 57CPV350
11.1 USING THE TRIP LOG
On the Chart, Navigation, Highway and NMEA Data pages the windows may be customized
to show TRIP LOG information.
Figure 11.1 - Using the Trip Log
1. Select one of the pages listed above, press and hold [MENU]. You will notice one of the
data boxes will be highlighted.
2. Press [ENT] and move the ShuttlePoint knob to highlight TRIP LOG, press [ENT] or
move the ShuttlePoint knob to the right.
3. A popup window will be shown with Nm (Nautical Mile), Sm (Statute Mile), Km
(Kilometer) and RESET. Move the ShuttlePoint knob to select the desired units of
measure and press [ENT] or move the ShuttlePoint knob to the right.
4. Press [CLR] or move the ShuttlePoint knob to the right until the selected page (Chart,
Navigation, Highway or NMEA Data Page) is shown.
11.1.0 Resetting the Trip Log
Select the page with TRIP LOG in one of the data windows as setup in the “Using the TRIP
LOG” section.
1. Press and hold [MENU], move the ShuttlePoint knob to highlight TRIP LOG.
2. Press [ENT] or move the ShuttlePoint knob to the right to show a popup window, select
RESET and press [ENT] or move the ShuttlePoint knob to the right.
3. A Warning popup window will be shown to confirm if you want to reset the Trip Log. Using
the ShuttlePoint knob select YES and press [ENT]. The Trip Log is now reset.
Page 58 CPV350
12. USER C-CARD
The Optional C-MAP User C-CARD is used to back up Marks, Routes, and Tracks stored
in your GPS chartplotter’s memory. The User C-CARD is similar to a back up disk used with
a PC, in case you have to clear your GPS chartplotter’s memory, or if you would like to
transfer Waypoint, Track and Route information from one STANDARD HORIZON GPS
chartplotter to another.
12.0 USER C-CARD MENU
C-MAP offers a special card that may be used to backup the User Points and Tracks the
you have created in the GPS chartplotter. This optional card is similar to using a floppy disk
on a PC to backup your files or to transfer the information that you have stored to a friends
GPS chartplotter. The information shown below will assist you to transfer the User Points,
Routes and Track history to the optional User C-CARD.
6
Type of data contained in the
file (Mark file, Waypoint file...)
File name
Number of Selected file
Information on stored User
Points on Internal Memory
Time of file creation
Date of file creation
5
6
2
1
3
4
1
2
3
4
5
Figure 12.0 - User C-CARD Menu
12.0.0 Formatting the User C-CARD
1. Press [MENU]. Move the ShuttlePoint knob to highlight USER POINTS and press
[ENT].
2. Move the ShuttlePoint knob to highlight USER C-CARD and press [ENT].
3. Move the ShuttlePoint knob to highlight FORMAT and press [ENT].
4. A popup Warning window will to confirm you want to format the User C-CARD.
5. Select YES and press [ENT] to confirm (select NO otherwise). The format of User
C-CARD must be done before using a new User C-CARD: this operation prepares the
User C-CARD to receive and store information.
NOTE
Formatting permanently erases all files previously saved on the User C-CARD.
Page 59CPV350
12.0.1 Transferring files to the optional User C-CARD
1. Remove the C-MAP NT+/MAX C-CARD if present and insert the optional User
C-CARD into the slot.
2. Press [MENU]. Move the ShuttlePoint knob to highlight USER POINTS and press
[ENT].
3. Move the ShuttlePoint knob to highlight USER C-CARD and press [ENT] or move
the ShuttlePoint knob to the right.
4. A screen will appear. Move the ShuttlePoint knob to the left to highlight SAVE and
press [ENT].
5. A popup SAVE FILE window will appear. In this window you can change the name
and the file type by using the ShuttlePoint knob and pressing [ENT], when finished
press [CLR] once.
6. To save the file to the User C-CARD.
12.0.2 Loading a file
If you have a problem and accidentally loose the User Points in the GPS chartplotter
with the optional User C-CARD it is possible to load the data back into the GPS
chartplotter using the following procedure:
1. Press [MENU]. Move the ShuttlePoint knob to highlight USER POINTS and press
[ENT].
2. Move the ShuttlePoint knob to highlight USER C-CARD and press [ENT].
3. Select the saved file from the User C-CARD list by using the ShuttlePoint knob and
press [ENT].
4. Move the ShuttlePoint knob to the left to highlight LOAD and press [ENT].
5. A popup information window will appear when loading is complete.
6. Press [ENT] to confirm.
12.0.3 Deleting a file from the User C-CARD
You may want to delete a saved file on the User C-CARD.
1. Press [MENU]. Move the ShuttlePoint knob to highlight USER POINTS and press
[ENT].
2. Move the ShuttlePoint knob to highlight USER C-CARD and press [ENT].
3. Select the saved file from the User C-CARD list by using the ShuttlePoint knob and
press [ENT].
4. Move the ShuttlePoint knob to the left to highlight DELETE and press [ENT].
5. A popup Warning window will to confirm you want to delete the file.
6. Press [ENT] to confirm.
Page 60 CPV350
13. PAGES

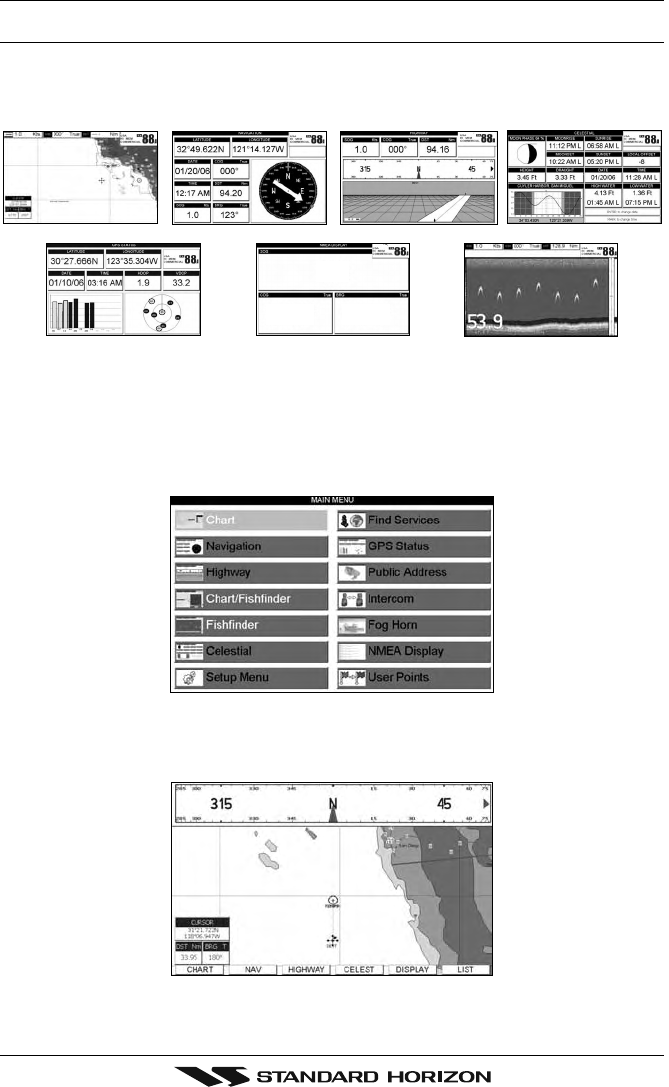

The GPS chartplotter has many pages that are designed to ease your navigation.
Kts
M
3.1
015° 353°
M
CHART
GPS STATUS
CELESTIAL
NMEA DISPLAY
NAVIGATION HIGHWAY
FISH FINDER full screen window
Shown only with optional F 520 connectedF
Figure 13 - Screen display pages
The pages can selected in one of two ways:
Selection by MENU
Press [MENU], move the ShuttlePoint knob to highlight the desired Page in the Main Menu
page and press [ENT].
Figure 13a - Screen display pages (by [MENU])
Selection by SOFT KEY
Pressing any Soft Key under the display, then press the Soft Key to show the desired page.
Figure 13b - Screen display pages (by Soft Keys)
Page 61CPV350
13.0 CHART PAGE

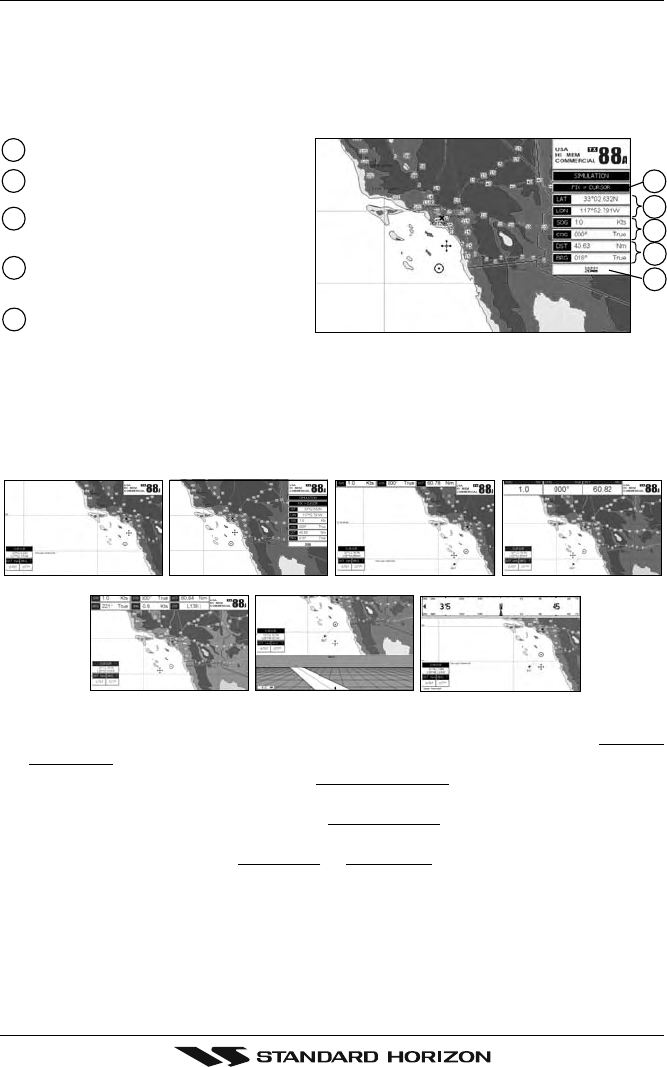

The Chart page is the main page of the GPS chartplotter. From this page the user can zoom
in/out, pan around the chart, show information about cartographic objects, see the exact
vessel position with the COG and SOG, place points, GOTO a destination point, show Track
history etc. The GPS chartplotter is provided with a Worldwide background showing C-MAP
NT+/MAX detail up to 2.0 NM. For more detail, optional C-MAP NT+/MAX C-CARDs are used.
1
5
2
4
3
Speed Over Ground and
Course Over Ground
4
Cursor coordinates
2
Fix Status
1
Distance and Bearings from Fix to
Cursor (if the Fix is NOT received,
DST and BRG are empty)
3
Chart Scale
5
Figure 13.0 - Charts and general text area
13.0.0 Window Selections
The window on the right side of the Chart page is called the General Window and it may be
edited, customized or even changed to show a highway or compass tape.
FULL CHART (None)
2 LINES SMALL
COMPASS
GENERAL 1 LINE SMALL
HIGHWAY
1 LINE LARGE
Figure 13.0.0 - Data window layout
1. To change, press [MENU] two times. Move the ShuttlePoint knob to highlight GENER-
AL SETUP and press [ENT] or move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight WINDOW SETUP and press [ENT] or move the
ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight CHART PAGE and press [ENT] or move the
ShuttlePoint knob to the right.
4. Select the desired window, HIGHWAY or COMPASS, and press [ENT] or move the
ShuttlePoint knob to the right.
5. Press [CLR] or move the ShuttlePoint knob to exit the menu and show the Chart page.
Page 62 CPV350
13.0.1 Additional Functions on Chart page
When on the Chart page you will notice icons of Buoys, Towers, Lights, Wrecks, Tide
Stations and Port Icons. If the cursor is moved over the top of these icons a popup window
will be shown with information about the icon.
13.0.2 Turning Off Information on Icon Points
The GPS chartplotter allows you to select to see information on points, all items or to turn
this function off.
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight GENERAL SETUP
and press [ENT] or move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight AUTO INFO and press [ENT] or move the
ShuttlePoint knob to the right.
3. Select the Off, On Points, or On ALL and press [ENT] or move the ShuttlePoint knob
to the right.
4. Press [CLR] or move the ShuttlePoint knob to the left until the Chart page appears.
13.0.3 Display Mode
Selects from a predefined table what cartographic objects are displayed and which display
options are set. Preprogrammed settings are user selectable from Full, Medium, Low,
capitalize RADAR in all places that are mentioned. Please note this function is not actually
showing RADAR information it is only showing what typically would be shown by a separate
dedicated RADAR display), Tides, Custom (default mode). The table below shows the
selections for each mode.
1. To change to one of the preprogrammed settings, press [MENU] two times. Move the
ShuttlePoint knob to highlight MAP CONFIGURATIONS and press [ENT] or move the
ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight DISPLAY MODE and press [ENT] or move the
ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob up or down to select the preset and press [ENT].
4. Press [CLR] or move the ShuttlePoint knob to the right until the Chart page is shown.
Setting Full Medium Low RADAR Tides Custom
(Default values)
Names On On On On On On
Name Tags On Off Off Off Off On
Nav-Aids & Light Sectors On No Sector No Sector No Sector Off Off
Attention Areas On On Off Off Off On
Tides & Currents On Off Off Off On On
Seabed Type On Off Off Off Off On
Ports & Services On On Off On Off On
Tracks & Routes On Off Off Off Off On
Depth Range On On On On On On
Depth Range Min 0 Ft 0 Ft 0 Ft 0 Ft 0 Ft 0 Ft
Depth Range Max 32805 Ft 32805 Ft 32805 Ft 32805 Ft 32805 Ft 1000 Ft
Land Elevation Values On On Off Off Off Off
Roads On Off Off Off Off On
Points Of Interest On Off Off Off Off On
Lat/Lon Grid On Off Off Off Off Off
Chart Boundaries On Auto Off Off Off Off
Value-Added Data On Off Off Off Off On
Mixing Levels On On On On On On
Chart Lock On On On On On On
Underwater Ob. Limit 1000 Ft 1000 Ft 32 Ft 32 Ft 32 Ft 10 Ft
Page 63CPV350
Rocks Icon + Depth Icon Icon Icon Icon Icon
Obstructions Icon + Depth Icon Icon Icon Icon Icon
Diffusers Icon + Depth Icon Icon Icon Icon Icon
Wrecks Icon + Depth Icon Icon Icon Icon Icon
13.0.4 Marine Settings
To control the display on the map of the marine features.
Names : Turns the Local area names On or Off.
Names Tags : Turns On or Off a tag for particular chart objects that either includes the Name of the chart
object or the Depth of an Underwater chart object.
Nav Aids & Light Sectors: Turns the presentation of Lights, Signals, Buoys and Beacons On (Nav-Aids & Light
Sectors are shown), Off (Nav-Aids & Light Sectors are not shown) or Icon (Nav-Aids are
shown, Light Sectors are hidden).
Attention Areas : Turns the displaying of Attention Areas (areas in which special attention by the mariner is
required because of natural or man-made hazards sailing regulations and restrictions) On
or Off.
Tides & Currents : Turns the displaying of Tides and Currents On or Off.
When data/time is available, Tidal stream arrows are shown on the charts, indicating the
direction and strength of the Tide. If no data/time is available from the GPS or the GPS
chartplotter is not in Simulation mode, the icon on the map is generic one. The color of the
arrow denotes the strength of the current as follows:
When the GPS chartplotter receives a valid position fix, the Tide icons are shown on the
charts on the basis of the current date and time: the screen displays and changes arrows
as date/time changes.
Seabed Type : Turns the displaying of the Seabed type On or Off.
Ports & Services : Turns the displaying of Ports and Service icons On of Off. Areas along the shore with
facilities for mooring, downloading and uploading of ships, generally sheltered from waves
and winds. Port installations are piers, wharves, pontoons, dry docks, cranes....
Tracks & Routes : Turns displaying of underwater objects On or Off. Objects are obstructions, wrecks, cable etc.
13.0.5 Depth Settings
To control the display on the map of the depth informations.
Depth Range : Sets On/Off the displaying of the Depth Areas (the sea areas included in the user selectable
range of minimum and maximum depth limits). The sea area that is beyond the selected
range is filled by an uniform white color, the sea area that is inside the selected range is
filled by ordinary multicolor shading. The Spot Soundings and Depth Contours are
displayed on the range only.
Depth Range Min : Sets the minimum depth limit to show Depth Sounding, Bathymetric Lines and Depth Area.
The default setting is 0 Mt.
Depth Range Max : Sets the max depth limit to show Depth Sounding, Bathymetric Lines and Depth Area. The
default setting is 9.999 Mt.
Page 64 CPV350
13.0.6 Land Settings
To control the display on the map of the terrestrial features.
Land Elevation Values : The Land Elevation areas are always shown, but it is possible to turn the displaying of Land
Elevation On or Off.
Roads : Turns the displaying of roads On or Off.
Points of interest : Turns the displaying of Points of Information On or Off.
13.0.7 Chart Settings
Settings that control how the chart features will be shown on the Chart page of the GPS
chartplotter.
Lat/Lon Grid : Turns the displaying of the Latitude and Longitude grid lines on or off on the chart page.
Chart Boundaries : Turns the displaying of Chart Boundaries on, off or auto mode which shows the chart boundaries
of the two charts below the current scale. The chart boundaries are only show when a C-Map NT,
NT+ or MAX card is inserted into the GPS chartplotter.
Value Added Data : Turns the displaying of Value added data On or Off. The Value Added Data (VAD) is a collection
of additional cartographic objects which are not present on the original paper chart (from which
the electronic chart derives). These objects have been obtained from other sources (that C-MAP
believes to be reliable) and then merged to the electronic charts in order to provide more
information useful for the navigation. VAD object can be any cartographic objects and it can be
distinguished from the official-chart-objects from the Quick Info. A dedicated icon is shown on the
Quick Info window to indicate that the object queried is a VAD. The same icon is also shown on
the Full Info page and in addition the extended text Value Added Data is shown on the details of
the VAD object.
Mixing Levels : When the map coverage at the current chart scale does not fill the entire display, the GPS
chartplotter draws the rest of the map using charts from above and below the current scale. When
this function is turned on you will notice the display may redraw 2 to 3 times to show all the details.
Chart Lock (*) : Sets On/Off the Chart Lock option. When Chart Lock is On, the available zoom scales are only
the ones containing cartographic data. Instead when Chart Lock is Off, it is possible to zoom down
into zoom scales not covered by cartographic data after the last available zoom scale covered by
cartographic data. The DSI window, if present, will show “NO CHART”, when an empty level is
entered in the location of map expansion mode.
NOTE(*)
When an empty level is entered, the message “No cartographic coverage” is shown on a window
in a corner of the map display. The warning message is always displayed as long as the current
zoom has no data coverage.
13.0.8 Underwater Objects Settings
To control the display on the map of the Underwater Objects features.
Underwater Objects Limit : Selects the max depth value to display Underwater Objects. If value is set to 0 Mt, the
Underwater Objects are not shown on the charts. Menu options are grayed out. If value
is more than 0 Mt (i.e. 10 Mt), in the Range from 0 Mt to the selected value the Underwater
Objects are displayed according to their setting below. The default setting is 10 Mt.
Rocks :Sets Off/Icon/Icon+Depth* the displaying of the Rocks. The default setting is Icon.
Obstructions :Sets Off/Icon/Icon+Depth* the displaying of the Obstructions. The default setting is Icon.
Diffusers :Sets Off/Icon/Icon+Depth* the displaying of Diffusers. The default setting is Icon.
Wrecks :Sets Off/Icon/Icon+Depth* the displaying of Wrecks. The default setting is Icon..
NOTE(*)
Choose the options: OFF (the object is not visible independently of the selected “Underwater Object
Depth Value”); ICON (the object icon is visible without tags, in the range selected from “Underwater
Object Depth Value” option); ICON+DEPTH (the object icon and tag is visible, in the range selected
from “Underwater Object Depth Value” option).
Page 65CPV350
13.0.9 Customizing the Data Windows
The data fields contained on the General, 1 Line Small/Large and 2 Line Small data windows
can be changed. The picture below shows the Chart page with 1 Line Large selected and
a popup window with many selections.
1. To change a data window field, press and hold [MENU] until the field is highlighted.
2. Move the ShuttlePoint knob to the desired data field and press [ENT]. The popup
window will be shown.
3. Move the ShuttlePoint knob up or down to choose the desired setting and press [ENT]
to select and press [CLR] to store and exit the editing mode.
Figure 13.0.9 - Customize the Data Windows
NOTE
Data window field on the NAVIGATION, HIGHWAY, GPS STATUS, and NMEA pages may be
customized in the above manner.
13.1 CUSTOMIZING CHART SETTINGS
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight MAP CONFIGURA-
TIONS and press [ENT] or move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob up or down to select the desired item within the groups
Marine Settings, Depth Settings, Land Settings, Chart Settings or Underwater Objects
Settings and press [ENT]. See the above sections for details on selections.
Page 66 CPV350
13.2 NAVIGATION PAGE
This page is useful to show information when heading to a destination. The default page is
shown with a Compass Rose, however this can be customized to show a Compass Tape.
1. To change to show the COMPASS TAPE, select the Chart page, press [MENU] two
times. Move the ShuttlePoint knob to highlight GENERAL SETUP and press [ENT] or
move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight WINDOW SETUP and press [ENT] or move the
ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight NAVIGATION PAGE and press [ENT] or move
the ShuttlePoint knob to the right.
4. Move the ShuttlePoint up or down to select COMPASS TAPE and press [ENT].
5. Press [CLR] or move the Shuttlpoint knob to the right until the Chart page is shown.
4
2
1
6
7
3
5
3
2
49
8
Fix position
Time
Speed Over Ground
Course Over Ground
5
1
Date
Distance
6
7
Bearing to Destination
8
9
VHF information
Compass Rose
Figure 13.2 - Navigation Data page with Compass Rose
4
2
1
6
7
3
5
3
2
4
9
5
1
8
9
Time To Go
Fix position
7
Compass Tape
Time
6
8
Speed Over Ground
Course Over Ground
Bearing to Destination
Distance to Destination
VHF Information
Figure 13.2a - Navigation Data page with Compass Tape
Page 67CPV350
13.3 HIGHWAY PAGE
Shows a 3D view of the vessel traveling through the water when Navigating to a destination
point, Mark or following a Route. Moving the ShuttlePoint knob up or down changes the highway
scale.
4
2
1
6
7
3
Speed Over Ground
Highway Display
Highway Scale
VHF Information
Distance
5
1
3
2
4
7
Course Over Ground
Compass Tape
5
6
Figure 13.3 - Highway page
13.4 CELESTIAL PAGE
This page is useful for boaters that are concerned about the height of the water under a
bridge or by fisherman that wish to know the tide and moon phase of a specific date.
Changing date
1. Press [ENT] and a popup window will be shown.
2. Moving the ShuttlePoint knob up or down changes the digits and left and right selects
the month, day and year.
3. Press [CLR] to exit and view the information.
Changing to and from Daylight Savings time
1. Press [MARK/MOB] to toggle between Standard and Daylight Savings time.
Figure 13.4 - Celestial page
Page 68 CPV350
13.5 GPS STATUS PAGE
This page is used as a reference to see how well the GPS is receiving satellites.
Horizontal Dilution of Precision
4
2
Ship’s Coordinates
Tracked, but not used, Satellite
Used Satellite
COG (Course Over Ground)
1
7
8
6
3
Vertical Dilution of Precision
VHF information
Date and Time
5
15
3
2
4
6
8
7
4
3
09

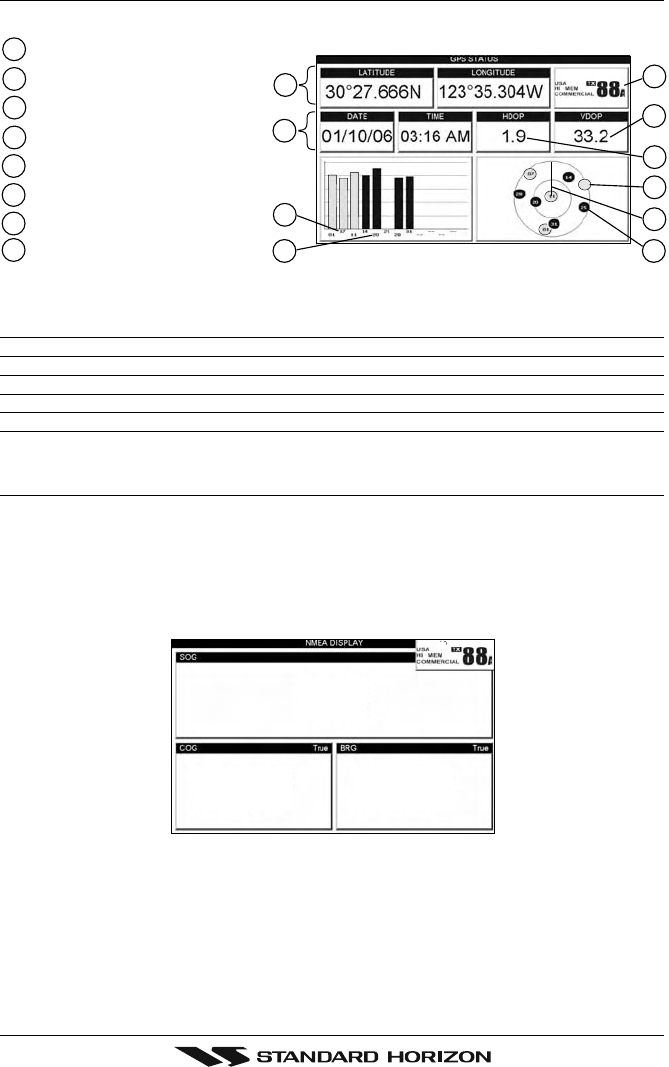

Figure 13.5 - GPS Status page
The WAAS/GPS Icon area may change due to the satellite reception:
ACQUIRING : the GPS is trying to receive a valid position fix.
GPS2D : The GPS is receiving at least 2 valid Satellites
GPS3D : the GPS is receiving at least 3 Satellites.
WAAS 2D/3D : the GPS is receiving a 2D or 3D position and the correction from the WAAS Satellite.
HDOP : Horizontal Dilution of Precision
VDOP : Vertical Dilution of Precision
13.6 NMEA DISPLAY PAGE
The GPS chartplotter is capable of displaying information in the customizable data windows
from external NMEA devices. Depth sounder, Speed Log with temp, Wind speed and
direction, Flux gate compass, and GPS information can be shown in any of the boxes. The
default NMEA Display shows 3 windows. When going to a destination, this screen is useful
to navigate as to get to the destination keep the Course Over Ground (COG) and Bearing
(BRG) figures the same.
Kts
M
3.1
015° 353°
M
Figure 13.6 - NMEA Display page
Page 69CPV350
The NMEA sentences read from external devices are: BWC, DSC, DSE, GGA, GLL, GSA,
GSV, HDG, HDM, HDT, RMC, VHW, VTG, DPT, DBT, MTW, VWR, VWT, TLL, WPL, RTE.
CHANGING the NMEA PAGE Windows
1. Press [MENU]. Move the ShuttlePoint knob to highlight NMEA DISPLAY and press
[ENT].
2. Move the ShuttlePoint knob to highlight DISPLAY and press [ENT].
3. To change the 5 different pages move the ShuttlePoint knob to the left or right.
13.7 NMEA DATA PAGE
The NMEA Data Page is very useful to see if a External device (example: Depth Sounder)
is transmitting NMEA sentences to the GPS chartplotter. This page can also be used to see
if the GPS chartplotter NMEA output is being loaded down by a external NMEA device the
GPS chartplotter is connected to.
Scenario: CPV connected to Autopilot but not receiving.
Usually the VHF Radio will be connected to the Green and Brown wires. To check to see
if the GPS chartplotter is transmitting the sentences:
1. Press [MENU]. Move the ShuttlePoint knob to highlight NMEA DISPLAY and press
[ENT].
2. Move the ShuttlePoint knob to highlight DATA and press [ENT].
3. Connect the BLUE Wire on the GPS chartplotter to the junction of the Brown wire and
the VHF wire. The display should look similar to the picture below.
Figure 13.7 - NMEA Data page
13.8 NMEA DEPTH, WIND SPEED, TEMP AND SOG TREND PAGES
When the GPS chartplotter is connected to the Optional FF520 50/200kHz BLACK BOX
FISH FINDER or a Digital Depth Sounder, Wind Speed/Direction, Speed Log with Temp
with NMEA output the GPS chartplotter is capable of show Trends in the data from the
device.
To select a NMEA Trend Page:
1. Press [MENU]. Move the ShuttlePoint knob to highlight NMEA DISPLAY and press
[ENT].
2. Move the ShuttlePoint knob to select DEPTH TREND, WIND SPEED TREND, TEMP
TREND or SOG TREND and press [ENT].
Page 70 CPV350
13.9 VHF DIGITAL SELECTIVE CALLING *
Digital Selective Calling is a semi-automated method of establishing a VHF radio call. DSC
had also been designated as part of the Global Maritime Distress and Safety System
(GMDSS). It is planned that DSC will eventually replace aural watches on distress
frequencies and will be used to announce routine and urgent maritime safety information
broadcasts.
This new system allow mariners to instantly send a distress call with GPS position (when
connected to the transceiver) to the US Coast Guard and other vessels within range of the
transmission. DSC will also allow mariners to initiate POSITION Request, POSITION Send
calls to or from another vessel equipped with a DSC transceiver.

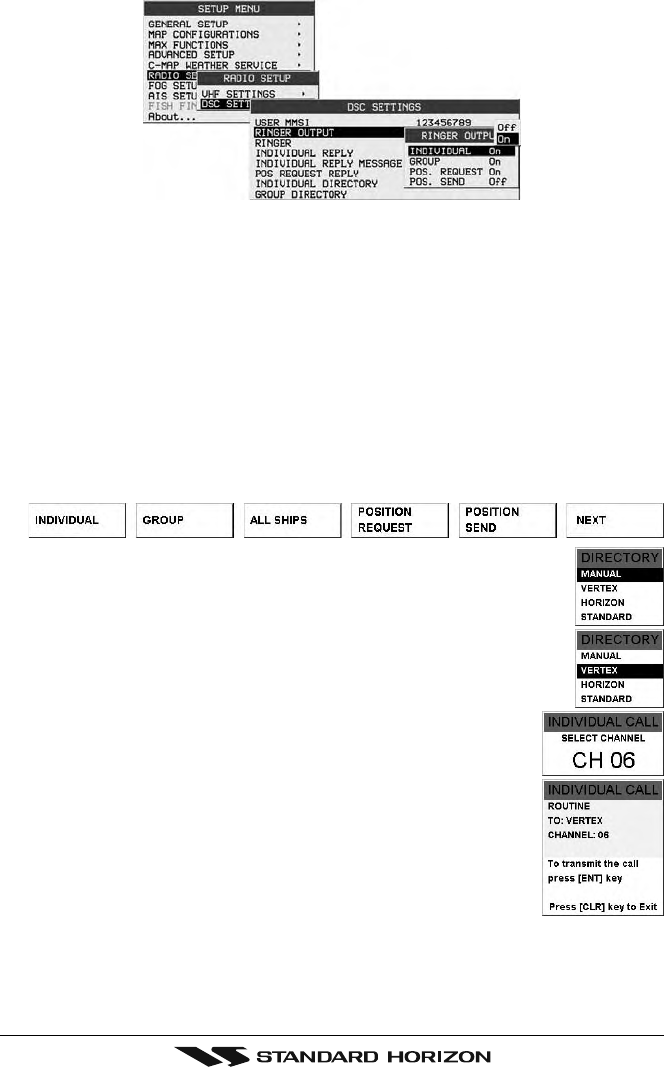

The CPV350 is capable of VHF Marine Radios with Digital Selective Calling are able to be
interfaced with the GPS chartplotter which feeds GPS data to the VHF and listens for DSC
calls from the VHF. By connecting a few wires between the STANDARD HORIZON VHF and
the GPS chartplotter it will receive:
1. a vessel that has transmitted a DSC Distress call
2. a vessel that has transmitted a DSC Position Send Call
3. The position of a vessel that transmitted a DSC Position Request Call
13.9.0 Position Request
The CPV350 can transmit a DSC position request call to other equipped vessels with DSC.
The position of the polled vessel is show on the chart pages after the call was received. This
is a great feature for anyone wanting to know the position of another vessel for example you
buddy that is catching fish, or finding the location of a person you are cruising with.
Page 71CPV350
14. ADVANCED SETTINGS
The Advanced Setup menu allows customization of many GPS functions, Alarms and
NMEA interfacing.
1. To access this menu press [MENU] two times. Move the ShuttlePoint knob to highlight
ADVANCED SETUP and press [ENT]or move the ShuttlePoint knob to the right.
Figure 14 - Advanced Settings Menu
While in this menu you will see many selections which are described in the next sections.
14.0 NAVIGATE
The Navigate Menu allows customization of the Coordinate System (Loran TD’s), Map
Datum, Map Orientation Resolution (angle the vessel has to change before the chart is
redrawn) and Static Navigation.
Figure 14.0 - Navigate Menu
Coordinate System : Selections are:
a. TD: Loran TD
b. UTM: Universal Transverse Mercator Grid
c. ddd mm.mmm: Degrees Minutes and Thousands of Minutes
d. ddd mm.mm: Degrees Minutes and Hundredths of Minutes
e. ddd mm.ss: Degrees Minutes and Seconds (default)
Map Datum : Allows selection of Map Datums. The default Datum is WGS84 as C-MAP cartography
has been compiled using the WGS84 Datum.
Map Orientation Resolution: Sets the angle the vessel has to change before the chart is redrawn. The default setting
is 30 degrees. Example: if the vessel is heading 000T at a speed of 25 Knots, the display
will redraw:
a. In Home mode the GPS chartplotter centers the location of the vessel in the center
of the display. To keep the vessel in the center of the display the GPS chartplotter
will occasionally redraw.
b. If the vessel changes course greater than 330T or more than 30T the chart will be
redrawn.
Static Navigation : Sets up a threshold for the speed. When the speed received from the positioning device
is under that threshold, the GPS chartplotter displays zero. The default setting is 0.9 Kts.
Page 72 CPV350
The Loran TD selection allows the GPS chartplotter to be set up so the user can enter in
LORAN TD’s directly into the GPS chartplotter. After the TD’s have been entered, and the
user changes to ddd mm.sss (Degrees Minutes and Seconds) the TD’s will be converted
to Lat / Lon coordinates.
To use the TD Coordinate System the user must setup the Chain and Pair information of
the TD’s. If you do not know this information, refer to paper charts that show the Chain and
Pair information.
ASF1/2 :Additional Secondary phase Factor (TD Coordinate System)
Correction to TD1/2 values which can be inserted by the user.
Alter :Alternate Solution (TD Coordinate System)
Parameter selected by the user that is applied in the conversion of TD values to
geographical coordinates Lat/Lon. It defines which of the two possible solutions can be
used.
14.1 COMPASS
The GPS chartplotter computes compass direction from the constellation of GPS Satellites.
For the GPS chartplotter to compute COG (Course Over Ground) direction the vessel must
be moving through the water. This menu allows the GPS chartplotter to customize the
following selections:
Bearings : Selects between True and Magnetic. When Magnetic bearings is enabled, the GPS chartplotter applies
the selected Magnetic Variation (Auto or Manual, see next paragraph) to compute True bearing.
Variation : Allows the user to select Auto or Manual. When Auto mode is selected the GPS chartplotter computes
the offset by the current GPS fixed location. Manual mode allows the user to enter in a magnetic variation
that is applied in the True conversion.
Calibration : This function allows a user to enter in the offset for areas that the vessel may cruise instead of entering
in a manual offset for one location. This offset is useful for cruising vessels or vessels that travel
internationally often.

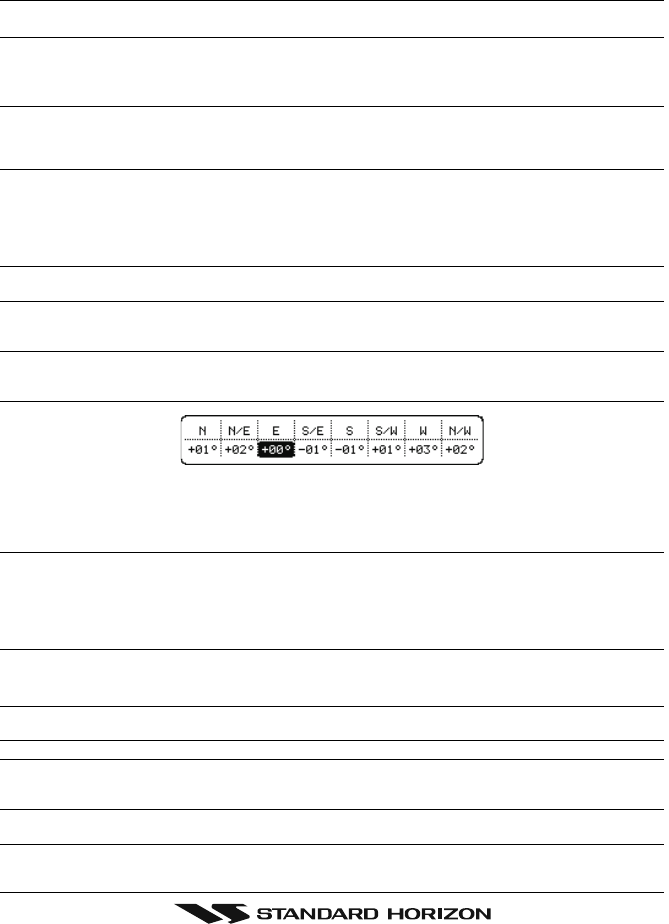

Figure 14.1 - Compass Table
14.2 INPUT/OUTPUT (NMEA)
The GPS chartplotter has 2 NMEA inputs and 3 NMEA outputs.
14.3 ALARMS
This menu is used to select and setup audible and visual Alarms. Available alarms are
Arrival, XTE, Depth, Anchor and Grounding Alarm.
Arrival Alarm : Alerts when the vessel is approaching a single destination point or when arriving at a leg in a Route.
Available selections: 0.00 to 9.99NM.
XTE Alarm : Alerts when the vessel is deviating from a defined course. Available selections: 0.00 to 9.99NM.
Depth Alarm : Alerts when the received depth Value from the optional FF520 50/200kHz BLACK BOX FISH
FINDER or Depth Finder inputting NMEA data into the GPS chartplotter is lower than the selected
value. Available selections: 0000 to 3000 FT.
Anchor Alarm : Alerts when the ships moves off a selected locations by a selected distance. Available selections:
0.00 to 9.99NM.
Page 73CPV350
Audible Alarm : Enables or disables the alarm beep.
Grounding Alarm : This function looks ahead of the vessels heading to see if a potential danger exists. When the
Grounding Alarm is enabled the GPS chartplotter will draw a triangle in front of the vessel on the
Chart page showing the area that is being searched as shown below. The depth and range
(distance) of the area the GPS chartplotter looks ahead for a shallow area can be set using this
function.
The following warning appears when the Grounding Alarm is enabled:
NOTES
The Grounding Alarm function only operates with the new NT+/MAX C-CARDs. It also affects the
speed of the redraw of the screen. If this function is not used it may be disabled.
When any of the objects checked are found for the first time, the GPS chartplotter shows a pop up
window to alert the user of the possible danger. The name of each new dangerous object found is
reported in the warning window. In the Grounding Alarm Report page the relative item has a tick
marker next to it, to identify the dangerous object currently detected. If in the next search cycle the
same objects are found again, the alarm window will not be shown. Instead, if in the next searches
the objects found before are no longer detected, their relevant item in the Grounding Alarm Report
page is cleared (note that in this case, if the same object type is found again later, the Alarm will
be shown). The GPS chartplotter shows an icon on the charts that identifies when a Grounding
Alarm is detected.
a. Ground Alarm Range : Allows setting the distance of the grounding alarm zone.
Available selections are 0.25, 0.5 and 1.0NM. The default selection is 0.25NM. When
a depth or a object is found in the scanned zone area a marker is printed in the
Grounding Alarm Report Page to identify which dangerous objects have been currently
detected.
b. Grounding Alarm Report : Displays a report of dangerous objects found.
Page 74 CPV350
15. AIS
AIS is an Automatic Identification System. It has been introduced to improve the safety of
navigation by assisting in the efficient operation of ship-to ship, ship reporting and VTS
applications. The system should enable operators to obtain information from the ship
automatically, requiring a minimum of involvement of ship’s personnel, and should have a
high level of availability. AIS transponders installed on IMO vessels use VHF frequencies
to:
♦Transmit details of their own vessel
♦Receive details from other vessels or navigation aids within VHF range.
Information being transmitted from vessels over 300 tons that, due to recent worldwide
legislation, are required to fit Class “A” AIS transponders.
Connecting to the GPS chartplotter an AIS receiver (please contact your local dealer),
vessels with AIS transponder within VHF range are displayed on screen giving the skipper
or navigator a visual interpretation of the data of nearby vessels. This improves safety, and
specifically for collision avoidance reasons.
15.0 AIS SYSTEM DEFINITIONS
♦Target: It is a vessel equipped with AIS. Information about the targets is being
received by AIS Receiver and displayed on the screen.
♦CPA : Closest Point of Approach is the closest distance that will be achieved
between your vessel and the tracked target, based on your vessel’s speed and
direction and the target’s speed and direction.
♦CPA Limit: This is the distance from your vessel that a target may reach before
a target is deemed a threat.
♦CPA Alarm: Occurs if CPA is less or equal to CPA Limit. This test is done for
active targets only.
♦TCPA: Time to closest Point of Approach is the time remaining until the CPA
will occur.
♦TCPA Limit: This is the time remaining before the CPA is reached.
♦TCPA Alarm: Occurs if TCPA is less or equal to TCPA Limit. This test is done
for active targets only and if CPA value is less or equal to CPA Limit.
♦Radio Call Sign: International call sign assigned to vessel, often used on voice
radio.
♦Name: Name of ship, 20 characters.
♦MMSI: Maritime Mobile Service Identity.
♦MMSI number: A unique 9 digit number that is assigned to a DSC radio sta-
tion. It primarily registers the boat information in the U.S. Coast Guard’s na-
tional distress database for use in emergency situations.
♦Active Target: Target located within the Activation Range. Active target is rep-
resented by oriented triangle with COG and Heading vectors. Rate of turn may
also be displayed.
Page 75CPV350
♦Dangerous Target: Target detected by CPA or TCPA Alarm. Dangerous target
is Active Target by definition. For better visibility Dangerous Target symbol is
flashing.
♦Sleeping Target: Target located outside the Activation Range. Sleeping target
is represented by a small oriented triangle.
♦Lost Target: When the AIS info is not received from that vessel for 3.5 min-
utes. The presentation will be a flashing black triangle with a cross through.
♦Activation Range: Range around your boat where targets become active. AIS
target become active within this range. Activation Range should be greater
than CPA Limit by definition.
NOTE
A target is removed from the screen if data is not received for 10 minutes.
The maximum number of tracked targets is 100.
Depending on the scale the presentation of the targets change to remove clutter on the screen. This
information is updated every 3 seconds to 6 minutes depending on speed and rate of turn, enabling
the track of the vessels in range to be plotted.
15.1 AIS MENU
To configure the GPS chartplotter to receive AIS data, follow the procedure:
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight AIS MENU and press
[ENT] or move the ShuttlePoint knob to the right. The new AIS menu appears on the
screen. The available functions are described in the following table.
Display : Turns the display of AIS Targets overlay on the cartography On or Off. The default setting is On.
Activation Range : Defines the range from the fix within which the AIS Target becomes active. The values allowed
are from 0.1 to 20 Nm. The default setting is 5 Nm.
CPA Alarm : Turns On or Off the alarm. The default setting is On.
CPA Limit : The values allowed are from 0.1 to 10 Nm. The default setting is 0.5 Nm.
TCPA Alarm : Turns On or Off the alarm. The default setting is On.
TCPA Limit : The values allowed are from 1 to 30 Min. The default setting is 10 Min.
15.2 TO SET THE CHARTPLOTTER FOR RECEIVING AIS
Make sure the AIS receiver is properly connected to the GPS chartplotter. The GPS
chartplotter reads the AIS NMEA message VMD, type 1, 2, 3 and 5. Select the used serial
port and transmission speed by following the procedure:
1. To access this menu press [MENU] two times. Move the ShuttlePoint knob to highlight
ADVANCED SETUP and press [ENT] or move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight IN/OUT CONNECTIONS and press [ENT] or
move the ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight PORT n INPUT and press [ENT] or move the
ShuttlePoint knob to the right.
4. Move the ShuttlePoint knob to highlight m and press [ENT] or move the ShuttlePoint
knob to the right.
Where:
n = Port 1/Port 2/Port 3/Port 4/Port 5
m = NMEA-0183 4800-N81-N, NMEA-0183 38400-N82-N according to the transmission
speed of your AIS receiver.
Page 76 CPV350
15.3 QUICK INFO ON AIS TARGET
By placing the cursor over a AIS Target icon, the following information is displayed:
♦Vessel Name
♦MMSI number
♦Radio Call Sign
♦SOG
♦COG
♦CPA and TCPA values
NOTE
The selected AIS Target icon is surrounded by a square frame when user places the cursor over
the icon.
Page 77CPV350
16. C-MAP WEATHER SERVICE
NOTE
Check with C-Map USA for the operation of C-Map Weather service by calling 508.477.8010
C-MAP Weather Service is an innovative meteorological forecasting system with the ability
to visualize the weather forecast, overlaying it on cartography. The weather data is held on
C-MAP’s weather server, which can be accessed via a C-COM modem connected to the
chartplotter or by using the C-MAP personal Suite (or the DPS - Dealer Programming
System) saving the weather data on a User C-CARD. The weather data are overlaid on a
map page as layers. The Weather format data available are:
Figure 16 - Weather data package
16.0 C-WEATHER SERVICE MENU
To select the menu:
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight C-MAP WEATHER
SERVICE and press [ENT] or move the ShuttlePoint knob to the right.
The C-Weather menu is shown on the screen, the items are described in the following
paragraphs.
16.0.0 Download
Allows to connect the software to the C-MAP weather server and to download C-MAP
weather data directly via C-COM.
Select Country To Call : Allows the selection of the country to call. The whole telephone number set is automatically
updated after every download.
SIM Pin : Allows inserting of the Pin of the SIM.
Download Area : Allows the weather download: a squared grey area, where the weather data will be
downloaded, is centered on cursor position. See the following picture.
Page 78 CPV350
Figure 16.0.0 - Download Area
Press [LOAD] to activate the C-Weather Download: the whole data package (see the
previous “Weather data package” table) are downloaded. [STOP] allows to interrupt the data
download. At the end of the operation press [EXIT] to close the window.
16.0.1 Copy From User C-CARD
Allows the whole data package C-Weather loading from the User C-CARD.
16.0.2 Weather Forecast
Allows selecting the Layer of specific weather data to be displayed on the screen and to
change date and time of the forecast preview. The following functions are available:
♦Panning: default usage of the cursor key is the normal panning function.
♦Zoom in/out: zoom in/out functions are allowed as usual by using [ZOOM].
♦Set of date and time: [DAT E ] to modify date and time values.
♦Layer selection: [LAYER] to cycle of the weather layers.
♦Exit: [EXIT] to close the weather prediction page.
16.0.3 Real Time View
The following selections are available:
♦Real Time View On: the data is shown (the area of the download) at the cur-
rent date and time (received from the GPS).
♦Real Time View Off: the Weather data is not displayed.
The layer displayed is the one selected into the previous menu item.
Page 79CPV350
17. RADIO CONTROLS AND INDICATORS
NOTE
This section defines each control for the transceiver section of the CPV350. For detailed operating
instructions refer to section “18. BASIC OPERATION.”
17.0 CONTROLS AND KEYS
The ShuttlePoint knob
The ShuttlePoint Knob controls the Up/Down and Left/Right movement of the cursor, and
is also used to select options for Menu operation.
The MENU key
Pressing [MENU] one time selects the Main Menu. When in menu mode, move the
ShuttlePoint up or down to highlight a selection and press the [ENT] key to select the
function.
Pressing [MENU] two times selects the Setup Menu.
The ENT key
Press [ENT] to select the desired menu function or to confirm selection.
The CLR key
Press [CLR] to exit from menu or data windows or to leave a menu without making changes,
to abort selected function or to step backward from a selection made in the menu.
The Channel knob
The rotary knob is used to select operating channels and to choose menu items.
Secondary use
When the [ZOOM] key is pressed a zoom icon will be shown on the left corner of the display.
Turning the rotary knob clockwise zooms the chart plotter into a lower scale and counter
clockwise to a higher scale.
Page 80 CPV350
The VOL (Volume) knob
Adjusting [VOL] knob controls the VHF audio volume level.
The SQL (Squelch) knob
Adjusting [SQL] clockwise, sets the point at which random noise on the channel does not
activate the audio circuits but a received signal does. This point is called the squelch
threshold. Further adjustment of the squelch control will degrade reception of wanted
transmissions.
The 16/9 key
Immediately recalls channel 16 from any channel location. Holding down this key recalls
channel 9. Pressing [16/9] again reverts to the previous selected working channel.
Secondary use
Press and hold [16/9] then press [WX] to changes from USA, International, and Canadian
channel groups.
The WX key
Immediately recalls the previously selected NOAA weather channel from any channel.
Secondary use
Holding down [16/9] while pressing [WX] changes from USA, International and Canadian
channel groups.
The DW key
Pressing this key enables dual watch between a priority channel (Ch16 is the default) and
a selected channel until a signal is received. When a signal is received on the selected
channel the radio will momentarily switch to the Priority channel and listen for communications.
Refer to section “18.10 DUAL WATCH (TO PRIORITY CHANNEL)” for details.
The SCAN/MEM key
Press [SCAN/MEM] to start and stop the scanning of programmed channels. Refer to
section “18.11 SCANNING” for details.
Secondary use
To memorized a channel into scan memory, select the channel and press and hold
[SCAN/MEM] until “MEM” is shown in the “VHF Radio” window on the display.
To delete a memorized channel from scan memory, select the channel and press and hold
[SCAN/MEM] until “MEM” is removed from the display.
The H/L key
Press [H/L] to toggle the transmit output power between 25 W (High) and 1 W (Low) power.
When [H/L] is pressed while the transceiver is on channel 13 or 67, the power will
temporarily switch from LO to HI power until [PTT] is released.
[H/L] does not function on transmit inhibited and low power only channels.
NOTE
1W low power is indicated by “LO” on the display, when 25W high power is selected the display
shows “HI” on the display.
The CALL key
Press [CALL] to access the DSC OPERATION menu. “INDIVIDUAL CALL,” “GROUP
CALL,” “ALL SHIPS CALL,” “POSITION REQUEST,” “POSITION SEND,” “DSC STANDBY,”
and “DSC LOG” functions can be accessed from the Soft keys located underneath the
display
NOTE
To use DSC functions a MMSI must be entered. Refer to section “19.1 MARITIME MOBILE
SERVICE IDENTITY (MMSI).”
Page 81CPV350
The DISTRESS key
Used to send a DSC Distress Call. To send the distress call refer to section “19.2.0
Transmitting A DSC Distress Call.”
The Soft keys (located underneath the display)
These keys are used for selection of a variety of function.
The actual selection available is shown on the display, just above the function key.
The PWR key and Lamp/Contrast
Press and hold [PWR] to turn the CPV350 On or Off.
Secondary use
Once on press [PWR] to show the Contrast and Lamp popup window. To adjust, move the
ShuttlePoint knob left/right to adjust the backlight and up and down to adjust the displays
contrast. To store the settings press the [ENT] key.
The Microphone jack
Connects the CPV350 to the supplied Hand Microphone.
17.1 RECEIVER AUDIO TONE CONTROL
Allows the treble and bass of the speaker audio to be adjusted for best listening in noisy
environments. The effect is similar to adjusting a the treble and bass controls on a stereo.
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight RADIO SETUP and
press [ENT] or move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight VHF SETTING and press [ENT] or move the
ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight AF SETUP and press [ENT] or move the
ShuttlePoint knob to the right.
4. Move the ShuttlePoint knob to highlight TREBLE and press [ENT] or move the
ShuttlePoint knob to the right.
5. Move the ShuttlePoint knob up or down to select desired audio response in the higher
frequency range. Available selections are –6” through +6.
6. Press [ENT] to store the selected setting.
7. Move the ShuttlePoint knob to highlight BASS and press [ENT] or move the ShuttlePoint
knob to the right.
8. Move the ShuttlePoint knob up or down to select desired audio response in the lower
frequency range. Available selections are –6” through +6.
9. Press [ENT] to store the selected setting.
10. Press [CLR] until the menu disappears or an easier method is to move the ShuttlePoint
knob to the left a few times.
Figure 17.1 - AF Setup menu
Page 82 CPV350
18. BASIC RADIO OPERATION
18.0 RECEPTION
1. After the transceiver has been installed, ensure that the power supply and antenna are
properly connected.
2. Press and hold [PWR] until the display shows the start-up page.
3. Turn [SQL] counterclockwise until the “BUSY” appears in the “VHF Radio” window on
the display.
4. Turn up [VOL] until noise or audio from the speaker is at a comfortable level.
5. Turn [SQL] clockwise until the random noise disappears. This state is known as the
“Squelch threshold.”
6. Turn the Channel knob to select the desired channel. Refer to the channel chart on page
129 for available channels.
7. When a message is received, adjust the volume to the desired listening level. “BUSY”
is displayed indicating that the channel is being used.
18.1 TRANSMISSION
1. Perform steps 1 through 6 of section “18.0 RECEPTION.”
2. Before transmitting, monitor the channel to ensure it is clear.
THIS IS AN FCC REQUIREMENT!
3. Press [PTT] on the microphone. “TX” indicator will appear in the “VHF Radio” window
on the display.
4. Speak slowly and clearly into the microphone.
5. When the transmission is finished, release [PTT].
NOTE
The CPV350 is supplied with a noise-canceling microphone. The oval slot labeled “MIC” should be
positioned within 1/2 inch (1.3 cm) from the mouth for optimum performance.
18.2 TRANSMIT TIME-OUT TIMER (TOT)
When [PTT] on the microphone is held down, transmit time is limited to 5 minutes. This limits
unintentional transmissions due to a stuck microphone. About 10 seconds before automatic
transmitter shutdown, a warning beep will be heard from the speaker(s). The transceiver
will automatically go to receive mode, even if [PTT] is continually held down. Before
transmitting again, [PTT] must first be released and then pressed again.
18.3 SIMPLEX/DUPLEX CHANNEL USE
Refer to the VHF MARINE CHANNEL CHART (page 129) for instructions on use of simplex
and duplex channels.
NOTE
All channels are factory-programmed in accordance with International, Industry Canada (Canada),
and FCC (USA) regulations. Mode of operation cannot be altered from simplex to duplex or vice-
versa.
Page 83CPV350
18.4 INTERNATIONAL, USA, AND CANADA MODE
1. To change the modes, hold [16/9] and press [WX]. The mode changes from International
to Canadian to USA with each press of [WX].
2. “INTL” will be displayed in the “VHF Radio” window on the display for International
mode, “CAN” will be displayed for Canadian mode, and “USA” will be displayed on the
LCD for USA mode.
3. Refer to the VHF MARINE CHANNEL CHART (page 129) for allocated channels in each
mode.
18.5 NOAA WEATHER CHANNELS
NOTE
NOAA Weather channels are available in the waters of USA and Canada only.
1. To receive a NOAA weather channel, press [WX] from any channel. The CPV350 will
go to the last selected weather channel.
2. Turn the Channel knob on the radio or [UP()] / [DOWN()] on the microphone to
select a different NOAA weather channel.
3. To exit from the NOAA weather channels, press [WX]. The transceiver returns to the
channel it was on prior to a weather channel.
18.5.1 NOAA Weather Alert
In the event of extreme weather disturbances, such as storms and hurricanes, the NOAA
(National Oceanic and Atmospheric Administration) sends a weather alert accompanied by
a 1050 Hz tone and subsequent weather report on one of the NOAA weather channels.
When the Weather Alert feature is enabled (see section “18.5.3 Customizing Weather
Alert,” the transceiver is capable of receiving this alert if the following is performed:
1. Program NOAA weather channels into the transceiver’s memory for scanning. Follow
the same procedure as for regular channels under section “18.11 SCANNING.”
2. Press [SCAN/MEM] once to start memory scanning or priority scanning (determined
from the “18.11.0 Selecting the Scan Type” section, see page 96 for details).
3. The programmed NOAA weather channels will be scanned along with the regular-
programmed channels. However, scanning will not stop on a normal weather broadcast
unless a NOAA alert is received.
4. When an alert is received on a NOAA weather channel, scanning will stop and the
transceiver will emit a loud beep to alert the user of a NOAA broadcast.
5. Press [WX] to stop the alert tone and receive the weather report.
NOTE
If [WX] is not pressed the alert tone will be emitted for 5 minutes and then the weather report will
be received.
NOTE
The Weather Alert feature is also engaged while the transceiver is receiving on one of the NOAA
weather channels.
Page 84 CPV350
18.5.2 NOAA Weather Alert Test
NOAA tests the alert system every Wednesday between 11AM and 1PM. To test the
CPV350’s NOAA Weather alert feature, on Wednesday between 11AM and 1PM, setup as
in previous section and confirm the alert is heard.
18.5.3 Customizing NOAA Weather Alert
This menu selection allows you customize the NOAA Weather alert function. Default setting
is On.
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight RADIO SETUP and
press [ENT] or move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight VHF SETTINGS and press [ENT] or move the
ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight WX ALERT and press [ENT] or move the
ShuttlePoint knob to the right.
4. Move the ShuttlePoint knob to select the desired WX alert mode. The WX alert mode
can be set to:
On SCAN – the CPV350 will only alert when in scan mode
On WX – the alert will only sound if the radio is on a receiving weather channel
On SCAN/WX – the CPV350 will only alert when a receiving channel is programmed
and scanned.
Off – disables the Weather alert function
5. Press [ENT] or move the ShuttlePoint to the right to store the selected setting.
6. Press [CLR] until the menu disappears or an easier method is to move the ShuttlePoint
knob to the left a few times.

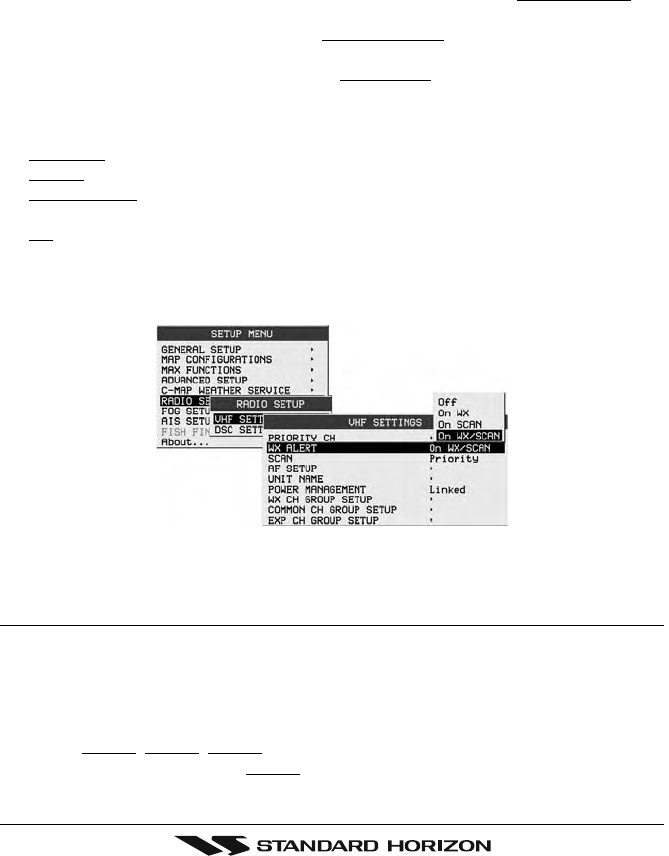

Figure 18.5.3 - WX ALERT menu
18.6 EMERGENCY CHANNEL (CHANNEL 16 USE)
Channel 16 is known as the Hail and Distress Channel. An emergency is defined as a threat
to life or property. In such instances, be sure the transceiver is on and set to CHANNEL 16.
Then use the following procedure:
1. Press the microphone push-to-talk switch and say “Mayday, Mayday, Mayday.
This is , , ” (your vessel’s name).
2. Then repeat once: “Mayday, ” (your vessel’s name).
3. Now report your position in latitude/longitude, or by giving a true or magnetic bearing
Page 85CPV350
(state which) to a well-known landmark such as a navigation aid or geographic feature
such as an island or harbor entry.
4. Explain the nature of your distress (sinking, collision, aground, fire, heart attack, life-
threatening injury, etc.).
5. State the kind of assistance your desire (pumps, medical aid, etc.).
6. Report the number of persons aboard and condition of any injured.
7. Estimate the present seaworthiness and condition of your vessel.
8. Give your vessel’s description: length, design (power or sail), color and other distinguishing
marks. The total transmission should not exceed 1 minute.
9. End the message by saying “OVER.” Release the microphone button and listen.
10. If there is no answer, repeat the above procedure. If there is still no response, try another
channel.
18.7 CALLING ANOTHER VESSEL (CHANNEL 16 OR 9)
Channel 16 may be used for initial contact (hailing) with another vessel.
However, its most important use is for emergency and distress messages. This channel
must be monitored at all times except when actually using another channel.
It is monitored by the U.S. and Canadian Coast Guards and by other vessels. Use of channel
16 for hailing must be limited to initial contact only. Calling should not exceed 30 seconds,
but may be repeated 3 times at 2-minute intervals. In areas of heavy radio traffic, congestion
on channel 16 resulting from its use as a hailing channel can be reduced significantly in U.S.
waters by using channel 9 as the initial contact (hailing) channel for non-emergency
communications. Here, also, calling time should not exceed 30 seconds but may be
repeated 3 times at 2-minute intervals.
Prior to making contact with another vessel, refer to the channel charts in this manual, and
select an appropriate channel for communications after initial contact. For example,
Channels 68 and 69 are some of the channels available to non-commercial (recreational)
boaters. Monitor your desired channel in advance to make sure you will not be interrupting
other traffic, and then go back to either channel 16 or 9 for your initial contact.
When the hailing channel (16 or 9) is clear, state the name of the other vessel you wish to
call and then “This is” followed by the name of your vessel and your Station License (Call
Sign). When the other vessel returns your call, immediately request another channel by
saying “Go to,” the number of the other channel, and “Over.” Then switch to the new channel.
When the new channel is not busy, call the other vessel.
After a transmission, say “Over,” and release the microphone’s push-to-talk (PTT) switch.
When all communication with the other vessel is completed, end the last transmission by
stating your Call Sign and the word “Out.” Note that it is not necessary to state your Call Sign
with each transmission, only at the beginning and end of the contact.
Remember to return to Channel 16 when not using another channel. Some radios
automatically monitor Channel 16 even when set to other channels or when scanning.
18.8 MAKING TELEPHONE CALLS
To make a radiotelephone call, use a channel designated for this purpose. The fastest way
to learn which channels are used for radiotelephone traffic is to ask at a local marina.
Channels available for such traffic are designated Public Correspondence channels on the
channel charts in this manual. Some examples for USA use are Channels 24, 25, 26, 27,
Page 86 CPV350
28, 84, 85, 86, and 87. Call the marine operator and identify yourself by your vessel’s name,
The marine operator will then ask you how you will pay for the call (telephone credit card,
collect, etc.) and then link your radio transmission to the telephone lines.
The marine telephone company managing the VHF channel you are using may charge a
link-up fee in addition to the cost of the call.
18.9 OPERATING ON CHANNELS 13 AND 67
Channel 13 is used at docks and bridges and by vessels maneuvering in port. Messages
on this channel must concern navigation only, such as meeting and passing in restricted
waters.
Channel 67 is used for navigational traffic between vessels.
By regulation, power is normally limited to 1 Watt on these channels. Your radio is
programmed to automatically reduce power to this limit on these channels. However, in
certain situations it may be necessary to temporarily use a higher power. See page 89
([H/L] key) for means to temporarily override the low-power limit on these two channels.
18.10 DUAL WATCH (TO PRIORITY CHANNEL)
Dual watch allows the radio to monitor one channel and the assigned Priority channel. By
default the priority channel is set to 16, however the priority channel may be changed by
referring to section “18.11.3 Priority Channel Set.”
1. Adjust [SQL] until the background noise disappears.
2. Select the channel you wish to dual watch to “Priority channel” by
rotating the channel knob.
3. Press [DW].
4. The CPV350 will scan between Priority channel and the channel that
was selected in step 2.
5. If a transmission is received on the channel selected in step 2, the CPV350 will dual
watch between the working channel and the Priority channel.
6. To stop Dual Watch, press [DW] again.
18.11 SCANNING
Allows the user to select the scan type from Memory scan or Priority scan. “Memory scan”
scans the channels that were programmed into memory. “Priority scan” scans the channels
programmed in memory with the priority channel.
18.11.0 Selecting the Scan Type
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight RADIO SETUP and
press [ENT] or move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight VHF SETTINGS and press [ENT] or move the
ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight SCAN and press [ENT] or move the ShuttlePoint
knob to the right.
4. Another popup window will be shown with Priority and Memory, move the ShuttlePoint
Page 87CPV350
knob to the desired selection and press [ENT] or move the ShuttlePoint knob to the right.
5. Press [CLR] until the menu disappears or an easier method is to move the ShuttlePoint
knob to the left a few times.
Figure 18.11.0 - SCAN menu
18.11.1 Memory Scanning (M-SCAN)
By default the CPV350 is set to P-Scan. To change to MEM scan follow steps in “18.11.0
Selecting the Scan Type.”
1. Adjust [SQL] until background noise disappears.
2. Select a desired channel to be scanned by rotating the channel knob. Press and hold
[SCAN/MEM] for one second, “MEM” will appears in the “VHF
Radio” window on the display which indicates the channel has been
programmed into the CPV350’s memory.
3. Repeat step 2 for all the desired channels to be scanned.
4. To DELETE a channel from the CPV350’s memory, select the channel then press and
hold [SCAN/MEM] for one second, “MEM” will disappear in the display.
5. To start scanning, just press [SCAN/MEM] momentarily. “M-SCAN” appears in the
“VHF Radio” window on the display. Scanning will proceed from the
lowest to the highest programmed channel number and will stop on
a channel when a transmission is received.
6. The channel number will blink during reception.
7. To stop scanning, press [16/9] or [WX].
18.11.2 Priority Scanning (P-SCAN)
In the default setting, Channel 16 is set as the priority channel. You may change the priority
channel to the desired channel from the Channel 16 by the Radio Setup Mode, refer to the
next section “18.11.3 Priority Channel Set.”
1. Adjust [SQL] until background noise disappears.
2. Select a desired channel to be scanned by rotating the channel knob. Press and hold
[SCAN/MEM] for one second, “MEM” will appears in the “VHF
Radio” window on the display which indicates the channel has been
programmed into the CPV350’s memory.
3. Repeat step 2 for all the desired channels to be scanned.
4. To DELETE a channel from the CPV350’s memory, select the channel then press and
hold [SCAN/MEM] until “MEM” is removed from the display.
Page 88 CPV350

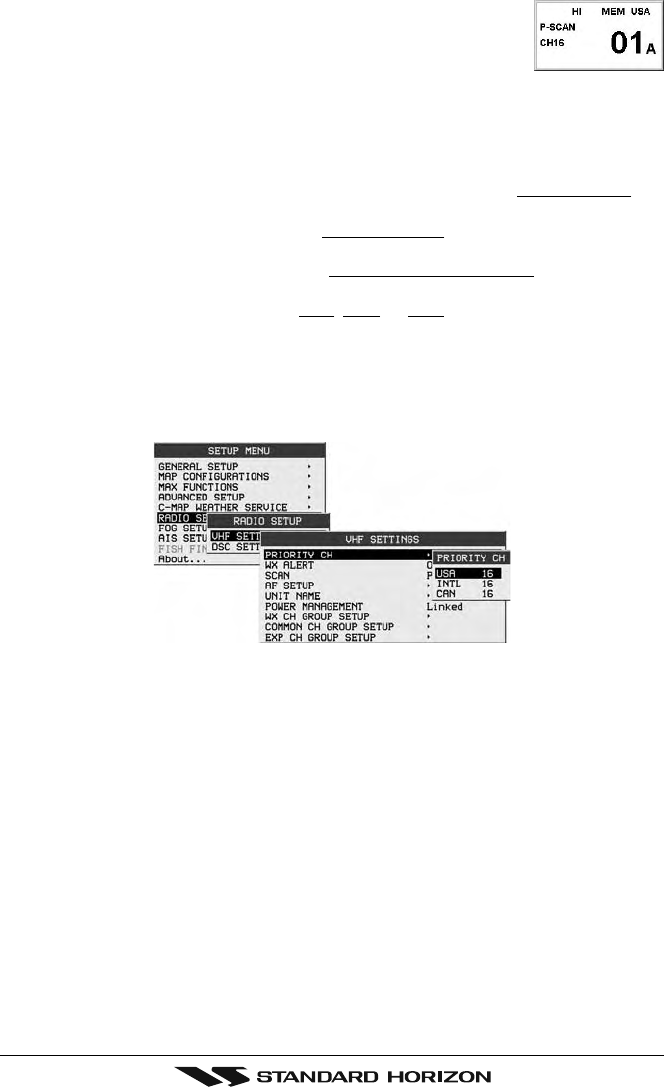

5. To start priority scanning, press [SCAN/MEM] momentarily. “P-
SCAN” appears in the “VHF Radio” window on the display. Scanning
will proceed between the memorized channels and the priority
channel. The priority channel will be scanned after each programmed
channel.
6. To stop scanning, press [16/9] or [WX].
18.11.3 Priority Channel Set
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight RADIO SETUP and
press [ENT] or move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight VHF SETTINGS and press [ENT] or move the
ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight PRIORITY CHANNEL SET and press [ENT]
or move the ShuttlePoint knob to the right.
4. Move the ShuttlePoint knob to select USA, INTL, or CAN, and press [ENT] or move the
ShuttlePoint knob to the right.
5. Move the ShuttlePoint knob to select the channel to be a priority.
6. Press [ENT] to store the selected setting.
7. Press [CLR] until the menu disappears or an easier method is to move the ShuttlePoint
knob to the left a few times.
Figure 18.11.3 - PRIORITY CH menu
Page 89CPV350

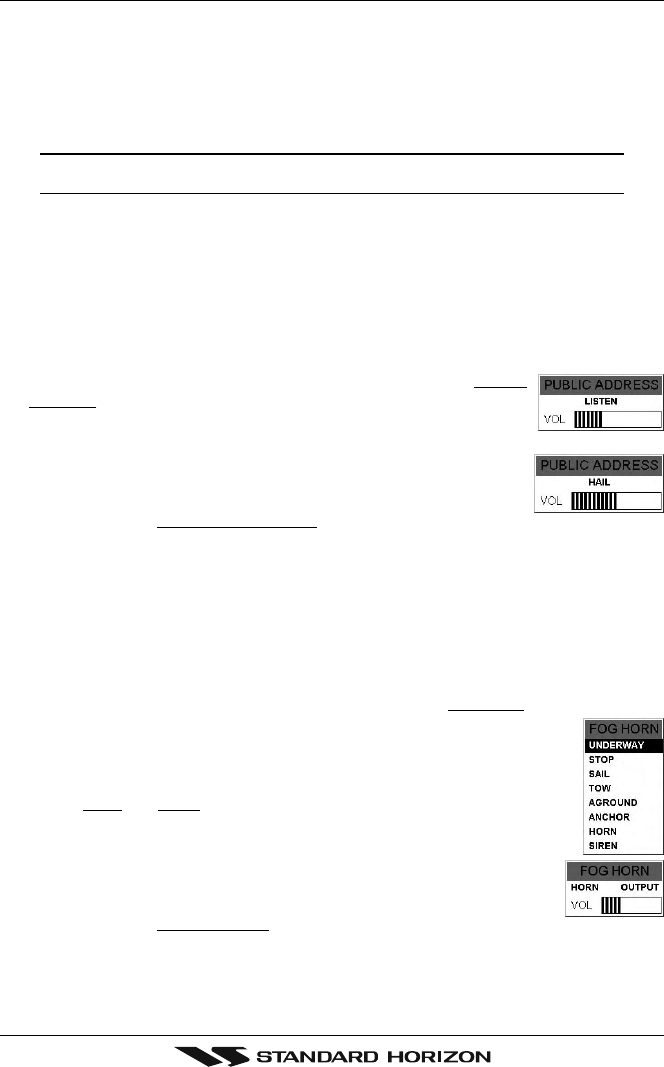

18.12 PA/FOG OPERATION
PA/FOG mode allows the CPV350 to be used as a 30W hailer when an optional STANDARD
HORIZON 220SW or 240SW PA horn speaker is installed. When in Hail or FOG mode the
PA speaker Listen’s Back (acts as a microphone and amplifies sound to the front panel
speaker) through the PA horn speaker providing two-way communications through the PA
horn speaker.
NOTE
When in PA or FOG mode the CPV350 will receive on the last selected VHF channel before
entering into the PA or FOG mode and receive DSC calls.
PA HAIL mode: PA HAIL mode allows the transceiver to be used as a power hailer when
an optional STANDARD HORIZON 220SW or 240 SW HAIL/PA
speaker is installed. The Hail mode has a listen-back feature providing
two way communication through the HAIL/PA speaker.
FOG HORN mode: Automatic signaling is transmitted through the HAIL/PA horn.
18.12.0 Operating the PA HAIL mode
1. Press [MENU]. Move the ShuttlePoint knob to highlight Public
Address and press [ENT].
2. Press [PTT] on the microphone to speak through the HAIL/PA
speaker.
3. With the [PTT] pressed, rotate the Channel knob to control the PA
Volume level. The AF output level can be set from 0 to 30 watts.
4. To exit the PA HAIL mode, press [MENU] and move the ShuttlePoint
knob to highlight Exit Public Address, then press [ENT].
5. To adjust the listen back volume, rotate the Channel knob when the [PTT] is not
pressed.
18.12.1 Operating the FOG HORN mode
Operator can select from “Underway,” “Stop,” “Sail,” “Tow,” “Aground,” “Anchor,” “Horn,” or
“Siren.” Please refer to next page for FOG Horn Timing Chart.
1. Press [MENU]. Move the ShuttlePoint knob to highlight Fog Horn and press [ENT].
2. A “Fog Horn” popup window will be displayed, move the ShuttlePoint knob
up or down, or turn the Channel knob to select the one of the eight functions
from the window.
3. Press [ENT].
4. On the Horn and Siren modes, press [PTT] on the microphone to activate
the fog signal through the HAIL/PA horn and turn the Channel knob while
the [PTT] is pressed to control the volume of the horn or siren.
5. Rotate the Channel knob to control the AF output level. The AF output
level can be set from 0 to 30 watts.
6. To exit the FOG HORN mode, press [MENU] and move the ShuttlePoint
knob to highlight Exit Fog Horn, then press [ENT].
7. To adjust the listen back volume, rotate the Channel knob when the [PTT] is not
pressed.
Page 90 CPV350
FOG HORN TIMING CHART
The fog horn function sounds a horn repeatedly until the function is turned off.
TYPE PATTERN USAGE
120s
Listen Back
5s 5s
2s 2s
120s
Listen Back
1s 1s1s 1s
2s 2s2s 2s
120s
Listen Back
1s 1s1s 1s1s 1s
2s 2s2s 2s2s 2s
120s
Listen Back
60s
Listen Back
60s
Listen Back
UNDERWAY
STOP
SAIL
TOW
AGROUND
ANCHOR One 5-second rings evey 60 seconds.
One 5-second blasts evey 120 seconds.
Two 5-second blasts (separated by 2
seconds) evey 120 seconds.
One 5-second blasts followed by two 1-
second blasts (separated by 2 seconds)
evey 120 seconds.
One 5-second blasts followed by three 1-
second blasts (separated by 2 seconds)
evey 120 seconds.
One 11-second rings evey 60 seconds.
Motor vessel underway and
making way.
Motor vessel underway but
stopped (not making way).
Sailling vessel underway, fish-
ing vessel (underway or an-
chored), vessel not under
command, a vessel restricted
in her ability to maneuver (un-
derway or at anchor), or a
vessel towing or pushing an-
other ahead.
Vessel under tow (manned).
Vessel is aground.
Vessel is at anchor.
Page 91CPV350

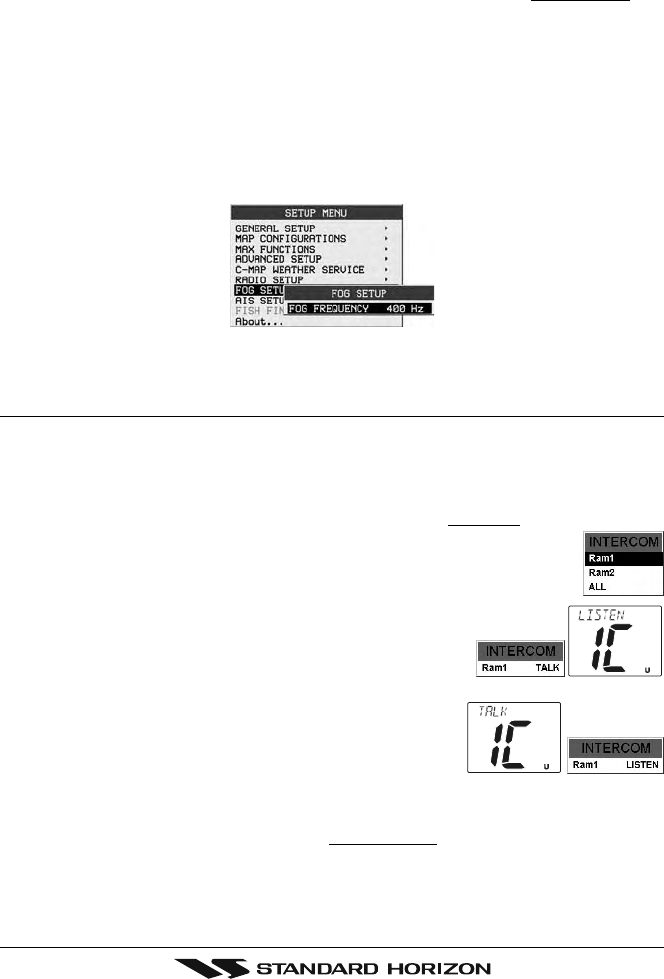

18.12.2 FOG ALERT TONE Frequency
Allows selection of the Frequency for the FOG horn signal. Available selections are “200
Hz” through “850 Hz” in 50 Hz steps. The default Alert Tone Frequency is 400 Hz.
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight FOG SETUP and
press [ENT] or move the ShuttlePoint knob to the right.
2. Press [ENT] or move the ShuttlePoint knob to the right again, move the ShuttlePoint
knob up or down to select the “100 Hz” digits of the desired tone frequency (“2” through
“8”).
3. Move the ShuttlePoint knob to the right, then move the ShuttlePoint knob up or down
to select the “10 Hz” digits of the desired tone frequency (“0” or “5”).
4. Press [ENT] to store the selected setting.
5. Press [CLR] until the menu disappears or an easier method is to move the ShuttlePoint
knob to the left a few times.
Figure 18.11.3 - PRIORITY CH menu
18.13 INTERCOM OPERATION
Connecting a CMP25 RAM+ or VH-310 handset to the CPV350 allows intercom
communications. Refer to section “21.2 INTERCOM OPERATION” for CMP25 RAM+
Microphone or section “22.2 INTERCOM OPERATION” for VH-310 Handset.
1. Press [MENU]. Move the ShuttlePoint knob to highlight Intercom then press [ENT].
2. If your CPV350 is equipped with two CMP25 RAM+ Mic’s (or VH-310
Handset), “INTERCOM” popup window appears on the display, select the
station you wish to communicate (Ram1, Ram2, or ALL) with the ShuttlePoint
knob, then press [ENT].
3. When the “INTERCOM” is activated, a “INTERCOM” popup
window is displayed on the CPV350, and “IC” is displayed
on the CMP25 RAM+ Mic or VH-310 Handset.
4. Press [PTT]. “Talk” will be shown on the display.
NOTE: A warning beep will be emitted when the CPV350
microphone’s [PTT] is pressed while the RAM+ Mic’s or
VH-310 Handset’s [PTT] is pressed.
5. Speak slowly and clearly into the microphone, hold the
microphone about 1/2 inch (1.3 cm) away from your mouth.
6. When finished, release [PTT].
7. To exit the “INTERCOM” mode and return to radio operation mode, press [MENU] and
move the ShuttlePoint knob to highlight Exit Intercom, then press [ENT].
(Second Station Mic’s PTT switch is pressed)
(CPV350’s PTT switch is pressed)
Page 92 CPV350

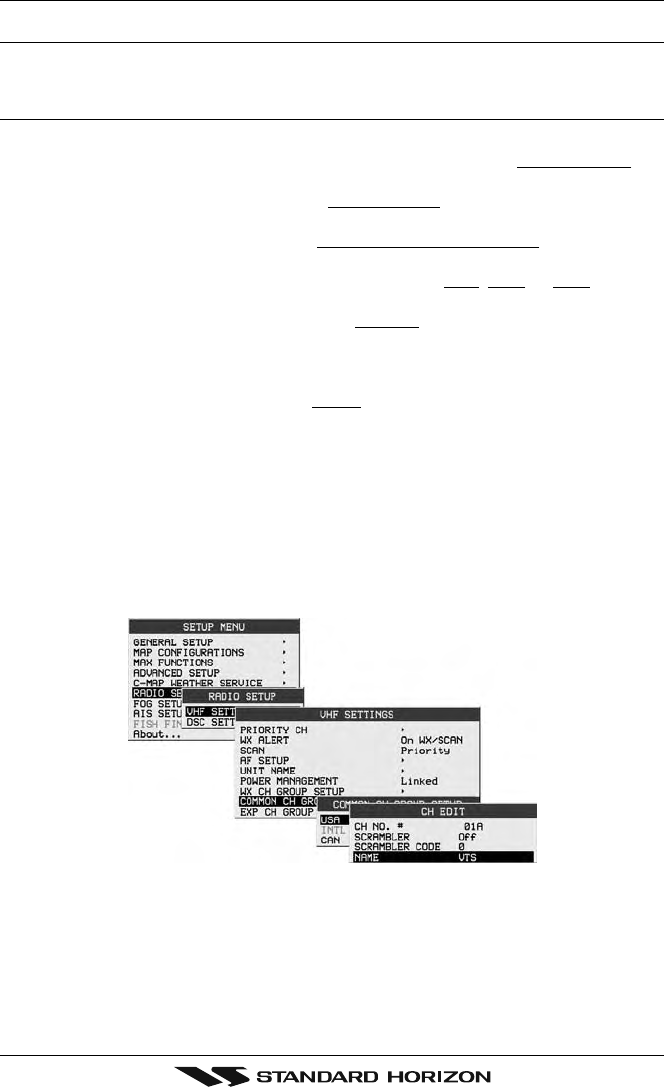

18.14 VOICE SCRAMBLER
If privacy of communications is desired, a CVS2500 voice scrambler (VS) can be installed
in the transceiver. Contact your Dealer to have a CVS2500 installed.
18.14.0 Setting Up the Voice Scrambler
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight RADIO SETUP and
press [ENT] or move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight VHF SETTING and press [ENT] or move the
ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight COMMON CHANNEL SETUP and press [ENT]
or move the ShuttlePoint knob to the right.
4. Move the ShuttlePoint knob to select the channel group (USA, INTL, or CAN) you wish
to setup the Voice Scrambler and press [ENT] or move the ShuttlePoint knob to the
right.
5. Move the ShuttlePoint knob to highlight CH NO. and press [ENT] or move the
ShuttlePoint knob to the right.
6. Move the ShuttlePoint knob to select the operating channel you wish to setup the Voice
Scrambler and press [ENT].
7. Move the ShuttlePoint knob to highlight SCRAMBLER and press [ENT] or move the
ShuttlePoint knob to the right.
8. Another popup window will be shown with On and Off, move the ShuttlePoint knob to
select On and press [ENT] or move the ShuttlePoint knob to the right.
9. Move the ShuttlePoint knob to highlight SCRAMBLER CODE and press [ENT] or move
the ShuttlePoint knob to the right.
10. Move the ShuttlePoint knob to select the desired Scramble Code. The Scramble Code
can be select to 0, 1, 2, or 3.
11. To setup the Voice Scramble to another operating channel, repeat steps 5 through 10.
12. Press [CLR] until the menu disappears or an easier method is to move the ShuttlePoint
knob to the left a few times.
Figure 18.14.0 - CH EDIT menu
Page 93CPV350
18.14.1 Voice Scramble Operation
1. Turn on the transceiver.
2. Select a channel that was programmed for scrambler mode (“VS” will appear in the “VHF
Radio” window on the display).
3. If a channel is not set for the voice scrambler, the display will be as shown in the
illustration at the right (“VS” will disappear from the display).
4. If a voice scrambler is canceled temporarily in the “SETUP” menu, the display will be
as shown in the illustration at the right.
5. Monitor the channel before transmitting.
6. Transmit the voice message. The signal sent will be scrambled.
Page 94 CPV350
19. DIGITAL SELECTIVE CALLING
19.0 GENERAL
WARNING
This radio is designed to generate a digital maritime distress and safety call to
facilitate search and rescue. To be effective as a safety device, this equipment must
be used only within communication range of a shore-based VHF marine channel 70
distress and safety watch system. The range of signal may vary but under normal
conditions should be approximately 20 nautical miles.
NOTE
A DSC Warning sticker is included with the CPV350. To comply with FCC
regulations this sticker must be mounted in a location that can be easily viewed from
the location of the CPV350. Make sure
the chosen location is clean and dry
before applying the sticker.
Digital Selective Calling is a semi-
automated method of establishing a radio
call, it has been designated by the
International Maritime Organization (IMO)
as an international standard for
establishing VHF, MF, and HF radio calls.
It has also been designated as part of the
Global Maritime Distress and Safety
System (GMDSS). It is planned that DSC
will eventually replace aural watches on distress frequencies and will be used to
announce routine and urgent maritime safety information broadcasts.
This system allows mariners to instantly send a distress call with GPS position
(when connected to the transceiver) to the Coast Guard and other vessels within
range of the transmission. DSC will also allow mariners to initiate or receive
Distress, Urgency, Safety, Routine, POSITION REQUEST, POSITION SEND, and
Group calls to or from another vessel equipped with a DSC transceiver.
19.1 MARITIME MOBILE SERVICE IDENTITY (MMSI)
19.1.0 What is an MMSI?
An MMSI (Maritime Mobile Service Identity) is a nine digit number used on Marine
Transceivers capable of using Digital Selective Calling (DSC). This number is used like a
telephone number to selectively call other vessels.
THIS NUMBER MUST BE PROGRAMMED INTO THE CPV350 TO OPERATE THE DSC
FUCTIONS.
How can I obtain an MMSI assignment?
Boat US offers online registration of a MMSI. Visit www.boatus.com/mmsi
WARNING
STICKER
DISTRESS
PULL OPEN
Page 95CPV350
19.1.1 Programming the MMSI
WARNING
User MMSI can be input only twice. If the user tries to input an MMSI more than
twice, the radio will show the display on the right. If the user needs to change the
MMSI more than twice, the transceiver will have to be sent to Factory Service. Refer
to the section “23.1 FACTORY SERVICE.”
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight RADIO SETUP and
press [ENT] or move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight DSC SETTINGS and press [ENT] or move the
ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight USER MMSI and press [ENT] or move the
ShuttlePoint knob to the right.
4. Move the ShuttlePoint knob to the up or down to select the first number of your MMSI,
then move the ShuttlePoint knob to the right to step to the next number.
5. Repeat step 6 to set your MMSI (up to nine digits).
6. When finished programming the number, press the [ENT] to store the number in
memory.
7. Press [CLR] until the menu disappears or an easier method is to move the ShuttlePoint
knob to the left a few times.
Figure 19.1 - DSC SETTINGS menu
19.2 DSC DISTRESS CALL
The CPV350 is capable of transmitting and receiving DSC Distress messages from all DSC
radios. The CPV350 will transmit the Latitude, Longitude of the vessel if the GPS has a fix.
19.2.0 Transmitting a DSC Distress Call
NOTE
To be able to transmit a DSC distress call an MMSI number must be programmed, refer to section
“19.1.1 Programming the MMSI.” In order for your ships location to be transmitted a GPS antenna
must be connected to the CPV350, refer to section “2.3 MOUNTING THE GPS WASS SMART
ANTENNA.”
1. Lift the red spring loaded DISTRESS cover and press [DISTRESS]. “DISTRESS
ALERT” popup window will appear on the display.
Page 96 CPV350
2. Press and hold [DISTRESS]. The radios display will
count down (3-2-1) and then transmit the Distress call.
3. When the distress signal is sent, CH70 and “TX” icon
will briefly appear on the VHF Radio” window in the
display. After the message has been sent, the radio will
sound a Distress Alarm.
4. The transceiver will watch for a DSC acknowledgment
transmission on CH70 and also receive calls on CH16.
5. If an acknowledgement is received, select channel 16
and advise your distress situation.
6. If no acknowledgment is received, the distress call is repeated in
4 minute intervals until a DSC acknowledgment is received.
7. When a DSC Distress acknowledgment is received, a distress
alarm sounds. The radio automatically switched to channel 16,
and display shows the MMSI of the ship responding to your
distress.
RECEIVED ACK: acknowledgment signal is received.
RECEIVED RLY: relay signal is received from another
vessel or coast station.
8. To cancel the DSC distress alarm signal from the speaker,
press any key.
Transmitting a DSC Distress Call with Nature of Distress
The CPV350 is capable of transmitting a DSC Distress Call with the following “Nature of
Distress” categories: Undesignated, Fire, Flooding, Collision, Grounding, Capsizing,
Sinking, Adrift, Abandoning, Piracy, MOB.
1. Lift the red spring loaded DISTRESS cover and press
[DISTRESS]. The “DISTRESS ALERT” popup window
will appear on the display.
2. Move the ShuttlePoint knob to the up or down or turn the
Channel knob to select the desired nature of distress
category.
3. Press and hold [DISTRESS]. The radios display will
count down (3-2-1) and then transmit the Distress call.
4. When the distress signal is sent, CH70 and “TX” icon
will appear on the “VHF Radio” window in the display. After the
message has been sent, the radio will sound a Distress Alarm.
5. The transceiver will watch for a DSC acknowledgment transmission
on CH70 and also receive calls on CH16.
6. If an acknowledgement is received, select channel 16 and advise
your distress situation.
7. If no acknowledgment is received, the distress call is repeated
in 4-minute intervals until a DSC acknowledgment is received.
8. When a DSC Distress acknowledgment is received, a distress
alarm sounds. The radio automatically switches to channel
16, and display shows the MMSI of the ship responding to
your distress.
RECEIVED ACK: acknowledgment signal is received.
RECEIVED RLY: relay signal is received from another vessel or coast station.
9. To cancel the DSC distress alarm signal from the speaker, press any key.
Page 97CPV350
Cancel a DSC Distress Call
If a DSC Distress call was sent by error the CPV350
allows you to send a message to other vessels to cancel
the Distress Call that was made in error.
Press [CLR], then press [ENT].
19.2.1 Receiving a DSC Distress Call
1. When a DSC Distress call is received, an emergency alarm
sounds.
2. The CPV350 automatically switches to channel 16, and
“RECEIVED DISTRESS ALERT” popup window is shown
on the display.
3. Press any key to stop the alarm.
NOTE
You must continue monitoring channel 16 as a coast station may require assistance in the rescue
attempt.
19.3 ALL SHIPS CALL
The All Ships Call function allows contact to be established with other vessel stations
without having their ID in the individual calling directory. Also, priority for the call can be
designated as Urgency or Safety.
URGENCY Call:This type of call is used when a vessel may not truly be in distress, but have
a potential problem that may lead to a distress situation. This call is the
same as saying PAN PAN PAN on channel 16.
SAFETY Call: Used to transmit boating safety information to other vessels. This message
usually contains information about an overdue boat, debris in the water,
loss of a navigation aid or an important meteorological message. This call
is the same as saying Securite, Securite, Securite.
19.3.0 Transmitting an All Ships Call
1. Press [CALL]. The “DSC Operation” menu soft keys appear below the display.
2. Press [ALL SHIPS] and a “ALL SHIPS CALL” popup window
will be shown on the display.
3. Move the ShuttlePoint knob up or down or turn the Channel
knob to select the call (Urgency or Safety), then press [ENT].
4. Press [ENT] again to transmit the selected type of all ships DSC call.
5. After the ALL SHIPS CALL is transmitted, the transceiver will switch
to CH16.
6. Listen to the channel to make sure it is not busy, then key the
microphone and say PAN PAN PAN or “Securite, Securite, Securite”
depending on the priority of the call. Say your call sign and announce
the channel you wish to switch to for communications.
Page 98 CPV350
19.3.1 Receiving an All Ships Call
1. When an all ships call is received, an emergency alarm sounds.
2. The radio will automatically change to channel 16, and a “RCEIVED
DSC CALL” popup window will be shown on the display to see the
MMSI of the vessel transmitting the All Ships Call.
3. Press any key to stop the alarm.
4. Monitor channel 16 or traffic channel until the URGENCY voice
communication is completed.
19.4 INDIVIDUAL CALL
This feature allows the CPV350 to contact another vessel with a DSC VHF radio and
automatically switch the receiving radio to a desired communications channel. This feature
is similar to calling a vessel on CH16 and requesting to go to another channel (switching
to the channel is private between the two stations).
19.4.0 Setting up the Individual / Position Call Directory
The CPV350 has a DSC directory that allows you to store a vessel or person’s name and
the MMSI number associated with vessels you wish to transmit Individual calls, Position
Requests and Position Send transmissions. The CPV350 can store up to 56 MMSI into the
Individual directory.
To transmit an Individual call you must program this directory with information of the persons
you wish to call, similar to a cellular phones telephone directory.
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight RADIO SETUP and
press [ENT] or move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight DSC SETTINGS and press [ENT] or move the
ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight INDIVIDUAL DIRECTORY and press [ENT] or
move the ShuttlePoint knob to the right.
4. Move the ShuttlePoint knob to highlight NEW then press [ENT].
5. Move the ShuttlePoint knob to up or down to scroll through the first letter of the name
of the vessel or person you want to reference in the directory.
6. Move the ShuttlePoint knob to the right to store the first letter in the name and step to
the next letter to the right.
7. Repeat step 5 and 6 until the name is complete. The name can consist of up to eleven
characters.
8. After the eleventh letter or space has been entered, press [ENT] to advance to the MMSI
number entry.
9. Move the ShuttlePoint knob to up or down to scroll through numbers, 0-9 to enter the
desired number and move the ShuttlePoint knob to the right to move one space to the
right. Repeat this procedure until all nine space of the MMSI number are entered.
10. If a mistake was made entering in the MMSI number move the ShuttlePoint knob to the
left until the wrong number is selected, then move the ShuttlePoint knob to up or down
to correct the entry.
11. To store the data entered, press [ENT] two times.
Page 99CPV350

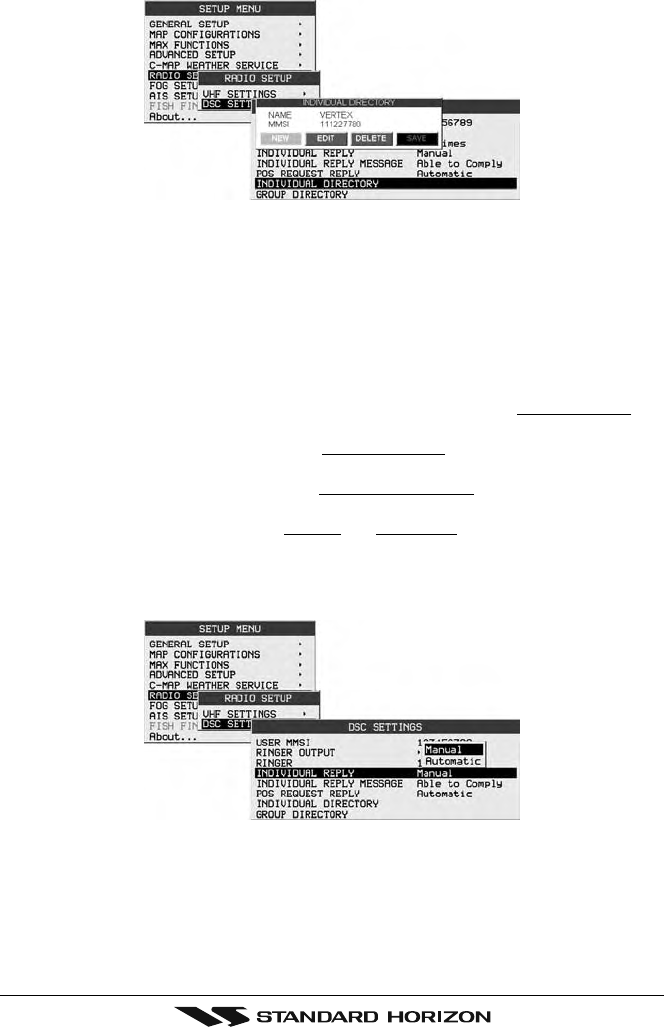

12. To enter another individual address, repeat steps 4 through 11.
13. Press [CLR] until the menu disappears.
Figure 19.4.0 - INDIVIDUAL DIRECTORY menu
19.4.1 Setting up Individual Reply
Allows setting up the radio to automatically (default setting) or manually respond to a DSC
Individual call requesting you to switch to a working channel for voice communications.
When Manual is selected the MMSI of the calling vessel is shown allowing you to see who
is calling. This function is similar to caller id on a cellular phone.
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight RADIO SETUP and
press [ENT] or move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight DSC SETTINGS and press [ENT] or move the
ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight INDIVIDUAL REPLY and press [ENT] or move
the ShuttlePoint knob to the right.
4. A popup window will be shown with Manual and Automatic, move the ShuttlePoint knob
to the desired selection and press [ENT] or move the ShuttlePoint knob to the right.
5. Press [CLR] until the menu disappears or an easier method is to move the ShuttlePoint
knob to the left a few times.
Figure 19.4.0 - INDIVIDUAL REPLY menu
Page 100 CPV350
19.4.2 Setting up the Individual/Group Call Ringer
When an Individual Call or Group Call is received the radio will produce a ringing tone for
3 minutes. This selection allows ringer time to be changed.
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight RADIO SETUP and
press [ENT] or move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight DSC SETTINGS and press [ENT] or move the
ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight RINGER and press [ENT] or move the
ShuttlePoint knob to the right.
4. Another popup window will be shown, move the ShuttlePoint knob to the desired ringing
time of a Individual Call and press [ENT] or move the ShuttlePoint knob to the right.
5. Press [CLR] until the menu disappears or an easier method is to move the ShuttlePoint
knob to the left a few times.
Figure 19.4.2 - RINGER menu
The CPV350 has the capability to turn off the ringer for Individual, Group and DSC polling
calls.
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight RADIO SETUP and
press [ENT] or move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight DSC SETTINGS and press [ENT] or move the
ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight RINGER OUTPUT and press [ENT] or move
the ShuttlePoint knob to the right.
4. Move the ShuttlePoint knob to select INDIVIDUAL if you wish to disable the Individual
Call ringer, move the ShuttlePoint knob to GROUP or Polling ringer and press [ENT]
or move the ShuttlePoint knob to the right.
5. Another popup window will be shown with On and Off, move the ShuttlePoint knob to
select Off and press [ENT] or move the ShuttlePoint knob to the right
6. Press [CLR] until the menu disappears or an easier method is to move the ShuttlePoint
knob to the left a few time.
If you wish to return to enabling the ringer tone, just repeat the above procedure, moving
the ShuttlePoint knob to select On in step “5” above.
Page 101CPV350
Figure 19.4.2 - RINGER OUTPUT menu
19.4.3 Transmitting an Individual Call
This feature allows the user to contact another vessel with a DSC radio. This feature is
similar to calling a vessel on CH16 and requesting to go to another channel.
Using the Individual Calling directory
To use this method the CPV350 must be pre-programmed with MMSI numbers of vessels
you wish to call (similar to programming in telephone numbers into a cell phone. Refer to
section “19.5.1 Setting up the Individual / Position Call Directory.”
1. Press [CALL]. The “DSC Operation” menu soft keys appear at the bottom edge of the
display.
2. Press [INDIVIDUAL] and the “DIRECTORY” popup window on the
display.
3. Move the ShuttlePoint knob to the up or down or turn the Channel knob
to select the “Individual” you want to contact.
4. Press [ENT], then turn the Channel knob to select the operating channel
you want to communicate on and press [ENT].
5. Press [ENT] again to transmit the individual DSC Call or press the [CLR]
key to cancel the call. After INDIVIDUAL CALL is transmitted, the
transceiver will wait 8 seconds for the acknowledgment. If the reply
signal is not received, the transceiver will transmit again.
6. After the second INDIVIDUAL CALL is transmitted, if the reply signal
is not received, the display will be as shown in the illustration on the
right. To send the call again, press [ENT].
7. When an individual call acknowledgment is received, the established
channel is automatically changed to the channel which is selected on
step 3 above and a ringing tone sounds.
8. Press any key to listen to the channel to make sure it is not busy, then
key the microphone and call the other vessel you desire to communicate
with.
Page 102 CPV350
Manual Calling a Individual MMSI
You may enter an MMSI number manually to contact without Setting up the Individual
Directory.
1. Press [CALL]. The “DSC Operation” menu soft keys will appear at underneath the
display.
2. Press [INDIVIDUAL] to show the “DIRECTORY” popup window on the display.
3. Move the ShuttlePoint knob to the up or down or turn the Channel knob
to select “MANUAL,” then press the [ENT] key show the “MMSI INPUT”
window on the display.
4. Move the ShuttlePoint knob to up or down to scroll through numbers, 0-
9 to enter the desired number and move the ShuttlePoint knob to the right
to move one space to the right. Repeat this procedure until all nine space
of the MMSI number are entered.
5. If a mistake was made entering in the MMSI number move the ShuttlePoint knob to the
left until the wrong number is selected, then move the ShuttlePoint knob to up or down
to correct the entry.
6. When finished entering the MMSI number, press the [ENT].
7. Turn channel knob to select the operating channel you want to
communicate on and press [ENT].
8. Press [ENT] again to transmit the individual DSC Call or press the
[CLR] key to cancel the call.
9. After INDIVIDUAL CALL is transmitted, the transceiver will wait 8
seconds for the acknowledgment. If the reply signal is not received,
the transceiver will transmit again.
10. After the second INDIVIDUAL CALL is transmitted, if the reply signal
is not received, the display will be as shown in the illustration on the
right. To send the call again, press [ENT] or to exit the mode, press
[CLR].
11. When an individual call acknowledgment is received, the established channel is
automatically changed to the channel which is selected on step 7 above and a ringing
tone sounds.
12. Press any key to listen to the channel to make sure it is not busy, then key the
microphone and call the other vessel you desire to communicate with.
19.4.4 Receiving an Individual Call
When the CPV350 receives an individual call, by default the CPV350 automatically
transmits an acknowledgement before switching to the requested channel. The CPV350
can be set so the CPV350 prompts you to manually send a reply, refer to section “19.4.1
Setting up Individual Reply.”
1. When an individual call is received, an individual call ringing alarm
sounds.
2. The radio automatically switches to the requested channel, and
appear “RCEIVED DSC CALL” popup window on the display to
see the MMSI of the vessel transmitting the Individual Call.
3. Press any key to stop the alarm.
4. Press [PTT] on the microphone and talk to the calling ship.
Page 103CPV350
19.5 CALL WAITING DIRECTORY
The CPV350 logs received distress calls and individual calls. The DSC Call Waiting feature
is similar to an answer machine where calls are this recorded logs for review. When a call
is logged while the radio is set on the DSC Standby function, a message will appear on the
LCD. The CPV350 can be memorized up to the latest 23 Distress and up to the latest 56
Individual Calls.
19.5.0 Enabling the Call Waiting Feature
Follow the steps below to enable or disable the Call Waiting feature.
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight RADIO SETUP and
press [ENT] or move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight DSC SETTINGS and press [ENT] or move the
ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight INDIVIDUAL REPLY MESSAGE and press
[ENT] or move the ShuttlePoint knob to the right.
4. A popup window will be shown with Able to Comply or Unable to Comply, move the
ShuttlePoint knob to the desired selection and press [ENT] or move the ShuttlePoint
knob to the right.
5. Press [CLR] until the menu disappears or an easier method is to move the ShuttlePoint
knob to the left a few times.
Figure 19.5.0 - INDIVIDUAL REPLY MESSAGE menu
19.5.1 Reviewing Received Calls Logged into the Call Waiting
Directory
1. Press [CALL]. The “DSC Operation” menu soft keys will appear at the bottom edge of
the display.
2. Press [NEXT] to show additional soft keys.
3. Press [DSC LOG] to appear “DSC LOG” popup window on the display.
4. Move the ShuttlePoint knob to the up or down or turn the Channel Knob to
select the category (DISTRESS or DSC CALL) you want to review and call
back.
Page 104 CPV350
5. Press [ENT], to review details for the selected category.
6. Move the ShuttlePoint knob to the up or down to select the station you want to review
and call back, then press [RESEND] to call the selected station.
Figure 19.5.1 - DSC CALL LOG list
19.5.2 To Delete the Received Log from the “DSC Log” Directory
1. Press [CALL]. The “DSC Operation” menu Tabs will appear at the bottom edge of the
display.
2. Press [NEXT] to change the menu Tabs to another Tabs.
3. Press [DSC LOG] to appear “DSC LOG” popup window on the display.
4. Move the ShuttlePoint knob to the up or down or turn the Channel knob to select the
category (DISTRESS or DSC CALL) to be deleted.
5. Press [ENT], to review details for the selected category.
6. Move the ShuttlePoint knob to the up or down to select the station you want to delete,
then press [DELETE] to delete from the DSC Log.
7. Press [CLR] until the menu disappears or an easier method is to move the ShuttlePoint
knob to the left a few times.
Page 105CPV350
19.6 GROUP CALL
This feature allows the user to contact a group of specific vessels (example members of a
yacht club) using DSC radios with Group call function to automatically switch to a desired
channel for voice communications.
19.6.0 Setting up a Group Call
For this function to operate the same Group MMSI must be programmed into all the DSC
VHF radios within the group of vessels that will be using this feature. The group MMSI is
a 9 digit (first digit permanently set to “0”) number that will allow other radios to call your
vessel along with others to automatically switch to a working channel for voice
communications. This function is very useful for yacht clubs and vessels traveling together
that want to collectively make announcements on a predetermined channel.
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight RADIO SETUP and
press [ENT] or move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight DSC SETTINGS and press [ENT] or move the
ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight GROUP DIRECTORY then press [ENT].
4. Move the ShuttlePoint knob to highlight NEW then press [ENT].
5. Move the ShuttlePoint knob to up or down to scroll through the first letter of the name
of the vessel or person you want to reference in the group MMSI number.
6. Move the ShuttlePoint knob to the right to store the first letter in the name and step to
the next letter to the right.
7. Repeat step 7 and 8 until the name is complete. The name can consist of up to eleven
characters.
8. After the eleventh letter or space has been entered, press [ENT] to advance to the group
MMSI number entry.
9. Move the ShuttlePoint knob to up or down to scroll through numbers, 0-9 to enter the
desired number and move the ShuttlePoint knob to the right to move one space to the
right (first digit permanently set to “0”). Repeat this procedure until all nine space of the
MMSI number are entered.
10. If a mistake was made entering in the MMSI number move the ShuttlePoint knob to the
left until the wrong number is selected, then move the ShuttlePoint knob to up or down
to correct the entry.
11. To store the data entered, press [ENT] two times.
12. To enter another group MMSI, repeat steps 6 through 11.
13. Press [CLR] until the menu disappears.
Figure 19.6.0 - GROUP DIRECTORY menu
Page 106 CPV350
19.6.1 Transmitting a Group Call
Using the Group calling directory
1. Press [CALL]. The “DSC Operation” menu Tabs will appear at the bottom edge of the
display.
2. Press [GROUP] to show “DIRECTORY” popup window on
the display.
3. Move the ShuttlePoint knob to the up or down or turn the
Channel knob to select the “Group” you want to contact.
4. Press [ENT], then turn the Channel knob to select the
operating channel you want to communicate on and press
[ENT].
5. Press [ENT] again to transmit the Group Call signal.
6. After the GROUP CALL is transmitted, all the radios in the group will
switch to the designated channel.
7. Listen to the channel to make sure it is not busy, then key the
microphone and call the other vessels you desire to communicate
with.
Manual Calling a Group MMSI number
You may enter a Group MMSI number manually to contact without Setting up the Group call
number.
1. Press [CALL]. The “DSC Operation” menu Tabs will appear at the bottom edge of the
display.
2. Press [GROUP] to show “DIRECTORY” popup window on the display.
3. Move the ShuttlePoint knob to the up or down or turn the Channel knob
to select “MANUAL,” then press [ENT] to show the “MMSI INPUT” window
on the display.
4. Move the ShuttlePoint knob to up or down to scroll through numbers, 0-
9 to enter the desired number and move the ShuttlePoint knob to the right
to move one space to the right (first digit permanently set to “0”). Repeat this procedure
until all nine space of the MMSI number are entered.
5. If a mistake was made entering in the MMSI number move the ShuttlePoint knob to the
left until the wrong number is selected, then move the ShuttlePoint knob to up or down
to correct the entry.
6. When finished entering the MMSI number, press the [ENT] key.
7. Turn the Channel knob to select the operating channel you want to
communicate on and press [ENT].
8. Press [ENT] again to transmit the Group Call signal.
9. After the GROUP CALL is transmitted, all the radios in the group will
switch to the designated channel.
10. Listen to the channel to make sure it is not busy, then key the
microphone and call the other vessels you desire to communicate
with.
Page 107CPV350
19.6.2 Receiving a Group Call
1. When a group call is received, the CPV350 will produce a ringing
alarm sound.
2. The radio automatically switches to the requested channel, and
appear “RECEIVED DSC CALL” popup window on the display to
see the MMSI of the vessel transmitting the Group Call.
3. Press any key to stop the alarm.
4. Monitor the channel for the person calling the Group for a
message.
5. If you want to respond, monitor the channel to make sure it is clear, then press [PTT]
on the microphone and talk to the calling ship(s).
19.7 POSITION REQUEST
Advancements in DSC have made it possible to poll the location of another vessel and show
the position of that vessel on the display of the CPV350 making it easy to navigate to the
location of the polled vessel. This is a great feature for anyone wanting to know the position
of another vessel. For example your buddy that is catching fish, or finding the location of a
person you are cruising with.
NOTE
The other vessel must have an operating GPS receiver connected to its DSC transceiver and must
not have its transceiver set to deny position requests. (Refer the section “19.4.0 Setting up the
Individual / Position Call Directory” to enter information into the individual directory).
19.7.0 Setting up Position Reply
The CPV350 can be set up to automatically or manually send your position to another
vessel. This selection is important if you are concerned about someone polling the position
of your vessel that you may not want to. In the manual mode you will see the MMSI or
persons name shown on the display allowing you to choose to send your position to the
requesting vessel.
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight RADIO SETUP and
press [ENT] or move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight DSC SETTINGS and press [ENT] or move the
ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight POS REQUEST REPLY and press [ENT] or
move the ShuttlePoint knob to the right.
4. Another popup window will be shown with Manual or Automatic, move the ShuttlePoint
knob to the desired selection and press [ENT] or move the ShuttlePoint knob to the right.
In Manual mode, the display of the CPV350 will show who is requesting the position.
In Automatic mode, after a DSC POS Request is received, the radio will automatically
transmit your vessels position.
5. Press [CLR] until the menu disappears or an easier method is to move the ShuttlePoint
knob to the left a few times.
Page 108 CPV350
Figure 19.7.0 - POS REQUEST REPLY menu
The CPV350 has the capability to turn off the Position Request ringer.
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight RADIO SETUP and
press [ENT] or move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight DSC SETTINGS and press [ENT] or move the
ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight RINGER OUTPUT and press [ENT] or move
the ShuttlePoint knob to the right.
4. Move the ShuttlePoint knob to select POLLING and press [ENT] or move the
ShuttlePoint knob to the right.
5. A popup window will be shown with On or Off, move the ShuttlePoint knob to select Off
and press [ENT] or move the ShuttlePoint knob to the right.
6. Press [CLR] until the menu disappears or an easier method is to move the ShuttlePoint
knob to the left a few times.
If you wish to return to enabling the ringer tone, just repeat the above procedure, moving
the ShuttlePoint knob to select On in step “5” above.
Figure 19.7.0 - RINGER OUTPUT menu
19.7.1 Transmitting a Position Request to Another Vessel
Using the Individual directory to make a Position request
1. Press the [CALL] key. The “DSC Operation” menu soft keys will appear below the
display.
Page 109CPV350
2. Press [POSITION REQUEST] to show the “DIRECTORY”
popup window on the display.
3. Move the ShuttlePoint knob up or down or turn the Channel
knob to select the “Individual” you want to poll the location of
the vessel and show the position of that vessel, then press
[ENT].
4. Press [ENT] again to transmit the position request DSC call.
5. When the CPV350 receives the position from the polled vessel it
is shown on the GPS Chart of the page.
6. If the CPV350 does not receive a reply, the display will be as
shown in the illustration on the right. To send again, press [ENT].
Manual sending a position request call
You may enter an MMSI number manually to contact without Setting up the Individual /
Position Call Directory.
1. Press [CALL]. The “DSC Operation” menu Tabs will appear at the bottom edge of the
display.
2. Press [POSITION REQUEST] to show “DIRECTORY” popup window on
the display.
3. Move the ShuttlePoint knob to the up or down or turn the Channel knob
to select “MANUAL,” then press [ENT] to appear “MMSI INPUT” window
on the display.
4. Move the ShuttlePoint knob to up or down to scroll through numbers, 0-
9 to enter the desired number and move the ShuttlePoint knob to
the right to move one space to the right. Repeat this procedure until
all nine space of the MMSI number are entered.
5. If a mistake was made entering in the MMSI number move the
ShuttlePoint knob to the left until the wrong number is selected,
then move the ShuttlePoint knob to up or down to correct the entry.
6. When finished entering the MMSI number, press [ENT].
7. Press [ENT] to transmit the position request DSC call.
8. When the CPV350 receives the position from the polled vessel it
is shown on the the GPS Chart of the radio display.
9. If the CPV350 does not receive a reply, the display will be as
shown in the illustration on the right. To send again, press [ENT].
Page 110 CPV350
19.7.2 Receiving a Position Request
When a position request call is received from another vessel, a ringing
alarm will sound and POS REQUEST will be shown in the LCD.
Operation and transceiver function differs depending on “POS
REQUEST REPLY” in the “DSC Setup” menu setting.
Automatically reply:
1. When a position request call is received, a calling alarm sounds 4 times. Then requested
position coordinates are transmitted automatically to the vessel requesting your vessels
position.
2. To exit from position request display, press any key.
Manually reply:
1. When a position request call is received from another vessel, the “RECEIVED DSC
CALL” window will open.
2. Press [ENT] to transmit your position to the requesting vessel and exit from position
request display. Press [CLR] to exit from position request display without the transmitting
your position (No Reply).
19.8 POSITION SEND
The feature is similar to Position Request, however instead of requesting a position of
another vessel this function allows you to send your position to another vessel.
19.8.0 Setting up a Position Send Ringer
The CPV350 has the capability to turn off the Position Send ringer.
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight RADIO SETUP and
press [ENT] or move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight DSC SETTINGS and press [ENT] or move the
ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight RINGER OUTPUT and press [ENT] or move
the ShuttlePoint knob to the right.
4. Move the ShuttlePoint knob to select POS SEND and press [ENT] or move the
ShuttlePoint knob to the right.
5. A popup window will be shown with On or Off, move the ShuttlePoint knob to select Off
and press [ENT] or move the ShuttlePoint knob to the right.
6. Press [CLR] until the menu disappears or an easier method is to move the ShuttlePoint
knob to the left a few times.
To enable the ringer, repeat the above procedure, moving the ShuttlePoint knob to select
On in step “5” above.
Page 111CPV350

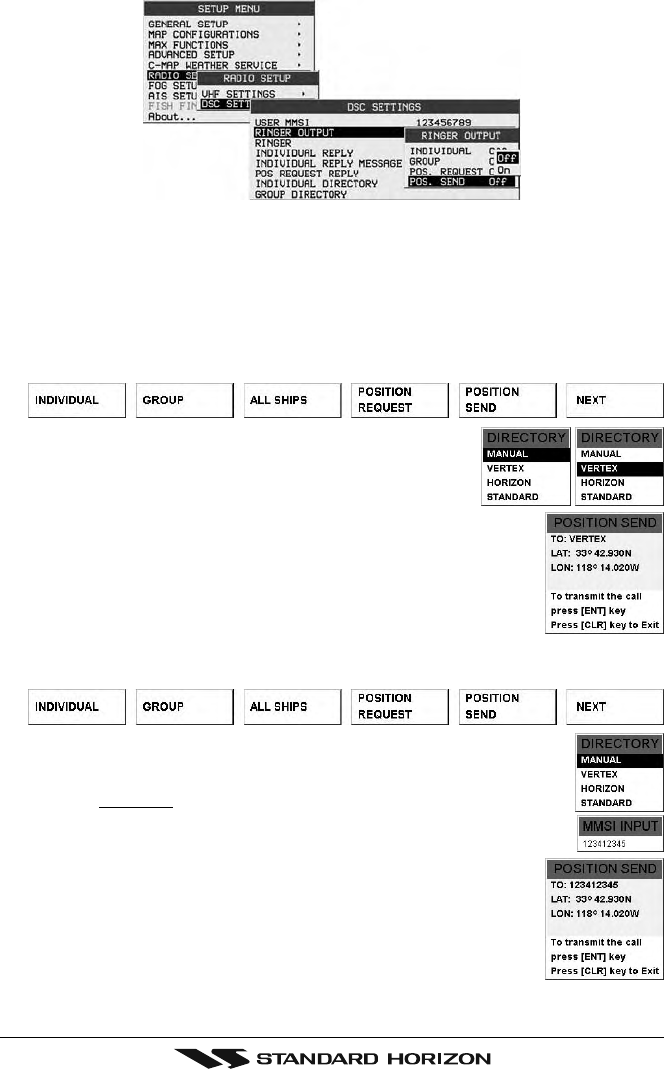

Figure 19.8.0 - RINGER OUTPUT menu
19.8.1 Transmitting a DSC Position Send Call
Pre-Programmable Calling
Using the Individual directory to transmit a position send call.
1. Press [CALL]. The “DSC Operation” menu Tabs will appear at the bottom edge of the
display.
2. Press [POSITION SEND] to show “DIRECTORY” popup
window on the display.
3. Move the ShuttlePoint knob to the up or down or turn the
Channel knob to select the “Individual” you want to contact,
then press [ENT].
4. Press [ENT] again to send your position to the selected vessel.
Manual Calling
1. Press [CALL]. The “DSC Operation” menu soft keys appear below the display.
2. Press [POSITION REQUEST] to show “DIRECTORY” popup window on
the display.
3. Move the ShuttlePoint knob to the up or down or turn the Channel knob
to select MANUAL, then press [ENT] to appear “MMSI INPUT” popup
window on the display.
4. Move the ShuttlePoint knob to up or down to scroll through numbers, 0-
9 to enter the desired number and move the ShuttlePoint knob to the
right to move one space to the right. Repeat this procedure until all
nine space of the MMSI number are entered.
5. If a mistake was made entering in the MMSI number move the
ShuttlePoint knob to the left until the wrong number is selected, then
move the ShuttlePoint knob to up or down to correct the entry.
6. When finished entering the MMSI number, press [ENT].
7. Press [ENT] again to send your position to the selected vessel.
Page 112 CPV350
19.8.2 Receiving a DSC Position Send Call
When another vessel transmits their location to the CPV350, the following will happen:
1. When the call is received, a ringing sound will be produced and the
“RECEIVED DSC CALL” popup window will open.
2. Press the any key to stop the alarm.
3. Press [ENT] to shows the position of the calling vessel on the GPS
Chart of the radio display.
Page 113CPV350
20. RADIO SETUP
20.0 CHANNEL NAME CHANGE
This selection allows you to customize the name of a channel from the default name.
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight RADIO SETUP and
press [ENT] or move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight VHF SETTING and press [ENT] or move the
ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight COMMON CHANNEL SETUP and press [ENT]
or move the ShuttlePoint knob to the right.
4. Move the ShuttlePoint knob to select the channel group (USA, INTL, or CAN) you wish
to change the channel name and press [ENT] or move the ShuttlePoint knob to the right.
5. Move the ShuttlePoint knob to highlight CH NO. and press [ENT] or move the
ShuttlePoint knob to the right.
6. Move the ShuttlePoint knob to select the operating channel you wish change the
channel name and press [ENT].
7. Move the ShuttlePoint knob to highlight NAME and press [ENT] or move the ShuttlePoint
knob to the right.
8. Move the ShuttlePoint knob to up or down to scroll through the first character (letter,
number, or symbol) of the channel name.
9. Move the ShuttlePoint knob to the right to enter the first character and step to the next
character to the right.
10. 7. Repeat step 8 and 9 until the name is complete. The name can consist of up to twelve
characters.
11. Press [CLR] until the menu disappears or an easier method is to move the ShuttlePoint
knob to the left a few times.
Figure 20.0 - CH EDIT menu
Page 114 CPV350
20.1 UNIT NAME
This selection allows you to provide the name to the radio and optional RAM+ or VH-310
Handset when connected.
1. Press [MENU] two times. Move the ShuttlePoint knob to highlight RADIO SETUP and
press [ENT] or move the ShuttlePoint knob to the right.
2. Move the ShuttlePoint knob to highlight VHF SETTING and press [ENT] or move the
ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight UNIT NAME and press [ENT] or move the
ShuttlePoint knob to the right.
4. Move the ShuttlePoint knob to select the Unit (MAIN, RAM1, or RAM2) to be named and
press [ENT] or move the ShuttlePoint knob to the right.
5. Move the ShuttlePoint knob to up or down to scroll through the first letter of the unit
name.
6. Move the ShuttlePoint knob to the right to enter the first character and step to the next
letter to the right.
7. Repeat step 5 and 6 until the name is complete. The name can consist of up to twelve
characters.
8. Press [CLR] until the menu disappears or an easier method is to move the ShuttlePoint
knob to the left a few times.
Figure 20.1 - UNIT NAME menu
Page 115CPV350
21. ENHANCED RAM+ MIC OPERATION
When the RAM+ microphone is connected to the CPV350, most VHF, DSC, and setup
menus can be remotely operated. The RAM+ Mic is supplied with 23 feet (7 m) of routing
cable and can be extended up to 70 feet (21 m) using three 23 feet extension cables model
CT-100. The intercom operation can be used between the RAM+ Mic and the transceiver.
21.0 RAM+ MIC CONTROLS
SQUELCH CONTROL (SQL)
Activates the squelch adjusting mode.
Press this key to activate the squelch adjusting mode. Press the microphone’s [] or []
key to adjust the squelch.
When this key is pressed and held down for 1 second or more, the squelch is turned off.
VOLUME KEY (VOL)
Activates the volume adjusting mode.
Press this key to activate the volume adjusting mode. Press the microphone’s [] or []
to adjust the volume.
POWER SWITCH (PWR)
Press and hold down this key to turn to the transceiver and RAM+ Mic on and off.
PTT (Push-To-Talk) SWITCH
Activates transmission.
[H/L] KEY
Toggles between high and low power. When the [H/L] key is pressed while the transceiver
is on channel 13 or 67, the power will temporarily switch from LO to HI power until the PTT
is released. The [H/L] key does not function on transmit inhibited and low power only
channels.
[](UP)/[](DOWN) KEY
These keys are used to select channels, adjust the volume and squelch level, and to choose
the item selection of different functions (such as the DSC operation). In many ways, these
keys emulate the function of the transceiver’sChannel knob.
[16/9] KEY
Immediately recalls channel 16 from any channel location. Holding down this key recalls
channel 9. Pressing the [16/9] key reverts to the previous selected working channel.
Secondary use
Please see secondary use for the [WX] and [MEM] key.
[SCAN] Key
1. Starts and stops scanning of programmed channels.
2. If held while the [UP()] or [DOWN()] key on the microphone are pressed, the radio
will show the channels programmed in scan memory. This function will not work if the
unit is scanning.
NOTE
The priority channel by default is Channel 16, however the priority channel can be changed. To
select a different priority channel refer to section “18.11.3 Priority Channel Set.”
Page 116 CPV350
[CALL/SET] Key
The [CALL/SET] key functions as the enter key.
Secondary use
Press the [CALL/SET] key to access the DSC OPERATION
menu.
Press and hold the [CALL/SET] key to access the SETUP
menu.
[DW] Key
Watches for a transmission on CH16 and another selected
channel until either signal is received. (Dual watch)
Secondary use
Press and hold [DW] key, intercom operation will operate
between radio and RAM+ Mic.
[NAV] Key
Press this key, when connected to the GPS receiver, the
LCD displays Position Data and Time from the GPS.
[WX] Key
Immediately recalls the previously selected US NOAA
weather channel from any channel location.
Secondary use
Holding down the [16/9] key while pressing the [WX] key
switch the Channel Group.
NOTE
If position is displayed, this icon will be hidden.
[DISTRESS] KEY
Used to send a DSC Distress Call. To send the distress call refer to section “19.2.0
Transmitting a DSC Distress Call.”
21.1 PA/FOG OPERATION
The RAM+ is capable of controlling the 30W Public address, 4 fog horns, bells and whistles.
21.1.0 Operating the PA / Hailer
1. Press and hold the [NAV] key then select “PUBLIC ADRESS” with the
[UP()] or [DOWN()] key.
2. Press the [CALL/SET] key.
3. Press the PTT switch and speak into the microphone.
4. To turn up the PA Volume, press the PTT switch and press the [UP()]
or [DOWN()] keys to adjust the Audio output level. The level can be set
from 0 to 30W.
5. To adjust the listen back volume, (while in listenback mode) press the
[VOL] key, then press the [UP()] or [DOWN()] key to the desired
listen back volume.
To exit from the PA / Hailer mode, press and hold down the [NAV] key again.
SCAN DW
NAV
WX
CALL
SET
MEM IC
U.I.C
MENU
16
9
Page 117CPV350
21.1.1 Operating the FOG Horn
The CPV350 is capable of sending Underway, Stop, Sail, Tow, Horn, Siren, Aground and
Anchor signals.
1. Press and hold the [NAV] key then select “FOG” with the [UP()] or
[DOWN()] key.
2. Press the [CALL/SET] key.
3. Select the one of the eight functions described above with the [UP()]
or [DOWN()]key and press the [CALL/SET] key.
4. On the “Horn” and “Siren” modes, press the PTT switch to activate the
tone through the HAIL/PA speaker.
Press the [UP()] or [DOWN()] keys to adjust the Audio output level.
The level can be set from 0 to 30W.
5. To adjust the listen back volume, (while in listenback mode) press the
[VOL] Key, then press the [UP()] or [DOWN()] key to the desired
listen back volume.
To exit from the FOG HORN mode, press and hold down the [NAV] key
again.
21.2 INTERCOM OPERATION
21.2.0 Communication
1. Press and hold the [DW] key while in the “RADIO” mode, the mode is changed to
“INTERCOM” mode. When the “INTERCOM” operation is
activated, “IC” is displayed on the RAM+ Mic (and VH-310
Handset) and “INTERCOM” is displayed on the CPV350.
2. Press the PTT switch, “TALK” is displayed.
NOTE: A warning beep is emitted when the RAM+ Mic PTT
switch is pressed while the transceiver microphone’s PTT
switch is pressed.
3. Speak slowly and clearly into the microphone, hold the
microphone about 1/2 inch away from your mouth.
4. When finished, release the PTT switch.
5. Press the [DW] key momentarily the mode will revert to “RADIO” mode.
21.2.1 Calling
Hold down the [DW] key for 1 second or more, when the “INTERCOM” operation is
activated. A calling beep is emitted twice from the transceiver speaker.
(RAM+ Mic’s PTT switch is pressed)
(CPV350’s PTT switch is pressed)
Page 118 CPV350
21.3 DSC/RADIO SETUP MODE
The RAM+ can access the DSC / RADIO setup menu (refer to section “19. DIGITAL
SELECTIVE CALLING” and section “20. RADIO SETUP MODE” for details). The LAMP,
CONTRAST, and KEY BEEP menu item accessed from the RAM+ only controls the RAM+’s
display and speaker.
DSC/RADIO Setup mode from the RAM+:
1. Press and hold down the [CALL/SET] key until “RADIO SETUP” menu appears.
2. Press the [UP()] / [DOWN()] key to select “RADIO SETUP” or “DSC SETUP” menu.
3. Press the [CALL/SET] key, then select the menu item you wish to work on by pressing
the [UP()] / [DOWN()] key.
4. Press the [CALL/SET] key.
5. Press the [UP()] / [DOWN()] key to change the value or condition for the menu item,
then press the [CALL/SET] key to save the new setting.
6. Press the [UP()] / [DOWN()] key to select “EXIT,” then press the [CALL/SET] key
to return to the normal operation.
RADIO SETUP-menu DSC SETUP-menu
NOTE
When setup menu is selected, the CPV350 will be temporarily disabled until the RAM+ mic, exits
from the setup mode.
Page 119CPV350
22 VH-310 HANDSET OPERATION
When the VH-310 HANDSET is connected to the CPV350, most VHF, DSC, and setup
menus can be remotely operated. The VH-310 HANDSET is supplied with 23 feet (7 m) of
routing cable and can be extended up to 70 feet (21 m) using three 23 feet extension cables
model CT-100. The intercom operation can be used between the VH-310 HANDSET or the
CPV350.

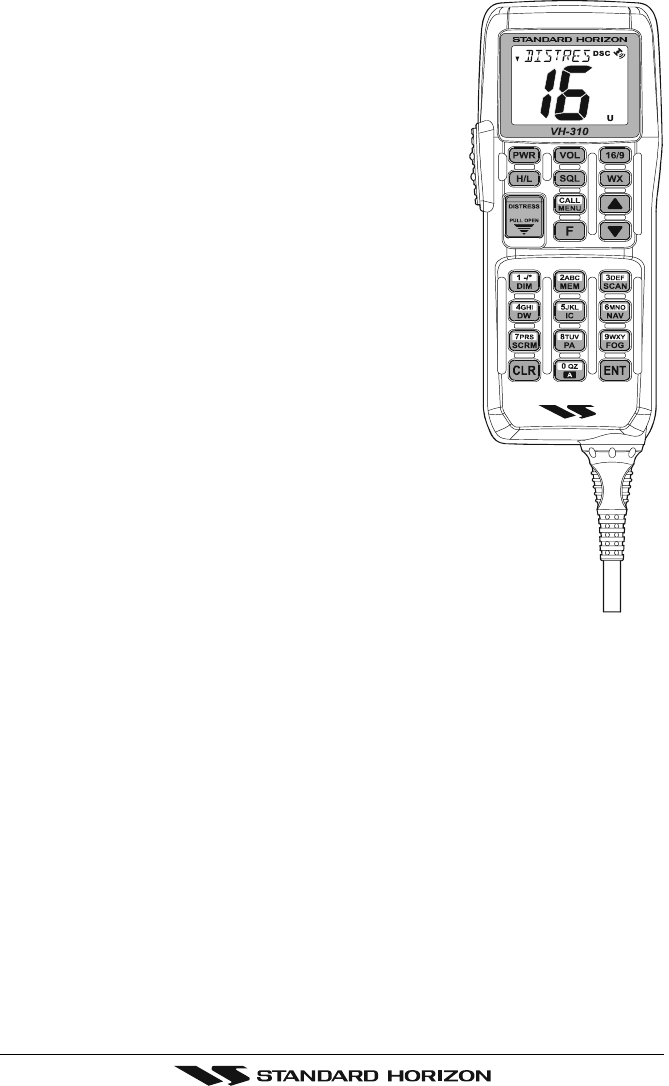

22.0 VH-310 HANDSET CONTROLS
PWR key
Press and hold down this key to turn to the transceiver and VH-310 HANDSET on and off.
PTT (Push-To-Talk) Switch
Activates transmission.
[H/L] key
Toggles between high and low power. When the [H/L] key is pressed while the transceiver
is on channel 13 or 67, the power will temporarily switch from “LO” to “HI” power until the
PTT is released.
The [H/L] key does not function on transmit inhibited and low power only channels.
[DISTRESS] key
Used to send a DSC Distress Call. To send the distress call refer to section “19.2.0
Transmitting a DSC Distress Call.”
[VOL] key
Activates the volume adjusting mode.
Press this key to activate the volume adjusting mode.
Press the [] or [] to adjust the volume.
NOTE
When the VH-310 handset is removed from the cradle the speaker audio will be automatically
reduced so not to damage your hearing. When the VH-310 is in the cradle the speaker audio will
increase so communications can be heard.
[SQL] key
Activates the squelch adjusting mode.
Press this key to activate the squelch adjusting mode. Press the [] or [] key to adjust
the squelch.
[CALL(MENU)] key
The [CALL(MENU)] key functions as the enter key.
Secondary use
Press the [CALL(MENU)] key to access the DSC OPERATION menu. The “INDIVIDUAL
CALL,” “GROUP CALL,” “ALL SHIP CALL,” “POSITION REQUEST,” POSITION SEND,”
STANDBY MODE,” and “CALL WAITING” functions can be accessed from the DSC
OPERATION menu.
Press and hold the [CALL(MENU)] key to access the RADIO SETUP (refer ro section 20)
or DSC SETUP menu (refer to section 19).
Page 120 CPV350
[F] key
Activates the “Alternate” key function.
Press this key to activates the “Alternate” key function of the ten
keypad.
[16/9] key
Immediately recalls channel 16 from any channel location.
Holding down this key recalls channel 9. Pressing the [16/9]
key reverts to the previous selected working channel.
Secondary use
Press and hold the [16/9] key then press the [WX] key to switch
the USA, International or Canadian channels.
[WX] key
Immediately recalls the previously selected US NOAA weather
channel from any channel location.
Secondary use
Holding down the [16/9] key while pressing the [WX] key
switches the Channel Group.
[]/[] KEY
These keys are used to select channels, adjust the volume and
squelch level, and to choose the item selection of different
functions (such as DSC operation).
KEYPAD
[1(DIM)] key
When in radio mode, this key is used to directly select channel digit “1” in
a channel number.
Secondary use
Press the [F] key first then press the [1(DIM)] key to access the LCD
Dimmer menu.
[2(MEM)] Key
When in radio mode, this key is used to directly select channel digit “2” in
a channel number.
Secondary use
Press the [F] key first then press the [2(MEM)] key, memorize the selected channel into
the transceiver scan memory for scanning. When repeat the same procedures ([F]
[2(MEM)]), will delete the channel from the scan memory. Refer to section “18.11
SCANNING” for details.
[3(SCAN)] Key
When in radio mode, this key is used to directly select channel digit “3” in a channel
number.
Secondary use
Press the [F] key first then press the [3(SCAN)] key to start and stop the scanning of
programmed channels. Refer to section “18.11 SCANNING” for details.
[4(DW)] Key
When in radio mode, this key is used to directly select channel digit “4” in a channel
number.
Secondary use
Press the [F] key first then press the [4(DW)] key to scan for voice communications on
the priority channel and another selected channel until a signal is received on either
channel (Dual Watch). Refer to section “18.10 DUAL WATCH (TO PRIORITY CHANNEL)”
for details.
Page 121CPV350
[5(IC)] Key
When in radio mode, this key is used to directly select channel digit “5” in a channel
number.
Secondary use
Press the [F] key then press the [5(IC)] key to activate intercom function between
RAM+(s) or VH-310 handset(s). Refer to section “18.13 INTERCOM OPERATION” for
details.
[6(NAV)] Key
When in radio mode, this key is used to directly select channel digit “6” in a channel
number.
Secondary use
Press the [F] key first then press the [6(NAV)] key, the LCD will display NAV GPS Data,
Time, SOG (Speed Over Ground), and COG (Course Over Ground).
[7(SCRM)] Key
When in radio mode, this key is used to directly select channel digit “7” in a channel
number.
Secondary use
Press the [F] key first then press the [7(SCRM)] key, available to cancel the voice
scrambler temporarily. Refer to section “22.1 PA/FOG OPERATION” for details.
[8(PA)] Key
When in radio mode, this key is used to directly select channel digit “8” in a channel
number.
Secondary use
Press the [F] key first then press the [8(PA)] key, available to operate the 30 Watt PA
function. Refer to section “22.1 PA/FOG OPERATION” for details.
[9(FOG)] Key
When in radio mode, this key is used to directly select channel digit “9” in a channel
number.
Secondary use
Press the [F] key first then press the [9(FOG)] key, available to operate the Fog Horn
function. Refer to section “22.1 PA/FOG OPERATION” for details.
[0] Key
When in radio mode, this key is used to directly select channel digit “0” in a channel
number.
Secondary use
Used to select A (alpha channels). Press the desired channel keys then press and hold
[0] key until “A” appears next to the channel number and press [ENT] to select the
channel.
[CLR] Key
Press the [CLR] key to cancel the menu selection and/or keypad entry.
[ENT] Key
Press the [ENT] key to enter the menu selection and/or keypad entry.
Page 122 CPV350
22.1 PA/FOG OPERATION
The VH-310 Handset is capable of controlling the 30W Public address, 4 fog horns, bells
and whistles.
22.1.0 Operating the PA / Hailer
1. Press the [F] key followed by the [8(PA)] key, activate the “PA / HAIL”
mode.
2. Press the [PTT] switch and speak into the microphone.
3. To turn up the PA Volume, press the [PTT] switch and press the [] or
[] keys to adjust the Audio output level. The level can be set from 0 to
30W.
4. To adjust the listen back volume, (while in listenback mode) press the
[VOL] Key, then press the [] or [] key to the desired listen back
volume.
To exit from the PA / Hailer mode, press the [F] key followed by the [8(PA)] key again.
22.1.1 Operating the FOG Horn
The CPV350 is capable of sending Underway, Stop, Sail, Tow, Horn, Siren, Aground and
Anchor signals.
1. Press the [F] key followed by the [9(FOG)] key, activate the “FOG
HORN” menu.
2. Select the one of the eight functions described above with the [] or []
key and press the [ENT] key.
3. On the “Horn” and “Siren” modes, press the [PTT] switch to activate the
tone through the HAIL/PA speaker.
Press the [] or [] keys to adjust the Audio output level. The level can
be set from 0 to 30W.
4. To adjust the listen back volume, (while in listenback mode) press the
[VOL] Key, then press the [] or [] key to the desired listen back
volume.
To exit from the FOG HORN mode, press the [F] key followed by the [9(FOG)] key again.
22.2 INTERCOM OPERATION
22.2.0 Communication
1. Press the [F] key followed by the [5(IC)] key, the mode is
changed to “INTERCOM” mode.
2. When the “INTERCOM” operation is activated, “IC” is
displayed on the VH-310 Handset (and RAM+ Mic, if used)
and “INTERCOM” is displayed on the CPV350.
3. Press the [PTT] switch, “TALK” is displayed.
NOTE
A warning beep is emitted when the RAM+ Mic PTT switch is
pressed while the transceiver microphone’s PTT switch is pressed.
(VH-310 Mic’s PTT switch is pressed)
(CPV350’s PTT switch is pressed)
Page 123CPV350
4. Speak slowly and clearly into the microphone, hold the microphone about 1/2 inch away
from your mouth.
5. When finished, release the [PTT] switch.
6. To exit the “INTERCOM” mode and return to radio operation mode, press the [F] key
followed by the [5(IC)] key again.
22.2.1 Calling
Press and hold the [5(IC)] key for 1 second when the “INTERCOM” operation is activated,
a calling beep is emitted from the CPV350 speaker.
22.3 MANUAL INPUTTING OF THE GPS LOCATION (LAT/LON)
You may send the Latitude/Longitude of your vessel manually from the VH-310 Handset
even if the CPV350 is not connected the GPS receiver unit.
After the position is entered, transmitting a DSC Distress, Position Request, or Position
Send will contain the manually entered position.
1. Press and hold down the [CALL(MENU)] key until “Radio Setup” menu
appears.
2. Press the [] key to select “DSC SETUP” menu.
3. Press the [ENT] key, then select “POS INPUT” with the []/[] key.
4. Press the [ENT] key then, enter the your local time from the keypad by
the 24-hour system on the UTC time.
5. Enter the Latitude of your vessel location (xx.xx.xx) by the keypad, then
press the [6(NAV)] key to select North (N), or [7(SCRM)] key to select
South (S).
6. Enter the Longitude of your vessel location (xxx.xx.xx) by the keypad,
then press the [3(SCAN)] to select East (E), or [9(FOG)] key to select
West (W).
7. If a number was entered by mistake, press the [H/L] key repeatedly to
select the number. Press the []/[] key to select the desired number.
8. Press and hold in the [ENT] key to store the data entered, then press the
[16/9] key to exit this menu and return to radio operation mode.
Page 124 CPV350
22.4 DSC/RADIO SETUP MODE
The VH-310 Handset can access the DSC / RADIO setup menu (refer to section “19.
DIGITAL SELECTIVE CALLING” and section “20. RADIO SETUP MODE” for details). The
CONTRAST, NAV DISPLAY, KEY BEEP, and AF SELECT menu item accessed from the
VH-310 Handset only controls the VH-310 Handset’s display and speaker.
DSC/RADIO Setup mode from the VH-310 Handset:
1. Press and hold down the [CALL(MENU)] key until “RADIO SETUP” menu appears.
2. Press the []/[] key to select “RADIO SETUP” or “DSC SETUP” menu.
3. Press the [ENT] key, then select the menu item you wish to work on by pressing the []/
[] key.
4. Press the [ENT] key.
5. Press the []/[] key to change the value or condition for the menu item, then press
the [ENT] key to save the new setting.
6. Press the []/[] key to select “EXIT,” then press the [ENT] key to return to the normal
operation.

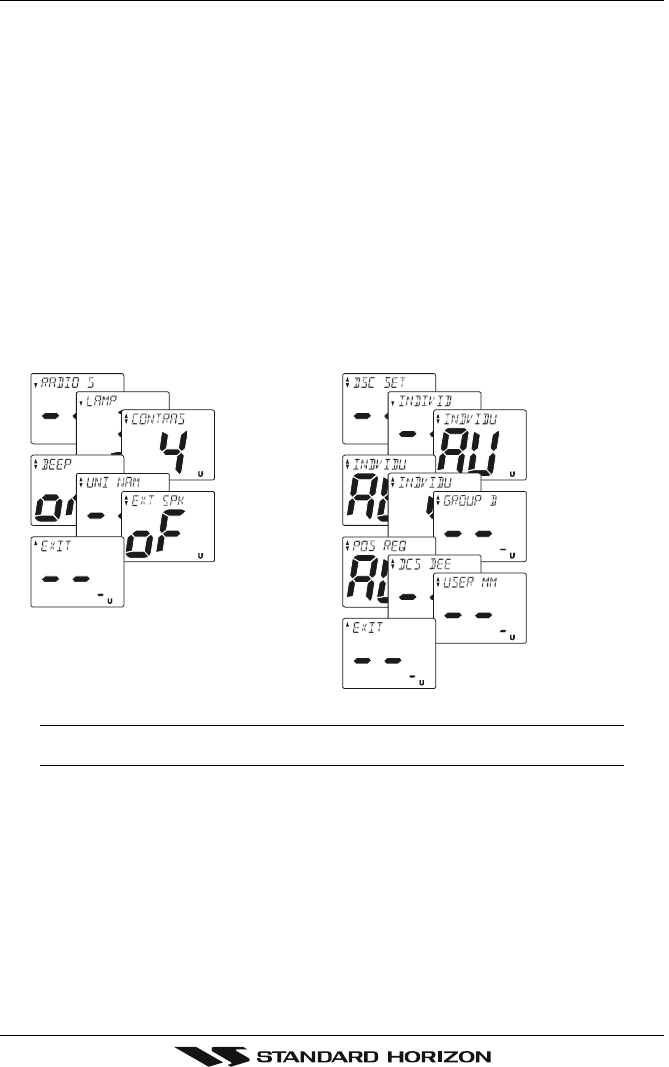

RADIO SETUP-menu DSC SETUP-menu
NOTE
When the SETUP menu is selected, using the VH-310 Handset, the CPV350 will be temporarily
disabled until the VH-310 Handset exits from the setup mode.
Page 125CPV350
22.4.1 Changing GPS Information to Vessel position or COG
Allows customizing the NAV data showing GPS Information. Factory default is “Your
Vessel’s Current Position,” however, following the steps below the GPS Information can be
changed to “Course Over Ground (COG).”
1. Press and hold down the [CALL(MENU)] key until “RADIO SETUP”
menu appears.
2. Press the [ENT] key, then select “NAV DISPLAY” with the []/[] key.
3. Press the [CALL(SET)MENU] key.
4. Press the [] or [] key to select “Pos (Your Vessel’s Current Position)”
or “Cru (Course Over Ground).”
5. Press the [ENT] key to store the data entered, then press the [16/9] key
to exit this menu and return to radio operation mode.
22.4.2 External Speaker AF Selection
The AF SELECT menu allows you to set the audio output level of the VH-310’s External
Speaker to “fixed” regardress the VOL level setting of the VH-310, which is useful to the case
when use with the amplified speaker, such as the Standard Horizon MLS-310.
1. Press and hold down the [CALL(MENU)] key until “Radio Setup” menu
appears.
2. Press the [ENT] key, then select “AF SELECT” with the []/[] key.
3. Press the [ENT] key.
4. Press the [] or [] key to select “Pr” (External Speaker Level is
“Fixed”) or “Po” (External Speaker Level is “Adjustable”).
5. Press the [ENT] key to store the data entered, then press the [16/9] key
to exit this menu and return to radio operation mode.
Page 126 CPV350
23. MAINTENANCE
The inherent quality of the solid-state components used in this transceiver will provide many
years of continuous use. Taking the following precautions will prevent damage to the
transceiver.
Keep the microphone connected or the jack covered at all times to prevent corrosion
of electrical contacts;
Never key the microphone unless an antenna or suitable dummy load is connected to
the transceiver.
Ensure that the supply voltage to the transceiver does not exceed 16 VDC or fall below
11 VDC.
Use only STANDARD HORIZON-approved accessories and replacement parts.
In the unlikely event of serious problems, please contact your Dealer or our repair facility.
Address and phone numbers for this facility, as well as warranty information, are contained
in section “25 WARRANTY.”
23.0 REPLACEMENT PARTS
Occasionally an owner needs a replacement mounting bracket or knob.
These can be ordered from our Parts Department by writing or calling:
Marine Division of Vertex Standard
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
Telephone (714) 827-7600
Commonly requested parts, and their part numbers are listed below.
Dust Cover: RA0751100
Power Cord: T9023306
ACC Cable: T9101553
Channel Knob: RA0750700
VOL/SQL Knob: RA0750800
Mounting Bracket: RA0752200
Mounting Bracket Knob: RA045910A
Microphone Hanger: RA0458800
CMP25 RAM+ Mic or VH-310 Routing Cable Assembly: S8101512
Page 127CPV350
23.1 FACTORY SERVICE
In the unlikely event that the radio fails to perform or needs servicing, please contact the
following:
Standard Horizon
Attention Marine Repair Department
10900 Walker Street, Cypress, CA 90630
Telephone (800) 366-4566
An “RA” Return Authorization number is not necessary to send a product in for service.
Include a brief note describing the problem along with your name, return address, phone
number, and proof of purchase.
23.2 TROUBLESHOOTING
The GPS chartplotter does not turn On. The voltage or the polarity may not be correct.
Make sure that the correct voltage (10-35 volt dc) is present. Check also that the polarity
is correct.
The GPS chartplotter does not get a valid fix. The GPS WAAS Smart Antenna may not
be in a open sky position or the antenna cable may not be properly connected. Make sure
that no metal obstacle is placed around the antenna acting as a shield for the antenna and
disconnect and connect again the antenna cable to the GPS chartplotter. If, after 15
minutes, the GPS chartplotter does not get the fix, turn it Off and On again.
The GPS chartplotter does not turn Off. The GPS chartplotter may be in an unpredictable
status. If, after pressing [PWR] (for at least 3 seconds) the GPS chartplotter does not turn
Off, turn Off the voltage.
The GPS chartplotter screen becomes very dark after a long exposure to direct
sunlight. The internal temperature is very high. Control the contrast. Protect the GPS
chartplotter from direct sunlight.
The GPS chartplotter does not respond to any command. The GPS chartplotter may be
in an unpredictable status. Try to turn Off, and then turn On. If the problem persists, erase
the memory) or remove power from the battery.
External devices are not receiving data from the GPS chartplotter. The connections or
the Software settings may not be right. Check the connections or the settings.
The location of my fix is not shown correctly on the Chart page. This is usually caused
when C-MAP Geo-References a nautical chart. Contact C-MAP with the Latitude &
Longitude of your vessels position, the position where you think your vessels should be and
with details of the cartography areas, which can be seen by selecting the Chart page, press
[MENU], move the ShuttlePoint knob to highlight FIND SERVICES and press [ENT], move
the ShuttlePoint knob to highlight INFORMATION and press [ENT], move the ShuttlePoint
knob to Data Source and press [ENT]. Write down the “Compilation scale”, “Notice to
mariners” and “Horizontal datum”. Next contact C-MAP USA at 508/477-8010 and advise
the problem.
Page 128 CPV350
24. CHANNEL ASSIGNMENTS
Tables on the following columns list the VHF Marine Channel assignments for U.S.A. and
International use. Below are listed some data about the charts.
1. VTS. Where indicated, these channels are part of the U.S. Coast Guard’s Vessel Traffic
System.
2. Alpha channel numbers, that is, channel numbers followed by the letter A (such as
Channel 07A) are simplex channels on the U.S.A. or Canadian channel assignments
whose counterparts in the International assignments are duplex channels. International
channels do not use “alpha” numbers. If you call the Coast Guard on Channel 16, they
will sometimes ask you to “go to channel 22 Alpha.” This is a channel assigned to U.S.A,
and Canadian Coast Guards for handling distress and other calls. If your radio is set for
International operation you will go to Channel 22 instead of 22A, and will not be able to
communicate with the Coast Guard. To use Channel 22A, your radio must be set for
USA or Canada operation, usually by a U/I/C (USA/International/Canada) control or
combination of controls. Channel 22 (without an “A”) is an International duplex channel
for port operations. Some radios indicate an “A” adjacent to the alpha channels on the
display; on others “alpha” is not indicated but the proper channel is selected based on
the U/I/C setting.
3. Bridge-to-Bridge channels (for example, Channel 13) are for use by bridge operators
on intercoastal waterways and rivers. It is also used by marine vessels in the vicinity of
these bridges for navigation and for communicating with the bridge operators. Note that
a limit of 1 Watt is specified for these channels. See page 28 for additional information.
4. The S/D column on the chart indicates either S (simplex) or D (duplex). Simplex means
transmitting and receiving on the same frequency. Only one party at a time can talk,
unlike a telephone. Be sure to say “over” and release your microphone push-to-talk
switch at the end of each transmission. Duplex operation involves the use of one
frequency for transmitting and a separate frequency for receiving. On channels
specified as duplex on the charts, correct mode of operation is established automatically
by your radio when you select a channel; you cannot change the mode. And you still
must release the push-to-talk switch after each transmission in order to listen to the
radio.
5. Channels normally used by recreational boaters are those that include the term “non-
commercial” in the Channel Use column of the chart. Some of these are shared with
other users and some are used only in certain geographic regions.
6. Marine vessels equipped with VHF radios are required to monitor Channel 16.
Page 129CPV350
VHF MARINE CHANNEL CHART
CH U C I S/D TX RX CHANNEL USE
01 X X D 156.050 160.650 Public Correspondence (Marine Operator)
01A X S 156.050 Port Operation and Commercial. VTS in selected areas
02 X X D 156.100 160.700 Public Correspondence (Marine Operator)
03 X X D 156.150 160.750 Public Correspondence (Marine Operator)
03A X S 156.150 US Government only, Coast Guard
04 X D 156.200 160.800 Public Correspondence (Marine Operator),
Port operation, ship movement
04A X S 156.200 Pacific Coast: Coast Guard,
East Coast: Commercial fishing
05 X D 156.250 160.850 Public Correspondence (Marine Operator),
Port operation, ship movement
05A X X S 156.250 Port operation. VTS in Seattle
06 X X X S 156.300 Inter-ship Sefety
07 X D 156.350 160.950 Public Correspondence (Marine Operator),
Port operation, ship movement
07A X X S 156.350 Commercial
08 X X X S 156.400 Commercial (Inter-ship only)
09 X X X S 156.450 Boater Calling channel, Commercial &
Non-commercial (Recreational)
10 X X X S 156.500 Commercial
11 X X X S 156.550 Commercial. VTS in selected areas.
12 X X X S 156.600 Port operation. VTS in selected areas.
13 X X X S 156.650 Inter-ship Navigation Safety (Bridge-to-bridge)
14 X X X S 156.700 Port operation. VTS in selected areas.
15 X S - - - 156.750 Environmental (Receive only)
15 X X S 156.750 Commercial, non-commercial, ship movement (1 W)
16 X X X S 156.800 International Distress, Safety and Calling
17 X X X S 156.850 State Controlled (1 W)
18 X D 156.900 161.500 Port operation, ship movement
18A X X S 156.900 Commercial
19 X D 156.950 161.550 Port operation, ship movement
19A X S 156.950 US: Commercial
19A X S 156.950 Coast Guard
20 X X X D 157.000 161.600 Canadian Coast Guard Only,
International: port operations and shipment
20A X S 157.000 Port operation
21 X D 157.050 161.650 Port operation, ship movement
21A X X S 157.050 U.S. Government Only, Canadian Coast Guard
22 X D 157.100 161.700 Port operation, ship movement
22A X X S 157.100 US and Canadian Coast Guard Liaison and
Maritime Safety Information Broadcasts
announced on channel 16
23 X X D 157.150 161.750 Public Correspondence (Marine Operator)
23A X S 157.150 U.S. Government Only
24 X X X D 157.200 161.800 Public Correspondence (Marine Operator)
25 X X X D 157.250 161.850 Public Correspondence (Marine Operator)
26 X X X D 157.300 161.900 Public Correspondence (Marine Operator)
27 X X X D 157.350 161.950 Public Correspondence (Marine Operator)
28 X X X D 157.400 162.000 Public Correspondence (Marine Operator)
Page 130 CPV350
VHF MARINE CHANNEL CHART
CH U C I S/D TX RX CHANNEL USE
60 X X D 156.025 160.625 Public Correspondence (Marine Operator)
61 X D 156.075 160.675 Public Correspondence (Marine Operator),
Port operation, ship movement
61A X X S 156.075 U.S. Government Only, Canadian Coast Guard,
Pacific Coast: Commercial Fishing-East Coast
62 X D 156.125 160.725 Public Correspondence (Marine Operator),
Port operation, ship movement
62A X S 156.125 Public Coast: Coast Guard;
East Coast: commercial fishing only
63 X D 156.175 160.775 Public Correspondence (Marine Operator),
Port operation, ship movement
63A X S 156.175 Port Operation and Commercial. VTS in selected areas.
64 X X D 156.225 160.825 Public Correspondence (Marine Operator),
Port operation, ship movement
64A X X S 156.225 U.S. Government Only,
Canadian Commercial Fishing
65 X D 156.275 160.875 Public Correspondence (Marine Operator),
Port operation, ship movement
65A X X S 156.275 Port Opeations
66 X D 156.325 160.925 Public Correspondence (Marine Operator),
Port operation, ship movement
66A X X S 156.325 Port Operations
67 X X X S 156.375 US: Commercial.
Used for Bridge-to-bridge communications
in lower Mississippi River. Inter-ship only,
Canada: Commercial fishing, S&R
68 X X X S 156.425 Non-commercial (Recreational)
69 X X X S 156.475 US: Non-commercial (Recreational),
Canada: Commercial fishing only,
International: Inter-ship, Port opertions and Ship movement
70 X X X S 156.525 Digital selective calling (voice communications not allowed)
71 X X X S 156.575 US, Canada: Non-commercial (Recreational),
International: Port opertions and Ship movement
72 X X X S 156.625 Non-commercial (Inter-ship only)
73 X X X S 156.675 US: Port Operations,
Canada: Commercial fish ing only,
International: Inter-ship, Port opertions and Ship movement
74 X X X S 156.725 US: Port Operations,
Canada: Commercial fishing only,
International: Inter-ship, Port opertions and Ship movement
75 X S 156.775 Port Operations (Inter-ship only) (1W)
76 X S 156.825 Port Operations (Inter-ship only) (1W)
77 X X S 156.875 Port Operations (Inter-ship only) (1W)
77 X S 156.875 Port Operations (Inter-ship only)
78 X D 156.925 161.525 Public Correspondence (Marine Operator),
Port operation, ship-movement
78A X X S 156.925 Non-commercial (Recreational)
79 X D 156.975 161.575 Port operation and Ship movement
79A X X S 156.975 Commercial
80 X D 157.025 161.625 Port operation, ship movement
80A X X S 157.025 Commercial
Page 131CPV350
VHF MARINE CHANNEL CHART
CH U C I S/D TX RX CHANNEL USE
81 X D 157.075 161.675 Port operation, ship movement
81A X X S 157.075 U.S. Government Only -
Environmental protection operations.
82 X D 157.125 161.725 Public Correspondence (Marine Operator),
Port operation, ship movement
82A X X S 157.125 U.S. Government Only,
Canadian Coast Guard Only
83 X X D 157.175 161.775 Canadian Coast Guard Only
83A X X S 157.175 U.S. Government Only,
Canadian Coast Guard Only
83 X X D 157.175 161.775 Public Correspondence (Marine Operator)
84 X X X D 157.225 161.825 Public Correspondence (Marine Operator)
85 X X X D 157.275 161.875 Public Correspondence (Marine Operator)
86 X X X D 157.325 161.925 Public Correspondence (Marine Operator)
87 X X X D 157.375 161.975 Public Correspondence (Marine Operator)
88 X X X D 157.425 162.025 Public Correspondence (ship-to-coast)
88A X S 157.425 Commercial, Inter-ship Only
WX01
X X X D - - - 162.550 Weather (receive only)
WX02
X X X D - - - 162.400 Weather (receive only)
WX03
X X X D - - - 162.475 Weather (receive only)
WX04
X X X D - - - 162.425 Weather (receive only)
WX05
X X X D - - - 162.450 Weather (receive only)
WX06
X X X D - - - 162.500 Weather (receive only)
WX07
X X X D - - - 162.525 Weather (receive only)
WX08
X X X D - - - 161.650 Weather (receive only)
WX09
X X X D - - - 161.775 Weather (receive only)
WX10
X X X D - - - 163.275 Weather (receive only)
The above BOLD channels are not for use of the general public in U.S. waters, unless proper authorization is
given.
Page 132 CPV350
Noncommercial
6817 156.425 156.425
0916 156.450 156.450
69 156.475 156.475
71 156.575 156.575
72 156.625 ........ Intership only.
78A 156.925 156.925
79A 156.975 156.975 Great Lakes only.
80A 157.025 157.025 Do.
6714 156.375 ....... Internship only.
Distress, Safety and Calling
16 156.800 156.800 EPRIB
Intership Safety
06 156.300 ........ a. Intership, or
b. For SAR: Ship
and aircraft for the
U.S. Coast Guard.
Environmental
1513 ........ 156.750 Coast to ship only.
Maritime Control
179,10 156.850 156.850
Liaison, U.S. Coast Guard
22A11 157.100 157.100 Ship, aircraft, and
coast stations of
the U.S. Coast
Guard and at
Lake Mead, Nev.,
ship and coast
stations of the
National Park
Service, U.S.
Department of the
Interior.
Port Operations
01A1156.050 156.050
63A1156.175 156.175
052156.250 156.250
65A 156.275 156.275
66A 156.325 156.325
123156.600 156.600
73 156.675 156.675
143156.700 156.700
74 156.725 156.725
774156.875 Intership only.
20A12 157.000 Intership only.
Navigational (Bridge-to-Bridge)5
136156.650 156.650
677156.375 156.375
Commercial
01A1156.050 156.050
63A1156.175 156.175
07A 156.350 156.350
677156.375 Intership only.
08 156.400 ........ Do.
09 156.450 156.450
10 156.500 156.500
113156.550 156.550
18A 156.900 156.900
19A 156.950 156.950
79A 156.975 156.975
80A 157.025 157.025
88A8157.425 ........ Intership only.
7214 156.625 ........ Internship only.
Digital Selective Calling
7015 156.525 156.525
Ship
transmit
Channel
designator
Carrier frequency
(MHz)
Points of communi-
cation (Intership and
between coast and
ship unless other-
wise iandicated)
Coast
transmit
Ship
transmit
Channel
designator
Carrier frequency
(MHz)
Points of communi-
cation (Intership and
between coast and
ship unless other-
wise iandicated)
Coast
transmit
1: 156.050 MHz and 156.175 MHz are available for port operations and commercial
communications purposes when used only within the U.S. Coast Guard designated Vessel
Traffic Services (VTS) area of New Orleans, on the lower Mississippi River from the various
pass entrances in the Gulf of Mexico to Devil’s Swamp Light at River Mile 242.4 above head
of passes near Baton Rouge.
2: 156.250 MHz is available for port operations communications use only within the U.S. Coast
Guard designated VTS radio protection areas of New Orleans and Houston described in Sec.
80.383. 156.250 MHz is available for intership port operations communications used only
within the area of Los Angeles and Long Beach harbors, within a 25- nautical mile radius of
Point Fermin, California.
3: 156.550 MHz, 156.600 MHz and 156.700 MHz are available in the U.S. Coast Guard
designated port areas only for VTS communications and in the Great Lakes available
primarily for communications relating to the movement of ships in sectors designated by the
St. Lawrence Seaway Development Corporation or the U.S. Coast Guard. The use of these
frequencies outside VTS and ship movement sector protected areas is permitted provided
they cause no interference to VTS and ship movement communications in thier respective
designated sectors.
Page 133CPV350
4: Use of 156.875 MHz is limited to communications with pilots regarding the movement and
docking of ships. Normal output power must not exceed 1 watt.
5: 156.375 MHz and 156.650 MHz are available primarily for intership navigational
communications. These frequencies are available between coast and ship on a secondary
basis when used on or in the vicinity of locks or drawbridges. Normal output power must not
exceed 1 watt. Maximum output power must not exceed 10 watts for coast stations or 25
watts for ship stations.
6: On the Great Lakes, in addition to bridge-to-bridge communications, 156.650 MHz is
available for vessel control purposes in established vessel traffic systems. 156.650 MHz is
not available for use in the Mississippi River from South Pass Lighted Whistle Buoy “2” and
Southwest Pass entrance Midchannel Lighted Whistle Buoy to mile 242.4 above Head of
Passes near Baton Rouge. Additionally it is not available for use in the Mississippi River-Gulf
Outlet, the Mississippi River-Gulf Outlet Canal, and the Inner Harbor Navigational Canal,
except to aid the transition from these areas.
7: Use of 156.375 MHz is available for navigational communications only in the Mississippi
River from South Pass Lighted Whistle Buoy “2” and Southwest Pass entrance Mid-channel
Lighted Whistle Buoy to mile 242.4 above head of Passes near Baton Rouge, and in addition
over the full length of the Mississippi River-Gulf Outlet Canal from entrance to its junction with
the Inner Harbor Navigation Canal, and over the ull length of the Inner Harbor Navigation
Canal from its junction with the Mississippi River to its entry to Lake Pontchartrain at the New
Seabrook vehicular bridge.
8: Within 120 km (75 miles) of the United States/Canada border, in the area of the Puget Sound
and the Strait of Juan de Fuca and its approaches, 157.425 MHz is half of the duplex pair
designated as Channel 88. In this area, Channel 88 is available to ship stations for
communications with public coast stations only. More than 120 km (75 miles) from the United
States/Canada border in the area of the Puget Sound and the Strait of Juan de Fuca, its
approaches, the Great Lakes, and the St. Lawrence Seaway, 157.425 MHz is available for
intership and commercial communications. Outside Puget Sound area and its approaches
and the Great Lakes, 157.425 MHz is also available for communications between commercial
fishing vessels and associated aircraft while engaged in commercial fishing activities.
9: When the frequency 156.850 MHz is authorized, it may be used additionally for search and
rescue training exercises conducted by state or local governments.
10: The frequency 156.850 MHz is additionally available to coast stations on the Great Lakes
for transmission of scheduled Coded Marine Weather Forecasts (MAFOR), Great Lakes
Weather Broadcast (LAWEB) and nscheduled Notices to Mariners or Bulletins. F3C and J3C
emissions are permitted. Coast Stations on the Great Lakes must cease weather broadcasts
which cause interference to stations operating on 156.800 MHz until the interference
problem is resolved.
11: The frequency 157.100 MHz is authorized for search and rescue training exercises by state
or local government in conjunction with U.S. Coast Guard stations. Prior U.S. Coast Guard
approval is required. Use must cease immediately on U.S. Coast Guard request.
12: The duplex pair for channel 20 (157.000/161.600 MHz) may be used for ship to coast station
communications.
13: Available for assignment to coast stations, the use of which is in accord with an agreed
program, for the broadcast of information to ship stations concerning the environmental
conditions in which vessels operate, i.e., weather; sea conditions; time signals; notices to
mariners; and hazards to navigation.
14: Available only in the Puget Sound and the Strait of Juan de Fuca.
15: The frequency 156.525 MHz is to be used exclusively for distress, safety and calling using
digital selective calling techniques. No other uses are permitted.
16: The frequency 156.450 MHz is available for intership, ship and coast general purpose calling
by noncommercial vessels, such as recreational boats and private coast stations.
17: The frequency 156.425 MHz is assigned by rule to private coast stations in Alaska for
facsimile transmissions as well as voice communications.
Page 134 CPV350
25. TECHNICAL TESTS
25.0 SYSTEM TEST
If you have connected your GPS chartplotter according to the instructions, and chosen the
proper menu selection for your device, and are still having problems with your GPS
chartplotter, the extended auto-test should help determine the problem. Make sure the GPS
chartplotter is turned Off. While pressing and holding any other key, turn the GPS
chartplotter On. SYSTEM TEST menu will appear on the display:
Figure 20.0 - System Test
Use the ShuttlePoint knob to select the desired test. Choose the test, press [ENT]. To exit
from any submenu press [CLR]. To exit from the System Test turn Off the GPS chartplotter.
25.0.0 RAM Menu (reset)
This test verifies the integrity of the memories and if desired during this test all the internal
memory can be erased and the default setting restored.
RAM Test
To verify the integrity of the RAM. If on the screen the message ERROR appears, the RAM
is physically damaged. Contact your Dealer or STANDARD HORIZON.
RAM Clear
To clear internal memory. If the GPS chartplotter exhibits unusual operations, or appears
to be malfunctioning, it may be possible to correct the problem by clearing RAM.
This operation will erase all Marks, Routes, stored Track plots and Destinations. It will also
return all selections (Input Data Format, Autopilot selection, etc.) to original default values.
To confirm clear RAM press [ENT] again (but if at this time you do not wish to clear RAM
press [CLR]).
25.0.1 DIM Menu
To select the desired value for brightness and keypad light.
Contrast
Each time you move the ShuttlePoint knob to right, the screen will decrease brightness,
move it to the left to increase brightness.
Backlight
The second option allows to set the backlight. Operates in similar mode as Contrast.
Page 135CPV350
25.0.2 Cartridges
To check the C-CARD and its connector.
Background ROM
To test the WorldWideBackground. If there is not a malfunction, the code of the Background
and the message "OK" are shown, but if the Background is defective the message "Faulty"
is shown.
C-CARD Test
To test the C-CARD. There are the possible situations:
1. if there is a C-CARD inserted in the slot and there is not a malfunction, the name of the
C-CARD zone and the message "OK" are shown.
2. if there is a C-CARD inserted in the slot, but it is a defective C-CARD, the name of the
C-CARD zone and the message "Faulty" are shown.
3. if there is not any C-CARD inserted in the slot, the message "not present" is shown.
4. if there is a User C-CARD inserted in the slot, the message USER C-CARD is shown.
C-CARD Connector
Indicates if there is a malfunction in the connector.
25.0.3 Serial Ports
If you are having problems receiving data from the position-finding instrument, this test
should help determine the problem.
Change Parameters
To change the parameters of the serial interface. This menu allows to select the Port (Signal
Source), the Baud Rate, the Data Bits (Word Length), the Parity, the Stop Bits.
Input Data Display
To allow the GPS chartplotter to act as a computer terminal and display the incoming data
exactly as it is received. If the data displayed on the screen is unrecognizable, you may have
selected the wrong input parameters for your particular receiver, for example, Baud Rate
9600 instead of Baud Rate 4800. Check your receiver manual to be sure that you have
selected the proper parameter. If the screen is blank, you may have a broken connection,
and no data is being received or you may have connected the device to the other input port.
Use [ZOOM] to stop (or continue after pause) data displaying, [ENT] to show data in hex
or ASCII mode (normal or small) and [CLR] to exit.
25.0.4 Modem test
Checks the Modem connections (to be used only if the C-COM Modem is connected).
Press [ENT] to select the desired Modem Port to the Port to which the Modem C-COM is
connected.
Page 136 CPV350
26. WARRANTY
26.0 MARINE PRODUCTS LIMITED WARRANTY
STANDARD HORIZON (a division of Vertex Standard) warrants, to the original purchaser
only, each new Marine Communications Product (“Product”) manufactured and/or supplied
by STANDARD HORIZON against defects in materials and workmanship under normal use
and service for a period of time from the date of purchase as follows:
Fixed Mount and Portable Transceivers
1 year - if purchased before 01/01/91
3 years - if purchased between 01/01/91 and 01/01/94
3 years Waterproof - if purchased after 01/01/94
Loud hailers
1 year - if purchased before 01/01/91
3 years - if purchased after 01/01/91
Associated Chargers
1 year - if purchased before 01/01/91
3 years - if purchased after 01/01/91
Associated Batteries - 1 year. Note: Batteries will be deemed deflective only if storage
capacity drops below 80% of rated capacity or if leakage develops.
Associated Accessories - 1 year. Includes: Microphones/Handsets, External Speakers,
Antennas, Carrying Accessories, Power Supplies, and Signaling Boards.
To receive warranty service, the purchaser must deliver the Product, transportation and
insurance prepaid, to STANDARD HORIZON (a division of Vertex Standard), Attention
Marine repairs 10900 Walker Street, Cypress, CA 90630. Include proof of purchase
indicating model. serial number, and date of purchase. STANDARD HORIZON will return
the Product to the purchaser freight prepaid. Products purchased prior to January 1, 1991
will bear the STANDARD HORIZON warranty terms in effect prior to that date.
In the event of a defect, malfunction or failure of the Product during the warranty period,
STANDARD HORIZON’s liability for any breach of contract or any breach of express or
implied warranties in connection with the sale of Products shall be limited solely to repair
or replacement, at its option, of the Product or part(s) therein which, upon examination by
STANDARD HORIZON, appear to be defective or not up to factory specifications.
STANDARD HORIZON may, at its option, repair or replace parts or subassemblies with new
or reconditioned parts and subassemblies. Parts thus repaired or replaced are warranted
for the balance of the original applicable warranty.
STANDARD HORIZON will not warrant installation, maintenance or service of the Products.
In all instances, STANDARD HORIZON’s liability for damages shall not exceed the
purchase price of the defective Product.
This warranty only extends to Products sold within the 50 States of the United States of
America and the District of Columbia.
Page 137CPV350
STANDARD HORIZON will pay all labor to repair the product and replacement parts
charges incurred in providing the warranty service except where purchaser abuse or other
qualifying exceptions exist. The purchaser must pay any transportation expenses incurred
in returning the Product to STANDARD HORIZON for service.
This limited warranty does not extend to any Product which has been subjected to misuse,
neglect, accident, incorrect wiring by anyone other than STANDARD HORIZON, improper
installation, or subjected to use in violation of instructions furnished by STANDARD
HORIZON, nor does this warranty extend to Products on which the serial number has been
removed, defaced, or changed. STANDARD HORIZON cannot be responsible in any way
for ancillary equipment not furnished by STANDARD HORIZON which is attached to or used
in connection with STANDARD HORIZON’s Products, or for the operation of the Product
with any ancillary equipment, and all such equipment is expressly excluded from this
warranty. STANDARD HORIZON disclaims liability for range, coverage, or operation of the
Product and ancillary equipment as a whole under this warranty. STANDARD HORIZON
reserves the right to make changes or improvements in Products, during subsequent
production, without incurring the obligation to install such changes or improvements on
previously manufactured Products.
The implied warranties which the law imposes on the sale of this Product are expressly
LIMITED, in duration, to the time period specified above. STANDARD HORIZON shall not
be liable under any circumstances for consequential damages resulting from the use and
operation of this Product, or from the breach of this LIMITED WARRANTY, any implied
warranties, or any contract with STANDARD HORIZON. IN CONNECTION WITH THE
SALE OF ITS PRODUCTS, STANDARD HORIZON MAKES NO WARRANTIES, EXPRESS
OR IMPLIED AS TO THE MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE OR OTHERWISE, EXCEPT AS EXPRESSLY SET FORTH HEREIN.
Some states do not allow the exclusion or limitation of incidental or consequential damages,
or limitation on how long an implied warranty lasts, so the above limitations or exclusions
may not apply. This warranty gives specific legal rights, and there may be other rights which
may vary from state to state.
ONLY PRODUCTS SOLD ON OR AFTER JANUARY 1, 1991 ARE COVERED UNDER
THE TERMS OF THIS LIMITED WARRANTY.
Page 138 CPV350
26.1 ON-LINE WARRANTY REGISTRATION
THANK YOU for buying Marine Division of Vertex Standard products! We are confident your
new radio will serve your needs for many years!
Please visit www.standardhorizon.com to register the GX3000S Marine VHF. It should
be noted that visiting the Web site from time to time may be beneficial to you, as new
products are released they will appear on the STANDARD HORIZON Web site. Also a
statement regarding product support should be added to the manual.
Product Support Inquiries
If you have any questions or comments regarding the use of the GX3000S, you can visit the
STANDARD HORIZON Web site to send an E-Mail or contact the Product Support team
at (714) 827-7600 ext 6300 M-F 7:00-5:00PST.
In addition to the warranty, STANDARD HORIZON includes a lifetime “flat rate” and
“customer loyalty” programs to provide service after the warranty period has expired. If you
wish to obtain the flat rate price for out-of-warranty repair, you must include the information
on the Owner’s Record with the unit when you return it to your Dealer or to STANDARD
HORIZON.
Lifetime Flat Rate Service Program: For the original Owner only, for the lifetime of the unit,
STANDARD HORIZON will repair the unit to original specifications.
Note: The flat rate amount is payable by the Owner only if STANDARD HORIZON or the
STANDARD HORIZON Dealer determines that a repair is needed. After the repair, a 90-
day warranty will be in effect from the date of return of the unit to the Owner.
This service program is not available for equipment which has failed as a result of neglect,
accident, breakage, misuse, improper installation or modification, or water damage
(depending on the product).
Page 139CPV350
NOTE
Page 140 CPV350
27. SPECIFICATIONS
27.0 CPV350 SPECIFICATIONS
27.0.0 GENERAL
Input Voltage: 13.8 VDC ±20 %
Current drain: 1.2 A (Standby)
1.7 A (Receive)
6.5 A (Transmit)
Dimensions: 6.7” x 10.9” x 5.4” (170 x 276 x 138 mm) (H x W x D)
Flush-Mount Dimensions: 5.4” x 7.2” x 4.9” (136 x 183 x 124 mm) (H x W x D)
Weight: 4.8 lbs (2.2 kg)
Display: 7 inch TFT 256 Color LCD (800 x 480 resolution)
27.0.1 TRANSMITTER
RF Output: 25 / 1W
Conducted Spurious Emissions: 80 dB(Hi); 60 dB(Lo)
Modulation: 16K0F3E, for DSC 16K0G2B
Frequency Stability: ±0.0005 %
FM Hum and Noise: 50dB
27.0.2 RECEIVER
Sensitivity: 0.25 µV (12 dB SINAD)
0.28 µV (12 dB SINAD, 70CH Receiver)
Squelch Sensitivity: 0.15 µV
Selectivity (TYP.): –80 dB (Spurious and Image Rejection)
–80 dB (Intermodulation and Rejection at 12dB SINAD)
Audio output:4.5 W
Frequency Stability: ±0.0005%
DSC format: Class D EN301 025 V1.2
NMEA input/Output: Output - DSC, DSC
Input - GLL, GGA, RMC, GNS
Hailer power: 30 W
27.0.3 GPS CHART PLOTTER
User Points (Marks/Waypoints): 1000
Routes: 20 (Max. 50 Waypoints each)
Track Points: 1000
NMEA Input Output: 3 Input/Output Interface NMEA-0183
Cartography: C-MAP NT+/MAX C-CARD
NMEA sentences: GLL, VTG, BWC, WCV, APA, APB, HDG, BOD,
XTE, RMA, RMB, RMC, GGA, HSC, DBT, DPT,
MTW, AND VHW
Page 141CPV350
27.1 GPS WAAS SMART RECEIVER SPECIFICATIONS
This GPS WAAS Smart Receiver is based on a 12 channel GPS engine that delivers
accuracy better than three meters by decoding the GPS correction signals from the satellite-
based WAAS (Wide Area Augmentation System). The GPS engine, interface electronics
and the passive antenna are enclosed inside the waterproof plastic housing. This provides
advanced state of the art GPS performance in an easy to use package.
27.1.0 PHYSICAL CHARACTERISTICS
Color: Ivory white
Dimensions: 97 mm in diameter x 32 mm in height (flush mounted)
or 61,5 mm on flagpole mount
Weight (without cable): 5.6 oz (160 g)
Cable GPH 10: white 15 meter 8x28AWG cable
with 6 pins female connector
27.1.1 ELECTRICAL CHARACTERISTICS
Input Voltage: 10 VDC to 35 VDC unregulated
Input Current: 112 mA @ 12 VDC
60 mA @ 24 VDC
45 mA @ 35 VDC
GPS Receiver Sensitivity: –145 dBW minimum
27.1.2 GPS PERFORMANCE
Receiver: WAAS (North America), EGNOS (Europe),
MSAS (Asia)
Geodetic Datum: WGS84
Channels:12
Frequency: 1575.42 MHz (L1, C/A code)
ACQUISITION TIME (Approximate)
Reacquisition: less than 1 second
Hot Start: 8 seconds (typical)
Warm Start: < 40 seconds (typical)
Cold Start: < 45 seconds (typical)
ACCURACY
Position: less than 10' (3 m), 95 % of the time
Speed: 0.3 Knots RMS
NMEA OUTPUT MESSAGES/UPDATE RATE
GGA: 1 second
GLL: 1 second
VTG: 1 second
RMC: 1 second
GSA: 3 seconds
GSV: 3 seconds
PCMPD: 1 second
Page 142 CPV350
28. APPENDIX: TERMS
ALT (Altitude) – Shows the Altitude of the vessel.
APP Wind DIR SPD (Apparent Wind Direction) – Shows the Apparent Wind Direction when
a external wind instrument with NMEA is connected.
APP Wind SPD (Apparent Wind Speed) – Shows the Apparent Wind Speed when a
external wind instrument with NMEA is connected.
BRG (Bearing) – The direction from your current position to a Destination point.
COG (Course Over Ground) – The course your vessel is heading.
DATE – Shows the current date received by the GPS.
DEPTH – Shows the water depth when the optional FF520 50/200kHz BLACK BOX FISH
FINDER or Digital Depth Sounder is connected.
DRAUGHT – Tide height value referred to Horizontal cursor.
DSC (Digital Selective Calling) – Digital Selective Calling is a semi-automated method of
establishing a VHF Radio call. DSC had also been designated as part of the Global Maritime
Distress and Safety System (GMDSS). It is planned that DSC will eventually replace aural
watches on distress frequencies and will be used to announce routine and urgent maritime
safety information broadcasts.
DST (Distance) – The distance from your current position to a Destination point.
ETA – Estimated Time of Arrival
GPS Constellation – The Global Positioning System (GPS) is a space-based radio-
navigation system consisting of a constellation of satellites and a network of ground stations
used for monitoring and control. A minimum of 24 GPS satellites orbit the Earth at an altitude
of approximately 11,000 miles providing users with accurate information on position,
velocity and time anywhere in the world and in all weather conditions.
GPS2D – The GPS is receiving at least 2 valid satellites.
GPS3D – The GPS is receiving at least 3 Satellites.
HDG (Heading) – Shows heading from a External Flux Gate Compass when connected.
HDOP/VDOP – Horizontal/Vertical Dilution of Precision. It is a parameter indicating the
precision of the positioning system (GPS). The smaller the HDOP/VDOP value, the more
accurately the position fix is provided.
HEIGHT – The current tide height referred to the vertical cursor.
HIGH WATER – The maximum level of the tide height in 24 hours.
LOW WATER – The minimum level of the tide height in 24 hours.
Position Request – Marine DSC VHF Function of transmitting a GPS position to another
Marine DSC VHF. When GPS chartplotter is connected to STANDARD HORIZON GPS the
position of another vessel is shown on the Chart page.
Page 143CPV350
SPEED – Shows the Speed Thru the Water when a Digital Speed Log is connected.
SOG (Speed Over Ground) – The speed you vessel is traveling at.
STEER – Heading to steer to destination Waypoint.
TIME – Shows the current time received by the GPS.
TRIP LOG – Shows the distance the vessel has traveled since the trip log was reset.
TRU Wind DIR SPD (Apparent Wind Direction) – Shows the True Wind Direction when a
external wind instrument with NMEA is connected.
TRU Wind SPD (Apparent Wind Speed) – Shows the True Wind Speed when a external
wind instrument with NMEA is connected.
TTG (Time To Go) – Shows time to go to reach a Destination point.
UNITS
Nm Nautical Mile (1 NM = 1.15 Sm or 1.85Km)
Sm Statue Mile (1Sm = 0.87Nm or 1.61Km)
Km Kilometer (1 Kilometer = 0062 Sm or 0.54Nm)
FT Feet. (1 Foot = 0.167 Fathoms or 0.305 Meters)
FA Fathom (1 Fathom = 6 Feet or 1.83 Meters)
Mt Meter (1 Meter = 3.28 Feet or 0.55 Fathoms)
Kts Knot (1 Knot = 1.15 MPH or 1.85 KPH)
MPH Miles Per Hour (1 MPH = 0.87 Knots or 1.61 KPH)
Kmh Kilometer Per Hour (1 KPH = 0.54 Knots or 0.62 MPH)
VMG – It is the destination closing Velocity. The VMG is calculated using the current speed
of the vessel (SOG) and the difference between the current vessel course and the bearing
to the Destination.
WAAS 2D/3D – The GPS is receiving a 2D or 3D position and the correction from the WAAS
Satellite. WAAS consists of approximately 25 ground reference stations positioned across
the United States that monitor GPS satellite data. Two master stations, located on either
coast, collect data from the reference stations and create a GPS correction message. This
correction accounts for GPS satellite orbit and clock drift plus signal delays caused by the
atmosphere and ionosphere. The corrected differential message is then broadcast through
one of two geostationary satellites, or satellites with a fixed position over the equator. The
information is compatible with the basic GPS signal structure, which means any WAAS-
enabled GPS receiver can read the signal.
WATER TEMP – Shows the sea water temperature when the FF520 50/200kHz BLACK
BOX FISH FINDER or a Digital Speed Log/Temp instrument with NMEA is connected.
XTE (Cross Track Error) – The distance your vessel is off course (left or right) to a
Destination point.
Page 144 CPV350
Marine Division of VERTEX STANDARD
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
www.standardhorizon.com
EM016N100
Copyright 2006
VERTEX STANDARD CO., LTD.
All rights reserved.
No portion of this manual
may be reproduced
without the permission of
VERTEX STANDARD CO., LTD.
0603b-0E
