Yepzon YPZN1-20 GPS Tracker User Manual DRAFT Y1CC QuickStart

Yepzon Oy GPS Tracker DRAFT Y1CC QuickStart

Users Manual

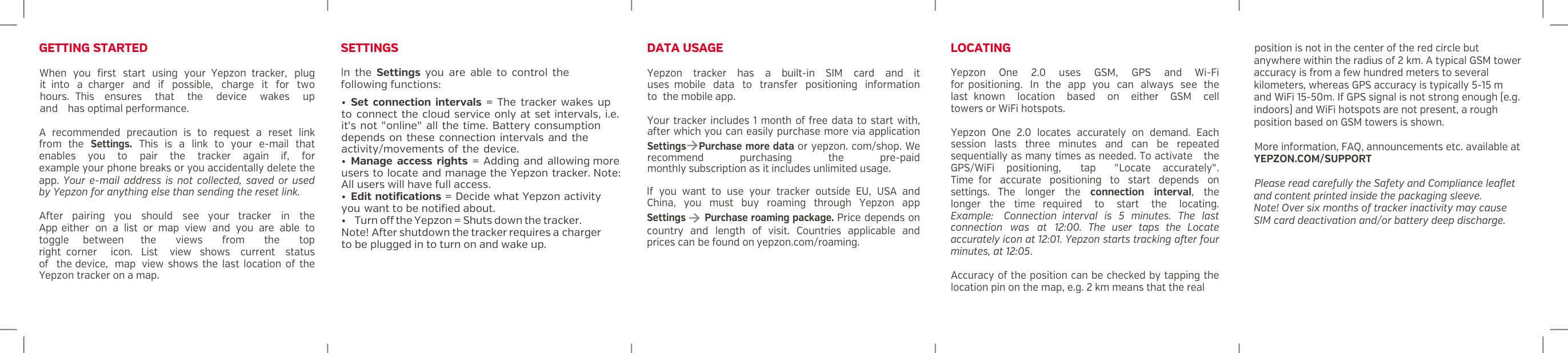

GETTING STARTED When you first start using your Yepzon tracker, plug it  into a  charger and if possible, charge it for two hours. This ensures that the device wakes up and has optimal performance. A  recommended  precaution is to request a  reset link from the Settings. This is a  link to your e-mail that enables you to pair the tracker again if, for example your phone breaks or you accidentally delete the app.  Your e-mail  address  is  not  collected,  saved  or  used by Yepzon for anything else than sending the reset link.After pairing you should see your tracker in the App either on a  list or map view and you are able to toggle between the views from the top right  corner icon. List view shows current status of the device, map view shows the last location of the Yepzon tracker on a map. SETTINGS ln the Settings you are able to control the following functions: DATAUSAGE Yepzon tracker has a  built-in  SIM card and it uses  mobile data to transfer positioning information to the mobile app. Your tracker includes 1 month of free data to start with, after which you can easily purchase more via application Settings➔Purchase more data or yepzon. com/shop. We recommend purchasing  the pre-paid monthly subscription as it includes unlimited usage. lf you want to use your tracker outside EU, USA  and China, you  must  buy  roaming  through Yepzon app Settings ➔ Purchase roaming package. Price depends on country and length of visit.  Countries applicable and prices can be found on yepzon.com/roaming. LOCATING Yepzon One  2.0 uses GSM, GPS and Wi-Fi for positioning. In the app you can always see the last  known location based on either GSM cell towers or WiFi hotspots. Yepzon  One  2.0  locates  accurately on demand. Each session  lasts  three minutes  and can be repeated sequentially as many times as needed. To activate the GPS/WiFi positioning, tap "Locate accurately". Time  for accurate positioning to start depends on settings.  The longer the connection interval, the longer the time  required to start the locating. Example: Connection  interval is 5 minutes. The last connection was at 12:00.  The  user  taps  the  Locate accurately icon at 12:01. Yepzon starts tracking after four minutes, at 12:05.Accuracy of the position can be checked by tapping the location pin on the map, e.g. 2 km means that the real position is not in the center of the red circle but anywhere within the radius of 2 km. A typical GSM tower accuracy is from a few hundred meters to several kilometers, whereas GPS accuracy is typically 5-15 m and WiFi 15-50m. If GPS signal is not strong enough (e.g. indoors) and WiFi hotspots are not present, a rough  position based on GSM towers is shown.   More information, FAQ, announcements etc. available at  YEPZON.COM/SUPPORTPlease read carefully the Safety and Compliance leaflet and content printed inside the packaging sleeve.Note! Over six months of tracker inactivity may cause SIM card deactivation and/or battery deep discharge.•Set connection intervals = The tracker wakes upto  connect the cloud service only at set intervals, i.e.it's not "online" all the time. Battery consumptiondepends on these connection intervals and theactivity/movements of the device.•Manage access rights = Adding and allowing moreusers to locate and manage the Yepzon tracker. Note: All users will have full access.•Edit notifications = Decide what Yepzon activityyou want to be notified about.•  Turn off the Yepzon = Shuts down the tracker.Note! After shutdown the tracker requires a chargerto be plugged in to turn on and wake up.
nnYepzon ONE 2.0 - QUICK START

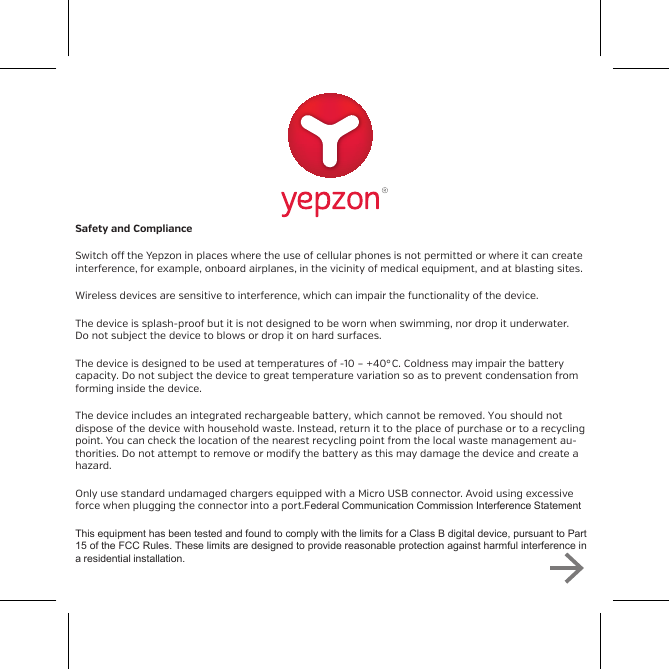

Safety and ComplianceSwitch o the Yepzon in places where the use of cellular phones is not permitted or where it can createinterference, for example, onboard airplanes, in the vicinity of medical equipment, and at blasting sites.Wireless devices are sensitive to interference, which can impair the functionality of the device.The device is splash-proof but it is not designed to be worn when swimming, nor drop it underwater.Do not subject the device to blows or drop it on hard surfaces.The device is designed to be used at temperatures of -10 – +40°C. Coldness may impair the batterycapacity. Do not subject the device to great temperature variation so as to prevent condensation fromforming inside the device.The device includes an integrated rechargeable battery, which cannot be removed. You should notdispose of the device with household waste. Instead, return it to the place of purchase or to a recycling point. You can check the location of the nearest recycling point from the local waste management au-thorities. Do not attempt to remove or modify the battery as this may damage the device and create a hazard. Only use standard undamaged chargers equipped with a Micro USB connector. Avoid using excessive force when plugging the connector into a port.Federal Communication Commission Interference StatementThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference ina residential installation.recycling point. You can check the location of the nearest recyclingpoint from the local waste management authorities. Do not attemptto remove or modify the battery as this may damage the device andcreate a hazard. Only use standard undamaged chargers equipped with a Micro USBconnector. Avoid using excessive force when plugging the connectorinto a port.This device complies with part 15 of the FCC Rules. Operation issubject to the following two conditions: (1) This device may notcause harmful interference, and (2) this device must accept anyinterference received, including interference that may causeundesired operation.This product meets applicable national SAR limits of 1.6W/kg. Thespecific maximum SAR values can be found at yepzon.com/support.When carrying the product or using it while worn on your body,either use an accessory such as a holster or otherwise maintain adistance of 0,5 cm from the body to ensure compliance with RFexposure requirements.This product does not contain any user-serviceable parts. Changesor modifications made to this equipment not expressly approved bythe party responsible for compliance could void the user's authorityto operate the equipment.You can read more on safety at www.yepzon.com/support.You can find the manufacturer’s Declaration of Conformity atwww.yepzon.com/legal.

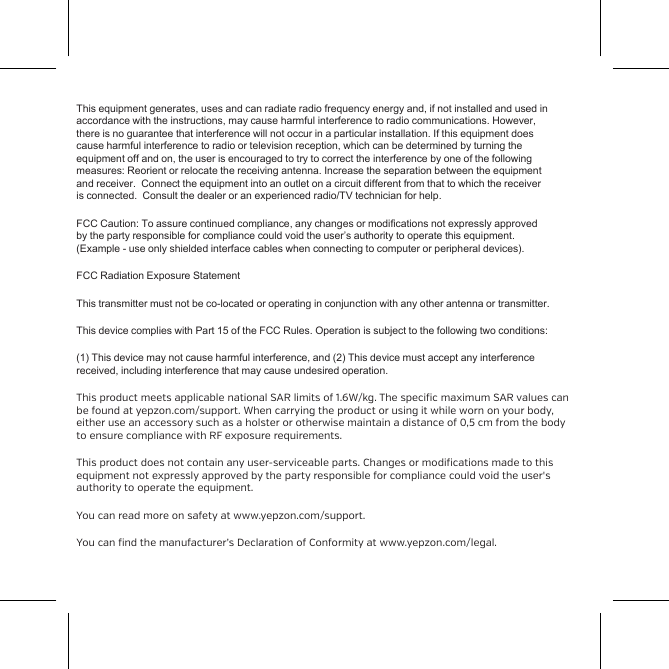

Safety and ComplianceSwitch o the Yepzon in places where the use of cellular phones isnot permitted or where it can create interference, for example,onboard airplanes, in the vicinity of medical equipment, and atblasting sites.Wireless devices are sensitive to interference, which can impair thefunctionality of the device.The device is splash-proof but it is not designed to be worn whenswimming, nor drop it underwater. Do not subject the device toblows or drop it on hard surfaces.The device is designed to be used at temperatures of -10 – +40°C.Coldness may impair the battery capacity. Do not subject the deviceto great temperature variation so as to prevent condensation fromforming inside the device.The device includes an integrated rechargeable battery, whichcannot be removed. You should not dispose of the device withhousehold waste. Instead, return it to the place of purchase or to a This equipment generates, uses and can radiate radio frequency energy and, if not installed and used inaccordance with the instructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation. If this equipment doescause harmful interference to radio or television reception, which can be determined by turning theequipment off and on, the user is encouraged to try to correct the interference by one of the followingmeasures: Reorient or relocate the receiving antenna. Increase the separation between the equipmentand receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiveris connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approvedby the party responsible for compliance could void the user’s authority to operate this equipment.(Example - use only shielded interface cables when connecting to computer or peripheral devices).FCC Radiation Exposure StatementThis transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) This device must accept any interferencereceived, including interference that may cause undesired operation.This product meets applicable national SAR limits of 1.6W/kg. The specific maximum SAR values canbe found at yepzon.com/support. When carrying the product or using it while worn on your body,either use an accessory such as a holster or otherwise maintain a distance of 0,5 cm from the bodyto ensure compliance with RF exposure requirements.This product does not contain any user-serviceable parts. Changes or modifications made to thisequipment not expressly approved by the party responsible for compliance could void the user'sauthority to operate the equipment.You can read more on safety at www.yepzon.com/support.You can find the manufacturer’s Declaration of Conformity at www.yepzon.com/legal.
