Youngshin Electronics J2WAMR Car Alarm System User Manual 2WAMR FCC ID

Youngshin Electronics Co., LTD. Car Alarm System 2WAMR FCC ID

Users Manual

USER’S GUIDE
2WAMR
Young Shin Electronics, Inc.
Young Shin Electronics, Inc.
www.magicar.com
USER’S GUIDE
2WAMR
Two-Way AM Remote
FCC ID : O44J2WAMR
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions :
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
CAUTION :
Changes or modifications not expressly approved by the party
responsible for compliance could void the user s authority to
operate this device.
Page 2 Page 3
1. Safety Information Page 4
2. Remote-Pager : 2WAMR W/LCD Page 4
3. Description of Remote Appearance Page 5
4. GLO Color LCD Page 5
5. LCD Icons Page 6
6. Remote-Pager Button Functions Page 7
7. More Button Functions Page 8
8. Remote-Pager Learn Routine Page 9
9. Alarm Mode Page 9
10. Dual Stage Shock Sensor Page 10
11. Auto-Start Function Page 10
12. Reservation Mode Page 11
13. Canceling Reservation Mode Page 13
14. Trunk Release Page 13
15. Query Function Page 13
16. Panic Mode Page 13
17. Valet Mode Page 14
18. Timer Start Mode Page 14
19. Safety Shut Down Features Page 14
20. R.P.S (Remote Paging System) Page 15
21. Optional Programmable Features Page 15
Ignition Lock Page 15
Passive Arming Page 15
Turbo Mode Page 16
22. Optional installaton Features Page 17
Cold Start Mode Page 17
Optional Auxiliary 1 & Auxiliary 2 Page 17
23. Limited Lifetime Consumer Warranty Page 18
Your Warranty Page 19
TABLE OF CONTENTS
Page 5
Safety Information
Remote-Pager : 2WAMR w/LCD
The model name, 2WAMR stands for
.
This transmitter allows you to activate multiple functions by pressing different
combinations of the 4 buttons on the unit.
Please take these safety precautions into consideration under the following
conditions:
When servicing your automobile (i.e. changing the oil, washing your car), the
Young Shin Electronics, Inc system should be in Valet Mode. There is a safety
shutdown switch underthe hood that deactivates the remote starter function if the hood is open.
However, if the switch has been damaged or the switch has been installed improperly,the vehicle
may start when Button is pressed for 2 seconds, even if the hood is open.
Whenever you loan your vehicle to an individual who is not familiar with Young Shin Electronics,
Inc, you may want to put the vehicle in Valet mode. This will prevent the borrower from accidentally
activating the Young Shin Electronics, Inc auto-security system.
If the Young Shin Electronics, Inc 2WAMR is installed in a manual transmission vehicle, extra pre-
cautions are required because the Young Shin Electronics, Incdoes not monitor the gear shift :
Under normal circumstances, Reservation Mode is cancelled
when a door or hatchback opens. Please verify that the opening of any door or
hatchback cancels Reservation Mode. If any of the doors or hatchback are not
monitored by Young Shin Electronics, Inc because of improper installation or a faulty dome
light switch, do not use the Young Shin Electronics, Inc and take your vehicle immediately to
the dealer for repair. Do not set Reservation Mode if the window(s) are open or if there is
anyone inside the vehicle, this includes animals. Remote start installation in a manual
transmission vehicle with a convertible top is not recommended.
Page 4
GLO color LCD
The remote-pager comes with GLO which is a unique color LCD display
that visually tells the vehicle owner the security status of your car at all times.
There are differing icons that will appear on your GLO LCD indicating what
your vehicle is currently doing.

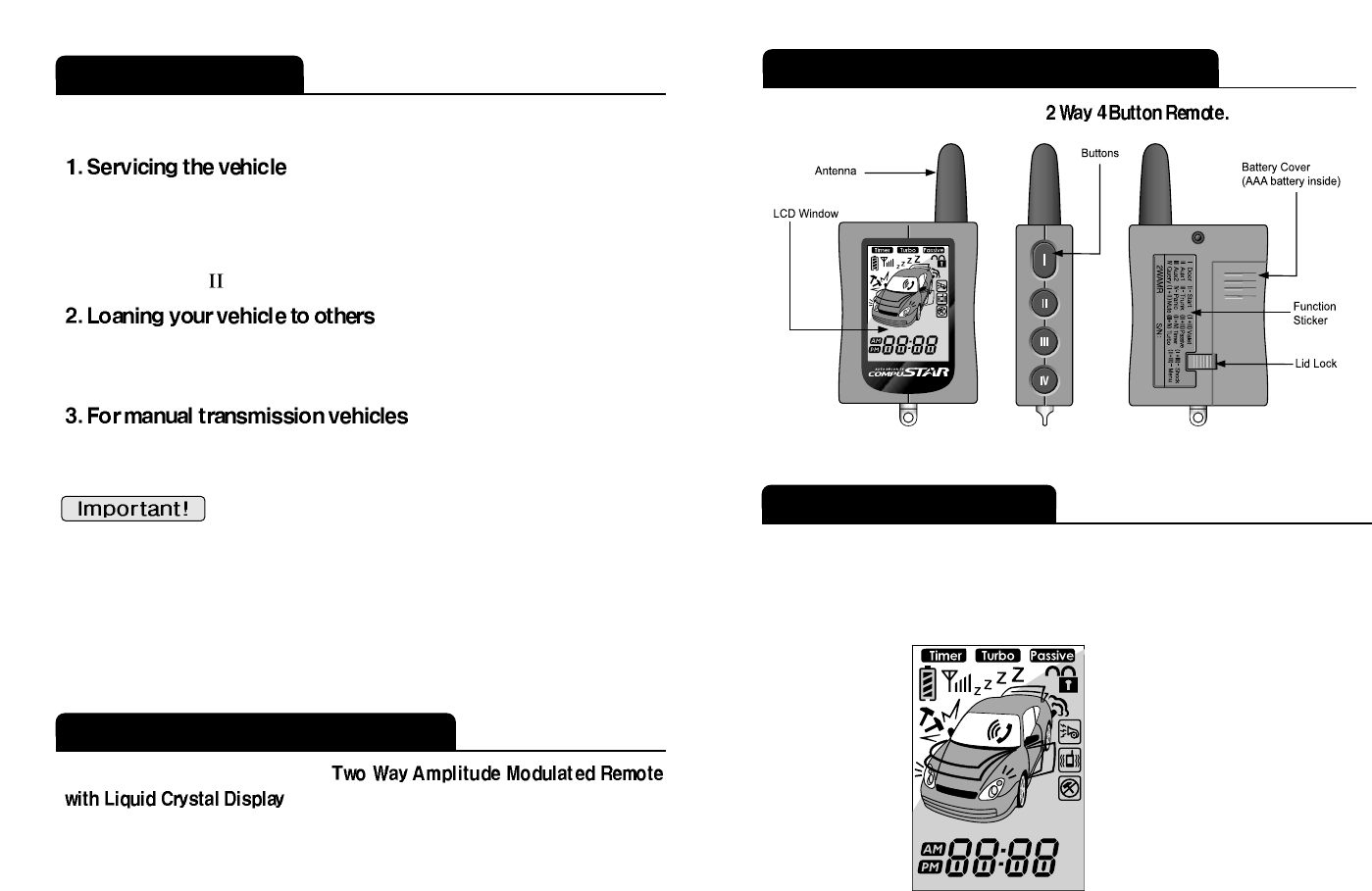

Description of Remote Appearance
Front Side Rear
The model name, 2WAMR, stands for
Page 7
Remote-Pager Button Functions
1
2
3
4
5
6
7
8
9
10
11
1/2 sec
1/2 sec
1/2 sec
1/2 sec
1/2 sec
1/2 sec
1/2 sec
2 sec
2 sec
2 sec
Alarm Mode - on/off, RPS - on/off,
Siren Off, Starter Kill (Anti-Grind) -
on/off
AUX 1
AUX 2
Query Function
Trunk Release
Auto-start Function – on/off
Panic, Press to shut off Siren.
Siren Chirps – on/off
Valet Mode – on/off
Passive Arming – on/off
Timer Start Mode – on/off
Turbo Mode - on/off
Shock Sensor – on/off
Button
PressedFor
Function
12
13
14
15
1/2 sec
1/2 sec
2 sec
2 sec
2 sec
Programming Menu 1 - Installer Only
Programming Menu 2 - Installer Only
Represents pressing the button for 2 seconds.
Represents simultaneously pressing the buttons.
Represents simultaneously pressing the buttons for 2 seconds.

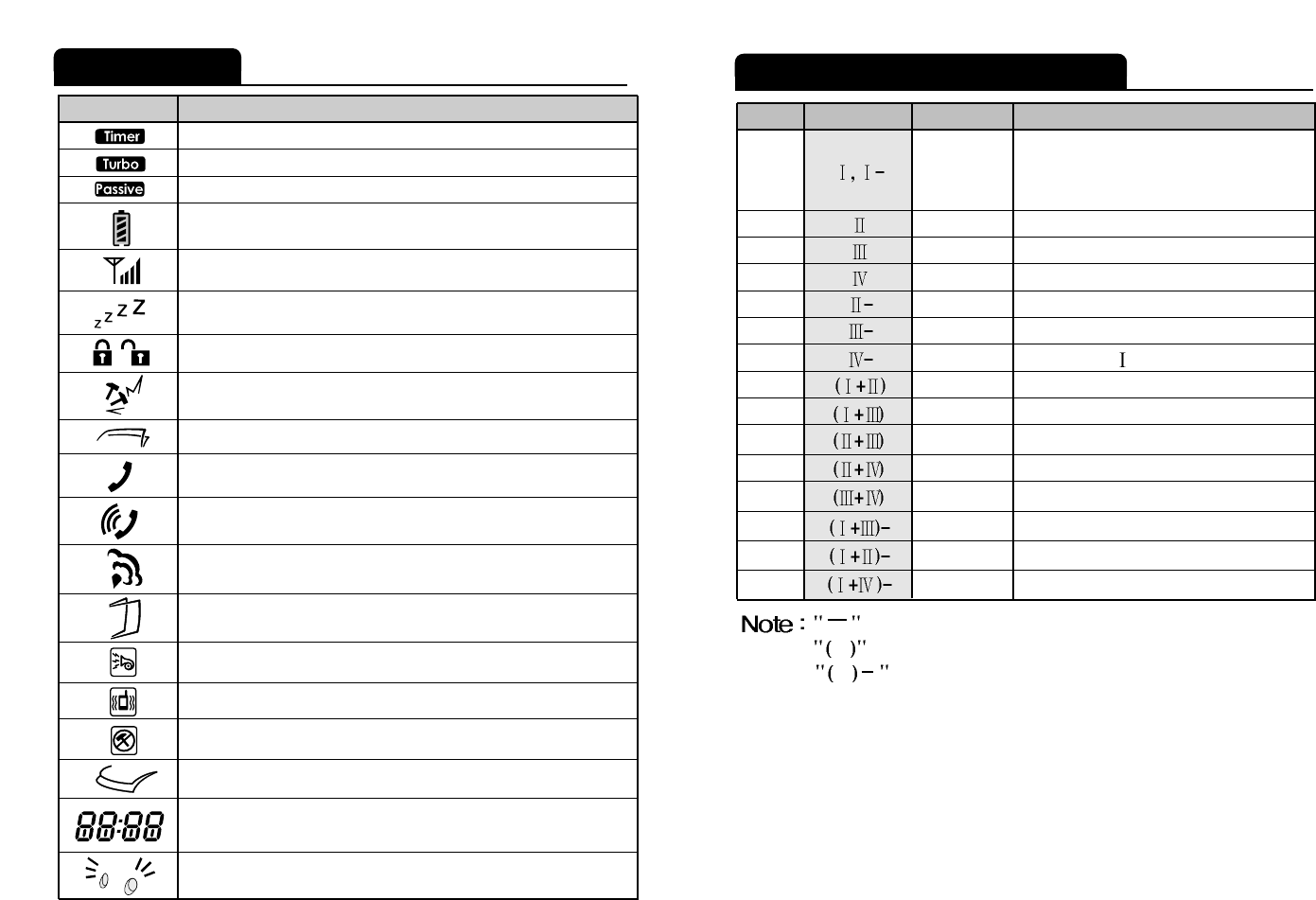

Page 6
Indicates if Vibrator is on or off.
Indicates that Shock sensor is turned on or off.
Indicates that your car siren is turned on or off when you lock
or unlock the vehicle.
Displays if your Hood is open.
Displays if your door is open.
1. Time Clock.
2. Remainder of the engine running time.
Indicates if Timer Mode is on or off.
Indicates if Turbo Start Mode is on or off.
Indicates if Passive Arming Mode is on or off.
Displays remaining battery life.
Indicates that your remote-pager is transmitting signals to the
controller unit.
Indicates if you are in Valet Mode.
Display if your car is lock or unlcok
Indicates that the Shock Sensor has been triggered.
Displays if your Trunk is open.
Indicates if RPS is on or off.
Indicates that someone is paging you from your vehicle.
Displays if your vehicle has auto-started properly or ignition on.
Icon Explanation
LCD Icons
Indicates if your car
parking lights are flashing.

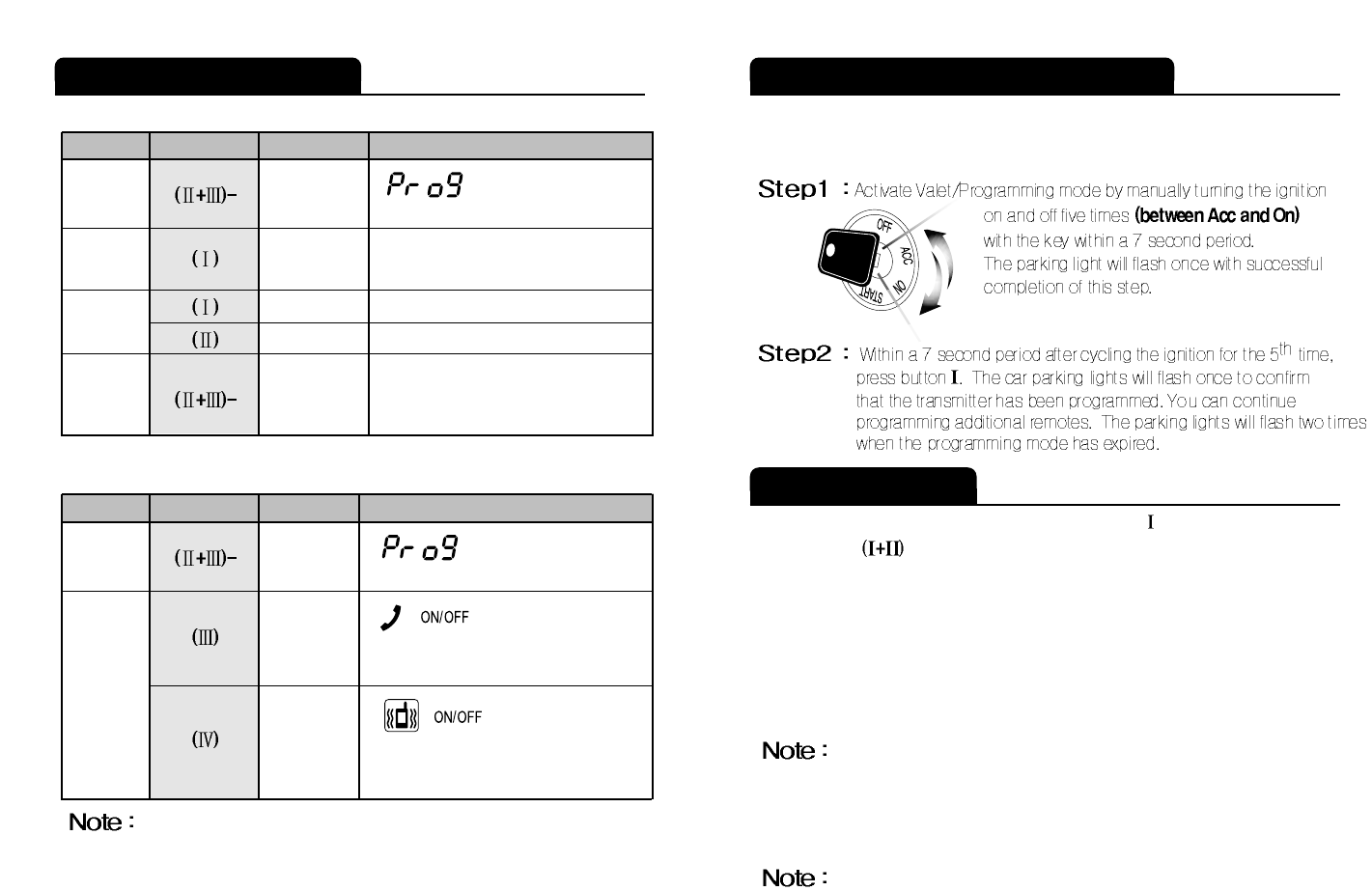

Page 8
More Button Functions
(1) Time Setting
Tones will sound for confirmation
STEP 1 2 sec
Button
PressedFor
Function
Time setting is on. The numbers will
flash, and tones will sound.
STEP 2 1/2 sec
Change hour.
Change minutes.
Time setting is off. Tones will
sound.
STEP 3
STEP 4
1/2 sec
1/2 sec
2 sec
(2) RPS & Vibration mode on or off
Step 2 must be completed within 15 seconds. If not, start over at step 1.
Tones will sound for confirmation
STEP 1 2 sec
Button
PressedFor
Function
STEP 2
RPS on or off, tones will sound for
confirmation.
Vibration mode on or off, tones will
sound for confirmation.
1/2 sec
1/2 sec
Page 9
Remote-Pager Learn Routine
The Young Shin Electronics, Inc. system will allow up to three remotes to be
programmed to one vehicle. Please perform the following procedure to add or
reprogram additional remotes.
Alarm Mode
You can arm or disarm alarm mode by pressing Button for a 1/2 second.
Press Buttons for a 1/2second to make your car siren mute when arming or
disarming your vehicle. Keep in mind that your car siren will still activate for all
other modes (i.e. panic or alarm trigger) regardless of whether or not your car
siren is in mute mode. The car siren will be mute only when arming or disarming
your vehicle.
When the alarm is armed, the starter kill function (an optional feature provided by
your installer) is activated. This feature disengages the starter mechanism on
your vehicle and prevents it from starting, even with a key.
If you lose your remote after you have armed the vehicle, use your key
to open the door. The siren will go off. Turn the ignition on then off,
5 times with your key to shut down the alarm and put the system into
valet mode. You can cancel the valet mode with a remote later on.
See : Valet mode, on page 10.
(Siren duration is 30 to 60 sec depending on the options set at the time
of initial installation.)

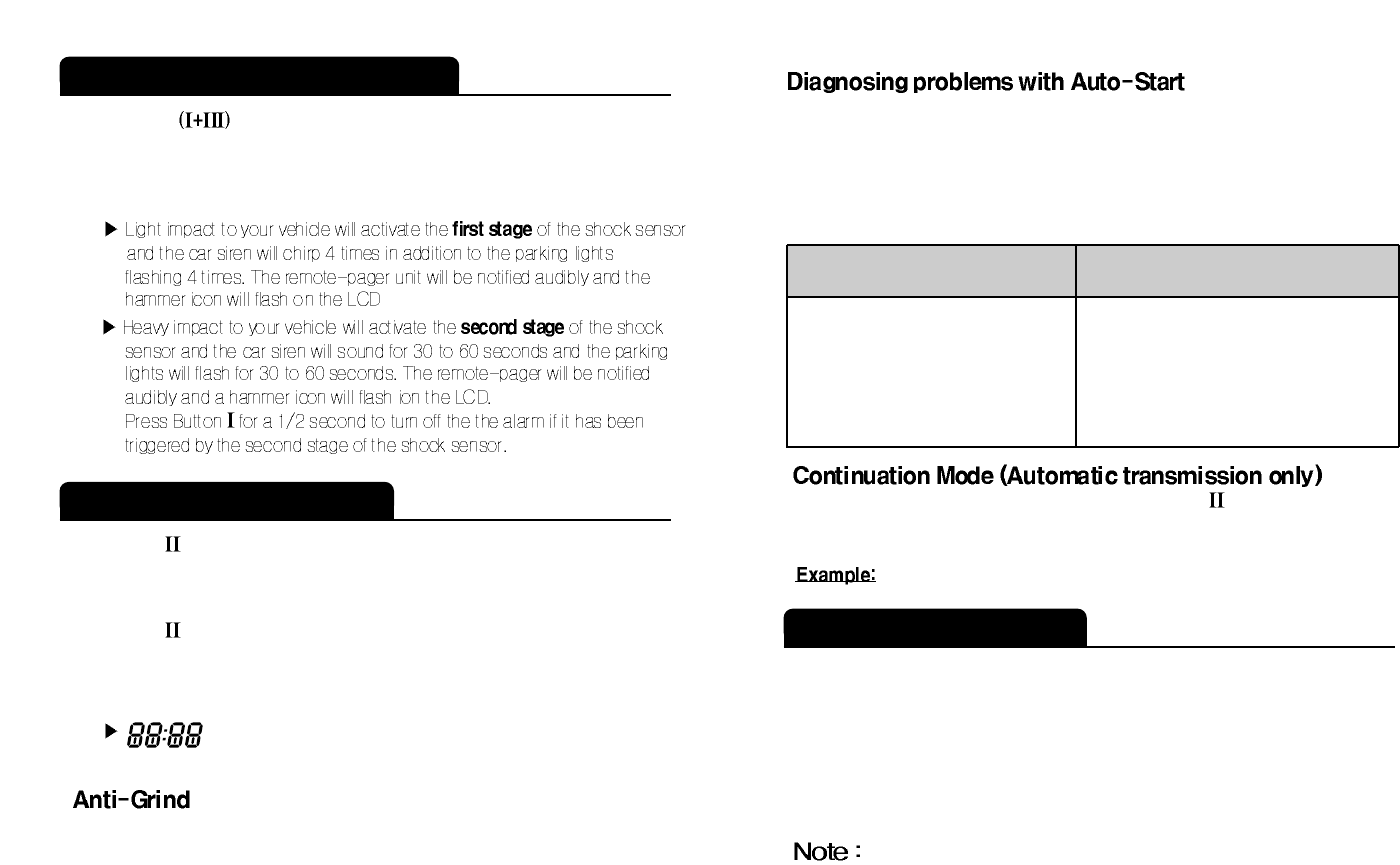

Page 10
shows the amount of run-time left in the remote
start mode.
Press Buttons
fo
r 2 seconds to activate or deactivate the dual stage shock
sensor. The dual stage shock sensor will activate in 30 seconds after the CompuStar
alarm mode is armed. When the dual shock sensor is engaged, the remote-pager
will be alerted by the following triggers:
Press button for 2 seconds to auto-start an automatic transmission engine.
Remember, that a manual key in the ignition is required to drive the car.
For manual transmission vehicles, please use reservation mode.
Press button for 2 seconds in order to turn off an auto-started car.
The engine will run 15 or 25 minutes (25 or 45 min for diesel) depending on preset
options at the time of installation and then shut off.
Auto-Start Function
Dual Stage Shock Sensor
The anti-grind circuit (an optional feature provided by your installer) prevents you
from engaging the starter on a remote-started vehicle.
Page 11
If there is a problem in auto-starting your vehicle,the Young Shin Electronics,Inc.
system will do one of two things; if it fails for any of the reasons listed in the table
below, it will flash the parkinglights three times then flash the error number.
Otherwise, it will attempt to start the vehicle three times. If, after three times, the
vehicle will not start or stay running, the Young Shin Electronics,Inc. system will shut
down. In either case, please see your installer to resolve the situation.
1
2
3
4
5
6
7
Error Number
(# of times parking lights flash) Error Reason
Engine On
Key On
Door Open
Trunk Open
Brake On
Hood Open
Reservation Off (Manual Transmission Only)

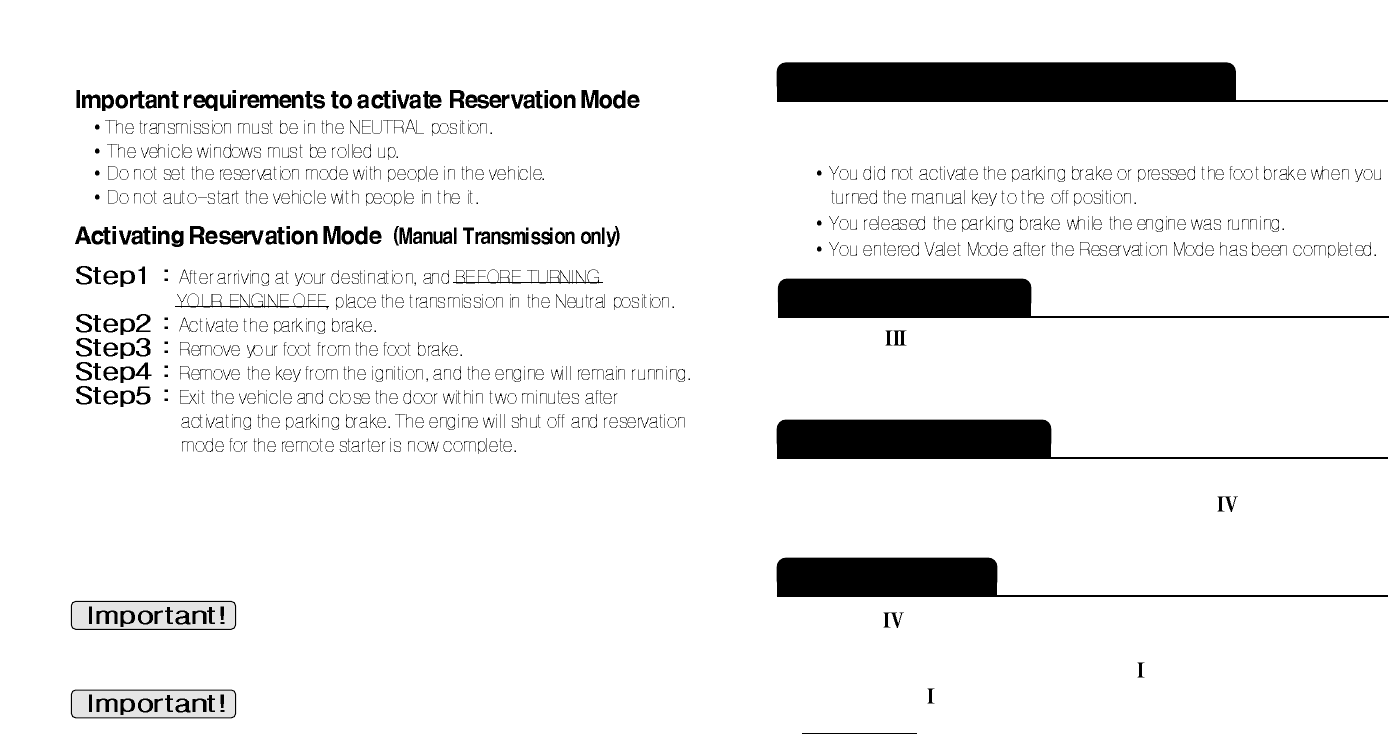

Reservation Mode
(manual transmission only)
In order to auto-start your manual transmission vehicle, you must first set the
Young Shin Electronics, Inc system to Reservation Mode before leaving your vehicle.
The purpose of Reservation Mode is to leave the transmission gear in the neutral
position when you leave your vehicle. Reservation mode is intended for use on
MANUAL TRANSMISSIONS ONLY and NOT FOR AUTOMATIC TRANSMISSIONS.
Reservation Mode must be engaged each and every time you leave your manual
transmission vehicle in order to auto-start it.
The system is not recommended for vehicles with removable tops.
While your vehicle is running with your key, press button for 2 seconds,
you are now in the continuation mode. Your engine will continue running for the
preset time even if you take your key out the ignition.
For a quick stop when you don’t want to restart the vehicle.
Page 12
When the vehicle shuts off after reservation mode, the
Young Shin Electronics, Inc system will lock/arm the vehicle. Take care to not
lock your keys inside.
Your vehicle is now ready for auto-starting. However, the reservation mode will
be cancelled if the door is opened or the Young Shin Electronics, Inc. system is put
in Valet mode after the reservation has been set. Once cancelled, you will have to
start the vehicle with the manual key and repeat the above 5 steps if you want to
restore reservation mode.
If you try to auto-start the vehicle when reservation mode
has not been set, the auto-start feature will not work.
When you press the auto-start button, the remote will beep three times. The car
parking lights will flash three times, pause, then flash seven times.
Page 13
If you do not want to set reservation mode, shut off the engine before you exit the
vehicle. The engine will shut off for the following reasons:
Canceling Reservation Mode
Trunk Release
Press Button for 2 seconds in order to unlock and release your trunk.
Note that, the trunk release function will not only release the trunk, but will unlock
all the doors as well.
Query Function allows the you to visually monitor the status of your car by
looking at the remote-pager GLO LCD icons. Press button for a 1/2
second to activate the Query Function.
Query Function
Panic Mode
Press button for 2 seconds to enter Panic Mode. In this mode, the car will arm,
if not armed already, and the siren/horn will activate and the parking lights will flash.
In order to disengage Panic Mode, press button for a 1/2 second.
Then, press button for a 1/2 second to unlock/disarm your vehicle.
If Anti-Jacking option has been programmed (ask your dealer if you
would like to have this option) and the Ignition-Kill has been installed ,
the Panic Mode works as Anti-Jacking if the key is in the ignition.
If Anti-Jacking mode is activated while key is in the ignition,
a)The siren will go off for 1.5 minutes, and b) Ignition-Kill will be activated
after the first 30 seconds. This is to give a 30 second warning to the hijacker,
then to disconnect the ignition to stop the vehicle.

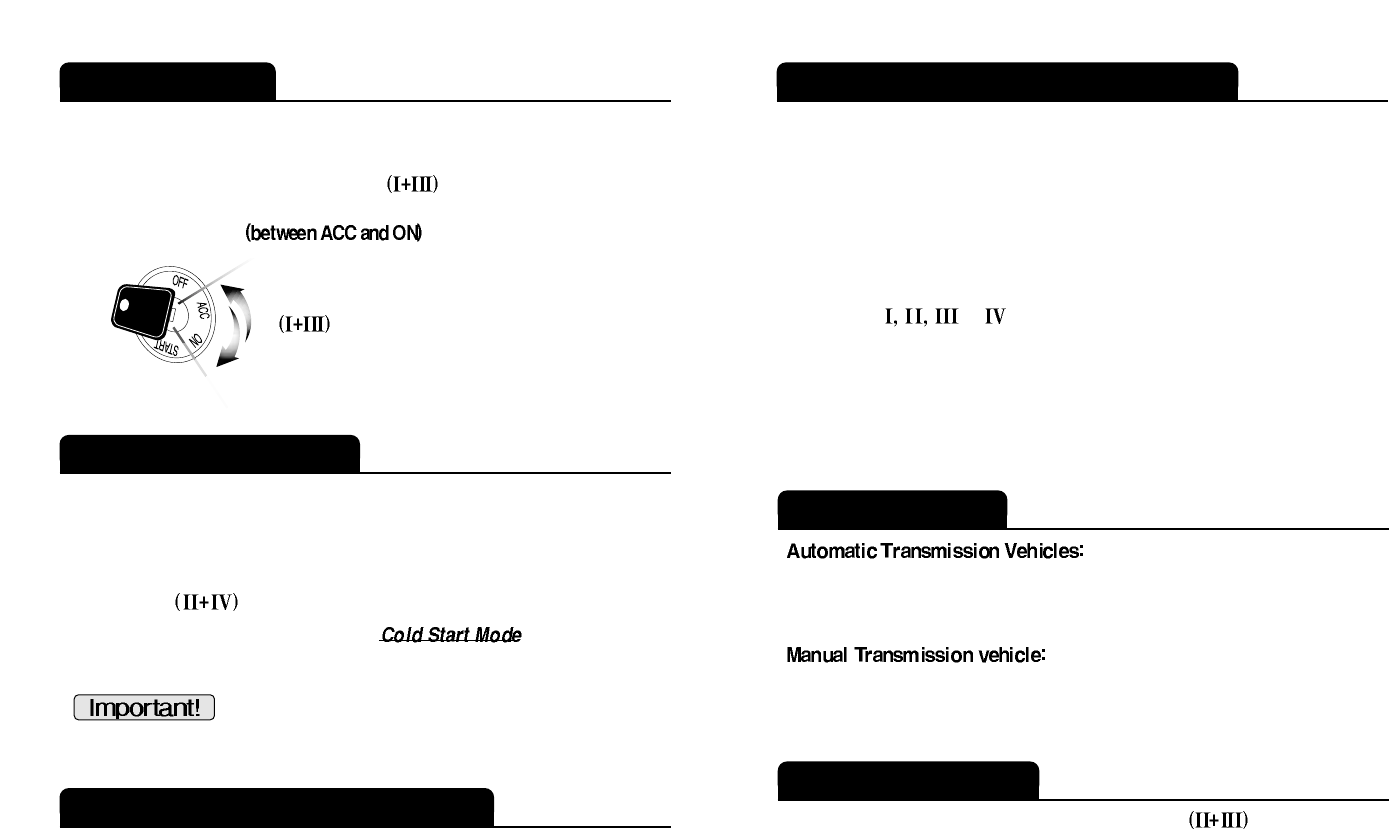

Page 14
While the vehicle is in valet mode, only the keyless entry function will be available.
Valet Mode is very useful when loaning your vehicle or having it serviced.
In order to enter Valet mode, press Buttons simultaneously for a 1/2 second.
In order to manually enter Valet Mode, insert your key into the ignition and turn
the ignition on, then off, five times within 10 seconds.
Valet Mode
You can exit Valet Mode only by pressing Buttons
simultaneously for a 1/2 second.
Timer Start Mode
In Timer Start Mode, your car automatically starts every 1.5 or 3.0 hours,
depending on preset options during the time of installation, for a 24-hour period.
This mode is cancelled automatically after 24 hours or once you start your car with
either the key or remote-pager. In order to enter Timer Start Mode,
press Buttons simultaneously for a 1/2 second.
Also, note that Timer Start Mode becomes once an
optional temperature sensor is installed.
Timer Start Mode should be used only in open areas.
Never start and run the vehicle in an enclosed space such
as a garage or carport.
Safety Shut Down Features
The Young Shin Electronics, Inc. 2WAMR system has several shut down safety
features. The following actions will shut down the engine or prevent the car from
auto-starting : Opening the hood, pressing the brake, or if Valet Mode is turned on.
Page 15
The optional RPS is a feature that allows an individual to page you by simply tapping
on the front windshield of the vehicle. RPS is automatically turned on upon activating
alarm mode (pressing button I for a 1/2 second) on the Young Shin Electronics, Inc.
2WAMR .
The RPS module can be activated by tapping a key on the glass, opposite of the
sensor, producing a high-frequency vibration. This high-frequency vibration is
detected and your remote-pager will beep and a telephone icon will appear on the
GLO LCD indicating that someone is paging you from your vehicle.
Press Button or for a 1/2 second to deactivate the RPS visual and
audible paging alerts.
RPS (Remote Paging System)
OPTIONAL PROGRAMMABLE FEATURES
These additional programmable features can be programmed to the Young Shin
Electronics, Inc. system by your authorized Young Shin Electronics, Inc. dealer.
Ignition Lock
This progammable option will automatically lock the vehicle doors once the key is in the ignition
and the brake pedal is pressed. The doors will unlock as soon as the key is removed from the
ignition.
This progammable option will automatically lock the vehicle doors once the key is in the ignition
and the brake pedal is pressed. The doors will automatically unlock when the emergency
brake is set while the vehicle is running with the key.
You can turn this function on or off by pressing buttons for a 1/2 second.
When set to passive arming, your security system will arm automatically 30
seconds after all the car doors are closed. There are two types of passive arming
that can be programmed by your Young Shin Electronics, Inc dealership:
(1) passive arming with passive lock and (2) passive arming with active lock.
Passive Arming
Passive locking means the door will lock when the system passively arms.
In the default factory setting, the system is armed and locked actively, which means
the system will only arm/lock when the remote-pager is utilized.
Page 16
Turbo Mode
you can turn this feature on and off by pressing Buttons for a 1/2 second.
In this mode, if the emergency brake has been set, the engine will continue to run
after the key has been taken out of the ignition. It will run until two minutes after the
emergency brake has been set.
To utilize this mode, the emergency brake sensing wire has to be connected to the
emergency brake wire of the vehicle. Consult the authorized dealer for this mode.
This option is ideal for turbo-charged vehicles because it allows the turbo too slowly
cool after operation.
Optional Auxiliary 1 & Auxiliary 2
The auxiliary output system is an optional feature that can be tailored for your
vehicle by your local authorized Young Shin Electronics, Inc dealership. For example,
you can customize your car to have remote power control of your windows, radio,
and sunroof in addition to the rooftop on your convertible car.
Page 17
OPTIONAL INSTALLATION FEATURES
The Young Shin Electronics, Inc 2WAMR remote-pager has additional features and
expansion possibilities that may require additional parts and labor.
Cold Start Mode
Timer Start
Mode becomes Cold Start Mode. In this mode, your car will automatically start if
the temperature of the inside of the vehicle goes below the preset temperature.
The minimum interval between the starts will be 1.5 or 3.0 hours depending on
preset options during the time of installation. Cold Start Mode is activated or
deactivated by pressing Buttons for a 1/2 second.
Page 19
Young Shin Electronics, Inc. is not RESPONSIBLE OR LIABLE FOR ANY DAMAGES
WHATSOEVER,INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAM-
AGES, INCIDENTAL DAMAGES, DAMAGES FOR LOSS OF TIME,
LOSS OF EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC
OPPORTUNITY AND THE LIKE that may or may not resulted from the operation of
Young Shin Electronics, Inc.
NOT WITH STANDING THE ABOVE, MANUFACTURER DOES OFFER A LIMITED
WARRANTY TO REPLACE OR REPAIR THE CONTROL MODULE AS
DESCRIBED ABOVE.
Your Warranty
The product’s warranty is automatically void if its date code or serial number is defaced,
missing or altered. This warranty will not be valid unless you have completed the
registration card and mailed it to Young Shin Electronics, Inc, within 10 days after the
purchase to the address listed on the registration card.
Young Shin Electronics, Inc. Warrants to the original purchaser that this product shall be
free of defects in material and workmanship under normal use and circumstances for the
period of time that the original owner of this product owns the vehicle in which it is
installed ; except that the remote controller unit for the period of one year from the date of
installation to the original owner of this product.
When the original purchaser returns the product to the retail store where it was
purchased or prepaid postal to Young Shin Electronics, Inc., 3415 S. 116th St Seattle,
WA 98168, USA within the warranty period, and if the product is defective,Young Shin
Electronics, Inc., will at its option repair or replace such.
TO THE MAXIMUM EXTENT ALLOWED BY LAW, ANY AND ALL WARRANTIES
ARE EXCLUDED BY THE MANUFACTURER AND EACH ENTITY PARTICIPATING
IN THE STREAM OF COMMERCE THEREWITH.
THIS EXCLUSION INCLUDES BUT IS NOT LIMITED TO, THE EXCLUSION OF ANY
AND ALL WARRANTY OF MERCHANTABILITY AND/OR ANY AND ALL WARRANTY
OF FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY AND ALL WARRANTY
OF NON-INFRINGEMENT OR PATENTS, IN THE UNITED STATES OF AMERICA
AND/OR ABROAD.
NEITHER THE MANUFACTURER OF ANY ENTITIES CONNECTED THEREWITH
SHALL BE RESPONSIBLE OR LIABLE FOR ANY DAMAGES WHATSOEVER,
INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES, INCIDENTAL
DAMAGES, DAMAGES FOR LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL
LOSS, LOSS OF ECONOMIC OPPORTUNITY AND THE LIKE. NOTWITHSTANDING
THE ABOVE, MANUFACTURER DOES OFFER A LIMITED WARRANTY TO REPLACE
OR REPAIR THE CONTROL MODULE AS DESCRIBED ABOVE.
Some states do not allow limitations on how long an implied warranty will last or the
exclusion or limitation on how long an implied warranty will last or the exclusion or
limitation of incidental or consequential damages.
This warranty gives you specific legal rights, and you may also have other rights,
which vary State to State.
Limited Lifetime Consumer Warranty
Page 18

Navigation menu
