ZMODO Technology H2404 Breeze User Manual 1

ZMODO Technology Shenzhen Corp. Ltd. Breeze 1

Users Manual

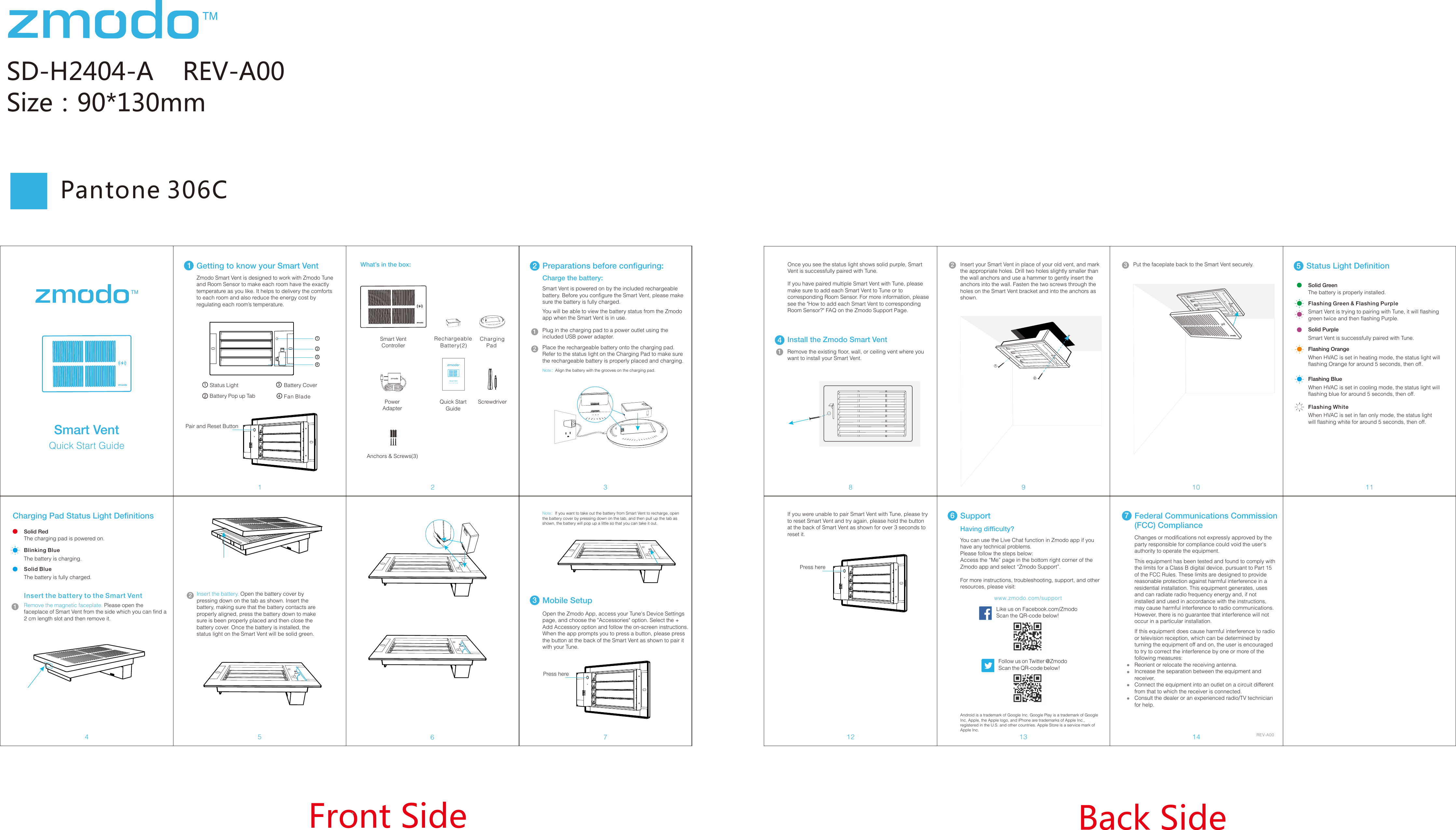

SD-H2404-A    REV-A00Size:90*130mm34672Front Side Back Side11Getting to know your Smart Vent8 10 1112Smart Vent ControllerPowerAdapterPlug in the charging pad to a power outlet using the included USB power adapter.  2Smart Vent is powered on by the included rechargeable battery. Before you configure the Smart Vent, please make sure the battery is fully charged.You will be able to view the battery status from the Zmodo app when the Smart Vent is in use. Place the rechargeable battery onto the charging pad. Refer to the status light on the Charging Pad to make sure the rechargeable battery is properly placed and charging.5Zmodo Smart Vent is designed to work with Zmodo Tune and Room Sensor to make each room have the exactly temperature as you like. It helps to delivery the comforts to each room and also reduce the energy cost by regulating each room’s temperature.Charge the battery: Note:Align the battery with the grooves on the charging pad.12Charging Pad Status Light DefinitionsSolid RedThe charging pad is powered on.Blinking BlueThe battery is charging. Solid BlueThe battery is fully charged. Insert the battery to the Smart VentRemove the magnetic faceplate. Please open the faceplace of Smart Vent from the side which you can find a 2 cm length slot and then remove it. 1Rechargeable     Battery(2) Charging PadPreparations before configuring:What’s in the box:4Install the Zmodo Smart VentRemove the existing floor, wall, or ceiling vent where you want to install your Smart Vent.1Insert your Smart Vent in place of your old vent, and mark the appropriate holes. Drill two holes slightly smaller than the wall anchors and use a hammer to gently insert the anchors into the wall. Fasten the two screws through the holes on the Smart Vent bracket and into the anchors as shown.2Pantone 306C Android is a trademark of Google Inc. Google Play is a trademark of Google Inc. Apple, the Apple logo, and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. Apple Store is a service mark of Apple Inc.Having difficulty?Follow us on Twitter @ZmodoScan the QR-code below! Like us on Facebook.com/Zmodo Scan the QR-code below!www.zmodo.com/supportYou can use the Live Chat function in Zmodo app if you have any technical problems.Please follow the steps below:Access the “Me” page in the bottom right corner of the Zmodo app and select “Zmodo Support”. For more instructions, troubleshooting, support, and other resources, please visit:6SupportREV-A00 Note:If you want to take out the battery from Smart Vent to recharge, open the battery cover by pressing down on the tab, and then pull up the tab as shown, the battery will pop up a little so that you can take it out. 3Mobile SetupOpen the Zmodo App, access your Tune's Device Settings page, and choose the "Accessories" option. Select the + Add Accessory option and follow the on-screen instructions. When the app prompts you to press a button, please press the button at the back of the Smart Vent as shown to pair it with your Tune.Once you see the status light shows solid purple, Smart Vent is successfully paired with Tune.If you have paired multiple Smart Vent with Tune, please make sure to add each Smart Vent to Tune or to corresponding Room Sensor. For more information, please see the "How to add each Smart Vent to corresponding Room Sensor?" FAQ on the Zmodo Support Page.Put the faceplate back to the Smart Vent securely.3Status Light Definition5Solid GreenThe battery is properly installed.Solid PurpleSmart Vent is successfully paired with Tune.Status Light Battery Cover1234BatteryPopupTab Fan BladeScrewdriverQuick Start GuideSmart Vent Quick Start GuideQuick Start GuideSmart VentInsert the battery. Open the battery cover by pressing down on the tab as shown. Insert the battery, making sure that the battery contacts are properly aligned, press the battery down to make sure is been properly placed and then close the battery cover. Once the battery is installed, the status light on the Smart Vent will be solid green.21234Pair and Reset ButtonAnchors & Screws(3)Press here912Flashing Green & Flashing PurpleSmart Vent is trying to pairing with Tune, it will flashing green twice and then flashing Purple.Flashing OrangeWhen HVAC is set in heating mode, the status light will flashing Orange for around 5 seconds, then off.Flashing BlueWhen HVAC is set in cooling mode, the status light will flashing blue for around 5 seconds, then off.Flashing WhiteWhen HVAC is set in fan only mode, the status light will flashing white for around 5 seconds, then off.If you were unable to pair Smart Vent with Tune, please try to reset Smart Vent and try again, please hold the button at the back of Smart Vent as shown for over 3 seconds to reset it.Press hereThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.13 147Federal Communications Commission (FCC) ComplianceIf this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
