ZOLL Medical Israel UCOR30 uCOR Monitoring System, uCor 3.0 User Manual EMC TEST REPORT

ZOLL Medical Israel Ltd. uCOR Monitoring System, uCor 3.0 EMC TEST REPORT

Manual

Non-Specific Radio Report Shell Rev. August 2015 Page 1 of 117 Company: Zoll medical Corporation Model: µCor 3.0 EMC TEST REPORT (FULL COMPLIANCE) Report Number: 102716227BOX-002 Project Number: G102716227 Report Issue Date: 03/09/2017 Model(s) Tested: µCor 3.0 Model(s) Partially Tested: None Model(s) Not Tested but declared equivalent by the client: None Standards: FCC Part 15 Subpart C: 01/2017 FCC Part 15 Subpart B: 01/2017 Tested by: Client: Intertek Testing Services NA, Inc. 70 Codman Hill Road Boxborough, MA 01719 USA Zoll Medical Israel Ltd. 14 Atir Yeda Street Kfar-Saba 4464313 Israel Client: Zoll Medical Corporation 121 Gamma Drive Pittsburgh PA 15238 USA Report prepared by Naga Suryadevara Report reviewed by Vathana Ven Naga Suryadevara/EMC Engineer Vathana Ven/Staff Engineer, EMC This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program.
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 2 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Table of Contents 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Client Information ................................................................................................................................ 4 4 Description of Equipment Under Test and Variant Models ............................................................. 4 5 System Setup and Method .................................................................................................................. 6 6 Output Power and Human RF Exposure ........................................................................................... 7 7 Occupied and 20dB Bandwidth ........................................................................................................ 15 8 Channel Separation ........................................................................................................................... 29 9 Number of Hopping Channels .......................................................................................................... 32 10 Average Channel Occupancy Time .............................................................................................. 34 11 Out of Band Conducted Emissions .............................................................................................. 38 12 Radiated Spurious Emissions ....................................................................................................... 72 13 Radiated Emissions (Digital Device and Receiver) ..................................................................... 99 14 AC Mains Conducted Emissions ................................................................................................ 109 15 Revision History ........................................................................................................................... 117

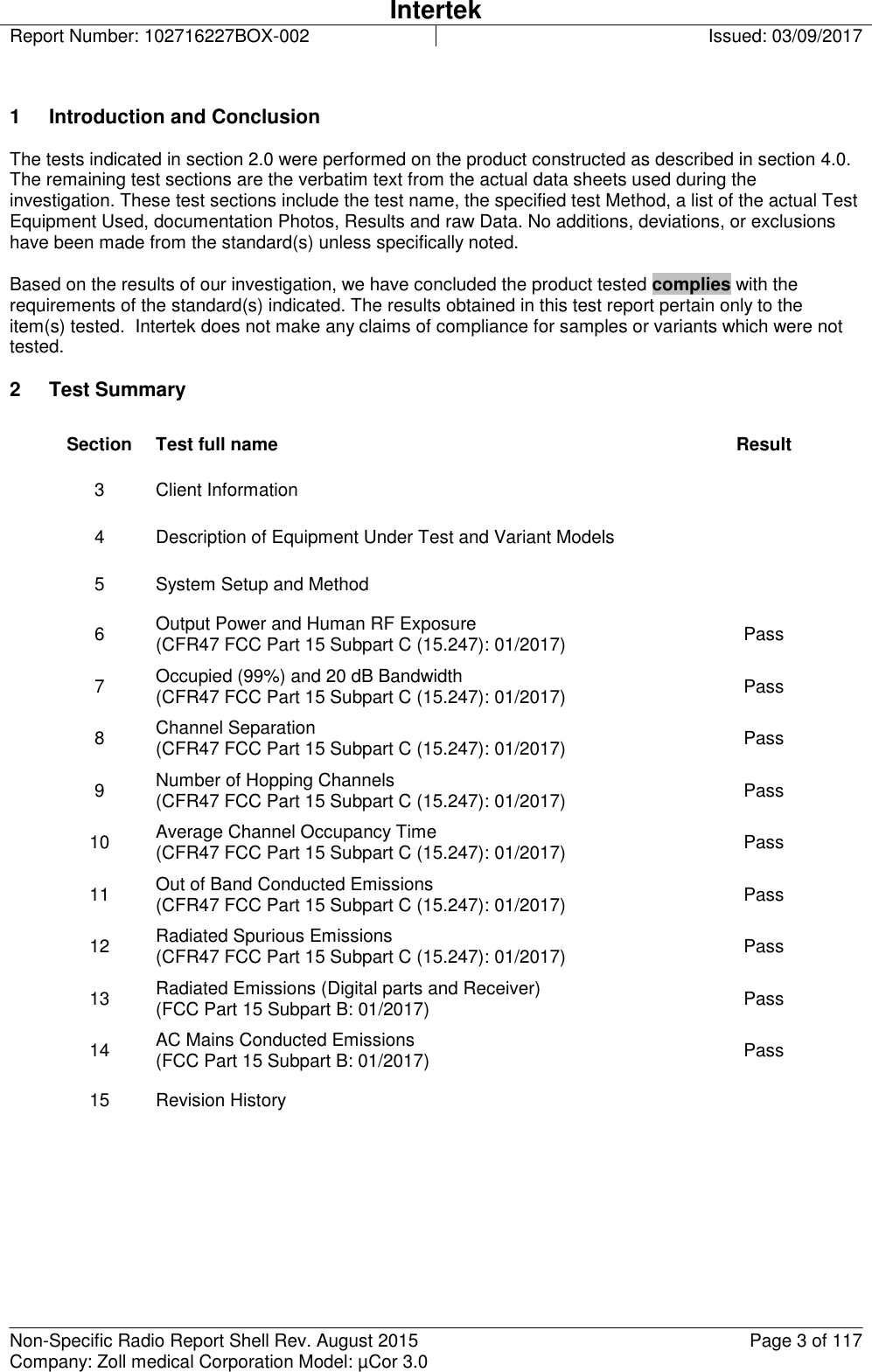

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 3 of 117 Company: Zoll medical Corporation Model: µCor 3.0 1 Introduction and Conclusion The tests indicated in section 2.0 were performed on the product constructed as described in section 4.0. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test Method, a list of the actual Test Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complies with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. Intertek does not make any claims of compliance for samples or variants which were not tested. 2 Test Summary Section Test full name Result 3 Client Information 4 Description of Equipment Under Test and Variant Models 5 System Setup and Method 6 Output Power and Human RF Exposure (CFR47 FCC Part 15 Subpart C (15.247): 01/2017) Pass 7 Occupied (99%) and 20 dB Bandwidth (CFR47 FCC Part 15 Subpart C (15.247): 01/2017) Pass 8 Channel Separation (CFR47 FCC Part 15 Subpart C (15.247): 01/2017) Pass 9 Number of Hopping Channels (CFR47 FCC Part 15 Subpart C (15.247): 01/2017) Pass 10 Average Channel Occupancy Time (CFR47 FCC Part 15 Subpart C (15.247): 01/2017) Pass 11 Out of Band Conducted Emissions (CFR47 FCC Part 15 Subpart C (15.247): 01/2017) Pass 12 Radiated Spurious Emissions (CFR47 FCC Part 15 Subpart C (15.247): 01/2017) Pass 13 Radiated Emissions (Digital parts and Receiver) (FCC Part 15 Subpart B: 01/2017) Pass 14 AC Mains Conducted Emissions (FCC Part 15 Subpart B: 01/2017) Pass 15 Revision History

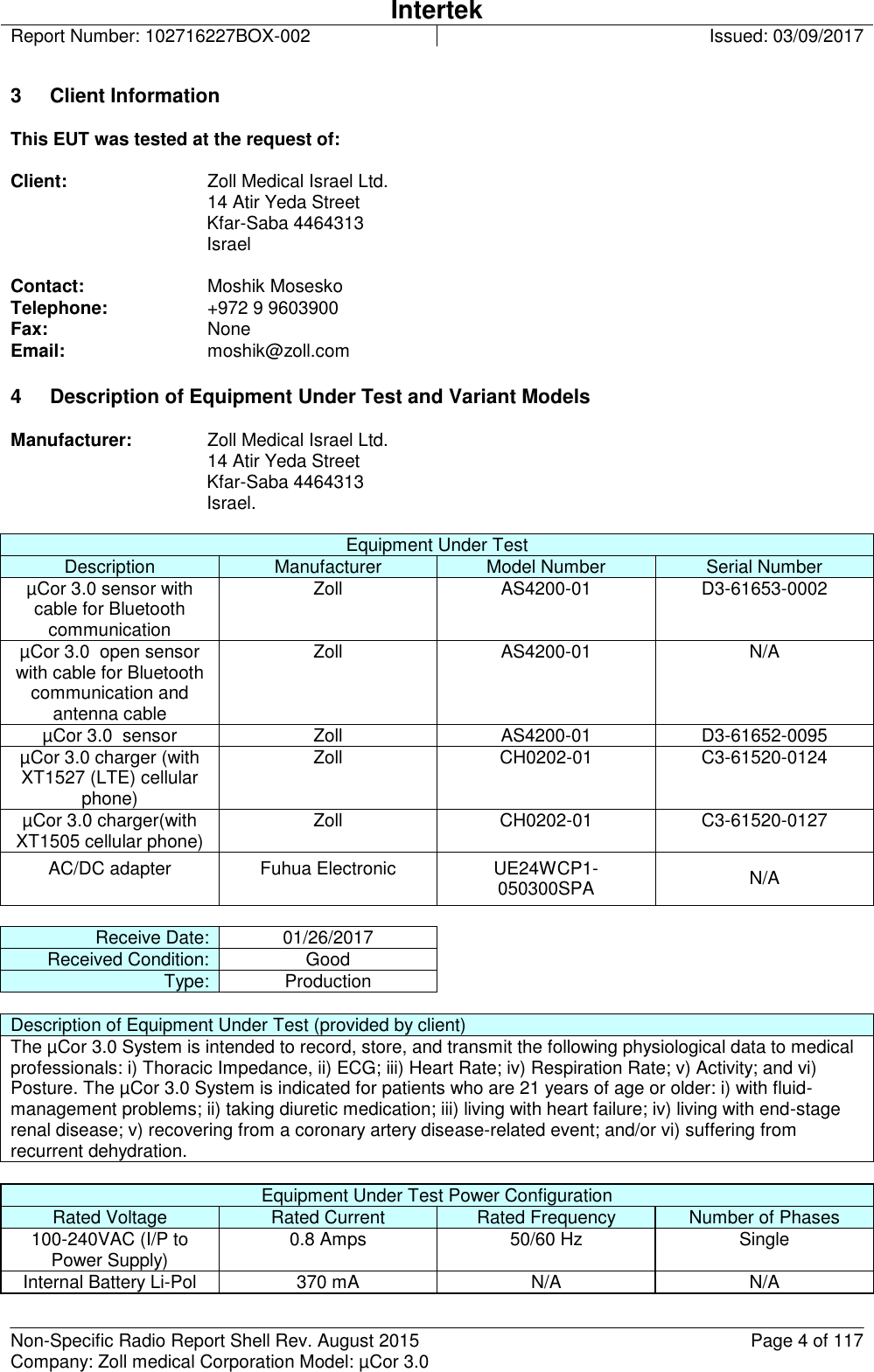

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 4 of 117 Company: Zoll medical Corporation Model: µCor 3.0 3 Client Information This EUT was tested at the request of: Client: Zoll Medical Israel Ltd. 14 Atir Yeda Street Kfar-Saba 4464313 Israel Contact: Moshik Mosesko Telephone: +972 9 9603900 Fax: None Email: moshik@zoll.com 4 Description of Equipment Under Test and Variant Models Manufacturer: Zoll Medical Israel Ltd. 14 Atir Yeda Street Kfar-Saba 4464313 Israel. Equipment Under Test Description Manufacturer Model Number Serial Number µCor 3.0 sensor with cable for Bluetooth communication Zoll AS4200-01 D3-61653-0002 µCor 3.0 open sensor with cable for Bluetooth communication and antenna cable Zoll AS4200-01 N/A µCor 3.0 sensor Zoll AS4200-01 D3-61652-0095 µCor 3.0 charger (with XT1527 (LTE) cellular phone) Zoll CH0202-01 C3-61520-0124 µCor 3.0 charger(with XT1505 cellular phone) Zoll CH0202-01 C3-61520-0127 AC/DC adapter Fuhua Electronic UE24WCP1-050300SPA N/A Receive Date: 01/26/2017 Received Condition: Good Type: Production Description of Equipment Under Test (provided by client) The µCor 3.0 System is intended to record, store, and transmit the following physiological data to medical professionals: i) Thoracic Impedance, ii) ECG; iii) Heart Rate; iv) Respiration Rate; v) Activity; and vi) Posture. The µCor 3.0 System is indicated for patients who are 21 years of age or older: i) with fluid-management problems; ii) taking diuretic medication; iii) living with heart failure; iv) living with end-stage renal disease; v) recovering from a coronary artery disease-related event; and/or vi) suffering from recurrent dehydration. Equipment Under Test Power Configuration Rated Voltage Rated Current Rated Frequency Number of Phases 100-240VAC (I/P to Power Supply) 0.8 Amps 50/60 Hz Single Internal Battery Li-Pol 370 mA N/A N/A

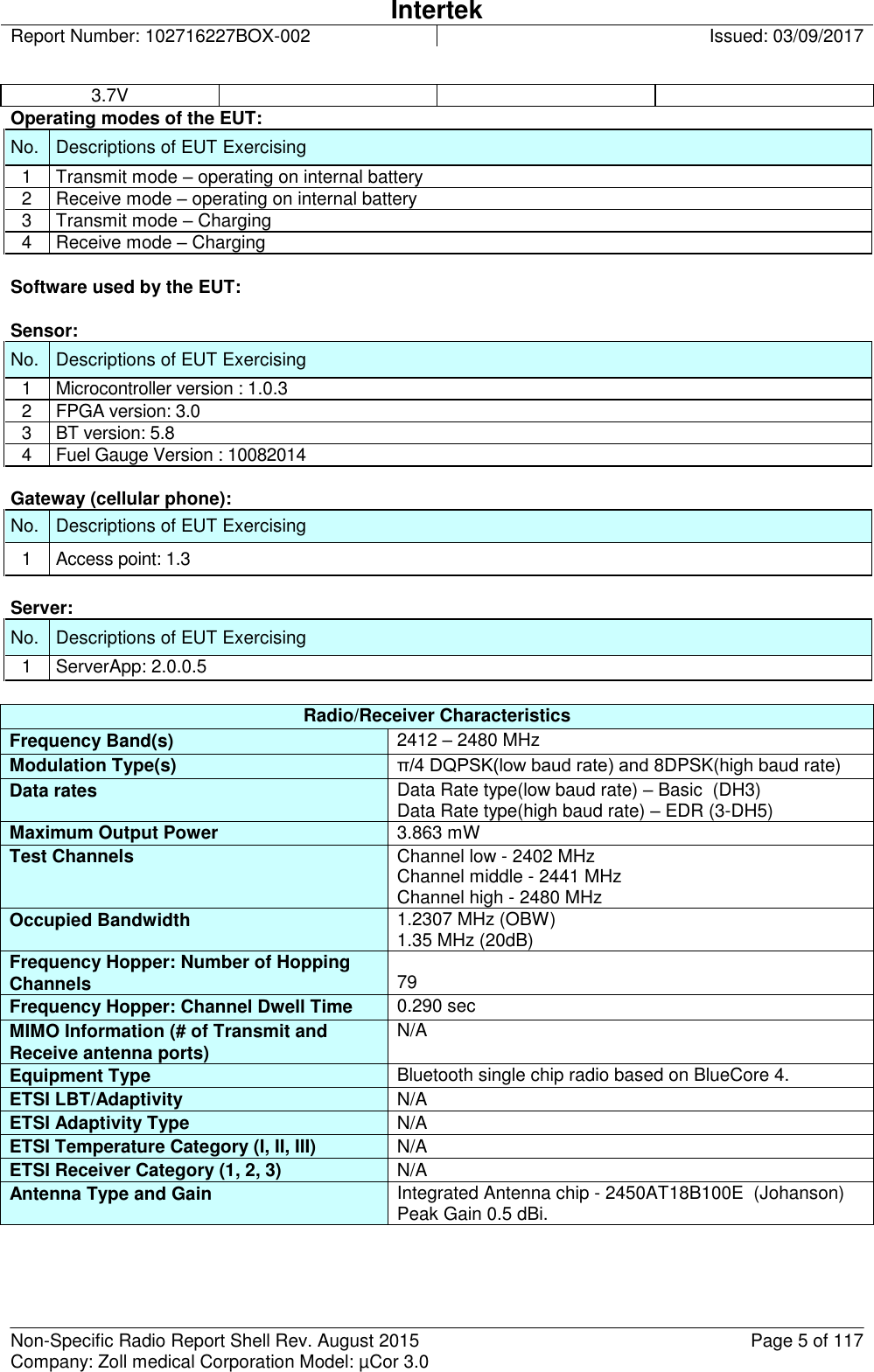

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 5 of 117 Company: Zoll medical Corporation Model: µCor 3.0 3.7V Operating modes of the EUT: No. Descriptions of EUT Exercising 1 Transmit mode – operating on internal battery 2 Receive mode – operating on internal battery 3 Transmit mode – Charging 4 Receive mode – Charging Software used by the EUT: Sensor: No. Descriptions of EUT Exercising 1 Microcontroller version : 1.0.3 2 FPGA version: 3.0 3 BT version: 5.8 4 Fuel Gauge Version : 10082014 Gateway (cellular phone): No. Descriptions of EUT Exercising 1 Access point: 1.3 Server: No. Descriptions of EUT Exercising 1 ServerApp: 2.0.0.5 Radio/Receiver Characteristics Frequency Band(s) 2412 – 2480 MHz Modulation Type(s) π/4 DQPSK(low baud rate) and 8DPSK(high baud rate) Data rates Data Rate type(low baud rate) – Basic (DH3) Data Rate type(high baud rate) – EDR (3-DH5) Maximum Output Power 3.863 mW Test Channels Channel low - 2402 MHz Channel middle - 2441 MHz Channel high - 2480 MHz Occupied Bandwidth 1.2307 MHz (OBW) 1.35 MHz (20dB) Frequency Hopper: Number of Hopping Channels 79 Frequency Hopper: Channel Dwell Time 0.290 sec MIMO Information (# of Transmit and Receive antenna ports) N/A Equipment Type Bluetooth single chip radio based on BlueCore 4. ETSI LBT/Adaptivity N/A ETSI Adaptivity Type N/A ETSI Temperature Category (I, II, III) N/A ETSI Receiver Category (1, 2, 3) N/A Antenna Type and Gain Integrated Antenna chip - 2450AT18B100E (Johanson) Peak Gain 0.5 dBi.

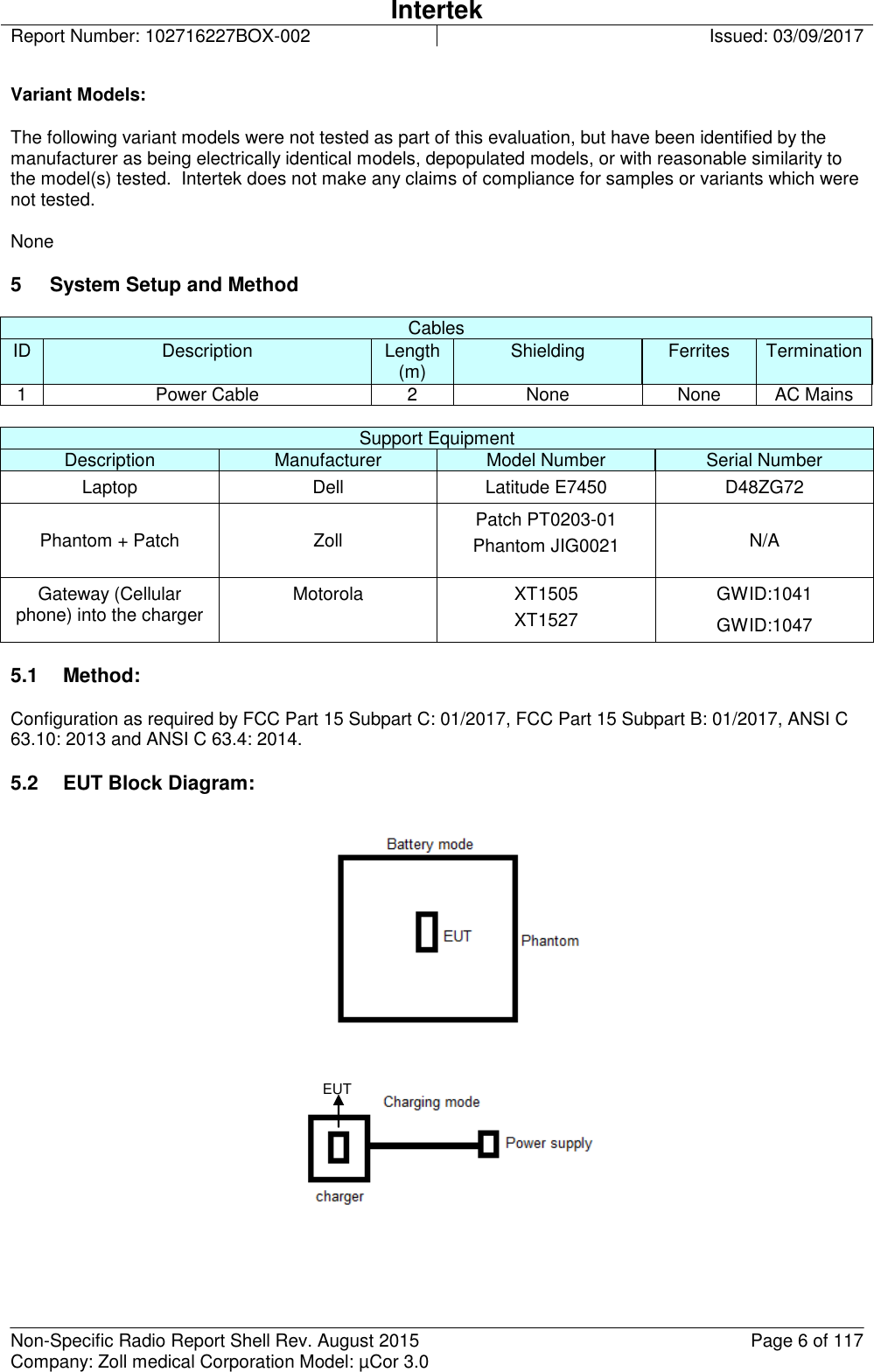

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 6 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Variant Models: The following variant models were not tested as part of this evaluation, but have been identified by the manufacturer as being electrically identical models, depopulated models, or with reasonable similarity to the model(s) tested. Intertek does not make any claims of compliance for samples or variants which were not tested. None 5 System Setup and Method Cables ID Description Length (m) Shielding Ferrites Termination 1 Power Cable 2 None None AC Mains Support Equipment Description Manufacturer Model Number Serial Number Laptop Dell Latitude E7450 D48ZG72 Phantom + Patch Zoll Patch PT0203-01 Phantom JIG0021 N/A Gateway (Cellular phone) into the charger Motorola XT1505 XT1527 GWID:1041 GWID:1047 5.1 Method: Configuration as required by FCC Part 15 Subpart C: 01/2017, FCC Part 15 Subpart B: 01/2017, ANSI C 63.10: 2013 and ANSI C 63.4: 2014. 5.2 EUT Block Diagram: EUT
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 7 of 117 Company: Zoll medical Corporation Model: µCor 3.0 6 Output Power and Human RF Exposure 6.1 Method Tests are performed in accordance with FCC Part 15 Subpart C (15.247). TEST SITE: EMC Lab The EMC Lab has one Semi-anechoic Chamber and one Shielded Chamber. AC Mains Power is available at 120, 230, and 277 Single Phase; 208, 400, and 480 3-Phase. Large reference ground-planes are installed in the general lab area to facilitate EMC work not requiring a shielded environment. 6.2 Test Equipment Used: Asset Description Manufacturer Model Serial Cal Date Cal Due DAV004’ Weather Station Davis Instruments 7400 PE80529A61A 05/02/2016 05/02/2017 CBLHF2012-2M-2’ 2m 9kHz-40GHz Coaxial Cable - SET2 Huber & Suhner SF102 252675002 02/09/2016 02/09/2017 ROS005’ ETSI Test System Rhode & Schwartz TS8997 N/A 09/15/2016 09/15/2017 Software Utilized: Name Manufacturer Version None 6.3 Results: The sample tested was found to Comply. For systems operating in the 2400-2483.5 MHz band employing at least 75 hopping channels, the maximum peak output power is 1 watt (30 dBm), for all other systems 0.125 W (21 dBm). Device has 79 hopping channels Frequency Mode of operation Data Rate Output Power in dBm Output Power in mW Limit 2402 Charging Low 5.87 3.863 1 W 2402 High 3.83 2.415 1 W 2402 Battery Low 5.78 3.784 1 W 2402 High 3.86 2.432 1 W 2441 Charging Low 5.38 3.451 1 W 2441 High 3.29 2.133 1 W 2441 Battery Low 5.34 3.419 1 W 2441 High 3.32 2.147 1 W 2480 Charging Low 4.26 2.666 1 W 2480 High 2.64 1.836 1 W 2480 Battery Low 4.71 2.958 1 W 2480 High 2.64 1.8365 1 W Note: Devices antenna gain is less than 6 dBi.

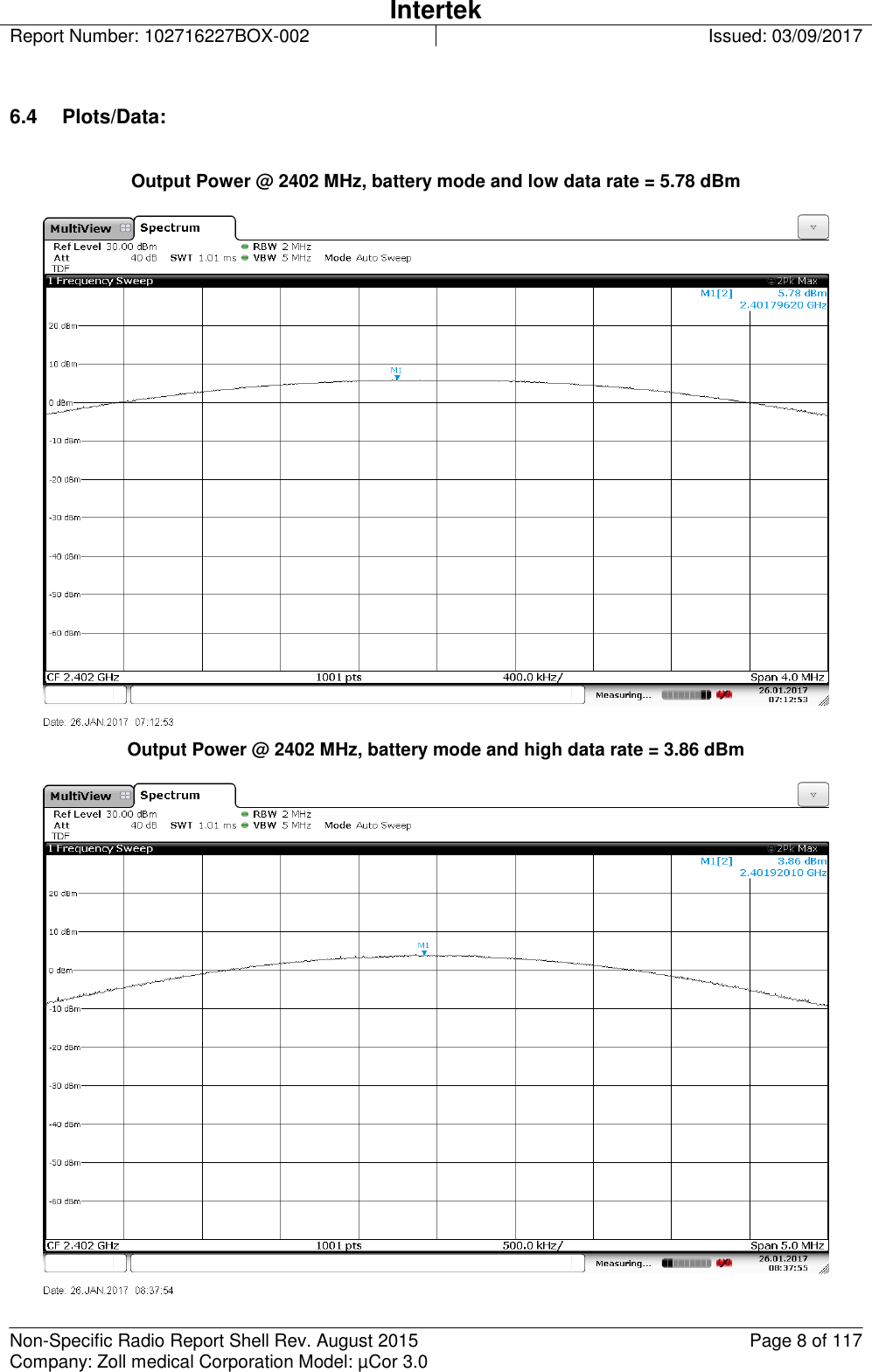

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 8 of 117 Company: Zoll medical Corporation Model: µCor 3.0 6.4 Plots/Data: Output Power @ 2402 MHz, battery mode and low data rate = 5.78 dBm Output Power @ 2402 MHz, battery mode and high data rate = 3.86 dBm
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 9 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Output Power @ 2402 MHz, Charging mode and low data rate = 5.87 dBm Output Power @ 2402 MHz, Charging mode and high data rate = 3.83 dBm
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 10 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Output Power @ 2441 MHz, battery mode and low data rate = 5.34 dBm Output Power @ 2441 MHz, battery mode and high data rate = 3.32 dBm
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 11 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Output Power @ 2441 MHz, charging mode and low data rate = 5.38 dBm Output Power @ 2441 MHz, charging mode and high data rate = 3.29 dBm
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 12 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Output Power @ 2480 MHz, battery mode and low data rate = 4.71 dBm Output Power @ 2480 MHz, battery mode and high data rate = 2.64 dBm

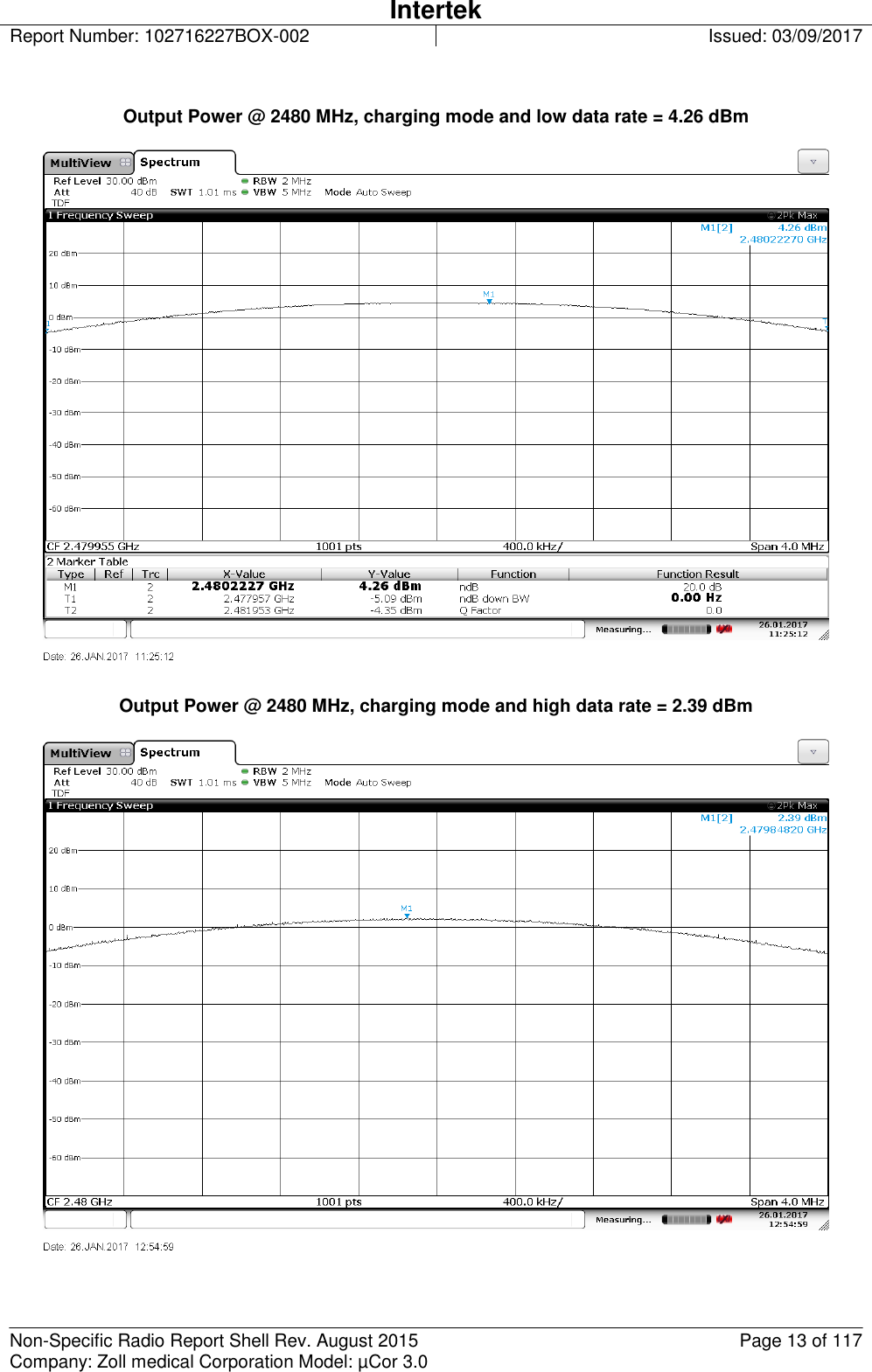

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 13 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Output Power @ 2480 MHz, charging mode and low data rate = 4.26 dBm Output Power @ 2480 MHz, charging mode and high data rate = 2.39 dBm

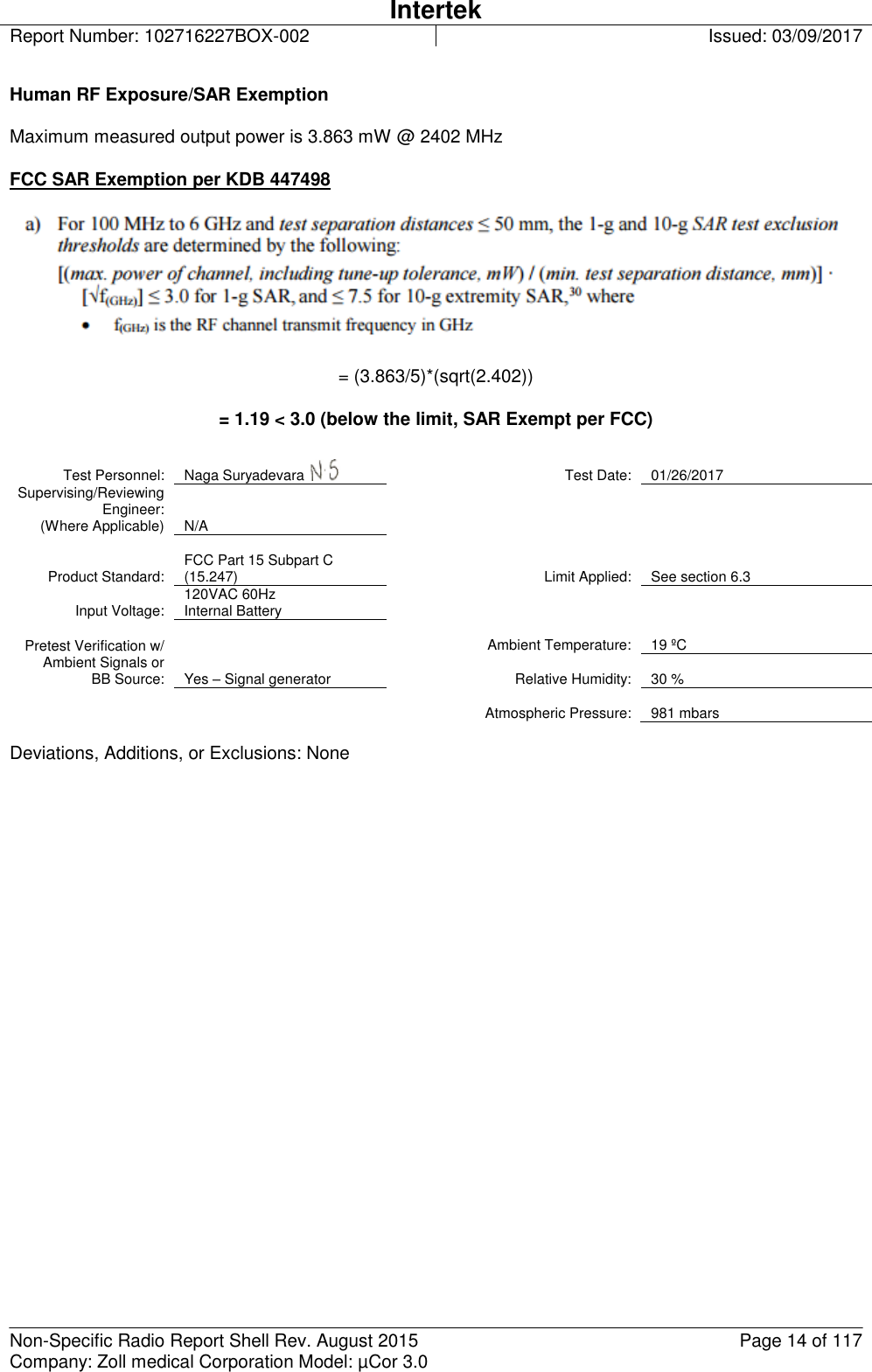

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 14 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Human RF Exposure/SAR Exemption Maximum measured output power is 3.863 mW @ 2402 MHz FCC SAR Exemption per KDB 447498 = (3.863/5)*(sqrt(2.402)) = 1.19 < 3.0 (below the limit, SAR Exempt per FCC) Test Personnel: Naga Suryadevara Test Date: 01/26/2017 Supervising/Reviewing Engineer: (Where Applicable) N/A Product Standard: FCC Part 15 Subpart C (15.247) Limit Applied: See section 6.3 Input Voltage: 120VAC 60Hz Internal Battery Pretest Verification w/ Ambient Signals or BB Source: Yes – Signal generator Ambient Temperature: 19 ºC Relative Humidity: 30 % Atmospheric Pressure: 981 mbars Deviations, Additions, or Exclusions: None

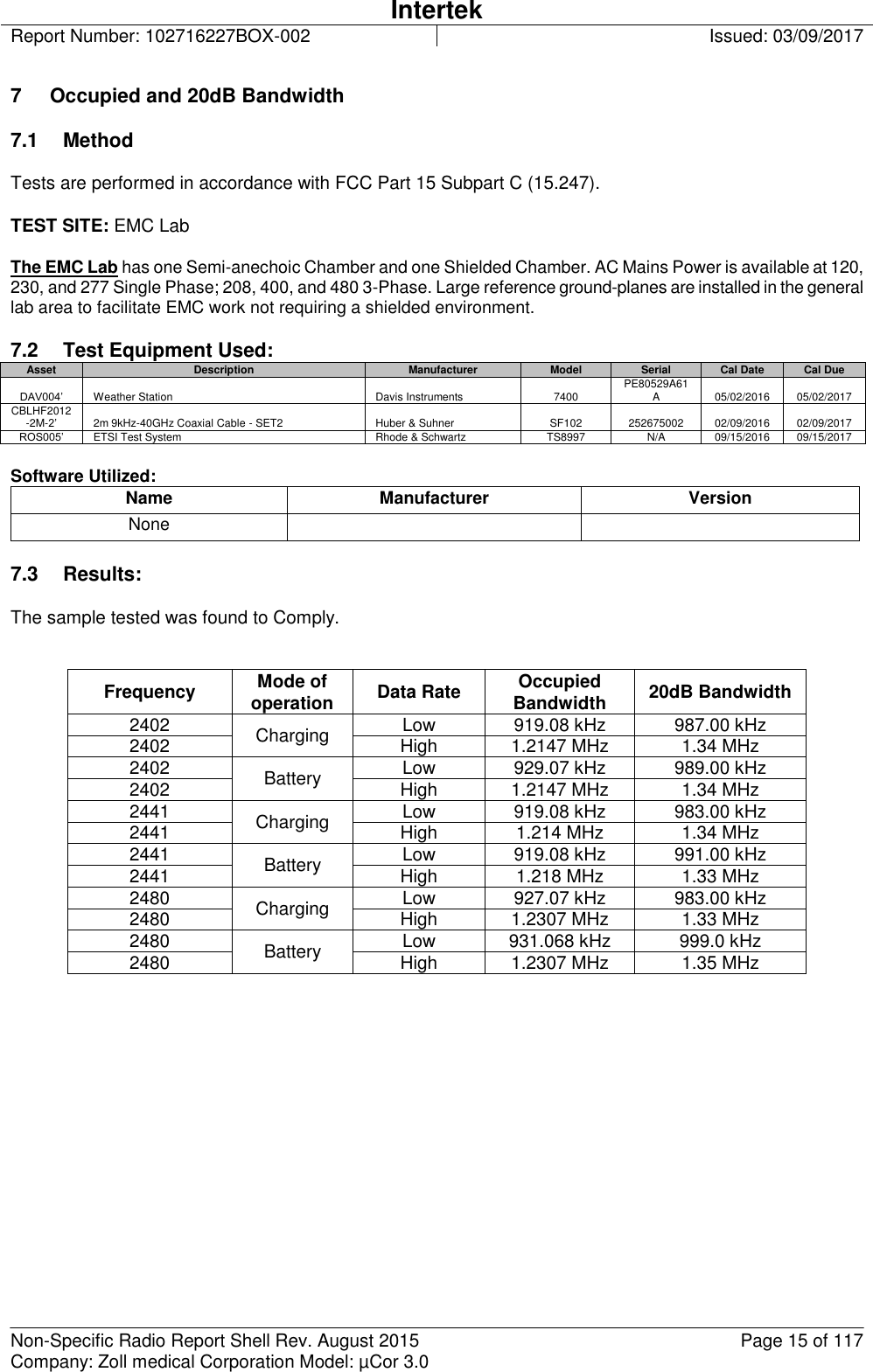

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 15 of 117 Company: Zoll medical Corporation Model: µCor 3.0 7 Occupied and 20dB Bandwidth 7.1 Method Tests are performed in accordance with FCC Part 15 Subpart C (15.247). TEST SITE: EMC Lab The EMC Lab has one Semi-anechoic Chamber and one Shielded Chamber. AC Mains Power is available at 120, 230, and 277 Single Phase; 208, 400, and 480 3-Phase. Large reference ground-planes are installed in the general lab area to facilitate EMC work not requiring a shielded environment. 7.2 Test Equipment Used: Asset Description Manufacturer Model Serial Cal Date Cal Due DAV004’ Weather Station Davis Instruments 7400 PE80529A61A 05/02/2016 05/02/2017 CBLHF2012-2M-2’ 2m 9kHz-40GHz Coaxial Cable - SET2 Huber & Suhner SF102 252675002 02/09/2016 02/09/2017 ROS005’ ETSI Test System Rhode & Schwartz TS8997 N/A 09/15/2016 09/15/2017 Software Utilized: Name Manufacturer Version None 7.3 Results: The sample tested was found to Comply. Frequency Mode of operation Data Rate Occupied Bandwidth 20dB Bandwidth 2402 Charging Low 919.08 kHz 987.00 kHz 2402 High 1.2147 MHz 1.34 MHz 2402 Battery Low 929.07 kHz 989.00 kHz 2402 High 1.2147 MHz 1.34 MHz 2441 Charging Low 919.08 kHz 983.00 kHz 2441 High 1.214 MHz 1.34 MHz 2441 Battery Low 919.08 kHz 991.00 kHz 2441 High 1.218 MHz 1.33 MHz 2480 Charging Low 927.07 kHz 983.00 kHz 2480 High 1.2307 MHz 1.33 MHz 2480 Battery Low 931.068 kHz 999.0 kHz 2480 High 1.2307 MHz 1.35 MHz

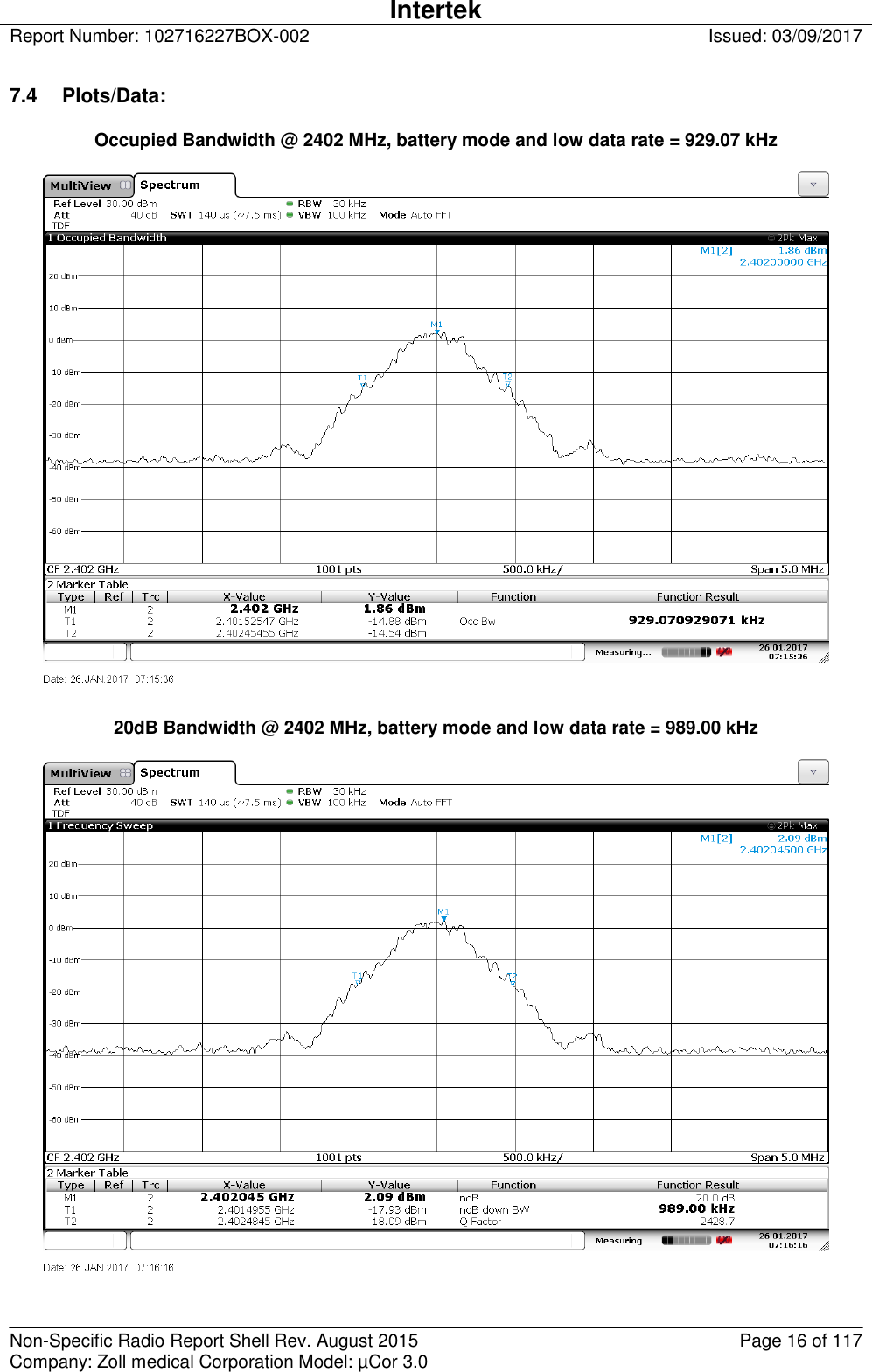

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 16 of 117 Company: Zoll medical Corporation Model: µCor 3.0 7.4 Plots/Data: Occupied Bandwidth @ 2402 MHz, battery mode and low data rate = 929.07 kHz 20dB Bandwidth @ 2402 MHz, battery mode and low data rate = 989.00 kHz
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 17 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Occupied Bandwidth @ 2402 MHz, battery mode and high data rate = 1.2147 MHz 20dB Bandwidth @ 2402 MHz, battery mode and high data rate = 1.34 MHz
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 18 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Occupied Bandwidth @ 2402 MHz, charging mode and low data rate = 919.08 kHz 20dB Bandwidth @ 2402 MHz, charging mode and low data rate = 987.00 kHz

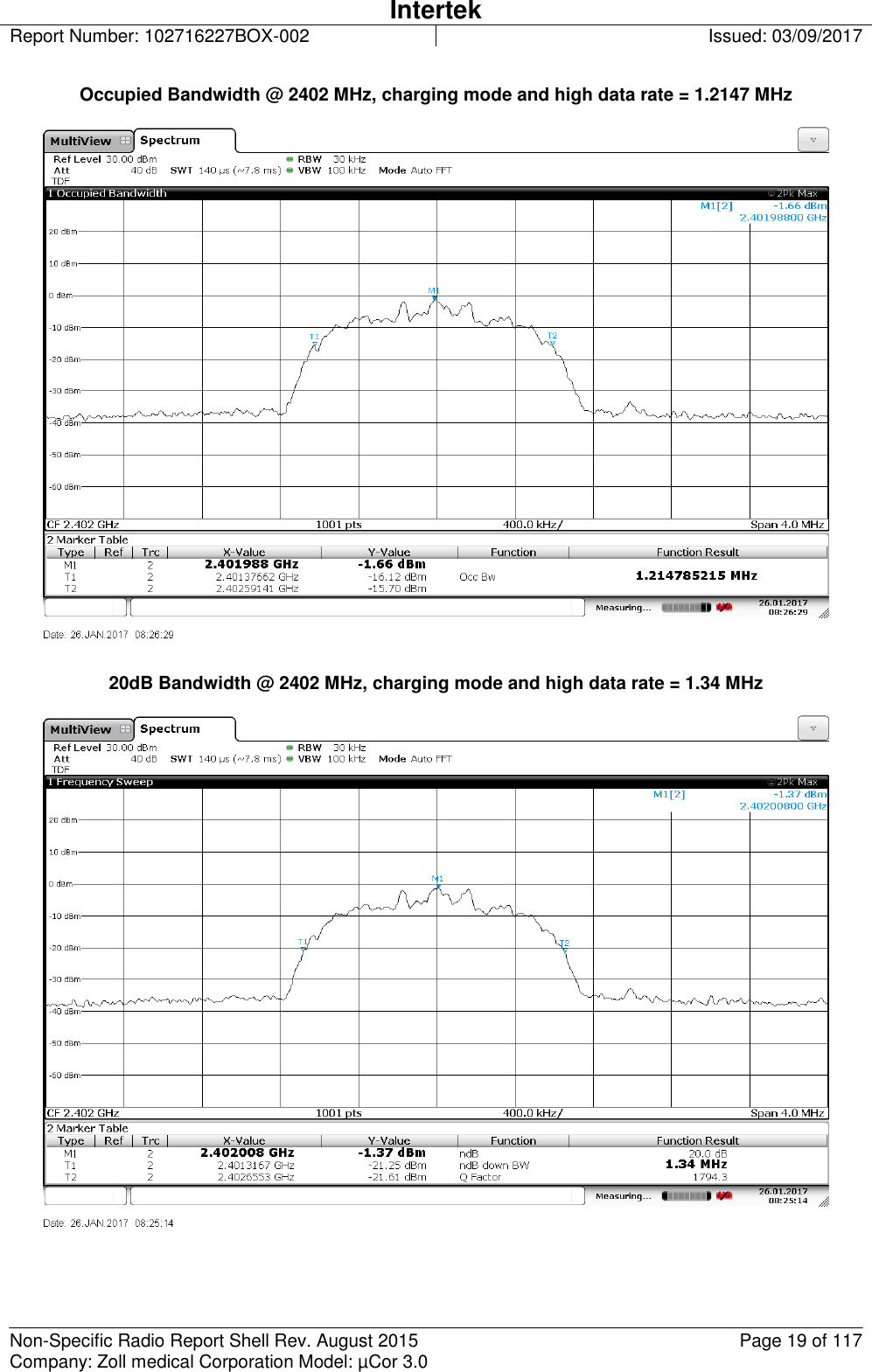

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 19 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Occupied Bandwidth @ 2402 MHz, charging mode and high data rate = 1.2147 MHz 20dB Bandwidth @ 2402 MHz, charging mode and high data rate = 1.34 MHz

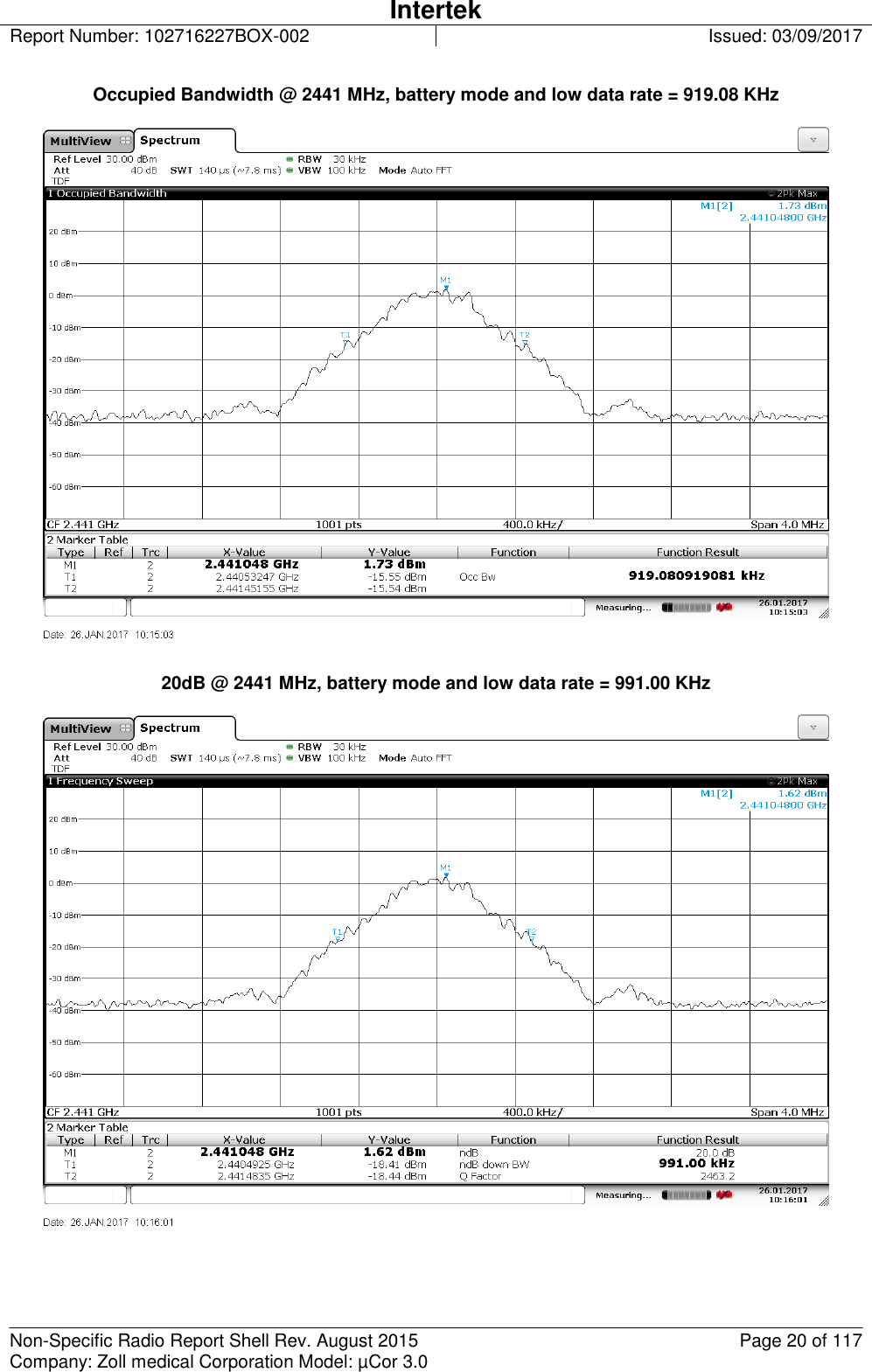

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 20 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Occupied Bandwidth @ 2441 MHz, battery mode and low data rate = 919.08 KHz 20dB @ 2441 MHz, battery mode and low data rate = 991.00 KHz
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 21 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Occupied Bandwidth @ 2441 MHz, battery mode and high data rate = 1.218 MHz 20dB Bandwidth @ 2441 MHz, battery mode and high data rate = 1.33 MHz
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 22 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Occupied Bandwidth @ 2441 MHz, charging mode and low data rate = 919.08 KHz 20dB Bandwidth @ 2441 MHz, charging mode and low data rate = 983.00 KHz
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 23 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Occupied Bandwidth @ 2441 MHz, charging mode and high data rate = 1.214 MHz 20dB Bandwidth @ 2441 MHz, charging mode and high data rate = 1.34 MHz
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 24 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Occupied Bandwidth @ 2480 MHz, battery mode and low data rate = 931.068 kHz 20dB Bandwidth @ 2480 MHz, battery mode and low data rate = 999.000 kHz
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 25 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Occupied Bandwidth @ 2480 MHz, battery mode and high data rate = 1.23076 MHz 20dB Bandwidth @ 2480 MHz, battery mode and high data rate = 1.35 MHz
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 26 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Occupied Bandwidth @ 2480 MHz, charging mode and low data rate = 927.07 kHz 20dB Bandwidth @ 2480 MHz, charging mode and low data rate = 983.00 kHz

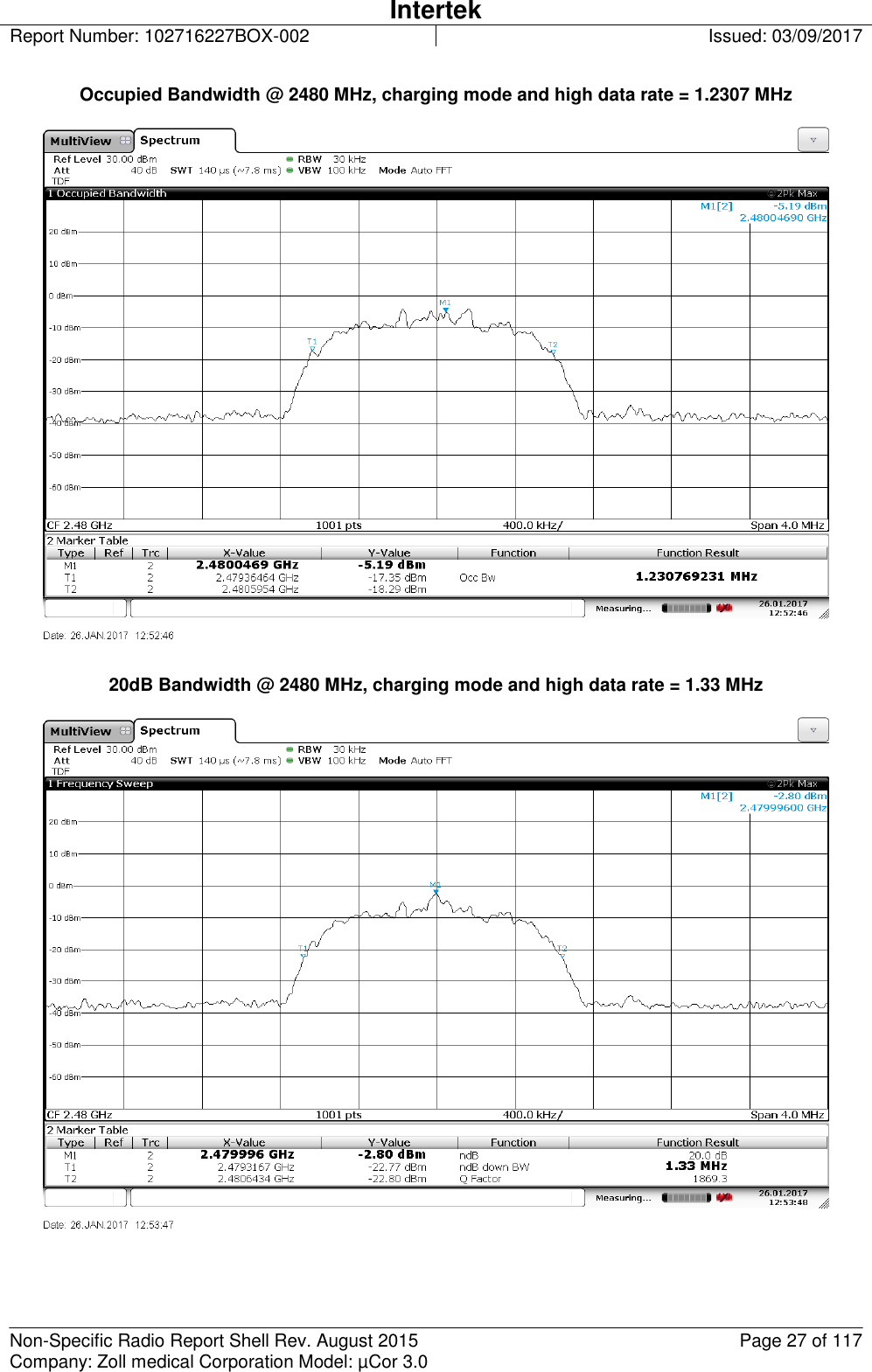

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 27 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Occupied Bandwidth @ 2480 MHz, charging mode and high data rate = 1.2307 MHz 20dB Bandwidth @ 2480 MHz, charging mode and high data rate = 1.33 MHz
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 28 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Test Personnel: Naga Suryadevara Test Date: 01/26/2017 Supervising/Reviewing Engineer: (Where Applicable) N/A Product Standard: FCC Part 15 Subpart C (15.247) Limit Applied: See section 7.3 Input Voltage: 120VAC 60Hz Internal Battery Pretest Verification w/ Ambient Signals or BB Source: Yes – Signal generator Ambient Temperature: 19 ºC Relative Humidity: 30 % Atmospheric Pressure: 981 mbars

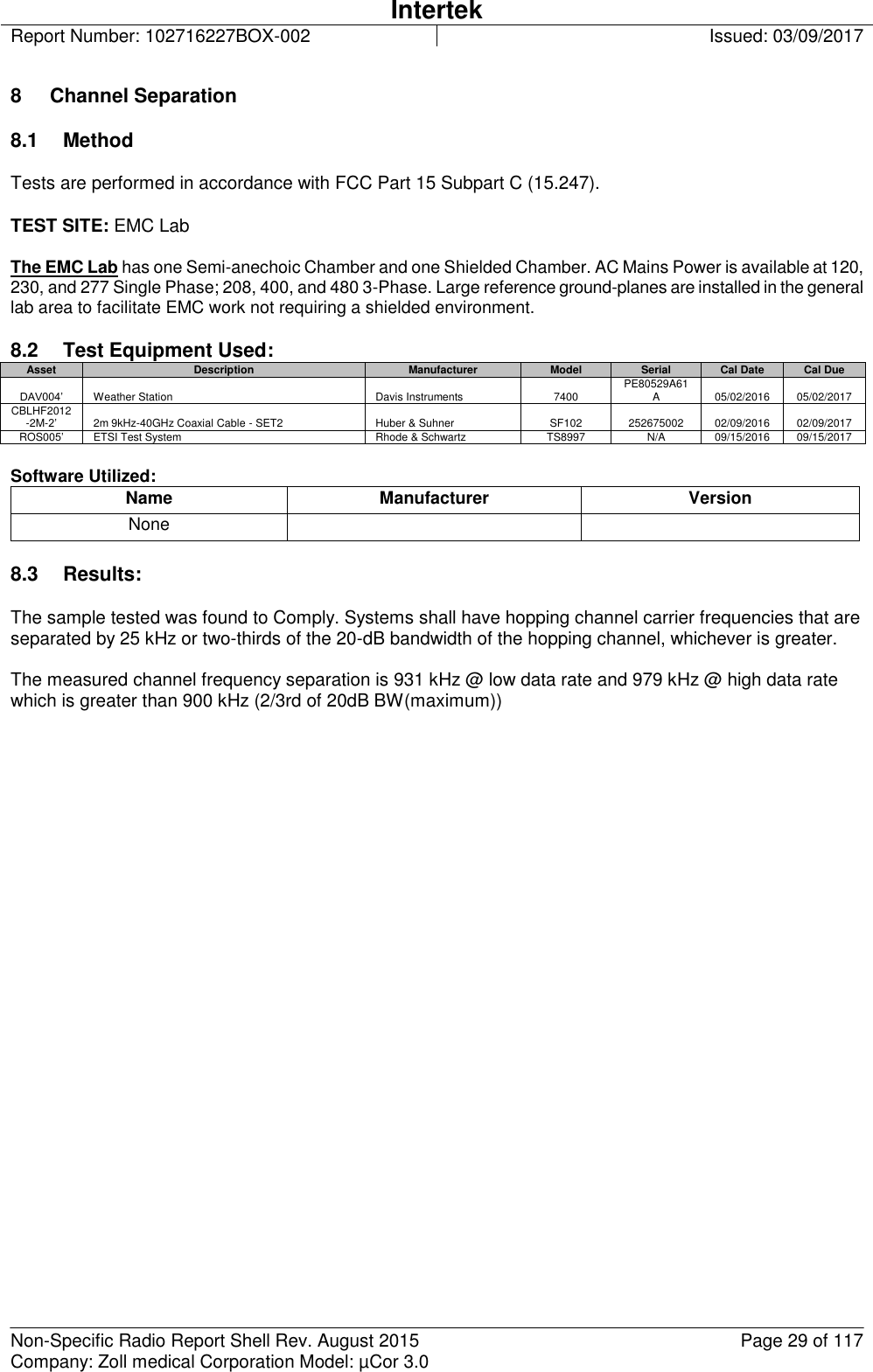

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 29 of 117 Company: Zoll medical Corporation Model: µCor 3.0 8 Channel Separation 8.1 Method Tests are performed in accordance with FCC Part 15 Subpart C (15.247). TEST SITE: EMC Lab The EMC Lab has one Semi-anechoic Chamber and one Shielded Chamber. AC Mains Power is available at 120, 230, and 277 Single Phase; 208, 400, and 480 3-Phase. Large reference ground-planes are installed in the general lab area to facilitate EMC work not requiring a shielded environment. 8.2 Test Equipment Used: Asset Description Manufacturer Model Serial Cal Date Cal Due DAV004’ Weather Station Davis Instruments 7400 PE80529A61A 05/02/2016 05/02/2017 CBLHF2012-2M-2’ 2m 9kHz-40GHz Coaxial Cable - SET2 Huber & Suhner SF102 252675002 02/09/2016 02/09/2017 ROS005’ ETSI Test System Rhode & Schwartz TS8997 N/A 09/15/2016 09/15/2017 Software Utilized: Name Manufacturer Version None 8.3 Results: The sample tested was found to Comply. Systems shall have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20-dB bandwidth of the hopping channel, whichever is greater. The measured channel frequency separation is 931 kHz @ low data rate and 979 kHz @ high data rate which is greater than 900 kHz (2/3rd of 20dB BW(maximum))
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 30 of 117 Company: Zoll medical Corporation Model: µCor 3.0 8.4 Plots/Data: Channel Separation, Low data rate = 931.10 kHz Channel Separation, High data rate = 979.00 kHz
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 31 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Test Personnel: Naga Suryadevara Test Date: 01/26/2017 Supervising/Reviewing Engineer: (Where Applicable) N/A Product Standard: FCC Part 15 Subpart C (15.247) Limit Applied: See section 8.3 Input Voltage: 120VAC 60Hz Internal Battery Pretest Verification w/ Ambient Signals or BB Source: Yes – Signal generator Ambient Temperature: 19 ºC Relative Humidity: 30 % Atmospheric Pressure: 981 mbars

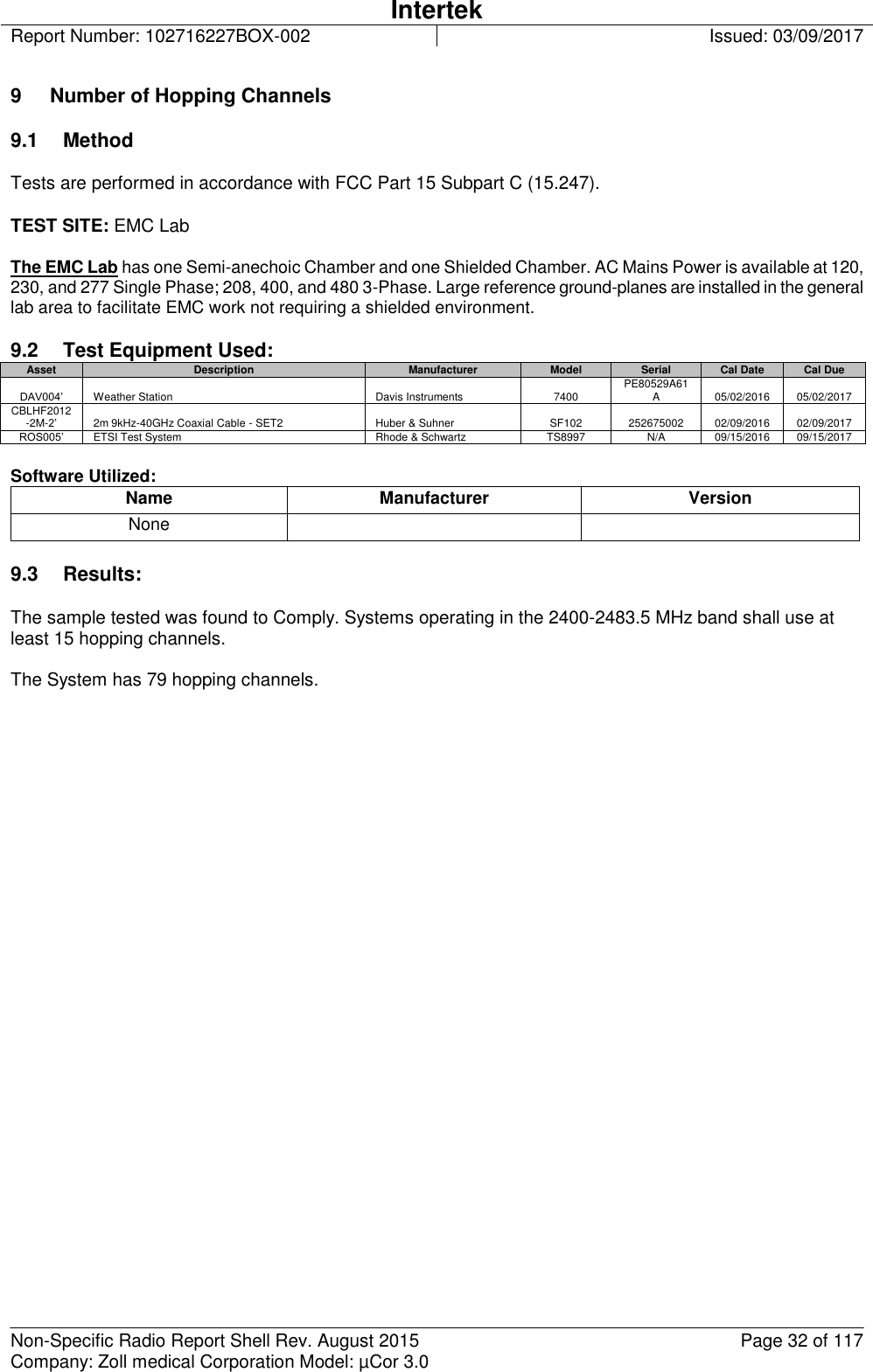

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 32 of 117 Company: Zoll medical Corporation Model: µCor 3.0 9 Number of Hopping Channels 9.1 Method Tests are performed in accordance with FCC Part 15 Subpart C (15.247). TEST SITE: EMC Lab The EMC Lab has one Semi-anechoic Chamber and one Shielded Chamber. AC Mains Power is available at 120, 230, and 277 Single Phase; 208, 400, and 480 3-Phase. Large reference ground-planes are installed in the general lab area to facilitate EMC work not requiring a shielded environment. 9.2 Test Equipment Used: Asset Description Manufacturer Model Serial Cal Date Cal Due DAV004’ Weather Station Davis Instruments 7400 PE80529A61A 05/02/2016 05/02/2017 CBLHF2012-2M-2’ 2m 9kHz-40GHz Coaxial Cable - SET2 Huber & Suhner SF102 252675002 02/09/2016 02/09/2017 ROS005’ ETSI Test System Rhode & Schwartz TS8997 N/A 09/15/2016 09/15/2017 Software Utilized: Name Manufacturer Version None 9.3 Results: The sample tested was found to Comply. Systems operating in the 2400-2483.5 MHz band shall use at least 15 hopping channels. The System has 79 hopping channels.

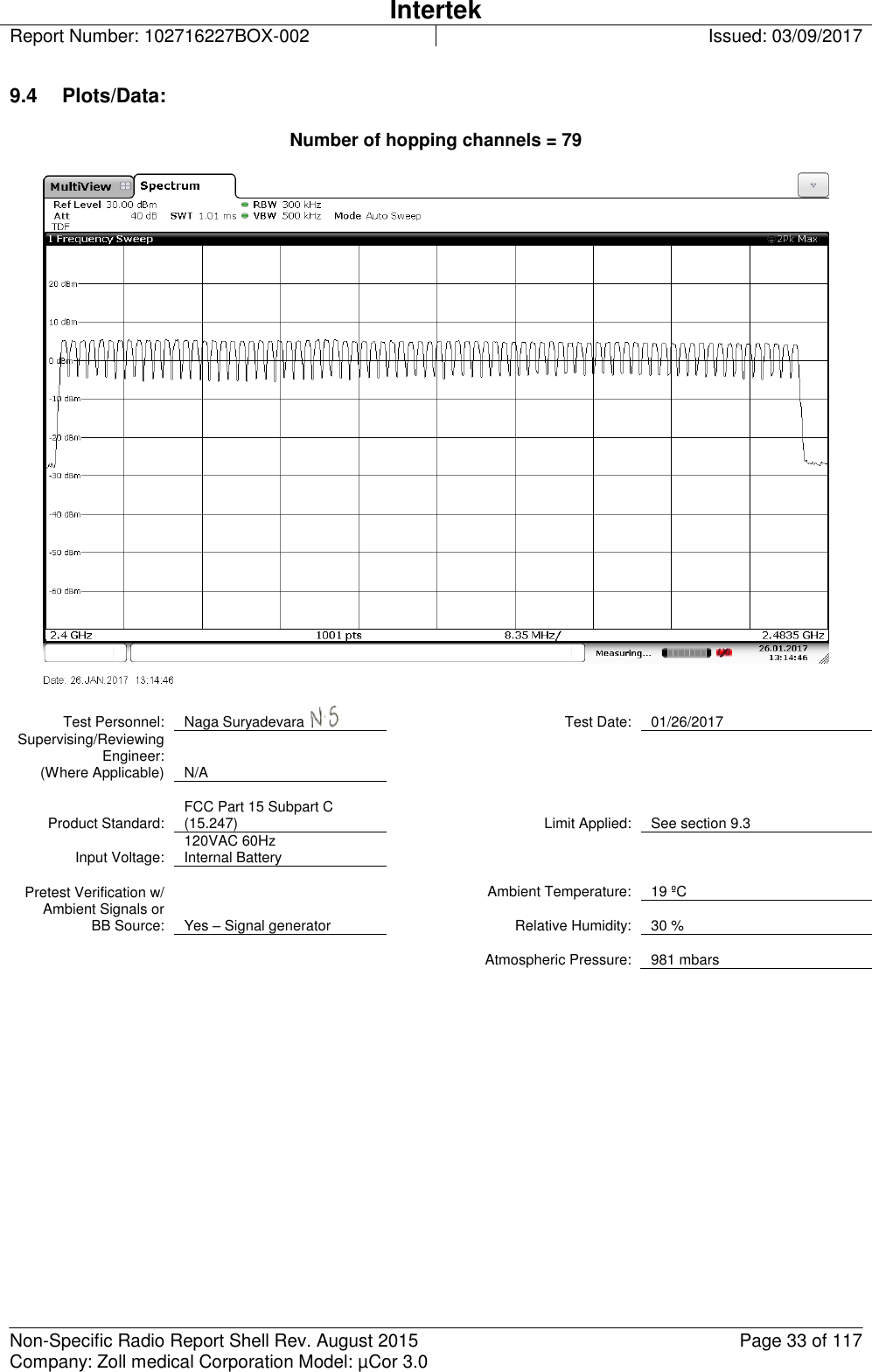

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 33 of 117 Company: Zoll medical Corporation Model: µCor 3.0 9.4 Plots/Data: Number of hopping channels = 79 Test Personnel: Naga Suryadevara Test Date: 01/26/2017 Supervising/Reviewing Engineer: (Where Applicable) N/A Product Standard: FCC Part 15 Subpart C (15.247) Limit Applied: See section 9.3 Input Voltage: 120VAC 60Hz Internal Battery Pretest Verification w/ Ambient Signals or BB Source: Yes – Signal generator Ambient Temperature: 19 ºC Relative Humidity: 30 % Atmospheric Pressure: 981 mbars
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 34 of 117 Company: Zoll medical Corporation Model: µCor 3.0 10 Average Channel Occupancy Time 10.1 Method Tests are performed in accordance with FCC Part 15 Subpart C (15.247). TEST SITE: EMC Lab The EMC Lab has one Semi-anechoic Chamber and one Shielded Chamber. AC Mains Power is available at 120, 230, and 277 Single Phase; 208, 400, and 480 3-Phase. Large reference ground-planes are installed in the general lab area to facilitate EMC work not requiring a shielded environment. 10.2 Test Equipment Used: Asset Description Manufacturer Model Serial Cal Date Cal Due DAV004’ Weather Station Davis Instruments 7400 PE80529A61A 05/02/2016 05/02/2017 CBLHF2012-2M-2’ 2m 9kHz-40GHz Coaxial Cable - SET2 Huber & Suhner SF102 252675002 02/09/2016 02/09/2017 ROS005’ ETSI Test System Rhode & Schwartz TS8997 N/A 09/15/2016 09/15/2017 Software Utilized: Name Manufacturer Version None 10.3 Results: The sample tested was found to Comply. For systems operating in the 2400-2483.5 MHz band, the average time of occupancy on any channel shall not be greater than 0.4 second within a period of 0.4 second multiplied by the number of hopping channels employed Since the radio employs 79 channels, Occupancy time was calculated during the period of 0.4 * 79 = 31.6 sec. Occupancy Time @ low data rate = 0.000510 * 31 *10 = 0.1581 sec Occupancy Time @ high data rate = 0.00290 * 10 *10 = 0.290 sec
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 35 of 117 Company: Zoll medical Corporation Model: µCor 3.0 10.4 Plots/Data: Dwell time, Low data rate = 510.00 us Number of bursts in 3.16 second sweep, Low data rate = 31

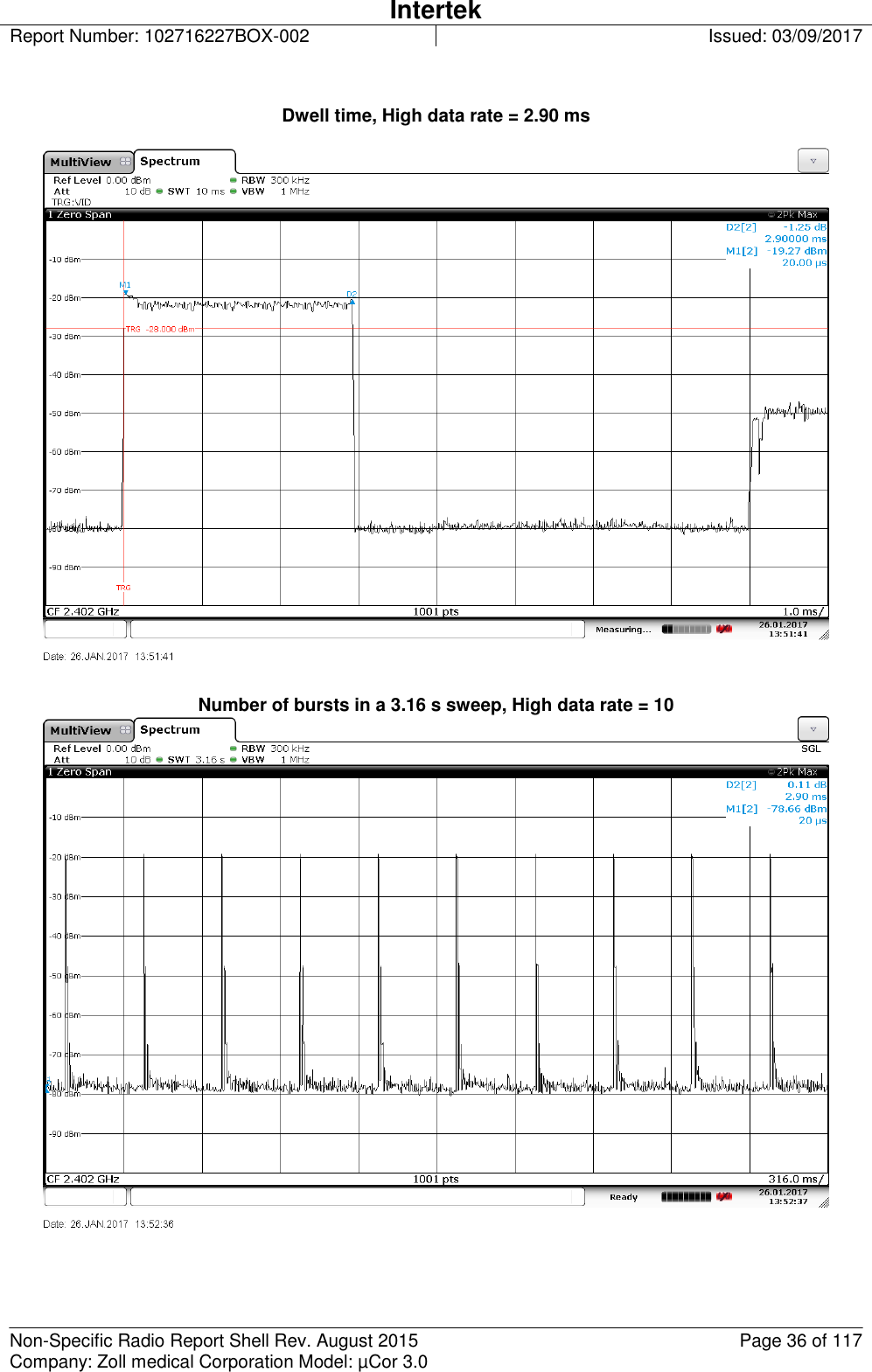

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 36 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Dwell time, High data rate = 2.90 ms Number of bursts in a 3.16 s sweep, High data rate = 10
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 37 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Test Personnel: Naga Suryadevara Test Date: 01/26/2017 Supervising/Reviewing Engineer: (Where Applicable) N/A Product Standard: FCC Part 15 Subpart C (15.247) Limit Applied: See section 10.3 Input Voltage: 120VAC 60Hz Internal Battery Pretest Verification w/ Ambient Signals or BB Source: Yes – Signal generator Ambient Temperature: 19 ºC Relative Humidity: 30 % Atmospheric Pressure: 981 mbars

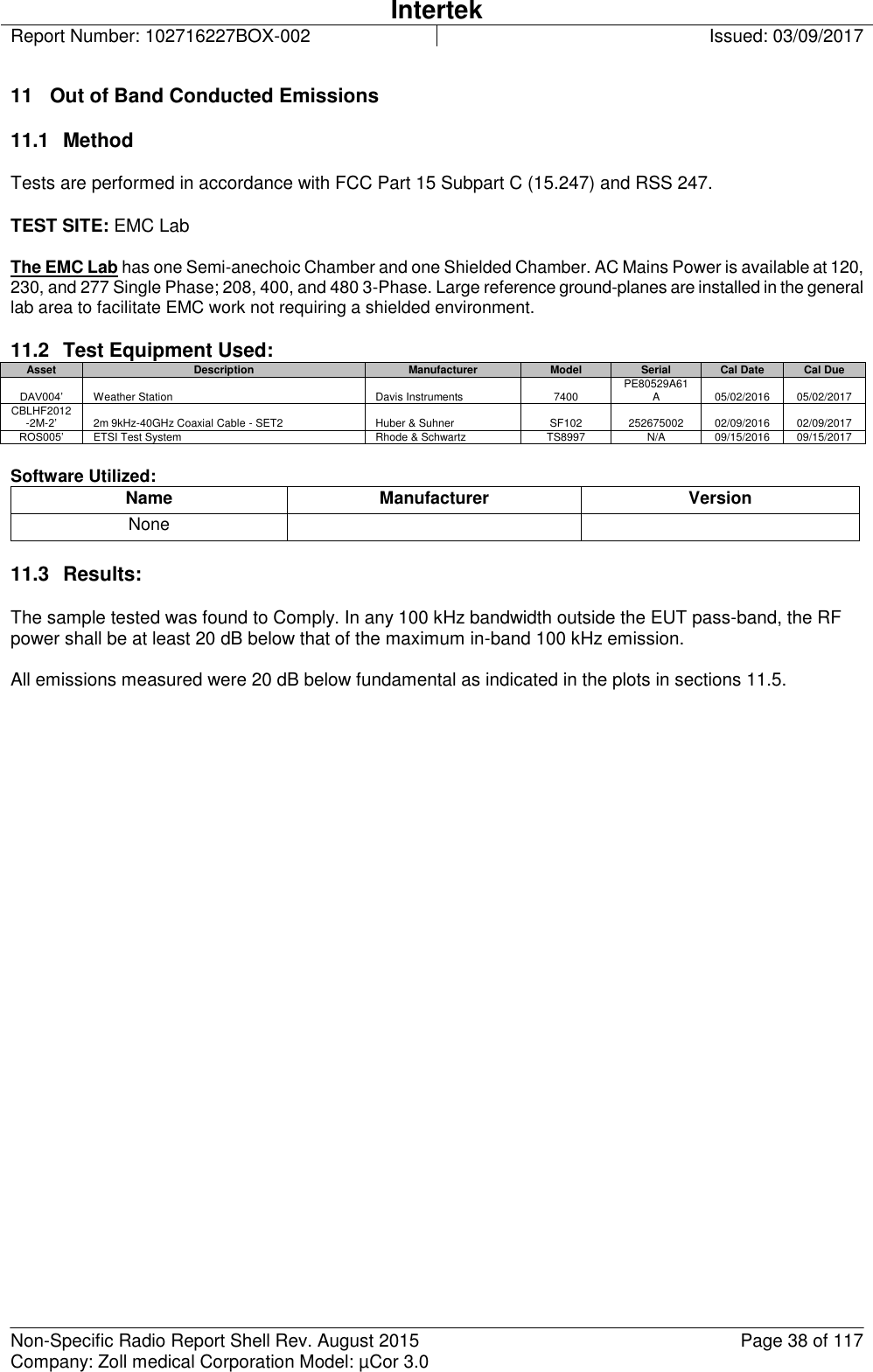

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 38 of 117 Company: Zoll medical Corporation Model: µCor 3.0 11 Out of Band Conducted Emissions 11.1 Method Tests are performed in accordance with FCC Part 15 Subpart C (15.247) and RSS 247. TEST SITE: EMC Lab The EMC Lab has one Semi-anechoic Chamber and one Shielded Chamber. AC Mains Power is available at 120, 230, and 277 Single Phase; 208, 400, and 480 3-Phase. Large reference ground-planes are installed in the general lab area to facilitate EMC work not requiring a shielded environment. 11.2 Test Equipment Used: Asset Description Manufacturer Model Serial Cal Date Cal Due DAV004’ Weather Station Davis Instruments 7400 PE80529A61A 05/02/2016 05/02/2017 CBLHF2012-2M-2’ 2m 9kHz-40GHz Coaxial Cable - SET2 Huber & Suhner SF102 252675002 02/09/2016 02/09/2017 ROS005’ ETSI Test System Rhode & Schwartz TS8997 N/A 09/15/2016 09/15/2017 Software Utilized: Name Manufacturer Version None 11.3 Results: The sample tested was found to Comply. In any 100 kHz bandwidth outside the EUT pass-band, the RF power shall be at least 20 dB below that of the maximum in-band 100 kHz emission. All emissions measured were 20 dB below fundamental as indicated in the plots in sections 11.5.

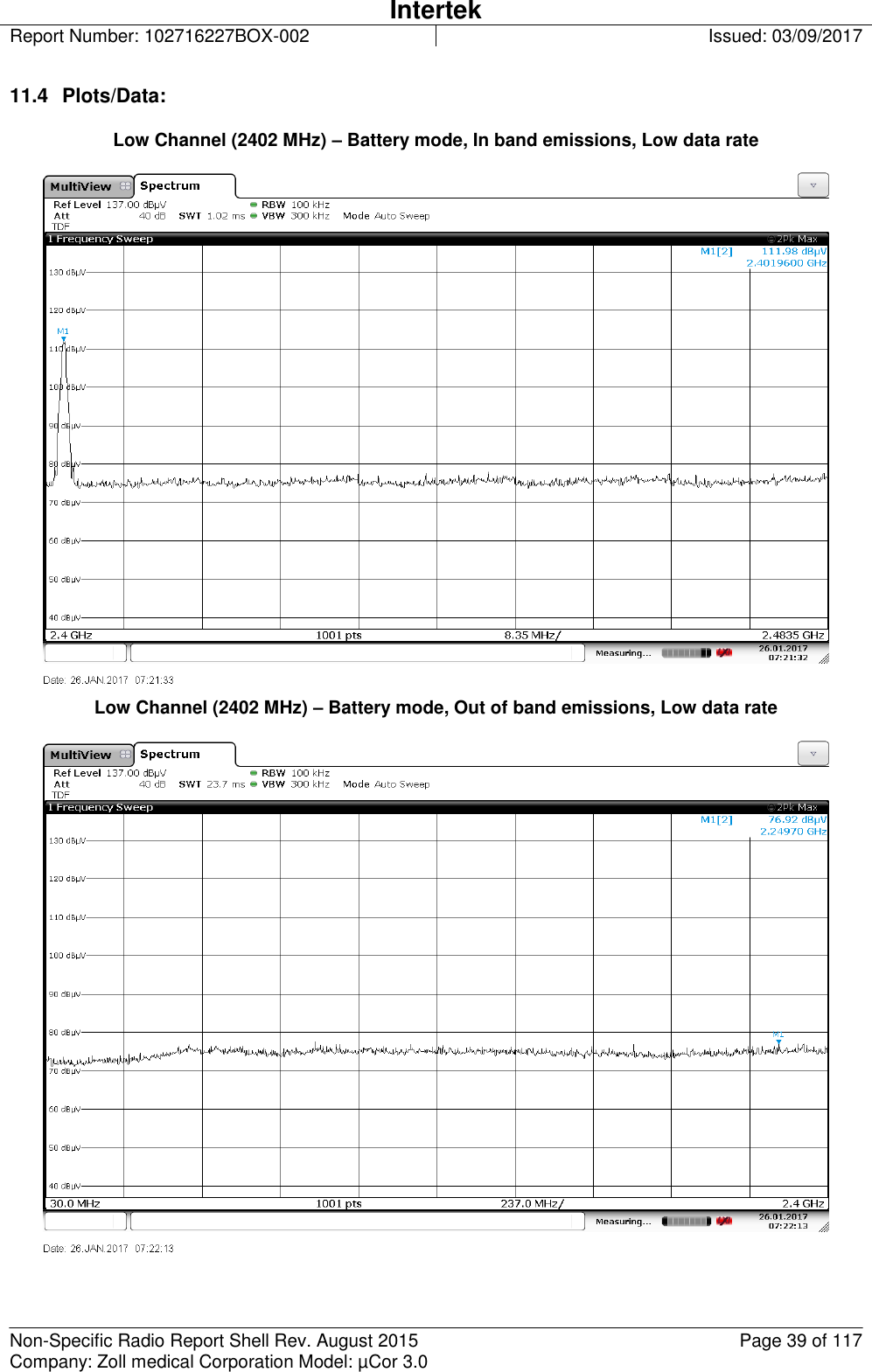

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 39 of 117 Company: Zoll medical Corporation Model: µCor 3.0 11.4 Plots/Data: Low Channel (2402 MHz) – Battery mode, In band emissions, Low data rate Low Channel (2402 MHz) – Battery mode, Out of band emissions, Low data rate

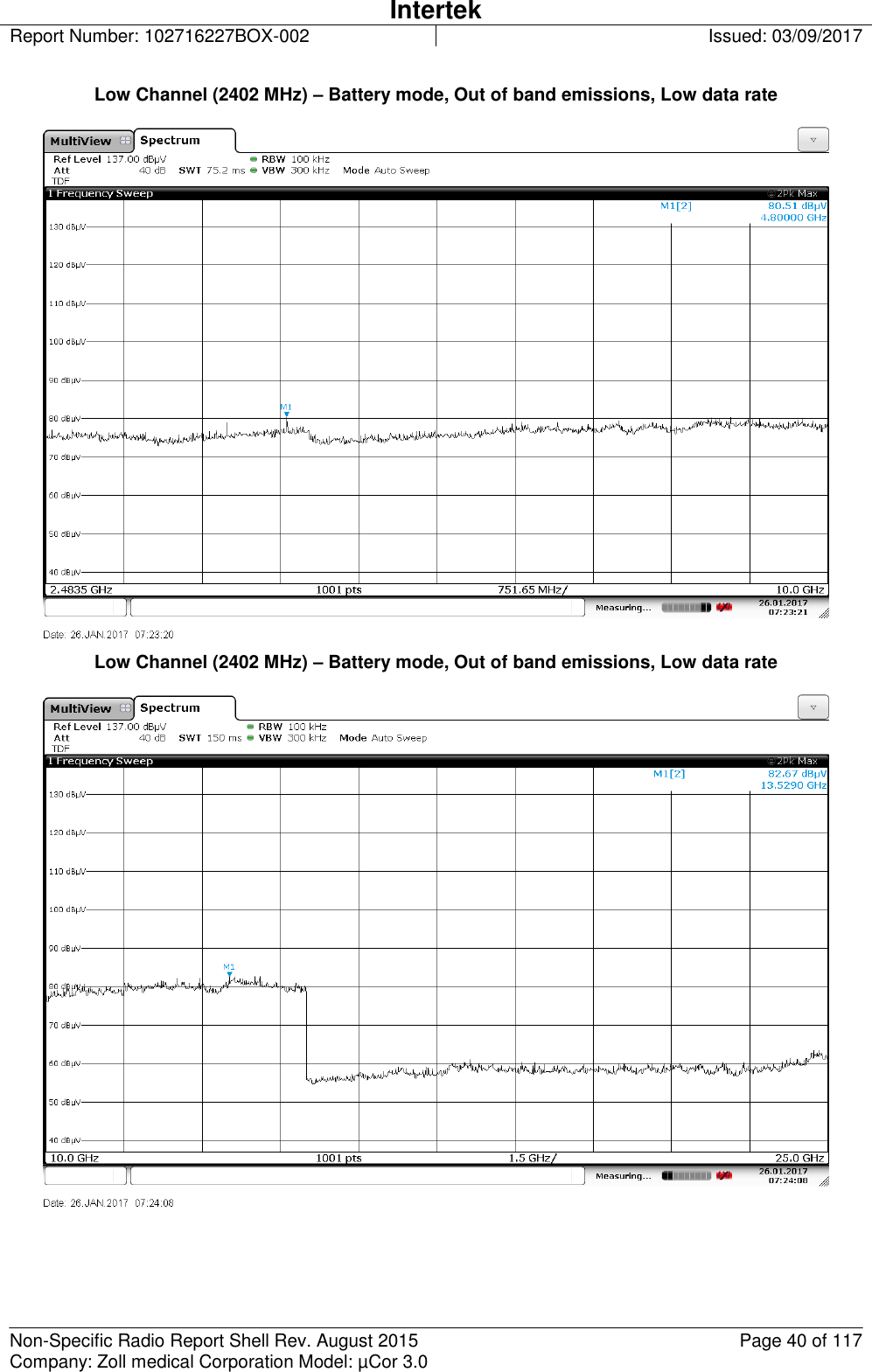

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 40 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Low Channel (2402 MHz) – Battery mode, Out of band emissions, Low data rate Low Channel (2402 MHz) – Battery mode, Out of band emissions, Low data rate

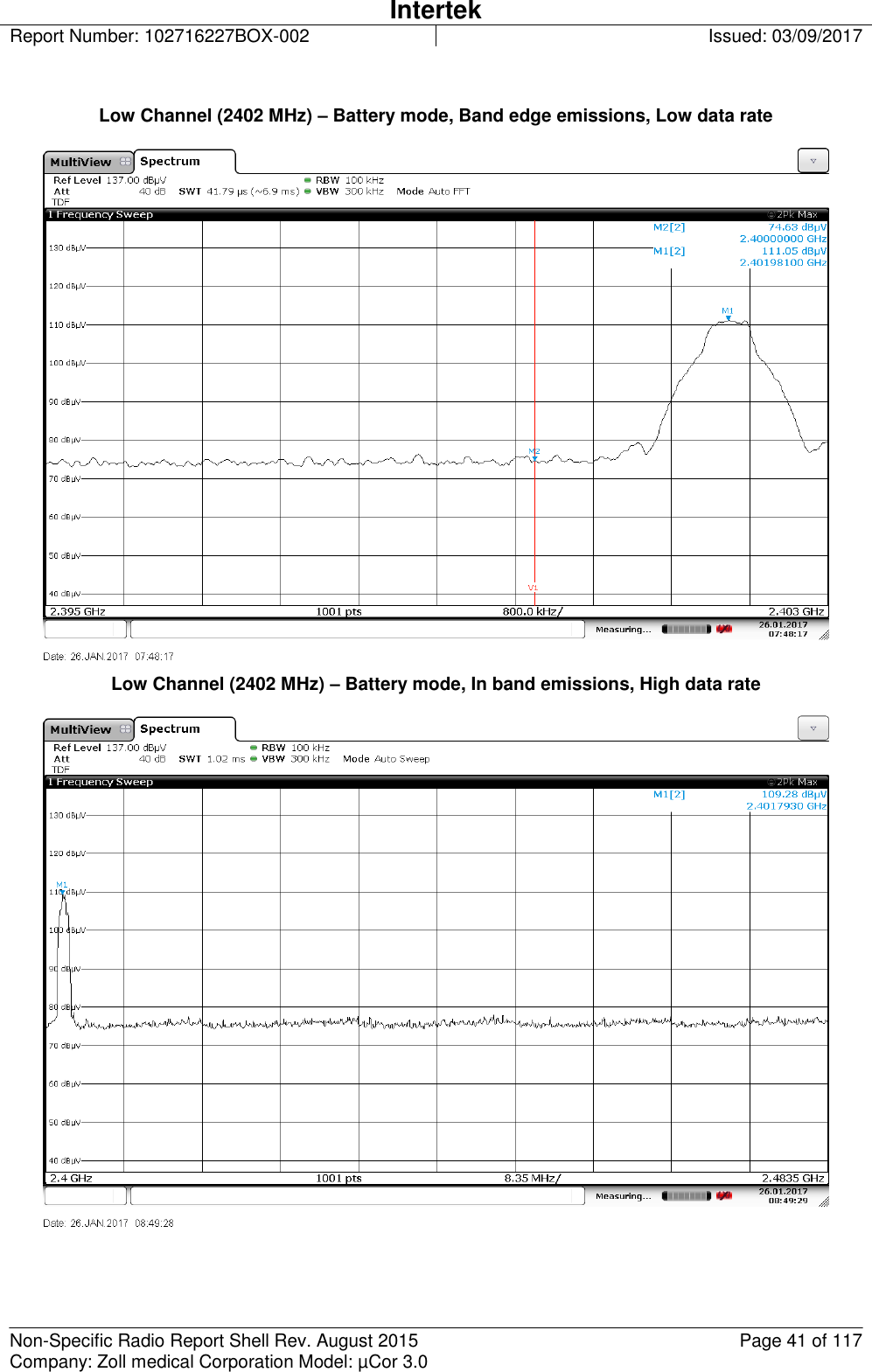

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 41 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Low Channel (2402 MHz) – Battery mode, Band edge emissions, Low data rate Low Channel (2402 MHz) – Battery mode, In band emissions, High data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 42 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Low Channel (2402 MHz) – Battery mode, Out of band emissions, High data rate Low Channel (2402 MHz) – Battery mode, Out of band emissions, High data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 43 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Low Channel (2402 MHz) – Battery mode, Out of band emissions, High data rate Low Channel (2402 MHz) – Battery mode, Band edge emissions, High data rate

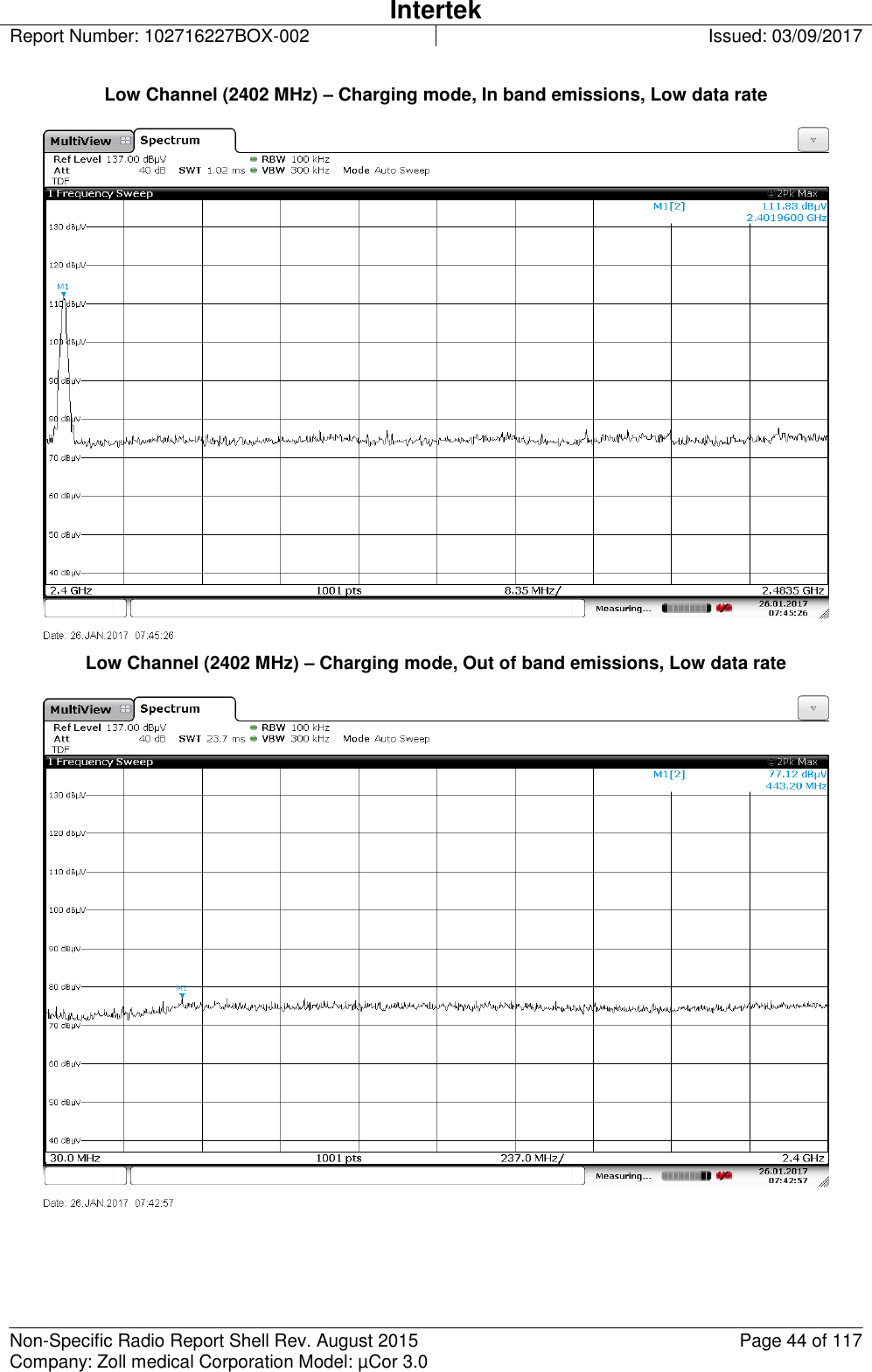

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 44 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Low Channel (2402 MHz) – Charging mode, In band emissions, Low data rate Low Channel (2402 MHz) – Charging mode, Out of band emissions, Low data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 45 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Low Channel (2402 MHz) – Charging mode, Out of band emissions, Low data rate Low Channel (2402 MHz) – Charging mode, Out of band emissions, Low data rate

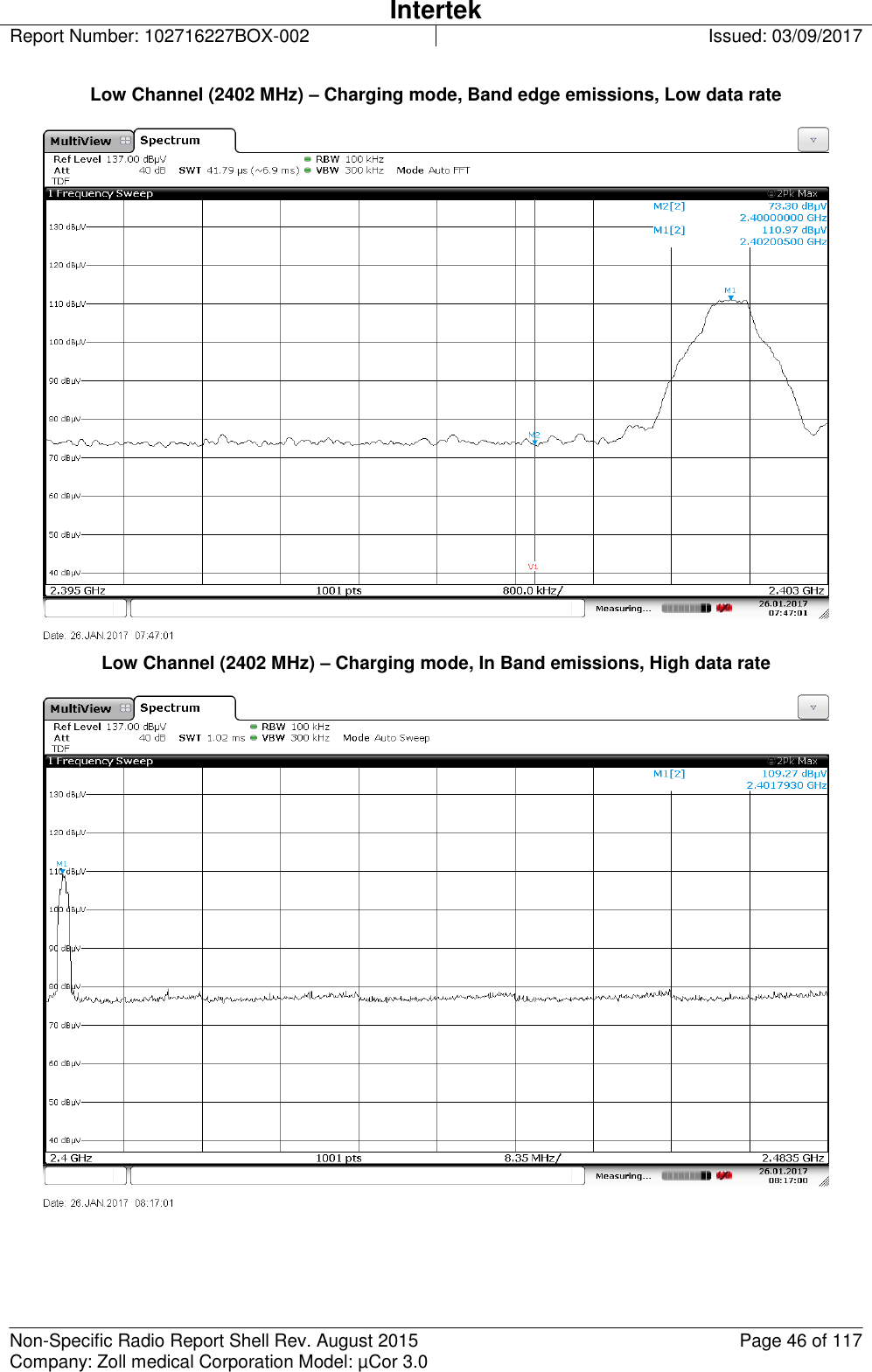

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 46 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Low Channel (2402 MHz) – Charging mode, Band edge emissions, Low data rate Low Channel (2402 MHz) – Charging mode, In Band emissions, High data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 47 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Low Channel (2402 MHz) – Charging mode, Out of Band emissions, High data rate Low Channel (2402 MHz) – Charging mode, Out of Band emissions, High data rate

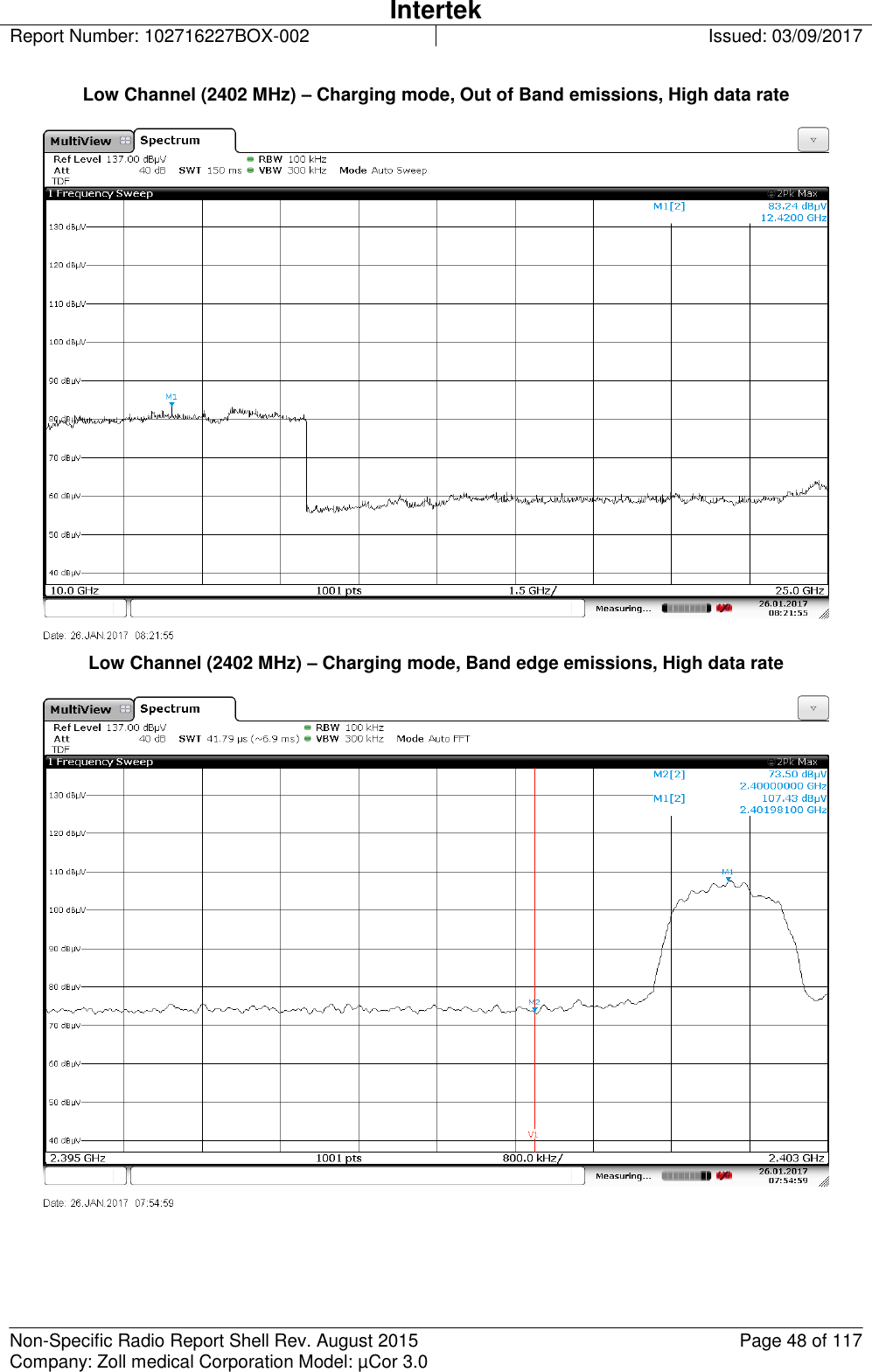

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 48 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Low Channel (2402 MHz) – Charging mode, Out of Band emissions, High data rate Low Channel (2402 MHz) – Charging mode, Band edge emissions, High data rate

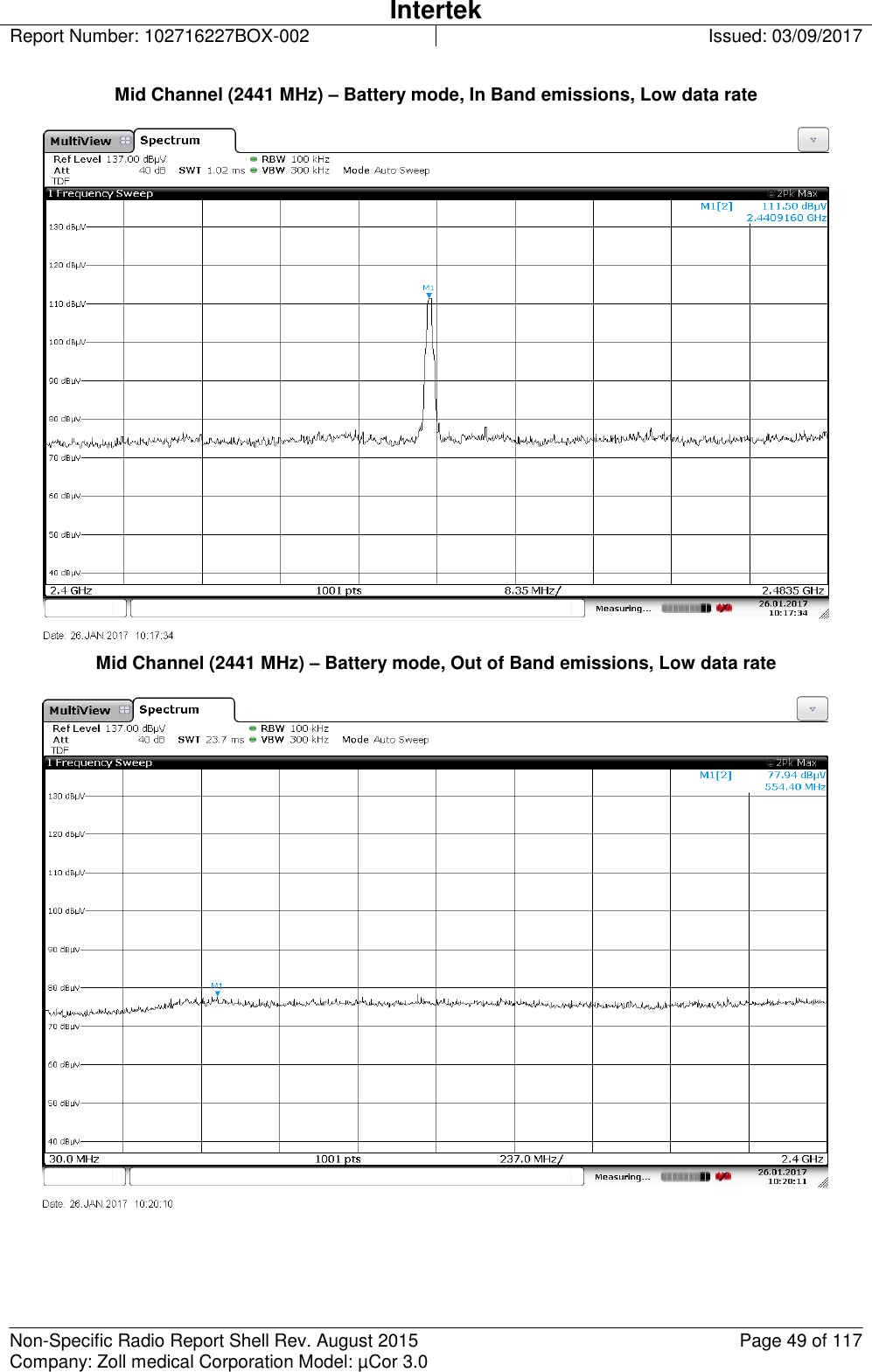

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 49 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Mid Channel (2441 MHz) – Battery mode, In Band emissions, Low data rate Mid Channel (2441 MHz) – Battery mode, Out of Band emissions, Low data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 50 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Mid Channel (2441 MHz) – Battery mode, Out of Band emissions, Low data rate Mid Channel (2441 MHz) – Battery mode, Out of Band emissions, Low data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 51 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Mid Channel (2441 MHz) – Battery mode, In Band emissions, High data rate Mid Channel (2441 MHz) – Battery mode, Out of Band emissions, High data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 52 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Mid Channel (2441 MHz) – Battery mode, Out of Band emissions, High data rate Mid Channel (2441 MHz) – Battery mode, Out of Band emissions, High data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 53 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Mid Channel (2441 MHz) – Charging mode, In Band emissions, Low data rate Mid Channel (2441 MHz) – Charging mode, Out of Band emissions, Low data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 54 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Mid Channel (2441 MHz) – Charging mode, Out of Band emissions, Low data rate Mid Channel (2441 MHz) – Charging mode, Out of Band emissions, Low data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 55 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Mid Channel (2441 MHz) – Charging mode, In Band emissions, High data rate Mid Channel (2441 MHz) – Charging mode, Out of Band emissions, High data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 56 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Mid Channel (2441 MHz) – Charging mode, Out of Band emissions, High data rate Mid Channel (2441 MHz) – Charging mode, Out of Band emissions, High data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 57 of 117 Company: Zoll medical Corporation Model: µCor 3.0 High Channel (2480 MHz) – Battery mode, In Band emissions, Low data rate High Channel (2480 MHz) – Battery mode, Out of Band emissions, Low data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 58 of 117 Company: Zoll medical Corporation Model: µCor 3.0 High Channel (2480 MHz) – Battery mode, Out of Band emissions, Low data rate High Channel (2480 MHz) – Battery mode, Out of Band emissions, Low data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 59 of 117 Company: Zoll medical Corporation Model: µCor 3.0 High Channel (2480 MHz) – Battery mode, Band edge emissions, Low data rate High Channel (2480 MHz) – Battery mode, In Band emissions, High data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 60 of 117 Company: Zoll medical Corporation Model: µCor 3.0 High Channel (2480 MHz) – Battery mode, Out of emissions, High data rate High Channel (2480 MHz) – Battery mode, Out of emissions, High data rate

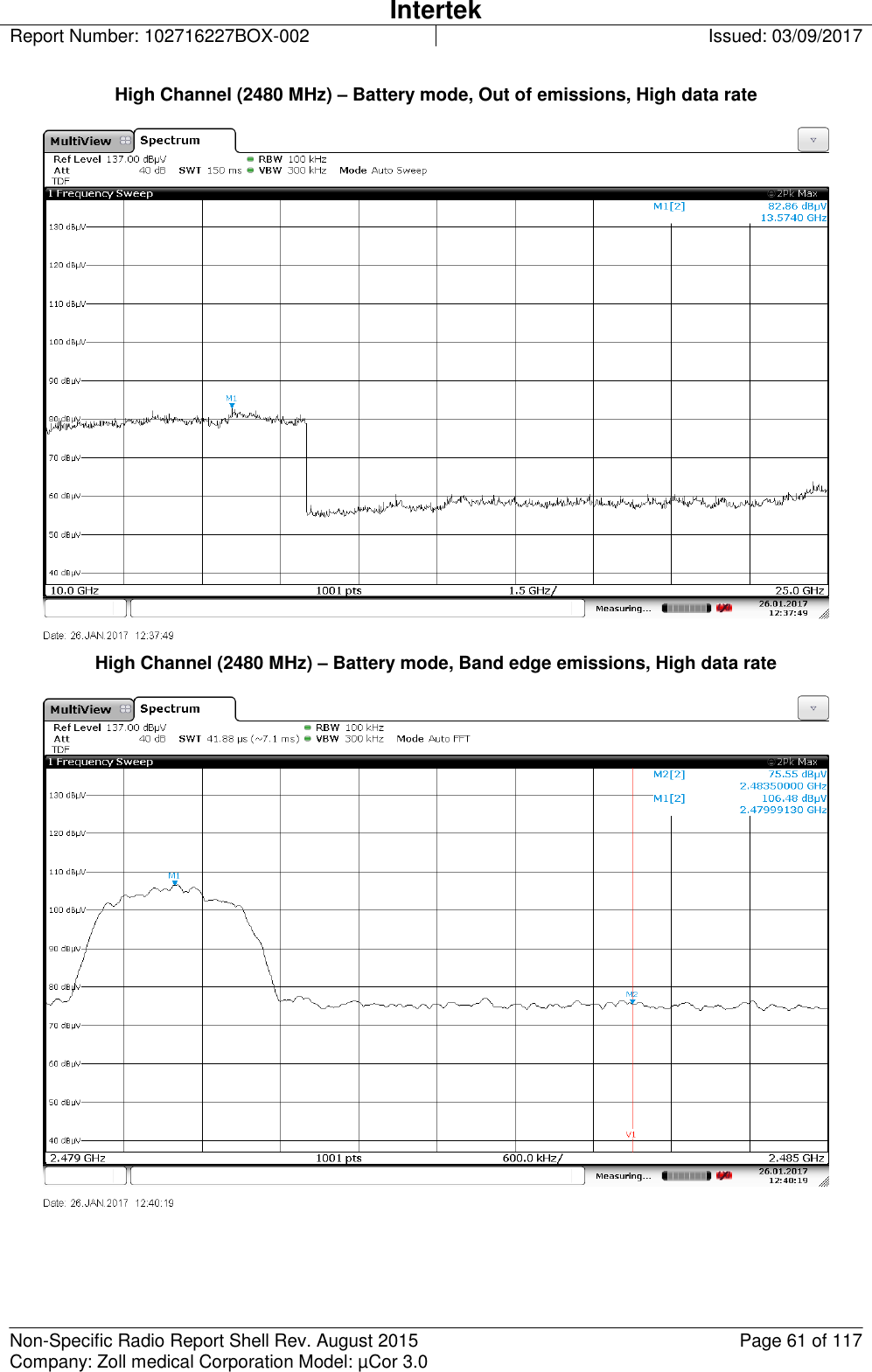

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 61 of 117 Company: Zoll medical Corporation Model: µCor 3.0 High Channel (2480 MHz) – Battery mode, Out of emissions, High data rate High Channel (2480 MHz) – Battery mode, Band edge emissions, High data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 62 of 117 Company: Zoll medical Corporation Model: µCor 3.0 High Channel (2480 MHz) – Charging mode, In Band emissions, Low data rate High Channel (2480 MHz) – Charging mode, Out of Band emissions, Low data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 63 of 117 Company: Zoll medical Corporation Model: µCor 3.0 High Channel (2480 MHz) – Charging mode, Out of Band emissions, Low data rate High Channel (2480 MHz) – Charging mode, Out of Band emissions, Low data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 64 of 117 Company: Zoll medical Corporation Model: µCor 3.0 High Channel (2480 MHz) – Charging mode, Band edge emissions, Low data rate High Channel (2480 MHz) – Charging mode, In Band emissions, High data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 65 of 117 Company: Zoll medical Corporation Model: µCor 3.0 High Channel (2480 MHz) – Charging mode, Out of Band emissions, High data rate High Channel (2480 MHz) – Charging mode, Out of Band emissions, High data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 66 of 117 Company: Zoll medical Corporation Model: µCor 3.0 High Channel (2480 MHz) – Charging mode, Out of Band emissions, High data rate High Channel (2480 MHz) – Charging mode, Band edge emissions, High data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 67 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Frequency hopping – Battery mode, Lower Band edge emissions, Low data rate Frequency hopping – Battery mode, Lower Band edge emissions, High data rate

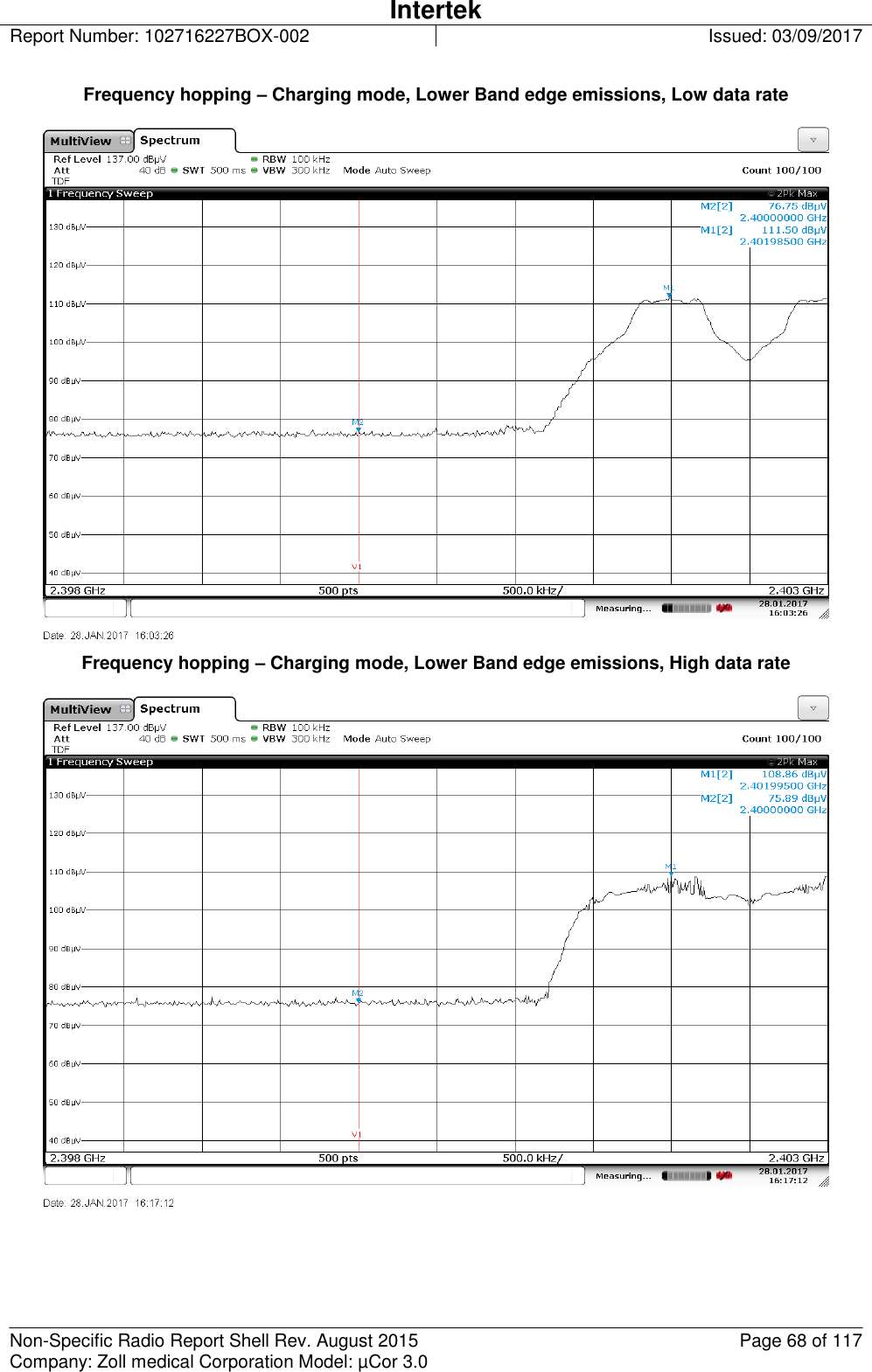

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 68 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Frequency hopping – Charging mode, Lower Band edge emissions, Low data rate Frequency hopping – Charging mode, Lower Band edge emissions, High data rate

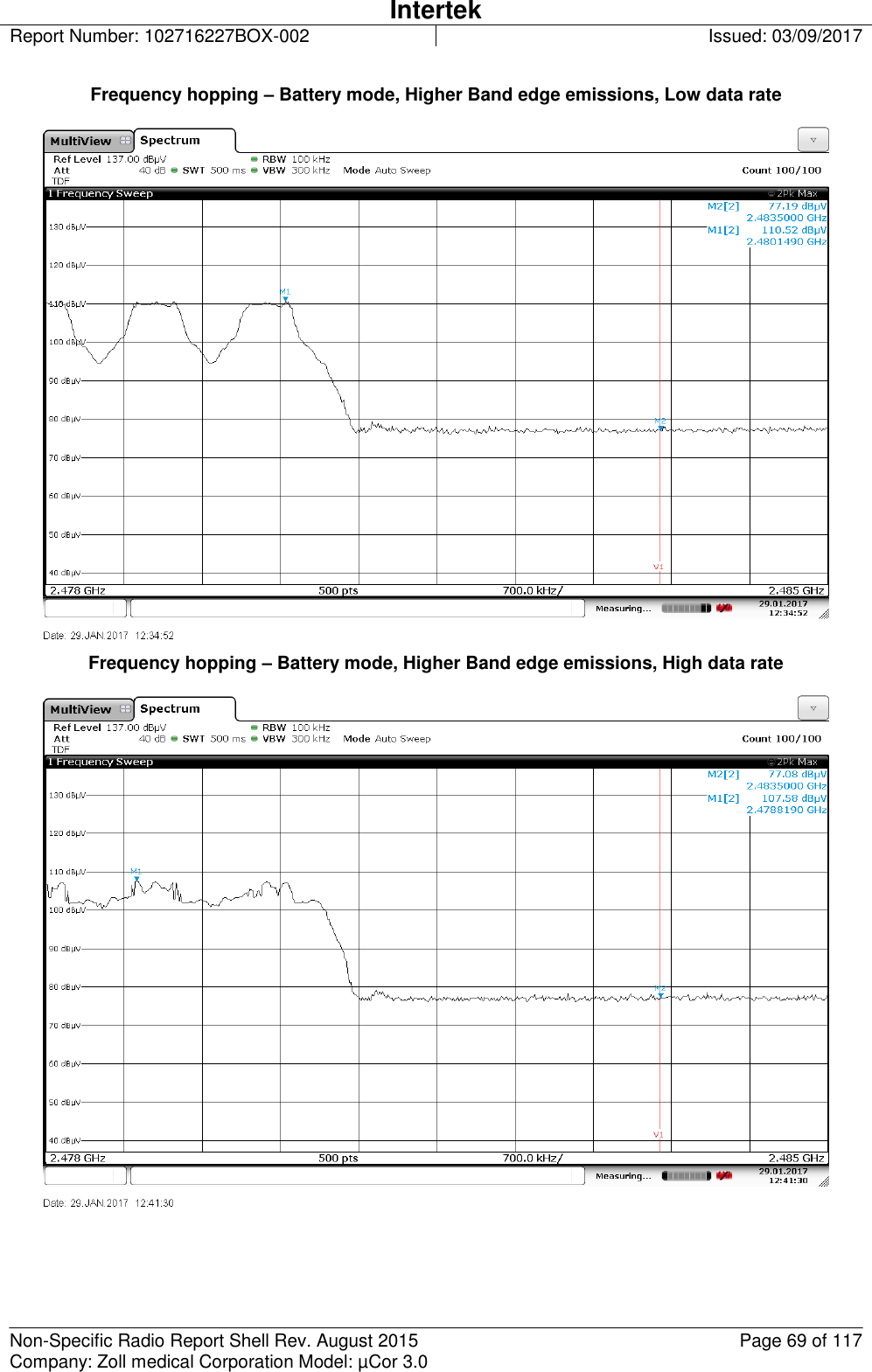

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 69 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Frequency hopping – Battery mode, Higher Band edge emissions, Low data rate Frequency hopping – Battery mode, Higher Band edge emissions, High data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 70 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Frequency hopping – Charging mode, Higher Band edge emissions, Low data rate Frequency hopping – Charging mode, Higher Band edge emissions, High data rate
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 71 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Test Personnel: Naga Suryadevara Test Date: 01/26/2017 Supervising/Reviewing Engineer: (Where Applicable) N/A Product Standard: FCC Part 15 Subpart C (15.247) Limit Applied: See section 11.3 Input Voltage: 120VAC 60Hz Internal Battery Pretest Verification w/ Ambient Signals or BB Source: Yes – Signal generator Ambient Temperature: 19 ºC Relative Humidity: 30 % Atmospheric Pressure: 981 mbars
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 72 of 117 Company: Zoll medical Corporation Model: µCor 3.0 12 Radiated Spurious Emissions 12.1 Method Tests are performed in accordance with FCC Part 15 Subpart C (15.247). TEST SITE: 10m ALSE The 10m ALSE is 13m (Length) x 21m (Depth) x 10m (Height) with the effective size in terms of space from the tips of the absorber is 12m (Length) x 20m (Depth) x 8.5m (Height). This chamber achieves broadband performance using a unique arrangement of hybrid and ferrite tile absorber. This chamber has a built in 3m diameter turntable (Embedded type). The metal structure of the table makes electrical connection around the entire circumference of the turntable to the ground plane with a metal brush type connection. The turntable is located on one end of the chamber and the antennas are mounted 3 and 10 meters away at the other end of the chamber on the adjustable an Antenna Mast. The antenna mast is a non-conductive bore sighted type with remote control of antenna height and polarization. The Antenna Mast and the turntable can be remotely controlled through the controller located in the adjacent Control room. A Styrofoam table 80 cm high is used for table-top equipment. Measurement Uncertainty Measurement Frequency Range Expanded Uncertainty (k=2) Ucispr Radiated Emissions, 10m 30-1000 MHz 4.6 dB 6.3 dB Radiated Emissions, 3m 30-1000 MHz 5.3 dB 6.3 dB Radiated Emissions, 3m 1-6 GHz 4.5 dB 5.2 dB Radiated Emissions, 3m 6-15 GHz 5.2 dB 5.5 dB Radiated Emissions, 3m 15-18 GHz 5.0 dB 5.5 dB Radiated Emissions, 3m 18-40 GHz 5.0 dB 5.5 dB As shown in the table above our radiated emissions labU is less than the corresponding CISPRU reference value in CISPR 16-4-2 Table 1, hence the compliance of the product is only based on the measured value, and no measurement uncertainty correction is required, based on CISPR 22 and CISPR 11 (for 2006 and later revisions) Clause 11.

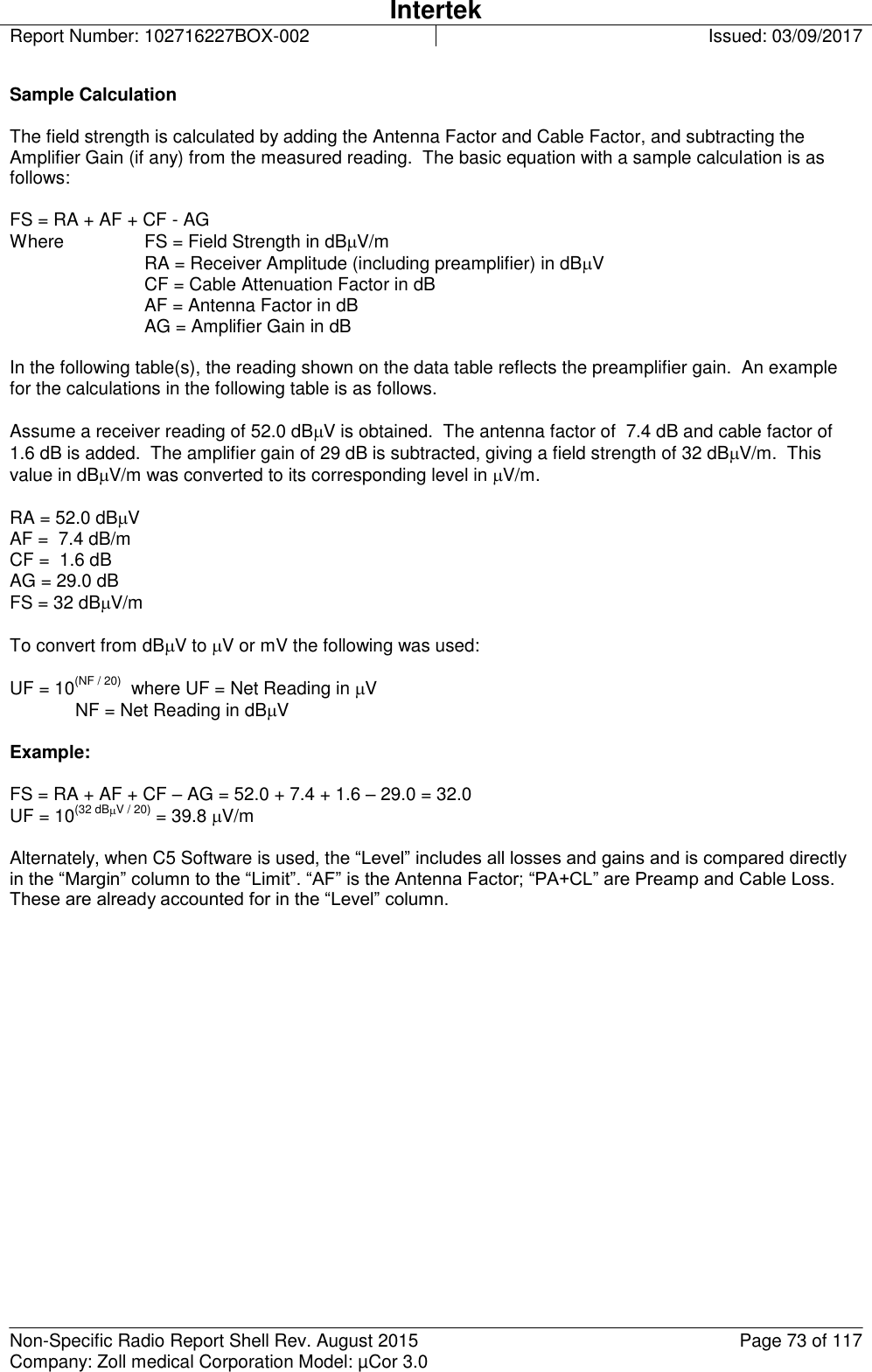

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 73 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Sample Calculation The field strength is calculated by adding the Antenna Factor and Cable Factor, and subtracting the Amplifier Gain (if any) from the measured reading. The basic equation with a sample calculation is as follows: FS = RA + AF + CF - AG Where FS = Field Strength in dBV/m RA = Receiver Amplitude (including preamplifier) in dBV CF = Cable Attenuation Factor in dB AF = Antenna Factor in dB AG = Amplifier Gain in dB In the following table(s), the reading shown on the data table reflects the preamplifier gain. An example for the calculations in the following table is as follows. Assume a receiver reading of 52.0 dBV is obtained. The antenna factor of 7.4 dB and cable factor of 1.6 dB is added. The amplifier gain of 29 dB is subtracted, giving a field strength of 32 dBV/m. This value in dBV/m was converted to its corresponding level in V/m. RA = 52.0 dBV AF = 7.4 dB/m CF = 1.6 dB AG = 29.0 dB FS = 32 dBV/m To convert from dBV to V or mV the following was used: UF = 10(NF / 20) where UF = Net Reading in V NF = Net Reading in dBV Example: FS = RA + AF + CF – AG = 52.0 + 7.4 + 1.6 – 29.0 = 32.0 UF = 10(32 dBV / 20) = 39.8 V/m Alternately, when C5 Software is used, the “Level” includes all losses and gains and is compared directly in the “Margin” column to the “Limit”. “AF” is the Antenna Factor; “PA+CL” are Preamp and Cable Loss. These are already accounted for in the “Level” column.
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 74 of 117 Company: Zoll medical Corporation Model: µCor 3.0 12.2 Test Equipment Used: Asset Description Manufacturer Model Serial Cal Date Cal Due DAV004’ Weather Station Davis Instruments 7400 PE80529A61A 05/02/2016 05/02/2017 145145’ Broadband Hybrid Antenna 30 MHz - 3 GHz Sunol Sciences Corp. JB3 A122313 03/09/2016 03/09/2017 145-410’ Cables 145-420 145-421 145-422 145-406 Huber + Suhner 10m Track A Cables multiple 07/30/2016 07/30/2017 PRE10’ 30-1000MHz pre-amp ITS PRE10 PRE10 12/16/2016 12/16/2017 ETS001’ 1-18GHz DRG Horn Antenna ETS-Lindgren 3117 00143259 02/10/2016 02/10/2017 145-416’ Cables 145-420 145-423 145-424 145-408 Huber + Suhner 3m Track B cables multiple 07/30/2016 07/30/2017 145014’ Preamplifier (1 GHz to 26.5 GHz) Hewlett Packard 8449B 3008A00232 05/27/2016 05/27/2017 EMC04’ ANTENNA, RIDGED GUIDE, 18-40 GHZ EMCO 3116 2090 09/14/2016 09/14/2017 REA004’’ 3GHz High Pass Filter Reactel, Inc 7HSX-3G/18G-S11 06-1 01/25/2016 01/25/2017 PRE10’ 30-1000MHz pre-amp ITS PRE10 PRE10 12/16/2016 12/16/2017 CBLHF2012-2M-2’ 2m 9kHz-40GHz Coaxial Cable - SET2 Huber & Suhner SF102 252675002 02/09/2016 02/09/2017 CBLHF2012-5M-2’ 5m 9kHz-40GHz Coaxial Cable - SET2 Huber & Suhner SF102 252676002 02/19/2016 02/19/2017 Software Utilized: Name Manufacturer Version Compliance5 Teseq 5.26.46.46 12.3 Results: The sample tested was found to Comply.
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 75 of 117 Company: Zoll medical Corporation Model: µCor 3.0 12.4 Plots/Data: Low Channel, Charging mode, Tx (Low data rate, 30 MHz – 1 GHz) Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 10m Project: Zoll medical_01/26/2017 Test Notes: Tx Low channel, charging mode Temperature: 19 C Humidity: 30% 981 mbars Tested by: Naga Suryadevara Test Started: 26 Jan 2017 13 : 01 Prescan Emission Graph 26 Jan 2017 13 : 01 Test: Radiated - FCC15 Class B @ 10m Project: Zoll medical_01/26/2017 Tested by: Naga Suryadevara Test Notes: Tx Low channel (HDR), charging mode 30M 100M 1GFrequency (Hz)0102030405060708090100Level (dBuV/m)FCC Part 15 Class B QP Radiated Emissions @10mTrace1: Measured PeakTrace2: Measured Quasi PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace2: Measured Quasi Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 319.978357156 M 16.70 20.100 -38.178 36.020 -19.32 -- 310 1.15 120 k 463.994589287 M 24.22 23.660 -37.590 36.020 -11.80 -- 96 2.37 120 k 335.972946186 M 24.35 20.219 -38.136 36.020 -11.67 -- 97 1.24 120 k 303.958917427 M 29.04 19.758 -38.210 36.020 -6.98 -- 96 2.36 120 k 431.946092589 M 30.31 22.739 -37.777 36.020 -5.71 -- 94 2.39 120 k 815.994588912 M 31.49 28.000 -35.661 36.020 -4.53 -- 286 1.15 120 k

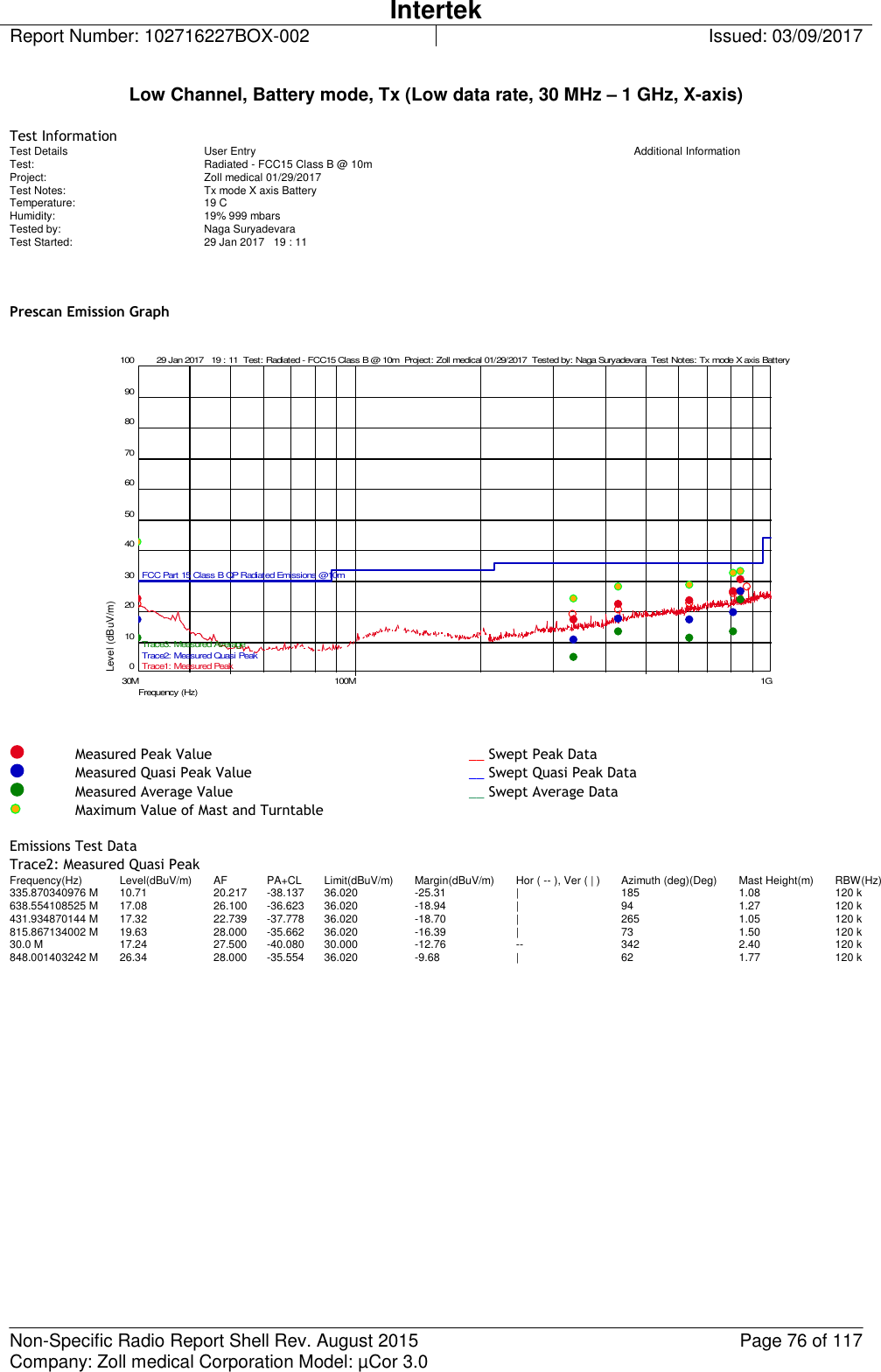

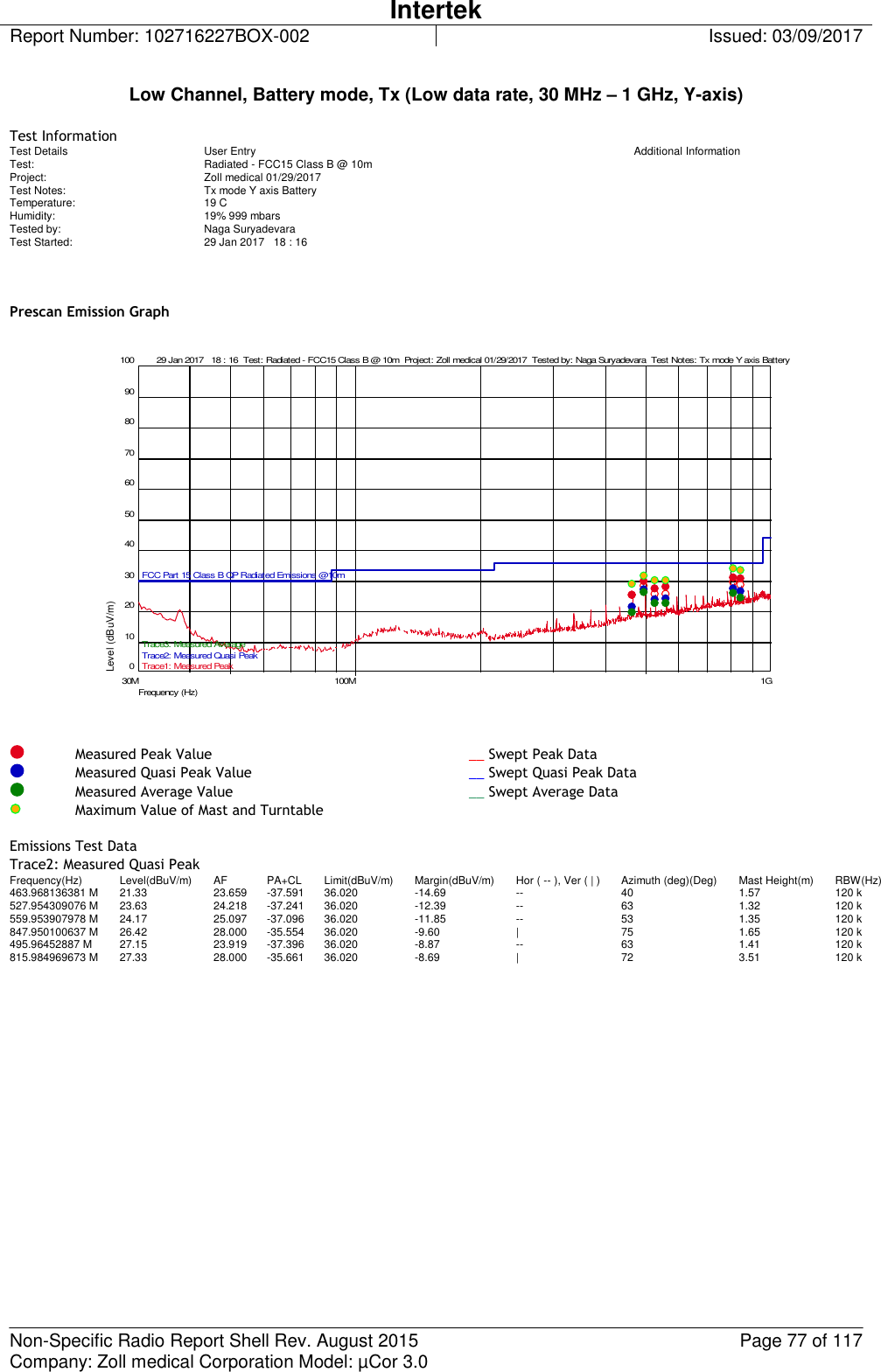

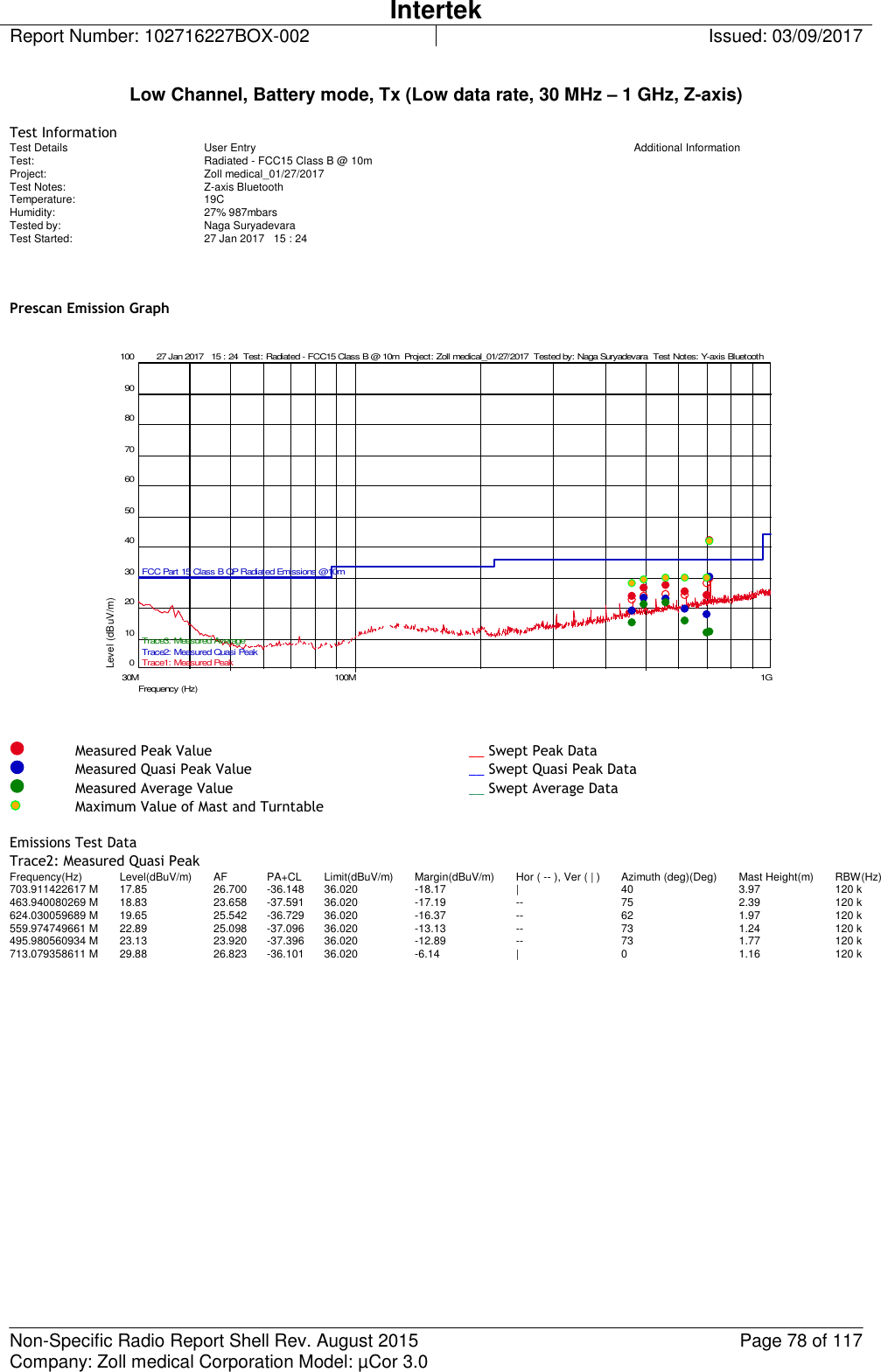

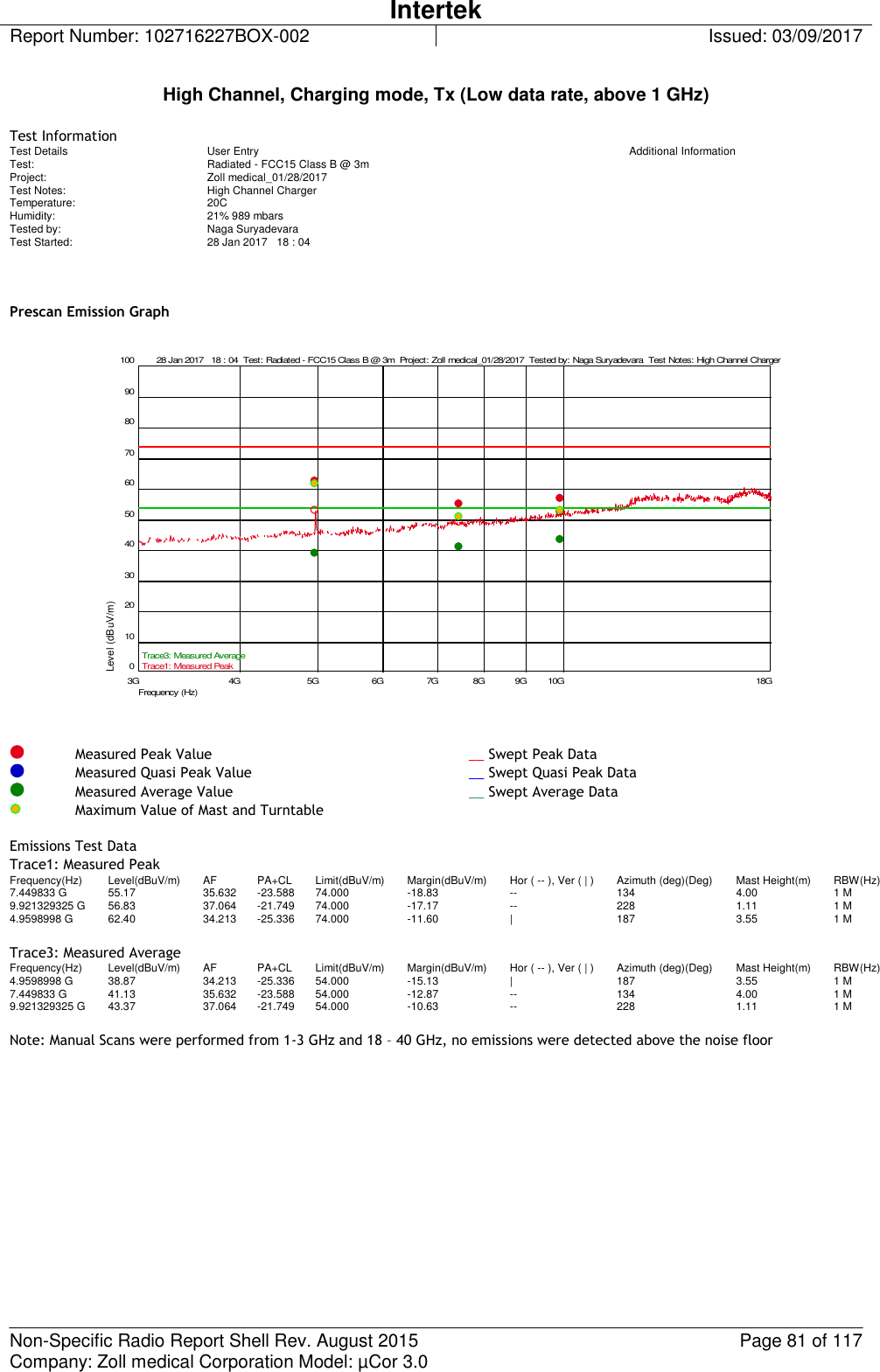

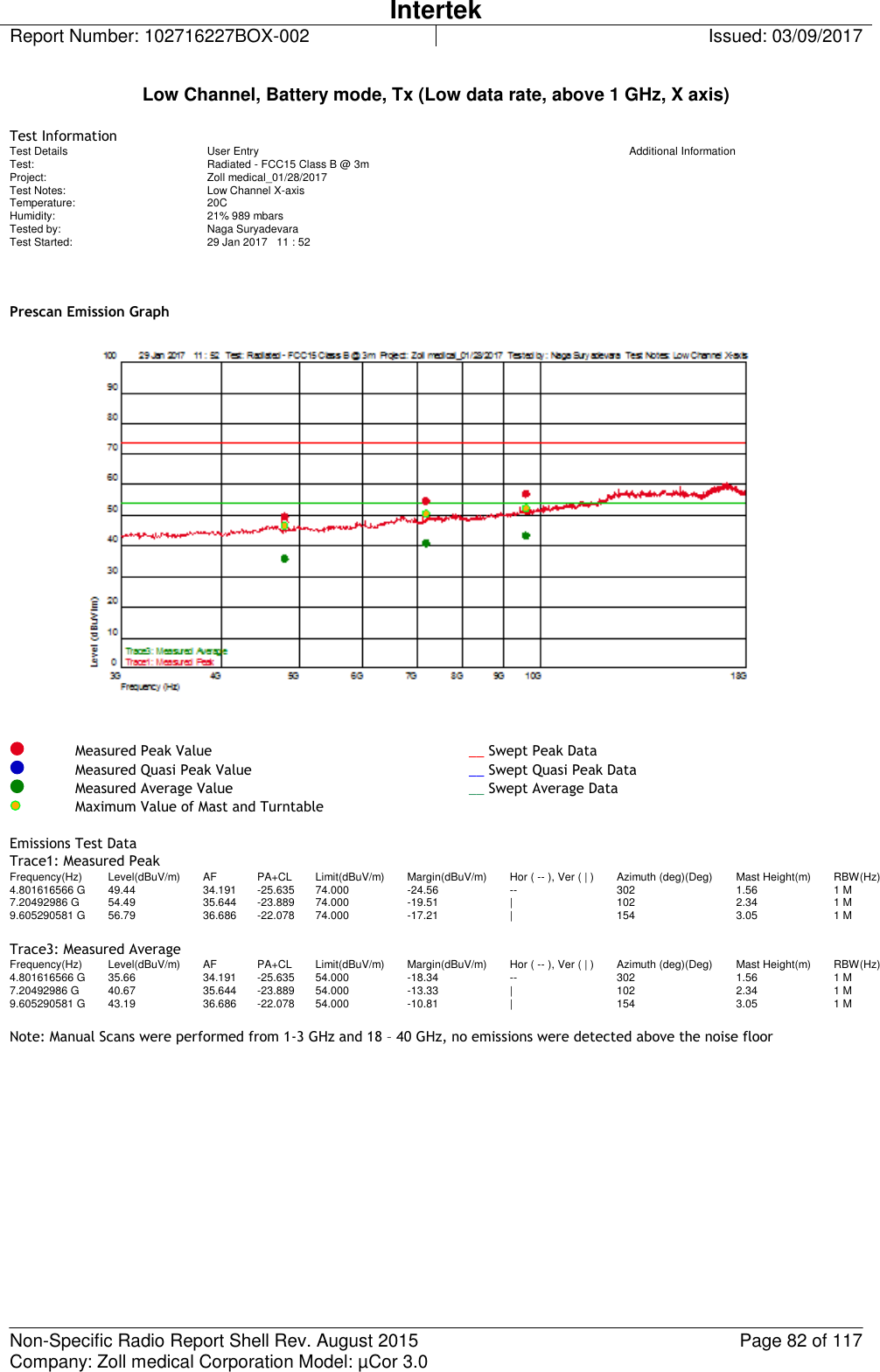

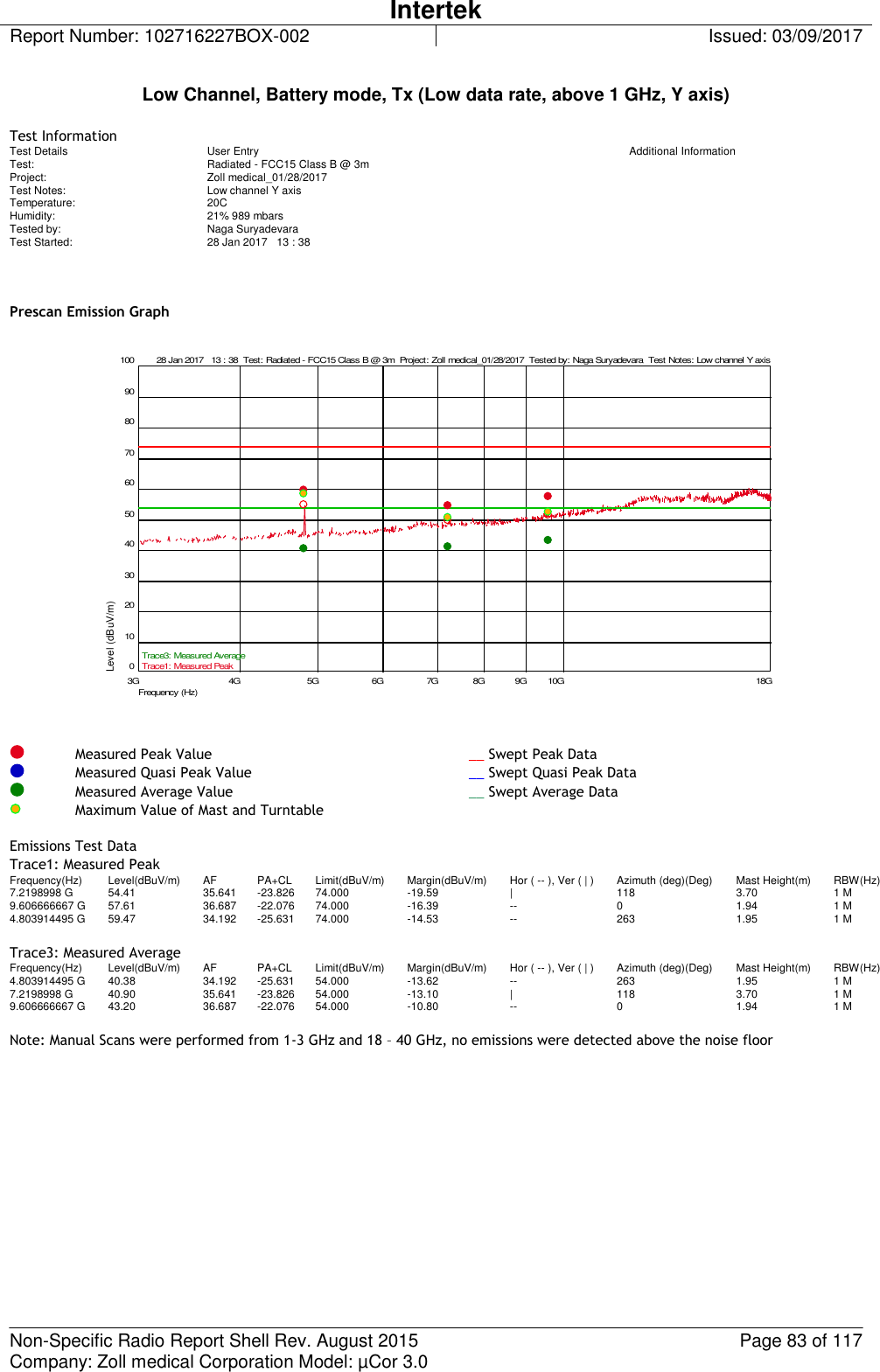

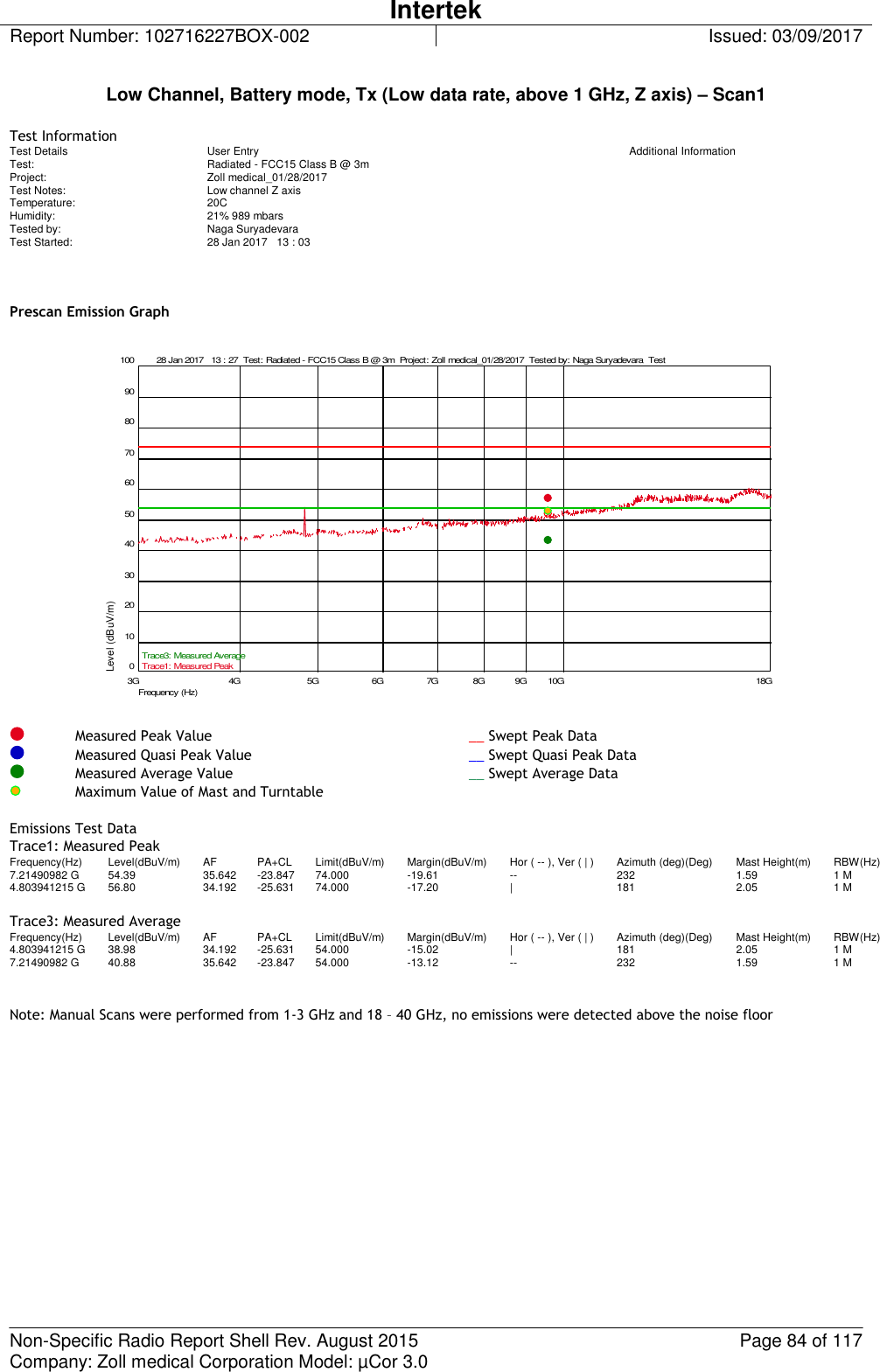

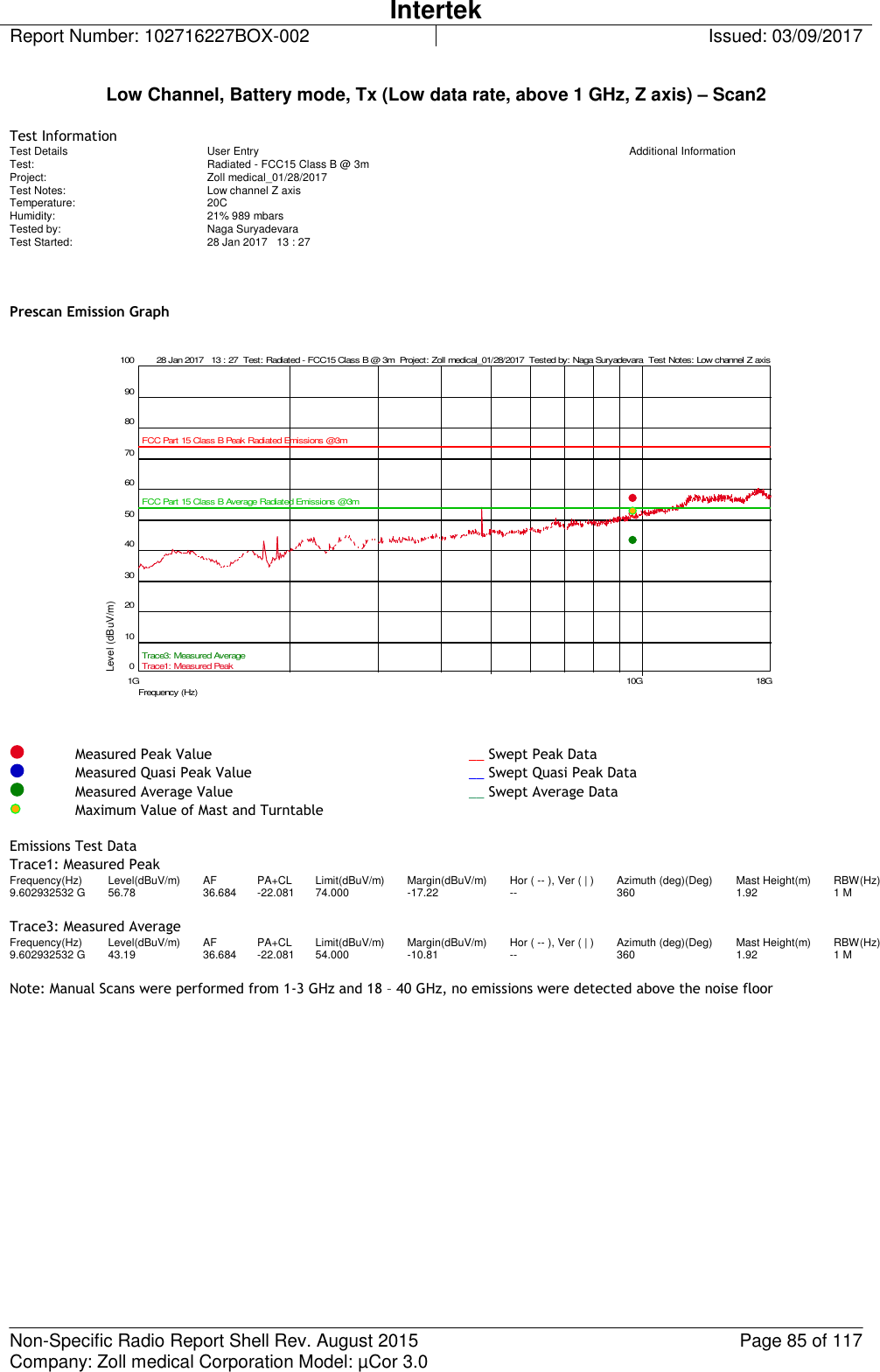

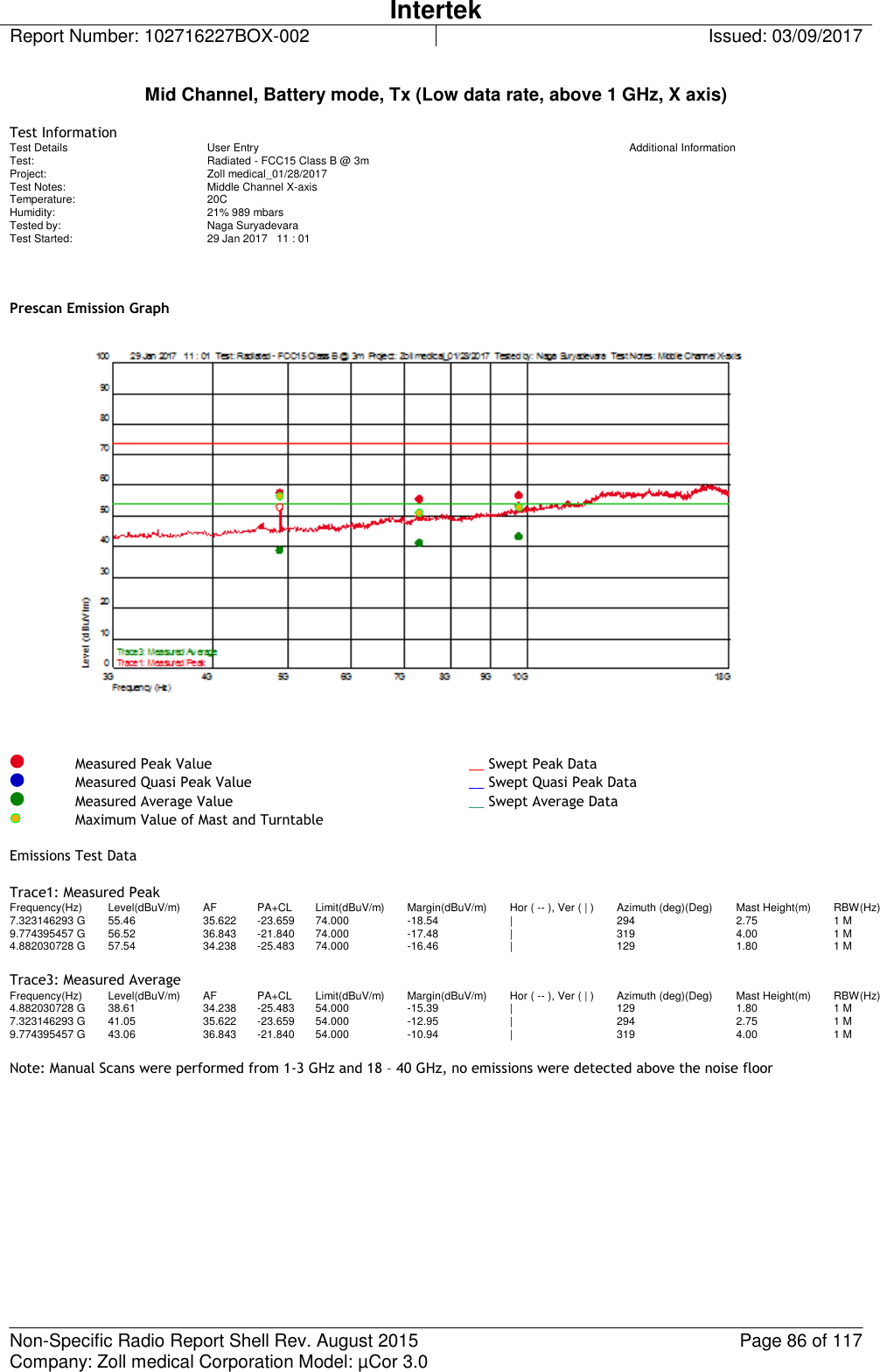

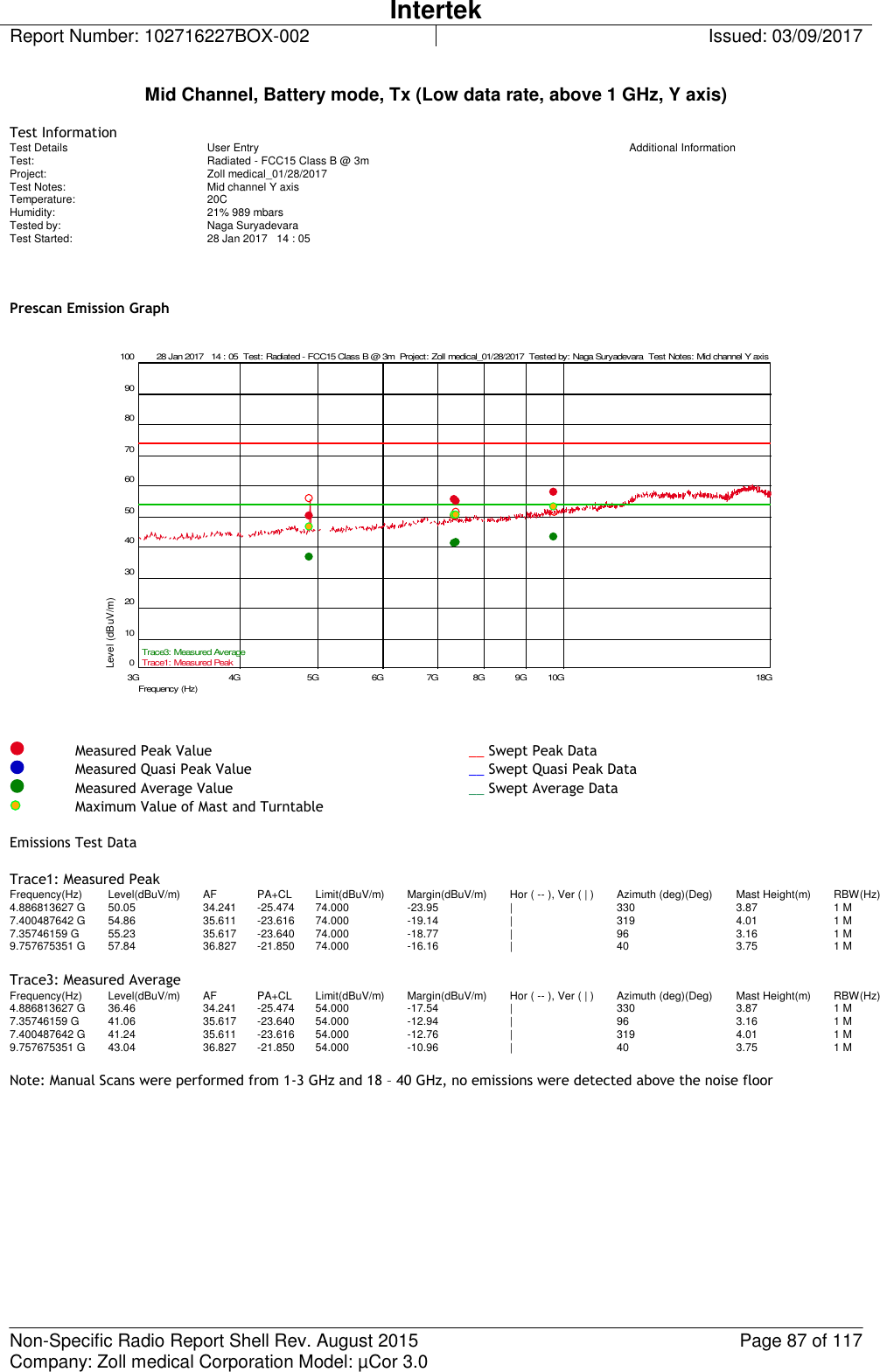

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 76 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Low Channel, Battery mode, Tx (Low data rate, 30 MHz – 1 GHz, X-axis) Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 10m Project: Zoll medical 01/29/2017 Test Notes: Tx mode X axis Battery Temperature: 19 C Humidity: 19% 999 mbars Tested by: Naga Suryadevara Test Started: 29 Jan 2017 19 : 11 Prescan Emission Graph 29 Jan 2017 19 : 11 Test: Radiated - FCC15 Class B @ 10m Project: Zoll medical 01/29/2017 Tested by: Naga Suryadevara Test Notes: Tx mode X axis Battery30M 100M 1GFrequency (Hz)0102030405060708090100Level (dBuV/m)FCC Part 15 Class B QP Radiated Emissions @10mTrace1: Measured PeakTrace2: Measured Quasi PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace2: Measured Quasi Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 335.870340976 M 10.71 20.217 -38.137 36.020 -25.31 | 185 1.08 120 k 638.554108525 M 17.08 26.100 -36.623 36.020 -18.94 | 94 1.27 120 k 431.934870144 M 17.32 22.739 -37.778 36.020 -18.70 | 265 1.05 120 k 815.867134002 M 19.63 28.000 -35.662 36.020 -16.39 | 73 1.50 120 k 30.0 M 17.24 27.500 -40.080 30.000 -12.76 -- 342 2.40 120 k 848.001403242 M 26.34 28.000 -35.554 36.020 -9.68 | 62 1.77 120 k
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 77 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Low Channel, Battery mode, Tx (Low data rate, 30 MHz – 1 GHz, Y-axis) Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 10m Project: Zoll medical 01/29/2017 Test Notes: Tx mode Y axis Battery Temperature: 19 C Humidity: 19% 999 mbars Tested by: Naga Suryadevara Test Started: 29 Jan 2017 18 : 16 Prescan Emission Graph 29 Jan 2017 18 : 16 Test: Radiated - FCC15 Class B @ 10m Project: Zoll medical 01/29/2017 Tested by: Naga Suryadevara Test Notes: Tx mode Y axis Battery30M 100M 1GFrequency (Hz)0102030405060708090100Level (dBuV/m)FCC Part 15 Class B QP Radiated Emissions @10mTrace1: Measured PeakTrace2: Measured Quasi PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace2: Measured Quasi Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 463.968136381 M 21.33 23.659 -37.591 36.020 -14.69 -- 40 1.57 120 k 527.954309076 M 23.63 24.218 -37.241 36.020 -12.39 -- 63 1.32 120 k 559.953907978 M 24.17 25.097 -37.096 36.020 -11.85 -- 53 1.35 120 k 847.950100637 M 26.42 28.000 -35.554 36.020 -9.60 | 75 1.65 120 k 495.96452887 M 27.15 23.919 -37.396 36.020 -8.87 -- 63 1.41 120 k 815.984969673 M 27.33 28.000 -35.661 36.020 -8.69 | 72 3.51 120 k
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 78 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Low Channel, Battery mode, Tx (Low data rate, 30 MHz – 1 GHz, Z-axis) Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 10m Project: Zoll medical_01/27/2017 Test Notes: Z-axis Bluetooth Temperature: 19C Humidity: 27% 987mbars Tested by: Naga Suryadevara Test Started: 27 Jan 2017 15 : 24 Prescan Emission Graph 27 Jan 2017 15 : 24 Test: Radiated - FCC15 Class B @ 10m Project: Zoll medical_01/27/2017 Tested by: Naga Suryadevara Test Notes: Y-axis Bluetooth30M 100M 1GFrequency (Hz)0102030405060708090100Level (dBuV/m)FCC Part 15 Class B QP Radiated Emissions @10mTrace1: Measured PeakTrace2: Measured Quasi PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace2: Measured Quasi Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 703.911422617 M 17.85 26.700 -36.148 36.020 -18.17 | 40 3.97 120 k 463.940080269 M 18.83 23.658 -37.591 36.020 -17.19 -- 75 2.39 120 k 624.030059689 M 19.65 25.542 -36.729 36.020 -16.37 -- 62 1.97 120 k 559.974749661 M 22.89 25.098 -37.096 36.020 -13.13 -- 73 1.24 120 k 495.980560934 M 23.13 23.920 -37.396 36.020 -12.89 -- 73 1.77 120 k 713.079358611 M 29.88 26.823 -36.101 36.020 -6.14 | 0 1.16 120 k
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 79 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Low Channel, Charging mode, Tx (Low data rate, above 1 GHz) Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Test Notes: Low Channel Charger Temperature: 20C Humidity: 21% 989 mbars Tested by: Naga Suryadevara Test Started: 28 Jan 2017 17 : 17 Prescan Emission Graph 28 Jan 2017 17 : 17 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: Low Channel Charger3G 4G 5G 6G 7G 8G 9G 10G 18GFrequency (Hz)0102030405060708090100Level (dBuV/m)Trace1: Measured PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace1: Measured Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 7.203687375 G 54.48 35.644 -23.895 74.000 -19.52 | 310 4.00 1 M 4.803961255 G 55.85 34.192 -25.631 74.000 -18.15 -- 81 3.00 1 M 9.599385438 G 56.67 36.681 -22.087 74.000 -17.33 | 188 1.23 1 M Trace3: Measured Average Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 4.803961255 G 37.64 34.192 -25.631 54.000 -16.36 -- 81 3.00 1 M 7.203687375 G 40.67 35.644 -23.895 54.000 -13.33 | 310 4.00 1 M 9.599385438 G 43.18 36.681 -22.087 54.000 -10.82 | 188 1.23 1 M Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 80 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Mid Channel, Charging mode, Tx (Low data rate, above 1 GHz) Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Test Notes: Mid Channel Charger Temperature: 20C Humidity: 21% 989 mbars Tested by: Naga Suryadevara Test Started: 28 Jan 2017 17 : 40 Prescan Emission Graph 28 Jan 2017 17 : 40 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: Mid Channel Charger3G 4G 5G 6G 7G 8G 9G 10G 18GFrequency (Hz)0102030405060708090100Level (dBuV/m)Trace1: Measured PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace1: Measured Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 7.323473614 G 54.96 35.622 -23.659 74.000 -19.04 -- 331 3.87 1 M 4.843987975 G 55.34 34.192 -25.630 74.000 -18.66 -- 107 3.88 1 M 9.759338677 G 57.44 36.829 -21.849 74.000 -16.56 | 48 2.96 1 M Trace3: Measured Average Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 4.843987975 G 37.32 34.192 -25.630 54.000 -16.68 -- 107 3.88 1 M 7.323473614 G 41.05 35.622 -23.659 54.000 -12.95 -- 331 3.87 1 M 9.759338677 G 43.04 36.829 -21.849 54.000 -10.96 | 48 2.96 1 M Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 81 of 117 Company: Zoll medical Corporation Model: µCor 3.0 High Channel, Charging mode, Tx (Low data rate, above 1 GHz) Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Test Notes: High Channel Charger Temperature: 20C Humidity: 21% 989 mbars Tested by: Naga Suryadevara Test Started: 28 Jan 2017 18 : 04 Prescan Emission Graph 28 Jan 2017 18 : 04 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: High Channel Charger3G 4G 5G 6G 7G 8G 9G 10G 18GFrequency (Hz)0102030405060708090100Level (dBuV/m)Trace1: Measured PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace1: Measured Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 7.449833 G 55.17 35.632 -23.588 74.000 -18.83 -- 134 4.00 1 M 9.921329325 G 56.83 37.064 -21.749 74.000 -17.17 -- 228 1.11 1 M 4.9598998 G 62.40 34.213 -25.336 74.000 -11.60 | 187 3.55 1 M Trace3: Measured Average Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 4.9598998 G 38.87 34.213 -25.336 54.000 -15.13 | 187 3.55 1 M 7.449833 G 41.13 35.632 -23.588 54.000 -12.87 -- 134 4.00 1 M 9.921329325 G 43.37 37.064 -21.749 54.000 -10.63 -- 228 1.11 1 M Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 82 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Low Channel, Battery mode, Tx (Low data rate, above 1 GHz, X axis) Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Test Notes: Low Channel X-axis Temperature: 20C Humidity: 21% 989 mbars Tested by: Naga Suryadevara Test Started: 29 Jan 2017 11 : 52 Prescan Emission Graph Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace1: Measured Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 4.801616566 G 49.44 34.191 -25.635 74.000 -24.56 -- 302 1.56 1 M 7.20492986 G 54.49 35.644 -23.889 74.000 -19.51 | 102 2.34 1 M 9.605290581 G 56.79 36.686 -22.078 74.000 -17.21 | 154 3.05 1 M Trace3: Measured Average Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 4.801616566 G 35.66 34.191 -25.635 54.000 -18.34 -- 302 1.56 1 M 7.20492986 G 40.67 35.644 -23.889 54.000 -13.33 | 102 2.34 1 M 9.605290581 G 43.19 36.686 -22.078 54.000 -10.81 | 154 3.05 1 M Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 83 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Low Channel, Battery mode, Tx (Low data rate, above 1 GHz, Y axis) Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Test Notes: Low channel Y axis Temperature: 20C Humidity: 21% 989 mbars Tested by: Naga Suryadevara Test Started: 28 Jan 2017 13 : 38 Prescan Emission Graph 28 Jan 2017 13 : 38 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: Low channel Y axis 3G 4G 5G 6G 7G 8G 9G 10G 18GFrequency (Hz)0102030405060708090100Level (dBuV/m)Trace1: Measured PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace1: Measured Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 7.2198998 G 54.41 35.641 -23.826 74.000 -19.59 | 118 3.70 1 M 9.606666667 G 57.61 36.687 -22.076 74.000 -16.39 -- 0 1.94 1 M 4.803914495 G 59.47 34.192 -25.631 74.000 -14.53 -- 263 1.95 1 M Trace3: Measured Average Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 4.803914495 G 40.38 34.192 -25.631 54.000 -13.62 -- 263 1.95 1 M 7.2198998 G 40.90 35.641 -23.826 54.000 -13.10 | 118 3.70 1 M 9.606666667 G 43.20 36.687 -22.076 54.000 -10.80 -- 0 1.94 1 M Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 84 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Low Channel, Battery mode, Tx (Low data rate, above 1 GHz, Z axis) – Scan1 Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Test Notes: Low channel Z axis Temperature: 20C Humidity: 21% 989 mbars Tested by: Naga Suryadevara Test Started: 28 Jan 2017 13 : 03 Prescan Emission Graph 28 Jan 2017 13 : 27 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test3G 4G 5G 6G 7G 8G 9G 10G 18GFrequency (Hz)0102030405060708090100Level (dBuV/m)Trace1: Measured PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace1: Measured Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 7.21490982 G 54.39 35.642 -23.847 74.000 -19.61 -- 232 1.59 1 M 4.803941215 G 56.80 34.192 -25.631 74.000 -17.20 | 181 2.05 1 M Trace3: Measured Average Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 4.803941215 G 38.98 34.192 -25.631 54.000 -15.02 | 181 2.05 1 M 7.21490982 G 40.88 35.642 -23.847 54.000 -13.12 -- 232 1.59 1 M Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 85 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Low Channel, Battery mode, Tx (Low data rate, above 1 GHz, Z axis) – Scan2 Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Test Notes: Low channel Z axis Temperature: 20C Humidity: 21% 989 mbars Tested by: Naga Suryadevara Test Started: 28 Jan 2017 13 : 27 Prescan Emission Graph 28 Jan 2017 13 : 27 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: Low channel Z axis 1G 10G 18GFrequency (Hz)0102030405060708090100Level (dBuV/m)FCC Part 15 Class B Average Radiated Emissions @3mFCC Part 15 Class B Peak Radiated Emissions @3mTrace1: Measured PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace1: Measured Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 9.602932532 G 56.78 36.684 -22.081 74.000 -17.22 -- 360 1.92 1 M Trace3: Measured Average Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 9.602932532 G 43.19 36.684 -22.081 54.000 -10.81 -- 360 1.92 1 M Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 86 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Mid Channel, Battery mode, Tx (Low data rate, above 1 GHz, X axis) Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Test Notes: Middle Channel X-axis Temperature: 20C Humidity: 21% 989 mbars Tested by: Naga Suryadevara Test Started: 29 Jan 2017 11 : 01 Prescan Emission Graph Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace1: Measured Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 7.323146293 G 55.46 35.622 -23.659 74.000 -18.54 | 294 2.75 1 M 9.774395457 G 56.52 36.843 -21.840 74.000 -17.48 | 319 4.00 1 M 4.882030728 G 57.54 34.238 -25.483 74.000 -16.46 | 129 1.80 1 M Trace3: Measured Average Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 4.882030728 G 38.61 34.238 -25.483 54.000 -15.39 | 129 1.80 1 M 7.323146293 G 41.05 35.622 -23.659 54.000 -12.95 | 294 2.75 1 M 9.774395457 G 43.06 36.843 -21.840 54.000 -10.94 | 319 4.00 1 M Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 87 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Mid Channel, Battery mode, Tx (Low data rate, above 1 GHz, Y axis) Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Test Notes: Mid channel Y axis Temperature: 20C Humidity: 21% 989 mbars Tested by: Naga Suryadevara Test Started: 28 Jan 2017 14 : 05 Prescan Emission Graph 28 Jan 2017 14 : 05 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: Mid channel Y axis 3G 4G 5G 6G 7G 8G 9G 10G 18GFrequency (Hz)0102030405060708090100Level (dBuV/m)Trace1: Measured PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace1: Measured Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 4.886813627 G 50.05 34.241 -25.474 74.000 -23.95 | 330 3.87 1 M 7.400487642 G 54.86 35.611 -23.616 74.000 -19.14 | 319 4.01 1 M 7.35746159 G 55.23 35.617 -23.640 74.000 -18.77 | 96 3.16 1 M 9.757675351 G 57.84 36.827 -21.850 74.000 -16.16 | 40 3.75 1 M Trace3: Measured Average Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 4.886813627 G 36.46 34.241 -25.474 54.000 -17.54 | 330 3.87 1 M 7.35746159 G 41.06 35.617 -23.640 54.000 -12.94 | 96 3.16 1 M 7.400487642 G 41.24 35.611 -23.616 54.000 -12.76 | 319 4.01 1 M 9.757675351 G 43.04 36.827 -21.850 54.000 -10.96 | 40 3.75 1 M Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 88 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Mid Channel, Battery mode, Tx (Low data rate, above 1 GHz, Z axis) Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Test Notes: Mid channel Z axis Temperature: 20C Humidity: 21% 989 mbars Tested by: Naga Suryadevara Test Started: 28 Jan 2017 14 : 35 Prescan Emission Graph 28 Jan 2017 14 : 35 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: Mid channel Z axis 3G 4G 5G 6G 7G 8G 9G 10G 18GFrequency (Hz)0102030405060708090100Level (dBuV/m)Trace1: Measured PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace1: Measured Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 7.32998664 G 54.70 35.621 -23.655 74.000 -19.30 | 230 2.18 1 M 9.771663326 G 56.93 36.840 -21.842 74.000 -17.07 -- 166 2.69 1 M 4.881877087 G 58.77 34.238 -25.483 74.000 -15.23 | 152 3.17 1 M Trace3: Measured Average Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 4.881877087 G 39.18 34.238 -25.483 54.000 -14.82 | 152 3.17 1 M 7.32998664 G 41.05 35.621 -23.655 54.000 -12.95 | 230 2.18 1 M 9.771663326 G 43.06 36.840 -21.842 54.000 -10.94 -- 166 2.69 1 M Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 89 of 117 Company: Zoll medical Corporation Model: µCor 3.0 High Channel, Battery mode, Tx (Low data rate, above 1 GHz, X axis) Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Test Notes: High Channel X-axis Battery Temperature: 20C Humidity: 21% 989 mbars Tested by: Naga Suryadevara Test Started: 29 Jan 2017 10 : 09 Prescan Emission Graph Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace1: Measured Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 7.452124249 G 55.04 35.633 -23.587 74.000 -18.96 | 360 1.67 1 M 9.91260521 G 57.22 37.047 -21.754 74.000 -16.78 | 331 1.38 1 M 4.95997328 G 60.06 34.213 -25.336 74.000 -13.94 | 338 2.91 1 M Trace3: Measured Average Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 4.95997328 G 38.43 34.213 -25.336 54.000 -15.57 | 338 2.91 1 M 7.452124249 G 41.29 35.633 -23.587 54.000 -12.71 | 360 1.67 1 M 9.91260521 G 43.53 37.047 -21.754 54.000 -10.47 | 331 1.38 1 M Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 90 of 117 Company: Zoll medical Corporation Model: µCor 3.0 High Channel, Battery mode, Tx (Low data rate, above 1 GHz, Y axis) Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Test Notes: High Channel Y-axis Temperature: 20C Humidity: 21% 989 mbars Tested by: Naga Suryadevara Test Started: 28 Jan 2017 19 : 03 Prescan Emission Graph 28 Jan 2017 19 : 03 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: High Channel Y-axis3G 4G 5G 6G 7G 8G 9G 10G 18GFrequency (Hz)0102030405060708090100Level (dBuV/m)Trace1: Measured PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace1: Measured Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 7.447775551 G 55.17 35.632 -23.589 74.000 -18.83 -- 0 1.32 1 M 9.919271877 G 57.09 37.060 -21.750 74.000 -16.91 | 319 2.27 1 M 4.95997328 G 63.87 34.213 -25.336 74.000 -10.13 | 69 2.88 1 M Trace3: Measured Average Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 4.95997328 G 39.70 34.213 -25.336 54.000 -14.30 | 69 2.88 1 M 7.447775551 G 41.12 35.632 -23.589 54.000 -12.88 -- 0 1.32 1 M 9.919271877 G 43.37 37.060 -21.750 54.000 -10.63 | 319 2.27 1 M Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 91 of 117 Company: Zoll medical Corporation Model: µCor 3.0 High Channel, Battery mode, Tx (Low data rate, above 1 GHz, Z axis) Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Test Notes: High channel Z axis Temperature: 20C Humidity: 21% 989 mbars Tested by: Naga Suryadevara Test Started: 28 Jan 2017 15 : 05 Prescan Emission Graph 28 Jan 2017 15 : 05 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: High channel Z axis 3G 4G 5G 6G 7G 8G 9G 10G 18GFrequency (Hz)0102030405060708090100Level (dBuV/m)Trace1: Measured PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace1: Measured Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 7.446472946 G 55.17 35.631 -23.590 74.000 -18.83 -- 229 1.69 1 M 9.765190381 G 56.51 36.834 -21.846 74.000 -17.49 | 19 2.05 1 M 4.95995324 G 63.74 34.213 -25.336 74.000 -10.26 | 173 1.93 1 M Trace3: Measured Average Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 4.95995324 G 40.09 34.213 -25.336 54.000 -13.91 | 173 1.93 1 M 7.446472946 G 41.12 35.631 -23.590 54.000 -12.88 -- 229 1.69 1 M 9.765190381 G 43.05 36.834 -21.846 54.000 -10.95 | 19 2.05 1 M Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor

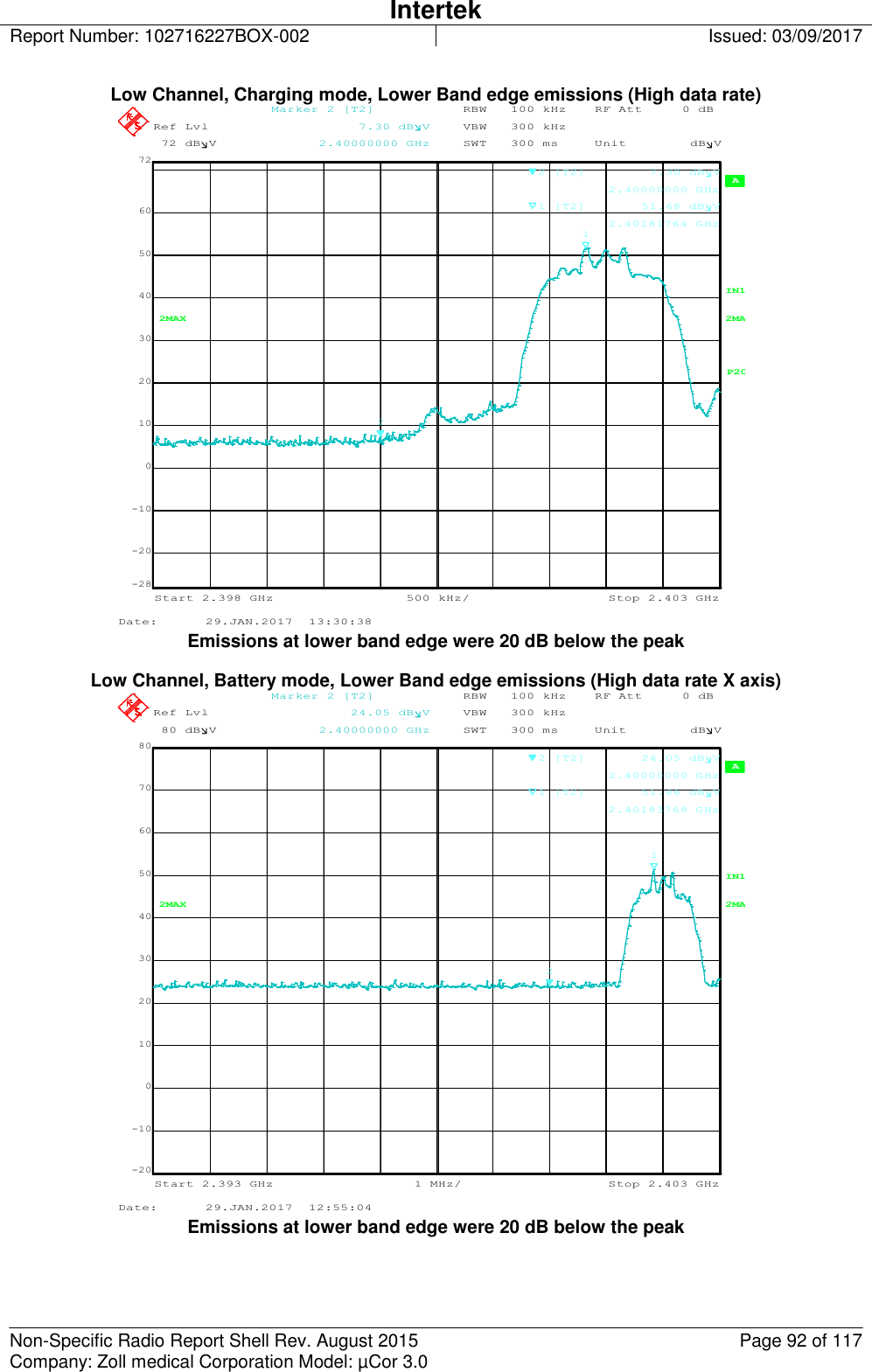

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 92 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Low Channel, Charging mode, Lower Band edge emissions (High data rate) SWT 300 ms A UnitdBæVP20Start2.398 GHzStop2.403 GHz500 kHz/Ref Lvl 72 dBæVRef Lvl 72 dBæVRF Att 0 dB2MAX2MARBW 100 kHzVBW 300 kHzIN1 -20 -10 0 10 20 30 40 50 60 -28 7212Marker 2 [T2] 7.30 dBæV 2.40000000 GHz2 [T2] 7.30 dBæV 2.40000000 GHz1 [T2] 51.68 dBæV 2.40181764 GHzDate: 29.JAN.2017 13:30:38 Emissions at lower band edge were 20 dB below the peak Low Channel, Battery mode, Lower Band edge emissions (High data rate X axis) SWT 300 ms A UnitdBæVRef Lvl 80 dBæVRef Lvl 80 dBæVRF Att 0 dBStart2.393 GHzStop2.403 GHz1 MHz/ 2MARBW 100 kHzVBW 300 kHzIN12MAX -10 0 10 20 30 40 50 60 70 -20 8012Marker 2 [T2] 24.05 dBæV 2.40000000 GHz2 [T2] 24.05 dBæV 2.40000000 GHz1 [T2] 51.46 dBæV 2.40183768 GHzDate: 29.JAN.2017 12:55:04 Emissions at lower band edge were 20 dB below the peak

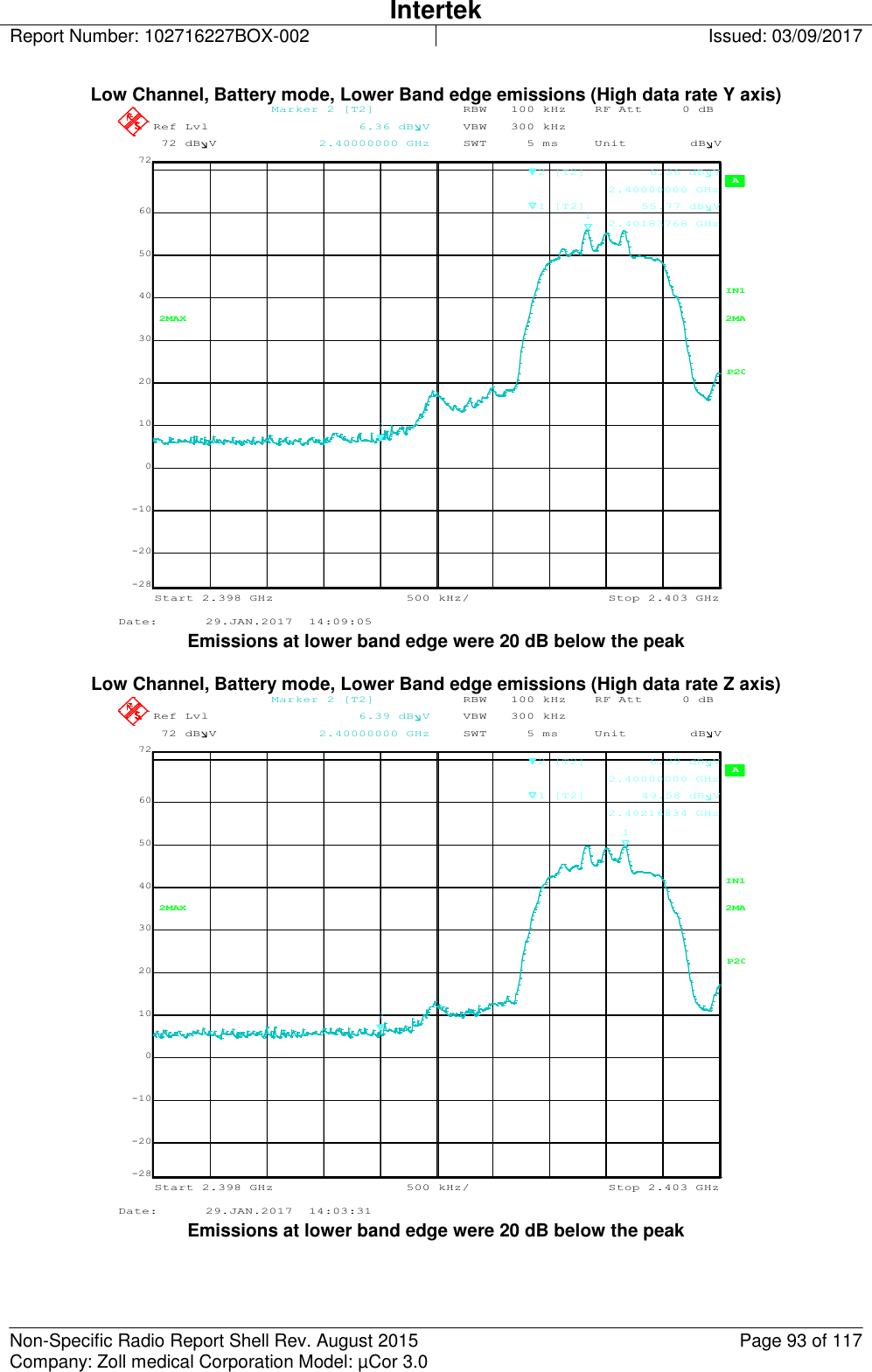

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 93 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Low Channel, Battery mode, Lower Band edge emissions (High data rate Y axis) A UnitdBæVSWT 5 msP20Start2.398 GHzStop2.403 GHz500 kHz/Ref Lvl 72 dBæVRef Lvl 72 dBæVRF Att 0 dB2MARBW 100 kHzVBW 300 kHzIN12MAX -20 -10 0 10 20 30 40 50 60 -28 7212Marker 2 [T2] 6.36 dBæV 2.40000000 GHz2 [T2] 6.36 dBæV 2.40000000 GHz1 [T2] 55.77 dBæV 2.40183768 GHzDate: 29.JAN.2017 14:09:05 Emissions at lower band edge were 20 dB below the peak Low Channel, Battery mode, Lower Band edge emissions (High data rate Z axis) A UnitdBæVSWT 5 ms2MAXP20Start2.398 GHzStop2.403 GHz500 kHz/Ref Lvl 72 dBæVRef Lvl 72 dBæVRF Att 0 dB2MARBW 100 kHzVBW 300 kHzIN1 -20 -10 0 10 20 30 40 50 60 -28 7212Marker 2 [T2] 6.39 dBæV 2.40000000 GHz2 [T2] 6.39 dBæV 2.40000000 GHz1 [T2] 49.58 dBæV 2.40216834 GHzDate: 29.JAN.2017 14:03:31 Emissions at lower band edge were 20 dB below the peak

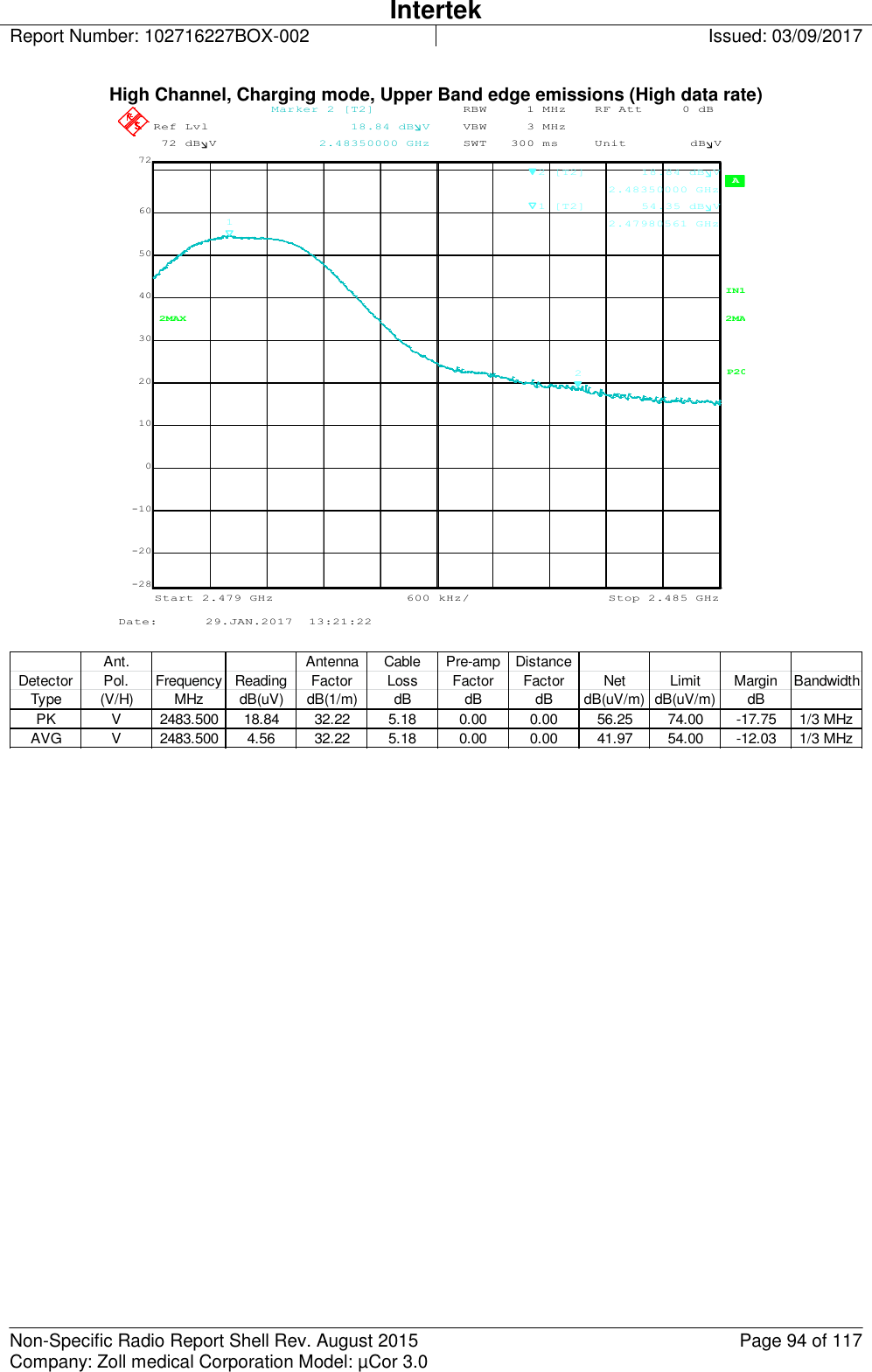

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 94 of 117 Company: Zoll medical Corporation Model: µCor 3.0 High Channel, Charging mode, Upper Band edge emissions (High data rate) SWT 300 ms A UnitdBæV2MARef Lvl 72 dBæVRef Lvl 72 dBæVRBW 1 MHzVBW 3 MHzRF Att 0 dBIN1Start2.479 GHzStop2.485 GHz600 kHz/P202MAX -20 -10 0 10 20 30 40 50 60 -28 7212Marker 2 [T2] 18.84 dBæV 2.48350000 GHz2 [T2] 18.84 dBæV 2.48350000 GHz1 [T2] 54.35 dBæV 2.47980561 GHzDate: 29.JAN.2017 13:21:22 Ant. Antenna Cable Pre-amp DistanceDetector Pol. Frequency Reading Factor Loss Factor Factor Net Limit Margin BandwidthType (V/H) MHz dB(uV) dB(1/m) dB dB dB dB(uV/m) dB(uV/m) dB PK V 2483.500 18.84 32.22 5.18 0.00 0.00 56.25 74.00 -17.75 1/3 MHzAVG V 2483.500 4.56 32.22 5.18 0.00 0.00 41.97 54.00 -12.03 1/3 MHz

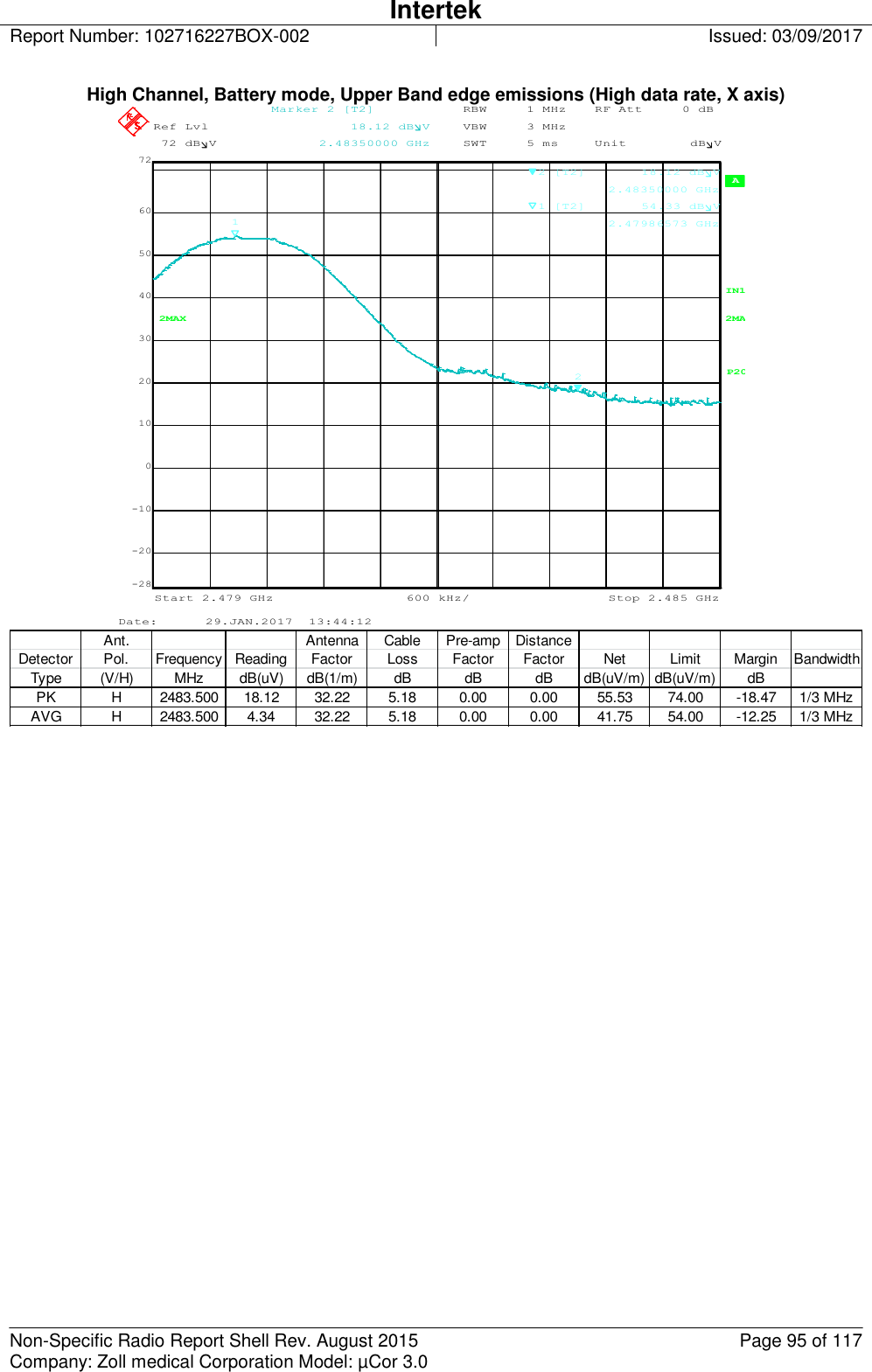

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 95 of 117 Company: Zoll medical Corporation Model: µCor 3.0 High Channel, Battery mode, Upper Band edge emissions (High data rate, X axis) A UnitdBæV2MAP20Start2.479 GHzStop2.485 GHz600 kHz/Ref Lvl 72 dBæVRef Lvl 72 dBæVRF Att 0 dBRBW 1 MHzVBW 3 MHzIN1SWT 5 ms2MAX -20 -10 0 10 20 30 40 50 60 -28 7212Marker 2 [T2] 18.12 dBæV 2.48350000 GHz2 [T2] 18.12 dBæV 2.48350000 GHz1 [T2] 54.33 dBæV 2.47986573 GHzDate: 29.JAN.2017 13:44:12 Ant. Antenna Cable Pre-amp DistanceDetector Pol. Frequency Reading Factor Loss Factor Factor Net Limit Margin BandwidthType (V/H) MHz dB(uV) dB(1/m) dB dB dB dB(uV/m) dB(uV/m) dB PK H 2483.500 18.12 32.22 5.18 0.00 0.00 55.53 74.00 -18.47 1/3 MHzAVG H 2483.500 4.34 32.22 5.18 0.00 0.00 41.75 54.00 -12.25 1/3 MHz
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 96 of 117 Company: Zoll medical Corporation Model: µCor 3.0 High Channel, Battery mode, Upper Band edge emissions (High data rate, Y axis) A UnitdBæVP20Start2.479 GHzStop2.485 GHz600 kHz/Ref Lvl 72 dBæVRef Lvl 72 dBæVRF Att 0 dBRBW 1 MHzVBW 3 MHzIN1SWT 5 ms2MA2MAX -20 -10 0 10 20 30 40 50 60 -28 7212Marker 2 [T2] 17.53 dBæV 2.48350000 GHz2 [T2] 17.53 dBæV 2.48350000 GHz1 [T2] 52.74 dBæV 2.47984168 GHzDate: 29.JAN.2017 13:50:55 Ant. Antenna Cable Pre-amp DistanceDetector Pol. Frequency Reading Factor Loss Factor Factor Net Limit Margin BandwidthType (V/H) MHz dB(uV) dB(1/m) dB dB dB dB(uV/m) dB(uV/m) dB PK H 2483.500 17.53 32.22 5.18 0.00 0.00 54.94 74.00 -19.06 1/3 MHzAVG H 2483.500 4.22 32.22 5.18 0.00 0.00 41.63 54.00 -12.37 1/3 MHz

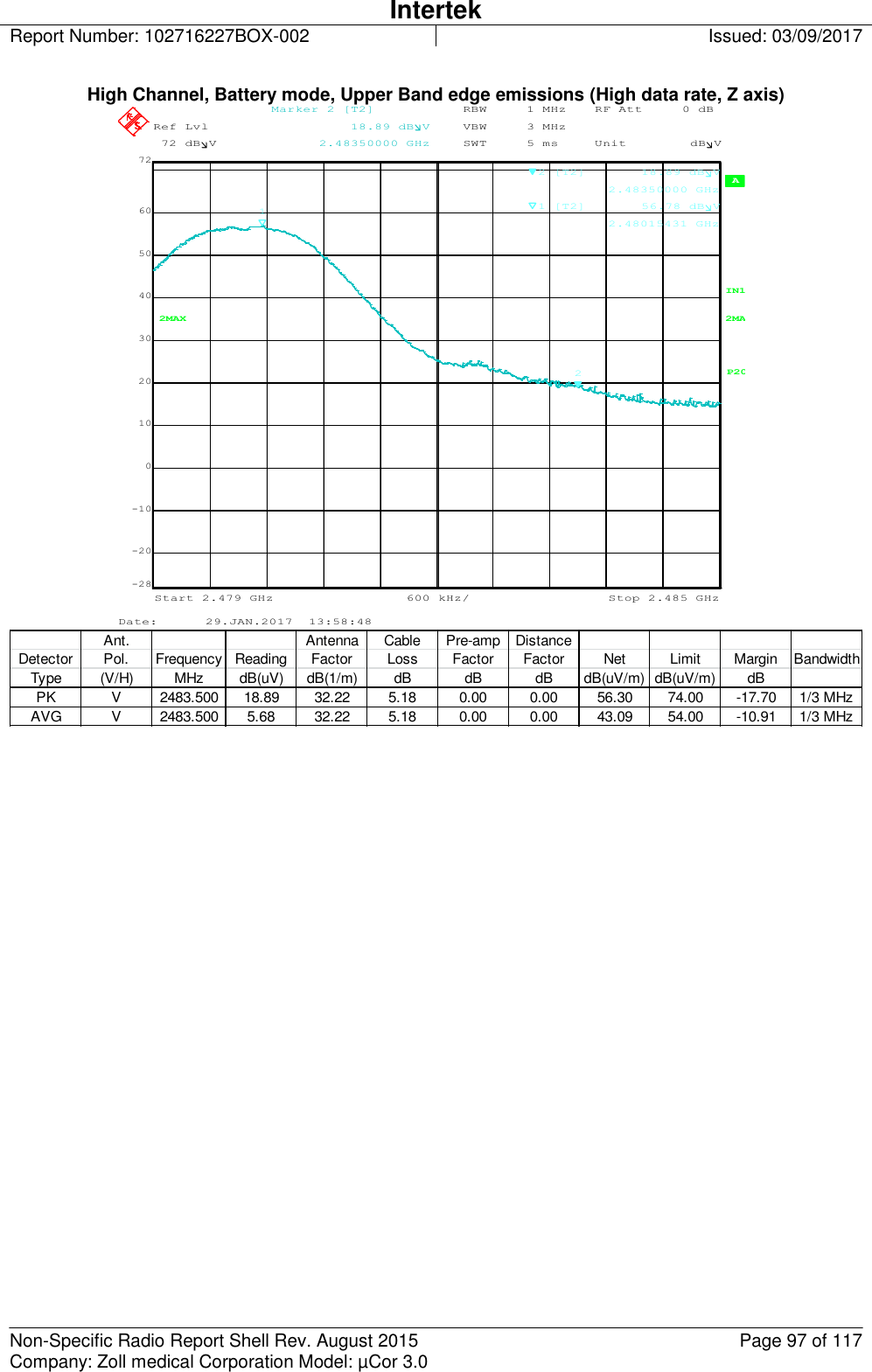

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 97 of 117 Company: Zoll medical Corporation Model: µCor 3.0 High Channel, Battery mode, Upper Band edge emissions (High data rate, Z axis) A UnitdBæVP20Start2.479 GHzStop2.485 GHz600 kHz/Ref Lvl 72 dBæVRef Lvl 72 dBæVRF Att 0 dBRBW 1 MHzVBW 3 MHzIN1SWT 5 ms2MA2MAX -20 -10 0 10 20 30 40 50 60 -28 7212Marker 2 [T2] 18.89 dBæV 2.48350000 GHz2 [T2] 18.89 dBæV 2.48350000 GHz1 [T2] 56.78 dBæV 2.48015431 GHzDate: 29.JAN.2017 13:58:48 Ant. Antenna Cable Pre-amp DistanceDetector Pol. Frequency Reading Factor Loss Factor Factor Net Limit Margin BandwidthType (V/H) MHz dB(uV) dB(1/m) dB dB dB dB(uV/m) dB(uV/m) dB PK V 2483.500 18.89 32.22 5.18 0.00 0.00 56.30 74.00 -17.70 1/3 MHzAVG V 2483.500 5.68 32.22 5.18 0.00 0.00 43.09 54.00 -10.91 1/3 MHz
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 98 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Test Personnel: Naga Suryadevara Test Date: 01/27/2017 01/28/2017 01/29/2017 Supervising/Reviewing Engineer: (Where Applicable) N/A Product Standard: FCC Part 15 Subpart C (15.247) Limit Applied: As specified in the plots (Section 12.4) Input Voltage: 120VAC 60Hz Internal Battery Pretest Verification w/ Ambient Signals or BB Source: BB Source Ambient Temperature: 19, 20 19 ºC Relative Humidity: 30, 21 19 % Atmospheric Pressure: 981, 989, 999 mbars Deviations, Additions, or Exclusions: None

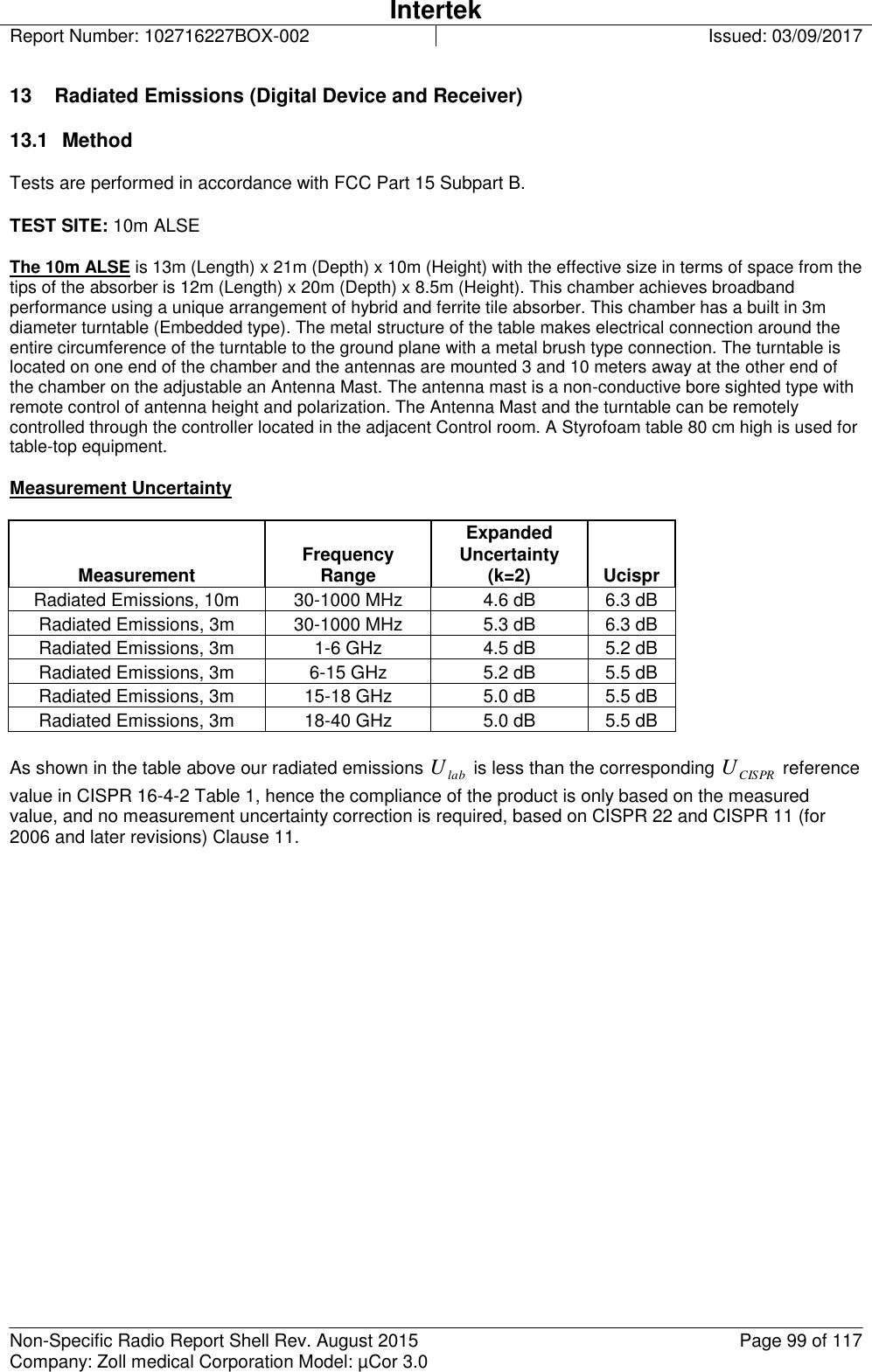

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 99 of 117 Company: Zoll medical Corporation Model: µCor 3.0 13 Radiated Emissions (Digital Device and Receiver) 13.1 Method Tests are performed in accordance with FCC Part 15 Subpart B. TEST SITE: 10m ALSE The 10m ALSE is 13m (Length) x 21m (Depth) x 10m (Height) with the effective size in terms of space from the tips of the absorber is 12m (Length) x 20m (Depth) x 8.5m (Height). This chamber achieves broadband performance using a unique arrangement of hybrid and ferrite tile absorber. This chamber has a built in 3m diameter turntable (Embedded type). The metal structure of the table makes electrical connection around the entire circumference of the turntable to the ground plane with a metal brush type connection. The turntable is located on one end of the chamber and the antennas are mounted 3 and 10 meters away at the other end of the chamber on the adjustable an Antenna Mast. The antenna mast is a non-conductive bore sighted type with remote control of antenna height and polarization. The Antenna Mast and the turntable can be remotely controlled through the controller located in the adjacent Control room. A Styrofoam table 80 cm high is used for table-top equipment. Measurement Uncertainty Measurement Frequency Range Expanded Uncertainty (k=2) Ucispr Radiated Emissions, 10m 30-1000 MHz 4.6 dB 6.3 dB Radiated Emissions, 3m 30-1000 MHz 5.3 dB 6.3 dB Radiated Emissions, 3m 1-6 GHz 4.5 dB 5.2 dB Radiated Emissions, 3m 6-15 GHz 5.2 dB 5.5 dB Radiated Emissions, 3m 15-18 GHz 5.0 dB 5.5 dB Radiated Emissions, 3m 18-40 GHz 5.0 dB 5.5 dB As shown in the table above our radiated emissions labU is less than the corresponding CISPRU reference value in CISPR 16-4-2 Table 1, hence the compliance of the product is only based on the measured value, and no measurement uncertainty correction is required, based on CISPR 22 and CISPR 11 (for 2006 and later revisions) Clause 11.

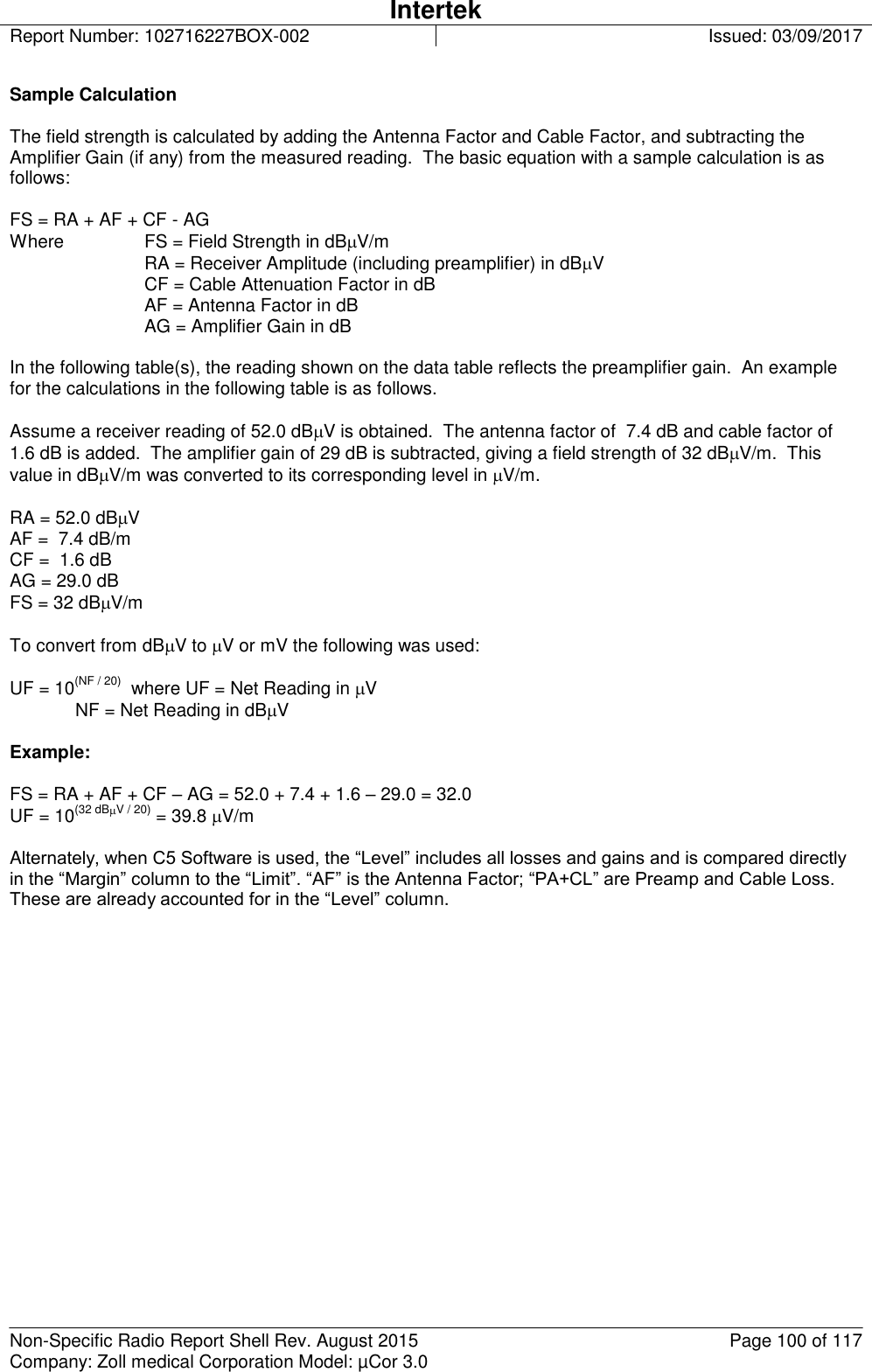

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 100 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Sample Calculation The field strength is calculated by adding the Antenna Factor and Cable Factor, and subtracting the Amplifier Gain (if any) from the measured reading. The basic equation with a sample calculation is as follows: FS = RA + AF + CF - AG Where FS = Field Strength in dBV/m RA = Receiver Amplitude (including preamplifier) in dBV CF = Cable Attenuation Factor in dB AF = Antenna Factor in dB AG = Amplifier Gain in dB In the following table(s), the reading shown on the data table reflects the preamplifier gain. An example for the calculations in the following table is as follows. Assume a receiver reading of 52.0 dBV is obtained. The antenna factor of 7.4 dB and cable factor of 1.6 dB is added. The amplifier gain of 29 dB is subtracted, giving a field strength of 32 dBV/m. This value in dBV/m was converted to its corresponding level in V/m. RA = 52.0 dBV AF = 7.4 dB/m CF = 1.6 dB AG = 29.0 dB FS = 32 dBV/m To convert from dBV to V or mV the following was used: UF = 10(NF / 20) where UF = Net Reading in V NF = Net Reading in dBV Example: FS = RA + AF + CF – AG = 52.0 + 7.4 + 1.6 – 29.0 = 32.0 UF = 10(32 dBV / 20) = 39.8 V/m Alternately, when C5 Software is used, the “Level” includes all losses and gains and is compared directly in the “Margin” column to the “Limit”. “AF” is the Antenna Factor; “PA+CL” are Preamp and Cable Loss. These are already accounted for in the “Level” column.

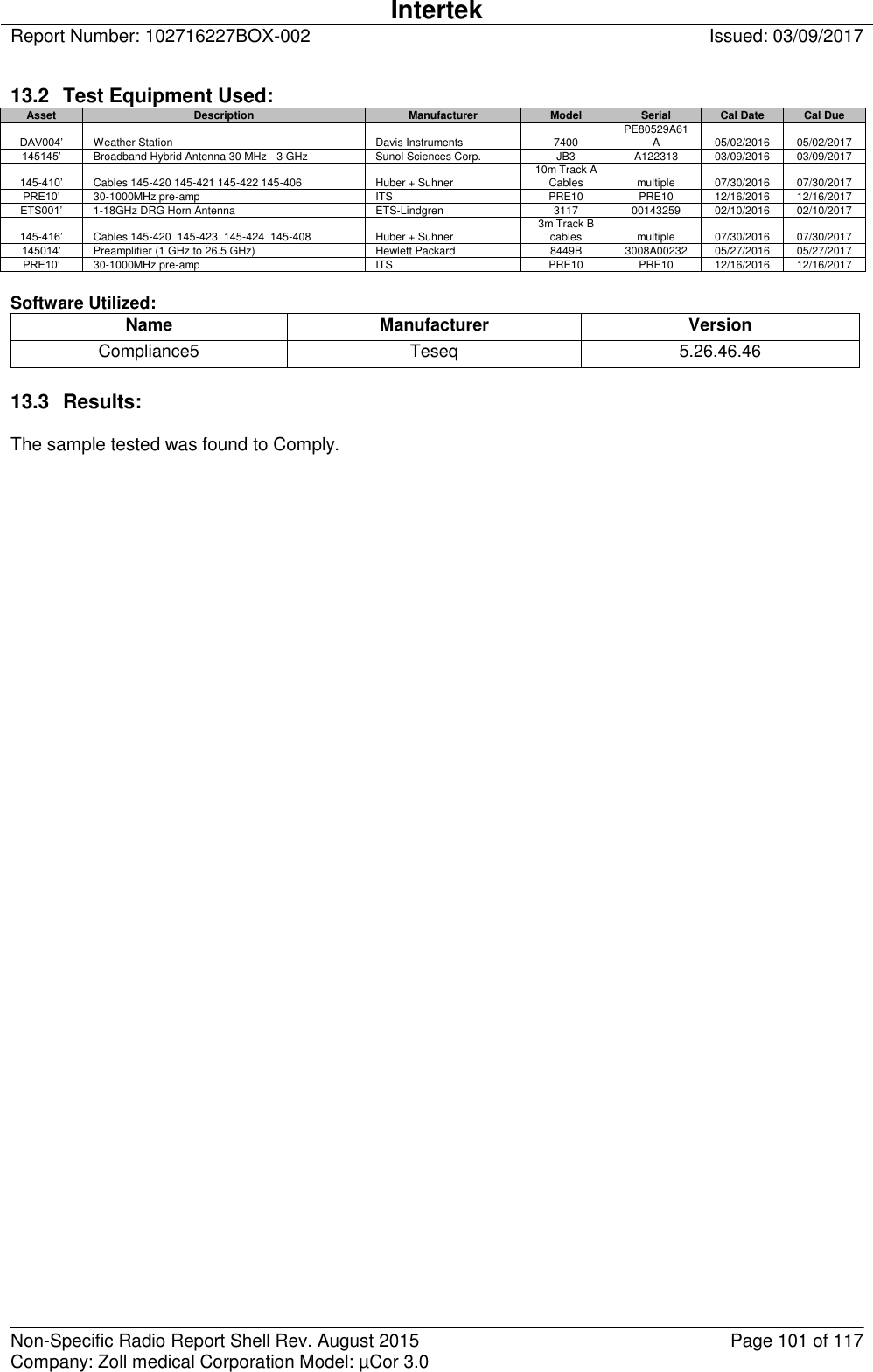

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 101 of 117 Company: Zoll medical Corporation Model: µCor 3.0 13.2 Test Equipment Used: Asset Description Manufacturer Model Serial Cal Date Cal Due DAV004’ Weather Station Davis Instruments 7400 PE80529A61A 05/02/2016 05/02/2017 145145’ Broadband Hybrid Antenna 30 MHz - 3 GHz Sunol Sciences Corp. JB3 A122313 03/09/2016 03/09/2017 145-410’ Cables 145-420 145-421 145-422 145-406 Huber + Suhner 10m Track A Cables multiple 07/30/2016 07/30/2017 PRE10’ 30-1000MHz pre-amp ITS PRE10 PRE10 12/16/2016 12/16/2017 ETS001’ 1-18GHz DRG Horn Antenna ETS-Lindgren 3117 00143259 02/10/2016 02/10/2017 145-416’ Cables 145-420 145-423 145-424 145-408 Huber + Suhner 3m Track B cables multiple 07/30/2016 07/30/2017 145014’ Preamplifier (1 GHz to 26.5 GHz) Hewlett Packard 8449B 3008A00232 05/27/2016 05/27/2017 PRE10’ 30-1000MHz pre-amp ITS PRE10 PRE10 12/16/2016 12/16/2017 Software Utilized: Name Manufacturer Version Compliance5 Teseq 5.26.46.46 13.3 Results: The sample tested was found to Comply.

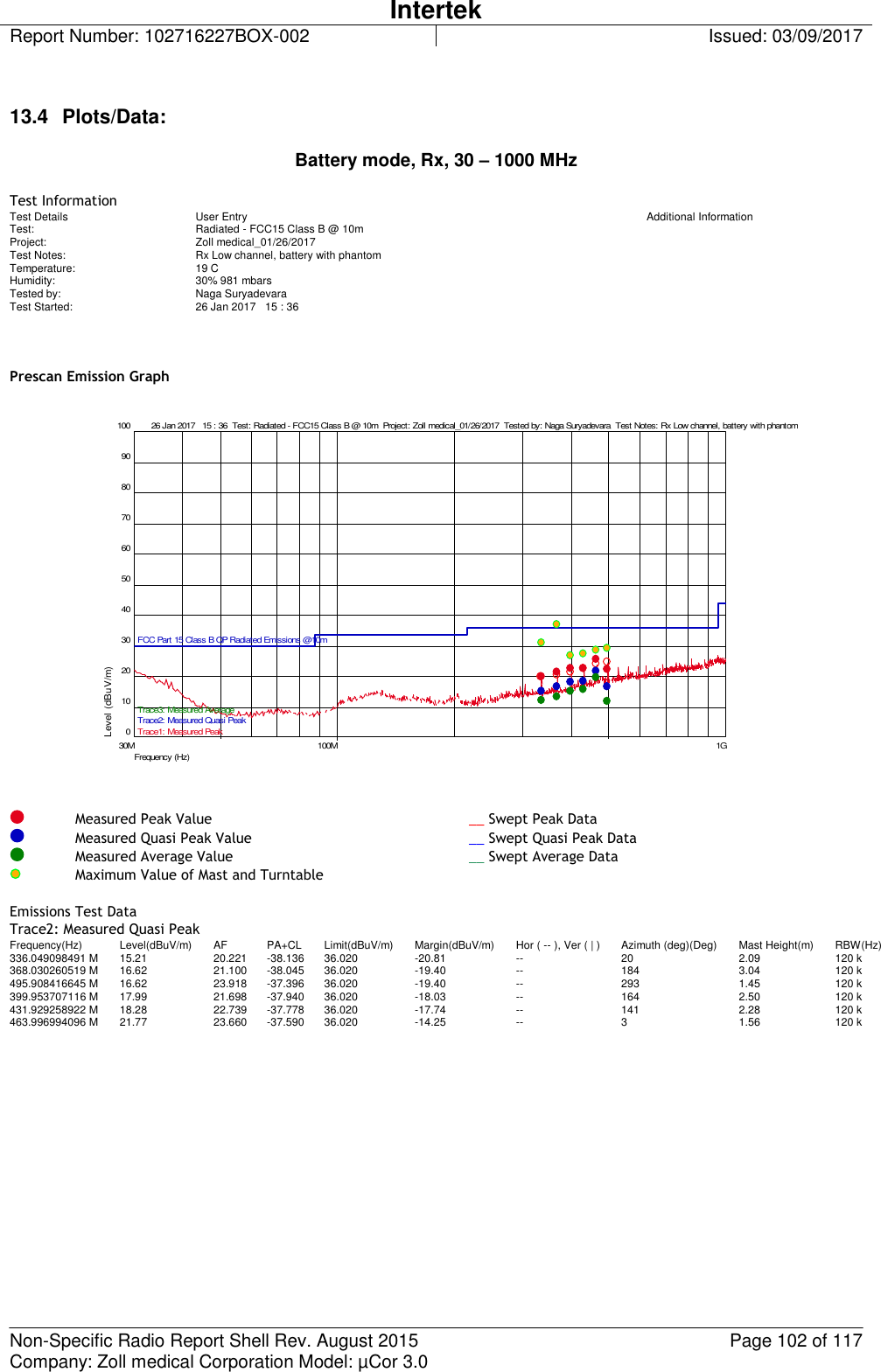

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 102 of 117 Company: Zoll medical Corporation Model: µCor 3.0 13.4 Plots/Data: Battery mode, Rx, 30 – 1000 MHz Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 10m Project: Zoll medical_01/26/2017 Test Notes: Rx Low channel, battery with phantom Temperature: 19 C Humidity: 30% 981 mbars Tested by: Naga Suryadevara Test Started: 26 Jan 2017 15 : 36 Prescan Emission Graph 26 Jan 2017 15 : 36 Test: Radiated - FCC15 Class B @ 10m Project: Zoll medical_01/26/2017 Tested by: Naga Suryadevara Test Notes: Rx Low channel, battery with phantom30M 100M 1GFrequency (Hz)0102030405060708090100Level (dBuV/m)FCC Part 15 Class B QP Radiated Emissions @10mTrace1: Measured PeakTrace2: Measured Quasi PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace2: Measured Quasi Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 336.049098491 M 15.21 20.221 -38.136 36.020 -20.81 -- 20 2.09 120 k 368.030260519 M 16.62 21.100 -38.045 36.020 -19.40 -- 184 3.04 120 k 495.908416645 M 16.62 23.918 -37.396 36.020 -19.40 -- 293 1.45 120 k 399.953707116 M 17.99 21.698 -37.940 36.020 -18.03 -- 164 2.50 120 k 431.929258922 M 18.28 22.739 -37.778 36.020 -17.74 -- 141 2.28 120 k 463.996994096 M 21.77 23.660 -37.590 36.020 -14.25 -- 3 1.56 120 k
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 103 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Charging mode, Rx, 30 – 1000 MHz (XT 1505) Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 10m Project: Zoll medical_01/26/2017 Test Notes: Rx Low channel, charging mode Temperature: 19 C Humidity: 30% 981 mbars Tested by: Naga Suryadevara Test Started: 26 Jan 2017 13 : 56 Prescan Emission Graph 26 Jan 2017 13 : 56 Test: Radiated - FCC15 Class B @ 10m Project: Zoll medical_01/26/2017 Tested by: Naga Suryadevara Test Notes: Rx Low channel, charging mode 30M 100M 1GFrequency (Hz)0102030405060708090100Level (dBuV/m)FCC Part 15 Class B QP Radiated Emissions @10mTrace1: Measured PeakTrace2: Measured Quasi PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace2: Measured Quasi Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 335.933667629 M 20.46 20.219 -38.137 36.020 -15.56 -- 97 2.51 120 k 880.022645431 M 28.95 28.300 -35.446 36.020 -7.07 -- 130 1.26 120 k 303.958115824 M 29.04 19.758 -38.210 36.020 -6.98 -- 261 3.83 120 k 431.966934273 M 30.24 22.739 -37.777 36.020 -5.78 -- 85 1.87 120 k 847.946894224 M 30.58 28.000 -35.554 36.020 -5.44 -- 121 1.15 120 k 815.972144022 M 31.24 28.000 -35.661 36.020 -4.78 -- 297 1.05 120 k

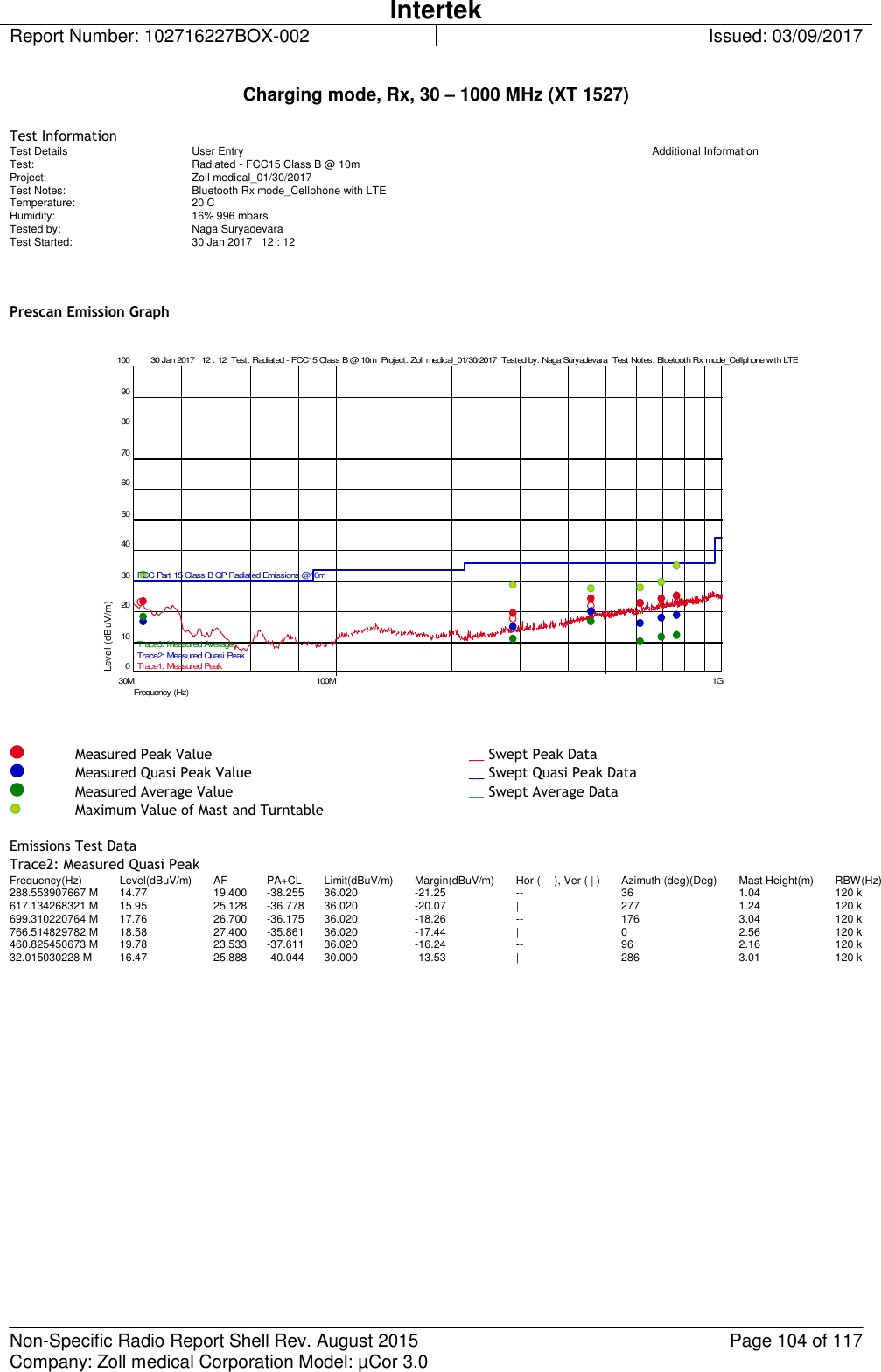

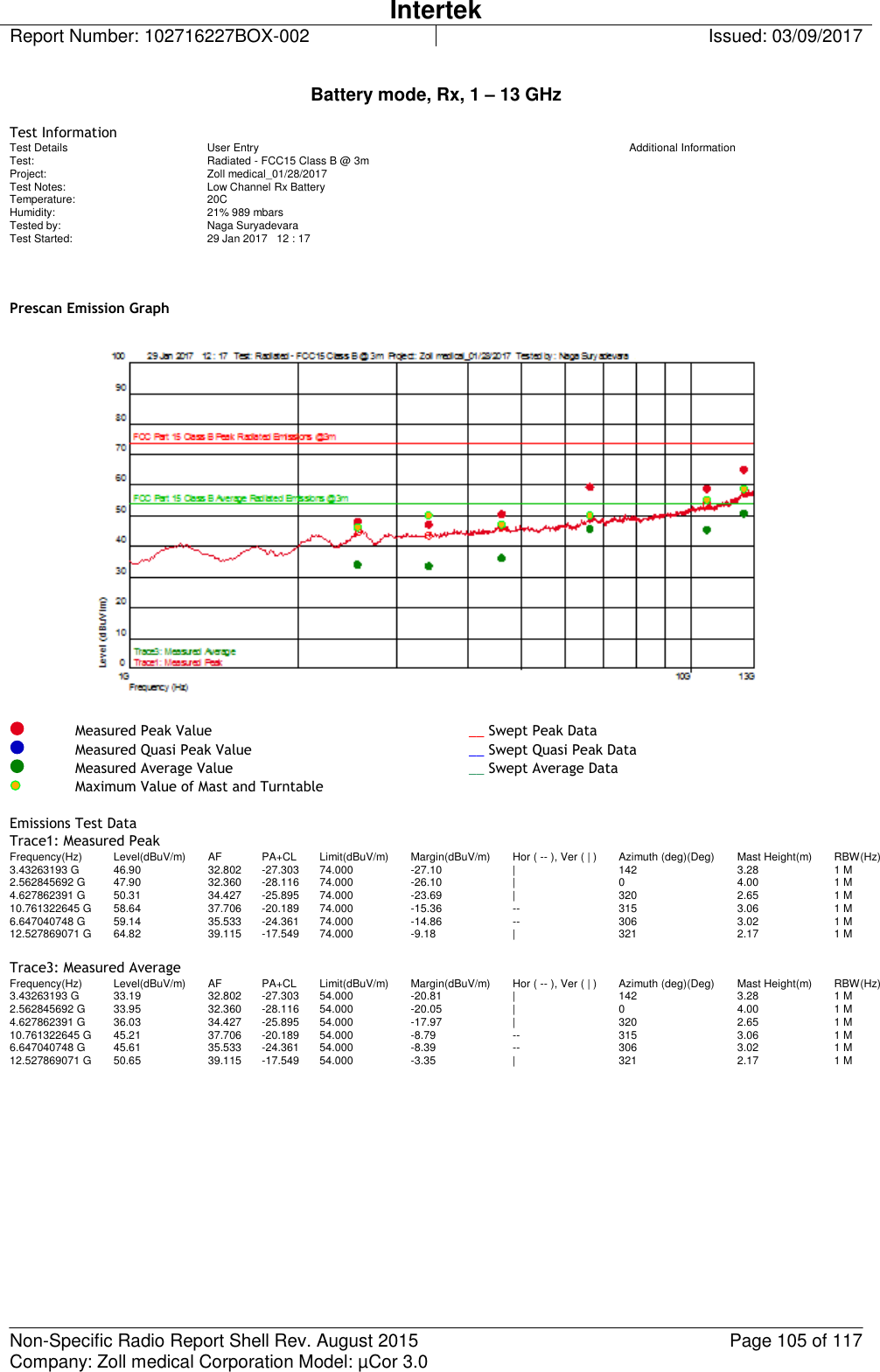

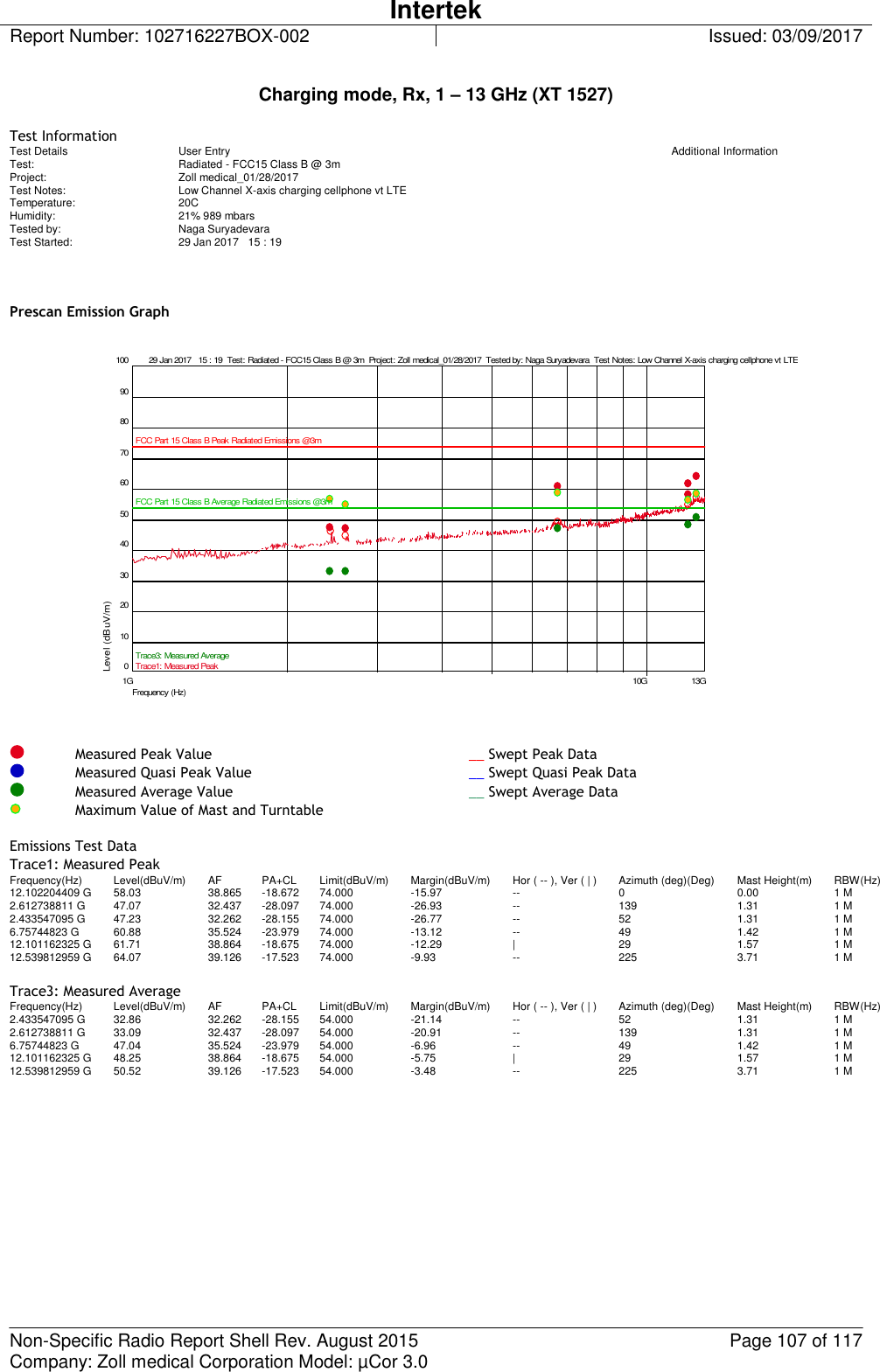

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 104 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Charging mode, Rx, 30 – 1000 MHz (XT 1527) Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 10m Project: Zoll medical_01/30/2017 Test Notes: Bluetooth Rx mode_Cellphone with LTE Temperature: 20 C Humidity: 16% 996 mbars Tested by: Naga Suryadevara Test Started: 30 Jan 2017 12 : 12 Prescan Emission Graph 30 Jan 2017 12 : 12 Test: Radiated - FCC15 Class B @ 10m Project: Zoll medical_01/30/2017 Tested by: Naga Suryadevara Test Notes: Bluetooth Rx mode_Cellphone with LTE30M 100M 1GFrequency (Hz)0102030405060708090100Level (dBuV/m)FCC Part 15 Class B QP Radiated Emissions @10mTrace1: Measured PeakTrace2: Measured Quasi PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace2: Measured Quasi Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 288.553907667 M 14.77 19.400 -38.255 36.020 -21.25 -- 36 1.04 120 k 617.134268321 M 15.95 25.128 -36.778 36.020 -20.07 | 277 1.24 120 k 699.310220764 M 17.76 26.700 -36.175 36.020 -18.26 -- 176 3.04 120 k 766.514829782 M 18.58 27.400 -35.861 36.020 -17.44 | 0 2.56 120 k 460.825450673 M 19.78 23.533 -37.611 36.020 -16.24 -- 96 2.16 120 k 32.015030228 M 16.47 25.888 -40.044 30.000 -13.53 | 286 3.01 120 k
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 105 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Battery mode, Rx, 1 – 13 GHz Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Test Notes: Low Channel Rx Battery Temperature: 20C Humidity: 21% 989 mbars Tested by: Naga Suryadevara Test Started: 29 Jan 2017 12 : 17 Prescan Emission Graph Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace1: Measured Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 3.43263193 G 46.90 32.802 -27.303 74.000 -27.10 | 142 3.28 1 M 2.562845692 G 47.90 32.360 -28.116 74.000 -26.10 | 0 4.00 1 M 4.627862391 G 50.31 34.427 -25.895 74.000 -23.69 | 320 2.65 1 M 10.761322645 G 58.64 37.706 -20.189 74.000 -15.36 -- 315 3.06 1 M 6.647040748 G 59.14 35.533 -24.361 74.000 -14.86 -- 306 3.02 1 M 12.527869071 G 64.82 39.115 -17.549 74.000 -9.18 | 321 2.17 1 M Trace3: Measured Average Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 3.43263193 G 33.19 32.802 -27.303 54.000 -20.81 | 142 3.28 1 M 2.562845692 G 33.95 32.360 -28.116 54.000 -20.05 | 0 4.00 1 M 4.627862391 G 36.03 34.427 -25.895 54.000 -17.97 | 320 2.65 1 M 10.761322645 G 45.21 37.706 -20.189 54.000 -8.79 -- 315 3.06 1 M 6.647040748 G 45.61 35.533 -24.361 54.000 -8.39 -- 306 3.02 1 M 12.527869071 G 50.65 39.115 -17.549 54.000 -3.35 | 321 2.17 1 M
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 106 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Charging mode, Rx, 1 – 13 GHz (XT 1505) Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Test Notes: Low Channel X-axis charging cellphone w/o LTE Temperature: 20C Humidity: 21% 989 mbars Tested by: Naga Suryadevara Test Started: 29 Jan 2017 16 : 19 Prescan Emission Graph 29 Jan 2017 16 : 19 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: Low Channel X-axis charging cellphone w/o LTE1G 10G 13GFrequency (Hz)0102030405060708090100Level (dBuV/m)FCC Part 15 Class B Average Radiated Emissions @3mFCC Part 15 Class B Peak Radiated Emissions @3mTrace1: Measured PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace1: Measured Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 1.887882431 G 45.60 30.801 -28.451 74.000 -28.40 -- 96 1.31 1 M 2.439425518 G 49.78 32.257 -28.153 74.000 -24.22 -- 128 1.07 1 M 6.625210421 G 59.21 35.548 -24.447 74.000 -14.79 | 253 1.07 1 M 12.348550435 G 63.27 39.103 -18.019 74.000 -10.73 -- 163 1.67 1 M Trace3: Measured Average Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 1.887882431 G 32.20 30.801 -28.451 54.000 -21.80 -- 96 1.31 1 M 2.439425518 G 40.41 32.257 -28.153 54.000 -13.59 -- 128 1.07 1 M 6.625210421 G 45.27 35.548 -24.447 54.000 -8.73 | 253 1.07 1 M 12.348550435 G 49.50 39.103 -18.019 54.000 -4.50 -- 163 1.67 1 M
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 107 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Charging mode, Rx, 1 – 13 GHz (XT 1527) Test Information Test Details User Entry Additional Information Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Test Notes: Low Channel X-axis charging cellphone vt LTE Temperature: 20C Humidity: 21% 989 mbars Tested by: Naga Suryadevara Test Started: 29 Jan 2017 15 : 19 Prescan Emission Graph 29 Jan 2017 15 : 19 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: Low Channel X-axis charging cellphone vt LTE1G 10G 13GFrequency (Hz)0102030405060708090100Level (dBuV/m)FCC Part 15 Class B Average Radiated Emissions @3mFCC Part 15 Class B Peak Radiated Emissions @3mTrace1: Measured PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace1: Measured Peak Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 12.102204409 G 58.03 38.865 -18.672 74.000 -15.97 -- 0 0.00 1 M 2.612738811 G 47.07 32.437 -28.097 74.000 -26.93 -- 139 1.31 1 M 2.433547095 G 47.23 32.262 -28.155 74.000 -26.77 -- 52 1.31 1 M 6.75744823 G 60.88 35.524 -23.979 74.000 -13.12 -- 49 1.42 1 M 12.101162325 G 61.71 38.864 -18.675 74.000 -12.29 | 29 1.57 1 M 12.539812959 G 64.07 39.126 -17.523 74.000 -9.93 -- 225 3.71 1 M Trace3: Measured Average Frequency(Hz) Level(dBuV/m) AF PA+CL Limit(dBuV/m) Margin(dBuV/m) Hor ( -- ), Ver ( | ) Azimuth (deg)(Deg) Mast Height(m) RBW(Hz) 2.433547095 G 32.86 32.262 -28.155 54.000 -21.14 -- 52 1.31 1 M 2.612738811 G 33.09 32.437 -28.097 54.000 -20.91 -- 139 1.31 1 M 6.75744823 G 47.04 35.524 -23.979 54.000 -6.96 -- 49 1.42 1 M 12.101162325 G 48.25 38.864 -18.675 54.000 -5.75 | 29 1.57 1 M 12.539812959 G 50.52 39.126 -17.523 54.000 -3.48 -- 225 3.71 1 M
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 108 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Test Personnel: Naga Suryadevara Test Date: 01/26/2017 01/29/2017 01/30/2017 Supervising/Reviewing Engineer: (Where Applicable) N/A Product Standard: FCC Part 15 Subpart B Limit Applied: Class A Input Voltage: 120VAC 60Hz Internal Battery Pretest Verification w/ Ambient Signals or BB Source: BB Source Ambient Temperature: 19, 20, 20 ºC Relative Humidity: 30, 21, 16 % Atmospheric Pressure: 981, 989, 996 mbars

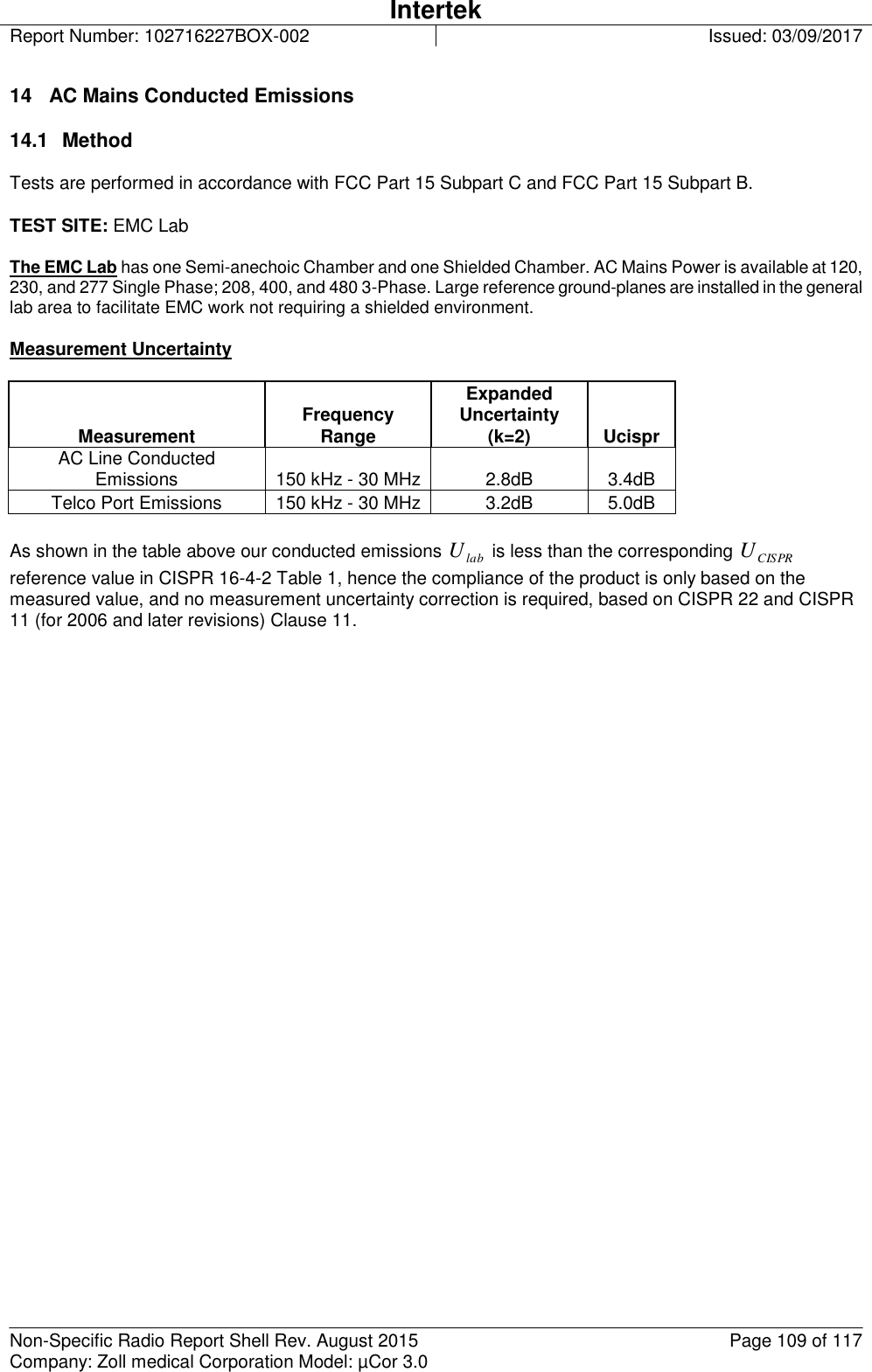

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 109 of 117 Company: Zoll medical Corporation Model: µCor 3.0 14 AC Mains Conducted Emissions 14.1 Method Tests are performed in accordance with FCC Part 15 Subpart C and FCC Part 15 Subpart B. TEST SITE: EMC Lab The EMC Lab has one Semi-anechoic Chamber and one Shielded Chamber. AC Mains Power is available at 120, 230, and 277 Single Phase; 208, 400, and 480 3-Phase. Large reference ground-planes are installed in the general lab area to facilitate EMC work not requiring a shielded environment. Measurement Uncertainty Measurement Frequency Range Expanded Uncertainty (k=2) Ucispr AC Line Conducted Emissions 150 kHz - 30 MHz 2.8dB 3.4dB Telco Port Emissions 150 kHz - 30 MHz 3.2dB 5.0dB As shown in the table above our conducted emissions labU is less than the corresponding CISPRU reference value in CISPR 16-4-2 Table 1, hence the compliance of the product is only based on the measured value, and no measurement uncertainty correction is required, based on CISPR 22 and CISPR 11 (for 2006 and later revisions) Clause 11.

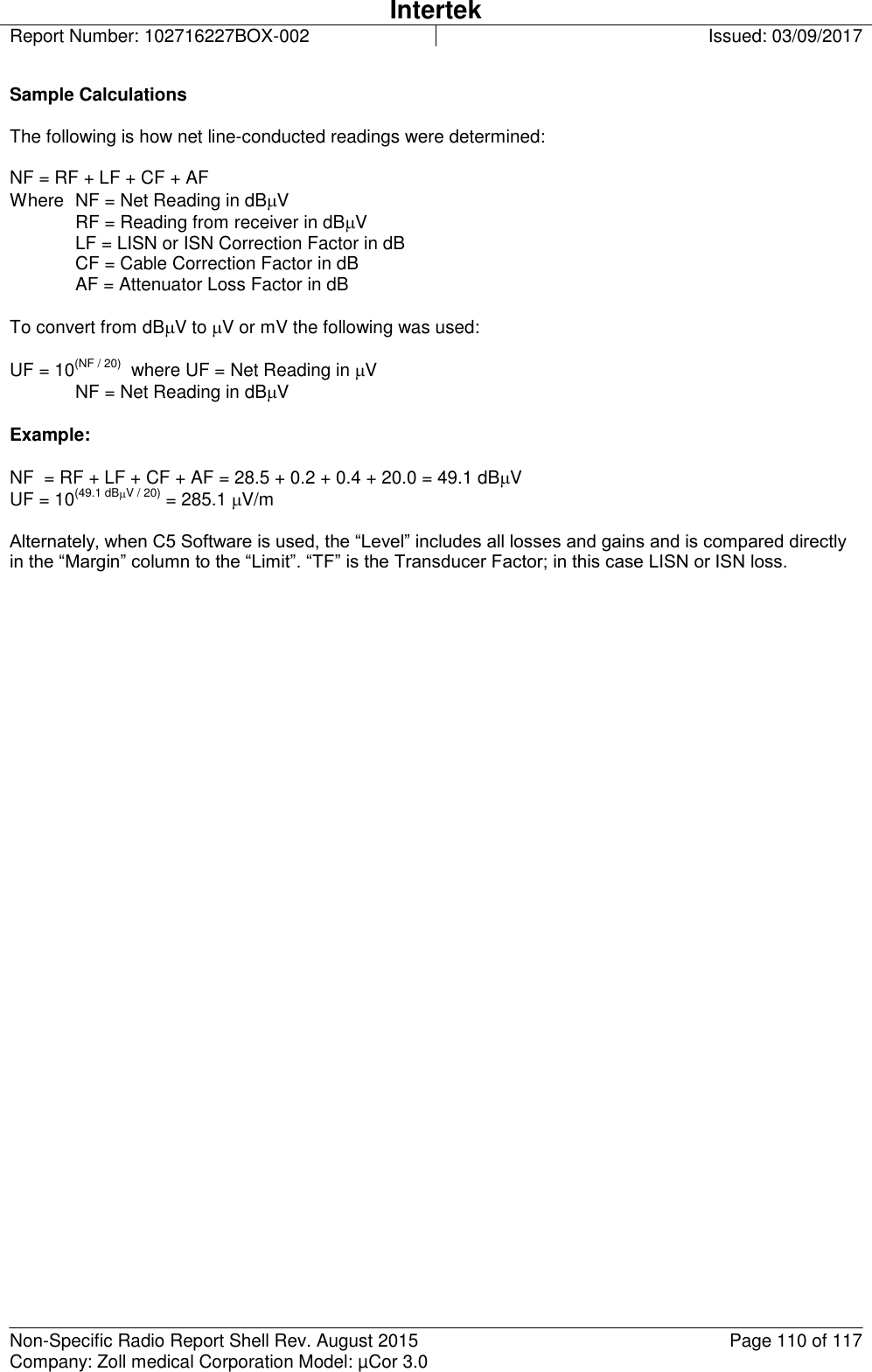

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 110 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Sample Calculations The following is how net line-conducted readings were determined: NF = RF + LF + CF + AF Where NF = Net Reading in dBV RF = Reading from receiver in dBV LF = LISN or ISN Correction Factor in dB CF = Cable Correction Factor in dB AF = Attenuator Loss Factor in dB To convert from dBV to V or mV the following was used: UF = 10(NF / 20) where UF = Net Reading in V NF = Net Reading in dBV Example: NF = RF + LF + CF + AF = 28.5 + 0.2 + 0.4 + 20.0 = 49.1 dBV UF = 10(49.1 dBV / 20) = 285.1 V/m Alternately, when C5 Software is used, the “Level” includes all losses and gains and is compared directly in the “Margin” column to the “Limit”. “TF” is the Transducer Factor; in this case LISN or ISN loss.

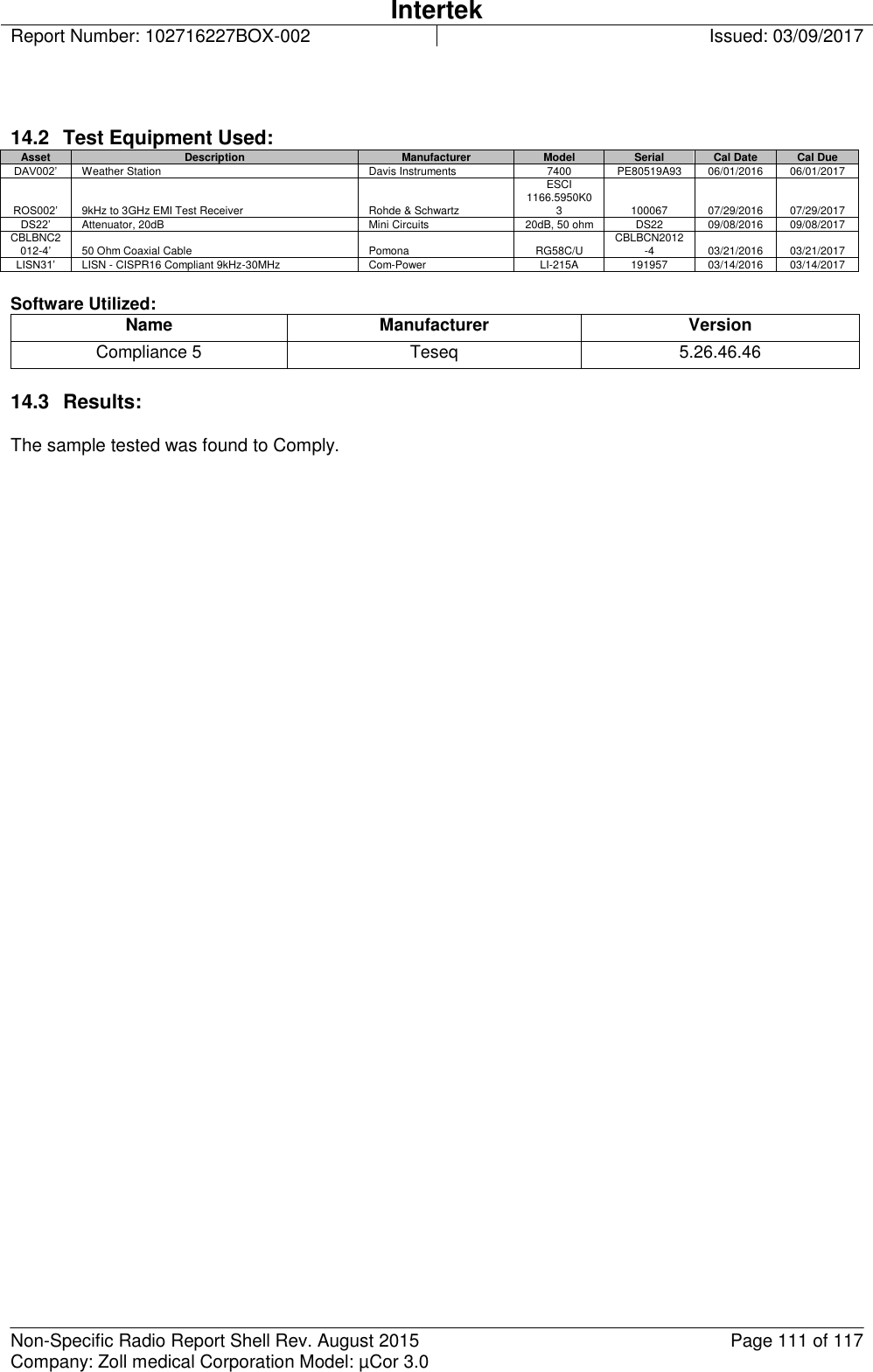

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 111 of 117 Company: Zoll medical Corporation Model: µCor 3.0 14.2 Test Equipment Used: Asset Description Manufacturer Model Serial Cal Date Cal Due DAV002’ Weather Station Davis Instruments 7400 PE80519A93 06/01/2016 06/01/2017 ROS002’ 9kHz to 3GHz EMI Test Receiver Rohde & Schwartz ESCI 1166.5950K03 100067 07/29/2016 07/29/2017 DS22’ Attenuator, 20dB Mini Circuits 20dB, 50 ohm DS22 09/08/2016 09/08/2017 CBLBNC2012-4’ 50 Ohm Coaxial Cable Pomona RG58C/U CBLBCN2012-4 03/21/2016 03/21/2017 LISN31’ LISN - CISPR16 Compliant 9kHz-30MHz Com-Power LI-215A 191957 03/14/2016 03/14/2017 Software Utilized: Name Manufacturer Version Compliance 5 Teseq 5.26.46.46 14.3 Results: The sample tested was found to Comply.

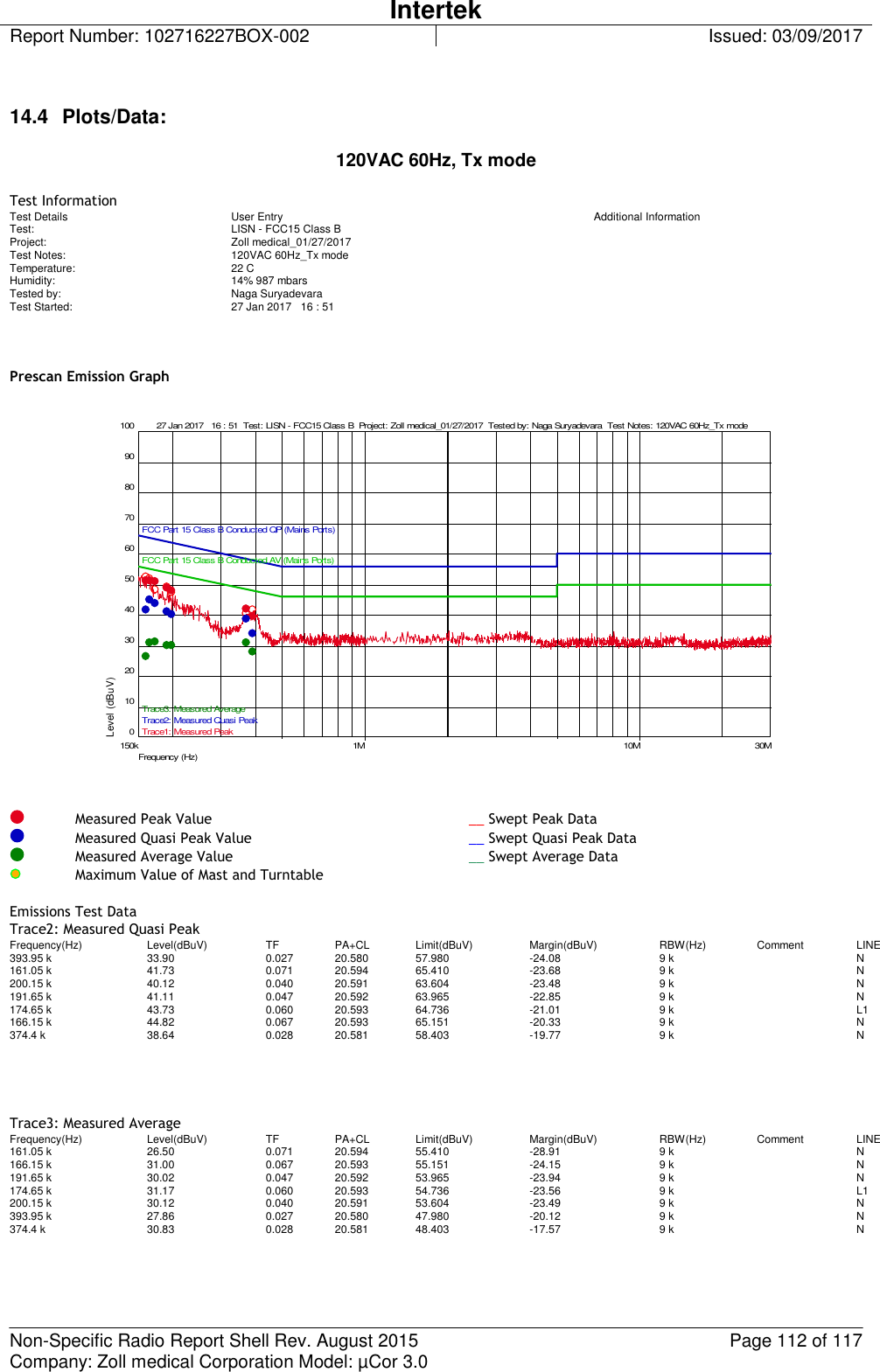

Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 112 of 117 Company: Zoll medical Corporation Model: µCor 3.0 14.4 Plots/Data: 120VAC 60Hz, Tx mode Test Information Test Details User Entry Additional Information Test: LISN - FCC15 Class B Project: Zoll medical_01/27/2017 Test Notes: 120VAC 60Hz_Tx mode Temperature: 22 C Humidity: 14% 987 mbars Tested by: Naga Suryadevara Test Started: 27 Jan 2017 16 : 51 Prescan Emission Graph 27 Jan 2017 16 : 51 Test: LISN - FCC15 Class B Project: Zoll medical_01/27/2017 Tested by: Naga Suryadevara Test Notes: 120VAC 60Hz_Tx mode150k 1M 10M 30MFrequency (Hz)0102030405060708090100Level (dBuV)FCC Part 15 Class B Conducted AV (Mains Ports)FCC Part 15 Class B Conducted QP (Mains Ports)Trace1: Measured PeakTrace2: Measured Quasi PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace2: Measured Quasi Peak Frequency(Hz) Level(dBuV) TF PA+CL Limit(dBuV) Margin(dBuV) RBW(Hz) Comment LINE 393.95 k 33.90 0.027 20.580 57.980 -24.08 9 k N 161.05 k 41.73 0.071 20.594 65.410 -23.68 9 k N 200.15 k 40.12 0.040 20.591 63.604 -23.48 9 k N 191.65 k 41.11 0.047 20.592 63.965 -22.85 9 k N 174.65 k 43.73 0.060 20.593 64.736 -21.01 9 k L1 166.15 k 44.82 0.067 20.593 65.151 -20.33 9 k N 374.4 k 38.64 0.028 20.581 58.403 -19.77 9 k N Trace3: Measured Average Frequency(Hz) Level(dBuV) TF PA+CL Limit(dBuV) Margin(dBuV) RBW(Hz) Comment LINE 161.05 k 26.50 0.071 20.594 55.410 -28.91 9 k N 166.15 k 31.00 0.067 20.593 55.151 -24.15 9 k N 191.65 k 30.02 0.047 20.592 53.965 -23.94 9 k N 174.65 k 31.17 0.060 20.593 54.736 -23.56 9 k L1 200.15 k 30.12 0.040 20.591 53.604 -23.49 9 k N 393.95 k 27.86 0.027 20.580 47.980 -20.12 9 k N 374.4 k 30.83 0.028 20.581 48.403 -17.57 9 k N
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 113 of 117 Company: Zoll medical Corporation Model: µCor 3.0 120VAC 60Hz, Rx mode Test Information Test Details User Entry Additional Information Test: LISN - FCC15 Class B Project: Zoll medical_01/27/2017 Test Notes: 120VAC 60Hz_Rx mode Temperature: 22 C Humidity: 14% 987 mbars Tested by: Naga Suryadevara Test Started: 27 Jan 2017 17 : 08 Prescan Emission Graph 27 Jan 2017 17 : 08 Test: LISN - FCC15 Class B Project: Zoll medical_01/27/2017 Tested by: Naga Suryadevara Test Notes: 120VAC 60Hz_Rx mode150k 1M 10M 30MFrequency (Hz)0102030405060708090100Level (dBuV)FCC Part 15 Class B Conducted AV (Mains Ports)FCC Part 15 Class B Conducted QP (Mains Ports)Trace1: Measured PeakTrace2: Measured Quasi PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace2: Measured Quasi Peak Frequency(Hz) Level(dBuV) TF PA+CL Limit(dBuV) Margin(dBuV) RBW(Hz) Comment LINE 441.55 k 31.46 0.025 20.577 57.033 -25.57 9 k N 193.35 k 39.43 0.045 20.592 63.891 -24.46 9 k N 199.3 k 39.69 0.041 20.591 63.640 -23.95 9 k N 172.95 k 43.14 0.062 20.593 64.818 -21.68 9 k L1 372.7 k 39.12 0.028 20.581 58.441 -19.32 9 k N 154.25 k 47.86 0.077 20.594 65.768 -17.91 9 k N Trace3: Measured Average Frequency(Hz) Level(dBuV) TF PA+CL Limit(dBuV) Margin(dBuV) RBW(Hz) Comment LINE 193.35 k 28.13 0.045 20.592 53.891 -25.76 9 k N 172.95 k 31.00 0.062 20.593 54.818 -23.82 9 k L1 199.3 k 30.07 0.041 20.591 53.640 -23.57 9 k N 154.25 k 34.48 0.077 20.594 55.768 -21.29 9 k N 441.55 k 26.76 0.025 20.577 47.033 -20.28 9 k N 372.7 k 31.58 0.028 20.581 48.441 -16.86 9 k N
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 114 of 117 Company: Zoll medical Corporation Model: µCor 3.0 120VAC 60Hz, Tx mode Test Information Test Details User Entry Additional Information Test: LISN - FCC15 Class B Project: Zoll medical_01/30/2017 Test Notes: Tx mode Cellphone with LTE Tested by: Naga Suryadevara Test Started: 30 Jan 2017 17 : 00 Prescan Emission Graph 30 Jan 2017 17 : 00 Test: LISN - FCC15 Class B Project: Zoll medical_01/30/2017 Tested by: Naga Suryadevara Test Notes: Tx mode Cellphone with LTE150k 1M 10M 30MFrequency (Hz)0102030405060708090100Level (dBuV)FCC Part 15 Class B Conducted AV (Mains Ports)FCC Part 15 Class B Conducted QP (Mains Ports)Trace1: Measured PeakTrace2: Measured Quasi PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace2: Measured Quasi Peak Frequency(Hz) Level(dBuV) TF PA+CL Limit(dBuV) Margin(dBuV) RBW(Hz) Comment LINE 429.65 k 24.29 0.026 20.577 57.259 -32.97 9 k N 3.169 M 25.00 0.020 20.580 56.000 -31.00 9 k L1 250.3 k 34.83 0.035 20.588 61.747 -26.92 9 k N 178.9 k 46.12 0.057 20.593 64.537 -18.42 9 k L1 154.25 k 49.49 0.077 20.594 65.768 -16.28 9 k L1 367.6 k 44.95 0.028 20.581 58.555 -13.61 9 k L1 Trace3: Measured Average Frequency(Hz) Level(dBuV) TF PA+CL Limit(dBuV) Margin(dBuV) RBW(Hz) Comment LINE 429.65 k 19.97 0.026 20.577 47.259 -27.29 9 k N 3.169 M 19.43 0.020 20.580 46.000 -26.57 9 k L1 250.3 k 25.44 0.035 20.588 51.747 -26.30 9 k N 154.25 k 34.71 0.077 20.594 55.768 -21.06 9 k L1 178.9 k 34.97 0.057 20.593 54.537 -19.57 9 k L1 367.6 k 40.17 0.028 20.581 48.555 -8.38 9 k L1
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 115 of 117 Company: Zoll medical Corporation Model: µCor 3.0 120VAC 60Hz, Rx mode Test Information Test Details User Entry Additional Information Test: LISN - FCC15 Class B Project: Zoll medical_01/30/2017 Test Notes: Rx mode Cellphone with LTE Tested by: Naga Suryadevara Test Started: 30 Jan 2017 17 : 22 Prescan Emission Graph 30 Jan 2017 17 : 22 Test: LISN - FCC15 Class B Project: Zoll medical_01/30/2017 Tested by: Naga Suryadevara Test Notes: Rx mode Cellphone with LTE150k 1M 10M 30MFrequency (Hz)0102030405060708090100Level (dBuV)FCC Part 15 Class B Conducted AV (Mains Ports)FCC Part 15 Class B Conducted QP (Mains Ports)Trace1: Measured PeakTrace2: Measured Quasi PeakTrace3: Measured Average Measured Peak Value __ Swept Peak Data Measured Quasi Peak Value __ Swept Quasi Peak Data Measured Average Value __ Swept Average Data Maximum Value of Mast and Turntable Emissions Test Data Trace2: Measured Quasi Peak Frequency(Hz) Level(dBuV) TF PA+CL Limit(dBuV) Margin(dBuV) RBW(Hz) Comment LINE 224.8 k 37.86 0.038 20.590 62.640 -24.78 9 k N 198.45 k 40.87 0.041 20.591 63.675 -22.80 9 k N 170.4 k 45.14 0.064 20.593 64.941 -19.80 9 k N 176.35 k 46.01 0.059 20.593 64.656 -18.65 9 k L1 155.1 k 49.35 0.076 20.594 65.722 -16.37 9 k L1 371.85 k 45.74 0.028 20.581 58.460 -12.72 9 k N Trace3: Measured Average Frequency(Hz) Level(dBuV) TF PA+CL Limit(dBuV) Margin(dBuV) RBW(Hz) Comment LINE 224.8 k 29.91 0.038 20.590 52.640 -22.73 9 k N 170.4 k 33.07 0.064 20.593 54.941 -21.87 9 k N 198.45 k 32.24 0.041 20.591 53.675 -21.43 9 k N 155.1 k 35.10 0.076 20.594 55.722 -20.63 9 k L1 176.35 k 35.12 0.059 20.593 54.656 -19.54 9 k L1 371.85 k 40.35 0.028 20.581 48.460 -8.11 9 k N
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 116 of 117 Company: Zoll medical Corporation Model: µCor 3.0 Test Personnel: Naga Suryadevara Test Date: 01/27/2017 01/30/2017 Supervising/Reviewing Engineer: (Where Applicable) N/A Product Standard: FCC Part 15 Subpart C FCC Part 15 Subpart B Limit Applied: Class B Input Voltage: 120VAC 60Hz Pretest Verification w/ Ambient Signals or BB Source: Signal generator Ambient Temperature: 22, 20 ºC Relative Humidity: 14, 17 % Atmospheric Pressure: 987, 990 mbars Deviations, Additions, or Exclusions: None
Intertek Report Number: 102716227BOX-002 Issued: 03/09/2017 Non-Specific Radio Report Shell Rev. August 2015 Page 117 of 117 Company: Zoll medical Corporation Model: µCor 3.0 15 Revision History Revision Level Date Report Number Prepared By Reviewed By Notes 0 02/12/2017 102716227BOX-002 VFV Original Issue 1 02/15/2017 102716227BOX-002 VFV Fixed typographical errors 2 03/09/2017 102716227BOX-002 VFV Updated section 4, 5.1, 5.2 and pages 94-97.
