ZOLL Medical Israel UCOR30 uCOR Monitoring System, uCor 3.0 User Manual EMC TEST REPORT
ZOLL Medical Israel Ltd. uCOR Monitoring System, uCor 3.0 EMC TEST REPORT
Manual
Non-Specific Radio Report Shell Rev. August 2015
Page 1 of 117
Company: Zoll medical Corporation Model: µCor 3.0
EMC TEST REPORT
(FULL COMPLIANCE)
Report Number: 102716227BOX-002
Project Number: G102716227
Report Issue Date: 03/09/2017
Model(s) Tested:
µCor 3.0
Model(s) Partially Tested:
None
Model(s) Not Tested but declared equivalent by the
client:
None
Standards:
FCC Part 15 Subpart C: 01/2017
FCC Part 15 Subpart B: 01/2017
Tested by:
Client:
Intertek Testing Services NA, Inc.
70 Codman Hill Road
Boxborough, MA 01719
USA
Zoll Medical Israel Ltd.
14 Atir Yeda Street
Kfar-Saba 4464313
Israel
Client:
Zoll Medical Corporation
121 Gamma Drive Pittsburgh
PA 15238
USA
Report prepared by Naga Suryadevara
Report reviewed by Vathana Ven
Naga Suryadevara/EMC Engineer
Vathana Ven/Staff Engineer, EMC
This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between
Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the
agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement,
for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit
copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its
marks for the sale or advertisement of the tested material, product or service must first be approved in writing by
Intertek. The observations and test results in this report are relevant only to the sample tested. This report by
itself does not imply that the material, product, or service is or has ever been under an Intertek certification
program.
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 2 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Table of Contents
1 Introduction and Conclusion .............................................................................................................. 3
2 Test Summary ...................................................................................................................................... 3
3 Client Information ................................................................................................................................ 4
4 Description of Equipment Under Test and Variant Models ............................................................. 4
5 System Setup and Method .................................................................................................................. 6
6 Output Power and Human RF Exposure ........................................................................................... 7
7 Occupied and 20dB Bandwidth ........................................................................................................ 15
8 Channel Separation ........................................................................................................................... 29
9 Number of Hopping Channels .......................................................................................................... 32
10 Average Channel Occupancy Time .............................................................................................. 34
11 Out of Band Conducted Emissions .............................................................................................. 38
12 Radiated Spurious Emissions ....................................................................................................... 72
13 Radiated Emissions (Digital Device and Receiver) ..................................................................... 99
14 AC Mains Conducted Emissions ................................................................................................ 109
15 Revision History ........................................................................................................................... 117
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 3 of 117
Company: Zoll medical Corporation Model: µCor 3.0
1 Introduction and Conclusion
The tests indicated in section 2.0 were performed on the product constructed as described in section 4.0.
The remaining test sections are the verbatim text from the actual data sheets used during the
investigation. These test sections include the test name, the specified test Method, a list of the actual Test
Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions
have been made from the standard(s) unless specifically noted.
Based on the results of our investigation, we have concluded the product tested
complies
with the
requirements of the standard(s) indicated. The results obtained in this test report pertain only to the
item(s) tested. Intertek does not make any claims of compliance for samples or variants which were not
tested.
2 Test Summary
Section
Test full name
Result
3
Client Information
4
Description of Equipment Under Test and Variant Models
5
System Setup and Method
6
Output Power and Human RF Exposure
(CFR47 FCC Part 15 Subpart C (15.247): 01/2017)
Pass
7
Occupied (99%) and 20 dB Bandwidth
(CFR47 FCC Part 15 Subpart C (15.247): 01/2017)
Pass
8
Channel Separation
(CFR47 FCC Part 15 Subpart C (15.247): 01/2017)
Pass
9
Number of Hopping Channels
(CFR47 FCC Part 15 Subpart C (15.247): 01/2017)
Pass
10
Average Channel Occupancy Time
(CFR47 FCC Part 15 Subpart C (15.247): 01/2017)
Pass
11
Out of Band Conducted Emissions
(CFR47 FCC Part 15 Subpart C (15.247): 01/2017)
Pass
12
Radiated Spurious Emissions
(CFR47 FCC Part 15 Subpart C (15.247): 01/2017)
Pass
13
Radiated Emissions (Digital parts and Receiver)
(FCC Part 15 Subpart B: 01/2017)
Pass
14
AC Mains Conducted Emissions
(FCC Part 15 Subpart B: 01/2017)
Pass
15
Revision History
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 4 of 117
Company: Zoll medical Corporation Model: µCor 3.0
3 Client Information
This EUT was tested at the request of:
Client: Zoll Medical Israel Ltd.
14 Atir Yeda Street
Kfar-Saba 4464313
Israel
Contact: Moshik Mosesko
Telephone: +972 9 9603900
Fax: None
Email: moshik@zoll.com
4 Description of Equipment Under Test and Variant Models
Manufacturer: Zoll Medical Israel Ltd.
14 Atir Yeda Street
Kfar-Saba 4464313
Israel.
Equipment Under Test
Description
Manufacturer
Model Number
Serial Number
µCor 3.0 sensor with
cable for Bluetooth
communication
Zoll
AS4200-01
D3-61653-0002
µCor 3.0 open sensor
with cable for Bluetooth
communication and
antenna cable
Zoll
AS4200-01
N/A
µCor 3.0 sensor
Zoll
AS4200-01
D3-61652-0095
µCor 3.0 charger (with
XT1527 (LTE) cellular
phone)
Zoll
CH0202-01
C3-61520-0124
µCor 3.0 charger(with
XT1505 cellular phone)
Zoll
CH0202-01
C3-61520-0127
AC/DC adapter
Fuhua Electronic
UE24WCP1-
050300SPA
N/A
Receive Date:
01/26/2017
Received Condition:
Good
Type:
Production
Description of Equipment Under Test (provided by client)
The µCor 3.0 System is intended to record, store, and transmit the following physiological data to medical
professionals: i) Thoracic Impedance, ii) ECG; iii) Heart Rate; iv) Respiration Rate; v) Activity; and vi)
Posture. The µCor 3.0 System is indicated for patients who are 21 years of age or older: i) with fluid-
management problems; ii) taking diuretic medication; iii) living with heart failure; iv) living with end-stage
renal disease; v) recovering from a coronary artery disease-related event; and/or vi) suffering from
recurrent dehydration.
Equipment Under Test Power Configuration
Rated Voltage
Rated Current
Rated Frequency
Number of Phases
100-240VAC (I/P to
Power Supply)
0.8 Amps
50/60 Hz
Single
Internal Battery Li-Pol
370 mA
N/A
N/A
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 5 of 117
Company: Zoll medical Corporation Model: µCor 3.0
3.7V
Operating modes of the EUT:
No.
Descriptions of EUT Exercising
1
Transmit mode – operating on internal battery
2
Receive mode – operating on internal battery
3
Transmit mode – Charging
4
Receive mode – Charging
Software used by the EUT:
Sensor:
No.
Descriptions of EUT Exercising
1
Microcontroller version : 1.0.3
2
FPGA version: 3.0
3
BT version: 5.8
4
Fuel Gauge Version : 10082014
Gateway (cellular phone):
No.
Descriptions of EUT Exercising
1
Access point: 1.3
Server:
No.
Descriptions of EUT Exercising
1
ServerApp: 2.0.0.5
Radio/Receiver Characteristics
Frequency Band(s)
2412 – 2480 MHz
Modulation Type(s)
π/4 DQPSK(low baud rate) and 8DPSK(high baud rate)
Data rates
Data Rate type(low baud rate) – Basic (DH3)
Data Rate type(high baud rate) – EDR (3-DH5)
Maximum Output Power
3.863 mW
Test Channels
Channel low - 2402 MHz
Channel middle - 2441 MHz
Channel high - 2480 MHz
Occupied Bandwidth
1.2307 MHz (OBW)
1.35 MHz (20dB)
Frequency Hopper: Number of Hopping
Channels
79
Frequency Hopper: Channel Dwell Time
0.290 sec
MIMO Information (# of Transmit and
Receive antenna ports)
N/A
Equipment Type
Bluetooth single chip radio based on BlueCore 4.
ETSI LBT/Adaptivity
N/A
ETSI Adaptivity Type
N/A
ETSI Temperature Category (I, II, III)
N/A
ETSI Receiver Category (1, 2, 3)
N/A
Antenna Type and Gain
Integrated Antenna chip - 2450AT18B100E (Johanson)
Peak Gain 0.5 dBi.
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 6 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Variant Models:
The following variant models were not tested as part of this evaluation, but have been identified by the
manufacturer as being electrically identical models, depopulated models, or with reasonable similarity to
the model(s) tested. Intertek does not make any claims of compliance for samples or variants which were
not tested.
None
5 System Setup and Method
Cables
ID
Description
Length
(m)
Shielding
Ferrites
Termination
1
Power Cable
2
None
None
AC Mains
Support Equipment
Description
Manufacturer
Model Number
Serial Number
Laptop
Dell
Latitude E7450
D48ZG72
Phantom + Patch
Zoll
Patch PT0203-01
Phantom JIG0021
N/A
Gateway (Cellular
phone) into the charger
Motorola
XT1505
XT1527
GWID:1041
GWID:1047
5.1 Method:
Configuration as required by FCC Part 15 Subpart C: 01/2017, FCC Part 15 Subpart B: 01/2017, ANSI C
63.10: 2013 and ANSI C 63.4: 2014.

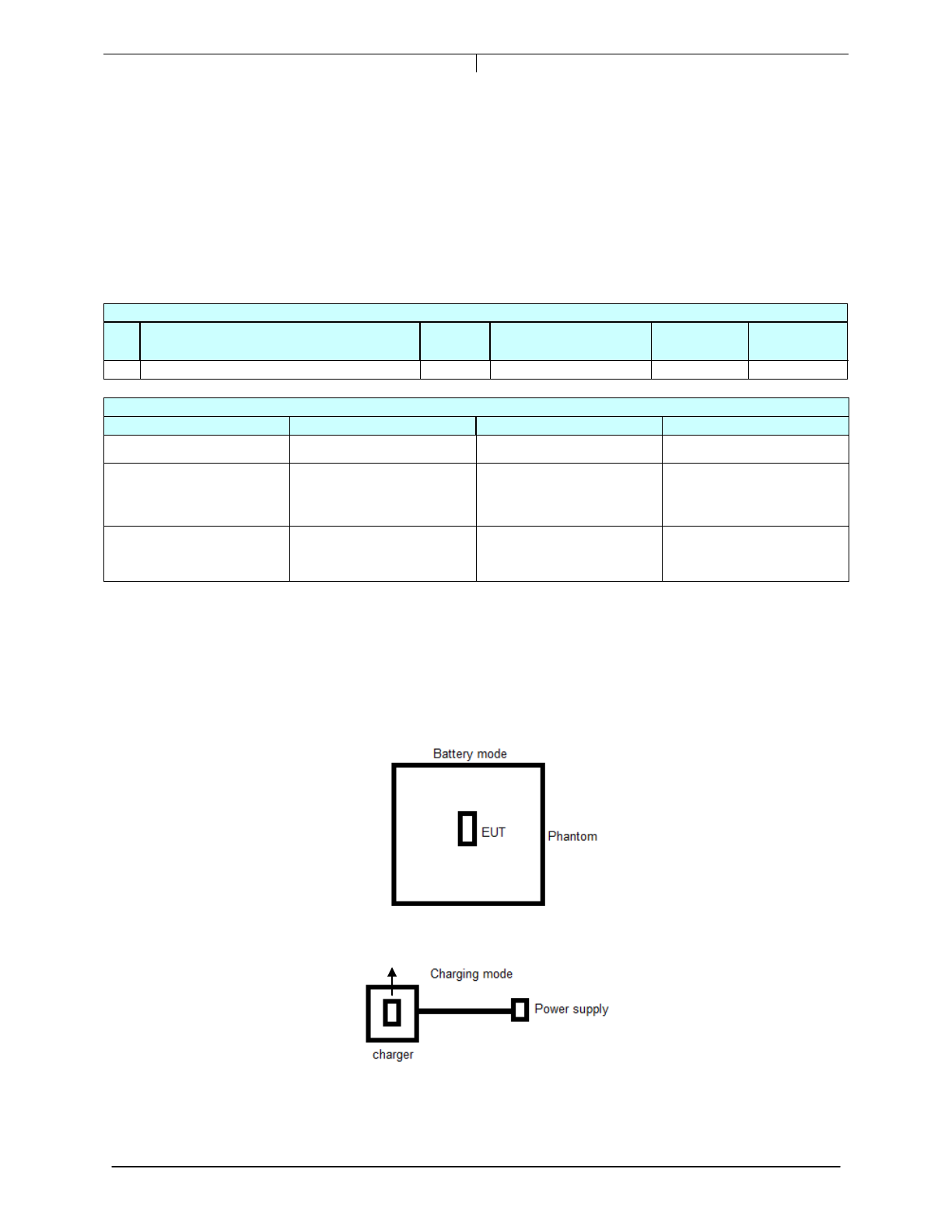

5.2 EUT Block Diagram:
EUT
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 7 of 117
Company: Zoll medical Corporation Model: µCor 3.0
6 Output Power and Human RF Exposure
6.1 Method
Tests are performed in accordance with FCC Part 15 Subpart C (15.247).
TEST SITE: EMC Lab
The EMC Lab has one Semi-anechoic Chamber and one Shielded Chamber. AC Mains Power is available at 120,
230, and 277 Single Phase; 208, 400, and 480 3-Phase. Large reference ground-planes are installed in the general
lab area to facilitate EMC work not requiring a shielded environment.
6.2 Test Equipment Used:
Asset
Description
Manufacturer
Model
Serial
Cal Date
Cal Due
DAV004’
Weather Station
Davis Instruments
7400
PE80529A61
A
05/02/2016
05/02/2017
CBLHF2012
-2M-2’
2m 9kHz-40GHz Coaxial Cable - SET2
Huber & Suhner
SF102
252675002
02/09/2016
02/09/2017
ROS005’
ETSI Test System
Rhode & Schwartz
TS8997
N/A
09/15/2016
09/15/2017
Software Utilized:
Name
Manufacturer
Version
None
6.3 Results:
The sample tested was found
to Comply
. For systems operating in the 2400-2483.5 MHz band employing
at least 75 hopping channels, the maximum peak output power is 1 watt (30 dBm), for all other systems
0.125 W (21 dBm).

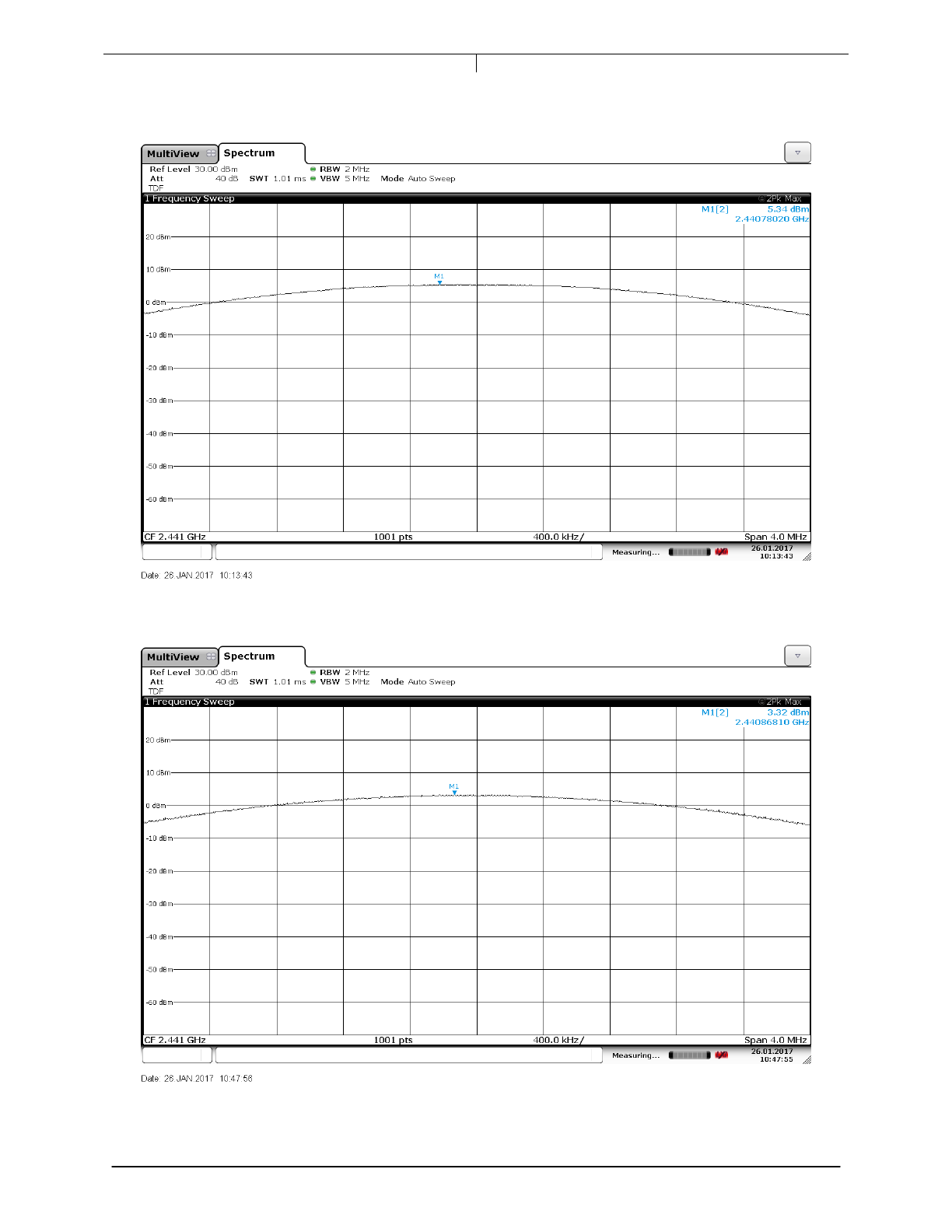

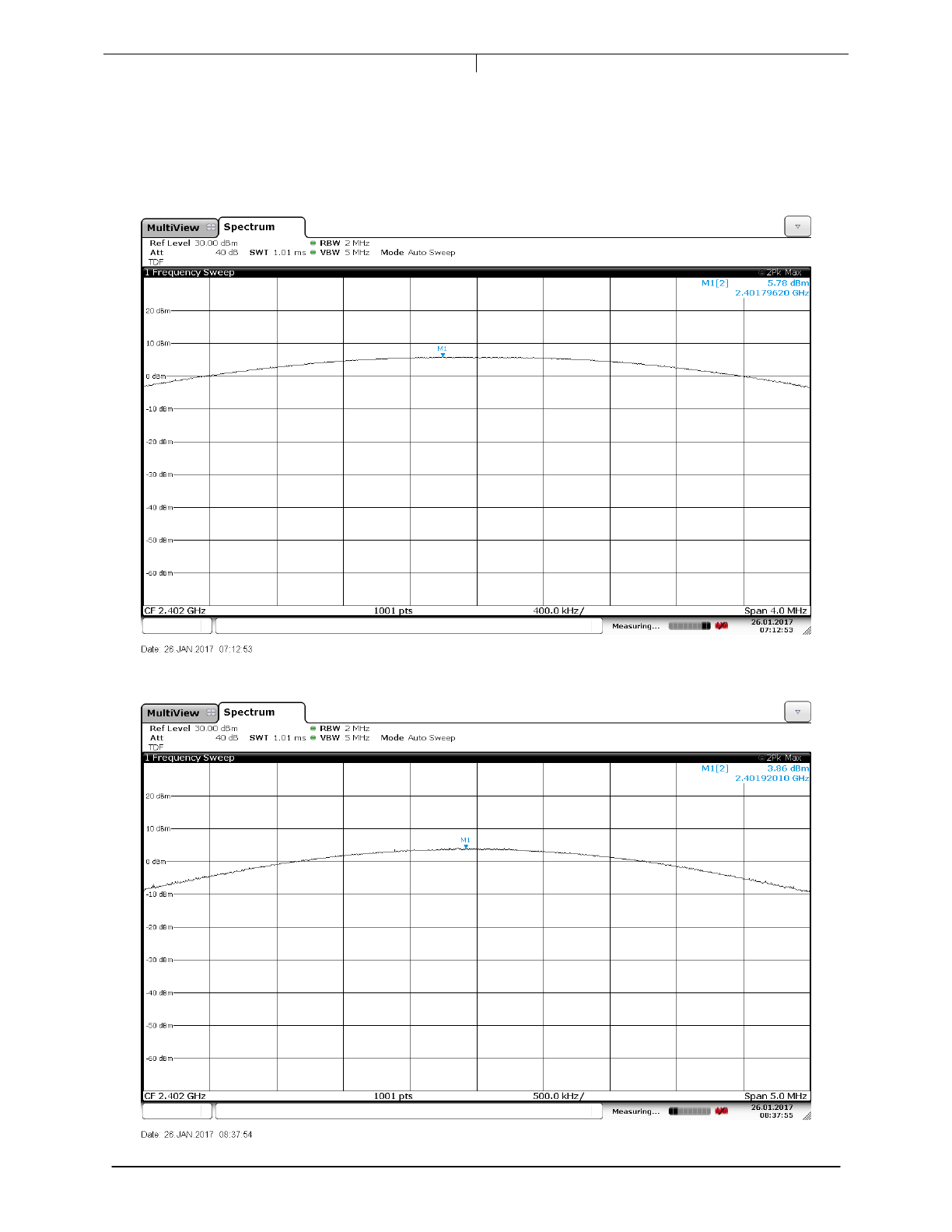

Device has 79 hopping channels
Frequency
Mode of
operation
Data Rate
Output Power
in dBm
Output Power in
mW
Limit
2402
Charging
Low
5.87
3.863
1 W
2402
High
3.83
2.415
1 W
2402
Battery
Low
5.78
3.784
1 W
2402
High
3.86
2.432
1 W
2441
Charging
Low
5.38
3.451
1 W
2441
High
3.29
2.133
1 W
2441
Battery
Low
5.34
3.419
1 W
2441
High
3.32
2.147
1 W
2480
Charging
Low
4.26
2.666
1 W
2480
High
2.64
1.836
1 W
2480
Battery
Low
4.71
2.958
1 W
2480
High
2.64
1.8365
1 W
Note: Devices antenna gain is less than 6 dBi.
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 8 of 117
Company: Zoll medical Corporation Model: µCor 3.0
6.4 Plots/Data:
Output Power @ 2402 MHz, battery mode and low data rate = 5.78 dBm
Output Power @ 2402 MHz, battery mode and high data rate = 3.86 dBm
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 9 of 117
Company: Zoll medical Corporation Model: µCor 3.0

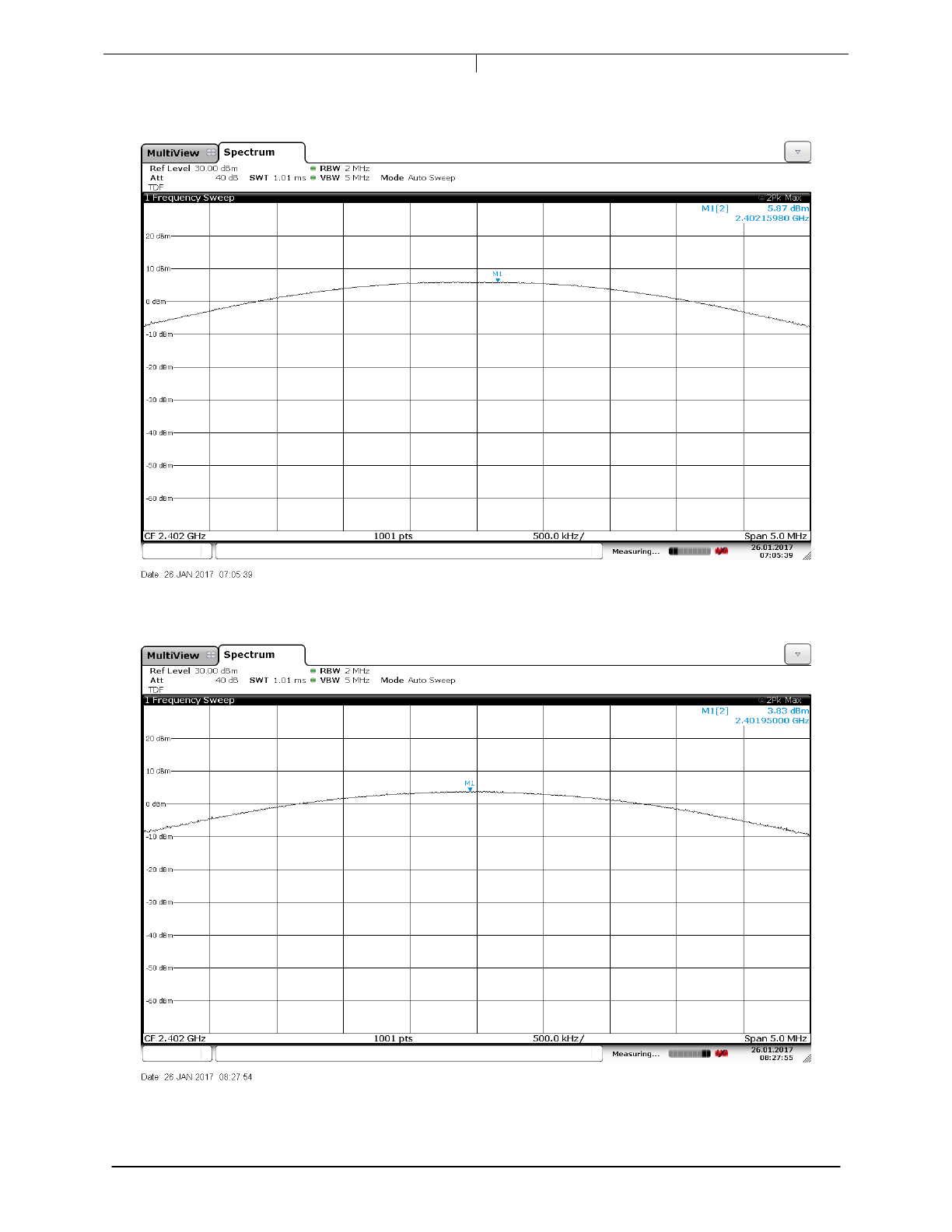

Output Power @ 2402 MHz, Charging mode and low data rate = 5.87 dBm
Output Power @ 2402 MHz, Charging mode and high data rate = 3.83 dBm
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 10 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Output Power @ 2441 MHz, battery mode and low data rate = 5.34 dBm
Output Power @ 2441 MHz, battery mode and high data rate = 3.32 dBm
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 11 of 117
Company: Zoll medical Corporation Model: µCor 3.0

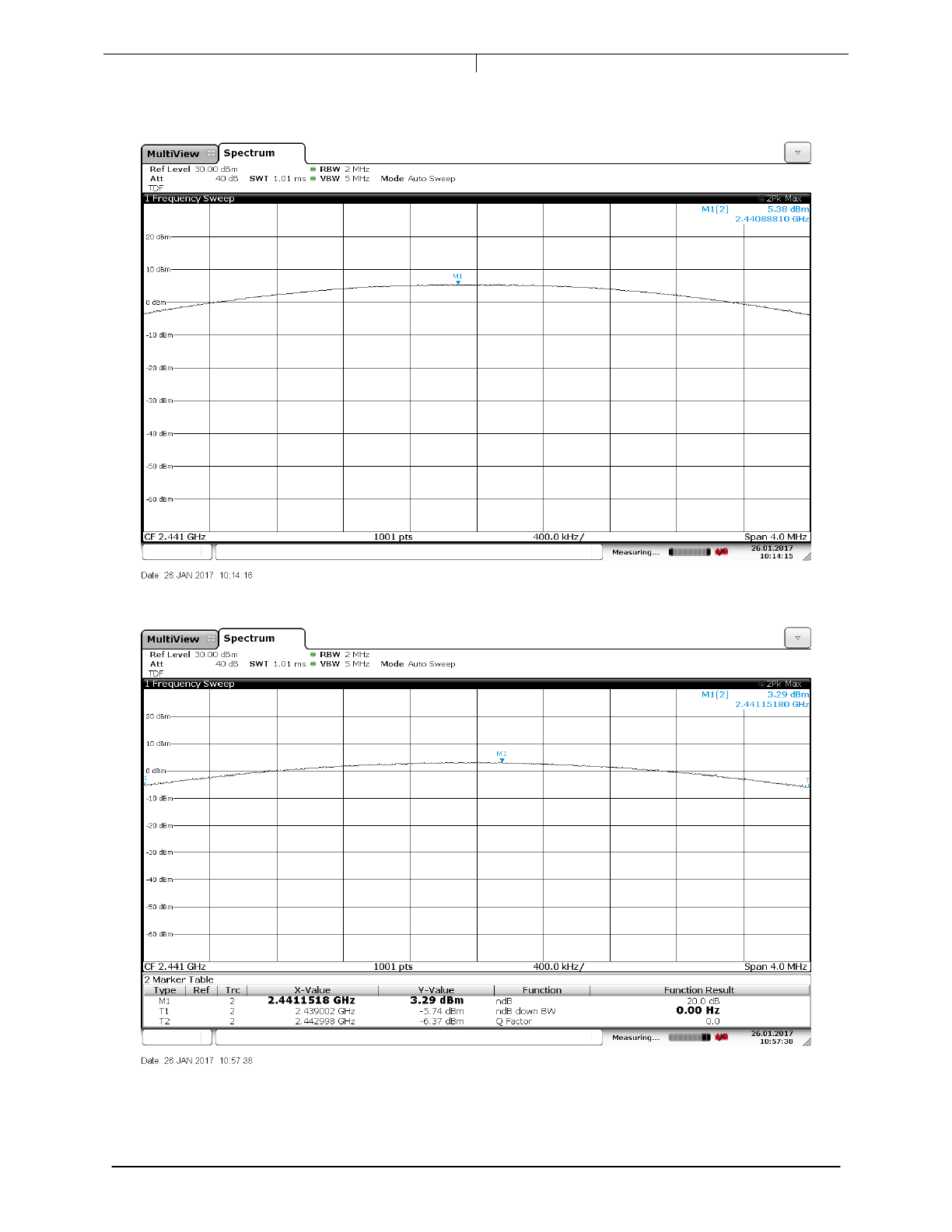

Output Power @ 2441 MHz, charging mode and low data rate = 5.38 dBm
Output Power @ 2441 MHz, charging mode and high data rate = 3.29 dBm
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 12 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Output Power @ 2480 MHz, battery mode and low data rate = 4.71 dBm
Output Power @ 2480 MHz, battery mode and high data rate = 2.64 dBm
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 13 of 117
Company: Zoll medical Corporation Model: µCor 3.0

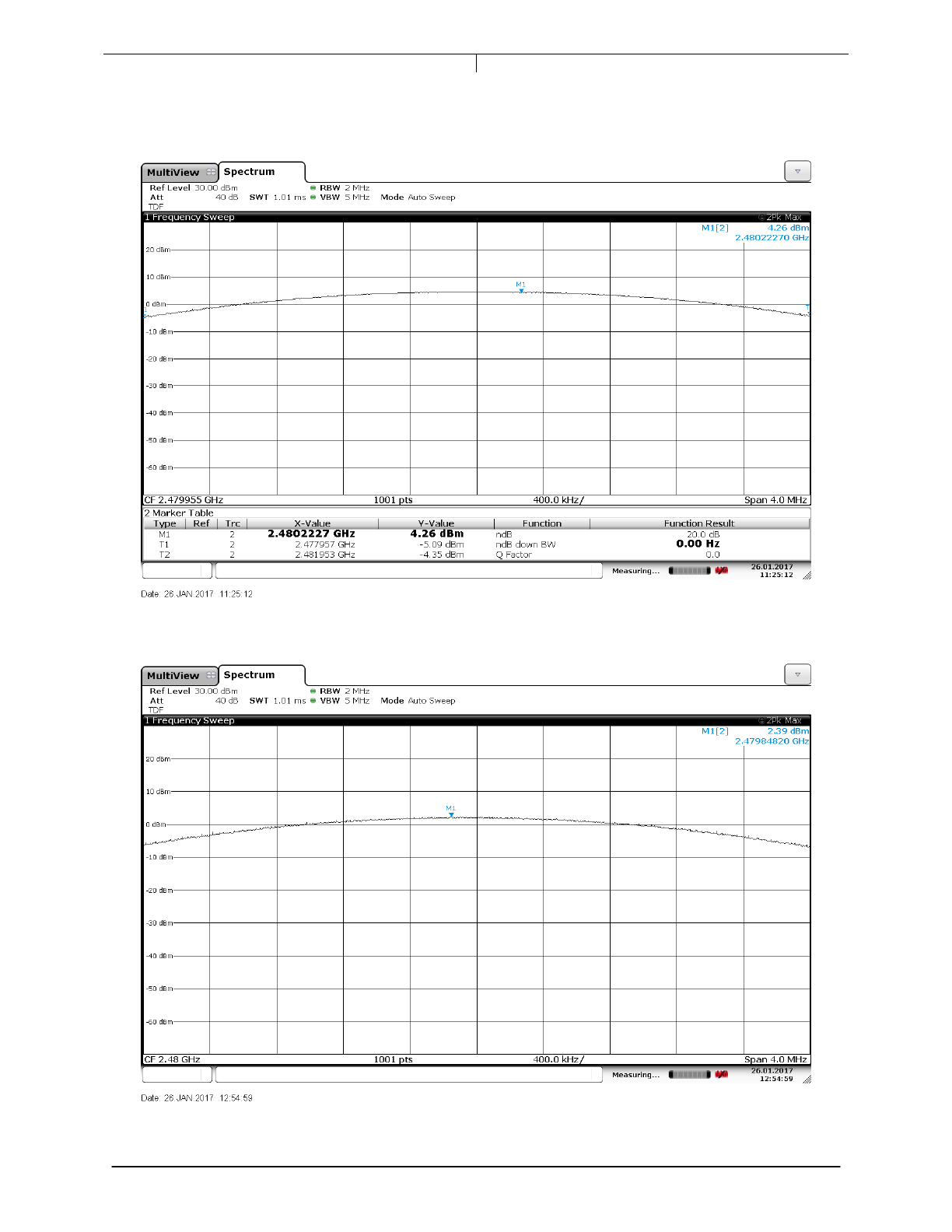

Output Power @ 2480 MHz, charging mode and low data rate = 4.26 dBm
Output Power @ 2480 MHz, charging mode and high data rate = 2.39 dBm
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 14 of 117
Company: Zoll medical Corporation Model: µCor 3.0

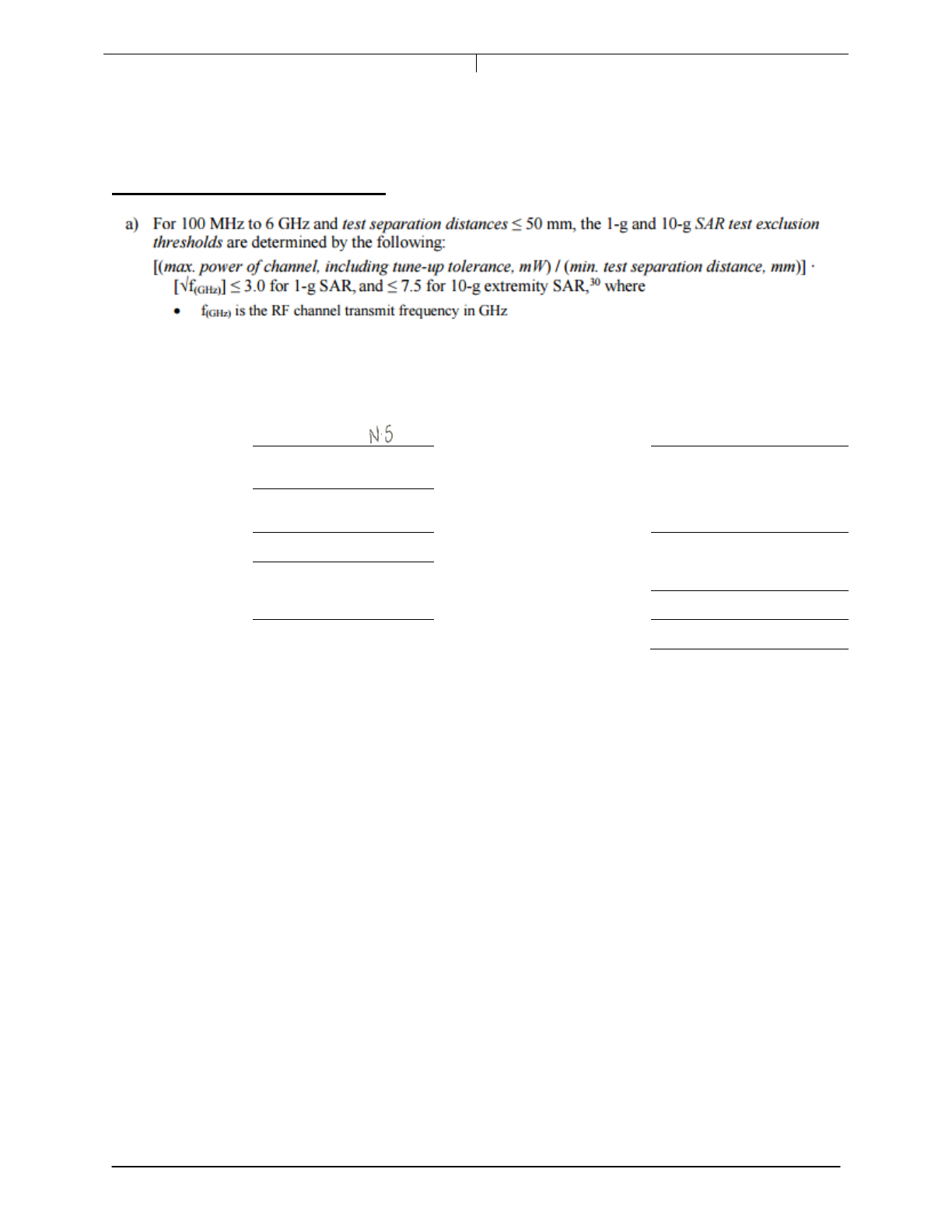

Human RF Exposure/SAR Exemption
Maximum measured output power is 3.863 mW @ 2402 MHz
FCC SAR Exemption per KDB 447498
= (3.863/5)*(sqrt(2.402))
= 1.19 < 3.0 (below the limit, SAR Exempt per FCC)
Test Personnel:
Naga Suryadevara
Test Date:
01/26/2017
Supervising/Reviewing
Engineer:
(Where Applicable)
N/A
Product Standard:
FCC Part 15 Subpart C
(15.247)
Limit Applied:
See section 6.3
Input Voltage:
120VAC 60Hz
Internal Battery
Pretest Verification w/
Ambient Signals or
BB Source:
Yes – Signal generator
Ambient Temperature:
19 ºC
Relative Humidity:
30 %
Atmospheric Pressure:
981 mbars
Deviations, Additions, or Exclusions: None
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 15 of 117
Company: Zoll medical Corporation Model: µCor 3.0
7 Occupied and 20dB Bandwidth
7.1 Method
Tests are performed in accordance with FCC Part 15 Subpart C (15.247).
TEST SITE: EMC Lab
The EMC Lab has one Semi-anechoic Chamber and one Shielded Chamber. AC Mains Power is available at 120,
230, and 277 Single Phase; 208, 400, and 480 3-Phase. Large reference ground-planes are installed in the general
lab area to facilitate EMC work not requiring a shielded environment.
7.2 Test Equipment Used:
Asset
Description
Manufacturer
Model
Serial
Cal Date
Cal Due
DAV004’
Weather Station
Davis Instruments
7400
PE80529A61
A
05/02/2016
05/02/2017
CBLHF2012
-2M-2’
2m 9kHz-40GHz Coaxial Cable - SET2
Huber & Suhner
SF102
252675002
02/09/2016
02/09/2017
ROS005’
ETSI Test System
Rhode & Schwartz
TS8997
N/A
09/15/2016
09/15/2017
Software Utilized:
Name
Manufacturer
Version
None
7.3 Results:
The sample tested was found
to Comply
.
Frequency
Mode of
operation
Data Rate
Occupied
Bandwidth
20dB Bandwidth
2402
Charging
Low
919.08 kHz
987.00 kHz
2402
High
1.2147 MHz
1.34 MHz
2402
Battery
Low
929.07 kHz
989.00 kHz
2402
High
1.2147 MHz
1.34 MHz
2441
Charging
Low
919.08 kHz
983.00 kHz
2441
High
1.214 MHz
1.34 MHz
2441
Battery
Low
919.08 kHz
991.00 kHz
2441
High
1.218 MHz
1.33 MHz
2480
Charging
Low
927.07 kHz
983.00 kHz
2480
High
1.2307 MHz
1.33 MHz
2480
Battery
Low
931.068 kHz
999.0 kHz
2480
High
1.2307 MHz
1.35 MHz
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 16 of 117
Company: Zoll medical Corporation Model: µCor 3.0
7.4 Plots/Data:

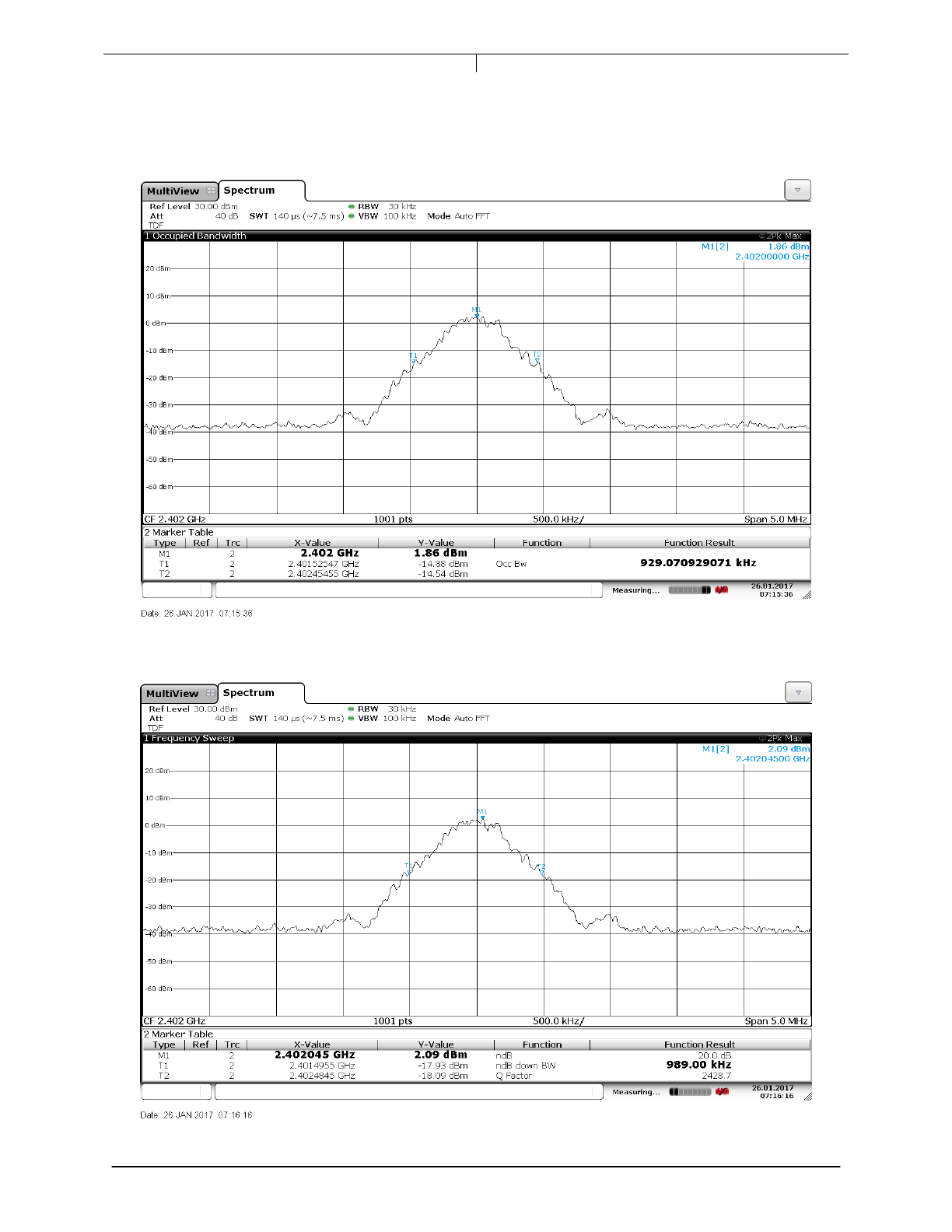

Occupied Bandwidth @ 2402 MHz, battery mode and low data rate = 929.07 kHz
20dB Bandwidth @ 2402 MHz, battery mode and low data rate = 989.00 kHz
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 17 of 117
Company: Zoll medical Corporation Model: µCor 3.0

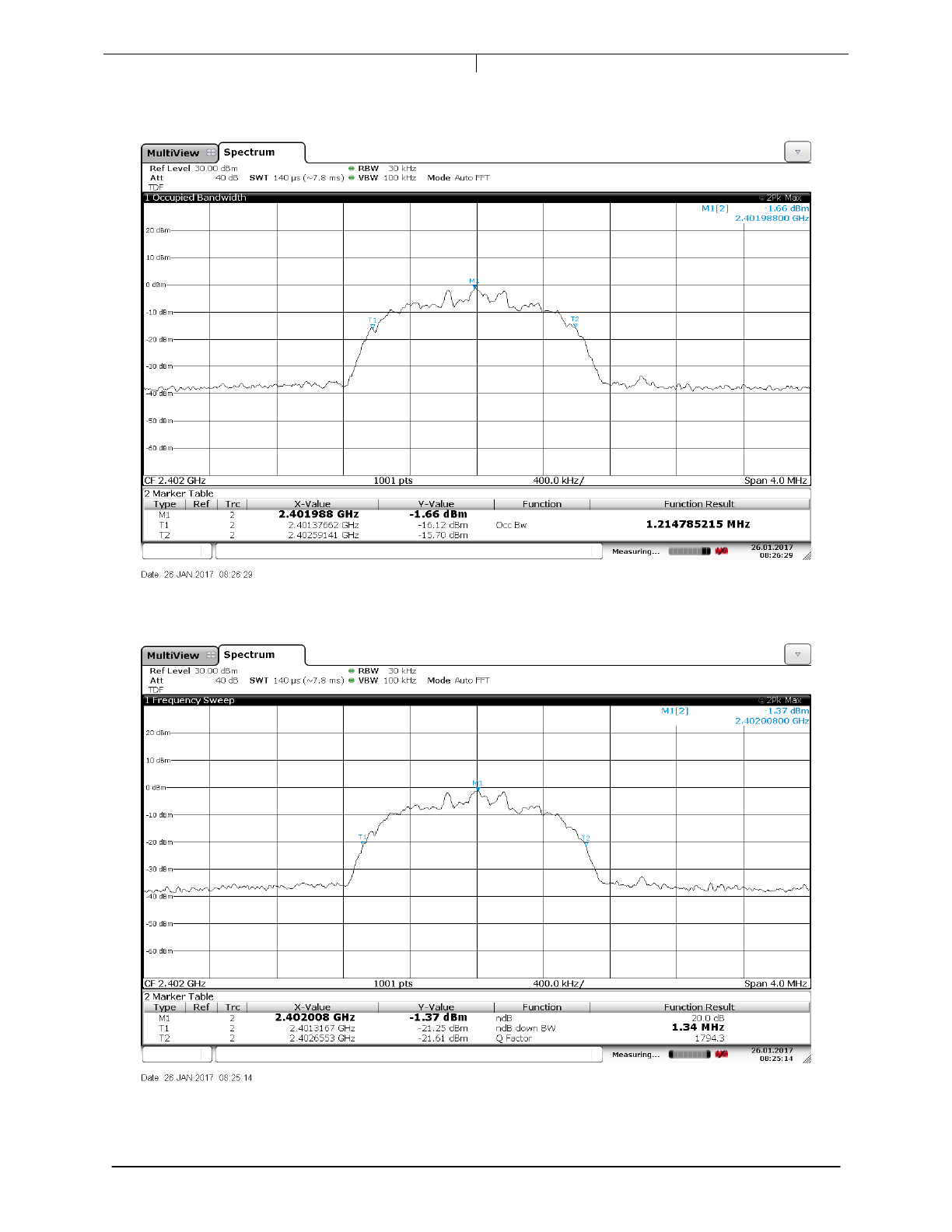

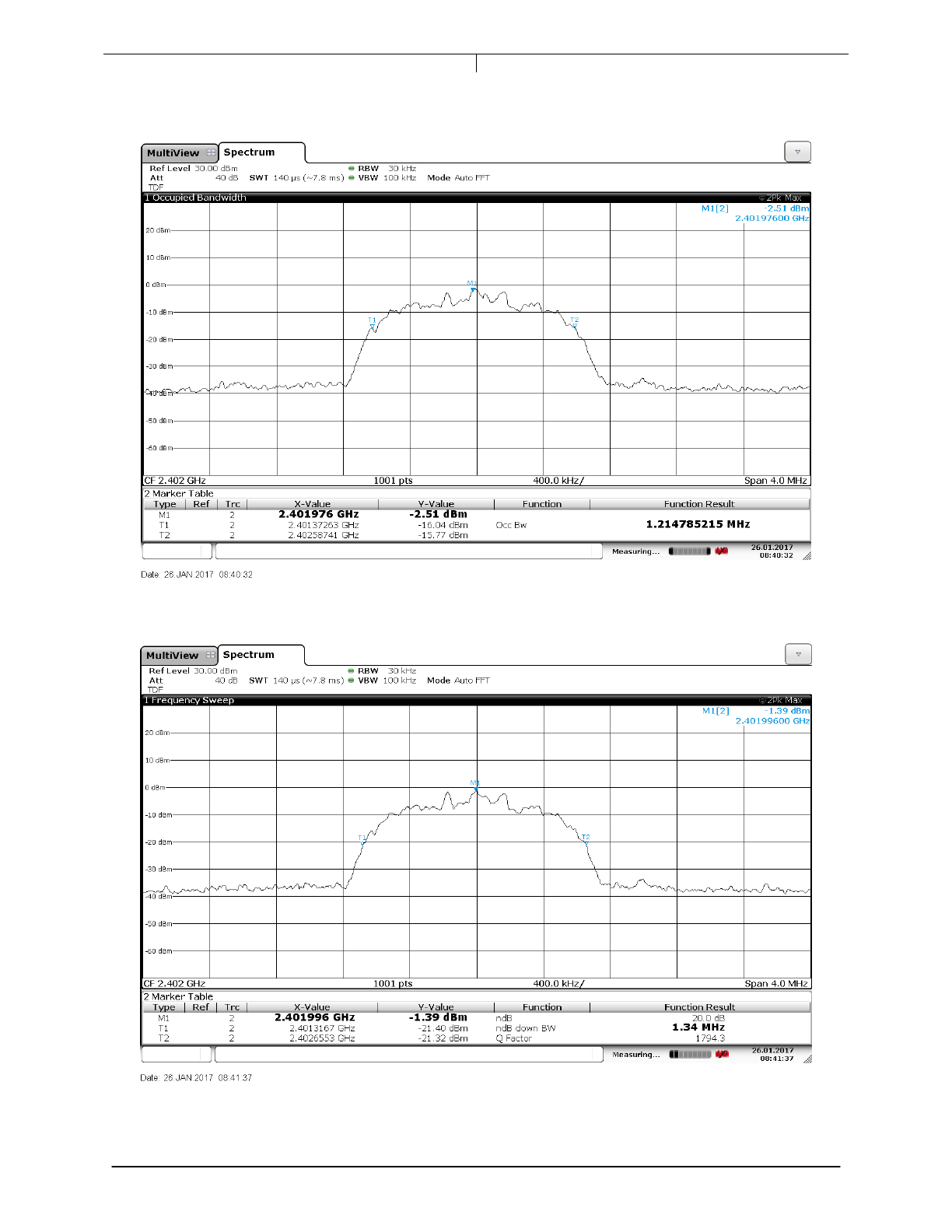

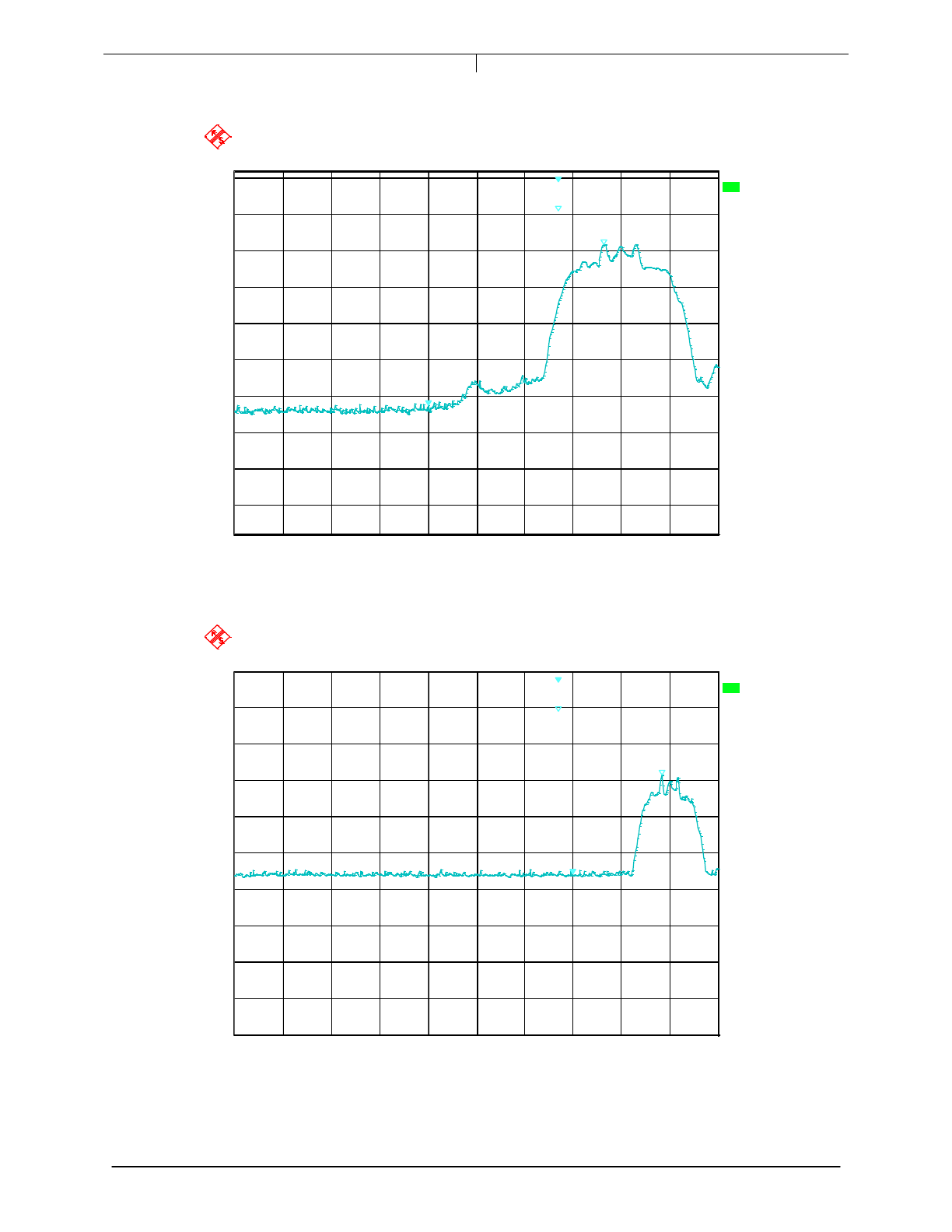

Occupied Bandwidth @ 2402 MHz, battery mode and high data rate = 1.2147 MHz
20dB Bandwidth @ 2402 MHz, battery mode and high data rate = 1.34 MHz
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 18 of 117
Company: Zoll medical Corporation Model: µCor 3.0

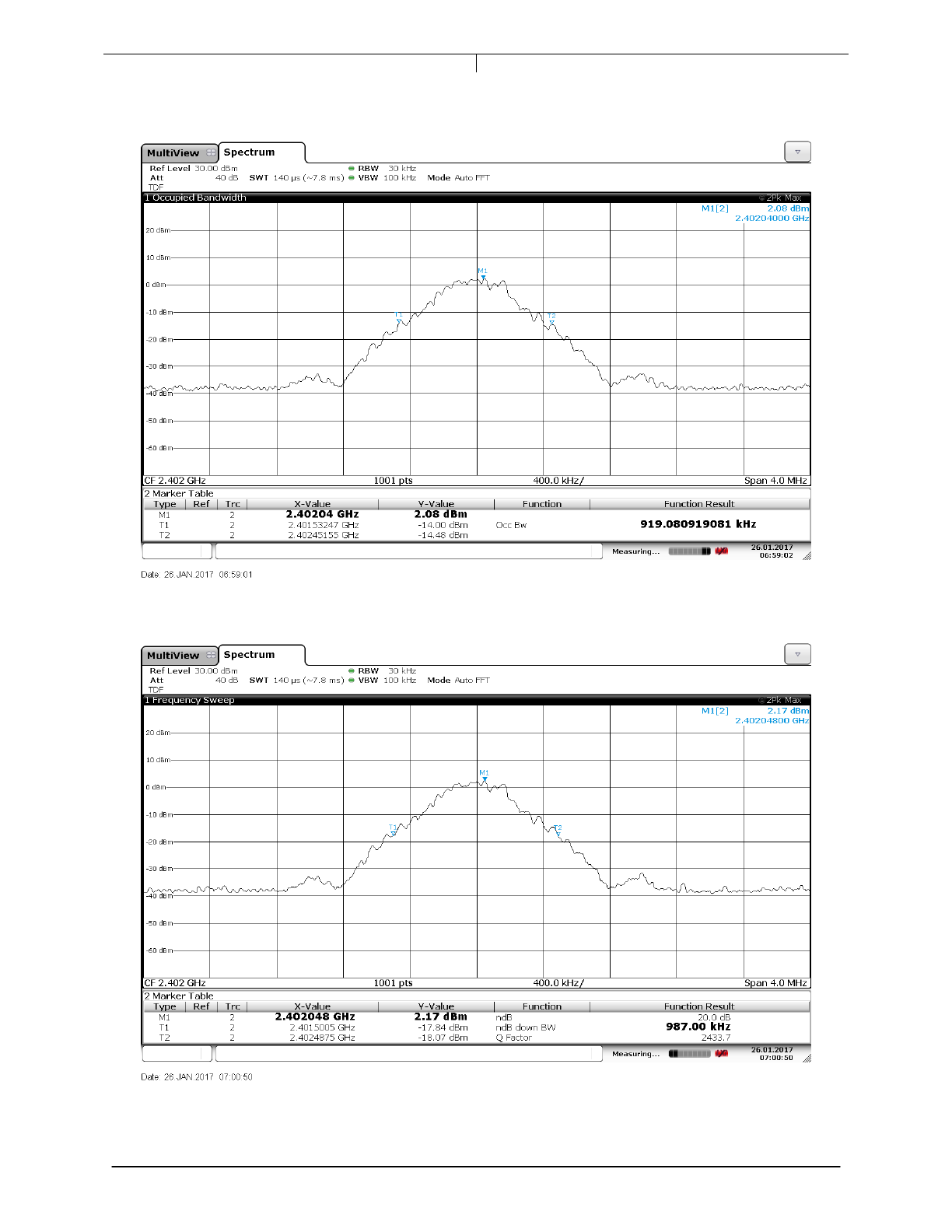

Occupied Bandwidth @ 2402 MHz, charging mode and low data rate = 919.08 kHz
20dB Bandwidth @ 2402 MHz, charging mode and low data rate = 987.00 kHz
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 19 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Occupied Bandwidth @ 2402 MHz, charging mode and high data rate = 1.2147 MHz
20dB Bandwidth @ 2402 MHz, charging mode and high data rate = 1.34 MHz
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 20 of 117
Company: Zoll medical Corporation Model: µCor 3.0

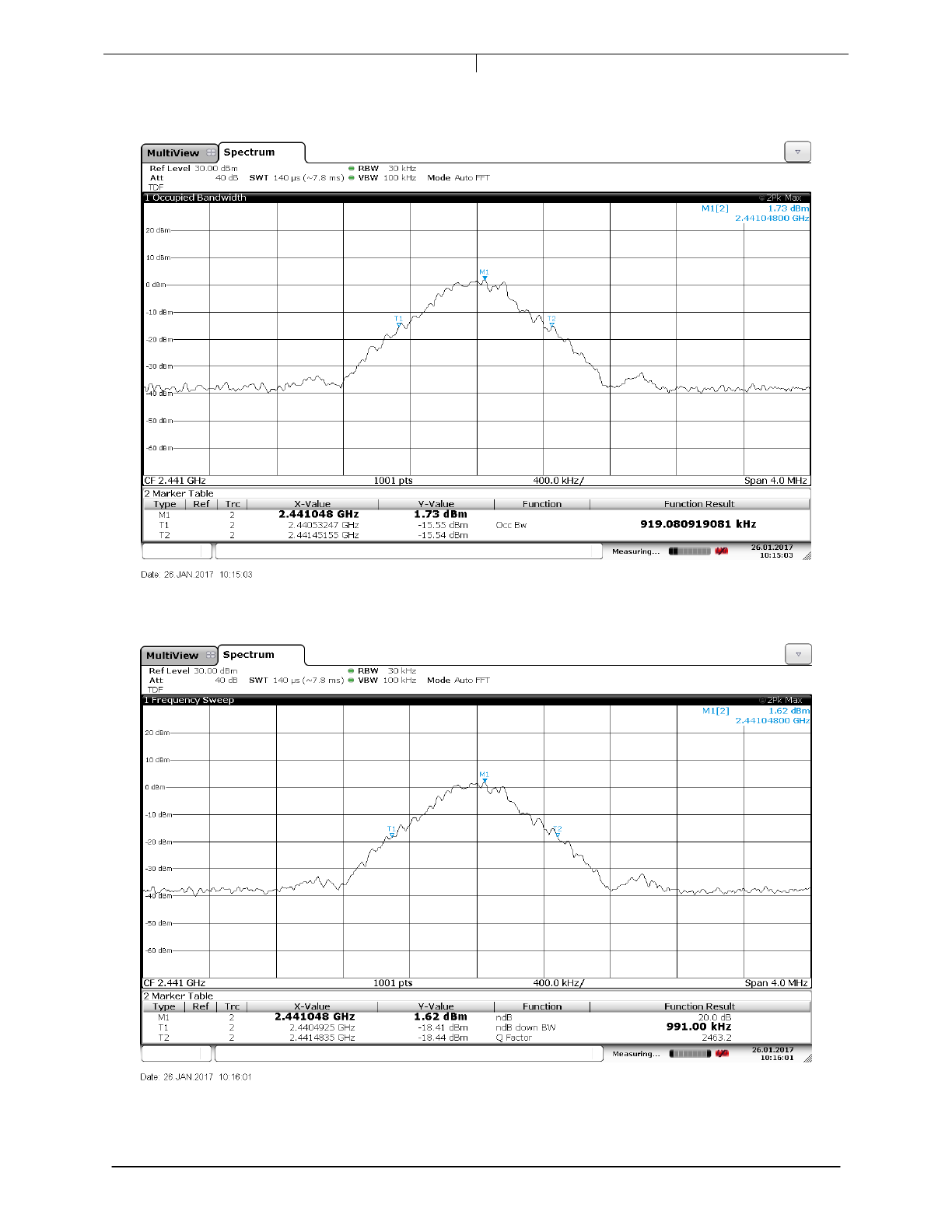

Occupied Bandwidth @ 2441 MHz, battery mode and low data rate = 919.08 KHz
20dB @ 2441 MHz, battery mode and low data rate = 991.00 KHz
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 21 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Occupied Bandwidth @ 2441 MHz, battery mode and high data rate = 1.218 MHz
20dB Bandwidth @ 2441 MHz, battery mode and high data rate = 1.33 MHz
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 22 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Occupied Bandwidth @ 2441 MHz, charging mode and low data rate = 919.08 KHz
20dB Bandwidth @ 2441 MHz, charging mode and low data rate = 983.00 KHz
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 23 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Occupied Bandwidth @ 2441 MHz, charging mode and high data rate = 1.214 MHz
20dB Bandwidth @ 2441 MHz, charging mode and high data rate = 1.34 MHz
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 24 of 117
Company: Zoll medical Corporation Model: µCor 3.0

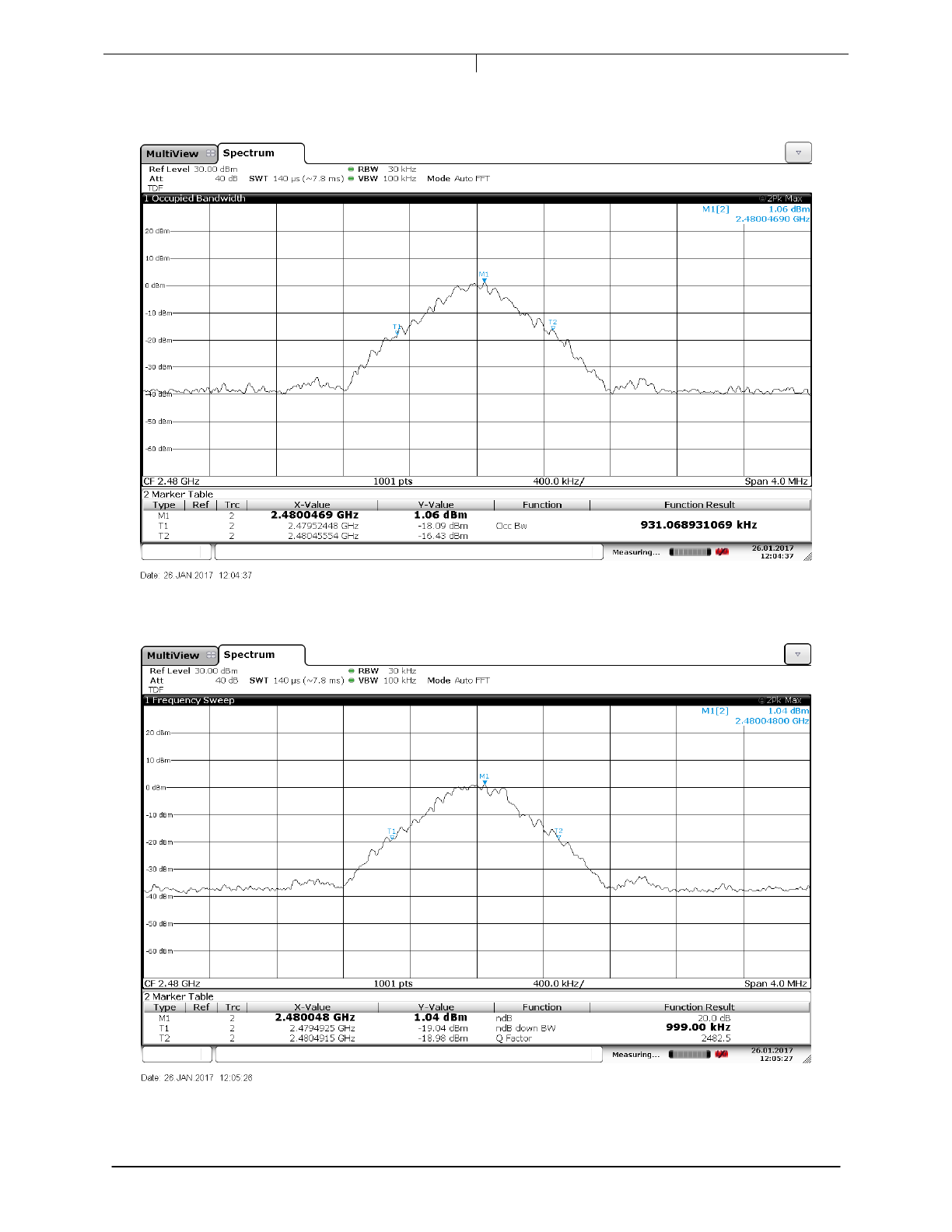

Occupied Bandwidth @ 2480 MHz, battery mode and low data rate = 931.068 kHz
20dB Bandwidth @ 2480 MHz, battery mode and low data rate = 999.000 kHz
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 25 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Occupied Bandwidth @ 2480 MHz, battery mode and high data rate = 1.23076 MHz
20dB Bandwidth @ 2480 MHz, battery mode and high data rate = 1.35 MHz
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 26 of 117
Company: Zoll medical Corporation Model: µCor 3.0

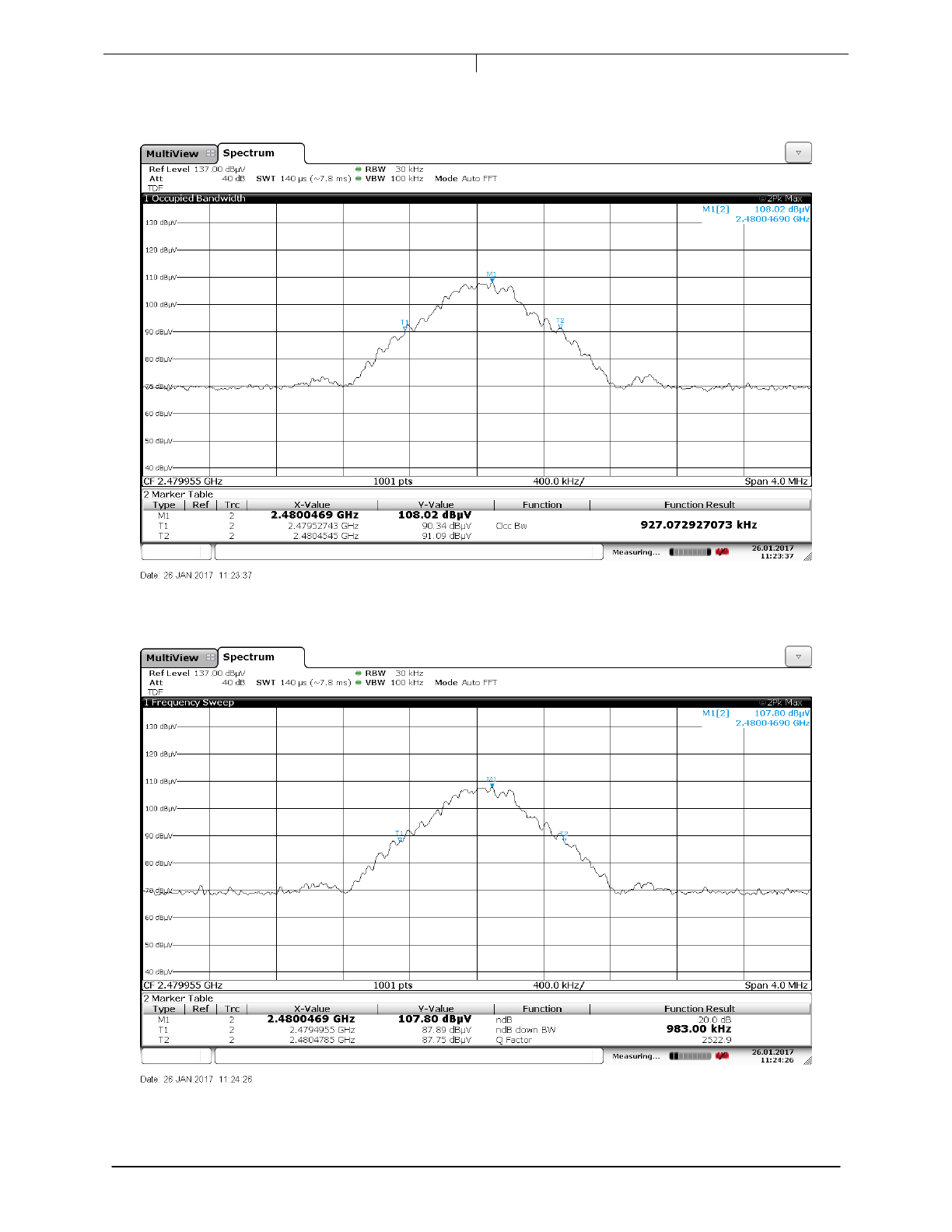

Occupied Bandwidth @ 2480 MHz, charging mode and low data rate = 927.07 kHz
20dB Bandwidth @ 2480 MHz, charging mode and low data rate = 983.00 kHz
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 27 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Occupied Bandwidth @ 2480 MHz, charging mode and high data rate = 1.2307 MHz
20dB Bandwidth @ 2480 MHz, charging mode and high data rate = 1.33 MHz
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 28 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Test Personnel:
Naga Suryadevara
Test Date:
01/26/2017
Supervising/Reviewing
Engineer:
(Where Applicable)
N/A
Product Standard:
FCC Part 15 Subpart C
(15.247)
Limit Applied:
See section 7.3
Input Voltage:
120VAC 60Hz
Internal Battery
Pretest Verification w/
Ambient Signals or
BB Source:
Yes – Signal generator
Ambient Temperature:
19 ºC
Relative Humidity:
30 %
Atmospheric Pressure:
981 mbars
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 29 of 117
Company: Zoll medical Corporation Model: µCor 3.0
8 Channel Separation
8.1 Method
Tests are performed in accordance with FCC Part 15 Subpart C (15.247).
TEST SITE: EMC Lab
The EMC Lab has one Semi-anechoic Chamber and one Shielded Chamber. AC Mains Power is available at 120,
230, and 277 Single Phase; 208, 400, and 480 3-Phase. Large reference ground-planes are installed in the general
lab area to facilitate EMC work not requiring a shielded environment.
8.2 Test Equipment Used:
Asset
Description
Manufacturer
Model
Serial
Cal Date
Cal Due
DAV004’
Weather Station
Davis Instruments
7400
PE80529A61
A
05/02/2016
05/02/2017
CBLHF2012
-2M-2’
2m 9kHz-40GHz Coaxial Cable - SET2
Huber & Suhner
SF102
252675002
02/09/2016
02/09/2017
ROS005’
ETSI Test System
Rhode & Schwartz
TS8997
N/A
09/15/2016
09/15/2017
Software Utilized:
Name
Manufacturer
Version
None
8.3 Results:
The sample tested was found
to Comply
. Systems shall have hopping channel carrier frequencies that are
separated by 25 kHz or two-thirds of the 20-dB bandwidth of the hopping channel, whichever is greater.
The measured channel frequency separation is 931 kHz @ low data rate and 979 kHz @ high data rate
which is greater than 900 kHz (2/3rd of 20dB BW(maximum))
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 30 of 117
Company: Zoll medical Corporation Model: µCor 3.0
8.4 Plots/Data:

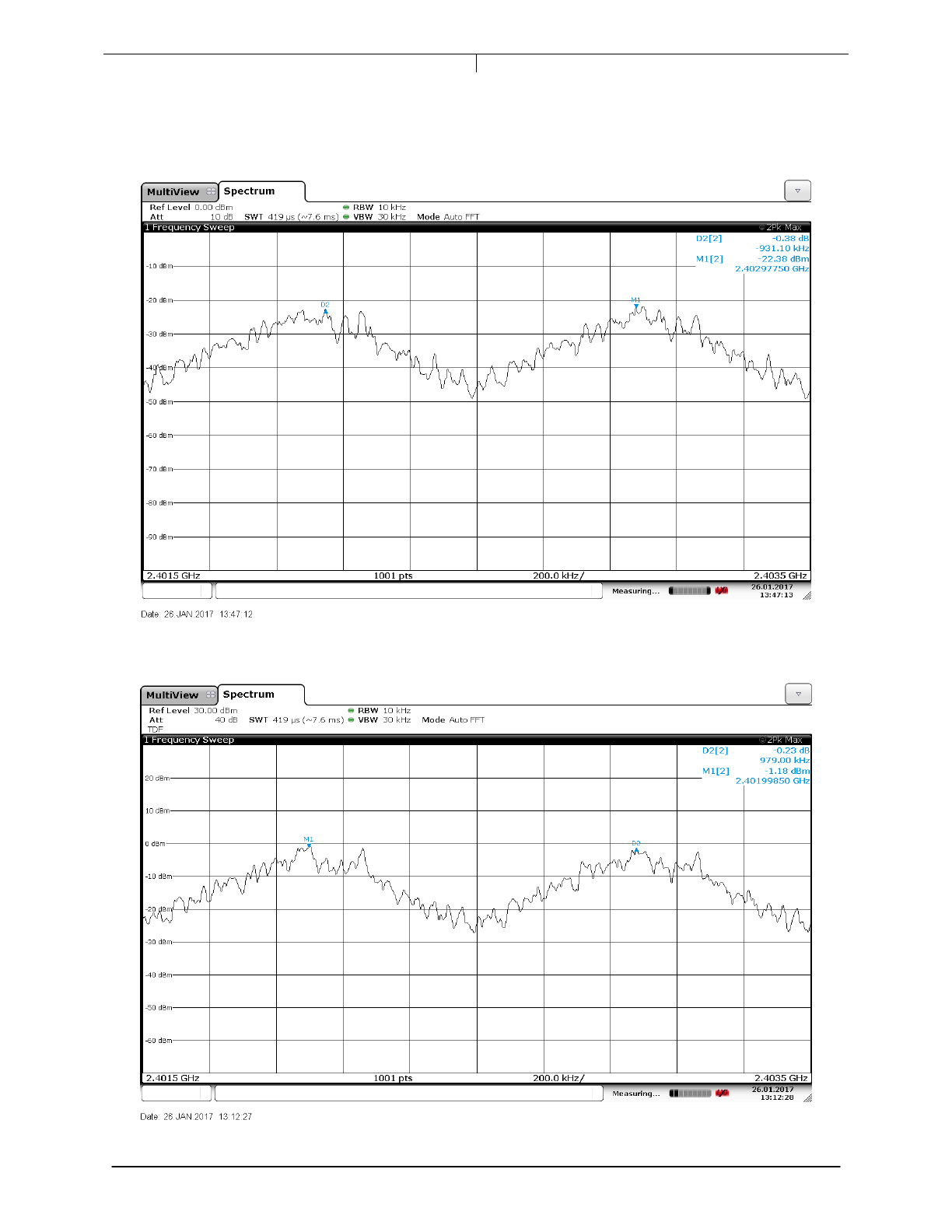

Channel Separation, Low data rate = 931.10 kHz
Channel Separation, High data rate = 979.00 kHz
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 31 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Test Personnel:
Naga Suryadevara
Test Date:
01/26/2017
Supervising/Reviewing
Engineer:
(Where Applicable)
N/A
Product Standard:
FCC Part 15 Subpart C
(15.247)
Limit Applied:
See section 8.3
Input Voltage:
120VAC 60Hz
Internal Battery
Pretest Verification w/
Ambient Signals or
BB Source:
Yes – Signal generator
Ambient Temperature:
19 ºC
Relative Humidity:
30 %
Atmospheric Pressure:
981 mbars
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 32 of 117
Company: Zoll medical Corporation Model: µCor 3.0
9 Number of Hopping Channels
9.1 Method
Tests are performed in accordance with FCC Part 15 Subpart C (15.247).
TEST SITE: EMC Lab
The EMC Lab has one Semi-anechoic Chamber and one Shielded Chamber. AC Mains Power is available at 120,
230, and 277 Single Phase; 208, 400, and 480 3-Phase. Large reference ground-planes are installed in the general
lab area to facilitate EMC work not requiring a shielded environment.
9.2 Test Equipment Used:
Asset
Description
Manufacturer
Model
Serial
Cal Date
Cal Due
DAV004’
Weather Station
Davis Instruments
7400
PE80529A61
A
05/02/2016
05/02/2017
CBLHF2012
-2M-2’
2m 9kHz-40GHz Coaxial Cable - SET2
Huber & Suhner
SF102
252675002
02/09/2016
02/09/2017
ROS005’
ETSI Test System
Rhode & Schwartz
TS8997
N/A
09/15/2016
09/15/2017
Software Utilized:
Name
Manufacturer
Version
None
9.3 Results:
The sample tested was found
to Comply
. Systems operating in the 2400-2483.5 MHz band shall use at
least 15 hopping channels.
The System has 79 hopping channels.
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 33 of 117
Company: Zoll medical Corporation Model: µCor 3.0
9.4 Plots/Data:

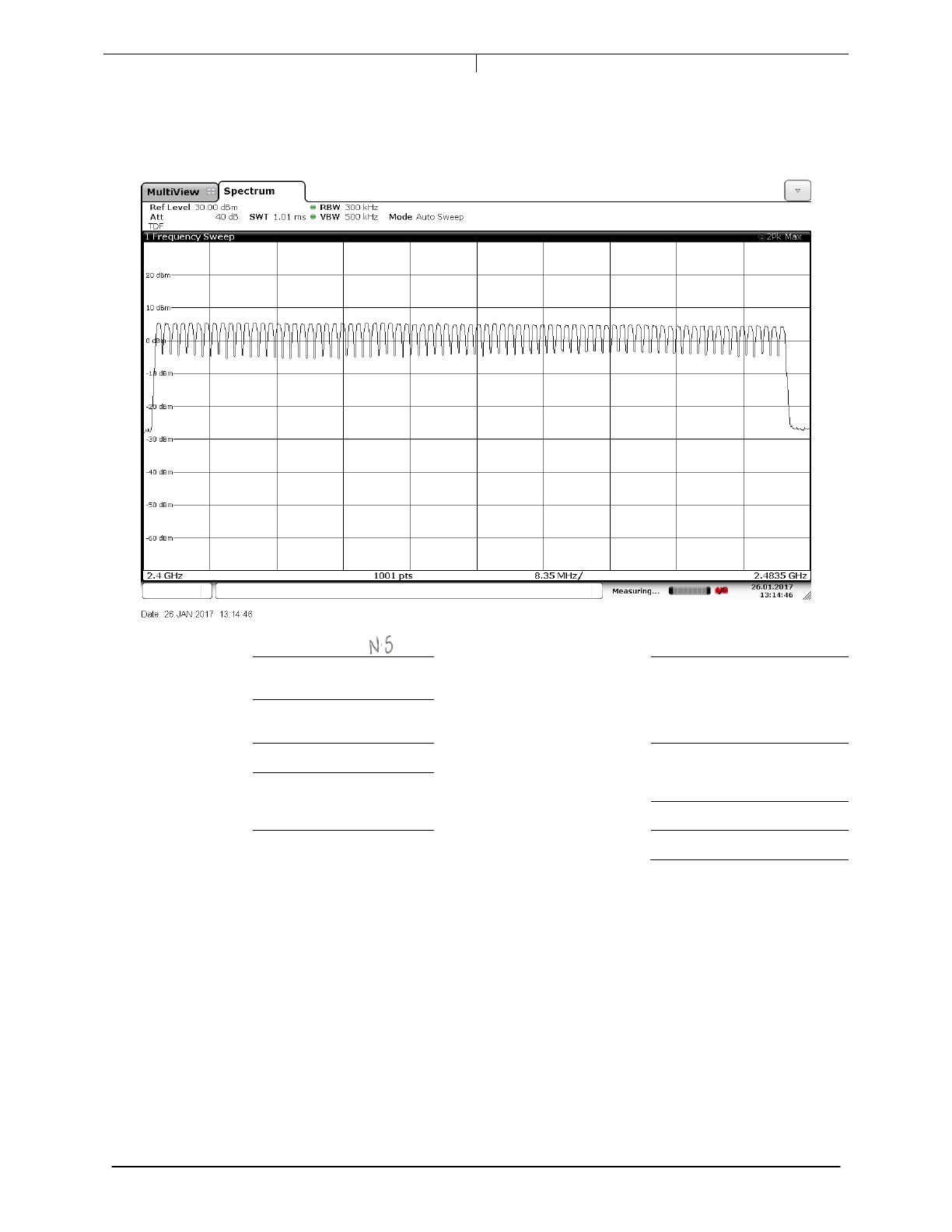

Number of hopping channels = 79
Test Personnel:
Naga Suryadevara
Test Date:
01/26/2017
Supervising/Reviewing
Engineer:
(Where Applicable)
N/A
Product Standard:
FCC Part 15 Subpart C
(15.247)
Limit Applied:
See section 9.3
Input Voltage:
120VAC 60Hz
Internal Battery
Pretest Verification w/
Ambient Signals or
BB Source:
Yes – Signal generator
Ambient Temperature:
19 ºC
Relative Humidity:
30 %
Atmospheric Pressure:
981 mbars
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 34 of 117
Company: Zoll medical Corporation Model: µCor 3.0
10 Average Channel Occupancy Time
10.1 Method
Tests are performed in accordance with FCC Part 15 Subpart C (15.247).
TEST SITE: EMC Lab
The EMC Lab has one Semi-anechoic Chamber and one Shielded Chamber. AC Mains Power is available at 120,
230, and 277 Single Phase; 208, 400, and 480 3-Phase. Large reference ground-planes are installed in the general
lab area to facilitate EMC work not requiring a shielded environment.
10.2 Test Equipment Used:
Asset
Description
Manufacturer
Model
Serial
Cal Date
Cal Due
DAV004’
Weather Station
Davis Instruments
7400
PE80529A61
A
05/02/2016
05/02/2017
CBLHF2012
-2M-2’
2m 9kHz-40GHz Coaxial Cable - SET2
Huber & Suhner
SF102
252675002
02/09/2016
02/09/2017
ROS005’
ETSI Test System
Rhode & Schwartz
TS8997
N/A
09/15/2016
09/15/2017
Software Utilized:
Name
Manufacturer
Version
None
10.3 Results:
The sample tested was found
to Comply
. For systems operating in the 2400-2483.5 MHz band, the
average time of occupancy on any channel shall not be greater than 0.4 second within a period of 0.4
second multiplied by the number of hopping channels employed
Since the radio employs 79 channels, Occupancy time was calculated during the period of 0.4 * 79 = 31.6
sec.
Occupancy Time @ low data rate = 0.000510 * 31 *10 = 0.1581 sec
Occupancy Time @ high data rate = 0.00290 * 10 *10 = 0.290 sec
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 35 of 117
Company: Zoll medical Corporation Model: µCor 3.0
10.4 Plots/Data:

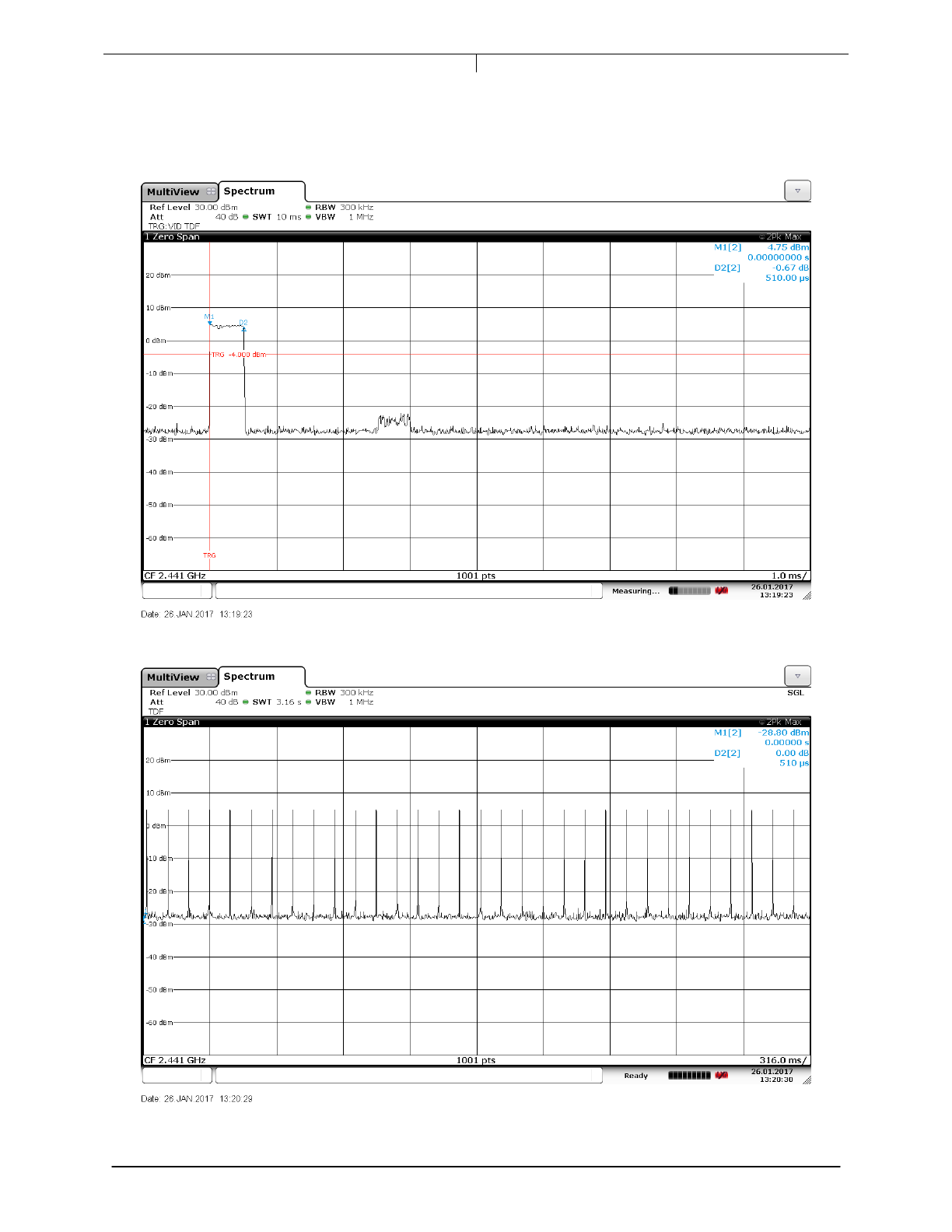

Dwell time, Low data rate = 510.00 us
Number of bursts in 3.16 second sweep, Low data rate = 31
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 36 of 117
Company: Zoll medical Corporation Model: µCor 3.0

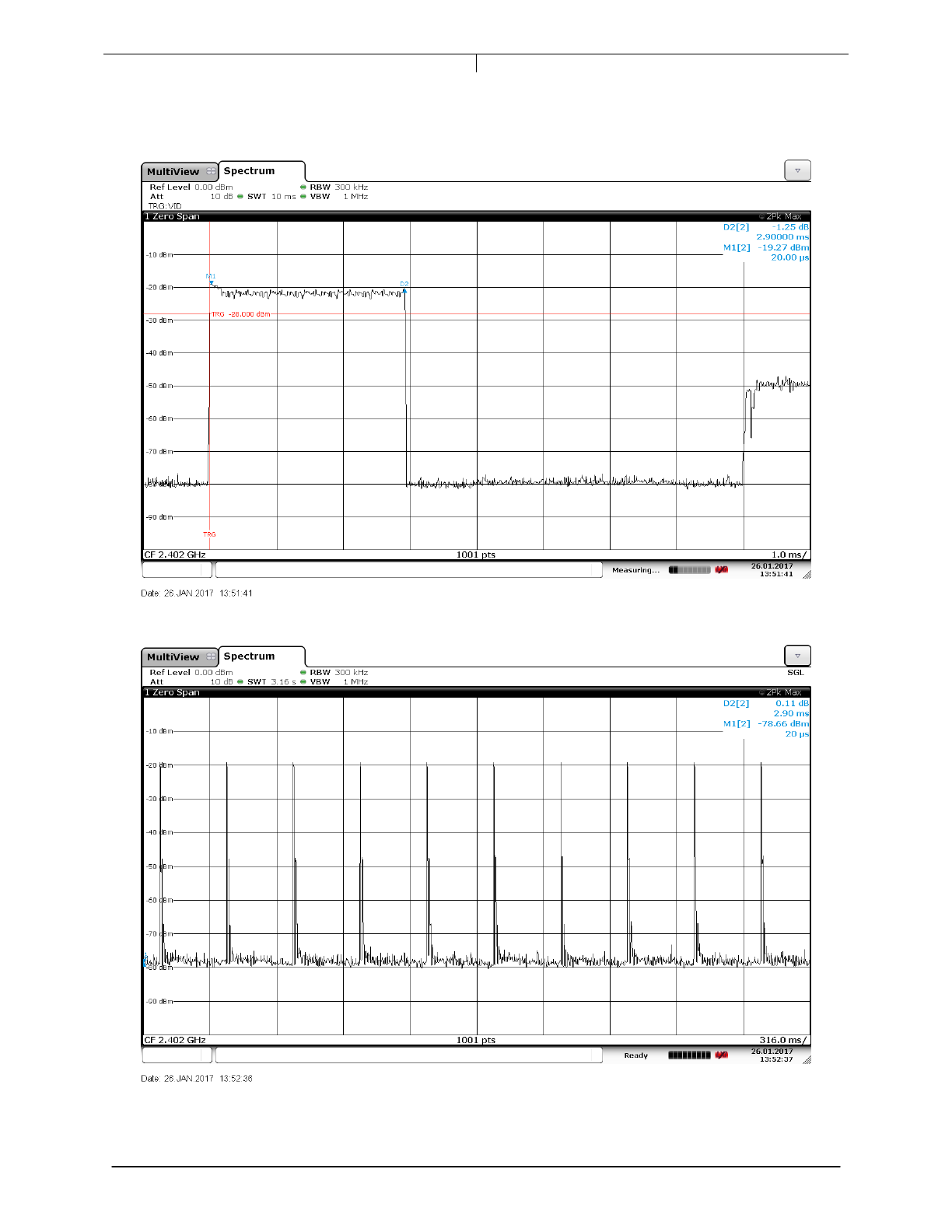

Dwell time, High data rate = 2.90 ms
Number of bursts in a 3.16 s sweep, High data rate = 10
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 37 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Test Personnel:
Naga Suryadevara
Test Date:
01/26/2017
Supervising/Reviewing
Engineer:
(Where Applicable)
N/A
Product Standard:
FCC Part 15 Subpart C
(15.247)
Limit Applied:
See section 10.3
Input Voltage:
120VAC 60Hz
Internal Battery
Pretest Verification w/
Ambient Signals or
BB Source:
Yes – Signal generator
Ambient Temperature:
19 ºC
Relative Humidity:
30 %
Atmospheric Pressure:
981 mbars
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 38 of 117
Company: Zoll medical Corporation Model: µCor 3.0
11 Out of Band Conducted Emissions
11.1 Method
Tests are performed in accordance with FCC Part 15 Subpart C (15.247) and RSS 247.
TEST SITE: EMC Lab
The EMC Lab has one Semi-anechoic Chamber and one Shielded Chamber. AC Mains Power is available at 120,
230, and 277 Single Phase; 208, 400, and 480 3-Phase. Large reference ground-planes are installed in the general
lab area to facilitate EMC work not requiring a shielded environment.
11.2 Test Equipment Used:
Asset
Description
Manufacturer
Model
Serial
Cal Date
Cal Due
DAV004’
Weather Station
Davis Instruments
7400
PE80529A61
A
05/02/2016
05/02/2017
CBLHF2012
-2M-2’
2m 9kHz-40GHz Coaxial Cable - SET2
Huber & Suhner
SF102
252675002
02/09/2016
02/09/2017
ROS005’
ETSI Test System
Rhode & Schwartz
TS8997
N/A
09/15/2016
09/15/2017
Software Utilized:
Name
Manufacturer
Version
None
11.3 Results:
The sample tested was found
to Comply
. In any 100 kHz bandwidth outside the EUT pass-band, the RF
power shall be at least 20 dB below that of the maximum in-band 100 kHz emission.
All emissions measured were 20 dB below fundamental as indicated in the plots in sections 11.5.
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 39 of 117
Company: Zoll medical Corporation Model: µCor 3.0

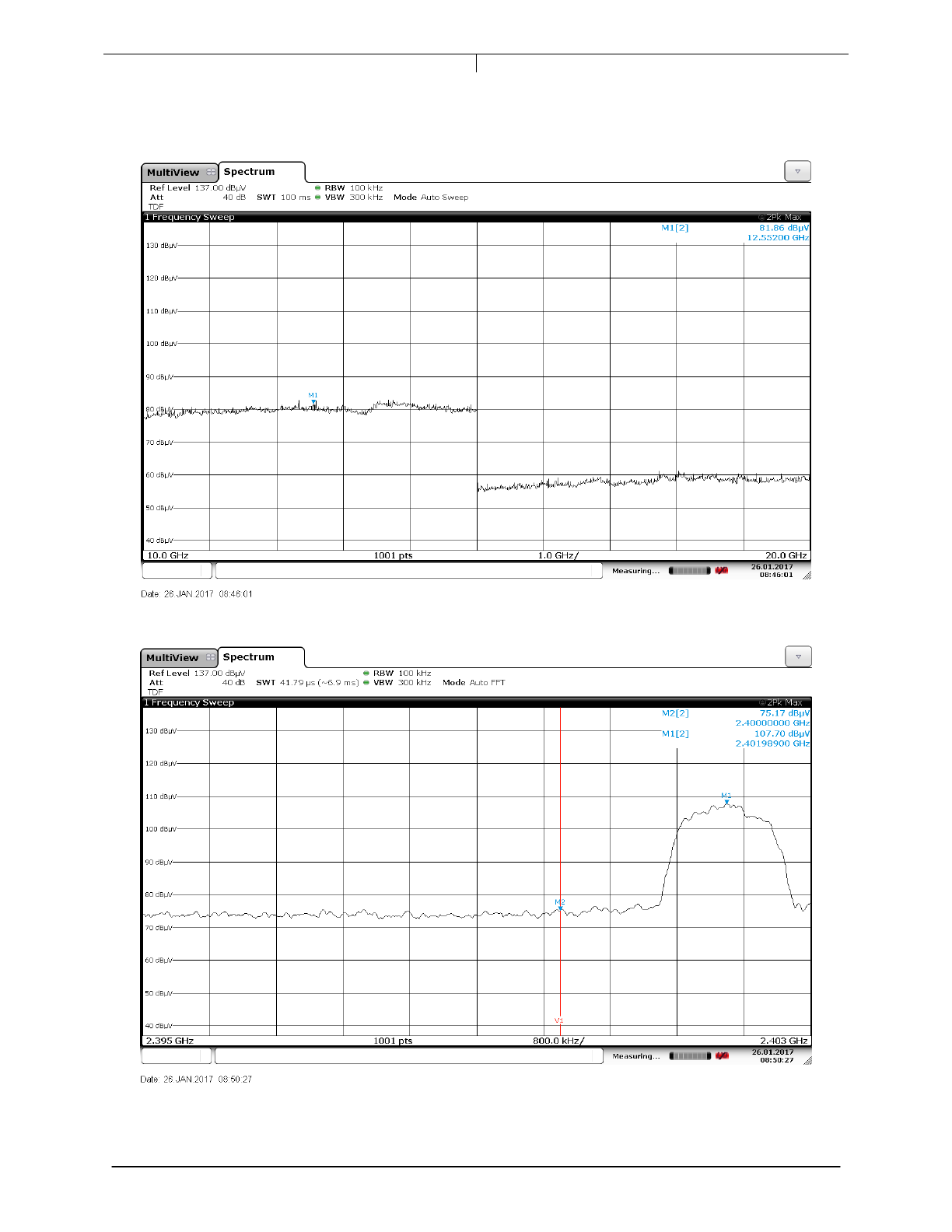

11.4 Plots/Data:

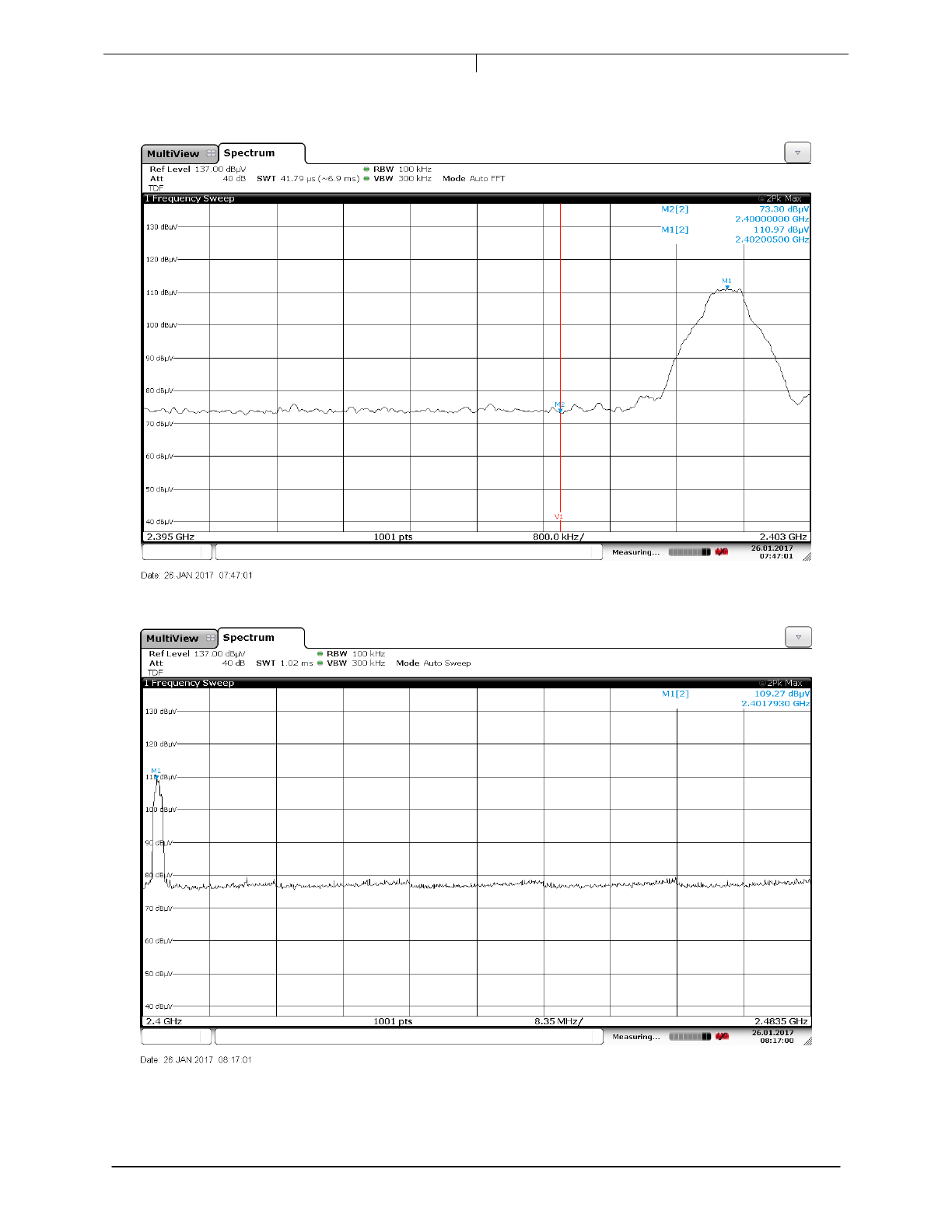

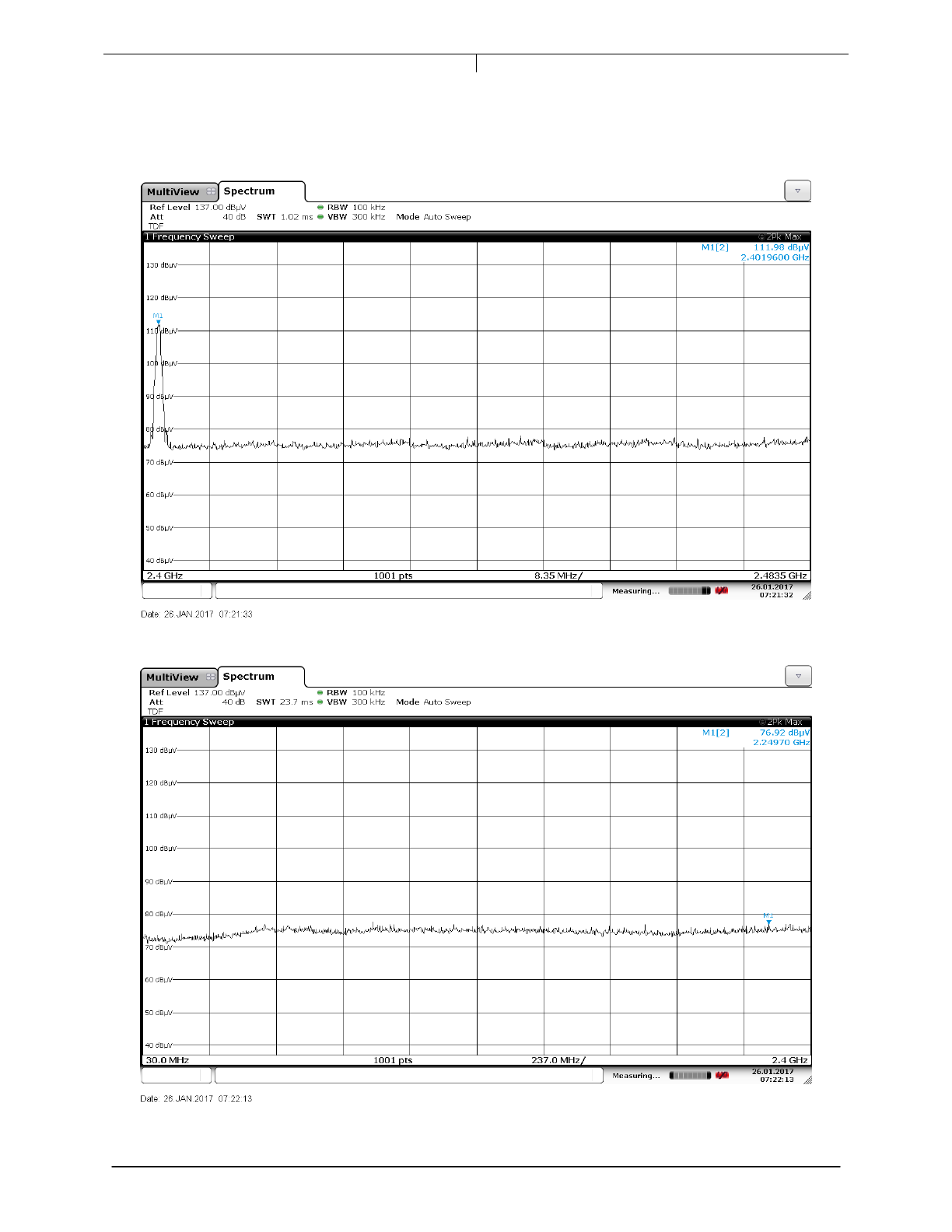

Low Channel (2402 MHz) – Battery mode, In band emissions, Low data rate
Low Channel (2402 MHz) – Battery mode, Out of band emissions, Low data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 40 of 117
Company: Zoll medical Corporation Model: µCor 3.0

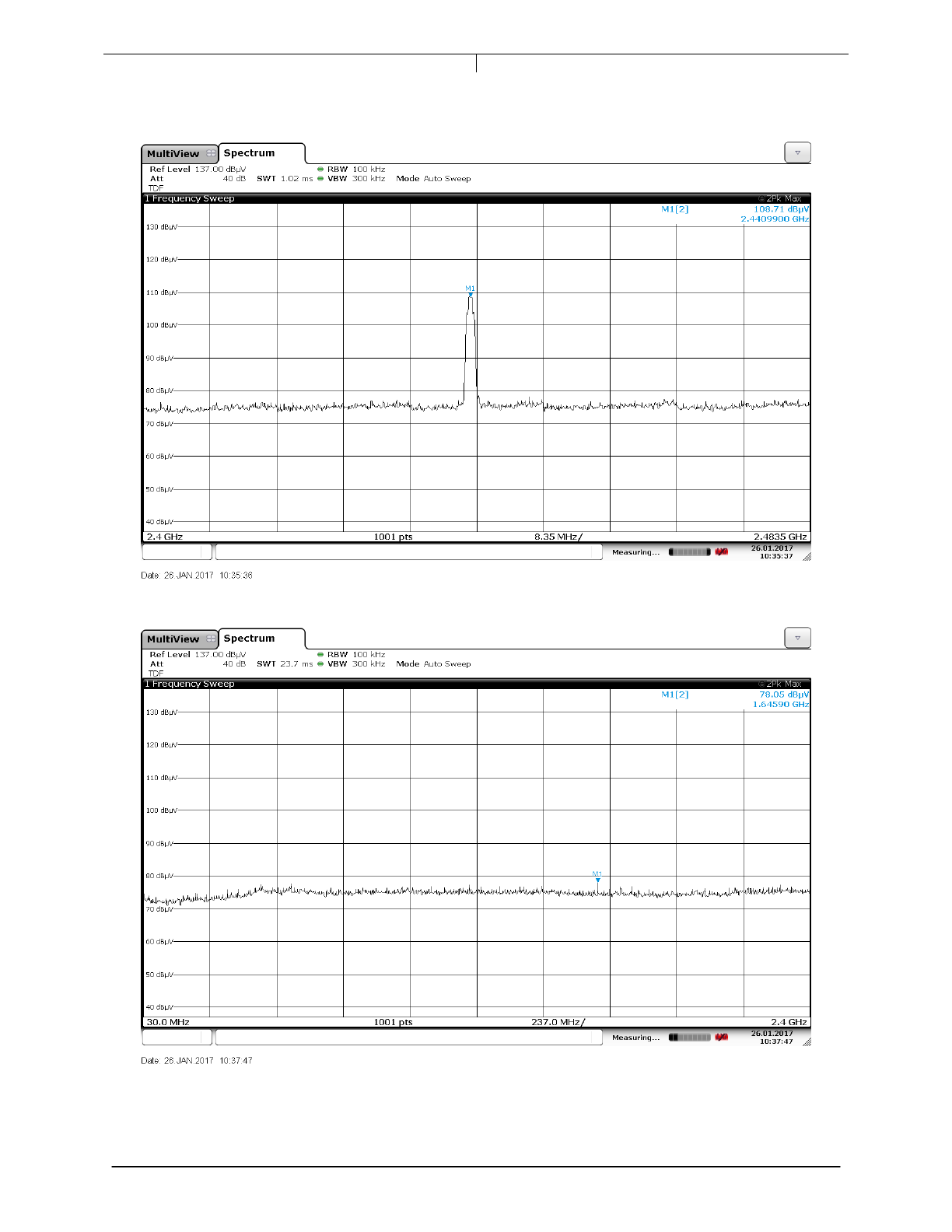

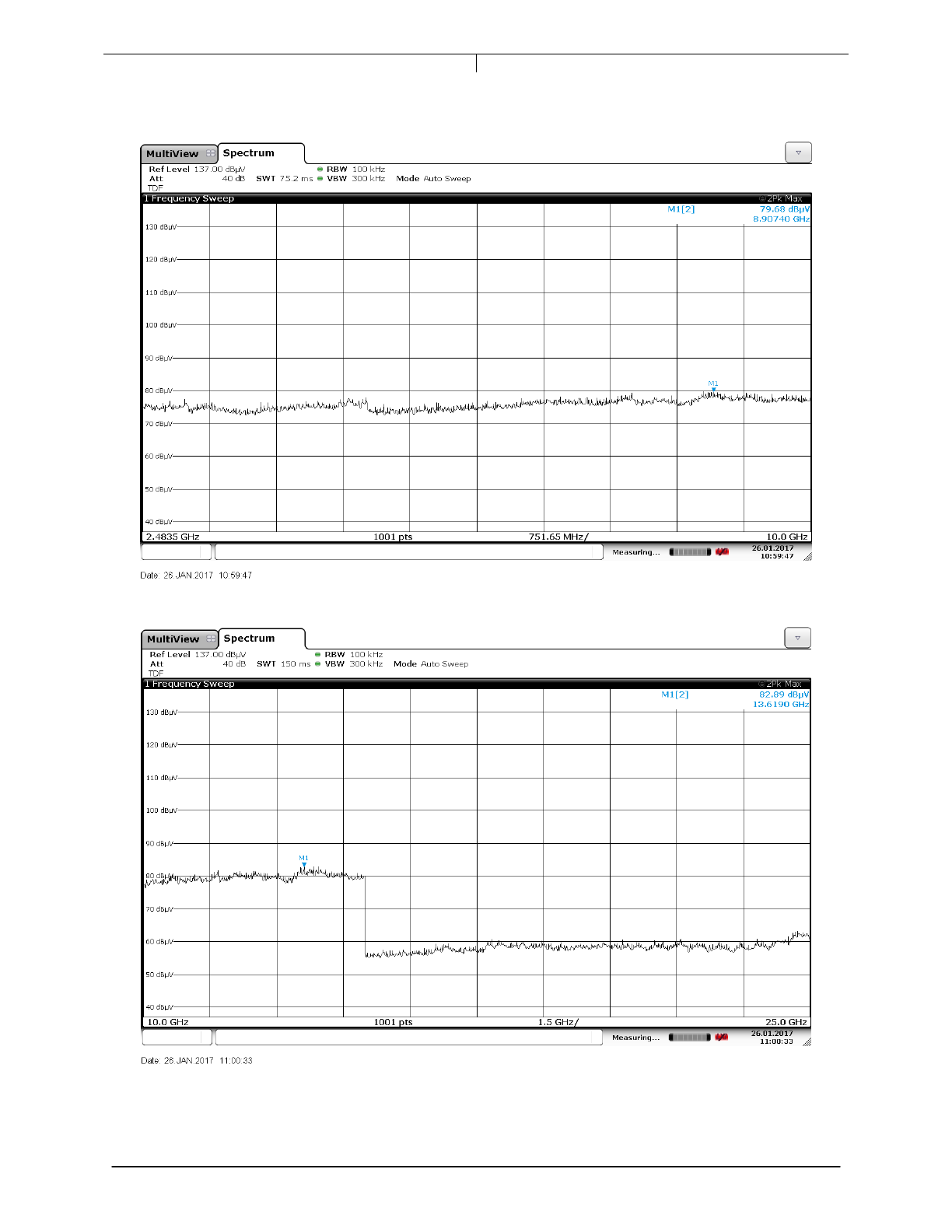

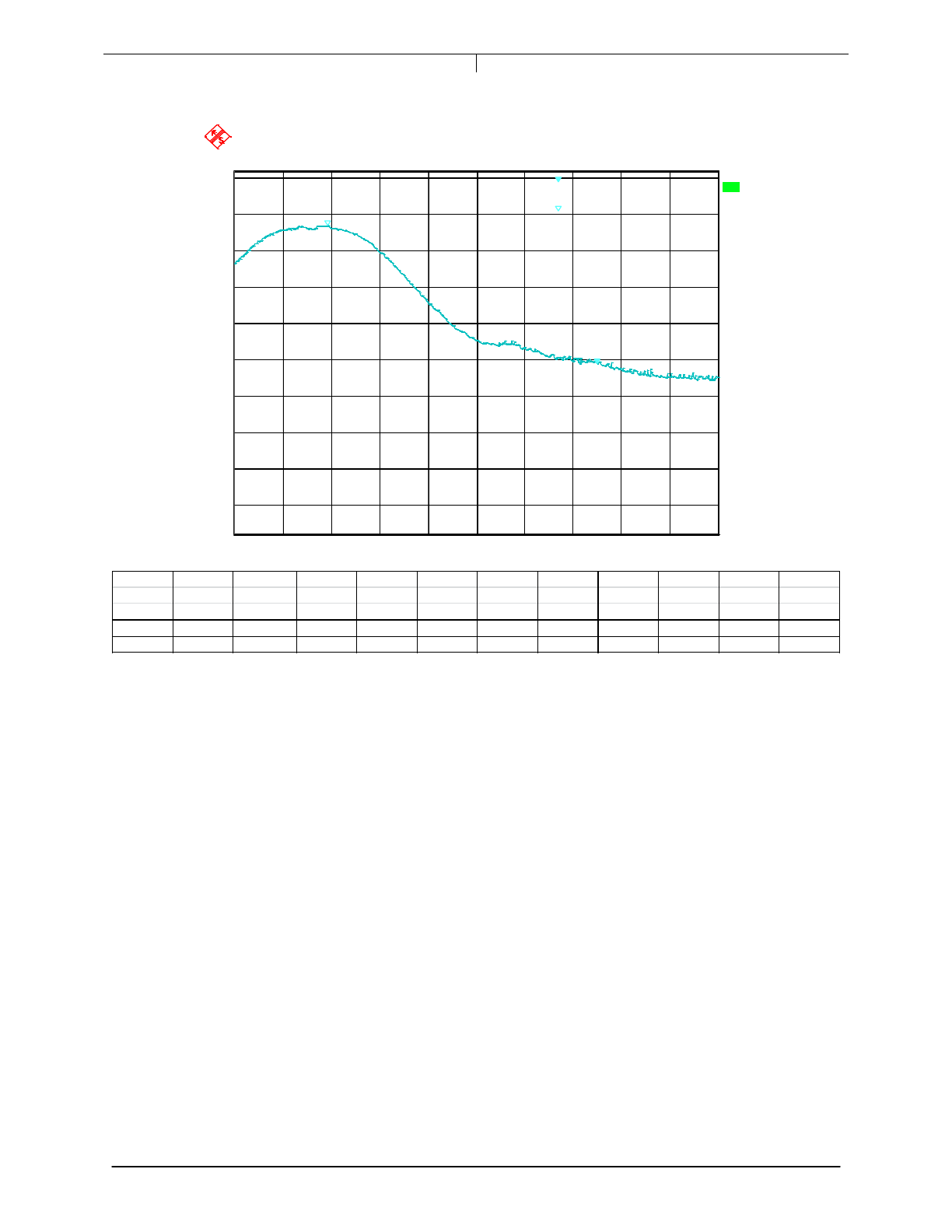

Low Channel (2402 MHz) – Battery mode, Out of band emissions, Low data rate
Low Channel (2402 MHz) – Battery mode, Out of band emissions, Low data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 41 of 117
Company: Zoll medical Corporation Model: µCor 3.0

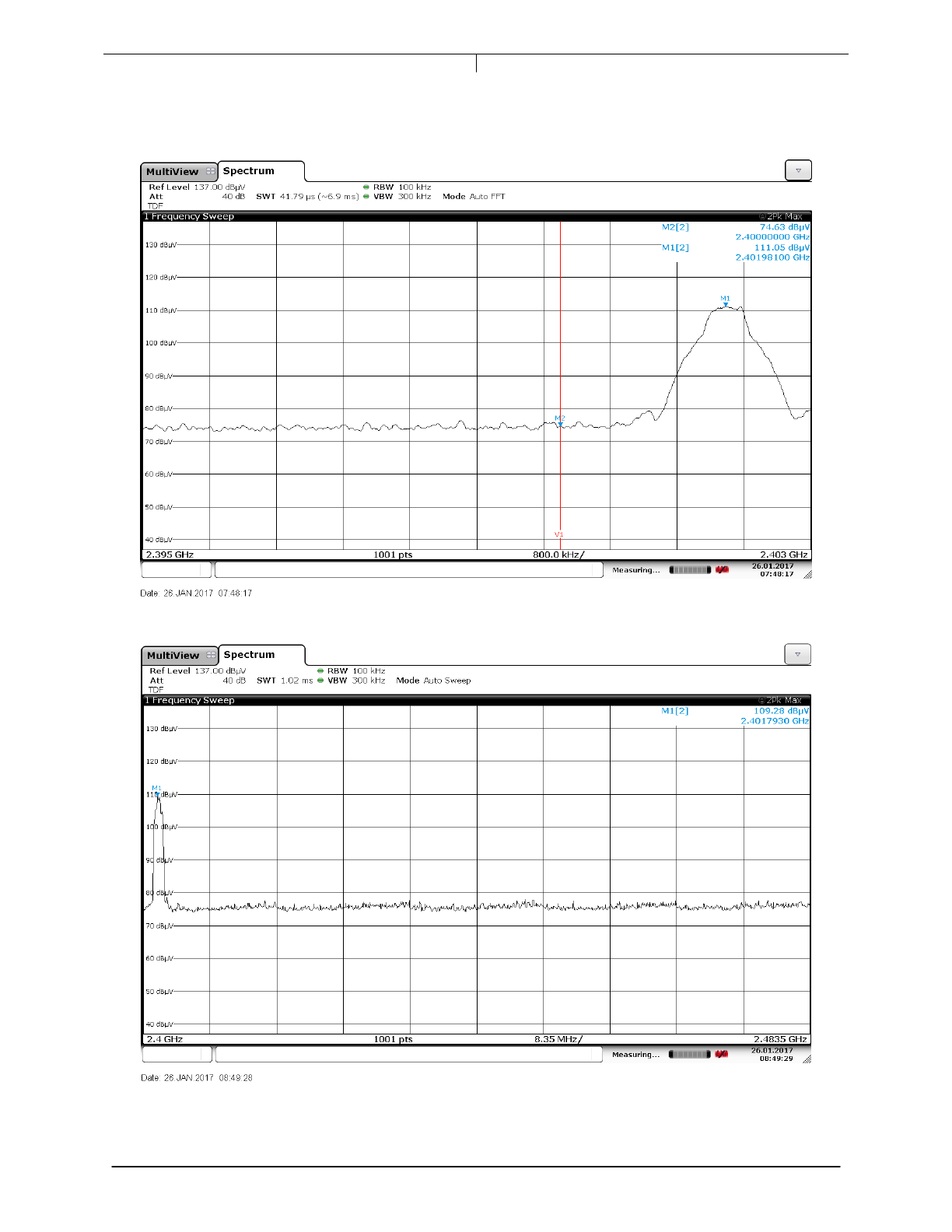

Low Channel (2402 MHz) – Battery mode, Band edge emissions, Low data rate
Low Channel (2402 MHz) – Battery mode, In band emissions, High data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 42 of 117
Company: Zoll medical Corporation Model: µCor 3.0

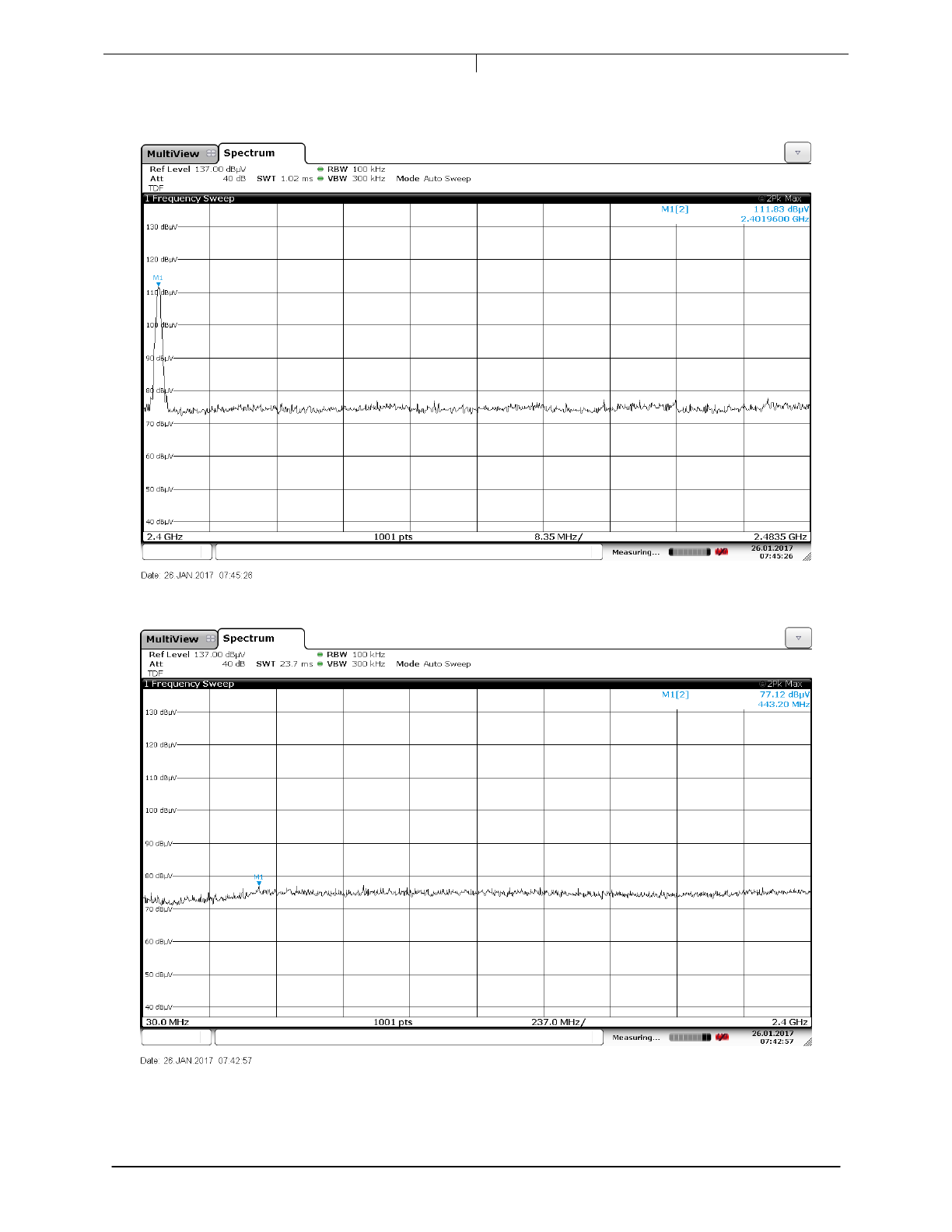

Low Channel (2402 MHz) – Battery mode, Out of band emissions, High data rate
Low Channel (2402 MHz) – Battery mode, Out of band emissions, High data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 43 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Low Channel (2402 MHz) – Battery mode, Out of band emissions, High data rate
Low Channel (2402 MHz) – Battery mode, Band edge emissions, High data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 44 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Low Channel (2402 MHz) – Charging mode, In band emissions, Low data rate
Low Channel (2402 MHz) – Charging mode, Out of band emissions, Low data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 45 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Low Channel (2402 MHz) – Charging mode, Out of band emissions, Low data rate
Low Channel (2402 MHz) – Charging mode, Out of band emissions, Low data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 46 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Low Channel (2402 MHz) – Charging mode, Band edge emissions, Low data rate
Low Channel (2402 MHz) – Charging mode, In Band emissions, High data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 47 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Low Channel (2402 MHz) – Charging mode, Out of Band emissions, High data rate
Low Channel (2402 MHz) – Charging mode, Out of Band emissions, High data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 48 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Low Channel (2402 MHz) – Charging mode, Out of Band emissions, High data rate
Low Channel (2402 MHz) – Charging mode, Band edge emissions, High data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 49 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Mid Channel (2441 MHz) – Battery mode, In Band emissions, Low data rate
Mid Channel (2441 MHz) – Battery mode, Out of Band emissions, Low data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 50 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Mid Channel (2441 MHz) – Battery mode, Out of Band emissions, Low data rate
Mid Channel (2441 MHz) – Battery mode, Out of Band emissions, Low data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 51 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Mid Channel (2441 MHz) – Battery mode, In Band emissions, High data rate
Mid Channel (2441 MHz) – Battery mode, Out of Band emissions, High data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 52 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Mid Channel (2441 MHz) – Battery mode, Out of Band emissions, High data rate
Mid Channel (2441 MHz) – Battery mode, Out of Band emissions, High data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 53 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Mid Channel (2441 MHz) – Charging mode, In Band emissions, Low data rate
Mid Channel (2441 MHz) – Charging mode, Out of Band emissions, Low data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 54 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Mid Channel (2441 MHz) – Charging mode, Out of Band emissions, Low data rate
Mid Channel (2441 MHz) – Charging mode, Out of Band emissions, Low data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 55 of 117
Company: Zoll medical Corporation Model: µCor 3.0

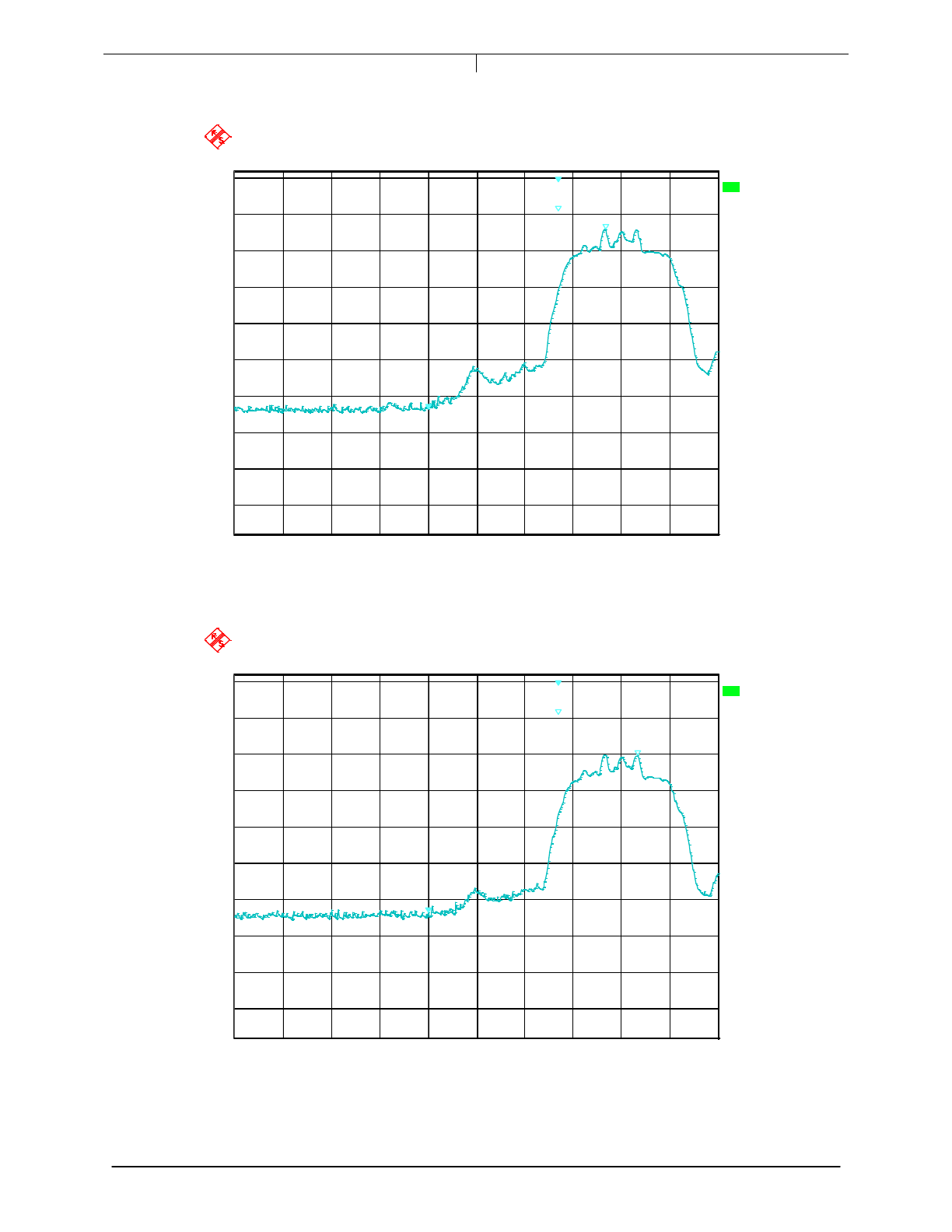

Mid Channel (2441 MHz) – Charging mode, In Band emissions, High data rate
Mid Channel (2441 MHz) – Charging mode, Out of Band emissions, High data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 56 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Mid Channel (2441 MHz) – Charging mode, Out of Band emissions, High data rate
Mid Channel (2441 MHz) – Charging mode, Out of Band emissions, High data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 57 of 117
Company: Zoll medical Corporation Model: µCor 3.0

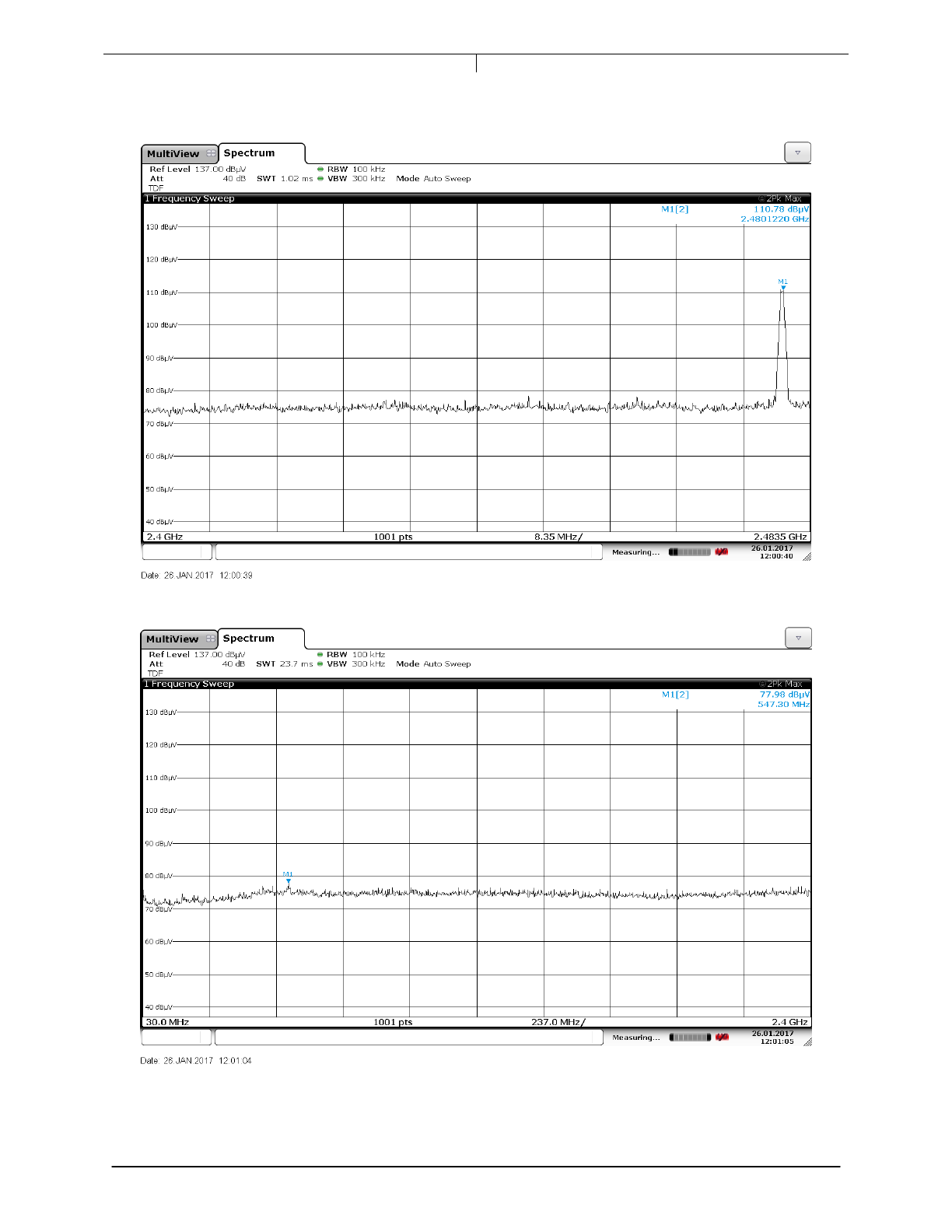

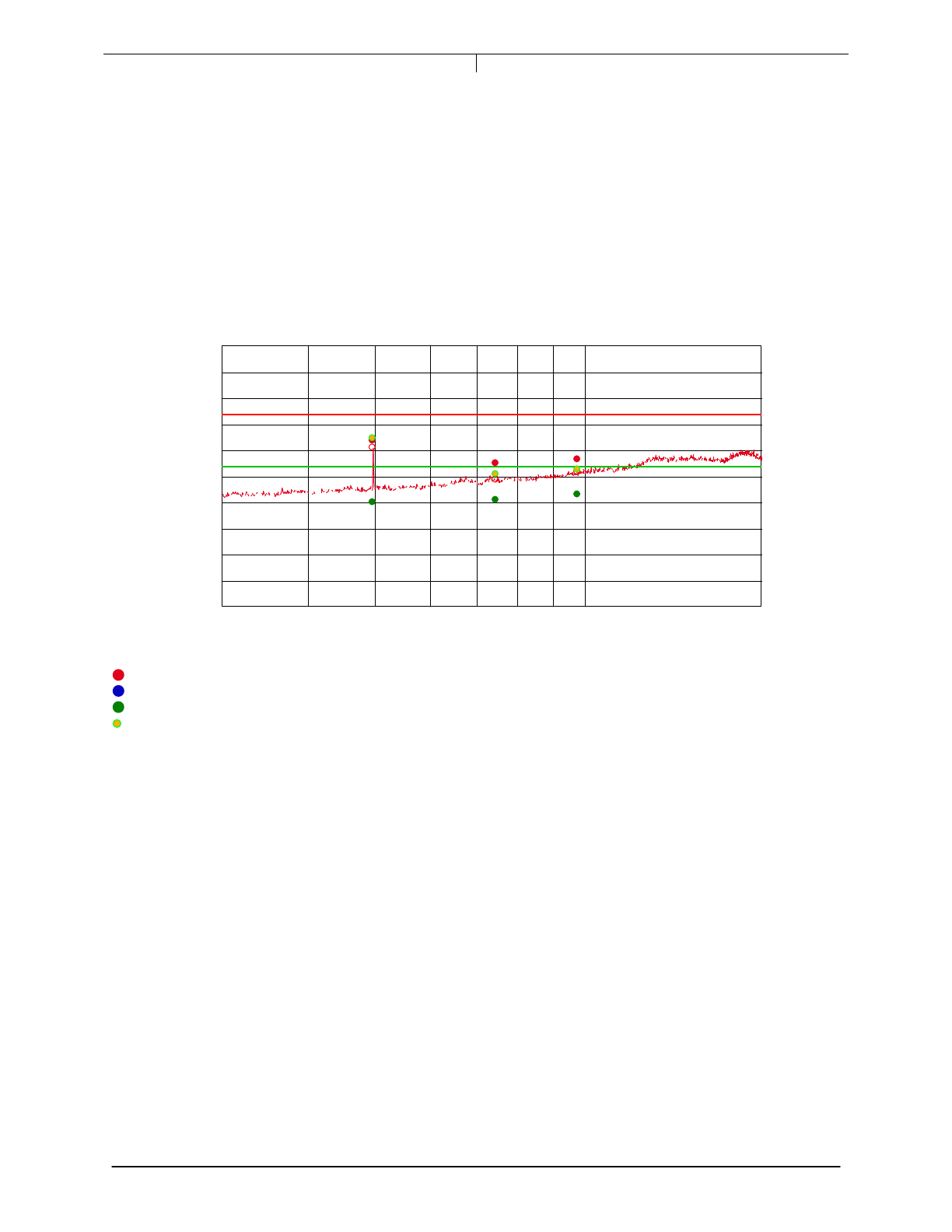

High Channel (2480 MHz) – Battery mode, In Band emissions, Low data rate
High Channel (2480 MHz) – Battery mode, Out of Band emissions, Low data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 58 of 117
Company: Zoll medical Corporation Model: µCor 3.0
High Channel (2480 MHz) – Battery mode, Out of Band emissions, Low data rate
High Channel (2480 MHz) – Battery mode, Out of Band emissions, Low data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 59 of 117
Company: Zoll medical Corporation Model: µCor 3.0

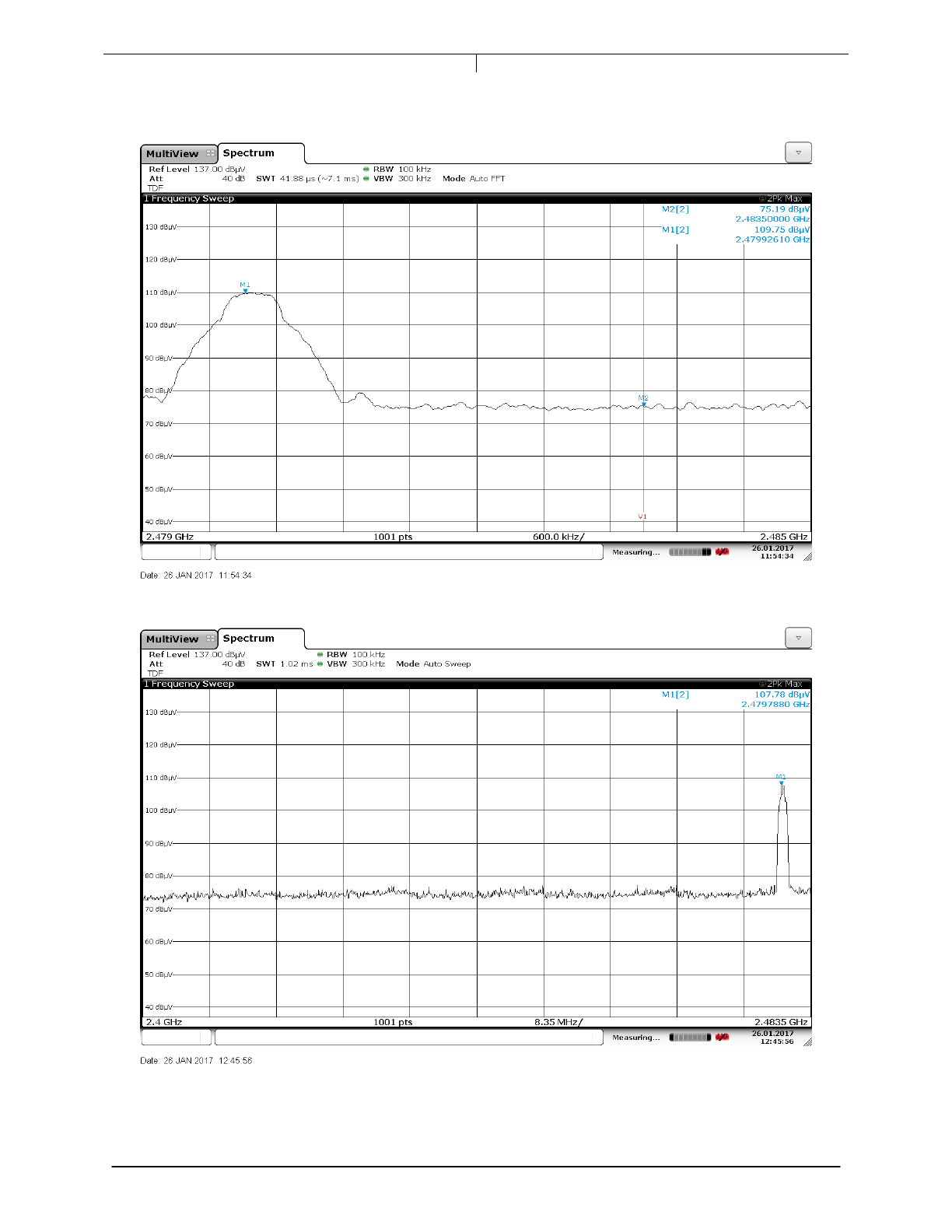

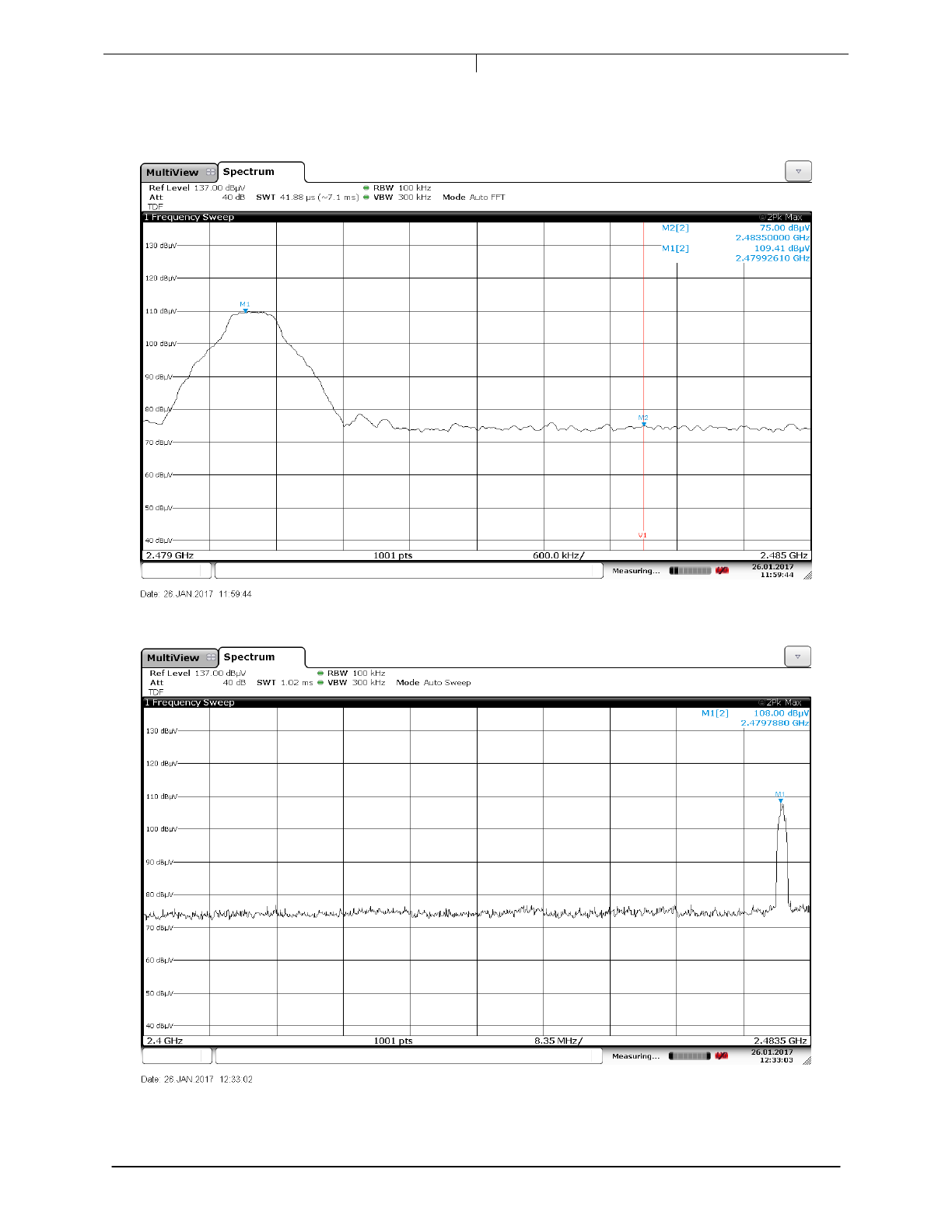

High Channel (2480 MHz) – Battery mode, Band edge emissions, Low data rate
High Channel (2480 MHz) – Battery mode, In Band emissions, High data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 60 of 117
Company: Zoll medical Corporation Model: µCor 3.0
High Channel (2480 MHz) – Battery mode, Out of emissions, High data rate
High Channel (2480 MHz) – Battery mode, Out of emissions, High data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 61 of 117
Company: Zoll medical Corporation Model: µCor 3.0

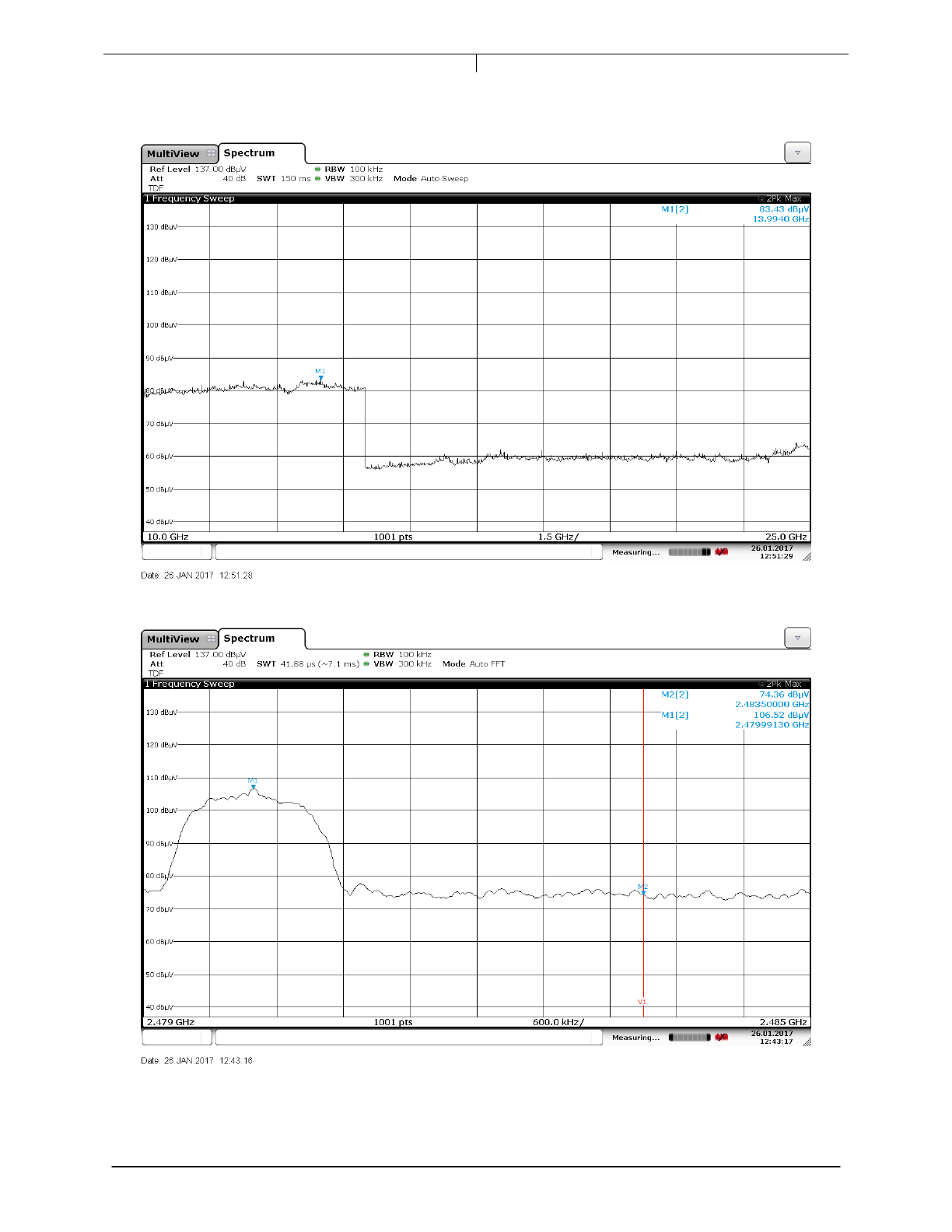

High Channel (2480 MHz) – Battery mode, Out of emissions, High data rate
High Channel (2480 MHz) – Battery mode, Band edge emissions, High data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 62 of 117
Company: Zoll medical Corporation Model: µCor 3.0

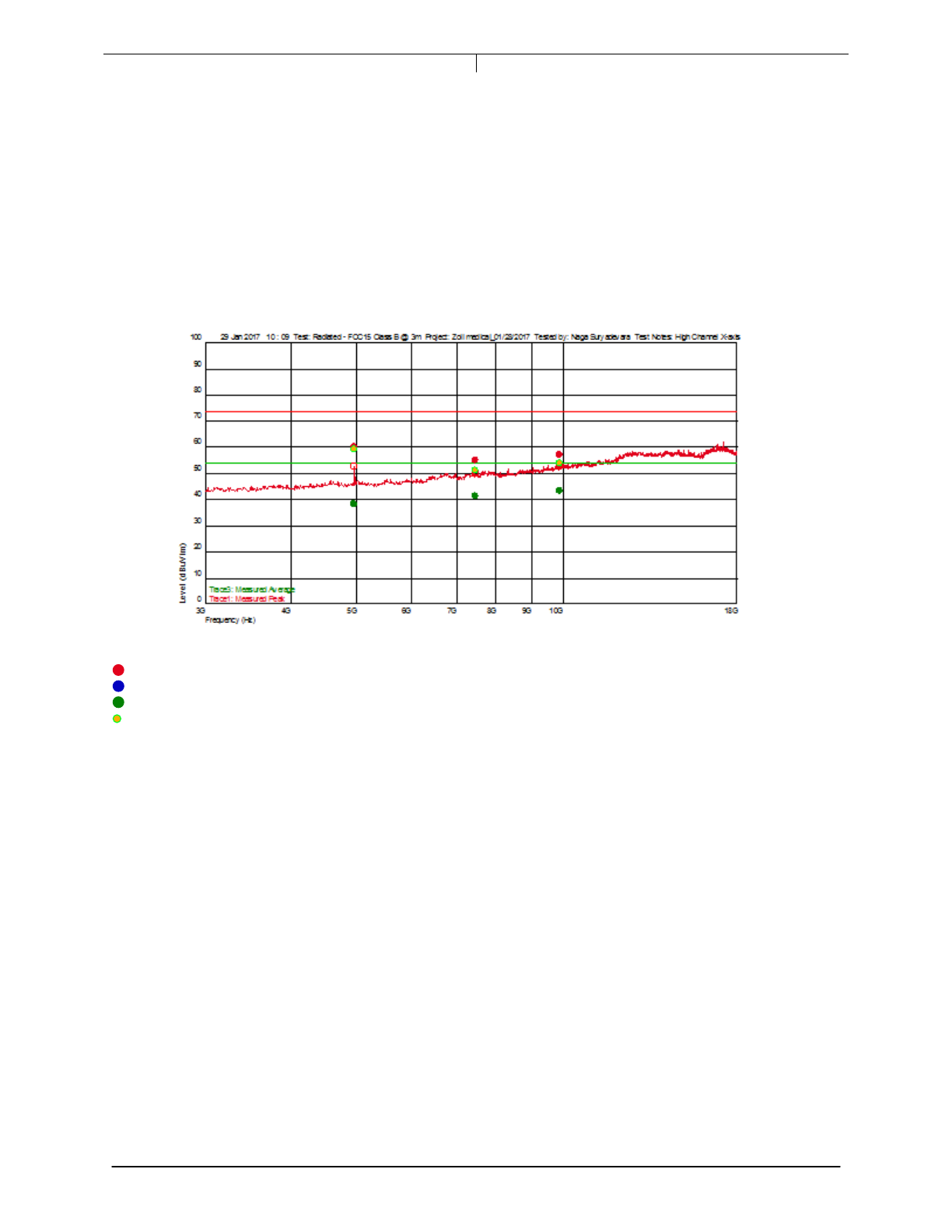

High Channel (2480 MHz) – Charging mode, In Band emissions, Low data rate
High Channel (2480 MHz) – Charging mode, Out of Band emissions, Low data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 63 of 117
Company: Zoll medical Corporation Model: µCor 3.0
High Channel (2480 MHz) – Charging mode, Out of Band emissions, Low data rate
High Channel (2480 MHz) – Charging mode, Out of Band emissions, Low data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 64 of 117
Company: Zoll medical Corporation Model: µCor 3.0
High Channel (2480 MHz) – Charging mode, Band edge emissions, Low data rate
High Channel (2480 MHz) – Charging mode, In Band emissions, High data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 65 of 117
Company: Zoll medical Corporation Model: µCor 3.0
High Channel (2480 MHz) – Charging mode, Out of Band emissions, High data rate
High Channel (2480 MHz) – Charging mode, Out of Band emissions, High data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 66 of 117
Company: Zoll medical Corporation Model: µCor 3.0
High Channel (2480 MHz) – Charging mode, Out of Band emissions, High data rate
High Channel (2480 MHz) – Charging mode, Band edge emissions, High data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 67 of 117
Company: Zoll medical Corporation Model: µCor 3.0

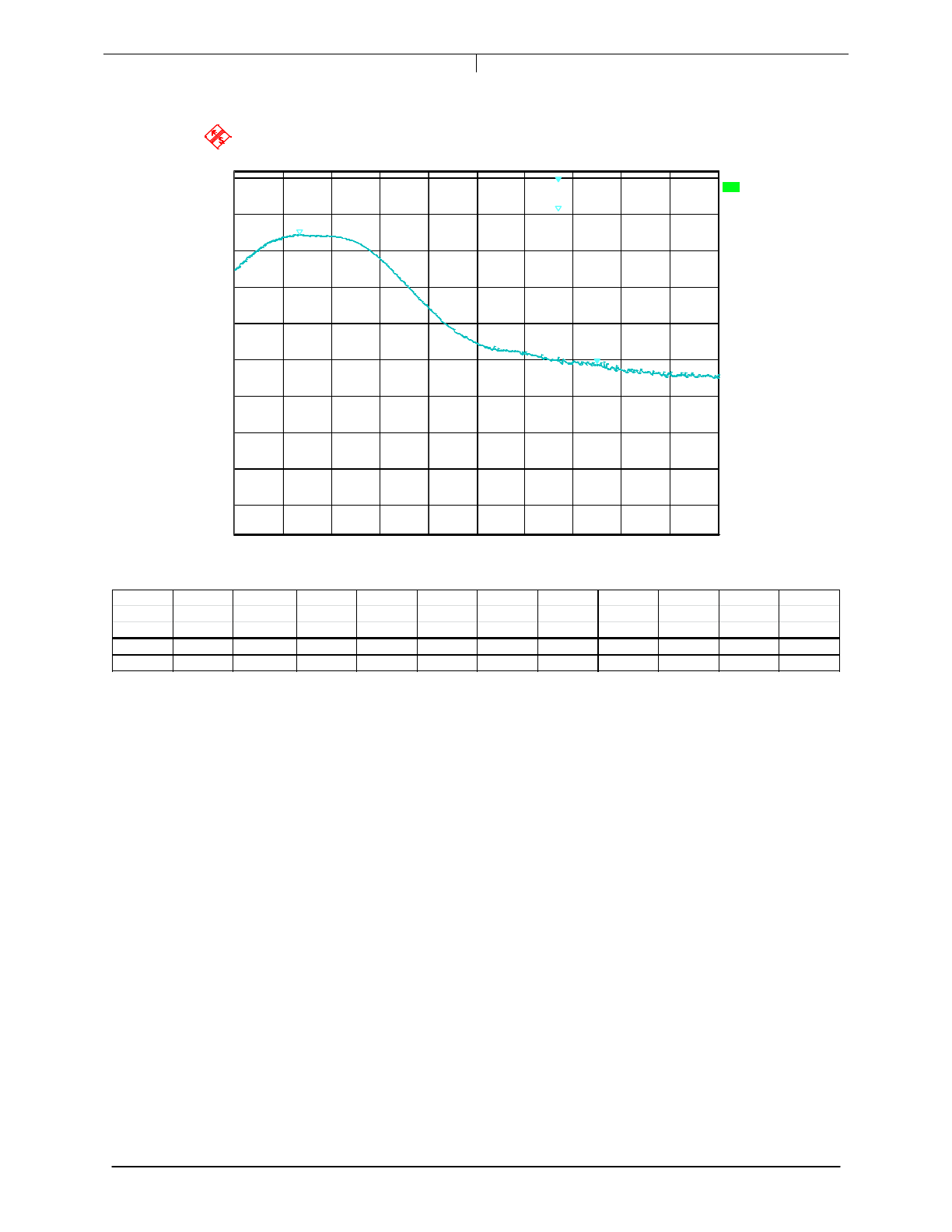

Frequency hopping – Battery mode, Lower Band edge emissions, Low data rate
Frequency hopping – Battery mode, Lower Band edge emissions, High data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 68 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Frequency hopping – Charging mode, Lower Band edge emissions, Low data rate
Frequency hopping – Charging mode, Lower Band edge emissions, High data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 69 of 117
Company: Zoll medical Corporation Model: µCor 3.0

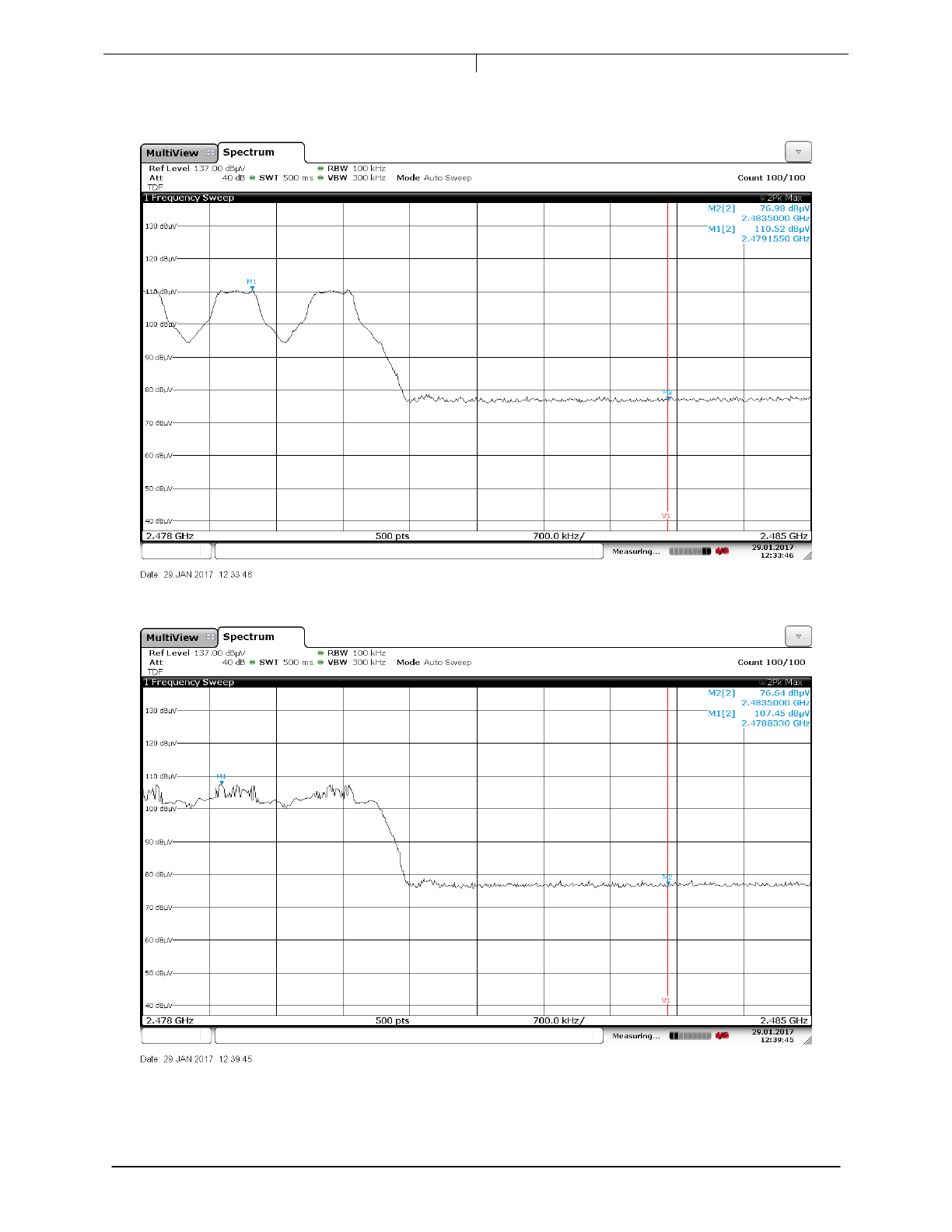

Frequency hopping – Battery mode, Higher Band edge emissions, Low data rate
Frequency hopping – Battery mode, Higher Band edge emissions, High data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 70 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Frequency hopping – Charging mode, Higher Band edge emissions, Low data rate
Frequency hopping – Charging mode, Higher Band edge emissions, High data rate
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 71 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Test Personnel:
Naga Suryadevara
Test Date:
01/26/2017
Supervising/Reviewing
Engineer:
(Where Applicable)
N/A
Product Standard:
FCC Part 15 Subpart C
(15.247)
Limit Applied:
See section 11.3
Input Voltage:
120VAC 60Hz
Internal Battery
Pretest Verification w/
Ambient Signals or
BB Source:
Yes – Signal generator
Ambient Temperature:
19 ºC
Relative Humidity:
30 %
Atmospheric Pressure:
981 mbars
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 72 of 117
Company: Zoll medical Corporation Model: µCor 3.0

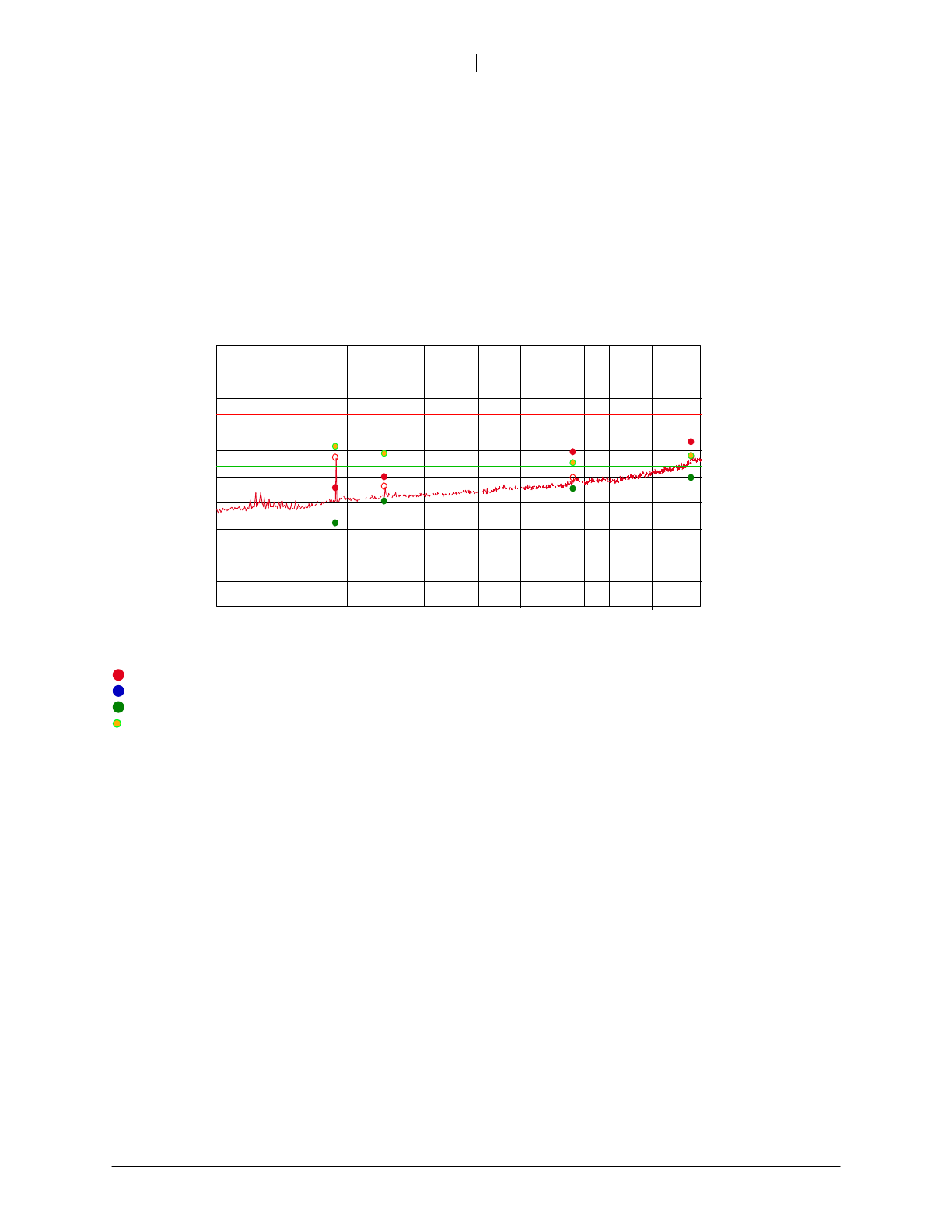

12 Radiated Spurious Emissions
12.1 Method
Tests are performed in accordance with FCC Part 15 Subpart C (15.247).
TEST SITE: 10m ALSE
The 10m ALSE is 13m (Length) x 21m (Depth) x 10m (Height) with the effective size in terms of space from the
tips of the absorber is 12m (Length) x 20m (Depth) x 8.5m (Height). This chamber achieves broadband
performance using a unique arrangement of hybrid and ferrite tile absorber. This chamber has a built in 3m
diameter turntable (Embedded type). The metal structure of the table makes electrical connection around the
entire circumference of the turntable to the ground plane with a metal brush type connection. The turntable is
located on one end of the chamber and the antennas are mounted 3 and 10 meters away at the other end of
the chamber on the adjustable an Antenna Mast. The antenna mast is a non-conductive bore sighted type with
remote control of antenna height and polarization. The Antenna Mast and the turntable can be remotely
controlled through the controller located in the adjacent Control room. A Styrofoam table 80 cm high is used for
table-top equipment.
Measurement Uncertainty
Measurement
Frequency
Range
Expanded
Uncertainty
(k=2)
Ucispr
Radiated Emissions, 10m
30-1000 MHz
4.6 dB
6.3 dB
Radiated Emissions, 3m
30-1000 MHz
5.3 dB
6.3 dB
Radiated Emissions, 3m
1-6 GHz
4.5 dB
5.2 dB
Radiated Emissions, 3m
6-15 GHz
5.2 dB
5.5 dB
Radiated Emissions, 3m
15-18 GHz
5.0 dB
5.5 dB
Radiated Emissions, 3m
18-40 GHz
5.0 dB
5.5 dB
As shown in the table above our radiated emissions
lab
U
is less than the corresponding
CISPR
U
reference
value in CISPR 16-4-2 Table 1, hence the compliance of the product is only based on the measured
value, and no measurement uncertainty correction is required, based on CISPR 22 and CISPR 11 (for
2006 and later revisions) Clause 11.
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 73 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Sample Calculation

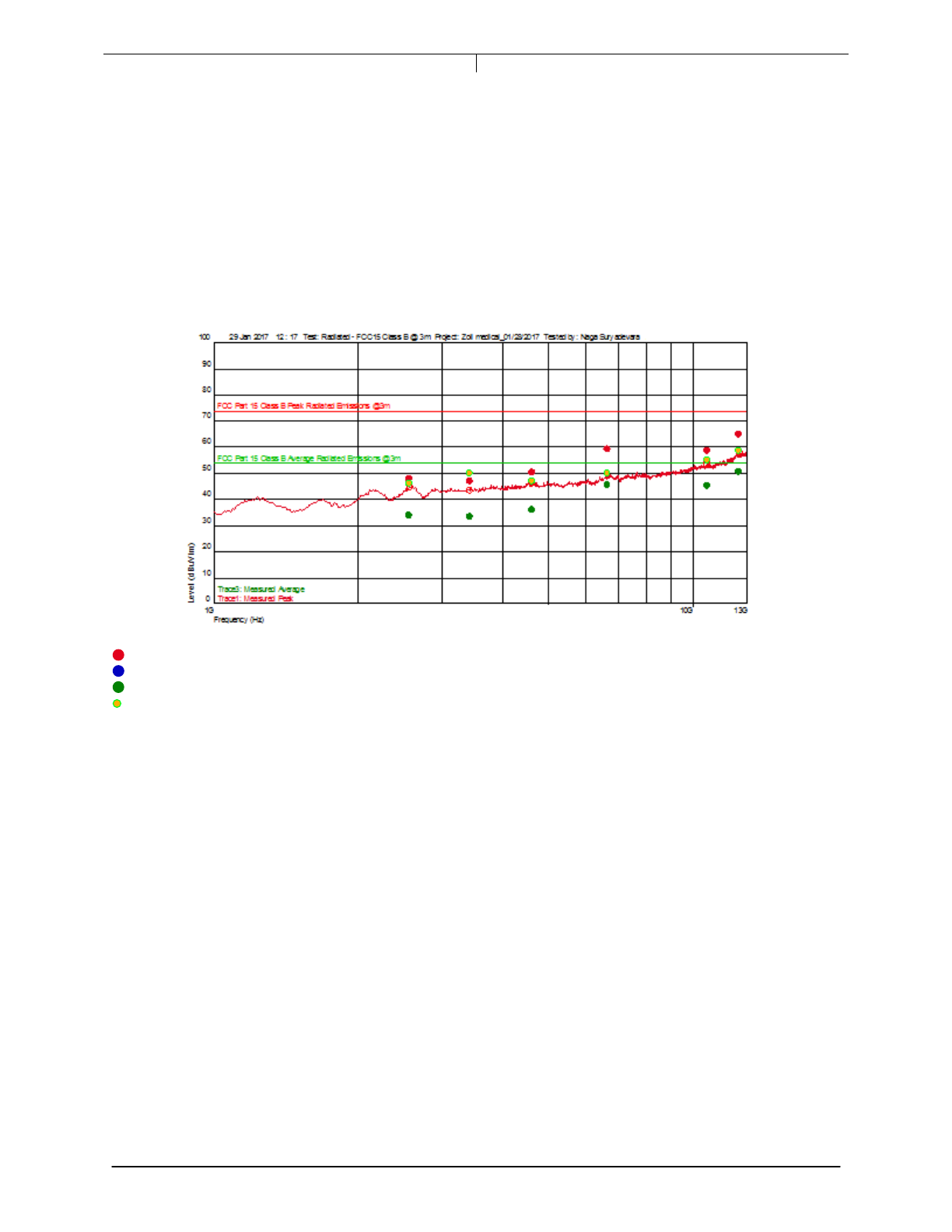

The field strength is calculated by adding the Antenna Factor and Cable Factor, and subtracting the
Amplifier Gain (if any) from the measured reading. The basic equation with a sample calculation is as
follows:
FS = RA + AF + CF - AG
Where FS = Field Strength in dBV/m
RA = Receiver Amplitude (including preamplifier) in dBV
CF = Cable Attenuation Factor in dB
AF = Antenna Factor in dB
AG = Amplifier Gain in dB
In the following table(s), the reading shown on the data table reflects the preamplifier gain. An example
for the calculations in the following table is as follows.
Assume a receiver reading of 52.0 dBV is obtained. The antenna factor of 7.4 dB and cable factor of
1.6 dB is added. The amplifier gain of 29 dB is subtracted, giving a field strength of 32 dBV/m. This
value in dBV/m was converted to its corresponding level in V/m.
RA = 52.0 dBV
AF = 7.4 dB/m
CF = 1.6 dB
AG = 29.0 dB
FS = 32 dBV/m
To convert from dBV to V or mV the following was used:
UF = 10(NF / 20) where UF = Net Reading in V
NF = Net Reading in dBV
Example:
FS = RA + AF + CF – AG = 52.0 + 7.4 + 1.6 – 29.0 = 32.0
UF = 10(32 dBV / 20) = 39.8 V/m
Alternately, when C5 Software is used, the “Level” includes all losses and gains and is compared directly
in the “Margin” column to the “Limit”. “AF” is the Antenna Factor; “PA+CL” are Preamp and Cable Loss.
These are already accounted for in the “Level” column.
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 74 of 117
Company: Zoll medical Corporation Model: µCor 3.0
12.2 Test Equipment Used:
Asset
Description
Manufacturer
Model
Serial
Cal Date
Cal Due
DAV004’
Weather Station
Davis Instruments
7400
PE80529A61
A
05/02/2016
05/02/2017
145145’
Broadband Hybrid Antenna 30 MHz - 3 GHz
Sunol Sciences Corp.
JB3
A122313
03/09/2016
03/09/2017
145-410’
Cables 145-420 145-421 145-422 145-406
Huber + Suhner
10m Track A
Cables
multiple
07/30/2016
07/30/2017
PRE10’
30-1000MHz pre-amp
ITS
PRE10
PRE10
12/16/2016
12/16/2017
ETS001’
1-18GHz DRG Horn Antenna
ETS-Lindgren
3117
00143259
02/10/2016
02/10/2017
145-416’
Cables 145-420 145-423 145-424 145-408
Huber + Suhner
3m Track B
cables
multiple
07/30/2016
07/30/2017
145014’
Preamplifier (1 GHz to 26.5 GHz)
Hewlett Packard
8449B
3008A00232
05/27/2016
05/27/2017
EMC04’
ANTENNA, RIDGED GUIDE, 18-40 GHZ
EMCO
3116
2090
09/14/2016
09/14/2017
REA004’’
3GHz High Pass Filter
Reactel, Inc
7HSX-
3G/18G-S11
06-1
01/25/2016
01/25/2017
PRE10’
30-1000MHz pre-amp
ITS
PRE10
PRE10
12/16/2016
12/16/2017
CBLHF2012
-2M-2’
2m 9kHz-40GHz Coaxial Cable - SET2
Huber & Suhner
SF102
252675002
02/09/2016
02/09/2017
CBLHF2012
-5M-2’
5m 9kHz-40GHz Coaxial Cable - SET2
Huber & Suhner
SF102
252676002
02/19/2016
02/19/2017
Software Utilized:
Name
Manufacturer
Version
Compliance5
Teseq
5.26.46.46
12.3 Results:
The sample tested was found
to Comply
.
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 75 of 117
Company: Zoll medical Corporation Model: µCor 3.0
12.4 Plots/Data:

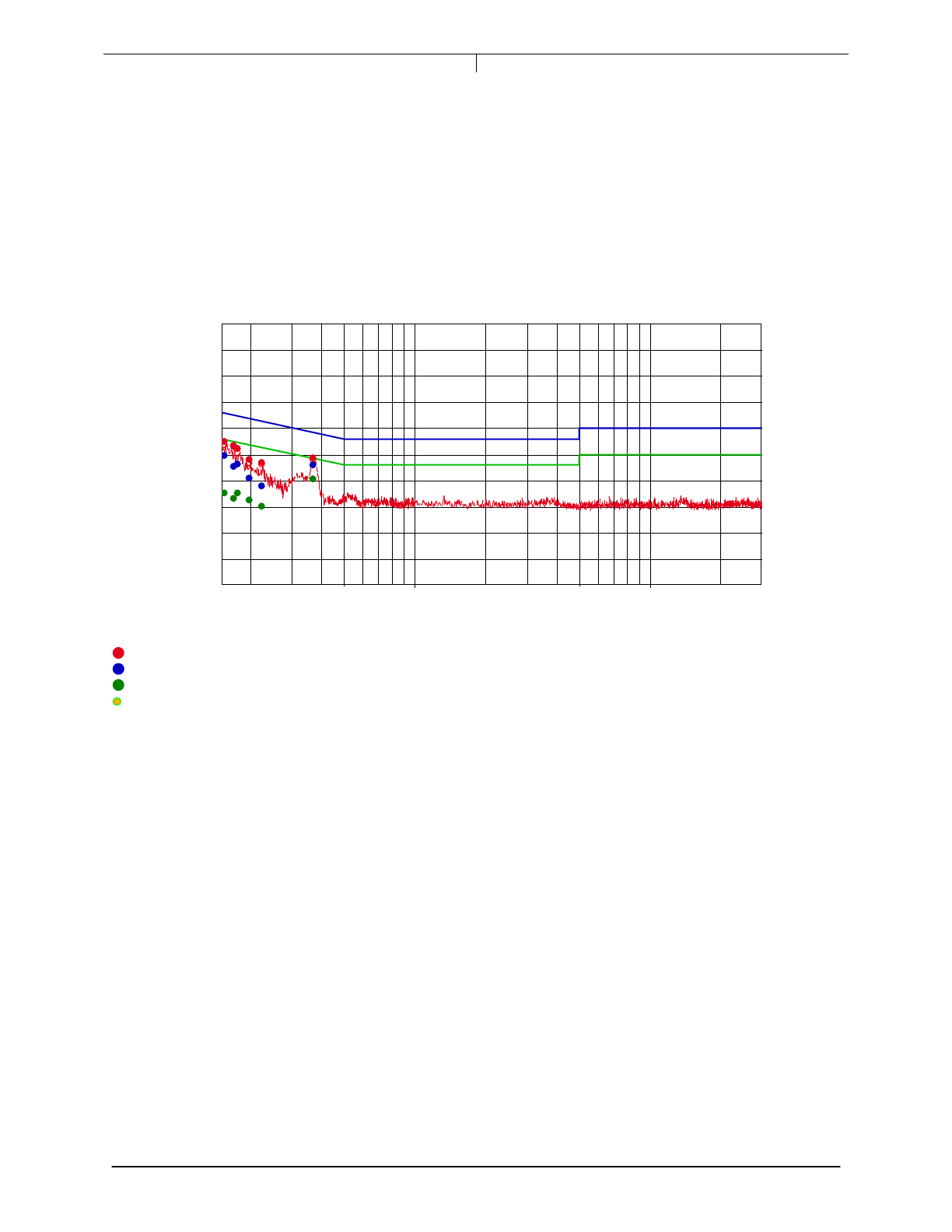

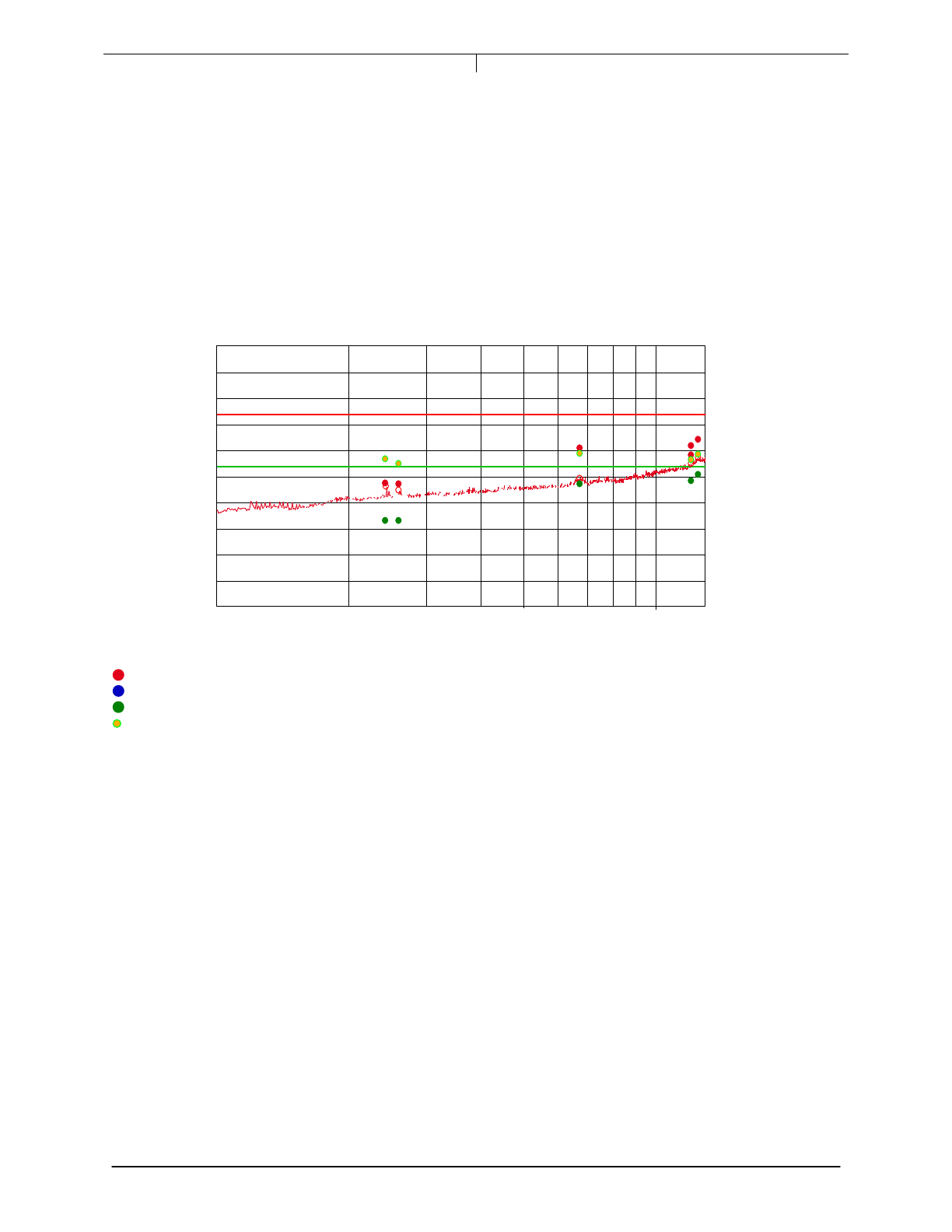

Low Channel, Charging mode, Tx (Low data rate, 30 MHz – 1 GHz)
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 10m
Project:
Zoll medical_01/26/2017
Test Notes:
Tx Low channel, charging mode
Temperature:
19 C
Humidity:
30% 981 mbars
Tested by:
Naga Suryadevara
Test Started:
26 Jan 2017 13 : 01

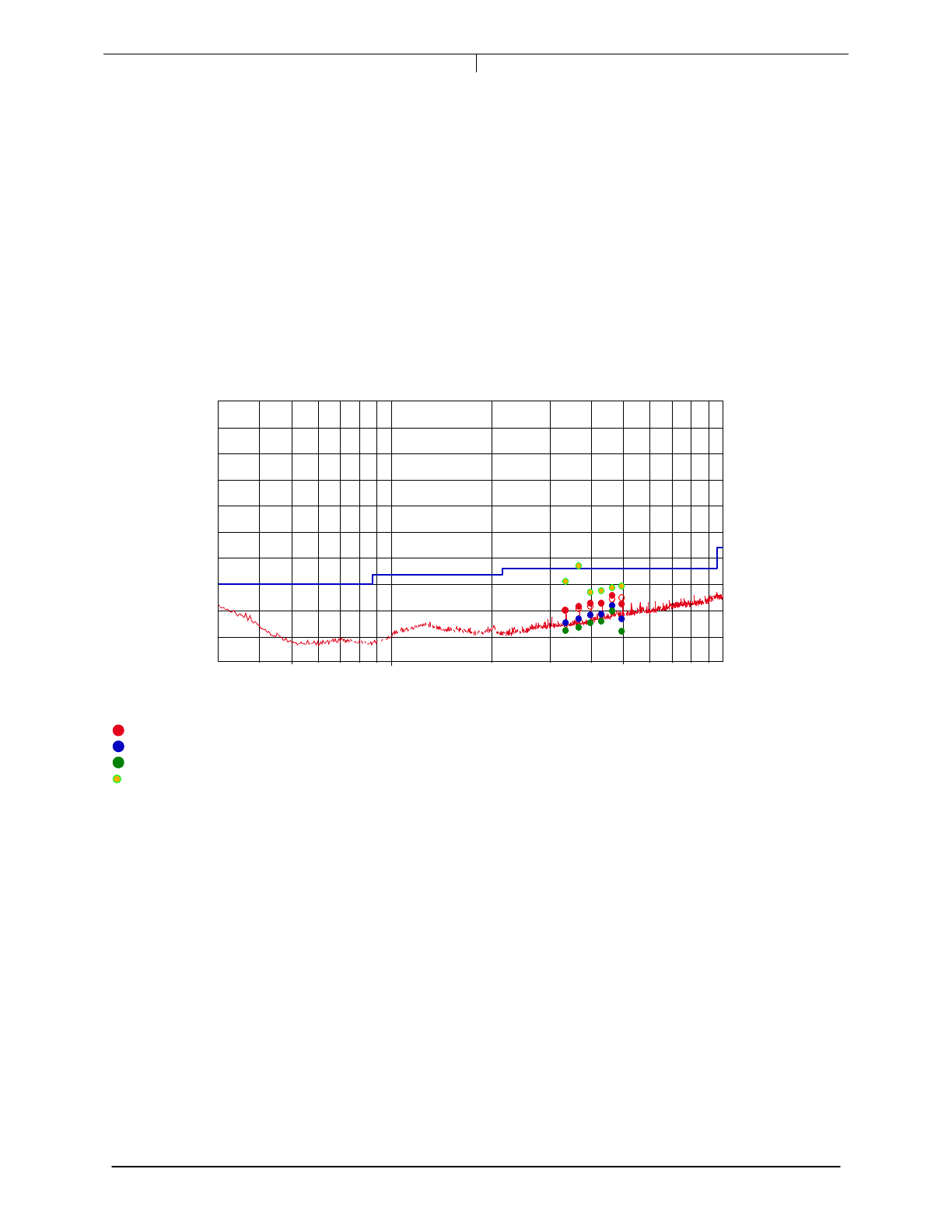

Prescan Emission Graph
26 Jan 2017 13 : 01 Test: Radiated - FCC15 Class B @ 10m Project: Zoll medical_01/26/2017 Tested by: Naga Suryadevara Test Notes: Tx Low channel (HDR), charging mode
30M 100M 1G
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV/m)
FCC Part 15 Class B QP Radiated Emissions @10m
Trace1: Measured Peak
Trace2: Measured Quasi Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace2: Measured Quasi Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
319.978357156 M
16.70
20.100
-38.178
36.020
-19.32
--
310
1.15
120 k
463.994589287 M
24.22
23.660
-37.590
36.020
-11.80
--
96
2.37
120 k
335.972946186 M
24.35
20.219
-38.136
36.020
-11.67
--
97
1.24
120 k
303.958917427 M
29.04
19.758
-38.210
36.020
-6.98
--
96
2.36
120 k
431.946092589 M
30.31
22.739
-37.777
36.020
-5.71
--
94
2.39
120 k
815.994588912 M
31.49
28.000
-35.661
36.020
-4.53
--
286
1.15
120 k
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 76 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Low Channel, Battery mode, Tx (Low data rate, 30 MHz – 1 GHz, X-axis)
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 10m
Project:
Zoll medical 01/29/2017
Test Notes:
Tx mode X axis Battery
Temperature:
19 C
Humidity:
19% 999 mbars
Tested by:
Naga Suryadevara
Test Started:
29 Jan 2017 19 : 11

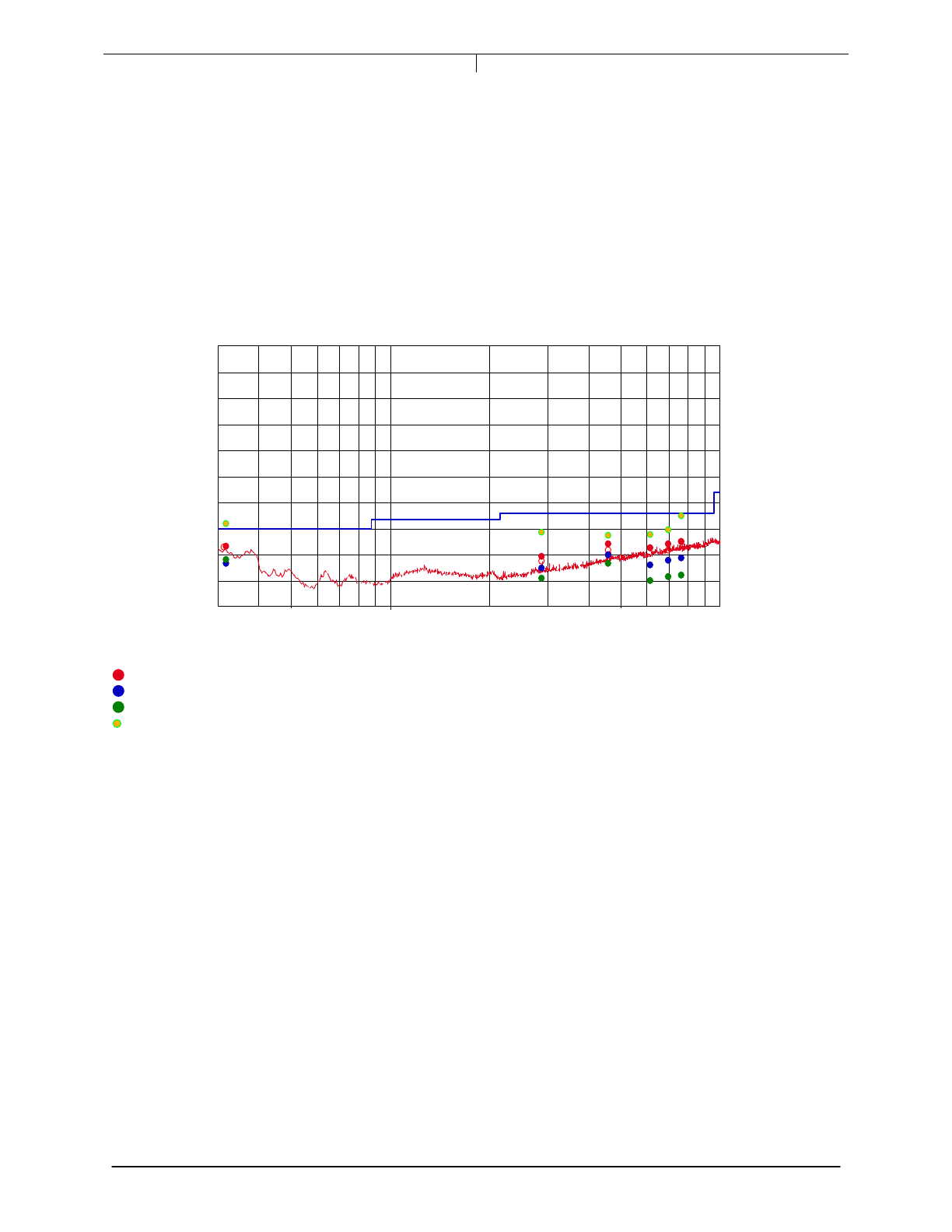

Prescan Emission Graph
29 Jan 2017 19 : 11 Test: Radiated - FCC15 Class B @ 10m Project: Zoll medical 01/29/2017 Tested by: Naga Suryadevara Test Notes: Tx mode X axis Battery
30M 100M 1G
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV/m)
FCC Part 15 Class B QP Radiated Emissions @10m
Trace1: Measured Peak
Trace2: Measured Quasi Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace2: Measured Quasi Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
335.870340976 M
10.71
20.217
-38.137
36.020
-25.31
|
185
1.08
120 k
638.554108525 M
17.08
26.100
-36.623
36.020
-18.94
|
94
1.27
120 k
431.934870144 M
17.32
22.739
-37.778
36.020
-18.70
|
265
1.05
120 k
815.867134002 M
19.63
28.000
-35.662
36.020
-16.39
|
73
1.50
120 k
30.0 M
17.24
27.500
-40.080
30.000
-12.76
--
342
2.40
120 k
848.001403242 M
26.34
28.000
-35.554
36.020
-9.68
|
62
1.77
120 k
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 77 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Low Channel, Battery mode, Tx (Low data rate, 30 MHz – 1 GHz, Y-axis)
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 10m
Project:
Zoll medical 01/29/2017
Test Notes:
Tx mode Y axis Battery
Temperature:
19 C
Humidity:
19% 999 mbars
Tested by:
Naga Suryadevara
Test Started:
29 Jan 2017 18 : 16

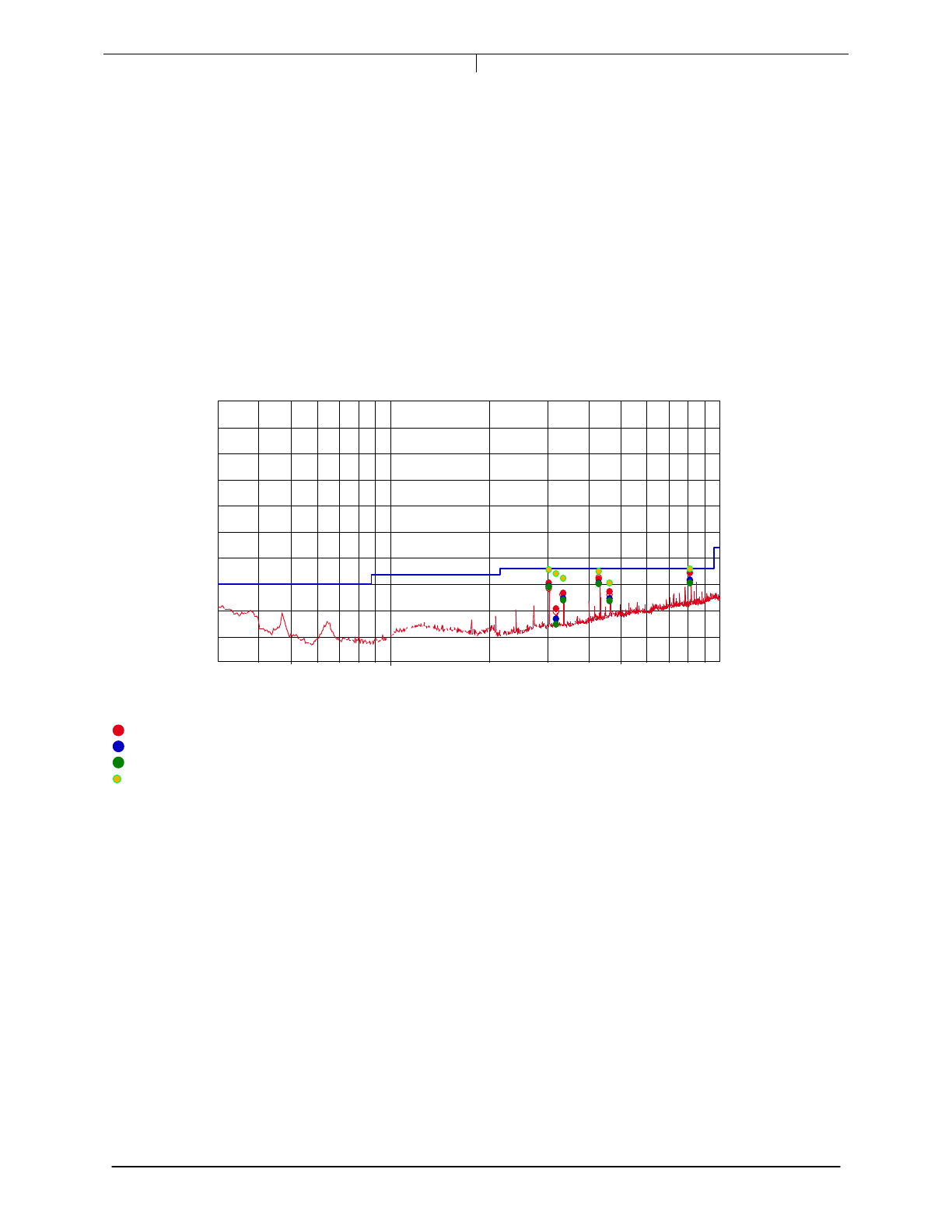

Prescan Emission Graph
29 Jan 2017 18 : 16 Test: Radiated - FCC15 Class B @ 10m Project: Zoll medical 01/29/2017 Tested by: Naga Suryadevara Test Notes: Tx mode Y axis Battery
30M 100M 1G
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV/m)
FCC Part 15 Class B QP Radiated Emissions @10m
Trace1: Measured Peak
Trace2: Measured Quasi Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace2: Measured Quasi Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
463.968136381 M
21.33
23.659
-37.591
36.020
-14.69
--
40
1.57
120 k
527.954309076 M
23.63
24.218
-37.241
36.020
-12.39
--
63
1.32
120 k
559.953907978 M
24.17
25.097
-37.096
36.020
-11.85
--
53
1.35
120 k
847.950100637 M
26.42
28.000
-35.554
36.020
-9.60
|
75
1.65
120 k
495.96452887 M
27.15
23.919
-37.396
36.020
-8.87
--
63
1.41
120 k
815.984969673 M
27.33
28.000
-35.661
36.020
-8.69
|
72
3.51
120 k
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 78 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Low Channel, Battery mode, Tx (Low data rate, 30 MHz – 1 GHz, Z-axis)
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 10m
Project:
Zoll medical_01/27/2017
Test Notes:
Z-axis Bluetooth
Temperature:
19C
Humidity:
27% 987mbars
Tested by:
Naga Suryadevara
Test Started:
27 Jan 2017 15 : 24
Prescan Emission Graph
27 Jan 2017 15 : 24 Test: Radiated - FCC15 Class B @ 10m Project: Zoll medical_01/27/2017 Tested by: Naga Suryadevara Test Notes: Y-axis Bluetooth
30M 100M 1G
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV/m)
FCC Part 15 Class B QP Radiated Emissions @10m
Trace1: Measured Peak
Trace2: Measured Quasi Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace2: Measured Quasi Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
703.911422617 M
17.85
26.700
-36.148
36.020
-18.17
|
40
3.97
120 k
463.940080269 M
18.83
23.658
-37.591
36.020
-17.19
--
75
2.39
120 k
624.030059689 M
19.65
25.542
-36.729
36.020
-16.37
--
62
1.97
120 k
559.974749661 M
22.89
25.098
-37.096
36.020
-13.13
--
73
1.24
120 k
495.980560934 M
23.13
23.920
-37.396
36.020
-12.89
--
73
1.77
120 k
713.079358611 M
29.88
26.823
-36.101
36.020
-6.14
|
0
1.16
120 k
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 79 of 117
Company: Zoll medical Corporation Model: µCor 3.0

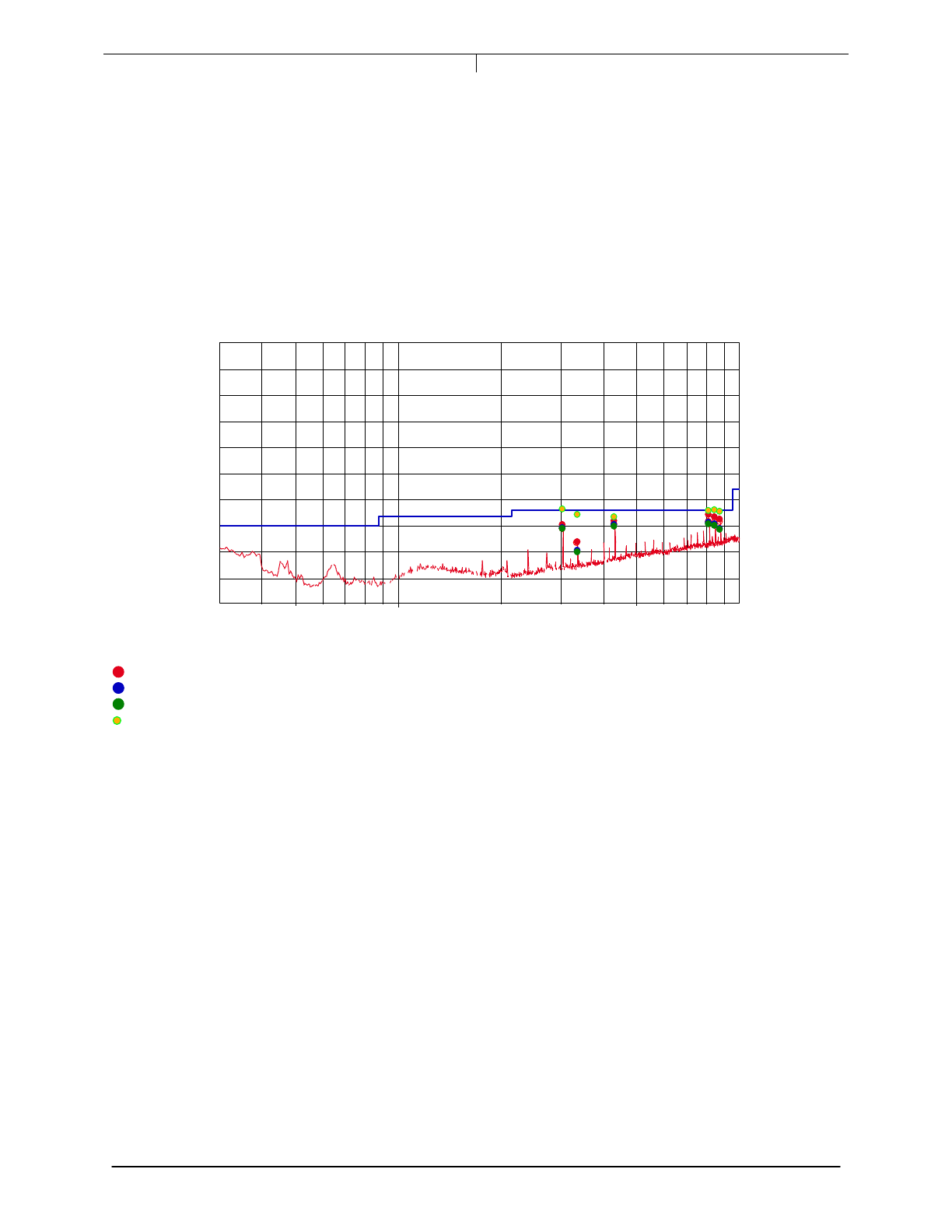

Low Channel, Charging mode, Tx (Low data rate, above 1 GHz)
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 3m
Project:
Zoll medical_01/28/2017
Test Notes:
Low Channel Charger
Temperature:
20C
Humidity:
21% 989 mbars
Tested by:
Naga Suryadevara
Test Started:
28 Jan 2017 17 : 17
Prescan Emission Graph
28 Jan 2017 17 : 17 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: Low Channel Charger
3G 4G 5G 6G 7G 8G 9G 10G 18G
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV/m)
Trace1: Measured Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace1: Measured Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
7.203687375 G
54.48
35.644
-23.895
74.000
-19.52
|
310
4.00
1 M
4.803961255 G
55.85
34.192
-25.631
74.000
-18.15
--
81
3.00
1 M
9.599385438 G
56.67
36.681
-22.087
74.000
-17.33
|
188
1.23
1 M
Trace3: Measured Average
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
4.803961255 G
37.64
34.192
-25.631
54.000
-16.36
--
81
3.00
1 M
7.203687375 G
40.67
35.644
-23.895
54.000
-13.33
|
310
4.00
1 M
9.599385438 G
43.18
36.681
-22.087
54.000
-10.82
|
188
1.23
1 M
Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 80 of 117
Company: Zoll medical Corporation Model: µCor 3.0

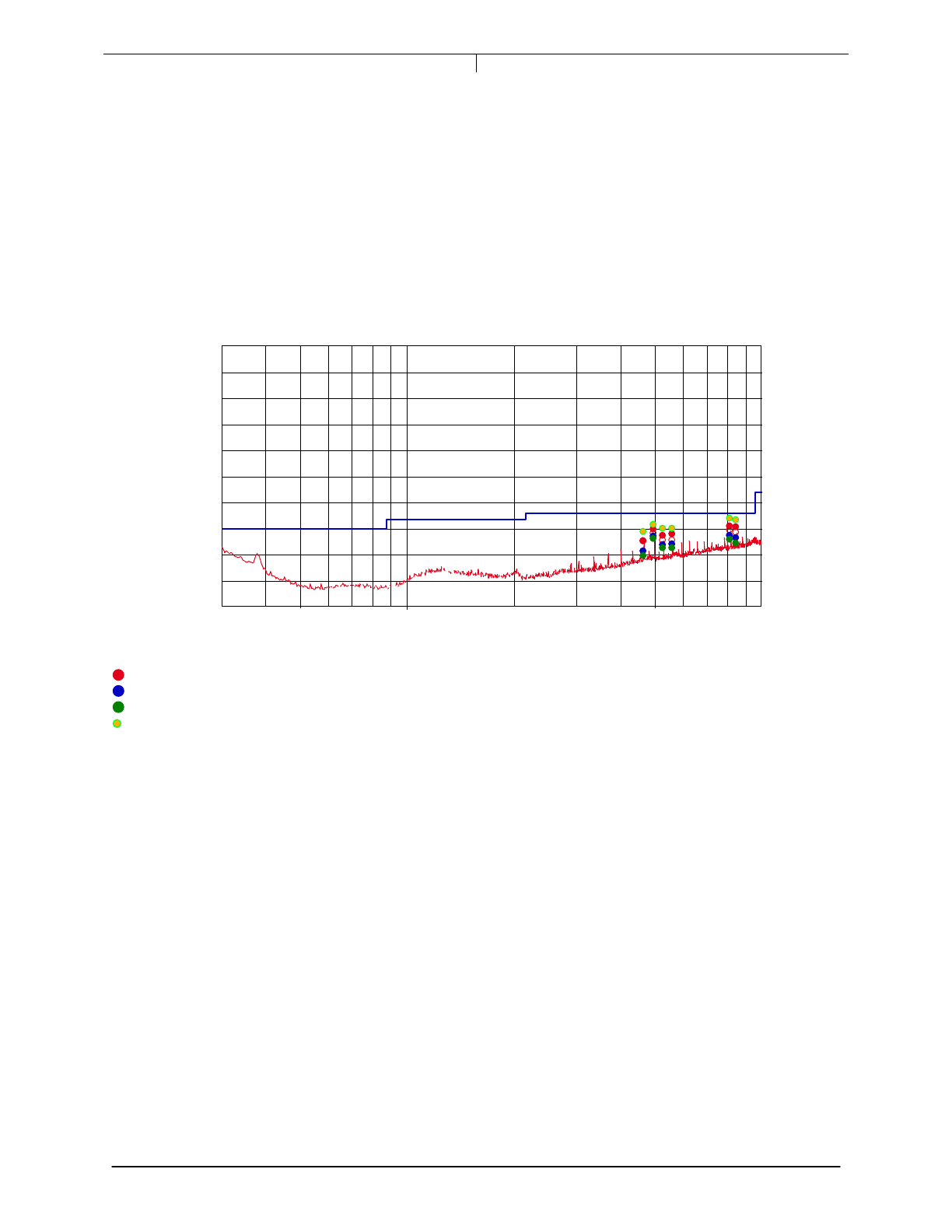

Mid Channel, Charging mode, Tx (Low data rate, above 1 GHz)
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 3m
Project:
Zoll medical_01/28/2017
Test Notes:
Mid Channel Charger
Temperature:
20C
Humidity:
21% 989 mbars
Tested by:
Naga Suryadevara
Test Started:
28 Jan 2017 17 : 40
Prescan Emission Graph
28 Jan 2017 17 : 40 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: Mid Channel Charger
3G 4G 5G 6G 7G 8G 9G 10G 18G
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV/m)
Trace1: Measured Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace1: Measured Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
7.323473614 G
54.96
35.622
-23.659
74.000
-19.04
--
331
3.87
1 M
4.843987975 G
55.34
34.192
-25.630
74.000
-18.66
--
107
3.88
1 M
9.759338677 G
57.44
36.829
-21.849
74.000
-16.56
|
48
2.96
1 M
Trace3: Measured Average
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
4.843987975 G
37.32
34.192
-25.630
54.000
-16.68
--
107
3.88
1 M
7.323473614 G
41.05
35.622
-23.659
54.000
-12.95
--
331
3.87
1 M
9.759338677 G
43.04
36.829
-21.849
54.000
-10.96
|
48
2.96
1 M
Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 81 of 117
Company: Zoll medical Corporation Model: µCor 3.0
High Channel, Charging mode, Tx (Low data rate, above 1 GHz)
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 3m
Project:
Zoll medical_01/28/2017
Test Notes:
High Channel Charger
Temperature:
20C
Humidity:
21% 989 mbars
Tested by:
Naga Suryadevara
Test Started:
28 Jan 2017 18 : 04
Prescan Emission Graph
28 Jan 2017 18 : 04 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: High Channel Charger
3G 4G 5G 6G 7G 8G 9G 10G 18G
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV/m)
Trace1: Measured Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace1: Measured Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
7.449833 G
55.17
35.632
-23.588
74.000
-18.83
--
134
4.00
1 M
9.921329325 G
56.83
37.064
-21.749
74.000
-17.17
--
228
1.11
1 M
4.9598998 G
62.40
34.213
-25.336
74.000
-11.60
|
187
3.55
1 M
Trace3: Measured Average
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
4.9598998 G
38.87
34.213
-25.336
54.000
-15.13
|
187
3.55
1 M
7.449833 G
41.13
35.632
-23.588
54.000
-12.87
--
134
4.00
1 M
9.921329325 G
43.37
37.064
-21.749
54.000
-10.63
--
228
1.11
1 M
Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 82 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Low Channel, Battery mode, Tx (Low data rate, above 1 GHz, X axis)
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 3m
Project:
Zoll medical_01/28/2017
Test Notes:
Low Channel X-axis
Temperature:
20C
Humidity:
21% 989 mbars
Tested by:
Naga Suryadevara
Test Started:
29 Jan 2017 11 : 52
Prescan Emission Graph
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace1: Measured Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
4.801616566 G
49.44
34.191
-25.635
74.000
-24.56
--
302
1.56
1 M
7.20492986 G
54.49
35.644
-23.889
74.000
-19.51
|
102
2.34
1 M
9.605290581 G
56.79
36.686
-22.078
74.000
-17.21
|
154
3.05
1 M
Trace3: Measured Average
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
4.801616566 G
35.66
34.191
-25.635
54.000
-18.34
--
302
1.56
1 M
7.20492986 G
40.67
35.644
-23.889
54.000
-13.33
|
102
2.34
1 M
9.605290581 G
43.19
36.686
-22.078
54.000
-10.81
|
154
3.05
1 M
Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 83 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Low Channel, Battery mode, Tx (Low data rate, above 1 GHz, Y axis)
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 3m
Project:
Zoll medical_01/28/2017
Test Notes:
Low channel Y axis
Temperature:
20C
Humidity:
21% 989 mbars
Tested by:
Naga Suryadevara
Test Started:
28 Jan 2017 13 : 38
Prescan Emission Graph
28 Jan 2017 13 : 38 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: Low channel Y axis
3G 4G 5G 6G 7G 8G 9G 10G 18G
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV/m)
Trace1: Measured Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace1: Measured Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
7.2198998 G
54.41
35.641
-23.826
74.000
-19.59
|
118
3.70
1 M
9.606666667 G
57.61
36.687
-22.076
74.000
-16.39
--
0
1.94
1 M
4.803914495 G
59.47
34.192
-25.631
74.000
-14.53
--
263
1.95
1 M
Trace3: Measured Average
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
4.803914495 G
40.38
34.192
-25.631
54.000
-13.62
--
263
1.95
1 M
7.2198998 G
40.90
35.641
-23.826
54.000
-13.10
|
118
3.70
1 M
9.606666667 G
43.20
36.687
-22.076
54.000
-10.80
--
0
1.94
1 M
Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 84 of 117
Company: Zoll medical Corporation Model: µCor 3.0

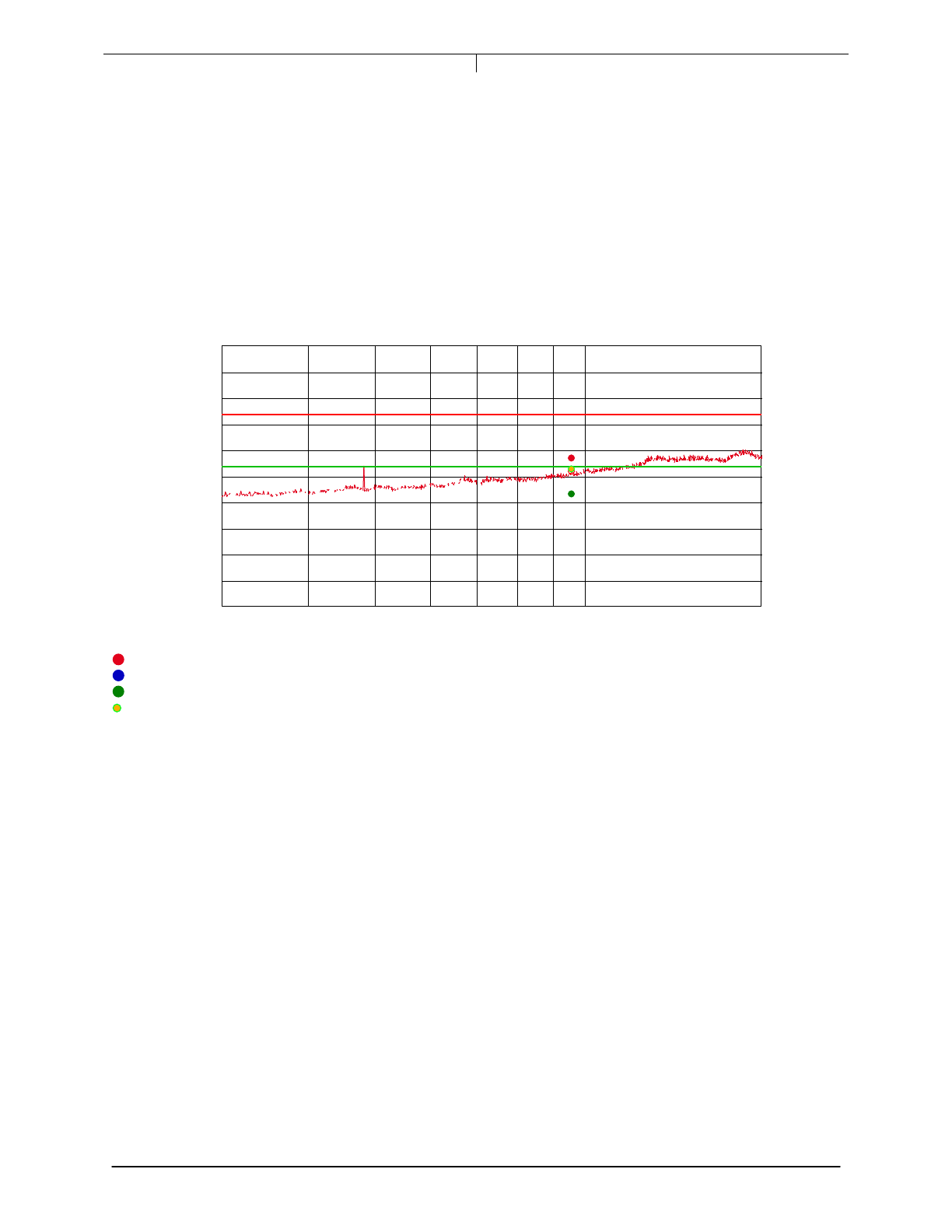

Low Channel, Battery mode, Tx (Low data rate, above 1 GHz, Z axis) – Scan1
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 3m
Project:
Zoll medical_01/28/2017
Test Notes:
Low channel Z axis
Temperature:
20C
Humidity:
21% 989 mbars
Tested by:
Naga Suryadevara
Test Started:
28 Jan 2017 13 : 03
Prescan Emission Graph
28 Jan 2017 13 : 27 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test
3G 4G 5G 6G 7G 8G 9G 10G 18G
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV/m)
Trace1: Measured Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace1: Measured Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
7.21490982 G
54.39
35.642
-23.847
74.000
-19.61
--
232
1.59
1 M
4.803941215 G
56.80
34.192
-25.631
74.000
-17.20
|
181
2.05
1 M
Trace3: Measured Average
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
4.803941215 G
38.98
34.192
-25.631
54.000
-15.02
|
181
2.05
1 M
7.21490982 G
40.88
35.642
-23.847
54.000
-13.12
--
232
1.59
1 M
Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 85 of 117
Company: Zoll medical Corporation Model: µCor 3.0

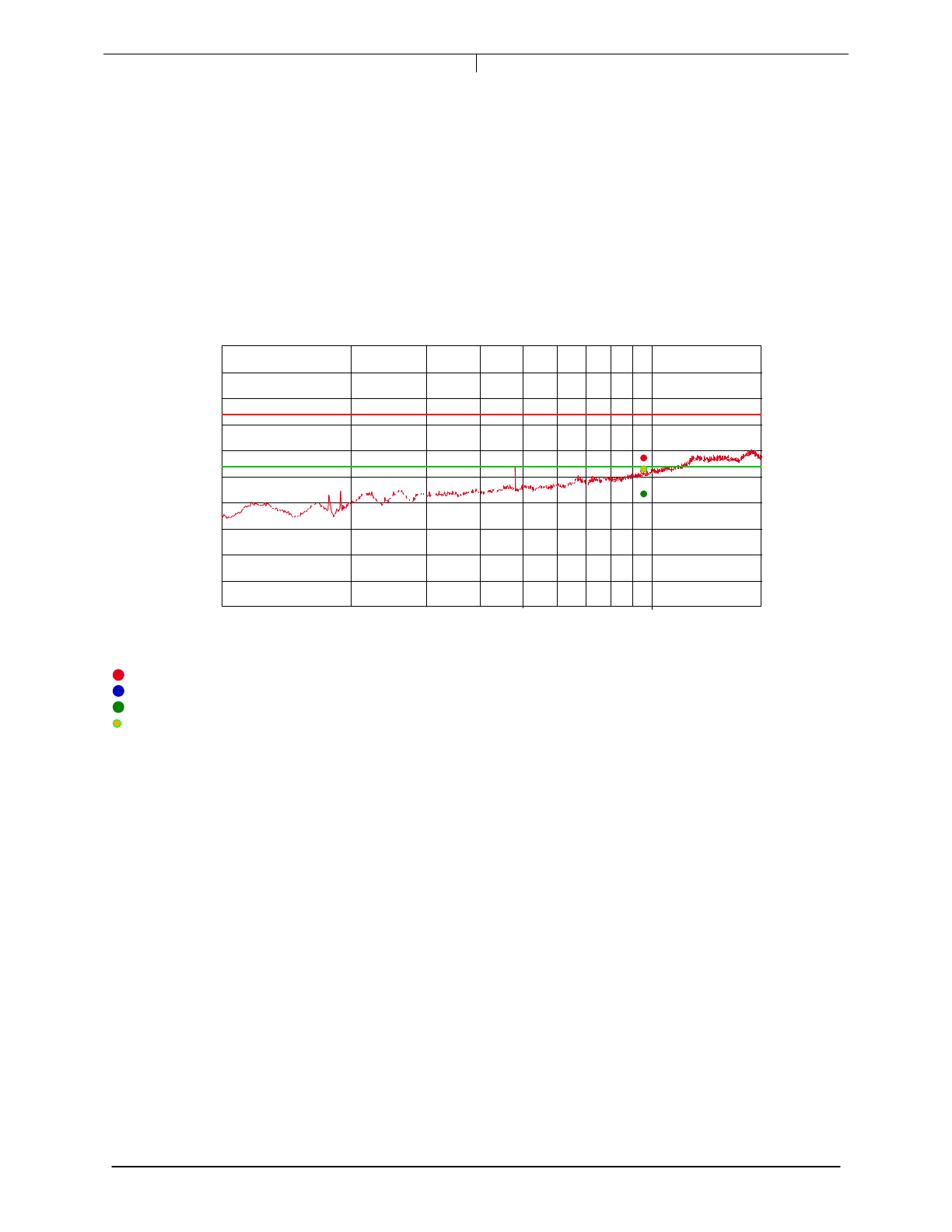

Low Channel, Battery mode, Tx (Low data rate, above 1 GHz, Z axis) – Scan2
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 3m
Project:
Zoll medical_01/28/2017
Test Notes:
Low channel Z axis
Temperature:
20C
Humidity:
21% 989 mbars
Tested by:
Naga Suryadevara
Test Started:
28 Jan 2017 13 : 27
Prescan Emission Graph
28 Jan 2017 13 : 27 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: Low channel Z axis
1G 10G 18G
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV/m)
FCC Part 15 Class B Average Radiated Emissions @3m
FCC Part 15 Class B Peak Radiated Emissions @3m
Trace1: Measured Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace1: Measured Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
9.602932532 G
56.78
36.684
-22.081
74.000
-17.22
--
360
1.92
1 M
Trace3: Measured Average
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
9.602932532 G
43.19
36.684
-22.081
54.000
-10.81
--
360
1.92
1 M
Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 86 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Mid Channel, Battery mode, Tx (Low data rate, above 1 GHz, X axis)
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 3m
Project:
Zoll medical_01/28/2017
Test Notes:
Middle Channel X-axis
Temperature:
20C
Humidity:
21% 989 mbars
Tested by:
Naga Suryadevara
Test Started:
29 Jan 2017 11 : 01

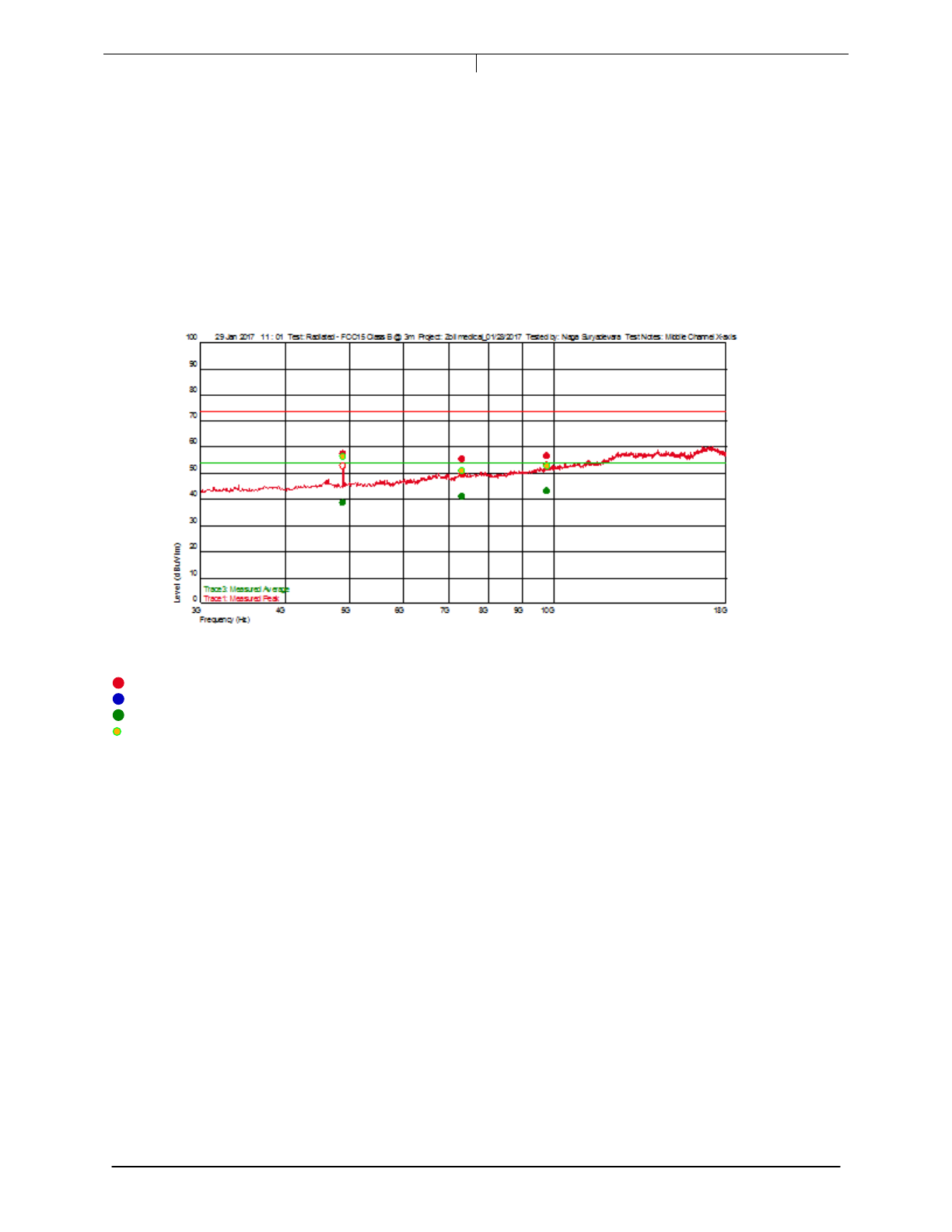

Prescan Emission Graph
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace1: Measured Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
7.323146293 G
55.46
35.622
-23.659
74.000
-18.54
|
294
2.75
1 M
9.774395457 G
56.52
36.843
-21.840
74.000
-17.48
|
319
4.00
1 M
4.882030728 G
57.54
34.238
-25.483
74.000
-16.46
|
129
1.80
1 M
Trace3: Measured Average
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
4.882030728 G
38.61
34.238
-25.483
54.000
-15.39
|
129
1.80
1 M
7.323146293 G
41.05
35.622
-23.659
54.000
-12.95
|
294
2.75
1 M
9.774395457 G
43.06
36.843
-21.840
54.000
-10.94
|
319
4.00
1 M
Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 87 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Mid Channel, Battery mode, Tx (Low data rate, above 1 GHz, Y axis)
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 3m
Project:
Zoll medical_01/28/2017
Test Notes:
Mid channel Y axis
Temperature:
20C
Humidity:
21% 989 mbars
Tested by:
Naga Suryadevara
Test Started:
28 Jan 2017 14 : 05
Prescan Emission Graph
28 Jan 2017 14 : 05 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: Mid channel Y axis
3G 4G 5G 6G 7G 8G 9G 10G 18G
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV/m)
Trace1: Measured Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace1: Measured Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
4.886813627 G
50.05
34.241
-25.474
74.000
-23.95
|
330
3.87
1 M
7.400487642 G
54.86
35.611
-23.616
74.000
-19.14
|
319
4.01
1 M
7.35746159 G
55.23
35.617
-23.640
74.000
-18.77
|
96
3.16
1 M
9.757675351 G
57.84
36.827
-21.850
74.000
-16.16
|
40
3.75
1 M
Trace3: Measured Average
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
4.886813627 G
36.46
34.241
-25.474
54.000
-17.54
|
330
3.87
1 M
7.35746159 G
41.06
35.617
-23.640
54.000
-12.94
|
96
3.16
1 M
7.400487642 G
41.24
35.611
-23.616
54.000
-12.76
|
319
4.01
1 M
9.757675351 G
43.04
36.827
-21.850
54.000
-10.96
|
40
3.75
1 M
Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 88 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Mid Channel, Battery mode, Tx (Low data rate, above 1 GHz, Z axis)
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 3m
Project:
Zoll medical_01/28/2017
Test Notes:
Mid channel Z axis
Temperature:
20C
Humidity:
21% 989 mbars
Tested by:
Naga Suryadevara
Test Started:
28 Jan 2017 14 : 35
Prescan Emission Graph
28 Jan 2017 14 : 35 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: Mid channel Z axis
3G 4G 5G 6G 7G 8G 9G 10G 18G
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV/m)
Trace1: Measured Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace1: Measured Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
7.32998664 G
54.70
35.621
-23.655
74.000
-19.30
|
230
2.18
1 M
9.771663326 G
56.93
36.840
-21.842
74.000
-17.07
--
166
2.69
1 M
4.881877087 G
58.77
34.238
-25.483
74.000
-15.23
|
152
3.17
1 M
Trace3: Measured Average
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
4.881877087 G
39.18
34.238
-25.483
54.000
-14.82
|
152
3.17
1 M
7.32998664 G
41.05
35.621
-23.655
54.000
-12.95
|
230
2.18
1 M
9.771663326 G
43.06
36.840
-21.842
54.000
-10.94
--
166
2.69
1 M
Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 89 of 117
Company: Zoll medical Corporation Model: µCor 3.0
High Channel, Battery mode, Tx (Low data rate, above 1 GHz, X axis)
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 3m
Project:
Zoll medical_01/28/2017
Test Notes:
High Channel X-axis Battery
Temperature:
20C
Humidity:
21% 989 mbars
Tested by:
Naga Suryadevara
Test Started:
29 Jan 2017 10 : 09
Prescan Emission Graph
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace1: Measured Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
7.452124249 G
55.04
35.633
-23.587
74.000
-18.96
|
360
1.67
1 M
9.91260521 G
57.22
37.047
-21.754
74.000
-16.78
|
331
1.38
1 M
4.95997328 G
60.06
34.213
-25.336
74.000
-13.94
|
338
2.91
1 M
Trace3: Measured Average
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
4.95997328 G
38.43
34.213
-25.336
54.000
-15.57
|
338
2.91
1 M
7.452124249 G
41.29
35.633
-23.587
54.000
-12.71
|
360
1.67
1 M
9.91260521 G
43.53
37.047
-21.754
54.000
-10.47
|
331
1.38
1 M
Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 90 of 117
Company: Zoll medical Corporation Model: µCor 3.0
High Channel, Battery mode, Tx (Low data rate, above 1 GHz, Y axis)
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 3m
Project:
Zoll medical_01/28/2017
Test Notes:
High Channel Y-axis
Temperature:
20C
Humidity:
21% 989 mbars
Tested by:
Naga Suryadevara
Test Started:
28 Jan 2017 19 : 03
Prescan Emission Graph
28 Jan 2017 19 : 03 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: High Channel Y-axis
3G 4G 5G 6G 7G 8G 9G 10G 18G
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV/m)
Trace1: Measured Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace1: Measured Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
7.447775551 G
55.17
35.632
-23.589
74.000
-18.83
--
0
1.32
1 M
9.919271877 G
57.09
37.060
-21.750
74.000
-16.91
|
319
2.27
1 M
4.95997328 G
63.87
34.213
-25.336
74.000
-10.13
|
69
2.88
1 M
Trace3: Measured Average
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
4.95997328 G
39.70
34.213
-25.336
54.000
-14.30
|
69
2.88
1 M
7.447775551 G
41.12
35.632
-23.589
54.000
-12.88
--
0
1.32
1 M
9.919271877 G
43.37
37.060
-21.750
54.000
-10.63
|
319
2.27
1 M
Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 91 of 117
Company: Zoll medical Corporation Model: µCor 3.0
High Channel, Battery mode, Tx (Low data rate, above 1 GHz, Z axis)
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 3m
Project:
Zoll medical_01/28/2017
Test Notes:
High channel Z axis
Temperature:
20C
Humidity:
21% 989 mbars
Tested by:
Naga Suryadevara
Test Started:
28 Jan 2017 15 : 05
Prescan Emission Graph
28 Jan 2017 15 : 05 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: High channel Z axis
3G 4G 5G 6G 7G 8G 9G 10G 18G
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV/m)
Trace1: Measured Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace1: Measured Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
7.446472946 G
55.17
35.631
-23.590
74.000
-18.83
--
229
1.69
1 M
9.765190381 G
56.51
36.834
-21.846
74.000
-17.49
|
19
2.05
1 M
4.95995324 G
63.74
34.213
-25.336
74.000
-10.26
|
173
1.93
1 M
Trace3: Measured Average
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
4.95995324 G
40.09
34.213
-25.336
54.000
-13.91
|
173
1.93
1 M
7.446472946 G
41.12
35.631
-23.590
54.000
-12.88
--
229
1.69
1 M
9.765190381 G
43.05
36.834
-21.846
54.000
-10.95
|
19
2.05
1 M
Note: Manual Scans were performed from 1-3 GHz and 18 – 40 GHz, no emissions were detected above the noise floor
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 92 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Low Channel, Charging mode, Lower Band edge emissions (High data rate)
SWT
300 ms
A
Unit
dB
æ
V
P20
Start
2.398 GHz
Stop
2.403 GHz
500 kHz/
Ref Lvl
72 dB
æ
V
Ref Lvl
72 dB
æ
V
RF Att
0 dB
2MAX
2MA
RBW
100 kHz
VBW
300 kHz
IN1
-20
-10
0
10
20
30
40
50
60
-28
72
1
2
Marker 2 [T2]
7.30 dB
æ
V
2.40000000 GHz
2 [T2] 7.30 dB
æ
V
2.40000000 GHz
1 [T2] 51.68 dB
æ
V
2.40181764 GHz
Date: 29.JAN.2017 13:30:38
Emissions at lower band edge were 20 dB below the peak
Low Channel, Battery mode, Lower Band edge emissions (High data rate X axis)
SWT
300 ms
A
Unit
dB
æ
V
Ref Lvl
80 dB
æ
V
Ref Lvl
80 dB
æ
V
RF Att
0 dB
Start
2.393 GHz
Stop
2.403 GHz
1 MHz/
2MA
RBW
100 kHz
VBW
300 kHz
IN1
2MAX
-10
0
10
20
30
40
50
60
70
-20
80
1
2
Marker 2 [T2]
24.05 dB
æ
V
2.40000000 GHz
2 [T2] 24.05 dB
æ
V
2.40000000 GHz
1 [T2] 51.46 dB
æ
V
2.40183768 GHz
Date: 29.JAN.2017 12:55:04
Emissions at lower band edge were 20 dB below the peak
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 93 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Low Channel, Battery mode, Lower Band edge emissions (High data rate Y axis)
A
Unit
dB
æ
V
SWT
5 ms
P20
Start
2.398 GHz
Stop
2.403 GHz
500 kHz/
Ref Lvl
72 dB
æ
V
Ref Lvl
72 dB
æ
V
RF Att
0 dB
2MA
RBW
100 kHz
VBW
300 kHz
IN1
2MAX
-20
-10
0
10
20
30
40
50
60
-28
72
1
2
Marker 2 [T2]
6.36 dB
æ
V
2.40000000 GHz
2 [T2] 6.36 dB
æ
V
2.40000000 GHz
1 [T2] 55.77 dB
æ
V
2.40183768 GHz
Date: 29.JAN.2017 14:09:05
Emissions at lower band edge were 20 dB below the peak
Low Channel, Battery mode, Lower Band edge emissions (High data rate Z axis)
A
Unit
dB
æ
V
SWT
5 ms
2MAX
P20
Start
2.398 GHz
Stop
2.403 GHz
500 kHz/
Ref Lvl
72 dB
æ
V
Ref Lvl
72 dB
æ
V
RF Att
0 dB
2MA
RBW
100 kHz
VBW
300 kHz
IN1
-20
-10
0
10
20
30
40
50
60
-28
72
1
2
Marker 2 [T2]
6.39 dB
æ
V
2.40000000 GHz
2 [T2] 6.39 dB
æ
V
2.40000000 GHz
1 [T2] 49.58 dB
æ
V
2.40216834 GHz
Date: 29.JAN.2017 14:03:31
Emissions at lower band edge were 20 dB below the peak
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 94 of 117
Company: Zoll medical Corporation Model: µCor 3.0

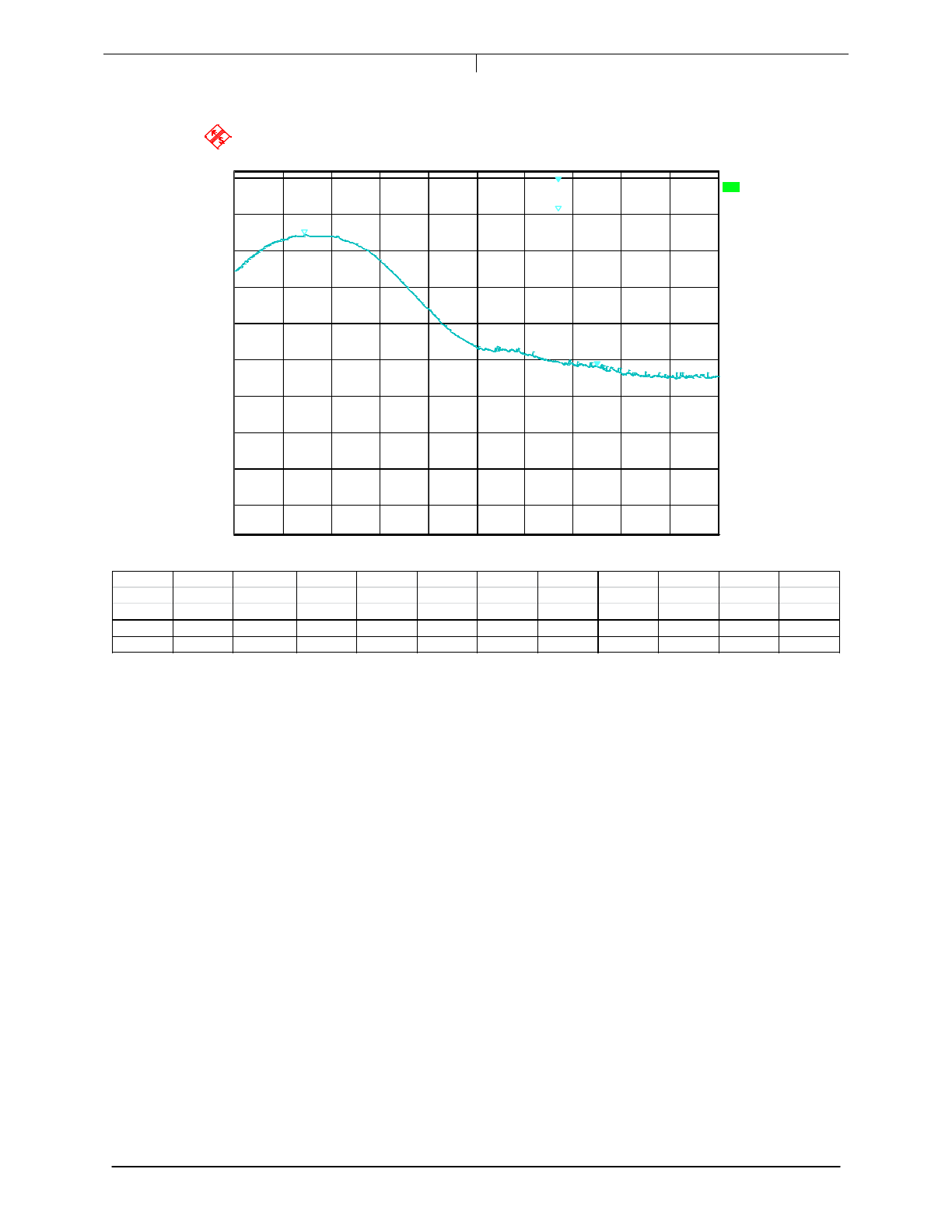

High Channel, Charging mode, Upper Band edge emissions (High data rate)
SWT
300 ms
A
Unit
dB
æ
V
2MA
Ref Lvl
72 dB
æ
V
Ref Lvl
72 dB
æ
V
RBW
1 MHz
VBW
3 MHz
RF Att
0 dB
IN1
Start
2.479 GHz
Stop
2.485 GHz
600 kHz/
P20
2MAX
-20
-10
0
10
20
30
40
50
60
-28
72
1
2
Marker 2 [T2]
18.84 dB
æ
V
2.48350000 GHz
2 [T2] 18.84 dB
æ
V
2.48350000 GHz
1 [T2] 54.35 dB
æ
V
2.47980561 GHz
Date: 29.JAN.2017 13:21:22
Ant. Antenna Cable Pre-amp Distance
Detector Pol. Frequency Reading Factor Loss Factor Factor Net Limit Margin Bandwidth
Type (V/H) MHz dB(uV) dB(1/m) dB dB dB dB(uV/m) dB(uV/m) dB
PK V 2483.500 18.84 32.22 5.18 0.00 0.00 56.25 74.00 -17.75 1/3 MHz
AVG V 2483.500 4.56 32.22 5.18 0.00 0.00 41.97 54.00 -12.03 1/3 MHz
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 95 of 117
Company: Zoll medical Corporation Model: µCor 3.0
High Channel, Battery mode, Upper Band edge emissions (High data rate, X axis)
A
Unit
dB
æ
V
2MA
P20
Start
2.479 GHz
Stop
2.485 GHz
600 kHz/
Ref Lvl
72 dB
æ
V
Ref Lvl
72 dB
æ
V
RF Att
0 dB
RBW
1 MHz
VBW
3 MHz
IN1
SWT
5 ms
2MAX
-20
-10
0
10
20
30
40
50
60
-28
72
1
2
Marker 2 [T2]
18.12 dB
æ
V
2.48350000 GHz
2 [T2] 18.12 dB
æ
V
2.48350000 GHz
1 [T2] 54.33 dB
æ
V
2.47986573 GHz
Date: 29.JAN.2017 13:44:12
Ant. Antenna Cable Pre-amp Distance
Detector Pol. Frequency Reading Factor Loss Factor Factor Net Limit Margin Bandwidth
Type (V/H) MHz dB(uV) dB(1/m) dB dB dB dB(uV/m) dB(uV/m) dB
PK H 2483.500 18.12 32.22 5.18 0.00 0.00 55.53 74.00 -18.47 1/3 MHz
AVG H 2483.500 4.34 32.22 5.18 0.00 0.00 41.75 54.00 -12.25 1/3 MHz
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 96 of 117
Company: Zoll medical Corporation Model: µCor 3.0
High Channel, Battery mode, Upper Band edge emissions (High data rate, Y axis)
A
Unit
dB
æ
V
P20
Start
2.479 GHz
Stop
2.485 GHz
600 kHz/
Ref Lvl
72 dB
æ
V
Ref Lvl
72 dB
æ
V
RF Att
0 dB
RBW
1 MHz
VBW
3 MHz
IN1
SWT
5 ms
2MA
2MAX
-20
-10
0
10
20
30
40
50
60
-28
72
1
2
Marker 2 [T2]
17.53 dB
æ
V
2.48350000 GHz
2 [T2] 17.53 dB
æ
V
2.48350000 GHz
1 [T2] 52.74 dB
æ
V
2.47984168 GHz
Date: 29.JAN.2017 13:50:55
Ant. Antenna Cable Pre-amp Distance
Detector Pol. Frequency Reading Factor Loss Factor Factor Net Limit Margin Bandwidth
Type (V/H) MHz dB(uV) dB(1/m) dB dB dB dB(uV/m) dB(uV/m) dB
PK H 2483.500 17.53 32.22 5.18 0.00 0.00 54.94 74.00 -19.06 1/3 MHz
AVG H 2483.500 4.22 32.22 5.18 0.00 0.00 41.63 54.00 -12.37 1/3 MHz
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 97 of 117
Company: Zoll medical Corporation Model: µCor 3.0
High Channel, Battery mode, Upper Band edge emissions (High data rate, Z axis)
A
Unit
dB
æ
V
P20
Start
2.479 GHz
Stop
2.485 GHz
600 kHz/
Ref Lvl
72 dB
æ
V
Ref Lvl
72 dB
æ
V
RF Att
0 dB
RBW
1 MHz
VBW
3 MHz
IN1
SWT
5 ms
2MA
2MAX
-20
-10
0
10
20
30
40
50
60
-28
72
1
2
Marker 2 [T2]
18.89 dB
æ
V
2.48350000 GHz
2 [T2] 18.89 dB
æ
V
2.48350000 GHz
1 [T2] 56.78 dB
æ
V
2.48015431 GHz
Date: 29.JAN.2017 13:58:48
Ant. Antenna Cable Pre-amp Distance
Detector Pol. Frequency Reading Factor Loss Factor Factor Net Limit Margin Bandwidth
Type (V/H) MHz dB(uV) dB(1/m) dB dB dB dB(uV/m) dB(uV/m) dB
PK V 2483.500 18.89 32.22 5.18 0.00 0.00 56.30 74.00 -17.70 1/3 MHz
AVG V 2483.500 5.68 32.22 5.18 0.00 0.00 43.09 54.00 -10.91 1/3 MHz
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 98 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Test Personnel:
Naga Suryadevara
Test Date:
01/27/2017
01/28/2017
01/29/2017
Supervising/Reviewing
Engineer:
(Where Applicable)
N/A
Product Standard:
FCC Part 15 Subpart C
(15.247)
Limit Applied:
As specified in the plots (Section
12.4)
Input Voltage:
120VAC 60Hz
Internal Battery
Pretest Verification w/
Ambient Signals or
BB Source:
BB Source
Ambient Temperature:
19, 20 19 ºC
Relative Humidity:
30, 21 19 %
Atmospheric Pressure:
981, 989, 999 mbars
Deviations, Additions, or Exclusions: None
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 99 of 117
Company: Zoll medical Corporation Model: µCor 3.0
13 Radiated Emissions (Digital Device and Receiver)
13.1 Method
Tests are performed in accordance with FCC Part 15 Subpart B.
TEST SITE: 10m ALSE
The 10m ALSE is 13m (Length) x 21m (Depth) x 10m (Height) with the effective size in terms of space from the
tips of the absorber is 12m (Length) x 20m (Depth) x 8.5m (Height). This chamber achieves broadband
performance using a unique arrangement of hybrid and ferrite tile absorber. This chamber has a built in 3m
diameter turntable (Embedded type). The metal structure of the table makes electrical connection around the
entire circumference of the turntable to the ground plane with a metal brush type connection. The turntable is
located on one end of the chamber and the antennas are mounted 3 and 10 meters away at the other end of
the chamber on the adjustable an Antenna Mast. The antenna mast is a non-conductive bore sighted type with
remote control of antenna height and polarization. The Antenna Mast and the turntable can be remotely
controlled through the controller located in the adjacent Control room. A Styrofoam table 80 cm high is used for
table-top equipment.
Measurement Uncertainty
Measurement
Frequency
Range
Expanded
Uncertainty
(k=2)
Ucispr
Radiated Emissions, 10m
30-1000 MHz
4.6 dB
6.3 dB
Radiated Emissions, 3m
30-1000 MHz
5.3 dB
6.3 dB
Radiated Emissions, 3m
1-6 GHz
4.5 dB
5.2 dB
Radiated Emissions, 3m
6-15 GHz
5.2 dB
5.5 dB
Radiated Emissions, 3m
15-18 GHz
5.0 dB
5.5 dB
Radiated Emissions, 3m
18-40 GHz
5.0 dB
5.5 dB
As shown in the table above our radiated emissions
lab
U
is less than the corresponding
CISPR
U
reference
value in CISPR 16-4-2 Table 1, hence the compliance of the product is only based on the measured
value, and no measurement uncertainty correction is required, based on CISPR 22 and CISPR 11 (for
2006 and later revisions) Clause 11.
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 100 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Sample Calculation
The field strength is calculated by adding the Antenna Factor and Cable Factor, and subtracting the
Amplifier Gain (if any) from the measured reading. The basic equation with a sample calculation is as
follows:
FS = RA + AF + CF - AG
Where FS = Field Strength in dBV/m
RA = Receiver Amplitude (including preamplifier) in dBV
CF = Cable Attenuation Factor in dB
AF = Antenna Factor in dB
AG = Amplifier Gain in dB
In the following table(s), the reading shown on the data table reflects the preamplifier gain. An example
for the calculations in the following table is as follows.
Assume a receiver reading of 52.0 dBV is obtained. The antenna factor of 7.4 dB and cable factor of
1.6 dB is added. The amplifier gain of 29 dB is subtracted, giving a field strength of 32 dBV/m. This
value in dBV/m was converted to its corresponding level in V/m.
RA = 52.0 dBV
AF = 7.4 dB/m
CF = 1.6 dB
AG = 29.0 dB
FS = 32 dBV/m
To convert from dBV to V or mV the following was used:
UF = 10(NF / 20) where UF = Net Reading in V
NF = Net Reading in dBV
Example:
FS = RA + AF + CF – AG = 52.0 + 7.4 + 1.6 – 29.0 = 32.0
UF = 10(32 dBV / 20) = 39.8 V/m
Alternately, when C5 Software is used, the “Level” includes all losses and gains and is compared directly
in the “Margin” column to the “Limit”. “AF” is the Antenna Factor; “PA+CL” are Preamp and Cable Loss.
These are already accounted for in the “Level” column.
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 101 of 117
Company: Zoll medical Corporation Model: µCor 3.0
13.2 Test Equipment Used:
Asset
Description
Manufacturer
Model
Serial
Cal Date
Cal Due
DAV004’
Weather Station
Davis Instruments
7400
PE80529A61
A
05/02/2016
05/02/2017
145145’
Broadband Hybrid Antenna 30 MHz - 3 GHz
Sunol Sciences Corp.
JB3
A122313
03/09/2016
03/09/2017
145-410’
Cables 145-420 145-421 145-422 145-406
Huber + Suhner
10m Track A
Cables
multiple
07/30/2016
07/30/2017
PRE10’
30-1000MHz pre-amp
ITS
PRE10
PRE10
12/16/2016
12/16/2017
ETS001’
1-18GHz DRG Horn Antenna
ETS-Lindgren
3117
00143259
02/10/2016
02/10/2017
145-416’
Cables 145-420 145-423 145-424 145-408
Huber + Suhner
3m Track B
cables
multiple
07/30/2016
07/30/2017
145014’
Preamplifier (1 GHz to 26.5 GHz)
Hewlett Packard
8449B
3008A00232
05/27/2016
05/27/2017
PRE10’
30-1000MHz pre-amp
ITS
PRE10
PRE10
12/16/2016
12/16/2017
Software Utilized:
Name
Manufacturer
Version
Compliance5
Teseq
5.26.46.46
13.3 Results:
The sample tested was found
to Comply
.
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 102 of 117
Company: Zoll medical Corporation Model: µCor 3.0
13.4 Plots/Data:
Battery mode, Rx, 30 – 1000 MHz
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 10m
Project:
Zoll medical_01/26/2017
Test Notes:
Rx Low channel, battery with phantom
Temperature:
19 C
Humidity:
30% 981 mbars
Tested by:
Naga Suryadevara
Test Started:
26 Jan 2017 15 : 36
Prescan Emission Graph
26 Jan 2017 15 : 36 Test: Radiated - FCC15 Class B @ 10m Project: Zoll medical_01/26/2017 Tested by: Naga Suryadevara Test Notes: Rx Low channel, battery with phantom
30M 100M 1G
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV/m)
FCC Part 15 Class B QP Radiated Emissions @10m
Trace1: Measured Peak
Trace2: Measured Quasi Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace2: Measured Quasi Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
336.049098491 M
15.21
20.221
-38.136
36.020
-20.81
--
20
2.09
120 k
368.030260519 M
16.62
21.100
-38.045
36.020
-19.40
--
184
3.04
120 k
495.908416645 M
16.62
23.918
-37.396
36.020
-19.40
--
293
1.45
120 k
399.953707116 M
17.99
21.698
-37.940
36.020
-18.03
--
164
2.50
120 k
431.929258922 M
18.28
22.739
-37.778
36.020
-17.74
--
141
2.28
120 k
463.996994096 M
21.77
23.660
-37.590
36.020
-14.25
--
3
1.56
120 k
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 103 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Charging mode, Rx, 30 – 1000 MHz (XT 1505)
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 10m
Project:
Zoll medical_01/26/2017
Test Notes:
Rx Low channel, charging mode
Temperature:
19 C
Humidity:
30% 981 mbars
Tested by:
Naga Suryadevara
Test Started:
26 Jan 2017 13 : 56
Prescan Emission Graph
26 Jan 2017 13 : 56 Test: Radiated - FCC15 Class B @ 10m Project: Zoll medical_01/26/2017 Tested by: Naga Suryadevara Test Notes: Rx Low channel, charging mode
30M 100M 1G
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV/m)
FCC Part 15 Class B QP Radiated Emissions @10m
Trace1: Measured Peak
Trace2: Measured Quasi Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace2: Measured Quasi Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
335.933667629 M
20.46
20.219
-38.137
36.020
-15.56
--
97
2.51
120 k
880.022645431 M
28.95
28.300
-35.446
36.020
-7.07
--
130
1.26
120 k
303.958115824 M
29.04
19.758
-38.210
36.020
-6.98
--
261
3.83
120 k
431.966934273 M
30.24
22.739
-37.777
36.020
-5.78
--
85
1.87
120 k
847.946894224 M
30.58
28.000
-35.554
36.020
-5.44
--
121
1.15
120 k
815.972144022 M
31.24
28.000
-35.661
36.020
-4.78
--
297
1.05
120 k
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 104 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Charging mode, Rx, 30 – 1000 MHz (XT 1527)
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 10m
Project:
Zoll medical_01/30/2017
Test Notes:
Bluetooth Rx mode_Cellphone with LTE
Temperature:
20 C
Humidity:
16% 996 mbars
Tested by:
Naga Suryadevara
Test Started:
30 Jan 2017 12 : 12
Prescan Emission Graph
30 Jan 2017 12 : 12 Test: Radiated - FCC15 Class B @ 10m Project: Zoll medical_01/30/2017 Tested by: Naga Suryadevara Test Notes: Bluetooth Rx mode_Cellphone with LTE
30M 100M 1G
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV/m)
FCC Part 15 Class B QP Radiated Emissions @10m
Trace1: Measured Peak
Trace2: Measured Quasi Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace2: Measured Quasi Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
288.553907667 M
14.77
19.400
-38.255
36.020
-21.25
--
36
1.04
120 k
617.134268321 M
15.95
25.128
-36.778
36.020
-20.07
|
277
1.24
120 k
699.310220764 M
17.76
26.700
-36.175
36.020
-18.26
--
176
3.04
120 k
766.514829782 M
18.58
27.400
-35.861
36.020
-17.44
|
0
2.56
120 k
460.825450673 M
19.78
23.533
-37.611
36.020
-16.24
--
96
2.16
120 k
32.015030228 M
16.47
25.888
-40.044
30.000
-13.53
|
286
3.01
120 k
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 105 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Battery mode, Rx, 1 – 13 GHz
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 3m
Project:
Zoll medical_01/28/2017
Test Notes:
Low Channel Rx Battery
Temperature:
20C
Humidity:
21% 989 mbars
Tested by:
Naga Suryadevara
Test Started:
29 Jan 2017 12 : 17
Prescan Emission Graph
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace1: Measured Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
3.43263193 G
46.90
32.802
-27.303
74.000
-27.10
|
142
3.28
1 M
2.562845692 G
47.90
32.360
-28.116
74.000
-26.10
|
0
4.00
1 M
4.627862391 G
50.31
34.427
-25.895
74.000
-23.69
|
320
2.65
1 M
10.761322645 G
58.64
37.706
-20.189
74.000
-15.36
--
315
3.06
1 M
6.647040748 G
59.14
35.533
-24.361
74.000
-14.86
--
306
3.02
1 M
12.527869071 G
64.82
39.115
-17.549
74.000
-9.18
|
321
2.17
1 M
Trace3: Measured Average
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
3.43263193 G
33.19
32.802
-27.303
54.000
-20.81
|
142
3.28
1 M
2.562845692 G
33.95
32.360
-28.116
54.000
-20.05
|
0
4.00
1 M
4.627862391 G
36.03
34.427
-25.895
54.000
-17.97
|
320
2.65
1 M
10.761322645 G
45.21
37.706
-20.189
54.000
-8.79
--
315
3.06
1 M
6.647040748 G
45.61
35.533
-24.361
54.000
-8.39
--
306
3.02
1 M
12.527869071 G
50.65
39.115
-17.549
54.000
-3.35
|
321
2.17
1 M
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 106 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Charging mode, Rx, 1 – 13 GHz (XT 1505)
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 3m
Project:
Zoll medical_01/28/2017
Test Notes:
Low Channel X-axis charging cellphone w/o LTE
Temperature:
20C
Humidity:
21% 989 mbars
Tested by:
Naga Suryadevara
Test Started:
29 Jan 2017 16 : 19
Prescan Emission Graph
29 Jan 2017 16 : 19 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: Low Channel X-axis charging cellphone w/o LTE
1G 10G 13G
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV/m)
FCC Part 15 Class B Average Radiated Emissions @3m
FCC Part 15 Class B Peak Radiated Emissions @3m
Trace1: Measured Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace1: Measured Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
1.887882431 G
45.60
30.801
-28.451
74.000
-28.40
--
96
1.31
1 M
2.439425518 G
49.78
32.257
-28.153
74.000
-24.22
--
128
1.07
1 M
6.625210421 G
59.21
35.548
-24.447
74.000
-14.79
|
253
1.07
1 M
12.348550435 G
63.27
39.103
-18.019
74.000
-10.73
--
163
1.67
1 M
Trace3: Measured Average
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
1.887882431 G
32.20
30.801
-28.451
54.000
-21.80
--
96
1.31
1 M
2.439425518 G
40.41
32.257
-28.153
54.000
-13.59
--
128
1.07
1 M
6.625210421 G
45.27
35.548
-24.447
54.000
-8.73
|
253
1.07
1 M
12.348550435 G
49.50
39.103
-18.019
54.000
-4.50
--
163
1.67
1 M
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 107 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Charging mode, Rx, 1 – 13 GHz (XT 1527)
Test Information
Test Details
User Entry
Additional Information
Test:
Radiated - FCC15 Class B @ 3m
Project:
Zoll medical_01/28/2017
Test Notes:
Low Channel X-axis charging cellphone vt LTE
Temperature:
20C
Humidity:
21% 989 mbars
Tested by:
Naga Suryadevara
Test Started:
29 Jan 2017 15 : 19
Prescan Emission Graph
29 Jan 2017 15 : 19 Test: Radiated - FCC15 Class B @ 3m Project: Zoll medical_01/28/2017 Tested by: Naga Suryadevara Test Notes: Low Channel X-axis charging cellphone vt LTE
1G 10G 13G
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV/m)
FCC Part 15 Class B Average Radiated Emissions @3m
FCC Part 15 Class B Peak Radiated Emissions @3m
Trace1: Measured Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace1: Measured Peak
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
12.102204409 G
58.03
38.865
-18.672
74.000
-15.97
--
0
0.00
1 M
2.612738811 G
47.07
32.437
-28.097
74.000
-26.93
--
139
1.31
1 M
2.433547095 G
47.23
32.262
-28.155
74.000
-26.77
--
52
1.31
1 M
6.75744823 G
60.88
35.524
-23.979
74.000
-13.12
--
49
1.42
1 M
12.101162325 G
61.71
38.864
-18.675
74.000
-12.29
|
29
1.57
1 M
12.539812959 G
64.07
39.126
-17.523
74.000
-9.93
--
225
3.71
1 M
Trace3: Measured Average
Frequency(Hz)
Level(dBuV/m)
AF
PA+CL
Limit(dBuV/m)
Margin(dBuV/m)
Hor ( -- ), Ver ( | )
Azimuth (deg)(Deg)
Mast Height(m)
RBW(Hz)
2.433547095 G
32.86
32.262
-28.155
54.000
-21.14
--
52
1.31
1 M
2.612738811 G
33.09
32.437
-28.097
54.000
-20.91
--
139
1.31
1 M
6.75744823 G
47.04
35.524
-23.979
54.000
-6.96
--
49
1.42
1 M
12.101162325 G
48.25
38.864
-18.675
54.000
-5.75
|
29
1.57
1 M
12.539812959 G
50.52
39.126
-17.523
54.000
-3.48
--
225
3.71
1 M
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 108 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Test Personnel:
Naga Suryadevara
Test Date:
01/26/2017
01/29/2017
01/30/2017
Supervising/Reviewing
Engineer:
(Where Applicable)
N/A
Product Standard:
FCC Part 15 Subpart B
Limit Applied:
Class A
Input Voltage:
120VAC 60Hz
Internal Battery
Pretest Verification w/
Ambient Signals or
BB Source:
BB Source
Ambient Temperature:
19, 20, 20 ºC
Relative Humidity:
30, 21, 16 %
Atmospheric Pressure:
981, 989, 996 mbars
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 109 of 117
Company: Zoll medical Corporation Model: µCor 3.0
14 AC Mains Conducted Emissions
14.1 Method
Tests are performed in accordance with FCC Part 15 Subpart C and FCC Part 15 Subpart B.
TEST SITE: EMC Lab
The EMC Lab has one Semi-anechoic Chamber and one Shielded Chamber. AC Mains Power is available at 120,
230, and 277 Single Phase; 208, 400, and 480 3-Phase. Large reference ground-planes are installed in the general
lab area to facilitate EMC work not requiring a shielded environment.
Measurement Uncertainty
Measurement
Frequency
Range
Expanded
Uncertainty
(k=2)
Ucispr
AC Line Conducted
Emissions
150 kHz - 30 MHz
2.8dB
3.4dB
Telco Port Emissions
150 kHz - 30 MHz
3.2dB
5.0dB
As shown in the table above our conducted emissions
lab
U
is less than the corresponding
CISPR
U
reference value in CISPR 16-4-2 Table 1, hence the compliance of the product is only based on the
measured value, and no measurement uncertainty correction is required, based on CISPR 22 and CISPR
11 (for 2006 and later revisions) Clause 11.
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 110 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Sample Calculations
The following is how net line-conducted readings were determined:
NF = RF + LF + CF + AF
Where NF = Net Reading in dBV
RF = Reading from receiver in dBV
LF = LISN or ISN Correction Factor in dB
CF = Cable Correction Factor in dB
AF = Attenuator Loss Factor in dB
To convert from dBV to V or mV the following was used:
UF = 10(NF / 20) where UF = Net Reading in V
NF = Net Reading in dBV
Example:
NF = RF + LF + CF + AF = 28.5 + 0.2 + 0.4 + 20.0 = 49.1 dBV
UF = 10(49.1 dBV / 20) = 285.1 V/m
Alternately, when C5 Software is used, the “Level” includes all losses and gains and is compared directly
in the “Margin” column to the “Limit”. “TF” is the Transducer Factor; in this case LISN or ISN loss.
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 111 of 117
Company: Zoll medical Corporation Model: µCor 3.0
14.2 Test Equipment Used:
Asset
Description
Manufacturer
Model
Serial
Cal Date
Cal Due
DAV002’
Weather Station
Davis Instruments
7400
PE80519A93
06/01/2016
06/01/2017
ROS002’
9kHz to 3GHz EMI Test Receiver
Rohde & Schwartz
ESCI
1166.5950K0
3
100067
07/29/2016
07/29/2017
DS22’
Attenuator, 20dB
Mini Circuits
20dB, 50 ohm
DS22
09/08/2016
09/08/2017
CBLBNC2
012-4’
50 Ohm Coaxial Cable
Pomona
RG58C/U
CBLBCN2012
-4
03/21/2016
03/21/2017
LISN31’
LISN - CISPR16 Compliant 9kHz-30MHz
Com-Power
LI-215A
191957
03/14/2016
03/14/2017
Software Utilized:
Name
Manufacturer
Version
Compliance 5
Teseq
5.26.46.46
14.3 Results:
The sample tested was found
to Comply
.
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 112 of 117
Company: Zoll medical Corporation Model: µCor 3.0
14.4 Plots/Data:
120VAC 60Hz, Tx mode
Test Information
Test Details
User Entry
Additional Information
Test:
LISN - FCC15 Class B
Project:
Zoll medical_01/27/2017
Test Notes:
120VAC 60Hz_Tx mode
Temperature:
22 C
Humidity:
14% 987 mbars
Tested by:
Naga Suryadevara
Test Started:
27 Jan 2017 16 : 51

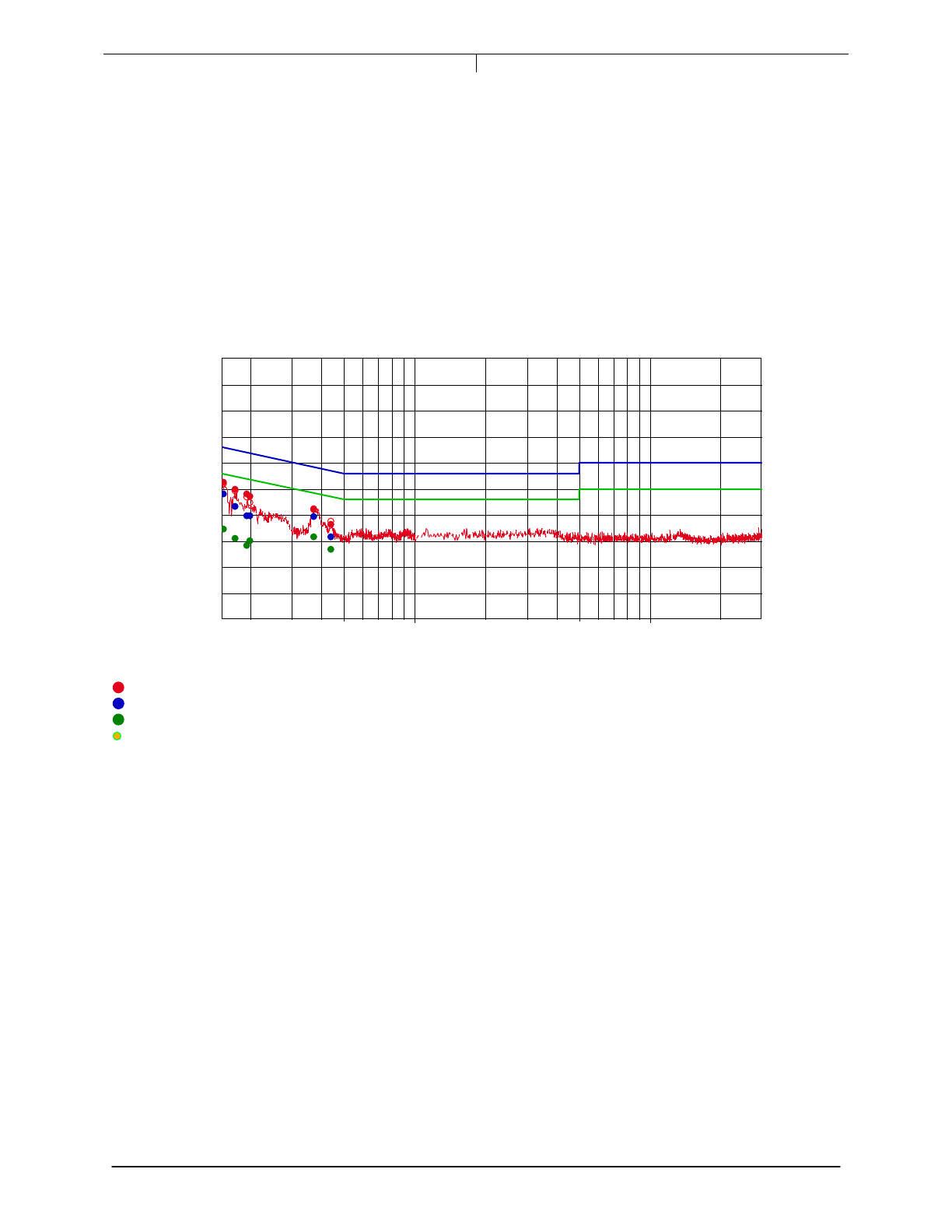

Prescan Emission Graph
27 Jan 2017 16 : 51 Test: LISN - FCC15 Class B Project: Zoll medical_01/27/2017 Tested by: Naga Suryadevara Test Notes: 120VAC 60Hz_Tx mode
150k 1M 10M 30M
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV)
FCC Part 15 Class B Conducted AV (Mains Ports)
FCC Part 15 Class B Conducted QP (Mains Ports)
Trace1: Measured Peak
Trace2: Measured Quasi Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace2: Measured Quasi Peak
Frequency(Hz)
Level(dBuV)
TF
PA+CL
Limit(dBuV)
Margin(dBuV)
RBW(Hz)
Comment
LINE
393.95 k
33.90
0.027
20.580
57.980
-24.08
9 k
N
161.05 k
41.73
0.071
20.594
65.410
-23.68
9 k
N
200.15 k
40.12
0.040
20.591
63.604
-23.48
9 k
N
191.65 k
41.11
0.047
20.592
63.965
-22.85
9 k
N
174.65 k
43.73
0.060
20.593
64.736
-21.01
9 k
L1
166.15 k
44.82
0.067
20.593
65.151
-20.33
9 k
N
374.4 k
38.64
0.028
20.581
58.403
-19.77
9 k
N
Trace3: Measured Average
Frequency(Hz)
Level(dBuV)
TF
PA+CL
Limit(dBuV)
Margin(dBuV)
RBW(Hz)
Comment
LINE
161.05 k
26.50
0.071
20.594
55.410
-28.91
9 k
N
166.15 k
31.00
0.067
20.593
55.151
-24.15
9 k
N
191.65 k
30.02
0.047
20.592
53.965
-23.94
9 k
N
174.65 k
31.17
0.060
20.593
54.736
-23.56
9 k
L1
200.15 k
30.12
0.040
20.591
53.604
-23.49
9 k
N
393.95 k
27.86
0.027
20.580
47.980
-20.12
9 k
N
374.4 k
30.83
0.028
20.581
48.403
-17.57
9 k
N
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 113 of 117
Company: Zoll medical Corporation Model: µCor 3.0
120VAC 60Hz, Rx mode
Test Information
Test Details
User Entry
Additional Information
Test:
LISN - FCC15 Class B
Project:
Zoll medical_01/27/2017
Test Notes:
120VAC 60Hz_Rx mode
Temperature:
22 C
Humidity:
14% 987 mbars
Tested by:
Naga Suryadevara
Test Started:
27 Jan 2017 17 : 08

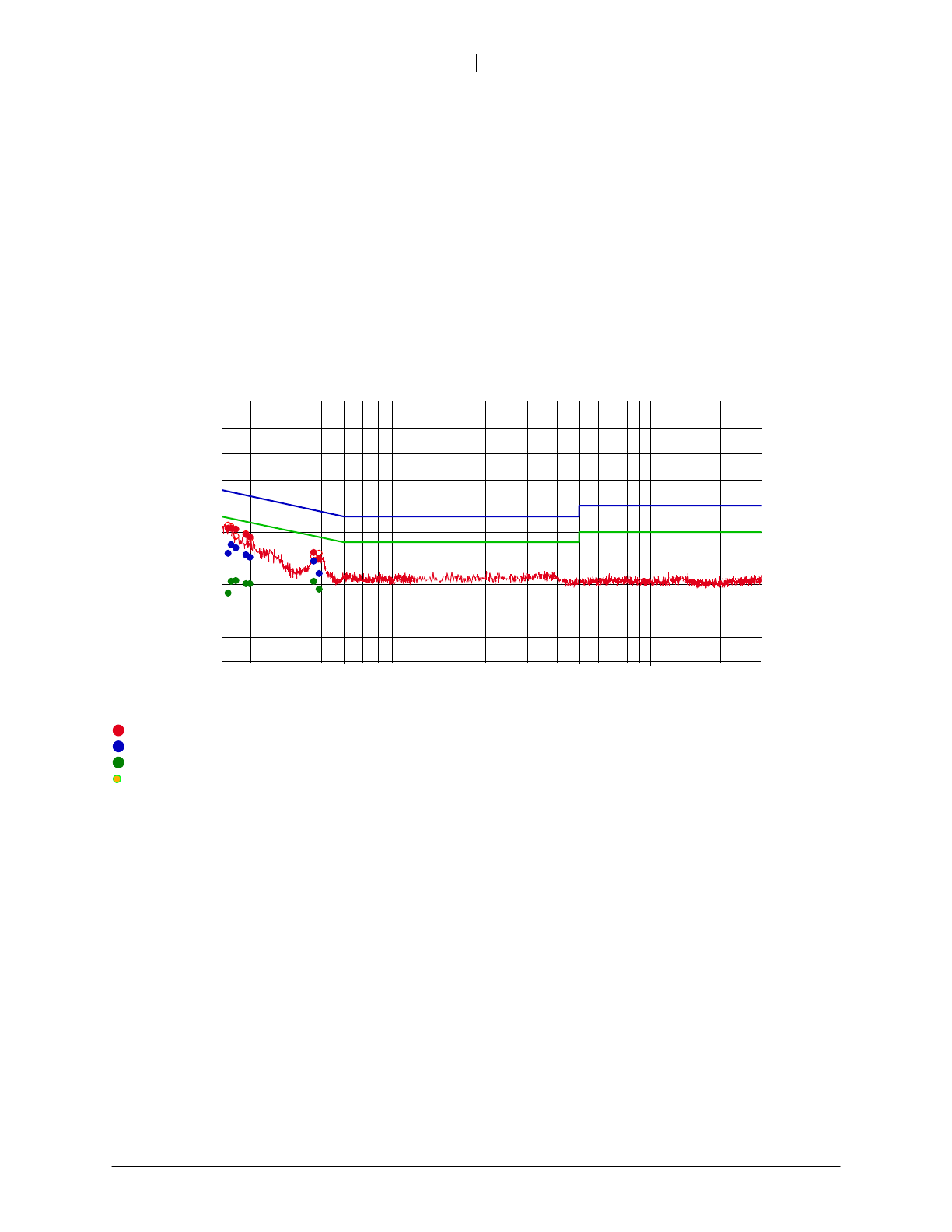

Prescan Emission Graph
27 Jan 2017 17 : 08 Test: LISN - FCC15 Class B Project: Zoll medical_01/27/2017 Tested by: Naga Suryadevara Test Notes: 120VAC 60Hz_Rx mode
150k 1M 10M 30M
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV)
FCC Part 15 Class B Conducted AV (Mains Ports)
FCC Part 15 Class B Conducted QP (Mains Ports)
Trace1: Measured Peak
Trace2: Measured Quasi Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace2: Measured Quasi Peak
Frequency(Hz)
Level(dBuV)
TF
PA+CL
Limit(dBuV)
Margin(dBuV)
RBW(Hz)
Comment
LINE
441.55 k
31.46
0.025
20.577
57.033
-25.57
9 k
N
193.35 k
39.43
0.045
20.592
63.891
-24.46
9 k
N
199.3 k
39.69
0.041
20.591
63.640
-23.95
9 k
N
172.95 k
43.14
0.062
20.593
64.818
-21.68
9 k
L1
372.7 k
39.12
0.028
20.581
58.441
-19.32
9 k
N
154.25 k
47.86
0.077
20.594
65.768
-17.91
9 k
N
Trace3: Measured Average
Frequency(Hz)
Level(dBuV)
TF
PA+CL
Limit(dBuV)
Margin(dBuV)
RBW(Hz)
Comment
LINE
193.35 k
28.13
0.045
20.592
53.891
-25.76
9 k
N
172.95 k
31.00
0.062
20.593
54.818
-23.82
9 k
L1
199.3 k
30.07
0.041
20.591
53.640
-23.57
9 k
N
154.25 k
34.48
0.077
20.594
55.768
-21.29
9 k
N
441.55 k
26.76
0.025
20.577
47.033
-20.28
9 k
N
372.7 k
31.58
0.028
20.581
48.441
-16.86
9 k
N
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 114 of 117
Company: Zoll medical Corporation Model: µCor 3.0
120VAC 60Hz, Tx mode
Test Information
Test Details
User Entry
Additional Information
Test:
LISN - FCC15 Class B
Project:
Zoll medical_01/30/2017
Test Notes:
Tx mode Cellphone with LTE
Tested by:
Naga Suryadevara
Test Started:
30 Jan 2017 17 : 00

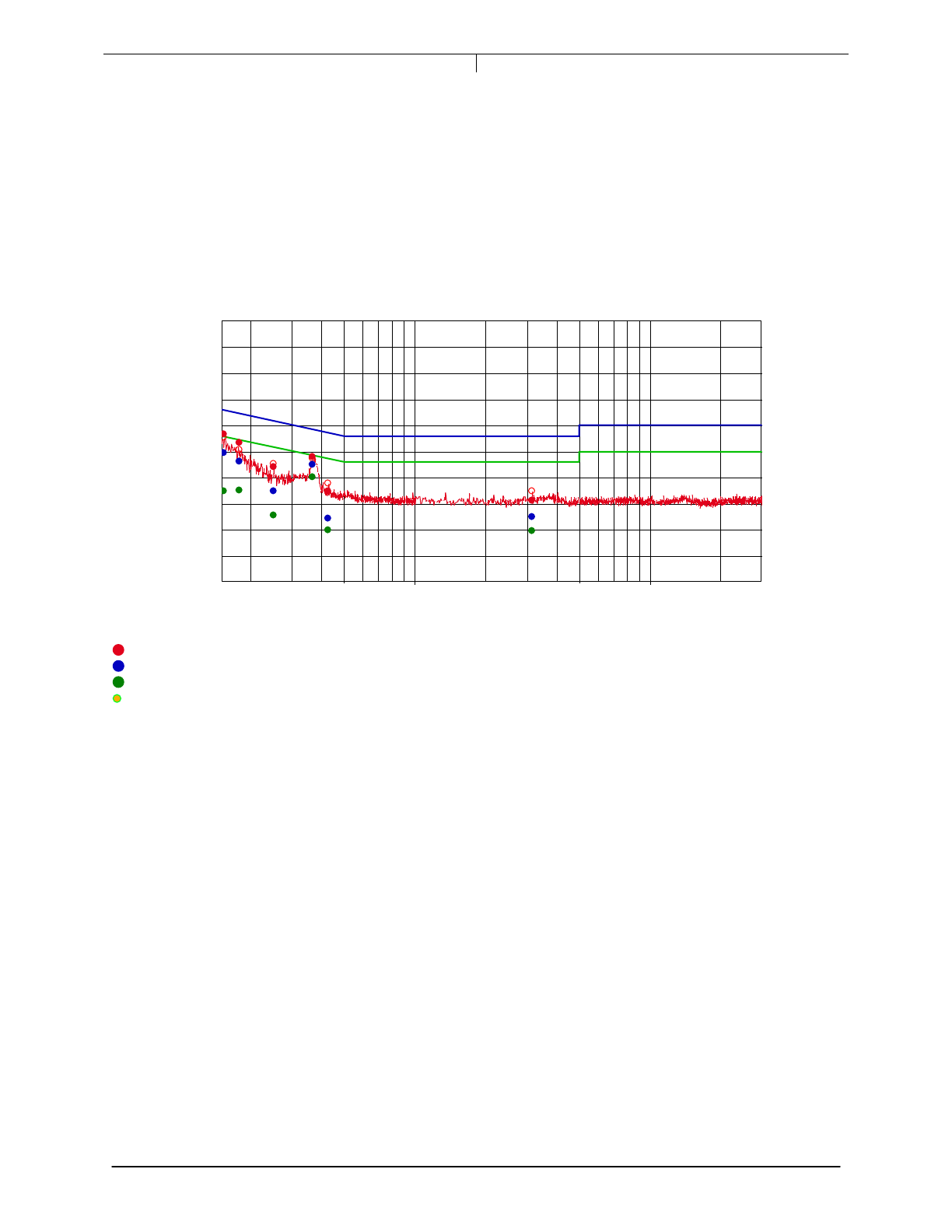

Prescan Emission Graph
30 Jan 2017 17 : 00 Test: LISN - FCC15 Class B Project: Zoll medical_01/30/2017 Tested by: Naga Suryadevara Test Notes: Tx mode Cellphone with LTE
150k 1M 10M 30M
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV)
FCC Part 15 Class B Conducted AV (Mains Ports)
FCC Part 15 Class B Conducted QP (Mains Ports)
Trace1: Measured Peak
Trace2: Measured Quasi Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace2: Measured Quasi Peak
Frequency(Hz)
Level(dBuV)
TF
PA+CL
Limit(dBuV)
Margin(dBuV)
RBW(Hz)
Comment
LINE
429.65 k
24.29
0.026
20.577
57.259
-32.97
9 k
N
3.169 M
25.00
0.020
20.580
56.000
-31.00
9 k
L1
250.3 k
34.83
0.035
20.588
61.747
-26.92
9 k
N
178.9 k
46.12
0.057
20.593
64.537
-18.42
9 k
L1
154.25 k
49.49
0.077
20.594
65.768
-16.28
9 k
L1
367.6 k
44.95
0.028
20.581
58.555
-13.61
9 k
L1
Trace3: Measured Average
Frequency(Hz)
Level(dBuV)
TF
PA+CL
Limit(dBuV)
Margin(dBuV)
RBW(Hz)
Comment
LINE
429.65 k
19.97
0.026
20.577
47.259
-27.29
9 k
N
3.169 M
19.43
0.020
20.580
46.000
-26.57
9 k
L1
250.3 k
25.44
0.035
20.588
51.747
-26.30
9 k
N
154.25 k
34.71
0.077
20.594
55.768
-21.06
9 k
L1
178.9 k
34.97
0.057
20.593
54.537
-19.57
9 k
L1
367.6 k
40.17
0.028
20.581
48.555
-8.38
9 k
L1
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 115 of 117
Company: Zoll medical Corporation Model: µCor 3.0
120VAC 60Hz, Rx mode
Test Information
Test Details
User Entry
Additional Information
Test:
LISN - FCC15 Class B
Project:
Zoll medical_01/30/2017
Test Notes:
Rx mode Cellphone with LTE
Tested by:
Naga Suryadevara
Test Started:
30 Jan 2017 17 : 22
Prescan Emission Graph
30 Jan 2017 17 : 22 Test: LISN - FCC15 Class B Project: Zoll medical_01/30/2017 Tested by: Naga Suryadevara Test Notes: Rx mode Cellphone with LTE
150k 1M 10M 30M
Frequency (Hz)
0
10
20
30
40
50
60
70
80
90
100
Level (dBuV)
FCC Part 15 Class B Conducted AV (Mains Ports)
FCC Part 15 Class B Conducted QP (Mains Ports)
Trace1: Measured Peak
Trace2: Measured Quasi Peak
Trace3: Measured Average
Measured Peak Value __ Swept Peak Data
Measured Quasi Peak Value __ Swept Quasi Peak Data
Measured Average Value __ Swept Average Data
Maximum Value of Mast and Turntable
Emissions Test Data
Trace2: Measured Quasi Peak
Frequency(Hz)
Level(dBuV)
TF
PA+CL
Limit(dBuV)
Margin(dBuV)
RBW(Hz)
Comment
LINE
224.8 k
37.86
0.038
20.590
62.640
-24.78
9 k
N
198.45 k
40.87
0.041
20.591
63.675
-22.80
9 k
N
170.4 k
45.14
0.064
20.593
64.941
-19.80
9 k
N
176.35 k
46.01
0.059
20.593
64.656
-18.65
9 k
L1
155.1 k
49.35
0.076
20.594
65.722
-16.37
9 k
L1
371.85 k
45.74
0.028
20.581
58.460
-12.72
9 k
N
Trace3: Measured Average
Frequency(Hz)
Level(dBuV)
TF
PA+CL
Limit(dBuV)
Margin(dBuV)
RBW(Hz)
Comment
LINE
224.8 k
29.91
0.038
20.590
52.640
-22.73
9 k
N
170.4 k
33.07
0.064
20.593
54.941
-21.87
9 k
N
198.45 k
32.24
0.041
20.591
53.675
-21.43
9 k
N
155.1 k
35.10
0.076
20.594
55.722
-20.63
9 k
L1
176.35 k
35.12
0.059
20.593
54.656
-19.54
9 k
L1
371.85 k
40.35
0.028
20.581
48.460
-8.11
9 k
N
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 116 of 117
Company: Zoll medical Corporation Model: µCor 3.0
Test Personnel:
Naga Suryadevara
Test Date:
01/27/2017
01/30/2017
Supervising/Reviewing
Engineer:
(Where Applicable)
N/A
Product Standard:
FCC Part 15 Subpart C
FCC Part 15 Subpart B
Limit Applied:
Class B
Input Voltage:
120VAC 60Hz
Pretest Verification w/
Ambient Signals or
BB Source:
Signal generator
Ambient Temperature:
22, 20 ºC
Relative Humidity:
14, 17 %
Atmospheric Pressure:
987, 990 mbars
Deviations, Additions, or Exclusions: None
Intertek
Report Number: 102716227BOX-002
Issued: 03/09/2017
Non-Specific Radio Report Shell Rev. August 2015 Page 117 of 117
Company: Zoll medical Corporation Model: µCor 3.0
15 Revision History
Revision
Level
Date
Report Number
Prepared
By
Reviewed
By
Notes
0
02/12/2017
102716227BOX-002
VFV
Original Issue
1
02/15/2017
102716227BOX-002
VFV
Fixed typographical
errors
2
03/09/2017
102716227BOX-002
VFV
Updated section 4,
5.1, 5.2 and pages
94-97.
