ZTE ZXR10W140A W140A Wireless Access Point User Manual W140A 0702

ZTE Corporation W140A Wireless Access Point W140A 0702

Users Manual

ZXR10 WAS (V1.0) IP Wireless Access System

W140A Outdoor Wireless Access

Point/Bridge

User’s Manual

ZTE CORPORATION

ZXR10 WAS (V1.0) IP Wireless Access System

W140A Outdoor Wireless Access Point/Bridge

User’s Manual

Manual Version 20040325-R1.0

Product Version V1.0

No part of this documentation may be excerpted, reproduced, translated, annotated or

duplicated, in any form or by any means without the prior written permission of ZTE

Corporation.

ZTE CORPORATION

ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, P.R.China

Website: http://www.zte.com.cn

Postcode: 518057

Customer Support Center: (+86755) 26771900 800-9830-9830

Fax: (+86755) 26770801

Email: support@zte.com.cn

* * * *

S.N.: sjzl20040367

FAX：+86-755-26770160

Suggestions and Feedback

To improve the quality of ZTE product documentation and offer better services to our customers, we hope

you can give us your suggestions and comments on our documentation and fax this form to

+86-755-26770160; or mail to “Marketing center 3rd floor ZTE Plaza, Keji Road South, Hi-Tech Industrial

Park, Nanshan District, Shenzhen, P. R. China”. Our postcode is 518057.

Document name ZXR10 WAS (V1.0) IP Wireless Access System W140A Outdoor Wireless Access Point/Bridge

User’s Manual

Product version V1.0 Document version 20040325-R1.0

Equipment installation time

Your information

Name Company

Postcode Company address

Telephone E-mail

Presentation: How is information presented? (Introductions, procedures, illustrations, others)

□ Good □ Fair □Average □ Poor □Bad

Accessibility: Can you find the information you want? (Table of contents, Index, headings,

numbering, others)

□ Good □ Fair □Average □ Poor □Bad

Your evaluation

of this

documentation

Intelligibility: Can you understand it when you find it? (Language, vocabulary, readability, others)

□ Good □ Fair □Average □ Poor □Bad

Presentation:

Accessibility:

Your suggestions

for improvement

of this

documentation

Intelligibility:

Your other

suggestions on

ZTE product

documentation

Preface

About This Manual

This manual is applicable to the ZXR10 WAS (V1.0) IP Wireless Access System

W140A Outdoor Wireless Access Point/Bridge (W140A for short below).

The ZXR10 WAS IP wireless access system is a proprietary product of ZTE

Corporation. It consists of a series of wireless access network products, such as

wireless network card, wireless Access Point (AP), wireless router, DSL 2-in-1 wireless

router and outdoor wireless access point/bridge.

This manual introduces the function features, installation, operation, use and

maintenance of the W140A, so it serves as instructions to the W140A. This manual

consists of 6 chapters and 2 appendixes.

Chapter 1, Safety Precautions, introduces the safety precautions of this product and

safety symbols used in this manual.

Chapter 2, Overview, presents functions, features and technical parameters of the

W140A.

Chapter 3, Structure and Principle, describes structure and principle of W140A.

Chapter 4, Installation and Debugging, deals with the installation and debugging

methods of the W140A.

Chapter 5, Command Line Configuration, covers the command line configurations of

the W140A.

Chapter 6: WEB configuration, presents the web configurations of W140A.

Chapter 7, Maintenance, puts forward the daily maintenance and version upgrade

methods of the W140A.

Appendix A, Packing, Transportation and Storage, outlines the packaging method,

storage conditions and transportation precautions of the W140A.

Appendix B, Making of Ethernet cables, introduces the power supply mode of W140A

Ethernet and making of Ethernet cables.

Conventions

Four striking symbols are used throughout this manual to emphasize important and

critical information during operation:

Danger, Warning, Caution and Note statements are

used throughout this manual to emphasize important and critical information. You must

read these statements to help ensure safety and to prevent product damage. The

statements are defined below.

Statement: The actual product may differ from what is described in this

manual due to frequent update of ZTE products and fast development of

technologies. Please contact the local ZTE office for the latest updating

information of the product.

-i-

Contents

1 Safety Precautions...................................................................................................................................1-1

1.1 Safety Precautions..........................................................................................................................1-1

1.2 Symbol Description........................................................................................................................ 1-2

2 Overview..................................................................................................................................................2-1

2.1 Preface............................................................................................................................................2-1

2.2 Functions and Features...................................................................................................................2-1

2.3 Technical Characteristics and Parameters ......................................................................................2-2

3 Structure and Principle...........................................................................................................................3-1

3.1 Structure and Working Principle ....................................................................................................3-1

3.1.1 Hardware Structure .............................................................................................................3-1

3.1.2 Software Structure...............................................................................................................3-1

3.2 Units/Components..........................................................................................................................3-2

3.3 Networking Modes......................................................................................................................... 3-3

4 Installation and Debugging ....................................................................................................................4-1

5 Command Line Configuration...............................................................................................................5-1

5.1 Overview........................................................................................................................................5-1

5.2 User Mode......................................................................................................................................5-3

5.3 Privileged Mode.............................................................................................................................5-4

5.3.1 Command to Test Network Connectivity ............................................................................5-4

5.3.2 Command to Save Configurations to Flash.........................................................................5-4

5.3.3 Command to Reset Software...............................................................................................5-4

5.3.4 Command to Enter Configure Mode...................................................................................5-5

5.3.5 Command to Exit Privileged Mode.....................................................................................5-5

-ii-

5.3.6 Command to Exit TELNET Configuration......................................................................... 5-5

5.4 Configure Mode............................................................................................................................. 5-5

5.4.1 Commands to Configure Wireless Access-Bridge .............................................................. 5-5

5.4.2 Command to Configure Bridge Information....................................................................... 5-6

5.4.3 Commands to Configure DHCP Server .............................................................................. 5-7

5.4.4 Discover commands............................................................................................................ 5-8

5.4.5 Commands to Configure 802.1X Parameters ..................................................................... 5-9

5.4.6 Command to Set User Password in Privileged Mode ....................................................... 5-12

5.4.7 Command to Delete Filtration Rules ................................................................................ 5-12

5.4.8 Command to Exit Configuration Mode ............................................................................ 5-13

5.4.9 Commands to Configure IAPP (Load-balance) ................................................................ 5-13

5.4.10 Interface Skip.................................................................................................................. 5-14

5.4.11 Commands to Configure Layer 2 Isolation..................................................................... 5-15

5.4.12 Commands to Configure IP network Parameters............................................................ 5-15

5.4.13 Command to Configure Log Print Information .............................................................. 5-16

5.4.14 Command to Configure MAC Filter............................................................................... 5-17

5.4.15 Command to Configure MAC Address Authentication .................................................. 5-18

5.4.16 Command to Configure Users ........................................................................................ 5-18

5.4.17 Commands to Configure Radius Server ......................................................................... 5-19

5.4.18 Command to Configure SNMP Module ......................................................................... 5-21

5.4.19 Command to Manage Telnet Idle Timeout ..................................................................... 5-25

5.4.20 Commands to Upload/download TFTP Files.................................................................. 5-25

5.4.21 Commands to Configure VLAN..................................................................................... 5-26

5.4.22 Show Commands ............................................................................................................5-27

5.5 Ethernet Interface Configuration Mode.......................................................................................5-33

5.5.1 Configurations in the Ethernet Interface Mode................................................................. 5-33

-iii-

5.5.2 Command to Exit the Ethernet Interface Configuration Mode .........................................5-33

5.5.3 Command to Configure Ethernet interface IP addresses...................................................5-33

5.5.4 Command to Configure MAC filter for the Ethernet Interface .........................................5-34

5.6 Wireless Interface Configuration Mode .......................................................................................5-34

5.6.1 Command to Configure 80211b-related Parameters for the Wireless Interface................5-34

5.6.2 Command to Exit Wireless Interface Configuration Mode...............................................5-36

5.6.3 Command to Enable Link Integrity Detection ..................................................................5-37

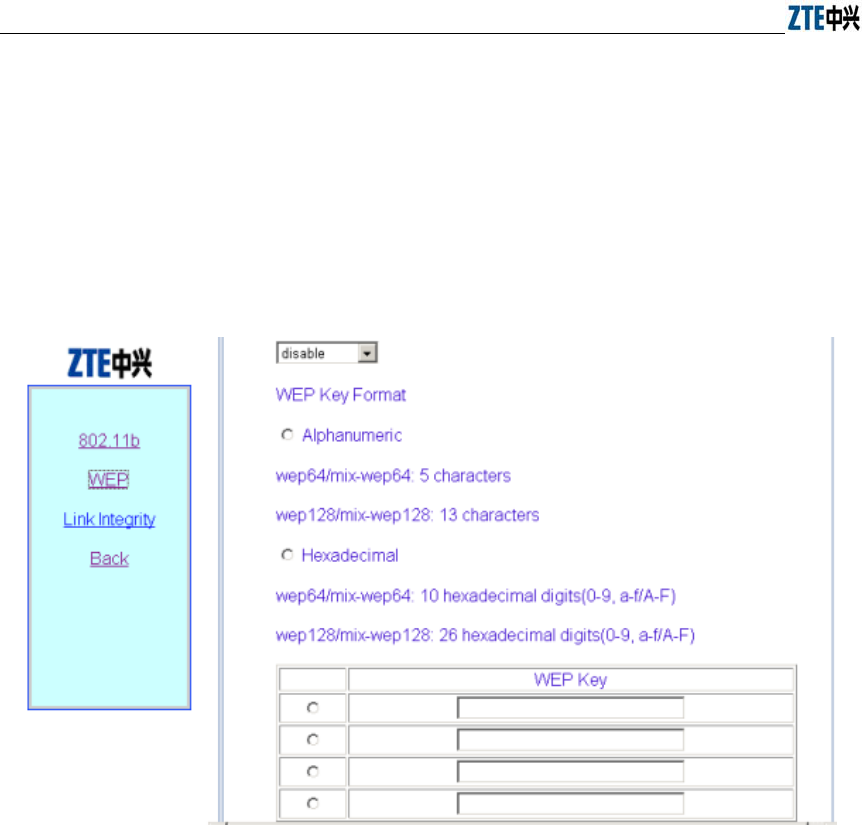

5.6.4 WEP Configuration of the Wireless Interface ...................................................................5-37

5.6.5 Command to Configure MAC Filter in Wireless Interface Configuration ........................5-38

5.6.6 Command to Configure Authentication Mode in Wireless Interface Configuration.........5-39

6 WEB Configuration ................................................................................................................................6-1

6.1 Overview........................................................................................................................................6-1

6.2 Opening the login WEB page.........................................................................................................6-2

6.3 Main menu of WEB configuration.................................................................................................6-4

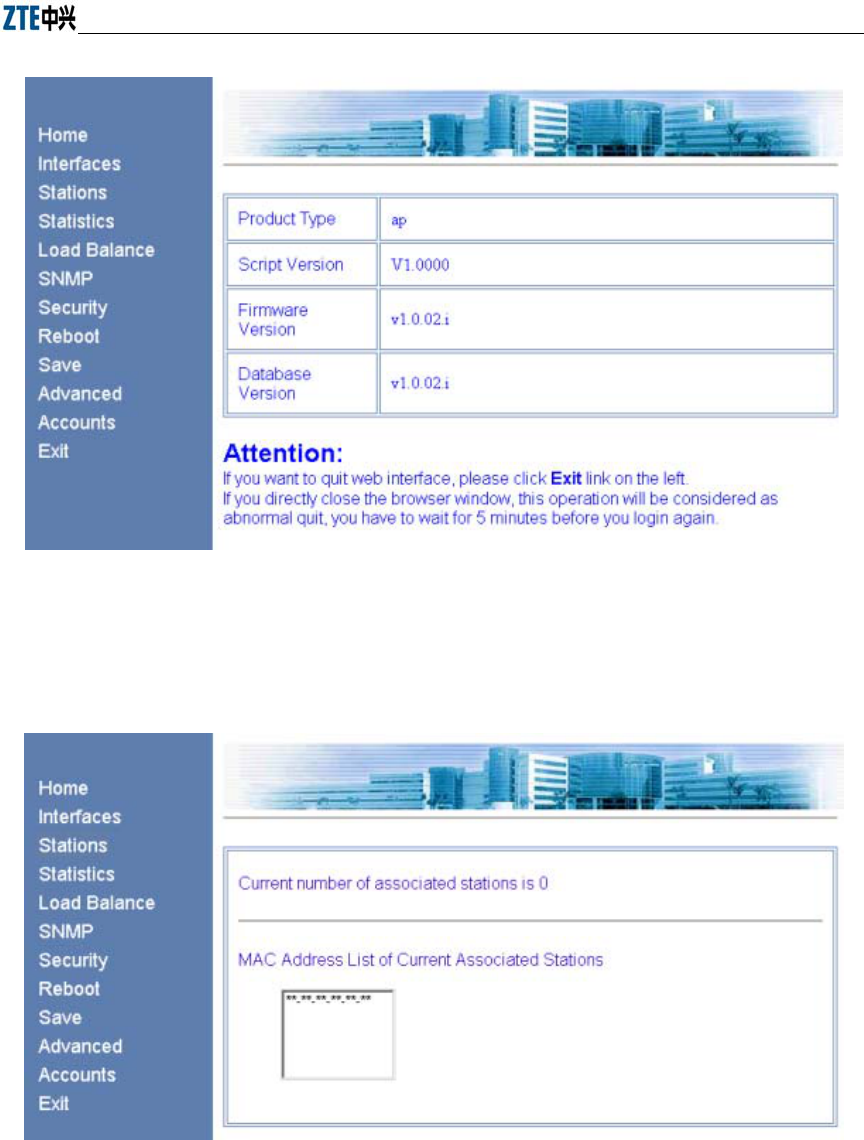

6.3.1 Home page (basic product information).............................................................................. 6-4

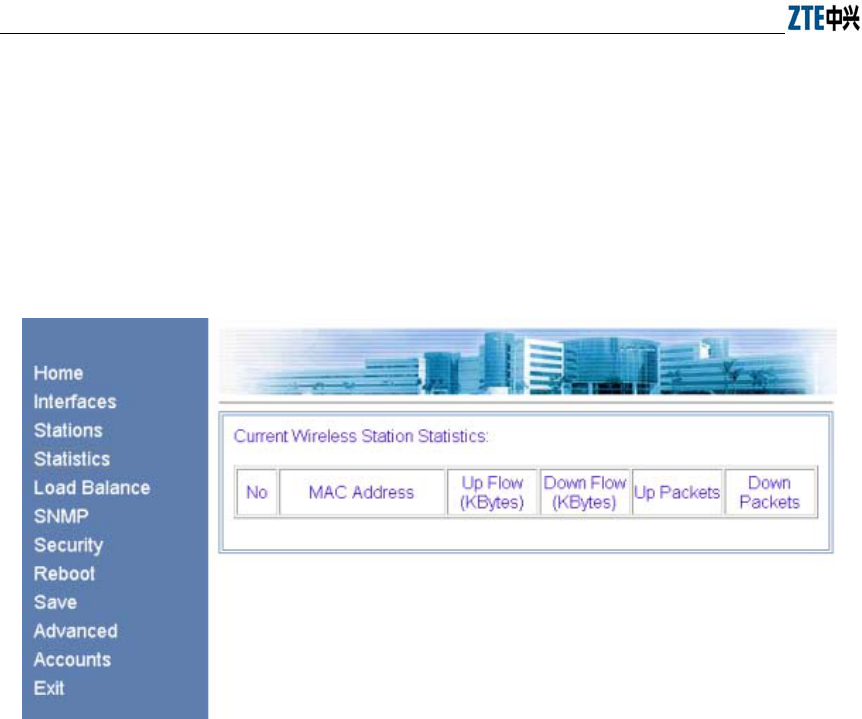

6.3.2 Stations page .......................................................................................................................6-5

6.3.3 Statistics Page......................................................................................................................6-6

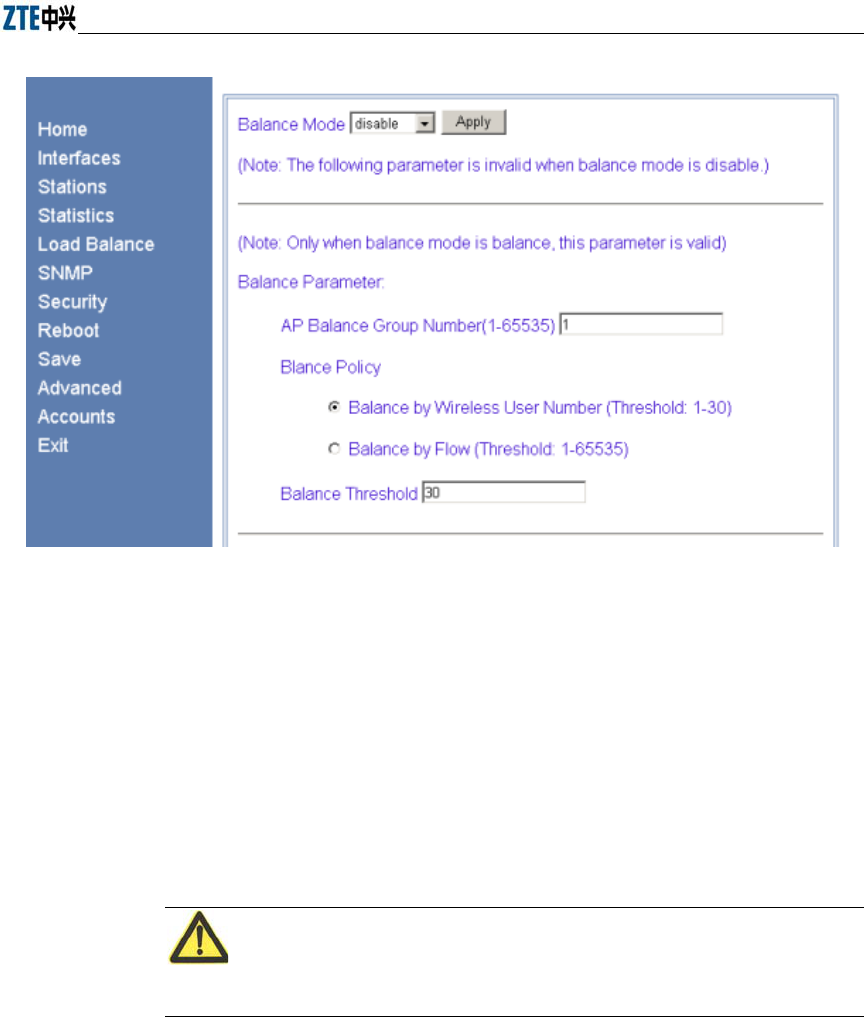

6.3.4 Load Balance page ..............................................................................................................6-6

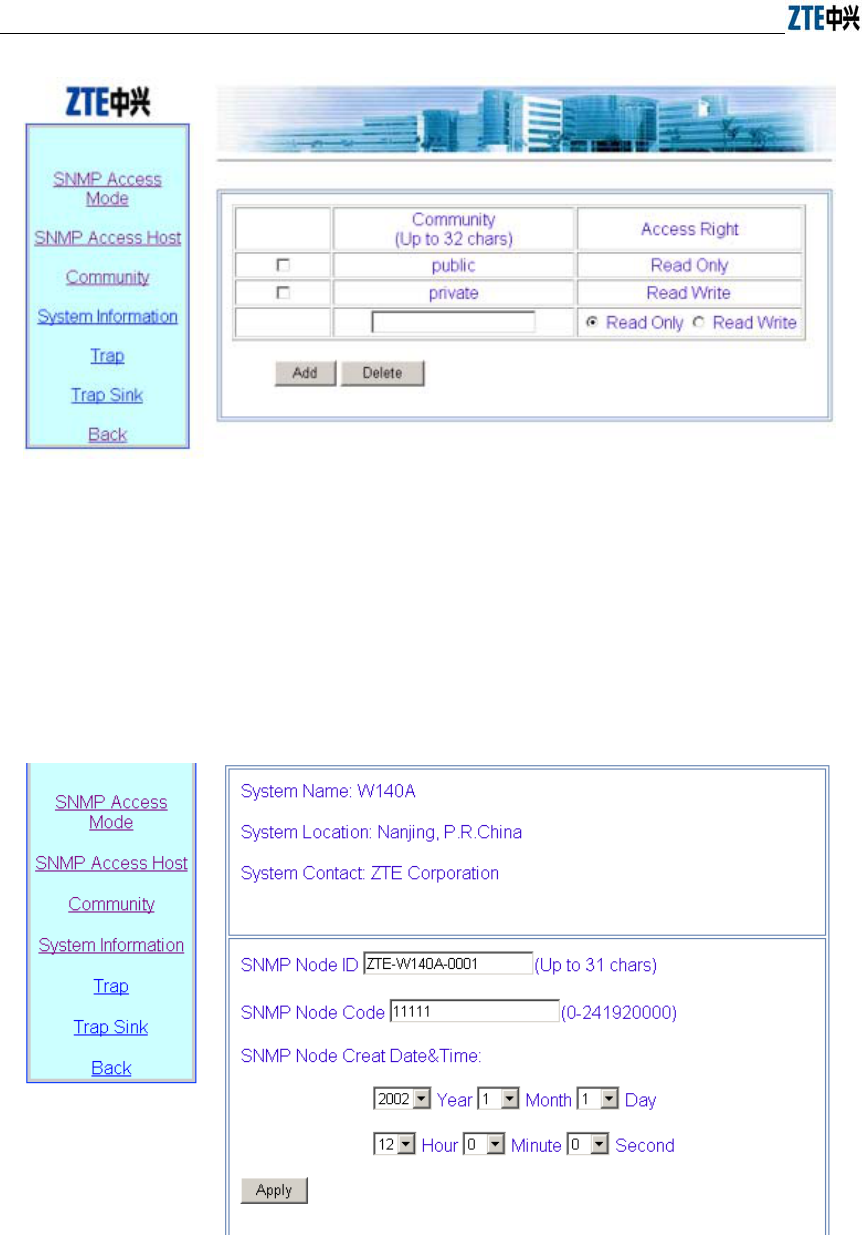

6.3.5 SNMP page .........................................................................................................................6-7

6.3.6 Security page.....................................................................................................................6-12

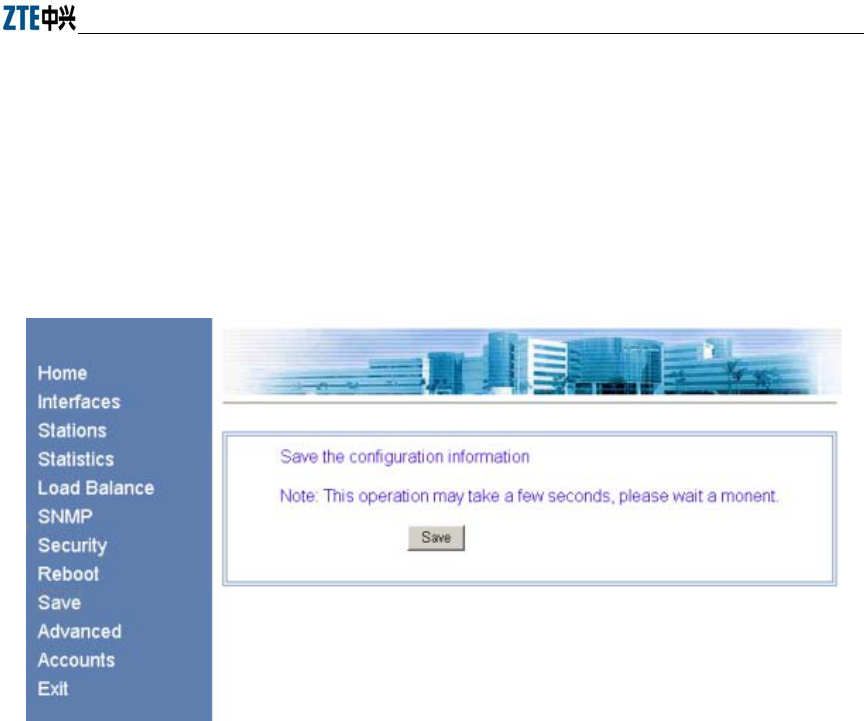

6.3.7 Save page .......................................................................................................................... 6-15

6.3.8 Reboot page.......................................................................................................................6-15

6.3.9 Advanced options page .....................................................................................................6-16

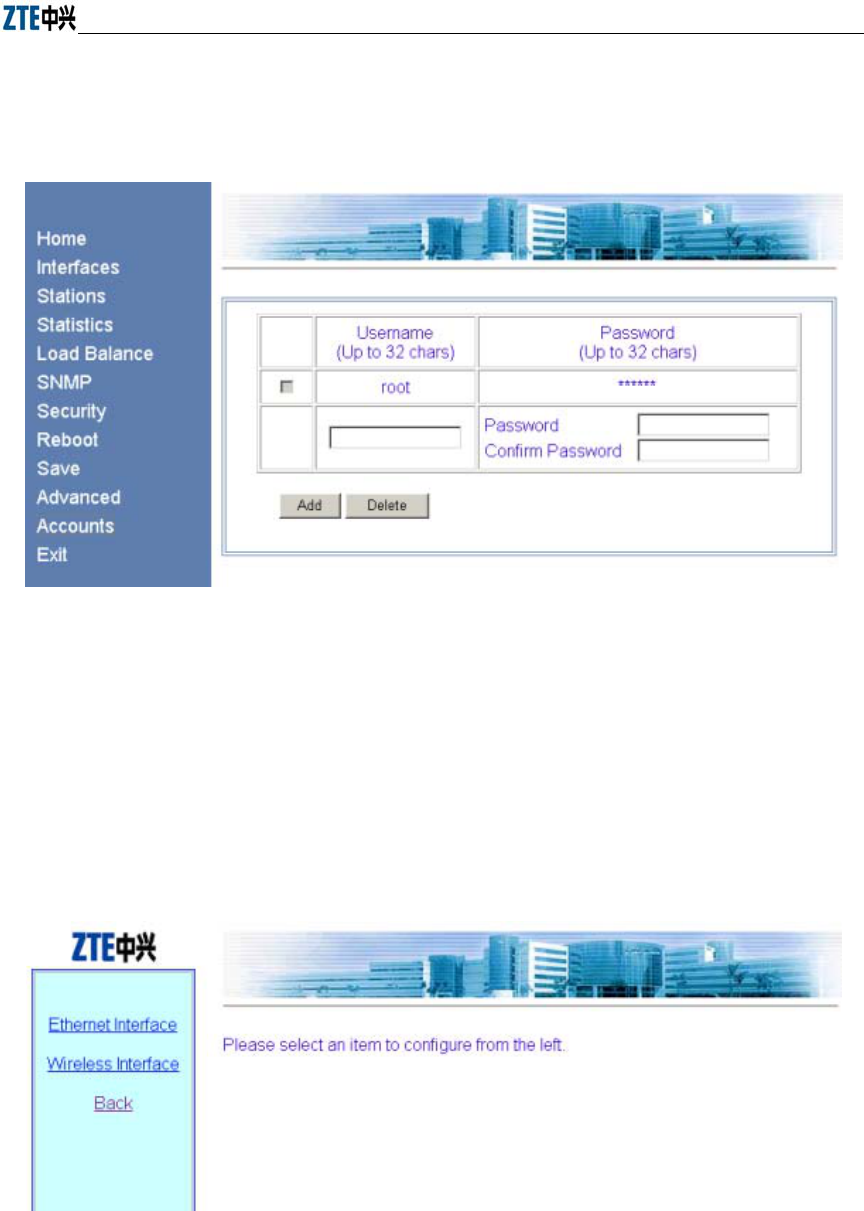

6.3.10 Accounts page .................................................................................................................6-23

6.4 Interfaces page .............................................................................................................................6-23

6.4.1 Ethernet Interface page .....................................................................................................6-24

-iv-

6.4.2 Wireless Interface page..................................................................................................... 6-25

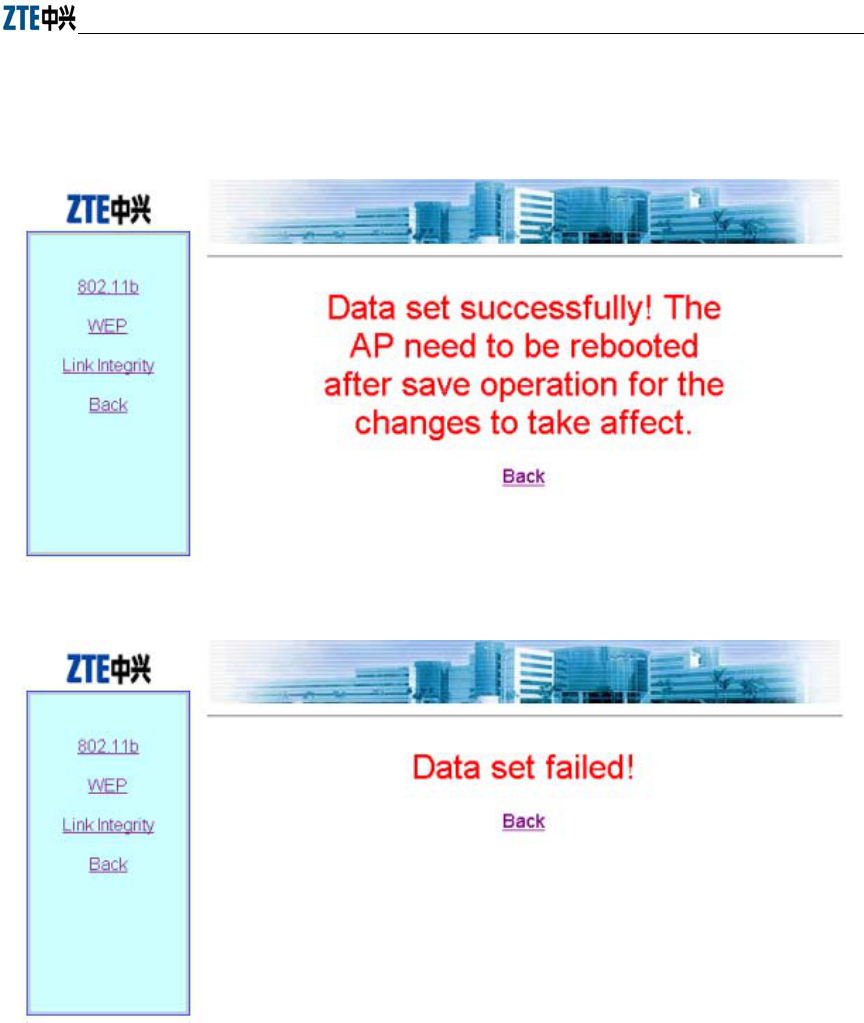

6.5 Data submission flow for WEB configuration............................................................................. 6-27

7 Maintenance............................................................................................................................................ 7-1

7.1 Maintenance Descriptions ............................................................................................................. 7-1

7.2 Daily Maintenance......................................................................................................................... 7-2

7.3 Version Loading and Upgrade ....................................................................................................... 7-2

7.3.1 TFTP File Loading Commands........................................................................................... 7-3

Appendix A Package, Transportation and Storage................................................................................ A-1

A.1 Package ........................................................................................................................................ A-1

A.2 Transportation .............................................................................................................................. A-1

A.3 Storage ......................................................................................................................................... A-2

Appendix B Making of Ethernet Cable ...................................................................................................B-1

B.1 W140A System Application Modes ..............................................................................................B-1

B.2 Making of Ethernet Cables ...........................................................................................................B-2

B.2.1 Making of Straight Through Ethernet Cables (RJ45).........................................................B-2

B.2.2 Making of Straight Through Power Supply Ethernet Cables (C-RJ45-001)......................B-2

B.2.3 Making of Crossover Ethernet Cables (RJ45J) ..................................................................B-3

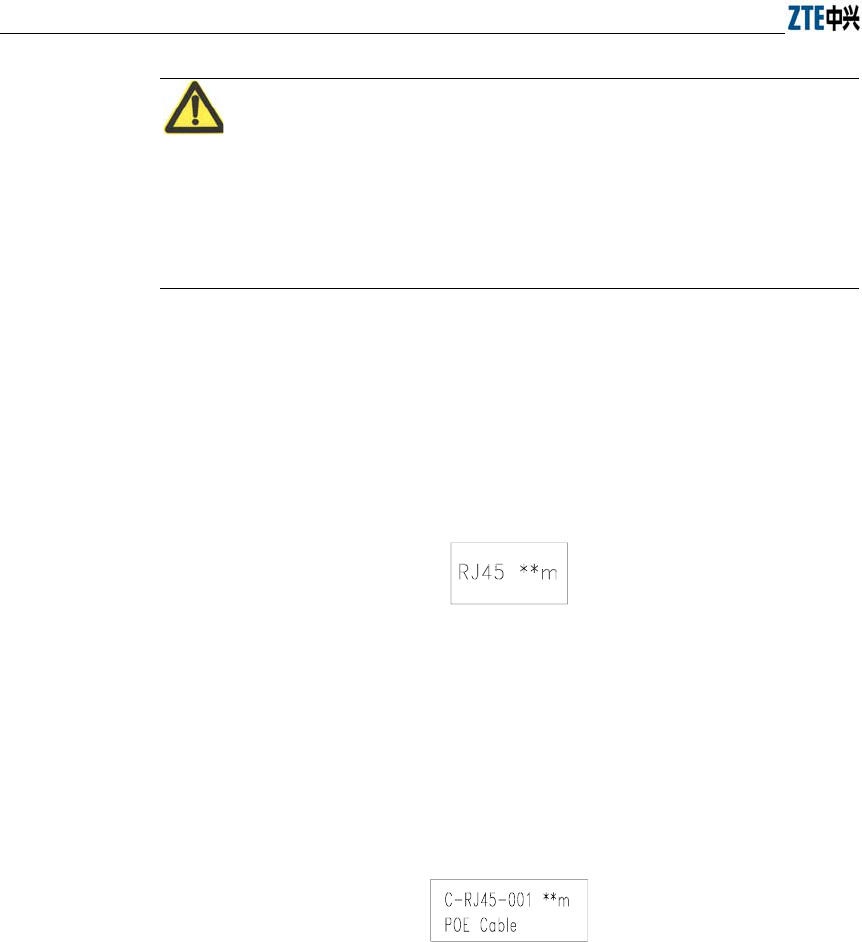

B.2.4 Ethernet Cable Label..........................................................................................................B-4

-i-

A List of Figures

Fig. 3.1-1 Appearance of W140A ..................................................................................................... 3-1

Fig. 3.1-2 W140A Software Structure...............................................................................................3-2

Fig. 3.2-1 W140A Rear Control Panel ..............................................................................................3-2

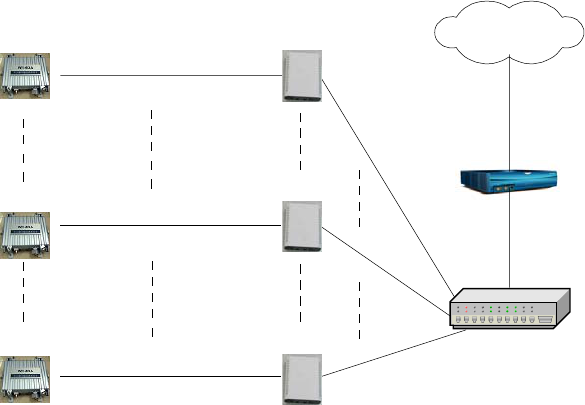

Fig. 3.3-1 Building Small Wireless LAN ..........................................................................................3-3

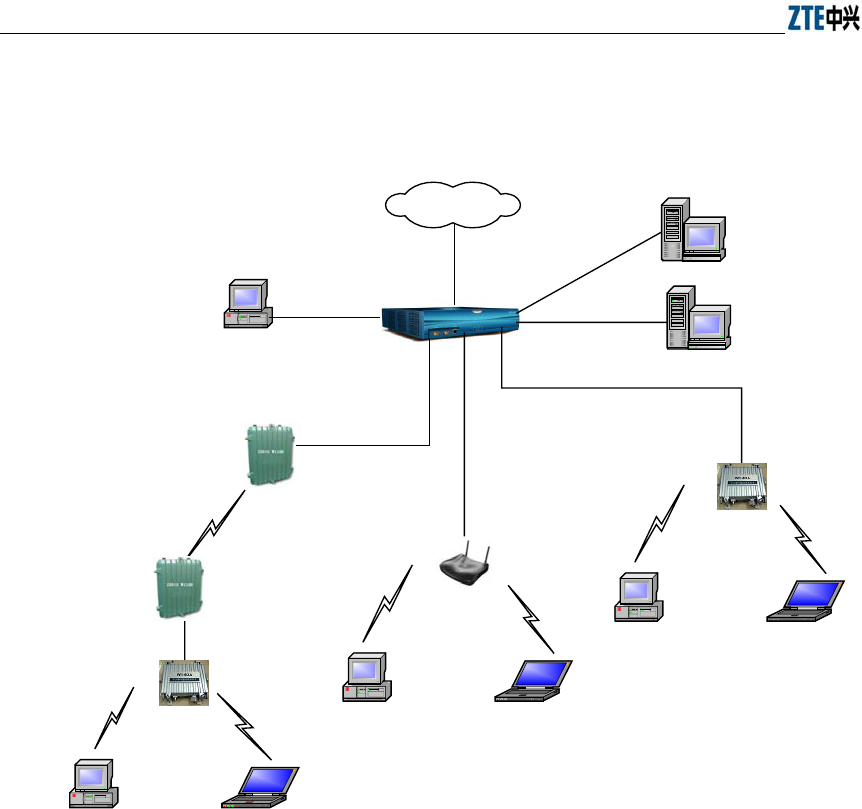

Fig. 3.3-2 Building Internet Wireless Access Network with AC, Indoor AP and Outdoor Bridge....3-4

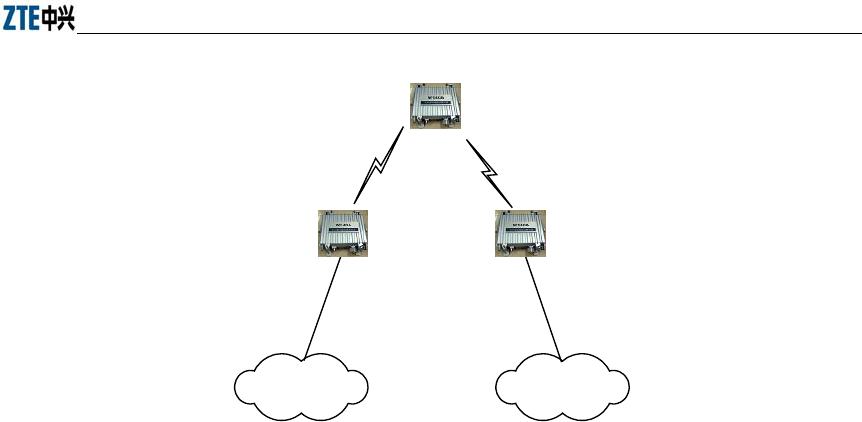

Fig. 3.3-3 Wireless Bridge Mode ......................................................................................................3-5

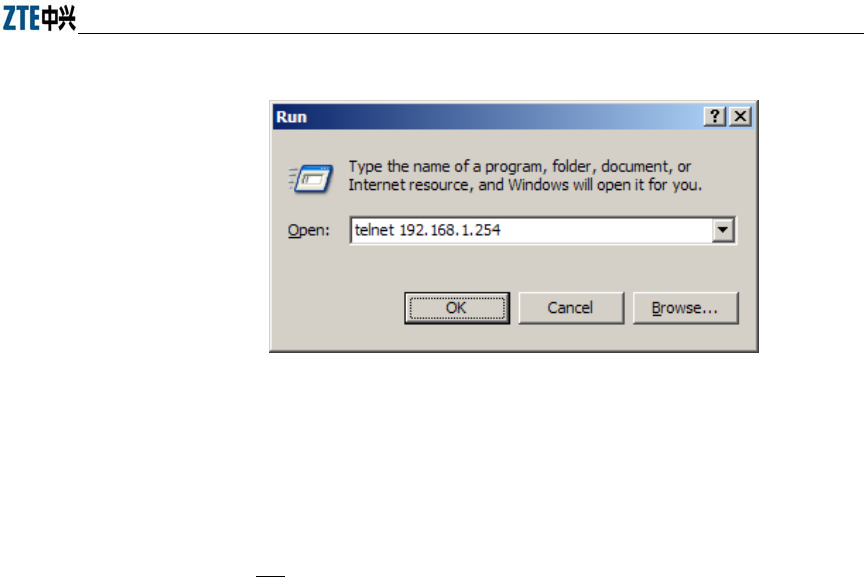

Fig. 4.1-1 Telnet to W140A ..............................................................................................................5-3

Fig. 5.1-1 Path diagram of WEB configuration ................................................................................ 6-2

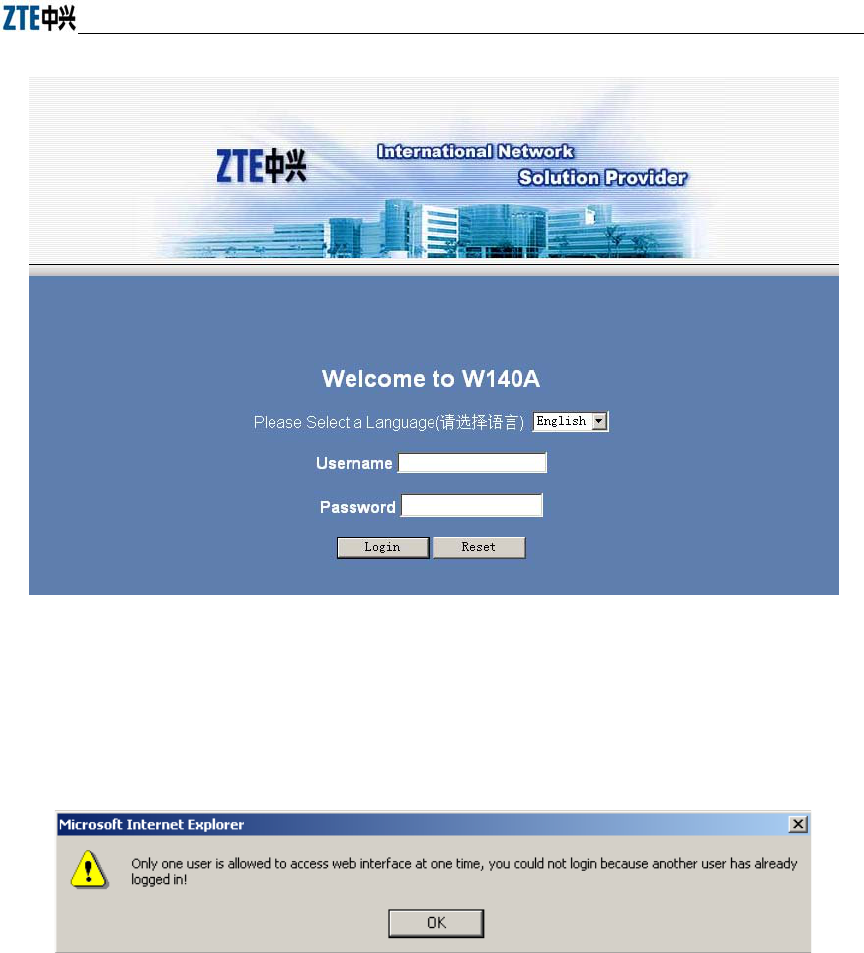

Fig. 5.2-1 Login page for WEB configuration ..................................................................................6-3

Fig. 5.2-2 Alert box for prompting that someone has already logged in for WEB configuration.....6-3

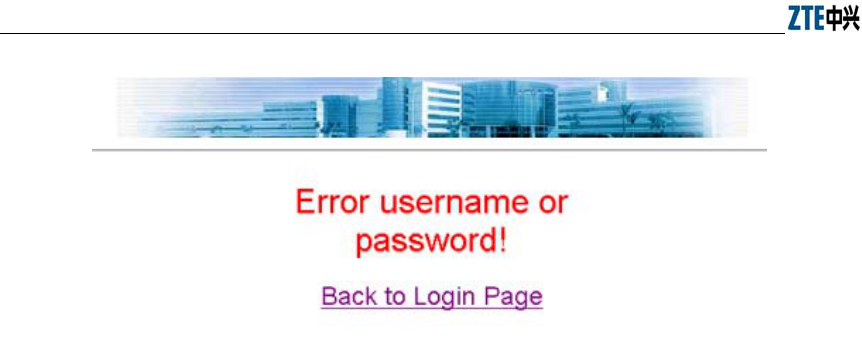

Fig. 5.2-3 Alert box for prompting that the entered user name and password are incorrect .............6-4

Fig. 5.3-1 Home page (basic product information) ........................................................................... 6-5

Fig. 5.3-2 Stations page..................................................................................................................... 6-5

Fig. 5.3-3 Statistics page ...................................................................................................................6-6

Fig. 5.3-4 Load Balance page ...........................................................................................................6-7

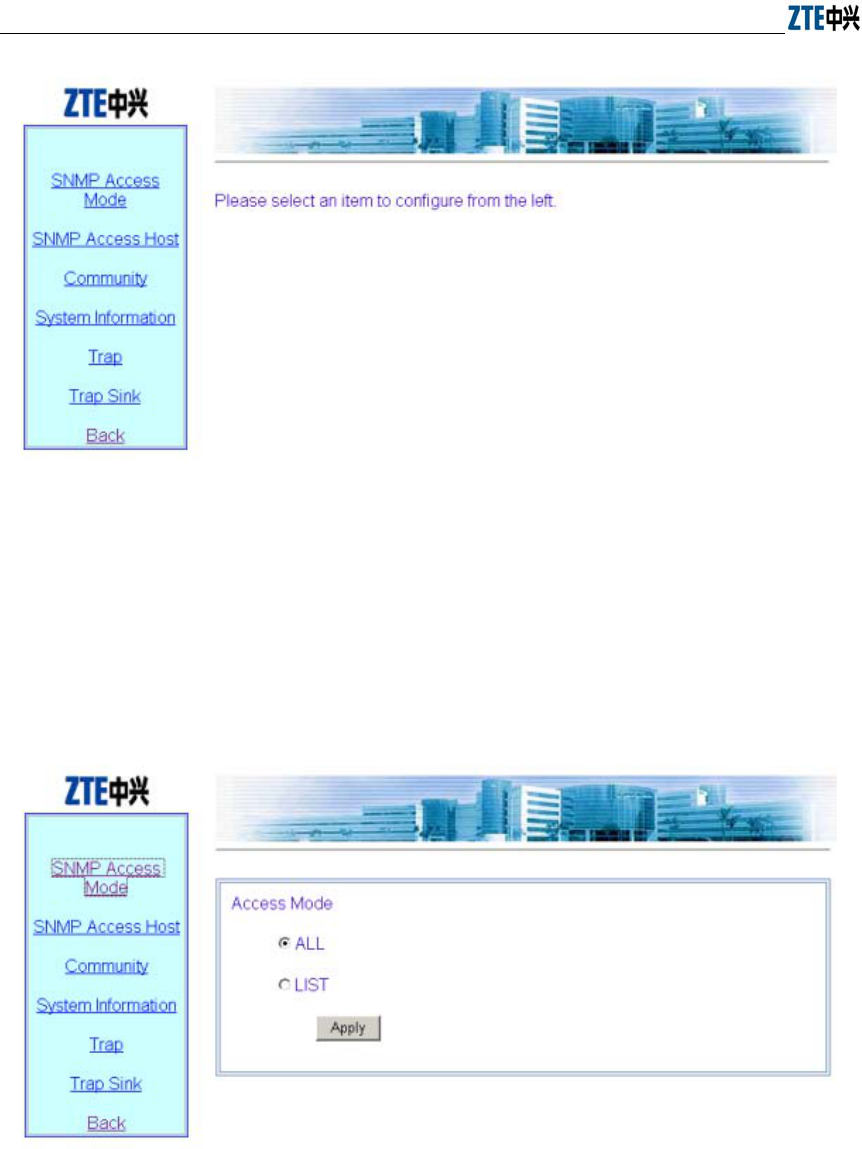

Fig. 5.3-5 Submenu for SNMP configuration ................................................................................... 6-8

Fig. 5.3-6 Access mode configuration page of the SNMP module ...................................................6-8

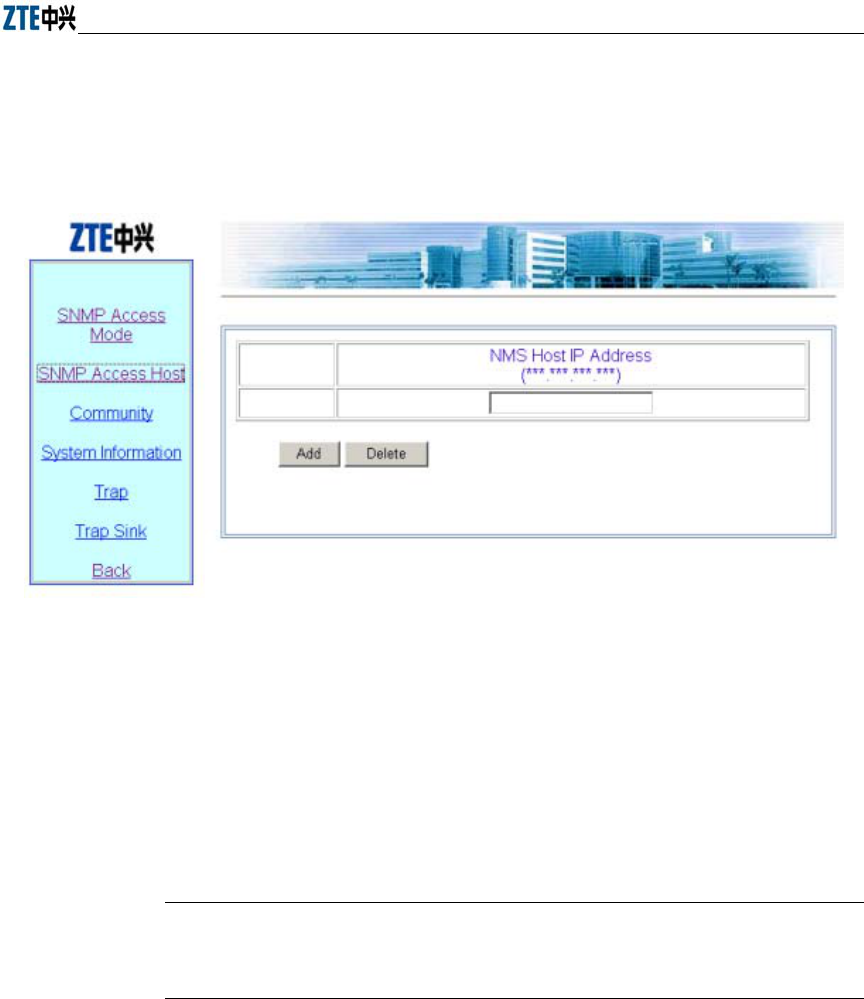

Fig. 5.3-7 Access host configuration page of the SNMP module .....................................................6-9

Fig. 5.3-8 Community configuration page of the SNMP module ................................................... 6-10

Fig. 5.3-9 System information configuration page of the SNMP module.......................................6-10

Fig. 5.3-10 Trap configuration page of the SNMP module............................................................. 6-11

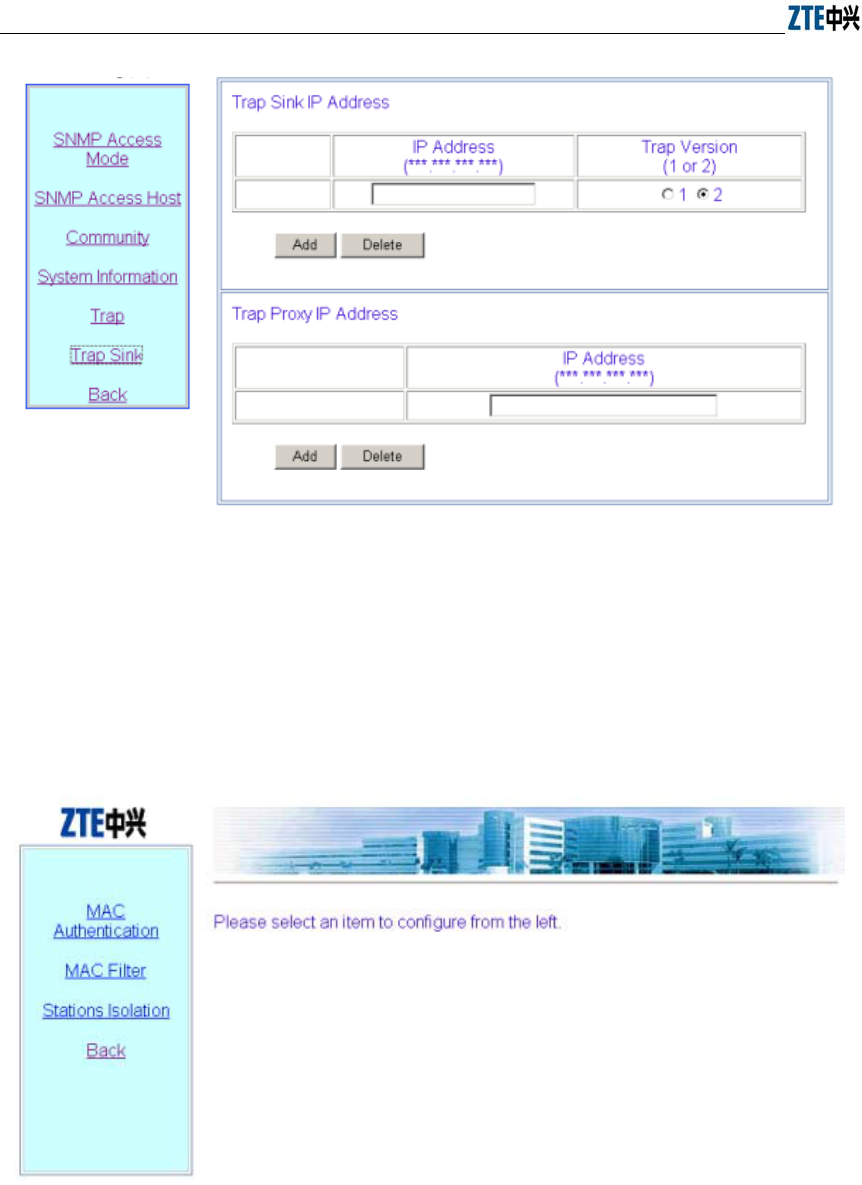

Fig. 5.3-11 Trap sink configuration page of the SNMP module .....................................................6-12

Fig. 5.3-12 Submenu of security configuration...............................................................................6-12

-ii-

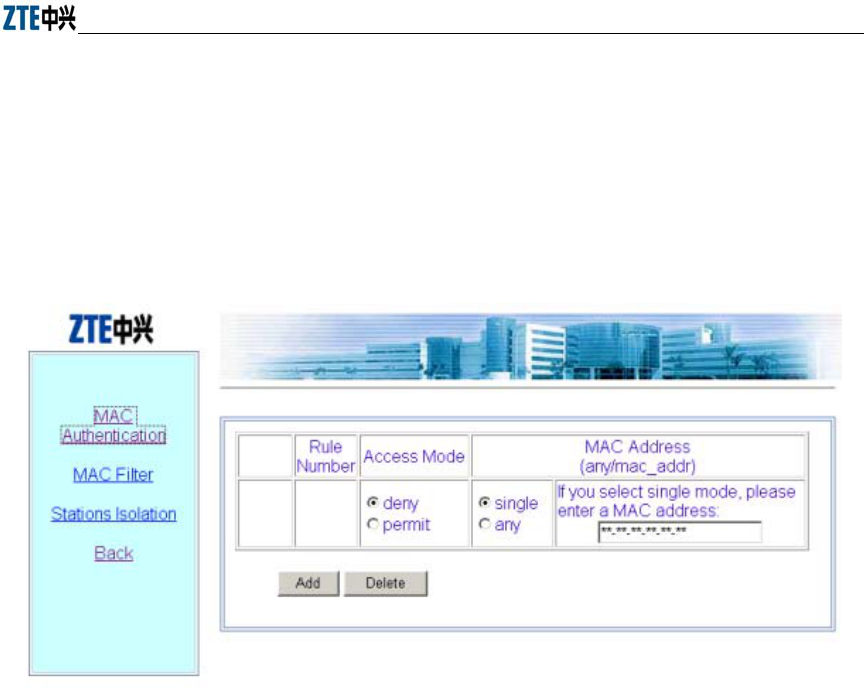

Fig. 5.3-13 MAC authentication configuration page ...................................................................... 6-13

Fig. 5.3-14 MAC filter rule configuration page.............................................................................. 6-14

Fig. 5.3-15 Stations Isolation page ................................................................................................. 6-14

Fig. 5.3-16 Save page ..................................................................................................................... 6-15

Fig. 5.3-17 Reboot page.................................................................................................................. 6-16

Fig. 5.3-18 Submenu of advanced options configuration ............................................................... 6-16

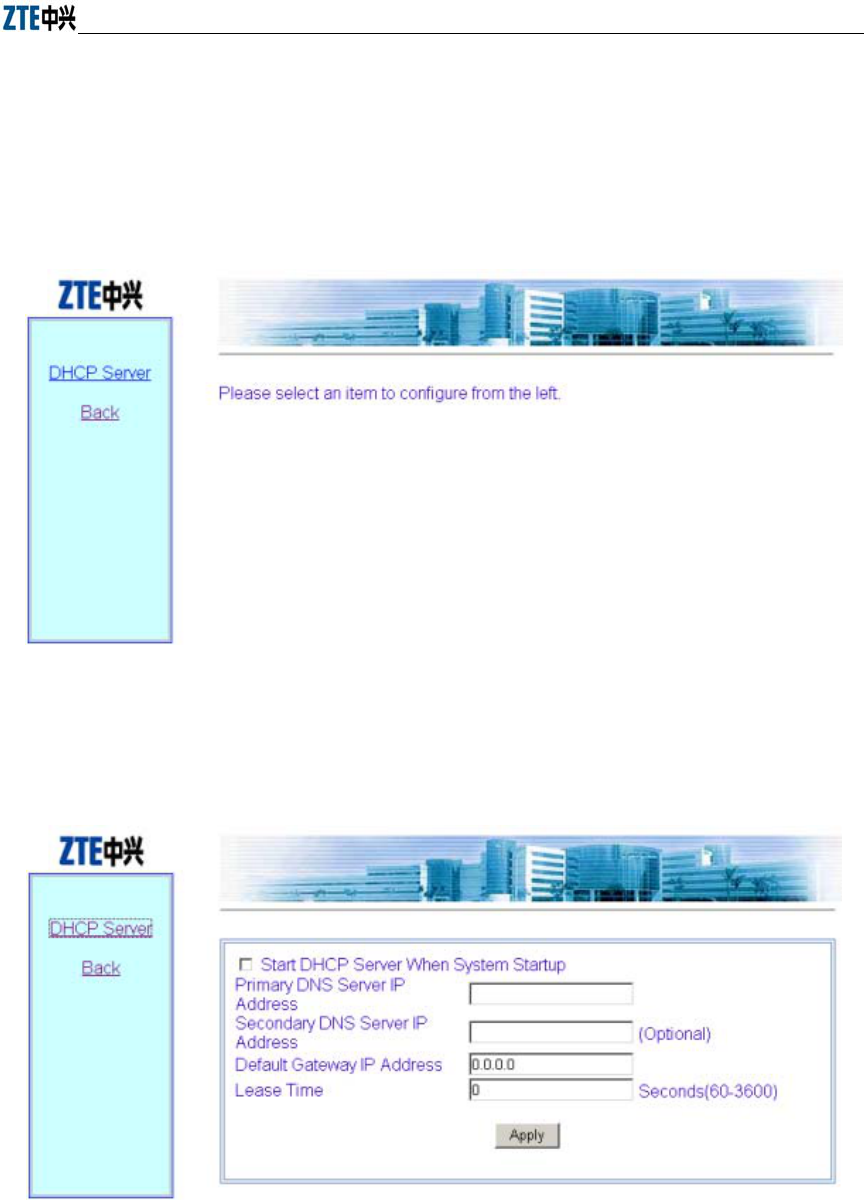

Fig. 5.3-19 Submenu of DHCP module.......................................................................................... 6-17

Fig. 5.3-20 DHCP server configuration page ................................................................................. 6-17

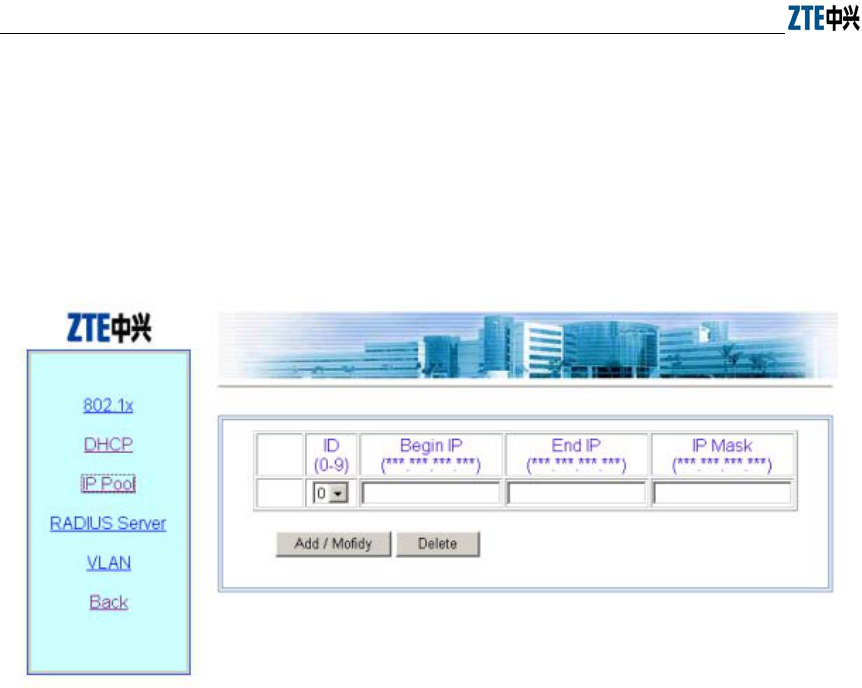

Fig. 5.3-21 IP pool page.................................................................................................................. 6-18

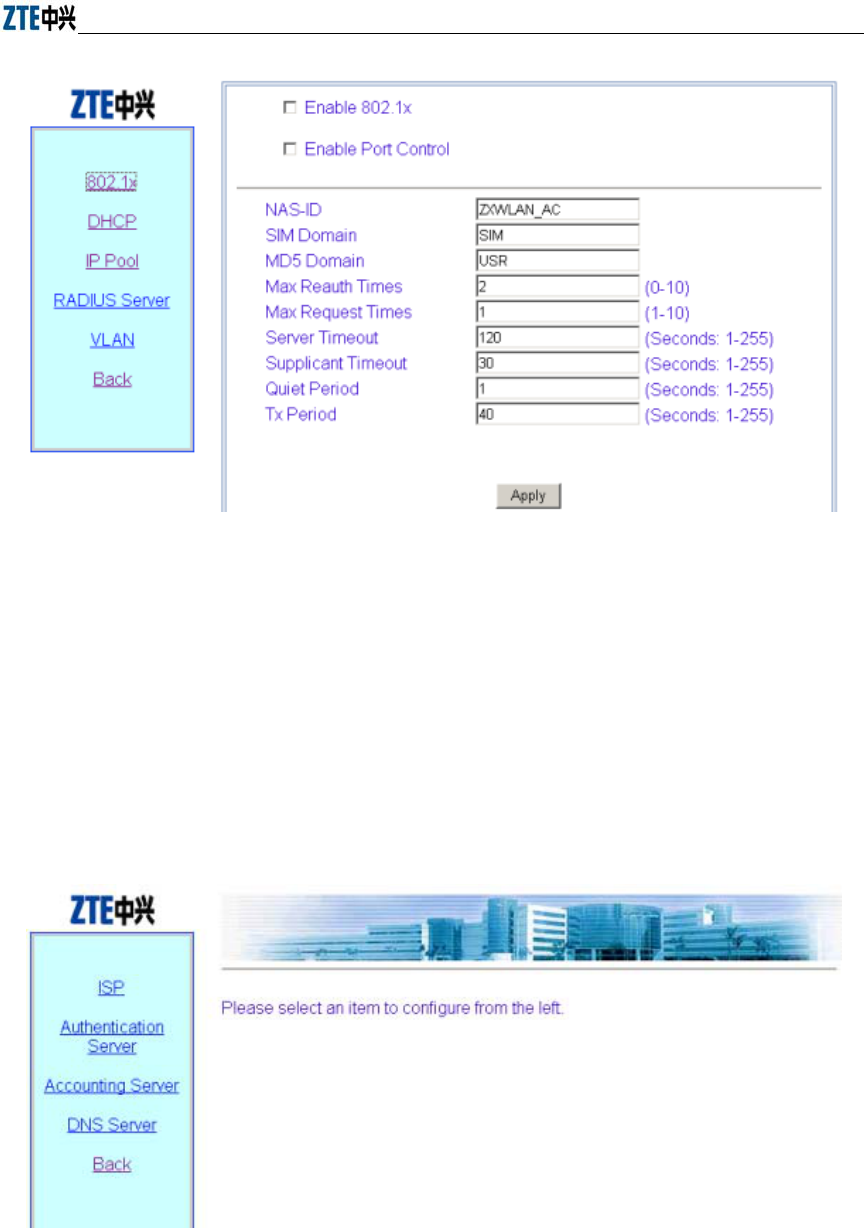

Fig. 5.3-22 802.11x configuration page.......................................................................................... 6-19

Fig. 5.3-23 Submenu of RADIUS server configuration ................................................................. 6-19

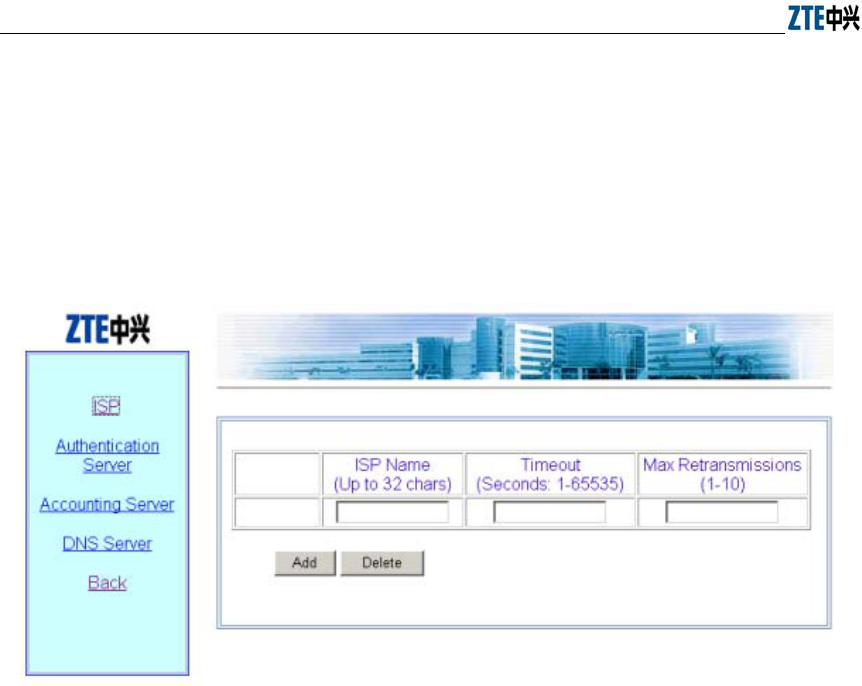

Fig. 5.3-24 ISP configuration page ................................................................................................. 6-20

Fig. 5.3-25 Authentication Server configuration page.................................................................... 6-21

Fig. 5.3-26 Accounting Server configuration page......................................................................... 6-21

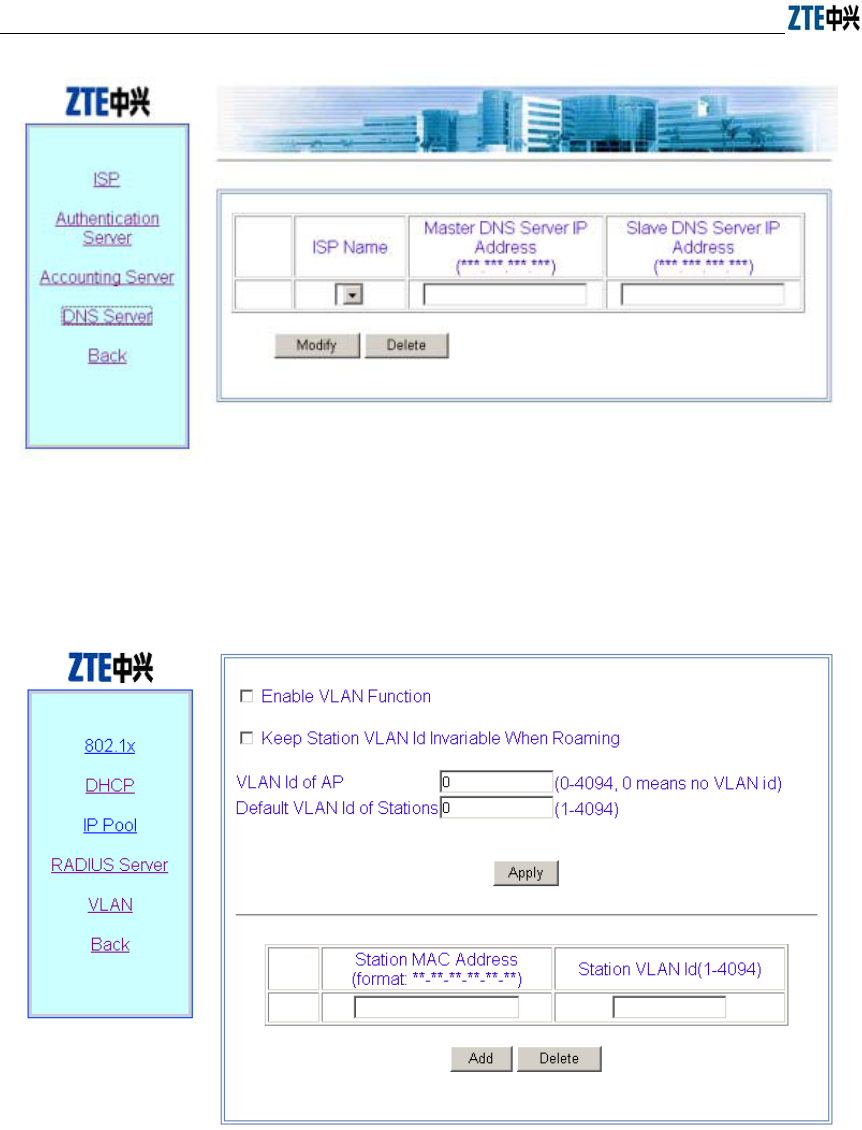

Fig. 5.3-27 DNS configuration page............................................................................................... 6-22

Fig. 5.3-28 VLAN configuration Page ........................................................................................... 6-22

Fig. 5.3-29 Account configuration page .........................................................................................6-23

Fig. 5.4-1 Submenu for interface configuration.............................................................................. 6-23

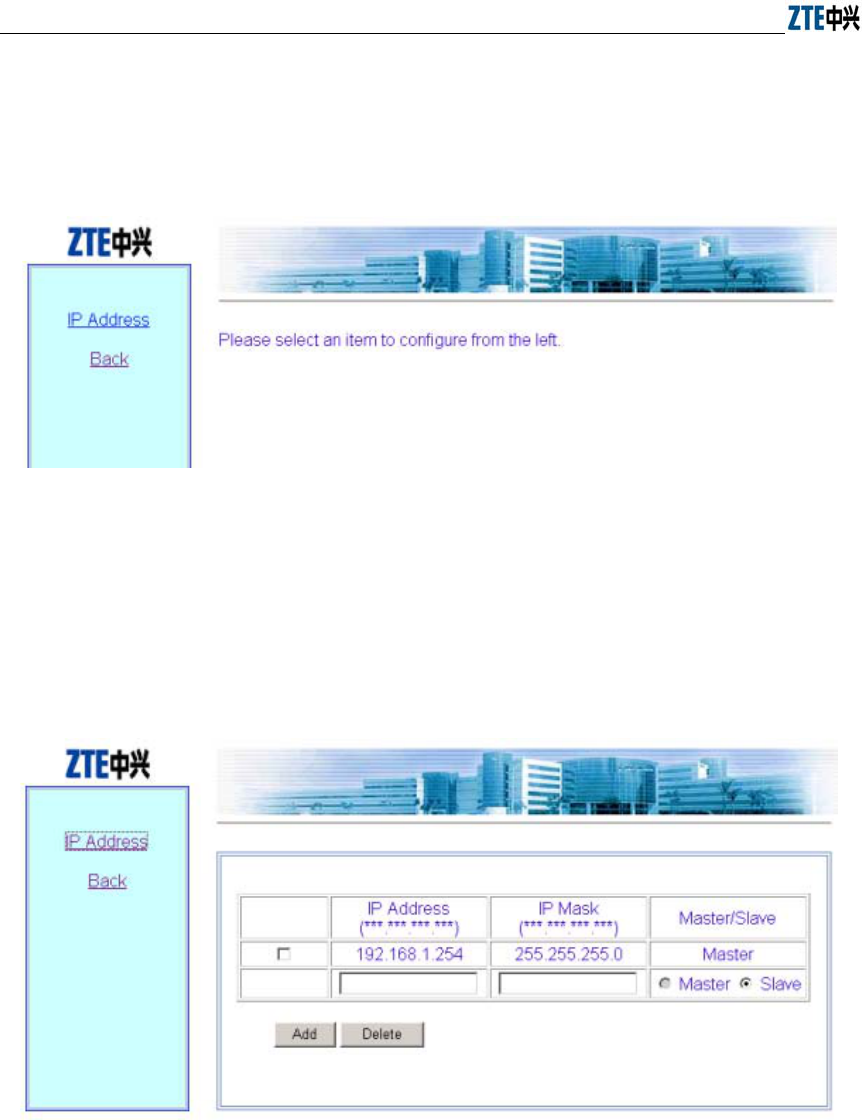

Fig. 5.4-2 Submenu for Ethernet interface configuration ............................................................... 6-24

Fig. 5.4-3 IP address configuration page of Ethernet interface....................................................... 6-24

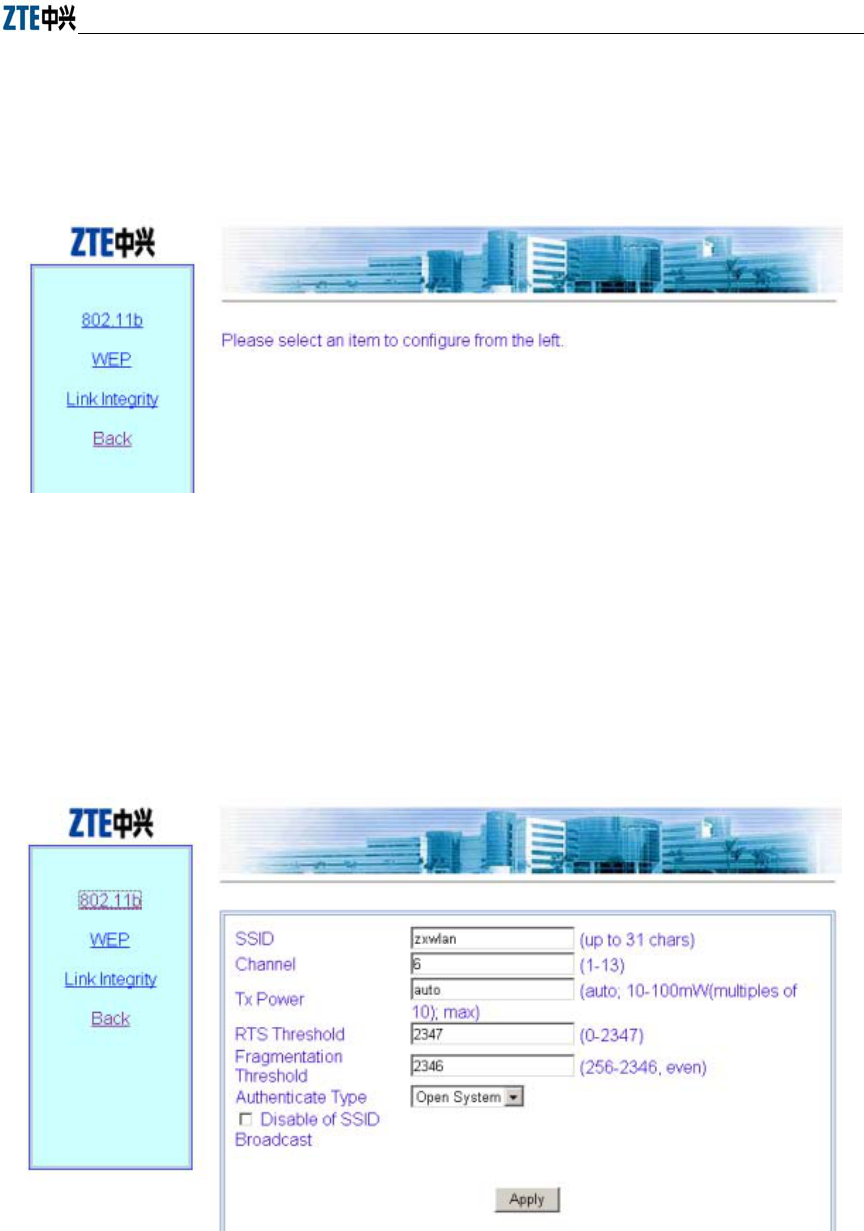

Fig. 5.4-4 Submenu for wireless interface configuration ............................................................... 6-25

Fig. 5.4-5 802.11b parameter configuration page of wireless interface.......................................... 6-25

Fig. 5.4-6 WEP configuration page of wireless interface ............................................................... 6-26

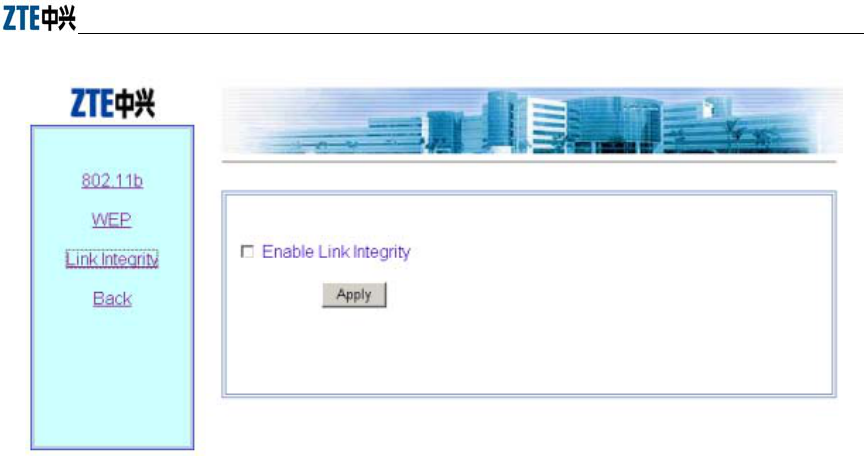

Fig. 5.4-7 Link integrity configuration page of wireless interface ................................................. 6-27

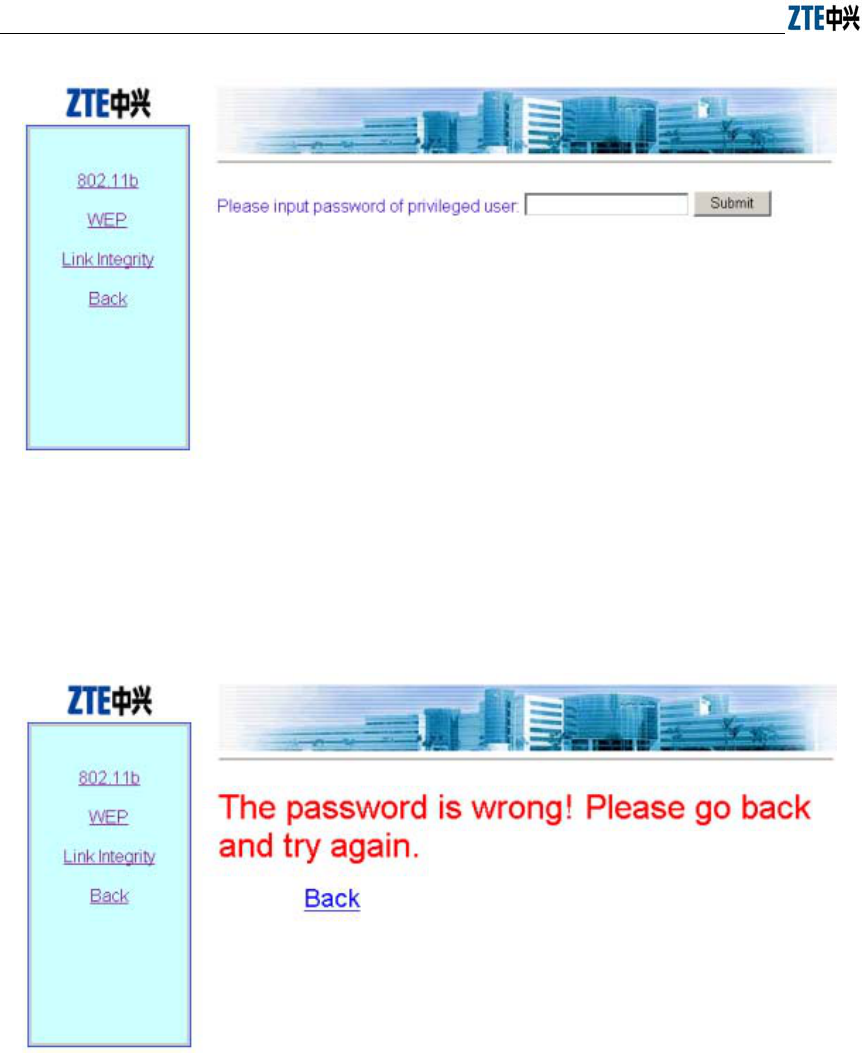

Fig. 5.5-1 The page for entering the password of privileged user .................................................. 6-28

Fig. 5.5-2 The page indicating that the privileged user password is incorrect................................ 6-28

-iii-

Fig. 5.5-3 A message indicating successful data submission ..........................................................6-29

Fig. 5.5-4 A message indicating failure in data submission ............................................................ 6-29

Figure B.1-1 W140A System Application........................................................................................ B-1

Figure B.2-1 Straight through Ethernet label ...................................................................................B-4

Figure B.2-2 Label of the Straight Through Power Supply Ethernet Cable..................................... B-4

Figure B.2-3 Crossover Ethernet Cable Label ................................................................................. B-5

-i-

A list of Tables

Table 1.2-1 Safety Symbols and Descriptions...................................................................................1-3

Table 2.3-1 W140A Technical Indices ..............................................................................................2-3

Table B.2-1 Connections of Straight Through Ethernet Cables (RJ45) ........................................... B-2

Table B.2-2 Connections of Straight Through Power Supply Ethernet Cables (C-RJ45-001)......... B-3

Table B.2-3 Connections of Crossover Ethernet Cables (RJ45J)..................................................... B-3

1-1

1 Safety Precautions

This chapter introduces the safety precautions of this product and safety symbols used

in this manual.

1.1 Safety Precautions

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: （1）This device may not cause harmful interference，and

（2） this device must accept any interference received, including interference that

may cause undesired operation.

To assure continued compliance, (example – use only shielded interface cables when

connecting to computer or peripheral devices). Any changes or modifications not

expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This equipment is with high temperature and voltage, so only the professional

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

1-2

personnel who had passed the training can install, operate and maintain it.

ZTE assumes no responsibility for consequences resulting from violation of general

specifications for safety operations or of safety rules for design, production and use of

equipment.

1.2 Symbol Description

See Table 1.2-1 for the safety symbols used in this manual, which serves to remind the

readers of the safety precautions to be taken when the equipment is installed, operated

and maintained.

Chapter Error! Style not defined. Error! Style not defined.

1-3

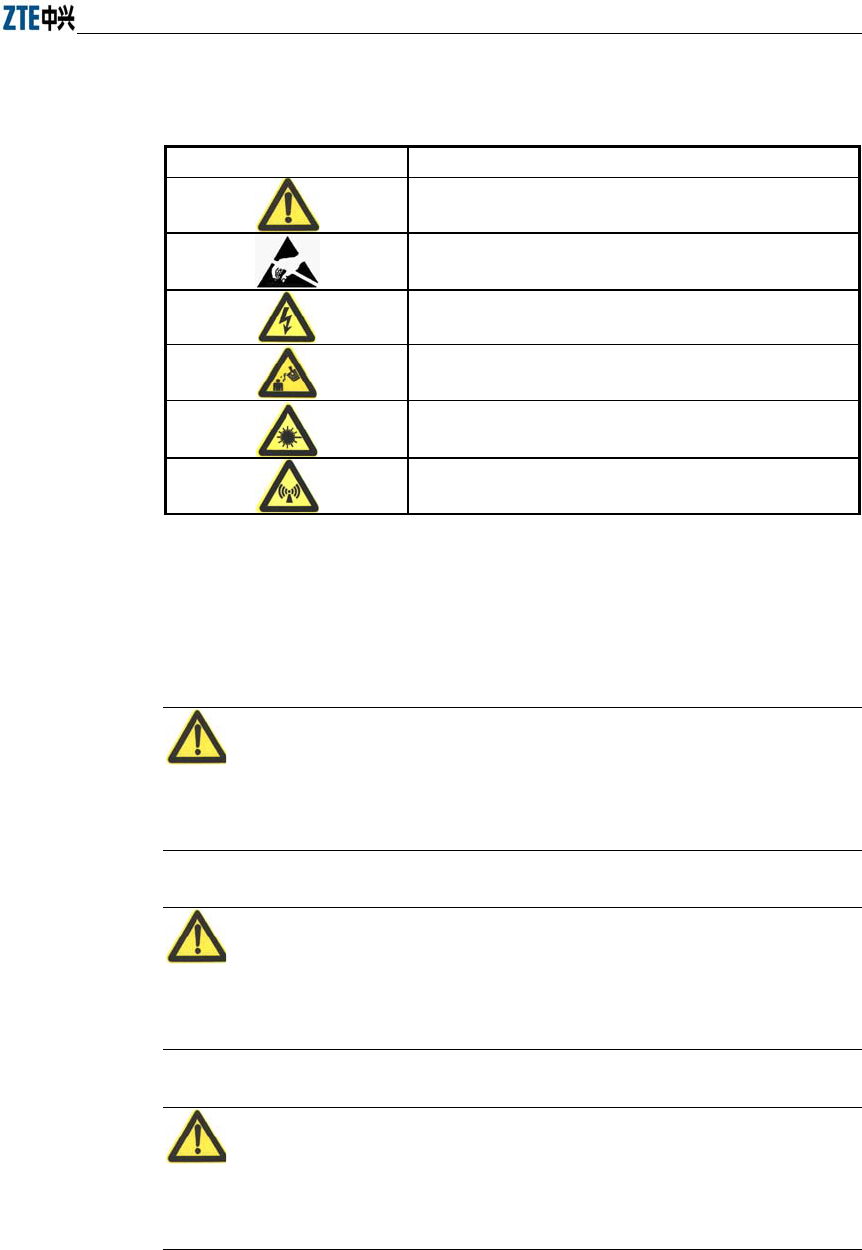

Table 1.2-1 Safety Symbols and Descriptions

Safety Symbol Meaning

Call for notice

Call for antistatic measures

Warn against electric shock

Caution against scald

Warn against laser

Caution against microwave

Four types of safety levels are available: danger, warning, caution and note. To the

right of a safety symbol is the text description of its safety level. Under the symbol is

the detailed description about its contents. The formats are as follows.

Danger:

Indicates an imminently hazardous situation which, if not avoided, will result in death

or serious injury. This signal word is to be limited to the most extreme situations.

Warning:

Indicates a potentially hazardous situation which, if not avoided, could result in death

or serious injury.

Caution:

Indicates a potentially hazardous situation which, if not avoided, could result in minor

or moderate injury. It may also be used to alert against unsafe practices.

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

1-4

Note:

A Note statement is used to notify people of installation, operation, or maintenance

information that is important, but not hazard-related.

 Tips:

Indicates a suggestion or hint to make things easier or more productive for the reader

2-1

2 Overview

This chapter presents functions, features, technical characteristics and parameters of

the W140A.

2.1 Preface

The W140A outdoor AP/bridge of ZXR10 WAS (V1.0) IP wireless access system is

developed by ZTE and its design totally complies with the international standards.

The W140A uses customized antennas on the roof or a special pole for wide coverage,

enabling wireless cellular roaming in a large area.

2.2 Functions and Features

W140A complies with IEEE 802.11b Standard and is compatible with wireless network

adapters and APs complying with this standard. The features of the W140A are as

follows:

● The maximum access rate is 11 Mbps. At most 100 Stations can be accessed.

● The radio transmission power can be adjusted up to 200 mW.

● Transparent bridge connection provides packet transfer between Basic Service

Set (BSS) and Distributed System (DS). The maximum transfer rate is not less

than 10 Mbps.

● The load balance adopts the access balance with multiple APs in the same area

provided by the internal protocol.

● It provides seamless roaming to enable users to access network easily.

● It provides link integrity function, thus enhancing equipment reliability.

● ESSID provides network authentication to prevent illegal users from accessing

the network.

● Static MAC filtration can filter MAC addresses set by users. Up to 100 filtration

groups can be set and each of them can be set with 64 MAC address filtration

rules.

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

2-2

● It provides data authentication and security management, supports 64-bit and

128-bit WEP encryption, provides mixed encryption for more flexible security.

● Automatic consistent correction system provides Automatic Scale Back

Functionality (ASBF) to automatically correct WLAN to the best connection

quality.

● High interoperability: the uplink interface is 10/100M adaptive Ethernet

interface, which can be connected through a network cable to the 10/100 Mbps

Ethernet in compliance with IEEE 802.3 network protocol.

● The uplink Ethernet interface provides VLAN trunk function, wireless access

users can be grouped into VLAN through MAC addresses, and W140As can be

grouped under the management VLAN.

● The version upgrade function upgrades the W140A software version and

supports remote online version loading.

● The embedded SNMP Agent supports SNMP v1/v2 to implement MIB II,

IEEE802dot11-MIB, IF-MIB, EtherLike-MIB and private MIB.

● Command line and WEB configuration modes are available for W140A

configuration, supporting remote uploading and downloading of configuration

files.

● Integrated management server is provided to monitor and manage ZTE wireless

network equipment, including W140A, in the distributed environment.

● The reliability design complies with IEC 60529 Standard, waterproof

performance reaches level 8, and dustproof performance reaches level 6.

● There is a dedicated lightning protection board the input terminal. For the

Ethernet part, the lightning strike surge tolerance is 2 kV between line and

ground and 1 kV between line and line. For the power supply part, the surge

tolerance should be 4 kV between line and ground and 2 kV between line and

line.

2.3 Technical Characteristics and Parameters

The technical indices of W140A are shown in Table 2.3-1.

Chapter Error! Style not defined. Error! Style not defined.

2-3

Table 2.3-1 W140A Technical Indices

Items Technical Indices

Standard 802.11b, 802.1d, 802.3u

Working band 2,400 MHz ~ 2,483.5 MHz

Spreading mode DSSS

Modulation mode CCK, DQPSK, DBPSK

BER ≤10-5

Data rate Adaptive 1 Mbps, 2 Mbps, 5.5 Mbps and 11 Mbps

Distance (m) Outdoor AP and 100 m~700 m;

Outdoor bridge, 25 km at the farthest

External interfaces RJ45 connector and wireless interface

Encryption type 64/128-bit WEP encryption

Channel quantity EU countries, 13; US and Canada: 11; France: 4; Japan: 14

Recommended number of users/maximum

number of users 30/100

MAC address capacity 1024

SNMP agent Supporting SNMP v1/v2, implementing MIB II, IEEE802dot11-MIB,

IF-MIB, EtherLike-MIB and private MIB

Antenna System

Outdoor AP: 8 dBi omni-directional, 8.5 dBi directional and 14 dBi

directional are available;

Outdoor bridge: 8 dBi omni-directional, 8.5 dBi directional, 14 dBi

directional and 21 dBi directional are available

Power supply mode

PoE 48V Ethernet power supply. The remote supply distance is 100m when

the Ethernet interface works at 100 Mbps, and the distance is 280m when the

Ethernet interface works at 10 Mbps

Total power consumption < 10 W

Dimensions 360 mm × 300 mm × 80 mm (L × W × H)

Weight 6 kg

Working temperature: -35 °C ~ +60 °C

Storage temperature -40 °C ~ +70 °C

Working humidity 5% ~ 95%

Storage humidity 10% ~ 100%

3-1

3 Structure and Principle

This chapter introduces the structure and principle of W140A, covering software and

hardware structure and principle, interfaces and networking modes.

3.1 Structure and Working Principle

3.1.1 Hardware Structure

With a standard waterproof and dustproof structure, W140A can be installed on the

roof, outside the window or on a special pole. The physical appearance of W140A is

shown in Fig. 3.1-1.

Fig. 3.1-1 Appearance of W140A

CPU is the core of W140A, and its memory may be 512K BOOT, 4M FLASH and

16M SDRAM.

3.1.2 Software Structure

The software function structure of W140A is given in Fig. 3.1-2.

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

3-2

802.11 driver RS232 driver Ethernet driver BSP

R01

Layer-2 supporting system

802.1x STP Other L2 protocol

TCP/UDP

IAPP

TFTP

RADIUS Client

DHCP Server

SNMP

HTTP

TELNET

Security system

OMS

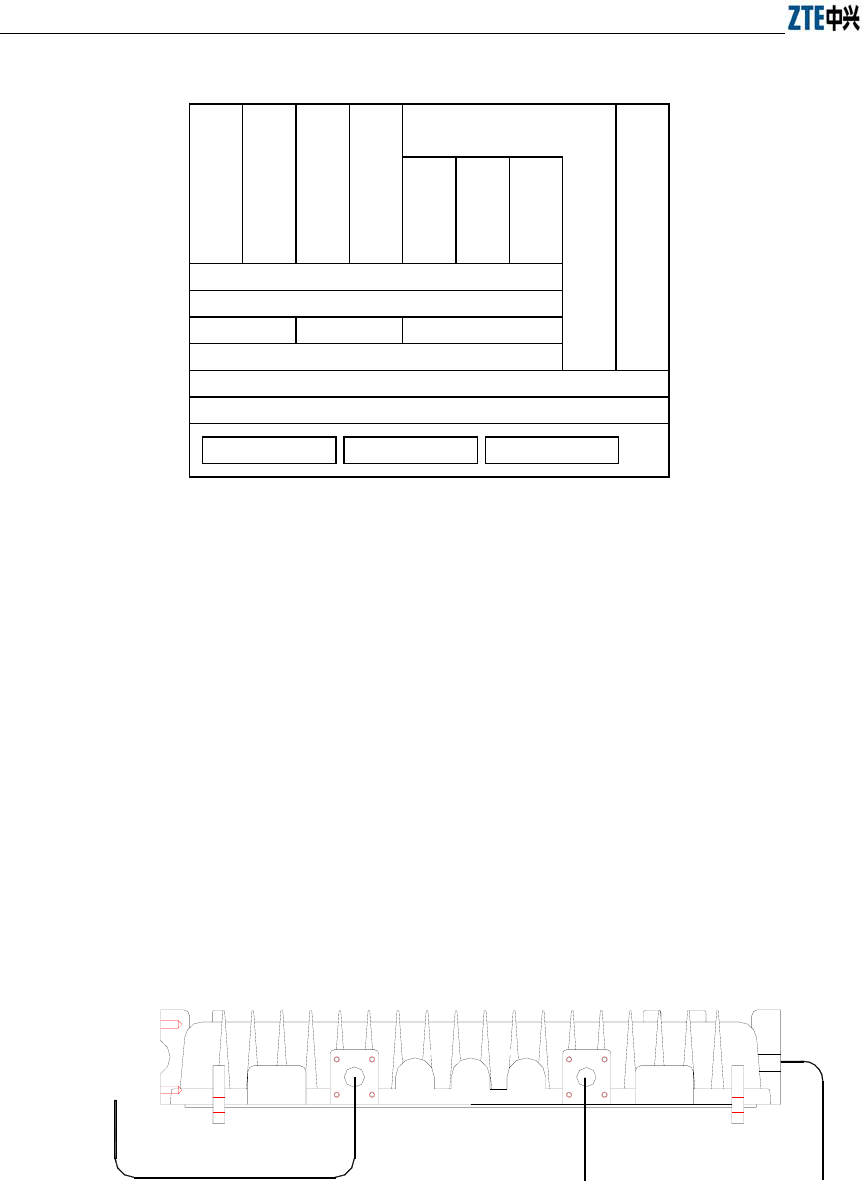

Fig. 3.1-2 W140A Software Structure

The software of W140A comprises the basic service subsystem and network

management subsystem.

● The basic service subsystem consists of these items: 802.11b AP drive, 802.3

Ethernet drive, transparent bridge connection, load balance, TCP/IP protocol

stack, dynamic address distribution, static MAC address filtration, and VLAN.

● The network management subsystem consists of SNMP Agent, telnet command

line configuration module, WEB page configuration module, and GUI integrated

management module.

3.2 Units/Components

W140A Rear Control Panel is shown in Fig. 3.2-1

Ethernet cable and feeder To the ground

antenna

Fig. 3.2-1 W140A Rear Control Panel

Chapter Error! Style not defined. Error! Style not defined.

3-3

The interfaces on the rear control panel are described as follows:

1. Chassis transfer interface 1: Ethernet

2. Chassis transfer interface 2: Antenna interface for antenna installation

3. Chassis grounding interface

3.3 Networking Modes

W140A provides both outdoor wireless access and Wi-Fi bridge function. The

operation modes of W140A are as follows.

1. Building small wireless LAN

Wired LAN

W140A W140A

PC Lap-top Computer PC Lap-top Computer

Fig. 3.3-1 Building Small Wireless LAN

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

3-4

2. Building Internet wireless access network together with AC, indoor AP and

outdoor bridge.

AAA

File server

W140A

Ethernet

Internet

UAS2500E

PC Lap-top Computer

W200A

PC Lap-top Computer

W110B

Fig. 3.3-2 Building Internet Wireless Access Network with AC, Indoor AP and Outdoor Bridge

3. Implementing bridge function

If two areas are far from each other or there are some obstacles between them,

W140A can be used for bridging. as shown Fig. 3.3-3, the two W140As work in

Bridge Server and Bridge Client modes respectively to provide a wireless bridge

between LAN1 and LAN2. The bandwidth of the bridge is decided by the

Bridge server. The Bridge Server may serve several Bridge Clients at the same

time. Considering the performance of wireless connection, Bridge server had

better not serve more than four Bridge clients.

Chapter Error! Style not defined. Error! Style not defined.

3-5

Bridge

Client

Bridge

Client

LAN1 LAN2

Bridge

Server

Fig. 3.3-3 Wireless Bridge Mode

4-1

4 Installation and Debugging

See document “ZXR10 WAS (V1.0) IP Wireless Access System W140A Outdoor

Wireless Access Point/Bridge Professional Installation Instruction manual”

5-1

5 Command Line Configuration

This chapter describes the operation methods and configuration commands of the

W140A command line configuration.

5.1 Overview

The W140A provides the Command Line Interface (CLI) for configuring the W140A

data.

The CLI configuration of the W140A has the following features:

1. The CLI configuration of the W140A allows users to perform configuration

through the Ethernet interface and wireless network card in the Telnet mode.

2. The CLI provides five command modes: User, privileged, configure, Ethernet

interface configuration and wireless interface configuration modes One mode is

the execution environment of a group of related commands, and one command

can be executed only in the corresponding command mode. To obtain the valid

commands in the current command mode, just input “?” in the current mode.

3. Commands are divided into information query command and function command.

The information query command serves to obtain some information to be

queried. The function command serves to change the function configuration of

the W140A. The changed configuration is saved in the running configuration

information library. To cancel the function configuration, execute the reverse

command of the former command (that is, no + key word + original command)

4. The CLI provides perfect help system: At any time, you can input “?” to obtain

the related help information.

5. The command inputting provides the fuzzy match function: Once the

information input by the user is enough for determining a command, it is not

necessary to input the full spell.

6. The CLI provides the command history function: You can select a historical

command for executing through “↑” or “↓” of the keyboard.

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

5-2

7. The CLI provides two layers of password protection to reject illegal users. The

first layer password authentication appears on the Telnet welcome interface, then

the safety authentication for accessing the user mode is required. The default

user name is “root” and default password is “public”. In the user mode, input the

enable command and correct password to enter the privileged mode, the default

password is “zte”.

8. The CLI can automatically page the output commands on the terminal:

“—More—” at the lower left corner of the command output window indicates

more output commands. At this time, you can press CTRL to display the next

page, press ENTER to output the next line and press other keys to exit.

9. The W140A CLI provides the basic command line editing function. The

short-cut keys for editing command lines are described as follows:

Ctrl + U: Delete the whole command being input.

Ctrl + A: Move the cursor to the first character of the command line.

Ctrl + E: Move the cursor to the last character of the command line.

Ctrl + X: Delete all the characters before the cursor.

Ctrl + K: Delete all the characters after the cursor (containing the character at

the cursor)

Ctrl + C: Give up all the input contents. Enter the new line and the prompt

character will appear.

When the Telnet mode is used for configuring the W140A, you just need to input

“telnet working IP address of W140A”, as shown in Fig. 5.1-1. By default, the W140A

working IP address is 192.168.1.254 and the sub-network mask is 255.255.255.0.

Chapter Error! Style not defined. Error! Style not defined.

5-3

Fig. 5.1-1 Telnet to W140A

These five configuration modes of the W140A and all the available commands under

each mode are described in detail as follows: The stipulation of command format is as

follows:

1. The abc refers to the contents to be input by the user.

2. The {abc | def} means that the user should input either of the two items.

3. [A ~ B] indicates the digital range of the configuration parameters that the user

can input.

4. For the contents included in [ ], the user can choose to input or not input them..

5.2 User Mode

Mode of entry: Telnet

Exit mode: exit

Default prompt: wlan>

Note: When an ordinary user logs in to the W140A via Telnet, he/she will not be able to

enter the user mode unless he/she passes the username and password authentication. By

default, the username and password are "root" and "public". To prevent illegal users

from attempting the password frequently, the system will cut the Telnet connections of

a user automatically if incorrect passwords have been entered 3 times continuously.

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

5-4

5.3 Privileged Mode

Mode of entry: Type in the enable command in the in use mode and enter the correct

password.

Exit mode: disable for entering the user mode; exit for exiting the privileged mode and

go back to the system.

Default prompt: wlan#

5.3.1 Command to Test Network Connectivity

Command mode: privileged mode

Function: Test the network connectivity

Command format: ping A.B.C.D [-n echo-number] [-w timeout] [-l packet-size]

Parameter description:

Name Range Description

A.B.C.D IP address Destination IP address

-n Null Sets the flag bits for the number of PING packets

echo-number 1~40 The number of PING packets

-w Null Sets the flag bits for the maximum timeout interval

Timeout 1~2 Maximum timeout interval (unit: s)

-l Null Sets the flag bits for the capacity of buffer area

packet-size 0~1504 Capacity of buffer area

5.3.2 Command to Save Configurations to Flash

Command mode: privileged mode

Function: Save configurations to flash

Command format: wlan#write flash

5.3.3 Command to Reset Software

Command mode: privileged mode

Function: Reset W140A

Command format: wlan#reboot

Chapter Error! Style not defined. Error! Style not defined.

5-5

5.3.4 Command to Enter Configure Mode

Command mode: privileged mode

Function: Enter configuration modes

Command format: wlan#configure terminal

5.3.5 Command to Exit Privileged Mode

Command mode: privileged mode

Function: Exit Privileged Mode and enter User Mode

Command format: wlan#disable

5.3.6 Command to Exit TELNET Configuration

Command mode: privileged mode

Function: Exit Telnet and go back to the system

Command format: wlan#exit

Note: This command can only be used via Telnet. If you log in by using a

hyperterminal mode via the serial port, this command will not be available.

5.4 Configure Mode

Mode of entry: Enter the configure terminal command in Privileged Mode

Exit mode: Exit and enter privileged mode

Default prompt: wlan (config) #

Note: In this mode (including the sub-mode), all the configuration commands can be

executed.

5.4.1 Commands to Configure Wireless Access-Bridge

1. access-bridge client connect-server

Command mode: Configure mode

Function: Configure the MAC address of the access bridge connecting the server

Command format: wlan (config) #access-bridge client connect-server mac

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

5-6

Parameter description:

Name Range Description

mac MAC address in the

xx-xx-xx-xx-xx-xx format

MAC address of the access bridge connecting

the server

2. access-bridge client enable

Command mode: Configure mode

Function: Enable/disable the wireless bridge client

Command format: wlan( config) #[no] access-bridge client enable

3. access-bridge server connect-client

Command mode: Configure mode

Function: Configure the MAC address of the access bridge connecting clients

Command format: wlan（config）#[no] access-bridge server connect-client mac

Parameter description:

Name Range Description

mac

MAC address in the

xx-xx-xx-xx-xx-xx format

MAC address of the access bridge connecting

clients

4. access-bridge server enable

Command mode: Configure mode

Function: Enable/disable the wireless bridge server

Command format: wlan (config) #[no] access-bridge server enable

5.4.2 Command to Configure Bridge Information

bridge filterdb

Command mode: Configure mode

Function: Configure bridge filtration or cancel the configuration

Command format: wlan (config) #[no] bridge filterdb max-user aging-time

alarm-percent

Chapter Error! Style not defined. Error! Style not defined.

5-7

Parameter description:

Name Range Description

max-user

512~1024 Maximum capacity of the MAC address list

aging-time 10~100,000 Aging time of the MAC address list entries

alarm-percent 1~10 Percent of alarms

5.4.3 Commands to Configure DHCP Server

1. dhcp server dns

Command mode: Configure mode

Function: Configure the IP addresses of the master/slave DNS server in the

DHCP server

Command format: wlan (config) # dhcp server dns A.B.C.D [A.B.C.D]

Parameter description:

Name Range Description

A.B.C.D

IP address IP address of the master DNS server

[A.B.C.D] IP address IP address of the slave DNS server (optional)

2. dhcp server gateway

Command mode: Configure mode

Function: Configure the IP address of the default gateway of the DHCP server

Command format: wlan (config) # dhcp server gateway A.B.C.D

Parameter description:

Name Range Description

A.B.C.D

IP address IP address of the gateway

3. dhcp server leasetime

Command mode: Configure mode

Function: Configure the address lease time of the DHCP server

Command format: wlan (config) # dhcp server leasetime time-value

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

5-8

Parameter description:

Name Range Description

time-value

60~3600 DHCP server address lease time (unit: s), 60s by

default

4. dhcp server run

Command mode: Configure mode

Function: Start, stop or restart the DHCP server

Command format: wlan (config) # dhcp server run run-flag

Parameter description:

Name Range Description

run-flag

start, stop, restart

start: Start the DHCP server

stop: Stop the DHCP server

restart: Restart the DHCH server

5. dhcp server start-flag

Command mode: Configure mode

Function: Configure the start flag of the DHCP server for the restart of the

system

Command format: wlan (config) # dhcp server start-flag {true|false}

Parameter description:

Name Range Description

{true|false} True, false

Start flag of the DHCP server. If it is set to true, it

will be started when the system is restarted. If false,

the DHCP server will not be started.

5.4.4 Discover commands

1. discover device

Command mode: Configure mode

Function: Configure the multicasting address for the integrated management and

the port number of the equipment

Command format: wlan (config) #discover device A.B.C.D [0~65535]

Chapter Error! Style not defined. Error! Style not defined.

5-9

Parameter description:

Name Range Description

A.B.C.D

IP address Multicasting address for the integrated management

of the equipment

[0~65535] 0~65535 Snooping port number for the integrated management

of the equipment

2. discover manager

Command mode: Configure mode

Function: Configure the multicasting address and port number for the integrated

management server

Command format: wlan (config) #discover manager A.B.C.D [0~65535]

Parameter description:

Name Range Description

A.B.C.D

IP address Multicasting address for the integrated management

server

[0~65535] 0~65535 Snooping port number for the integrated management

server

5.4.5 Commands to Configure 802.1X Parameters

1. dot1x enable

Command mode: Configure mode

Function: Enable or disable 802.1x

Command format: wlan (config) #[no] dot1x enable

2. dot1x max-reauth

Command mode: Configure mode

Function: Configure the maximum number of attempts for 802.1x authentication

Command format: wlan (config)# dot1x max-reauth max-reauth-times

Parameter description:

Name Range Description

max-reauth-times 0~10 the maximum number of attempts for 802.1x

authentication

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

5-10

3. dot1x max-request

Command mode: Configure mode

Function: Configure the maximum number of requests for 802.1x authentication

Command format: wlan (config) # dot1x max-request max-request-times

Parameter description:

Name Range Description

max-request-times

1~10 Maximum number of requests for 802.1x

authentication

4. dot1x md5-domain

Command mode: Configure mode

Function: Configure the domain name in the EAP-MD5 authentication mode

命令格式：wlan（config）Command format: wlan (config) # dot1x md5-domain

string

Parameter description:

Name Range Description

String No more than 32 characters Domain name in the EAP-MD5

authentication mode

5. dot1x nas-id

Command mode: Configure mode

Function: Configure the NAS-ID field for 802.1x

Command format: wlan (config) # dot1x nas-id string

Parameter description:

Name Range Description

String

No more than 64 characters NAS-ID character string

6. dot1x portenable

Command mode: Configure mode

Function: Enable or disable 802.1x port control

Command format: wlan (config) # [no] dot1x portenable

Chapter Error! Style not defined. Error! Style not defined.

5-11

7. dot1x quiet-period

Command mode: Configure mode

Function: Configure the quiet-period for 802.1x

Command format: wlan (config) # dot1x quiet-period value

Parameter description:

Name Range Description

Value

1~255 802.1x quiet-period (unit: s)

8. dot1x server-timeout

Command mode: Configure mode

Function: Configure the hold time for the 802.1x authentication server

Command format: wlan (config) # dot1x server-timeout value

Parameter description:

Name Range Description

value

1~255 Hold time of the authentication server (unit: s)

9. dot1x sim-domain

Command mode: Configure mode

Function: Configure the domain name in the EAP-SIM authentication mode

Command format: wlan (config) # dot1x sim-domain string

Parameter description:

Name Range Description

string

No more than 32 characters the domain name in the EAP-SIM

authentication mode

10. dot1x supp-timeout

Command mode: Configure mode

Function: Configure the supp hold time for 802.1x

Command format: wlan (config) # dot1x supp-timeout value

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

5-12

Parameter description:

Name Range Description

value

1~255 Hold time of the 802.1x client (unit: s)

11. dot1x tx-period

Command mode: Configure mode

Function: Configure the transmission period for 802.1x

Command format: wlan (config) # dot1x tx-period value

Parameter description:

Name Range Description

value

1~255 802.1x transmission-period (unit: s)

5.4.6 Command to Set User Password in Privileged Mode

Command mode: Configure mode

Function: Set user passwords in privileged mode

Command format: wlan（config）#enable-password password

Parameter description:

Name Range Description

password

No more than 30 characters User password in privileged mode

5.4.7 Command to Delete Filtration Rules

erase mac-access-rule

Command mode: Configure mode

Function: Delete MAC rules according to global rule numbers

Command format: wlan（config）#erase mac-access-rule {static} acl-rule-number

Parameter description:

Name Range Description

{static} static Static mac-access-rule flag

acl-rule-number 0~1023 Filtration rule number

Chapter Error! Style not defined. Error! Style not defined.

5-13

5.4.8 Command to Exit Configuration Mode

Command mode: Configure mode

Function: Exit configure mode and enter privileged Mode

Command format: wlan (config) #exit

5.4.9 Commands to Configure IAPP (Load-balance)

1. iapp balance

Command mode: Configure mode

Function: Set the load-balance group ID and nominal capacity

Command format: wlan (config) #iapp balance group-id capability

Parameter description:

Name Range Description

group-id

1~65535 Load-balance group ID

capability

1~30 Nominal capacity

2. iapp enable-flag

Command mode: Configure mode

Function: Enable or disable load balance and the restriction to the maximum

number of users allowed

Command format: wlan (config) #iapp enable-flag {disable|balance|max-user}

Parameter description:

Name Range Description

{disable|balance|

max-user}

disable, balance,

max-user

disable: Disable the IAPP function. Neither

load-balance nor the restriction to the maximum

number of users will be enabled.

balance: Enable load-balance

Max-user: Enable the restriction to the maximum

number of users

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

5-14

 Tips:

The iapp balance and iapp max-user configurations cannot take effect at the same

time.

3. iapp max-user

Command mode: Configure mode

Function: Set the number of users allowed

Command format: wlan (config) #iapp max-user value

Parameter description:

Name Range Description

Value

1~150 Sets the number of users allowed

5.4.10 Interface Skip

1. interface ethernet

Command mode: Configure mode

Function: Skip to the Ethernet interface configuration mode. This command

ends with the unit number of the Ethernet interface. For equipment, multiple

Ethernet interfaces are available.

Command format: wlan (config) #interface ethernet {0}

Parameter description:

Name Range Description

{0} 0 Unit number of the Ethernet interface. W140A has only

one Ethernet interface with the unchangeable value of 0.

2. interface wlan

Command mode: Configure mode

Function: Skip to the wireless interface configuration mode. This command ends

with the unit number of the wireless interface. For equipment, multiple wireless

interfaces are available.

Command format: wlan (config) #interface wlan {0}

Chapter Error! Style not defined. Error! Style not defined.

5-15

Parameter description:

Name Range Description

{0} 0 Unit number of the wireless interface. W140A has only

one wireless interface with the unchangeable value of 0.

5.4.11 Commands to Configure Layer 2 Isolation

1. intra-security enable

Command mode: Configure mode

Function: Enable or disable Layer 2 Isolation

Command format: wlan (config) #[no] intra-security enable

2. intra-security gateway

Command mode: Configure mode

Function: Configure the IP address or MAC address of the gateway

Command format: wlan (config) # intra-security gateway {ip A.B.C.D | mac

xx-xx-xx-xx-xx-xx}

Parameter description:

Name Range Description

A.B.C.D

IP address IP address of the gateway

xx-xx-xx-xx-xx-xx MAC address MAC address of the gateway

5.4.12 Commands to Configure IP network Parameters

1. ip arp

Command mode: Configure mode

Function: Add/delete ARP list entries

Command format: wlan (config) #[no] ip arp A.B.C.D xx-xx-xx-xx-xx-xx

Parameter description:

Name Range Description

A.B.C.D

IP address IP address of the host

xx-xx-xx-xx-xx-xx MAC address Hardware address of the host

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

5-16

2. ip route

Command mode: Configure mode

Function: Configure the default routing address for the system

Command format: wlan (config) #[no] ip route A.B.C.D1 A.B.C.D2 A.B.C.D3

Parameter description:

Name Range Description

A.B.C.D1

IP address IP address of the host

A.B.C.D2 Subnet mask IP address mask of the host

A.B.C.D3 IP address IP address of the next-hop router

3. ip pool

Command mode: Configure mode

Function: Configure the IP address pool for the system

Command format: wlan (config) #[no] ip pool index A.B.C.D1 A.B.C.D2

A.B.C.D3

Parameter description:

Name Range Description

index 0~9 Group number of the IP address pools

A.B.C.D1

IP address Starting IP address of the host address pool

A.B.C.D2 IP address Ending IP address of the host address pool

A.B.C.D3 Subnet mask Subnet mask of the addresses in an address pool

5.4.13 Command to Configure Log Print Information

1. logmsg all-enable

Command mode: Configure mode

Function: Open or close the log print information in all modules

Command format: wlan (config) #[no] logmsg all-enable

2. logmsg level

Command mode: Configure mode

Function: Configure the level of log print information to be output

Command format: wlan (config) # logmsg level level-num

Chapter Error! Style not defined. Error! Style not defined.

5-17

Parameter description:

Name Range Description

level-num

Lowest (Flood)

Lower (Info)

Higher (Error)

Highest (Fatal)

Level of the log print information to be output.

Only the information with a higher level will be

output.

3. logmsg mod-enable

Command mode: Configure mode

Function: Determine the module whose log print information should be output

Command format: wlan (config) # [no] logmsg mod-enable module

Parameter description:

Name Range Description

module

A specified module name Module whose log print information should be

output

4. logmsg telnet-log

Command mode: Configure mode

Function: Set the log print information output window to the active Telnet

window.

Command format: wlan (config) #[no] logmsg telnet-log

5.4.14 Command to Configure MAC Filter

Command mode: Configure mode

Function: Add/delete an access list by serial number

Command format: wlan（config）#[no] mac-access-list acl-list-number {deny|permit}

{macaddr|any}

Parameter description:

Name Range Description

acl-list-number

1~99 MAC filter group number

{ deny|permit } Deny, permit

Deny: If the conditions meet the requirements, the

MAC communication is denied.

Permit: If the conditions meet the requirements, the

MAC communication is allowed.

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

5-18

Name Range Description

{macaddr|any}

MAC address in the

xx-xx-xx-xx-xx-xx

format or any

MAC address from which MAC packets are sent. The

source address can be specified in two ways:

One is to use six 48-bit hexadecimal numbers with

dashes between them (HYPHEN), e.g.

00-d0-d0-f1-c4-ef

Another is to use the any keyword as the abbreviation

of source 00-00-00-00-00-00. It is not recommended

to use this keyword.

5.4.15 Command to Configure MAC Address Authentication

Command mode: Configure mode

Function: Configure MAC address authentication

Command format: wlan (config) #[no] mac-authen {deny|permit} {macaddr|any}

Parameter description:

Name Range Description

{deny|permit} Deny, permit

deny: If the conditions meet the requirements, the

MAC communication is denied.

permit: If the conditions meet the requirements, the

MAC communication is allowed.

{macaddr|any}

MAC address in the

xx-xx-xx-xx-xx-xx

format or any

MAC address from which MAC packets are sent. The

source address can be specified in two ways:

One is to use six 48-bit hexadecimal numbers with

dashes between them (HYPHEN), e.g.

00-d0-d0-f1-c4-ef

Another is to use the any keyword as the abbreviation

of source 00-00-00-00-00-00. It is not recommended

to use this keyword.

5.4.16 Command to Configure Users

Command mode: Configure mode

Function: Add/delete usernames

Command format: wlan (config) #[no] manage-user username password

Chapter Error! Style not defined. Error! Style not defined.

5-19

Parameter description:

Name Range Description

username

1~32 characters Username

password

1~32 characters User password

5.4.17 Commands to Configure Radius Server

1. radius-server account

Command mode: Configure mode

Function: Add/delete the accounting server of an ISP

Command format: wlan (config) #[no] radius-server account isp-name

master-flag A.B.C.D key-string

Parameter description:

Name Range Description

isp-name

1~255 characters ISP name

master-flag

master, slave Master/slave flag of the accounting server

A.B.C.D IP address IP address of the accounting server

key-string 1~255 characters Shared key string for accounting

2. radius-server authen

Command mode: Configure mode

Function: Add/delete the authentication server of an ISP

Command format: wlan (config) wlan（config）#[no] radius-server authen

isp-name master-flag A.B.C.D key-string

Parameter description:

Name Range Description

isp-name

1-255 characters ISP name

master-flag

master, slave Master or slave authentication server. Only one

master server can be set.

A.B.C.D IP address IP address of the authentication server

key-string 1-255 characters Shared key string for authentication

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

5-20

3. radius-server dns

Command mode: Configure mode

Function: Add/delete the DNS server of an ISP

Command format: wlan (config) #[no] radius-server dns isp-name A.B.C.D

[A.B.C.D]

Parameter description:

Name Range Description

isp-name

1~255 characters ISP name

A.B.C.D IP address IP address of the master DNS server

[A.B.C.D] IP address IP address of the slave DNS server

4. radius-server isp-name

Command mode: Configure mode

Function: Add/delete an ISP

Command format: wlan (config) #[no] radius-server isp-name isp-name

Parameter description:

Name Range Description

isp-name 1~255 character ISP name

5. radius-server retry-times

Command mode: Configure mode

Function: Set the number of retries of RADIUS authentication of an ISP

Command format: wlan (config) #radius-server retry-times isp-name retry-time

Parameter description:

Name Range Description

isp-name

1~255 characters Name of an ISP which has been created.

retry-time 1~10 Number of retries of RADIUS authentication

6. radius-server timeout

Command mode: Configure mode

Function: Set the hold time of the RADIUS authentication of an ISP

Command format: wlan (config) #radius-server timeout isp-name timeout

Chapter Error! Style not defined. Error! Style not defined.

5-21

Parameter description:

Name Range Description

isp-name

1~255 characters Name of an ISP which has been created.

timeout 1~65535 Hold time of the RADIUS authentication (unit: s)

5.4.18 Command to Configure SNMP Module

1. snmp access-host

Command mode: Configure mode

Function: Add and delete host IP addresses allowed to access

Command format: wlan (config) #[no] snmp access-host A.B.C.D

Parameter description:

Name Range Description

A.B.C.D

IP address Host IP addresses (up to 10) in dotted decimal

format (A.B.C.D)

2. snmp access-mode

Command mode: Configure mode

Function: Allow all hosts or hosts in the server-list to access this agent

Command format: wlan (config) #snmp access-mode {all|list}

Parameter description:

Name Range Description

{all|list} all, list all: All users are allow to access

list: Users in server-list are allowed to access

3. snmp community

Command mode: Configure mode

Function: Configure the SNMP access community string and its access right

Command format: wlan (config) #snmp community comstr {read-only|

read-write}

wlan（config）#no snmp community comstr

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

5-22

Parameter description:

Name Range Description

comstr

1~32 characters

Names of the SNMP access community strings

(up to 10). comstr is a string with up to 32

characters

{read-only|read-write} read-only, read-write read-only: read-only access

read-write: Read-write access

4. snmp contact

Command mode: Configure mode

Function: Set the name and contact information of the equipment administrator

Command format: wlan (config) #snmp contact sysContact

Parameter description:

Name Range Description

sysContact

1~255 characters

A management variable of the system group in

MIB II, denotes the name and contact

information of the equipment administrator

5. snmp location

Command mode: Configure mode

Function: Configure the geographical location of the managed equipment

Command format: wlan (config) #snmp location sysLocation

Parameter description:

Name Range Description

sysLocation

1~255 characters

A management variable of the system group in

MIB, used to define the geographic location of

the managed equipment

6. snmp nodecode

Command mode: Configure mode

Function: Configure the network element (NE) codes of the managed equipment

Command format: wlan (config) #snmp nodecode node-code

Chapter Error! Style not defined. Error! Style not defined.

5-23

Parameter description:

Name Range Description

node-code

>= 0 (integer)

A management variable of the system group in

MIB, used to define the NE code of the managed

equipment

7. snmp nodeid

Command mode: Configure mode

Function: Configure the NE ID of the managed equipment

Command format: wlan (config) #snmp nodeid node-id

Parameter description:

Name Range Description

node-code

1~31 characters

A management variable of the system group in

MIB, used to define the NE ID of the managed

equipment

8. snmp nodecreatdate

Command mode: Configure mode

Function: Configure the NE creation date of the managed equipment

Command format: wlan (config) #snmp nodecreatdate hh:mm:ss month day year

Parameter description:

Name Range Description

hh:mm:ss

Time hh (hour): mm (minute): ss (second)

month 1~12 Month

day 1~31 Day

year 2002~2130 Year: 4 bits

hh:mm:ss month day year: A management variable of the system group in MIB,

used to define the NE creation date of the managed equipment

9. snmp proxytraphost

Command mode: Configure mode

Function: Add the address information of a proxy Trap destination host

Command format: wlan (config) #[no] snmp proxytraphost A.B.C.D

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

5-24

Parameter description:

Name Range Description

A.B.C.D

IP address Addresses of the proxy Trap destination hosts (up

to 10)

10. snmp sysname

Command mode: Configure mode

Function: Set the name of the managed equipment

Command format: wlan (config) #snmp sysname sysName

Parameter description:

Name Range Description

sysName

1~255 characters

A management variable of the system group in

RFC1213 MIB, used as the name of the managed

equipment

11. snmp trap enable

Command mode: Configure mode

Function: Configure if the SNMP Agent is allowed to send Trap

Command format: wlan (config) #[no] snmp trap enable

12. snmp authtrap enable

Command mode: Configure mode

Function: Configure if the SNMP Agent is allowed to send the authentication

failed Trap

Command format: wlan (config) #[no] snmp authtrap enable

13. snmp traphost

Command mode: Configure mode

Function: Add the address of a trap destination host and the trap version number

Command format: wlan (config) #snmp traphost A.B.C.D [version version]

wlan（config）#no snmp traphost A.B.C.D

Chapter Error! Style not defined. Error! Style not defined.

5-25

Parameter description:

Name Range Description

A.B.C.D

IP address Addresses of Trap destination hosts

version 1~2 Trap version number

5.4.19 Command to Manage Telnet Idle Timeout

Command mode: Configure mode

Function: Set the automatic exit time when the Telnet window is idle

Command format: wlan (config) #telnet idle-timeout time-value

Parameter description:

Name Range Description

time-value

300~3600 (unit: s) The automatic exit time when the Telnet window is

idle (300s by default)

5.4.20 Commands to Upload/download TFTP Files

1. tftp dir

Command mode: Configure mode

Function: Check the free space of a flash disk (unit: byte)

Command format: wlan (config) #tftp dir

2. tftp pic

Command mode: Configure mode

Function: Download graphics files from the Web configuration pages on the

TFTP server and save them to a flash disk.

Command format: wlan (config) #tftp pic A.B.C.D

Parameter description:

Name Range Description

A.B.C.D

IP address IP Address of a TFTP server in dotted decimal format

3. Download files using tftp get

Command mode: Configure mode

Function: Download files from the TFTP server using TFTP and save them to

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

5-26

the flash disk.

Command format: wlan (config) #tftp get A.B.C.D flash-file-name

Parameter description:

Name Range Description

A.B.C.D

IP address IP Address of a TFTP server in dotted decimal

format

flash-file-name Filename of a version Full name (including the extension name) of the file

to be transmitted from the TFTP server

4. Upload files using tftp put

Command mode: Configure mode

Function: Upload files from the flash disk to the TFTP server using TFTP

Command format: wlan (config) #tftp put A.B.C.D flash-file-name

Parameter description:

Name Range Description

A.B.C.D

IP address IP Address of a TFTP server in dotted decimal

format

flash-file-name Filename of a version Full name (including the extension name) of the

file to be transmitted from the flash disk

5.4.21 Commands to Configure VLAN

1. vlan ap-vid

Command mode: Configure mode

Function: Configure the VLAN ID of AP

Command format: wlan (config) #vlan ap-vid value

Parameter description:

Name Range Description

value

0~4094 VLAN ID

2. vlan enable

Command mode: Configure mode

Function: Enable VLAN

Chapter Error! Style not defined. Error! Style not defined.

5-27

Command format: wlan (config) #vlan enable

3. vlan keep-vid

Command mode: Configure mode

Function: Allow a terminal to switch over with the same VLAN ID between

different APs

Command format: wlan (config) #vlan keep-vid

4. vlan sta-default-vid

Command mode: Configure mode

Function: Configure the default VLAN ID of the STA accessed from the AP

Command format: wlan (config) #vlan sta-default-vid value

Parameter description:

Name Range Description

value

1~4094 Default VLAN ID when the STA is accessed

5. vlan sta-vid

Command mode: Configure mode

Function: Configure the specified VLAN ID of the STA accessed from the AP

Command format: wlan (config) #vlan sta-vid xx-xx-xx-xx-xx-xx vlan value

Parameter description:

Name Range Description

value

1~4094 Default VLAN ID when the STA is accessed

xx-xx-xx-xx-xx-xx

MAC address MAC address of the accessed STA

5.4.22 Show Commands

1. show access-bridge

Command mode: Configure mode

Function: Display configured parameters of a wireless bridge

Command format: wlan (config) #show access-bridge

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

5-28

2. show alarm

1) show alarm all

Command mode: Configure mode

Function: Display all alarm information

Command format: wlan (config) #show alarm all

2) show alarm bycode

Command mode: Configure mode

Function: Display alarm Information by alarm code

Command format: wlan (config) #show alarm bycode code

Parameter description:

Name Range Description

code

1001~3999 Code of an alarm

3) show alarm bylevel

Command mode: Configure mode

Function: Display alarm information by alarm level

Command format: wlan (config) #show alarm bylevel level

Parameter description:

Name Range Description

level

1~3 Alarm level

3. show bridge configure

Command mode: Configure mode

Function: Display configured bridge parameters

Command format: wlan (config) #show bridge configure

4. show dhcp server

Command mode: Configure mode

Function: Display DHCP server parameters

Command format: wlan (config) #show dhcp server

Chapter Error! Style not defined. Error! Style not defined.

5-29

5. show discover

Command mode: Configure mode

Function: Display configured discover parameters of the equipment

Command format: wlan (config) #show discover

6. show dot1x-cfg

Command mode: Configure mode

Function: Display 802.1x parameters

Command format: wlan (config) #show dot1x-cfg

7. show dynamic-key

Command mode: Configure mode

Function: Display dynamic WEP key parameters

Command format: wlan (config) #show dynamic-key

8. show iapp

Command mode: Configure mode

Function: Display configured load-balance parameters

Command format: wlan (config) #show iapp

9. show interface

Command mode: Configure mode

Function: Display configured interface parameters

Command format: wlan (config) #show interface {ethernet|wlan} Function:

Display configured Layer 2 isolation parameters

Command format: wlan (config) #show intra-security

11. show ip

1) show ip arp

Command mode: Configure mode

Function: Display ARP address resolution information

Command format: wlan (config) #show ip arp

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

5-30

2) show ip if-stat

Command mode: Configure mode

Function: Display IP interface status information

Command format: wlan (config) #show ip if-stat

3) show ip pool

● show ip pool config

Command mode: Configure mode

Function: Display information of all IP address pools

Command format: wlan (config) #show ip pool config

● show ip pool used

Command mode: Configure mode

Function: Display information of allocated IP addresses in the specified IP

address pool

Command format: wlan (config) #show ip pool used index

Parameter description:

Name Range Description

Index 0~9 Serial number of an IP address pool

4) show ip route

Command mode: Configure mode

Function: Display configured IP route parameters

Command format: wlan (config) #show ip route

12. show logmsg

Command mode: Configure mode

Function: Display all configured log print information

Command format: wlan (config) #show logmsg

Chapter Error! Style not defined. Error! Style not defined.

5-31

13. show mac-access-list

Command mode: Configure mode

Function: Display configured mac-access-list information

Command format: wlan (config) #show mac-access-list {static} [1~99]

14. show mac-authen

Command mode: Configure mode

Function: Display configured mac-authen parameters

Command format: wlan (config) #show mac-authen

15. show manage-user

Command mode: Configure mode

Function: Display configured manage-user parameters

Command format: wlan (config) #show manage-user

16. show radius

Command mode: Configure mode

Function: Display configured radius parameters

Command format: wlan (config) #show radius

17. show snmp

1) show snmp access-host

Command mode: Configure mode

Function: Display configured snmp access-host parameters

Command format: wlan (config) #show snmp access-host

2) show snmp community

Command mode: Configure mode

Function: Display configured snmp community parameters

Command format: wlan (config) #show snmp community

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

5-32

3) show snmp nodeinfo

Command mode: Configure mode

Function: Display configured snmp nodeinfo parameters

Command format: wlan（config）#show snmp nodeinfo

4) show snmp sysinfo

Command mode: Configure mode

Function: Display configured snmp sysInfo parameters

Command format: wlan (config) #show snmp sysinfo

5) show snmp traphost

Command mode: Configure mode

Function: Display configured snmp traphost parameters

Command format: wlan (config) #show snmp traphost

18. show telnet idle-timeout

Command mode: Configure mode

Function: Display the configured interval for telnet idle time-out

Command format: wlan (config) #show telnet idle-timeout

19. show version

Command mode: Configure mode

Function: Display the software version number

Command format: wlan (config) #show version

20. show vlan

Command mode: Configure mode

Function: Display configured VLAN information

Command format: wlan (config) #show vlan

Chapter Error! Style not defined. Error! Style not defined.

5-33

5.5 Ethernet Interface Configuration Mode

Mode of entry: Enter the interface ethernet command in configure mode

Exit mode: Exit and enter configure mode

Default prompt: wlan (config-int-ethernet)#

Note: In this mode (including the sub-mode), all information can be configured for

relevant interfaces.

5.5.1 Configurations in the Ethernet Interface Mode

Command mode: Ethernet Interface Configuration Mode

Function: Set the mode of rate negotiation for the Ethernet interface

Command format: wlan (config-int-ethernet)# ethernet-mode mode

Parameter description:

Name Range Description

mode

10M, autoNeg (100M/10M) Mode of the Ethernet Interface

5.5.2 Command to Exit the Ethernet Interface Configuration Mode

Command mode: Ethernet Interface Configuration Mode

Function: Exit Ethernet interface configuration mode and enter configure Mode

Command format: wlan (config-int-ethernet)# #exit

5.5.3 Command to Configure Ethernet interface IP addresses

Command mode: Ethernet Interface Configuration Mode

Function: Set the IP address of the Ethernet interface

Command format: wlan（config-int-ethernet）#ipaddr A.B.C.D1 A.B.C.D2 [second]

wlan（config-int-ethernet）#no ipaddr A.B.C.D1 [A.B.C.D2]

Parameter description:

Name Range Description

A.B.C.D1

IP address IP address of an interface

A.B.C.D2 IP address IP address mask of an interface

[second] Optional The additional IP address flag of an interface

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

5-34

5.5.4 Command to Configure MAC filter for the Ethernet Interface

Command mode: Ethernet Interface Configuration Mode

Function: Configure MAC filter for the Ethernet interface

Command format: wlan（config-int-ethernet）#[no] mac-access-group acl-number

direction

Parameter description:

Name Range Description

acl-num

1~99 MAC filter entry number bound to the interface

direction in Bind to the "in" direction of the interface

5.6 Wireless Interface Configuration Mode

Mode of entry: Enter the interface wlan command in configure mode

Exit mode: Exit and enter configure mode

Default prompt: wlan (config-int-wlan)#

Note: In this mode (including the sub-mode), all information can be configured for

relevant interfaces.

5.6.1 Command to Configure 80211b-related Parameters for the Wireless

Interface

1. 80211b channel

Command mode: Wireless interface configuration mode

Function: Set the current operating channel

Command format: wlan (config-int-wlan) #80211b channel channel-num

Parameter description:

Name Range Description

channel-num

1~13 Wireless channel number: 6 by default

2. 80211b dynamic-key

Command mode: Wireless interface configuration mode

Function: Set the dynamic key of the wireless network

Command format: wlan (config-int-wlan) #80211b dynamic-key key

Chapter Error! Style not defined. Error! Style not defined.

5-35

xx-xx-xx-xx-xx-xx key1-string key2-string used-key

wlan（config-int-wlan）#no 80211b dynamic-key xx-xx-xx-xx-xx-xx

wlan（config-int-wlan）#80211b dynamic-key enable xx-xx-xx-xx-xx-xx

wlan（config-int-wlan）#no 80211b dynamic-key enable xx-xx-xx-xx-xx-xx

Note: The 80211b dynamic-key key command is used to set the dynamic key

for a specified MAC address. The 80211b dynamic-key enable command is

used to enable this dynamic key.

Parameter description:

Name Range Description

xx-xx-xx-xx-xx-xx MAC address MAC address of the wireless user using the dynamic

key

key1-string 5 or 13 characters First dynamic key (the key length can only be 5 or

13 characters)

key2-string 5 or 13 characters Second dynamic key (the key length can only be 5

or 13 characters)

used-key key1, key2 Key number that is used

3. 80211b enh-security enable

Command mode: Wireless interface configuration mode

Function: Set to enable or disable the enhanced security function of AP

Command format: wlan (config) #[no] 80211b enh-security enable

Note: If the enhanced security function is enabled, the wireless terminal will not

be able to scan the AP. If this function is disabled, the AP can be scanned.

4. 80211b essid

Command mode: Wireless interface configuration mode

Function: Set ESSID of the wireless network

Command format: wlan (config-int-wlan) #80211b essid essid-string

Parameter description:

Name Range Description

essid-string

1~31 characters ESSID of the wireless network. By default, it is

zxwlan.

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

5-36

5. 80211b frg-threshold

Command mode: Wireless interface configuration mode

Function: Set fragment threshold

Command format: wlan (config-int-wlan) #80211b frg-threshold value

Parameter description:

Name Range Description

value

256~2346 (even) Threshold of fragments, 2346 by default

6. 80211b power

Command mode: Wireless interface configuration mode

Function: Set the transmission power of the wireless network card

Command format: wlan (config-int-wlan) #80211b power value

Parameter description:

Name Range Description

value

auto，

10/20/30/40/50/60/70/80/90/100

(unit: mW)

max

auto: automatic power control (default)

10/20/30/40/50/60/70/80/90/100: fixed

transmission power

max: maximal transmission power

7. 80211b rts-threshold

Command mode: Wireless interface configuration mode

Function: Set RTS threshold

Command format: wlan (config-int-wlan) #80211b rts-threshold value

Parameter description:

Name Range Description

value

0~2347 RTS threshold, 2347 by default

5.6.2 Command to Exit Wireless Interface Configuration Mode

Command mode: Wireless interface configuration mode

Function: Exit wireless interface configuration mode and enter configure mode

Command format: wlan (config-int-wlan)# exit

Chapter Error! Style not defined. Error! Style not defined.

5-37

5.6.3 Command to Enable Link Integrity Detection

Command mode: Wireless interface configuration mode

Function: Set to enable or disable link integrity detection

Command format: wlan (config-int-wlan)#[no] link-integrity enable

Note: the link integrity detection function of AP means that when the Ethernet link of

the AP is disconnected, the AP will release all connected wireless users, close the

wireless port, and deny the connection requests of other wireless terminals. When the

link is recovered, the AP will open the wireless port and accept connections of wireless

users.

5.6.4 WEP Configuration of the Wireless Interface

1. wep mode

Command mode: Wireless interface configuration mode

Function: Set WEP encryption mode and WEP key format

Command format: wlan (config-int-wlan) #wep mode {disable | wep64 | wep128

| mix-wep64 | mix-wep128} {Alphanumeric|Hexadecimal}

Parameter description:

Name Range Description

{disable|wep64|wep128|

mix-wep64|mix-wep128}

disable

wep64

wep128

mix-wep64

mix-wep128

Disable: disable the WEP encryption

function

wep64: Use the 64-bit WEP encryption

wep128: Use the 128-bite WEP encryption

mix-wep64: Use a mixed 64-bit WEP

encryption. In this mode, the clients can

communicate normally with a correct 64-bit

encryption key or without encryption.

Mix-wep128: Use a mixed 128-bite WEP

encryption. In this mode, the clients can

communicate normally with a correct

128-bite encryption key or without

encryption.

{Alphanumeric|

Hexadecimal}

Alphanumeric

Hexadecimal

Alphanumeric: WEP key in string format

Alphanumeric: WEP key in sexadecimal

format

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

5-38

2. wep set-key

Command mode: Wireless interface configuration mode

Function: Set the key of WEP encryption

Command format: wlan (config-int-wlan) #wep set-key key-id key-text

Parameter description:

Name Range Description

key-id

key1, key2, key3, key4 Entry number of the key to be set

key-text

5 or 13 characters, or a

combination of 10 or 26

sexadecimal digits

If it is set to 64-bit encryption, the key_text

argument can be 5 case sensitive characters (in

alphanumeric format), e.g. MyKey, or 10

sexadecimal digits (in hexadecimal format), e.g.

11AA22BB33

If it is set to 128-bit encryption, the key_text

argument can be 13 case sensitive characters (in

alphanumeric format), e.g. MyKey12345678, or

26 sexadecimal digits (in hexadecimal format),

e.g. 00112233445566778899AABBCC

3. wep use-key

Command mode: Wireless interface configuration mode

Function: Set the WEP encryption key to be used

Command format: wlan (config-int-wlan) #wep use-key key-id

Parameter description:

Name Range Description

Key-id key1, key2, key3, key4 Entry number of the key to be used

5.6.5 Command to Configure MAC Filter in Wireless Interface Configuration

Command mode: Wireless interface configuration mode

Function: Configure MAC filter for the wireless interface

Command format: wlan (config-int-wlan) #[no] mac-access-group acl-list-number

direction

Chapter Error! Style not defined. Error! Style not defined.

5-39

Parameter description:

Name Range Description

Acl-list-number 1~99 MAC filter entry number bound to the interface

direction in Bind to the "in" direction of the interface

5.6.6 Command to Configure Authentication Mode in Wireless Interface

Configuration

Command mode: Wireless interface configuration mode

Function: Configure authentication mode for the wireless interface

Command format: wlan (config-int-ethernet) #authmode auth mode

Parameter description:

Name Range Description

Authmode

OpenSystem

SharedKey

Both

OpenSystem: Authentication using Opensystem

SharedKey: Authentication using Sharedkey

Both: Both authentication modes are supported

6-1

6 WEB Configuration

This chapter describes the operation methods and configuration pages of the W140A

web configuration.

6.1 Overview

For the W140A, we also provide a WEB configuration page to configure the various

parameters of the W140A. The configuration page is same as an ordinary Web page,

and the followings are some instructions on WEB configuration:

1. We provide a means to log into the W140A in the HTTP mode to configure

parameters. Users can open the WEB configuration login page of the W140A by

entering http://Working IP Address of W140A in the address bar of the WEB

browser (the default working IP address of the W140A is 192.168.1.254, and the

subnet is 255.255.255.0).

2. To simplify operation, only one operation mode is available at present for WEB

configuration (similar to the CONFIG mode in CLI configuration), with two

levels of password protection. The first level of password allows users to browse

the current parameters. To submit data for the first time after login, users must

enter the privileged user password, and it is unnecessary to re-enter the

privileged user password for submitting other data pages if the password is

correct. These two levels of passwords are same as those of the CLI

configuration.

3. Browsing and setting functions: After you logs in successfully, you can open a

certain WEB page to browse the current parameters. To modify a certain

parameter, you just need to enter the new value and then submit the modification.

If the setting operation is successful, you can view the new setting by returning

to the previous page. WEB configuration will resolve the newly entered value,

and a failure message will be returned if the format is incorrect.

4. At present, only one user is allowed to configure or browse parameters for WEB

configuration. If the user is idle for over 5 minutes, he will automatically exit

and another user can log in for configuration.

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

6-2

The path diagram of WEB configuration is as shown in Fig. 6.1-1.

Home

Interfaces

Stations

Statistics

Load Balance

SNMP

Security

Reboot

Save

Advanced

Accounts

Exit

SNMP Access Mode

SNMP Access Host

Community

System Information

Trap

Trap Sink

Ethernet Interface

Wireless Interface

IP Address

802.11b

WEP

Link Integrity

802.1x

DHCP

IP Pool

RADIUS Server

VLAN

MAC Authentication

MAC Filter

Station Isolation

DHCP Server

ISP

Athentication Server

Accounting Server

DNS Server

Fig. 6.1-1 Path diagram of WEB configuration

6.2 Opening the login WEB page

Open the WEB browser, and enter “Http://Working IP Address of the W140A” in the

address bar of the browser to display the WEB page shown in Fig. 6.2-1. You can open

the parameter-browsing page by entering the correct user name and password in this

page.

Chapter Error! Style not defined. Error! Style not defined.

6-3

Fig. 6.2-1 Login page for WEB configuration

If someone has already logged in for WEB configuration (or you have opened the

WEB configuration window), the following message will be given after you submit

your user name and password, as shown in Fig. 6.2-2.

Fig. 6.2-2 Alert box for prompting that someone has already logged in for WEB configuration

If the entered user name and password are incorrect, the following message will be

given after you submit your user name and password, as shown in Fig. 6.2-3.

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

6-4

Fig. 6.2-3 Alert box for prompting that the entered user name and password are incorrect

6.3 Main menu of WEB configuration

After you log into the system successfully, the main menu page for user browsing will

be opened. The main menu includes the following items: Home, Interfaces, Stations,

Statistics, Load Balance, SNMP, Security, Reboot, Save, Advanced, Accounts and

Exit. Among them, Interfaces, SNMP, Security and Advanced also have submenus,

while other configuration modules only have one WEB page for configuration. The

main menu is on the left of the WEB page, as shown in Fig. 6.3-1, and the right pane is

the page of the currently selected configuration module.

6.3.1 Home page (basic product information)

The contents in this page are read-only, which can only be browsed and cannot be set.

Chapter Error! Style not defined. Error! Style not defined.

6-5

Fig. 6.3-1 Home page (basic product information)

6.3.2 Stations page

Click Stations in the main menu to display the page as shown in Fig. 6.3-2.

Fig. 6.3-2 Stations page

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

6-6

This page displays the information about the wireless users who have logged into this

AP. The parameters include the number of wireless users and the MAC address of the

users.

6.3.3 Statistics Page

Click Statistics in the main menu to display the page as shown in Fig. 6.3-3.

Fig. 6.3-3 Statistics page

This page displays the flow information of each wireless user, including uplink flow,

downlink flow, uplink packets and downlink packets.

6.3.4 Load Balance page

Click Load Balance in the main menu to display the page as shown in Fig. 6.3-4.

Chapter Error! Style not defined. Error! Style not defined.

6-7

Fig. 6.3-4 Load Balance page

This page is used to configure IAPP parameters, including balance mode, AP load

balance (AP group number and nominal capacity) and the maximum number of users,

all of which have a certain value range. Three balance modes are available: disable,

balance and max-user. When you configure the mode as “disable”, the IAPP mode will

be disabled; when you configure the mode as “balance”, the AP load balance will be

enabled, and the parameter in the “AP Balance Group Number (1-65535)” box will

take effect; and when you configure the mode as “max-user”, the parameter in the

“Balance Threshold” box will take effect.

Note:

You can only select one from AP load balance or Max-user.

6.3.5 SNMP page

Click SNMP in the main menu to display the page as shown in Fig. 6.3-5.

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

6-8

Fig. 6.3-5 Submenu for SNMP configuration

On the left of this page is the submenu for SNMP configuration: SNMP Access Mode,

SNMP Access Host, Community, System Information, Trap, Trap Sink and Back.

6.3.5.1 SNMP Access Mode page

Click SNMP Access Mode in the SNMP menu to display the page as shown in Fig.

6.3-6.

Fig. 6.3-6 Access mode configuration page of the SNMP module

This page is used to configure the access mode of SNMP, with two options: all and list.

Chapter Error! Style not defined. Error! Style not defined.

6-9

6.3.5.2 SNMP Access Host page

Click SNMP Access Host in the SNMP menu to display the page as shown in Fig.

6.3-7.

Fig. 6.3-7 Access host configuration page of the SNMP module

This page is used to add or delete the IP address of SNMP access host, and the

parameter includes the IP address of the accessible host .

Operation instructions: there are two buttons “Add” and “Delete” on the page. To

perform the adding operation, you just need to enter the data in the blank box on the

bottom; and to perform the deleting operation, you just need to check off the record to

be deleted (you may delete multiple records simultaneously).

 Tips:

The operation for other pages with multiple records is similar to this.

6.3.5.3 Community page

Click Community in the SNMP menu to display the page as shown in Fig. 6.3-8.

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

6-10

Fig. 6.3-8 Community configuration page of the SNMP module

This page is used to add or delete SNMP community strings, and the parameters

include community ID and access right.

6.3.5.4 System information page

Click System Information in the SNMP menu to display the page as shown in Fig.

6.3-9.

Fig. 6.3-9 System information configuration page of the SNMP module

Chapter Error! Style not defined. Error! Style not defined.

6-11

This page displays the name, location and contact information of the current SNMP

management equipment. You can also configure the related information of the NE in

this page, including NE ID, NE code and NE creation date and time.

6.3.5.5 Trap page

Click Trap in the SNMP menu to display the page as shown in Fig. 6.3-10.

Fig. 6.3-10 Trap configuration page of the SNMP module

This page is used to configure the Trap of the SNMP module, with two parameters for

configuration: Enable Trap and Enable Authentication Failure Trap.

6.3.5.6 Trap Sink page

Click Trap Sink in the SNMP menu to display the page as shown in Fig. 6.3-11.

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

6-12

Fig. 6.3-11 Trap sink configuration page of the SNMP module

This page is used to add or delete the Trap Sink host and Trap Proxy host of the SNMP

module. The parameters include the IP address and Trap version.

6.3.6 Security page

Click Security in the main menu to display the page as shown in Fig. 6.3-12.

Fig. 6.3-12 Submenu of security configuration

Chapter Error! Style not defined. Error! Style not defined.

6-13

On the left of this page is the security configuration submenu: MAC Authentication,

MAC Filter, Stations Isolation and Back.

6.3.6.1 MAC Authentication page

Click MAC Authentication in the Security menu to display the page as shown in Fig.

6.3-13.

Fig. 6.3-13 MAC authentication configuration page

This page is used to add or delete MAC authentication rules, and the parameters

include Access Mode (permit or deny) and filter type (any or single).

6.3.6.2 MAC filter page

Click MAC filter in the Security menu to display the page as shown in Fig. 6.3-14.

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

6-14

Fig. 6.3-14 MAC filter rule configuration page

This page is used to add or delete a certain filter rule and configure whether to apply

the setting for certain interfaces. The parameters include filter mode and filter type.

6.3.6.3 Stations Isolation page

Click Stations Isolation in the Security menu to display the page as shown in Fig.

6.3-15.

Fig. 6.3-15 Stations Isolation page

Chapter Error! Style not defined. Error! Style not defined.

6-15

This page is used to enable wireless stations isolation and set the gateway IP address or

MAC address for stations isolation. The parameters include Gateway IP Address and

Gateway MAC Address.

6.3.7 Save page

Click Save in the main menu to display the page as shown in Fig. 6.3-16.

Fig. 6.3-16 Save page

This page is used to save the configured parameters in FLASH.

6.3.8 Reboot page

Click Reboot in the main menu to display the page as shown in Fig. 6.3-17.

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

6-16

Fig. 6.3-17 Reboot page

This page is used to execute the reboot operation. This window will be closed after

clicking the button.

6.3.9 Advanced options page

Click Advanced in the main menu to display the page as shown in Fig. 6.3-18.

Fig. 6.3-18 Submenu of advanced options configuration

Chapter Error! Style not defined. Error! Style not defined.

6-17

On the left of this page is the submenu of the advanced options configuration: 802.1x,

DHCP, IP Pool, RADIUS Server, VLAN and Back.

6.3.9.1 DHCP page

Click DHCP in the Advanced menu to display the page as shown in Fig. 6.3-19.

Fig. 6.3-19 Submenu of DHCP module

Click DHCP Server in the DHCP submenu to display the page as shown in Fig.

6.3-20.

Fig. 6.3-20 DHCP server configuration page

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

6-18

This page is used to configure the related parameters of the DHCP server: Primary

DNS Server IP address, Secondary DNS Server IP Address, Default Gateway IP

Address, and Lease time.

6.3.9.2 IP Pool page

Click IP Pool in the Advanced menu to display the page as shown in Fig. 6.3-21.

Fig. 6.3-21 IP pool page

This page is used to add, modify and delete IP pools. The parameters include ID, Begin

IP, End Ip and IP Mask.

6.3.9.3 802.1x page

Click 802.1x in the Advanced menu to display the page as shown in Fig. 6.3-22.

Chapter Error! Style not defined. Error! Style not defined.

6-19

Fig. 6.3-22 802.11x configuration page

This page is used to configure 802.1x authentication parameters, including two check

boxes: Enable 802.1x and Enable Port Control, and some other parameters: NAS-ID,

SIM Domain, MD5 Domain, Max Reauth Times, Max Request Times, Server Timeout,

Supplicant Timeout, Quiet Period and Tx Period.

6.3.9.4 RADIUS Server page

Click RADIUS Server in the Advanced menu to display the page as shown in Fig.

6.3-23.

Fig. 6.3-23 Submenu of RADIUS server configuration

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

6-20

The RADIUS configuration submenu includes: ISP, Authentication Server, Accounting

Server, DNS Server and Back.

● ISP Page

Click ISP in the RADIUS Server menu to display the page as shown in Fig.

6.3-24.

Fig. 6.3-24 ISP configuration page

● Authentication Server page

Click Authentication Server in the RADIUS Server menu to display the page

as shown in Fig. 6.3-25.

Chapter Error! Style not defined. Error! Style not defined.

6-21

Fig. 6.3-25 Authentication Server configuration page

● Accounting Server page

Click Accounting Server in the RADIUS Server menu to display the page as

shown in Fig. 6.3-26.

Fig. 6.3-26 Accounting Server configuration page

● DNS Server page

Click DNS Server in the RADIUS Server menu to display the page as shown in

Fig. 6.3-27.

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

6-22

Fig. 6.3-27 DNS configuration page

6.3.9.5 VLAN page

Click VLAN in the Advanced menu to display the page as shown in Fig. 6.3-28.

Fig. 6.3-28 VLAN configuration Page

This page serves to enable/disable the VLAN and configure its parameter.

Chapter Error! Style not defined. Error! Style not defined.

6-23

6.3.10 Accounts page

Click Accounts in the main menu to display the page as shown in Fig. 6.3-29.

Fig. 6.3-29 Account configuration page

This page is used to add, delete or modify an ordinary user name and password.

6.4 Interfaces page

Open the submenu page of interface configuration by clicking Interfaces in the main

menu. The W140A product involves the configuration of Ethernet interface and

Wireless interface.

Fig. 6.4-1 Submenu for interface configuration

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

6-24

6.4.1 Ethernet Interface page

Click Ethernet Interface in Fig. 6.4-1 to open the submenu for Ethernet interface

configuration, as shown in Fig. 6.4-2.

Fig. 6.4-2 Submenu for Ethernet interface configuration

On the left of this page is the submenu for Ethernet interface configuration: IP Address.

6.4.1.1 IP Address page

Click IP Address in the Ethernet Interface submenu to display the page as shown in

Fig. 6.4-3.

Fig. 6.4-3 IP address configuration page of Ethernet interface

This page is used to add or delete the IP address of the Ethernet interface module. The

parameters include IP Address, IP Mask and Master/Slave.

Chapter Error! Style not defined. Error! Style not defined.

6-25

6.4.2 Wireless Interface page

Click Wireless Interface in Fig. 6.4-1 to open the submenu for wireless interface

configuration, as shown in Fig. 6.4-4.

Fig. 6.4-4 Submenu for wireless interface configuration

On the left is the submenu for wireless interface configuration: 802.11b, WEP, Link

Integrity and Back.

6.4.2.1 802.11b page

Click 802.11b in the Wireless Interface submenu to display the page as shown in Fig.

6.4-5.

Fig. 6.4-5 802.11b parameter configuration page of wireless interface

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

6-26

This page is used to configure the 802.11b parameters of the wireless interface module.

The parameters include SSID, Channel, Tx Power, RTS Threshold, Fragmentation

Threshold, Authentication Type, and the check box “Disable SSID Broadcast”.

6.4.2.2 WEP page

Click WEP in the Wireless Interface submenu to display the page as shown in Fig.

6.4-6.

Fig. 6.4-6 WEP configuration page of wireless interface

This page is used to configure the WEP parameters of the wireless interface module.

The parameters include WEP mode, WEP value and WEP keyword.

6.4.2.3 Link Integrity page

Click Link Integrity in the Wireless Interface submenu to display the page as shown

in Fig. 6.4-7.

Chapter Error! Style not defined. Error! Style not defined.

6-27

Fig. 6.4-7 Link integrity configuration page of wireless interface

This page is used to configure the link integrity parameters of the wireless interface

module. The parameter includes the check box “Enable Link Integrity”.

6.5 Data submission flow for WEB configuration

When you open a certain WEB configuration page and enter parameters in the

corresponding text boxes, you can click “Submit” to immediately proceed to the next

page. If you submit data for the first time after login, a page will pop up for you to

enter the password of privileged user, as shown in Fig. 6.5-1. If you have already

submitted data with correct password, the system will skip this page and directly

proceed to the next page to prompt you whether the data have been submitted

successfully when you submit dada again.

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

6-28

Fig. 6.5-1 The page for entering the password of privileged user

If the entered password is incorrect, a message will pop up, prompting you that the

password is incorrect, as shown in Fig. 6.5-2. You can click “Back” to reselect page

connection.

Fig. 6.5-2 The page indicating that the privileged user password is incorrect

If the entered password of the privileged user is correct, the system will resolve the

entered data and judge whether the format and range are correct. Then, depending on

whether the setting is successful, a corresponding prompting message will be returned,

as shown in Fig. 6.5-3 (successful setting), and Fig. 6.5-4 (Failure in setting). You can

Chapter Error! Style not defined. Error! Style not defined.

6-29

click “Back” to return to the WEB page before submission, and the displayed data are

the submitted new parameters.

Fig. 6.5-3 A message indicating successful data submission

Fig. 6.5-4 A message indicating failure in data submission

7-1

7 Maintenance

This chapter introduces the daily maintenance work of the W140A and the loading and

upgrade of the version

7.1 Maintenance Descriptions

To guarantee the normal and stable running of the equipment, please pay attention to

the following suggestions and make the daily maintenance according to the daily

maintenance operation instructions.

1. Keep the equipment room clean and neat, take dustproof and dampproof

measures and prevent rats and insects from damaging the cables and other

devices.

2. According to related contents of the daily maintenance operation instructions,

make routine checks and test every day and make records.

3. Contact the local ZTE office at once when you cannot handle the problems.

Handle any emergency calmly.

4. Handle major faults, such as breakdown, according to the major fault handling

procedure and contact the local ZTE office immediately.

5. Never reset and load the devices or change data, unless necessary. Back up the

data before modifying the data (if necessary). After the running of the device

with changed data is confirmed normal, backup the new data. Be sure to

separate the new data from the old data. Delete the old data after confirming that

everything is OK one week later.

6. Please paste the necessary contact information, such as the phone number and

fax number of the local ZTE office, on a conspicuous place of the equipment

room, and make sure that all the personnel in the equipment room know this

information.

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

7-2

7.2 Daily Maintenance

The running conditions of the device can be detected through the following operations:

1. From the Ethernet switch, PING the management port addresses of all the APs

of this switch, to check whether the AP wired ports work normally.

2. For the hot spots adopting the DHCP mode, check whether the legal users can

obtain such parameters as IP address, gateway and DNS.

3. Check whether the exit route between the user and Internet is smooth.

4. With the wireless network card, in the AP signal coverage ranges, observe the

signal strength and link quality of different areas, PING the gateway IP address,

observe packet losses, and check whether Internet access is normal.

5. Make roaming and handover operations in different AP signal coverage ranges,

and observe packet losses when pinging the gateway IP addresses, and check

whether Internet accesses are normal.

7.3 Version Loading and Upgrade

Before delivering the W140A, the file set and graphical file set of the running version

have been loaded into the W140A flash.

The running version file set comprises the following files:

Runbin Running software

Database.dat Database file

Zxipcmd.dat Command script file

Tf010102.hex Wireless network adapter third party firmware file

Th010000.hex Wireless network adapter third party firmware file

There may be two wireless network adapter third party firmware files, but W140A

needs only one of them.

The graphical file set is the graph library of the WEB configuration page.

TFTP online loading is used for version loading. With TFTP online loading, the

running version file and graphical file sets can be loaded.

Chapter Error! Style not defined. Error! Style not defined.

7-3

7.3.1 TFTP File Loading Commands

Through the Telnet client, log on to the W140A and enter the configure mode, execute

the tftp command to load the required file.

1. Load the running version file

Command format: tftp get A.B.C.D file-name

Description: A.B.C.D is the TFTP host address, file-name is the file to be loaded,

such as files runbin, database.dat, zxipcmd.dat, tf010102.hex and th010000.hex.

wlan (config)#tftp get 168.1.15.204 database.dat

tftp fetch of database.dat from host 168.1.15.204 (168.1.15.204) started

wlan (config)#Have receive 10240 BYTE:7%

Have receive 20480 BYTE:14%

Have receive 30720 BYTE:21%

Have receive 40960 BYTE:29%

Have receive 51200 BYTE:36%

Have receive 61440 BYTE:43%

Have receive 71680 BYTE:50%

Have receive 81920 BYTE:58%

Have receive 92160 BYTE:65%

Have receive 102400 BYTE:72%

Have receive 112640 BYTE:80%

Have receive 122880 BYTE:87%

Have receive 133120 BYTE:94%

%get file successful!!

Done with tftp get of database.dat

wlan (config)#tftp get 168.1.15.204 ?

runbin

tf010102.hex

th010000.hex

zxipcmd.dat

database.dat

wlan (config)#

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

7-4

2. Load the graphical file set.

Command format: tftp pic A.B.C.D

Description: A.B.C.D is the TFTP host address.

wlan (config)#tftp pic 168.1.15.204

tftp fetch of zte.gif from host 168.1.15.204 (168.1.15.204) started

wlan (config)#% get file successful!

Done with tftp get of zte.gif

wlan (config)#tftp fetch of back.gif from host 168.1.15.204

(168.1.15.204) started

% get file successful!

Done with tftp get of back.gif

wlan (config)#tftp fetch of login33.jpg from host 168.1.15.204

(168.1.15.204) started

% get file successful!

Done with tftp get of login33.jpg

wlan (config)#tftp fetch of login23.jpg from host 168.1.15.204

(168.1.15.204) started

% get file successful!

Done with tftp get of login23.jpg

(Omitted)

wlan (config)#

A-1

Appendix A Package, Transportation and

Storage

It describes the packing methods, storage conditions and transportation precautions. It

serves as a guide to the transportation, unpacking, installation and relocation of the

equipment.

A.1 Package

The following parts are included in the package of the ZXB10-S300:

1. For details about W140A and its fittings, see Error! Reference source not

found. Error! Reference source not found..

2. A set of delivery attached documents

3. A warranty card

4. A quality certificate

Outside each package, there are obvious marks indicating the model, product name,

placement direction, warnings against moisture, water and breakage. Avoid damages,

confusion and mismatching while storing and transporting the equipment.

A.2 Transportation

Operate according to the transportation marks on the containers.

When loaded, the heavier or bigger containers are arranged at the bottom. The

barycenter height should be less than 2m. Containers are piled up orderly and securely.

The loading weight shall not exceed the allowed loading capacity.

When loading the equipment onto the vehicle, the requirements for the height of the

goods in transportation must be followed. Keep the package flat and straight in the

truck.

During transportation, the speed of the truck should be kept within 25 km/h ~ 45 km/h

based on the actual road conditions.

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

A-2

Never load the flammables, explosives and corrosives in the same truck.

Rain-proof, dustproof, sunproof and impact-proof measures are necessary in the

equipment transportation. For the open truck transportation, cover the goods with

tarpaulin.

During transportation, use vans.

Trailers or other vehicles loaded with the communication equipment can be carried by

open wagons during rail transportation.

If some equipment is damaged in the transportation or handling, notify the relevant

department in time for handling.

Ensure personal safety during transportation. Assign skilled workers. Work

collaboratively in accordance with relevant regulations during while handling the

product. Prevent the goods from being crushed or falling down. Take care not to

remove or erase product identifiers and relevant inspection and test labels.

Precision instrument and meters, equipment and computer shall be delivered and stored

according to the anti-damp, anti-shock and anti-pressing labels in the packing box.

Take care not to put them upside down.

A.3 Storage

1. All the storage sites must be clean, well-organized, well-ventilated and dry, and

equipped with the air-conditioning and lighting facilities. The temperature and

humidity should be adjusted according to the product requirements. The goods

should be kept away from direct sunshine or other heat sources. The windows

and curtains should not be opened without permission. The daily record should

be maintained for the indoor temperature and humidity. The corresponding

anti-static measures are necessary for the static-sensitive products.

2. Goods are arranged in order. Shelves have no dust. Containers are in order.

Sections are labeled with cards.

3. Complete, clear and real records are required during the storage, which can be

managed via PC or account book. Goods location codes and necessary marks are

required in the storage.

Error! Style not defined. Error! Style not defined.

A-3

4. The products in storage should be checked regularly. If any product has expired,

oxidized or got damp, report to the leader in charge for handling. The inventory

should be made once a month to make sure the account, goods and cards are

consistent.

5. Anti-static floor should be installed at the entrance to the warehouses.

6. Materials in all the warehouses should be “First-in-first-out”. The one that is

entered first should be delivered first.

7. For the products stored over six months in the warehouse, open the packing

container, and connect it to power supply over two hours, then restore the

original package and storage.

B-1

Appendix B Making of Ethernet Cable

It introduces the power supply mode of W140A Ethernet and making of Ethernet

cables.

B.1 W140A System Application Modes

W140As are generally installed outdoors, as on roofs and special poles. The installation

environment is complicated, AC power is unsuitable, so Ethernet power supply (PoE)

is used. The system application mode is shown in Figure B.1-1.

AP Straight-through

Ethernet cable /48V DC

Straight-through

Ethernet cable

Crossover

Ethernet cable

(RJ45J)

( C-RJ45-001 )

Straight-through Ethernet cable

W201P

Straight-through

Ethernet cable /48V DC

AP Straight-through power

Ethernet cable /48V DC

(C-RJ45-001)

Internet

Ethernet switch

(RJ45)

W201P

Straight-through

Ethernet cable

(RJ45)

Power Source End of the Ethernet Power Supply (PoE)

Figure B.1-1 W140A System Application

In Figure B.1-1, Ethernet cables are: straight through Ethernet cable, straight through

Ethernet power cable and crossover Ethernet cable. In practical applications, AP and

AC may come from different producers, so the network cables should be determined

according to the detailed configurations.

According to the Ethernet specifications, 100 Base-T Ethernet features less than 100m

transmission distance and 10 Base-T Ethernet features not greater than 300m

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

B-2

transmission distance. So, in the wireless LAN system, no matter whether Ethernet

power supply is adopted, when the total wiring length (L) between the AP and Ethernet

switch is greater than 100m (less than 300m), it is suggested to configure the Ethernet

switch port as 100 M.

B.2 Making of Ethernet Cables

B.2.1 Making of Straight Through Ethernet Cables (RJ45)

In IP wireless access system, the following network cables must adopt the straight

through Ethernet cables:

1. The Ethernet cable between the Ethernet switch (end A) and W201P (end B).

2. If no switch is used, the AC downlink port is directly connected to W201P, and

the Ethernet cable between AC (end A) and W201P (end B) is a straight through

Ethernet cable.

The connections of the straight through Ethernet cables are shown in Table

B.2-1.

Table B.2-1 Connections of Straight Through Ethernet Cables (RJ45)

End A Signal Name Conductor Color End B Signal Name Conductor Color

1 Data receiving Rx+ White/orange 1 Data transmitting Tx+ White/orange

2 Data receiving Rx- Orange 2 Data transmitting Tx- Orange

3 Data transmitting Tx+ White/green 3 Data receiving Rx+ White/green

4 MATCH1 Blue 4 MATCH1 Blue

5 MATCH2 White/blue 5 MATCH2 White/blue

6 Data transmitting Tx- Green 6 Data receiving Rx- Green

7 MATCH3 White/brown 7 MATCH3 White/brown

8 MATCH4 Brown 8 MATCH4 Brown

B.2.2 Making of Straight Through Power Supply Ethernet Cables (C-RJ45-001)

The Ethernet cable between the W201P (end A) and AP (end B) not only serves as the

Ethernet data signal cable, but also provides -48V DC power for two twisted pairs 4&5

and 7&8 on the load balance, to power AP remotely.

The connection method of this cable is the same as that of the straight through cable

without power supply, and the connection table is shown in Table B.2-2.

Error! Style not defined. Error! Style not defined.

B-3

Table B.2-2 Connections of Straight Through Power Supply Ethernet Cables (C-RJ45-001)

End A Signal Name Conductor Color End B Signal Name Conductor Color

1 Data receiving Rx+ White/orange 1 Data transmitting Tx+ White/orange

2 Data receiving Rx- Orange 2 Data transmitting Tx- Orange

3 Data transmitting Tx+ White/green 3 Data receiving Rx+ White/green

4 GND Blue 4 GND Blue

5 GND White/blue 5 GND White/blue

6 Data transmitting Tx- Green 6 Data receiving Rx- Green

7 -48V White/brown 7 -48V White/brown

8 -48V Brown 8 -48V Brown

Note:

These cables are with -48 V DC power supply, so make sure to prevent short circuits,

otherwise, the signal will be interrupted and the equipment may not work normally, and

even the equipment protection action will be activated. GND and -48 V each occupy

one twisted pair. These twisted pairs should be separate, otherwise short circuit may

occur.

B.2.3 Making of Crossover Ethernet Cables (RJ45J)

The connections of the crossover Ethernet cables are shown in Table B.2-3.

Table B.2-3 Connections of Crossover Ethernet Cables (RJ45J)

End A Signal Name Conductor Color End B Signal Name Conductor Color

1 Data receiving Rx+ White/orange 3 Data transmitting Tx+ White/green

2 Data receiving Rx- Orange 6 Data transmitting Tx- Green

3 Data transmitting Tx+ White/green 1 Data receiving Rx+ White/orange

4 MATCH1 Blue 4 MATCH1 Blue

5 MATCH2 White/blue 5 MATCH2 White/blue

6 Data transmitting Tx- Green 2 Data receiving Rx- Orange

7 MATCH3 White/brown 7 MATCH3 White/brown

8 MATCH4 Brown 8 MATCH4 Brown

ZXR10 WAS (V1.0) W140A Outdoor Wireless Access Point / Bridge User’s Manual

B-4

Note:

The signals and connection methods mentioned here are designed according to the

signal definitions of the ZTE AC equipment interface. If the AC in the actual

engineering is not from ZTE, modify the cable making methods according to the actual

conditions.

B.2.4 Ethernet Cable Label

After the Ethernet cable is crimped, paste labels on ends A and B of the network cable,

indicating name and length of this cable.

1. Label of the straight through Ethernet cable

The label of the straight through Ethernet cable (RJ45) is shown in Figure B.2-1.

Figure B.2-1 Straight through Ethernet label

In the diagram, “**m” indicates the actual length of the cable.

2. Label of the straight through power supply Ethernet cable

The label of the straight through power supply Ethernet cable (C-RJ45-001) is

shown in Figure B.2-2.

Figure B.2-2 Label of the Straight Through Power Supply Ethernet Cable

In the diagram, “**m” indicates the actual length of the cable; “PoE Cable”

indicates that this is the Ethernet power cable.

3. Label of the Crossover Ethernet Cable

The label of the crossover Ethernet cable (RJ45J) is shown in Figure B.2-3.

Error! Style not defined. Error! Style not defined.

B-5

RJ45J * * m

Figure B.2-3 Crossover Ethernet Cable Label

In the diagram, “**m” indicates the actual length of the cable; “J” after “RJ45”

indicates that this is the crossover Ethernet cable.

Warning:

Changes or modifications to this unit not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment. Any change to

the equipment will void FCC grant.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

B-1
