ZEBEX INDUSTRIES INC.
Subject Version Date Page
Z-2065 series User’s Manual 3.00 2010/3/19 56 / 69

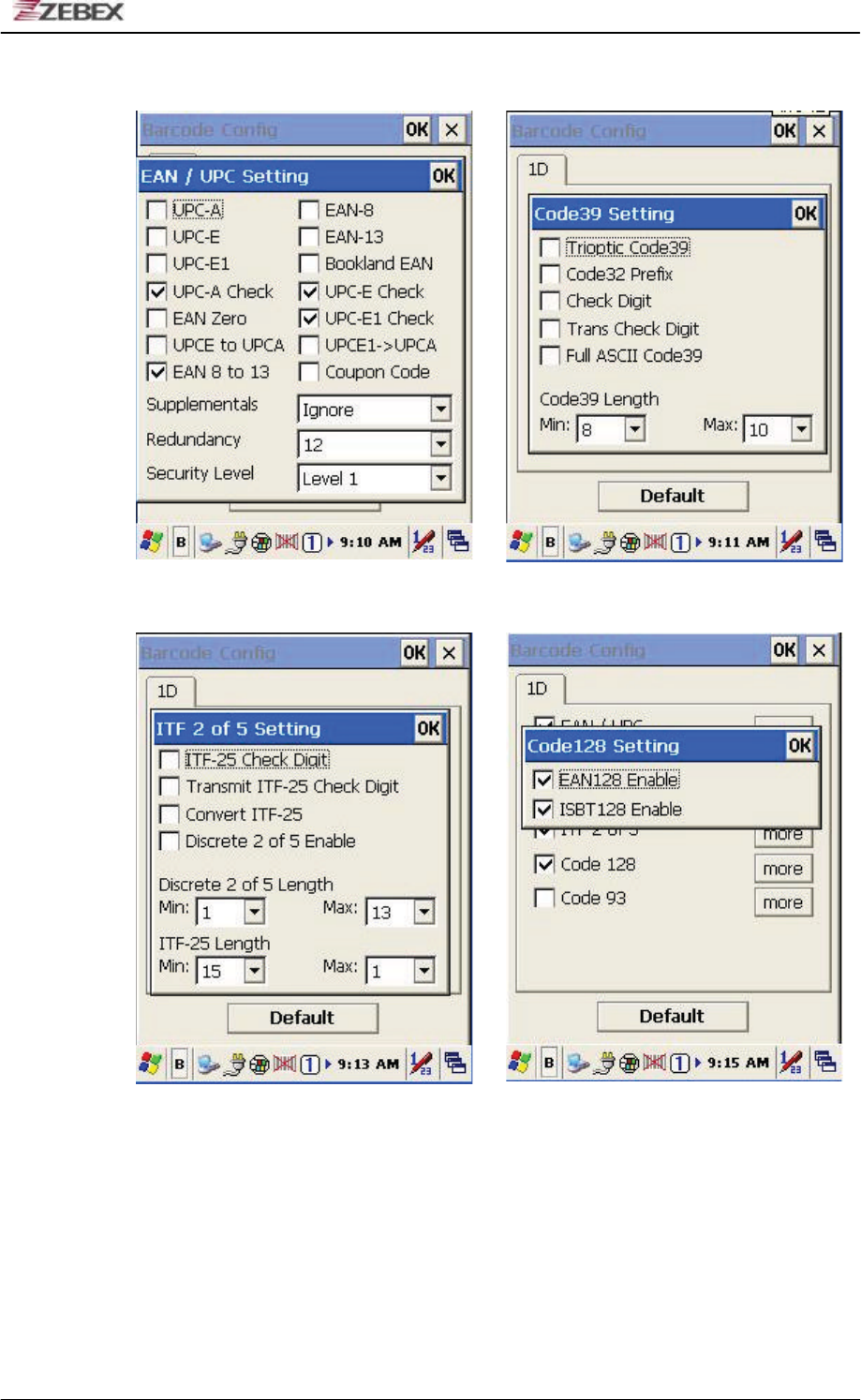

The default values of EAN/UPC code and Code39.
The default values of ITF 2 of 5 code and Code128.
ZEBEX INDUSTRIES INC.
Subject Version Date Page
Z-2065 series User’s Manual 3.00 2010/3/19 57 / 69
Backup/Restore

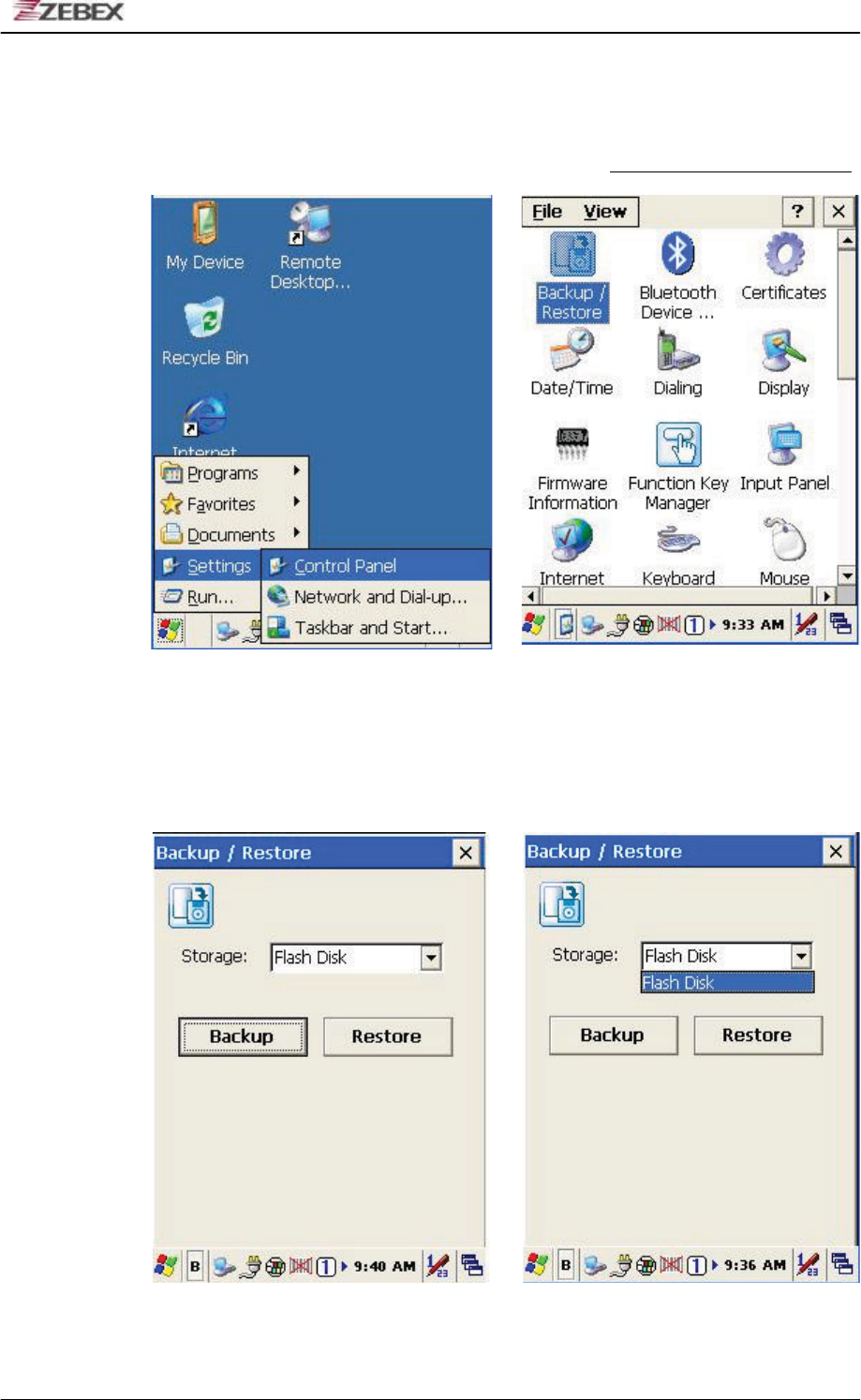

You can find this application is located on path “\settings\control Panel\”.
This application provides you an easy way to backup or restore the device
setting information into Flash Disk and storage card. Application also provides
selection of Flash Disk when there is no storage card. When Mini SD Card
was installed into devices, program will auto-search and provides selection of
SD Card from menu.
ZEBEX INDUSTRIES INC.
Subject Version Date Page
Z-2065 series User’s Manual 3.00 2010/3/19 58 / 69

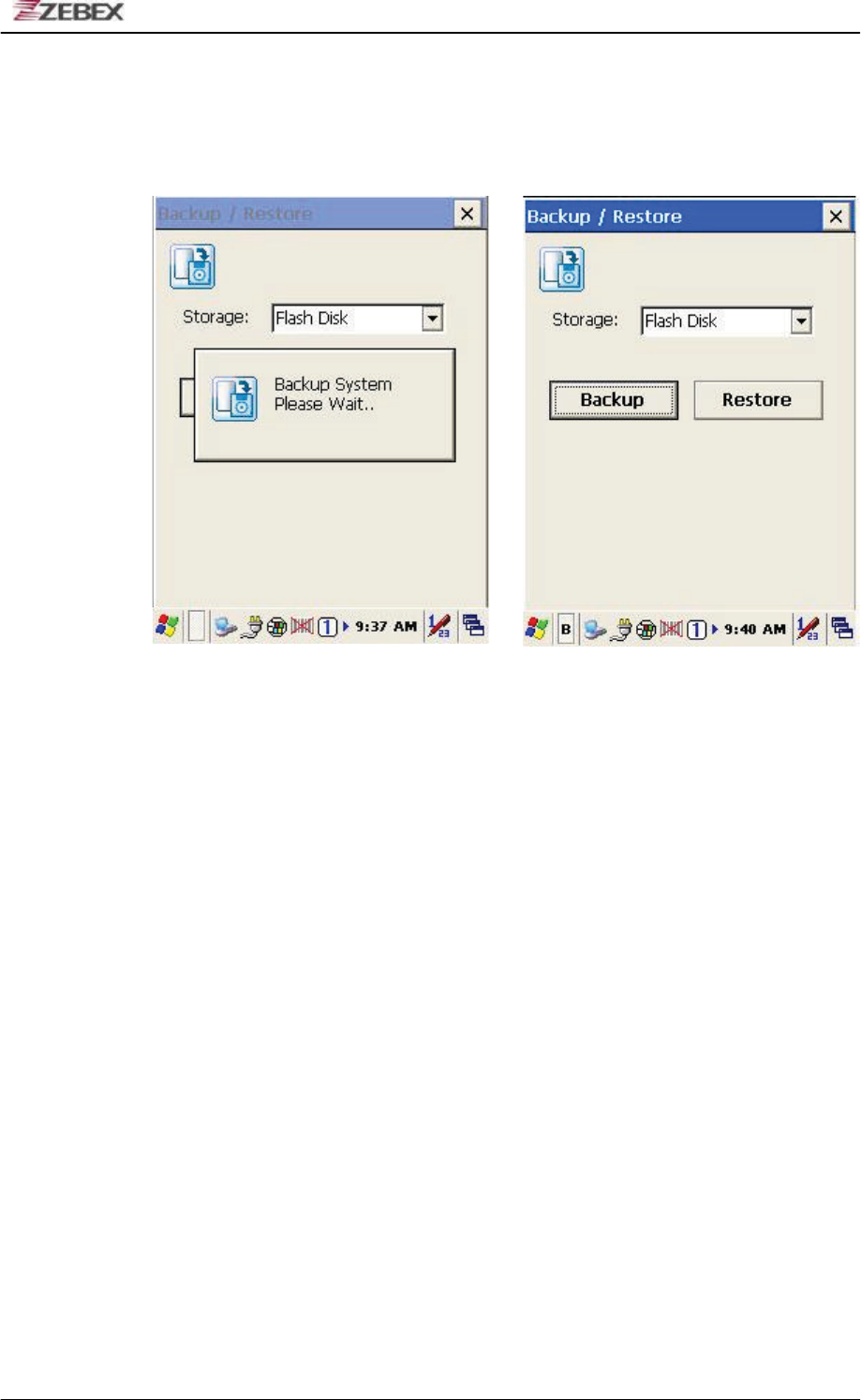

Backup : Select backup data as saved devices, press ” Backup ” bottom to
proceed backup. Display will restore when backup was finished.
ʳ
ZEBEX INDUSTRIES INC.
Subject Version Date Page
Z-2065 series User’s Manual 3.00 2010/3/19 59 / 69
Firmware Information

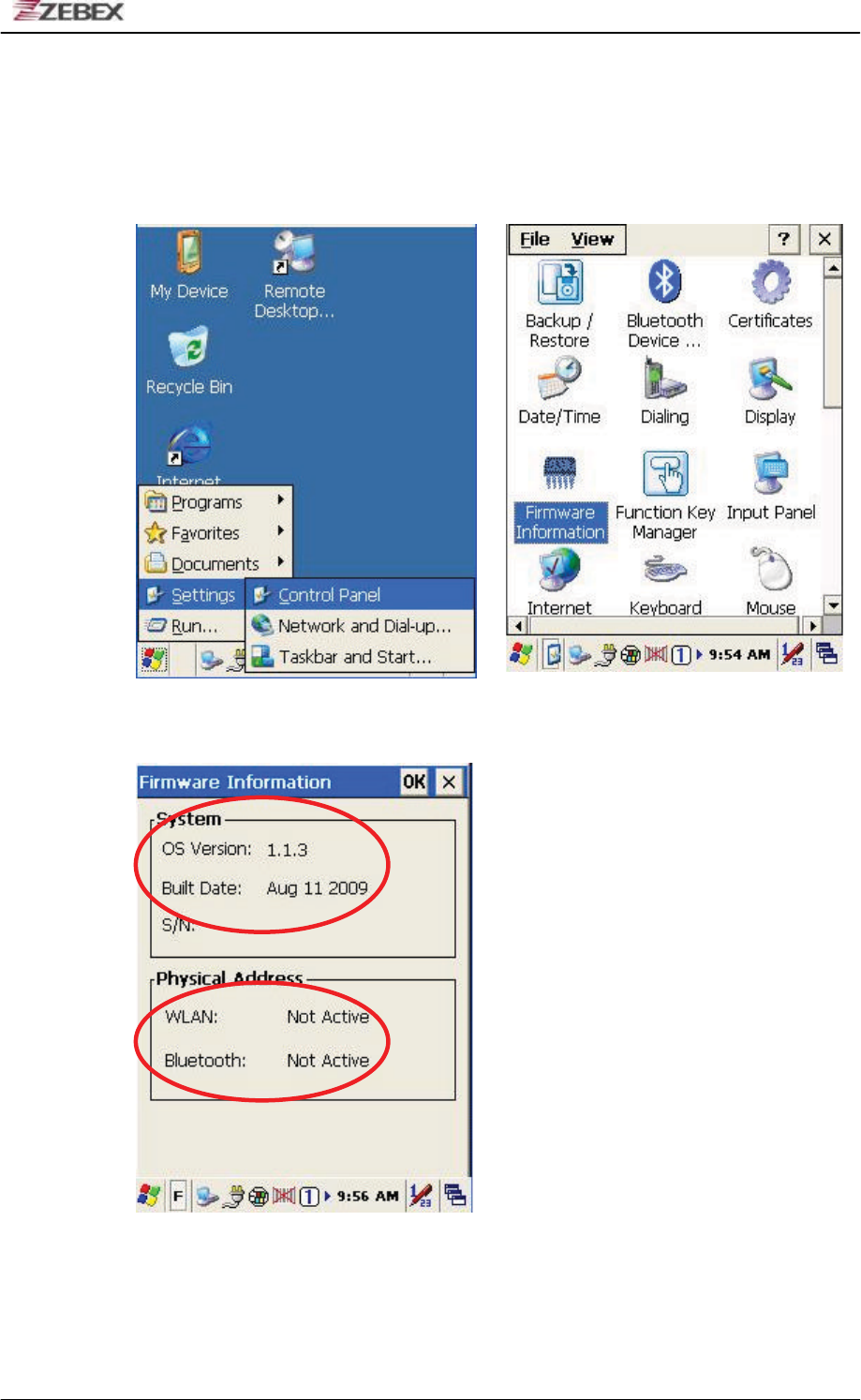

This application will check and display the version information of the device’s
operation system and PowerPack utility.
You can find this application is located on path " \settings\control Panel\".
!
!
This information is good for identify device firmware version for future update
or maintenance.
!
!
!
!
!
!
!
!
!
!
!
!
!
ZEBEX INDUSTRIES INC.
Subject Version Date Page
Z-2065 series User’s Manual 3.00 2010/3/19 60 / 69
Function Key Manager
This application utility is provides you an easier way to set up function key for
your device. Through using this function key set up utility you will easily and
quickly to start the application program like, Window Media Player,
Calculator… etc, or your own designed application program, and even the
windows system function, like increasing or decreasing the volume or doing
the adjustment of brightness on LCD panel.

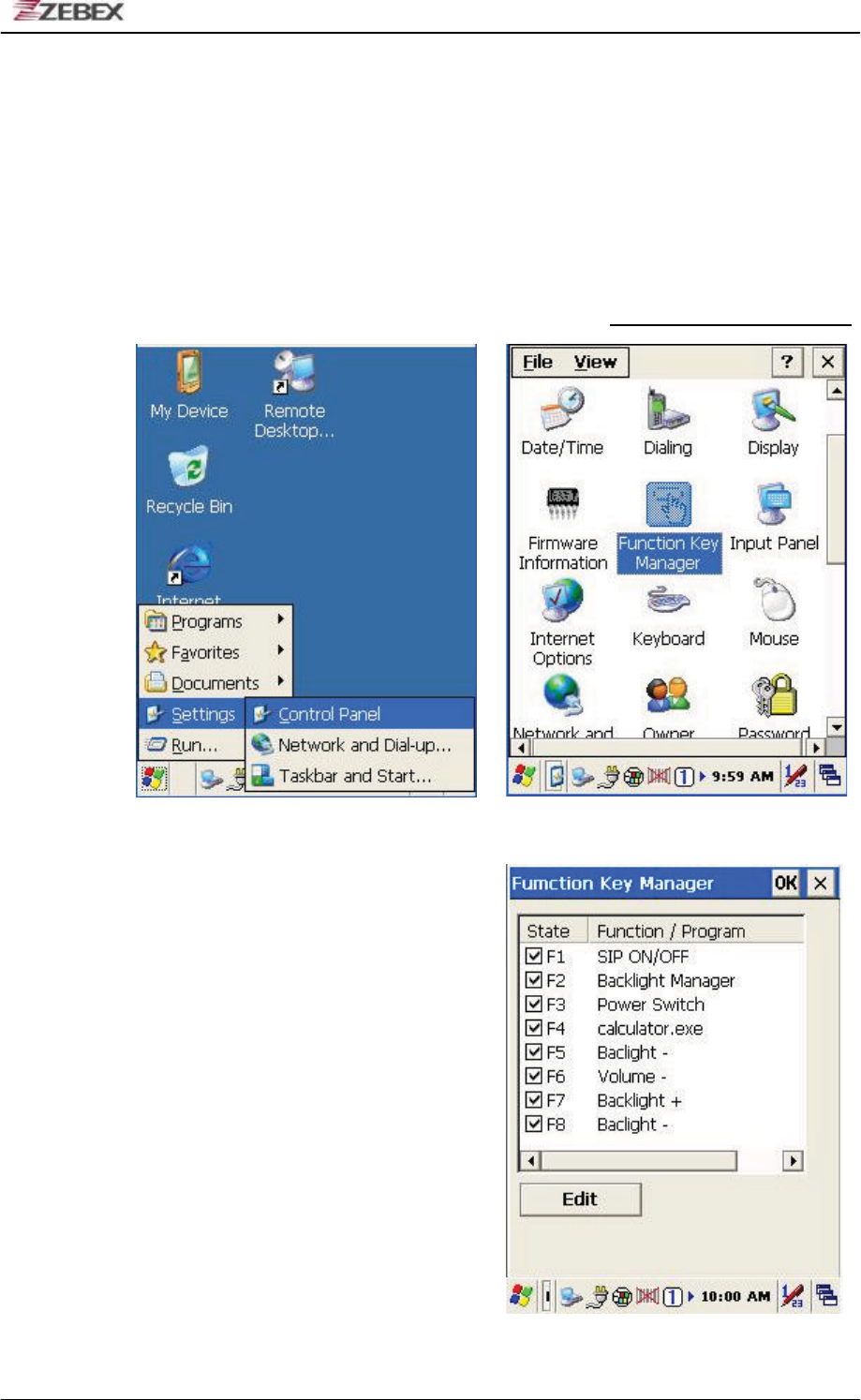

You can find this application is located on path “\settings\control Panel\”.
Program provides eight different function key (F1~F8) for set up, default
setting was shown as below:
F1: SIP ON/OFFǶ
F2: Backlight ManagesǶ
F3: Power SwitchǶ
F4: Calculator.exeǶ
F5: Volume + Ƕ
F6: Volume -Ƕ
F7: Backlight +Ƕ
F8: Backlight -Ƕ
ZEBEX INDUSTRIES INC.
Subject Version Date Page
Z-2065 series User’s Manual 3.00 2010/3/19 61 / 69

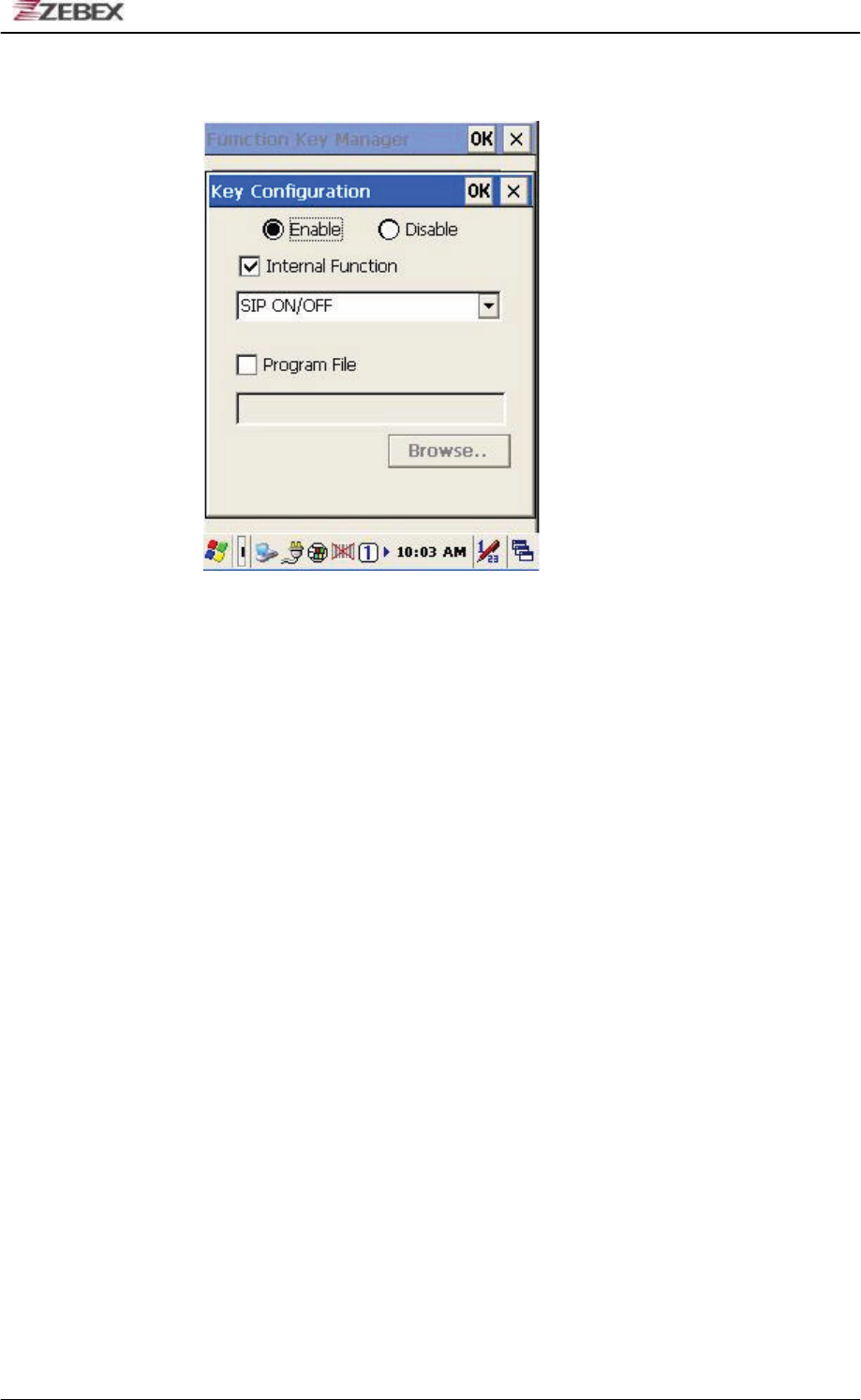

Function Key Manager Set Up Instruction:
Enable/ Disable : Enable or Disable Function Key
Provide two set up methods of Internal Function and Program File
Internal Function : Provide following options,
SIP ON/OFF
Backlight Manager
Power Switch
Stylus Calibration
Wi-Fi ON/OFF
Bluetooth ON/OFF
Volume +
Volume –
Backlight +
Backlight –
Cut
Copy
Paste
Program File : Install application program according to demand,
this function can be used for setting up auto-execution.
ZEBEX INDUSTRIES INC.
Subject Version Date Page
Z-2065 series User’s Manual 3.00 2010/3/19 62 / 69

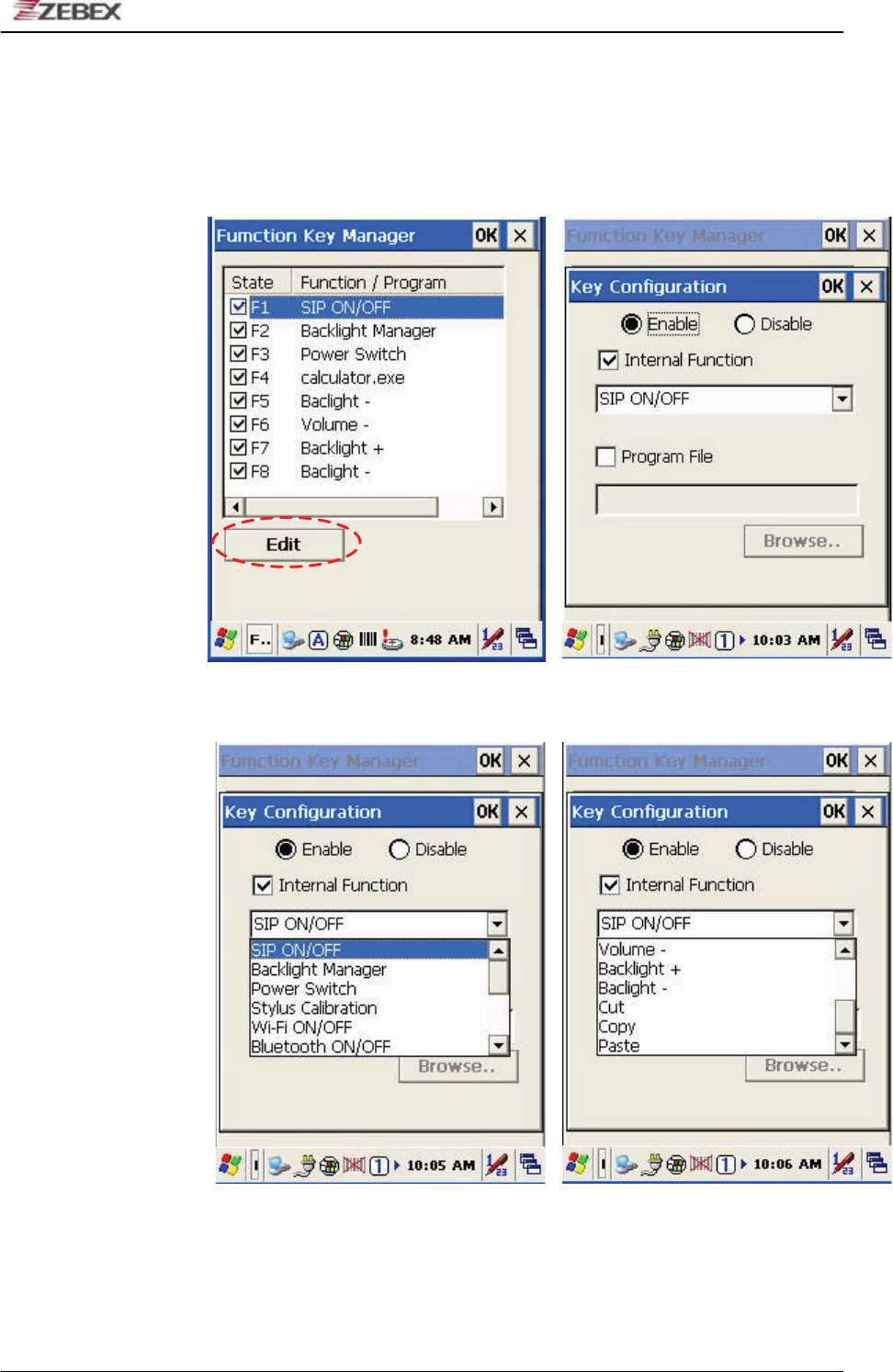

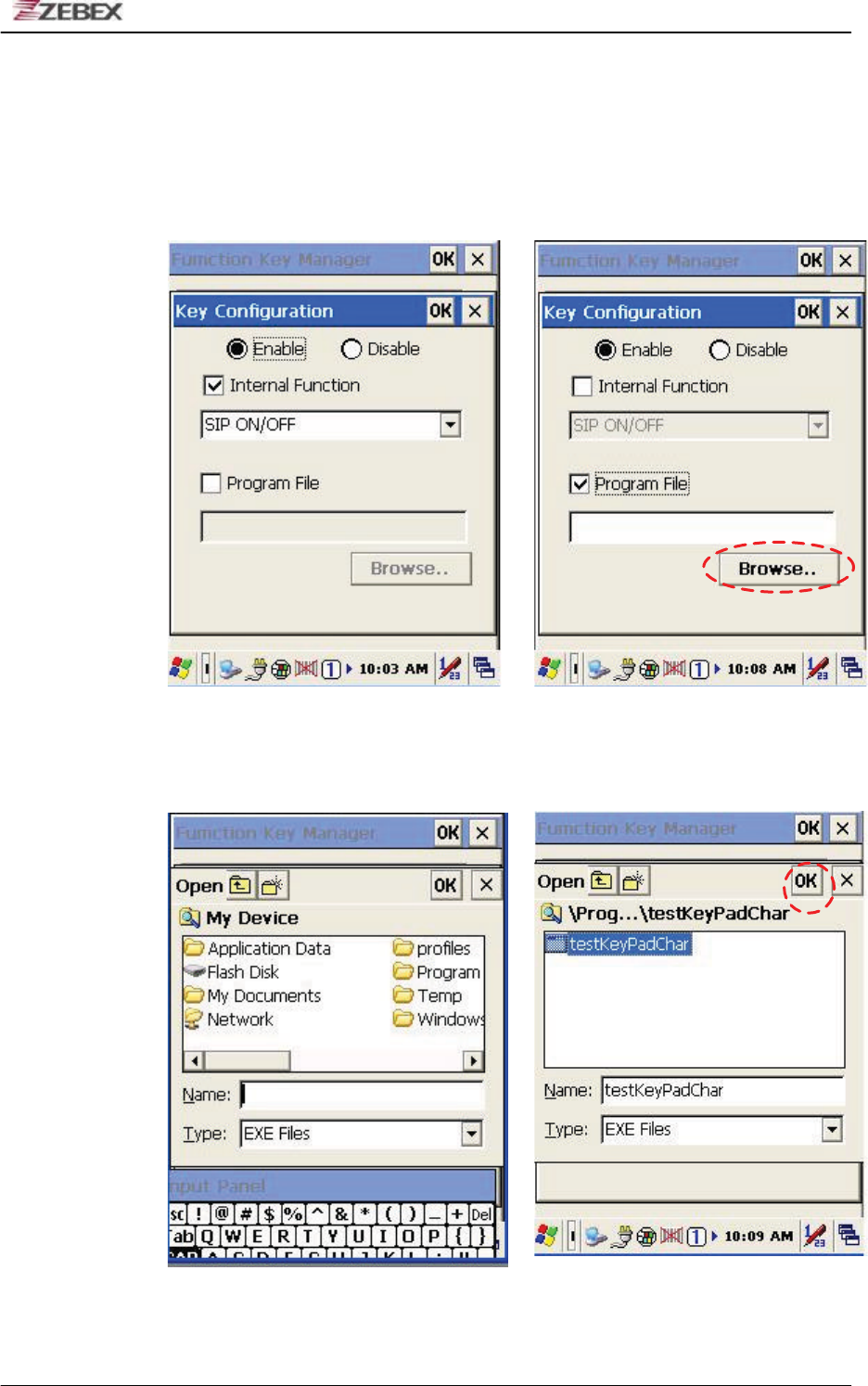

1. Edit Internal Function itemsǺ
1.1 Select items need to be modified, select by clicking ” Edit ” bottom to
enter set up window as below:
1.2 Select new functional item a nd complete editing.
ZEBEX INDUSTRIES INC.
Subject Version Date Page
Z-2065 series User’s Manual 3.00 2010/3/19 63 / 69
2. Edit application software for auto-executionǺ
2.1 Select Program File itemǴthen click ” Browse ” bottom to enter File
Opening Window.
2.2 Select software required auto-execution, then select ” OK ” bottom to
complete selecting process.
ZEBEX INDUSTRIES INC.
Subject Version Date Page
Z-2065 series User’s Manual 3.00 2010/3/19 64 / 69

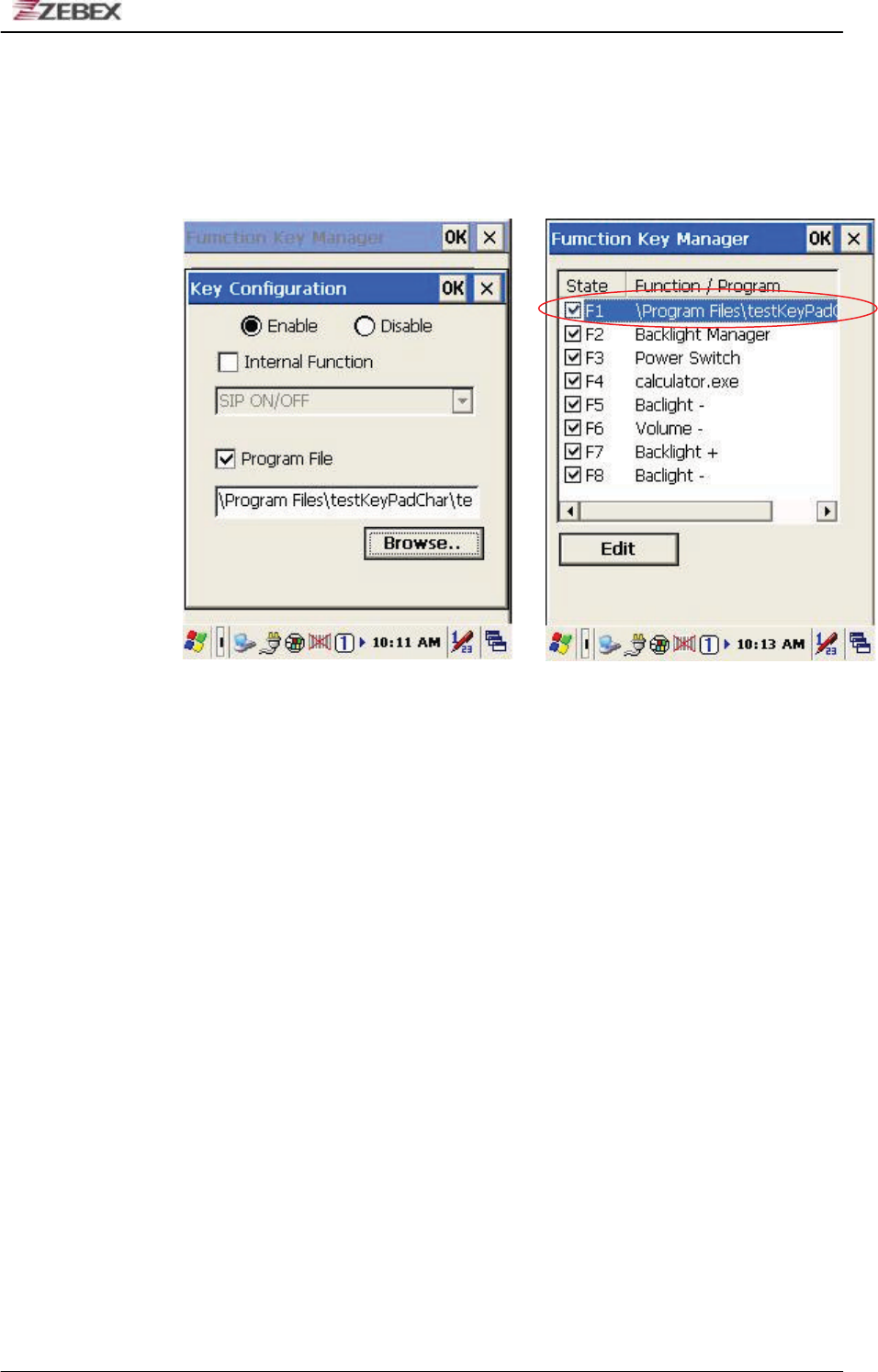

2.3 Confirmed Function / Program had been updated within column. Select
by clicking ” OK “ bottom to complete editing process. When Function
Key Manager Main Page reappear on the display, F1 on function key
item lists had been updated to testkeypadChar.
ZEBEX INDUSTRIES INC.
Subject Version Date Page
Z-2065 series User’s Manual 3.00 2010/3/19 65 / 69
How to order
Please offer Part Number or Model Name for next purchase.
1. Z-2065 Series Windows CE.NET Handheld Computer Set.
Part Number Model Name Description
882-6000R9-000 Z-2065BA Windows CE.NET Handheld Computer, W/1D
engine/RS -232 DB9(F) cable / Mini USB interface
882-60WLR9-000 Z-2065WL WindowsCE.NET Handheld Computer, W/Wireless
LAN/BT module/1D engine/RS -232 DB9(F) cable /
Mini USB interface
Standard Accessories
170-70R449-180 RS-232 Cable RS232 charging cable for Z-2050/ 2065
173-0U0000-150 MINI USB Cable Terminal to PC USB port
862-206502-400 Battery Pack Lithium-Ion rechargeable battery pack, 3.7V 5000 mAh
560-820500-741 Stylus Pen Length: 95.7cm, including reset thimble
623-220500-061 Sling Sling for stylus pen
623-220650-051 Hand Strip Z-2065 hand strip and stylus pen holder
560-020650-891 Hand Strip Holder Z-2065 hand strip holder
11S-900180-008 AC Adapter AC 100~240V 50/60HZ 0.6A, DC 9V/2A
11S-000000-008 Integrated Plug head for 11S-900180-008 Type: Britain/ U.S./Australia/Europe
ZEBEX INDUSTRIES INC.
Subject Version Date Page
Z-2065 series User’s Manual 3.00 2010/3/19 66 / 69

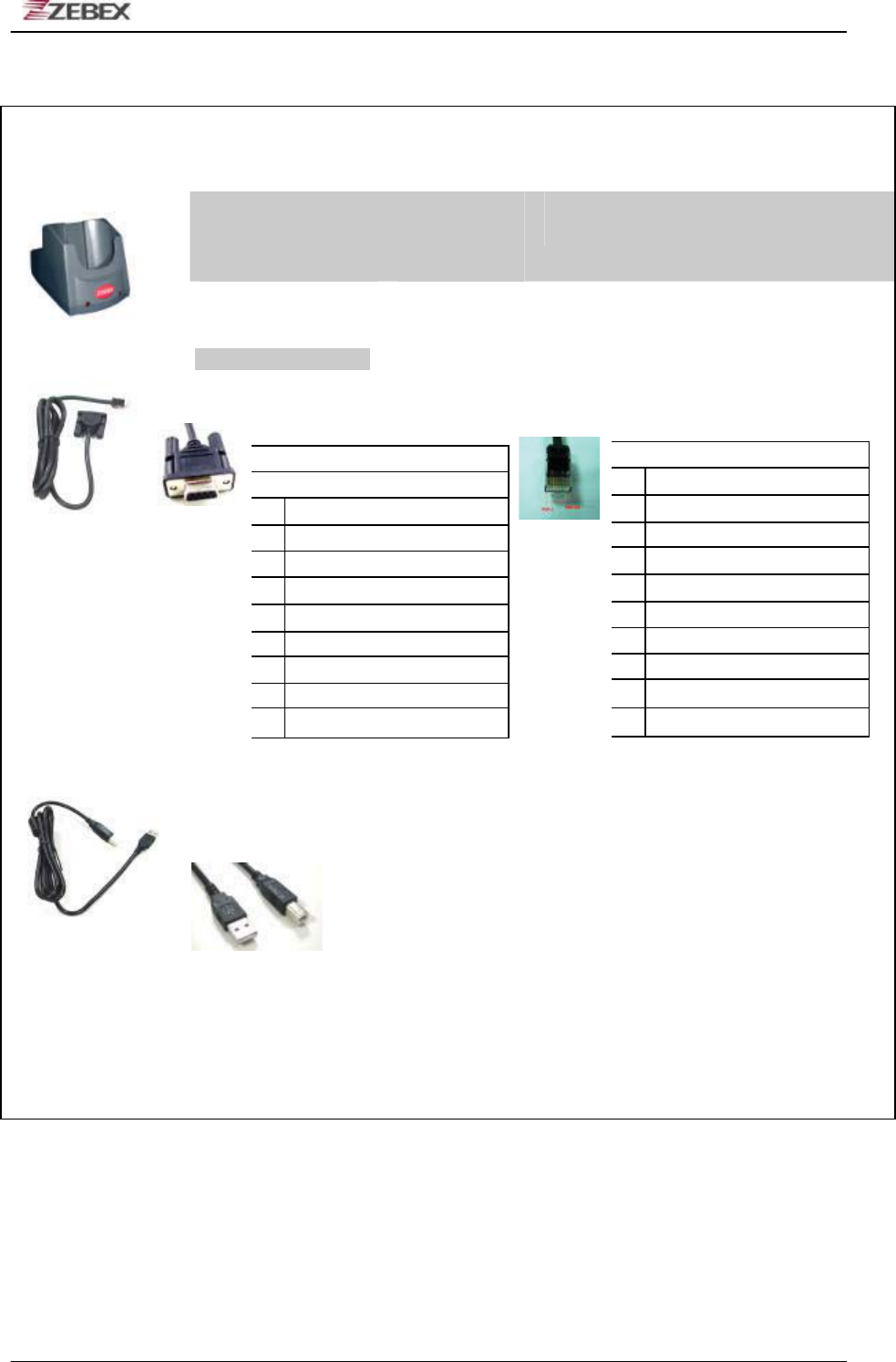

2. CRD-60 Communication and Battery charging Cradle Set.
Part Number Model Name Description
882-60CR00-000 CRD-60 Z-2065 communication and battery
charging cradle
Standard Accessories
174-1RF050-150 RS-232 Cable RS232 cable connect from CRD-60 to PC
RS-232 Dsub port.
173-0U3000-150 USB Cable RJ45 USB type B cable connect from
CRD-60 to PC USB port.
PIN-OUT configuration
DB-9(F)
1 CD (Carrier detect)
2 TxD (Transmit data)
3 RxD (Receive data)
4 DSR (Data set ready)
5 GND (Signal ground)
6 DTR(Data terminal ready)
7 CTS (Clear to send)
8 RTS (Request to send)
9 RI (Ring indicator)
PIN-OUT configuration
1NC
2 TxD (Transmit data)
3 RxD (Receive data)
4NC
5 GND (Signal ground)
6NC
7 CTS (Clear to send)
8 RTS (Request to send)
9NC
10 GND(Signal ground)
ZEBEX INDUSTRIES INC.
Subject Version Date Page
Z-2065 series User’s Manual 3.00 2010/3/19 67 / 69

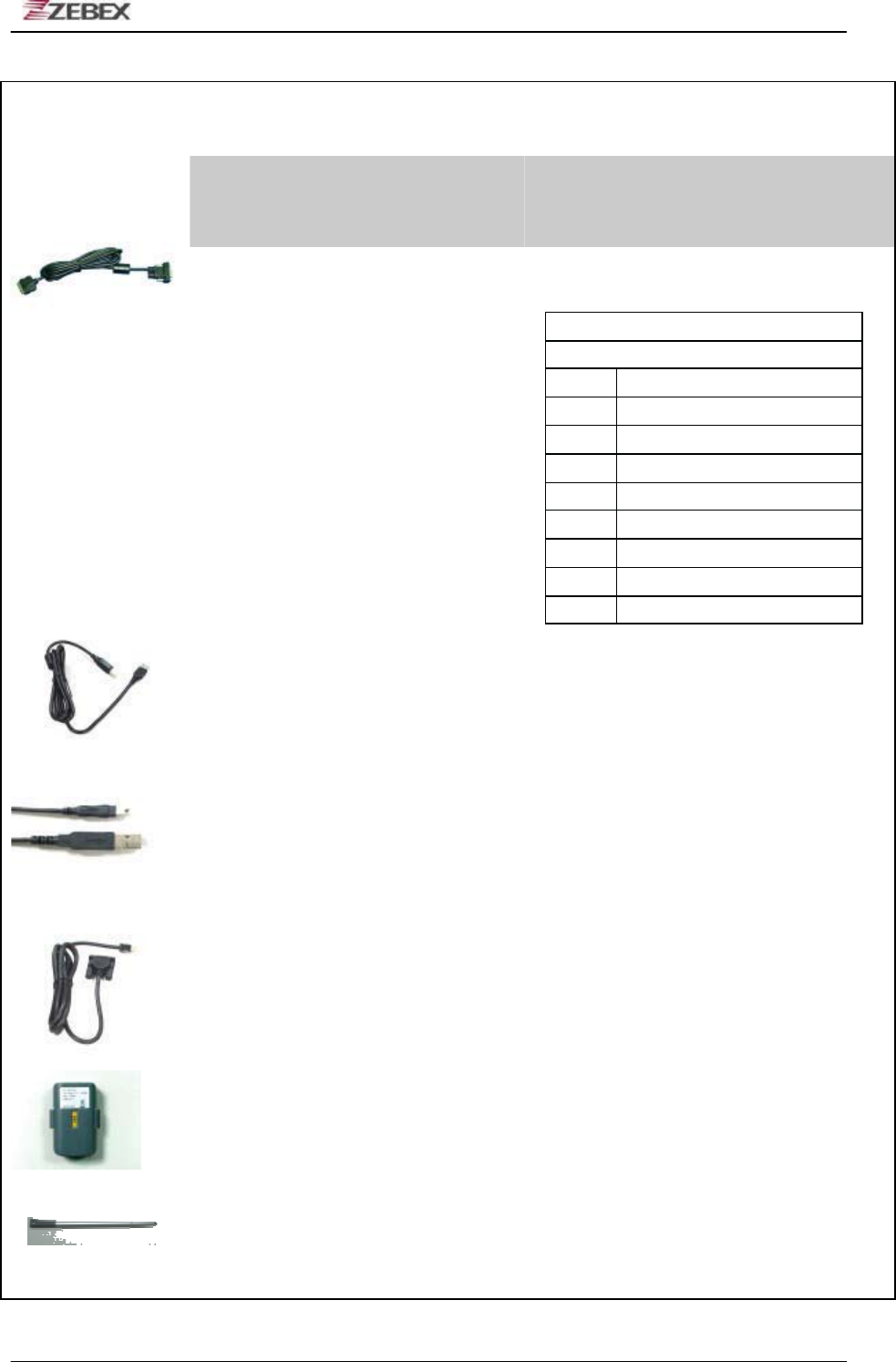

3. Z-2065 Series Optional Accessories
Part Number Model Name Description
170-70R449-180 RS-232 cable RS232 charging cable for Z-2050/2065
PIN-OUT configuration
DB-9 (Female)
1 CD (Carrier detect)
2 TxD (Transmit data)
3 RxD (Receive data)
4 DSR (Data set ready)
5 GND (Signal ground)
6 DTR (Data terminal ready)
7 CTS (Clear to send)
8 RTS (Request to send)
9 RI (Ring indicator)
173-0U0000-150 MINI USB Cable Terminal to PC USB port
174-1RF050-150 RS-232 Cable RS-232 cable connect from CRD-60 to PC
RS-232 Dsub port.
173-0U3000-150 USB Cable RJ45 USB type B cable connect from
CRD-60 to PC USB port.
862-206502-400 Battery Pack Lithium-ion rechargeable battery pack,
3.7V, 5000mAh
560-820500-741 Stylus Pen 95.7mm, including reset thimble
ZEBEX INDUSTRIES INC.
Subject Version Date Page
Z-2065 series User’s Manual 3.00 2010/3/19 68 / 69

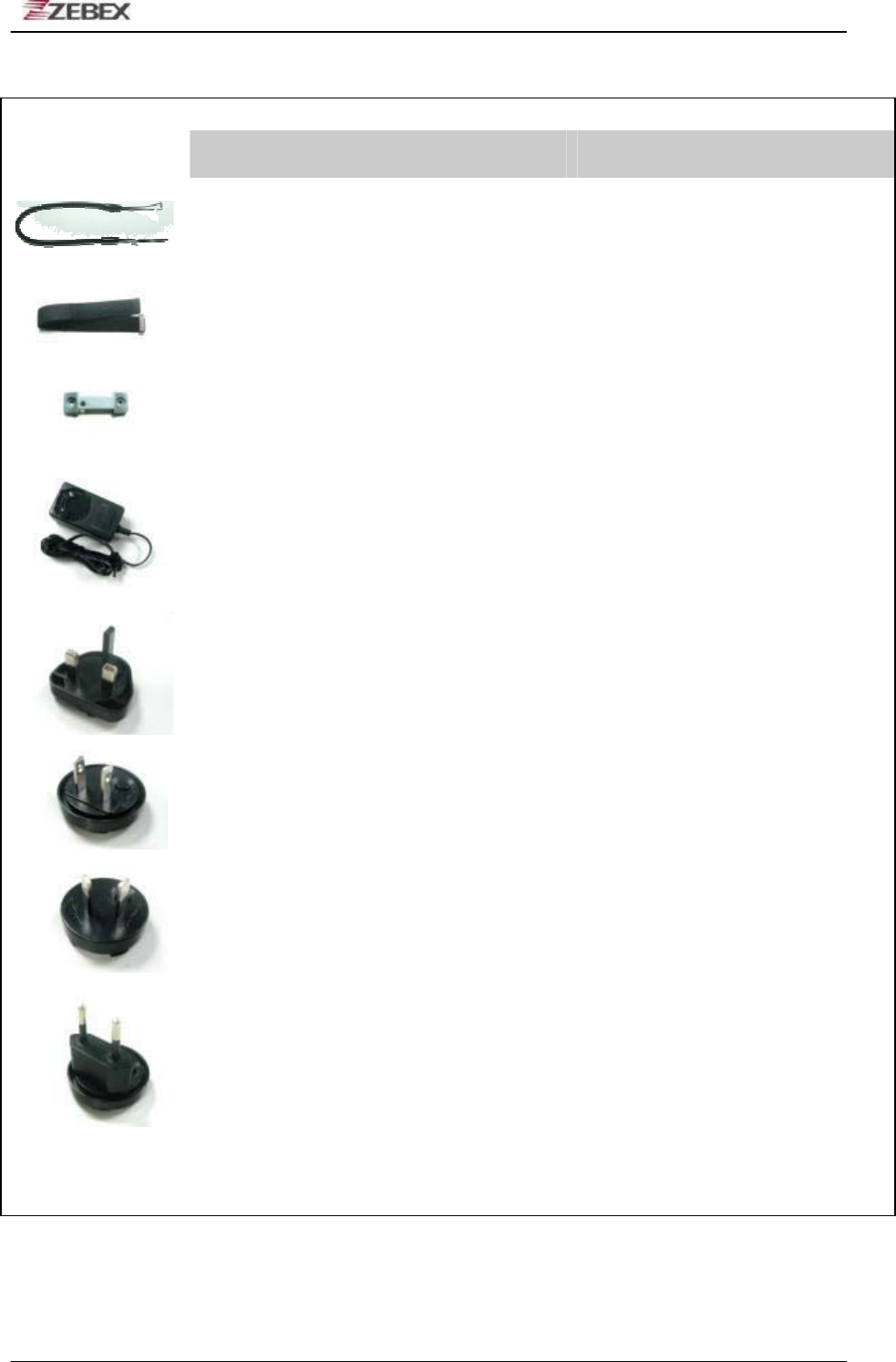

Part Number Model Name Description
623-220500-061 Sling Sling for stylus pen
623-220650-051 Hand Strip Z-2065 hand strip and stylus pen
holder
560-020650-891 Hand Strip Holder Z-2065 hand strip holder
862-206502-400 AC Adapter AC 100~240V 50/60HZ 0.6A, DC
9V/2A
11S-000000-008 Adapter Head Britain type head ,interchangeable
plug, for 11S-900180-008 AC adapter
11S-000001-008 Adapter Head U.S. type head ,interchangeable plug,
for 11S-900180-008 AC adapter
11S-000002-008 Adapter Head Australia type head ,interchangeable
plug, for 11S-900180-008 AC adapter
11S-000003-008 Adapter Head Europe type head ,interchangeable
plug, for 11S-900180-008 AC adapter
ZEBEX INDUSTRIES INC.
Subject Version Date Page
Z-2065 series User’s Manual 3.00 2010/3/19 69 / 69
<< MEMO >>
