Installation
Installation Procedure
Attaching the Ribbon Take-Up Spool

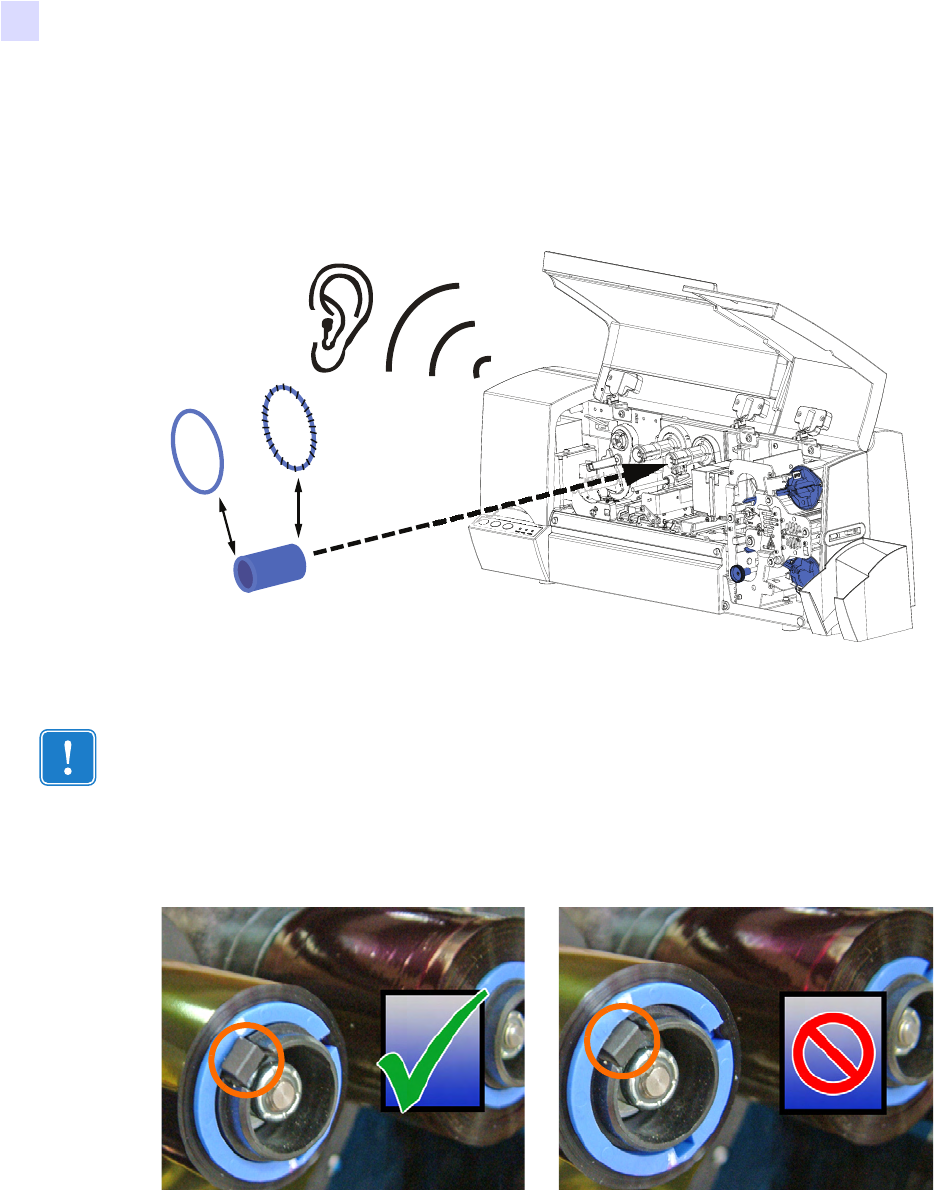

Step 1. Attach the Ribbon Take-Up Spool by sliding it onto the Ribbon Take-Up Spindle and
pressing it straight back until in clicks into place.
The two figures below show the right and wrong ways to insert the printing ribbon on
either spindle.
Important • Make sure that the Ribbon Take-Up Spool is attached with its “toothed” end
toward the rear of the printer.
Right way: the clip is OVER the core. Wrong way: the core is not pushed fully against
the back side, resulting in a Y border on the
printed cards.
Installation
Installation Procedure
980541-003 Rev. B Zebra P630i & P640i Card Printer User’s Manual 15
Installing the Ribbon
i Series Printers require the use of i Series ribbons for full color printing. These Resin Thermal
Transfer and Dye Sublimation ribbons are specifically designed for the i Series Printers.
Step 1. Open the printer Main Cover. The printhead will raise for easy ribbon loading.
Step 2. If present, remove the used Supply and Take-Up Spools.
Step 3. Remove the ribbon from its packaging. Remove the tape that holds the end of the
ribbon (save this tape; it will be used shortly).

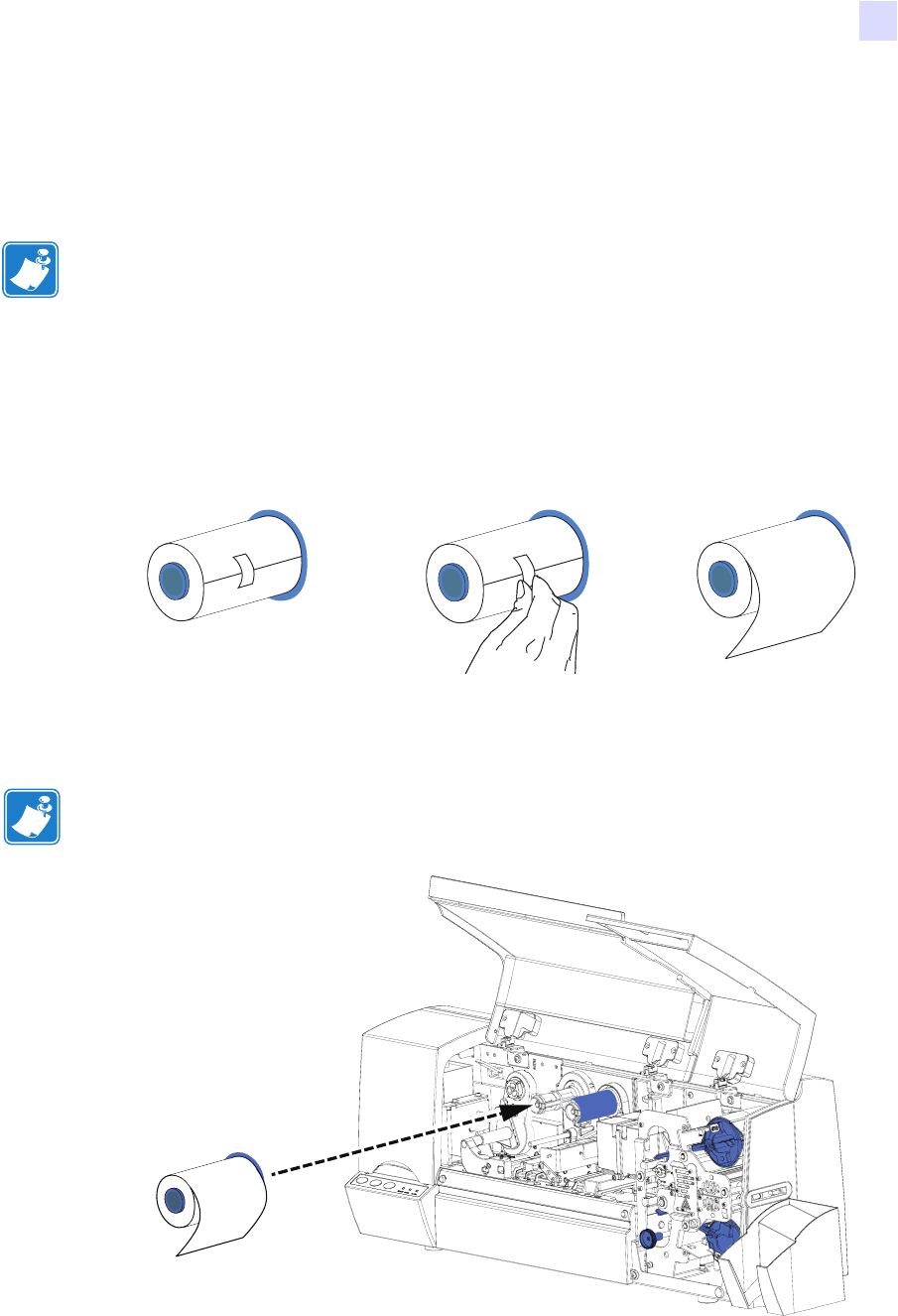

Step 4. Install the Ribbon on the left (supply) spindle, with the free end of the ribbon coming
from the roll pointing down to your right.
Note • In normal printer operation, when the ribbon is exhausted, a warning message appears
on the monitor and the MEDIA indicator on the printer lights.
Note • Note that the “flanged” end of the ribbon spool is toward the rear of the printer, and
make sure the internal grooves on the core engage the teeth on the supply spindle.
16 Zebra P630i & P640i Card Printer User’s Manual 980541-003 Rev. B
Installation
Installation Procedure

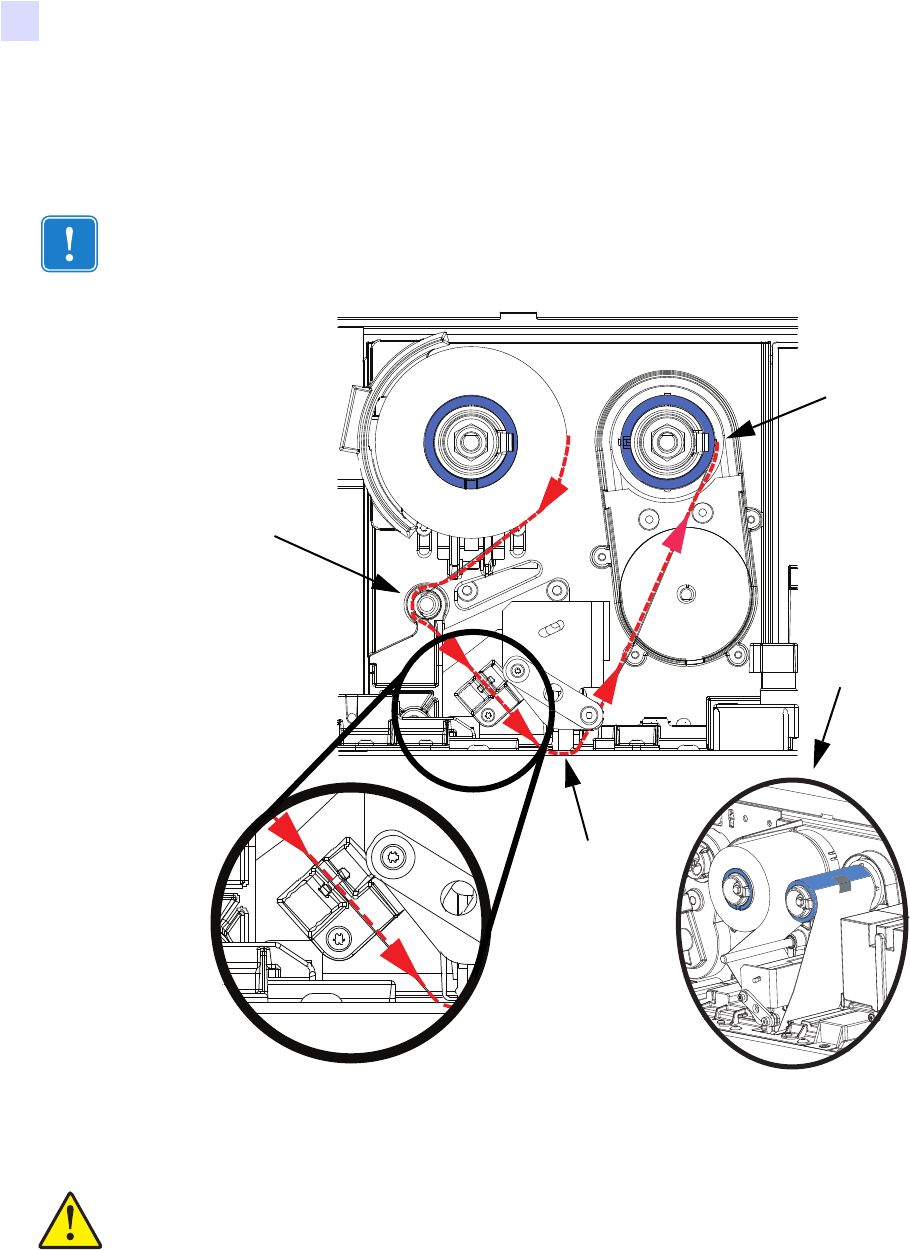

Step 5. Route the Ribbon as shown in the figure below. The Ribbon Supply Spindle is free-
wheeling; pull ribbon off it as needed. If the tape removed from the new ribbon in
step 3 is undamaged, use it to attach the end of the ribbon to the Take-Up Spool;
otherwise use other adhesive-backed tape.
Step 6. Close the printer Main Cover. Press the RIBBON button on the Control Panel to
synchronize the color ribbon. If the MEDIA light fails to go out, check the
Ribbon Sensor.
Step 7. Re-open the printer cover to inspect the ribbon path for wrinkles and folds. Correct if
necessary, then close the cover. If you do not then hear the ribbon motor advancing
the ribbon, press the RIBBON button.
Important • When the end of the ribbon is attached to the Take-Up Spool, slack in the ribbon
can be taken up by rotating the Ribbon Supply Spool; do not try to turn the Take-Up Spool.
1. Pass the
ribbon over
the round
guide bar
2. Ribbon goes
through the
Sensor
3. Ribbon goes
under the
Printhead
4. Run the
ribbon up
and to
the right,
around the
spool
Ensure the
ribbon is
centered
on the
spool
Attach the
ribbon with
tape
Caution • Color ribbon wrinkling and “fold-over” can seriously affect print quality
Installation
Installation Procedure
980541-003 Rev. B Zebra P630i & P640i Card Printer User’s Manual 17
Installing the Cleaning Cassette
Before being printed, each surface of the card is cleaned by a soft tacky roller that is itself
cleaned periodically by adhesive tape in the Cleaning Cassette. By default, the roller is cleaned
every 10 cards. The printer driver software allows the card count to be modified.
By cleaning the roller every 10 cards, the Cleaning Cassette contains sufficient tape
for 3,000 cards.
Step 1. Open the main cover of the printer.
Step 2. If present, remove the used Cleaning Cassette.
Step 3. Remove the Cleaning Cassette from its packaging.
Step 4. Remove the protective foil from the Cleaning Cassette. Avoid touching the exposed
tacky surface.
Step 5. Install the Cleaning Cassette on the printer by locating the rectangular pin on the
cleaning mechanism in the receptacle on the cassette. Push the cassette gently home,
ensuring that the internal grooves on the upper spool engage the teeth on the take-up
drive; you will hear a click when it is fully engaged. Note that you may need to move
the take up side of the cleaning tape assembly to allow for full engagement.
18 Zebra P630i & P640i Card Printer User’s Manual 980541-003 Rev. B
Installation
Installation Procedure
Loading the Laminate
The Laminate (laminating film) is loaded into cassettes to protect it from dirt or other
contaminants.
See the figure below. The “Upper Laminate Cassette”, used on both the P630i and P640i
Printers, has a label with the word “UPPER” and another “label” of a red dot. The “Lower
Laminate Cassette”, used only on the P640i Printer, has a label with the word “LOWER” and
another “label” of a yellow dot.
Note • In this description of loading laminate, references to the lower Laminate Cassette
apply only to the P640i Printer. The P640i Printer can apply laminate to both surfaces of the
card; the P630i Printer only to the upper surface.
“Lower
Laminate
Cassette”
(P640i only)
“Upper
Laminate
Cassette”
(P630i and
P640i)
Installation
Installation Procedure
980541-003 Rev. B Zebra P630i & P640i Card Printer User’s Manual 19
Removing the Laminate Cassette(s)
Step 1. The Laminate Cassette(s) (Upper only for the P630i Printer; Upper and Lower for the
P640i) are held in position by latch plates. The Upper Cassette is freed by turning its
Latch Plate counter-clockwise to a full vertical position; the Lower Cassette (only
present on the P640i Printer) is freed by turning its Latch Plate clockwise. Then pull
the cassette straight out from its holder.

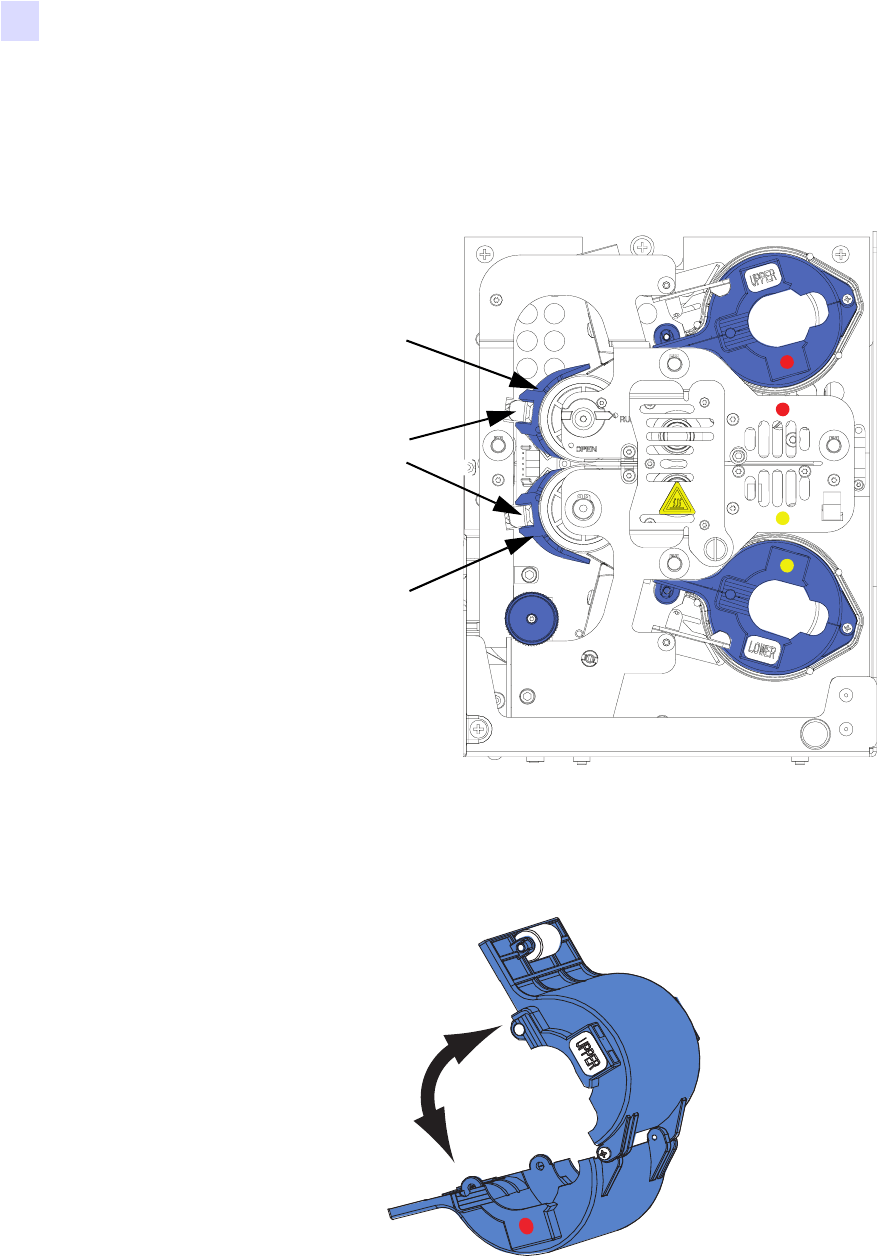

Lower Laminate
Cassette Latch Plate
(P640i only)
Upper Laminate
Cassette Latch Plate
(P630i and P640i)
Heater
Cores
area
Hot Surface • If the printer has been in use, the Heater Cores area of the Laminator
may be hot.
Important • If either Latch Plate is opened, even unintentionally, the corresponding Cassette
must be removed and the Laminate reeled in.
Caution • If you feel resistance when removing the cassette, the laminate has likely run
out, leaving one end attached to the core and the other end under the cutter. Keep
tugging on the cassette, which will come free with a short tail of laminate.
20 Zebra P630i & P640i Card Printer User’s Manual 980541-003 Rev. B
Installation
Installation Procedure
Step 2. If there is a suspicion a patch is blocked somewhere, temporarily remove the
corresponding Transfer Guide to be sure there are no scraps of laminate remaining. If
there are any, remove them. Then slide the Transfer Guide back in until it is held in
place by the Retaining Spring.
Step 3. Open the Cassette, like a clam shell, by separating its two halves. Grasp the two
halves firmly with your fingers, then pull it apart. Do NOT use tools. (Upper
Cassette shown.)
Step 4. If there is an empty laminate core in the Cassette, remove it.
1. Push and hold
the Retaining
Springs (A)
to the Left
2. Slide the
Transfer
Guides (B)
Straight Out
3. Release the
Retaining
Springs (A)
(A)
(A)
(B)
(B)
Installation
Installation Procedure
980541-003 Rev. B Zebra P630i & P640i Card Printer User’s Manual 21
Loading the Laminate Cassette(s)
Step 1. Remove the new roll of laminate from its packaging.
Step 2. Carefully following the guidelines in the following figure, place the laminate in
the Cassette.
.
Important • If you are using partial-width laminate in the Lower Cassette of a P640i Printer,
read the following section, Using Partial-Width Laminate, before proceeding with this
procedure. (Partial-width laminates are frequently used on the bottom surface of cards that
have a signature panel or a magnetic stripe.)
Important • The Upper and Lower Laminate Cassettes (the lower one only used on the P640i
Printer; the upper one used on both printers) are loaded differently, even though the Cassettes
appear virtually the same.
Note • Handle the laminate by the ends of the spools to avoid contaminating the laminate.

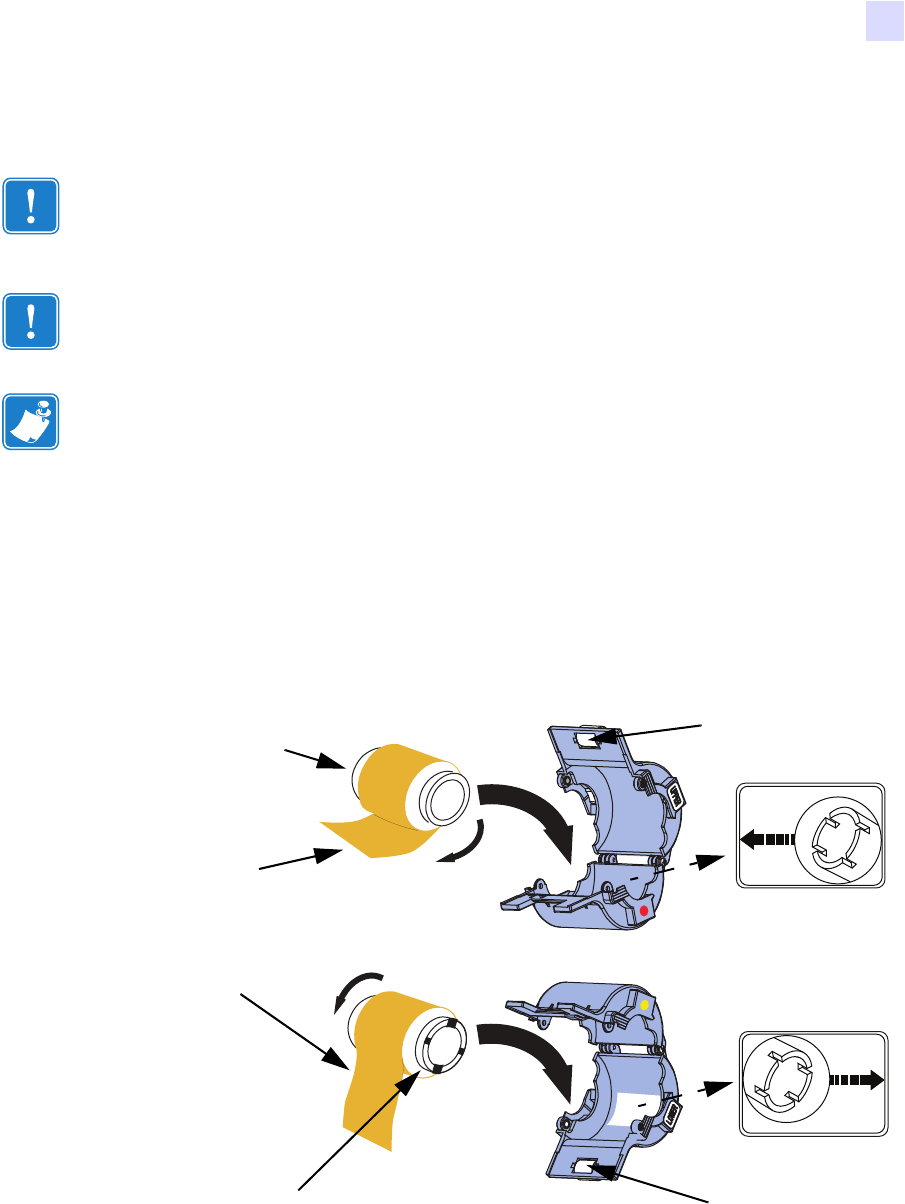

Upper Cassette
(Used on Both P630i and P640i)
White Roller Up
White Roller Down
Notched End of
Spool to Right
Notched End of
Spool to Left
Laminate Unrolls
Over Spool
Laminate Unrolls
Under Spool
Lower Cassette
(Used on P640i Only)
Labels inside
Cassettes
showing notch
orientation
22 Zebra P630i & P640i Card Printer User’s Manual 980541-003 Rev. B
Installation
Installation Procedure
Step 3. Pull out an inch or two of laminate past the lip of the cassette.
Step 4. Close the cassette by firmly pressing the “clamshell” together. You will hear a click
and feel a detent when the halves of the cassette seat together.
Step 5. Pull out a little more laminate between the lips of the cassette. If it suddenly stops,
resisting further pulling, a spring detent on the cassette has probably snagged a notch
on the end of the core. This means that the core was installed the wrong way. Open
the cassette and re-install the laminate.
Step 6. If the exposed end of the laminate is uneven or crinkled, cut it as square as you can
with scissors.

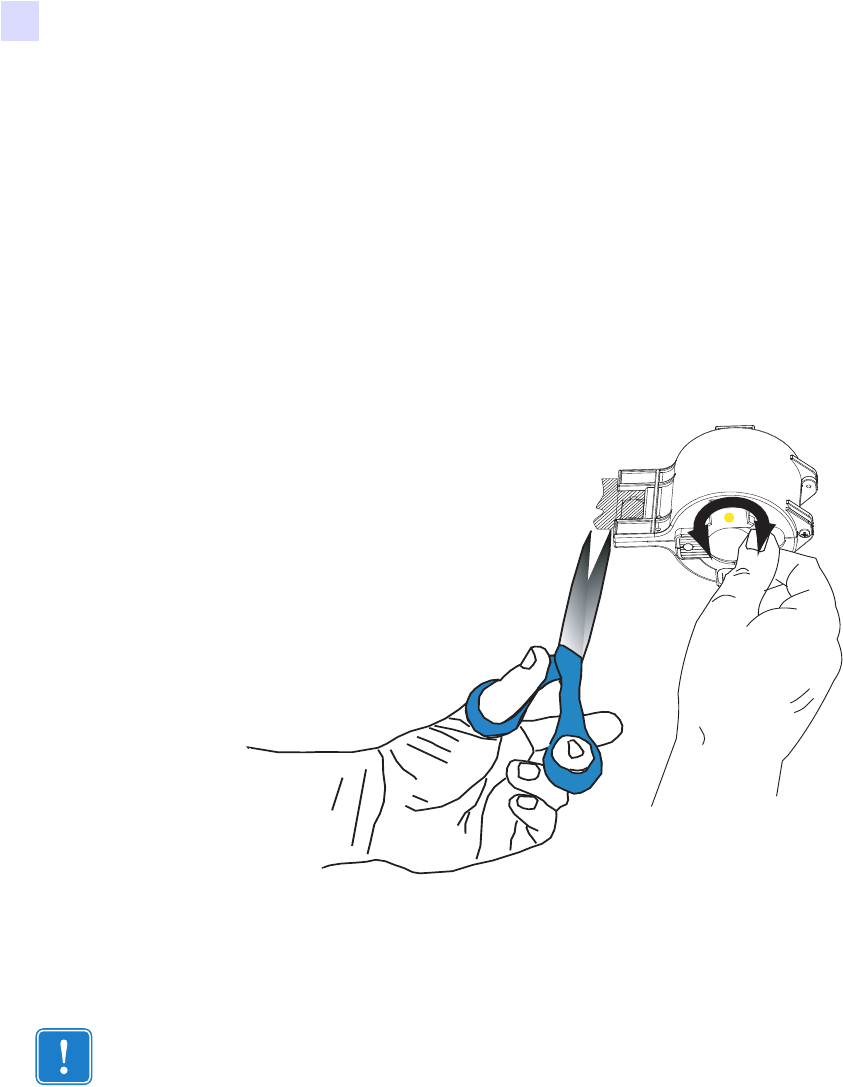

Step 7. Holding the cassette with the white roller up and pointing to your left, rotate the core
counter-clockwise to reel in the laminate. Stop when the end of the laminate is even
with the edge of the lips of the cassette.
Important • Check for overhang any time the cassette latch is opened or the cassette is
removed.
Installation
Installation Procedure
980541-003 Rev. B Zebra P630i & P640i Card Printer User’s Manual 23
Laminating Contact Smart Cards
The laminating patch on the top surface of a smart card has a rectangular aperture to expose
the card’s electrical contacts. In all other respects the laminating process for smart cards is the
same as for ordinary cards. Note that this procedure also applies to registered laminates.
The special laminate for the top cassette is punched with a repeated pattern. Loading
procedure for smart card laminate is exactly the same as for standard laminate.
The smaller hole is an index marker that tells the printer where to cut the laminate, exactly
splitting the index hole (the printer driver allows adjustment of the cut location).
After loading the Smart Card laminate in the upper cassette, trim the laminate along the cut
line as shown above.
Note • Check if the patch roll is centered on the core; if not, gently tap the roll on a flat
surface to re-center it.
INDEX
MARKER
CUT
LINE
Note • When using smart card or registered laminates, the laminate length value in the driver
may need to be adjusted; see Laminator Station Adjustments on page 72..
24 Zebra P630i & P640i Card Printer User’s Manual 980541-003 Rev. B
Installation
Installation Procedure
Using Partial-Width Laminate
Laminate come in three widths:
“Full-Width” laminate is 2 in (51 mm) wide. Full-width laminate is used on the front (i.e.,
upper) or back (i.e., lower) surface of the card.
“Partial-Width” laminate is available in two widths:
• 1.66 in (42mm) wide laminate is used for cards with a writable signature panel.
• 1.33 in (33 mm) wide laminate is used for cards with a magnetic stripe
If there is no signature panel or magnetic stripe on the back of the card, full-width laminate
would generally be used. These are shown in the following figure.
Step 1. Remove the Laminate Edge Guide from its “storage location” on the Laminator
Frame (it snaps out).
Note • Since partial-width laminates are only used for the back (i.e., lower) surface of the
card, this section only applies to the P640i Printer.
BACK OF CARD
BACK OF CARD
OF
OF
F
OF
FC
F C
2“
1.3”
1.66“
Laminate
Edge
Guide
