Zebra Technologies MD-TRCV-24GHZ Modular Transmitter User Manual 2400 wireless
Zebra Technologies Corporation Modular Transmitter 2400 wireless
Users manual
2400 Wireless
2.4 GHz Transceiver
Part Number: CC15380-1
Features
The Zebra 2400 Wireless is a 2.4 Ghz radio
designed for OEM applications that oper-
ate in the unlicensed FCC band between
2.4-2.5 Ghz. The 2400 Wireless can be
used for communications where physical
connection is not desired. The following
objectives can be achieved with the 2400
Wireless, (i) provides a limited range radio
(20-30 feet line of sight), (ii) minimizes parts
count and associated cost, (iii) acts as a
cable replacement when used together with
Zebra Wireless printers. When combined
with Zebra’s Intelligent Wireless Controller
(part number CQ13867-1), the 2400 Wire-
less can be attached to any RS232C port.
To minimize integration headaches, the 2400
Wireless has modular FCC approval, which means that no additional FCC
approval is required by the OEM providing an approved antenna is used.
Note: The modular approval for this radio only applies for battery powered equipment.
Installation of this radio into A.C. connected equipment requires additional regulatory
approval. Please contact Zebra Technologies Corporation for details.
Electrical
Input Voltage: Vcc = 5 Volts +,-10%
Power Dissipation: 250 mW (receive mode)
350mW (transmit mode)
<5 mW (sleep mode)
Current Consumption: 50 mA (receive mode)
70 mA (transmit mode)
<1 mA (sleep mode)
Operating Frequency: 2.482 GHz
Transmit Power Output: -10 dBm (typical)
Receiver Sensitivity: -85 dBm (typical)
Out of band interfering
signal rejection: 60 dB (typical)
Baud rate: user selectable
J1 Pin Assignments: Pin # Signal Name1Description
Pin 1 sleep/awake* 1 = sleep
Pin 2 Vcc
Pin 3 RXD Receive Data
Pin 4 TX/RX* 1 = transmit
Pin 5 No connect
Pin 6 TXD Transmit Data
Pin 7 GND
Pin 8 GND
J2 Pin Assignments: Pin # Signal Name1Description
(Optional) Pin 1 GND
Pin 2 GND
J3 Pin Assignments: Pin # Signal Name1Description
(Optional) Pin 1 GND
Pin 2 GND

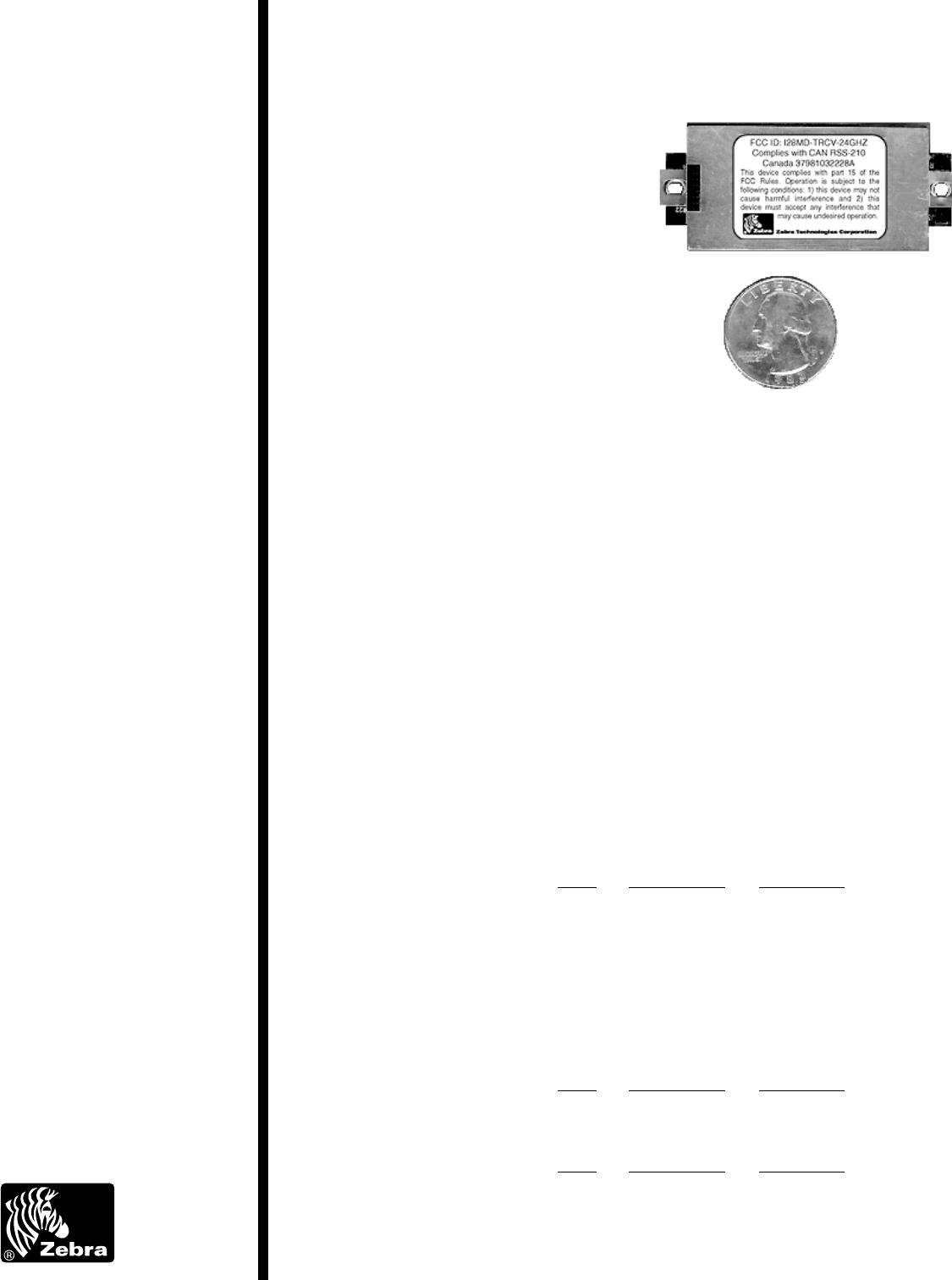

Actual Size
1. All signals are at CMOS levels
RF FILTER
TX SAW
MODULE
DATA
BUFFERS
RX SAW
MODULE
DATA
BUFFERS
CONTROL
LOGIC
TXD
RXD
SLEEP/
AWAKE*
TX/RX*
TX
MIX
RX
MIX
LOCAL
OSCILLATOR
0.000
0.235
0.312
0.540
0.845
0.768
1.080
0.194
2.189
1.364
2.357
2.447
0.000
0.070 0.250
0.062
0.080
J1
J2
J3
1
8
.125, 2 places
Antenna Connector
2.253
1
1
0.000
0.120
0.090

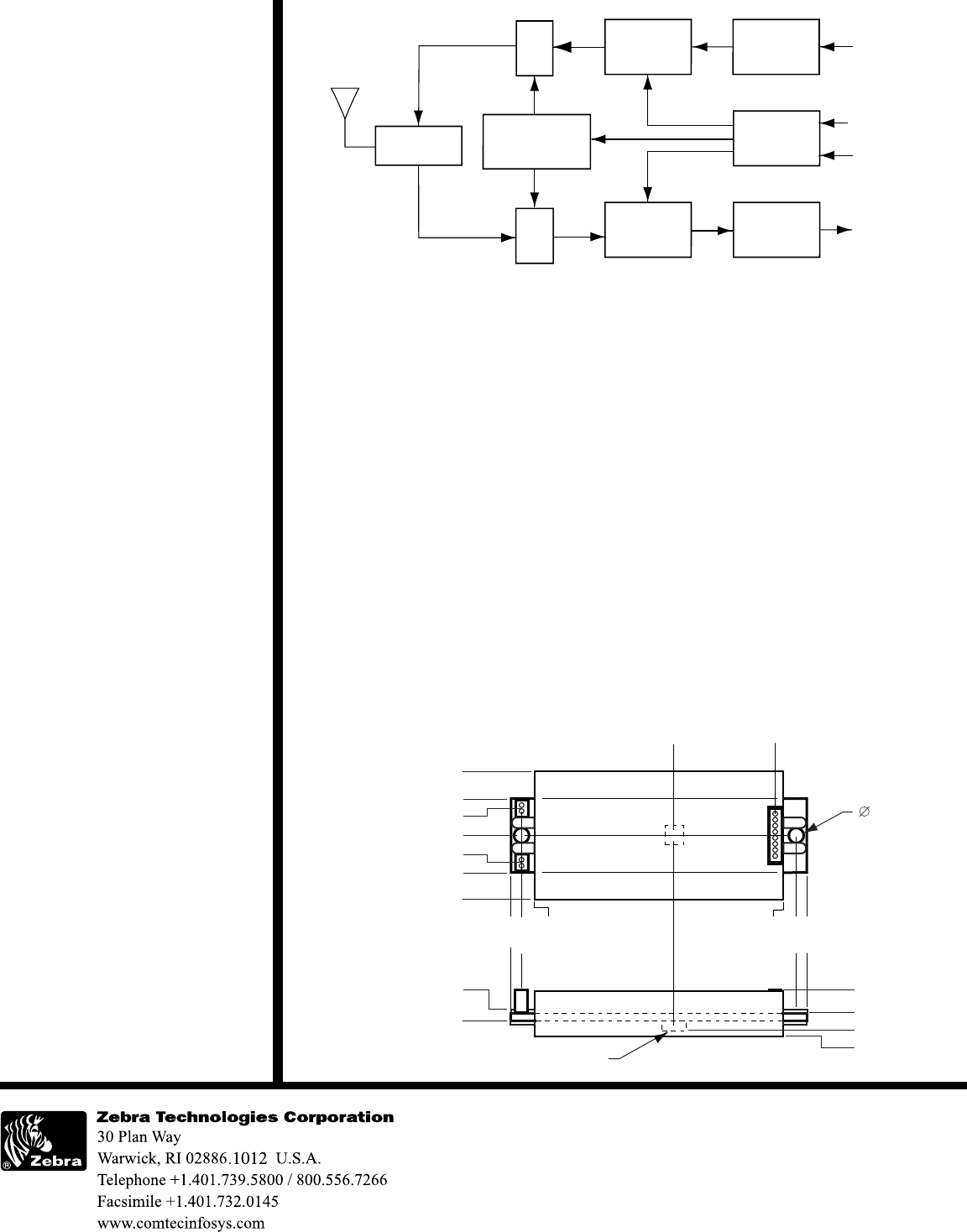

2400 Wireless
Block Diagram
Software When the Intelligent Wireless Controller (P/N CQ13967-1) is not used, Zebra can provide
C source code for a CS/CDMA collision avoidance communications protocol. This soft-
ware supports multiple radio pairs operating in proximity to each other, and implements
error detection, retries and radio address association. The radio address association
algorithm is based on radio or product serial number.
Regulatory Approvals: FCC Modular, ID Number: I28MD-TRCV-24GHZ
Canada: Canada RSS210 Certification # 37981032228A
Product Labelling Any final product that contains this radio must have a
Requirements permanently affixed label visible from the outside of the
product that says the following: “Contains FCC ID:
I28MD-TRCV-24GHz.”
Physical Connectors: Antenna - SSMT, M/A-COM part number 2367-5002-54
Data (J1) - 8 pin female, Samtec part number SLM-108-01-S-S
Optional ground connectors (J2, J3)- 2 pin female, Samtec part
number SLM-102-01-S-S
Connectors mate with Samtec MTMS family. Part number is dependent on
desired board spacing.
Dimensions:
©2000 Zebra Technologies Corporation all rights reserved.
Specifications for information purposes and are subject to change.
WARNING: Changes or modifications to this radio not expressly approved by Zebra Technologies
Corporation may void the user’s authority to operate the equipment under the modular approval with
FCC ID# I28MD-TRCV-24GHZ.
Likewise, the antenna used with this radio must be approved by Zebra for the modular approval to be
valid.
All products and brand names are trademarks of their respective companies.
P/N AT 15380 10/2000 Rev. 1.2
