Zebra Technologies MD-TRCV-9CMHZ Modular Low Power Radio Transceiver User Manual 916 Wireless
Zebra Technologies Corporation Modular Low Power Radio Transceiver 916 Wireless
Data Sheet
916 Wireless
916 MHz Transceiver
Part Number: CC15431-1
Features
The Comtec Wireless 916 is a 916
Mhz radio designed for OEM applica-
tions that operate in the unlicensed
FCC band between 902-928 Mhz. The
Wireless 916 can be used for commu-
nications where physical connection
Electrical
Input Voltage: Vcc = 5 Volts +,-10%
Power Dissipation: 50mW (receive mode)
50mW (transmit mode)
5 mW (sleep mode)
Current Consumption: 10 mA (receive mode)
10 mA (transmit mode)
1 mA (sleep mode)
Operating Frequency: 916.5 Mhz
Transmit Power Output: -5dBm (typical)
Receiver Sensitivity: -85 dBm (typical)
Out of band interfering
signal rejection: 60 dB (typical)
Baud rate: user selectable, up to 19,200 bps
J1 Pin Assignments: Pin # Signal Name2Description
Pin 1 sleep/awake* 1 = sleep
Pin 2 Vcc
Pin 3 RXD Receive Data
Pin 4 TX/RX* 1 = transmit
Pin 5 No connect
Pin 6 TXD Transmit Data
Pin 7 GND
Pin 8 GND
J2 Pin Assignments: Pin # Signal Name
(Optional) Pin 1 GND
Pin 2 GND
J3 Pin Assignments: Pin # Signal Name
(Optional) Pin 1 GND
Pin 2 GND
is not desired. The following objectives
can be achieved with the Wireless 916, (i) provides a
limited range radio (20-30 feet line of sight), (ii) mini-
mizes parts count and associated cost, (iii) acts as a
cable replacement when used together with Comtec
Wireless printers. When combined with Comtec’s In-
telligent Wireless Controller (part number CQ13967),
the Wireless 916 can be attached to any RS232C port.
To minimize integration headaches, the Wireless 916
has modular FCC approval, which means that no ad-
ditional FCC approval is required by the OEM1.

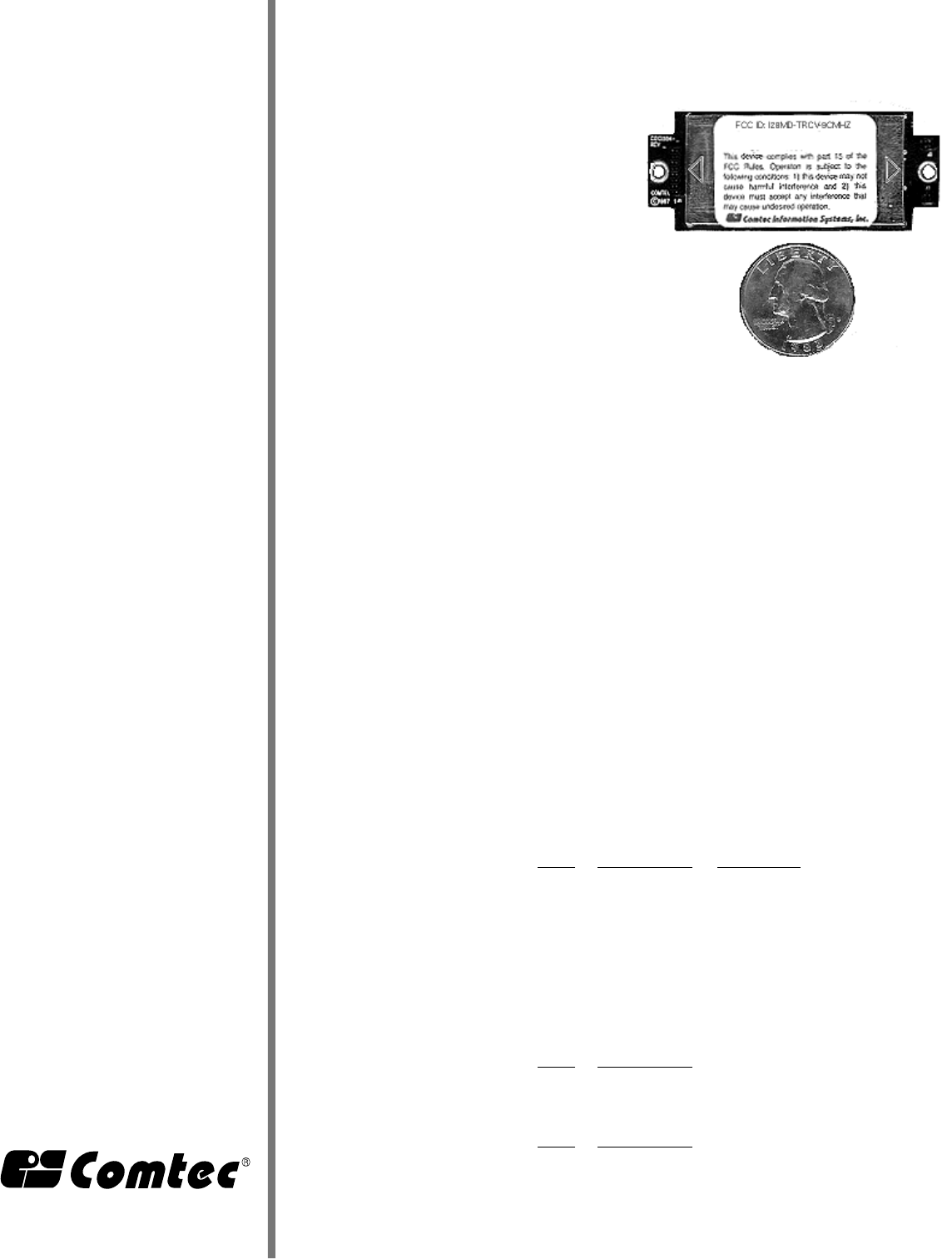

Actual Size

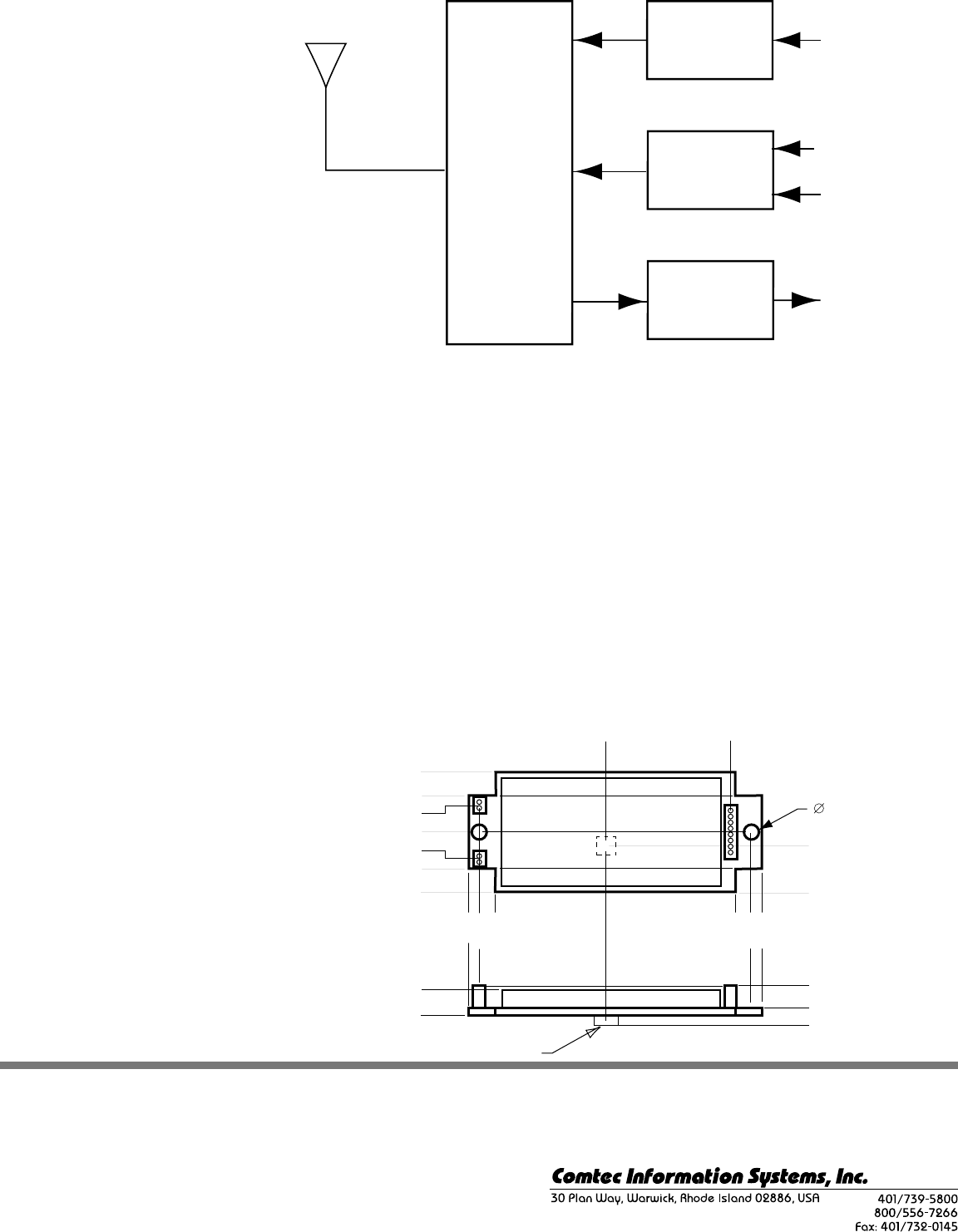

916 Wireless Block Diagram
(Part Number CC13626)
Software When the Intelligent Wireless Controller (P/N CQ13967) is not used, Comtec can provide C
source code for a CS/CDMA collision avoidance communications protocol. This software
supports multiple radio pairs operating in proximity to each other, and implements error
detection, retries and radio address association. The radio address association algorithm is
based on radio or product serial number.
Regulatory Approvals: FCC Modular, ID Number: I28MD-TRCV-9CMHZ
Canada T.B.D.
Physical Connectors: Antenna - SSMT, M/A-COM part number 2367-5002-54
Data - (J1) 8 pin female, Samtec part number SLM-108-01-S-S
Ground (J2 & J3)- 2 pin female, Samtec part number SLM-102-01-S-S
TX SECTION DATA
BUFFERS
DATA
BUFFERS
CONTROL
LOGIC
TXD
RXD
SLEEP/
AWAKE*
TX/RX*
RX SECTION
TRANSCIEVER
MODULE
0.000
0.000 0.000
0.396
0.196
0.275
0.500
0.804
0.725
1.000
0..090
0..224
2..223 2..189
1.160
2..357
2..447
0.000
0.210 0.250
0.062
0.080
J1
J2
J3
1
1
18
.125, 2 places
Antenna Connector
Connectors mate with Samtec MTMS family. Part number is dependent on desired board
spacing.
Dimensions:
©1996-2000 Comtec Information Systems, Inc. All rights reserved.
Specifications for information purposes and are subject to change.
All products and brand names are trademarks of their respective companies.
ComtecTM is a registered trademark of Comtec Information Systems, Inc.
4/00 Rev. 1.0.
1Comtec antenna or equivalent is used.
2All signals operate at CMOS levels.
