Host user manual
HC100™
Wristband Printer
User Guide
© 2008 ZIH Corp. The copyrights in this manual and the software and/or firmware in the printer described
therein are owned by ZIH Corp. Unauthorized reproduction of this manual or the software and/or firmware in the
printer may result in imprisonment of up to one year and fines of up to $10,000 (17 U.S.C.506). Copyright violators
may be subject to civil liability.
This product may contain ZPL®, ZPL II®, and ZebraLink™ programs; Element Energy Equalizer® Circuit; E3®; and
Monotype Imaging fonts. Software © ZIH Corp. All rights reserved worldwide.
ZebraLink and all product names and numbers are trademarks, and Zebra, the Zebra logo, ZPL, ZPL II, Element
Energy Equalizer Circuit, and E3 Circuit are registered trademarks of ZIH Corp. All rights reserved worldwide.
All other brand names, product names, or trademarks belong to their respective holders. For additional trademark
information, please see “Trademarks” on the product CD.
Proprietary Statement This manual contains proprietary information of Zebra Corporation and its subsidiaries
(“Zebra Technologies”). It is intended solely for the information and use of parties operating and maintaining the
equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other
parties for any other purpose without the express, written permission of Zebra Technologies Corporation.
Product Improvements Continuous improvement of products is a policy of Zebra Technologies Corporation.
All specifications and designs are subject to change without notice.
Liability Disclaimer Zebra Technologies Corporation takes steps to ensure that its published Engineering
specifications and manuals are correct; however, errors do occur. Zebra Technologies Corporation reserves the right
to correct any such errors and disclaims liability resulting therefrom.
Limitation of Liability In no event shall Zebra Technologies Corporation or anyone else involved in the creation,
production, or delivery of the accompanying product (including hardware and software) be liable for any damages
whatsoever (including, without limitation, consequential damages including loss of business profits, business
interruption, or loss of business information) arising out of the use of, the results of use of, or inability to use such
product, even if Zebra Technologies Corporation has been advised of the possibility of such damages. Some
jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation
or exclusion may not apply to you.
Part Number: 61207L-001 Rev. A
3
Compliance Information
4/23/08 HC100 User Guide 61207L-001 Rev. A
Declaration of Conformity
I have determined that the Zebra printers identified as the
HC100™
manufactured by:
Zebra Technologies Corporation
333 Corporate Woods Parkway
Vernon Hills, Illinois 60061-3109 U.S.A.
Have been shown to comply with the applicable technical standards of the FCC
For Home, Office, Commercial, and Industrial use
If no unauthorized change is made in the equipment,
and if the equipment is properly maintained and operated.
Compliance Information
FCC Compliance Statement
4
61207L-001 Rev. A HC100 User Guide 4/23/08
FCC Compliance Statement
This device complies with Part 15 rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
The user is cautioned that any changes or modifications not expressly approved by Zebra
Technologies Corporation could void the user’s authority to operate the equipment. To ensure
compliance, this printer must be used with Shielded Communication Cables.
FCC Radiation Exposure Statement
(for printers with internal radio devices)
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
FCC Rules and Regulations for Data Cables
Zebra printers comply with FCC Rules and Regulations, Part 15 for Class B Equipment using
fully shielded, 6.5 ft. (2 m) data cables. Use of unshielded cables may increase radiation above
the Class B limits.
Canadian DOC Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
4/23/08 HC100 User Guide 61207L-001 Rev. A
Contents
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
FCC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
FCC Radiation Exposure Statement
(for printers with internal radio devices) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
FCC Rules and Regulations for Data Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Canadian DOC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
About This Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Who Should Use This Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
How This Document Is Organized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Web Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
The Americas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Europe, Africa, Middle East, and India . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Asia Pacific . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

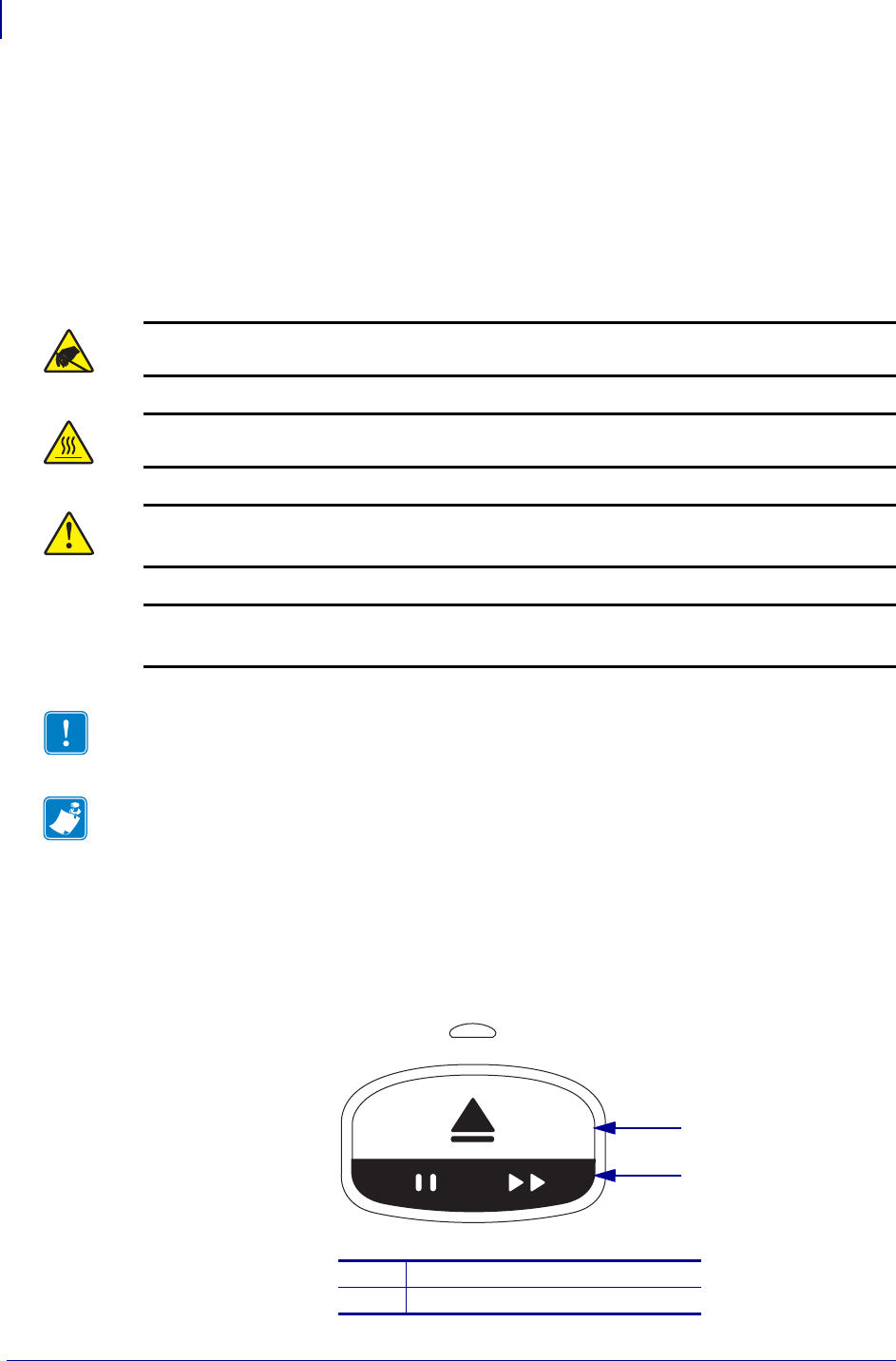

Document Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1 • Introduction to the HC100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

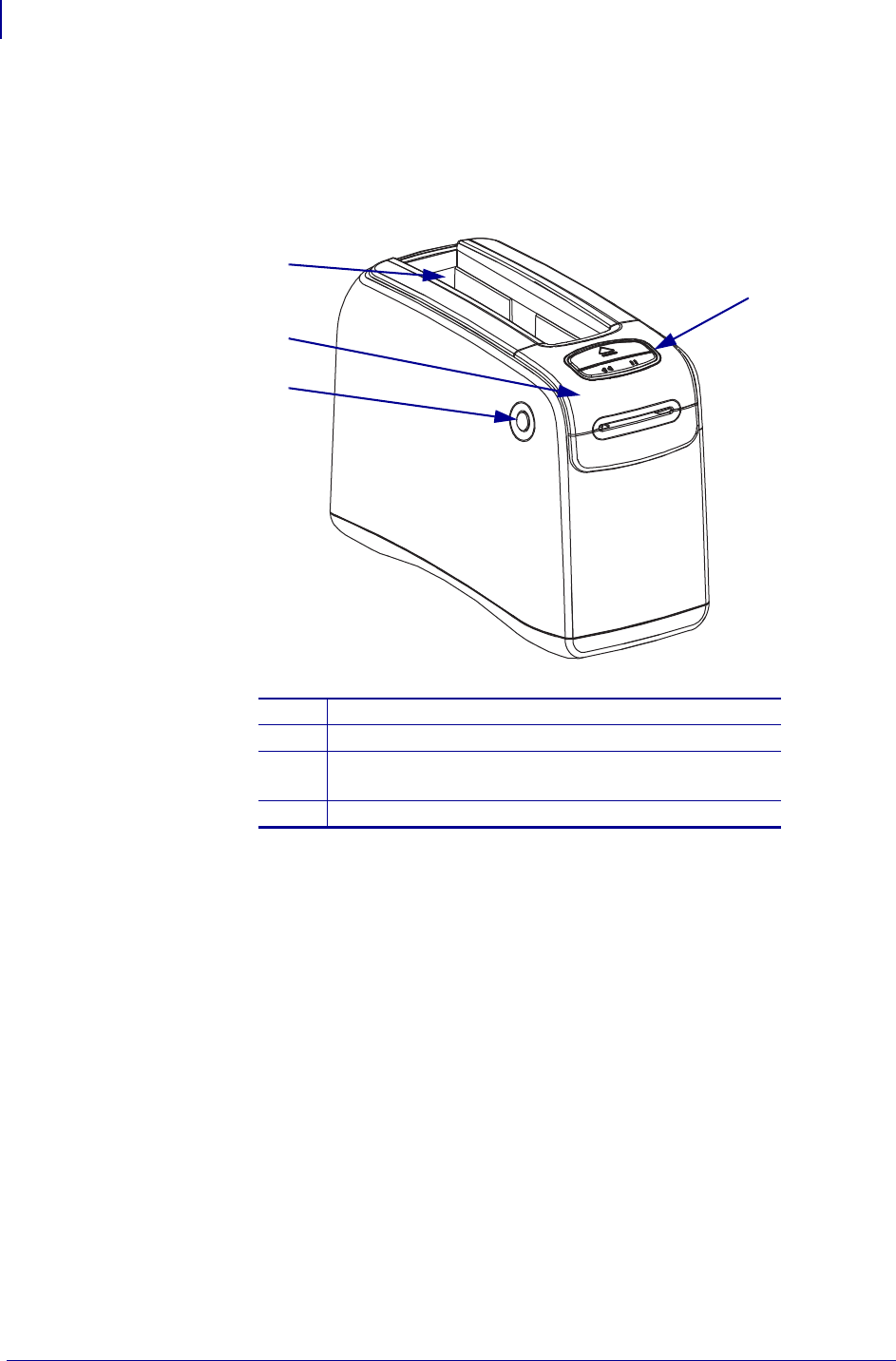

Front of Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

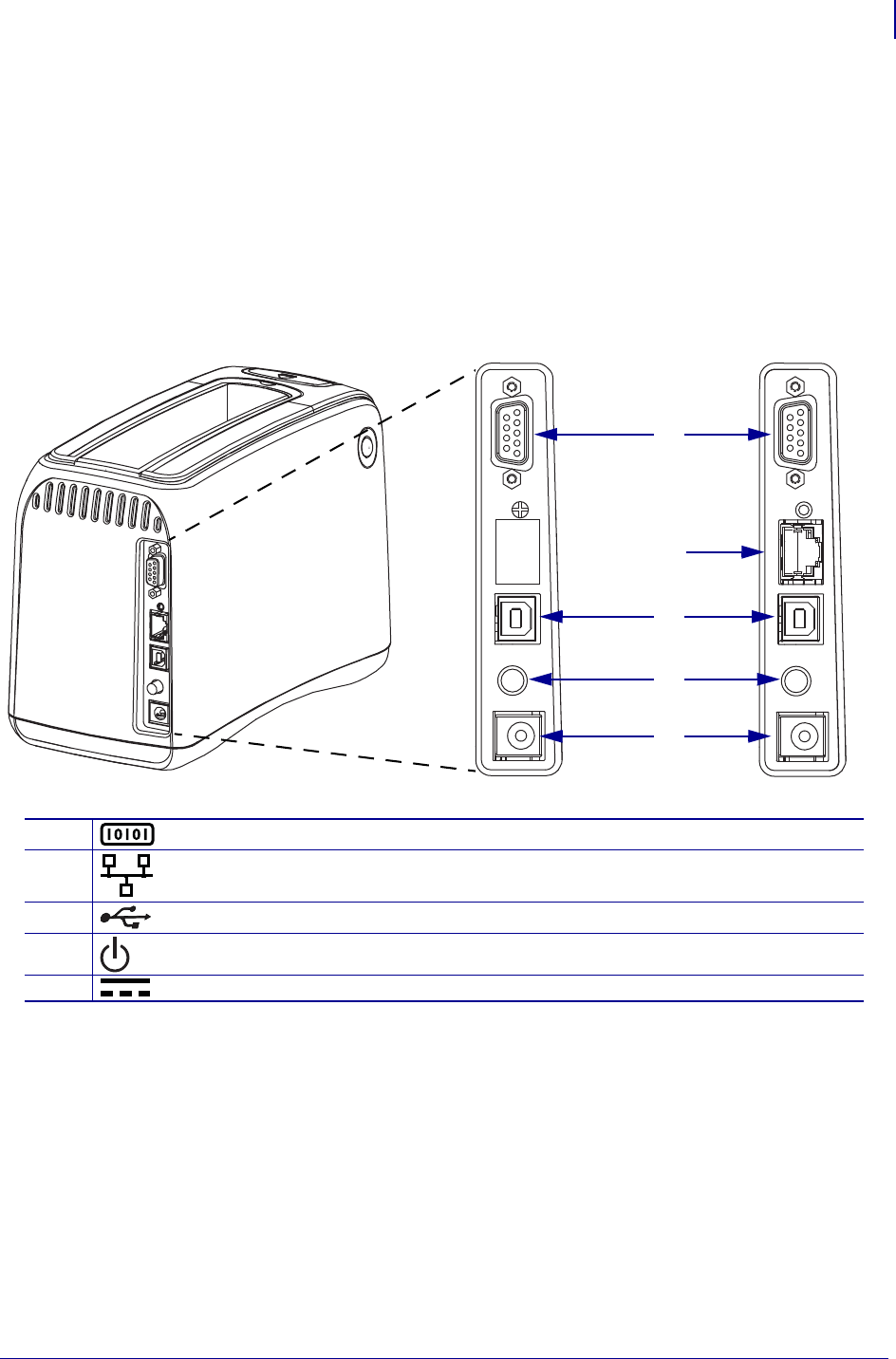

Rear of Printer and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

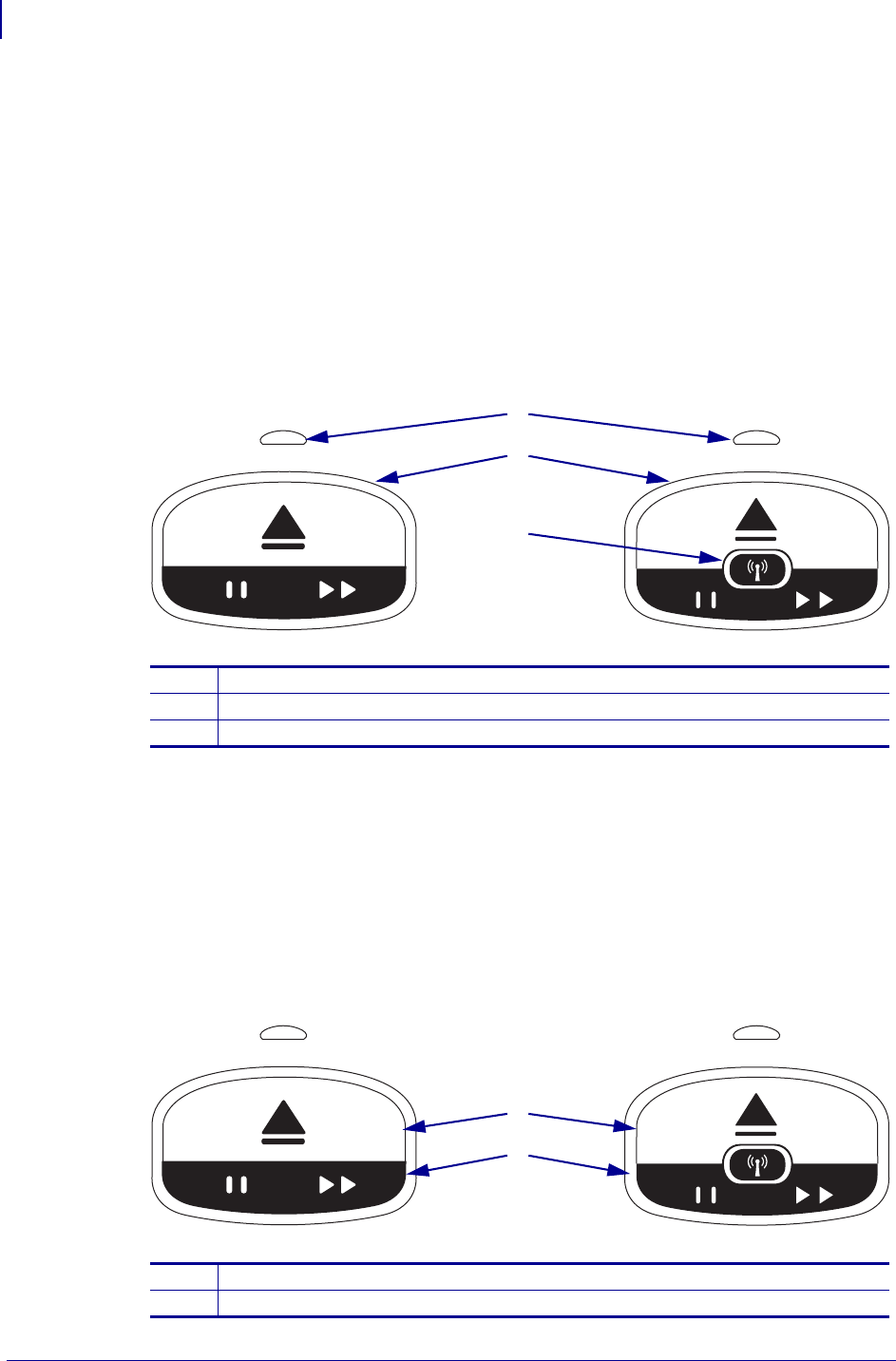

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Control Panel Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Control Panel Buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Contents
6
61207L-001 Rev. A HC100 User Guide 4/23/08
Media Cartridges and Wristbands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

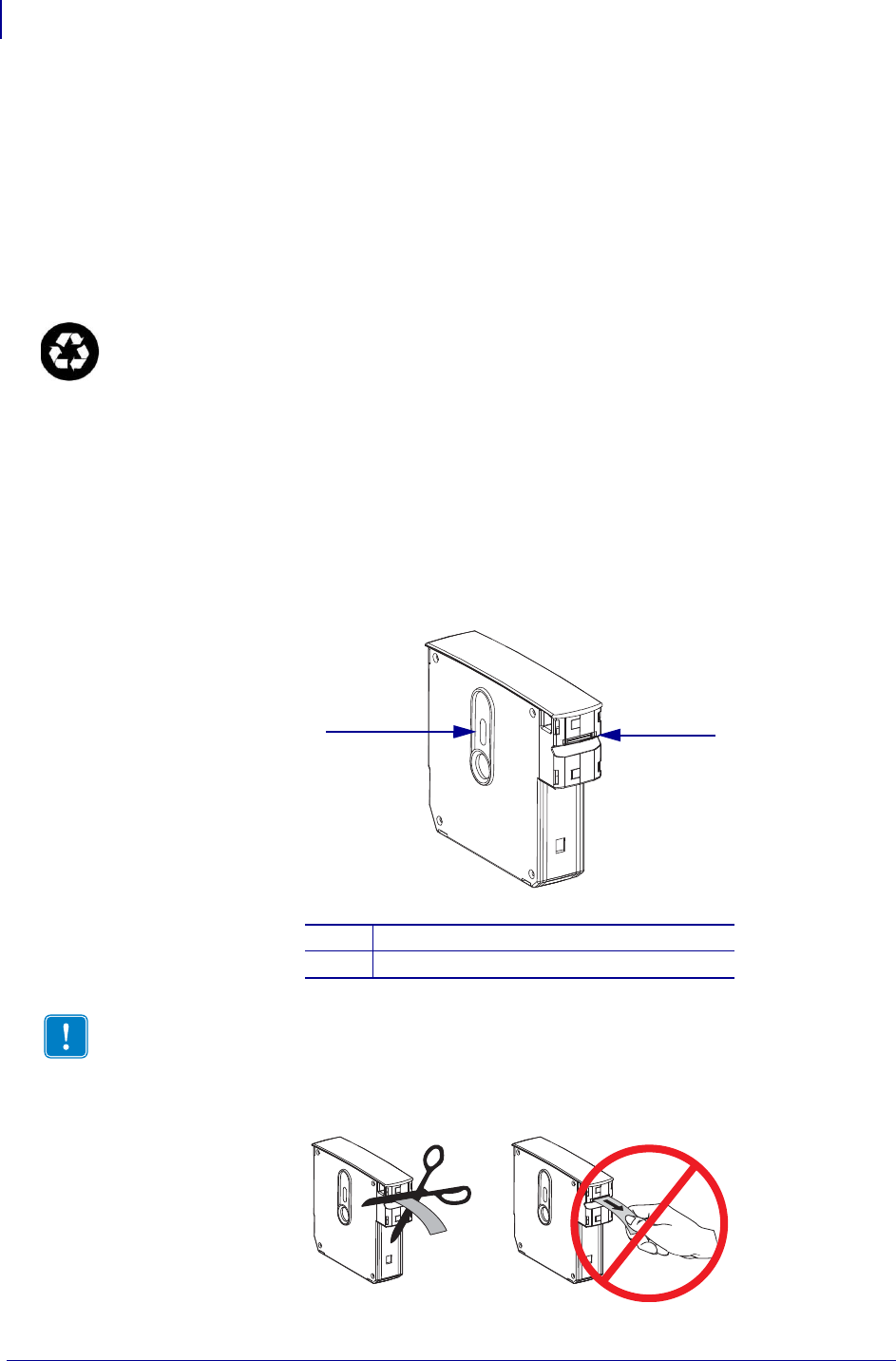

Media Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Wristband Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Wristband Colors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

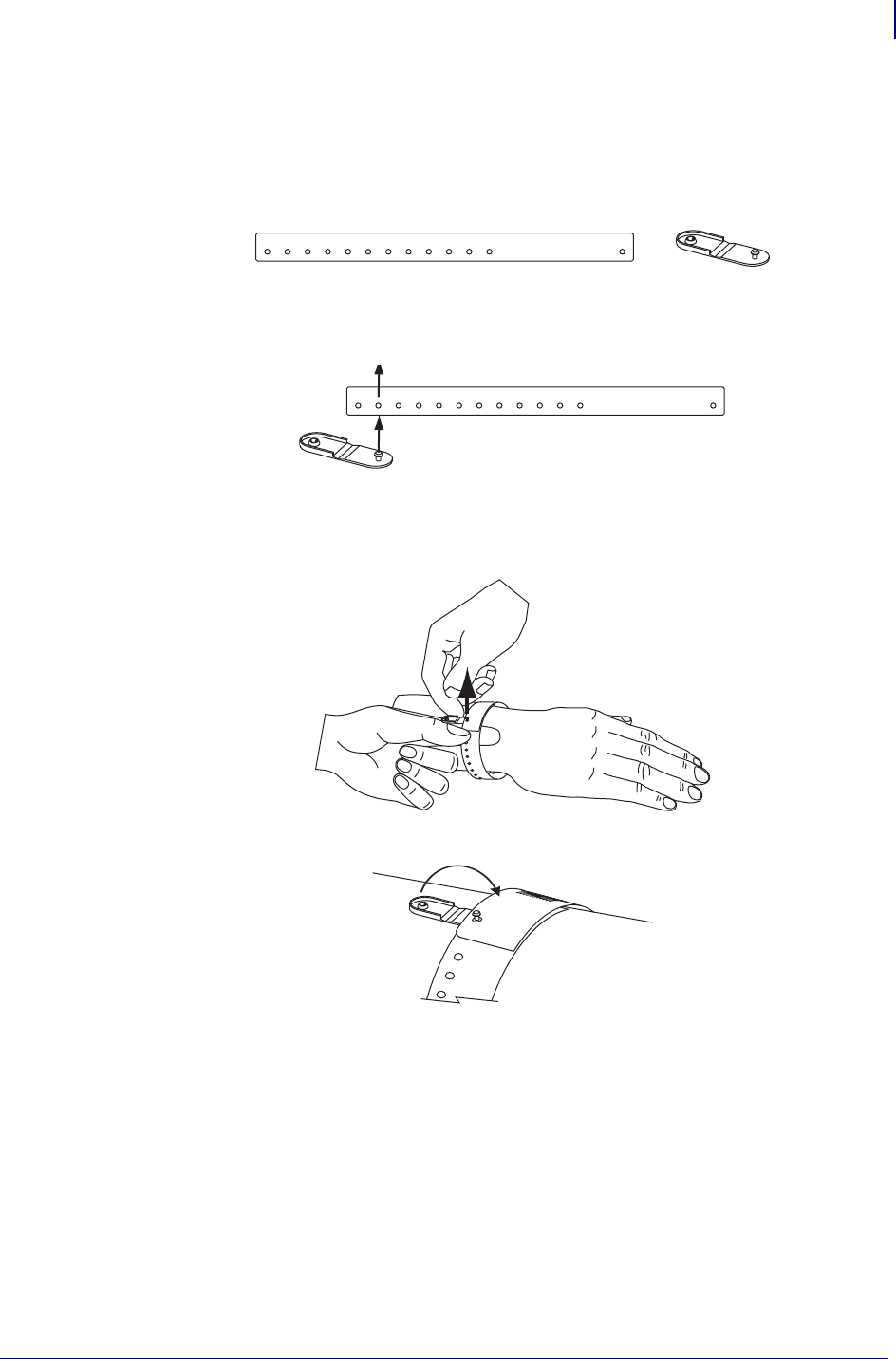

Wristband Closure Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

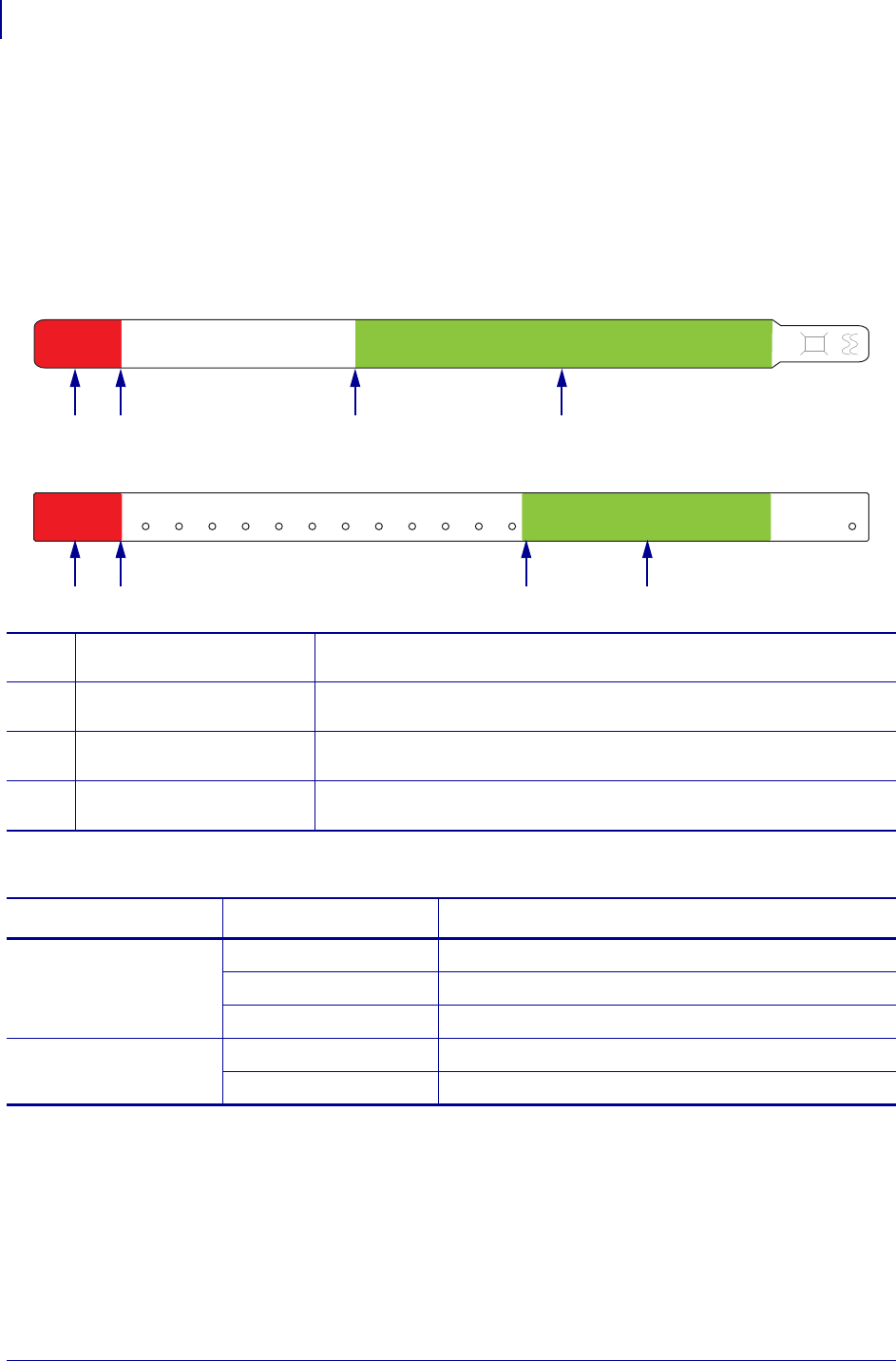

Wristband Print Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2 • Printer Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Handling the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Unpack and Inspect the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Store the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Ship the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Preparing the Printer for Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Site Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

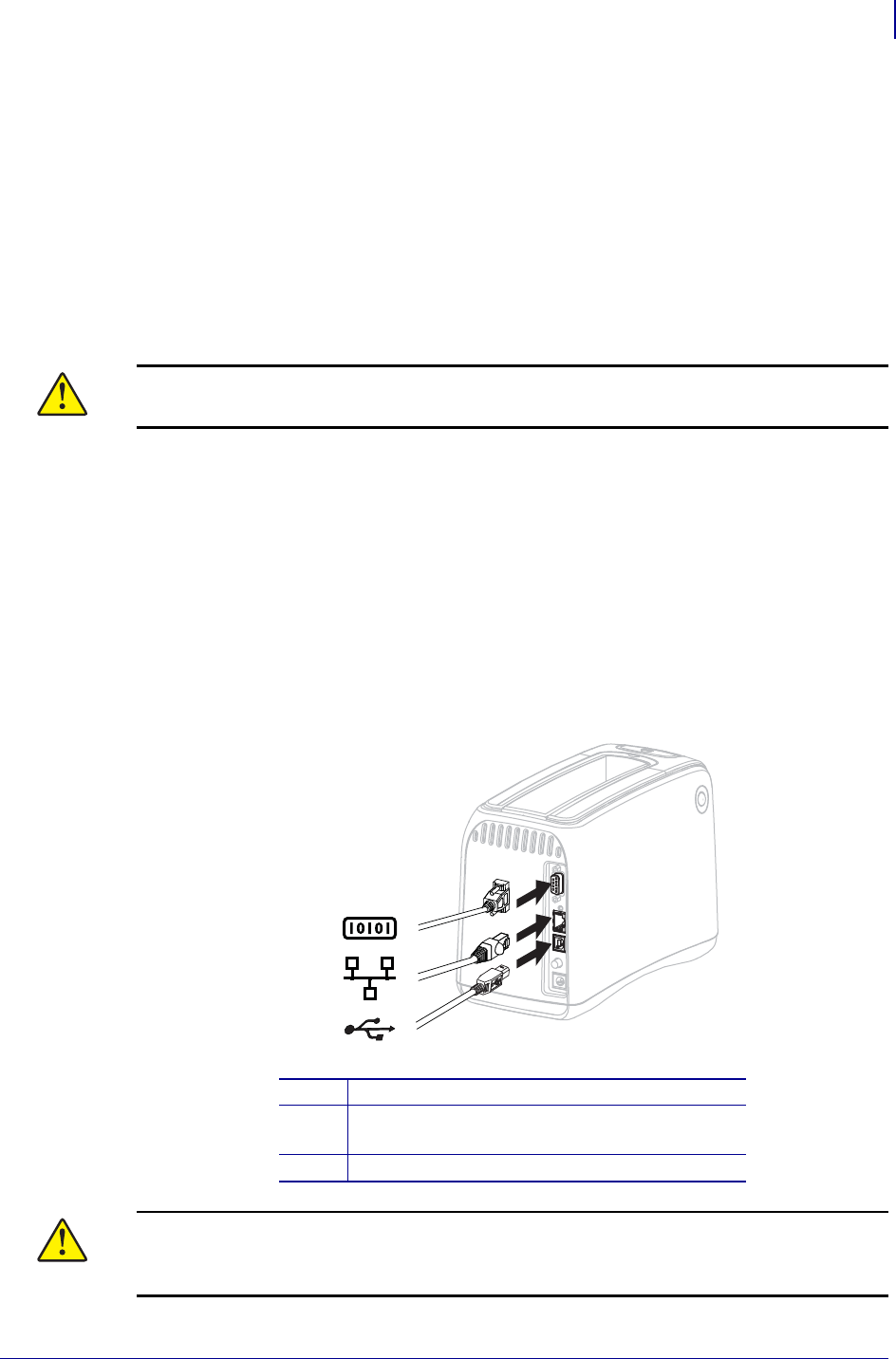

Connect to Data Communication Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

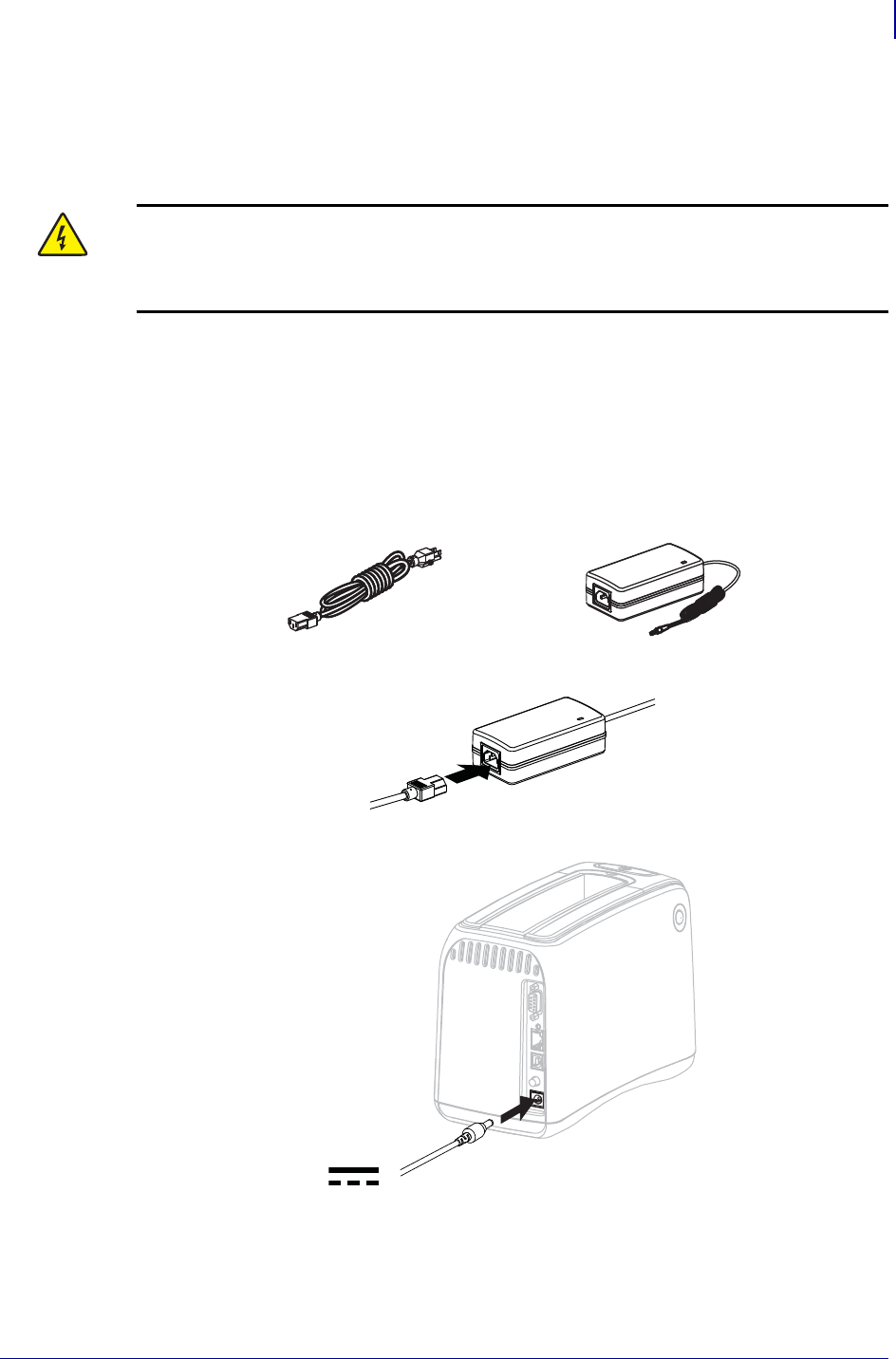

Connect to Power Source and Turn on Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

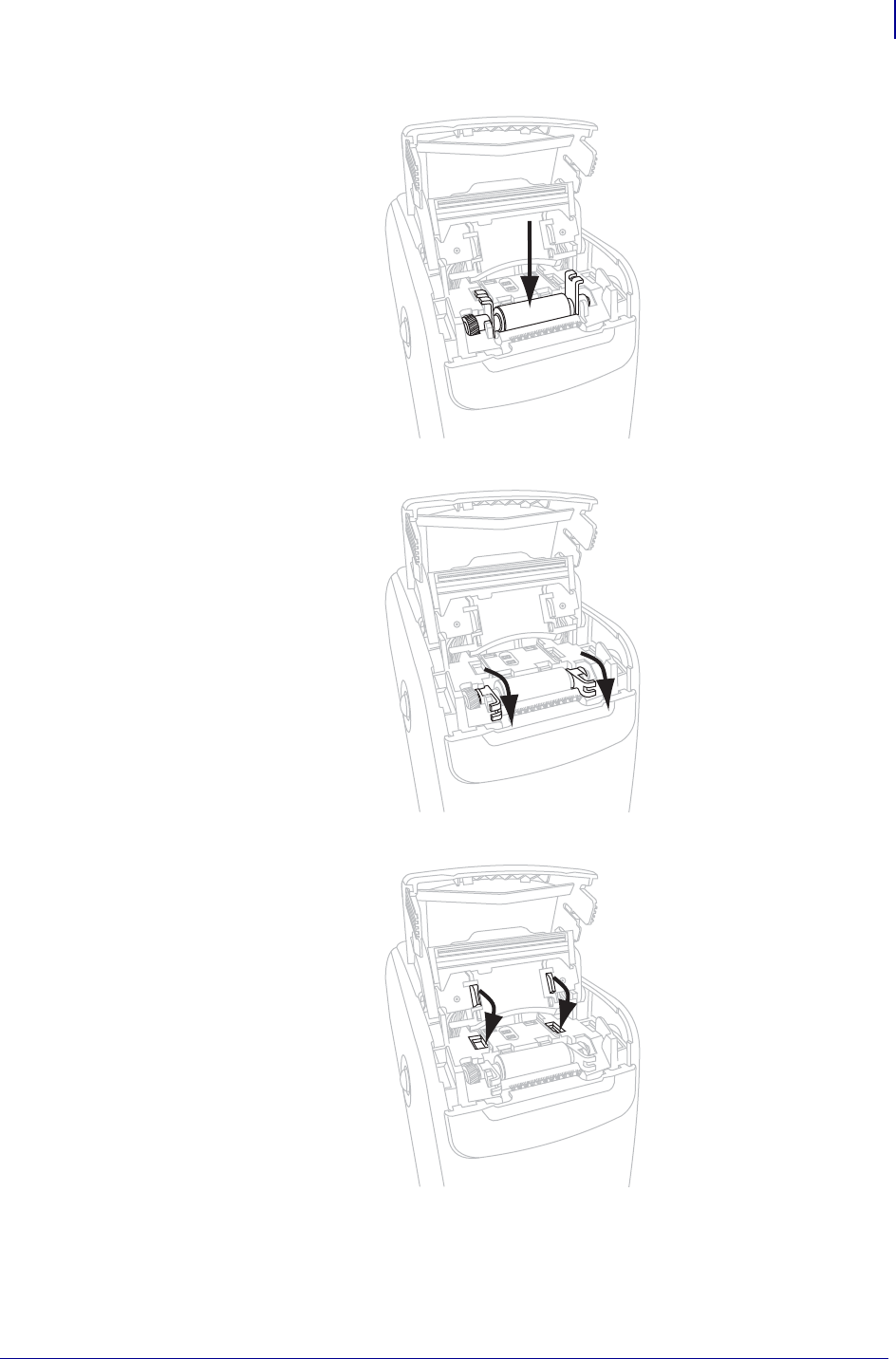

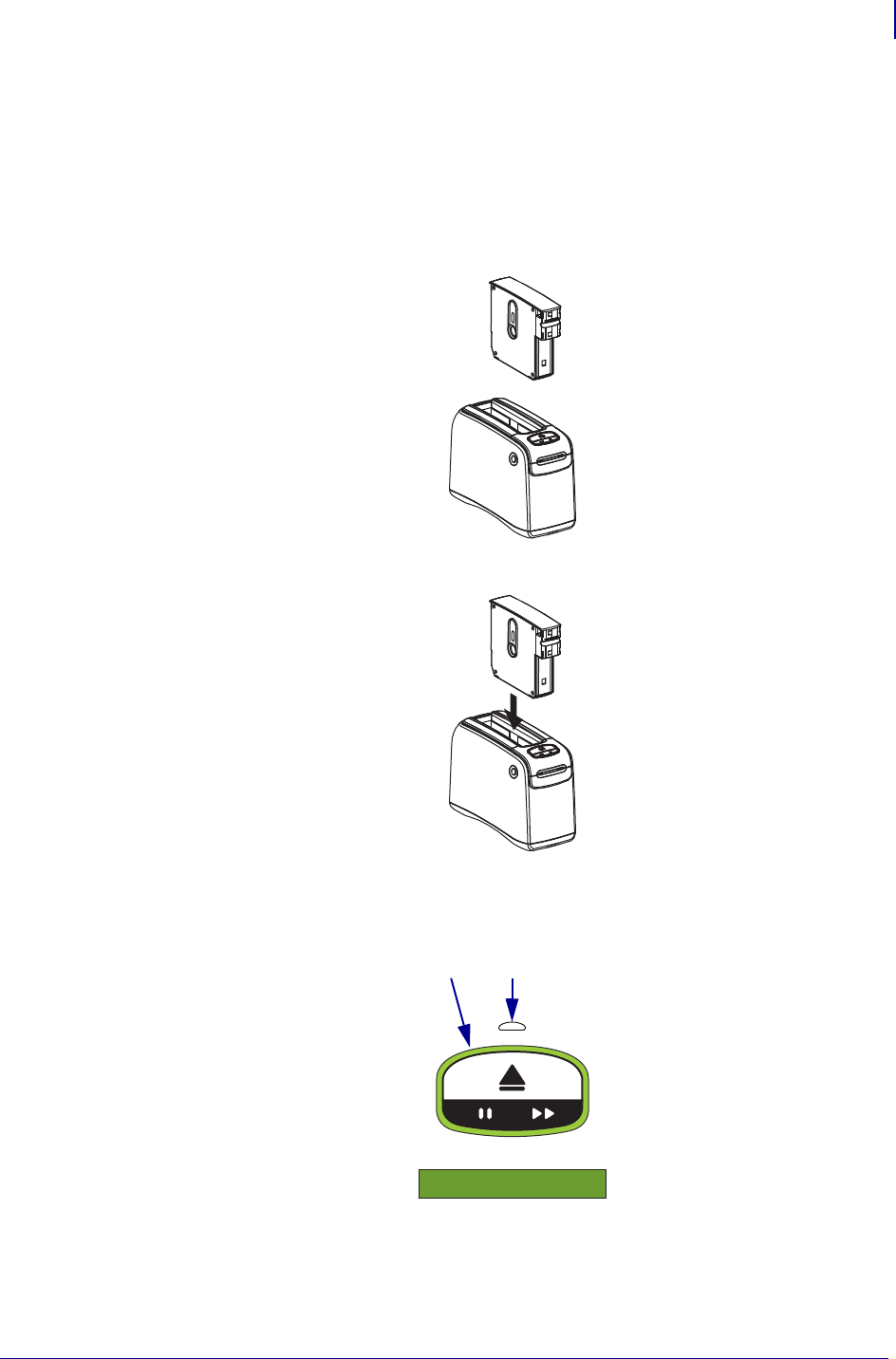

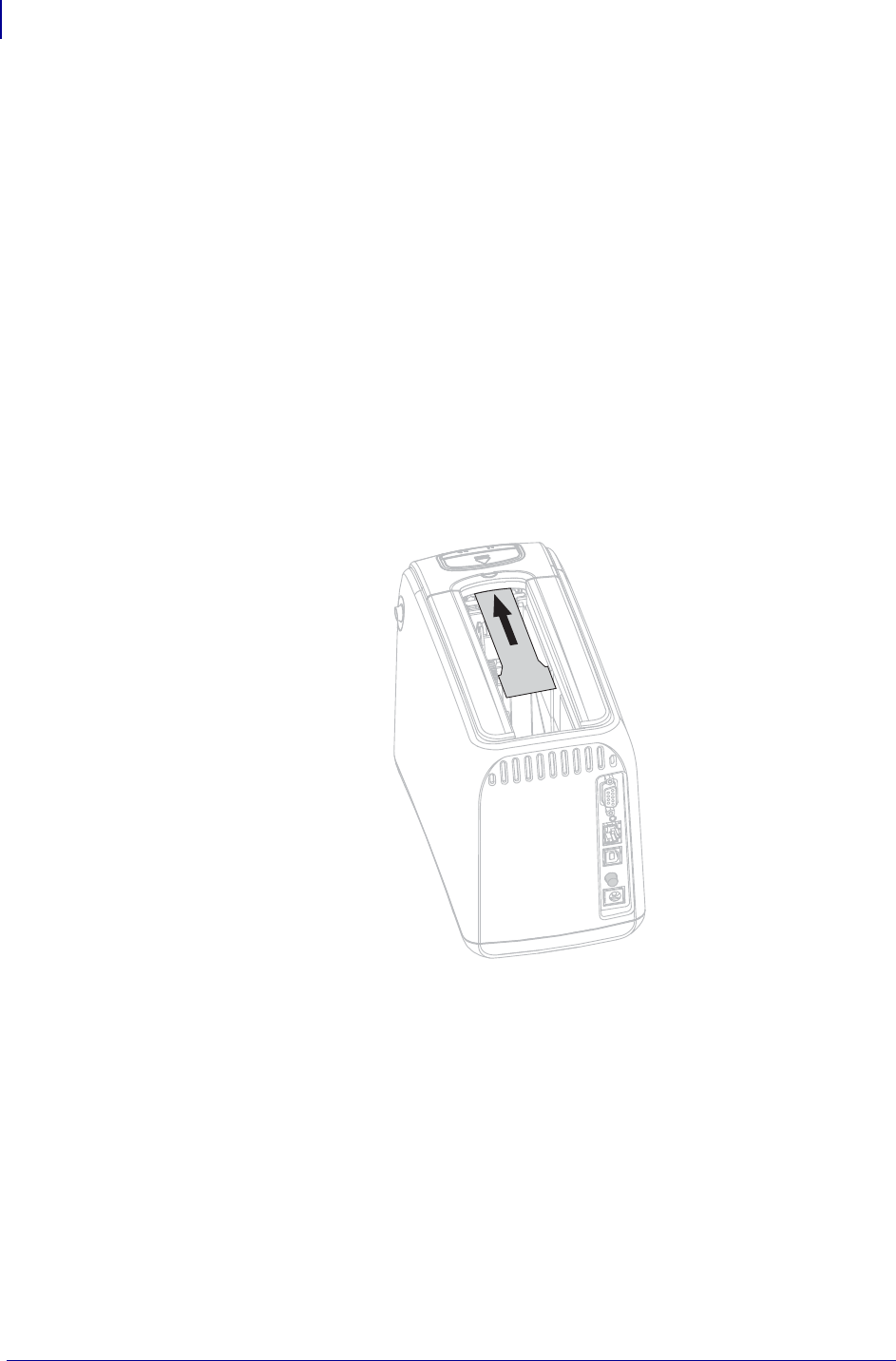

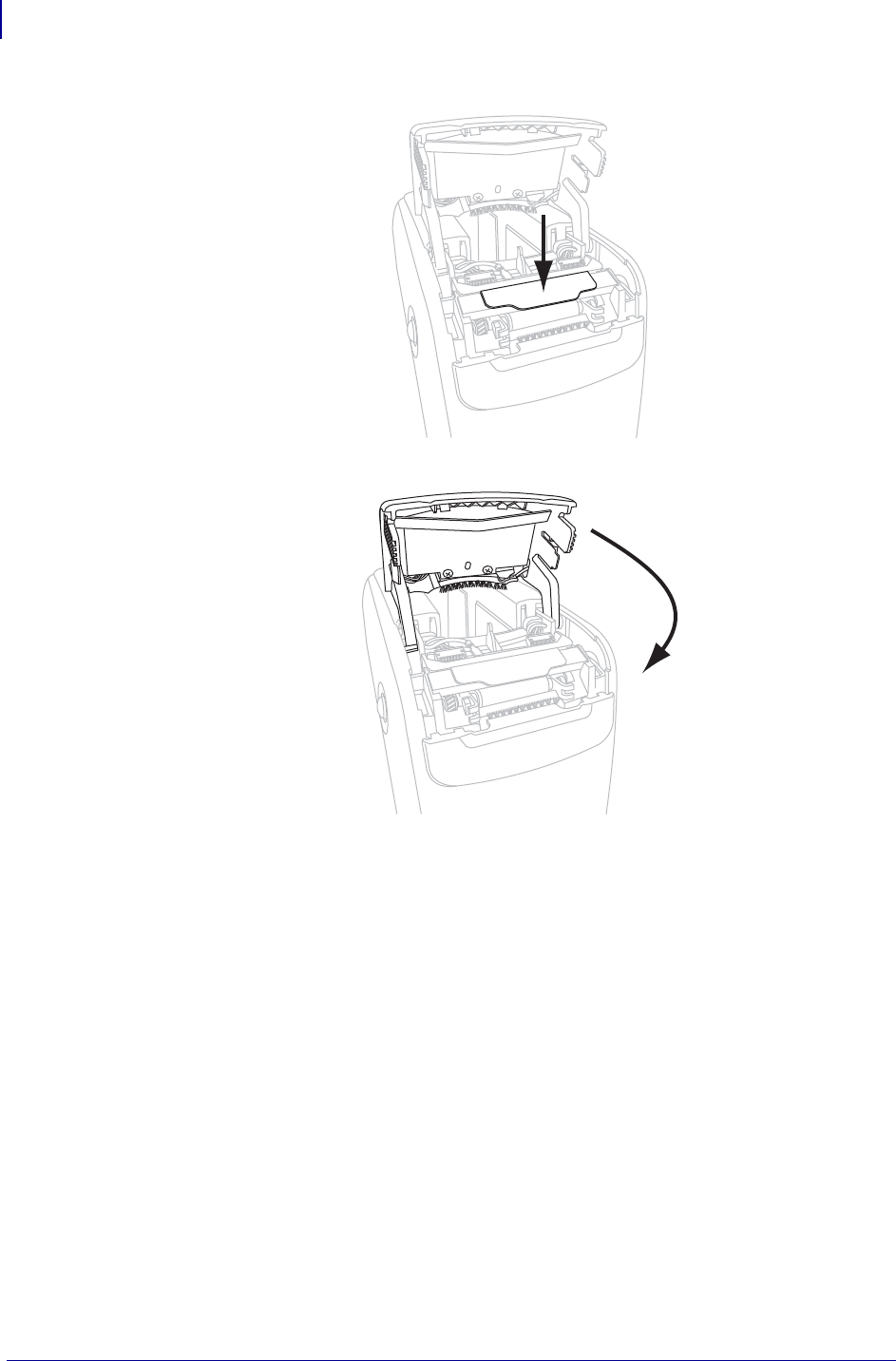

Insert Media Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3 • Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

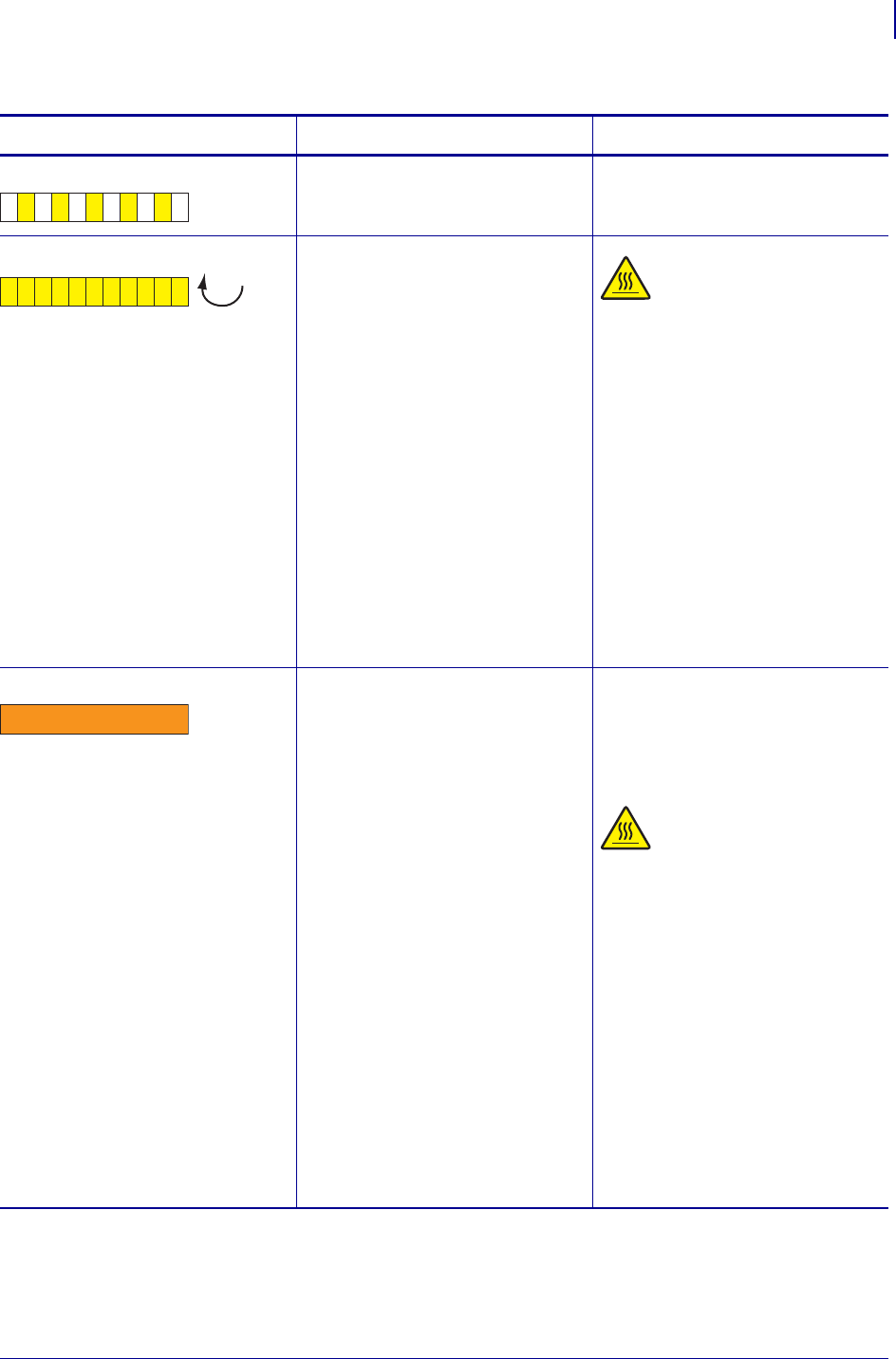

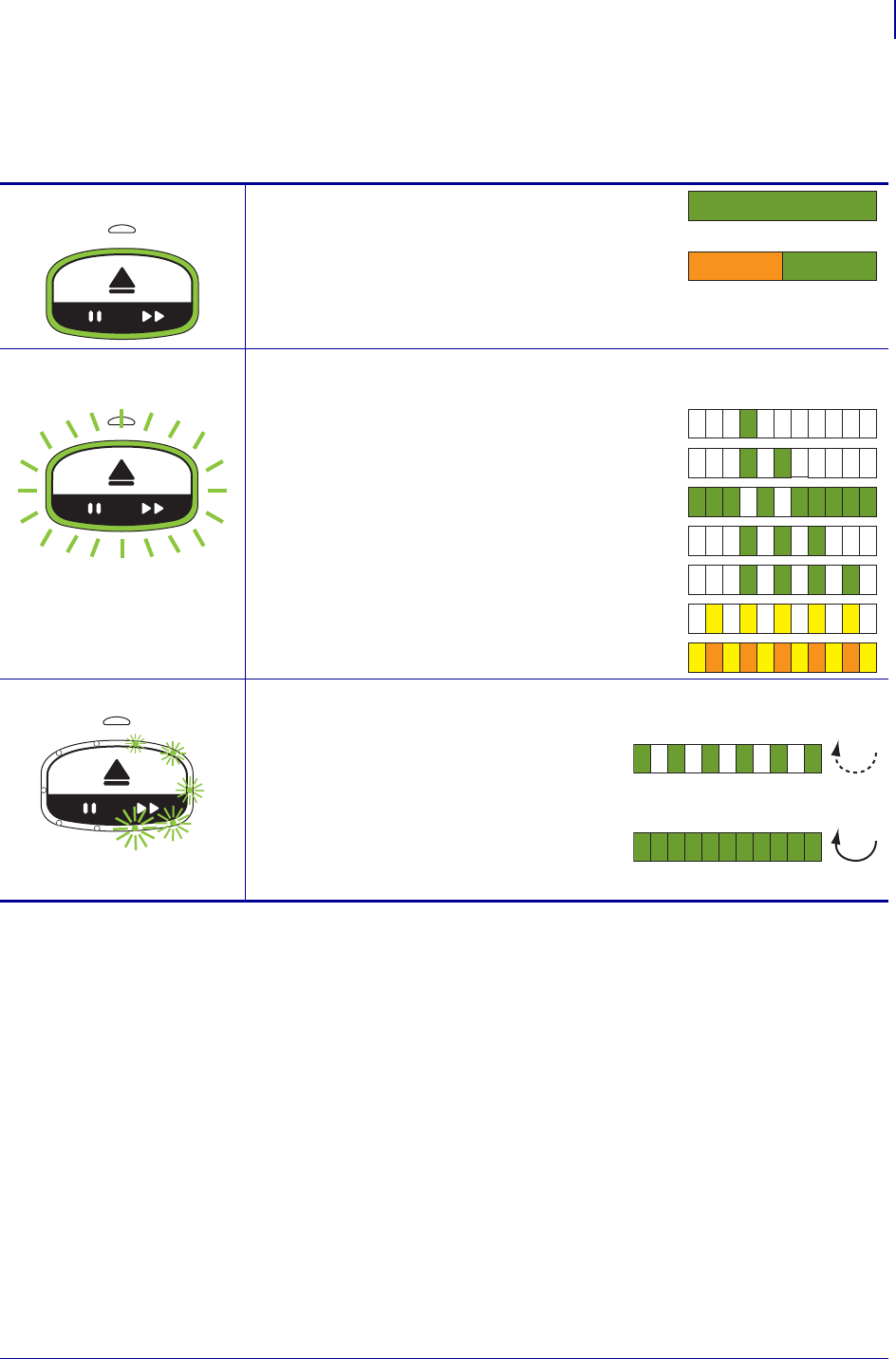

Media Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Printer Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

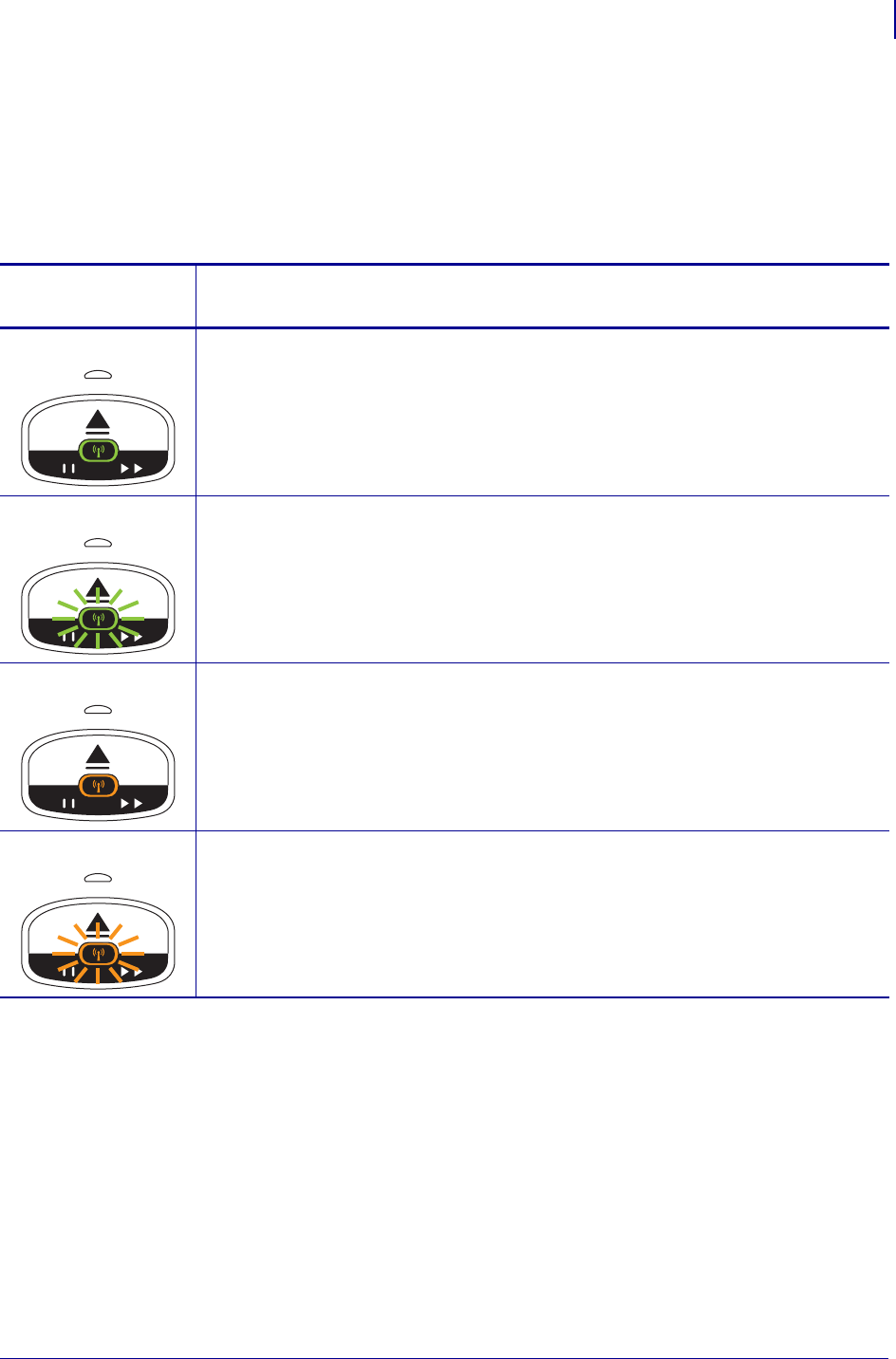

Wireless Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Miscellaneous Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
4 • Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Cleaning the Media Path. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Using a Cleaning Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

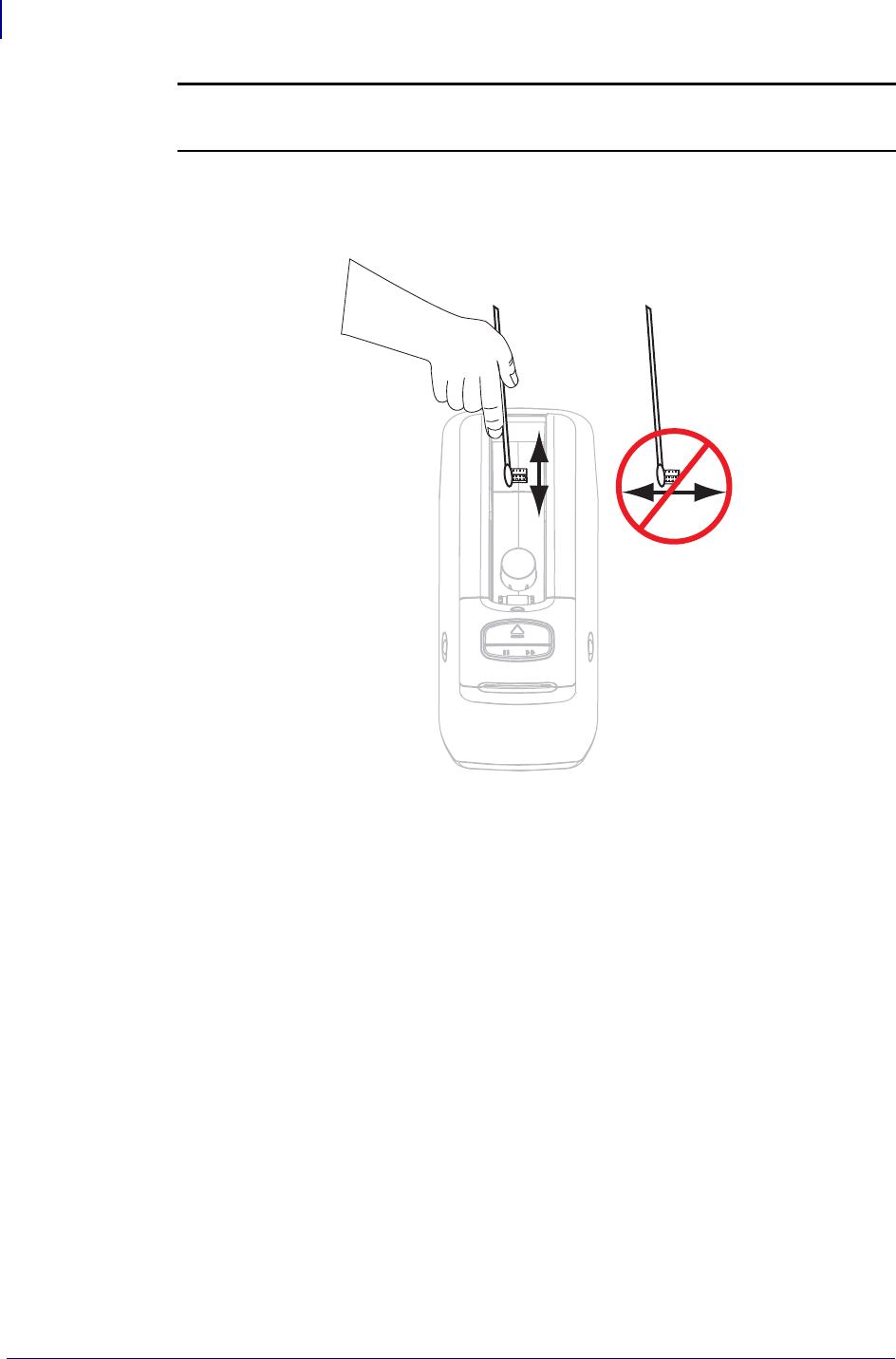

Using a Swab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

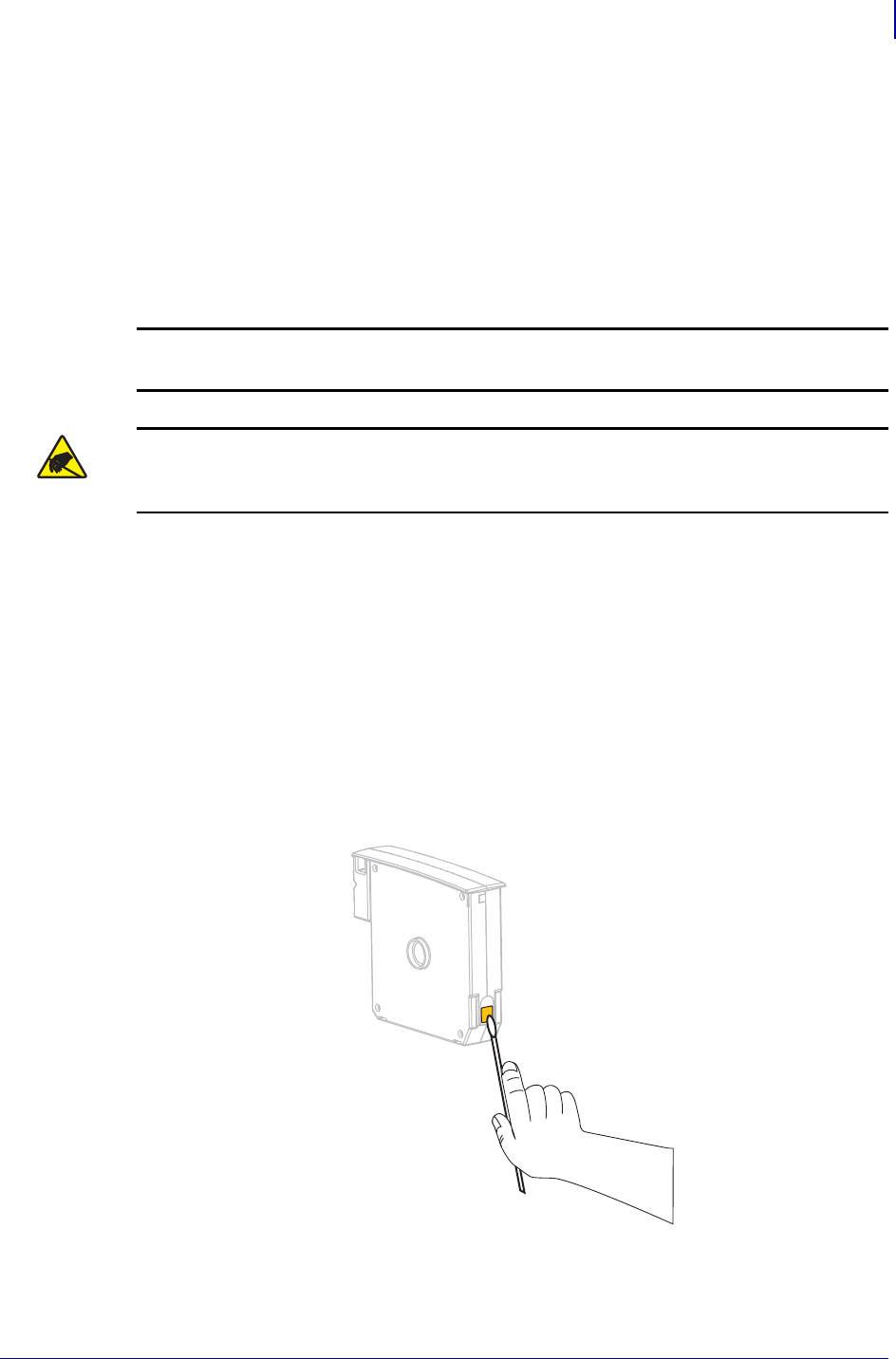

Cleaning the Smart Card Contacts and the Media Cartridge Sensor Pins . . . . . . . . . . . . 51
Replacing Printer Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Ordering Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Recycling Printer Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
5 • Advanced User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Viewing Printer Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

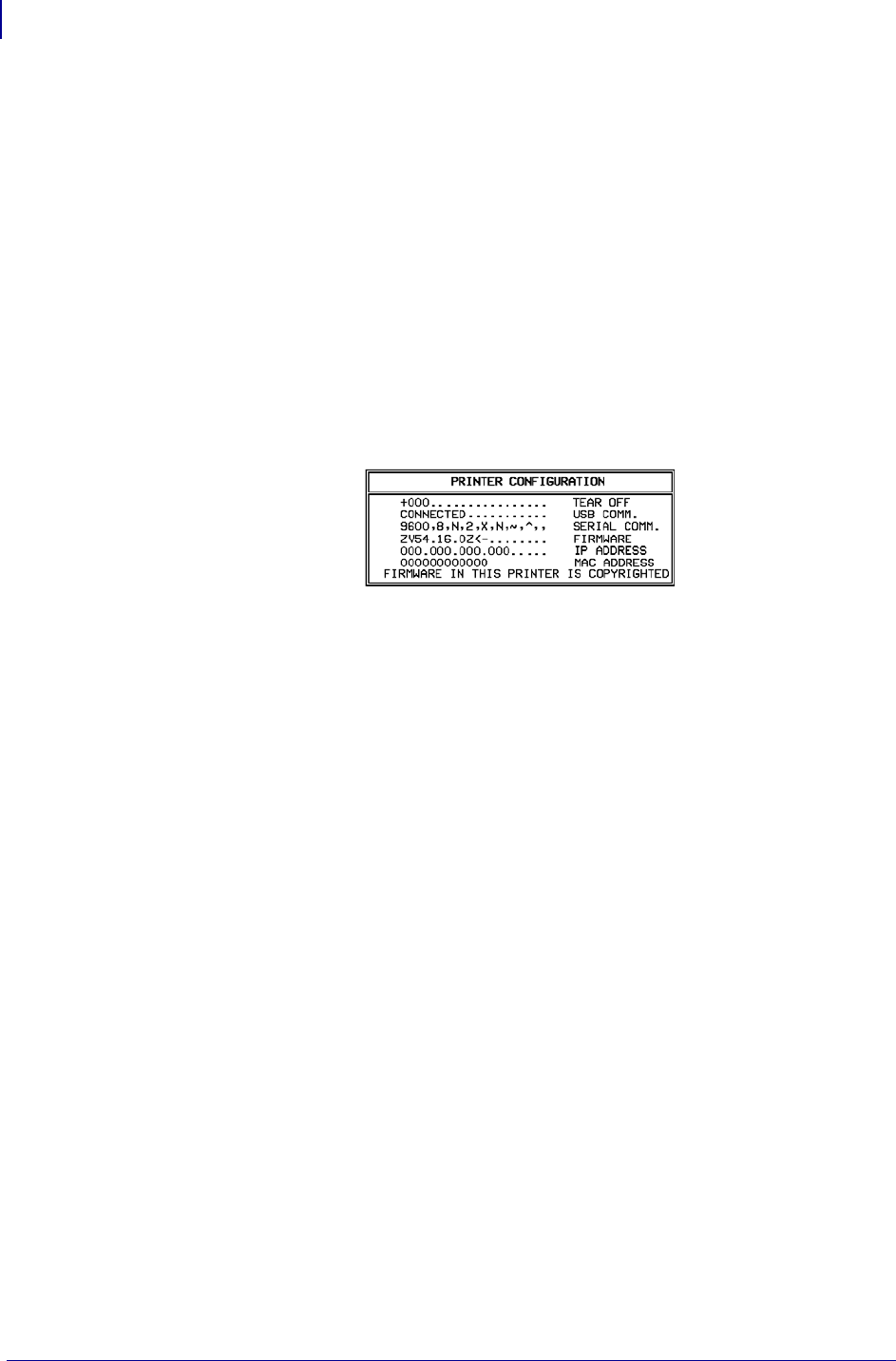

On a Printer Configuration Wristband. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

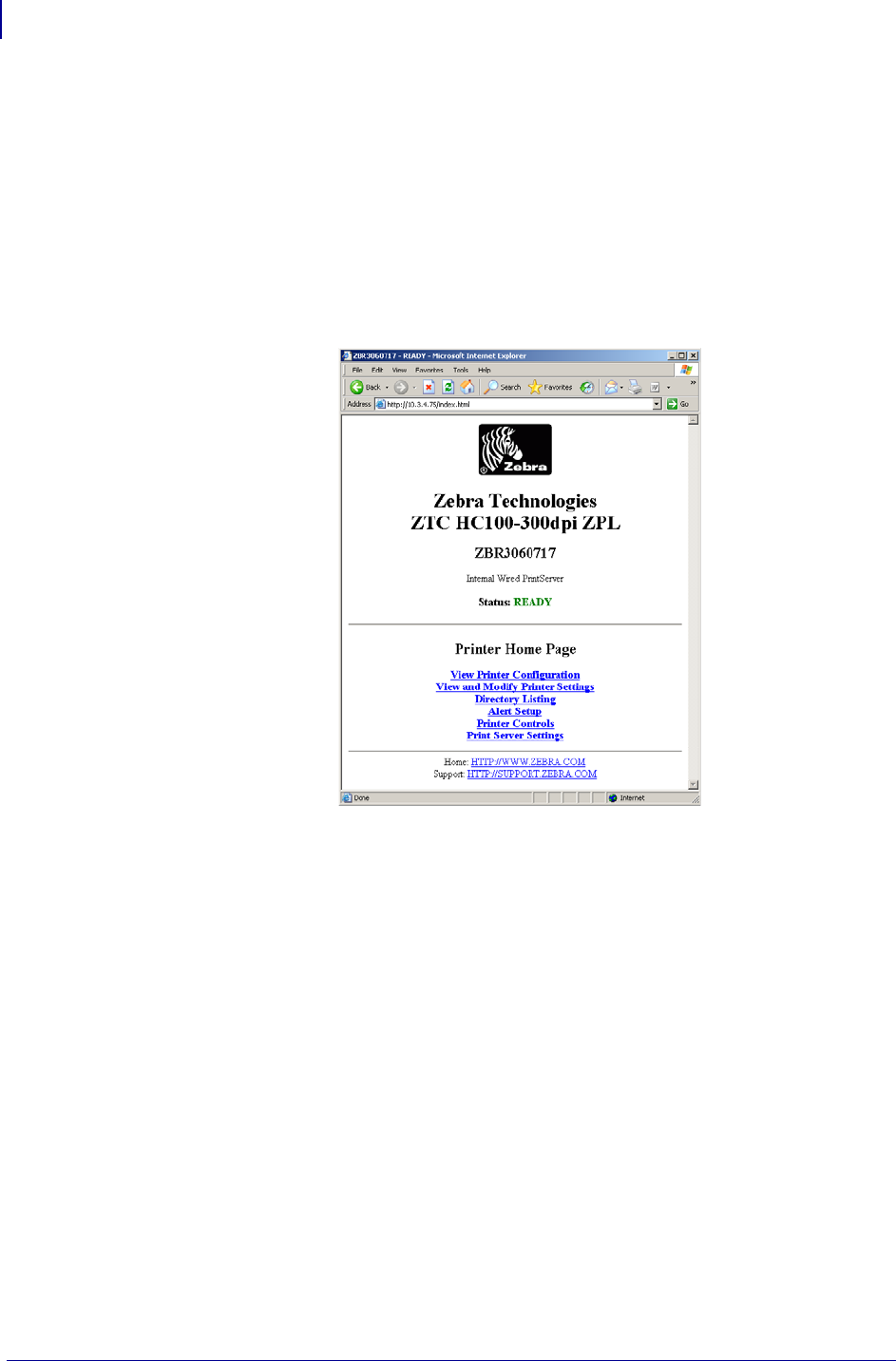

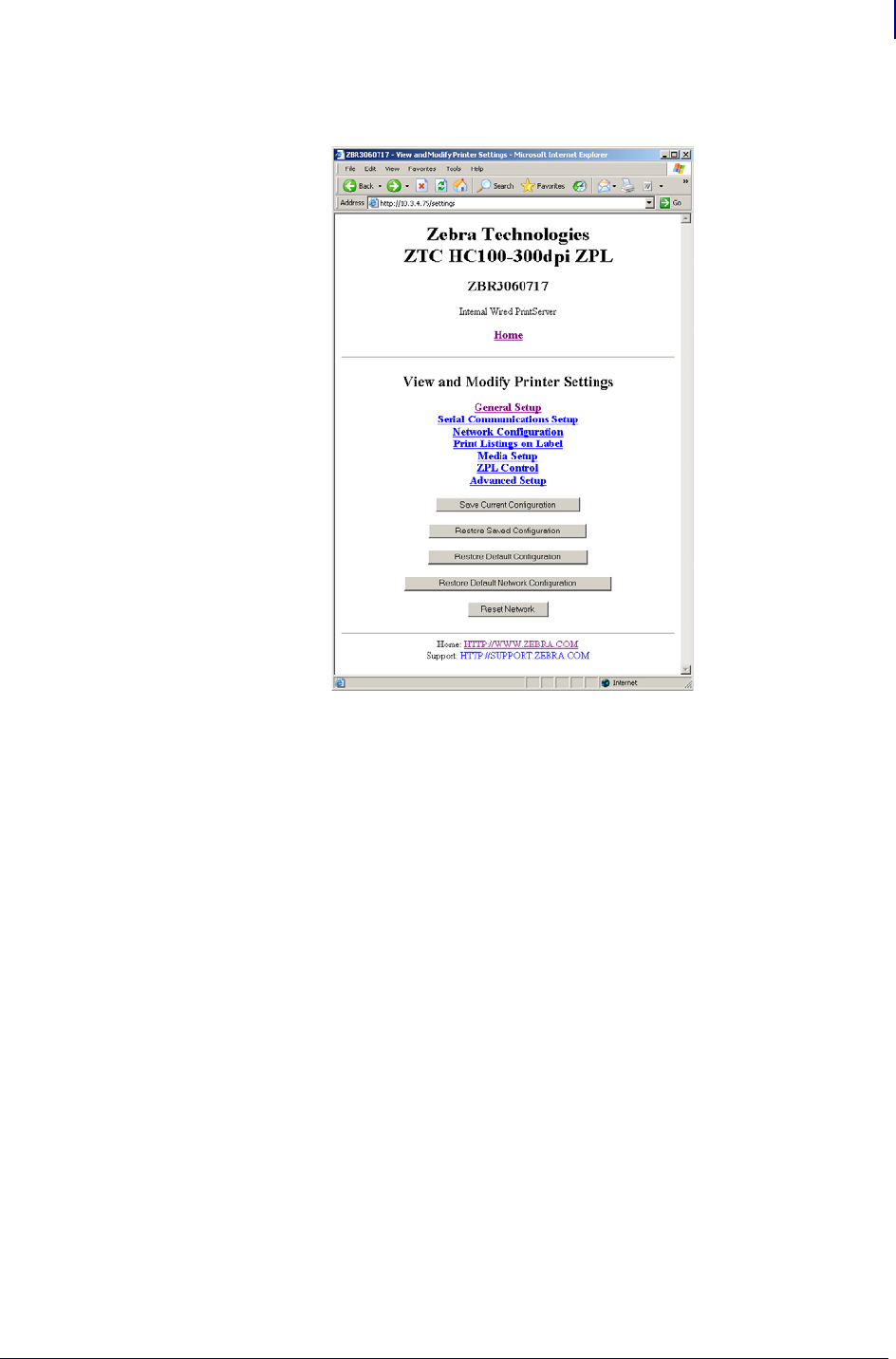

Through the Printer’s Web Pages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Changing and Restoring Printer Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Setting, Changing, and Restoring Print Server Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Connecting for the First Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Changing Parameters after Connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Web Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
7
Contents
4/23/08 HC100 User Guide 61207L-001 Rev. A
Additional Diagnostics Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

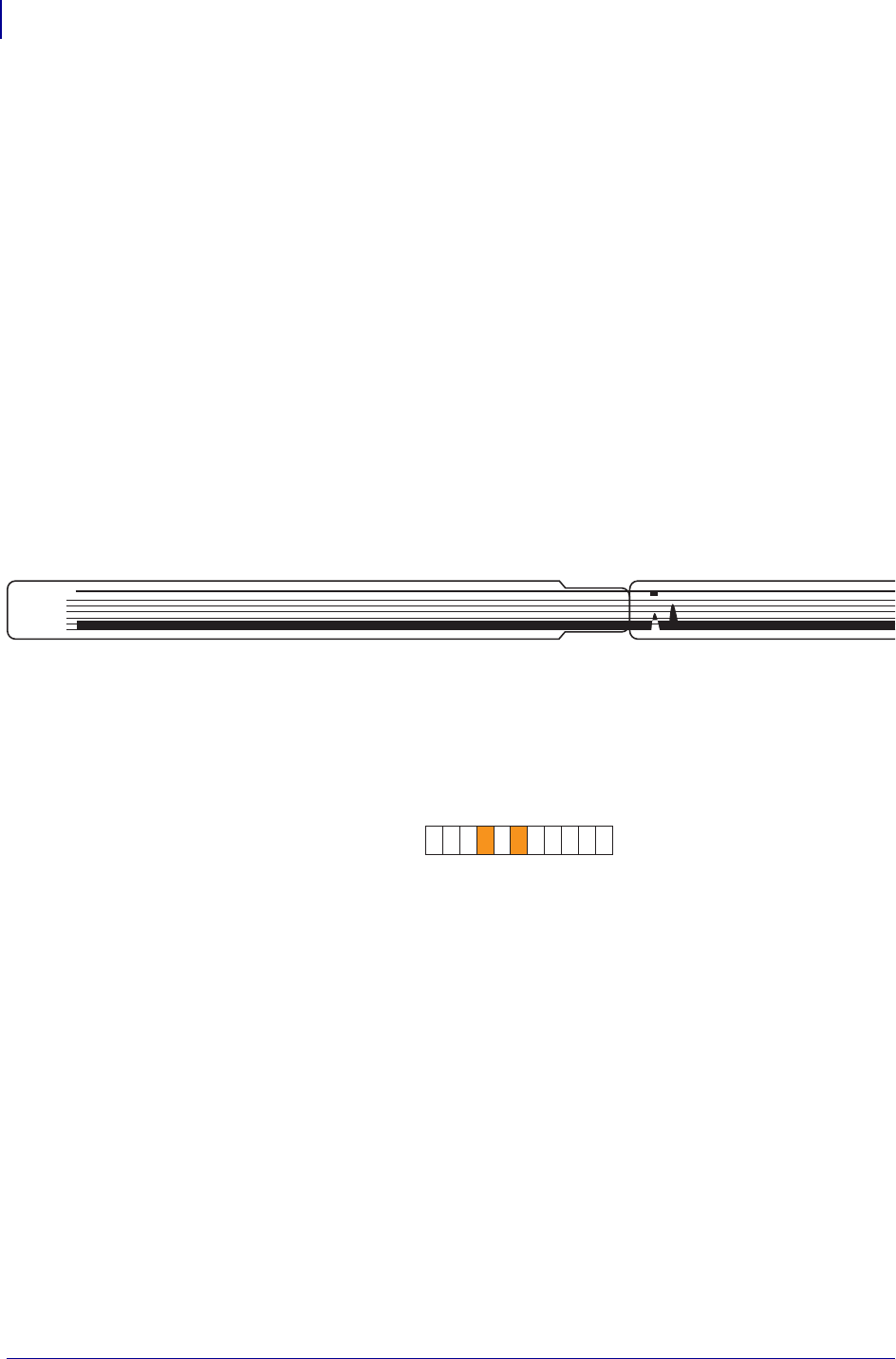

Media Sensor Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Communications Diagnostics Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Downloading Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
6 • Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Physical and Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Wristband . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Standard and Optional Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

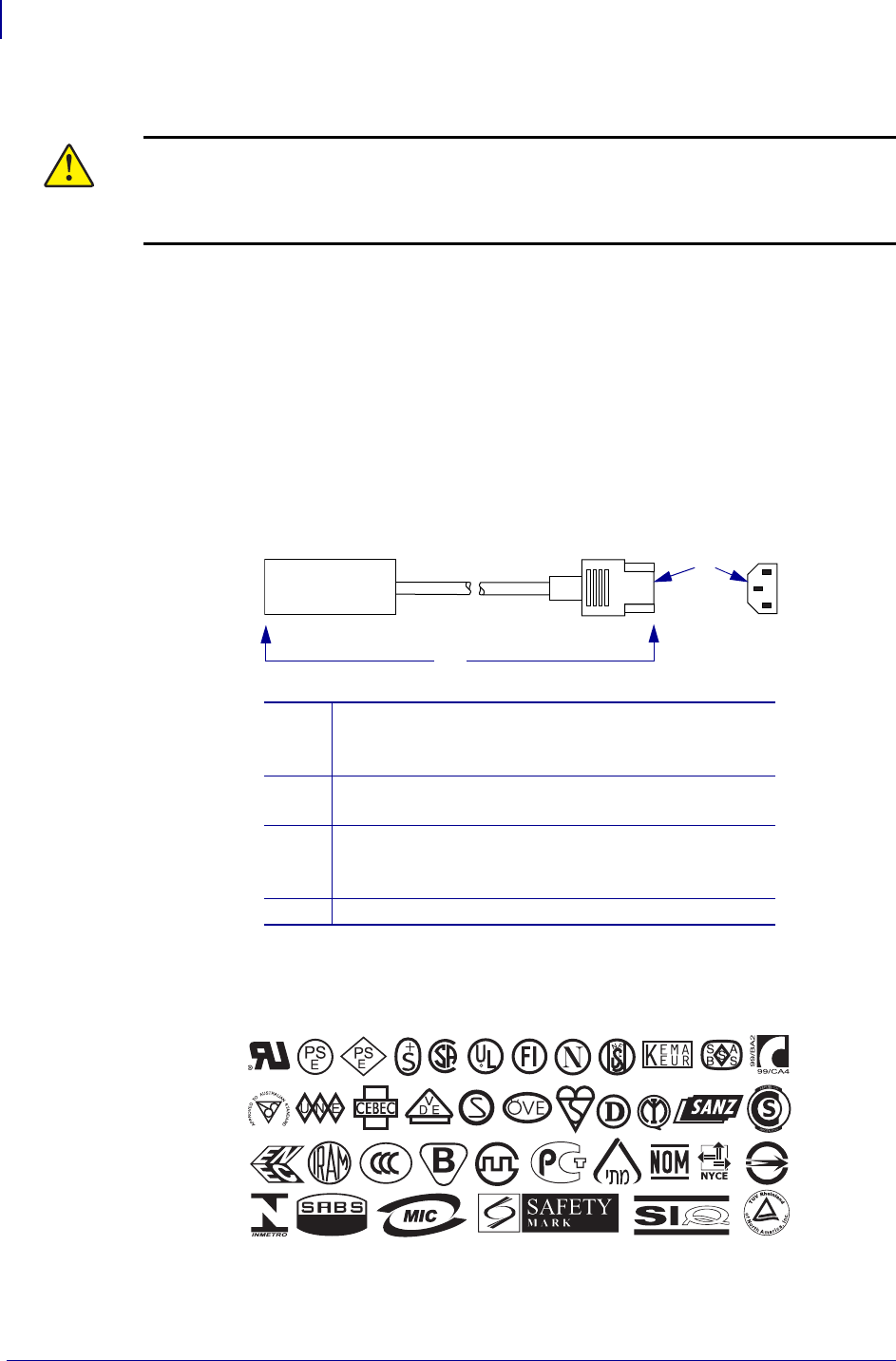

Power Cord. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
End User License Agreement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Contents
8
61207L-001 Rev. A HC100 User Guide 4/23/08
Notes • ___________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
4/23/08 HC100 User Guide 61207L-001 Rev. A
About This Document
This section provides you with contact information, document structure and organization, and
additional reference documents.
Contents
Who Should Use This Document. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
How This Document Is Organized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
About This Document
Who Should Use This Document
10
61207L-001 Rev. A HC100 User Guide 4/23/08
Who Should Use This Document
This User Guide is intended for use by any person who needs to operate or to troubleshoot the
printer. An additional section is included for advanced users or service technicians.
How This Document Is Organized
The User Guide is set up as follows:
Section Description
Introduction to the HC100 on page 15 This section shows the printer components,
indicator lights, and operational controls.
Printer Setup on page 25 This section provides instructions for setting up the
printer, connecting it to your network, and
preparing it for use.
Troubleshooting on page 33 This section includes the meaning of various
printer status lights.
Routine Maintenance on page 43 This section includes routine cleaning procedures
and recycling information.
Advanced User Information
on page 55 This section contains information and instructions
that are intended only for advanced users or
service technicians.
Specifications on page 75 This section contains the specifications for the
printer and wristbands.
11
About This Document
Contacts
4/23/08 HC100 User Guide 61207L-001 Rev. A
Contacts
You can contact Zebra Technologies Corporation at the following:
Web Site
http://www.zebra.com
Technical Support via the Internet is available 24 hours per day, 365 days per year. Go to
http://www.zebra.com/support.
The Americas
Europe, Africa, Middle East, and India
Asia Pacific
Regional Headquarters Technical Support Customer Service Dept.
Zebra Technologies International, LLC
333 Corporate Woods Parkway
Vernon Hills, Illinois 60061.3109 U.S.A
T: +1 847 793 2600
Toll-free +1 800 423 0422
F: +1 847 913 8766
T: +1 877 ASK ZEBRA (275 9327)
F: +1 847 913 2578
Hardware: ts1@zebra.com
Software: ts3@zebra.com
For printers, parts, media, and ribbon, please
call your distributor, or contact us.
T: +1 877 ASK ZEBRA (275 9327)
E: clientcare@zebra.com
Regional Headquarters Technical Support Internal Sales Dept.
Zebra Technologies Europe Limited
Zebra House
The Valley Centre, Gordon Road
High Wycombe
Buckinghamshire, HP13 6EQ, UK
T: +44 (0)1494 472872
F: +44 (0) 1494 450103
T: +44 (0) 1494 768298
F: +44 (0) 1494 768210
Germany: Tsgermany@zebra.com
France: Tsfrance@zebra.com
Spain/Portugal: Tsspain@zebra.com
All other areas: Tseurope@zebra.com
For printers, parts, media, and ribbon, please
call your distributor, or contact us.
T: +44 (0) 1494 768316
F: +44 (0) 1494 768244
E: cseurope@zebra.com
Regional Headquarters Technical Support Customer Service
Zebra Technologies Asia Pacific, LLC
120 Robinson Road
#06-01 Parakou Building
Singapore 068913
T: +65 6858 0722
F: +65 6885 0838
T: +65 6858 0722
F: +65 6885 0838
E: China: tschina@zebra.com
All other areas:
tsasiapacific@zebra.com
For printers, parts, media, and ribbon, please
call your distributor, or contact us.
T: +65 6858 0722
F: +65 6885 0836
About This Document
Document Conventions
12
61207L-001 Rev. A HC100 User Guide 4/23/08
Document Conventions
The following conventions are used throughout this document to convey certain information.
Alternate Color (online only) Cross-references contain hot links to other sections in this
guide. If you are viewing this guide online in .pdf format, you can click the cross-reference
(blue text) to jump directly to its location.
Icons Used
Illustration Callouts Callouts are used when an illustration contains information that needs
to be labeled and described. A table that contains the labels and descriptions follows the
graphic. Figure 1 provides an example.
Figure 1 • Sample Figure with Callouts
Caution • Warns you of the potential for electrostatic discharge.
Caution • Warns you of a situation where excessive heat could cause a burn.
Caution • Advises you that failure to take or avoid a specific action could result in physical
harm to you.
Caution • (No icon) Advises you that failure to take or avoid a specific action could result in
physical harm to the hardware.
Important • Advises you of information that is essential to complete a task.
Note • Indicates neutral or positive information that emphasizes or supplements important
points of the main text.
1Eject button
2Pause/Feed button
1
2
13
About This Document
Document Conventions
4/23/08 HC100 User Guide 61207L-001 Rev. A

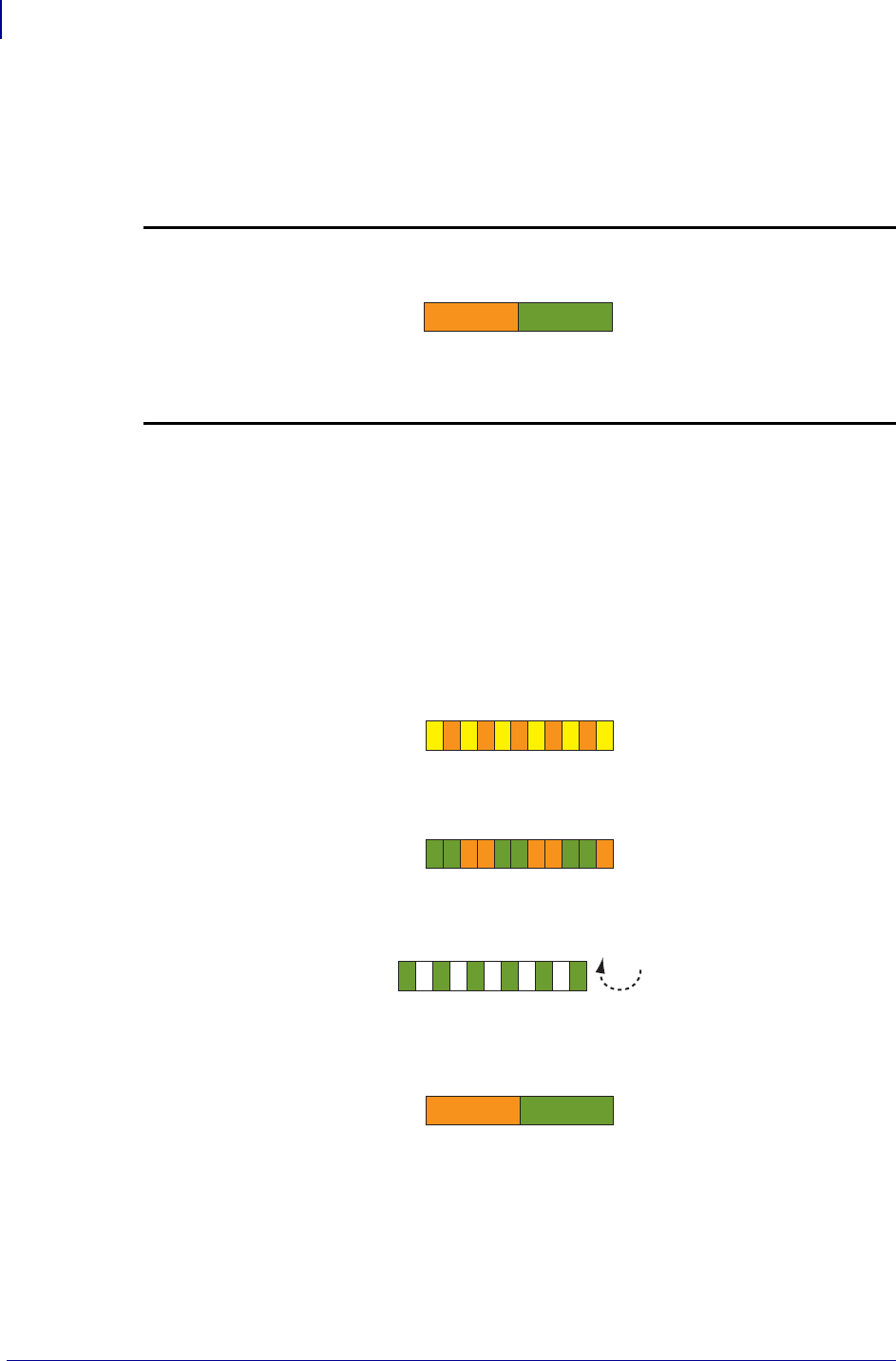

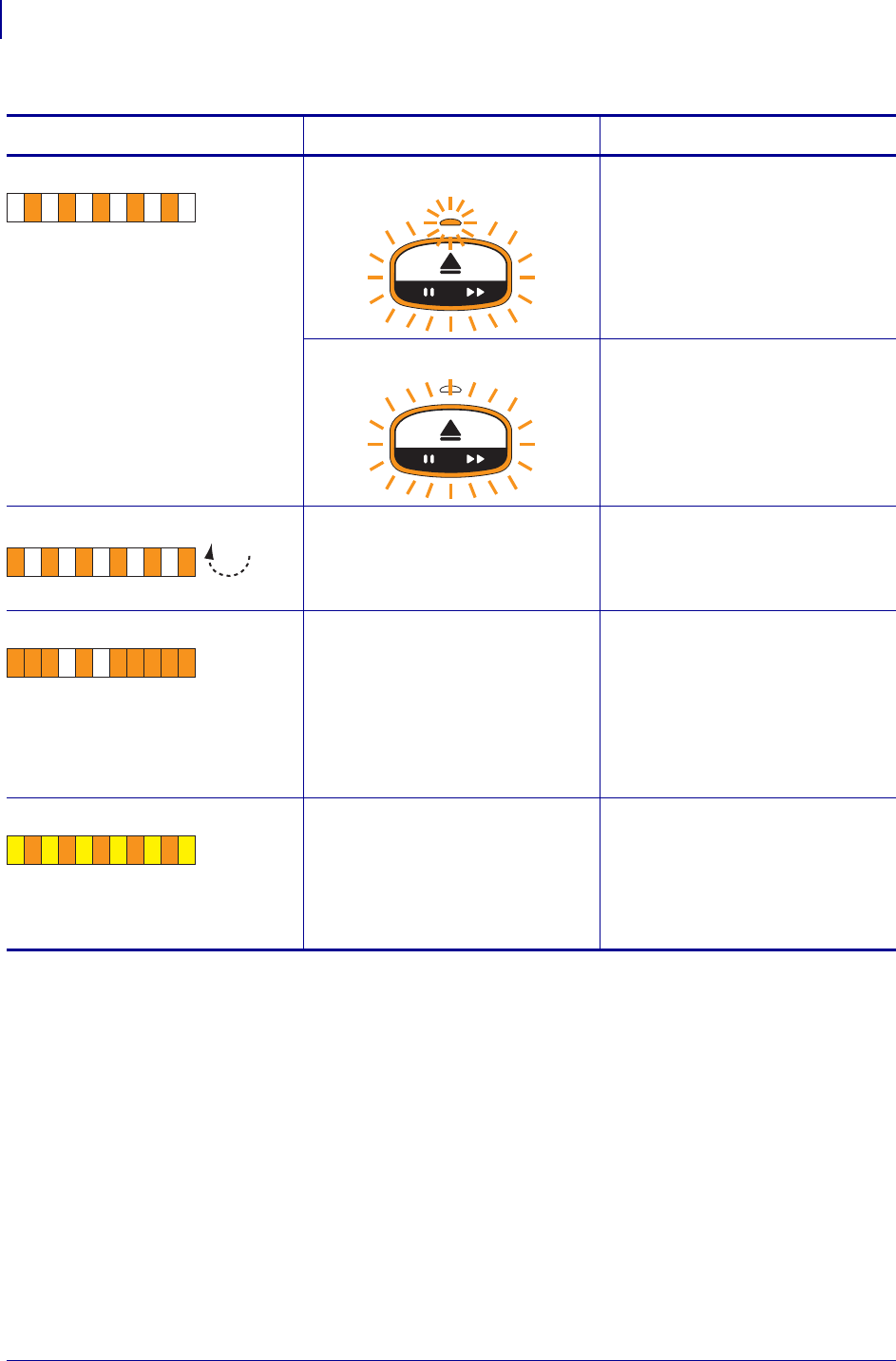

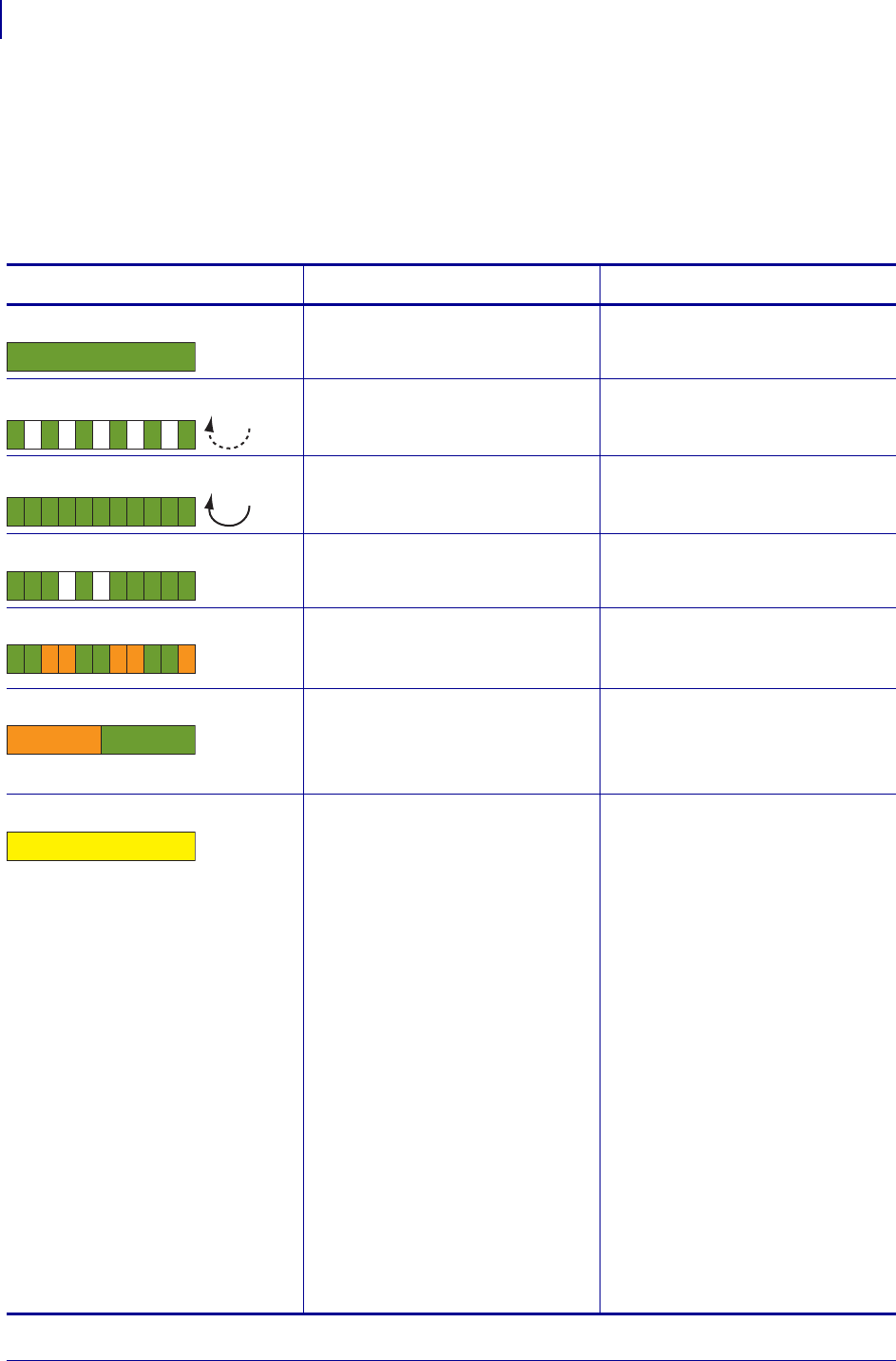

Control Panel Lights The printer status indicator uses green, yellow, and orange lights that
sometimes blink or rotate to indicate the printer’s status and any error conditions. The lights
and light sequences are indicated as follows:
Lights On A solid, colored bar indicates when the printer
status indicator is on.
A solid bar that is divided into two colors indicates
that half of the printer status indicator lights are on
with one color while the other half of the lights are
on with the other color.
Lights Flashing or
Blinking Alternating colors in a subdivided bar indicate that the lights on the printer
status indicator are flashing or blinking.
• one colored blink
• two colored blinks
• steady color on with two blinks off
• three colored blinks
• four colored blinks
• consistent flashing on and off
• flashing between two colors.
Lights Rotating The printer status indicator lights can light up in a clockwise rotating
sequence.
Rotating lights that come on one at a time are
indicated by a curved, broken arrow and a bar
that shows the color of the lights.
Rotating lights that stay on after lighting up
are indicated by a curved, solid arrow and a
bar that shows the color of the lights.
About This Document
Document Conventions
14
61207L-001 Rev. A HC100 User Guide 4/23/08
Notes • ___________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
4/23/08 HC100 User Guide 61207L-001 Rev. A
1
Introduction to the HC100
This section shows the printer components, indicator lights, and operational controls.
Contents
Front of Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Rear of Printer and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Control Panel Lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Control Panel Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Media Cartridges and Wristbands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Media Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Wristband Sizes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Wristband Colors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Wristband Closure Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Wristband Print Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
17
Introduction to the HC100
Rear of Printer and Connectors
4/23/08 HC100 User Guide 61207L-001 Rev. A
Rear of Printer and Connectors
Figure 3 shows the data communication connectors on the rear of the printer, the power
button, and the D/C power connector. For more information about the optional wired and
wireless Ethernet print servers, see Connect to Data Communication Interfaces on page 27 and
Changing and Restoring Printer Settings on page 58.
Figure 3 • Rear of Printer
1Serial port
2Optional ZebraNet® 10/100 Internal Print Server (wired Ethernet) port
3USB port
4Power on/off button (in is On, out is Off)
5D/C power connector
Standard and
Optional Wireless
Optional 10/100
Wired Ethernet
1
2
3
4
5
Introduction to the HC100
Control Panel
18
61207L-001 Rev. A HC100 User Guide 4/23/08
Control Panel
The control panel is located on the front of the printer.
Control Panel Lights
The control panel has two basic lights that indicate the printer’s status and error conditions
(Figure 4). Printers with the Wireless Ethernet Option have an additional status indicator light.
Figure 4 • Control Panel Lights
Control Panel Buttons
The control panel has two buttons (Figure 5). Their function is described in Table 1. When you
press or press and hold a button, the printer action occurs when you release the button.
Figure 5 • Control Panel Buttons
1Media status indicator (see Media Status Indicator on page 34)
2Printer status indicator (outer ring) (see Printer Status Indicator on page 36)
3Wireless status indicator (see Wireless Status Indicator on page 39)
Standard and Optional
10/100 Wired Ethernet Optional Wireless
1
3
2
1EJECT button
2PAUSE/FEED button
Standard and Optional
10/100 Wired Ethernet Optional Wireless
1
2
19
Introduction to the HC100
Control Panel
4/23/08 HC100 User Guide 61207L-001 Rev. A
Table 1 • Function of the Control Panel Buttons
Button Function/Description
EJECT This button functions only when the printer is idle or paused. The function depends on
whether you press the button or press and hold it.
•Pressing and releasing EJECT causes the printer to retract the current wristband and
eject the media cartridge.
•Pressing and holding EJECT for 6 seconds force ejects the media cartridge without
retracting the protruding wristband. After a forced eject, press the upper cover release
buttons to open the printer’s upper cover and release the wristband. See Media Cartridges
on page 20 for information on removing the wristband from the cartridge. Do NOT pull
the remainder of the wristband out of the cartridge.
Note • If pressing EJECT does not eject the media cartridge, power cycle the printer
and press EJECT again. Use the forced eject option only as a last resort if these other
attempts fail.
PAUSE/FEED PAUSE/FEED has different functions depending on whether the printer is idle or paused and
on whether you press the button or press and hold it.
•Pressing and releasing PAUSE/FEED has two functions.
•Pause—
PAUSE/FEED functions as a pause button when the printer is actively printing
a wristband. While a wristband is printing, press the button to pause the printer before
the next wristband starts printing. The printer remains paused until you press the button
again.
•Feed—
PAUSE/FEED functions as a feed button when the printer is idle. Press the
button to feed one blank wristband.
•Pressing and holding PAUSE/FEED places the printer in user configuration mode. The
printer status indicator lights blink orange in 2-second intervals, adding one blink each
interval. Depending on when you release PAUSE/FEED, different actions take place:
• One orange blink—A printer configuration wristband prints.
• Two orange blinks—A media sensor profile prints.
• Three orange blinks—The printer resets all print server parameters (wired Ethernet and
wireless Ethernet) back to defaults.
• Four orange blinks—The printer resets all printer parameters back to defaults.
• After four orange blinks, the printer exits user configuration mode. The printer status
lights return to solid green. The printer feeds a wristband when you release
PAUSE/FEED.
Introduction to the HC100
Media Cartridges and Wristbands
20
61207L-001 Rev. A HC100 User Guide 4/23/08
Media Cartridges and Wristbands
Different sizes, colors, and closure types of wristbands are available in recyclable media
cartridges. This information appears on the media cartridge label. The wristbands feature an
antimicrobial coating to help protect against the spread of S. aureus, P aeruginosa, E. coli, and
MRSA.
For ordering information, see Contacts on page 11. Only Genuine Zebra™ supplies will work
with your printer.
Media Cartridges
View the level of media remaining in the cartridge through the wristband supply window on
the left side of the media cartridge (Figure 6). Wristbands exit through a slot on the front of the
media cartridge.
Figure 6 • Media Cartridge
Media cartridges cannot be reused or refilled. Dispose of media cartridges in accordance with
your local regulations or standards. For information on Zebra's recycling program, see
http://www.zebra.com/environment.
1Wristband supply window
2Wristband exit area
Important • Forcibly pulling a wristband from the media cartridge can damage the cartridge.
A damaged cartridge will not work. If a wristband sticks out partially from a cartridge, use
scissors to cut off the exposed part so that it is flush with the cartridge. Do NOT pull the
remainder of the wristband out of the cartridge. The printer will eject the partial wristband
after the cartridge loads properly.
12
21
Introduction to the HC100
Media Cartridges and Wristbands
4/23/08 HC100 User Guide 61207L-001 Rev. A

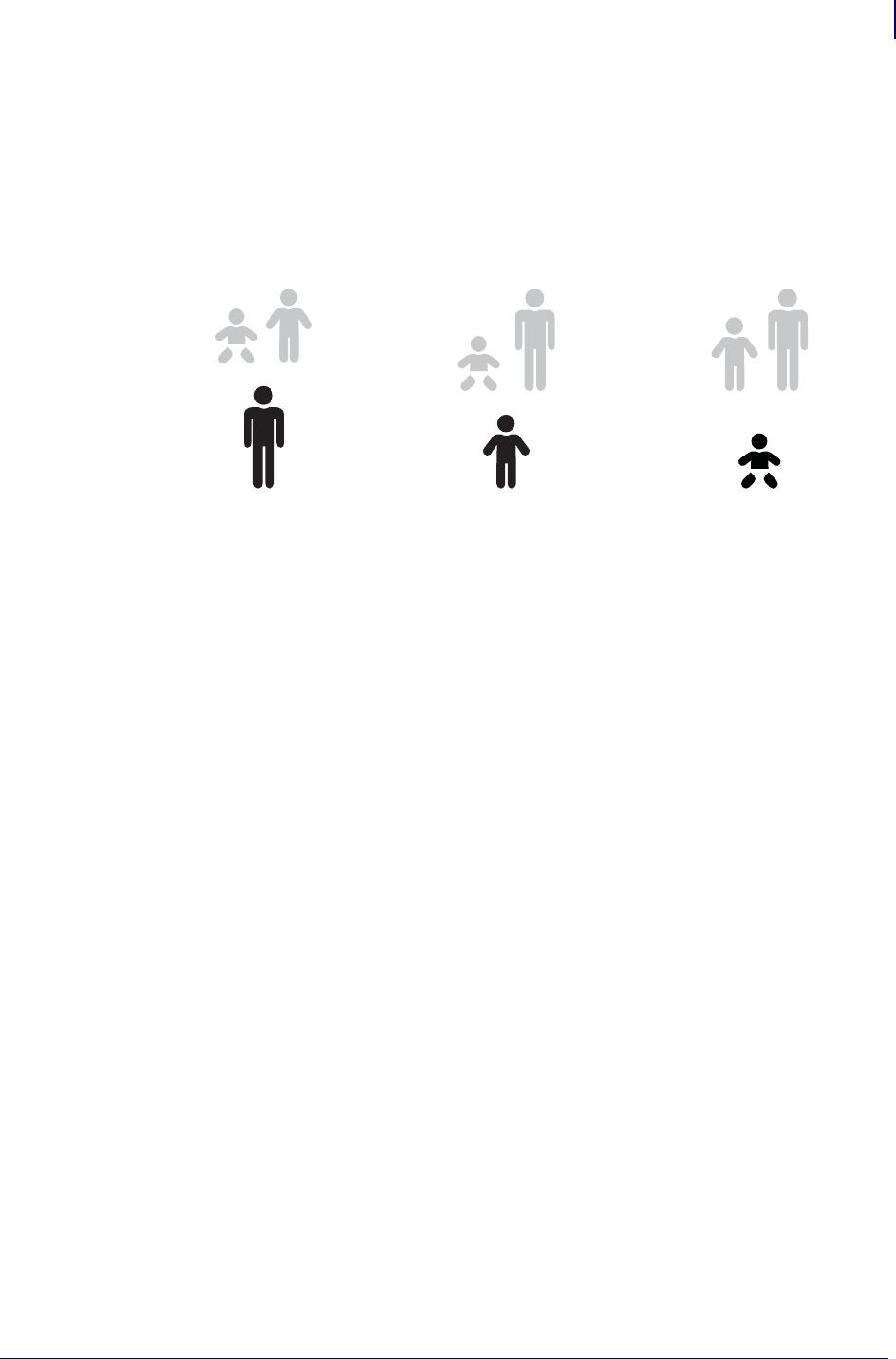

Wristband Sizes
The size of the wristbands is indicated on the top of each media cartridge (Figure 7). A
wristband should be snug enough to stay on the person’s wrist or ankle but not so tight that it
cuts into the person’s skin or cuts off circulation.
Figure 7 • Wristband Size Indicators
Wristband Colors
Wristbands are available in seven colors for color-coding.
Adult Pediatric Infant
Adhesive Closure Type
•Red
•Blue
•Yellow
•Green
•Pink
• Purple
•Orange
Clip Closure Type
•Red
•Blue
•Yellow
• Green
•Pink
• Purple
Introduction to the HC100
Media Cartridges and Wristbands
22
61207L-001 Rev. A HC100 User Guide 4/23/08
Wristband Closure Type
Zebra offers two types of wristband: adhesive closure and clip closure.

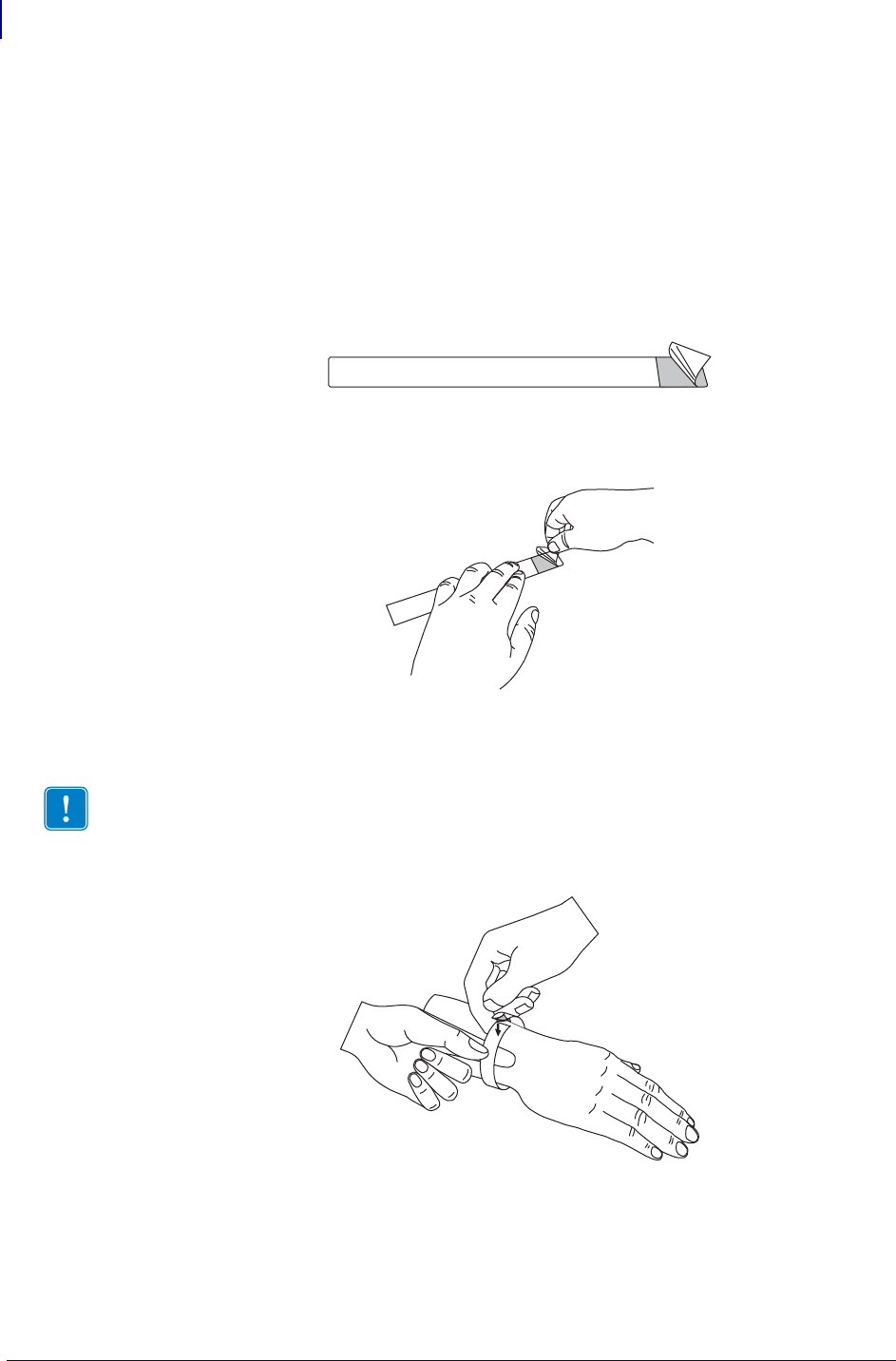

Adhesive Wristbands
Zebra Z-Band™ Direct Wristbands are fastened with adhesives that are part of the wristband.
Figure 8 • Adhesive Closure Wristband
To fasten an adhesive wristband, complete these steps:
1. Remove the cover from the adhesive.
2. Wrap the wristband around a person’s wrist or ankle, and then press the exposed adhesive
to the wristband.
Important • To keep the wristband from being too loose or too tight, place your finger
between the wristband and the person’s wrist or ankle while fastening the wristband. Do
not attempt to adjust the wristband after it is fastened. The tamper-evident slits under the
adhesive tear if you try to remove the wristband.
23
Introduction to the HC100
Media Cartridges and Wristbands
4/23/08 HC100 User Guide 61207L-001 Rev. A
Clip Wristbands
Zebra Z-Band™ QuickClip Wristbands are fastened with clips.
Figure 9 • Clip Closure Wristband
To fasten a clip wristband, complete these steps:
1. Insert the post on a clip through a hole on the wristband.
2. Wrap the wristband around a person’s wrist or ankle, and then thread the post through the
lone hole on the opposite end of the wristband. If necessary, move the clip to a different
hole to resize the wristband.
3. Fold the clip over, and press to lock it.
XXXXX XXXXX
XXXXXXXX
XXXX XXXX
XXXX XXX XXXX
XXXXXXXX
XXXXXXXXXX
Introduction to the HC100
Media Cartridges and Wristbands
24
61207L-001 Rev. A HC100 User Guide 4/23/08
Wristband Print Zone
The best area for printing varies by wristband type. For best results, design your wristband
formats so that they print in the recommended print zone of the wristband (Figure 10). Avoid
printing over the clip holes (Z-Band QuickClip) or the tamper-evident slits (Z-Band Direct).
Figure 10 • Media Home Position and Recommended Print Zone
Z-Band QuickClip
12 3 4
Z-Band Direct
12 3 4
1Non-printable area
(shown in red) You cannot print on approximately the first 1 inch (25.4 mm) of each
wristband because the media does not backfeed into the printer.
2Media home position The media home position (0,0) occurs 1 in. (25.4 mm) from the leading
edge of the wristband.
3Recommended print start
position The start position from the leading edge of the wristband varies by
wristband type (see Table 2).
4Recommended print zone
(shown in green) This area is recommended for printing because it is visible on the
patient after the wristband is secured.
Table 2 • Recommended Print Start Position by Label Type
Wristband Type Wristband Length Start Position from the Leading Edge
Z-Band Direct 11 in. (279 mm) 4.5 in. (114 mm)
7 in. (178 mm) 2.5 in. (64 mm)
6 in. (152 mm) 2 in. (51 mm)
Z-Band QuickClip 11 in. (279 mm) 6.25 in. (159 mm)
7 in. (178 mm) 3.25 in. (83 mm)
4/23/08 HC100 User Guide 61207L-001 Rev. A
2
Printer Setup
This section provides instructions for setting up the printer, connecting it to your network, and
preparing it for use.
Contents
Handling the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Unpack and Inspect the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Store the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Ship the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Preparing the Printer for Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Site Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Connect to Data Communication Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Connect to Power Source and Turn on Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Insert Media Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Printer Setup
Handling the Printer
26
61207L-001 Rev. A HC100 User Guide 4/23/08
Handling the Printer
This section describes how to handle your printer.
Unpack and Inspect the Printer
When you receive the printer, immediately unpack it and inspect for shipping damage.
• Save all packing materials.
• Check all exterior surfaces for damage.
If you discover shipping damage upon inspection:
• Immediately notify the shipping company and file a damage report.
• Keep all packaging material for shipping company inspection.
• Notify your authorized Zebra reseller
Store the Printer
If you are not placing the printer into immediate operation, repackage it using the original
packing materials. You may store the printer under the conditions shown in Table 3.
Ship the Printer
If you must ship the printer:
• Turn off (O) the printer, and disconnect all cables.
• Remove any media cartridges from the printer.
• Make sure that upper cover is closed.
• Carefully pack the printer into the original container or a suitable alternate container to
avoid damage during transit. A shipping container can be purchased from Zebra if the
original packaging has been lost or destroyed.
Important • Zebra Technologies Corporation is not responsible for any damage incurred
during the shipment of the equipment and will not repair this damage under warranty.
Table 3 • Storage Temperature and Humidity
Temperature Relative Humidity
–40°F to 140°F (–40° to 60°C) 5% to 85% non-condensing
27
Printer Setup
Preparing the Printer for Use
4/23/08 HC100 User Guide 61207L-001 Rev. A
Preparing the Printer for Use
To prepare the printer for use, select an appropriate location for the printer, connect the
appropriate cables to the printer, turn on the printer power, and then select and insert a media
cartridge.
Site Selection
Select a solid, level surface within reach of an available power outlet. To allow for proper
ventilation and cooling, leave open space on all sides of the printer.
Connect to Data Communication Interfaces
Select a data communication interface that is supported by both your printer and your
computer or your Local Area Network (LAN). You may send wristband formats to the printer
through any of its data communication ports.
Figure 11 shows the location of the data communication ports. Table 4 provides basic
information about the data communication interfaces.
Figure 11 • Data Communication Ports
Caution • Do not place any padding or cushioning material under the unit or next to the
back of the unit. This can prevent proper cooling and cause the unit to overheat.
1Serial port
2Optional ZebraNet 10/100 Internal Print Server
(wired Ethernet) port
3USB port
Caution • Be careful not to plug a USB cable into the optional 10/100 wired Ethernet port
on the printer. Doing so will damage the connector. The 10/100 wired Ethernet port comes
with a plastic plug to protect it from accidental damage.
1
2
3
Printer Setup
Preparing the Printer for Use
28
61207L-001 Rev. A HC100 User Guide 4/23/08
Use of Shielded Data Cables Ethernet cables do not require shielding, but all other data
cables must be fully shielded and fitted with metal or metallized connector shells. Unshielded
data cables may increase radiated emissions above the regulated limits.
Table 4 • Characteristics of the Data Communication Interfaces
Interface Standard
or Optional Characteristics
RS-232 Serial Standard • Maximum cable length of 50 ft (15.24 m).
• You may need to change printer parameters to match the host
computer. See Changing and Restoring Printer Settings
on page 58.
• You need to use a null-modem adaptor to connect to the printer if
using a standard modem cable.
USB Standard • Maximum cable length of 16.4 ft (5 m).
• No printer parameter changes required to match the host
computer.
• Requires installation of a printer driver. The driver is available at
http://www.zebra.com/drivers or on the user CD that came with
your printer.
ZebraNet 10/100
Internal Print Server
(wired Ethernet)
Optional • Can print to the printer from any computer on your LAN.
• Can communicate with the printer through the printer’s web
pages.
• The printer must be configured to use your LAN. See Setting,
Changing, and Restoring Print Server Settings on page 66.
ZebraNet Internal
Wireless Print Server
(wireless Ethernet,
802.11b/g)
Optional • Can print to the printer from any computer on your Wireless
Local Area Network (WLAN) or LAN.
• Can communicate with the printer through the printer’s web
pages.
• The printer must be configured to use your WLAN. See Setting,
Changing, and Restoring Print Server Settings on page 66.
29
Printer Setup
Preparing the Printer for Use
4/23/08 HC100 User Guide 61207L-001 Rev. A
Connect to Power Source and Turn on Power
After you connect to a data communication interface, you may connect the printer to a power
source and turn the power on.
To connect the printer to a power source and turn on the power, complete these
steps:
1. Locate the two parts of the power cord assembly. The power cord assembly consists of an
A/C power cord (1) and a low-voltage D/C cord that is attached to a power supply (2)
(Zebra model number FSP070-RDBM). If an A/C power cord was not included with your
printer, refer to Power Cord on page 78 for specifications.
2. Insert the female end of the A/C power cord into the power supply.
3. Insert the low-power D/C cord into the D/C power connector on the back of the printer.
Caution • For personnel and equipment safety, always use an approved three-conductor
power cord specific to the region or country intended for installation. This cord must use an
IEC 320 female connector and the appropriate region-specific three-conductor grounded
plug configuration.
12
Printer Setup
Preparing the Printer for Use
30
61207L-001 Rev. A HC100 User Guide 4/23/08

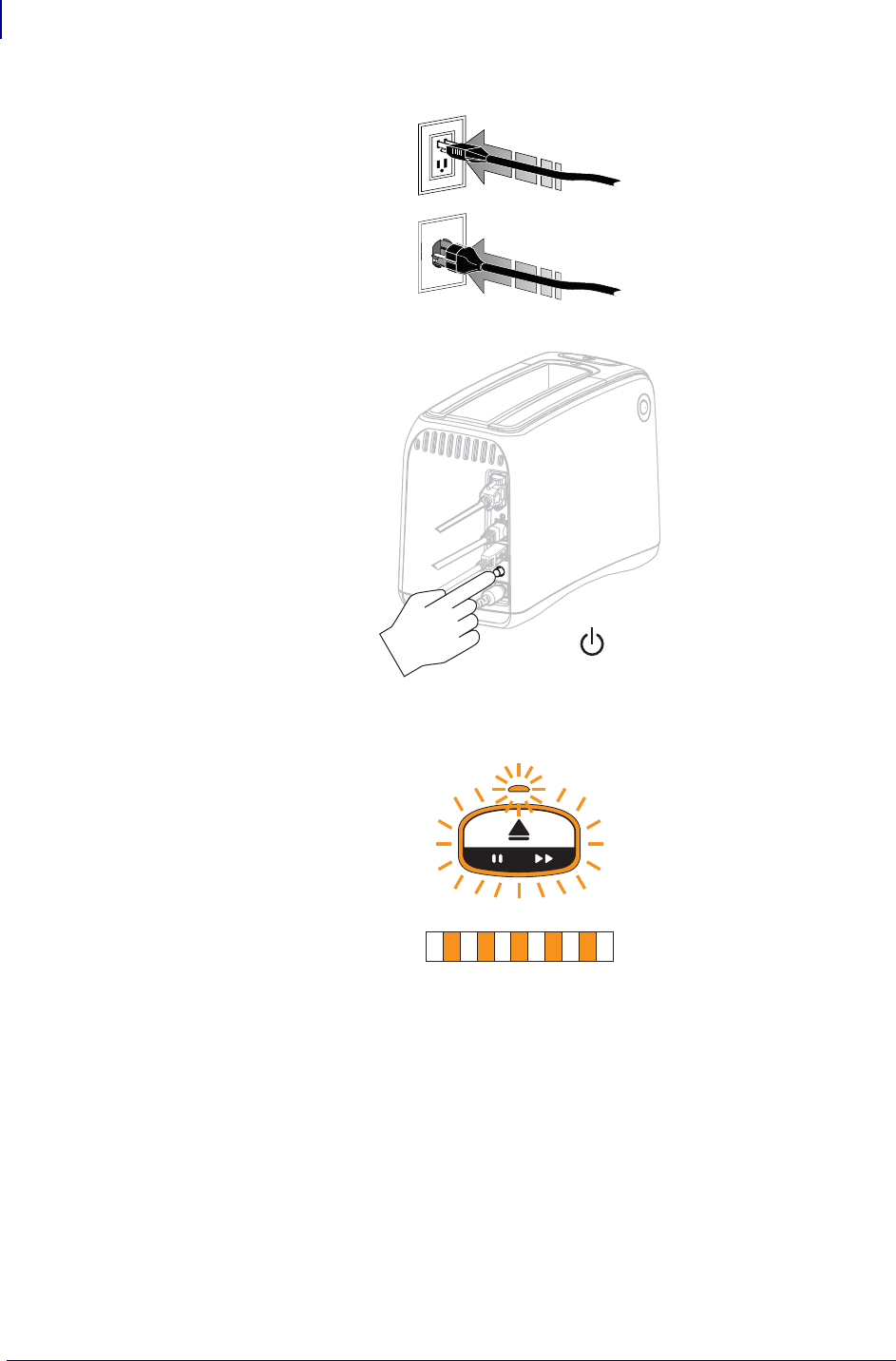

4. Plug the male end of the A/C power cord into an appropriate power outlet.
5. Push the power button to turn on (I) the printer.
The printer performs a self-test, and the control panel cycles through the light colors. The
media status indicator and the printer status indicator blink orange to indicate that there is
no media in the printer.
115 V AC
230 V AC
31
Printer Setup
Preparing the Printer for Use
4/23/08 HC100 User Guide 61207L-001 Rev. A
Insert Media Cartridge
For more information about media cartridges and wristbands, see Media Cartridges and
Wristbands on page 20.
To insert a media cartridge, complete these steps:
1. Orient the cartridge and the printer as shown.
2. Insert the cartridge into the printer, and then press down until the cartridge clicks.
The printer prepares a wristband for printing. With a new cartridge, the printer status
indicator (1) turns green, and the media status indicator (2) remains off. For other media
conditions, see Media Status Indicator on page 34.
1 2
Printer Setup
Preparing the Printer for Use
32
61207L-001 Rev. A HC100 User Guide 4/23/08
Notes • ___________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
4/23/08 HC100 User Guide 61207L-001 Rev. A
3
Troubleshooting
This section includes the meaning of various printer status lights.
Contents
Media Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Printer Status Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Wireless Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Miscellaneous Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Troubleshooting
Media Status Indicator
34
61207L-001 Rev. A HC100 User Guide 4/23/08
Media Status Indicator
Table 5 shows how the media status indicator and printer status indicator display different
media levels or media errors. For light sequences not included here, see Printer Status
Indicator on page 36.

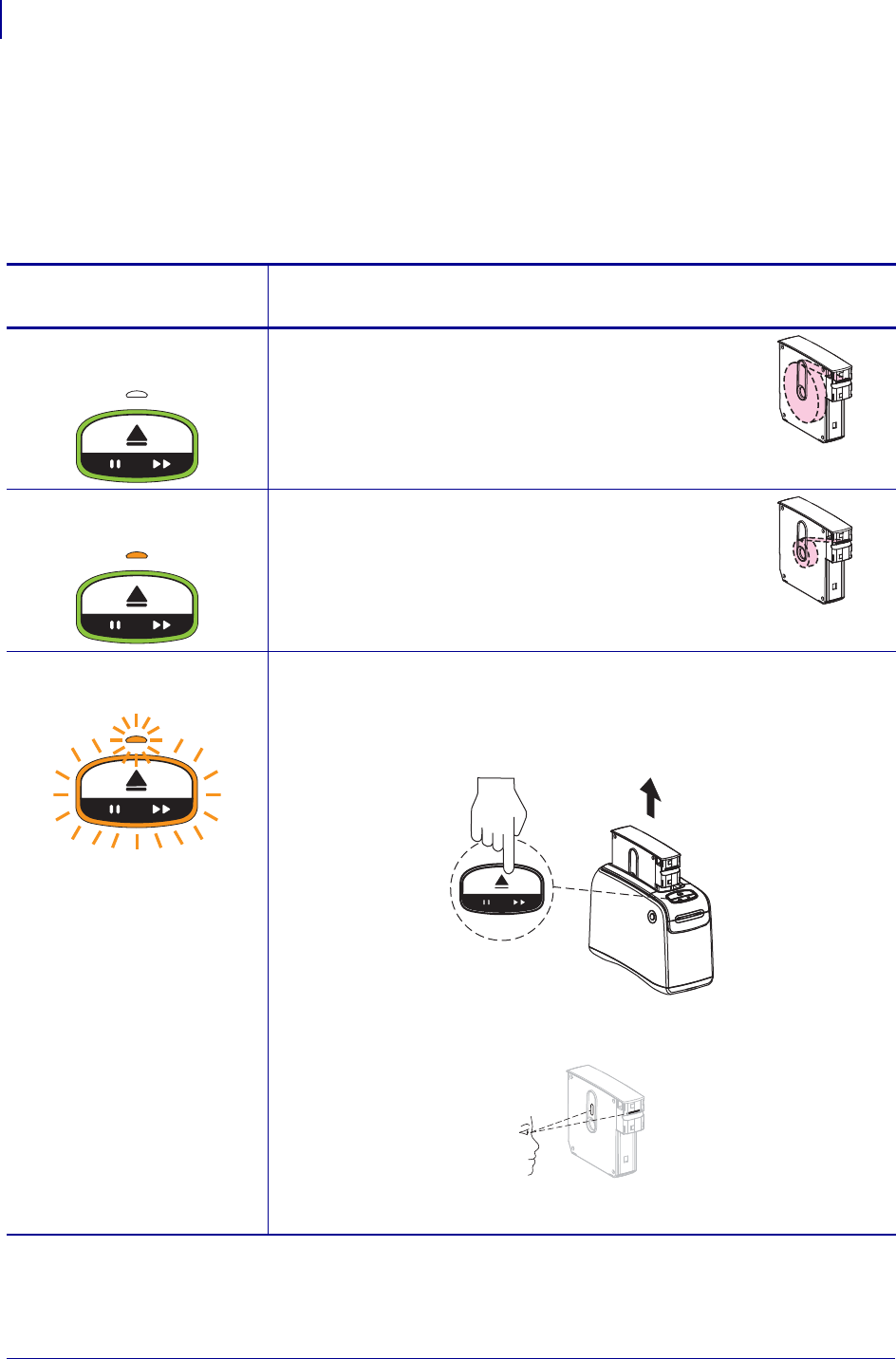

Table 5 • Media Status Indicator Lights
Media Status Indicator/
Printer Status Indicator Meaning/Action Required
Off/
Green The printer is ready to print. The media cartridge still
contains a substantial number of wristbands. No action is
required.
Solid Orange/
Green The media level is low in the media cartridge (usually 20 or
fewer wristbands). The printer can still continue to print.
To order replacement media cartridges, see Contacts
on page 11.

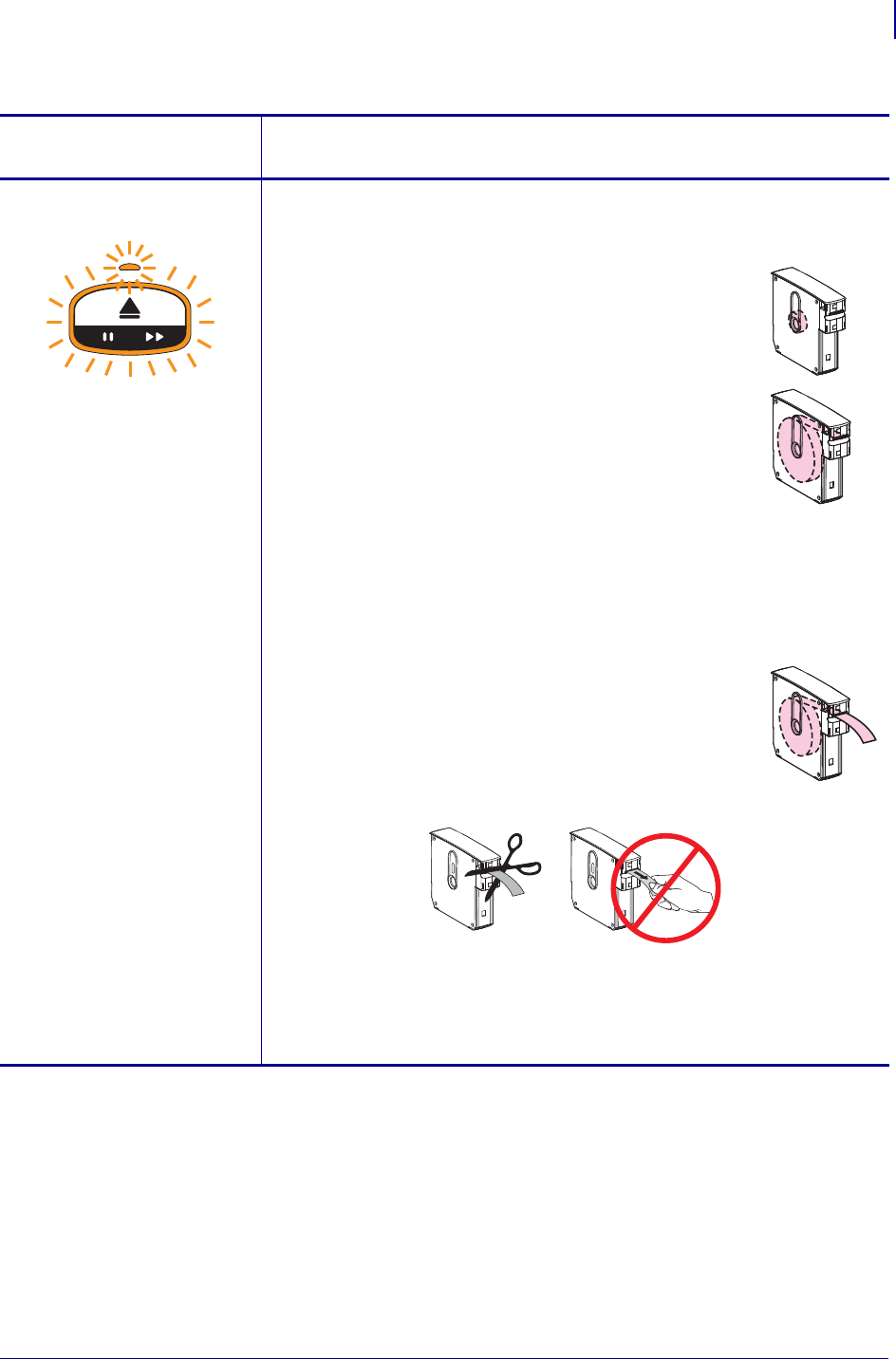

Blinking Orange/
Blinking Orange A media error occurred.
To resolve the problem, complete these steps:
1. Push the Eject button, and then remove the media cartridge from the
printer.
2. Check the media cartridge for the level of media and for misfed
wristbands.
(continued on next page)
35
Troubleshooting
Media Status Indicator
4/23/08 HC100 User Guide 61207L-001 Rev. A
Blinking Orange/
Blinking Orange (continued from previous page)
3. If the media cartridge is...
Empty
a. Dispose of or recycle the empty media cartridge
according to your local ordinances.
b. Insert a different media cartridge in the printer.
Not empty
a. Reinsert the media cartridge into the printer.
b. If the error persists, clean the smart card on the
media cartridge and the media cartridge sensor (see
Cleaning the Smart Card Contacts
and the Media Cartridge Sensor Pins on page 51).
c. If the error reoccurs after cleaning, replace the media cartridge.
d. If the error reoccurs with a different media cartridge, contact
technical support (see Contacts on page 11).
Not empty, but wristbands are protruding from the
cartridge or jamming in the printer
Media is not loading correctly.
a. Cut off the protruding part of the wristband. Do NOT
pull the wristband out of the media cartridge, or you
will damage the media cartridge.
b. Reinsert the cartridge into the printer.
c. If the error reoccurs, replace the media cartridge.
d. If the error reoccurs with a different media cartridge, contact
technical support (see Contacts on page 11).
Table 5 • Media Status Indicator Lights (Continued)
Media Status Indicator/
Printer Status Indicator Meaning/Action Required
Troubleshooting
Printer Status Indicator
36
61207L-001 Rev. A HC100 User Guide 4/23/08
Printer Status Indicator
In alert and error conditions, the printer status indicator lights may be on, blinking, or rotating.
Table 6 describes the different lights and light sequences. See Control Panel Lights on page 13
for information about how the light sequences are indicated.
Table 6 • Lights and Light Sequences for Alert and Error Conditions
Light or Light Sequence Meaning Action Required
Steady Green The printer is ready to print. None
Rotating Green The printer is downloading or
processing data. None.
Rotating Green Fill The printer is defragmenting or
initializing flash memory. None.
Steady Green, 2 Blinks Off The printer is paused. Press PAUSE/FEED to resume
printing.
Flashing Green then Orange The printer is in forced download
mode. Download firmware to the printer,
or power cycle the printer to return
to regular printing mode.
Steady Half-Orange, Half-Green The printer is writing to flash after
a firmware download. None.
Caution • Do not power cycle the
printer during this phase. Doing
so makes the printer inoperable.
Steady Yellow A forced eject of the media
cartridge is being initiated by
pressing and holding EJECT. The
printer will ultimately eject the
media cartridge when the button is
released, but it may be a forced
eject or a normal eject.
•To cancel the forced eject
and eject the media cartridge
normally, release EJECT
before the printer status
indicator blinks yellow.
•To proceed with the forced
eject, continue to hold EJECT
(about 6 seconds) until the
printer status indicator blinks
yellow.
After the forced eject, press
the upper cover release
buttons to open the printer’s
upper cover and release the
wristband. See Media
Cartridges on page 20 for
information on removing the
wristband from the cartridge.
Do NOT pull the remainder of
the wristband out of the
cartridge.
37
Troubleshooting
Printer Status Indicator
4/23/08 HC100 User Guide 61207L-001 Rev. A
Flashing Yellow A forced eject of the media
cartridge is pending. Release EJECT to allow the
printer to force eject the media
cartridge.
Rotating Yellow Fill The printhead reached temperature
fail safe mode. Caution • The printhead
may be hot and could
cause severe burns.
Allow the printhead to
cool.
1. Turn the printer off (O).
2. Wait for the printhead to cool.
3. Turn the printer back on (I).
4. If the problem persists, repeat
steps 1 and 2 and then make
sure that the printhead cables
are connected properly.
5. If the problem persists after
checking the cables, contact
technical support (see
Contacts on page 11).
Steady Orange If the color lasts for more than
3 seconds, one of the following
conditions exists:
• The printhead is too cold.
• The printhead is too hot.
• The platen motor is too hot.
Wait a few minutes. If the platen
motor is causing the problem,
printing resumes when it cools.
If printing does not resume, do the
following:
Caution • The printhead
may be hot and could
cause severe burns.
Allow the printhead to
cool.
1. Turn the printer off (O).
2. Wait for the printhead to cool.
3. Turn the printer back on (I).
4. If the problem persists, repeat
steps 1 and 2 and then make
sure that the printhead cables
are connected properly.
5. If the problem persists after
checking the cables, contact
technical support (see
Contacts on page 11).
Table 6 • Lights and Light Sequences for Alert and Error Conditions (Continued)
Light or Light Sequence Meaning Action Required
Troubleshooting
Printer Status Indicator
38
61207L-001 Rev. A HC100 User Guide 4/23/08
Flashing Orange A media error occurred. See Media Status Indicator
on page 34.
The printer’s upper cover is open. Make sure that the upper cover is
closed and latched. If the problem
persists, contact technical support
(see Contacts on page 11).
Rotating Orange A wristband was waiting to be
removed when the printer tried to
eject the media cartridge.
Tear off the wristband that is
hanging outside the printer before
trying again to eject the media
cartridge.
Steady Orange, 2 Blinks Off The printer is paused because one
of the following conditions exists:
• The printer encountered an
error while downloading a
wristband format, a graphic, a
font, or a bitmap.
• The printer is out of memory.
Press PAUSE/FEED to resume
printing.
Flashing Yellow then Orange PAUSE/FEED was pressed and
held during printer power up. The
printer can initiate forced
download mode.
Release PAUSE/FEED during the
3 seconds that these lights flash to
enter forced download mode. If
you hold PAUSE/FEED longer
than 3 seconds, the printer boots
up normally.
Table 6 • Lights and Light Sequences for Alert and Error Conditions (Continued)
Light or Light Sequence Meaning Action Required
39
Troubleshooting
Wireless Status Indicator
4/23/08 HC100 User Guide 61207L-001 Rev. A
Wireless Status Indicator
Table 7 describes the meaning of the wireless status indicator lights. For more information
about the wireless print server, see the ZebraNet Wireless User Guide. A copy of this manual is
available at http://www.zebra.com/manuals or on the user CD that came with your printer.
Table 7 • Wireless Status Indicator Lights
Wireless Status
Indicator Meaning
Steady Green The printer is associated with a wireless network. The signal strength is strong.
Flashing Green The printer is NOT associated with a wireless network. The signal strength is strong.
Steady Orange The printer is associated with a wireless network. The signal strength is weak.
Flashing Orange The printer is NOT associated with a wireless network. The signal strength is weak.
Troubleshooting
Miscellaneous Troubleshooting
40
61207L-001 Rev. A HC100 User Guide 4/23/08
Miscellaneous Troubleshooting
Table 8 lists troubleshooting situations that are not necessarily shown by the status indicators.
Table 8 • Miscellaneous Troubleshooting
Problem Meaning/Action Required
Data is not printing on the first part of the
wristband. You cannot print on the leading edge of each wristband.
Redesign your wristband format so that it fits in the
recommended print zone. See Wristband Print Zone
on page 24.
Data prints poorly on some sections of the
wristband. Printing on uncoated areas, over holes, or over scores
affects print quality.
Redesign your wristband format so that it fits in the
recommended print zone. See Wristband Print Zone
on page 24.
Wristbands will not load from a particular
media cartridge. The printer is not detecting the media cartridge.
Clean the smart card contacts on the media cartridge and the
pins on the media cartridge sensor (see Cleaning the Smart
Card Contacts and the Media Cartridge Sensor Pins
on page 51).
The media cartridge is damaged. This can occur if someone
pulls a wristband out of the media cartridge.
If you believe that the media cartridge was damaged when
you received it, contact your authorized Zebra reseller.
Otherwise, dispose of or recycle the media cartridge. To
order replacement media cartridges, see Contacts
on page 11.
The media cartridge is refurbished. Only Genuine Zebra™
supplies will work with your printer.
Dispose of or recycle the media cartridge. To order
replacement media cartridges, see Contacts on page 11.
Wristbands will not load from any media
cartridge. The printer is not detecting the media cartridge.
Clean the pins on the media cartridge sensor (see Cleaning
the Smart Card Contacts and the Media Cartridge Sensor
Pins on page 51). If the problem persists, have the printer
repaired by a qualified service technician.
Wristbands consistently jam or do not load
correctly. The printer might not be detecting the black mark on the
back of the wristbands.
1. Replace the media cartridge.
2. If the problem persists with a different media cartridge,
have a qualified service technician check and possibly
replace the media sensor.
41
Troubleshooting
Miscellaneous Troubleshooting
4/23/08 HC100 User Guide 61207L-001 Rev. A
The printer will not eject the media cartridge. 1. Turn the printer off (O) and then back on (I).
2. If the problem persists, initiate a forced eject.
a. Press and hold EJECT for at least 6 seconds. The
printer status indicator turns yellow after 2 seconds
and flashes yellow after 6 seconds.
b. Release EJECT after the printer status indicator
flashes.

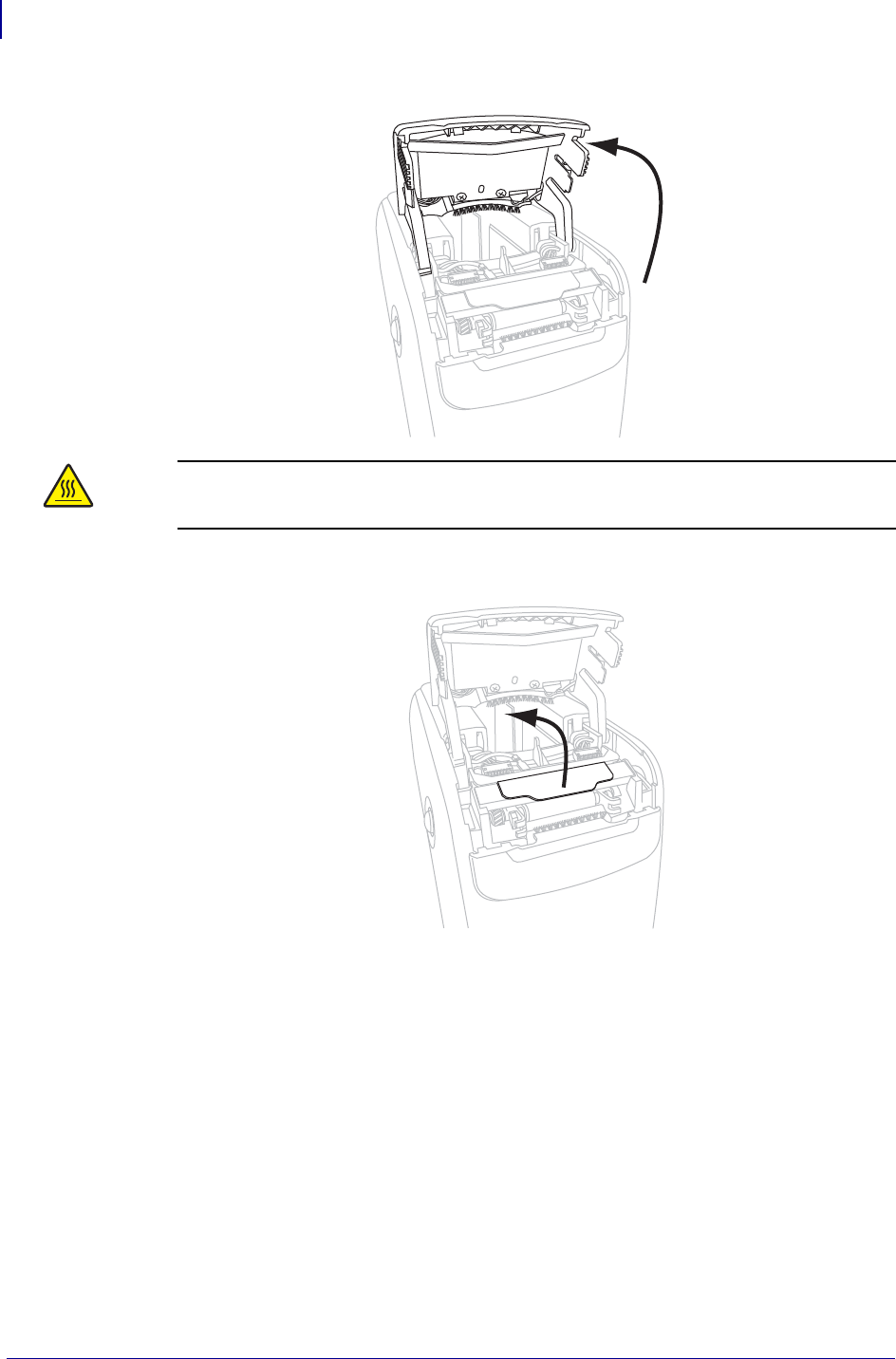

c. Press the upper cover release buttons to open the
printer’s upper cover and release the wristband.
d. See Media Cartridges on page 20 for information
on removing the wristband from the cartridge. Do
NOT pull the remainder of the wristband out of the
cartridge.
e. Close the upper cover.
3. If the problem persists, contact technical support (see
Contacts on page 11).
The printer overheats. Improper ventilation may be causing the printer to overheat.
Check that the printer has open spaces on all sides. The
printer should be on a flat, level surface. Do not place
objects on top of the printer.
Table 8 • Miscellaneous Troubleshooting (Continued)
Problem Meaning/Action Required
Troubleshooting
Miscellaneous Troubleshooting
42
61207L-001 Rev. A HC100 User Guide 4/23/08
Notes • ___________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
4/23/08 HC100 User Guide 61207L-001 Rev. A
4
Routine Maintenance
This section includes routine cleaning procedures and recycling information.
Contents
Cleaning the Media Path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Using a Cleaning Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Using a Swab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Cleaning the Smart Card Contacts and the Media Cartridge Sensor Pins . . . . . . . . . . . 51
Replacing Printer Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Ordering Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Recycling Printer Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Routine Maintenance
Cleaning the Media Path
44
61207L-001 Rev. A HC100 User Guide 4/23/08
Cleaning the Media Path
For best results, clean the media path after each cartridge of media. You can clean the media
path using a cleaning card or using a swab.
Using a Cleaning Card
For cleaning cards, order part number 61097M. For ordering information, see Contacts
on page 11.
To clean the media path using a cleaning card, complete these steps:
1. Press EJECT, and then remove the media cartridge from the printer.
2. Turn off (O) the printer power.
3. Remove the cleaning card from its packaging.
4. Insert the cleaning card into the media chute as shown.
5. Press and hold EJECT.
6. Turn on (I) the printer power.
7. Hold EJECT for approximately 15 seconds while the printer powers up and performs a
self-test.
8. Release EJECT when the cleaning card begins moving.
The printer uses the cleaning card to clean the media path.
45
Routine Maintenance
Cleaning the Media Path
4/23/08 HC100 User Guide 61207L-001 Rev. A
9.
10. Reinsert the media cartridge.
Using a Swab
Use the swab from a Preventive Maintenance Kit (part number 47362) or a clean swab dipped
in a solution of isopropyl alcohol (minimum 90%) and deionized water (maximum 10%).
To clean the media path using a swab, complete these steps:
1. Press the Eject button, and remove the media cartridge from the printer.
2. Turn off (O) the printer power.

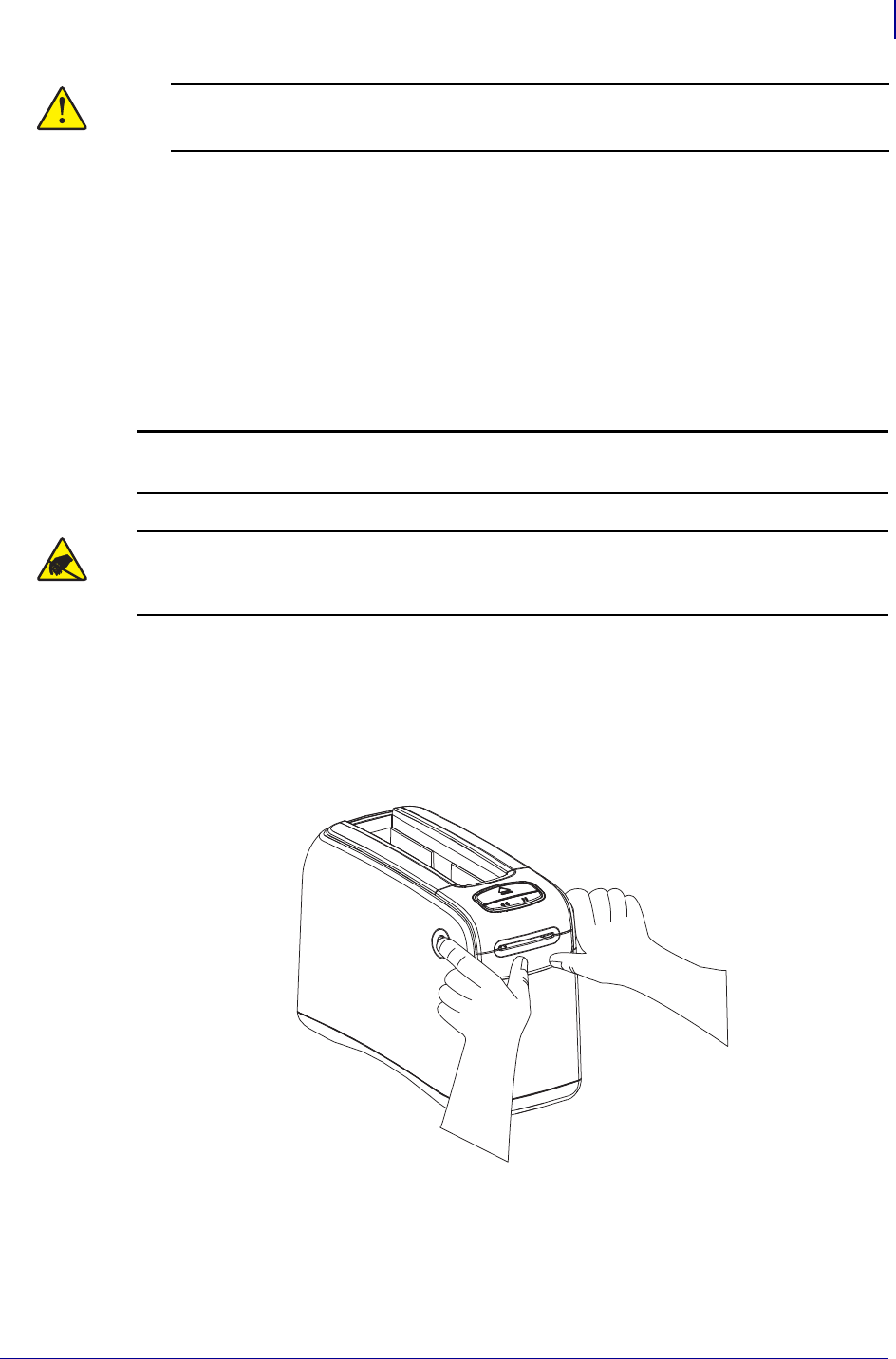

3. Press both upper cover release buttons simultaneously.
The upper cover springs partially open.
Caution • The cleaning card contains isopropyl alcohol, a flammable material. After
use, discard according to your local regulations.
Cleaning is complete when the card stops moving and returns to its original position.
When cleaning is completed, remove and dispose of the cleaning card.
Caution • Remove all rings, watches, hanging necklaces, identification badges, or other
metallic objects that could touch the printhead or drop into the media cartridge slot.
Caution • Before proceeding, discharge any built-up static electricity by touching the
printer’s metal back plate near its power switch or by using an anti-static wriststrap and
mat.
Routine Maintenance
Cleaning the Media Path
46
61207L-001 Rev. A HC100 User Guide 4/23/08
4. Rotate the upper cover up and back.
5. Caution • The printhead may be hot and could cause severe burns. Allow the
printhead to cool.
Grasp the metal lever plate on the printhead assembly and rotate the assembly upward to
expose the printhead elements.
47
Routine Maintenance
Cleaning the Media Path
4/23/08 HC100 User Guide 61207L-001 Rev. A

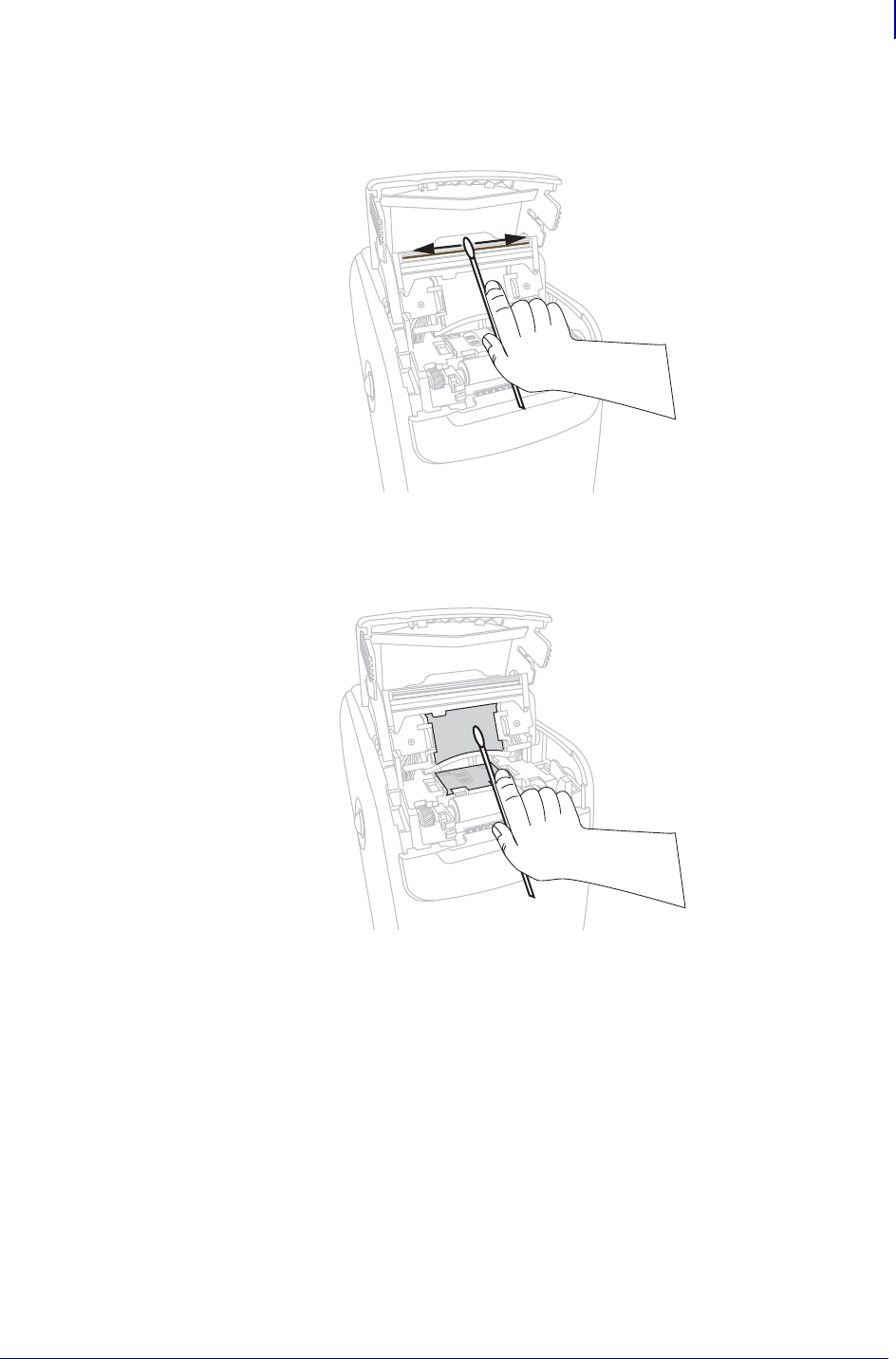

6. Clean the printhead elements.
a. Using the swab from the Preventive Maintenance Kit or a swab dipped in the alcohol
solution, wipe along the brown strip on the printhead assembly from end to end.
b. Allow the solution to evaporate.
7. Clean the media guide surfaces.
a. Using the swab, wipe the media chute surfaces.
b. Allow the solution to evaporate.
Routine Maintenance
Cleaning the Media Path
48
61207L-001 Rev. A HC100 User Guide 4/23/08

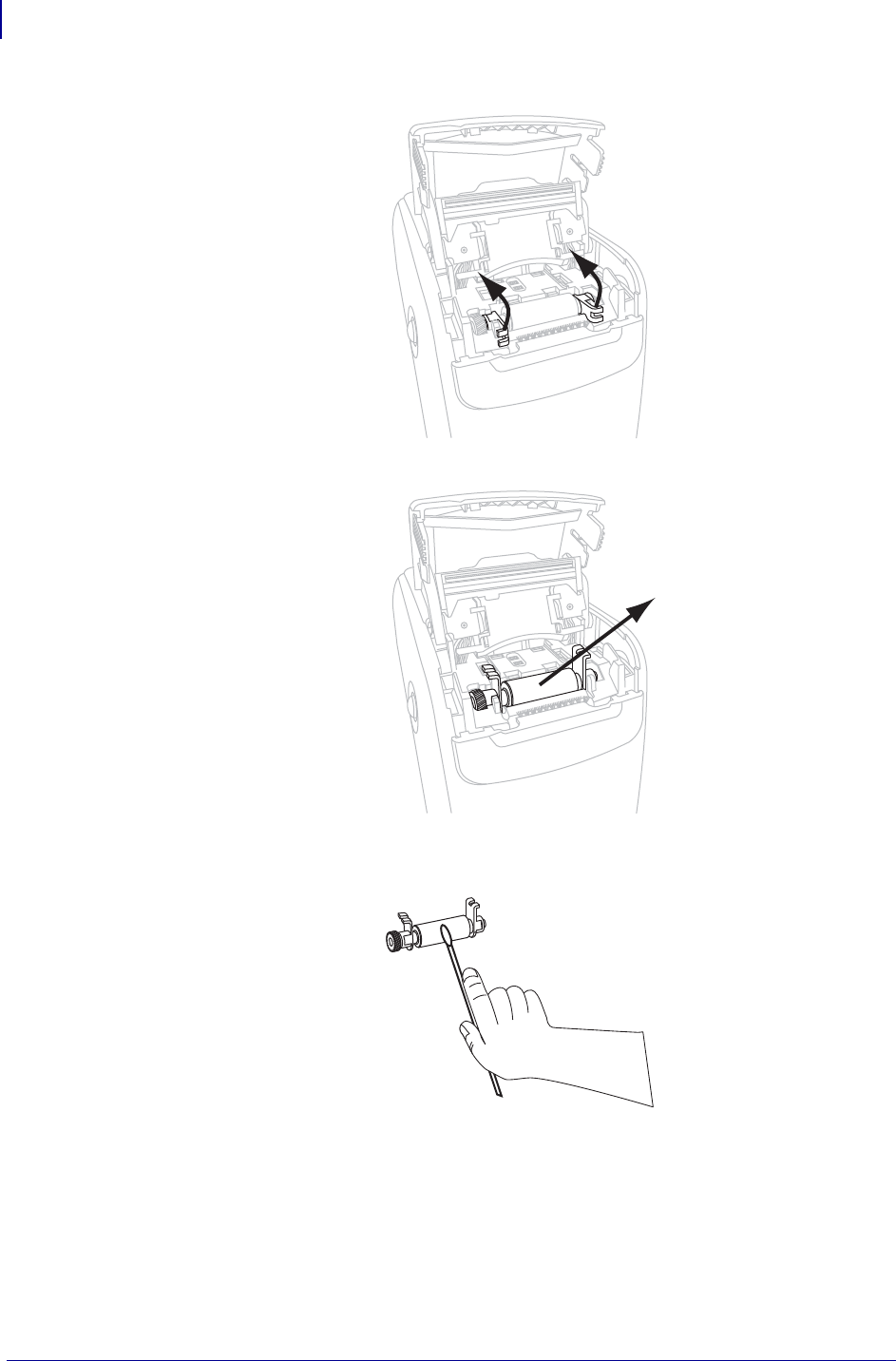

8. Rotate the two side clips on the platen roller upward.
9. Remove the platen roller from the printer.
10. Clean the platen roller.
a. Using the swab, thoroughly clean the platen roller.
b. Allow the solution to evaporate.
49
Routine Maintenance
Cleaning the Media Path
4/23/08 HC100 User Guide 61207L-001 Rev. A
11. Place the platen roller back into its place in the printer.
12. Secure the platen roller by rotating the two side clips back into place.
13. Align the snap tabs on the bottom of the media chute with the slots in the printer chassis.
Routine Maintenance
Cleaning the Media Path
50
61207L-001 Rev. A HC100 User Guide 4/23/08
14. Press down on the metal lever plate to snap the printhead assembly back into place.
15. Close the upper cover.
16. Turn on (I) the printer power.
17. Reinsert the media cartridge.
18. Discard the used swab.
51
Routine Maintenance
Cleaning the Smart Card Contacts and the Media Cartridge Sensor Pins
4/23/08 HC100 User Guide 61207L-001 Rev. A
Cleaning the Smart Card Contacts
and the Media Cartridge Sensor Pins
After every five media cartridges, clean the media cartridge sensor pins to ensure that they
make good contact with the smart card contacts on the media cartridge. If the printer will not
detect a media cartridge, cleaning the media cartridge sensor pins and the smart card contacts
on the cartridge may correct the problem. Use the swab from a Preventive Maintenance Kit
(part number 47362) or a clean swab dipped in a solution of isopropyl alcohol (minimum 90%)
and deionized water (maximum 10%).
To clean the smart card contacts and the media cartridge sensor pins, complete
these steps:
1. Press the Eject button, and remove the media cartridge from the printer.
2. Turn off (O) the printer power.
3. Disconnect the low-power D/C cord from the D/C power connector on the back of the
printer.
4. Using the swab from the Preventive Maintenance Kit or a swab dipped in the alcohol
solution, clean the gold smart card contacts on the back of the media cartridge. Allow the
solution to evaporate.
Caution • Remove all rings, watches, hanging necklaces, identification badges, or other
metallic objects that could touch the printhead or drop into the media cartridge slot.
Caution • Before proceeding, discharge any built-up static electricity by touching the
printer’s metal back plate near its power switch or by using an anti-static wriststrap and
mat.
Routine Maintenance
Cleaning the Smart Card Contacts and the Media Cartridge Sensor Pins
52
61207L-001 Rev. A HC100 User Guide 4/23/08
5.
6. Insert the low-power D/C cord into the D/C power connector on the back of the printer.
7. Turn on (I) the printer power.
8. Reinsert the media cartridge.
9. Discard the used swab.
Caution • Use only vertical strokes to clean the media cartridge sensor pins. Using
horizontal strokes could damage the pins.
Clean the media cartridge sensor pins.
a. Using the swab and vertical strokes, clean the gold media cartridge sensor pins,
which are visible at the back of the media cartridge slot.
b. Allow the solution to evaporate.
53
Routine Maintenance
Replacing Printer Components
4/23/08 HC100 User Guide 61207L-001 Rev. A
Replacing Printer Components
Some printer components, such as the printhead and platen roller, may wear out over time and
can be replaced easily. Regular cleaning may extend the life of some of these components.
Ordering Replacement Parts
For optimal printing quality and proper printer performance across our product line, Zebra
strongly recommends the use of Genuine Zebra™ supplies as part of the total solution.
Contact your authorized Zebra reseller for part ordering information, or see Contacts
on page 11 for contact addresses and telephone numbers.
Recycling Printer Components
Lubrication
No lubrication is needed for this printer.
The majority of this printer’s components are recyclable. Do not dispose of any printer
components in unsorted municipal waste. Please recycle the printer components according to
your local standards. For more information, see http://www.zebra.com/environment.
Caution • Some commercially available lubricants will damage the finish and the
mechanical parts if used on this printer.
Routine Maintenance
Lubrication
54
61207L-001 Rev. A HC100 User Guide 4/23/08
Notes • ___________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
4/23/08 HC100 User Guide 61207L-001 Rev. A
5
Advanced User Information
This section contains information and instructions that are intended only for advanced users or
service technicians.
Contents
Viewing Printer Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
On a Printer Configuration Wristband . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Through the Printer’s Web Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Changing and Restoring Printer Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Setting, Changing, and Restoring Print Server Settings . . . . . . . . . . . . . . . . . . . . . . . . . 66
Connecting for the First Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Changing Parameters after Connecting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Web Pages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Additional Diagnostics Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Media Sensor Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Communications Diagnostics Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Downloading Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Advanced User Information
Viewing Printer Settings
56
61207L-001 Rev. A HC100 User Guide 4/23/08
Viewing Printer Settings
The printer configuration wristband provides some basic information about the printer,
particularly about the connectivity settings. If your printer has an active Ethernet wired or
wireless connection, you can view all of the printer’s settings through the printer’s web pages.
On a Printer Configuration Wristband
A printer configuration wristband (Figure 12) shows the printer’s connectivity settings and the
wristband tear-off position. The IP ADDRESS and MAC ADDRESS fields will have values
only if a wired or wireless print server is active. The USB COMM field shows if the printer is
connected to a computer via the USB connector.
Figure 12 • Sample Printer Configuration Wristband
To print a printer configuration wristband, complete these steps:
1. Make sure that the printer is on (I) and ready to print.
2. Press and hold PAUSE/FEED until the green lights turn off on the printer status indicator
and the orange lights blink once.
3. Release PAUSE/FEED.
A printer configuration wristband prints.
57
Advanced User Information
Viewing Printer Settings
4/23/08 HC100 User Guide 61207L-001 Rev. A
Through the Printer’s Web Pages
The View Printer Configuration web page is shown in Figure 13. You can access this page for
your printer by clicking View Printer Configuration on the printer home page. For more
information about the web pages, see Web Pages on page 70.

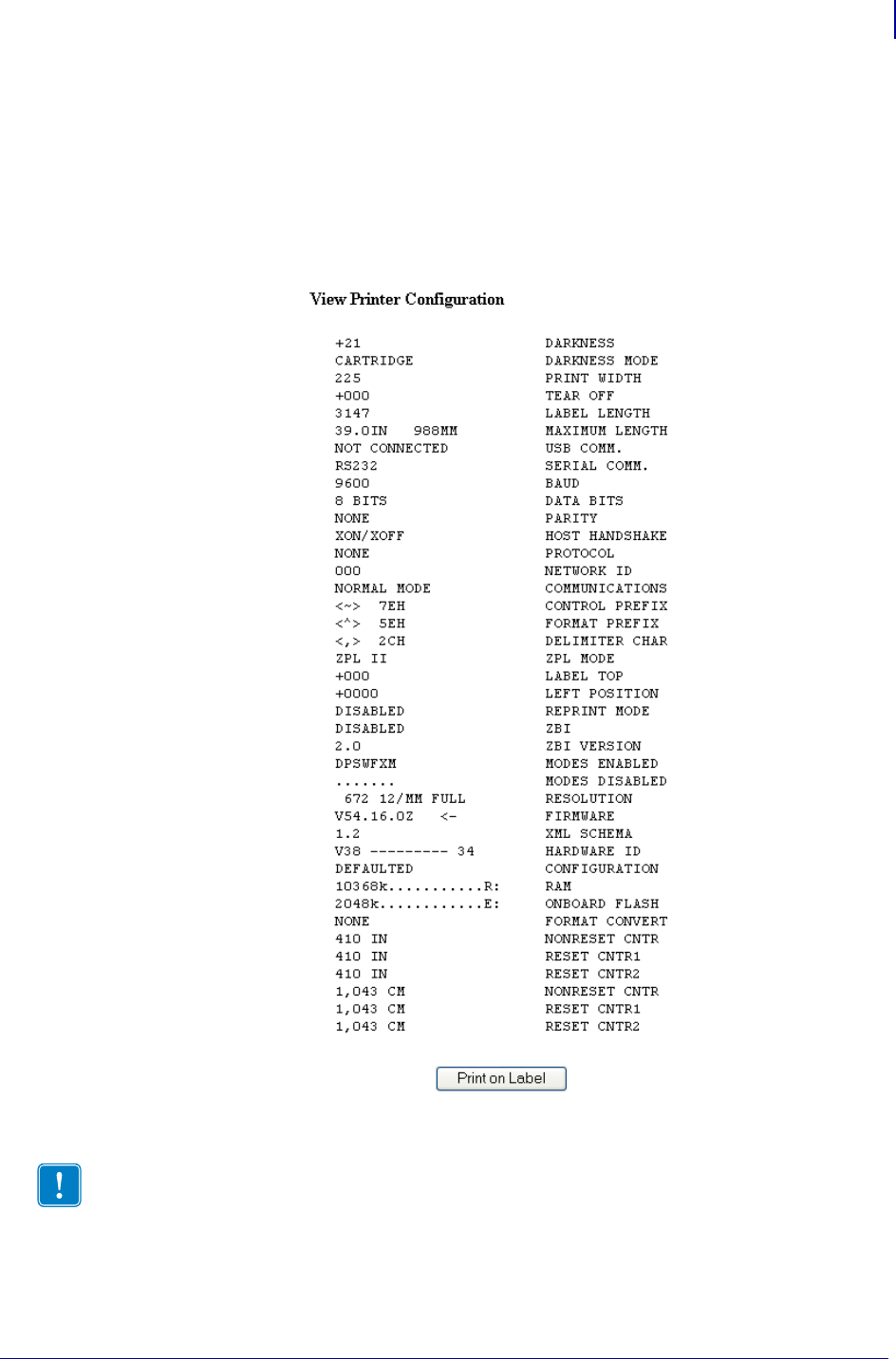

Figure 13 • View Printer Configuration Web Page (Printer Default Values Shown)
Important • If you select the Print on Label option, a printer configuration wristband prints
(see Figure 12 on page 56).
Advanced User Information
Changing and Restoring Printer Settings
58
61207L-001 Rev. A HC100 User Guide 4/23/08
Changing and Restoring Printer Settings
By default, the printer automatically adjusts the settings based on the type of media cartridge
that you insert. You will not usually need to adjust these settings. If necessary, you can adjust
the printer settings to obtain optimal print quality or to change connectivity parameters. You
do this through Zebra Programming Language II (ZPL II) commands, Set/Get/Do (SGD)
commands, or through the printer’s web pages. The printer requires an active wired or wireless
Ethernet connection for you to access the printer’s web pages.
For the ZPL commands and SGD commands, see the ZPL II Programming Guide. A copy of
this manual is available at http://www.zebra.com/manuals or on the user CD that came with
your printer. For instructions on accessing the printer’s web pages, see Web Pages on page 70.
Table 9 shows the printer parameters and what you can use to modify them.
Table 9 • Printer Parameters
Parameter Details
DARKNESS MODE Select Darkness Mode
The printer has three darkness modes, which determine how the DARKNESS
value is set.
Default Value: CARTRIDGE
Selections:
• CARTRIDGE—DARKNESS is set to the media cartridge default value. No
changes are allowed, and the printer ignores ZPL commands that change the
darkness value.
• USER—DARKNESS is set by the user, and the printer ignores the media
cartridge default value. This darkness value is used for all media cartridges
that are inserted into the printer.
• RELATIVE—DARKNESS is stored as the difference between the current
darkness setting and the current media cartridge default value. The printer
adds this difference to the default darkness value of any subsequent media
cartridges.
Corresponding ZPL Command: None
Corresponding SGD Command: media.darkness_mode
Located on Web Page: General Setup
59
Advanced User Information
Changing and Restoring Printer Settings
4/23/08 HC100 User Guide 61207L-001 Rev. A
DARKNESS Adjust Print Darkness
Change the darkness setting if the wristbands print too light or too dark.
Important • To ensure the best image durability, set the darkness to the
highest setting that provides good print quality and bar codes that scan
consistently. If the darkness is set too high, bar codes may not scan, or the
printhead may wear prematurely.
Default Value: This value varies depending on the darkness mode and the media
cartridge being used. Typically, the value is +21.
Corresponding ZPL Command: ~SD, ^MD (available when the darkness mode is
set to USER or RELATIVE; ignored when the darkness mode is set to
CARTRIDGE)
Corresponding SGD Command: None
Located on Web Page: General Setup
PRINT WIDTH Set Print Width
This parameter is set automatically by the printer cartridge. It cannot be modified.
The ^PW ZPL II command is ignored.
Located on Web Page: Media Setup (view only)
TEAR OFF Adjust the Tear-Off Position
This parameter adjusts the resting position of the wristband after printing. Higher
numbers move the wristband farther out of the printer while lower numbers move
the wristband farther inside the printer.
Default Value: +0
Range: +0 to +120
Corresponding ZPL Command: ^TA
Corresponding SGD Command: None
Located on Web Page: General Setup
LABEL LENGTH Set Wristband Length
This parameter is set automatically by the printer cartridge. It cannot be modified.
The ^LL ZPL II command is ignored.
MAXIMUM LENGTH Set Maximum Wristband Length
This parameter is set automatically by the printer cartridge. It cannot be modified.
The ^ML ZPL II command is ignored.
Located on Web Page: Media Setup (view only)
SERIAL Set Serial Communications
Select the communications port that matches the one being used by the host
computer. This setting applies only when the serial port is used.
Default Value: RS232
Selections: RS232, RS485 MULTIDROP
Corresponding ZPL Command: ^SC
Corresponding SGD Command: None
Located on Web Page: Serial Communications Setup
Table 9 • Printer Parameters (Continued)
Parameter Details
Advanced User Information
Changing and Restoring Printer Settings
60
61207L-001 Rev. A HC100 User Guide 4/23/08
BAUD Set Baud
This setting applies only when the serial port is used. The baud setting of the
printer must match the baud setting of the host computer for accurate
communications to take place. Select the value that matches the one being used
by the host computer.
Default Value: 9600
Selections: 300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400,
57600, 115200
Corresponding ZPL Command: ^SC
Corresponding SGD Command: None
Located on Web Page: Serial Communications Setup
DATA BITS Set Data Bits
This setting applies only when the serial port is used. The data bits of the printer
must match the data bits of the host computer for accurate communications to
take place. Set the data bits to match the setting being used by the host computer.
Default Value: 8BITS
Selections: 7BITS, 8BITS
Corresponding ZPL Command: ^SC
Corresponding SGD Command: None
Located on Web Page: Serial Communications Setup
PARITY Set Parity
This setting applies only when the serial port is used. The parity of the printer
must match the parity of the host computer for accurate communications to take
place. Select the parity that matches the one being used by the host computer.
Default Value: NONE
Selections: EVEN, ODD, NONE
Corresponding ZPL Command: ^SC
Corresponding SGD Command: None
Located on Web Page: Serial Communications Setup
HOST HANDSHAKE Set Host Handshake
This setting applies only when the serial port is used. The handshake protocol of
the printer must match the handshake protocol of the host computer for
communication to take place. Select the handshake protocol that matches the one
being used by the host computer.
Default Value: XON/XOFF
Selections: XON/XOFF, DSR/DTR, RTS/CTS
Corresponding ZPL Command: ^SC
Corresponding SGD Command: None
Located on Web Page: Serial Communications Setup
Table 9 • Printer Parameters (Continued)
Parameter Details
61
Advanced User Information
Changing and Restoring Printer Settings
4/23/08 HC100 User Guide 61207L-001 Rev. A
PROTOCOL Set Protocol
Protocol is a type of error checking system. Depending on the selection, an
indicator may be sent from the printer to the host computer signifying that data
has been received. Select the protocol that is requested by the host computer.
Further details on protocol can be found in the ZPL II Programming Guide.
Default Value: NONE
Selections: NONE, ZEBRA, ACK_NAK
Corresponding ZPL Command: ^SC
Corresponding SGD Command: None
Located on Web Page: Serial Communications Setup
NETWORK ID Set Network ID
This parameter assigns a unique number to the printer when the printer is
operating in an RS422/485 multi-drop network environment (an external
RS422/485 adapter is required). This gives the host computer the means to
address a specific printer. This does not affect TCP/IP or IPX networks.
Default Value: 000
Range: 000 to 999
Corresponding ZPL Command: ^NI
Corresponding SGD Command: None
Located on Web Page: Serial Communications Setup
COMMUNICATIONS Set Communications Diagnostics Mode
The communication diagnostics mode is a troubleshooting tool for checking the
interconnection between the printer and the host computer. For more information,
see Communications Diagnostics Test on page 73.
Default Value: NORMAL MODE
Selections: NORMAL MODE, DIAGNOSTICS
Corresponding ZPL Command: ~JD to start, ~JE to stop
Corresponding SGD Command: None
Located on Web Page: None
CONTROL PREFIX Set Control Prefix Character
The printer looks for this two-digit hex character to indicate the start of a
ZPL/ZPL II control instruction.
Note • Do not use the same hex value for the control, format, and
delimiter character. The printer must see different characters to work
properly.
Default Value: 7E ~
Range: 00 to FF
Corresponding ZPL Command: ^CT or ~CT
Corresponding SGD Command: None
Located on Web Page: ZPL Control
Table 9 • Printer Parameters (Continued)
Parameter Details
Advanced User Information
Changing and Restoring Printer Settings
62
61207L-001 Rev. A HC100 User Guide 4/23/08
FORMAT PREFIX Set Format Prefix Character
The format prefix is a two-digit hex value used as a parameter place marker in
ZPL/ZPL II format instructions. The printer looks for this hex character to
indicate the start of a ZPL/ZPL II format instruction. See the ZPL II
Programming Guide for more information.
Note • Do not use the same hex value for the control, format, and
delimiter character. The printer must see different characters to work
properly.
Default Value: 5E ^
Range: 00 to FF
Corresponding ZPL Command: ^CC or ~CC
Corresponding SGD Command: None
Located on Web Page: ZPL Control
DELIMITER CHAR Set Delimiter Character
The delimiter character is a two-digit hex value used as a parameter place marker
in ZPL/ZPL II format instructions. See the ZPL II Programming Guide for more
information.
Note • Do not use the same hex value for the control, format, and
delimiter character. The printer must see different characters to work
properly.
Default Value: 2C ,
Range: 00 to FF
Corresponding ZPL Command: ^CD or ~CD
Corresponding SGD Command: None
Located on Web Page: ZPL Control
ZPL MODE Select ZPL Mode
The printer remains in the selected mode until it is changed by this parameter or
by using a ZPL/ZPL II command. The printer accepts wristband formats written
in either ZPL or ZPL II, eliminating the need to rewrite any ZPL formats that
already exist.
Default Value: ZPL II
Range: ZPL II, ZPL
Corresponding ZPL Command: ^SZ
Corresponding SGD Command: None
Located on Web Page: ZPL Control
Table 9 • Printer Parameters (Continued)
Parameter Details
63
Advanced User Information
Changing and Restoring Printer Settings
4/23/08 HC100 User Guide 61207L-001 Rev. A
LABEL TOP Adjust Top Position
This parameter adjusts the print position vertically on the wristband. Positive
numbers adjust the top position farther down the wristband (away from the
printhead) by the specified number of dots. Negative numbers adjust the top
position up the wristband (toward the printhead).
Default Value: +000
Range: +000 to +120 dots
Corresponding ZPL Command: ^LT
Corresponding SGD Command: None
Located on Web Page: General Setup
LEFT POSITION Adjust Left Position
This parameter adjusts the print position horizontally on the wristband. Positive
numbers adjust printing to the left by the specified number of dots. Negative
numbers shift printing to the right.
Default Value: 0000
Range: –9999 to +9999 dots
Corresponding ZPL Command: ^LS
Corresponding SGD Command: None
Located on Web Page: Advanced Setup
REPRINT MODE Enable Reprint Mode
When reprint mode is enabled, the printer reprints the last wristband after you
correct an error condition.
Default Value: DISABLED
Selections: ENABLED, DISABLED
Corresponding ZPL Command: ^JZ
Corresponding SGD Command: None
Located on Web Page: None
ZBI Run ZBI 2.0
If your printer was not factory-enabled with ZBI 2.0, you must purchase a
ZBI 2.0 Activation Key to use ZBI 2.0. Contact your authorized Zebra reseller for
more information.
Default Value: STOPPED (DISABLED)
Selections: STARTED (ENABLED), STOPPED (DISABLED)
Corresponding ZPL Command: ^JI or ~JI to start, ~JQ to stop
Corresponding SGD Command: zbi.control.run to start,
zbi.control.terminate to stop
Located on Web Page: None
Table 9 • Printer Parameters (Continued)
Parameter Details
Advanced User Information
Changing and Restoring Printer Settings
64
61207L-001 Rev. A HC100 User Guide 4/23/08
FORMAT CONVERT Select Format Convert
Selects the bitmap scaling factor. The first number is the original dots per inch
(dpi) value; the second, the dpi to which you would like to scale.
Default Value: NONE
Selections: NONE, 150 → 300, 150 → 600, 200 → 600, 300 → 600
Corresponding ZPL Command: ^MU
Corresponding SGD Command: None
Located on Web Page: Advanced Setup
NONRESET CNTR View Non-Resettable Counter
This parameter displays the total length of media that the printer has printed. You
can use ZPL commands to change the unit of measure for this counter.
Corresponding ZPL Command: ~HQ to view, ^MU to change unit of measure
Corresponding SGD Command: odometer.total_print_length
Located on Web Page: None
RESET CNTR1 View User-Controlled Counter 1
This parameter displays the total length of media that the printer has printed since
this parameter was last reset. You can use ZPL commands to change the unit of
measure and reset this counter.
Corresponding ZPL Command: ~HQ to view, ~RO to reset, ^MU to change unit of
measure
Corresponding SGD Command: odometer.media_marker_count1
Located on Web Page: None
RESET CNTR2 View User-Controlled Counter 2
This parameter displays the total length of media that the printer has printed since
this parameter was last reset. You can use ZPL commands to change the unit of
measure and reset this counter.
Corresponding ZPL Command: ~HQ to view, ~RO to reset, ^MU to change unit of
measure
Corresponding SGD Command: odometer.media_marker_count2
Located on Web Page: None
Table 9 • Printer Parameters (Continued)
Parameter Details
65
Advanced User Information
Changing and Restoring Printer Settings
4/23/08 HC100 User Guide 61207L-001 Rev. A
LOAD DEFAULTS Restore Printer Default Values
Restores all parameters other than the network settings back to the factory
defaults. Use care when loading defaults because you will need to reload all
settings that you changed manually.
Note • Loading factory defaults causes the printer to auto-calibrate.
Corresponding ZPL Command: ^JUF
Corresponding SGD Command: None
Located on Web Page: View and Modify Printer Settings (Restore Default
Configuration button)
To restore printer default values through the control panel, complete
these steps:
1. Press and hold PAUSE/FEED to place the printer in user configuration mode.
The printer status indicator blinks orange. Depending on when you release
PAUSE/FEED, different actions take place.
2. Release PAUSE/FEED after the orange light blinks four times.
The printer resets all printer parameters back to defaults. The default values
are shown in Figure 13 on page 57.
Table 9 • Printer Parameters (Continued)
Parameter Details
Advanced User Information
Setting, Changing, and Restoring Print Server Settings
66
61207L-001 Rev. A HC100 User Guide 4/23/08
Setting, Changing, and Restoring Print Server Settings
Your printer may include an optional ZebraNet 10/100 Internal Print Server (wired Ethernet)
or a ZebraNet Internal Wireless Plus Print Server (wireless Ethernet).
For additional information, refer to the manuals for your wired or wireless print server. Copies
of the manuals are available at http://www.zebra.com/manuals or on the user CD that came
with your printer. For instructions on accessing the printer’s web pages, see Web Pages
on page 70.
Connecting for the First Time
ZebraNet 10/100 Internal Print Server To configure the 10/100 Internal Print Server,
connect the printer to your Local Area Network (LAN) using an Ethernet cable. By default, the
printer is set for dynamic IP resolution, so it should acquire an IP address. Print a printer
configuration wristband to find the printer’s IP address (see Viewing Printer Settings
on page 56). If you need to change parameters before you can connect the first time, use the
serial or USB port to send the appropriate ZPL or SGD commands.
Zebranet Internal Wireless Print Server See the ZebraNet Wireless User Guide for
configuration instructions. Before you can connect your printer to your Wireless Local Area
Network (WLAN) or view the printer’s web pages, you need to set the printer’s parameters to
match your WLAN. Use the serial or USB port to send the appropriate instructions to the
printer.
After the printer connects to your WLAN, you can access the printer’s web pages to make
changes to the settings. Print a printer configuration wristband to find the printer’s IP address
(see Viewing Printer Settings on page 56).
Changing Parameters after Connecting
Table 9 shows basic print server parameters and what you can use to modify them. For all
other print server parameters, refer to the manuals for your wired or wireless print server.
Table 10 • Print Server Parameters
Parameter Details
IP ADDRESS View or Change the Printer’s IP Address
This parameter can be modified only when PERMANENT is selected for
IP PROTOCOL.
Selections: 0 to 255 for each field
Default Value: 0.0.0.0
Note • Leading zeroes are not shown in the address.
Corresponding ZPL Command: ^ND, ^NS (wired), or ^WI (wireless)
Corresponding SGD Command: internal_wired.ip.addr (wired) or
wlan.ip.addr (wireless)
Located on Web Page: TCP/IP Settings
67
Advanced User Information
Setting, Changing, and Restoring Print Server Settings
4/23/08 HC100 User Guide 61207L-001 Rev. A
IP PROTOCOL Select the Method to Obtain an IP Address
This parameter tells if the user (permanent) or the server (dynamic) selects the
IP address. If a dynamic option is chosen, this parameter tells the method by
which the print server (wired or wireless) receives the IP address from the server.
Selections: ALL, BOOTP, DHCP, DHCP AND BOOTP, PERMANENT
Default Value: All
Corresponding ZPL Command: ^ND, ^NS (wired), or ^WI (wireless)
Corresponding SGD Command: internal_wired.ip.protocol (wired)
or wlan.ip.protocol (wireless)
Located on Web Page: TCP/IP Settings
SUBNET MASK View or Change the Subnet
This parameter can be modified only when PERMANENT is selected for
IP PROTOCOL.
Selections: 0 to 255 for each field
Default Value: 255.255.255.0
Note • Leading zeroes are not shown in the address.
Corresponding ZPL Command: ^ND, ^NS (wired), or ^WI (wireless)
Corresponding SGD Command: internal_wired.ip.netmask (wired) or
wlan.ip.netmask (wireless)
Located on Web Page: TCP/IP Settings
DEFAULT GATEWAY View or Change the Gateway
This parameter can be modified only when PERMANENT is selected for
IP PROTOCOL.
Selections: 0 to 255 for each field
Default Value: 0.0.0.0
Note • Leading zeroes are not shown in the address.
Corresponding ZPL Command: ^ND, ^NS (wired), or ^WI (wireless)
Corresponding SGD Command: internal_wired.ip.gateway (wired) or
wlan.ip.gateway (wireless)
Located on Web Page: TCP/IP Settings
Table 10 • Print Server Parameters (Continued)
Parameter Details
Advanced User Information
Setting, Changing, and Restoring Print Server Settings
68
61207L-001 Rev. A HC100 User Guide 4/23/08
IP PROTOCOL Select the Method to Obtain an IP Address
This parameter tells if the user (permanent) or the server (dynamic) selects the
IP address. If a dynamic option is chosen, this parameter tells the method by
which the print server (wired or wireless) receives the IP address from the server.
Selections: ALL, BOOTP, DHCP, DHCP AND BOOTP, PERMANENT
Default Value: All
Corresponding ZPL Command: ^ND, ^NS (wired), or ^WI (wireless)
Corresponding SGD Command: internal_wired.ip.protocol (wired)
or wlan.ip.protocol (wireless)
Located on Web Page: TCP/IP Settings
SUBNET MASK View or Change the Subnet
This parameter can be modified only when PERMANENT is selected for
IP PROTOCOL.
Selections: 0 to 255 for each field
Default Value: 255.255.255.0
Note • Leading zeroes are not shown in the address.
Corresponding ZPL Command: ^ND, ^NS (wired), or ^WI (wireless)
Corresponding SGD Command: internal_wired.ip.netmask (wired) or
wlan.ip.netmask (wireless)
Located on Web Page: TCP/IP Settings
DEFAULT GATEWAY View or Change the Gateway
This parameter can be modified only when PERMANENT is selected for
IP PROTOCOL.
Selections: 0 to 255 for each field
Default Value: 0.0.0.0
Note • Leading zeroes are not shown in the address.
Corresponding ZPL Command: ^ND, ^NS (wired), or ^WI (wireless)
Corresponding SGD Command: internal_wired.ip.gateway (wired) or
wlan.ip.gateway (wireless)
Located on Web Page: TCP/IP Settings
Table 10 • Print Server Parameters (Continued)
Parameter Details
69
Advanced User Information
Setting, Changing, and Restoring Print Server Settings
4/23/08 HC100 User Guide 61207L-001 Rev. A
DEFAULT NET Restore Print Server Default Values
Restores the wired and wireless network settings back to factory defaults.
Corresponding ZPL Command: ^JUN
Corresponding SGD Command: none
Located on Web Page: View and Modify Printer Settings (Restore Default
Network Configuration button)
To restore printer default values through the control panel, complete
these steps:
1. Press and hold PAUSE/FEED to place the printer in user configuration mode.
The printer status indicator blinks orange. Depending on when you release
PAUSE/FEED, different actions take place.
2. Release PAUSE/FEED after the orange light blinks three times.
The printer resets all print server parameters back to defaults.
Table 10 • Print Server Parameters (Continued)
Parameter Details
Advanced User Information
Web Pages
70
61207L-001 Rev. A HC100 User Guide 4/23/08
Web Pages
If your printer has an active Ethernet wired or wireless connection, you can view and modify
the printer’s settings through the printer’s web pages. For additional information, refer to the
manuals for your wired or wireless print server. Copies of the manuals are available at
http://www.zebra.com/manuals or on the user CD that came with your printer.
The printer home page is shown in Figure 14.
Figure 14 • Printer Home Page
To access printer settings through the web pages, complete these steps:
1. On the printer home page, click View and Modify Printer Settings.
The printer prompts for a password.
2. Enter the password for your printer. The default password is 1234.
3. Click Submit Changes.
The following statement appears:
Access Granted. This IP Address now has admin access to the restricted printer
pages. Please Click here to proceed
71
Advanced User Information
Web Pages
4/23/08 HC100 User Guide 61207L-001 Rev. A
4. Click on the statement.
The View and Modify Printer Settings page displays.
5. Modify the settings as needed.
For additional information, refer to the manuals for your wired or wireless print server.
Copies of the manuals are available at http://www.zebra.com/manuals or on the user CD
that came with your printer.
Advanced User Information
Additional Diagnostics Tools
72
61207L-001 Rev. A HC100 User Guide 4/23/08
Additional Diagnostics Tools
The media sensor profile and the communications diagnostics test are available as diagnostic
tools.
Media Sensor Profile
Use the media sensor profile to troubleshoot the following types of problems:
• If the media sensor experiences difficulty in determining where wristbands start and stop.
• If the media sensor incorrectly identifies a preprinted area on a wristband as the end of the
wristband.
The media sensor readings are shown as peaks and flat areas on the media sensor profile
(Figure 15). Two peaks appear when the sensors are operating properly, indicating that the
sensors correctly detected the black mark on the back of the wristband. A media sensor profile
prints on two wristbands.
Figure 15 • Media Sensor Profile
To print a media sensor profile, complete these steps:
1. Make sure that the printer is on (I) and ready to print.
2. Press and hold PAUSE/FEED until the green lights turn off on the printer status indicator
and the orange lights blink once. Continue holding PAUSE/FEED until the orange lights
blink twice.
3. Release PAUSE/FEED.
A media sensor profile prints.
MEDIA MEDIA MEDIA MEDIA MEDIA MEDIA MEDIA MEDIA MEDIA MEDIA MEDIA MEDIA MEDIA MEDIA MEDIA MEDIA MEDIA MEDIA MEDIA MEDIA MEDI IA MEDIA MEDIA MEDIA MEDIA MEDIA MEDIA MEDIA MEDIA MEDIA MEDIA MEDIA
100
80
60
40
20
0
73
Advanced User Information
Additional Diagnostics Tools
4/23/08 HC100 User Guide 61207L-001 Rev. A
Communications Diagnostics Test
The communication diagnostics test is a troubleshooting tool for checking the interconnection
between the printer and the host computer.
When the printer is in diagnostics mode, it prints all data received from the host computer as
straight ASCII characters with the hex values below the ASCII text. The printer prints all
characters received, including control codes such as CR (carriage return). Figure 16 shows a
typical printout from this test. The actual format is modified to print on narrow wristbands.

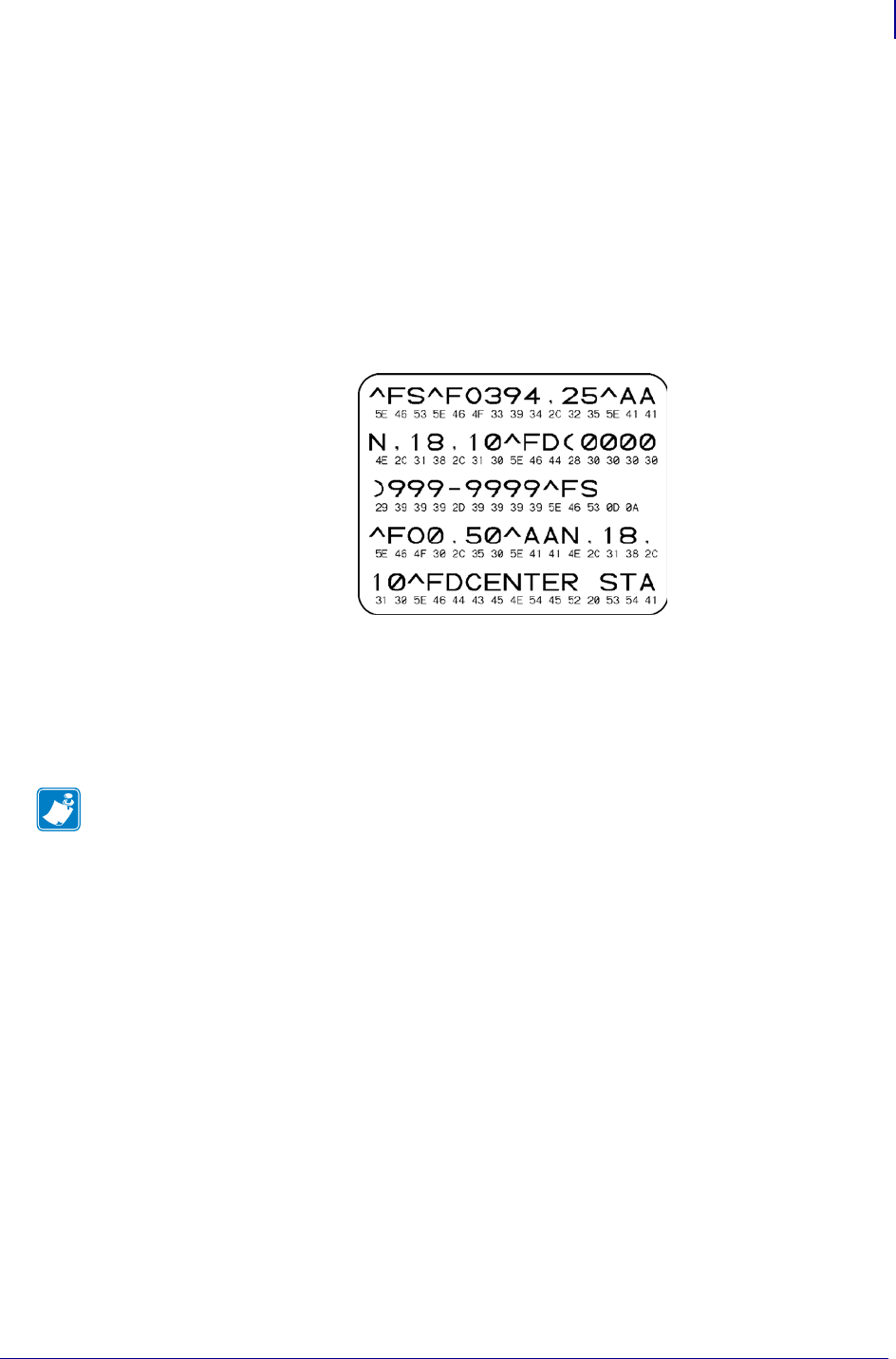

Figure 16 • Communications Diagnostics Test Printout
To use communications diagnostics mode, complete these steps:
1. Set the printer to Diagnostics mode by sending the ~JD ZPL II command to the printer.
The printer enters Diagnostics mode and prints any data received from the host computer
on a test printout
2. Check the test printout for error codes. For any errors, check that your communication
parameters are correct.
Errors show on the test printout as follows:
• FE indicates a framing error.
• OE indicates an overrun error.
• PE indicates a parity error.
• NE indicates noise.
3. Send the ~JE ZPL II command to the printer to return to normal operation.
Note • The PAUSE/FEED button will not advance a wristband while the printer is in
Diagnostics mode. Exit Diagnostics mode to use that button and feed a wristband.
Advanced User Information
Downloading Firmware
74
61207L-001 Rev. A HC100 User Guide 4/23/08
Downloading Firmware
Zebra periodically issues updated firmware to enhance the usability of its printers. You may
download the latest HC100 firmware to the printer at any time. For the latest firmware version
and instructions for downloading it, go to http://www.zebra.com/firmware.
You may choose to place the printer in forced download mode before downloading firmware.
While in this mode, the printer does not accept wristband printing instructions or control panel
button presses.
To place the printer in forced download mode, complete these steps:
1. Turn the printer off (O).
2. Press and hold PAUSE/FEED while turning on the printer (I).
During the printer self test, the printer status indicator rapidly alternates between yellow
and orange for 3 seconds.
3. Release PAUSE/FEED during this light sequence to enter forced download mode.
The printer status indicator alternates between green and orange lights.
4. Download firmware to the printer using any available connection.
As firmware is downloading, a green light rotates on the printer status indicator.
During the firmware download process, the printer status indicator turns to a steady half-
orange and half-green as the printer writes to flash memory. Do NOT power cycle the
printer during this phase.
When the firmware download process is complete, the printer returns to normal operation.
See Media Status Indicator on page 34 for more information on the indicator lights.
Caution • During the firmware download process, the printer status indicator turns to a
steady half-orange and half-green as the printer writes to flash memory.
Do NOT power cycle the printer during this phase. Doing so makes the printer inoperable.
If necessary, contact technical support for assistance (see Contacts on page 11).
4/23/08 HC100 User Guide 61207L-001 Rev. A
6
Specifications
This section contains the specifications for the printer and wristbands.
Contents
Physical and Environmental. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Wristband. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Standard and Optional Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Specifications
Physical and Environmental
76
61207L-001 Rev. A HC100 User Guide 4/23/08
Physical and Environmental
Printing
Physical
Dimensions (LxWxH) 9.5x5x7 in. (242x127x178 mm)
Clearance 6 in. (153 mm) above the printer to load a media cartridge
Weight 3.1 lb (1.4 kg)
Electrical 100-240 VAC, 50-60 Hz external power supply
Temperature
Operating 40° to 104°F (5° to 40°C)
Storage –40° to 140°F (–40° to 60°C)
Relative Humidity
Operating 20% to 85%, non-condensing
Storage 5% to 85%, non-condensing
Printhead Resolution 300 dpi
Print Speed 2 in./sec (51 mm/sec)
Dot size (width x length) 0.0033 in. x 0.0039 in. (0.084 mm x 0.099 mm)
Minimum print length 3 in. (76 mm)
Maximum print length 22 in. (558 mm)
Bar code modulus
(X) dimension 3.27 mil to 32.67 mil
77
Specifications
Wristband
4/23/08 HC100 User Guide 61207L-001 Rev. A
Wristband
Standard and Optional Features
Wristband widths • 0.75 in (19 mm)
• 1 in. (25 mm)
• 1-3/16 in. (30 mm)
Wristband closure types • Adhesive (Z-Band™ Direct)
• Clip (Z-Band™ QuickClip)
Wristband lengths Adhesive Closure Type
• Adult (11 in./279 mm)
• Pediatric (7 in./178 mm)
• Infant (6 in./152 mm)
Clip Closure Type
• Adult (11 in./279 mm)
• Infant (7 in./178 mm)
Colors Adhesive Closure Type
•Red
•Blue
• Yellow
• Green
•Pink
•Purple
•Orange
Clip Closure Type
•Red
•Blue
•Yellow
•Green
•Pink
• Purple
Memory • Standard 8 MB Flash (2 MB user available)
• Optional 64 MB Flash (58 MB user available)
• Standard 16 MB SDRAM (4 MB user available)
Connectivity • RS-232 Serial
•USB 2.0
• Optional 10/100 internal wired Ethernet (factory installed)
• Optional 802.11 b/g internal wireless Ethernet (factory installed)
Programming Languages •ZPL II
•XML
• Optional ZBI 2.0
Specifications
Power Cord
78
61207L-001 Rev. A HC100 User Guide 4/23/08
Power Cord
Depending on how your printer was ordered, a power cord may or may not be included. If one
is not included or if the one included is not suitable for your requirements, see Figure 17 and
refer to the following guidelines:
• The overall cord length must be less than 9.8 ft. (3 m).
• The cord must be rated for at least 10 A, 250 V.
• The chassis ground (earth) must be connected to ensure safety and reduce electromagnetic
interference.
Figure 17 • Power Cord Specifications
Figure 18 • International Safety Organization Certifications
Caution • For personnel and equipment safety, always use an approved three-conductor
power cord specific to the region or country intended for installation. This cord must use an
IEC 320 female connector and the appropriate region-specific, three-conductor grounded
plug configuration.
1AC power plug for your country—This should bear
the certification mark of at least one of the known
international safety organizations (Figure 18).
23-conductor HAR cable or other cable approved for
your country.
3IEC 320 connector—This should bear the
certification mark of at least one of the known
international safety organizations (Figure 18).
4Length ≤ 9.8 ft. (3 m). Rating 10 Amp, 250 VAC.
3
1
2
4
4/23/08 HC100 User Guide 61207L-001 Rev. A
End User License
Agreement
Please read the terms of this “End User License Agreement” (the “Agreement”) carefully. The
Agreement is a legal agreement between you (either an individual or a single entity) and Zebra
Technologies International, LLC (“Zebra”) for the Zebra computer software and/or firmware
accompanying this End User License Agreement, and any associated media, printed materials
and any “online” or electronic documentation (collectively, “Software”). By installing or
using the Software, you agree to be bound by the terms of this Agreement. If you do not agree
to the terms of this Agreement, you may not install or use the Software.
1. Grant of License. The Software is protected by copyright and other intellectual property
laws and international treaties. The Software is licensed to you, and not sold, subject to the
terms of this Agreement. Subject to the terms of this Agreement, Zebra hereby grants you a
limited, personal, non-exclusive license during the term of this Agreement to use the Software
solely and exclusively for your internal use for the operation of your associated Zebra
printer(s) and for no other purpose. To the extent that any portion of the Software is provided
to you in a manner that is designed to be installed by you, you may install one copy of the
installable Software on one hard disk or other storage device for one printer, computer,
workstation, terminal, or other digital electronic device, as applicable (an “Electronic
Device”), and you may access and use that Software as installed on that Electronic Device so
long as only one copy of such Software is in operation. If you are an organization rather than
an individual, you may authorize personnel associated with your business to use the Software,
but only one person at a time on one Electronic Device at a time. You agree not to duplicate or
copy the Software, except that you may make one back-up copy for archive purposes. The
primary user of the Electronic Device on which installable Software is installed may also make
a copy for his or her exclusive use on a portable computer, so long as such Software is being
used only on one Electronic Device at a time.
2. Storage/Network Use. In the alternative, you may install a copy of the Software on a
storage device, such as a network server, used only to access and use the Software on your
Electronic Devices over an internal network; however, you must acquire and dedicate a license
for each separate Electronic Device on which the Software is accessed and used from the
storage device. A license for the Software may not be shared or used concurrently on different
Electronic Devices.
End User License Agreement
80
61207L-001 Rev. A HC100 User Guide 4/23/08
3. Documentation. If the Software contains documentation which is provided only in
electronic form, you may print one copy of such electronic documentation. You may not copy
the printed materials accompanying the Software.
4. Limitations of Reverse Engineering, Decompilation and Disassembly. You
may not reverse engineer, decompile, or disassemble the Software, except and only to the
extent that such activity is permitted by applicable law notwithstanding this limitation.
5. Transfer/Sublicense. You may not transfer, sublicense, distribute, rent, lease, supply,
market or lend the Software to any other party.
6. Confidentiality. You acknowledge that the Software embodies confidential information
owned by Zebra and/or its suppliers and licensors. To the extent you have access to any such
information, you agree to use such information only for the authorized use of the Software.
You further agree not to disclose such confidential information to any other party and to use at
least the same degree of care to maintain the confidential nature of such information as you use
to maintain the confidentiality of your own confidential information.
7. Intellectual Property. All title, copyrights and other intellectual property rights in and to
the Software (including but not limited to copyrights, patents, trade secrets and trademarks)
are owned by Zebra or its suppliers and licensors. You must maintain all copyright notices on
all copies of the Software. All rights not expressly granted are reserved by Zebra. Without
prejudice to any rights or remedies Zebra may have for your violation of this Software
License, Zebra shall own all changes or modifications to the Software.
8. Termination. Without prejudice to any other rights or remedies Zebra may have, Zebra
may terminate this Agreement if you fail to comply with the terms and conditions of this
Agreement. Zebra may terminate this Agreement by offering you a superseding Agreement for
the Software or any replacement or modified version of or upgrade to the Software and
conditioning your continued use of the Software or such replacement, modified or upgraded
version on your acceptance of such superseding Agreement. In addition, either party may
terminate this Agreement at any time. Subject to the foregoing, termination shall be effective
upon notice to the other party. In the event that this Agreement terminates for any reason, your
license to use the Software will terminate, and you must immediately stop using the Software,
destroy all copies of the Software and all of its component parts, and, upon request, provide an
affidavit certifying your compliance with the foregoing. The provisions of Sections 4, 5, 6, 7,
12, 13, 14, 15, 16, 17, 18, 19 and 20 shall survive termination of this Agreement.
9. U.S. Government Restricted Rights. You agree that the Software constitutes
“commercial computer software” and/or “commercial computer software documentation”
within the meaning of Federal Acquisition Regulation § 12.212 for civilian agencies and
Defense Federal Acquisition Regulation Supplement § 227.7202. Accordingly, if you are an
agency, department, employee, or other entity of the United States Government, the use,
duplication, reproduction, release, modification, disclosure, or transfer of the Software,
including technical data or manuals, is restricted by the terms, conditions and covenants
contained in these EULA Terms and Conditions. All Software provided to the U.S.
Government pursuant to solicitations issued prior to December 1, 1995 is provided with
RESTRICTED RIGHTS as provided for in FAR, 48 CFR 52.227-19 (JUNE 1987) or DFARs,
48 CFR 252.227-7013 (OCT 1988), as applicable.
81
End User License Agreement
4/23/08 HC100 User Guide 61207L-001 Rev. A
10. Export Restrictions. You agree that you will not export or re-export the Software, any
part thereof, or any process or service that is the direct product of the Software (the foregoing
collectively referred to as the “Restricted Components”), to any country, person or entity
subject to U.S. export restrictions. You specifically agree not to export or re-export any of the
Restricted Components: (i) to any country to which the U.S. has embargoed or restricted the
export of goods or services, which currently include but are not necessarily limited to Cuba,
Iran, Iraq, North Korea, Sudan and Syria, or to any national of any such country, wherever
located, who intends to transmit or transport the Restricted Components back to such country;
(ii) to any person or entity who you know or have reason to know will utilize the Restricted
Components in the design, development or production of nuclear, chemical or biological
weapons; or (iii) to any person or entity who has been prohibited from participating in U.S.
export transactions by any federal agency of the U.S. government. You warrant and represent
that neither the U.S. Commerce Department, Bureau of Export Administration nor any other
U.S. federal agency has suspended, revoked or denied your export privileges.
Contractor/Manufacturer is Zebra Technologies Corporation, 333 Corporate Woods Parkway,
Vernon Hills, Illinois 60061.
11. Accessing Services Using the Software. Your use of any service accessible using
the Software is not covered by this EULA and may be governed by separate terms of use,
conditions or notices. Zebra and its suppliers and licensors hereby disclaim any such liability
for any such services accessed.
12. Your Security Responsibilities. Notwithstanding anything to the contrary in this
Agreement, as between Zebra and you, you acknowledge and agree that you are solely
responsible for maintaining and protecting all aspects of any network, systems, and data
(including any Personal Information) of, relating to, possessed by, or maintained by you,
including maintaining and protecting such things from or against any theft, loss, misuse,
alteration, disposal, or unauthorized access. “Personal Information” means individually
identifiable information from or about an individual consumer including, but not limited to:
(a) a first and last name or first initial and last name; (b) a home or other physical address,
which includes at least a street name and name of city or town; (c) an email address; (d) a
telephone number; (e) a Social Security number; (f) credit and/or debit card information,
including number, expiration date, security code, and/or track data; (g) date of birth; (h)
driver's license number; or (i) any other information from or about an individual consumer that
is combined with (a) though (i) above.
13. Disclaimer. ZEBRA SUPPLIES THE SOFTWARE AS IS AND WITH ALL FAULTS
AND DOES NOT MAKE ANY WARRANTIES WHATSOEVER, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO WARRANTIES CONCERNING THE SOFTWARE
OR ANY APPLICATION, OPERATION OR USE THEREOF, THE OUTPUT OR THE
DATA GENERATED BY THE OPERATION OR USE THEREOF, OR ANY SUPPORT
SERVICES RENDERED WITH RESPECT THERETO. ZEBRA HEREBY EXCLUDES
ALL IMPLIED WARRANTIES TO THE MAXIMUM EXTENT AUTHORIZED BY LAW,
INCLUDING, SPECIFICALLY, ANY IMPLIED WARRANTY ARISING BY STATUTE OR
OTHERWISE IN LAW OR FROM A COURSE OF DEALING OR USAGE OF TRADE,
ALL IMPLIED WARRANTIES OF MERCHANTABILITY, OR OF MERCHANTABLE
QUALITY, OR OF FITNESS FOR ANY PURPOSE, PARTICULAR, SPECIFIC OR
OTHERWISE, OR OF TITLE, OR OF NONINFRINGEMENT. SOME JURISDICTIONS
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IMPLIED WARRANTIES, SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. WHEN THE
End User License Agreement
82
61207L-001 Rev. A HC100 User Guide 4/23/08
IMPLIED WARRANTIES ARE NOT ALLOWED TO BE EXCLUDED IN THEIR
ENTIRETY, THEY WILL BE LIMITED TO THE DURATION OF NINETY (90) DAYS.
WITHOUT LIMITING THE GENERALITY OF THE FOREGOING, ZEBRA DOES NOT
WARRANT THAT THE OPERATION OF THE SOFTWARE WILL BE UNINTERRUPTED
OR ERROR FREE. To the extent that the Software covered by this EULA includes emulation
libraries, sUCH emulation libraries do not work 100% correctly or cover 100% of the
functionality of the printer language being emulated, are offered “as is” AND WITH ALL
FAULTS, AND ALL THE DISCLAIMERS AND LIMITATIONS CONTAINED IN THIS
PARAGRAPH AND THIS AGREEMENT APPLY TO SUCH EMULATION LIBRARIES.
14. Limitation of Liability and Damages. ZEBRA DOES NOT ASSUME
RESPONSIBILITY FOR ANY SPECIFIC APPLICATION OF THE SOFTWARE OR FOR
COMPATIBILITY WITH OTHER SOFTWARE OR EQUIPMENT. TO THE FULL
EXTENT ALLOWED BY LAW, ZEBRA EXCLUDES FOR ITSELF AND ITS LICENSORS
AND SUPPLIERS ANY LIABILITY FOR ANY DAMAGES, INCLUDING WITHOUT
LIMITATION DIRECT, CONSEQUENTIAL, INCIDENTAL, INDIRECT, SPECIAL,
EXEMPLARY OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE
OR PROFITS, LOSS OF BUSINESS, DAMAGE TO GOODWILL, LOSS OF
INFORMATION OR DATA, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN
CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE,
PERFORMANCE, FAILURE, OR INTERRUPTION OF ANY PRODUCTS, PARTS OR
SOFTWARE, WHETHER BASED ON CONTRACT, TORT, NEGLIGENCE, STRICT
LIABILITY OR OTHERWISE, EVEN IF ZEBRA OR ANY LICENSOR OR SUPPLIER
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. TO THE
MAXIMUM EXTENT AUTHORIZED BY LAW, THIS DISCLAIMER OF LIABILITY
FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN
SHALL FAIL OF ITS ESSENTIAL PURPOSE. SOME JURISDICTIONS DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF DIRECT, INCIDENTAL, CONSEQUENTIAL OR
OTHER DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY
TO YOU. WHEN LIABILITY FOR DAMAGES IS NOT ALLOWED TO BE LIMITED OR
EXCLUDED IN ITS ENTIRETY, ZEBRA LIMITS ITS LIABILITY TO REPAIR,
REPLACEMENT, OR, AT ZEBRA'S OPTION, REFUND OF THE PRICE OF THE
SOFTWARE. NOTWITHSTANDING ANYTHING TO THE CONTRARY IN THIS
AGREEMENT, ZEBRA SHALL NOT, UNDER ANY CIRCUMSTANCE OR UNDER ANY
LEGAL OR EQUITABLE THEORY (INCLUDING, WITHOUT LIMITATION, UNDER
CONTRACT, TORT, CONTRIBUTION, OR INDEMNITY), BE LIABLE TO CUSTOMER
OR TO ANY OTHER PARTY FOR ANY LOSSES, DAMAGES (WHETHER DIRECT,
INDIRECT, SPECIAL, PUNITIVE, INCIDENTAL OR CONSEQUENTIAL), COSTS,
EXPENSES, FINES OR FEES RELATING TO THE THEFT, LOSS, MISUSE,
ALTERATION, OR DISPOSAL OF, OR UNAUTHORIZED ACCESS TO, ANY
NETWORK, SYSTEM, OR DATA (INCLUDING PERSONAL INFORMATION) OF,
RELATING TO, POSSESSED BY, OR MAINTAINED BY CUSTOMER.
15. Zebra Suppliers and Licensors. Any release, disclaimer or limitation of Zebra's
liability or damages pursuant to this Agreement shall be construed, in addition to Zebra's
benefit, also to the benefit of Zebra's suppliers, licensors, employees, and contractors and,
without limiting any other defenses that such suppliers, licensors, employees and contractors
may have, you agree to release such parties from liability or damages in accordance with such
release, disclaimer, or limitation of liability or damages to the same extent that such provisions
apply to Zebra.
83
End User License Agreement
4/23/08 HC100 User Guide 61207L-001 Rev. A
16. Governing Law. To the maximum extent permitted by law, the laws of the State of
Illinois, U.S.A., without reference to its conflict of laws provisions, will apply to this
Agreement. You irrevocably agree to submit to the exclusive jurisdiction and venue of the
state or federal courts in the State of Illinois in the event of any litigation involving this
Agreement or the Software. You agree that you shall not assert any claim that you are not
subject to the jurisdiction of such courts, that the venue is improper, that the forum is
inconvenient or any similar objection, claim or argument. Zebra may, in its sole discretion,
choose to resolve any controversy or dispute between you and Zebra concerning this
Agreement, or the existence, validity, breach or termination thereof, whether during or after
the term by binding arbitration in accordance with the Commercial Arbitration Rules of the
American Arbitration Association (“AAA”), as modified or supplemented under this Section
15, by providing notice to you. In the event that Zebra provides such notice, you hereby waive
any right to institute a court or other dispute resolution proceeding with respect to such
controversy or dispute and acknowledge arbitration in accordance with this Section 15 as the
sole and exclusive means of resolving such controversy or dispute. The arbitration proceeding
will take place in Chicago, Illinois and be conducted in the English language. The arbitration
panel will consist of 3 arbitrators, one arbitrator appointed by each party and a third neutral
arbitrator appointed by the two arbitrators designated by the parties. Any communication
between a party and any arbitrator will be directed to the AAA for transmittal to the arbitrator.
The parties expressly agree that the arbitrators will be empowered to, at either party’s request,
grant injunctive relief. The arbitral award will be the exclusive remedy of the parties for all
claims, counterclaims, issues or accountings presented or pleaded to the arbitrators. Judgment
upon the arbitral award may be entered in any court that has jurisdiction thereof. Any
additional costs, fees or expenses incurred in enforcing the arbitral award will be charged
against the party that resists its enforcement. Nothing in this Section will prevent Zebra from
seeking interim injunctive relief against you or filing an action against you to collect unpaid
and past due amounts in any court of competent jurisdiction.
17. Injunctive Relief. You acknowledge that, in the event you breach any provision of this
Agreement, Zebra will not have an adequate remedy in money or damages. Zebra shall
therefore be entitled to obtain an injunction against such breach from any court of competent
jurisdiction immediately upon request without posting bond. Zebra's right to obtain injunctive
relief shall not limit its right to seek further remedies.
18. Entire Agreement. This Agreement constitutes the entire understanding and agreement
of the parties and supersedes any and all prior or contemporaneous representations,
understandings and agreements between the parties with respect to the subject matter of this
Agreement. If any provision of this Agreement is held invalid, the remainder of this
Agreement shall continue in full force and effect.
19. Assignment. You may not assign this Agreement or any of your rights or obligations
hereunder (by operation of law or otherwise) without the prior written consent of Zebra. Zebra
may assign this Agreement and its rights and obligations without your consent. Subject to the
foregoing, this Agreement shall be binding upon and inure to the benefit of the parties to it and
their respective legal representatives, successors and permitted assigns.
20. Modification. No modification of this Agreement shall be binding unless it is in writing
and is signed by an authorized representative of the party against whom enforcement of the
modification is sought.
21. Waiver. The failure by a party to exercise any right hereunder shall not operate as a
waiver of such party's right to exercise such right or any other right in the future.
End User License Agreement
84
61207L-001 Rev. A HC100 User Guide 4/23/08
22. QUESTIONS. Should you have any questions, or if you desire to contact Zebra for any
reason, please contact the Zebra subsidiary serving your country, or write:
Zebra Technologies International, LLC
333 Corporate Woods Parkway
Vernon Hills, Illinois 60061
REVISED MARCH 2008.
4/23/08 HC100 User Guide 61207L-001 Rev. A
Index
A
adhesive wristbands, 22
adjustments
left position, 63
print darkness, 59
tear-off position, 59
wristband (label) top, 63
B
battery disposal, 53
baud setting, 60
bitmap scaling factor, 64
C
Canadian DOC compliance, 4
cartridges. See media cartridges
cleaning card, 44
cleaning procedures
media path, 44
smart card contacts and media cartridge sensor
pins, 51
clip wristbands, 23
communications diagnostics test
interpreting results, 73
selecting, 61
connectivity options, 77
contacts, 11
control panel
buttons, 18
location, 16
location of lights, 18
control prefix setting, 61
counters, 64
customer service, 11
D
darkness mode, 58
darkness setting, 59
data bits setting, 60
data cable shielding, 28
data communication interfaces
connecting data communication cables, 27
port locations, 17
default gateway, 67, 68
default values
how to restore print server defaults, 69
how to restore printer parameters, 65
delimiter character setting, 62
diagnostics tools, 72
disposal of printer parts, 53
downloading firmware
light sequence, 36
overview, 74
dpi format conversion, 64
E
EJECT button, 18
end user license agreement, 79
Ethernet
characteristics of wireless connection, 28
connector location, 17
F
fail safe mode, 37
FCC compliance, 4
FCC radiation exposure limits, 4
Index
86
61207L-001 Rev. A HC100 User Guide 4/23/08
feeding a wristband, 18
firmware download
light sequence, 36
overview, 74
forced eject of media cartridge
light sequences, 36
pressing and holding EJECT, 18
format convert setting, 64
format prefix setting, 62
H
home position on wristband, 24
host handshake setting, 60
I
indicator lights. See media status indicator, printer
status indicator, or wireless status indicator
inspect for shipping damage, 26
international safety organization marks, 78
IP address
selecting method for obtaining, 67, 68
view or modify, 66
IP protocol, 67, 68
J
jamming wristbands, 34
L
label (wristband) top setting, 63
left position adjustment, 63
liability, 2
license agreement, 79
lubrication, 53
M
maximum wristband length setting, 59
media (wristband) specifications, 77
media cartridge sensor pins
cleaning, 51
troubleshooting, 40
media cartridge slot, 16
media cartridges
cleaning smart card contacts, 51
damaging by pulling wristbands, 20
described, 20
inserting into printer, 31
media levels, 34
ordering, 11
problems loading, 40
media errors, 34
media home position, 24
media path cleaning, 44
media sensor profile
described, 72
PAUSE/FEED button description, 18
media status indicator
description of lights, 34
location, 18
memory options, 77
N
network ID setting, 61
O
odometer, 64
optional features, 77
ordering media cartridges, 11
ordering replacement parts, 53
overheating, 40
P
parity setting, 60
PAUSE/FEED button, 18
pausing the printer
light sequence, 36
pressing PAUSE/FEED, 18
platen roller cleaning, 44
power
connecting to power supply, 29
power button and power connector locations, 17
power cord specifications, 78
print darkness setting, 59
print quality problems, 40
print server
characteristics of wireless connection, 28
print width setting, 59
printer configuration wristband
PAUSE/FEED button description, 18
printing, 56
printer features, 77
87
Index
4/23/08 HC100 User Guide 61207L-001 Rev. A
printer settings
baud, 60
communication diagnostics mode, 61
control prefix, 61
counters, 64
darkness mode, 58
data bits, 60
delimiter character, 62
format convert, 64
format prefix, 62
host handshake, 60
left position, 63
maximum wristband length, 59
network ID, 61
parity, 60
print darkness, 59
print width, 59
protocol, 61
serial communications, 59
tear-off position, 59
viewing, 56
viewing on printer configuration wristband, 56
viewing through web pages, 57
wristband (label) top, 63
wristband length, 59
ZBI 2.0, 63
ZPL mode, 62
printer status indicator lights
location, 18
troubleshooting, 36
printer storage, 26
printhead cleaning procedures, 44
printhead fail safe mode, 37
printing specifications, 76
programming languages, 77
protocol setting, 61
R
radiation exposure limits, 4
recycling
printer parts, 53
replacement parts, 53
report shipping damage, 26
reprint mode for reprinting last wristband, 63
resettable counters, 64
S
sales, 11
sensor profile, 72
serial port
characteristics of serial connection, 28
connecting cable, 27
connector location, 17
setting serial communications, 59
Set/Get/Do (SGD) commands
commands for changing print server settings, 66
commands for changing printer settings, 58
setup
connecting data communication cables, 27
connecting to power supply, 29
site selection, 27
unpack the printer, 26
shielded data cables, 28
shipping
report damage, 26
reshipping the printer, 26
site selection, 27
smart card contacts
cleaning, 51
troubleshooting, 40
standard features, 77
status lights. See media status indicator lights or
printer status indicator lights
storing the printer, 26
subnet mask, 67, 68
T
technical support, 11
temperature fail safe mode, 37
top of wristband (label) setting, 63
troubleshooting
diagnostics, 72
media status indicator, 34
printer status indicator lights, 36
U
unpack the printer, 26
upper cover, 16
upper cover release button, 16
USB port
characteristics of USB connection, 28
connector location, 17
user-controlled counters, 64
V
view printer settings, 56
Index
88
61207L-001 Rev. A HC100 User Guide 4/23/08
W
wired print server
changing parameters, 66
connecting for the first time, 66
connector location, 17
wireless print server
changing parameters, 66
characteristics, 28
connecting for the first time, 66
wireless status indicator location, 18
wristbands
adhesive type, 22
clip type, 23
level in media cartridge, 20
level of media in media cartridge, 34
loading, 31
maximum length setting, 59
printable area, 24
printer cannot detect black mark, 35
setting wristband length, 59
sizes, 21
specifications, 77
troubleshooting, 40
wristband (label) top setting, 63
Z
ZBI 2.0 starting and stopping, 63
Zebra Programming Language (ZPL)
commands for changing print server settings, 66
commands for changing printer settings, 58
ZPL mode setting, 62
