Zero Energy Solutions LTD. Zigbee module Manual

Manual

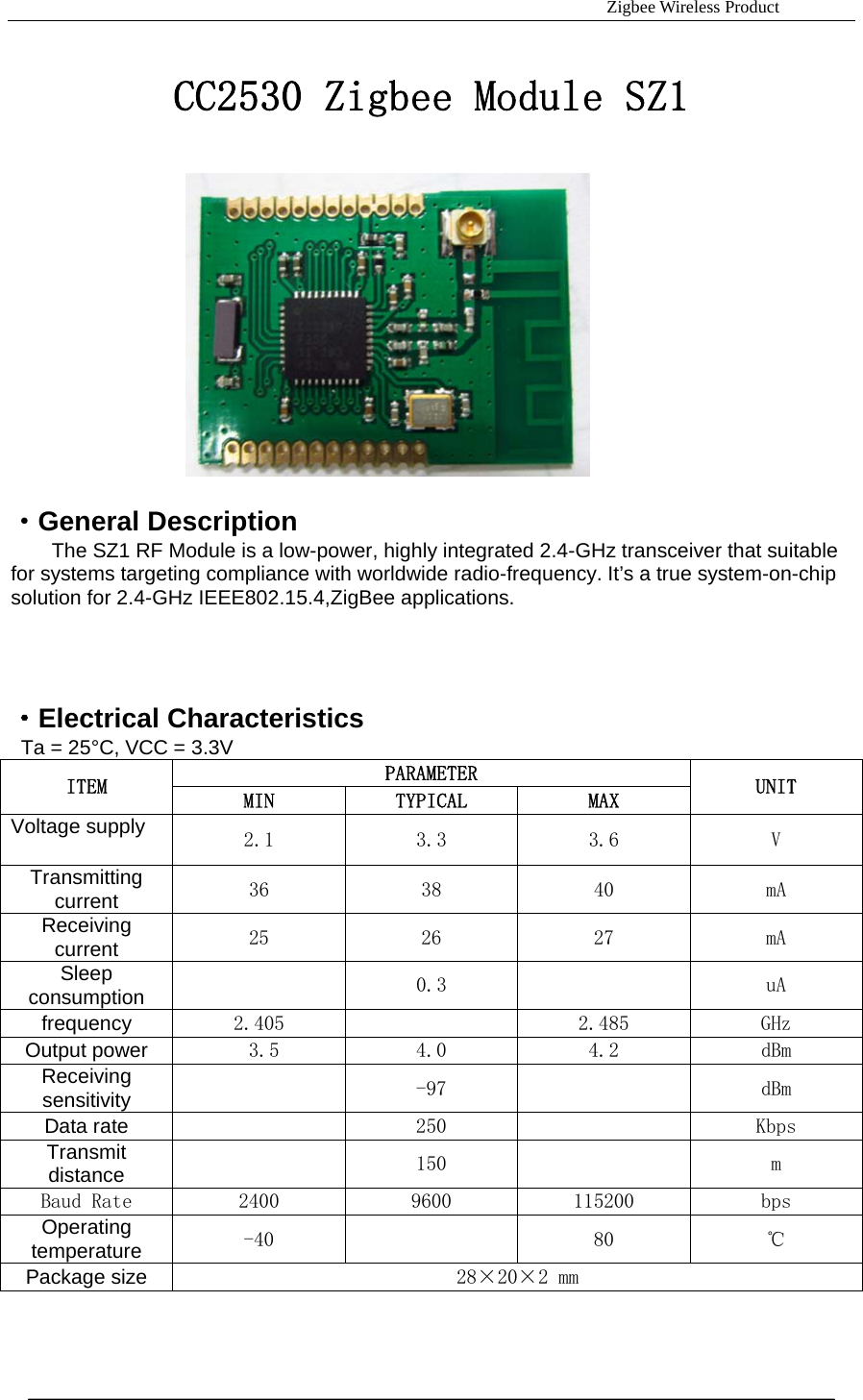

                                                                    Zigbee Wireless Product  CC2530 Zigbee Module SZ1               ·General Description The SZ1 RF Module is a low-power, highly integrated 2.4-GHz transceiver that suitable for systems targeting compliance with worldwide radio-frequency. It’s a true system-on-chip solution for 2.4-GHz IEEE802.15.4,ZigBee applications.   ·Electrical Characteristics   Ta = 25°C, VCC = 3.3V PARAMETER ITEM  MIN  TYPICAL  MAX  UNIT Voltage supply  2.1  3.3  3.6  V Transmitting current 36    38  40  mA Receiving current 25     26  27  mA Sleep consumption   0.3    uA frequency 2.405     2.485  GHz Output power  3.5   4.0  4.2  dBm Receiving sensitivity   -97     dBm Data rate   250     Kbps Transmit distance    150    m Baud Rate  2400  9600  115200  bps Operating temperature -40    80  ℃ Package size 28×20×2 mm

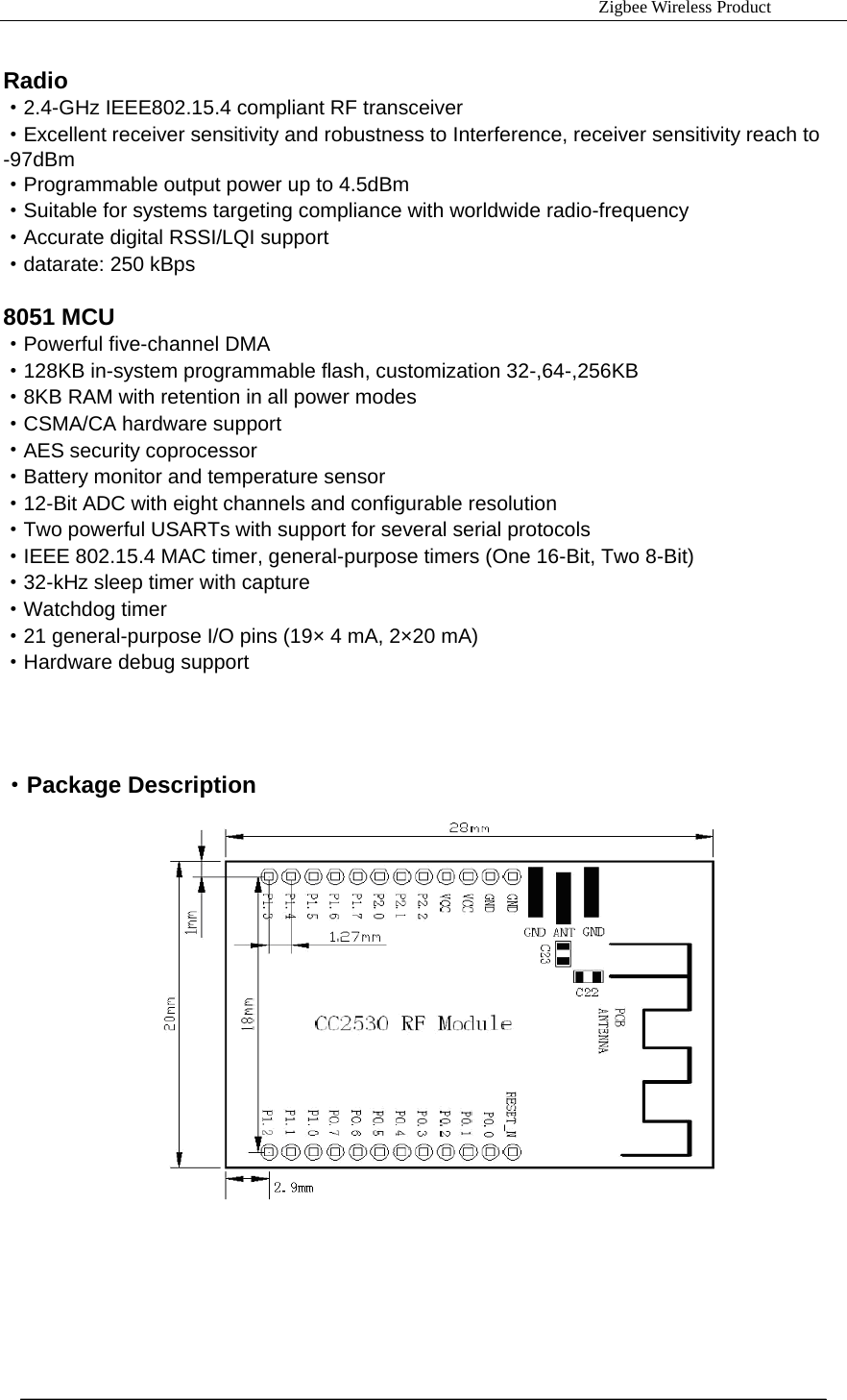

                                                                    Zigbee Wireless Product  Radio ·2.4-GHz IEEE802.15.4 compliant RF transceiver ·Excellent receiver sensitivity and robustness to Interference, receiver sensitivity reach to -97dBm ·Programmable output power up to 4.5dBm ·Suitable for systems targeting compliance with worldwide radio-frequency ·Accurate digital RSSI/LQI support ·datarate: 250 kBps  8051 MCU ·Powerful five-channel DMA ·128KB in-system programmable flash, customization 32-,64-,256KB ·8KB RAM with retention in all power modes ·CSMA/CA hardware support ·AES security coprocessor ·Battery monitor and temperature sensor ·12-Bit ADC with eight channels and configurable resolution ·Two powerful USARTs with support for several serial protocols ·IEEE 802.15.4 MAC timer, general-purpose timers (One 16-Bit, Two 8-Bit) ·32-kHz sleep timer with capture ·Watchdog timer ·21 general-purpose I/O pins (19× 4 mA, 2×20 mA) ·Hardware debug support     ·Package Description

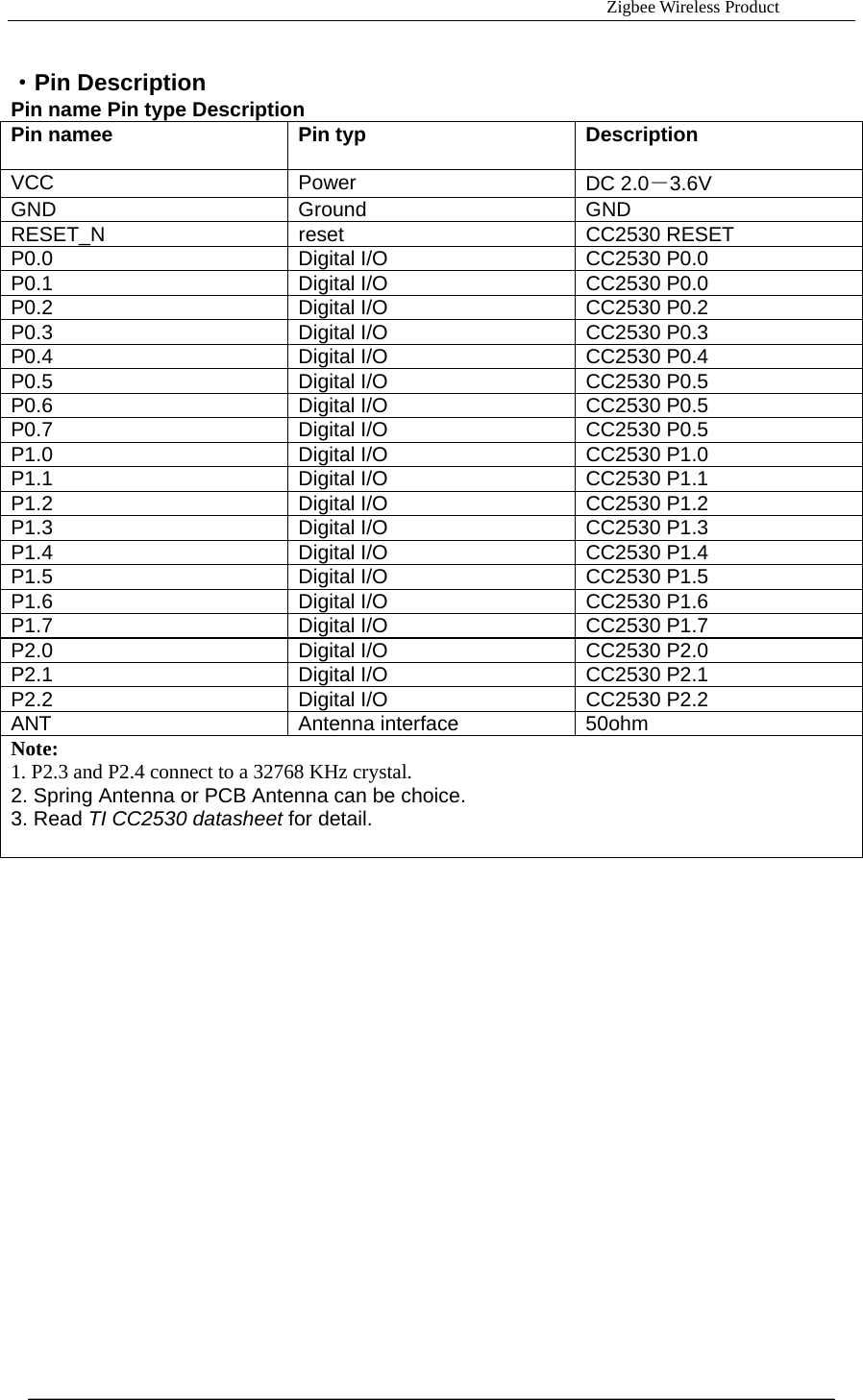

                                                                    Zigbee Wireless Product  ·Pin Description Pin name Pin type Description Pin namee    Pin typ  Description VCC   Power   DC 2.0-3.6V  GND   Ground   GND  RESET_N   reset   CC2530 RESET  P0.0    Digital I/O    CC2530 P0.0   P0.1    Digital I/O    CC2530 P0.0   P0.2    Digital I/O    CC2530 P0.2   P0.3    Digital I/O    CC2530 P0.3   P0.4    Digital I/O    CC2530 P0.4   P0.5    Digital I/O    CC2530 P0.5   P0.6    Digital I/O    CC2530 P0.5   P0.7    Digital I/O    CC2530 P0.5   P1.0    Digital I/O    CC2530 P1.0   P1.1    Digital I/O    CC2530 P1.1   P1.2    Digital I/O    CC2530 P1.2   P1.3    Digital I/O    CC2530 P1.3   P1.4    Digital I/O    CC2530 P1.4   P1.5    Digital I/O    CC2530 P1.5   P1.6    Digital I/O    CC2530 P1.6   P1.7    Digital I/O    CC2530 P1.7   P2.0    Digital I/O    CC2530 P2.0   P2.1    Digital I/O    CC2530 P2.1   P2.2    Digital I/O    CC2530 P2.2   ANT   Antenna interface   50ohm  Note:  1. P2.3 and P2.4 connect to a 32768 KHz crystal. 2. Spring Antenna or PCB Antenna can be choice. 3. Read TI CC2530 datasheet for detail.

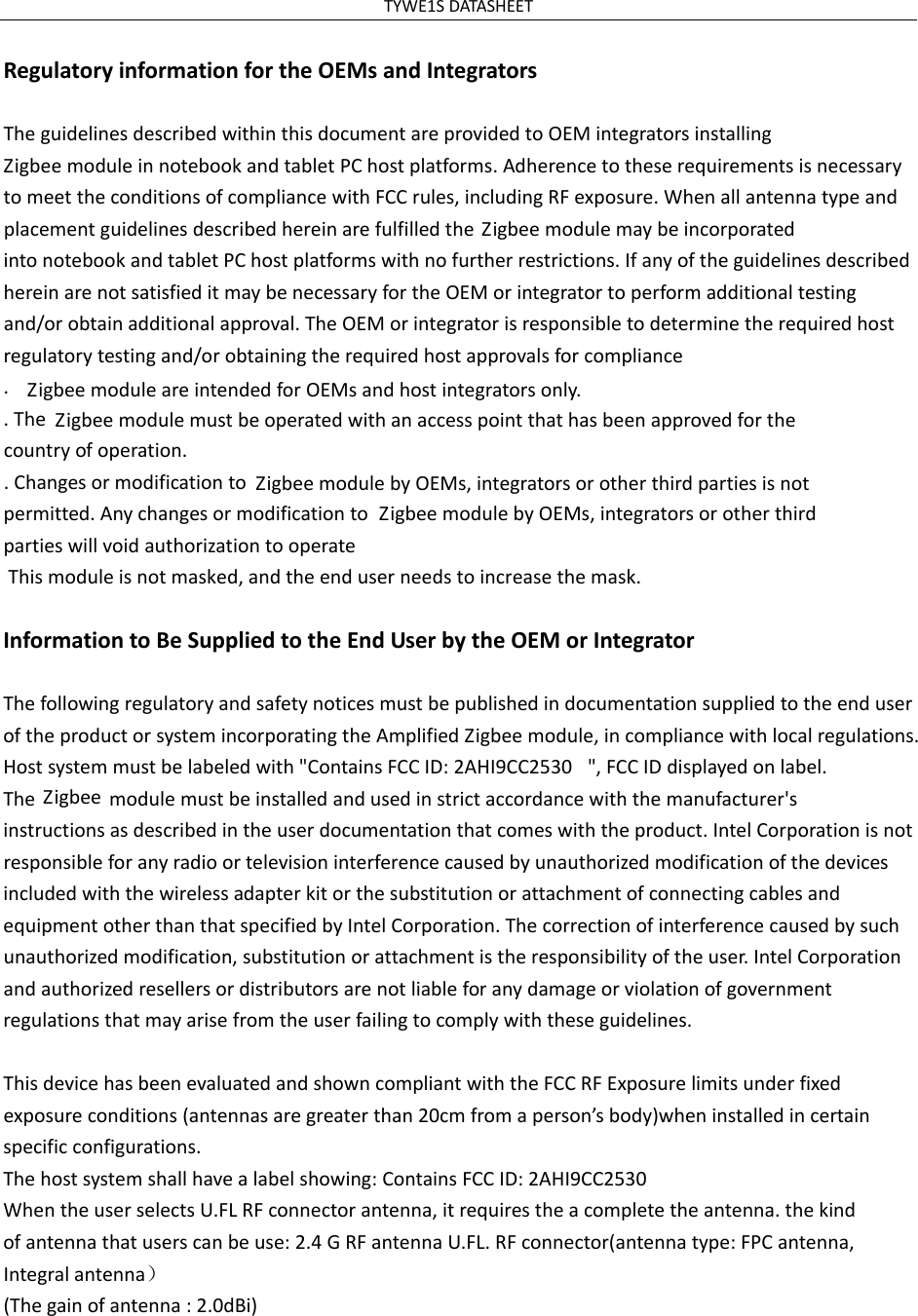

TYWE1SDATASHEETRegulatoryinformationfortheOEMsandIntegratorsTheguidelinesdescribedwithinthisdocumentareprovidedtoOEMintegratorsinstalling ZigbeemoduleinnotebookandtabletPChostplatforms.AdherencetotheserequirementsisnecessarytomeettheconditionsofcompliancewithFCCrules,includingRFexposure.WhenallantennatypeandplacementguidelinesdescribedhereinarefulfilledtheZigbeemodulemaybeincorporatedintonotebookandtabletPChostplatformswithnofurtherrestrictions.IfanyoftheguidelinesdescribedhereinarenotsatisfieditmaybenecessaryfortheOEMorintegratortoperformadditionaltestingand/orobtainadditionalapproval.TheOEMorintegratorisresponsibletodeterminetherequiredhostregulatorytestingand/orobtainingtherequiredhostapprovalsforcompliance.ZigbeemoduleareintendedforOEMsandhostintegratorsonly..The Zigbeemodulemustbeoperatedwithanaccesspointthathasbeenapprovedforthecountryofoperation..ChangesormodificationtoZigbeemodulebyOEMs,integratorsorotherthirdpartiesisnotpermitted.AnychangesormodificationtoZigbeemodulebyOEMs,integratorsorotherthirdpartieswillvoidauthorizationtooperate This module is not masked, and the end user needs to increase the mask. InformationtoBeSuppliedtotheEndUserbytheOEMorIntegratorThefollowingregulatoryandsafetynoticesmustbepublishedindocumentationsuppliedtotheenduseroftheproductorsystemincorporatingtheAmplifiedZigbeemodule,incompliancewithlocalregulations.Hostsystemmustbelabeledwith"ContainsFCCID: 2AHI9CC2530 ",FCCIDdisplayedonlabel.TheZigbee modulemustbeinstalledandusedinstrictaccordancewiththemanufacturer'sinstructionsasdescribedintheuserdocumentationthatcomeswiththeproduct.IntelCorporationisnotresponsibleforanyradioortelevisioninterferencecausedbyunauthorizedmodificationofthedevicesincludedwiththewirelessadapterkitorthesubstitutionorattachmentofconnectingcablesandequipmentotherthanthatspecifiedbyIntelCorporation.Thecorrectionofinterferencecausedbysuchunauthorizedmodification,substitutionorattachmentistheresponsibilityoftheuser.IntelCorporationandauthorizedresellersordistributorsarenotliableforanydamageorviolationofgovernmentregulationsthatmayarisefromtheuserfailingtocomplywiththeseguidelines.ThisdevicehasbeenevaluatedandshowncompliantwiththeFCCRFExposurelimitsunderfixedexposureconditions(antennasaregreaterthan20cmfromaperson’sbody)wheninstalledincertainspecificconfigurations.Thehostsystemshallhavealabelshowing:ContainsFCCID:2AHI9CC2530WhentheuserselectsU.FLRFconnectorantenna,itrequirestheacompletetheantenna.thekindofantennathatuserscanbeuse:2.4GRFantennaU.FL.RFconnector(antennatype:FPCantenna,Integralantenna)(Thegainofantenna:2.0dBi)

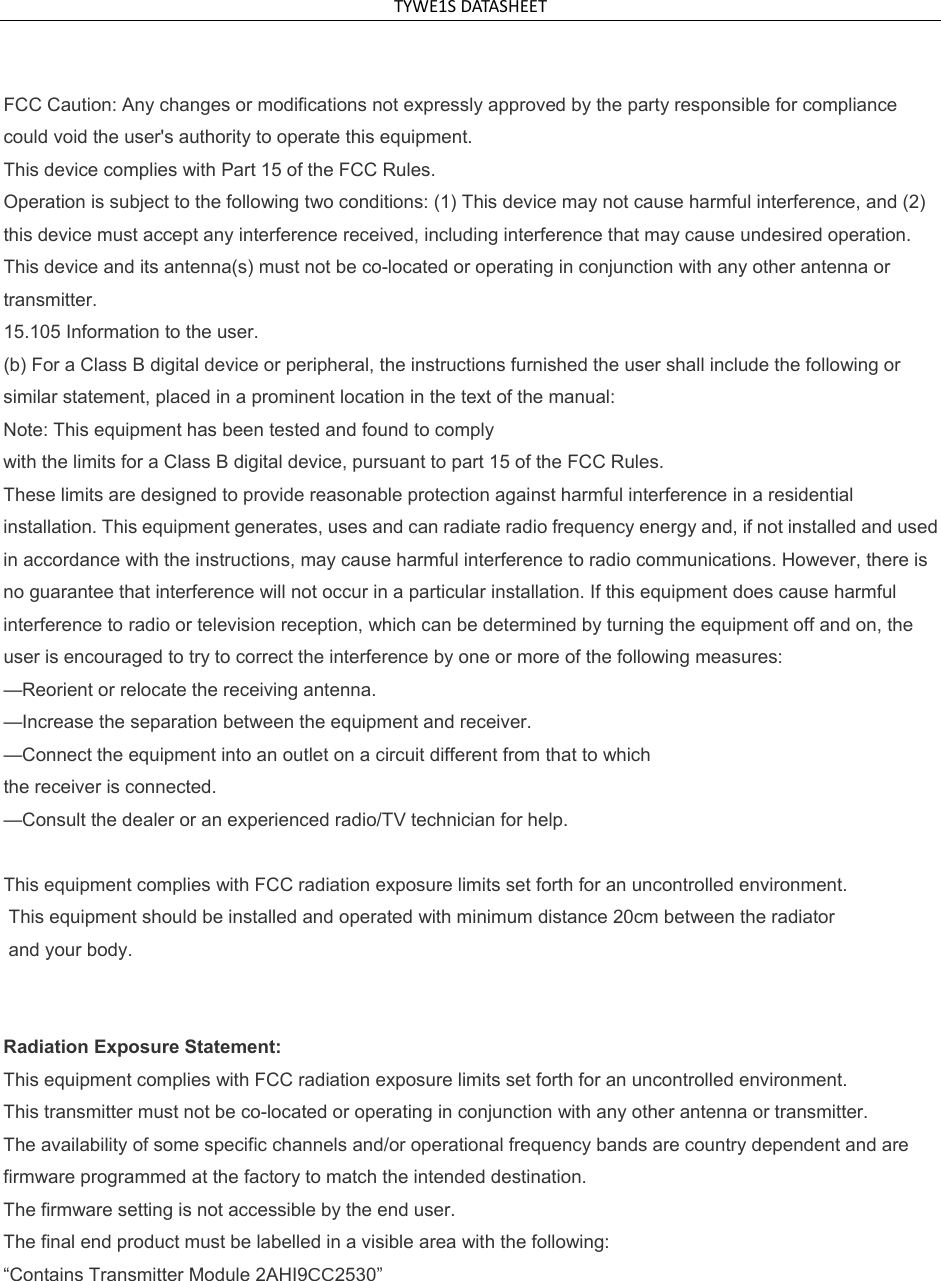

TYWE1SDATASHEET FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. 15.105 Information to the user. (b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.  This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.  This equipment should be installed and operated with minimum distance 20cm between the radiator  and your body.   Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. The final end product must be labelled in a visible area with the following: “Contains Transmitter Module 2AHI9&&2530” 
