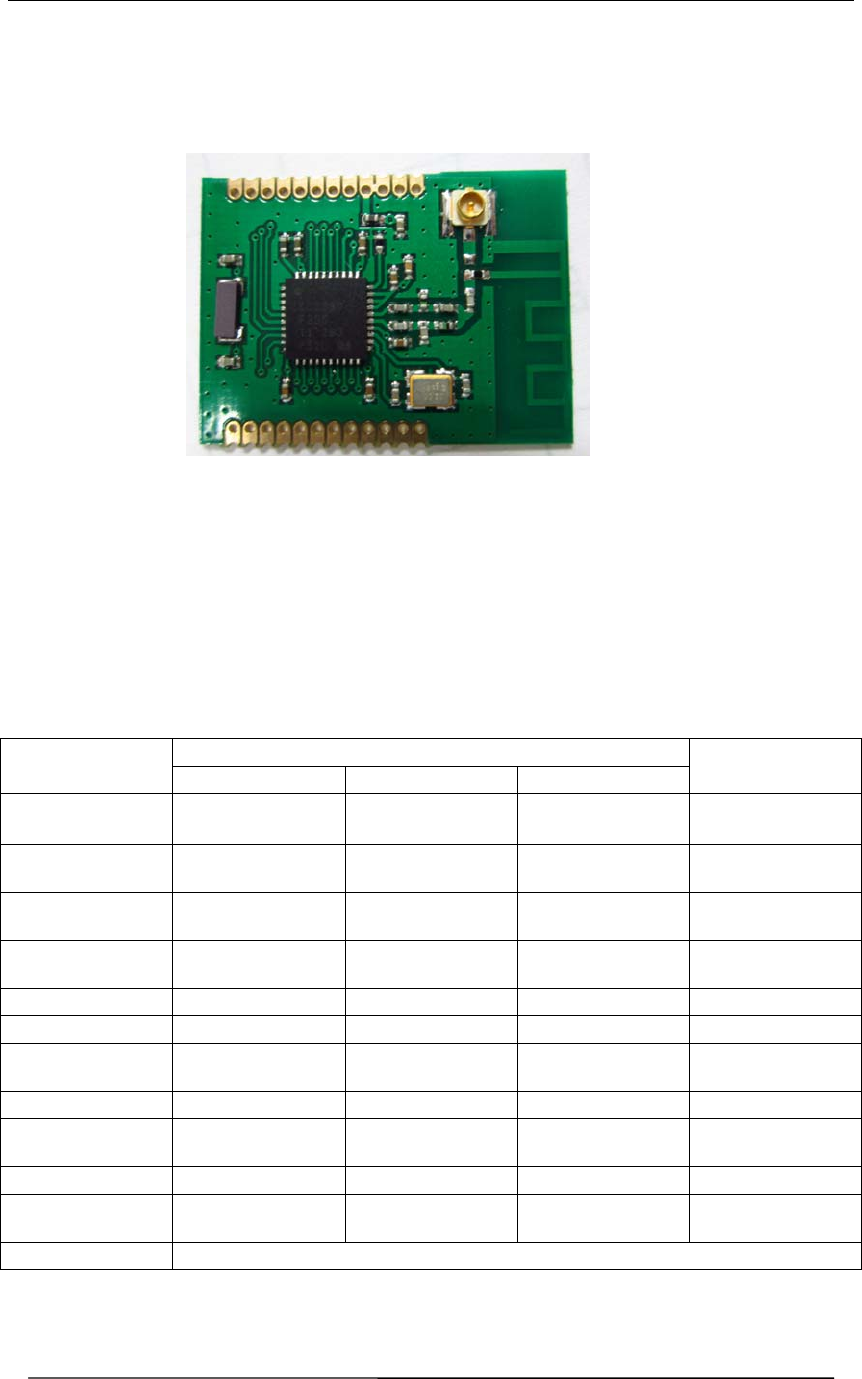

CC2530 Zigbee Module SZ1

·General Description

The SZ1 RF Module is a low-power, highly integrated 2.4-GHz transceiver that suitable

for systems targeting compliance with worldwide radio-frequency. It’s a true system-on-chip

solution for 2.4-GHz IEEE802.15.4,ZigBee applications.

·Electrical Characteristics

Ta = 25°C, VCC = 3.3V

PARAMETER

ITEM MIN TYPICAL MAX UNIT

Voltage supply

2.1 3.3 3.6 V

Transmitting

current 36 38 40 mA

Receiving

current 25 26 27 mA

Sleep

consumption 0.3 uA

frequency 2.405 2.485 GHz

Output power 3.5 4.0 4.2 dBm

Receiving

sensitivity -97 dBm

Data rate 250 Kbps

Transmit

distance 150 m

Baud Rate 2400 9600 115200 bps

Operating

temperature -40 80 ℃

Package size 28×20×2 mm

Zigbee Wireless Product

Radio

·2.4-GHz IEEE802.15.4 compliant RF transceiver

·Excellent receiver sensitivity and robustness to Interference, receiver sensitivity reach to

-97dBm

·Programmable output power up to 4.5dBm

·Suitable for systems targeting compliance with worldwide radio-frequency

·Accurate digital RSSI/LQI support

·datarate: 250 kBps

8051 MCU

·Powerful five-channel DMA

·128KB in-system programmable flash, customization 32-,64-,256KB

·8KB RAM with retention in all power modes

·CSMA/CA hardware support

·AES security coprocessor

·Battery monitor and temperature sensor

·12-Bit ADC with eight channels and configurable resolution

·Two powerful USARTs with support for several serial protocols

·IEEE 802.15.4 MAC timer, general-purpose timers (One 16-Bit, Two 8-Bit)

·32-kHz sleep timer with capture

·Watchdog timer

·21 general-purpose I/O pins (19× 4 mA, 2×20 mA)

·Hardware debug support

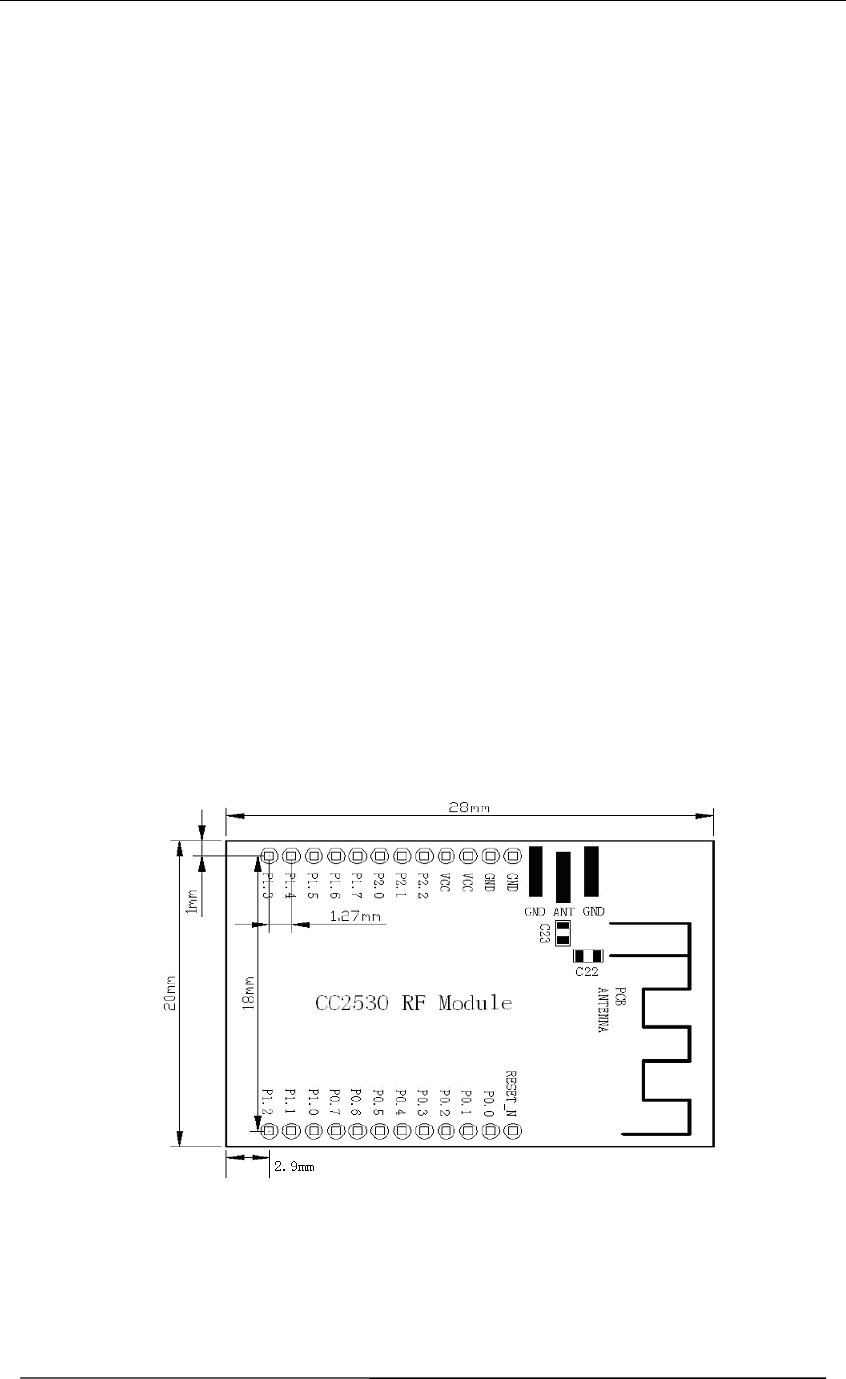

·Package Description

Zigbee Wireless Product

·Pin Description

Pin name Pin type Description

Pin namee

Pin typ Description

VCC Power DC 2.0－3.6V

GND Ground GND

RESET_N reset CC2530 RESET

P0.0 Digital I/O CC2530 P0.0

P0.1 Digital I/O CC2530 P0.0

P0.2 Digital I/O CC2530 P0.2

P0.3 Digital I/O CC2530 P0.3

P0.4 Digital I/O CC2530 P0.4

P0.5 Digital I/O CC2530 P0.5

P0.6 Digital I/O CC2530 P0.5

P0.7 Digital I/O CC2530 P0.5

P1.0 Digital I/O CC2530 P1.0

P1.1 Digital I/O CC2530 P1.1

P1.2 Digital I/O CC2530 P1.2

P1.3 Digital I/O CC2530 P1.3

P1.4 Digital I/O CC2530 P1.4

P1.5 Digital I/O CC2530 P1.5

P1.6 Digital I/O CC2530 P1.6

P1.7 Digital I/O CC2530 P1.7

P2.0 Digital I/O CC2530 P2.0

P2.1 Digital I/O CC2530 P2.1

P2.2 Digital I/O CC2530 P2.2

ANT Antenna interface 50ohm

Note:

1. P2.3 and P2.4 connect to a 32768 KHz crystal.

2. Spring Antenna or PCB Antenna can be choice.

3. Read TI CC2530 datasheet for detail.

TYWE1SDATASHEET

RegulatoryinformationfortheOEMsandIntegrators



TheguidelinesdescribedwithinthisdocumentareprovidedtoOEMintegratorsinstalling 

ZigbeemoduleinnotebookandtabletPChostplatforms.Adherencetotheserequirementsisnecessary

tomeettheconditionsofcompliancewithFCCrules,includingRFexposure.Whenallantennatypeand

placementguidelinesdescribedhereinarefulfilledthe

Zigbeemodulemaybeincorporated

intonotebookandtabletPChostplatformswithnofurtherrestrictions.Ifanyoftheguidelinesdescribed

hereinarenotsatisfieditmaybenecessaryfortheOEMorintegratortoperformadditionaltesting

and/orobtainadditionalapproval.TheOEMorintegratorisresponsibletodeterminetherequiredhost

regulatorytestingand/orobtainingtherequiredhostapprovalsforcompliance

.ZigbeemoduleareintendedforOEMsandhostintegratorsonly.

.The 

Zigbeemodulemustbeoperatedwithanaccesspointthathasbeenapprovedforthe

countryofoperation.

.ChangesormodificationtoZigbeemodulebyOEMs,integratorsorotherthirdpartiesisnot

permitted.AnychangesormodificationtoZigbeemodulebyOEMs,integratorsorotherthird

partieswillvoidauthorizationtooperate

This module is not masked, and the end user needs to increase the mask.



InformationtoBeSuppliedtotheEndUserbytheOEMorIntegrator



Thefollowingregulatoryandsafetynoticesmustbepublishedindocumentationsuppliedtotheenduser

oftheproductorsystemincorporatingtheAmplifiedZigbeemodule,incompliancewithlocalregulations.

Hostsystemmustbelabeledwith"ContainsFCCID: 2AHI9CC2530 ",FCCIDdisplayedonlabel.

The

Zigbee modulemustbeinstalledandusedinstrictaccordancewiththemanufacturer's

instructionsasdescribedintheuserdocumentationthatcomeswiththeproduct.IntelCorporationisnot

responsibleforanyradioortelevisioninterferencecausedbyunauthorizedmodificationofthedevices

includedwiththewirelessadapterkitorthesubstitutionorattachmentofconnectingcablesand

equipmentotherthanthatspecifiedbyIntelCorporation.Thecorrectionofinterferencecausedbysuch

unauthorizedmodification,substitutionorattachmentistheresponsibilityoftheuser.IntelCorporation

andauthorizedresellersordistributorsarenotliableforanydamageorviolationofgovernment

regulationsthatmayarisefromtheuserfailingtocomplywiththeseguidelines.



ThisdevicehasbeenevaluatedandshowncompliantwiththeFCCRFExposurelimitsunderfixed

exposureconditions(antennasaregreaterthan20cmfromaperson’sbody)wheninstalledincertain

specificconfigurations.

Thehostsystemshallhavealabelshowing:ContainsFCCID:2AHI9CC2530

WhentheuserselectsU.FLRFconnectorantenna,itrequirestheacompletetheantenna.thekind

ofantennathatuserscanbeuse:2.4GRFantennaU.FL.RFconnector(antennatype:FPCantenna,

Integralantenna）

(Thegainofantenna:2.0dBi)



TYWE1SDATASHEET

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may cause undesired operation.

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or

transmitter.

15.105 Information to the user.

(b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following or

similar statement, placed in a prominent location in the text of the manual:

Note: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance 20cm between the radiator

and your body.

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

The availability of some specific channels and/or operational frequency bands are country dependent and are

firmware programmed at the factory to match the intended destination.

The firmware setting is not accessible by the end user.

The final end product must be labelled in a visible area with the following:

“Contains Transmitter Module 2AHI9&&2530”


