ZhaofengweiTechnology ZR303RX Wireless baby monitor receiver User Manual
Shenzhen ZhaofengweiTechnology Co. Ltd. Wireless baby monitor receiver Users Manual
Users manual
1. Safety Instructions
This baby monitor is compliant with all relevant standards
regarding electromagnetic fields and is, when handled as
described in the Use r ’s Guide, sa fe to u se . T he re fo re ,
always read the instructions in this Users Guide carefully
before using the device.
WARNING
Adult assembly is required.Keep small parts away
from children when assembling
This product is not a toy.do not allow children to play
with is.
This baby monitor is not a substitute for responsible
adult supervision.
Do not place the baby unit or cables in the cot or
within arm’s reach of the baby (at least 1 meter away).
Keep the cords out of reach of children
Do not use the baby monitor near water or a heat
source
Only use the power adapters provided
Do not touch the plug contacts with sharp or metal
objects,
WELCOME...
to you new digital Baby Monitor!
Thank you for purchasing the product.Now you can see
and hear your baby sleeping in the other room or you can
monitor your older children in their playroom.
PACKING LIST
1×Parent Unit 1×Baby Unit
2×Power adapter
This User’s Guide provides you with all the information you
need to get the most from your product.
Before you can use the baby monitor, we recommend you
insert and fully charge the battery in the parent unit, so that
it continues to work if you disconnect it from the mains
power to carry it to another location. Please read the safety
instructions on page 6 before you install the units.
234

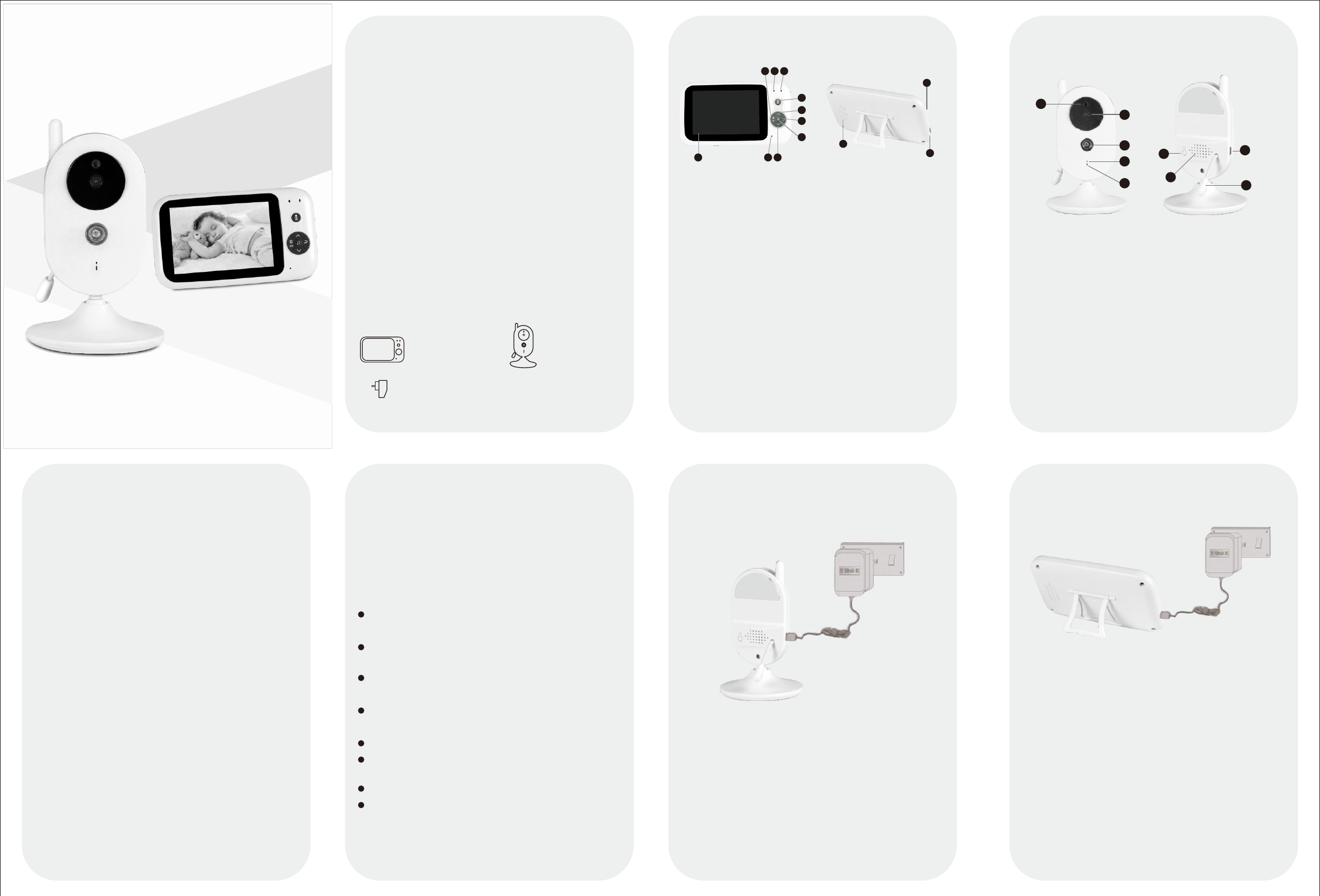

Overview of your Parent Unit
1.Lcd display
2.Vox indicating led
3.Power indicating led
4.Menu key/OK
5.Power key
6.Volume-key/Down key (menu screen)
7.Volume+key/Up key(menu screen)
8. PTT key
9.Microphone
10.Speaker
11.Power adapter connector
12.Music control key.
13. Return
Overview of your Baby Unit
1.Light Sensor
2.Infrared LED
3.Camera Lens
4.Power LED
5.Microphone
6.Speaker
7.Pair key
8.Temperature sensor
9.Power adapter connector
678
5
Table of contents
1.Safety instructions…………………………....……6
2.Getting started………………………………...……7
2.1 Baby unit power supply……………....……7
2.2 Parent unit power supply………….....……8
3.Using the Baby Monitor…..…..……….........……9
3.1 Setting up……………………….…...………9
3.2 Pairing camera………………………..…...10
3.3 Night vision…………………………………10
3.4 Music player………………………………..10
3.5 Talk function………………………………..10
3.6 Adjusting the volume………………..…….10
3.7 Reset the parent unit………………………10
4.Monitoring screen icons…………………………..11
5.Menu Options………………………………………12
5.1 Main menu…………………………………..12
5.2 Camera Registration……………………...13
5.3 Alarm…………………………………………13
5.4 Settings……………………………………..14
5.5 Languages…………....…………………...15
6.Wall mounting instructions…………........……..16
2. Getting started
2.1 Baby unit power supply
1. Connect the small plug of the power adapter to the
baby unit and the other end to the mains socket.
NOTE :only use the power adapter provided
2. A green light led will display indicate the baby unit is
working
2.2 Parent unit power supply
Charging the parent unit fully before use is
recommended
This will allow the unit to operate on battery in the event of a
power failure
1.Connect the plug of the power adapter to the parent
unit and the other end to the mains socket
NOTE :only use the power adapter provided
2.The LCD screeni lluminates and starts up automatically
after a few seconds.
3.Press and hold the power key at least 3 seconds to turn
on the parent unit.
5
1
3
2
5
48
6
2.4GHz Digital
VIDEO BABY MONITOR
9
7
USER’ S GUIDE V1.0
11
10
7
8
13
12
6
19
2
3
4
MODEL:ZR303TX-RX
10 11 12
9
3. Using the Baby Monitor
Place the baby unit in a convenient location(e.g.on a
table)and point the camera lens towards the area you
want to monitor. Adjust the baby unit uniti you are
satisfied with the image in the parent unit.
To mount the baby unit on the wall, see section”9.
3.1 Setting up
wall mounting instruction”for more details.
NOTE
Do not place the baby unit within baby’s reach! if there
is interference on the picture or sound,try moving the
units to different location, and ensure, they are not
close to other electrical equipment.
3.2 Pairing camera
The enclosed baby unit has already been registered, You
do not need to register it again unless the baby unit loses its
link with parent unit,see section”5.2Camera registration
”for more details.
3.3 Night vision
The baby unit has 1 high-intensity infrared LED for picking
up clear images in the dark.
3.4 Music Player
Press and hold key at least 3 seconds will turn on
the music player and play lullaby, through the baby unit;
long press the key 3 seconds again will turn off it.
3.5 Talk Function
Press and hold
3.6 Adjusting the volume
When the video is playing mode, press key to decrease
volume or key to increase volume, The display will show
the current volume for 5 seconds.
3.7 Reset the parent unit
Press and hold the power key at least 3 seconds,the parent
unit will be forced to restart.

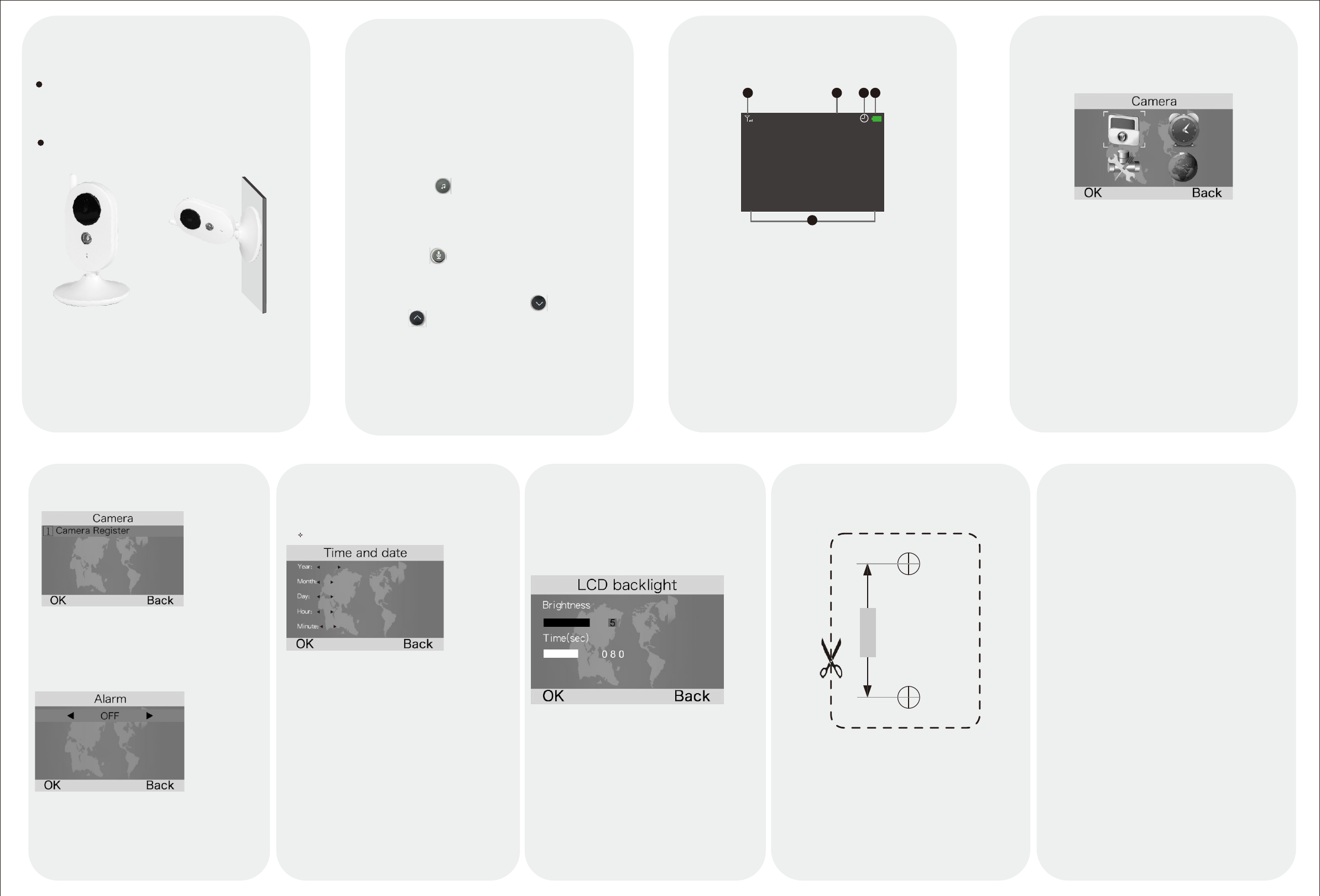

4.Monitoring Screen lcons
1. Signal strength indicator
2. Temperature of the baby’s room
3. Alarm activated
4. Battery indicator
5. Date and time
5.Menu Options
5.1Main menu
Press”Menu”key at monitoring screen will enter the main
menu, It contains 4 items:
1.Camera
2.Alarm
3.Settings
4.Languages
You can press the “Up” key or “Down” key to move the
cursor to select an item and press”Menu”key will enter
the sub-menu which you selected.
Press”Return”key will back to monitoring screen
16
1. Use the template below to mark the wall in the correct
places to drill holes for wall- mounting screws
6. Wall mounting instructions
2. Insert 4mm head screws (not supplied) into the holes
and tighten the screws. Then,align your baby unit with the
screws and push it down.
3. Point the camera lens towards the ares you want to
monitor. Adjust the baby until you are satisfied with the
image in the parent unit.
33mm
6mm
headscrew
6mm
headscrew
10 . 01 22 : 36
1
13
5.2 Camera Registration
Press“menu”key to entry registering screen, then
push the pair key on the back of baby unit within 10
seconds.
5.3 Alarm
Press"music"key to choose item "Up"and"down"key to
change value
15
5.4.5 VOX Sensitivity
Switch the Vox sensitivity at Low/Medium/High level
5.4.6 LCD backlight
You are be able to adjust the brightness of the LCD
you are viewing and the LCD backlight active time in
menu operation.
Language setting menu allows you to choose your
language from the following:
5.5 Language
1、English
2、French
3、Spanish
4、Portuguese
5、ltalian
6、German
7、Turkish
8、Russian
key on the parent unit to talk to your
baby through the baby unit ioudspeaker.
30℃
2 3 4
5
14
5.4 Settings
5.4.1Time and date
There are contains 2 items in this menu
Set time/date
Press"music"key to choose item "Up"and"down"key to
change value
5.4.2 Temperature unit
Switch the unit to Celsius of Fahrenheit
5.4.3 Anti-flicker
You are able to adjust the frequency of 50/60 Hz to
suit your lighting for anti-flicker
5.4.4 System mode
This menu allows you to choose the working mode
from the following:Normal mode from the /VOX mode
2 0 1 5
0 1
0 7
2 0
3 3
FCC WARNING
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation. Any
changes or modifications not expressly approved
by the party responsible for compliance
could void the user's authority to operate the equipment. NOTE:
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception,
which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one
or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for
help. The device has been evaluated to meet general RF
exposure requirement. The device can be used in
17
portable exposure condition without restriction
FCC ID: 2AQMY-ZR303RX
