Zhuhai HiVi Technology M300 Multimedia Active Speaker User Manual

Zhuhai HiVi Technology co., Ltd. Multimedia Active Speaker Users Manual

user manual

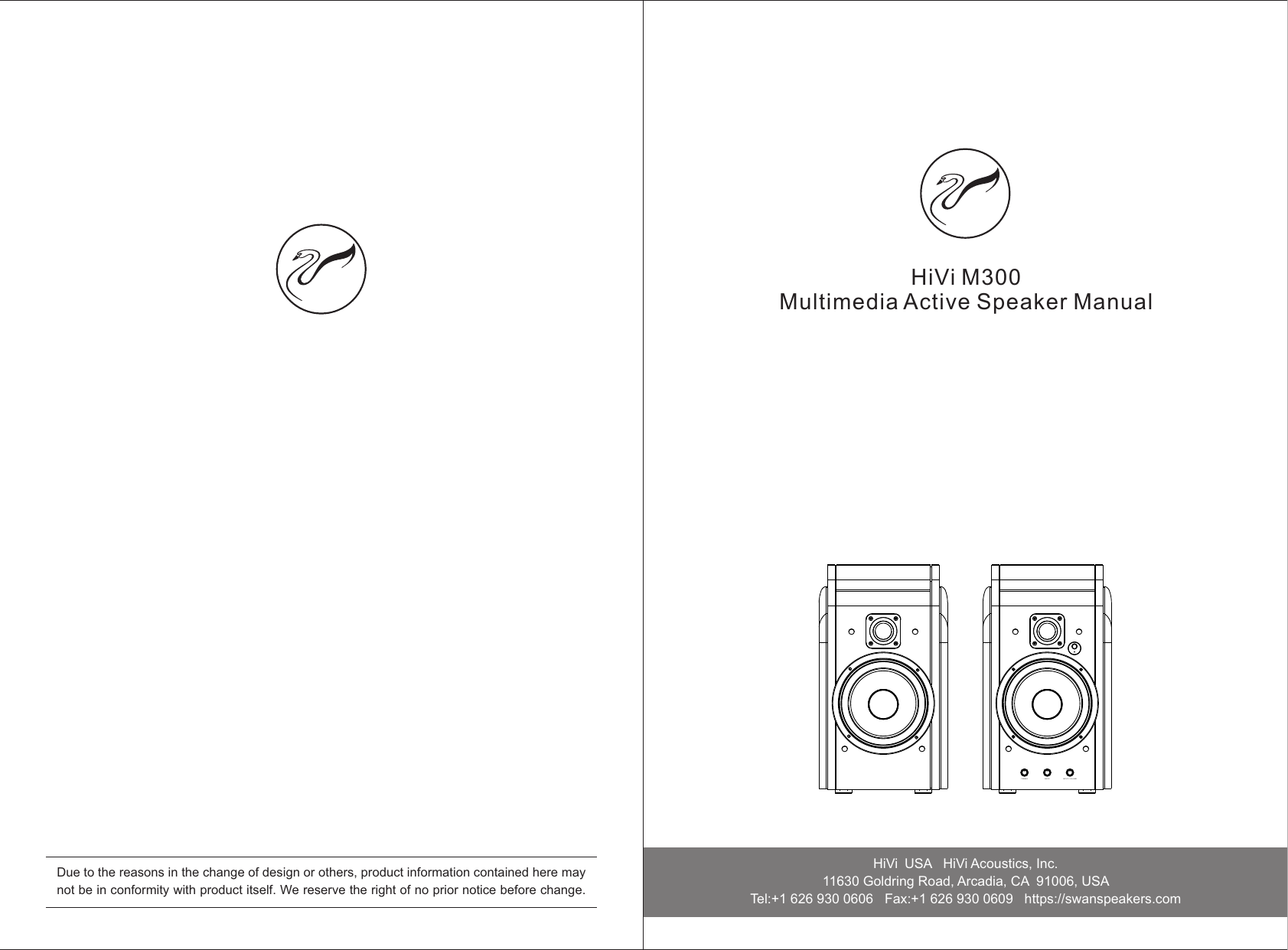

HiVi M300Multimedia Active Speaker ManualHiVi USA 11630 Goldring Road, Arcadia, CA 91006, USA Tel:+1 626 930 0606 Fax:+1 626 930 0609 https://swanspeakers.comHiVi Acoustics, Inc. Due to the reasons in the change of design or others, product information contained here may not be in conformity with product itself. We reserve the right of no prior notice before change. BASSTREBL E INPUT / V OLUME

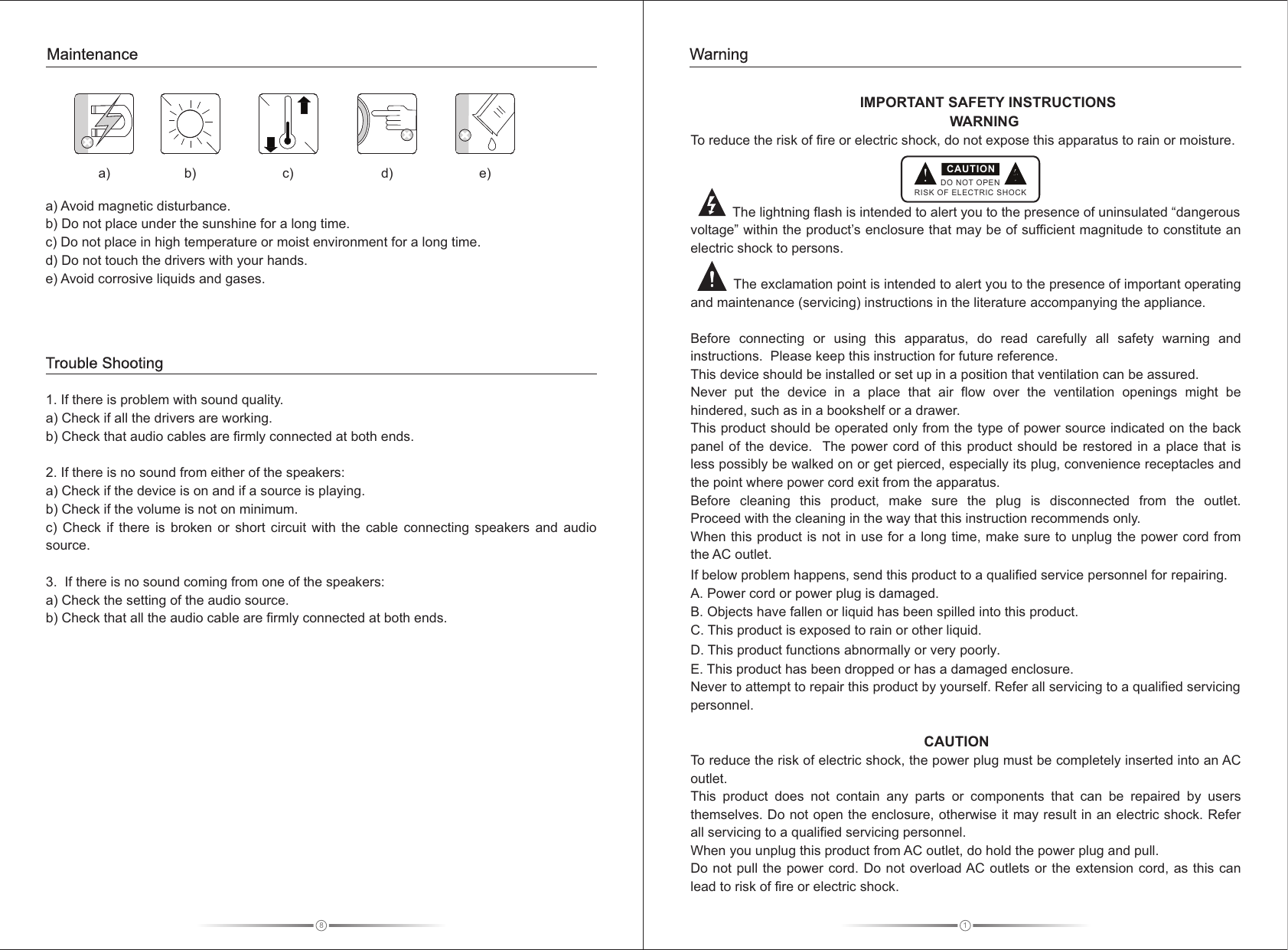

1 IMPORTANT SAFETY INSTRUCTIONS WARNINGTo reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The lightning flash is intended to alert you to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute an electric shock to persons. The exclamation point is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.Before connecting or using this apparatus, do read carefully all safety warning and instructions. Please keep this instruction for future reference.This device should be installed or set up in a position that ventilation can be assured. Never put the device in a place that air flow over the ventilation openings might be hindered, such as in a bookshelf or a drawer.This product should be operated only from the type of power source indicated on the back panel of the device. The power cord of this product should be restored in a place that is less possibly be walked on or get pierced, especially its plug, convenience receptacles and the point where power cord exit from the apparatus.Before cleaning this product, make sure the plug is disconnected from the outlet. Proceed with the cleaning in the way that this instruction recommends only.When this product is not in use for a long time, make sure to unplug the power cord from the AC outlet.If below problem happens, send this product to a qualified service personnel for repairing.A. Power cord or power plug is damaged.B. Objects have fallen or liquid has been spilled into this product.C. This product is exposed to rain or other liquid.D. This product functions abnormally or very poorly.E. This product has been dropped or has a damaged enclosure.Never to attempt to repair this product by yourself. Refer all servicing to a qualified servicing personnel. CAUTIONTo reduce the risk of electric shock, the power plug must be completely inserted into an AC outlet.This product does not contain any parts or components that can be repaired by users themselves. Do not open the enclosure, otherwise it may result in an electric shock. Refer all servicing to a qualified servicing personnel.When you unplug this product from AC outlet, do hold the power plug and pull.Do not pull the power cord. Do not overload AC outlets or the extension cord, as this can lead to risk of fire or electric shock.DO NOT OPENRISK OF ELECTRIC SHOCKCAUTIONWarning8Trouble Shooting1. If there is problem with sound quality. a) Check if all the drivers are working.b Check that audio cables are firmly connected at both ends.2. If there is no sound from either of the speakers:a Check if the device is on and if a source is playing.b Check if the volume is not on minimum.c Check if there is broken or short circuit with the cable connecting speakers and audio source. 3. If there is no sound coming from one of the speakers:a Check the setting of the audio source.b Check that all the audio cable are firmly connected at both ends. ))))))a) Avoid magnetic disturbance. b) Do not place under the sunshine for a long time. c) Do not place in high temperature or moist environment for a long time. d) Do not touch the drivers with your hands. e) Avoid corrosive liquids and gases. a) b) c) d) e) Maintenance

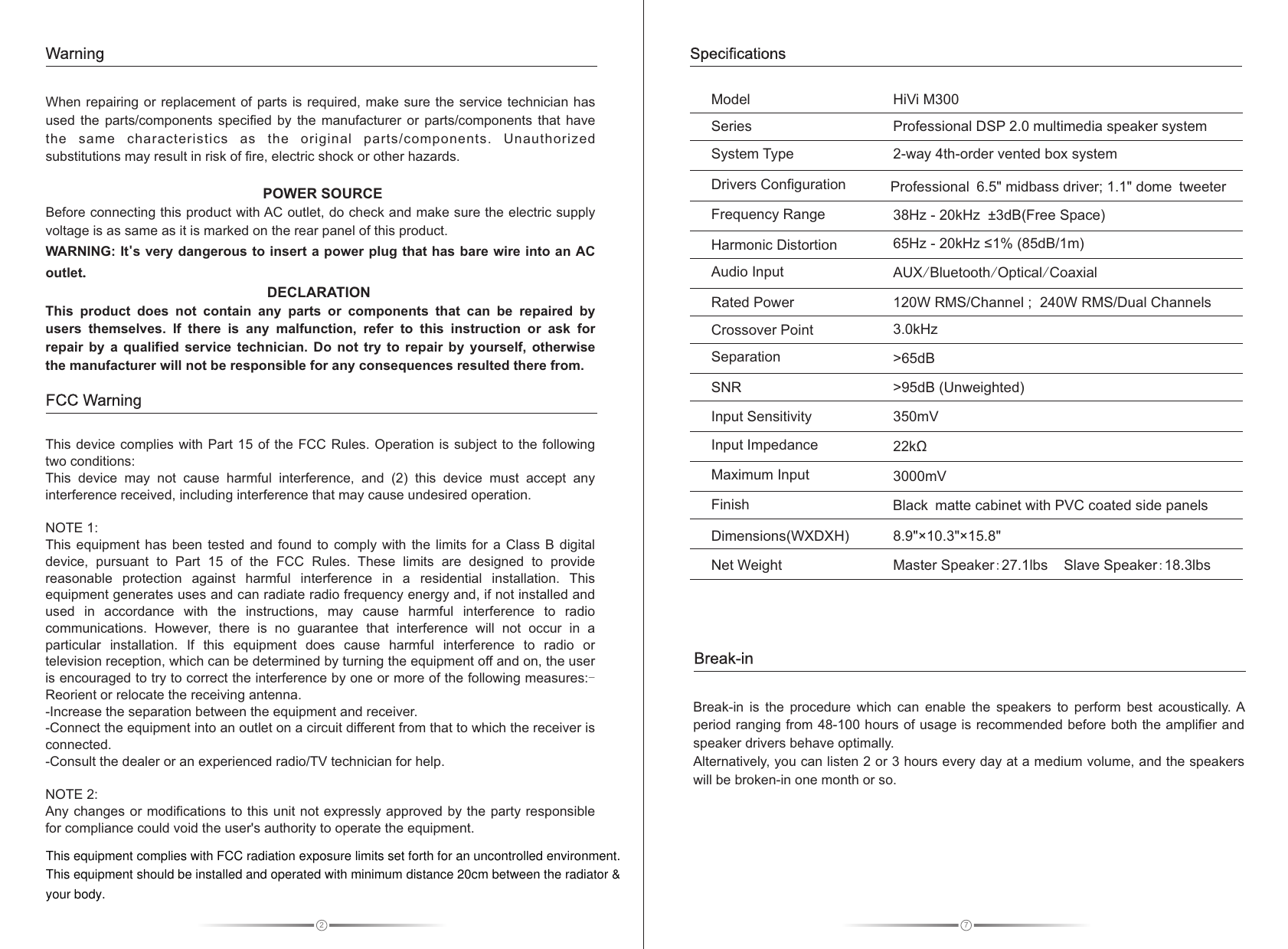

2When repairing or replacement of parts is required, make sure the service technician has used the parts/components specified by the manufacturer or parts/components that have the same characteristics as the original parts/components. Unauthorized substitutions may result in risk of fire, electric shock or other hazards. POWER SOURCEBefore connecting this product with AC outlet, do check and make sure the electric supply voltage is as same as it is marked on the rear panel of this product.WARNING: It's very dangerous to insert a power plug that has bare wire into an AC outlet. DECLARATIONThis product does not contain any parts or components that can be repaired by users themselves. If there is any malfunction, refer to this instruction or ask for repair by a qualified service technician. Do not try to repair by yourself, otherwise the manufacturer will not be responsible for any consequences resulted there from. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.FCC WarningWarning7HiVi M3002-way 4th-order vented box system>95dB (Unweighted)350mV22kΩ3000mV38Hz - 20kHz ±3dB(Free Space)65Hz - 20kHz ≤1% (85dB/1m)AUX/Bluetooth/Optical/Coaxial8.9"×10.3"×15.8"120W RMS/Channel ; 240W RMS/Dual ChannelsProfessional DSP 2.0 multimedia speaker system3.0kHz>65dBSystem TypeFrequency RangeDrivers ConfigurationSNRInput SensitivityInput ImpedanceRated PowerFinishDimensions(WXDXH)Master Speaker:27.1lbs Slave Speaker:18.3lbsNet WeightSeriesHarmonic DistortionMaximum InputModelAudio Input SeparationCrossover PointSpecificationsBreak-in is the procedure which can enable the speakers to perform best acoustically. A period ranging from 48-100 hours of usage is recommended before both the amplifier and speaker drivers behave optimally. Alternatively, you can listen 2 or 3 hours every day at a medium volume, and the speakers will be broken-in one month or so. Break-inProfessional 6 5" midbass driver; 1 1 dome tweeter. . " Black matte cabinet with PVC coated side panelsThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

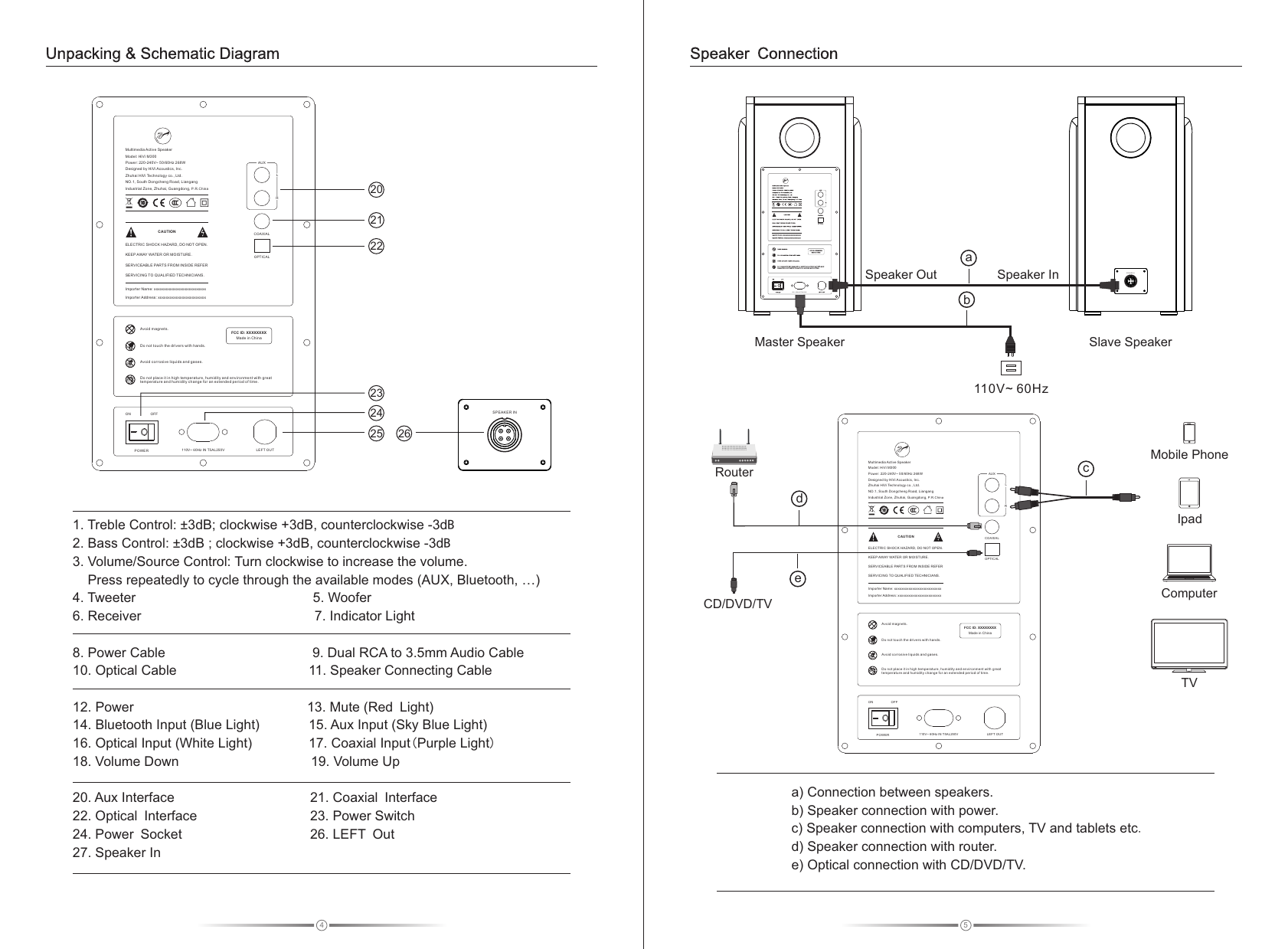

Bluebooth ConnectionSelect mode via a remote control or press INPUT/VOLUME control on the front panel. Indicator light should flash blue. Choose HiVi M300. Steady blue light indicates successful Bluetooth connection.Bluebooth6BASSTREBL E INPUT / V OLUMEAUXPOW ER MU TEBTOPT C OAXVOL UMEAUXPOW ER M UT EBTOPT C OA XINPUT / VOLUMEMaster speakerSlave speaker d>70mmSTAND / DESK WALLSpeaker Placementd>30mm60mm<d>100mm BASSTREBLE INPUT / VOLUME3Please make sure all the following components are in the box. Unpacking & Schematic Diagramx 1 891011x 1x 1x 1ManualBASSTREBL E INPUT / V OLUME 1234567AUXPOW ER MU TEBTOPT C OAXVOL UME12 1314 1516 1718 19
POW ERON OF F110V~ 60Hz I N T5AL2 50V LEF T OUTAvo id m ag ne ts.Do no t touch t he driv ers wit h hands .Do no t place i t in high t emper ature , humid ity and env ironm ent wit h great tem perat ure and h umidi ty chan ge for an e xtended p eriod o f time.Avo id c or ro siv e liqui ds and ga ses.OPTIC ALCOAXI ALAUXLRMulti medi a Active S peake rModel : HiVi M3 00 Power : 220- 240V ~ 50/60 Hz 268 WDesig ned by H iVi Acous tics , Inc.Zhuha i HiVi Techno logy co ., Ltd .NO.1, S outh D ongc heng Ro ad, Li anga ng Indus tria l Zone , Zhuha i, Gua ngdo ng, P.R.Chi na ELECT RIC SH OCK HA ZARD, D O NOT OPE N. KEEP AWAY WAT ER OR MO ISTU RE. SERVI CEABL E PARTS FRO M INSID E REFE R SERVI CING TO QU ALIF IED TEC HNICI ANS. CAUTI ONMade in C hina FCC ID: XXXXXXXXImpor ter Na me: xx xxxxx xxxx xxxx xxxxx xxxx xx Impor ter Addr ess: x xxxxx xxxx xxxx xxxxx xxxx x 5a) Connection between speakers.b) Speaker connection with power.c) Speaker connection with computers, TV and tablets etc.d) Speaker connection with router.e) Optical connection with CD/DVD/TV.Speaker ConnectionSPEAKER IN110V~ 60Hz S InpeakerSpeaker OutaSlave SpeakerMaster SpeakerbMobile PhoneIpadComputerTVcRouterCD/DVD/TVde41. Treble Control: ±3dB; clockwise +3dB, counterclockwise -3dB2. Bass Control: ±3dB ; clockwise +3dB, counterclockwise -3dB 3. Volume/Source Control: Turn clockwise to increase the volume. Press repeatedly to cycle through the available modes (AUX, Bluetooth, …)4. Tweeter 5. Woofer 6. Receiver 7. Indicator Light8. Power Cable 9. Dual RCA to 3.5mm Audio Cable10. Optical Cable 11. Speaker Connecting Cable 12. Power 13. Mute (Red Light) 14. Bluetooth Input (Blue Light) 15. Aux Input (Sky Blue Light) 16. Optical Input (White Light) 17. Coaxial Input(Purple Light) 18. Volume Down 19. Volume Up20. Aux Interface 21. Coaxial Interface22. Optical Interface 23. Power Switch24. Power Socket 26. LEFT Out 27. Speaker In Unpacking & Schematic Diagram202122232425 26SPEAKER INPOW ERON OF F110V~ 60H z IN T5AL 250V LEF T OUTAvo id m ag ne ts .Do not touch the d ri ve rs w it h ha nd s.Do not place it in h ig h te mp er at ur e, h um id it y an d en vi ro nm en t wi th g re at temperatur e an d hu mi di ty c ha ng e fo r an e xt en de d pe ri od o f ti me .Avo id c or ro si ve l iq uids and gases.OPTIC ALCOAXI ALAUXLRMultimedia Active Spea kerModel: HiVi M 300 Power: 220-240V~ 50/ 60Hz 2 68WDesigned by HiVi Acou stic s, Inc .Zhuhai HiVi Technology co., Ltd.NO.1, South Dongchen g Road , Lian gang Industrial Zone, Zhu hai, G uang dong , P.R.Chin a ELECTRIC SHOCK HAZARD, DO NO T OPEN. KEEP AWAY WAT ER OR MO ISTU RE. SERVI CEAB LE PARTS FROM INS IDE RE FER SERVI CING TO QUALIFIED TE CHNI CIAN S. CAUTIONMade in China FCC ID: XXXXXXXXImporter Name: xxxxx xxxx xxxx xxxx xxxx xxxx x Importer Address: xxxx xxxx xxxx xxxx xxxx xxxx 110V~ 60Hz IN T5AL250V
