Zhuhai HiVi Technology M300 Multimedia Active Speaker User Manual
Zhuhai HiVi Technology co., Ltd. Multimedia Active Speaker Users Manual
user manual
HiVi M300
Multimedia Active Speaker Manual
HiVi USA
11630 Goldring Road, Arcadia, CA 91006, USA
Tel:+1 626 930 0606 Fax:+1 626 930 0609 https://swanspeakers.com
HiVi Acoustics, Inc.
Due to the reasons in the change of design or others, product information contained here may
not be in conformity with product itself. We reserve the right of no prior notice before change.
BASS
TREBL E INPUT / V OLUME
1
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
The lightning flash is intended to alert you to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude to constitute an
electric shock to persons.
The exclamation point is intended to alert you to the presence of important operating
and maintenance (servicing) instructions in the literature accompanying the appliance.
Before connecting or using this apparatus, do read carefully all safety warning and
instructions. Please keep this instruction for future reference.
This device should be installed or set up in a position that ventilation can be assured.
Never put the device in a place that air flow over the ventilation openings might be
hindered, such as in a bookshelf or a drawer.
This product should be operated only from the type of power source indicated on the back
panel of the device. The power cord of this product should be restored in a place that is
less possibly be walked on or get pierced, especially its plug, convenience receptacles and
the point where power cord exit from the apparatus.
Before cleaning this product, make sure the plug is disconnected from the outlet.
Proceed with the cleaning in the way that this instruction recommends only.
When this product is not in use for a long time, make sure to unplug the power cord from
the AC outlet.
If below problem happens, send this product to a qualified service personnel for repairing.
A. Power cord or power plug is damaged.
B. Objects have fallen or liquid has been spilled into this product.
C. This product is exposed to rain or other liquid.
D. This product functions abnormally or very poorly.
E. This product has been dropped or has a damaged enclosure.
Never to attempt to repair this product by yourself. Refer all servicing to a qualified servicing
personnel.
CAUTION
To reduce the risk of electric shock, the power plug must be completely inserted into an AC
outlet.
This product does not contain any parts or components that can be repaired by users
themselves. Do not open the enclosure, otherwise it may result in an electric shock. Refer
all servicing to a qualified servicing personnel.
When you unplug this product from AC outlet, do hold the power plug and pull.
Do not pull the power cord. Do not overload AC outlets or the extension cord, as this can
lead to risk of fire or electric shock.
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION
Warning
8
Trouble Shooting
1. If there is problem with sound quality.
a) Check if all the drivers are working.
b Check that audio cables are firmly connected at both ends.
2. If there is no sound from either of the speakers:
a Check if the device is on and if a source is playing.
b Check if the volume is not on minimum.
c Check if there is broken or short circuit with the cable connecting speakers and audio
source.
3. If there is no sound coming from one of the speakers:
a Check the setting of the audio source.
b Check that all the audio cable are firmly connected at both ends.
)
)
)
)
)
)
a) Avoid magnetic disturbance.
b) Do not place under the sunshine for a long time.
c) Do not place in high temperature or moist environment for a long time.
d) Do not touch the drivers with your hands.
e) Avoid corrosive liquids and gases.
a) b) c) d) e)
Maintenance
2
When repairing or replacement of parts is required, make sure the service technician has
used the parts/components specified by the manufacturer or parts/components that have
the same characteristics as the original parts/components. Unauthorized
substitutions may result in risk of fire, electric shock or other hazards.
POWER SOURCE
Before connecting this product with AC outlet, do check and make sure the electric supply
voltage is as same as it is marked on the rear panel of this product.
WARNING: It's very dangerous to insert a power plug that has bare wire into an AC
outlet.
DECLARATION
This product does not contain any parts or components that can be repaired by
users themselves. If there is any malfunction, refer to this instruction or ask for
repair by a qualified service technician. Do not try to repair by yourself, otherwise
the manufacturer will not be responsible for any consequences resulted there from.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE 1:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:-
Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
NOTE 2:
Any changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
FCC Warning
Warning
7
HiVi M300
2-way 4th-order vented box system
>95dB (Unweighted)
350mV
22kΩ
3000mV
38Hz - 20kHz ±3dB(Free Space)
65Hz - 20kHz ≤1% (85dB/1m)
AUX/Bluetooth/Optical/Coaxial
8.9"×10.3"×15.8"
120W RMS/Channel ; 240W RMS/Dual Channels
Professional DSP 2.0 multimedia speaker system
3.0kHz
>65dB
System Type
Frequency Range
Drivers Configuration
SNR
Input Sensitivity
Input Impedance
Rated Power
Finish
Dimensions(WXDXH)
Master Speaker:27.1lbs Slave Speaker:18.3lbs
Net Weight
Series
Harmonic Distortion
Maximum Input
Model
Audio Input
Separation
Crossover Point
Specifications
Break-in is the procedure which can enable the speakers to perform best acoustically. A
period ranging from 48-100 hours of usage is recommended before both the amplifier and
speaker drivers behave optimally.
Alternatively, you can listen 2 or 3 hours every day at a medium volume, and the speakers
will be broken-in one month or so.
Break-in
Professional 6 5" midbass driver; 1 1 dome tweeter. . "
Black matte cabinet with PVC coated side panels
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
Bluebooth Connection
Select mode via a remote control or press INPUT/VOLUME control on the front
panel. Indicator light should flash blue. Choose HiVi M300.
Steady blue light indicates successful Bluetooth connection.
Bluebooth
6
BASS
TREBL E INPUT / V OLUME
AUX
POW ER MU TE
BT
OPT C OAX
VOL UME
AUX
POW ER M UT E
BT
OPT C OA X
INPUT / VOLUME
Master
speaker
Slave
speaker d>70mm
STAND / DESK WALL
Speaker Placement
d>30mm
60mm<d>100mm BASS
TREBLE INPUT / VOLUME
3
Please make sure all the following components are in the box.
Unpacking & Schematic Diagram
x 1 8
9
10
11
x 1
x 1
x 1
Manual
BASS
TREBL E INPUT / V OLUME 123
4
5
6
7
AUX
POW ER MU TE
BT
OPT C OAX
VOL UME
12 13
14 15
16 17
18 19
POW ER
ON OF F
110V~ 60Hz I N T5AL2 50V LEF T OUT
Avo id m ag ne ts.
Do no t touch t he driv ers wit h hands .
Do no t place i t in high t emper ature , humid ity and env ironm ent wit h great
tem perat ure and h umidi ty chan ge for an e xtended p eriod o f time.
Avo id c or ro siv e liqui ds and ga ses.
OPTIC AL
COAXI AL
AUX
L
R
Multi medi a Active S peake r
Model : HiVi M3 00
Power : 220- 240V ~ 50/60 Hz 268 W
Desig ned by H iVi Acous tics , Inc.
Zhuha i HiVi Techno logy co ., Ltd .
NO.1, S outh D ongc heng Ro ad, Li anga ng
Indus tria l Zone , Zhuha i, Gua ngdo ng, P.R.Chi na
ELECT RIC SH OCK HA ZARD, D O NOT OPE N.
KEEP AWAY WAT ER OR MO ISTU RE.
SERVI CEABL E PARTS FRO M INSID E REFE R
SERVI CING TO QU ALIF IED TEC HNICI ANS.
CAUTI ON
Made in C hina
FCC ID: XXXXXXXX
Impor ter Na me: xx xxxxx xxxx xxxx xxxxx xxxx xx
Impor ter Addr ess: x xxxxx xxxx xxxx xxxxx xxxx x
5

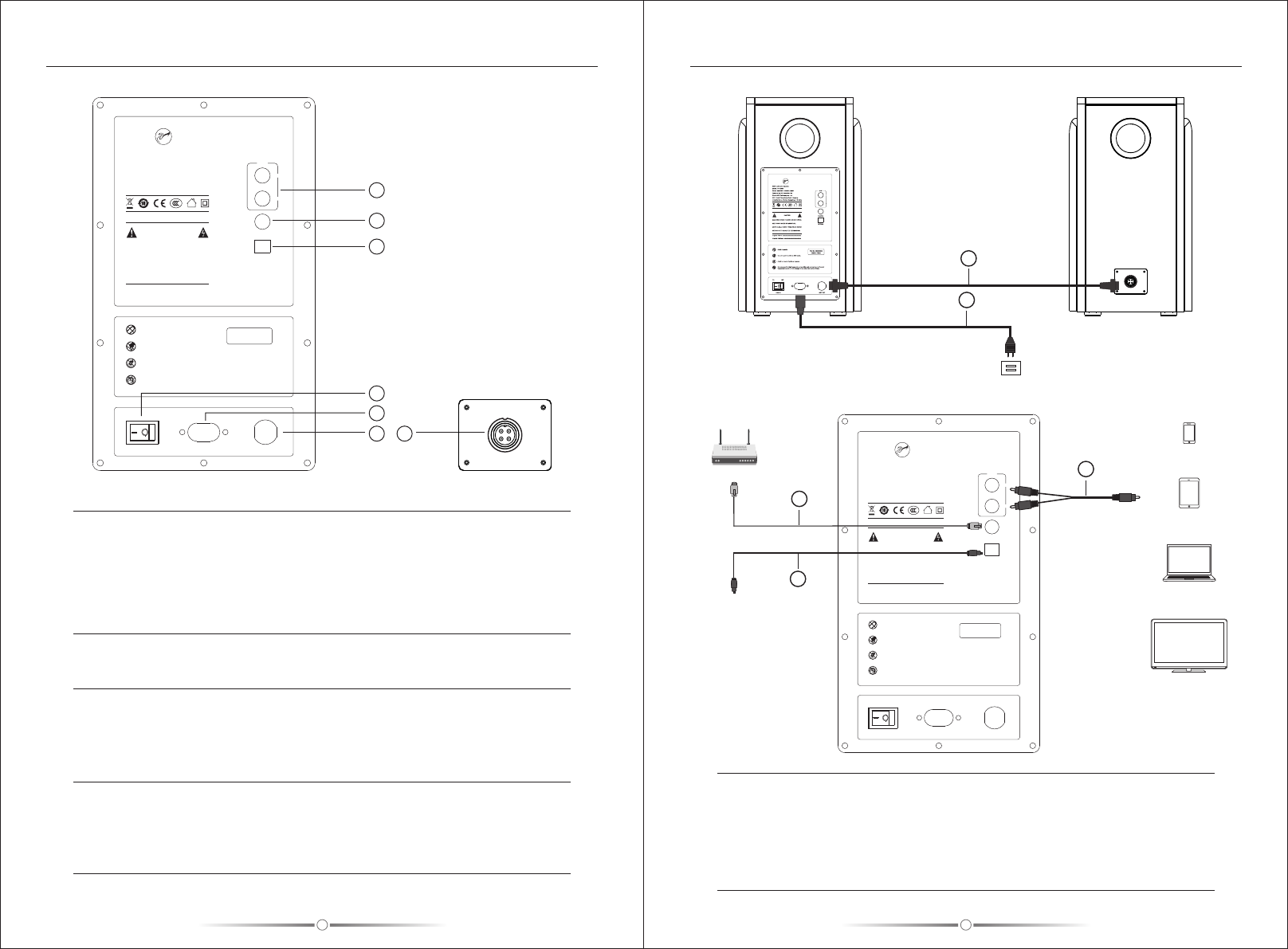

a) Connection between speakers.
b) Speaker connection with power.
c) Speaker connection with computers, TV and tablets etc.
d) Speaker connection with router.
e) Optical connection with CD/DVD/TV.
Speaker Connection
SPEAKER IN
110V~ 60Hz
S Inpeaker
Speaker Out
a
Slave SpeakerMaster Speaker
b
Mobile Phone
Ipad
Computer
TV
c
Router
CD/DVD/TV
d
e
4
1. Treble Control: ±3dB; clockwise +3dB, counterclockwise -3dB
2. Bass Control: ±3dB ; clockwise +3dB, counterclockwise -3dB
3. Volume/Source Control: Turn clockwise to increase the volume.
Press repeatedly to cycle through the available modes (AUX, Bluetooth, …)
4. Tweeter 5. Woofer
6. Receiver 7. Indicator Light
8. Power Cable 9. Dual RCA to 3.5mm Audio Cable
10. Optical Cable 11. Speaker Connecting Cable
12. Power 13. Mute (Red Light)
14. Bluetooth Input (Blue Light) 15. Aux Input (Sky Blue Light)
16. Optical Input (White Light) 17. Coaxial Input(Purple Light)
18. Volume Down 19. Volume Up
20. Aux Interface 21. Coaxial Interface
22. Optical Interface 23. Power Switch
24. Power Socket 26. LEFT Out
27. Speaker In
Unpacking & Schematic Diagram
20
21
22
23
24
25 26
SPEAKER IN
POW ER
ON OF F
110V~ 60H z IN T5AL 250V LEF T OUT
Avo id m ag ne ts .
Do not touch the d ri ve rs w it h ha nd s.
Do not place it in h ig h te mp er at ur e, h um id it y an d en vi ro nm en t wi th g re at
temperatur e an d hu mi di ty c ha ng e fo r an e xt en de d pe ri od o f ti me .
Avo id c or ro si ve l iq uids and gases.
OPTIC AL
COAXI AL
AUX
L
R
Multimedia Active Spea ker
Model: HiVi M 300
Power: 220-240V~ 50/ 60Hz 2 68W
Designed by HiVi Acou stic s, Inc .
Zhuhai HiVi Technology co., Ltd.
NO.1, South Dongchen g Road , Lian gang
Industrial Zone, Zhu hai, G uang dong , P.R.Chin a
ELECTRIC SHOCK HAZARD, DO NO T OPEN.
KEEP AWAY WAT ER OR MO ISTU RE.
SERVI CEAB LE PARTS FROM INS IDE RE FER
SERVI CING TO QUALIFIED TE CHNI CIAN S.
CAUTION
Made in China
FCC ID: XXXXXXXX
Importer Name: xxxxx xxxx xxxx xxxx xxxx xxxx x
Importer Address: xxxx xxxx xxxx xxxx xxxx xxxx
110V~ 60Hz IN T5AL250V
