14.1 Overview
DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual clients to
obtain TCP/IP configuration at start-up from a server. You can configure the NBG5615’s LAN as a
DHCP server or disable it. When configured as a server, the NBG5615 provides the TCP/IP
configuration for the clients. If DHCP service is disabled, you must have another DHCP server on
your LAN, or else the computer must be manually configured.
14.1.1 What You Can Do
•Use the General screen to enable the DHCP server (Section 14.2 on page 133).
•Use the Advanced screen to assign IP addresses on the LAN to specific individual computers
based on their MAC Addresses (Section 14.3 on page 134).
•Use the Client List screen to view the current DHCP client information (Section 14.4 on page
136).
14.1.2 What You Need To Know
The following terms and concepts may help as you read through this chapter.
MAC Addresses
Every Ethernet device has a unique MAC (Media Access Control) address. The MAC address is
assigned at the factory and consists of six pairs of hexadecimal characters, for example,
00:A0:C5:00:00:02. Find out the MAC addresses of your network devices if you intend to add them
to the DHCP Client List screen.
14.2 DHCP Server General Screen
Use this screen to enable the DHCP server. Click Netw ork > DHCP Server. The following screen
displays.
Chapter 14 DHCP Server
NBG5615 User’s Guide
134

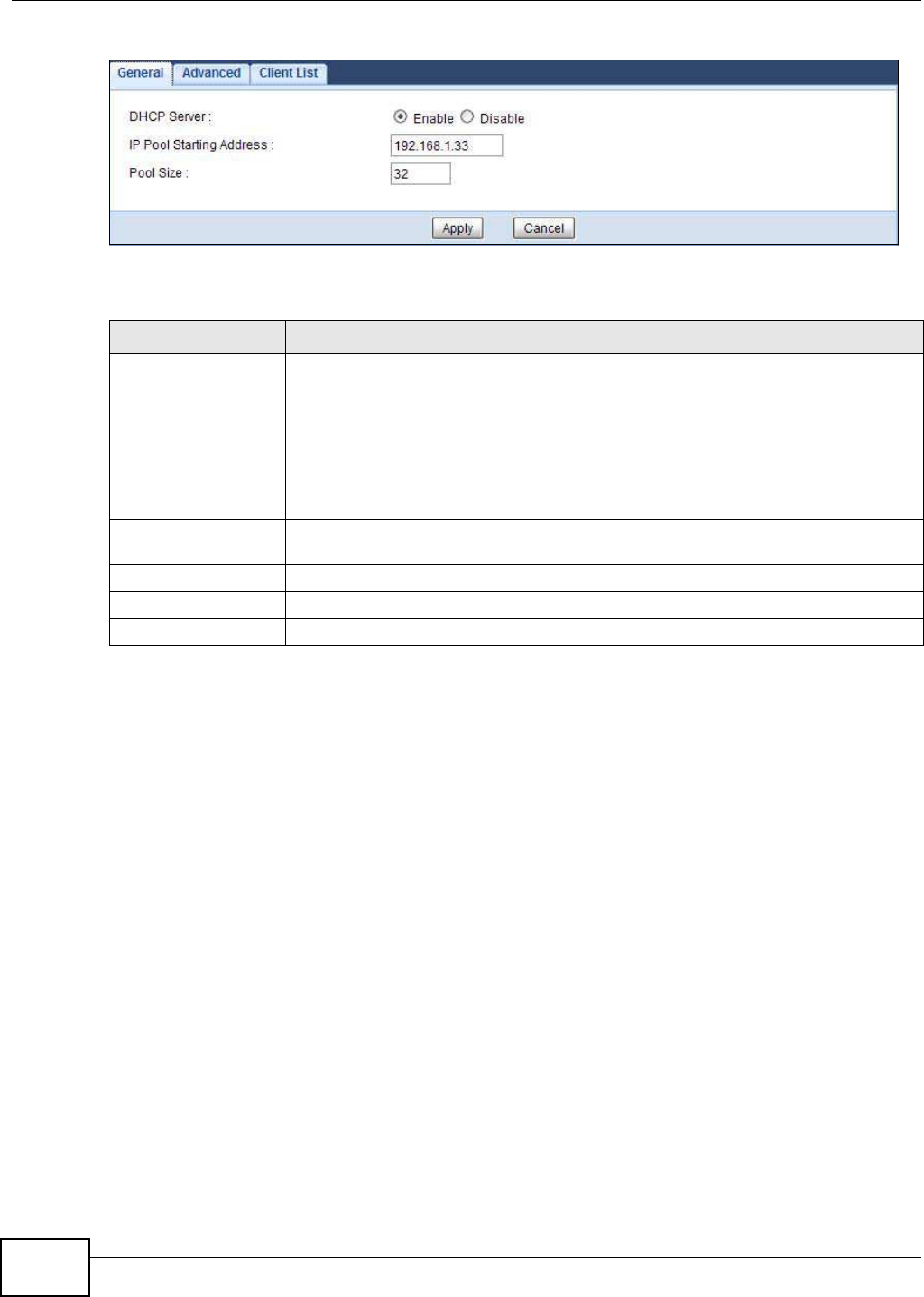

Figure 78 Network > DHCP Server > General
The following table describes the labels in this screen.
14.3 DHCP Server Advanced Screen
This screen allows you to assign IP addresses on the LAN to specific individual computers based on
their MAC addresses. You can also use this screen to configure the DNS server information that the
NBG5615 sends to the DHCP clients.
To change your NBG5615’s static DHCP settings, click Netw ork > DHCP Server > Advanced. The
following screen displays.
Table 52 Network > DHCP Server > General
LABEL DESCRIPTION
DHCP Server Select Enable to activate DHCP for LAN.
DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows
individual clients (computers) to obtain TCP/IP configuration at startup from a server.
Enable the DHCP server unless your ISP instructs you to do otherwise. Select Disable
to stop the NBG5615 acting as a DHCP server. When configured as a server, the
NBG5615 provides TCP/IP configuration for the clients. If not, DHCP service is
disabled and you must have another DHCP server on your LAN, or else the computers
must be manually configured. When set as a server, fill in the following four fields.
IP Pool Starting
Address
This field specifies the first of the contiguous addresses in the IP address pool for LAN.
Pool Size This field specifies the size, or count of the IP address pool for LAN.
Apply Click Apply to save your changes back to the NBG5615.
Cancel Click Cancel to begin configuring this screen afresh.
Chapter 14 DHCP Server
NBG5615 User’s Guide 135

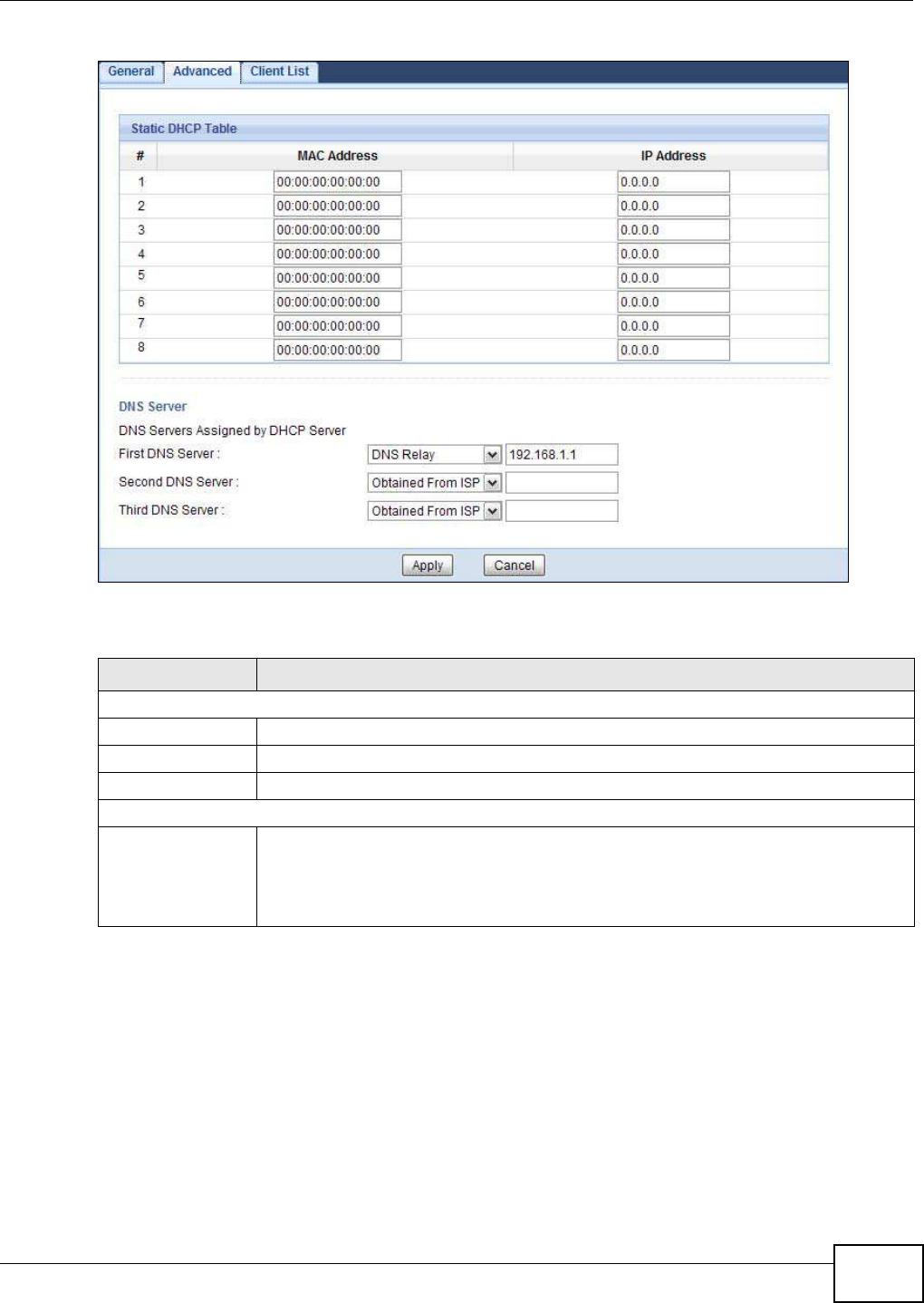

Figure 79 Network > DHCP Server > Advanced
The following table describes the labels in this screen.
Table 53 Network > DHCP Server > Advanced
LABEL DESCRIPTION
Static DHCP Table
# This is the index number of the static IP table entry (row).
MAC Address Type the MAC address (with colons) of a computer on your LAN.
IP Address Type the LAN IP address of a computer on your LAN.
DNS Server
DNS Servers
Assigned by DHCP
Server
The NBG5615 passes a DNS (Domain Name System) server IP address (in the order you
specify here) to the DHCP clients. The NBG5615 only passes this information to the LAN
DHCP clients when you enable DHCP Server. When you disable DHCP Server, DHCP
service is disabled and you must have another DHCP sever on your LAN, or else the
computers must have their DNS server addresses manually configured.
Chapter 14 DHCP Server
NBG5615 User’s Guide
136
14.4 DHCP Client List Screen
The DHCP table shows current DHCP client information (including IP Address, Host Name and MAC
Address) of network clients using the NBG5615’s DHCP servers.
Configure this screen to always assign an IP address to a MAC address (and host name). Click
Netw ork > DHCP Server > Client List.
Note: You can also view a read-only client list by clicking Monitor > DHCP Server.
Figure 80 Network > DHCP Server > Client List
The following table describes the labels in this screen.
First DNS Server
Second DNS Server
Third DNS Server
Select Obtained From I SP if your ISP dynamically assigns DNS server information
(and the NBG5615's WAN IP address). The field to the right displays the (read-only)
DNS server IP address that the ISP assigns.
Select User-Defined if you have the IP address of a DNS server. Enter the DNS server's
IP address in the field to the right. If you chose User-Defined, but leave the IP address
set to 0.0.0.0, User-Defined changes to None after you click Apply. If you set a
second choice to User- Defined, and enter the same IP address, the second User-
Defined changes to None after you click Apply.
Select DNS Relay to have the NBG5615 act as a DNS proxy. The NBG5615's LAN IP
address displays in the field to the right (read-only). The NBG5615 tells the DHCP
clients on the LAN that the NBG5615 itself is the DNS server. When a computer on the
LAN sends a DNS query to the NBG5615, the NBG5615 forwards the query to the
NBG5615's system DNS server (configured in the W AN > I nternet Connection
screen) and relays the response back to the computer. You can only select DNS Relay
for one of the three servers; if you select DNS Relay for a second or third DNS server,
that choice changes to None after you click Apply.
Select None if you do not want to configure DNS servers. If you do not configure a DNS
server, you must know the IP address of a computer in order to access it.
Apply Click Apply to save your changes back to the NBG5615.
Cancel Click Cancel to begin configuring this screen afresh.
Table 53 Network > DHCP Server > Advanced (continued)
LABEL DESCRIPTION
Table 54 Network > DHCP Server > Client List
LABEL DESCRIPTION
# This is the index number of the host computer.
Status This field displays whether the connection to the host computer is up (a yellow bulb) or
down (a gray bulb).
Chapter 14 DHCP Server
NBG5615 User’s Guide 137
Host Name This field displays the computer host name.
IP Address This field displays the IP address relative to the # field listed above.
MAC Address This field shows the MAC address of the computer with the name in the Host Name field.
Every Ethernet device has a unique MAC (Media Access Control) address which uniquely
identifies a device. The MAC address is assigned at the factory and consists of six pairs of
hexadecimal characters, for example, 00:A0:C5:00:00:02.
Reserve Select this if you want to reserve the IP address for this specific MAC address.
Apply Click Apply to save your changes back to the NBG5615.
Cancel Click Cancel to reload the previous configuration for this screen.
Table 54 Network > DHCP Server > Client List (continued)
LABEL DESCRIPTION
Chapter 14 DHCP Server
NBG5615 User’s Guide
138
NBG5615 User’s Guide 139
CHAPTER 15
NAT
15.1 Overview
NAT (Network Address Translation - NAT, RFC 1631) is the translation of the IP address of a host in
a packet. For example, the source address of an outgoing packet, used within one network is
changed to a different IP address known within another network.

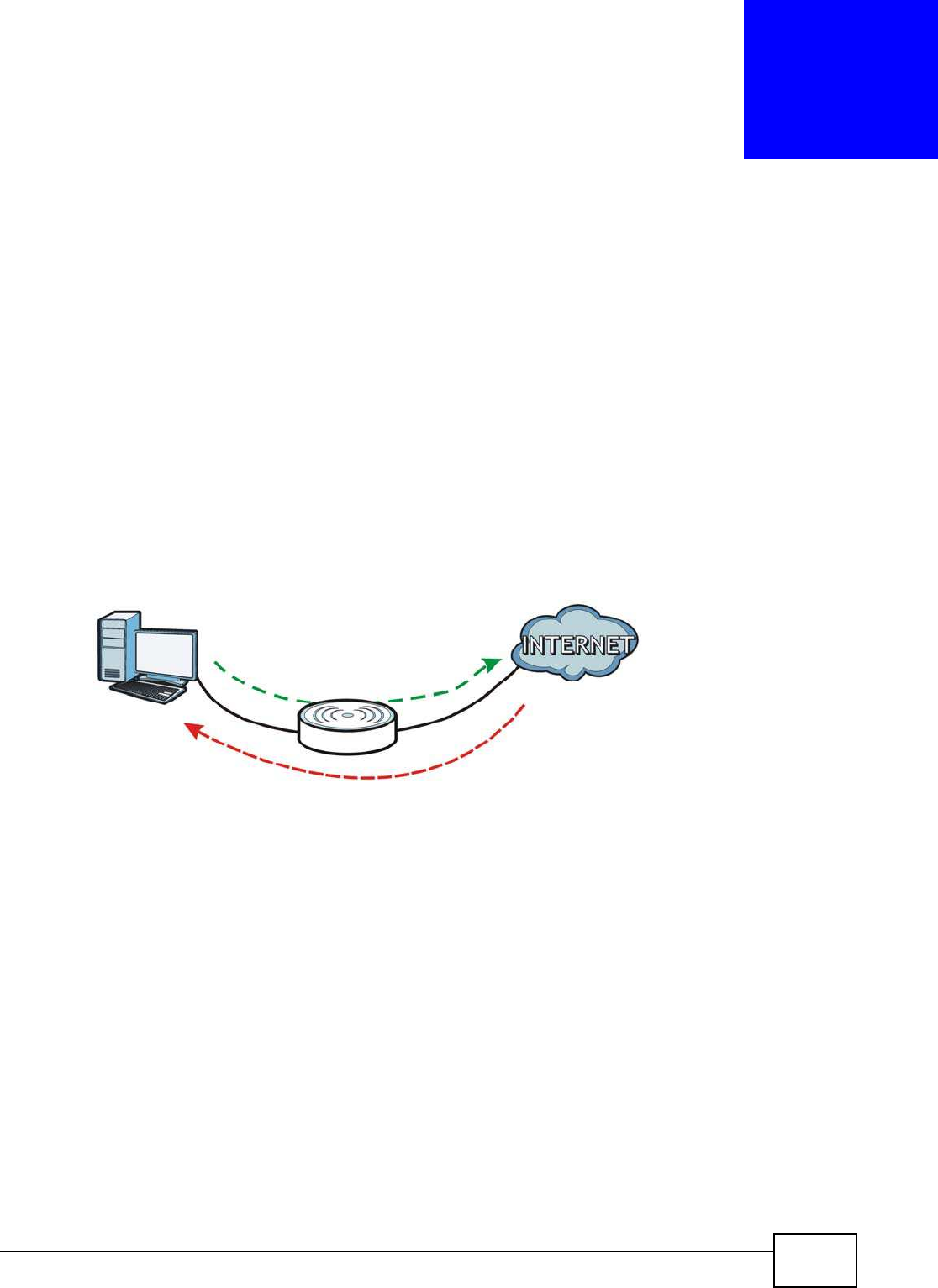

The figure below is a simple illustration of a NAT network. You want to assign ports 21-25 to one
FTP, Telnet and SMTP server (A in the example), port 80 to another (B in the example) and assign
a default server IP address of 192.168.1.35 to a third (C in the example).
You assign the LAN IP addresses to the devices (A to D) connected to your NBG5615. The ISP
assigns the WAN IP address. The NAT network appears as a single host on the Internet. All traffic
coming from A to D going out to the Internet use the IP address of the NBG5615, which is
192.168.1.1.

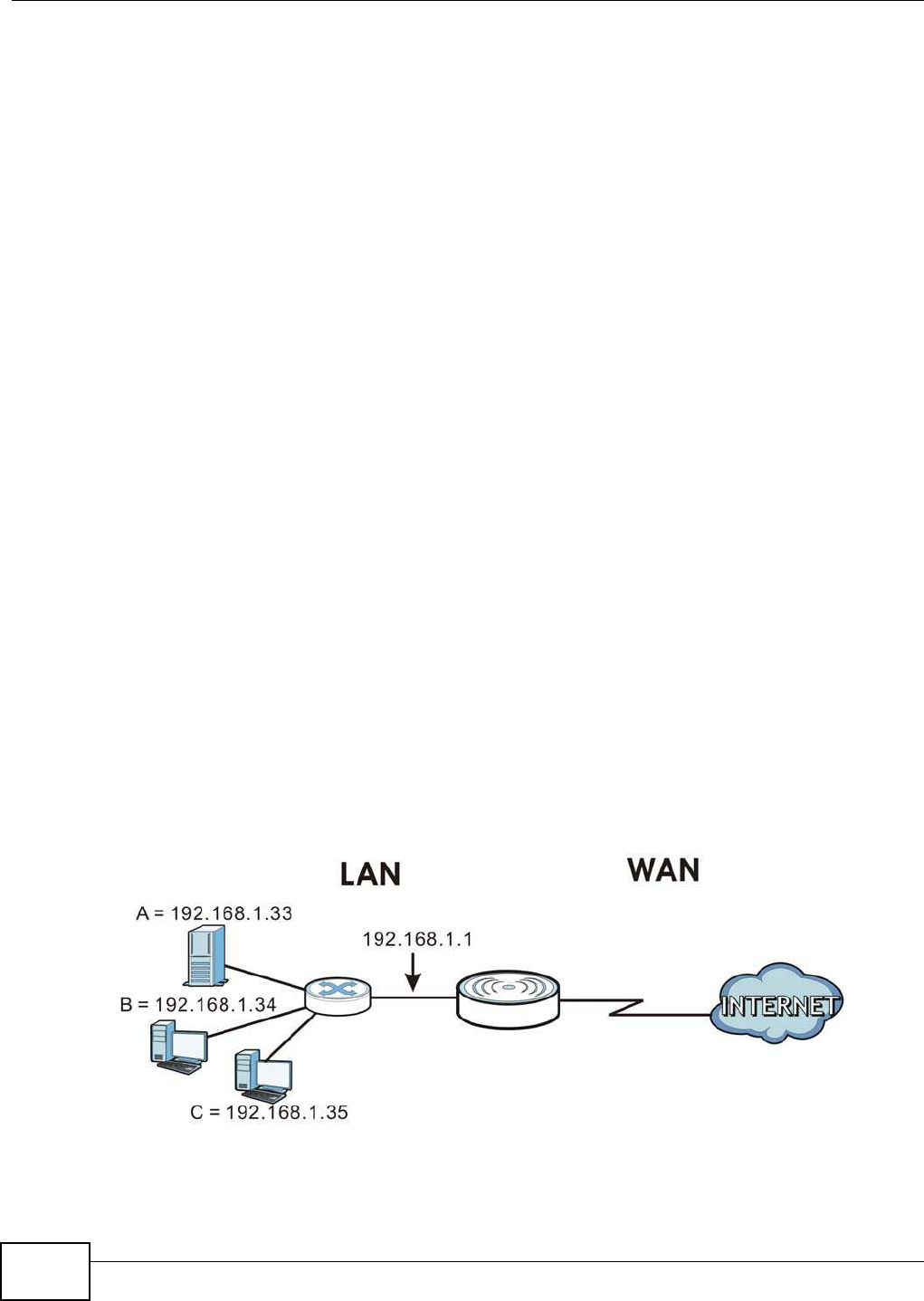

Figure 81 NAT Example
This chapter discusses how to configure NAT on the NBG5615.
Note: You must create a firewall rule in addition to setting up NAT, to allow traffic from
the WAN to be forwarded through the NBG5615.
15.1.1 What You Can Do
•Use the General screen to enable NAT (Section 15.2 on page 141).
A: 192.168.1.33
B: 192.168.1.34
C: 192.168.1.35
IP address
192.168.1.1
WANLAN
assigned by ISP
FTP, Telnet, SNMP
Port 80
Ports 21 to 25
Chapter 15 NAT
NBG5615 User’s Guide
140
•Use the Port Forw arding screen to set a default server and change your NBG5615’s port
forwarding settings to forward incoming service requests to the server(s) on your local network
(Section 15.3 on page 142).
•Use the Port Trigger screen to change your NBG5615’s trigger port settings (Section 15.5.3 on
page 147).
15.1.2 What You Need To Know
The following terms and concepts may help as you read through this chapter.
Inside/Outside
This denotes where a host is located relative to the NBG5615, for example, the computers of your
subscribers are the inside hosts, while the web servers on the Internet are the outside hosts.
Global/Local
This denotes the IP address of a host in a packet as the packet traverses a router, for example, the
local address refers to the IP address of a host when the packet is in the local network, while the
global address refers to the IP address of the host when the same packet is traveling in the WAN
side.
Note: Inside/outside refers to the location of a host, while global/local refers to the IP
address of a host used in a packet.
An inside local address (ILA) is the IP address of an inside host in a packet when the packet is still
in the local network, while an inside global address (IGA) is the IP address of the same inside host
when the packet is on the WAN side. The following table summarizes this information.
Note: NAT never changes the IP address (either local or global) of an outside host.
What NAT Does
In the simplest form, NAT changes the source IP address in a packet received from a subscriber
(the inside local address) to another (the inside global address) before forwarding the packet to the
WAN side. When the response comes back, NAT translates the destination address (the inside
global address) back to the inside local address before forwarding it to the original inside host. Note
that the IP address (either local or global) of an outside host is never changed.
The global IP addresses for the inside hosts can be either static or dynamically assigned by the ISP.
In addition, you can designate servers, for example, a web server and a telnet server, on your local
Table 55 NAT Definitions
ITEM DESCRIPTION
Inside This refers to the host on the LAN.
Outside This refers to the host on the WAN.
Local This refers to the packet address (source or destination) as the packet travels on the LAN.
Global This refers to the packet address (source or destination) as the packet travels on the WAN.
Chapter 15 NAT
NBG5615 User’s Guide 141
network and make them accessible to the outside world. If you do not define any servers , NAT
offers the additional benefit of firewall protection. With no servers defined, your NBG5615 filters out
all incoming inquiries, thus preventing intruders from probing your network. For more information
on IP address translation, refer to RFC 1631, The I P Network Address Translator (NAT).
How NAT Works
Each packet has two addresses – a source address and a destination address. For outgoing packets,
the ILA (Inside Local Address) is the source address on the LAN, and the IGA (Inside Global
Address) is the source address on the WAN. For incoming packets, the ILA is the destination
address on the LAN, and the IGA is the destination address on the WAN. NAT maps private (local)
IP addresses to globally unique ones required for communication with hosts on other networks. It
replaces the original IP source address in each packet and then forwards it to the Internet. The
NBG5615 keeps track of the original addresses and port numbers so incoming reply packets can
have their original values restored. The following figure illustrates this.

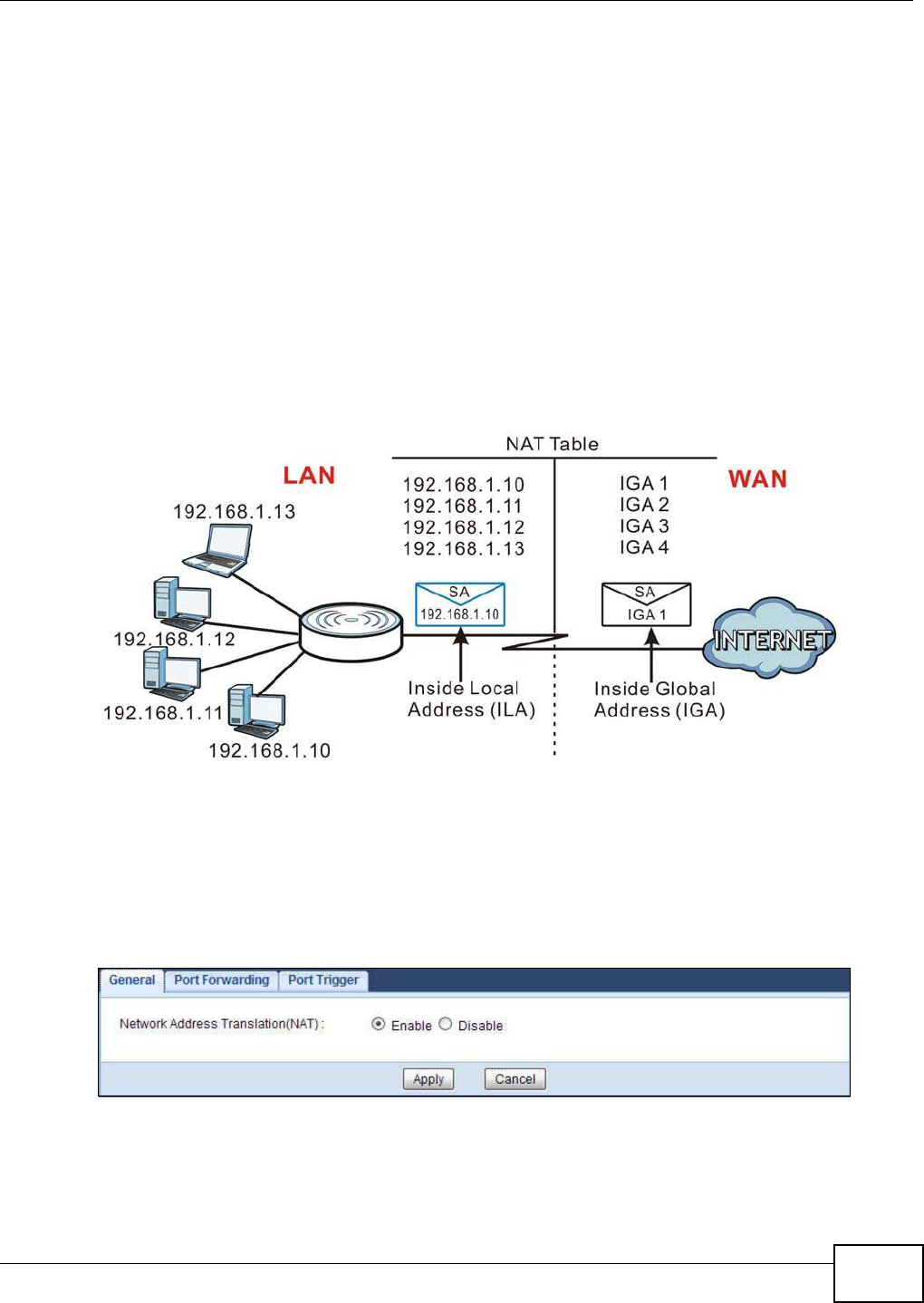

Figure 82 How NAT Works
15.2 General
Use this screen to enable NAT and set a default server. Click Netw ork > NAT to open the General
screen.
Figure 83 Network > NAT > General
Chapter 15 NAT
NBG5615 User’s Guide
142
The following table describes the labels in this screen.
15.3 Port Forwarding Screen
Use this screen to forward incoming service requests to the server(s) on your local network and set
a default server. You may enter a single port number or a range of port numbers to be forwarded,
and the local IP address of the desired server. The port number identifies a service; for example,
web service is on port 80 and FTP on port 21. In some cases, such as for unknown services or
where one server can support more than one service (for example both FTP and web service), it
might be better to specify a range of port numbers.
In addition to the servers for specified services, NAT supports a default server. A service request
that does not have a server explicitly designated for it is forwarded to the default server. If the
default is not defined, the service request is simply discarded.
Note: Many residential broadband ISP accounts do not allow you to run any server
processes (such as a Web or FTP server) from your location. Your ISP may
periodically check for servers and may suspend your account if it discovers any
active services at your location. If you are unsure, refer to your ISP.
Port forwarding allows you to define the local servers to which the incoming services will be
forwarded. To change your NBG5615’s port forwarding settings, click Netw ork > NAT > Port
Forw arding. The screen appears as shown.
Note: If you do not assign a Default Server, the NBG5615 discards all packets received
for ports that are not specified in this screen or remote management.
Refer to Appendix C on page 249 for port numbers commonly used for particular services.
Table 56 Network > NAT > General
LABEL DESCRIPTION
Network Address
Translation (NAT)
Network Address Translation (NAT) allows the translation of an Internet protocol
address used within one network (for example a private IP address used in a local
network) to a different IP address known within another network (for example a public
IP address used on the Internet).
Select Enable to activate NAT. Select Disable to turn it off.
Apply Click Apply to save your changes back to the NBG5615.
Cancel Click Cancel to begin configuring this screen afresh.
Chapter 15 NAT
NBG5615 User’s Guide 143

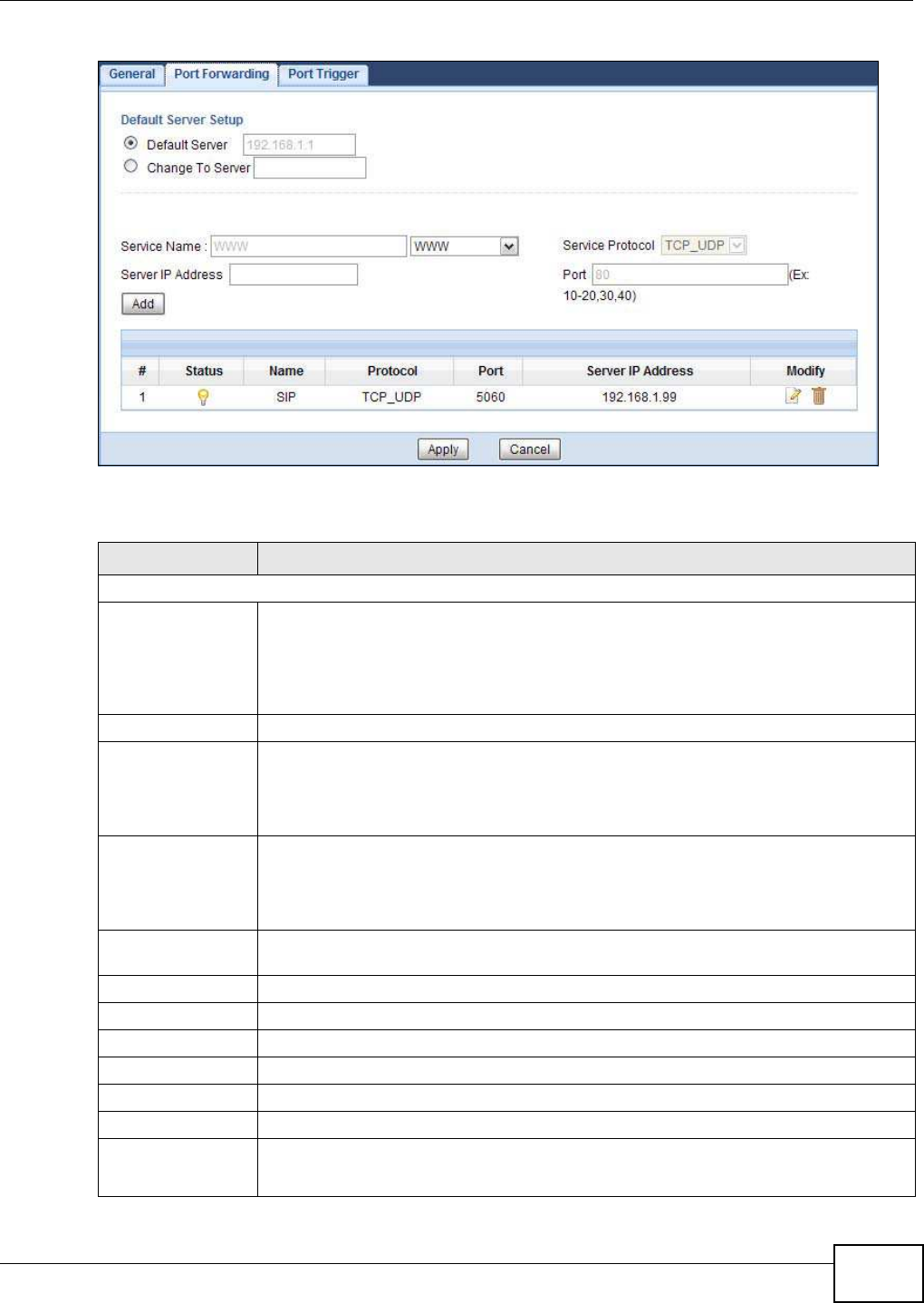

Figure 84 Network > NAT > Port Forwarding
The following table describes the labels in this screen.
Table 57 Network > NAT > Port Forwarding
LABEL DESCRIPTION
Default Server Setup
Default Server In addition to the servers for specified services, NAT supports a default server. A default
server receives packets from ports that are not specified in the Port Forw arding
screen. You can decide whether you want to use the default server or specify a server
manually.
Select this to use the default server.
Change to Server Select this and manually enter the server’s IP address.
Service Name Select a pre-defined service from the drop-down list box. The pre-defined service port
number(s) and protocol will be displayed in the port forwarding summary table.
Otherwise, select User define to manually enter the port number(s) and select the IP
protocol.
Service Protocol Select the transport layer protocol supported by this virtual server. Choices are TCP,
UDP, or TCP_UDP.
If you have chosen a pre-defined service in the Service Name field, the protocol will be
configured automatically.
Server IP Address Enter the inside IP address of the virtual server here and click Add to add it in the port
forwarding summary table.
#This is the number of an individual port forwarding server entry.
Status This icon is turned on when the rule is enabled.
Name This field displays a name to identify this rule.
Protocol This is the transport layer protocol used for the service.
Port This field displays the port number(s).
Server IP Address This field displays the inside IP address of the server.
Modify Click the Edit icon to open the edit screen where you can modify an existing rule.
Click the Delete icon to remove a rule.
Chapter 15 NAT
NBG5615 User’s Guide
144
15.3.1 Port Forwarding Edit Screen
This screen lets you edit a port forwarding rule. Click a rule’s Edit icon in the Port Forw arding
screen to open the following screen.

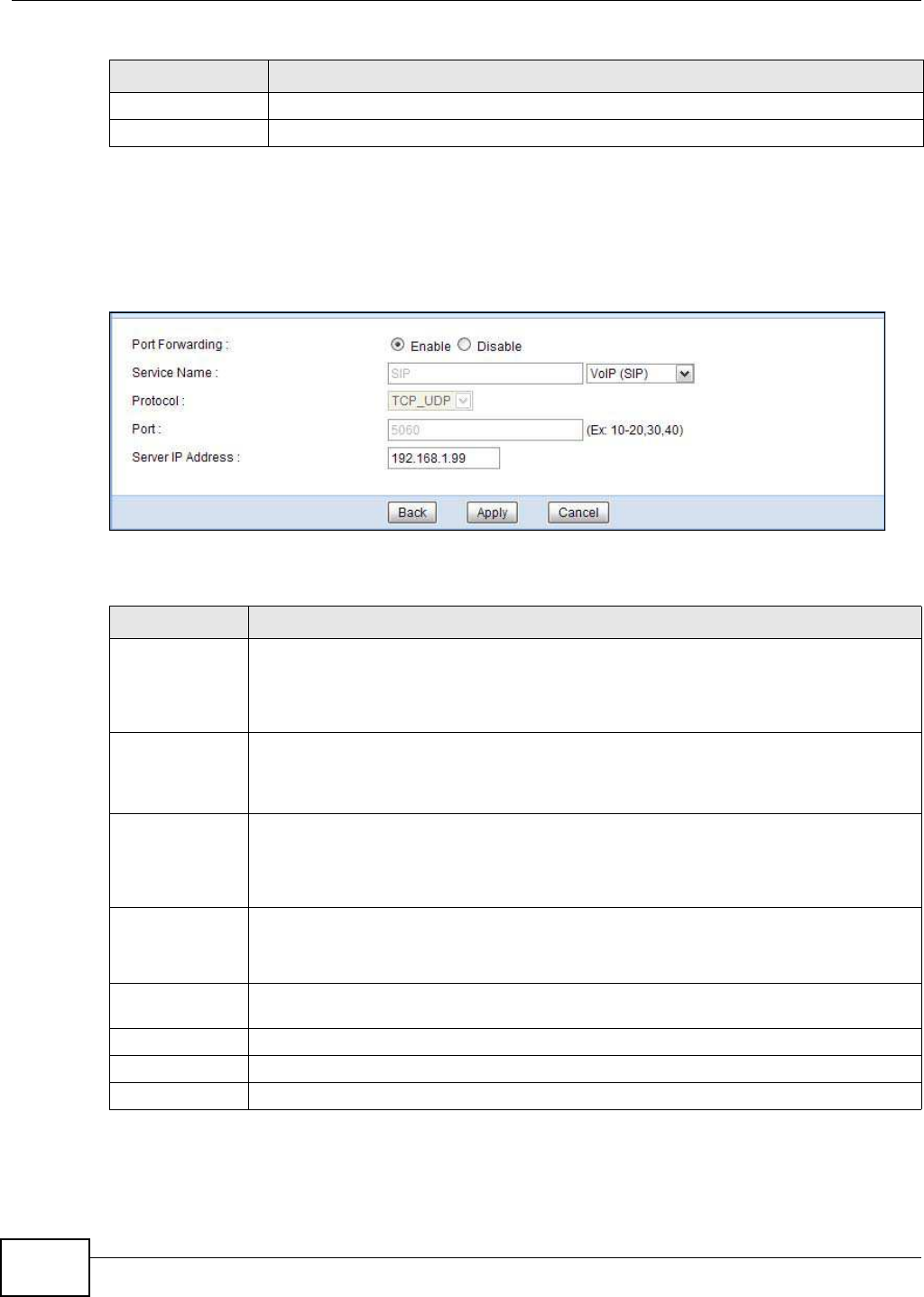

Figure 85 Network > NAT > Port Forwarding Edit
The following table describes the labels in this screen.
Apply Click Apply to save your changes back to the NBG5615.
Cancel Click Cancel to begin configuring this screen afresh.
Table 57 Network > NAT > Port Forwarding (continued)
LABEL DESCRIPTION
Table 58 Network > NAT > Port Forwarding Edit
LABEL DESCRIPTION
Port Forwarding Select Enable to turn on this rule and the requested service can be forwarded to the host
with a specified internal IP address.
Select Disable to disallow forwarding of these ports to an inside server without having to
delete the entry.
Service Name Type a name (of up to 31 printable characters) to identify this rule in the first field next to
Service Nam e. Otherwise, select a predefined service in the second field next to Service
Nam e. The predefined service name and port number(s) will display in the Service Nam e
and Port fields.
Protocol Select the transport layer protocol supported by this virtual server. Choices are TCP, UDP,
or TCP_UDP.
If you have chosen a pre-defined service in the Service Nam e field, the protocol will be
configured automatically.
Port Type a port number(s) to define the service to be forwarded to the specified server.
To specify a range of ports, enter a hyphen (-) between the first port and the last port,
such as 10-.
Server IP
Address
Type the IP address of the server on your LAN that receives packets from the port(s)
specified in the Port field.
Back Click Back to return to the previous screen.
Apply Click Apply to save your changes back to the NBG5615.
Cancel Click Cancel to begin configuring this screen afresh.
Chapter 15 NAT
NBG5615 User’s Guide 145
15.4 Port Trigger Screen
To change your NBG5615’s trigger port settings, click Netw ork > NAT > Port Trigger. The screen
appears as shown.
Note: Only one LAN computer can use a trigger port (range) at a time.

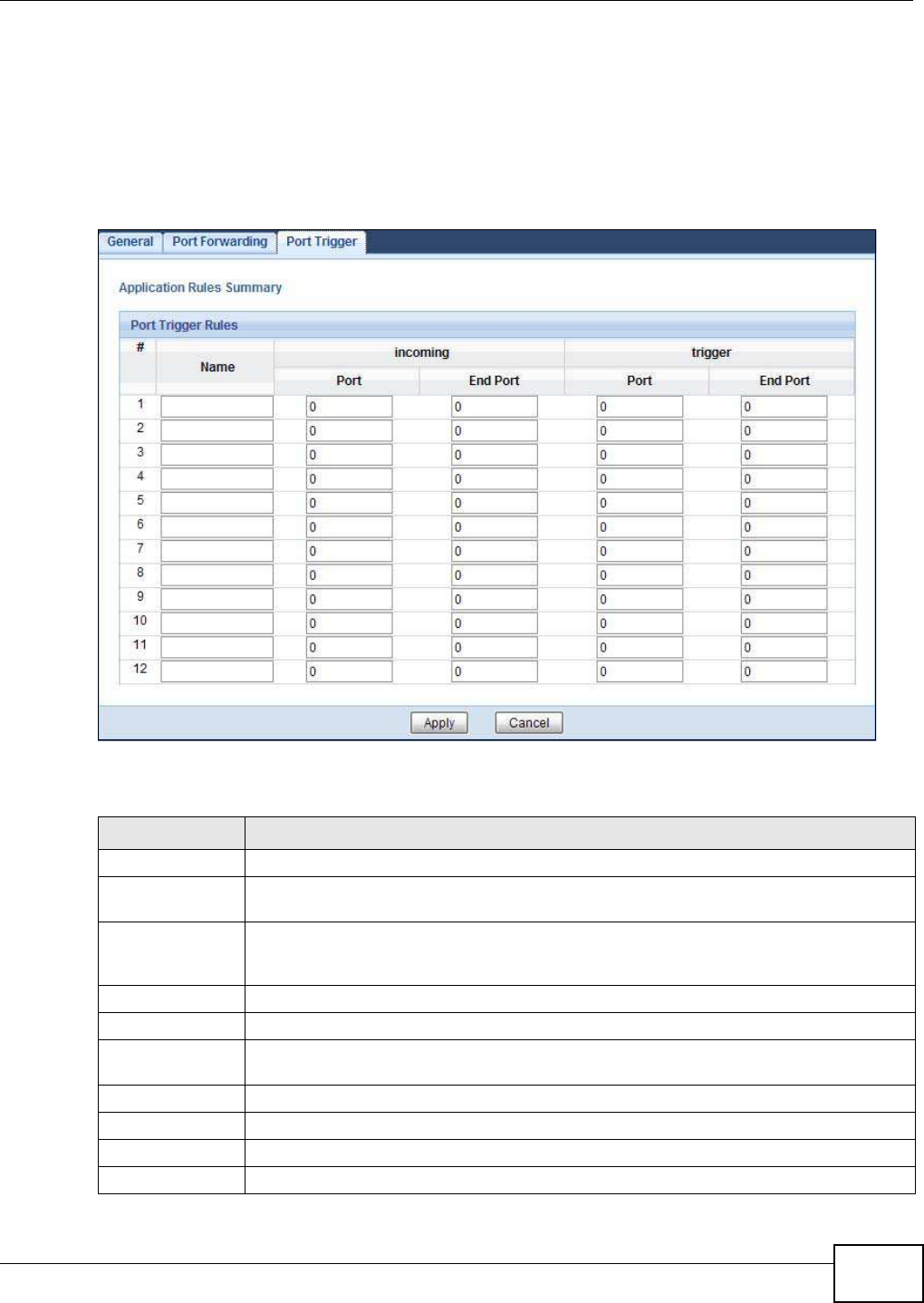

Figure 86 Network > NAT > Port Trigger
The following table describes the labels in this screen.
Table 59 Network > NAT > Port Trigger
LABEL DESCRIPTION
#This is the rule index number (read-only).
Name Type a unique name (up to 15 characters) for identification purposes. All characters are
permitted - including spaces.
Incoming Incoming is a port (or a range of ports) that a server on the WAN uses when it sends out
a particular service. The NBG5615 forwards the traffic with this port (or range of ports) to
the client computer on the LAN that requested the service.
Port Type a port number or the starting port number in a range of port numbers.
End Port Type a port number or the ending port number in a range of port numbers.
Trigger The trigger port is a port (or a range of ports) that causes (or triggers) the NBG5615 to
record the IP address of the LAN computer that sent the traffic to a server on the WAN.
Port Type a port number or the starting port number in a range of port numbers.
End Port Type a port number or the ending port number in a range of port numbers.
Apply Click Apply to save your changes back to the NBG5615.
Cancel Click Cancel to begin configuring this screen afresh.
Chapter 15 NAT
NBG5615 User’s Guide
146
15.5 Technical Reference
The following section contains additional technical information about the NBG5615 features
described in this chapter.
15.5.1 NATPort Forwarding: Services and Port Numbers
A port forwarding set is a list of inside (behind NAT on the LAN) servers, for example, web or FTP,
that you can make accessible to the outside world even though NAT makes your whole inside
network appear as a single machine to the outside world.
Use the Port Forw arding screen to forward incoming service requests to the server(s) on your
local network. You may enter a single port number or a range of port numbers to be forwarded, and
the local IP address of the desired server. The port number identifies a service; for example, web
service is on port 80 and FTP on port 21. In some cases, such as for unknown services or where one
server can support more than one service (for example both FTP and web service), it might be
better to specify a range of port numbers.
In addition to the servers for specified services, NAT supports a default server. A service request
that does not have a server explicitly designated for it is forwarded to the default server. If the
default is not defined, the service request is simply discarded.
Note: Many residential broadband ISP accounts do not allow you to run any server
processes (such as a Web or FTP server) from your location. Your ISP may
periodically check for servers and may suspend your account if it discovers any
active services at your location. If you are unsure, refer to your ISP.
15.5.2 NAT Port Forwarding Example
Let's say you want to assign ports 21-25 to one FTP, Telnet and SMTP server (A in the example),
port 80 to another (B in the example) and assign a default server IP address of 192.168.1.35 to a
third (C in the example). You assign the LAN IP addresses and the ISP assigns the WAN IP address.
The NAT network appears as a single host on the Internet.
Figure 87 Multiple Servers Behind NAT Example
Chapter 15 NAT
NBG5615 User’s Guide 147
15.5.3 Trigger Port Forwarding
Some services use a dedicated range of ports on the client side and a dedicated range of ports on
the server side. With regular port forwarding you set a forwarding port in NAT to forward a service
(coming in from the server on the WAN) to the IP address of a computer on the client side (LAN).
The problem is that port forwarding only forwards a service to a single LAN IP address. In order to
use the same service on a different LAN computer, you have to manually replace the LAN
computer's IP address in the forwarding port with another LAN computer's IP address.
Trigger port forwarding solves this problem by allowing computers on the LAN to dynamically take
turns using the service. The NBG5615 records the IP address of a LAN computer that sends traffic
to the WAN to request a service with a specific port number and protocol (a "trigger" port). When
the NBG5615's WAN port receives a response with a specific port number and protocol ("incoming"
port), the NBG5615 forwards the traffic to the LAN IP address of the computer that sent the
request. After that computer’s connection for that service closes, another computer on the LAN can
use the service in the same manner. This way you do not need to configure a new IP address each
time you want a different LAN computer to use the application.
15.5.4 Trigger Port Forwarding Example
The following is an example of trigger port forwarding.
Figure 88 Trigger Port Forwarding Process: Example
1Jane requests a file from the Real Audio server (port 7070).
2Port 7070 is a “trigger” port and causes the NBG5615 to record Jane’s computer IP address. The
NBG5615 associates Jane's computer IP address with the "incoming" port range of 6970-7170.
3The Real Audio server responds using a port number ranging between 6970-7170.
4The NBG5615 forwards the traffic to Jane’s computer IP address.
5Only Jane can connect to the Real Audio server until the connection is closed or times out. The
NBG5615 times out in three minutes with UDP (User Datagram Protocol), or two hours with TCP/IP
(Transfer Control Protocol/Internet Protocol).
Janes com puter
Real Audio Server
Port 707 0
Chapter 15 NAT
NBG5615 User’s Guide
148
15.5.5 Two Points To Remember About Trigger Ports
1Trigger events only happen on data that is coming from inside the NBG5615 and going to the
outside.
2If an application needs a continuous data stream, that port (range) will be tied up so that another
computer on the LAN can’t trigger it.
NBG5615 User’s Guide 149
CHAPTER 16
DDNS
16.1 Overview
DDNS services let you use a domain name with a dynamic IP address.
16.1.1 What You Need To Know
The following terms and concepts may help as you read through this chapter.
What is DDNS?
Dynamic Domain Name Service (DDNS) services let you use a fixed domain name with a dynamic
IP address. Users can always use the same domain name instead of a different dynamic IP address
that changes each time to connect to the NBG5615 or a server in your network.
Note: The NBG5615 must have a public global IP address and you should have your
registered DDNS account information on hand.
16.2 General
To change your NBG5615’s DDNS, click Netw ork > DDNS. The screen appears as shown.
Figure 89 Dynamic DNS
Chapter 16 DDNS
NBG5615 User’s Guide
150
The following table describes the labels in this screen.
Table 60 Dynamic DNS
LABEL DESCRIPTION
Dynamic DNS Select Enable to use dynamic DNS. Select Disable to turn this feature off.
Service Provider Select the name of your Dynamic DNS service provider.
Host Name Enter a host names in the field provided. You can specify up to two host names in the
field separated by a comma (",").
Usename Enter your user name.
Password Enter the password assigned to you.
Apply Click Apply to save your changes back to the NBG5615.
Cancel Click Cancel to begin configuring this screen afresh.
NBG5615 User’s Guide 151
CHAPTER 17
Static Route
17.1 Overview
This chapter shows you how to configure static routes for your NBG5615.
The NBG5615 usually uses the default gateway to route outbound traffic from computers on the
LAN to the Internet. To have the NBG5615 send data to devices not reachable through the default
gateway, use static routes.

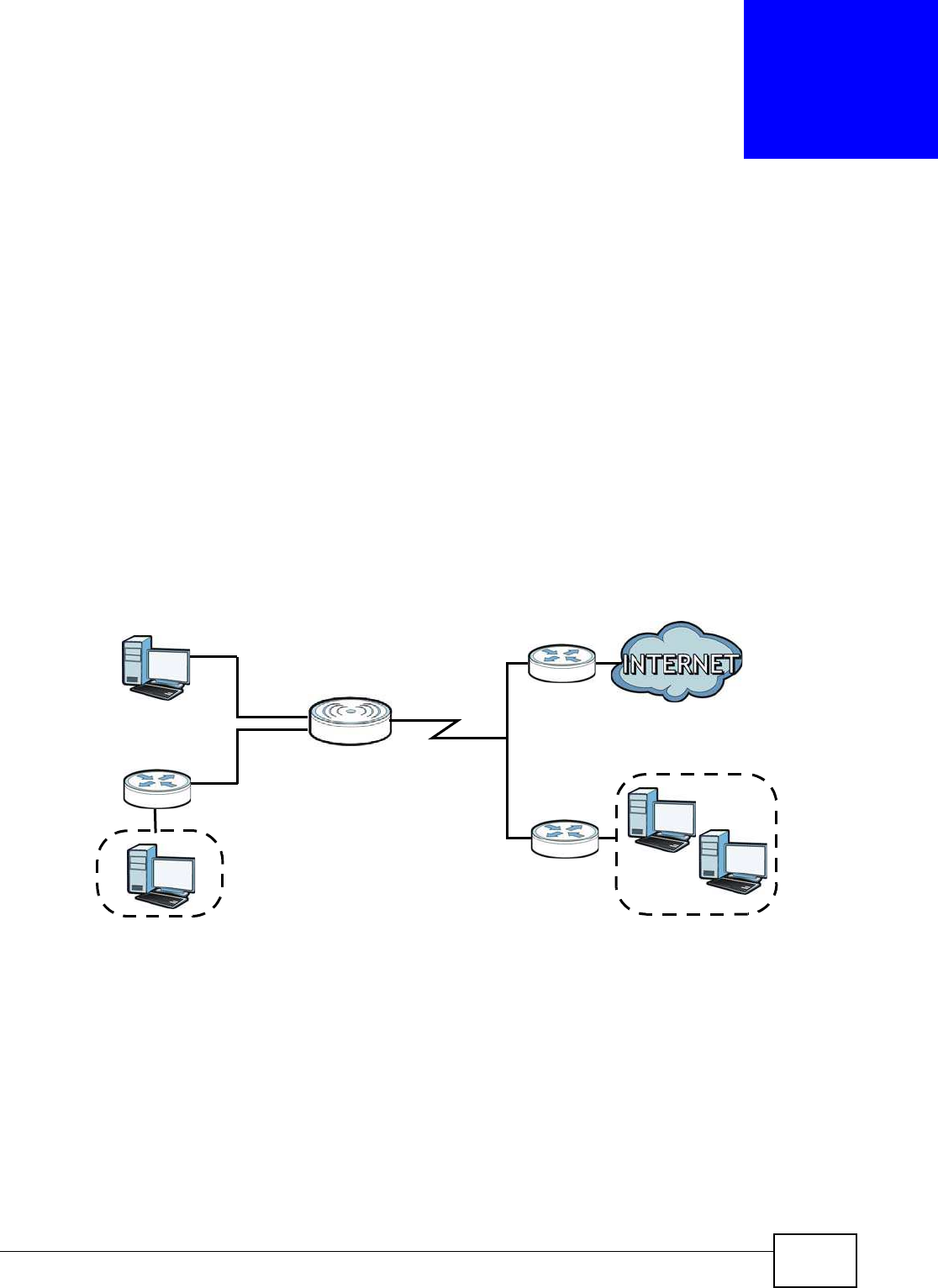

For example, the next figure shows a computer (A) connected to the NBG5615’s LAN interface. The
NBG5615 routes most traffic from A to the Internet through the NBG5615’s default gateway (R1 ).
You create one static route to connect to services offered by your ISP behind router R2 . You create
another static route to communicate with a separate network behind a router R3 connected to the
LAN.

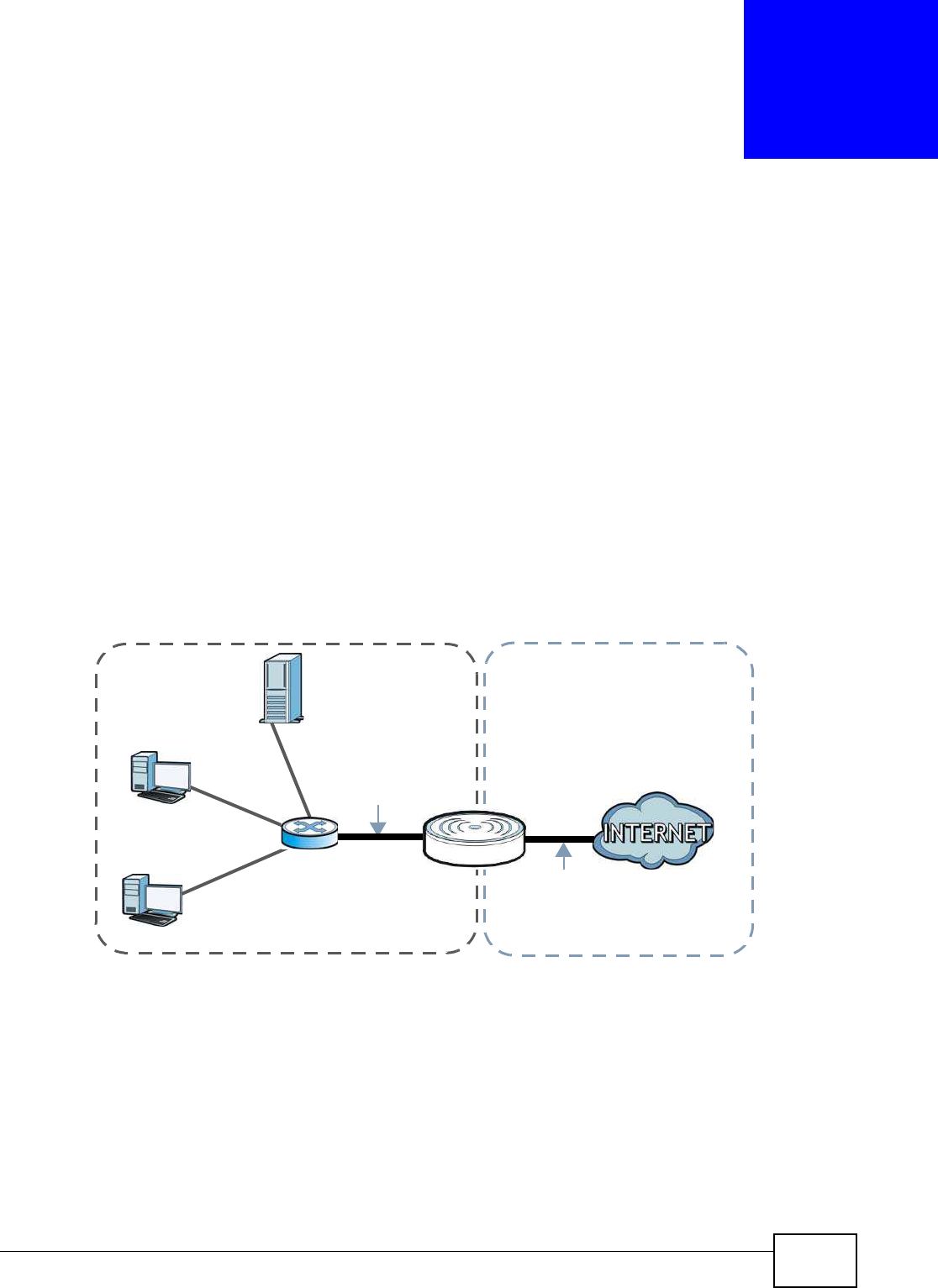

Figure 90 Example of Static Routing Topology
17.2 IP Static Route Screen
Click Netw ork > Static Route to open the Static Route screen.
WAN
R1
R2
A
R3
LAN
Chapter 17 Static Route
NBG5615 User’s Guide
152

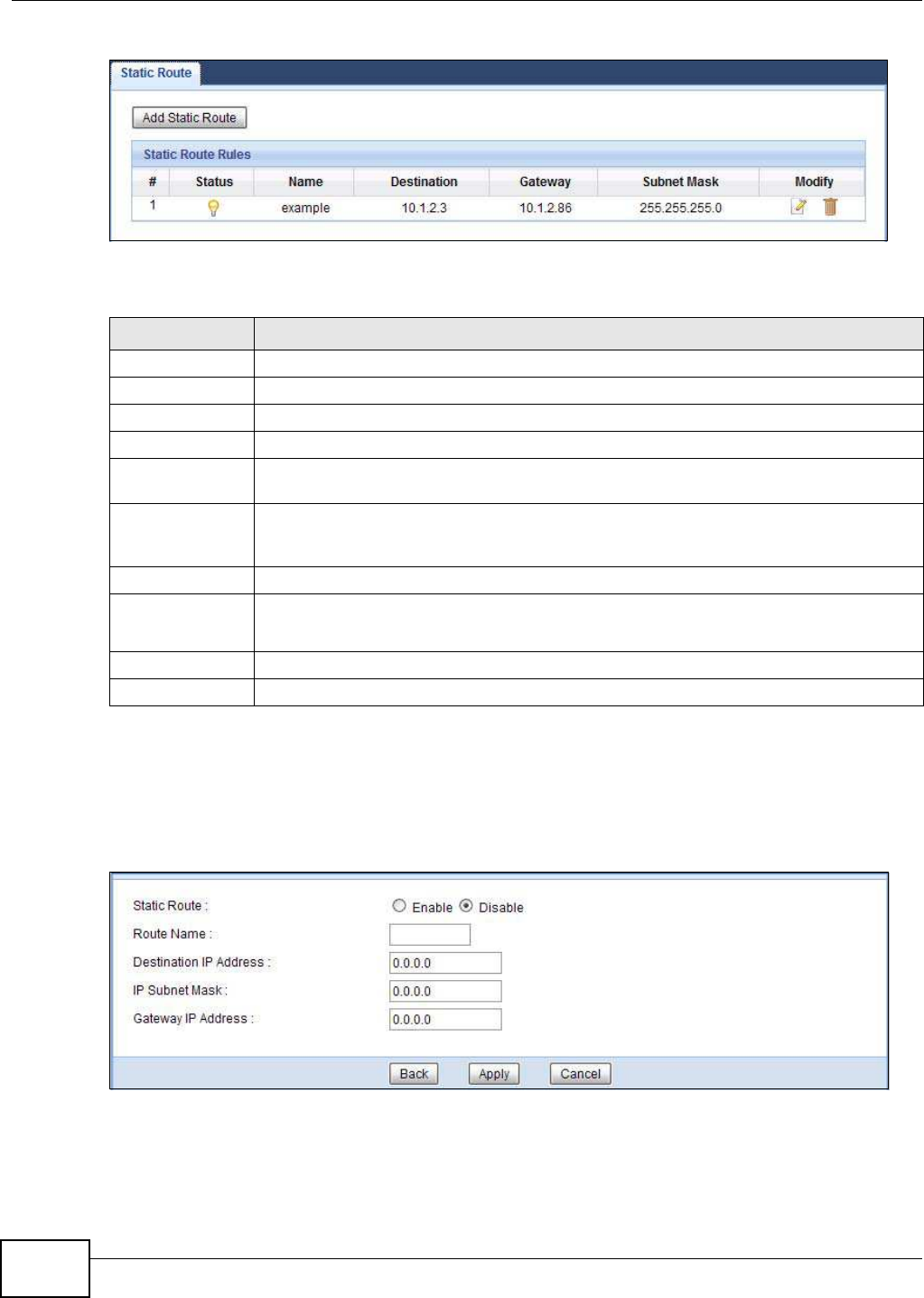

Figure 91 Network > Static Route
The following table describes the labels in this screen.
17.2.1 Add/Edit Static Route
Click the Add Static Route button or a rule’s Edit icon in the Static Route screen. Use this screen
to configure the required information for a static route.
Figure 92 Network > Static Route: Add/Edit
Table 61 Network > Static Route
LABEL DESCRIPTION
Add Static Route Click this to create a new rule.
#This is the number of an individual static route.
Status This field indicates whether the rule is active (yellow bulb) or not (gray bulb).
Name This field displays a name to identify this rule.
Destination This parameter specifies the IP network address of the final destination. Routing is always
based on network number.
Gateway This is the IP address of the gateway. The gateway is a router or switch on the same
network segment as the device's LAN or WAN port. The gateway helps forward packets to
their destinations.
Subent Mask This parameter specifies the IP network subnet mask of the final destination.
Modify Click the Edit icon to open a screen where you can modify an existing rule.
Click the Delete icon to remove a rule from the NBG5615.
Apply Click Apply to save your changes back to the NBG5615.
Cancel Click Cancel to begin configuring this screen afresh.
Chapter 17 Static Route
NBG5615 User’s Guide 153
The following table describes the labels in this screen.
Table 62 Network > Static Route: Add/Edit
LABEL DESCRIPTION
Static Route Select to enable or disable this rule.
Route Name Type a name to identify this rule. You can use up to printable English keyboard
characters, including spaces.
Destination IP
Address
This parameter specifies the IP network address of the final destination. Routing is
always based on network number. If you need to specify a route to a single host, use a
subnet mask of 255.255.255.255 in the subnet mask field to force the network number to
be identical to the host ID.
IP Subnet Mask Enter the IP subnet mask here.
Gateway IP
Address
Enter the IP address of the next-hop gateway. The gateway is a router or switch on the
same segment as your NBG5615's interface(s). The gateway helps forward packets to
their destinations.
Back Click Back to return to the previous screen without saving.
Apply Click Apply to save your changes back to the NBG5615.
Cancel Click Cancel to set every field in this screen to its last-saved value.
Chapter 17 Static Route
NBG5615 User’s Guide
154
NBG5615 User’s Guide 155
CHAPTER 18
Firewall
18.1 Overview
Use these screens to enable and configure the firewall that protects your NBG5615 and your LAN
from unwanted or malicious traffic.
Enable the firewall to protect your LAN computers from attacks by hackers on the Internet and
control access between the LAN and WAN. By default the firewall:
allows traffic that originates from your LAN computers to go to all of the networks.
blocks traffic that originates on the other networks from going to the LAN.
The following figure illustrates the default firewall action. User A can initiate an IM (Instant
Messaging) session from the LAN to the WAN (1). Return traffic for this session is also allowed (2).
However other traffic initiated from the WAN is blocked (3 and 4).

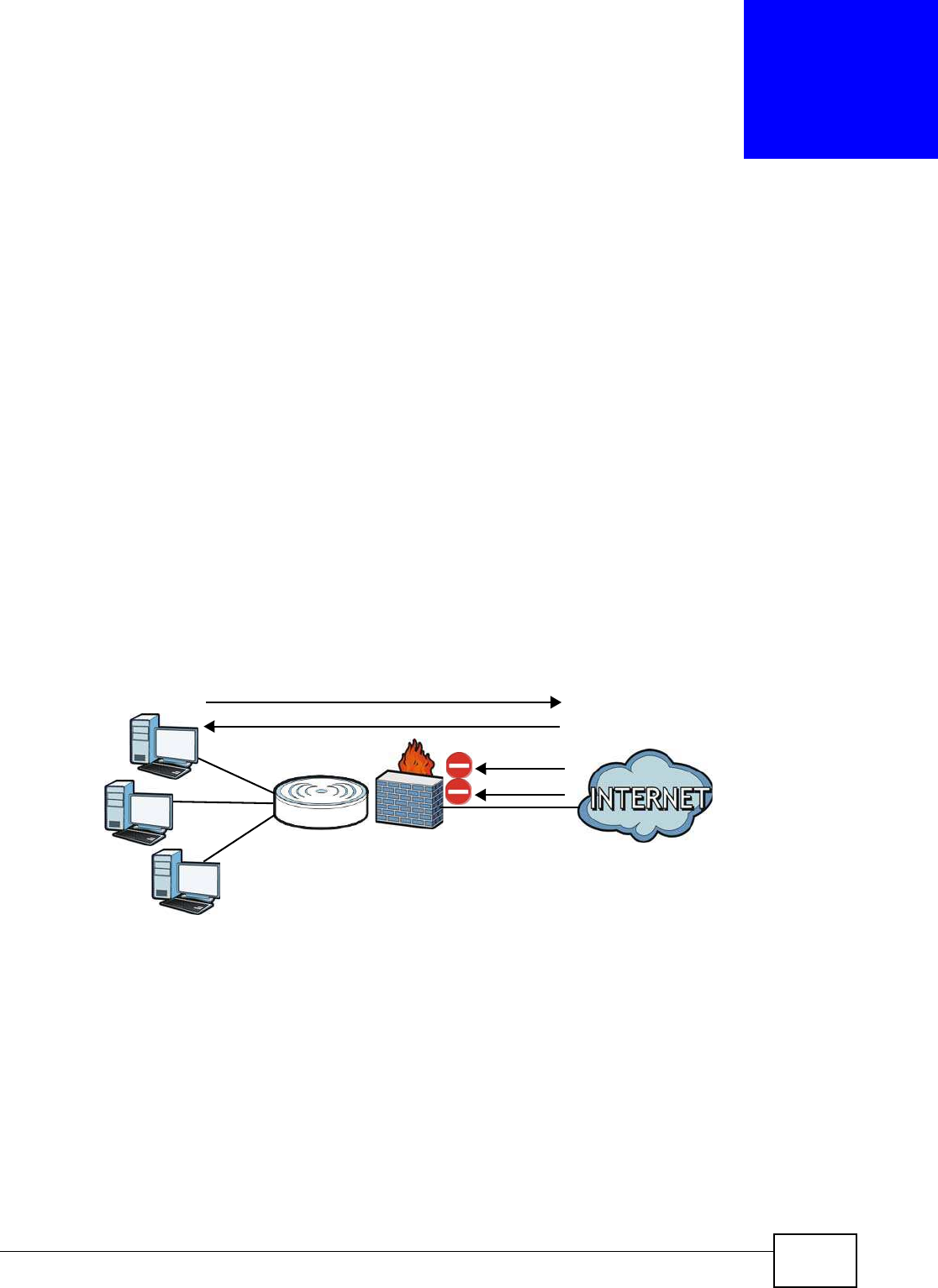

Figure 93 Default Firewall Action
18.1.1 What You Can Do
•Use the General screen to enable or disable the NBG5615s firewall (Section 18.2 on page 157).
•Use the Services screen enable service blocking, enter/delete/modify the services you want to
block and the date/time you want to block them (Section 18.3 on page 157).
18.1.2 What You Need To Know
The following terms and concepts may help as you read through this chapter.
Chapter 18 Firewall
NBG5615 User’s Guide
156
What is a Firewall?
Originally, the term “firewall” referred to a construction technique designed to prevent the spread of
fire from one room to another. The networking term "firewall" is a system or group of systems that
enforces an access-control policy between two networks. It may also be defined as a mechanism
used to protect a trusted network from a network that is not trusted. Of course, firewalls cannot
solve every security problem. A firewall is one of the mechanisms used to establish a network
security perimeter in support of a network security policy. It should never be the only mechanism or
method employed. For a firewall to guard effectively, you must design and deploy it appropriately.
This requires integrating the firewall into a broad information-security policy. In addition, specific
policies must be implemented within the firewall itself.
Stateful Inspection Firewall
Stateful inspection firewalls restrict access by screening data packets against defined access rules.
They make access control decisions based on IP address and protocol. They also "inspect" the
session data to assure the integrity of the connection and to adapt to dynamic protocols. These
firewalls generally provide the best speed and transparency; however, they may lack the granular
application level access control or caching that some proxies support. Firewalls, of one type or
another, have become an integral part of standard security solutions for enterprises.
About the NBG5615 Firewall
The NBG5615’s firewall feature physically separates the LAN and the WAN and acts as a secure
gateway for all data passing between the networks.
It is a stateful inspection firewall and is designed to protect against Denial of Service attacks when
activated (click the General tab under Firew all and then click the Enable Firew all check box).
The NBG5615's purpose is to allow a private Local Area Network (LAN) to be securely connected to
the Internet. The NBG5615 can be used to prevent theft, destruction and modification of data, as
well as log events, which may be important to the security of your network.
The NBG5615 is installed between the LAN and a broadband modem connecting to the Internet.
This allows it to act as a secure gateway for all data passing between the Internet and the LAN.
The NBG5615 has one Ethernet WAN port and four Ethernet LAN ports, which are used to physically
separate the network into two areas.The WAN (Wide Area Network) port attaches to the broadband
(cable or DSL) modem to the Internet.
The LAN (Local Area Network) port attaches to a network of computers, which needs security from
the outside world. These computers will have access to Internet services such as e-mail, FTP and
the World Wide Web. However, "inbound access" is not allowed (by default) unless the remote host
is authorized to use a specific service.
Guidelines For Enhancing Security With Your Firewall
1Change the default password via Web Configurator.
2Think about access control before you connect to the network in any way, including attaching a
modem to the port.
3Limit who can access your router.
Chapter 18 Firewall
NBG5615 User’s Guide 157
4Don't enable any local service (such as NTP) that you don't use. Any enabled service could present
a potential security risk. A determined hacker might be able to find creative ways to misuse the
enabled services to access the firewall or the network.
5For local services that are enabled, protect against misuse. Protect by configuring the services to
communicate only with specific peers, and protect by configuring rules to block packets for the
services at specific interfaces.
6Protect against IP spoofing by making sure the firewall is active.
7Keep the firewall in a secured (locked) room.
18.2 General Screen
Use this screen to enable or disable the NBG5615’s firewall, and set up firewall logs. Click Security
> Firew all to open the General screen.

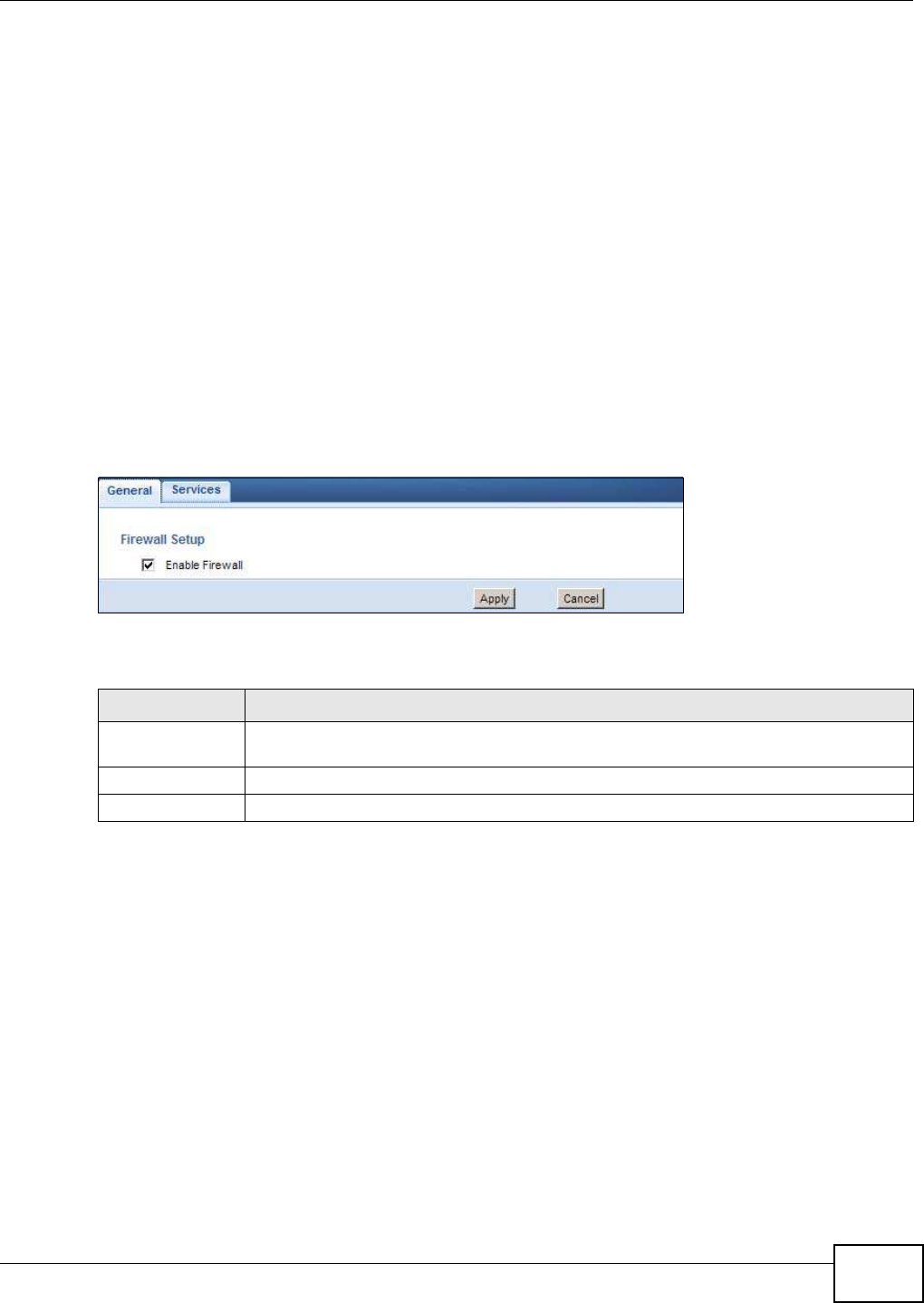

Figure 94 Security > Firewall > General l
The following table describes the labels in this screen.
18.3 Services Screen
If an outside user attempts to probe an unsupported port on your NBG5615, an ICMP response
packet is automatically returned. This allows the outside user to know the NBG5615 exists. Use this
screen to prevent the ICMP response packet from being sent. This keeps outsiders from discovering
your NBG5615 when unsupported ports are probed.
You can also use this screen to enable service blocking, enter/delete/modify the services you want
to block and the date/time you want to block them.
Click Security > Firew all > Services. The screen appears as shown next.
Table 63 Security > Firewall > General
LABEL DESCRIPTION
Enable Firewall Select this check box to activate the firewall. The NBG5615 performs access control and
protects against Denial of Service (DoS) attacks when the firewall is activated.
Apply Click Apply to save the settings.
Cancel Click Cancel to start configuring this screen again.
Chapter 18 Firewall
NBG5615 User’s Guide
158

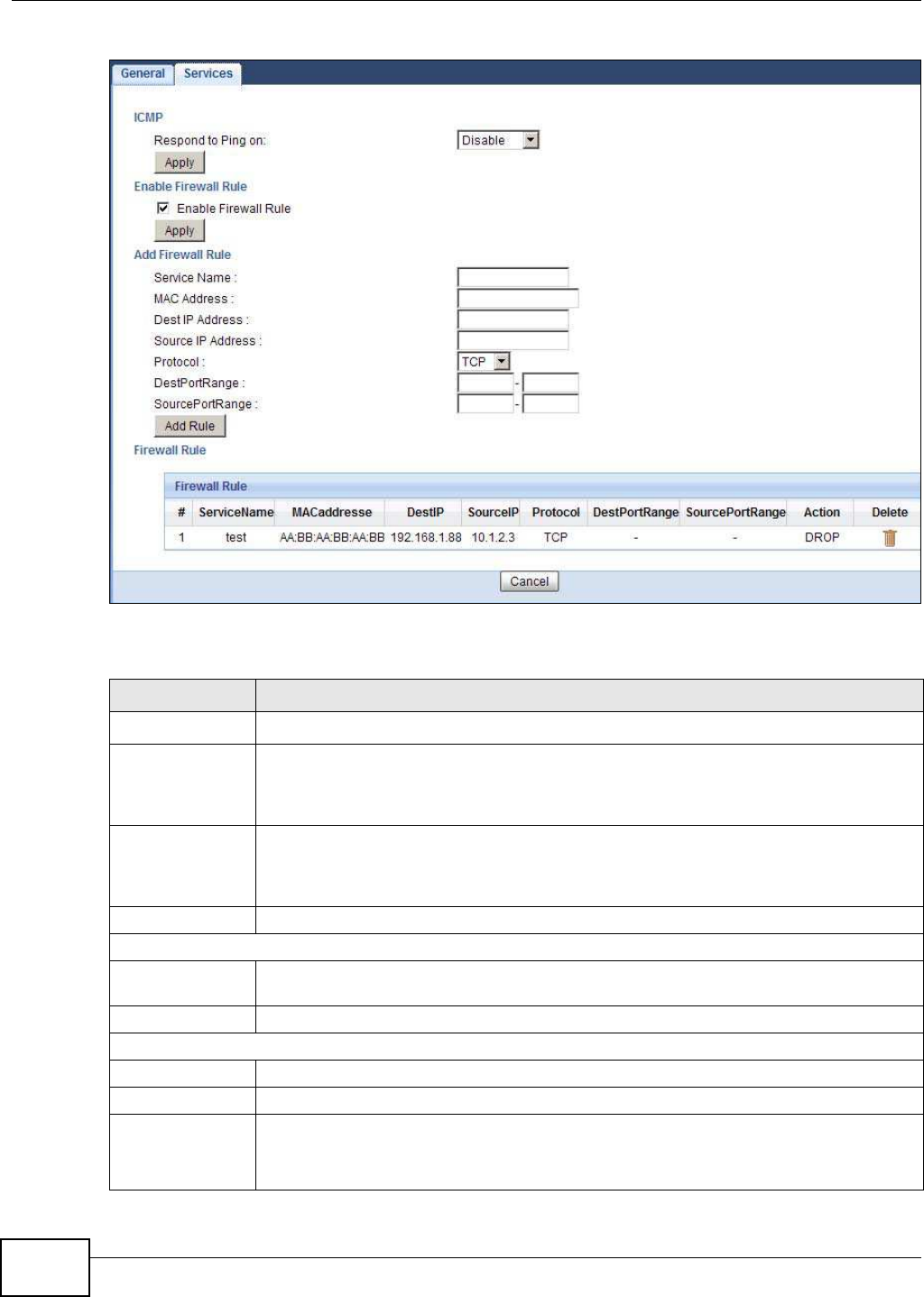

Figure 95 Security > Firewall > Services l
The following table describes the labels in this screen.
Table 64 Security > Firewall > Services
LABEL DESCRIPTION
LABEL DESCRIPTION
ICMP Internet Control Message Protocol is a message control and error-reporting protocol
between a host server and a gateway to the Internet. ICMP uses Internet Protocol (IP)
datagrams, but the messages are processed by the TCP/IP software and directly apparent
to the application user.
Respond to Ping
on
The NBG5615 will not respond to any incoming Ping requests when Disable is selected.
Select LAN to reply to incoming LAN Ping requests. Select W AN to reply to incoming WAN
Ping requests. Otherwise select LAN& W AN to reply to all incoming LAN and WAN Ping
requests.
Apply Click Apply to save the settings.
Enable Firewall Rule
Enable Firewall
Rule
Select this check box to activate the firewall rules that you define (see Add Firew all Rule
below).
Apply Click Apply to save the settings.
Add Firewall Rule
Service Name Enter a name that identifies or describes the firewall rule.
MAC Address Enter the MAC address of the computer for which the firewall rule applies.
Dest IP Address Enter the IP address of the computer to which traffic for the application or service is
entering.
The NBG5615 applies the firewall rule to traffic initiating from this computer.
Chapter 18 Firewall
NBG5615 User’s Guide 159
See Appendix C on page 249 for commonly used services and port numbers.
Source IP Address Enter the IP address of the computer that initializes traffic for the application or service.
The NBG5615 applies the firewall rule to traffic initiating from this computer.
Protocol Select the protocol (TCP, UDP or I CMP) used to transport the packets for which you want
to apply the firewall rule.
Dest Port Range Enter the port number/range of the destination that define the traffic type, for example
TCP port 80 defines web traffic.
Source Port
Range
Enter the port number/range of the source that define the traffic type, for example TCP
port 80 defines web traffic.
Add Rule Click Add to save the firewall rule.
Firewall Rule
#This is your firewall rule number. The ordering of your rules is important as rules are
applied in turn.
Service Name This is a name that identifies or describes the firewall rule.
MAC address This is the MAC address of the computer for which the firewall rule applies.
Dest IP This is the IP address of the computer to which traffic for the application or service is
entering.
Source IP This is the IP address of the computer from which traffic for the application or service is
initialized.
Protocol This is the protocol (TCP, UDP or I CMP) used to transport the packets for which you want
to apply the firewall rule.
Dest Port Range This is the port number/range of the destination that define the traffic type, for example
TCP port 80 defines web traffic.
Source Port
Range
This is the port number/range of the source that define the traffic type, for example TCP
port 80 defines web traffic.
Action DROP - Traffic matching the conditions of the firewall rule are stopped.
Delete Click Delete to remove the firewall rule.
Cancel Click Cancel to start configuring this screen again.
Table 64 Security > Firewall > Services (continued)
LABEL DESCRIPTION
Chapter 18 Firewall
NBG5615 User’s Guide
160
NBG5615 User’s Guide 161
CHAPTER 19
Content Filtering
19.1 Overview
This chapter provides a brief overview of content filtering using the embedded web GUI.
Internet content filtering allows you to create and enforce Internet access policies tailored to your
needs. Content filtering is the ability to block certain web features or specific URL keywords.
19.1.1 What You Need To Know
The following terms and concepts may help as you read through this chapter.
Content Filtering Profiles
Content filtering allows you to block certain web features, such as cookies, and/or block access to
specific web sites. For example, you can configure one policy that blocks John Doe’s access to arts
and entertainment web pages.
A content filtering profile conveniently stores your custom settings for the following features.
Keyword Blocking URL Checking
The NBG5615 checks the URL’s domain name (or IP address) and file path separately when
performing keyword blocking.
The URL’s domain name or IP address is the characters that come before the first slash in the URL.
For example, with the URL www.zyxel.com.tw/news/pressroom.php, the domain name is
www.zyxel.com.tw.
The file path is the characters that come after the first slash in the URL. For example, with the URL
www.zyxel.com.tw/news/pressroom.php, the file path is news/pressroom.php.
Since the NBG5615 checks the URL’s domain name (or IP address) and file path separately, it will
not find items that go across the two. For example, with the URL www.zyxel.com.tw/news/
pressroom.php, the NBG5615 would find “tw” in the domain name (www.zyxel.com.tw). It would
also find “news” in the file path (news/pressroom.php) but it would not find “tw/news”.
19.2 Content Filter
Use this screen to restrict web features, add keywords for blocking and designate a trusted
computer. Click Security > Content Filter to open the Content Filter screen.
Chapter 19 Content Filtering
NBG5615 User’s Guide
162
Figure 96 Security > Content Filter
The following table describes the labels in this screen.
Table 65 Security > Content Filter
LABEL DESCRIPTION
Trusted IP Setup To enable this feature, type an IP address of any one of the computers in your network
that you want to have as a trusted computer. This allows the trusted computer to have
full access to all features that are configured to be blocked by content filtering.
Leave this field blank to have no trusted computers.
Restrict Web
Features
Select the box(es) to restrict a feature. When you download a page containing a
restricted feature, that part of the web page will appear blank or grayed out.
ActiveX A tool for building dynamic and active Web pages and distributed object applications.
When you visit an ActiveX Web site, ActiveX controls are downloaded to your browser,
where they remain in case you visit the site again.
Java A programming language and development environment for building downloadable Web
components or Internet and intranet business applications of all kinds.
Cookies Used by Web servers to track usage and provide service based on ID.
Web Proxy A server that acts as an intermediary between a user and the Internet to provide
security, administrative control, and caching service. When a proxy server is located on
the WAN it is possible for LAN users to circumvent content filtering by pointing to this
proxy server.
Enable URL
Keyword Blocking
The NBG5615 can block Web sites with URLs that contain certain keywords in the domain
name or IP address. For example, if the keyword "bad" was enabled, all sites containing
this keyword in the domain name or IP address will be blocked, e.g., URL http://
www.website.com/bad.html would be blocked.
Select this check box to enable this feature.
Keyword Type a keyword in this field. You may use any character (up to 64 characters). Wildcards
are not allowed. You can also enter a numerical IP address.
Add Click Add after you have typed a keyword.
Repeat this procedure to add other keywords. Up to 64 keywords are allowed.
When you try to access a web page containing a keyword, you will get a message telling
you that the content filter is blocking this request.
Chapter 19 Content Filtering
NBG5615 User’s Guide 163
19.3 Technical Reference
The following section contains additional technical information about the NBG5615 features
described in this chapter.
19.3.1 Customizing Keyword Blocking URL Checking
You can use commands to set how much of a website’s URL the content filter is to check for
keyword blocking. See the appendices for information on how to access and use the command
interpreter.
Domain Name or IP Address URL Checking
By default, the NBG5615 checks the URL’s domain name or IP address when performing keyword
blocking.
This means that the NBG5615 checks the characters that come before the first slash in the URL.
For example, with the URL www.zyxel.com.tw/news/pressroom.php, content filtering only searches
for keywords within www.zyxel.com.tw.
Full Path URL Checking
Full path URL checking has the NBG5615 check the characters that come before the last slash in the
URL.
For example, with the URL www.zyxel.com.tw/news/pressroom.php, full path URL checking
searches for keywords within www.zyxel.com.tw/news/.
Use the ip urlfilter customize actionFlags 6 [disable | enable] command to extend (or
not extend) the keyword blocking search to include the URL's full path.
File Name URL Checking
Filename URL checking has the NBG5615 check all of the characters in the URL.
For example, filename URL checking searches for keywords within the URL www.zyxel.com.tw/
news/pressroom.php.
Keyword List This list displays the keywords already added.
Delete Highlight a keyword in the lower box and click Delete to remove it. The keyword
disappears from the text box after you click Apply.
Clear All Click this button to remove all of the listed keywords.
Apply Click Apply to save your changes.
Cancel Click Cancel to begin configuring this screen afresh
Table 65 Security > Content Filter (continued)
LABEL DESCRIPTION
Chapter 19 Content Filtering
NBG5615 User’s Guide
164
Use the ip urlfilter customize actionFlags 8 [disable | enable] command to extend (or
not extend) the keyword blocking search to include the URL's complete filename.
NBG5615 User’s Guide 165
CHAPTER 20
Bandwidth Management
20.1 Overview
This chapter contains information about configuring bandwidth management and editing rules.
ZyXEL’s Bandwidth Management allows you to specify bandwidth management rules based on an
application.
In the figure below, uplink traffic goes from the LAN device (A) to the WAN device (B). Bandwidth
management is applied before sending the packets out to the WAN. Downlink traffic comes back
from the WAN device (B) to the LAN device (A). Bandwidth management is applied before sending
the traffic out to LAN.
Figure 97 Bandwidth Management Example
You can allocate specific amounts of bandwidth capacity (bandwidth budgets) to individual
applications (like VoIP, Web, FTP, and E-mail for example).
20.2 What You Can Do
•Use the General screen to enable bandwidth management and assign bandwidth values (Section
20.4 on page 166).
•Use the Advanced screen to configure bandwidth managements rule for the pre-defined services
and applications (Section 20.5 on page 166).
AB
-> VOIP
-> FTP
-> HTTP
-> Chat, Email
Chapter 20 Bandwidth Management
NBG5615 User’s Guide
166
20.3 What You Need To Know
The sum of the bandwidth allotments that apply to the WAN interface (LAN to WAN, WLAN to WAN)
must be less than or equal to the Upstream Bandw idth that you configure in the Bandw idth
Managem ent Advanced screen (Section 20.5 on page 166).
The sum of the bandwidth allotments that apply to the LAN interface (WAN to LAN, WAN to WLAN)
must be less than or equal to the Dow nstream Bandw idth that you configure in the Bandw idth
Managem ent Advanced screen Section 20.5 on page 166.
20.4 General Screen
Use this screen to have the NBG5615 apply bandwidth management.
Click Managem ent > Bandw idth MGMT to open the bandwidth management General screen.

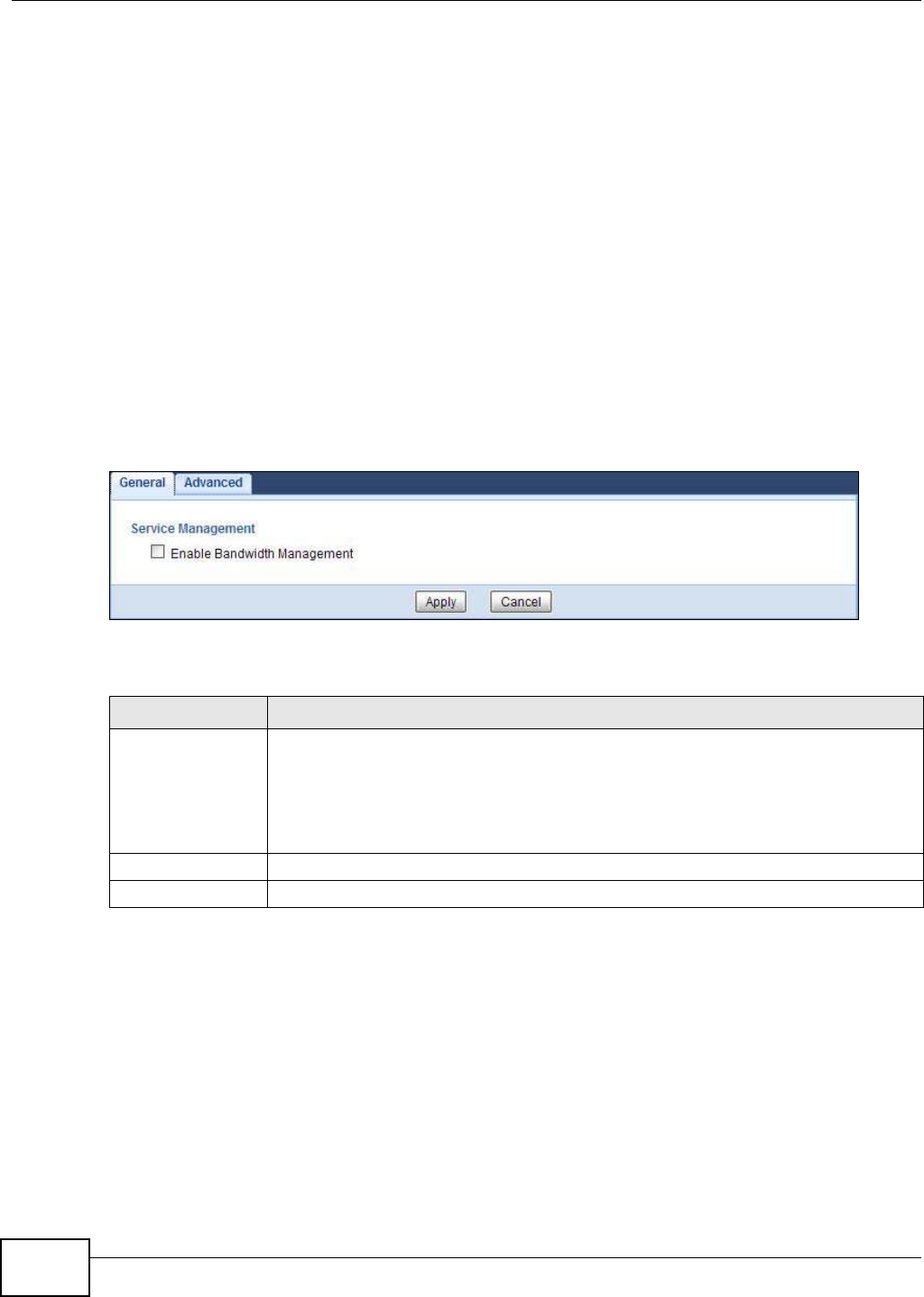

Figure 98 Management > Bandwidth Management > General
The following table describes the labels in this screen.
20.5 Advanced Screen
Use this screen to configure bandwidth management rules for the pre-defined services or
applications.
You can also use this screen to configure bandwidth management rule for other services or
applications that are not on the pre-defined list of NBG5615. Additionally, you can define the source
and destination IP addresses and port for a service or application.
Table 66 Management > Bandwidth Management > General
LABEL DESCRIPTION
Enable Bandwidth
Management
This field allows you to have NBG5615 apply bandwidth management.
Enable bandwidth management to give traffic that matches a bandwidth rule priority
over traffic that does not match a bandwidth rule.
Enabling bandwidth management also allows you to control the maximum or minimum
amounts of bandwidth that can be used by traffic that matches a bandwidth rule.
Apply Click Apply to save your customized settings.
Cancel Click Cancel to begin configuring this screen afresh.
Chapter 20 Bandwidth Management
NBG5615 User’s Guide 167
Note: The two tables shown in this screen can be configured and applied at the same
time.
Click Managem ent > Bandw idth MGMT > Advanced to open the bandwidth management
Advanced screen.

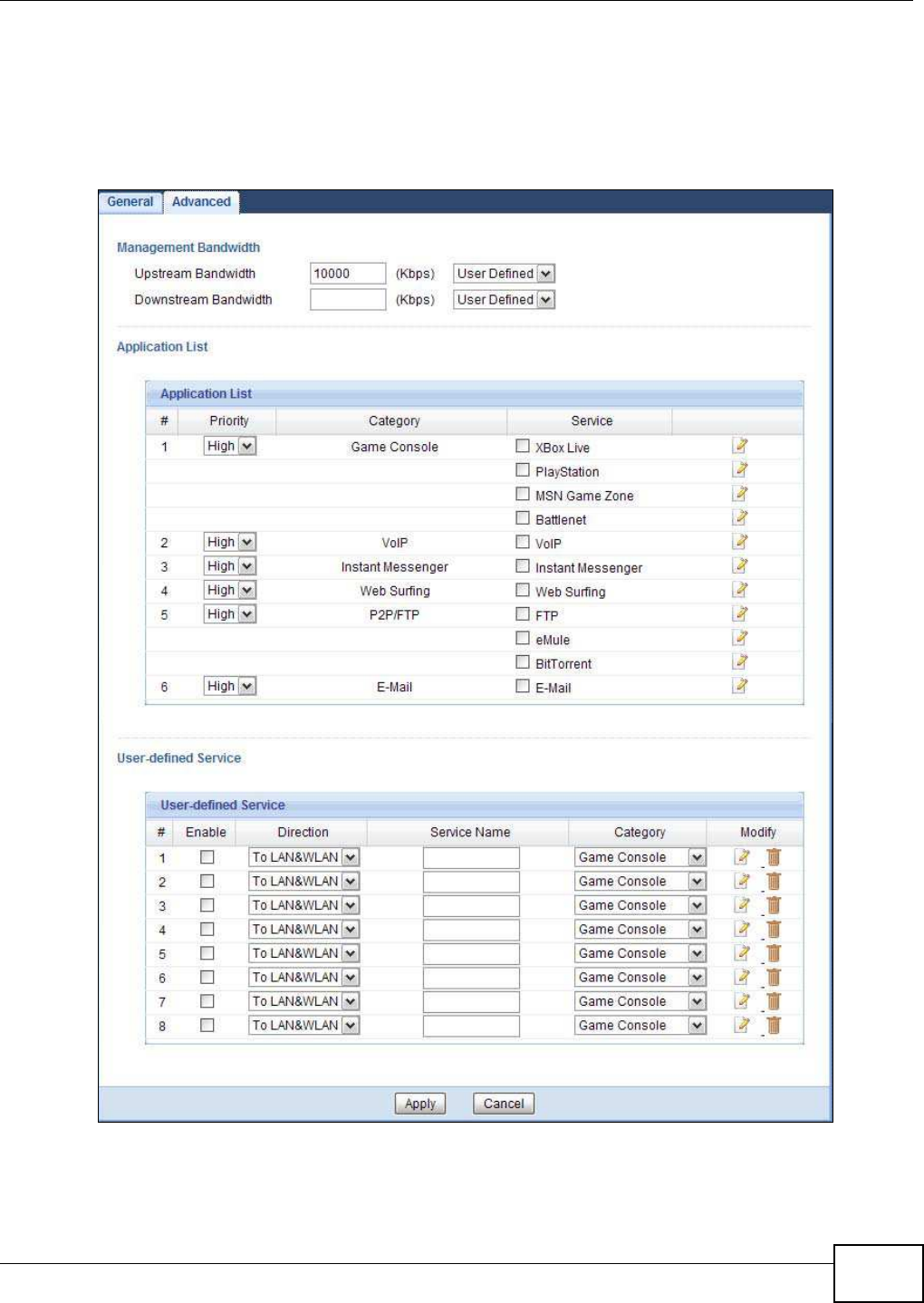

Figure 99 Management > Bandwidth Management > Advanced
Chapter 20 Bandwidth Management
NBG5615 User’s Guide
168
The following table describes the labels in this screen.
20.5.1 Rule Configuration: Application Rule Configuration
If you want to edit a bandwidth management rule for a pre-defined service or application, click the
Edit icon in the Application List table of the Advanced screen. The following screen displays.
Table 67 Management > Bandwidth Management > Advanced
LABEL DESCRIPTION
Management Bandwidth
Upstream
Bandwidth
Select the total amount of bandwidth from a drop-down list box that you want to dedicate
to uplink traffic. Otherwise, select User Defined and manually specify the amount of
bandwidth in kilobits per second.
This is traffic from LAN/WLAN to WAN.
Downstream
Bandwidth
Select the total amount of bandwidth from a drop-down list box that you want to dedicate
to uplink traffic. Otherwise, select User Defined and manually specify the amount of
bandwidth in kilobits per second.
This is traffic from WAN to LAN/WLAN.
Application List Use this table to allocate specific amounts of bandwidth based on a pre-defined service.
#This is the number of an individual bandwidth management rule.
Priority Select a priority from the drop down list box. Choose High, Mid or Low .
High - Select this for voice traffic or video that is especially sensitive to jitter (jitter is
the variations in delay).
Mid - Select this for "excellent effort" or better than best effort and would include
important business traffic that can tolerate some delay.
Low - Select this for non-critical "background" traffic such as bulk transfers that are
allowed but that should not affect other applications and users.
Category This is the category where a service belongs.
Service This is the name of the service.
Select the check box to have the NBG5615 apply this bandwidth management rule.
Click the Edit icon to open the Rule Configuration screen where you can modify the
rule.
User-defined
Service
Use this table to allocate specific amounts of bandwidth to specific applications or services
you specify.
#This is the number of an individual bandwidth management rule.
Enable Select this check box to have the NBG5615 apply this bandwidth management rule.
Direction Select To LAN&W LAN to apply bandwidth management to traffic from WAN to LAN and
WLAN.
Select To W AN to apply bandwidth management to traffic from LAN/WLAN to WAN.
Service Name Enter a descriptive name for the bandwidth management rule.
Category This is the category where a service belongs.
Modify Click the Edit icon to open the Rule Configuration screen. Modify an existing rule or
create a new rule in the Rule Configuration screen. See Section 20.5.2 on page 169 for
more information.
Click the Rem ove icon to delete a rule.
Apply Click Apply to save your customized settings.
Cancel Click Cancel to begin configuring this screen afresh.
Chapter 20 Bandwidth Management
NBG5615 User’s Guide 169
Figure 100 Bandwidth Management Rule Configuration: Application List
The following table describes the labels in this screen.
20.5.2 Rule Configuration: User Defined Service Rule Configuration
If you want to edit a bandwidth management rule for other applications or services, click the Edit
icon in the User-defined Service table of the Advanced screen. The following screen displays.
Table 68 Bandwidth Management Rule Configuration: Application List
LABEL DESCRIPTION
#This is the number of an individual bandwidth management rule.
Enable Select an interface’s check box to enable bandwidth management on that interface.
Direction These read-only labels represent the physical interfaces. Bandwidth management applies
to all traffic flowing out of the router through the interface, regardless of the traffic’s
source.
Traffic redirect or IP alias may cause LAN-to-LAN traffic to pass through the NBG5615
and be managed by bandwidth management.
Bandwidth Select Maxim um Bandw idth or Minim um Bandw idth and specify the maximum or
minimum bandwidth allowed for the rule in kilobits per second.
Destination Port This is the port number of the destination that define the traffic type, for example TCP
port 80 defines web traffic.
See Appendix C on page 249 for some common services and port numbers.
Source Port This is the port number of the source that define the traffic type, for example TCP port 80
defines web traffic.
See Appendix C on page 249 for some common services and port numbers.
Protocol This is the protocol (TCP, UDP or user-defined) used for the service.
Apply Click Apply to save your customized settings.
Cancel Click Cancel to exit this screen without saving.
Chapter 20 Bandwidth Management
NBG5615 User’s Guide
170
Figure 101 Bandwidth Management Rule Configuration: User-defined Service
The following table describes the labels in this screen.
See Appendix C on page 249 for commonly used services and port numbers.
Table 69 Bandwidth Management Rule Configuration: User-defined Service
LABEL DESCRIPTION
BW Budget Select Maxim um Bandw idth or Minimum Bandw idth and specify the maximum
or minimum bandwidth allowed for the rule in kilobits per second.
Destination Address
Start
Enter the starting IP address of the destination computer.
The NBG5615 applies bandwidth management to the service or application that is
entering this computer.
Destination Address End Enter the ending IP address of the destination computer.
The NBG5615 applies bandwidth management to the service or application that is
entering this computer.
Destination Port This is the port number of the destination that define the traffic type, for example
TCP port 80 defines web traffic.
Source Address Start Enter the starting IP address of the computer that initializes traffic for the
application or service.
The NBG5615 applies bandwidth management to traffic initiating from this
computer.
Source Address End Enter the ending IP address of the computer that initializes traffic for the
application or service.
The NBG5615 applies bandwidth management to traffic initiating from this
computer.
Source Port This is the port number of the source that define the traffic type, for example TCP
port 80 defines web traffic.
Protocol Select the protocol (TCP, UDP, BOTH) for which the bandwidth management rule
applies.
If you select BOTH, enter the protocol for which the bandwidth management rule
applies. For example, ICMP for ping traffic.
Apply Click Apply to save your customized settings.
Cancel Click Cancel to exit this screen without saving.
Chapter 20 Bandwidth Management
NBG5615 User’s Guide 171
20.5.3 Predefined Bandwidth Management Services
The following is a description of some services that you can select and to which you can apply
media bandwidth management in the Managem ent > Bandw idth MGMT > Advanced screen.
Table 70 Media Bandwidth Management Setup: Services
SERVICE DESCRIPTION
FTP File Transfer Program enables fast transfer of files, including large files that may not be
possible by e-mail.
WWW The World Wide Web (WWW) is an Internet system to distribute graphical, hyper-linked
information, based on Hyper Text Transfer Protocol (HTTP) - a client/server protocol for
the World Wide Web. The Web is not synonymous with the Internet; rather, it is just one
service on the Internet. Other services on the Internet include Internet Relay Chat and
Newsgroups. The Web is accessed through use of a browser.
E-Mail Electronic mail consists of messages sent through a computer network to specific groups
or individuals. Here are some default ports for e-mail:
VoIP (SIP) Sending voice signals over the Internet is called Voice over IP or VoIP. Session Initiated
Protocol (SIP) is an internationally recognized standard for implementing VoIP. SIP is an
application-layer control (signaling) protocol that handles the setting up, altering and
tearing down of voice and multimedia sessions over the Internet.
SIP is transported primarily over UDP but can also be transported over TCP.
BitTorrent BitTorrent is a free P2P (peer-to-peer) sharing tool allowing you to distribute large
software and media files. BitTorrent requires you to search for a file with a searching
engine yourself. It distributes files by corporation and trading, that is, the client
downloads the file in small pieces and share the pieces with other peers to get other half
of the file.
Gaming Online gaming services lets you play multiplayer games on the Internet via broadband
technology. As of this writing, your NBG5615 supports Xbox, Playstation, Battlenet and
MSN Game Zone.
Chapter 20 Bandwidth Management
NBG5615 User’s Guide
172
NBG5615 User’s Guide 173
CHAPTER 21
Remote Management
21.1 Overview
This chapter provides information on the Remote Management screens.
Remote Management allows you to manage your NBG5615 from a remote location through the
following interfaces:
•LAN and WAN
•LAN only
•WAN only
Note: The NBG5615 is managed using the Web Configurator.
21.2 What You Can Do in this Chapter
•Use the WWW screen to define the interface/s from which the NBG5615 can be managed
remotely using the web and specify a secure client that can manage the NBG5615 (Section 21.4
on page 174).
•Use the Telnet screen to define the interface/s from which the NBG5615 can be managed
remotely using Telnet service and specify a secure client that can manage the NBG5615 (Section
21.5 on page 175).
•Use the W ake On LAN screen to enable Wake on LAN and remotely turn on a device on the local
network (Section 21.6 on page 175).
21.3 What You Need to Know
Remote management over LAN or WAN will not work when:
1The IP address in the Secured Client I P Address field (Section 21.4 on page 174) does not match
the client IP address. If it does not match, the NBG5615 will disconnect the session immediately.
2There is already another remote management session. You may only have one remote
management session running at one time.
3There is a firewall rule that blocks it.
Chapter 21 Remote Management
NBG5615 User’s Guide
174
21.3.1 Remote Management and NAT
When NAT is enabled:
Use the NBG5615’s WAN IP address when configuring from the WAN.
Use the NBG5615’s LAN IP address when configuring from the LAN.
21.3.2 System Timeout
There is a default system management idle timeout of five minutes (three hundred seconds). The
NBG5615 automatically logs you out if the management session remains idle for longer than this
timeout period. The management session does not time out when a statistics screen is polling. You
can change the timeout period in the Maintenance > General screen
21.4 WWW Screen
To change your NBG5615’s remote management settings, click Management > Remote MGMT >
WWW.

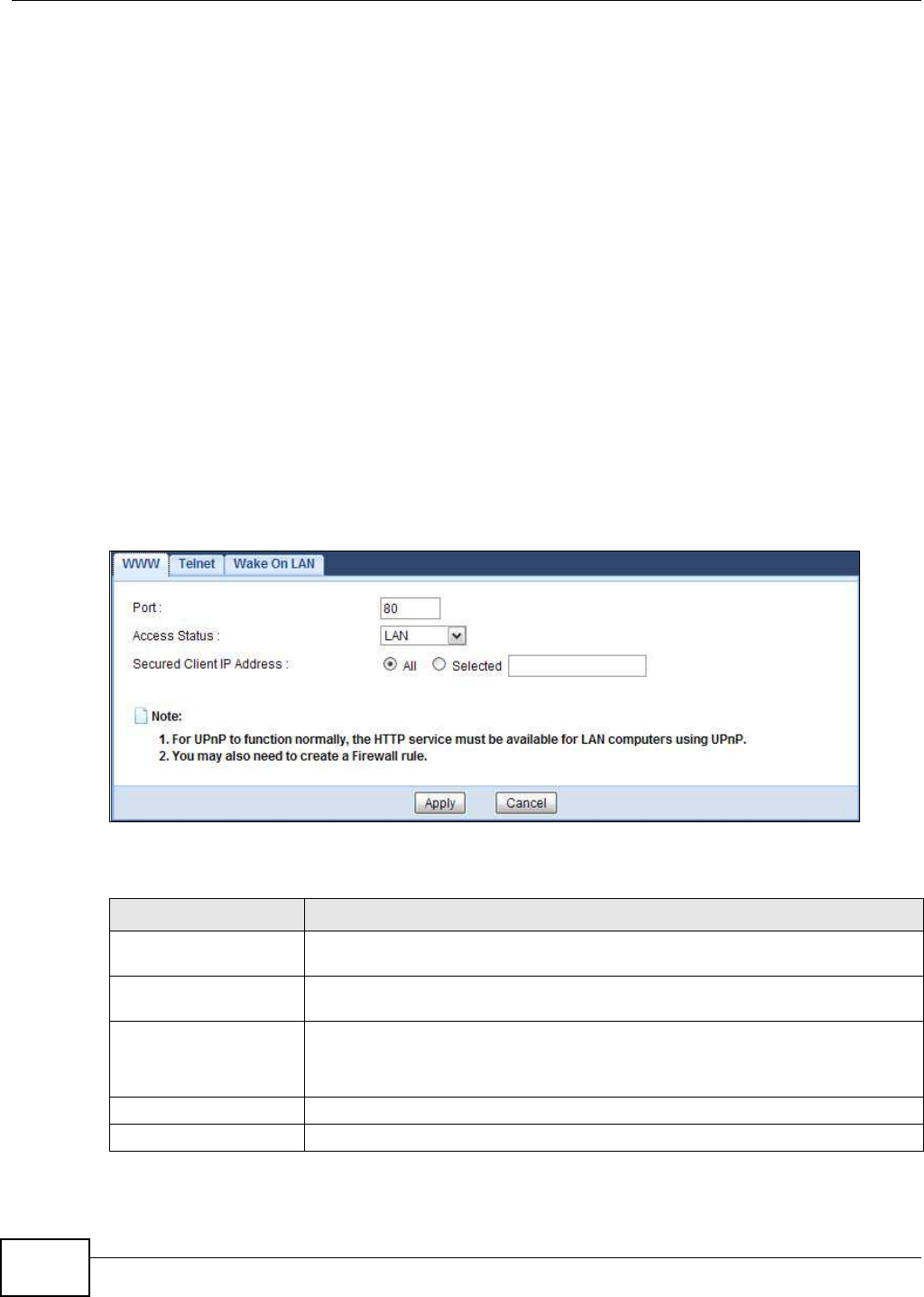

Figure 102 Management > Remote Management > WWW
The following table describes the labels in this screen.
Table 71 Management > Remote Management > WWW
LABEL DESCRIPTION
Port You may change the server port number for a service if needed, however you must
use the same port number in order to use that service for remote management.
Access Status Select the interface(s) through which a computer may access the NBG5615 using
this service.
Secured Client IP
Address
Select All to allow all computes to access the NBG5615.
Otherwise, check Selected and specify the IP address of the computer that can
access the NBG5615.
Apply Click Apply to save your customized settings.
Cancel Click Cancel to begin configuring this screen afresh.
Chapter 21 Remote Management
NBG5615 User’s Guide 175
21.5 Telnet Screen
To change your NBG5615’s remote management settings, click Management > Remote MGMT >
Telnet to open the Telnet screen.

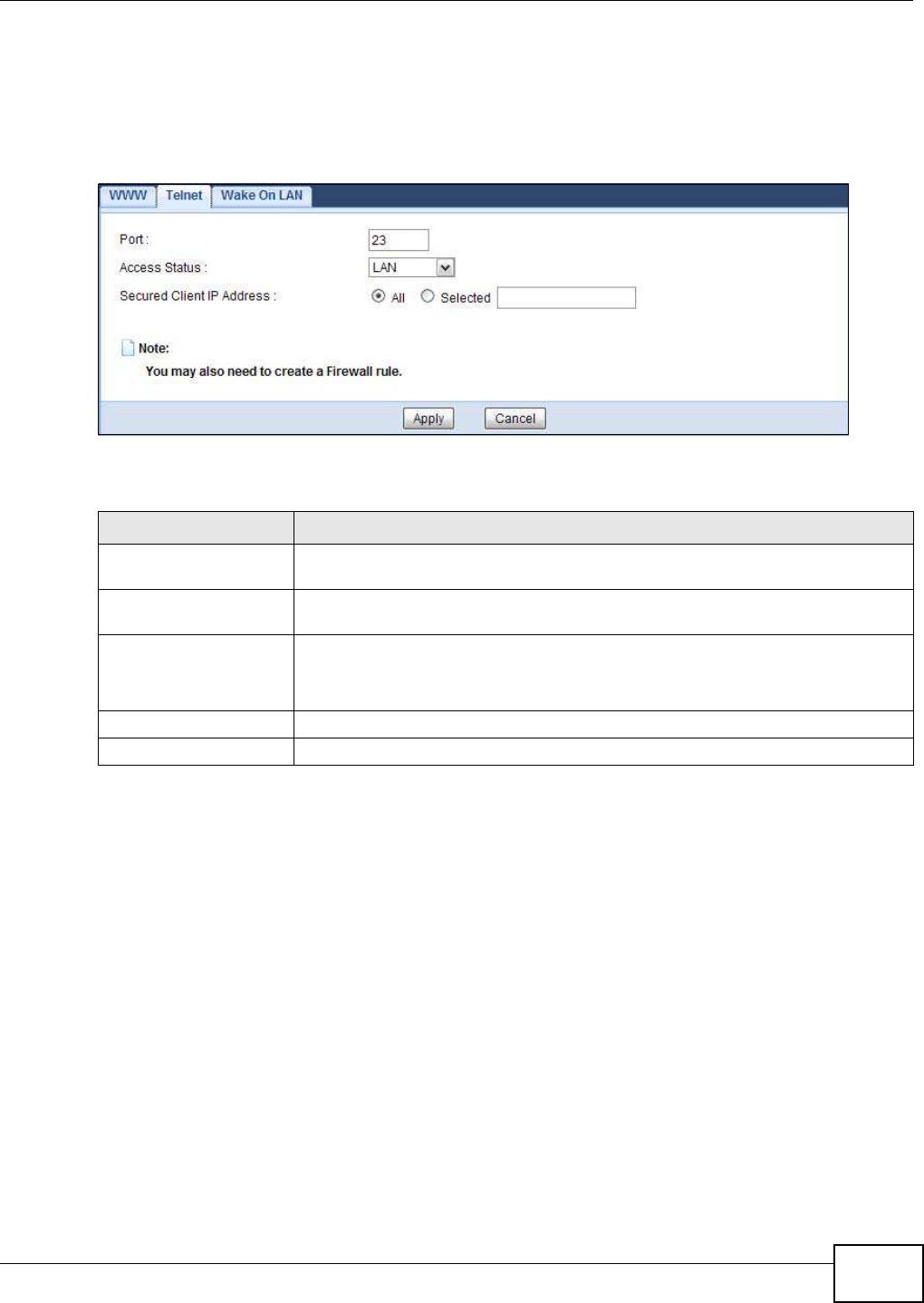

Figure 103 Management > Remote MGMT > Telnet
The following table describes the labels in this screen.
21.6 Wake On LAN Screen
Wake On LAN (WoL) allows you to remotely turn on a device on the network, such as a computer,
storage device or media server. To use this feature the remote hardware (for example the network
adapter on a computer) must support Wake On LAN using the “Magic Packet” method.
You need to know the MAC address of the remote device. It may be on a label on the device.
Table 72 Management > Remote MGMT > Telnet
LABEL DESCRIPTION
Port You may change the server port number for a service if needed, however you must
use the same port number in order to use that service for remote management.
Access Status Select the interface(s) through which a computer may access the NBG5615 using
this service.
Secured Client IP
Address
Select All to allow all computes to access the NBG5615.
Otherwise, check Selected and specify the IP address of the computer that can
access the NBG5615.
Apply Click Apply to save your customized settings.
Cancel Click Cancel to begin configuring this screen afresh.
Chapter 21 Remote Management
NBG5615 User’s Guide
176
Use this screen to remotely turn on a device on the network. Click the Managem ent > Rem ote
MGMT > W ake On LAN to open the following screen.

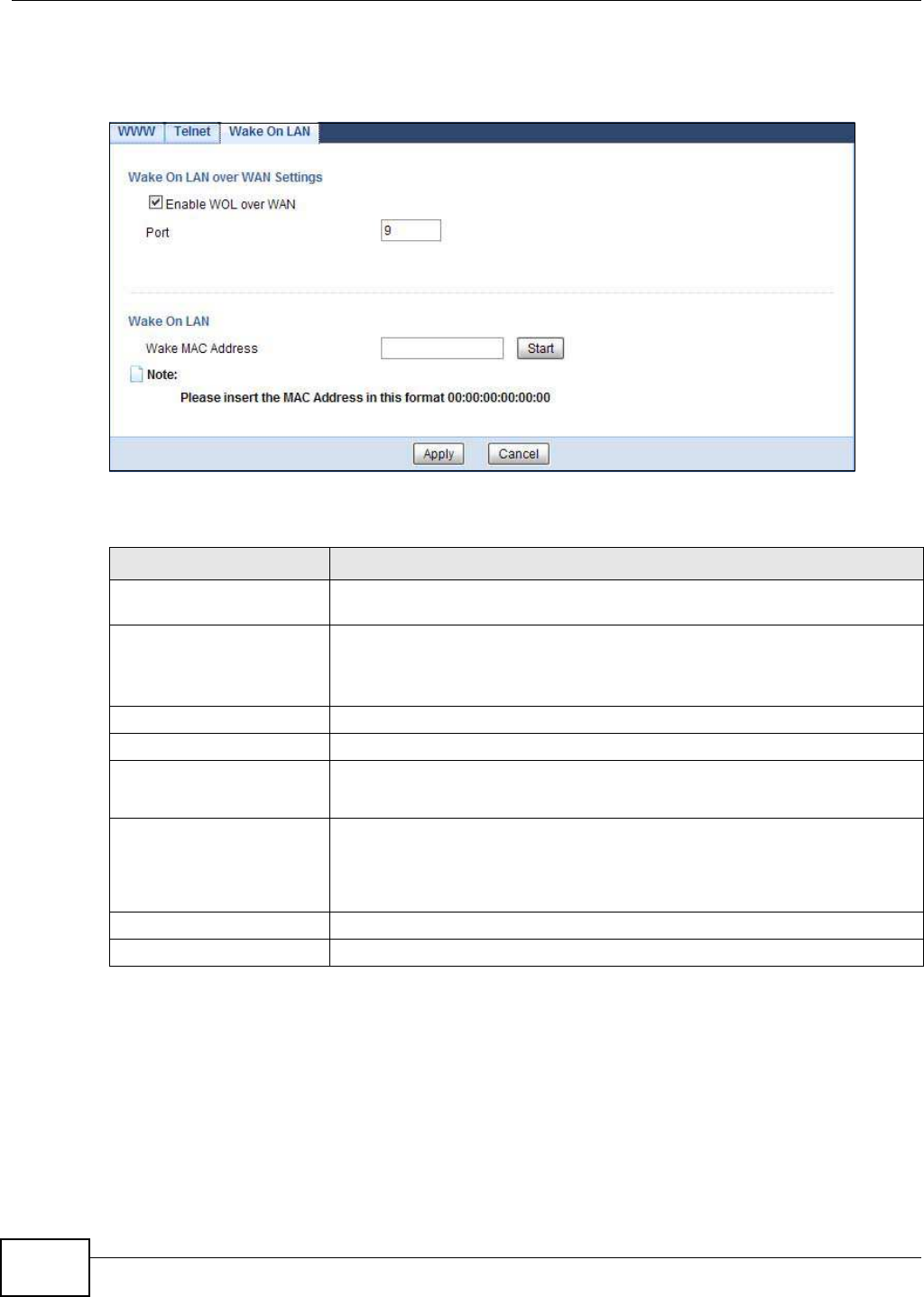

Figure 104 Management > Remote MGMT > Wake On LAN
The following table describes the labels in this screen.
Table 73 Management > Remote MGMT > Wake On LAN
LABEL DESCRIPTION
Wake On LAN over WAN
Settings
Enable WOL over WAN Select this option to have the NBG5615 forward a WoL “Magic Packet” to all
devices on the LAN if the packet comes from the WAN or remote network and
uses the port number specified in the Port field. A LAN device whose hardware
supports Wake on LAN then will be powered on if it is turned off previously.
Port Type a port number from which a WoL packet is forwarded to the LAN.
Wake On LAN
Wake MAC Address Enter the MAC Address of the device on the network that will be turned on.
A MAC address consists of six hexadecimal character pairs.
Start Click this to have the NBG5615 generate a WoL packet and forward it to turn
the specified device on.
A screen pops up displaying MAC address error if you input the MAC address
incorrectly.
Apply Click Apply to save the setting to the NBG5615.
Cancel Click Cancel to begin configuring this screen afresh.
NBG5615 User’s Guide 177
CHAPTER 22
Universal Plug-and-Play (UPnP)
22.1 Overview
This chapter introduces the UPnP feature in the web configurator.
Universal Plug and Play (UPnP) is a distributed, open networking standard that uses TCP/IP for
simple peer-to-peer network connectivity between devices. A UPnP device can dynamically join a
network, obtain an IP address, convey its capabilities and learn about other devices on the network.
In turn, a device can leave a network smoothly and automatically when it is no longer in use.
22.2 What You Need to Know
UPnP hardware is identified as an icon in the Network Connections folder (Windows XP). Each UPnP
compatible device installed on your network will appear as a separate icon. Selecting the icon of a
UPnP device will allow you to access the information and properties of that device.
22.2.1 NAT Traversal
UPnP NAT traversal automates the process of allowing an application to operate through NAT. UPnP
network devices can automatically configure network addressing, announce their presence in the
network to other UPnP devices and enable exchange of simple product and service descriptions.
NAT traversal allows the following:
Dynamic port mapping
Learning public IP addresses
Assigning lease times to mappings
Windows Messenger is an example of an application that supports NAT traversal and UPnP.
See the NAT chapter for more information on NAT.
22.2.2 Cautions with UPnP
The automated nature of NAT traversal applications in establishing their own services and opening
firewall ports may present network security issues. Network information and configuration may also
be obtained and modified by users in some network environments.
When a UPnP device joins a network, it announces its presence with a multicast message. For
security reasons, the NBG5615 allows multicast messages on the LAN only.
Chapter 22 Universal Plug-and-Play (UPnP)
NBG5615 User’s Guide
178
All UPnP-enabled devices may communicate freely with each other without additional configuration.
Disable UPnP if this is not your intention.
22.3 UPnP Screen
Use this screen to enable UPnP on your NBG5615.
Click Managem ent > UPnP to display the screen shown next.

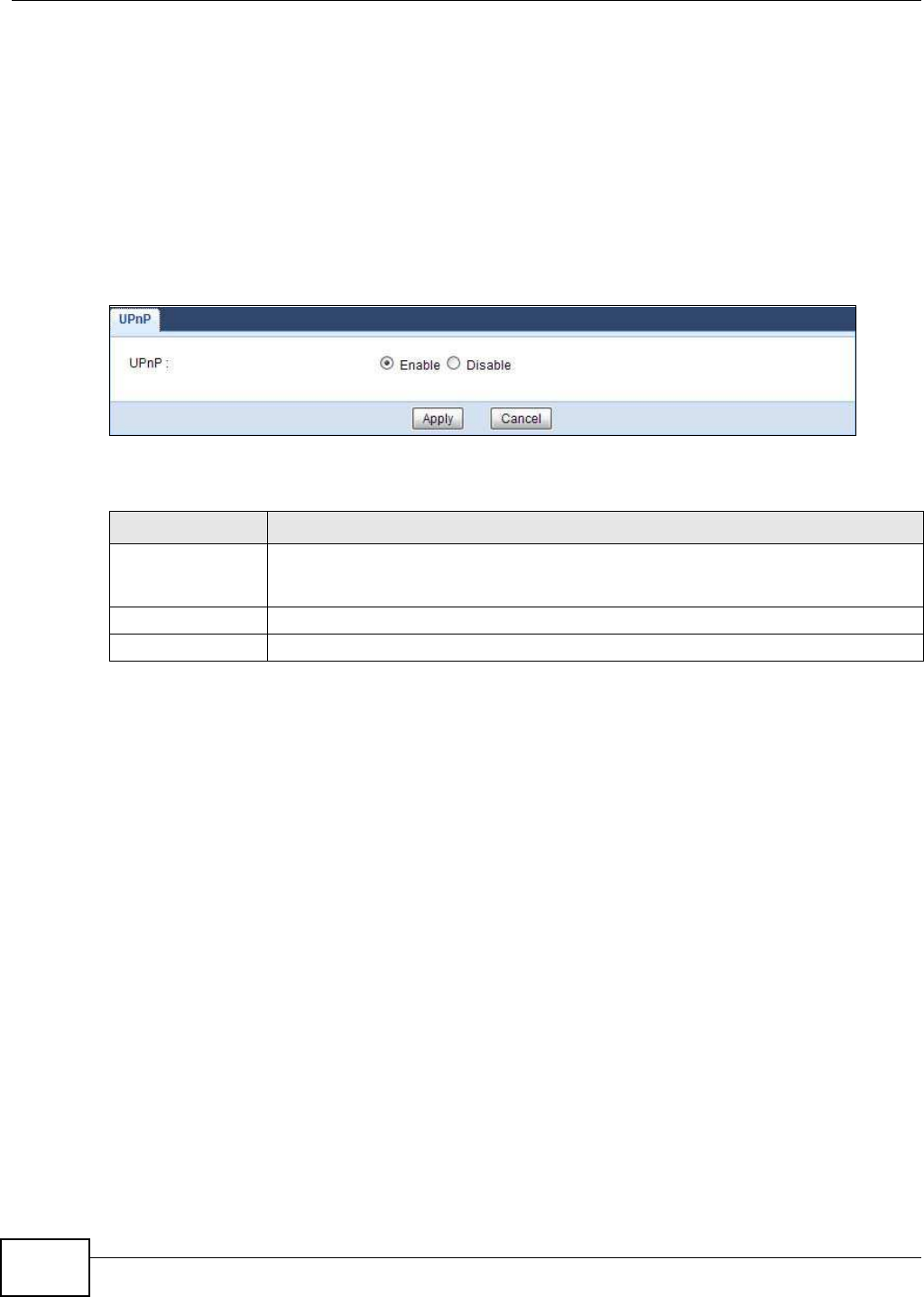

Figure 105 Management > UPnP
The following table describes the fields in this screen.
22.4 Technical Reference
The sections show examples of using UPnP.
22.4.1 Using UPnP in Windows XP Example
This section shows you how to use the UPnP feature in Windows XP. You must already have UPnP
installed in Windows XP and UPnP activated on the NBG5615.
Make sure the computer is connected to a LAN port of the NBG5615. Turn on your computer and
the NBG5615.
22.4.1.1 Auto-discover Your UPnP-enabled Network Device
1Click start and Control Panel. Double-click Netw ork Connections. An icon displays under
Internet Gateway.
2Right-click the icon and select Properties.
Table 74 Management > UPnP
LABEL DESCRIPTION
UPnP Select Enable to activate UPnP. Be aware that anyone could use a UPnP application to
open the web configurator's login screen without entering the NBG5615's IP address
(although you must still enter the password to access the web configurator).
Apply Click Apply to save the setting to the NBG5615.
Cancel Click Cancel to return to the previously saved settings.
Chapter 22 Universal Plug-and-Play (UPnP)
NBG5615 User’s Guide 179

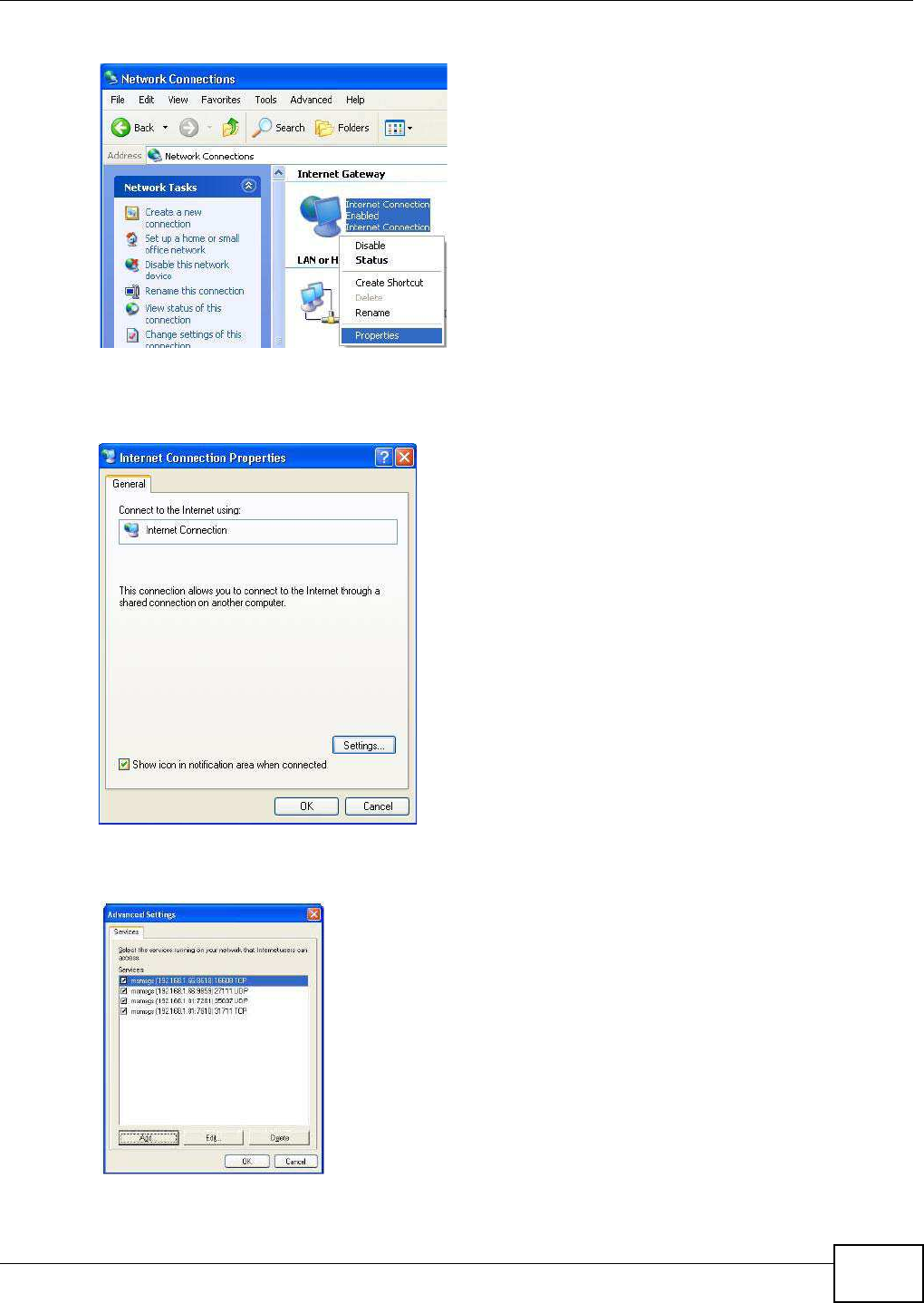

Figure 106 Network Connections
3In the I nternet Connection Properties window, click Settings to see the port mappings there
were automatically created.
Figure 107 Internet Connection Properties
4You may edit or delete the port mappings or click Add to manually add port mappings.
Figure 108 Internet Connection Properties: Advanced Settings
Chapter 22 Universal Plug-and-Play (UPnP)
NBG5615 User’s Guide
180

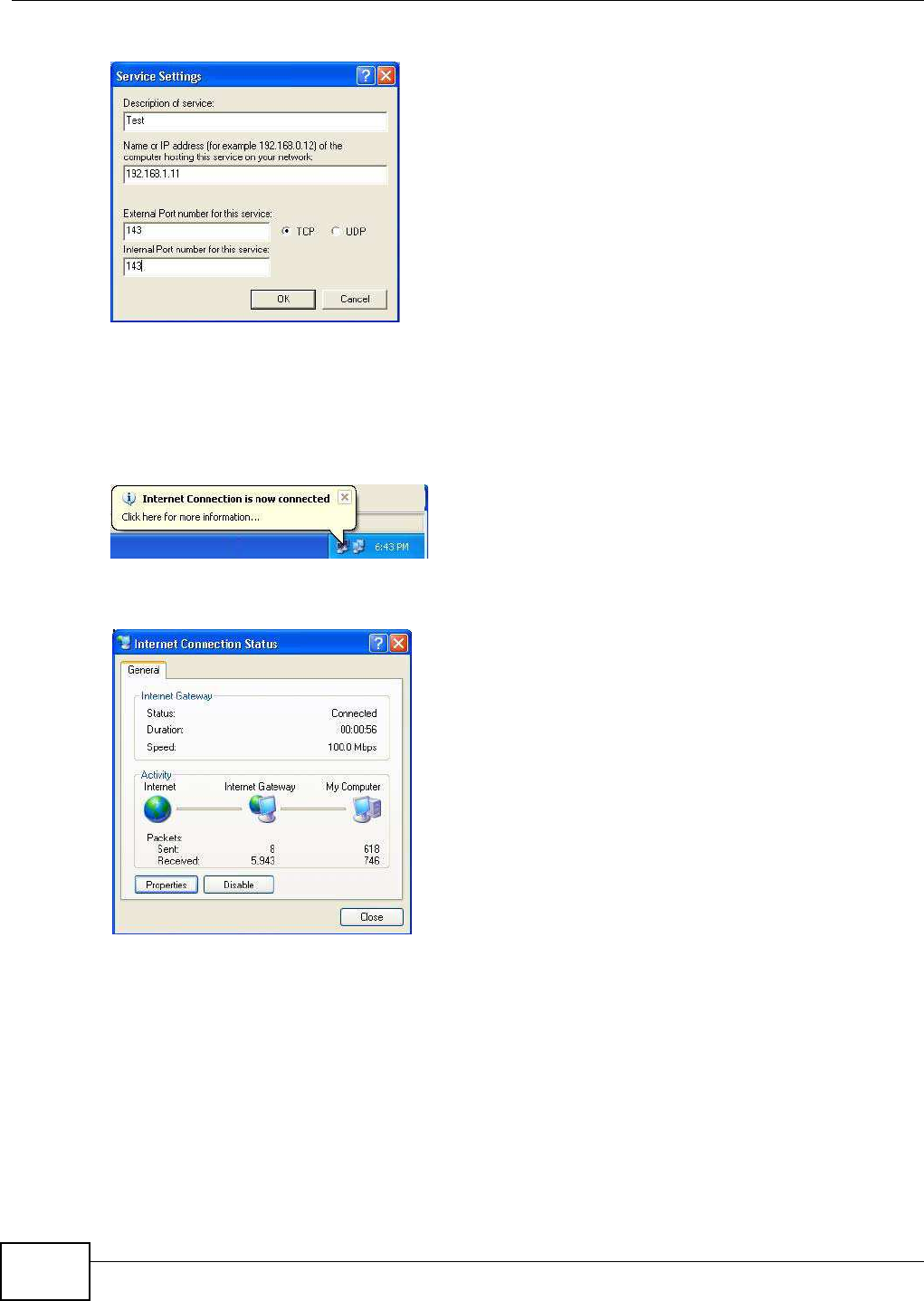

Figure 109 Internet Connection Properties: Advanced Settings: Add
Note: When the UPnP-enabled device is disconnected from your computer, all port
mappings will be deleted automatically.
5Select Show icon in notification area w hen connected option and click OK. An icon displays in
the system tray.
Figure 110 System Tray Icon
6Double-click on the icon to display your current Internet connection status.
Figure 111 Internet Connection Status
22.4.2 Web Configurator Easy Access
With UPnP, you can access the web-based configurator on the NBG5615 without finding out the IP
address of the NBG5615 first. This comes helpful if you do not know the IP address of the
NBG5615.
Follow the steps below to access the web configurator.
1Click Start and then Control Panel.
2Double-click Netw ork Connections.
Chapter 22 Universal Plug-and-Play (UPnP)
NBG5615 User’s Guide 181
3Select My Netw ork Places under Other Places.

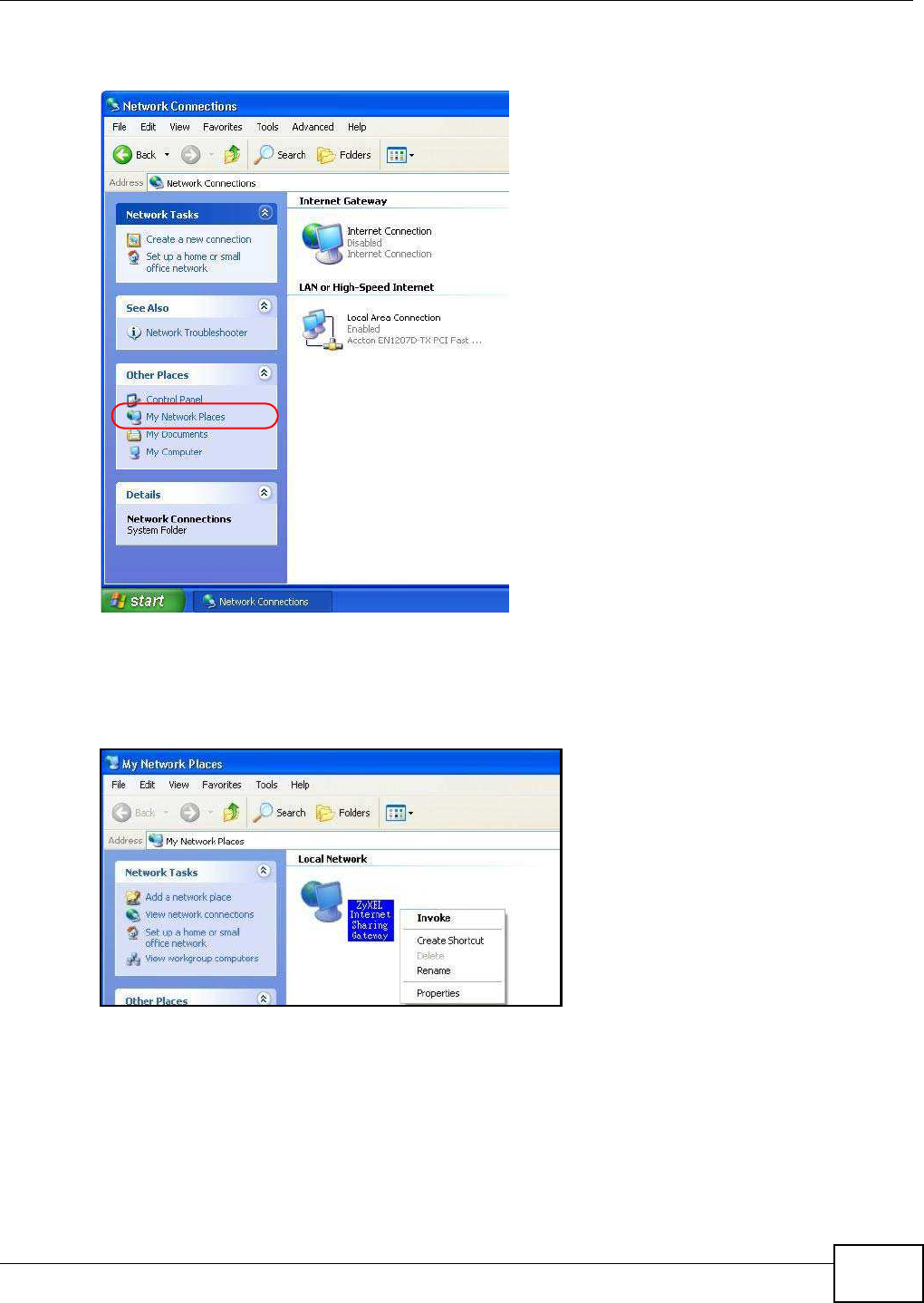

Figure 112 Network Connections
4An icon with the description for each UPnP-enabled device displays under Local Netw ork.
5Right-click on the icon for your NBG5615 and select I nvoke. The web configurator login screen
displays.
Figure 113 Network Connections: My Network Places
6Right-click on the icon for your NBG5615 and select Properties. A properties window displays with
basic information about the NBG5615.
Chapter 22 Universal Plug-and-Play (UPnP)
NBG5615 User’s Guide
182

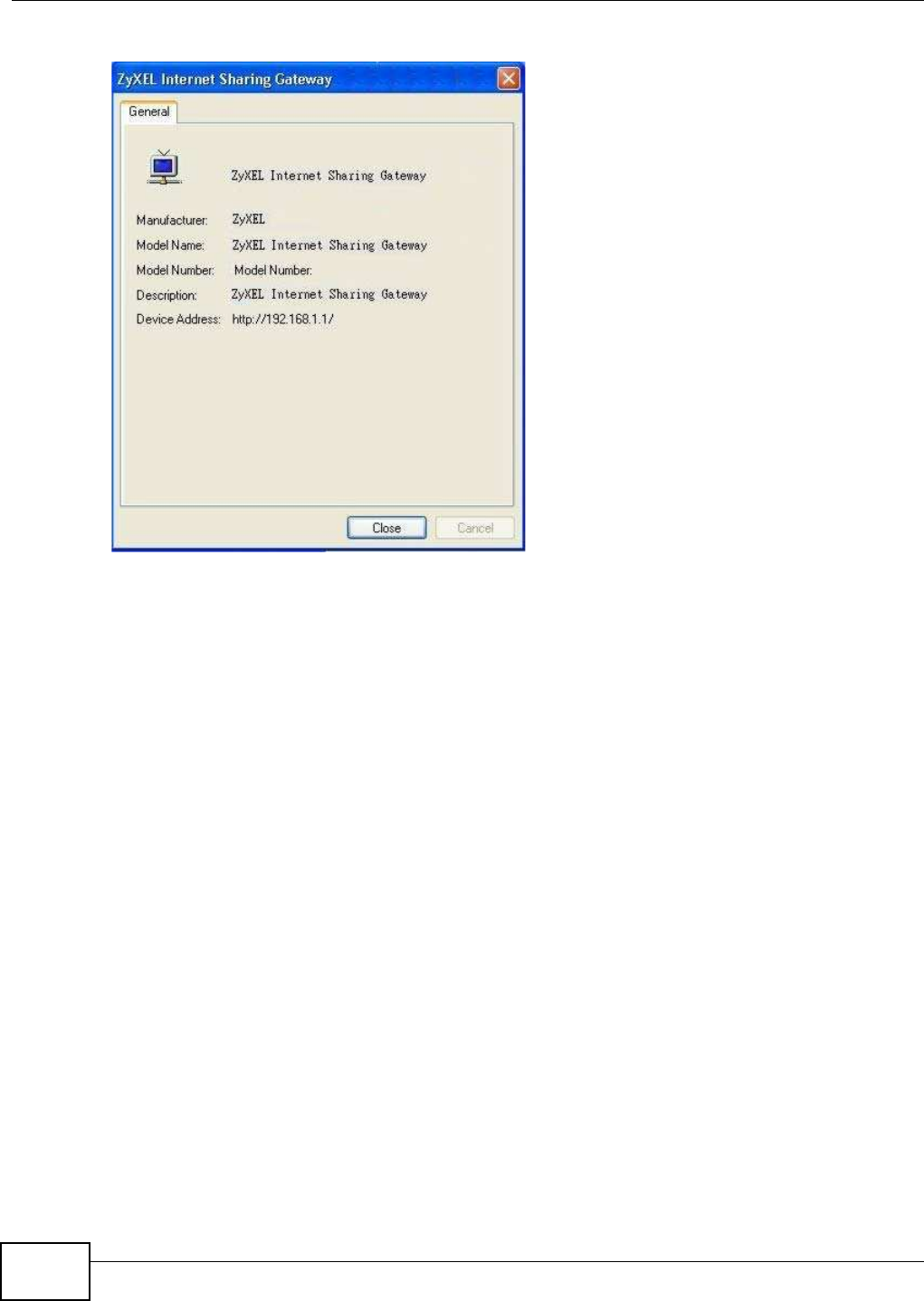

Figure 114 Network Connections: My Network Places: Properties: Example
NBG5615 User’s Guide 183
CHAPTER 23
USB Media Sharing
23.1 Overview
This chapter describes how to configure the media sharing settings on the NBG5615.
Note: The read and write performance may be affected by amount of file-sharing traffic
on your network, type of connected USB device and your USB version (1.1 or 2.0).
Media Server
You can set up your NBG5615 to act as a media server to provide media (like video) to DLNA-
compliant players, such as Windows Media Player, ZyXEL DMAs (Digital Media Adapters), Xboxes or
PS3s. The media server and clients must have IP addresses in the same subnet.
The NBG5615 media server enables you to:
Publish all folders for everyone to play media files in the USB storage device connected to the
NBG5615.
Use hardware-based media clients like the DMA-2500 to play the files.
Note: Anyone on your network can play the media files in the published folders. No user
name and password nor other form of security is required.
The following figure is an overview of the NBG5615’s media server feature. DLNA devices A and B
can access and play files on a USB device (C) which is connected to the NBG5615 (D).
Figure 115 Media Server Overview
AB
C
D
Chapter 23 USB Media Sharing
NBG5615 User’s Guide
184
File-Sharing Server
You can also share files on a USB memory stick or hard drive connected to your NBG5615 with
users on your network.
The following figure is an overview of the NBG5615’s file-sharing server feature. Computers A and
B can access files on a USB device (C) which is connected to the NBG5615 (D).
Figure 116 File Sharing Overview
23.2 What You Can Do
•Use the DLNA screen to use the NBG5615 as a media server and allow DLNA-compliant devices
to play media files stored in the attached USB device (Section 23.5 on page 186).
•Use the SAMBA screen to enable file-sharing via the NBG5615 using Windows Explorer or the
workgroup name. This screen also allow you to configure the workgroup name and create user
accounts (Section 23.6 on page 186).
•Use the FTP screen to allow file sharing via the NBG5615 using FTP and create user accounts
(Section 23.7 on page 188).
23.3 What You Need To Know
DLNA
The Digital Living Network Alliance (DLNA) is a group of personal computer and electronics
companies that works to make products compatible in a home network. DLNA clients play files
stored on DLNA servers. The NBG5615 can function as a DLNA-compliant media server and stream
files to DLNA-compliant media clients without any configuration.
A
BC
D
Chapter 23 USB Media Sharing
NBG5615 User’s Guide 185
Workgroup name
This is the name given to a set of computers that are connected on a network and share resources
such as a printer or files. Windows automatically assigns the workgroup name when you set up a
network.
File Systems
A file system is a way of storing and organizing files on your hard drive and storage device. Often
different operating systems such as Windows or Linux have different file systems. The file-sharing
feature on your NBG5615 supports New Technology File System (NTFS), File Allocation Table (FAT)
and FAT32 file systems.
Windows/CIFS
Common Internet File System (CIFS) is a standard protocol supported by most operating systems
in order to share files across the network.
CIFS runs over TCP/IP but uses the SMB (Server Message Block) protocol found in Microsoft
Windows for file and printer access; therefore, CIFS will allow all applications, not just Web
browsers, to open and share files across the Internet.
The NBG5615 uses Common Internet File System (CIFS) protocol for its file sharing functions. CIFS
compatible computers can access the USB file storage devices connected to the NBG5615. CIFS
protocol is supported on Microsoft Windows, Linux Samba and other operating systems (refer to
your systems specifications for CIFS compatibility).
Samba
SMB is a client-server protocol used by Microsoft Windows systems for sharing files, printers, and
so on.
Samba is a free SMB server that runs on most Unix and Unix-like systems. It provides an
implementation of an SMB client and server for use with non-Microsoft operating systems.
File Transfer Protocol
This is a method of transferring data from one computer to another over a network such as the
Internet.
23.4 Before You Begin
Make sure the NBG5615 is connected to your network and turned on.
1Connect the USB device to one of the NBG5615’s USB ports.
2The NBG5615 detects the USB device and makes its contents available for browsing. If you are
connecting a USB hard drive that comes with an external power supply, make sure it is connected
to an appropriate power source that is on.
Chapter 23 USB Media Sharing
NBG5615 User’s Guide
186
Note: If your USB device cannot be detected by the NBG5615, see the troubleshooting
for suggestions.
23.5 DLNA Screen
Use this screen to have the NBG5615 act as a DLNA-compliant media server that lets DLNA-
compliant media clients on your network play video, music, and photos from the NBG5615 (without
having to copy them to another computer). Click Managem ent > USB Media Sharing > DLNA.

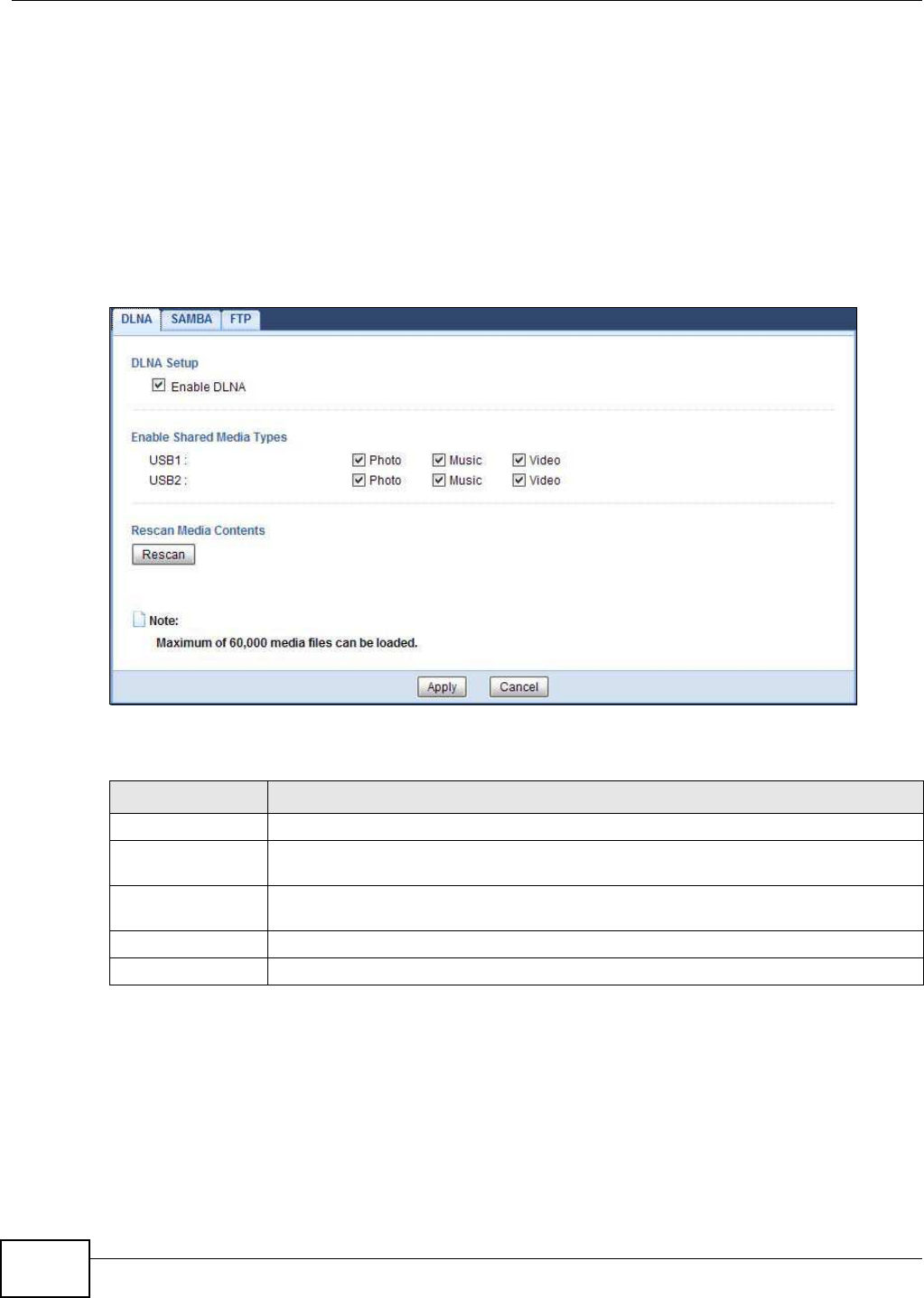

Figure 117 Management > USB Media Sharing > DLNA
The following table describes the labels in this screen.
23.6 SAMBA Screen
Use this screen to set up file-sharing via the NBG5615 using Windows Explorer or the workgroup
name. You can also configure the workgroup name and create file-sharing user accounts. Click
Managem ent > USB Media Sharing > SAMBA.
Table 75 Management > USB Media Sharing > DLNA
LABEL DESCRIPTION
Enable DLNA Select this to have the NBG5615 function as a DLNA-compliant media server.
USB1/2 Select the media type that you want to share on the USB device connected to the
NBG5615’s USB port.
Rescan Click this button to have the NBG5615 scan the media files on the connected USB device
and do indexing of the file list again so that DLNA clients can find the new files if any.
Apply Click Apply to save your changes back to the NBG5615.
Cancel Click Cancel to begin configuring this screen afresh.
Chapter 23 USB Media Sharing
NBG5615 User’s Guide 187
Figure 118 Management > USB Media Sharing > SAMBA
The following table describes the labels in this screen.
Table 76 Management > USB Media Sharing > SAMBA
LABEL DESCRIPTION
Enable SAMBA Select this to enable file sharing through the NBG5615 using Windows Explorer or by
browsing to your work group.
Name Specify the name to identify the NBG5615 in a work group.
Work Group You can add the NBG5615 to an existing or a new workgroup on your network. Enter the
name of the workgroup which your NBG5615 automatically joins. You can set the
NBG5615’s workgroup name to be exactly the same as the workgroup name to which
your computer belongs to.
Note: The NBG5615 will not be able to join the workgroup if your local area network has
restrictions set up that do not allow devices to join a workgroup. In this case,
contact your network administrator.
Decription Enter the description of the NBG5615 in a work group.
USB1/2 Specify the user’s access rights to the USB storage device which is connected to the
NBG5615’s USB port.
Read & W rite - The user has read and write rights, meaning that the user can create
and edit the files on the connected USB device.
Read - The user has read rights only and can not create or edit the files on the
connected USB device.
User Accounts Before you can share files you need a user account. Configure the following fields to set
up a file-sharing account.
#This is the index number of the user account.
Chapter 23 USB Media Sharing
NBG5615 User’s Guide
188
23.7 FTP Screen
Use this screen to set up file sharing via the NBG5615 using FTP and create user accounts. Click
Managem ent > USB Media Sharing > FTP.

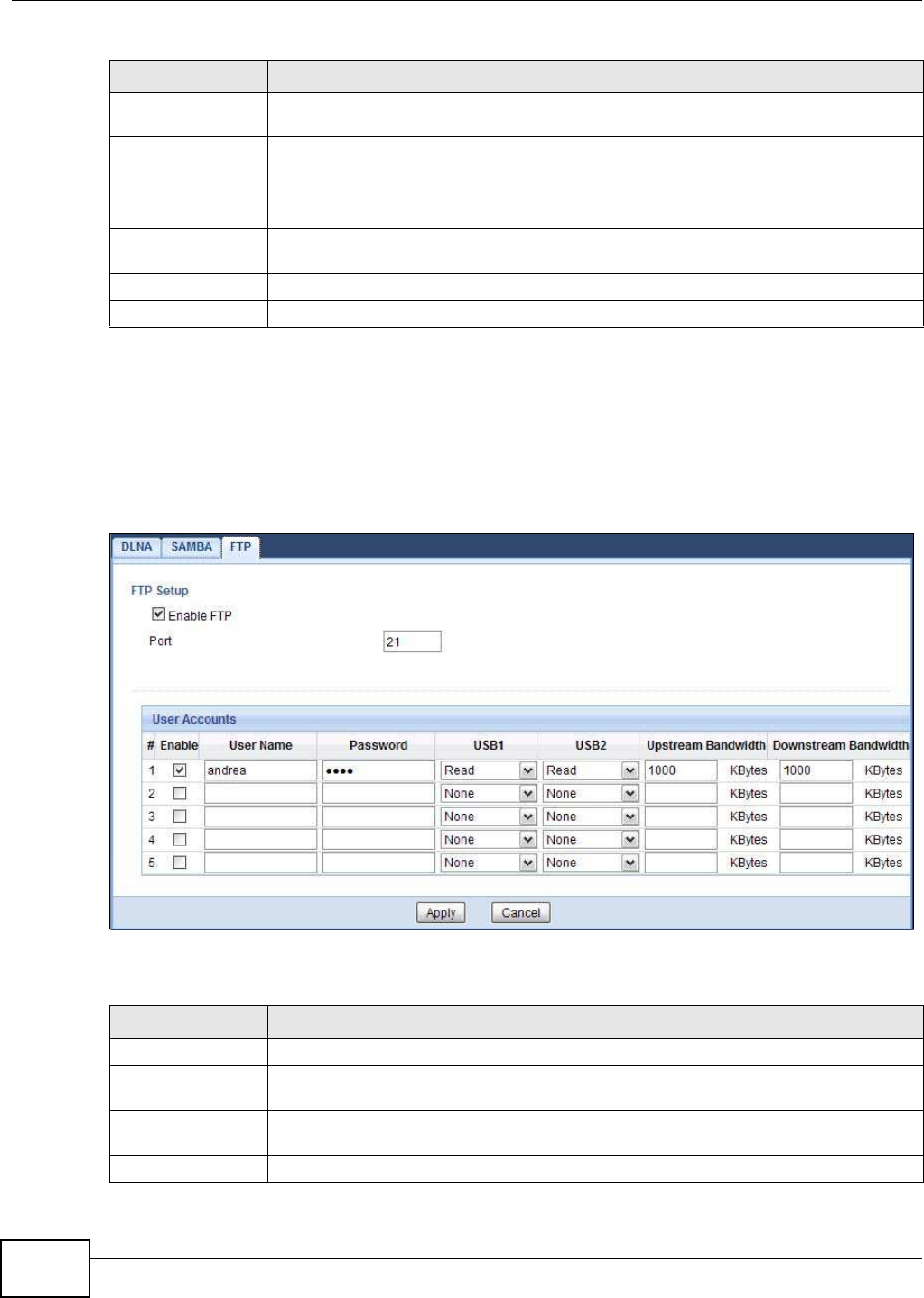

Figure 119 Management > USB Media Sharing > FTP
The following table describes the labels in this screen.
Enable This field displays whether a user account is activated or not. Select the check box to
enable the account. Clear the check box to disable the account.
User Name Enter a user name that will be allowed to access the shared files. You can enter up to 20
characters. Only letters and numbers allowed.
Password Enter the password used to access the shared files. You can enter up to 20 characters.
Only letters and numbers are allowed. The password is case sensitive.
USB1/2 Select the USB port(s) of the NBG5615. The configured user can access the files on the
USB device(s) connected to the selected USB port(s) only.
Apply Click Apply to save your changes back to the NBG5615.
Cancel Click Cancel to begin configuring this screen afresh.
Table 76 Management > USB Media Sharing > SAMBA (continued)
LABEL DESCRIPTION
Table 77 Management > USB Media Sharing > FTP
LABEL DESCRIPTION
Enable FTP Select this to enable the FTP server on the NBG5615 for file sharing using FTP.
Port You may change the server port number for FTP if needed, however you must use the
same port number in order to use that service for file sharing.
User Accounts Before you can share files you need a user account. Configure the following fields to set
up a file-sharing account.
#This is the index number of the user account.
Chapter 23 USB Media Sharing
NBG5615 User’s Guide 189
23.8 Example of Accessing Your Shared Files From a
Computer
You can use Windows Explorer or FTP to access the USB storage devices connected to the
NBG5615.
This example shows you how to use Microsoft’s Windows XP to browse your shared files. Refer to
your operating system’s documentation for how to browse your file structure.
23.8.1 Use Windows Explorer to Share Files
You should have enabled file sharing and create a user account (Bob/1234 for example) with read
and write access to USB 1 in the USB Media Sharing > SAMBA screen.

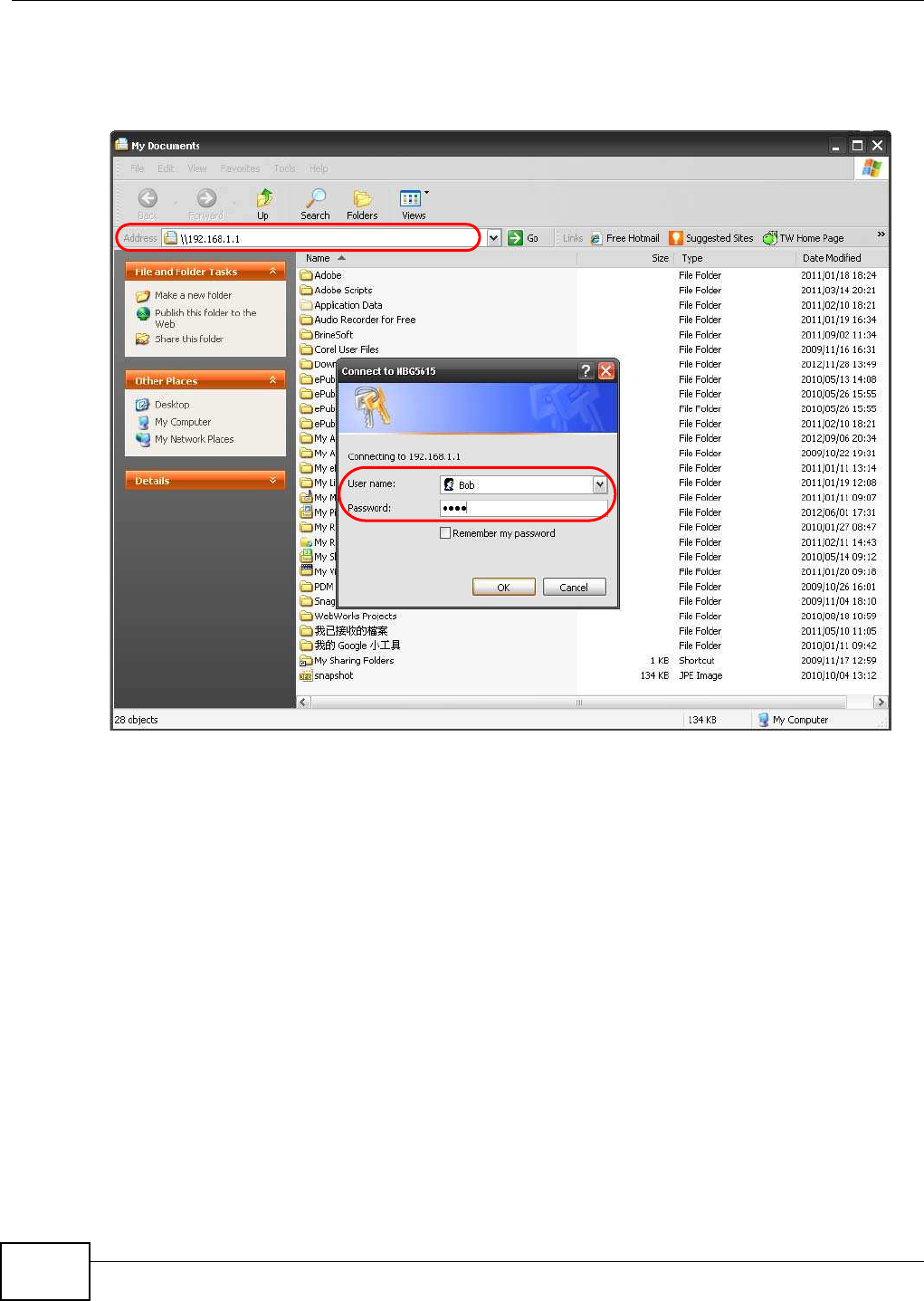

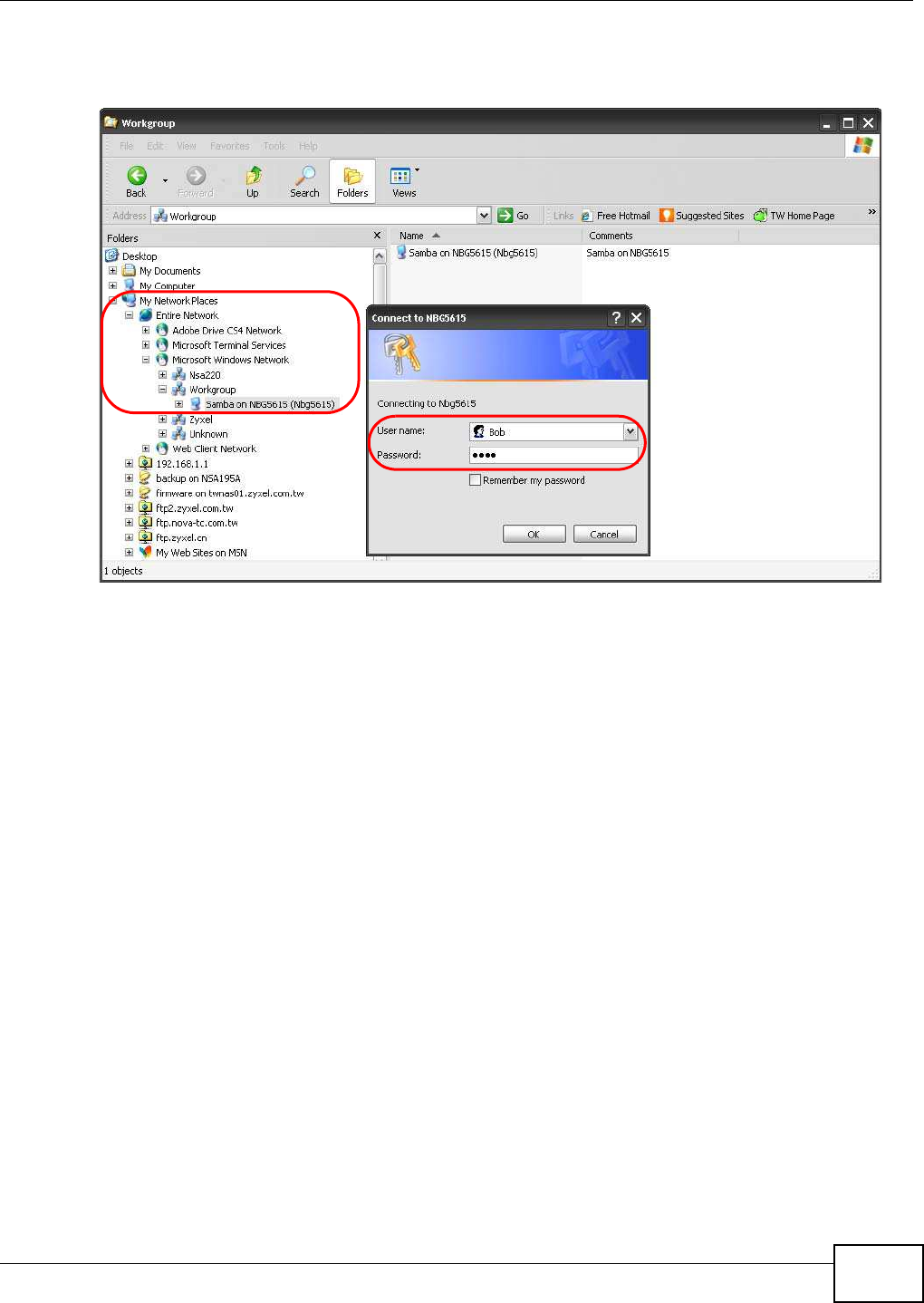

Open Windows Explorer to access the connected USB device using either Windows Explorer browser
or by browsing to your workgroup.
Enable This field displays whether a user account is activated or not. Select the check box to
enable the account. Clear the check box to disable the account.
User Name Enter a user name that will be allowed to access the shared files. You can enter up to 20
characters. Only letters and numbers allowed.
Password Enter the password used to access the shared files. You can enter up to 20 characters.
Only letters and numbers are allowed. The password is case sensitive.
USB1/2 Specify the user’s access rights to the USB storage device which is connected to the
NBG5615’s USB port.
Read & W rite - The user has read and write rights, meaning that the user can create
and edit the files on the connected USB device.
Read - The user has read rights only and can not create or edit the files on the
connected USB device.
None - The user cannot access the files on the USB device(s) connected to the USB
port.
Upstream
Bandwidth
Enter the maximum bandwidth (in Kbps) allowed for incoming FTP traffic.
Downstream
Bandwidth
Enter the maximum bandwidth (in Kbps) allowed for outgoing FTP traffic.
Apply Click Apply to save your changes back to the NBG5615.
Cancel Click Cancel to begin configuring this screen afresh.
Table 77 Management > USB Media Sharing > FTP (continued)
LABEL DESCRIPTION
Chapter 23 USB Media Sharing
NBG5615 User’s Guide
190
1In Windows Explorer’s Address bar type a double backslash “\\” followed by the IP address of the
NBG5615 (the default IP address of the NBG5615 in router mode is 192.168.1.1) and press
[ENTER]. A screen asking for password authentication appears. Type the user name and password
(Bob and 1234 in this example) and click OK.
Note: Once you log into the shared folder via your NBG5615, you do not have to relogin
unless you restart your computer.
Chapter 23 USB Media Sharing
NBG5615 User’s Guide 191
2You can also use the workgroup name to access files by browsing to the workgroup folder using the
folder tree on the left side of the screen. It is located under My Netw ork Places. In this example
the workgroup name is the default “Workgroup”.
23.8.2 Use FTP to Share Files
You can use FTP to access the USB storage devices connected to the NBG5615. In this example, we
use the web browser to share files via FTP from the LAN. The way or screen you log into the FTP
server (on the NBG5615) varies depending on your FTP client. See your FTP client documentation
for more information.
You should have enabled file sharing and create a user account (Bob/1234 for example) with read
and write access to USB 1 in the USB Media Sharing > FTP screen.
1In your web browser’s address or URL bar type “ftp://” followed by the IP address of the NBG5615
(the default LAN IP address of the NBG5615 in router mode is 192.168.1.1) and click Go or press
[ENTER].
Chapter 23 USB Media Sharing
NBG5615 User’s Guide
192
2A screen asking for password authentication appears. Enter the user name and password (you
configured in the USB Media Sharing > FTP screen) and click Log On.
3The screen changes and shows you the folder for the USB storage device connected to your
NBG5615. Double-click the folder to display the contents in it.
NBG5615 User’s Guide 193
CHAPTER 24
Maintenance
24.1 Overview
This chapter provides information on the Maintenance screens.
24.2 What You Can Do
•Use the General screen to set the timeout period of the management session (Section 24.3 on
page 193).
•Use the Passw ord screen to change your NBG5615’s system password (Section 24.4 on page
194).
•Use the Tim e screen to change your NBG5615’s time and date (Section 24.5 on page 195).
•Use the Firmw are Upgrade screen to upload firmware to your NBG5615 (Section 24.6 on page
196).
•Use the Backup/ Restore screen to view information related to factory defaults, backup
configuration, and restoring configuration (Section 24.8 on page 199).
•Use the Restart screen to reboot the NBG5615 without turning the power off (Section 24.8 on
page 199).
•Use the Language screen to change the language for the Web Configurator (Section 24.9 on
page 199) .
•Use the Sys OP Mode screen to select how you want to use your NBG5615 (Section 24.11 on
page 201).
24.3 General Screen
Use this screen to set the management session timeout period. Click Maintenance > General.
The following screen displays.

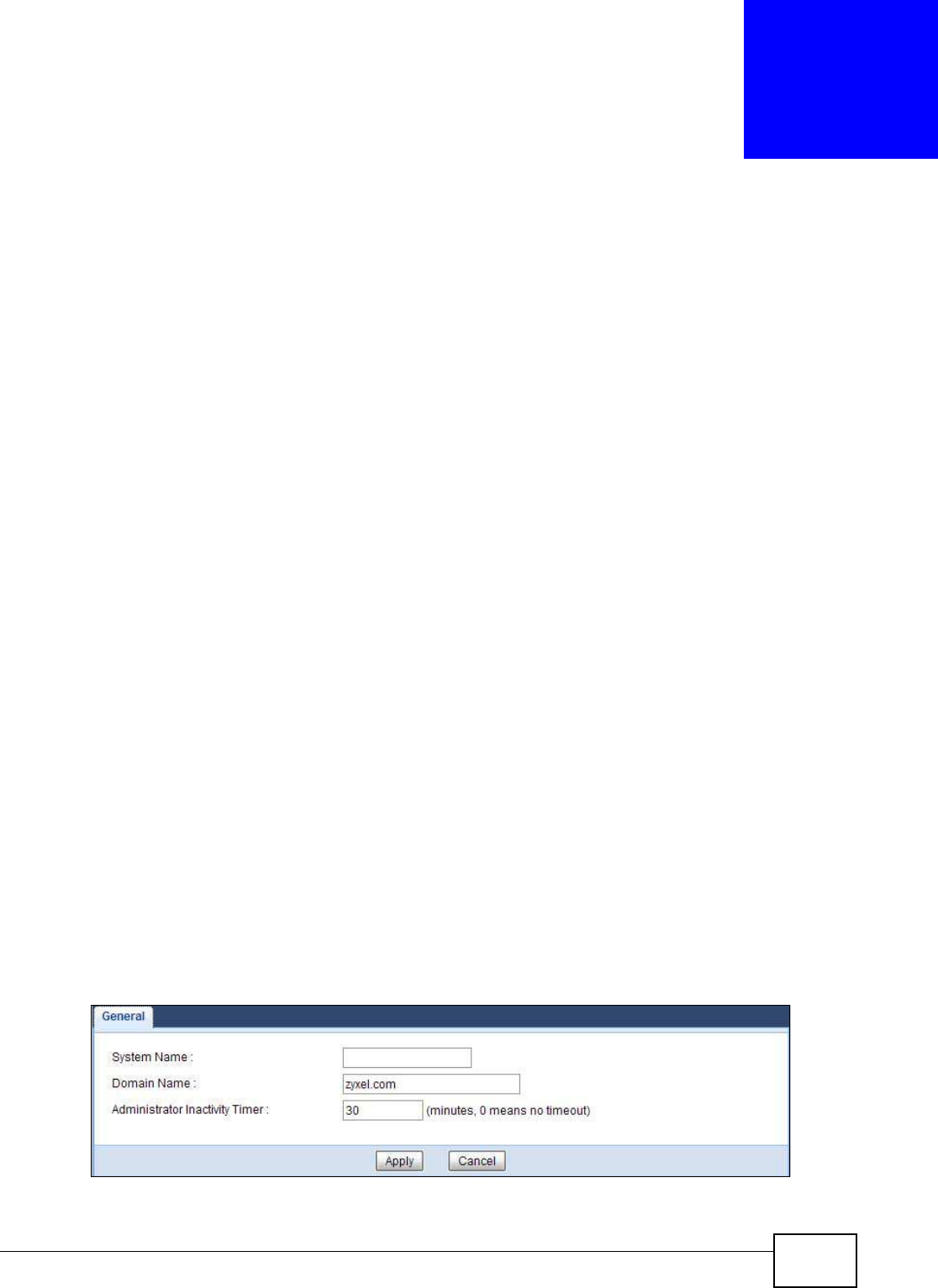

Figure 120 Maintenance > General
Chapter 24 Maintenance
NBG5615 User’s Guide
194
The following table describes the labels in this screen.
24.4 Password Screen
It is strongly recommended that you change your NBG5615's password.
If you forget your NBG5615's password (or IP address), you will need to reset the device. See
Section 24.8 on page 199 for details.
Click Maintenance > Passw ord. The screen appears as shown.

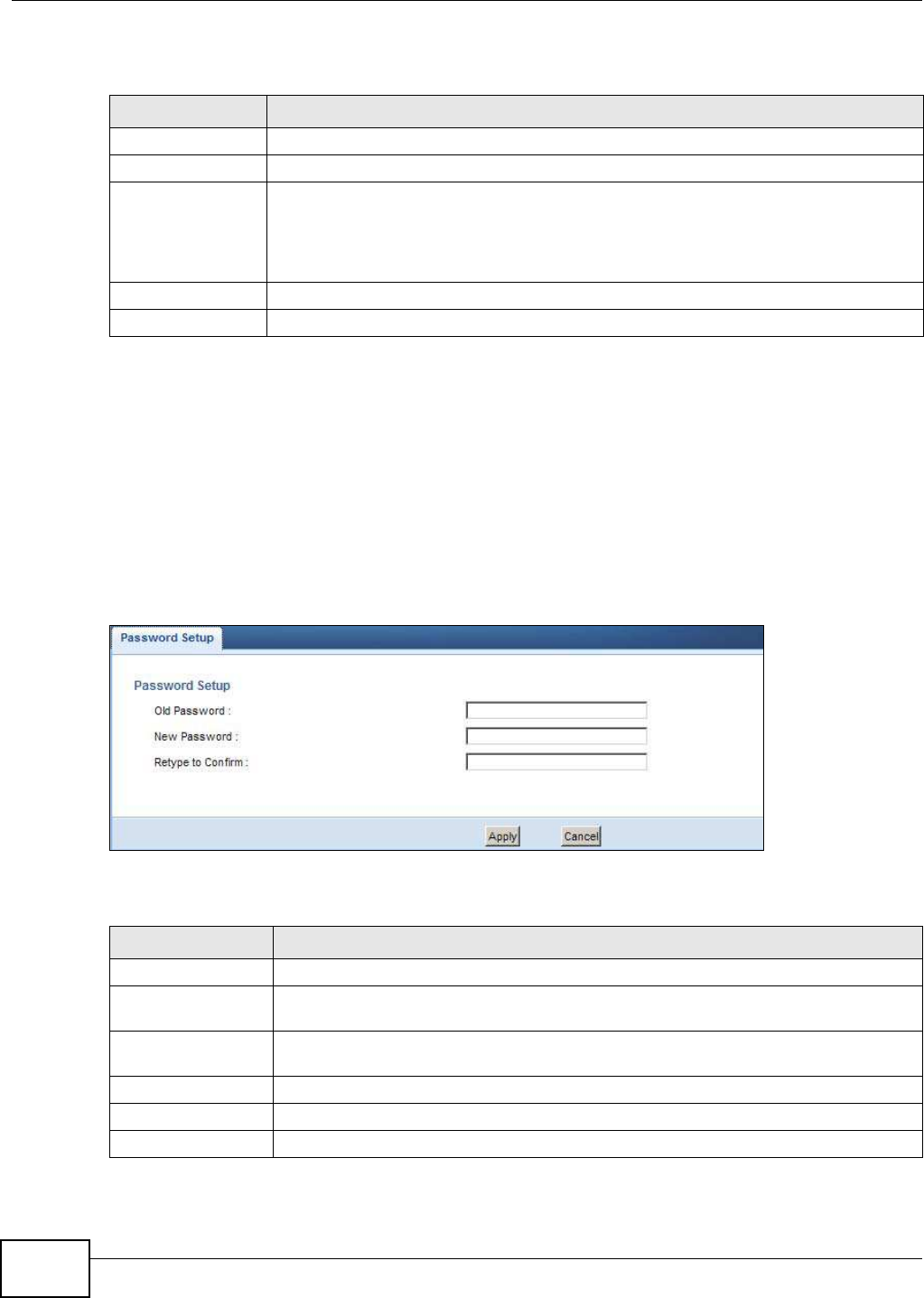

Figure 121 Maintenance > Password
The following table describes the labels in this screen.
Table 78 Maintenance > General
LABEL DESCRIPTION
System Name System Name is a unique name to identify the NBG5615 in an Ethernet network.
Domain Name Enter the domain name you want to give to the NBG5615.
Administrator
Inactivity Timer
Type how many minutes a management session can be left idle before the session times
out. The default is 5 minutes. After it times out you have to log in with your password
again. Very long idle timeouts may have security risks. A value of "0" means a
management session never times out, no matter how long it has been left idle (not
recommended).
Apply Click Apply to save your changes back to the NBG5615.
Cancel Click Cancel to begin configuring this screen afresh.
Table 79 Maintenance > Password
LABEL DESCRIPTION
Password Setup Change your NBG5615’s password (recommended) using the fields as shown.
Old Password Type the default password or the existing password you use to access the system in
this field.
New Password Type your new system password (up to 30 characters). Note that as you type a
password, the screen displays an asterisk (*) for each character you type.
Retype to Confirm Type the new password again in this field.
Apply Click Apply to save your changes back to the NBG5615.
Cancel Click Cancel to begin configuring this screen afresh.
Chapter 24 Maintenance
NBG5615 User’s Guide 195
24.5 Time Setting Screen
Use this screen to configure the NBG5615’s time based on your local time zone. To change your
NBG5615’s time and date, click Maintenance > Tim e. The screen appears as shown.

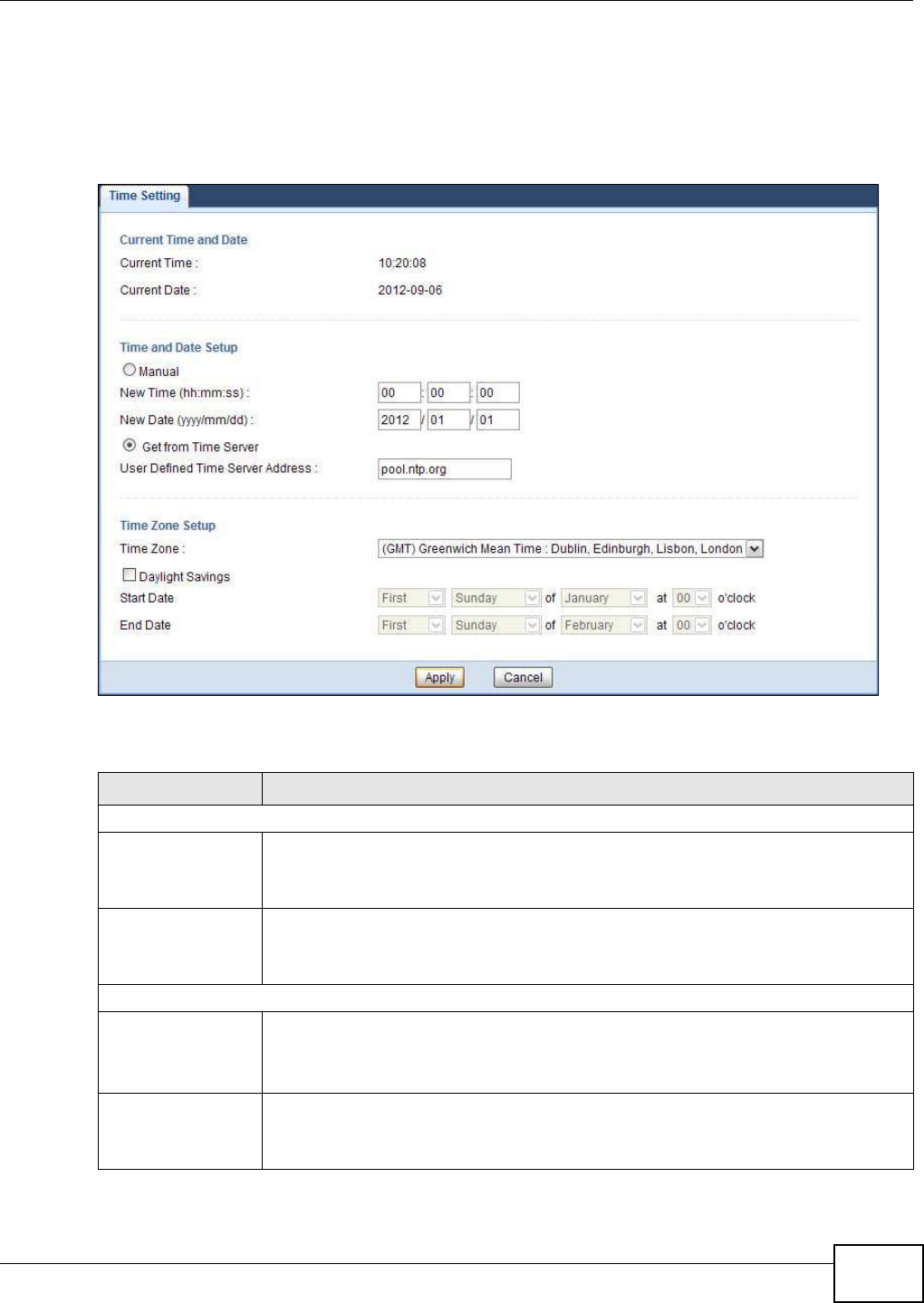

Figure 122 Maintenance > Time
The following table describes the labels in this screen.
Table 80 Maintenance > Time
LABEL DESCRIPTION
Current Time and Date
Current Time This field displays the time of your NBG5615.
Each time you reload this page, the NBG5615 synchronizes the time with the time
server.
Current Date This field displays the date of your NBG5615.
Each time you reload this page, the NBG5615 synchronizes the date with the time
server.
Current Time and Date
Manual Select this radio button to enter the time and date manually. If you configure a new
time and date, Time Zone and Daylight Saving at the same time, the new time and date
you entered has priority and the Time Zone and Daylight Saving settings do not affect
it.
New Time
(hh:mm:ss)
This field displays the last updated time from the time server or the last time
configured manually.
When you select Manual, enter the new time in this field and then click Apply.
Chapter 24 Maintenance
NBG5615 User’s Guide
196
24.6 Firmware Upgrade Screen
Find firmware at www.zyxel.com in a file that uses the version number and project code with a
“*.bin” extension, e.g., “V1.00(AAGI.0).bin”. The upload process uses HTTP (Hypertext Transfer
Protocol) and may take up to two minutes. After a successful upload, the system will reboot.
New Date
(yyyy/mm/dd)
This field displays the last updated date from the time server or the last date configured
manually.
When you select Manual, enter the new date in this field and then click Apply.
Get from Time
Server
Select this radio button to have the NBG5615 get the time and date from the time
server you specified below.
User Defined Time
Server Address
Select User Defined Time Server Address and enter the IP address or URL (up to 20
extended ASCII characters in length) of your time server. Check with your ISP/network
administrator if you are unsure of this information.
Time Zone Setup
Time Zone Choose the time zone of your location. This will set the time difference between your
time zone and Greenwich Mean Time (GMT).
Daylight Savings Daylight saving is a period from late spring to early fall when many countries set their
clocks ahead of normal local time by one hour to give more daytime light in the
evening.
Select this option if you use Daylight Saving Time.
Start Date Configure the day and time when Daylight Saving Time starts if you selected Daylight
Savings. The at field uses the 24 hour format. Here are a couple of examples:
Daylight Saving Time starts in most parts of the United States on the second Sunday of
March. Each time zone in the United States starts using Daylight Saving Time at 2 A.M.
local time. So in the United States you would select Second, Sunday, March and
select 2 in the at field.
Daylight Saving Time starts in the European Union on the last Sunday of March. All of
the time zones in the European Union start using Daylight Saving Time at the same
moment (1 A.M. GMT or UTC). So in the European Union you would select Last,
Sunday, March. The time you select in the at field depends on your time zone. In
Germany for instance, you would select 2 because Germany's time zone is one hour
ahead of GMT or UTC (GMT+1).
End Date Configure the day and time when Daylight Saving Time ends if you selected Daylight
Savings. The at field uses the 24 hour format. Here are a couple of examples:
Daylight Saving Time ends in the United States on the first Sunday of November. Each
time zone in the United States stops using Daylight Saving Time at 2 A.M. local time.
So in the United States you would select First, Sunday, Novem ber and select 2 in the
at field.
Daylight Saving Time ends in the European Union on the last Sunday of October. All of
the time zones in the European Union stop using Daylight Saving Time at the same
moment (1 A.M. GMT or UTC). So in the European Union you would select Last,
Sunday, October. The time you select in the at field depends on your time zone. In
Germany for instance, you would select 2 because Germany's time zone is one hour
ahead of GMT or UTC (GMT+1).
Apply Click Apply to save your changes back to the NBG5615.
Cancel Click Cancel to begin configuring this screen afresh.
Table 80 Maintenance > Time (continued)
LABEL DESCRIPTION
Chapter 24 Maintenance
NBG5615 User’s Guide 197
Click Maintenance > Firm w are Upgrade. Follow the instructions in this screen to upload
firmware to your NBG5615.

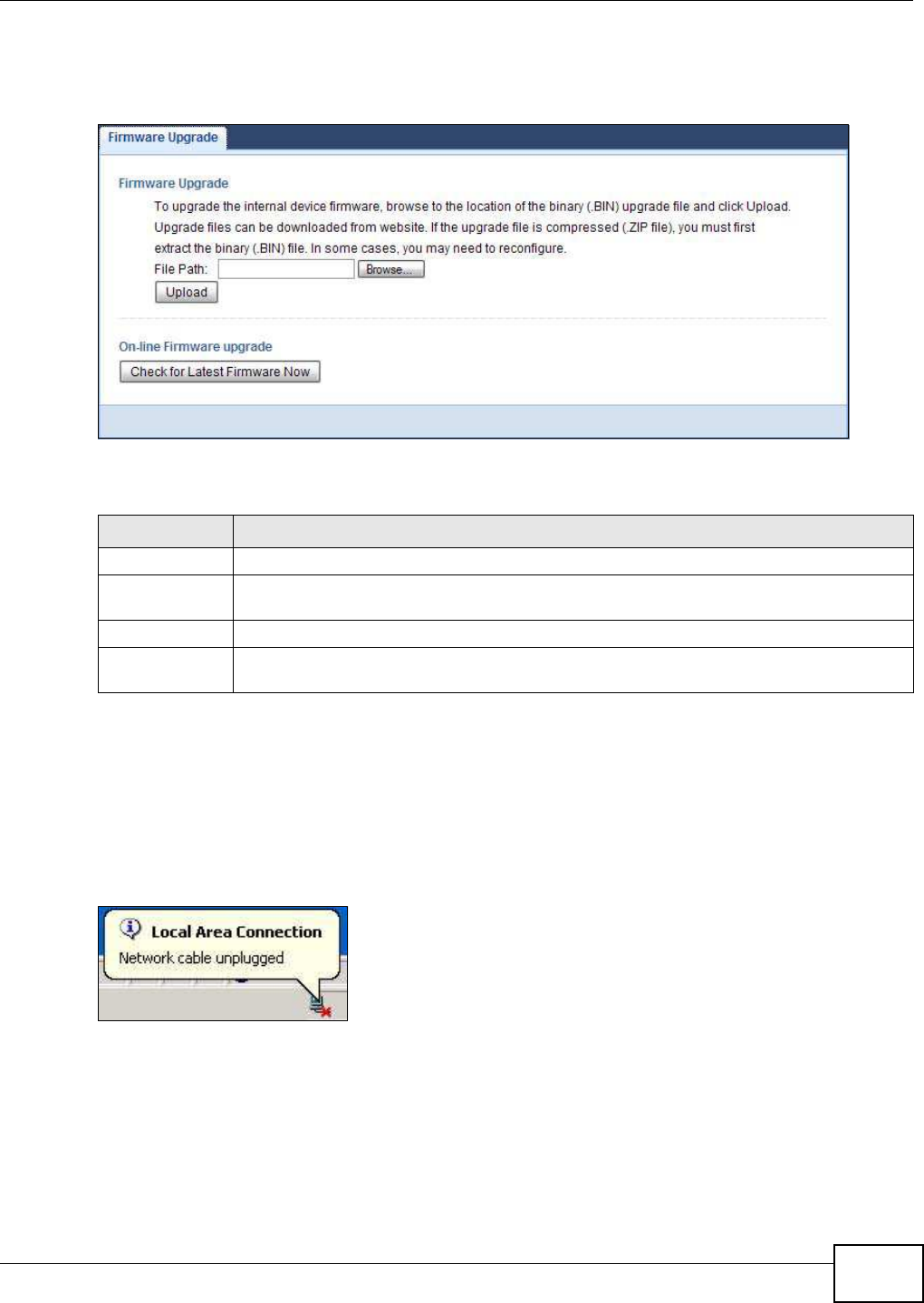

Figure 123 Maintenance > Firmware Upgrade
The following table describes the labels in this screen.
Note: Do not turn off the NBG5615 while firmware upload is in progress!
After you see the Firm w are Upload I n Process screen, wait two minutes before logging into the
NBG5615 again.
The NBG5615 automatically restarts in this time causing a temporary network disconnect. In some
operating systems, you may see the following icon on your desktop.
Figure 124 Network Temporarily Disconnected
After two minutes, log in again and check your new firmware version in the Status screen.
If the upload was not successful, an error message appears. Click Return to go back to the
Firm w are Upgrade screen.
Table 81 Maintenance > Firmware Upgrade
LABEL DESCRIPTION
File Path Type in the location of the file you want to upload in this field or click Brow se... to find it.
Browse... Click Brow se... to find the .bin file you want to upload. Remember that you must
decompress compressed (.zip) files before you can upload them.
Upload Click Upload to begin the upload process. This process may take up to two minutes.
Check for Latest
Firmware Now
Click this to check for the latest updated firmware.
Chapter 24 Maintenance
NBG5615 User’s Guide
198
24.7 Configuration Backup/Restore Screen
Backup configuration allows you to back up (save) the NBG5615’s current configuration to a file on
your computer. Once your NBG5615 is configured and functioning properly, it is highly
recommended that you back up your configuration file before making configuration changes. The
backup configuration file will be useful in case you need to return to your previous settings.
Restore configuration allows you to upload a new or previously saved configuration file from your
computer to your NBG5615.
Click Maintenance > Backup/ Restore. Information related to factory defaults, backup
configuration, and restoring configuration appears as shown next.

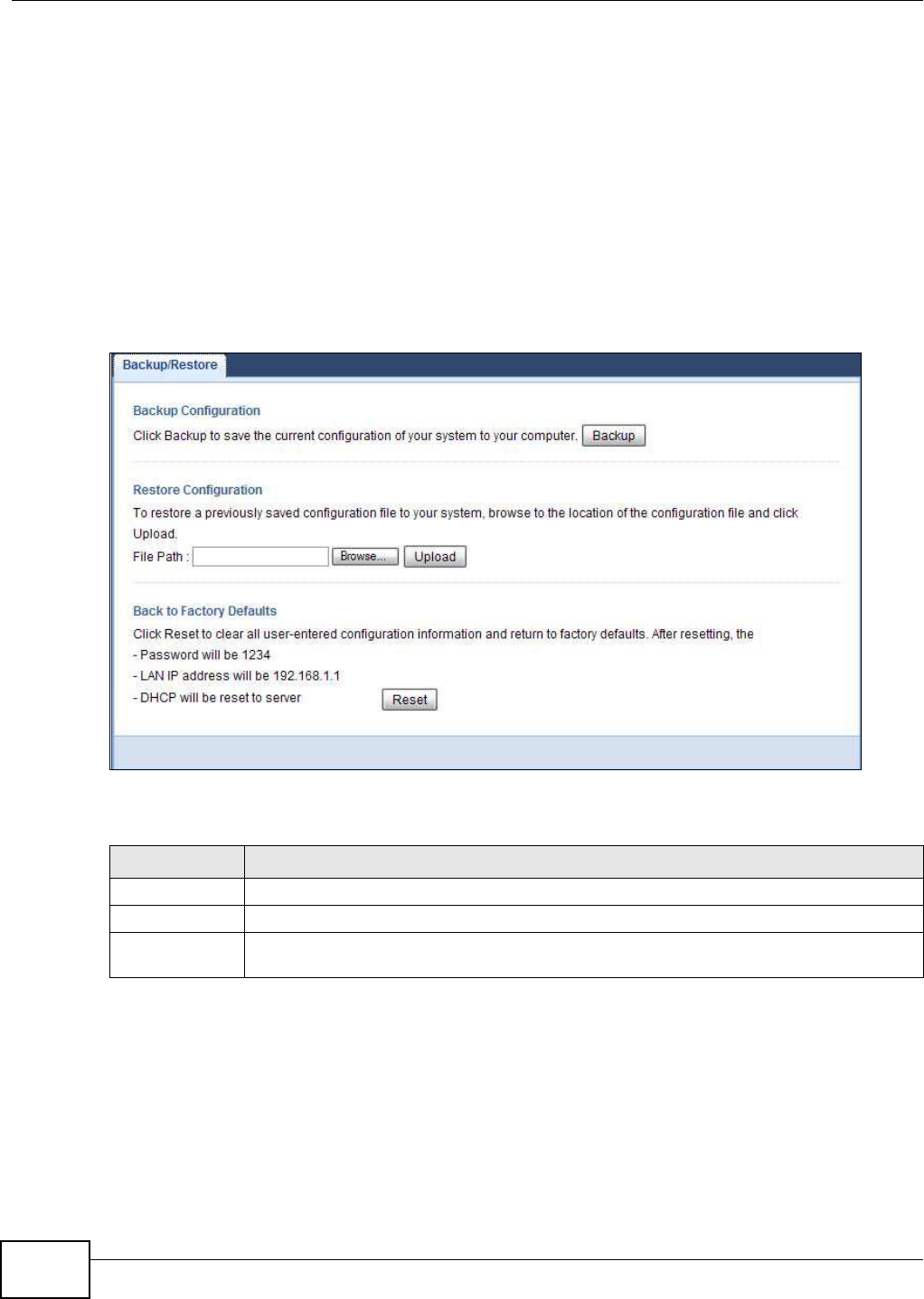

Figure 125 Maintenance > Backup/Restore
The following table describes the labels in this screen.
Table 82 Maintenance > Backup/Restore
LABEL DESCRIPTION
Backup Click Backup to save the NBG5615’s current configuration to your computer.
File Path Type in the location of the file you want to upload in this field or click Brow se... to find it.
Browse... Click Brow se... to find the file you want to upload. Remember that you must decompress
compressed (.ZIP) files before you can upload them.
Chapter 24 Maintenance
NBG5615 User’s Guide 199
Note: If you uploaded the default configuration file you may need to change the IP
address of your computer to be in the same subnet as that of the default NBG5615
IP address (192.168.1.1). See Appendix B on page 221 for details on how to set up
your computer’s IP address.
24.8 Restart Screen
System restart allows you to reboot the NBG5615 without turning the power off.
Click Maintenance > Restart to open the following screen.

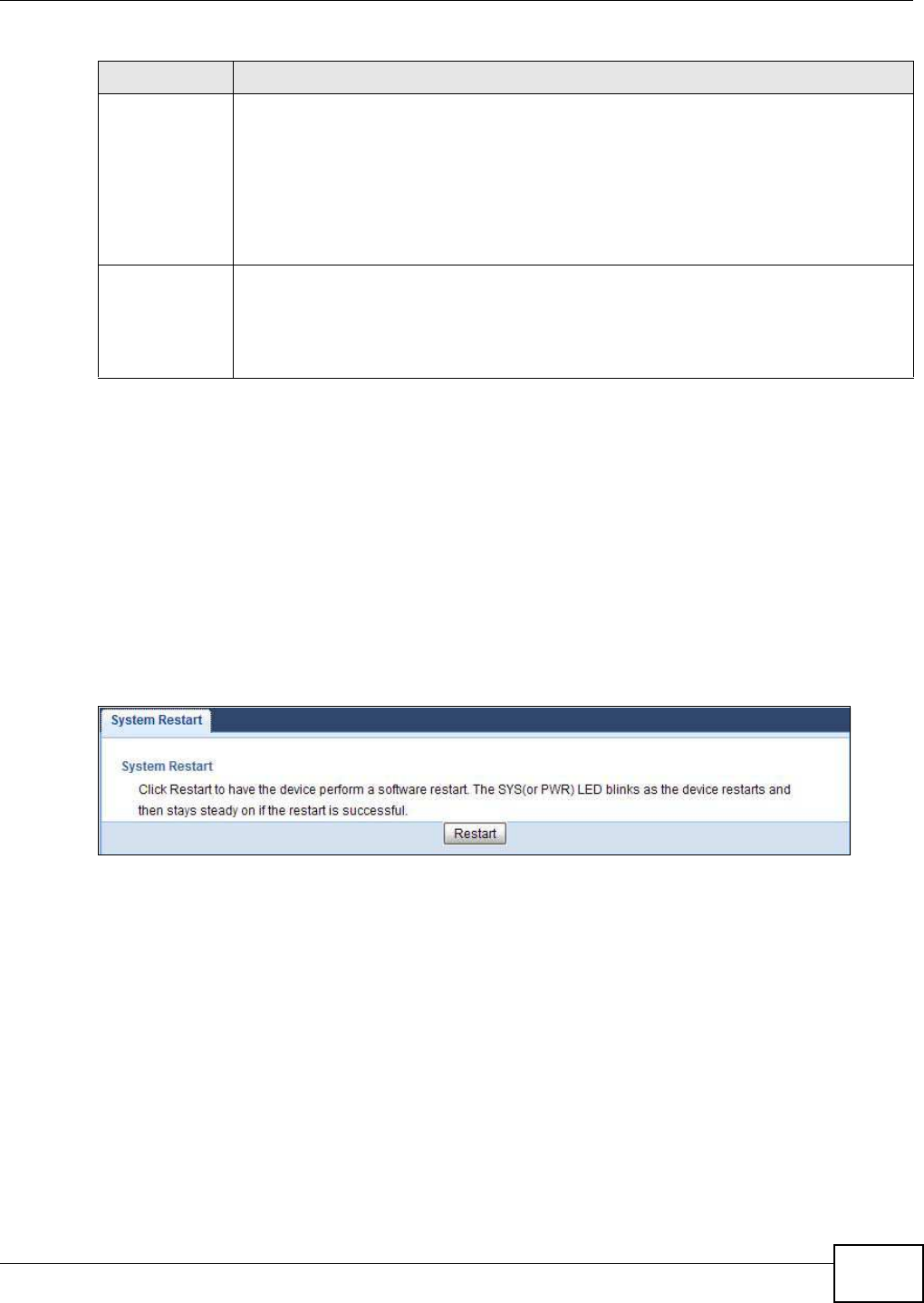

Figure 126 Maintenance > Restart
Click Restart to have the NBG5615 reboot. This does not affect the NBG5615's configuration.
24.9 Language Screen
Use this screen to change the language for the Web Configurator.
Select the language you prefer and click Apply. The Web Configurator language changes after a
while without restarting the NBG5615.
Upload Click Upload to begin the upload process.
Note: Do not turn off the NBG5615 while configuration file upload is in progress.
After you see a “configuration upload successful” screen, you must then wait one minute
before logging into the NBG5615 again. The NBG5615 automatically restarts in this time
causing a temporary network disconnect.
If you see an error screen, click Back to return to the Backup/Restore screen.
Reset Pressing the Reset button in this section clears all user-entered configuration information
and returns the NBG5615 to its factory defaults.
You can also press the RESET button on the rear panel to reset the factory defaults of your
NBG5615. Refer to the chapter about introducing the Web Configurator for more
information on the RESET button.
Table 82 Maintenance > Backup/Restore (continued)
LABEL DESCRIPTION
Chapter 24 Maintenance
NBG5615 User’s Guide
200

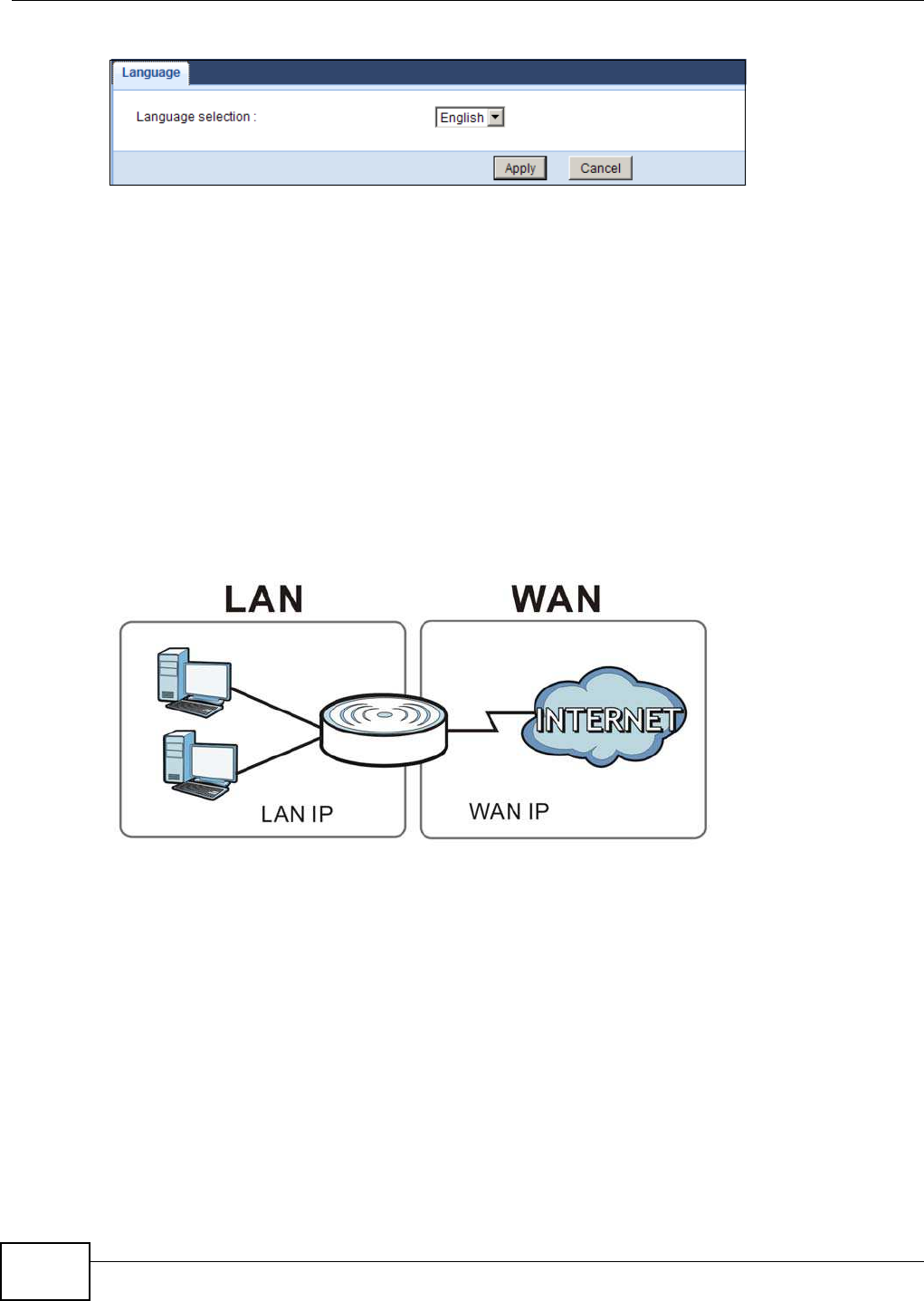

Figure 127 Maintenance > Language
24.10 System Operation Mode Overview
The Sys OP Mode (System Operation Mode) function lets you configure your NBG5615 as a router
or access point. You can choose between Router Mode, and Access Point Mode depending on
your network topology and the features you require from your device.
The following describes the device modes available in your NBG5615.
Router
A router connects your local network with another network, such as the Internet. The router has
two IP addresses, the LAN IP address and the WAN IP address.
Figure 128 LAN and WAN IP Addresses in Router Mode
Access Point
An access point enabled all ethernet ports to be bridged together and be in the same subnet. To
connect to the Internet, another device, such as a router, is required.
Chapter 24 Maintenance
NBG5615 User’s Guide 201

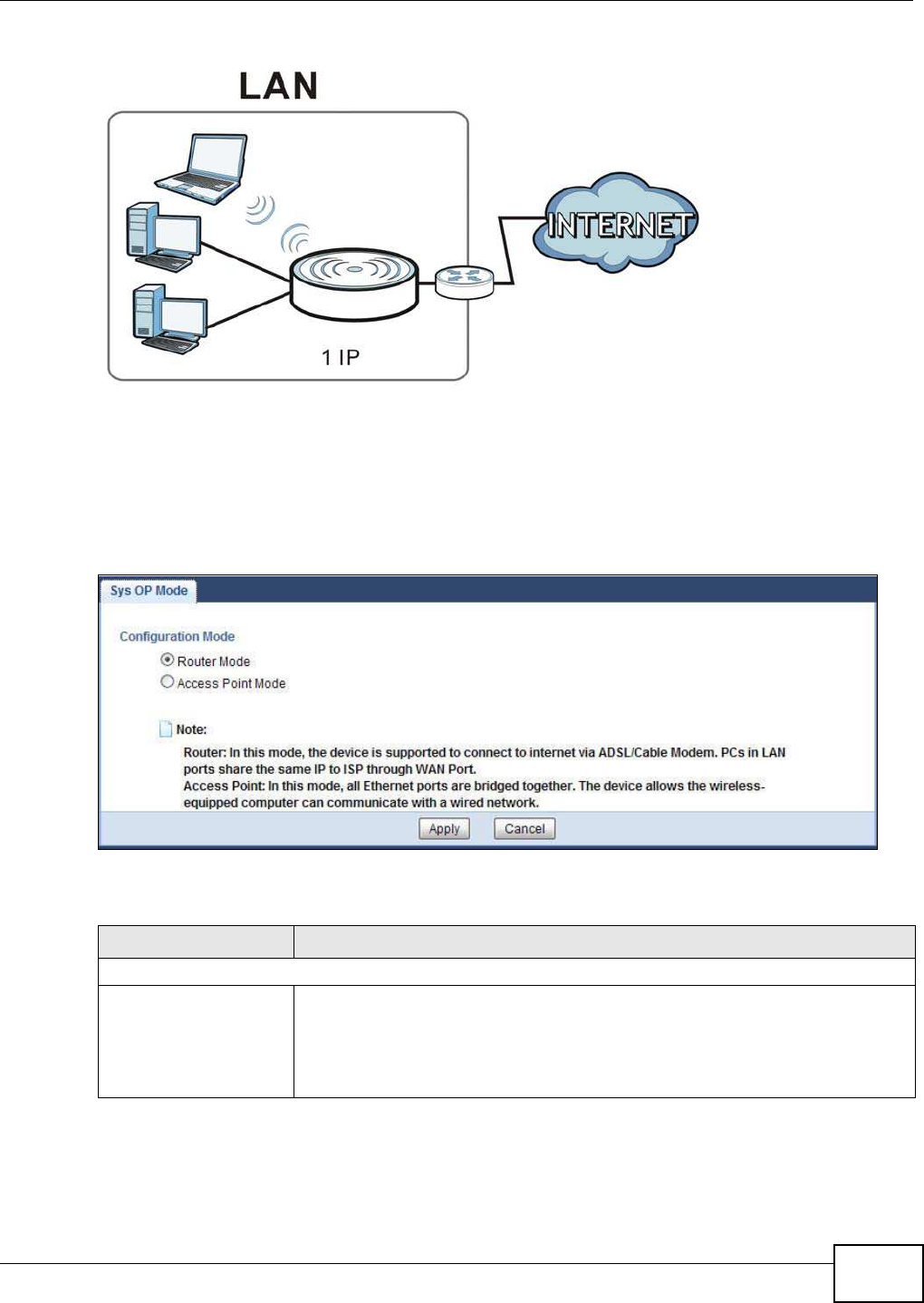

Figure 129 Access Point Mode
24.11 Sys OP Mode Screen
Use this screen to select how you want to use your NBG5615.
Figure 130 Maintenance > Sys OP Mode
The following table describes the labels in the General screen.
Table 83 Maintenance > Sys OP Mode
LABEL DESCRIPTION
Configuration Mode
Router Mode Select Router Mode if your device routes traffic between a local network and
another network such as the Internet. This mode offers services such as a firewall
or bandwidth management.
You can configure the IP address settings on your WAN port. Contact your ISP or
system administrator for more information on appropriate settings.
Chapter 24 Maintenance
NBG5615 User’s Guide
202
Note: If you select the incorrect system operation Mode you may not be able to connect
to the Internet.
Access Point Mode Select Access Point Mode if your device bridges traffic between clients on the
same network.
•In Access Point Mode, all Ethernet ports have the same IP address.
All ports on the rear panel of the device are LAN ports, including the port
labeled WAN. There is no WAN port.
The DHCP server on your device is disabled.
Router functions (such as NAT, bandwidth management, remote management,
firewall and so on) are not available when the NBG5615 is in Access Point
Mode.
The IP address of the device on the local network is set to 192.168.1.2.
Apply Click Apply to save your settings.
Cancel Click Cancel to return your settings to the default (Router).
Table 83 Maintenance > Sys OP Mode (continued)
LABEL DESCRIPTION
NBG5615 User’s Guide 203
CHAPTER 25
Troubleshooting
25.1 Overview
This chapter offers some suggestions to solve problems you might encounter. The potential
problems are divided into the following categories.
Power, Hardware Connections, and LEDs
NBG5615 Access and Login
Internet Access
Resetting the NBG5615 to Its Factory Defaults
Wireless Connections
USB Device Problems
ZyXEL Share Center Utility Problems
25.2 Power, Hardware Connections, and LEDs
The NBG5615 does not turn on. None of the LEDs turn on.
1Make sure you are using the power adaptor or cord included with the NBG5615.
2Make sure the power adaptor or cord is connected to the NBG5615 and plugged in to an appropriate
power source. Make sure the power source is turned on.
3Disconnect and re-connect the power adaptor or cord to the NBG5615.
4If the problem continues, contact the vendor.
One of the LEDs does not behave as expected.
1Make sure you understand the normal behavior of the LED. See Section 1.7 on page 18.
2Check the hardware connections. See the Quick Start Guide.
3Inspect your cables for damage. Contact the vendor to replace any damaged cables.
Chapter 25 Troubleshooting
NBG5615 User’s Guide
204
4Disconnect and re-connect the power adaptor to the NBG5615.
5If the problem continues, contact the vendor.
25.3 NBG5615 Access and Login
I don’t know the IP address of my NBG5615.
1The default IP address of the NBG5615 in Router Mode is 192 .1 68 .1 .1 . The default IP address of
the NBG5615 in Access Point Mode is 1 9 2.1 6 8 .1 .2 .
2If you changed the IP address and have forgotten it, you might get the IP address of the NBG5615
in Router Mode by looking up the IP address of the default gateway for your computer. To do this
in most Windows computers, click Start > Run, enter cm d, and then enter ipconfig. The IP
address of the Default Gatew ay might be the IP address of the NBG5615 (it depends on the
network), so enter this IP address in your Internet browser.
3If your NBG5615 in Access Point Mode is a DHCP client, you can find your IP address from the
DHCP server. This information is only available from the DHCP server which allocates IP addresses
on your network. Find this information directly from the DHCP server or contact your system
administrator for more information.
4Reset your NBG5615 to change all settings back to their default. This means your current settings
are lost. See Section 25.5 on page 207 in the Troubleshooting for information on resetting your
NBG5615.
I forgot the password.
1The default password is 1 2 3 4 .
2If this does not work, you have to reset the device to its factory defaults. See Section 25.5 on page
207.
I cannot see or access the Login screen in the Web Configurator.
1Make sure you are using the correct IP address.
The default IP address of the NBG5615 in Router Mode is 1 92 .1 6 8.1 .1 . The default IP
address of the NBG5615 in Access Point Mode is 1 9 2 .1 6 8 .1 .2 .
If you changed the IP address (Section 13.4 on page 130), use the new IP address.
If you changed the IP address and have forgotten it, see the troubleshooting suggestions for I
don’t know the IP address of my NBG5615.
Chapter 25 Troubleshooting
NBG5615 User’s Guide 205
2Check the hardware connections, and make sure the LEDs are behaving as expected. See the Quick
Start Guide.
3Make sure your Internet browser does not block pop-up windows and has JavaScript and Java
enabled. See Appendix A on page 211.
4Make sure your computer is in the same subnet as the NBG5615. (If you know that there are
routers between your computer and the NBG5615, skip this step.)
If there is a DHCP server on your network, make sure your computer is using a dynamic IP
address. See Section 13.4 on page 130.
If there is no DHCP server on your network, make sure your computers IP address is in the
same subnet as the NBG5615. See Section 13.4 on page 130.
5Reset the device to its factory defaults, and try to access the NBG5615 with the default IP address.
See Section 1.5 on page 16.
6If the problem continues, contact the network administrator or vendor, or try one of the advanced
suggestions.
Advanced Suggestions
Try to access the NBG5615 using another service, such as Telnet. If you can access the
NBG5615, check the remote management settings and firewall rules to find out why the
NBG5615 does not respond to HTTP.
If your computer is connected to the W AN port or is connected wirelessly, use a computer that is
connected to a LAN/ETHERNET port.
I can see the Login screen, but I cannot log in to the NBG5615.
1Make sure you have entered the password correctly. The default password is 1234 . This field is
case-sensitive, so make sure [Caps Lock] is not on.
2This can happen when you fail to log out properly from your last session. Try logging in again after
5 minutes.
3Disconnect and re-connect the power adaptor or cord to the NBG5615.
4If this does not work, you have to reset the device to its factory defaults. See Section 25.5 on page
207.
25.4 Internet Access
I cannot access the Internet.
Chapter 25 Troubleshooting
NBG5615 User’s Guide
206
1Check the hardware connections, and make sure the LEDs are behaving as expected. See the Quick
Start Guide.
2Go to Maintenance > Sys OP Mode. Check your System Operation Mode setting.
If the NBG5615 is in Router Mode, make sure the WAN port is connected to a broadband
modem or router with Internet access. Your computer and the NBG5615 should be in the same
subnet.
If the NBG5615 is in Access Point Mode, make sure the WAN port is connected to a
broadband modem or router with Internet access and your computer is set to obtain an
dynamic IP address.
3If the NBG5615 is in Router Mode, make sure you entered your ISP account information correctly
in the wizard or the WAN screen. These fields are case-sensitive, so make sure [Caps Lock] is not
on.
4If you are trying to access the Internet wirelessly, make sure the wireless settings in the wireless
client are the same as the settings in the AP.
5Disconnect all the cables from your device, and follow the directions in the Quick Start Guide again.
6If the problem continues, contact your ISP.
I cannot access the Internet anymore. I had access to the Internet (with the NBG5615), but
my Internet connection is not available anymore.
1Check the hardware connections, and make sure the LEDs are behaving as expected. See the Quick
Start Guide and Section 1.7 on page 18.
2Reboot the NBG5615.
3If the problem continues, contact your ISP.
The Internet connection is slow or intermittent.
1There might be a lot of traffic on the network. Look at the LEDs, and check Section 1.7 on page 18.
If the NBG5615 is sending or receiving a lot of information, try closing some programs that use the
Internet, especially peer-to-peer applications.
2Check the signal strength. If the signal strength is low, try moving the NBG5615 closer to the AP if
possible, and look around to see if there are any devices that might be interfering with the wireless
network (for example, microwaves, other wireless networks, and so on).
3Reboot the NBG5615.
4If the problem continues, contact the network administrator or vendor, or try one of the advanced
suggestions.
Advanced Suggestion
Chapter 25 Troubleshooting
NBG5615 User’s Guide 207
Check the settings for QoS. If it is disabled, you might consider activating it.
25.5 Resetting the NBG5615 to Its Factory Defaults
If you reset the NBG5615, you lose all of the changes you have made. The NBG5615 re-loads its
default settings, and the password resets to 12 34. You have to make all of your changes again.
You will lose all of your changes when you push the RESET button.
To reset the NBG5615:
1Make sure the power LED is on.
2Press the RESET button for one to four seconds to restart/reboot the NBG5615.
3Press the RESET button for longer than five seconds to set the NBG5615 back to its factory-default
configurations.
If the NBG5615 restarts automatically, wait for the NBG5615 to finish restarting, and log in to the
Web Configurator. The password is “1234”.
If the NBG5615 does not restart automatically, disconnect and reconnect the NBG5615’s power.
Then, follow the directions above again.
25.6 Wireless Connections
I cannot access the NBG5615 or ping any computer from the WLAN.
1Make sure the wireless LAN is enabled on the NBG5615.
2Make sure the wireless adapter on your computer is working properly.
3Make sure the wireless adapter installed on your computer is IEEE 802.11 compatible and supports
the same wireless standard as the NBG5615.
4Make sure your computer (with a wireless adapter installed) is within the transmission range of the
NBG5615.
5Check that both the NBG5615 and the wireless adapter on your computer are using the same
wireless and wireless security settings.
6Make sure traffic between the WLAN and the LAN is not blocked by the firewall on the NBG5615.
Chapter 25 Troubleshooting
NBG5615 User’s Guide
208
7Make sure you allow the NBG5615 to be remotely accessed through the WLAN interface. Check
your remote management settings.
See the chapter on Wireless LAN in the User’s Guide for more information.
I set up URL keyword blocking, but I can still access a website that should be blocked.
Make sure that you select the Enable URL Keyw ord Blocking check box in the Content Filtering
screen. Make sure that the keywords that you type are listed in the Keyw ord List.
If a keyword that is listed in the Keyw ord List is not blocked when it is found in a URL, customize
the keyword blocking using commands. See the Customizing Keyword Blocking URL Checking
section in the Content Filtering chapter.
I cannot access the Web Configurator after I switched to AP mode.
When you change from router mode to AP mode, your computer must have an IP address in the
range between “192.168.1.3” and “192.168.1.254”.
Refer to Appendix B on page 221 for instructions on how to change your computer’s IP address.
What factors may cause intermittent or unstabled wireless connection? How can I solve this
problem?
The following factors may cause interference:
Obstacles: walls, ceilings, furniture, and so on.
Building Materials: metal doors, aluminum studs.
Electrical devices: microwaves, monitors, electric motors, cordless phones, and other wireless
devices.
To optimize the speed and quality of your wireless connection, you can:
Move your wireless device closer to the AP if the signal strength is low.
Reduce wireless interference that may be caused by other wireless networks or surrounding
wireless electronics such as cordless phones.
Place the AP where there are minimum obstacles (such as walls and ceilings) between the AP and
the wireless client.
Reduce the number of wireless clients connecting to the same AP simultaneously, or add
additional APs if necessary.
Try closing some programs that use the Internet, especially peer-to-peer applications. If the
wireless client is sending or receiving a lot of information, it may have too many programs open
that use the Internet.
Chapter 25 Troubleshooting
NBG5615 User’s Guide 209
Position the antennas for best reception. If the AP is placed on a table or floor, point the antennas
upwards. If the AP is placed at a high position, point the antennas downwards. Try pointing the
antennas in different directions and check which provides the strongest signal to the wireless
clients.
25.7 USB Device Problems
I cannot access or see a USB device that is connected to the NBG5615.
1Be sure to install the ZyXEL NetUSB Share Center Utility (for NetUSB functionality) first from the
included disc, or download the latest version from the zyxel.com website.
2Disconnect the problematic USB device, then reconnect it to the NBG5615.
3Ensure that the USB device has power.
4Check your cable connections.
5Restart the NBG5615 by disconnecting the power and then reconnecting it.
6If the USB device requires a special driver, install the driver from the installation disc that came
with the device. After driver installation, reconnect the USB device to the NBG5615 and try to
connect to it again with your computer.
7If the problem persists, contact your vendor.
What kind of USB devices do the NBG5615 support?
1It is strongly recommended to use version 2.0 or lower USB storage devices (such as memory
sticks, USB hard drives) and/or USB devices (such as USB printers). Other USB products are not
guaranteed to function properly with the NBG5615.
25.8 ZyXEL Share Center Utility Problems
I cannot access or see a USB device that is connected to the NBG5615.
1Disconnect the problematic USB device, then reconnect it to the NBG5615.
2Ensure that the USB device in question has power.
Chapter 25 Troubleshooting
NBG5615 User’s Guide
210
3Check your cable connections.
4Restart the NBG5615 by disconnecting the power and then reconnecting it.
5If the USB device requires a special driver, install the driver from the installation disc that came
with the device. After driver installation, reconnect the USB device to the NBG5615 and try to
connect to it again with your computer.
6If the problem persists, contact your vendor.
I cannot install the ZyXEL Share Center Utility.
1Make sure that the set up program is one required for your operating system.
2Install the latest patches and updates for your operating system.
3Check the zyxel.com download site for a newer version of the utility.
NBG5615 User’s Guide 211
APPENDIX A
Pop-up Windows, JavaScript and Java
Permissions
In order to use the web configurator you need to allow:
Web browser pop-up windows from your device.
JavaScript (enabled by default).
Java permissions (enabled by default).
Note: The screens used below belong to Internet Explorer version 6, 7 and 8. Screens for
other Internet Explorer versions may vary.
Internet Explorer Pop-up Blockers
You may have to disable pop-up blocking to log into your device.
Either disable pop-up blocking (enabled by default in Windows XP SP (Service Pack) 2) or allow
pop-up blocking and create an exception for your device’s IP address.
Disable Pop-up Blockers
1In Internet Explorer, select Tools, Pop-up Blocker and then select Turn Off Pop- up Blocker.

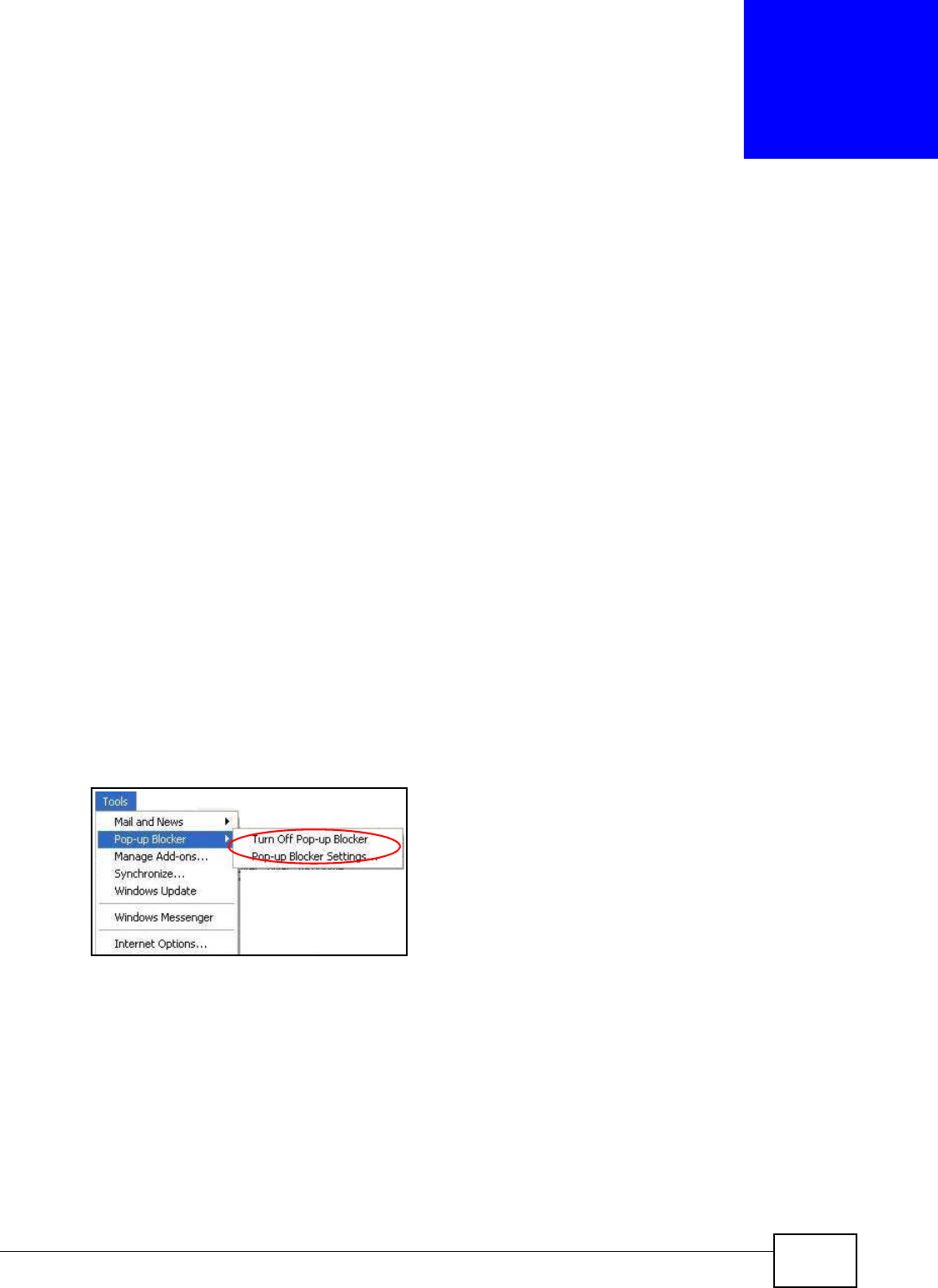

Figure 131 Pop-up Blocker
You can also check if pop-up blocking is disabled in the Pop-up Blocker section in the Privacy tab.
1In Internet Explorer, select Tools, I nternet Options, Privacy.
2Clear the Block pop-ups check box in the Pop-up Blocker section of the screen. This disables any
web pop-up blockers you may have enabled.
Appendix A Pop-up Windows, JavaScript and Java Permissions
NBG5615 User’s Guide
212

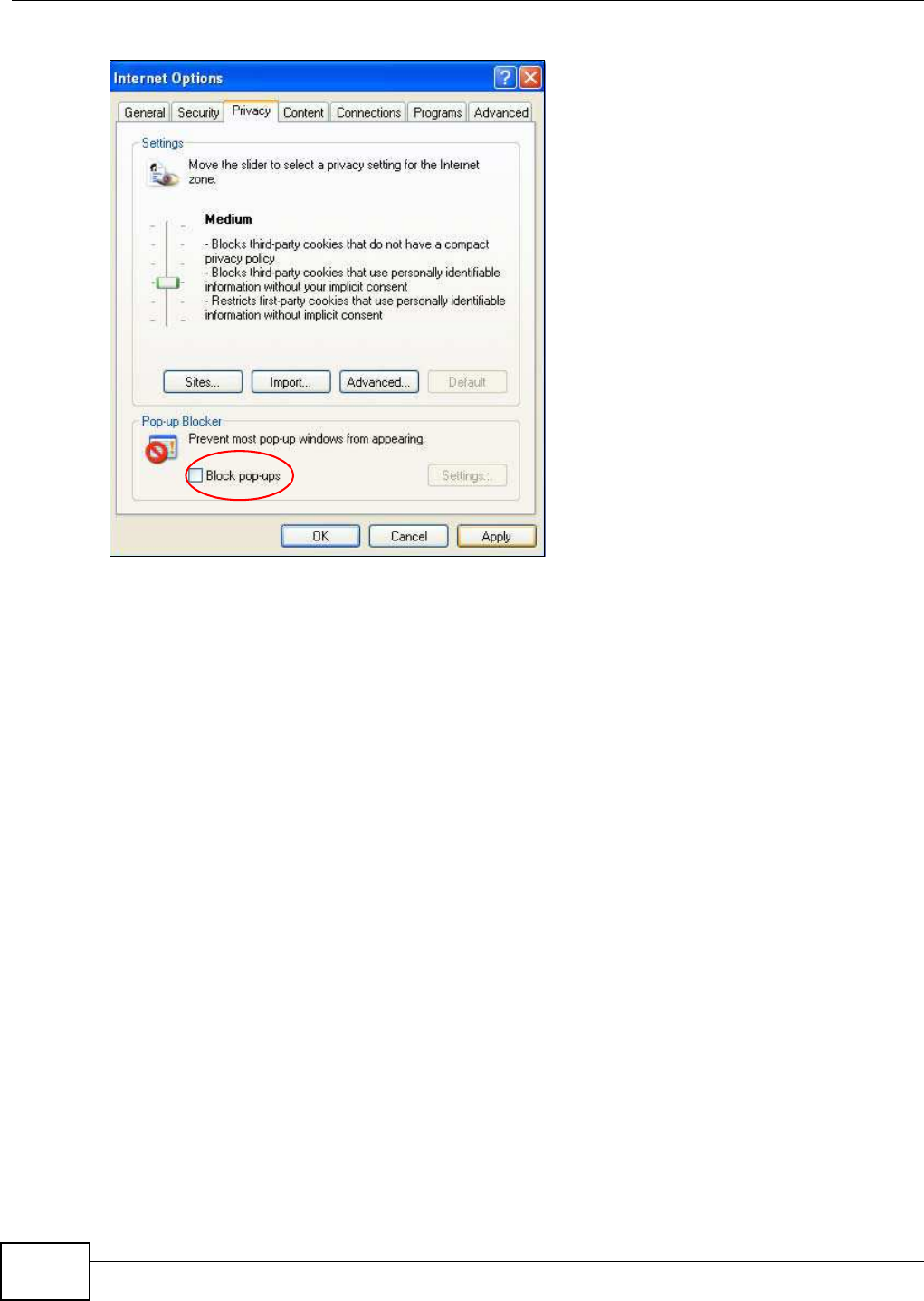

Figure 132 Internet Options: Privacy
3Click Apply to save this setting.
Enable Pop-up Blockers with Exceptions
Alternatively, if you only want to allow pop-up windows from your device, see the following steps.
1In Internet Explorer, select Tools, I nternet Options and then the Privacy tab.
2Select Settingsto open the Pop-up Blocker Settings screen.
Appendix A Pop-up Windows, JavaScript and Java Permissions
NBG5615 User’s Guide 213

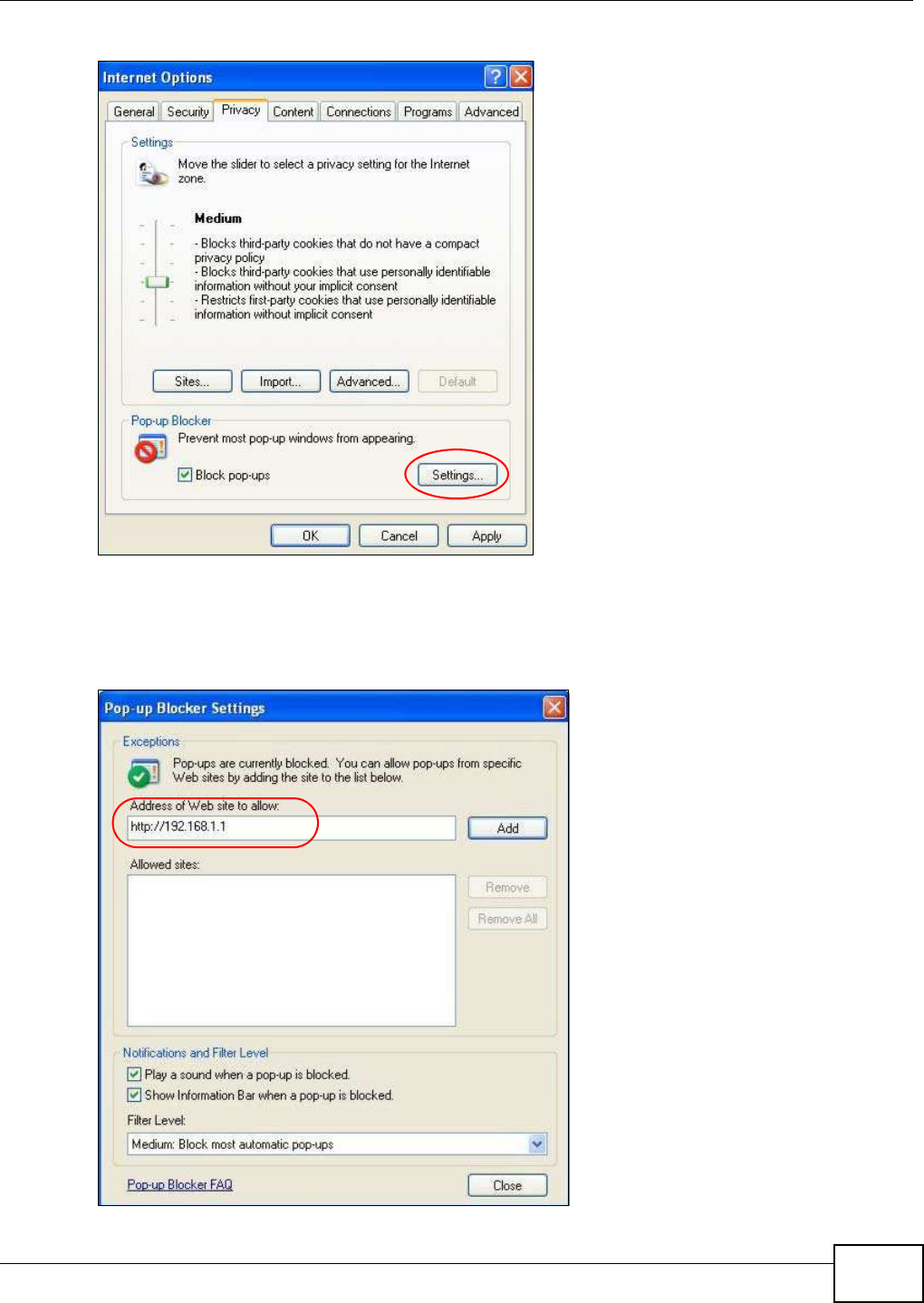

Figure 133 Internet Options: Privacy
3Type the IP address of your device (the web page that you do not want to have blocked) with the
prefix “http://”. For example, http://192.168.167.1.
4Click Add to move the IP address to the list of Allow ed sites.
Figure 134 Pop-up Blocker Settings
Appendix A Pop-up Windows, JavaScript and Java Permissions
NBG5615 User’s Guide
214
5Click Close to return to the Privacy screen.
6Click Apply to save this setting.
JavaScript
If pages of the web configurator do not display properly in Internet Explorer, check that JavaScript
are allowed.
1In Internet Explorer, click Tools, I nternet Options and then the Security tab.

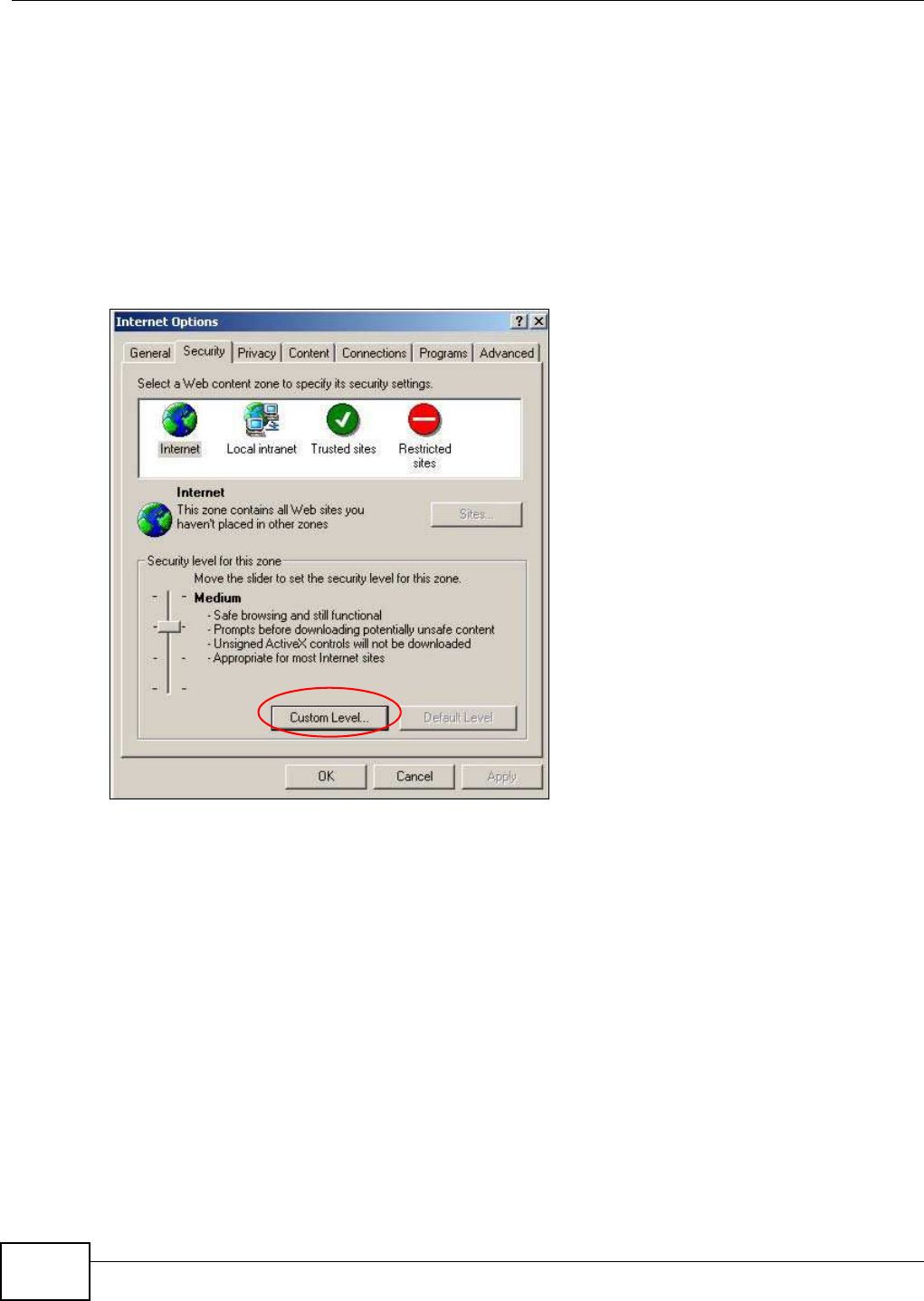

Figure 135 Internet Options: Security
2Click the Custom Level... button.
3Scroll down to Scripting.
4Under Active scripting make sure that Enable is selected (the default).
5Under Scripting of Java applets make sure that Enable is selected (the default).
6Click OK to close the window.
Appendix A Pop-up Windows, JavaScript and Java Permissions
NBG5615 User’s Guide 215

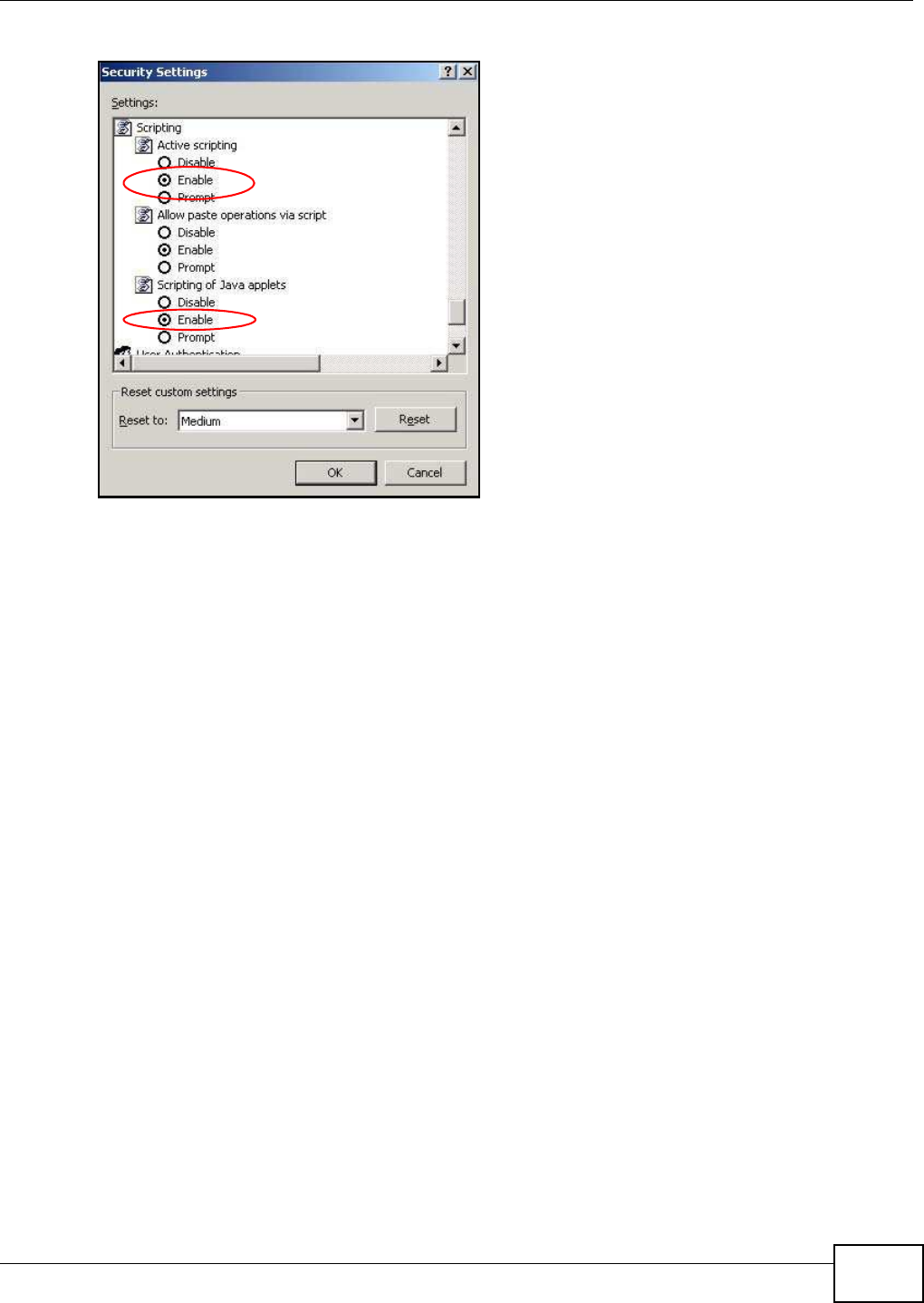

Figure 136 Security Settings - Java Scripting
Java Permissions
1From Internet Explorer, click Tools, I nternet Options and then the Security tab.
2Click the Custom Level... button.
3Scroll down to Microsoft VM.
4Under Java perm issions make sure that a safety level is selected.
5Click OK to close the window.
Appendix A Pop-up Windows, JavaScript and Java Permissions
NBG5615 User’s Guide
216
Figure 137 Security Settings - Java
JAVA (Sun)
1From Internet Explorer, click Tools, I nternet Options and then the Advanced tab.
2Make sure that Use Java 2 for < applet> under Java ( Sun) is selected.
3Click OK to close the window.
Figure 138 Java (Sun)
Appendix A Pop-up Windows, JavaScript and Java Permissions
NBG5615 User’s Guide 217
Mozilla Firefox
Mozilla Firefox 2.0 screens are used here. Screens for other versions may vary slightly. The steps
below apply to Mozilla Firefox 3.0 as well.
You can enable Java, Javascript and pop-ups in one screen. Click Tools, then click Options in the
screen that appears.

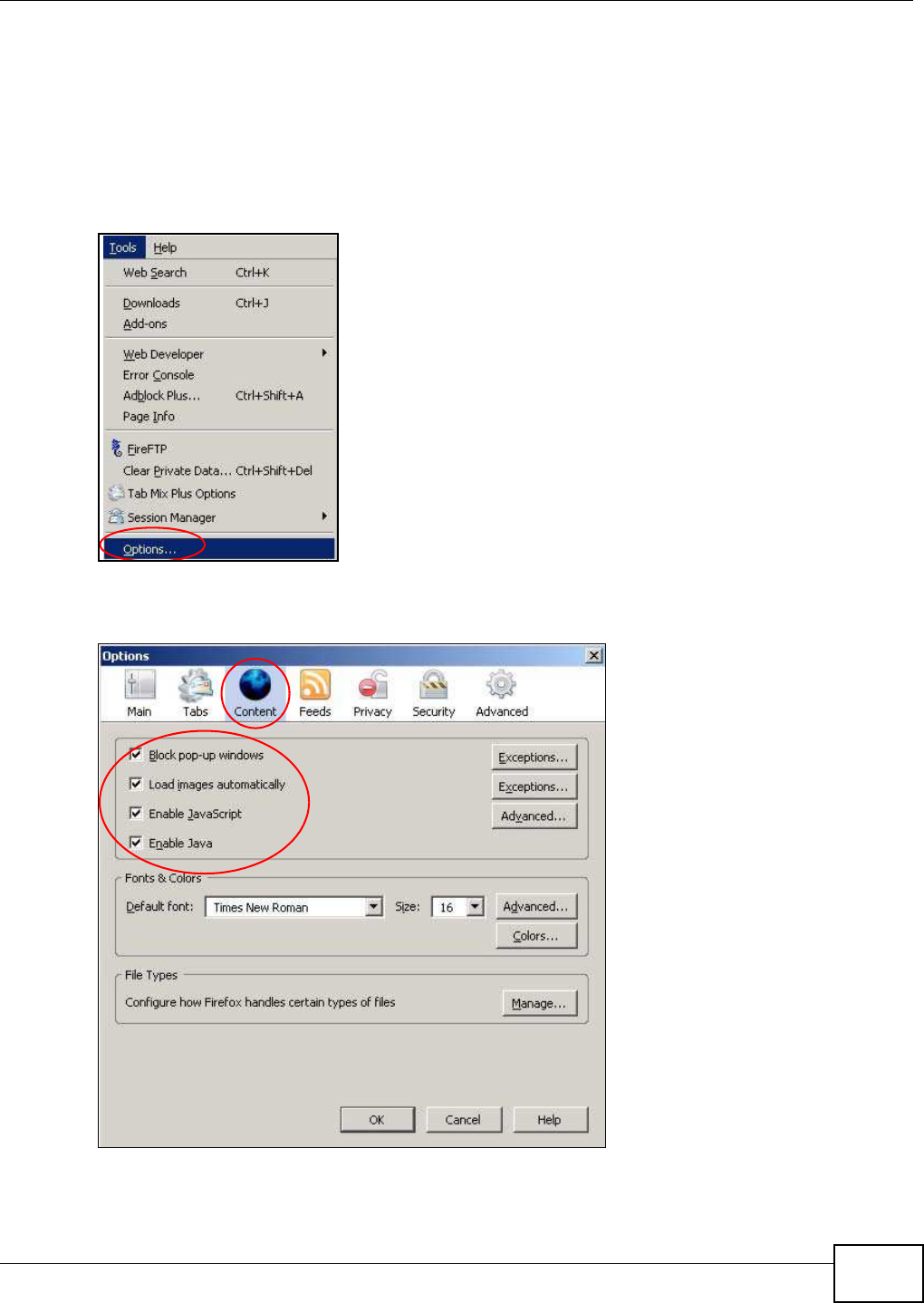

Figure 139 Mozilla Firefox: TOOLS > Options
Click Content to show the screen below. Select the check boxes as shown in the following screen.
Figure 140 Mozilla Firefox Content Security
Appendix A Pop-up Windows, JavaScript and Java Permissions
NBG5615 User’s Guide
218
Opera
Opera 10 screens are used here. Screens for other versions may vary slightly.
Allowing Pop-Ups
From Opera, click Tools, then Preferences. In the General tab, go to Choose how you prefer
to handle pop-ups and select Open all pop-ups.

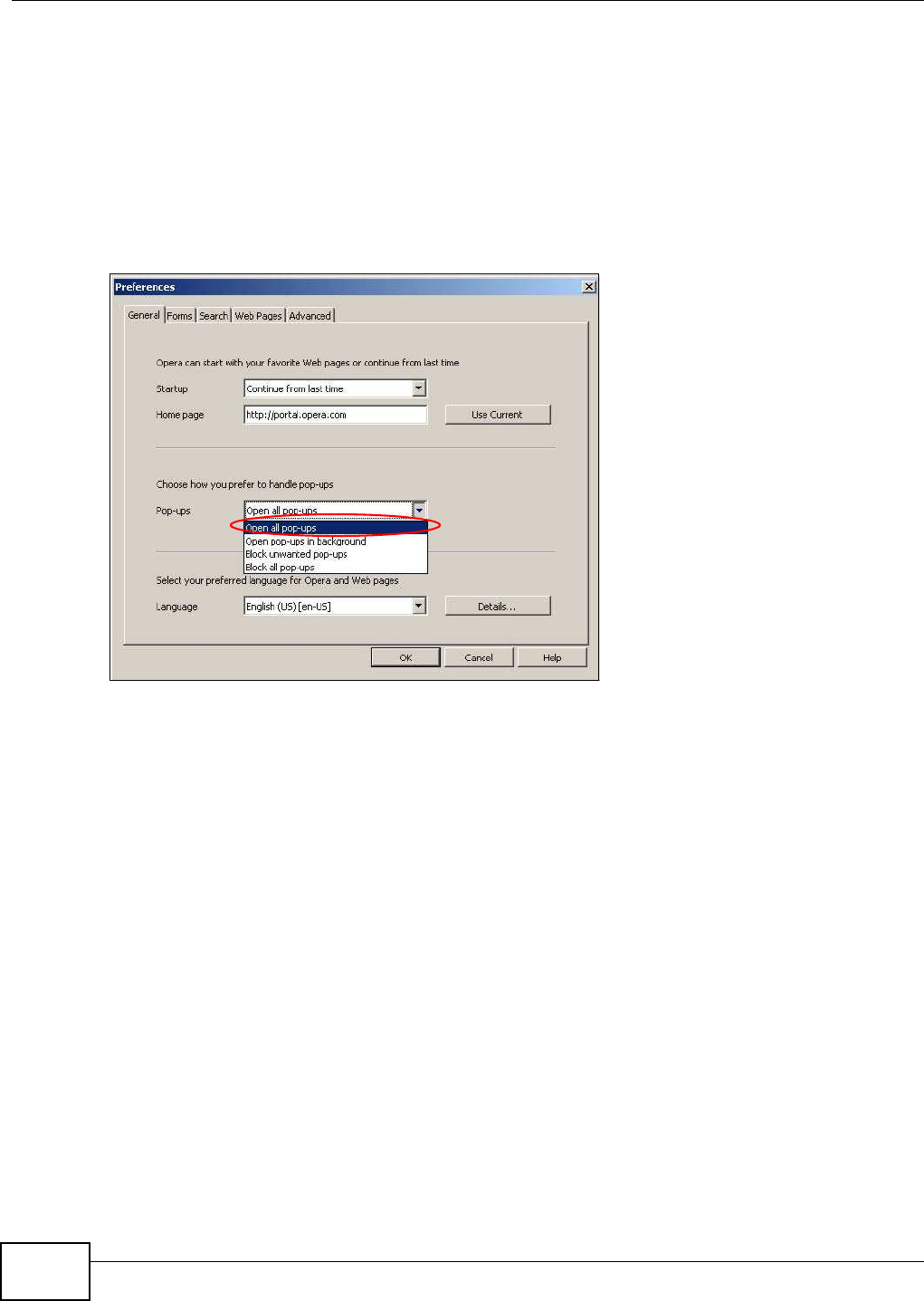

Figure 141 Opera: Allowing Pop-Ups
Enabling Java
From Opera, click Tools, then Preferences. In the Advanced tab, select Content from the left-
side menu. Select the check boxes as shown in the following screen.
Appendix A Pop-up Windows, JavaScript and Java Permissions
NBG5615 User’s Guide 219

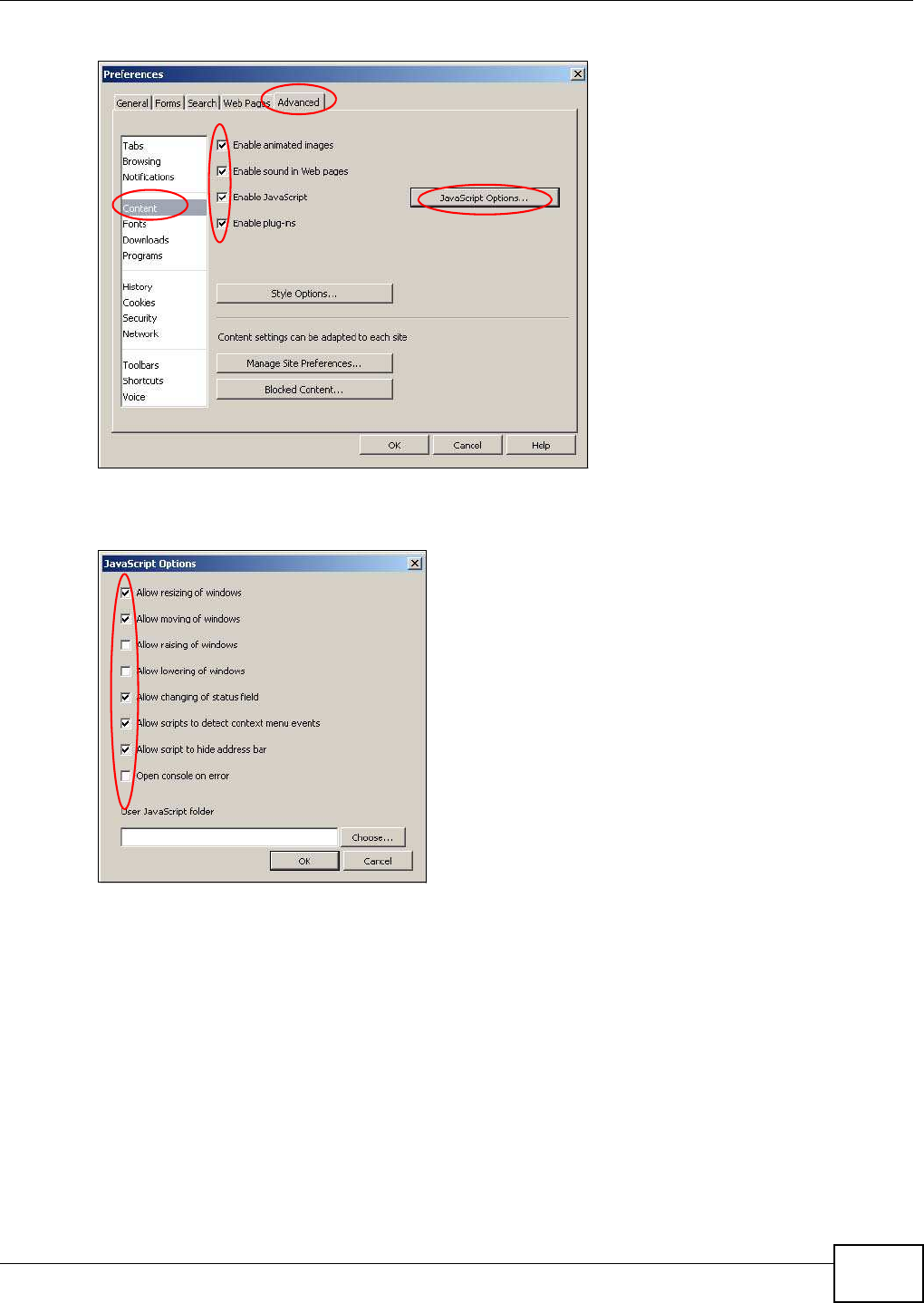

Figure 142 Opera: Enabling Java
To customize JavaScript behavior in the Opera browser, click JavaScript Options.
Figure 143 Opera: JavaScript Options
Select the items you want Opera’s JavaScript to apply.
Appendix A Pop-up Windows, JavaScript and Java Permissions
NBG5615 User’s Guide
220
NBG5615 User’s Guide 221
APPENDIX B
Setting Up Your Computers IP Address
Note: Your specific NBG5615 may not support all of the operating systems described in
this appendix. See the product specifications for more information about which
operating systems are supported.
This appendix shows you how to configure the IP settings on your computer in order for it to be
able to communicate with the other devices on your network. Windows Vista/XP/2000, Mac OS 9/
OS X, and all versions of UNIX/LINUX include the software components you need to use TCP/IP on
your computer.
If you manually assign IP information instead of using a dynamic IP, make sure that your network’s
computers have IP addresses that place them in the same subnet.
In this appendix, you can set up an IP address for:
Windows XP/NT/2000 on page 221
Windows Vista on page 225
Windows 7 on page 229
Mac OS X: 10.3 and 10.4 on page 233
Mac OS X: 10.5 and 10.6 on page 236
Linux: Ubuntu 8 (GNOME) on page 239
Linux: openSUSE 10.3 (KDE) on page 243
Windows XP/NT/2000
The following example uses the default Windows XP display theme but can also apply to Windows
2000 and Windows NT.

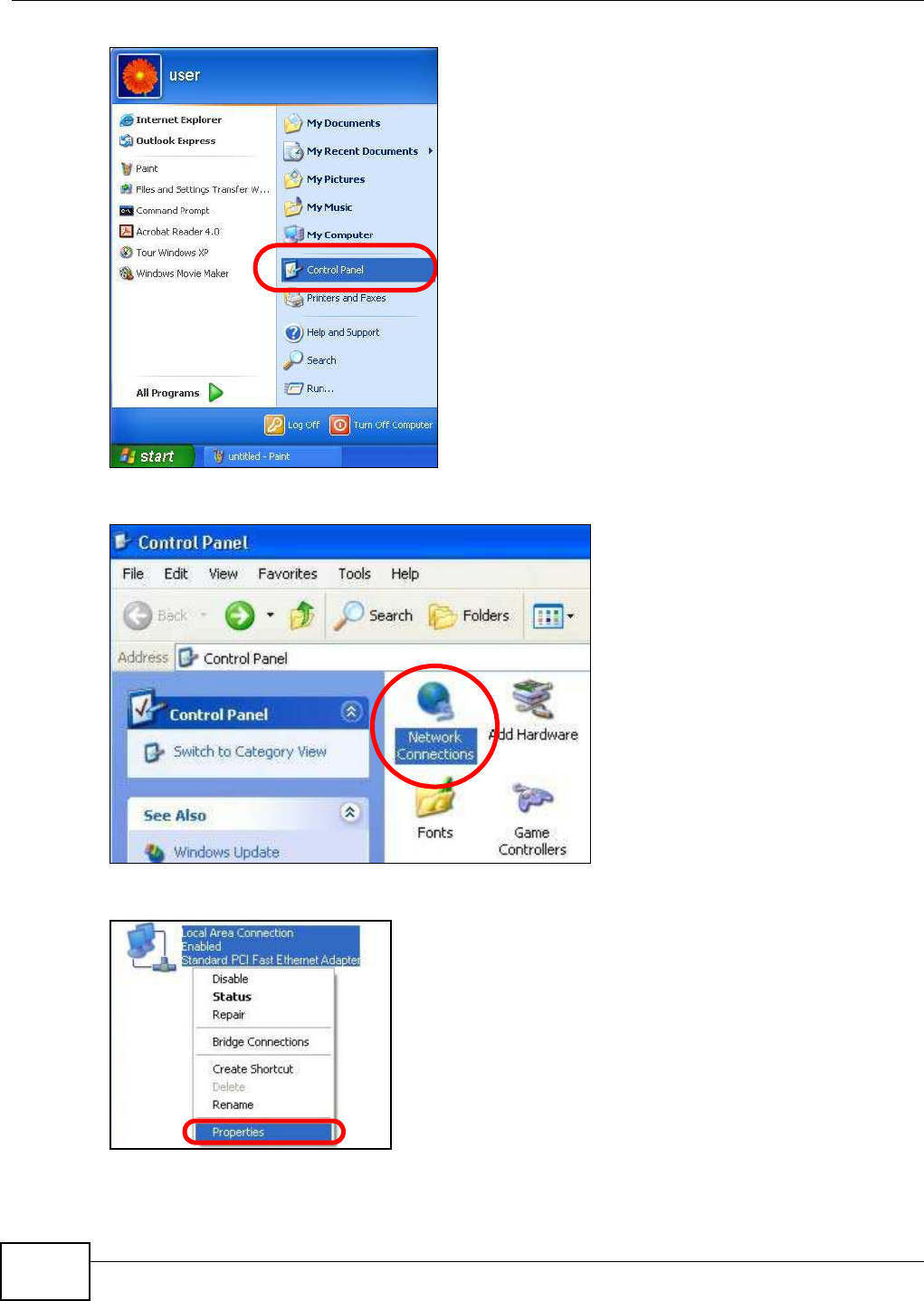

1Click Start > Control Panel.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide
222
2In the Control Panel, click the Netw ork Connections icon.
3Right-click Local Area Connection and then select Properties.

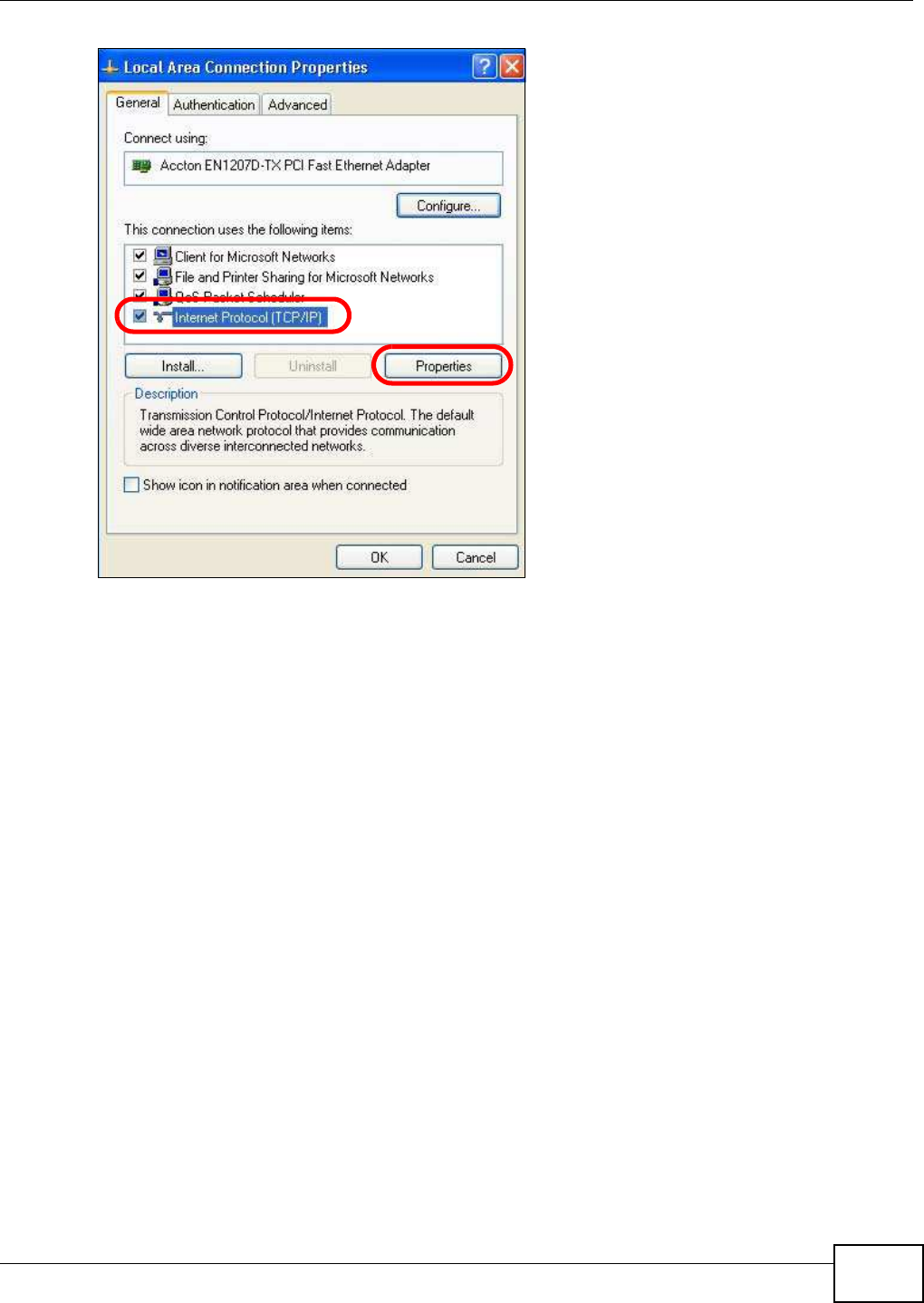

4On the General tab, select I nternet Protocol ( TCP/ I P) and then click Properties.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide 223

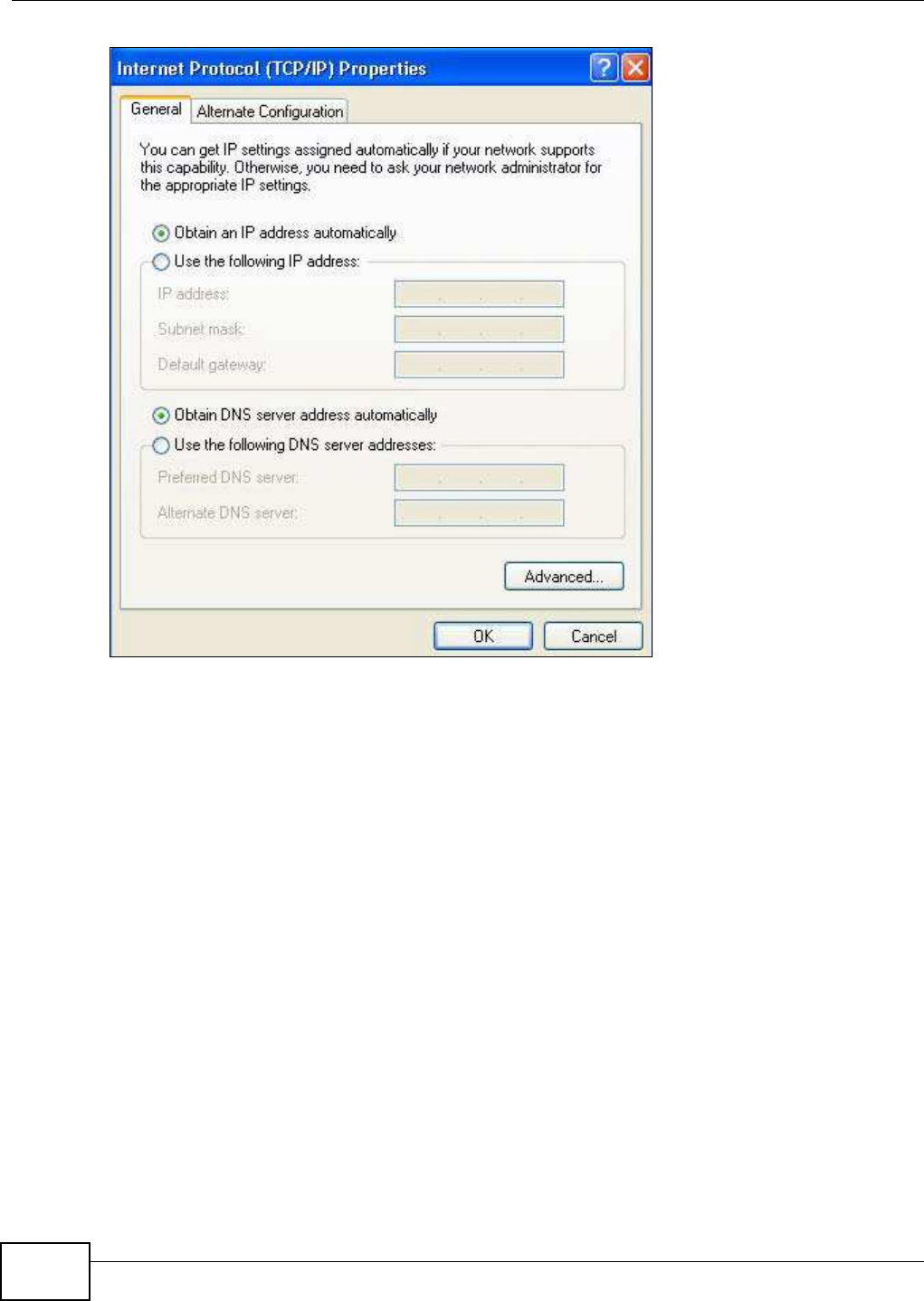

5The I nternet Protocol TCP/ I P Properties window opens.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide
224
6Select Obtain an I P address autom atically if your network administrator or ISP assigns your IP
address dynamically.
Select Use the follow ing I P Address and fill in the I P address, Subnet mask, and Default
gatew ay fields if you have a static IP address that was assigned to you by your network
administrator or ISP. You may also have to enter a Preferred DNS server and an Alternate DNS
server, if that information was provided.
7Click OK to close the I nternet Protocol ( TCP/ I P) Properties window.
8Click OK to close the Local Area Connection Properties window.
Verifying Settings
1Click Start > All Program s > Accessories > Com m and Prompt.
2In the Com m and Prom pt window, type "ipconfig" and then press [ENTER].
You can also go to Start > Control Panel > Netw ork Connections, right-click a network
connection, click Status and then click the Support tab to view your IP address and connection
information.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide 225
Windows Vista
This section shows screens from Windows Vista Professional.

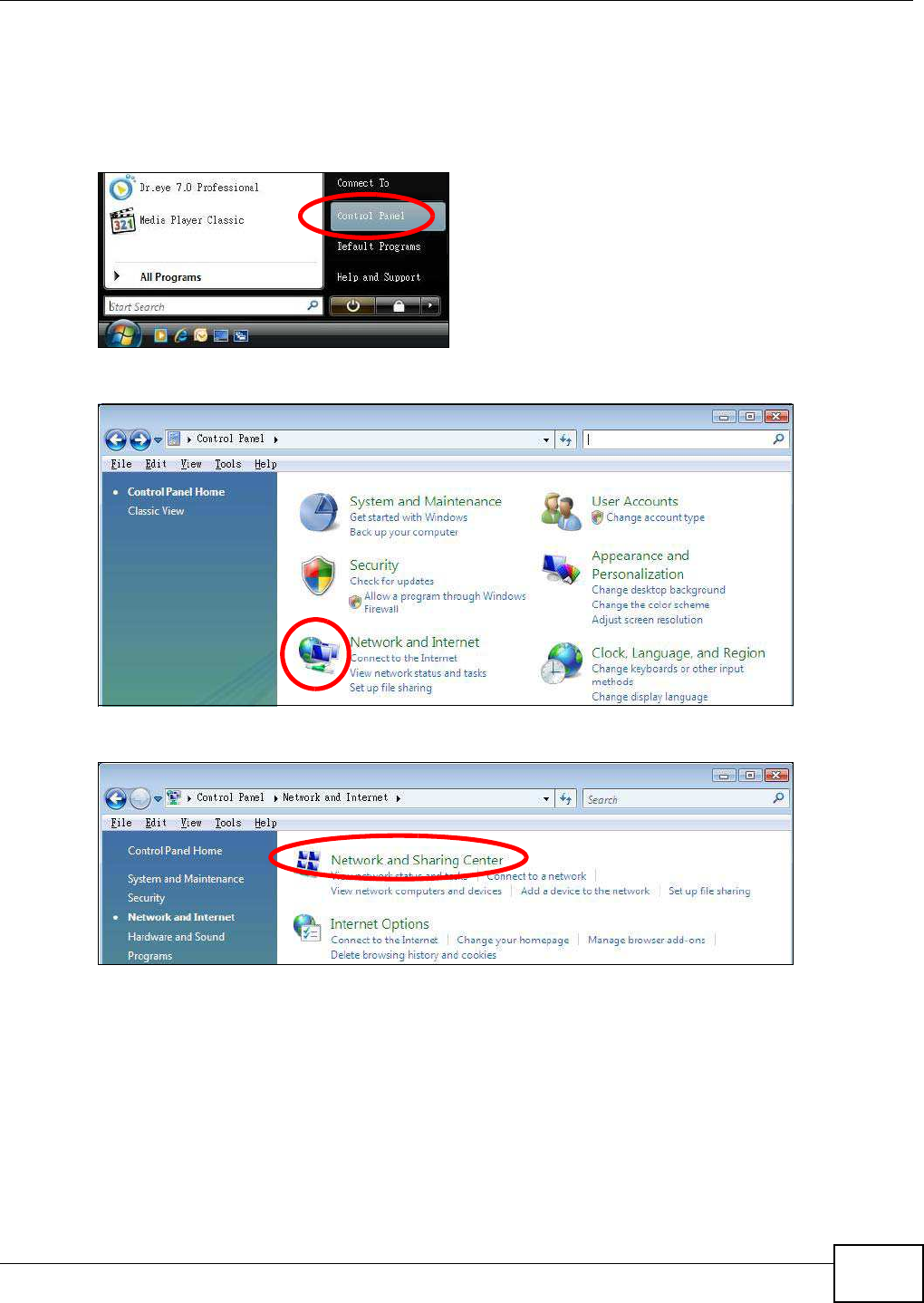

1Click Start > Control Panel.
2In the Control Panel, click the Netw ork and I nternet icon.
3Click the Netw ork and Sharing Center icon.
4Click Manage netw ork connections.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide
226
5Right-click Local Area Connection and then select Properties.
Note: During this procedure, click Continue whenever Windows displays a screen saying
that it needs your permission to continue.

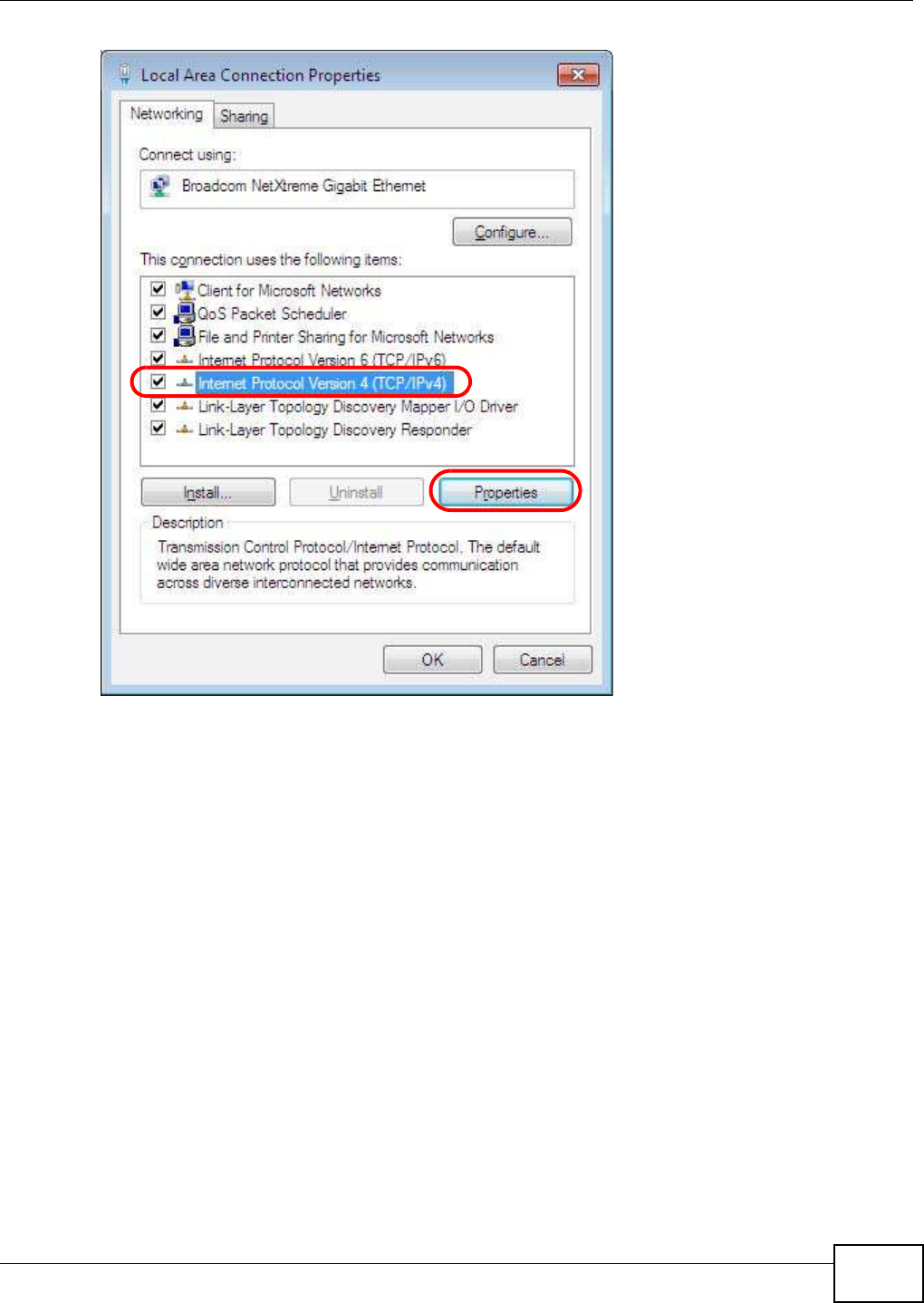

6Select I nternet Protocol Version 4 ( TCP/ I Pv4) and then select Properties.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide 227

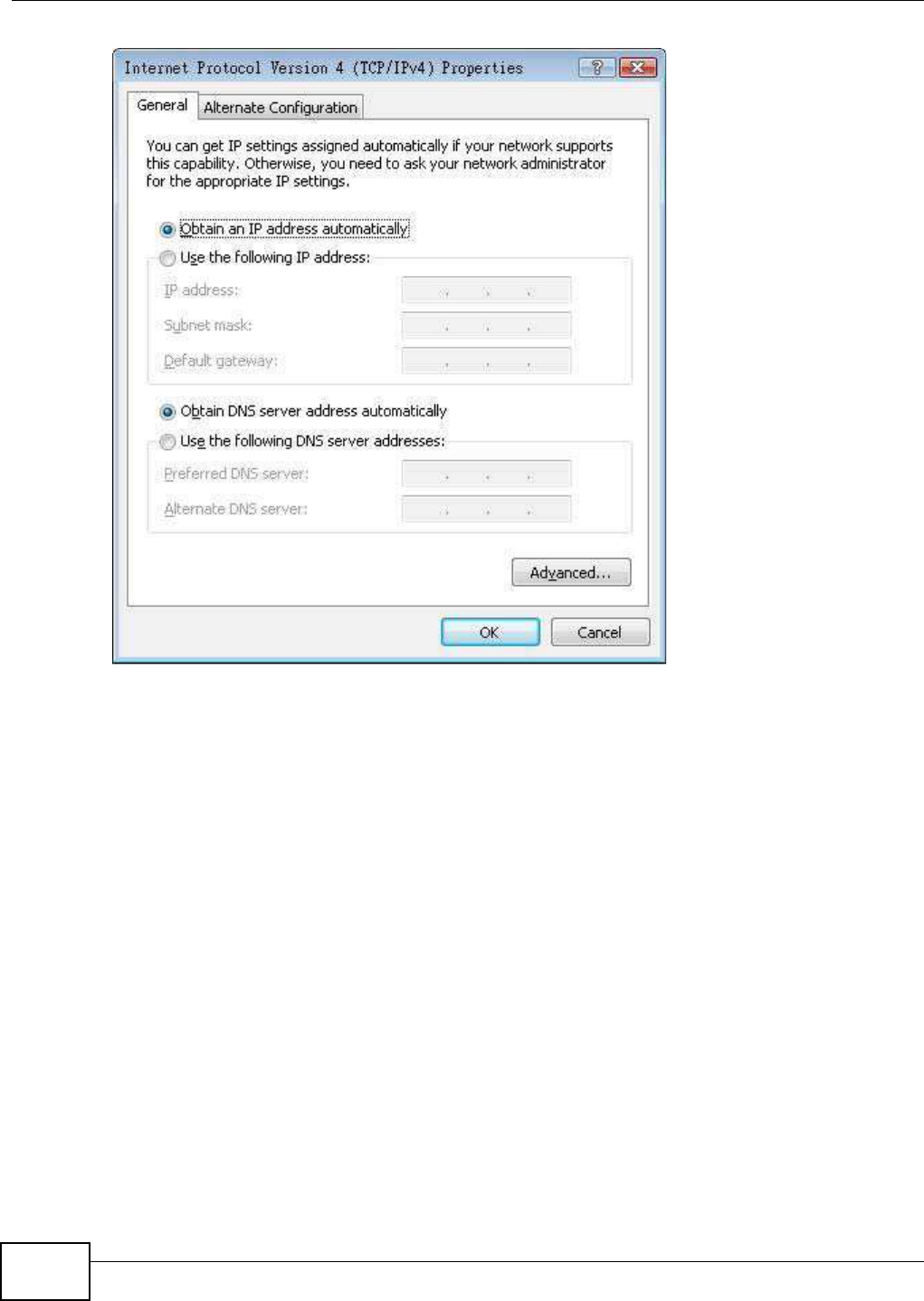

7The I nternet Protocol Version 4 ( TCP/ I Pv4 ) Properties window opens.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide
228
8Select Obtain an I P address autom atically if your network administrator or ISP assigns your IP
address dynamically.
Select Use the follow ing I P Address and fill in the I P address, Subnet mask, and Default
gatew ay fields if you have a static IP address that was assigned to you by your network
administrator or ISP. You may also have to enter a Preferred DNS server and an Alternate DNS
server, if that information was provided.Click Advanced.
9Click OK to close the I nternet Protocol ( TCP/ I P) Properties window.
10 Click OK to close the Local Area Connection Properties window.
Verifying Settings
1Click Start > All Program s > Accessories > Com m and Prompt.
2In the Com m and Prom pt window, type "ipconfig" and then press [ENTER].
You can also go to Start > Control Panel > Netw ork Connections, right-click a network
connection, click Status and then click the Support tab to view your IP address and connection
information.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide 229
Windows 7
This section shows screens from Windows 7 Enterprise.
1Click Start > Control Panel.
2In the Control Panel, click View netw ork status and tasks under the Netw ork and I nternet
category.
3Click Change adapter settings.

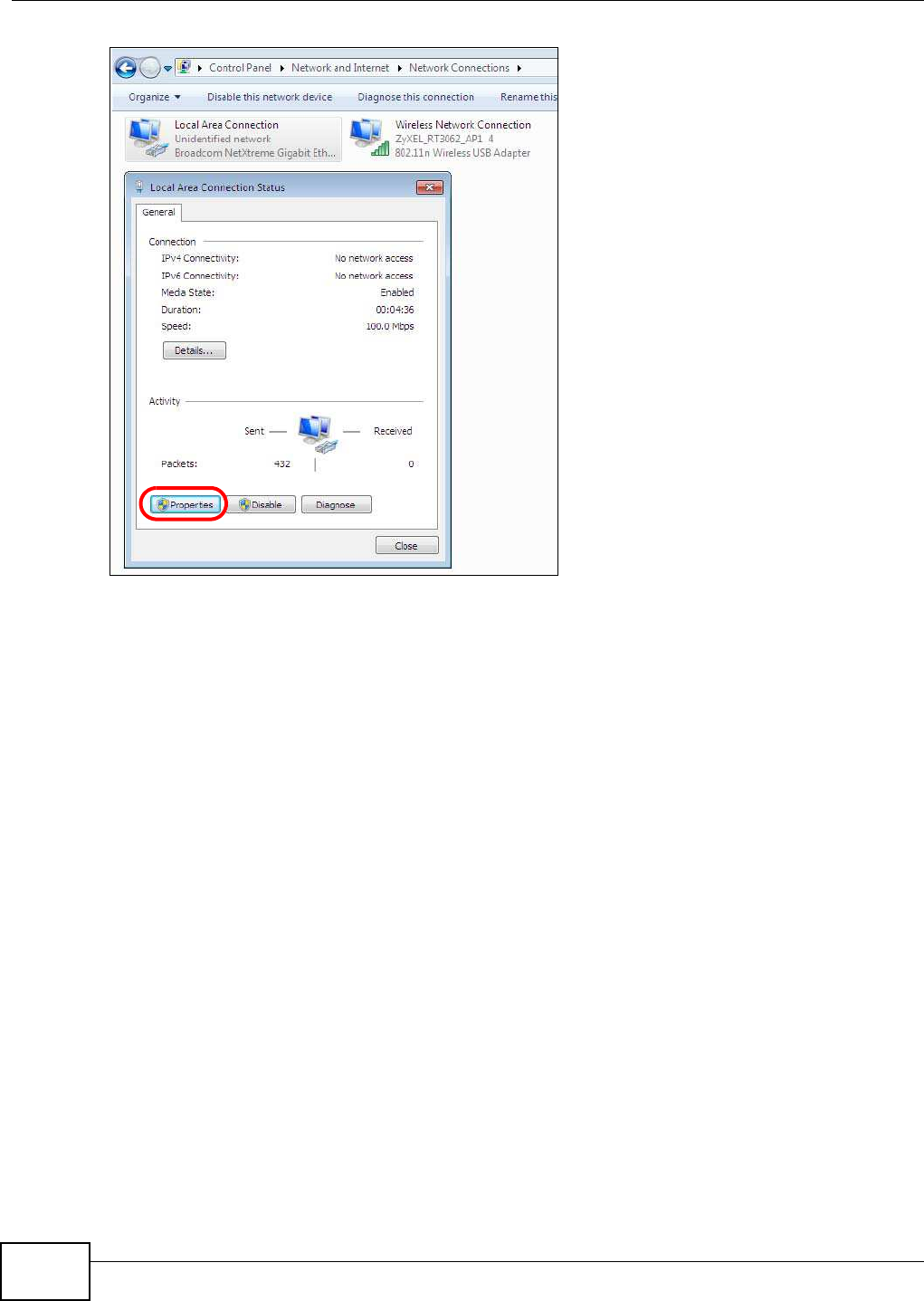

4Double click Local Area Connection and then select Properties.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide
230
Note: During this procedure, click Continue whenever Windows displays a screen saying
that it needs your permission to continue.
5Select I nternet Protocol Version 4 ( TCP/ I Pv4) and then select Properties.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide 231
6The I nternet Protocol Version 4 ( TCP/ I Pv4 ) Properties window opens.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide
232

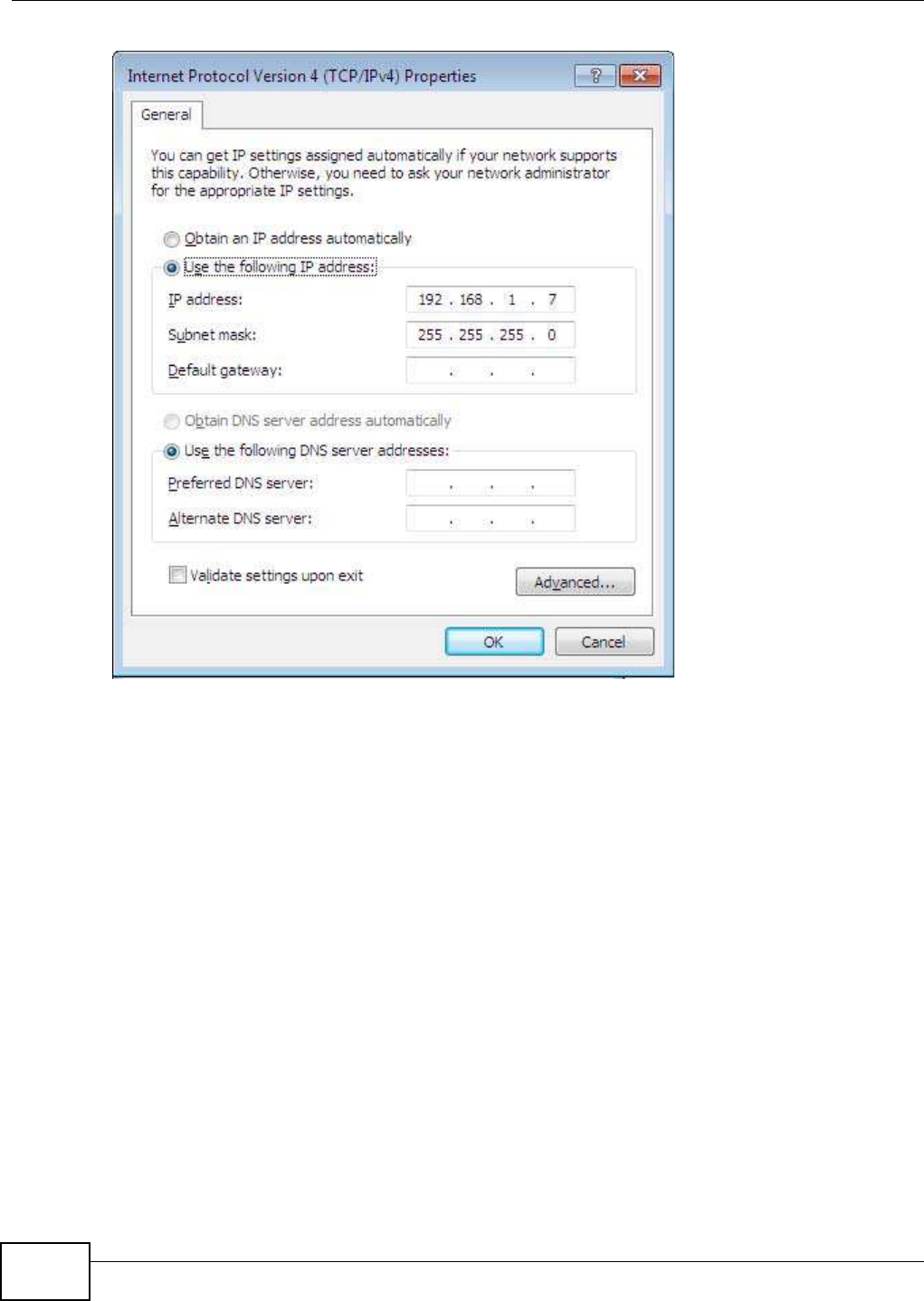

7Select Obtain an I P address autom atically if your network administrator or ISP assigns your IP
address dynamically.
Select Use the follow ing I P Address and fill in the I P address, Subnet mask, and Default
gatew ay fields if you have a static IP address that was assigned to you by your network
administrator or ISP. You may also have to enter a Preferred DNS server and an Alternate DNS
server, if that information was provided. Click Advanced if you want to configure advanced
settings for IP, DNS and WINS.
8Click OK to close the I nternet Protocol ( TCP/ I P) Properties window.
9Click OK to close the Local Area Connection Properties window.
Verifying Settings
1Click Start > All Program s > Accessories > Com m and Prompt.
2In the Com m and Prom pt window, type "ipconfig" and then press [ENTER].

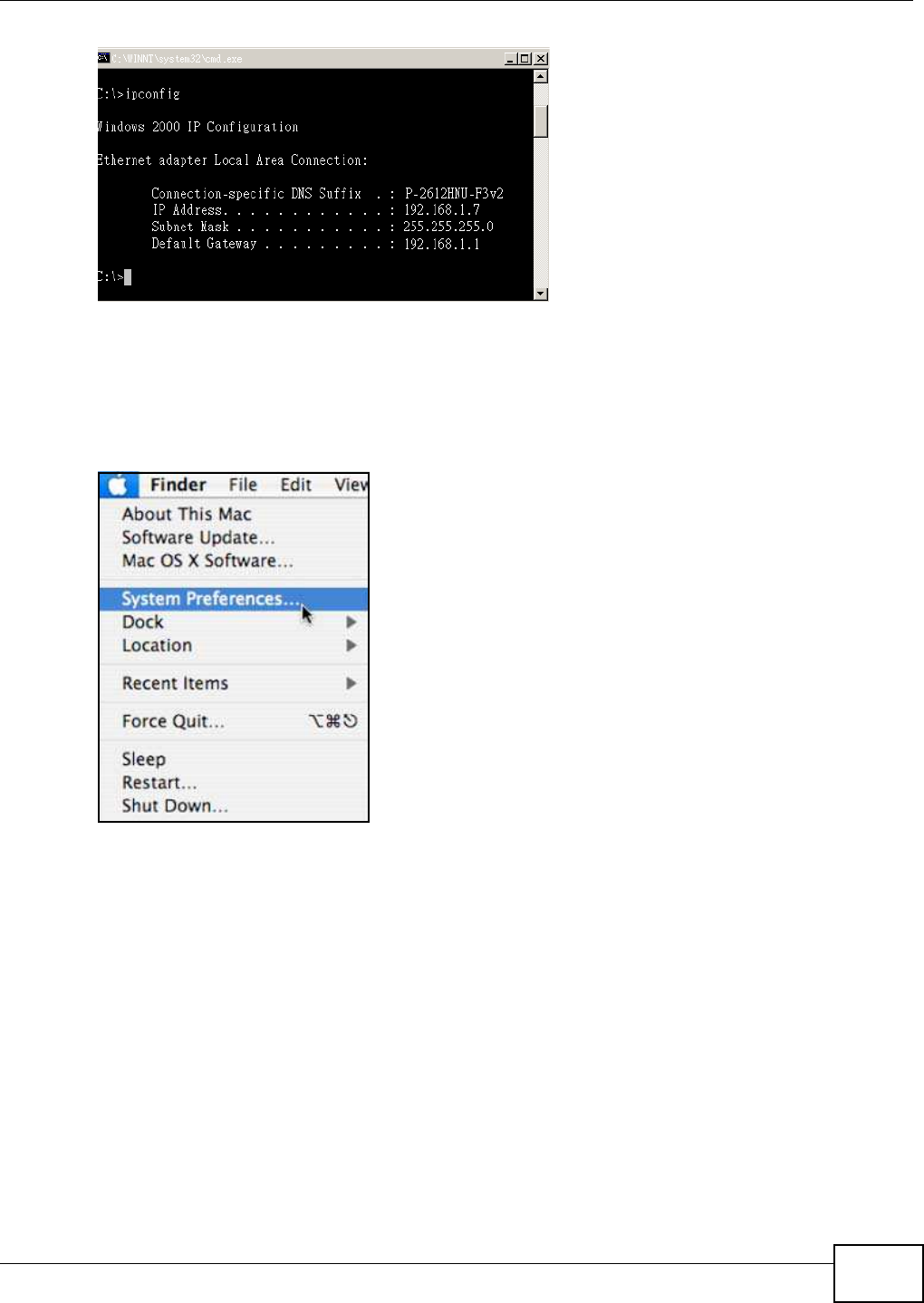

3The IP settings are displayed as follows.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide 233
Mac OS X: 10.3 and 10.4
The screens in this section are from Mac OS X 10.4 but can also apply to 10.3.
1Click Apple > System Preferences.

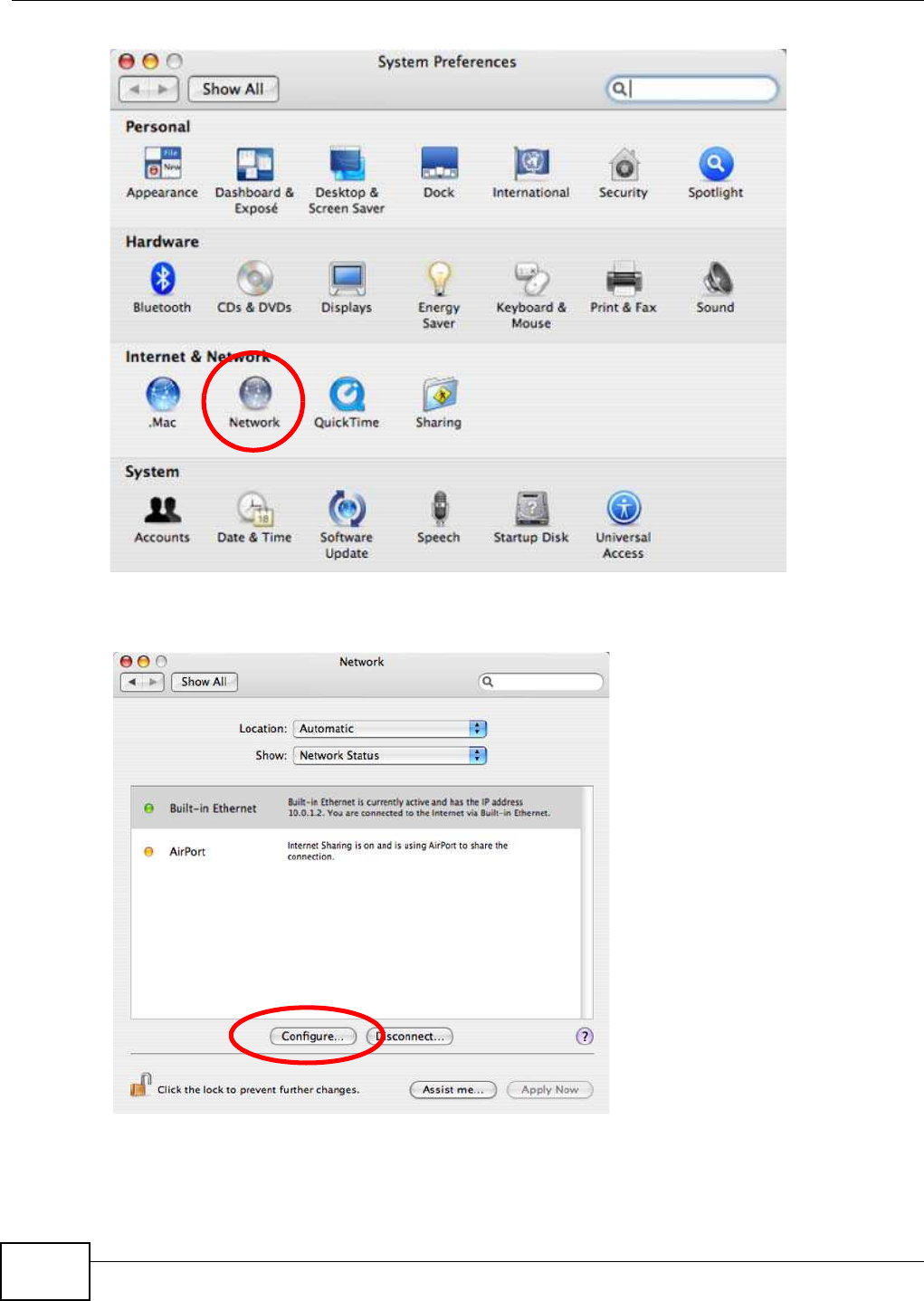

2In the System Preferences window, click the Netw ork icon.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide
234
3When the Netw ork preferences pane opens, select Built- in Ethernet from the network
connection type list, and then click Configure.

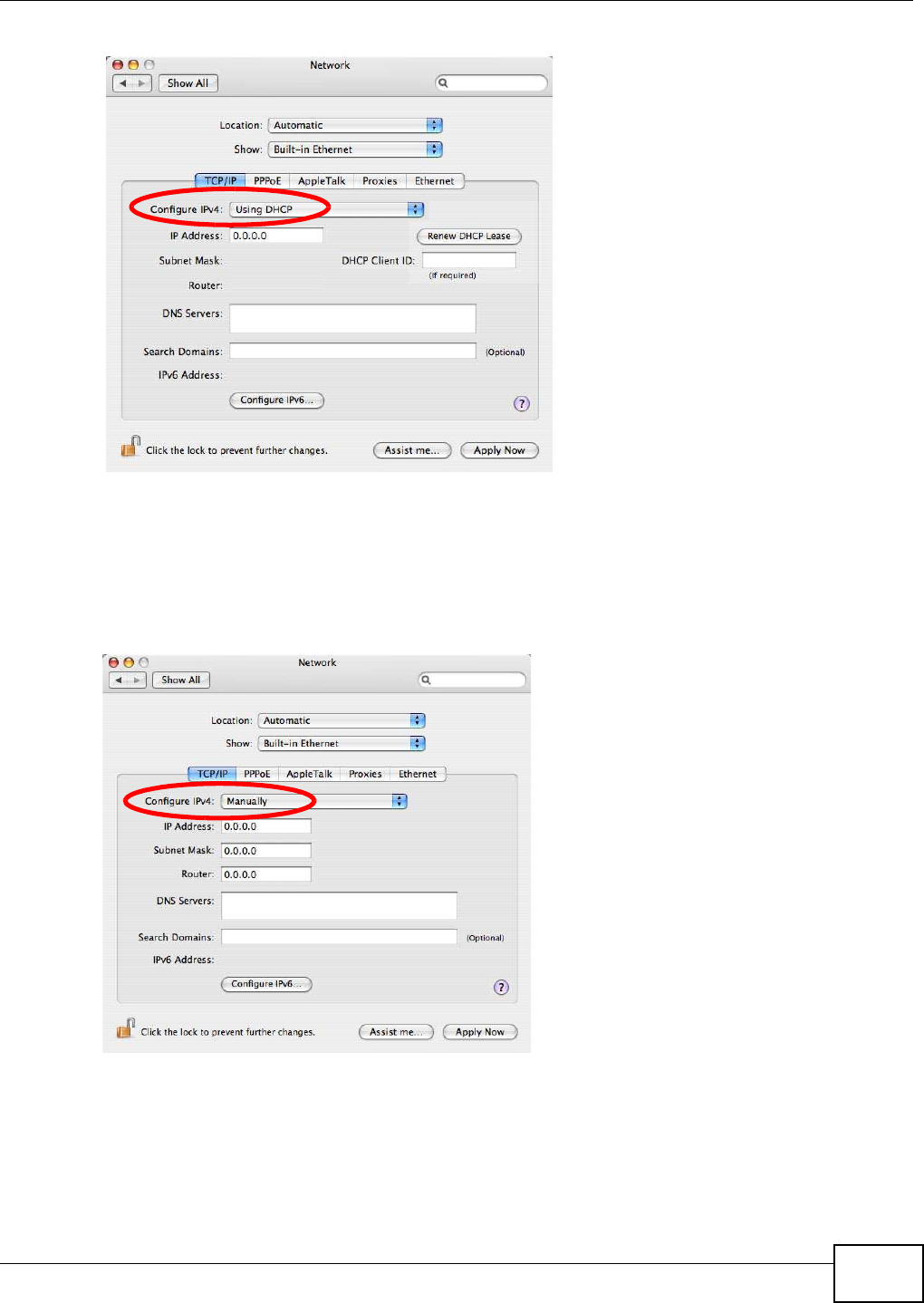

4For dynamically assigned settings, select Using DHCP from the Configure I Pv4 list in the TCP/ I P
tab.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide 235
5For statically assigned settings, do the following:
•From the Configure I Pv4 list, select Manually.
•In the I P Address field, type your IP address.
•In the Subnet Mask field, type your subnet mask.
•In the Router field, type the IP address of your device.
6Click Apply Now and close the window.
Verifying Settings
Check your TCP/IP properties by clicking Applications > Utilities > Netw ork Utilities, and then
selecting the appropriate Netw ork I nterface from the I nfo tab.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide
236
Figure 144 Mac OS X 10.4: Network Utility
Mac OS X: 10.5 and 10.6
The screens in this section are from Mac OS X 10.5 but can also apply to 10.6.
1Click Apple > System Preferences.

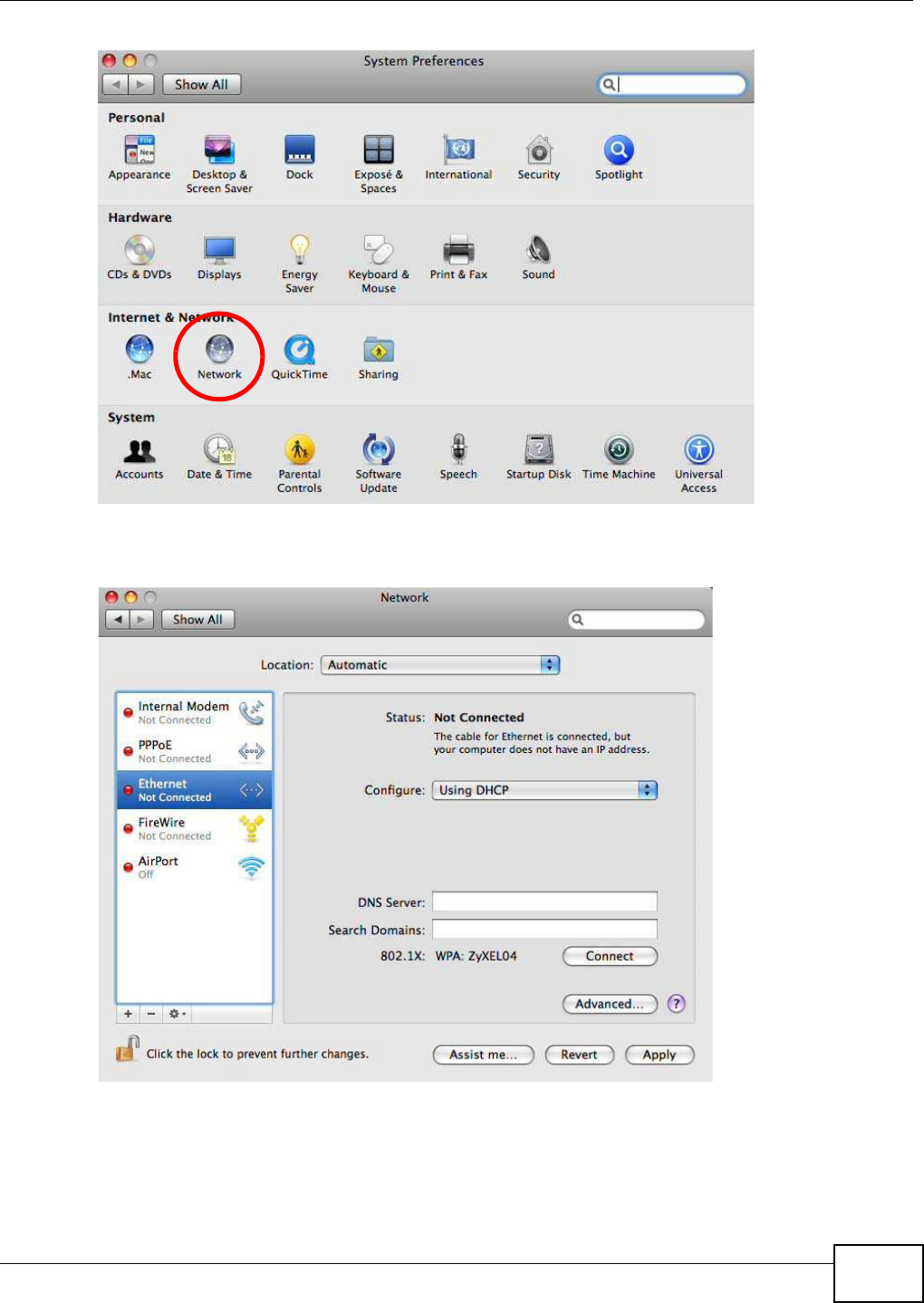

2In System Preferences, click the Netw ork icon.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide 237
3When the Netw ork preferences pane opens, select Ethernet from the list of available connection
types.
4From the Configure list, select Using DHCP for dynamically assigned settings.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide
238

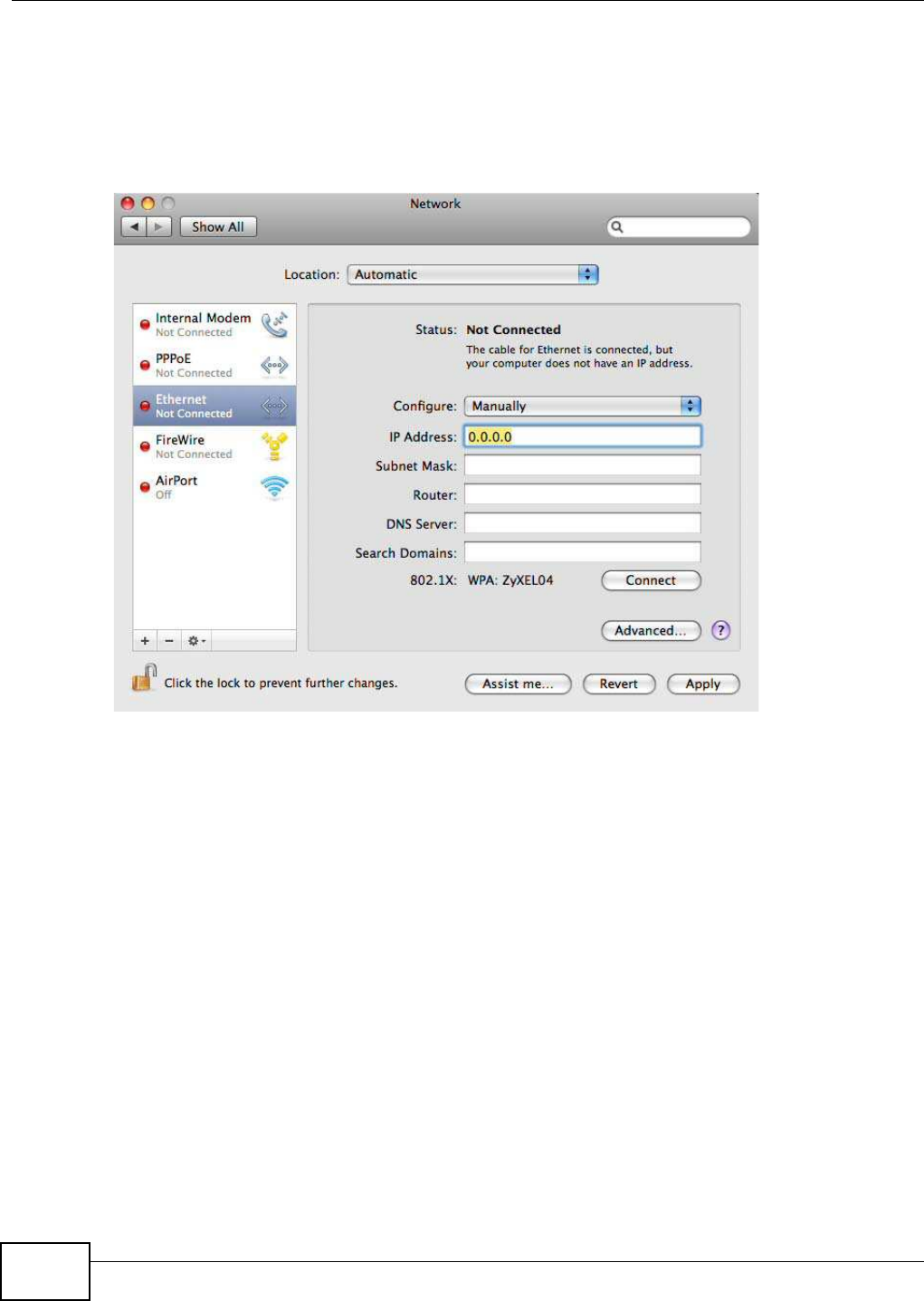

5For statically assigned settings, do the following:
•From the Configure list, select Manually.
•In the I P Address field, enter your IP address.
•In the Subnet Mask field, enter your subnet mask.
•In the Router field, enter the IP address of your NBG5615.
6Click Apply and close the window.
Verifying Settings
Check your TCP/IP properties by clicking Applications > Utilities > Netw ork Utilities, and then
selecting the appropriate Netw ork interface from the I nfo tab.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide 239

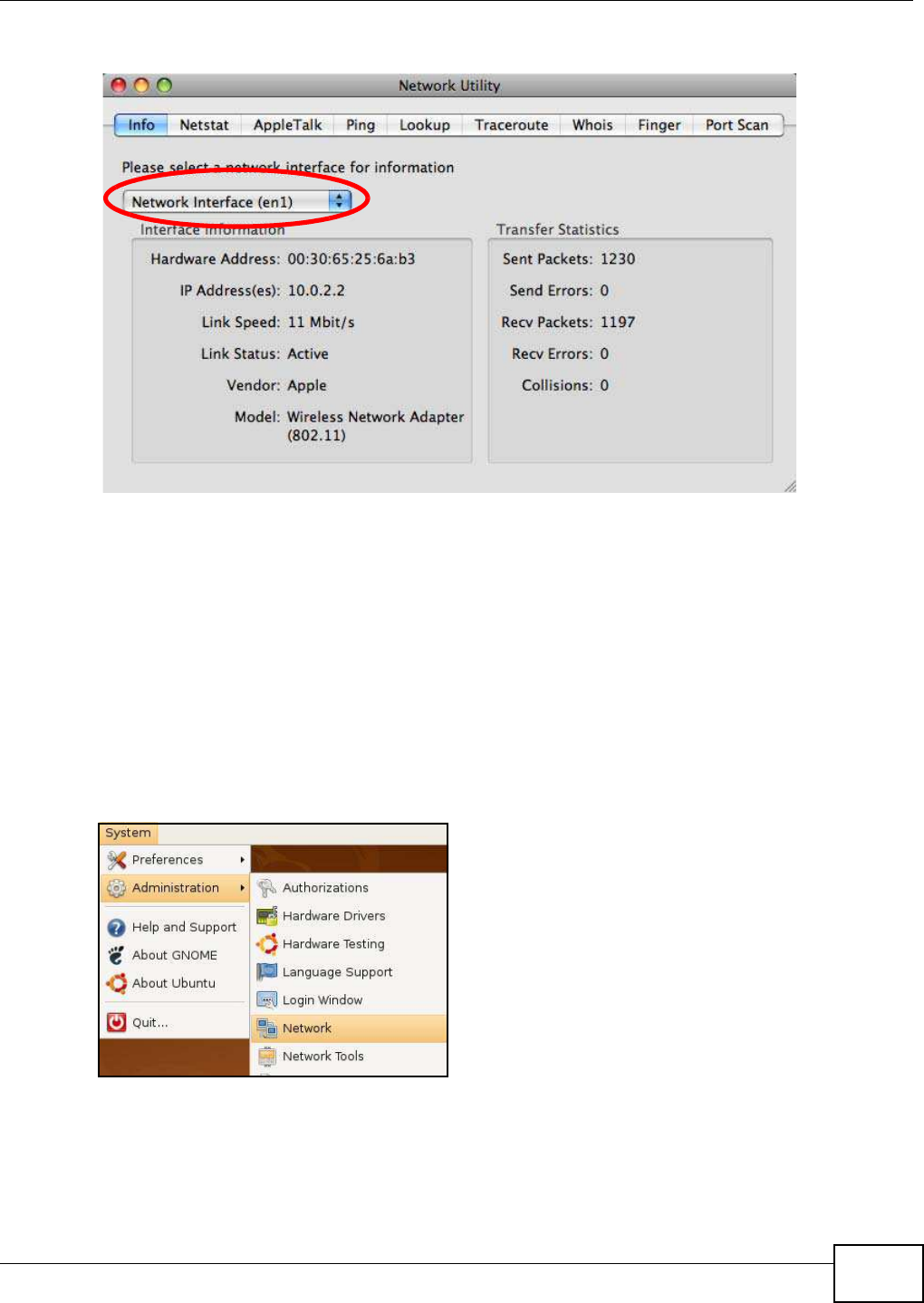

Figure 145 Mac OS X 10.5: Network Utility
Linux: Ubuntu 8 (GNOME)
This section shows you how to configure your computer’s TCP/IP settings in the GNU Object Model
Environment (GNOME) using the Ubuntu 8 Linux distribution. The procedure, screens and file
locations may vary depending on your specific distribution, release version, and individual
configuration. The following screens use the default Ubuntu 8 installation.
Note: Make sure you are logged in as the root administrator.
Follow the steps below to configure your computer IP address in GNOME:
1Click System > Adm inistration > Netw ork.
2When the Netw ork Settings window opens, click Unlock to open the Authenticate window. (By
default, the Unlock button is greyed out until clicked.) You cannot make changes to your
configuration unless you first enter your admin password.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide
240
3In the Authenticate window, enter your admin account name and password then click the
Authenticate button.

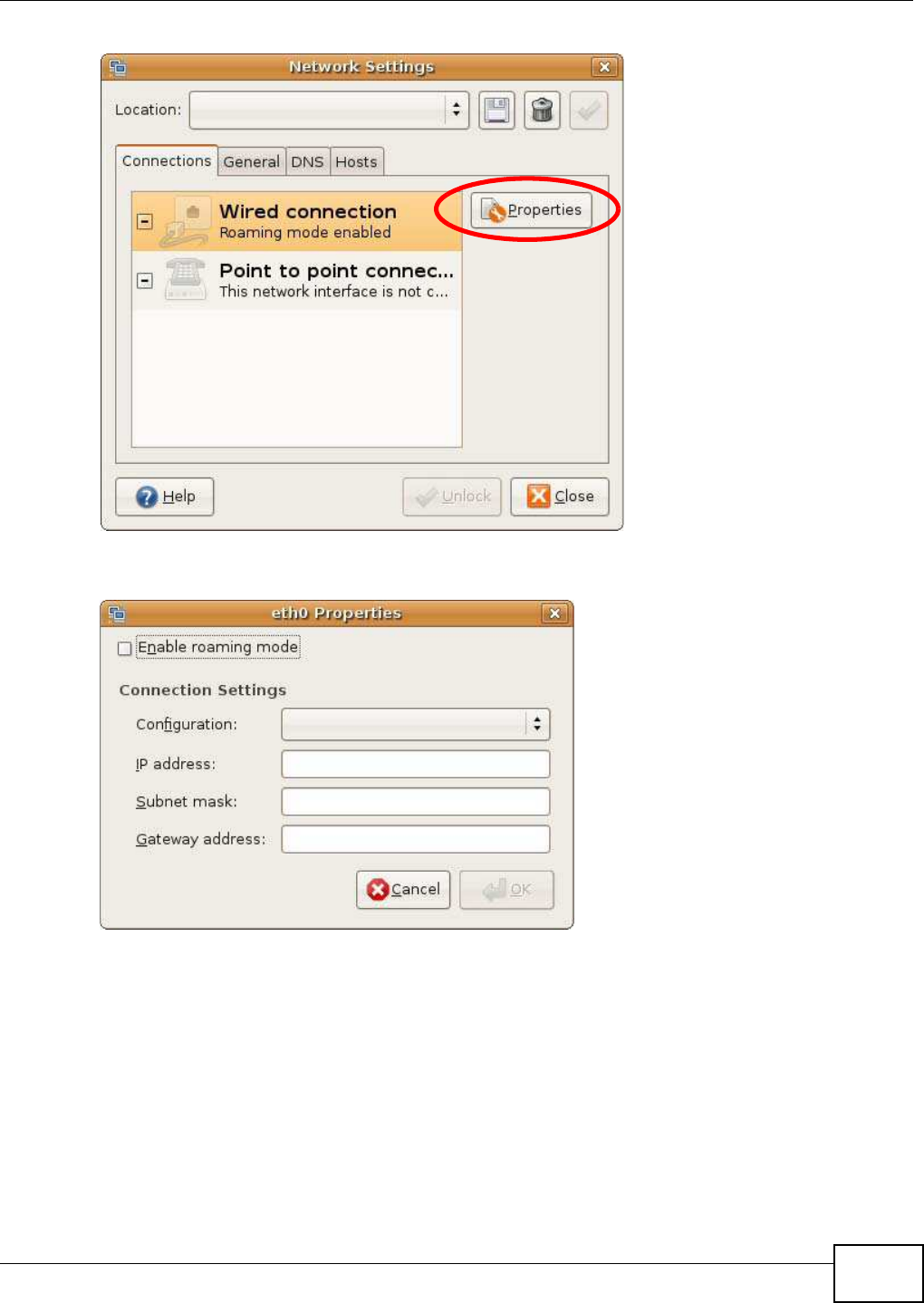

4In the Netw ork Settings window, select the connection that you want to configure, then click
Properties.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide 241
5The Properties dialog box opens.
•In the Configuration list, select Autom atic Configuration ( DHCP) if you have a dynamic IP
address.
•In the Configuration list, select Static I P address if you have a static IP address. Fill in the
I P address, Subnet m ask, and Gatew ay address fields.
6Click OK to save the changes and close the Properties dialog box and return to the Netw ork
Settings screen.

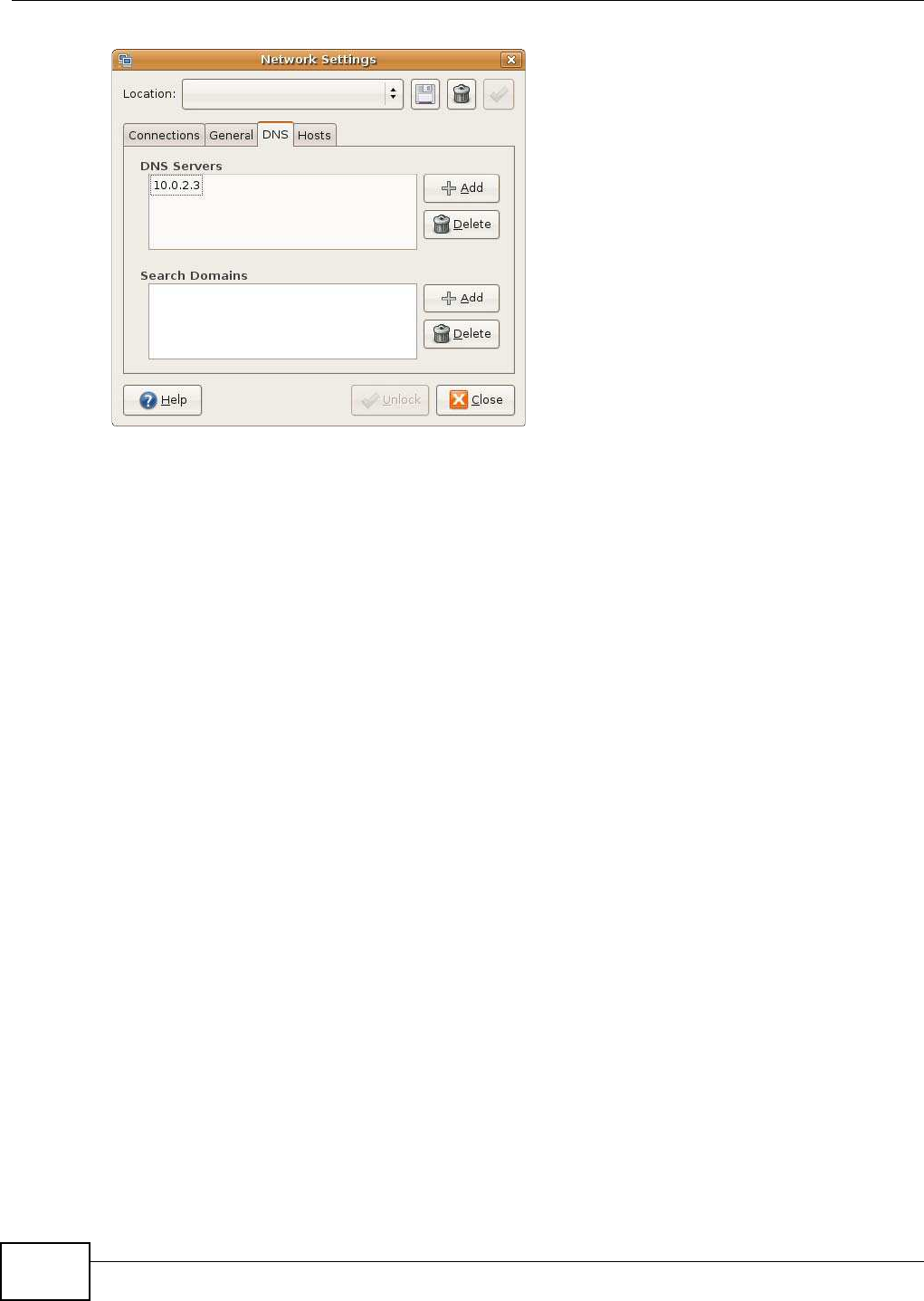

7If you know your DNS server IP address(es), click the DNS tab in the Netw ork Settings window
and then enter the DNS server information in the fields provided.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide
242
8Click the Close button to apply the changes.
Verifying Settings
Check your TCP/IP properties by clicking System > Adm inistration > Netw ork Tools, and then
selecting the appropriate Netw ork device from the Devices tab. The I nterface Statistics
column shows data if your connection is working properly.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide 243

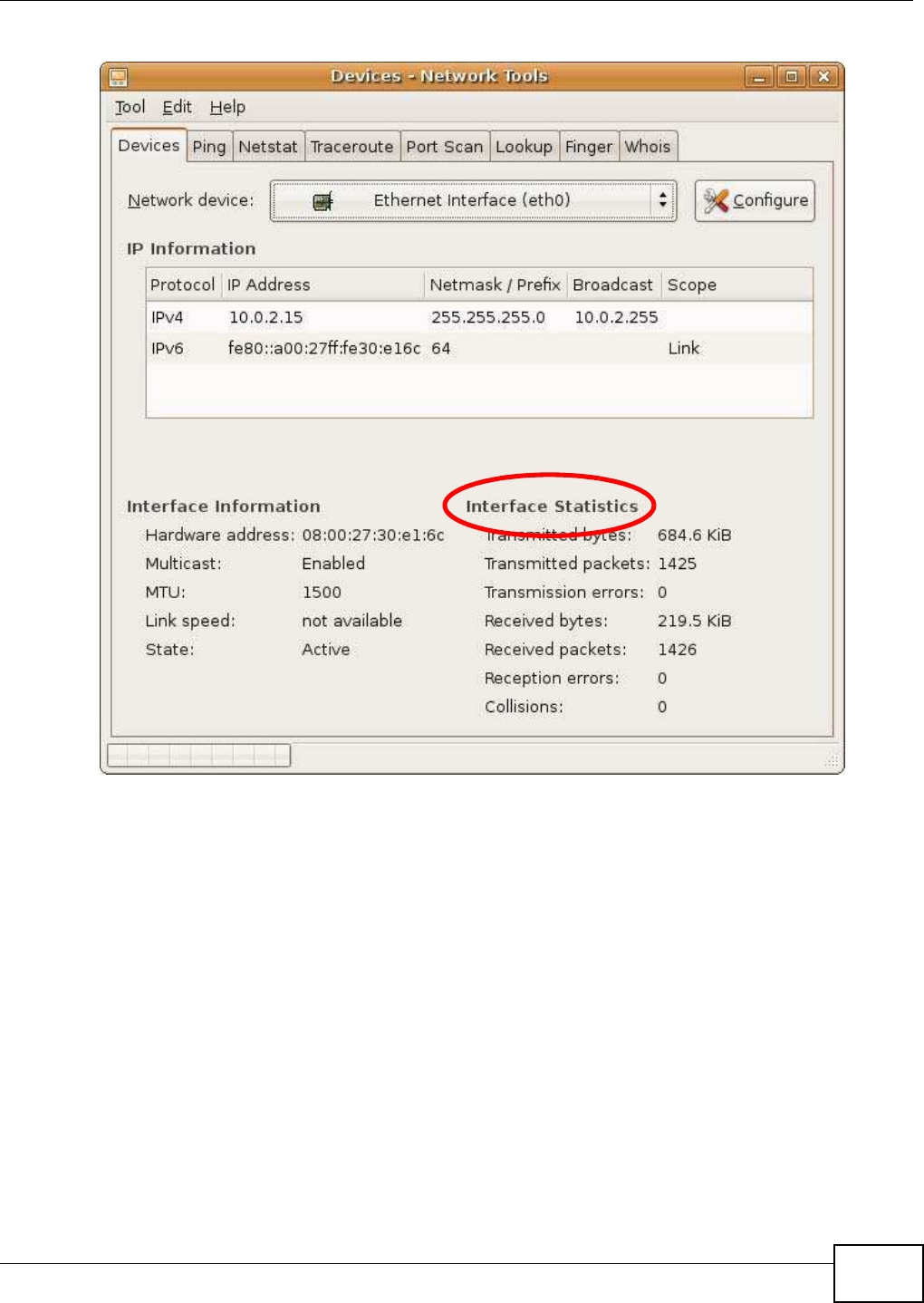

Figure 146 Ubuntu 8: Network Tools
Linux: openSUSE 10.3 (KDE)
This section shows you how to configure your computer’s TCP/IP settings in the K Desktop
Environment (KDE) using the openSUSE 10.3 Linux distribution. The procedure, screens and file
locations may vary depending on your specific distribution, release version, and individual
configuration. The following screens use the default openSUSE 10.3 installation.
Note: Make sure you are logged in as the root administrator.
Follow the steps below to configure your computer IP address in the KDE:
1Click K Menu > Com puter > Administrator Settings ( YaST) .
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide
244
2When the Run as Root - KDE su dialog opens, enter the admin password and click OK.

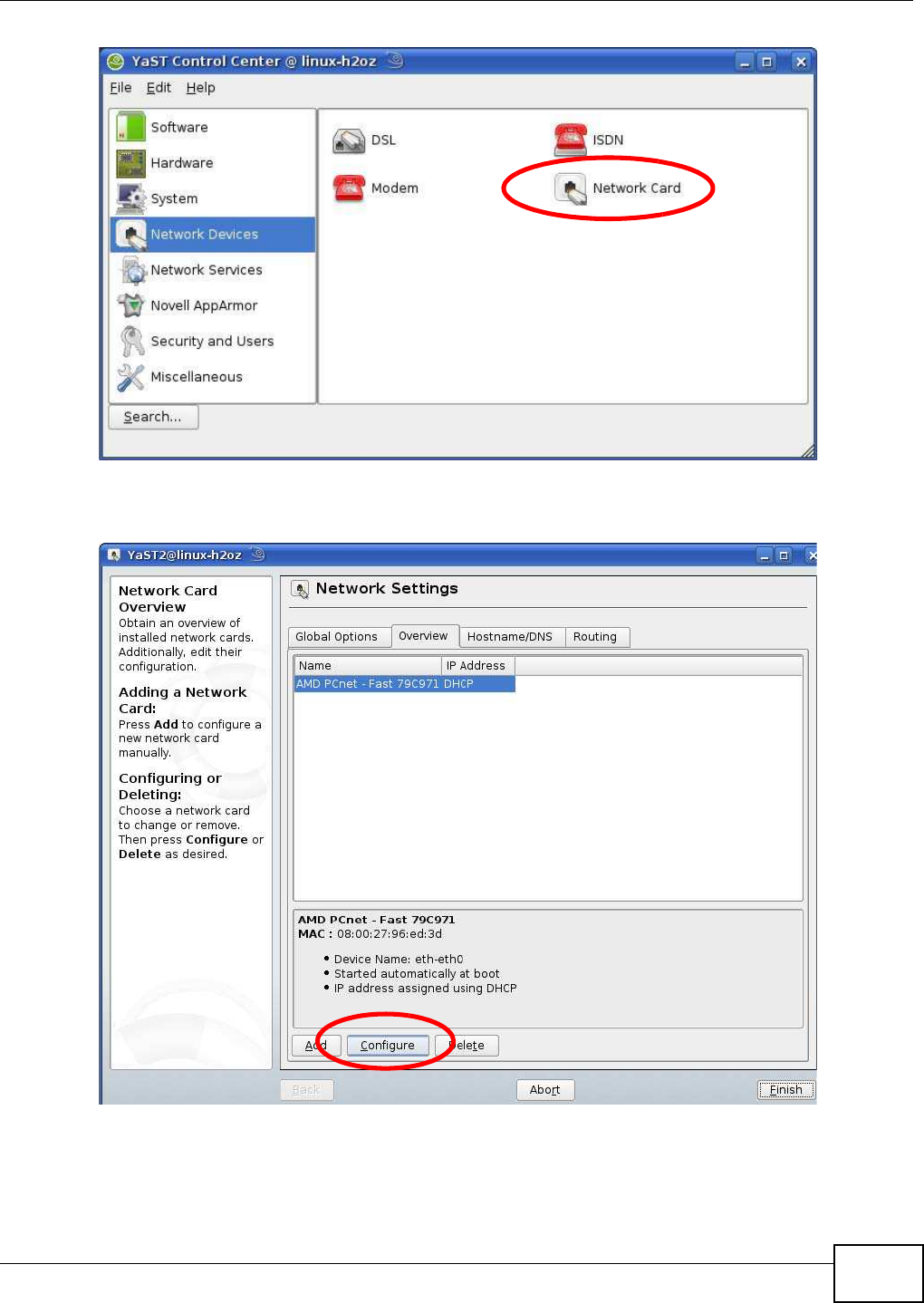

3When the YaST Control Center window opens, select Netw ork Devices and then click the
Netw ork Card icon.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide 245
4When the Netw ork Settings window opens, click the Overview tab, select the appropriate
connection Nam e from the list, and then click the Configure button.
5When the Netw ork Card Setup window opens, click the Address tab
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide
246

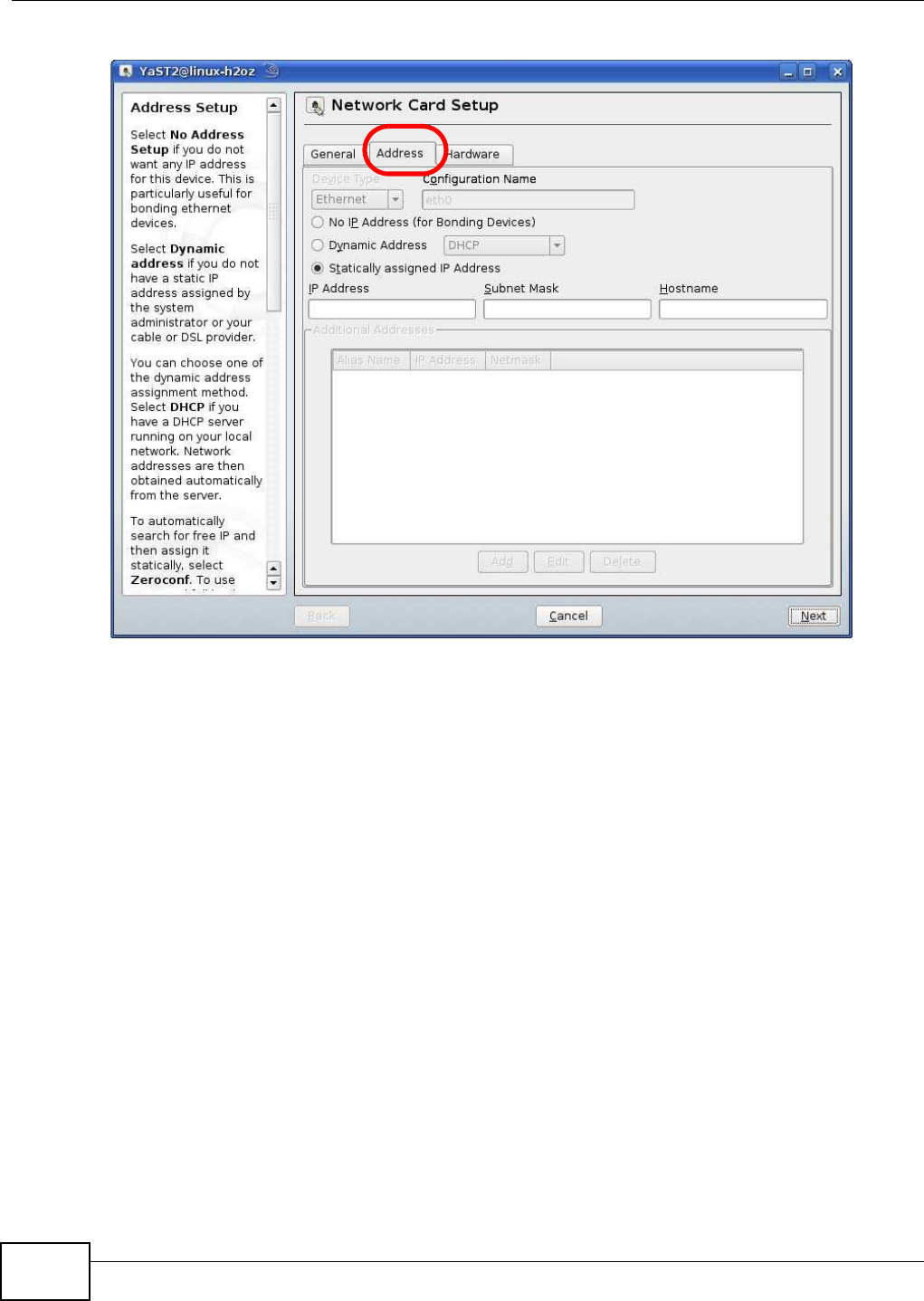

Figure 147 openSUSE 10.3: Network Card Setup
6Select Dynam ic Address ( DHCP) if you have a dynamic IP address.
Select Statically assigned I P Address if you have a static IP address. Fill in the I P address,
Subnet m ask, and Hostnam e fields.
7Click Next to save the changes and close the Netw ork Card Setup window.

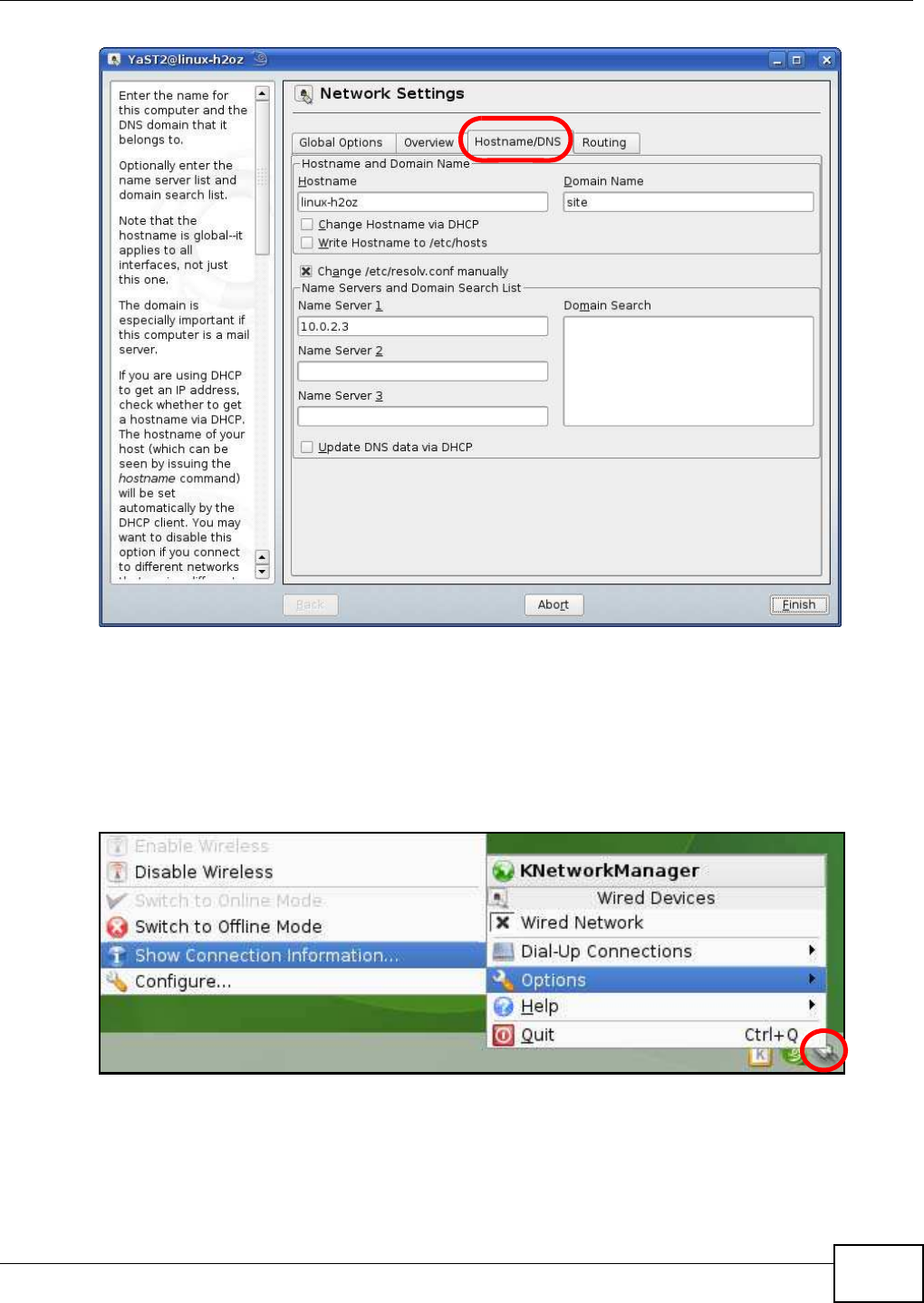

8If you know your DNS server IP address(es), click the Host nam e/ DNS tab in Netw ork Settings
and then enter the DNS server information in the fields provided.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide 247
9Click Finish to save your settings and close the window.
Verifying Settings
Click the KNetw ork Manager icon on the Task bar to check your TCP/IP properties. From the
Options sub-menu, select Show Connection I nformation.
Figure 148 openSUSE 10.3: KNetwork Manager
When the Connection Status - KNetw ork Manager window opens, click the Statistics tab to
see if your connection is working properly.
Appendix B Setting Up Your Computer’s IP Address
NBG5615 User’s Guide
248

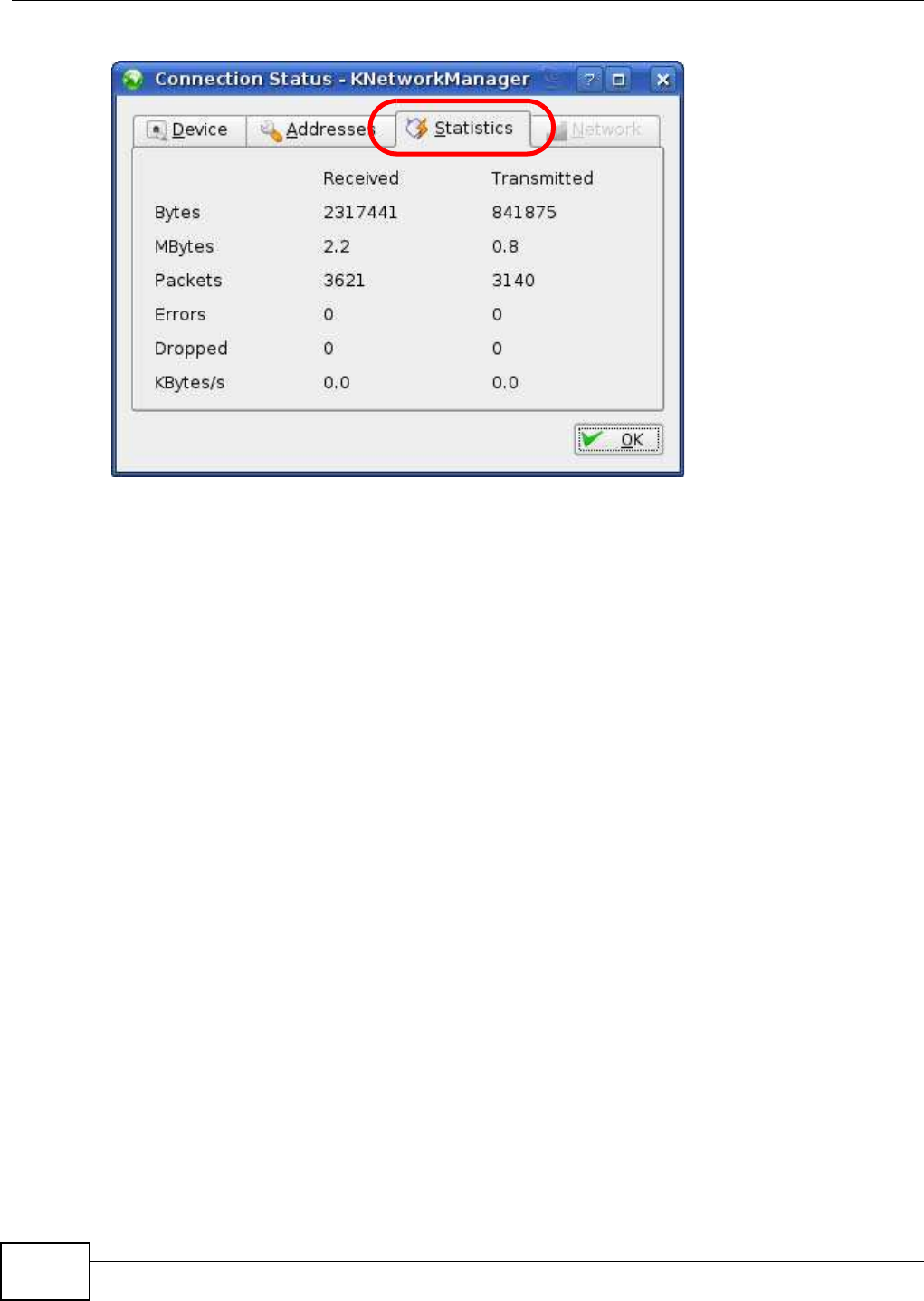

Figure 149 openSUSE: Connection Status - KNetwork Manager
NBG5615 User’s Guide 249
APPENDIX C
Common Services
The following table lists some commonly-used services and their associated protocols and port
numbers. For a comprehensive list of port numbers, ICMP type/code numbers and services, visit
the IANA (Internet Assigned Number Authority) web site.
Nam e: This is a short, descriptive name for the service. You can use this one or create a
different one, if you like.
Protocol: This is the type of IP protocol used by the service. If this is TCP/ UDP, then the service
uses the same port number with TCP and UDP. If this is USER-DEFI NED, the Port( s) is the IP
protocol number, not the port number.
Port( s) : This value depends on the Protocol. Please refer to RFC 1700 for further information
about port numbers.
•If the Protocol is TCP, UDP, or TCP/ UDP, this is the IP port number.
•If the Protocol is USER, this is the IP protocol number.
Description: This is a brief explanation of the applications that use this service or the situations
in which this service is used.
Table 84 Commonly Used Services
NAME PROTOCOL PORT(S) DESCRIPTION
AH
(IPSEC_TUNNEL)
User-Defined 51 The IPSEC AH (Authentication Header)
tunneling protocol uses this service.
AIM/New-ICQ TCP 5190 AOL’s Internet Messenger service. It is
also used as a listening port by ICQ.
AUTH TCP 113 Authentication protocol used by some
servers.
BGP TCP 179 Border Gateway Protocol.
BOOTP_CLIENT UDP 68 DHCP Client.
BOOTP_SERVER UDP 67 DHCP Server.
CU-SEEME TCP
UDP
7648
24032
A popular videoconferencing solution from
White Pines Software.
DNS TCP/UDP 53 Domain Name Server, a service that
matches web names (for example
www.zyxel.com) to IP numbers.
ESP
(IPSEC_TUNNEL)
User-Defined 50 The IPSEC ESP (Encapsulation Security
Protocol) tunneling protocol uses this
service.
FINGER TCP 79 Finger is a UNIX or Internet related
command that can be used to find out if a
user is logged on.
FTP TCP
TCP
20
21
File Transfer Program, a program to enable
fast transfer of files, including large files
that may not be possible by e-mail.
H.323 TCP 1720 NetMeeting uses this protocol.
Appendix C Common Services
NBG5615 User’s Guide
250
HTTP TCP 80 Hyper Text Transfer Protocol - a client/
server protocol for the world wide web.
HTTPS TCP 443 HTTPS is a secured http session often used
in e-commerce.
ICMP User-Defined 1Internet Control Message Protocol is often
used for diagnostic or routing purposes.
ICQ UDP 4000 This is a popular Internet chat program.
IGMP (MULTICAST) User-Defined 2Internet Group Management Protocol is
used when sending packets to a specific
group of hosts.
IKE UDP 500 The Internet Key Exchange algorithm is
used for key distribution and
management.
IRC TCP/UDP 6667 This is another popular Internet chat
program.
MSN Messenger TCP 1863 Microsoft Networks’ messenger service
uses this protocol.
NEW-ICQ TCP 5190 An Internet chat program.
NEWS TCP 144 A protocol for news groups.
NFS UDP 2049 Network File System - NFS is a client/
server distributed file service that provides
transparent file sharing for network
environments.
NNTP TCP 119 Network News Transport Protocol is the
delivery mechanism for the USENET
newsgroup service.
PING User-Defined 1Packet INternet Groper is a protocol that
sends out ICMP echo requests to test
whether or not a remote host is reachable.
POP3 TCP 110 Post Office Protocol version 3 lets a client
computer get e-mail from a POP3 server
through a temporary connection (TCP/IP
or other).
PPTP TCP 1723 Point-to-Point Tunneling Protocol enables
secure transfer of data over public
networks. This is the control channel.
PPTP_TUNNEL
(GRE)
User-Defined 47 PPTP (Point-to-Point Tunneling Protocol)
enables secure transfer of data over public
networks. This is the data channel.
RCMD TCP 512 Remote Command Service.
REAL_AUDIO TCP 7070 A streaming audio service that enables
real time sound over the web.
REXEC TCP 514 Remote Execution Daemon.
RLOGIN TCP 513 Remote Login.
RTELNET TCP 107 Remote Telnet.
RTSP TCP/UDP 554 The Real Time Streaming (media control)
Protocol (RTSP) is a remote control for
multimedia on the Internet.
SFTP TCP 115 Simple File Transfer Protocol.
Table 84 Commonly Used Services (continued)
NAME PROTOCOL PORT(S) DESCRIPTION
Appendix C Common Services
NBG5615 User’s Guide 251
SMTP TCP 25 Simple Mail Transfer Protocol is the
message-exchange standard for the
Internet. SMTP enables you to move
messages from one e-mail server to
another.
SNMP TCP/UDP 161 Simple Network Management Program.
SNMP-TRAPS TCP/UDP 162 Traps for use with the SNMP (RFC:1215).
SQL-NET TCP 1521 Structured Query Language is an interface
to access data on many different types of
database systems, including mainframes,
midrange systems, UNIX systems and
network servers.
SSH TCP/UDP 22 Secure Shell Remote Login Program.
STRM WORKS UDP 1558 Stream Works Protocol.
SYSLOG UDP 514 Syslog allows you to send system logs to a
UNIX server.
TACACS UDP 49 Login Host Protocol used for (Terminal
Access Controller Access Control System).
TELNET TCP 23 Telnet is the login and terminal emulation
protocol common on the Internet and in
UNIX environments. It operates over TCP/
IP networks. Its primary function is to
allow users to log into remote host
systems.
TFTP UDP 69 Trivial File Transfer Protocol is an Internet
file transfer protocol similar to FTP, but
uses the UDP (User Datagram Protocol)
rather than TCP (Transmission Control
Protocol).
VDOLIVE TCP 7000 Another videoconferencing solution.
Table 84 Commonly Used Services (continued)
NAME PROTOCOL PORT(S) DESCRIPTION
Appendix C Common Services
NBG5615 User’s Guide
252
NBG5615 User’s Guide 253
APPENDIX D
Legal Information
Copyright
Copyright © 2012 by ZyXEL Communications Corporation.
The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a retrieval system, translated into
any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or
otherwise, without the prior written permission of ZyXEL Communications Corporation.
Published by ZyXEL Communications Corporation. All rights reserved.
Disclaimer
ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it
convey any license under its patent rights nor the patent rights of others. ZyXEL further reserves the right to make changes in any
products described herein without notice. This publication is subject to change without notice.
Trademarks
NetUSB is a trademark of ZyXEL Communications, Inc. Other trademarks mentioned in this publication are used for identification purposes
only and may be properties of their respective owners.
Certifications
Federal Communications Commission (FCC) Interference Statement
The device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operations.
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses,
and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this device does cause harmful interference to radio/television reception, which can be determined by turning the device off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
1Reorient or relocate the receiving antenna.
2Increase the separation between the equipment and the receiver.
3Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority
to operate this equipment.
FCC Radiation Exposure Statement
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
IEEE 802.11b, 802.11g or 802.11n (20MHz) operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. IEEE
802.11n (40MHz) operation of this product in the U.S.A. is firmware-limited to channels 3 through 9.
To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the
antenna of this device and all persons.
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired operation of the device
This device has been designed to operate with an antenna having a maximum gain of 2dBi.
Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the EIRP is not more than
required for successful communication.
IC Radiation Exposure Statement
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific
operating instructions for satisfying RF exposure compliance.
Appendix D Legal Information
NBG5615 User’s Guide
254
 率輻理

更率




 
Notices
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Viewing Certifications
Go to http://www.zyxel.com to view this product’s documentation and certifications.
ZyXEL Limited Warranty
ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in material or workmanship for a specific
period (the Warranty Period) from the date of purchase. The Warranty Period varies by region. Check with your vendor and/or the
authorized ZyXEL local distributor for details about the Warranty Period of this product. During the warranty period, and upon proof of
purchase, should the product have indications of failure due to faulty workmanship and/or materials, ZyXEL will, at its discretion, repair or
replace the defective products or components without charge for either parts or labor, and to whatever extent it shall deem necessary to
restore the product or components to proper operating condition. Any replacement will consist of a new or re-manufactured functionally
equivalent product of equal or higher value, and will be solely at the discretion of ZyXEL. This warranty shall not apply if the product has
been modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions.
Note
Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This warranty is in lieu of all other
warranties, express or implied, including any implied warranty of merchantability or fitness for a particular use or purpose. ZyXEL shall in
no event be held liable for indirect or consequential damages of any kind to the purchaser.
To obtain the services of this warranty, contact your vendor. You may also refer to the warranty policy for the region in which you bought
the device at http://www.zyxel.com/web/support_warranty_info.php.
Registration
Register your product online to receive e-mail notices of firmware upgrades and information at www.zyxel.com for global products, or at
www.us.zyxel.com for North American products.
Open Source Licenses
This product contains in part some free software distributed under GPL license terms and/or GPL like licenses. Open source licenses are
provided with the firmware package. You can download the latest firmware at www.zyxel.com. To obtain the source code covered under
those Licenses, please contact support@zyxel.com.tw to get it.
Regulatory Information
European Union
The following information applies if you use the product within the European Union.
Declaration of Conformity with Regard to EU Directive 1999/5/EC (R&TTE Directive)
Compliance Information for 2.4GHz and 5GHz Wireless Products Relevant to the EU and Other Countries Following the EU Directive 1999/5/EC
(R&TTE Directive)
[Czech] ZyXEL tímto prohlašuje, že tento zařízení je ve shodě se základními požadavky a dalšími příslušnými ustanoveními
směrnice 1999/5/EC.
[Danish] Undertegnede ZyXEL erklærer herved, at følgende udstyr udstyr overholder de væsentlige krav og øvrige relevante
krav i direktiv 1999/5/EF.
[German] Hiermit erklärt ZyXEL, dass sich das Gerät Ausstattung in Übereinstimmung mit den grundlegenden Anforderungen
und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EU befindet.
[Estonian] Käesolevaga kinnitab ZyXEL seadme seadmed vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele sätetele.
English Hereby, ZyXEL declares that this equipment is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
[Spanish] Por medio de la presente ZyXEL declara que el equipo cumple con los requisitos esenciales y cualesquiera otras
disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Appendix D Legal Information
NBG5615 User’s Guide 255
National Restrictions
This product may be used in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for
the countries mentioned below:
Ce produit peut être utilisé dans tous les pays de l’UE (et dans tous les pays ayant transposés la directive 1999/5/CE) sans aucune
limitation, excepté pour les pays mentionnés ci-dessous:
Questo prodotto è utilizzabile in tutte i paesi EU (ed in tutti gli altri paesi che seguono le direttive EU 1999/5/EC) senza nessuna
limitazione, eccetto per i paesii menzionati di seguito:
Das Produkt kann in allen EU Staaten ohne Einschränkungen eingesetzt werden (sowie in anderen Staaten die der EU Direktive 1995/5/CE
folgen) mit Außnahme der folgenden aufgeführten Staaten:
In the majority of the EU and other European countries, the 2, 4- and 5-GHz bands have been made available for the use of wireless local
area networks (LANs). Later in this document you will find an overview of countries inwhich additional restrictions or requirements or both
are applicable.
The requirements for any country may evolve. ZyXEL recommends that you check with the local authorities for the latest status of their
national regulations for both the 2,4- and 5-GHz wireless LANs.
The following countries have restrictions and/or requirements in addition to those given in the table labeled “Overview of Regulat ory
Requirements for Wireless LANs”:.
[Greek]  Η ΑΑ ZyXEL ΗΩ  επισός ΦΩΑ   Ω ΑΑΗ Α 
 Χ ΑΑ Η ΗΓΑ 1999/5/C.
[French] Par la présente ZyXEL déclare que l'appareil équipements est conforme aux exigences essentielles et aux autres
dispositions pertinentes de la directive 1999/5/EC.
[Italian] Con la presente ZyXEL dichiara che questo attrezzatura è conforme ai requisiti essenziali ed alle altre disposizioni
pertinenti stabilite dalla direttiva 1999/5/CE.
[Latvian] Ar šo ZyXEL deklarē, ka iekārtas atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem
noteikumiem.
[Lithuanian] Šiuo ZyXEL deklaruoja, kad šis įranga atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
[Dutch] Hierbij verklaart ZyXEL dat het toestel uitrusting in overeenstemming is met de essentiële eisen en de andere
relevante bepalingen van richtlijn 1999/5/EC.
[Maltese] Hawnhekk, ZyXEL, jiddikjara li dan tagħmir jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li
hemm fid-Dirrettiva 1999/5/EC.
[Hungarian] Alulírott, ZyXEL nyilatkozom, hogy a berendezés megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EK
irányelv egyéb elõírásainak.
[Polish] Niniejszym ZyXEL oświadcza, że sprzęt jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi
postanowieniami Dyrektywy 1999/5/EC.
[Portuguese] ZyXEL declara que este equipamento está conforme com os requisitos essenciais e outras disposições da Directiva
1999/5/EC.
[Slovenian] ZyXEL izjavlja, da je ta oprema v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/EC.
[Slovak] ZyXEL týmto vyhlasuje, že zariadenia spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/EC.
[Finnish] ZyXEL vakuuttaa täten että laitteet tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien
direktiivin muiden ehtojen mukainen.
[Swedish] Härmed intygar ZyXEL att denna utrustning står I överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 1999/5/EC.
[Bulgarian] С я ZyXEL , ч      я 
    1999/5/C.
[Icelandic] Hér með lýsir, ZyXEL því yfir að þessi búnaður er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipunar
1999/5/EC.
[Norwegian] Erklærer herved ZyXEL at dette utstyret er I samsvar med de grunnleggende kravene og andre relevante
bestemmelser I direktiv 1999/5/EF.
[Romanian] Prin prezenta, ZyXEL declară că acest echipament este în conformitate cu cerinţele esenţiale şi alte prevederi
relevante ale Directivei 1999/5/EC.
Overview of Regulatory Requirements for Wireless LANs
Frequency Band (MHz) Max Power Level
(EIRP)1 (mW) Indoor ONLY Indoor and Outdoor
2400-2483.5 100 V
5150-5350 200 V
5470-5725 1000 V
Appendix D Legal Information
NBG5615 User’s Guide
256
Belgium
The Belgian Institute for Postal Services and Telecommunications (BIPT) must be notified of any outdoor wireless link having a range
exceeding 300 meters. Please check http://www.bipt.be for more details.
Draadloze verbindingen voor buitengebruik en met een reikwijdte van meer dan 300 meter dienen aangemeld te worden bij het Belgisch
Instituut voor postdiensten en telecommunicatie (BIPT). Zie http://www.bipt.be voor meer gegevens.
Les liaisons sans fil pour une utilisation en extérieur d’une distance supérieure à 300 mètres doivent être notifiées à l’Institut Belge des
services Postaux et des Télécommunications (IBPT). Visitez http://www.ibpt.be pour de plus amples détails.
Denmark
In Denmark, the band 5150 - 5350 MHz is also allowed for outdoor usage.
I Danmark må frekvensbåndet 5150 - 5350 også anvendes udendørs.
Italy
This product meets the National Radio Interface and the requirements specified in the National Frequency Allocation Table for Italy. Unless
this wireless LAN product is operating within the boundaries of the owner's property, its use requires a “general authorization.” Please
check http://www.sviluppoeconomico.gov.it/ for more details.
Questo prodotto è conforme alla specifiche di Interfaccia Radio Nazionali e rispetta il Piano Nazionale di ripartizione delle frequenze in
Italia. Se non viene installato all 'interno del proprio fondo, l'utilizzo di prodotti Wireless LAN richiede una “Autorizzazione Generale”.
Consultare http://www.sviluppoeconomico.gov.it/ per maggiori dettagli.
Latvia
The outdoor usage of the 2.4 GHz band requires an authorization from the Electronic Communications Office. Please check http://
www.esd.lv for more details.
2.4 GHz frekvenèu joslas izmantoðanai ârpus telpâm nepiecieðama atïauja no Elektronisko sakaru direkcijas. Vairâk informâcijas: http://www.esd.lv.
Notes:
1. Although Norway, Switzerland and Liechtenstein are not EU member states, the EU Directive 1999/5/EC has also been implemented in
those countries.
2. The regulatory limits for maximum output power are specified in EIRP. The EIRP level (in dBm) of a device can be calculated by adding
the gain of the antenna used(specified in dBi) to the output power available at the connector (specified in dBm).
List of national codes
Safety Warnings
Do NOT use this product near water, for example, in a wet basement or near a swimming pool.
Do NOT expose your device to dampness, dust or corrosive liquids.
Do NOT store things on the device.
Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning.
Connect ONLY suitable accessories to the device.
Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY
qualified service personnel should service or disassemble this device. Please contact your vendor for further information.
Make sure to connect the cables to the correct ports.
Place connecting cables carefully so that no one will step on them or stumble over them.
Always disconnect all cables from this device before servicing or disassembling.
Use ONLY an appropriate power adaptor or cord for your device.
Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in North America or 230V AC in Europe).
Do NOT allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can walk on the power
adaptor or cord.
Do NOT use the device if the power adaptor or cord is damaged as it might cause electrocution.
If the power adaptor or cord is damaged, remove it from the power outlet.
COUNTRY ISO 3166 2 LETTER CODE COUNTRY ISO 3166 2 LETTER CODE
Austria AT Malta MT
Belgium BE Netherlands NL
Cyprus CY Poland PL
Czech Republic CR Portugal PT
Denmark DK Slovakia SK
Estonia EE Slovenia SI
Finland FI Spain ES
France FR Sweden SE
Germany DE United Kingdom GB
Greece GR Iceland IS
Hungary HU Liechtenstein LI
Ireland IE Norway NO
Italy IT Switzerland CH
Latvia LV Bulgaria BG
Lithuania LT Romania RO
Luxembourg LU Turkey TR
Appendix D Legal Information
NBG5615 User’s Guide 257
Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to order a new one.
Do not use the device outside, and make sure all the connections are indoors. There is a remote risk of electric shock from lightning.
Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your device.
Antenna Warning! This device meets ETSI and FCC certification requirements when using the included antenna(s). Only use the
included antenna(s).
If you wall mount your device, make sure that no electrical lines, gas or water pipes will be damaged.
Your product is marked with this symbol, which is known as the WEEE mark. WEEE stands for Waste Electronics and
Electrical Equipment. It means that used electrical and electronic products should not be mixed with general waste. Used
electrical and electronic equipment should be treated separately.
Appendix D Legal Information
NBG5615 User’s Guide
258
Index
NBG5615 User’s Guide 259
Index
A
ActiveX 162
Address Assignment 96
AP 15
AP Mode
menu 69
status screen 67
AP+Bridge 15
B
Bandwidth management
overview 165
priority 167
services 171
BitTorrent 171
Bridge/Repeater 15
C
certifications 253
notices 254
viewing 254
Channel 59, 68
channel 106
CIFS 185
Common Internet File System, see CIFS
Configuration
restore 198
content filtering 161
by keyword (in URL) 161
Cookies 162
copyright 253
CPU usage 60, 68
D
Daylight saving 196
DDNS 149
see also Dynamic DNS
service providers 149
DHCP 90, 133
DHCP server
see also Dynamic Host Configuration Protocol
DHCP server 130, 133
Digital Living Network Alliance 184
disclaimer 253
DLNA 183, 184
indexing 186
overview 183
rescan 186
DLNA-compliant client 184
DNS 135
DNS Server 96
DNS server 135
documentation
related 2
Domain Name System 135
Domain Name System. See DNS.
duplex setting 60, 69
Dynamic DNS 149
Dynamic Host Configuration Protocol 133
DynDNS 149
DynDNS see also DDNS 149
E
encryption 107
and local (user) database 108
key 108
WPA compatible 108
ESSID 207
Index
NBG5615 User’s Guide260
F
FCC interference statement 253
file sharing 184
access right 187, 189
bandwidth 189
example 189
FTP 188
overview 184
Samba 186
user account 187, 188
Windows Explorer 186
work group 186
File Transfer Program 171
Firewall 156
Firewall overview
guidelines 156
ICMP packets 157
network security
Stateful inspection 156
ZyXEL device firewall 156
firewall
stateful inspection 155
Firmware upload 196
file extension
using HTTP
firmware version 59, 68
FTP. see also File Transfer Program 171
G
General wireless LAN screen 110
Guest WLAN 108
Guest WLAN Bandwidth 109
Guide
Quick Start 2
H
HTTP 171
Hyper Text Transfer Protocol 171
I
IGMP 97
see also Internet Group Multicast Protocol
version
IGMP version 97
Internet Group Multicast Protocol 97
IP Address 131, 132, 142
IP alias 130
IP Pool 134
J
Java 162
L
LAN 129
IP pool setup 130
LAN overview 129
LAN setup 129
LAN TCP/IP 130
Language 199
Link type 60, 69
local (user) database 107
and encryption 108
Local Area Network 129
M
MAC 121
MAC address 96, 107
cloning 96
MAC address filter 107
MAC address filtering 121
MAC filter 121
managing the device
good habits 16
using the web configurator. See web configurator.
using the WPS. See WPS.
MBSSID 15
Index
NBG5615 User’s Guide 261
Media access control 121
media client 183
media file 183, 186
type 186
media server 183
overview 183
meida file play 183
Memory usage 60, 68
mode 15
Multicast 97
IGMP 97
N
NAT 139, 142
global 140
how it works 141
inside 140
local 140
outside 140
overview 139
port forwarding 146
see also Network Address Translation
server 140
server sets 146
NAT Traversal 177
Navigation Panel 60, 69
navigation panel 60, 69
Network Address Translation 139, 142
O
operating mode 15
other documentation 2
P
P2P 171
peer-to-peer 171
Point-to-Point Protocol over Ethernet 99
Point-to-Point Tunneling Protocol 101
Pool Size 134
Port forwarding 142, 146
default server 142, 146
example 146
local server 142
port numbers
services
port speed 60, 69
PPPoE 99
dial-up connection
PPTP 101
product registration 254
Q
Quality of Service (QoS) 123
Quick Start Guide 2
R
RADIUS server 107
registration
product 254
related documentation 2
Remote management
and NAT 174
limitations 173
system timeout 174
Reset button 16
Reset the device 16
Restore configuration 198
Roaming 123
Router Mode
status screen 57
RTS/CTS Threshold 106, 123
S
Samba 185
Scheduling 126
Server Message Block, see SMB
Service and port numbers 159, 170
Index
NBG5615 User’s Guide262
Service Set 53, 110, 120
Service Set IDentification 53, 110, 120
Service Set IDentity. See SSID.
Session Initiated Protocol 171
SIP 171
SMB 185
SSID 53, 59, 68, 106, 110, 120
stateful inspection firewall 155
Static DHCP 134
Static Route 151
Status 57
Subnet Mask 131, 132
Summary
DHCP table 90
Packet statistics 91
Wireless station status 92
System General Setup 193
System restart 199
T
TCP/IP configuration 133
Time setting 195
trademarks 253
trigger port 147
Trigger port forwarding 147
example 147
process 147
U
Universal Plug and Play 177
Application 177
Security issues 177
UPnP 177
URL Keyword Blocking 162
USB media sharing 183
user authentication 107
local (user) database 107
RADIUS server 107
User Name 150
V
VoIP 171
VPN 101
W
Wake On LAN 175
WAN (Wide Area Network) 95
WAN MAC address 96
warranty 254
note 254
Web Configurator
how to access 39
Overview 39
web configurator 16
Web Proxy 162
WEP Encryption 114, 116
WEP encryption 113
WEP key 113
windows media player 183
Wireless association list 92
wireless channel 207
wireless LAN 207
wireless LAN scheduling 126
Wireless network
basic guidelines 106
channel 106
encryption 107
example 105
MAC address filter 107
overview 105
security 106
SSID 106
Wireless security 106
overview 106
type 106
wireless security 207
Wireless tutorial 73
Wizard setup 27
WLAN button 17
WoL 175
work group 185
name 185
Index
NBG5615 User’s Guide 263
Windows 185
World Wide Web 171
WPA compatible 108
WPS 16
WWW 171
X
Xbox Live 171
Index
NBG5615 User’s Guide264

Navigation menu
