NBG6716 User’s Guide 166

CHAPTER 23

Maintenance

23.1 Overview

This chapter provides information on the Maintenance screens.

23.2 What You Can Do

•Use the General screen to set the timeout period of the management session (Section 23.3 on

page 166).

•Use the Password screen to change your NBG6716’s system password (Section 23.4 on page

167).

•Use the Time screen to change your NBG6716’s time and date (Section 23.5 on page 168).

•Use the Firmware Upgrade screen to upload firmware to your NBG6716 (Section 23.6 on page

169).

•Use the Backup/Restore screen to view information related to factory defaults, backup

configuration, and restoring configuration (Section 23.8 on page 172).

•Use the Restart screen to reboot the NBG6716 without turning the power off (Section 23.8 on

page 172).

•Use the Language screen to change the language for the Web Configurator (Section 23.9 on

page 172) .

•Use the Sys OP Mode screen to select how you want to use your NBG6716 (Section 23.11 on

page 174).

23.3 General Screen

Use this screen to set the management session timeout period. Click Maintenance > General.

The following screen displays.

Figure 118 Maintenance > General

Chapter 23 Maintenance

NBG6716 User’s Guide 167

The following table describes the labels in this screen.

23.4 Password Screen

It is strongly recommended that you change your NBG6716's password.

If you forget your NBG6716's password (or IP address), you will need to reset the device. See

Section 23.8 on page 172 for details.

Click Maintenance > Password. The screen appears as shown.

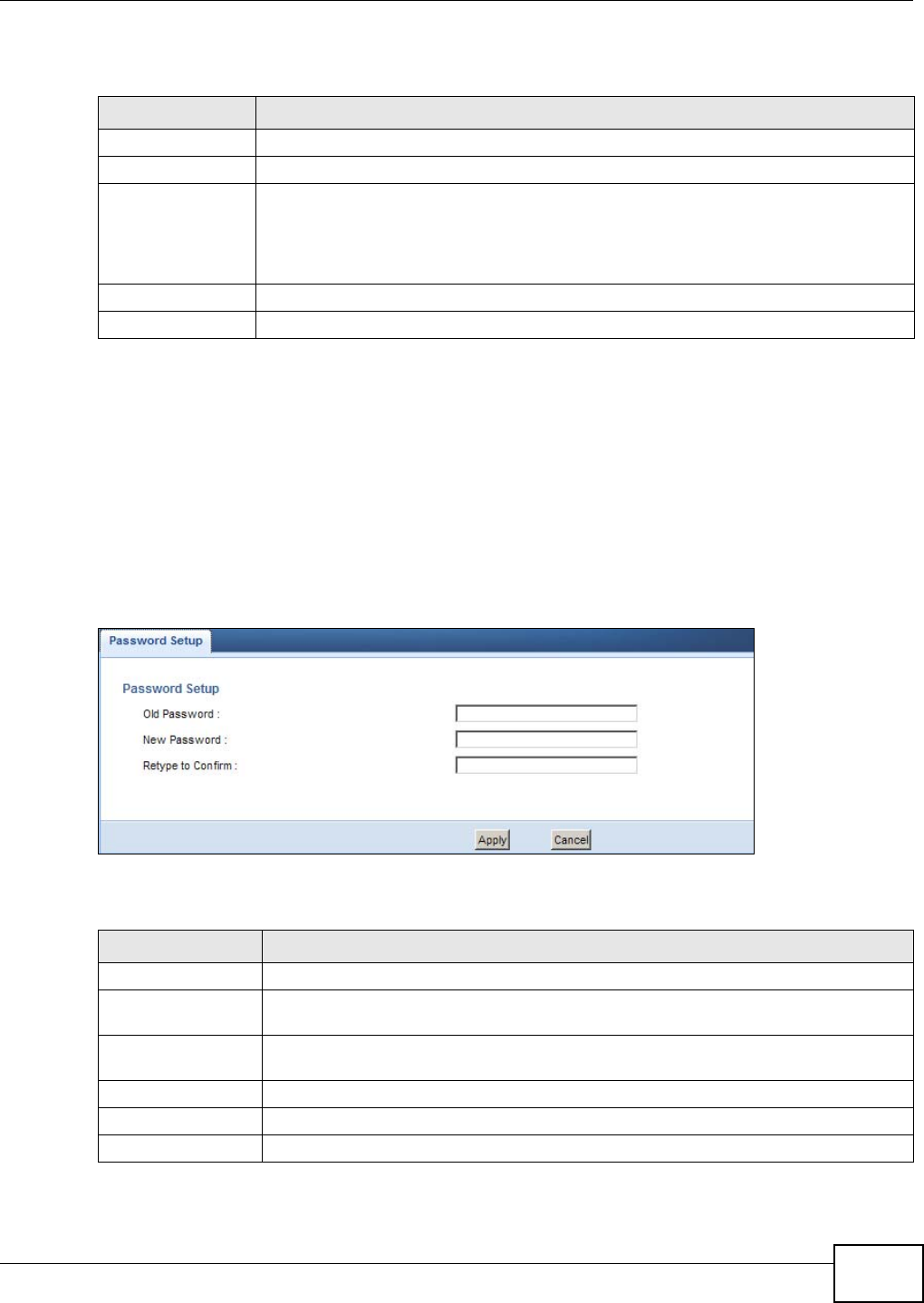

Figure 119 Maintenance > Password

The following table describes the labels in this screen.

Table 68 Maintenance > General

LABEL DESCRIPTION

System Name System Name is a unique name to identify the NBG6716 in an Ethernet network.

Domain Name Enter the domain name you want to give to the NBG6716.

Administrator

Inactivity Timer Type how many minutes a management session can be left idle before the session times

out. The default is 5 minutes. After it times out you have to log in with your password

again. Very long idle timeouts may have security risks. A value of "0" means a

management session never times out, no matter how long it has been left idle (not

recommended).

Apply Click Apply to save your changes back to the NBG6716.

Cancel Click Cancel to begin configuring this screen afresh.

Table 69 Maintenance > Password

LABEL DESCRIPTION

Password Setup Change your NBG6716’s password (recommended) using the fields as shown.

Old Password Type the default password or the existing password you use to access the system in

this field.

New Password Type your new system password (up to 30 characters). Note that as you type a

password, the screen displays an asterisk (*) for each character you type.

Retype to Confirm Type the new password again in this field.

Apply Click Apply to save your changes back to the NBG6716.

Cancel Click Cancel to begin configuring this screen afresh.

Chapter 23 Maintenance

NBG6716 User’s Guide

168

23.5 Time Setting Screen

Use this screen to configure the NBG6716’s time based on your local time zone. To change your

NBG6716’s time and date, click Maintenance > Time. The screen appears as shown.

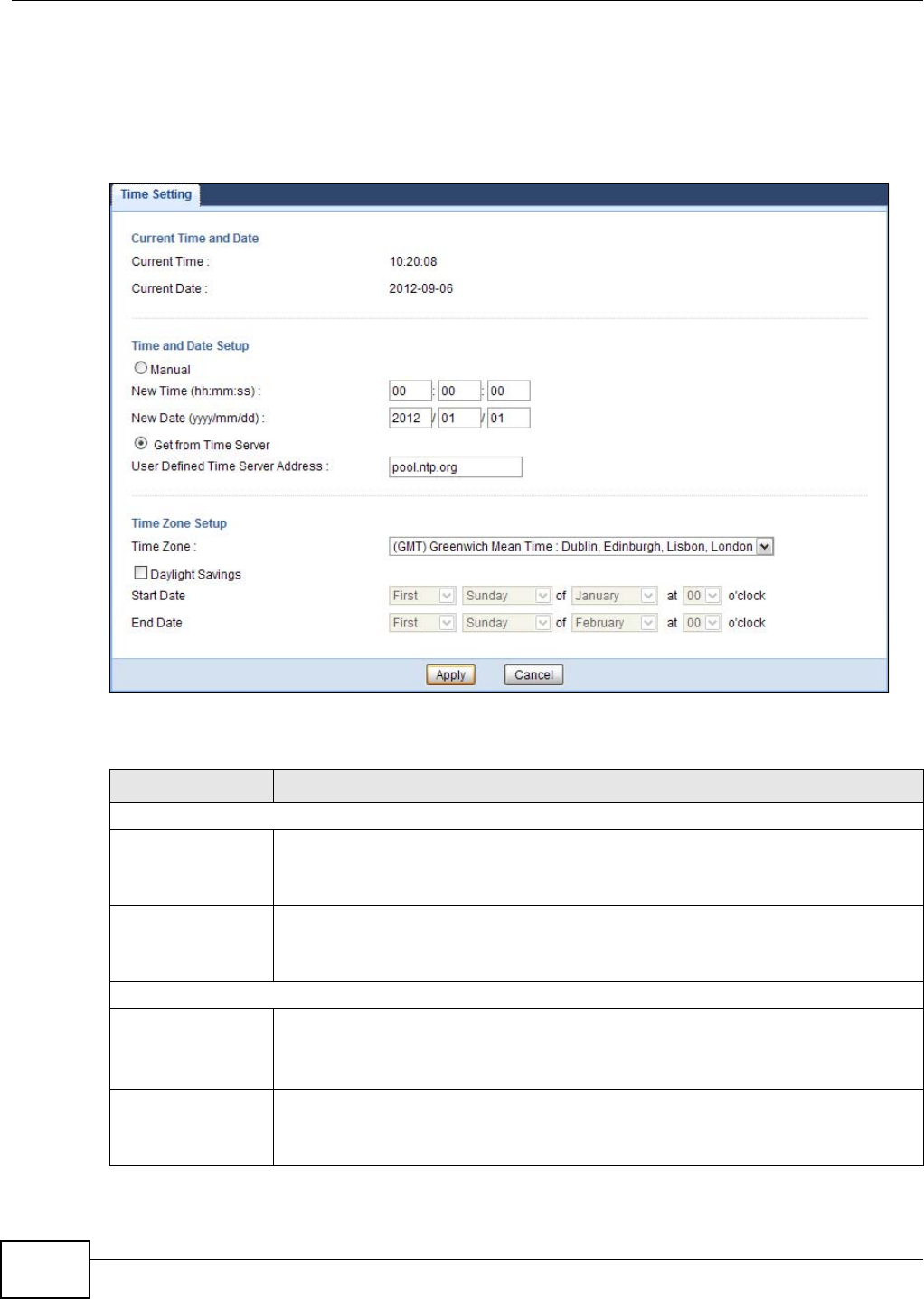

Figure 120 Maintenance > Time

The following table describes the labels in this screen.

Table 70 Maintenance > Time

LABEL DESCRIPTION

Current Time and Date

Current Time This field displays the time of your NBG6716.

Each time you reload this page, the NBG6716 synchronizes the time with the time

server.

Current Date This field displays the date of your NBG6716.

Each time you reload this page, the NBG6716 synchronizes the date with the time

server.

Current Time and Date

Manual Select this radio button to enter the time and date manually. If you configure a new

time and date, Time Zone and Daylight Saving at the same time, the new time and date

you entered has priority and the Time Zone and Daylight Saving settings do not affect

it.

New Time

(hh:mm:ss)

This field displays the last updated time from the time server or the last time

configured manually.

When you select Manual, enter the new time in this field and then click Apply.

Chapter 23 Maintenance

NBG6716 User’s Guide 169

23.6 Firmware Upgrade Screen

Find firmware at www.zyxel.com in a file that uses the version number and project code with a

“*.bin” extension, e.g., “V1.00(AAKG.0).bin”. The upload process uses HTTP (Hypertext Transfer

Protocol) and may take up to two minutes. After a successful upload, the system will reboot.

New Date

(yyyy/mm/dd)

This field displays the last updated date from the time server or the last date configured

manually.

When you select Manual, enter the new date in this field and then click Apply.

Get from Time

Server Select this radio button to have the NBG6716 get the time and date from the time

server you specified below.

User Defined Time

Server Address Select User Defined Time Server Address and enter the IP address or URL (up to 20

extended ASCII characters in length) of your time server. Check with your ISP/network

administrator if you are unsure of this information.

Time Zone Setup

Time Zone Choose the time zone of your location. This will set the time difference between your

time zone and Greenwich Mean Time (GMT).

Daylight Savings Daylight saving is a period from late spring to early fall when many countries set their

clocks ahead of normal local time by one hour to give more daytime light in the

evening.

Select this option if you use Daylight Saving Time.

Start Date Configure the day and time when Daylight Saving Time starts if you selected Daylight

Savings. The at field uses the 24 hour format. Here are a couple of examples:

Daylight Saving Time starts in most parts of the United States on the second Sunday of

March. Each time zone in the United States starts using Daylight Saving Time at 2 A.M.

local time. So in the United States you would select Second, Sunday, March and

select 2 in the at field.

Daylight Saving Time starts in the European Union on the last Sunday of March. All of

the time zones in the European Union start using Daylight Saving Time at the same

moment (1 A.M. GMT or UTC). So in the European Union you would select Last,

Sunday, March. The time you select in the at field depends on your time zone. In

Germany for instance, you would select 2 because Germany's time zone is one hour

ahead of GMT or UTC (GMT+1).

End Date Configure the day and time when Daylight Saving Time ends if you selected Daylight

Savings. The at field uses the 24 hour format. Here are a couple of examples:

Daylight Saving Time ends in the United States on the first Sunday of November. Each

time zone in the United States stops using Daylight Saving Time at 2 A.M. local time.

So in the United States you would select First, Sunday, November and select 2 in the

at field.

Daylight Saving Time ends in the European Union on the last Sunday of October. All of

the time zones in the European Union stop using Daylight Saving Time at the same

moment (1 A.M. GMT or UTC). So in the European Union you would select Last,

Sunday, October. The time you select in the at field depends on your time zone. In

Germany for instance, you would select 2 because Germany's time zone is one hour

ahead of GMT or UTC (GMT+1).

Apply Click Apply to save your changes back to the NBG6716.

Cancel Click Cancel to begin configuring this screen afresh.

Table 70 Maintenance > Time (continued)

LABEL DESCRIPTION

Chapter 23 Maintenance

NBG6716 User’s Guide

170

Click Maintenance > Firmware Upgrade. Follow the instructions in this screen to upload

firmware to your NBG6716.

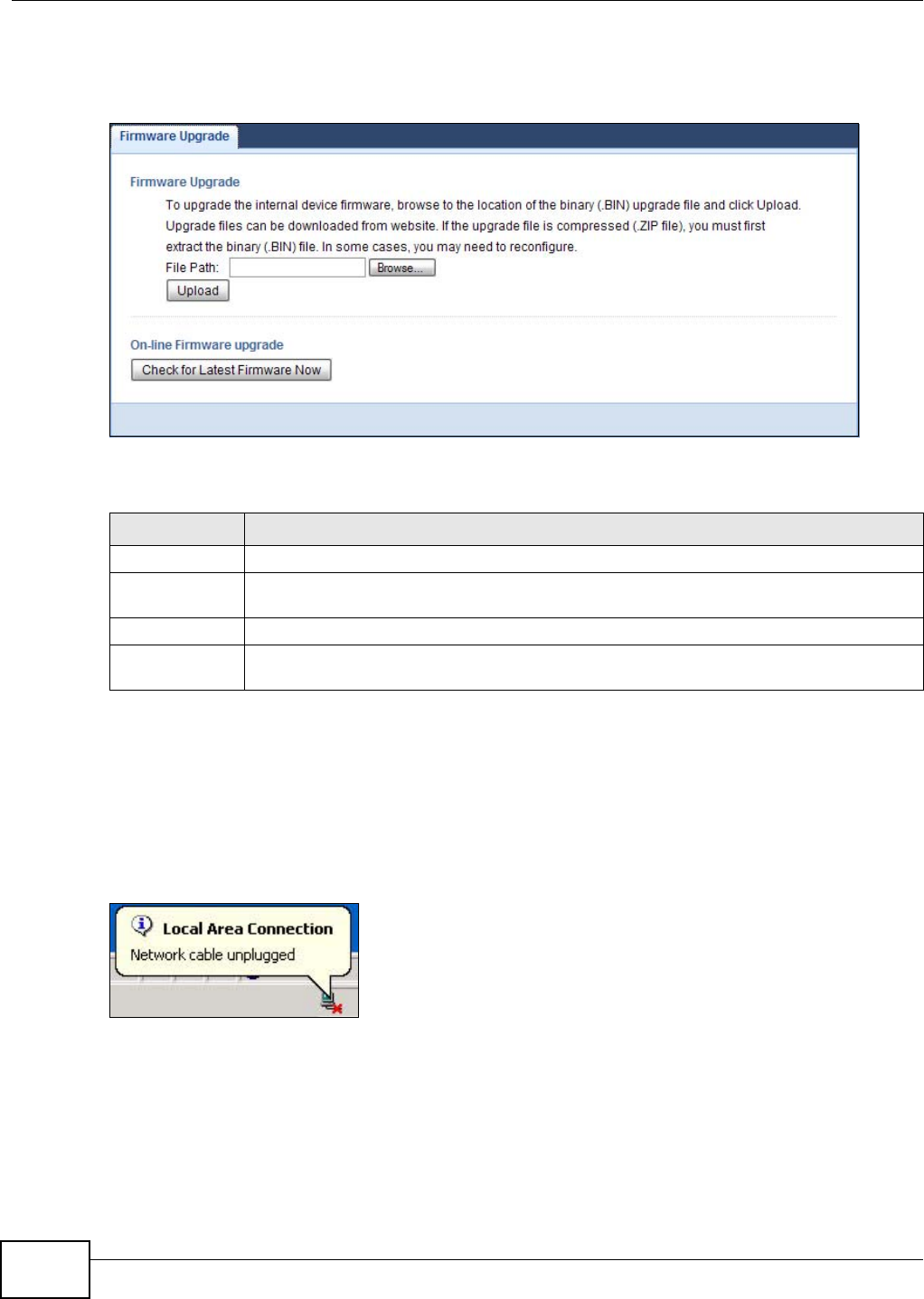

Figure 121 Maintenance > Firmware Upgrade

The following table describes the labels in this screen.

Note: Do not turn off the NBG6716 while firmware upload is in progress!

After you see the Firmware Upload In Process screen, wait two minutes before logging into the

NBG6716 again.

The NBG6716 automatically restarts in this time causing a temporary network disconnect. In some

operating systems, you may see the following icon on your desktop.

Figure 122 Network Temporarily Disconnected

After two minutes, log in again and check your new firmware version in the Status screen.

If the upload was not successful, an error message appears. Click Return to go back to the

Firmware Upgrade screen.

Table 71 Maintenance > Firmware Upgrade

LABEL DESCRIPTION

File Path Type in the location of the file you want to upload in this field or click Browse... to find it.

Browse... Click Browse... to find the .bin file you want to upload. Remember that you must

decompress compressed (.zip) files before you can upload them.

Upload Click Upload to begin the upload process. This process may take up to two minutes.

Check for Latest

Firmware Now Click this to check for the latest updated firmware.

Chapter 23 Maintenance

NBG6716 User’s Guide 171

23.7 Configuration Backup/Restore Screen

Backup configuration allows you to back up (save) the NBG6716’s current configuration to a file on

your computer. Once your NBG6716 is configured and functioning properly, it is highly

recommended that you back up your configuration file before making configuration changes. The

backup configuration file will be useful in case you need to return to your previous settings.

Restore configuration allows you to upload a new or previously saved configuration file from your

computer to your NBG6716.

Click Maintenance > Backup/Restore. Information related to factory defaults, backup

configuration, and restoring configuration appears as shown next.

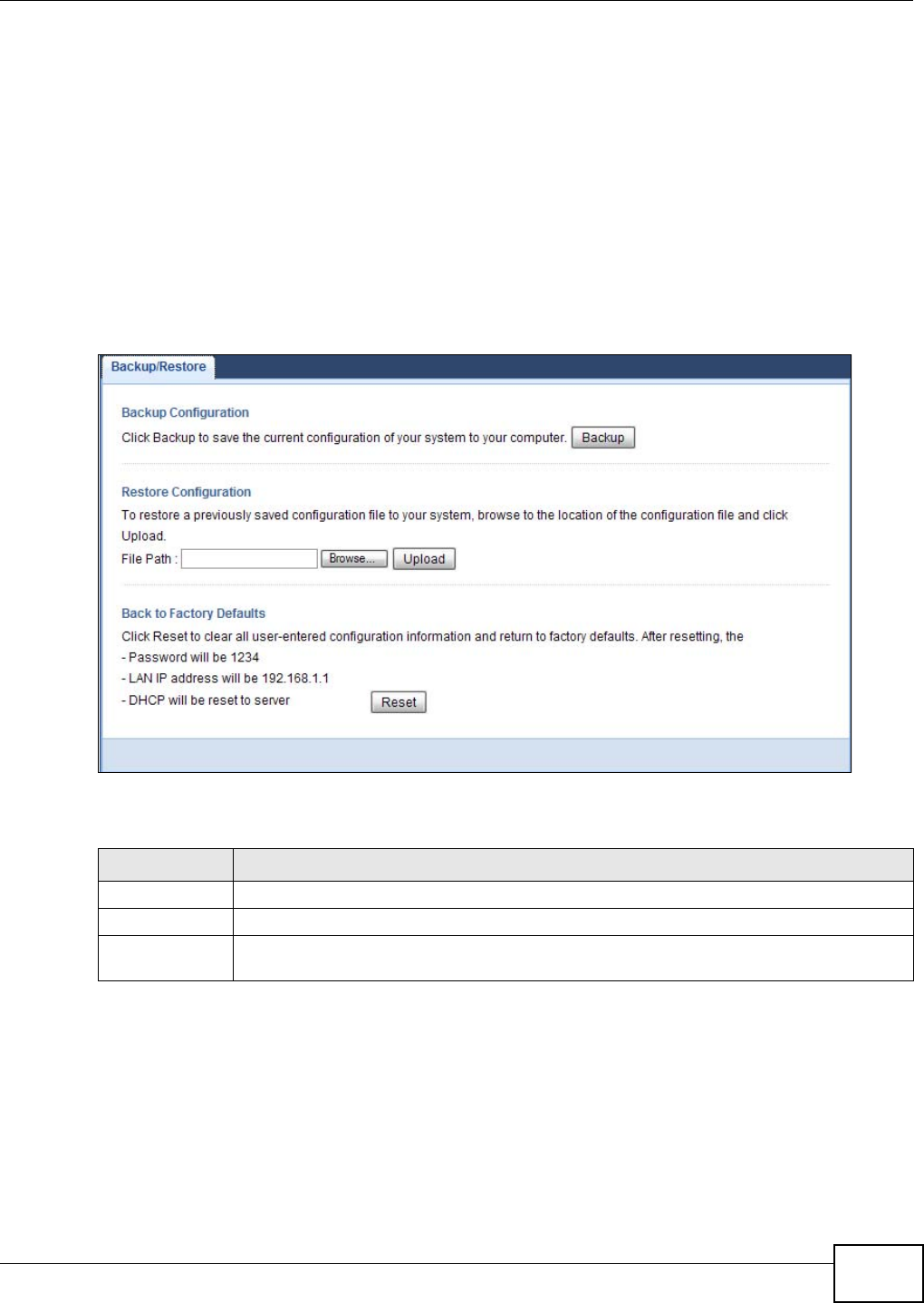

Figure 123 Maintenance > Backup/Restore

The following table describes the labels in this screen.

Table 72 Maintenance > Backup/Restore

LABEL DESCRIPTION

Backup Click Backup to save the NBG6716’s current configuration to your computer.

File Path Type in the location of the file you want to upload in this field or click Browse... to find it.

Browse... Click Browse... to find the file you want to upload. Remember that you must decompress

compressed (.ZIP) files before you can upload them.

Chapter 23 Maintenance

NBG6716 User’s Guide

172

Note: If you uploaded the default configuration file you may need to change the IP

address of your computer to be in the same subnet as that of the default NBG6716

IP address (192.168.1.1). See Appendix B on page 193 for details on how to set up

your computer’s IP address.

23.8 Restart Screen

System restart allows you to reboot the NBG6716 without turning the power off.

Click Maintenance > Restart to open the following screen.

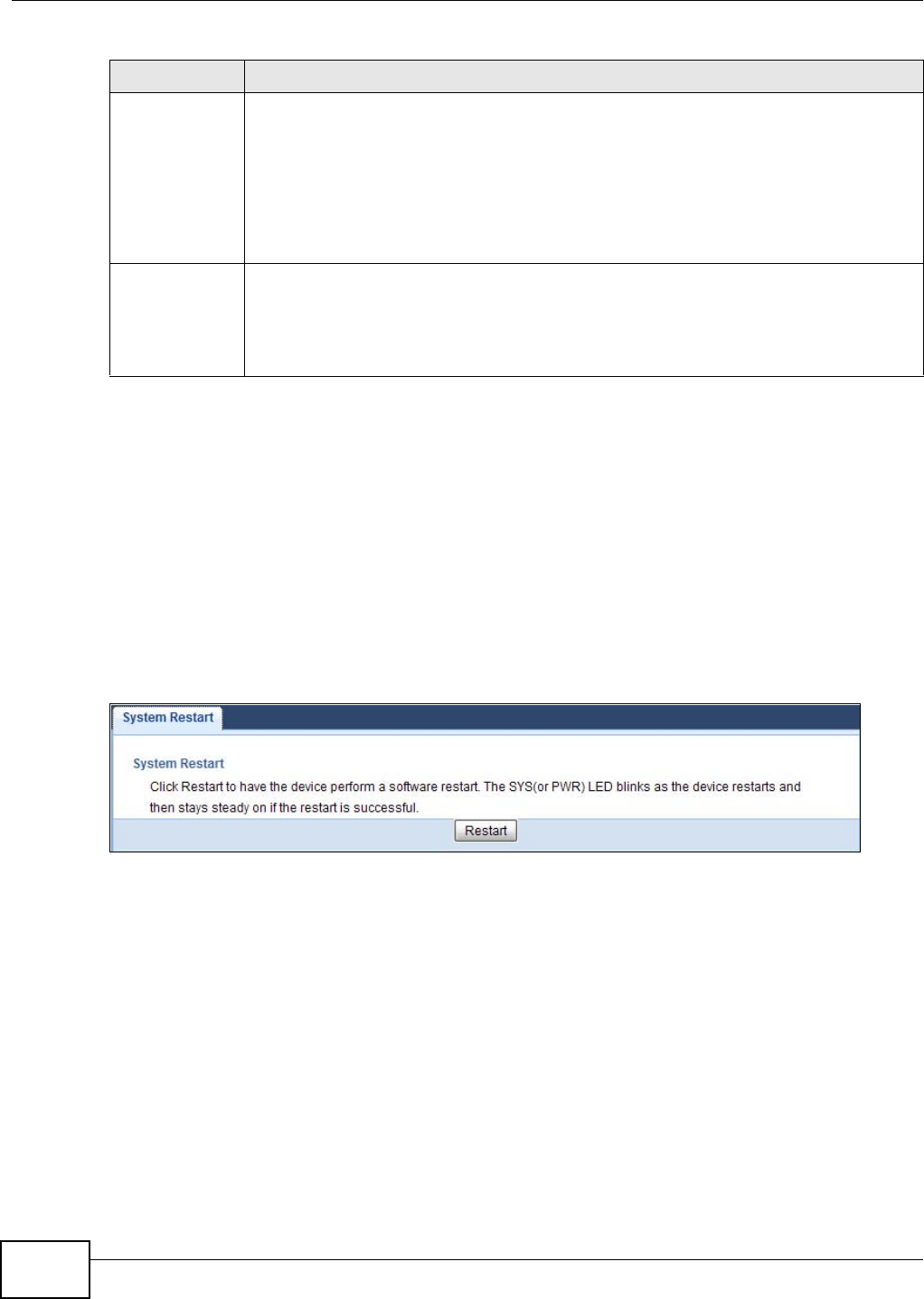

Figure 124 Maintenance > Restart

Click Restart to have the NBG6716 reboot. This does not affect the NBG6716's configuration.

23.9 Language Screen

Use this screen to change the language for the Web Configurator.

Select the language you prefer and click Apply. The Web Configurator language changes after a

while without restarting the NBG6716.

Upload Click Upload to begin the upload process.

Note: Do not turn off the NBG6716 while configuration file upload is in progress.

After you see a “configuration upload successful” screen, you must then wait one minute

before logging into the NBG6716 again. The NBG6716 automatically restarts in this time

causing a temporary network disconnect.

If you see an error screen, click Back to return to the Backup/Restore screen.

Reset Pressing the Reset button in this section clears all user-entered configuration information

and returns the NBG6716 to its factory defaults.

You can also press the RESET button on the rear panel to reset the factory defaults of your

NBG6716. Refer to the chapter about introducing the Web Configurator for more

information on the RESET button.

Table 72 Maintenance > Backup/Restore (continued)

LABEL DESCRIPTION

Chapter 23 Maintenance

NBG6716 User’s Guide 173

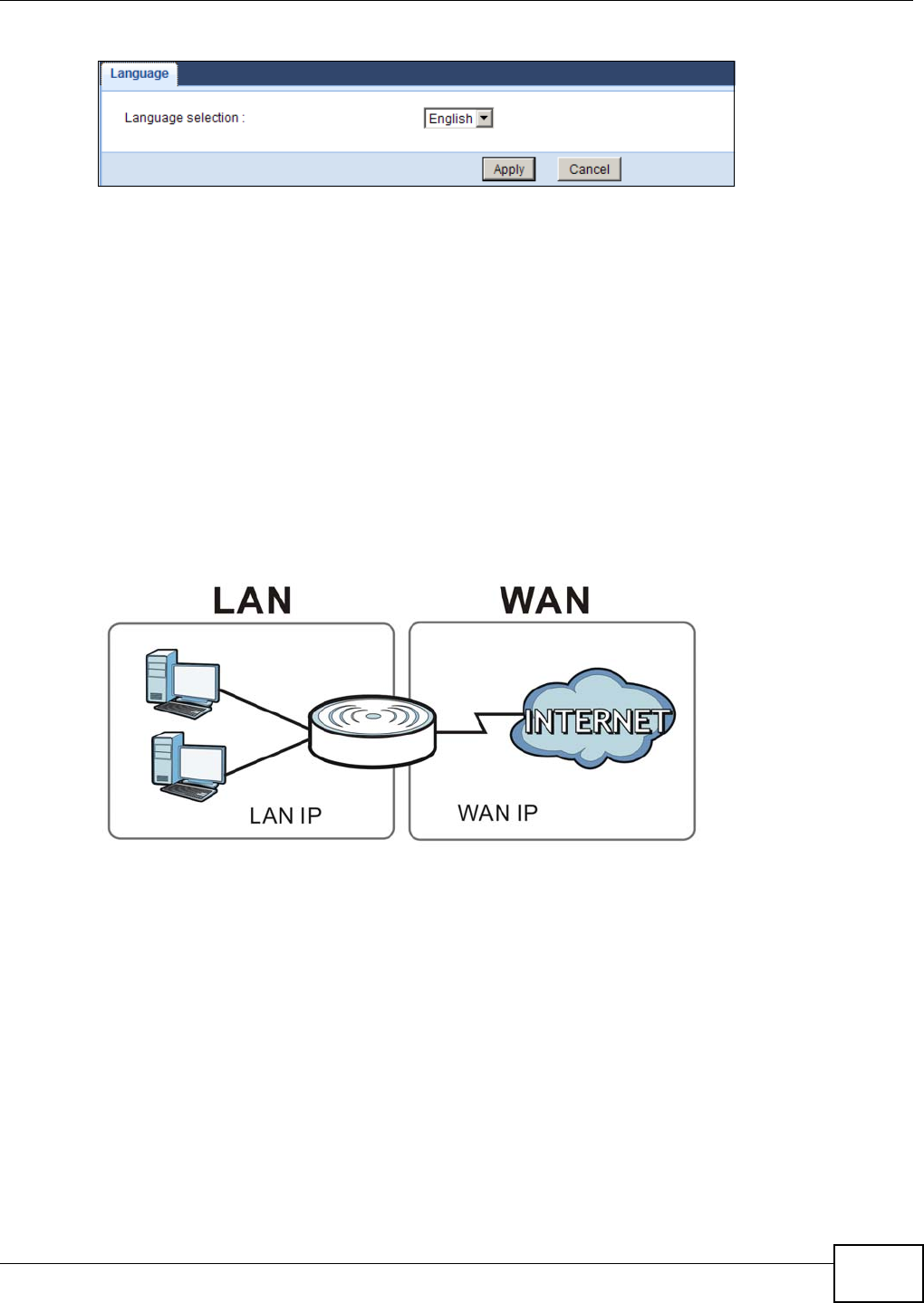

Figure 125 Maintenance > Language

23.10 System Operation Mode Overview

The Sys OP Mode (System Operation Mode) function lets you configure your NBG6716 as a router

or access point. You can choose between Router Mode, and Access Point Mode depending on

your network topology and the features you require from your device.

The following describes the device modes available in your NBG6716.

Router

A router connects your local network with another network, such as the Internet. The router has

two IP addresses, the LAN IP address and the WAN IP address.

Figure 126 LAN and WAN IP Addresses in Router Mode

Access Point

An access point enabled all ethernet ports to be bridged together and be in the same subnet. To

connect to the Internet, another device, such as a router, is required.

Chapter 23 Maintenance

NBG6716 User’s Guide

174

Figure 127 Access Point Mode

23.11 Sys OP Mode Screen

Use this screen to select how you want to use your NBG6716.

Figure 128 Maintenance > Sys OP Mode

The following table describes the labels in the General screen.

Table 73 Maintenance > Sys OP Mode

LABEL DESCRIPTION

Configuration Mode

Router Mode Select Router Mode if your device routes traffic between a local network and

another network such as the Internet. This mode offers services such as a firewall

or bandwidth management.

You can configure the IP address settings on your WAN port. Contact your ISP or

system administrator for more information on appropriate settings.

Chapter 23 Maintenance

NBG6716 User’s Guide 175

Note: If you select the incorrect system operation Mode you may not be able to connect

to the Internet.

Access Point Mode Select Access Point Mode if your device bridges traffic between clients on the

same network.

•In Access Point Mode, all Ethernet ports have the same IP address.

• All ports on the rear panel of the device are LAN ports, including the port

labeled WAN. There is no WAN port.

• The DHCP server on your device is disabled.

• Router functions (such as NAT, bandwidth management, remote management,

firewall and so on) are not available when the NBG6716 is in Access Point

Mode.

• The IP address of the device on the local network is set to 192.168.1.2.

Apply Click Apply to save your settings.

Cancel Click Cancel to return your settings to the default (Router).

Table 73 Maintenance > Sys OP Mode (continued)

LABEL DESCRIPTION

NBG6716 User’s Guide 176

CHAPTER 24

Troubleshooting

24.1 Overview

This chapter offers some suggestions to solve problems you might encounter. The potential

problems are divided into the following categories.

•Power, Hardware Connections, and LEDs

•NBG6716 Access and Login

•Internet Access

•Resetting the NBG6716 to Its Factory Defaults

•Wireless Connections

•USB Device Problems

•ZyXEL Share Center Utility Problems

24.2 Power, Hardware Connections, and LEDs

The NBG6716 does not turn on. None of the LEDs turn on.

1Make sure you are using the power adaptor or cord included with the NBG6716.

2Make sure the power adaptor or cord is connected to the NBG6716 and plugged in to an appropriate

power source. Make sure the power source is turned on.

3Disconnect and re-connect the power adaptor or cord to the NBG6716.

4If the problem continues, contact the vendor.

One of the LEDs does not behave as expected.

1Make sure you understand the normal behavior of the LED. See Section 1.7 on page 16.

2Check the hardware connections. See the Quick Start Guide.

3Inspect your cables for damage. Contact the vendor to replace any damaged cables.

Chapter 24 Troubleshooting

NBG6716 User’s Guide 177

4Disconnect and re-connect the power adaptor to the NBG6716.

5If the problem continues, contact the vendor.

24.3 NBG6716 Access and Login

I don’t know the IP address of my NBG6716.

1The default IP address of the NBG6716 in Router Mode is 192.168.1.1. The default IP address of

the NBG6716 in Access Point Mode is 192.168.1.2.

2If you changed the IP address and have forgotten it, you might get the IP address of the NBG6716

in Router Mode by looking up the IP address of the default gateway for your computer. To do this

in most Windows computers, click Start > Run, enter cmd, and then enter ipconfig. The IP

address of the Default Gateway might be the IP address of the NBG6716 (it depends on the

network), so enter this IP address in your Internet browser.

3If your NBG6716 in Access Point Mode is a DHCP client, you can find your IP address from the

DHCP server. This information is only available from the DHCP server which allocates IP addresses

on your network. Find this information directly from the DHCP server or contact your system

administrator for more information.

4Reset your NBG6716 to change all settings back to their default. This means your current settings

are lost. See Section 24.5 on page 180 in the Troubleshooting for information on resetting your

NBG6716.

I forgot the password.

1The default password is 1234.

2If this does not work, you have to reset the device to its factory defaults. See Section 24.5 on page

180.

I cannot see or access the Login screen in the Web Configurator.

1Make sure you are using the correct IP address.

• The default IP address of the NBG6716 in Router Mode is 192.168.1.1. The default IP

address of the NBG6716 in Access Point Mode is 192.168.1.2.

• If you changed the IP address (Section 12.4 on page 108), use the new IP address.

• If you changed the IP address and have forgotten it, see the troubleshooting suggestions for I

don’t know the IP address of my NBG6716.

Chapter 24 Troubleshooting

NBG6716 User’s Guide

178

2Check the hardware connections, and make sure the LEDs are behaving as expected. See the Quick

Start Guide.

3Make sure your Internet browser does not block pop-up windows and has JavaScript and Java

enabled. See Appendix A on page 184.

4Make sure your computer is in the same subnet as the NBG6716. (If you know that there are

routers between your computer and the NBG6716, skip this step.)

• If there is a DHCP server on your network, make sure your computer is using a dynamic IP

address. See Section 12.4 on page 108.

• If there is no DHCP server on your network, make sure your computer’s IP address is in the

same subnet as the NBG6716. See Section 12.4 on page 108.

5Reset the device to its factory defaults, and try to access the NBG6716 with the default IP address.

See Section 1.5 on page 15.

6If the problem continues, contact the network administrator or vendor, or try one of the advanced

suggestions.

Advanced Suggestions

• Try to access the NBG6716 using another service, such as Telnet. If you can access the

NBG6716, check the remote management settings and firewall rules to find out why the

NBG6716 does not respond to HTTP.

• If your computer is connected to the WAN port or is connected wirelessly, use a computer that is

connected to a LAN/ETHERNET port.

I can see the Login screen, but I cannot log in to the NBG6716.

1Make sure you have entered the password correctly. The default password is 1234. This field is

case-sensitive, so make sure [Caps Lock] is not on.

2This can happen when you fail to log out properly from your last session. Try logging in again after

5 minutes.

3Disconnect and re-connect the power adaptor or cord to the NBG6716.

4If this does not work, you have to reset the device to its factory defaults. See Section 24.5 on page

180.

24.4 Internet Access

I cannot access the Internet.

Chapter 24 Troubleshooting

NBG6716 User’s Guide 179

1Check the hardware connections, and make sure the LEDs are behaving as expected. See the Quick

Start Guide.

2Go to Maintenance > Sys OP Mode. Check your System Operation Mode setting.

• If the NBG6716 is in Router Mode, make sure the WAN port is connected to a broadband

modem or router with Internet access. Your computer and the NBG6716 should be in the same

subnet.

• If the NBG6716 is in Access Point Mode, make sure the WAN port is connected to a

broadband modem or router with Internet access and your computer is set to obtain an

dynamic IP address.

3If the NBG6716 is in Router Mode, make sure you entered your ISP account information correctly

in the wizard or the WAN screen. These fields are case-sensitive, so make sure [Caps Lock] is not

on.

4If you are trying to access the Internet wirelessly, make sure the wireless settings in the wireless

client are the same as the settings in the AP.

5Disconnect all the cables from your device, and follow the directions in the Quick Start Guide again.

6If the problem continues, contact your ISP.

I cannot access the Internet anymore. I had access to the Internet (with the NBG6716), but

my Internet connection is not available anymore.

1Check the hardware connections, and make sure the LEDs are behaving as expected. See the Quick

Start Guide and Section 1.7 on page 16.

2Reboot the NBG6716.

3If the problem continues, contact your ISP.

The Internet connection is slow or intermittent.

1There might be a lot of traffic on the network. Look at the LEDs, and check Section 1.7 on page 16.

If the NBG6716 is sending or receiving a lot of information, try closing some programs that use the

Internet, especially peer-to-peer applications.

2Check the signal strength. If the signal strength is low, try moving the NBG6716 closer to the AP if

possible, and look around to see if there are any devices that might be interfering with the wireless

network (for example, microwaves, other wireless networks, and so on).

3Reboot the NBG6716.

4If the problem continues, contact the network administrator or vendor, or try one of the advanced

suggestions.

Advanced Suggestion

Chapter 24 Troubleshooting

NBG6716 User’s Guide

180

• Check the settings for QoS. If it is disabled, you might consider activating it.

24.5 Resetting the NBG6716 to Its Factory Defaults

If you reset the NBG6716, you lose all of the changes you have made. The NBG6716 re-loads its

default settings, and the password resets to 1234. You have to make all of your changes again.

You will lose all of your changes when you push the RESET button.

To reset the NBG6716:

1Make sure the power LED is on.

2Press the RESET button for one to four seconds to restart/reboot the NBG6716.

3Press the RESET button for longer than five seconds to set the NBG6716 back to its factory-default

configurations.

If the NBG6716 restarts automatically, wait for the NBG6716 to finish restarting, and log in to the

Web Configurator. The password is “1234”.

If the NBG6716 does not restart automatically, disconnect and reconnect the NBG6716’s power.

Then, follow the directions above again.

24.6 Wireless Connections

I cannot access the NBG6716 or ping any computer from the WLAN.

1Make sure the wireless LAN is enabled on the NBG6716.

2Make sure the wireless adapter on your computer is working properly.

3Make sure the wireless adapter installed on your computer is IEEE 802.11 compatible and supports

the same wireless standard as the NBG6716.

4Make sure your computer (with a wireless adapter installed) is within the transmission range of the

NBG6716.

5Check that both the NBG6716 and the wireless adapter on your computer are using the same

wireless and wireless security settings.

6Make sure traffic between the WLAN and the LAN is not blocked by the firewall on the NBG6716.

Chapter 24 Troubleshooting

NBG6716 User’s Guide 181

7Make sure you allow the NBG6716 to be remotely accessed through the WLAN interface. Check

your remote management settings.

• See the chapter on Wireless LAN in the User’s Guide for more information.

I set up URL keyword blocking, but I can still access a website that should be blocked.

Make sure that you select the Enable URL Keyword Blocking check box in the Content Filtering

screen. Make sure that the keywords that you type are listed in the Keyword List.

If a keyword that is listed in the Keyword List is not blocked when it is found in a URL, customize

the keyword blocking using commands. See the Customizing Keyword Blocking URL Checking

section in the Content Filtering chapter.

I cannot access the Web Configurator after I switched to AP mode.

When you change from router mode to AP mode, your computer must have an IP address in the

range between “192.168.1.3” and “192.168.1.254”.

Refer to Appendix B on page 193 for instructions on how to change your computer’s IP address.

What factors may cause intermittent or unstabled wireless connection? How can I solve this

problem?

The following factors may cause interference:

• Obstacles: walls, ceilings, furniture, and so on.

• Building Materials: metal doors, aluminum studs.

• Electrical devices: microwaves, monitors, electric motors, cordless phones, and other wireless

devices.

To optimize the speed and quality of your wireless connection, you can:

• Move your wireless device closer to the AP if the signal strength is low.

• Reduce wireless interference that may be caused by other wireless networks or surrounding

wireless electronics such as cordless phones.

• Place the AP where there are minimum obstacles (such as walls and ceilings) between the AP and

the wireless client.

• Reduce the number of wireless clients connecting to the same AP simultaneously, or add

additional APs if necessary.

• Try closing some programs that use the Internet, especially peer-to-peer applications. If the

wireless client is sending or receiving a lot of information, it may have too many programs open

that use the Internet.

Chapter 24 Troubleshooting

NBG6716 User’s Guide

182

• Position the antennas for best reception. If the AP is placed on a table or floor, point the antennas

upwards. If the AP is placed at a high position, point the antennas downwards. Try pointing the

antennas in different directions and check which provides the strongest signal to the wireless

clients.

24.7 USB Device Problems

I cannot access or see a USB device that is connected to the NBG6716.

1Disconnect the problematic USB device, then reconnect it to the NBG6716.

2Ensure that the USB device has power.

3Check your cable connections.

4Restart the NBG6716 by disconnecting the power and then reconnecting it.

5If the USB device requires a special driver, install the driver from the installation disc that came

with the device. After driver installation, reconnect the USB device to the NBG6716 and try to

connect to it again with your computer.

6If the problem persists, contact your vendor.

What kind of USB devices do the NBG6716 support?

1It is strongly recommended to use version 2.0 or lower USB storage devices (such as memory

sticks, USB hard drives) and/or USB devices (such as USB printers). Other USB products are not

guaranteed to function properly with the NBG6716.

24.8 ZyXEL Share Center Utility Problems

I cannot access or see a USB device that is connected to the NBG6716.

1Disconnect the problematic USB device, then reconnect it to the NBG6716.

2Ensure that the USB device in question has power.

3Check your cable connections.

4Restart the NBG6716 by disconnecting the power and then reconnecting it.

Chapter 24 Troubleshooting

NBG6716 User’s Guide 183

5If the USB device requires a special driver, install the driver from the installation disc that came

with the device. After driver installation, reconnect the USB device to the NBG6716 and try to

connect to it again with your computer.

6If the problem persists, contact your vendor.

I cannot install the ZyXEL Share Center Utility.

1Make sure that the set up program is one required for your operating system.

2Install the latest patches and updates for your operating system.

3Check the zyxel.com download site for a newer version of the utility.

NBG6716 User’s Guide 184

APPENDIX A

Pop-up Windows, JavaScript and Java

Permissions

In order to use the web configurator you need to allow:

• Web browser pop-up windows from your device.

• JavaScript (enabled by default).

• Java permissions (enabled by default).

Note: The screens used below belong to Internet Explorer version 6, 7 and 8. Screens for

other Internet Explorer versions may vary.

Internet Explorer Pop-up Blockers

You may have to disable pop-up blocking to log into your device.

Either disable pop-up blocking (enabled by default in Windows XP SP (Service Pack) 2) or allow

pop-up blocking and create an exception for your device’s IP address.

Disable Pop-up Blockers

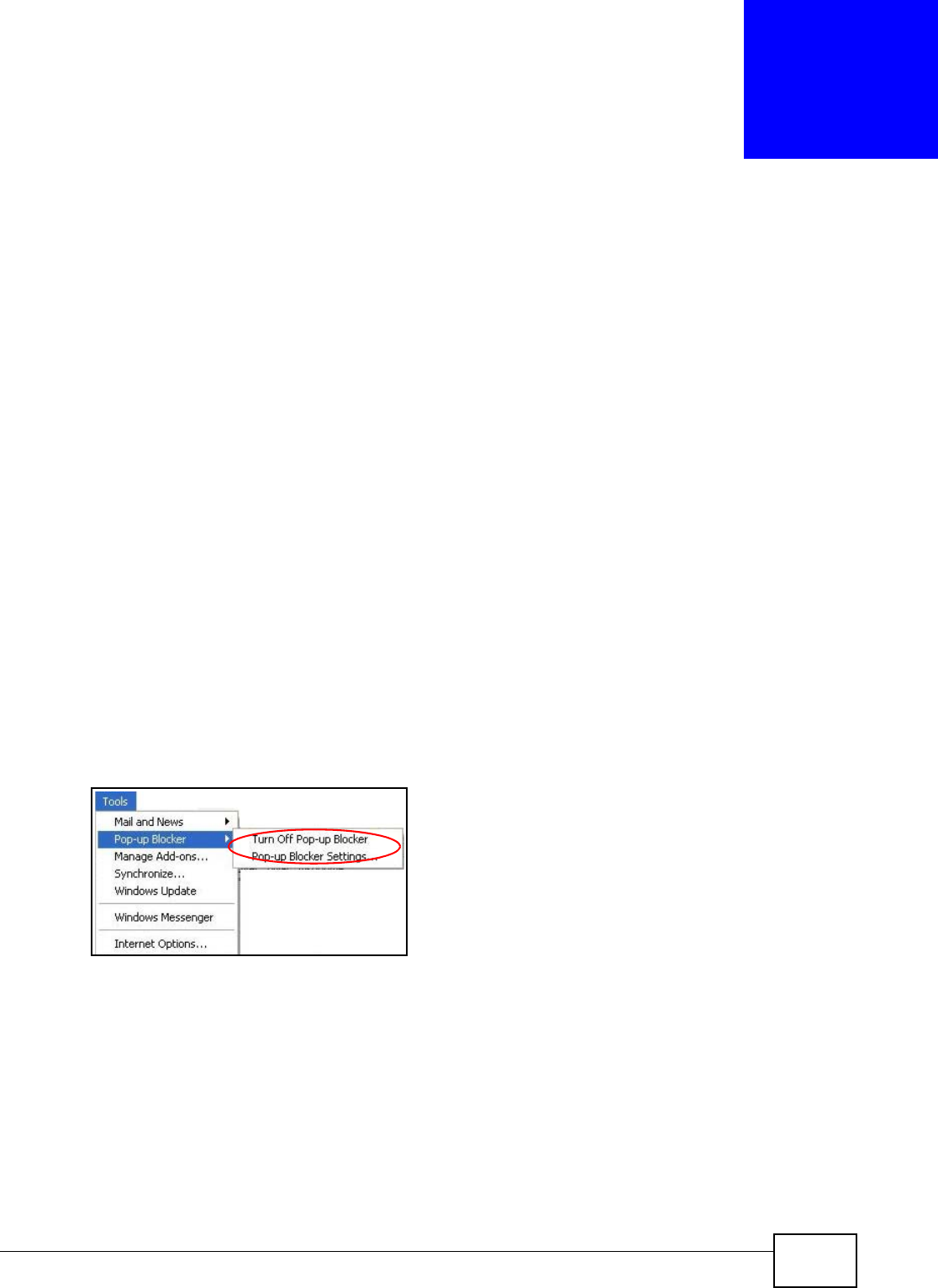

1In Internet Explorer, select Tools, Pop-up Blocker and then select Turn Off Pop-up Blocker.

Figure 129 Pop-up Blocker

You can also check if pop-up blocking is disabled in the Pop-up Blocker section in the Privacy tab.

1In Internet Explorer, select Tools, Internet Options, Privacy.

2Clear the Block pop-ups check box in the Pop-up Blocker section of the screen. This disables any

web pop-up blockers you may have enabled.

Appendix A Pop-up Windows, JavaScript and Java Permissions

NBG6716 User’s Guide 185

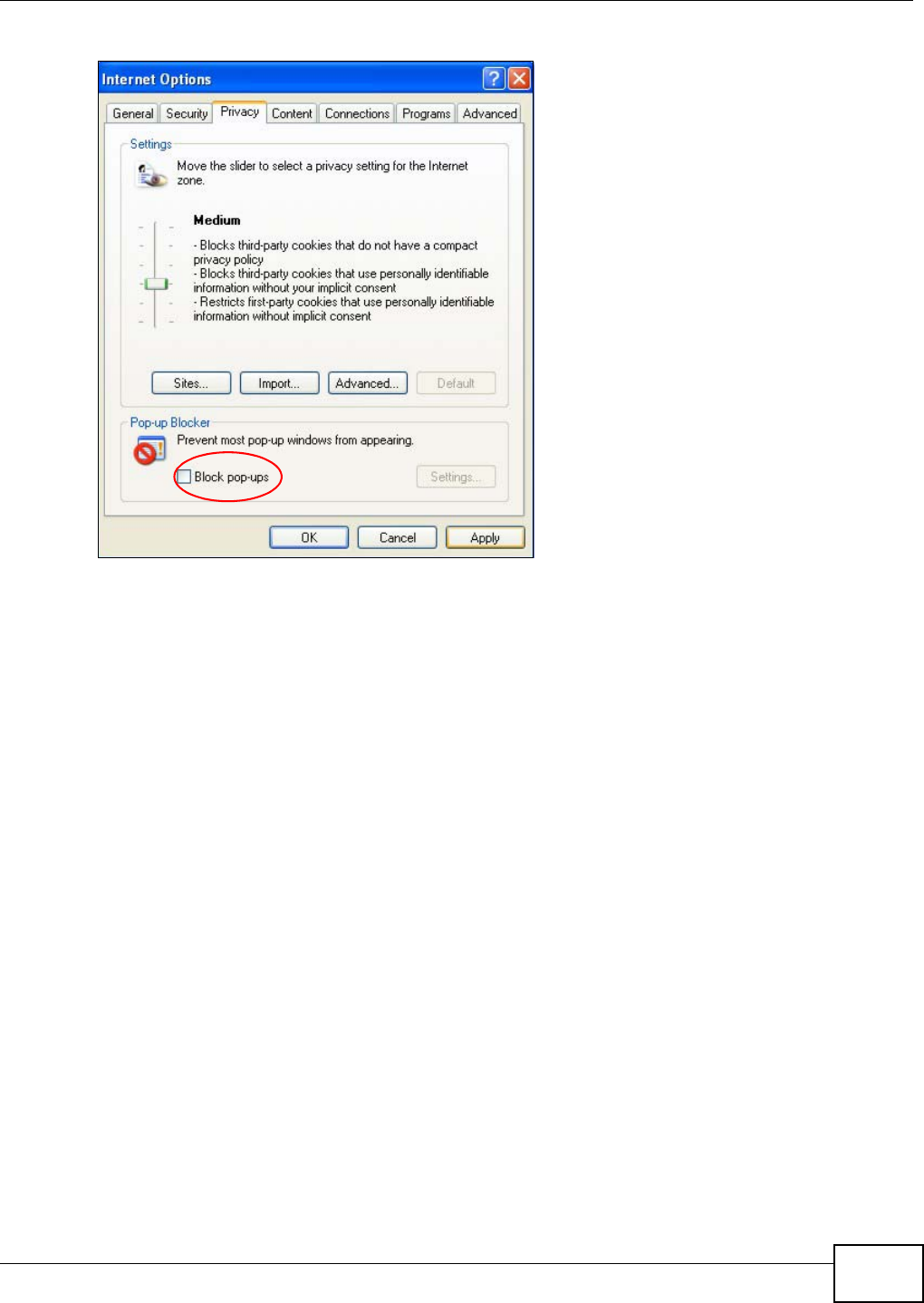

Figure 130 Internet Options: Privacy

3Click Apply to save this setting.

Enable Pop-up Blockers with Exceptions

Alternatively, if you only want to allow pop-up windows from your device, see the following steps.

1In Internet Explorer, select Tools, Internet Options and then the Privacy tab.

2Select Settings…to open the Pop-up Blocker Settings screen.

Appendix A Pop-up Windows, JavaScript and Java Permissions

NBG6716 User’s Guide

186

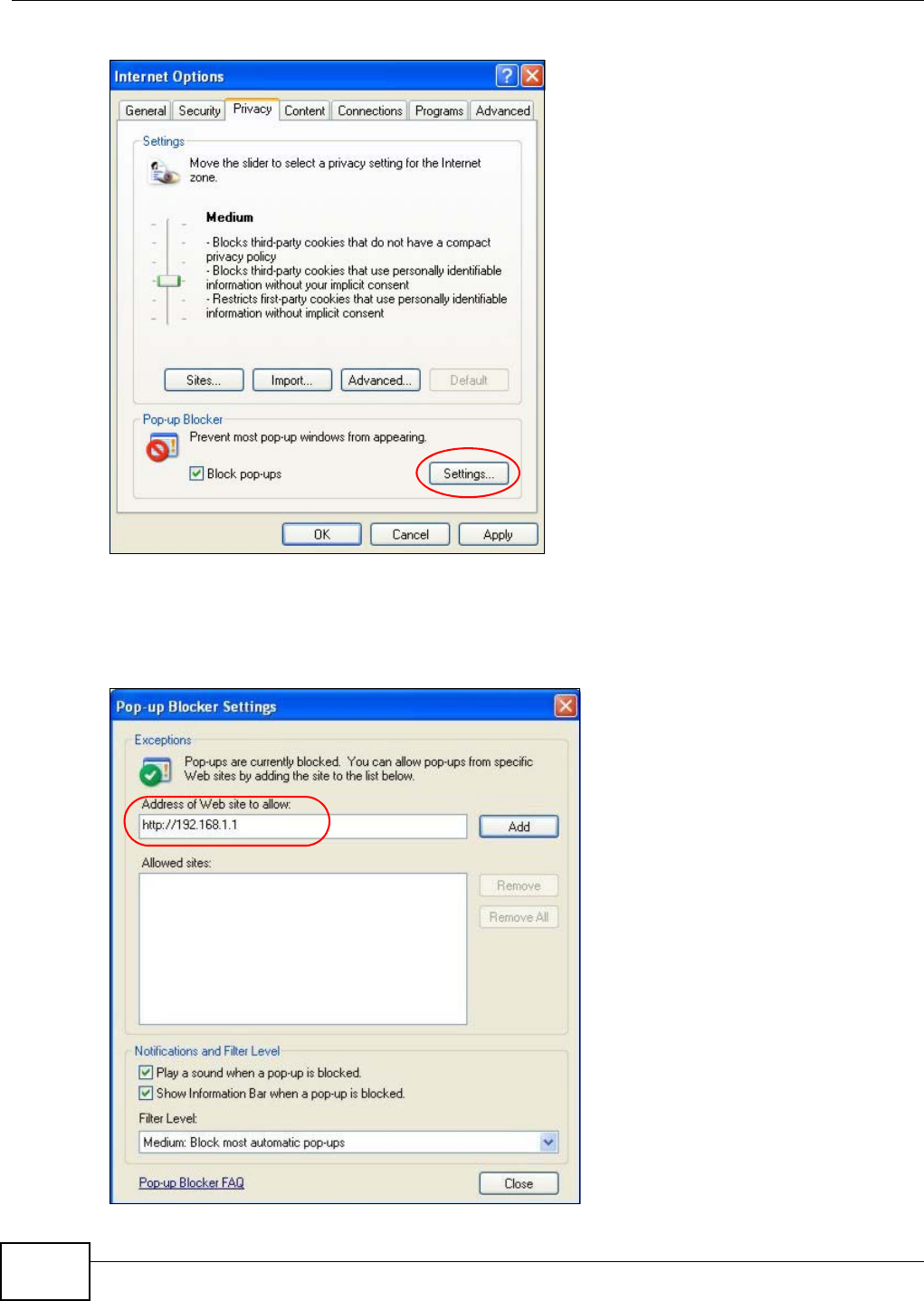

Figure 131 Internet Options: Privacy

3Type the IP address of your device (the web page that you do not want to have blocked) with the

prefix “http://”. For example, http://192.168.167.1.

4Click Add to move the IP address to the list of Allowed sites.

Figure 132 Pop-up Blocker Settings

Appendix A Pop-up Windows, JavaScript and Java Permissions

NBG6716 User’s Guide 187

5Click Close to return to the Privacy screen.

6Click Apply to save this setting.

JavaScript

If pages of the web configurator do not display properly in Internet Explorer, check that JavaScript

are allowed.

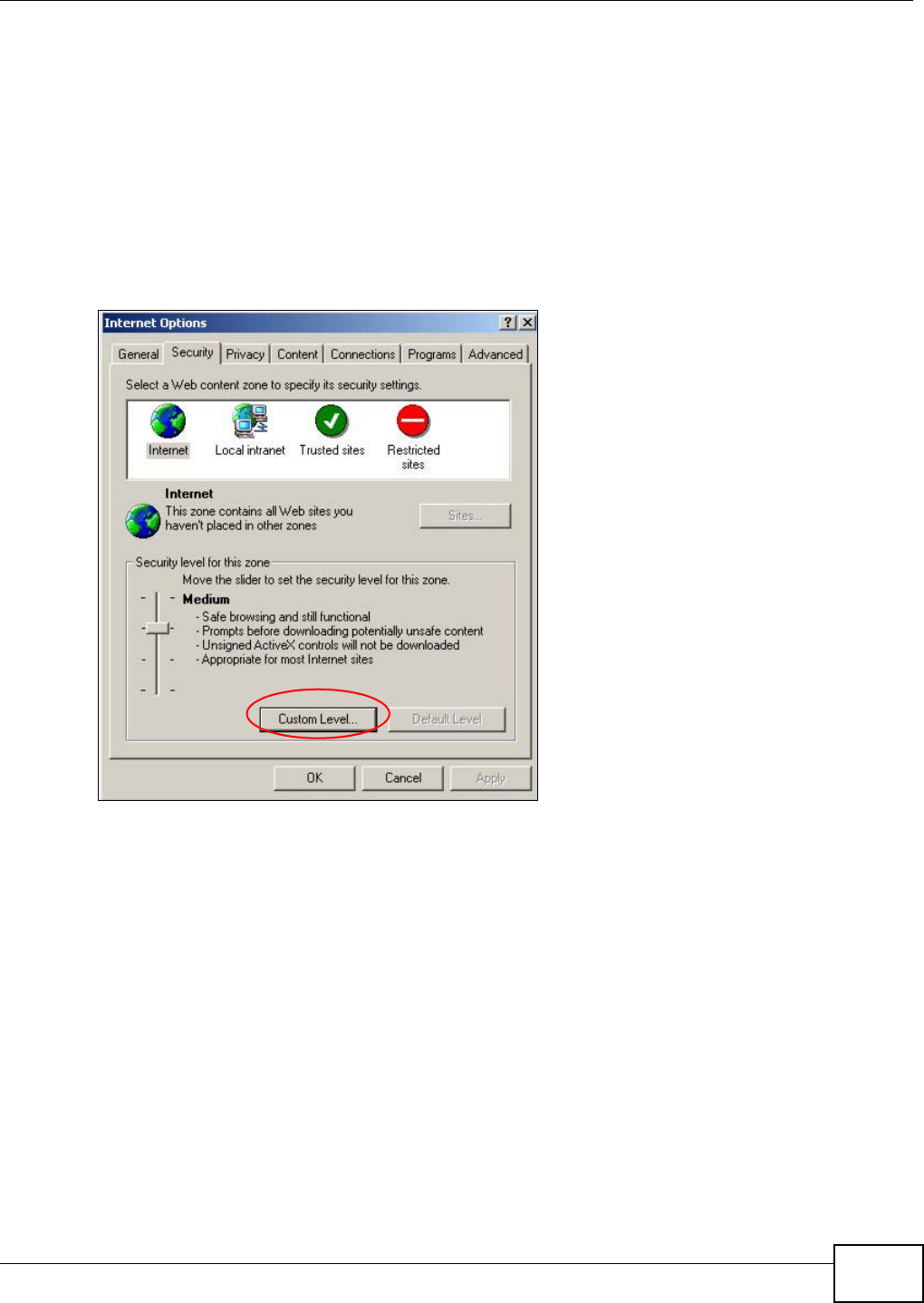

1In Internet Explorer, click Tools, Internet Options and then the Security tab.

Figure 133 Internet Options: Security

2Click the Custom Level... button.

3Scroll down to Scripting.

4Under Active scripting make sure that Enable is selected (the default).

5Under Scripting of Java applets make sure that Enable is selected (the default).

6Click OK to close the window.

Appendix A Pop-up Windows, JavaScript and Java Permissions

NBG6716 User’s Guide

188

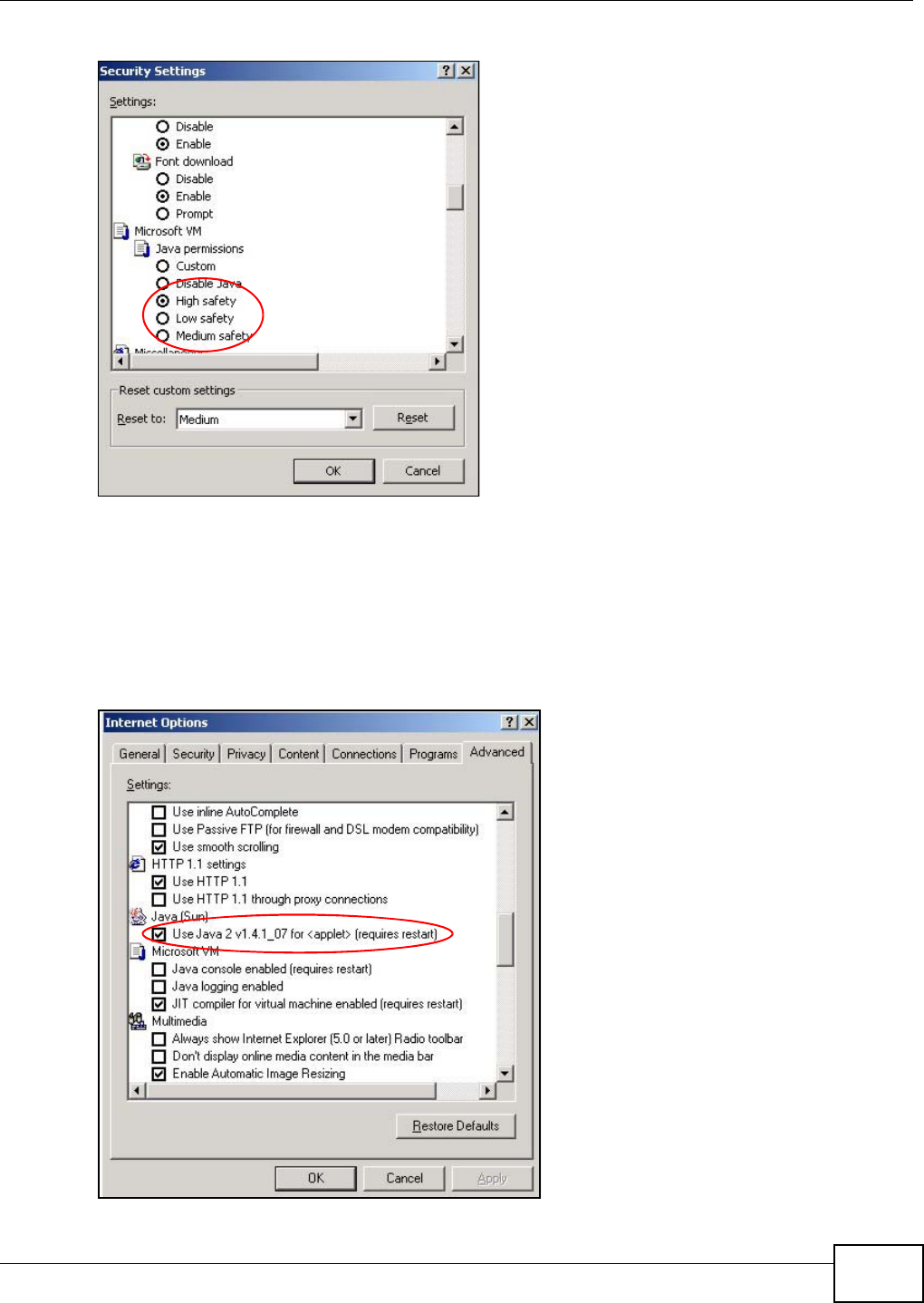

Figure 134 Security Settings - Java Scripting

Java Permissions

1From Internet Explorer, click Tools, Internet Options and then the Security tab.

2Click the Custom Level... button.

3Scroll down to Microsoft VM.

4Under Java permissions make sure that a safety level is selected.

5Click OK to close the window.

Appendix A Pop-up Windows, JavaScript and Java Permissions

NBG6716 User’s Guide 189

Figure 135 Security Settings - Java

JAVA (Sun)

1From Internet Explorer, click Tools, Internet Options and then the Advanced tab.

2Make sure that Use Java 2 for <applet> under Java (Sun) is selected.

3Click OK to close the window.

Figure 136 Java (Sun)

Appendix A Pop-up Windows, JavaScript and Java Permissions

NBG6716 User’s Guide

190

Mozilla Firefox

Mozilla Firefox 2.0 screens are used here. Screens for other versions may vary slightly. The steps

below apply to Mozilla Firefox 3.0 as well.

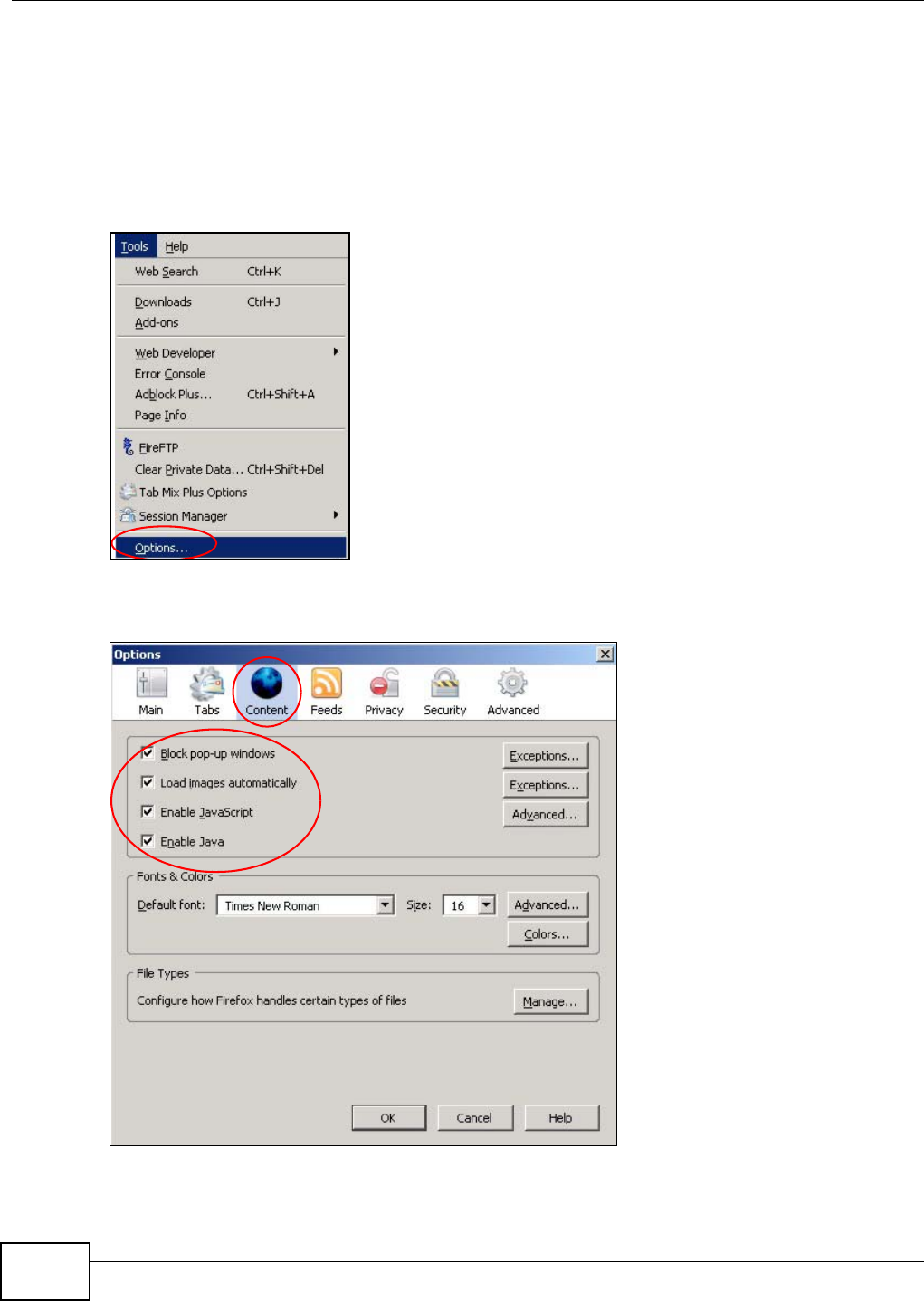

You can enable Java, Javascript and pop-ups in one screen. Click Tools, then click Options in the

screen that appears.

Figure 137 Mozilla Firefox: TOOLS > Options

Click Content to show the screen below. Select the check boxes as shown in the following screen.

Figure 138 Mozilla Firefox Content Security

Appendix A Pop-up Windows, JavaScript and Java Permissions

NBG6716 User’s Guide 191

Opera

Opera 10 screens are used here. Screens for other versions may vary slightly.

Allowing Pop-Ups

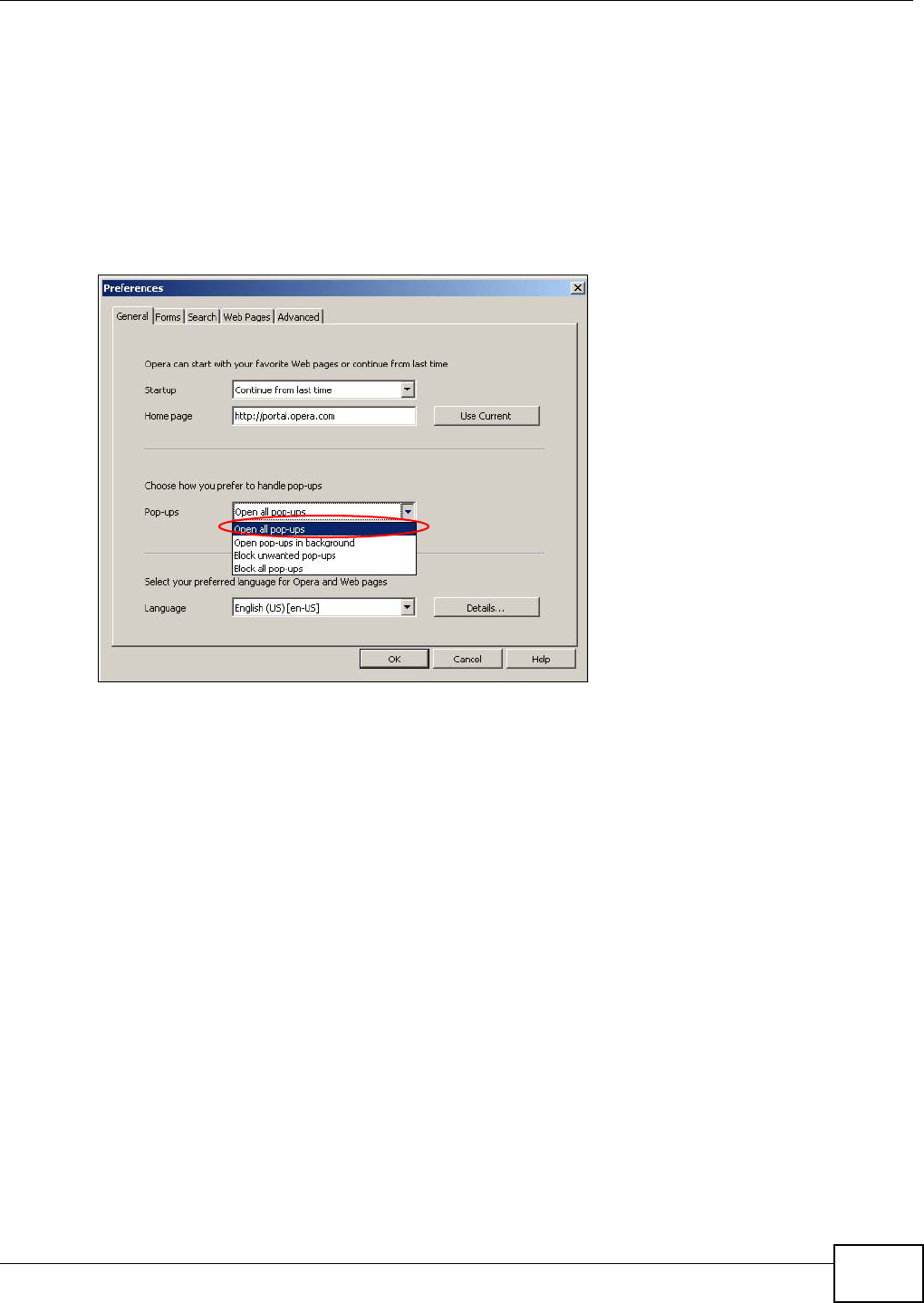

From Opera, click Tools, then Preferences. In the General tab, go to Choose how you prefer

to handle pop-ups and select Open all pop-ups.

Figure 139 Opera: Allowing Pop-Ups

Enabling Java

From Opera, click Tools, then Preferences. In the Advanced tab, select Content from the left-

side menu. Select the check boxes as shown in the following screen.

Appendix A Pop-up Windows, JavaScript and Java Permissions

NBG6716 User’s Guide

192

Figure 140 Opera: Enabling Java

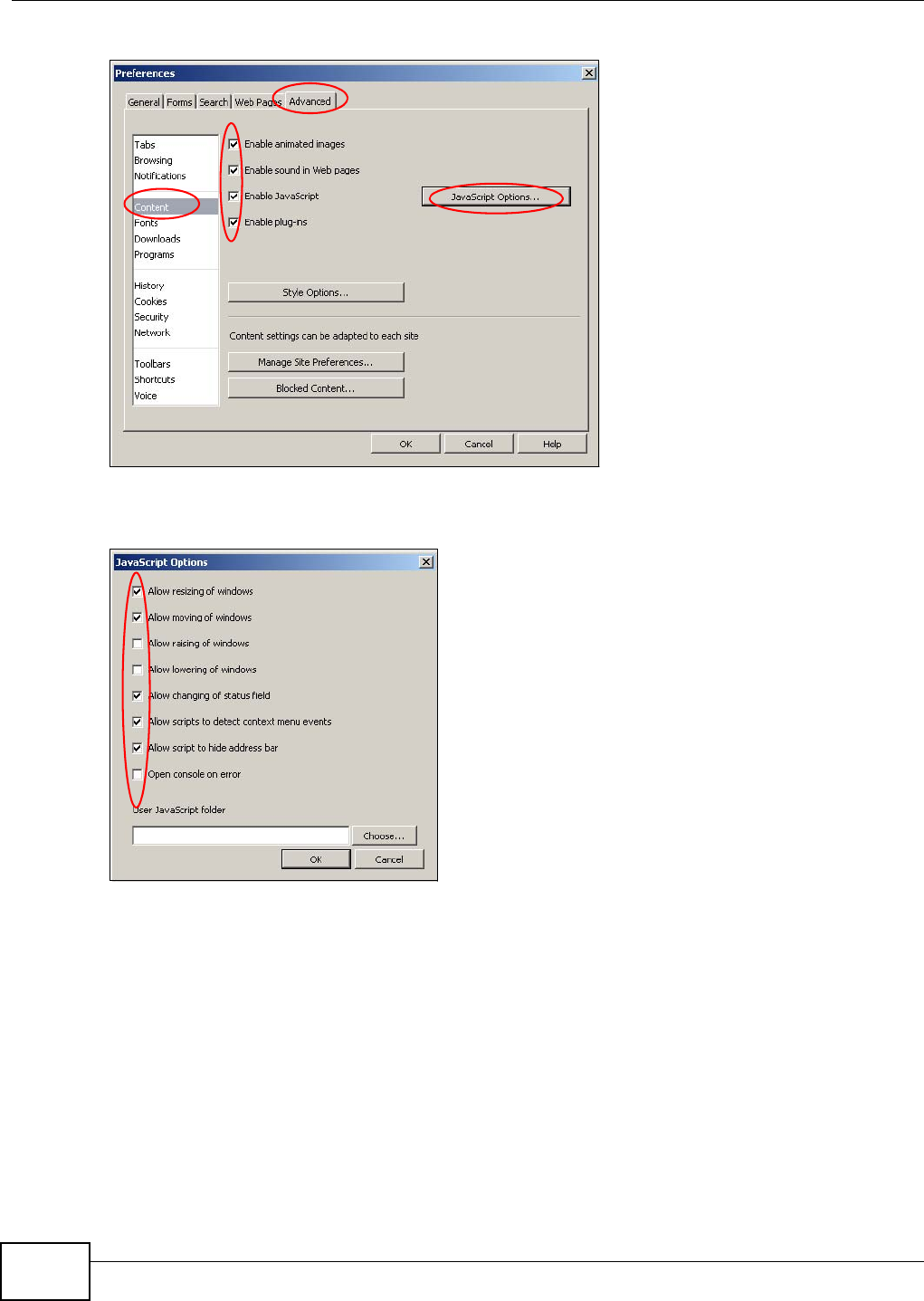

To customize JavaScript behavior in the Opera browser, click JavaScript Options.

Figure 141 Opera: JavaScript Options

Select the items you want Opera’s JavaScript to apply.

NBG6716 User’s Guide 193

APPENDIX B

Setting Up Your Computer’s IP Address

Note: Your specific NBG6716 may not support all of the operating systems described in

this appendix. See the product specifications for more information about which

operating systems are supported.

This appendix shows you how to configure the IP settings on your computer in order for it to be

able to communicate with the other devices on your network. Windows Vista/XP/2000, Mac OS 9/

OS X, and all versions of UNIX/LINUX include the software components you need to use TCP/IP on

your computer.

If you manually assign IP information instead of using a dynamic IP, make sure that your network’s

computers have IP addresses that place them in the same subnet.

In this appendix, you can set up an IP address for:

•Windows XP/NT/2000 on page 193

•Windows Vista on page 197

•Windows 7 on page 201

•Mac OS X: 10.3 and 10.4 on page 205

•Mac OS X: 10.5 and 10.6 on page 208

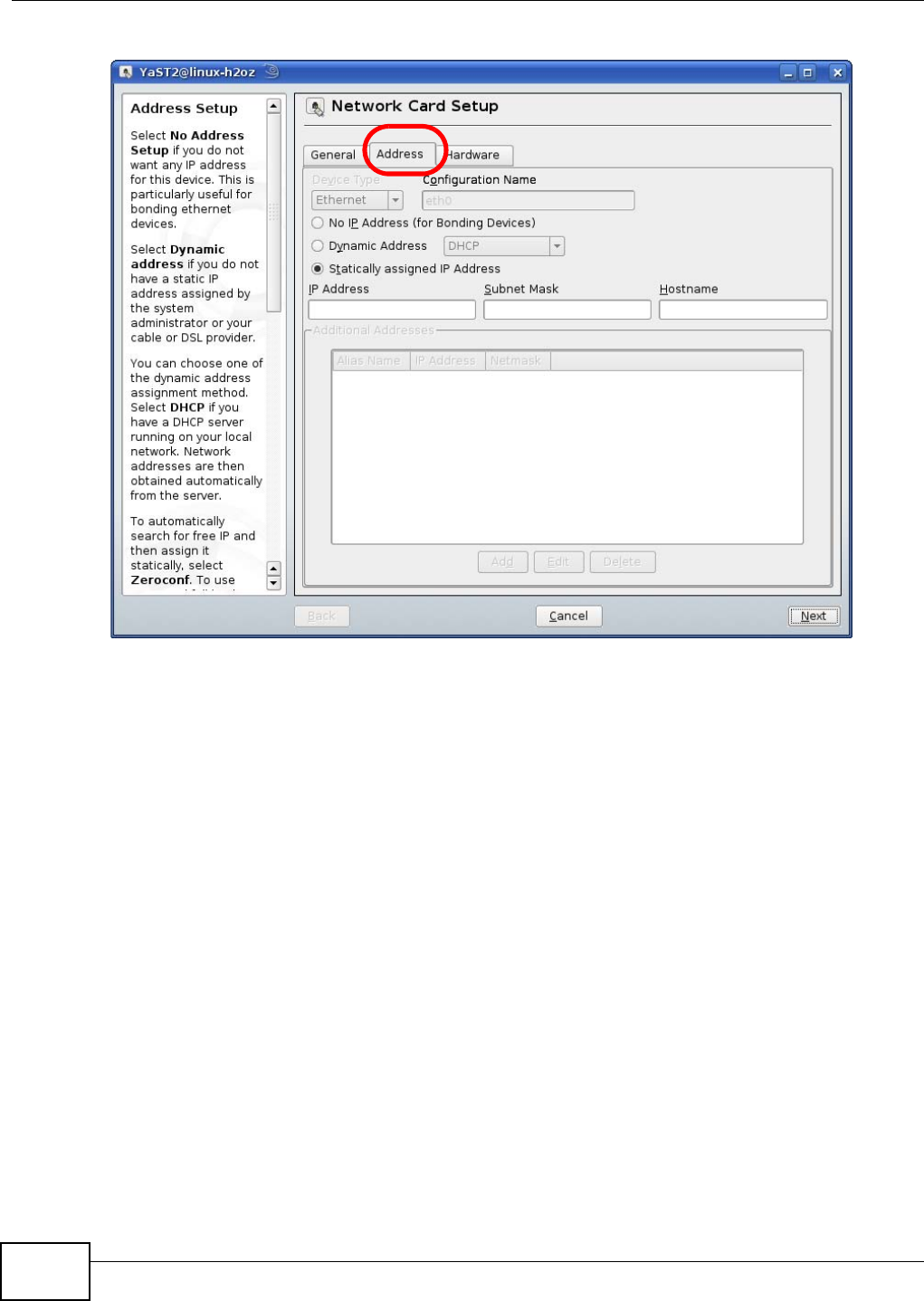

•Linux: Ubuntu 8 (GNOME) on page 211

•Linux: openSUSE 10.3 (KDE) on page 215

Windows XP/NT/2000

The following example uses the default Windows XP display theme but can also apply to Windows

2000 and Windows NT.

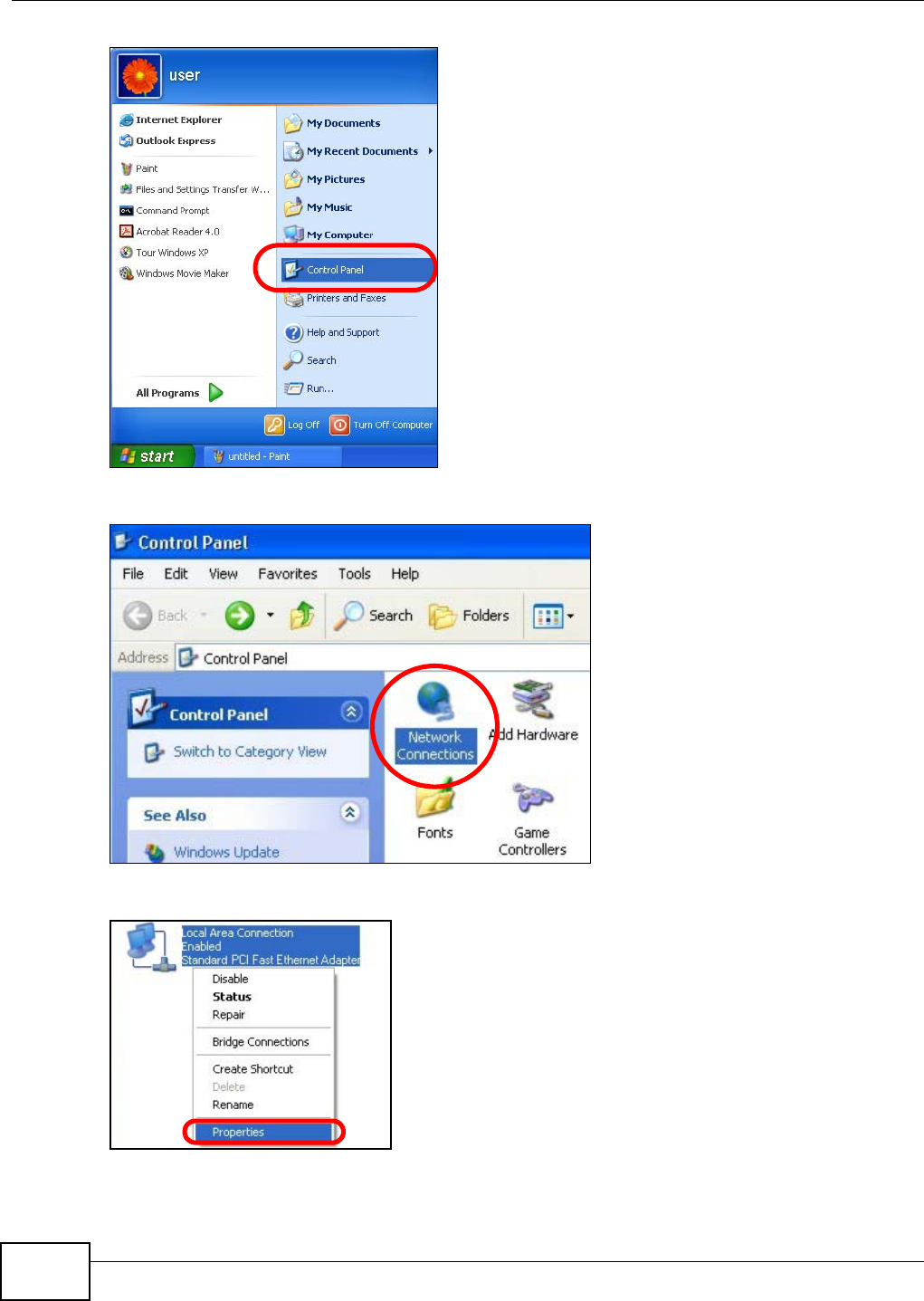

1Click Start > Control Panel.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide

194

2In the Control Panel, click the Network Connections icon.

3Right-click Local Area Connection and then select Properties.

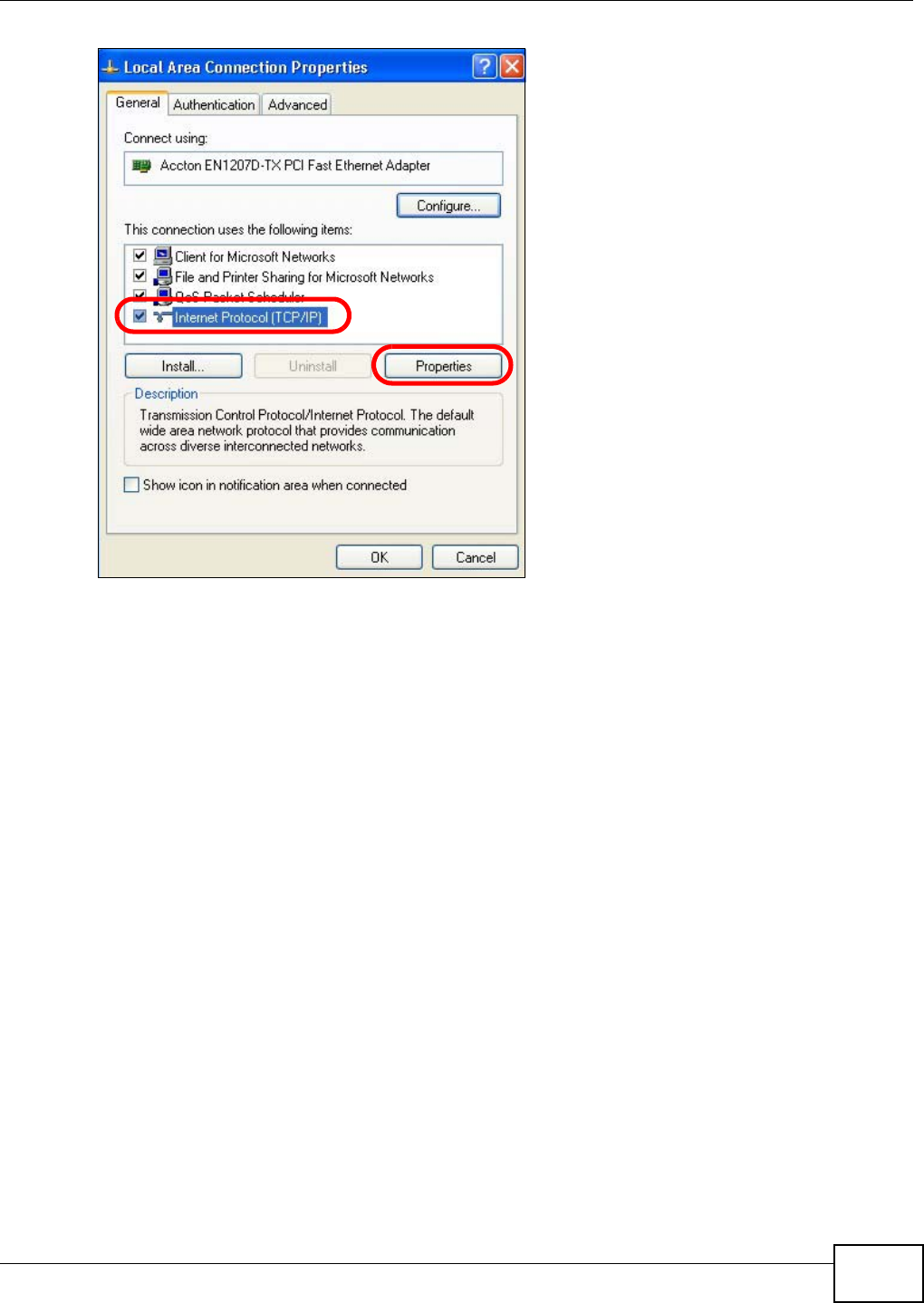

4On the General tab, select Internet Protocol (TCP/IP) and then click Properties.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide 195

5The Internet Protocol TCP/IP Properties window opens.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide

196

6Select Obtain an IP address automatically if your network administrator or ISP assigns your IP

address dynamically.

Select Use the following IP Address and fill in the IP address, Subnet mask, and Default

gateway fields if you have a static IP address that was assigned to you by your network

administrator or ISP. You may also have to enter a Preferred DNS server and an Alternate DNS

server, if that information was provided.

7Click OK to close the Internet Protocol (TCP/IP) Properties window.

8Click OK to close the Local Area Connection Properties window.

Verifying Settings

1Click Start > All Programs > Accessories > Command Prompt.

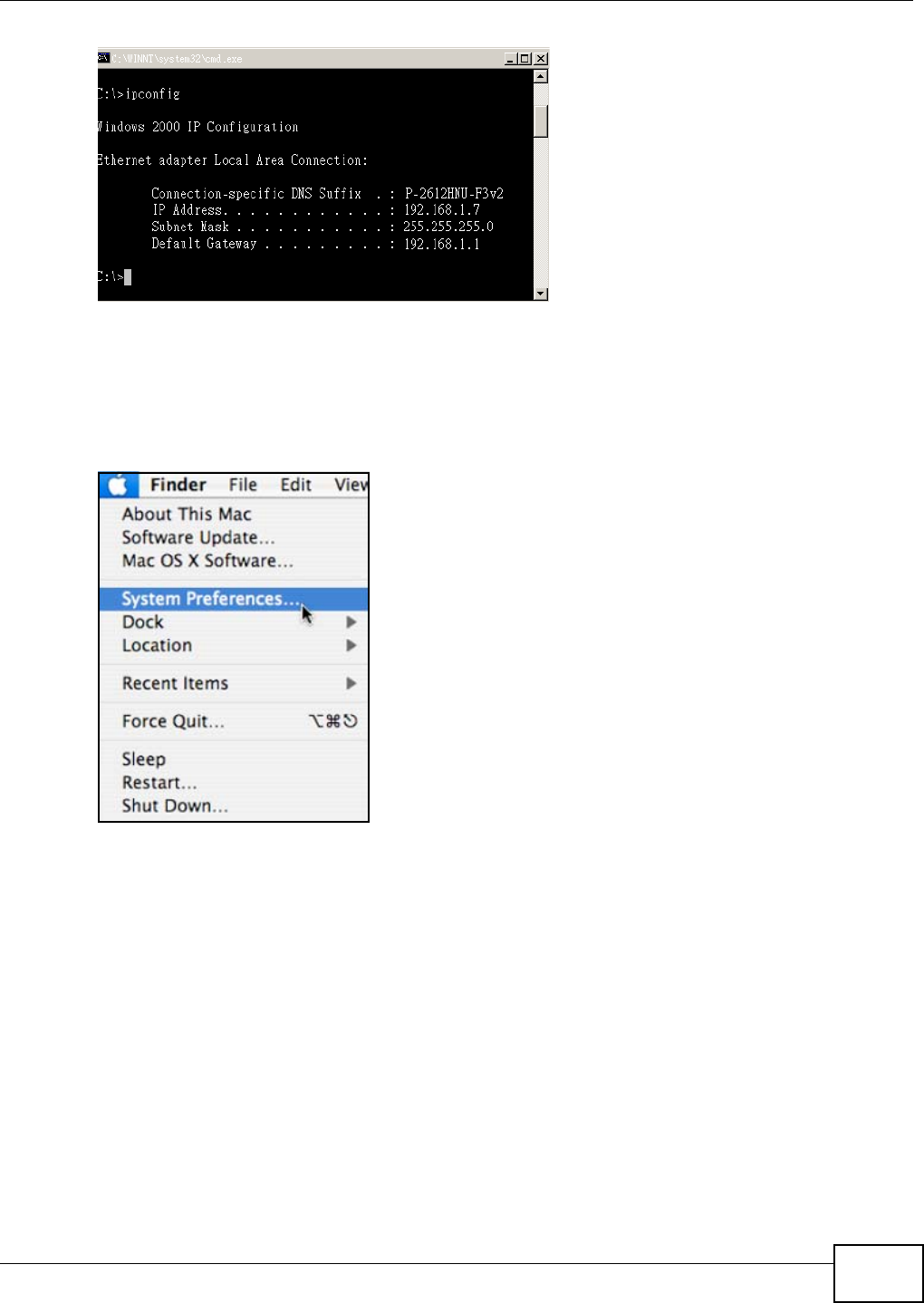

2In the Command Prompt window, type "ipconfig" and then press [ENTER].

You can also go to Start > Control Panel > Network Connections, right-click a network

connection, click Status and then click the Support tab to view your IP address and connection

information.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide 197

Windows Vista

This section shows screens from Windows Vista Professional.

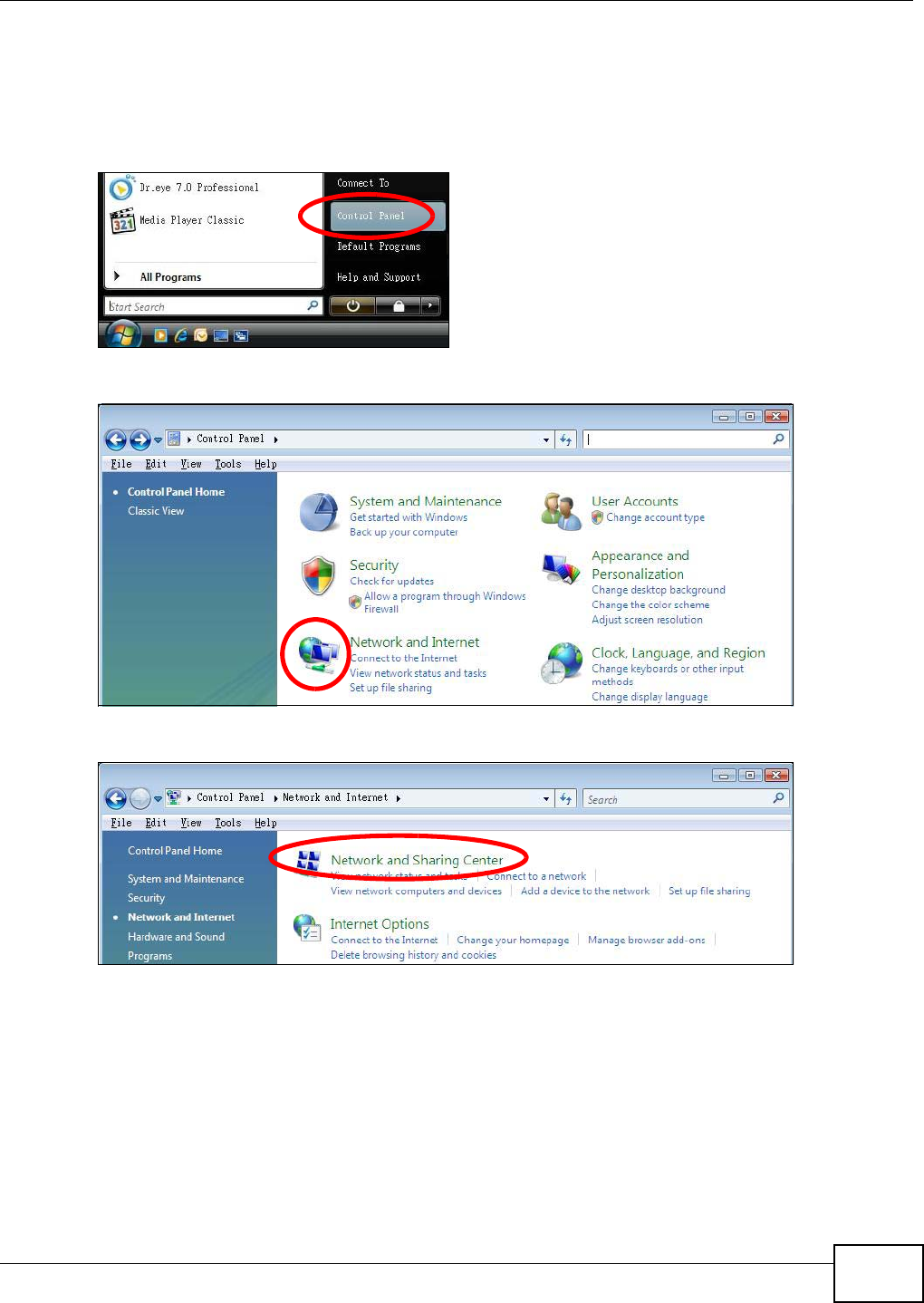

1Click Start > Control Panel.

2In the Control Panel, click the Network and Internet icon.

3Click the Network and Sharing Center icon.

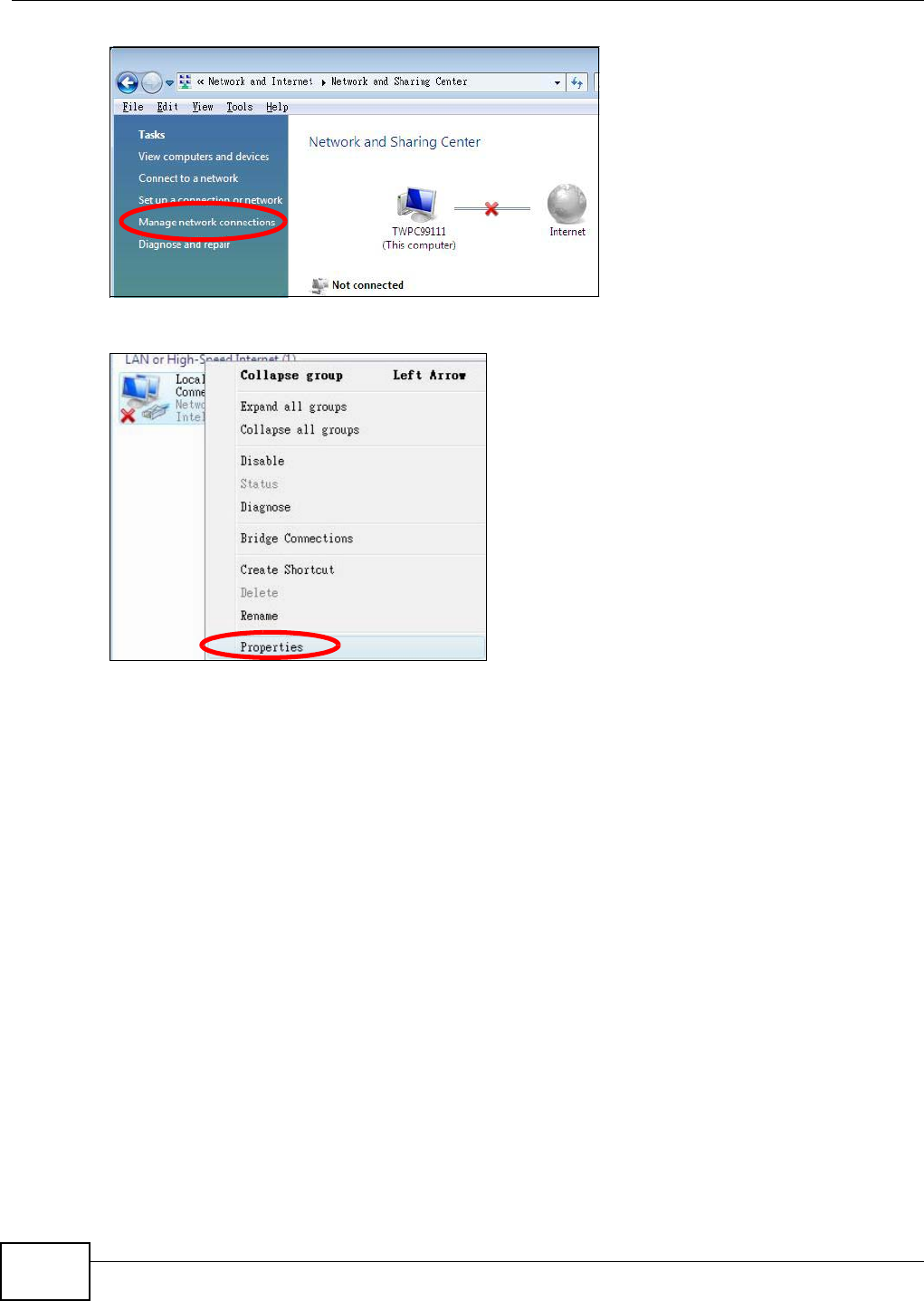

4Click Manage network connections.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide

198

5Right-click Local Area Connection and then select Properties.

Note: During this procedure, click Continue whenever Windows displays a screen saying

that it needs your permission to continue.

6Select Internet Protocol Version 4 (TCP/IPv4) and then select Properties.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide 199

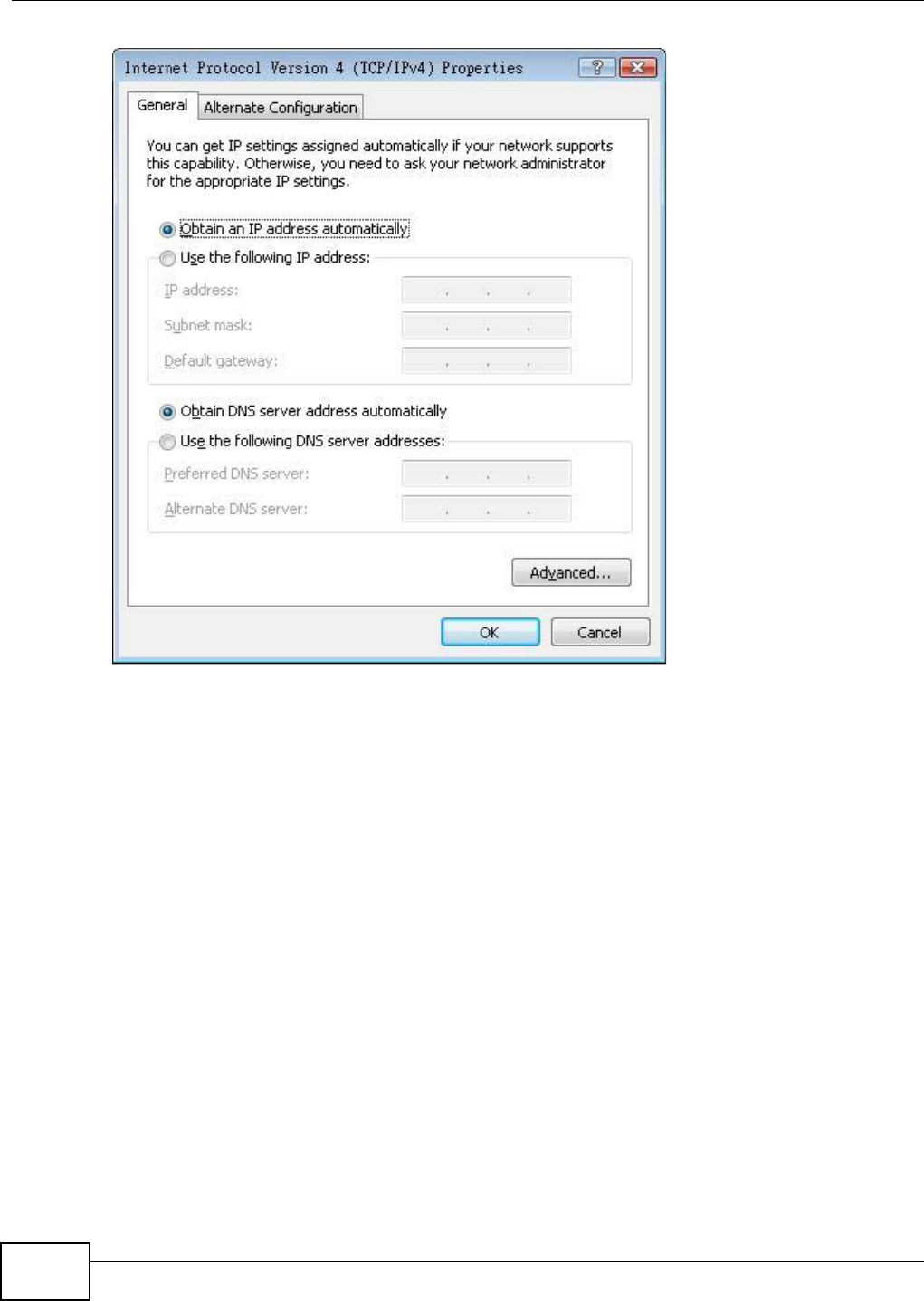

7The Internet Protocol Version 4 (TCP/IPv4) Properties window opens.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide

200

8Select Obtain an IP address automatically if your network administrator or ISP assigns your IP

address dynamically.

Select Use the following IP Address and fill in the IP address, Subnet mask, and Default

gateway fields if you have a static IP address that was assigned to you by your network

administrator or ISP. You may also have to enter a Preferred DNS server and an Alternate DNS

server, if that information was provided.Click Advanced.

9Click OK to close the Internet Protocol (TCP/IP) Properties window.

10 Click OK to close the Local Area Connection Properties window.

Verifying Settings

1Click Start > All Programs > Accessories > Command Prompt.

2In the Command Prompt window, type "ipconfig" and then press [ENTER].

You can also go to Start > Control Panel > Network Connections, right-click a network

connection, click Status and then click the Support tab to view your IP address and connection

information.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide 201

Windows 7

This section shows screens from Windows 7 Enterprise.

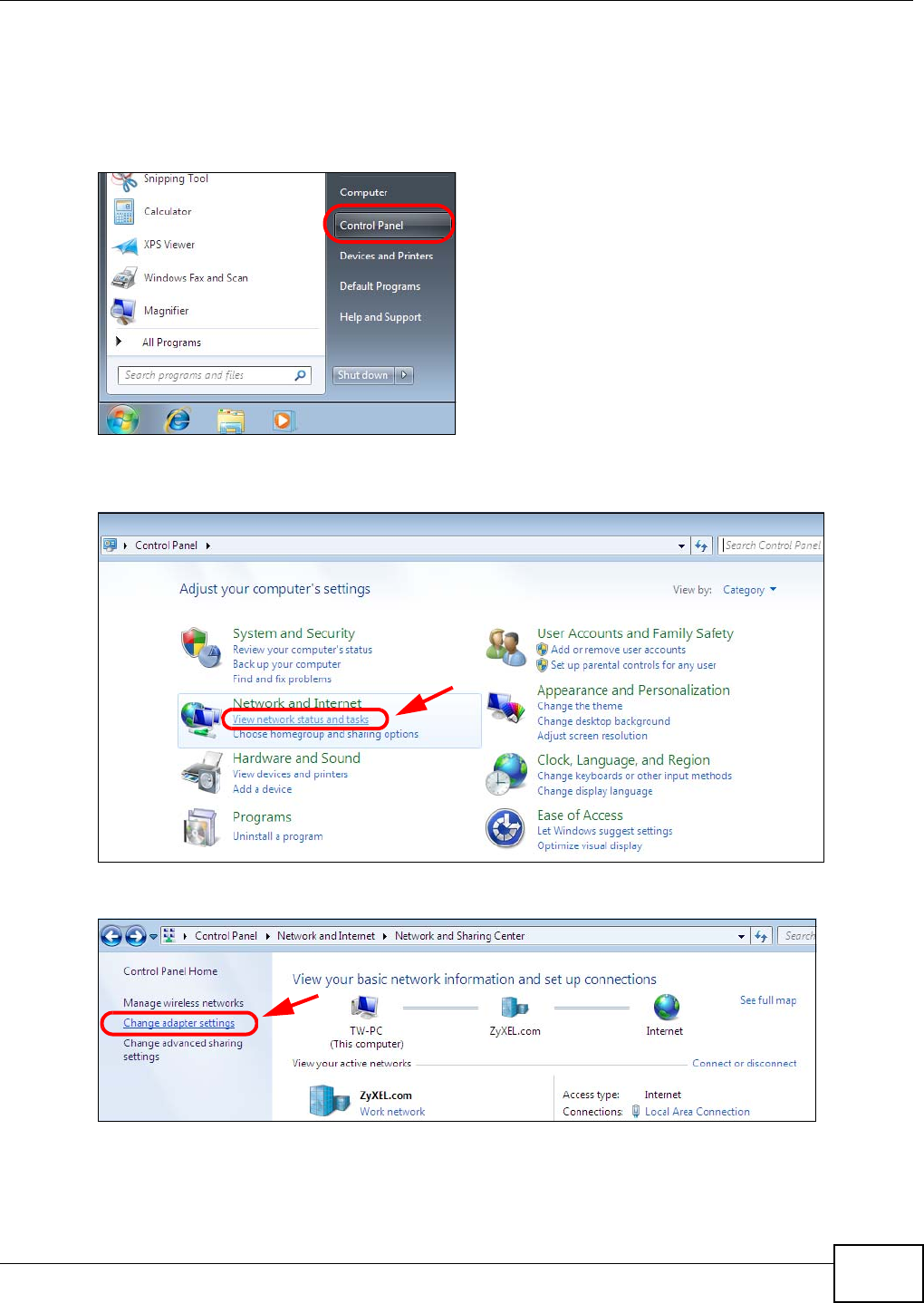

1Click Start > Control Panel.

2In the Control Panel, click View network status and tasks under the Network and Internet

category.

3Click Change adapter settings.

4Double click Local Area Connection and then select Properties.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide

202

Note: During this procedure, click Continue whenever Windows displays a screen saying

that it needs your permission to continue.

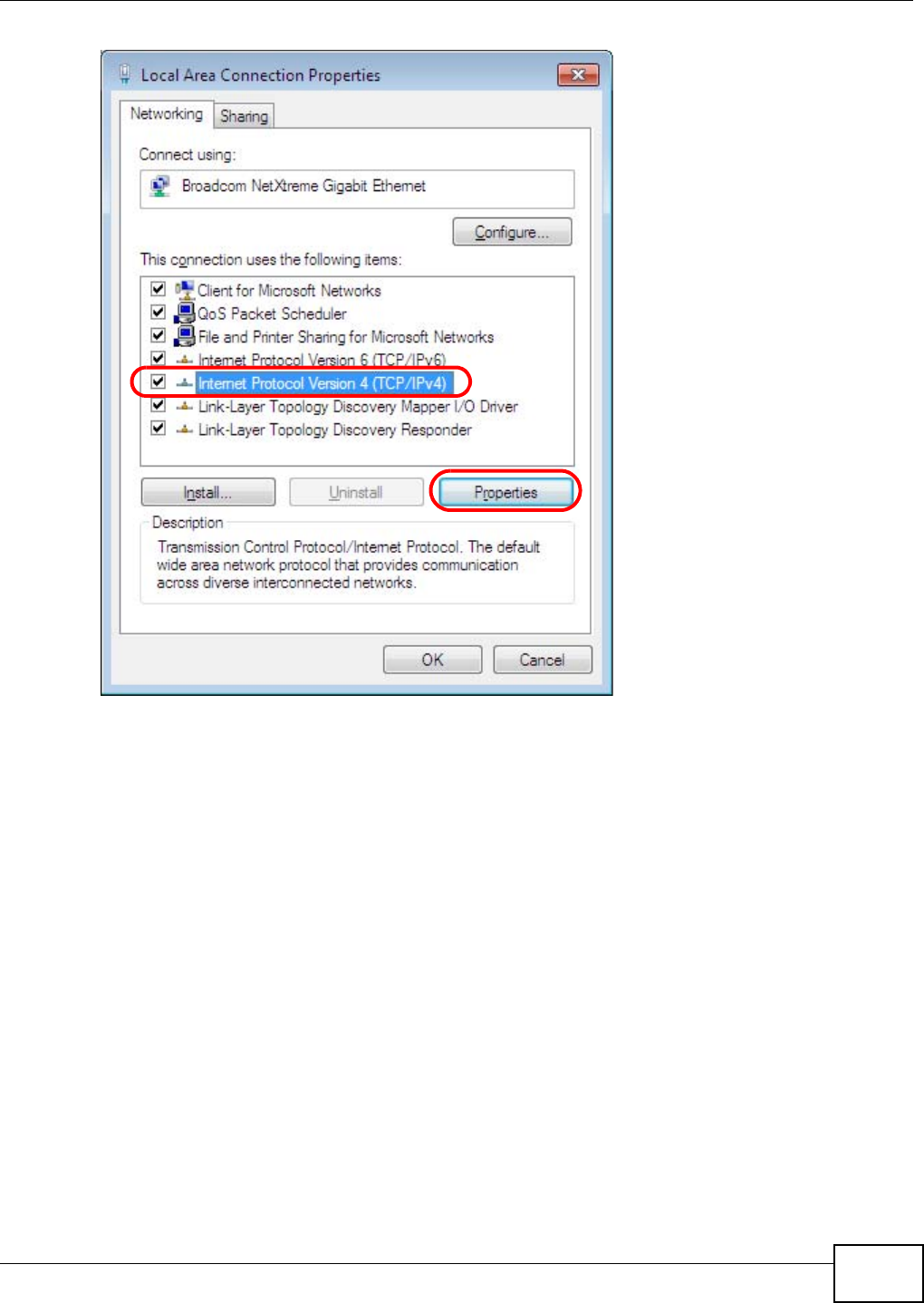

5Select Internet Protocol Version 4 (TCP/IPv4) and then select Properties.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide 203

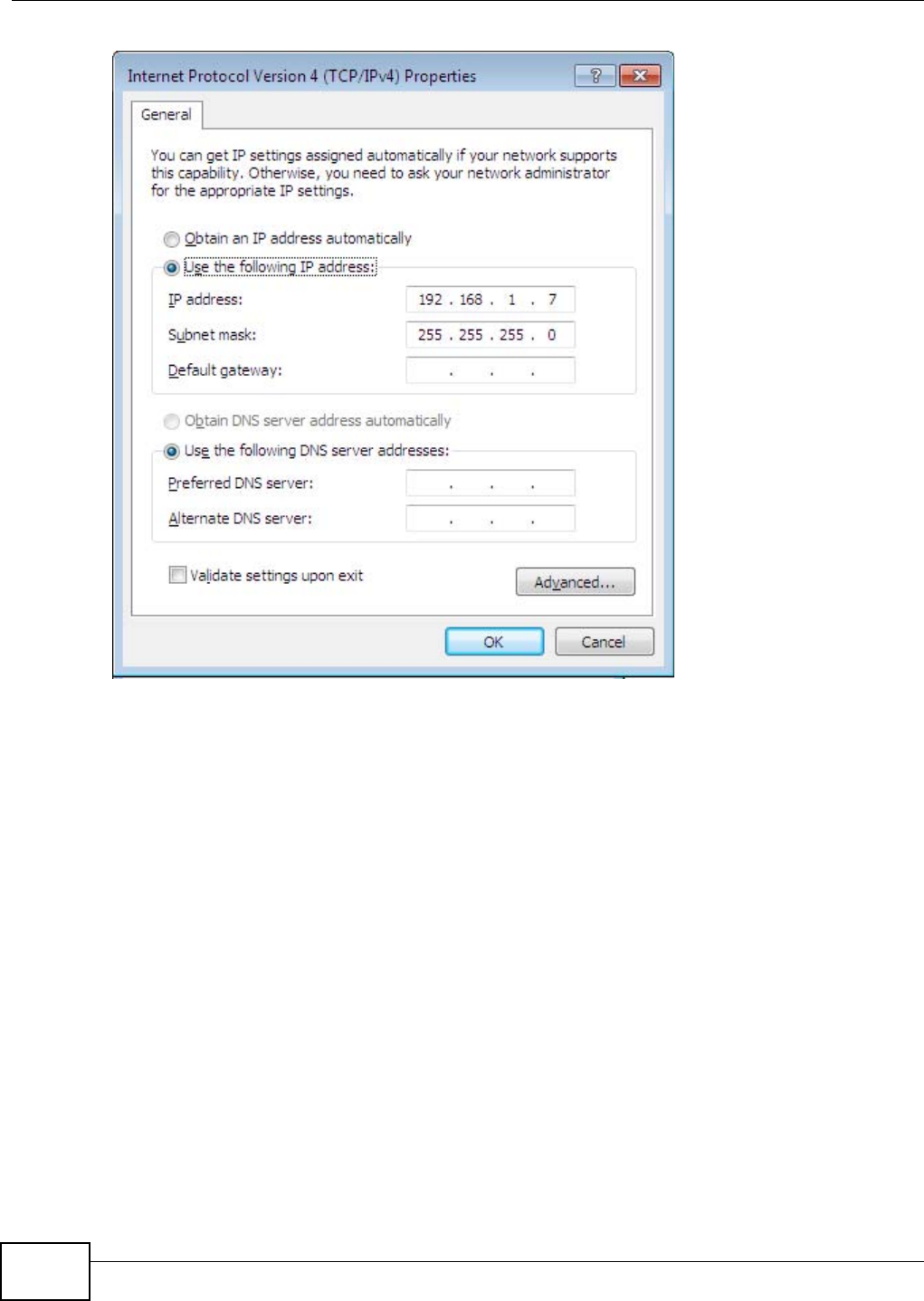

6The Internet Protocol Version 4 (TCP/IPv4) Properties window opens.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide

204

7Select Obtain an IP address automatically if your network administrator or ISP assigns your IP

address dynamically.

Select Use the following IP Address and fill in the IP address, Subnet mask, and Default

gateway fields if you have a static IP address that was assigned to you by your network

administrator or ISP. You may also have to enter a Preferred DNS server and an Alternate DNS

server, if that information was provided. Click Advanced if you want to configure advanced

settings for IP, DNS and WINS.

8Click OK to close the Internet Protocol (TCP/IP) Properties window.

9Click OK to close the Local Area Connection Properties window.

Verifying Settings

1Click Start > All Programs > Accessories > Command Prompt.

2In the Command Prompt window, type "ipconfig" and then press [ENTER].

3The IP settings are displayed as follows.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide 205

Mac OS X: 10.3 and 10.4

The screens in this section are from Mac OS X 10.4 but can also apply to 10.3.

1Click Apple > System Preferences.

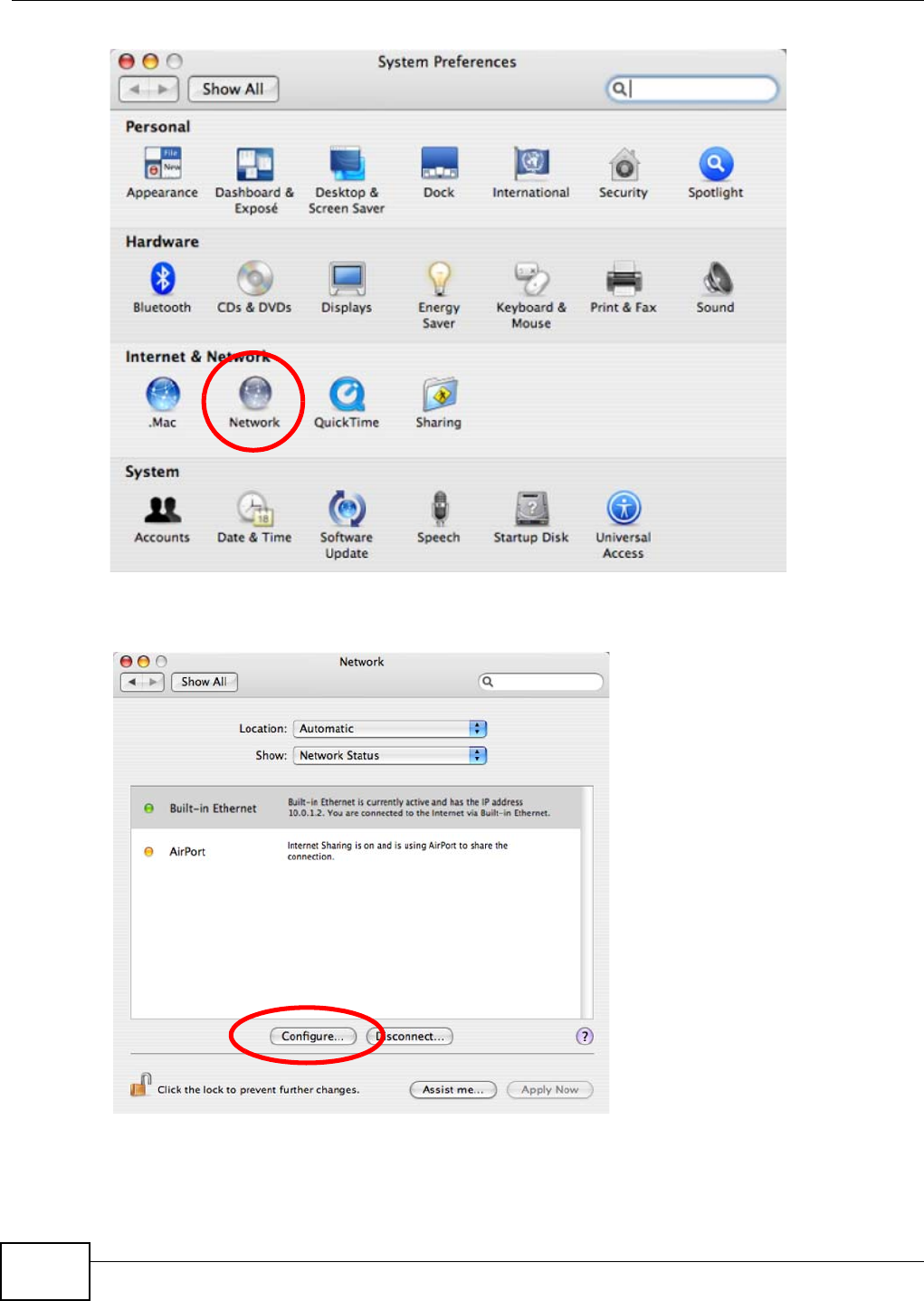

2In the System Preferences window, click the Network icon.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide

206

3When the Network preferences pane opens, select Built-in Ethernet from the network

connection type list, and then click Configure.

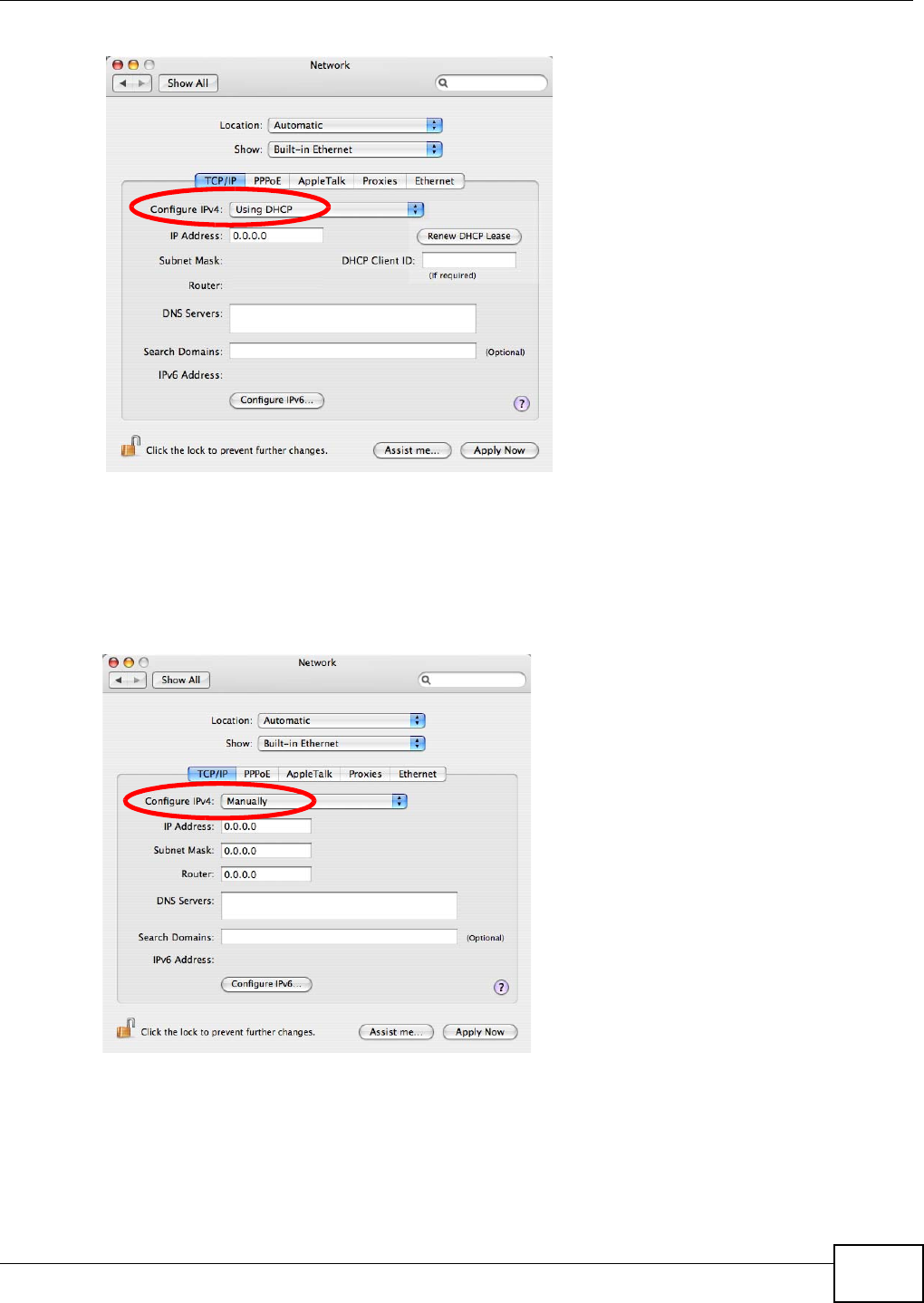

4For dynamically assigned settings, select Using DHCP from the Configure IPv4 list in the TCP/IP

tab.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide 207

5For statically assigned settings, do the following:

•From the Configure IPv4 list, select Manually.

•In the IP Address field, type your IP address.

•In the Subnet Mask field, type your subnet mask.

•In the Router field, type the IP address of your device.

6Click Apply Now and close the window.

Verifying Settings

Check your TCP/IP properties by clicking Applications > Utilities > Network Utilities, and then

selecting the appropriate Network Interface from the Info tab.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide

208

Figure 142 Mac OS X 10.4: Network Utility

Mac OS X: 10.5 and 10.6

The screens in this section are from Mac OS X 10.5 but can also apply to 10.6.

1Click Apple > System Preferences.

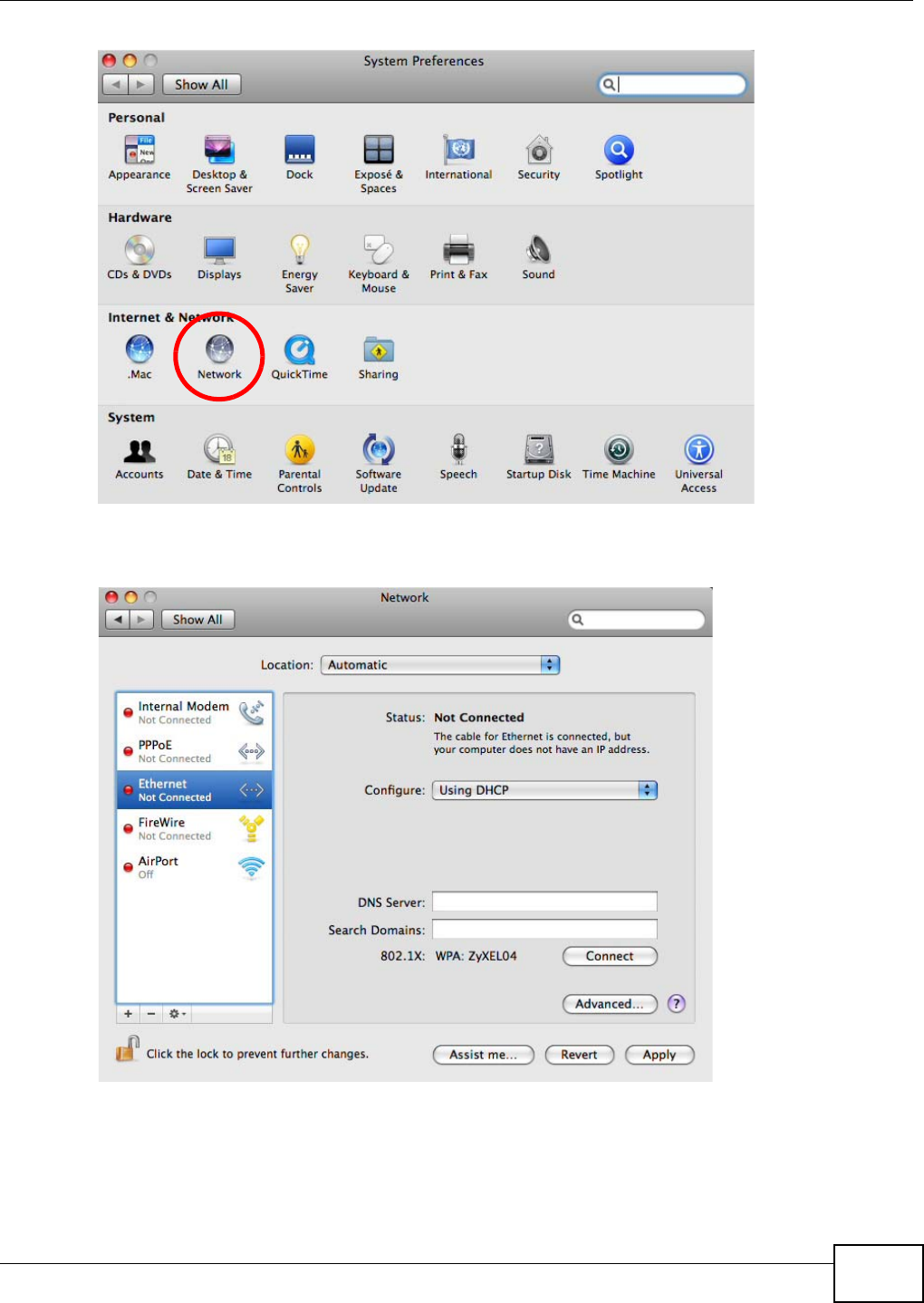

2In System Preferences, click the Network icon.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide 209

3When the Network preferences pane opens, select Ethernet from the list of available connection

types.

4From the Configure list, select Using DHCP for dynamically assigned settings.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide

210

5For statically assigned settings, do the following:

•From the Configure list, select Manually.

•In the IP Address field, enter your IP address.

•In the Subnet Mask field, enter your subnet mask.

•In the Router field, enter the IP address of your NBG6716.

6Click Apply and close the window.

Verifying Settings

Check your TCP/IP properties by clicking Applications > Utilities > Network Utilities, and then

selecting the appropriate Network interface from the Info tab.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide 211

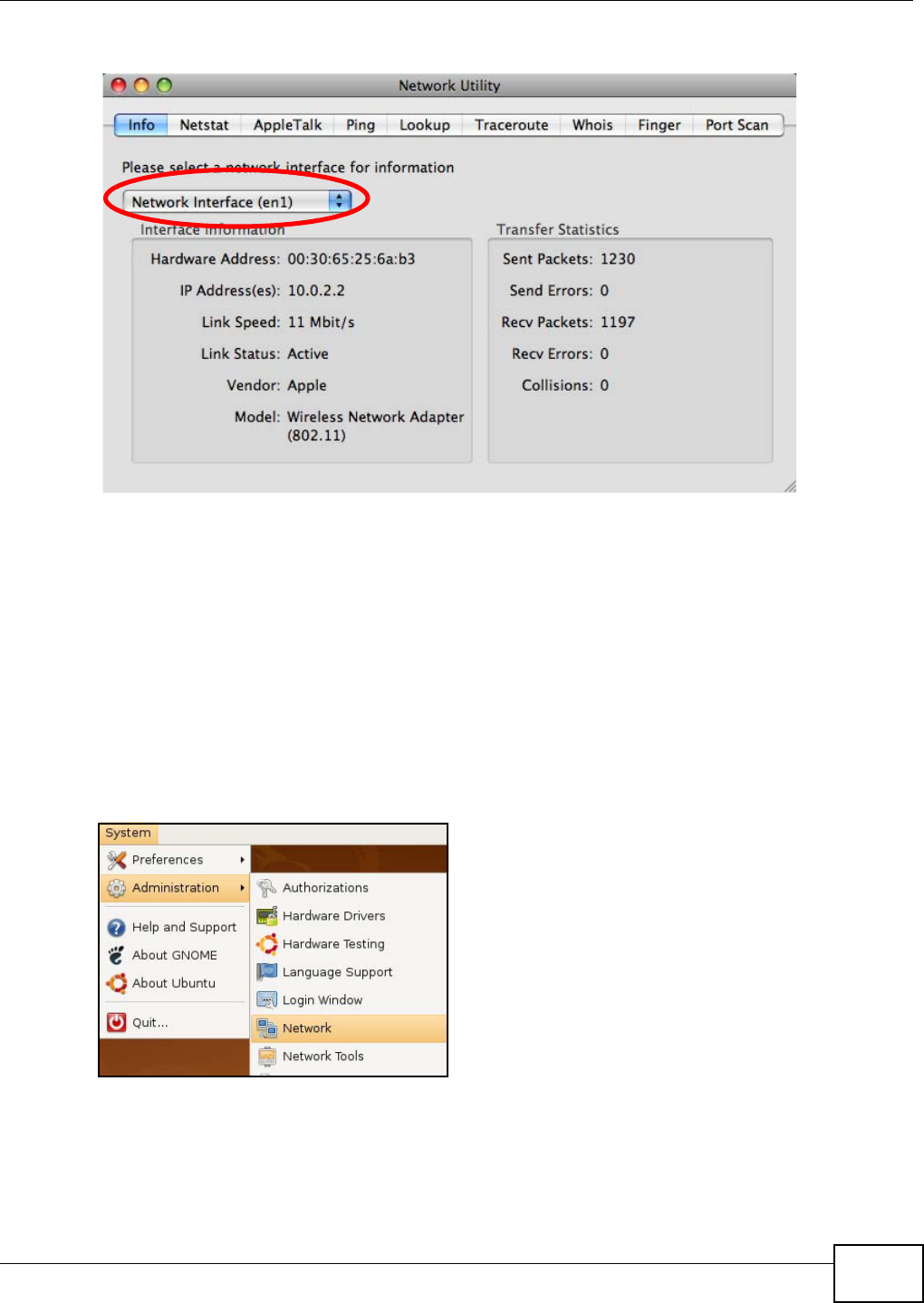

Figure 143 Mac OS X 10.5: Network Utility

Linux: Ubuntu 8 (GNOME)

This section shows you how to configure your computer’s TCP/IP settings in the GNU Object Model

Environment (GNOME) using the Ubuntu 8 Linux distribution. The procedure, screens and file

locations may vary depending on your specific distribution, release version, and individual

configuration. The following screens use the default Ubuntu 8 installation.

Note: Make sure you are logged in as the root administrator.

Follow the steps below to configure your computer IP address in GNOME:

1Click System > Administration > Network.

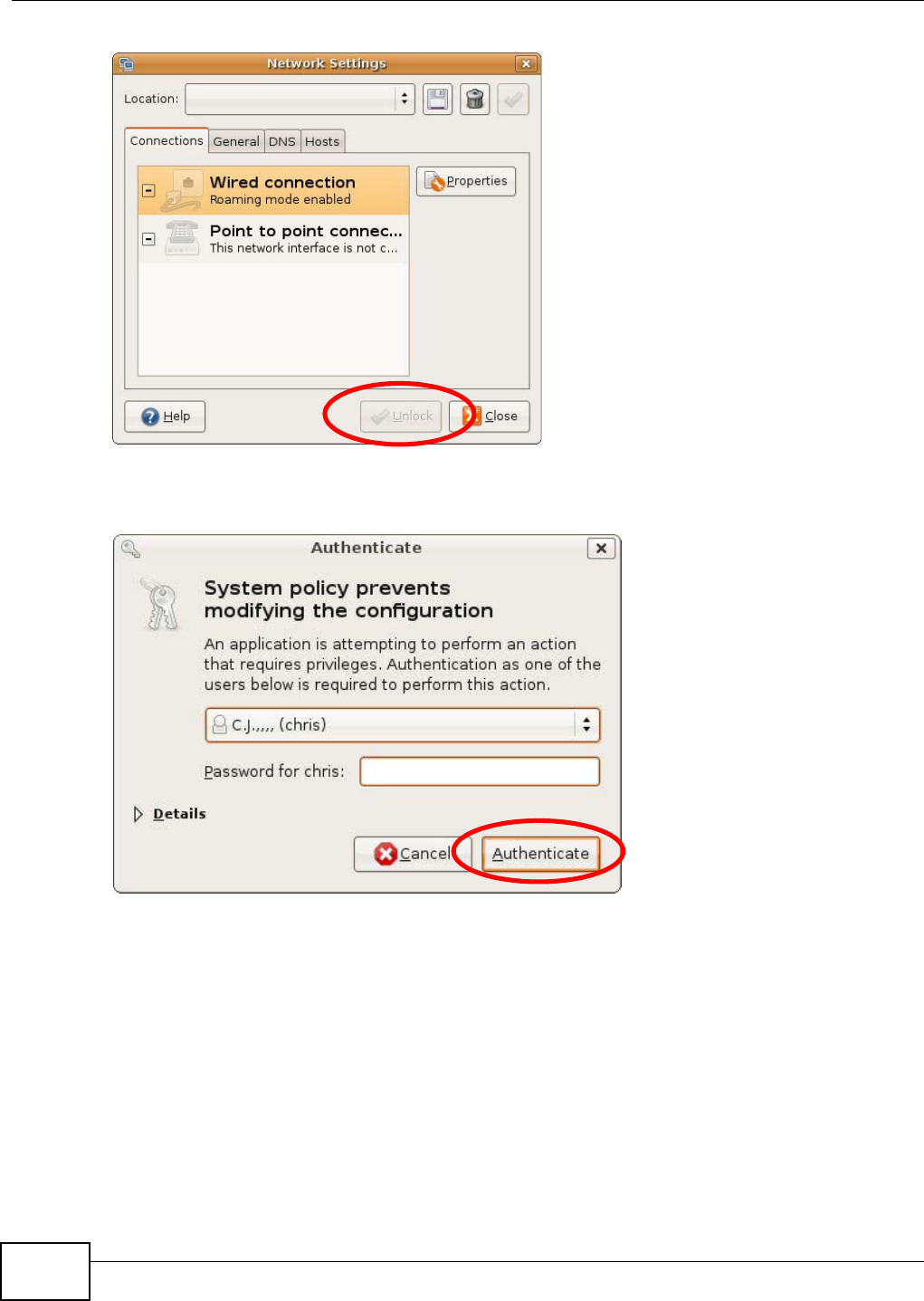

2When the Network Settings window opens, click Unlock to open the Authenticate window. (By

default, the Unlock button is greyed out until clicked.) You cannot make changes to your

configuration unless you first enter your admin password.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide

212

3In the Authenticate window, enter your admin account name and password then click the

Authenticate button.

4In the Network Settings window, select the connection that you want to configure, then click

Properties.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide 213

5The Properties dialog box opens.

•In the Configuration list, select Automatic Configuration (DHCP) if you have a dynamic IP

address.

•In the Configuration list, select Static IP address if you have a static IP address. Fill in the

IP address, Subnet mask, and Gateway address fields.

6Click OK to save the changes and close the Properties dialog box and return to the Network

Settings screen.

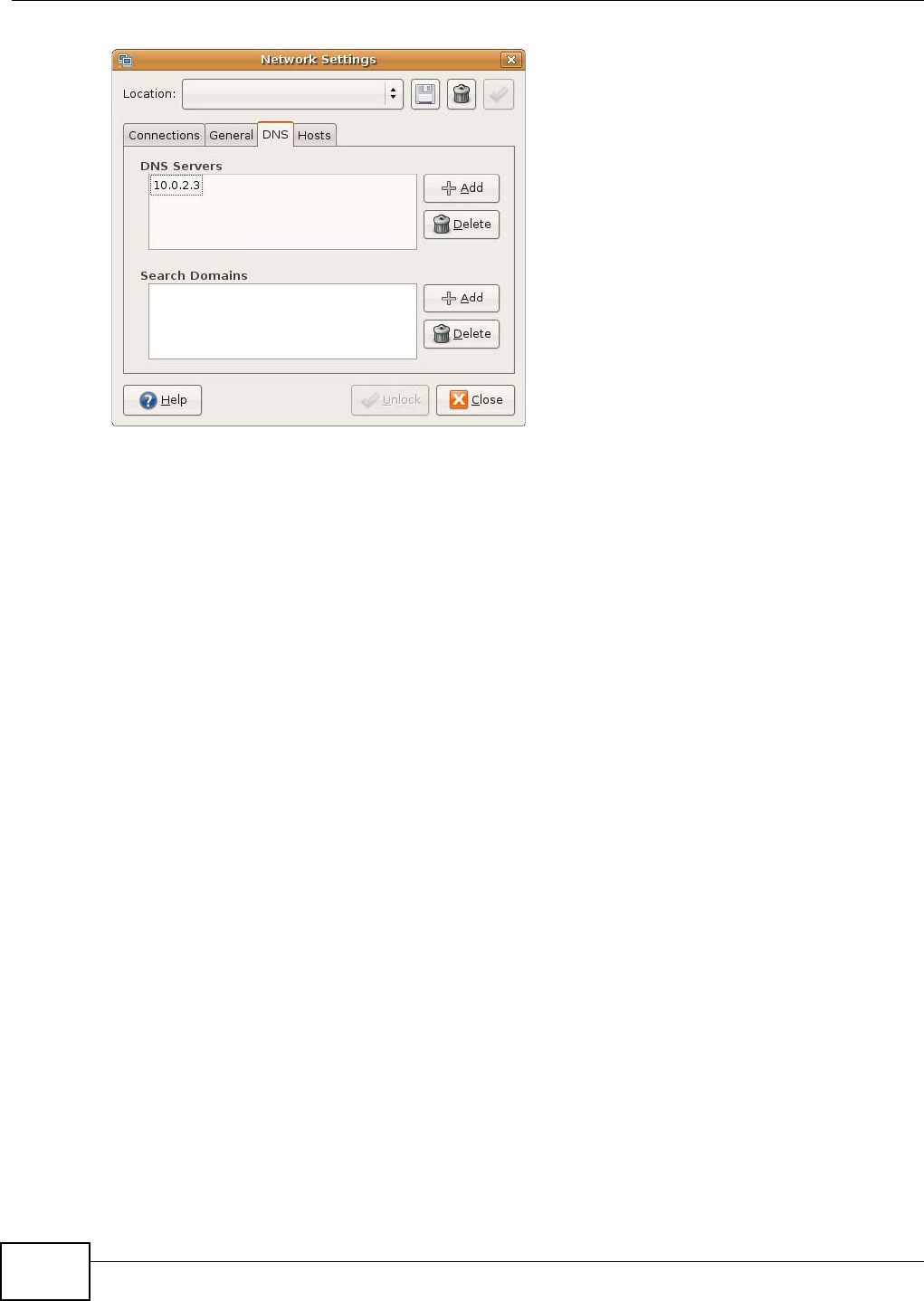

7If you know your DNS server IP address(es), click the DNS tab in the Network Settings window

and then enter the DNS server information in the fields provided.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide

214

8Click the Close button to apply the changes.

Verifying Settings

Check your TCP/IP properties by clicking System > Administration > Network Tools, and then

selecting the appropriate Network device from the Devices tab. The Interface Statistics

column shows data if your connection is working properly.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide 215

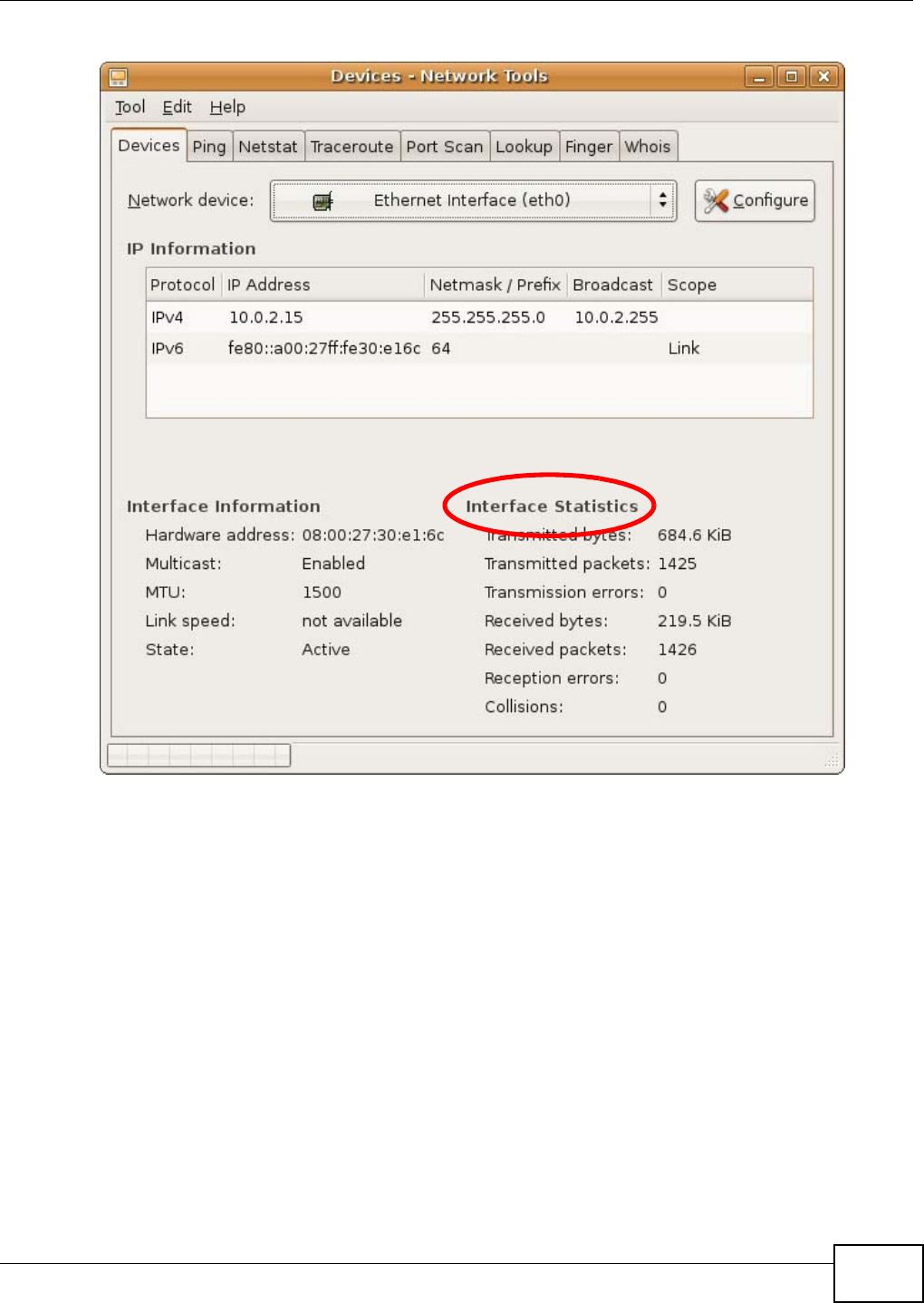

Figure 144 Ubuntu 8: Network Tools

Linux: openSUSE 10.3 (KDE)

This section shows you how to configure your computer’s TCP/IP settings in the K Desktop

Environment (KDE) using the openSUSE 10.3 Linux distribution. The procedure, screens and file

locations may vary depending on your specific distribution, release version, and individual

configuration. The following screens use the default openSUSE 10.3 installation.

Note: Make sure you are logged in as the root administrator.

Follow the steps below to configure your computer IP address in the KDE:

1Click K Menu > Computer > Administrator Settings (YaST).

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide

216

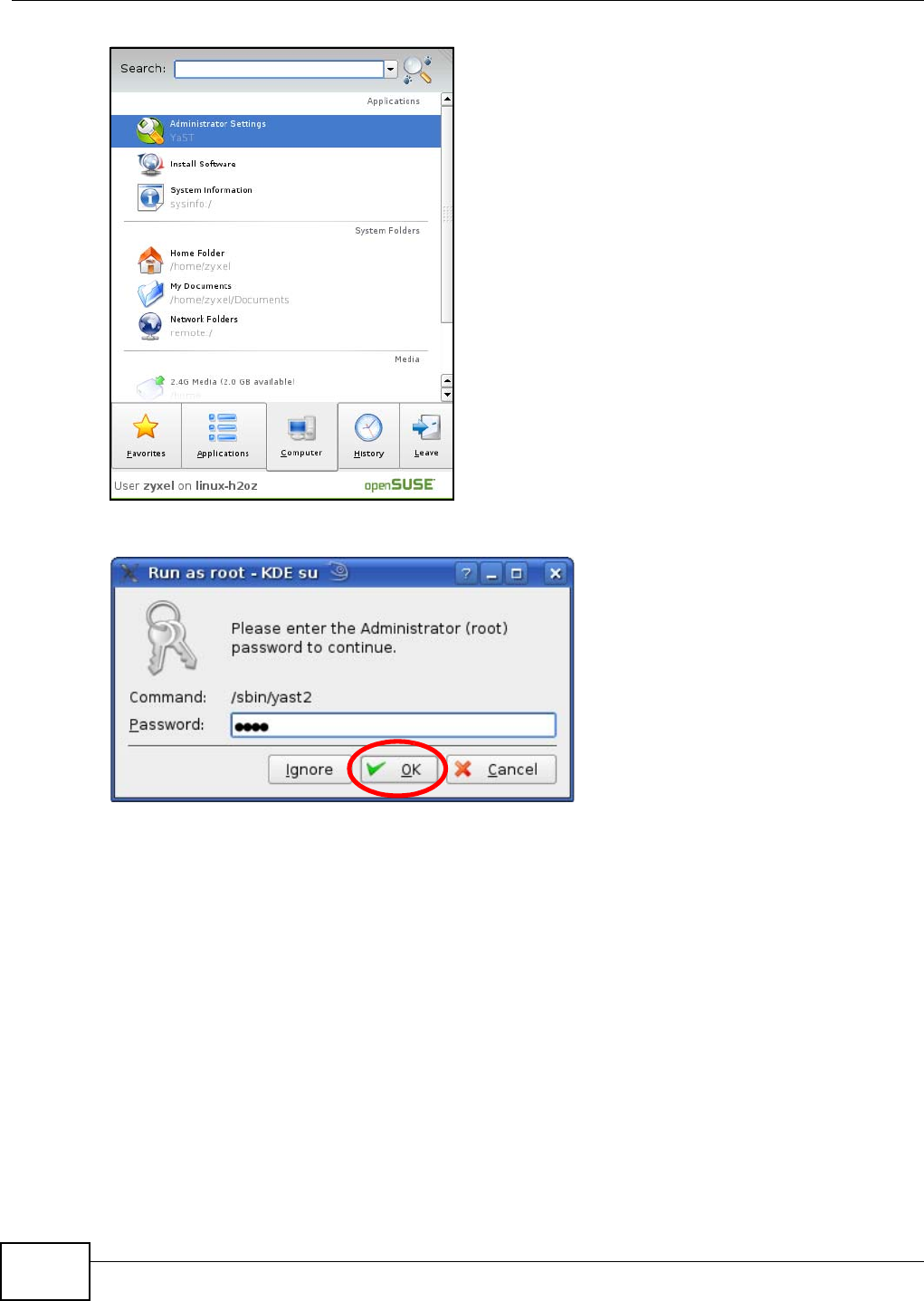

2When the Run as Root - KDE su dialog opens, enter the admin password and click OK.

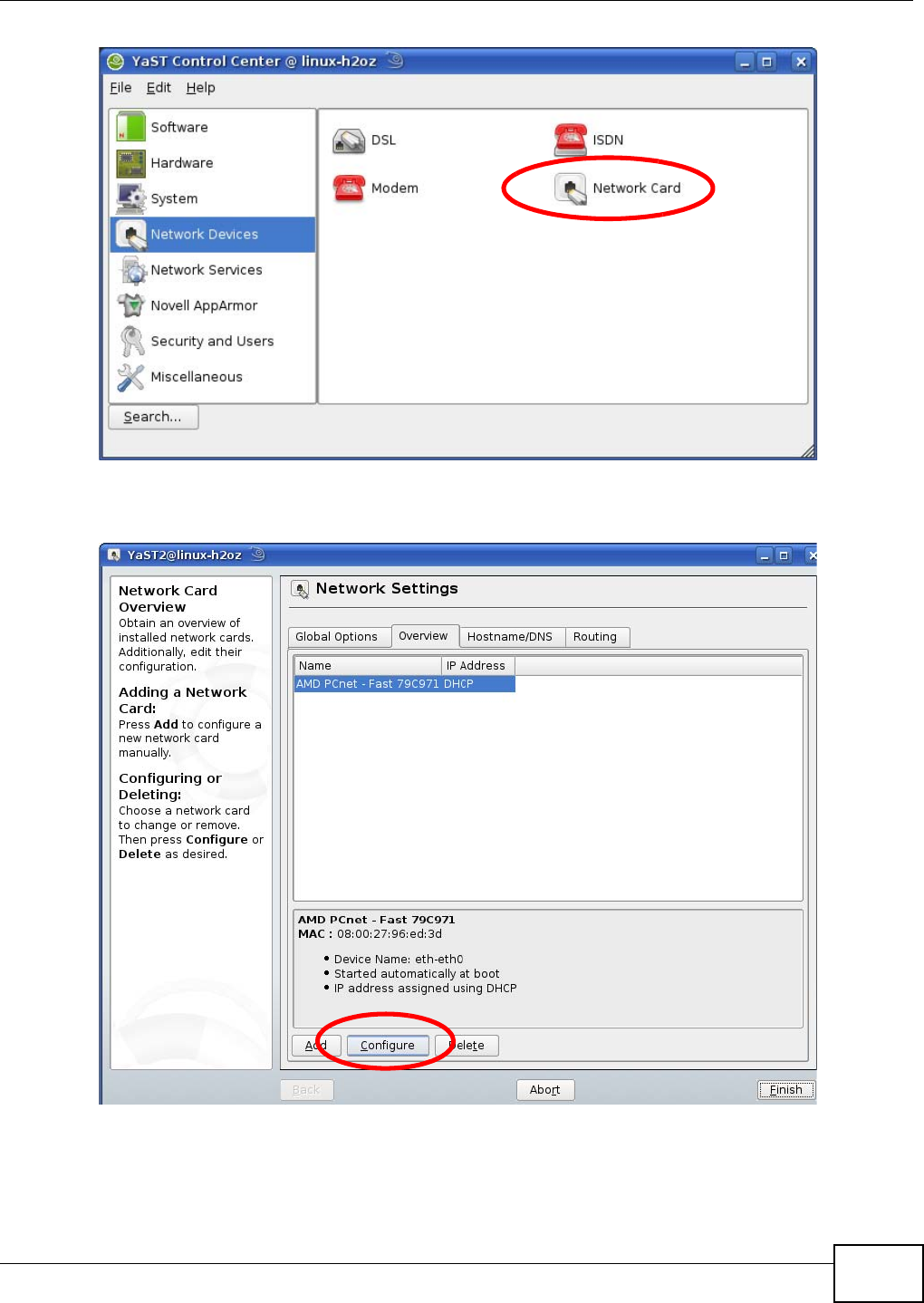

3When the YaST Control Center window opens, select Network Devices and then click the

Network Card icon.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide 217

4When the Network Settings window opens, click the Overview tab, select the appropriate

connection Name from the list, and then click the Configure button.

5When the Network Card Setup window opens, click the Address tab

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide

218

Figure 145 openSUSE 10.3: Network Card Setup

6Select Dynamic Address (DHCP) if you have a dynamic IP address.

Select Statically assigned IP Address if you have a static IP address. Fill in the IP address,

Subnet mask, and Hostname fields.

7Click Next to save the changes and close the Network Card Setup window.

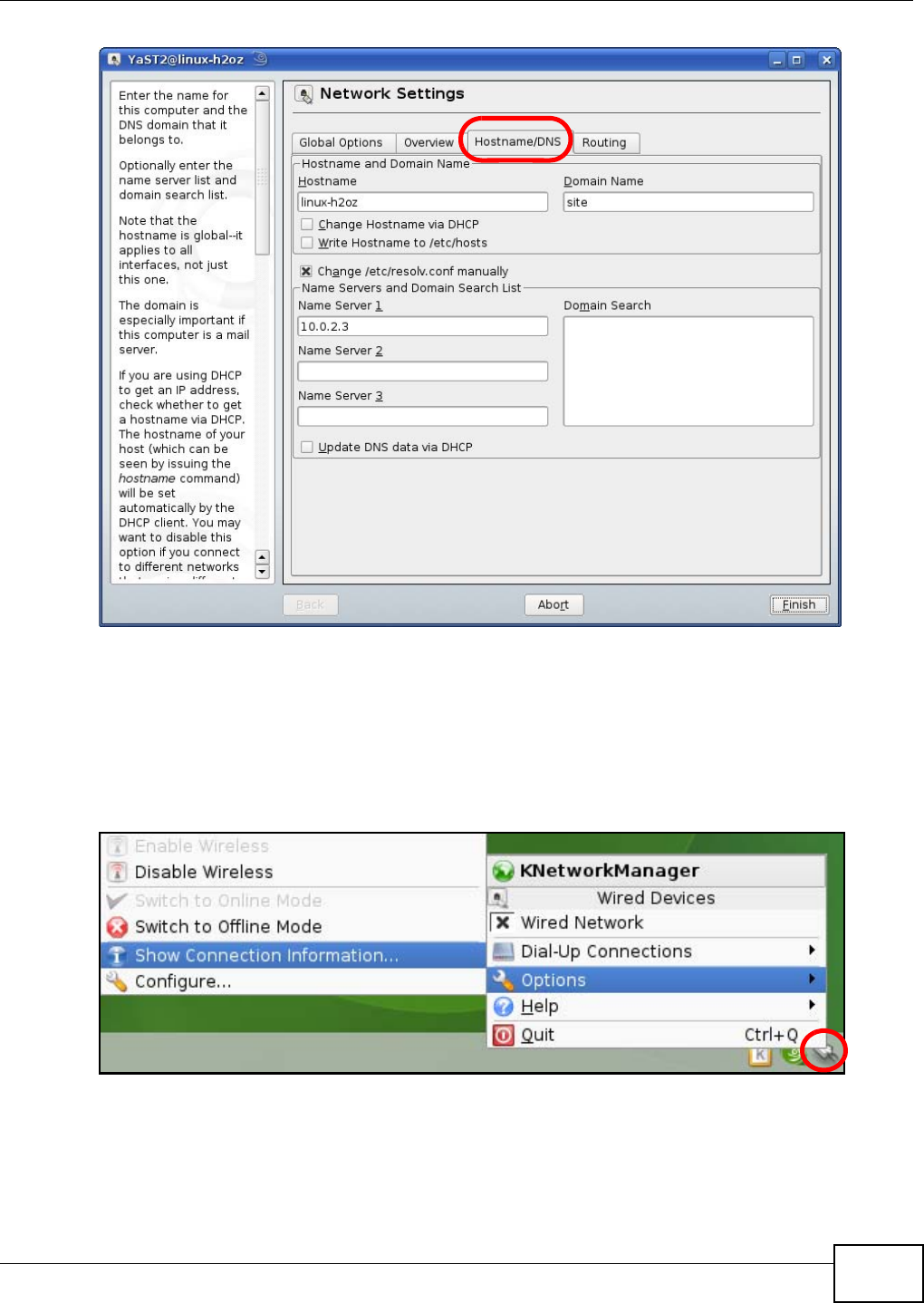

8If you know your DNS server IP address(es), click the Hostname/DNS tab in Network Settings

and then enter the DNS server information in the fields provided.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide 219

9Click Finish to save your settings and close the window.

Verifying Settings

Click the KNetwork Manager icon on the Task bar to check your TCP/IP properties. From the

Options sub-menu, select Show Connection Information.

Figure 146 openSUSE 10.3: KNetwork Manager

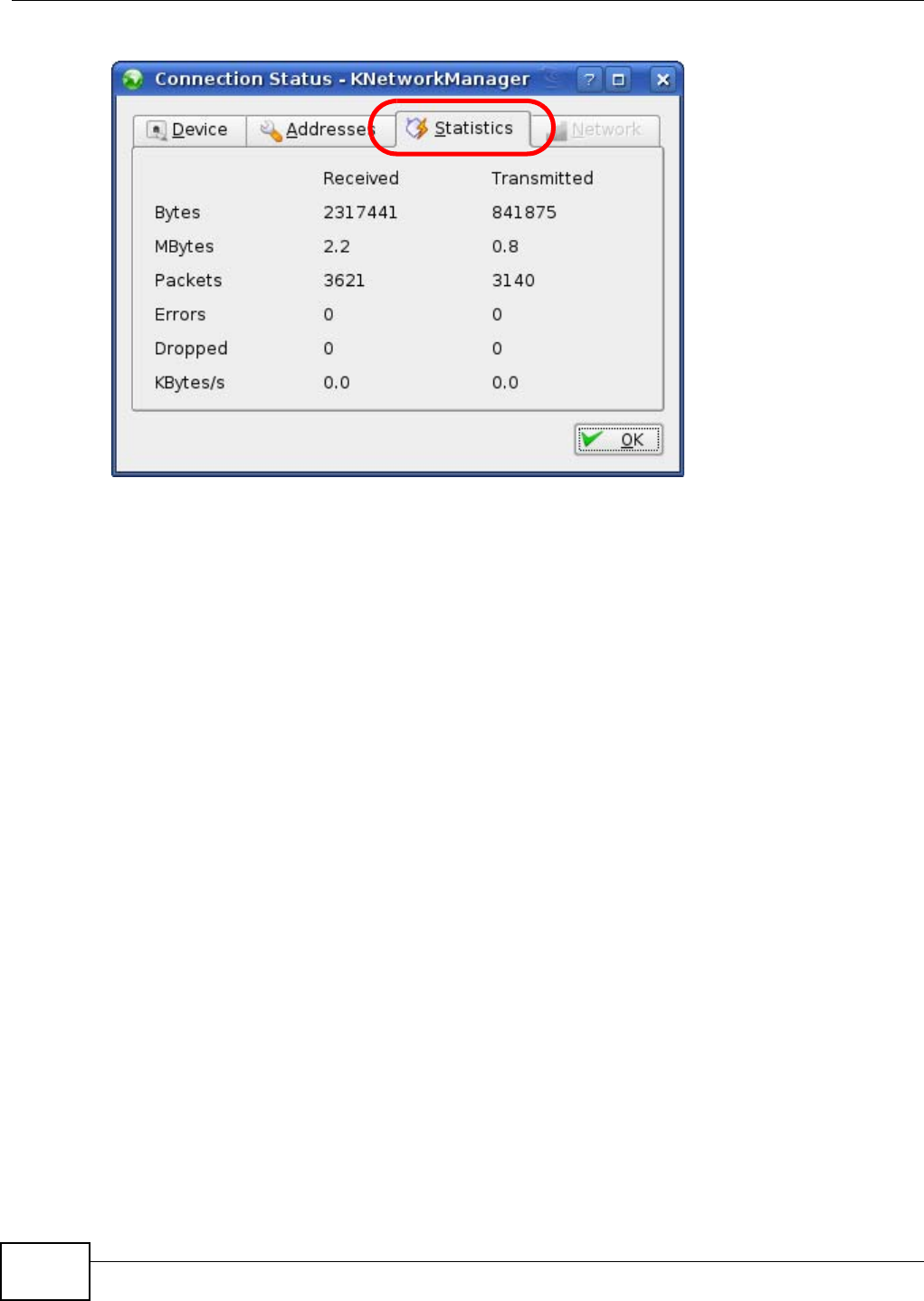

When the Connection Status - KNetwork Manager window opens, click the Statistics tab to

see if your connection is working properly.

Appendix B Setting Up Your Computer’s IP Address

NBG6716 User’s Guide

220

Figure 147 openSUSE: Connection Status - KNetwork Manager

NBG6716 User’s Guide 221

APPENDIX C

Common Services

The following table lists some commonly-used services and their associated protocols and port

numbers. For a comprehensive list of port numbers, ICMP type/code numbers and services, visit

the IANA (Internet Assigned Number Authority) web site.

•Name: This is a short, descriptive name for the service. You can use this one or create a

different one, if you like.

•Protocol: This is the type of IP protocol used by the service. If this is TCP/UDP, then the service

uses the same port number with TCP and UDP. If this is USER-DEFINED, the Port(s) is the IP

protocol number, not the port number.

•Port(s): This value depends on the Protocol. Please refer to RFC 1700 for further information

about port numbers.

•If the Protocol is TCP, UDP, or TCP/UDP, this is the IP port number.

•If the Protocol is USER, this is the IP protocol number.

•Description: This is a brief explanation of the applications that use this service or the situations

in which this service is used.

Table 74 Commonly Used Services

NAME PROTOCOL PORT(S) DESCRIPTION

(IPSEC_TUNNEL) User-Defined 51 The IPSEC AH (Authentication Header)

tunneling protocol uses this service.

AIM/New-ICQ TCP 5190 AOL’s Internet Messenger service. It is

also used as a listening port by ICQ.

AUTH TCP 113 Authentication protocol used by some

servers.

BGP TCP 179 Border Gateway Protocol.

BOOTP_CLIENT UDP 68 DHCP Client.

BOOTP_SERVER UDP 67 DHCP Server.

CU-SEEME TCP

UDP

7648

24032

A popular videoconferencing solution from

White Pines Software.

DNS TCP/UDP 53 Domain Name Server, a service that

matches web names (for example

www.zyxel.com) to IP numbers.

ESP

(IPSEC_TUNNEL) User-Defined 50 The IPSEC ESP (Encapsulation Security

Protocol) tunneling protocol uses this

service.

FINGER TCP 79 Finger is a UNIX or Internet related

command that can be used to find out if a

user is logged on.

FTP TCP

TCP

File Transfer Program, a program to enable

fast transfer of files, including large files

that may not be possible by e-mail.

H.323 TCP 1720 NetMeeting uses this protocol.

Appendix C Common Services

NBG6716 User’s Guide

222

HTTP TCP 80 Hyper Text Transfer Protocol - a client/

server protocol for the world wide web.

HTTPS TCP 443 HTTPS is a secured http session often used

in e-commerce.

ICMP User-Defined 1Internet Control Message Protocol is often

used for diagnostic or routing purposes.

ICQ UDP 4000 This is a popular Internet chat program.

IGMP (MULTICAST) User-Defined 2Internet Group Management Protocol is

used when sending packets to a specific

group of hosts.

IKE UDP 500 The Internet Key Exchange algorithm is

used for key distribution and

management.

IRC TCP/UDP 6667 This is another popular Internet chat

program.

MSN Messenger TCP 1863 Microsoft Networks’ messenger service

uses this protocol.

NEW-ICQ TCP 5190 An Internet chat program.

NEWS TCP 144 A protocol for news groups.

NFS UDP 2049 Network File System - NFS is a client/

server distributed file service that provides

transparent file sharing for network

environments.

NNTP TCP 119 Network News Transport Protocol is the

delivery mechanism for the USENET

newsgroup service.

PING User-Defined 1Packet INternet Groper is a protocol that

sends out ICMP echo requests to test

whether or not a remote host is reachable.

POP3 TCP 110 Post Office Protocol version 3 lets a client

computer get e-mail from a POP3 server

through a temporary connection (TCP/IP

or other).

PPTP TCP 1723 Point-to-Point Tunneling Protocol enables

secure transfer of data over public

networks. This is the control channel.

PPTP_TUNNEL

(GRE) User-Defined 47 PPTP (Point-to-Point Tunneling Protocol)

enables secure transfer of data over public

networks. This is the data channel.

RCMD TCP 512 Remote Command Service.

REAL_AUDIO TCP 7070 A streaming audio service that enables

real time sound over the web.

REXEC TCP 514 Remote Execution Daemon.

RLOGIN TCP 513 Remote Login.

RTELNET TCP 107 Remote Telnet.

RTSP TCP/UDP 554 The Real Time Streaming (media control)

Protocol (RTSP) is a remote control for

multimedia on the Internet.

SFTP TCP 115 Simple File Transfer Protocol.

Table 74 Commonly Used Services (continued)

NAME PROTOCOL PORT(S) DESCRIPTION

Appendix C Common Services

NBG6716 User’s Guide 223

SMTP TCP 25 Simple Mail Transfer Protocol is the

message-exchange standard for the

Internet. SMTP enables you to move

messages from one e-mail server to

another.

SNMP TCP/UDP 161 Simple Network Management Program.

SNMP-TRAPS TCP/UDP 162 Traps for use with the SNMP (RFC:1215).

SQL-NET TCP 1521 Structured Query Language is an interface

to access data on many different types of

database systems, including mainframes,

midrange systems, UNIX systems and

network servers.

SSH TCP/UDP 22 Secure Shell Remote Login Program.

STRM WORKS UDP 1558 Stream Works Protocol.

SYSLOG UDP 514 Syslog allows you to send system logs to a

UNIX server.

TACACS UDP 49 Login Host Protocol used for (Terminal

Access Controller Access Control System).

TELNET TCP 23 Telnet is the login and terminal emulation

protocol common on the Internet and in

UNIX environments. It operates over TCP/

IP networks. Its primary function is to

allow users to log into remote host

systems.

TFTP UDP 69 Trivial File Transfer Protocol is an Internet

file transfer protocol similar to FTP, but

uses the UDP (User Datagram Protocol)

rather than TCP (Transmission Control

Protocol).

VDOLIVE TCP 7000 Another videoconferencing solution.

Table 74 Commonly Used Services (continued)

NAME PROTOCOL PORT(S) DESCRIPTION

NBG6716 User’s Guide 224

APPENDIX D

Legal Information

The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a retrieval system, translated into

any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or

otherwise, without the prior written permission of ZyXEL Communications Corporation.

Disclaimer

ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it

convey any license under its patent rights nor the patent rights of others. ZyXEL further reserves the right to make changes in any

products described herein without notice. This publication is subject to change without notice.

Trademarks

Trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective owners.

Certifications

Federal Communications Commission (FCC) Interference Statement

The device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired operations.

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses,

and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this device does cause harmful interference to radio/television reception, which can be determined by turning the device off and on, the

user is encouraged to try to correct the interference by one or more of the following measures:

1Reorient or relocate the receiving antenna.

2Increase the separation between the equipment and the receiver.

3Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority

to operate this equipment.

FCC Radiation Exposure Statement

• This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

• IEEE 802.11b, 802.11g or 802.11n (20MHz) operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. IEEE

802.11n (40MHz) operation of this product in the U.S.A. is firmware-limited to channels 3 through 9.

• To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the

antenna of this device and all persons.

• Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only.

• Operations in the 5.15-5.25GHz band are restricted to indoor usage only.

Industry Canada Statement

This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:

1) this device may not cause interference and

2) this device must accept any interference, including interference that may cause undesired operation of the device

This device has been designed to operate with an antenna having a maximum gain of 2dBi.

Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms.

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the EIRP is not more than

required for successful communication.

IC Radiation Exposure Statement

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific

operating instructions for satisfying RF exposure compliance.

Appendix D Legal Information

NBG6716 User’s Guide 225

注意 ! 依據低功率電波輻射性電機管理辦法

第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用

者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。

第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現

有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。

前項合法通信，指依電信規定作業之無線電信。低功率射頻電機須忍

受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

在 5.25 - 5.35 GHz 頻帶內操作之無線資訊傳輸設備，限於室內使用。

Notices

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the

equipment.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Viewing Certifications

Go to http://www.zyxel.com to view this product’s documentation and certifications.

ZyXEL Limited Warranty

ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in material or workmanship for a specific

period (the Warranty Period) from the date of purchase. The Warranty Period varies by region. Check with your vendor and/or the

authorized ZyXEL local distributor for details about the Warranty Period of this product. During the warranty period, and upon proof of

purchase, should the product have indications of failure due to faulty workmanship and/or materials, ZyXEL will, at its discretion, repair or

replace the defective products or components without charge for either parts or labor, and to whatever extent it shall deem necessary to

restore the product or components to proper operating condition. Any replacement will consist of a new or re-manufactured functionally

equivalent product of equal or higher value, and will be solely at the discretion of ZyXEL. This warranty shall not apply if the product has

been modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions.

Note

Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This warranty is in lieu of all other

warranties, express or implied, including any implied warranty of merchantability or fitness for a particular use or purpose. ZyXEL shall in

no event be held liable for indirect or consequential damages of any kind to the purchaser.

To obtain the services of this warranty, contact your vendor. You may also refer to the warranty policy for the region in which you bought

the device at http://www.zyxel.com/web/support_warranty_info.php.

Registration

Register your product online to receive e-mail notices of firmware upgrades and information at www.zyxel.com for global products, or at

www.us.zyxel.com for North American products.

Open Source Licenses

This product contains in part some free software distributed under GPL license terms and/or GPL like licenses. Open source licenses are

provided with the firmware package. You can download the latest firmware at www.zyxel.com. To obtain the source code covered under

those Licenses, please contact support@zyxel.com.tw to get it.

Regulatory Information

European Union

The following information applies if you use the product within the European Union.

Declaration of Conformity with Regard to EU Directive 1999/5/EC (R&TTE Directive)

Compliance Information for 2.4GHz and 5GHz Wireless Products Relevant to the EU and Other Countries Following the EU Directive 1999/5/EC

(R&TTE Directive)

[Czech] ZyXEL tímto prohlašuje, že tento zařízení je ve shodě se základními požadavky a dalšími příslušnými ustanoveními

směrnice 1999/5/EC.

[Danish] Undertegnede ZyXEL erklærer herved, at følgende udstyr udstyr overholder de væsentlige krav og øvrige relevante

krav i direktiv 1999/5/EF.

[German] Hiermit erklärt ZyXEL, dass sich das Gerät Ausstattung in Übereinstimmung mit den grundlegenden Anforderungen

und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EU befindet.

[Estonian] Käesolevaga kinnitab ZyXEL seadme seadmed vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist

tulenevatele teistele asjakohastele sätetele.

English Hereby, ZyXEL declares that this equipment is in compliance with the essential requirements and other relevant

provisions of Directive 1999/5/EC.

[Spanish] Por medio de la presente ZyXEL declara que el equipo cumple con los requisitos esenciales y cualesquiera otras

disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

Appendix D Legal Information

NBG6716 User’s Guide

226

National Restrictions

This product may be used in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for

the countries mentioned below:

Ce produit peut être utilisé dans tous les pays de l’UE (et dans tous les pays ayant transposés la directive 1999/5/CE) sans aucune

limitation, excepté pour les pays mentionnés ci-dessous:

Questo prodotto è utilizzabile in tutte i paesi EU (ed in tutti gli altri paesi che seguono le direttive EU 1999/5/EC) senza nessuna

limitazione, eccetto per i paesii menzionati di seguito:

Das Produkt kann in allen EU Staaten ohne Einschränkungen eingesetzt werden (sowie in anderen Staaten die der EU Direktive 1995/5/CE

folgen) mit Außnahme der folgenden aufgeführten Staaten:

In the majority of the EU and other European countries, the 2, 4- and 5-GHz bands have been made available for the use of wireless local

area networks (LANs). Later in this document you will find an overview of countries inwhich additional restrictions or requirements or both

are applicable.

The requirements for any country may evolve. ZyXEL recommends that you check with the local authorities for the latest status of their

national regulations for both the 2,4- and 5-GHz wireless LANs.

The following countries have restrictions and/or requirements in addition to those given in the table labeled “Overview of Regulatory

Requirements for Wireless LANs”:.

[Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ ZyXEL ΔΗΛΩΝΕΙ ΟΤΙ εξοπλισμός ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ

ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕC.

[French] Par la présente ZyXEL déclare que l'appareil équipements est conforme aux exigences essentielles et aux autres

dispositions pertinentes de la directive 1999/5/EC.

[Italian] Con la presente ZyXEL dichiara che questo attrezzatura è conforme ai requisiti essenziali ed alle altre disposizioni

pertinenti stabilite dalla direttiva 1999/5/CE.

[Latvian] Ar šo ZyXEL deklarē, ka iekārtas atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem

noteikumiem.

[Lithuanian] Šiuo ZyXEL deklaruoja, kad šis įranga atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

[Dutch] Hierbij verklaart ZyXEL dat het toestel uitrusting in overeenstemming is met de essentiële eisen en de andere

relevante bepalingen van richtlijn 1999/5/EC.

[Maltese] Hawnhekk, ZyXEL, jiddikjara li dan tagħmir jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li

hemm fid-Dirrettiva 1999/5/EC.

[Hungarian] Alulírott, ZyXEL nyilatkozom, hogy a berendezés megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EK

irányelv egyéb elõírásainak.

[Polish] Niniejszym ZyXEL oświadcza, że sprzęt jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi

postanowieniami Dyrektywy 1999/5/EC.

[Portuguese] ZyXEL declara que este equipamento está conforme com os requisitos essenciais e outras disposições da Directiva

1999/5/EC.

[Slovenian] ZyXEL izjavlja, da je ta oprema v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/EC.

[Slovak] ZyXEL týmto vyhlasuje, že zariadenia spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/EC.

[Finnish] ZyXEL vakuuttaa täten että laitteet tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien

direktiivin muiden ehtojen mukainen.

[Swedish] Härmed intygar ZyXEL att denna utrustning står I överensstämmelse med de väsentliga egenskapskrav och övriga

relevanta bestämmelser som framgår av direktiv 1999/5/EC.

[Bulgarian] С настоящото ZyXEL декларира, че това оборудване е в съответствие със съществените изисквания и другите

приложими разпоредбите на Директива 1999/5/ЕC.

[Icelandic] Hér með lýsir, ZyXEL því yfir að þessi búnaður er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipunar

1999/5/EC.

[Norwegian] Erklærer herved ZyXEL at dette utstyret er I samsvar med de grunnleggende kravene og andre relevante

bestemmelser I direktiv 1999/5/EF.

[Romanian] Prin prezenta, ZyXEL declară că acest echipament este în conformitate cu cerinţele esenţiale şi alte prevederi

relevante ale Directivei 1999/5/EC.

Overview of Regulatory Requirements for Wireless LANs

Frequency Band (MHz) Max Power Level

(EIRP)1 (mW) Indoor ONLY Indoor and Outdoor

2400-2483.5 100 V

5150-5350 200 V

5470-5725 1000 V

Appendix D Legal Information

NBG6716 User’s Guide 227

Belgium

The Belgian Institute for Postal Services and Telecommunications (BIPT) must be notified of any outdoor wireless link having a range

exceeding 300 meters. Please check http://www.bipt.be for more details.

Draadloze verbindingen voor buitengebruik en met een reikwijdte van meer dan 300 meter dienen aangemeld te worden bij het Belgisch

Instituut voor postdiensten en telecommunicatie (BIPT). Zie http://www.bipt.be voor meer gegevens.

Les liaisons sans fil pour une utilisation en extérieur d’une distance supérieure à 300 mètres doivent être notifiées à l’Institut Belge des

services Postaux et des Télécommunications (IBPT). Visitez http://www.ibpt.be pour de plus amples détails.

Denmark

In Denmark, the band 5150 - 5350 MHz is also allowed for outdoor usage.

I Danmark må frekvensbåndet 5150 - 5350 også anvendes udendørs.

Italy

This product meets the National Radio Interface and the requirements specified in the National Frequency Allocation Table for Italy. Unless

this wireless LAN product is operating within the boundaries of the owner's property, its use requires a “general authorization.” Please

check http://www.sviluppoeconomico.gov.it/ for more details.

Questo prodotto è conforme alla specifiche di Interfaccia Radio Nazionali e rispetta il Piano Nazionale di ripartizione delle frequenze in

Italia. Se non viene installato all 'interno del proprio fondo, l'utilizzo di prodotti Wireless LAN richiede una “Autorizzazione Generale”.

Consultare http://www.sviluppoeconomico.gov.it/ per maggiori dettagli.

Latvia

The outdoor usage of the 2.4 GHz band requires an authorization from the Electronic Communications Office. Please check http://

www.esd.lv for more details.

2.4 GHz frekvenèu joslas izmantoðanai ârpus telpâm nepiecieðama atïauja no Elektronisko sakaru direkcijas. Vairâk informâcijas: http://www.esd.lv.

Notes:

1. Although Norway, Switzerland and Liechtenstein are not EU member states, the EU Directive 1999/5/EC has also been implemented in

those countries.

2. The regulatory limits for maximum output power are specified in EIRP. The EIRP level (in dBm) of a device can be calculated by adding

the gain of the antenna used(specified in dBi) to the output power available at the connector (specified in dBm).

List of national codes

Safety Warnings

• Do NOT use this product near water, for example, in a wet basement or near a swimming pool.

• Do NOT expose your device to dampness, dust or corrosive liquids.

• Do NOT store things on the device.

• Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning.

• Connect ONLY suitable accessories to the device.

• Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY

qualified service personnel should service or disassemble this device. Please contact your vendor for further information.

• Make sure to connect the cables to the correct ports.

• Place connecting cables carefully so that no one will step on them or stumble over them.

• Always disconnect all cables from this device before servicing or disassembling.

• Use ONLY an appropriate power adaptor or cord for your device.

• Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in North America or 230V AC in Europe).

• Do NOT allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can walk on the power

adaptor or cord.

• Do NOT use the device if the power adaptor or cord is damaged as it might cause electrocution.

• If the power adaptor or cord is damaged, remove it from the power outlet.

COUNTRY ISO 3166 2 LETTER CODE COUNTRY ISO 3166 2 LETTER CODE

Austria AT Malta MT

Belgium BE Netherlands NL

Cyprus CY Poland PL

Czech Republic CR Portugal PT

Denmark DK Slovakia SK

Estonia EE Slovenia SI

Finland FI Spain ES

France FR Sweden SE

Germany DE United Kingdom GB

Greece GR Iceland IS

Hungary HU Liechtenstein LI

Ireland IE Norway NO

Italy IT Switzerland CH

Latvia LV Bulgaria BG

Lithuania LT Romania RO

Luxembourg LU Turkey TR

Appendix D Legal Information

NBG6716 User’s Guide

228

• Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to order a new one.

• Do not use the device outside, and make sure all the connections are indoors. There is a remote risk of electric shock from lightning.

• Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your device.

• Antenna Warning! This device meets ETSI and FCC certification requirements when using the included antenna(s). Only use the

included antenna(s).

• If you wall mount your device, make sure that no electrical lines, gas or water pipes will be damaged.

Your product is marked with this symbol, which is known as the WEEE mark. WEEE stands for Waste Electronics and

Electrical Equipment. It means that used electrical and electronic products should not be mixed with general waste. Used

electrical and electronic equipment should be treated separately.

Index

NBG6716 User’s Guide 229

Index

ActiveX 136

Address Assignment 77

AP 13

AP Mode

menu 54

status screen 52

AP+Bridge 13

Bridge/Repeater 13

certifications 224

notices 225

viewing 225

Channel 45, 53

channel 85

CIFS 158

Common Internet File System, see CIFS

Configuration

restore 171

content filtering 135

by keyword (in URL) 135

Cookies 136

CPU usage 46, 53

Daylight saving 169

DDNS 125

ZyXEL Communications NBG6716 Simultaneous Dual-Band Wireless AC1750 HD Media Router User Manual Book

ZyXEL Communications Corporation Simultaneous Dual-Band Wireless AC1750 HD Media Router Book

Contents

User Manual Part 2.pdf

Navigation menu

Namespaces

Views

Navigation
