NWA-1100
802.11b/g Wireless Access Point
User’s Guide
Version 1.00
7/2008
Edition 1
About This User's Guide
ZyXEL NWA-1100 User’s Guide 3
About This User's Guide
Intended Audience
This manual is intended for people who want to configure the ZyXEL Device using the web
configurator. You should have at least a basic knowledge of TCP/IP networking concepts and
topology.
Related Documentation
• Quick Start Guide
The Quick Start Guide is designed to help you get up and running right away. It contains
information on setting up your network and configuring for Internet access.
• Supporting Disk
Refer to the included CD for support documents.
• ZyXEL Web Site
Please refer to www.zyxel.com for additional support documentation and product
certifications.
User Guide Feedback
Help us help you. Send all User Guide-related comments, questions or suggestions for
improvement to the following address, or use e-mail instead. Thank you!
The Technical Writing Team,
ZyXEL Communications Corp.,
6 Innovation Road II,
Science-Based Industrial Park,
Hsinchu, 300, Taiwan.
E-mail: techwriters@zyxel.com.tw
Document Conventions
ZyXEL NWA-1100 User’s Guide
4
Document Conventions
Warnings and Notes
These are how warnings and notes are shown in this User’s Guide.
1Warnings tell you about things that could harm you or your device.
"Notes tell you other important information (for example, other things you may
need to configure or helpful tips) or recommendations.
Syntax Conventions
• The NWA-1100 may be referred to as the “ZyXEL Device”, the “device” or the “system”
in this User’s Guide.
• Product labels, screen names, field labels and field choices are all in bold font.
• A key stroke is denoted by square brackets and uppercase text, for example, [ENTER]
means the “enter” or “return” key on your keyboard.
• “Enter” means for you to type one or more characters and then press the [ENTER] key.
“Select” or “choose” means for you to use one of the predefined choices.
• A right angle bracket ( > ) within a screen name denotes a mouse click. For example,
Maintenance > Configuration File > Backup means you first click Maintenance in the
navigation panel, then the Configuration File sub menu and finally the Backup button to
get to that screen.
• Units of measurement may denote the “metric” value or the “scientific” value. For
example, “k” for kilo may denote “1000” or “1024”, “M” for mega may denote “1000000”
or “1048576” and so on.
• “e.g.,” is a shorthand for “for instance”, and “i.e.,” means “that is” or “in other words”.
Document Conventions
ZyXEL NWA-1100 User’s Guide 5

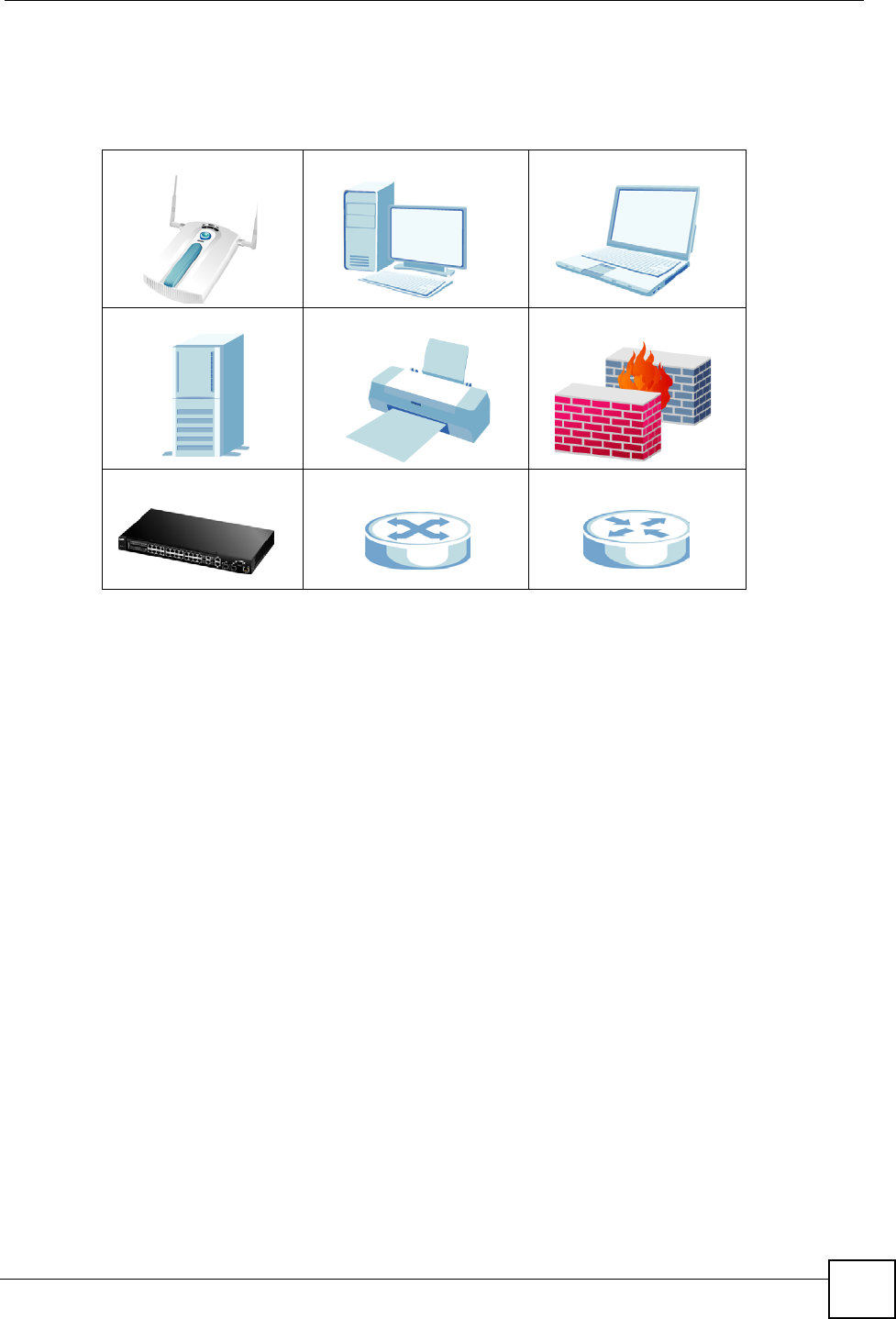

Icons Used in Figures
Figures in this User’s Guide may use the following generic icons. The ZyXEL Device icon is
not an exact representation of your device.
ZyXEL Device Computer Notebook computer
Server Printer Firewall
Ethernet Switch Switch Router
Safety Warnings
ZyXEL NWA-1100 User’s Guide
6
Safety Warnings
1For your safety, be sure to read and follow all warning notices and instructions.
• Do NOT use this product near water, for example, in a wet basement or near a swimming
pool.
• Do NOT expose your device to dampness, dust or corrosive liquids.
• Do NOT store things on the device.
• Do NOT install, use, or service this device during a thunderstorm. There is a remote risk
of electric shock from lightning.
• Connect ONLY suitable accessories to the device.
• ONLY qualified service personnel should service or disassemble this device.
• Make sure to connect the cables to the correct ports.
• Place connecting cables carefully so that no one will step on them or stumble over them.
• Always disconnect all cables from this device before servicing or disassembling.
• Use ONLY an appropriate power adaptor or cord for your device.
• Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in
North America or 230V AC in Europe).
• Do NOT allow anything to rest on the power adaptor or cord and do NOT place the
product where anyone can walk on the power adaptor or cord.
• Do NOT use the device if the power adaptor or cord is damaged as it might cause
electrocution.
• If the power adaptor or cord is damaged, remove it from the power outlet.
• Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to order a
new one.
• Do not use the device outside, and make sure all the connections are indoors. There is a
remote risk of electric shock from lightning.
• Antenna Warning! This device meets ETSI and FCC certification requirements when
using the included antenna(s). Only use the included antenna(s).
• If you wall mount your device, make sure that no electrical lines, gas or water pipes will
be damaged.
• The PoE (Power over Ethernet) devices that supply or receive power and their connected
Ethernet cables must all be completely indoors.
This product is recyclable. Dispose of it properly.
Safety Warnings
ZyXEL NWA-1100 User’s Guide 7
Safety Warnings
ZyXEL NWA-1100 User’s Guide
8
Contents Overview
ZyXEL NWA-1100 User’s Guide 9
Contents Overview
Introduction ............................................................................................................................ 23
Introducing the ZyXEL Device ...................................................................................................25
Introducing the Web Configurator .............................................................................................. 35
Status Screens .......................................................................................................................... 39
Tutorial ....................................................................................................................................... 43
The Web Configurator ...........................................................................................................51
System Screens ........................................................................................................................ 53
Wireless Settings Screen .......................................................................................................... 61
Wireless Security Screen .......................................................................................................... 75
RADIUS Screen ......................................................................................................................... 89
MAC Filter Screen ..................................................................................................................... 93
IP Screen ................................................................................................................................... 97
Remote Management ..............................................................................................................101
Certificate Screen .....................................................................................................................111
Log Screens .............................................................................................................................115
Maintenance ............................................................................................................................ 121
Troubleshooting ....................................................................................................................... 129
Appendices and Index .........................................................................................................133
Contents Overview
ZyXEL NWA-1100 User’s Guide
10
Table of Contents
ZyXEL NWA-1100 User’s Guide 11
Table of Contents
About This User's Guide .......................................................................................................... 3
Document Conventions............................................................................................................4
Safety Warnings........................................................................................................................ 6
Contents Overview ................................................................................................................... 9
Table of Contents.................................................................................................................... 11
List of Figures ......................................................................................................................... 17
List of Tables........................................................................................................................... 21
Part I: Introduction................................................................................. 23
Chapter 1
Introducing the ZyXEL Device............................................................................................... 25
1.1 Introducing the ZyXEL Device ............................................................................................. 25
1.2 Applications for the ZyXEL Device ...................................................................................... 25
1.2.1 Access Point .............................................................................................................. 25
1.2.2 Wireless Client ........................................................................................................... 26
1.2.3 Bridge ......................................................................................................................... 27
1.2.4 AP + Bridge ................................................................................................................ 29
1.3 Ways to Manage the ZyXEL Device .................................................................................... 30
1.4 Configuring Your ZyXEL Device’s Security Features .......................................................... 30
1.4.1 Control Access to Your Device ................................................................................... 30
1.4.2 Wireless Security ....................................................................................................... 31
1.5 Good Habits for Managing the ZyXEL Device ..................................................................... 31
1.6 Hardware Connections ........................................................................................................ 32
1.7 LEDs .................................................................................................................................... 32
Chapter 2
Introducing the Web Configurator ........................................................................................ 35
2.1 Accessing the Web Configurator ......................................................................................... 35
2.2 Resetting the ZyXEL Device ................................................................................................ 36
2.2.1 Methods of Restoring Factory-Defaults ...................................................................... 36
2.3 Navigating the Web Configurator ......................................................................................... 36
Table of Contents
ZyXEL NWA-1100 User’s Guide
12
Chapter 3
Status Screens ........................................................................................................................ 39
3.1 The Status Screen ............................................................................................................... 39
3.1.1 System Statistics Screen ............................................................................................ 41
Chapter 4
Tutorial ..................................................................................................................................... 43
4.1 How to Configure the Wireless LAN .................................................................................... 43
4.1.1 Choosing the Wireless Mode ..................................................................................... 43
4.1.2 Wireless LAN Configuration Overview ....................................................................... 43
4.1.3 Further Reading ......................................................................................................... 44
4.2 ZyXEL Device Setup in Wireless Client Mode ..................................................................... 44

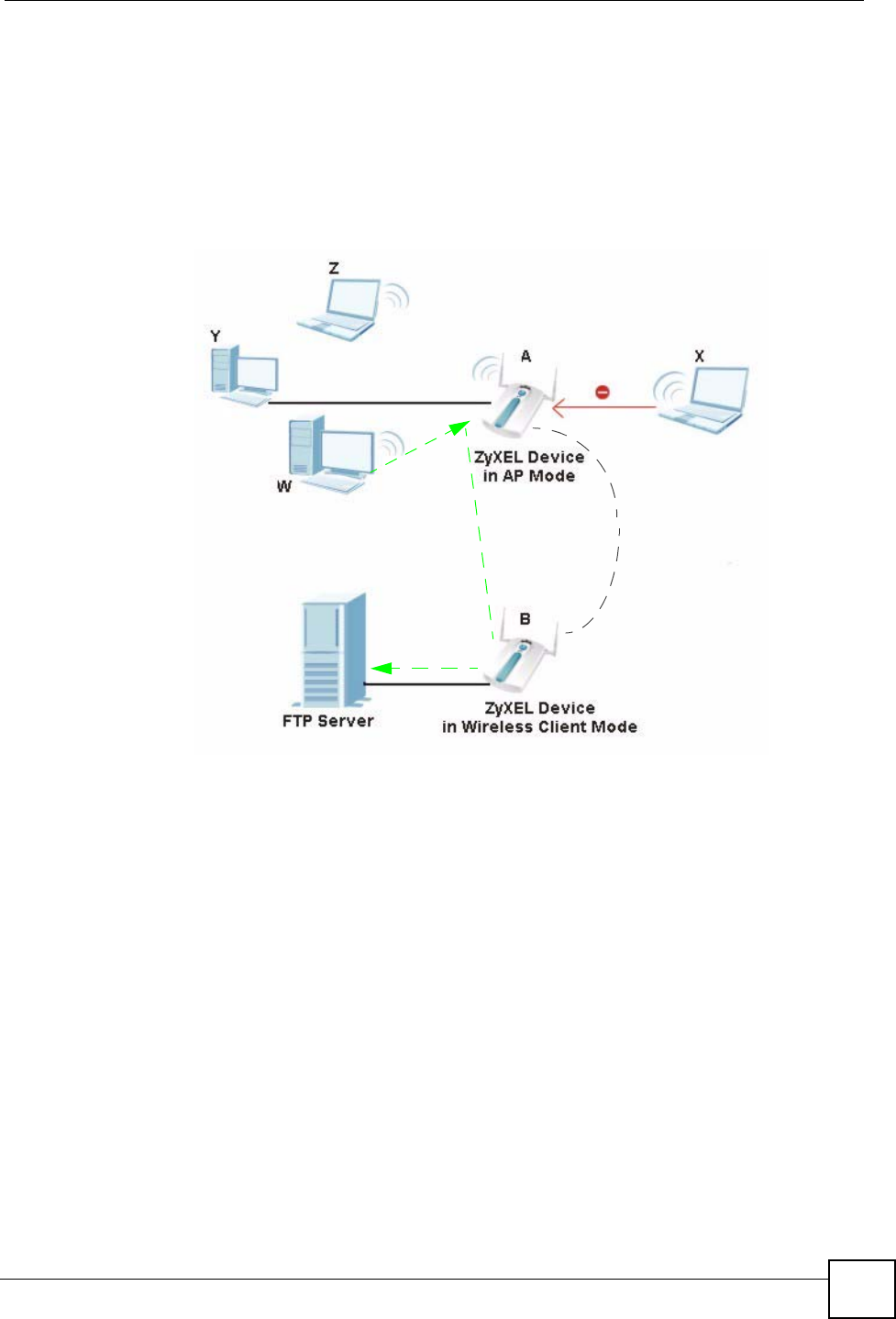

4.2.1 Scenario ..................................................................................................................... 45
4.2.2 Configuring the ZyXEL Device in Access Point Mode .............................................. 45
4.2.3 Configuring the ZyXEL Device in Wireless Client Mode ............................................ 46
4.2.4 Testing the Connection and Troubleshooting ............................................................. 49
Part II: The Web Configurator ............................................................... 51
Chapter 5
System Screens ...................................................................................................................... 53
5.1 Overview .............................................................................................................................. 53
5.2 What You Can Do in the System Screens ........................................................................... 53
5.3 What You Need To Know About the System Screens ......................................................... 54
5.4 General Screen ................................................................................................................... 55

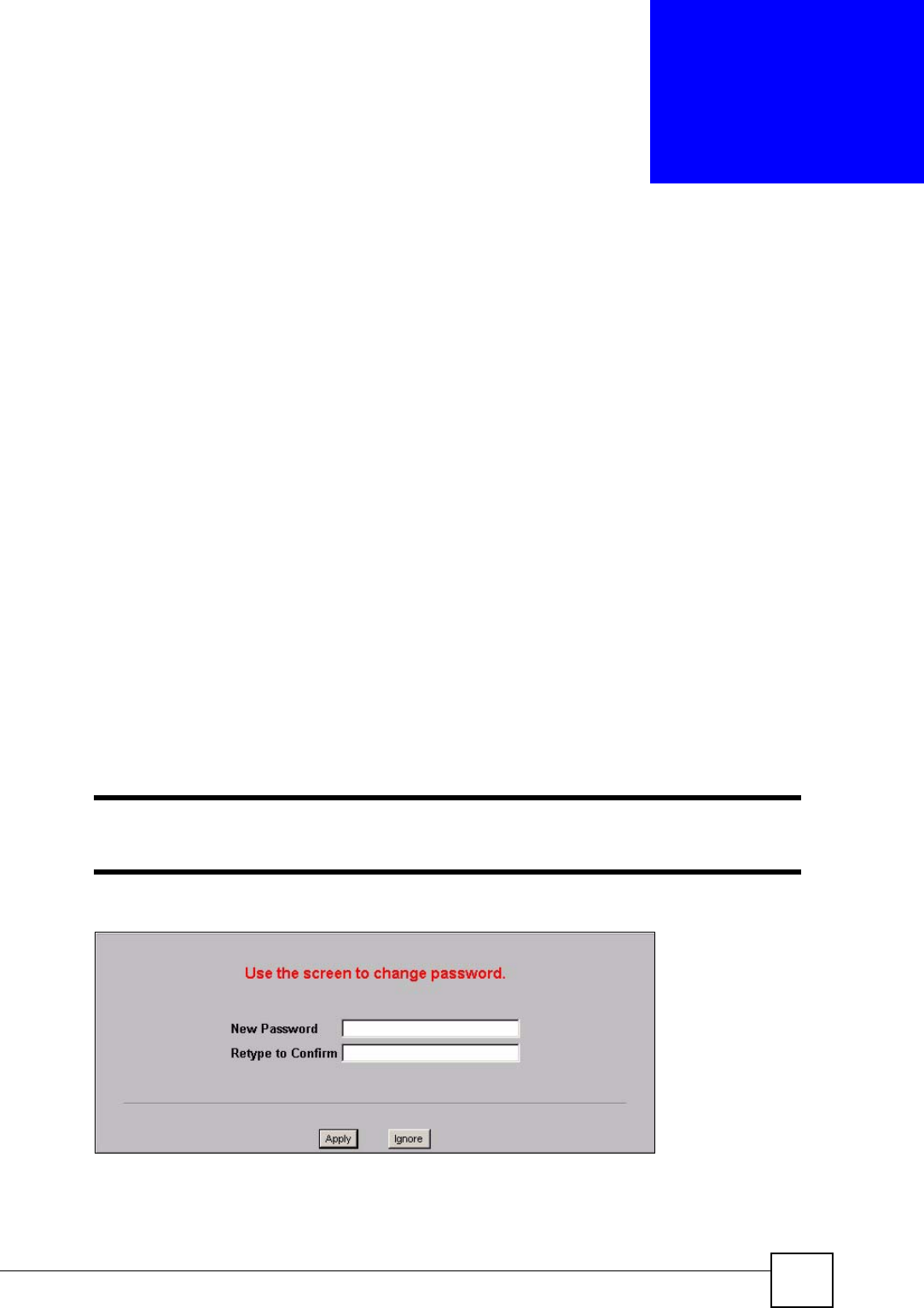

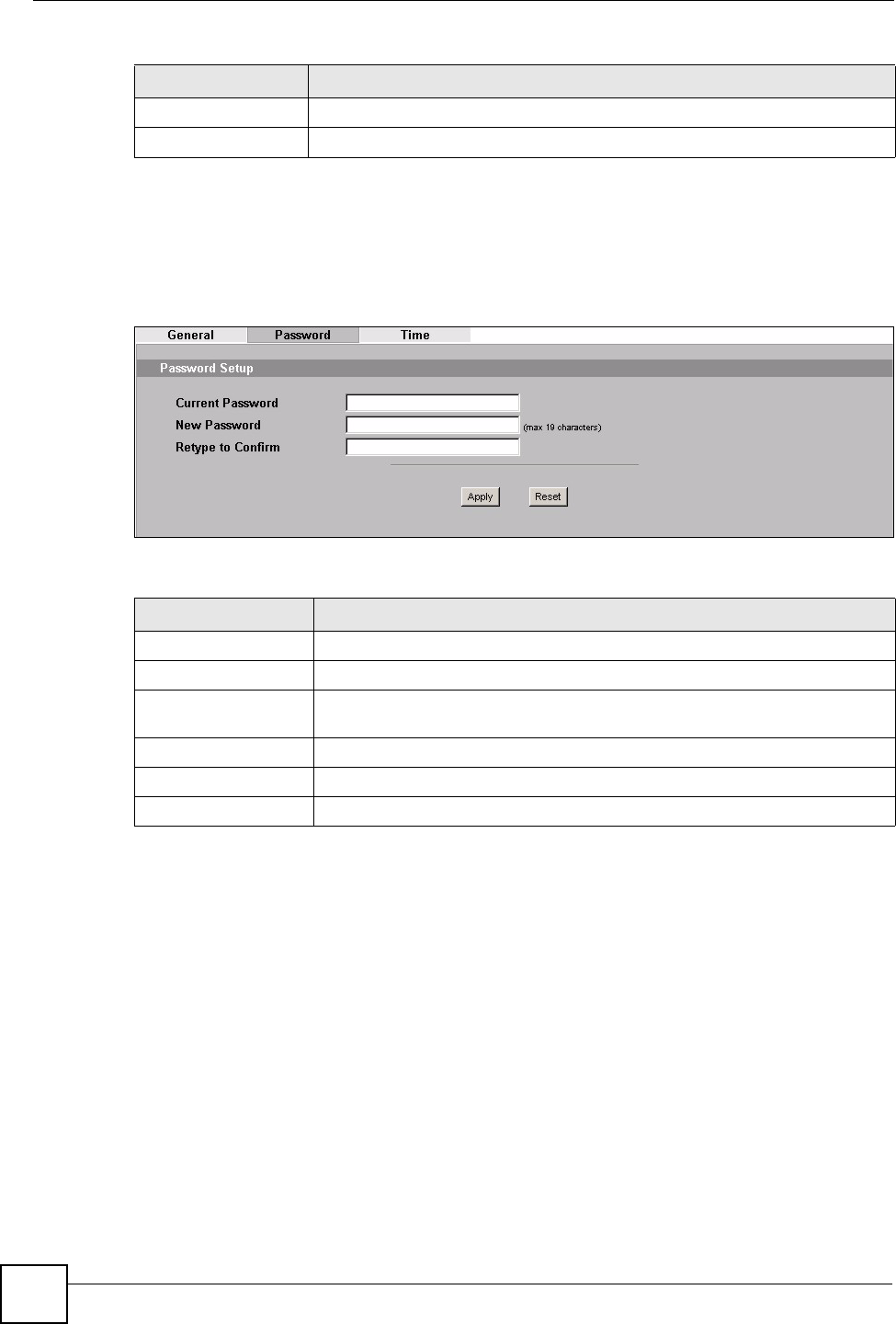

5.4.1 Password Screen ....................................................................................................... 56

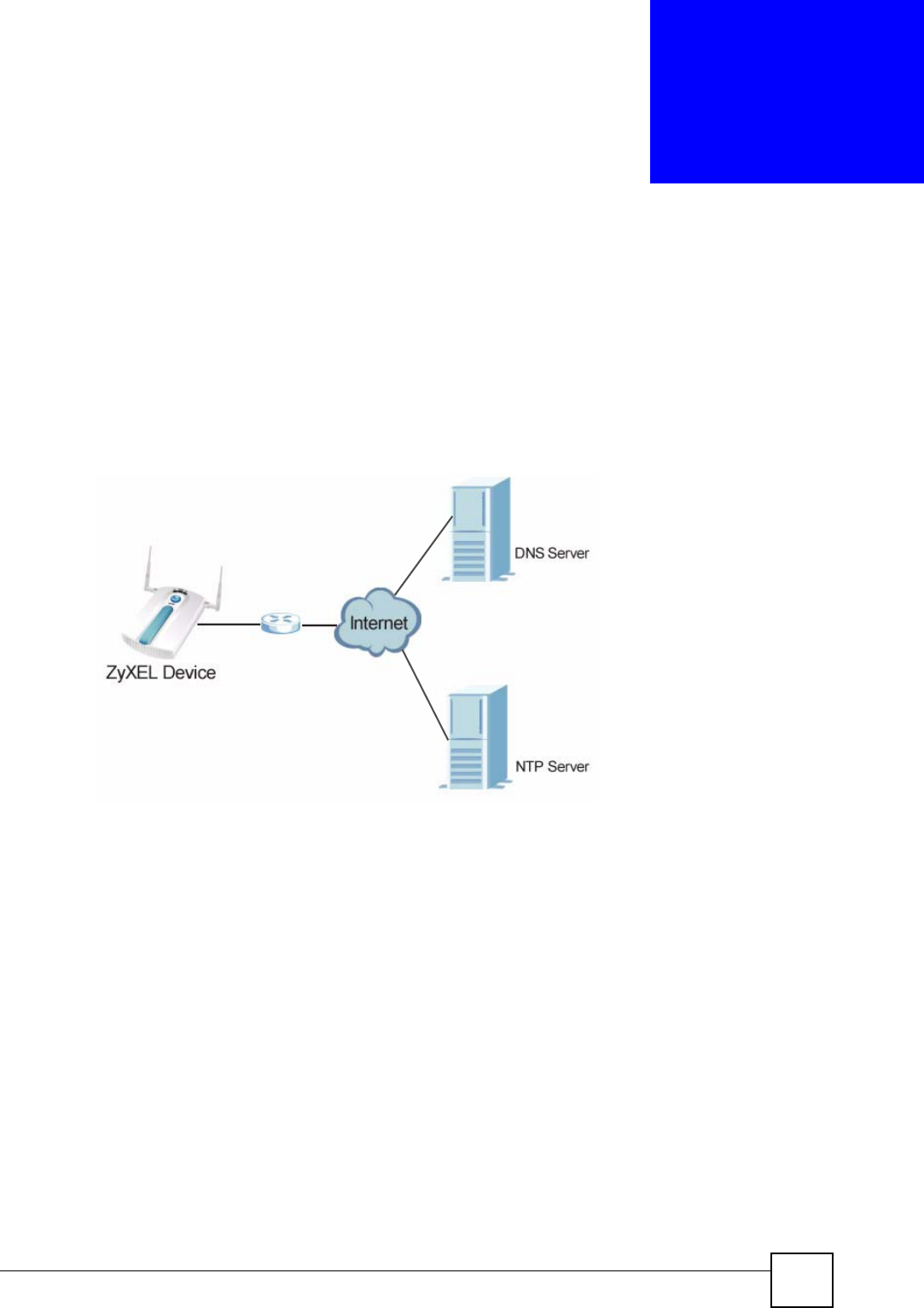

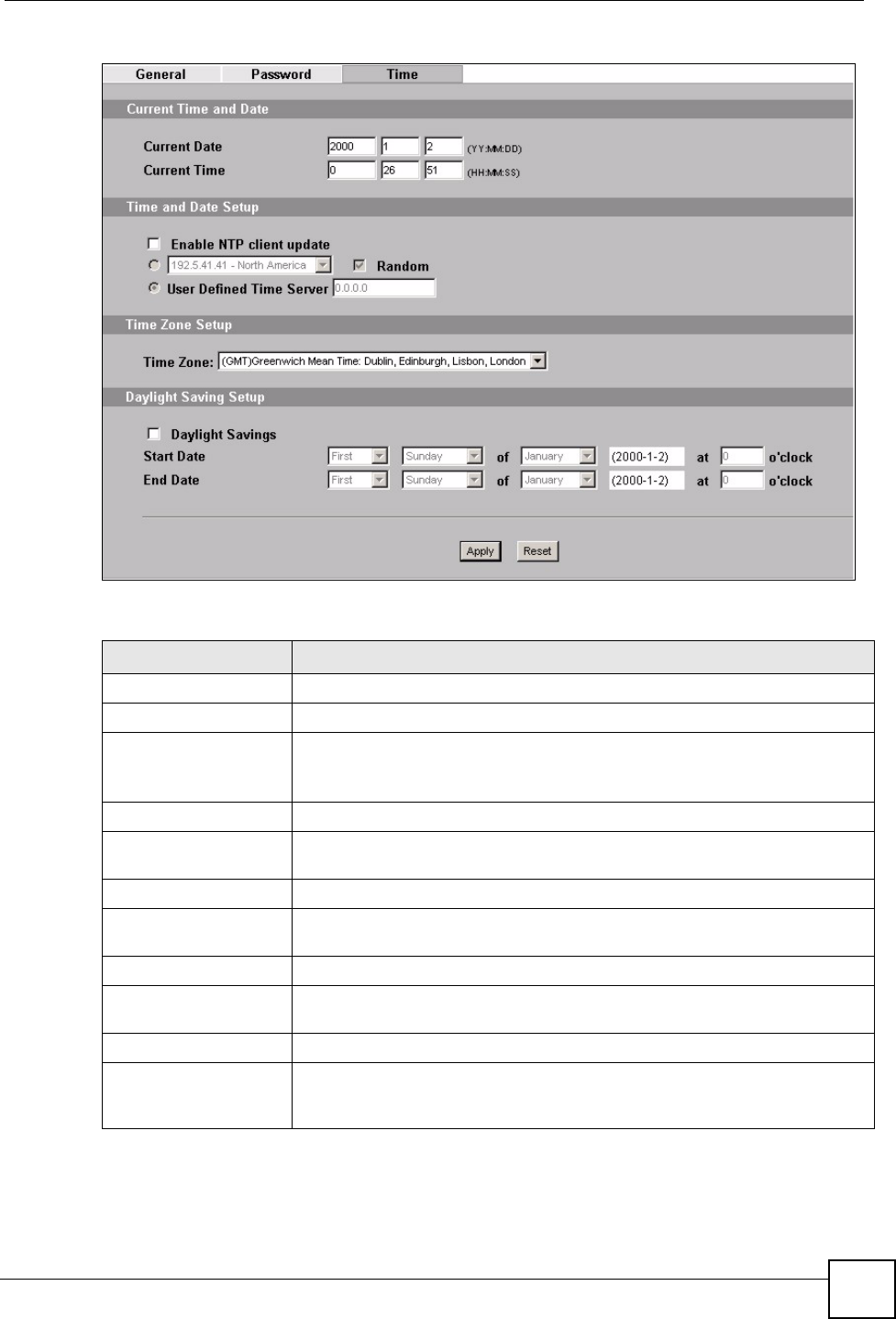

5.5 Time Screen ....................................................................................................................... 56
5.6 Technical Reference ............................................................................................................ 58
5.6.1 Pre-defined NTP Time Servers List ............................................................................ 58
Chapter 6
Wireless Settings Screen .......................................................................................................61
6.1 Overview .............................................................................................................................. 61
6.2 What You Can Do in the Wireless Settings Screen ............................................................. 61
6.3 What You Need To Know About Wireless Settings Screen ................................................. 62
6.4 Wireless Settings Screen .................................................................................................... 63
6.4.1 Access Point Mode .................................................................................................... 63
6.4.2 Wireless Client Mode ................................................................................................. 65
6.4.3 Bridge Mode ............................................................................................................... 68
6.4.4 AP + Bridge Mode ...................................................................................................... 70
6.5 Technical Reference ............................................................................................................ 71
Table of Contents
ZyXEL NWA-1100 User’s Guide 13
6.5.1 WMM QoS ..................................................................................................................71
6.5.2 Spanning Tree Protocol (STP) ................................................................................... 71
6.5.2.1 Rapid STP ........................................................................................................ 71
6.5.2.2 STP Terminology .............................................................................................. 71
6.5.2.3 How STP Works ............................................................................................... 72
6.5.2.4 STP Port States ................................................................................................ 72
6.5.3 Additional Wireless Terms .......................................................................................... 73
Chapter 7
Wireless Security Screen....................................................................................................... 75
7.1 Overview .............................................................................................................................. 75
7.2 What You Can Do in the Wireless Security Screen ............................................................. 75
7.3 What You Need To Know About Wireless Security .............................................................. 76
7.4 The Security Screen ............................................................................................................ 77
7.4.1 Security: WEP ............................................................................................................78
7.4.2 Security: 802.1x Only ................................................................................................. 79
7.4.2.1 Access Point ..................................................................................................... 79
7.4.2.2 Wireless Client .................................................................................................. 80
7.4.3 Security: 802.1x Static 64-bit, 802.1x Static 128-bit ................................................... 81
7.4.4 Security: WPA ............................................................................................................83
7.4.4.1 Access Point ..................................................................................................... 83
7.4.4.2 Wireless Client .................................................................................................. 84
7.4.5 Security: WPA2 or WPA2-MIX .................................................................................... 85
7.4.5.1 Access Point ..................................................................................................... 85
7.4.5.2 Wireless Client .................................................................................................. 86
7.4.6 Security: WPA-PSK, WPA2-PSK, WPA2-PSK-MIX .................................................... 87
7.5 Technical Reference ............................................................................................................ 87
Chapter 8
RADIUS Screen ....................................................................................................................... 89
8.1 Overview .............................................................................................................................. 89
8.2 What You Can Do in the RADIUS Screen ........................................................................... 89
8.3 What You Need to Know About RADIUS ............................................................................. 89
8.4 The RADIUS Screen ........................................................................................................... 90
Chapter 9
MAC Filter Screen ................................................................................................................... 93
9.1 Overview .............................................................................................................................. 93
9.2 What You Can Do in the MAC Filter .................................................................................... 93
9.3 What You Need To Know About MAC Filter ........................................................................ 93
9.4 MAC Filter Screen ............................................................................................................... 94
Chapter 10
IP Screen.................................................................................................................................. 97
Table of Contents
ZyXEL NWA-1100 User’s Guide
14
10.1 Overview ............................................................................................................................ 97
10.2 What You Can Do in the IP Screen ................................................................................... 97
10.3 What You Need to Know About IP ..................................................................................... 97
10.4 IP Screen ........................................................................................................................... 98
10.5 Technical Reference .......................................................................................................... 99
10.5.1 WAN IP Address Assignment ................................................................................... 99
Chapter 11
Remote Management............................................................................................................101
11.1 Overview .......................................................................................................................... 101
11.2 What You Can Do in the Remote Management Screens ................................................. 102
11.3 What You Need To Know About Remote Management ................................................... 102
11.4 The Telnet Screen ............................................................................................................ 104
11.5 The FTP Screen ............................................................................................................... 104
11.6 The WWW Screen ........................................................................................................... 105
11.7 The SNMP Screen ...........................................................................................................106
11.8 Technical Reference ........................................................................................................ 108
11.8.1 MIB ......................................................................................................................... 108
11.8.2 Supported MIBs ...................................................................................................... 108
11.8.3 SNMP Traps ........................................................................................................... 108
Chapter 12
Certificate Screen ................................................................................................................. 111
12.1 Overview ...........................................................................................................................111
12.2 What You Can Do in the Certificate Screen ......................................................................111
12.3 What You Need To Know About Certificates ....................................................................111
12.4 Certificate Screen .............................................................................................................112
12.5 Technical Reference .........................................................................................................112
12.5.1 Private-Public Certificates .......................................................................................113
12.5.2 Certification Authorities ...........................................................................................113
12.5.3 Checking the Fingerprint of a Certificate on Your Computer ...................................113
Chapter 13
Log Screens .......................................................................................................................... 115
13.1 Overview ...........................................................................................................................115
13.2 What You Can Do in the Log Screens ..............................................................................115
13.3 What You Need To Know About Logs ...............................................................................116
13.4 View Log Screen ...............................................................................................................116
13.5 Log Settings Screen .........................................................................................................117
13.6 Technical Reference .........................................................................................................118
13.6.1 Example Log Messages ..........................................................................................119
13.7 Log Commands ................................................................................................................119
13.7.1 Configuring What You Want the ZyXEL Device to Log ...........................................119
Table of Contents
ZyXEL NWA-1100 User’s Guide 15
13.7.2 Displaying Logs ...................................................................................................... 120
13.7.3 Command List ........................................................................................................ 120
Chapter 14
Maintenance .......................................................................................................................... 121
14.1 Overview .......................................................................................................................... 121
14.2 What You Can Do in the Maintenance Screens .............................................................. 121
14.3 What You Need To Know About the Maintenance Screens ............................................. 121
14.4 Association List Screen ...................................................................................................121
14.5 Channel Usage Screen ................................................................................................... 122
14.6 F/W Upload Screen .........................................................................................................123
14.7 Configuration Screen ....................................................................................................... 124
14.7.1 Backup Configuration ............................................................................................. 125
14.7.2 Restore Configuration ............................................................................................ 125
14.7.3 Back to Factory Defaults ........................................................................................ 126
14.8 Restart Screen ................................................................................................................. 127
Chapter 15
Troubleshooting.................................................................................................................... 129
15.1 Power, Hardware Connections, and LEDs ...................................................................... 129
15.2 ZyXEL Device Access and Login .................................................................................... 129
15.3 Internet Access ................................................................................................................ 131
Part III: Appendices and Index............................................................ 133
Appendix A Product Specifications....................................................................................... 135
Appendix B Power over Ethernet (PoE) Specifications ........................................................137
Appendix C Power Adaptor Specifications ...........................................................................139
Appendix D Setting up Your Computer’s IP Address ........................................................... 141
Appendix E Wireless LANs .................................................................................................. 153
Appendix F Pop-up Windows, JavaScripts and Java Permissions ...................................... 167
Appendix G IP Addresses and Subnetting ...........................................................................173
Appendix H Text File Based Auto Configuration .................................................................. 181
Appendix I How to Access and Use the CLI......................................................................... 187
Appendix J Legal Information............................................................................................... 191
Appendix K Customer Support............................................................................................. 195
Table of Contents
ZyXEL NWA-1100 User’s Guide
16
Index....................................................................................................................................... 201
List of Figures
ZyXEL NWA-1100 User’s Guide 17
List of Figures

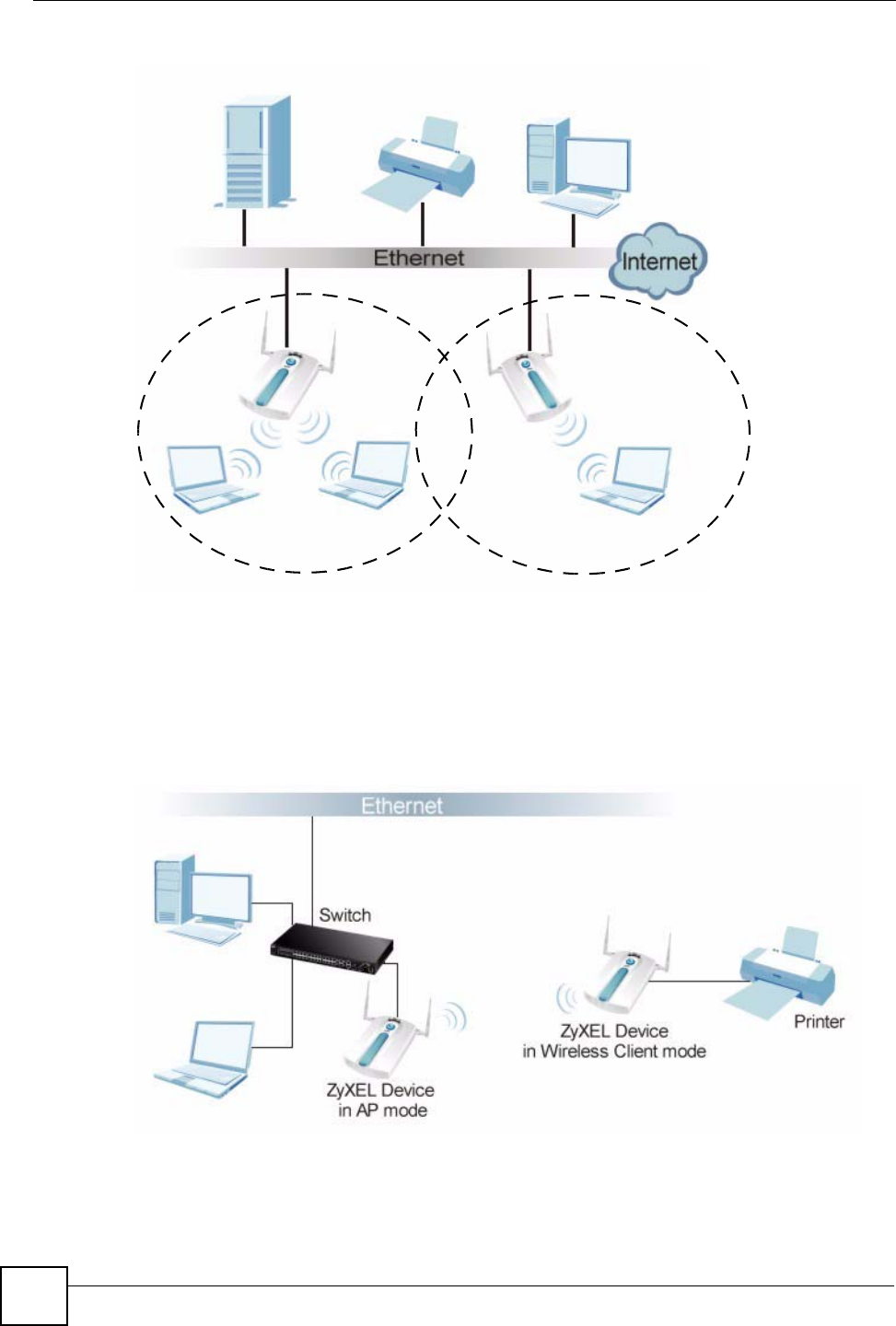

Figure 1 Access Point Application .......................................................................................................... 26
Figure 2 Wireless Client Application ....................................................................................................... 26
Figure 3 Bridge Application .................................................................................................................... 27

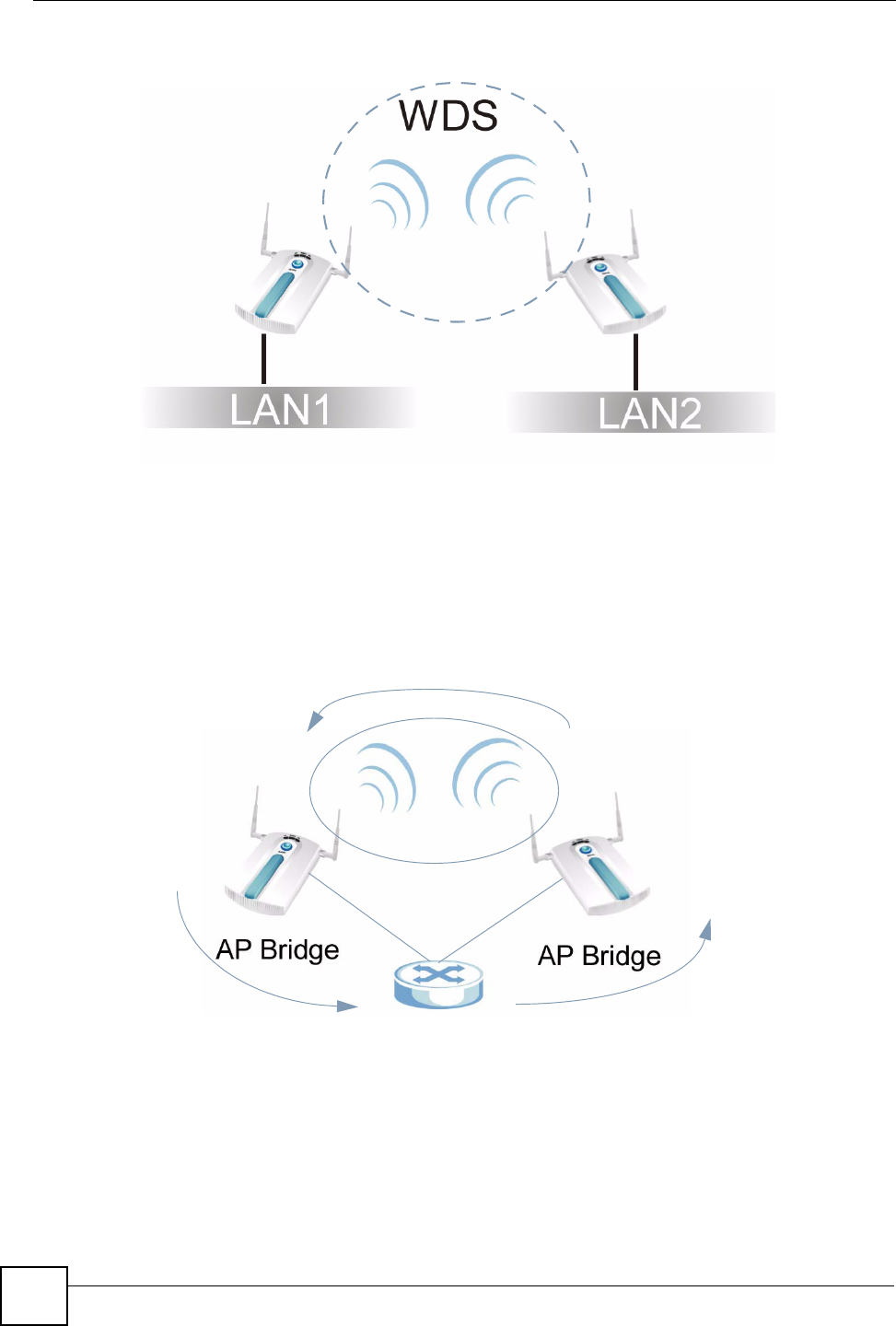

Figure 4 Bridging Example ..................................................................................................................... 28

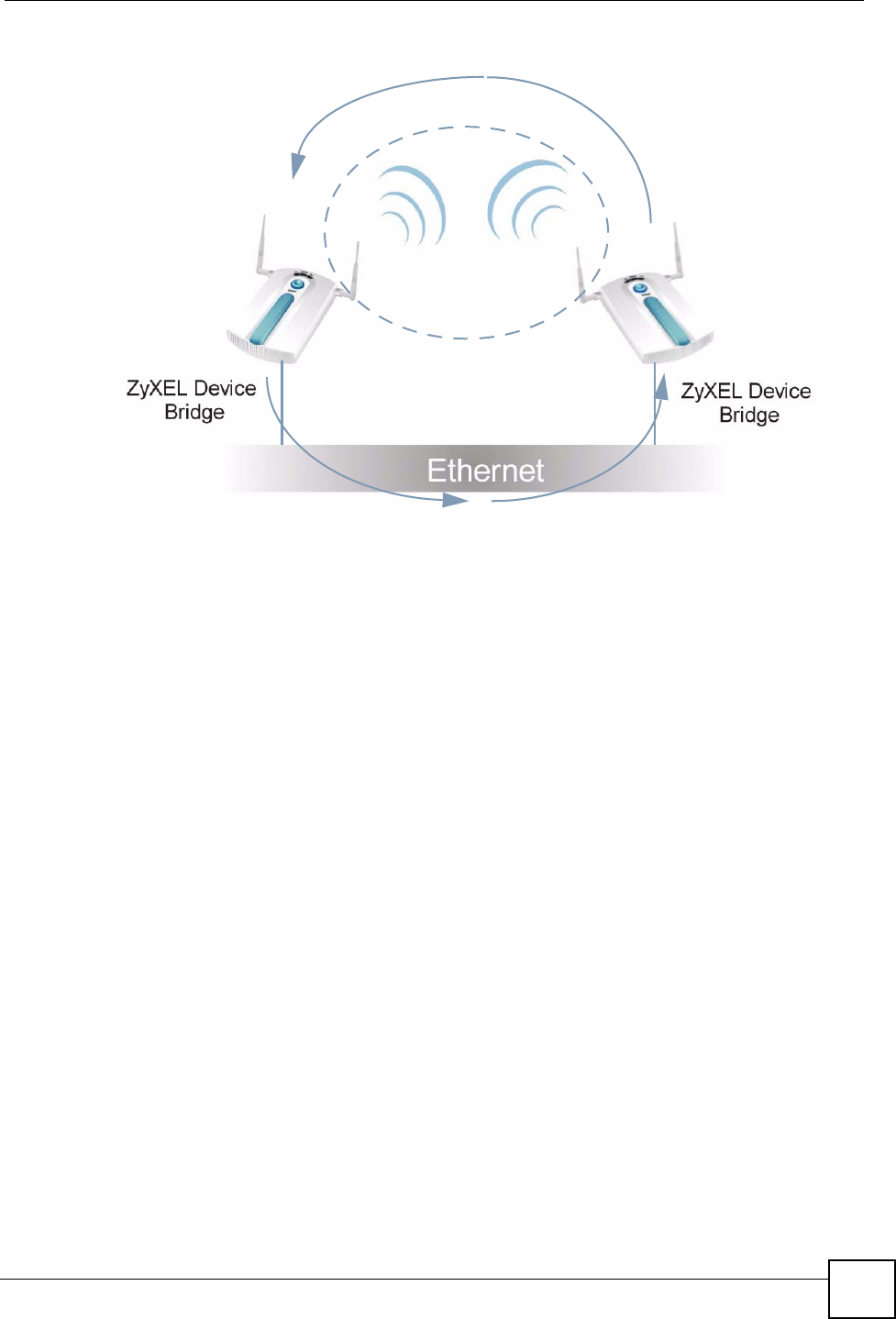

Figure 5 Bridge Loop: Two Bridges Connected to Hub .......................................................................... 28
Figure 6 Bridge Loop: Bridge Connected to Wired LAN ......................................................................... 29
Figure 7 AP + Bridge Application ........................................................................................................... 30
Figure 8 LEDs ......................................................................................................................................... 32
Figure 9 Change Password Screen ........................................................................................................ 35

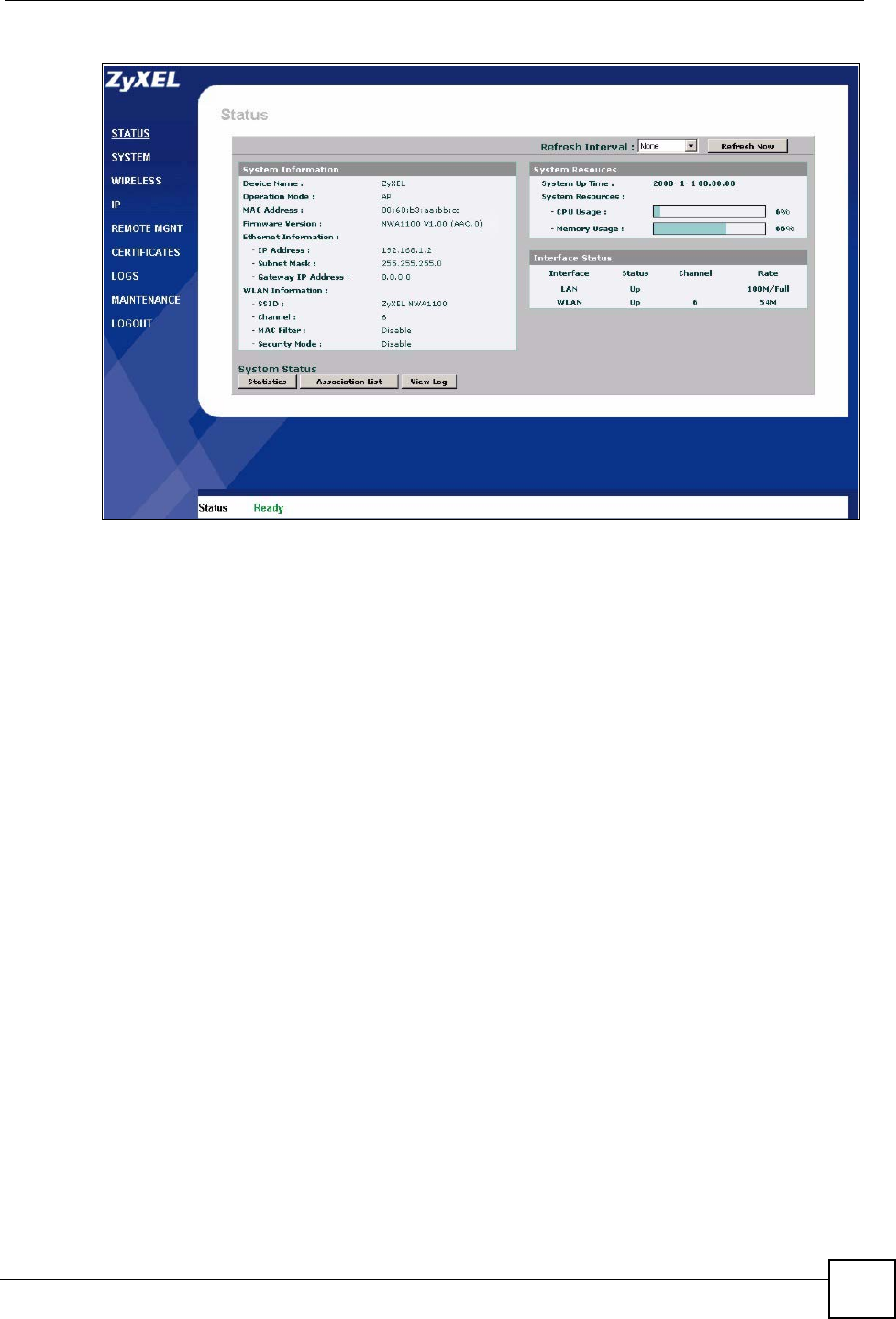

Figure 10 Status Screen of the Web Configurator .................................................................................. 37
Figure 11 The Status Screen .................................................................................................................. 39
Figure 12 System Status: Show Statistics .............................................................................................. 41
Figure 13 Configuring Wireless LAN ...................................................................................................... 44
Figure 14 FTP Server Connected to a Wireless Client ........................................................................... 45
Figure 15 Access Point Mode Wireless Setttings ................................................................................... 46
Figure 16 Access Point Mode Security Setttings .................................................................................... 46

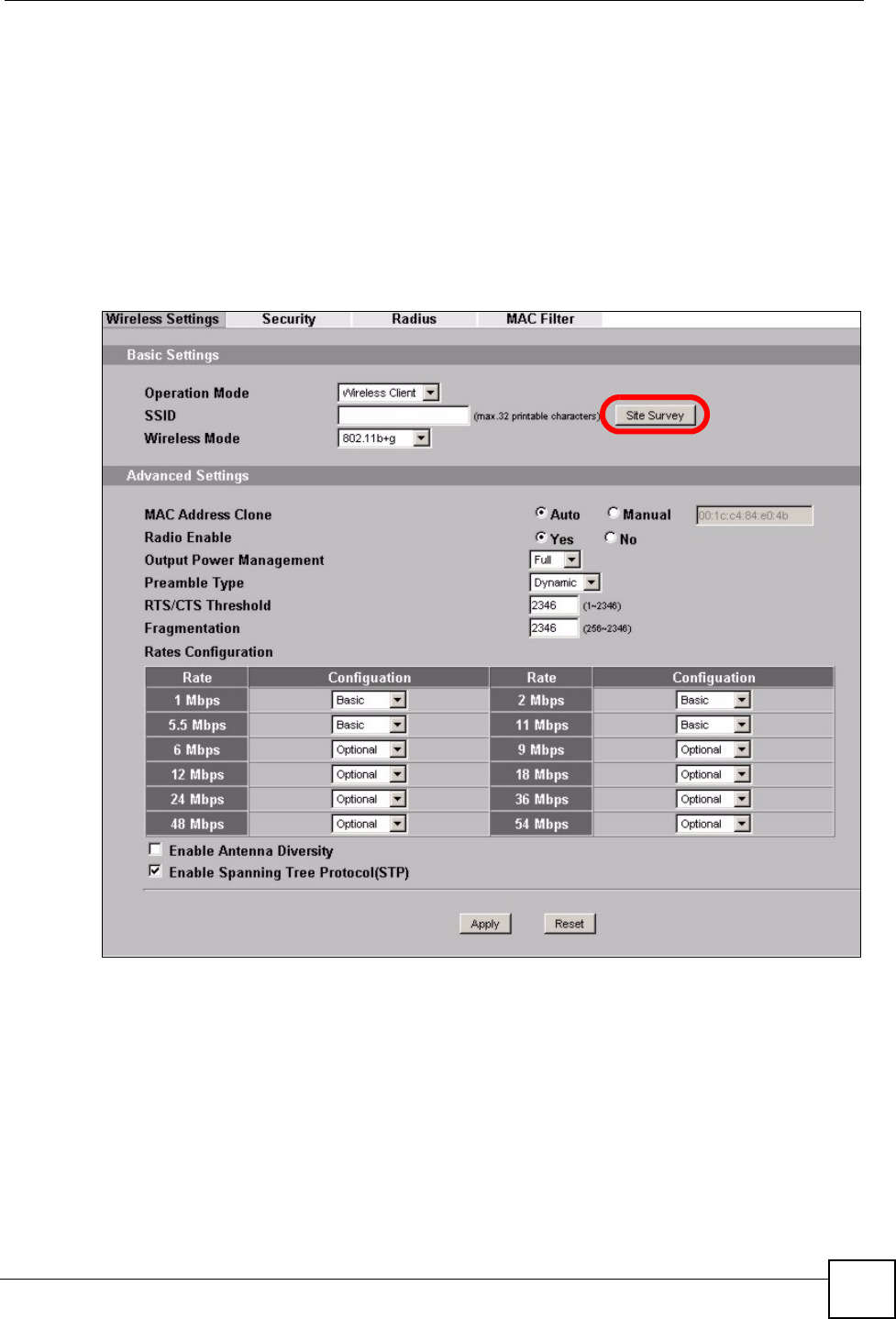

Figure 17 Wireless Client Mode Wireless Settings ................................................................................. 47

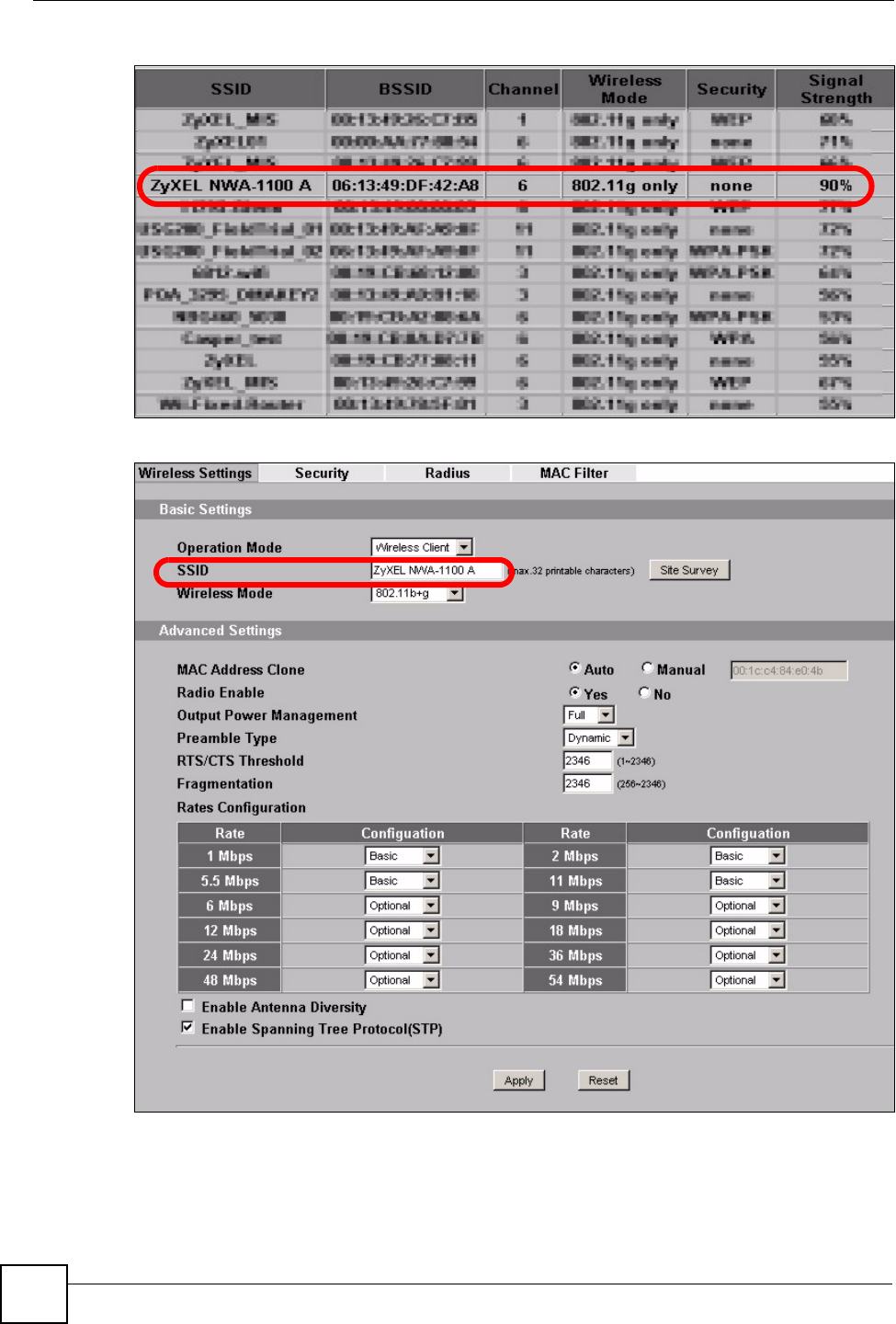

Figure 18 Site Survey ............................................................................................................................. 48
Figure 19 Wireless Client Mode ............................................................................................................. 48
Figure 20 Wireless Client Mode Security Setttings ................................................................................ 49
Figure 21 Wireless Client MAC Filtering ................................................................................................. 49
Figure 22 ZyXEL Device Setup .............................................................................................................. 53
Figure 23 System: General .................................................................................................................... 55
Figure 24 System: Password. ................................................................................................................. 56
Figure 25 System: Time .......................................................................................................................... 57
Figure 26 Wireless Mode ........................................................................................................................ 61

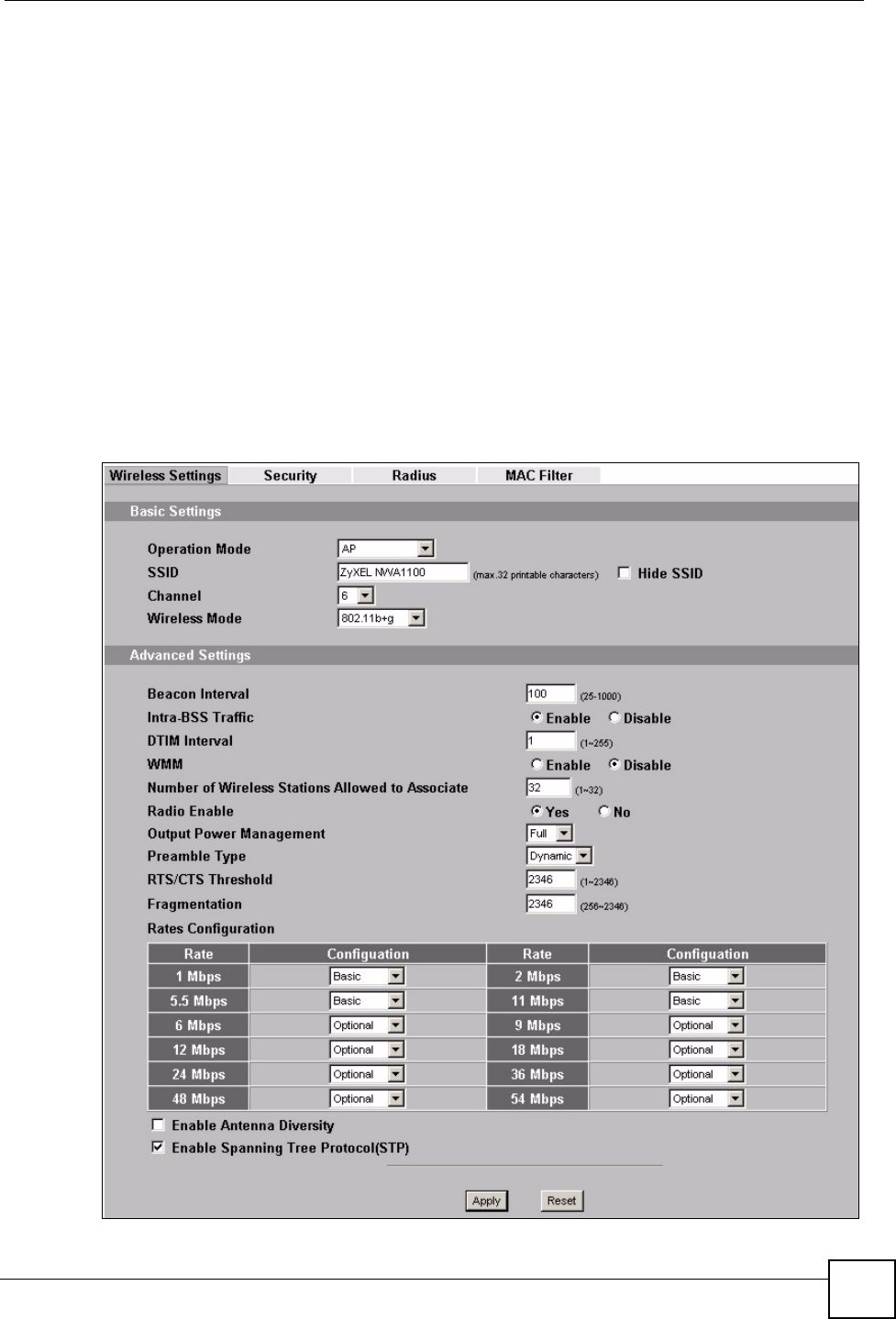

Figure 27 Wireless: Access Point ........................................................................................................... 63
Figure 28 Wireless: Wireless Client ........................................................................................................ 66
Figure 29 Wireless: Bridge ..................................................................................................................... 68
Figure 30 Wireless: AP+Bridge .............................................................................................................. 70
Figure 31 Securing the Wireless Network .............................................................................................. 75
Figure 32 Security: None ........................................................................................................................ 78
Figure 33 Security: WEP ........................................................................................................................ 78
Figure 34 Security: 802.1x Only for Access Point .................................................................................. 80
Figure 35 Security: 802.1x Only for Wireless Client ............................................................................... 81
Figure 36 Security: 802.1x Static 64-bit, 802.1x Static 128-bit (AP mode) ............................................. 82
Figure 37 Security: WPA for Access Point ............................................................................................ 83
Figure 38 Security: WPA for Wireless Client .......................................................................................... 84
List of Figures
ZyXEL NWA-1100 User’s Guide
18
Figure 39 Security:WPA2 or WPA2-MIX for Access Point ...................................................................... 85
Figure 40 Security: WPA2 or WPA2-MIX for Wireless Client .................................................................. 86
Figure 41 Security: WPA-PSK, WPA2-PSK or WPA2-PSK-MIX ............................................................. 87
Figure 42 RADIUS Server Setup ............................................................................................................ 89
Figure 43 Wireless > RADIUS ................................................................................................................ 90

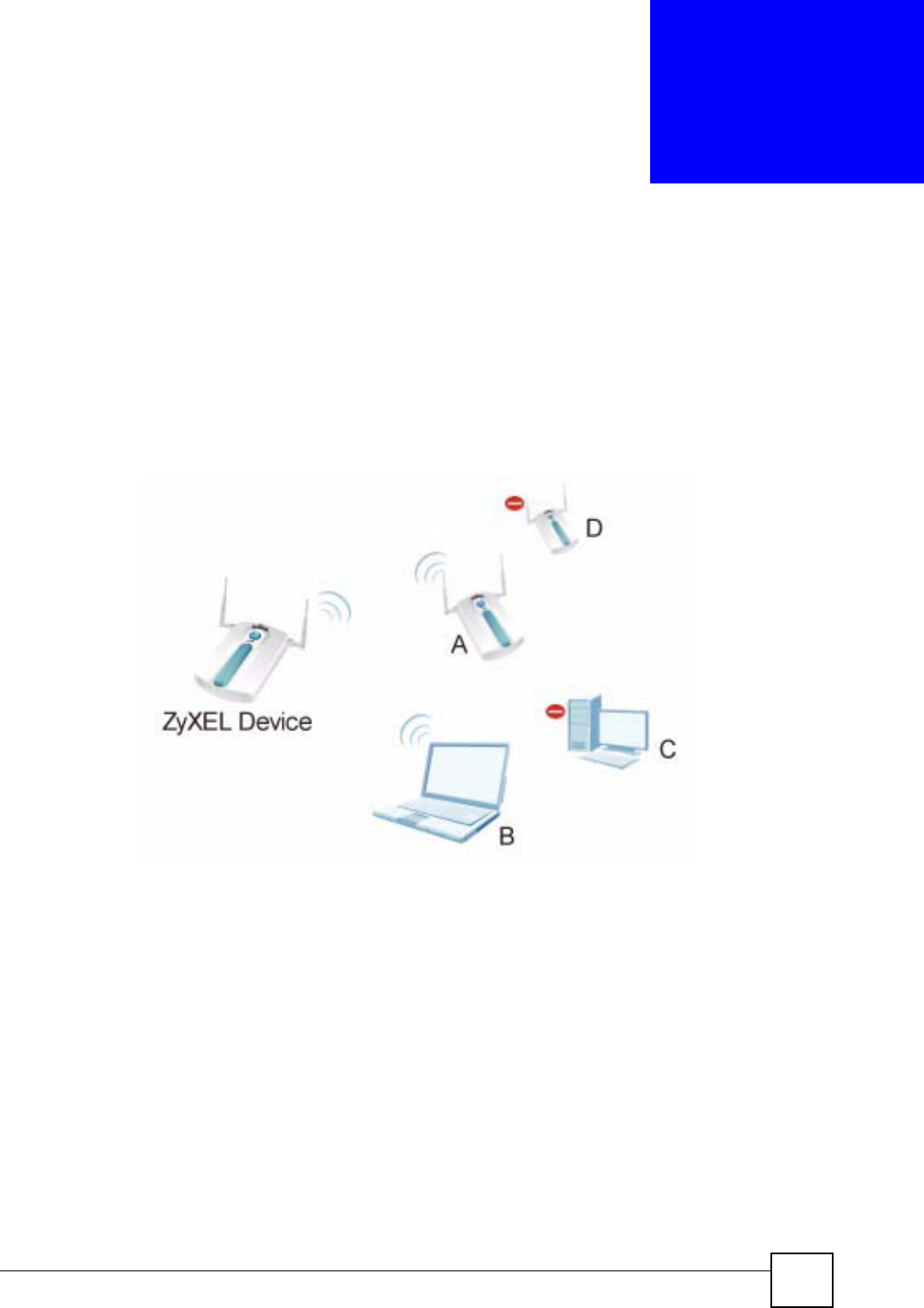

Figure 44 MAC Filtering ......................................................................................................................... 93
Figure 45 Wireless > MAC Filter ............................................................................................................. 94
Figure 46 IP Setup .................................................................................................................................. 97
Figure 47 IP Setup .................................................................................................................................. 98
Figure 48 Remote Management Example ............................................................................................101
Figure 49 SNMP Management Mode ................................................................................................... 103
Figure 50 Remote Management: Telnet ............................................................................................... 104
Figure 51 Remote Management: FTP .................................................................................................. 105
Figure 52 Remote Management: WWW ...............................................................................................106
Figure 53 Remote Management: SNMP ..............................................................................................107
Figure 54 Certificates Example .............................................................................................................111
Figure 55 Certificate ..............................................................................................................................112
Figure 56 Certificates on Your Computer ..............................................................................................113
Figure 57 Certificate Details .................................................................................................................114
Figure 58 Accessing Logs in the Network ............................................................................................115
Figure 59 View Log ................................................................................................................................116
Figure 60 Log Settings ..........................................................................................................................117
Figure 61 Association List .................................................................................................................... 122
Figure 62 Channel Usage ..................................................................................................................... 122
Figure 63 Firmware Upload .................................................................................................................. 123
Figure 64 Firmware Upload In Process ................................................................................................ 124
Figure 65 Network Temporarily Disconnected ...................................................................................... 124
Figure 66 Firmware Upload Error ......................................................................................................... 124
Figure 67 Configuration ........................................................................................................................ 125
Figure 68 Configuration Upload Successful ......................................................................................... 126
Figure 69 Network Temporarily Disconnected ...................................................................................... 126
Figure 70 Configuration Upload Error ................................................................................................... 126
Figure 71 Reset Warning Message ...................................................................................................... 127
Figure 72 Restart Screen ..................................................................................................................... 127
Figure 73 WIndows 95/98/Me: Network: Configuration ........................................................................ 142
Figure 74 Windows 95/98/Me: TCP/IP Properties: IP Address ............................................................ 143
Figure 75 Windows 95/98/Me: TCP/IP Properties: DNS Configuration ................................................ 144
Figure 76 Windows XP: Start Menu ...................................................................................................... 145
Figure 77 Windows XP: Control Panel ................................................................................................. 145
Figure 78 Windows XP: Control Panel: Network Connections: Properties ........................................... 146
Figure 79 Windows XP: Local Area Connection Properties ................................................................. 146
Figure 80 Windows XP: Advanced TCP/IP Settings ............................................................................ 147
Figure 81 Windows XP: Internet Protocol (TCP/IP) Properties ............................................................ 148
List of Figures
ZyXEL NWA-1100 User’s Guide 19
Figure 82 Macintosh OS 8/9: Apple Menu ............................................................................................ 149
Figure 83 Macintosh OS 8/9: TCP/IP ................................................................................................... 149
Figure 84 Macintosh OS X: Apple Menu .............................................................................................. 150
Figure 85 Macintosh OS X: Network .................................................................................................... 151
Figure 86 Peer-to-Peer Communication in an Ad-hoc Network ........................................................... 153
Figure 87 Basic Service Set ................................................................................................................. 154
Figure 88 Infrastructure WLAN ............................................................................................................. 155
Figure 89 RTS/CTS .............................................................................................................................. 156
Figure 90 WPA(2) with RADIUS Application Example ......................................................................... 164
Figure 91 WPA(2)-PSK Authentication ................................................................................................. 164
Figure 92 Pop-up Blocker ..................................................................................................................... 167
Figure 93 Internet Options: Privacy ...................................................................................................... 168
Figure 94 Internet Options: Privacy ...................................................................................................... 169
Figure 95 Pop-up Blocker Settings ....................................................................................................... 169
Figure 96 Internet Options: Security ..................................................................................................... 170
Figure 97 Security Settings - Java Scripting ......................................................................................... 171
Figure 98 Security Settings - Java ........................................................................................................ 171
Figure 99 Java (Sun) ............................................................................................................................ 172
Figure 100 Network Number and Host ID ............................................................................................ 174
Figure 101 Subnetting Example: Before Subnetting ............................................................................ 176
Figure 102 Subnetting Example: After Subnetting ............................................................................... 177
Figure 103 Text File Based Auto Configuration .................................................................................... 181
Figure 104 Configuration File Format ................................................................................................... 183
Figure 105 WEP Configuration File Example ....................................................................................... 184
Figure 106 802.1X Configuration File Example .................................................................................... 184
Figure 107 WPA-PSK Configuration File Example ............................................................................... 185
Figure 108 WPA Configuration File Example ....................................................................................... 185
Figure 109 Wlan Configuration File Example ....................................................................................... 185
List of Figures
ZyXEL NWA-1100 User’s Guide
20
List of Tables
ZyXEL NWA-1100 User’s Guide 21
List of Tables
Table 1 LEDs ......................................................................................................................................... 32
Table 2 The Status Screen .................................................................................................................... 39
Table 3 System Status: Show Statistics ................................................................................................. 41
Table 4 Private IP Address Ranges ....................................................................................................... 54
Table 5 System: General ....................................................................................................................... 55
Table 6 System: Password .................................................................................................................... 56
Table 7 System: Time ............................................................................................................................ 57
Table 8 Default Time Servers ................................................................................................................ 58
Table 9 Wireless: Access Point ............................................................................................................. 64
Table 10 Wireless: Wireless Client ........................................................................................................ 66
Table 11 Wireless: Bridge ...................................................................................................................... 68
Table 12 STP Path Costs ...................................................................................................................... 72
Table 13 STP Port States ...................................................................................................................... 72
Table 14 Additional Wireless Terms ....................................................................................................... 73
Table 15 Wireless Security Levels ......................................................................................................... 76
Table 16 Security: WEP ......................................................................................................................... 79
Table 17 Security: 802.1x Only for Access Point ................................................................................... 80
Table 18 Security: 802.1x Only for Wireless Client ................................................................................ 81
Table 19 Security: 802.1x Static 64-bit, 802.1x Static 128-bit ................................................................82
Table 20 Security: WPA for Access Point .............................................................................................. 83
Table 21 Security: WPA for Wireless Client ........................................................................................... 84
Table 22 Security: WPA2 or WPA2-MIX for Access Point ..................................................................... 85
Table 23 Security: WPA2 or WPA2-MIX for Wireless Client .................................................................. 86
Table 24 Security: WPA-PSK, WPA2-PSK or WPA2-PSK-MIX ............................................................. 87
Table 25 Wireless > RADIUS ................................................................................................................. 90
Table 26 Wireless > MAC Filter ............................................................................................................. 94
Table 27 IP Setup .................................................................................................................................. 98
Table 28 Private IP Address Ranges ..................................................................................................... 99
Table 29 Remote Management: Telnet ................................................................................................ 104
Table 30 Remote Management: FTP ................................................................................................... 105
Table 31 Remote Management: WWW ...............................................................................................106
Table 32 Remote Management: SNMP ............................................................................................... 107
Table 33 SNMP Traps .......................................................................................................................... 108
Table 34 SNMP Interface Index to Physical and Virtual Port Mapping ................................................ 109
Table 35 Certificate ...............................................................................................................................112
Table 36 View Log ................................................................................................................................116
Table 37 Log Settings ...........................................................................................................................117
Table 38 System Maintenance Logs .....................................................................................................119
List of Tables
ZyXEL NWA-1100 User’s Guide
22
Table 39 Log Categories and Available Settings ................................................................................. 120
Table 40 Log Command List ................................................................................................................ 120
Table 41 Association List ..................................................................................................................... 122
Table 42 Channel Usage ..................................................................................................................... 123
Table 43 Firmware Upload ................................................................................................................... 123
Table 44 Restore Configuration ........................................................................................................... 125
Table 45 Hardware Specifications ....................................................................................................... 135
Table 46 Firmware Specifications ........................................................................................................ 135
Table 47 Power over Ethernet Injector Specifications ........................................................................ 137
Table 48 Power over Ethernet Injector RJ-45 Port Pin Assignments .................................................. 137
Table 49 North American Plug Standards ............................................................................................ 139
Table 50 European Plug Standards ..................................................................................................... 139
Table 51 United Kingdom Plug Standards ........................................................................................... 139
Table 52 Australia and New Zealand Plug Standards ......................................................................... 139
Table 53 IEEE 802.11g ........................................................................................................................ 157
Table 54 Wireless Security Levels ....................................................................................................... 158
Table 55 Comparison of EAP Authentication Types ............................................................................ 161
Table 56 Wireless Security Relational Matrix ...................................................................................... 165
Table 57 Subnet Masks ....................................................................................................................... 174
Table 58 Subnet Masks ....................................................................................................................... 175
Table 59 Maximum Host Numbers ...................................................................................................... 175
Table 60 Alternative Subnet Mask Notation ......................................................................................... 175
Table 61 Subnet 1 ................................................................................................................................ 177
Table 62 Subnet 2 ................................................................................................................................ 178
Table 63 Subnet 3 ................................................................................................................................ 178
Table 64 Subnet 4 ................................................................................................................................ 178
Table 65 Eight Subnets ........................................................................................................................ 178
Table 66 24-bit Network Number Subnet Planning .............................................................................. 179
Table 67 16-bit Network Number Subnet Planning .............................................................................. 179
Table 68 Auto Configuration by DHCP ................................................................................................ 182
Table 69 Configuration via SNMP ........................................................................................................ 182
Table 70 Displaying the File Version .................................................................................................... 182
Table 71 Displaying the File Version .................................................................................................... 183
Table 72 Displaying the Auto Configuration Status .............................................................................. 183
Table 73 Default Management IP Address .......................................................................................... 187
Table 74 Default User Name and Password ........................................................................................ 187
Table 75 Common Command Input Values ......................................................................................... 188
Table 76 CLI Shortcuts and Help ......................................................................................................... 189
23
PART I
Introduction
Introducing the ZyXEL Device (25)
Status Screens (39)
Introducing the Web Configurator (35)
Tutorial (43)
24
ZyXEL NWA-1100 User’s Guide 25
CHAPTER 1
Introducing the ZyXEL Device
This chapter introduces the main applications and features of the ZyXEL Device. It also
discusses the ways you can manage your ZyXEL Device.
1.1 Introducing the ZyXEL Device
Your ZyXEL Device extends the range of your existing wired network without additional
wiring, providing easy network access to mobile users.
It controls network access with MAC address filtering and RADIUS server authentication.It
also provides a high level of network traffic security, supporting IEEE 802.1x, Wi-Fi
Protected Access (WPA), WPA2 and WEP data encryption. Its Quality of Service (QoS)
features allow you to prioritize time-sensitive or highly important applications such as VoIP.
Your ZyXEL Device is easy to install, configure and use. The embedded Web-based
configurator enables simple, straightforward management and maintenance.
See the Quick Start Guide for instructions on how to make hardware connections.
1.2 Applications for the ZyXEL Device
The ZyXEL Device can be configured to use the following WLAN operating modes
1AP (Access Point)
2Wireless Client
3Bridge
4AP + Bridge
Applications for each operating mode are shown below.
1.2.1 Access Point
The ZyXEL Device is an ideal access solution for wireless Internet connection. A typical
Internet access application for your ZyXEL Device is shown as follows. Stations A, B and C
can access the wired network through the ZyXEL Devices.
Chapter 1 Introducing the ZyXEL Device
ZyXEL NWA-1100 User’s Guide
26
Figure 1 Access Point Application
1.2.2 Wireless Client
The ZyXEL Device can be used as a wireless client to communicate with an existing network.
In the figure below, the printer can receive requests from the wired computer clients A and B
via the ZyXEL Device in Wireless Client mode.
Figure 2 Wireless Client Application
AP1
AP2
ABC
BSS2
BSS1
A
B
Chapter 1 Introducing the ZyXEL Device
ZyXEL NWA-1100 User’s Guide 27

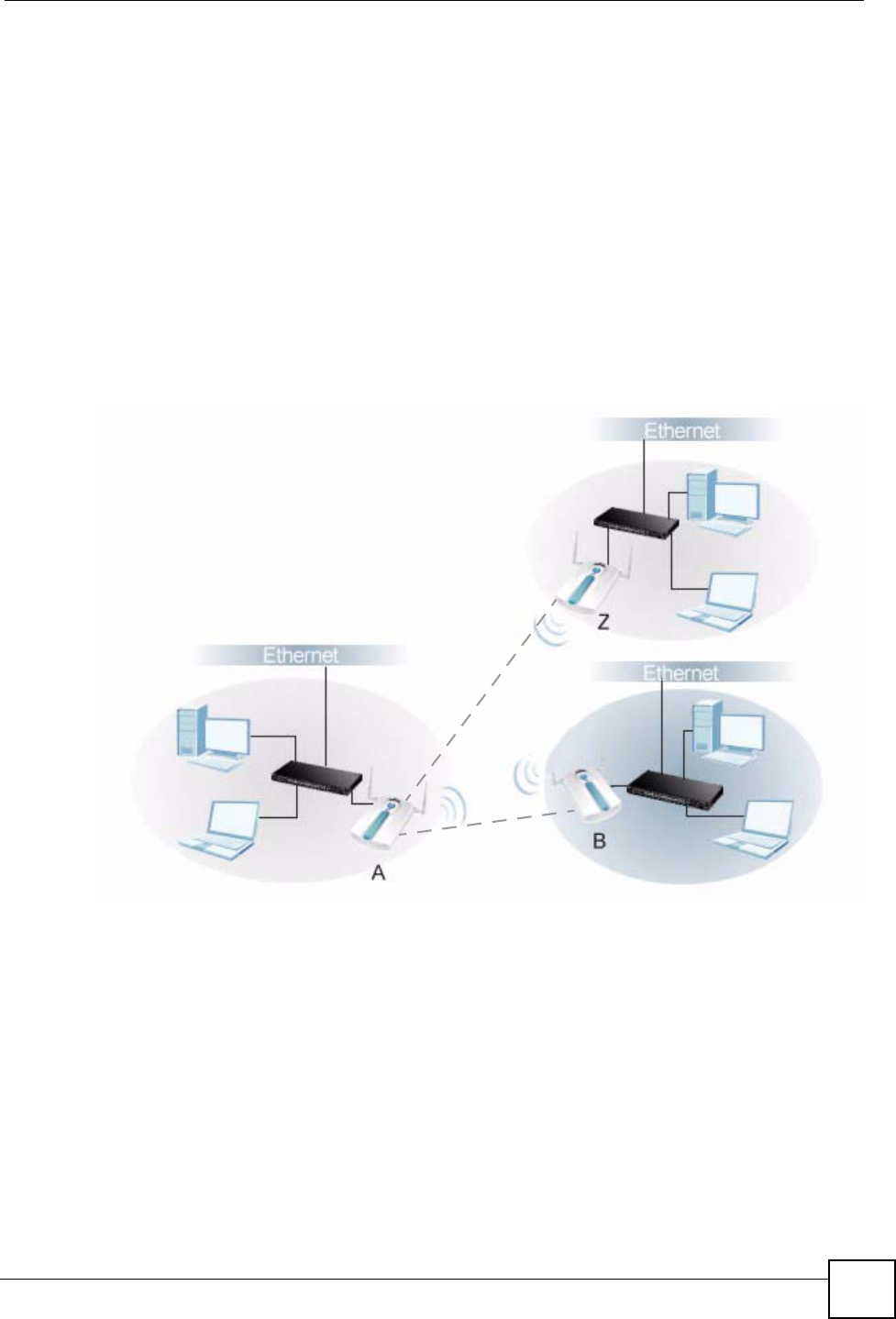

1.2.3 Bridge
The ZyXEL Device can act as a wireless network bridge and establish wireless links with
other APs. In the figure below, the ZyXEL Devices (A, B and Z) are connected to independent
wired networks and have a bridge connection (A can communicate with B and Z) at the same
time. Security between bridged APs (the Wireless Distribution System or WDS) is
independent of the security between the wired networks and their respective APs. If you do not
enable WDS security, traffic between APs is not encrypted. When WDS security is enabled,
both APs must use the same pre-shared key. See Section 6.4.3 on page 68 for more details.
Once the security settings of peer sides match one another, the connection between devices is
made.
At the time of writing, WDS security is compatible with other ZyXEL NWA-series access
points only. Refer to your other access point’s documentation for details.
Figure 3 Bridge Application
In the example below, when both ZyXEL Devices are in Bridge mode, they form a WDS
(Wireless Distribution System) allowing the computers in LAN 1 to connect to the computers
in LAN 2.
Chapter 1 Introducing the ZyXEL Device
ZyXEL NWA-1100 User’s Guide
28
Figure 4 Bridging Example
Be careful to avoid bridge loops when you enable bridging in the ZyXEL Device. Bridge loops
cause broadcast traffic to circle the network endlessly, resulting in possible throughput
degradation and disruption of communications. The following examples show two network
topologies that can lead to this problem:
• If two or more ZyXEL Devices (in bridge mode) are connected to the same hub.
Figure 5 Bridge Loop: Two Bridges Connected to Hub
• If your ZyXEL Device (in bridge mode) is connected to a wired LAN while
communicating with another wireless bridge that is also connected to the same wired
LAN.
Chapter 1 Introducing the ZyXEL Device
ZyXEL NWA-1100 User’s Guide 29
Figure 6 Bridge Loop: Bridge Connected to Wired LAN
To prevent bridge loops, ensure that you enable STP in the Wireless screen or your ZyXEL
Device is not set to bridge mode while connected to both wired and wireless segments of the
same LAN.
1.2.4 AP + Bridge
In AP+Bridge mode, the ZyXEL Device supports both AP and bridge connection at the same
time.
Using AP + Bridge mode, your ZyXEL Device can extend the range of the WLAN. In the
figure below, A and B act as AP + Bridge devices that forward traffic between associated
wireless workstations and the wired LAN.
When the ZyXEL Device is in AP+Bridge mode, security between APs (the Wireless
Distribution System or WDS) is independent of the security between the wireless stations and
the AP. If you do not enable WDS security, traffic between APs is not encrypted. When WDS
security is enabled, both APs must use the same pre-shared key. See Section 6.4.4 on page 70
for more details.
Unless specified, the term “security settings” refers to the traffic between the wireless stations
and the ZyXEL Device.
Chapter 1 Introducing the ZyXEL Device
ZyXEL NWA-1100 User’s Guide
30
Figure 7 AP + Bridge Application
1.3 Ways to Manage the ZyXEL Device
Use any of the following methods to manage the ZyXEL Device.
• Web Configurator. This is recommended for everyday management of the ZyXEL Device
using a (supported) web browser.
• CLI (Command Line Interface). Line commands are mostly used for troubleshooting by
service engineers.
• FTP (File Transfer Protocol) for firmware upgrades.
• SNMP (Simple Network Management Protocol). The device can be monitored by an
SNMP manager. See the SNMP chapter in this User’s Guide.
1.4 Configuring Your ZyXEL Device’s Security Features
Your ZyXEL Device comes with a variety of security features. This section summarizes these
features and provides links to sections in the User’s Guide to configure security settings on
your ZyXEL Device. Follow the suggestions below to improve security on your ZyXEL
Device and network.
1.4.1 Control Access to Your Device
Ensure only people with permission can access your ZyXEL Device.
• Control physical access by locating devices in secure areas, such as locked rooms. Most
ZyXEL Devices have a reset button. If an unauthorized person has access to the reset
button, they can then reset the device’s password to its default password, log in and
reconfigure its settings.
Chapter 1 Introducing the ZyXEL Device
ZyXEL NWA-1100 User’s Guide 31
• Change any default passwords on the ZyXEL Device, such as the password used for
accessing the ZyXEL Device’s web configurator (if it has a web configurator). Use a
password with a combination of letters and numbers and change your password regularly.
Write down the password and put it in a safe place.
• Avoid setting a long timeout period before the ZyXEL Device’s web configurator
automatically times out. A short timeout reduces the risk of unauthorized person accessing
the web configurator while it is left idle.
• See Chapter 5 on page 53 for instructions on changing your password and setting the
timeout period.
• Configure remote management to control who can manage your ZyXEL Device. See
Chapter 11 on page 101 for more information. If you enable remote management, ensure
you have enabled remote management only on the IP addresses, services or interfaces you
intended and that other remote management settings are disabled.
1.4.2 Wireless Security
Wireless devices are especially vulnerable to attack. If your ZyXEL Device has a wireless
function, take the following measures to improve wireless security.
• Enable wireless security on your ZyXEL Device. Choose the most secure encryption
method that all devices on your network support. See Section 7.4 on page 77 for directions
on configuring encryption. If you have a RADIUS server, enable IEEE 802.1x or WPA(2)
user identification on your network so users must log in. This method is more common in
business environments.
• Hide your wireless network name (SSID). The SSID can be regularly broadcast and
unauthorized users may use this information to access your network. See Section 6.4 on
page 63 for directions on using the web configurator to hide the SSID.
• Enable the MAC filter to allow only trusted users to access your wireless network or deny
unwanted users access based on their MAC address. See Section 9.4 on page 94 for
directions on configuring the MAC filter.
1.5 Good Habits for Managing the ZyXEL Device
Do the following things regularly to make the ZyXEL Device more secure and to manage it
more effectively.
• Change the password often. Use a password that’s not easy to guess and that consists of
different types of characters, such as numbers and letters.
• Write down the password and put it in a safe place.
• Back up the configuration (and make sure you know how to restore it). Restoring an
earlier working configuration may be useful if the device becomes unstable or even
crashes. If you forget your password, you will have to reset the ZyXEL Device to its
factory default settings. If you backed up an earlier configuration file, you won’t have to
totally re-configure the ZyXEL Device; you can simply restore your last configuration.
Chapter 1 Introducing the ZyXEL Device
ZyXEL NWA-1100 User’s Guide
32
1.6 Hardware Connections
See your Quick Start Guide for information on making hardware connections.
1.7 LEDs
Figure 8 LEDs
Table 1 LEDs
LABEL LED COLOR STATUS DESCRIPTION
1 SYS Green On The ZyXEL Device is in AP + Bridge or Bridge mode,
and has successfully established a Wireless Distribution
System (WDS) connection.
Amber Flashing The ZyXEL Device is starting up.
Off Either
• The ZyXEL Device is in Access Point or mode and is
functioning normally.
• The ZyXEL Device is in AP+Bridge or Bridge mode
and has not established a Wireless Distribution
System (WDS) connection.
or
• The ZyXEL Device is not receiving power.
2 WLAN Green On The wireless adaptor WLAN is active.
Chapter 1 Introducing the ZyXEL Device
ZyXEL NWA-1100 User’s Guide 33
Blinking The wireless adaptor WLAN is active, and transmitting
or receiving data.
Off The wireless adaptor WLAN is not active.
3 ETHERNET Green On The ZyXEL Device has a 10 Mbps Ethernet connection.
Blinking The ZyXEL Device has a 10 Mbps Ethernet connection
and is sending or receiving data.
Yellow On The ZyXEL Device has a 100 Mbps Ethernet
connection.
Blinking The ZyXEL Device has a 100 Mbps Ethernet connection
and is sending/receiving data.
Off The ZyXEL Device does not have an Ethernet
connection.
Table 1 LEDs (continued)
LABEL LED COLOR STATUS DESCRIPTION
Chapter 1 Introducing the ZyXEL Device
ZyXEL NWA-1100 User’s Guide
34
ZyXEL NWA-1100 User’s Guide 35
CHAPTER 2
Introducing the Web
Configurator
This chapter describes how to access the ZyXEL Device’s web configurator and provides an
overview of its screens.
2.1 Accessing the Web Configurator
1Make sure your hardware is properly connected and prepare your computer or computer
network to connect to the ZyXEL Device (refer to the Quick Start Guide).
2Launch your web browser.
3Type "192.168.1.2" as the URL (default).
4Type "1234" (default) as the password and click Login. In some versions, the default
password appears automatically - if this is the case, click Login.
5You should see a screen asking you to change your password (highly recommended) as
shown next. Type a new password (and retype it to confirm) then click Apply.
Alternatively, click Ignore.
"If you do not change the password, the following screen appears every time
you login.
Figure 9 Change Password Screen
You should now see the Status screen. See Chapter 2 on page 35 for details about the Status
screen.
Chapter 2 Introducing the Web Configurator
ZyXEL NWA-1100 User’s Guide
36
"The management session automatically times out when the time period set in
the Administrator Inactivity Timer field expires (default five minutes). Simply
log back into the ZyXEL Device if this happens.
2.2 Resetting the ZyXEL Device
If you forget your password or cannot access the web configurator, you will need to use the
RESET button. This replaces the current configuration file with the factory-default
configuration file. This means that you will lose all the settings you previously configured.
The password will be reset to 1234.
2.2.1 Methods of Restoring Factory-Defaults
You can erase the current configuration and restore factory defaults in two ways:
Use the RESET button to upload the default configuration file. Hold this button in for about
10 seconds (the lights will begin to blink). Use this method for cases when the password or IP
address of the ZyXEL Device is not known.
Use the web configurator to restore defaults (refer to Section 14.7 on page 124).
2.3 Navigating the Web Configurator
The following summarizes how to navigate the web configurator from the Status screen.
Check the status bar at the bottom of the screen when you click Apply or OK to verify that the
configuration has been updated.
Chapter 2 Introducing the Web Configurator
ZyXEL NWA-1100 User’s Guide 37
Figure 10 Status Screen of the Web Configurator
• Click the links on the left of the screen to configure advanced features such as SYSTEM
(General, Password and Time), WIRELESS (Wireless Settings, Security, RADIUS,
MAC Filter), IP, REMOTE MGNT (Telnet, FTP, WWW and SNMP),
CERTIFICATES, and LOGS (View Log and Log Settings).
• Click MAINTENANCE to view information about your ZyXEL Device or upgrade
configuration and firmware files. Maintenance features include Association List,
Channel Usage, F/W (firmware) Upload, Configuration File (Backup, Restore and
Default) and Restart.
• Click LOGOUT at any time to exit the web configurator.
Chapter 2 Introducing the Web Configurator
ZyXEL NWA-1100 User’s Guide
38
ZyXEL NWA-1100 User’s Guide 39
CHAPTER 3
Status Screens
The Status screens display when you log into the ZyXEL Device, or click Status in the
navigation menu.
Use the Status screens to look at the current status of the device, system resources, and
interfaces. The Status screens also provide detailed information about system statistics,
associated wireless clients, and logs.
3.1 The Status Screen
Use this screen to get a quick view of system, Ethernet, WLAN and other information
regarding your ZyXEL Device.
Click Status. The following screen displays.
Figure 11 The Status Screen
The following table describes the labels in this screen.
Table 2 The Status Screen
LABEL DESCRIPTION
Refresh Interval Enter how often you want the ZyXEL Device to update this screen.
Refresh Now Click this to update this screen immediately.
System Information
Chapter 3 Status Screens
ZyXEL NWA-1100 User’s Guide
40
Device Name This field displays the ZyXEL Device system name. It is used for
identification. You can change this in the System > General screen’s
Device Name field.
Operation Mode This field displays the current operating mode of the first wireless module
(AP, Wireless Client, Bridge or AP+Bridge). You can change the
operating mode in the Wireless > Wireless Settings screen.
MAC Address This displays the MAC (Media Access Control) address of the ZyXEL
Device on the LAN. Every network device has a unique MAC address
which identifies it across the network.
Firmware Version This field displays the current version of the firmware inside the device. It
also shows the date the firmware version was created. You can change the
firmware version by uploading new firmware in Maintenance > F/W
Upload.
Ethernet Information
IP Address This field displays the current IP address of the ZyXEL Device on the
network.
Subnet Mask Subnet masks determine the maximum number of possible hosts on a
network. You can also use subnet masks to divide one network into
multiple sub-networks.
Gateway IP Address This is the IP address of the gateway. The gateway is a router or switch on
the same network segment as the device's LAN port. The gateway helps
forward packets to their destinations.
WLAN Information
SSID This field displays the SSID (Service Set Identifier).
Channel The channel or frequency used by the ZyXEL Device to send and receive
information.
MAC Filter Media Access Control filtering checks incoming frames based on MAC
(Media Access Control) address(es) that you specify.
Security Mode This displays the security mode the ZyXEL Device is using.
System Resources
System Up Time This field displays the elapsed time since the ZyXEL Device was turned on.
CPU Usage This field displays what percentage of the ZyXEL Device’s processing
ability is currently being used. The higher the CPU usage, the more likely
the ZyXEL Device is to slow down.
Memory Usage This field displays what percentage of the ZyXEL Device’s volatile memory
is currently in use. The higher the memory usage, the more likely the
ZyXEL Device is to slow down. Some memory is required just to start the
ZyXEL Device and to run the web configurator.
Interface Status
Interface This column displays each interface of the ZyXEL Device.
Status This field indicates whether or not the ZyXEL Device is using the interface.
For each interface, this field displays Up when the ZyXEL Device is using
the interface and Down when the ZyXEL Device is not using the interface.
Channel Click this to see which wireless channels are currently in use in the local
area. See Section 14.5 on page 122.
Rate For the LAN port this displays the port speed and duplex setting.
For the WLAN interface, it displays the downstream and upstream
transmission rate or N/A if the interface is not in use.
Table 2 The Status Screen
LABEL DESCRIPTION
Chapter 3 Status Screens
ZyXEL NWA-1100 User’s Guide 41
3.1.1 System Statistics Screen
Use this screen to view read-only information, including 802.11 Mode, Channel ID, Retry
Count and FCS Error Count. Also provided is the "poll interval". The Poll Interval field is
configurable. The fields in this screen vary according to the current wireless mode of each
WLAN adaptor.
Click Status > Show Statistics. The following screen pops up.
Figure 12 System Status: Show Statistics
The following table describes the labels in this screen.
LAN This field displays the number of wireless clients currently associated to
the first wireless module. Each wireless module supports up to 32
concurrent associations.
WLAN This field displays the number of wireless clients currently associated to
the second wireless module. Each wireless module supports up to 32
concurrent associations.
System Status
Statistics Click this link to view port status and packet specific statistics. See Section
3.1.1 on page 41.
Association List Click this to see a list of wireless clients currently associated to each of the
ZyXEL Device’s wireless modules. See Section 14.4 on page 121.
View Log Click this to see a list of logs produced by the ZyXEL Device. See Chapter
13 on page 115.
Table 2 The Status Screen
LABEL DESCRIPTION
Table 3 System Status: Show Statistics
LABEL DESCRIPTION
Description
802.11 Mode This field shows which mode (802.11b Only, 802.11g Only, 802.11b+g) the
ZyXEL Device is using.
Channel ID Click this to see which wireless channels are currently in use in the local area.
See Section 14.5 on page 122.
RX PKT This is the number of received packets on this port.
TX PKT This is the number of transmitted packets on this port.
Retry Count This is the total number of retries for transmitted packets (TX).
FCS Error This is the ratio percentage showing the total number of checksum error of
received packets (RX) over total RX.
Chapter 3 Status Screens
ZyXEL NWA-1100 User’s Guide
42
ZyXEL NWA-1100 User’s Guide 43
CHAPTER 4
Tutorial
This chapter first provides an overview of how to configure the wireless LAN on your ZyXEL
Device, and then gives step-by-step guidelines showing how to configure your ZyXEL Device
for some example scenarios.
4.1 How to Configure the Wireless LAN
This section illustrates how to choose which wireless operating mode to use on the ZyXEL
Device and how to set up the wireless LAN in each wireless mode. See Section 4.1.3 on page
44 for links to more information on each step.
4.1.1 Choosing the Wireless Mode
•Use Access Point operating mode if you want to allow wireless clients to access your
wired network, all using the same security and Quality of Service (QoS) settings. See
Section 1.2.1 on page 25 for details.
•Use Wireless Client operating mode if you want to use the ZyXEL Device to access a
wireless network. See Section 1.2.2 on page 26 for details.
•Use Bridge operating mode if you want to use the ZyXEL Device to communicate with
other access points. See Section 1.2.2 on page 26 for details.
The ZyXEL Device is a bridge when other APs access your wired Ethernet network
through the ZyXEL Device.
•Use AP + Bridge operating mode if you want to use the ZyXEL Device as an access point
(see above) while also communicating with other access points. See Section 1.2.4 on page
29 for details.

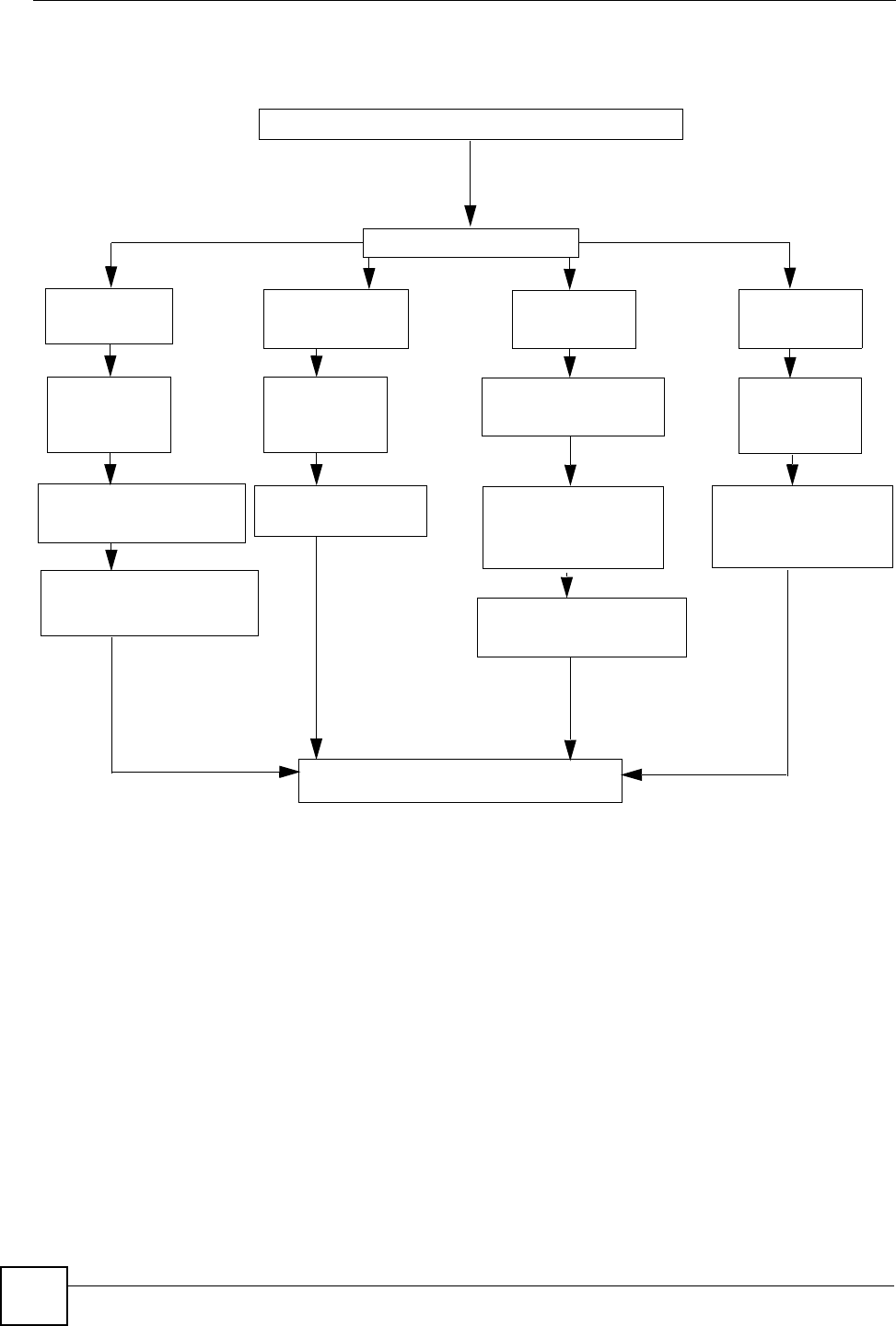

4.1.2 Wireless LAN Configuration Overview
The following figure shows the steps you should take to configure the wireless settings
according to the operating mode you select. Use the Web Configurator to set up your ZyXEL
Device’s wireless network (see your Quick Start Guide for information on setting up your
ZyXEL Device and accessing the Web Configurator).
Chapter 4 Tutorial
ZyXEL NWA-1100 User’s Guide
44
Figure 13 Configuring Wireless LAN
4.1.3 Further Reading
Use these links to find more information on the steps:
• Selecting a WLAN Adaptor: see Section 6.4.1 on page 63.
• Choosing 802.11 Mode: see Section 6.4.1 on page 63.
• Choosing a wireless Channel ID: see Section 6.4.1 on page 63.
• Choosing a Security mode: see Section 7.4.1 on page 78.
• Configuring an external RADIUS server: see Section 8.4 on page 90.
• Configuring MAC Filtering: see Section 9.1 on page 93.
4.2 ZyXEL Device Setup in Wireless Client Mode
This example shows you how to restrict wireless access to your ZyXEL Device.
Select the WLAN Adaptor you want to configure.
Select Operating Mode.
Access Point Bridge
Mode.
AP + Bridge
Mode.
Wireless Client
Mode.
Select 802.11
Mode and
Channel ID.
Configure RADIUS
authentication (optional).
Configure MAC Filter
(optional).
Select AP you Select 802.11 Mode
and Channel ID.
(optional).
Select 802.11
Mode and
Channel ID.
Configure RADIUS
authentication
(optional).
Check your settings and test.
Mode.
Configure MAC Filter
Configure Security
authentication
(optional).
Configure RADIUS
want to
connect to.
Settings.
Chapter 4 Tutorial
ZyXEL NWA-1100 User’s Guide 45
4.2.1 Scenario
In the figure below, there are two ZyXEL Devices (A and B) in the network. A is in Access
Point (AP) mode while B is in Wireless Client mode. Station B is connected to a File Transfer
Protocol (FTP) server. You want only specified wireless clients to be able to access station B.
You also want to allow wireless traffic between B and wireless clients connected to A (W, Y
and Z). Other wireless devices (X) must not be able to connect to the FTP server.
Figure 14 FTP Server Connected to a Wireless Client
4.2.2 Configuring the ZyXEL Device in Access Point Mode
Before setting up the ZyXEL Device as a wireless client (B), you need to make sure there is an
access point to connect to. Use the Ethernet port on your ZyXEL Device to configure it via a
wired connection.
Open the Web Configurator and go to the Wireless > Wireless Settings screen.
Denied
Access
Chapter 4 Tutorial
ZyXEL NWA-1100 User’s Guide
46
Figure 15 Access Point Mode Wireless Setttings
1Set the Operation Mode to AP.
2Enter an SSID name, such as “NWA-1100 A”.
3Choose the channel you want the ZyXEL Device to use.
4Select the Wireless Mode.
5Set the Intra-BSS Traffic to Enable.
6Go to Wireless > Security to configure the ZyXEL Device to use WPA-PSK security
mode.
Figure 16 Access Point Mode Security Setttings
4.2.3 Configuring the ZyXEL Device in Wireless Client Mode
Your ZyXEL Device should have a wired connection before it can be set to wireless client
operating mode. Connect your ZyXEL Device to the FTP server. Open the Web Configurator
ZyXEL Device and go to the Wireless > Wireless Settings screen. Follow these steps to
configure Station B.
1Select Wireless Client as Operating Mode. Wait for the screen to refresh.
Chapter 4 Tutorial
ZyXEL NWA-1100 User’s Guide 47
2You should now see a tab that says Site Survey (refer to Figure 18). Click on this. A
window should pop up which contains a list of all available wireless devices within your
ZyXEL Device’s range. Copy the SSID of the AP you want your wireless client to
connect to (refer to Figure 19).
3For this example, you want to connect to the access point, A.The SSID that you should
copy is ZyXEL NWA-1100 A (refer to Figure 15 to check the SSID of Station A).
4Go back to the screen in Figure 17. In the SSID field, enter ZyXEL NWA-1100 A (refer
to Figure 18).
5Set the Wireless Mode to the same one set for the access point. Click Apply.
Figure 17 Wireless Client Mode Wireless Settings
Chapter 4 Tutorial
ZyXEL NWA-1100 User’s Guide
48
Figure 18 Site Survey
Figure 19 Wireless Client Mode
6Go to Wireless > Security to configure the ZyXEL Device to use WPA-PSK security
mode.
Chapter 4 Tutorial
ZyXEL NWA-1100 User’s Guide 49
Figure 20 Wireless Client Mode Security Setttings
7One way to ensure that only specified wireless clients can access the FTP server is by
enabling MAC filtering on the ZyXEL Device. See Chapter 9 on page 93 for more
information on the MAC Filter screen.
8Still in the Web Configurator, go to Wireless > MAC Filter. Click on Active then
highlight Allow the following MAC Address to associate. Enter the MAC Addresses
of the wireless clients (W, Y and Z) you want to associate with the ZyXEL Device.
Click Apply.
Figure 21 Wireless Client MAC Filtering
After following this tutorial, you should now have the same setup as shown in Figure 14.
4.2.4 Testing the Connection and Troubleshooting
This section discusses how you can check if you have correctly configured your network setup
as described in this tutorial.
• Try accessing the FTP server from wireless clients W, Y or Z. Test if you can send
or retrieve a file. If you cannot establish a connection with the FTP server, do the
following steps.
1Make sure W, Y and Z use the same wireless security settings as A and can access A.
2Make sure B uses the same wireless and wireless security settings as A and can access A.
3Make sure intra-BSS traffic is enabled on A.
• Try accessing the FTP server from X. If you are able to access the FTP server, do
the following.
1Make sure MAC filtering is enabled.
2Make sure X’s MAC address is not entered in the list of allowed devices.
Chapter 4 Tutorial
ZyXEL NWA-1100 User’s Guide
50
51
PART II
The Web
Configurator
System Screens (53)
Wireless Settings Screen (61)
Wireless Security Screen (75)
RADIUS Screen (89)
MAC Filter Screen (93)
IP Screen (97)
Remote Management (101)
Certificate Screen (111)
Log Screens (115)
Maintenance (121)
Troubleshooting (129)
52
ZyXEL NWA-1100 User’s Guide 53
CHAPTER 5
System Screens
5.1 Overview
This chapter provides information and instructions on how to identify and manage your
ZyXEL Device over the network.
Figure 22 ZyXEL Device Setup
In the figure above, the ZyXEL Device connects to a Domain Name Server (DNS) server to
avail of a domain name. It also connects to an Network Time Protocol (NTP) server to set the
time on the device.
5.2 What You Can Do in the System Screens
•Use the System > General screen (see Section on page 55) to specify the Device name
and Administrator Inactivity Timer value. You can also configure your System DNS
Servers in this screen.
•Use the System > Password screen (see Section 5.4.1 on page 56) to manage the
password for your ZyXEL Device.
•Use the System > Time Setting screen (see Section 5.5 on page 56) to change your
ZyXEL Device’s time and date. This screen allows you to configure the ZyXEL Device’s
time based on your local time zone.
Chapter 5 System Screens
ZyXEL NWA-1100 User’s Guide
54
5.3 What You Need To Know About the System Screens
IP Address Assignment
Every computer on the Internet must have a unique IP address. If your networks are isolated
from the Internet, for instance, only between your two branch offices, you can assign any IP
addresses to the hosts without problems. However, the Internet Assigned Numbers Authority
(IANA) has reserved the following three blocks of IP addresses specifically for private
networks.
You can obtain your IP address from the IANA, from an ISP or have it assigned by a private
network. If you belong to a small organization and your Internet access is through an ISP, the
ISP can provide you with the Internet addresses for your local networks. On the other hand, if
you are part of a much larger organization, you should consult your network administrator for
the appropriate IP addresses.
"Regardless of your particular situation, do not create an arbitrary IP address;
always follow the guidelines above. For more information on address
assignment, please refer to RFC 1597, Address Allocation for Private Internets
and RFC 1466, Guidelines for Management of IP Address Space.
IP Address and Subnet Mask
Similar to the way houses on a street share a common street name, computers on a LAN share
one common network number.
Where you obtain your network number depends on your particular situation. If the ISP or
your network administrator assigns you a block of registered IP addresses, follow their
instructions in selecting the IP addresses and the subnet mask.
If the ISP did not explicitly give you an IP network number, then most likely you have a single
user account and the ISP will assign you a dynamic IP address when the connection is
established. The Internet Assigned Number Authority (IANA) reserved this block of addresses
specifically for private use; please do not use any other number unless you are told otherwise.
Let's say you select 192.168.1.0 as the network number; which covers 254 individual
addresses, from 192.168.1.1 to 192.168.1.254 (zero and 255 are reserved). In other words, the
first three numbers specify the network number while the last number identifies an individual
computer on that network.
Once you have decided on the network number, pick an IP address that is easy to remember,
for instance, 192.168.1.2, for your device, but make sure that no other device on your network
is using that IP address.
Table 4 Private IP Address Ranges
10.0.0.0 - 10.255.255.255
172.16.0.0 - 172.31.255.255
192.168.0.0 - 192.168.255.255
Chapter 5 System Screens
ZyXEL NWA-1100 User’s Guide 55
The subnet mask specifies the network number portion of an IP address. Your device will
compute the subnet mask automatically based on the IP address that you entered. You don't
need to change the subnet mask computed by the device unless you are instructed to do
otherwise.
5.4 General Screen
Use the General screen to identify your ZyXEL Device over the network. Click System >
General. The following screen displays.
Figure 23 System: General
The following table describes the labels in this screen.
Table 5 System: General
LABEL DESCRIPTION
Device Settings
Device Name Type a descriptive name to identify the ZyXEL Device in the Ethernet network.
This name can be up to 15 alphanumeric characters long. Spaces are not
allowed, but dashes "-" are accepted.
Administrator
Inactivity Timer
Type how many minutes a management session (via web configurator) can be
left idle before the session times out.
The default is 5 minutes. After it times out you have to log in with your
password again. Very long idle timeouts may have security risks.
A value of "0" means a management session never times out, no matter how
long it has been left idle (not recommended).
System DNS Servers
First DNS Server
Second DNS Server
Third DNS Server
The field to the right displays the (read-only) DNS server IP address that the
DHCP assigns.
Select User-Defined if you have the IP address of a DNS server. Enter the
DNS server's IP address in the field to the right.
Select None if you do not want to configure DNS servers. If you do not
configure a DNS server, you must know the IP address of a machine in order
to access it.
The default setting is None.
Chapter 5 System Screens
ZyXEL NWA-1100 User’s Guide
56
5.4.1 Password Screen
Use this screen to control access to your ZyXEL Device by assigning a password to it. Click
System > Password. The following screen displays.
Figure 24 System: Password.
The following table describes the labels in this screen.
5.5 Time Screen
Use this screen to change your ZyXEL Device’s time and date, click System > Time. The
following screen displays.
Apply Click Apply to save your changes.
Reset Click Reset to reload the previous configuration for this screen.
Table 5 System: General
LABEL DESCRIPTION
Table 6 System: Password
LABEL DESCRIPTIONS
Password Setup
Current Password Type in your existing system password (“1234” is the default password).
New Password Type your new system password (max 19 characters). Note that as you type a
password, the screen displays an asterisk (*) for each character you type.
Retype to Confirm Retype your new system password for confirmation.
Apply Click Apply to save your changes.
Reset Click Reset to reload the previous configuration for this screen.
Chapter 5 System Screens
ZyXEL NWA-1100 User’s Guide 57
Figure 25 System: Time
The following table describes the labels in this screen.
Table 7 System: Time
LABEL DESCRIPTION
Current Time and Date
Current Date This field displays the last updated date from the time server.
Current Time This field displays the time of your ZyXEL Device.
Each time you reload this page, the ZyXEL Device synchronizes the time with
the time server (if configured).
Time and Date Setup
Enable NTP client
update
Select this to have the ZyXEL Device use the predefined list of Network Time
Protocol (NTP) servers.
Random Select this to have the ZyXEL Device select which NTP server to use.
User Defined Time
Server
Enter the IP address or URL of your time server. Check with your ISP/network
administrator if you are unsure of this information.
Time Zone Setup
Time Zone Choose the time zone of your location. This will set the time difference
between your time zone and Greenwich Mean Time (GMT).
Daylight Saving Setup
Daylight Savings Select this option if you use daylight savings time. Daylight saving is a period
from late spring to early fall when many countries set their clocks ahead of
normal local time by one hour to give more daytime light in the evening.
Chapter 5 System Screens
ZyXEL NWA-1100 User’s Guide
58
5.6 Technical Reference
This section provides some technical information about the topics covered in this chapter.
5.6.1 Pre-defined NTP Time Servers List
When you turn on the ZyXEL Device for the first time, the date and time start at 2000-01-01
00:00:00. When you select Auto in the System > Time Setting screen, the ZyXEL Device
then attempts to synchronize with one of the following pre-defined list of NTP time servers.
The ZyXEL Device continues to use the following pre-defined list of NTP time servers if you
do not specify a time server or it cannot synchronize with the time server you specified.
Start Date Configure the day and time when Daylight Saving Time starts if you selected
Enable Daylight Saving. The at field uses the 24 hour format. Here are a
couple of examples:
Daylight Saving Time starts in most parts of the United States on the second
Sunday of March. Each time zone in the United States starts using Daylight
Saving Time at 2 A.M. local time. So in the United States you would select
Second, Sunday, March and 2:00.
Daylight Saving Time starts in the European Union on the last Sunday of
March. All of the time zones in the European Union start using Daylight Saving
Time at the same moment (1 A.M. GMT or UTC). So in the European Union
you would select Last, Sunday, March. The time you type in the at field
depends on your time zone. In Germany for instance, you would type 2
because Germany's time zone is one hour ahead of GMT or UTC (GMT+1).
End Date Configure the day and time when Daylight Saving Time ends if you selected
Enable Daylight Saving. The o'clock field uses the 24 hour format. Here are
a couple of examples:
Daylight Saving Time ends in the United States on the first Sunday of
November. Each time zone in the United States stops using Daylight Saving
Time at 2 A.M. local time. So in the United States you would select First,
Sunday, November and 2:00.
Daylight Saving Time ends in the European Union on the last Sunday of
October. All of the time zones in the European Union stop using Daylight
Saving Time at the same moment (1 A.M. GMT or UTC). So in the European
Union you would select Last, Sunday, October. The time you type in the at
field depends on your time zone. In Germany for instance, you would type 2
because Germany's time zone is one hour ahead of GMT or UTC (GMT+1).
Apply Click Apply to save your changes.
Reset Click Reset to reload the previous configuration for this screen.
Table 7 System: Time
LABEL DESCRIPTION
Table 8 Default Time Servers
ntp1.cs.wisc.edu
ntp1.gbg.netnod.se
ntp2.cs.wisc.edu
tock.usno.navy.mil
Chapter 5 System Screens
ZyXEL NWA-1100 User’s Guide 59
When the ZyXEL Device uses the pre-defined list of NTP time servers, it randomly selects
one server and tries to synchronize with it. If the synchronization fails, then the ZyXEL
Device goes through the rest of the list in order from the first one tried until either it is
successful or all the pre-defined NTP time servers have been tried.
ntp3.cs.wisc.edu
ntp.cs.strath.ac.uk
ntp1.sp.se
time1.stupi.se
tick.stdtime.gov.tw
tock.stdtime.gov.tw
time.stdtime.gov.tw
Table 8 Default Time Servers (continued)
Chapter 5 System Screens
ZyXEL NWA-1100 User’s Guide
60
ZyXEL NWA-1100 User’s Guide 61
CHAPTER 6
Wireless Settings Screen
6.1 Overview
This chapter discusses the steps to configure the Wireless Settings screen on the ZyXEL
Device. It also introduces the wireless LAN (WLAN) and some basic scenarios.
Figure 26 Wireless Mode
In the figure above, the ZyXEL Device allows access to another bridge device (A) and a
notebook computer (B) upon verifying their settings and credentials. It denies access to other
devices (C and D) with configurations that do not match those specified in your ZyXEL
Device.
6.2 What You Can Do in the Wireless Settings Screen
Use the Wireless > Wireless Settings screen (see Section 6.4 on page 63) to configure the
ZyXEL Device to operate in AP (Access Point), Wireless Client, Bridge or AP + Bridge.
Chapter 6 Wireless Settings Screen
ZyXEL NWA-1100 User’s Guide
62
6.3 What You Need To Know About Wireless Settings Screen
BSS
A Basic Service Set (BSS) exists when all communications between wireless clients or
between a wireless client and a wired network client go through one access point (AP). Intra-
BSS traffic is traffic between wireless clients in the BSS.
ESS
An Extended Service Set (ESS) consists of a series of overlapping BSSs, each containing an
access point, with each access point connected together by a wired network. This wired
connection between APs is called a Distribution System (DS).
Operating Mode
The ZyXEL Device can run in four operating modes as follows:
•AP (Access Point). The ZyXEL Device is wireless access point that allows
wireless communication to other devices in the network.
•Wireless Client. The ZyXEL Device acts as a wireless client to access a wireless
network.
•Bridge. The ZyXEL Device acts as a wireless network bridge and establishes
wireless links with other APs. You need to know the MAC address of the peer
device, which also must be in bridge mode. The ZyXEL Device can establish up
to five wireless links with other APs.
•AP+Bridge Mode. The ZyXEL Device functions as a bridge and access point
simultaneously.
Refer to Chapter 1 on page 25 for illustrations of these wireless applications.
SSID
The SSID (Service Set IDentifier) identifies the Service Set with which a wireless station is
associated. Wireless stations associating to the access point (AP) must have the same SSID.
Normally, the ZyXEL Device acts like a beacon and regularly broadcasts the SSID in the area.
You can hide the SSID instead, in which case the ZyXEL Device does not broadcast the SSID.
In addition, you should change the default SSID to something that is difficult to guess.
This type of security is fairly weak, however, because there are ways for unauthorized wireless
devices to get the SSID. In addition, unauthorized wireless devices can still see the
information that is sent in the wireless network.
Channel
A channel is the radio frequency(ies) used by IEEE 802.11a/b/g wireless devices. Channels
available depend on your geographical area. You may have a choice of channels (for your
region) so you should use a different channel than an adjacent AP (access point) to reduce
interference.
Chapter 6 Wireless Settings Screen
ZyXEL NWA-1100 User’s Guide 63
Wireless Mode
The IEEE 802.1x standard was designed to extend the features of IEEE 802.11 to support
extended authentication as well as providing additional accounting and control features. Your
ZyXEL Device can support 802.11b Only, 802.11g Only and 802.11b+g.
6.4 Wireless Settings Screen
Use this screen to choose the operating mode for your ZyXEL Device. Click Wireless >
Wireless Settings. The screen varies depending upon the operating mode you select.
6.4.1 Access Point Mode
Use this screen to use your ZyXEL Device as an access point. Select AP as the Operation
Mode. The following screen displays.
Figure 27 Wireless: Access Point
Chapter 6 Wireless Settings Screen
ZyXEL NWA-1100 User’s Guide
64
The following table describes the general wireless LAN labels in this screen.
Table 9 Wireless: Access Point
LABEL DESCRIPTION
Basic Settings
Operation Mode Select AP from the drop-down list.
SSID The SSID (Service Set IDentifier) identifies the Service Set with which a wireless
station is associated. Wireless stations associating to the access point (AP) must
have the same SSID. Select an SSID Profile from the drop-down list box.
Note: If you are configuring the ZyXEL Device from a computer
connected to the wireless LAN and you change the
ZyXEL Device’s SSID or security settings, you will lose
your wireless connection when you press Apply to
confirm. You must then change the wireless settings of
your computer to match the ZyXEL Device’s new
settings.
Hide SSID If you hide the SSID, then the ZyXEL Device cannot be seen when a wireless client
scans for local APs. The trade-off for the extra security of “hiding” the ZyXEL Device
may be inconvenience for some valid WLAN clients.
Channel Set the operating frequency/channel depending on your particular region.
To manually set the ZyXEL Device to use a channel, select a channel from the
drop-down list box. Click MAINTENANCE and then the Channel Usage tab to open
the Channel Usage screen to make sure the channel is not already used by
another AP or independent peer-to-peer wireless network.
To have the ZyXEL Device automatically select a channel, click Scan instead.
Wireless Mode Select 802.11b Only to allow only IEEE 802.11b compliant WLAN devices to
associate with the ZyXEL Device.
Select 802.11g Only to allow only IEEE 802.11g compliant WLAN devices to
associate with the ZyXEL Device.
Select 802.11b+g to allow both IEEE802.11b and IEEE802.11g compliant WLAN
devices to associate with the ZyXEL Device. The transmission rate of your ZyXEL
Device might be reduced.
Advanced
Settings
Beacon Interval When a wirelessly networked device sends a beacon, it includes with it a beacon
interval. This specifies the time period before the device sends the beacon again.
The interval tells receiving devices on the network how long they can wait in
lowpower mode before waking up to handle the beacon. This value can be set from
20ms to 1000ms. A high value helps save current consumption of the access point.
Intra-BSS
Traffic
When Intra-BSS is enabled, wireless client can access the wired network and
communicate with each other. When Intra-BSS is disabled, wireless client can still
access the wired network but cannot communicate with each other.
DTIM Interval Delivery Traffic Indication Message (DTIM) is the time period after which broadcast
and multicast packets are transmitted to mobile clients in the Power Saving mode.
A high DTIM value can cause clients to lose connectivity with
the network. This value can be set from 1 to 100.
WMM Select this to turn on WMM QoS (Wireless MultiMedia Quality of Service). The
ZyXEL Device assigns priority to packets based on the IEEE 802.1q or DSCP
information in their headers. If a packet has no WMM information in its header, it is
assigned the default priority.
Chapter 6 Wireless Settings Screen
ZyXEL NWA-1100 User’s Guide 65
6.4.2 Wireless Client Mode
Use this screen to turn your ZyXEL Device into a wireless client. Select Wireless Client as
the Operation Mode. The following screen displays.
Number of
Wireless
Stations
Allowed to
Associate
Specify how many wireless stations can associate with your ZyXEL Device.
Radio Enable Select Yes to enable WLAN radio, and No to turn it off. The ZyXEL Device cannot
be accessed wirelessly if radio is turned off.
Output Power
Management
Set the output power of the ZyXEL Device in this field. If there is a high density of
APs in an area, decrease the output power of the ZyXEL Device to reduce
interference with other APs. Select one of the following Full (Full Power), 50%,
25%, 12.5% or Min (Minimum). See the product specifications for more information
on your ZyXEL Device’s output power.
Preamble Type Select Dynamic to have the AP automatically use short preamble when wireless
adapters support it, otherwise the AP uses long preamble.
Select Long if you are unsure what preamble mode the wireless adapters support,
and to provide more reliable communications in busy wireless networks.
RTS/CTS
Threshold
(Request To Send) The threshold (number of bytes) for enabling RTS/CTS
handshake. Data with its frame size larger than this value will perform the RTS/CTS
handshake. Setting this attribute to be larger than the maximum MSDU (MAC
service data unit) size turns off the RTS/CTS handshake. Setting this attribute to its
smallest value (1) turns on the RTS/CTS handshake. Enter a value between 1 and
2346.
Fragmentation The threshold (number of bytes) for the fragmentation boundary for directed
messages. It is the maximum data fragment size that can be sent. Enter an even
number between 256 and 2346.
Rates
Configuration
This section controls the data rates permitted for clients.
For each Rate, select an option from the Configuration list. The options are:
•Basic (1~11 Mbps only): Clients can always connect to the access point at this
speed.
•Optional: Clients can connect to the access point at this speed, when permitted
to do so by the AP.
•Disable: Clients cannot connect to the access point at this speed.
Enable Antenna
Diversity
Select this to use antenna diversity. Antenna diversity uses multiple antennas to
reduce signal interference.
Enable
Spanning Tree
Control (STP)
(R)STP detects and breaks network loops and provides backup links between
switches, bridges or routers. It allows a bridge to interact with other (R)STP -
compliant bridges in your network to ensure that only one path exists between any
two stations on the network. Select the check box to activate STP on the ZyXEL
Device.
Apply Click Apply to save your changes.
Reset Click Reset to begin configuring this screen afresh.
Table 9 Wireless: Access Point
LABEL DESCRIPTION
Chapter 6 Wireless Settings Screen
ZyXEL NWA-1100 User’s Guide
66
Figure 28 Wireless: Wireless Client
The following table describes the general wireless LAN labels in this screen.
Table 10 Wireless: Wireless Client
LABEL DESCRIPTION
Basic Settings
Operation Mode Select Wireless Client from the drop-down list. Click Apply to make the Site
Survey button appear next to the SSID field. Click this button to get a pop up
window of available APs.
SSID The SSID (Service Set IDentifier) identifies the Service Set with which a wireless
station is associated. Wireless stations associating to the access point (AP) must
have the same SSID.
In this field, enter the SSID of the AP you want to use (click Site Survey button for a
list of available APs). Click Apply. Set the security configuration for this operating
mode in the Wireless > Security screen. Check the Status screen to check if the
settings you set show in the WLAN information.
Note: If you are configuring the ZyXEL Device from a computer
connected to the wireless LAN and you change the
ZyXEL Device’s SSID or security settings, you will lose
your wireless connection when you press Apply to
confirm. You must then change the wireless settings of
your computer to match the ZyXEL Device’s new
settings.
Chapter 6 Wireless Settings Screen
ZyXEL NWA-1100 User’s Guide 67
Site Survey Click this to view a list of available wireless access points within the range.
Wireless Mode Select 802.11b Only to allow only IEEE 802.11b compliant WLAN devices to
associate with the ZyXEL Device.
Select 802.11g Only to allow only IEEE 802.11g compliant WLAN devices to
associate with the ZyXEL Device.
Select 802.11b+g to allow both IEEE802.11b and IEEE802.11g compliant WLAN
devices to associate with the ZyXEL Device. The transmission rate of your ZyXEL
Device might be reduced.
Advanced
Settings
MAC Address
Clone
Choose Manual to configure the ZyXEL Device's MAC address by cloning the MAC
address from a computer on your LAN. Choose Auto to use the factory default
MAC address of your ZyXEL Device.
Radio Enable Select Yes to enable WLAN radio, and No to turn it off. The ZyXEL Device cannot
be accessed wirelessly if radio is turned off.
Output Power
Management
Set the output power of the ZyXEL Device in this field. If there is a high density of
APs in an area, decrease the output power of the ZyXEL Device to reduce
interference with other APs. Select one of the following Full (Full Power), 50%,
25%, 12.5% or Min (Minimum). See the product specifications for more information
on your ZyXEL Device’s output power.
Preamble Type Select Dynamic to have the ZyXEL Device automatically use short preamble when
the wireless network your ZyXEL Device is connected to supports it, otherwise the
ZyXEL Device uses long preamble.
Select Long preamble if you are unsure what preamble mode the wireless device
your ZyXEL Device is connected to supports, and to provide more reliable
communications in busy wireless networks.
RTS/CTS
Threshold
(Request To Send) The threshold (number of bytes) for enabling RTS/CTS
handshake. Data with its frame size larger than this value will perform the RTS/CTS
handshake. Setting this attribute to be larger than the maximum MSDU (MAC
service data unit) size turns off the RTS/CTS handshake. Setting this attribute to its
smallest value (1) turns on the RTS/CTS handshake. Enter a value between 1 and
2346.
Fragmentation The threshold (number of bytes) for the fragmentation boundary for directed
messages. It is the maximum data fragment size that can be sent. Enter an even
number between 256 and 2346.
Rates
Configuration
This section controls the data rates permitted for clients.
For each Rate, select an option from the Configuration list. The options are:
•Basic (1~11 Mbps only): Clients can always connect to the access point at this
speed.
•Optional: Clients can connect to the access point at this speed, when permitted
to do so by the AP.
•Disable: Clients cannot connect to the access point at this speed.
Enable Antenna
Diversity
Select this to use antenna diversity. Antenna diversity uses multiple antennas to
reduce signal interference.
Enable
Spanning Tree
Control (STP)
(R)STP detects and breaks network loops and provides backup links between
switches, bridges or routers. It allows a bridge to interact with other (R)STP -
compliant bridges in your network to ensure that only one path exists between any
two stations on the network. Select the check box to activate STP on the ZyXEL
Device.
Apply Click Apply to save your changes.
Reset Click Reset to begin configuring this screen afresh.
Table 10 Wireless: Wireless Client
LABEL DESCRIPTION
Chapter 6 Wireless Settings Screen
ZyXEL NWA-1100 User’s Guide
68
6.4.3 Bridge Mode
Use this screen to have the ZyXEL Device act as a wireless network bridge and establish
wireless links with other APs. You need to know the MAC address of the peer device, which
also must be in bridge mode.
Use this screen to use the ZyXEL Device as a wireless bridge. Select Bridge as the
Operation Mode.
Figure 29 Wireless: Bridge
The following table describes the bridge labels in this screen.
Table 11 Wireless: Bridge
LABEL DESCRIPTIONS
Basic Settings
Operation Mode Select Bridge in this field.
Chapter 6 Wireless Settings Screen
ZyXEL NWA-1100 User’s Guide 69
Channel Set the operating frequency/channel depending on your particular region.
To manually set the ZyXEL Device to use a channel, select a channel from the
drop-down list box. Click MAINTENANCE and then the Channel Usage tab to
open the Channel Usage screen to make sure the channel is not already used
by another AP or independent peer-to-peer wireless network.
To have the ZyXEL Device automatically select a channel, click Scan instead.
Wireless Mode Select 802.11b Only to allow only IEEE 802.11b compliant WLAN devices to
associate with the ZyXEL Device.
Select 802.11g Only to allow only IEEE 802.11g compliant WLAN devices to
associate with the ZyXEL Device.
Select 802.11b+g to allow both IEEE802.11b and IEEE802.11g compliant
WLAN devices to associate with the ZyXEL Device. The transmission rate of
your ZyXEL Device might be reduced.
WDS Settings
Local Mac Address
Remote MAC
Address 1 - 4
A Wireless Distribution System is a wireless connection between two or more
APs.
Note: WDS security is independent of the security settings
between the ZyXEL Device and any wireless clients.
Local MAC Address is the MAC address of your ZyXEL Device. You can
specify up to 4 remote devices’ MAC addresses in this section.
Advanced Settings
Radio Enable Select Yes to enable WLAN radio, and No to turn it off. The ZyXEL Device
cannot be accessed wirelessly if radio is turned off.
Output Power
Management
Set the output power of the ZyXEL Device in this field. If there is a high density
of APs in an area, decrease the output power of the ZyXEL Device to reduce
interference with other APs. Select one of the following Full (Full Power), 50%,
25%, 12.5% or Min (Minimum). See the product specifications for more
information on your ZyXEL Device’s output power.
Preamble Type Select Dynamic to have the ZyXEL Device automatically use short preamble
when wireless adapters support it, otherwise the AP uses long preamble.
Select Long preamble if you are unsure what preamble mode the wireless
adapters support, and to provide more reliable communications in busy
wireless networks.
RTS/CTS Threshold (Request To Send) The threshold (number of bytes) for enabling RTS/CTS
handshake. Data with its frame size larger than this value will perform the RTS/
CTS handshake. Setting this attribute to be larger than the maximum MSDU
(MAC service data unit) size turns off the RTS/CTS handshake. Setting this
attribute to 1 turns on the RTS/CTS handshake. Enter a value between 1 and
2346.
Fragmentation The threshold (number of bytes) for the fragmentation boundary for directed
messages. It is the maximum data fragment size that can be sent. Enter an
even number between 256 and 2346.
Rates Configuration This section controls the data rates permitted for clients.
For each Rate, select an option from the Configuration list. The options are:
•Basic (1~11 Mbps only): Clients can always connect to the access point at
this speed.
•Optional: Clients can connect to the access point at this speed, when
permitted to do so by the AP.
•Disable: Clients cannot connect to the access point at this speed.
Table 11 Wireless: Bridge
LABEL DESCRIPTIONS
Chapter 6 Wireless Settings Screen
ZyXEL NWA-1100 User’s Guide
70
6.4.4 AP + Bridge Mode
Use this screen to have the ZyXEL Device function as a bridge and access point
simultaneously. Select AP + Bridge as the Operation Mode. The following screen diplays.
Figure 30 Wireless: AP+Bridge
Enable Antenna
Diversity
Select this to use antenna diversity. Antenna diversity uses multiple antennas
to reduce signal interference.
Enable Spanning
Tree Protocol(STP)
(R)STP detects and breaks network loops and provides backup links between
switches, bridges or routers. It allows a bridge to interact with other (R)STP -
compliant bridges in your network to ensure that only one path exists between
any two stations on the network. Select the check box to activate STP on the
ZyXEL Device.
Table 11 Wireless: Bridge
LABEL DESCRIPTIONS
