Chapter 6 LAN Setup
P-660HW-Dx v2 User’s Guide 101
The following table describes the labels in this screen.
6.5 LAN Client List
This table allows you to assign IP addresses on the LAN to specific individual computers
based on their MAC Addresses.
Every Ethernet device has a unique MAC (Media Access Control) address. The MAC address
is assigned at the factory and consists of six pairs of hexadecimal characters, for example,
00:A0:C5:00:00:02.
To change your ZyXEL Device’s static DHCP settings, click Network > LAN > Client List.
The screen appears as shown.
Table 28 DHCP Setup
LABEL DESCRIPTION
DHCP Setup
DHCP If set to Server, your ZyXEL Device can assign IP addresses, an IP default
gateway and DNS servers to Windows 95, Windows NT and other systems that
support the DHCP client.
If set to None, the DHCP server will be disabled.
If set to Relay, the ZyXEL Device acts as a surrogate DHCP server and relays
DHCP requests and responses between the remote server and the clients.
Enter the IP address of the actual, remote DHCP server in the Remote DHCP
Server field in this case.
When DHCP is used, the following items need to be set:
IP Pool Starting
Address
This field specifies the first of the contiguous addresses in the IP address pool.
Pool Size This field specifies the size, or count of the IP address pool.
Remote DHCP
Server
If Relay is selected in the DHCP field above then enter the IP address of the
actual remote DHCP server here.
DNS Server
DNS Servers
Assigned by DHCP
Server
The ZyXEL Device passes a DNS (Domain Name System) server IP address to
the DHCP clients.
Primary DNS Server
Secondary DNS
Server
This field is not available when you set DHCP to Relay.
Enter the IP addresses of the DNS servers. The DNS servers are passed to the
DHCP clients along with the IP address and the subnet mask.
If the fields are left as 0.0.0.0, the ZyXEL Device acts as a DNS proxy and
forwards the DHCP client’s DNS query to the real DNS server learned through
IPCP and relays the response back to the computer.
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
Chapter 6 LAN Setup
P-660HW-Dx v2 User’s Guide
102

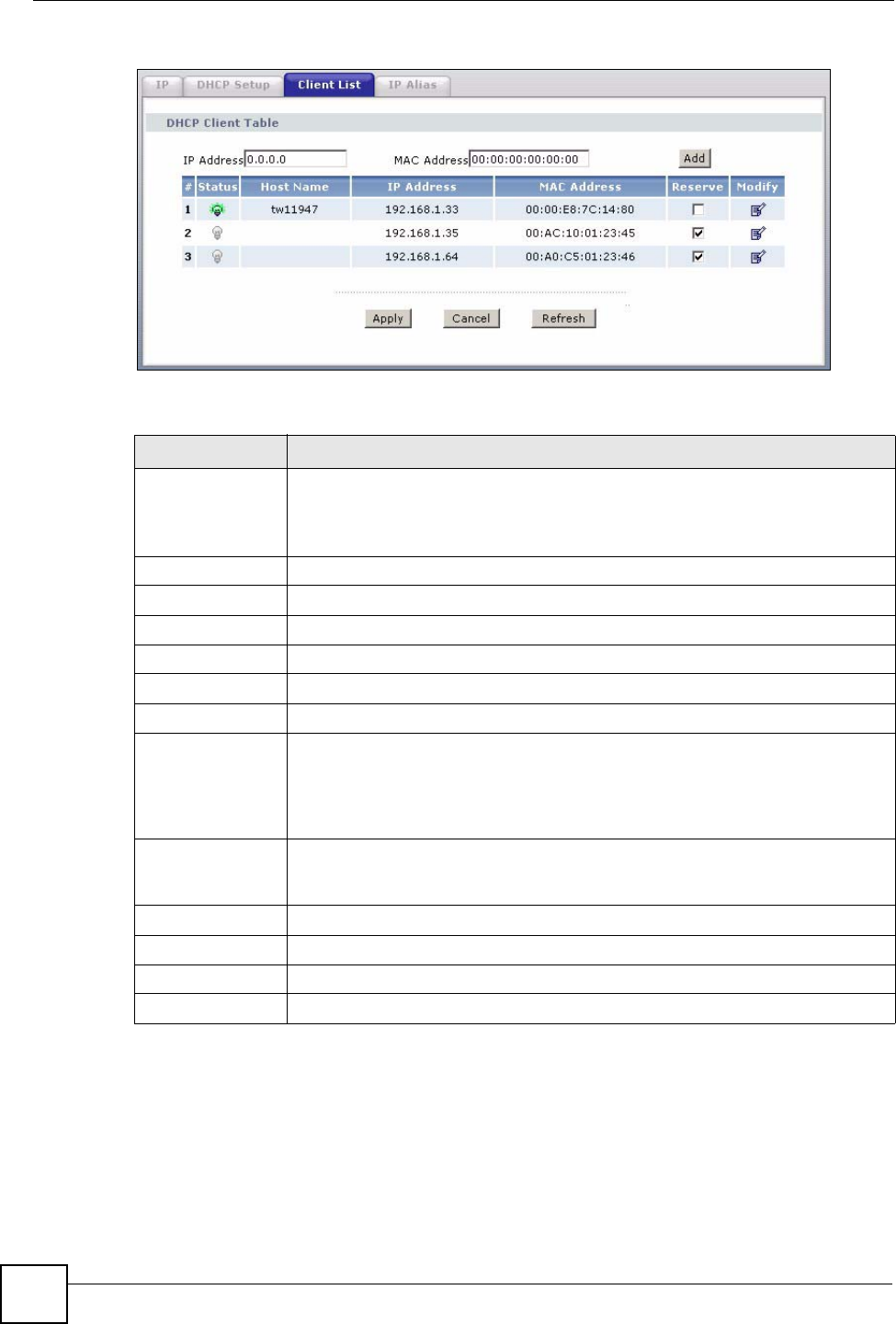

Figure 57 LAN Client List
The following table describes the labels in this screen.
6.6 LAN IP Alias
IP alias allows you to partition a physical network into different logical networks over the
same Ethernet interface. The ZyXEL Device supports three logical LAN interfaces via its
single physical Ethernet interface with the ZyXEL Device itself as the gateway for each LAN
network.
Table 29 LAN Client List
LABEL DESCRIPTION
IP Address Enter the IP address that you want to assign to the computer on your LAN with
the MAC address specified below.
The IP address should be within the range of IP addresses you specified in the
DHCP Setup for the DHCP client.
MAC Address Enter the MAC address of a computer on your LAN.
Add Click Add to add a static DHCP entry.
# This is the index number of the static IP table entry (row).
Status This field displays whether the client is connected to the ZyXEL Device.
Host Name This field displays the computer host name.
IP Address This field displays the IP address relative to the # field listed above.
MAC Address The MAC (Media Access Control) or Ethernet address on a LAN (Local Area
Network) is unique to your computer (six pairs of hexadecimal notation).
A network interface card such as an Ethernet adapter has a hardwired address
that is assigned at the factory. This address follows an industry standard that
ensures no other adapter has a similar address.
Reserve Select the check box(es) in each entry to have the ZyXEL Device always assign
the selected entry(ies)’s IP address(es) to the corresponding MAC address(es)
(and host name(s)). You can select up to 32 entries in this table.
Modify Click the modify icon to have the IP address field editable and change it.
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
Refresh Click Refresh to reload the DHCP table.
Chapter 6 LAN Setup
P-660HW-Dx v2 User’s Guide 103
When you use IP alias, you can also configure firewall rules to control access between the
LAN's logical networks (subnets).
"Make sure that the subnets of the logical networks do not overlap.

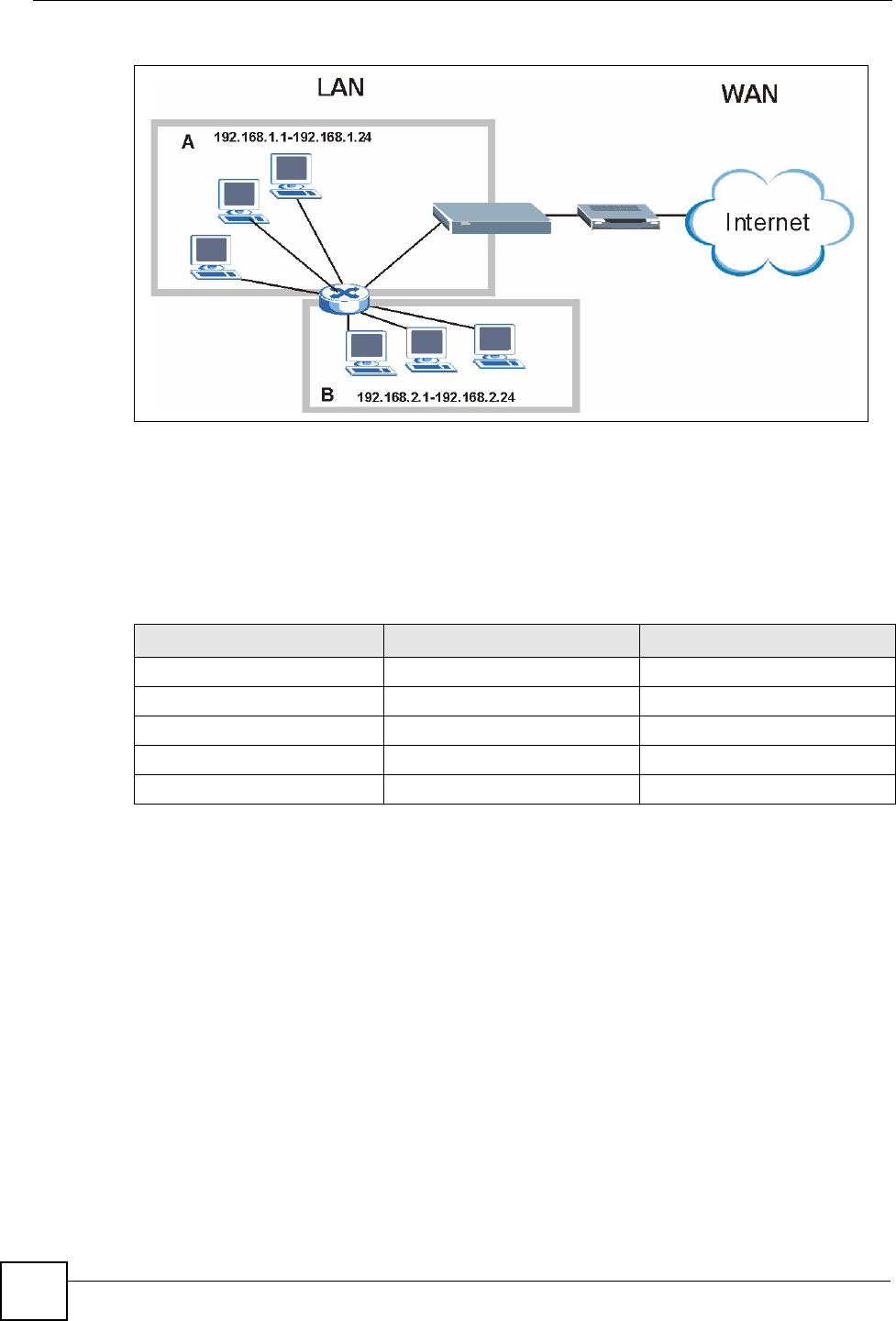

The following figure shows a LAN divided into subnets A, B, and C.
Figure 58 Physical Network & Partitioned Logical Networks
To change your ZyXEL Device’s IP alias settings, click Network > LAN > IP Alias. The
screen appears as shown.
Figure 59 LAN IP Alias
Chapter 6 LAN Setup
P-660HW-Dx v2 User’s Guide
104
The following table describes the labels in this screen.
Table 30 LAN IP Alias
LABEL DESCRIPTION
IP Alias 1, 2 Select the check box to configure another LAN network for the ZyXEL Device.
IP Address Enter the IP address of your ZyXEL Device in dotted decimal notation.
Alternatively, click the right mouse button to copy and/or paste the IP address.
IP Subnet Mask Your ZyXEL Device will automatically calculate the subnet mask based on the IP
address that you assign. Unless you are implementing subnetting, use the subnet
mask computed by the ZyXEL Device.
RIP Direction RIP (Routing Information Protocol, RFC 1058 and RFC 1389) allows a router to
exchange routing information with other routers. The RIP Direction field controls
the sending and receiving of RIP packets. Select the RIP direction from None/
Both/In Only/Out Only. When set to Both or Out Only, the ZyXEL Device will
broadcast its routing table periodically. When set to Both or In Only, it will
incorporate the RIP information that it receives; when set to None, it will not send
any RIP packets and will ignore any RIP packets received.
RIP Version The RIP Version field controls the format and the broadcasting method of the RIP
packets that the ZyXEL Device sends (it recognizes both formats when receiving).
RIP-1 is universally supported but RIP-2 carries more information. RIP-1 is
probably adequate for most networks, unless you have an unusual network
topology. Both RIP-2B and RIP-2M sends the routing data in RIP-2 format; the
difference being that RIP-2B uses subnet broadcasting while RIP-2M uses
multicasting. Multicasting can reduce the load on non-router machines since they
generally do not listen to the RIP multicast address and so will not receive the RIP
packets. However, if one router uses multicasting, then all routers on your network
must use multicasting, also. By default, RIP direction is set to Both and the
Version set to RIP-1.
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
P-660HW-Dx v2 User’s Guide 105
CHAPTER 7
Wireless LAN
This chapter discusses how to configure the wireless network settings on your ZyXEL Device.
See the appendices for more detailed information about wireless networks.
7.1 Wireless Network Overview

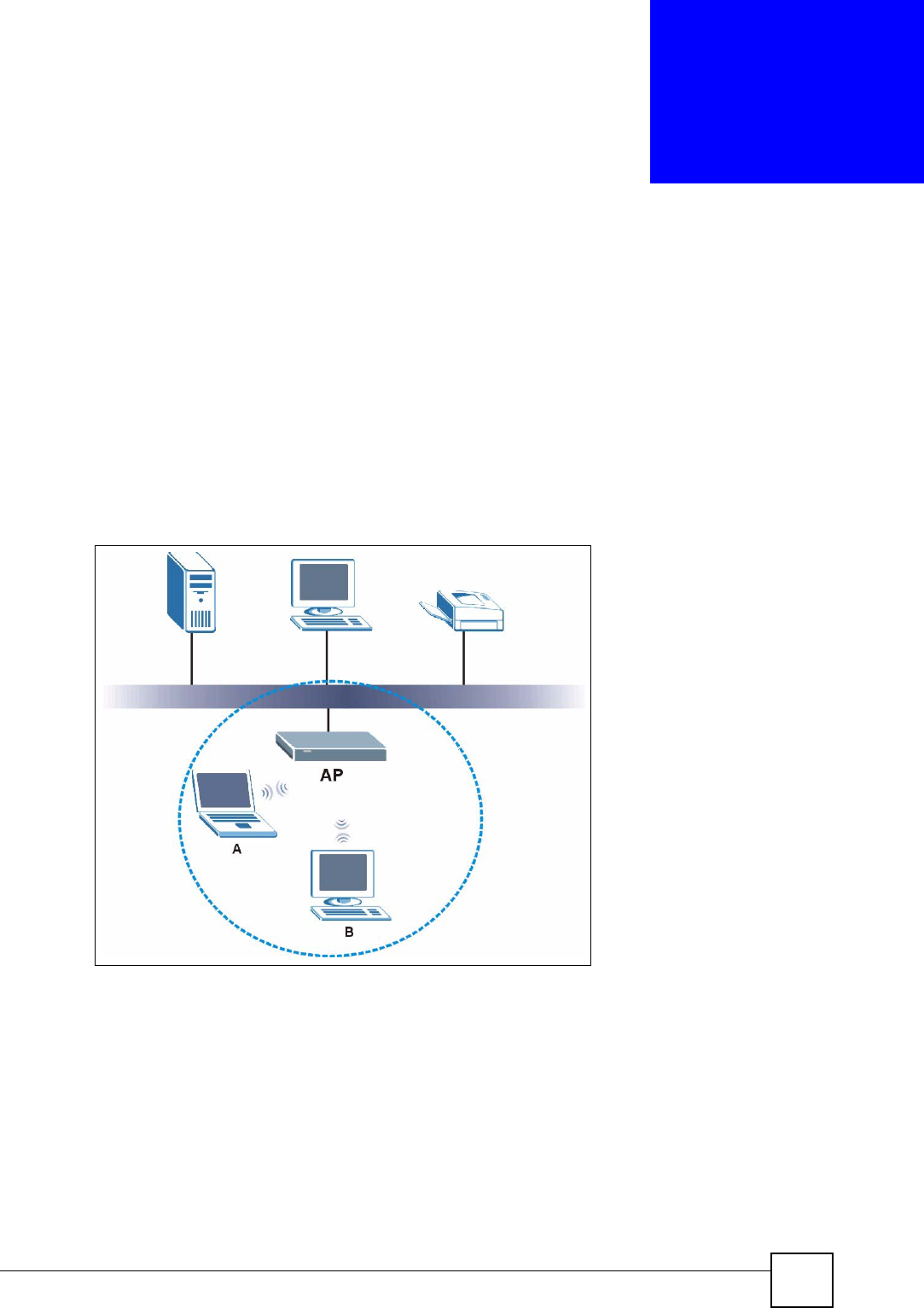

The following figure provides an example of a wireless network.
Figure 60 Example of a Wireless Network
The wireless network is the part in the blue circle. In this wireless network, devices A and B
are called wireless clients. The wireless clients use the access point (AP) to interact with other
devices (such as the printer) or with the Internet. Your ZyXEL Device is the AP.
Every wireless network must follow these basic guidelines.
• Every wireless client in the same wireless network must use the same SSID.
The SSID is the name of the wireless network. It stands for Service Set IDentity.
• If two wireless networks overlap, they should use different channels.
Like radio stations or television channels, each wireless network uses a specific channel,
or frequency, to send and receive information.
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide
106
• Every wireless client in the same wireless network must use security compatible with the
AP.
Security stops unauthorized devices from using the wireless network. It can also protect
the information that is sent in the wireless network.
7.2 Wireless Security Overview
The following sections introduce different types of wireless security you can set up in the
wireless network.
7.2.1 SSID
Normally, the AP acts like a beacon and regularly broadcasts the SSID in the area. You can
hide the SSID instead, in which case the AP does not broadcast the SSID. In addition, you
should change the default SSID to something that is difficult to guess.
This type of security is fairly weak, however, because there are ways for unauthorized devices
to get the SSID. In addition, unauthorized devices can still see the information that is sent in
the wireless network.
7.2.2 MAC Address Filter
Every wireless client has a unique identification number, called a MAC address.1 A MAC
address is usually written using twelve hexadecimal characters2; for example, 00A0C5000002
or 00:A0:C5:00:00:02. To get the MAC address for each wireless client, see the appropriate
User’s Guide or other documentation.
You can use the MAC address filter to tell the AP which wireless clients are allowed or not
allowed to use the wireless network. If a wireless client is allowed to use the wireless network,
it still has to have the correct settings (SSID, channel, and security). If a wireless client is not
allowed to use the wireless network, it does not matter if it has the correct settings.
This type of security does not protect the information that is sent in the wireless network.
Furthermore, there are ways for unauthorized devices to get the MAC address of an authorized
wireless client. Then, they can use that MAC address to use the wireless network.
7.2.3 User Authentication
Authentication is the process of verifying whether a wireless device is allowed to use the
wireless network. You can make every user log in to the wireless network before they can use
it. This is called user authentication. However, every wireless client in the wireless network
has to support IEEE 802.1x to do this.
For wireless networks, there are two typical places to store the user names and passwords for
each user.
• In the AP: this feature is called a local user database or a local database.
1. Some wireless devices, such as scanners, can detect wireless networks but cannot use wireless networks.
These kinds of wireless devices might not have MAC addresses.
2. Hexadecimal characters are 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, and F.
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide 107
• In a RADIUS server: this is a server used in businesses more than in homes.
If your AP does not provide a local user database and if you do not have a RADIUS server,
you cannot set up user names and passwords for your users.
Unauthorized devices can still see the information that is sent in the wireless network, even if
they cannot use the wireless network. Furthermore, there are ways for unauthorized wireless
users to get a valid user name and password. Then, they can use that user name and password
to use the wireless network.
Local user databases also have an additional limitation that is explained in the next section.
7.2.4 Encryption
Wireless networks can use encryption to protect the information that is sent in the wireless
network. Encryption is like a secret code. If you do not know the secret code, you cannot
understand the message.
The types of encryption you can choose depend on the type of user authentication. (See
Section 7.2.3 on page 106 for information about this.)
For example, if the wireless network has a RADIUS server, you can choose WPA or WPA2.
If users do not log in to the wireless network, you can choose no encryption, Static WEP,
WPA-PSK, or WPA2-PSK.
Usually, you should set up the strongest encryption that every wireless client in the wireless
network supports. For example, suppose the AP does not have a local user database, and you
do not have a RADIUS server. Therefore, there is no user authentication. Suppose the wireless
network has two wireless clients. Device A only supports WEP, and device B supports WEP
and WPA. Therefore, you should set up Static WEP in the wireless network.
"It is recommended that wireless networks use WPA-PSK, WPA, or stronger
encryption. IEEE 802.1x and WEP encryption are better than none at all, but it is
still possible for unauthorized devices to figure out the original information
pretty quickly.
It is not possible to use WPA-PSK, WPA or stronger encryption with a local
user database. In this case, it is better to set up stronger encryption with no
authentication than to set up weaker encryption with the local user database.
Table 31 Types of Encryption for Each Type of Authentication
NO AUTHENTICATION RADIUS SERVER
Weakest No Security WPA
Static WEP
WPA-PSK
Strongest WPA2-PSK WPA2
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide
108
When you select WPA2 or WPA2-PSK in your ZyXEL Device, you can also select an option
(WPA compatible) to support WPA as well. In this case, if some wireless clients support
WPA and some support WPA2, you should set up WPA2-PSK or WPA2 (depending on the
type of wireless network login) and select the WPA compatible option in the ZyXEL Device.
Many types of encryption use a key to protect the information in the wireless network. The
longer the key, the stronger the encryption. Every wireless client in the wireless network must
have the same key.

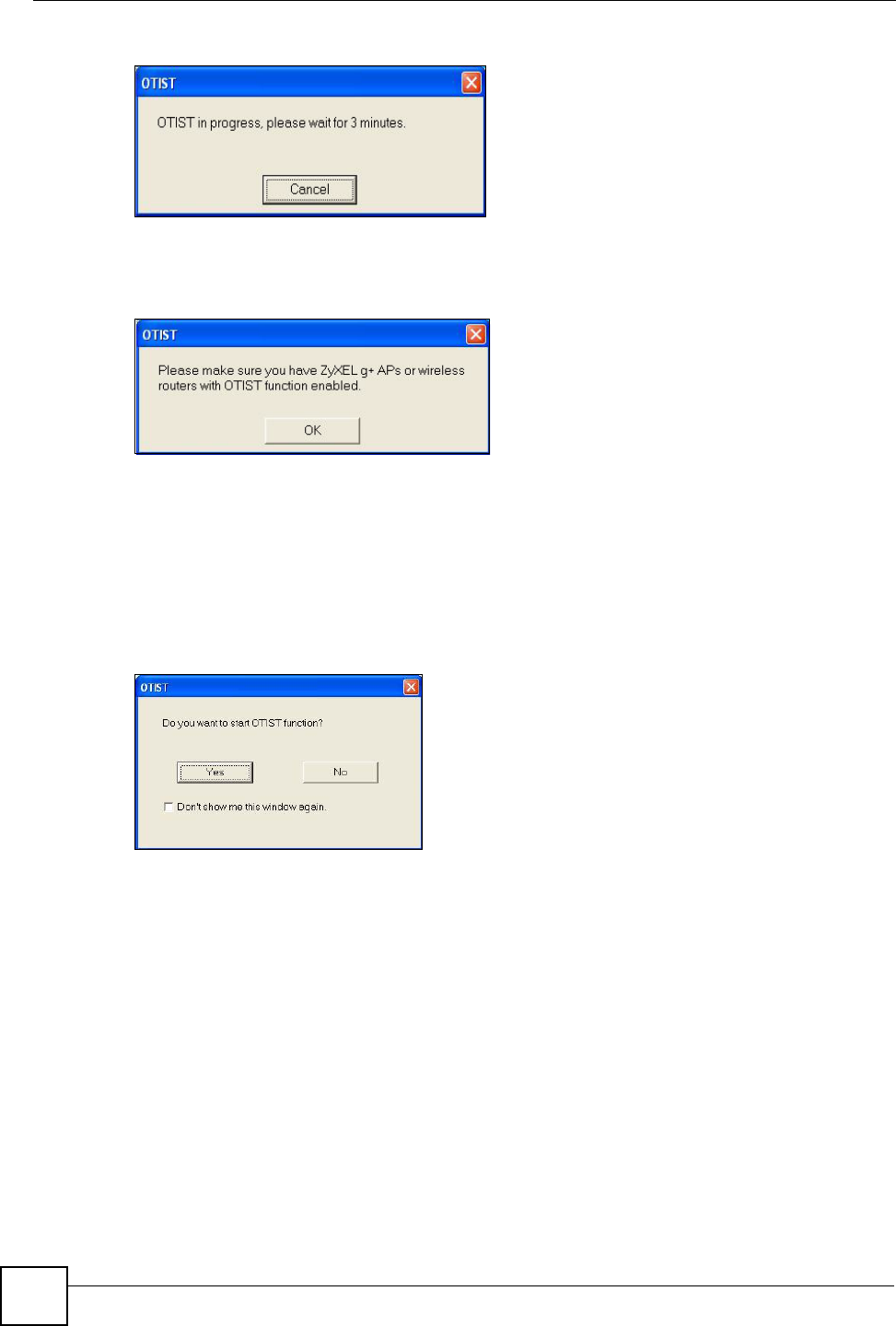

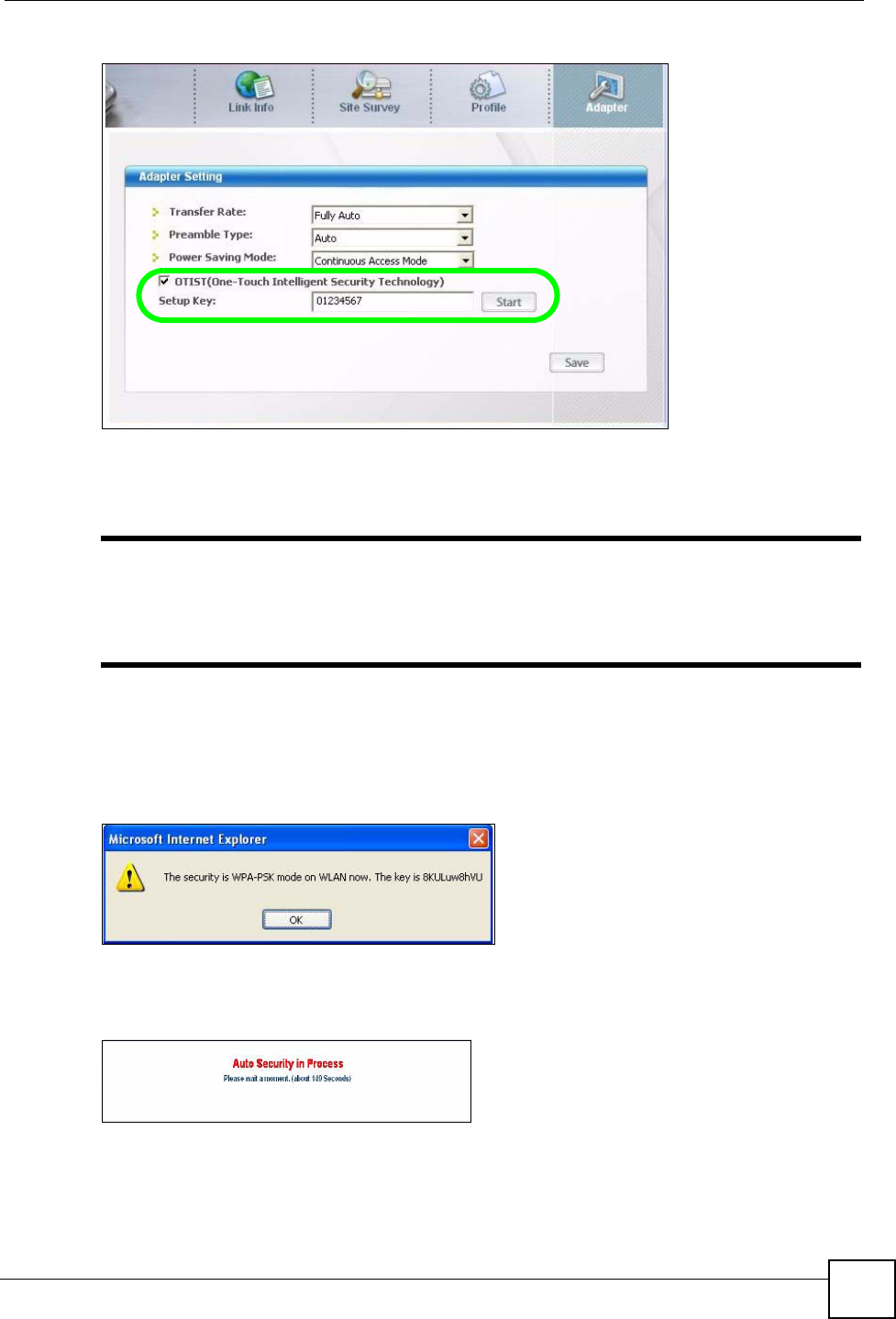

7.2.5 One-Touch Intelligent Security Technology (OTIST)
With ZyXEL’s OTIST, you set up the SSID and WPA-PSK on the ZyXEL Device. Then, the
ZyXEL Device transfers them to the devices in the wireless networks. As a result, you do not
have to set up the SSID and encryption on every device in the wireless network.
The devices in the wireless network have to support OTIST, and they have to be in range of
the ZyXEL Device when you activate it. See Section 7.4 on page 117 for more details.
7.3 General Wireless LAN Screen
"If you are configuring the ZyXEL Device from a computer connected to the
wireless LAN and you change the ZyXEL Device’s SSID or WEP settings, you
will lose your wireless connection when you press Apply to confirm. You must
then change the wireless settings of your computer to match the ZyXEL
Device’s new settings.
Click Network > Wireless LAN to open the General screen.
Figure 61 Wireless LAN: General
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide 109
The following table describes the general wireless LAN labels in this screen.
See the rest of this chapter for information on the other labels in this screen.
7.3.1 No Security
Select No Security to allow wireless clients to communicate with the access points without
any data encryption.
"If you do not enable any wireless security on your ZyXEL Device, your network
is accessible to any wireless networking device that is within range.
Table 32 Wireless LAN: General
LABEL DESCRIPTION
Wireless Setup
Active Wireless
LAN
Click the check box to activate wireless LAN.
Network Name
(SSID)
(Service Set IDentity) The SSID identifies the Service Set with which a wireless client
is associated. Wireless clients associating to the access point (AP) must have the
same SSID. Enter a descriptive name (up to 32 printable 7-bit ASCII characters) for
the wireless LAN.
Note: If you are configuring the ZyXEL Device from a computer
connected to the wireless LAN and you change the ZyXEL
Device’s SSID or WEP settings, you will lose your wireless
connection when you press Apply to confirm. You must
then change the wireless settings of your computer to
match the ZyXEL Device’s new settings.
Hide SSID Select this check box to hide the SSID in the outgoing beacon frame so a station
cannot obtain the SSID through scanning using a site survey tool.
Channel
Selection
Set the operating frequency/channel depending on your particular region.
Select a channel from the drop-down list box.
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to reload the previous configuration for this screen.
Advanced
Setup
Click Advanced Setup to display the Wireless Advanced Setup screen and edit
more details of your WLAN setup.
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide
110

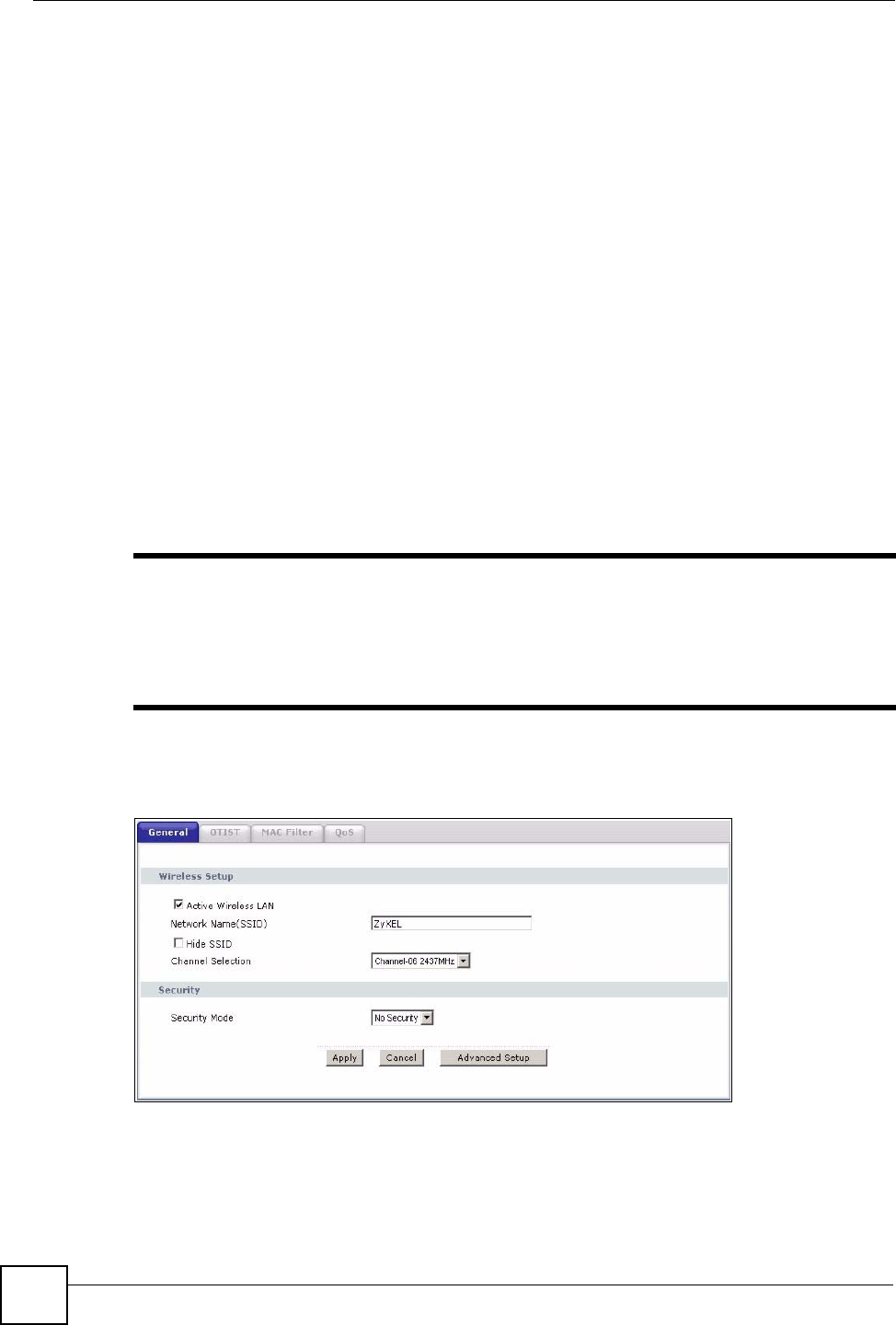

Figure 62 Wireless: No Security
The following table describes the labels in this screen.
7.3.2 WEP Encryption
WEP encryption scrambles the data transmitted between the wireless clients and the access
points to keep network communications private. It encrypts unicast and multicast
communications in a network. Both the wireless clients and the access points must use the
same WEP key.
Your ZyXEL Device allows you to configure up to four 64-bit, 128-bit or 256-bit WEP keys
but only one key can be enabled at any one time.
In order to configure and enable WEP encryption; click Network > Wireless LAN to display
the General screen. Select Static WEP from the Security Mode list.
Table 33 Wireless No Security
LABEL DESCRIPTION
Security Mode Choose No Security from the drop-down list box.
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to reload the previous configuration for this screen.
Advanced
Setup
Click Advanced Setup to display the Wireless Advanced Setup screen and edit
more details of your WLAN setup.
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide 111

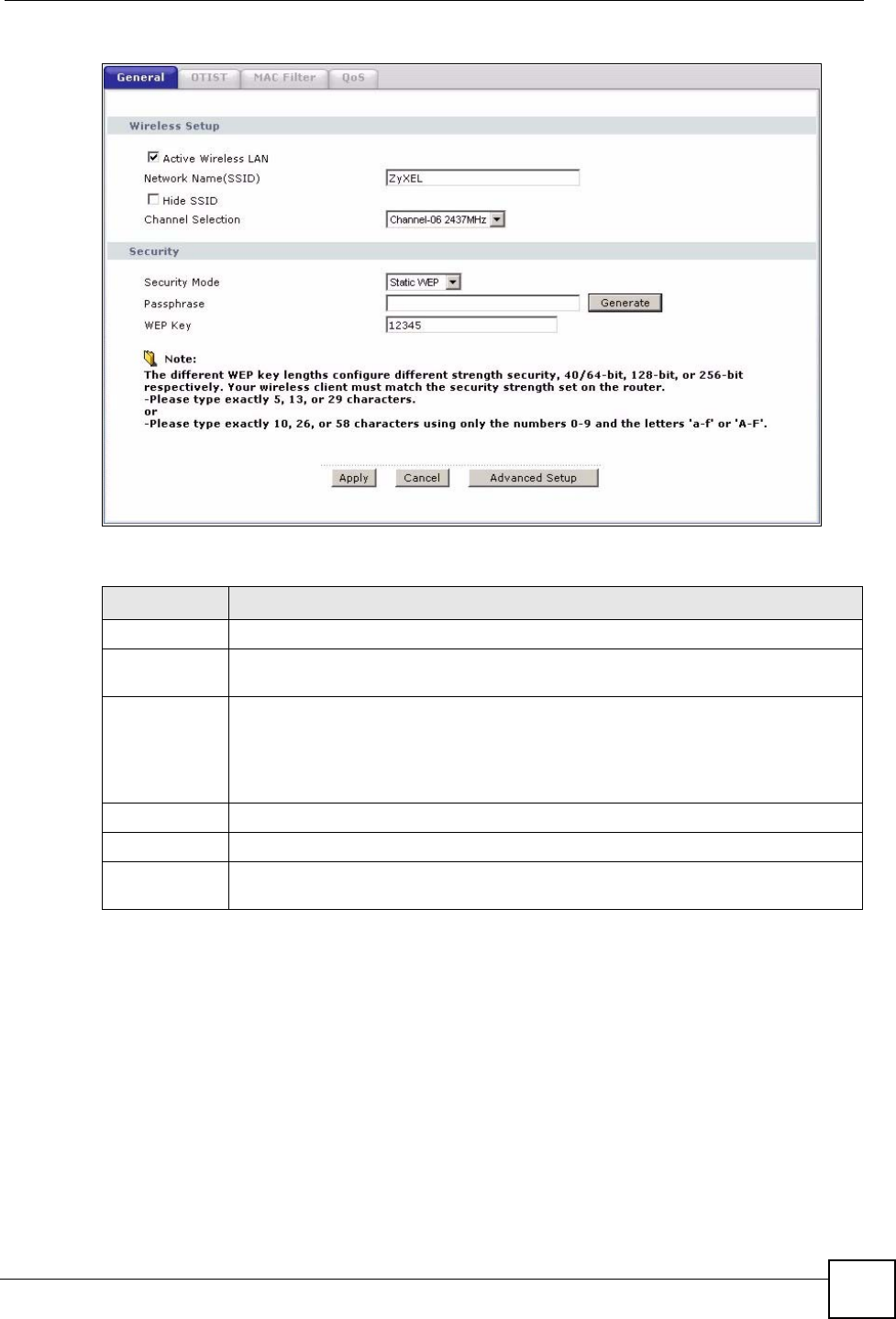

Figure 63 Wireless: Static WEP Encryption
The following table describes the wireless LAN security labels in this screen.
7.3.3 WPA-PSK/WPA2-PSK
In order to configure and enable WPA(2)-PSK authentication; click Network > Wireless
LAN to display the General screen. Select WPA-PSK or WPA2-PSK from the Security
Mode list.
Table 34 Wireless: Static WEP Encryption
LABEL DESCRIPTION
Security Mode Choose Static WEP from the drop-down list box.
Passphrase Enter a Passphrase (up to 32 printable characters) and clicking Generate. The
ZyXEL Device automatically generates a WEP key.
WEP Key The WEP keys are used to encrypt data. Both the ZyXEL Device and the wireless
clients must use the same WEP key for data transmission.
If you want to manually set the WEP key, enter any 5, 13 or 29 characters (ASCII
string) or 10, 26 or 58 hexadecimal characters ("0-9", "A-F") for a 64-bit, 128-bit or
256-bit WEP key respectively.
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to reload the previous configuration for this screen.
Advanced
Setup
Click Advanced Setup to display the Wireless Advanced Setup screen and edit
more details of your WLAN setup.
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide
112

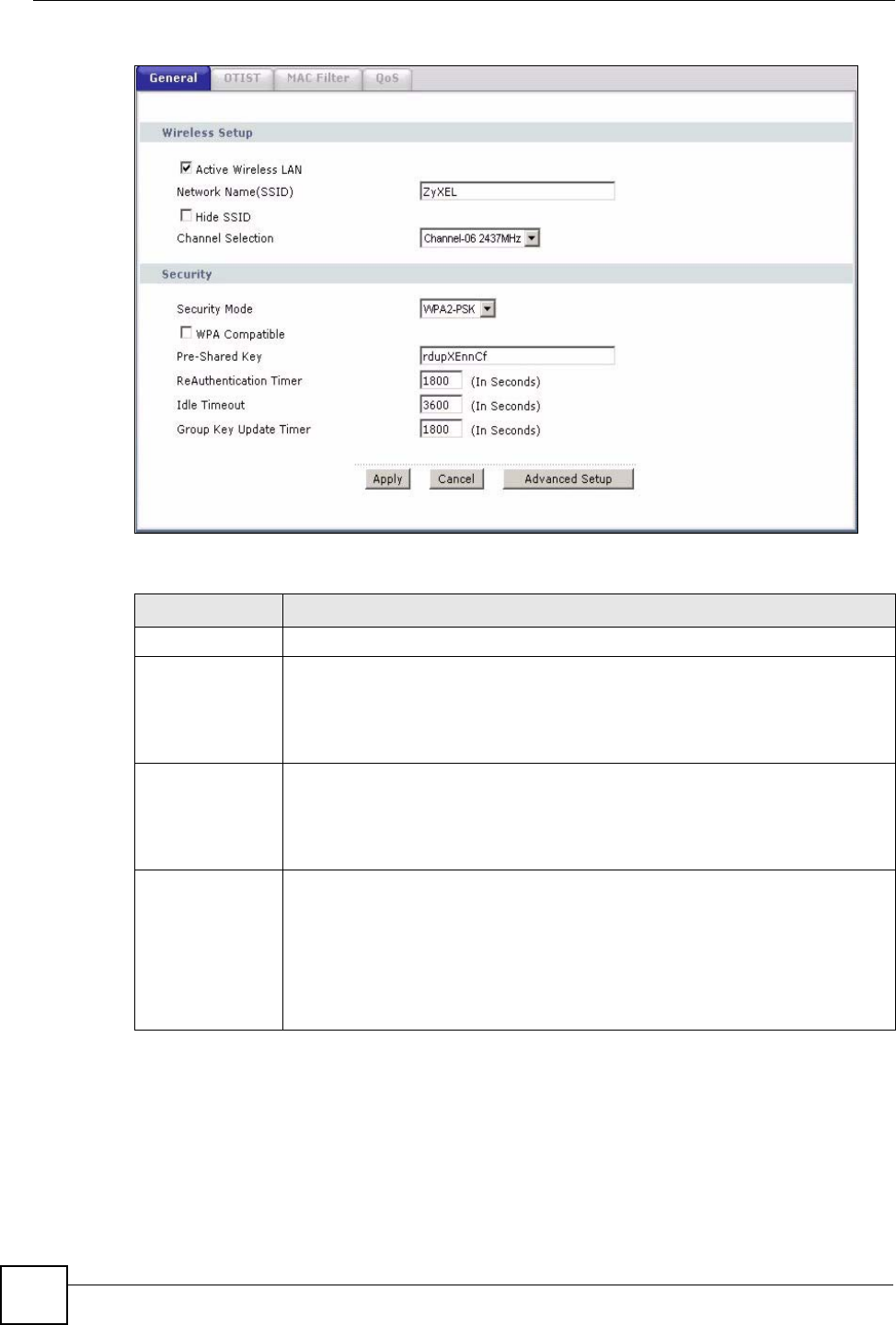

Figure 64 Wireless: WPA-PSK/WPA2-PSK
The following table describes the wireless LAN security labels in this screen.
Table 35 Wireless: WPA-PSK/WPA2-PSK
LABEL DESCRIPTION
Security Mode Choose WPA-PSK or WPA2-PSK from the drop-down list box.
WPA Compatible This check box is available only when you select WPA2-PSK or WPA2 in the
Security Mode field.
Select the check box to have both WPA2 and WPA wireless clients be able to
communicate with the ZyXEL Device even when the ZyXEL Device is using
WPA2-PSK or WPA2.
Pre-Shared Key The encryption mechanisms used for WPA/WPA2 and WPA-PSK/WPA2-PSK
are the same. The only difference between the two is that WPA-PSK/WPA2-PSK
uses a simple common password, instead of user-specific credentials.
Type a pre-shared key from 8 to 63 case-sensitive ASCII characters (including
spaces and symbols).
ReAuthentication
Timer (In
Seconds)
Specify how often wireless clients have to resend usernames and passwords in
order to stay connected. Enter a time interval between 10 and 9999 seconds. The
default time interval is 1800 seconds (30 minutes).
Note: If wireless client authentication is done using a RADIUS
server, the reauthentication timer on the RADIUS server
has priority.
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide 113
7.3.4 WPA/WPA2
In order to configure and enable WPA/WPA2; click the Wireless LAN link under Network to
display the General screen. Select WPA or WPA2 from the Security Mode list.
Idle Timeout (In
Seconds)
The ZyXEL Device automatically disconnects a wireless station from the wireless
network after a period of inactivity. The wireless station needs to send the
username and password again before it can use the wireless network again.
Some wireless clients may prompt users for a username and password; other
clients may use saved login credentials. In either case, there is usually a short
delay while the wireless client logs in to the wireless network again.
This value is usually smaller when the wireless network is keeping track of how
much time each wireless station is connected to the wireless network (for
example, using an authentication server). If the wireless network is not keeping
track of this information, you can usually set this value higher to reduce the
number of delays caused by logging in again.
Group Key
Update Timer (In
Seconds)
The Group Key Update Timer is the rate at which the AP (if using WPA-PSK/
WPA2-PSK key management) or RADIUS server (if using WPA(2) key
management) sends a new group key out to all clients. The re-keying process is
the WPA(2) equivalent of automatically changing the WEP key for an AP and all
stations in a WLAN on a periodic basis. Setting of the Group Key Update Timer
is also supported in WPA-PSK/WPA2-PSK mode. The default is 1800 seconds
(30 minutes).
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to reload the previous configuration for this screen.
Advanced Setup Click Advanced Setup to display the Wireless Advanced Setup screen and edit
more details of your WLAN setup.
Table 35 Wireless: WPA-PSK/WPA2-PSK
LABEL DESCRIPTION
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide
114

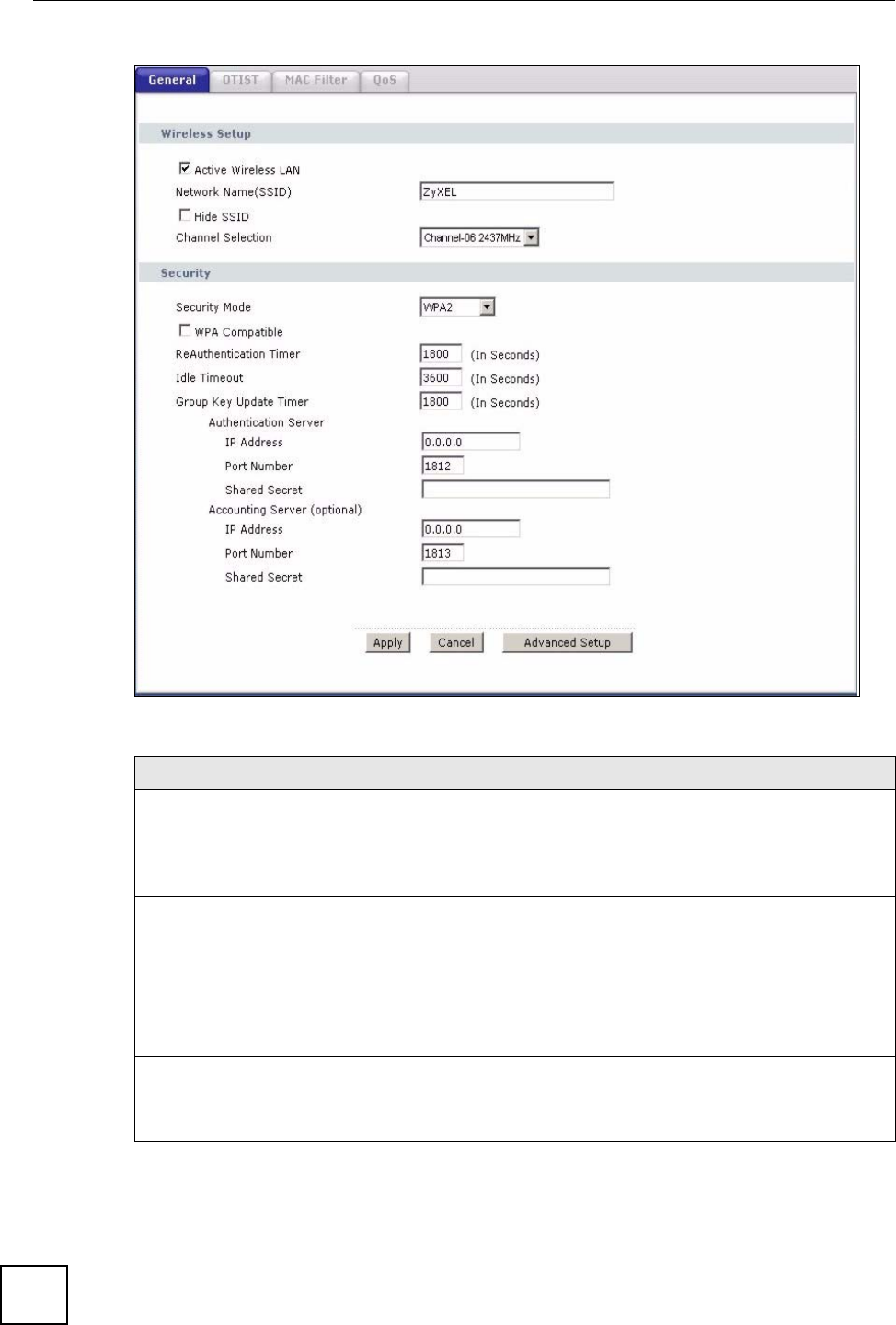

Figure 65 Wireless: WPA/WPA2
The following table describes the wireless LAN security labels in this screen.
Table 36 Wireless: WPA/WPA2
LABEL DESCRIPTION
WPA Compatible This check box is available only when you select WPA2-PSK or WPA2 in the
Security Mode field.
Select the check box to have both WPA2 and WPA wireless clients be able to
communicate with the ZyXEL Device even when the ZyXEL Device is using
WPA2-PSK or WPA2.
ReAuthentication
Timer (In Seconds)
Specify how often wireless clients have to resend usernames and passwords in
order to stay connected. Enter a time interval between 10 and 9999 seconds.
The default time interval is 1800 seconds (30 minutes).
Note: If wireless client authentication is done using a
RADIUS server, the reauthentication timer on the
RADIUS server has priority.
Idle Timeout (In
Seconds)
The ZyXEL Device automatically disconnects a wireless client from the wired
network after a period of inactivity. The wireless client needs to enter the
username and password again before access to the wired network is allowed.
The default time interval is 3600 seconds (or 1 hour).
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide 115

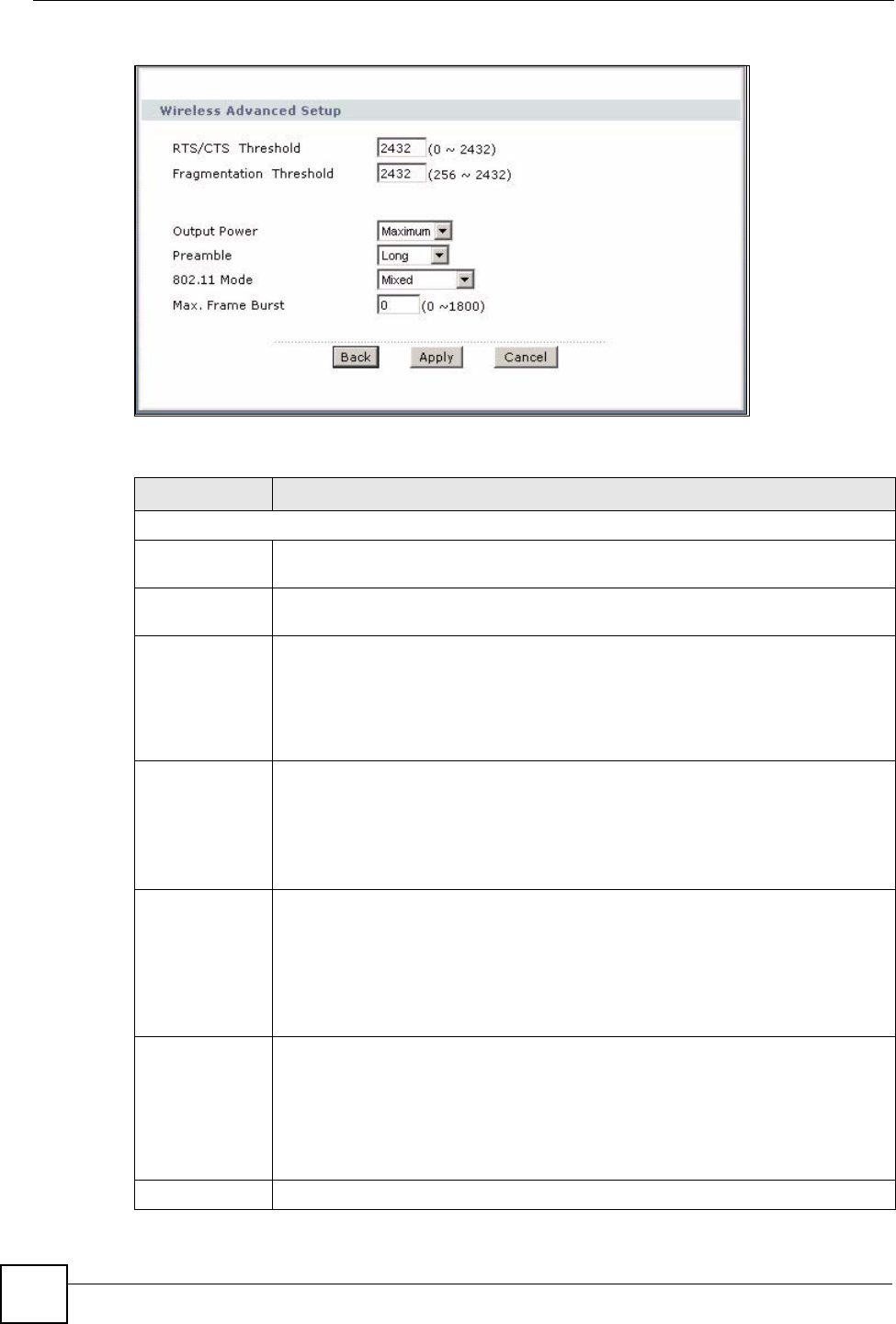

7.3.5 Wireless LAN Advanced Setup
To configure advanced wireless settings, click the Advanced Setup button in the General
screen. The screen appears as shown.
Group Key Update
Timer (In Seconds)
The Group Key Update Timer is the rate at which the AP (if using WPA-PSK/
WPA2-PSK key management) or RADIUS server (if using WPA(2) key
management) sends a new group key out to all clients. The re-keying process is
the WPA(2) equivalent of automatically changing the WEP key for an AP and all
stations in a WLAN on a periodic basis. Setting of the Group Key Update Timer
is also supported in WPA-PSK/WPA2-PSK mode. The default is 1800 seconds
(30 minutes).
Authentication Server
IP Address Enter the IP address of the external authentication server in dotted decimal
notation.
Port Number Enter the port number of the external authentication server. The default port
number is 1812.
You need not change this value unless your network administrator instructs you
to do so with additional information.
Shared Secret Enter a password (up to 31 alphanumeric characters) as the key to be shared
between the external authentication server and the ZyXEL Device.
The key must be the same on the external authentication server and your ZyXEL
Device. The key is not sent over the network.
Accounting Server (optional)
IP Address Enter the IP address of the external accounting server in dotted decimal notation.
Port Number Enter the port number of the external accounting server. The default port number
is 1813.
You need not change this value unless your network administrator instructs you
to do so with additional information.
Shared Secret Enter a password (up to 31 alphanumeric characters) as the key to be shared
between the external accounting server and the ZyXEL Device.
The key must be the same on the external accounting server and your ZyXEL
Device. The key is not sent over the network.
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to reload the previous configuration for this screen.
Advanced Setup Click Advanced Setup to display the Wireless Advanced Setup screen and
edit more details of your WLAN setup.
Table 36 Wireless: WPA/WPA2 (continued)
LABEL DESCRIPTION
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide
116
Figure 66 Advanced
The following table describes the labels in this screen.
Table 37 Wireless LAN: Advanced
LABEL DESCRIPTION
Wireless Advanced Setup
RTS/CTS
Threshold
Enter a value between 0 and 2432.
Fragmentation
Threshold
This is the maximum data fragment size that can be sent. Enter a value between
256 and 2432.
Output Power Set the output power of the ZyXEL Device in this field. This control changes the
strength of the ZyXEL Device's antenna gain or transmission power. Antenna gain
is the increase in coverage. Higher antenna gain improves the range of the signal
for better communications. If there is a high density of APs within an area, decrease
the output power of the ZyXEL Device to reduce interference with other APs.
The options are Maximum, Middle and Minimum.
Preamble Select Long preamble if you are unsure what preamble mode the wireless adapters
support, and to provide more reliable communications in busy wireless networks.
Select Short preamble if you are sure the wireless adapters support it, and to
provide more efficient communications.
Select Dynamic to have the ZyXEL Device automatically use short preamble when
wireless adapters support it, otherwise the ZyXEL Device uses long preamble.
802.11 Mode Select 802.11b Only to allow only IEEE 802.11b compliant WLAN devices to
associate with the ZyXEL Device.
Select 802.11g Only to allow only IEEE 802.11g compliant WLAN devices to
associate with the ZyXEL Device.
Select Mixed to allow either IEEE802.11b or IEEE802.11g compliant WLAN
devices to associate with the ZyXEL Device. The transmission rate of your ZyXEL
Device might be reduced.
Max. Frame
Burst
Enable Maximum Frame Burst to help eliminate collisions in mixed-mode
networks (networks with both IEEE 802.11g and IEEE 802.11b traffic) and enhance
the performance of both pure IEEE 802.11g and mixed IEEE 802.11b/g networks.
Maximum Frame Burst sets the maximum time, in micro-seconds, that the
ZZyXEL Device transmits IEEE 802.11g wireless traffic only.
Type the maximum frame burst between 0 and 1800 (650, 1000 or 1800
recommended). Enter 0 to disable this feature.
Back Click Back to return to the previous screen.
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide 117
7.4 OTIST
In a wireless network, the wireless clients must have the same SSID and security settings as
the access point (AP) or wireless router (we will refer to both as “AP” here) in order to
associate with it. Traditionally this meant that you had to configure the settings on the AP and
then manually configure the exact same settings on each wireless client.
OTIST (One-Touch Intelligent Security Technology) allows you to transfer your AP’s SSID
and WPA-PSK security settings to wireless clients that support OTIST and are within
transmission range. You can also choose to have OTIST generate a WPA-PSK key for you if
you didn’t configure one manually.
"OTIST replaces the pre-configured wireless settings on the wireless clients.
7.4.1 Enabling OTIST
You must enable OTIST on both the AP and wireless client before you start transferring
settings.
"The AP and wireless client(s) MUST use the same Setup key.
7.4.1.1 AP
You can enable OTIST using the RESET button or the web configurator.
7.4.1.1.1 Reset button
If you use the RESET button, the default (01234567) or previous saved (through the web
configurator) Setup key is used to encrypt the settings that you want to transfer.
Hold in the RESET button for three to eight seconds.
"If you hold in the RESET button too long, the device will reset to the factory
defaults!
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to reload the previous configuration for this screen.
Table 37 Wireless LAN: Advanced (continued)
LABEL DESCRIPTION
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide
118
7.4.1.1.2 Web Configurator
Click the Network > Wireless LAN > OTIST. The following screen displays.
Figure 67 OTIST
The following table describes the labels in this screen.
7.4.1.2 Wireless Client
Start the ZyXEL utility and click the Adapter tab. Select the OTIST check box, enter the
same Setup Key as your AP’s and click Save.
Table 38 OTIST
LABEL DESCRIPTION
Setup Key Type an OTIST Setup Key of exactly eight ASCII characters in length.
The default OTIST setup key is "01234567".
Note: If you change the OTIST setup key here, you must
also make the same change on the wireless client(s).
Yes! If you want OTIST to automatically generate a WPA-PSK, you must:
• Change your security to any security other than WPA-PSK in the Wireless
LAN > General screen.
• Select the Yes! checkbox in the OTIST screen and click Start.
• The wireless screen displays an auto generated WPA-PSK and is now in
WPA-PSK security mode.
The WPA-PSK security settings are assigned to the wireless client when you
start OTIST.
Note: If you already have a WPA-PSK configured in the
Wireless LAN > General screen, and you run OTIST
with Yes! selected, OTIST will use the existing WPA-
PSK.
Start Click Start to encrypt the wireless security data using the setup key and have
the ZyXEL Device set the wireless client(s) to use the same wireless settings
as the ZyXEL Device. You must also activate and start OTIST on the wireless
client(s) all within three minutes.
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide 119
Figure 68 Example Wireless Client OTIST Screen
7.4.2 Starting OTIST
"You must click Start in the AP OTIST web configurator screen and in the
wireless client(s) Adapter screen all within three minutes (at the time of writing).
You can start OTIST in the wireless clients and AP in any order but they must all
be within range and have OTIST enabled.
1In the AP, a web configurator screen pops up showing you the security settings to
transfer. You can use the key in this screen to set up WPA-PSK encryption manually for
non-OTIST devices in the wireless network. After reviewing the settings, click OK.
Figure 69 Security Key
2This screen appears while OTIST settings are being transferred. It closes when the
transfer is complete.
Figure 70 OTIST in Progress (AP)
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide
120
Figure 71 OTIST in progress (Client)
In the wireless client, you see this screen if it can’t find an OTIST-enabled AP (with the same
Setup key). Click OK to go back to the ZyXEL utility main screen.
Figure 72 No AP with OTIST Found
• If there is more than one OTIST-enabled AP within range, you see a screen asking you to
select one AP to get settings from.
7.4.3 Notes on OTIST
1If you enabled OTIST in the wireless client, you see this screen each time you start the
utility. Click Ye s for it to search for an OTIST-enabled AP.
Figure 73 Start OTIST?
2If an OTIST-enabled wireless client loses its wireless connection for more than ten
seconds, it will search for an OTIST-enabled AP for up to one minute. (If you manually
have the wireless client search for an OTIST-enabled AP, there is no timeout; click
Cancel in the OTIST progress screen to stop the search.)
3When the wireless client finds an OTIST-enabled AP, you must still click Start in the
AP OTIST web configurator screen or hold in the RESET button (for one to five
seconds) for the AP to transfer settings.
4If you change the SSID or the keys on the AP after using OTIST, you need to run OTIST
again or enter them manually in the wireless client(s).
5If you configure OTIST to generate a WPA-PSK key, this key changes each time you
run OTIST. Therefore, if a new wireless client joins your wireless network, you need to
run OTIST on the AP and ALL wireless clients again.
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide 121
7.5 MAC Filter
The MAC filter screen allows you to configure the ZyXEL Device to give exclusive access to
up to 32 devices (Allow) or exclude up to 32 devices from accessing the ZyXEL Device
(Deny). Every Ethernet device has a unique MAC (Media Access Control) address. The MAC
address is assigned at the factory and consists of six pairs of hexadecimal characters, for
example, 00:A0:C5:00:00:02. You need to know the MAC address of the devices to configure
this screen.
To change your ZyXEL Device’s MAC filter settings, click Network > Wireless LAN >
MAC Filter. The screen appears as shown.

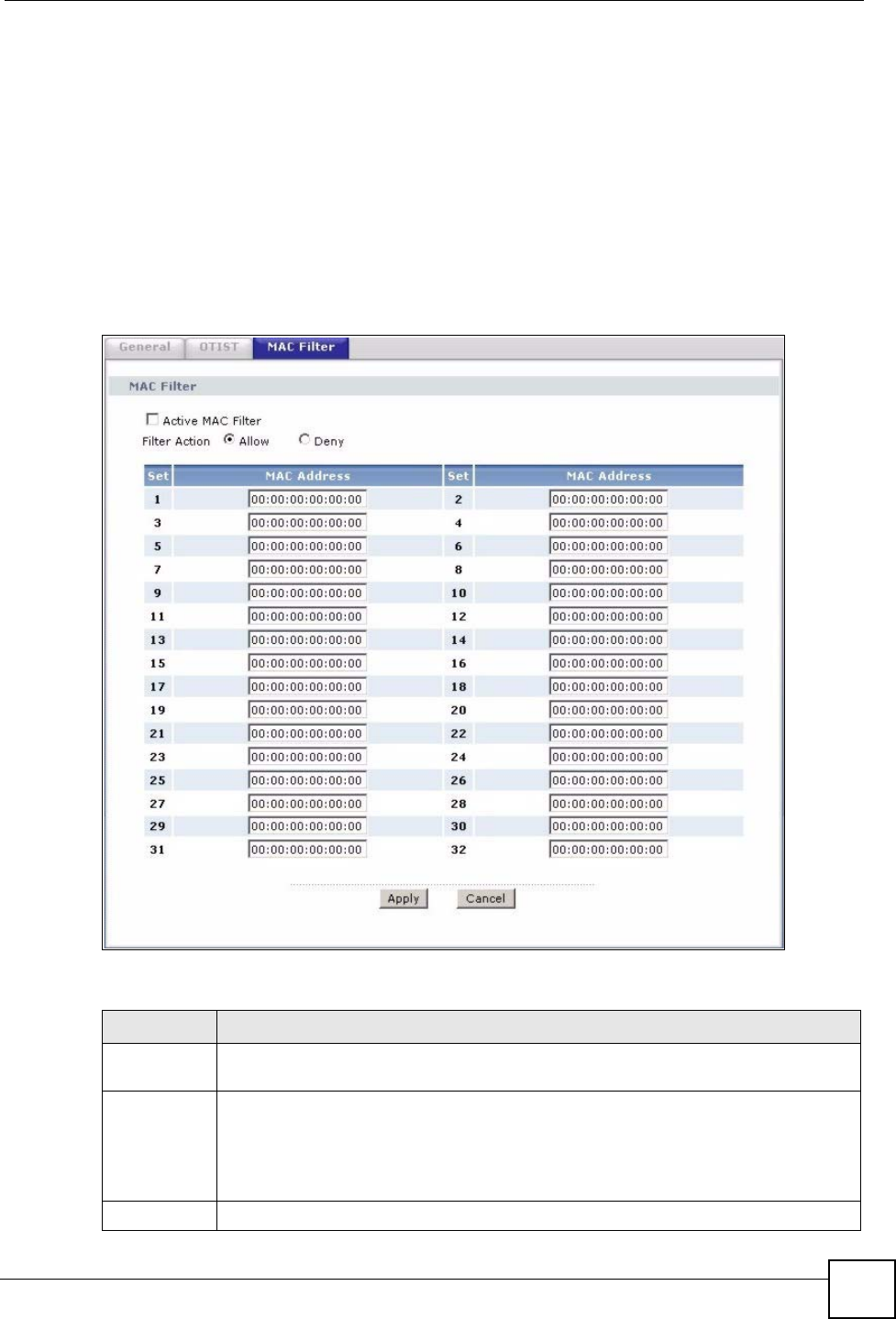

Figure 74 MAC Address Filter
The following table describes the labels in this menu.
Table 39 MAC Address Filter
LABEL DESCRIPTION
Active MAC
Filter
Select the check box to enable MAC address filtering.
Filter Action Define the filter action for the list of MAC addresses in the MAC Address table.
Select Deny to block access to the ZyXEL Device, MAC addresses not listed will be
allowed to access the ZyXEL Device
Select Allow to permit access to the ZyXEL Device, MAC addresses not listed will be
denied access to the ZyXEL Device.
Set This is the index number of the MAC address.
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide
122
7.6 WMM QoS
WMM (Wi-Fi MultiMedia) QoS (Quality of Service) allows you to prioritize wireless traffic
according to the delivery requirements of individual services.
WMM is a part of the IEEE 802.11e QoS enhancement to certified Wi-Fi wireless networks.
7.6.1 WMM QoS Example
When WMM QoS is not enabled, all traffic streams are given the same access throughput to
the wireless network. If the introduction of another traffic stream creates a data transmission
demand that exceeds the current network capacity, then the new traffic stream reduces the
throughput of the other traffic streams.
When WMM QoS is enabled, the streams are prioritized according to the needs of the
application. You can assign different priorities to different applications. This prevents
reductions in data transmission for applications that are sensitive.
7.6.2 WMM QoS Priorities
The following table describes the priorities that you can apply to traffic that the ZyXEL
Device sends to the wireless network.
MAC
Address
Enter the MAC addresses of the wireless client that are allowed or denied access to
the ZyXEL Device in these address fields. Enter the MAC addresses in a valid MAC
address format, that is, six hexadecimal character pairs, for example,
12:34:56:78:9a:bc.
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to reload the previous configuration for this screen.
Table 39 MAC Address Filter
LABEL DESCRIPTION
Table 40 WMM QoS Priorities
PRIORITY LEVELS:
Highest Typically used for voice traffic or video that is especially sensitive to jitter
(variations in delay). Use the highest priority to reduce latency for improved voice
quality.
High Typically used for video traffic which has some tolerance for jitter but needs to be
prioritized over other data traffic.
Mid Typically used for traffic from applications or devices that lack QoS capabilities.
Use mid priority for traffic that is less sensitive to latency, but is affected by long
delays, such as Internet surfing.
Low This is typically used for non-critical “background” traffic such as bulk transfers
and print jobs that are allowed but that should not affect other applications and
users. Use low priority for applications that do not have strict latency and
throughput requirements.
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide 123
7.6.3 Services
The commonly used services and port numbers are shown in the following table. Please refer
to RFC 1700 for further information about port numbers. Next to the name of the service, two
fields appear in brackets. The first field indicates the IP protocol type (TCP, UDP, or ICMP).
The second field indicates the IP port number that defines the service. (Note that there may be
more than one IP protocol type. For example, look at the DNS service. (UDP/TCP:53) means
UDP port 53 and TCP port 53.
Table 41 Commonly Used Services
SERVICE DESCRIPTION
AIM/New-ICQ(TCP:5190) AOL’s Internet Messenger service, used as a listening port by ICQ.
AUTH(TCP:113) Authentication protocol used by some servers.
BGP(TCP:179) Border Gateway Protocol.
BOOTP_CLIENT(UDP:68) DHCP Client.
BOOTP_SERVER(UDP:67) DHCP Server.
CU-SEEME(TCP/UDP:7648,
24032)
A popular videoconferencing solution from White Pines Software.
DNS(UDP/TCP:53) Domain Name Server, a service that matches web names (e.g.
www.zyxel.com) to IP numbers.
FINGER(TCP:79) Finger is a UNIX or Internet related command that can be used to
find out if a user is logged on.
FTP(TCP:20.21) File Transfer Program, a program to enable fast transfer of files,
including large files that may not be possible by e-mail.
H.323(TCP:1720) NetMeeting uses this protocol.
HTTP(TCP:80) Hyper Text Transfer Protocol - a client/server protocol for the world
wide web.
HTTPS(TCP:443) HTTPS is a secured http session often used in e-commerce.
ICQ(UDP:4000) This is a popular Internet chat program.
IKE(UDP:500) The Internet Key Exchange algorithm is used for key distribution and
management.
IPSEC_TUNNEL(AH:0) The IPSEC AH (Authentication Header) tunneling protocol uses this
service.
IPSEC_TUNNEL(ESP:0) The IPSEC ESP (Encapsulation Security Protocol) tunneling protocol
uses this service.
IRC(TCP/UDP:6667) This is another popular Internet chat program.
MSN Messenger(TCP:1863) Microsoft Networks’ messenger service uses this protocol.
MULTICAST(IGMP:0) Internet Group Multicast Protocol is used when sending packets to a
specific group of hosts.
NEW-ICQ(TCP:5190) An Internet chat program.
NEWS(TCP:144) A protocol for news groups.
NFS(UDP:2049) Network File System - NFS is a client/server distributed file service
that provides transparent file sharing for network environments.
NNTP(TCP:119) Network News Transport Protocol is the delivery mechanism for the
USENET newsgroup service.
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide
124
7.7 QoS Screen
The QoS screen by default allows you to automatically give a service a priority level
according to the ToS value in the IP header of the packets it sends.
PING(ICMP:0) Packet INternet Groper is a protocol that sends out ICMP echo
requests to test whether or not a remote host is reachable.
POP3(TCP:110) Post Office Protocol version 3 lets a client computer get e-mail from a
POP3 server through a temporary connection (TCP/IP or other).
PPTP(TCP:1723) Point-to-Point Tunneling Protocol enables secure transfer of data
over public networks. This is the control channel.
PPTP_TUNNEL(GRE:0) Point-to-Point Tunneling Protocol enables secure transfer of data
over public networks. This is the data channel.
RCMD(TCP:512) Remote Command Service.
REAL_AUDIO(TCP:7070) A streaming audio service that enables real time sound over the web.
REXEC(TCP:514) Remote Execution Daemon.
RLOGIN(TCP:513) Remote Login.
RTELNET(TCP:107) Remote Telnet.
RTSP(TCP/UDP:554) The Real Time Streaming (media control) Protocol (RTSP) is a
remote control for multimedia on the Internet.
SFTP(TCP:115) Simple File Transfer Protocol.
SMTP(TCP:25) Simple Mail Transfer Protocol is the message-exchange standard for
the Internet. SMTP enables you to move messages from one e-mail
server to another.
SNMP(TCP/UDP:161) Simple Network Management Program.
SNMP-TRAPS(TCP/UDP:162) Traps for use with the SNMP (RFC:1215).
SQL-NET(TCP:1521) Structured Query Language is an interface to access data on many
different types of database systems, including mainframes, midrange
systems, UNIX systems and network servers.
SSH(TCP/UDP:22) Secure Shell Remote Login Program.
STRM WORKS(UDP:1558) Stream Works Protocol.
SYSLOG(UDP:514) Syslog allows you to send system logs to a UNIX server.
TACACS(UDP:49) Login Host Protocol used for (Terminal Access Controller Access
Control System).
TELNET(TCP:23) Telnet is the login and terminal emulation protocol common on the
Internet and in UNIX environments. It operates over TCP/IP
networks. Its primary function is to allow users to log into remote host
systems.
TFTP(UDP:69) Trivial File Transfer Protocol is an Internet file transfer protocol
similar to FTP, but uses the UDP (User Datagram Protocol) rather
than TCP (Transmission Control Protocol).
VDOLIVE(TCP:7000) Another videoconferencing solution.
Table 41 Commonly Used Services (continued)
SERVICE DESCRIPTION
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide 125
7.7.1 ToS (Type of Service) and WMM QoS
ToS defines the DS (Differentiated Service) field in the IP packet header. The ToS value of
outgoing packets is between 0 and 255. 0 is the lowest priority.
WMM QoS checks the ToS in the header of transmitted data packets. It gives the application a
priority according to this number. If the ToS is not specified, then transmitted data is treated as
normal or best-effort traffic.
Click Network > Wireless LAN > QoS. The following screen displays.

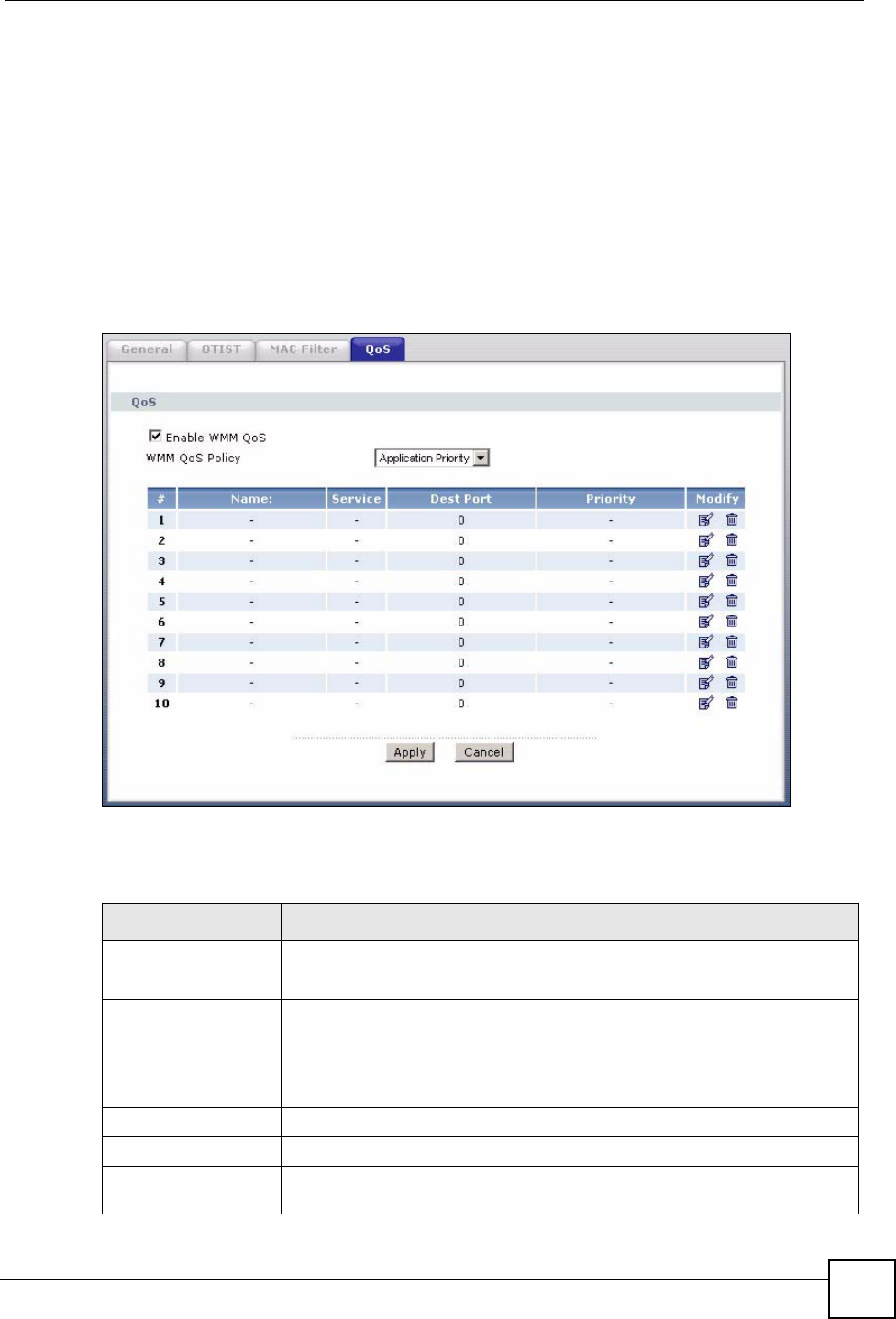

Figure 75 Wireless LAN: QoS
The following table describes the fields in this screen.
Table 42 Wireless Lan: QoS
LABEL DESCRIPTION
QoS
Enable WMM QoS Select the check box to enable WMM QoS on the ZyXEL Device.
WMM QoS Policy Select Default to have the ZyXEL Device automatically give a service a
priority level according to the ToS value in the IP header of packets it sends.
Select Application Priority from the drop-down list box to display a table of
application names, services, ports and priorities to which you want to apply
WMM QoS.
# This is the number of an individual application entry.
Name This field displays a description given to an application entry.
Service This field displays either FTP, WWW, E-mail or a User Defined service to
which you want to apply WMM QoS.
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide
126

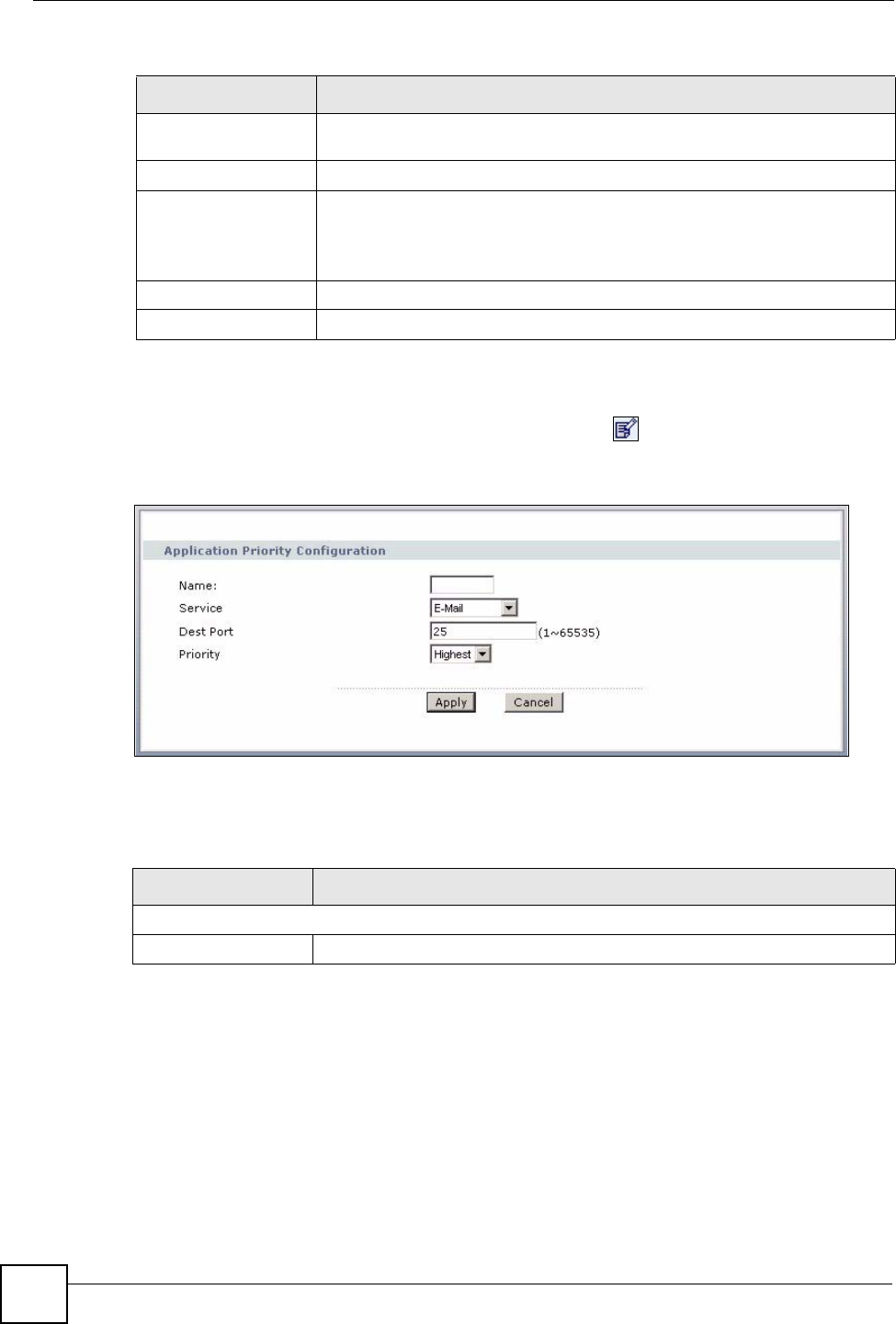

7.7.2 Application Priority Configuration
To edit a WMM QoS application entry, click the edit icon ( ) under Modify. The following
screen displays.
Figure 76 Application Priority Configuration
The following table describes the fields in this screen.
Dest Port This field displays the destination port number to which the application sends
traffic.
Priority This field displays the WMM QoS priority for traffic bandwidth.
Modify Click the to open the Application Priority Configuration screen. Modify an
existing application entry or create a application entry in the Application
Priority Configuration screen.
Click the Remove icon to delete an application entry.
Apply Click Apply to save your changes back to the ZyXEL Device.
Cancel Click Cancel to reload the previous configuration for this screen.
Table 42 Wireless Lan: QoS (continued)
LABEL DESCRIPTION
Table 43 Application Priority Configuration
LABEL DESCRIPTION
Application Priority Configuration
Name Type a description of the application priority.
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide 127
Service The following is a description of the applications you can prioritize with WMM
QoS. Select a service from the drop-down list box.
• FTP
File Transfer Program enables fast transfer of files, including large files that
may not be possible by e-mail. FTP uses port number 21.
• E-Mail
Electronic mail consists of messages sent through a computer network to
specific groups or individuals. Here are some default ports for e-mail:
POP3 - port 110
IMAP - port 143
SMTP - port 25
HTTP - port 80
•WWW
The World Wide Web is an Internet system to distribute graphical, hyper-linked
information, based on Hyper Text Transfer Protocol (HTTP) - a client/server
protocol for the World Wide Web. The Web is not synonymous with the
Internet; rather, it is just one service on the Internet. Other services on the
Internet include Internet Relay Chat and Newsgroups. The Web is accessed
through use of a browser.
• User-Defined
User-defined services are user specific services configured using known ports
and applications.
Dest Port This displays the port the selected service uses. Type a port number in the
field provided if you want to use a different port to the default port. See table
Table 41 on page 123 for information on port numbers.
Priority Select a priority from the drop-down list box.
Apply Click Apply to save your changes back to the ZyXEL Device.
Cancel Click Cancel to return to the previous screen without saving your changes.
Table 43 Application Priority Configuration (continued)
LABEL DESCRIPTION
Chapter 7 Wireless LAN
P-660HW-Dx v2 User’s Guide
128
P-660HW-Dx v2 User’s Guide 129
CHAPTER 8
Network Address Translation
(NAT) Screens
This chapter discusses how to configure NAT on the ZyXEL Device.
8.1 NAT Overview
NAT (Network Address Translation - NAT, RFC 1631) is the translation of the IP address of a
host in a packet, for example, the source address of an outgoing packet, used within one
network to a different IP address known within another network.
8.1.1 NAT Definitions
Inside/outside denotes where a host is located relative to the ZyXEL Device, for example, the
computers of your subscribers are the inside hosts, while the web servers on the Internet are
the outside hosts.
Global/local denotes the IP address of a host in a packet as the packet traverses a router, for
example, the local address refers to the IP address of a host when the packet is in the local
network, while the global address refers to the IP address of the host when the same packet is
traveling in the WAN side.
Note that inside/outside refers to the location of a host, while global/local refers to the IP
address of a host used in a packet. Thus, an inside local address (ILA) is the IP address of an
inside host in a packet when the packet is still in the local network, while an inside global
address (IGA) is the IP address of the same inside host when the packet is on the WAN side.
The following table summarizes this information.
NAT never changes the IP address (either local or global) of an outside host.
Table 44 NAT Definitions
ITEM DESCRIPTION
Inside This refers to the host on the LAN.
Outside This refers to the host on the WAN.
Local This refers to the packet address (source or destination) as the packet travels on the
LAN.
Global This refers to the packet address (source or destination) as the packet travels on the
WAN.
Chapter 8 Network Address Translation (NAT) Screens
P-660HW-Dx v2 User’s Guide
130
8.1.2 What NAT Does
In the simplest form, NAT changes the source IP address in a packet received from a
subscriber (the inside local address) to another (the inside global address) before forwarding
the packet to the WAN side. When the response comes back, NAT translates the destination
address (the inside global address) back to the inside local address before forwarding it to the
original inside host. Note that the IP address (either local or global) of an outside host is never
changed.
The global IP addresses for the inside hosts can be either static or dynamically assigned by the
ISP. In addition, you can designate servers, for example, a web server and a telnet server, on
your local network and make them accessible to the outside world. If you do not define any
servers (for Many-to-One and Many-to-Many Overload mapping – see Table 45 on page 132),
NAT offers the additional benefit of firewall protection. With no servers defined, your ZyXEL
Device filters out all incoming inquiries, thus preventing intruders from probing your network.
For more information on IP address translation, refer to RFC 1631, The IP Network Address
Translator (NAT).

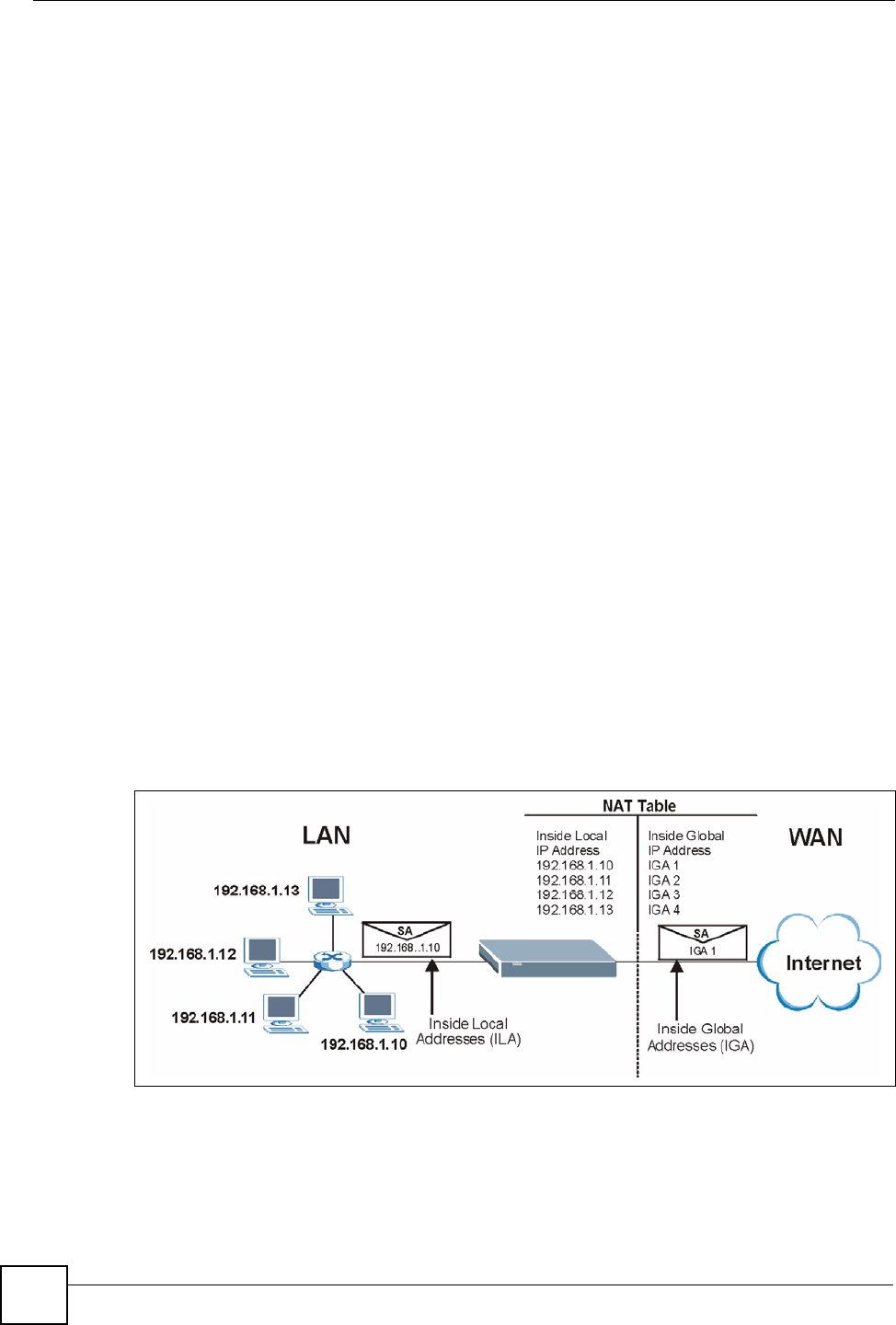

8.1.3 How NAT Works
Each packet has two addresses – a source address and a destination address. For outgoing
packets, the ILA (Inside Local Address) is the source address on the LAN, and the IGA (Inside
Global Address) is the source address on the WAN. For incoming packets, the ILA is the
destination address on the LAN, and the IGA is the destination address on the WAN. NAT
maps private (local) IP addresses to globally unique ones required for communication with
hosts on other networks. It replaces the original IP source address (and TCP or UDP source
port numbers for Many-to-One and Many-to-Many Overload NAT mapping) in each packet
and then forwards it to the Internet. The ZyXEL Device keeps track of the original addresses
and port numbers so incoming reply packets can have their original values restored. The
following figure illustrates this.
Figure 77 How NAT Works

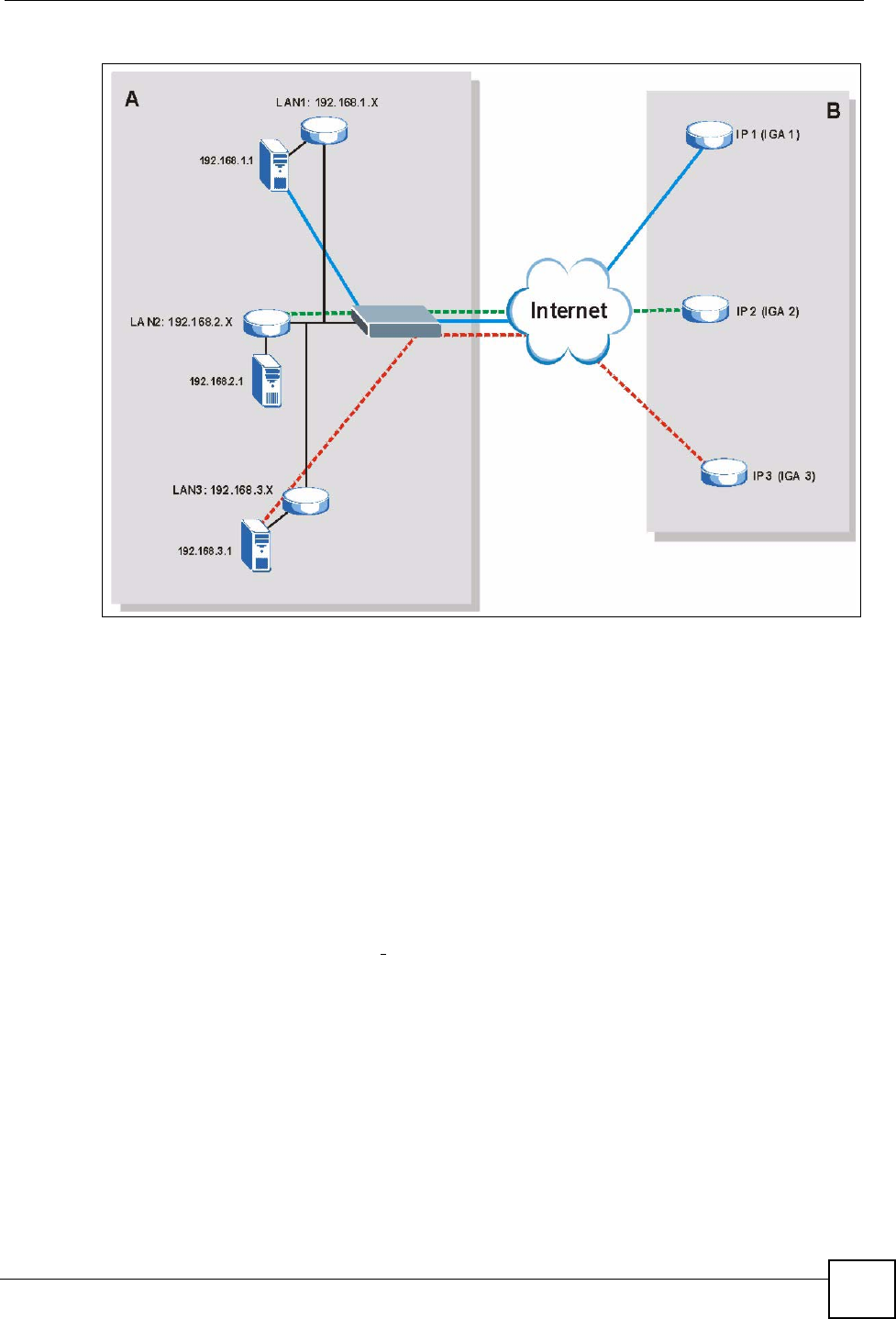

8.1.4 NAT Application
The following figure illustrates a possible NAT application, where three inside LANs (logical
LANs using IP Alias) behind the ZyXEL Device can communicate with three distinct WAN
networks. More examples follow at the end of this chapter.
Chapter 8 Network Address Translation (NAT) Screens
P-660HW-Dx v2 User’s Guide 131
Figure 78 NAT Application With IP Alias
8.1.5 NAT Mapping Types
NAT supports five types of IP/port mapping. They are:
•One to One: In One-to-One mode, the ZyXEL Device maps one local IP address to one
global IP address.
•Many to One: In Many-to-One mode, the ZyXEL Device maps multiple local IP
addresses to one global IP address. This is equivalent to SUA (for instance, PAT, port
address translation), ZyXEL’s Single User Account feature that previous ZyXEL routers
supported (the SUA Only option in today’s routers).
•Many to Many Overload: In Many-to-Many Overload mode, the ZyXEL Device maps
the multiple local IP addresses to shared global IP addresses.
•Many-to-Many No Overload: In Many-to-Many No Overload mode, the ZyXEL Device
maps each local IP address to a unique global IP address.
•Server: This type allows you to specify inside servers of different services behind the
NAT to be accessible to the outside world.
Port numbers do NOT change for One-to-One and Many-to-Many No Overload NAT
mapping types.
Chapter 8 Network Address Translation (NAT) Screens
P-660HW-Dx v2 User’s Guide
132
The following table summarizes these types.
8.2 SUA (Single User Account) Versus NAT
SUA (Single User Account) is a ZyNOS implementation of a subset of NAT that supports two
types of mapping, Many-to-One and Server. The ZyXEL Device also supports Full
Feature NAT to map multiple global IP addresses to multiple private LAN IP addresses of
clients or servers using mapping types as outlined in Table 45 on page 132.
• Choose SUA Only if you have just one public WAN IP address for your ZyXEL Device.
• Choose Full Feature if you have multiple public WAN IP addresses for your ZyXEL
Device.
8.3 SIP ALG
Some applications, such as SIP, cannot operate through NAT (are NAT un-friendly) because
they embed IP addresses and port numbers in their packets’ data payload.
Some NAT routers may include a SIP Application Layer Gateway (ALG). An Application
Layer Gateway (ALG) manages a specific protocol (such as SIP, H.323 or FTP) at the
application layer.
A SIP ALG allows SIP calls to pass through NAT by examining and translating IP addresses
embedded in the data stream.
When the ZyXEL Device registers with the SIP register server, the SIP ALG translates the
ZyXEL Device’s private IP address inside the SIP data stream to a public IP address. You do
not need to use STUN or an outbound proxy if your ZyXEL Device is behind a SIP ALG.
Table 45 NAT Mapping Types
TYPE IP MAPPING
One-to-One ILA1ÅÆ IGA1
Many-to-One (SUA/PAT) ILA1ÅÆ IGA1
ILA2ÅÆ IGA1
…
Many-to-Many Overload ILA1ÅÆ IGA1
ILA2ÅÆ IGA2
ILA3ÅÆ IGA1
ILA4ÅÆ IGA2
…
Many-to-Many No Overload ILA1ÅÆ IGA1
ILA2ÅÆ IGA2
ILA3ÅÆ IGA3
…
Server Server 1 IPÅÆ IGA1
Server 2 IPÅÆ IGA1
Server 3 IPÅÆ IGA1
Chapter 8 Network Address Translation (NAT) Screens
P-660HW-Dx v2 User’s Guide 133
8.4 NAT General Setup
You must create a firewall rule in addition to setting up SUA/NAT, to allow traffic from the
WAN to be forwarded through the ZyXEL Device. Click Network > NAT to open the
following screen.

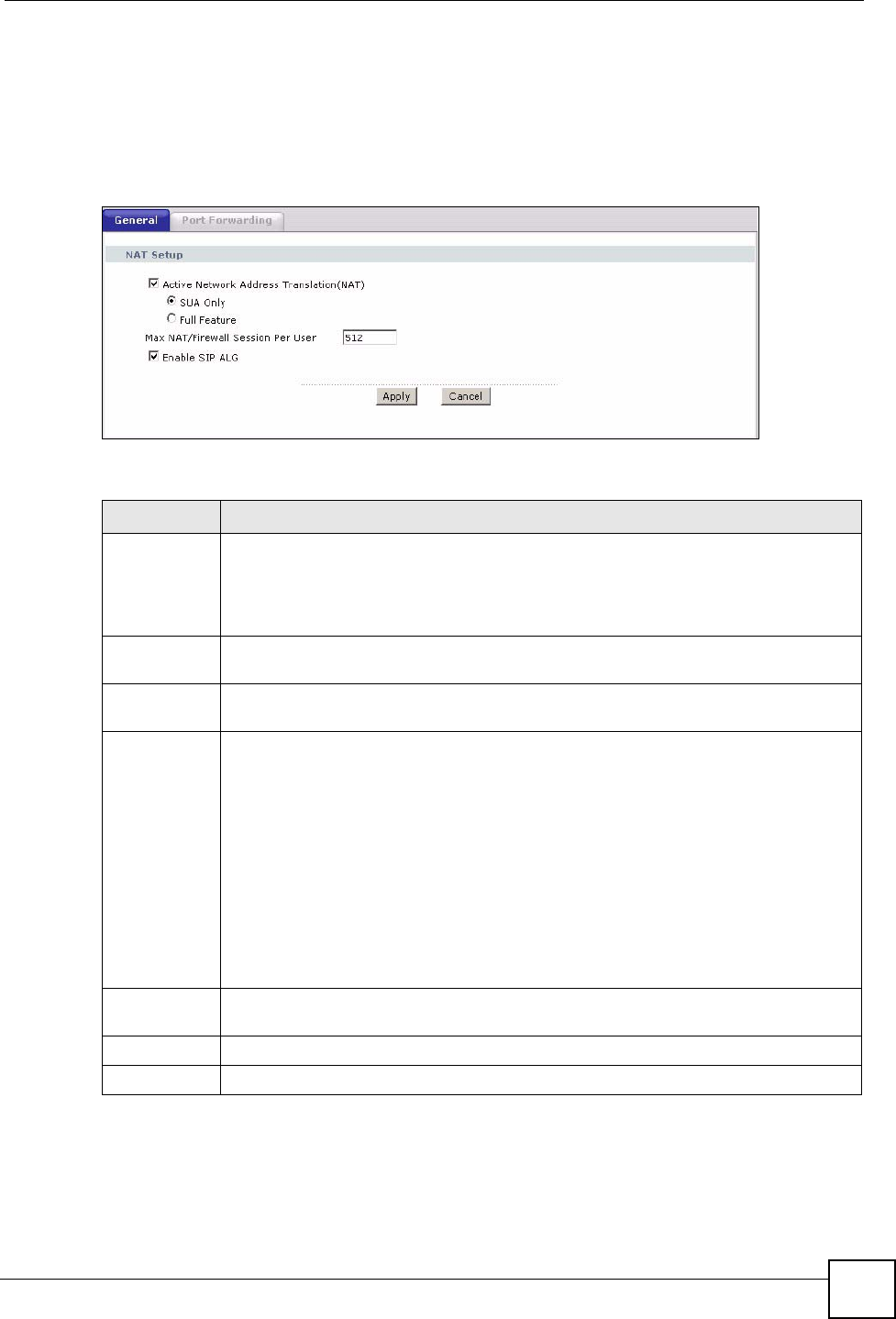

Figure 79 NAT General
The following table describes the labels in this screen.
Table 46 NAT General
LABEL DESCRIPTION
Active
Network
Address
Translation
(NAT)
Select this check box to enable NAT.
SUA Only Select this radio button if you have just one public WAN IP address for your ZyXEL
Device.
Full Feature Select this radio button if you have multiple public WAN IP addresses for your ZyXEL
Device.
Max NAT/
Firewall
Session Per
User
When computers use peer to peer applications, such as file sharing applications, they
need to establish NAT sessions. If you do not limit the number of NAT sessions a
single client can establish, this can result in all of the available NAT sessions being
used. In this case, no additional NAT sessions can be established, and users may not
be able to access the Internet.
Each NAT session establishes a corresponding firewall session. Use this field to limit
the number of NAT/firewall sessions each client computer can establish through the
ZyXEL Device.
If your network has a small number of clients using peer to peer applications, you can
raise this number to ensure that their performance is not degraded by the number of
NAT sessions they can establish. If your network has a large number of users using
peer to peer applications, you can lower this number to ensure no single client is using
all of the available NAT sessions.
Enable SIP
ALG
Select this option if you want to enable SIP ALG, for example, to use an IP phone
through your NAT enabled ZyXEL Device.
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to reload the previous configuration for this screen.
Chapter 8 Network Address Translation (NAT) Screens
P-660HW-Dx v2 User’s Guide
134
8.5 Port Forwarding
A port forwarding set is a list of inside (behind NAT on the LAN) servers, for example, web or
FTP, that you can make visible to the outside world even though NAT makes your whole
inside network appear as a single computer to the outside world.
You may enter a single port number or a range of port numbers to be forwarded, and the local
IP address of the desired server. The port number identifies a service; for example, web
service is on port 80 and FTP on port 21. In some cases, such as for unknown services or
where one server can support more than one service (for example both FTP and web service),
it might be better to specify a range of port numbers. You can allocate a server IP address that
corresponds to a port or a range of ports.
Many residential broadband ISP accounts do not allow you to run any server processes (such
as a Web or FTP server) from your location. Your ISP may periodically check for servers and
may suspend your account if it discovers any active services at your location. If you are
unsure, refer to your ISP.
8.5.1 Default Server IP Address
In addition to the servers for specified services, NAT supports a default server IP address. A
default server receives packets from ports that are not specified in this screen.
"If you do not assign a Default Server IP address, the ZyXEL Device discards all
packets received for ports that are not specified here or in the remote
management setup.
8.5.2 Port Forwarding: Services and Port Numbers
Use the Port Forwarding screen to forward incoming service requests to the server(s) on your
local network.
The most often used port numbers are shown in the following table. Please refer to RFC 1700
for further information about port numbers.
Table 47 Services and Port Numbers
SERVICES PORT NUMBER
ECHO 7
FTP (File Transfer Protocol) 21
SMTP (Simple Mail Transfer Protocol) 25
DNS (Domain Name System) 53
Finger 79
HTTP (Hyper Text Transfer protocol or WWW, Web) 80
POP3 (Post Office Protocol) 110
NNTP (Network News Transport Protocol) 119
SNMP (Simple Network Management Protocol) 161
Chapter 8 Network Address Translation (NAT) Screens
P-660HW-Dx v2 User’s Guide 135
8.5.3 Configuring Servers Behind Port Forwarding (Example)
Let's say you want to assign ports 21-25 to one FTP, Telnet and SMTP server (A in the
example), port 80 to another (B in the example) and assign a default server IP address of
192.168.1.35 to a third (C in the example). You assign the LAN IP addresses and the ISP
assigns the WAN IP address. The NAT network appears as a single host on the Internet.
Figure 80 Multiple Servers Behind NAT Example
8.6 Configuring Port Forwarding
"The Port Forwarding screen is available only when you select SUA Only in the
NAT > General screen.
"If you do not assign a Default Server IP address, the ZyXEL Device discards all
packets received for ports that are not specified here or in the remote
management setup.
Click Network > NAT > Port Forwarding to open the following screen.
See Table 47 on page 134 for port numbers commonly used for particular services.
SNMP trap 162
PPTP (Point-to-Point Tunneling Protocol) 1723
Table 47 Services and Port Numbers
SERVICES PORT NUMBER
Chapter 8 Network Address Translation (NAT) Screens
P-660HW-Dx v2 User’s Guide
136

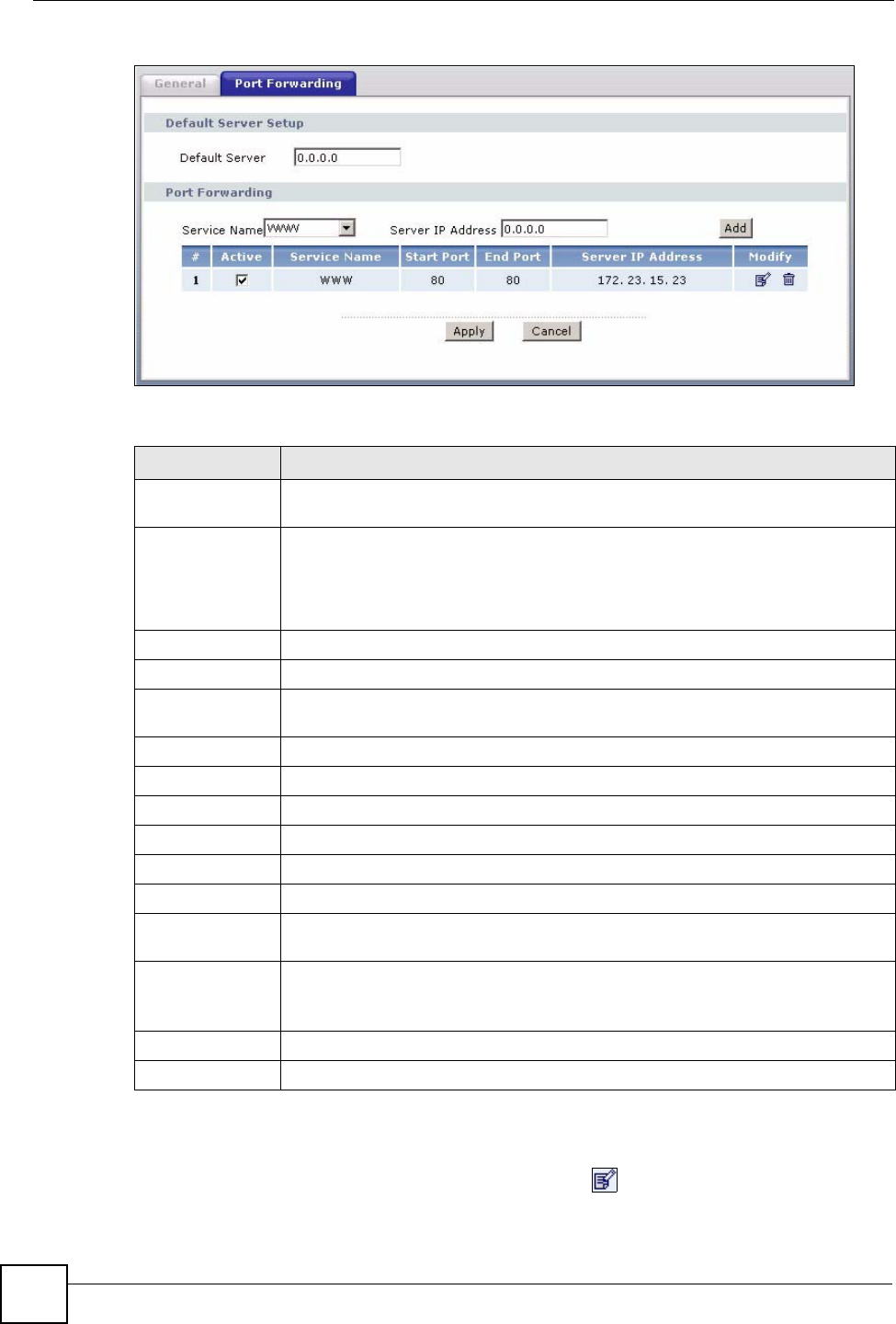

Figure 81 NAT Port Forwarding
The following table describes the fields in this screen.
8.6.1 Port Forwarding Rule Edit
To edit a port forwarding rule, click the rule’s edit icon ( ) in the Port Forwarding screen
to display the screen shown next.
Table 48 NAT Port Forwarding
LABEL DESCRIPTION
Default Server
Setup
Default Server In addition to the servers for specified services, NAT supports a default server. A
default server receives packets from ports that are not specified in this screen. If
you do not assign a Default Server IP address, the ZyXEL Device discards all
packets received for ports that are not specified here or in the remote
management setup.
Port Forwarding
Service Name Select a service from the drop-down list box.
Server IP
Address
Enter the IP address of the server for the specified service.
Add Click this button to add a rule to the table below.
#This is the rule index number (read-only).
Active Click this check box to enable the rule.
Service Name This is a service’s name.
Start Port This is the first port number that identifies a service.
End Port This is the last port number that identifies a service.
Server IP
Address
This is the server’s IP address.
Modify Click the edit icon to go to the screen where you can edit the port forwarding rule.
Click the delete icon to delete an existing port forwarding rule. Note that
subsequent rules move up by one when you take this action.
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to return to the previous configuration.
Chapter 8 Network Address Translation (NAT) Screens
P-660HW-Dx v2 User’s Guide 137
Figure 82 Port Forwarding Rule Setup
The following table describes the fields in this screen.
8.7 Address Mapping
"The Address Mapping screen is available only when you select Full Feature in
the NAT > General screen.
Ordering your rules is important because the ZyXEL Device applies the rules in the order that
you specify. When a rule matches the current packet, the ZyXEL Device takes the
corresponding action and the remaining rules are ignored. If there are any empty rules before
your new configured rule, your configured rule will be pushed up by that number of empty
Table 49 Port Forwarding Rule Setup
LABEL DESCRIPTION
Active Click this check box to enable the rule.
Service Name Enter a name to identify this port-forwarding rule.
Start Port Enter a port number in this field.
To forward only one port, enter the port number again in the End Port field.
To forward a series of ports, enter the start port number here and the end port
number in the End Port field.
End Port Enter a port number in this field.
To forward only one port, enter the port number again in the Start Port field above
and then enter it again in this field.
To forward a series of ports, enter the last port number in a series that begins with
the port number in the Start Port field above.
Server IP
Address
Enter the inside IP address of the server here.
Back Click Back to return to the previous screen.
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
Chapter 8 Network Address Translation (NAT) Screens
P-660HW-Dx v2 User’s Guide
138
rules. For example, if you have already configured rules 1 to 6 in your current set and now you
configure rule number 9. In the set summary screen, the new rule will be rule 7, not 9. Now if
you delete rule 4, rules 5 to 7 will be pushed up by 1 rule, so old rules 5, 6 and 7 become new
rules 4, 5 and 6.
To change your ZyXEL Device’s address mapping settings, click Network > NAT > Address
Mapping to open the following screen.

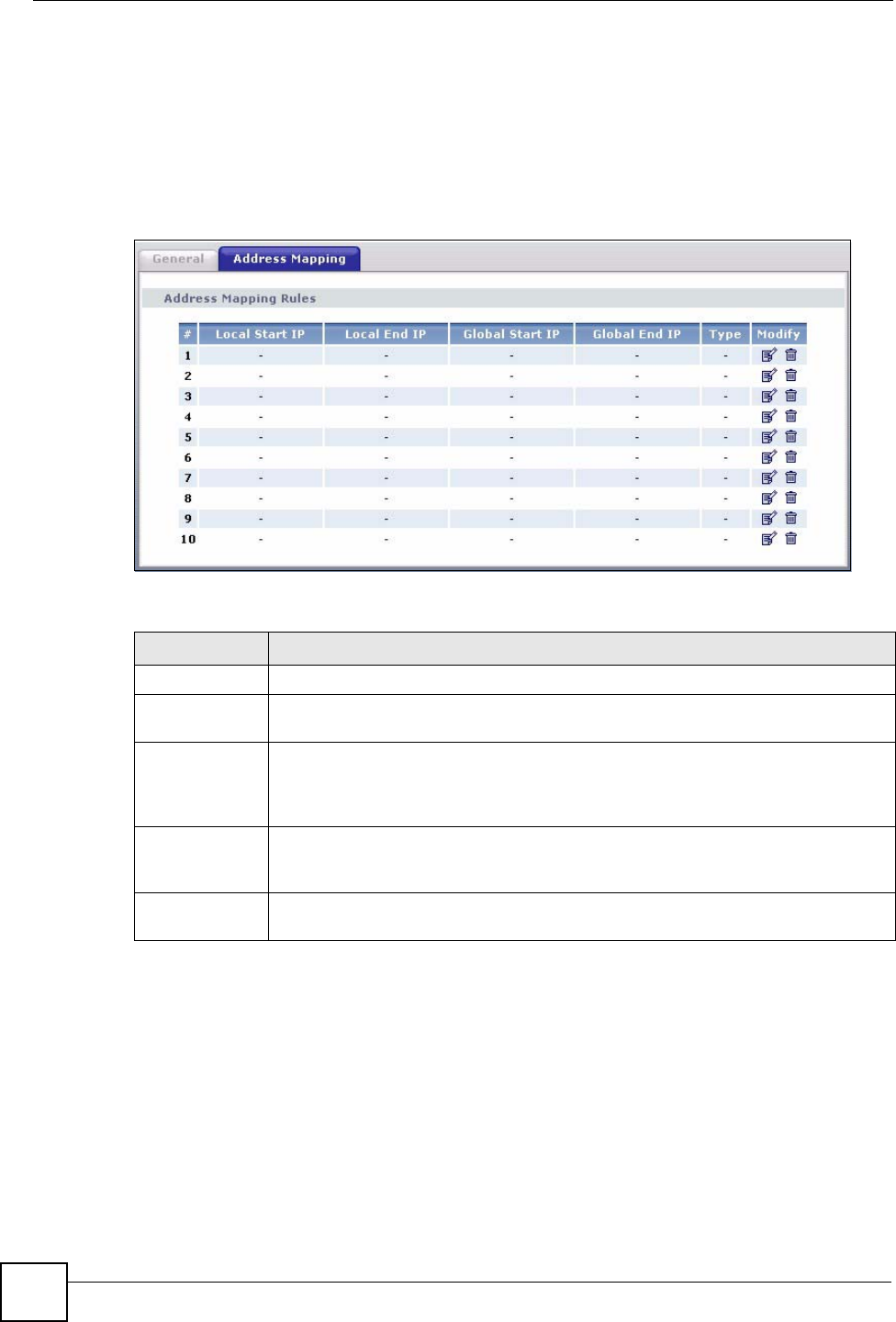

Figure 83 Address Mapping Rules
The following table describes the fields in this screen.
Table 50 Address Mapping Rules
LABEL DESCRIPTION
#This is the rule index number.
Local Start IP This is the starting Inside Local IP Address (ILA). Local IP addresses are N/A for
Server port mapping.
Local End IP This is the end Inside Local IP Address (ILA). If the rule is for all local IP addresses,
then this field displays 0.0.0.0 as the Local Start IP address and 255.255.255.255
as the Local End IP address. This field is N/A for One-to-one and Server mapping
types.
Global Start IP This is the starting Inside Global IP Address (IGA). Enter 0.0.0.0 here if you have a
dynamic IP address from your ISP. You can only do this for Many-to-One and
Server mapping types.
Global End IP This is the ending Inside Global IP Address (IGA). This field is N/A for One-to-one,
Many-to-One and Server mapping types.
Chapter 8 Network Address Translation (NAT) Screens
P-660HW-Dx v2 User’s Guide 139
8.7.1 Address Mapping Rule Edit
To edit an address mapping rule, click the rule’s edit icon in the Address Mapping screen to
display the screen shown next.

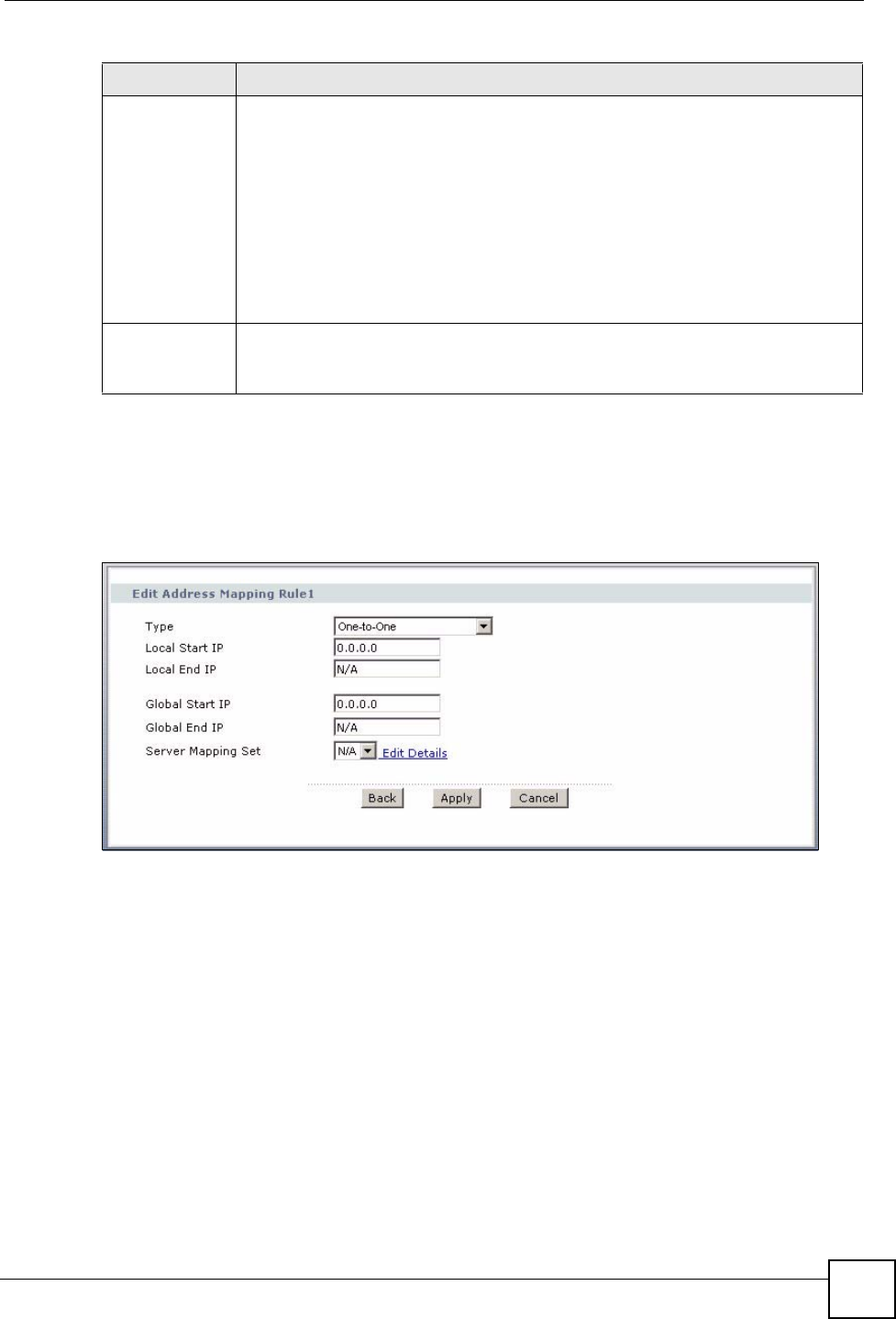

Figure 84 Edit Address Mapping Rule
Type 1-1: One-to-one mode maps one local IP address to one global IP address. Note
that port numbers do not change for the One-to-one NAT mapping type.
M-1: Many-to-One mode maps multiple local IP addresses to one global IP address.
This is equivalent to SUA (i.e., PAT, port address translation), ZyXEL's Single User
Account feature that previous ZyXEL routers supported only.
M-M Ov (Overload): Many-to-Many Overload mode maps multiple local IP
addresses to shared global IP addresses.
MM No (No Overload): Many-to-Many No Overload mode maps each local IP
address to unique global IP addresses.
Server: This type allows you to specify inside servers of different services behind
the NAT to be accessible to the outside world.
Modify Click the edit icon to go to the screen where you can edit the address mapping rule.
Click the delete icon to delete an existing address mapping rule. Note that
subsequent address mapping rules move up by one when you take this action.
Table 50 Address Mapping Rules (continued)
LABEL DESCRIPTION
Chapter 8 Network Address Translation (NAT) Screens
P-660HW-Dx v2 User’s Guide
140
The following table describes the fields in this screen.
Table 51 Edit Address Mapping Rule
LABEL DESCRIPTION
Type Choose the port mapping type from one of the following.
•One-to-One: One-to-One mode maps one local IP address to one global IP
address. Note that port numbers do not change for One-to-one NAT mapping
type.
•Many-to-One: Many-to-One mode maps multiple local IP addresses to one
global IP address. This is equivalent to SUA (i.e., PAT, port address translation),
ZyXEL's Single User Account feature that previous ZyXEL routers supported
only.
•Many-to-Many Overload: Many-to-Many Overload mode maps multiple local IP
addresses to shared global IP addresses.
•Many-to-Many No Overload: Many-to-Many No Overload mode maps each
local IP address to unique global IP addresses.
•Server: This type allows you to specify inside servers of different services behind
the NAT to be accessible to the outside world.
Local Start IP This is the starting local IP address (ILA). Local IP addresses are N/A for Server port
mapping.
Local End IP This is the end local IP address (ILA). If your rule is for all local IP addresses, then
enter 0.0.0.0 as the Local Start IP address and 255.255.255.255 as the Local End
IP address.
This field is N/A for One-to-One and Server mapping types.
Global Start IP This is the starting global IP address (IGA). Enter 0.0.0.0 here if you have a dynamic
IP address from your ISP.
Global End IP This is the ending global IP address (IGA). This field is N/A for One-to-One, Many-
to-One and Server mapping types.
Server Mapping
Set
Only available when Type is set to Server.
Select a number from the drop-down menu to choose a server mapping set.
Edit Details Click this link to go to the Port Forwarding screen to edit a server mapping set that
you have selected in the Server Mapping Set field.
Back Click Back to return to the previous screen.
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
141
PART IV
Security
Firewalls (143)
Firewall Configuration (155)
Content Filtering (177)
Certificates (145)
142
P-660HW-Dx v2 User’s Guide 143
CHAPTER 9
Firewalls
This chapter gives some background information on firewalls and introduces the ZyXEL
Device firewall.
9.1 Firewall Overview
Originally, the term firewall referred to a construction technique designed to prevent the
spread of fire from one room to another. The networking term “firewall” is a system or group
of systems that enforces an access-control policy between two networks. It may also be
defined as a mechanism used to protect a trusted network from an untrusted network. Of
course, firewalls cannot solve every security problem. A firewall is one of the mechanisms
used to establish a network security perimeter in support of a network security policy. It
should never be the only mechanism or method employed. For a firewall to guard effectively,
you must design and deploy it appropriately. This requires integrating the firewall into a broad
information-security policy. In addition, specific policies must be implemented within the
firewall itself.
Refer to Section 10.5 on page 158 to configure default firewall settings.
Refer to Section 10.6 on page 159 to view firewall rules.
Refer to Section 10.6.1 on page 161 to configure firewall rules.
Refer to Section 10.6.2 on page 164 to configure a custom service.
Refer to Section 10.10.3 on page 173 to configure firewall thresholds.
9.2 Types of Firewalls
There are three main types of firewalls:
• Packet Filtering Firewalls
• Application-level Firewalls
• Stateful Inspection Firewalls
9.2.1 Packet Filtering Firewalls
Packet filtering firewalls restrict access based on the source/destination computer network
address of a packet and the type of application.
Chapter 9 Firewalls
P-660HW-Dx v2 User’s Guide
144
9.2.2 Application-level Firewalls
Application-level firewalls restrict access by serving as proxies for external servers. Since they
use programs written for specific Internet services, such as HTTP, FTP and telnet, they can
evaluate network packets for valid application-specific data. Application-level gateways have
a number of general advantages over the default mode of permitting application traffic directly
to internal hosts:
Information hiding prevents the names of internal systems from being made known via DNS
to outside systems, since the application gateway is the only host whose name must be made
known to outside systems.
Robust authentication and logging pre-authenticates application traffic before it reaches
internal hosts and causes it to be logged more effectively than if it were logged with standard
host logging. Filtering rules at the packet filtering router can be less complex than they would
be if the router needed to filter application traffic and direct it to a number of specific systems.
The router need only allow application traffic destined for the application gateway and reject
the rest.
9.2.3 Stateful Inspection Firewalls
Stateful inspection firewalls restrict access by screening data packets against defined access
rules. They make access control decisions based on IP address and protocol. They also
"inspect" the session data to assure the integrity of the connection and to adapt to dynamic
protocols. These firewalls generally provide the best speed and transparency, however, they
may lack the granular application level access control or caching that some proxies support.
See Section 9.5 on page 148 for more information on stateful inspection.
Firewalls, of one type or another, have become an integral part of standard security solutions
for enterprises.
9.3 Introduction to ZyXEL’s Firewall
The ZyXEL Device firewall is a stateful inspection firewall and is designed to protect against
Denial of Service attacks when activated. The ZyXEL Device’s purpose is to allow a private
Local Area Network (LAN) to be securely connected to the Internet. The ZyXEL Device can
be used to prevent theft, destruction and modification of data, as well as log events, which may
be important to the security of your network. The ZyXEL Device also has packet filtering
capabilities.
The ZyXEL Device is installed between the LAN and the Internet. This allows it to act as a
secure gateway for all data passing between the Internet and the LAN.
The ZyXEL Device has one DSL/ISDN port and one Ethernet LAN port, which physically
separate the network into two areas.
• The DSL/ISDN port connects to the Internet.
• The LAN (Local Area Network) port attaches to a network of computers, which needs
security from the outside world. These computers will have access to Internet services
such as e-mail, FTP, and the World Wide Web. However, “inbound access” will not be
allowed unless you configure remote management or create a firewall rule to allow a
remote host to use a specific service.
Chapter 9 Firewalls
P-660HW-Dx v2 User’s Guide 145
9.3.1 Denial of Service Attacks

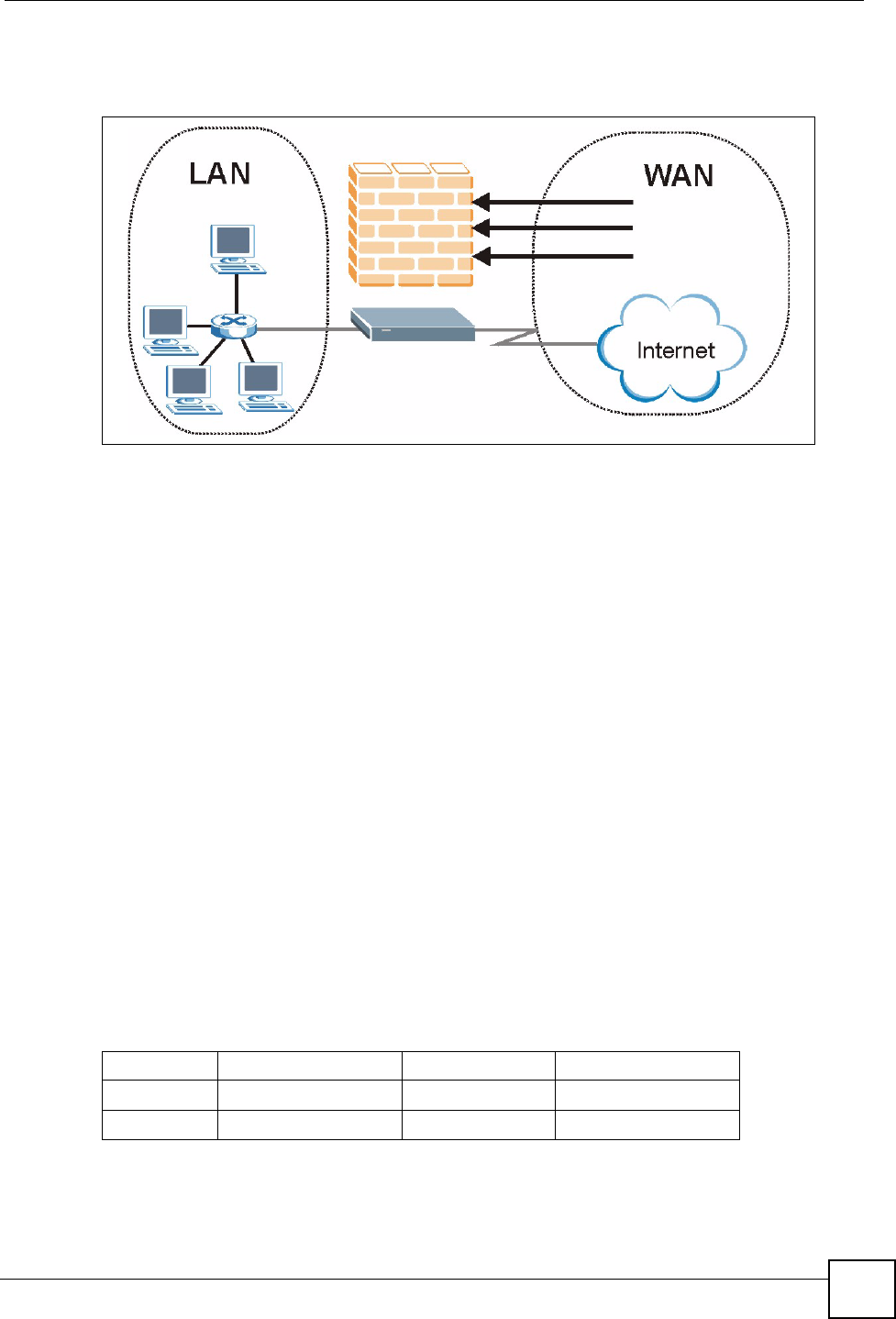

Figure 85 Firewall Application
9.4 Denial of Service
Denials of Service (DoS) attacks are aimed at devices and networks with a connection to the
Internet. Their goal is not to steal information, but to disable a device or network so users no
longer have access to network resources. The ZyXEL Device is pre-configured to
automatically detect and thwart all known DoS attacks.
9.4.1 Basics
Computers share information over the Internet using a common language called TCP/IP. TCP/
IP, in turn, is a set of application protocols that perform specific functions. An “extension
number”, called the "TCP port" or "UDP port" identifies these protocols, such as HTTP
(Web), FTP (File Transfer Protocol), POP3 (E-mail), etc. For example, Web traffic by default
uses TCP port 80.
When computers communicate on the Internet, they are using the client/server model, where
the server "listens" on a specific TCP/UDP port for information requests from remote client
computers on the network. For example, a Web server typically listens on port 80. Please note
that while a computer may be intended for use over a single port, such as Web on port 80,
other ports are also active. If the person configuring or managing the computer is not careful, a
hacker could attack it over an unprotected port.
Some of the most common IP ports are:
Table 52 Common IP Ports
21 FTP 53 DNS
23 Telnet 80 HTTP
25 SMTP 110 POP3
Chapter 9 Firewalls
P-660HW-Dx v2 User’s Guide
146
9.4.2 Types of DoS Attacks
There are four types of DoS attacks:
1Those that exploit bugs in a TCP/IP implementation.
2Those that exploit weaknesses in the TCP/IP specification.
3Brute-force attacks that flood a network with useless data.
4IP Spoofing.
5"Ping of Death" and "Teardrop" attacks exploit bugs in the TCP/IP implementations of
various computer and host systems.
• Ping of Death uses a "ping" utility to create an IP packet that exceeds the maximum
65,536 bytes of data allowed by the IP specification. The oversize packet is then sent to an
unsuspecting system. Systems may crash, hang or reboot.
• Teardrop attack exploits weaknesses in the re-assembly of IP packet fragments. As data is
transmitted through a network, IP packets are often broken up into smaller chunks. Each
fragment looks like the original IP packet except that it contains an offset field that says,
for instance, "This fragment is carrying bytes 200 through 400 of the original (non
fragmented) IP packet." The Teardrop program creates a series of IP fragments with
overlapping offset fields. When these fragments are reassembled at the destination, some
systems will crash, hang, or reboot.
6Weaknesses in the TCP/IP specification leave it open to "SYN Flood" and "LAND"
attacks. These attacks are executed during the handshake that initiates a communication
session between two applications.

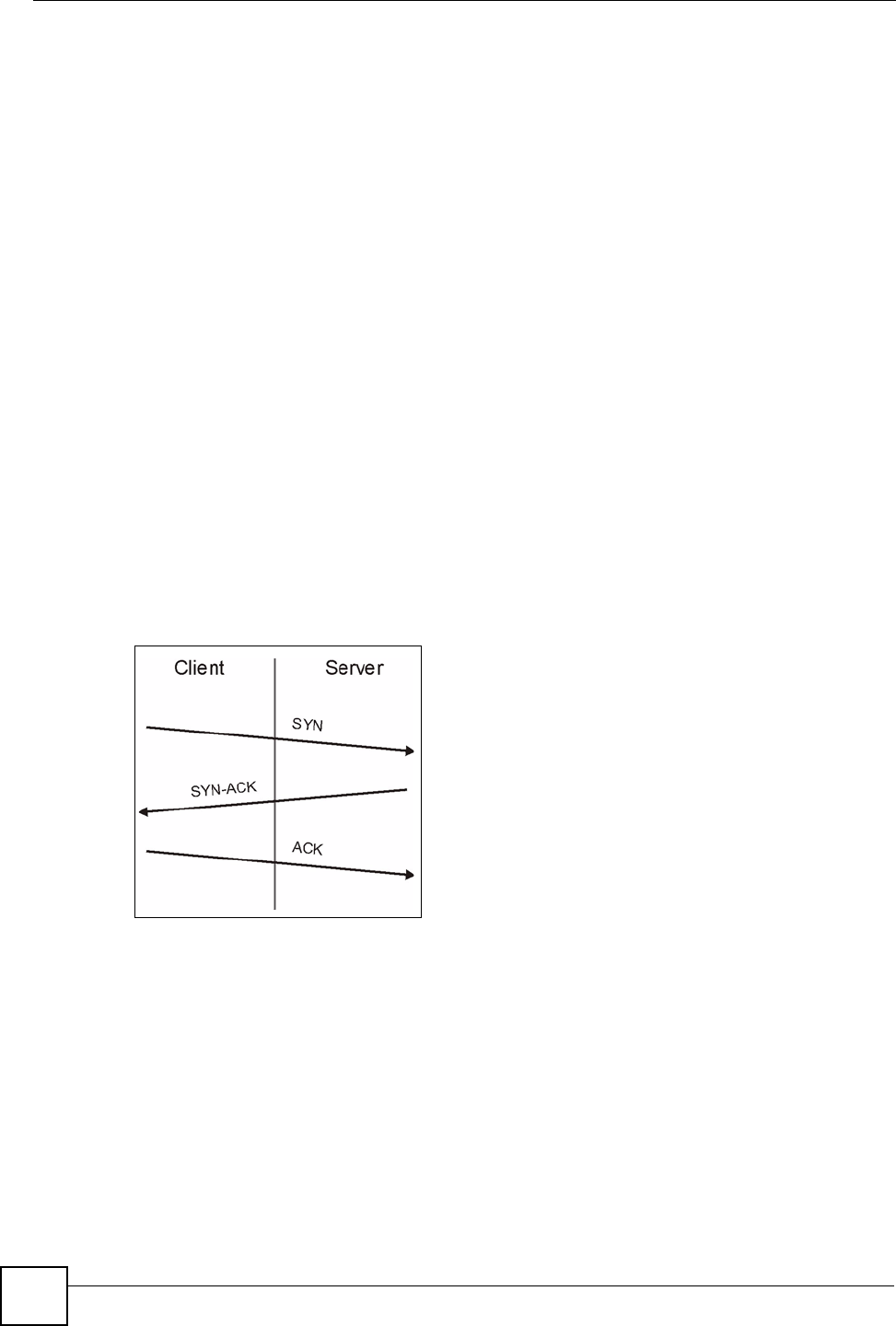

Figure 86 Three-Way Handshake
Under normal circumstances, the application that initiates a session sends a SYN
(synchronize) packet to the receiving server. The receiver sends back an ACK
(acknowledgment) packet and its own SYN, and then the initiator responds with an ACK
(acknowledgment). After this handshake, a connection is established.
•SYN Attack floods a targeted system with a series of SYN packets. Each packet causes
the targeted system to issue a SYN-ACK response. While the targeted system waits for the
ACK that follows the SYN-ACK, it queues up all outstanding SYN-ACK responses on
what is known as a backlog queue. SYN-ACKs are moved off the queue only when an
ACK comes back or when an internal timer (which is set at relatively long intervals)
terminates the three-way handshake. Once the queue is full, the system will ignore all
incoming SYN requests, making the system unavailable for legitimate users.
Chapter 9 Firewalls
P-660HW-Dx v2 User’s Guide 147

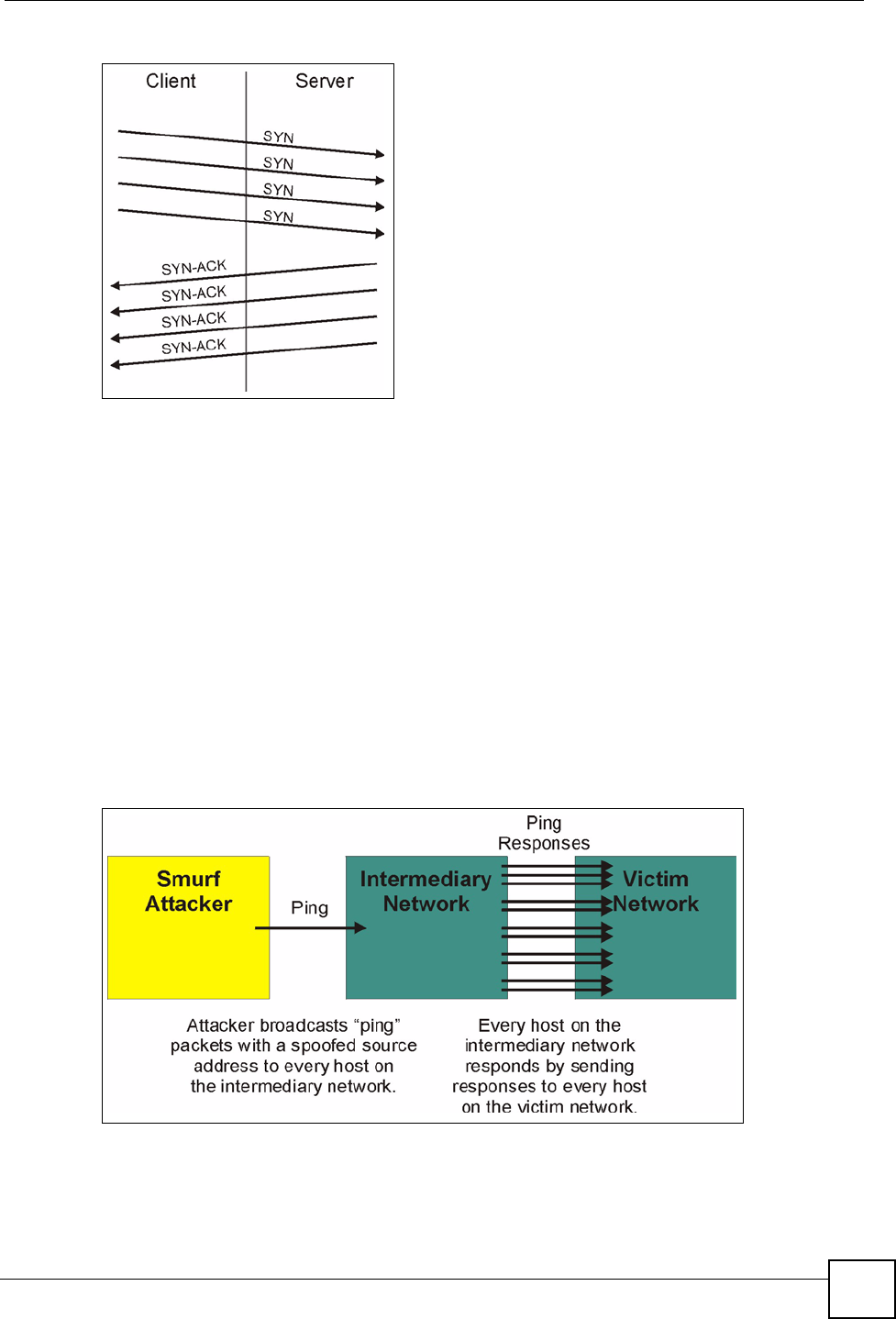

Figure 87 SYN Flood
•In a LAND Attack, hackers flood SYN packets into the network with a spoofed source IP
address of the targeted system. This makes it appear as if the host computer sent the
packets to itself, making the system unavailable while the target system tries to respond to
itself.
7A brute-force attack, such as a "Smurf" attack, targets a feature in the IP specification
known as directed or subnet broadcasting, to quickly flood the target network with
useless data. A Smurf hacker floods a router with Internet Control Message Protocol
(ICMP) echo request packets (pings). Since the destination IP address of each packet is
the broadcast address of the network, the router will broadcast the ICMP echo request
packet to all hosts on the network. If there are numerous hosts, this will create a large
amount of ICMP echo request and response traffic. If a hacker chooses to spoof the
source IP address of the ICMP echo request packet, the resulting ICMP traffic will not
only clog up the "intermediary" network, but will also congest the network of the
spoofed source IP address, known as the "victim" network. This flood of broadcast
traffic consumes all available bandwidth, making communications impossible.
Figure 88 Smurf Attack
Chapter 9 Firewalls
P-660HW-Dx v2 User’s Guide
148
9.4.2.1 ICMP Vulnerability
ICMP is an error-reporting protocol that works in concert with IP. The following ICMP types
trigger an alert:
9.4.2.2 Illegal Commands (NetBIOS and SMTP)
The only legal NetBIOS commands are the following - all others are illegal.
All SMTP commands are illegal except for those displayed in the following tables.
9.4.2.3 Traceroute
Traceroute is a utility used to determine the path a packet takes between two endpoints.
Sometimes when a packet filter firewall is configured incorrectly an attacker can traceroute
the firewall gaining knowledge of the network topology inside the firewall.
Often, many DoS attacks also employ a technique known as "IP Spoofing" as part of their
attack. IP Spoofing may be used to break into systems, to hide the hacker's identity, or to
magnify the effect of the DoS attack. IP Spoofing is a technique used to gain unauthorized
access to computers by tricking a router or firewall into thinking that the communications are
coming from within the trusted network. To engage in IP spoofing, a hacker must modify the
packet headers so that it appears that the packets originate from a trusted host and should be
allowed through the router or firewall. The ZyXEL Device blocks all IP Spoofing attempts.
9.5 Stateful Inspection
With stateful inspection, fields of the packets are compared to packets that are already known
to be trusted. For example, if you access some outside service, the proxy server remembers
things about your original request, like the port number and source and destination addresses.
This “remembering” is called saving the state. When the outside system responds to your
request, the firewall compares the received packets with the saved state to determine if they
Table 53 ICMP Commands That Trigger Alerts
5REDIRECT
13 TIMESTAMP_REQUEST
14 TIMESTAMP_REPLY
17 ADDRESS_MASK_REQUEST
18 ADDRESS_MASK_REPLY
Table 54 Legal NetBIOS Commands
MESSAGE:
REQUEST:
POSITIVE:
VE:
RETARGET:
KEEPALIVE:
Table 55 Legal SMTP Commands
AUTH DATA EHLO ETRN EXPN HELO HELP MAIL NOOP
QUIT RCPT RSET SAML SEND SOML TURN VRFY
Chapter 9 Firewalls
P-660HW-Dx v2 User’s Guide 149
are allowed in. The ZyXEL Device uses stateful packet inspection to protect the private LAN
from hackers and vandals on the Internet. By default, the ZyXEL Device’s stateful inspection
allows all communications to the Internet that originate from the LAN, and blocks all traffic to
the LAN that originates from the Internet. In summary, stateful inspection:
• Allows all sessions originating from the LAN (local network) to the WAN (Internet).
• Denies all sessions originating from the WAN to the LAN.

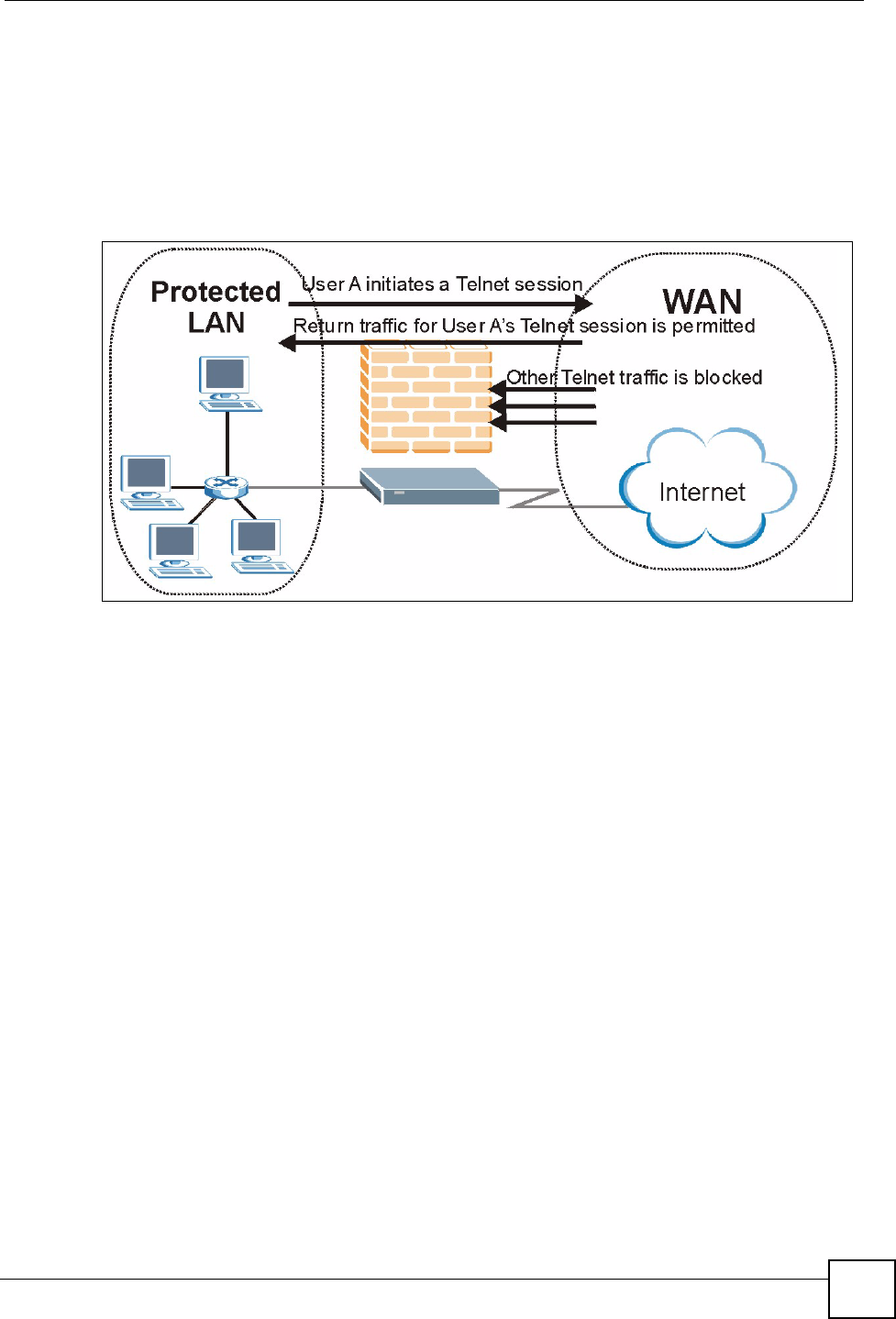

Figure 89 Stateful Inspection
The previous figure shows the ZyXEL Device’s default firewall rules in action as well as
demonstrates how stateful inspection works. User A can initiate a Telnet session from within
the LAN and responses to this request are allowed. However other Telnet traffic initiated from
the WAN is blocked.
9.5.1 Stateful Inspection Process
In this example, the following sequence of events occurs when a TCP packet leaves the LAN
network through the firewall's WAN interface. The TCP packet is the first in a session, and the
packet's application layer protocol is configured for a firewall rule inspection:
1The packet travels from the firewall's LAN to the WAN.
2The packet is evaluated against the interface's existing outbound access list, and the
packet is permitted (a denied packet would simply be dropped at this point).
3The packet is inspected by a firewall rule to determine and record information about the
state of the packet's connection. This information is recorded in a new state table entry
created for the new connection. If there is not a firewall rule for this packet and it is not
an attack, then the settings in the Firewall General screen determine the action for this
packet.
4Based on the obtained state information, a firewall rule creates a temporary access list
entry that is inserted at the beginning of the WAN interface's inbound extended access
list. This temporary access list entry is designed to permit inbound packets of the same
connection as the outbound packet just inspected.
5The outbound packet is forwarded out through the interface.
Chapter 9 Firewalls
P-660HW-Dx v2 User’s Guide
150
6Later, an inbound packet reaches the interface. This packet is part of the connection
previously established with the outbound packet. The inbound packet is evaluated
against the inbound access list, and is permitted because of the temporary access list
entry previously created.
7The packet is inspected by a firewall rule, and the connection's state table entry is
updated as necessary. Based on the updated state information, the inbound extended
access list temporary entries might be modified, in order to permit only packets that are
valid for the current state of the connection.
8Any additional inbound or outbound packets that belong to the connection are inspected
to update the state table entry and to modify the temporary inbound access list entries as
required, and are forwarded through the interface.
9When the connection terminates or times out, the connection's state table entry is deleted
and the connection's temporary inbound access list entries are deleted.
9.5.2 Stateful Inspection and the ZyXEL Device
Additional rules may be defined to extend or override the default rules. For example, a rule
may be created which will:
• Block all traffic of a certain type, such as IRC (Internet Relay Chat), from the LAN to the
Internet.
• Allow certain types of traffic from the Internet to specific hosts on the LAN.
• Allow access to a Web server to everyone but competitors.
• Restrict use of certain protocols, such as Telnet, to authorized users on the LAN.
These custom rules work by evaluating the network traffic’s Source IP address, Destination IP
address, IP protocol type, and comparing these to rules set by the administrator.
"The ability to define firewall rules is a very powerful tool. Using custom rules, it
is possible to disable all firewall protection or block all access to the Internet.
Use extreme caution when creating or deleting firewall rules. Test changes after
creating them to make sure they work correctly.
Below is a brief technical description of how these connections are tracked. Connections may
either be defined by the upper protocols (for instance, TCP), or by the ZyXEL Device itself (as
with the "virtual connections" created for UDP and ICMP).
9.5.3 TCP Security
The ZyXEL Device uses state information embedded in TCP packets. The first packet of any
new connection has its SYN flag set and its ACK flag cleared; these are "initiation" packets.
All packets that do not have this flag structure are called "subsequent" packets, since they
represent data that occurs later in the TCP stream.
If an initiation packet originates on the WAN, this means that someone is trying to make a
connection from the Internet into the LAN. Except in a few special cases (see "Upper Layer
Protocols" shown next), these packets are dropped and logged.
Chapter 9 Firewalls
P-660HW-Dx v2 User’s Guide 151
If an initiation packet originates on the LAN, this means that someone is trying to make a
connection from the LAN to the Internet. Assuming that this is an acceptable part of the
security policy (as is the case with the default policy), the connection will be allowed. A cache
entry is added which includes connection information such as IP addresses, TCP ports,
sequence numbers, etc.
When the ZyXEL Device receives any subsequent packet (from the Internet or from the LAN),
its connection information is extracted and checked against the cache. A packet is only
allowed to pass through if it corresponds to a valid connection (that is, if it is a response to a
connection which originated on the LAN).
9.5.4 UDP/ICMP Security
UDP and ICMP do not themselves contain any connection information (such as sequence
numbers). However, at the very minimum, they contain an IP address pair (source and
destination). UDP also contains port pairs, and ICMP has type and code information. All of
this data can be analyzed in order to build "virtual connections" in the cache.
For instance, any UDP packet that originates on the LAN will create a cache entry. Its IP
address and port pairs will be stored. For a short period of time, UDP packets from the WAN
that have matching IP and UDP information will be allowed back in through the firewall.
A similar situation exists for ICMP, except that the ZyXEL Device is even more restrictive.
Specifically, only outgoing echoes will allow incoming echo replies, outgoing address mask
requests will allow incoming address mask replies, and outgoing timestamp requests will
allow incoming timestamp replies. No other ICMP packets are allowed in through the firewall,
simply because they are too dangerous and contain too little tracking information. For
instance, ICMP redirect packets are never allowed in, since they could be used to reroute
traffic through attacking machines.
9.5.5 Upper Layer Protocols
Some higher layer protocols (such as FTP and RealAudio) utilize multiple network
connections simultaneously. In general terms, they usually have a "control connection" which
is used for sending commands between endpoints, and then "data connections" which are used
for transmitting bulk information.
Consider the FTP protocol. A user on the LAN opens a control connection to a server on the
Internet and requests a file. At this point, the remote server will open a data connection from
the Internet. For FTP to work properly, this connection must be allowed to pass through even
though a connection from the Internet would normally be rejected.
In order to achieve this, the ZyXEL Device inspects the application-level FTP data.
Specifically, it searches for outgoing "PORT" commands, and when it sees these, it adds a
cache entry for the anticipated data connection. This can be done safely, since the PORT
command contains address and port information, which can be used to uniquely identify the
connection.
Any protocol that operates in this way must be supported on a case-by-case basis. You can use
the web configurator’s Custom Ports feature to do this.
Chapter 9 Firewalls
P-660HW-Dx v2 User’s Guide
152
9.6 Guidelines for Enhancing Security with Your Firewall
• Change the default password via CLI (Command Line Interpreter) or web configurator.
• Limit who can telnet into your router.
• Don't enable any local service (such as SNMP or NTP) that you don't use. Any enabled
service could present a potential security risk. A determined hacker might be able to find
creative ways to misuse the enabled services to access the firewall or the network.
• For local services that are enabled, protect against misuse. Protect by configuring the
services to communicate only with specific peers, and protect by configuring rules to
block packets for the services at specific interfaces.
• Protect against IP spoofing by making sure the firewall is active.
• Keep the firewall in a secured (locked) room.
9.6.1 Security In General
You can never be too careful! Factors outside your firewall, filtering or NAT can cause
security breaches. Below are some generalizations about what you can do to minimize them.
• Encourage your company or organization to develop a comprehensive security plan. Good
network administration takes into account what hackers can do and prepares against
attacks. The best defense against hackers and crackers is information. Educate all
employees about the importance of security and how to minimize risk. Produce lists like
this one!
• DSL or cable modem connections are “always-on” connections and are particularly
vulnerable because they provide more opportunities for hackers to crack your system.
Turn your computer off when not in use.
• Never give out a password or any sensitive information to an unsolicited telephone call or
e-mail.
• Never e-mail sensitive information such as passwords, credit card information, etc.,
without encrypting the information first.
• Never submit sensitive information via a web page unless the web site uses secure
connections. You can identify a secure connection by looking for a small “key” icon on
the bottom of your browser (Internet Explorer 3.02 or better or Netscape 3.0 or better). If a
web site uses a secure connection, it is safe to submit information. Secure web transactions
are quite difficult to crack.
• Never reveal your IP address or other system networking information to people outside
your company. Be careful of files e-mailed to you from strangers. One common way of
getting BackOrifice on a system is to include it as a Trojan horse with other files.
• Change your passwords regularly. Also, use passwords that are not easy to figure out. The
most difficult passwords to crack are those with upper and lower case letters, numbers and
a symbol such as % or #.
• Upgrade your software regularly. Many older versions of software, especially web
browsers, have well known security deficiencies. When you upgrade to the latest versions,
you get the latest patches and fixes.
• If you use “chat rooms” or IRC sessions, be careful with any information you reveal to
strangers.
• If your system starts exhibiting odd behavior, contact your ISP. Some hackers will set off
hacks that cause your system to slowly become unstable or unusable.
Chapter 9 Firewalls
P-660HW-Dx v2 User’s Guide 153
• Always shred confidential information, particularly about your computer, before throwing
it away. Some hackers dig through the trash of companies or individuals for information
that might help them in an attack.
9.7 Packet Filtering Vs Firewall
Below are some comparisons between the ZyXEL Device’s filtering and firewall functions.
9.7.1 Packet Filtering:
• The router filters packets as they pass through the router’s interface according to the filter
rules you designed.
• Packet filtering is a powerful tool, yet can be complex to configure and maintain,
especially if you need a chain of rules to filter a service.
• Packet filtering only checks the header portion of an IP packet.
9.7.1.1 When To Use Filtering
• To block/allow LAN packets by their MAC addresses.
• To block/allow special IP packets which are neither TCP nor UDP, nor ICMP packets.
• To block/allow both inbound (WAN to LAN) and outbound (LAN to WAN) traffic
between the specific inside host/network "A" and outside host/network "B". If the filter
blocks the traffic from A to B, it also blocks the traffic from B to A. Filters can not
distinguish traffic originating from an inside host or an outside host by IP address.
• To block/allow IP trace route.
9.7.2 Firewall
• The firewall inspects packet contents as well as their source and destination addresses.
Firewalls of this type employ an inspection module, applicable to all protocols, that
understands data in the packet is intended for other layers, from the network layer (IP
headers) up to the application layer.
• The firewall performs stateful inspection. It takes into account the state of connections it
handles so that, for example, a legitimate incoming packet can be matched with the
outbound request for that packet and allowed in. Conversely, an incoming packet
masquerading as a response to a nonexistent outbound request can be blocked.
• The firewall uses session filtering, i.e., smart rules, that enhance the filtering process and
control the network session rather than control individual packets in a session.
• The firewall provides e-mail service to notify you of routine reports and when alerts occur.
9.7.2.1 When To Use The Firewall
• To prevent DoS attacks and prevent hackers cracking your network.
• A range of source and destination IP addresses as well as port numbers can be specified
within one firewall rule making the firewall a better choice when complex rules are
required.
Chapter 9 Firewalls
P-660HW-Dx v2 User’s Guide
154
• To selectively block/allow inbound or outbound traffic between inside host/networks and
outside host/networks. Remember that filters can not distinguish traffic originating from
an inside host or an outside host by IP address.
• The firewall performs better than filtering if you need to check many rules.
• Use the firewall if you need routine e-mail reports about your system or need to be alerted
when attacks occur.
• The firewall can block specific URL traffic that might occur in the future. The URL can be
saved in an Access Control List (ACL) database.
P-660HW-Dx v2 User’s Guide 155
CHAPTER 10
Firewall Configuration
This chapter shows you how to enable and configure the ZyXEL Device firewall.
10.1 Access Methods
The web configurator is, by far, the most comprehensive firewall configuration tool your
ZyXEL Device has to offer. For this reason, it is recommended that you configure your
firewall using the web configurator.CLI (Command Line Interpreter) commands provide
limited configuration options and are only recommended for advanced users.
10.2 Firewall Policies Overview
Firewall rules are grouped based on the direction of travel of packets to which they apply:
By default, the ZyXEL Device’s stateful packet inspection allows packets traveling in the
following directions:
• LAN to LAN/ Router
This allows computers on the LAN to manage the ZyXEL Device and communicate
between networks or subnets connected to the LAN interface.
• LAN to WAN
By default, the ZyXEL Device’s stateful packet inspection drops packets traveling in the
following directions:
•WAN to LAN
•WAN to WAN/ Router
This prevents computers on the WAN from using the ZyXEL Device as a gateway to
communicate with other computers on the WAN and/or managing the ZyXEL Device.
You may define additional rules and sets or modify existing ones but please exercise
extreme caution in doing so.
• LAN to LAN/ Router • WAN to LAN
• LAN to WAN • WAN to WAN/ Router
Chapter 10 Firewall Configuration
P-660HW-Dx v2 User’s Guide
156
"If you configure firewall rules without a good understanding of how they work,
you might inadvertently introduce security risks to the firewall and to the
protected network. Make sure you test your rules after you configure them.
For example, you may create rules to:
• Block certain types of traffic, such as IRC (Internet Relay Chat), from the LAN to the
Internet.
• Allow certain types of traffic, such as Lotus Notes database synchronization, from specific
hosts on the Internet to specific hosts on the LAN.
• Allow everyone except your competitors to access a Web server.
• Restrict use of certain protocols, such as Telnet, to authorized users on the LAN.
These custom rules work by comparing the Source IP address, Destination IP address and IP
protocol type of network traffic to rules set by the administrator. Your customized rules take
precedence and override the ZyXEL Device’s default rules.
10.3 Rule Logic Overview
"Study these points carefully before configuring rules.
10.3.1 Rule Checklist
State the intent of the rule. For example, “This restricts all IRC access from the LAN to the
Internet.” Or, “This allows a remote Lotus Notes server to synchronize over the Internet to an
inside Notes server.”
1Is the intent of the rule to forward or block traffic?
2What direction of traffic does the rule apply to?
3What IP services will be affected?
4What computers on the LAN are to be affected (if any)?
5What computers on the Internet will be affected? The more specific, the better. For
example, if traffic is being allowed from the Internet to the LAN, it is better to allow
only certain machines on the Internet to access the LAN.
10.3.2 Security Ramifications
1Once the logic of the rule has been defined, it is critical to consider the security
ramifications created by the rule:
2Does this rule stop LAN users from accessing critical resources on the Internet? For
example, if IRC is blocked, are there users that require this service?
Chapter 10 Firewall Configuration
P-660HW-Dx v2 User’s Guide 157
3Is it possible to modify the rule to be more specific? For example, if IRC is blocked for
all users, will a rule that blocks just certain users be more effective?
4Does a rule that allows Internet users access to resources on the LAN create a security
vulnerability? For example, if FTP ports (TCP 20, 21) are allowed from the Internet to
the LAN, Internet users may be able to connect to computers with running FTP servers.
5Does this rule conflict with any existing rules?
6Once these questions have been answered, adding rules is simply a matter of plugging
the information into the correct fields in the web configurator screens.
10.3.3 Key Fields For Configuring Rules
10.3.3.1 Action
Should the action be to Drop, Reject or Permit?
"“Drop” means the firewall silently discards the packet. “Reject” means the
firewall discards packets and sends an ICMP destination-unreachable message
to the sender.
10.3.3.2 Service
Select the service from the Service scrolling list box. If the service is not listed, it is necessary
to first define it. See Section 10.8 on page 169 for more information on predefined services.
10.3.3.3 Source Address
What is the connection’s source address; is it on the LAN or WAN? Is it a single IP, a range of
IPs or a subnet?
10.3.3.4 Destination Address
What is the connection’s destination address; is it on the LAN or WAN? Is it a single IP, a
range of IPs or a subnet?
10.4 Connection Direction
This section describes examples for firewall rules for connections going from LAN to WAN
and from WAN to LAN.
LAN to LAN/ Router and WAN to WAN/ Router rules apply to packets coming in on the
associated interface (LAN or WAN respectively). LAN to LAN/ Router means policies for
LAN-to-ZyXEL Device (the policies for managing the ZyXEL Device through the LAN
interface) and policies for LAN-to-LAN (the policies that control routing between two subnets
on the LAN). Similarly, WAN to WAN/ Router polices apply in the same way to the WAN
port.
Chapter 10 Firewall Configuration
P-660HW-Dx v2 User’s Guide
158
10.4.1 LAN to WAN Rules
The default rule for LAN to WAN traffic is that all users on the LAN are allowed non-
restricted access to the WAN. When you configure a LAN to WAN rule, you in essence want
to limit some or all users from accessing certain services on the WAN. WAN to LAN Rules
The default rule for WAN to LAN traffic blocks all incoming connections (WAN to LAN). If
you wish to allow certain WAN users to have access to your LAN, you will need to create
custom rules to allow it.
10.4.2 Alerts
Alerts are reports on events, such as attacks, that you may want to know about right away. You
can choose to generate an alert when a rule is matched in the Edit Rule screen (see Figure 92
on page 162). When an event generates an alert, a message can be immediately sent to an e-
mail account that you specify in the Log Settings screen. Refer to the chapter on logs for
details
10.5 General Firewall Policy
Click Security > Firewall to display the following screen. Activate the firewall by selecting
the Active Firewall check box as seen in the following screen.
Refer to Section 9.1 on page 143 for more information.

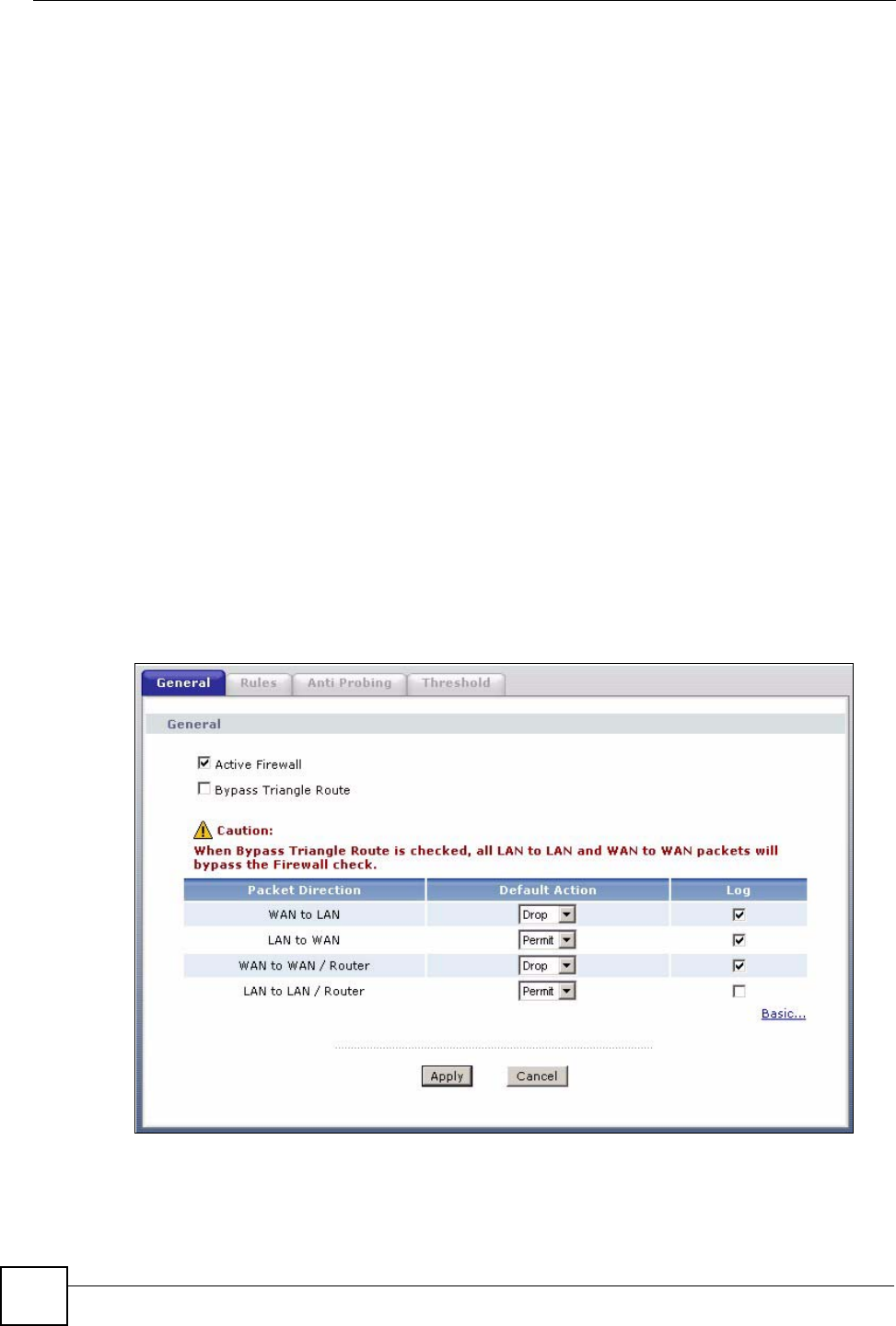

Figure 90 Firewall: General
Chapter 10 Firewall Configuration
P-660HW-Dx v2 User’s Guide 159
The following table describes the labels in this screen.
10.6 Firewall Rules Summary
"The ordering of your rules is very important as rules are applied in turn.
Refer to Section 9.1 on page 143 for more information.
Click Security > Firewall > Rules to bring up the following screen. This screen displays a list
of the configured firewall rules. Note the order in which the rules are listed.
Table 56 Firewall: General
LABEL DESCRIPTION
Active Firewall Select this check box to activate the firewall. The ZyXEL Device performs access
control and protects against Denial of Service (DoS) attacks when the firewall is
activated.
Bypass Triangle
Route
Select this check box to have the ZyXEL Device firewall permit the use of triangle
route topology on the network. See the appendix for more on triangle route
topology.
Note: Allowing asymmetrical routes may let traffic from the
WAN go directly to a LAN computer without passing
through the router. See Appendix I on page 341 for more
on triangle route topology and how to deal with this
problem.
Packet Direction This is the direction of travel of packets (LAN to LAN / Router, LAN to WAN,
WAN to WAN / Router, WAN to LAN).
Firewall rules are grouped based on the direction of travel of packets to which they
apply. For example, LAN to LAN / Router means packets traveling from a
computer/subnet on the LAN to either another computer/subnet on the LAN
interface of the ZyXEL Device or the ZyXEL Device itself.
Default Action Use the drop-down list boxes to select the default action that the firewall is take on
packets that are traveling in the selected direction and do not match any of the
firewall rules.
Select Drop to silently discard the packets without sending a TCP reset packet or
an ICMP destination-unreachable message to the sender.
Select Reject to deny the packets and send a TCP reset packet (for a TCP
packet) or an ICMP destination-unreachable message (for a UDP packet) to the
sender.
Select Permit to allow the passage of the packets.
Log Select the check box to create a log (when the above action is taken) for packets
that are traveling in the selected direction and do not match any of your
customized rules.
Expand... Click this button to display more information.
Basic... Click this button to display less information.
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
Chapter 10 Firewall Configuration
P-660HW-Dx v2 User’s Guide
160

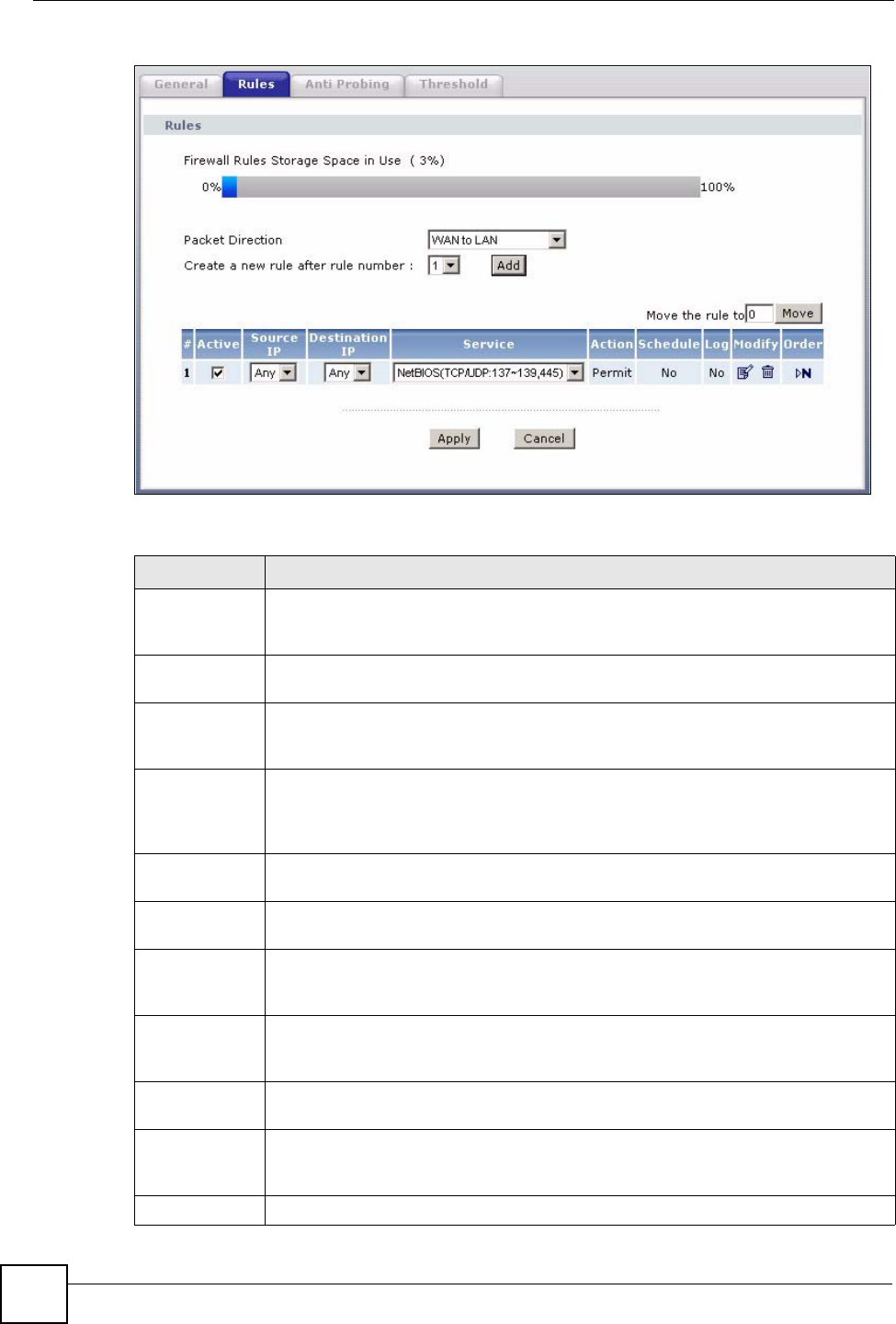

Figure 91 Firewall Rules
The following table describes the labels in this screen.
Table 57 Firewall Rules
LABEL DESCRIPTION
Firewall Rules
Storage Space
in Use
This read-only bar shows how much of the ZyXEL Device's memory for recording
firewall rules it is currently using. When you are using 80% or less of the storage
space, the bar is green. When the amount of space used is over 80%, the bar is red.
Packet
Direction
Use the drop-down list box to select a direction of travel of packets for which you
want to configure firewall rules.
Create a new
rule after rule
number
Select an index number and click Add to add a new firewall rule after the selected
index number. For example, if you select “6”, your new rule becomes number 7 and
the previous rule 7 (if there is one) becomes rule 8.
The following read-only fields summarize the rules you have created that apply to
traffic traveling in the selected packet direction. The firewall rules that you configure
(summarized below) take priority over the general firewall action settings in the
General screen.
#This is your firewall rule number. The ordering of your rules is important as rules are
applied in turn.
Active This field displays whether a firewall is turned on or not. Select the check box to
enable the rule. Clear the check box to disable the rule.
Source IP This drop-down list box displays the source addresses or ranges of addresses to
which this firewall rule applies. Please note that a blank source or destination
address is equivalent to Any.
Destination IP This drop-down list box displays the destination addresses or ranges of addresses to
which this firewall rule applies. Please note that a blank source or destination
address is equivalent to Any.
Service This drop-down list box displays the services to which this firewall rule applies. See
Section 10.8 on page 169 for more information.
Action This field displays whether the firewall silently discards packets (Drop), discards
packets and sends a TCP reset packet or an ICMP destination-unreachable
message to the sender (Reject) or allows the passage of packets (Permit)
Schedule This field tells you whether a schedule is specified (Yes) or not (No).
Chapter 10 Firewall Configuration
P-660HW-Dx v2 User’s Guide 161
10.6.1 Configuring Firewall Rules
Refer to Section 9.1 on page 143 for more information.
In the Rules screen, select an index number and click Add or click a rule’s Edit icon to display
this screen and refer to the following table for information on the labels.
Log This field shows you whether a log is created when packets match this rule (Yes) or
not (No).
Modify Click the Edit icon to go to the screen where you can edit the rule.
Click the Remove icon to delete an existing firewall rule. A window displays asking
you to confirm that you want to delete the firewall rule. Note that subsequent firewall
rules move up by one when you take this action.
Order Click the Move icon to display the Move the rule to field. Type a number in the
Move the rule to field and click the Move button to move the rule to the number that
you typed. The ordering of your rules is important as they are applied in order of their
numbering.
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
Table 57 Firewall Rules (continued)
LABEL DESCRIPTION
Chapter 10 Firewall Configuration
P-660HW-Dx v2 User’s Guide
162

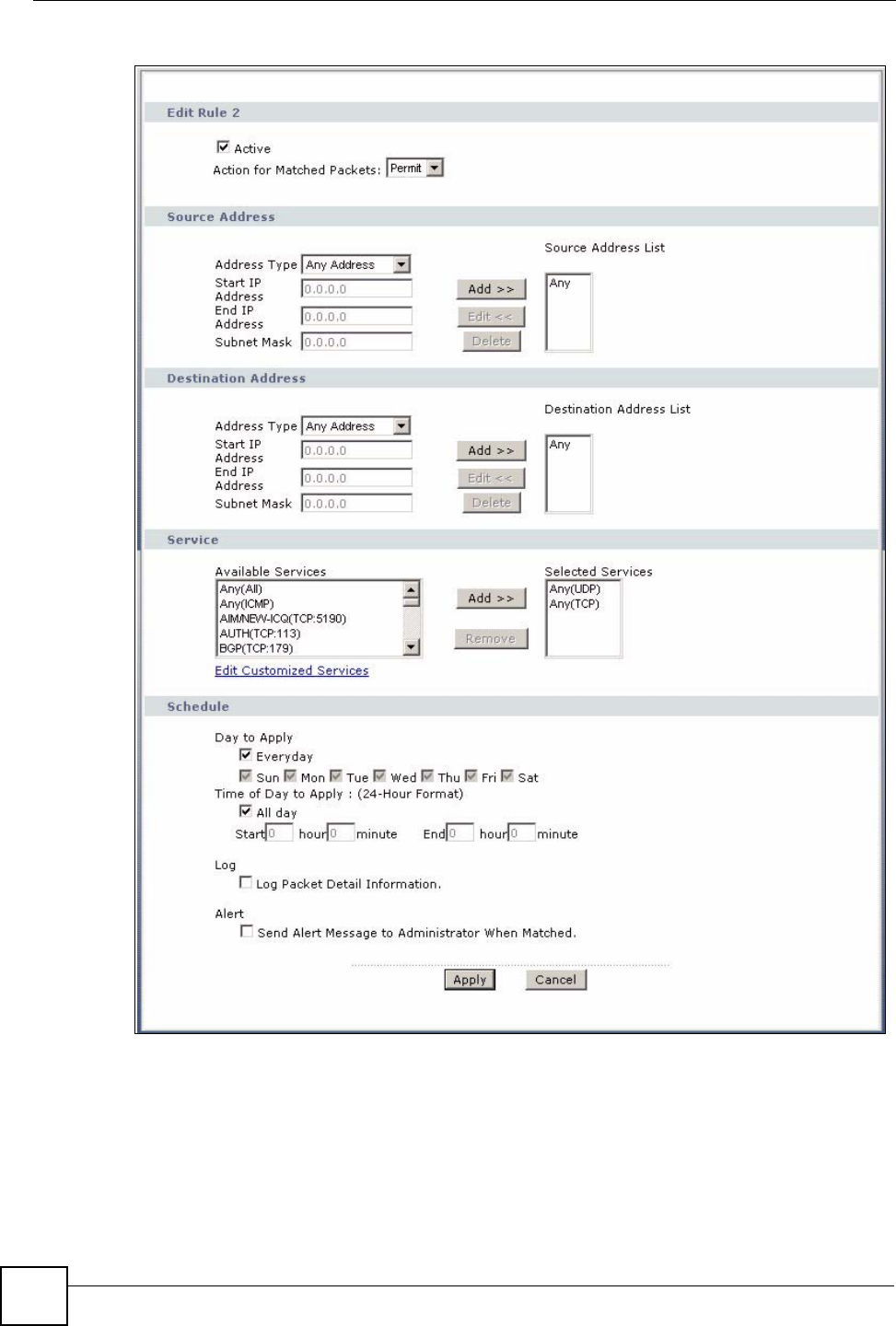

Figure 92 Firewall: Edit Rule
Chapter 10 Firewall Configuration
P-660HW-Dx v2 User’s Guide 163
The following table describes the labels in this screen.
Table 58 Firewall: Edit Rule
LABEL DESCRIPTION
Active Select this option to enable this firewall rule.
Action for Matched
Packet
Use the drop-down list box to select what the firewall is to do with packets that
match this rule.
Select Drop to silently discard the packets without sending a TCP reset packet
or an ICMP destination-unreachable message to the sender.
Select Reject to deny the packets and send a TCP reset packet (for a TCP
packet) or an ICMP destination-unreachable message (for a UDP packet) to the
sender.
Select Permit to allow the passage of the packets.
Source/Destination
Address
Address Type Do you want your rule to apply to packets with a particular (single) IP, a range of
IP addresses (e.g., 192.168.1.10 to 192.169.1.50), a subnet or any IP address?
Select an option from the drop-down list box that includes: Single Address,
Range Address, Subnet Address and Any Address.
Start IP Address Enter the single IP address or the starting IP address in a range here.
End IP Address Enter the ending IP address in a range here.
Subnet Mask Enter the subnet mask here, if applicable.
Add >> Click Add >> to add a new address to the Source or Destination Address box.
You can add multiple addresses, ranges of addresses, and/or subnets.
Edit << To edit an existing source or destination address, select it from the box and click
Edit <<.
Delete Highlight an existing source or destination address from the Source or
Destination Address box above and click Delete to remove it.
Services
Available/ Selected
Services
Please see Section 10.8 on page 169 for more information on services
available. Highlight a service from the Available Services box on the left, then
click Add >> to add it to the Selected Services box on the right. To remove a
service, highlight it in the Selected Services box on the right, then click
Remove.
Edit Customized
Service
Click the Edit Customized Services link to bring up the screen that you use to
configure a new custom service that is not in the predefined list of services.
Schedule
Day to Apply Select everyday or the day(s) of the week to apply the rule.
Time of Day to
Apply (24-Hour
Format)
Select All Day or enter the start and end times in the hour-minute format to
apply the rule.
Log
Log Packet Detail
Information
This field determines if a log for packets that match the rule is created or not. Go
to the Log Settings page and select the Access Control logs category to have
the ZyXEL Device record these logs.
Alert
Send Alert
Message to
Administrator When
Matched
Select the check box to have the ZyXEL Device generate an alert when the rule
is matched.
Chapter 10 Firewall Configuration
P-660HW-Dx v2 User’s Guide
164
10.6.2 Customized Services
Configure customized services and port numbers not predefined by the ZyXEL Device. For a
comprehensive list of port numbers and services, visit the IANA (Internet Assigned Number
Authority) website. For further information on these services, please read Section 10.8 on page
169. Click the Edit Customized Services link while editing a firewall rule to configure a
custom service port. This displays the following screen.
Refer to Section 9.1 on page 143 for more information.

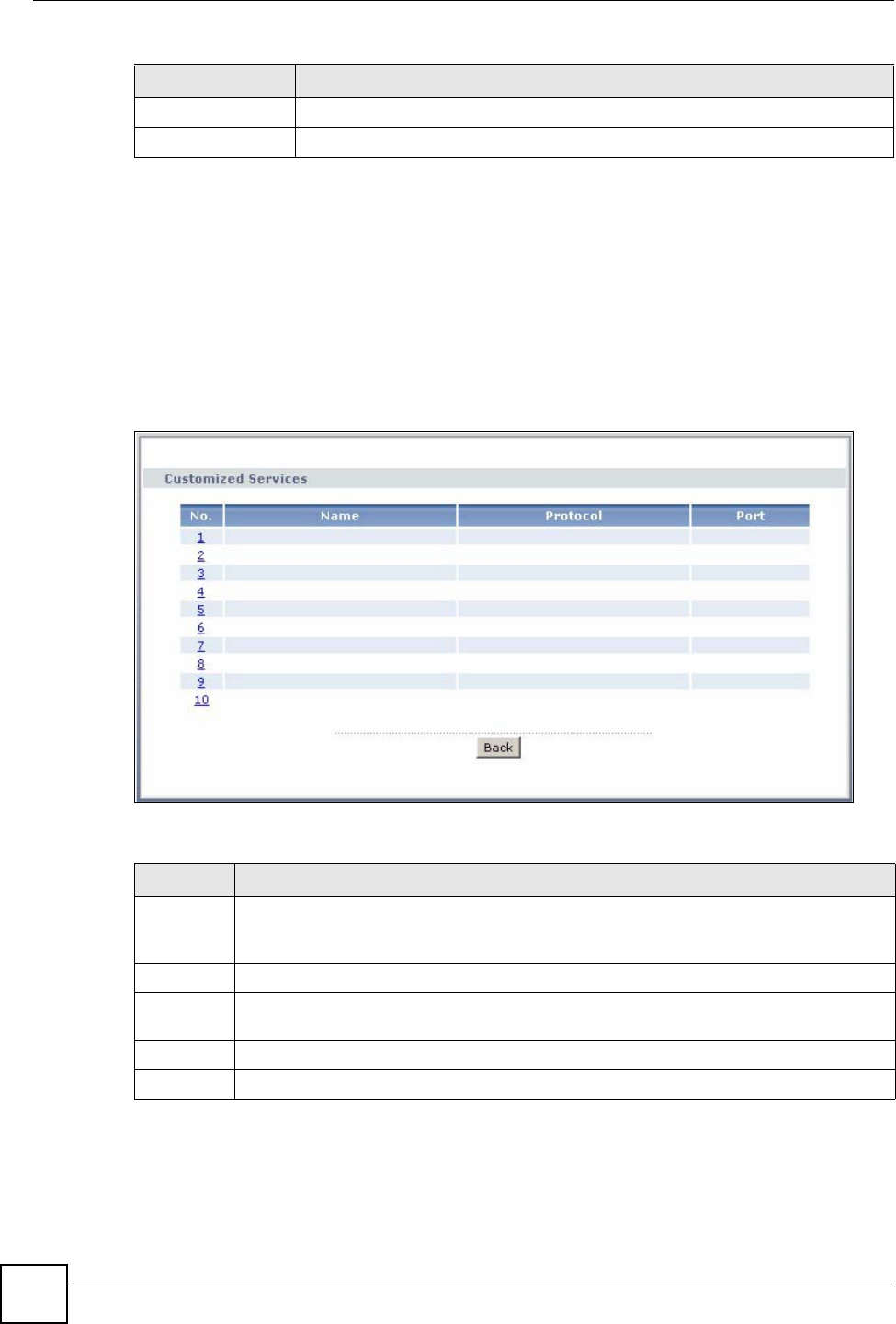

Figure 93 Firewall: Customized Services
The following table describes the labels in this screen.
10.6.3 Configuring a Customized Service
Click a rule number in the Firewall Customized Services screen to create a new custom port
or edit an existing one. This action displays the following screen.
Apply Click Apply to save your customized settings and exit this screen.
Cancel Click Cancel to exit this screen without saving.
Table 58 Firewall: Edit Rule (continued)
LABEL DESCRIPTION
Table 59 Customized Services
LABEL DESCRIPTION
No. This is the number of your customized port. Click a rule’s number of a service to go to a
screen where you can configure or edit a customized service. See Section 10.6.3 on
page 164 for more information.
Name This is the name of your customized service.
Protocol This shows the IP protocol (TCP, UDP or TCP/UDP) that defines your customized
service.
Port This is the port number or range that defines your customized service.
Back Click Back to return the Firewall Edit Rule screen.
Chapter 10 Firewall Configuration
P-660HW-Dx v2 User’s Guide 165
Refer to Section 9.1 on page 143 for more information.
Figure 94 Firewall: Configure Customized Services
The following table describes the labels in this screen.
10.7 Example Firewall Rule
The following Internet firewall rule example allows a hypothetical “MyService” connection
from the Internet.
1Click Security > Firewall > Rules.
2Select WAN to LAN in the Packet Direction field.
Table 60 Firewall: Configure Customized Services
LABEL DESCRIPTION
Service Name Type a unique name for your custom port.
Service Type Choose the IP port (TCP, UDP or TCP/UDP) that defines your customized port from
the drop down list box.
Port Configuration
Type Click Single to specify one port only or Range to specify a span of ports that define
your customized service.
Port Number Type a single port number or the range of port numbers that define your customized
service.
Back Click Back to return to the previous screen.
Apply Click Apply to save your customized settings and exit this screen.
Cancel Click Cancel to return to the previous screen.
Delete Click Delete to delete the current rule and return to the previous screen.
Chapter 10 Firewall Configuration
P-660HW-Dx v2 User’s Guide
166
Figure 95 Firewall Example: Rules
3In the Rules screen, select the index number after that you want to add the rule. For
example, if you select “6”, your new rule becomes number 7 and the previous rule 7 (if
there is one) becomes rule 8.
4Click Add to display the firewall rule configuration screen.
5In the Edit Rule screen, click the Edit Customized Services link to open the
Customized Service screen.
6Click an index number to display the Customized Services Config screen and configure
the screen as follows and click Apply.
Figure 96 Edit Custom Port Example
7Select Any in the Destination Address box and then click Delete.
8Configure the destination address screen as follows and click Add.
Chapter 10 Firewall Configuration
P-660HW-Dx v2 User’s Guide 167

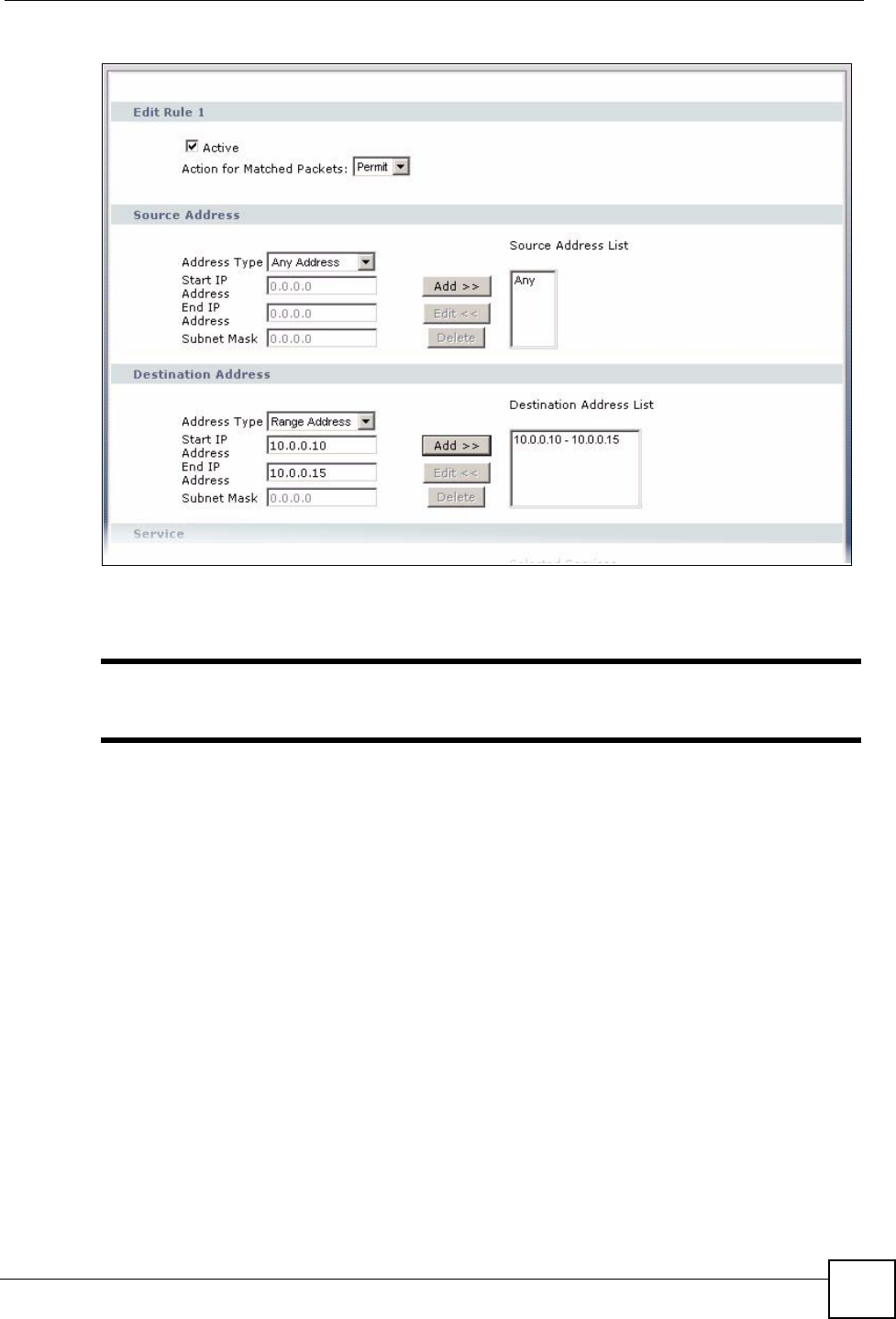

Figure 97 Firewall Example: Edit Rule: Destination Address
9Use the Add >> and Remove buttons between Available Services and Selected
Services list boxes to configure it as follows. Click Apply when you are done.
"Custom services show up with an “*” before their names in the Services list box
and the Rules list box.
Chapter 10 Firewall Configuration
P-660HW-Dx v2 User’s Guide
168

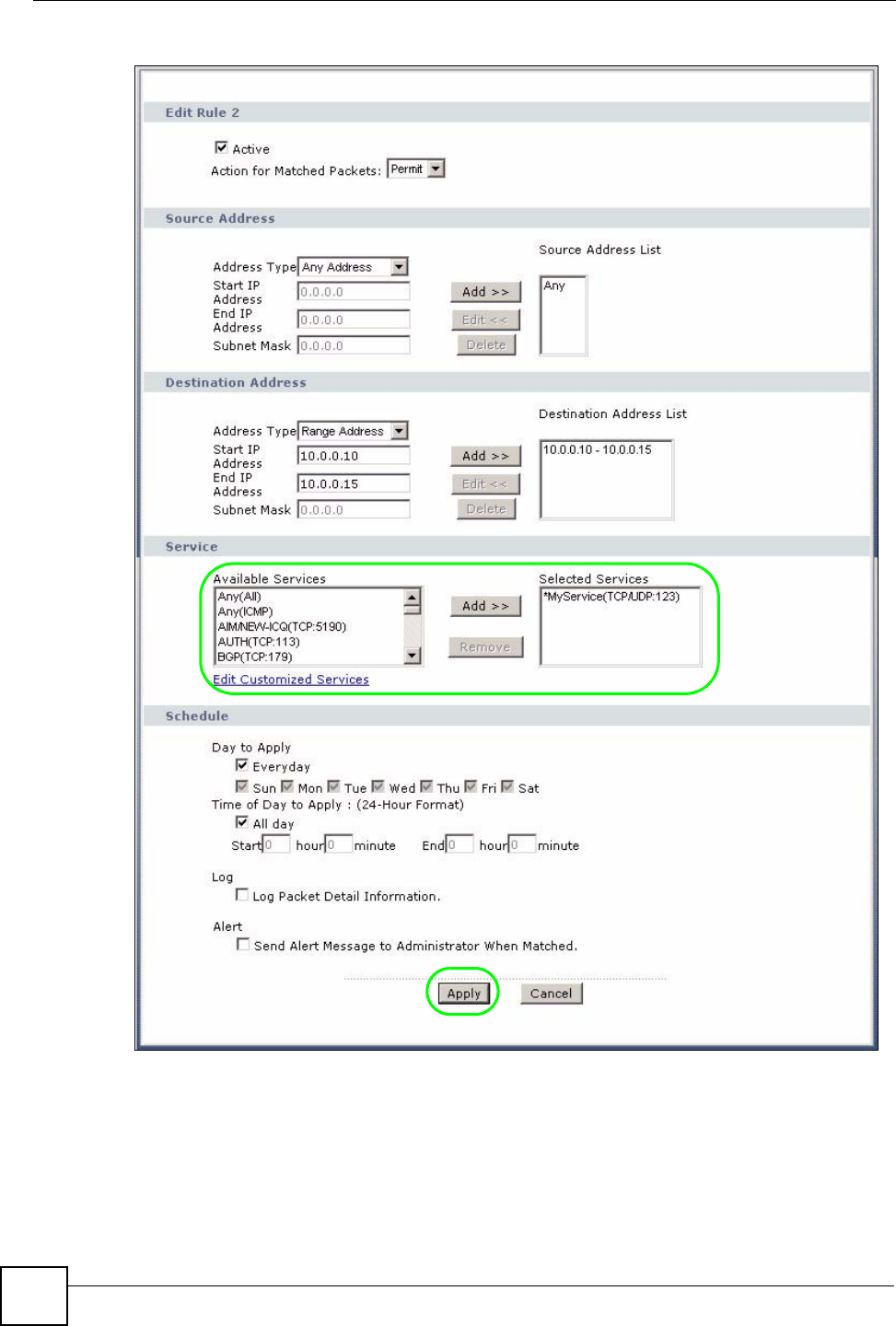

Figure 98 Firewall Example: Edit Rule: Select Customized Services
On completing the configuration procedure for this Internet firewall rule, the Rules screen
should look like the following.
Rule 1 allows a “MyService” connection from the WAN to IP addresses 10.0.0.10 through
10.0.0.15 on the LAN.
Chapter 10 Firewall Configuration
P-660HW-Dx v2 User’s Guide 169
Figure 99 Firewall Example: Rules: MyService
10.8 Predefined Services
The Available Services list box in the Edit Rule screen (see Section 10.6.1 on page 161)
displays all predefined services that the ZyXEL Device already supports. Next to the name of
the service, two fields appear in brackets. The first field indicates the IP protocol type (TCP,
UDP, or ICMP). The second field indicates the IP port number that defines the service. (Note
that there may be more than one IP protocol type. For example, look at the default
configuration labeled “(DNS)”. (UDP/TCP:53) means UDP port 53 and TCP port 53. Up to 128
entries are supported. Custom service ports may also be configured using the Edit
Customized Services function discussed previously.
Table 61 Predefined Services
SERVICE DESCRIPTION
AIM/NEW_ICQ(TCP:5190) AOL’s Internet Messenger service, used as a listening port by ICQ.
AUTH(TCP:113) Authentication protocol used by some servers.
BGP(TCP:179) Border Gateway Protocol.
BOOTP_CLIENT(UDP:68) DHCP Client.
BOOTP_SERVER(UDP:67) DHCP Server.
CU-SEEME(TCP/UDP:7648,
24032)
A popular videoconferencing solution from White Pines Software.
DNS(UDP/TCP:53) Domain Name Server, a service that matches web names (e.g.
www.zyxel.com) to IP numbers.
FINGER(TCP:79) Finger is a UNIX or Internet related command that can be used to find
out if a user is logged on.
FTP(TCP:20.21) File Transfer Program, a program to enable fast transfer of files,
including large files that may not be possible by e-mail.
H.323(TCP:1720) Net Meeting uses this protocol.
Chapter 10 Firewall Configuration
P-660HW-Dx v2 User’s Guide
170
HTTP(TCP:80) Hyper Text Transfer Protocol - a client/server protocol for the world
wide web.
HTTPS HTTPS is a secured http session often used in e-commerce.
ICQ(UDP:4000) This is a popular Internet chat program.
IPSEC_TRANSPORT/
TUNNEL(AH:0)
The IPSEC AH (Authentication Header) tunneling protocol uses this
service.
IPSEC_TUNNEL(ESP:0) The IPSEC ESP (Encapsulation Security Protocol) tunneling protocol
uses this service.
IRC(TCP/UDP:6667) This is another popular Internet chat program.
MSN Messenger(TCP:1863) Microsoft Networks’ messenger service uses this protocol.
MULTICAST(IGMP:0) Internet Group Multicast Protocol is used when sending packets to a
specific group of hosts.
NEWS(TCP:144) A protocol for news groups.
NFS(UDP:2049) Network File System - NFS is a client/server distributed file service that
provides transparent file-sharing for network environments.
NNTP(TCP:119) Network News Transport Protocol is the delivery mechanism for the
USENET newsgroup service.
PING(ICMP:0) Packet INternet Groper is a protocol that sends out ICMP echo
requests to test whether or not a remote host is reachable.
POP3(TCP:110) Post Office Protocol version 3 lets a client computer get e-mail from a
POP3 server through a temporary connection (TCP/IP or other).
PPTP(TCP:1723) Point-to-Point Tunneling Protocol enables secure transfer of data over
public networks. This is the control channel.
PPTP_TUNNEL(GRE:0) Point-to-Point Tunneling Protocol enables secure transfer of data over
public networks. This is the data channel.
RCMD(TCP:512) Remote Command Service.
REAL_AUDIO(TCP:7070) A streaming audio service that enables real time sound over the web.
REXEC(TCP:514) Remote Execution Daemon.
RLOGIN(TCP:513) Remote Login.
RTELNET(TCP:107) Remote Telnet.
RTSP(TCP/UDP:554) The Real Time Streaming (media control) Protocol (RTSP) is a remote
control for multimedia on the Internet.
SFTP(TCP:115) Simple File Transfer Protocol.
SMTP(TCP:25) Simple Mail Transfer Protocol is the message-exchange standard for
the Internet. SMTP enables you to move messages from one e-mail
server to another.
SNMP(TCP/UDP:161) Simple Network Management Program.
SNMP-TRAPS (TCP/
UDP:162)
Traps for use with the SNMP (RFC:1215).
SQL-NET(TCP:1521) Structured Query Language is an interface to access data on many
different types of database systems, including mainframes, midrange
systems, UNIX systems and network servers.
SSDP(UDP:1900) Simole Service Discovery Protocol (SSDP) is a discovery service
searching for Universal Plug and Play devices on your home network
or upstream Internet gateways using DUDP port 1900.
Table 61 Predefined Services (continued)
SERVICE DESCRIPTION
Chapter 10 Firewall Configuration
P-660HW-Dx v2 User’s Guide 171
10.9 Anti-Probing
If an outside user attempts to probe an unsupported port on your ZyXEL Device, an ICMP
response packet is automatically returned. This allows the outside user to know the ZyXEL
Device exists. The ZyXEL Device supports anti-probing, which prevents the ICMP response
packet from being sent. This keeps outsiders from discovering your ZyXEL Device when
unsupported ports are probed.
Internet Control Message Protocol (ICMP) is a message control and error-reporting protocol
between a host server and a gateway to the Internet. ICMP uses Internet Protocol (IP)
datagrams, but the messages are processed by the TCP/IP software and directly apparent to the
application user.
Refer to Section 9.1 on page 143 for more information.
Click Security > Firewall > Anti Probing to display the screen as shown.

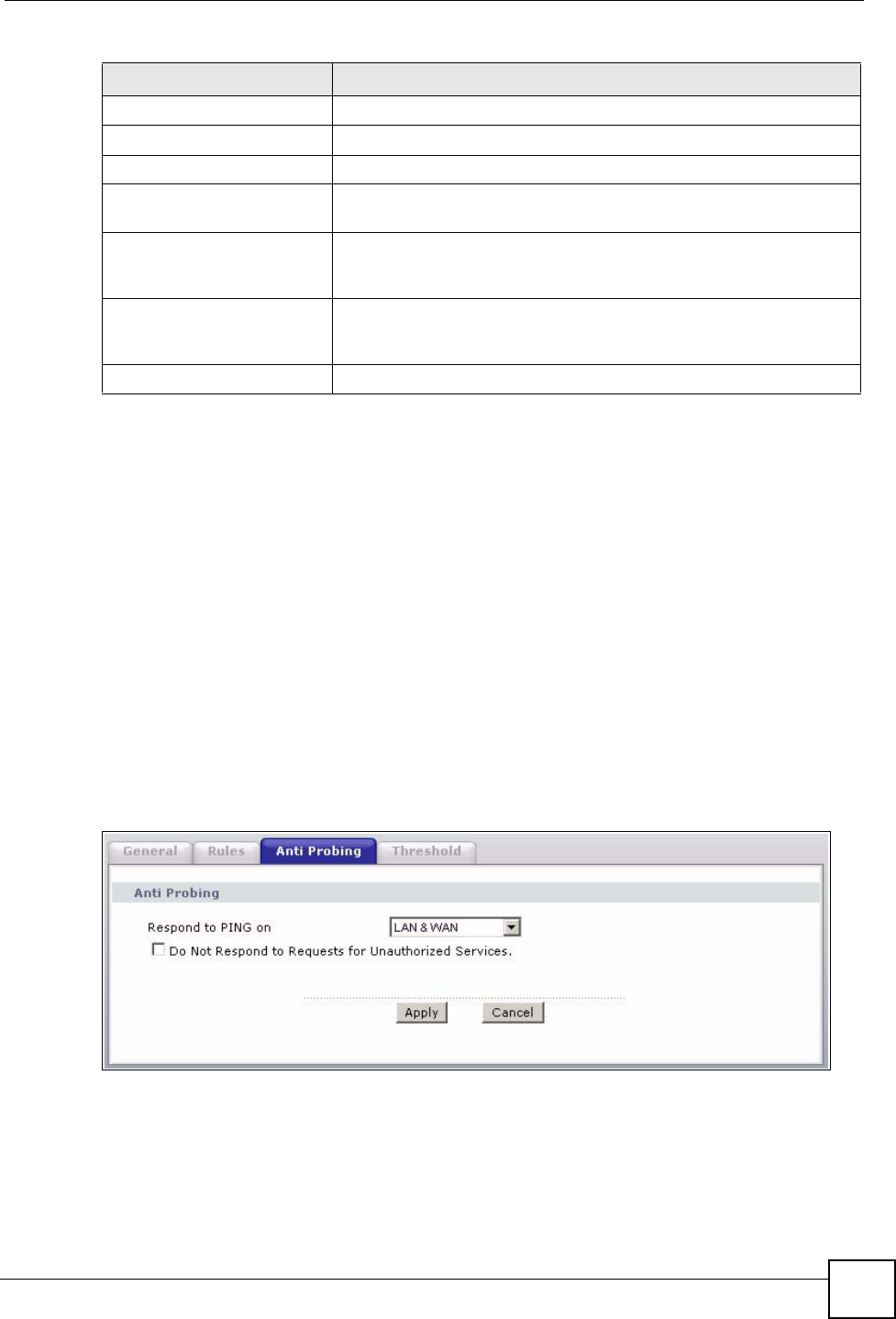

Figure 100 Firewall: Anti Probing
SSH(TCP/UDP:22) Secure Shell Remote Login Program.
STRMWORKS(UDP:1558) Stream Works Protocol.
SYSLOG(UDP:514) Syslog allows you to send system logs to a UNIX server.
TACACS(UDP:49) Login Host Protocol used for (Terminal Access Controller Access
Control System).
TELNET(TCP:23) Telnet is the login and terminal emulation protocol common on the
Internet and in UNIX environments. It operates over TCP/IP networks.
Its primary function is to allow users to log into remote host systems.
TFTP(UDP:69) Trivial File Transfer Protocol is an Internet file transfer protocol similar
to FTP, but uses the UDP (User Datagram Protocol) rather than TCP
(Transmission Control Protocol).
VDOLIVE(TCP:7000) Another videoconferencing solution.
Table 61 Predefined Services (continued)
SERVICE DESCRIPTION
Chapter 10 Firewall Configuration
P-660HW-Dx v2 User’s Guide
172
The following table describes the labels in this screen.
10.10 DoS Thresholds
For DoS attacks, the ZyXEL Device uses thresholds to determine when to drop sessions that
do not become fully established. These thresholds apply globally to all sessions.
You can use the default threshold values, or you can change them to values more suitable to
your security requirements.
Refer to Section 10.10.3 on page 173 to configure thresholds.
10.10.1 Threshold Values
Tune these parameters when something is not working and after you have checked the firewall
counters. These default values should work fine for most small offices. Factors influencing
choices for threshold values are:
• The maximum number of opened sessions.
• The minimum capacity of server backlog in your LAN network.
• The CPU power of servers in your LAN network.
• Network bandwidth.
• Type of traffic for certain servers.
If your network is slower than average for any of these factors (especially if you have servers
that are slow or handle many tasks and are often busy), then the default values should be
reduced.
You should make any changes to the threshold values before you continue configuring
firewall rules.
Table 62 Firewall: Anti Probing
LABEL DESCRIPTION
Respond to PING
on
The ZyXEL Device does not respond to any incoming Ping requests when
Disable is selected.
Select LAN to reply to incoming LAN Ping requests.
Select WAN to reply to incoming WAN Ping requests.
Otherwise select LAN & WAN to reply to both incoming LAN and WAN Ping
requests.
Do Not Respond
to Requests for
Unauthorized
Services.
Select this option to prevent hackers from finding the ZyXEL Device by probing for
unused ports. If you select this option, the ZyXEL Device will not respond to port
request(s) for unused ports, thus leaving the unused ports and the ZyXEL Device
unseen. By default this option is not selected and the ZyXEL Device will reply with
an ICMP Port Unreachable packet for a port probe on its unused UDP ports, and a
TCP Reset packet for a port probe on its unused TCP ports.
Note that the probing packets must first traverse the ZyXEL Device's firewall
mechanism before reaching this anti-probing mechanism. Therefore if the firewall
mechanism blocks a probing packet, the ZyXEL Device reacts based on the
corresponding firewall policy to send a TCP reset packet for a blocked TCP
packet or an ICMP port-unreachable packet for a blocked UDP packets or just
drop the packets without sending a response packet.
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
Chapter 10 Firewall Configuration
P-660HW-Dx v2 User’s Guide 173
10.10.2 Half-Open Sessions
An unusually high number of half-open sessions (either an absolute number or measured as
the arrival rate) could indicate that a Denial of Service attack is occurring. For TCP, "half-
open" means that the session has not reached the established state-the TCP three-way
handshake has not yet been completed (see Figure 86 on page 146). For UDP, "half-open"
means that the firewall has detected no return traffic.
The ZyXEL Device measures both the total number of existing half-open sessions and the rate
of session establishment attempts. Both TCP and UDP half-open sessions are counted in the
total number and rate measurements. Measurements are made once a minute.
When the number of existing half-open sessions rises above a threshold (max-incomplete
high), the ZyXEL Device starts deleting half-open sessions as required to accommodate new
connection requests. The ZyXEL Device continues to delete half-open requests as necessary,
until the number of existing half-open sessions drops below another threshold (max-
incomplete low).
When the rate of new connection attempts rises above a threshold (one-minute high), the
ZyXEL Device starts deleting half-open sessions as required to accommodate new connection
requests. The ZyXEL Device continues to delete half-open sessions as necessary, until the rate
of new connection attempts drops below another threshold (one-minute low). The rate is the
number of new attempts detected in the last one-minute sample period.
10.10.2.1 TCP Maximum Incomplete and Blocking Time
An unusually high number of half-open sessions with the same destination host address could
indicate that a Denial of Service attack is being launched against the host.
Whenever the number of half-open sessions with the same destination host address rises above
a threshold (TCP Maximum Incomplete), the ZyXEL Device starts deleting half-open
sessions according to one of the following methods:
• If the Blocking Time timeout is 0 (the default), then the ZyXEL Device deletes the oldest
existing half-open session for the host for every new connection request to the host. This
ensures that the number of half-open sessions to a given host will never exceed the
threshold.
• If the Blocking Time timeout is greater than 0, then the ZyXEL Device blocks all new
connection requests to the host giving the server time to handle the present connections.
The ZyXEL Device continues to block all new connection requests until the Blocking
Time expires.
10.10.3 Configuring Firewall Thresholds
The ZyXEL Device also sends alerts whenever TCP Maximum Incomplete is exceeded. The
global values specified for the threshold and timeout apply to all TCP connections.
Click Firewall, and Threshold to bring up the next screen.
Chapter 10 Firewall Configuration
P-660HW-Dx v2 User’s Guide
174
Figure 101 Firewall: Threshold
The following table describes the labels in this screen.
Table 63 Firewall: Threshold
LABEL DESCRIPTION DEFAULT VALUES
Denial of Service
Thresholds
One Minute Low This is the rate of new half-open sessions
that causes the firewall to stop deleting half-
open sessions. The ZyXEL Device continues
to delete half-open sessions as necessary,
until the rate of new connection attempts
drops below this number.
80 existing half-open sessions.
One Minute High This is the rate of new half-open sessions
that causes the firewall to start deleting half-
open sessions. When the rate of new
connection attempts rises above this number,
the ZyXEL Device deletes half-open sessions
as required to accommodate new connection
attempts.
100 half-open sessions per
minute. The above numbers cause
the ZyXEL Device to start deleting
half-open sessions when more
than 100 session establishment
attempts have been detected in
the last minute, and to stop
deleting half-open sessions when
fewer than 80 session
establishment attempts have been
detected in the last minute.
Maximum
Incomplete Low
This is the number of existing half-open
sessions that causes the firewall to stop
deleting half-open sessions. The ZyXEL
Device continues to delete half-open
requests as necessary, until the number of
existing half-open sessions drops below this
number.
80 existing half-open sessions.
Chapter 10 Firewall Configuration
P-660HW-Dx v2 User’s Guide 175
Maximum
Incomplete High
This is the number of existing half-open
sessions that causes the firewall to start
deleting half-open sessions. When the
number of existing half-open sessions rises
above this number, the ZyXEL Device
deletes half-open sessions as required to
accommodate new connection requests. Do
not set Maximum Incomplete High to lower
than the current Maximum Incomplete Low
number.
100 existing half-open sessions.
The above values causes the
ZyXEL Device to start deleting
half-open sessions when the
number of existing half-open
sessions rises above 100, and to
stop deleting half-open sessions
with the number of existing half-
open sessions drops below 80.
TCP Maximum
Incomplete
This is the number of existing half-open TCP
sessions with the same destination host IP
address that causes the firewall to start
dropping half-open sessions to that same
destination host IP address. Enter a number
between 1 and 256. As a general rule, you
should choose a smaller number for a smaller
network, a slower system or limited
bandwidth.
10 existing half-open TCP
sessions.
Action taken when the TCP Maximum Incomplete threshold is reached.
Delete the oldest
half open session
when new
connection
request comes
Select this radio button to clear the oldest half
open session when a new connection request
comes.
Deny new
connection
request for
Select this radio button and specify for how
long the ZyXEL Device should block new
connection requests when TCP Maximum
Incomplete is reached.
Enter the length of blocking time in minutes
(between 1 and 256).
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
Table 63 Firewall: Threshold (continued)
LABEL DESCRIPTION DEFAULT VALUES
Chapter 10 Firewall Configuration
P-660HW-Dx v2 User’s Guide
176
P-660HW-Dx v2 User’s Guide 177
CHAPTER 11
Content Filtering
This chapter covers how to configure content filtering.
11.1 Content Filtering Overview
Internet content filtering allows you to create and enforce Internet access policies tailored to
your needs. Content filtering gives you the ability to block web sites that contain key words
(that you specify) in the URL. You can set a schedule for when the ZyXEL Device performs
content filtering. You can also specify trusted IP addresses on the LAN for which the ZyXEL
Device will not perform content filtering.
11.2 Configuring Keyword Blocking
Use this screen to block sites containing certain keywords in the URL. For example, if you
enable the keyword "bad", the ZyXEL Device blocks all sites containing this keyword
including the URL http://www.website.com/bad.html, even if it is not included in the Filter
List.
To have your ZyXEL Device block Web sites containing keywords in their URLs, click
Security > Content Filter. The screen appears as shown.

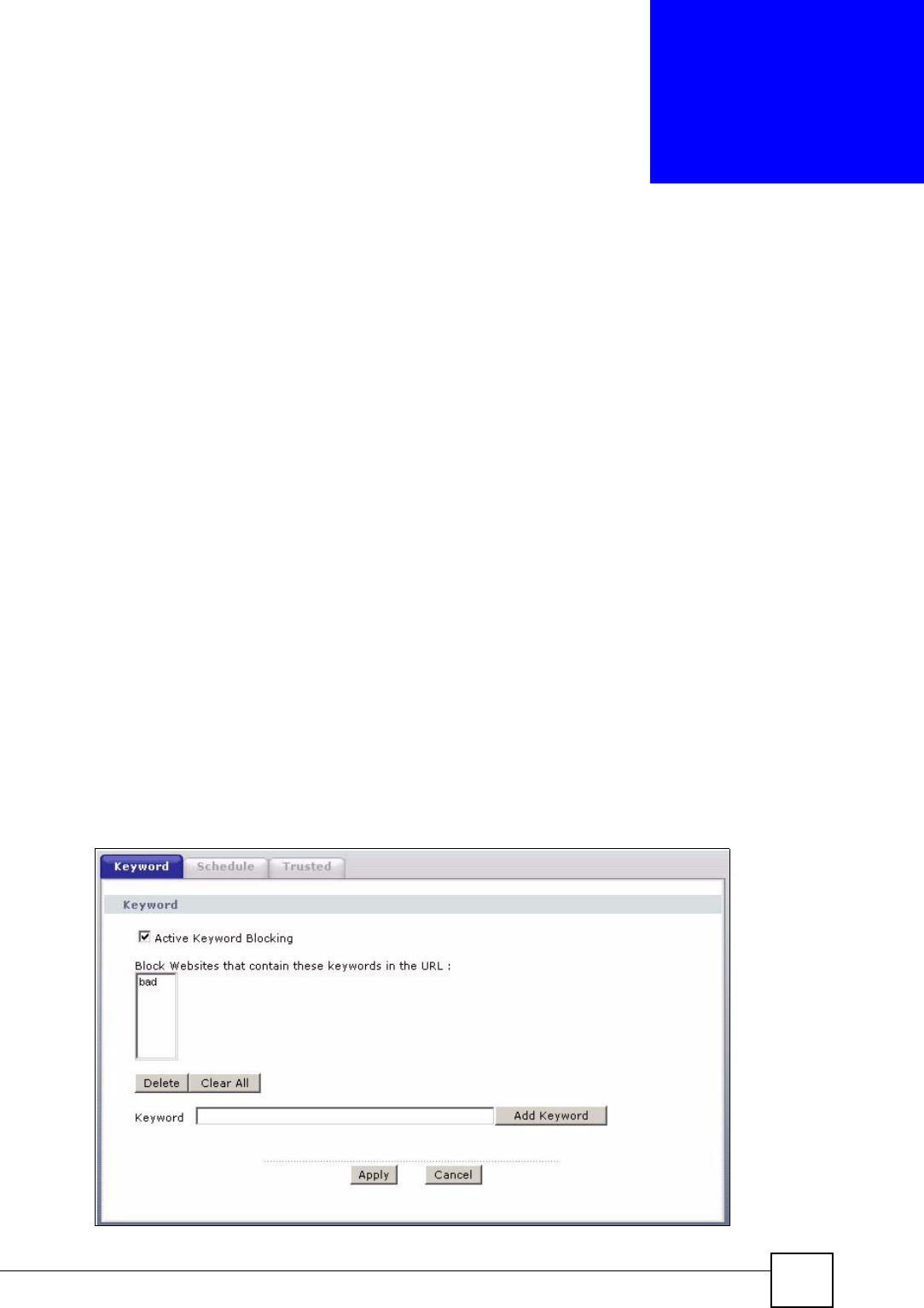

Figure 102 Content Filter: Keyword
Chapter 11 Content Filtering
P-660HW-Dx v2 User’s Guide
178
The following table describes the labels in this screen.
11.3 Configuring the Schedule
To set the days and times for the ZyXEL Device to perform content filtering, click Security >
Content Filter > Schedule. The screen appears as shown.

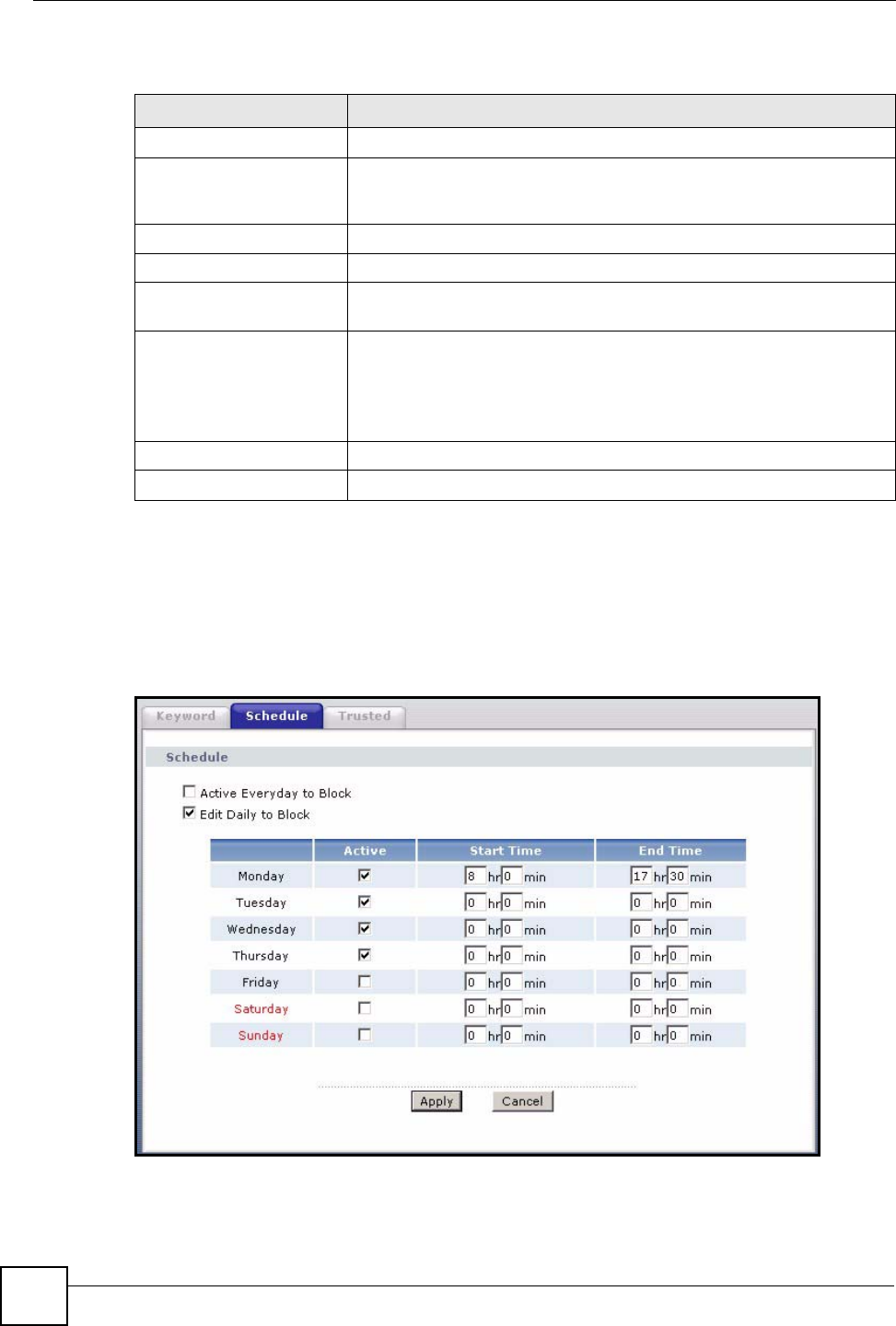

Figure 103 Content Filter: Schedule
Table 64 Content Filter: Keyword
LABEL DESCRIPTION
Active Keyword Blocking Select this check box to enable this feature.
Block Websites that
contain these keywords in
the URL:
This box contains the list of all the keywords that you have configured the
ZyXEL Device to block.
Delete Highlight a keyword in the box and click Delete to remove it.
Clear All Click Clear All to remove all of the keywords from the list.
Keyword Type a keyword in this field. You may use any character (up to 127
characters). Wildcards are not allowed.
Add Keyword Click Add Keyword after you have typed a keyword.
Repeat this procedure to add other keywords. Up to 64 keywords are
allowed.
When you try to access a web page containing a keyword, you will get a
message telling you that the content filter is blocking this request.
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to return to the previously saved settings.
Chapter 11 Content Filtering
P-660HW-Dx v2 User’s Guide 179
The following table describes the labels in this screen.
11.4 Configuring Trusted Computers
To exclude a range of users on the LAN from content filtering on your ZyXEL Device, click
Security > Content Filter > Trusted. The screen appears as shown.
Figure 104 Content Filter: Trusted
The following table describes the labels in this screen.
Table 65 Content Filter: Schedule
LABEL DESCRIPTION
Schedule Select Active Everyday to Block to make the content filtering active everyday.
Otherwise, select Edit Daily to Block and configure which days of the week (or
everyday) and which time of the day you want the content filtering to be active.
Active
Everyday to
Block
Select this option to allow continuous filtering of websites based on the keywords you
have chosen.
Edit Daily to
Block
Select this option to filter websites according to the day(s) and time(s) configured.
Active Select the check box to have the content filtering active on the selected day.
Start TIme Enter the start time when you want the content filtering to take effect in hour-minute
format.
End Time Enter the end time when you want the content filtering to stop in hour-minute format.
Apply Click Apply to save your changes.
Cancel Click Cancel to return to the previously saved settings.
Table 66 Content Filter: Trusted
LABEL DESCRIPTION
Trusted User IP Range
From Type the IP address of a computer (or the beginning IP address of a specific
range of computers) on the LAN that you want to exclude from content
filtering.
To Type the ending IP address of a specific range of users on your LAN that
you want to exclude from content filtering. Leave this field blank if you want
to exclude an individual computer.
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to return to the previously saved settings.
Chapter 11 Content Filtering
P-660HW-Dx v2 User’s Guide
180
181
PART V
Advanced
Static Route (183)
Bandwidth Management (187)
Dynamic DNS Setup (199)
Remote Management Configuration (203)
Universal Plug-and-Play (UPnP) (213)
182
P-660HW-Dx v2 User’s Guide 183
CHAPTER 12
Static Route
This chapter shows you how to configure static routes for your ZyXEL Device.
12.1 Static Route
Each remote node specifies only the network to which the gateway is directly connected, and
the ZyXEL Device has no knowledge of the networks beyond. For instance, the ZyXEL
Device knows about network N2 in the following figure through remote node Router 1.
However, the ZyXEL Device is unable to route a packet to network N3 because it doesn't
know that there is a route through the same remote node Router 1 (via gateway Router 2). The
static routes are for you to tell the ZyXEL Device about the networks beyond the remote
nodes.

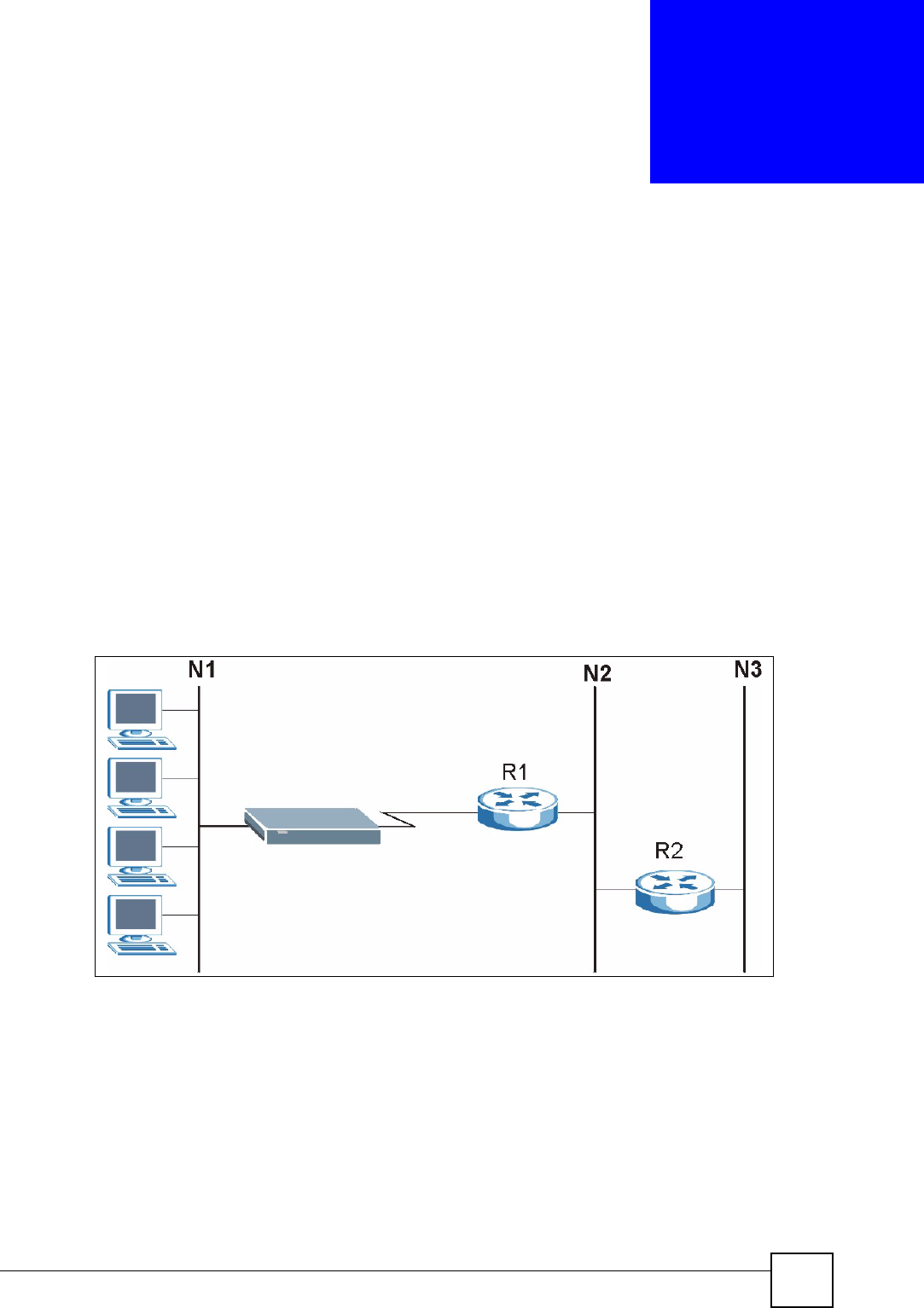

Figure 105 Example of Static Routing Topology
12.2 Configuring Static Route
Click Advanced > Static Route to open the Static Route screen.
Chapter 12 Static Route
P-660HW-Dx v2 User’s Guide
184

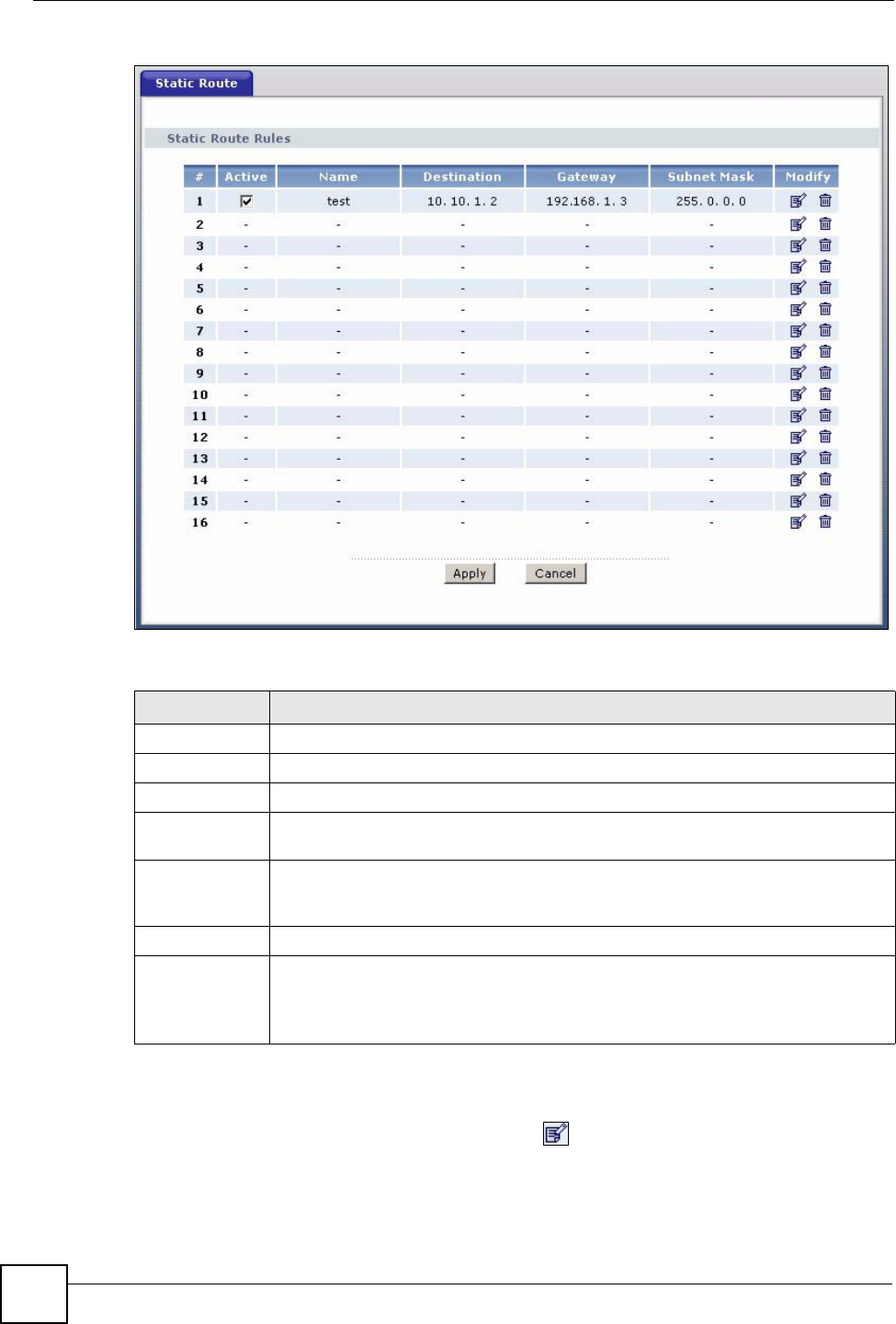

Figure 106 Static Route
The following table describes the labels in this screen.
12.2.1 Static Route Edit
Select a static route index number and click Edit ( ). The screen shown next appears. Use
this screen to configure the required information for a static route.
Table 67 Static Route
LABEL DESCRIPTION
#This is the number of an individual static route.
Active Select the check box to activate this static route. Otherwise, clear the check box.
Name This is the name that describes or identifies this route.
Destination This parameter specifies the IP network address of the final destination. Routing is
always based on network number.
Gateway This is the IP address of the gateway. The gateway is a router or switch on the same
network segment as the device's LAN or WAN port. The gateway helps forward
packets to their destinations.
Subnet Mask This is the IP subnet mask.
Modify Click the Edit icon to go to the screen where you can set up a static route on the
ZyXEL Device.
Click the Delete icon to remove a static route from the ZyXEL Device. A window
displays asking you to confirm that you want to delete the route.
Chapter 12 Static Route
P-660HW-Dx v2 User’s Guide 185

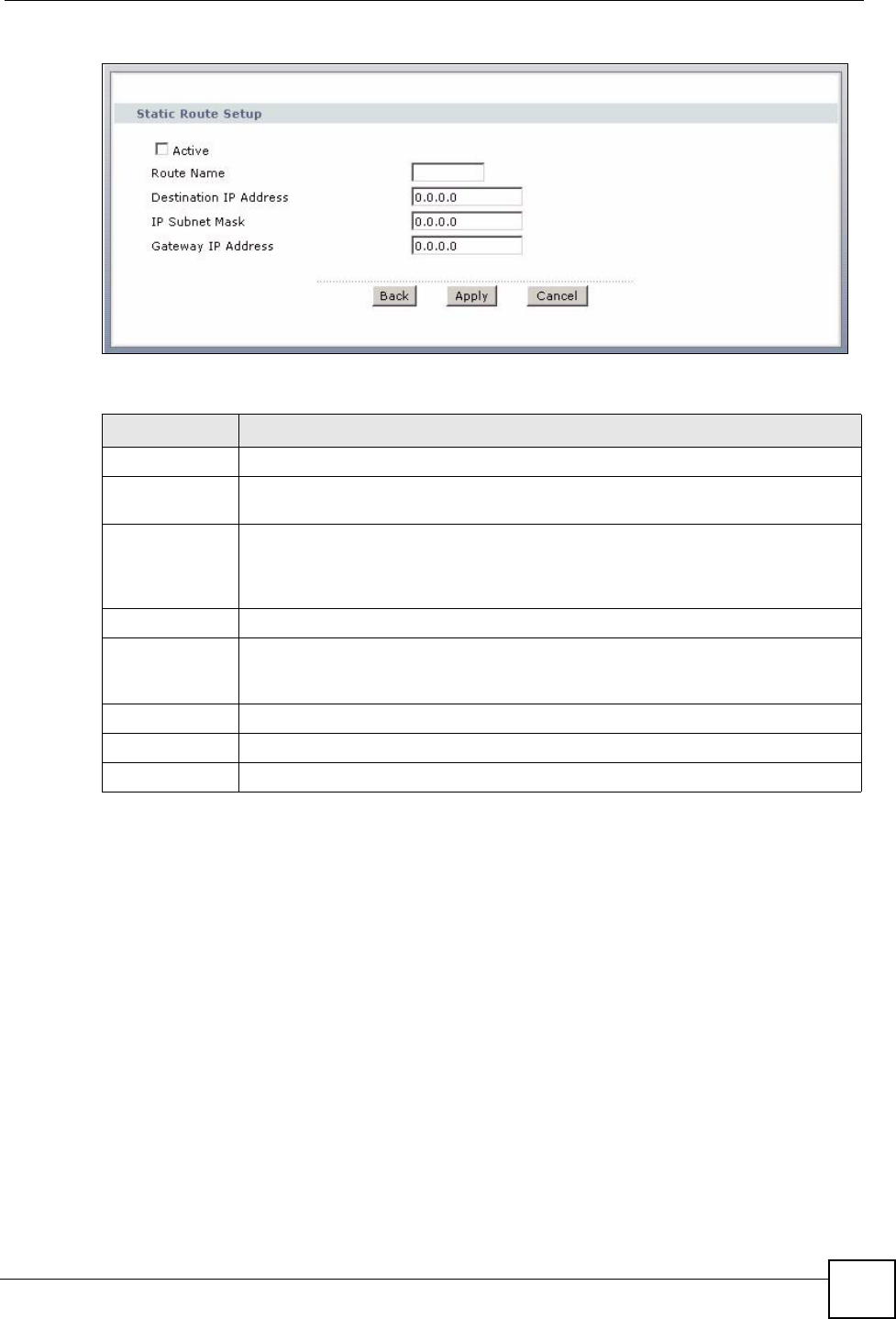

Figure 107 Static Route Edit
The following table describes the labels in this screen.
Table 68 Static Route Edit
LABEL DESCRIPTION
Active This field allows you to activate/deactivate this static route.
Route Name Enter the name of the IP static route. Leave this field blank to delete this static
route.
Destination IP
Address
This parameter specifies the IP network address of the final destination. Routing is
always based on network number. If you need to specify a route to a single host,
use a subnet mask of 255.255.255.255 in the subnet mask field to force the network
number to be identical to the host ID.
IP Subnet Mask Enter the IP subnet mask here.
Gateway IP
Address
Enter the IP address of the gateway. The gateway is a router or switch on the same
network segment as the device's LAN or WAN port. The gateway helps forward
packets to their destinations.
Back Click Back to return to the previous screen without saving.
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
Chapter 12 Static Route
P-660HW-Dx v2 User’s Guide
186
P-660HW-Dx v2 User’s Guide 187
CHAPTER 13
Bandwidth Management
This chapter contains information about configuring bandwidth management, editing rules and
viewing the ZyXEL Device’s bandwidth management logs.
13.1 Bandwidth Management Overview
ZyXEL’s Bandwidth Management allows you to specify bandwidth management rules based
on an application and/or subnet. You can allocate specific amounts of bandwidth capacity
(bandwidth budgets) to different bandwidth rules.
The ZyXEL Device applies bandwidth management to traffic that it forwards out through an
interface. The ZyXEL Device does not control the bandwidth of traffic that comes into an
interface.
Bandwidth management applies to all traffic flowing out of the router, regardless of the
traffic's source.
Traffic redirect or IP alias may cause LAN-to-LAN traffic to pass through the ZyXEL Device
and be managed by bandwidth management.
The sum of the bandwidth allotments that apply to any interface must be less than or equal to
the speed allocated to that interface in the Bandwidth Management > Summary screen.
13.2 Application-based Bandwidth Management
You can create bandwidth classes based on individual applications (like VoIP, Web, FTP, E-
mail and Video for example).
13.3 Subnet-based Bandwidth Management
You can create bandwidth classes based on subnets.
The following figure shows LAN subnets. You could configure one bandwidth class for
subnet A and another for subnet B.
Chapter 13 Bandwidth Management
P-660HW-Dx v2 User’s Guide
188
Figure 108 Subnet-based Bandwidth Management Example
13.4 Application and Subnet-based Bandwidth Management
You could also create bandwidth classes based on a combination of a subnet and an
application. The following example table shows bandwidth allocations for application specific
traffic from separate LAN subnets.
13.5 Scheduler
The scheduler divides up an interface’s bandwidth among the bandwidth classes. The ZyXEL
Device has two types of scheduler: fairness-based and priority-based.
13.5.1 Priority-based Scheduler
With the priority-based scheduler, the ZyXEL Device forwards traffic from bandwidth classes
according to the priorities that you assign to the bandwidth classes. The larger a bandwidth
class’s priority number is, the higher the priority. Assign real-time applications (like those
using audio or video) a higher priority number to provide smoother operation.
Table 69 Application and Subnet-based Bandwidth Management Example
TRAFFIC TYPE FROM SUBNET A FROM SUBNET B
VoIP 64 Kbps 64 Kbps
Web 64 Kbps 64 Kbps
FTP 64 Kbps 64 Kbps
E-mail 64 Kbps 64 Kbps
Video 64 Kbps 64 Kbps
Chapter 13 Bandwidth Management
P-660HW-Dx v2 User’s Guide 189
13.5.2 Fairness-based Scheduler
The ZyXEL Device divides bandwidth equally among bandwidth classes when using the
fairness-based scheduler; thus preventing one bandwidth class from using all of the interface’s
bandwidth.
13.6 Maximize Bandwidth Usage
The maximize bandwidth usage option (see Figure 109 on page 192) allows the ZyXEL
Device to divide up any available bandwidth on the interface (including unallocated
bandwidth and any allocated bandwidth that a class is not using) among the bandwidth classes
that require more bandwidth.
When you enable maximize bandwidth usage, the ZyXEL Device first makes sure that each
bandwidth class gets up to its bandwidth allotment. Next, the ZyXEL Device divides up an
interface’s available bandwidth (bandwidth that is unbudgeted or unused by the classes)
depending on how many bandwidth classes require more bandwidth and on their priority
levels. When only one class requires more bandwidth, the ZyXEL Device gives extra
bandwidth to that class.
When multiple classes require more bandwidth, the ZyXEL Device gives the highest priority
classes the available bandwidth first (as much as they require, if there is enough available
bandwidth), and then to lower priority classes if there is still bandwidth available. The ZyXEL
Device distributes the available bandwidth equally among classes with the same priority level.
13.6.1 Reserving Bandwidth for Non-Bandwidth Class Traffic
Do the following three steps to configure the ZyXEL Device to allow bandwidth for traffic
that is not defined in a bandwidth filter.
1Leave some of the interface’s bandwidth unbudgeted.
2Do not enable the interface’s Maximize Bandwidth Usage option.
3Do not enable bandwidth borrowing on the child-classes that have the root class as their
parent (see Section 13.9 on page 192).
13.6.2 Maximize Bandwidth Usage Example
Here is an example of a ZyXEL Device that has maximize bandwidth usage enabled on an
interface. The following table shows each bandwidth class’s bandwidth budget. The classes
are set up based on subnets. The interface is set to 10240 kbps. Each subnet is allocated 2048
kbps. The unbudgeted 2048 kbps allows traffic not defined in any of the bandwidth filters to
go out when you do not select the maximize bandwidth option.
Table 70 Maximize Bandwidth Usage Example
BANDWIDTH CLASSES AND ALLOTMENTS
Root Class: 10240 kbps Administration: 2048 kbps
Sales: 2048 kbps
Marketing: 2048 kbps
Research: 2048 kbps
Chapter 13 Bandwidth Management
P-660HW-Dx v2 User’s Guide
190
The ZyXEL Device divides up the unbudgeted 2048 kbps among the classes that require more
bandwidth. If the administration department only uses 1024 kbps of the budgeted 2048 kbps,
the ZyXEL Device also divides the remaining 1024 kbps among the classes that require more
bandwidth. Therefore, the ZyXEL Device divides a total of 3072 kbps of unbudgeted and
unused bandwidth among the classes that require more bandwidth.
13.6.2.1 Priority-based Allotment of Unused and Unbudgeted Bandwidth
The following table shows the priorities of the bandwidth classes and the amount of bandwidth
that each class gets.
Suppose that all of the classes except for the administration class need more bandwidth.
• Each class gets up to its budgeted bandwidth. The administration class only uses 1024
kbps of its budgeted 2048 kbps.
• The sales and marketing are first to get extra bandwidth because they have the highest
priority (6). If they each require 1536 kbps or more of extra bandwidth, the ZyXEL Device
divides the total 3072 kbps total of unbudgeted and unused bandwidth equally between the
sales and marketing departments (1536 kbps extra to each for a total of 3584 kbps for
each) because they both have the highest priority level.
• Research requires more bandwidth but only gets its budgeted 2048 kbps because all of the
unbudgeted and unused bandwidth goes to the higher priority sales and marketing classes.
13.6.2.2 Fairness-based Allotment of Unused and Unbudgeted Bandwidth
The following table shows the amount of bandwidth that each class gets.
Suppose that all of the classes except for the administration class need more bandwidth.
• Each class gets up to its budgeted bandwidth. The administration class only uses 1024
kbps of its budgeted 2048 kbps.
• The ZyXEL Device divides the total 3072 kbps total of unbudgeted and unused bandwidth
equally among the other classes. 1024 kbps extra goes to each so the other classes each get
a total of 3072 kbps.
Table 71 Priority-based Allotment of Unused and Unbudgeted Bandwidth Example
BANDWIDTH CLASSES, PRIORITIES AND ALLOTMENTS
Root Class: 10240 kbps Administration: Priority 4, 1024 kbps
Sales: Priority 6, 3584 kbps
Marketing: Priority 6, 3584 kbps
Research: Priority 5, 2048 kbps
Table 72 Fairness-based Allotment of Unused and Unbudgeted Bandwidth Example
BANDWIDTH CLASSES AND ALLOTMENTS
Root Class: 10240 kbps Administration: 1024 kbps
Sales: 3072 kbps
Marketing: 3072 kbps
Research: 3072 kbps
Chapter 13 Bandwidth Management
P-660HW-Dx v2 User’s Guide 191
13.6.3 Bandwidth Management Priorities
The following table describes the priorities that you can apply to traffic that the ZyXEL
Device forwards out through an interface.
13.7 Over Allotment of Bandwidth
You can set the bandwidth management speed for an interface higher than the interface’s
actual transmission speed. Higher priority traffic gets to use up to its allocated bandwidth,
even if it takes up all of the interface’s available bandwidth. This could stop lower priority
traffic from being sent. The following is an example.
If you use VoIP and NetMeeting at the same time, the device allocates up to 500 Kbps of
bandwidth to each of them before it allocates any bandwidth to FTP. As a result, FTP can only
use bandwidth when VoIP and NetMeeting do not use all of their allocated bandwidth.
Suppose you try to browse the web too. In this case, VoIP, NetMeeting and FTP all have
higher priority, so they get to use the bandwidth first. You can only browse the web when
VoIP, NetMeeting, and FTP do not use all 1000 Kbps of available bandwidth.
13.8 Configuring Summary
Click Advanced > Bandwidth MGMT to open the screen as shown next.
Enable bandwidth management on an interface and set the maximum allowed bandwidth for
that interface.
Table 73 Bandwidth Management Priorities
PRIORITY LEVELS: TRAFFIC WITH A HIGHER PRIORITY GETS THROUGH FASTER WHILE
TRAFFIC WITH A LOWER PRIORITY IS DROPPED IF THE NETWORK IS CONGESTED.
High Typically used for voice traffic or video that is especially sensitive to jitter (jitter
is the variations in delay).
Mid Typically used for “excellent effort” or better than best effort and would include
important business traffic that can tolerate some delay.
Low This is typically used for non-critical “background” traffic such as bulk
transfers that are allowed but that should not affect other applications and
users.
Table 74 Over Allotment of Bandwidth Example
BANDWIDTH CLASSES, ALLOTMENTS PRIORITIES
Actual outgoing bandwidth available on the interface: 1000 kbps
Root Class: 1500 kbps (same
as Speed setting)
VoIP traffic (Service = SIP): 500 Kbps High
NetMeeting traffic (Service = H.323): 500 kbps High
FTP (Service = FTP): 500 Kbps Medium
Chapter 13 Bandwidth Management
P-660HW-Dx v2 User’s Guide
192

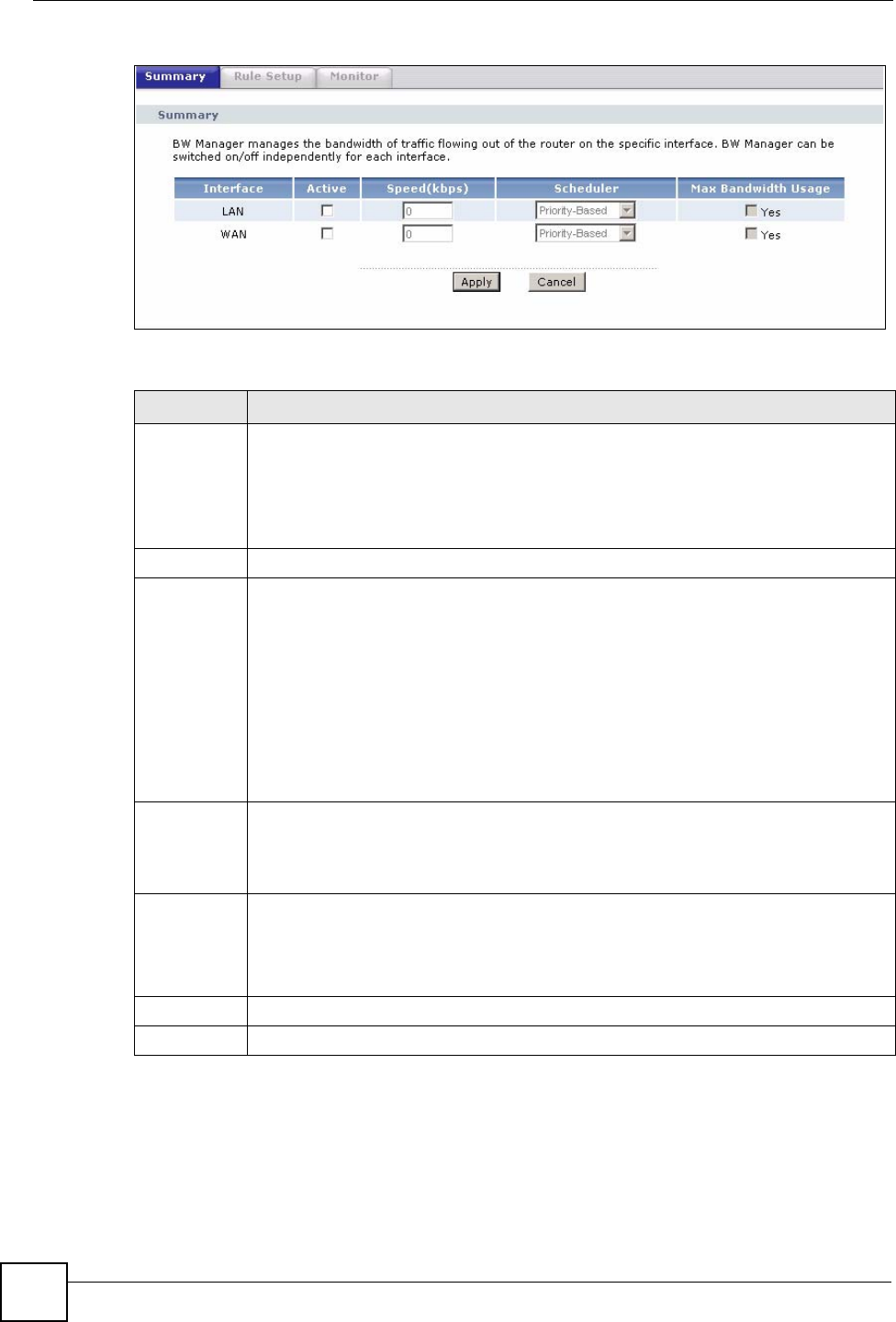

Figure 109 Bandwidth Management: Summary
The following table describes the labels in this screen.
13.9 Bandwidth Management Rule Setup
You must use the Bandwidth Management Summary screen to enable bandwidth
management on an interface before you can configure rules for that interface.
Table 75 Media Bandwidth Management: Summary
LABEL DESCRIPTION
Interface These read-only labels represent the physical interfaces. Select an interface’s check
box to enable bandwidth management on that interface. Bandwidth management
applies to all traffic flowing out of the router through the interface, regardless of the
traffic’s source.
Traffic redirect or IP alias may cause LAN-to-LAN traffic to pass through the ZyXEL
Device and be managed by bandwidth management.
Active Select an interface’s check box to enable bandwidth management on that interface.
Speed (kbps) Enter the amount of bandwidth for this interface that you want to allocate using
bandwidth management.
The recommendation is to set this speed to match the interface’s actual transmission
speed. For example, set the WAN interface speed to 1000 kbps if your Internet
connection has an upstream transmission speed of 1 Mbps.
You can set this number higher than the interface’s actual transmission speed. This
may stop lower priority traffic from being sent if higher priority traffic uses all of the
actual bandwidth.
You can also set this number lower than the interface’s actual transmission speed. If
you do not enable Max Bandwidth Usage, this will cause the ZyXEL Device to not use
some of the interface’s available bandwidth.
Scheduler Select either Priority-Based or Fairness-Based from the drop-down menu to control
the traffic flow.
Select Priority-Based to give preference to bandwidth classes with higher priorities.
Select Fairness-Based to treat all bandwidth classes equally.
Max
Bandwidth
Usage
Select this check box to have the ZyXEL Device divide up all of the interface’s
unallocated and/or unused bandwidth among the bandwidth classes that require
bandwidth. Do not select this if you want to reserve bandwidth for traffic that does not
match a bandwidth class or you want to limit the speed of this interface (see the Speed
field description).
Apply Click Apply to save your settings to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
Chapter 13 Bandwidth Management
P-660HW-Dx v2 User’s Guide 193
Click Advanced > Bandwidth MGMT > Rule Setup to open the following screen.

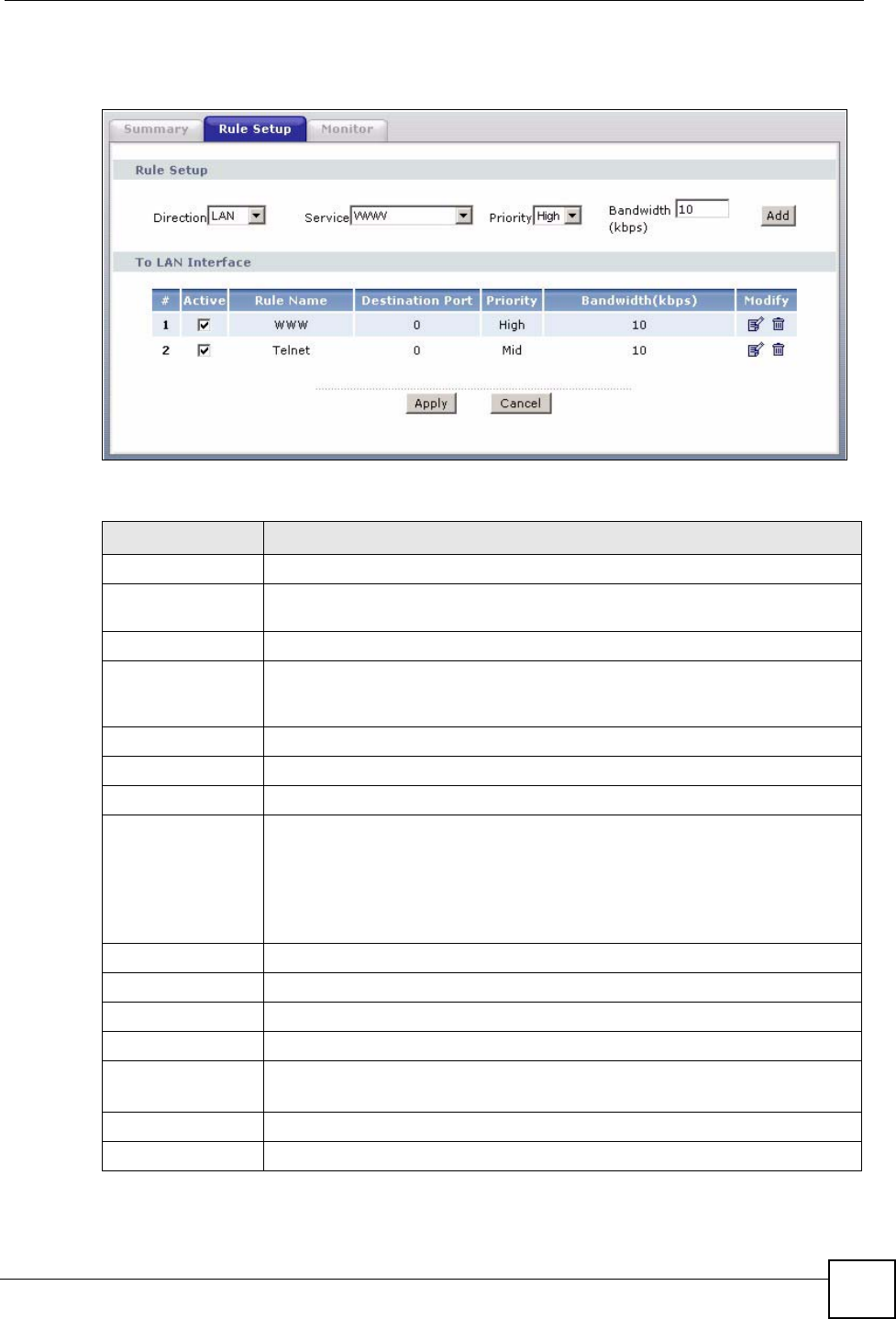

Figure 110 Bandwidth Management: Rule Setup
The following table describes the labels in this screen.
Table 76 Bandwidth Management: Rule Setup
LABEL DESCRIPTION
Direction Select the direction of traffic to which you want to apply bandwidth management.
Service Select a service for your rule or you can select User Defined to go to the screen
where you can define your own.
Priority Select a priority from the drop down list box. Choose High, Mid or Low.
Bandwidth (kbps) Specify the maximum bandwidth allowed for the rule in kbps. The
recommendation is a setting between 20 kbps and 20000 kbps for an individual
rule.
Add Click this button to add a rule to the following table.
To LAN Interface
#This is the number of an individual bandwidth management rule.
Active This displays whether the rule is enabled. Select this check box to have the
ZyXEL Device apply this bandwidth management rule.
Enable a bandwidth management rule to give traffic that matches the rule priority
over traffic that does not match the rule.
Enabling a bandwidth management rule also allows you to control the maximum
amounts of bandwidth that can be used by traffic that matches the rule.
Rule Name This is the name of the rule.
Destination Port This is the port number of the destination. 0 means any destination port.
Priority This is the priority of this rule.
Bandwidth (kbps) This is the maximum bandwidth allowed for the rule in kbps.
Modify Click the Edit icon to go to the screen where you can edit the rule.
Click the Remove icon to delete an existing rule.
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
Chapter 13 Bandwidth Management
P-660HW-Dx v2 User’s Guide
194
13.10 DiffServ
DiffServ is a class of service (CoS) model that marks packets so that they receive specific per-
hop treatment at DiffServ-compliant network devices along the route based on the application
types and traffic flow. Packets are marked with DiffServ Code Points (DSCPs) indicating the
level of service desired. This allows the intermediary DiffServ-compliant network devices to
handle the packets differently depending on the code points without the need to negotiate
paths or remember state information for every flow. In addition, applications do not have to
request a particular service or give advanced notice of where the traffic is going.
13.10.1 DSCP and Per-Hop Behavior
DiffServ defines a new DS (Differentiated Services) field to replace the Type of Service
(TOS) field in the IP header. The DS field contains a 2-bit unused field and a 6-bit DSCP field
which can define up to 64 service levels. The following figure illustrates the DS field.
DSCP is backward compatible with the three precedence bits in the ToS octet so that non-
DiffServ compliant, ToS-enabled network device will not conflict with the DSCP mapping.
Figure 111 DiffServ: Differentiated Service Field
The DSCP value determines the forwarding behavior, the PHB (Per-Hop Behavior), that each
packet gets across the DiffServ network. Based on the marking rule, different kinds of traffic
can be marked for different priorities of forwarding. Resources can then be allocated
according to the DSCP values and the configured policies.
PHB consists of two types of services: EF (Expedited Forwarding) and AF (Assured
Forwarding). EF has higher priority. EF guarantees services with minimal loss and delay. AF
has four sub-classes, each with three levels of importance (drop precedence). A high drop
precedence means low importance.
13.10.2 Rule Configuration
Click the Edit icon or select User Defined from the Service drop-down list in the Rule Setup
screen to configure a bandwidth management rule. Use bandwidth rules to allocate specific
amounts of bandwidth capacity (bandwidth budgets) to specific applications and/or subnets.
DSCP
(6-bit)
Unused
(2-bit)
Table 77 Sub-Classes of AF Services
DIFFSERV PRIORITY LOW DROP
PRECEDENCE
MEDIUM DROP
PRECEDENCE
HIGH DROP
PRECEDENCE
SUB-CLASS4 AF41 AF42 AF43
SUB-CLASS3 AF31 AF32 AF33
SUB-CLASS2 AF21 AF22 AF23
SUB-CLASS1 AF11 AF12 AF13
Chapter 13 Bandwidth Management
P-660HW-Dx v2 User’s Guide 195

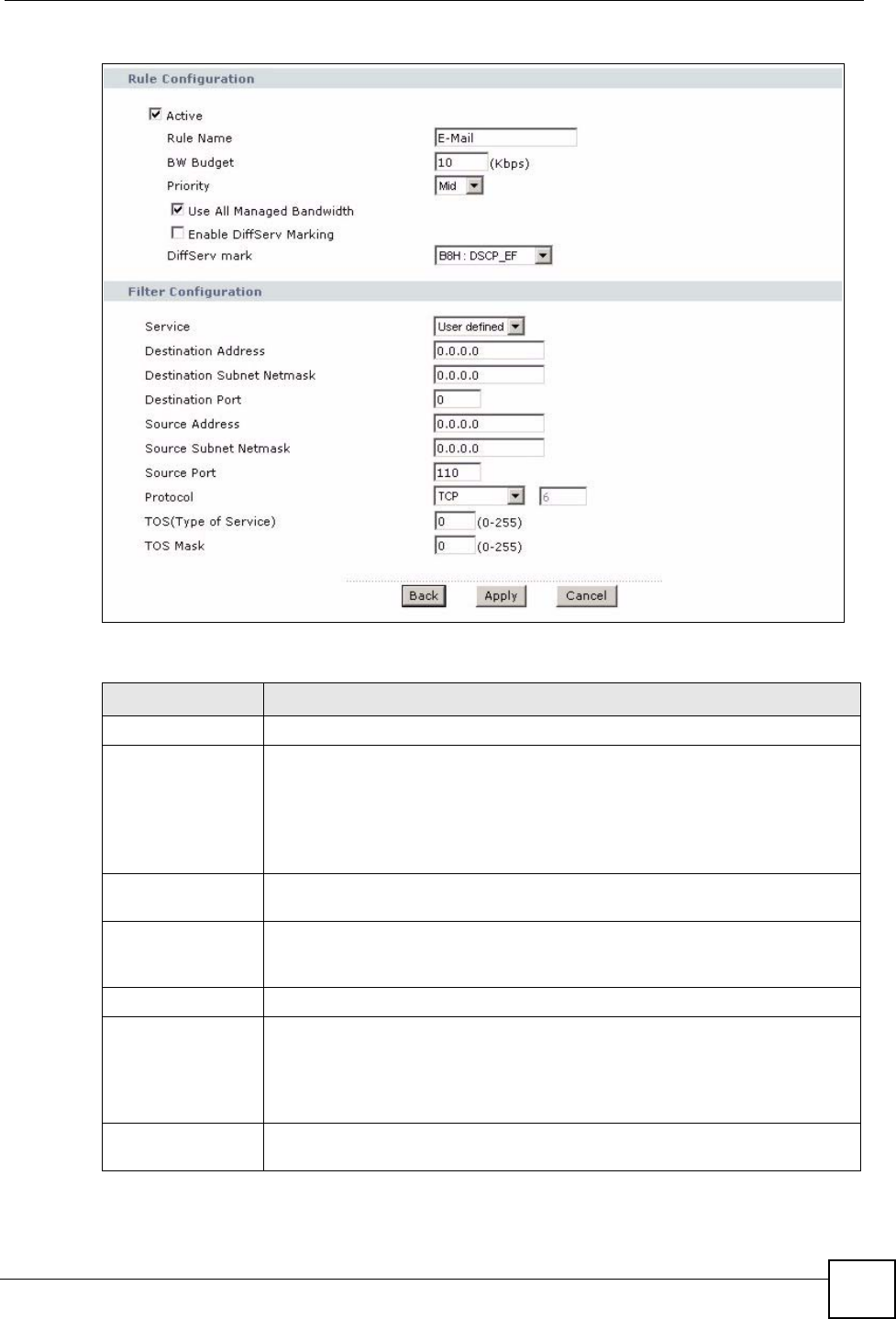

Figure 112 Bandwidth Management Rule Configuration
The following table describes the labels in this screen.
Table 78 Bandwidth Management Rule Configuration
LABEL DESCRIPTION
Rule Configuration
Active Select this check box to have the ZyXEL Device apply this bandwidth
management rule.
Enable a bandwidth management rule to give traffic that matches the rule
priority over traffic that does not match the rule.
Enabling a bandwidth management rule also allows you to control the maximum
amounts of bandwidth that can be used by traffic that matches the rule.
Rule Name Use the auto-generated name or enter a descriptive name of up to 20
alphanumeric characters, including spaces.
BW Budget Specify the maximum bandwidth allowed for the rule in kbps. The
recommendation is a setting between 20 kbps and 20000 kbps for an individual
rule.
Priority Select a priority from the drop down list box. Choose High, Mid or Low.
Use All Managed
Bandwidth
Select this option to allow a rule to borrow unused bandwidth on the interface.
Bandwidth borrowing is governed by the priority of the rules. That is, a rule with
the highest priority is the first to borrow bandwidth. Do not select this if you want
to leave bandwidth available for other traffic types or if you want to restrict the
amount of bandwidth that can be used for the traffic that matches this rule.
Enable DiffServ
Marking
Select this option to enable DiffServ marking on the ZyXEL Device.
Chapter 13 Bandwidth Management
P-660HW-Dx v2 User’s Guide
196
DiffServ mark Select the marking rule from the drop-down list. The first three digits are the
DiffServ code point. A packet with the lowest priority mark will be dropped when
the line is busy.
Filter Configuration
Service This field simplifies bandwidth class configuration by allowing you to select a
predefined application. When you select a predefined application, you do not
configure the rest of the bandwidth filter fields (other than enabling or disabling
the filter).
SIP (Session Initiation Protocol) is a signaling protocol used in Internet
telephony, instant messaging and other VoIP (Voice over IP) applications.
Select SIP from the drop-down list box to configure this bandwidth filter for traffic
that uses SIP.
File Transfer Protocol (FTP) is an Internet file transfer service that operates on
the Internet and over TCP/IP networks. A system running the FTP server
accepts commands from a system running an FTP client. The service allows
users to send commands to the server for uploading and downloading files.
Select FTP from the drop-down list box to configure this bandwidth filter for FTP
traffic.
H.323 is a standard teleconferencing protocol suite that provides audio, data
and video conferencing. It allows for real-time point-to-point and multipoint
communication between client computers over a packet-based network that
does not provide a guaranteed quality of service. Select H.323 from the drop-
down list box to configure this bandwidth filter for traffic that uses H.323.
Select User defined from the drop-down list box if you do not want to use a
predefined application for the bandwidth class. When you select User defined,
you need to configure at least one of the following fields (other than the Subnet
Mask fields which you only enter if you also enter a corresponding destination or
source IP address).
Destination
Address
Enter the destination IP address in dotted decimal notation.
Destination Subnet
Netmask
Enter the destination subnet mask. This field is N/A if you do not specify a
Destination Address. Refer to the appendices for more information on IP
subnetting.
Destination Port Enter the port number of the destination. See Table 79 on page 197 for some
common services and port numbers. A blank destination IP address means any
destination IP address.
Source Address Enter the source IP address in dotted decimal notation. A blank source IP
address means any source IP address.
Source Subnet
Netmask
Enter the destination subnet mask. This field is N/A if you do not specify a
Source Address. Refer to the appendices for more information on IP
subnetting. A blank source port means any source port number.
Source Port Enter the port number of the source. See Table 79 on page 197 for some
common services and port numbers.
Protocol Select the protocol (TCP or UDP) or select User defined and enter the protocol
(service type) number. 0 means any protocol number.
TOS (Type of
Service)
TOS defines the DS (Differentiated Service) field in the IP header.
Enter the new TOS value of the outgoing packet (between 0 and 255). 0 is the
lowest priority.
TOS Mask The TOS mask is used to compare the specified (or entire) bits in the TOS IP
header with the value specified in this rule.
Enter the TOS Mask value between 0 (lowest priority) and 255.
Back Click Back to go to the previous screen.
Table 78 Bandwidth Management Rule Configuration (continued)
LABEL DESCRIPTION
Chapter 13 Bandwidth Management
P-660HW-Dx v2 User’s Guide 197
13.11 Bandwidth Monitor
To view the ZyXEL Device’s bandwidth usage and allotments, click Advanced > Bandwidth
MGMT > Monitor. The screen appears as shown. Select an interface from the drop-down list
box to view the bandwidth usage of its bandwidth rules. The gray section of the bar represents
the percentage of unused bandwidth and the blue color represents the percentage of bandwidth
in use. The screen refreshes every few seconds.
Apply Click Apply to save your changes to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
Table 79 Services and Port Numbers
SERVICES PORT NUMBER
ECHO 7
FTP (File Transfer Protocol) 21
SMTP (Simple Mail Transfer Protocol) 25
DNS (Domain Name System) 53
Finger 79
HTTP (Hyper Text Transfer protocol or WWW, Web) 80
POP3 (Post Office Protocol) 110
NNTP (Network News Transport Protocol) 119
SNMP (Simple Network Management Protocol) 161
SNMP trap 162
PPTP (Point-to-Point Tunneling Protocol) 1723
Table 78 Bandwidth Management Rule Configuration (continued)
LABEL DESCRIPTION
Chapter 13 Bandwidth Management
P-660HW-Dx v2 User’s Guide
198
Figure 113 Bandwidth Management: Monitor
Table 80 Bandwidth Management Monitor
LABEL DESCRIPTION
Monitor This section allows you to select which network to monitor. You may select either a
LAN, WLAN, or WAN. After selecting a network to monitor, information on active
services and their bandwidth usage will appear.
P-660HW-Dx v2 User’s Guide 199
CHAPTER 14
Dynamic DNS Setup
This chapter discusses how to configure your ZyXEL Device to use Dynamic DNS.
14.1 Dynamic DNS Overview
Dynamic DNS allows you to update your current dynamic IP address with one or many
dynamic DNS services so that anyone can contact you (in NetMeeting, CU-SeeMe, etc.). You
can also access your FTP server or Web site on your own computer using a domain name (for
instance myhost.dhs.org, where myhost is a name of your choice) that will never change
instead of using an IP address that changes each time you reconnect. Your friends or relatives
will always be able to call you even if they don't know your IP address.
First of all, you need to have registered a dynamic DNS account with www.dyndns.org. This is
for people with a dynamic IP from their ISP or DHCP server that would still like to have a
domain name. The Dynamic DNS service provider will give you a password or key.
14.1.1 DYNDNS Wildcard
Enabling the wildcard feature for your host causes *.yourhost.dyndns.org to be aliased to the
same IP address as yourhost.dyndns.org. This feature is useful if you want to be able to use,
for example, www.yourhost.dyndns.org and still reach your hostname.
If you have a private WAN IP address, then you cannot use Dynamic DNS.
See Section 14.2 on page 199 for configuration instruction.
14.2 Configuring Dynamic DNS
To change your ZyXEL Device’s DDNS, click Advanced > Dynamic DNS. The screen
appears as shown.
See Section 14.1 on page 199 for more information.
Chapter 14 Dynamic DNS Setup
P-660HW-Dx v2 User’s Guide
200

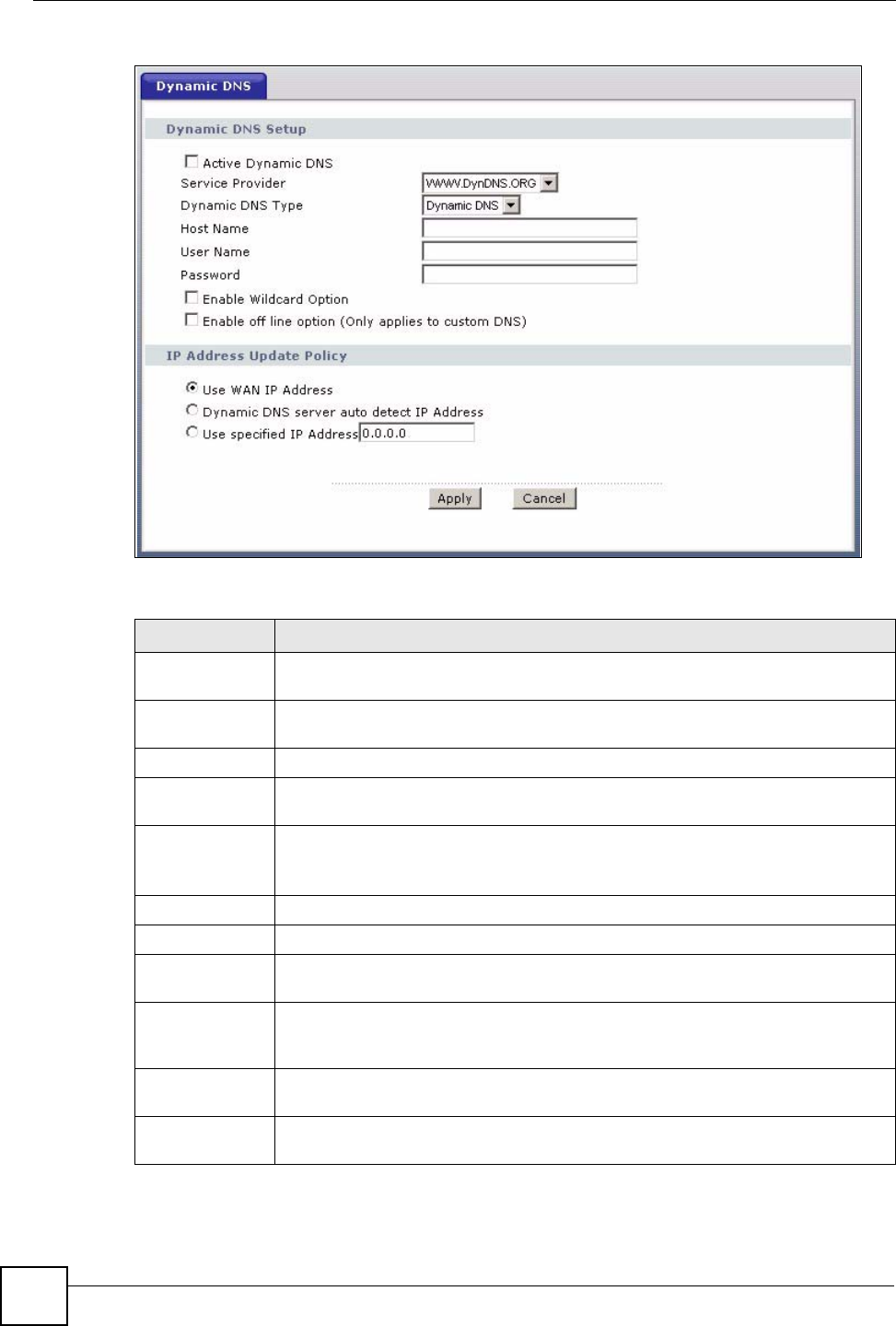

Figure 114 Dynamic DNS
The following table describes the fields in this screen.
Table 81 Dynamic DNS
LABEL DESCRIPTION
Dynamic DNS
Setup
Active Dynamic
DNS
Select this check box to use dynamic DNS.
Service Provider This is the name of your Dynamic DNS service provider.
Dynamic DNS
Type
Select the type of service that you are registered for from your Dynamic DNS
service provider.
Host Name Type the domain name assigned to your ZyXEL Device by your Dynamic DNS
provider.
You can specify up to two host names in the field separated by a comma (",").
User Name Type your user name.
Password Type the password assigned to you.
Enable Wildcard
Option
Select the check box to enable DynDNS Wildcard.
Enable off line
option
This option is available when Custom DNS is selected in the DDNS Type field.
Check with your Dynamic DNS service provider to have traffic redirected to a URL
(that you can specify) while you are off line.
IP Address
Update Policy
Use WAN IP
Address
Select this option to update the IP address of the host name(s) to the WAN IP
address.
