BT-Com
The BT-Com converts InterWrite electronic whiteboards to wireless
operation. Using
Bluetooth
TM wireless technology, the BT-Com elimi-
nates the need for a physical serial or USB connection from your
InterWrite whiteboard to your PC. With the BT-Com in place, your
InterWrite whiteboard can communicate wirelessly with the
Bluetooth
USB (desktop) or PCMCIA (laptop) hub on your computer.

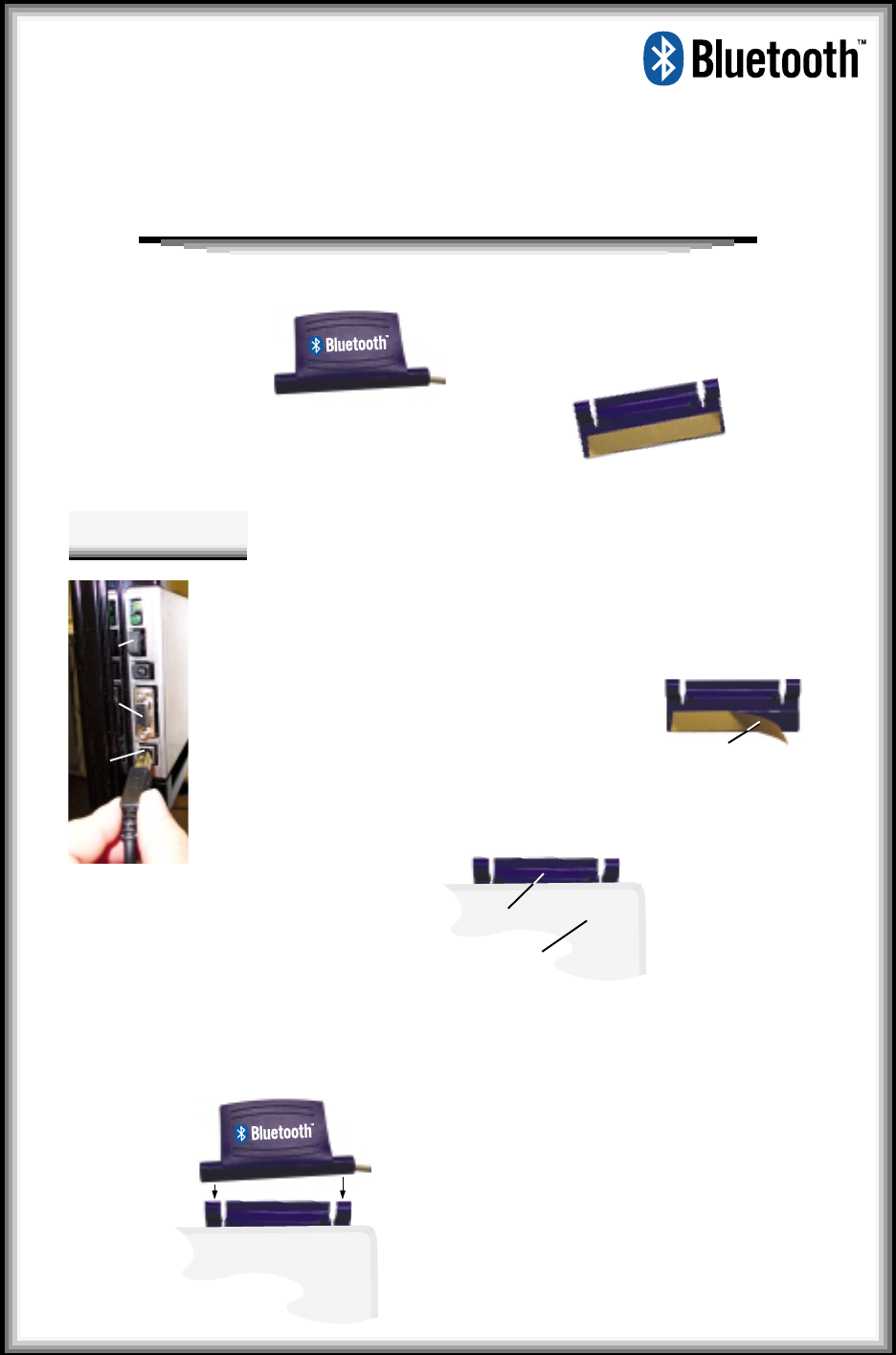

The BT-Com consists
of two pieces:
- 1 - BT-Com
37-00730-01
Whiteboard
Clip
Position the clip on the back of
the whiteboard at the upper
right corner. Press firmly to
affix the adhesive strip to the
back of the whiteboard.
44
44
4
Paper Strip
Remove the paper covering
the adhesive strip on the clip.
33
33
3
Power off the whiteboard
by toggling the power
switch on the lower right
side of the whiteboard.
11
11
1
Power
Switch
Serial
Port
USB
Port
If necessary, remove the
serial or USB connector
from the whiteboard.
22
22
2
The BTBT
BTBT
BT-Com-Com
-Com-Com
-Com unit with
an RJ12 connector
The clipclip
clipclip
clip, which attaches
the BT-Com to the
whiteboard
With the logo facing you, insert
the BT-Com into the cradle on
the clip.
55
55
5
Installation
If you haven’t already done so, install the InterWrite software on your PC so you can enjoy the
convenience of the
Bluetooth
wireless technology when operating your InterWrite whiteboard.

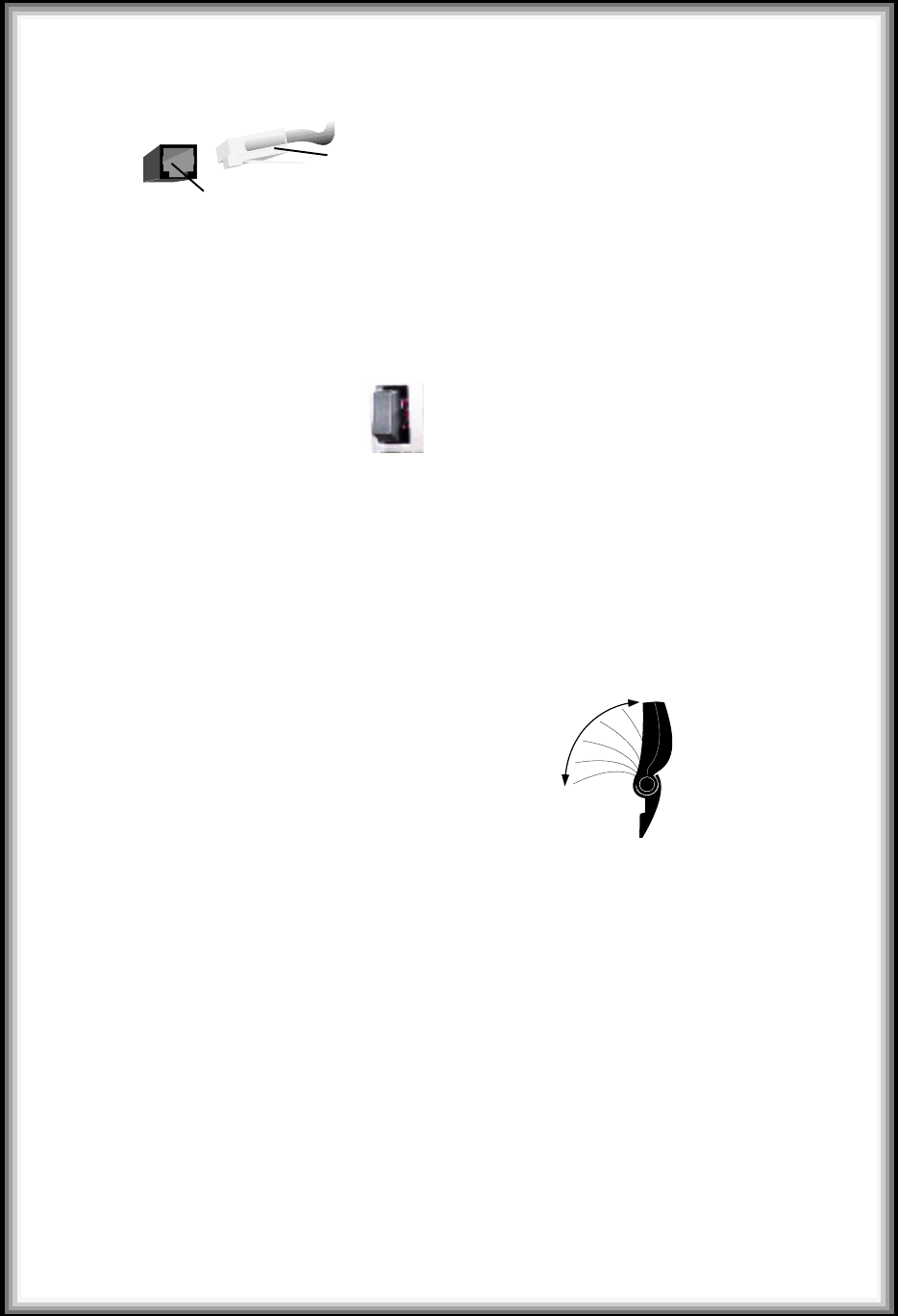

Note: The BT-Com swivels in the clip cradle. In
most installations, the optimal orientation of the
BT-Com is standing up in the cradle. However, if
you are experiencing reception problems, try
rotating the BT-Com through the 90° arc to see
if a different orientation improves reception.
- 2 - BT-Com
37-00730-01
* If your whiteboard does not have an RJ12 port, please contact
RJ12 Connector
RJ12 Port Plug the end of the connector
into the port (it looks like a
phone jack)* on the back of
the whiteboard.
66
66
6
Power on the whiteboard. You
will hear four beeps that indicate
the power is on, followed by two
beeps when the whiteboard has
recognized the BT-Com.
77
77
7
Power
Switch
Regulatory Statements
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Reorient or coil the cables.
If necessary, consult the dealer, or an experienced radio/television technician for
additional suggestions.
- 3 - BT-Com
37-00730-01
Canada
Industry Canada Class B emission compliance statement
This Class B digital apparatus complies with Canadian ICES-003.
Avis de conformité á la réglementation d’Industrie Canada
Cet appareil numérique de classe B est conforme á la norme NMB-003 du Canada.
Caution
Any cables the user adds to the device must be shielded to be in compliance with the
FCC standards. Any unauthorized modification to this device could result in the
revocation of the end user’s authority to operate this device.
This device complies with Part 15 of FCC rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
- 4 - BT-Com
37-00730-01
European Union – Emission Directive
This product is in conformity with the protection requirements of EU Council Directive
89/366/ECC on the approximation of the laws of the Member States relating to
electromagnetic compatibility.
This product has been tested and found to comply with the limits for Class B Information
Technology Equipment according to CISPR 22/European Standard EN55022. The limits
for Class B equipment were derived for typical industrial environments to provide
reasonable protection against interference with licensed communication devices.
Supplementary Information
The product herewith complies with the requirements of the EMC Directive 89/336/EEC.
Scottsdale, Arizona, U.S.A. 11/15/2002 Dana Doubrava
Location Date Hardware Engineering Manager
European Contact
GTCO CalComp
World Trade Center
A-1300 Vienna — Airport
Austria
Tel: + 43 1 7007 36450
Fax: + 43 1 7007 36458
conforms to the following product specifications:
Safety: Not applicable to any standard
EMC: ETSI EN 301 489-1/2000
CISPR 22:1997-Class B
EN55022:1988-Class B
EN 61000-4-2/1995
EN 61000-4-3/1995
EN 61000-4-4/1995
CE Certification for the BT-Com
Declaration of conformity according to ISO/IEC Guide 22 and EN 45014:
Manufacturer’s Name: GTCO CalComp, Inc.
Manufacturer’s Address: 14555 N. 82nd Street
Scottsdale, Arizona 85260
U.S.A.
declares, that the product
Product Name: BT-Com
Model Numbers: BT-Com
Product Options: All
EN 61000-4-5/1995
EN 61000-4-6/1996
EN 61000-4-11/1994
EN 61000-3-2/1995 Class B
EN 61000-3-3/1995
