Introduction

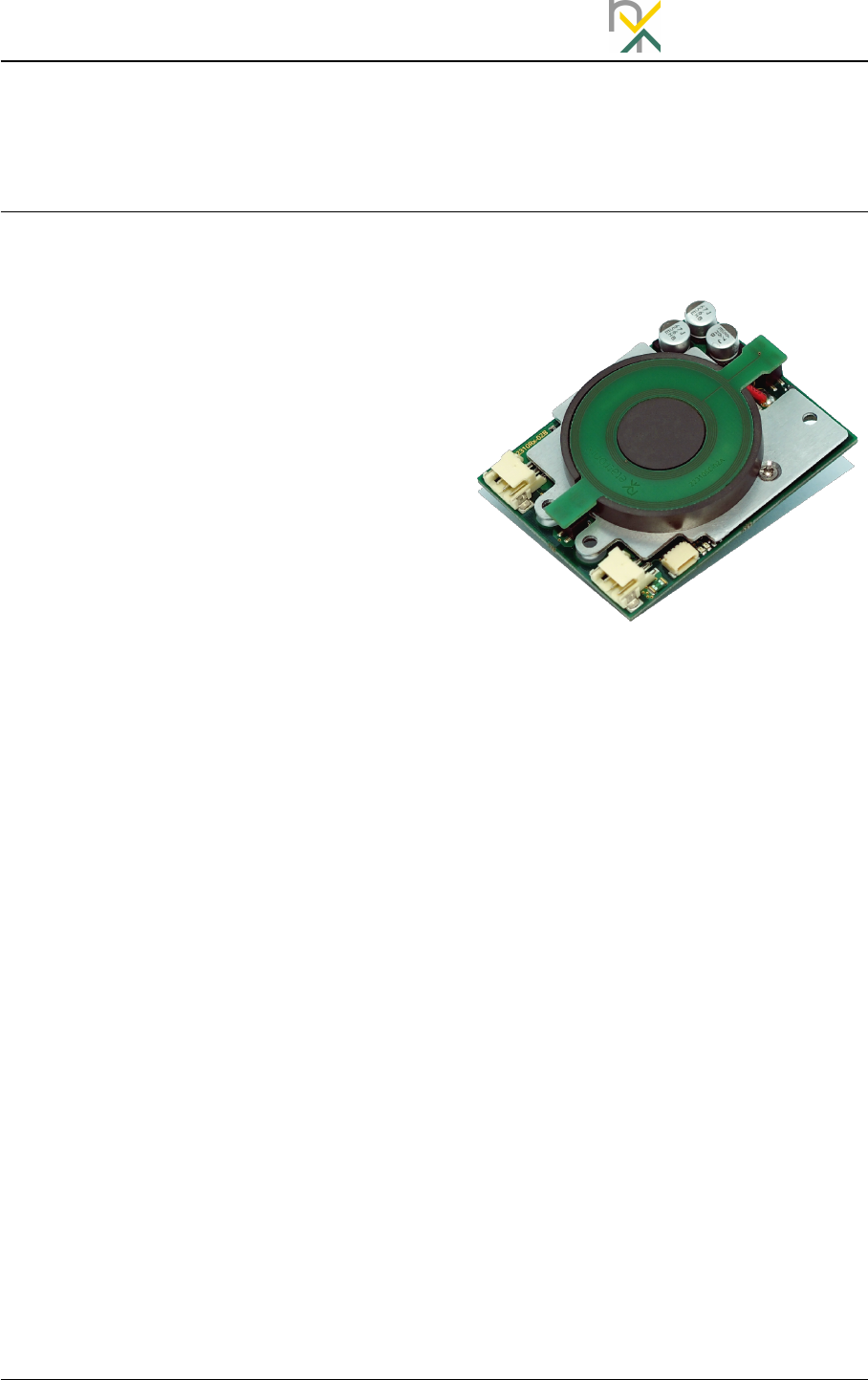

The exm module series provides easy to
use plug and play solutions for high per-
formance wireless power transmission
between a power transmitter (Tx) and a
power receiver (Rx). In combination with
a proprietary data transmission channel,
the series provides a fast regulation loop
and the ability to transfer customer data
in parallel. Compliance to global safety
and EMC standards qualifies the series
for worldwide markets.
The exm10 series contains easy to use
power receiver modules that can be
wirelessly powered with any etatronix
exm10 power receiver. They provide up
to
10 W
at the DC output. A LiIon charge
function as well as a battery manage-
ment system including a state of charge
algorithm is available.
In combination with an exm10 power
transmitter, the system complies to CE
and FCC regulations. It has a modular
approval which minimizes the certifica-
tion effort of the application containing
the module.
Features
•Up to 85% Efficiency
•10 W Continuous Output Power
•Fast Dynamic Response
•Foreign Object Detection
•Up to 2kbps Data Transmission
•Low Standby Consumption
•Battery Management Functionality
•Low Emissions, Compliance to
–EN 55011/CISPR 11 class B
–FCC, part 15 & 18
–IEC / EN 61000-4-3,4,5,6,8
–Works with any exm10 Wireless
Power Transmitter
exm10 series-datasheet-Draft-01.pdf
© etatronix GmbH, November 2017 1/ 10
etatronix exm10 series
10W Wireless Power Receiver with Battery Charger
Table of Contents
1 Electrical Specification 3
1.1 OperatingConditions .............................. 3
1.2 Interface ...................................... 3
1.3 Compliance .................................... 3
2 Mechanical Specification 4
2.1 Dimensions .................................... 4
2.2 Mounting...................................... 5
3Interfaces 6
3.1 PowerConnector................................. 6
3.2 BatteryConnector ................................ 6
3.3 SignalConnector ................................. 7
4 Functional Description 8
5 Compliance 9
5.1 Compliance .................................... 9
References 10
Revision History
Revision Date Changes
Draft-01 11/2017 First Draft Release
2/ 10 exm10 series-datasheet-Draft-01.pdf
© etatronix GmbH, November 2017
exm10 series
10W Wireless Power Receiver with Battery Charger etatronix
1 Electrical Specification
1.1 Operating Conditions
Parameter Min Typ Max Unit
Output voltage1- - 20 V
Output current1,2 - - 2.7 A
Ambient temperature -25 - 70 ◦C
Standby current 3- tbd. - mA
Data transmission frequency - 2 - MHz
1
In case of a connected battery, output current and voltage depend on actual charge state. The module
works in CC/CV mode.
2Output current limitation can be tailored to specific load and battery requirements.
3Receiver module not connected with power transmitter, BMS active.
1.2 Interface
Parameter Min Typ Max Unit
Low level digital interface 1-0.1 - 0.6 V
High level digital interface 12.7 - 3.4 V
Maximum voltage at PG 1,2 - - 4.2 V
Maximum current PG 1- - 10 mA
Output Capacity - - 440 µF
Battery Fuse Rating - T7 - A
Battery Fuse Melting Integral - 8.7 - A2Sec
1Internal limiting series resistor: 330 Ω.
2Voltage at PG-pin shall not exceed the output voltage.
1.3 Compliance
Regulation Description
EN 55011 class B EMIregulation for home equipment
exm10 series-datasheet-Draft-01.pdf
© etatronix GmbH, November 2017 3/ 10
etatronix exm10 series
10W Wireless Power Receiver with Battery Charger
2 Mechanical Specification
2.1 Dimensions

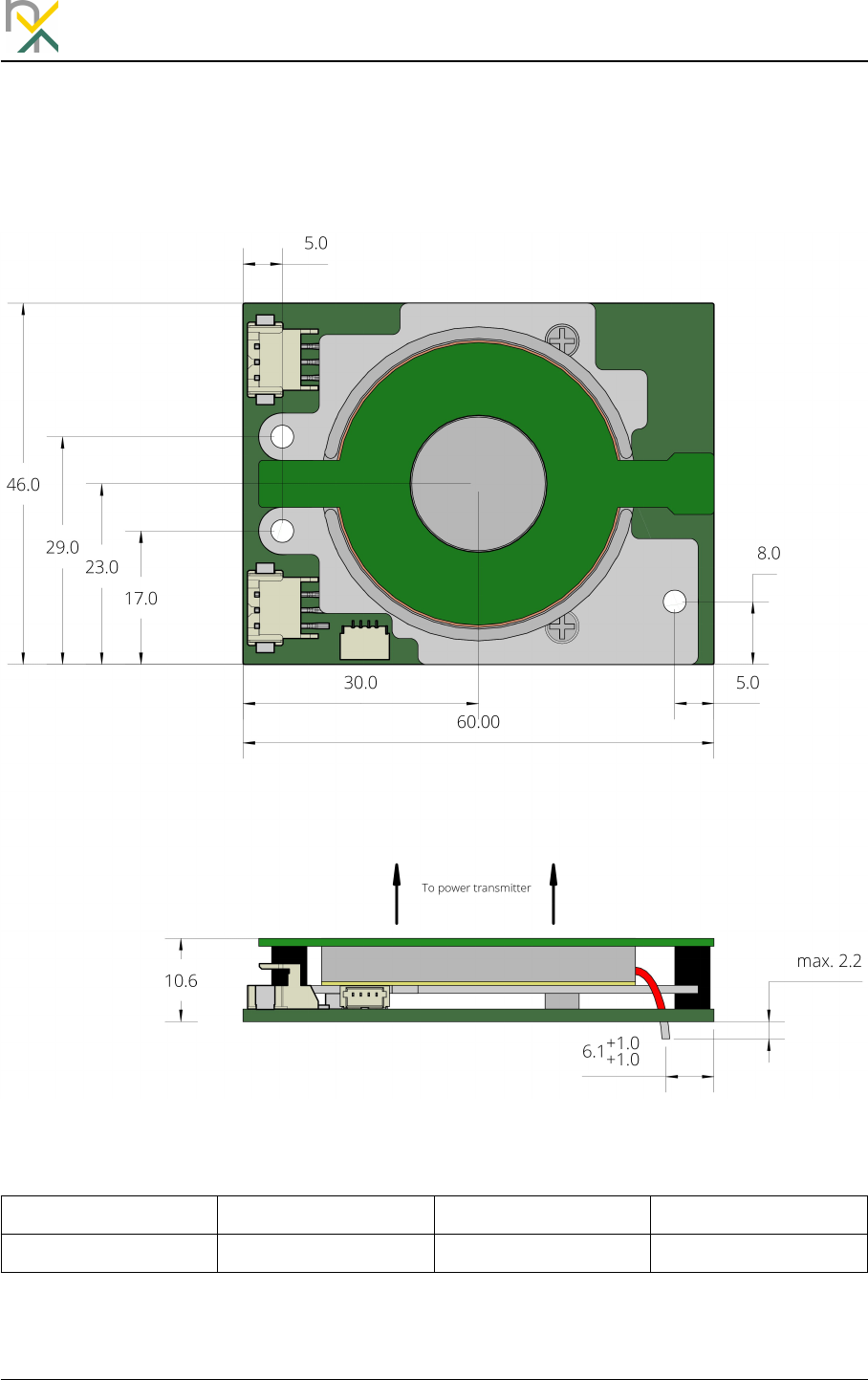

Figure 1: Dimensions
Length Width Height Weight
60.0mm +/-0.2 46.0mm +/-0.2 10.6mm +/-0.21tbd
1Notice that the height varies and will be higher at the solder points.
4/ 10 exm10 series-datasheet-Draft-01.pdf
© etatronix GmbH, November 2017
exm10 series
10W Wireless Power Receiver with Battery Charger etatronix
2.2 Mounting

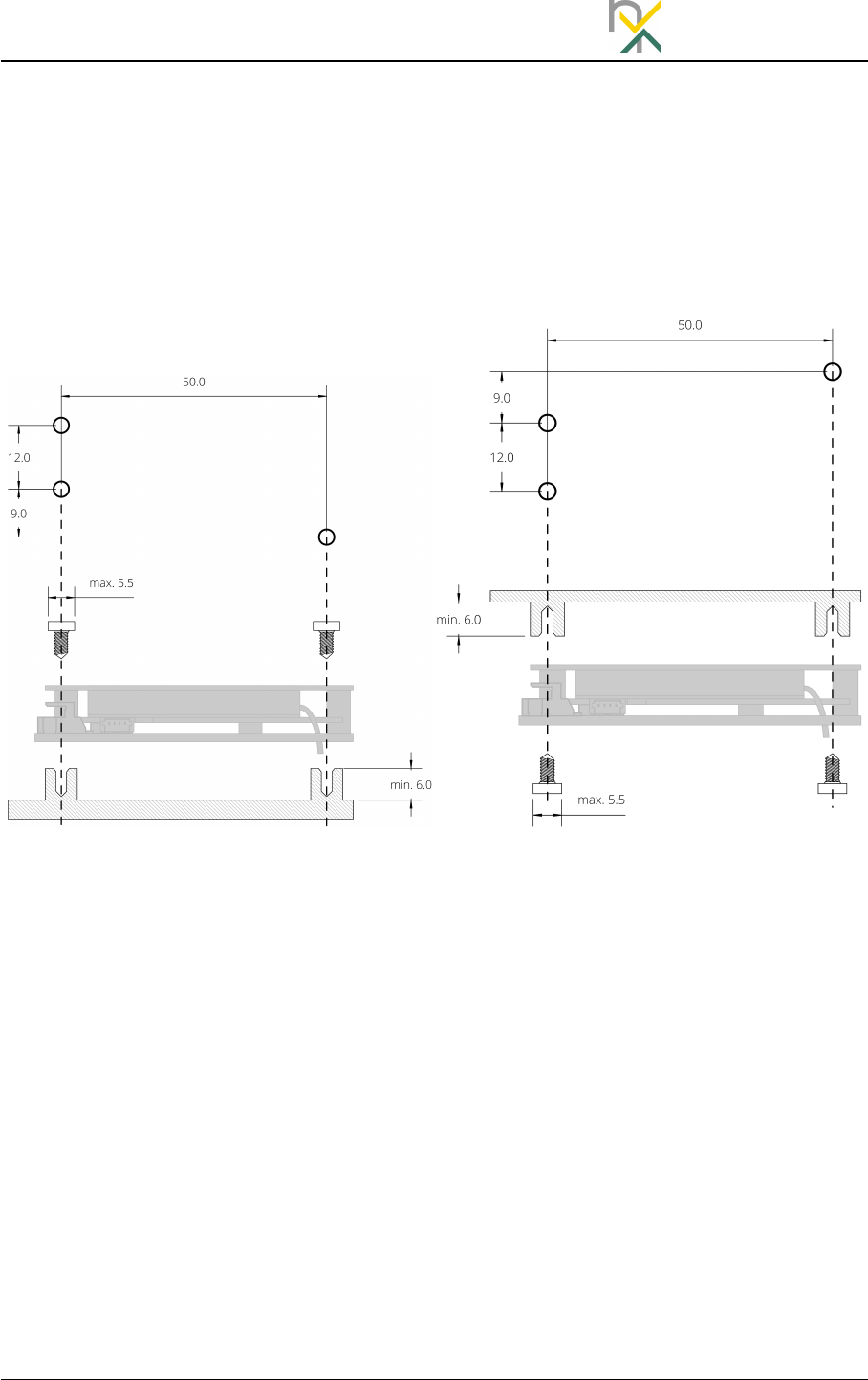

Figure 2shows two possible examples for the mounting of the exm module. Using the
provided holes, the module can be mounted on a separate carrier (a) or on the surface
which faces the power coil (b). In order to fit onto the module, the screw-head should
have a maximum diameter of 5.5mm. The height of the standoffs should be at least
6mm.
(a) Carrier Mounting (b) Surface Mounting
Figure 2: Mounting Examples
exm10 series-datasheet-Draft-01.pdf
© etatronix GmbH, November 2017 5/ 10
etatronix exm10 series
10W Wireless Power Receiver with Battery Charger
3Interfaces
The interface of the exm module consists of a power output to connect the load, a
signal output for communication with the module or via the wireless link and a separate
battery connector.

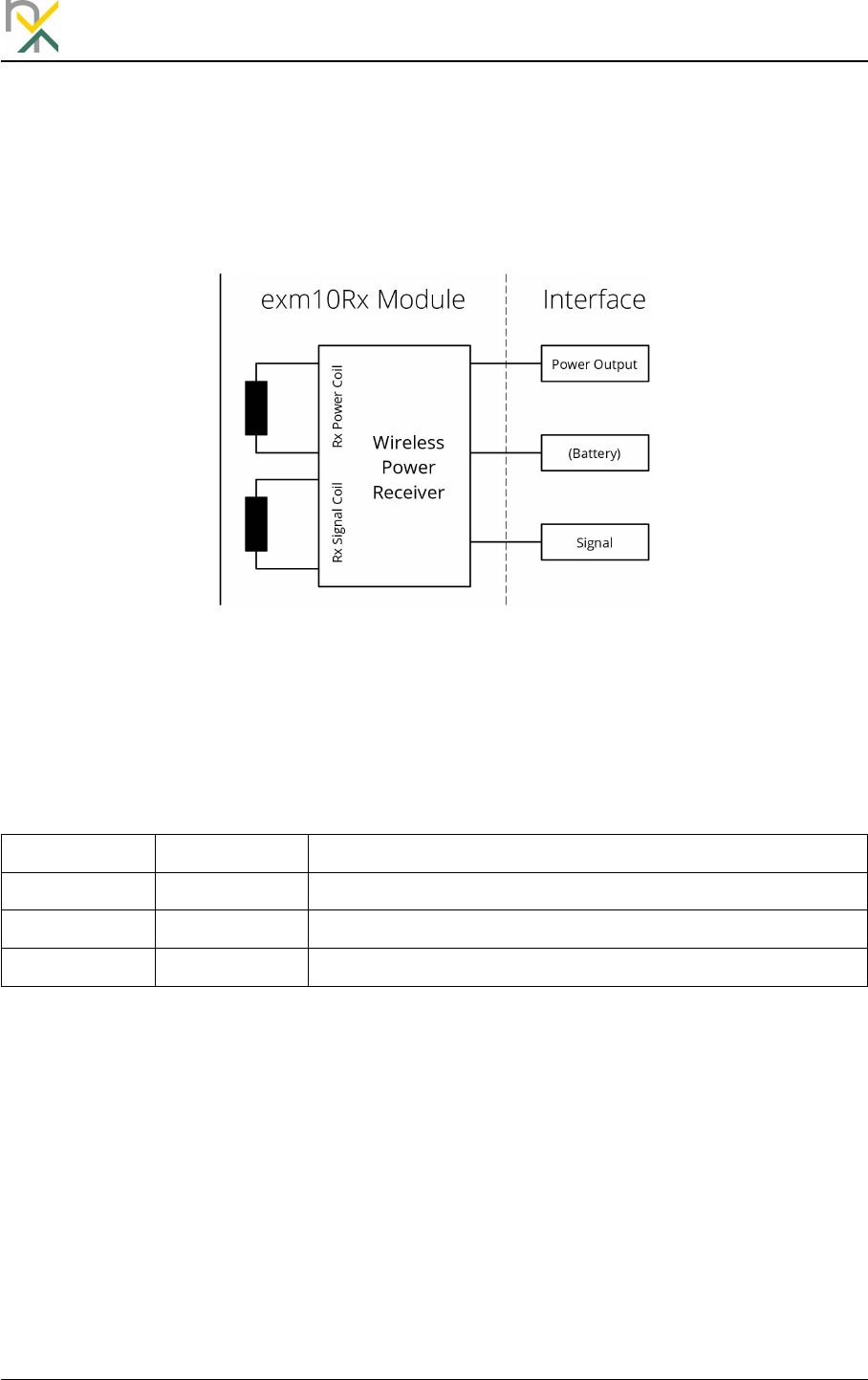

Figure 3: Interfaces
3.1 Power Connector
Type: TE Connectivity 1-292173-3
Pin Name Function
1 Vout- Output GND
2 PG Power Good1
3 Vout+ Output Voltage
1Open collector to GND
3.2 Battery Connector
Type: TE Connectivity 1-292173-3
6/ 10 exm10 series-datasheet-Draft-01.pdf
© etatronix GmbH, November 2017
exm10 series
10W Wireless Power Receiver with Battery Charger etatronix
Pin Name Function
1 GND Battery -
2 NTC Thermistor of the battery to GND1
3 Vbat+ Battery +2
1Open collector to GND
2Protected by an internal Fuse
3.3 Signal Connector
Connection to the signal connector is not necessary for power transmission but can
be used for status updated and customer-specific data transmission. More details are
specified in [1].
Type: JST SM04B-SRSS-TB
Pin Name Function
1 VCCint Internal Supply Voltage
2 COM1 I2C SDA, UART Tx1
3 COM2 I2C SCL, UART Rx1
4 GNDint Internal GND
1Depending on configuration
exm10 series-datasheet-Draft-01.pdf
© etatronix GmbH, November 2017 7/ 10
etatronix exm10 series
10W Wireless Power Receiver with Battery Charger
4 Functional Description

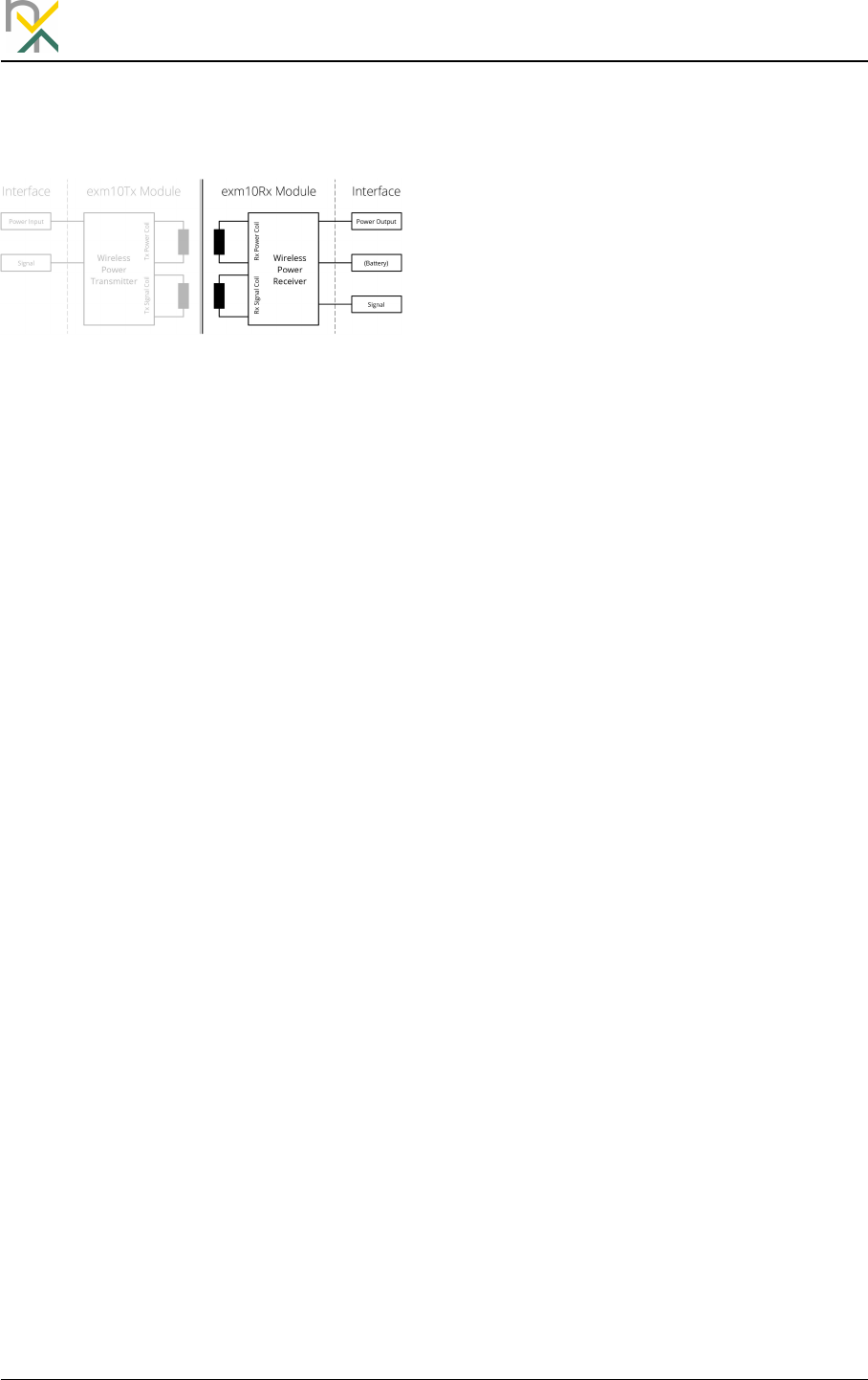

Figure 4: Block Diagram
To maximize the power transmission effi-
ciency, the power transmission between
transmitter and receiver modules of the
exm10 series is realized using resonant
circuits. These resonant circuits additio-
nally provide the ability to vary the trans-
mitted power by changing the switching
frequency. By increasing the switching
frequency, the available power in the re-
ceiver side decreases.
For the accurate output voltage regula-
tion, a control loop is necessary. The
output conditions like output current,
voltage and power are measured on
the receiver side and sent to the power
transmitter. If corrections are necessary,
the transmitter will change the switching
frequency to the desired value.
An appropriate control loop needs a
fast signal transmission with little de-
lay. Often it’s advantageous to trans-
fer status or customer-specific informa-
tion between both units. To meet these
two demands, the exm10 series pro-
vides a data channel that allows the
parallel transmission of analog regula-
tion information as well as digital status
and customer-specific information. This
transmission is done using a second pair
of coupled coils. Like the power trans-
mission coils, the signal coils are forming
a near field coupling system thus the in-
tended use of radio waves isn’t neces-
sary.
8/ 10 exm10 series-datasheet-Draft-01.pdf
© etatronix GmbH, November 2017
exm10 series
10W Wireless Power Receiver with Battery Charger etatronix
5 Compliance
5.1 Compliance
Regulation Description
EN 55011/CISPR11 class B
Industrial, scientific and medical equipment - Radio-
frequency disturbance characteristics - Limits and met-
hods of measurement
IEC/EN 61000-4-3
Electromagnetic compatibility (EMC) - Part 4-3: Tes-
ting and measurement techniques - Radiated, radio-
frequency, electromagnetic field immunity test
IEC/EN 61000-4-4
Electromagnetic compatibility (EMC) - Part 4-4:Testing
and measurement techniques - Electrical fast tran-
sient/burst immunity test
IEC/EN 61000-4-5 Electromagnetic compatibility (EMC) - Part 4-5: Testing
and measurement techniques - Surge immunity test
IEC/EN 61000-4-6
Electromagnetic compatibility (EMC) - Part 4-6: Testing
and measurement techniques - Immunity to conducted
disturbances, induced by radio-frequency fields
IEC/EN 61000-4-8
Electromagnetic compatibility (EMC) - Part 4-8: Testing
and measurement techniques - Power frequency mag-
netic field immunity test
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. this device may not cause harmful interference, and
2.
this device must accept any interference received, including interference that
may cause undesired operation.
exm10 series-datasheet-Draft-01.pdf
© etatronix GmbH, November 2017 9/ 10
etatronix exm10 series
10W Wireless Power Receiver with Battery Charger
References
[1] etatronix GmbH, FDD - Kommunikation über UART mit WirelessPower Modul -
Beschreibung der UART Kommunikation mit einem etatronix Lademodul, Jun. 14,
2017.
10 / 10 exm10 series-datasheet-Draft-01.pdf
© etatronix GmbH, November 2017
