lemega Technology FK-M3 M3+ Internet Radio User Manual M3 english 20170105

Shenzhen lemega Technology Co., Ltd M3+ Internet Radio M3 english 20170105

Contents

User manual part 2

18 of 35 19 of 35 4.1 Last listened When Internet radio mode restarts, the last-listened station is selected. To select another recently used station, select Menu > Last listened then one of the stations listed. Most recent stations appear at the top of the list.4.2 Presets Presets are stored in the radio and cannot be accessed from other radios. To store an Internet radio preset, press and hold Preset until the display shows the Save preset screen. Select one of the presets to save the currently playing station. To select a preset, press Preset briefly, then select one of the listed preset stations.When a preset station is playing, it shows ☆1,2,3 etc in the bottom middle of the screen. Note: Operation of presets is identical for Internet radio, DAB and FM.4.3 Favourites Favourites are stored on the Internet radio portal. Before you set up an account on the portal from its Web interface ( ), the favourites are associated solely with the radio on which you set them. After you set up a portal account, all the favourites from your different radios are merged into a combined favourites list. This combined list is available to all the radios on your account.To store a playing station as a favourite, press and hold Select until the display shows 'Favourite added'. The station appears in the default favourites list Stations.To select a favourite, select Menu > Station list > My favourites > [Favourites list] > [Station].4.4 BrowseTo browse Internet broadcasts, select Menu> Station list> then either Stations > or Podcasts >Browse through the menus to find broadcasts.www.wifiradio-frontier.com4. 5 Search You can also search through Internet broadcasts for stations or podcasts with particular keywords in their title. To search, select Menu > Station list > then either Stations > or Podcasts > Enter a keyword by selecting characters then OK. The search entry screens are similar in operation to the Wi-Fi password entry screen.Select a broadcast from the list.For podcasts, you may be able to select a particular episode.4.6 My added stations Even though the Internet radio portal contains thousands of stations, you may want to listen to stations not listed. You can add your own s tations via the portal. These added stations are accessible from M3+ by selecting Menu > Station list > My added stations > [Station].

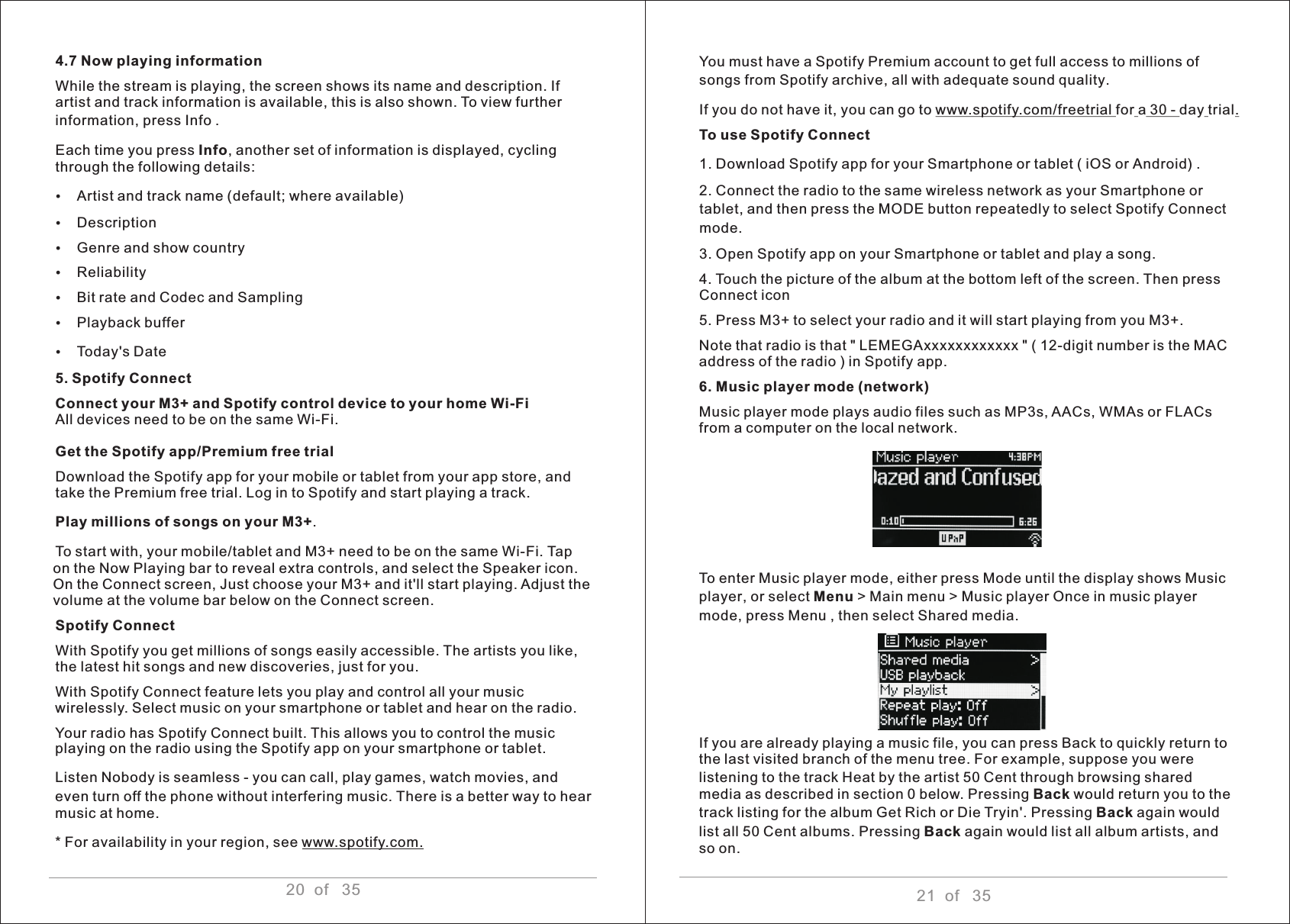

20 of 35 21 of 354.7 Now playing information While the stream is playing, the screen shows its name and description. If artist and track information is available, this is also shown. To view further information, press Info . Each time you press Info, another set of information is displayed, cycling through the following details: ŸArtist and track name (default; where available)ŸDescriptionŸGenre and show countryŸReliabilityŸBit rate and Codec and SamplingŸPlayback bufferŸToday's Date5. Connect your M3+ and Spotify control device to your home Wi-Fi All devices need to be on the same Wi-Fi.Get the Spotify app/Premium free trial Download the Spotify app for your mobile or tablet from your app store, and take the Premium free trial. Log in to Spotify and start playing a track. Play millions of songs on your M3+. To start with, your mobile/tablet and M3+ need to be on the same Wi-Fi. Tap on the Now Playing bar to reveal extra controls, and select the Speaker icon. On the Connect screen, Just choose your M3+ and it'll start playing. Adjust the volume at the volume bar below on the Connect screen.Spotify ConnectWith Spotify you get millions of songs easily accessible. The artists you like, the latest hit songs and new discoveries, just for you. With Spotify Connect feature lets you play and control all your music wirelessly. Select music on your smartphone or tablet and hear on the radio.Your radio has Spotify Connect built. This allows you to control the music playing on the radio using the Spotify app on your smartphone or tablet. Listen Nobody is seamless - you can call, play games, watch movies, and even turn off the phone without interfering music. There is a better way to hear music at home. * For availability in your region, see www.spotify.com. Spotify Connect You must have a Spotify Premium account to get full access to millions of songs from Spotify archive, all with adequate sound quality. If you do not have it, you can go to www.spotify.com/freetrial for a 30 - day trial. To use Spotify Connect 1. Download Spotify app for your Smartphone or tablet ( iOS or Android) . 2. Connect the radio to the same wireless network as your Smartphone or tablet, and then press the MODE button repeatedly to select Spotify Connect mode. 3. Open Spotify app on your Smartphone or tablet and play a song. 4. Touch the picture of the album at the bottom left of the screen. Then press Connect icon 5. Press M3+ to select your radio and it will start playing from you M3+.Note that radio is that " LEMEGAxxxxxxxxxxxx " ( 12-digit number is the MAC address of the radio ) in Spotify app. 6. Music player mode (network) Music player mode plays audio files such as MP3s, AACs, WMAs or FLACs from a computer on the local network.To enter Music player mode, either press Mode until the display shows Music player, or select Menu > Main menu > Music player Once in music player mode, press Menu , then select Shared media. If you are already playing a music file, you can press Back to quickly return to the last visited branch of the menu tree. For example, suppose you were listening to the track Heat by the artist 50 Cent through browsing shared media as described in section 0 below. Pressing Back would return you to the track listing for the album Get Rich or Die Tryin'. Pressing Back again would list all 50 Cent albums. Pressing Back again would list all album artists, and so on.
22 of 35 23 of 35You can use << and >> to move through tracks. Press and hold to rewind or fast forward and press quickly to select previous or next track.6.1 Shared media (from UPnP media server) Select Menu > Shared media > If you have set up shared media, you should see an entry consisting of <computer name>: <Shared media name>, for example JB-Laptop: Audio. If you have more than one computer sharing media, the alternatives are listed. Select the shared media you want to play. From this point on, the menus are generated from the shared media server (typically Windows Media Player). The first menu shows a list of media types, for example Music, Video, Pictures and Playlists. M3+ can only play music and playlists. There is also a search function, which finds tracks in a similar way to Internet radio searchFrom Music, there are numerous ways of selecting tracks, including: ŸGenre ŸArtist ŸAlbum ŸComposerŸRatingOnce you have found a track you want to play, press Select. A short press plays the track immediately and a long press adds the track to the playlist. You can also add entire albums to the playlist. M3+ plays either the selected track or the playlist.6.1.1 Wake-on-LAN If shared media is selected a list of available music servers will be displayed. If a question mark appears before the server name, this indicates that the server has been seen before and supports Wake-on-LAN functionality, but cannot currently be found on the network. If a server with a question mark is selected by the user, the device will try to. wake the server up and connect to it. In some instances this may not be possible as the server may not be connected to the network any more or may be switched off. 6.1.2 Prune servers From time to time it may be necessary to remove servers displaying question marks in front of the server name from the server list. For example,if the device is moved to a new network or if a Wake-on-LAN server is removed from your current network. To perform this function go to Menu > Prune servers > Yes6.2 USB PLAYBACKTo play audio from a USB mass-storage device such as a USB Flash stick or USB hard drive, Select Menu > USB playback. Browsing folders From this point on, menus are generated from the folders on the USB device. Browse folders with the Select control and Back button. The display shows folder and file names ( not necessarily track names).Once you have found a track that you want to play, press Select . A short press plays the track immediately. A long press (at any time while the track is displayed or playing) adds the track to My playlist. You can also add entire folders to My playlist.6.3 Playlists M3+ holds a queue of up to 200 tracks in the playlist. Playlist tracks can be mixed from multiple UPnP servers. To manage the playlist, select Menu > My playlist. To view the playlist, scroll though it by turning Select . UPnP tracks show their track name. To play the playlist from a certain track, quick Select . To erase a track from the playlist, long Select .then confirm YES. If you select a track/album/folder for instant playback (without using the playlist), the playlist is preserved. The playlist is also preserved during standby.

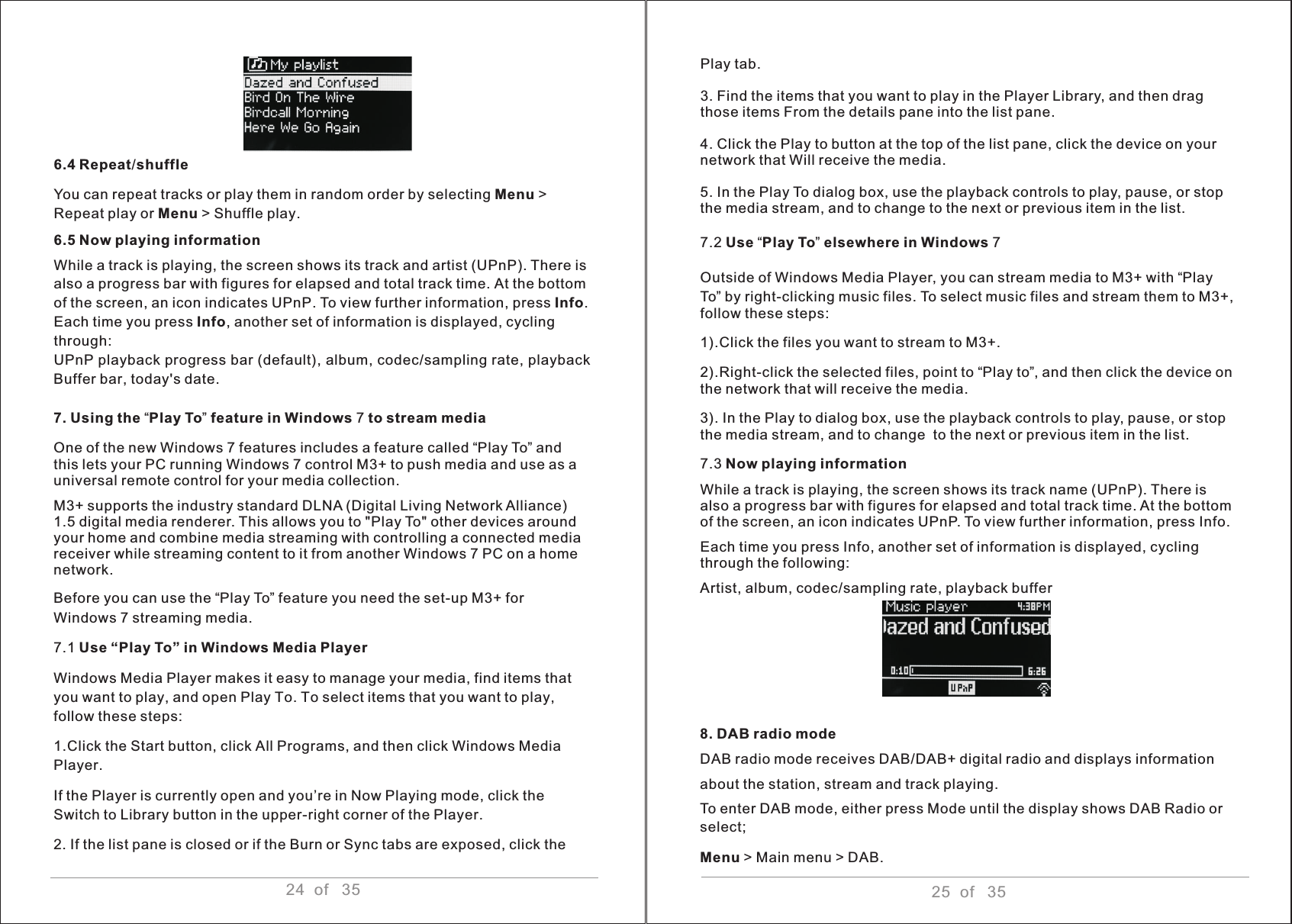

24 of 356.4 Repeat/shuffle You can repeat tracks or play them in random order by selecting Menu > Repeat play or Menu > Shuffle play.6.5 Now playing information While a track is playing, the screen shows its track and artist (UPnP). There is also a progress bar with figures for elapsed and total track time. At the bottom of the screen, an icon indicates UPnP. To view further information, press Info. Each time you press Info, another set of information is displayed, cyclingthrough: UPnP playback progress bar (default), album, codec/sampling rate, playback Buffer bar, today's date.7. Using the “Play To” feature in Windows 7 to stream media One of the new Windows 7 features includes a feature called “Play To” and this lets your PC running Windows 7 control M3+ to push media and use as a universal remote control for your media collection. M3+ supports the industry standard DLNA (Digital Living Network Alliance) 1.5 digital media renderer. This allows you to "Play To" other devices around your home and combine media streaming with controlling a connected media receiver while streaming content to it from another Windows 7 PC on a home network. Before you can use the “Play To” feature you need the set-up M3+ for Windows 7 streaming media. 7.1 Use “Play To” in Windows Media Player Windows Media Player makes it easy to manage your media, find items that you want to play, and open Play To. To select items that you want to play, follow these steps: 1.Click the Start button, click All Programs, and then click Windows Media Player.If the Player is currently open and you’re in Now Playing mode, click the Switch to Library button in the upper-right corner of the Player.2. If the list pane is closed or if the Burn or Sync tabs are exposed, click the Play tab.3. Find the items that you want to play in the Player Library, and then drag those items From the details pane into the list pane.4. Click the Play to button at the top of the list pane, click the device on your network that Will receive the media.5. In the Play To dialog box, use the playback controls to play, pause, or stop the media stream, and to change to the next or previous item in the list.7.2 Use “Play To” elsewhere in Windows 7 Outside of Windows Media Player, you can stream media to M3+ with “Play To” by right-clicking music files. To select music files and stream them to M3+, follow these steps: 1).Click the files you want to stream to M3+.2).Right-click the selected files, point to “Play to”, and then click the device on the network that will receive the media. 3). In the Play to dialog box, use the playback controls to play, pause, or stop the media stream, and to change to the next or previous item in the list. 7.3 Now playing information While a track is playing, the screen shows its track name (UPnP). There is also a progress bar with figures for elapsed and total track time. At the bottom of the screen, an icon indicates UPnP. To view further information, press Info. Each time you press Info, another set of information is displayed, cycling through the following: Artist, album, codec/sampling rate, playback buffer8. DAB radio mode DAB radio mode receives DAB/DAB+ digital radio and displays informationabout the station, stream and track playing. To enter DAB mode, either press Mode until the display shows DAB Radio or select; Menu > Main menu > DAB. 25 of 35

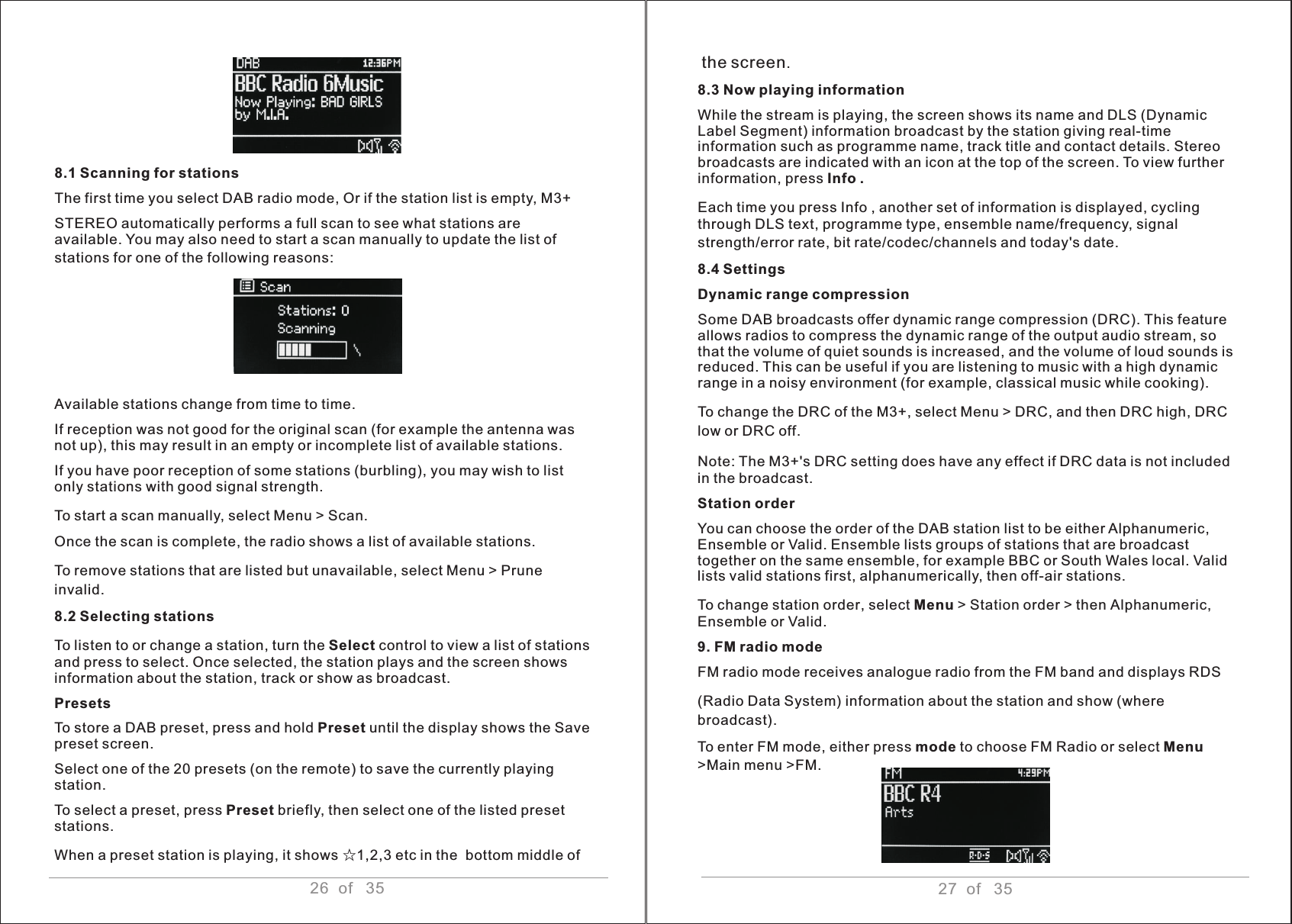

26 of 358.1 Scanning for stations The first time you select DAB radio mode, Or if the station list is empty, M3+ STEREO automatically performs a full scan to see what stations are available. You may also need to start a scan manually to update the list of stations for one of the following reasons: Available stations change from time to time. If reception was not good for the original scan (for example the antenna was not up), this may result in an empty or incomplete list of available stations.If you have poor reception of some stations (burbling), you may wish to list only stations with good signal strength.To start a scan manually, select Menu > Scan.Once the scan is complete, the radio shows a list of available stations.To remove stations that are listed but unavailable, select Menu > Prune invalid.8.2 Selecting stationsTo listen to or change a station, turn the Select control to view a list of stations and press to select. Once selected, the station plays and the screen shows information about the station, track or show as broadcast. Presets To store a DAB preset, press and hold Preset until the display shows the Save preset screen. Select one of the 20 presets (on the remote) to save the currently playing station. To select a preset, press Preset briefly, then select one of the listed preset stations. When a preset station is playing, it shows ☆1,2,3 etc in the bottom middle of 27 of 35 the screen. 8.3 Now playing information While the stream is playing, the screen shows its name and DLS (Dynamic Label Segment) information broadcast by the station giving real-time information such as programme name, track title and contact details. Stereo broadcasts are indicated with an icon at the top of the screen. To view further information, press Info .Each time you press Info , another set of information is displayed, cycling through DLS text, programme type, ensemble name/frequency, signal strength/error rate, bit rate/codec/channels and today's date.8.4 Settings Dynamic range compression Some DAB broadcasts offer dynamic range compression (DRC). This feature allows radios to compress the dynamic range of the output audio stream, so that the volume of quiet sounds is increased, and the volume of loud sounds is reduced. This can be useful if you are listening to music with a high dynamic range in a noisy environment (for example, classical music while cooking). To change the DRC of the M3+, select Menu > DRC, and then DRC high, DRC low or DRC off. Note: The M3+'s DRC setting does have any effect if DRC data is not included in the broadcast. Station order You can choose the order of the DAB station list to be either Alphanumeric, Ensemble or Valid. Ensemble lists groups of stations that are broadcast together on the same ensemble, for example BBC or South Wales local. Valid lists valid stations first, alphanumerically, then off-air stations. To change station order, select Menu > Station order > then Alphanumeric, Ensemble or Valid.9. FM radio mode FM radio mode receives analogue radio from the FM band and displays RDS (Radio Data System) information about the station and show (where broadcast). To enter FM mode, either press mode to choose FM Radio or select Menu >Main menu >FM.

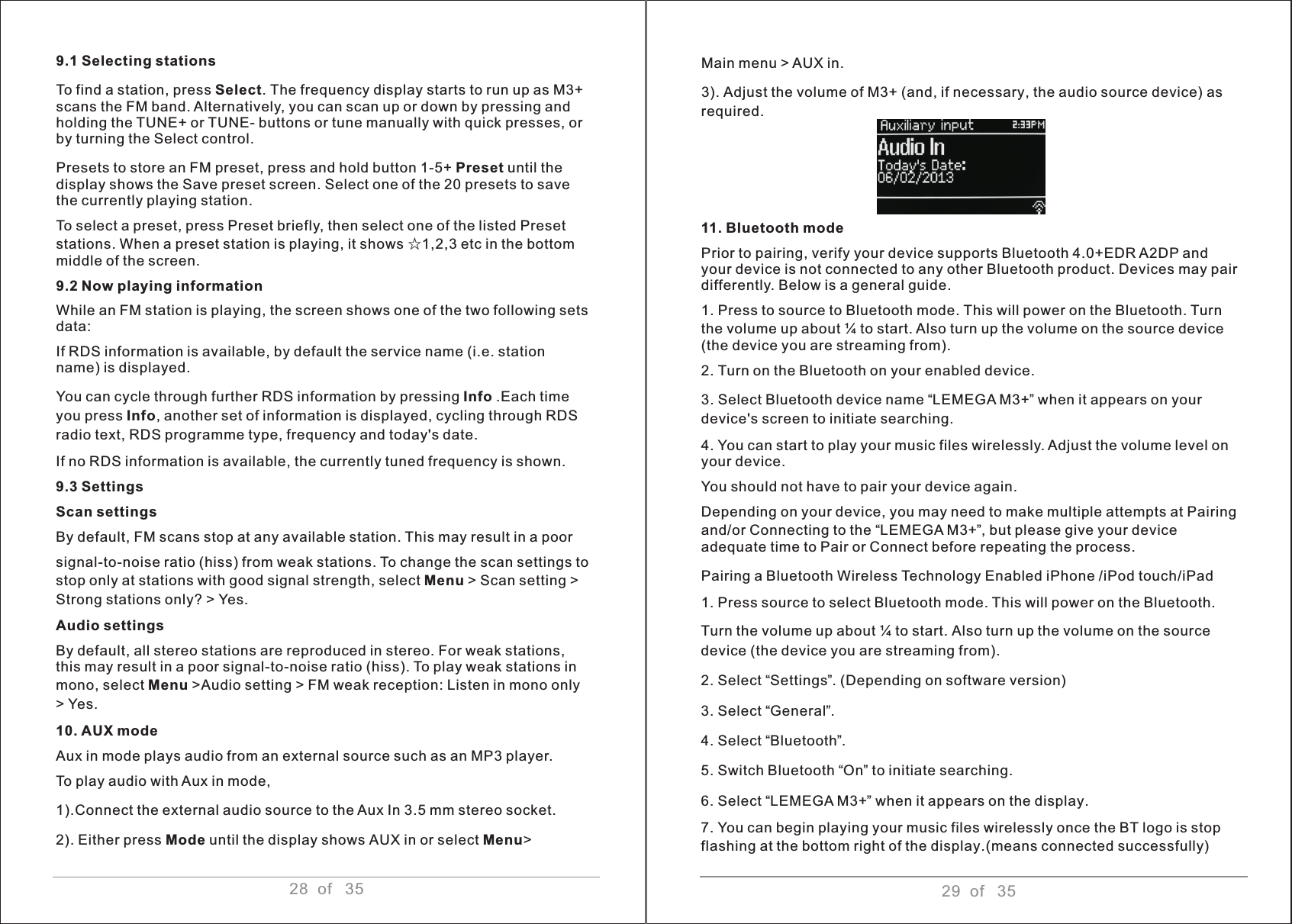

28 of 359.1 Selecting stations To find a station, press Select. The frequency display starts to run up as M3+ scans the FM band. Alternatively, you can scan up or down by pressing and holding the TUNE+ or TUNE- buttons or tune manually with quick presses, or by turning the Select control. Presets to store an FM preset, press and hold button 1-5+ Preset until the display shows the Save preset screen. Select one of the 20 presets to save the currently playing station. To select a preset, press Preset briefly, then select one of the listed Preset stations. When a preset station is playing, it shows ☆1,2,3 etc in the bottom middle of the screen. 9.2 Now playing information While an FM station is playing, the screen shows one of the two following sets data:If RDS information is available, by default the service name (i.e. station name) is displayed.You can cycle through further RDS information by pressing Info .Each time you press Info, another set of information is displayed, cycling through RDS radio text, RDS programme type, frequency and today's date.If no RDS information is available, the currently tuned frequency is shown. 9.3 Settings Scan settings By default, FM scans stop at any available station. This may result in a poor signal-to-noise ratio (hiss) from weak stations. To change the scan settings to stop only at stations with good signal strength, select Menu > Scan setting > Strong stations only? > Yes. Audio settings By default, all stereo stations are reproduced in stereo. For weak stations, this may result in a poor signal-to-noise ratio (hiss). To play weak stations in mono, select Menu >Audio setting > FM weak reception: Listen in mono only > Yes.10. AUX mode Aux in mode plays audio from an external source such as an MP3 player. To play audio with Aux in mode, 1).Connect the external audio source to the Aux In 3.5 mm stereo socket. 2). Either press Mode until the display shows AUX in or select Menu> Main menu > AUX in.3). Adjust the volume of M3+ (and, if necessary, the audio source device) as required.11. Bluetooth mode Prior to pairing, verify your device supports Bluetooth 4.0+EDR A2DP and your device is not connected to any other Bluetooth product. Devices may pair differently. Below is a general guide. 1. Press to source to Bluetooth mode. This will power on the Bluetooth. Turn the volume up about ¼ to start. Also turn up the volume on the source device (the device you are streaming from). 2. Turn on the Bluetooth on your enabled device. 3. Select Bluetooth device name “LEMEGA M3+” when it appears on your device's screen to initiate searching. 4. You can start to play your music files wirelessly. Adjust the volume level on your device.You should not have to pair your device again. Depending on your device, you may need to make multiple attempts at Pairing and/or Connecting to the “LEMEGA M3+”, but please give your device adequate time to Pair or Connect before repeating the process. Pairing a Bluetooth Wireless Technology Enabled iPhone /iPod touch/iPad 1. Press source to select Bluetooth mode. This will power on the Bluetooth. Turn the volume up about ¼ to start. Also turn up the volume on the source device (the device you are streaming from). 2. Select “Settings”. (Depending on software version) 3. Select “General”.4. Select “Bluetooth”. 5. Switch Bluetooth “On” to initiate searching. 6. Select “LEMEGA M3+” when it appears on the display. 7. You can begin playing your music files wirelessly once the BT logo is stop flashing at the bottom right of the display.(means connected successfully) 29 of 35

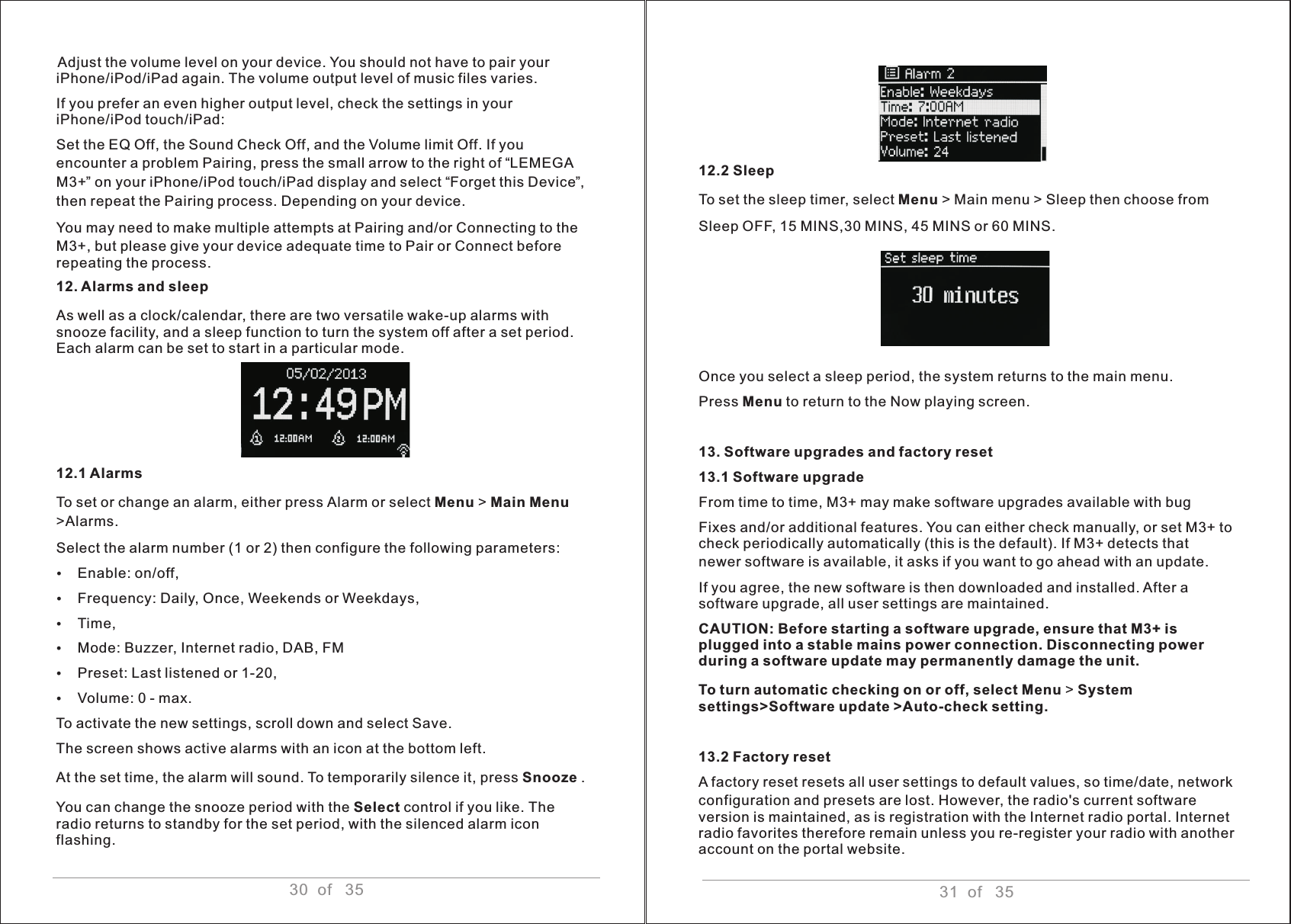

Adjust the volume level on your device. You should not have to pair your iPhone/iPod/iPad again. The volume output level of music files varies.If you prefer an even higher output level, check the settings in your iPhone/iPod touch/iPad:Set the EQ Off, the Sound Check Off, and the Volume limit Off. If you encounter a problem Pairing, press the small arrow to the right of “LEMEGA M3+” on your iPhone/iPod touch/iPad display and select “Forget this Device”, then repeat the Pairing process. Depending on your device.You may need to make multiple attempts at Pairing and/or Connecting to the M3+, but please give your device adequate time to Pair or Connect before repeating the process.12. Alarms and sleep As well as a clock/calendar, there are two versatile wake-up alarms with snooze facility, and a sleep function to turn the system off after a set period. Each alarm can be set to start in a particular mode. 12.1 AlarmsTo set or change an alarm, either press Alarm or select Menu > Main Menu >Alarms. Select the alarm number (1 or 2) then configure the following parameters:ŸEnable: on/off,ŸFrequency: Daily, Once, Weekends or Weekdays,ŸTime,ŸMode: Buzzer, Internet radio, DAB, FMŸPreset: Last listened or 1-20,ŸVolume: 0 - max.To activate the new settings, scroll down and select Save.The screen shows active alarms with an icon at the bottom left.At the set time, the alarm will sound. To temporarily silence it, press Snooze . You can change the snooze period with the Select control if you like. The radio returns to standby for the set period, with the silenced alarm icon flashing. 30 of 3512.2 Sleep To set the sleep timer, select Menu > Main menu > Sleep then choose fromSleep OFF, 15 MINS,30 MINS, 45 MINS or 60 MINS.Once you select a sleep period, the system returns to the main menu. Press Menu to return to the Now playing screen.13. Software upgrades and factory reset 13.1 Software upgrade From time to time, M3+ may make software upgrades available with bug Fixes and/or additional features. You can either check manually, or set M3+ to check periodically automatically (this is the default). If M3+ detects that newer software is available, it asks if you want to go ahead with an update.If you agree, the new software is then downloaded and installed. After a software upgrade, all user settings are maintained. CAUTION: Before starting a software upgrade, ensure that M3+ is plugged into a stable mains power connection. Disconnecting power during a software update may permanently damage the unit.To turn automatic checking on or off, select Menu > System settings>Software update >Auto-check setting.13.2 Factory reset A factory reset resets all user settings to default values, so time/date, network configuration and presets are lost. However, the radio's current software version is maintained, as is registration with the Internet radio portal. Internet radio favorites therefore remain unless you re-register your radio with another account on the portal website. 31 of 35
Example MAC filtering enabled on Received.wma,but found Data obtained from server Router switched off Streaming IR station and suddenly station becomes unavailable that the stream wasn't WMA is unreadable. when trying to decode when trying to decode DescriptionCorrect key entered,But router rejects requestCannot recognise file format Problem past router - Problem with connection to Problem past router – no No UPnP servers found No DAB reception Trying to access USB menu, UPnP server settings Allow access for M3+ in UPnP server but no USB plugged in Access not granted by Software upgrade failed plugged in. Unsupported USB device General USB problems USB USB device device Bad memory sector found on -independent of network incorrect data being router response being received received from network from network from network Messege Failed to connect Format error Network error Network not ready Network timeout No UPnP media Service not No USB device Unauthorised Update failed unsupported USB device data from memory user have to remove the Unable to read particular Power failure to USB device- USB read error underpowered USB error available (DAB) found found routerTo perform a factory reset, select Menu > System settings > Factory reset proceed >Yes.14. Troubleshooting and error messages 14.1 Error messages32 of 3514.2 TroubleshootingWaiting for Users 'Press Play…' Spotify mode - No Spotify account credentials available on the M3+audio system. Connect to the audio system using a Spotify Connect account. Spotify mode – Waiting for playback information; for example, when the audio playback is moved by the Spotify app to a different audio speaker or the smart device itself. Example Description Messege 'DAB:'No stationsavailable' message' 'Cannot connect to network Low signal strength Low signal strength Network down Solutions Cause Problem FM: HissDAB: burbling/intermittent cut-out Check/move antenna Move radio Rescan local (high-strength)stations only For DAB, check local coverage at www.ukdigitalradio.com/coverage As above then rescan stations. Check that network is working between a computer and the router Obtain the M3+ MAC address from Menu < System settings > Network > View settings and add to router list. Router restricts access to listed MAC addresses Note: M3+ has separateMAC addresses for wired and wireless networks only the current network adaptor method address is displayed, but the other address can be obtained by changing the first pair of digits between '00'(wireless) and '02'(wired) 33 of 35

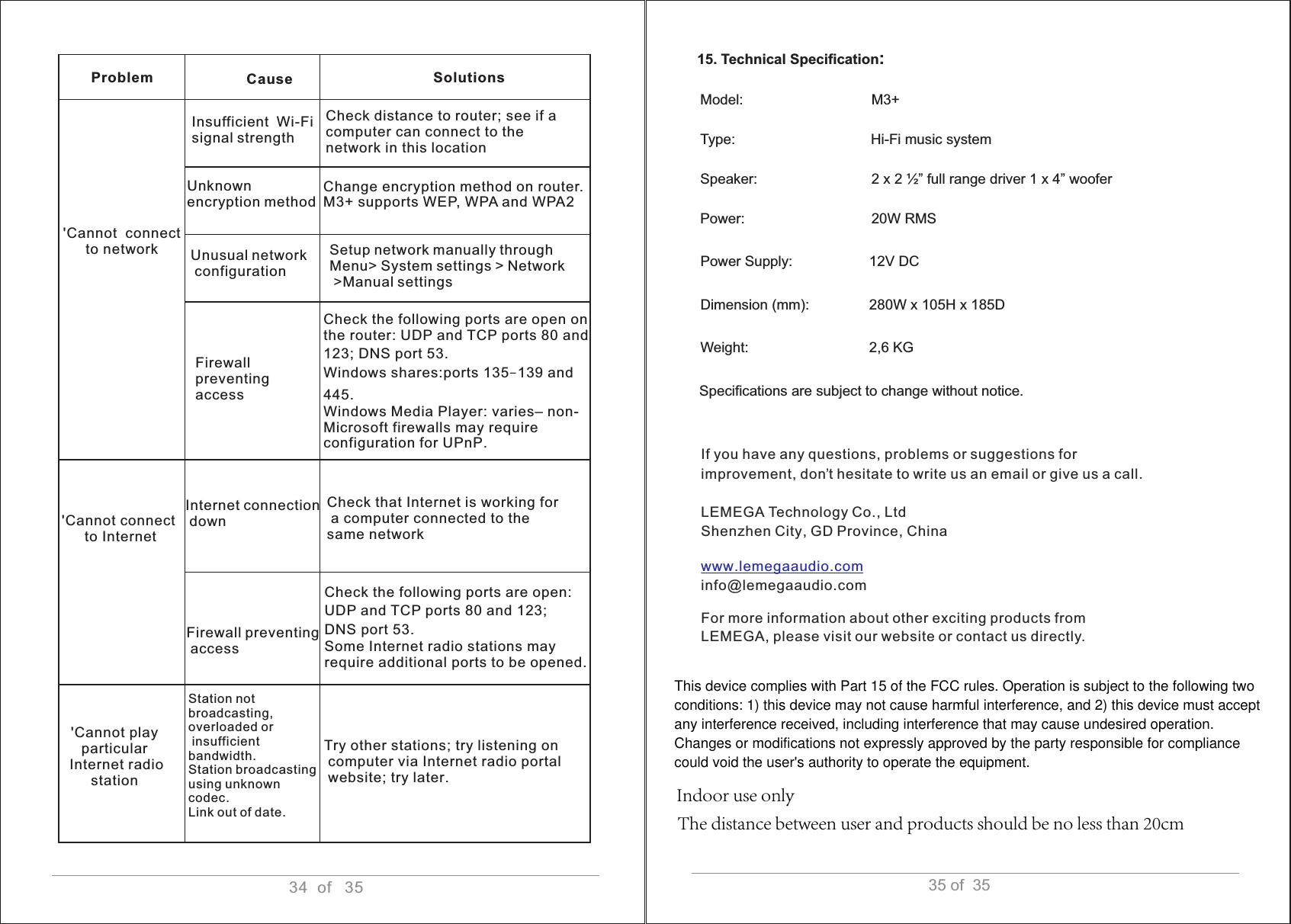

Insufficient Wi-Fi signal strength Unusual network configuration Unknown encryption method Firewall preventingaccess Check distance to router; see if a computer can connect to the network in this location Setup network manually through Menu> System settings > Network >Manual settings Change encryption method on router.M3+ supports WEP, WPA and WPA2 Check the following ports are open onthe router: UDP and TCP ports 80 and123; DNS port 53. Windows shares:ports 135–139 and 445. Windows Media Player: varies– non-Microsoft firewalls may require configuration for UPnP. 'Cannot connect to network Solutions CauseProblem Internet connection down Firewall preventing access Station not broadcasting, overloaded or insufficient bandwidth. Station broadcastingusing unknown codec. Link out of date. Check that Internet is working for a computer connected to the same network Check the following ports are open:UDP and TCP ports 80 and 123; DNS port 53. Some Internet radio stations may require additional ports to be opened. Try other stations; try listening on computer via Internet radio portal website; try later. ' Cannot connect to Internet ' Cannot play particular Internet radiostation34 of 35Power Supply: 12V DCDimension (mm): 280W x 105H x 185DWeight: 2,6 KGSpecifications are subject to change without notice.15. Technical Specification:Model: M3+Type:Speaker: 2 x 2 ” full range driver 1 x 4” woofer½Hi-Fi music systemPower: 20W RMS35 of 35If you have any questions, problems or suggestions forimprovement, don’t hesitate to write us an email or give us a call.LEMEGA Technology Co., LtdShenzhen City, GD Province, Chinainfo@lemegaaudio.comFor more information about other exciting products fromLEMEGA, please visit our website or contact us directly.www.lemegaaudio.comThis device complies with Part 15 of the FCC rules. Operation is subject to the following twoconditions: 1) this device may not cause harmful interference, and 2) this device must acceptany interference received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliancecould void the user's authority to operate the equipment.Indoor use onlyThe distance between user and products should be no less than 20cm

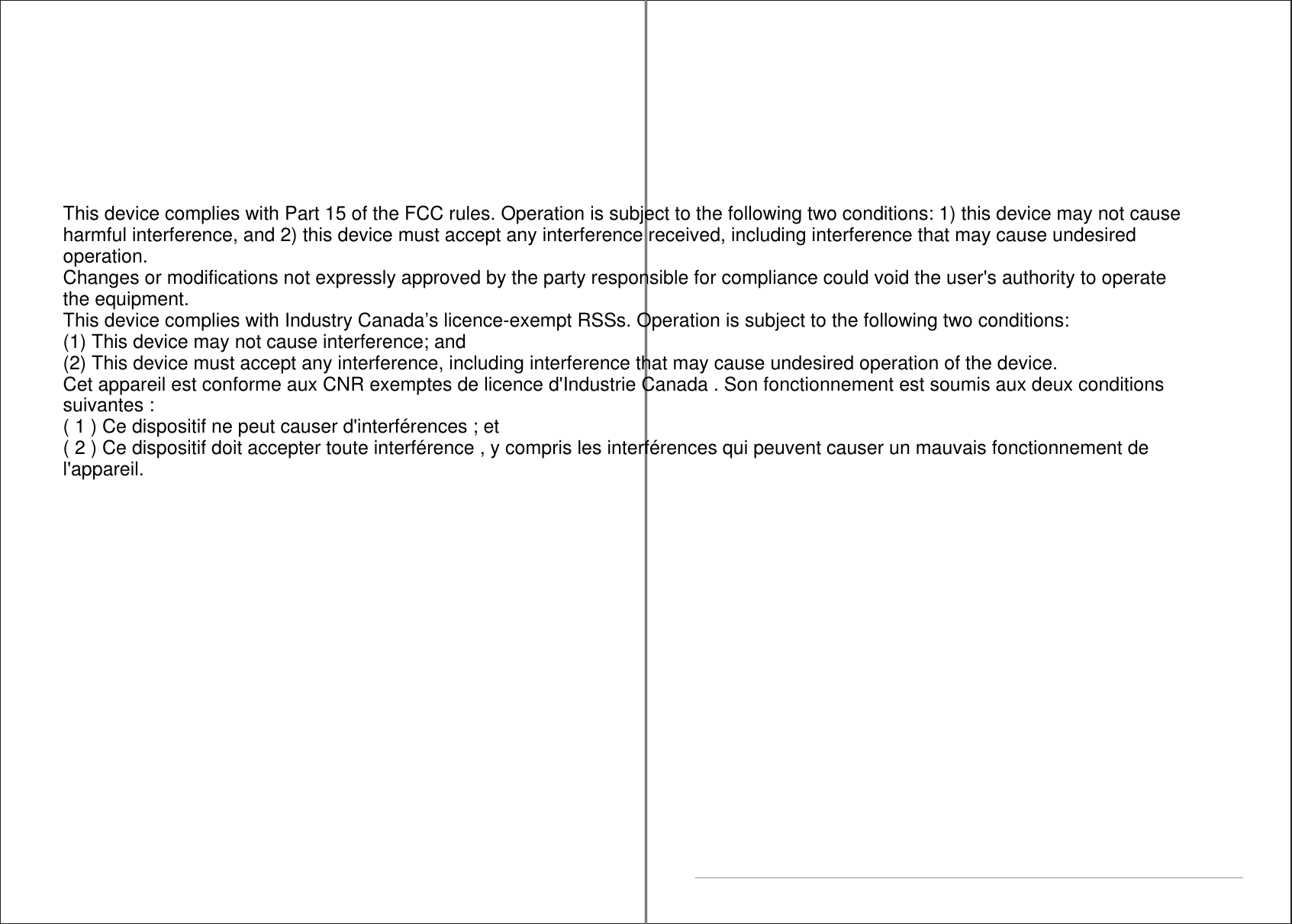

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not causeharmful interference, and 2) this device must accept any interference received, including interference that may cause undesiredoperation.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operatethe equipment.This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:(1) This device may not cause interference; and(2) This device must accept any interference, including interference that may cause undesired operation of the device.Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son fonctionnement est soumis aux deux conditionssuivantes :( 1 ) Ce dispositif ne peut causer d'interférences ; et( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent causer un mauvais fonctionnement del'appareil.
