User Manual for Solar-Log models including: 50 Data Logger, Gateway, 50 Data Logger Gateway
7 Introduction 1 Introduction This manual is intended for use by solar energy technicians and professional electricians, as well as Gateway Solar-Log 50 users.
Fig.: Gateway Solar-Log 50 without extended snap-fit tabs Fig.: Gateway Solar-Log 50 with extended snap-fit tabs. Fig.: Top Connections – Gateway Solar-Log 50. Fig.:pdfView

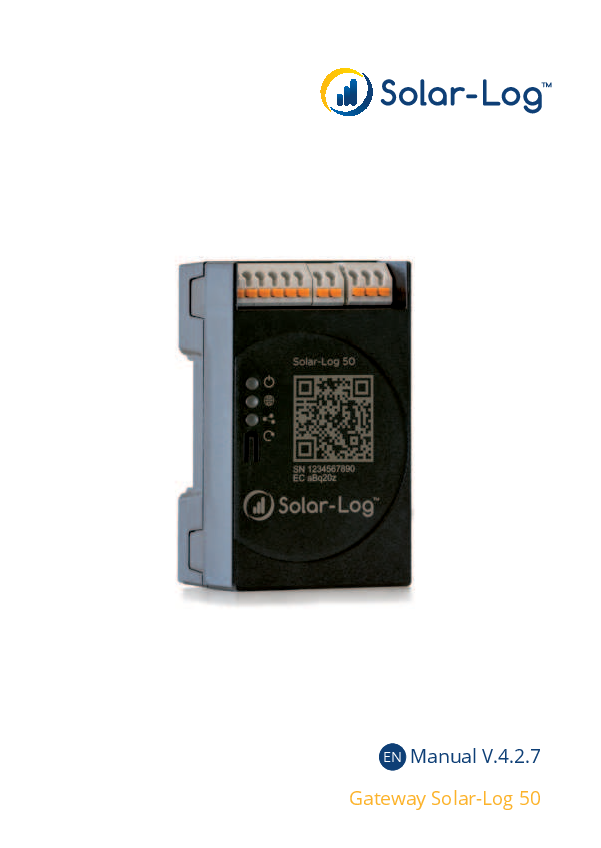

EN Manual V.4.2.7 Gateway Solar-Log 50 1 Publisher: Solar-Log GmbH Fuhrmannstr. 9 72351 Geislingen-Binsdorf Germany International support Tel.: +49 (0)7428/4089-300 e-mail: info@solar-log.com Contact: https://www.solar-log.com Italy Technical support: +39 0471 631032 France Technical support: +33 97 7909708 Switzerland Technical support: +41 565 355346 United States Technical support: +1 203 702 7189 2 Table of Contents 1 Introduction 7 2 Safety information 8 2.1 Hazard Classes ...................................................................................................................................................8 3 Electric current 9 4 Package Contents and Installation 10 5 Gateway Solar-Log 50 Connections11 5.1 Top Connections Gateway Solar-Log 50 .......................................................................................................11 5.2 Bottom Connections Gateway Solar-Log 50 .................................................................................................12 6 Connector Assignments and Wiring 13 6.1 Notes on wiring the connections ...................................................................................................................13 6.2 2 x RS485 (A/B) or 1 x RS422...........................................................................................................................14 7 Connecting the inverters15 7.1 Switch off the inverters and the Solar-LogTM.................................................................................................16 8 Connecting accessories 17 8.1 External power meter......................................................................................................................................17 9 Other connections 19 9.1 USB ....................................................................................................................................................................19 10 Installation 20 3 10.1 Connect the Solar-LogTM to a network / PC. ..................................................................................................20 10.2 Initial set up of the Gateway Solar-Log 50 ....................................................................................................21 10.3 Solar-LogTM replacement .................................................................................................................................22 10.4 Component replacement................................................................................................................................22 10.5 Adding new components ................................................................................................................................22 11 Go to the Main Menu 23 11.1 Operating the Main Menu of the Solar-LogTM ...............................................................................................26 11.2 Explanations of the names in the main menu. ............................................................................................28 11.2.1 Header bar.........................................................................................................................................................28 11.2.2 Left-side navigation menu ...............................................................................................................................28 11.2.3 Configuration Page ...........................................................................................................................................28 11.2.4 Login Section Menu ..........................................................................................................................................29 11.3 Setting up of the Solar-LogTM with the configuration assistant .................................................................33 11.4 Gateway Solar-Log 50 Manual Configuration...............................................................................................38 12 Main menu 39 12.1 Virtual LCD Display...........................................................................................................................................39 13 Configuration Menu40 13.1 Configuring network settings .........................................................................................................................40 13.1.1 Ethernet..............................................................................................................................................................41 13.1.2 Proxy...................................................................................................................................................................43 13.2 Internet Configuration.....................................................................................................................................44 13.2.1 Portal ..................................................................................................................................................................44 13.3 Configuring connected devices ......................................................................................................................46 13.3.1 Device definition ...............................................................................................................................................47 13.3.2 Device Detection ...............................................................................................................................................49 13.3.3 Configuring devices ..........................................................................................................................................49 13.3.4 Configuring inverters........................................................................................................................................49 13.3.5 Generation Information on PAC Correction Factor ......................................................................................50 13.3.6 Configuring power meters...............................................................................................................................51 13.3.7 Configure the battery .......................................................................................................................................52 13.3.8 Module Fields, Power Output and Descriptions ...........................................................................................52 13.4 Feed-in management ......................................................................................................................................54 13.4.1 Plant parameters ..............................................................................................................................................54 13.4.2 Active power ......................................................................................................................................................54 13.4.3 Active power deactivated .................................................................................................................................55 13.4.4 70% fixed reduction..........................................................................................................................................55 13.4.5 70% Fixed reduction with the calculation of self-consumption ..................................................................56 13.4.6 Adjustable reduction ........................................................................................................................................56 13.4.7 Adjustable Reduction with the Calculation of Self-Consumption ...............................................................57 13.4.8 Fixed reduction in watts ...................................................................................................................................57 13.4.9 Fixed reduction in watts with the calculation of self-consumption ............................................................57 13.5 Editing Data ......................................................................................................................................................58 4 13.5.1 System backup ..................................................................................................................................................58 13.5.2 Backup................................................................................................................................................................60 13.5.3 Reset ...................................................................................................................................................................62 13.6 System Configuration ......................................................................................................................................63 13.6.1 Access control....................................................................................................................................................63 13.6.2 HTTPS .................................................................................................................................................................64 13.6.3 Language/Country/Time ..................................................................................................................................65 13.6.4 Licenses..............................................................................................................................................................67 13.6.5 Firmware ............................................................................................................................................................68 14 Diagnostics Menu71 14.1 Accessing Support............................................................................................................................................71 14.2 Starting Feed-in management........................................................................................................................72 14.2.1 Explanation of the Values in the Power Reduction Section.........................................................................73 14.2.2 Explanation of the Symbols in the Feed-in power (% DC) column:.............................................................75 15 Yield Data Menu 76 15.1 Current values ..................................................................................................................................................76 15.1.1 Table ...................................................................................................................................................................77 16 Symbols on the virtual LCD display 78 16.1 Meaning of the symbols on the virtual LCD display ....................................................................................78 16.2 Fault messages.................................................................................................................................................79 16.3 Normal operation ............................................................................................................................................79 17 Notifications via LED80 17.1 LED status indications .....................................................................................................................................80 18 Faults 81 18.1 Restarting and resetting..................................................................................................................................81 18.1.1 Reset buttons ....................................................................................................................................................81 18.2 Fault messages.................................................................................................................................................82 18.2.1 Fault messages time .........................................................................................................................................82 18.2.2 Fault messages Internet...................................................................................................................................82 18.2.3 Portal Transfer Fault messages.......................................................................................................................83 19 Cleaning and care84 19.1 Cleaning tips .....................................................................................................................................................84 19.2 Care tips ............................................................................................................................................................84 5 20 Disposal 85 21 Appendix 86 21.1 Internet ports ..................................................................................................................................................... 86 22 Dimensions 87 23 List of Figures88 6 1 Introduction Introduction This manual is intended for use by solar energy technicians and professional electricians, as well as Gateway Solar-Log 50 users. It should be noted that the installation and commissioning of the individual components is only to be performed by properly trained specialists. Refer to Chapter 4 "Safety information" for more information. The wiring for the devices is described in detail in the Component Installation Manual. The Solar-LogTM must only be used by persons who have fully read and understood the manual before installing, operating and/or servicing the device. Our product documentation is being constantly updated and expanded. The current versions of the documents can be downloaded from our website: https://www.solar-log.com/de/support/downloads. The descriptions in this manual refer to firmware version 4.2.7 7 Safety information 2 Safety information In order to protect people, the device itself, and other equipment, please pay attention to the following before handling the product: · the content of this manual, · the safety information, · the warning signs and type plates attached to the product. Note: All the actions described in this manual for wiring and working on the individual components must be carried out only by specially trained electricians. All repairs should only be carried out by similarly trained personnel, or by the manufacturers themselves. Solar-Log GmbH is not liable for any personal injuries, property damages and system malfunctions and their consequences which result from not adhering to the product documentation. 21 Hazard Classes The safety instructions in this document are represented with standard signs and symbols. Two classes of risk are identified, depending on their probability of occurrence and the seriousness of their consequences. Danger Indicates an imminently hazardous situation to life Non-compliance with this warning can lead to severe and irreversible injuries or death Caution Indicates an imminently hazardous situation to people, or a risk of material damage Non-compliance with this warning can lead to irreversible injuries or to material damage. 8 3 Electric current Electric current Danger Risk of death by electric shock if inverters are opened. Never open the inverter housing when the inverter is connected to power. Refer to Switching inverters off. Always read the installation and safety instructions given in the manual for the corresponding inverter. Danger Danger of death if there is condensation in the power supply unit when started! Condensation can occur if the power supply unit is moved directly from a cold environment to a warm environment. Wait until the temperatures have equalized before doing this. Caution Damage to the electrical components in inverters and on interface cards due to electrostatic discharge. Avoid contact with component connections and plug contacts. Before picking up the component, ground yourself by holding the protective conductor (PE) or the unpainted part of the inverter housing. Caution Damage to the electrical components of the Solar-LogTM due to the wiring of the Solar-LogTM! Disconnect the Solar-LogTM from the power supply. Caution Risk of electric shock. Do not use the unit if the housing of the external power supply unit is damaged. A damaged power supply unit must be replaced by one of the same type in order to avoid danger. Caution The Solar-LogTM may only be used indoors or enclosed spaces. The device has the protection class IP20. 9 Package Contents and Installation 4 Package Contents and Installation Check the package contents before proceeding to assembly and installation. Report any damage or missing parts to the forwarding agent and dealer immediately. The device is produced according to protection class IP20 and is intended only for installation in interior areas that are dry and dust-free. It can mounted on the wall (see illustration below) or on a top-hat rail (refer to the Solar-LogTM dimensions in chapter 22). Power can come from a DIN rail power supply or a 24V power supply with an adapter. Note Please note that a power supply is not included in the package contents. Note We recommend using the Solar-LogTM power supply (Art.N.: 256226) Please note that: GND 24V Wall mounting For wall mounting, extend the snap-fit tabs on the bottom of the device and attach it to the wall with a suitable device and accessories. Fig.: Gateway Solar-Log 50 without extended snap-fit tabs Fig.: Gateway Solar-Log 50 with extended snap-fit tabs 10 Gateway Solar-Log 50 Connections 5 Gateway Solar-Log 50 Connections 51 Top Connections Gateway Solar-Log 50 2x RS485 or RS422 Input: 24 V/ 1A DC Pins without function 6 5 4 32 1 - + Fig.: Top Connections Gateway Solar-Log 50 Gateway Solar-Log 50 Top connections 2 x RS485 or RS422 Connection for inverters and additional accessories Input: 24 V/1A DC Connection pins for the power supply Technical Data Nominal voltage Maximum cable cross-section Power consumption 24V = +- 5% or 24VDC +- 5% SOLID WIRE: 30-16 AWG / 0.051.31 mm2 (Solid wire) STRANDED WIRE: 30-16 AWG / 0.05-1.31 mm2 (Litz wire) < 0.5W 11 Gateway Solar-Log 50 Connections 52 Bottom Connections Gateway Solar-Log 50 Fig.: Bottom connections Gateway Solar-Log 50 Bottom of the Gateway Solar-Log 50 USB USB connection. Suitable for USB sticks. Not suitable for a connec- tion to a PC / laptop. Network Ethernet network interface, 10/100 Mbit Note This USB connection can only be used for USB sticks and not for a direct PC or laptop connection. 12 Connector Assignments and Wiring 6 Connector Assignments and Wiring The following connecting cables, which may be needed for various purposes, are not included in the package content. · To connect a router, you need a network cable with the appropriate length. If you want to connect the So- lar-LogTM directly to your PC or laptop, you need to use a crossover cable. · Cable to connect the Solar-LogTM to an inverter. · Sets of prefabricated cables are available as accessories suitable for the inverter concerned. The length of these cable sets is 3 m. · If you want to connect several inverters to Solar-LogTM, you need suitable cables and connectors to connect the inverters to each other. · When wiring with CAT cables, the twisted pair of wires should be used. 61 Notes on wiring the connections The wiring of the inverters and accessories needs to be carried out with the greatest care and attention. The most frequent source of errors when installing the Solar-LogTM is faulty wiring. For this reason, we recommend: · Wiring with high quality cables For example: LIYCY >=0.14mm2 or Cat 5/7 SSTP · Refer to the manufacturer's specifications in regard to UV resistance and mounting type when wiring in out- side areas. · A larger cable diameter is recommended for longer distances. · Use ferrules with flexible wires · Twist the corresponding wire pairs and shielding · Wire from left-to-right. · Wire from light to dark. 13 Connector Assignments and Wiring 62 2 x RS485 (A/B) or 1 x RS422 Use the provided terminal blocks when connecting inverters or accessories to the RS485 or RS422 interface. RS485 Connection Block Pin Assignment RS485-A RS485-B PIN Assignment Assignment 1 Data+ - 2 24 V - 3 Ground / GND - 4 Data- - 5 - Data+ 6 - Data- RS422 Connection Block Pin Assignment RS422 PIN 1 2 3 4 5 6 Assignment T/RX+ 24 V Ground / GND T/RXR/TX+ R/TX- Note If inverters that use the RS422 connection are connected to this interface (e.g. Fronius, AEG, Riello), then it is not possible to connect accessories such as sensors or meters to this bus. 14 7 Connecting the inverters Connecting the inverters As each inverter manufacturer uses different wiring connections and connectors, the corresponding data cables must be adapted correctly. · See Chapter,,Belegung und Verkabelung der Anschlüsse" for terminal block connector wiring diagrams for the connection to the Solar-LogTM · Please refer to the Component Connection Manual when connecting inverters supported by the Solar-LogTM. (Download from https://www.solar-log.com/en/support/downloads/manuals) Note Solar-Log GmbH supplies suitable connection cables for most inverter manufacturers. Always read the manufacturer-specific instructions for connecting the data cable. You will find these instructions in the manufacturer's documentation. However, when assigning the inverter wiring on the Solar-LogTM, follow the instructions in this manual, otherwise the inverters will not be detected by Solar-LogTM. Danger Risk of death by electric shock if inverters are opened. Never open the inverter housing when the inverter is connected to power. See the chapter "Switching inverters off." Always read the installation and safety instructions given in the manual for the corresponding inverter. 15 Connecting the inverters 71 Switch off the inverters and the Solar-LogTM. Switching inverters off Before a making a cable connection between the Solar-LogTM and the connections inside the inverter and before installing an interface card in the inverter, always turn off all of the inverters first. To do this, read the manufacturer's documentation for the inverter, and proceed as follows: · Disconnect the AC side. · Disconnect the DC side. · Wait at least 5 minutes until the condensers in the inverters have discharged. Turn the Solar-LogTM off. · Hold down reset button for 10 seconds and then release it as soon as the components LED turns ( ) Orange. The Solar-LogTM will shut down and can be disconnected from the power supply (see chapter 18.1.1 "Reset Button" for more information). 16 8 Connecting accessories Connecting accessories 81 External power meter External power meters can be connected to the Solar-LogTM via the RS-485 bus. The energy recorded by these meters can be used for numerous applications: · Generator Mode: This mode is used, for example, for inverters that are not directly supported by Solar-LogTM. · Total yield meter: This mode is used to record the energy production of several inverters. · Consumption meter: This mode is used to measure power consumption and to make it possible to display this data. Note We recommend using the meters that we have tested and offer. We cannot guarantee the functionality of other products. Note Refer to the Meter Connection Manual for all of the supported meters and their wiring diagram. Download it from our website: https://www.solar-log.com/en/support/downloads/manuals 17 Connecting accessories External power meters/accumulating meters With multiple phase meters, a basic distinction is made between phase-exact and accumulating meters. Accumulating meters provide the total values from all three phases. The meter calculates the total output (also to and from the grid) of the individual phases and provides this total as a single value. In the example: Phase 1 supplies 3 kW via an inverter (single phase). Phase 2 draws 2 kW (energy) Phase 3 draws 1 kW (energy) With an accumulating meter, this results in a total of 0 kW. Examples of accumulating meters are the Janitza UMG 104/UMG 604 and the Solar-LogTM Pro380. 18 9 Other connections Other connections 91 USB The Gateway Solar-Log 50 comes with an USB connection. This USB connection can only be used for USB sticks and not, for example, for a direct PC or laptop connection. Note When a USB stick is connected, the Solar-LogTM automatically saves a backup in the backup folder. A maximum of 10 backup files are saved in the directory. Older backup files are automatically deleted. The backup is saved on the USB stick in the directory /Backup with the following file names: · solarlog_backup_YYMMDD.dat: YYMMDD = year, month and day - each two digits, e.g. 180807 is then 07 August 2018 19 Installation 10 Installation The Gateway Solar-Log 50 has an integrated web server, which contains all the software necessary for operation and configuration. No additional software needs to be installed on the PC to access the Solar-LogTM. A common web browser with JavaScript enabled is required. We recommend using the current version of Mozilla's Firefox, Google's Chrome or Microsoft's Edge. To run the web browser, a network connection is required between the PC or laptop and Solar-LogTM, and Solar-LogTM must be up and running. It is required to have DHCP enabled on the router. 101 Connect the Solar-LogTM to a network / PC. The Solar-LogTM is equipped with a standard Ethernet RJ45 socket, which can be connected through any commercially available network cable. Speeds of 10 Mbit and 100 Mbit are supported. In general, any PC networking technology can be used for connecting the Solar-LogTM. The following technologies are available: · Connection through an Internet router: Ethernet RJ45 network cable. · Direct cable connection from the PC to the Solar-LogTM: Ethernet RJ45 network patch cable. If the Solar-LogTM is operated via a router, ensure that the necessary ports have been activated (see Chapter ,,Internet-Ports"). Note The Gateway Solar-Log 50 has DHCP activated by default to be able to establish a connection when connected to a router with DHCP enabled. 20 Installation 102 Initial set up of the Gateway Solar-Log 50 The complete configuration of the Gateway Solar-Log 50 can be done via the PC/laptop or via a tablet or smartphone. Requirements · All cables and accessories (if any) have been connected to the Solar-LogTM. · The Solar-Log50 is connected to an Internet router. · The DHCP service is enabled on the Internet router. or · The DHCP service is enabled when connecting directly to the Solar-LogTM with a PC. (We recommend a crossover network cable here.) Note Please also be sure to carry out a system backup on a harddrive after initial start-up. We recommend regular data back-ups and also that a system back-up should be carried out if changes are made in the configuration of the plant. To carry out a backup and system backup, proceed as follows: Carrying out a backup: Access the Configuration | Data | Backup menu item on the Solar-LogTM in the web interface. Then click the "Prepare" button in the "Save data backup on harddrive" area. This may take some time. Confirm with "OK". You can now save the file in any folder that you choose on the harddrive by selecting "Download". Carrying out a system backup: Access the Configuration | Data | System Backup menu item on the Solar-LogTM in the web interface. Then click the "Prepare" button in the "Save system settings to hard disk" area. Save to the hard disk. You can now save the file in any folder that you choose on the hard disk by selecting "Download". 21 Installation 103 Solar-LogTM replacement If the Solar-LogTM is to be replaced soon, a system and data back-up of the old device should be made beforehand. To ensure that data is transferred properly, the sequence of interfaces must be identical on the old device and replacement device. Subsequently, the previously created system and data back-up is simply restored. Note When restoring the system and data back-up, always restore the system back-up first. To restore a system and data back-up to the Solar-LogTM, the following steps are necessary: Restoring the system backup: Access the Configuration | Data | System Backup menu item on the Solar-LogTM in the web interface. Click the "Search" button in the "Restore system settings from hard disk" area. Search for the solarlog_config.dat file and select it. This is transferred to the Solar-LogTM by clicking the "Upload" button. Restoring the data backup: Access the Configuration | Data | Backup menu item on the Solar-LogTM in the web interface. Click the "Search" button in the "Restore data backup from harddrive" area. Search for the solarlog_backup.dat file and select it. This is transferred to the Solar-LogTM by clicking the "Upload" button. 104 Component replacement To ensure that data recording can continue to function correctly when a device is replaced, the device to be replaced must be installed with exactly the same sequence and at the same interface as the old device. Subsequently, the previously created system back-up is simply restored. To restore a system back-up to the Solar-LogTM, the following steps are necessary: Restoring the system backup: Access the Configuration | Data | System Backup menu item on the Solar-LogTM in the web interface. Click the "Search" button in the "Restore system settings from hard disk" area. Search for the solarlog_config.dat file and select it. This is transferred to the Solar-LogTM by clicking the "Upload" button. 105 Adding new components To ensure correct data recording when adding new components, these must be added at a free interface. After installation, the component must be added using Configuration | Devices | Definition for each interface assignment and then recognized using Configuration | Devices | Detection. 22 11 Go to the Main Menu The various options to open the main menu of the Solar-LogTM are listed below: Device URL · Start the web browser. · Enter http://solar-log in the address bar and press the ENTER key. · The main menu of the Solar-LogTM is displayed. Go to the Main Menu. Fig.: Main menu of the Gateway Solar-Log 50 Alternatively, the Solar-LogTM can also be accessed as follows: IP address from an automatic IP range: · Start the web browser. · Enter http://169.254.wx.yz in the address bar and press the ENTER key: Here wxyz stands for the last 4 digits from serial number of the Solar-LogTM. The serial number is printed on the model tag. · The main menu of the Solar-LogTM is displayed. IP address that was entered during the initial configuration · Start the web browser. · Enter IP address from the Initial Configuration in the address bar and press the ENTER key. · The main menu of the Solar-LogTM is displayed. 23 Go to the Main Menu. Device URL when there are several Solar-LogTM devices on the network · Start the web browser. · Enter http://solar-log-wxyz in the address bar and press the ENTER key: Here wxyz stands for the last 4 digits from serial number of the Solar-LogTM. The serial number is printed on the model tag. · The main menu of the Solar-LogTM is displayed. Define the password If no password has been defined, the a security notice is displayed in the following window. Fig.: Pop-up window with security information 24 Go to the Main Menu. Click on "Yes" here to directly define a user password. The following configuration page appears: Fig.: Configuration page "Access control" In the Access protection for the browser section, the user password can be activated and defined. Click on "save" after the defining the password. Set password later (not recommended) It is possible to define the user password later by clicking on "No" or by clicking on "No" after checking the box "I am aware of the security risks." Close the "Do not show this dialog automatically any more" window. If "Do not show this dialog automatically any more" was checked, the security warning will no longer appear each time when accessing the web interface. As a reminder to define a password, a small red triangle appears in the top right corner. Click on this icon at any time to define the user password. Once a password has been defined, the triangle disappears. 25 Go to the Main Menu. 111 Operating the Main Menu of the Solar-LogTM The main menu of the Solar-LogTM functions like a website and is divided into four main sections: · Header bar (A) · Left navigation (B) · Tab (C) · Configuration page (D) Various control elements are used. (See the explanation below). Fig.: Layout of the main menu 26 Control elements The following control elements are used: Control elements Control element Meaning Text field Text field with incorrect or missing entry. Drop-down selection list Switch deactivated and activated The question mark boxes display additional information Check boxes Several boxes can be selected at one time Command buttons for various functions Fig.: Control elements Go to the Main Menu. 27 Go to the Main Menu. 112 Explanations of the names in the main menu 1121 Header bar The header contains three main sections: · Login symbol ( ): Clicking on the login symbol, for example, allows you to access the info center or assistant. · Configuration: Here you can change the device settings as required. · Diagnostics: Diagnostics allows you to view a summary of the device information and to create a diagnostic report. · Yield data: Yield data allows you to view the current plant yields and the system information. Note All of the points are described below in the chapters: · Login Section Menu · Configuration Menu · Diagnostics Menu · Yield Data Menu 1122 Left-side navigation menu Depending on the tab selected, you can access additional functions from the navigation menu (left-side). Tabs Additional configuration sections appear according to the function selected. 1123 Configuration Page Here you have the option to make any necessary modifications to the configuration, to create back or to reset the device. 28 Go to the Main Menu. 1124 Login Section Menu You can entered a password protected section by clicking on the log in button (to the right of the confirmation in the web interface) and entering your user and password. There is a gray line below the login button that indicates if you are logged in and with which user level. (Refer to the Access Control section for more information) Fig.: Log in button with selection box Additional points below the login symbol: · Assistant · System Information · Info Center · Legal notices · Restart Assistant The configuration assistant can be started directly from here. System Information The following information can be viewed from system information: About the Solar-LogTM: · Model · Serial number · Firmware version Plant data: · Plant size Detected devices (depending on what devices are connected): · Battery · Hybrid System · Sensor · Inverter · Meter Data transfers: · Last transfer with the time and date and state message (in the example: OK) 29 Go to the Main Menu. Fig.: System Info with example plant Info Center Information on the following sections can be accessed here: · Solar-LogTM: The information about the Solar-LogTM such as the serial number, Easy Code and MAC address is located here. · Solar-Log WEB-EnerestTM: Here the domain, transfer type, last transfer and ordered package can be viewed. · Documentation: This item allows you to call up the corresponding manuals and download them if required or call up the component database. · Firmware & Support: In this section you can, for example, access the website, the support contact form or the FAQs. · Solar-LogTM Shop: For example, you can use this item to select: the Solar-LogTM Shop, the Accessories section and the Licenses section. Legal notices The legal notices indications that this product uses open source components. In addition, a list of these components is displayed with the respective license texts. Restart This function resets the device. 30 Go to the Main Menu. Hide arrow The "Hide Arrow" (on the right of the header bar) allows you to increase the amount of the page displayed in the browser by hiding the Welcome header. Fig.: Header bar with the "Hide Arrow" New Firmware A notification is sent via the Web browser when a new firmware is version available; a green triangle with an exclamation mark is displayed at the top in the status line. (See illustration: Signal for new firmware) Fig.: Signal for new firmware Note The Automatic Firmware Update Check has to be activated in the Configuration | System | Firmware menu to use this function. (See illustration: Automatic Firmware Update Check with notification text displayed) 31 Go to the Main Menu. Fig.: Automatic Firmware Update Check with notification text displayed The following notification text is displayed by clicking on the question mark: "This settings allows firmware versions with critical errors to be automatically updated. However, generally, this setting only indicates that a new firmware version is available (green exclamation mark at the top). When clicking on the green exclamation mark in the header bar, a window with the new firmware version will appear. Selecting "OK" redirects you to the page of the Solar-LogTM for firmware updates. Selecting "Cancel" closes the window. 32 Go to the Main Menu. 113 Setting up of the Solar-LogTM with the configuration assistant After the initial set up of the Solar-LogTM, the Solar-LogTM starts to ask about the following settings: · Language · Country and time · Display access control At the end, a pop-up window appears where you can start the Solar-LogTM configuration wizard. (See the following image: "Startup screen of the Solar-LogTM configuration wizard"). At this point, if you do not want to continue with the setup, the configuration wizard can be stopped by clicking on the "Cancel" button. After clicking on "Cancel," the local "Cockpit" WEB page is started. The setup can be done manually from this menu. The Solar-LogTM configuration wizard can also be started at any time from the Configuration | System | Configuration Wizard menu. Note The configuration assistant can be stopped at any time by clicking on the "Cancel" button (left below the progress bar). The previously entered settings remain active. Fig.: Startup screen of the Solar-LogTM configuration wizard 33 Go to the Main Menu. Click on the "Start" button to run the configuration wizard. Once started, the Ethernet Settings menu appears (see image "Solar-LogTM Ethernet Settings). In the network settings can be entered in the IP address, subnet mask and gateway boxes. The function "Obtain IP address automatically (DHCP)" can also be deactivated if the Solar-LogTM is to be assigned a fixed IP address. Fig.: Solar-LogTM Ethernet settings from the Solar-LogTM Configuration Wizard Click on the "Connection Test" button in the Internet connection section to check if the settings are correct. Fig.: Example of a successful connection test Fig.: Example of an unsuccessful connection test 34 Go to the Main Menu. Note All entries are saved automatically by clicking on the "Next" button. Clicking on the "Back" button allows to go back and change the settings at any time. If the test is successful, click on the "Next" button to go to the next section. A dialog window appears. From this window, you can check if a new Solar-LogTM firmware version is available (see image "Displayed Firmware Update Window"). Fig.: Displayed Firmware Update Window By clicking on "Yes," the configuration wizard checks for a new firmware version and can install it after that. At the end, the interface detection is performed. Otherwise, the interface detection menu appears by clicking on "No" for the firmware update check. Note The device detection is to be performed after the components have been connected. Otherwise the corresponding boxes for the components are grayed out. 35 Go to the Main Menu. Interface assignment The connected components have to be assigned in the interface assignment section. Procedure: · Click on the plus symbol. · Select the device class, manufacturer, type (depending on device) and interface. · Confirm by clicking on "OK." · Repeat these steps for assigning the second interface. When the selection of connected devices is complete, click on the "Start" to start the Device Detection. (See "Device Definition" chapter) Fig.: Configuration wizard - Example - Interface Assignments Note The device detection can be canceled by clicking on the "Skip" button for example, when there is incorrect interface assignment or number of detected devices. 36 Go to the Main Menu. Click on "OK" after a successful detection. Then click on "Next." The device configuration menu appears. In the device configuration, one can, for example, define the generator output, the module fields and the names of the individual components. (Also refer to the chapter "Device Configuration") Fig.: Example Configuration Wizard Device Configuration The "portal" page is loaded by clicking on "next." Here the data transfer to the Solar-Log WEB EnerestTM portal can be activated. The box "Portal Server" appears once the data transfer to the Solar-Log WEB EnerestTM portal is activated. There are two options for entering the portal server: · Option when the Solar-LogTM has already been registered on the portal: If you know the portal server, you can manually enter it. Otherwise, there is the option to automatically enter the portal server by using the "Obtain automatically" function (above the globe symbol). · Option when the Solar-LogTM has not been registered on the portal: If the Solar-LogTM has not been registered on the portal, the function to obtain portal server automatically can be started with the globe symbol. The "portal server" box is grayed out and the Solar-LogTM goes into a waiting state and remains in this state until it has been registered in the Enerest portal (see the Solar-Log WEB EnerestTM User Manual, available to download from https://www.solar-log.com/en/support/downloads/manuals). After that the Solar-LogTM obtains the portal server automatically. After clicking on "Next," the configuration wizard is finished and a summary is displayed. (See illustration: "Configuration Wizard Summary") 37 Go to the Main Menu. Fig.: Example Configuration Wizard Summary 114 Gateway Solar-Log 50 Manual Configuration After the device connection has been established and the Solar-LogTM has been connected to the Internet router, the basic configuration of the Gateway Solar-Log 50 is done via a web browser. All settings made at the initial startup can be changed later at any time. Procedure: · Enter http://solar-log-wxyz in the web browser address bar (wxyz stands for the last 4 digits from serial num- ber of the Solar-LogTM). · A selection of display languages is displayed. · Select the desired Display Language. Click on Continue. · Define the country and time zone. Continue. · The Access Protection menu is displayed. Click on Continue after defining the user password. · The Configuration Wizard is displayed. Click on Cancel to perform a manual configuration. · Select "Configuration" from the menu in the header bar. · The following can be manually configured from the Configuration menu: · Network · Internet · Devices · Data · System (For a detailed description of the configuration, refer to the chapter: "Configuration Menu") 38 12 Main menu Main menu The main menu on the Solar-LogTM is divided into three sections: · Configuration · Diagnostics · Yield data In addition, the following sub-menus are displayed in this view: · Cockpit · Table These are also located on the left side of the of the Virtual LCD Display and in additional sub-menus (depending on connected the devices) and as a selection in the main navigation menu. 121 Virtual LCD Display The Virtual LCD Display is located above the left navigation menu and displays the notifications from the Solar-LogTM in the form of codes and symbols in addition to the date and time. The codes and symbols are described in more detail below (see chapter: "Notifications on the Virtual LCD Display"). The notications are in real time. Fig.: Virtual LCD Display 39 Configuration Menu 13 Configuration Menu The Configuration menu is divided into the following sub-sections: · Network · Internet · Devices · Feed-in management · Data · System The following sub-sections of the menu will be explained separately in the following chapters. 131 Configuring network settings Open the dialog box. Select Configuration | Network from the menu. The Network menu is divided into the following sub-sections: · Ethernet · Proxy Note The network should always be available (24/7) to ensure comprehensive logging and reliable monitoring. Note The Gateway Solar-Log 50 is equipped with a 7-day memory to prevent data transfer failures (e.g. router failure). 40 1311 Ethernet Configuration Menu Fig.: Ethernet settings The Ethernet settings for the Solar-LogTM are adjusted in this tab. Obtain IP address automatically (DHCP) Here the following options are available: · Activate Obtain IP address automatically · Deactivate Obtain IP address automatically. . With the default settings of the Solar-LogTM, the "Obtain IP address automatically (DHCP)" option is active. DHCP also have to be enabled on the Internet router for the the Solar-LogTM to obtain an IP address. If the Solar-LogTM receives a fixed IP address later, the Obtain IP address automatically (DHCP) switch needs to be deactivated. The following fields need to be adjusted according the network's configurations. IP address The IP addresses need to be in the same network to successfully establish a connection to the device. That means the first three blocks of the IP address are identical; only the last block differs. An example: 192.168.100.1 for the router 192.168.100.2 for the Solar-LogTM etc. Subnet mask The Subnet mask is 255.255.255.0 by default and must be the same for every device in the subnet. Gateway The gateway is typically the IP address of the router to which Solar-LogTM is connected. That IP address is to be entered here. 41 Configuration Menu Alternate DNS server In some networks, the DNS server is a separate address for resolving Internet addresses (unlike a gateway). If an Alternate DNS server is needed, switch the function to activated and enter the IP address of the DNS server. Once finished, click onSave. Connection Test Use the "Connection Test" button to determine if the entries are correct and if a connection can be successfully established. The message indicates if the connection was successful or not. (See the following illustrations) Fig.: Example of a successful connection test Fig.: Example of an unsuccessful connection test 42 1312 Proxy Configuration Menu Fig.: Example of proxy settings The proxy function is not enabled by default. Configure the proxy in the Configuration | Network | Proxy menu. The proxy settings need to be configured in the Solar-LogTM to enable Internet communication via the proxy server. Proxy servers are typically used in the networks of organizations and companies. Procedure · When using a proxy, select Connect Method. · Enter proxy server, port, user name and password. · SAVE the settings. 43 Configuration Menu 132 Internet Configuration Select Configuration | Internet from the menu. The following tabs can be displayed: · Portal 1321 Portal The following functions are available in this tab: · Activate/deactivate transfers · Activated: · Status · Test Fig.: Example of portal settings Note Please download the Solar-Log WEB EnerestTM Home User Manual from our website to efficiently use and configure the Solar-Log WEB EnerestTM Home. Located here: https://www.solar-log.com/en/support/downloads/ 44 Configuration Menu Solar-Log WEB EnerestTM section The following selection options are available in this section: · Activate/deactivate transfers · Portal server. There are two options for entering the portal server: · Option when the Solar-LogTM has already been registered on the portal: If you know the portal server, you can manually enter it. Otherwise, there is the option to automatically enter the portal server by using the "Obtain automatically" function (above the globe symbol). · Option when the Solar-LogTM has not been registered on the portal: If the Solar-LogTM has not been registered on the portal, the function to obtain portal server automatically can be started with the globe symbol. The "portal server" box is grayed out and the Solar-LogTM goes into a waiting state and remains in this state until it has been registered in the Enerest portal (see the Solar-Log WEB EnerestTM User Manual, available to download from https://www.solar-log.com/en/support/downloads/manuals). After that the Solar-LogTM obtains the portal server automatically. · Transfer interval · SAVE the settings. Status section The following fields are displayed in the Status section: · Date (Last Export) · Error (Last Export) Test section A connection test can be performed in the Test section. A separate pop-up window is displayed with the progress of test. The connection test also indicates if the test was successful or not. If it was not successful, it displays the error. After the tests are finished, possible causes for the connection problems are listed. (See the following example illustration). Fig.: Example - Transfer Test with an Error Image 45 Configuration Menu After confirming with OK, an additional field with the status of the test is displayed in the Test section. Question marks indicate that the test was unsuccessful and possible causes are listed. Fig.: Example - Connection Test with an Error 133 Configuring connected devices From the menu Configuration | Devices, the PV plant components connected to the Solar-LogTM can be · defined · detected · and configured. We recommend the following procedures for new installations: · Define the interface to be used for the connected devices. · Device detection. · Device configuration. 46 Configuration Menu 1331 Device definition To define the device definition, go to the Configuration | Devices | Definition menu. The interfaces are assigned in this section. Configuring the device interface section The interface for the connected devices needs to be defined from the Configuration | Devices | Definition | Interfaces menu before performing a device detection. Procedure: · Go to the plus symbol under "Interface assignments". Fig.: Interface definition via the plus symbol In the following window, the connected components can be selected in the box Device Class. The following device classes can be defined: · Battery · Hybrid System · Sensor · Inverter · Meter Depending on the device class and/or the selected Manufacturer, additional boxes visible: Type, Interface and Baud rate. Note Caution: Using different manufacturers on the same serial bus may cause communication problems. Only the network interface (Ethernet) can have multiple assignments according to our component database at https://www.solar-log.com/en/support. 47 Configuration Menu If the device class is correct, confirm the selection with OK. Define additional connected device classes as described. If all of the connected components have been selected and confirmed with OK, an overview is displayed in the interface assignments. (See illustration: "Overview of the selected components") Fig.: Overview of the selected components From the overview, there is the option to check whether the settings are correct and, if need be, adjust or delete them with the and symbols. (The symbols are only displayed by moving the mouse over the components.) Additionally, the following is displayed in the overview of the device interfaces: · Device class The selected devices can be seen here. In the example: · Sensor · Inverters · Manufacturer The manufacturer is displayed in this column. In the example: · Mencke&Tegtmeyer · Diehl AKO · Type The defined types are listed in this column. In the example: · Sensor Full/Light · EIA485 · Interface Interface indicates which interface and baud rate the devices are using. When all of the definitions are correct, then click on SAVE. 48 Configuration Menu 1332 Device Detection During the Device Detection process, all of the predefined components in the Device Definition menu which are connected to the Solar-LogTM interfaces are searched for and recognized. During the Device Detection process, the Solar-LogTM's internal data structure is prepared for these devices. Procedure: · Select Configuration | Devices | Detection from the menu. · The devices which were predefined in the Device Definition menu are displayed in the overview. · START Device Detection. · The Device Detection goes from the top listed interface to the bottom listed interface when searching for devices. The progress of the device detection is displayed in a window that automatically appears. · The detected devices are displayed with the number of devices per bus. · If all of the devices on a bus have been detected, the rest of the search can be skipped. The search is then continued on the next bus. · The Device Detection is completed once all of the buses have been checked. Status message: New device detected, the data is being reformatted. 1333 Configuring devices After the Device Detection has been successfully completed, the detected devices have to be configured in the Configuration | Devices | Configuration menu. Depending on the device, different settings might be needed for the configuration. Procedure: · Select the device that needs to be configured in the Device Configuration section. · Depending on the device type, different configuration boxes appear. · The sections below--Module Fields, Power Output and Descriptions--are largely identical Enter the module field, connected generator power and description. 1334 Configuring inverters The following values have to be configured for inverters: · Maximum AC Power · Pac Correction Factor · Module field · Generator Power and MPP tracker output (according to the string plan) · Labels or names of the inverters and/or MPP trackers. Procedure: · Select Device. · Enter · the maximum AC power from the inverter's data specification in the section: Module Field, Power and Name. · Enter the Pac Correction Factor (for more information, refer to the section "Generation Information on PAC Correction Factor") 49 Configuration Menu · Define the module field. Inverters can be assigned to be different module fields. See Chapter:,,Modulfelder". · Generator Power The connected power of the individual inverters in Wp. The total power can be calculated using the formula: Module power * Number of modules. The output does not have to be entered. It is calculated from the total generator power values that have been entered for the Mpp Tracker. · The generator power for every tracker needs to be entered if the inverter has several MPP trackers. · IA distinct name can be assigned to every generator/MPP tracker in the Label box. · SAVE the settings. 1335 Generation Information on PAC Correction Factor At photovoltaic plants, several measuring points and power generators (inverters) are combined with one another. The Solar-LogTM evaluates this data and partially looks for any correlations. For example, if the total amount of energy produced based on what the inverters display is compared with the values from calibrated power meters, deviations of up to 8% can arise. In practice, meters and inverters both can display too much or too little kWh. To correct these inaccuracies in the medium term, the Solar-LogTM firmware uses a PAC correction factor. Calculating the PAC correction factor All yield data are always stored internally without any correction factor. This factor is applied only when the data are displayed. The factor can therefore be adjusted at any time. The formula for calculating the correction factor is as follows: (Yield power meter / yield inverter) * 1000 If the inverter does not have a display, it is advisable to use the values which are recorded by the Solar-LogTM from a period over a week. That is why it is recommended to leave the default PAC correction factor at 1000 initially. The correction factor can be adjusted yearly after receiving the statement from the utility company. Example calculation: Inverter 1 Total energy 259.12 kWh Total = 564.34 kWh Inverter 2 Total energy 305.22 kWh Calibrated power meter Total energy 550.55 kWh Deviation= 13.79 kWh By comparing the values, you see that the inverters are more likely to display too much output. Pac Correction Factor Calibrated power meter total energy Inverter total energy 550.5 kWh 564.34 kWh Calculated PAC correction factor in the example: (550.55 kWh/564.34 kWh)* 1000= 975.66 Rounded PAC correction factor = 976 50 Configuration Menu 1336 Configuring power meters An operating mode needs to be assigned to power meters to configure them. Possible operating modes for power meters: · Generator (records the individual producers, e.g. PV inverter) · Meter for the entire plant (records the complete PV plant output) · Consumption meter (records the complete consumption) · Sub-consumption meter (records the consumption from individual appliances) · Battery (Bi-directional meter) · Battery (Bi-directional meter) · Deactivated Depending on the selected operating mode and/or meter type, additional selection boxes appear, such as Energy type and/or Impulse rate. Note Several consumption meters can be defined for every plant. Their measurements are added to the total consumption. Note A sub-consumption meter is a consumption meter whose consumption has already been recorded by another meter. It is used to visualize the consumption from a particular appliance or group. Procedure · Select Device · Select the desired operating mode from the Meter configuration section. · If needed, assign a plant group to this meter. · SAVE the settings. 51 Configuration Menu 1337 Configure the battery The following configurations can be made here for the connected battery. · Battery size Enter the battery size in Wh in this box. · Consumption meter includes battery charge This box enables recording the battery charges from the consumption meter. Note The following components always have to be used for battery monitoring to work: => Inverters => Battery => Consumption meter 1338 Module Fields, Power Output and Descriptions Depending on the device type (power meter, inverter, etc.), different settings can adjusted from the Module Fields, Power Output and Descriptions menu. See the following chapters: · Configuring inverters · Configuring power meters In this section, for example, the device name can be changed and the nominal power (maximum AC output) of the individual devices can be defined. Module Fields Each connected MPP tracker is assigned to a module field. Module fields are subdivided according to the type of the solar module, angles of inclination and alignment. If all modules within a system are of the same type and have the same alignment, only one module field, e.g. "1", is defined. MPP trackers that are not used must be switched off (switched to "0"). Additional module fields need to be defined for modules with different alignments and module types. Ideally, each field should be made up of at least two individual MPP trackers, which monitor each other. The module fields are used for performance monitoring. Example module fields: A plant with 23.6 kWp is divided into: 3 x SMA SB5000TL and 2 x SMA SB2500. 18 kWp is located on a barn roof with 30° inclination, 20° South-East deviation, and 5 kWp on an adjoining garage roof, 32° inclination, 0° South deviation. 52 Configuration Menu This results in two module fields according to the following table: Division of the module fields Location Inverter MPP Tracker output Module field Barn 1. SB5000TL 2000 1 Barn 1. SB5000TL 2000 1 Barn 1. SB5000TL 2200 1 Barn 2. SB5000TL 2000 1 Barn 2. SB5000TL 2000 1 Barn 2. SB5000TL 2200 1 Barn 3. SB5000TL 2000 1 Barn 3. SB5000TL 2000 1 Barn 3. SB5000TL 2200 1 Garage 1. SB2500 2500 2 Garage 2. SB2500 2500 2 Changing the device order section The sequential order of the inverters and other devices is determined during inverter detection. They are normally sorted by their serial number or communications address. The order can be changed through drag and drop from the Configuration | Devices | Configuration | Order menu. 53 Configuration Menu 134 Feed-in management 1341 Plant parameters The plant data is entered in the plant parameters tab. · Maximum apparent power from the generating plant Enter the maximum plant power output in volt-ampere (VA) here. This value has to match the value registered with the grid company. Typically, this calculation is based the total module power output. 1342 Active power The following modes are available from the Feed-in Management | Active power menu: · Deactivated · 70% fixed reduction · 70% Fixed reduction with the calculation of self-consumption · Adjustable reduction · Adjustable reduction with the calculation of self-consumption · Fixed reduction in watts · Fixed reduction in watts with the calculation of self-consumption · Percentage of consumption for an adjustable reduction Note The active power reduction mode that needs to be implemented for a particular PV plant is determined by the current national laws, standards and grid operator's requirements. The planner and/or installer of your plant or the respective grid operator can provide you with information regarding the mode of active power reduction that needs to be used. Note The feed-in management functions are not supported by all makes and models of inverters. Prior to installation please check whether power management and reactive power control are supported by the inverters used. Please consult our inverter database for an overview of all the inverters supported by Solar-LogTM devices and more details on supported functions of a particular inverter: https://www.solar-log.com/en/support. Interface assignments section The inverters with their assigned interfaces that are connected to the Solar-LogTM are displayed in this section. Select the inverter(s) to control and activate it/them. 54 Configuration Menu Dynamic control for different module orientations section Depending on the plant, there might be different module orientations. To integrate these differences with the active power, the switch "Dynamic control for different module orientations" needs to be activated (deactivated by default). This switch is located in the Feed-In Management | Active Power menu. Activate this. When this option is activated, different reduction commands are sent to the inverters, e.g. taking their orientation into consideration, to maximize the amount of power fed into the grid without exceeding the limit. The advantage here, for example, is that when some inverters are performing below a 70% limit, the output from other inverters can be adjusted above the 70% to balance the final output to 70%. 1343 Active power deactivated When this menu item is selected, active power is deactivated. However, the controllable interfaces can still be selected. 1344 70% fixed reduction By activating this menu item the inverter(s) are controlled to be fixed at 70% of the installed DC power. Enter the Maximum AC Power and Connected Generator Power as reference values in the Configuration | Devices | Configuration menu. The maximum power output for the inverters can be calculated from the connected generator power value that has been entered. Procedure · Select 70% fixed reduction. · Select the inverter(s) to control in the Interface assignments section. · SAVE the settings. Note Changes to the Maximum AC Power of the inverter in Configuration | Devices | Configuration menu are disabled. Enter your password via the Log-on as Installer / PM to enable changes. Note The 70% reduction is always applied to the entire plant. All of the inverters are controlled on the same level by the Solar-LogTM, independent of their alignments (east-west orientation). This can lead to a lower feed-in amount than the maximum allowed. Example 1 DC power 12 kWp AC power 12 kW 70% of the DC power corresponds to 8.4kW. As the AC and DC power are identical, the down-control is correct. 55 Configuration Menu Example 2 DC power 12 kWp AC power 10kW 70% of the DC power corresponds to 8.4kW. For this reason the inverter controlled by the Solar-LogTM is reduced to 84% (8.4kW) and not only to 70% (7kW). 1345 70% Fixed reduction with the calculation of self-consumption This function is an enhancement to the 70% fixed reduction described in the previous chapter. The Solar-LogTM needs to be linked to a consumption meter to implement this function. Please note the instructions in chapter "External power meter". The configuration of this corresponds to that already described for the 70% fixed reduction. Procedure · Select 70% Fixed reduction with the calculation of self-consumption · Select the inverter(s) to control in the Interface assignments section. · SAVE the settings. Note The Solar-LogTM needs to be linked to a consumption meter to implement this function. Please note the instructions in chapter"External power meter". The current amount of self-consumption is calculated by employing a power meter for self-consumption. The consumption is calculated with the energy generated by the inverter. If the difference between the current production and consumption is lower than 70% of the module`s power output, the inverters are regulated accordingly, so that the amount of power at the feeding point is still only at 70% of the connected generator power. 1346 Adjustable reduction This function allows the maximum amount of grid feed-in power to be configured. The reduction level in regard to the amount of connected generator power can be freely defined as a percentage (X%). The Solar-LogTM only regulates the inverters when the amount of feed-in power for the grid has reached the limit. Procedure: · Select Adjustable reduction. · Enter the percentage for the adjustable reduction. · Select the inverter(s) to control in the Interface assignments section. · SAVE the settings. 56 Configuration Menu 1347 Adjustable Reduction with the Calculation of Self-Consumption This function allows the maximum amount of grid feed-in power to be configured. The reduction level in regard to the amount of connected generator power can be freely defined as a percentage (X%). The amount of self-consumption is taken into account for this calculation. The Solar-LogTM only regulates the inverters when the amount of feed-in power for the grid has reached the limit. If there is enough self-consumption, the inverters continue to operate without any reductions. Procedure: · Select Adjustable reduction with the calculation of self-consumption · Enter the percentage for the adjustable reduction. · Select the inverter(s) to control in the Interface assignments section. · SAVE the settings. Note The Solar-LogTM needs to be linked to a consumption meter to implement this function. Please note the instructions in chapter"External power meter". 1348 Fixed reduction in watts This function allows the maximum amount of grid feed-in power to be configured. The reduction level in regard to the amount of connected generator power can be freely defined to a particular output level (W). The Solar-LogTM only regulates the inverters when the amount of feed-in power for the grid has reached the limit. Procedure: · Select Adjustable reduction. · Enter the Output (W) for the adjustable reduction. · Select the inverter(s) to control in the Interface assignments section. · SAVE the settings. 1349 Fixed reduction in watts with the calculation of self-consumption This function allows the maximum amount of grid feed-in power to be configured. The reduction level in regard to the amount of connected generator power can be freely defined to a particular output level (W). The amount of self-consumption is taken into account for this calculation. The Solar-LogTM only regulates the inverters when the amount of feed-in power for the grid has reached the limit. If there is enough self-consumption, the inverters continue to operate without any reductions. Procedure: · Select Adjustable reduction with the calculation of self-consumption · Enter the Output (W) for the adjustable reduction. · Select the inverter(s) to control in the Interface assignments section. · SAVE the settings. 57 Configuration Menu Note The Solar-LogTM needs to be linked to a consumption meter to implement this function. Please note the instructions in chapter"External power meter". 13410 Percentage of consumption for an adjustable reduction This function allows the maximum amount of power generated by the inverter to be configured. The percentage configured (freely adjustable) results in a corresponding reduction in regard to the total consumption at the inverter. Example: The total consumption of an installation is at 2000 W and the reduction of the inverters is configured to 90%, leaving 1800 W. 200 W has to be purchased from the grid to cover the total consumption. Procedure: · Select the percentage of consumption for the adjustable reduction. · Enter the percentage (%) for the adjustable reduction. · Select the inverter(s) to control in the Interface assignments section. · SAVE the settings. 135 Editing Data The Configuration | Data menu offers several functions in regard to the data recorded by the Solar-LogTM and contains the following options: · System backup · Backup · Reset 1351 System backup The Configuration | Data | Backup menu offers the following functions: · Restore configuration from hard disk · Save configuration to hard disk · Save configuration to USB · Restore configuration from USB The system data consist of all the data that have been saved in the configuration. It is recommended always to make a backup of the system data before changing the configuration or updating the firmware. 58 Configuration Menu Restoring configuration from hard disk section This function imports the configuration file from the solarlog_config.dat file into the Solar-LogTM. Procedure · Click on Browse. · The file manager of your OS appears. · Select the DAT file that is to be imported. · The selected firmware's file name is displayed. · Click on Upload. · The configuration is being imported. Please wait a moment. · The Solar-LogTM reboots itself. Saving configuration to hard disk section With the function a configuration file can be created and saved to a hard drive. A Solar-Log configuration file has the following file name: "solarlog_config.dat." Procedure · Click on Prepare. · After the data has been prepared, the Download option is displayed. · Click on Download. · Depending on your browser settings, a window pops up with the options to open the file with a program or save file. · Select Save file. · The file is saved in the download folder. Alternative procedure · Click on Prepare. · After the data has been prepared, the Download option is displayed. · Right click with the mouse on Download. · Select Save link as. · The file manager of your OS appears. · Select the desired location to save the file to. · Select save. · The file is saved in the selected folder. Saving configuration to USB section With this function, a backup can be saved to a USB stick which is directly connected to the device. Procedure · Touch Save. · The configuration is being created. Please wait a moment. · The progress and status of the update are displayed. Finish current measurement. Search for USB stick Save configuration. · The solarlog_config_YYMMDD.dat file is saved in the /Backup directory of the USB stick. YYMMDD stands for year, month and day - each two digits, e.g. solarlog_config_180828.dat is then the backup from 28 August 2018. · The configuration file can be saved elsewhere as a backup or imported into the Solar-LogTM again. 59 Configuration Menu Restoring configuration from USB section This function imports the solarlog_config.dat (or solarlog_config_YYMMDD.dat) configuration file from a USB stick which is directly connected to the device into the Solar-LogTM. Procedure · Click on RESTORE. · A search for a back-up file is carried out on the USB stick. If not already present, this configuration file (solarlog_config_YYMMDD.dat) must have been stored in a / backup directory beforehand. (Please create a /backup directory beforehand if one is not already present). A search for the configuration file is carried out in this directory. · Start this search. · When a configuration file is found on the USB stick, click on RESTORE to import it. This data is being imported. Please wait. · The Solar-LogTM reboots itself. · The configuration file was imported. 1352 Backup The Configuration | Data | Backup menu offers the following functions: · Restore data backup from hard drive. · Save data backup to hard drive. · Save data backup to a USB stick. · Restore data backup from a USB stick. Restore data backup from hard drive section This function restores the backup file with the name solarlog_backup.dat to the Solar-LogTM. Procedure · Click on Upload. · The file manager of your OS appears. · Select the DAT file that is to be imported. · The selected backup's file name is displayed. · Click on Upload. · The configuration is being imported. Please wait a moment. · The Solar-LogTM reboots itself. Saving data backup to hard drive section With the function a backup can be created and saved to a hard disk. A Solar-Log backup file has the following file name: solarlog_backup.dat. Procedure · Click on Prepare. · The progress and status of the update are displayed. Finish current measurement. Search for USB stick Save the configuration after the data has been prepared, the Download option is then displayed. · Click on Download. 60 Configuration Menu · Depending on your browser settings, a window pops up with the options to open the file with a program or save file. · Select Save file. · The file is saved in the download folder. Alternative procedure · Click on Prepare. · After the data has been prepared, the Download option is displayed. · Right click with the mouse on Download. · Select Save link as. · The file manager of your OS appears. · Select the desired location to save the file to. · Select save. · The file is saved in the selected folder. Saving data backup to USB section With this function, a backup can be saved /Backup directory of a USB stick which is directly connected to the device. Procedure · Touch Save. · The backup is being created. Please wait a moment. · The progress and status of the update are displayed. Finish current measurement. Search for USB stick Save configuration. · The solarlog_backup_YYMMDD.dat file is saved in the /Backup directory of the USB stick. YYMMDD stands for year, month and day - each two digits, e.g. solarlog_backup_180828.dat is then the backup from 28 August 2018. The Solar-LogTM backup can be copied to another storage medium or imported into the Solar-LogTM again. Restoring backup from USB section This function restores a backup file with the name solarlog_backup.dat from the USB stick connected directly to the device to the Solar-LogTM. Procedure · Click on RESTORE. · A search for a back-up file is carried out on the USB stick. If not already present, this back-up file (solarlog_backup_YYMMDD.dat) must have been stored in a /backup directory beforehand. (Please create a /backup directory beforehand if one is not already present). A search for the back-up file is carried out in this directory. · Start this search. · When a configuration file is found on the USB stick, click on Restore to import it. · The backup is being restored. Please wait a moment. · The Solar-LogTM reboots itself. · The configuration file was imported. 61 Configuration Menu 1353 Reset The Configuration | Data | Reset menu offers the following functions: · Reset the yield data. · Reset the inverter configuration. · Restore factory settings. Resetting yield data section In certain circumstances after an inverter detection, it may occur that incorrect or unusable data is displayed. In this case, the stored data can be deleted without having to reconfigure the Solar-LogTM completely. Procedure · Click on RESET. · If you are sure that the data should be deleted, click on Continue. Otherwise click on Cancel. · The data is being deleted. · The Solar-LogTM reboots itself. Resetting inverter configuration section If the Device Detection needs to be started again, it is recommended to delete the previous inverter configuration with this function. Procedure · Click on RESET. · If you are sure that the inverter configuration should be deleted, click on Continue. Otherwise click on Cancel. · The data and inverter configuration are deleted. · The Solar-LogTM reboots itself. Restore factory settings section This function restores the Solar-LogTM to its factory settings. All of the yield data and configuration is deleted. Procedure · Click on RESET. · If you are sure that the data should be deleted, click on Continue. Otherwise click on Cancel. · The factory settings are being restored. · The Solar-LogTM reboots itself. Note The network settings remain when this function is used. 62 Configuration Menu 136 System Configuration The Configuration | System menu has the basic settings for the Solar-LogTM and contains the following tabs: · Access control · HTTPS · Language/Country/Time · Licenses · Firmware 1361 Access control Access protection for of the Solar-LogTM can be configured in this menu. The following section can be restricted with pin codes or passwords. · Access protection for the browser menu. Access protection for the browser menu In this section, the following parts of the Solar-LogTM's browser menu can be restricted with a password: · User General access to the Browser menu. · Installer Access to the Configuration menu. · Installer/PM Access to the Configuration | Feed-in Management menu. The default password for access to the Feed-in Management menu is PM. Access for users and installers is not restricted. Procedure · Activate the password restriction for the desired menus. · Enter a secure password for each of the menus. · Enter the password again. · SAVE the settings. 63 Configuration Menu 1362 HTTPS The following section are located here: · SSL certificate · User-specific certificate SSL certificate An SSL certificate is a code on the web server that secures online communication. When a web browser connects to a website, the SSL certificate provides a secure connection. The Solar-LogTM uses such an SSL certificate. This can be imported into the web browser or the operating system. There is also the option to use your own SSL certificate instead of the Solar-LogTM certificate. There are four different boxes under SSL certificate: · Status: · This indicates which certificate the Solar-LogTM is currently using. · SSL certificate fingerprint: The correctness and authenticity of the certificate used can be verified by means of the fingerprint. This is done by comparing the string displayed in the field with the reference sequence in the browser. · Issue a new certificate: You can use the button issue a new certificate, but the certificate currently used will be irrevocably deleted. · Download SSL certificate: The Download button offers the option to download the SSL certificate and to import it into the browser or operating system. User-specific certificate An user-specific certificate can be uploaded in this section. Go to "Browse" to select the certificate you want to upload. Note Please note the help texts in the individual sections. 64 Configuration Menu 1363 Language/Country/Time The following options are available from the Configuration | System | Language/Country/Time menu: · System language of the Solar-LogTM. · Country/Location of the Solar-LogTM. · System time of the Solar-LogTM. · Time synchronization. Language section Procedure · Select the desired Language in the selection menu. The selected display language affects the display in the web browser. · SAVE the settings. Country section Procedure · Select your Country in the selection menu. The country setting affects how the date, time and currency formats are displayed. · SAVE the settings. Time section The clock time is factory-set, but it may be lost due to long periods of storage. The time zone, date and summertime values must be set correctly, so that no incorrect statuses or results are obtained during monitoring and graph display, e.g. when e-mail messages are sent or when a curve is displayed on the day graph. Fig.: Configuring the time on the Solar-LogTM Adjust the time in the Configuration | System | Language/Country/Time menu. Adjust the new system time Procedure · The current system time is displayed. · Enter the following format to change the date and time: DD/MM/YY HH:MM:SS For example: 19.07.18 14:02:26 PM (14:02:26) for 19 July 2018 14 Hours 02 Minutes 26 seconds (14:02 p.m.) · SET a new date and time. 65 Configuration Menu Adjust the time zone Procedure · Enter the time difference in hours (time zone). Default: GMT +1 · Save the Entry . Set Day Light Saving Time. Procedure · Select the corresponding Day Light Saving Time settings: Options: no, CEST (Central European Summer Time), USA, Australia. · SAVE settings. Automatic time synchronization section To automatically synchronize the system time, the Solar-LogTM regularly contacts a network time protocol (NTP) server. If the Solar-LogTM is connected to the Internet via a router, the synchronization occurs during the night. Procedure · Activate the Automatic time synchronization button. · SAVE the settings. Update now function, the time synchronization with the NTP server can be manually started. The NTP port 123 needs to be enabled in the gateway or firewall. Note It is important that the time on the device is synchronized or manually set the correct time, otherwise functionality is limited (e. g. no resetting of the device) and no logging is performed. 66 Configuration Menu 1364 Licenses Certain Solar-LogTM functions have to be activated by entering a license code. You receive a license certificate after purchasing a license for a particular function. The licenses are always linked to the serial number of the particular Solar-logTM and can only be used with the device with this serial number. Perform the following steps to purchase a license: · Go to the license portal at https://shop.solar-log.com. · Log on with your Enerest account. · After you have to enter the serial number of the Solar-LogTM, a list of compatible licenses is displayed. · You can only select one license from the list. After the selection has been made, the web-shop payment op- tions appear. · After the payment confirmation, the license is valid. Automatic import: · Go to the Configuration | System | Licenses WEB menu of the Solar-LogTM. · Click on Synchronize. · Now the Solar-LogTM connects to the license server and downloads all of the active licenses. Manual import: · Download the license file from the License portal. · Go to the Configuration | System | Licenses WEB menu of the Solar-LogTM. · Click on the plus symbol and select the license file. After importing the license, it is activated immediately and "Installed" is displayed. The following licenses can be purchased for the Gateway Solar-Log 50 (refer also to the specifications on our website https://www.solar-log.com/en/products-components/gateway-solar-log-50): · Expansion license to 30 kWp. · Expansion license to 10 components. Note Licenses are linked to the device (serial number). The license has to be purchased again if a device has been replaced after the warranty has expired. Note If a Solar-LogTM with a license has a defect during the warranty period, a license can be requested for the replacement device. There are no costs involved, provided that the defective device is returned to Solar-Log GmbH. 67 Configuration Menu Fig.: Solar-LogTM with installed licenses 1365 Firmware The firmware tab offers the following functions: · Information about the current firmware version. · Firmware Update. Status section The firmware version currently installed on the Solar-LogTM is displayed. The version number contains three sections: Version number 4.2.7 Build 116 Date 19.02.2020 68 Configuration Menu Updating firmware manually section This function allows a new firmware to be imported from a disk. Note Before manual updating, it is important to save the current system data and make a backup. Note Clear the browser's cache after updating the firmware to prevent any possible display errors. Procedure · Click on Browse. · The file manager of your OS appears. · Select the firmware file that is to be imported. · The selected firmware's file name is displayed. · Click on Upload. · Then you are asked if system and data backups have been made. If you click "Cancel" on these queries, the process is aborted. · The progress and status of the update are displayed. Upload the file Finish current measurement Restart Unzip the file Restart · The Solar-LogTM reboots itself. · The current firmware version is displayed in the menu. Check for Update from the Internet section With this function, the Solar-LogTM contacts the Solare Datensysteme GmbH firmware servers to check if a new version is available and offers to install it. Check for Update from USB With this function, the Solar-LogTM checks the USB stick connected directly to the device if a new version is available. When this function is used, the progress and status of the update are displayed · Finish current measurement · Select the USB stick. 69 Configuration Menu Automatic Firmware Updates section With this function, the Solar-LogTM regularly checks the firmware servers to see if a new version is available. When a new version is available, it is automatically downloaded and installed during the night. Note By activating this function, you give Solar-Log GmbH permission to automatically load minor updates. This function is not intended to replace manual firmware updates. 70 14 Diagnostics Menu Click on Diagnostics in the tool bar to access the Diagnostics menu. The following menus can be selected from the left-side navigation. · Support · Feed-in management (with an active license) 141 Accessing Support To access the Support menu, go to Diagnostic | Support. Diagnostics Menu Fig.: Support - General There are following sections under the Support | General menu: · System Information: The following information is available in this tab: · Model (type of Solar-LogTM) · Hardware (hardware components available for the device) · Solar-LogTM serial number · Firmware Version and date · Revision number · MAC (MAC address of the device) · OS (Operating System) · Creating diagnostic reports: You have the option to create and download a diagnostic report. This can be sent to Solar-Log support for analysis. 71 Diagnostics Menu · Restart Using the "Restart" button, the Solar-LogTM can be restarted via the WEB menu as an alternative to powering off the device itself. 142 Starting Feed-in management To access the Feed-In Management menu, go to Diagnostic | Feed-In Management. The inverter control can be analyzed and adjusted in this section. Note! The menu Feed-In Management under Diagnostic | Feed-In Management only appears if active power has been configured in the Configuration | Feed-In Management section. Fig.: Feed-in management control status example There is also a option with the 10% Diagnosis Function to simulate a dynamic reduction to 10%. The values are displayed in the table. 72 Diagnostics Menu Note! The 10% Diagnosis Function can only be used when the 70% Fixed Reduction has been activated. 1421 Explanation of the Values in the Power Reduction Section The following values are displayed in the Power Reduction section: Power reduction type determined by: The currently active control source is indicated in this field. Displayed Text PMC_NONE PMC_DIAG PMC_INTERN Explanation Text No control source. Controlled by the diagnostic mode. Controlled by the internal configuration. Type of Reduction: This contains the current type of power reduction that is specified by the control source. Displayed Text PMF_NONE PMF_PR_ERROR PMF_PR_FIX_PERC PMF_PR_FIX_KW PMF_PR_VAR_PERC PMF_PR_VAR_PERC_CONS PMF_PR_VAR_KW Explanation Text No power reduction function. An error occurred while determining the power reduction function. Fixed reduction at % DC. Fixed reduction at X kW (AC) Fixed reduction at % DC with self-consumption calculation. Fixed reduction at % of the consumption. Fixed reduction at X kW (AC) with self-consumption calculation. Value specification from: This field indications how the control value used was determined. Displayed Text PMV_NONE PMV_CONFIG PMV_MODE PMV_ERROR Explanation Text No control source. The value is stored in the configuration. The value can be determined by the reduction mode. An error occurred while determining the value. 73 Diagnostics Menu Target power output %: The fields indicates the percentage of the Plant's DC power determined by the control for the target output. The detailed values for the individual bus connections and for the total plant are displayed in the following table below. The individual buses (RS485 A and/or B) are displayed depending on which bus is assigned to control the inverters. The column Total always corresponds to the plant total and reflects the value from the grid connection point. The consumption values are displayed in all of the columns, but only the plant total is taken into account. Note! The values from the individual inverters are calculated per bus and for the entire plant. Generator power (kW): The generator power corresponds to the module output of the inverter that is connected to this data bus. This value results from the total of the partial outputs entered in the field generator power under configuration | Devices | Configuration. This kW values is used when calculating the output reduction (e.g.: the 70% reduction). Maximum AC power (kW): The maximum AC power of the inverter(s) depends on the device. Refer to the inverter specifications for this value and configure it in the field Maximum AC power under configuration | Devices | Configuration. Allowed power (kW): This kW value is the maximum amount of power that is allowed at the grid connection point. The value is calculated based on the generator output and the current power output. Consumption (kW): This value is calculated from the consumption meters and refers to the entire plant. The values displayed in the respective bus column only refer to the plant total and are not taken into account in the corresponding columns. The consumption value is normally subtracted from the allowed power from the entire plant. Control value power (kW): This value is calculated by the Solar-LogTM and is the maximum current power output from the inverters. It is used for the current target power output. Note! Due to technical reasons, the calculation from the Solar-LogTM is subject to a rounding factor. This may lead to deviations in the data recording. 74 Diagnostics Menu Current power output (kW): The value refers to the current output generated by the inverter per interface (column) and for the entire plant. Control value power (% AC): The Solar-LogTM calculates the control value power (kW) as a percentage of the maximum AC power and relays this to the inverters. Current power output (AC%): The value indicates the total output generated as a percentage of the maximum AC power for the inverter or all of the inverters on a bus. Feed-in power (% DC): This value is the current amount of feed-in power as a percentage of the generated output. 1422 Explanation of the Symbols in the Feed-in power (% DC) column: The feed-in power value is in the target power range with a tolerance of -2% to +1%. The feed-in power value is below the target value allowed. Generally, this means that the output allowed at the grid connection point is not being achieved due to low irradiation or high self-consumption. This means that the value is above the target value allowed. If the red triangle is only displayed at a bus and entire plant has a green symbol, this means that only this bus is over the target value allowed. However, the plant totals do not go over the target value because of self-consumption. 75 Yield Data Menu 15 Yield Data Menu Click on Yield Data in the tool bar to access the Yield Data menu. The following options can be selected from the left-side navigation menu. · Current values 151 Current values The Cockpit tab can be automatically selected from the Current values . the Dashboard view of the plant includes the following values: Fig.: Example plant's current values (cockpit view) · Consumption (only when consumption meters are connected). This displays the current consumption. · Production (power generated by the plant) + discharge *only with a connected battery system) displays the current production and battery discharge. · Feed-in amount (only when meters are connected). This displays the power output that is currently being fed into the grid. 76 Yield Data Menu There are two graphs located below the Dashboard display: · The current day curve (graph on the left): There is also the option to display the previous six days as a curve in this graph. Therefore, just click on the day value in the graph on the right. · The current day value as well as those from the previous 6 days (graph on the right): Move the mouse above one of the bars to display the day value. Click on one of the bars to have it display in the graph on the left as a curve. Additional tabs can be selected in this view: · Table Note! When only consumption meters are connected to the Solar-LogTM, a large consumption tachometer is displayed instead of the production tachometer in the Current values | Cockpit menu. 1511 Table The current values from the connected devices and status are displayed as a table in Table tab. Fig.: Table with the current values from an example plant Depending on the particular device connected, the following values are displayed: · The current output from each individual inverter. · The total current consumption as measured by the consumption meters. · The current irradiation per m2 as measured by the sensor. · The values from the battery with the columns Charge/Discharge and Charge Level (%). · Device's operating status. 77 Symbols on the virtual LCD display 16 Symbols on the virtual LCD display 161 Meaning of the symbols on the virtual LCD display The following symbols are shown on the Solar-LogTM virtual LCD display: Meaning of the symbols on the virtual LCD display Symbol Meaning Inverter Internet or Network Meter Booting progress Notifications from the Solar-LogTM Time Input box for fault codes Fig.: Virtual LCD Display - Meaning of the symbols 78 Symbols on the virtual LCD display 162 Fault messages Fault messages from the connected devices If a device cannot be contacted by the Solar-LogTM (offline), the respective symbol blinks. OK is not displayed. Fault codes for connected devices The respective component symbol blinks and an "E" is in the first position of the text box. A blinking code is displayed in the second position of the text box. The fault code sequence always starts with "R." That is followed by a blank and then the code numbers are displayed in the sequence. Fig.: Example for a blinking code sequence for Internet - Fault 4 163 Normal operation The symbol for the connected components is continuously illuminated. When there are no problems or faults, OK is displayed on the virtual LCD display. 79 Notifications via LED 17 Notifications via LED 171 LED status indications On the front of the unit on the left, there are three LEDs that indicate the device's operating status. Fig.: Status LEDs Depending on the operating state, the LEDs can be lit up continuously in different colors. Normal operation Symbol Name Power Color is green Meaning Power supply available Internet Internet is red is orange Internet is green Components is red Components is green No Internet connection. => Check the network cables. DNS failure. Internet connection available Connection lost to at least one component. Normal operation. Connection established to the components. (The LED is also green when there is no solar irradiation, e.g. night shut-off) 80 18 Faults 181 Restarting and resetting 1811 Reset buttons Depending on the length that is held down, the reset button · Device reset (reboot) · Device Shutdown · Factory settings are restored The reset button is located below the LEDs. has the following function: Faults Fig.: Reset button Explanation of the reset functions: Time Function Meaning Hold down reset button for more than 5 seconds and then release it. LED off Hold down the button Green between 5 and 9 seconds and then release it. No function Device reset. Holding down the reset button only briefly has no function. All settings made on the unit are maintained, as well as all data collected during run-time. Hold down the button be- Orange tween 10 and 14 seconds and then release it. Device Shutdown. Hold the button down at Red least 15 seconds and then release it. The device is being restored to the factory defaults. Hold it down 15 seconds and then release it and then hold it down again briefly. briefly green, then off The factory reset was interrupted. All settings made on the unit are maintained, as well as all data collected during run-time. The device is in standby mode when both of the LEDs "Components" and "Internet" are not lit. Now the Solar-LogTM can be disconnected from the power supply within 2 minutes. After 2 minutes, the device automatically reboots. Both of the LEDs "Components" and "Internet" not being lit is an indication that the reset was successful. Time: Is being deleted IP address: is being set to DHCP again Passwords: Deleted Configuration data: Deleted Yield data: Deleted All of the settings are still active. 81 Faults 182 Fault messages 1821 Fault messages time These fault messages are displayed on the virtual LCD display Fault messages Time Error code Message Possible cause or remedy 1 No time/date set Set the time and date or use the automatic time synchronization function TM Just like error 1 The names have been changed with Firmware 3.0.2. 1822 Fault messages Internet These fault messages are displayed on the VLCD display. The Internet symbol blinks and the corresponding error code is displayed. Fault messages Internet Error code Possible cause or remedy 1 Check the Internet connection and network configuration. 2 The active DNS server configured under Configuration | Network | Ethernet is not available. Check the configurations. 3 No DNS server available Check the configurations and make sure that the correct DNS server has been entered. 4 The configured DNS server is not available. Please enter the correct DNS server. 5 DNS server could not resolve the server address. Check the DNS server and the server address. 82 1823 Portal Transfer Fault messages Portal Transfer Fault messages Error code Message 101 The server address could not be resolved. 102 103 220 Other Cannot open socket. Cannot connect to the socket. Authentication failure (portal) General errors Possible cause/remedy The access type was not configured. An alternative DNS server is required. The wrong server was entered. The network connection was disconnected and could not be reestablished. Possible causes: Unknown. If this error continues to occur, contact our technical support. Possible causes: The connection is blocked by a firewall or a router. The wrong server was entered. The server is offline. The portal registration was done incorrectly. The portal was not configured for HTTP transfers. The wrong server was entered. There is detailed description of this error. If this error continues to occur, contact our technical support. Faults 83 Cleaning and care 19 Cleaning and care 191 Cleaning tips Important! Disconnect the device from the power supply before cleaning it! · Clean the device on the outside only with a dry, lint-free cloth. · If the device is very dirty, it can be cleaned with a slightly damp cloth and a commercially available household cleaner. Important! When cleaning, make sure that no moisture gets into the device! 192 Care tips · Make sure that the device is not exposed to moisture, heat or strong sunlight at its location of installation. 84 20 Disposal Disposal Caution Solar-LogTM contains electronic components that can release highly toxic substances if burned or disposed of along with domestic waste. The Solar-LogTM can either be disposed of at a recycling center (electrical waste) or returned to the manufacturer Solar-Log GmbH. Solar-Log GmbH Fuhrmannstraße 9 72351 Geislingen-Binsdorf Germany 85 Appendix 21 Appendix 211 Internet ports If the Solar-LogTM is connected to the Internet via a router, you must ensure that the following ports on the router have been unblocked for the Solar-LogTM: Function Protocol Name resolution DNS Port (outgoing) 53 Time synchroni- NTP 123 zation Easy Installation HTTP 80 (WEB) ICMP - HTTP Export HTTP 80 Firmware update HTTP 80 Server used Notes According to the network configuration or 8.8.8.8 (Google Public DNS) when the name cannot be resolved with the dedicated DNS. 0.pool.ntp.org to 3.pool.ntp. org ntps1-1.cs.tu-berlin.de bonehed.lcs.mit.edu navobs1.gatech.edu 130.149.17.8 130,207,244,240 pool0.solarlog-web.com to pool9.solarlog-web.com solar-log.com According to the configuration. pool0.solarlog-web.com to pool9.solarlog-web.com Normally, only the name server from the local network is used. This function ensures that the correct time is always in the logs. The Solar-LogTM has an internal clock, but it losses the time during a long power outage. A ping test is performed by the Easy Installation to test the Internet connection and if the DNS server functions. 86 22 Dimensions Dimensions Internet ports 87 List of Figures 23 List of Figures Fig.: Gateway Solar-Log 50 without extended snap-fit tabs Fig.: Gateway Solar-Log 50 with extended snap-fit tabs ..... 10 Fig.: Top Connections Gateway Solar-Log 50................................................................................................................................. 11 Fig.: Bottom connections Gateway Solar-Log 50.............................................................................................................................. 12 Fig.: Main menu of the Gateway Solar-Log 50 ................................................................................................................................. 23 Fig.: Pop-up window with security information ............................................................................................................................... 24 Fig.: Configuration page "Access control" ......................................................................................................................................... 25 Fig.: Layout of the main menu............................................................................................................................................................ 26 Fig.: Control elements ......................................................................................................................................................................... 27 Fig.: Log in button with selection box................................................................................................................................................ 29 Fig.: System Info with example plant................................................................................................................................................. 30 Fig.: Header bar with the "Hide Arrow"............................................................................................................................................. 31 Fig.: Signal for new firmware .............................................................................................................................................................. 31 Fig.: Automatic Firmware Update Check with notification text displayed .................................................................................... 32 Fig.: Startup screen of the Solar-LogTM configuration wizard.......................................................................................................... 33 Fig.: Solar-LogTM Ethernet settings from the Solar-LogTM Configuration Wizard .......................................................................... 34 Fig.: Example of a successful connection test .................................................................................................................................. 34 Fig.: Example of an unsuccessful connection test ........................................................................................................................... 34 Fig.: Displayed Firmware Update Window........................................................................................................................................ 35 Fig.: Configuration wizard - Example - Interface Assignments....................................................................................................... 36 Fig.: Example Configuration Wizard Device Configuration ....................................................................................................... 37 Fig.: Example Configuration Wizard Summary.............................................................................................................................. 38 Fig.: Virtual LCD Display ...................................................................................................................................................................... 39 Fig.: Ethernet settings.......................................................................................................................................................................... 41 Fig.: Example of a successful connection test .................................................................................................................................. 42 Fig.: Example of an unsuccessful connection test ........................................................................................................................... 42 Fig.: Example of proxy settings........................................................................................................................................................... 43 Fig.: Example of portal settings .......................................................................................................................................................... 44 Fig.: Example - Transfer Test with an Error Image........................................................................................................................... 45 Fig.: Example - Connection Test with an Error ................................................................................................................................. 46 Fig.: Interface definition via the plus symbol.................................................................................................................................... 47 Fig.: Overview of the selected components...................................................................................................................................... 48 Fig.: Configuring the time on the Solar-LogTM ................................................................................................................................... 65 Fig.: Solar-LogTM with installed licenses ............................................................................................................................................. 68 Fig.: Support - General......................................................................................................................................................................... 71 Fig.: Feed-in management control status example ...................................................................................................................... 72 Fig.: Example plant's current values (cockpit view).......................................................................................................................... 76 Fig.: Table with the current values from an example plant ............................................................................................................ 77 Fig.: Virtual LCD Display - Meaning of the symbols ......................................................................................................................... 78 Fig.: Example for a blinking code sequence for Internet - Fault 4 ................................................................................................. 79 Fig.: Reset button ................................................................................................................................................................................. 81 88 Solar-Log GmbH Fuhrmannstraße 9 72351 Geislingen-Binsdorf Germany Tel: +49 (0)7428/4089-300 info@solar-log.com www.solar-log.com www.solarlog-web.com The copyright of these instructions remains with the manufacturer. No part of these instructions may be reproduced in any form or processed, duplicated or distributed using electronic systems without the written consent of Solar-Log GmbH. Non-compliance resulting in contradiction of the above-mentioned specifications shall result in obligation to provide compensation for damages. Subject to change without notice. Solar-Log GmbH cannot guarantee the accuracy or completeness of the information provided and expressly refuses to accept liability for any errors or omissions in such information. All brands and trademarks contained in this manual are the sole property of the respective manufacturer, which we respect and recognize herewith. "Speedwire" is registered trademark of SMA Solar Technology AG in many countries. Solar-Log GmbH assume nos liability for printing errors. EN | 06.2021 Version 4.2.7.A | Gateway_SolarLog_50_Manual_ENAdobe PDF Library 15.0 Adobe InDesign 16.2 (Windows)
