1 Objective
This document is an document for assemble of a cB-3013-01 product.
Utfärdare / Issued by Datum / Date Beteckning / Ref. Sida / Page
Jennie Amareus 2006-01-27 cBProject-0504-04 (2) 4 (7)
Ärende / Subjekt Godkänd av / Approved by
cB-3013-01 - Assemble Specification
Template update: 00-12-01
2 Assemble overview
2.1 Bill of material (BOM)
2.1.1 Parts included in the design
Mechanics, mounted PCB’s, connectors etc. The BOM is unique for every product.
Document name: cB-3013-01 BOM
Document number:
Document file: cB-3013-01 BOM.xls
Revision: latest
2.2 Patches
Document name:
Document number:
Document file:
Revision:
Time consumption [s]:
2.3 Labels
2.3.1 PCB labels
Printed label part no:
Printed label revision:
Label document file:
Label document revision:
Label part no:
Utfärdare / Issued by Datum / Date Beteckning / Ref. Sida / Page
Jennie Amareus 2006-01-27 cBProject-0504-04 (2) 5 (7)
Ärende / Subjekt Godkänd av / Approved by
cB-3013-01 - Assemble Specification
Template update: 00-12-01
2.4 Mechanical assemble

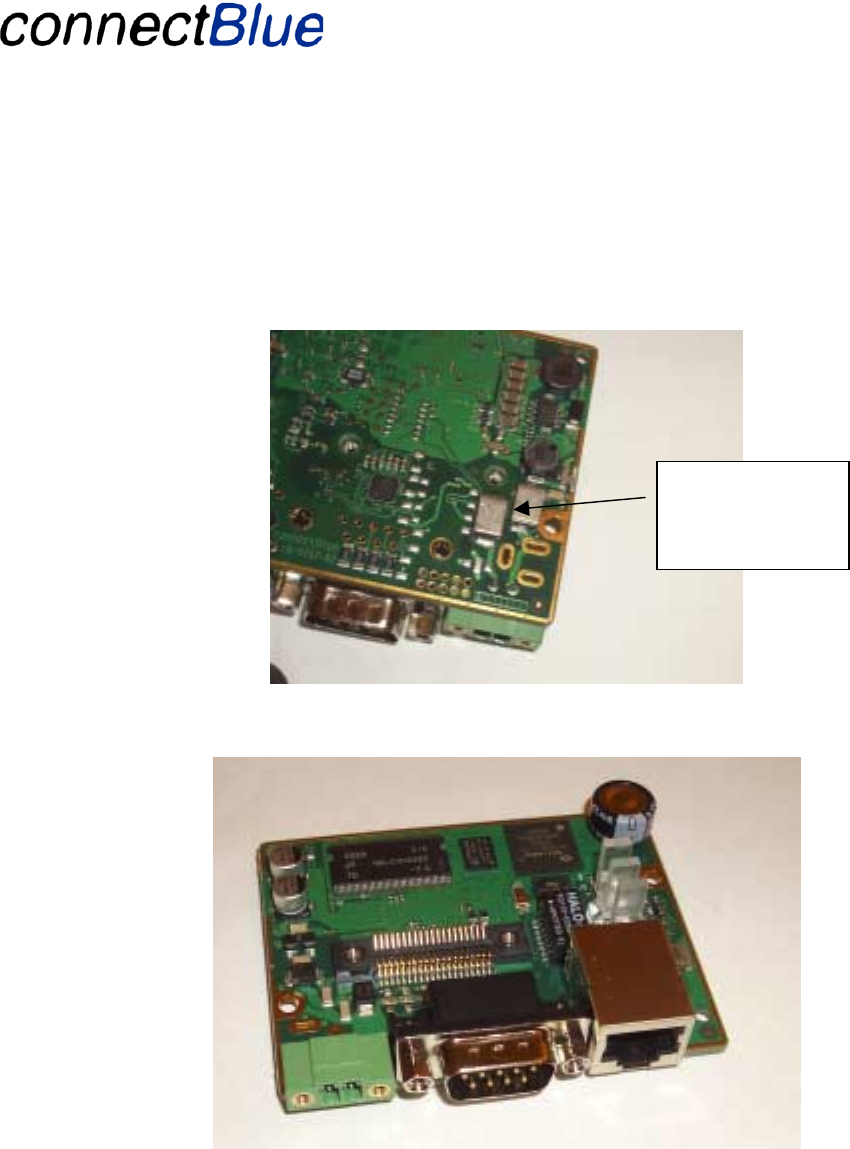

1. Put glue, Loctite480, between position F1 and F2 on the cB-0717 PCB. (CYANAKRYLAT-480,
Rohs kompatibel Superlim Black Max 480. Elfa nr: 80-876-03)
2. Mount the lightpipes on the cB-0717-0103 PCB (BOM pos 5).
3. Mount the cB-0901-0201 PCB (BOM pos 2) on the cB-0717-0204 (BOM pos 1) using torx (BOM
pos 4).

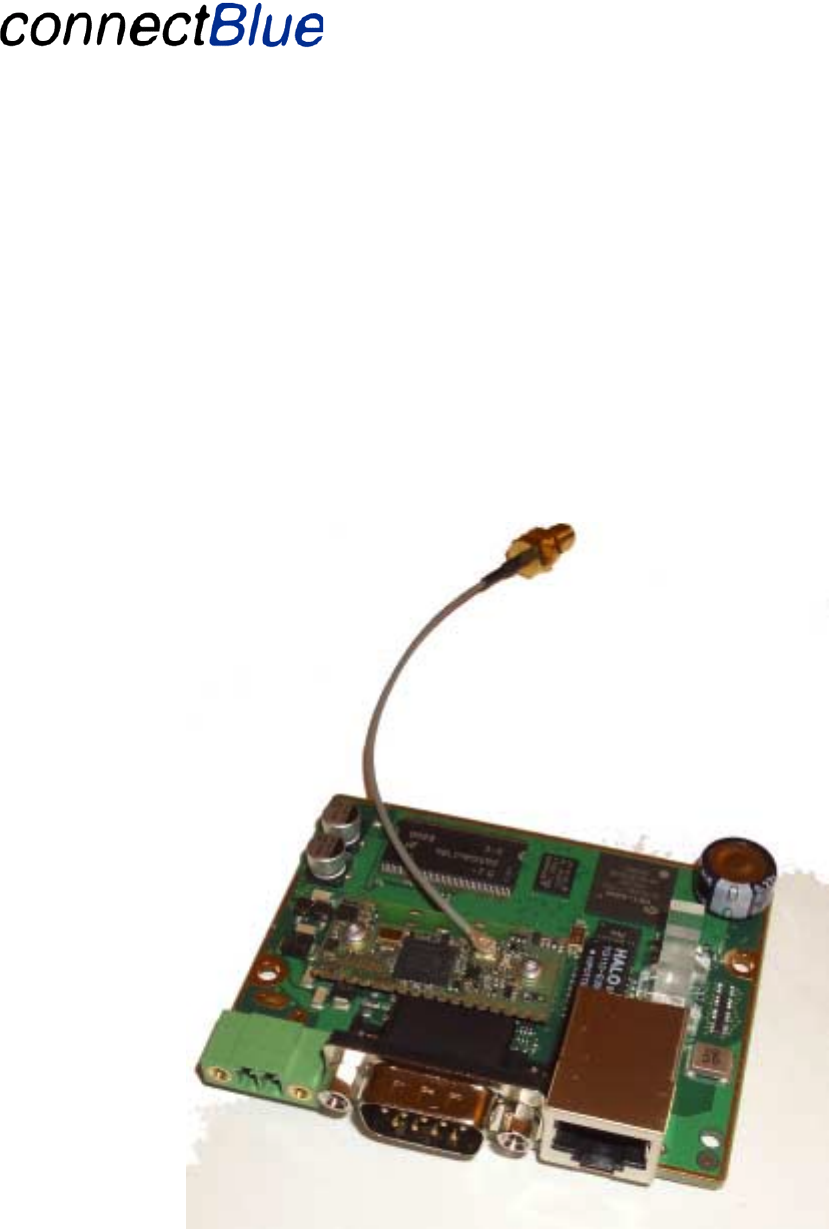

4. Mount the SMA antenna cable on the Bluetooth module.
Put glue
between pos
F1 and F2
Utfärdare / Issued by Datum / Date Beteckning / Ref. Sida / Page
Jennie Amareus 2006-01-27 cBProject-0504-04 (2) 6 (7)
Ärende / Subjekt Godkänd av / Approved by
cB-3013-01 - Assemble Specification
Template update: 00-12-01
5. Mount the SMA antenna cable in the housing.

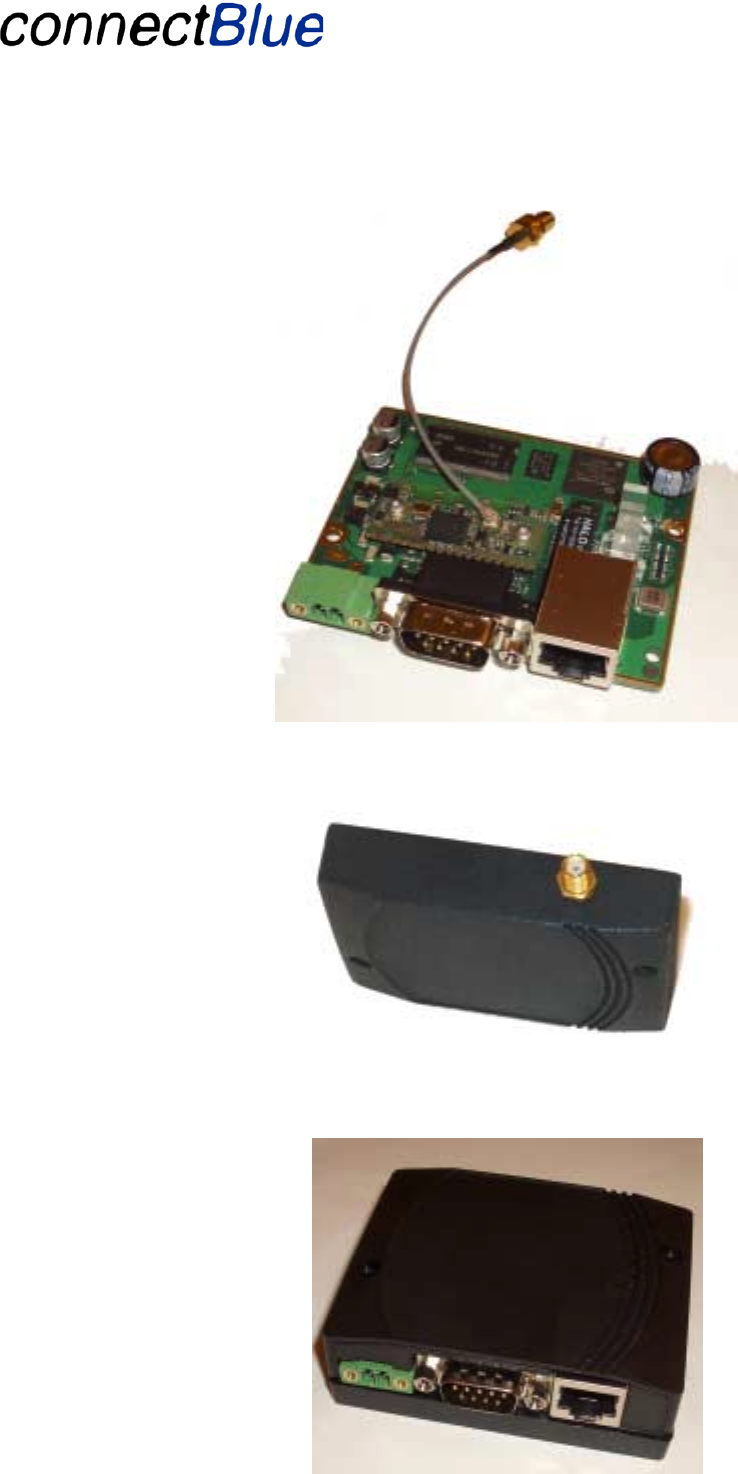

6. Mount the PCBs in the plastic housing (BOM pos2).
Utfärdare / Issued by Datum / Date Beteckning / Ref. Sida / Page
Jennie Amareus 2006-01-27 cBProject-0504-04 (2) 7 (7)
Ärende / Subjekt Godkänd av / Approved by
cB-3013-01 - Assemble Specification
Template update: 00-12-01

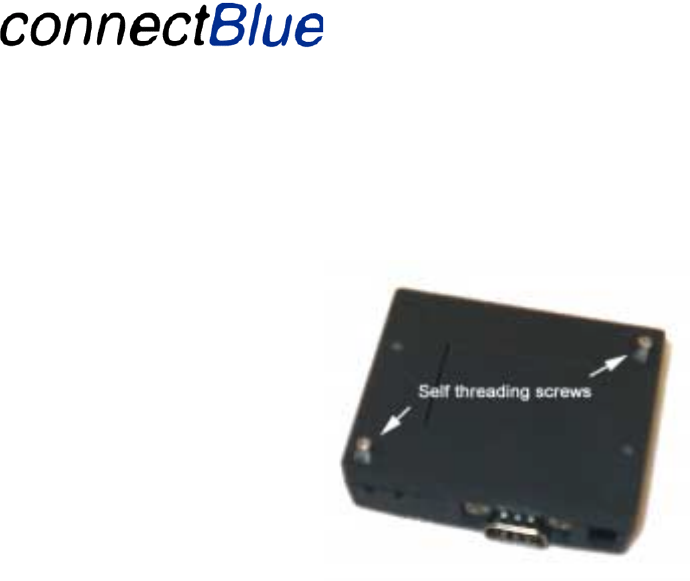

7. Use the self threaded screws to assemble the plastic housing.
8. The unit is assembled and ready for test.
