5 Omni-Directional Antennas
5.1 Omni-Directional Antenna for 2.4 GHz band
BAT-ANT-N-6G-IP65
Order Number: 943 981-002
To be placed in the middle of the illuminated area.
Indoor and outdoor use is possible.
Radiation Pattern
horizontal vertical
Frequency range 2400 MHz - 2500 MHz
Gain 6.0 dBi
VSWR (voltage standing wave ratio) < 1.8
Polarization Linear, vertical
HPBW (half power bandwidth) horizontal 360°
Downtilt 0°
Max. Power 25 W
Impedance 50 Ω
Connector N female
Table 3: Electrical Specification
Temperature – 40 °C to +80 °C, – 40 °F to 176 °F
Radome color Grey-white
Radome material Fiber glass
Weight 0.34 kg, 0.75 lb
Dimensions ø 22 mm x 250 mm, ø 0.87 in x 9.84 in
Protection class IP65
Table 4: Environmental & Mechanical Characteristics
BAT Antenna Guide
Release
03
09/2012 17
5.2 Omnidirectional antenna for 5 GHz band
BAT-ANT-N-5A-IP65
Order Number: 943 981-003
To be placed in the middle of the illuminated area.
Indoor and outdoor use is possible.
1 m, 3.28 ft with N male connectors at both ends.
Pigtail, R-SMA male to N female
Mounting material
Table 5: Cable and Accessories
Radiation Pattern
horizontal 5470 MHz vertical 5470 MHz
Frequency range 5150 MHz - 5875 MHz
Gain 5 dBi
VSWR (voltage standing wave ratio) 1.5
Polarization Linear, vertical
HPBW (half power bandwidth) horizontal 360°
HPBW (half power bandwidth) vertical 25°
Max. Power 6 W
Impedance 50 Ω
Connector N female
Table 6: Electrical Specification
18 BAT Antenna Guide
Release
03
09/2012
5.3 Omnidirectional Antenna for 2.4 and 5 GHz
band
BAT-ANT-N-3AGN-F
Order Number: 942 047-001 (10 pcs.)
The antenna is supplied with all BAT-F and BAT-C devices.
The antenna is directly screwed on the BAT.
Temperature – 45 °C to +70 °C, – 49 °F to +158 °F
Radome color Grey-white
Radome material Polypropylene
Weight 0.3 kg, 0.66 lb
Dimensions 16 mm x 160 mm, 0.63 in x 6.3 in
Protection class IP65
Table 7: Environmental & Mechanical Characteristics
1 m, 3.28 ft with N male connectors at both ends.
Pigtail, R-SMA male to N female
Mounting material
Table 8: Cable and Accessories
7.2
0.87
mm
inch
183
22
BAT Antenna Guide
Release
03
09/2012 19
Radiation Pattern
horizontal 2400 MHz horizontal 5000 MHz
vertical 2400 MHz vertical 5000 MHz
Frequency range 2400 MHz - 2500 MHz 5150 MHz - 5875 MHz
Gain 2.5 dBi 5.0 dBi
VSWR (voltage standing wave
ratio)
2.0
Polarization Linear, vertical
HPBW (half power bandwidth) horizontal 360°
HPBW (half power bandwidth) vertical 30° vertical 15°
Max. Power 2 W
Impedance 50 Ω
Connector N-type male
Table 9: Electrical Specification
20 BAT Antenna Guide
Release
03
09/2012
BAT-ANT-RSMA-2AGN-R
Order Number: 942 046-001 (10 pcs.)
The antenna is supplied with all BAT-R devices.
The antenna is directly screwed on the BAT.
Temperature −40 °F ... +158 °F (−40 °C ... +70 °C)
Radome color Grey-white
Radome material ABS
Weight 70 g (0.15 lb)
Dimensions 22 mm x 183 mm (0.87 in x 7.20 in)
Protection class IP65
Table 10: Environmental & Mechanical Characteristics
6.29 ± 0.08
21.2
0.83
Ø 12.5
Ø 0.49
90°
159.8 ± 2
1.19
30.2
mm
inch
24 BAT Antenna Guide
Release
03
09/2012

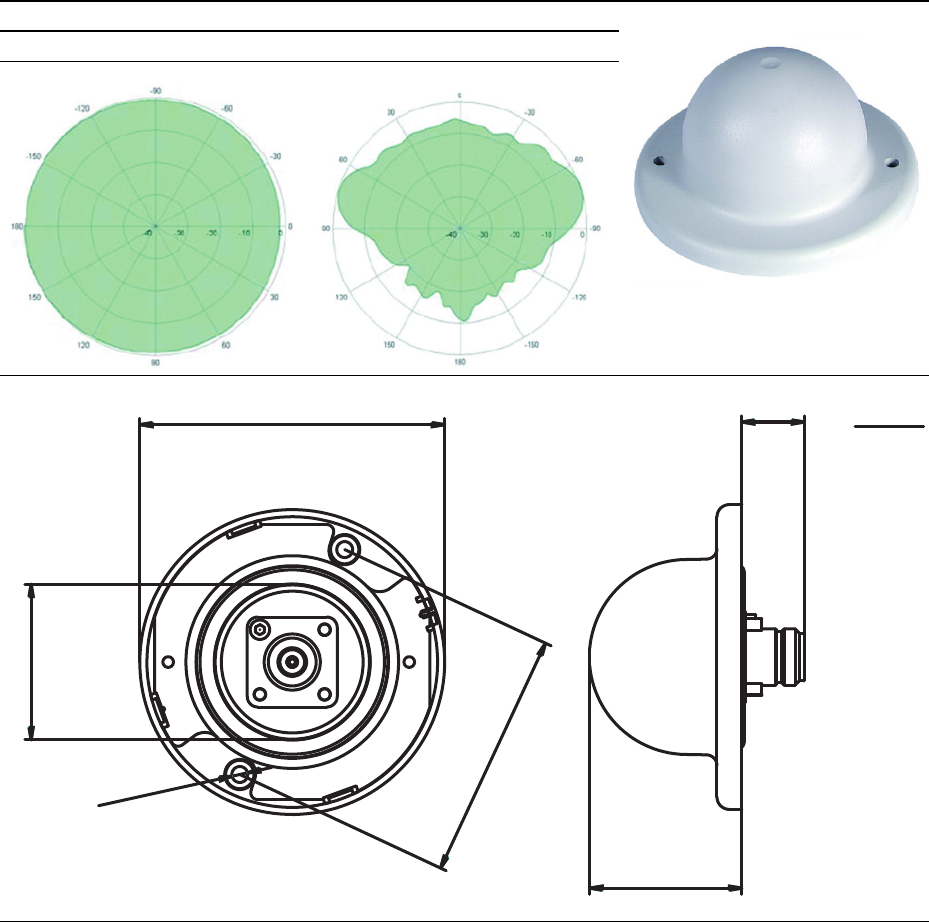

5.5 Dual band Hemispherical Antenna for
2.4 and 5 GHz band
BAT-ANT-N-6ABG-IP65
Order Number: 943 981-004
To be placed on moving parts, vehicles or boxes.
Radiation Pattern
horizontal vertical
42.89
17.7
Ø 86
70
Ø 4.5
Ø 43.92
Ø 1.73
2.76
Ø 0.18
Ø 3.39
1.69
0.7
mm
inch
BAT Antenna Guide
Release
03
09/2012 25
Frequency range 2300 - 2500 and 4900 - 5935 MHz
Impedance 50 Ω
VSWR (voltage standing wave ratio) 1.8
Polarization Linear, vertical
Gain 6dBi @2.4 GHz, 8dBi @5 GHz
3 dB beamwidth horizontal @ 2.4 GHz 360°
3 dB beamwidth horizontal @ 5 GHz 173°
Max. Power 75 W (CW) at 25 °C, 77 °F
Table 16: Electrical Specification
1 m, 3.28 ft with N male connectors at both ends.
Pigtail, R-SMA male to N female
Table 17: Cable and Accessories
