Host Unit Manual

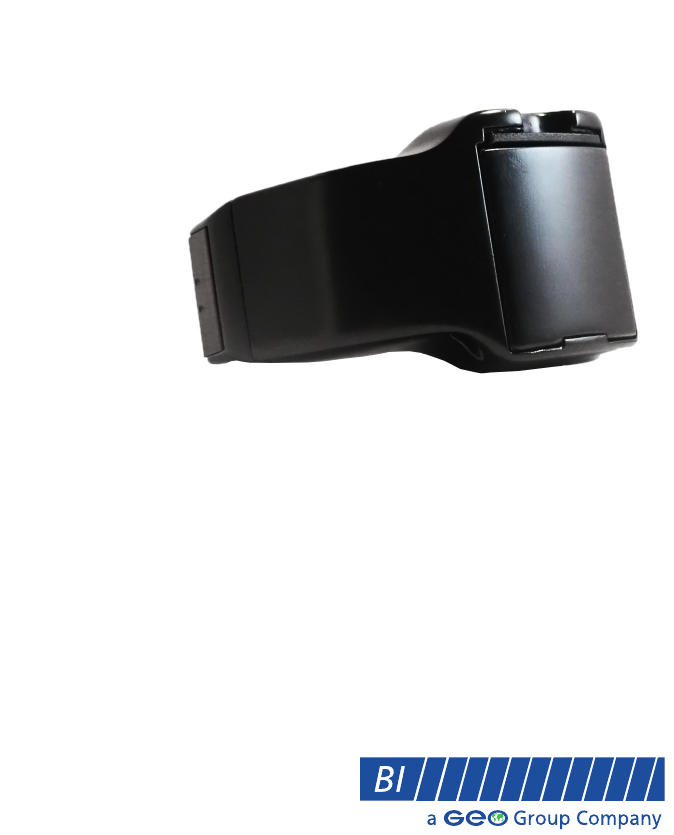

BI LOC8™

User Guide

8-90-00160-0

Revision 1

BI Proprietary & Confidential

LOC8 User Guide Contents

Contents

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

Chapter 1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

The Tracking Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

The Central Monitoring Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Common Terms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Chapter 2 Tracking Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Hardware Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Appendix A Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Appendix B Event Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Appendix C Unit Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Appendix D Product Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Contents LOC8 User Guide

LOC8 User Guide

Preface

BI LOC8™ User Guide

Printed in USA

BI prepared this manual for use by BI customers only. All comments concerning the

contents of this manual should be directed to BI’s Marketing Department, 6400

Lookout Road, Boulder, CO 80301, USA. No part of this work covered by copyright

may be reproduced in any form whether graphically, electronically, or mechanically;

including photocopying, recording, taping, or storage in an information retrieval

system without prior written permission from BI.

Trademarks & Patents

Technical Support

For technical support when using BI’s monitoring center, contact BI Monitoring

Operations:

BI Monitoring Operations

800 Main Street, Suite 501

Anderson, Indiana 46016

1.800.666.3145

FAX 1.765.649.3148

For technical support when using an agency monitoring center, contact BI Technical

Support:

BI Incorporated

Technical Support

6400 Lookout Road

Boulder, CO 80301

1.800.241.9924

Waste Electrical and Electronic Equipment (WEEE)

All electrical products that reach the duration of their functioning

capabilities must be returned to BI Incorporated for recycling.

BI BI LOC8

BI logo 

BI TotalAccess

Preface LOC8 User Guide

FCC Compliance Statement

United States FCC, Part 15

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

Any changes or modifications by the user to the equipment that are made without

written approval by BI Incorporated could void the user’s authority to operate the

equipment.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and base station.

Connect the equipment into an outlet on a circuit different from that to which

the base station is connected.

Consult the dealer or an experienced radio/TV technician for help.

Industry Canada Compliance Statement

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including interference

that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux

appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions

suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de

l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est

susceptible d'en compromettre le fonctionnement.

Operation and EME Exposure

The equipment represented herein is designed to comply with the following national

and international standards and guidelines regarding exposure of human beings to

radio frequency electromagnetic energy (EME):

LOC8 User Guide Preface

United States Federal Communications Commission, Code of Federal

Regulations; 47 CFR part 2 sub-part J.

American National Standards Institute (ANSI). C95. 1-2005.

Institute of Electrical and Electronics Engineers (IEEE). C95. 1-2005 Edition.

International Commission on Non-Ionizing Radiation Protection (ICNIRP)

1998.

Ministry of Health (Canada). Safety Code 6. Limits of Human Exposure to

Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz or

300 GHz, 1999.

Australian Communications and Media Authority. Radiocommunications

(Electromagnetic Radiation - Human Exposure) Standard 2003, Amendment

Standards 2011 (No. 2).

Anatel (Agência Nacional de Telecomunicações), Brasil Regulatory Authority,

Resolution 303 (July 2, 2002) “Regulation of the limitation of exposure to

electrical, magnetic, and electromagnetic fields in the radio frequency range

between 9 kHz and 300 GHz.” “Attachment to Resolution 303 from July 2,

2002. Updated on November 22, 2012”.

Requirements for Exposure to Radio Waves

LOC8 includes a radio transmitter and receiver. It is designed and manufactured not to

exceed the emission limits for exposure to radio frequency (RF) energy set by the

Federal Communications Commission (FCC) of the U.S. Government. These limits

are part of comprehensive guidelines and establish permitted levels of RF energy for

standards that were developed by independent scientific organizations through

periodic and thorough evaluation of scientific studies. The standards include a

substantial safety margin designed to assure the safety of all persons, regardless of age

and health.

The exposure standard for wireless mobile phones employs a unit of measurement

know as the Specific Absorption Rate (SAR). The SAR limit set by the FCC is 1.6 W/

kg.1 Tests for SAR are conducted using standard operating positions reviewed by the

FCC with the phone transmitting at its highest certified power level in all tested

frequency bands. Although the SAR is determined at the highest certified power level,

the actual SAR level of the phone while operating can be well below the maximum

value. This is because the phone is designed to operate at multiple power levels so as to

use only the power required to reach the network. In general, the closer you are to a

wireless base station antenna, the lower the power output.

Before a phone model is available for sale to the public, it must be tested and certified

to the FCC that it does not exceed the limit established by the government-adopted

1. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg

(W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety for

the public and to account for any variations in measurements.

Preface LOC8 User Guide

requirement for safe exposure. The tests are performed in positions and locations (e.g.,

at the ear and worn on the body) as required by the FCC for each model.

While there may be differences between the SAR levels of various phones and at

various positions, they all meet the government requirement for safe exposure.

Additional information on Specific Absorption Rates (SAR) can be found on the

Cellular Telecommunications Industry Association (CTIA) website at http://

www.ctia.org.

Electromagnetic Interference/Compatibility

Nearly every electronic device is susceptible to electromagnetic interference (EMI) if

inadequately shielded, designed or otherwise configured for electromagnetic

compatibility.

Facilities

To avoid electromagnetic interference and/or compatibility conflicts, obey all facility

posted notices about cellular phones. Hospitals or health care facilities may be using

equipment that is sensitive to external RF energy.

Aircraft

Per FAA regulations cellular phones should be turned off when on board an aircraft.

Any use of a radio product must be in accordance with applicable regulations per

airline crew instructions.

Medical Devices

If a person using the LOC8 system also uses any personal medical devices (i.e.

pacemaker, hearing aid, etc.), consult the manufacturer of the personal medical device

to determine if it is adequately shielded from RF energy. A physician may be able to

assist in obtaining this information.

Operational Warnings

There are certain areas where you want to avoid operation of any radio product.

Potentially Explosive Atmospheres

Turn off any radio product prior to entering any area with a potentially explosive

atmosphere unless it is a radio product type especially qualified for use as “Intrinsically

Safe” (for example, Factory Mutual, CSA, or UL-approved). Do not remove, install, or

charge batteries in such areas. Sparks in a potentially explosive atmosphere can cause

an explosion or fire resulting in bodily injury or even death.

NOTE: The areas with potentially explosive atmospheres referred to above

include fueling areas, such as below decks on boats, fuel or chemical

transfer or storage facilities, areas where the air contains chemicals or

particles, such as grain, dust or metal powders, and any other area where

LOC8 User Guide Preface

you would normally be advised to turn off your vehicle engine. Areas with

potentially explosive atmospheres are often but not always posted.

Blasting Caps and Areas

To avoid possible interference with blasting operations, turn off radio products when

near electrical blasting caps, in a blasting area, or in areas posted: “Turn off two-way

radio.” Obey all signs and instructions.
