PORTABLE QUAD-BAND
MOBILE PHONE
User Manual
Please read this manual before operating your
phone and keep it for future reference.
This document is watermarked because certain important information in the document has not yet been verified.
This document has been sent to you as a draft and for informational purposes only.
The document should only be used for internal purposes and may not be distributed outside of Samsung,
except to Samsung's carrier customer for testing purposes. Distributing the
document outside of Samsung, except to Samsung's carrier customer for testing purposes could result in legal exposure
to the company if the preliminary, unverified information in the draft turns out to be inaccurate.
DRAFT
Internal Use Only
M919_UM_English_MC8_031813_D4
Intellectual Property
All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers
relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone
System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual
Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software,
computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the
rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare
derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No
title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain
with SAMSUNG and its suppliers.
Open Source Software
Some software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser
General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered
under the open source licenses, please visit:
http://opensource.samsung.com
.
Disclaimer of Warranties; Exclusion of Liability
EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE
PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND
WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR
ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE
PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR
COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING
DRAFT
Internal Use Only
THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED
WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR
ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF
THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS
OR BENEFITS.
Modification of Software
SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS,
OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE.
USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR
CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS.
SAFE™ (Samsung Approved For Enterprise)
SAFE™: "SAFE™" (Samsung for Enterprise) is a mark for a Samsung device which has been tested against Samsung's own
internal criteria for interoperability with certain third party security-related solutions for MDM and VPN. The testing includes field
testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the
Samsung device. During the testing, the device is tested with the security solutions to see if the solutions work with the device as
described by the third party security solution providers. The testing, for example, includes field testing with local network
connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. For more
information about Samsung's SAFE™ program, please refer to
www.samsung.com/us/safe
.
Disclaimer of Warranties: EXCEPT AS OTHERWISE PROVIDED IN THEIR STANDARD END USER LICENSE AND WARRANTY, TO THE
FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMSUNG TELECOMMUNICATIONS AMERICA, LLC, AND
THEIR AFFILIATES (COLLECTIVELY REFERRED TO HEREIN AS THE "SAMSUNG ENTITIES") EXPRESSLY DISCLAIM ANY AND ALL
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,
INTEROPERABILITY OR NON-INFRINGEMENT, WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™
DRAFT
Internal Use Only
DEVICES AND APPLICATIONS TESTED WITH SAFE™ DEVICES. IN NO EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER WITH RESPECT TO
INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES OR APPLICATIONS TESTED WITH SAFE™ DEVICES. In
addition, information technology security protection will be affected by features or functionality associated with, among other
things the e-mail platform, master data management, and virtual private network solutions selected by the software provider,
solution provider or user. Choice of an e-mail, master data management, and virtual private network solution is at the sole
discretion of the software provider, solution provider or user and any associated effect on information technology security
protection is solely the responsibility of the software provider, solution provider or user. For complete statement of limited
warranty, please refer to
www.samsung.com/us/safe
, available on the web and where Samsung smartphone and Galaxy Tab™
devices are sold. [101212]
Samsung Telecommunications America (STA), LLC
Headquarters:
1301 E. Lookout Drive
Richardson, TX 75082
Customer Care Center:
1000 Klein Rd.
Plano, TX 75074
Toll Free Tel: 1.888.987.HELP (4357)
DRAFT
Internal Use Only
©2013 Samsung Telecommunications America, LLC. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
Do you have questions about your Samsung Mobile Device?
For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at:
www.samsung.com/us/support
Nuance®, VSuite™, T9® Text Input, and the Nuance logo are trademarks or registered trademarks of Nuance Communications,
Inc., or its affiliates in the United States and/or other countries.
ACCESS® and NetFront™ are trademarks or registered trademarks of ACCESS Co., Ltd. in Japan and other countries.
The Bluetooth® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth word mark and “B Design”) are
registered trademarks and are wholly owned by the Bluetooth SIG.
microSD™ and the microSD logo are Trademarks of the SD Card Association.
Openwave® is a registered Trademark of Openwave, Inc.
Google, the Google logo, Android, the Android logo, Google Play, Gmail, Google Mail, Google Maps, Google Music, Google Talk,
Picasa, YouTube and other marks are trademarks of Google Inc.
Wi-Fi is a registered trademark of the Wireless Fidelity Alliance, Inc.
LTE is a trademark of ETSI
Swype and the Swype logos are trademarks of Swype, Inc. © 2010 Swype, Inc. All rights reserved.
, DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under
license.
Internet Address:
http://www.samsung.com
TM
DRAFT
Internal Use Only
DivX Certified® to play DivX® video up to HD 720p, including premium content.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX
Certified® device that has passed rigorous testing to verify that it plays DivX video. Visit
www.divx.com
for more information and
software tools to convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-
Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu (tap
Apps >
Settings > About device > Legal information > License settings > DivX® VOD > Register
). Go to
vod.divx.com
for more information on
how to complete your registration.
Dynamic Noise Suppression from Audience
Your phone is equipped with an advanced voice processing chip that delivers clear mobile calls by suppressing background noise,
intermittent sounds (like a siren or nearby conversation), and echoes, allowing you to hear and be heard nearly anywhere.
How Does It Work?
Based on the intelligence of the human hearing system, the technology:
•
Captures, evaluates and distinguishes all the sound signals surrounding your phone, and the person you're speaking with.
•
Then isolates the primary voice in conversation and filters out the background noise - so the person you're calling hears only your voice,
without disturbing background noise.
•
Dynamically equalizes and adjusts voice volume to optimize your calling experience, so you can hear clearly and don't need to speak louder to
overcome surrounding noise.
The noise suppression technology is built-in and already enabled in your new mobile phone. So it's ready to provide unsurpassed
voice clarity with every call.
DRAFT
Internal Use Only
1
Table of Contents
Section 1: Getting Started .......................... 7
Understanding this User Manual . . . . . . . . . . . . 7
Battery Cover . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Extending Your Battery Life . . . . . . . . . . . . . . 15
Initial Device Configuration . . . . . . . . . . . . . . . 16
Switching the Device On or Off . . . . . . . . . . . . 18
Restarting the Device . . . . . . . . . . . . . . . . . . . 18
Locking and Unlocking the Device . . . . . . . . . 18
Creating a New Google Account . . . . . . . . . . . 19
Signing into Your Google Account . . . . . . . . . . 19
Retrieving your Google Account Password . . . 20
Confirming the Default Image and Video
Storage Location . . . . . . . . . . . . . . . . . . . . 20
Creating a Samsung Account . . . . . . . . . . . . . 21
Voice Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Visual Voicemail . . . . . . . . . . . . . . . . . . . . . . . 23
Task Manager . . . . . . . . . . . . . . . . . . . . . . . . 24
Google Now . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Section 2: Understanding Your Device .....26
Features of Your Device . . . . . . . . . . . . . . . . . 26

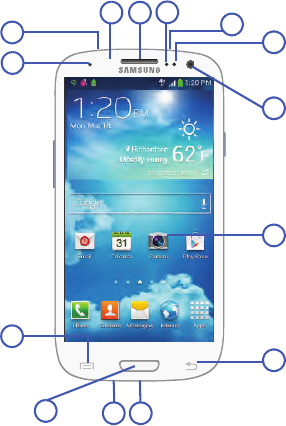

Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Side Views . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Device Display . . . . . . . . . . . . . . . . . . . . . . . . 31
Status Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Function Keys . . . . . . . . . . . . . . . . . . . . . . . . . 39
Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . 40
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Screen Navigation . . . . . . . . . . . . . . . . . . . . . 53
Using Motions and Gestures . . . . . . . . . . . . . . 56
Menu Navigation . . . . . . . . . . . . . . . . . . . . . . 58
Customizing the Screens . . . . . . . . . . . . . . . . 60
Section 3: Memory Card ............................67
Using the SD Card . . . . . . . . . . . . . . . . . . . . . 67
SD card Overview . . . . . . . . . . . . . . . . . . . . . . 67
DRAFT
Internal Use Only
2
Section 4: Call Functions and
Contacts List ..............................................71
Displaying Your Phone Number . . . . . . . . . . . .71
Making a Call . . . . . . . . . . . . . . . . . . . . . . . . .71
Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . .72
Making Emergency Calls . . . . . . . . . . . . . . . . . 73
Dialing Options . . . . . . . . . . . . . . . . . . . . . . . .74
Answering a Call . . . . . . . . . . . . . . . . . . . . . . .75
Managing Reject Calls . . . . . . . . . . . . . . . . . . . 76
International Calls . . . . . . . . . . . . . . . . . . . . . .77
Pause Dialing . . . . . . . . . . . . . . . . . . . . . . . . .78
Wait Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Redialing the Last Number . . . . . . . . . . . . . . .79
Speed Dialing . . . . . . . . . . . . . . . . . . . . . . . . . 79
Wi-Fi Calling . . . . . . . . . . . . . . . . . . . . . . . . . .81
In Call Options . . . . . . . . . . . . . . . . . . . . . . . . . 84
Using S Voice . . . . . . . . . . . . . . . . . . . . . . . . .90
Logs Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
Section 5: Entering Text ............................95
Text Input Methods . . . . . . . . . . . . . . . . . . . . .95
Selecting the Text Input Method . . . . . . . . . . . 95
Entering Text Using Swype . . . . . . . . . . . . . . .96
Using the Samsung Keyboard . . . . . . . . . . . .102
Samsung Keyboard Settings . . . . . . . . . . . . .105
Using the Google Voice Typing . . . . . . . . . . . .107
CUT COPY PASTE and TRANSLATE XXXX
XX????? . . . . . . . . . . . . . . . . . . . . . . . . . . .108
Section 6: Contacts .................................109
Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . .109
Contacts List . . . . . . . . . . . . . . . . . . . . . . . . .109
Finding a Contact . . . . . . . . . . . . . . . . . . . . . .113
Contact List Options . . . . . . . . . . . . . . . . . . . .116
Contact Menu Options . . . . . . . . . . . . . . . . . .117
Contact Entry Options . . . . . . . . . . . . . . . . . .118
Joining Contact Information . . . . . . . . . . . . . .118
Sending a Namecard . . . . . . . . . . . . . . . . . . .121
Copying Contact Information . . . . . . . . . . . . .122
Synchronizing Contacts . . . . . . . . . . . . . . . . .123
Display Options . . . . . . . . . . . . . . . . . . . . . . .124
Adding more Contacts via Accounts
and Sync . . . . . . . . . . . . . . . . . . . . . . . . . .125
Additional Contact Options . . . . . . . . . . . . . . .126
Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128
The Favorites Tab . . . . . . . . . . . . . . . . . . . . .130
DRAFT
Internal Use Only
3
Section 7: Messages .............................. 131
Types of Messages . . . . . . . . . . . . . . . . . . . 131
Creating and Sending Messages . . . . . . . . . 132
Message Options . . . . . . . . . . . . . . . . . . . . . 133
Viewing Newly Received Messages . . . . . . . 136
Deleting Messages . . . . . . . . . . . . . . . . . . . . 138
Message Search . . . . . . . . . . . . . . . . . . . . . 139
Messaging Settings . . . . . . . . . . . . . . . . . . . 139
Assigning Messages as Spam . . . . . . . . . . . 143
Accessing Your Spam Folder . . . . . . . . . . . . 144
Text Templates . . . . . . . . . . . . . . . . . . . . . . 144
Using Email . . . . . . . . . . . . . . . . . . . . . . . . . 145
Microsoft Exchange Email (Outlook) . . . . . . . 150
Using Google Mail . . . . . . . . . . . . . . . . . . . . 155
Google Talk . . . . . . . . . . . . . . . . . . . . . . . . . 157
ChatON . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Section 8: Multimedia ............................ 161
Assigning the Default Storage Location . . . . 161
Using the Camera . . . . . . . . . . . . . . . . . . . . 162
Camera Options . . . . . . . . . . . . . . . . . . . . . . 163
Quick Settings . . . . . . . . . . . . . . . . . . . . . . . 165
Camera and Camcorder Settings . . . . . . . . . 166
Using the Camcorder . . . . . . . . . . . . . . . . . . 169
Sharing Pictures XXXXX . . . . . . . . . . . . . . . . 171
The Gallery . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Using Samsung Video . . . . . . . . . . . . . . . . . . 179
Samsung HubXXX . . . . . . . . . . . . . . . . . . . . 182
Play Movies & TV . . . . . . . . . . . . . . . . . . . . . 185
Play Music XXX . . . . . . . . . . . . . . . . . . . . . . 186
Music Player XXX . . . . . . . . . . . . . . . . . . . . . 191
Using Playlists . . . . . . . . . . . . . . . . . . . . . . . 194
Creating a Playlist . . . . . . . . . . . . . . . . . . . . 194
Transferring Music Files . . . . . . . . . . . . . . . . 195
Removing Music Files . . . . . . . . . . . . . . . . . 195
Samsung Link . . . . . . . . . . . . . . . . . . . . . . . 196
AllShare Cast Hub . . . . . . . . . . . . . . . . . . . . 200
T-Mobile TV . . . . . . . . . . . . . . . . . . . . . . . . . 205
YouTube . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Section 9: Applications and
Development ............................................207
Applications . . . . . . . . . . . . . . . . . . . . . . . . . 207
Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
DRAFT
Internal Use Only
4
ChatON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Chrome . . . . . . . . . . . . . . . . . . . . . . . . . . . . .211
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . .214
Downloads . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Dropbox . . . . . . . . . . . . . . . . . . . . . . . . . . . .215
Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Flipboard . . . . . . . . . . . . . . . . . . . . . . . . . . . .217
Gallery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .218
Gmail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .218
Google . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .218
Group Play . . . . . . . . . . . . . . . . . . . . . . . . . .219
Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . .221
Local . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Lookout Security . . . . . . . . . . . . . . . . . . . . . . 222
Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .222
Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Mobile HotSpot . . . . . . . . . . . . . . . . . . . . . . .225
Music Player . . . . . . . . . . . . . . . . . . . . . . . . . 225
My Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .230
Photo Reader . . . . . . . . . . . . . . . . . . . . . . . . .230
Play Books . . . . . . . . . . . . . . . . . . . . . . . . . . .230
Play Magazines . . . . . . . . . . . . . . . . . . . . . . .231
Play Movies & TV . . . . . . . . . . . . . . . . . . . . . .231
Play Music . . . . . . . . . . . . . . . . . . . . . . . . . . .232
Play Store . . . . . . . . . . . . . . . . . . . . . . . . . . .232
Downloading a New Google Application . . . . .232
Launching an Installed Google Application . . .234
Polaris Office 5.0 . . . . . . . . . . . . . . . . . . . . . .235
S Health . . . . . . . . . . . . . . . . . . . . . . . . . . . . .236
S Memo . . . . . . . . . . . . . . . . . . . . . . . . . . . . .236
S Translator . . . . . . . . . . . . . . . . . . . . . . . . . .239
S Voice . . . . . . . . . . . . . . . . . . . . . . . . . . . . .239
Samsung Apps . . . . . . . . . . . . . . . . . . . . . . .240
Samsung Hub . . . . . . . . . . . . . . . . . . . . . . . .240
Samsung Link . . . . . . . . . . . . . . . . . . . . . . . .241
Samsung Video . . . . . . . . . . . . . . . . . . . . . . .242
Samsung WatchON . . . . . . . . . . . . . . . . . . . .243
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .243
Story Album . . . . . . . . . . . . . . . . . . . . . . . . . .243
T-Mobile My Account . . . . . . . . . . . . . . . . . . .244
DRAFT
Internal Use Only
5
T-Mobile Name ID . . . . . . . . . . . . . . . . . . . . 244
T-Mobile TV . . . . . . . . . . . . . . . . . . . . . . . . . 244
TecTiles XXX . . . . . . . . . . . . . . . . . . . . . . . . 245
Talk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
TripAdvisor . . . . . . . . . . . . . . . . . . . . . . . . . 248
Task Manager . . . . . . . . . . . . . . . . . . . . . . . 248
Visual Voicemail . . . . . . . . . . . . . . . . . . . . . . 249
Voice Recorder . . . . . . . . . . . . . . . . . . . . . . . 249
Voice Search . . . . . . . . . . . . . . . . . . . . . . . . 251
VPN Client . . . . . . . . . . . . . . . . . . . . . . . . . . 251
YouTube . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Section 10: Connections ........................ 254
Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Enable Downloading for Web Applications . . 266
PC Connections . . . . . . . . . . . . . . . . . . . . . . 267
Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
USB Tethering . . . . . . . . . . . . . . . . . . . . . . . 271
Mobile HotSpot . . . . . . . . . . . . . . . . . . . . . . 272
Section 11: Changing Your Settings .......275
Accessing the Settings Tabs . . . . . . . . . . . . . 275
Settings Tabs - Overview . . . . . . . . . . . . . . . 275
Wi-Fi Settings . . . . . . . . . . . . . . . . . . . . . . . 276
Bluetooth settings . . . . . . . . . . . . . . . . . . . . 282
Airplane Mode . . . . . . . . . . . . . . . . . . . . . . . 284
Data Usage . . . . . . . . . . . . . . . . . . . . . . . . . 284
More Settings . . . . . . . . . . . . . . . . . . . . . . . . 285
Lock Screen . . . . . . . . . . . . . . . . . . . . . . . . . 294
Display Settings . . . . . . . . . . . . . . . . . . . . . . 299
Sound Settings . . . . . . . . . . . . . . . . . . . . . . . 302
Home Screen Mode . . . . . . . . . . . . . . . . . . . 305
Call Settings . . . . . . . . . . . . . . . . . . . . . . . . . 305
Blocking Mode . . . . . . . . . . . . . . . . . . . . . . . 314
Accessory . . . . . . . . . . . . . . . . . . . . . . . . . . 315
Accessibility Settings . . . . . . . . . . . . . . . . . . 315
Language and Input Settings . . . . . . . . . . . . 318
Motions and Gestures Settings . . . . . . . . . . . 324
Smart screen . . . . . . . . . . . . . . . . . . . . . . . . 328
Air view . . . . . . . . . . . . . . . . . . . . . . . . . . . . 328
Voice control . . . . . . . . . . . . . . . . . . . . . . . . 329
Add Account . . . . . . . . . . . . . . . . . . . . . . . . . 330
DRAFT
Internal Use Only
6
Cloud . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 331
Backup and Reset . . . . . . . . . . . . . . . . . . . . . 332
Location Services . . . . . . . . . . . . . . . . . . . . .334
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . .335
Application Manager . . . . . . . . . . . . . . . . . . .338
Battery Usage . . . . . . . . . . . . . . . . . . . . . . . .341
Power Saving Mode . . . . . . . . . . . . . . . . . . . .341
SD Card & Device Storage . . . . . . . . . . . . . . .342
Date and Time . . . . . . . . . . . . . . . . . . . . . . . .342
About Device . . . . . . . . . . . . . . . . . . . . . . . . . 343
Software Update . . . . . . . . . . . . . . . . . . . . . .344
Section 12: Health and Safety
Information ...............................................345
Exposure to Radio Frequency (RF) Signals . . . 345
Specific Absorption Rate (SAR) Certification
Information . . . . . . . . . . . . . . . . . . . . . . . . 350
FCC Part 15 Information to User . . . . . . . . . . 352
Commercial Mobile Alerting System (CMAS) .352
Smart Practices While Driving . . . . . . . . . . . .352
Battery Use and Safety . . . . . . . . . . . . . . . . .354
Samsung Mobile Products and Recycling . . .355
UL Certified Travel Charger . . . . . . . . . . . . . . 357
Display / Touch-Screen . . . . . . . . . . . . . . . . .357
GPS & AGPS . . . . . . . . . . . . . . . . . . . . . . . . .358
Emergency Calls . . . . . . . . . . . . . . . . . . . . . .359
Care and Maintenance . . . . . . . . . . . . . . . . . .360
Responsible Listening . . . . . . . . . . . . . . . . . .361
Operating Environment . . . . . . . . . . . . . . . . .363
FCC Hearing Aid Compatibility (HAC)
Regulations for Wireless Devices . . . . . . . .365
Restricting Children's Access to Your
Mobile Device . . . . . . . . . . . . . . . . . . . . . .366
FCC Notice and Cautions . . . . . . . . . . . . . . . .367
Other Important Safety Information . . . . . . . .367
Section 13: Warranty Information ..........369
Standard Limited Warranty . . . . . . . . . . . . . .369
End User License Agreement for Software . . .374
Index .........................................................382
DRAFT
Internal Use Only
Getting Started 7
Section 1: Getting Started
This section explains how to get started with your phone by
installing and charging the battery, installing the micro SIM
card and optional memory card, and setting up your voice
mail.
Before using your device for the first time, you’ll need to
install and charge the battery and install the micro SIM card.
The micro SIM card is loaded with your subscription details,
such as your PIN, available optional services, and many other
features. If desired, you can also install an SD card to store
media for use with your phone.
Understanding this User Manual
The sections of this manual generally follow the features of
your phone. A robust index for features begins on page 382.
Also included is important safety information that you should
know before using your phone. This information is available
near the back of the guide, beginning on page 345.
This manual provides navigation instructions according to
the default display settings. If you select other settings,
navigation may be different.
Unless otherwise specified, all instructions in this manual
assume you are starting from the Home screen and using the
available keys.
Note:
Instructions in this manual are based on default settings,
and may vary from your device, depending on the
software version on your device, and any changes to the
device’s Settings.
Unless stated otherwise, instructions in this User Manual
start with the device unlocked, at the Home screen.
All screen images in this manual are simulated. Actual
displays may vary, depending on the software version of
your device and any changes to the device’s Settings.
DRAFT
Internal Use Only
8
Special Text
Throughout this manual, you’ll find text that is set apart from
the rest. These are intended to point out important
information, share quick methods for activating features, to
define terms, and more. The definitions for these methods
are as follows:
•
Notes
: Presents alternative options for the current feature, menu,
or sub-menu.
•
Tips
: Provides quick or innovative methods, or useful shortcuts.
•
Important
: Points out important information about the current
feature that could affect performance.
•
Warning
: Brings to your attention important information to
prevent loss of data or functionality, or even prevent damage to
your phone.
Text Conventions
This manual provides condensed information about how to
use your phone. To make this possible, the following text
conventions are used to represent often-used steps:
Example:
From the Home screen, press (
Menu
)
➔
Settings
➔
Bluetooth
.
Battery Cover
The battery, micro SIM card and SD card are installed under
the battery cover.
Important!
Before removing or replacing the battery cover,
make sure the device is switched off. To turn the
device off, hold down the key until the
power-off image displays, then tap
Power off
.
Caution!
Do not bend or twist the back cover excessively
during installation or removal. Doing so may damage
the cover.
To remove the battery cover:
1. Hold the device firmly and locate the cover release
latch.
2. Place your fingernail in the opening and firmly “pop”
the cover off the device (similar to a soda can).
➔
Arrows are used to represent the sequence of
selecting successive options in longer, or
repetitive, procedures.
DRAFT
Internal Use Only
Getting Started 9
To replace the battery cover:
Position the battery cover over the battery
compartment and press down until you hear a click.
SIM Card Overview
Important!
Before removing or replacing the micro SIM card,
make sure the device is switched off. To turn the
phone off, hold down the key until the
power-off image displays, then tap
Power off
.
The micro SIM card is loaded with your subscription details
such as your telephone number, PIN, available optional
services, and many other features.
Important!
The micro SIM card and its information can be
easily damaged by scratching or bending, so be
careful when handling, inserting, or removing the
card. Keep all SIM cards out of reach of small
children.
Some features on your device (such as Wi-Fi Calling) can be
unlocked by using the new micro SIM card.
To use this new micro SIM card, call or contact T-Mobile
customer service for more information.
This card contains the necessary information for identifying
and authenticating the user to the IMS (IP Multimedia
Subsystem).
Release Latch
DRAFT
Internal Use Only
10
Installing and Removing the SIM card
This device uses a different type of SIM card called a “micro
SIM”. Other larger SIM cards will not function or fit within this
slot.
To install the SIM card:
1. Carefully slide the micro SIM card into the SIM card
socket until it clicks into place.
2. Make sure that the card’s gold contacts face into the
phone and that the upper-left angled corner of the card
is positioned as shown.
To remove the micro SIM card:
1. Remove the battery cover.
2. Carefully place your fingernail into the end of the micro
SIM slot and push the card slightly out.
3. Carefully slide the card out of the micro SIM card
socket.
Note:
If the card is not inserted correctly, the device will not
detect it and no service will be available. If this happens,
turn off the device, remove the card, and reinstall the
card in the correct orientation.
Incorrect
Correct
Micro SIM card
DRAFT
Internal Use Only
Getting Started 11
Installing the microSD Memory Card
Your device supports an optional (external) microSD™
memory cards for storage of media such as music, pictures,
video and other files. The SD card is designed for use with
this mobile device and other devices.
Note:
microSD memory cards include capacities of up to 2GB.
microSDHC™ memory card types can range from 4GB
to up to 32GB. microSDXC™ memory card types can
include capacities greater than 32GB.
Note:
This device supports a memory card of up to a 64GB.
The device comes in a 16GB model.
1. Remove the battery cover.
2. Locate the microSD card slot on the inside of the
device.
3. Orient the card with the gold strips facing down.
4. Carefully slide the microSD card into the card socket
until it clicks into place. For more information on how
to use the SD card see “Using the SD Card” on page 67
Important!
Be sure to align the gold contact pins on the card
with the phone’s contact pins.
Removing the microSD Memory Card
1. Remove the battery cover.
2. Firmly press the card into the slot and release it. The
card should pop partially out of the slot.
3. Remove the card from the slot.
4. Replace the battery cover.
Correct
Incorrect
DRAFT
Internal Use Only
12
Battery
Before using your device for the first time, install the battery
and charge it fully.
Important!
Before removing or replacing the battery, make
sure the device is switched off. To turn the device
off, hold down the key until the power-off
image displays, then tap
Power off
.
Installing the Battery
1. Slide the battery into the compartment (1) so that the
tabs on the end align with the slots at the bottom of the
phone, making sure the connectors align.
2. Gently press down to secure the battery (2).
Removing the Battery
Grip the battery at the top end (3) and lift it up and out
of the battery compartment (4).
Installing Battery
Removing Battery
DRAFT
Internal Use Only
Getting Started 13
Charging the Battery
Your device is powered by a rechargeable Li-ion battery. A
wall charger, which is used for charging the battery, is
included with your device. Use only approved batteries and
chargers. Ask your local Samsung dealer for further details.
Before using your device for the first time, you must fully
charge the battery. A discharged battery recharges fully in
approximately 4 hours.
Note:
Verify that the battery is installed prior to connecting the
wall charger. If both the wall charger is connected and
the battery is not installed, the handset will power cycle
continuously and prevent proper operation. Failure to
unplug the wall charger before you remove the battery,
can cause the device to become damaged.
Important!
It is recommended you fully charge the battery
before using your device for the first time.
1. Connect the USB cable to the charging head.
2. Locate the Charger/Accessory jack.
3. Insert the USB cable into the device’s Charger/
Accessory jack.
4. Plug the charging head into a standard AC power
outlet. The device turns on with the screen locked and
indicates both its charge state and percent of charge.
Correct
Incorrect
Charging Head
USB Cable
DRAFT
Internal Use Only
14
Warning!
While the device is charging, if the touch screen
does not function due to an unstable power supply
unplug the USB power adapter from the power outlet
or unplug the USB cable from the device.
Note:
This illustration displays both the
correct
and incorrect
orientation for connecting the charger. If the charger is
incorrectly connected, damage to the accessory port will
occur therefore voiding the phone’s warranty.
5. When charging is finished, first unplug the charger’s
power plug from the AC wall outlet, then disconnect
the charger’s connector from the phone.
Important!
If your handset has a touch screen display, please
note that a touch screen responds best to a light
touch from the pad of your finger or a non-metallic
stylus. Using excessive force or a metallic object
when pressing on the touch screen may damage
the tempered glass surface and void the warranty.
For more information, refer to “Standard Limited
Warranty” on page 369.
Correct
Incorrect
DRAFT
Internal Use Only
Getting Started 15
Low Battery Indicator
When the battery level is low and only a few minutes of talk
time remain (~15% charge), a warning tone sounds and the
“Battery low” message repeats at regular intervals on the
display. In this condition, your device conserves its remaining
battery power, by dimming the backlight.
When the battery level becomes too low, the device
automatically turns off.
The on-screen battery charge is represented (by default) as a
colored battery icon. You can also choose to display a
percentage value. Having a percentage value on-screen can
provide a better idea of the remaining charge on the battery.
Press ➔ and then tap
Settings
➔
My device
➔
Display
➔
Display battery percentage
.
For more information, refer to “Display Settings” on page
299.
Extending Your Battery Life
Active applications, light levels, Bluetooth usage, and GPS
functionality all act to drain your battery. The following is a
list of helpful tips that can help conserve your battery power:
•
Reduce your backlight on time.
•
Turn Bluetooth off when not in use.
•
Turn Wi-Fi off when not in use.
•
Deactivate the GPS when not needed. Most applications using
this function will periodically query the GPS satellites for your
current location; each query drains your battery.
•
Do not wait until your battery is completely depleted before
charging your device. Repeating this process of a complete
discharge and recharge can over time reduce the storage
capacity of any battery.
•
Turn off Automatic application sync.
•
Use the Power Saving feature to deactivate some hardware and
interface functions.
•
Check the Battery use screen to review what features or functions
have been consuming your battery resources.
•
Check the Running Services and close any unnecessary
applications.
DRAFT
Internal Use Only
16
•
Use the Task Manager feature to end/shutdown background
applications that are still running. These minimized applications
can, over time, cause your device to “slow down”.
•
Turn off any streaming services after use (see Running Services).
•
Animated wallpapers use processing power, memory, and more
power. Change your Live Wallpaper to a non-animated Wallpaper
gallery or Gallery image.
Initial Device Configuration
1. Select a language from the associated field.
English is the default language.
Note:
If you are visually impaired or have difficulty hearing, tap
Accessibility
to configure the accesibility settings.
2. Tap
Next
.
Note:
You may be prompted with a notification that your
activation is completed.
3. At the
Wi-Fi
screen, connect to either an existing
Wireless Access Point (WAP) or tap
Next
to continue.
4. At the Samsung account screen, select one of the
following options:
•
If this is your first time, tap
Create new account
.
•
If you have previously created a Samsung account, tap
Sign in
.
– or –
Tap
Next
to continue with the setup process and create
an account later. For more information, refer to
“Creating a Samsung Account” on page 21.
5. At the
Got Google?
screen, choose either
Yes
to log into
your existing Google account or
No
to continue.
•
If you selected
Yes
, on the Sign in screen, enter your current
Google Email and Password information and tap ( )
Next
.
•
Tap
OK
to agree to the Google legal agreements.
•
If prompted to enable purchases, tap
Set up credit card
and
enter your credit card information and click
Save
.
•
Click
Skip
to continue without entering this information.
6. If you indicated that you did not have a current Google
account, then at the
Make it Google
screen, choose
either
Get an account
to create a new account or
Not now
to continue.
DRAFT
Internal Use Only
Getting Started 17
7. Select/deselect the desired
Google & location
services
and tap (
Next
).
Note:
Enabling Google location services can drain battery
power.
8. When prompted, enter a
First
and
Last
name then tap
(
Next
). This will help to identify this as your
device.
9. When prompted with the Dropbox activation screen,
you can choose to either:
Create account
,
Sign in
,
Disclaimer
, or tap
Skip
to continue.
Note:
For more information, refer to “Dropbox” on page 215.
10. From the
Learn about key features
screen:
•
Tap an available field to display an on-screen tutorial.
•
Turn on a feature by sliding the activation slider to the ON
position ( ).
11. Tap
Next
.
12. Accept the current device name.
– or –
Tap the
Device name
field and use the on-screen
keyboard to rename your device.
13. Tap
Finish
to complete the setup process.
14. Read the on-screen Collect diagnostics information.
Note:
This software collects only diagnostic data from your
device so that T-Mobile technicians can better
troubleshoot issues with your device.
15. Select either
More Info
(to read additional information)
or
Finish
to close the message screen.
Important!
Selecting
Finish
only closes the current description
screen and does not disable data collection.
To disable data collection, go to
Settings
➔
Accounts
➔
Backup and reset
➔
Collect
diagnostics
and turn off the
Allow diagnostics to be
collected
feature. For more information, refer to
“Collect Diagnostics” on page 333.
ON
ON
DRAFT
Internal Use Only
18
Switching the Device On or Off
Once the device has been configured, you will not be
prompted with setup screens again.
To turn the device on:
Press and hold (
Power/End
) until the device
switches on.
The device searches for your network and after finding
it, you can make or receive calls.
Note:
The display language is preset to English at the factory.
To change the language, use the Language menu. For
more information, refer to “Language and Input
Settings” on page 318.
To turn the device off:
1. Press and hold (
Power/End
) until the Device
options screen appears.
2. Tap
Power off
().
Restarting the Device
1. Press and hold (
Power/End
) until the Device
options screen appears.
2. Tap
Restart
().
Locking and Unlocking the Device
By default, the device screen locks when the backlight turns
off.
Place your finger on the screen and swipe the glass in
any of the directions shown unlock the device.
Note:
You can choose to configure lock settings to prevent
unauthorized use of your device. For more information,
refer to “Security” on page 335.
DRAFT
Internal Use Only
Getting Started 19
Creating a New Google Account
You should create a Google™ Account when you first use
your device in order to fully utilize the functionality. This
account provides access to several device features such as
Gmail™, Talk™, and the Google Play Store™ applications.
Before you are able to access Google applications, you must
enter your account information. These applications sync
between your device and your online Google account.
To create a new Google Account from your device:
1. From the Home screen, tap (
Play Store
).
2. Read the introduction and tap
New
to begin.
3. Follow the on-screen instructions to create a Google
Account.
– or –
If this is not the first time you are starting the device,
tap ➔ (
Gmail
).
Note:
If you already have a Google account, you only need to
sign in.
To create a new Google Account from the Web:
1. From a computer, launch a Web browser and navigate
to
www.google.com
.
2. On the main page, click
Sign-in
➔
Create an account
for free
.
3. Follow the on-screen prompts to create your free
account.
4. Look for an email from Google in the email box you
provided, and respond to the email to confirm and
activate your new account.
Signing into Your Google Account
1. Launch an application that requires a Google account
(such as Play Store or Gmail).
2. Click
Existing
.
3. Tap the
Email
and
Password
fields and enter your
information.
4. Tap
Sign in
. Your device communicates with the Google
servers to confirm your information.
5. If prompted, create a new Gmail username by entering
a prefix for your
@gmail.com
email address.
DRAFT
Internal Use Only
20
Retrieving your Google Account
Password
A Google account password is required for Google
applications. If you misplace or forget your Google Account
password, follow these instructions to retrieve it:
1. From your computer, use an Internet browser and
navigate to
http://google.com/accounts.
2. Click on the
Can’t access your account?
link.
3. Follow the on-screen password recovery procedure.
Confirming the Default Image and
Video Storage Location
Although the device is configured to store new pictures and
videos to the Memory card, it is a very good idea to confirm
this location before using your device.
Important!
Too many users can overlook this storage
destination until something goes wrong. It is
recommended that you verify this location or
change it before initiating the use of the camera or
camcorder features.
1. From the Home screen, tap (
Apps
)
➔
(
Camera
).
2. Press and then tap
Settings
➔ (
Settings
)
and scroll down to the
Storage
entry.
3. Tap this entry and select the desired default storage
location for newly taken pictures or videos. Choose
from:
Phone
or
Memory card
.
Note:
It is recommended that you set the option to
Memory
card
.
4. Press to return to the Home screen.
DRAFT
Internal Use Only
Getting Started 21
Creating a Samsung Account
Just as important as setting up and activating a Google
account to help provide access to Play Store, etc.. An active
Samsung account is required to begin accessing applications
such as Media Hub.
Note:
The Samsung account application will manage your
access to the previously mentioned applications, and
there is no longer a need to remember different
passwords for each application.
1. Press ➔ and then tap
Settings
➔
Accounts
➔
Add account
➔
Samsung account
.
2. If you have previously created a Samsung account, tap
Sign in
.
– or –
If this is your first time, tap
Create new account
.
3. Tap
Terms and conditions
and
Privacy policy
to read the
legal disclaimers and related information.
4. If you agree to the terms, place a green check mark in
the
I accept all the terms above
field and tap
Agree
.
5. Enter your the required information and tap
Sign up
.
Note:
You may be prompted to confirm your credentials via
email.
6. Verify your account via email by accessing the email
address provided during setup and following the steps
outlined to complete your registration.
– or –
If you have already setup your email account on the
device, tap
Go to Mailbox
and follow the on-screen
instructions.
– or –
If you have already verified your email address, tap
Activate account
.
7. Confirm the Samsung account icon no longer appears
in the Notifications area at the top of the screen.
Note:
Without confirming your email address and following the
documented procedures, related applications will not
function properly since it is Samsung account that is
managing their username and password access.
DRAFT
Internal Use Only
22
Voice Mail
Setting Up Your Voice Mail
Your device automatically transfers all unanswered calls to
voicemail, even if your device is in use or turned off. As soon
as your battery is charged and the micro SIM card inserted,
activate your voicemail account.
Important!
Always use a password to protect against
unauthorized access.
For new users, follow the instructions below to set up voice
mail:
Note:
Voicemail setup may be different depending on your
network.
1. From the Home screen, tap and then touch and
hold the key until the device dials voicemail.
You may be prompted to enter a password.
2. Follow the tutorial to create a password, a greeting,
and a display name.
Accessing Your Voice Mail
You can access your Voice Mail by either pressing and
holding on the keypad, or by using the phone’s
Application icon, then tapping the Voice Mail application. To
access Voice Mail using the menu:
1. From the Home screen, tap and then touch and
hold until the device dials voicemail.
Note:
Touching and holding will launch the voicemail
application.
2. When connected, follow the voice prompts from the
voicemail center.
Accessing Your Voice Mail From Another Phone
1. Dial your wireless phone number.
2. When you hear your voicemail greeting, press the
asterisk key on the phone you are using.
3. Enter your passcode.
DRAFT
Internal Use Only
Getting Started 23
Visual Voicemail
Visual Voicemail enables users to view a list of people who
left a voicemail message, and listen to the any message they
want without being limited to chronological order.
1. From the Home screen, tap (
Apps
) ➔
(
Visual Voicemail
).
2. Read the on-screen information and tap
Next.
Note:
You must subscribe to the Visual Voicemail service to
use this feature. Charges may apply. Please contact your
service provider for further details.
3. Tap an on-screen voicemail message to play it back.
To check Visual Voicemail messages:
1. From the Home screen, tap (
Apps
) ➔
(
Visual Voicemail
).
2. Tap the voicemail message you want to play.
3. Tap (
Play
).
To delete Visual Voicemail messages:
1. From the Home screen, tap (
Apps
) ➔
(
Visual Voicemail
).
2. Tap the voicemail message you want to delete.
3. Tap (
Delete
) ➔
OK
.
DRAFT
Internal Use Only
24
Task Manager
Your device can run applications simultaneously, with some
applications running in the background.
Sometimes your device might seem to slow down over time,
and the biggest reason for this are background applications.
These are applications that were not properly closed or
shutdown and are still active but minimized. The Task
Manager not only lets you see which of these applications
are still active in the background but also easily lets you
choose which applications are left running and which are
closed.
Note:
The larger the number of applications running on your
phone, the larger the energy drain on your battery.
Task Manger Overview
Press and hold (
Home
) and then tap
(
Task manager
). This screen contains the following
tabs:
• Active applications
display those currently active applications
running on your phone.
•Downloaded
displays any installed packages or applications
from the Play Store that are taking up memory space. Tap
Uninstall
to remove them from your phone.
•RAM
, which displays the amount of current RAM (Random
Access Memory) currently being used and allow you to
Clear
Memory
.
•Storage
displays a visual graph indicating the available and
used space within the System storage, USB storage, and
external SD card.
•Help
provides additional battery saving and RAM management
techniques.
Shutting Down an Currently Active Application
1. Press and hold (
Home
) and then tap
(
Task manager
).
2. From the
Active applications
tab, tap
End
to close
selected applications.
– or –
Tap
End all
to close all background running
applications.
DRAFT
Internal Use Only
Getting Started 25
Google Now
Google Now® recognizes a users’ repeated actions
performed on the device (including access of common
locations, repeated calendar appointments, search queries,
etc.). This information is then used to display more relevant
information to the user in the form of “cards”. These
scrollable on-screen cards are displayed when the Google
Now application is launched.
These cards are not manually added.
The service uses your GPS, Google Search, and usage
information to generate these cards automatically.
To initially set up Google Now:
1. Press and hold (
Home
) and then tap
(
Google Now
).
2. Follow the on-screen instructions to review the
available information.
3. When prompted, agree to launch the application. Some
initial on-screen “cards” are shown. A default is the
Weather card that provides updated weather
information in your area.
To configure the Google Now settings:
1. Press and hold (
Home
) and then tap
(
Google Now
).
2. Press and select
Settings
.
3. Access each desired Settings page and configure it as
desired.
When these condition are met, new card information will
begin to appear in the Google Now list of cards.
DRAFT
Internal Use Only
26
Section 2: Understanding Your Device
This section outlines key features of your device. It also
describes the device’s keys, screen and the icons that
display when the device is in use.
Features of Your Device
Your device is lightweight, easy-to-use and offers many
significant features. The following list outlines a few of the
features included in your device.
•
Touch screen with virtual (on-screen) QWERTY keyboard
•
Brilliant 4.99” HD Super AMOLED
®
screen (1280x720)
•
1.9 gigahertz quad-core processor
•
Delivering data speeds faster than the current 3G network
technology by using 4G LTE and High Speed Packet Access Plus
(HSPA+).
•
Android 4.1.2, Jelly Bean Platform
•
TecTile™ compliant
•
Support for Motions such as Direct call, Smart alert, etc..
•
Wi-Fi
®
Capability
•
Smart Remote – Rich TV experience with Infrared (IR)
•
Over 700,000 Apps available to download from the Google Play™
Store and Cento™ Store
•
Access to Movies and TV Shows with Samsung Cento Store
•
Samsung Link
®
to share your media content across DLNA
certified device.
•
Cloud connectivity enabled via the use of an external Web storage
service
•
Compliant with AllShare Cast Hub
®
•
13 Megapixel Camera and Camcorder with autofocus and digital
zoom
•
2 Megapixel Front Facing camera for Video Chat
•
Share Shot picture sharing functionality
•
S-Beam file transfer technology
•
Share Shot camera sharing-capable via multi-connect Wi-Fi
Direct connection
•
Bluetooth enabled
•
NFC-compatible
•
Full Integration of Google Mobile™ Services (Gmail, YouTube,
Google Maps, Google Voice Search)
DRAFT
Internal Use Only
Understanding Your Device 27
•
Multiple Messaging Options: Text/Picture/Video Messaging and
Google Talk™
•
Corporate and Personal Email
•
Music Player with multitasking features
•
Pre-loaded e-reader applications such as: Play Books™ and Play
Magazines™
•
Assisted GPS (Google Navigation)
•
Webkit-based browser
•
Expandable memory slot - supports up to 64GB microSD
•
Mobile HotSpot Capability
•
USB Tethering-capable
•
T-Mobile
®
TV
•
Video Chat via Google Talk
•
Google Play™ Music
•
Wi-Fi
®
Calling via the use of a micro SIM card
•
HD Video Player 1080p
– Codec: MPEG4, H.264, H.263, VC-1, WMV7/8, VP8, MP43
– Format: 3GP (MP4), WMV (ASF), AVI, and DivX
•
Video Player support for PIP (Picture in Picture) viewing
•
DivX Certified
®
to play DivX
®
video up to HD 720p, including
premium content
Front View
The following illustrations show the main elements of your
device. The following list correlates to the illustrations.
1.
Headset jack
allows you to connect a hands-free
headset so you can listen to music.
2.
Indicator light
illuminates with a series of distinct
colors and flashing patterns to indicate different
notifications and statuses. Events include Charging,
Low battery, and Missed event:
•
Powering on -
blue
blinks/animates
•
Battery Charging -
red
remains on
•
Battery Fully Charged -
green
remains on.
•
Low Battery or Charging Error-
red
blinks/animates
•
Missed Notification (Call or Messaging) -
blue
blinks/animates
For more information, refer to “LED Indicator” on page
301.
DRAFT
Internal Use Only
28
3.
Menu key
displays a list of options available for the
current screen. From the Home screen it displays
Add apps and widgets, Create folder, Set wallpaper,
Edit page, Search, and Settings options.
4.
Home
key displays the Home screen when pressed.
Press and hold to display your recent apps, Task
manager, and Remove all option.
Double-press to activate S Voice.
5.
Microphone
is used during phone calls and allows other
callers to hear you clearly when you are speaking to
them. There are two microphones on the device:
•
Bottom microphone: used during handset mode.
•
Top microphone: used while an active call is in the
speakerphone mode and assists in noise cancellation
(2 microphone solution).
6.
USB Power/Accessory connector
allows you to connect
a power cable or optional accessories such as a USB/
data cable.
7
8
9
10
11
4
3
1
12
5 6
2
6
13
DRAFT
Internal Use Only
Understanding Your Device 29
7.
Back key
redisplays the previous screen or clears
entries.
8.
Display
shows all the information needed to operate
your phone, such as the connection status, received
signal strength, phone battery level, and time.
9.
Front Facing Camera
allows you to take pictures while
facing the screen and allows you to video conference.
10.
Proximity Sensor
detects how close an object is to the
surface of the screen. This is typically used to detect
when your face is pressed up against the screen, such
as during a phone call.
•
While talking on the phone, the sensor detects talk activity and
locks the keypad to prevent accidental key presses.
11.
Light Sensor
lets you use the ambient light level to
adjust the screen brightness/contrast. This sensor
decreases screen brightness in dim light.
•
In a bright light condition (outdoors), the sensors cause the
device to increase the brightness and contrast for better
viewing.
•
In dim light conditions, the device increases the screen
brightness to compensate.
12.
Receiver
allows you to hear the other caller and the
different ring tones or sounds offered by your device.
13.
Air Gestures Sensor
used to detect Air View and Air
Gesture motions.
Back View
The following illustration shows the external elements of your
Device:
1.
microSD Card Slot
(internal) allows you use a microSD
card to expand the memory of your device.
2.
External speaker
allows you to hear ringers, music, and
other sounds offered by your phone.
DRAFT
Internal Use Only
30
3.
micro SIM Card Slot
(internal) Installation location for
SIM card.
4.
Flash
is used to take photos in low-light conditions.
5.
Camera lens
is used to take photos.
6.
IR Transmitter
is used to transmit IR signals to
compatible devices.
Side Views
The following illustration shows the side elements of your
device:
1.
Volume key
allows you to adjust the ringer volume in
standby mode (with the phone open) or adjust the voice
volume during a call. When receiving an incoming call:
•
Pressing the volume key down mutes the ring tone.
3 4
5
2 1
6
2
1
DRAFT
Internal Use Only
Understanding Your Device 31
2.
Power/End key
ends a call or switches the
phone off and on. Press and hold for two seconds to
turn toggle the Silent mode or Airplane mode states,
turn the device on or off, or Restart.
Device Display
Your display provides information about the device’s status,
and is the interface to manage features. The display
indicates your connection status, signal strength, battery
status and time. Icons display at the top of the device when
an incoming call or message is received and also alerts you
at a specified time when an alarm was set. The screen also
displays notifications, and Application (or shortcut) bar with
five primary shortcuts: Phone, Contacts, Messaging, Internet,
and Apps.
Widget
Home Screen
Primary
Notification
Shortcuts
Status Bar
area
Status
area
Shortcuts
Battery status
Connection Status
Time
Signal strength
Google Search
DRAFT
Internal Use Only
32
Display settings
In this menu, you can change various settings for the for the
wallpaper, cube, brightness or backlight.
From the Home screen, tap (
Apps
) ➔
(
Settings
) ➔
My device
➔
Display
. For more
information, refer to “Display Settings” on page 299.
Status Bar
The Status Bar shows information about the connection
status, signal strength, phone battery level, and time, and
displays notifications about incoming messages, calls and
other actions.
This list identifies the icons you see on your phone’s display
screen:
Indicator Icons
This list identifies the symbols you’ll see on your device’s
display and Indicator area:
Note:
Some Notification icons can be hidden manually by
toggling the status of the Notification panel function. For
more information, refer to “Accessing Additional Screen
Functions” on page 38.
Displays your current signal strength. The greater
the number of bars, the stronger the signal.
Indicates that the Airplane Mode is active. You
cannot send or receive any calls or access online
information.
Indicates there is no signal available.
Displays when there is no SIM card in the phone.
Displays when there is a system error or alert.
Displays to indicate a security warning. You are
prompted to set a screen lock password.
Displays when a call is in progress. Icon is
displayed in the Status bar area.
Displays when a call is on hold. Icon is displayed in
the Status bar area.
Displays when an active call is routed through a
Bluetooth headset. Icon is displayed in the Status
bar area.
DRAFT
Internal Use Only
Understanding Your Device 33
Displays when you have missed an incoming call.
Displays when you device is set to automatically
reject all incoming calls. The All numbers option
is enabled from within
Call settings
➔
Call rejection
➔
Auto reject mode
menu.
Displays when the speakerphone is on. Icon is
displayed in the Status bar area.
Displays when the microphone is muted. Icon is
displayed in the Status bar area.
Displays when Call forwarding is set to Always
forward. Displayed in the Status bar when the
current call is minimized. For more information,
refer to “Configuring Additional Voice Call Settings”
on page 310.
Displays your current battery charge level. Icon
shown is fully charged.
Displays when the current battery is 100 percent
charged and the Display battery percentage option
is enabled within the
Settings
➔
Display
menu.
100%
Displays your battery is currently charging.
Displays your current battery charge level is
low (Charge: ~28% - 15%).
Displays your current battery charge level is
very low (Charge: ~15% - 5%).
Shows your current battery only has up to 4%
power remaining and will soon shutdown.
(Charge: ~4% - 1%).
Displays when connected to the EDGE network.
Displays when your phone is communicating with
the EDGE network.
Displays when connected to the 3G network. 3G
indicator is only seen when roaming.
Displays when your phone is communicating with
the 3G network. 3G indicator is only seen when
roaming.
Displays when connected to the HSPA+ network.
DRAFT
Internal Use Only
34
Displays when your phone is communicating with
the HSPA+ network.
Displays when your phone is communicating
with the 4G LTE network.
Displays when the phone has detected an active
USB connection and is in a USB Debugging mode.
Displays when there is a new text message.
Displays when an outgoing text message has failed
to be delivered.
Displays when an incoming text message
content has failed to be downloaded.
Displays when there is a new voicemail message.
Displays when there is a new visual voicemail
message.
Displays in the notifications window when there
is a new Email message.
Displays in the notifications window when there
is a new Gmail message.
Displays when the user is prompted to set up a
new Dropbox account.
Displays when the user is prompted with a Lookout
Security notification.
Displays when the T-Mobile Name ID
application did not recognize a recent number
and would like to know whether you wish to
Not add, or add as a New or Existing number.
Displays when the time and date for a Calendar Event
has arrived. For more information, refer to
“Calendar” on page 208.
Displays when an alarm is set.
For more information, refer to “Setting an Alarm” o n
page 211.
Displays when the device is in Silent mode.
All sounds except media and alarms are silenced,
and Silent mode is set to
Vibrate
. For more
information, refer to “Silent mode via Device
Options Screen” on page 302.
DRAFT
Internal Use Only
Understanding Your Device 35
Displays when the device is in Silent mode.
All sounds are silenced, and Silent mode is set to
Mute
.
Displays when data synchronization and
application sync is active and synchronization is in
progress for Gmail, Calendar, and Contacts.
Displays when the Blocking mode feature is
active. For more information, refer to “Blocking
Mode” on page 314.
Displays when Bluetooth technology is active and
enabled.
Displays when the Bluetooth technology is active
and communicating with an external device.
Displays when the an outbound file transfer is in
progress.
Displays when a file or application download is in
progress.
Displays when the Share shot option is enabled
from within the Camera Shooting mode menu and
images and being shared via Wi-Fi Direct.
For more information, refer to “Camera Options” on
page 163.
Displays when a screen capture has been taken and
stored in the clipboard.
For more information, refer to “Using Motions and
Gestures” on page 56.
Displays when your device is connected being
used to control streaming media and is connected
to a Digital Living Network Alliance (DLNA)
certified device using the AllShare Play application.
Displays when your device is currently sharing/
streaming media to paired device using the
AllShare Play application.
Displays when AllShare Cast Hub is active,
connected to your device, and communicating.
For more information, refer to “AllShare Cast Hub”
on page 200.
DRAFT
Internal Use Only
36
Displays when updates are available for download.
Displays when a Play Store download has
completed.
Displays when Wi-Fi is connected, active, and
communicating with a Wireless Access Point
(WAP).
Displays when Wi-Fi is active and there is an
available open wireless network.
Displays when Wi-Fi Direct is active and
configured for a direct connection to another
compatible device in the same direct
communication mode.
Displays when Wi-Fi Direct is communicating
with another compatible device.
Displays when the USB Tethering mode is active
and communicating. For more information, refer to
“USB Tethering” on page 271.
Displays when Wi-Fi is being used as a Mobile
HotSpot feature is active and communicating.
For more information, refer to “Mobile HotSpot” o n
page 272.
Displays when a share shot has been established
with other users via a Wi-Fi Direct connection.
Displays when the Wi-Fi calling feature is active.
Minutes used while connected to the Wi-Fi network
count against available rate plan minutes.
Displays when the Wi-Fi calling feature is active and
you are using it with within your current active call.
Displays when there is an error in the use or 911
registration of the Wi-Fi Calling feature.
Displays when you are currently in Emergency
calling mode. You must exit this mode to resume
normal calling function.
Displays in the notifications window when action is
required within the Samsung account application.
Displays in the notifications window when
a new T-Mobile account information is available.
DRAFT
Internal Use Only
Understanding Your Device 37
For more details on configuring your phone’s settings, see
“Changing Your Settings” on page 275.
Notification Bar
The Notification area indicates new message events (data
sync status, new messages, calendar events, call status,
etc). You can expand this area to display the Notification
screen that provides more detailed information about the
current on-screen notification icons.
Displays in the notifications window when there are
too many on-screen notification icons to display.
Tap to show more notifications.
Tap to select a text input method.
Displays in the notifications window when a song is
currently playing within the Music Player.
Displays in the notifications window when a song is
currently playing within the Play Music application.
Displays when your device’s GPS is on and
communicating.
Displays when the external SD card (internal
microSD) has been disconnected (unmounted)
from the phone and is now ready for either removal
or formatting.
Displays when the External SD card is being
prepared for mounting to the device. This is
required for communication with the External SD
card.
Displays when the microSD card has been
improperly removed or unexpectedly.
Displays when storage within either the internal
location or the external SD card has reached its
capacity. It is recommended you either move
files off or delete them to make additional room.
Displays when Power saving mode is enabled.
Displays when the Power saving alert notification
has been activated. You are then prompted to view
your current battery level.
Displays when TTY device has been inserted.
DRAFT
Internal Use Only
38
1. Touch the Status bar to reveal the Notifications tab, and
then drag the tab to the bottom of the screen to open
the Notifications panel (1).
2. Tap a notification entry to open the associated
application (2).
Clearing Notifications
1. In a single motion, touch and drag the Status bar down
to the bottom of the screen to open the Notifications
panel.
2. Tap
Clear
. The notifications are cleared from the panel.
Accessing Additional Screen Functions
In addition to notifications, this screen also provides quick
and ready access to device functions. These can be quickly
activated or deactivated.
Scrolling across a horizontal list of functions has been
replaced with an accessible Grid view.
To activate the Grid view:
From the Notification panel, tap (
Open Grid view
)
to display additional functions.
To minimize the Grid view:
From the Notification panel, tap (
Close Grid view
)
to show only your primary functions.
DRAFT
Internal Use Only
Understanding Your Device 39
Note:
You can now select the function buttons you see at the
top of the Notifications panel.
The top 5 buttons are shown at the top (8 are shown
when in Landscape view).
To customize the functions displayed:
1. From the Notification screen, tap (
Open Grid
view
) to display additional functions.
2. Tap (
Edit
) then locate the Notifications panel area
located at the bottom of the Notifications panel screen.
3. In a single motion, touch and hold a desired function
then drag it to the top row.
Function Keys
Your device comes equipped with three main function keys
that can be used on any screen:
Home
,
Menu
, and
Back
.
Home Key
The
Home
key ( ) takes you back to your Home screen
(indicated by a white Home icon).
Press and hold to launch the Recent apps/Task
manager screen. For more information, refer to
“Accessing Recently-Used Applications” on page 60.
Menu Key
The
Menu
key ( ) activates an available menu function for
the current screen or application.
Back Key
The
Back
key ( ) returns you to the previously active
screen. If the on-screen keyboard is currently open, this key
closes the keyboard.
DRAFT
Internal Use Only
40
Home Screen
The Home screen is the starting point for using the
applications on your phone. There are initially seven
available panels, each populated with default shortcuts or
applications. You can customize each of these panels.
•
Notification area
displays those icons associated with end-user
notifications such as: email messages, calls (missed, call in
progress), new voicemail, upcoming event, USB connection,
Emails, and Text/MMS messages.
–
These notifications appear at the top-left of the screen (within
the Status bar area) and display important user information.
–
This information can be accessed by swiping down from the
Status bar (page 37).
•
Status area
displays those icons associated with the status of
the device such as communication, coverage, Bluetooth, 4G/3G,
Wi-Fi communication, battery levels, GPS, etc.
•
Home Screen
is a customizable screen that provides information
about notifications and device status, and allows access to
application Widgets.
•
Extended Home Screens
extend beyond the current visible
screen width to provide more space for adding icons, widgets,
and other customization features.
–
There are six available extended screens (panels) each of
which may be populated with its own shortcuts or widgets.
These screens share the use of the five Primary Shortcuts.
–
The current screen is indicated at the bottom by a white
square. Up to seven (7) total screens are available.
Widget
Home Screen
Primary
Notification
Shortcuts
Status Bar
area
Status
area
Shortcuts
Battery status
Connection Status
Time
Signal strength
Google Search
DRAFT
Internal Use Only
Understanding Your Device 41
Note:
Both the status bar and primary shortcuts are visible
across all screens.
•
Google search
is an on-screen Internet search engine powered
by Google™. Tap to access the Voice Actions feature where you
can verbally enter a search term and initiate an online search.
–
Tap (
Voice Actions
) to launch the function from within
this Google widget.
•
Widgets
are self-contained on-screen applications (not
shortcuts). These can be placed onto any of the available screens
(Home or extended).
•
Shortcuts
are icons that launch available device applications
such as Camera, YouTube, Contacts, Phone, Email, Play Store,
etc. These function the same as shortcuts on your computer.
–
Although some may already be found on the Extended Home
screens, the majority can also be found within the Applications
screens.
–
The Application screens can be accessed by tapping
(
Apps
) from the Primary shortcuts area.
–
Shortcuts can be removed from a screen and added back any
number of times.
•
Primary Shortcuts
: are four shortcuts present throughout all of
the available screens and can be used to both navigate within the
device or launch any of the following functions:
–
Phone
( ) launches the phone-related screen functions
(Keypad, Logs, Favorites, and Contacts).
–
Contacts
( ) launches the Contacts-related screens
(Phone, Groups, Contacts, and Favorites).
–
Messaging
( ) launches the Messaging menu (create new
messages or open an existing message string).
–
Internet
( ) launches the built-in Web browser.
–
Apps
launches the Applications page.
•
Tap (
Apps
) to access the Applications screens.
•
While in the Applications screens, tap
(
Back
) to easily
return to the Home screen.
As you transition from screen to screen, a screen indicator
(located at the bottom) displays the currently active panel.
DRAFT
Internal Use Only
42
Home Screen Menu Settings
When on the Home screen, press and then select any of
the following menu options:
•
Add apps and widgets
allows you to quickly access the Widget
tab where you can then drag a selected widget to an available
area on a selected screen.
•
Create folder
allows you to create on-screen folders to help
organize files of application shortcuts.
•
Set wallpaper
allows you to assign the current wallpaper for the
Home screen, Lock screen, or Home screen and lock screens.
Choose from Gallery, Live wallpapers, or Wallpapers.
•
Edit page
allows you to add or remove extended screens from
your device. You can have up to six extended screens (one Home
screen and six Extended screens).
•
Search
displays the Google Search box that you can use to
search for a key term online.
•
Settings
provides quick access to the device’s settings menu.
–
The Settings menu can also be accessed by pressing
and then tapping
➔
Settings
.
Applications
The Application menu provides quick access to the most
frequently used applications. Applications display on each of
the three panels on the Applications screens.
Important!
Once you log into your Google account. All
previously downloaded apps should now be
populated within the Application screens.
Application Screen Menu Settings
When on the Apps screen, the following menu options are
available:
1. Press and then tap
(
Apps
).
2. Press and then select from the following options:
•Play Store
: provides quick access to the Play Store (page 232).
•Edit
: allows you to organize your current applications by moving
them around the screen, edit or delete existing App folders.
• Create folder
: allows you to create an application folder where
you can better organize and group desired apps.
DRAFT
Internal Use Only
Understanding Your Device 43
• Uninstall
: allows you to uninstall a user-downloaded
application. Only those applications that are not default to the
device can be downloaded. Tap to remove the selected
app.
• Downloaded applications
: allows you to filter the view of apps
to only those applications that you have downloaded.
•View type
: allows you to customize the way the Apps menu
listing is shown (page 63).
• Share apps
: allows you to share information about selected
applications with external users (page 61).
• Hide applications
: allows you to specify which current
applications are hidden from view in this menu. Once you have
selected the apps, tap
Done
.
• Show hidden applications
: allows you to specify which
previously hidden applications are can be made visible again
for viewing in this menu. Once you have selected the apps, tap
Done
.
3. Press to return to the Home screen.
The following table contains a description of each application
available via both the Primary shortcuts area and via the
Applications screens. If the application is already described
in another section of this user manual, then a cross reference
to that particular section is provided. For information on
navigating through the Applications icons, see “Navigating
Through the Application Menus” on page 58.
Calculator
Launches the on-screen calculator application.
The calculator provides the basic arithmetic
functions; addition, subtraction, multiplication, and
division. You can also use this as a scientific calculator.
For more information, refer to “Calculator” on page
207.
Calendar
Launches a calendar application that syncs to your
Facebook™, Google™, or Microsoft Exchange work
calendars.
For more information, refer to “Calendar” on page
208.
DRAFT
Internal Use Only
44
Camera
Launches the built-in 13.0 megapixel camera
application from where you can take a picture with
either the front or rear facing cameras.
Note:
A micro SD card is no longer needed to take
pictures or shoot video due to built-in storage.
Note:
The default storage location is your phone. It
is recommended that you store your pictures
and videos on a microSD card. If something
were to occur to the device, your files are still
protected.
In addition to taking photos, the built-in camera also
doubles as a camcorder that also allows you to record,
view, and send high definition videos.
For more information, refer to “Using the Camera” o n
page 162. For more information, refer to “Using the
Camcorder” on page 169.
ChatON
Provides a global mobile communication service
where you can chat with more than 2 buddies via a
group chat. Share things such as pictures, videos,
animation messages (Scribbles), audio, Contacts,
Calendar entries, and Location information.
For more information, refer to “ChatON” on page 158.
Chrome
Allows you to use the Google Chrome web browser on
your device.
For more information, refer to “Chrome” on page 211.
Clock
Allows you to set an alarm, configure and view the
World clock, use a Stopwatch, set a Timer, or Desk
clock. The applications display in a tabular format and
quickly accessed with the touch of a finger.
For more information, refer to “Clock” on page 211.
DRAFT
Internal Use Only
Understanding Your Device 45
Contacts
The default storage location for saving phone
numbers to your Contacts List is your phone’s built-in
memory.
For more information, refer to “Contacts List” o n p a g e
109.
Downloads
Provides quick access to tabs containing a list of
your current downloaded files (Internet and Other).
For more information, refer to “Downloads” on page
215.
Dropbox
Provides access to your desktop files directly from
your device.
For more information, refer to “Dropbox” on page
215.
Email
Provides access to both your Outlook (Exchange
Server-based) work email and Internet email
accounts (such as Gmail and Yahoo! Mail).
For more information, refer to “Using Email” on page
145.
Flipboard
This application creates a personalized digital
magazine out of everything being shared with you.
Access news stories, personal feeds and other
related material.
For more information, refer to “Flipboard” on page
217.
Gallery
Displays a Gallery of camera images and video
stored in the microSD card.
For more information, refer to “The Gallery” on page
178.
DRAFT
Internal Use Only
46
Gmail
Provides access to your Gmail account. Google Mail
(Gmail) is a web-based email service. Gmail is
configured when you first set up your phone.
For more information, refer to “Using Google Mail” on
page 155.
Google
Provides an on-screen Internet search engine
powered by Google™.
For more information, refer to “Google” on page 218.
Group Play
This application lets you share documents, photos or
music in real-time with other connected friends.
For more information, refer to “Group Play” on page
219.
Help
The Help app provides additional in-device
information on Learning the basics, Changing
important settings, Use Key applications, and Help
settings.
For more information, refer to “Help” on page 220.
Internet
Open the browser to start surfing the Web. The
browser is fully optimized and comes with
advanced functionality to enhance the Internet
browsing feature on your phone.
For more information, refer to “Internet” on page 254.
Local
Displays company locations as markers on Google
Maps. When viewing an area you can quickly locate a
business or person, find out more information about
the business, see coupons, public responses, and
more.
For more information, refer to “Local” on page 221.
Lookout Security
Lookout Security™ provides mobile device-specific
security features that are coupled with a minimal
performance hit.
For more information, refer to “Lookout Security” on
page 222.
DRAFT
Internal Use Only
Understanding Your Device 47
Maps
Launches a Web-based dynamic map that helps
you find local businesses, locate friends, view maps
and get driving directions.
For more information, refer to “Maps” on page 222.
Messaging
Provides access to text and multimedia messaging
(SMS and MMS).
For more information, refer to “Creating and Sending
Messages” on page 132.
Mobile HotSpot
Provides access to the Tethering and Mobile
HotSpot menu where you can use either the USB
tethering or Mobile HotSpot functionality.
For more information, refer to “Mobile HotSpot” on
page 225.
Music player
Launches the built-in Music player that allows you
to play music files that you have stored on your
microSD card. You can also create playlists.
For more information, refer to “Music Player XXX” on
page 191.
My files
Lets you view supported image files and text files
on both your internal storage and microSD card.
Organize and store data, images, and more in your
own personal file folders. Files are stored to either the
internal storage or memory card in separate (user
defined) folders.
For more information, refer to “My Files” on page 226.
DRAFT
Internal Use Only
48
Navigation
Launches a Web-based navigation application.
Caution!
Traffic data is not real-time and directions
may be wrong, dangerous, prohibited, or
involve ferries.
For more information, refer to “Navigation” on page
228.
Phone
Provides the ability to make or answering calls,
access the Contacts list, which is used to store
contact information.
For more information, refer to “Call Functions and
Contacts List” on page 71.
Photo Reader
Allows you to use your camera to identify text and
extract useful information.
For more information, refer to “Photo Reader” on
page 230.
Play Books
Provides access to read over 3 million ebooks on the
go.
For more information, refer to “Play Books” on page
230.
Play Magazines
With Google Play Magazines, you can subscribe to
your favorite magazines and have them available to
read on your phone at any time or any place.
For more information, refer to “Play Magazines” on
page 231.
Play Movies & TV
Rent movies and TV shows on Google Play™ and
watch instantly using the Google Play Movies app.
For more information, refer to “Play Movies & TV” on
page 185.
DRAFT
Internal Use Only
Understanding Your Device 49
Play Music (Google Music)
Launches the built-in Google Music Player that
allows you to play music files that you have both
downloaded from Google Music and stored on
your microSD card.
For more information, refer to “Play Music XXX” on
page 186.
Play Store
Formerly known as the “Android Market”, it provides
access to downloadable applications, games, music,
and movies. The Play Store also allows you to provide
feedback and comments about an application, or flag
an application that might be incompatible with your
phone.
For more information, refer to “Play Store” on page
232.
Polaris Office 5.0
This application is a Microsoft Office compatible
office suite. This application provides a central place
for managing your documents online or offline.
For more information, refer to “Polaris Office 5.0” on
page 235.
S Health
S Health is a wellness application that allows you to
better manage your health by providing you with
relavant information.
For more information, refer to “S Health” o n p a g e 2 3 6 .
S Memo
This application allows you to create memos using
the keypad, your finger, or both. You can add images,
voice recordings, and text all in one place.
For more information, refer to “S Memo” on page 236.
DRAFT
Internal Use Only
50
S Translator
Allows you can easily translate words and phrases
(verbal or text meesages) into many different
languages.
For more information, refer to “S Translator” on page
239.
S Voice
Launches your phone’s built-in voice recognition
system that allows you to initiate several common
tasks without having to touch the phone. Features
include: Call, Text, Navigate, Play music, Memo, and
Driving mode.
For more information, refer to “Using S Voice” on page
90.
Samsung Apps
Allows you to easily download an abundance of
applications to your device. This includes games,
news, reference, social networking, navigation, and
more.
For more information, refer to “Samsung Apps” on
page 240.
Samsung Hub
This is Samsung’s integrated store for media content
that offers a comprehensive and consistent media
service experience. You can browse and purchase all
media content within a single store front.
For more information, refer to “Samsung Hub” on
page 240.
Samsung Link
Allows you to share your on-device media content
with other external devices using DLNA (Digital
Living Network Alliance) and built-in AllShare Play™
technology.
For more information, refer to “Samsung Link” on
page 241.
Samsung Video
Launches your device’s built-in video application
that plays video files stored on your microSD card.
For more information, refer to “Using Samsung Video”
on page 179.
DRAFT
Internal Use Only
Understanding Your Device 51
Samsung WatchON
This application, you can use your phone as a remote
control for your TV.
For more information, refer to “Samsung WatchON”
on page 243.
Settings
Accesses the device’s built-in Settings menu.
For more information, refer to “Changing Your
Settings” on page 275.
Story Album
Allows you to create a digital Album of your story in
media. Special moments will be on a timeline, and if
you wish, you can have your album published as a hard
copy.
For more information, refer to “Story Album” on page
243.
T-Mobile My Account
This application provides you online access to
account information such as your current activity,
billing information, service plans, downloads, and
other information.
For more information, refer to “T-Mobile My Account”
on page 244.
T-Mobile Name ID
Allows you to modify the on-screen Caller ID
information.
T-Mobile TV
Allows you to watch live mobile TV on your device.
This application is a subscription service.
For more information, refer to “T-Mobile TV” on page
244.
Talk
Launches a Web-based Google Talk application that
lets you chat and video conference with family and
friends over the Internet for free.
For more information, refer to “Google Talk” on page
157.
DRAFT
Internal Use Only
52
Important!
For help closing any or all current applications, use
the Task manager. For more information, refer to
“Task Manager” on page 248.
TripAdvisor
Allows you to watch live mobile TV on your device.
This application is a subscription service.
For more information, refer to “TripAdvisor” on page
248.
Visual Voicemail
Visual Voicemail enables users to view a list of people
who left a voicemail message, and listen to the any
message they want without being limited to
chronological order.
For more information, refer to “Visual Voicemail” on
page 23.
Voice Recorder
Allows you to record an audio file up to one minute
long and then immediately send it as a message.
For more information, refer to “Voice Recorder” on
page 249.
Voice Search
Launches the Google Now application that is used
for voice to text Internet searching.
For more information, refer to “Voice Search” on page
251.
VPN Client
This is a full-featured VPN Client that provides
support for the latest IPSec VPN standards and
provides interoperability with support for all major
VPN Gateways.
For more information, refer to “VPN Client” on page
251.
YouTube
Launches the YouTube Web page via the browser.
For more information, refer to “YouTube” on page
251.
DRAFT
Internal Use Only
Understanding Your Device 53
Screen Navigation
Using the touch screen display and the keys, you can
navigate the features of your device and enter characters.
The following conventions are used in this manual to
describe the navigation action in the procedures.
Navigating Through the Screens
The following terms describe the most common hardware
and on-screen actions.
•
Press and hold
:
Pressing relates to use of the hardware keys and
buttons to select or activate an item. For example: press the
Navigation key to scroll through a menu. Some buttons and keys
require you to press and hold them to activate a feature, for
example, you press the Lock key to lock and unlock the phone.
•
Tap
: Use a brief touch to select items on the display or to enter
text on the virtual QWERTY keyboard. For example: touch an
Application icon to open the application. A light touch works best.
•
Touch and hold
: Touch and hold an icon or key to open the
available options, or to access a pop-up menu. For example:
touch and hold from the Home screen to access a menu of
customization options.
Press and hold Tap Touch and hold
DRAFT
Internal Use Only
54
•
Flick
: Move your finger in lighter, quicker strokes than swiping.
This finger gesture is always used in a vertical motion, such as
when flicking through contacts or a message list.
•
Swipe or slide
: Quickly drag your finger vertically or horizontally
across the screen. This allows you to move the area of focus or to
scroll through a list. For example: slide your finger left or right on
the Home screen to scroll among the seven panels.
•
Drag
: Press and hold your finger with some pressure before you
start to move it. Do not release your finger until you have reached
the target position.
•
Rotate
: Automatically change the screen orientation from portrait
to landscape by turning the device sideways. For example: rotate
to landscape orientation when entering text, to provide a larger
keyboard, or when viewing web content to minimize scrolling.
Flick Swipe or slide
Rotate
and Drag
DRAFT
Internal Use Only
Understanding Your Device 55
•
Pinch
: “Pinch” the screen using your thumb and forefinger to
zoom out when viewing a picture or a Web page. (Move fingers
inward to zoom out.)
•
Spread
: “Spread” the screen using your thumb and forefinger to
zoom in when viewing a picture or a Web page. (Move fingers
outward to zoom in.)
Note:
These screens can be re-arranged in any desired order.
For more information, refer to “Customizing the
Screens” on page 60.
•
Motion Navigation and Activation
: The device comes equipped
with the ability to assign specific functions to certain device
actions that are detected by both the accelerometer and
gyroscope.
Note:
Motion must be enabled for this feature to be active. For
more information, refer to “Motions and Gestures
Settings” on page 324.
Pinch (Zoom Out)
Spread (Zoom In)
DRAFT
Internal Use Only
56
Using Motions and Gestures
By activating the various motion and gesture features within
this menu (page 324), you can access a variety of time
saving functions.
Caution!
Excessive shaking or impact to the device may cause
unintended results. To learn how to properly control
motions, tap (
Apps
) ➔
Settings
➔
My device
tab
➔
Motions and gestures
. When tapped, each entry
comes with an on-screen tutorial.
• Air gesture
: Allows you to control your device by performing
motions above the sensor (without touching the device).
•Motion
: Allows you to control your device using natural
movements (on the screen).
• Palm motion
: Allows you to control your device by touching the
screen with your entire hand.
• Gyroscope calibration
: Allows you to properly calibrate your
device’s touch screen.
To activate Air gesture:
1. From the Home screen, press and then tap
Settings
➔ (
My device
tab) ➔
Motions and
gestures
.
2. In a single motion touch and slide the
Air gesture
slider
to the right to turn it on.
3. Read the on-screen notification and tap
OK
.
Note:
At least one feature must be activated before Air gesture
can be activated.
4. Tap
Learn about the sensor and icon
field to review
on-screen information about the Airgestures sensor
and related icon.
5. In a single motion, slide a feature’s activation slider to
the on position ( ).
For more information, refer to “Motions and Gestures
Settings” on page 324.
My device
ON
ON
DRAFT
Internal Use Only
Understanding Your Device 57
To activate Motion:
1. From the Home screen, press and then tap
Settings
➔ (
My device
tab) ➔
Motions and
gestures
.
2. In a single motion touch and slide the
Motion
slider to
the right to turn it on.
3. Read the on-screen notification and tap
OK
.
Note:
At least one feature must be activated before Motion can
be activated.
4. In a single motion, slide a feature’s activation slider to
the on position ( ).
For more information, refer to “Motions and Gestures
Settings” on page 324.
To activate Palm Motion:
1. From the Home screen, press and then tap
Settings
➔ (
My device
tab) ➔
Motions and
gestures
.
2. In a single motion touch and slide the
Palm motion
slider to the right to turn it on.
3. Read the on-screen notification and tap
OK
.
Note:
At least one feature must be activated before Palm
motion can be activated.
4. In a single motion, slide a feature’s activation slider to
the on position ( ).
For more information, refer to “Motions and Gestures
Settings” on page 324.
My device
ON
ON
My device
ON
ON
DRAFT
Internal Use Only
58
Gyroscope Calibration
Calibrate your device by using the built-in gyroscope.
1. From the Home screen, press and then tap
Settings
➔ (
My device
tab) ➔
Motions and
gestures
➔
Gyroscope calibration
.
2. Place the device on a level surface and tap
Calibrate
.
The device adjusts the level of the accelerometer.
During the calibration process a green circle appears
on-screen and the center circle adjusts to the center
position.
Menu Navigation
You can tailor the device’s range of functions to fit your needs
using both menus and applications. Menus, sub-menus, and
features are accessed by scrolling through the available
on-screen menus. Your device defaults with seven screens.
Navigating Through the Application Menus
There are three default Application Menu screens available.
As you add more applications from the Play Store, more
screens are created to house these new apps.
1. From the Home screen, tap (
Apps
). The first
Application Menu screen displays.
•
To close the Applications screen, press
(
Home
)
.
2. Sweep the screen to access the other menus.
3. Tap any of the on-screen icons to launch the
associated application.
My device
DRAFT
Internal Use Only
Understanding Your Device 59
Using Sub-Menus
Sub-menus are available from within most screen and
applications.
1. Press . A sub-menu displays at the bottom of the
screen.
2. Tap an available on-screen option.
Using Context Menus
Context menus (also called pop-up menus) contain options
that apply to a specific item on the screen. They function
similarly to menu options that appear when you right click
your mouse on your desktop computer.
Touch and hold an item on-screen to open its context
menu.
Sub-Menu items
Context
Menu
DRAFT
Internal Use Only
60
Accessing Recently-Used Applications
1. Press and hold to open the recently-used
applications window.
Note:
This recent applications screen also provides access to
the
Task manager
.
2. A pop-up displays the six most recently used
applications.
3. Tap an icon to open the recent application.
Customizing the Screens
You can customize the Home screens (panels) to display the
Widgets, Shortcuts, Folders, or Wallpapers. For example, one
screen could contain the Music Player shortcut and other
forms of media, while another screen might contain
communication apps such as Gmail.
You can customize your Home screen by doing the following:
•
Adding, Deleting, and Rearranging screens
•
Assigning a New Home screen
•
Adding and Removing Primary Shortcuts
•
Sharing Application Information
•
Managing Shortcuts
•
Adding and Removing Widgets
•
Changing the Background (Wallpapers)
Adding and Deleting Screens
Your phone comes with seven screens. You can delete these
screens and then add them back later.
Note:
These screens can be deleted and re-arranged.
DRAFT
Internal Use Only
Understanding Your Device 61
Important!
Your phone can only contain at most seven screens
and at least one screen.
To delete a screen:
1. From the Home screen, press and then tap
Edit page
.
2. Touch and hold, then drag the undesired screen down
to the
Remove
tab ( ).
3. Press to return to the main Home screen.
To add a screen:
1. From the Home screen, press and then tap
Edit page
.
2. Tap (
Add screen
). The newly added screen
appears as the last page.
3. Press to return to the main Home screen.
Rearranging the Screens
1. From the Home screen, press and then tap
Edit page
.
2. Touch and hold a screen and then drag it into its new
location. Upper-left is screen position #1 and bottom-
right is screen last screen.
Assigning a New Home Screen
1. From the Home screen, press and then tap
Edit page
.
2. Tap . The new Home screen then indicates this
(
Home screen
) icon at the top of the selected
screen.
Sharing an App
The device’s Applications menu now comes with a feature
that allows you to share information about your selected
applications with external users.
1. Press and then tap
(
Apps
).
2. Press and then tap
Share apps
.
3. Place a check mark alongside those applications you
wish to share information about and tap
Done
.
DRAFT
Internal Use Only
62
Note:
Shared applications consist of those that have
previously been downloaded from the Play Store.
4. Select a sharing method. Choose from: Bluetooth,
ChatON, Dropbox, Email, Flipboard, Gmail, Messaging,
S Memo, and Wi-Fi Direct. XXX????
5. The recipient will be notified about the receipt of the
new information.
Managing Shortcuts
Note:
To move a shortcut from one screen to another, you
must carefully touch and hold the shortcut and slowly
drag it to the edge of the screen. As the shortcut turns
light blue, you can begin to move it to the adjacent
screen.If this does not work, delete it from its current
screen. Activate the new screen and then add the
selected shortcut.
To add a shortcut from the Applications screen:
1. Press to go to the Home screen.
2. Select a screen location for your new shortcut by
scrolling across your available screens until you reach
the desired one.
3. Tap
Apps
( ) to reveal all your current available
applications. By default, applications are displayed as
an Alphabetical grid.
4. Scroll across the screens and locate your desired
application.
5. Touch and hold the on-screen icon. The new shortcut
then appears to hover over the current screen.
6. While still holding the on-screen icon, position it on the
current screen. Once complete, release the screen to
lock the shortcut into its new position.
To add a shortcut via the Add to Home screen:
1. Press to go to the Home screen.
2. Navigate to a screen with an empty area.
3. Touch and hold an empty area of the screen.
4. From the
Home screen
window, tap
Apps and widgets
➔
Apps
.
DRAFT
Internal Use Only
Understanding Your Device 63
5. Scroll across the pages and in a single motion, touch
and hold an application to place a copy on the current
screen.
To delete a shortcut:
1. Press to go to the Home screen.
2. Touch and hold the desired shortcut. This unlocks it
from its location on the current screen.
3. Drag the shortcut over the
Remove
tab ( ) and
release it.
Adding and Removing Primary Shortcuts
Note:
You can change any of your primary shortcuts with the
exception of the
Apps
shortcut.
To remove a primary shortcut:
1. Press to go to the Home screen.
2. Touch and hold the primary shortcut you want to
replace, then drag it to an empty space on any
available screen. The primary shortcuts are now
updated to show an empty slot.
To insert a new primary shortcut:
1. Press and then tap
(
Apps
).
2. Locate your desired application, then touch and hold
the on-screen icon to position it on a desired screen.
For more information, refer to “Managing Shortcuts”
on page 62.
3. Locate the screen with the desired shortcut you want
to add as the new primary shortcut.
4. Touch and hold the shortcut until it detaches from the
screen.
5. In a single motion, touch and hold the new shortcut,
then drag it into the empty space within the row of
primary shortcuts. The new primary shortcut will now
appear on both the Home and Extended screens.
DRAFT
Internal Use Only
64
Adding and Removing Widgets
Widgets are self-contained applications that can be placed
on any screen. Unlike shortcuts, widgets appear as
applications.
To add a Widget:
1. Press and then tap
(
Apps
) ➔
Widgets
tab.
2. Scroll across the Widget pages and locate a desired
Widget.
3. Touch and hold an available Widget until it detaches
from the screen.
4. While still holding the Widget, scroll left or right across
the available screens and let go of the Widget to place
it on your current screen.
To remove a Widget:
1. Touch and hold a Widget until it unlocks from the
current screen.
2. Drag the widget over the
Remove
tab ( ) and
release it.
•
As you place the Widget into the Trash, both items turn red.
•
This action doesn’t delete the Widget, it just removes it from the
current screen.
To place a widget onto a different screen:
1. Touch and hold the widget until it becomes
transparent.
2. Slowly drag it past the edge of the screen until the
adjacent page appears highlighted and it then snaps
onto the new page.
3. Drag the widget to its desired position on the new
screen.
4. Repeat these steps to continue moving it to other
screens.
DRAFT
Internal Use Only
Understanding Your Device 65
Managing Wallpapers
Wallpapers consist of either Gallery images (user taken), Live
wallpapers (animated backgrounds), or Wallpaper gallery
(default phone wallpapers).
Note:
Selecting animated Live wallpapers will require
additional battery power.
To change the current Home screen wallpaper:
1. Navigate to any screen.
– or –
Press to go to the Home screen.
2. Touch and hold an empty area of the screen.
3. From the
Home screen
window tap
Set wallpaper
➔
Home screen
.
4. Select a Wallpaper type:
•
Tap
Gallery
to select from a user image stored in the camera
image gallery, crop the image, and tap
Done
.
•
Tap
Live wallpapers
to select from a list of animated
backgrounds, once done tap
Set wallpaper
.
•
Tap
Wallpapers
, scroll through the images, tap a wallpaper
image, then tap
Set wallpaper
.
Note:
Wallpapers supports the following image types: JPEG,
PNG, GIF, BMP, and WBMP.
To change Wallpapers from Settings Menu:
1. From the Home screen, press and then tap
Settings
➔
Display
➔
Wallpaper
.
– or –
Touch and hold an empty area of the screen and select
Set wallpaper
.
2. Choose from
Home screen
,
Lock screen
, or
Home and
lock screen
.
Note:
The
Home and lock screens
is an additional option that
allows you to change both screens at the same time.
3. Select a wallpaper type (
Gallery
,
Live wallpaper
, or
Wallpapers
).
4. Choose an image and tap
Done
or
Set wallpaper
.
DRAFT
Internal Use Only
66
To change the current Lock screen wallpaper:
1. Navigate to any screen, touch and hold an empty area
of the screen, and tap
Set wallpaper
➔
Lock screen
.
– or –
From the Home screen, press and then tap
Settings
➔
Display
➔
Wallpaper
➔
Lock screen
.
2. Select a Wallpaper type:
•
Tap
Gallery
to select from a user image stored in the camera
image gallery, crop the image, and tap
Done
.
•
Tap
Wallpaper
, scroll through the images, tap a wallpaper
image, then tap
Set wallpaper
.
DRAFT
Internal Use Only
Memory Card 67
Section 3: Memory Card
Your device lets you use a microSD card (also referred to as a
memory card) to expand available memory space. This
secure digital card enables you to exchange images, music,
and data between SD-compatible devices. This section
addresses the features and options of your device’s SD
functionality. The device has a USB SD card mode.
•
microSD memory cards include capacities of up to 2GB.
•
microSDHC™ memory card types can range from 4GB to up to
32GB.
•
microSDXC™ memory card types can include capacities greater
than 32GB.
Using the SD Card
There are several methods for using the SD card:
1. Connecting to your PC to store files (such as music,
videos, or other types of files and media).
2. To activate the camera, video, music player, and other
dependant media or applications.
Important!
Your device can support SDHC cards up to 64GB
capacity.
SD card Overview
After mounting an SD card in the device you can use your
computer to access and manage the SD card.
Important!
If access to the external SD card is not available,
download and install the USB drivers.
microSD Icon Indicators
The following icons show your microSD card connection
status at a glance:
the card can now safely be removed.
the card is being prepared for use and for
mounting.
the card has been improperly removed.
DRAFT
Internal Use Only
68
Important! DO NOT
remove a microSD card while the device is
accessing or transferring files. Doing so will result
in loss or damage of data. Make sure your battery
is fully charged before using the microSD card.
Your data may become damaged or lost if the
battery runs out while you are using the microSD
card.
Mounting the SD Card
To store photos, music, videos, and other applications. You
must mount (install) the SD card prior to use. Mounting the
SD card establishes a USB connection with your computer.
1. From the Home screen, press and then tap
Settings
➔ (
More
tab) ➔
Storage
.
2. Tap
Mount
SD card
.
Communicating with the SD card
1. Insert the SD card into the external, SD card slot (For
more information, refer to “Installing the microSD
Memory Card” on page 11.)
2. Verify the card is properly mounted.
Note:
Your device is configured to be used as a storage/media
device by default. If it does not respond properly, you will
need to verify the Debugging mode is not enabled.
3. Connect the USB cable to the phone and connect the
cable to the computer.
4. Confirm the new mounted drive appears as a new drive
on your computer. As soon as the connection is
established a drive letter is assigned to the phone’s
storage device.
5. To disconnect the new drive, simply remove the USB
cable from your device.
DRAFT
Internal Use Only
Memory Card 69
Unmounting the SD card
Unmounting the SD card prevents corruption and damage to
the SD card while removing it from the slot.
1. From the Home screen, press and then tap
Settings
➔
More
tab ➔
Storage
.
2. Tap
Unmount
SD card
➔
OK
.
3. After the “
SD card will be unmounted
” message
displays and the
Mount SD card
now appears in the
menu list, remove the SD card. For more information,
refer to “Removing the microSD Memory Card” on
page 11.
SD card Memory Status
To view the memory allocation for your external SD card:
From the Home screen, press and then tap
Settings
➔
More
tab ➔
Storage
.
The available memory displays under both the Device
memory and SD card headings.
Erasing Files from the SD card
To erase files from the SD card using the device:
1. Ensure the SD card is mounted.
2. From the Home screen, press and then tap
Settings
➔
More
tab ➔
Storage
➔
Mount SD card
.
3. Tap
Format SD card
➔
Format SD card
➔
Delete all
to
format the SD card. The SD card formats and erases all
the data stored on it.
DRAFT
Internal Use Only
70
Factory Data Reset
From this menu you can reset your phone and sound settings
to the factory default settings.
1. From the Home screen, press and then tap
Settings
➔ (
Accounts
tab) ➔
Backup and
reset
.
2. Tap
Factory data reset
. This action erases all data from
your device except current system software and
bundled applications, or SD card files such as music or
photos.
Note:
This feature provides an option to format the internal
USB storage, not the microSD card.
3. Tap
Reset device
➔
Delete all
.
DRAFT
Internal Use Only
Call Functions and Contacts List 71
Section 4: Call Functions and Contacts List
This section describes features and functionality associated
with making or answering calls, and the Contacts list, which
is used to store contact information.
Displaying Your Phone Number
From the Home screen, press and then tap
Settings
➔ (
More
tab) ➔
About device
➔
Status
. Your phone number displays in the
My phone number
field.
Note:
The device’s
Settings
menu can also be activated
by pressing and then tapping (
Apps
) ➔
(
Settings
).
Making a Call
You can store phone numbers that are regularly used to the
SIM card or to the device’s memory. These entries are
referred to as the
Contacts list
.
1. From the Home screen, tap (
Phone
).
2. Enter the phone number and then tap .
If you make a mistake while dialing, tap to
clear the last digit. Touch and hold to clear the
entire sequence.
Note:
When you activate the Auto redial option in the
Call settings
➔
Additional settings
menu, the device
automatically redials up to 10 times when the person
does not answer the call or is already on the phone,
provided your call is not sent to voicemail.
Note:
If your screen goes black during your interaction with
the device (launching Keypad, etc.), you might be
accidentally swiping over the front sensors.
DRAFT
Internal Use Only
72
Quick Dialing a Number from the Contacts List
1. From the Home screen, tap (
Contacts
).
2. Locate a contact from the list.
3. In a single motion, touch and drag your finger over the
number by going to the right. This action places a call
to the recipient.
Running a Call in the Background
If you exit the current call screen and return to the Home
screen, you are visually notified that you are still on an active
call by the green phone icon within the Status bar.
This is the best way to stay on your current call and do
something else (multi-task) such as access the Contacts list,
view a recent email, locate a picture, etc..
Ending a Call
Briefly tap key to end the call.
Note:
To redial a recent number, tap at the end of the call
or locate the number from the Logs list, tap the entry
and tap
Call
.
Quick
Quick
Texting
Calling
In Call Notification
Call
DRAFT
Internal Use Only
Call Functions and Contacts List 73
Ending a Call from the Status Bar
1. From an active call, you can launch a separate
application or return to the Home screen. The current
call is kept active in the background.
2. Tap the Status bar to reveal the Notifications tab, and
then drag the tab to the bottom of the screen to open
the Notifications panel (1).
3. Tap
End
to end the currently active call (2).
Making Emergency Calls
If you do not have a SIM card installed the first time you turn
on the phone, the
Insert SIM card to make calls
message
displays and an animated tutorial shows you how to install
the SIM card.
Without a SIM card, you can only make an emergency call
with the phone; normal cell phone service is not available.
Making an Emergency Call Without a SIM card
installed
1. Tap
Emergency call
from the on-screen display to make
an emergency call.
2. Enter 9-1-1 and tap . Complete your call.
During this type of call, you will have access to the
Speaker mode, Keypad, and End Call features.
Note:
Selecting Location consent may drain battery power. For
more information, refer to “Power Saving Mode” on
page 341.
3. Tap to exit this calling mode.
DRAFT
Internal Use Only
74
Making an Emergency Call With a SIM card installed
The Emergency calling mode makes redialing an emergency
number a 1-tap process. Before you can resume normal
calling operations, you should first exit this mode.
1. Swipe the Lock screen to unlock the device.
2. From the Home screen, tap .
3. Enter the emergency number (ex: 911) and then tap
.
4. Complete your call. During this type of call, you will
have access to the Speaker mode, Keypad, and End
Call features.
Note:
This mode can drain your battery power more rapidly
than a normal calling mode.
5. At the Emergency Callback screen, follow the
on-screen instructions.
Dialing Options
When you enter numbers on the Keypad, you will see three
on-screen options.
From the keypad screen, use one of the following options:
•
Voicemail
( ) to access your Voicemail service.
•
Call
( ) to call the entered number.
•
Delete
( ) to delete digits from the current number.
DRAFT
Internal Use Only
Call Functions and Contacts List 75
To view additional dialing options:
After entering a number, tap :
• Send message
to send the current caller a text message while
still maintaining the current call active.
• Add to Contacts
to add the current number to either a new or
existing Contacts entry.
• Speed dial setting
to access the Speed dialing setting menu
where you can assign a speed dial location to a current
Contacts entry.
• Add 2-sec pause
to insert a two-second pause to enter a
2-second delay within a number string (the phone continues
dialing after 2 seconds without any additional keys being
pressed.
Tip:
You can create pauses longer than two seconds by
entering multiple 2 second pauses.
• Add wait
to insert a hard pause within the number string (the
phone waits for your input). A wait requires that any
consecutive numbers be manually sent by tapping
Yes
.
• Ripple effect
to enable/disable the on-screen ripple effect that
occurs when you tap the screen.
• Call settings
to provide you access to the Call settings screen.
Answering a Call
When somebody calls you, the phone rings and displays the
incoming call image. The caller's phone number, picture, or
name if stored in Contacts List, displays.
At the incoming call screen:
•
Touch and slide in any direction to answer the call.
•
Touch and slide in any direction to reject the call.
•
Touch and drag the
Reject call with message
tab upward
and tap a predefined rejection message or tap
Create new
message
to create a new custom outgoing response.
Pressing the Volume down button mutes the ringer.
If the incoming call is from a number stored in your Contacts,
the entry’s name is displayed. You may also see the caller’s
phone number, if available.
DRAFT
Internal Use Only
76
Managing Reject Calls
This feature allows you to categorize both known and
unknown callers as rejected contacts. These Contacts are
then added to you Rejection list which can be managed for
individual entries from within the Contacts list or as a whole
from the Call rejection screen.
1. From the Home screen, tap .
2. Press and then tap
Call settings
➔
Call rejection
.
3. Tap the
Auto reject mode
field to configure your
automatic rejection settings. Rejected calls are routed
automatically to your voicemail. Choose from:
•Off
: disbales the auto rejection feature.
• All numbers
: enables the features for all known and unknown
numbers, including those contacts that are not assigned to the
rejection list.
• Auto reject numbers
: automatically rejects all entries assigned
to the Reject list/Blacklist.
Touch and
slide in any
direction to Touch and slide
in any direction
to reject the call
Touch and drag
upward to reject
with a message
answer the
call
DRAFT
Internal Use Only
Call Functions and Contacts List 77
Adding numbers to the rejection list
Entries can be added to the list via either the Contacts menu
or via the Auto reject list menu. The Contacts menu option
assigns all numbers for an individual as rejected. The Auto
reject list allows to assign individual numbers.
To assign multiple numbers as rejected via Contacts:
1. From the Home screen, tap (
Contacts
).
2. Locate an entry and tap it to open the Contact
Overview Screen (page 118).
3. Press and then tap
Add to reject list
. All phone
numbers associated with this entry are then added to
the reject list.
To assign single number as rejected via Auto reject list:
1. From the Home screen, tap .
2. Press and then tap
Call settings
➔
Call rejection
➔
Auto reject list
.
3. Tap (
Create
) and either enter the phone number
or select a Contact from your Logs or Contacts list.
4. Tap
Save
to complete the assignment.
International Calls
1. From the Home screen, tap and then touch and
hold until the device shows “+” on-screen.
2. Use the on-screen keypad to enter the country code,
area code, and phone number.
3. If you make a mistake, tap once to delete a
single digit.
– or –
Touch and hold to delete all digits.
4. Tap .
DRAFT
Internal Use Only
78
Pause Dialing
You can dial or save phone numbers with pauses for use with
automated systems, such as voicemail or financial phone
numbers.
•
2-Second Pause
automatically sends the next set of numbers
after a two-second pause. This is indicated in the number string
as a comma (
,
).
1. From the Home screen, tap and use the
on-screen keypad to enter the phone number.
2. Press and then tap
Add 2-sec pause
. This feature
adds an automatic two-second pause.
3. Use the keypad to enter the additional numbers that
will be dialed automatically after the second pause.
Tip:
You can create pauses longer than three seconds by
entering multiple 2 second pauses.
4. Tap .
Wait Dialing
Inserting a Wait into your dialing sequence means that the
phone waits until it hears a dial tone before proceeding with
the next sequence of numbers.
•
Wait
sends the next set of numbers only after tapping .
This is indicated in the number string as a semicolon (
;
).
Note:
Do not add multiple Waits (;) to a number string as this
will continue to prompt you after each sequence.
1. From the Home screen, tap and use the
on-screen keypad to enter the phone number.
2. Press and then tap
Add wait
. This feature causes
the phone to require your acceptance before sending
the next set of entered digits.
3. Tap .
4. Once prompted to
Send the following tones?
, tap
to dial the remaining digits.
Yes
Yes
DRAFT
Internal Use Only
Call Functions and Contacts List 79
Redialing the Last Number
The device stores the numbers of the calls you’ve dialed,
received, or missed if the caller is identified.
To recall any of these numbers:
1. From the Home screen, tap .
2. Tap the (
Logs
tab) to display the list of recent
calls.
3. Tap the name/number and tap .
Speed Dialing
Once you have stored phone numbers from your Contacts
List, you can set up to 99 speed dial entries (2-100) and then
dial them easily whenever you want, simply by touching the
associated numeric key.
Note:
Speed dial location #1 must be reserved for Voicemail
use.
Setting Up Speed Dial Entries
Important!
Speed dial location #1 is reserved for Voicemail. No
other number can be assigned to this slot.
1. From the Home screen, tap ➔ (
Keypad
tab).
2. Press
and then tap
Speed dial setting
. The
Speed
dial setting
screen displays a virtual list of locations
with the numbers 2 through 100.
3. Tap an unassigned number slot. The
Select contact
screen displays.
4. Tap a contact and select a number to assign it to the
speed dial location. The selected contact number/
image is displayed in the speed dial number box.
DRAFT
Internal Use Only
80
Changing a Speed Dial Entry Order
1. From the Home screen, tap ➔ (
Keypad
tab).
2. Press
and then tap
Speed dial setting
.
Important!
The number 1 is reserved for Voicemail and
another number cannot be assigned to this slot.
3. Press
and then tap
Change order
.
4. Tap the current entry then tap the new target speed
dial location.
Note:
Tapping 2 existing speed dial locations causes the
entries to switch positions.
5. Tap
Done
. to store the change.
6. Press to return to the previous screen.
Removing a Speed Dial Entry
1. From the Home screen, tap ➔
Keypad
tab.
2. Press
and then tap
Speed dial setting
.
3. Touch and hold a existing on-screen speed dial
location and select
Remove
from the context menu.
– or –
Press
and then tap
Remove
. Tap an entry and
select (
Remove entry
). Select either
Done
(to
complete the deletion) or
Cancel
(to exit).
4. Press to return to the previous screen.
Making a Call Using Speed Dial
You can assign a short cut number to a phone number in the
Contacts List for speed dialing.
1. From the Home screen, tap .
2. Touch and hold a previously created speed dial location
(numbers 2-100, or 1 if you are dialing voice mail) until
the number begins to dial.
3. If you are not certain of the speed dial location, tap
➔
➔
Speed dial setting
and tap a speed
dial number to view the assigned phone number.
DRAFT
Internal Use Only
Call Functions and Contacts List 81
Wi-Fi Calling
Wi-Fi Calling is a free feature for T-Mobile customers using
this device with the new ISIM card. Wi-Fi Calling is an
excellent solution for coverage issues in and around the
home or wherever cellular coverage is limited. Minutes used
while connected to the Wi-Fi network count against available
rate plan minutes.
The benefits of Wi-Fi Calling include the following:
•
Wi-Fi Calling provides a coverage option to improve upon your
current in-home coverage experience
•
Wi-Fi Calling works anywhere there is a Wi-Fi signal available
Important!
A new micro SIM card must be installed within the
device prior to using this feature. Wi-Fi must first
be active and communicating prior to launching
Wi-Fi Calling.
Note:
This feature is active by default. If you are in an active
Wi-Fi call and go out of range of your Wi-Fi, the call will
be dropped.
Activating Wi-Fi
1. From the Home screen, press and then tap
Settings
➔ (
Connections
tab).
2. Locate the
Wi-Fi
field (and in a single motion touch and
slide to the right to turn it on .
The slider color indicates the activation status.
3. Select a Wi-Fi network from the list of available
networks. Follow the on-screen instructions to
complete connection.
Note:
To avoid international data roaming fees when using
Wi-Fi calling when outside the United States, the Data
Roaming feature on your device must be turned off.
Wi-Fi Connected
Displays when Wi-Fi is connected, active, and
communicating with a Wireless Access Point
(WAP).
Wi-Fi Communication Issue
Displays when Wi-Fi is active and there is an
available open wireless network.
OFF
OFF
ON
ON
DRAFT
Internal Use Only
82
Note:
With certain rate plans, minutes used while connected
to the Wi-Fi network count against available rate plan
minutes.
Important!
If you are not using a new ISIM card, you will
receive an
Error: ERxx Invalid SIM
message. You
must be using a new ISIM card to use this feature.
Activating Wi-Fi Calling
1. Ensure that the
Wi-Fi connected
icon displays on
the Status Bar.
•
If prompted with an on-screen “Did you know your phone can
make calls over Wi-Fi” popup, tap
Learn
and follow the
remaining on-screen instructions. Tap
Next
➔
Done
.
2. From the Home screen, press and then tap
Settings
➔ (
Connections
tab) ➔
More settings
.
3. Locate the
Wi-Fi Calling
field and in a single motion
touch and slide to the right to turn it on
.
4. If (
Missing 911 Address
) displays in the Status
Bar, follow these steps to provide 911 an address for
emergency situations:
•
Log into
my.t-mobile.com
.
•
Click on
Profile
and edit the
Edit customer information
.
•
Enter your emergency location information and complete the
online registration.
5. From the Home screen, press and then tap
Settings
➔
Connections
tab ➔
More settings
➔
Wi-Fi Calling
.
6. Tap
Connection Preferences
and select a preference for
use by the Wi-Fi Calling feature:
• Wi-Fi Preferred
: Wi-Fi network is preferred over cellular
network when making calls. Calling requires you to stay in the
Wi-Fi range.
• Cellular Network Preferred
: The cellular network is preferred
over a Wi-Fi network when making calls.
• Never use Cellular Network
: Use only Wi-Fi for calls.
Do not use Cellular Network, even if available.
OFF
OFF
ON
ON
DRAFT
Internal Use Only
Call Functions and Contacts List 83
7. Tap
OK
to save the setting.
8. From the Home screen, press and then tap
Settings
➔
Connections
tab ➔
More settings.
9. Tap
Wi-Fi Calling
slider to toggle off the feature, then
tap it again to reactivate the feature and re-register
your device with the T-Mobile Network.
10. Confirm (
Wi-Fi Calling Ready
) displays in the
Status Bar.
Launching Wi-Fi Calling
Note:
Verify you are currently connected to a Wireless Access
Point.
1. Ensure that the
Wi-Fi connected
icon displays on the
status bar.
2. Confirm (
Wi-Fi Calling Ready
) displays in the
Status Bar.
3. Use the phone Dialer, Logs, or Contacts list to make a
call.
4. Go to the dialer and make a call. Make sure
(
Wi-Fi Calling in use
) appears during the call.
While Wi-Fi Calling mode is active, the call button shows a
Wi-Fi indicator .
When Wi-Fi Calling is disabled, the call button goes back to
show normal operation .
When Action Then
Displays on the
screen status
bar.
You are connected to the
T-Mobile network and can
make Wi-Fi calls.
Displays on the
screen status
bar.
The Wi-Fi calling feature is
active and in use within an
active call.
Does not display
on the screen
status bar.
You are charged normal
calling rate minutes. For more
information, refer to
“Activating Wi-Fi Calling” on
page 82.
Displays on the
screen status
bar.
There is an error in the use or
911 registration of the Wi-Fi
Calling feature.
DRAFT
Internal Use Only
84
In Call Options
Your device provides a number of features that are available
for use during a call.
Note:
Noise reduction and Extra volume features are disabled
while using Wi-Fi Calling.
Adjusting the Call Volume
During a call, use the Volume keys on the left side of the
device, to adjust the earpiece volume.
During a call, press the
Up
volume key to increase the
volume level and the
Down
volume key to decrease the
level.
– or –
Adjust the audio by enabling selecting an audio preset.
Tap the on-screen
Personalize call sound
button select
an equalizer setting for the incoming call.
•
Enabled/disabled via the Call settings menu (
Call settings
➔
Personalize call sound
). For more information, refer to
“Configuring General Call Settings”
on page 305.
– or –
Quickly add more volume to the incoming audio by
tapping the on-screen
Extra volume
button
From the Home screen, you can also adjust the ring volume
using these keys.
Dialer
Adds a
Activates or
Deactivates
Ends the
call
Places a
call on hold
Mutes or Unmutes
Activates or
Deactivates
Bluetooth
the call Headset
speakerphone
Personalized
call sound
new call
Noise
Reduction
Call duration
Extra volume
DRAFT
Internal Use Only
Call Functions and Contacts List 85
Adjusting Noise Reduction
During a call it may be necessary to adjust the noise
reduction feature. Activating this feature can improve the
quality of your conversation by reducing ambient noise.
1. Press and then tap
Noise reduction off
to toggle
the status and activate the feature.
2. Press and then tap
Noise reduction on
to toggle
the status and deactivate the feature.
Personalizing the Call Sound Setting
During a call it may be necessary to adjust the sound of the
incoming call by selecting an audio equalizer setting for the
current call.
1. Press and then tap (
Personalize call sound
).
2. Confirm the option is enabled .
Note:
If prompted to enable the feature via the Call settings
menu, go to
Call settings
➔
Personalize call sound
.
3. Select an available option.
Choose from: Adapt Sound, Soft sound, Clear sound,
and Off.
Placing a Call on Hold
You can place the current call on hold whenever you want. If
your network supports this service, you can also make
another call while a call is in progress.
To place a call on hold:
1. Tap
Hold
to place the current call on hold.
2. Tap
Unhold
to activate the call that is on hold.
To make a new call while a call is in progress:
1. Enter the new phone number that you wish to dial or
look it up in Call history.
2. Once connected, tap
Add call
to dial the second call.
3. Dial the new phone number and tap .
To switch between the two calls:
Tap
Swap
.
The previous In call number turns gray and displays
On hold. The new active call displays a green
background behind the number.
DRAFT
Internal Use Only
86
Turning the Speakerphone on and off
While on a call, you can use your Speakerphone by following
these steps:
1. Tap (
Speaker off
) to toggle the speakerphone on.
2. Tap (
Speaker on
) to toggle the speakerphone off.
Tip:
When the speaker is turned
On
, the color of the speaker is
green. When the speaker is turned
Off
, the color of the
speaker is white.
Muting a Call
1. Tap (
Mute off
) to turn mute on so the other caller
cannot hear you speaking.
2. Tap (
Mute on
) to turn mute off and resume your
conversation.
Switching to Bluetooth Headset
1. Pair the target Bluetooth headset prior to your call.
2. While on a call, switch to the Bluetooth headset instead
of speaker by tapping (
Headset off
).
3. At the prompt, tap
OK
to enable Bluetooth if it is not
already activated.
4. While on a call, switch back to the device speaker by
tapping (
Headset on
).
More In-call Options
During a call you can save the current caller’s information to
the Contacts list, or create a Memo.
Viewing the Contacts List
During a call you can look up a number in the Contacts list.
1. Press and then tap
Contacts
.
2. Browse the Contacts list for the information you need.
3. Press to return to the active call.
Speaker
Speaker
Mute
Mute
Headset
Headset
DRAFT
Internal Use Only
Call Functions and Contacts List 87
Creating a Message During a Call
During a call you can create a message.
1. Press and then tap
Message
➔ (
Compose
).
2. Address and create the message.
3. Review your message and tap (
Send
).
Creating a Memo During a Call
During a call it may be necessary to record information (a
Note).
1. Press and then tap
Memo
.
2. Use the keyboard to enter the note then tap
Save
.
Multi-Party calls
Making a Multi-Party Call
A multi-party call is a network service that multiple people to
participate in a multi-party or conference call.
For further details about subscribing to this service, contact
T-Mobile customer service.
Setting up a Multi-Party Call
1. From the Home screen, tap .
2. Dial the number for the first participant and tap
.
3. Once connected, tap
Add call
, enter the second phone
number and tap . The first caller is placed on
hold.
4. Wait for the second caller to answer the incoming call
and tap
Merge
. The two calls are now joined into a
multi-party call and display in the order in which they
were called.
DRAFT
Internal Use Only
88
Important!
Multiple callers can be joined to a single
multi-party line. Additional callers participate in a
new Multiparty session and are held in conjunction
with the previous multiparty call. You can swap or
place each multi-party call on hold.
Having a Private Conversation With One Participant
Note:
The Manage conference call option is not available for
multi-party calls created while using the Wi-Fi Calling
feature. You must be on the cellular network to use the
manage feature.
When you have two participants in a multi-party session, it
might be necessary to place one of those participants on
hold so that a private conversation can be held with a single
caller. While you are in a multi-party call:
1. Press and then tap
Manage conference call
.
2. Tap adjacent to the participants you would like
to split from the current multi-line call. The list displays
the callers in the order they were dialed.
Note:
The Manage conference call option is not available for
multi-party calls created while using the Wi-Fi Calling
feature. You must be on the cellular network to use the
manage feature.
3. Tap the participant to which you want to speak
privately.
You can now talk privately to that person while the
other participants can continue to converse with each
other. If there is only one other participant, that person
is placed on hold.
4. To return to the multi-party call, tap the Merge icon. All
of the multi-party call participants can now hear each
other.
Split Caller End Call
DRAFT
Internal Use Only
Call Functions and Contacts List 89
Dropping One Participant
1. Press and then tap
Manage conference call
➔
to the right of the number to drop.
The participant is disconnected and you can continue
the call with the other participant.
2. Tap to end your conversation with the remaining
caller.
Call Waiting
You can answer an incoming call while you have a call in
progress, if this service is supported by the network and you
have previously set the Call waiting option to Activate.
You are notified of an incoming call by a call waiting tone. For
more information, refer to “Configuring Additional Voice Call
Settings” on page 310.
To answer a new call while you have a call in progress:
1. In a single motion, touch and slide it in any
direction to answer the new incoming call.
2. Tap an option from the Accept call after menu:
• Putting xxx on hold
to place the previous caller on hold while
you answer the new incoming call.
• Ending call with xxx
to end the previous call and answer the
new call.
Note:
The new caller appears at the top of the list. The
previous caller is placed on hold and appears at the
bottom of the list.
3. Tap Swap to switch between the two calls. This places
the new caller on hold and activates the previous call.
Important!
The currently active call is displayed with a green
background.
4. Tap
Swap
again to switch back.
End
DRAFT
Internal Use Only
90
Using S Voice
This is a voice recognition application used to activate a wide
variety of functions on your device. This is a natural language
recognition application.
This goes beyond the Google Search Voice Actions feature
that simply recognizes Google commands and search terms.
You can ask it questions (Is it raining in Dallas?) or give it
commands (Show my where to find cheap gas).
1. From the Home screen, tap (
Apps
) ➔
(
S Voice
).
2. Read the on-screen disclaimer information and tap
Confirm
to continue.
3. Review the Terms of Service and tap
Agree
to continue.
4. Navigate through the following on-screen tutorial
screens by reading the information and tapping
Next
,
or tap
Skip
to continue without reading the information.
5. Wake up the application by repeating the phrase
Hi Galaxy
.
Note:
The wake-up command/phrase can be changed from
“Hi Galaxy” to anything else.
6. Tap (
Speak
) if the device does not hear you or
to give it a command.
Example 1:
•
I want to find the best pizza online.
•
Tap and say “Find me the best Pizza”. This launches
an Internet search.
Example 2:
•
I want to go to Cambridge.
•
Tap and say “Navigate to Cambridge”. This launches
the Map application and indicates where these are in relation to
your current position.
DRAFT
Internal Use Only
Call Functions and Contacts List 91
Logs Tab
The Logs tab is a list of the phone numbers (or Contacts
entries) for calls you placed, accepted, or missed. The Logs
tab makes redialing a number fast and easy. It is continually
updated as your device automatically adds new numbers to
the beginning of the list and removes the oldest entries from
the bottom of the list.
The Notification area of the Home screen (upper-left) displays
phone notifications, status, or alerts such as:
Accessing the Logs Tab
1. From the Home screen, tap ➔ (
Logs
tab).
2. Tap an entry to view available options.
Note:
The Logs tab only records calls that occur while the
phone is turned on. If a call is received while it is turned
off, it will not be included in your calling history.
Each entry contains the phone number (if it is available) and
Contacts entry name (if the number is in your Contacts).
Displays when a call is in progress.
Displays when a call was missed.
Indicates all outgoing calls made from your device.
Indicates any received calls that were answered.
Indicates a missed call.
Indicates any received calls that were rejected.
Indicates auto rejected calls.
DRAFT
Internal Use Only
92
Accessing Call log from The Notifications Area
1. Locate from the Notifications area of the Status
bar.
2. Tap the Status bar to reveal the Notifications tab, and
then drag the tab to the bottom of the screen to open
the Notifications panel.
3. Tap the Missed call entry to open the Logs screen.
This list provides easy access to redial an entry, or you can
also choose to access two types of history entry lists
depending on how they are touched.
Call logs - Caller Overview
•
Tap a contact entry name or number to reveal the
Call options
screen:
• Create contact
to save the number if it is not already in your
Contacts.
•View contact
to view the Contact details for the current entry.
•Update existing
to update an existing Contacts entry with the
current number.
•Call
allows you to redial the entry by name or number.
• Send message
allows you to create a new text message to the
selected entry.
•Time
provides the time and date of the call and its duration.
• Copy to dialing screen
press to pass the current
number to your dialer and then edit the selected number before
you place your next outbound call.
•Delete
press to delete the Contacts entry.
• Send number
press to send the current Contacts entry
information to an external recipient.
• Add to reject list
press to add the current phone
number to an automatic rejection list. Similar to a block list, the
selected caller will be blocked from making an incoming calls
to your phone.
•
Touch and hold an entry to display the entry-specific context
menu:
• Copy to dialing screen
to make alterations to the current
phone number prior to redial.
• Add to Contacts
to save the number if it is not already in your
Contacts.
•View contact
to view the information for the currently stored
Contacts entry.
• Send number
to send the current Contacts entry information to
an external recipient.
DRAFT
Internal Use Only
Call Functions and Contacts List 93
• Add to reject list
to add the current phone number to an
automatic rejection list. Similar to a block list, the selected caller
will be blocked from making an incoming calls to your phone.
•Delete
to delete the entry from the Logs list.
Altering Numbers from the Logs List
If you need to make a call from the Logs screen and you
need to alter the number prior to dialing, you can add the
appropriate prefix by prepending the number.
1. From the Home screen, tap ➔ (
Logs
tab).
2. Touch and hold an entry to access the entry-specific
context menu.
3. Tap
Copy to dialing screen
.
4. Edit the number using the on-screen keypad or delete
digits by pressing to erase the numbers.
5. Tap once the number has been changed.
Erasing the Call logs List
You can delete either an individual call log entry or all current
entries from the Logs list.
To clear a single entry from the list:
1. From the Home screen, tap ➔ (
Logs
tab).
2. Touch and hold an entry and select
Delete
➔
Delete
.
To clear all entries from the list:
1. From the Home screen, tap ➔ (
Logs
tab).
2. Press and then tap
Delete.
3. Tap
Select all
.
4. Tap
Delete
➔
Delete
to continue with the erasure.
– or –
Tap
Cancel
to stop the current process.
DRAFT
Internal Use Only
94
Call Duration
1. From the Home screen, tap ➔ (
Logs
tab).
2. Press and then tap
Call duration
.
3. The following times are displayed for Voice and Data:
•Last call
: shows the length of time for the last call.
• Dialed calls
: shows the total length of time for all calls made.
• Received calls
: shows the total length of time for all calls
received.
• All calls
: shows the total length of time for all calls made and
received.
You may reset these times to zero by pressing
then tapping
Reset
.
Viewing Missed Calls from Lock Screen
When you are unable to answer a call for any reason and
your screen is locked, the number of missed calls are
displayed on the Lock screen immediately after a call is
missed.
1. Press (
Power/End
) to reactivate the screen.
2. Touch and drag the button (with the number of missed
calls on it) anywhere on the screen. The Logs tab is
then displayed.
DRAFT
Internal Use Only
Entering Text 95
Section 5: Entering Text
This section describes how to select the desired text input
method when entering characters into your device. This
section also describes the predictive text entry system that
reduces the amount of key strokes associated with entering
text.
Your device comes equipped with an orientation detector that
can tell if the phone is being held in an upright (Portrait) or
sideways (Landscape) orientation. This is useful when
entering text.
Your device also provides several on-screen keypad text
entry options to make the task of text entry that much easier.
Text Input Methods
There are three text input methods available:
•
Google voice typing
: provides a voice to text interface.
•
Samsung keyboard
(default): an on-screen QWERTY
keyboard that can be used in both portrait and landscape
orientation.
•
Swype
: is enabled so as you can enter text as you swipe
across the on-screen keyboard. Instead of tapping each
key, use your finger to trace over each letter of a word.
The on-screen QWERTY keypad works the same in both
portrait and landscape mode.
Selecting the Text Input Method
The Text Input Method can be assigned from within one of
two locations:
Settings Menu:
From the Home screen, press and then tap
Settings
➔ (
My device
tab) ➔
Language and
input
➔
Default
and select an input method.
Text Input field:
1. From a screen where you can enter text, in a single
motion, touch and drag the Status bar down to the
bottom of the screen to open the Notifications screen.
2. Tap (
Choose input method
) and select an
available input method.
My device
DRAFT
Internal Use Only
96
Entering Text Using Swype
Swype™ is the default text input method that allows you to
enter a word by sliding your finger or stylus from letter to
letter, lifting your finger between words. Swype uses error
correcting algorithms and a language model to predict the
next word. Swype also includes a touch predictive text
system.
The on-screen keyboard options are different between the
Android keyboard and Swype on-screen input methods.
Note:
During its initial use, you may be prompted by a series of
Swype Connect set up screens. Follow the initial
on-screen set up instructions.
Enabling and Configuring Swype
If you configure another text input method (Samsung
keyboard) you must re-enable Swype before using the
Swype keyboard.
When Swype is enabled there can also be normal keyboard
functionality.
1. From the Home screen, press and then tap
Settings
➔
My device
tab ➔
Language and input
.
2. Tap
Default
➔
Swype
.
Swype Settings
To configure Swype settings:
1. From the Home screen, press and then tap
Settings
➔
My device
tab ➔
Language and input
➔
(adjacent to the
Swype
field).
2. Tap
How to Swype
to view an on-screen manual for
Swype.
3. Tap
Gestures
to view an on-screen reference page
related to Gesture usage.
4. Tap
Preferences
to alter these settings:
• Vibrate on keypress
: activates a vibration sensation as you
enter text using the keypad.
• Sound on keypress
: turns on sounds generated by the Swype
application.
• Show helpful tips
: turns on a flashing indicator for quick help.
DRAFT
Internal Use Only
Entering Text 97
•Auto-spacing
: automatically inserts a space between words.
When you finish a word, just lift your finger or stylus and start
the next word.
•Auto-capitalization
: automatically capitalizes the first letter of
a sentence.
• Show complete trace
: once enabled, sets wether or not to
display the complete Swype path.
• Pop-up on keypress
: once enabled, displays a character
above an on-screen key while typing.
• Next word prediction
: once enabled, predicts the next word in
your text string based on your current text entries.
Note:
If incorrect words are being entered as you type,
disabled this feature.
• Reset Swype’s dictionary
: once enabled, deletes any words
you have added to Swype’s dictionary.
•Version
: displays the software version information.
5. Tap
Language Options
to activate and select the current
text input language. Default language is US English.
• Living language
: allows you to automatically update Swype
with popular new words. Tap
Accept
to continue the process.
6. Tap
Swype Connect
to activate social media
personalization and configure data settings.
•Register now
: allows you register for the Swype Connect
service which allows you to backup your Swype dictionary and
sync your Swype dictionary across multiple devices.
–
Follow the on-screen instructions to backup and sync your
dictionary based on an email address.
–
Enter the activation code received after your email has been
confirmed.
• Backup & Sync
: when active, allows you to backup your
Swype dictionary and sync your Swype dictionary across
multiple devices.
• Contribute usage data
: when enabled, allows the Nuance
®
application to collect usage data for better word predictions.
• Cellular data
: when enabled, activates cellular data usage by
the Swype application so it can receive program updates,
language downloads, and other related features via your
existing data connection.
DRAFT
Internal Use Only
98
7. Tap
Personalization
to access and manage your
personal dictionary. Log into the available accounts to
add help personalize your personal dictionary with
commonly used words or names from your available
accounts.
• Edit Dictionary
: allows you to edit your current personal Swype
dictionary.
• Facebook
: allows you to log into your current Facebook
account from where contact names are added to your Swype’s
personal dictionary for later use when you enter names into text
fields. Helps recognize familiar names.
• Twitter
: allows you to sign into your existing Twitter account
from where names and words are added to your personal
dictionary. Helps recognize familiar names and words.
•Gmail
: allows you to sign in to your existing Gmail account from
where existing contact information is added to your personal
dictionary. Helps recognize familiar names.
8. Tap
Updates
to update the application if new software
is available.
Swype Text Entry Tips
You can access the SwypeTips application and watch a video
or tutorial on using Swype. You can also use the following
Swype text entry tips.
•
Create a squiggle (like an S shape) to create a double letter (such
as
pp
in apple).
•
Touch and hold a key to view the punctuation menu then make a
selection.
•
Move your finger or stylus over the apostrophe to enter
contractions.
•
Double-touch on the word you want to change to correct a
misspelled word, then touch the delete key to erase one
character. Touch and hold the delete key to erase an entire word.
DRAFT
Internal Use Only
Entering Text 99
Selecting a Text Input Mode in Swype
1. From a screen where you can enter text, tap the text
input field to reveal the on-screen keyboard.
2. With Swype as your text entry method, select one of
the following text mode options:
•ABC
to use Swype with alphanumeric characters from
the on-screen keyboard.
•SYM
(Symbol)
to enter numbers and symbols from the
on-screen keyboard.
Note:
After typing an initial uppercase character, the key
changes to and all letters that follow are in lower
case.
Swype Keyboard Overview
• Recipients
: a field where you can enter the recipients of the
current message. You can choose from
Groups
,
Favorites
,
Contacts
, or
Logs
.
• Text Input field
: a field where text, number, or other characters
can be entered.
•CAPS/ALT key
: When in 123ABC mode, this key changes the
capitalization of the subsequent entered characters. When in
SYM mode, this key can show additional symbol characters.
•SWYPE settings
: Touch and hold this button to access the
Swype settings screen.
• Text Input mode
: There are two available modes:
123ABC
and
SYM.
–
123ABC mode contains alphanumeric characters and a few
common punctuation marks. Text mode button indicates
SYM
.
–
SYM mode contains only symbols and numbers. Text mode
button indicates
123ABC
.
Edit
ABC
123
+!=
DRAFT
Internal Use Only
100
Using 123ABC Mode in SWYPE
In
123ABC
mode, you can enter only letters and a few
common punctuation marks from the on-screen keyboard.
The text mode key shows .
1. From a screen where you can enter text, tap the text
input field to reveal the on-screen keyboard.
2. Tap to configure the keyboard for 123ABC mode
(showing letters and numbers on the on-screen keys).
Once in this mode, the text input type shows .
Note:
After typing an initial uppercase character, the key
changes to and all letters that follow are in lower
case.
3. Swipe your finger continuously over the letters to form
a word.
–
If you make a mistake, tap to erase a single character.
Touch and hold to erase an entire word.
4. Tap (
Send
) to deliver the message.
Text input field
CAPS/ALT
Text Input mode
Delete
Current
SWYPE Settings
key
Recipients
Mode
Suggestions
123
+!=
Edit
ABC
123
+!=
DRAFT
Internal Use Only
Entering Text 101
By default, the first letter of an entry is capitalized and the
following letters are lower case. After a word is entered and
you lift your finger, the cursor automatically adds a space
after the word.
Note:
If multiple word choices exist for your Swype entry, an
on-screen popup appears to provide additional word
choices.
Entering Numbers and Symbols in SWYPE
By using the on-screen keyboard in portrait mode, some
symbols are not available (such as Emoticons or Smileys).
In SYM mode using Swype, you can only enter symbols and
numbers from the on-screen keyboard.
Once in SYM mode, the text mode key shows .
1. From a screen where you can enter text, tap the text
input field to reveal the on-screen keyboard.
2. Tap to configure the keyboard for SYM mode.
Once in this mode, the text input type shows .
3. Tap the on-screen key for the number or symbol you
want to enter.
4. Tap to select from additional symbols.
For example:
•
To enter
®
: tap
➔
and select the
®
key.
All lowercase
Displays when the next character is entered in
lowercase. Pressing this while in 123SYM mode,
reveals additional numeric-symbols keys.
Initial Uppercase
Displays when the first character of each word is
entered as uppercase but all subsequent
characters are lowercase.
All Uppercase
Displays when all characters will be entered as
uppercase characters.
Edit
ABC
123
+!=
Edit
ABC
2
1
123
+!=
2
1
DRAFT
Internal Use Only
102
Using the Samsung Keyboard
This QWERTY keyboard can be used to enter text in either a
Portrait or landscape orientation. The only difference
between the two orientations are the sizes of the keys.
From a screen where you enter text, rotate your phone
counterclockwise to a landscape orientation. The on-screen
QWERTY keyboard displays.
The Samsung Keyboard
This device has a built-in, QWERTY keypad (portrait mode) or
keyboard (landscape mode). Using the QWERTY keypad/
keyboard, you can type letter, numbers, punctuation, and
other characters.
To use the Samsung keyboard you must first configure the
settings to default to the Samsung keyboard.
1. From the Home screen, press and then tap
Settings
➔ (
My device
tab) ➔
Language and
input
➔
Default
➔
Samsung keyboard
.
– or –
From a screen where you can enter text, in a single
motion, touch and drag the Status bar down to the
bottom of the screen, then select (
Choose input
method
)
➔
Samsung keyboard
.
2. The virtual keyboard is then assigned to the Samsung
keyboard configuration for all subsequent text input.
My device
Text input field
Shift key
Input Mode
Input Options
DeleteCurrent Mode
Indicator Send
/Settings
DRAFT
Internal Use Only
Entering Text 103
Entering Text using Different Input Options
Although the default text input method with the Samsung
keyboard is to use the on-screen keys you have other
options.
Note:
To access settings, touch and hold the
Input Methods
button , then tap (
Settings
) then select it from
the available options.
1. From within an active message, tap the text input field
to reveal the on-screen keyboard.
2. Tap (
Input Methods
) to use the default Voice
typing input method to convert your spoken words to
on-screen text.
– or –
Touch and hold to select from other input
methods such as:
• Handwriting
to launch an on-screen handwriting area that can
be used to convert on-screen patterns (text) to text.
•Clipboard
to launch the device’s clipboard area from where
you can select a current clipboard item to place in your current
message.
• Picture Reader
to the camera and have the built-in Phot
Reader application recognize text.
• Keyboard alignment
to detach the on-screen keyboard so that
you can manually dock it anywhere on the current text entry
screen. Selecting the feature again redocks the keyboard into
its original location using the original size.
•Settings
to access the Samsung keyboard settings menu.
Changing the Text Input Mode in Keyboard
1. From a screen where you can enter text, tap the text
input field to reveal the on-screen keyboard.
2. With Samsung keyboard as your text entry method,
select one of the following text mode options:
•Abc
: to use alphabetic characters from the on-screen
keyboard. In this mode, the text mode button displays .
•Symbol/Numeric
: to enter numbers by pressing the
numbers selecting them on the on-screen keyboard. In this
mode, the text mode button displays .
There are up to 2 available pages of numeric symbols available
by tapping .
ABC
ABC
Sym
Sym
Sym
Sym
ABC
ABC
1/2
1/2
DRAFT
Internal Use Only
104
Note:
After typing an initial uppercase character, tap to
toggle capitalization.
By default, the first letter of a new entry is capitalized and the
following letters are lowercased. After a character is entered,
the cursor automatically advances to the next space.
Using ABC Mode in Samsung Keyboard
1. From a screen where you can enter text, tap the text
input field to reveal the on-screen keyboard.
2. Tap to configure the keyboard for ABC mode.
Once in this mode, the text input type shows .
Note:
After typing an initial uppercase character, the key
changes to and all letters that follow are in lower
case.
3. Enter your text using the on-screen keyboard.
–
If you make a mistake, tap to erase a single character.
Touch and hold to erase an entire word.
4. Tap (
Send
) to deliver the message.
All lowercase
Displays when the next character is entered in
lowercase.
Initial Uppercase
Displays when the first character of each word is
entered as uppercase but all subsequent
characters are lowercase.
All Uppercase
Displays when all characters will be entered as
uppercase characters.
ABC
ABC
Sym
Sym
DRAFT
Internal Use Only
Entering Text 105
Using Symbol/Numeric Mode
Use the Symbol/Numeric Mode to add numbers, symbols,
or emoticons. While in this mode, the text mode key
displays .
1. From a screen where you can enter text, tap the text
input field to reveal the on-screen keyboard. Rotate the
phone counterclockwise to a landscape orientation, if
desired.
2. Tap to configure the keyboard for Symbol
mode. Once in this mode, the text input type shows
.
3. Tap a number, symbol, or emoticon character.
4. Tap to return to ABC mode.
To enter symbols:
1. Tap to configure the keyboard for Symbol
mode.
2. Tap the appropriate symbol key.
– or –
Tap button to cycle through additional pages.
•
The first number on this key indicates which page (1 or 2) of
additional characters is active.
Samsung Keyboard Settings
1. From the Home screen, press and then tap
Settings
➔ (
My device
tab) ➔
Language and
input
➔ (adjacent to the
Samsung keyboard
field).
– or –
From within an active text entry screen, touch and hold
(
Input Methods
), drag across the icons, and
select (
Settings
) to reveal the
Samsung keyboard
settings
screen.
2. Set any of the following options:
• Portrait keyboard types
allows you to choose a keyboard
configuration (Qwerty keyboard [default] or 3x4 keyboard).
• Input language
sets the input language. Tap a language from
the available list. The keyboard is updated to the selected
language.
• Predictive text
enables predictive text entry mode. This must
be enabled to gain access to the advanced settings. Touch and
hold to access the advanced settings.
ABC
ABC
Sym
Sym
ABC
ABC
ABC
ABC
Sym
Sym
1/2
1/2
My device
DRAFT
Internal Use Only
106
• Continuous input
like using Swipe, allows you to enter text by
sliding your fingers across the on-screen keyboard. This
feature is optimized for use with the on-screen QWERTY
keyboard.
• Cursor control
when enabled, allows you to control your
on-screen cursor by moving your finger across the keyboard.
• Handwriting
allows you to configure the handwriting settings
such as: Input languages, Recognition type, Recognition time,
Pen thickness, Pen color, and About.
• Advanced
provides access to additional settings such as:
–
Auto capitalization
automatically capitalizes the first letter of
the first word in each sentence (standard English style).
–
Auto spacing
automatically inserts space between words.
–
Auto-punctuate
automatically inserts a full stop in a sentence
by tapping the space bar twice when using the on-screen
QWERTY keyboard.
–
Character preview
provides an automatic preview of the
current character selection within the text string. This is helpful
when multiple characters are available within one key.
–
Key-tap vibration
enables vibration feedback when you tap an
on-screen key.
–
Key-tap sound
enables auditory feedback when you tap an
on-screen key.
•Help
launches a brief on-screen help tutorial covering the main
concepts related to the Samsung keyboard.
• Reset settings
resets the keyboard settings back to their
original configuration.
Using Predictive Text
The predictive text system provides next-letter prediction and
regional error correction, which compensates for users
pressing the wrong keys on QWERTY keyboards.
Note:
Only available when ABC mode is selected. Predictive
text advanced settings are available only if the Predictive
function is enabled.
1. From the Home screen, press and then tap
Settings
➔ (
My device
tab) ➔
Language and
input
➔ (adjacent to the
Samsung keyboard
field).
– or –
From within an active text entry screen, touch and hold
(
Input Methods
) ➔ to reveal the
Samsung
keyboard settings
screen.
My device
DRAFT
Internal Use Only
Entering Text 107
2. In a single motion touch and slide the
Predictive text
slider to the right to turn it on .
3. Tap the
Predictive text
field and configure any of the
following advanced options:
• Personalized data
activate this feature to use the personal
language data that you have entered and selected to make
your text entry prediction results better. By enabling this feature
you can choose from the following personalization features:
• Learn from Facebook
allows you to log into your current
Facebook account and add used text to your personal
dictionary.
•Learn from Gmail
: allows you to sign in to your existing Gmail
account from where your style and existing contact information
is added to your personal dictionary. Helps recognize familiar
names.
• Learn from Twitter
allows you to sign into your existing Twitter
account and add used text to your personal dictionary.
• Learn from Messaging
allows your device to learn your
messaging style by using your Messaging information.
• Learn from Contacts
updates predictive style by learning your
Contacts style.
• Clear remote data
allows you to delete your anonymous data
stored on the personlaization server.
• Clear personalized data
removes all personalized data
entered by the user.
4. Press to return to the previous screen.
Using the Google Voice Typing
This feature uses Google voice recognition to convert your
spoken words into on-screen text.
You can use your voice to enter text using the Google Voice
typing feature.
1. From the keyboard, touch the top of the screen and
drag it down to display your notification panel.
2. Tap (
Choose input method
) ➔
Google voice
typing
.
3. At the Listening prompt (
Speak now
), speak
clearly and distinctly into the microphone.
The text is displayed in the message as you are
speaking.
ON
ON
DRAFT
Internal Use Only
108
4. Tap (
Done
) when you are finished.
– or –
Tap (
Resume
) to resume recognition.
Note:
The feature works best when you break your message
down into smaller segments.
Configure Google Voice Typing
1. From the Home screen, press and then tap
Settings
➔
Language and input
.
– or –
From a screen where you can enter text, in a single
motion, touch and drag the Status bar down to the
bottom of the screen, then select (
Choose input
method
)
➔
Set up input methods
.
2. Tap (adjacent to the
Google voice typing
field).
3. Select a language by tapping
Choose input languages
area.
4. Remove the check mark from the
Automatic
field. This
allows you to select additional languages.
5. Select the desired languages.
6. Activate
Block offensive words
to block recognition of
known offensive words or language. (A green check
mark indicates the feature is active).
7. Tap
Download offline speech recognition
to enable speech
recognition via locally stored files so that even if you
are not connected to a network you can still use the
service.
Using Google Voice Typing
1. From a screen where you can enter text, in a single
motion, touch and drag the Status bar down to the
bottom of the screen, then select (
Choose input
method
)
➔
Google voice typing
. The virtual keyboard is
then removed and all subsequent input to done via the
microphone as text to speech.
2. Speak into the device’s microphone and watch your
text being entered on-screen.
3. If the text is incorrect, tap
DELETE
.
4.
CUT COPY PASTE and TRANSLATE
XXXXXX?????
