4LGCell Installation
This section describes how to install the LGCell equipment. This section does not
describe how to install cables, MBS or other equipment. For pre-installation
planning, please see Section 3, LGCell Site Planning and Design.
Although modeled after an Ethernet/LAN-like architecture, LGCell is
not intended to be connected to Ethernet data hubs, routers, or other
similar data equipment.
Only LGC Wireless personnel and Service Provider approved vendor
personnel are authorized to install the LGCell system. Cellular and PCS
equipment operate in frequency bands that are licensed for use by cellular
and PCS operators.
If you plan to connect your LGCell system to more than one radio or base
station, you also need the Integration Module Installation and Reference
Manual.
Contents
LGCell Installation
System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
LGCell Standard Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
LGCell Equipment Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
•Main Hub Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
•Expansion Hub Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
•Remote Antenna Unit (RAU) Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Alarm Report Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4-2 LGCell Installation
4-3
System Requirements
An LGCell system has location, space, power, and safety requirements for
installation. The Dual Band LGCell requirements for space and power are different
from those for a single-band system and are noted below.
System Location
The LGCell Main Hub and Expansion Hub mount into a standard 19" equipment
rack in a wiring, telecom, or electrical closet, which may contain other Ethernet,
telephony, or miscellaneous equipment.
•Standard wiring closet temperatures: 0-45° C
•Does not require special air conditioning
Space Requirements
The LGCell Main Hub and Expansion Hubs are installed into a standard 19” rack.
•The Main Hub height is 1.7” (44.5 mm). The Dual Band Main Hub is 3.5”
(88.9 mm) high.
•The Expansion Hub height is 1.7” (44.5 mm). The Dual Band Expansion Hub
is 3.5” (88.9 mm) high.
•Allow at least one inch (25 mm) clearance between each hub, between any
existing equipment in the rack, and between the bottom shelf of the rack and
the hub.
Power Requirements
The LGCell requires AC voltage/current. LGC Wireless recommends connecting it
to a UPS (Uninterruptable Power Supply), which may exist in the wiring closet.
Dual-Band equipment requires twice as much power as single-band equipment.
•LGCell operates with 88-264 VAC 50/60 Hz.
•The Main Hub uses a maximum of 1.6 A of electrical current.
•The Expansion Hub uses a maximum of 1.6 A of electrical current.
•The RAUs are powered from the Expansion Hubs via the UTP/STP cable and
they use 12V DC.
4-4 LGCell Installation
Underwriters Laboratory Installation Guidelines
Use the following guidelines when rack mounting the LGC Cell:
1Do not exceed the maximum ambient air temperature of 45° C during
operation. Provide sufficient airflow and cooling within the rack to prevent
heat build-up from exceeding this limit.
2Be careful when servicing these products. If you are removing the system from
the rack, turn it off and remove the power cord first. There are no user
serviceable parts inside the hubs or RAUs.
3Do not compromise the amount of airflow required for safe operation of the
equipment when installing it in a rack. Both the Main Hub and the Expansion
Hub draw in air on the left side and exhaust heated air at the rear. The hubs
pass approximately 6 cu. ft. of air per minute through themselves and only
dissipate a maximum of 25 watts of heat from their internal circuitry.
4The AC input current consumption of the hubs is rated at 1.6 A at 110 VAC.
The internal power supply has internal fuses that are not user replaceable.
Consider the worst-case power consumption shown on the product labels when
provisioning the rack’s AC power source and distribution.
Fiber Port Safety Precautions
Suggested safety precautions for working with LGCell Fiber Ports follow. For
information about LGCell compliance with safety standards, see Appendix C –
Compliance Information.
•Viewing fiber: Observe the following warning about viewing fiber ends and
ports.
Do not stare with unprotected eyes at the connector ends of the fibers or
the ports of the hubs. Invisible infrared radiation is present at the front
panel of the Main Hub and Expansion Hub. Do not remove the Fiber
Port dust cover unless the port is in use. Do not stare directly into a Fiber
Port.
•Test fiber cables: When you use test fiber optical cables, connect the optical
power source last and disconnect it first.
•Fiber ends: Cover any unconnected fiber ends with an approved cap. Do not
use tape.
•Broken fiber cables: Do not stare with unprotected eyes at any broken ends of
the fibers. Report any broken fiber cables and have them replaced.
•Cleaning: Use only approved methods for cleaning optical fiber connectors.
•Modifications: Do not make any unauthorized modifications to this fiber
optical system or associated equipment.
4-5
•Live work: Live work is permitted on the LGCell as it is a Class 1 hazard.
•Signs: No warning signs are required.
•Test equipment: Use Class 1 test equipment.
Cable and Connector Requirements
The LGCell equipment operates over standard TIA/EIA 568-A specification,
Category 5 (CAT 5), or better, Unshielded Twisted Pair (UTP) or Shielded Twisted
Pair (STP) and standard 62.5µm/125µm Multi-Mode Fiber cable (MMF), at a
wavelength of 1300 nanometers (nm).
These cables are widely used industry standards for Local Area Networks (LANs).
The regulations, guidelines, and standards for cable installation are identical to
those specified by the TIA/EIA 568-A standard for LANs. See Appendix B – TIA/
EIA 568-A Cabling Standard.
LGC Wireless recommends Plenum rated CAT 5 UTP/STP and MMF cable and
connectors for conformity to building codes and standards.
LGCell Standard Equipment
•LGCell Main Hub
•LGCell Expansion Hub
•Remote Antenna Units (RAUs) with an in-building antenna
•Four screws for mounting the RAUs
•Four rack mount screws per hub to mount hubs into a 19" rack
•Installation and Reference Guide
LGCell Equipment Installation
The following are procedures for installing an LGCell system. Pre-testing the
system is not required. The installation procedures are based on the following
assumptions:
•The LGCell equipment has been unpacked and inspected.
•Locations for the Main Hub, Expansion Hubs, and RAUs have been identified.
•19" rack space is available in the wiring closets.
•AC power is available for the LGCell.
•MMF and UTP/STP have been pulled into place (based on previous design)
and terminated.
4-6 LGCell Installation
LGCell system installation includes the following tasks:
•Installing Main Hub
•Installing Expansion Hubs
•Installing Remote Antenna Units (RAUs) and antennas
•Connecting RF cables
•Connecting CAT 5 cables
•Connecting MMF cables
•Optimizing the system
These procedures tell you how the LGCell should respond during various phases of
the installation. If it is not responding as it should, see Section 6, Common
Problems, Troubleshooting, and Frequently Asked Questions.
Equipment Inspection
Check that all standard equipment was shipped. (See LGCell Standard Equipment,
on page 5.) If the equipment is damaged or parts are missing, contact LGC Wireless
immediately, at 1-800-530-9960 in the U.S. or, for international customers, at
+1-408-487-2400.
Most problems during installation are caused by improperly terminated
UTP/STP and MMF.
LGCell Configuration
If you are installing a Dual-Band LGCell system, use the following steps,
from here through “RF Cable Connection” on page 16 of this chapter.
4-7

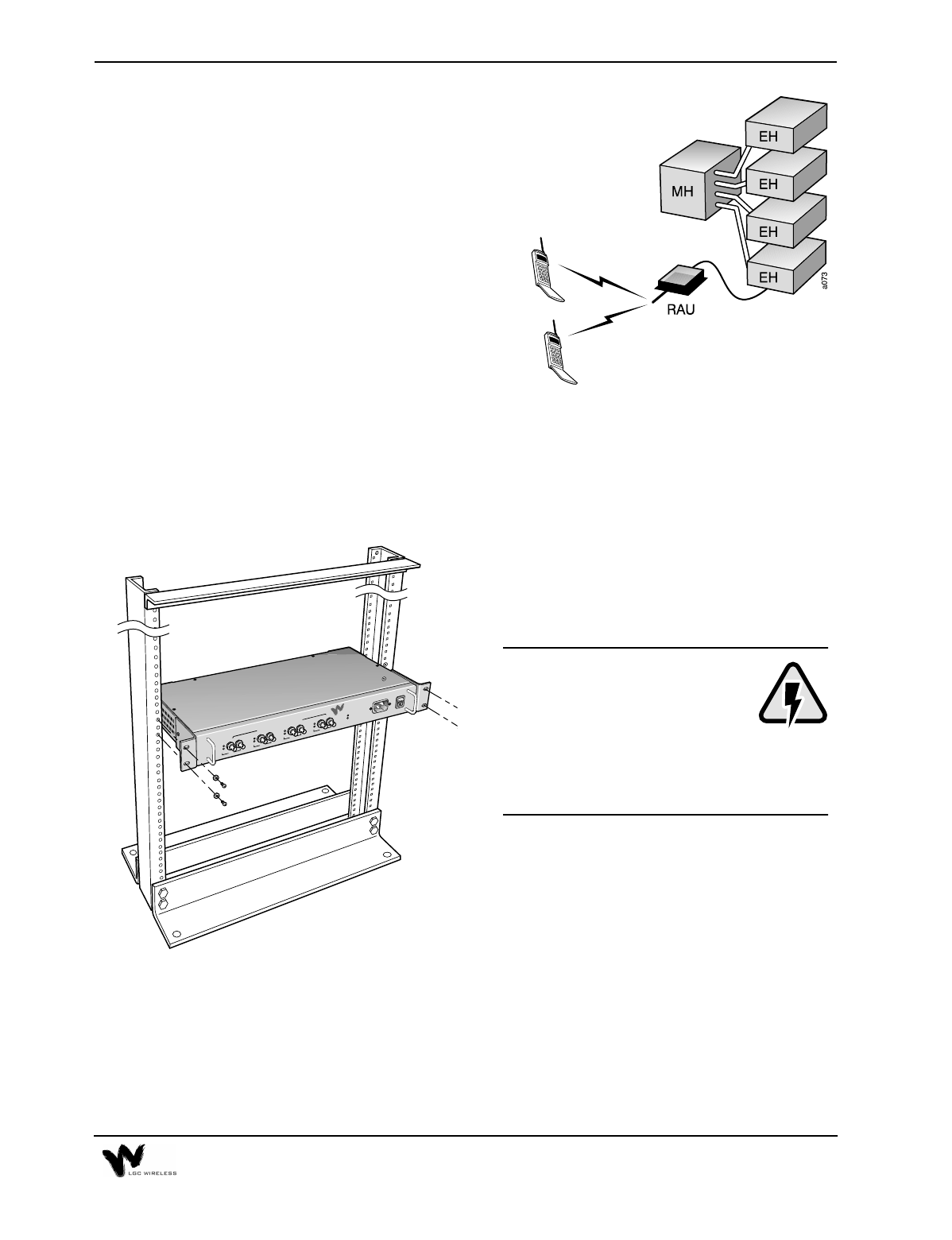

This diagram illustrates how the LGCell
is configured. The rest of this section
contains configuration and installation
procedures.
Main Hub Installation
Your installation may have one or more Main Hubs, each located in the same or
different wiring closet. Use the following procedures for all Main Hubs.

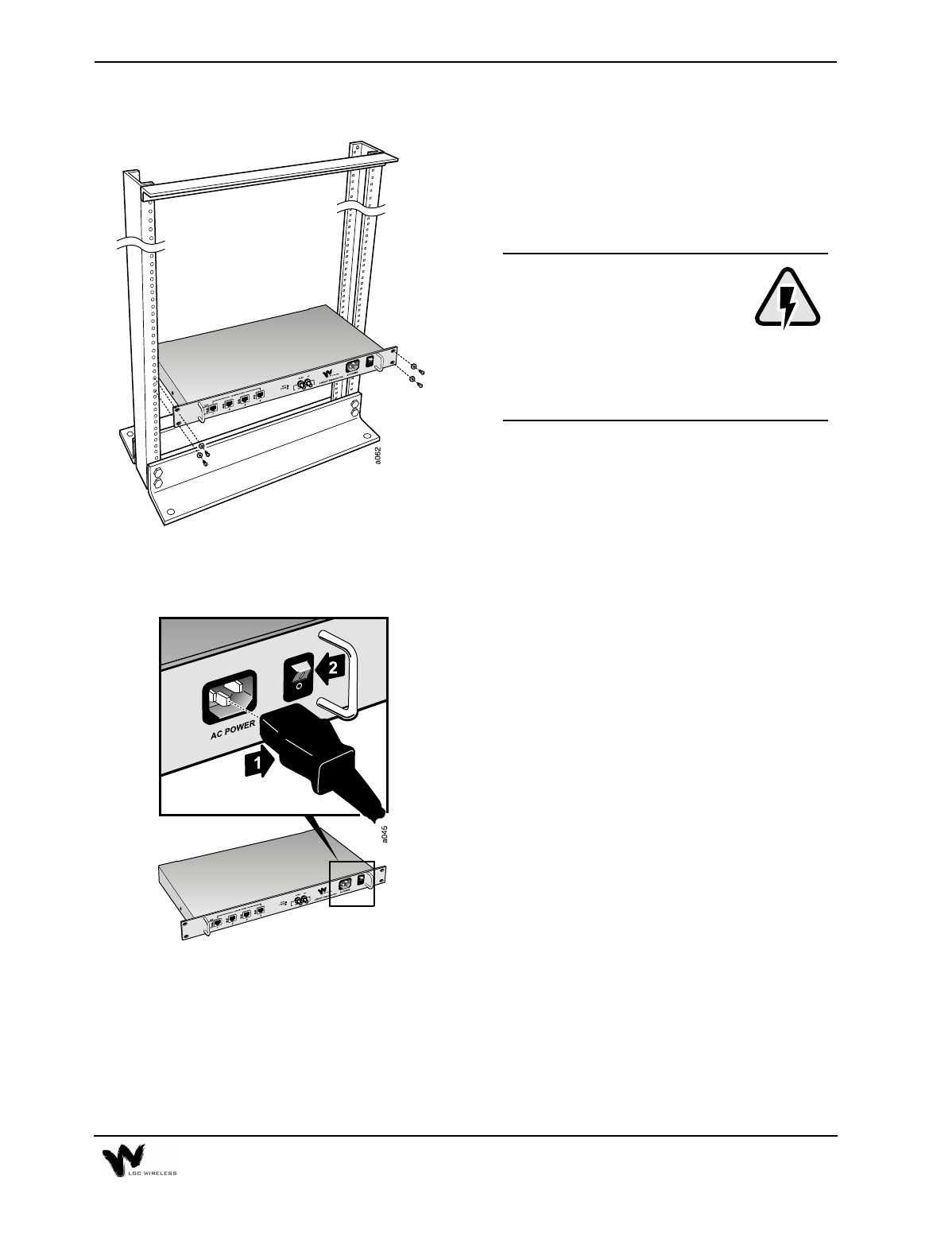

1 Mount the Main Hub
Mount the Main Hub to the rack in the
assigned wiring closet location, using four
screws provided.
For air circulation, be sure to
leave at least one inch (25 mm)
space between all hubs and
between any other equipment
in the rack. If mounting a hub on the rack’s
bottom shelf, also leave at least one inch
(25 mm) clearance from the bottom.
LINK
STATUS
1234
DOWN
LINK
STATUS
SYNC
UP
SYNC
POWER
TO EXPANSION HUB PORTS
LGC WIRELESS
LGCell
ª
Main Hub
DOWN
LINK
STATUS
SYNC
UP
DOWN
LINK
STATUS
SYNC
UP
DOWN
SYNC
UP
AC POWER
4-8 LGCell Installation
2 Connect Power and Power Up

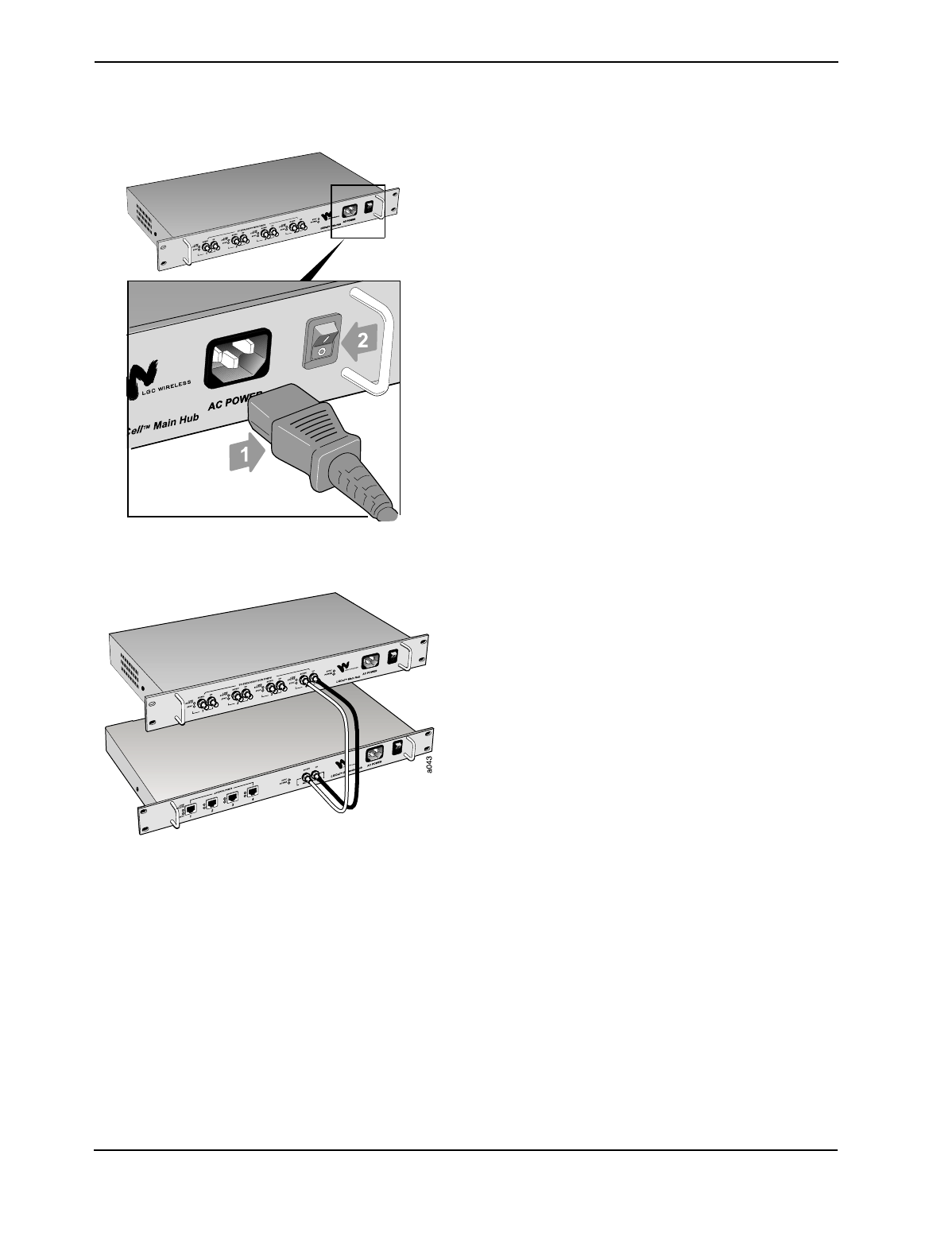

After mounting the Main Hub, connect the
AC power cord to the Main Hub. Plug the
power cord into an outlet providing AC
power (88-264 VAC). See 1 in graphic.
Power up the Main Hub by flipping the
power switch from position 0 to
position 1. See 2 in graphic.
The POWER and SYNC LEDs on the front
panel should be green (lit).

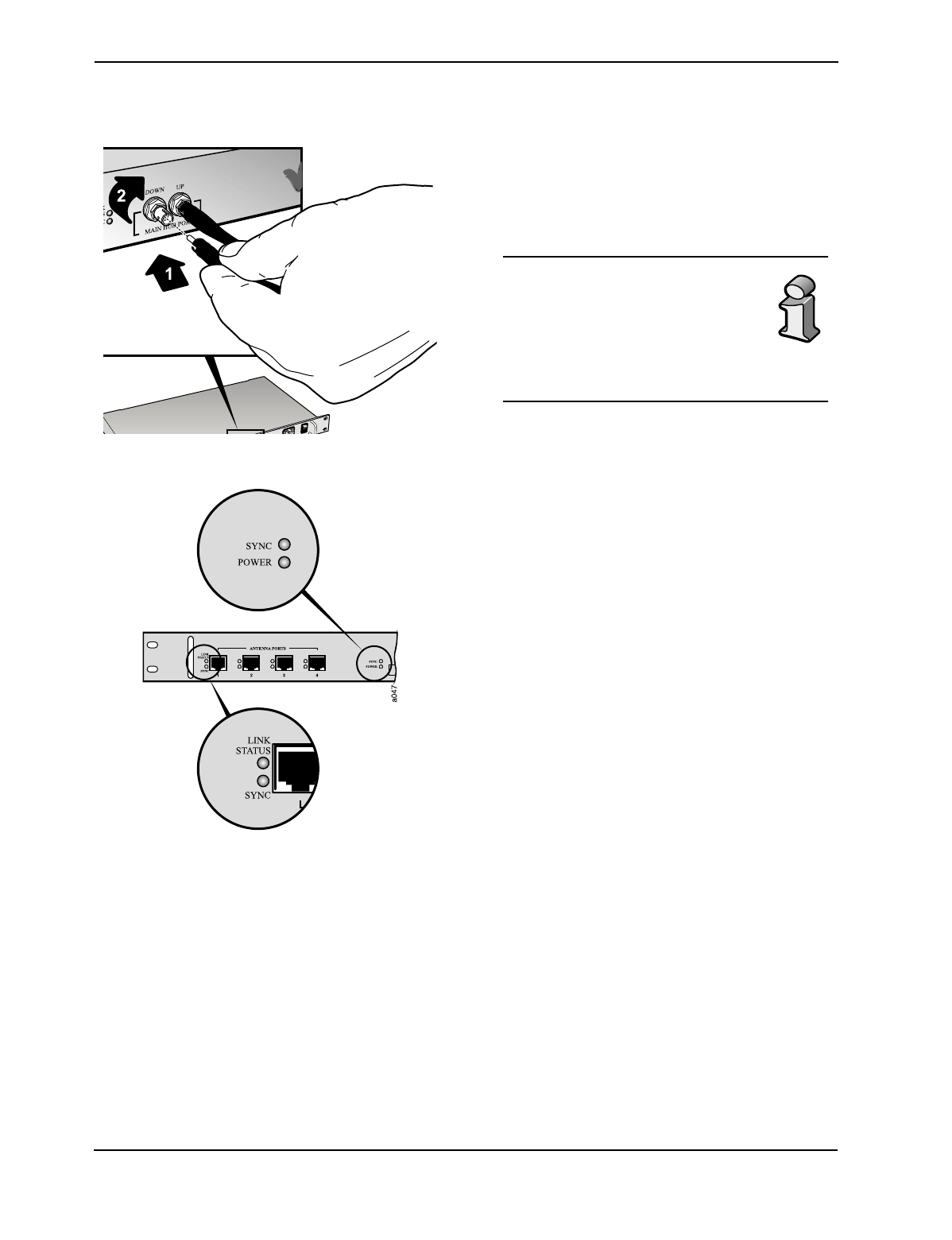

3 Connect the MMF cables
Using the procedure below, connect all
MMF cables (two per port) to the MMF
ST-female connectors (labeled DOWN and
UP) on the Main Hub front panel. Use any
available Main Hub port.
4-9

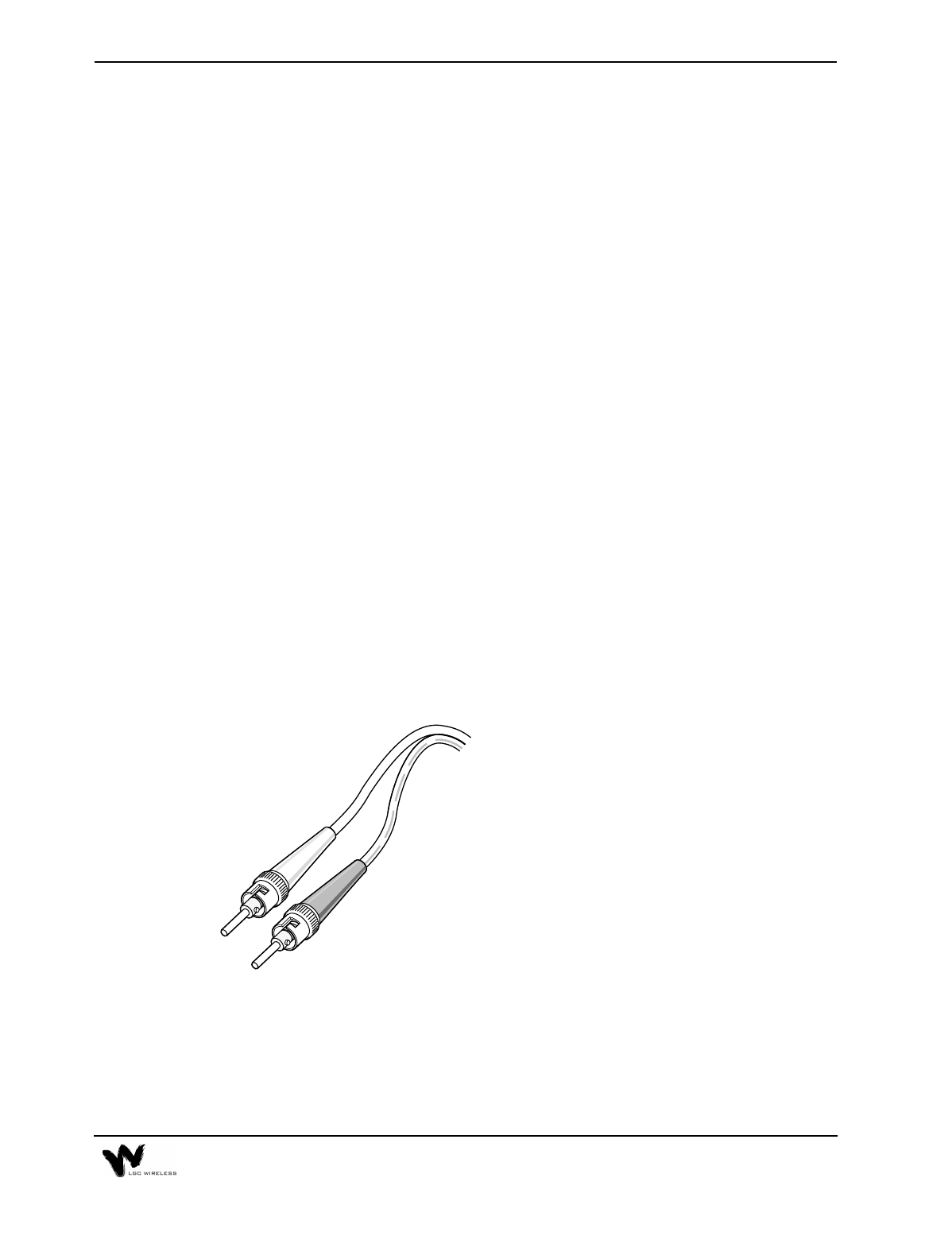

Be sure the MMF cable ST-connectors are clean and free of dust or oils.
If the fiber connector front face is not free of dust or oils, follow the
manufacturer’s recommendations for cleaning it.
The MMF cable is labeled with either 1 or 2, or is color-coded. This distinguishes
the connectors for proper connection between the Main Hub and Expansion Hubs.
If the fiber jumper is labeled with 1 or 2:
•Connect 1 to UP on Main Hub
•Connect 1 to UP on Expansion Hub
•Connect 2 to DOWN on Main Hub
•Connect 2 to DOWN on Expansion Hub
If the fiber jumper is color-coded (for example, “blue” or “red”):
•Connect “blue” to UP on Main Hub
•Connect “blue” to UP on Expansion Hub
•Connect “red” to DOWN on Main Hub
•Connect “red” to DOWN on Expansion Hub

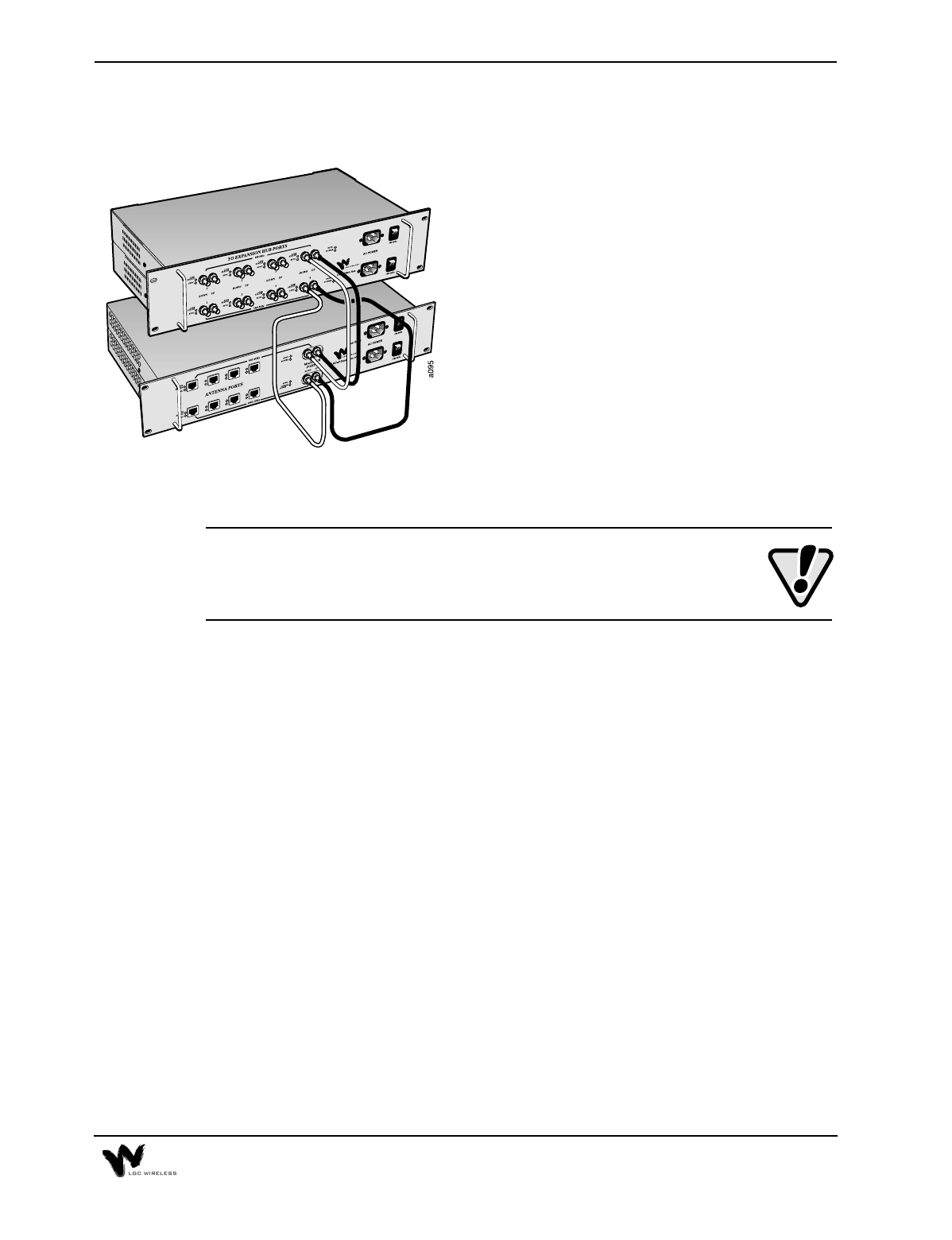

The connections for the Dual Band system
are shown here. Make sure you connect
the 900 MHz Main Hub to the 900 MHz
Expansion Hub and the 1800 MHz hubs
together.
4-10 LGCell Installation
Be sure to record which number or color is connected to UP and to DOWN.
This information is needed when connecting the other end of the MMF
cables to the Expansion Hub ports.
Expansion Hub Installation
The Expansion Hubs may be located in the same or different wiring closets, and
they may be located in a different wiring closet than the Main Hub.
Use the following procedures for all Expansion Hubs.
4 Check Main Hub LEDs
The POWER and SYNC LEDs should be
green. If not, reset the Main Hub.
If the POWER and SYNC LEDs do not light
green, see Section 6, Common Problems,
Troubleshooting, and Frequently Asked
Questions.
The LINK STATUS and SYNC LEDs on the
ports where the fiber is connected should
be red. This indicates that the other end of
the MMF cable is not yet connected to the
Expansion Hub ports.
4-11
1 Mount the Expansion Hubs
Mount the Expansion Hubs onto the rack
in the assigned wiring closet location,
using four screws per hub.
For air circulation, be sure to
leave at least one inch (25 mm)
space between all hubs and
between any other equipment
in the rack. If mounting a hub on the
rack’s bottom shelf, also leave at least one
inch (25 mm) clearance from the bottom.
2 Connect Power and Power Up
Connect the AC power cord to the
Expansion Hub. Plug the power cord into
an outlet providing AC power (88-264
VAC). See 1 in graphic.
Power up the Expansion Hubs by flipping
the power switch from position 0 to
position 1. See 2 in graphic.
The POWER LED on the Expansion hub
should be green (lit).
4-12 LGCell Installation
3 Connect the MMF cables
Connect all MMF cables from the Main
Hub to the Expansion Hubs. The SYNC
LED should be green.
For proper connection between
the Main Hub ports and the
Expansion Hub ports, refer to the
numbering or color coding you
recorded when installing the
Main Hub.
4 Check Expansion Hub LEDs
Connect all MMF cables from the Main
Hub to the Expansion Hubs.
The LINK STATUS and SYNC LEDs on each
Expansion Hub port should be red when
the UTP/STP cable is not yet connected to
the RAUs.
4-13
Remote Antenna Unit (RAU) Installation
5 Connect UTP/STP cables from RAUs
Connect all UTP/STP cables coming from
the RAUs to any available RJ-45
connector on the Expansion Hub.
The Expansion Hub fiber port
LINK STATUS and SYNC LEDs should be
green or off.
The LINK STATUS and SYNC LEDs on each
Expansion Hub port should remain red
until the RAU is connected on the other
end.
1 Connect Antennas
Connect an accessory antenna to each
RAU SMA connector. (The illustration
shows the RAU with an optional Rubber
Duck antenna.)
When connecting to the SMA
connector on the antenna, DO
NOT over-tighten the
connector. Firmly hand-
tightening the connector is adequate.
TENNA PORTS
LGCell
™
E
DOWN
MAIN HUB PORTS
UP
SYNC
POWER
AC POWER
ANTENNA PORTS
LGC WIRELESS
LGCell
™
Expansion Hub
LINK
STATUS
SYNC
4-14 LGCell Installation

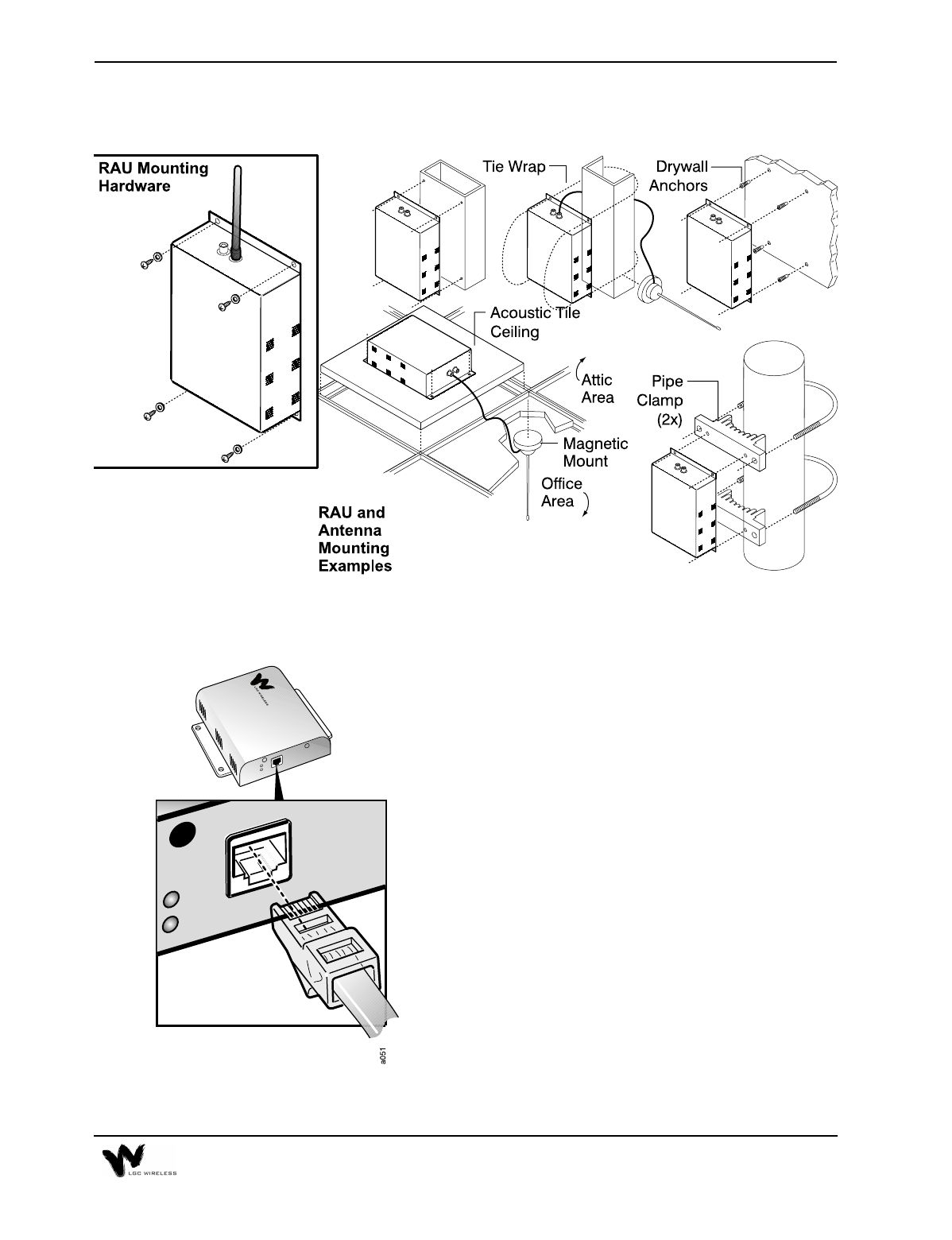

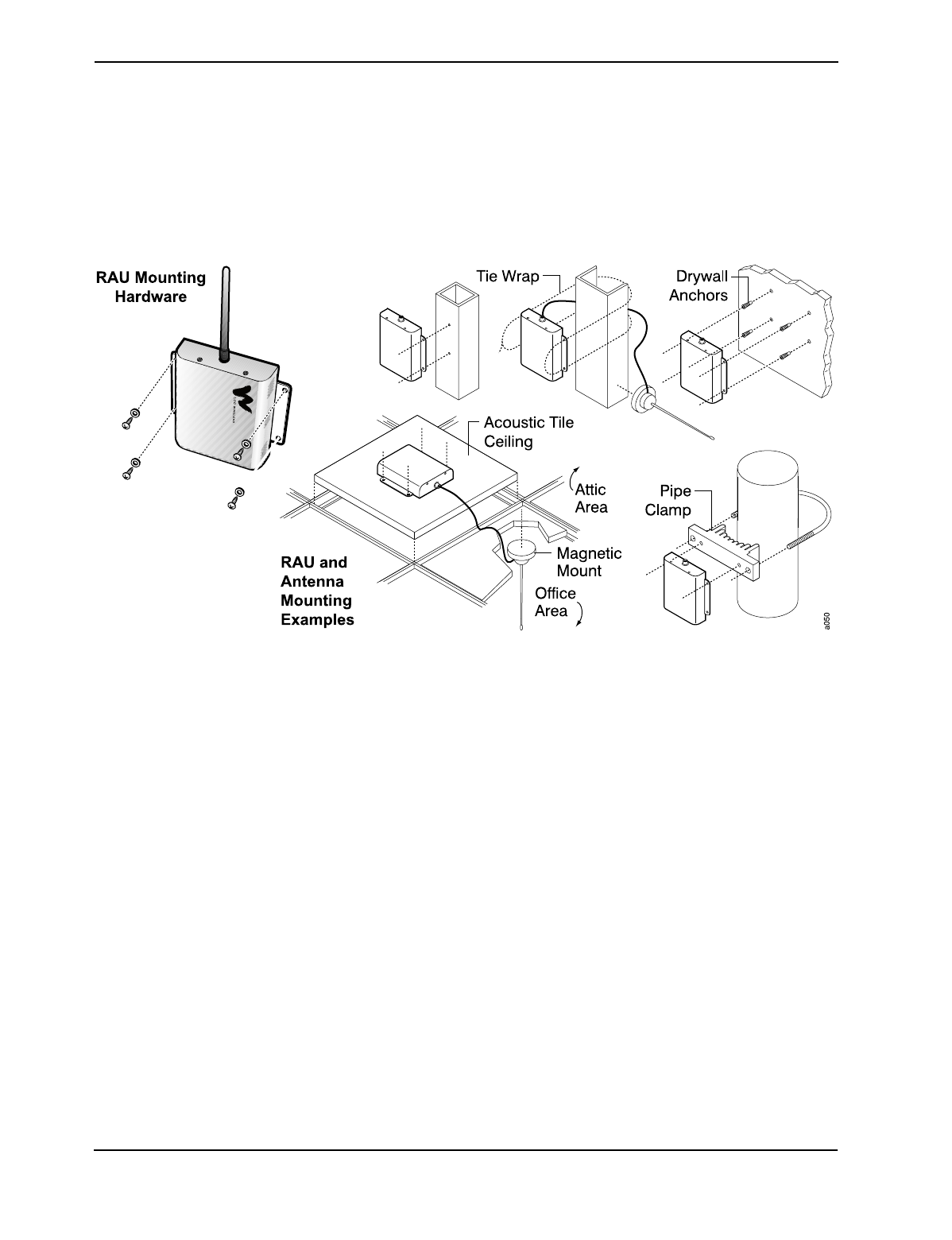

2 Mount RAUs and Antennas
Mount all RAUs in their assigned locations, using the enclosed screws. The
RAUs can mount above or below the ceiling, or to a wall.
For connecting and mounting an accessory directional antenna, refer to the
instructions shipped with that antenna.
4-15
The Dual Band RAU mounting is shown below.

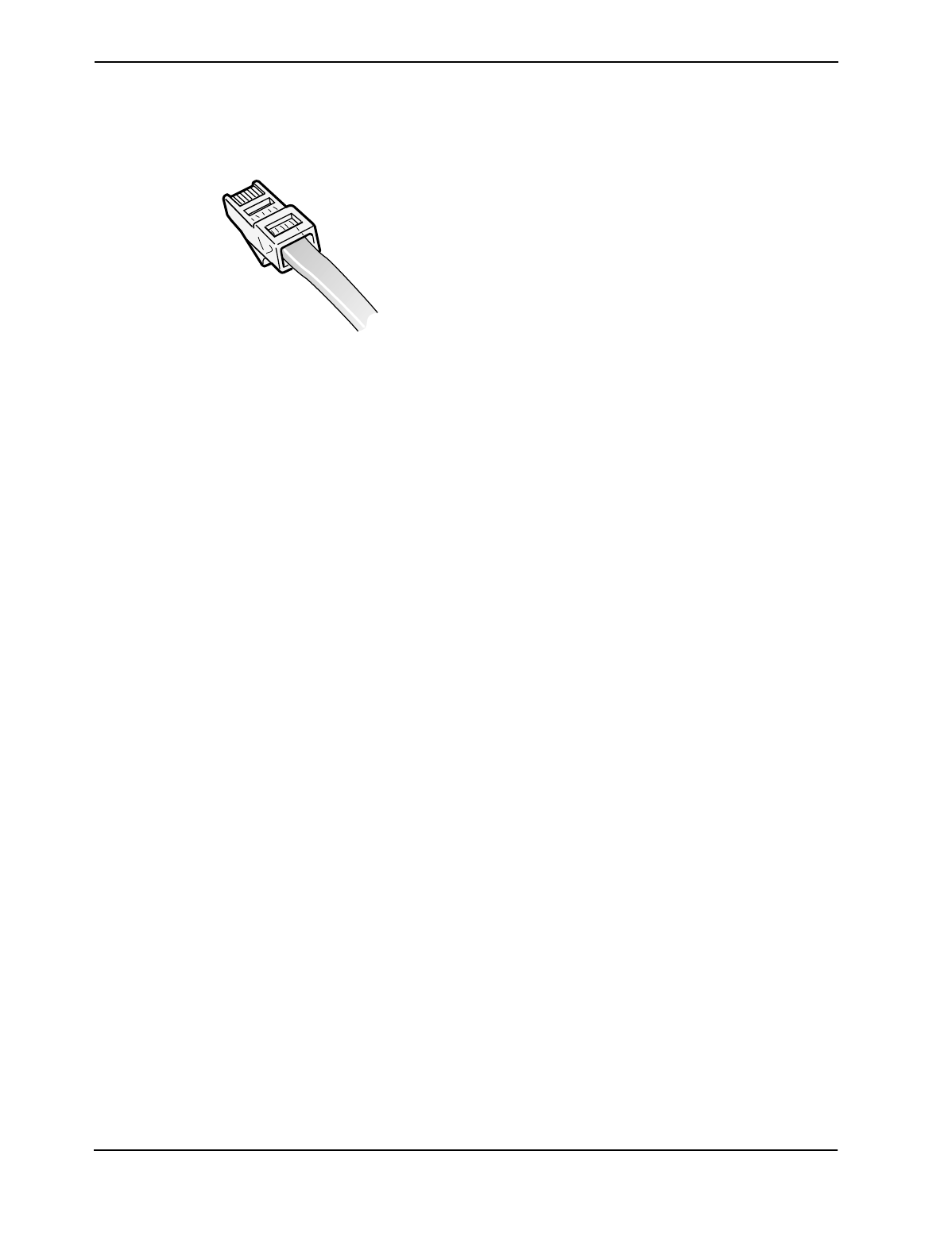

3 Connect UTP/STP Cable
Connect the UTP/STP cable coming from
the Expansion Hub to the RJ-45 connector
on the RAU.
4-16 LGCell Installation
RF Cable Connection
Before connecting any cables to the Main Hub, be sure the RF power
level does not exceed the input rating for the Main Hub. (See
“LGCell System Specifications” on page 16 in Section 2, LGCell
Equipment.)
For coverage applications, LGC Wireless recommends that you insert a lightning
arrestor or surge protector between a roof-mounted antenna and the Main Hub. If
you use a repeater, insert the lightning arrestor or surge protector between the
repeater and roof-mounted antenna.

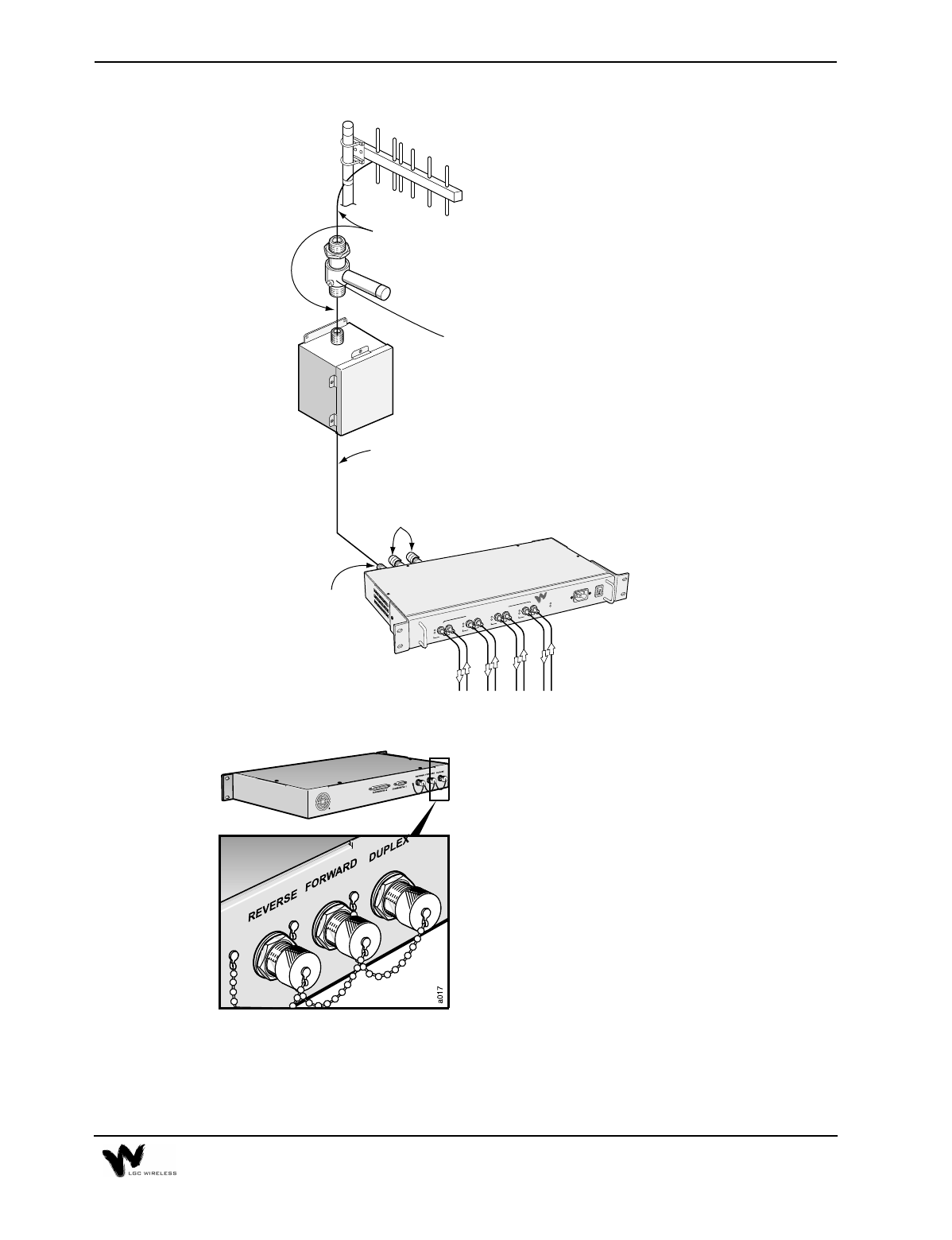

The following illustration shows how to connect the LGCell for coverage
applications, with a repeater.
For the Dual Band RAU, connect the
900 MHz Expansion Hub cable to the top
connector and the 1800 MHz cable to the
bottom connector.

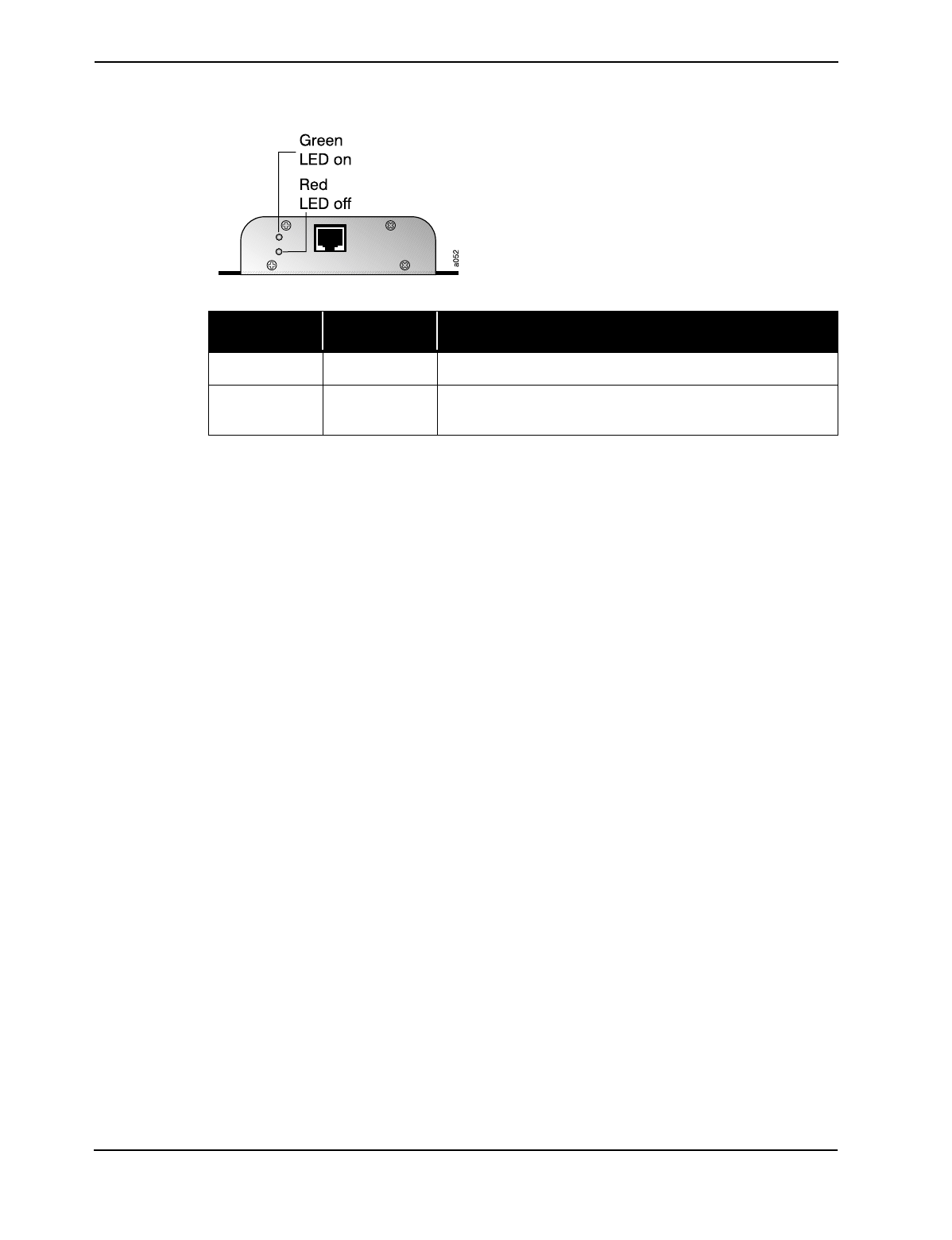

4 Check LEDs
The green POWER LED should be on and
the red ALARM LED should be off.
The green LED indicates that the RAU is
receiving power from the Expansion Hub
assigned to it.
4-17
Duplex Connector
This N-type female connector is typically used
to connect the LGCell to a repeater, roof-
mounted antenna, or MBS, as shown on the
previous page.
Connect an N-type male RF coaxial cable to the
duplex N-type female connector (labeled
DUPLEX) on the Main Hub back panel. If an N-
type male connectorized RF cable is not
available, use an RF adaptor. Connect the other
end of the coaxial cable to the roof-mounted
antenna, MBS, or repeater.
a072
1234
DOWN
LINK
STATUS
SYNC
UP
SYNC
POWER
AC POWER
TO EXPANSION HUB PORTS
LGC WIRELESS
LGCell
™
Main Hub
DOWN
LINK
STATUS
SYNC
UP
DOWN
LINK
STATUS
SYNC
UP
DOWN
LINK
STATUS
SYNC
UP
Uplink (Reverse) and
Downlink (Forward) -
Main
Hub
N-Male to N-Male Coaxial Cables
N-Male to N-Male Coaxial Cables
Roof-Mounted Antenna
Surge Suppressor
Repeater
To Ground Connector
Duplex
Output
4-18 LGCell Installation
The duplex ports have a variable gain. Please see the table for system
gain under “Maximum Input RF Power per Carrier vs. Number of
Carriers” on page 17 in Section 2, LGCell Equipment.
Downlink (Forward) and Uplink (Reverse) Connectors
Connect an N-type male RF coaxial cable to
the downlink N-type female connector
(labeled FORWARD) and an N-type male RF
coaxial cable to the uplink N-type female
connector (labeled REVERSE) on the Main Hub
back panel.
Connect the other ends of the coaxial cable to
the MBS. For diagrams of connecting LGCell
to specific MBS equipment, see Section 5,
Connectivity.
For simplex MBSs, be sure the MBS downlink coaxial cable connector
plugs into the downlink connector, and the uplink coaxial cable
connector plugs into the uplink connector on the Main Hub.

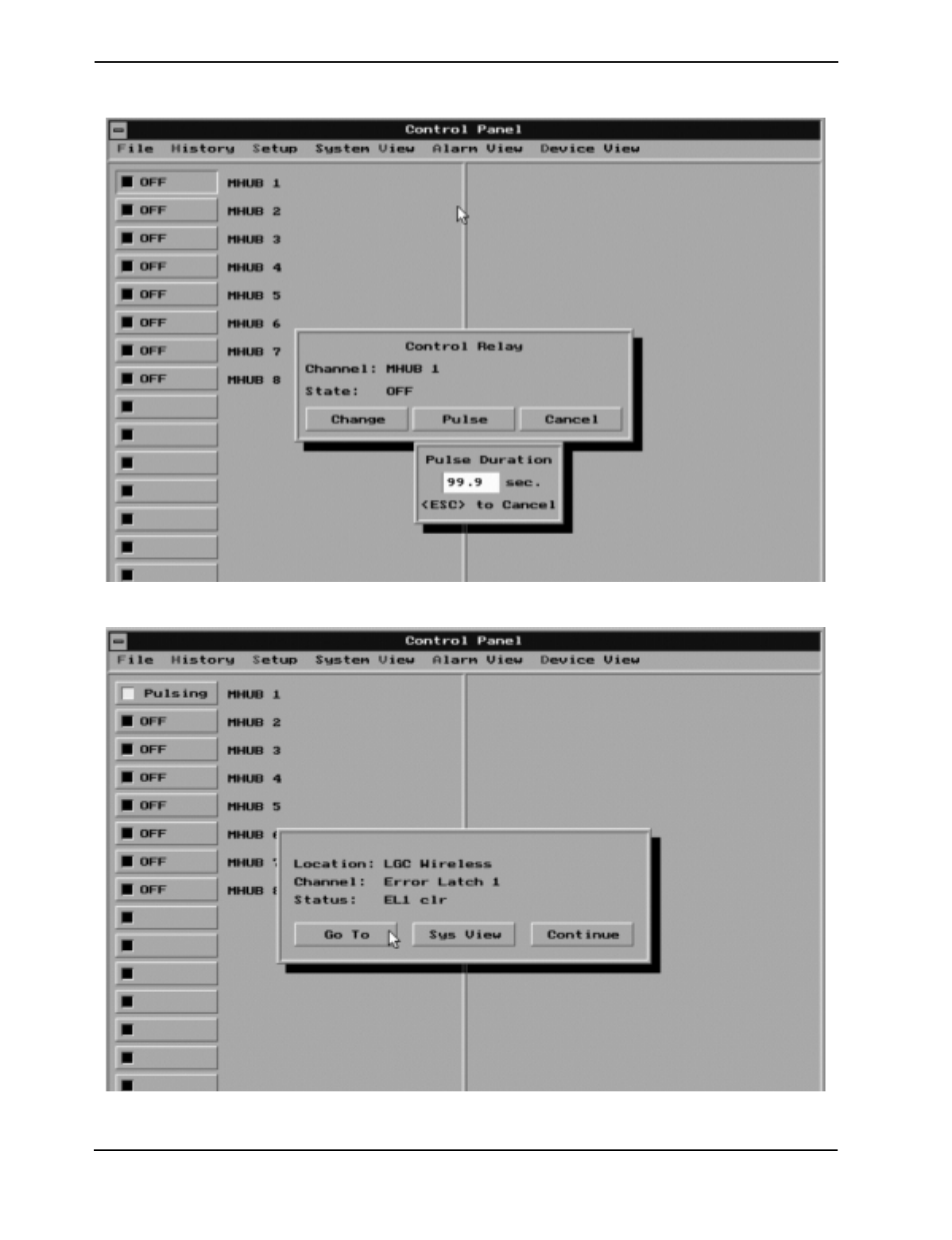

Alarm Report Monitor
A separately orderable option for use with LGCell, the Alarm Report Monitor is an

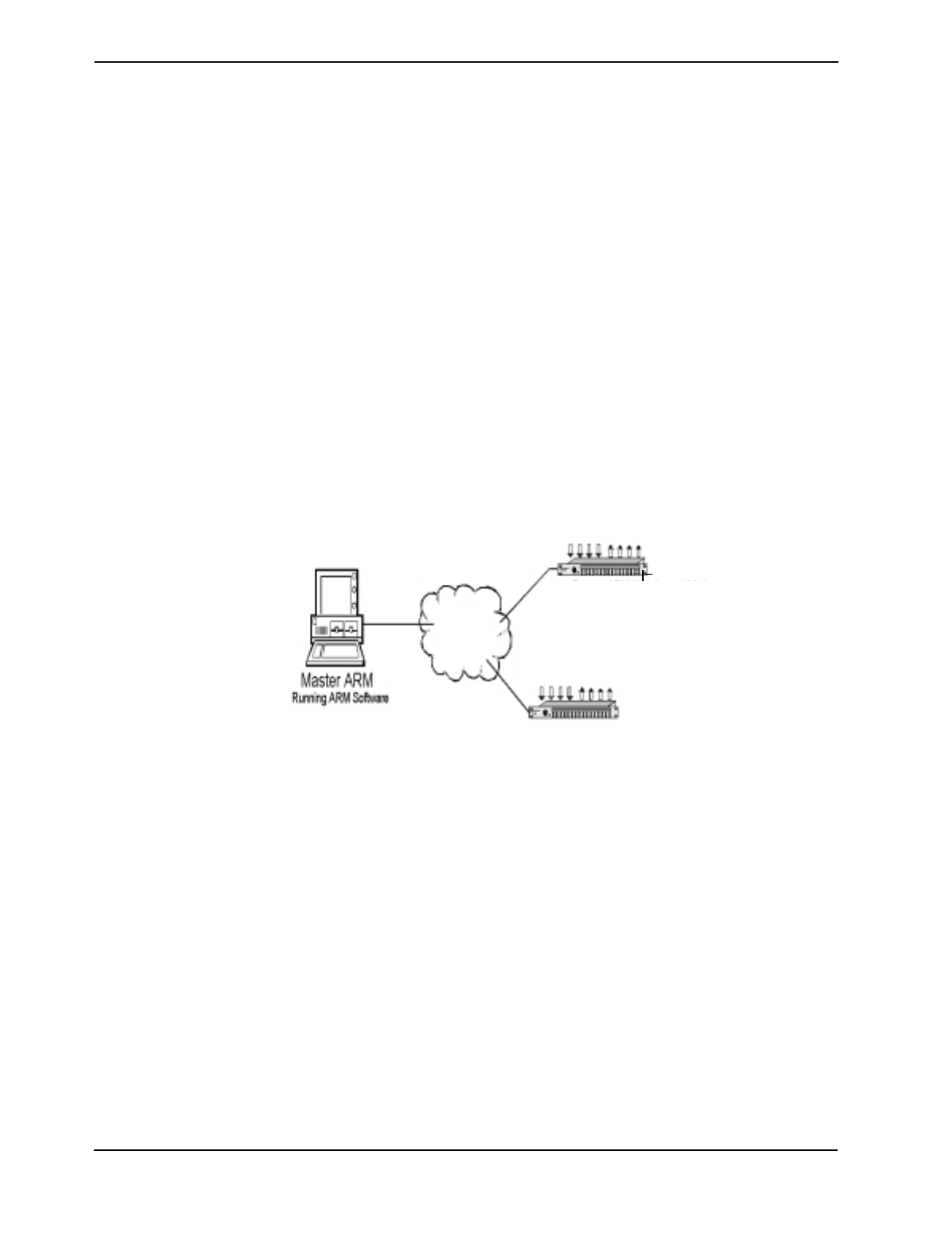

alarm monitoring, reporting, and remote control system. Up to 255 remote-ARM
monitoring units can monitor up to 2,040 LGCell systems. Each remote-ARM unit
communicates with the ARM software through a dial-up modem connection, using
an external or internal modem. A database of these devices is set up in a PC, with a
unique address for each device.
The ARM supports multiple users and tracks responsibility through log-in and log-
out procedures, using four security levels to protect critical system functions. It
features a graphic color status display, remote system reset control, alarm history
and control logs, security code management, and journal printer and paging options.
For ARM installation instructions, see Appendix E – Alarm Report Monitor
(ARM2000).
a060
DUPLEX
FORWARD
REVERSE
5Connectivity
This section describes how to connect multiple LGCell systems and how to connect
specific microcellular base stations (MBSs) to the LGCell.
Please refer to the tables in Section 2, LGCell Equipment, for important
information on system gains and maximum RF power per carrier.
Contents
Connectivity
Connecting Multiple LGCell Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Connecting two LGCells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Connecting More Than Two LGCells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Connecting LGCell to Base Stations, Microcells, or Picocells . . . . . . . . . . . . . . . 4
5-2 Connectivity
5-3
Connecting Multiple LGCell Systems
Connecting multiple LGCell systems increases the total number of Remote
Antenna Units (RAUs). Multiple LGCells can be stacked to increase the total
number of RAUs through the use of power combiner/dividers.
LGC Wireless provides Integration Modules which may be used with the LGCell
to efficiently centralize additional radio capacity inside a facility. These Modules
provide the connection between the radios for the facility and the LGCell system.
Because the Integration Modules distribute all available radio capacity
automatically among all antennas within a cell, available capacity is dynamically
allocated throughout the entire coverage area, thus providing an improved grade of
service without the need to conduct ongoing traffic monitoring and analysis.
Specific installation information on all available Integration Modules may be found
in the Integration Module Installation and Reference Manual.
Connecting two LGCells

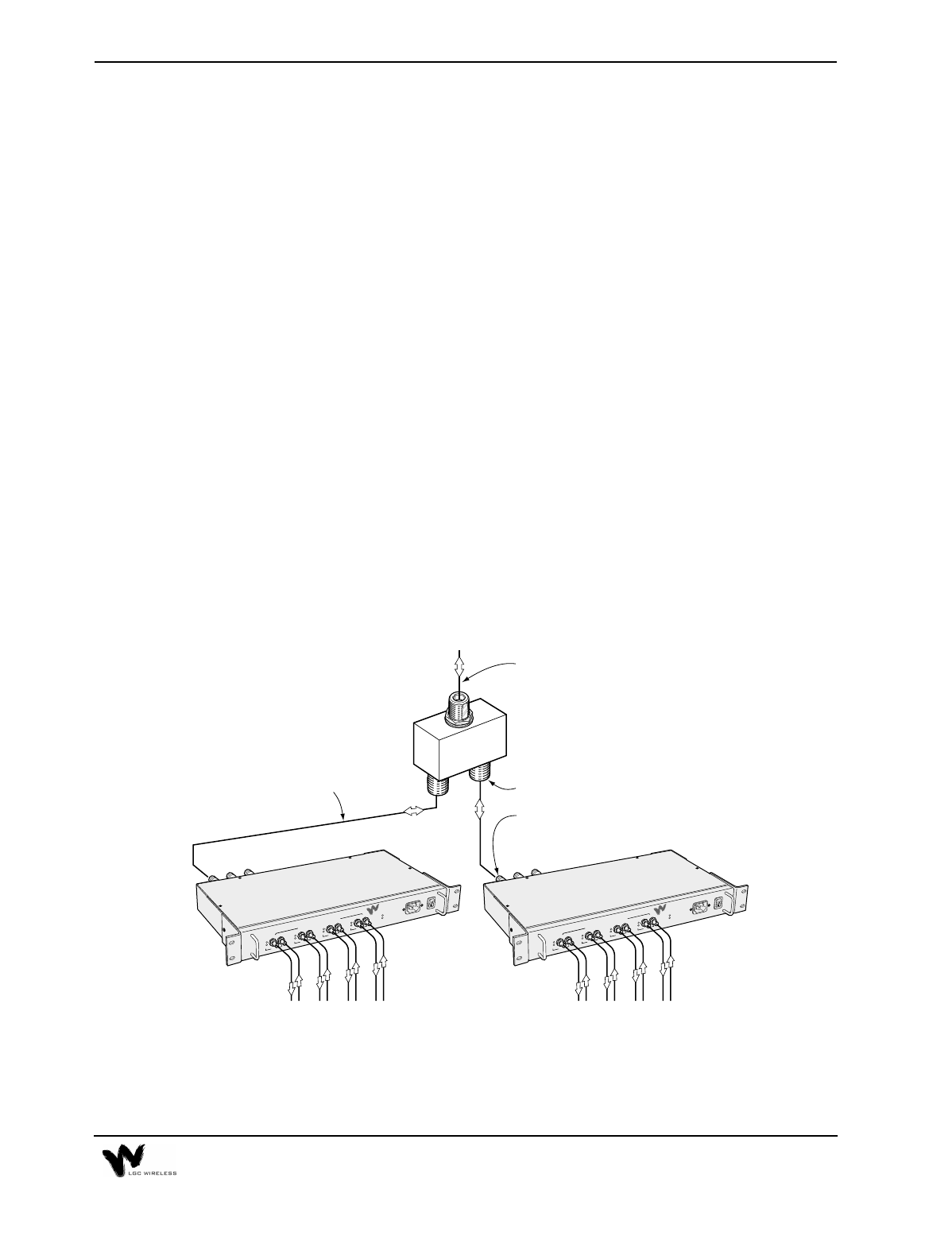

Connecting two LGCells increases the total number of RAUs from 16 to 32. A 2x1
or 2x2 hybrid power combiner/divider is required (see graphic below).
a009
1234
DOWN
LINK
STATUS
SYNC
UP
SYNC
POWER
AC POWER
TO EXPANSION HUB PORTS
LGC WIRELESS
LGCell
™
Main Hub
DOWN
LINK
STATUS
SYNC
UP
DOWN
LINK
STATUS
SYNC
UP
DOWN
LINK
STATUS
SYNC
UP
1234
DOWN
LINK
STATUS
SYNC
UP
SYNC
POWER
AC POWER
TO EXPANSION HUB PORTS
LGC WIRELESS
LGCell
™
Main Hub
DOWN
LINK
STATUS
SYNC
UP
DOWN
LINK
STATUS
SYNC
UP
DOWN
LINK
STATUS
SYNC
UP
Main Hubs
2 x 1 Power Combiner
N-Female Connectors
In Back of MH
N-Male to N-Male
Coaxial Jumper Cables (2)
N-Male to N-Male
Coaxial Jumper Cables
N-Female Connectors (3)
To Antenna on Roof
or MBS or Repeater
5-4 Connectivity
The following are procedures for connecting two LGCells. For Dual Band
installations, connect a power combiner/divider for each Main Hub band.
1 Connect Cables
2 Check Main Hub LEDs
After connecting the LGCells, check all Main Hub LEDs to ensure that the
system is operating properly.
Connecting More Than Two LGCells
Repeat this procedure to connect any number of LGCell systems. For three systems,
use a 3x1 power combiner/divider, and so on.
Connecting LGCell to Base Stations, Microcells, or
Picocells
One or more LGCell systems can connect with any base station, microcell, or
picocell. Before connecting an LGCell system to one of these, confirm the
following items:
•Connector type (LGCell uses N-type connectors)
•Power distribution (LGCell supports either duplex or simplex)
•Maximum power output (dBm) (Do not exceed the maximum input power into
the Main Hub. If the input power is too high, an attenuator might be required.)
For more information about connections to microcellular base stations or picocells,
including connections to multiple base stations, see the Integration Module
Installation and Reference Manual.
From LGCells to Hybrid Power
Combiner/Divider To Roof-Mounted Antenna, Repeater,
or MBS
Connect the DUPLEX, FORWARD, or
REVERSE connector of one of the Main
Hubs to an input/output port on the power
combiner/divider using an N-male to N-
male coaxial cable jumper.
Connect the combined port of the power
combiner/divider to a roof-mounted antenna,
repeater, or MBS using an N-male to N-male
coaxial cable jumper.
Connect the DUPLEX, FORWARD, or
REVERSE connector of the second Main
Hub to the second input/output port on the
power combiner/divider using an N-male to
N-male coaxial cable jumper.
6 Common Problems, Troubleshooting, and
Frequently Asked Questions
This section provides procedures for troubleshooting LGCell problems based on the
front panel diagnostic LEDs.
LGCell has no user-serviceable parts. Faulty or failed units are fully
replaceable through LGC Wireless. U.S. customers, please contact us at
1-800-530-9960. International customers, please contact us at
+1-408-487-2400.
Contents
Common Problems, Troubleshooting, and Frequently Asked Questions
Common Problems and Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
LED Indicator Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Troubleshooting Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Diagnostic Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6-2 Common Problems, Troubleshooting, and Frequently Asked Questions
6-3
Common Problems and Troubleshooting
The LGCell has three sources of potential problems:
•Malfunction of one or more LGCell component
•Faulty cabling/connector
•Antenna, base station, or repeater problem
By far, most problems discovered have to do with faulty cabling. All
CAT 5 cable should be tested to TIA/EIA 568-A specifications.
The diagnostic procedures are based on information in the Diagnostic Table on
page 9. The table lists all LEDs and indicates what to do under certain
circumstances. There is a blank table at the end of this section that you can copy and
use to record the LEDs while you troubleshoot an LGCell system.
After following the recommended procedures, if you cannot determine the cause of
a problem, call LGC Wireless customer help hotline:
1-800-530-9960
(International customers, please call +1-408-487-2400 for assistance.)
6-4 Common Problems, Troubleshooting, and Frequently Asked Questions
LED Indicator Description
The LGCell Main Hub, Expansion Hubs, and RAUs have front panel LEDs. The
LEDs provide diagnostic information and operational status of each unit. Together
they provide an efficient diagnostic display system, which help technicians find the
fault if there is a malfunction.
Main Hub LEDs
There are two sets of LEDs on the Main Hub
front panel:
•Main Hub MMF Ports
•Main Hub Functionality LEDs
•Main Hub MMF Ports LEDs
Provides status on each of the Main Hub’s four MMF ports.
•Main Hub Functionality LEDs
The LEDs provide diagnostic information on the Main Hub’s functionality.
LED Color Indication
LINK STATUS Green
Red
Indicates a good connection to Expansion Hub for that port.
Connection problem to Expansion Hub.
SYNC Green
Red
Indicates Expansion Hub and any RAUs connected to it are
operating properly.
Problem with Expansion Hub or one of the RAUs.
LED Color Indication
SYNC Green Indicates Main Hub is correctly producing the
synchronization signal.
POWER Green Turns green when Main Hub has power.
6-5

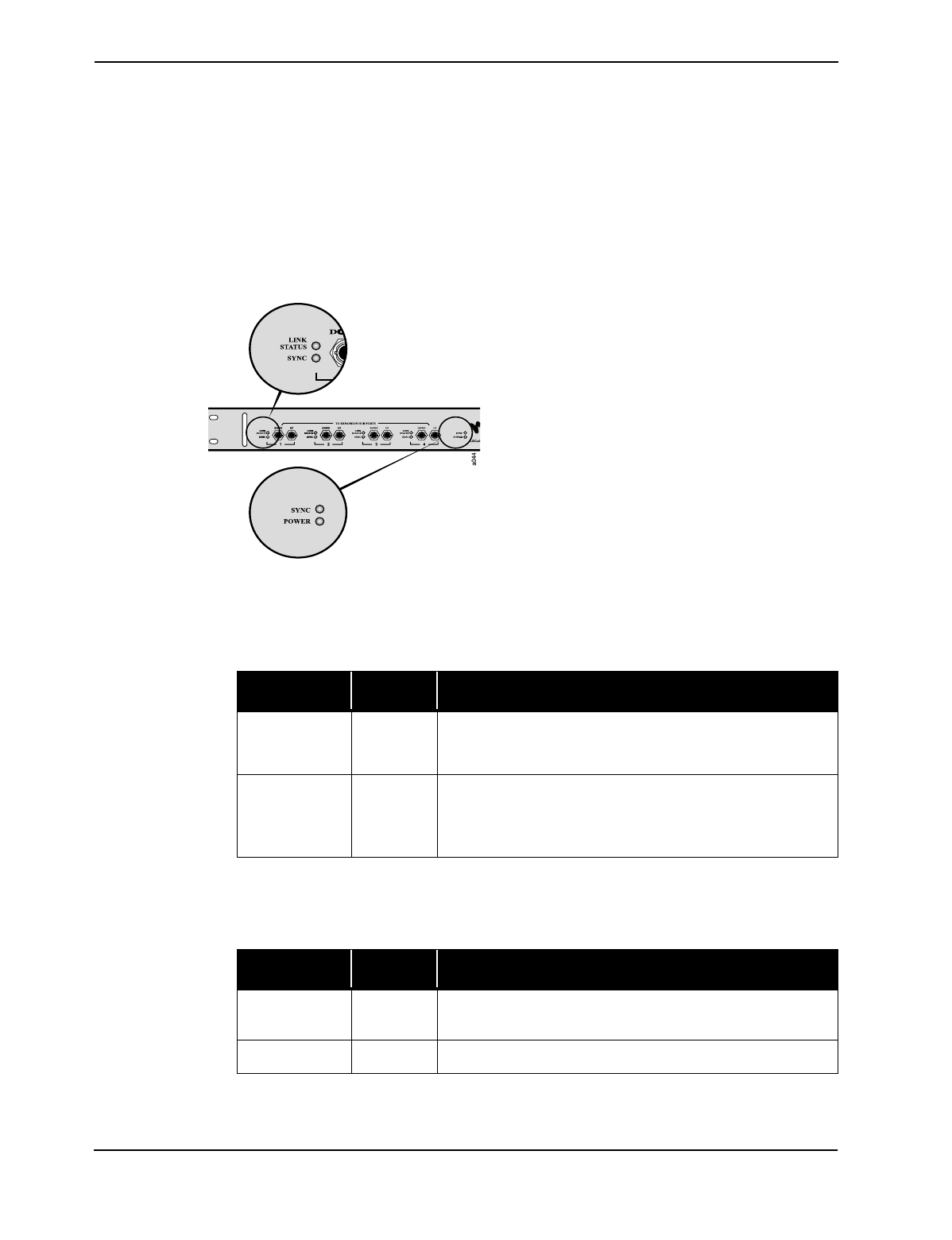

Expansion Hub LEDs
There are two sets of LEDs on the front panel
• Expansion Hub
UTP/STP Ports
• Expansion Hub Functionality
• UTP/STP Ports LEDs
Provides status on each of the Expansion Hub’s four UTP/STP ports.
•Expansion Hub Functionality LEDs
Provides diagnostic information on the Expansion Hub’s functionality.
LED Color Indication
LINK STATUS Green
Red
Indicates good connection to the RAU.
Connection problem between Expansion Hub and the RAU
plugged into that port.
SYNC Green
Red
Indicates RAU connected to it is operating properly.
Problem with the RAU plugged into that port.
LED Color Indication
SYNC Green Indicates Expansion Hub is receiving the synchronization
signal from Main Hub.
POWER Green Turns green when Expansion Hub has power.
6-6 Common Problems, Troubleshooting, and Frequently Asked Questions
RAU LEDs
RAUs have two LEDs:
•Sync
•Power
Troubleshooting Guidelines
The LGCell Main Hub, Expansion Hub, and RAUs have front-panel indicator
LEDs that provide diagnostic information and the operational status of each unit.
Together they provide an efficient diagnostic display system for maintenance and
fault location if a malfunction ever exists. The troubleshooting procedures in this
section are based on the front panel diagnostic LEDs.
The following table contains supplementary troubleshooting information that the
diagnostic LEDs do not cover. Please check the table for a possible cause of a
problem. Some simple checks or a minor adjustment might eliminate the problem
and restore proper operation.
LED Color Indication
SYNC Red Antenna lost sync and has shut down RF power.
POWER Green Antenna is plugged in and the connected Expansion Hub is
on.
6-7
Problem/Symptoms Check
No downlink signal output when
all diagnostic LEDs are green. Make sure that there is a reasonable amount of power at the
input of the Main Hub. Measure the output power of the
coaxial cable using a power meter.
The LGCell is intended for a different frequency band.
Verify that your system corresponds to the desired
frequency spectrum (for example, 800 MHz, 1800 MHz, or
1900 MHz). Check the part number of each unit.
The LGCell is factory set for different bands of operation.
Please be sure you have the proper band.
The system gain is lower than
specification. The optical fiber connector is dirty. Clean the fiber ST-
connector, using the manufacturer’s recommended cleaning
procedure.
There are two types of Multi-Mode Fiber (MMF), 62.5/
125 µm and 50/125 µm. Make sure the vertical run MMF is
the 62.5/125 µm type of fiber.
Remote Antenna Unit (RAU)
power LED (green LED) stays
off after you plug in the twisted
pair cable.
The Expansion Hub provides power to the RAU. Make sure
the Expansion Hub is on.
Make sure that the twisted-pair (TP) cable wiring conforms
to the TIA/EIA 568-A standard. (For information about the
standard, refer to Appendix B – TIA/EIA 568-A
Cabling Standard.) Use a standard local area network
(LAN) cable tester to perform this test. Possible errors are
wrong wiring and/or cable length.
The LGCell performance is
intermittent when you use it for
the CDMA application.
The uplink and downlink gain is not balanced. A CDMA
system performs active power control between the base
station and the mobile unit. It is important to maintain a
balanced link from the base station ports to the RAU ports
(equal uplink and downlink gain) to optimize the
performance of the LGCell.
6-8 Common Problems, Troubleshooting, and Frequently Asked Questions
Diagnostic Procedures
Use the following table when diagnosing system problems. While troubleshooting,
you can copy the blank table on page 12 and use it to record the LED colors on the
Main Hub, the particular Expansion Hub indicating a fault, and the RAUs
connected to it. This is necessary because the Main Hub, Expansion Hubs and
RAUs might be geographically distributed.
To determine where the fault might be
1Go to the Main Hub and record the LEDs. The Main Hub indicates which
Expansion Hub may be faulty by lighting one of its port LEDs red.
2Go to the Expansion Hub attached to the port that has a red LED.
3Record that Expansion Hub’s LEDs. The Expansion Hub indicates which
RAU(s) may be faulty by lighting its antenna LED red.
4Go to the RAU(s) connected to the Expansion Hub port indicating a fault.
Record the error.
5Compare your filled in table to the Diagnostic Table below and begin
troubleshooting according to the notes indicated for your situation.
6-9
Diagnostic Table
Major and Error Latch contacts indicate an alarm when the contacts go from a short to open state.
* Major Alarm contact will momentarily open for 100 milliseconds.
The following numbers correspond to the “See Note” column of the Diagnostic
Table above.
1System is functioning properly.
2The Expansion Hub is off.
Make sure the power cord is connected to a live AC power jack and that the
Expansion Hub power switch is in the 1 position.
3Power is being delivered to the RAU but it is not turning on.
•Check that the UTP/STP cable has been properly crimped and passes a
standard CAT 5 compliance test.
•If that is not the problem, replace RAU.
Visual Alarm LEDs Remote Alarm
Contacts See
Note
RAU Expansion Hub Main Hub DB-9 Connector
PORT LEDS HUB LEDS PORT LEDS HUB LEDS
POWER SYNC LINK
STATUS
SYNC SYNC POWER LINK
STATUS
SYNC SYNC POWER MAJOR
ALARM
CONTACT
ERROR
LATCH
CONTACT
Green Green Green Green Green Green Green Green Green Green Short Short 1
Off Off Off Off Off Off Red Red Green Green Open Open 2
Off Off Green Red Green Green Green Red Green Green Open* Open 3
Off Off Red Red Green Green Green Red Green Green Open* Open 4
Green Red Green Red Green Green Green Red Green Green Open Open 5
Green Red Green Red Off Green Green Red Green Green Open Open 6
Green Red Green Red Red Green Red Red Green Green Open Open 7
Green Red Green Red Off Green Off Off Off Off Open Open 8
Green Red Green Red Red Green Green Red Red Green Open Open 9
Green Off Green Green Green Green Red Red Green Green Open Open 10
Off Off Red Red Green Green Green Red Green Green Open* Open 11
6-10 Common Problems, Troubleshooting, and Frequently Asked Questions
4Power is not being delivered to the RAU.
•Switch the UTP cable to a different Expansion Hub port to see if the same
problem occurs.
If the LEDs on the new port are both green, there is a problem with the
Expansion Hub.
If the problem persists, there is a problem with either the RAU or the UTP/
STP cable.
•Check that the UTP/STP cable has been properly crimped and passes a
standard TIA/EIA 568-A CAT 5 compliance test.
If the cable passes the CAT 5 test, replace the RAU.
5RAU has lost synchronization.
•Make sure that the UTP/STP passes CAT 5 testing.
•If the cable is OK, replace the RAU.
6The Expansion Hub is not properly receiving the synchronization signal from
the Main Hub.
•The MMF cable connection might not be good or if system was working,
the MMF downlink cable is pulled out or cut. Switch MMF cables.
•If the problem persists, switch to a different Main Hub port. If this solves
the problem, the Main Hub port is malfunctioning.
•If the problem persists, there is an Expansion Hub problem.
•If switching MMF cables is not practical, switch the uplink and downlink
pairs. (A connection error may have been made when connecting the Main
Hub UP port to the Expansion Hub UP port, and similarly for the DOWN
ports.)
•If the Expansion Hub SYNC LED turns green, one of the MMF cables was
bad or the connection between the Main Hub and Expansion Hub was done
incorrectly. If both are bad, this test will not help. Switch to a different
Main Hub port.
7The Expansion Hub is not properly receiving the synchronization signal from
the Main Hub.
Too much loss on downlink MMF. Might be due to MMF pairs not attached to
the proper connector.
•Check that the “down” cable end is in the DOWN port connector on both the
Main Hub and on the Expansion Hub. Same for the “up” cable end and
connectors for the UP port.
•If the problem persists, check the integrity of MMF cable using an Optical
Time Domain Reflectometer. If the fiber is faulty, replace it.
•If the MMF cable is OK, try using a different Main Hub port.
6-11
•If the problem persists, replace the Main Hub.
•If the problem persists, replace the Expansion Hub.
8The Main Hub is off.
Make sure the power cord is connected to a live AC power jack and that the
Main Hub power switch is in the 1 position.
9Main Hub is not properly generating the synchronization signal.
Turn off the Main Hub and turn it back on. If the sync LED stays off, the Main
Hub might require replacement.
10 The Expansion Hub is not properly sending the synchronization signal to the
Main Hub.
The MMF cable connection might not be good, or if the system was working,
the MMF uplink cable is pulled out or cut.
11 The RAU is off.
•Check that the UTP/STP cable is operating properly.
•If the system was working, the RJ 45 cable is pulled out or cut.
6-12 Common Problems, Troubleshooting, and Frequently Asked Questions
Diagnostic Table
Use the following blank table to record LEDs as you troubleshoot
Visual Alarm LEDs Remote Alarm
Contacts See
Note
RAU Expansion Hub Main Hub DB-9 Connector
PORT LEDS HUB LEDS PORT LEDS HUB LEDS
POWER SYNC LINK
STATUS
SYNC SYNC POWER LINK
STATUS
SYNC SYNC POWER MAJOR
ALARM
CONTACTS
ERROR
LATCH
CONTACT
6-13
Frequently Asked Questions
The following list provides answers to some frequently asked questions about
LGCell:
1What is the LGCell Distributed Antenna System?
The LGCell Distributed Antenna System (DAS) contains multiple low-power
radiating elements that are deployed around indoor facilities to improve
coverage and capacity. The unique, patented architecture of the LGCell DAS
provides an inexpensive solution to the cellular and PCS provider for coverage/
capacity upgrades and private microcell applications.
2What is twisted pair cable? Will it pick up spurious emissions?
Twisted pair (TP) cable is the standard cable that you find at the back of your
computer for the network hookup. TP cable is the most ubiquitious cable in any
office building. Furthermore, TP cable is inexpensive and easy to install. The
twisting nature of the cable creates a transmission line for efficient signal
transfer and rejection of spurious emissions The LGCell uses a state-of-the-art
common-mode rejection device that reduces pickup of spurious emissions on a
TP cable by a factor of 10,000.
3Can a single LGCell simultaneously support multiple access standards (such
as 800 AMPS/TDMA?
Yes. The LGCell is a frequency selective product. The LGCell system is
transparent to the protocol that the base station and mobile unit use. You can
view the entire system with all the cables together as a frequency selective
repeater with a specified gain.
4What is the bandwidth of the LGCell?
LGCell selects from the RF bandwith, which can help prevent amplification of
an unwanted signal, such as a competitor’s signal. Refer to the data
specifications for the RF bandwith of the system. Another interpretation of
bandwidth is the amount of data that the LGCell system can transmit. The
microcellular or macrocellular base station to which the LGCell is connected
limits the bandwith or capacity of the LGCell, which is a transparent system.
Total, composite output power and spurious emissions are the only constraints
that limit the amount of channels that an RAU can radiate. Furthermore, the
LGCell system shall not limit the data rate of the modulation transmitted
through the system.
5Can the LGCell support multiband operation?
The LGCell provides a wide variety of single-band products, including the U.S.
800 MHz, European GSM 900, DCS 1800, Korean PCS 1800, U.S. PCS 1900
systems, and iDEN. You can use these systems together to provide multiband
services. In addition, LGCell has a Dual Band 900/1800 system available.
6-14 Common Problems, Troubleshooting, and Frequently Asked Questions
6Can the LGCell system share the same UTP Category 5 Cable with the
Ethernet network?
No. The LGCell system can use the existing unused cabling inside the building;
however, you cannot use the same cable to connect an RAU and a computer.
7What is the minimum power input to the Main Hub?
The coverage area of an RAU is directly related to the input down link power
at the Main Hub. Therefore, an input power that generates an output power of
0dBm per channel optimizes the coverage area of an RAU.
8What is the minimum detectable power of an RAU?
The minimum detectable power of system with 1 RAU is -114 dBm in a 30 kHz
bandwidth, -106 dBm in a 200 kHz bandwidth, and -98 dBm in a 1.25 MHz
bandwidth, without taking into account the processing gain of different access
standards.
9What is the difference between connecting the LGCell to a roof-mounted
antenna and to a microcellular base station?
Connecting the LGCell to a roof-mounted antenna increases the coverage of the
indoor environment. Connecting the LGCell to a microcellular base station
improves both the coverage and the capacity in the building and might also
provide a private wireless office application for the customer.
10 Does each Main Hub require a separate coaxial feed to the base station?
A typical RF input power per channel to the Main Hub is 0 dBm. This provides
a lot of margin (link budget margin) for interfacing with antennas through a
base station that typically has an output power of 20 dBm. Therefore, a power
combiner/splitter might be installed between the MH and the base station. This
enables one base station to connect to multiple Main Hubs. For details, refer to
Section 2, LGCell Equipment.
Appendix A – Cables, Connectors, and
Accessories
This section provides information about cables, connectors, and accessories that an
LGCell application might require. LGC Wireless can provide these components, or
the customer can. If the customer provides them, they must be on-site when LGC
Wireless personnel arrive.
Information in this section includes the following topics:
•A description of the cables and connectors needed for the installation
•Relative system gain over varying cable lengths
Contents
Appendix A – Cables, Connectors, and Accessories
Cables and Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
LGCell Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
A-2 Appendix A – Cables, Connectors, and Accessories
A-3
Cables and Connectors
The following cables and connectors are required for connecting LGCell. They are
not provided with the LGCell equipment and must be on site or installed at the site
prior to the LGCell installation. LGC wireless can provide and install these cables
and connectors.
Determine which cables (and their length) and connectors you need, then order
them through a cable vendor or installer.
Coaxial Cable – RF Transmission
Standard Coaxial Cable for Duplex RF Connections
•Connects the Main Hub to a roof-mounted antenna, repeater, or duplex MBS.
•Provides bi-directional downlink and uplink transmission with one cable for
duplex RF connections.
Standard Coaxial Cable for Simplex RF Connections
•Connects a Main Hub to a simplex MBS, a simplex roof-mounted antenna, or
repeater.
•Provides unidirectional downlink and uplink signals on separate cables for
simplex RF connections.
MMF Cable with ST-Connectors –
RF Transmission (Vertical Run)
Standard Multi-Mode Fiber Optic Cable
• Connects Main Hub to Expansion Hubs
• Transmits (downlink) and receives (uplink)
cellular and/or PCS signals.
• Accommodates distances up to 1 km.
a028
MMF
Cable
A-4 Appendix A – Cables, Connectors, and Accessories
UTP/STP Cable with RJ-45 connectors –
RF Transmission (Horizontal Run)
Standard Category 5 Unshielded or Shielded Twisted
Pair
• Connects the Expansion Hub to the RAUs.
• Transmits (downlink) and receives (uplink) cellular
and PCS signals.
• Delivers electrical power to RAUs.
• Accommodates distances up to 60 meters.
LGC Wireless recommends plenum-rated CAT 5 UTP/STP cable and connectors.
a029
UTP/STP
Cable
RJ-45
Connector
A-5
Unshielded Twisted Pair Cable Termination
All UTP (Unshielded Twisted Pair) shall be terminated according to the TIA/EIA
568-A standard. The following diagram describes how the four pairs should be
terminated.
The UTP/STP cable can be any length from 10 meters up to 60 meters. (Per
TIA/EIA specifications, UTP/STP cable must be at least 10 meters.) For
cables longer than 60 meters, system specifications are slightly degraded.
When using high quality UTP/STP cable, lengths up to 60 meters can be
used without degrading system performance.
12 3 45 6 78
Brown
Brown/
White
Blue Blue/
White
Green/
White
Green Orange
Orange/
White

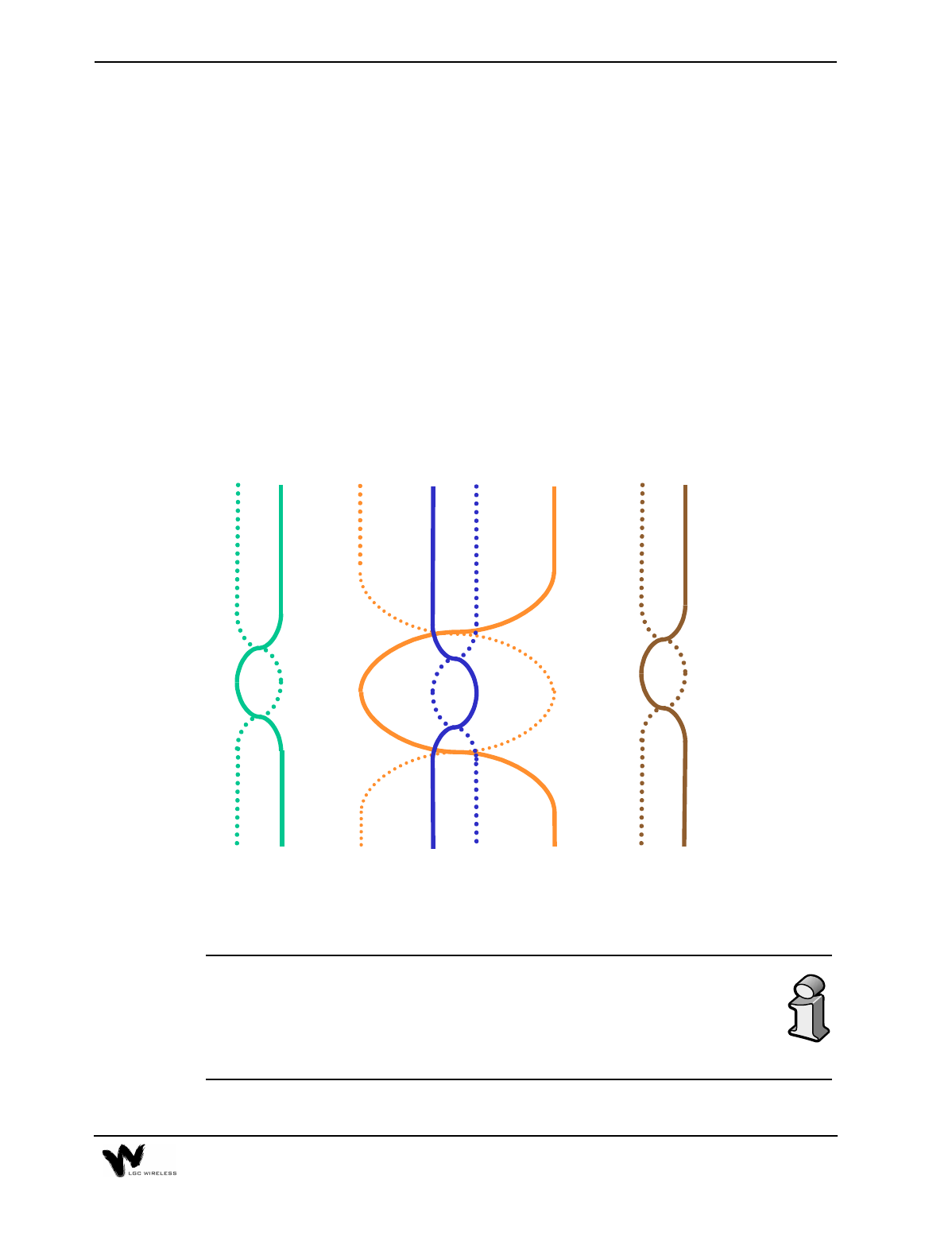

Top View of the Wiring Map for Category 5 (CAT 5) UTP Cable
(TIA/EIA 568-A Standard)
Straight Connect
A-6 Appendix A – Cables, Connectors, and Accessories
The next two tables show how system gain on the uplink and downlink vary as a
function of cable length (horizontal run, measured with 1 km of Multi-Mode Fiber).
LGCell System Gain vs. UTP/STP Cable Length (800 MHz, iDEN, 900 MHz)
UTP Cable Length (feet) Relative System Uplink and Downlink Gain (dB)
0 No change in gain
10 No change in gain
20 No change in gain
30 No change in gain
40 No change in gain
50 No change in gain
60 No change in gain
70 No change in gain
80 No change in gain
90 No change in gain
100 No change in gain
110 No change in gain
120 No change in gain
130 No change in gain
140 No change in gain
150 No change in gain
160 No change in gain
170 No change in gain
180 -0.6
190 -1.3
200 -2.0
210 -2.7
220 -3.4
230 -4.1
240 -4.8
250 -5.5
260 -6.2
270 -6.9
280 -7.6
290 -8.3
300 -9.0
310 -9.7
320 -10.4
330 -11.1
A-7
LGCell System Gain vs. UTP/STP Cable Length
for 1800 MHz or 1900 MHz
(Horizontal run, measured with 1 km of Multi-Mode Fiber)
LGCell Accessories
LGCell provides a full range of accessories that might be required for LGCell
applications. Please see your LGCell Price Book or contact your account manager
for the accessory list.
UTP Cable Length (feet) Relative System Uplink and Downlink Gain (dB)
0 No change in gain
10 No change in gain
20 No change in gain
30 No change in gain
40 No change in gain
50 No change in gain
60 No change in gain
70 No change in gain
80 No change in gain
90 No change in gain
100 No change in gain
110 No change in gain
120 No change in gain
130 No change in gain
140 No change in gain
150 No change in gain
160 No change in gain
170 No change in gain
180 -0.6
190 -1.3
200 -2.0
210 -2.7
220 -3.4
230 -4.1
240 -4.8
250 -5.5
260 -6.2
A-8 Appendix A – Cables, Connectors, and Accessories
Appendix B – TIA/EIA 568-A Cabling Standard
This appendix is a summary of the TIA/EIA 568-A Commercial Building
Telecommunications Cabling Standard.
The TIA/EIA 568-A commercial building cabling standard addresses the need for
a common criterion covering cabling in commercial buildings. The standard was
drafted to ensure support for a wide variety of applications, devices, and vendor
products.
The TIA/EIA 568-A standard assures a flexible cabling scheme which permits the
planning and installation of communications cable without prior knowledge of the
user's needs. This is especially valuable for new building construction and
renovation where it is less costly and less disruptive to install a universal cabling
system prior to occupancy.
The need for a building cabling standard was recognized in the early 1980s. It
resulted from the changes brought on by new technologies. The purpose of the
original drafting committee was to provide a non-proprietary cabling system for
both new and existing facilities.
In 1985, the Computer Communications Industry Association approached the
Electronic Industry Association (EIA) in regard to the market's confusion over
cabling systems. The EIA and later its offspring, the Telecommunications Industry
Association (TIA), addressed this via technical working groups comprised of
industry participants. The resulting standard 568 addressed performance and safety
issues related to technology and utilized many recognized and proven standards.
The TIA/EIA 568-A standard defines the categories of UTP cabling, the categories
of connecting hardware, patch cables, and provides guidelines on cabling practices.
The TIA/EIA 568-A standard describes six sub-systems within a facility
telecommunications cabling system summarized below. (This is intended as a
summary only and is meant to provide a better comprehension of the standard. The
complete TIA/EIA 568-A standard is available for purchase. Call 1-800-854-7179.)
B-2 Appendix B – TIA/EIA 568-A Cabling Standard
Horizontal Wiring
The horizontal cable is the portion of the cabling system which extends from the
work area outlet to the telecommunications closet. The horizontal cabling is a star
topology, with a maximum cabling run of 90 meters (295 feet), independent of
media type.
Voice Data
4-pair 100 ohm UTP cable 4-pair 100 ohm UTP/STP
2-pair 150 ohm STA
62.5/125 µm fiber optic cable
The horizontal cable amounts to the greatest quantity of individual cables in the
building. Although the TIA/EIA 568-A standard helps limit cabling options,
consideration should be given to media type in order to support possible future
needs. The cable selected should accommodate more than one network planning
period.
Backbone Wiring
The backbone cabling provides the interconnection between the tele-
communications closets and the equipment rooms and entrance facilities. The
backbone cabling is also a star topology with the maximum cable length being
media and applications dependent.
The backbone cable is typically second to horizontal cables in terms of amount of
cable deployed. The cable selected should accommodate a minimum of one to
several network planning periods.
B-3
HC Horizontal Cross-Connect MC Main Cross-Connect IC Intermediate Cross-Connect
Work Area
The work area interconnects the horizontal cabling at the wall outlet to the desktop
devices. The maximum allowable distance for patch cables is three meters (9.8
feet), based on the cable being of the same type as the horizontal cable.
Telecommunications Closet
The telecommunications closet is the area in a building dedicated to
telecommunication equipment. The functions which take place in the closet include
the interconnection point between horizontal and backbone cabling systems, the
interconnection of two or more backbone cabling systems, and/or the
interconnection of the entrance facility to the overall telecommunications cabling
system.

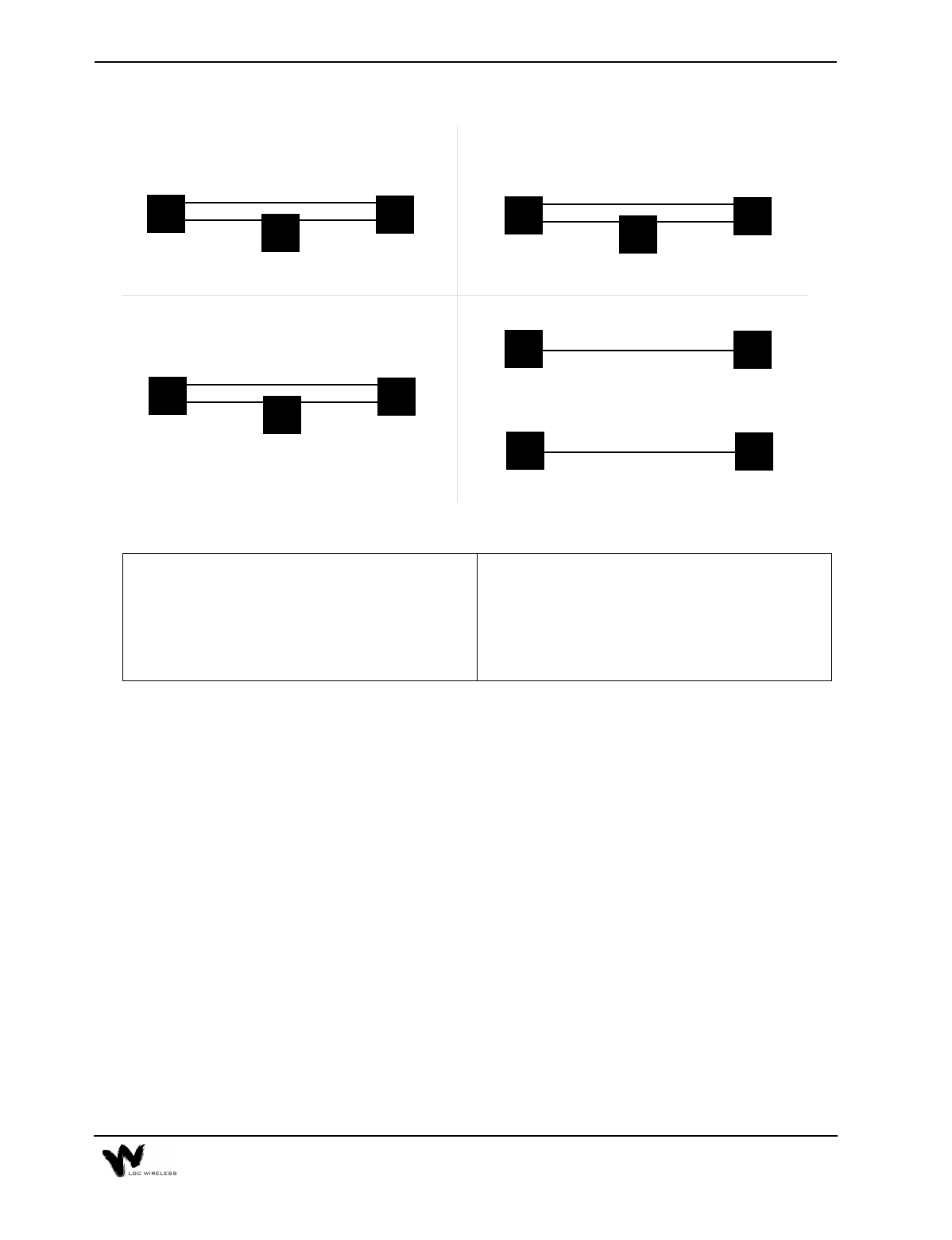

Note 1
When the HC to IC distance is less than maximum,
the IC to MC distance for optical fiber can be
increased accordingly but the total distance from the
HC to the MC shall not exceed the maximum of
2000m (6560 ft.).
Note 2
When the HC to IC distance is less than maximum,
the IC to MC distance for UTP cable can be
increased accordingly but the total distance from the
HC to the MC shall not exceed the maximum of
800 m (2624 ft). For voice applications only.
HC MC
IC
62.5/125 µm Optical Fiber Cable
3000m (9843 ft.)
500m
(1640 ft.) 2500m
(8202 ft.)
HC MC
IC
2000m (6560 ft.)
Maximum
500m
(1640 ft.)
Maximum
1500m
(4920 ft.)
Note 1
TC MC
IC
800m (2624 ft)
Maximum
500m
(1640 ft.)
Maximum
300m
(984 ft.)
Note 2
HC IC/
MC
90m (295 ft)
Maximum
Multi-Mode Optical Fiber Cable
62.5/125 micron Optical Fiber Cable
100Ohm UTP Cable for Voice 100Ohm UTP Cable for Data
HC IC/
MC
90m (295 ft)
Maximum
150Ohm STP-A Cable for Data
B-4 Appendix B – TIA/EIA 568-A Cabling Standard
Equipment Room
The equipment room is the area in a building where telecommunications equipment
is located. Parts of or all of the telecommunications cabling system terminate here.
Entrance Facilities
The entrance facility is where outside telecommunications service enters the
building, and interconnects with the building's internal telecommunications
systems. In a campus or multi-building environment, the entrance facility may also
contain the building's backbone interconnects.
Unshielded Twisted Pair Cable Termination
All UTP (Unshielded Twisted Pair) shall be terminated according to the TIA/EIA
568-A standard.
Appendix C – Compliance Information
All LGCell systems comply with Optical Fiber Safety Standard IEC/EM60825-2.
The LGCell distributed antenna system is rated as a Class 1 laser hazard system. It
has an absolute maximum output power of -11.5 dBm at 1300 nanometers (nm).
There are no restriction on the location or use of an LGCell system. No special
precautions are required if standard work practices are followed. Additional
information on the safe use of optical fiber communications systems is at the end of
this appendix.
The following provides LGC Wireless’ LGCell system approval status for various
countries around the world. Some European countries require National Type
Approval to their national standards (such as Germany).
DAS9M-2-W:
Telecom: A200296L (BAPT 222 ZV 15/ETS 300 609-4) and ETS 300 609-4,
October 1998
EMC: EN 300 339, June 1998, EN 61009-4-6, 1996, and EN55022/CISPR
22 Class B
Safety: Power Supplies, Astec International Ltd., Model LPS 43, Universal
Micro Electronics Co. Ltd., Model UPO651S-02, and International
Power Sources, Inc., Model UPO651S-02 all have CB scheme
certifications.
Markings: The German Type Approval mark is required as well as the UK
approval number. The CE mark is also required.

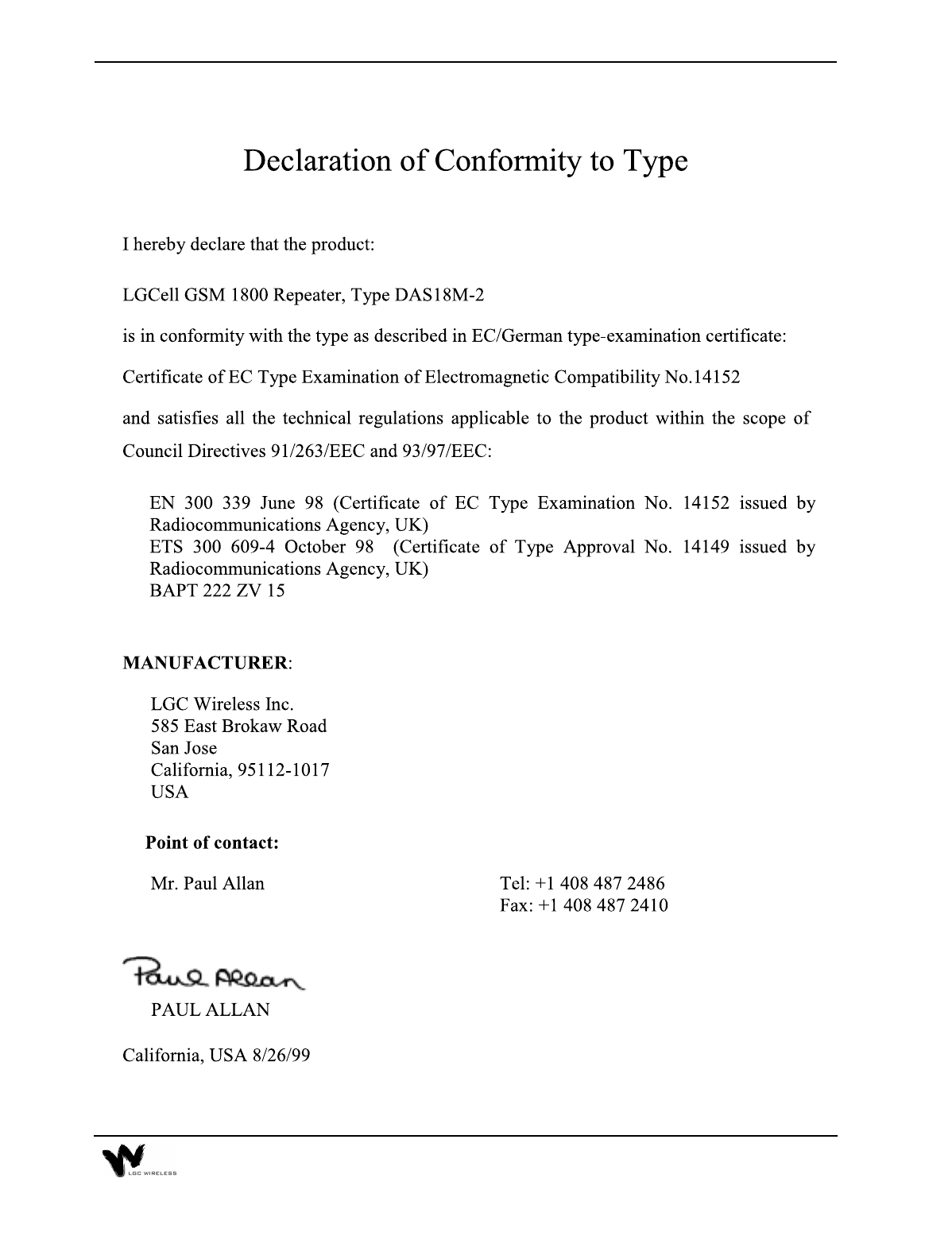

DAS18M-2-W:
Telecom: ETS 300 609-4, October 1998
EMC: EN 300 339, June 1998
Safety: Power Supplies, Astec International Ltd., Model LPS 43, Universal
Micro Electronics Co. Ltd., Model UPO651S-02, and International
Power Sources, Inc., Model UPO651S-02 all have CB scheme
certifications.
Markings: The UK approval number and the CE mark are required.
C-2 Appendix C – Compliance Information
DAS8M-2-W:
Telecom: FCC: NOO-DAS800-1 (FCC Part 22.901d) Non-Broadcast
Transmitter
Industry Canada: 3077281151A for the “Cellular 800” (RSS128,
Issue 1)
EMC: FCC: Class A, Part 15, Subpart B
Industry Canada: Same as FCC
Safety: UL 1950, 3rd Edition and the cUL mark for the Canadian equivalent.
NEBS: This is a customer driven conformance certification and typically
desired of equipment that is intended to be installed in a Central
Office environment. LGC products are intended as Customer
Premise Equipment and it is not anticipated that they will be
installed in a Central Office environment, therefore NEBS
conformance certification has not been pursued at this time.
Markings: The FCC approval number and the FCC logo are required. The word
Canada followed by the Canadian approval number is required. The
UL mark is required.
DAS19M-2-W:
Telecom: FCC: NOO-DAS800-1 (FCC Part 24E) Distributed Antenna System
(Repeater)
Canada: 3077331163A for the “PCS 1900” (RSS-133, Issue 1)
EMC: FCC: Class A, Part 15, Subpart B
Industry Canada: Same as FCC
Safety: UL 1950, 3rd Edition and the cUL mark for the Canadian equivalent.
NEBS: This is a customer driven conformance certification and typically
desired of equipment that is intended to be installed in a Central
Office environment. LGC products are intended as Customer
Premise Equipment and it is not anticipated that they will be
installed in a Central Office environment, therefore NEBS
conformance certification has not been pursued at this time.
Markings: The FCC approval number and the FCC logo are required. The word
Canada followed by the Canadian approval number is required. The
UL mark is required.
C-3
FCC Regulatory Notice:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
•This device may not cause harmful interference.
•This device must accept any interference received, including interference that
may cause undesired operation.
Industry Canada Regulatory Notice:
This Class B (or Class A, if so indicated on the registration label) digital apparatus
meets the requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numerique de la Classe B (ou Classe A, si ainsi indique sur l’etiquette
d’enregistration) respecte toutes les exigences du Reglement sur le Materiel
Brouilleur du Canada.
C-4 Appendix C – Compliance Information
C-5
C-6 Appendix C – Compliance Information
IEC/EN 60825-2 - Safe Use of Optical Fiber
Communication Systems
Part 2 of IEC 60825 provides requirements and specific guidance for the safe use of
optical fiber communications where optical power may be accessible at some
distance from the optical source. In this part of IEC 825, light emitting diodes
(LED’s) are included whenever the word “laser” is used.
Description of LGCell System
The LGCell is a distributed antenna system. It consists of three main components.
A Main Hub, which is connected by dual mode fiber optic cables to one or more
Expansion Hubs. Each Expansion Hub is connected by UTP CAT 5 cable to a
Remote Antenna Unit. Because LED’s are used to send a signal over the fiber optic
cable, the LGCell is covered under the IEC 60825 specification.
Requirements under IEC 60825
Under IEC 60825, LGC Wireless is required to determine the Class of operation of
the LGCell system, the Hazard level of the LGCell system and any special
instructions that must be included in an operators manual as well as any warning
labels that may be required on the LGCell system.
The LGCell is covered only under these definitions of section 3 of 60825.
3.2 enclosed system: A system in which, during normal operation, the optical
radiation is totally enclosed, by light proof cabinets, components, total internal
reflection or optical fiber cables and connectors.
3.3 end user: The person or organization using the optical fiber communication in
the manner the system was designed to be used. The user cannot necessarily control
the power generated and transmitted within the system.
3.4 hazard level 1: A hazard level 1 is allocated to any part within an optical fiber
communication system at which, under reasonably foreseeable circumstances,
human access to laser radiation in excess of the accessible emission limits (AEL) of
class 1 for the applicable wavelengths and emission duration will not occur.
3.10 light emitting diode (LED): Any semiconductor device which can be made
to produce electromagnetic optical radiation in the wavelength range from 180nm
to 1mm. (The optical radiation is produced by the process of spontaneous emission,
although some stimulated emission may be present.)
3.13 location with controlled access: A location where access to the protective
housing (enclosure) is controlled and is accessible only to authorized persons who
have received adequate training in laser safety and servicing of the system involved.
Examples include optical cable ducts and switching centers.
C-7
3.14 location with restricted access: A location where access to the protective
housing is restricted and not open to the public. Examples include industrial and
commercial premises, PBX rooms, computer system rooms, and optical test sets.
Distributed fiber networks may pass through unrestricted public areas, restricted
areas within premises, as well as controlled areas or they may be deployed entirely
within restricted business premises.
3.18 optical fiber communication system: An engineered assembly for the
generation, transference, and reception of optical radiation arising from lasers in
which the transference is by means of optical fiber for communication purposes.
3.19 reasonable foreseeable event: An event, the occurrence of which under given
circumstances can be predicted fairly accurately, and the occurrence of which is a
possibility. Examples of reasonably foreseeable events might include the following:
fiber cable break, optical connector disconnection, operator error or inattention to
safe working practices. Reckless use or use for completely inappropriate purposes
is not to be considered as a reasonably foreseeable event.
Installation Notes
The LGCell is covered under these parts of section 5 of 60825
5.2.1.3 Test Equipment: During installation or testing of an optical fiber cable or
system, only test equipment of laser Class 1 should be used.
5.2.1.5 Installation Rules: Each person engaged in the installation or service of an
optical fiber cable communication system should observe all rules, procedures and
practices established for the safe operation of optical fiber communication systems.
Evaluation of LGC System
The LGCell is covered under Annex A of 60825
The LGCell system is a self contained product that contains an optical fiber
communication system that would be safe under normal operating conditions
because the optical radiation is totally enclosed and contained under intended
operation. However, because of the extended nature of the system, the optical
power may be accessible a kilometer from the optical source. The LGCell system
contains LED's, which are the source of radiation covered under IEC 825. Usually
a whole fiber optical communication system would not be classified under IEC 825-
2 in the same way required under IEC 825-1. This is because, under intended
operation, the optical power is totally enclosed, and it could be argued that an
interpretation of IEC 825-1 would give a class 1 to all systems, which may not
accurately reflect the hazard potential of some systems. If the emitter can be
operated separately, it should be classified according to IEC 825-1. However, the
power output level of the LGCell system is so low that it always falls into the class
1 hazard level even under 100% modulation conditions. The absolute maximum
allowed at 1300nm is +9.5 dBm. The absolute maximum accessible output of the
C-8 Appendix C – Compliance Information
LGCell fiber optic system is -11.5 dBm. Therefore there is no restriction as to
location of use of the LGCell system and there is no labeling requirement.
Suggested Work Practices
The LGCell is covered under these parts of section D7 of 60825
The following working practices are suggested for working on the LGCell system:
•Viewing Fiber: Do not stare with unprotected eyes at the connector ends of the
fibers or the ports of the hub.
•Test Fibers Cables: When using test fiber optical cables, the optical power
source shall be the last to be connected and the first to be disconnected.
•Fiber ends: Any unconnected fiber ends should be covered with an approved
cap. Do not use tape.
•Broken Fiber Cables: Do not stare with unprotected eyes at any broken ends
of the fibers. Report and have any broken fiber cables replaced.
•Cleaning: Use only approved methods for cleaning optical fiber connectors.
•Modification: Do not make any unauthorized modifications to this fiber
optical system of associated equipment.
•Live work: Live work is permitted on the LGCell as it is a class 1 hazard.
•Signs: No warning signs are required.
•Test Equipment: Use class 1 test equipment.
Appendix D – Services
This appendix gives an overview of services that LGC Wireless provides.
LGC Wireless offers a full range of professional services to ensure cost-effective
and timely deployment of wireless networks. The seasoned staff of dedicated
service professionals at LGC Wireless combine wireless system design and
implementation expertise with a commitment to customer satisfaction unequalled
in the industry. LGC offers a “Coverage Guarantee” and full access to its experts
any time, 7 days a week and 24 hours a day.
For both small and large installations, LGC can deliver specific services or a full,
turnkey package that frees the customer from all the implementation details. LGC
Wireless offers the following services:
•Application Development
•Preliminary System Design
•Site Surveys
•Installation and Commissioning
•Project Management
•Turnkey Implementation
•Maintenance
Appendix E – Alarm Report Monitor (ARM2000)
This appendix describes the Alarm Report Monitor (ARM2000) system, an option
that you can order separately, for monitoring LGCell, PCS Extender, and Fiber
Extender alarms.
If your LGCell is connected to a microcellular base station, see the Integration
Module Installation and Reference Manual for installation and operation of alarm
devices and connectivity for that system.
Contents
Appendix E – Alarm Report Monitor (ARM2000)
Description of the ARM2000 System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
ARM2000 System Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ARM2000-RU (Remote Unit) Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PCARM Installation for ARM2000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Security Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Alarm and Device Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
PCARM Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
E-2 Appendix E – Alarm Report Monitor (ARM2000)
E-3
Description of the ARM2000 System
The Alarm Report Monitor (ARM2000) software is used to display, manage, and
record the alarm monitoring activity of one or more remote-ARM (ARM2000-RU)
alarm monitoring and remote control units. The software provides a graphical
display of up to 255 of these units and enables the user to identify and acknowledge
alarm events, reset alarms, maintain event history, and page field service personnel.
The system supports multiple users and tracks responsibility through log-in and log-
out procedures, using four security levels to protect critical system functions.
Alarm Report Monitor Features
The ARM2000 system has the following features:
•Graphic Color Status Display shows the entire system and individual device
front panels with animation of all alarm reporting functions.
•Remote System Reset Control uses point-and-click mouse control. Reset
status is color keyed for on/off and pulsing conditions.
•Alarm History and Control Logs keep track of all system events. You can
view and print reports for the entire system, one specific device, or one channel
of any unit.
•Security Code Management allows restrictions to sensitive areas of the
system. Four levels of security are available, with log-in and log-out
procedures to track responsibility.
•Journal Printer option keeps an active record of all alarm and control events.
All activity is time and date stamped.
Hardware and Operating System Requirements
To run ARM2000, you need the following hardware and operating system:
•IBM Pentium or compatible PC
•Windows 95 or Windows 98 with MS-DOS prompts
•VGA card with a minimum of 1024 Kbytes video RAM
•8 Mbytes of conventional memory
•Hard disk storage space: at least 10 Mbytes. Additional storage space allows
larger history logs.
•One Com port
•US Robotics External 56Kbps modem (connects to COM1 port)
•Mouse
•Parallel printer (optional)
E-4 Appendix E – Alarm Report Monitor (ARM2000)
ARM2000 System Basics
The ARM2000 system is an alarm monitoring, reporting, and remote control
system. Up to 8,160 individual alarm points can be monitored, displayed and logged
by the system. The system consists of up to 255 remote-ARM monitoring units that
can monitor up to 2,040 LGC systems (LGCell, PCS Extender, Fiber Extender) and
a Pentium PC running the ARM software.
These remote-ARM units communicate with the ARM software through dial-up
modem connections. Each remote-ARM unit can use an external or internal
modem. A database of these devices is set up in the PC, each device having a unique
address. This address is set on the device and programmed into the PC using the
Device Setup utilities of the software.
The next figure illustrates both the direct connection of a single ARM unit and
multiple units connected via a dial network.
Multiple Remote-ARM Over Dial-up Network
ARM2000-RU (Remote Unit) Installation
The ARM2000-RU is rack mounted in the same rack as the LGCell Main Hub(s).
This remote-ARM unit has an “octopus” cable that enables it to monitor up to 8
LGCell Main Hubs. The ARM unit needs to be within 4 feet of each Main Hub that
it will monitor due to the cable length.
The ARM unit has an external power supply that requires a 110 VAC receptacle.
Connect the power to the ARM unit after all cable and telephone connections are
completed.
Remote ARM with Internal Modem
Remote ARM with Internal Modem
Dial-up
Network
E-5
Modem Connections
Communications to or from the remote ARM can be configured in either of two
ways:
•Internal modem (inside remote-ARM unit)
The internal modem must be a North American qualified modem for use in
telephone networks that use North American standard call progress tones. This
modem is inside the remote-ARM unit and requires an analog phone line
connection with an RJ-11 male connector. Connect the phone line to the port
marked “Line” in COM1, at the back of the remote ARM.
•External modem (via RS-232 COM1)
LGC Wireless recommends a US Robotics External modem qualified in the
country of use. To install this modem, you need a DB-25 to RJ-45 converter
cable and a cable with RJ-45 male connectors on both ends.
If you are in a country that does not use North American standard call progress
tones, you need to use an external modem with the ARM2000-RU unit.
If you use the US Robotics External modem, you need to prepare the modem with
initialization commands before you use it, as “Preparing the PC Modem” on page 7
describes. Take the following steps to install the modem:
1Connect the phone line to the phone line marking at the rear of the modem.
2If you choose to be notified by a phone ring of an incoming call, then connect
the phone to the phone marking at the rear of the modem via RJ-11 male
connectors on both ends.
3Connect the DB-25 to RJ-45 converter at the rear of the modem.
4Run the other end of the RJ-45 cable to the RS-232 COM1 port at the rear of
the remote ARM.
Alarm Cable Connections
To connect the LGCell Main Hub(s) to the remote ARM, use the two-to-eight-port
connector cable. Make the following connections to monitor the following alarms:
Connector Alarm Monitored
J1 Alarms 1,2 - Main Hub 1
J2 Alarms 3,4 - Main Hub 2
J3 Alarms 5,6 - Main Hub 3
J4 Alarms 7,8 - Main Hub 4
J5 Alarms 9,10 – Main Hub 5
E-6 Appendix E – Alarm Report Monitor (ARM2000)
J6 Alarms 11,12 – Main Hub 6
J7 Alarms 13,14 – Main Hub 7
J8 Alarms 15,16 – Main Hub 8
Input Alarm input to ARM unit
Output Remote Reset from ARM unit
Alarm Cable and Connectors
Test Setup
After the ARM unit is powered up, the unit should be reset and ready for
communicating to the PCARM system for final programing.
When the ARM is powered, wait 15 seconds and then press the TEST button on the
left front of the unit. All 16 circuit alarm LEDs on the front panel should light and
toggle to green momentarily. If this does not occur, power down the ARM unit for
15 seconds and start over.
The LED final state should be green to indicate a proper connection and a no-fault
condition for each Main Hub that is also powered up. Each Main Hub has 2 LEDs
assigned to it. Alarm circuits that do not have an “octopus” cable connected will be
red.
E-7
PCARM Programming Information
If multiple ARM200-RU units are installed that will be controlled by one PCARM
system, then each ARM200-RU unit must be configured with a unique device ID
(1-255) for programming by the PCARM system. Each ARM unit must have a
different device ID if it will be controlled by one PCARM system. There is a label
on each ARM unit that indicates what device ID it has be configured for. The device
number and which Main Hub(s) it has been connected to, is important information
that must be provided to the person programming the PCARM.
PCARM Installation for ARM2000
The PCARM software runs the ARM2000 system. This section describes how to
install the PCARM software and configure it for running the ARM2000, with a
subsection on each of the following steps:
1PC modem preparation
2Remote programming of a remote-ARM unit
3PCARM software installation
4Modem connections
5Testing of communications between PCARM and a remote-ARM unit
Preparing the PC Modem
To communicate with the internal modem of the remote-ARM unit (ARM2000-
RU), prepare the US Robotics 56K external modem for the Intel Pentium PC that
will be running the PCARM software via the following steps:
1Install the US Robotics 56K external modem in the COM1 port of the Intel
Pentium PC. (Follow the installation instructions that accompany the modem.)
2Enter the AT commands to initialize the 56K modem to communicate with the
internal modem of the remote ARM.
To enter the AT commands
1Choose Accessories from Programs on the Start menu.
2Click HyperTerminal.
3Double click HyperTerminal.exe.
4Enter a name of connection (“Test”, for example).
5When prompted to enter a phone number, select direct to COM1 from the
“CONNECT USING” pull-down menu and click OK. Then click OK on
COM 1 properties.
E-8 Appendix E – Alarm Report Monitor (ARM2000)
Once connected to COM1, enter AT and press Enter. (You will see OK displayed
at this point and will not see any characters.) Then enter the following AT
commands.
•“AT&F”
•“AT&A0”
•“AT&B1”
•“AT&K0”
•“AT&M0”
•“AT&N3”
•“AT&W”
After you enter these commands, your PCARM modem is ready for communication
with the internal modem of the remote ARM. Exit HyperTerminal. (You do not
need to save this session).
Remote Programming of a Remote-ARM Unit
To program the remote-ARM unit with the phone number to dial out to the PCARM
modem when an alarm condition occurs, make sure that the remote-ARM unit is
connected to an analog dial-up line and is powered up. Call from the PCARM,
taking the following steps. (Make sure the US Robotics 56K modem is installed in
the PCARM before programming.)
1Click Start.
2Click Programs.
3Click Accessories.
4Click HyperTerminal.
5Double click HyperTerminal.exe.
6Type connection name (“TEST”, for example) and click Enter.
7Type the phone number of the line to which the remote-ARM unit is
connected.
8Click OK.
9Click Connect.
When a connection is established to the remote-ARM unit, the HyperTerminal
status bar will indicate the connection time.
10 After a connection is established, type “P” and then press the Enter key.
A prompt appears on the screen asking you to enter the phone number:
(ENTER PHONE NUMBER)
E-9
11 Enter the dial-up number (the PCARM modem number) that the remote ARM
will dial to establish communications with the PCARM. If you need to enter a
digit to access an outside line (such as 9), separate this digit from the phone
number with a comma for a pause. Enter 1 for long distance if required.
12 End the session by entering “ATH0”.
13 Exit HyperTerminal. You do not have to save the session.
PCARM Software Installation
To install the PCARM files
1Place the PCARM disk in the A (or appropriate) drive.
2Open Windows Explorer from the Program menu under the START Button.
3Make directory PCARM under the C drive.
4Make two sub-directories in the PCARM folder, labeled ARCHIVE and
BACKUP.
5Exit Windows Explorer.
6From the START Button RUN A:\PCARM.exe. Press OK.
The WinZip program will extract and unzip the PCARM files.
7Save the unzipped PCARM files to the C:\PCARM directory.
8Close the WinZip window.
9Take out the PCARM disk and store in a safe place.
10 After you install these files, verify that the files are in the PCARM directory
via Windows Explorer, then exit Explorer.
To create a shortcut for PCARM
1Right click the mouse on the Windows 95 desktop.
2Place the mouse pointer over NEW.
Another menu pops up.
3Click Shortcut.
4Click Browse.
5Double click PCARM.exe.
6Click Next.
7Click Next (again).
8Double click the desired icon.
A “PCARM.exe” icon appears on the desktop.
E-10 Appendix E – Alarm Report Monitor (ARM2000)
To set up PCARM software
1Double click the PCARM.exe shortcut icon that you created.
The System View screen appears.
2Click setup.
3Click Configure ARM Manager (change the configurations to desired
settings). Make sure “use modem” is YES. Once changes have been made,
save the changes and exit.
4Click Setup (again).
5Click Device.
6Click Remote Arm.
7Enter the device address (0001, for example).
8Enter the location (LGC Wireless, for example).
9Enter the phone number for the remote-ARM unit (assigned to that hardware
device number).
10 Enter appropriate alarm names, short names, alarm & clear states, and pager.
Select no for pager for all alarms entered. (See Inputs sample screen.) If you
are in Device 0001, alarm names are already set. This is the default database.
11 Save the data you entered. (You will not see any indicator of saved data.)
12 Click Program Outputs.
13 Enter the appropriate number of devices, and Energize and De-Energize states.
(See Outputs sample screen). If you are in Device 0001, there is default data
present.
14 Save data once entered.
15 Once data has been saved, exit out of setup. (This will take you to the Device
View screen.)
To receive alarms from the remote-ARM unit or units, leave the PCARM running
continuously on the PC. The System View screen indicates the status of each device
(REMOTE ARM UNIT).
E-11
Modem Connections
Communications to or from the remote-ARM unit can be configured in either of
two ways:
•The internal modem (inside the remote-ARM unit) uses North American call
progress tones.
•External Modem (via RS-232 COM1) used for International locations when
North American call progress tones are not used.
Internal Modem: (Required parts: cable with RJ-11 male connectors on both
ends)
The internal modem is situated inside the remote-ARM unit. The phone line
connection is connected to the port marked, “Line” in COM1, at the back of remote-
ARM unit.
External Modem: (Required parts: US Robotics External modem, DB-25 to
RJ-45 converter, cable with RJ-45 male connectors on both ends)
If you choose to use an external modem, use a US Robotics 56K external modem.
If this modem is used, please prepare the modem with the initialization commands
given in the modem preparation section prior to usage. Connect the phone line to
the phone line marking at the rear of the modem. Connect the DB-25 to RJ-45
converter at the rear of the modem, and run the other end of the RJ-45 cable to the
RS-232 COM1 port at the rear of the remote-ARM unit. Verify that you are using
a remote-ARM unit that does not have an internal modem (part number ARM2000-
RU-EXT).
Testing Communications Between PCARM and Remote-ARM Unit
To test communications between the two modems, the PCARM software needs to
be running. (Install the software and configure it, if not done.)
1Turn on the PC and wait for Windows 95 to load.
2Click the PCARM.exe shortcut icon to run the PCARM program.
This puts you at the System View screen.
3On the System View screen, click the device with which you want to
communicate.
This puts you at the Device View screen. To find the device, place the mouse
pointer over the cell for the device.
4On the Device View screen, click Test to test communications between the
PCARM and the remote-ARM unit.
An alarm condition prompts the remote-ARM unit to dial the PCARM (alternate
method of test).
E-12 Appendix E – Alarm Report Monitor (ARM2000)

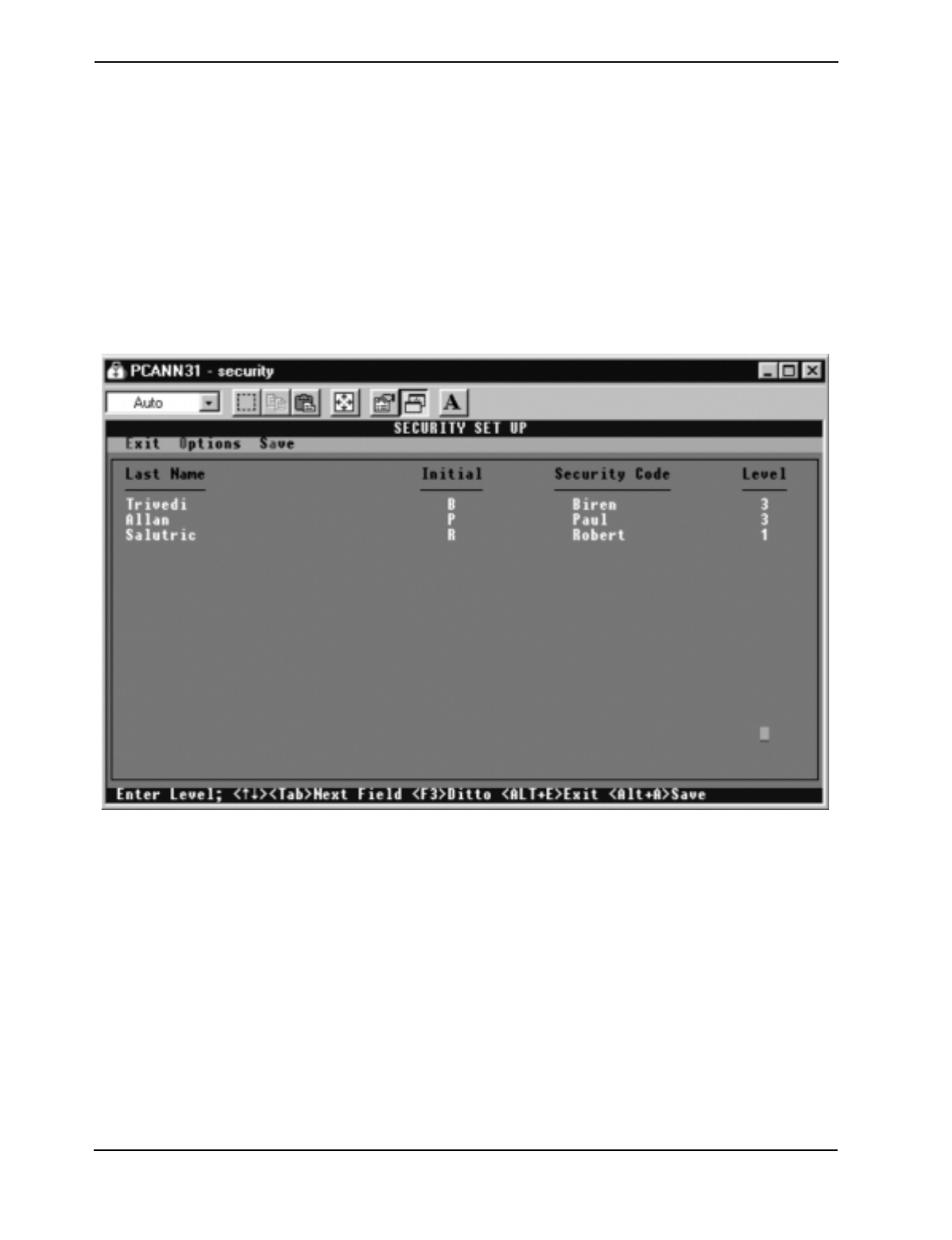

Security Setup
To access the security utility, click Setup on the Device View or System View
screen. Choose the desired security system by placing the cursor in the appropriate
box and clicking. For a secure system you will need to enter a name, password
(security code), and clearance level for each individual who will use the system. In
a secure system at least one operator must have a Level 3 security clearance. If the
system is set up to be Tracked, or Secured, an operator can log on and log off from
the Setup menu on the Device View or System View screen.
E-13
Security Setup Utility Overview
The Security Setup Utility enables the user to setup the various security features of
the ARM. It is made up of two different screens. One to select the system wide
security options and the other to enter the system operators.
Access to the Security Setup Utility
You can access the Security Setup Utility from the System View or Device View
screen or the Control Panel. From any of these, select Setup / Security. If the system
is in tracked or secured mode, you must have Level 3 security clearance. If the
operator who is currently logged on does not have Level 3 clearance, an error
message is displayed. In a secured system, you need to enter a second security code
to access this utility.
E-14 Appendix E – Alarm Report Monitor (ARM2000)

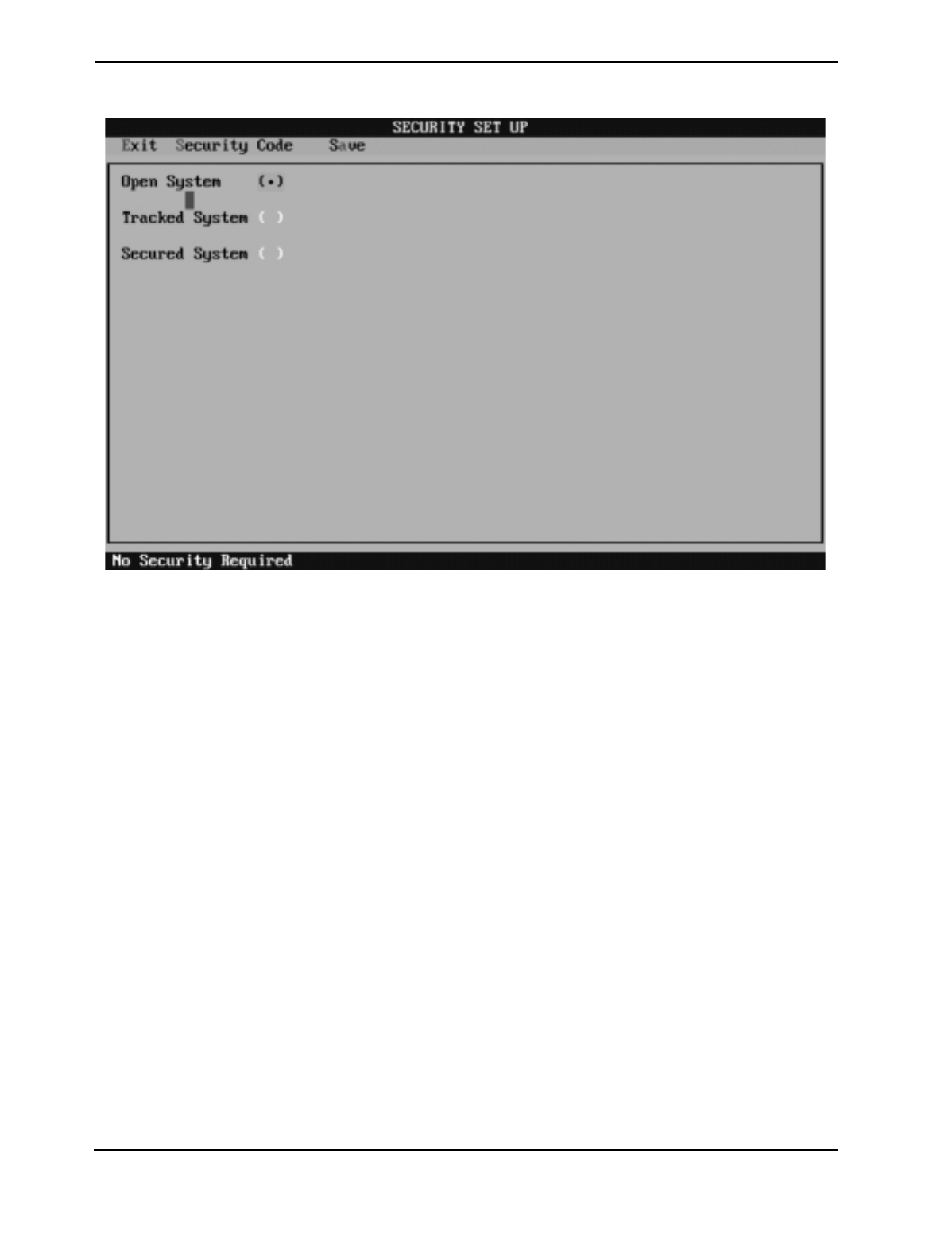

Security Options Screen
Security Options Fields
To select a Security Setup field, use the SPACEBAR key or position the cursor over
the field you want and click the left mouse button. You can set up the security of
the system in one of three ways:
•Open system
In an open system, all functions are available at all times. No log-on or log-off
procedure is required. This is the least secure system.
•Tracked system
In a tracked system, each user is assigned a security level and an access code.
There are four levels of security, each with progressively more access to the
system. After a user logs on at a given level, all functions for that level are
available to the user.
•Secure system
A secure system functions in the same way as a tracked system, except that level
3 functions (archive and system management) require reentry of the security
code.
E-15

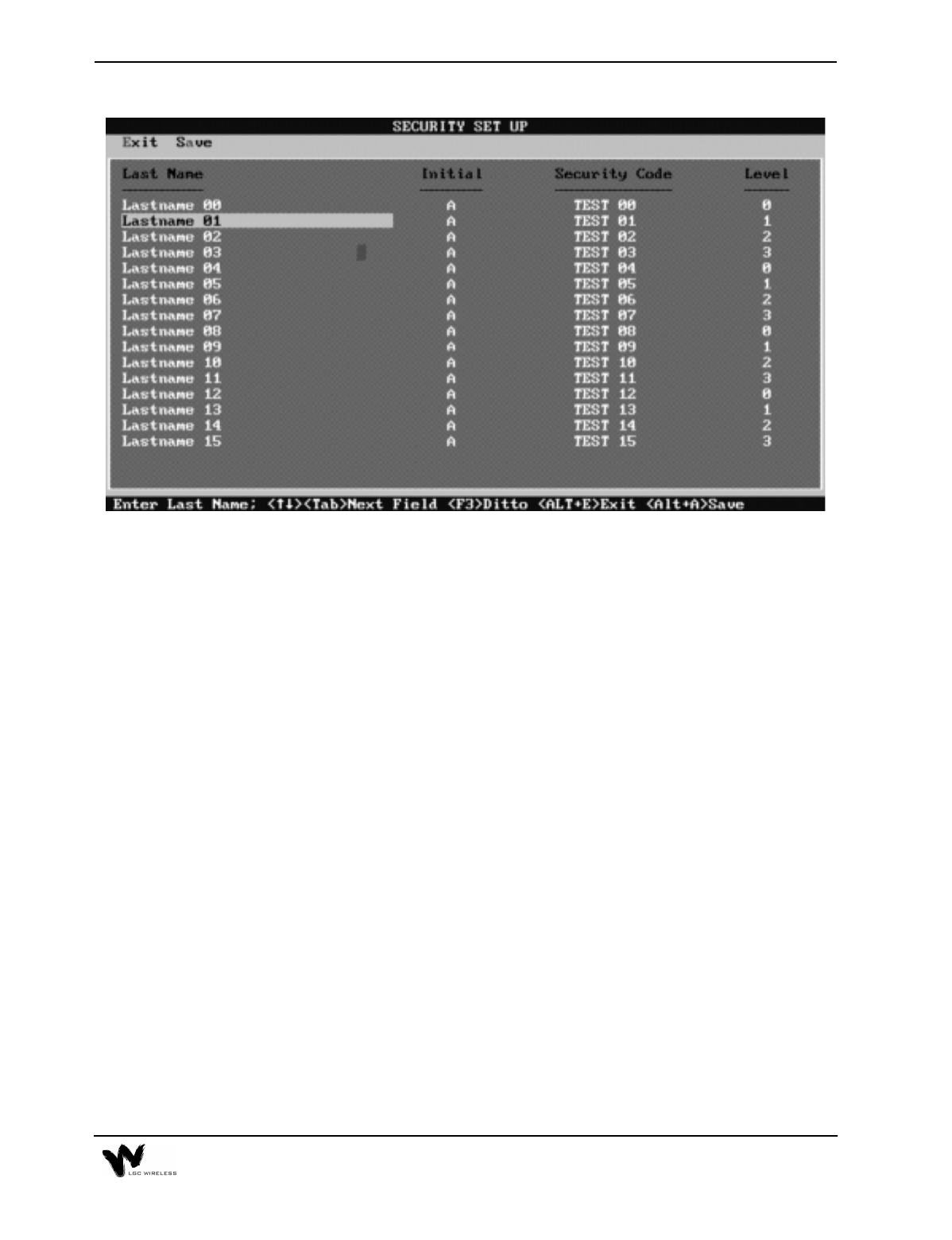

Security Codes Screen
The Security Codes screen enables the system supervisor (highest security, Level
3) to change or add operator names and security codes and assign individual
security levels.
Security Code Levels
•Level 0
Allows a user to view status and history screens and to print reports. At this
level, the user will not be able to acknowledge alarms. Any attempt to perform
a function will result in a prompt for a higher security code or log on.
•Level 1
All of Level 0 plus the ability to acknowledge alarms.
•Level 2
All of Level 1 plus the ability to control the remote-ARM relays.
•Level 3
Manager Level. Unrestricted access to all system functions. This level is
required for all setup functions.
E-16 Appendix E – Alarm Report Monitor (ARM2000)
Alarm and Device Setup
During the initial test after you complete the setup, PCARM displays the
appropriate clear and alarm conditions. To acknowledge these conditions, click the
ACK button on the Device View screen. During initial setup, all 16 devices are
assumed to be enabled.
Disabling Alarms and Devices
To disable an alarm, place the mouse pointer over the alarm and right click.
PCARM displays a dialog box that asks if you want to be reminded to enable after
an elapsed time. Make your selection of time and press Enter. The alarm is disabled
at this point, both in PCARM and on the REMOTE UNIT display panel.
You can also enable a device in this manner from the System View screen.

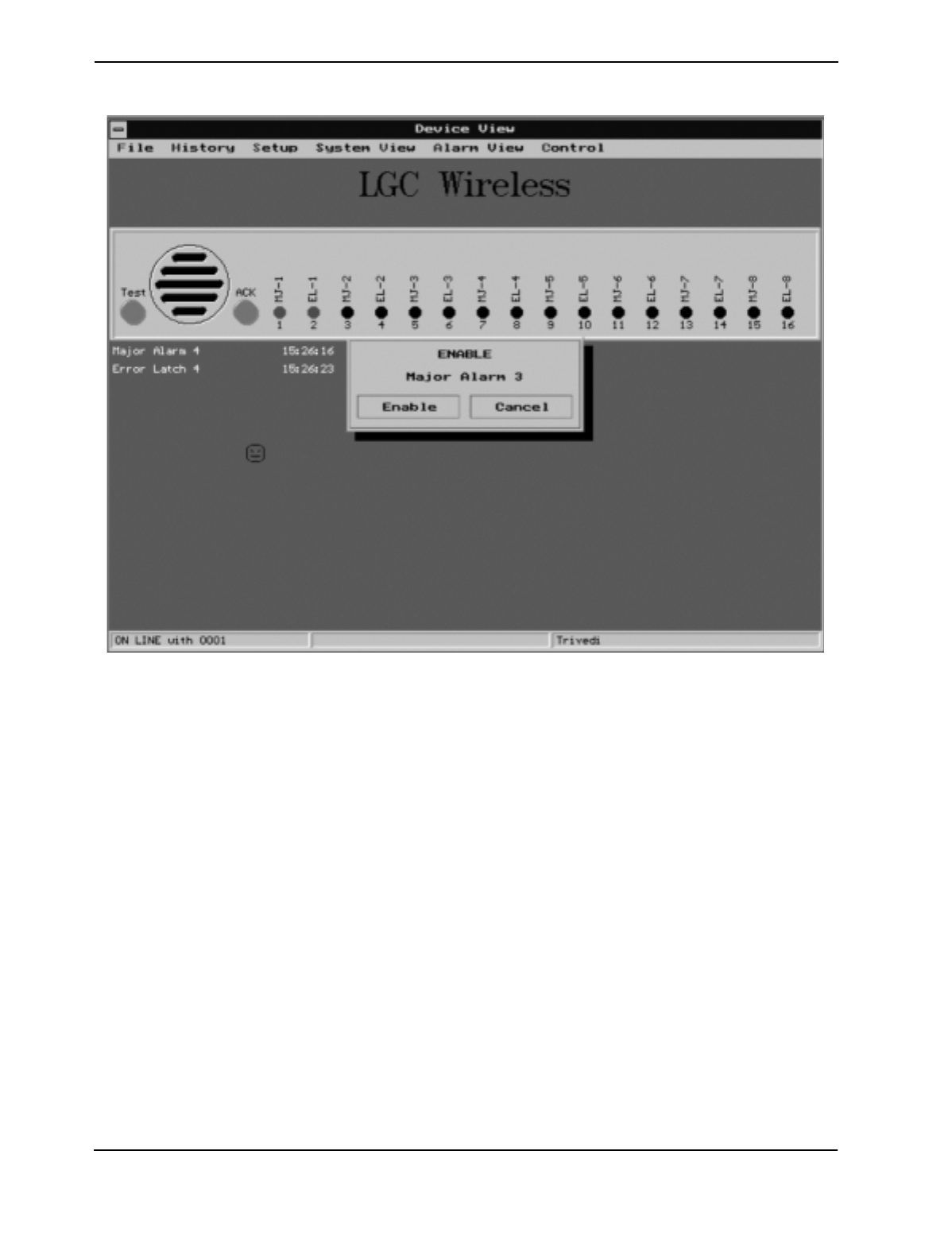

Enabling Alarms and Devices
To enable an alarm, place the mouse pointer over the desired alarm and right click.
PCARM displays a dialog box that gives you options to enable or cancel. Click the
enable options, or press E on the keyboard to enable them. (If you attempt to enable
an alarm when appropriate conditions have not been met, the alarm indicator (red
LED) flashes and the PC buzzer sounds.)
You can also enable a device in this manner from the System View screen.
E-17
E-18 Appendix E – Alarm Report Monitor (ARM2000)
Resetting the Main Hub Remotely
The remote-ARM unit is designed not only to monitor the alarm conditions, but also
to reset the Main Hub from a remote site. When an alarm condition occurs, you can
clear the alarm from the PCARM via the control menu and then reset the Main Hub.
To reset an alarm condition remotely
1From the Device View screen, click Control Menu to go to the Control Panel
screen.
2Choose a hub to reset by clicking that hub.
PCARM displays the Control Relay dialog box, which gives you the option to
pulse or change the state of the relay.
3Click Pulse to reset the hub.
PCARM displays the Pulse Duration dialog box, which asks you for a pulse
time and displays the following message:
ONLY ONE (1) SECOND PULSE IS REQUIRED TO RESET THE HUB.
E-19
4Choose your time and press Enter
If the alarm condition has cleared, the PC buzzer sounds and a status box
appears on your screen.
5Click Go To.
PCARM displays the Device View screen, on which the cleared alarm(s) flash
green.
6To acknowledge the clear condition, click ACK.
The flashing green indicator or indicators become solid green.

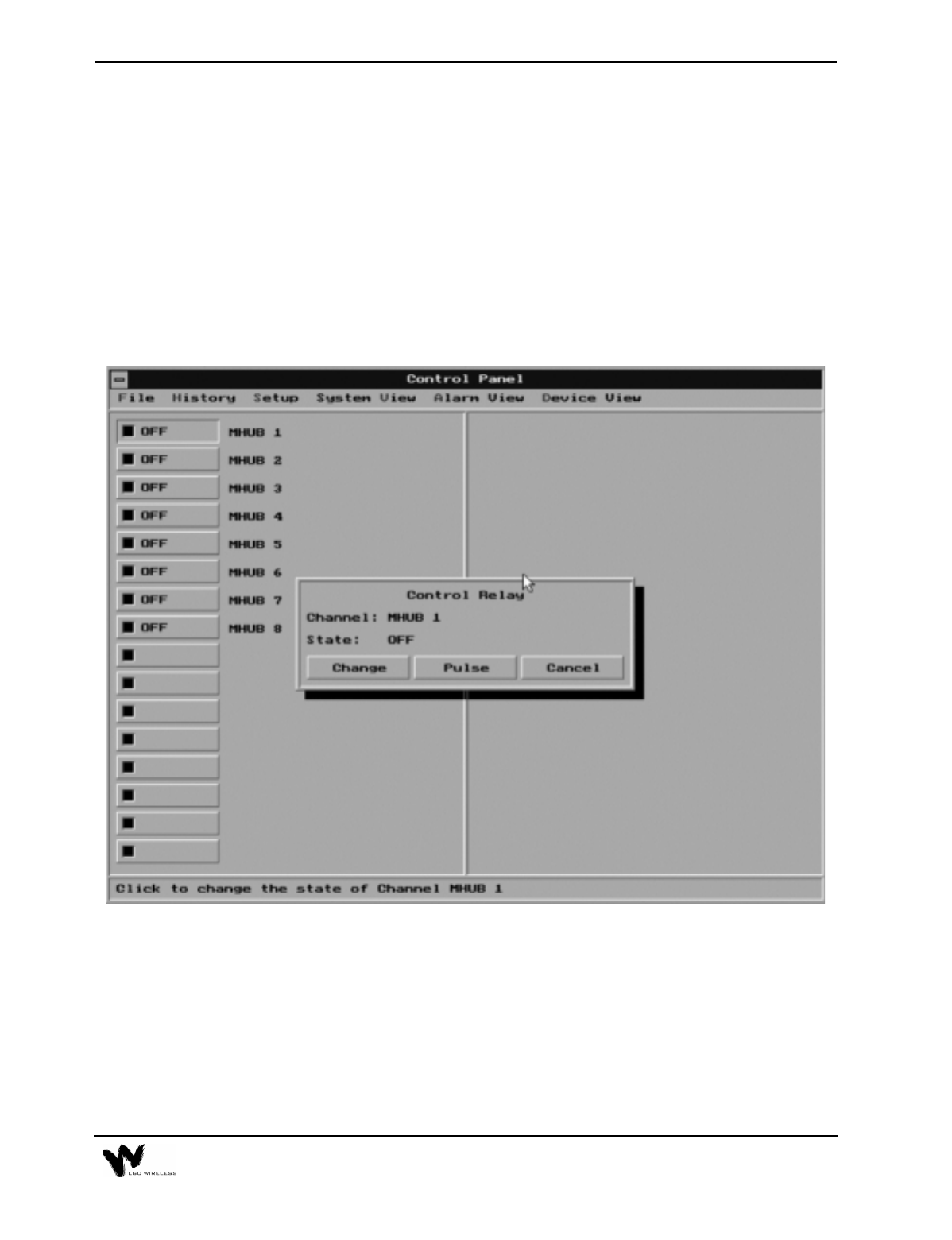

Control Relay Dialog Box
E-20 Appendix E – Alarm Report Monitor (ARM2000)
Pulse Duration Dialog Box
Control Panel Status Box
E-21
PCARM Operations
To display, manage, and record alarm monitoring activity in PCARM, you can
perform operations from the System View, Device View, and Alarm View screens.
You can also enable and disable alarms and devices from the System View and
Device View screens.
System View Screen
Overview of the System View Screen
The System View screen displays the current status for all of devices in the entire
system. On the screen, 255 windows display the status for each device in the
system. When no alarms are present, the windows for all of the active devices are
green. If an alarm occurs, the window of the particular device flashes red and the
PC’s buzzer sounds. A status bar at the bottom of the screen displays the current
status of the communications port and operator. At the top of the screen is a menu
bar for program navigation.
E-22 Appendix E – Alarm Report Monitor (ARM2000)
Window Status Indicators
Device Selection
To view a particular device, position the cursor over the window of the device and
click the right button. This transfers the program into the device view mode. See
“Device View Screen” on page 25.
Disabling Devices
You can disable devices to allow maintenance of the monitored equipment
without receiving false alarms. To disable a device, position the cursor over the
device and click the right mouse button. PCARM displays a dialog box that
prompts you to enter a reminder time. Enter a desired amount for timer (in
minutes) to be reminded that the device has been disabled, or 0 for no reminder.
Enabling Devices
To enable a device, position the mouse over the desired disabled device and
click the right mouse button. This will cause a confirmation dialog box to be
displayed. To enable the device, click the Enable button on the dialog box or
press the ‘E’ on the keyboard. To cancel, click the Cancel button, press the
‘ESC’ or ‘C’ key on the keyboard.
Window State Condition
Green All circuits clear and acknowledged.
Red Alarm condition on one or more channels. All alarms are acknowl-
edged.
Green Flashing Unacknowledged clear event on one or more channels.
Red Flashing Unacknowledged alarm on one or more channels.
Red/Green Flashing Both alarms and clears that are unacknowledged.
Blue Flashing Unit is not responding to polls.
Yellow The device is output only.
Gray Unit is not programmed.
Black Device has been disabled.
E-23
Status Bar
The status bar is located on the bottom of the System View screen. It displays the
current status of the system. It has three status windows. The function of each of
these windows is described in the following sections:
Communications Port Status
This window is used to display the current status of the communications port. If the
system is configured to be directly connected to a device it will display “Direct
Connect”. If the system is configured to use a modem it displays the current status
of the modem.
Operator Status:
This window is used to display the operator status. In an open system, it displays
“Open System”. In tracked and secured systems, it displays the name of the operator
that is currently logged on or “Please Log On” if no operator is logged on.
System View Menus
The System View menus are located on top of the screen. Descriptions of the menu
choices follow:
•File
This selection displays a pull down menu with the following choices:
Archive
This selection displays a sub-menu that allows clearing the active Alarm and/or
Control Log and saving the current contents to an Archive file. The data from
the Alarm and/or Control Log are stored in the sub directory archive. These files
are Dbase III compatible. In a tracked or secured system, the user must have a
Level 3 security code.
Exit
This selection terminates the ARM program and returns to DOS.
•History
This selection displays an Alarm History Screen that lists a full chronological
history of all events (alarms\clears) for the entire system.
E-24 Appendix E – Alarm Report Monitor (ARM2000)
•Setup
This selection displays a pull down menu with the following five choices:
Config ARM:
This selection accesses the ARM configuration utility.
Device:
This selection displays a sub-menu that allows access to the device setup
utilities as described below.
REMOTE-ARM:
This selection accesses the remote-ARM setup utility.
Security:
This selection accesses the Security Setup utility.
Log On:
This selection displays the Log On Dialog Box.
Log Off:
This selection displays the Log Off Dialog Box.
•Operator Log
This selection displays an Operator History Log that lists a full chronological
history of all operators that have logged into and logged out of the system.
•Print Current Alarms
This selection generates a report showing all current alarm conditions in the
system.
E-25

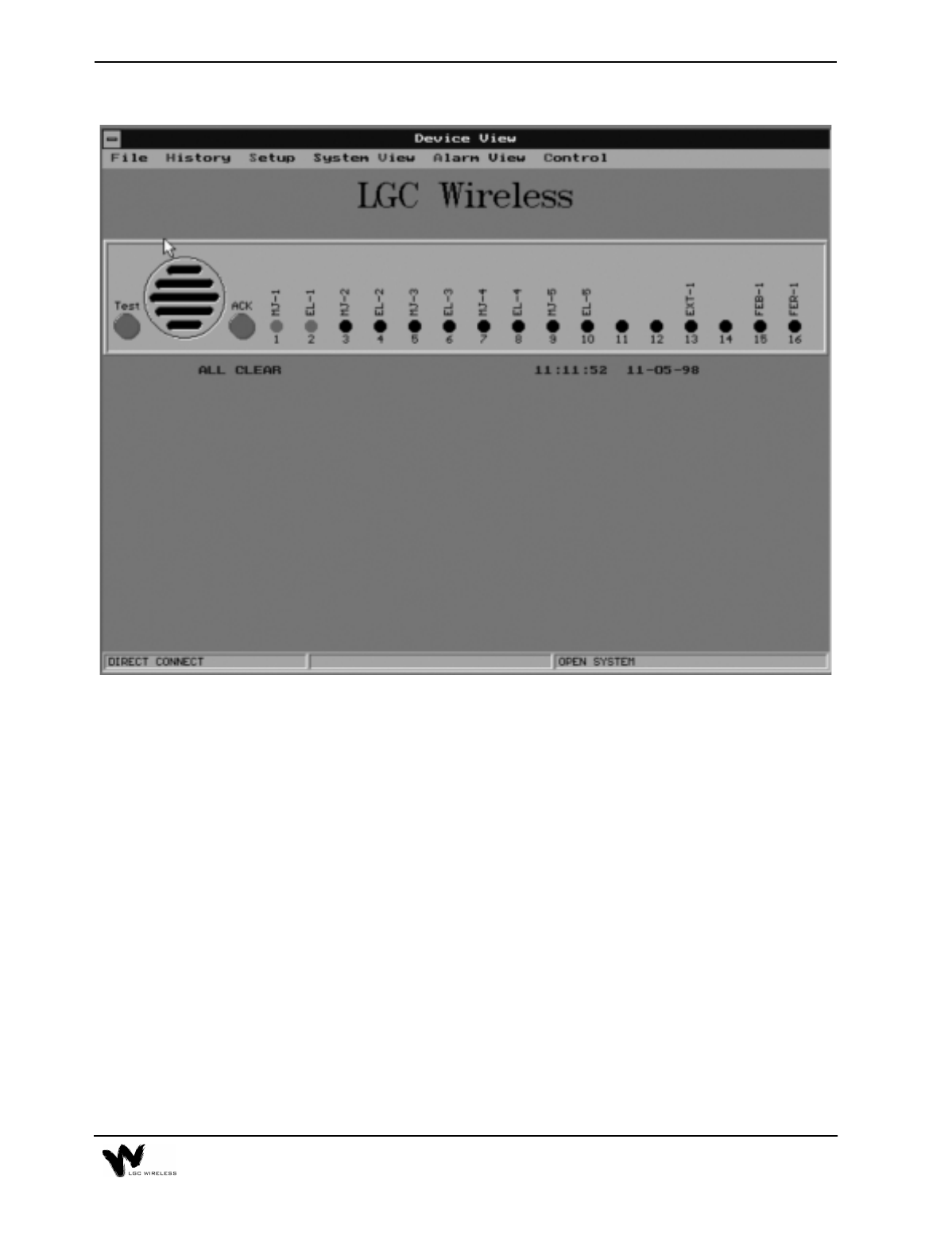

Device View Screen
Overview of the Device View Screen
The Device View screen displays a Graphic Color Status Display of any individual
front panel with animation of all alarm reporting functions. Each Device View has
the location name of the device printed at the top of the screen (LGC Wireless in
the example above). When no alarms are present all channel LED’s are green, there
is a message ‘ALL CLEAR’, and the time. Each LED has an associated name
(Short Name) printed above it. There is a status bar at the bottom of the screen that
displays the system status. There is a menu bar at the top of the screen for program
navigation.
When an alarm occurs, its associated LED begins to flash red and the PC’s buzzer
sounds until the alarm is acknowledged. Below the front panel, the alarm name,
status, and time/date the alarm occurred is displayed.
When the alarm clears, its associated LED flashes green and the PC’s buzzer
sounds three beeps. When the clear is acknowledged, the channel LED is steady
green.
E-26 Appendix E – Alarm Report Monitor (ARM2000)
When you are at the Device View screen, if an event occurs on another device, a
New Event dialog box will pop up over the Device View screen. The New Event
dialog box offers the following choices:
•Go To
Select to display the device that is alarming.
• System View
Select to display System View screen.
•Continue
Select to continue with the device that is presently displayed.
Acknowledging Alarms
Alarms and Clears are both acknowledged in the same manner. Simply position the
cursor over the ACK button and click the left mouse button. If the system has been
configured as an open system and the Require Initials on Acknowledgment option
has been enabled, the Enter Initials dialog box will be displayed. Simply enter your
initials followed by the enter key and the alarm is acknowledged. In tracked and
secured systems, an operator with a security level of one or greater must be logged
on in order to acknowledge and alarm or clear. If no one has logged on prior to
clicking the acknowledge button, the Log on dialog box will be displayed. The ESC
key will cancel the log on procedure without acknowledging the alarm.
Disabling Channels
Individual alarm channels can be disabled to allow equipment maintenance without
causing false alarms. To disable an alarm channel, position the cursor over the
desired disabled channel’s LED and click the right mouse button. A dialog box will
then pop prompting to enter a reminder time. Enter the desired timer (in minutes)
for the disabled reminder to pop up. Enter 0 if no reminder is required.
Enabling Channels
To enable the channel, position the cursor over the desired channel’s LED and click
the right mouse button. This will cause a confirmation dialog box to be displayed.
To enable the channel, click the Enable button or press the E key. To cancel, click
the Cancel button or press the ESC or C key.
Alarm View Dialog Box
The Alarm View dialog box has been provided as a quick way of viewing the last
two events that occurred on a given channel. To display the Alarm View dialog
box, position the cursor over the desired channel’s LED and click the left mouse
button. This is a non modal dialog box, clicking another channel or anything else
on the screen will close the dialog box and perform the selected function. If the
selected channel has no alarms an error box will be displayed.
E-27
Communications Test Function
A communications test function has been provided to test communications between
ARM and the remote-ARM unit and update the status. This should be done after a
new device is installed. To test a device, position the cursor over the test button and
click the left mouse button and ARM will call the remote-ARM unit. When the test
is complete a dialog box stating the result of the test will be displayed.
Status Bar
There is a status bar located at the bottom of the screen. This status bar displays the
current status of the system.
Alarm View Screen Overview
The Alarm View Screen provides a quick view of all the alarms (acknowledged and
unacknowledged) in the entire system. The alarms are displayed in chronological
order from the newest to the oldest. The unacknowledged alarms are displayed in
red, and the acknowledged alarms are displayed in blue. Clicking any of the alarms
in this view causes the program to switch to the device view of the selected alarm.
A scroll bar on the right hand side of the screen is provided to scroll through the
alarm list. A menu bar, at the top of the screens, is provided to navigate to other
screens. The contents of this screen can be printed to a printer or file.
E-28 Appendix E – Alarm Report Monitor (ARM2000)
Reports
You can display the following reports in PCARM:
•Alarm History Log
•Alarm History by Device
•Alarm Detail
Alarm History Log
The Chronological Alarm History screen displays the entire contents of the Alarm
History Log in chronological order (newest to oldest). A scroll bar on the right hand
side of the screen is provided to scroll through the alarm log. The scroll bar thumb
shows the current position in the file. A menu bar located on the top of the screen
is provided to navigate through the program.
This screen shows the location of the alarm, channel name, and status. For a more
detailed view of an individual alarm, position the cursor over the desired alarm and
click the left mouse button. This causes the Alarm Detail dialog box to be displayed.
In addition to the alarm information, this screen also displays any loss of
communications and restoration of communications.
Alarm History by Device
The Device History screen displays the chronological alarm history (newest to
oldest) of one specific remote-ARM device. A scroll bar on the right hand side of
the screen is provided to scroll through the alarms. The thumb of the scroll bar
shows the position in the file. A menu bar located at the top of the screen is provided
to navigate through the ARM.
This screen shows the channel name, status, and time the event occurred. For a more
detailed view of the event, position the cursor over the desired event and click the
left mouse button and the Alarm Detail Dialog Box will be displayed.
Alarm Detail Dialog Box
The Alarm Detail dialog box is displayed when you click any event in the Alarm
History logs. This dialog box displays the following information for the selected
event:
•Location name
•Channel name
•Status of the channel
•Time the event occurred
E-29
•Time the event was acknowledged
•Initials of who acknowledged the event

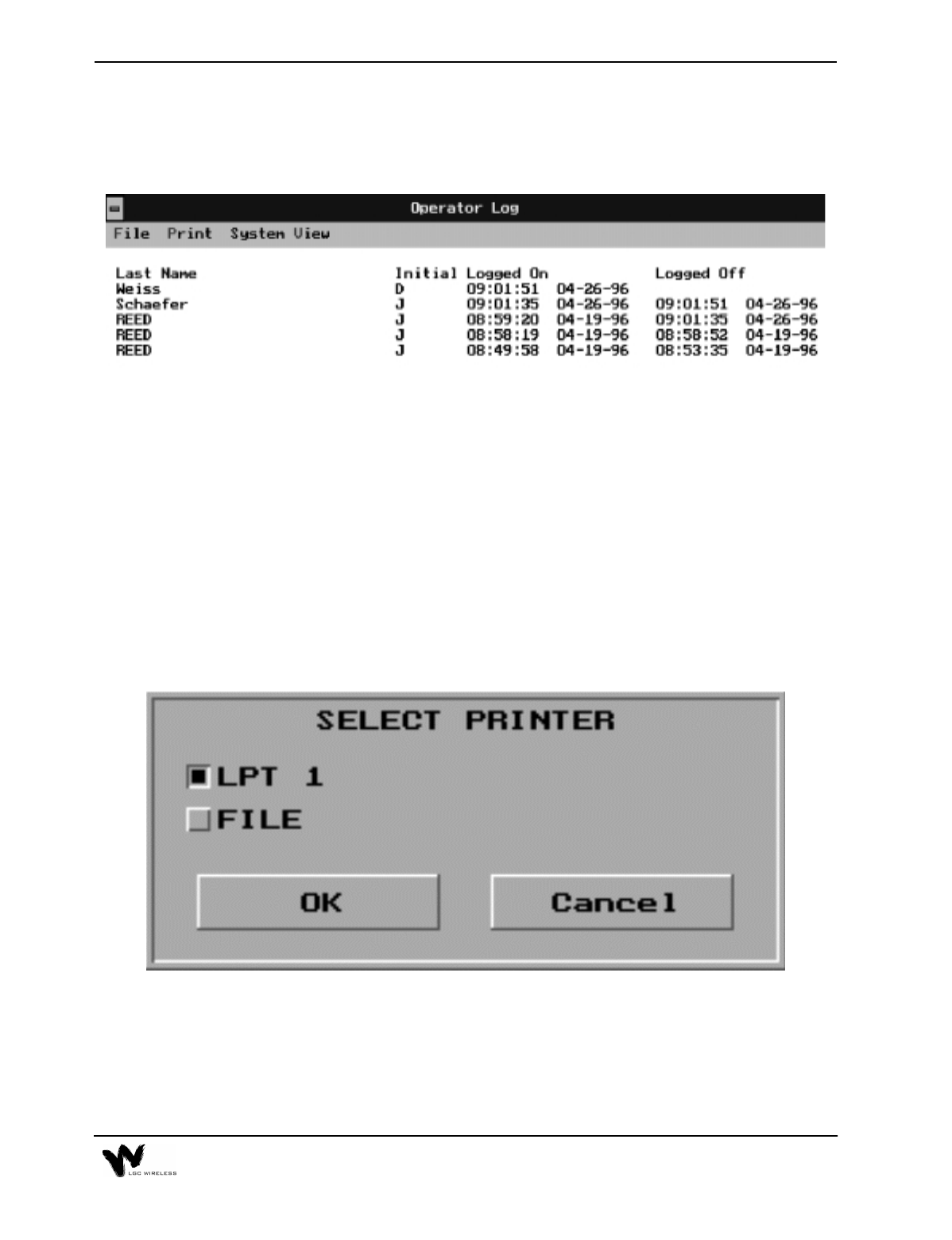

Operator Log
The Operator Log is a chronological history (newest to oldest) of the operators who
have logged on to the system. This screen contains columns to display the operator
name, time logged on, and the time logged off.
You can access the Operator Log only from the System View screen. Select
Operator Log from the main menu.
Report Printing
PCARM provides the ability to print any of the Alarm, Control, and Operator logs
to either a printer (connected to LPT1) or a file. To print a log, select Print from the
menu of the displayed log. This pops up the following dialog box.
In this dialog box, click the square button next to either LPT1 or FILE. To start
printing, click the OK button. If you select FILE, PCARM displays a second dialog
box in which you can enter the name of the file (up to 13 characters).
When printing begins (to file or printer), PCARM displays the Print Progress dialog
box. You can abort the print job at any time by clicking the Cancel button.
E-30 Appendix E – Alarm Report Monitor (ARM2000)
Alarm Logs
To print an alarm log, select the log you want and then select Print from the log
screen’s menu.
Control Logs
To print a control log, display the log and then select Print from the log screen’s
menu.
Current Alarms
ARM provides the ability to print a list of all current alarms (acknowledged and
unacknowledged) to a printer. To print all current alarms, select Print Current
Alarms from the menu on the System View screen.
Operator Log
To print the Operator Log, select Print from the Operator Log menu.

Navigation menu
