ADC Telecommunications DAS8M-4IDEN-W In-building distributed antenna system User Manual LGCell I Rp1 9 0500

Antenna gain sentence

1-1

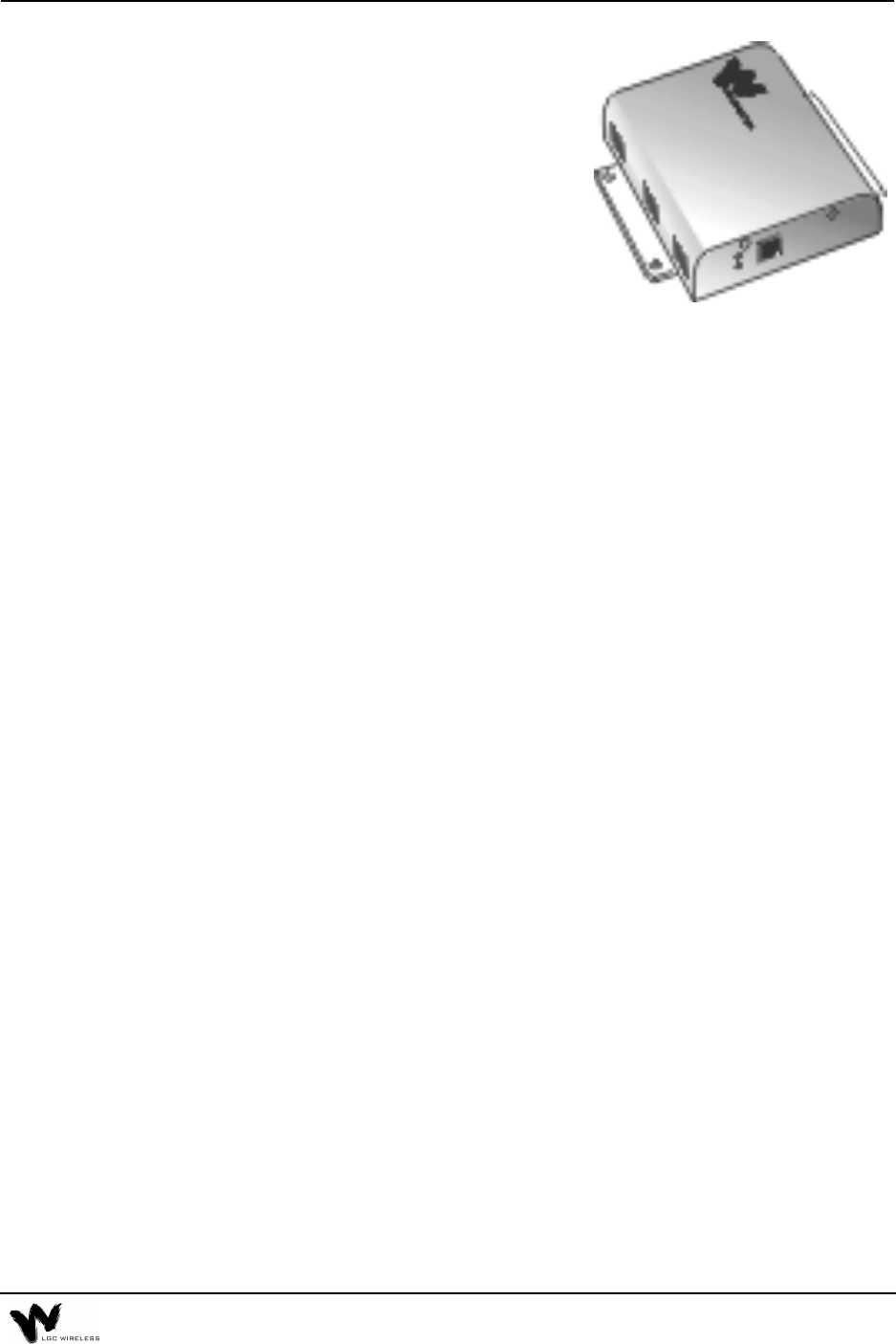

The Remote Antenna Unit (RAU)

The RAUs a re strategically positioned in and

around a building to provide high-quality

reception for wireless services.

•Connects to the Expansion Hubs via

standard CAT 5 (or better) unshielded or

shielded twisted pair (UTP/STP) cable (up

to 60 meters) (TIA/EIA 568-A standard)

•Mounts onto a variety of building materials.

Can be placed anywhere – above or below the ceiling, on the wall, or in other

locations. This RAU is a Plenum Rated Device.

•Connects to any external antenna with up to 10 dB of gain, dipole, directional,

omnidirectional, panel, or other antenna.

1-2
