5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598

Certification Exhibit

FCC ID: U4A-SCYPROX2

IC: 6982A-SCYPROX2

FCC Rule Part: 15.225

IC Radio Standards Specification: RSS-210

ACS Report Number: 09-0176 - 15C

Manufacturer: Assa Abloy, Inc.

Model: Bored/Exits, Mortise

Manual – Mortise

A8027A

06/09

permission of Sargent Manufacturing Company is prohibited.

Installation Instructions

Harmony Series H2

Mortise Lock

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

06/30/09

Table of Contents

Warning ...................................................................................2

General Description .................................................................3

Hardware Speciﬁcations .........................................................3

Electronics Speciﬁcations .......................................................3

Features ...................................................................................3

Parts Breakdown .....................................................................4

Installation Instructions ..........................................................6

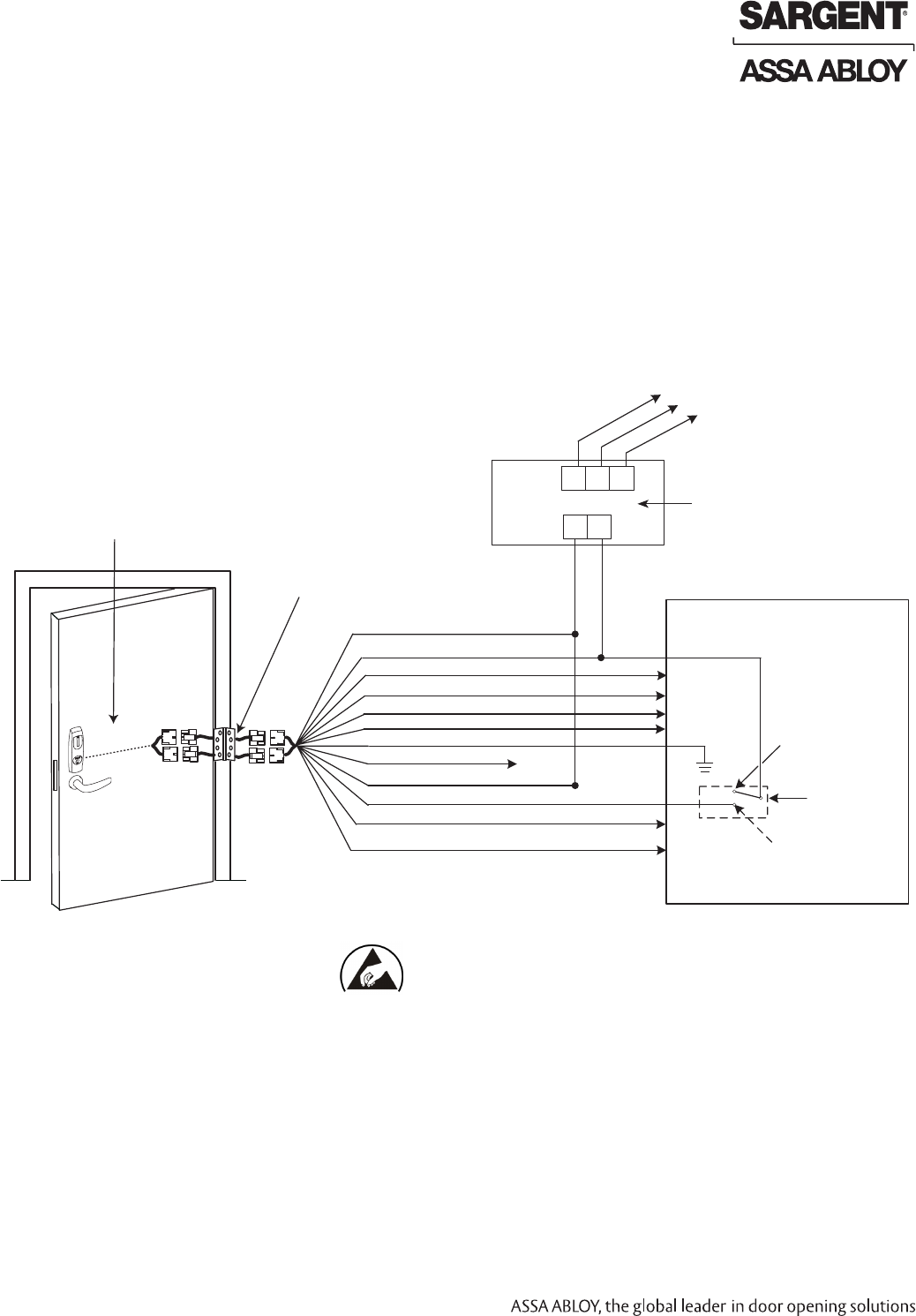

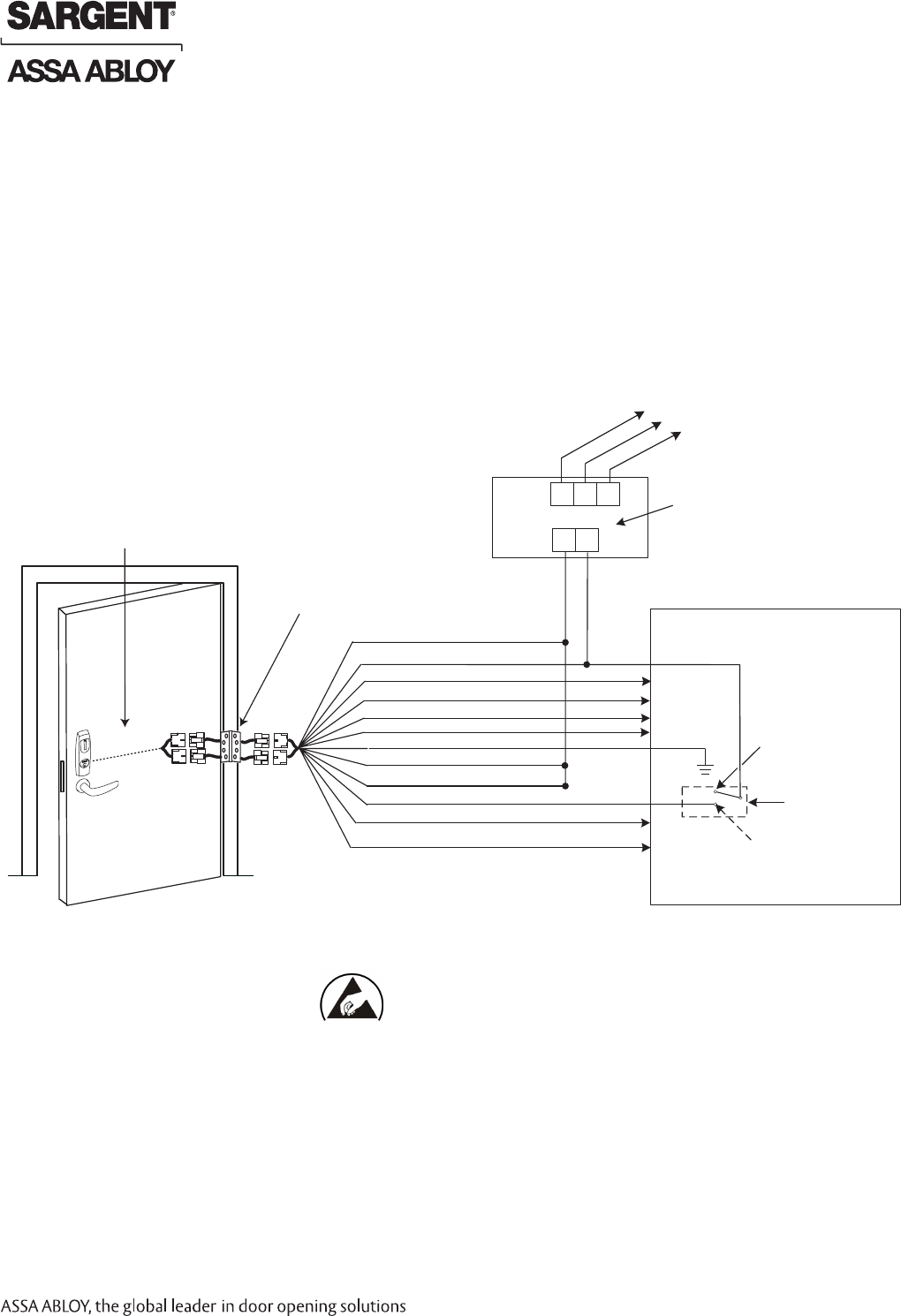

Wiring Diagrams ....................................................................14

Mechanical Operational Check .............................................18

Electrical Operational Check .................................................18

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device

may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a resi-

dential installation.

This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the inter-

ference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

• Consult the dealer or an experienced technician for help

The term “IC:” before the radio certiﬁcation number only signiﬁes that Industry Canada technical speciﬁcations were

met. This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.

Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may cause undesired operation.

Cet appareillage numérique de la classe B répond à toutes les exigences de l’interférence canadienne causant des

règlements d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer

l’interférence nocive, et (2) ce dispositif doit accepter n’importe quelle interférence reçue, y compris l’interférence qui

peut causer l’opération peu désirée.

Warning: Changes or modications to this unit not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

Warning

Observe precautions for handling electrostatic sensitive devices.

A8027A • 800-810-WIRE (9473) • www.sargentlock.com 2

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

Harmony Series H2 Mortise Lock

A8027A • 800-810-WIRE (9473) • www.sargentlock.com 3

Electronics Speciﬁcations

General Description

The SARGENT Harmony series H2 mortise lock is designed to interface with existing Wiegand Electronic Access Control

(EAC) panels. The reader requires 12 or 24VDC for power and is compatible with HID iCLASS® 13.56MHz technology.

Harmony series technology is backed by SARGENT’s Grade 1 hardware. The mortise lock monitors Request to Exit and

door position monitoring all inside the lock body and is available in 12 or 24VDC. Weatherseal gaskets are also included

for exterior door applications. The Harmony H2 iCLASS reader provides visual (LED) and audible indicators of lock state

(locked/unlocked).

5Features

• Complete monitoring of door via locks

• RX Setting (Dip-Switch Congurable for N/O, N/C and handing)

• Door Position (Integrated Secured/Unsecured)

• 24VDC System is available

• Fail Safe or Fail Secure solenoid version (must specify)

• Accepts all HID iCLASS 13.56MHz standard Wiegand bit formats

Total

One-Way

Length of

Wire Run (ft)

Load Current @ 12VDC

1/4A 1/2A 3/4A 1A 1-1/4A 1-1/2A 2A 3A

100 20 18 16 14 14 12 12 10

150 18 16 14 12 12 12 10 —

200 16 14 12 12 10 10 — —

250 16 14 12 10 10 10 — —

300 16 12 12 10 10 — — —

400 14 12 10 — — — — —

500 14 10 10 — — — — —

7501210——————

1,000 10 — — — — — — —

1,500 10 — — — — — — —

Total

One-Way

Length of

Wire Run (ft)

Load Current @ 24VDC

1/4A 1/2A 3/4A 1A 1-1/4A 1-1/2A 2A 3A

100 24 20 18 18 16 16 14 12

150 22 18 16 16 14 14 12 10

200 20 18 16 14 14 12 12 10

250 18 16 14 14 12 12 12 10

300 18 16 14 12 12 12 10 —

400 18 14 12 12 10 10 — —

500 16 14 12 10 10 — — —

750 14 12 10 10 — — — —

1,000 14 10 10 — — — — —

1,500 12 10 — — — — — —

Hardware Speciﬁcations

• Latch: Stainless steel, 3⁄4” projection, one-piece

• Deadbolt: One-piece hardened stainless steel

• Guardbolt: Stainless steel, non-handed

• Handed: Easily eld reversible without opening case

• Case: 12 gauge heavy duty wrought steel

• Outside lever controlled by any 13.56MHz HID

iCLASS Wiegand credential

• Inside lever provides RX signal and retracts latch

and deadbolt

• Door position switch within lock body

• Locks furnished for 1-3/4” doors. Other door

thicknesses require conrmation with factory.

• U.L. Listed (3 hr)

• Wire from EAC Panel to door must be shielded

with drain terminated at EAC Panel controller

12VDC System

• Reader Draw = 125mA

• 12VDC Solenoid Draw =500mA

• Total Current Draw = 625mA

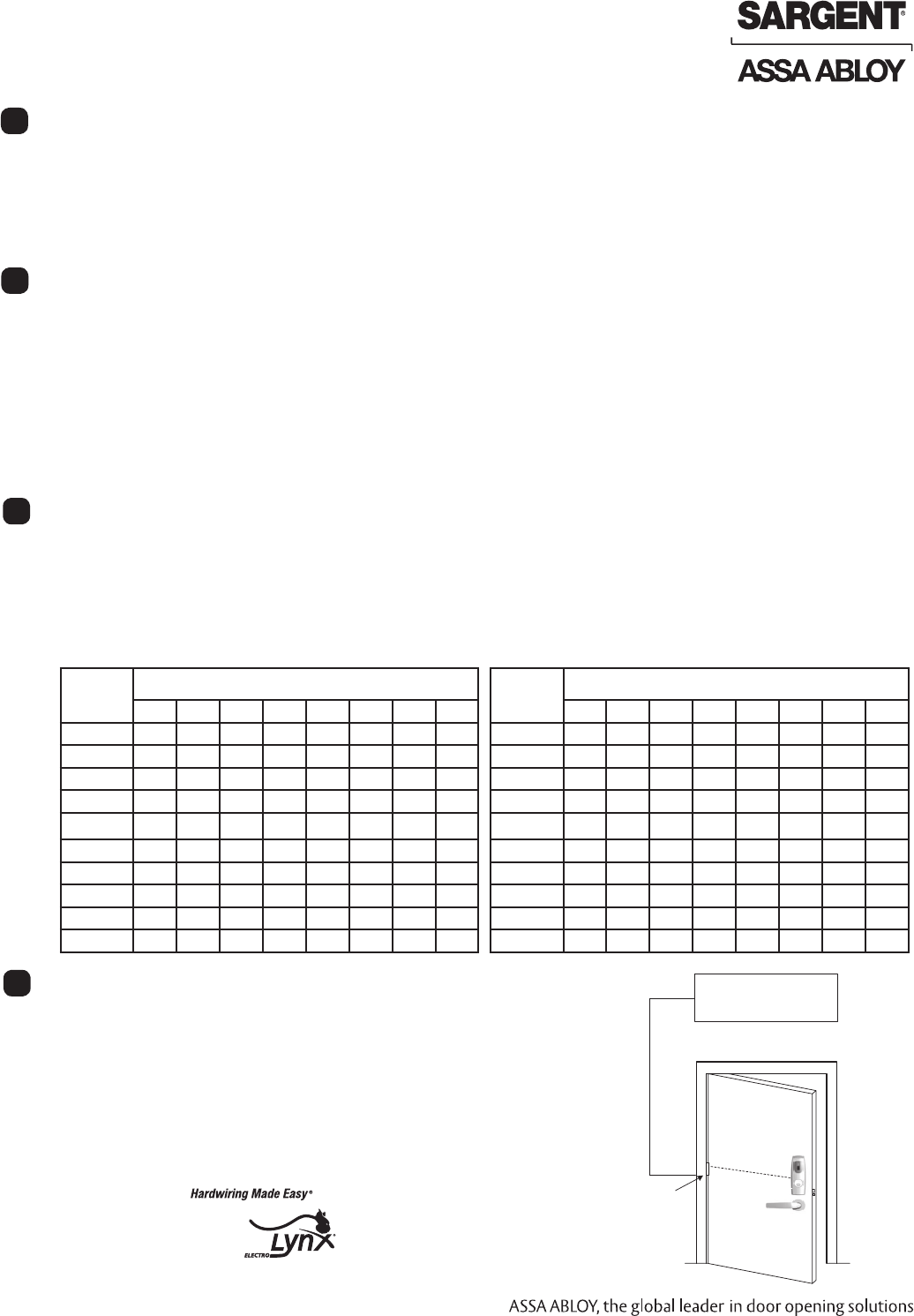

Wire Gauge Charts

24VDC System

• Reader Draw = 125mA

• 24VDC Solenoid Draw = 250mA

• Total Current Draw = 375mA

Harmony

Series H2

McKinney

Electronic

Transfer

Hinge

Wiegand Access

Control System

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

06/30/09

Harmony Series H2 Mortise Lock

A8027A • 800-810-WIRE (9473) • www.sargentlock.com4

Parts Breakdown

Left Hand Reverse Door

Tools Required:

• Phillips Screw Driver (Standard size)

• Flat Blade Screw Driver (Standard size)

• 1/8" Allen Wrench

15A

11A

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

Harmony Series H2 Mortise Lock

A8027A • 800-810-WIRE (9473) • www.sargentlock.com 5

Item Part # Description Req.

1 52-4039 Outside Harmony Escutcheon With Cylinder Prep 1

1A 52-4040 Outside Harmony Escutcheon Without Cylinder Prep 1

1B 52-0732 Reader Gasket (Factory Installed) 1

2 52-0796 Outside Weather Gasket 1

3 52-0795 Inside Weather Gasket 1

4 52-5218 Mounting Plate 1

5 52-5236 Screw Pack (5A; 5B; 5C; 5D) 1

5A 77-1467 8 x 32 x 2" Phillips Head Flat Head Machine Screw 2

5B 01-9242 8 x 32 x 5/8" Phillips Head Flat Head Undercut Machine Screw 2

5C 01-1028 8 x 32 x 1/4"Phillips Head Flat Head Undercut Machine Screw 1

5D 01-1176 8 x 32 x 3/8" Phillips Head Flat Head Undercut Tapping Screw 4

6 52-5196 Inside Escutcheon W/ Turn Assembly 1

6A 82-0706 Inside Escutcheon W/O Turn Prep 1

6B 52-4036 H2 Controller Assembly 1

7 Reference Harmony Series Catalog For Available Lever Styles 1

8 Reference Harmony Series Catalog For Available Rose Styles 1

9 82-0368 Inside Spindle 1

10 01-1495 8-32 x 5/8" SCREWS 2

11 82-3088 Inside Adapter Plate And Bushing Assembly 1

11A 82-4577 Inside Adapter Plate And Bushing Assembly (Dl) 1

12 Reference Harmony Series Catalog For Available Lever Styles 1

13 Reference Harmony Series Catalog For Available Cylinders (Size 43) 1

14 Lock Body "H2-82270-12/24 VDC x Finish" W/O Deadbolt, Fail Safe 1

"H2-82271-12/24 VDC x Finish" W/O Deadbolt, Fail Secure 1

"H2-82272-12/24 VDC x Finish" W/O Deadbolt, Fail Safe, Both Levers Lock 1

"H2-82273-12/24 VDC x Finish" W/O Deadbolt, Fail Secure, Both Levers Lock 1

"H2-82280-12/24 VDC x Finish" W/ Deadbolt, Fail Safe 1

"H2-82281-12/24 VDC x Finish" W/ Deadbolt, Fail Secure 1

"H2-82282-12/24 VDC x Finish" W/ Deadbolt, Fail Safe, Both Levers Lock 1

"H2-82283-12/24 VDC x Finish" W/ Deadbolt, Fail Secure, Both Levers Lock 1

15 82-0579 Electrical Outside Faceplate W/ Deadbolt 1

15A 82-0578 Electrical Outside Faceplate W/O Deadbolt 1

16 82-0110 Strike Plate 1

17 01-2299 #12 X 1 1/4" Phillips Flat Head Wood Screw 2

18 01-1019 12-24 X 1/2" Phillips Flat Head Undercut Machine Screw 4

19 01-1028 8-32 X 1/4" Phillips Flat Head Undercut Machine Screw 2

20 01-2298 #12 X 1" Phillips Flat Head Wood Screw 2

21 A7944 Field Prep Template

21B 4590 Door Manufacturer Template

22 A8027 Installation Instructions (Not Shown)

Parts Breakdown (Continued)

Left Hand Reverse Door

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

06/30/09

Harmony Series H2 Mortise Lock

A8027A • 800-810-WIRE (9473) • www.sargentlock.com6

Installation Instructions

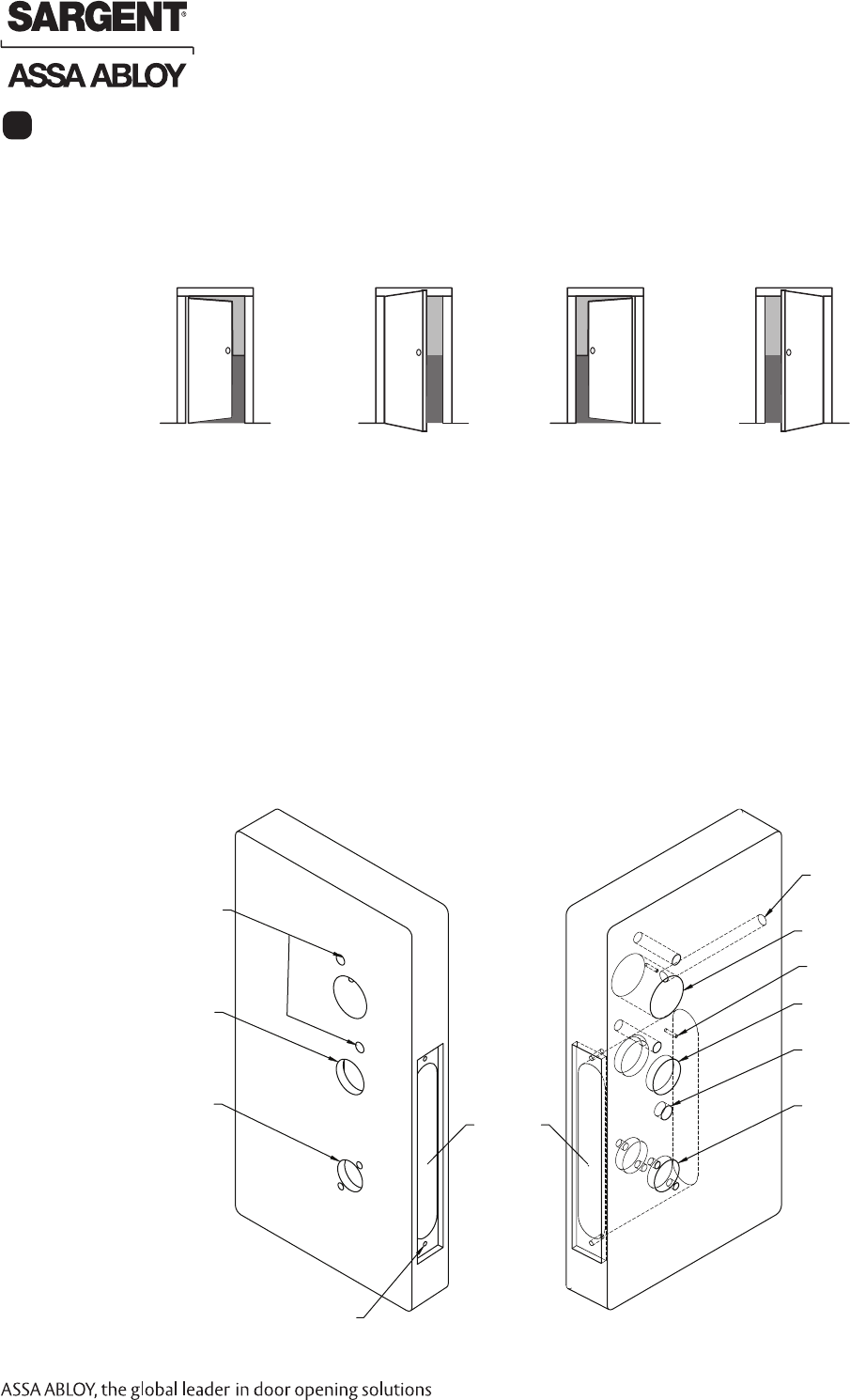

Step #1 – Door Preparation

Left Hand

Hinges Left.

Open Inward.

“LH”

Left Hand

Reverse Bevel

Hinges Left.

Open Outward

“LHRB”

Right Hand

Hinges Right.

Open Inward.

“RH”

Right Hand

Reverse Bevel

Hinges Right.

Open Outward

“RHRB”

A. Verify Hand and Bevel of Door

Stand on outside of locked door when determining door hand.

B. Door Preparation

Prepare door according to appropriate template. If necessary, refer to website, www.intelligentopenings.com:

• Prior to installation, make sure all holes are free of burrs, debris and sharp edges.

• If doors are not properly reinforced per ANSI115.2, commercially available reinforcements should be installed.

• Templates:

o Field prep: A7944 template ships with product.

o Manufacturer: 4590 wood and metal door template.

Outside of Door Inside of Door

Raceway for 12 Conductor

Network/Power Cable

(ElectroLynx) from McKinney

Hole for Cable from

Reader to Controller Board

Pre-drilled and/or

Tapped Holes (2 places)

Inside Cylinder Hole

Through-bolt Holes

(2 places)

Outside Cylinder Hole

(70/71, 80/81

functions only)

Lever Handle Hole

Thumb Turn Hole

Lever Handle Hole

Mortise

Area

Pre-drilled and/or

Tapped Holes (2 Places)

Fig. 1A

Fig. 1B Wood Door

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

Harmony Series H2 Mortise Lock

A8027A • 800-810-WIRE (9473) • www.sargentlock.com 7

Triangular Slot

Latchbolt

Installation Instructions (Continued)

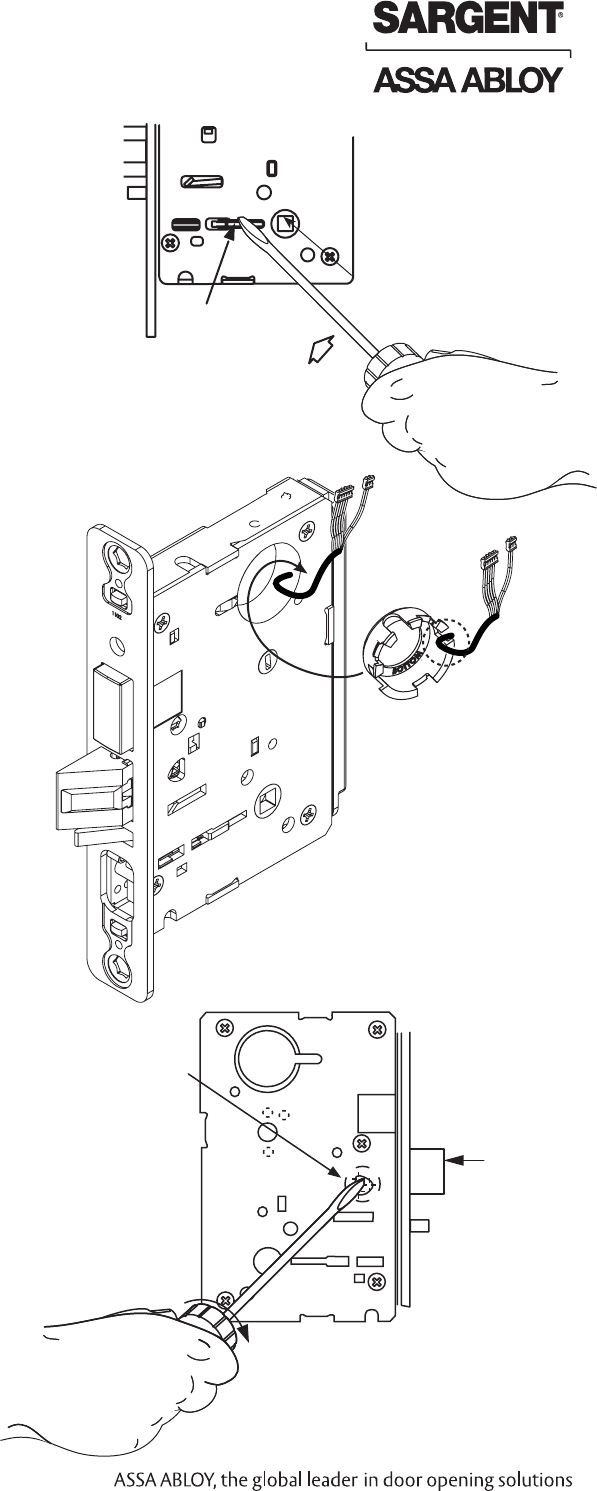

Step #2 – How to Reverse Lock Hand/Latch

Red surface of locking piece must face the outside/locked

side of door. To rotate locking piece (Fig. 2A1):

1. Position lock body with red surface of locking piece visible.

2. Insert blade type screwdriver into locking piece slot

to rotate locking piece toward back of lock body.

3. Rotate the locking piece 180° until RED surface

is on opposite side.

Note: Red indicates locked side (outside).

Wire harness MUST exit through non-cylinder side.

Make sure the plastic retaining ring is seated correctly (Fig. 2A2):

1. The wires and the plastic retaining ring must be

located on the non-cylinder side.

2. The orientation should place the word Bottom on

the opposite side from the wires.

3. Place the retaining ring under the wires with the

wires in the slot opposite the side marked Bottom.

4. The wires should be located in the slot on the

side - not through or under the retaining ring.

A. Reverse Lock Hand

B. Reverse Latch Hand

Beveled surface of latch must face strike (Fig. 2B1).

The deadlatch is self adjusting.

To change hand of latchbolt:

1. Insert screwdriver blade into the spade shaped slot.

2. Rotate screwdriver 90º to push latch out until back

of latch clears lock front; then rotate latch 180º.

Latch will then re-enter lock body.

Note: Latch cannot be unscrewed.

IMPORTANT: Must set the 4 position dip-switch RX

settings located on the rear of the mortise lock body

prior to lock installation (Step 3).

Fig. 2B1

Fig. 2A1

Plastic

Retaining

Ring

Outside of Door

Fig. 2A2

Locking Guide Slot:

Red color indicates

locked side.

Push In

Right Hand

Lock Shown

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

06/30/09

Harmony Series H2 Mortise Lock

A8027A • 800-810-WIRE (9473) • www.sargentlock.com8

(2)#12 x 1-1/4” Long F!at Head

Wood Screws (Wood Doors)

Fig. 4A

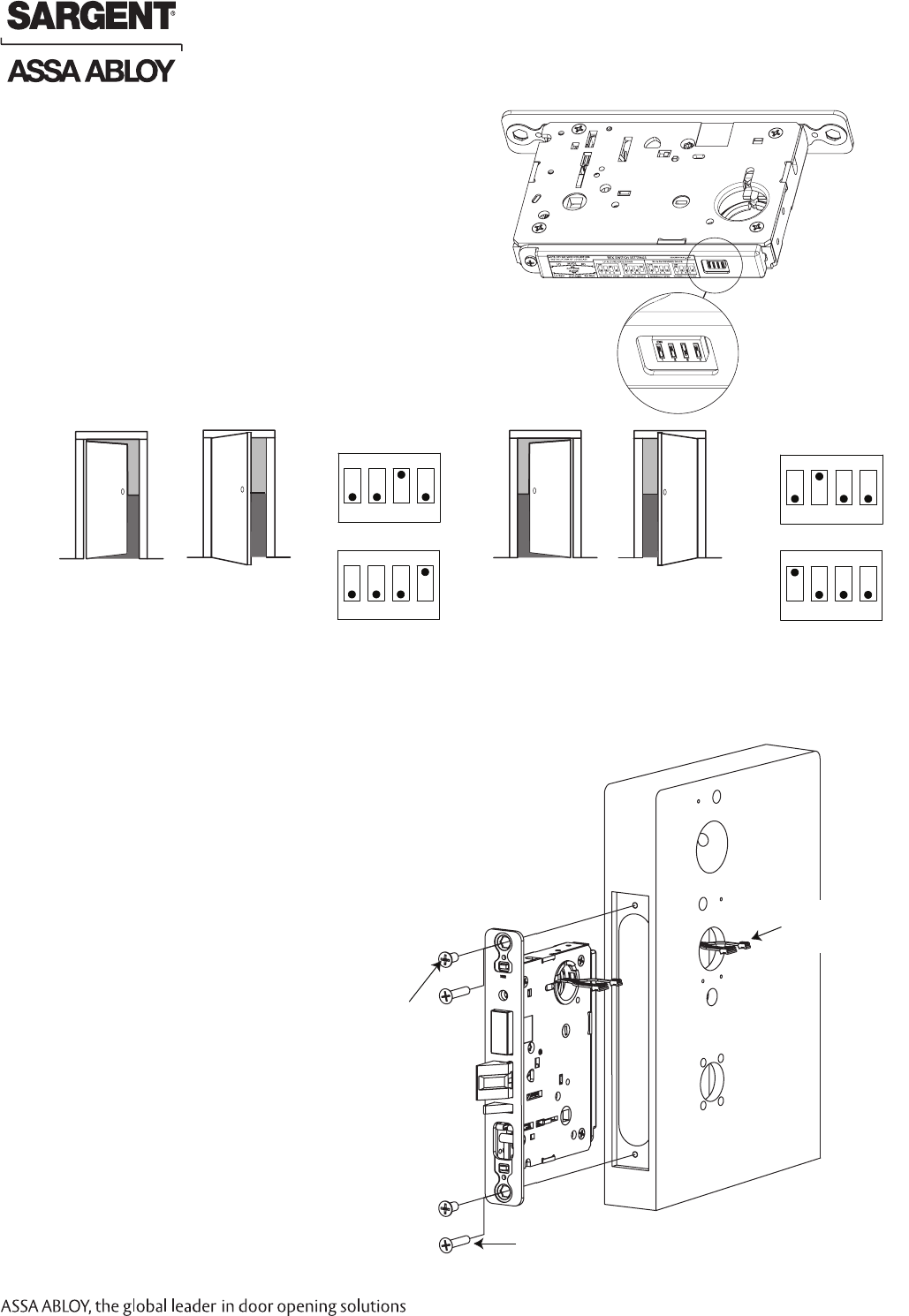

Step #3 – Mortise Lock Body

RX Switch Settings

Four Position DIP Switch

Use four-position dip switch settings for appropriate

door application.

Be sure to follow the directions on the RX Dip Switch

sticker exactly.

Failure to follow sticker directions will cause inaccurate RX

activity to be reported to the access control panel. Fig. 3A

Step #4 – Lock body Installation

Wires and connectors go into the mortised area and out of the inside

cylinder hole.

1. Insert mortise lock body into mortise door preparation.

2. Carefully feed wires from mortise lock through the non-cylinder side

hole of the door preparation.

3. Install appropriate hardware lock body screws.

Do not tighten at this time

NOTE: Do not tighten screws completely.

Cylinder should be installed prior to tightening.

Inside of Door

(2) #12-24 x 1/2” Long Flat

Head Screws (Metal Doors )

Feed connectors

and wires through

non-cylinder side.

Left Hand

Hinges Left.

Open Inward.

“LH”

Left Hand

Reverse Bevel

Hinges Left.

Open Outward

“LHRB”

Right Hand

Hinges Right.

Open Inward.

“RH”

Right Hand

Reverse Bevel

Hinges Right.

Open Outward

“RHRB”

LH and LH Reverse Door

Normally Open

Normally Closed

1 2 3 4

RH and RH Reverse Door

Normally Open

Normally Closed

1 2 3 4

Black circles indicate position of DIP switch

Fig. 3B

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

Harmony Series H2 Mortise Lock

A8027A • 800-810-WIRE (9473) • www.sargentlock.com 9

Fig. 5A

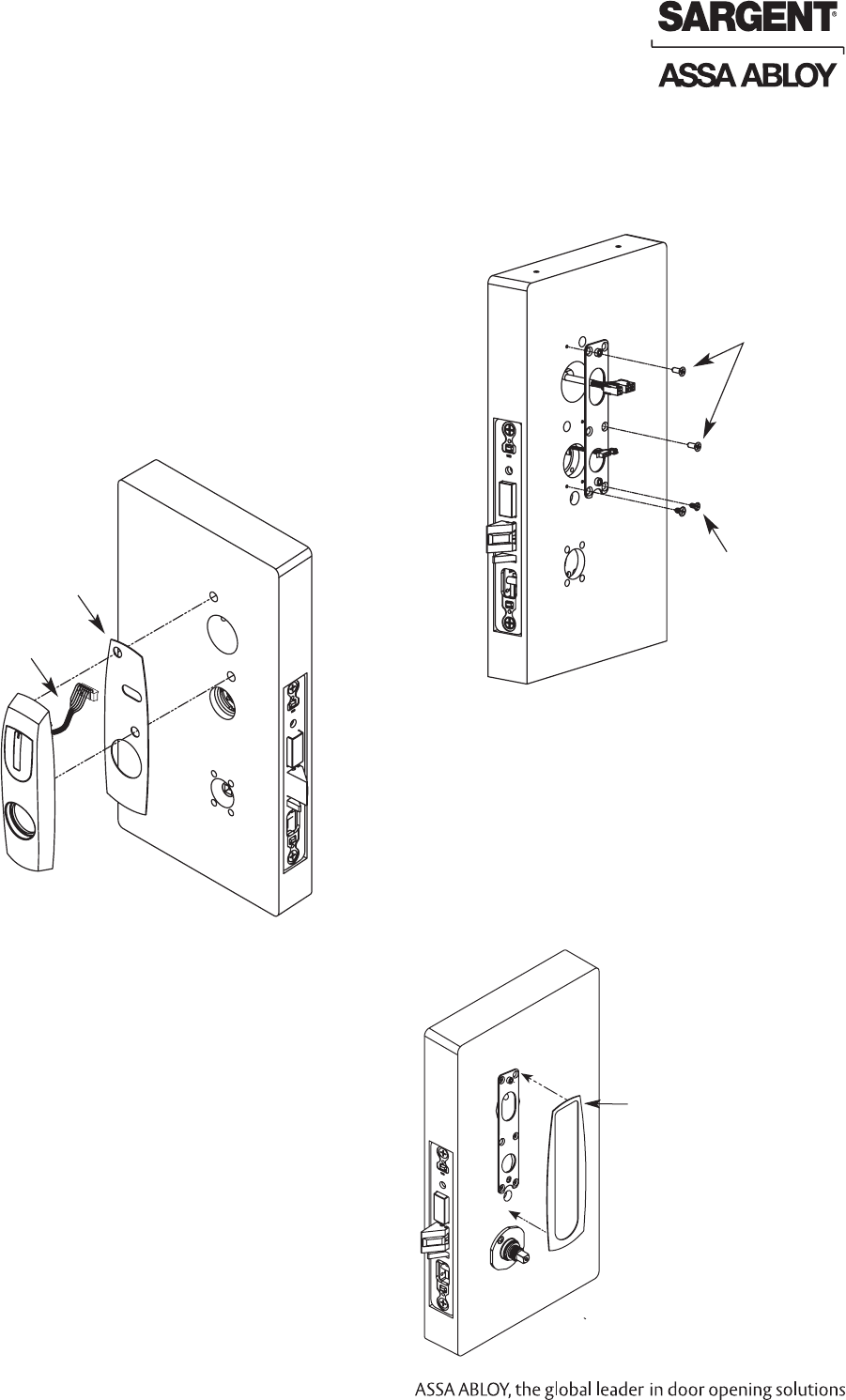

Step #5 – Outside Escutcheon and Inside Mounting Plate Installation

NOTE: Feed mortise connectors through the corresponding hole on the mounting plate.

1. Attach the mounting plate using (2) 8-32 x 3/8" Phillips at head

undercut combo screws in the upper left and middle right

positions of the mounting plate and (2) 8-32 x 3/8" Phillips at head

screws in the bottom positions (Fig 5A).

2. Feed the reader cable located on the back of the outside escutcheon

through the door prep. Remember, the outside gasket must be used

when installing Harmony in an outdoor application (Fig 5B).

3. Secure the mounting plate to the outside escutcheon with

(2) #8-32 x 2”at head machine screws (Fig 5C).

Fig. 5B

(2) 8-32 x 3/8” Phillips

Flat Head Undercut

Combo Screw

(2) 8-32 x 3/8”

Phillips Flat

Head Screw

Gasket required

for exterior door

applications

Reader Cable

Inside of Door

Outside of Door

Step #6 – Install Gasket

Add Gasket (if necessary):

Remember to place the inside gasket when

installing in an outdoor application.

Gasket ts snug around plate at top and sides,

leaving room for the hole at the bottom.

Remove backing and place gasket

on door (Fig. 6A).

Required for exterior

door applications.

Fig. 6A

Inside of Door

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

06/30/09

Harmony Series H2 Mortise Lock

A8027A • 800-810-WIRE (9473) • www.sargentlock.com10

Fig. 8B

Position cylinder so that the

SARGENT logo is right-side up.

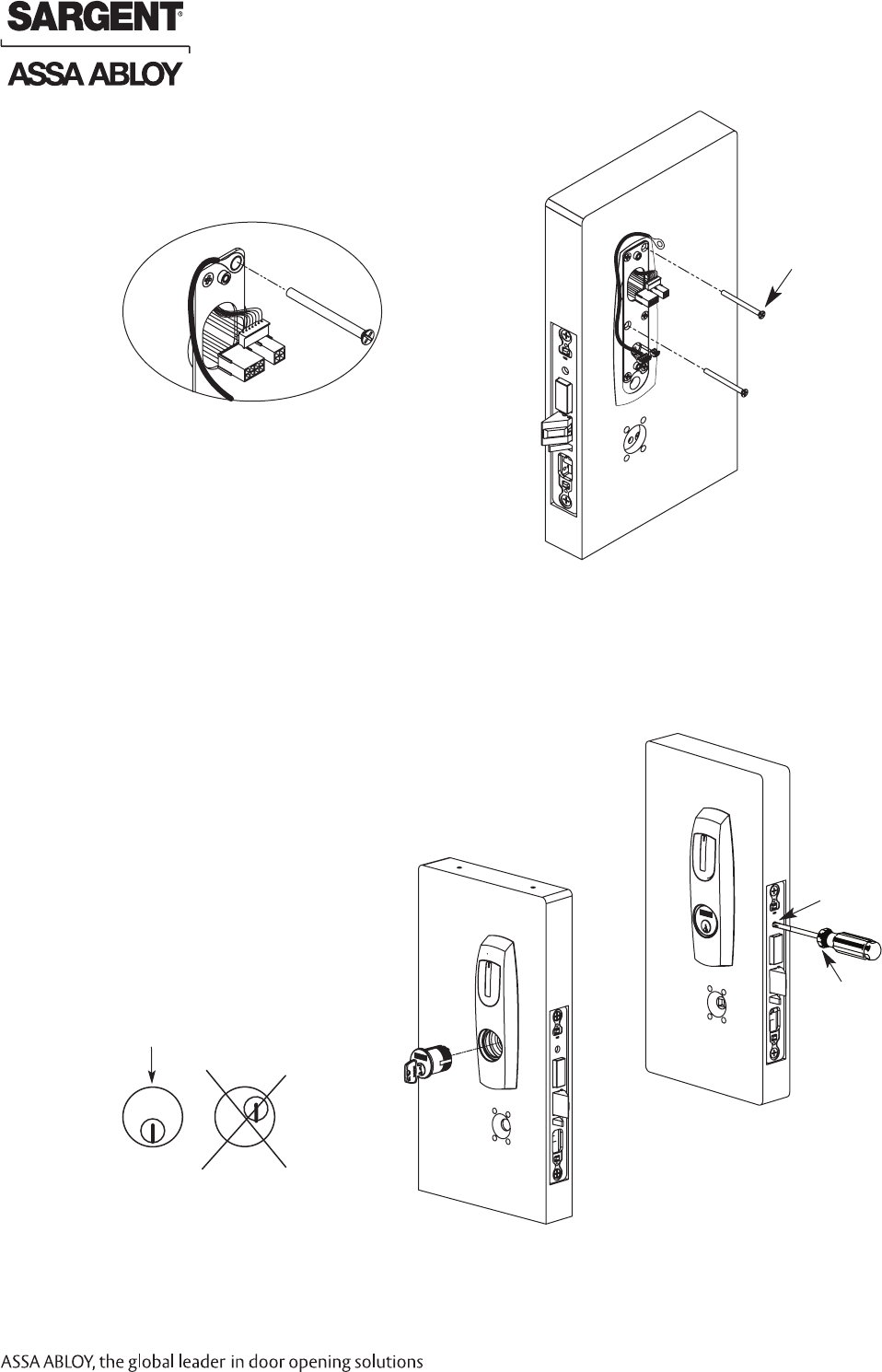

Step #8 – Outside Cylinder Installation

1. Verify orientation of cylinder so that SARGENT logo is right-side up (Fig. 8A).

2. Withdraw the key about 25% out of the cylinder before inserting into the escutcheon (Fig 8B).

3. Use the key to rotate the cylinder clockwise until it is ush at the bottom and the SARGENT logo is right-side up.

Do not attempt to tighten all the way.

4. Tighten the cylinder clamp set screw to prevent unscrewing

of the cylinder (Fig 8C).

5. Test cylinder function:

70/71 Function: Key retracts latch.

80/81 Function: Key retracts latch and

projects and retracts deadbolt.

Ensure smooth operation of latchbolt

and deadbolt.

NOTE: Use lever handle holes to

manipulate mortise to ease thread

engagement of cylinder.

Fig. 8C

Fig. 8A

Cylinder Set Screw

Phillips

Screwdriver

SARGENT

Correct Incorrect

Outside of Door

Fig. 7A1

(2) #8-32 x 2”

Phillips Flat Head

Machine Screw

Fig. 7A2 Detail

Step #7 – Connect Earth Ground

Connect pin-5 green/yellow ground wire ring terminal

to top right screw.

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

Harmony Series H2 Mortise Lock

A8027A • 800-810-WIRE (9473) • www.sargentlock.com 11

Fig. 10A

To ElectroLynx

Harness

From Reader

Board P5 to J5

Step #10 – Connect ElectroLynx

1. Connect P5 (7 Pin Connector) from reader board

to J5 on interior escutcheon PCB assembly (Fig. 10A).

2. Connect ElectroLynx harness (4 and 8-pin) from door harness

to ElectroLynx harness on interior PCB assembly (Fig. 10A).

NOTES:

Neatly fold the wires onto themselves and into the remaining

space to prevent pinching wires when mounting escutcheon.

Do not tuck extra mortise lock body wires back inside the lock

body cylinder hole.

Connectors go on only one way.

Do not offset connector and be sure they are completely seated.

PCB Layout - Wire Assignments - ElectroLynx Assembly (Molex)

J2 J1

1-Violet Lock Neg

(Solenoid, neg)

3-Pink

DPS (NC)

1- Black

PWR NEG

3-White

DATA 1

5-Orange

RX (NO/NC)

7-Brown

EGND

2-Gray Lock Pos

(Solenoid, pos)

4-Tan

DPS (COM)

2-Red

PWR POS

4-Green

DATA 0

6-Blue

RX (COM)

8-Yellow

LED

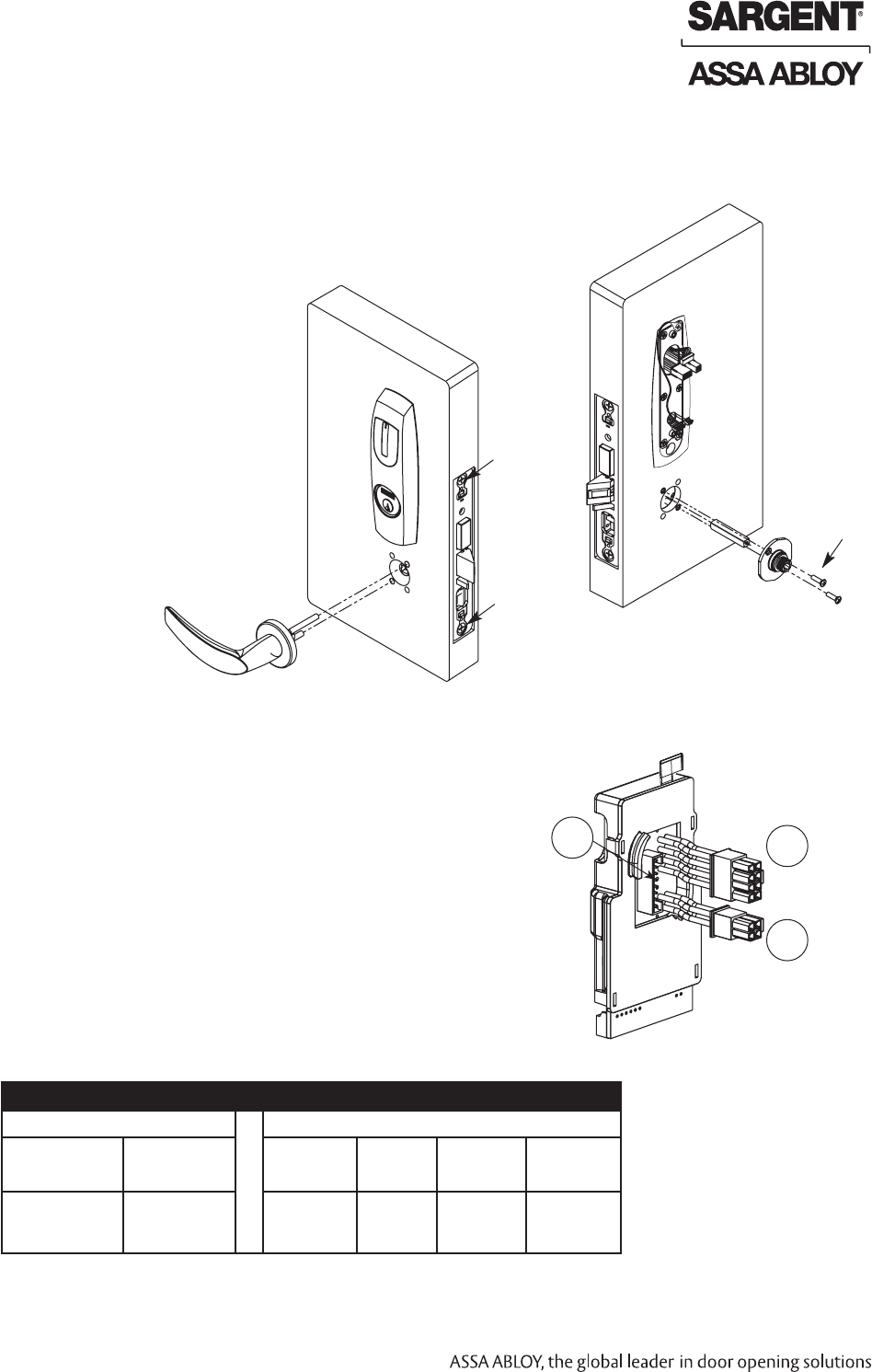

Step #9 – Outside Lever and Inside Adapter Plate Assembly Installation

1. With outside lever horizontal, insert the mounting post through outside of door and lock body.

Make certain the lever spindle is properly engaged inside the lock body (Fig 9A).

2. On the inside of the door, insert spindle into square hole of mortise lock (Fig 9B).

3. Slide inside adapter and plate assembly over

spindle and loosely secure with (2) 8-32 X 5/8”

Phillips oval head and lock washer

machine screws.

Be sure to rotate the set screw hole so

the hole (Studio Collection only) faces

the hinge side and seat the inside

spindle fully into the lock body.

4. Securely tighten the lock body screws.

Fig. 9B

Fig. 9A

Mortise

Lock body

Screw

8-32 X 5/8”

Phillips Oval

Head and

Lock Washer

Machine

Screw

Mortise

Lock body

Screw

Inside of Door

Outside of Door

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

06/30/09

Harmony Series H2 Mortise Lock

A8027A • 800-810-WIRE (9473) • www.sargentlock.com12

Step #12 – Connector Attachment (Exterior PCB Assembly)

1. Connect P3 (2-pin connector) from lock body

to J3 on module (Fig. 12A).

2. Connect P4 (6-pin connector) from lock body

to J4 on module (Fig. 12A).

From Lock

Body P3 to J3 From Lock

Body P4 to J4

Fig. 12A

J4 J3

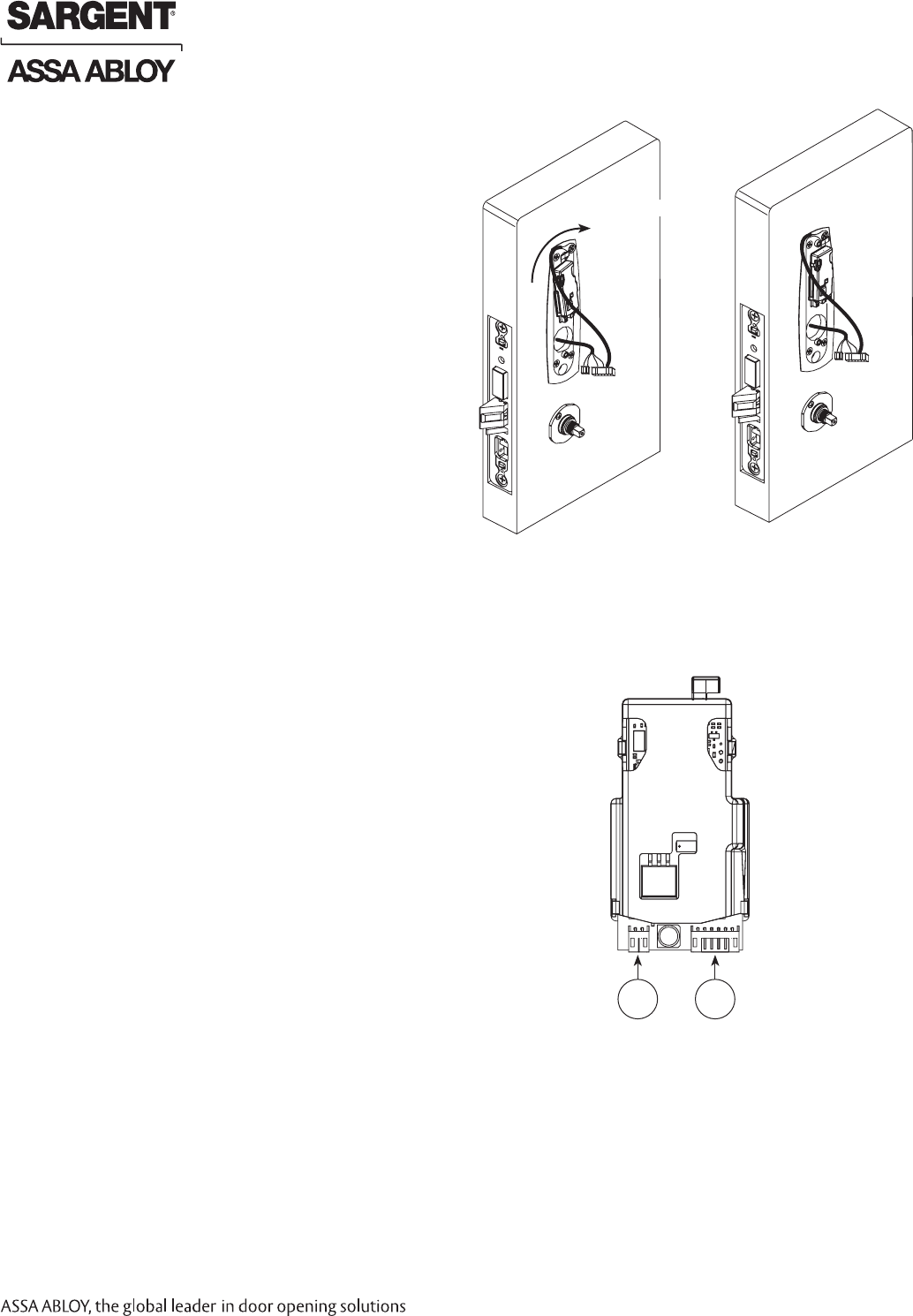

Step #11 – Outside Wire Positioning

Please follow these steps prior to installing

inside escutcheon to prevent any damage

caused by pinching wires:

1. Once wires are arranged, position piece

at a rotated angle against the door, under

earth ground wire.

1. Press piece against door while turning

clockwise (Fig. 11A).

2. Twist into place, perpendicular with door (Fig. 11B).

Inside of Door

Fig. 11A Fig. 11B

Rotate Clockwise

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

Harmony Series H2 Mortise Lock

A8027A • 800-810-WIRE (9473) • www.sargentlock.com 13

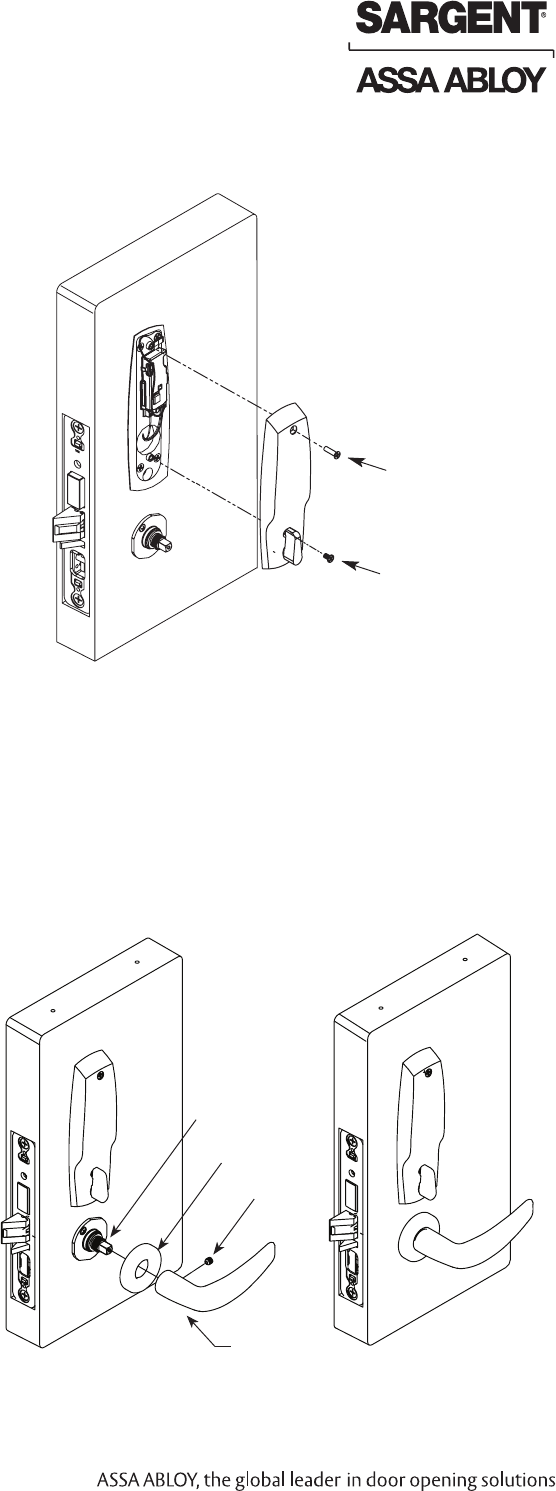

Step #14 – Inside Rose and Inside Lever Assembly Instructions

1. Rotate the inside rose - rst counter clockwise to

seat the threads and then, clockwise to securely tighten.

2. Slide lever handle onto spindle until fully seated.

Be sure handle is horizontal and facing the hinge side

of the door.

Push lever onto spindle so minimum gap is visible.

3. Tighten the set screw securely with 1/8” hex wrench.

Fig. 14A Fig. 14B

Set Screw

Inside Lever

Spindle

Inside of Door

Rose

Step #13 – Inside Escutcheon Assembly Installation

1. Tighten the inside escutcheon securely to the mounting

plate with the Phillips at head machine screws provided.

Use the 8-32 x 5/8” for the top of the escutcheon

and the 8-32 x 1/4” screws for the bottom of the

escutcheon located under the turn lever.

Remember the inside gasket must be used

when installing Harmony in an outdoor application.

2. Be sure the turn assembly is functional

and the deadbolt functions properly.

8-32 X 1/4” Phillips

Flat Head Undercut

Machine Screw

8-32 X 5/8” Phillips

Flat Head Undercut

Machine Screw

Fig. 13A

Inside of Door

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

06/30/09

Harmony Series H2 Mortise Lock

A8027A • 800-810-WIRE (9473) • www.sargentlock.com14

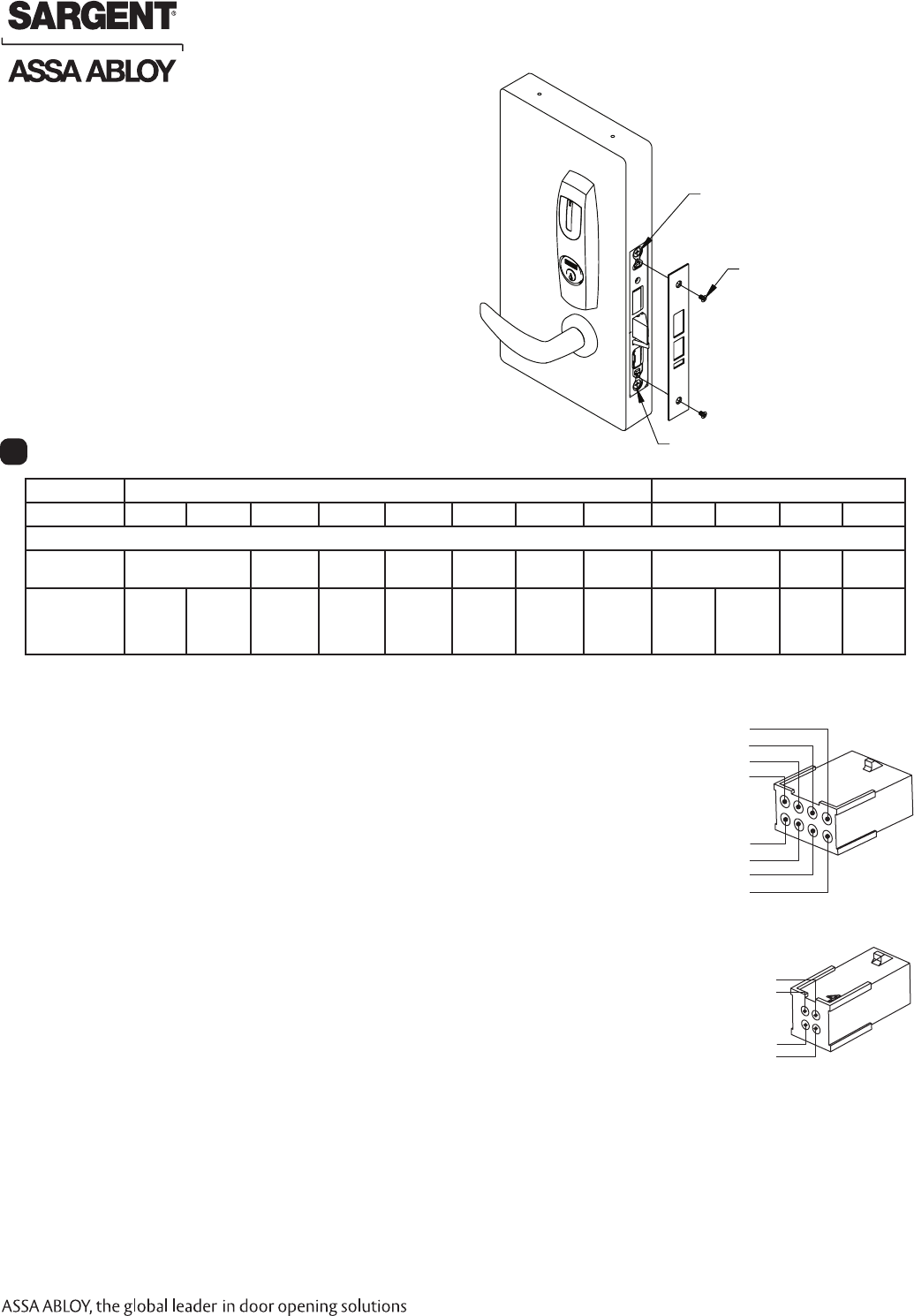

Step #15 – Application of Front Plate

Attach front plate with (2) 8-32x1/4” at head screws

and tighten securely.

Product 8 PIN CONNECTOR 4 PIN CONNECTOR

1-Black 2-Red 3-White 4-Green 5-Orange 6-Blue 7-Brown 8-Yellow 9-Violet 10-Gray 11-Pink 12-Tan

ACCESS CONTROL DEVICES: Harmony H2 Mortise, ElectroLynx wire Color / Function assignments

12/24VDC

(Reader)

WIE-

GAND

WIE-

GAND

RX RX EGND LED 12/24 VDC

(LOCK RELAY)

DPS

(NC)

DPS

(COM)

SARGENT -

HARMONY

SERIES,

H2 Mortise

NEG POS DATA_1 DATA_0 NO/NC COM REF.

*DIA-

GRAMS

REF.

*DIA-

GRAMS

NEG POS DPS DPS

Wiring Diagrams

Reader LED Conﬁguration

The Harmony Series reader can be congured for (3) modes of LED operation.

HID Programming cards are also supported to congure the behavior for LED

color activity. Call 1-800-WIRE for details.

Mode 1:

• Red LED ‘ON’ when powered.

• Presenting a 13.56MHz credential causes LED to ‘FLICKER’

green and return to red state.

• Reference *Diagram #1 as a function of power

requirement (12VDC or 24VDC).

Note: LED wire is unconnected.

Mode 2:

• Green LED “ON” when powered.

• No Flicker after presenting valid 13.56MHz credential.

• Reference *Diagram #2 as a function of power

requirement (12VDC or 24VDC).

Note: LED wire must be connected to circuit GROUND of the system’s power supply.

PIN8 (Yellow – LED)

PIN 6 (Blue – RX COM)

PIN 4 (Green – Data 0)

PIN 2 (Red – Reader POS)

PIN 1 (Black – Reader NEG)

PIN 3 (White – Data 1)

PIN 5 (Orange – RX NO/NC)

PIN 7 (Brown-EGND)

PIN 4 (Tan – DPS COM)

PIN 2 (Gray – Lock POS)

PIN 1 (Violet – Lock NEG)

PIN 3 (Pink – DPS NC)

Fig. 135

(2) 8-32x1/4”

Flat Head Screws

Lock Body Screw

Outside of Door

Mode 3:

• EAC Panel controls LED operation.

• Reference *Diagram #3 as a function of power requirement (12VDC or 24VDC).

Note: Control of LED is a function of the EAC panel equipment (ie. relay) to toggle between green and red.

Note: When LED wire is tied directly into EAC panel relay, no AC signals should be applied on wire or door reader

performance will be interfered (*Diagram #3).

*Diagrams on following pages

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

Harmony Series H2 Mortise Lock

A8027A • 800-810-WIRE (9473) • www.sargentlock.com 15

Typical Harmony Mortise Lock Application Diagram (12/24VDC Lock)

12/24VDC SYSTEM

• Reader Draw = 125mA

• 12VDC Solenoid Draw = 500mA

• 12VDC Total Current Draw = 625mA

• 24VDC Solenoid Draw = 250mA

• 24VDC Total Current Draw = 375mA

DIAGRAM #1 – MODE 1: RED LED ‘ON’ WHEN POWERED

Black (Hot)

White (Neutral)

Green (Gnd)

Power Supply

(By Others)

Harmony Series H2

Requires 12 or 24VDC

Electronic Access

Control Panel

(By Others)

Use (NC) for Fail

Safe Operation

Lock Relay

(NO) Fail

Secure Operation

DPS

DATA 1

DATA 0

READER NEG - Black, 1

READER POS - Red, 2

DATA 1 - White, 3

DATA 0 - Green, 4

RX (NO/NC) - Orange, 5

RX (COM) - Blue, 6

*EGND - Brown, 7

LED - Yellow, 8

LOCK NEG - Violet, 9

LOCK POS - Gray, 10

DPS (NC) - Pink, 11

DPS (COM) - Tan, 12

Not Used

H2 Harmony

Mortise Lock

120 VAC

Input 12/24VDC

H N G

- +

*IMPORTANT: Pin 7 must be tied to earth ground in the access control panel.

Failure to follow proper ESD safe grounding procedures could lead to equipment failure.

12 Conductor

ElectroLynx Harness

From McKinney

QC12 Electric Hinge

From McKinney

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

06/30/09

Harmony Series H2 Mortise Lock

A8027A • 800-810-WIRE (9473) • www.sargentlock.com16

Typical Harmony Mortise Lock Application Diagram (12/24VDC Lock)

DIAGRAM #2 – MODE 2: GREEN LED ‘ON’ WHEN POWERED

Black (Hot)

White (Neutral)

Green (Gnd)

Power Supply

(By Others)

Electronic Access

Control Panel

(By Others)

Use (NC) for Fail

Safe Operation

Lock Relay

(NO) Fail

Secure Operation

DPS

DATA 1

DATA 0

READER NEG - Black, 1

READER POS - Red, 2

DATA 1 - White, 3

DATA 0 - Green, 4

RX (NO/NC) - Orange, 5

RX (COM) - Blue, 6

*EGND - Brown, 7

LED - Yellow, 8

LOCK NEG - Violet, 9

LOCK POS - Gray, 10

DPS (NC) - Pink, 11

DPS (COM) - Tan, 12

120 VAC

Input 12/24VDC

H N G

- +

Harmony Series H2

Requires 12 or 24VDC

H2 Harmony

Mortise Lock

*IMPORTANT: Pin 7 must be tied to earth ground in the access control panel.

Failure to follow proper ESD safe grounding procedures could lead to equipment failure.

12/24VDC SYSTEM

• Reader Draw = 125mA

• 12VDC Solenoid Draw = 500mA

• 12VDC Total Current Draw = 625mA

• 24VDC Solenoid Draw = 250mA

• 24VDC Total Current Draw = 375mA

12 Conductor

ElectroLynx Harness

From McKinney

QC12 Electric Hinge

From McKinney

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

Harmony Series H2 Mortise Lock

A8027A • 800-810-WIRE (9473) • www.sargentlock.com 17

Typical Harmony Mortise Lock Application Diagram (12/24VDC Lock)

DIAGRAM #3 – MODE 3: EAC PANEL CONFIGURABLE

Black (Hot)

White (Neutral)

Green (Gnd)

Power Supply

(By Others)

Electronic Access

Control Panel

(By Others)

Lock Relay

(NO) Fail

Secure Operation

DPS

DATA 1

DATA 0

LED

READER NEG - Black, 1

READER POS - Red, 2

DATA 1 - White, 3

DATA 0 - Green, 4

RX (NO/NC) - Orange, 5

RX (COM) - Blue, 6

*EGND - Brown, 7

LED - Yellow, 8

LOCK NEG - Violet, 9

LOCK POS - Gray, 10

DPS (NC) - Pink, 11

DPS (COM) - Tan, 12

120 VAC

Input 12/24VDC

H N G

- +

Use (NC) for Fail

Safe Operation

Harmony Series H2

Requires 12 or 24VDC

H2 Harmony

Mortise Lock

*IMPORTANT: Pin 7 must be tied to earth ground in the access control panel.

Failure to follow proper ESD safe grounding procedures could lead to equipment failure.

12/24VDC SYSTEM

• Reader Draw = 125mA

• 12VDC Solenoid Draw = 500mA

• 12VDC Total Current Draw = 625mA

• 24VDC Solenoid Draw = 250mA

• 24VDC Total Current Draw = 375mA

12 Conductor

ElectroLynx Harness

From McKinney

QC12 Electric Hinge

From McKinney

A8027A-06/30/09

SARGENT

100 Sargent Drive

New Haven, CT 06511 USA

800-481-8464 • www.sargentlock.com

Founded in the early 1800s, SARGENT® is a market leader in locksets, cylinders, door closers, exit devices,

electro-mechanical products and access control systems for new construction, renovation, and replacement applications.

The company’s customer base includes commercial construction, institutional, and industrial markets.

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

ASSA ABLOY is the global leader in door opening solutions, dedicated to

satisfying end-user needs for security, safety and convenience.

For 82280-82283 & 82270-82273 Function mortise locks with cylinders:

1. Insert key into cylinder and rotate: There should be no friction against

lock case, wire harness or any other obstructions.

2. The key will retract the latch: Key should rotate freely.

3. When the deadbolt is thrown: Ensure that the key retracts both the

deadbolt and the latch.

4. Inside lever: When used, ensure it retracts both the latch

and deadbolt (if provided).

5. Close door: Ensure latch and deadbolt fully extend

and do not bind.

Mechanical Operational Check

Note: Once electrical wiring has been successfully

completed according to proper application, follow

the following step:

1. Turn power ON.

2. Verify LED located on reader is ON - red or green,

depending on reader conguration (see reader LED

conﬁguration).

3. Present credential and verify LED and sounder activity.

4. Verify valid card read at EAC Panel.

5. Verify system operation functions; i.e., when credential

is presented to reader that the door unlocks.

Electrical Operational Check

ASSALOY SCYPROX2 Harmony H2 Series Lock User Manual FCC Part 15

ASSA ABLOY Inc. Harmony H2 Series Lock FCC Part 15

Contents

Users Manual Mortise

Navigation menu

Namespaces

Views

Navigation
