6RT-N13U Chapter 1: Knowing your wireless router
1
Knowing your
wireless router
Package contents
Check the following items in your ASUS Wireless Router package.
RT-N13U Wireless Router
Power adapter
Support CD (manual, utilities)
RJ45 cable
Quick Start Guide
Note: If any of the items is damaged or missing, contact your retailer.
System requirements
Before installing the ASUS Wireless Router, ensure that your system/network
meets the following requirements:
An Ethernet RJ-45 port (10Base-T/100Base-TX)
At least one IEEE 802.11b/g/n device with wireless capability
An installed TCP/IP and Internet browser
Before you proceed
Take note of the following guidelines before installing the ASUS Wireless Router:
The length of the Ethernet cable that connects the device to the network (hub,
ADSL/cable modem, router, wall patch) must not exceed 100 meters.
Place the device on a at and stable surface as far from the ground as
possible.
Keep the device clear from metal obstructions and away from direct sunlight.
Keep the device away from transformers, heavy-duty motors, uorescent lights,
microwave ovens, refrigerators, and other industrial equipment to prevent
signal loss.
Install the device in a central area to provide ideal coverage for all wireless
mobile devices.
7
Chapter 1: Knowing your wireless router RT-N13U

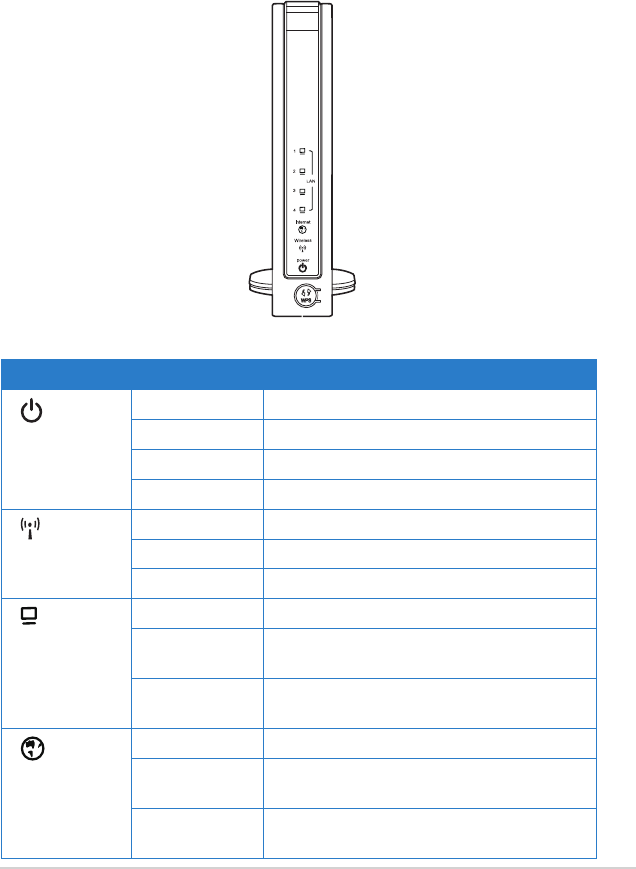

Status indicators
LED Status Indication
(Power) Off No power
On System ready
Flashing-slow Rescue mode
Flashing-quick WPS processing
(Wireless) Off No power
On Wireless system ready
Flashing Transmitting or receiving data (wireless)
LAN 1-4
(Local Area
Network)
Off No power or no physical connection
On Has physical connection to an Ethernet
network
Flashing Transmitting or receiving data (through
Ethernet cable)
(Internet) Off No power or no physical connection
On Has physical connection to an Ethernet
network
Flashing Transmitting or receiving data (through
Ethernet cable)
Install the device at least 20cm from a person to insure that the product is
operated in accordance with the RF Guidelines for Human Exposure adopted
by the Federal Communications Commission.
Hardware features
Front panel
8RT-N13U Chapter 1: Knowing your wireless router

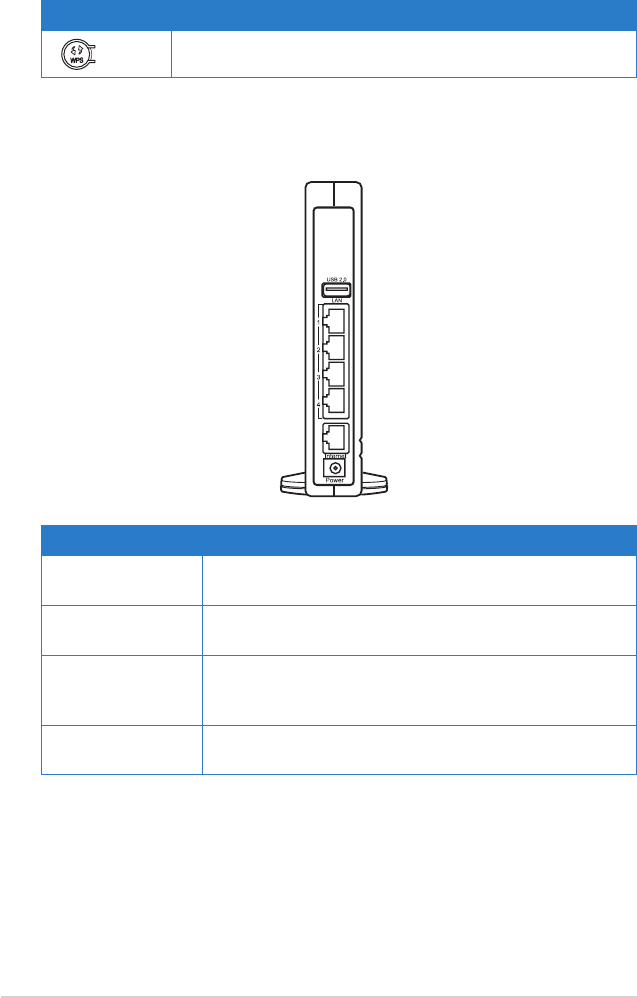

Rear panel
Label Description
Internet Connect an RJ-45 Ethernet cable to this port to establish
WAN connection.
LAN1-LAN4 Connect RJ-45 Ethernet cables to these ports to
establish LAN connection.
USB 2.0 Insert USB 2.0 devices such as USB hard disks and
USB ash drives (at least 2GB capacity) into these
ports.
Power Insert the AC adapter into this port to connect your
router to a power source.
Buttons
Button Indication
(WPS) This button launches the WPS wizard.
9
Chapter 1: Knowing your wireless router RT-N13U
1
2
Bottom panel
Item Description
1Restore button
Press this button to restore the system to its factory default
settings.
2Operation mode selector
Use this selector to choose an operation mode:
Router (IP Sharing mode): In this mode, RT-N13U connects
to WAN (Internet) by PPPoE, Automatic IP, or Static IP, and
provides wireless radio, NAT, rewall, and IP sharing services
in LAN.
Repeater: In this mode, RT-N13U extends your wireless
network and provides higher quality wireless radio to
users. NAT, rewall, and IP sharing services are disabled
automatically.
AP (Access Point): In this mode, RT-N13U receives the WAN
IP address from the router connected to the WAN port and
provides wireless radio to users. NAT, rewall, and IP sharing
services are disabled automatically.
10 RT-N13U Chapter 2: Setting up the hardware
2
Setting up the
hardware
Setting up the wireless router
The ASUS Wireless Router meets various working scenarios with proper
congurations. You may need to change the wireless router’s default settings so
as to meet the requirements in your wireless environment. It also provides you with
WPS, a utility that enables you to easily set up a secure wireless network.
Notes:
We recommend that you use wired connection for initial conguration to avoid possible
setup problems due to wireless uncertainty.
For more details on WPS, refer to the section WPS Wizard in Chapter 5 of this user
manual.
Setting up a wired connection

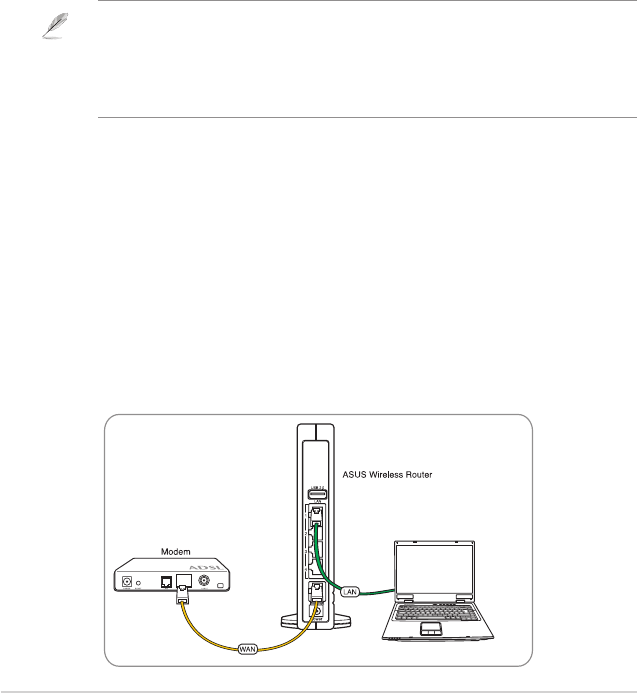

The ASUS Wireless Router is supplied with an Ethernet cable in the package.
The wireless router has integrated auto-crossover function, so use either straight-
through or crossover cable for wired connection.
To set up the wired connection:
1. Turn on your router and the modem.
2. Using an Ethernet cable, connect the routers Internet port to the modem.
3. Using another Ethernet cable, connect the router’s LAN port to your PC’s LAN
port.
11
Chapter 2: Setting up the hardware RT-N13U
Setting up a wireless connection
To set up a wireless connection:
1. Turn on your router and the modem.
2. Using an Ethernet cable, connect the modem to the router’s Internet port.
3. Connect an IEEE 802.11b/g/n compatible WLAN adapter. Refer to your wirelessRefer to your wireless
adapter user manual for wireless connection procedures. By default, the SSID
of ASUS Wireless Router is “ASUS” (in upper case), encryption is disabled and
open system authentication is used.
12 RT-N13U Chapter 2: Setting up the hardware
2. Select a network from the Choose a wireless network window. Wait for it to
connect.
Note: By default, the SSID of wireless router is ASUS. Connect to this default SSID.
3. After establishing a wireless connection, launch a web browser.
Notes:
You may also manually key in the router's default IP address (192.168.1.1) to launch the
router's web interface.
For more details on conguring your wireless router using the web GUI, refer to Chapter 4:
Conguring via the web GUI.
Conguring the wireless router
The ASUS Wireless Router includes a web graphics user interface (web GUI)
that allows you to congure the wireless router using your web browser on your
computer.
Using the web GUI
If your PC connects to the router using a cable, launch your web browser and the
login page of the router’s web GUI automatically launches.
If your PC connects to the router wirelessly, you have to select the network rst.
To select the network:
1. Click Start > Control Panel > Network Connections > Wireless Network
Connection.
13
Chapter 3: Conguring the clients RT-N13U
3
Conguring the
network clients
Accessing the wireless router
Setting an IP address for wired or wireless client
To access the ASUS Wireless Router, you must have the correct TCP/IP settings
on your wired or wireless clients. Ensure that the clients’ IP addresses are within
the same subnet as the ASUS Wireless Router.
By default, the ASUS Wireless Router integrates the DHCP server function, which
automatically assigns IP addresses to the clients in your network.
But in some instances, you may want to manually assign static IP addresses on
some of the clients or computers in your network rather than automatically getting
IP addresses from your wireless router.
Follow the instructions below that correspond to the operating system installed on
your client or computer.
Note: If you want to manually assign an IP address to your client, we recommend that you use
the following settings:
IP address: 192.168.1.xxx (xxx can be any number between 2 and 254. Ensure that the IP
address is not used by another device)
Subnet Mask: 255.255.255.0 (same as the ASUS Wireless Router)
Gateway: 192.168.1.1 (IP address of the ASUS Wireless Router)
DNS: 192.168.1.1 (ASUS Wireless Router) or assign a known DNS server in your network
14 RT-N13U Chapter 3: Conguring the clients
Windows® 9x/ME

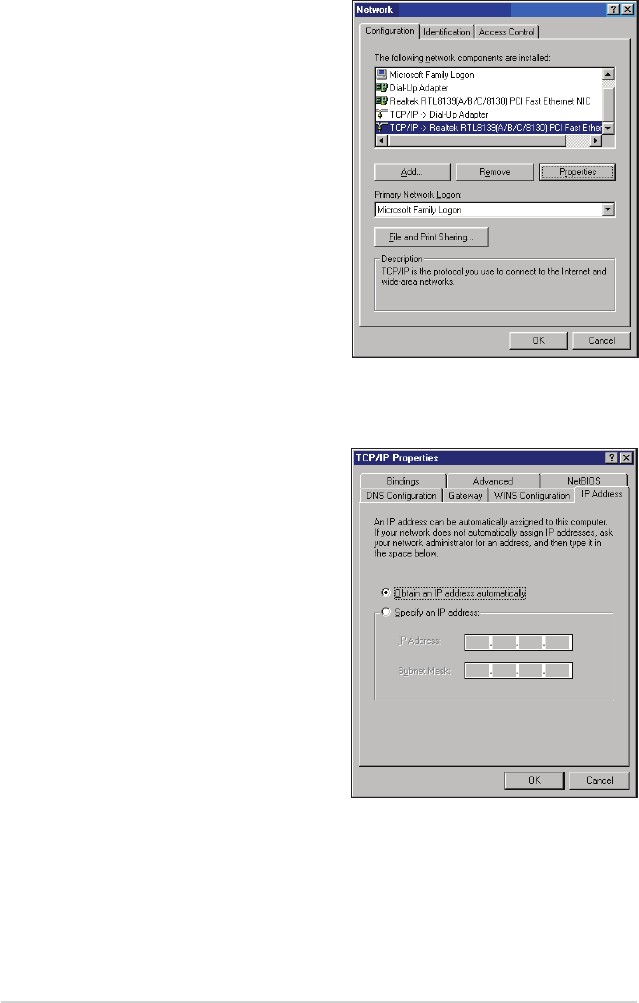

1. Click Start > Control Panel >
Network to display the Network
setup window.
2. Select TCP/IP then click
Properties.
3. If you want your computer to
automatically obtain an IP address,
click Obtain an IP address
automatically then click OK.
Otherwise, click Specify an
IP address, then key in the IP
address and Subnet Mask.
15
Chapter 3: Conguring the clients RT-N13U

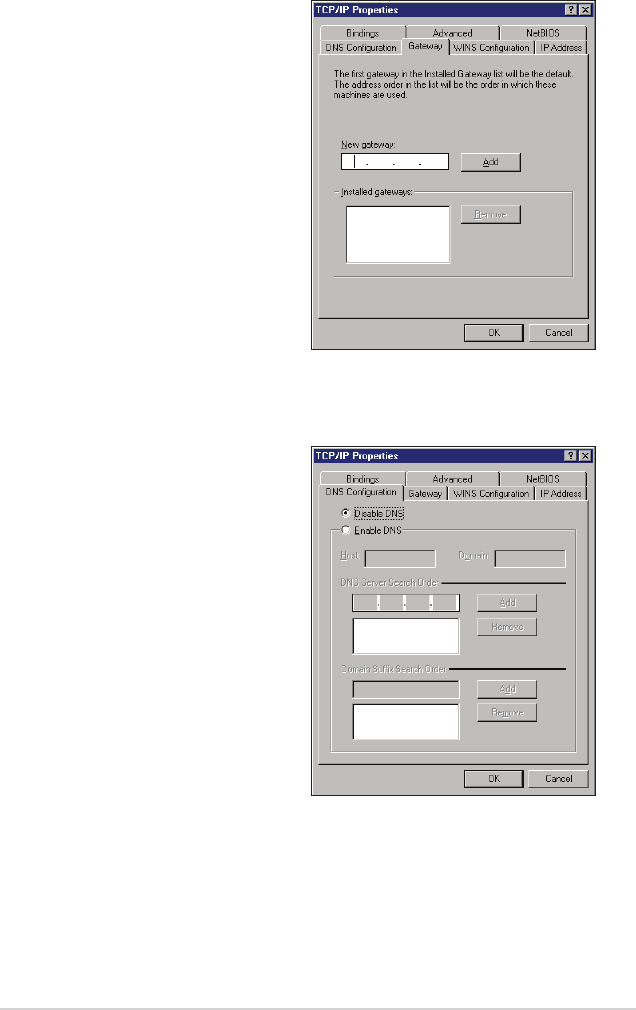

4. Select the Gateway tab, and key in
New gateway then click Add.
5. Select the DNS conguration tab
and click Enable DNS. Key in Host,
Domain, and DNS Server Search
Order, then click Add.
6. Click OK.
16 RT-N13U Chapter 3: Conguring the clients
Windows® NT4.0

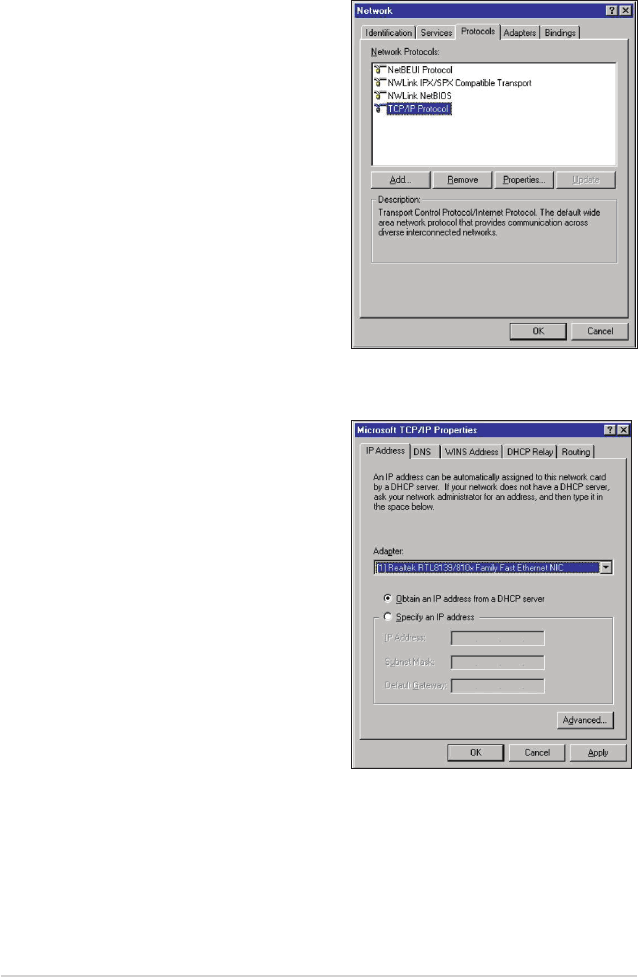

1. Go to Control Panel > Network to
display the Network setup window
then select the Protocols tab.
2. Select TCP/IP Protocol from the
Network Protocols list then click
Properties.
3. From the IP Address tab of the
Microsoft TCP/IP Properties
window, you can:
Select the type of network
adapter installed in your
system.
Set the router to assign IP
address automatically.
Manually set up the IP address,
subnet mask, and default
gateway.
17
Chapter 3: Conguring the clients RT-N13U

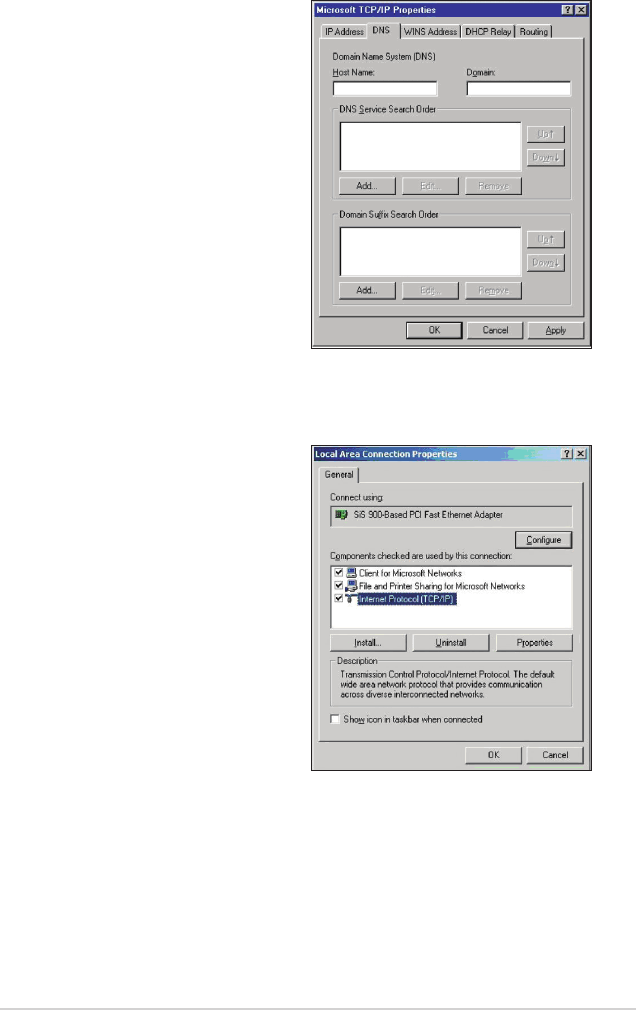

4. Select the DNS tab then click Add
under the DNS Service Search
Order and key in DNS.
Windows® 2000
1. Click Start > Control Panel >
Network and Dial-up Connection.
Right-click Local Area Connection
then click Properties.
18 RT-N13U Chapter 3: Conguring the clients

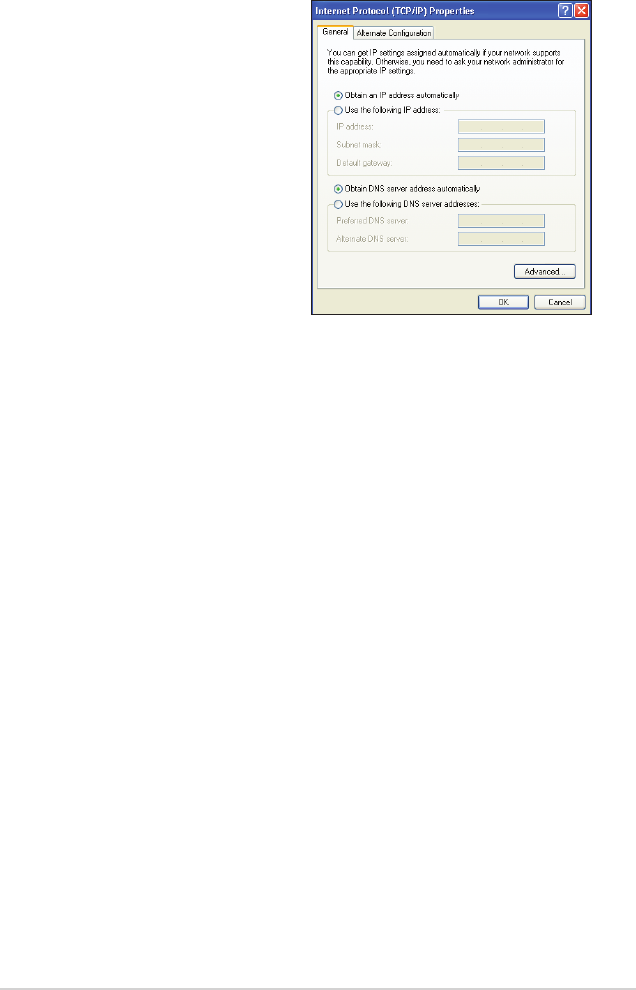

2. Select Internet Protocol (TCP/IP),
then click Properties.
3. Select Obtain an IP address
automatically if you want
the IP settings to be assigned
automatically. Otherwise, select
Use the following IP address: and
key in IP address, Subnet mask,
and Default gateway.
4. Select Obtain DNS server
address automatically if you
want the DNS server settings to be
assigned automatically. Otherwise,
select Use the following DNS
server addresses: and key in the
Preferred and Alternate DNS
server.
5. Click OK when done.
Windows® XP

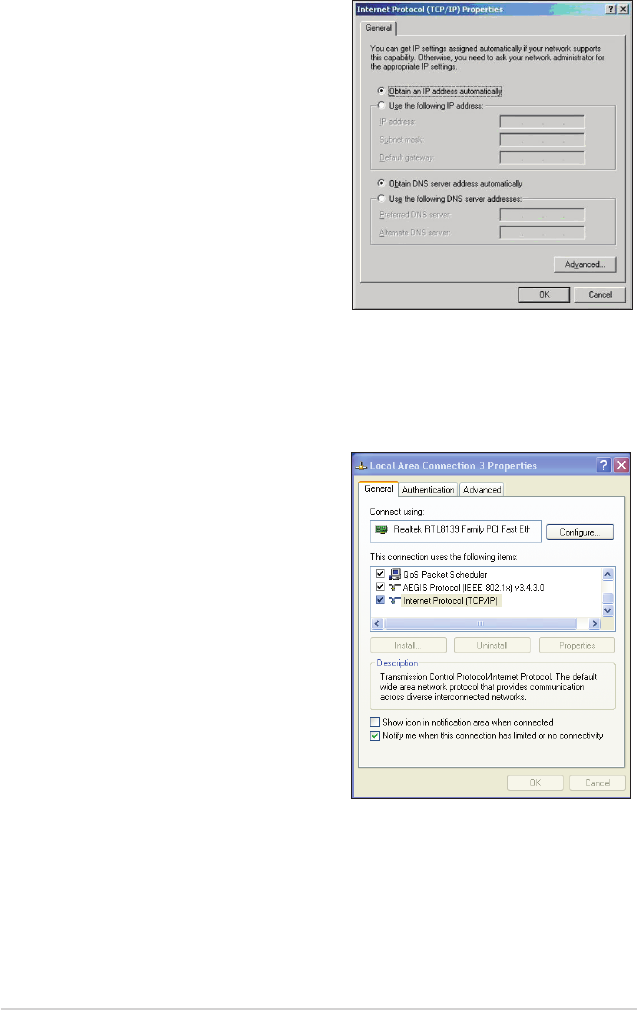

1. Click Start > Control Panel >
Network Connection. Right-click
Local Area Connection then select
Properties.
19
Chapter 3: Conguring the clients RT-N13U
2. Select Internet Protocol (TCP/IP),
then click Properties.
3. Select Obtain an IP address
automatically if you want
the IP settings to be assigned
automatically. Otherwise, select
Use the following IP address: and
key in IP address, Subnet mask,
and Default gateway.
4. Select Obtain DNS server
address automatically if you
want the DNS server settings to be
assigned automatically. Otherwise,
select Use the following DNS
server addresses: and key in the
Preferred and Alternate DNS
server.
5. Click OK when done.
20 RT-N13U Chapter 3: Conguring the clients
Windows® Vista
1. Go to Start > Control Panel >
Network and Internet > Network
and Sharing Center. Click View
status > Properties > Continue.

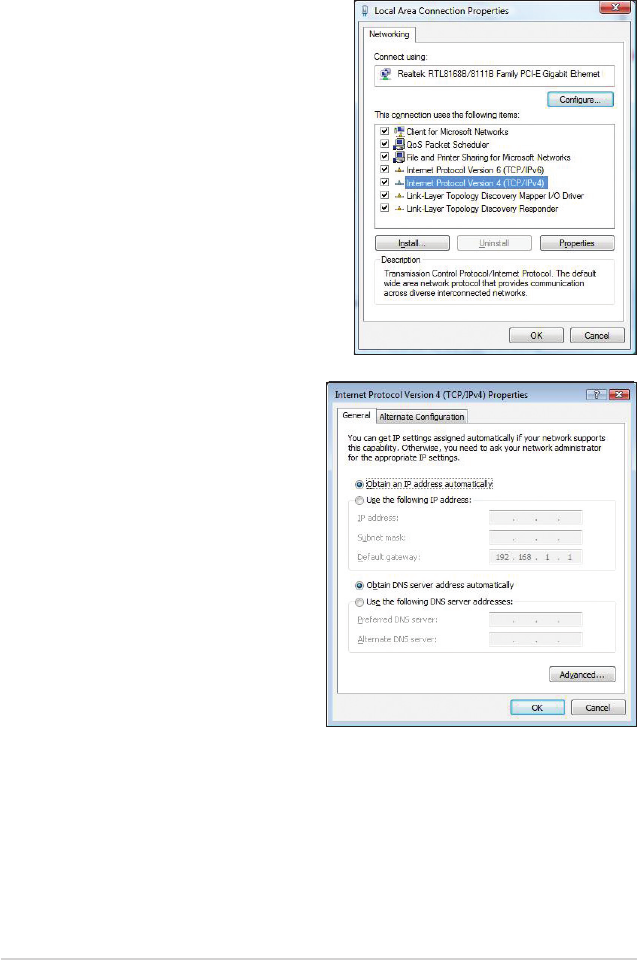

2. Select Internet Protocol
Version 4 (TCP/IPv4), then click
Properties.
3. Select Obtain an IP address
automatically if you want
the IP settings to be assigned
automatically. Otherwise, select
Use the following IP address:
and key in IP address and
Subnet mask.
4. Select Obtain DNS server
address automatically if you
want the DNS server settings
to be assigned automatically.
Otherwise, select Use the
following DNS server
addresses: and key in the
Preferred and Alternate DNS
server.
5. Click OK when done.

Navigation menu
