Using the LCD TV
Use the < > button and the < > button on the remote control to adjust the
settings for different items. (For example, adjustment can be made of items such as
Brightness, Contrast, Color, Sharpness, and Tint.)
5
When adjustments are complete, press the <OK> button once to close the adjustment
screen. Press the <MENU> button once again to close the ‘Menu’ screen.
6
N󳀏O󳀏T󳀏E
▶▶To configure the menu without using the remote control
❶
Press the <MENU> button located at the bottom of the LCD TV.
❷
Press the <CH
▲
/
▼
> buttons to navigate to submenus.
❸
Press the <VOL <
◀
/
▶
> buttons to adjust each item.
❹
If ‘Menu for Local Key’ is on, the <SOURCE> button is used as the <OK> button. When adjustments
have been completed, press the <MENU> button to close the ‘Menu’ screen.
2-8 To configure the menu
Using the LCD TV
Main Menu
PSM
(Select Screen
View)
ARC
16:9, 14:9, Zoom 1,
Screen Aspect Selection
Zoom 2, 4:3
OverScan 1~5 Magnifies the size of the Picture on screen.
Dynamic
Standard
Mild
Game
User
Vivid Picture Appearance
Standard Picture Appearance
Softer Picture Appearance
Select when playing video games on LCD TV
Brightness : Adjust brightness. (Brightness
means the brightness of the screen.)
Contrast : Adjust contrast. (Contrast means
the difference in brightness between an object
and its background.)
Color : Adjust color (RGB).(Adjusting the color
to make it look more natural.)
Sharpness : Adjust sharpness.(Sharpness
means the sharpness of the object's profile.)
Tint : Adjust color intensity.(Color intensity
indicates color depth.)
CSM Normal
Cool
Warm 1
Warm 2
Plain white
Bluish white
Reddish white
Red

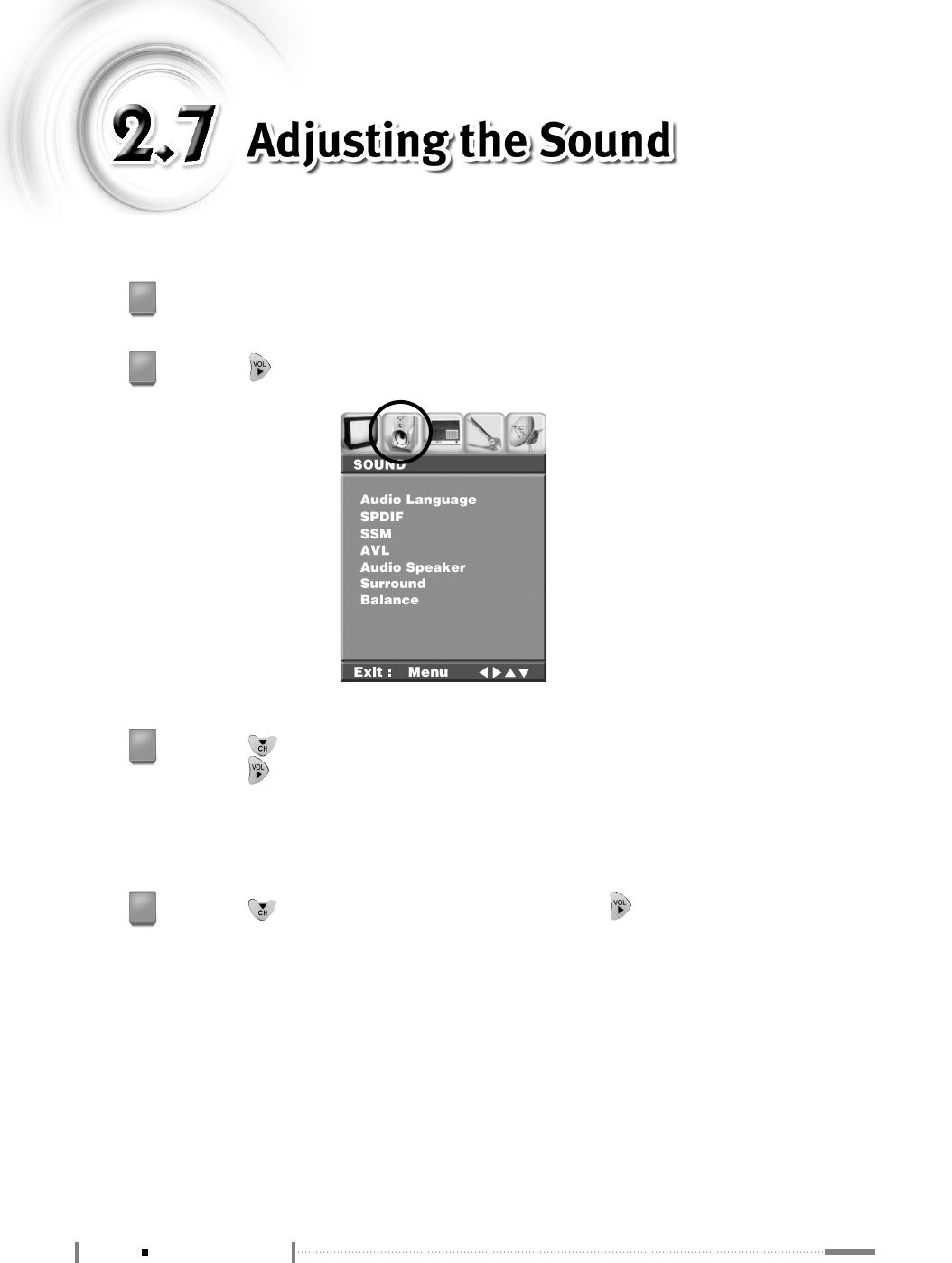

SOUND
Sub Menu 1 Sub Menu 2 Sub Menu 3
TV Menu Categories and Items
The Main Menu contains 5 categories, which in turn contain submenus and option items:
Audio Language
English,
Français, Español, Portugues
SPDIF AC-3
PCM
SSM Music When watching music video or concerts.
Movie When watching movies.
Speech When watching a show that is mostly dialogue.

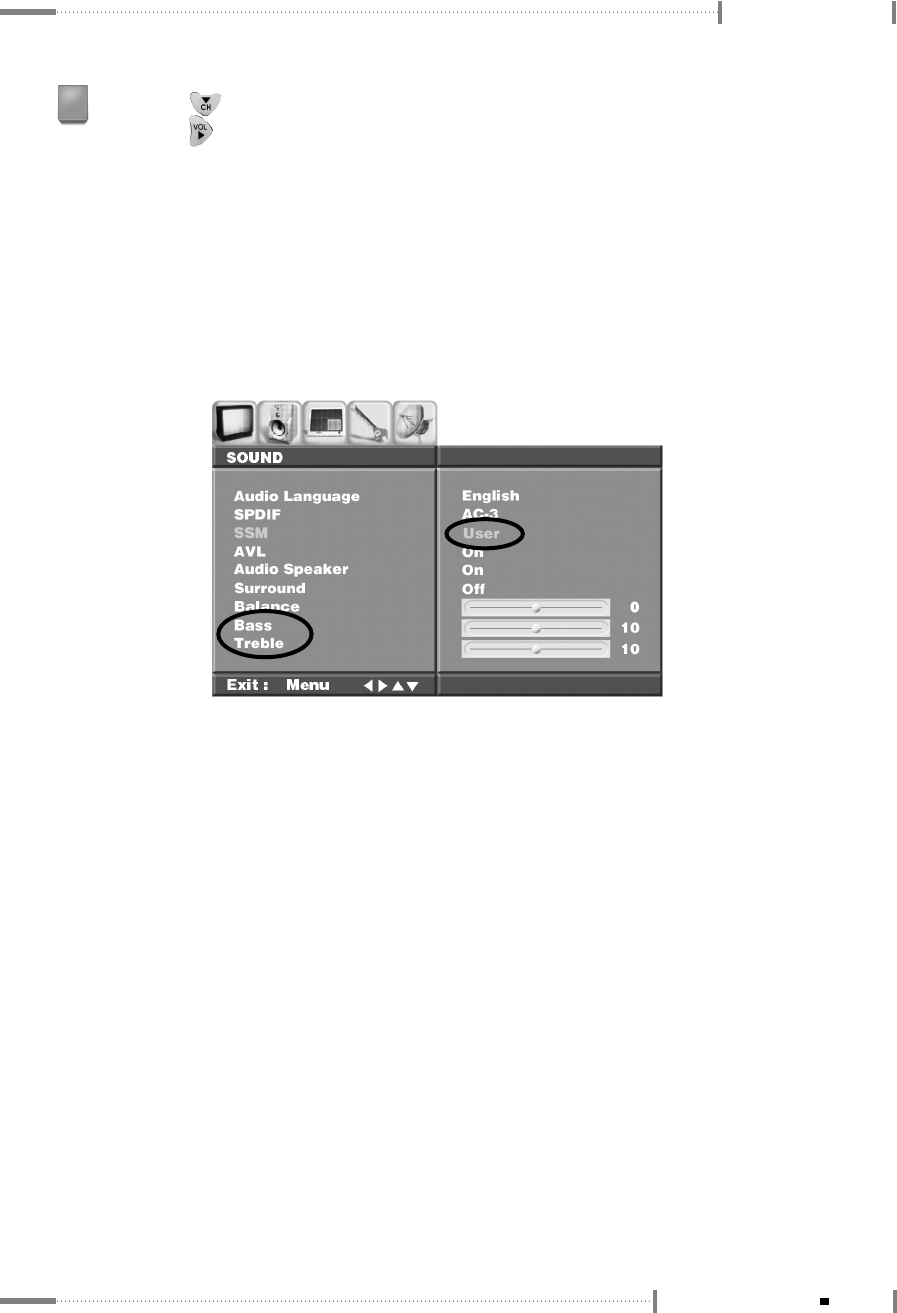

User Bass : Adjust bass.
Treble : Adjust treble.
2-9
To configure the menu

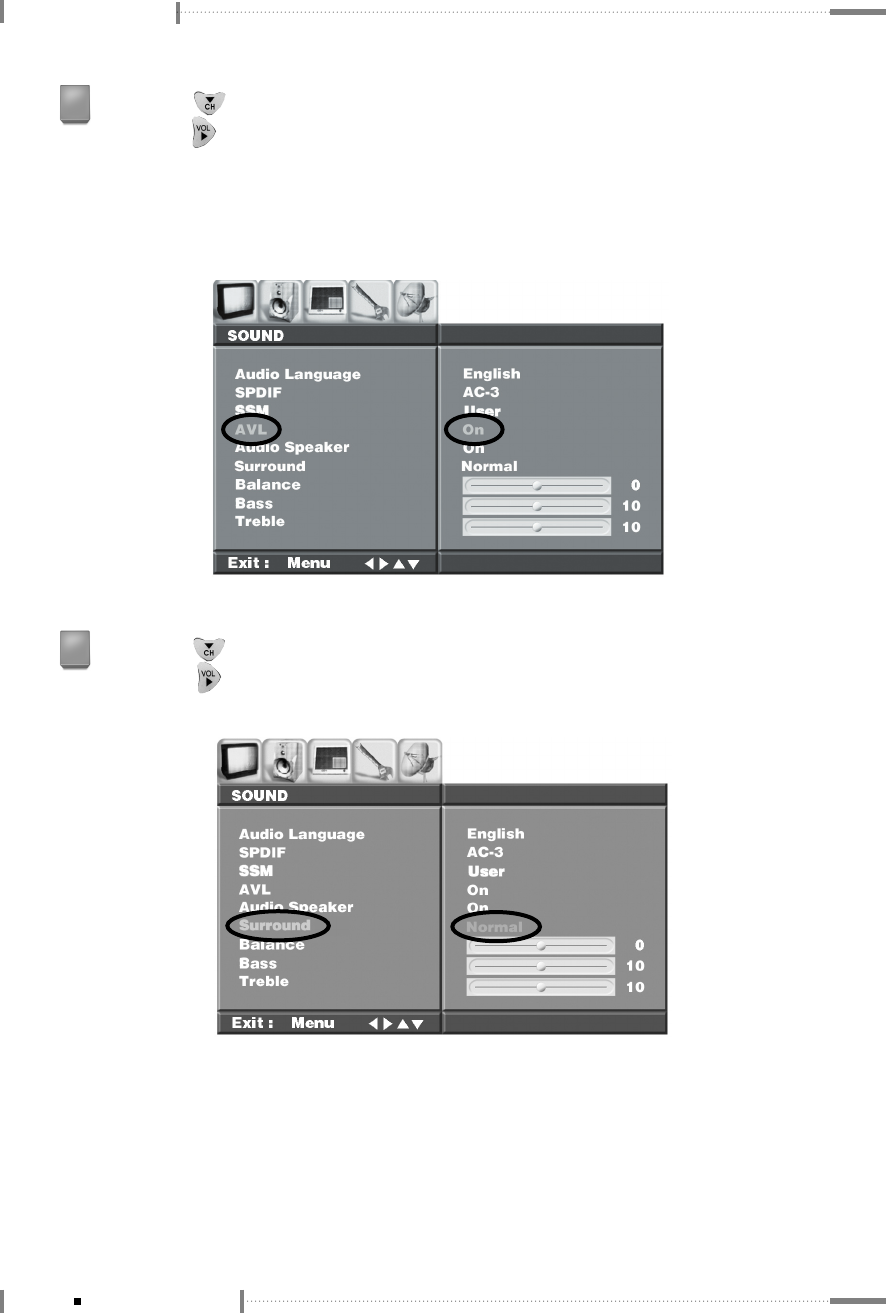

AVL On/Off AVL Function On/Off.
Audio Speaker On/Off Audio Speaker Function On/Off.
Surround

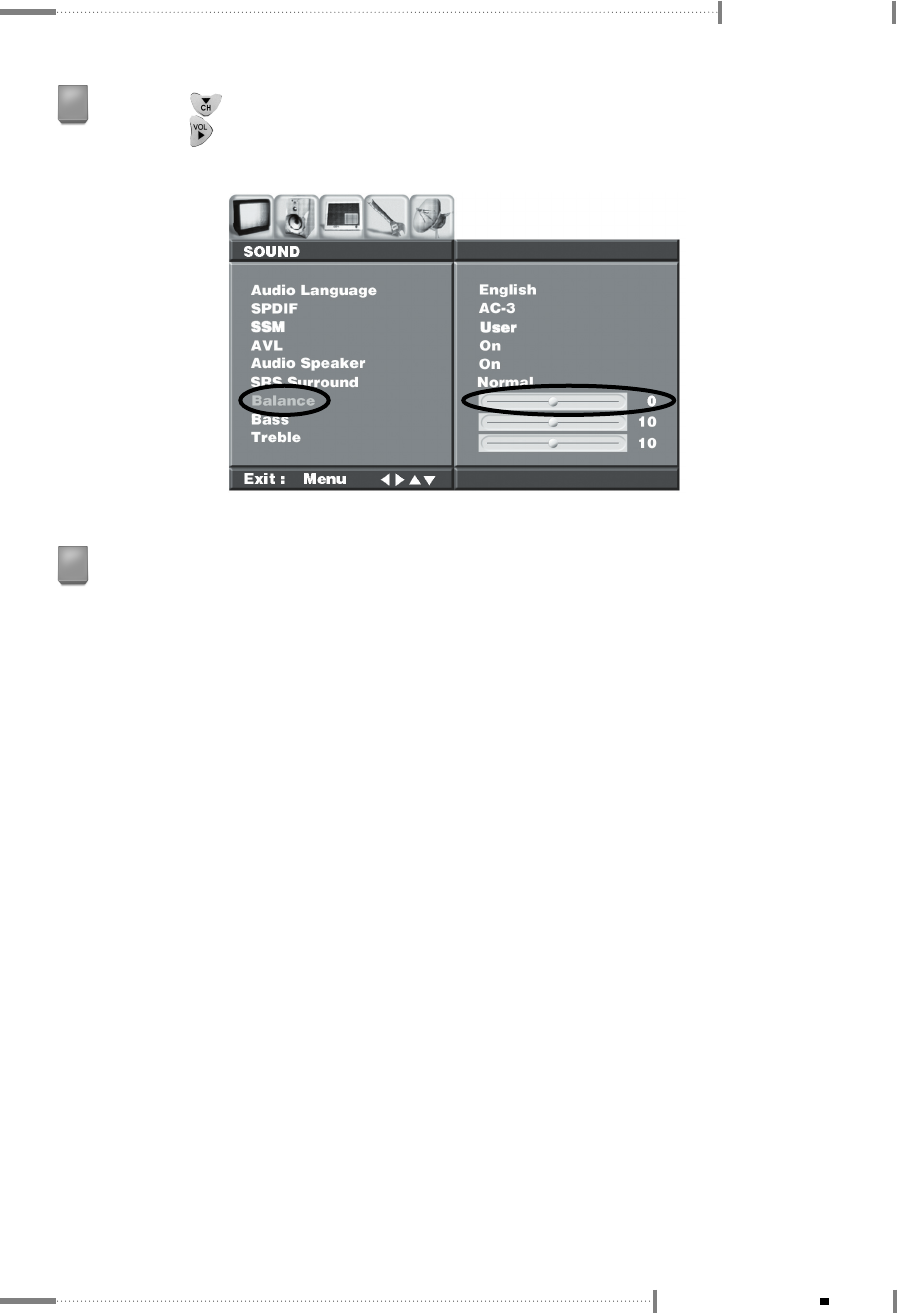

Balance
Off Surround Output Off.
Normal Optimal Surround for Output Condition.
Spatial Enhanced Surround.
-10 ~ 10
Adjust balance between the left & right speakers.
Using the LCD TV
Main Menu
SET UP
Language
Transparency
English, Deutsch, Français, Español, Italiano, Korean
(Menu Screen Display Language Selection.)
0~10 Adjusts the image transparency.
Sub Menu 1 Sub Menu 2 Sub Menu 3 Description
The standard
time area
selection.
ISM Method
Set ID
Normal Adjusts the image transparency.
Orbit Moves the screen up, down, left and right in
small increments to prevent overheating of the
panel during prolonged use.
White Sets the whole screen to white.
0~99 Set ID Selection
Factory Reset Off Selects the factory default.
Timer
Caption
Clock
Off Timer
AM, PM, On/Off
Manual
Auto Pacific
Mountain
Central
Eastern
TV Off Time Selection.
PIP/POP/PBP
On/Off Off
PIP
POP
PBP1~2
PIP/POP/PBP Function Off.
Source
Swap
PIP Size
PIP Position
Source
Swap
Source
Swap
Component, RGB, DVI
To Set
Small, Large
PIP Screen Position Selection.
Component, RGB, DVI
To Set
Component, RGB, DVI
To Set
On Timer
AM, PM, On/Off
TV On Time Selection.
Volume 0~100
Auto Off On/Off
TV Off Auto Function Selection.
Caption On/Off Off/On Caption function Off/On.
(When the subtitle function is provided.)
2-10 To configure the menu
Option Service 1~6
Font Setup By Program
By User
Font Style Size Standard, Large, Small
Style Font 1~7
Fg Color White, Black, Red, Green, Blue, Yellow,
Magenta, Cyan
Fg Opacity Solid, Flash, Translucent, Transparent
Bg Color White, Black, Red, Green, Blue, Yellow,
Magenta, Cyan
Using the LCD TV
Main Menu
CHANNEL
Sub Menu 1 Sub Menu 2 Sub Menu 3 Description
Bg Opacity
Solid, Flash, Translucent,
Transparent
Edge Type
None, Raised, Depressed, Uniform,
Left Shadow, Right Shadow
Edge Color
White, Black, Red, Green,
Blue, Yellow, Magenta, Cyan
Analog Caption
CC1~4
Closed Captioning function support.
TEXT 1~4 Text function support
Parental Lock On/Off Parental function On/Off.
MPAA MPAA(Motion Picture Association of America)
Guideline setup available.
Age Block TV Guideline function support.
Contect Block
Set Password Password setup available.
Channel Scan To Start Automatic channel scan.
Channel Edit Select the Chnnels by Air, CATV, DTV Air, DTV CATV.
Antenna All, Cable STD, Cable HRC, Cable IRC
Signal Strength
2-11
To configure the menu
To watch TV with the LCD TV, configure the channels. (Always check the TV
connection before use.)
To save TV channels, configure the channels during the broadcasting hours.
Use Automatic Channel Scanning to save all the channels currently airing.
Setting Channels Automatically

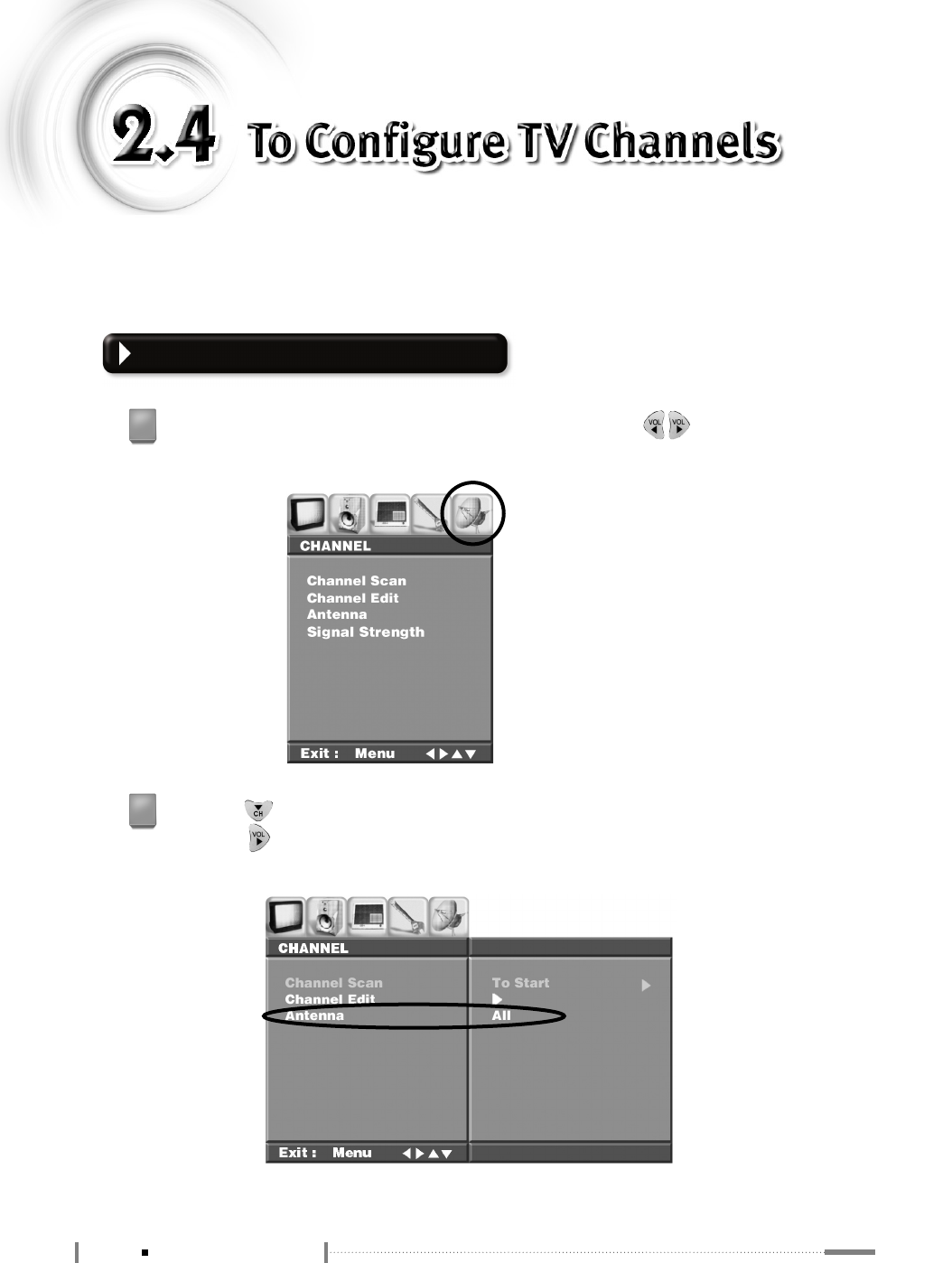

Press the <MENU> button on the remote control, and press the < > button on
the remote control to navigate to the ‘CHANNEL’ menu.
1
Press the < > button on the remote control to select the ‘Antenna’ submenu.
Press the < > button on the remote control to select the broadcasting method
(external input).
2
2-12 To Configure TV Channels
Using the LCD TV

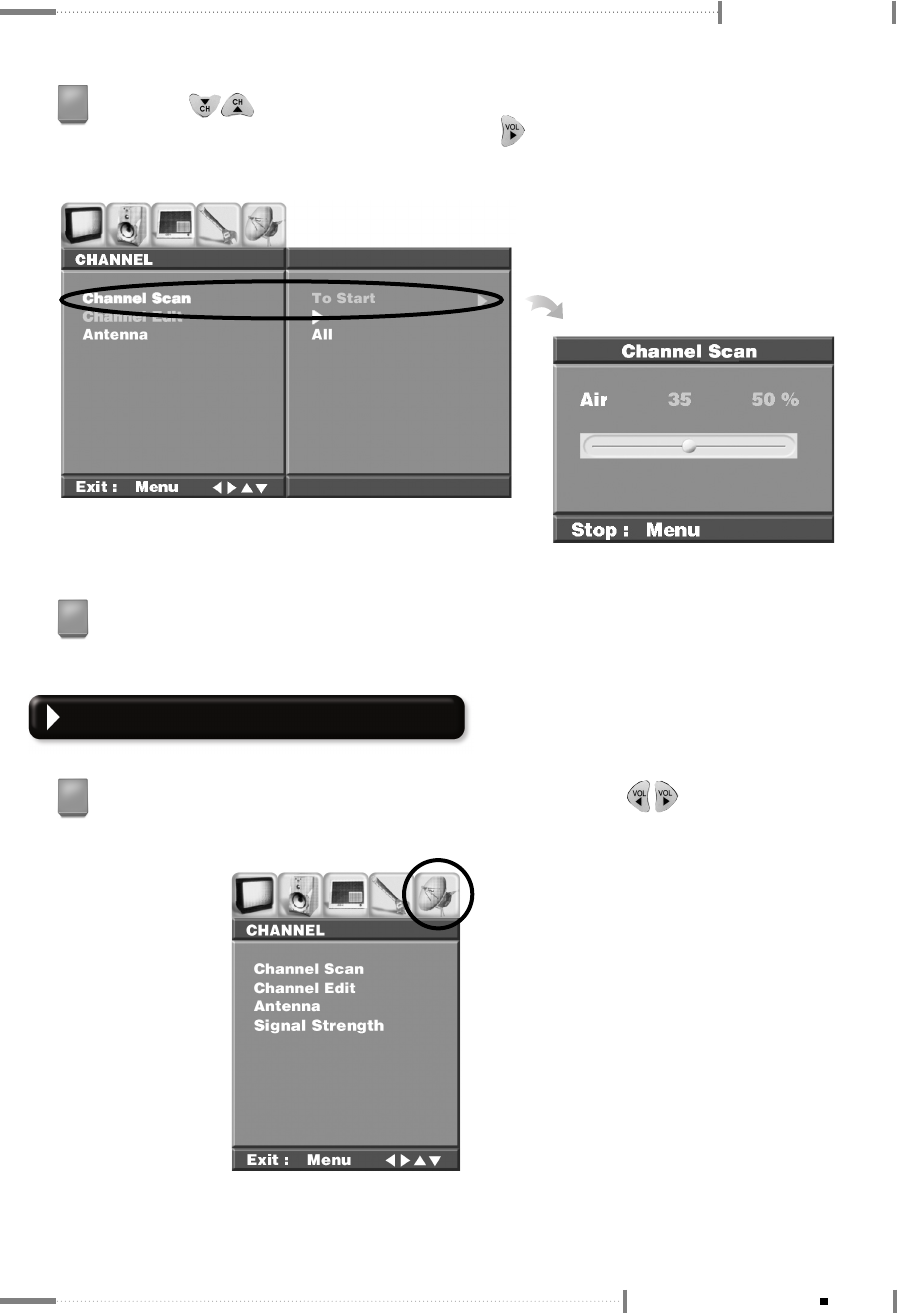

Press the < > button on the remote control to move to the ‘Channel scan’
submenu. At the ‘Channel scan’ item, press the < > button on the remote control to
run ‘To Start’. Channels will be scanned and saved automatically.
3
Press the <MENU> button on the remote control, and press the < > button on
the remote control to navigate to the ‘CHANNEL’ menu.
1
Press the <MENU> button on the remote control to close the ‘Menu’ screen.
4
Storing the Channel Manually
2-13
To Configure TV Channels

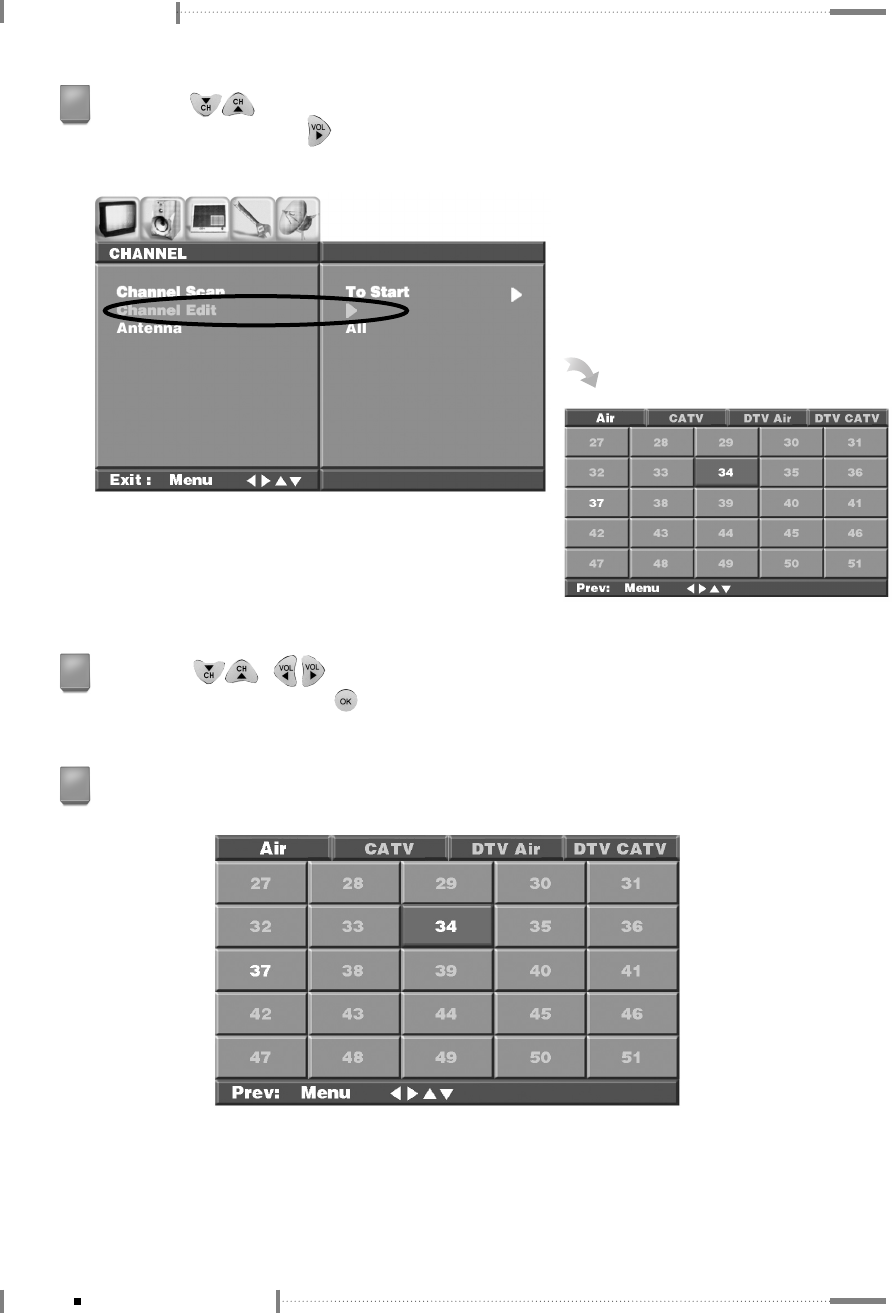

Press the < / > button on the remote control to move to the
Channel number. Press the < > button.
Using the LCD TV
Press the < > button on the remote control to move to the ‘Channel Edit’
submenu, and press the < > button to select the channel with the best video
quality from the channels found.
2
3
Press the <MENU> button on the remote control to close the ‘Menu’ screen.
4
2-14 To Configure TV Channels
Using the LCD TV
2-15
To Configure TV Channels

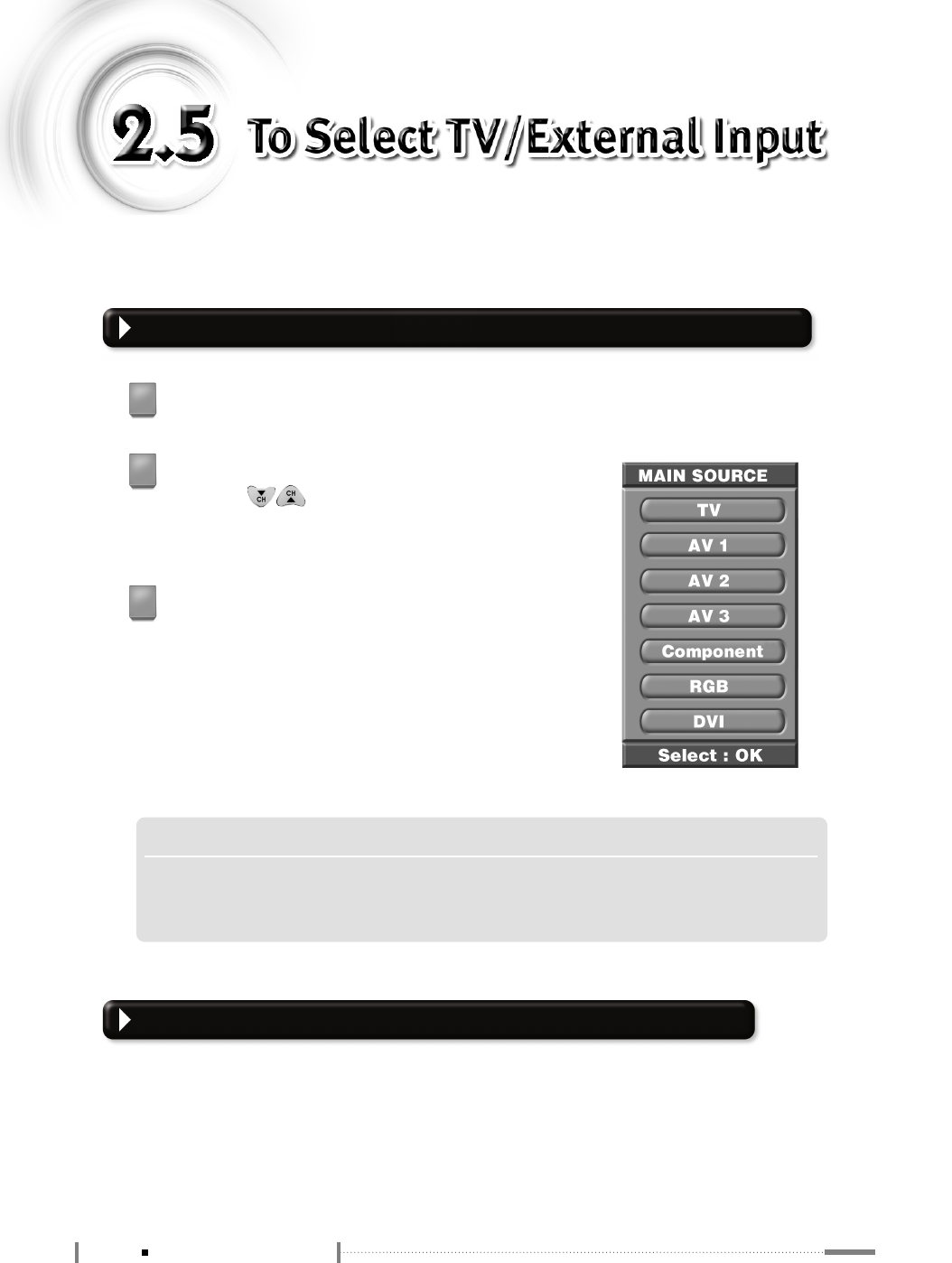

An external input signal connected to the LCD TV can be selected for viewing.
(VCR, DVD, Camcorder, etc.)
Selecting an External Input Device Connected to the LCD TV for viewing
Press the <SOURCE> button on the remote control.
1
The ‘MAIN SOURCE’ screen will be displayed.
Press the < > button on the remote control to
select the external device connected to the LCD TV,
and press the <OK> button.
2
LCD TV screen will be displayed when you play
the external input device.
3
Selecting External Input Device When Playing PIP/POP/PBP
Check the location of the external input device connected to the LCD TV, and select an
appropriate item. (Connection with cable broadcast, connection with VCR, connection with
DVD, connection with camcorder, etc.)
N󳀏O󳀏T󳀏E
▶
Press the <SOURCE> button at the bottom of the LCD TV to open the ‘MAIN SOURCE’ screen.
Use the CH
▲
/
▼
button to navigate to the ‘Connected External Device’ mode, and press the
<SOURCE> button to make a selection.
2-16 To Select TV/External Input
Using the LCD TV
Press the <MENU> button on the remote control.
1

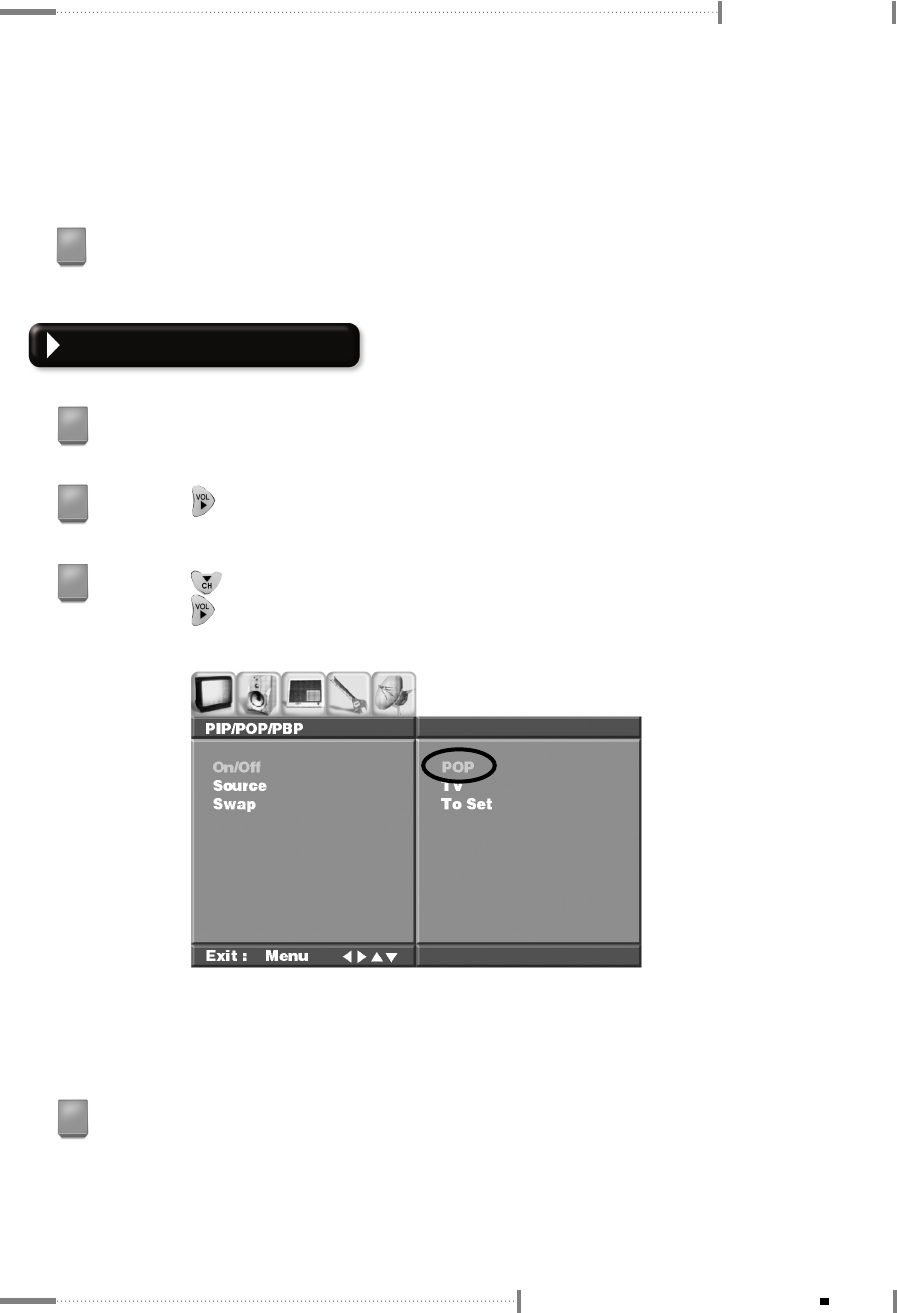

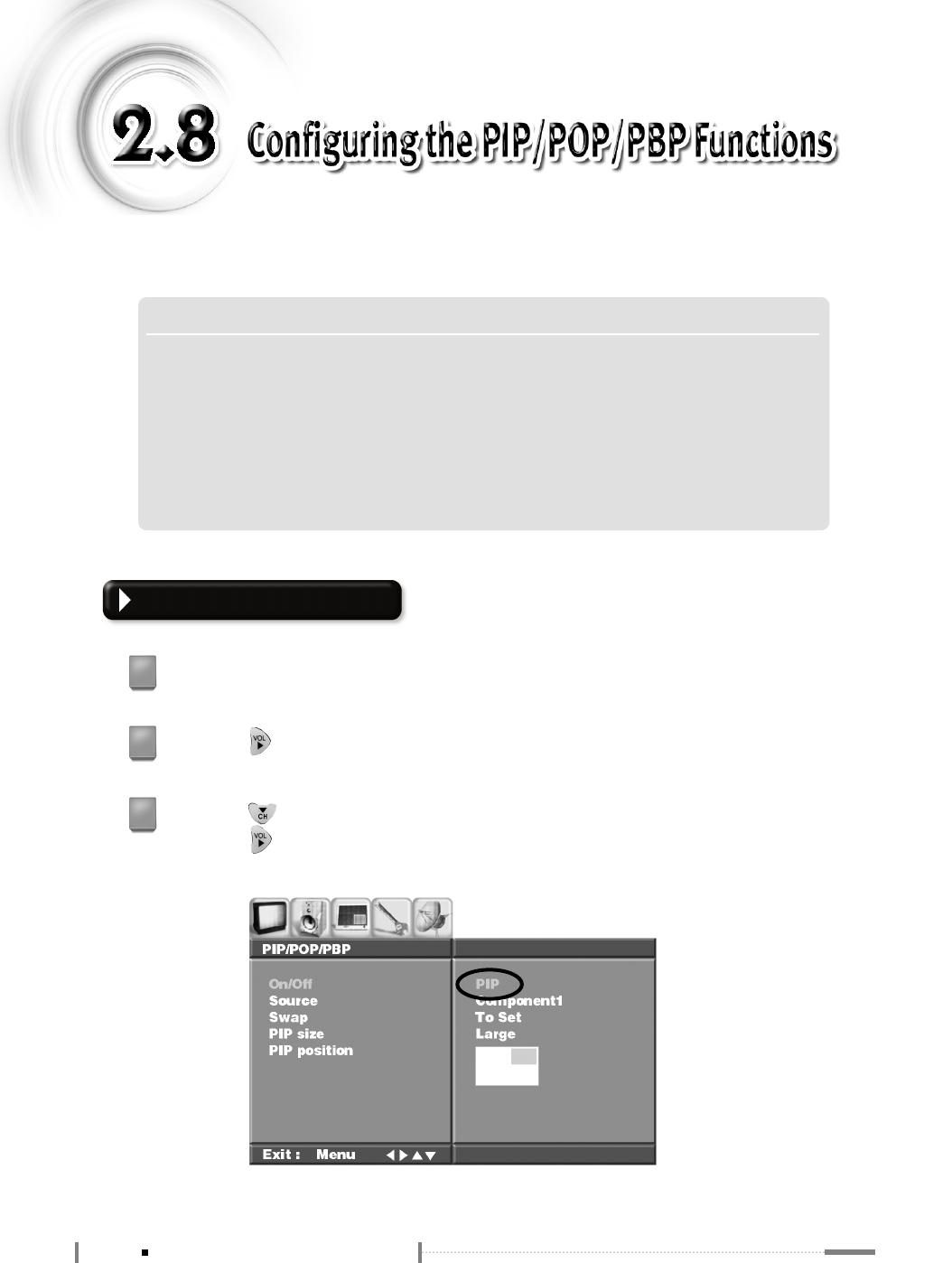

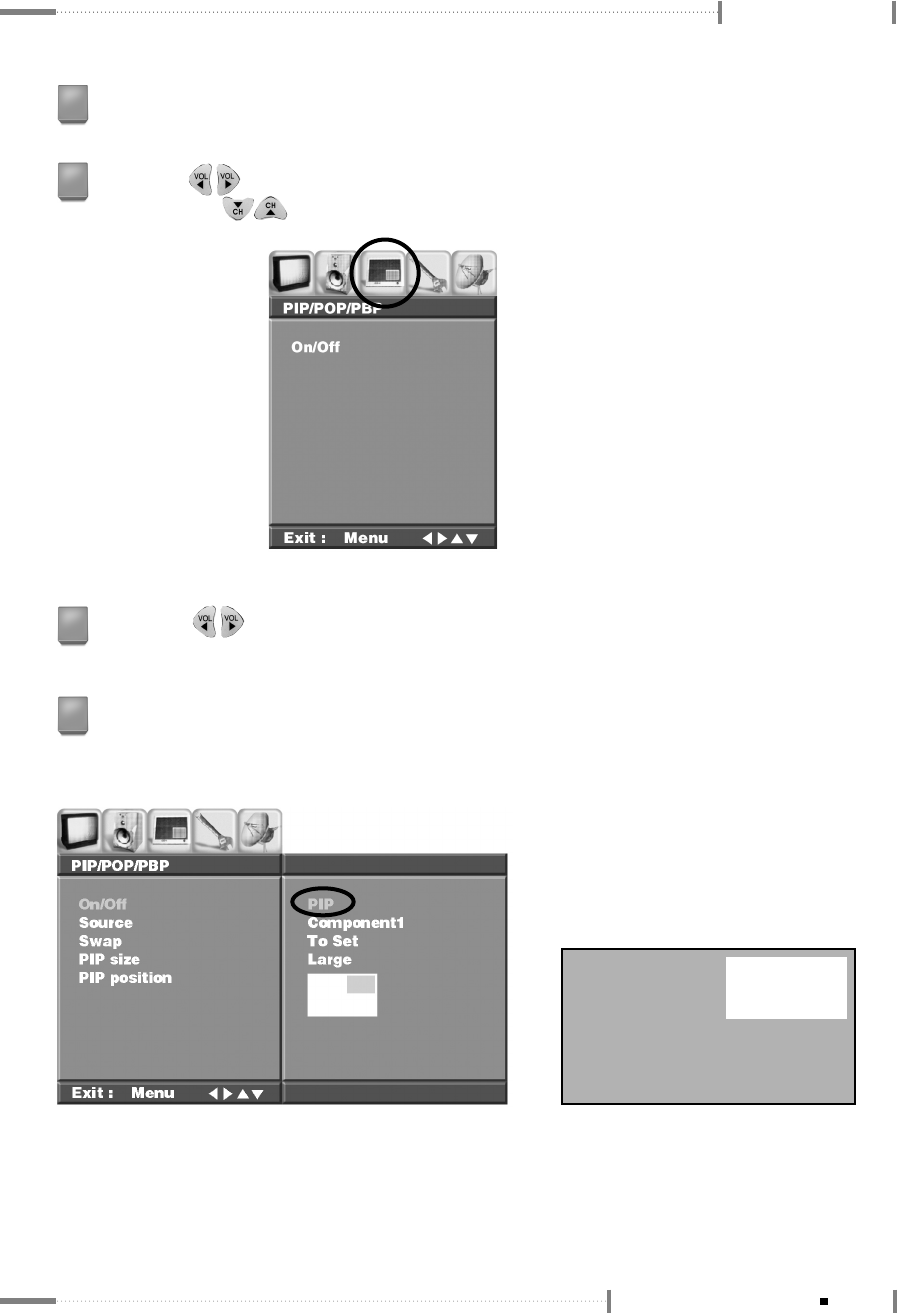

Press the < > button on the remote control to navigate to the ‘PIP/POP/PBP’ menu,
and press the < > button to navigate to the ‘On/Off’ submenu.
2

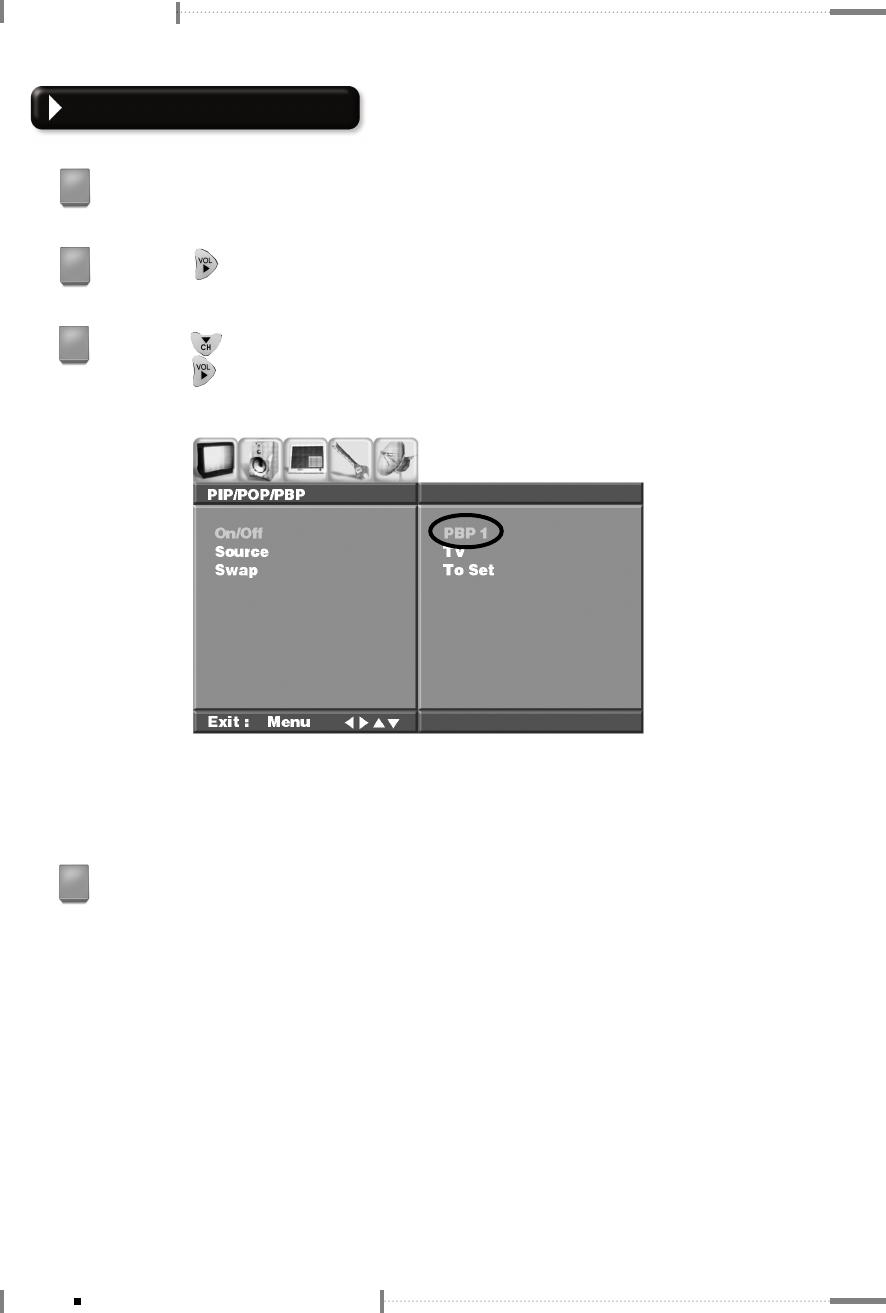

Press the < > button on the remote control. Option items will be displayed according
to the items ‘PIP, POP, PBP1, and PBP2’.
3
Configure settings for each of the items PIP, POP, PBP1, and PBP2. Select the external
input device connected to the LCD TV and configure the appropriate option item
(PIP/POP/PBP).
Using PIP Mode LCD TV Screen
4
2-17
To Select TV/External Input
Using the LCD TV

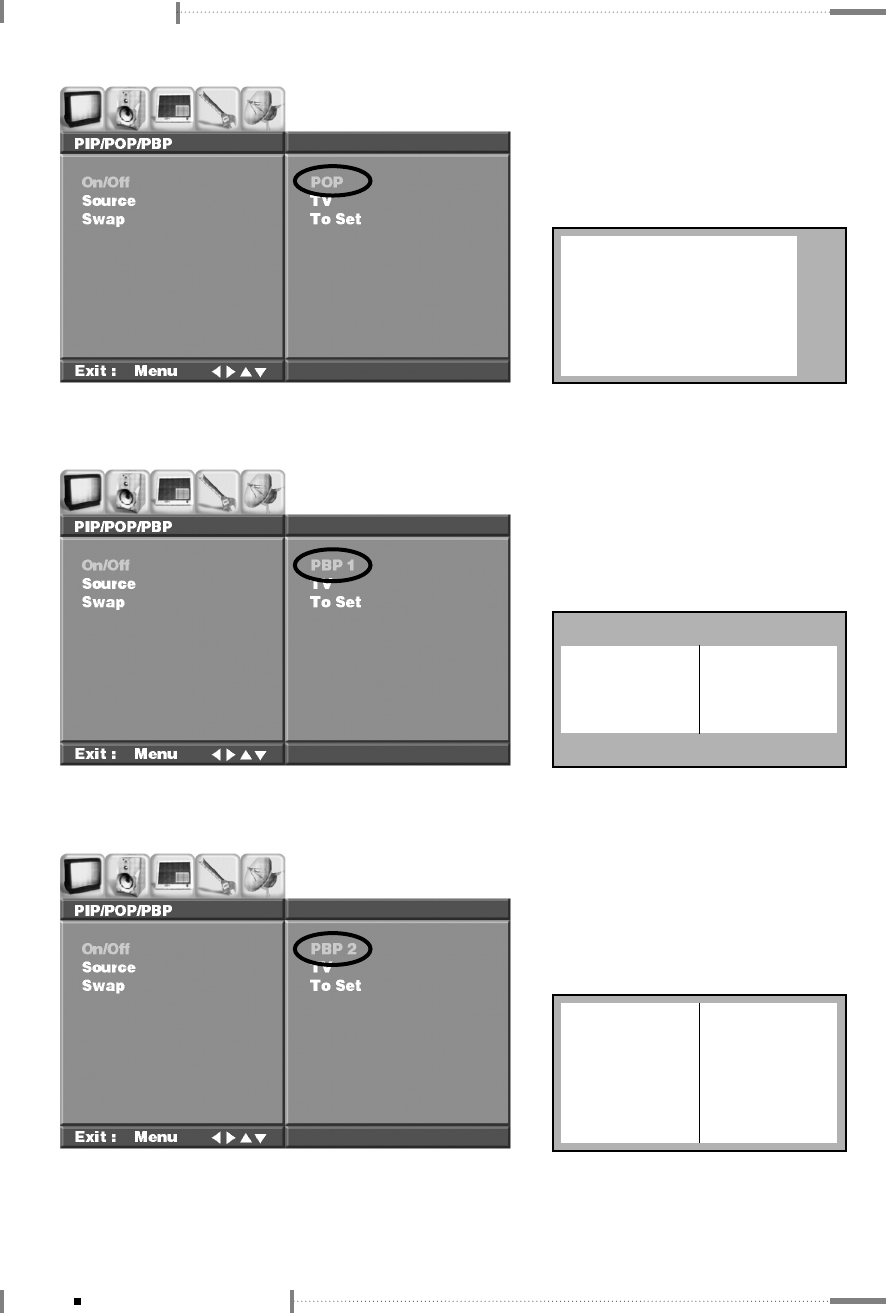

Using POP Mode
Using PBP1 Mode
LCD TV Screen
LCD TV Screen
Using PBP2 Mode LCD TV Screen
2-18 To Select TV/External Input
Using the LCD TV
When option configuration for each item is complete, press the <OK> button on the
remote control.
5
To swap between the main screen and the sub-screen when in PIP, POP, or PBP mode,
press the <SWAP> button on the remote control.
6
2-19
To Select TV/External Input

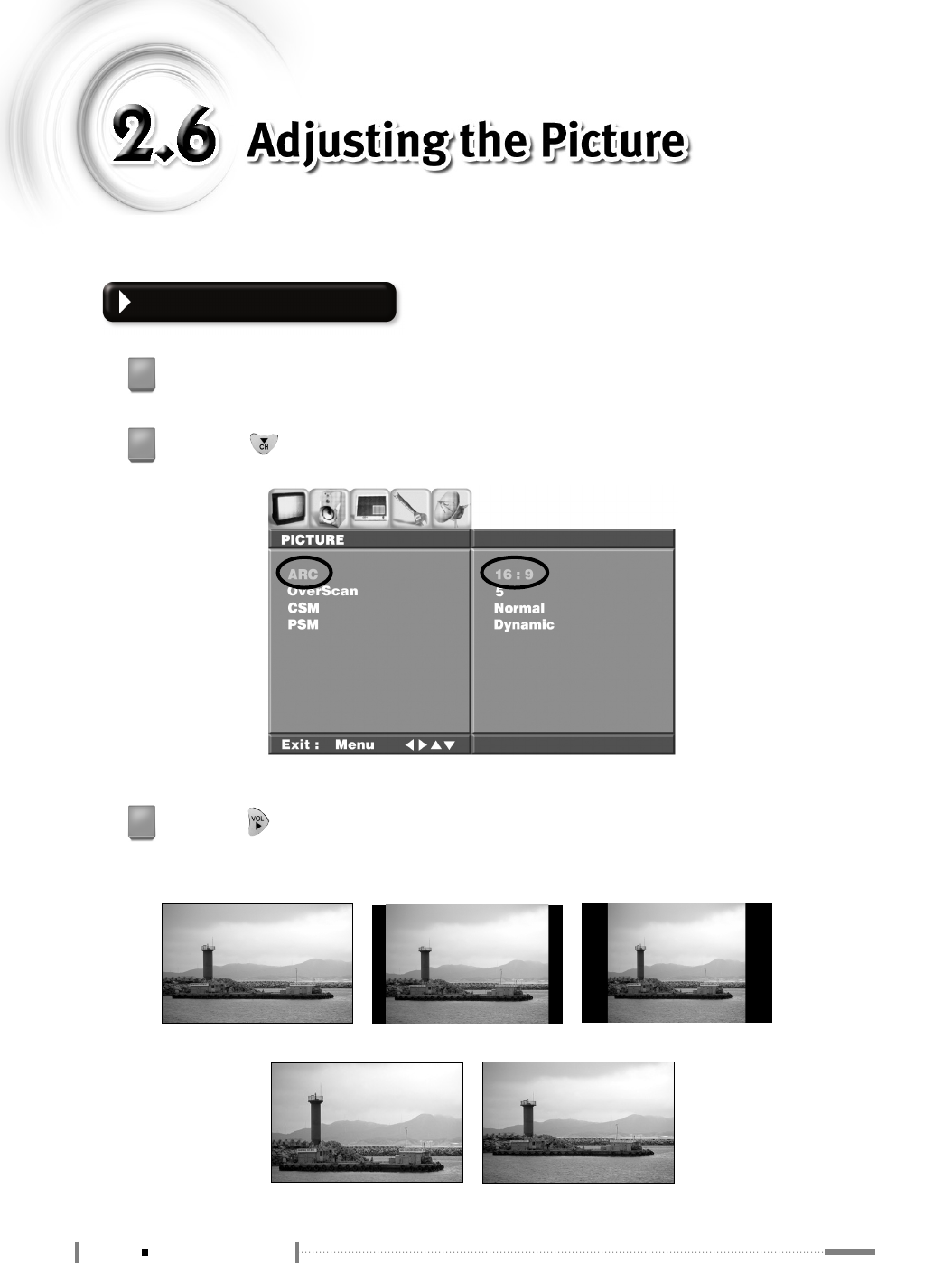

Selecting Screen ARC
Press the <MENU> button on the remote control.
1
Press the < > button on the remote control to navigate to the ‘ARC’ submenu.
2
Press the < > button on the remote control to select Screen Aspect. When selection is
complete, press the <OK> button (16:9, 14:9 or 4:3, Zoom 1 ,Zoom 2).
3
<Supported Only When the PIP/POP/PBP mode is Set to OFF>
<16:9> <4:3><14:9>
<Zoom 1> <Zoom 2>
2-20 Adjusting the Picture
Using the LCD TV

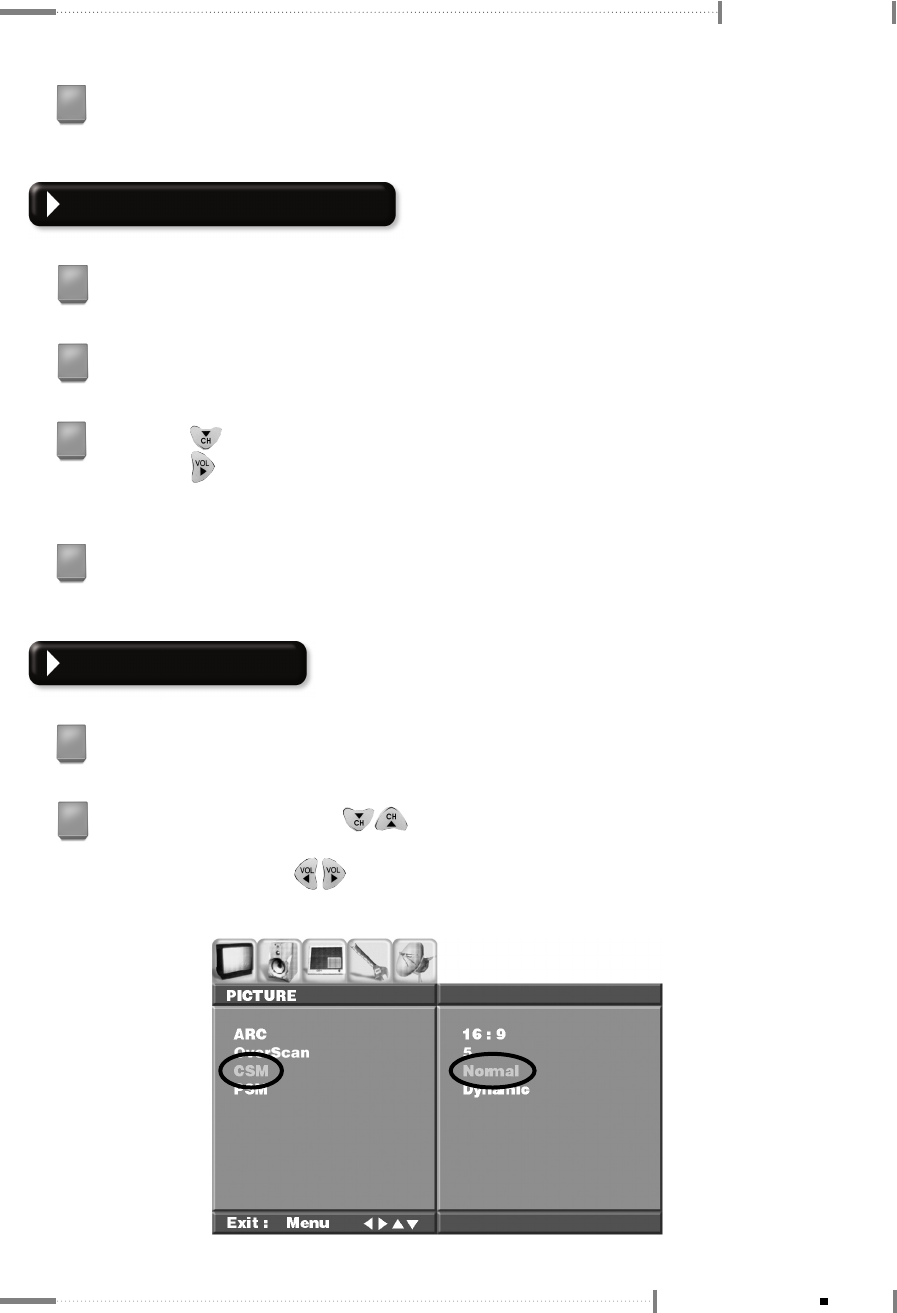

Selecting the CSM
Press the <MENU> button on the remote control.
1
When configuration is complete, press the <MENU> button to close the ‘Menu’ screen.
4
Press the <OK> button or the < > button on the remote control. The menu will be
selected, and the submenus can be navigated. Select the ‘CSM (Color Standard Mode)’
submenu and press the < > button on the remote control to select the option item
(select option items like ‘Normal, Cool, Warm1~2’ and so on in the ‘CSM’ submenu).
2
When configuration is complete, press the <MENU> button to close the ‘Menu’ screen.
4
Magnifies the screen size
Press the <MENU> button on the remote control.
1
Press the <OK> button on the remote control to navigate to the ‘PICTURE’ menu.
2
Press the < > button on the remote control to navigate to the ‘OverScan’ submenu.
Press the < > button on the remote control to Managifies the screen size.
When selection is complete, press the <OK> button (1~5).
3
2-21
Adjusting the Picture
Using the LCD TV

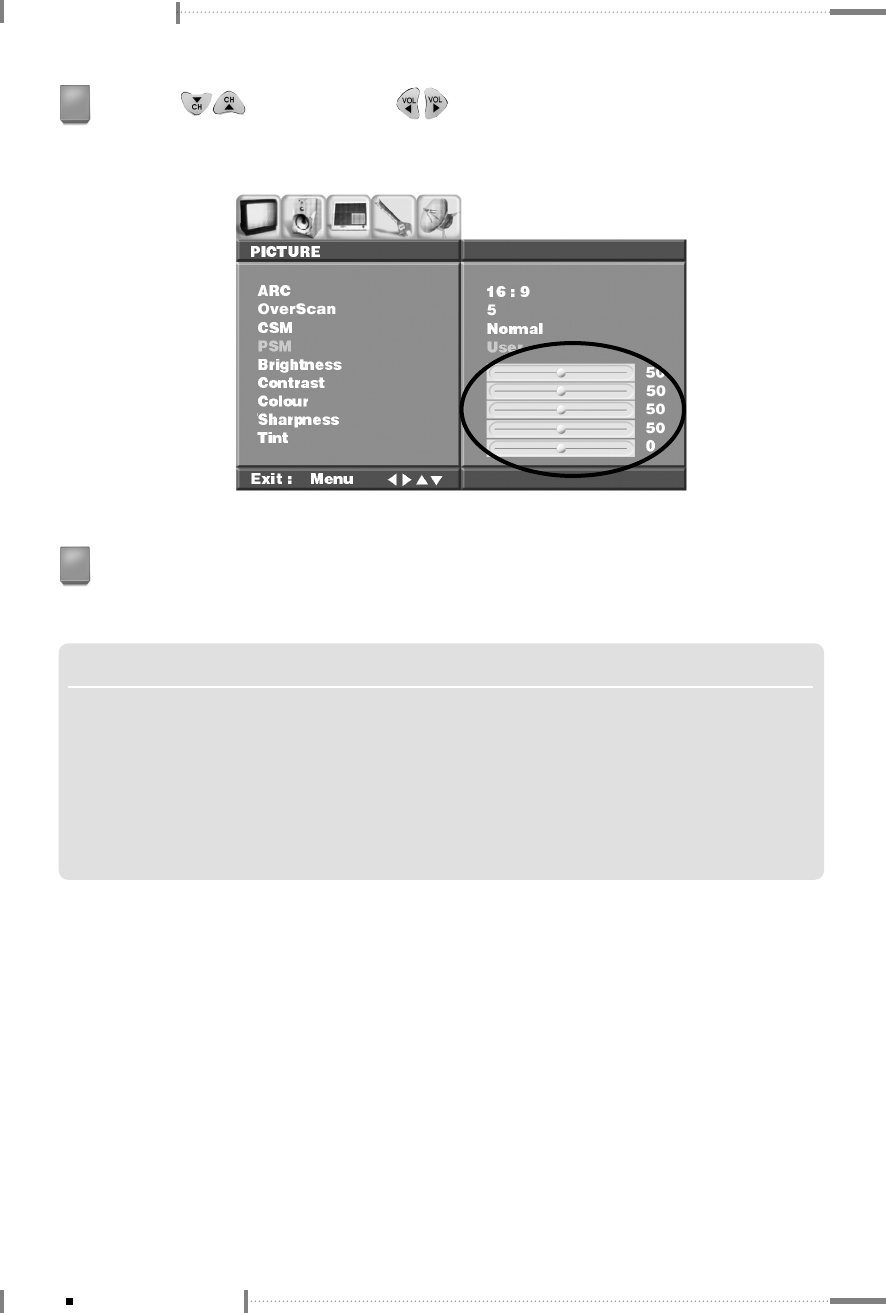

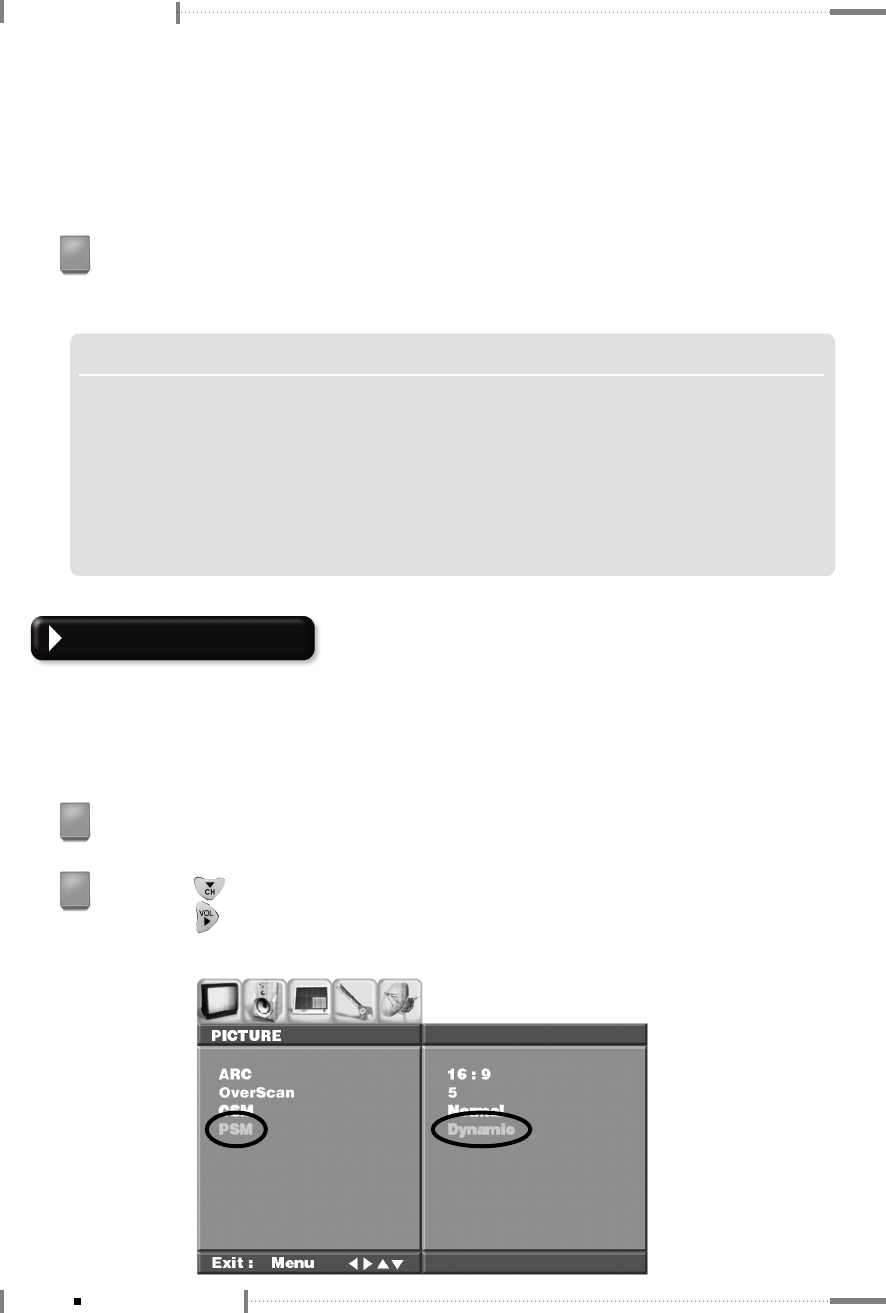

Press the < > button on the remote control to navigate to the ‘PSM’ submenu.
Press the < > button on the remote control to select options provided in PSM
(Picture Dynamic Mode).
2
When Selection is complete, press the <OK> button on the remote control, and press the
<MENU> button on the remote control once again to close the ‘Menu’ screen.
3
N󳀏O󳀏T󳀏E 󳀏S
▶▶To configure the menu without the remote control
❶
Press the <MENU> button located at the bottom of the LCD TV.
❷
Press the <CH
▲
/
▼
> buttons to navigate to submenus.
❸
Press the <VOL <
◀
/
▶
> buttons to adjust each item.
❹
If ‘Menu for Local Key’ is on, the <SOURCE> button is used as the <OK> button. When selects are
complete, press the <MENU> button to close the ‘Menu’ screen.

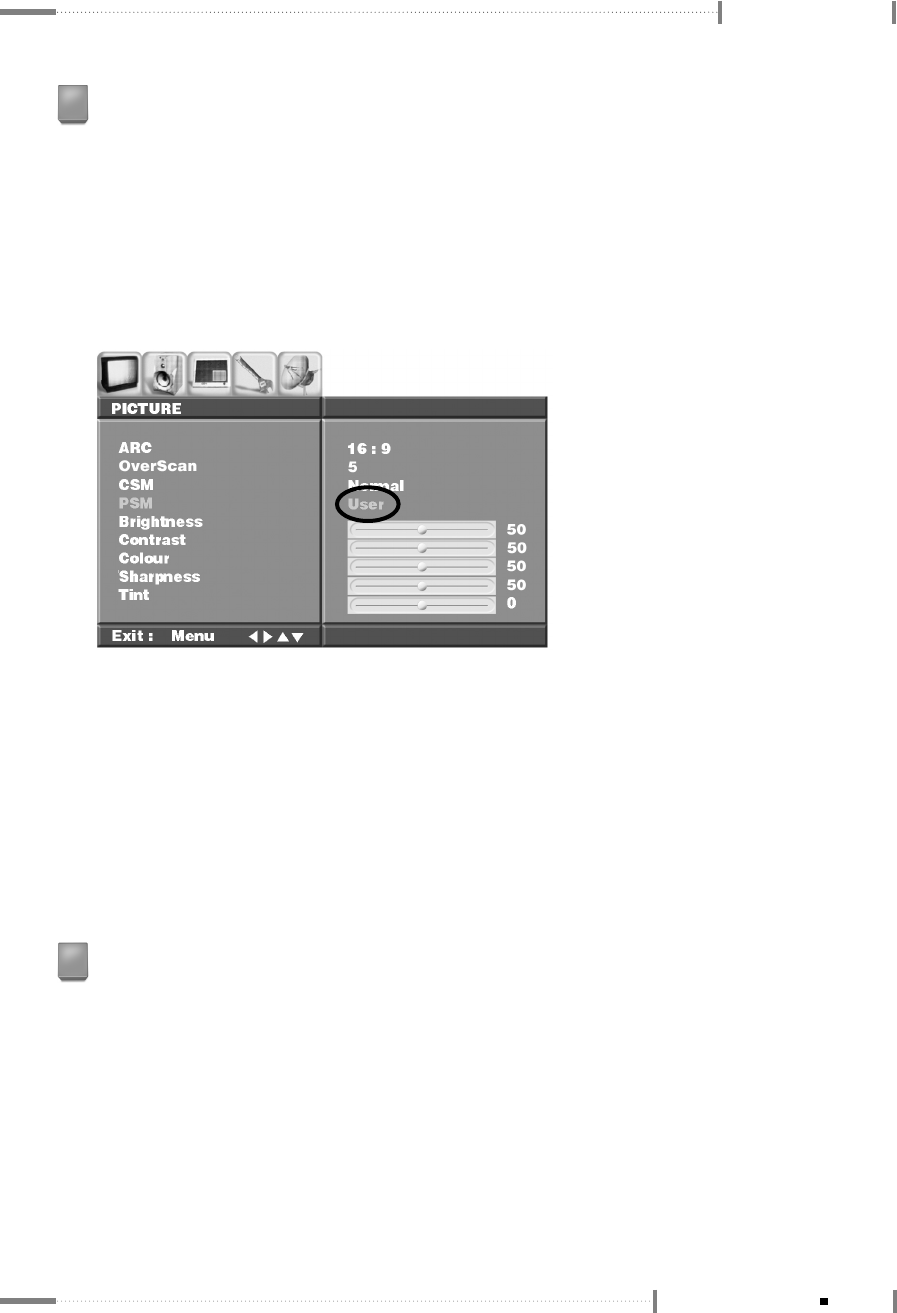

Selecting the PSM
The LCD TV has been configured with optimal contrast, brightness, sharpness, colors, etc.
by factory default, and there is no need for any further user configuration. However, if you
wish to adjust the picture settings, follow the instructions below.
Press the <MENU> button on the remote control.
1
2-22 Adjusting the Picture
- Normal : Plain White
- Cool : Bluish White
- Warm 1~2 : Reddish White
Using the LCD TV
PSM (Picture Standard Mode) provides the following functions:
●Standard : Standard Picture Appearance
●Mild : Softer Picture Appearance
●Game : Select this when playing video games on LCD TV.
●Dynamic : Vivid Picture Appearance
●User : Available user setting items are Brightness, Contrast, Color, Sharpness, Tint, etc.
3
- Brightness : Adjust brightness. (Brightness means the brightness of the screen.)
- Contrast : Adjust contrast. (Contrast means the difference in brightness between an object
and its background.)
- Colour : Adjust color (RGB). (Adjusting the color to make it look more natural.)
- Sharpness : Adjust sharpness. (Sharpness means the sharpness of the object's profile.)
- Tint : Adjust color intensity. (Color intensity indicates color depth.)
When configuration is complete, press the <OK> button on the remote control, and then
press the <MENU> button on the remote control to close the ‘Menu’ screen.
4
2-23
Adjusting the Picture
Press the <MENU> button on the remote control.
1
Press the < > button on the remote control to navigate to the ‘SOUND’ menu.
2
Press the < > on the remote control to go to the ‘AUDIO LANGUAGE’sub menu.
Press the < > on the remote control to select an option for ‘AUDIO LANGUAGE’.
This option is available only when digital multilingual signals are provided by the
broadcasting station. You can select a voice language for the digital TV.
(English, Français, Español, Portugues)
3
Press the < > to go to the ‘SPDIF’ sub menu. Press the < > on the remote control to
select an option for ‘SPDIF’. Press the <OK> button to save your setting.
Specify a digital audio format for the SPDIF terminal.
●PCM : Digital Output (select this option when connecting to a device that supports
PCM format.)
●AC-3 : Digital Output (select this option when connecting to a device that supports
AC3 format.)
4
2-24 Adjusting the Sound
Using the LCD TV
●Bass : Adjusts bass
●Treble : Adjusts treble
Press the < > button on the remote control to navigate to the ‘SSM’ submenu.
Press the < > button on the remote control to select the options provided in ‘SSM’.
When configuration is complete, press the <OK> button.
●
Flat : Standard factory settings.
●
Music : When watching music video or concerts.
●
Movie : When watching movies.
●
Speech : When watching a show that is mostly dialogue.
●
User : Available user setting items are Bass, Treble, etc.
5
2-25
Adjusting the Sound
Using the LCD TV
- Off : Select this if not using the Surround output function.
- Normal : Surround sound optimized to the output conditions will be used.
- Special : Enhances the surround output.
Press the < > button on the remote control to navigate to the ‘SRS Surround’ submenu.
Press the < > button on the remote control to select options provided in ‘SRS Surround’.
When configuration is complete, press the <OK> button.
7
Press the < > button on the remote control to navigate to the ‘AVL’ submenu.
Press the < > button on the remote control to select whether to use the ‘AVL’ function.
When selection is complete, press the <OK> button.
(The volume level fluctuates from station to station when changing channels.
If Auto Volume is set to ON, the volume is automatically adjusted to a comfortable
level when changing channels.)
6
2-26 Adjusting the Sound
Using the LCD TV
Press the < > button on the remote control to navigate to the ‘Balance’ submenu.
Press the < > button on the remote control to adjust ‘Left and Right Speaker Sound
Balance’. When adjustment is complete, press the <OK> button.
8
When configuration is complete, press the <MENU> button to close the ‘Menu’ screen.
9
2-27
Adjusting the Sound
Two channels can be shown on the TV screen simultaneously. Available screen
division methods are PIP (Picture in a Picture), POP (Picture on a Picture), and
PBP (Picture by a Picture).
PIP Function Settings
Press the <MENU> button on the remote control.
1
Press the < > button on the remote control to navigate to the ‘PIP/POP/PBP’ menu.
2
Press the < > button on the remote control to navigate to the ‘On/Off’ submenu.
Press the < > button on the remote control to select ‘PIP’. When configuration is
complete, press the <OK> button.
●Source : Select the external input source (Component, RGB, or DVI).
3
2-28 Configuring the PIP/POP/PBP Functions
N󳀏O󳀏T󳀏E
▶▶The PIP/POP/PBP modes are divided into two groups:
- Group A: Component, RGB, DVI
- Group B: TV, AV1, AV2, AV3
If Group A is selected for the main screen, it cannot be selected for the sub screen.
If Group B is selected for the main screen, it cannot be selected for the sub screen.
That is, the groups selected for the main and sub screen at any one time should be different from
each other.
Using the LCD TV
●Swap : Swap between the main screen and the sub-screen (To Set).
●PIP Size : Select the PIP screen size (Small or Large).
●PIP Position : Select the PIP screen position.
When configuration is complete, press the <MENU> button to close the ‘Menu’ screen.
4
POP Function Settings
Press the <MENU> button on the remote control.
1
Press the < > button on the remote control to navigate to the ‘PIP/POP/PBP’ menu.
2
Press the < > button on the remote control to navigate to the ‘On/Off’ submenu.
Press the < > button on the remote control to select ‘POP’. When configuration is
complete, press the <OK> button.
●Source : Select the external input source (Component, RGB, or DVI).
●Swap : Swap between the main screen and the sub-screen (To Set).
3
When configuration is complete, press the <MENU> button to close the ‘Menu’ screen.
4
2-29
Configuring the PIP/POP/PBP Functions
Using the LCD TV
Press the < > button on the remote control to navigate to the ‘On/Off’ submenu.
Press the < > button on the remote control to select ‘PBP1 or PBP2’.
When configuration is complete, press the <OK> button.
●Source : Select the external input source (Component, RGB, or DVI).
●Swap : Swap between the main screen and the sub-screen (To Set).
3
When configuration is complete, press the <MENU> button to close the ‘Menu’ screen.
4
2-30 Configuring the PIP/POP/PBP Functions
PBP Function Settings
Press the <MENU> button on the remote control.
1
Press the < > button on the remote control to navigate to the ‘PIP/POP/PBP’ menu.
2

Navigation menu
