Adura Technologies LCR10P2 Lighting control for commercial and industrial buildings User Manual LC Manual 01

Adura Technologies, Inc. Lighting control for commercial and industrial buildings LC Manual 01

Installation Manual

Specifications:
Ordering Information:
LC - 1R
LC Instructions 03.09
Single relay
LC - 2R Two relay
Optional external antenna
XA
Catalog Number Description
ADURA TECHNOLOGIES
San Francisco, CA 94105
Tel: 415.227.0868 • Toll Free 1-888-828-8281
ADURA TECHNOLOGIES
San Francisco, CA 94105
Tel: 415.227.0868 • Toll Free 1-888-828-8281
www . aduratech.co m
light controller
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful Interfer-
ence when the equipment is operated in a commercial environment. The equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of the equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his/her own expense.
Class A digital devices
Input Voltage:
Input Frequency:
Relays:
Max Switched Current:
Radio Frequency:
RF Transmission Output Power (Average):
100 ‒ 277 VAC
60 Hz
Normally open, SPST, zero crossing control
5A Ballast/5A Tungsten (LC-2R = 5A x 2 relays)
2.4 GHz
+12 dBm
Mounting: Magnets or screws inside of
a UL-rated fixture or enclosure
rated for the application.
Dimensions:
Operating Environment: 40 to 140 deg F
Memory: Configuration programming
stored in non-volatile memory
Current measurement:
Voltage measurement: 2% accuracy full scale
2% accuracy full scale
Wires: 24 Long, 600 VAC Rated, 18 AWG solid conductors
7 5/8 L x 1 3/16 W x 1 H
CAUTION
• Disconnect all incoming power before installation or service.
• All installation and maintenance work must be performed by qualified
personnel.
• The Light Controllers must be installed in accordance with state, local
and national electrical codes and requirements.
• Light Controller must be installed within a UL-rated fixture or enclosure
rated for this application.
INSTALLATION
INSTRUCTION MANUAL
The Light Controller is to be used to control lighting in commercial and
industrial buildings. It provides control of lights (on/off or dimming) by
means of commands transmitted and received via radio frequency. The
Light Controller is intended to be used in a network of devices which
communicate wirelessly including wall switches, occupancy sensors,
gateways and computer software applications.
The Light Controller is to be mounted inside the enclosure of a light fixture
or in a separate UL- rated enclosure. In the case of fluorescent lights, the
Light Controller is to be installed inside the ballast cavity of a standard
fluorescent luminaire.
The Light Controller is intended to be used to control fluorescent ballasts,
incandescent lights, LED drivers, and HID ballasts.
There are 3 models of the Light Controller:
• LC-1R has one relay and is intended to control one light fixture or group
of light fixtures.
• LC-2R has two relays and is intended to control two levels of light
within one fixture or two fixtures or two groups of light fixtures.
• LC-1RD has one relay and a low voltage dimming output (Class 1 rated)
intended to control standard 0-10 VDC dimming ballasts. Each LC-1RD
can provide dimming control to a maximum of 5 standard 0-10 VDC
dimming ballasts.
LC - 1RD Single relay with 0-10 VDC dimming
WARRANTY INFORMATION
Adura Technologies™ warranties its products to be free of defects for a period of five years. Adura Technologies will, at its option, repair or
replace any product that is defective in materials or manufacture that is returned to ADURA within the warranty period. This warranty is
void if this product has been installed improperly or in an improper environment, overloaded, misused, or altered in any manner, or not
installed in accordance with any labels or instructions. Adura Technologies is not liable for incidental, indirect, special, or consequential
damages, including without limitation, damage to, or loss of use of property, revenue or profit. This warranty does not cover the cost of
installation, removal or reinstallation.
TM TM
Installation Materials (Not Supplied)
Wiring connectors. All existing wiring connectors must be replaced with
new UL-listed wiring connectors, either wire nuts or captive-type connectors.
All wiring connectors must be correctly sized for the application, the number
and the size of the electrical conductors.
Sheet metal screws. As an option, the Light Controller can be secured
with 2 #8 sheet metal screws.
To install the Light Controller take the
following steps:
1. Turn off all power to the light fixtures by
switching off the circuit breaker or other
disconnect.
2. Open the fixture cover and remove the
cover for the ballast cavity. The ballast
and its wiring should now be visible.
(See Figure #1)
3. With a volt meter, verify that power is
off to the light fixture.
4. Place Light Controller in the desired
location and secure with the magnets
on the rear of the Light Controller or
screw it down.
6. Connect the black wire on the Light
Controller wires to the hot wire (black
for 120 V or brown for 277 V) using a
wiring connector (see wiring diagram #1
for one relay and wiring diagram #2 for
two relays).
7. Connect the blue wire on the Light
Controller to the black wire on the
ballast using a wiring connector.
8. Connect the white wire on the Light
Controller to the white wire on the
ballast and to the white wire on the
incoming power wiring using a wiring
connector.
9. Bend wires into place such that ballast
cover can easily be reattached.
10.Reattach the ballast cover and close
the luminaire cover.
11. Switch power on to the fixture.
Lights should turn on.
12.Refer to the setup application instruc-
tions for information on programming
the light controller.
Dimming Control (LC-1RD)
(See wiring diagram #3)
CAUTION: LOW VOLTAGE WIRING
MUST BE TREATED AS CLASS 1
1. Connect the gray wire on the LC-1RD
to the gray wire or gray terminal on the
dimming ballast.
2. Connect the violet wire on the LC-1RD
to the violet wire or violet terminal on
the dimming ballast.
3. When switched on, lamps should turn
on to full brightness. (Approximately
10 VDC signal on the Violet wire to
ground).
Dimensions:
6
11/16”
7
5/8”
1” 1 3/16”
7
1/4”

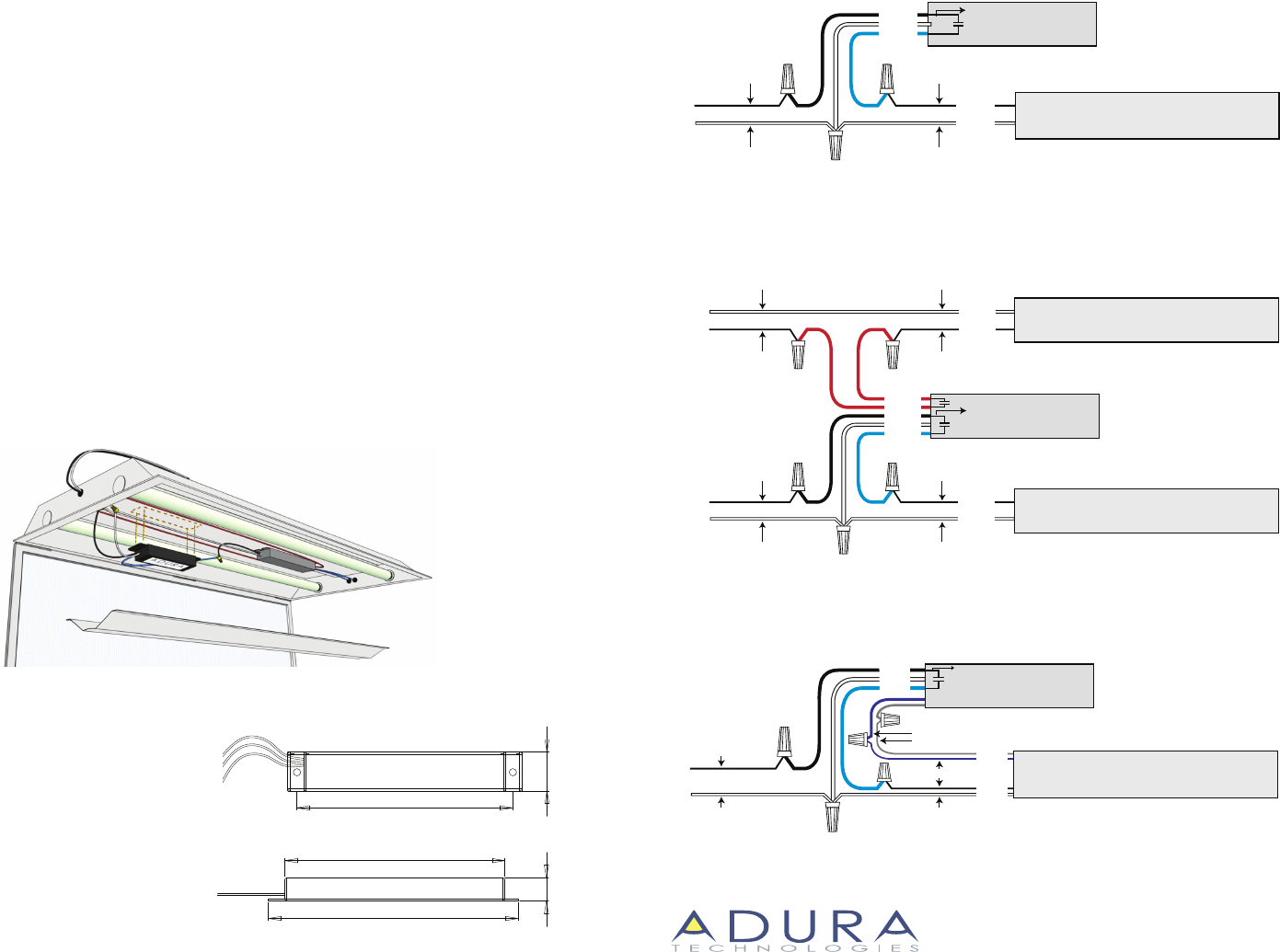

Wiring Diagram #1 LC-1R
120 VAC /277 VAC
EXISTING WIRING EXISTING WIRING
EXISTING WIRING EXISTING WIRING
BALLAST
H
N
LC-1R
WHITE
N
BLACK
BLUE
WHITE
BLACK
Wiring Diagram #3 LC-1RD
120 VAC /277 VAC
EXISTING WIRINGEXISTING WIRING
EXISTING WIRING
N
LC-1RD
BALLAST (0-10VDC DIMMING)
H
N
BLACK
WHITE
BLUE
BLACK
WHITE
GRAY
VIOLET
EXISTING WIRING
Wiring Diagram #2 LC-2R
120 VAC /277 VAC
RED
RED
BLACK
WHITE
BLUE
BALLAST #2
N
H
N
LC-2R
WHITE
N
EXISTING WIRING EXISTING WIRING
EXISTING WIRING EXISTING WIRING
EXISTING WIRING EXISTING WIRING
EXISTING WIRING EXISTING WIRING
120 VAC /277 VAC BLACK BALLAST #1
N
H
BLACK
WHITE
FIGURE #1
ADURA TECHNOLOGIES
San Francisco, CA 94105
Tel: 415.227.0868 • Toll Free 1-888-828-8281
TM
LOW VOLTAGE (MUST BE TREATED AS CLASS 1 WIRING)
5. Disconnect the hot wire to the ballast
(black for 120 VAC or brown for 277 VAC).
