Alvarion Technologies SUI-MMDS1 Indoor MMDS CPE transceiver User Manual New SUI

Alvarion Ltd. Indoor MMDS CPE transceiver New SUI

New SUI user manual

BreezeACCESS MMDS

Indoor Subscriber Units

SU-I/ID-MMDS Series

Installation

Manual

July, 2000

Cat. No. 213099

Front Matter

SU-I/ID Installation Manual ii BreezeACCESS MMDS Series

No part of this publication may be reproduced in any material form without the written permission of

the copyright owner.

Trade Names

BreezeACCESS, BreezeNET, BreezeLINK, BreezeVIEW and WIX are trade names of BreezeCOM

Ltd. Other brand and product names are registered trademarks or trademarks of their respective

companies.

Statement of Conditions

The information contained in this manual is subject to change without notice. BreezeCOM shall not be

liable for errors contained herein or for incidental or consequential damages in connection with the

furnishing, performance, or use of this manual or equipment supplied with it.

Warranty

In the following warranty text, “the Company” shall mean:

• BreezeCOM Ltd., for products located outside the USA.

• BreezeCOM Inc., for products located in the USA.

This BreezeACCESS product is warranted against defects in material and workmanship for a period of

one year from date of purchase. During this warranty period the Company will, at its option, either

repair or replace products that prove to be defective.

For warranty service or repair, the product must be returned to a service facility designated by the

Company. Authorization to return products must be obtained prior to shipment. The buyer shall pay all

shipping charges to the Company and the Company shall pay shipping charges to return the product to

the buyer within the USA.

The Company warrants that the firmware designed by it for use with the unit will execute its

programming instructions when properly installed on the unit. The Company does not warrant that the

operation of the unit or firmware will be uninterrupted or error-free.

Limitation of Warranty

The foregoing warranty shall not apply to defects resulting from improper or inadequate maintenance

by the buyer, buyer supplied interfacing, unauthorized modification or misuse, operation outside of the

environmental specifications for the product, or improper site preparation or maintenance. No other

warranty is expressed or implied. The company specifically disclaims the implied warranties of

merchantability and fitness for any particular purpose.

Front Matter

BreezeACCESS/MMDS Series iii SU-I/ID Installation Manual

BreezeCOM shall not be liable to any person for any special or indirect damages, including, but not

limited to, loss of profits or revenues, loss of use or damage to any associated equipment, cost of

capital, cost of substitute products, facilities or services, downtime costs or claims resulting from any

cause whatsoever arising from or in any way connected with the manufacture, sale, handling, service,

repair, maintenance or use of the products. In no event shall the company’s liability exceed the

purchase price denoted on the invoice.

Electronic Emission Notice

This device complies with Part 15 of the FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause

undesired operation.

FCC Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class A digital device,

pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own expense.

Information to User

Any changes or modifications of equipment not expressly approved by the manufacturer could void

the user’s authority to operate the equipment.

Safety Considerations

For the following safety considerations, “Instrument” means the BreezeACCESS Subscriber or

Access unit components and their cables.

Caution

To avoid shock, do not perform any servicing unless you are qualified to do so.

To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance

20cm (8 inches) is required between this antenna and all persons.

Front Matter

SU-I/ID Installation Manual iv BreezeACCESS MMDS Series

Grounding

Before connecting the instrument to the power line, verify that a suitable power cord is being used (the

protective earth terminal of this instrument must be connected to the protective conductor of the power

cord). The mains plug shall only be inserted in a socket outlet provided with a protective earth contact. If an

extension cord (power cable) is used make sure it has a protective conductor (grounding).

Line Voltage

Before connecting this instrument to the power line, make sure that the voltage of the power source

matches the requirements of the instrument: 100-250 VAC, 50-60 Hz.

Radio

The instrument transmits radio energy during normal operation. To avoid possible harmful exposure to

this energy, do not stand or work for extended periods of time in front of its antenna. The long-term

characteristics or the possible physiological effects of Radio Frequency Electromagnetic fields have

not been yet fully investigated.

Antenna Installation and Grounding

Be sure that the outdoor antennas and the supporting structure are properly installed to eliminate any

physical hazard to either people or property. Verify that the antenna mast is grounded so as to provide

protection against voltage surges and static charges. Make sure that the installation of the antenna and

cable is performed in accordance with all relevant national and local building and safety codes.

BreezeACCESS MMDS Series v SU-I/ID Installation Manual

Table of Contents

1. INTRODUCTION.....................................................................................................................1

2. BASIC INSTALLATION.........................................................................................................2

2.1 Packing List ..........................................................................................................................2

2.2 Other Required Items............................................................................................................2

2.3 Installation Overview............................................................................................................3

2.4 Installation Guidelines ..........................................................................................................3

2.4.1 Location of the Unit and Antenna(s) .............................................................................3

2.4.2 Location of the Antenna(s) ............................................................................................ 4

2.4.3 Antenna Diversity.......................................................................................................... 4

2.4.4 Antenna Polarization......................................................................................................5

2.4.5 Antenna Seal..................................................................................................................5

2.4.6 Lightning Protection ......................................................................................................5

2.5 Wall Mounting the Unit........................................................................................................6

2.6 Connecting Antenna(s) to the Units (SU-ID units only).......................................................8

2.7 Connecting the Unit to the Power Supply and to the CPE....................................................9

3. CONFIGURING SYSTEM PARAMETERS .......................................................................10

3.1 Getting Started with the Local Terminal.............................................................................10

3.2 Configuration Parameters ...................................................................................................12

3.3 Reset Unit............................................................................................................................ 14

4. ALIGNING THE ANTENNA ................................................................................................15

4.1 Aligning the Antenna Using the LEDs ...............................................................................15

4.2 Aligning the Antenna Using the Site Survey Menu............................................................16

5. MAXIMUM DATA RATE CONFIGURATION .................................................................17

Table of Contents

SU-I/ID Installation Manual vi BreezeACCESS MMDS Series

6. VERIFYING PROPER OPERATION..................................................................................18

6.1 Verifying Data Connectivity...............................................................................................18

7. SPECIFICATIONS.................................................................................................................19

7.1 Radio................................................................................................................................... 19

7.2 Data Communication ..........................................................................................................19

7.3 Configuration and Management .........................................................................................20

7.4 Interfaces.............................................................................................................................20

7.5 Electrical ............................................................................................................................. 20

7.6 Mechanical..........................................................................................................................20

7.7 Environmental.....................................................................................................................20

7.8 Standards Compliance, General..........................................................................................21

APPENDIX A. AL 1 Lightning Arrestor..................................................................................22

APPENDIX B. USING TELNET............................................................................................. 24

APPENDIX C. MMDS CHANNELS AND FREQUENCIES................................................. 25

Table of Contents

BreezeACCESS/MMDS Series vii SU-I/ID Installation Manual

Table of Figures

Figure 2-1. Wall Mounting the Unit ..........................................................................................7

Figure 2-2. Wall Mounting Plate ...............................................................................................7

Figure 2-3. Tightening the Cable(s) to the Connector(s)............................................................ 8

Figure 3-1. Main Menu............................................................................................................11

Figure 3-2. Basic Configuration Menu ....................................................................................13

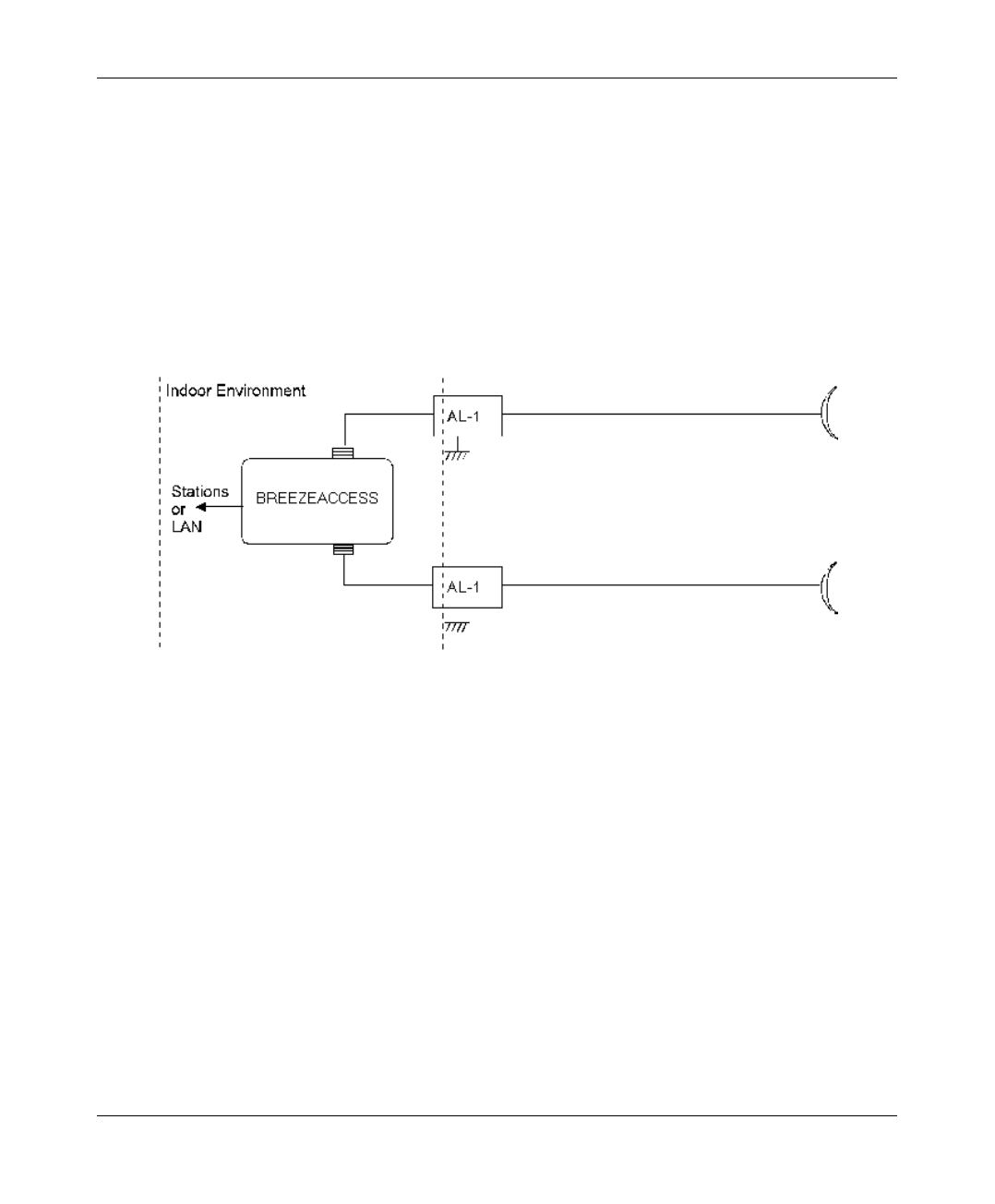

Figure A-1. AL-1 Connection Block Diagram ........................................................................22

BreezeACCESS MMDS Series 1 SU-I/ID Installation Manual

1. INTRODUCTION

This manual describes installation guidelines for BreezeACCESS/MMDS SU-I

and SU-ID Subscriber Units.

The BreezeACCESS IP Broadband Wireless Local Loop (WLL) system allows

access service providers to provide high-speed IP connectivity services to their

subscribers. To support IP-based services effectively BreezeACCESS systems

employ wireless packet data switching technology.

The BreezeACCESS MMDS line of products uses Frequency Hopping Spread

Spectrum radios that operate in Time Duplex Division (TDD) mode in the

2.500GHz – 2.686GHz frequency range.

The SU-I/ID-MMDS line of Subscriber Units comprises compact units that are

designed for indoor installation. SU-I units include two 2dBi integrated antennas.

SU-ID units have two RF connectors for detached diversity antennas. Detached

antennas can be installed either indoors or outdoors, depending on the specific

site conditions.

The SU-I/ID-MMDS is available in two frequency bands:

• SU-I/ID-MMDSa products operate in the 2.500 - 2.600 GHz frequency band.

• SU-I/ID-MMDSb products operate in the 2.596 - 2.686 GHz frequency band.

The SU-I/ID-MMDS series includes the following products:

• SU-I/ID-1D-MMDSa/b: supports a single Ethernet device

• SU-I/ID-8D-MMDSa/b: supports up to eight Ethernet workstations/PCs

• SU-I/ID-BD-MMDSa/b: supports a LAN (a bridge functionality)

Note: The information contained in this manual is applicable to

BreezeACCESS MMDS units with software release 2.5.

Basic Installation

SU-I/ID Installation Manual 2 BreezeACCESS MMDS Series

2. BASIC INSTALLATION

2.1 Packing List

The SU-I/ID units are shipped with the following units and accessories.

The exact packing list varies depending on system configuration and ordered

equipment.

• SU-I unit (with two integral antennas) or SU-ID unit (without antennas)

• A 5 VDC universal power supply transformer

• Mounting bracket for wall or ceiling installation

• A torque key for antenna connectors (SU-ID units)

2.2 Other Required Items

The following items must be available for the installation

• Antenna(s)*and RF cable(s)*for SU-ID units (according to specific

installation requirements)

• A PC with terminal emulation program

• A monitor cable* (supplied with each AU)

• An Ethernet cable (straight)

• Installation tools and materials

Items marked with an asterisk (*) are available from BreezeCOM.

Basic Installation

BreezeACCESS/MMDS Series 3 SU-I/ID Installation Manual

2.3 Installation Overview

Standard installation involves the following steps:

1. Verify that all components of the packing list, described in Section 2.1, are

intact and verify availability of the required items listed in Section 2.2.

2. Install the unit and antenna(s) in optimal locations as described in

Section 2.4.

3. Connect the antenna(s) to the unit as described in Section 2.6.(SU-ID units)

4. Connect the power supply to the unit as described in Section 2.7.

5. Connect the Ethernet port to the unit as described in Section 2.7.

6. Configure the basic system parameters as described in Section 3.

7. Align the antenna(s) for optimal connectivity and configure the Maximum

Data Rate if applicable, as described in Chapters 4 and 5.

8. Check the functionality of the unit as described in Chapter 6.

2.4 Installation Guidelines

This section describes the installation guidelines and the various considerations

that must be taken into account when planning the installation.

2.4.1 Location of the Unit and Antenna(s)

• The unit can be placed on a shelf, or can be attached to the ceiling or a wall

using a mounting bracket. SU-ID units should be installed as near to the

antenna(s) as possible to minimize loss of RF power in the cable(s).

• Keep the units well away from sources of heat, such as radiators, air-

conditioners, etc.

Basic Installation

SU-I/ID Installation Manual 4 BreezeACCESS MMDS Series

• For most applications, the most convenient choice is to use SU-I units,

equipped with two integral 3dBi omni antennas.

2.4.2 Location of the Antenna(s)

• Any physical object in the path between two units can cause signal

attenuation. Common obstructions are buildings and trees. If a unit’s

antenna is installed indoors, the walls and/or windows between the two

sites are physical obstructions. If the antenna is positioned outdoors, any

buildings or other physical structure such as trees, mountains or other

natural geographic features higher than the antenna and situated in the path

between the two sites can constitute obstructions.

• Install indoor antennas as close as possible to a window (or wall if a

window is not accessible) facing the required direction. Avoid metal

obstacles such as metal window frames or metal film anti-glare windows in

the transmission path. Install outdoor antennas high enough to avoid any

obstacles, which may block the signal.

• Position the antennas clear of metal furniture and away from moving metal

objects such as metal fans or doors.

• For best performance, position the antennas clear of radiation sources that

emit in the 2.5 - 2.7 GHz frequency band, such as microwave ovens.

2.4.3 Antenna Diversity

In applications where no multipath propagation is expected, a single antenna is

sufficient to ensure good performance levels. However, in cases where multipath

propagation exists, BreezeCOM recommends that two antennas be used. This

takes advantage of space diversity capabilities. By using two antennas per unit,

the system can select the best antenna on a per-packet basis (every several

milliseconds).

Multipath propagation is to be expected when there are potential reflectors

between the Access Unit and Subscriber Units. These reflectors may be buildings

or moving objects such as airplanes and motor vehicles. If this is the case, the

radio signal does not travel in a straight line, but is reflected or deflected off of

the object, creating multiple propagation paths.

Basic Installation

BreezeACCESS/MMDS Series 5 SU-I/ID Installation Manual

When installing a single antenna, modify the transmit diversity option to either

antenna 1 or antenna 2, according to the antenna being used.

2.4.4 Antenna Polarization

Antenna polarization must be the same at either end of the link. In most

applications, the preferred orientation is vertical polarization. Above-ground

propagation of the signal is better when it is polarized vertically. To verify

antenna polarization, refer to the assembly instructions supplied with the antenna

set. For screw-on and detached omni antennas, make sure that the antennas are

extended upward vertically in relation to the floor to achieve vertical

polarization.

2.4.5 Antenna Seal

When using outdoor antennas, you must seal the antenna connectors against rain.

Otherwise the antennas are not suitable for use in outdoor installations.

2.4.6 Lightning Protection

Lightning protection is designed to protect people, property and equipment by

providing a path to ground for the lightning’s energy. The lightning arrestor

diverts the strike energy to ground through a deliberate and controlled path

instead of allowing it to choose a random path. Lightning protection for a

building is more forgiving than protection of electronic devices. A building can

withstand up to 100,000 volts, but electronic equipment may be damaged by just

a few volts.

Lightning protection entails connecting an antenna discharge unit (also called an

arrestor) to each cable as close as possible to the point where it enters the

building. It also entails proper grounding of the arrestors and of the antenna mast

(if the antenna is connected to one).

The lightning arrestor should be installed and grounded at the point where the

cable enters the building. The arrestor is connected to the unit at one end and to

the antenna at the other end.

Basic Installation

SU-I/ID Installation Manual 6 BreezeACCESS MMDS Series

The professional installer you choose must be knowledgeable about lightning

protection. The installer must install the lightning protector in a way that

maximizes lightning protection. BreezeCOM offers the following high-quality

lightning arrestor assembly:

BreezeACCESS AL 1 Lightning Arrestor - Part No. 872905 5 ft (1.5m), “N”

Male to “N” Female.

Note: Detached antennas, whether installed indoors or out, should be installed

ONLY by experienced antenna installation professionals who are familiar

with local building and safety codes and, wherever applicable, are licensed

by the appropriate government regulatory authorities.

Failure to do so may void the BreezeACCESS Product Warranty and may

expose the end user to legal and financial liabilities. BreezeCOM and its

resellers or distributors are not liable for injury, damage or violation of

government regulations associated with the installation of detached

antennas.

2.5 Wall Mounting the Unit

Use the supplied brackets for wall mounting to install the unit on a wall or a

ceiling.

1. Turn the unit so the rear panel is facing you.

2. Unscrew the two screws located at the antennas end of the unit (the top

screws).

3. Align the Unit Mounting Slots (see Figure 2-2) with the slots you have just

unscrewed.

4. Using the longer screws supplied with the wall mounts, screw the wall

mount to the unit.

5. Align the Convenience Mounting Slots (see Figure 2-2) with the nails, push

the wall mount against the wall and let it slide down until it rests on the

nails.

Basic Installation

BreezeACCESS/MMDS Series 7 SU-I/ID Installation Manual

Figure 2-1. Wall Mounting the Unit

Special slots have been added to the wall mounts to allow for unobtrusive cable

installation. These slots should be used to fasten cables coming out of the unit to

the wall mounts, eliminating loose or tangled cable installations.

Convenience Mountin

Slots

Unit Mountin

Slots

Cable Fastenin

Slots

Figure 2-2. Wall Mounting Plate

Basic Installation

SU-I/ID Installation Manual 8 BreezeACCESS MMDS Series

2.6 Connecting Antenna(s) to the Units (SU-ID units only)

For installation convenience, a torque key is included with all BreezeACCESS

SU-ID units.

WARNING: The use of improper tools for tightening antenna connection cables

to BreezeACCESS SU-I units may result in damage to the cable

connectors.

Use the included torque key to tighten the cable(s) to the connector(s) on the side

of the SU-I unit. The key is designed to prevent over tightening of the screws and

protects the connectors from damage.

Tighten the cable(s) to the connector(s) using the torque key.

Figure 2-3. Tightening the Cable(s) to the Connector(s)

If excessive pressure is applied to tighten the screws, the torque key will break.

Note: Do not attempt to tighten the screws any further. This may damage the

connectors on the BreezeACCESS SU-ID unit.

Basic Installation

BreezeACCESS/MMDS Series 9 SU-I/ID Installation Manual

2.7 Connecting the Unit to the Power Supply and to the CPE

The unit operates on a power input of 5V DC, supplied by the power transformer

included with the unit.

1. Plug the output jack of the power transformer into the DC input jack located

on the rear panel of the unit.

2. Connect the supplied universal power transformer to a power outlet - 110/

220VAC.

3. Use a straight Ethernet 10BaseT cable to connect a PC (SU-I/ID) or a hub

(SU-I/ID-8D or SU-I/ID-BD) to the Ethernet port (marked UTP) located on

the rear panel of the unit.

Configuring System Parameters

SU-I/ID Installation Manual 10 BreezeACCESS MMDS Series

3. CONFIGURING SYSTEM PARAMETERS

After completing the installation process, as described in the preceding sections

of this manual, proceed with configuration of the basic system parameters.

This manual covers the configuration of basic installation parameters. Refer to

the Administration Manual for information related to other parameters.

Note: Optionally, the product can be configured using Telnet over the Ethernet

port, after setting IP address. For further information refer to Appendix B.

3.1 Getting Started with the Local Terminal

1. Connect one end of the Monitor cable to the MON jack on the rear side of

the unit. Connect the second end of the cable to the COM port of the

terminal. The COM port connector on the Monitor cable is a 9 pin D-type

plug.

2. Run a terminal emulation program (e.g., ProComm or Windows

HyperTerminal) using the following setup:

Baud rate 9600

Data bits 8

Stop bits 1

Parity None

Flow Control Xon/Xoff

Connector Available Com Port

3. Press Enter. The Select Access Level menu appears. Select the access level

according to your authorized access level. You will be requested to enter

your password. After entering the correct password press enter. The main

menu appears (refer to Figure 3-1).

Configuring System Parameters

BreezeACCESS/MMDS Series 11 SU-I/ID Installation Manual

Software

Version No.

BreezeACCESS/SU-I-1D

Official Release Version – 2.5.3

Release Date: Tue Jul 18 21:12:54 2000

Main Menu

=====================

1 – Info Screens

2 – Unit Control

3 – Basic Configuration

4 – Site Survey

5 – Advanced Configuration

BreezeACCESS >>>

Figure 3-1. Main Menu

The appearance of the displayed Main Menu varies in accordance with the

access level.

• For users with read only access rights, only the Info Screens option is

displayed. Users with this access level cannot access the Unit Control,

Basic Configuration, Site Survey and Advanced Configuration menus.

• For users with Installer access rights, the first four menu items (Info

Screens, Unit Control, Basic Configuration and Site Survey) are

displayed. Users with this access level cannot access the Advanced

Configuration menu.

• For users with Administrator access rights, the full Main Menu will be

displayed. These users can access all the menu items.

Unit Type

Unit Name

Configuring System Parameters

SU-I/ID Installation Manual 12 BreezeACCESS MMDS Series

4. Operate the monitor program as follows:

• Type an option number to open/activate the option. You may need

to press the Enter key in some cases.

• Press the Esc key to exit a menu or an option.

• You can log-out and exit the monitor program at any time by

simultaneously pressing the Ctrl and X keys.

• Reset the unit after making configuration changes for the new values

to take effect.

• You can view the current parameters’ configuration by selecting 1 in

the Main Menu to Access the Info Screens menu, and than selecting

2 in the Info Screens menu to view the Basic Configuration

parameters.

3.2 Configuration Parameters

The following system parameters must be configured for each specific installation:

• ESSID

• IP Address

• Subnet Mask

• Default Gateway Address

• Frequency Offset

• Hopping Band

• Flexible sub-bands Definition (if Flexible Hopping was selected in the

Hopping Band menu)

• Transmit Antenna

Note: You must select Reset Unit in the Unit Control menu for the changes to take

effect.

Subscriber Units should be configured after the applicable Access Unit is

operational. When configuring Subscriber Units, the first parameter that should

be configured is the ESSID. Otherwise the unit will not successfully synchronize

with the Access Unit and will continuously reset itself, thus interfering with the

configuration process.

Configuring System Parameters

BreezeACCESS/MMDS Series 13 SU-I/ID Installation Manual

1. From the main menu, type 3 to access the Basic Configuration menu.

BreezeACCESS/SU-I-1D

Official Release Version – 2.5.3

Release Date: Tue Jul 18 21:12:54 2000

Basic Configuration

====================

1 – IP Address

2 – Subnet Mask

3 – Default Gateway Address

4 – ESSID

5 – Maximum Data Rate

6 - Frequency Offset

H – Hopping Band

F – Flexible sub-bands Definition

G – Transmit Antenna

P - Power Level

S - Show Basic Configuration

BreezeACCESS >>>

Figure 3-2. Basic Configuration Menu

2. From the Basic Configuration menu, type 4 to access the ESSID selection

screen. Enter the required ESSID.

3. Type 1 to access the IP Address selection screen. Enter the required IP

address.

4. Type 2 to access the Subnet Mask selection screen. Enter the required subnet

mask.

5. Type 3 to access the Default Gateway Address selection screen. Enter the

required default gateway address.

6. Type 6 to access the Frequency Offset selection screen. Enter the required

Frequency Offset

Configuring System Parameters

SU-I/ID Installation Manual 14 BreezeACCESS MMDS Series

7. Type H to access the Hopping Band selection screen. Enter the required

hopping band.

8. If Flexible Hopping was selected in the Hopping Band selection menu, type

F to access the Flexible sub-bands Definition menu. Use the Add/Delete sub-

bands screens to define the required frequencies. See Appendix C for a list of

the standard frequencies as a function of the allocated channel(s).

9. Type G to access the Transmit Antenna selection screen. Enter the required

selection (0 - use two antennas, 1 - use antenna #1, 2 - use antenna #2). For

SU-I units with two integral antennas, select 0 - use two antennas.

3.3 Reset Unit

1. From the main menu, type 2 to access the Unit Control menu.

2. Type 1 to access the Reset Unit menu. Type 1 to reset the unit so that new

configuration settings are applied.

Note: Should you make any mistakes during configuration or encounter any

problems associated with system configuration parameters, you may

configure the unit back to the factory defaults, as follows:

Type 2 in the Unit Control menu to access the Set Factory Defaults menu.

Type in 2 (Set Factory defaults-Full) to load the default values. Reset the

unit for the factory defaults values to take effect.

Aligning the Antenna

BreezeACCESS/MMDS Series 15 SU-I/ID Installation Manual

4. ALIGNING THE ANTENNA

Omni and low gain antennas do not require alignment due to their wide radiation

pattern. High gain antennas have a narrow beamwidth, necessitating an

alignment procedure in order to optimize the link.

For Subscriber Units with directional antenna(s), you can either use the LED

indicators on the front panel of the unit or view the Received Signal Strength

Indication (RSSI) on the monitor. In most installations, alignment using the

LEDs is sufficient. The RSSI reading can be used when finer alignment is

required.

Note: Antenna alignment of the Subscriber Unit is possible only after the Access

Unit you wish to associate with is operational and the ESSID was properly

configured.

4.1 Aligning the Antenna Using the LEDs

1. Synchronize the units by aligning the antenna manually to point to the base

station until the WLNK indicator LED on the front panel of the unit

illuminates.

2. Rotate the antenna left and/or right until you reach the point of signal quality

reading on the quality (QLT) LEDs. The higher the number of illuminated

LEDs the better is the quality of the link. Make sure that at all times, the

front of the antenna faces the general direction of the Access Unit.

3. For proper operation, at least one (L) LED should be illuminated. If this is

not possible, improve the link quality by placing the antenna at a higher

point or in a different location.

4. After the antenna is optimally aligned, tighten the U-bolts (or metal band) to

secure the antenna to the pole.

Aligning the Antenna

SU-I/ID Installation Manual 16 BreezeACCESS MMDS Series

4.2 Aligning the Antenna Using the Site Survey Menu

1. Start the Monitor program as described in Section 3.1.

2. From the main menu, type 4 to access the Site Survey menu. Type 4 to start

the Continuous RSSI Display. Each line in the display includes the number

of frames that were received since the last measurement (total Rx) and the

average RSSI for these frames.

3. Rotate the antenna left and/or right until you reach the point of maximum

RSSI reading. Make sure that at all times, the front of the antenna faces the

general direction of the Base Station.

4. For proper operation, the RSSI reading should be at least 52 units. When the

maximum reading is less than 52 units, try to improve it by placing the

antenna at a higher point or in a different location. For best performance it is

recommended that the RSSI be higher than 76.

5. Press the Esc key to stop the test.

6. Tighten the U-bolts (or metal band) over the antenna to secure it to the pole.

Maximum Data Rate Configuration

BreezeACCESS/MMDS Series 17 SU-I/ID Installation Manual

5. MAXIMUM DATA RATE CONFIGURATION

1. If the average RSSI reading using the Average RSSI Continuous Display is

lower than 76, the default data rate of 3 Mbps is too high and the data rate of

the unit should be configured accordingly:

2. From the main menu, type 3 to access the Basic Configuration menu. Type 5

to access the Maximum Data Rate menu.

L Type 3 (3Mbps) if the RSSI reading is higher than 76 units.

LL Type 2 (2Mbps) if the RSSI reading is between 66 to 76 units.

LLL Type 1 (1Mbps) if the RSSI reading is lower than 66 units.

3. Reset the unit for the new configuration to become effective.

Verifying Proper Operation

SU-I/ID Installation Manual 18 BreezeACCESS MMDS Series

6. VERIFYING PROPER OPERATION

After completing the installation, and after connecting the unit to the AC mains,

the system starts operation. To verify proper operation, view the LED panel

located on the front panel of the unit. Table 6-1 lists the various LED states.

Table 6-1. SU-I LEDs

Name Description Functionality

PWR Power supply On – After successful power up

Off – Power off

WLNK Wireless Link

Activity Blinking – Receiving packets from the wireless

link

Off – no reception of packets from the wireless

link

ETH Ethernet activity Blinking – Reception of data from Ethernet LAN

Off – No reception of data from Ethernet LAN

QLT Quality of

received RF

signal

Very low quality reception or not

synchronized with Access Unit, less than

-81 dBm

Low quality reception (usually enabling

1Mbps traffic) from -81 to -77 dBm

Medium quality reception (usually

enabling 2 Mbps traffic) from -77 to -65

dBm

High quality reception (usually enabling

3 Mbps traffic) greater than -65 dBm

6.1 Verifying Data Connectivity

From the user’s PC or from a portable PC connected to the unit, Ping the unit or

try to connect it to the Internet.

Specifications

BreezeACCESS/MMDS Series 19 SU-I/ID Installation Manual

7. SPECIFICATIONS

7.1 Radio

Frequency band A (MMDSa):2.500 – 2.600GHz

band B (MMDSb):2.596 – 2.686GHz

Radio Access Method FH-CDMA or TDMA

Operation Mode Time Duplex Division

Channel Bandwidth 2 MHz

Output Power (at antenna port)19dBm typical.

Sensitivity

(dBm at antenna port, BER 1E10-6)

1Mbps

2Mbps

3Mbps

-89

-82

-73

Data Rate 3Mbps max

Modulation Multilevel GFSK

7.2 Data Communication

Standard Compliance IEEE 802.3 CSMA/CD

Specifications

SU-I/ID Installation Manual 20 BreezeACCESS MMDS Series

7.3 Configuration and Management

Local Management Via MON port, Monitor program using terminal emulation

Remote Management SNMP, Telnet, TFTP

Remote Management Access From Wired LAN, Wireless Link

SNMP Agents MIB II, Bridge MIB, Private MIBs

Accounting RADIUS compatible client

Security Authentication and filtering

Software upgrade TFTP download

7.4 Interfaces

RF (Antenna) 2 x SMA jacks

Ethernet 10Base-T (RJ-45)

Monitor 3-pin low profile

Power DC socket for a power transformer

7.5 Electrical

External power Supply 100-250 VAC, 50-60 Hz, 0.5 A

Input voltage 5VDC

7.6 Mechanical

Without antenna and power supply 13cm x 8.6cm x 3cm

7.7 Environmental

Operating Temperature 0°C to 40°C

Operating Humidity 5%-95% non condensing

Specifications

BreezeACCESS/MMDS Series 21 SU-I/ID Installation Manual

7.8 Standards Compliance, General

EMC FCC part 15, FCC part 21

Safety UL 1950

Environmental GR - 63 - CORE (Bellcore)

Appendix A

SU-I/ID Installation Manual 22 BreezeACCESS MMDS Series

APPENDIX A. AL 1 Lightning Arrestor

The AL 1 Lightning Arrestor is used to protect transmitters and receivers from

transients originating from lightning or EMP.

The AL 1 is gas tube-based and is not radioactive. The gas discharge tube can

sustain several transients if the time period between transients is sufficient to

allow the tube to cool down.

Figure A-1. AL-1 Connection Block Diagram

One of the female-type N connectors is mounted directly through a hole in the

shelter wall and held in place with a lockwasher and nut.

Appendix A

BreezeACCESS/MMDS Series 23 SU-I/ID Installation Manual

AL 1 Lightning Arrestor Specifications

Turn on voltage 75V

Insertion loss 0.3dB typical

DC path from input to

output existing

Operating Temperature -55° C to +70° C

Dimensions 67.5mm x 25mm x 25mm (2.7” x 1” x 1”)

Connectors • Antenna Port: N-type, Female

• Equipment Port: N-type, Female

Operating Environment Indoor/Outdoor

Grounding One of the female-type N connectors is

mounted directly through a hole in the shelter

wall and held in place with a lockwasher and

nut.

Note: All specifications are subject to change without notice.

Appendix B

SU-I/ID Installation Manual 24 BreezeACCESS MMDS Series

APPENDIX B. USING TELNET

Use the following procedure to connect to BreezeACCESS units via a Telnet

session.

1. Connect the PC to the Ethernet port of the unit (or the hub to which the unit

is connected) using a straight Ethernet cable. If you connect the PC directly

to a unit that is normally connected to a hub, use a crossed Ethernet cable.

You may also connect the PC to any Ethernet port on the network and

communicate with the unit to be managed via the wired or wireless media.

2. Make sure that the IP parameters of the PC are configured to enable

connectivity with the unit.

3. Run a Telnet application and use the IP address of the unit to be managed as

the Host Name.

4. Set Port to Telnet (this is the default).

5. Set Terminal Type to VT100 (this is the default).

6. Enter the Service Provider password.

7. When the password is recognized, the following message is displayed:

You have entered.

8. Press Enter, the Breeze ACCESS Monitor is displayed on the screen.

To exit the Telnet session, choose Disconnect from the Connect menu.

(The session is terminated automatically, after a specific time of inactivity

determined by the Log-out Timer).

Appendix C

BreezeACCESS/MMDS Series 25 SU-I/ID Installation Manual

APPENDIX C. MMDS CHANNELS AND

FREQUENCIES

Channel

Name Frequency

Band (MHz Low Frequency (MHz) High Frequency (MHz)

Actual Value in

Add/Delete

Sub-bands

Actual Value in

Add/Delete

Sub-bands

A1 2500 - 2506 2501.5 2501 2504.5 2504

B1 2506 - 2512 2507.5 2507 2510.5 2510

A2 2512 - 2518 2513.5 2513 2516.5 2516

B2 2518 - 2524 2519.5 2519 2522.5 2522

A3 2524 - 2530 2525.5 2525 2528.5 2528

B3 2530 - 2536 2531.5 2531 2534.5 2534

A4 2536 - 2542 2537.5 2537 2540.5 2540

B4 2542 - 2548 2543.5 2543 2546.5 2546

C1 2548 - 2554 2549.5 2549 2552.5 2552

D1 2554 - 2560 2555.5 2555 2558.5 2558

C2 2560 - 2566 2561.5 2561 2564.5 2564

D2 2566 - 2572 2567.5 2567 2570.5 2570

C3 2572 - 2578 2573.5 2573 2576.5 2576

D3 2578 - 2584 2579.5 2579 2582.5 2582

C4 2584 - 2590 2585.5 2585 2588.5 2588

Appendix C

SU-I/ID Installation Manual 26 BreezeACCESS MMDS Series

Channel

Name Frequency

Band (MHz Low Frequency (MHz) High Frequency (MHz)

Actual Value in

Add/Delete

Sub-bands

Actual Value in

Add/Delete

Sub-bands

D4 2590 - 2596 2591.5 2591 2594.5 2594

E1 2596 - 2602 2597.5 2597 2600.5 2600

F1 2602 - 2608 2603.5 2603 2606.5 2606

E2 2608 - 2614 2609.5 2609 2612.5 2612

F2 2614 - 2620 2615.5 2615 2618.5 2618

E3 2620 - 2626 2621.5 2621 2624.5 2624

F3 2626 - 2632 2627.5 2627 2630.5 2630

E4 2632 - 2638 2633.5 2633 2636.5 2636

F4 2638 - 2644 2639.5 2639 2642.5 2642

G1 2644 - 2650 2645.5 2645 2648.5 2648

H1 2650 - 2656 2651.5 2651 2654.5 2654

G2 2656 - 2662 2657.5 2657 2660.5 2660

H2 2662 - 2668 2663.5 2663 2666.5 2666

G3 2668 - 2674 2669.5 2669 2672.5 2672

H3 2674 - 2680 2675.5 2675 2678.5 2678

G4 2680 - 2686 2681.5 2681 2684.5 2684

Alvarion Technologies SUI-MMDS1 Indoor MMDS CPE transceiver User Manual New SUI

Alvarion Ltd. Indoor MMDS CPE transceiver New SUI

Contents

New SUI user manual

Navigation menu

Namespaces

Views

Navigation
