Avaya AP8120 802.11abgn Access Point User Manual NN47251 104 02 02 REGAP8120

Avaya, Inc. 802.11abgn Access Point NN47251 104 02 02 REGAP8120

NN47251-104 02.02 REGAP8120

Avaya WLAN 8100 Regulatory Information
- WLAN AP 8120
1.1.0.0
NN47251-104, 02.02
October 2011
© 2011 Avaya Inc.
All Rights Reserved.
Notice
While reasonable efforts have been made to ensure that the
information in this document is complete and accurate at the time of
printing, Avaya assumes no liability for any errors. Avaya reserves the
right to make changes and corrections to the information in this
document without the obligation to notify any person or organization of
such changes.
Documentation disclaimer
“Documentation” means information published by Avaya in varying
mediums which may include product information, operating instructions
and performance specifications that Avaya generally makes available
to users of its products. Documentation does not include marketing
materials. Avaya shall not be responsible for any modifications,
additions, or deletions to the original published version of
documentation unless such modifications, additions, or deletions were
performed by Avaya. End User agrees to indemnify and hold harmless
Avaya, Avaya's agents, servants and employees against all claims,
lawsuits, demands and judgments arising out of, or in connection with,
subsequent modifications, additions or deletions to this documentation,
to the extent made by End User.
Link disclaimer
Avaya is not responsible for the contents or reliability of any linked Web
sites referenced within this site or documentation provided by Avaya.
Avaya is not responsible for the accuracy of any information, statement
or content provided on these sites and does not necessarily endorse
the products, services, or information described or offered within them.
Avaya does not guarantee that these links will work all the time and has
no control over the availability of the linked pages.
Warranty
Avaya provides a limited warranty on its Hardware and Software
(“Product(s)”). Refer to your sales agreement to establish the terms of
the limited warranty. In addition, Avaya’s standard warranty language,
as well as information regarding support for this Product while under
warranty is available to Avaya customers and other parties through the
Avaya Support Web site: http://support.avaya.com. Please note that if
you acquired the Product(s) from an authorized Avaya reseller outside
of the United States and Canada, the warranty is provided to you by
said Avaya reseller and not by Avaya.
Licenses
THE SOFTWARE LICENSE TERMS AVAILABLE ON THE AVAYA
WEBSITE, HTTP://SUPPORT.AVAYA.COM/LICENSEINFO/ ARE
APPLICABLE TO ANYONE WHO DOWNLOADS, USES AND/OR
INSTALLS AVAYA SOFTWARE, PURCHASED FROM AVAYA INC.,
ANY AVAYA AFFILIATE, OR AN AUTHORIZED AVAYA RESELLER
(AS APPLICABLE) UNDER A COMMERCIAL AGREEMENT WITH
AVAYA OR AN AUTHORIZED AVAYA RESELLER. UNLESS
OTHERWISE AGREED TO BY AVAYA IN WRITING, AVAYA DOES
NOT EXTEND THIS LICENSE IF THE SOFTWARE WAS OBTAINED
FROM ANYONE OTHER THAN AVAYA, AN AVAYA AFFILIATE OR AN
AVAYA AUTHORIZED RESELLER; AVAYA RESERVES THE RIGHT
TO TAKE LEGAL ACTION AGAINST YOU AND ANYONE ELSE
USING OR SELLING THE SOFTWARE WITHOUT A LICENSE. BY
INSTALLING, DOWNLOADING OR USING THE SOFTWARE, OR
AUTHORIZING OTHERS TO DO SO, YOU, ON BEHALF OF
YOURSELF AND THE ENTITY FOR WHOM YOU ARE INSTALLING,
DOWNLOADING OR USING THE SOFTWARE (HEREINAFTER
REFERRED TO INTERCHANGEABLY AS “YOU” AND “END USER”),
AGREE TO THESE TERMS AND CONDITIONS AND CREATE A
BINDING CONTRACT BETWEEN YOU AND AVAYA INC. OR THE
APPLICABLE AVAYA AFFILIATE ( “AVAYA”).
Copyright
Except where expressly stated otherwise, no use should be made of
materials on this site, the Documentation, Software, or Hardware
provided by Avaya. All content on this site, the documentation and the
Product provided by Avaya including the selection, arrangement and
design of the content is owned either by Avaya or its licensors and is
protected by copyright and other intellectual property laws including the
sui generis rights relating to the protection of databases. You may not
modify, copy, reproduce, republish, upload, post, transmit or distribute
in any way any content, in whole or in part, including any code and
software unless expressly authorized by Avaya. Unauthorized
reproduction, transmission, dissemination, storage, and or use without
the express written consent of Avaya can be a criminal, as well as a
civil offense under the applicable law.
Third-party components
Certain software programs or portions thereof included in the Product
may contain software distributed under third party agreements (“Third
Party Components”), which may contain terms that expand or limit
rights to use certain portions of the Product (“Third Party Terms”).
Information regarding distributed Linux OS source code (for those
Products that have distributed the Linux OS source code), and
identifying the copyright holders of the Third Party Components and the
Third Party Terms that apply to them is available on the Avaya Support
Web site: http://support.avaya.com/Copyright.
Trademarks
The trademarks, logos and service marks (“Marks”) displayed in this
site, the Documentation and Product(s) provided by Avaya are the
registered or unregistered Marks of Avaya, its affiliates, or other third
parties. Users are not permitted to use such Marks without prior written
consent from Avaya or such third party which may own the Mark.
Nothing contained in this site, the Documentation and Product(s)
should be construed as granting, by implication, estoppel, or otherwise,
any license or right in and to the Marks without the express written
permission of Avaya or the applicable third party.
Avaya is a registered trademark of Avaya Inc.
All non-Avaya trademarks are the property of their respective owners,
and “Linux” is a registered trademark of Linus Torvalds.
Downloading Documentation
For the most current versions of Documentation, see the Avaya
Support Web site: http://support.avaya.com.
Contact Avaya Support
Avaya provides a telephone number for you to use to report problems
or to ask questions about your Product. The support telephone number
is 1-800-242-2121 in the United States. For additional support
telephone numbers, see the Avaya Web site: http://support.avaya.com.
2 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
Contents
Chapter 1: Regulatory Compliance Statements............................................................... 5
Federal Communications Commission (FCC) Compliance Notices.......................................................... 5
Class B Interference Statement................................................................................................................ 5
Class B Equipment (Residential Use) (Korean)........................................................................................ 6
FCC Caution............................................................................................................................................. 6
RF Radiation Exposure and Hazard Statement........................................................................................ 6
Non-Modification Statement...................................................................................................................... 6
Deployment Statement.............................................................................................................................. 7
Canadian IC Statements........................................................................................................................... 7
European Union and European Free Trade Association (EFTA) Regulatory Compliance........................ 7
Declaration of Conformity.......................................................................................................................... 8
European Community Declaration of Conformity...................................................................................... 9
Countries of Operation and Restrictions of Use in the European Community.......................................... 11
Operation Using the 2.400 to 2.4835 GHz Channels in the European Community.................................. 11
Operation Using the 5.15 to 5.25 GHz, 5.25 to 5.35 GHz, and 5.470 to 5.725 GHz Channels in the
European Community............................................................................................................................... 12
Dynamic Frequency Selection (DFS)........................................................................................................ 12
Transmit Power Control............................................................................................................................ 13
Antenna Statement................................................................................................................................... 13
Chapter 2: English.............................................................................................................. 15

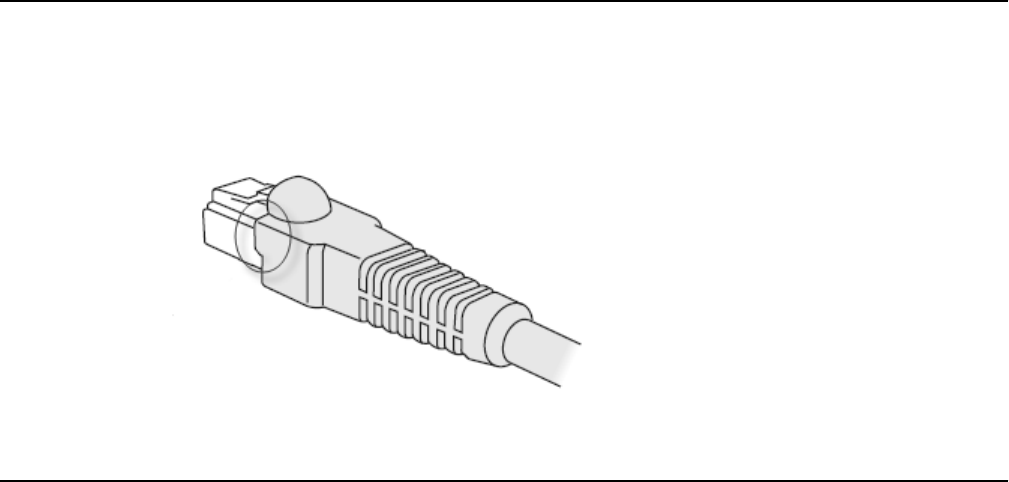

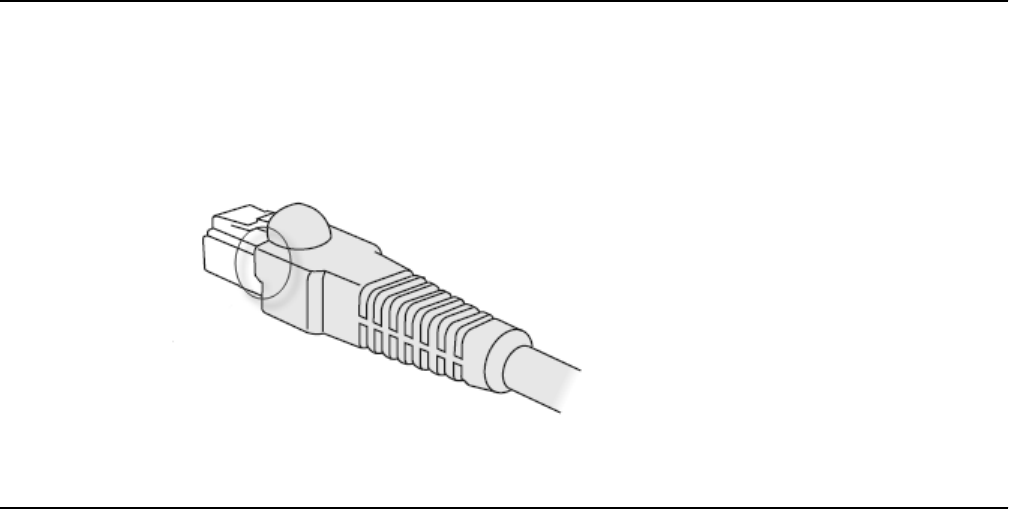

Cable requirements................................................................................................................................... 15

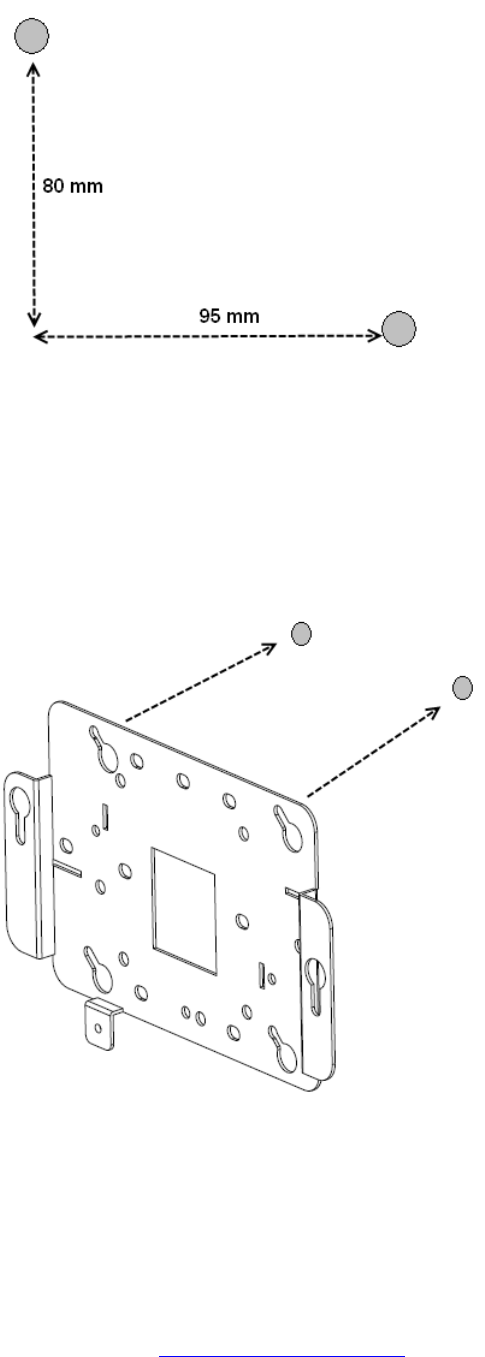

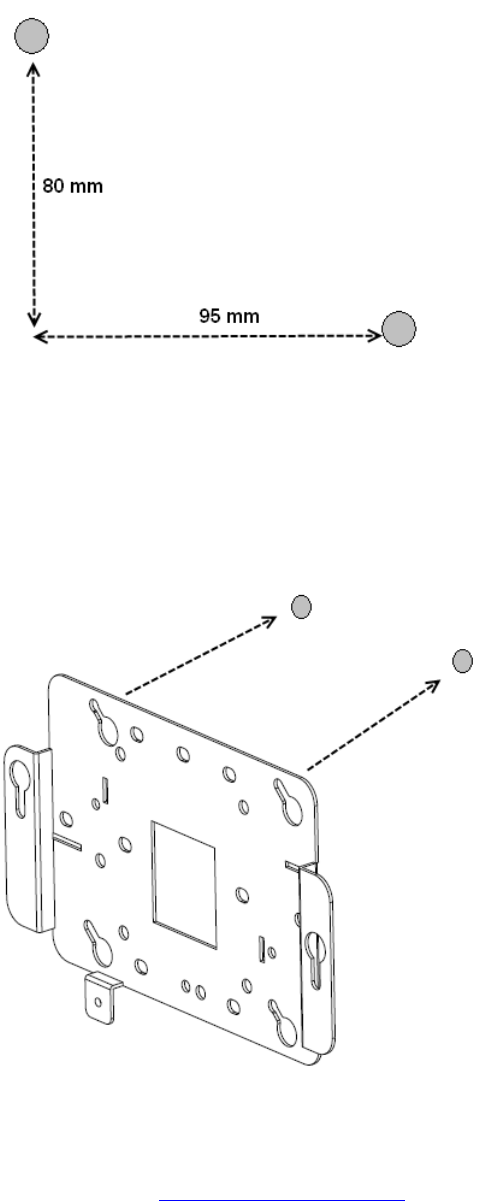

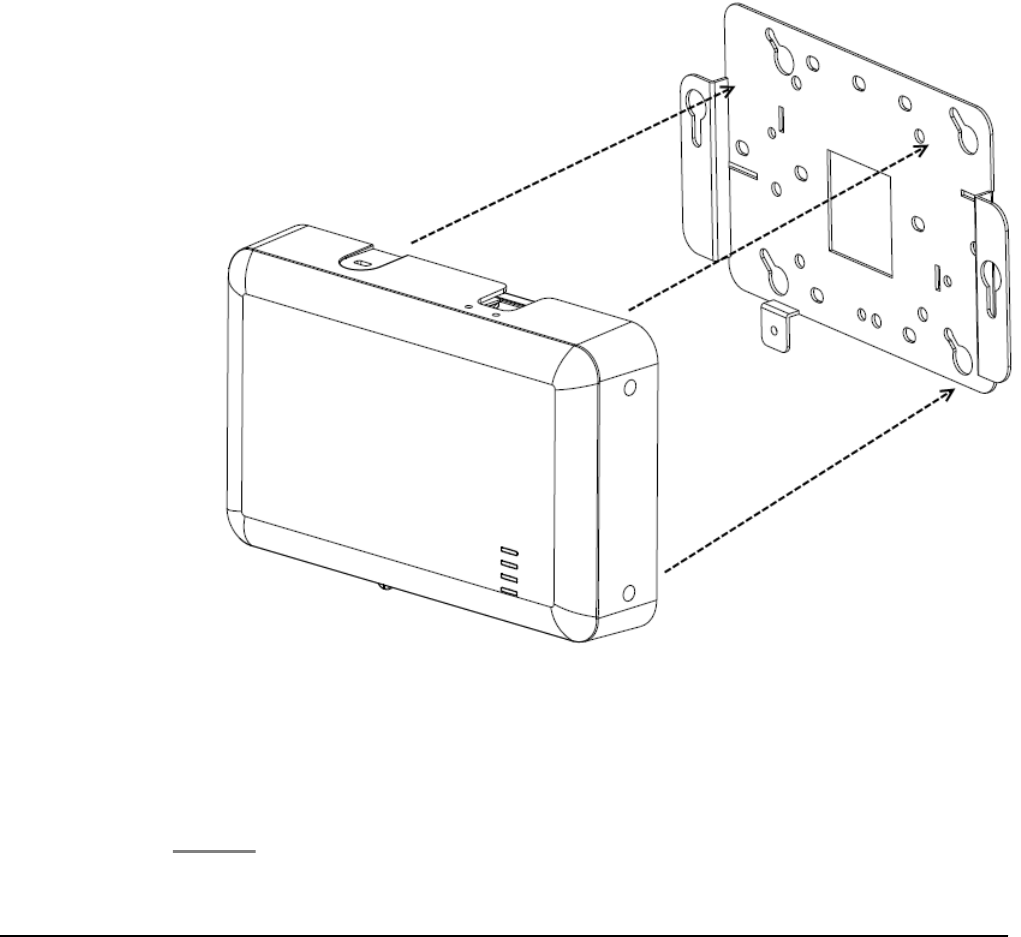

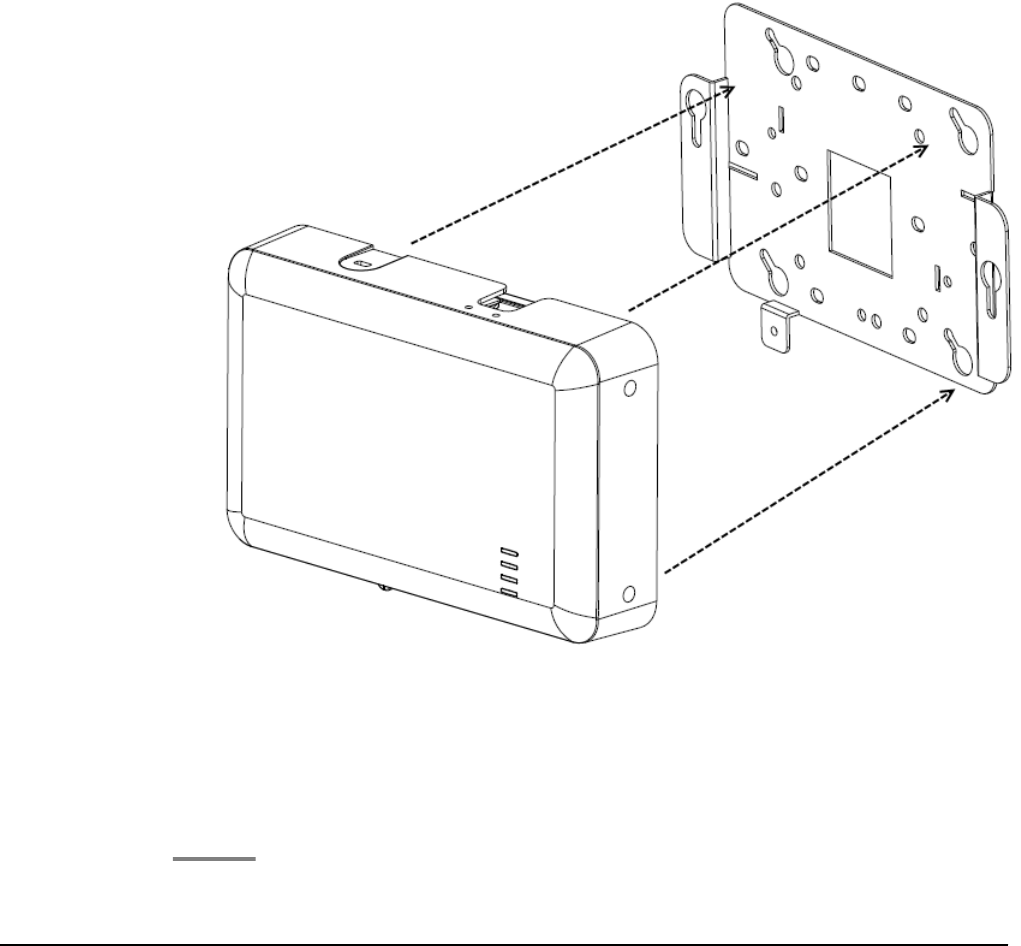

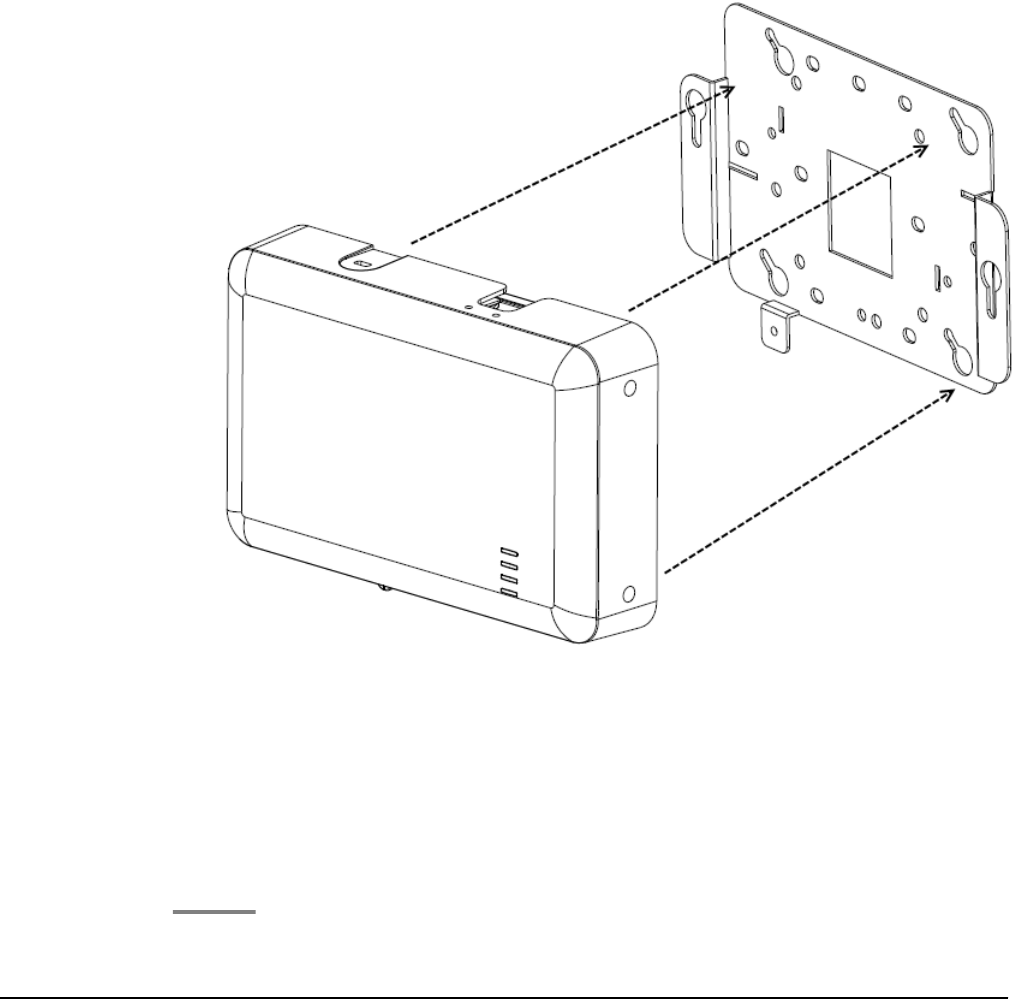

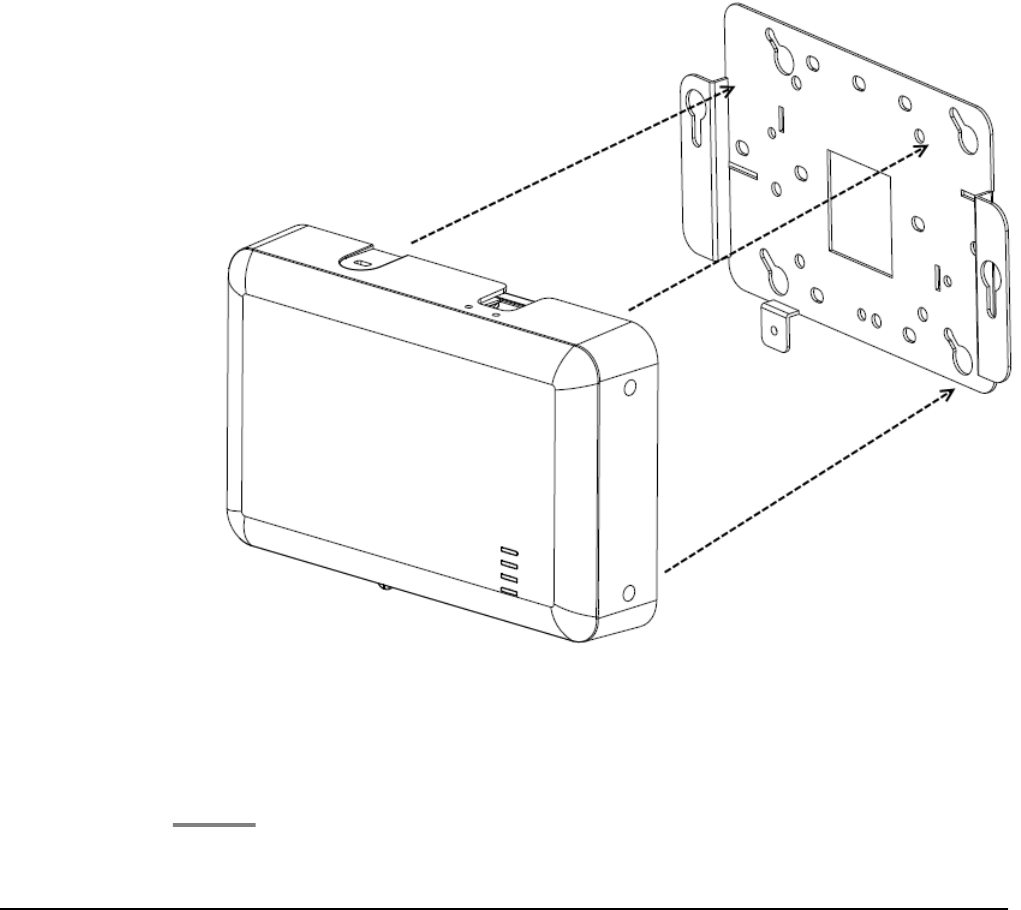

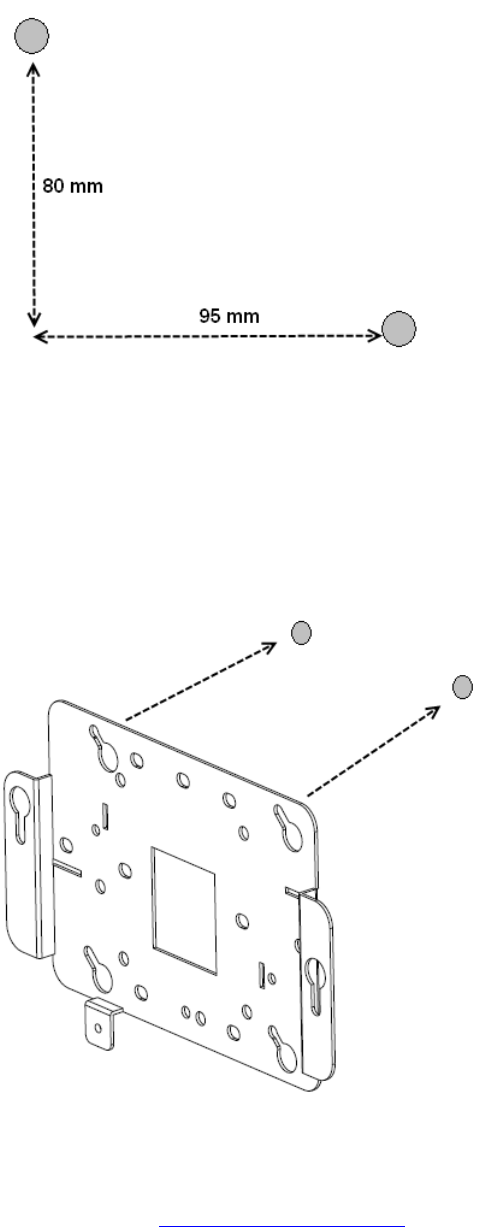

Mounting a wireless LAN access point on a wall...................................................................................... 15

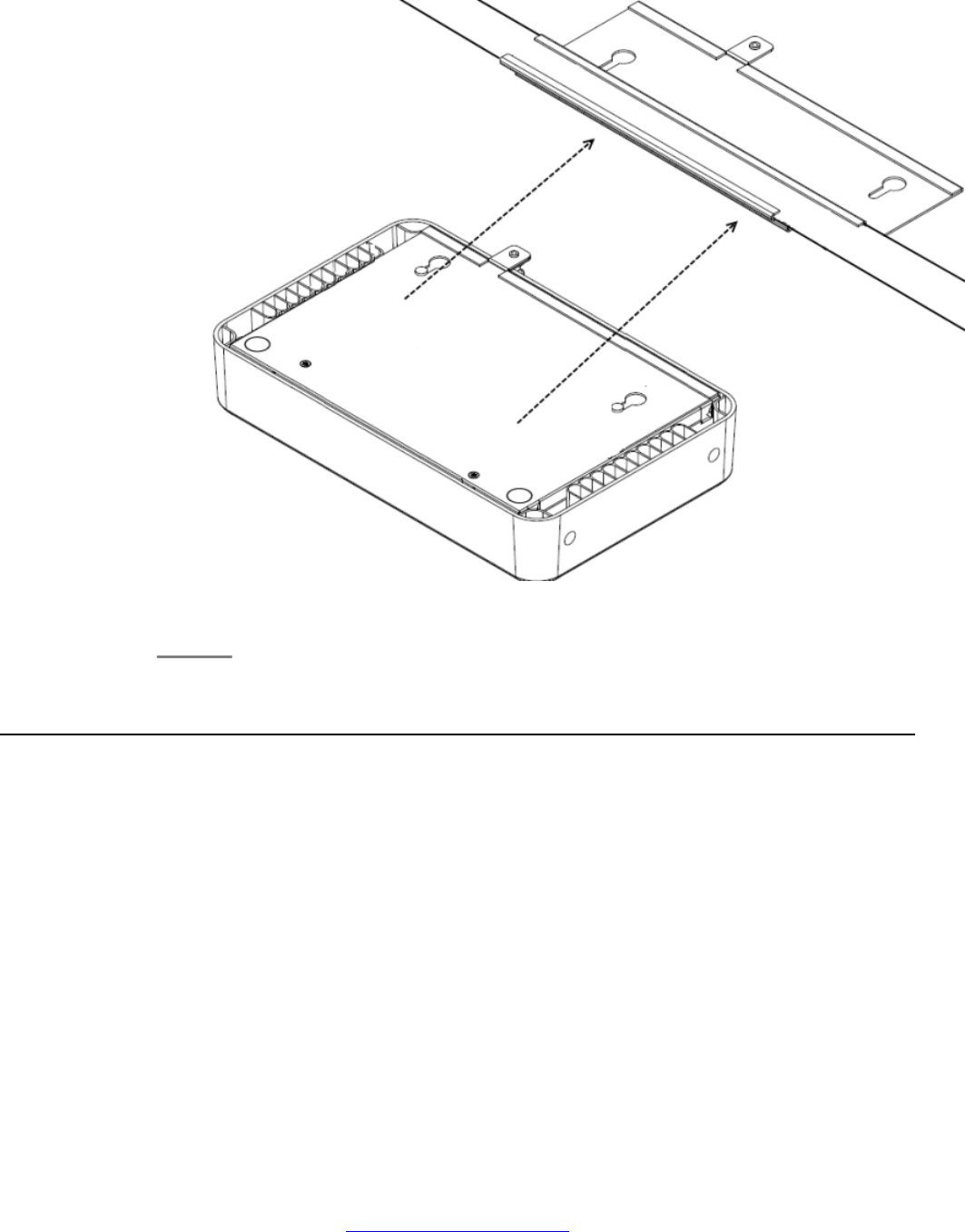

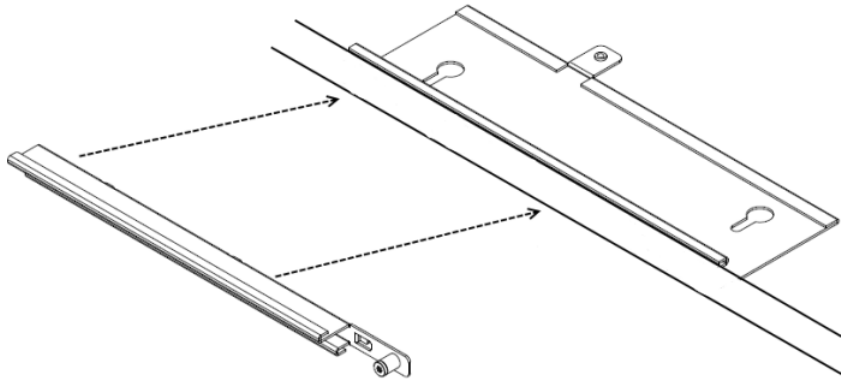

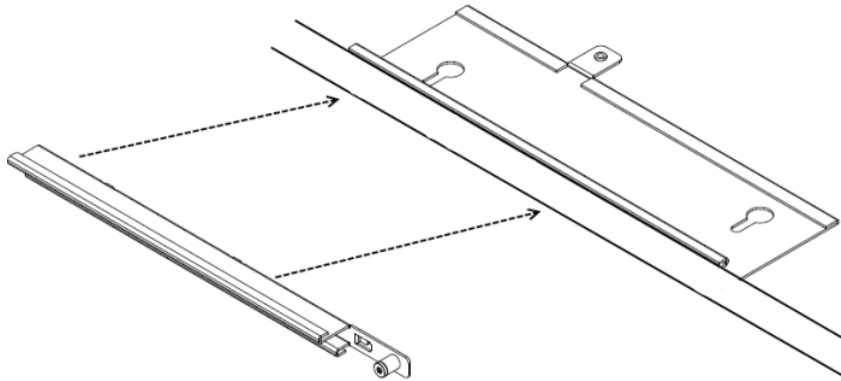

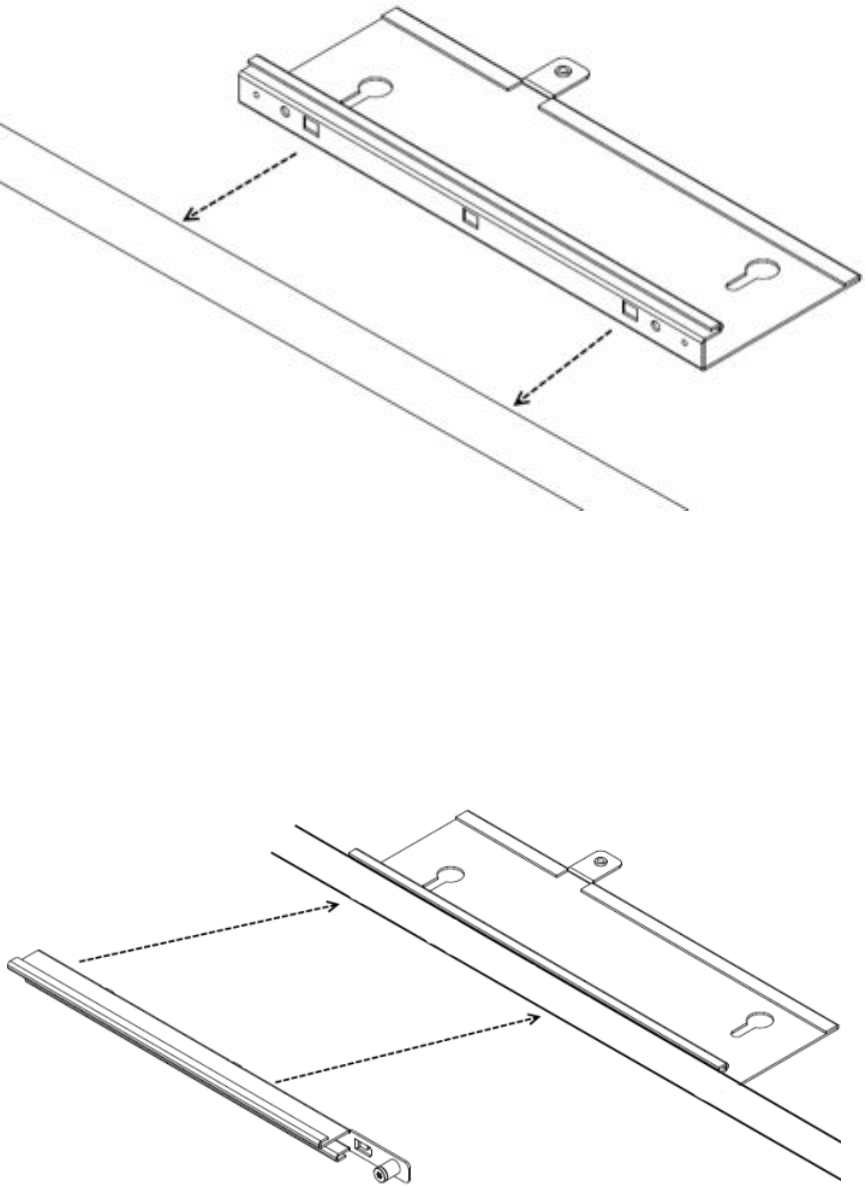

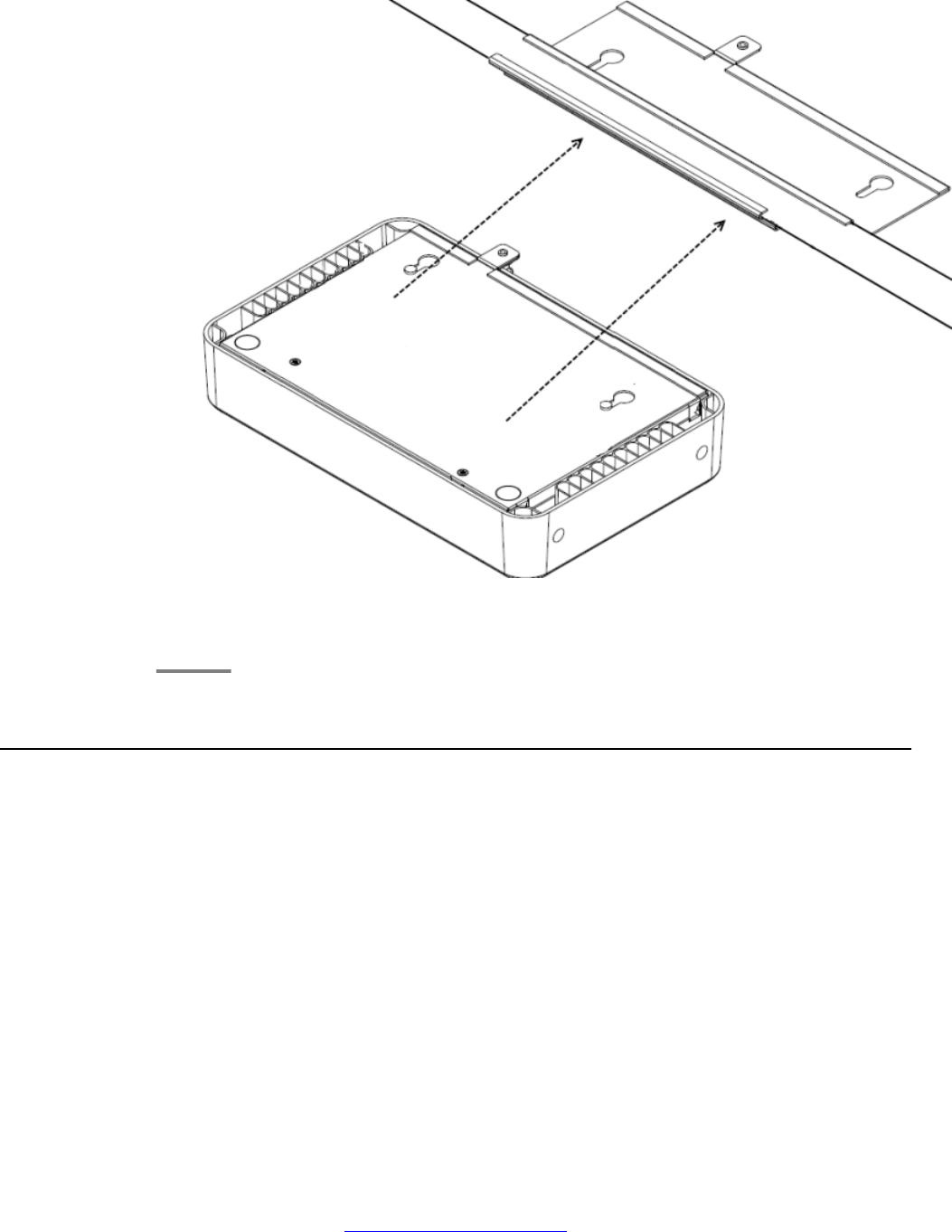

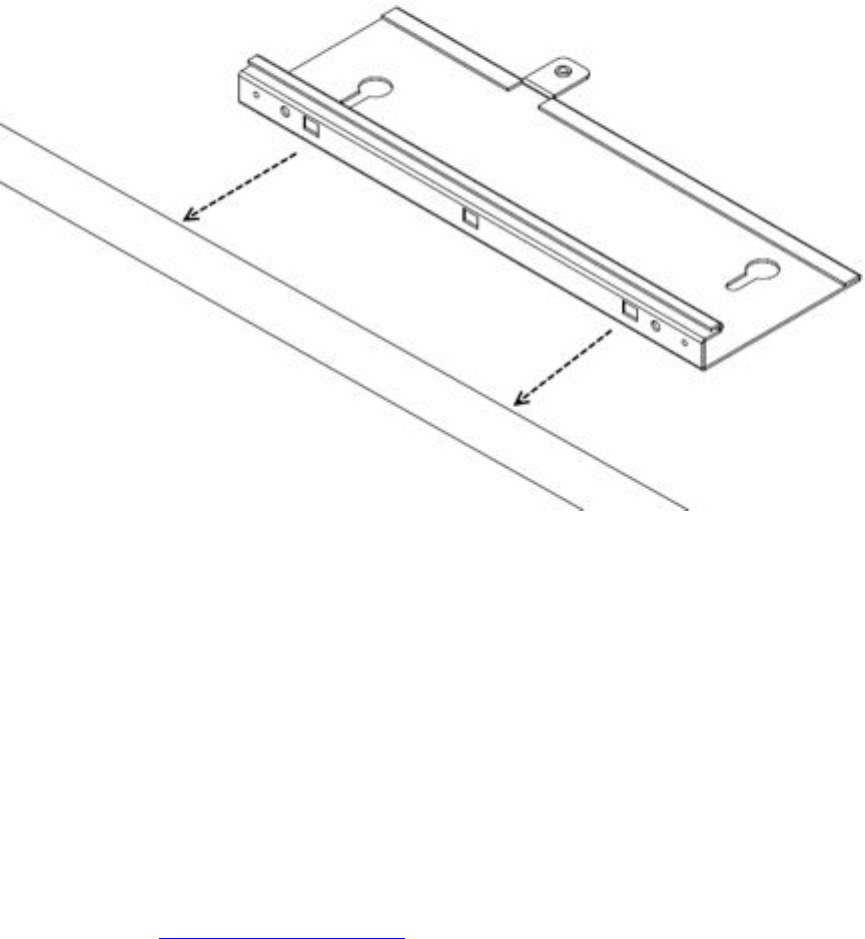

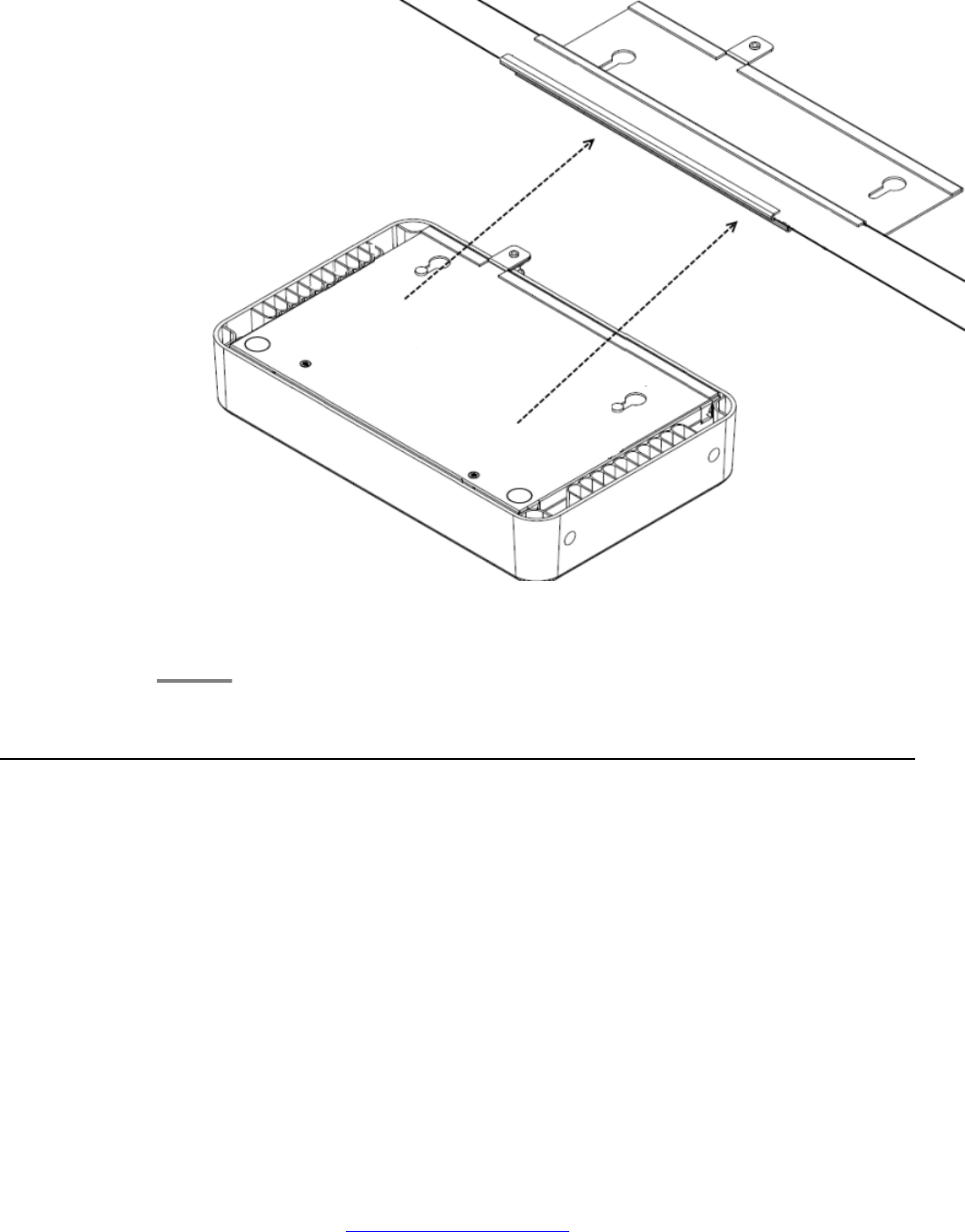

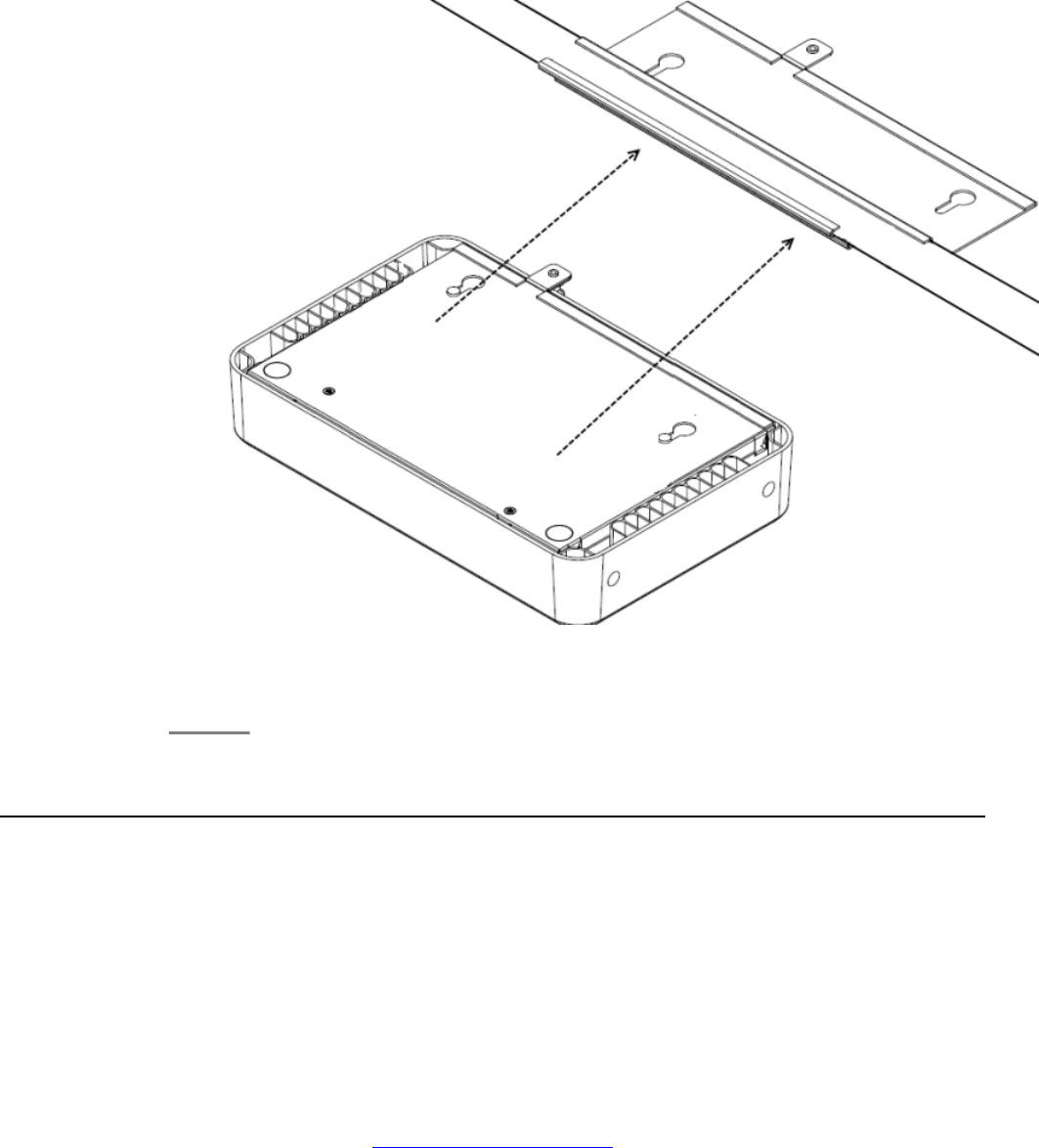

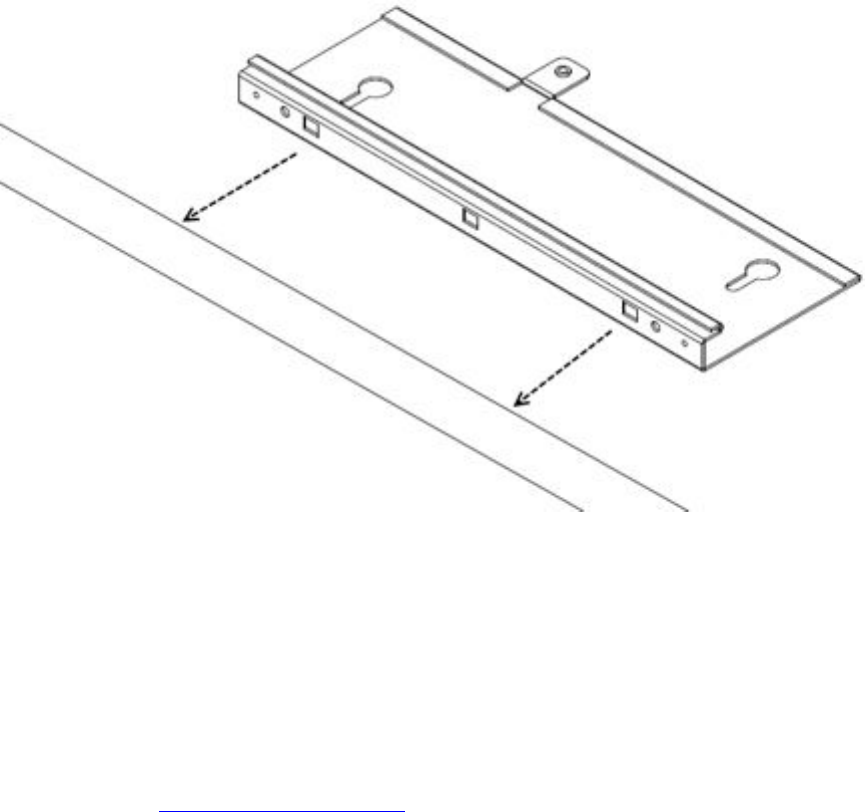

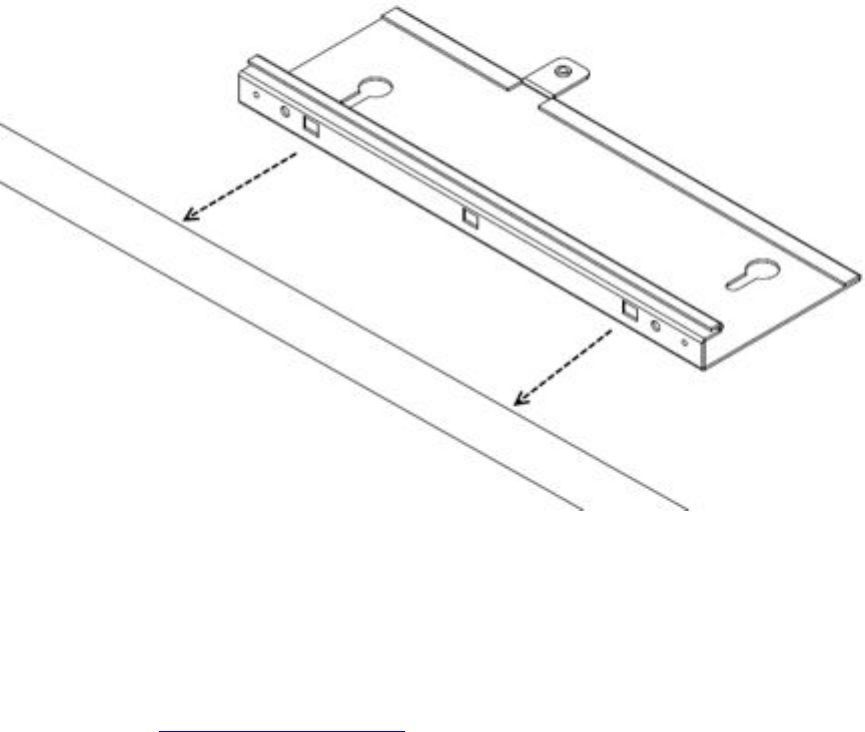

Installing an Access Point with a ceiling grid adaptor............................................................................... 17

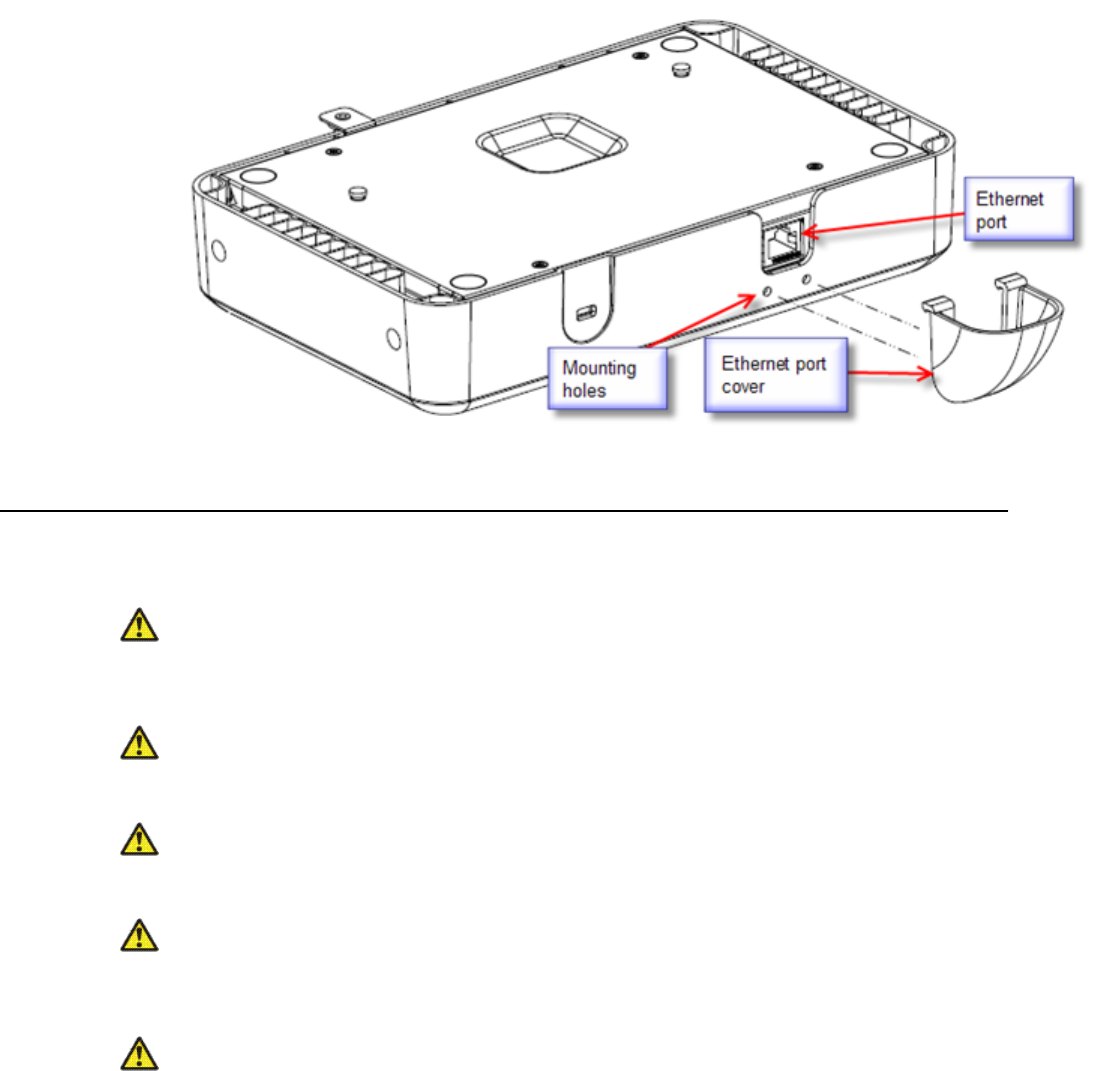

Ethernet port cover.................................................................................................................................... 20
Safety Messages....................................................................................................................................... 21
Chapter 3: Deutsch............................................................................................................. 23
Kabelanschlüsse....................................................................................................................................... 23
Wandmontage eines Wireless LAN Access Points................................................................................... 23
Deckenmontage eines Access Points (Rasterdecke)............................................................................... 25
Abdeckung für Ethernet-Port.................................................................................................................... 28
Sicherheitshinweise.................................................................................................................................. 29
Chapter 4: Español............................................................................................................. 31
Requisitos del cable.................................................................................................................................. 31
Montaje en la pared de un punto de acceso inalámbrico para redes LAN............................................... 31
Instalación de un punto de acceso con un adaptador para estructuras de techos desmontables........... 34

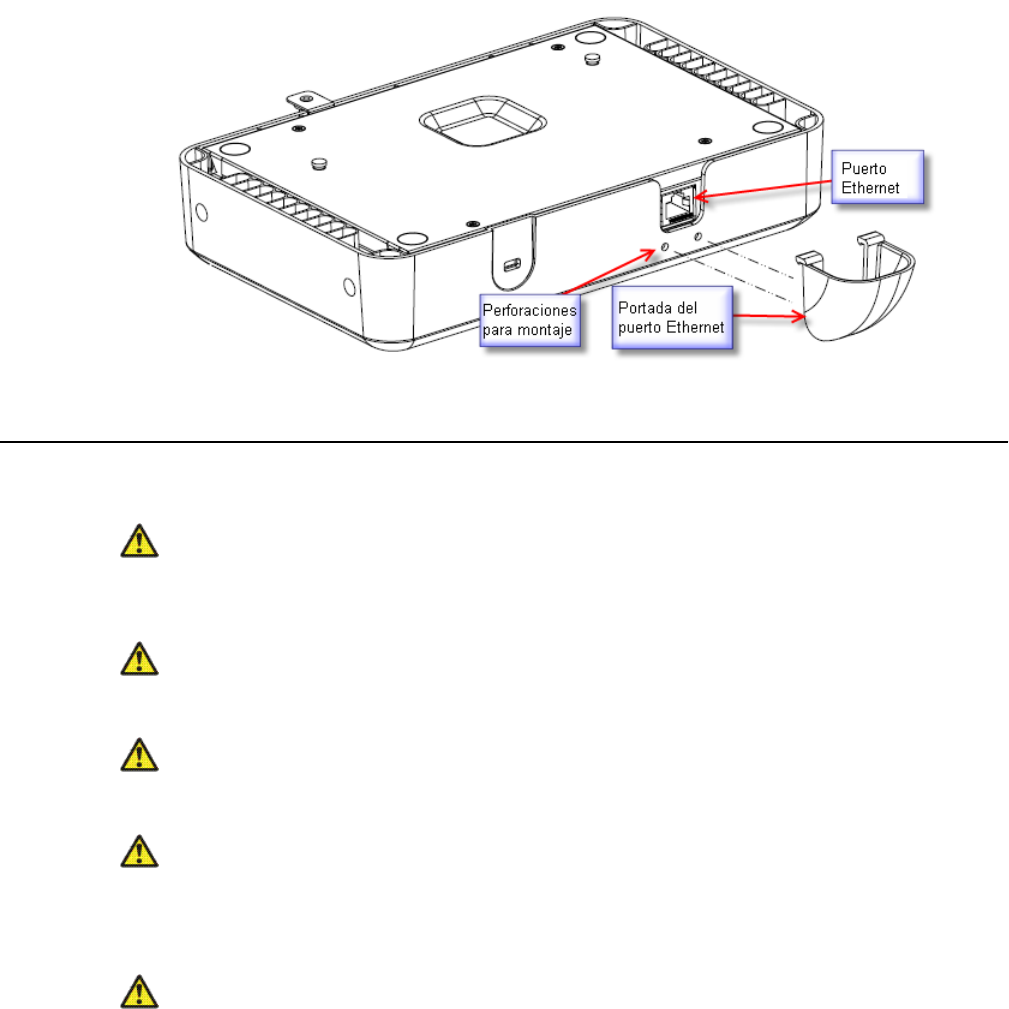

Cubierta del puerto Ethernet..................................................................................................................... 36
Advertencias de seguridad....................................................................................................................... 37
Chapter 5: Français............................................................................................................. 39
Configuration requise pour les câbles....................................................................................................... 39
Montage mural du point accès WLAN...................................................................................................... 39
Installation du point accès avec un adaptateur pour grille de plafond...................................................... 41

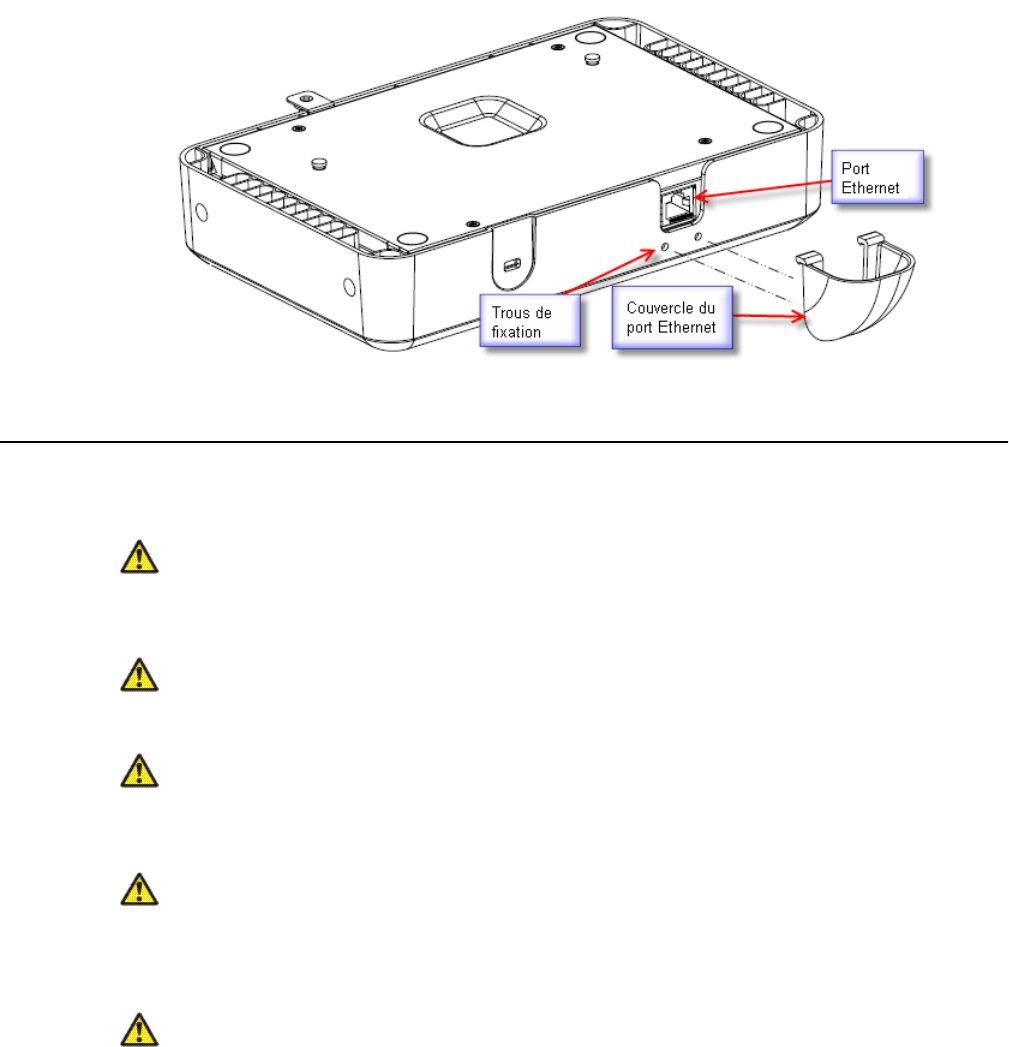

Couvercle du port Ethernet....................................................................................................................... 44
Messages de sécurité............................................................................................................................... 45
Chapter 6: Português do Brasil......................................................................................... 47
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 3
Requisitos de cabo.................................................................................................................................... 47
Instalando um ponto de acesso LAN sem fio em uma parede................................................................. 47
Instalando um ponto de acesso com um adaptador de grade de teto...................................................... 49
Tampa da porta Ethernet.......................................................................................................................... 52
Mensagens de segurança......................................................................................................................... 53

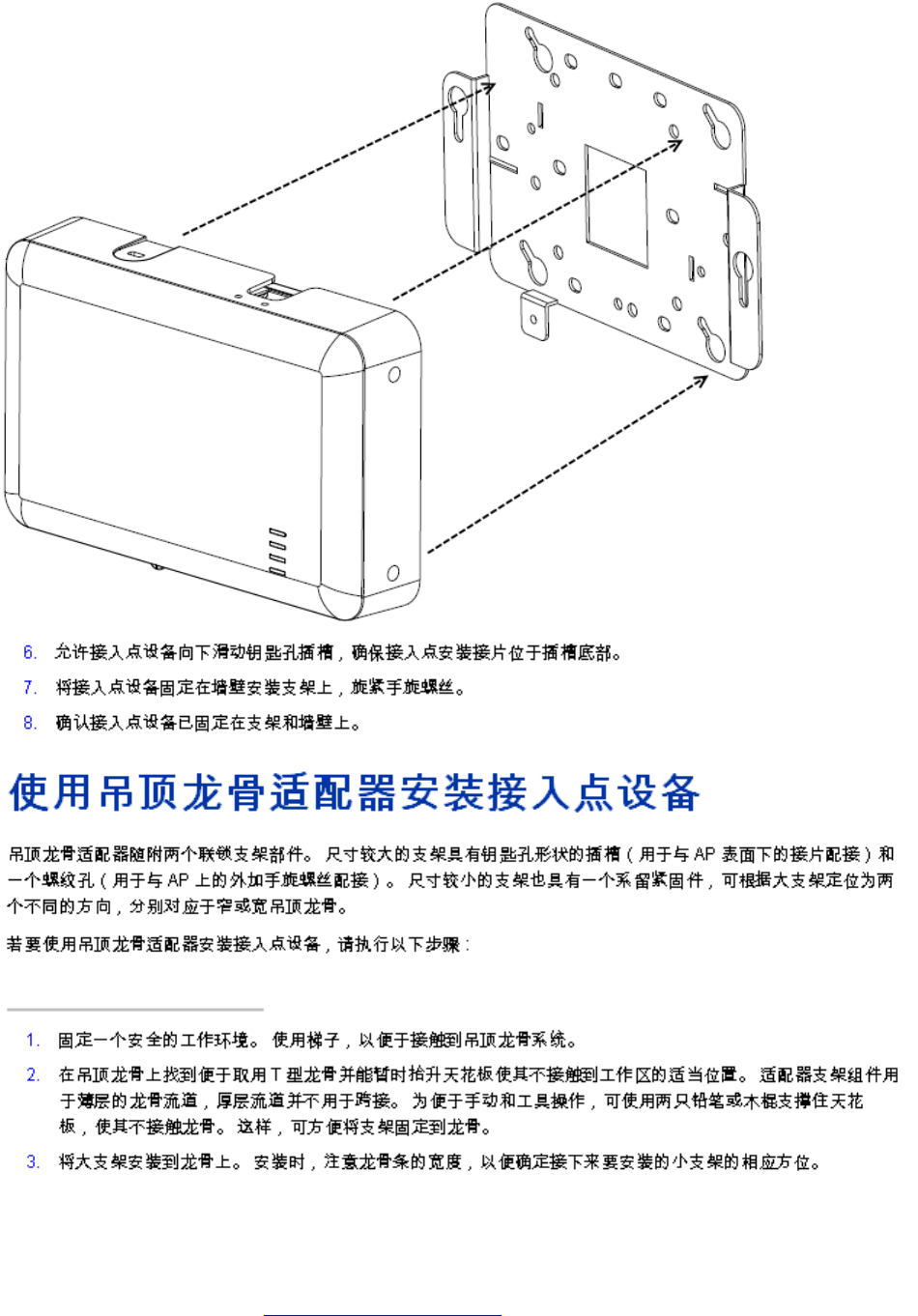

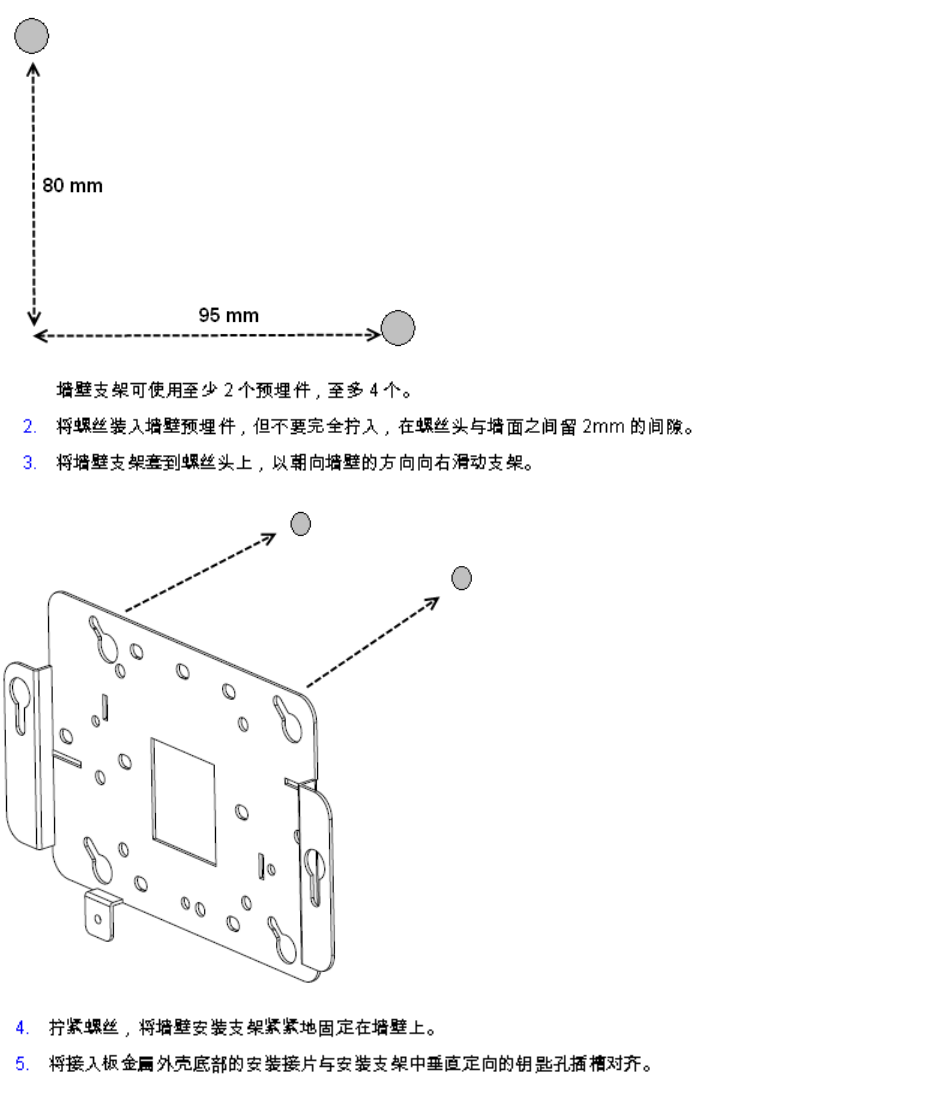

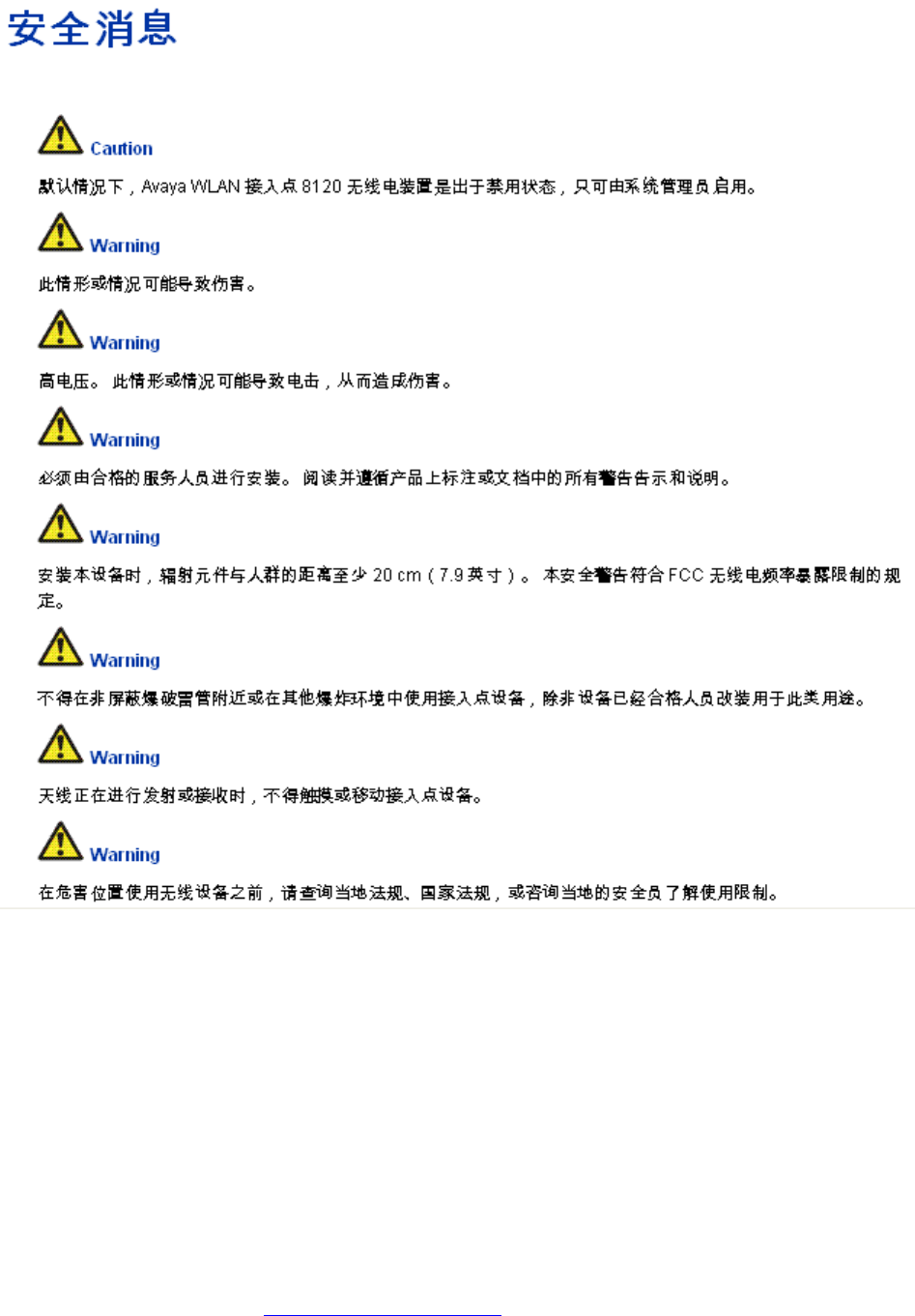

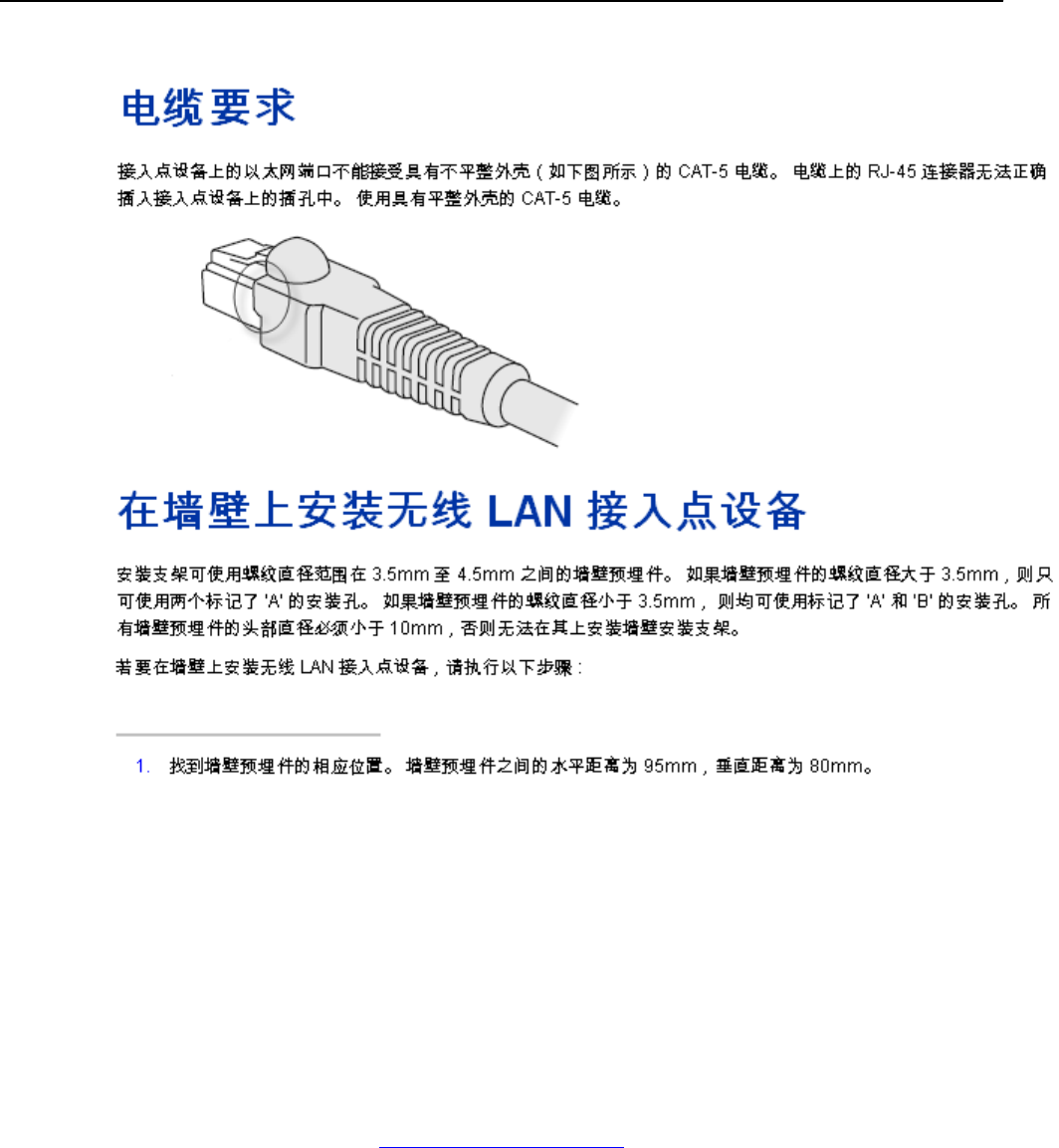

Chapter 7: Simplified Chinese........................................................................................... 55

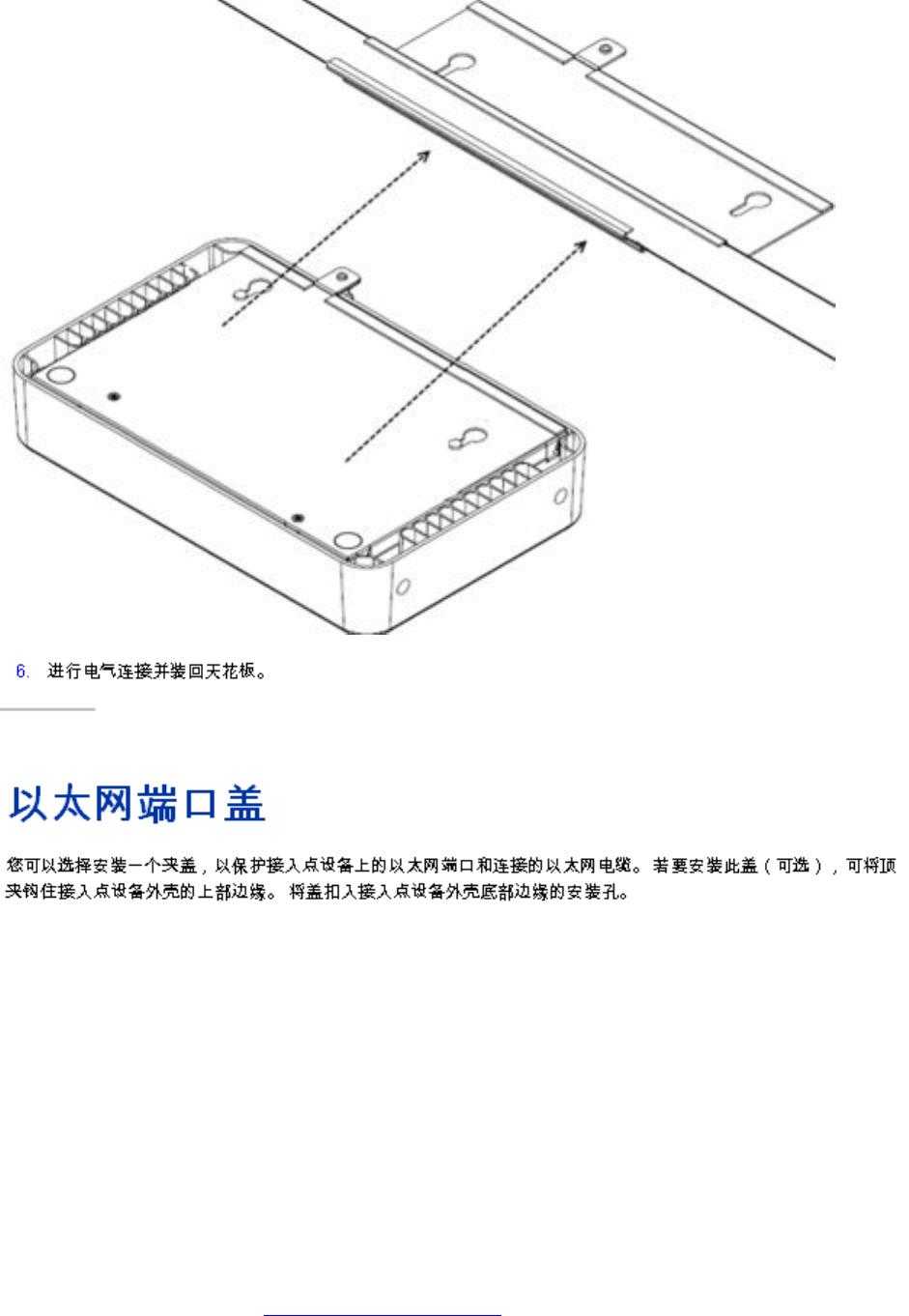

Chinese..................................................................................................................................................... 56
4 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Chapter 1: Regulatory Compliance
Statements
The Avaya WLAN 8100 product line consists of the following models:
• WLAN AP 8120
• WLAN AP 8120 with external antenna
Warning:
The AP8120 and the AP8120 with External Antenna are both designed for indoor use only and must
not be installed outdoors.
Warning:
The AP8120 with External Antenna must be installed by a professional installer.
This guide contains regulatory compliance statements for the WLAN AP 8120 model only.
Federal Communications Commission (FCC) Compliance
Notices
This section includes the following FCC statements for the WLAN AP 8120 access point:
• FCC ID:
• Class B Interference Statement
• RF Radiation Exposure and Hazard Warning
• Non-Modification Statement
• Deployment Statement
Class B Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 5
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Class B Equipment (Residential Use) (Korean)
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
RF Radiation Exposure and Hazard Statement
To ensure compliance with FCC RF exposure requirements, this device must be installed in a
location such that the antenna of the device will be greater than 20 cm (8 in.) away from all
persons. Using higher gain antennas and types of antennas not covered under the FCC
certification of this product is not allowed. Installers of the radio and end users of the product
must adhere to the installation instructions provided in this manual.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Non-Modification Statement
Use only the supplied internal antenna. Unauthorized antennas, modifications, or attachments
could damage the WLAN AP 8120 and violate FCC regulations. Any changes or modifications
Regulatory Compliance Statements
6 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
not expressly approved by the party responsible for compliance could void the user's authority
to operate this equipment.
Deployment Statement
This product is certified for indoor deployment only. Do not install or use this product
outdoors.
Canadian IC Statements
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil
ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the
potential for harmful interference to co-channel mobile satellite systems.
Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour
une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes
de satellites mobiles utilisant les mêmes canaux.
Be advised that high-power radars are allocated as primary users (i.e. priority users) of the
bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference
and/or damage to LE-LAN devices.
Les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d.,
qu’ils ont la priorité) pour les bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars
pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
European Union and European Free Trade Association
(EFTA) Regulatory Compliance
This equipment may be operated in the countries that comprise the member countries of the
European Union and the European Free Trade Association. These countries, listed in the
following paragraph, are referred to as The European Community throughout this document:
Deployment Statement
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 7
AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA,
FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA,
LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL, ROMANIA,
SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND, LICHTENSTEIN,
NORWAY, SWITZERLAND.
The WLAN AP 8120 access point communicates with an Avaya WLAN 8100 Wireless
Controller using a standard CAT-5 (Category 5) or higher 1000 Mbps twisted pair Ethernet
cable to provide wireless local area networking (WLAN) capabilities. The WLAN AP 8120
access point includes two 802.11a+n, b/g+n radios and one, six element, dual-band antenna
omnidirectional internal antenna.
Declaration of Conformity
Marking by this symbol
indicates compliance with the Essential Requirements of the R&TTE Directive of the European
Union (1999/5/EC). This equipment meets the following conformance standards:
Safety: EN 60950-1:2001 + A11:2004
EMC: EN 55022:2006, EN 55024:1998 + A1:2001 + A2:2003, EN 301-489-1 v1.6.1, EN
301-489-17 v1.2.1, CISPR22:2005, CISPR24
Including: EN 61000-3-2, -3-3, -4-2, -4-3, -4-4, -4-5, -4-6 and -4-11. The product is also licensed
as required for additional country specific standards as required for the International
Marketplace.
Radio: EN 300-328 v.1.7.1 (2006-10) & EN 301-893 v.1.5.1 (2008-12)
DEVIATION: The WLAN AP 8120 access point was tested to and are compliant with all of the
technical specifications of EN 301-893 v1.5.1 for operation in the 5.0 GHz bands, except the
DFS requirements in the 5600 – 5650 MHz band.
IEEE 802.11a operation in the 5250 to 5350 MHz and 5470 to 5725 MHz frequency bands is
governed by ETSI EN 301-893 v1.5.1 and the R&TTE Directive 1999/5/EC. Effective July 1,
2008, EN 301-893 v1.5.1 was updated to require compliance with 0.8 μsecond pulse widths
and staggered PRF’s in the 5470 – 5725 MHz band. The WLAN AP 8120 access point meets
compliance with these new mandates by disabling operation, via software, on channels 120,
124, 128 and 132 in the 5600 to 5650 MHz frequency band because it cannot meet the 0.8
μsecond pulse width and staggered PRF DFS requirements as outlined in the updated EN
301-893 v1.5.1 standard.
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission
systems; Data transmission equipment operating in the 2,4 GHz ISM band and using wide
band modulation techniques and Broadband Radio Access Networks (BRAN); 5 GHz high
performance RLAN. Certifications are harmonized to the EN standards covering essential
requirements under article 3.2 of the R&TTE Directive.
Regulatory Compliance Statements
8 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
SAR: EN 50385:2002
European Community Declaration of Conformity
WLAN Radio Model, WLAN AP 8120, as stated in the following Declarations of Conformity,
represents all models in the WLAN AP 8120 as listed above.
Bulgaria български
С това, avayal обявява, че този модел на радио на WLAN Радио Модел
WLAN, WLAN AP 8120, е със съгласие с съществените изисквания и други
важни условия на директива 1999/5 на европейски съюз
Czech
Republic Èesky
Avaya tímto prohlašuje, že tento WLAN Rádio Model, WLAN AP 8120, je ve
shodì se základními požadavky a dalšími pøíslušnými ustanoveními smìrnice
1999/5/ES.
Denmark Dansk
Undertegnede Avayaerklærer herved, at følgende udstyr WLAN Radio Model,
WLAN AP 8120, overholder de væsentlige krav og øvrige relevante krav i
direktiv 1999/5/EF.
English English
Hereby, Avaya declares that this WLAN Radio Model, WLAN AP 8120, is in
compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
Estonia Eesti
Käesolevaga kinnitab Avayaseadme WLAN Radio Model, WLAN AP 8120,
vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele sätetele.
Finland Suomi
Avayavakuuttaa täten että WLAN Radio Esikuvallinen, WLAN AP 8120,
tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä
koskevien direktiivin muiden ehtojen mukainen.
France Français
Par la présente Avaya déclare que l'appareil Model Par radio, AP 8120 de
WLAN, est conforme aux exigencies essentielles et aux autres dispositions
pertinentes de la directive 1999/5/CE.
Germany Deutsch
Hiermit erklärt Avaya., dass sich das Gerät WLAN Radiomodell, WLAN AP
8120, in Übereinstimmung mit den grundlegenden Anforderungen und den
übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Greece ΕΛΛΗΝΙΚΗ
European Community Declaration of Conformity
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 9
Hungary Magyar
Alulírott, Avayanyilatkozom, hogy a WLAN Rádió Minta, WLAN AP 8120,
megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv
egyéb elõírásainak.
Italy Italiano
Con la presente Avayadichiara che questo Modello Radiofonico AP 8120 di
WLAN, è conforme ai requisiti essenziali ed alle alter disposizioni pertinenti
stabilite dalla direttiva 1999/5/CE.
Latvia Latviski
Ar šo Avayadeklarç, ka WLAN Radio Model, WLAN AP 8120, atbilst Direktîvas
1999/5/EK bûtiskajâm prasîbâm un citiem ar to saistîtajiem noteikumiem.
Lithuania Lietuviø
Šiuo Avayadeklaruoja, kad šis WLAN Radio Model, WLAN AP 8120, atitinka
esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Malta Malti
Hawnhekk, Avaya., jiddikjara li dan WLAN Radio Model, WLAN AP 8120,
jikkonforma mal-tiijiet essenzjali u ma provvedimenti orajn relevanti li hemm
fid-Dirrettiva 1999/5/EC.
Netherland
sNetherlands
Hierbij verklaart Avayadat het toestel WLAN Radiomodel, WLAN AP 8120, in
overeenstemming is met de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG.
Poland Polski
Niniejszym Avayaooewiadcza, ¿e WLAN Radio Model, WLAN AP 8120, jest
zgodny z zasadniczymi wymogami oraz pozosta³ymi stosownymi
postanowieniami Dyrektywy 1999/5/EC.
Portugal Português
Avaya declara que este Modelo De rádio, AP 8120 de WLAN, está conforme
com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Romania Român
Astfel, Avaya declarã acel acest WLAN Radio Model, WLAN AP 8120, este în
conformitate cu cerinþele necesare ºi proviziile alte semnificative de Directive
1999 5 EC.
Slovakia Slovensky
Avaya týmto vyhlasuje, že WLAN Radio Model, WLAN AP 8120 spåòa
základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
Slovenia Slovensko
Avaya izjavlja, da je ta WLAN Radio Model, WLAN AP 8120, v skladu z
bistvenimi zahtevami in ostalimi relevantnimi doloèili directive 1999/5/ES.
Spain Español
Regulatory Compliance Statements
10 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
Por medio de la presente Avaya declara que el Modelo De radio AP 8120 de
WLAN, cumple con los requisitos esenciales y cualesquiera otras
disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Sweden Svenska
Härmed intygar Avaya elatt denna WLAN Radiotelegrafera till Modell, WLAN
AP 8120, står I överensstämmelse med de väsentliga egenskapskrav och
övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Countries of Operation and Restrictions of Use in the
European Community
Operation Using the 2.400 to 2.4835 GHz Channels in the
European Community
The professional installer should use the configuration utility provided with this product to verify
the current channel of operation, the expected transmit power level, and to confirm that the
device is operating in conformance with the spectrum usage rules for the selected European
Community country. If operation is occurring outside of the allowable channels as indicated in
this guide, then operation of the product must cease immediately and the installer must consult
with the local technical support staff responsible for the wireless network.
This device is intended to be operated in all countries of the European Community. Additional
restrictions of use for the WLAN AP 8120 access point within the European Community
countries in the 2.400 to 2.4835 GHz band are listed below.
• The frequencies associated with channels 1 to 13 in the 2.400 to 2.4835 GHz band are
allowed to be used either indoors or outdoors in all countries of the European Community,
except where noted below.
• In France, the following operation is permitted:
Indoor operation is permitted in the 2.400 to 2.4835 GHz band on channels 1 to 13 at
a maximum EIRP of 100 mW (20 dBm).
The WLAN AP 8120 access point, using the internal antennas, are guaranteed to meet this
limit by automatically adjusting the transmit power level through the operating software.
Countries of Operation and Restrictions of Use in the European Community
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 11
Operation Using the 5.15 to 5.25 GHz, 5.25 to 5.35 GHz, and
5.470 to 5.725 GHz Channels in the European Community
To remain in conformance with European National spectrum usage laws, follow the channel
limitations associated with the 5 GHz bands as specified in this document. The professional
installer should verify the current channel of operation and the expected transmit power level
of the WLAN AP 8120 access point to confirm that the device is operating in conformance with
the spectrum usage rules for the European Community country where the unit is being
installed. If operation is occurring outside of the allowable frequencies or above the power
levels, as indicated in this guide, then operation of the product must cease immediately and
the installer must consult with the local technical support staff responsible for the wireless
network.
This device is intended to be operated in all countries of the European Community. Additional
restrictions of use for the WLAN AP 8120 access points within the European Community
countries in the 5.15 to 5.25 GHz, 5.25 to 5.35 GHz, and 5.470 to 5.725 GHz bands are listed
below.
This device is restricted to indoor use only when operated in the European Community using
the 5.15-5.25 GHz and 5.25-5.35 GHz bands, which includes channels 36, 40, 44, 48, 52,
56, 60 & 64. • The 5 GHz Turbo Mode feature is not allowed for operation in any European
Community country.
Dynamic Frequency Selection (DFS)
The WLAN AP 8120 access point implements a DFS feature in accordance with the limits in
EN 301-893 v1.5.1, Section 4.7 and Annex D, Tables D.1, D.2 & D.4 for a device operating in
the mode defined as “Master”. Section 4.7 and Tables 5 of this document define the
requirements prior to using a channel and during normal operation for a Master device (i.e.,
Interference Detection Threshold, Channel Availability Check Time, Uniform Spreading,
Channel Closing Transmission Time and Channel Move Time). This product qualifies for this
category since the maximum achievable transmit power is greater than 23 dBm per the
requirements of Table D.2 in Annex D of the standard.
IEEE 802.11a operation in the 5250 to 5350 MHz and 5470 to 5725 MHz frequency bands is
governed by ETSI EN 301-893 v1.5.1 and the R&TTE Directive 1999/5/EC. Effective July 1,
2008, EN 301-893 v1.5.1 was updated to require compliance with 0.8 μsecond pulse widths
and staggered PRF’s in the 5470 – 5725 MHz band. The WLAN AP 8120 access point meets
compliance with these new mandates by disabling operation, via software, on channels 120,
124, 128 and 132 in the 5600 to 5650 MHz frequency band because it cannot meet the 0.8
μsecond pulse width and staggered PRF DFS requirements as outlined in the updated EN
301-893 v1.5.1 standard.
Regulatory Compliance Statements
12 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
Transmit Power Control
European Regulatory requirements specify that wireless devices must employ Transmit Power
Control (TPC) to reduce the potential for interference to other communication systems
operating in the 5 GHz frequency bands. This device includes a provision for adjustment of
Transmit Power in accordance with the limits in EN 301-893 v1.5.1, Sections 4.4.2.1 and
4.4.2.2.
Antenna Statement
Intentional radiators, such as the Avaya WLAN 8100, WLAN AP 8120 access points, are not
intended to be operated with any antenna(s) other than those furnished by Avaya. An
intentional radiator may only be operated with the antenna(s) with which it is authorized.
Use of an antenna not specifically authorized by Avaya may not comply with local regulatory
requirements with respect to radiated emission limits and may result in illegal operation of the
product. The installer of the wireless system and associated antenna is required to ensure that
only those antennas specifically approved by Avaya are deployed with the intentional
radiator.
Be sure to associate the appropriate antenna model number and localized regulatory region
when selecting the Avaya authorized antenna(s).
Transmit Power Control
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 13
Regulatory Compliance Statements
14 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
Chapter 2: English
Using the following procedures and information when installing the Avaya WLAN AP 8120 access
points.
Cable requirements
The Ethernet ports on the access point cannot accept a CAT-5 cable that has an uneven sheath
as shown below. The RJ-45 connector on the cable will not seat properly in the receptacle on
the access point. Use a CAT-5 cable with an even sheath instead.
Mounting a wireless LAN access point on a wall
The mounting bracket is designed to use wall anchors with threaded section diameters ranging
between 3.5mm and 4.5mm. If wall anchors have threaded diameters greater than 3.5mm,
only the two mounting holes marked ‘A may be used. If wall anchors have threaded diameters
of less than 3.5mm, the holes marked ‘A and the holes marked ‘B’ may be used. All wall
anchors must have a head diameter of less than 10mm or the wall mounting bracket cannot
be installed over them.
Perform the following procedure to mount a wireless LAN access point on a wall:
Procedure
1. Locate the appropriate position of the wall anchors. The wall anchors should be
95mm apart horizontally and 80mm apart vertically.
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 15
The wall bracket is designed to use a minimum of 2 anchors and a maximum of
4.
2. Install the screws into the wall anchors but do not seat them fully, leave at least a
2mm gap between the screw head and the wall.
3. Slip the wall bracket over the heads of the screws and slide the bracket to the right
as viewed facing the wall.
4. Tighten the screws to secure the wall mounting bracket tightly against the wall.
5. Align the mounting tabs on the bottom of the access point sheet metal enclosure
with the vertically oriented keyhole slots in the mounting bracket.
English
16 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
6. Allow the access point to slide down the keyhole slots, making sure the access point
mounting tabs are seated at the bottom of the slot.
7. Secure the access point to the wall mounting bracket and tighten the
thumbscrews.
8. Verify that the access point is secured to both the bracket and to the wall.
Installing an Access Point with a ceiling grid adaptor
The ceiling grid adaptor comes with two interlocking bracket parts. The larger bracket includes
keyhole shaped slots which mate with tabs on the under surface of the AP and a threaded hole
that mates with the captive thumbscrew on the AP. The smaller bracket also includes a captive
fastener and it can be oriented with respect to the larger bracket in two different ways
corresponding to narrow or wide ceiling grids.
Perform the following procedure to install the access point with a ceiling grid adaptor:
Installing an Access Point with a ceiling grid adaptor
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 17
Procedure
1. Secure a safe work environment. Obtain a ladder that allows easy access to the
ceiling grid system.
2. Identify an appropriate location on the ceiling grid where the ceiling T-bars are safely
accessible and where the ceiling tiles can be temporarily elevated and cleared away
from the work area. The adaptor bracket assembly is intended for use with the thin
section grid runners, not the thicker section runners used to cross large spans. To
provide access for hands and tools, use a pair of pencils or sticks to hold up the
ceiling tiles out of the grid. Doing this provides easy access for securing the bracket
to the grid.
3. Mount the larger bracket to the grid. While installing, pay attention to the width of
the grid strip in order to ascertain the appropriate orientation for the smaller bracket
which is installed next.
4. Mount the interlocking small bracket to the large bracket and clamp the two pieces
together on the grid. The smaller bracket has tabs formed into it which engage slots
in the larger tab. This allows the two parts to slide together and lock to one another.
When this is done, the two brackets effectively clamp themselves around the ceiling
grid. When the two halves of the bracket are correctly slid together, the captive
fastener in the small bracket should engage threads provided in the larger bracket.
Use a screwdriver to screw down the captive fastener. Securing the two brackets
in this manner is essential to prevent them from disengaging from one another.
Tighten the captive fastener screw securely.
English
18 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
5. Attach the access point to the bracket. Align the access point securing tabs with the
keyhole slots in the ceiling grid bracket and carefully slide the access point onto the
ceiling grid bracket assembly. If the access point and the bracket assembly are
correctly engaged, it should be possible to engage the access points captive
thumbscrew into the threaded tab provided on the ceiling grid bracket.
Installing an Access Point with a ceiling grid adaptor
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 19
6. Make electrical connections and return ceiling tiles.

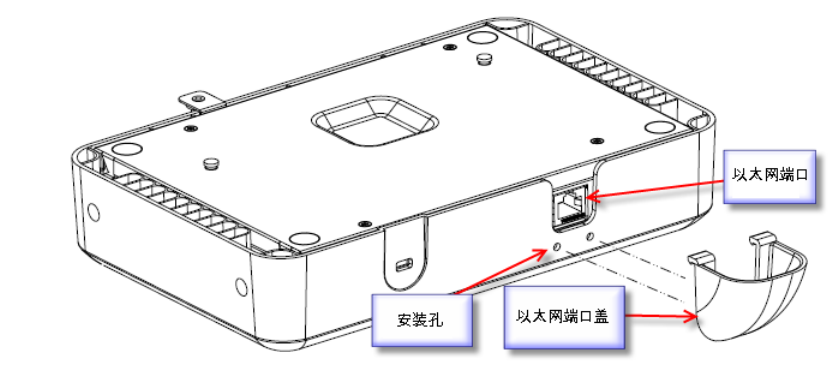

Ethernet port cover
You can choose to attach a clip-on cover to protect the Ethernet port and attached Ethernet
cable on the access point. To attach this optional cover, hook the top clips over the upper edge
of the access point enclosure. Snap the cover into mounting holes on the lower edge of the
access point enclosure.
English
20 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
Safety Messages
Caution:
The Avaya WLAN Access Point 8120 radios are disabled by default and can be enabled
only by a system administrator.
Warning:
This situation or condition can cause injury.
Warning:
High voltage. This situation or condition can cause injury due to electric shock.
Warning:
Only qualified service personnel must perform installation. Read and follow all warning
notices and instructions marked on the product or included in the documentation.
Warning:
Install this device in such a manner as to maintain a minimum of 20 cm (7.9 inches)
separation distance between the radiating element(s) and all persons. This safety warning
conforms with FCC radio frequency exposure limits.
Safety Messages
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 21
Warning:
Do not operate access point near unshielded blasting caps or in an otherwise explosive
environment unless the device has been modified for such use by qualified personnel.
Warning:
Do not touch or move the access point when the antennas are transmitting or receiving.
Warning:
Before using a wireless device in a hazardous location, consult the local codes, national
codes, and safety directors of the location for usage constraints.
English
22 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
Chapter 3: Deutsch
Verwenden Sie die folgenden Verfahren und Informationen zur Installation der Access Points Avaya
WLAN AP 8120.
Kabelanschlüsse
Die Ethernet-Ports an den Access Points können nicht mit CAT 5-Kabeln mit einer abgesetzten
Kabelhülse verbunden werden (siehe unten). Der RJ-45-Anschluss des Kabels sitzt in diesem
Fall nicht richtig auf dem Port des Access Points auf. Verwenden Sie stattdessen ein CAT 5-
Kabel mit einer geraden Kabelhülse.
Wandmontage eines Wireless LAN Access Points
Die Wandhalterung wird mit Wanddübeln mit einem Gewindedurchmesser von 3,5-4,5 mm
befestigt. Verwenden Sie bei Gewindedurchmessern über 3,5 mm lediglich die beiden mit
„A“ markierten Montagelöcher der Wandhalterung. Bei Gewindedurchmessern unter 3,5 mm
können Sie die mit „A“ und die mit „B“ markierten Montagelöcher verwenden. Der
Kopfdurchmesser der Wanddübel muss kleiner als 10 mm sein, damit die Wandhalterung
richtig montiert werden kann.
So führen Sie die Wandmontage eines Wireless LAN Access Points durch:
Procedure
1. Bestimmen Sie die richtige Position der Wanddübel. Die Wanddübel müssen
waagerecht in einem Abstand von 95 mm und senkrecht in einem Abstand von
80 mm installiert werden.
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 23
Die Wandhalterung wird mit mindestens 2 und höchstens 4 Dübeln befestigt.
2. Drehen Sie die Schrauben in die Wanddübel, ohne sie ganz festzuziehen. Lassen
Sie einen Abstand von mindestens 2 mm zwischen dem Schraubenkopf und der
Wand.
3. Setzen Sie die Wandhalterung auf die Schraubenköpfe auf. Schieben Sie die
Halterung nach rechts (von Ihnen aus gesehen).
4. Ziehen Sie die Schrauben an, um die Wandhalterung sicher an der Wand zu
befestigen.
5. Richten Sie die Montagelaschen unten am Metallgehäuse des Access Points mit
den senkrechten Längsschlitzen an der Wandhalterung aus.
Deutsch
24 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
6. Schieben Sie den Access Point vorsichtig in den Längsschlitzen nach unten, sodass
die Montagelaschen des Access Points am unteren Rand der Längsschlitze
aufsitzen.
7. Befestigen Sie den Access Point an der Wandhalterung, und ziehen Sie die
Daumenschrauben an.
8. Überprüfen Sie, ob der Access Point sicher an der Wandhalterung und an der Wand
angebracht ist.
Deckenmontage eines Access Points (Rasterdecke)
Der Adapter für die Deckenmontage verfügt über zwei ineinander greifende Halterungen. Die
Montagelaschen unten am Access Point passen in die Längsschlitze an der größeren
Halterung. Die unverlierbare Schraube am Access Point wird in das Gewindeloch an der
größeren Haltung geschraubt. Die unverlierbare Schraube an der kleineren Halterung kann je
nach Rastergröße auf zweierlei Weise an der größeren Halterung ausgerichtet werden.
Deckenmontage eines Access Points (Rasterdecke)
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 25
So führen Sie die Deckenmontage eines Access Points an einer Rasterdecke durch:
Procedure
1. Sorgen Sie für eine sichere Arbeitsumgebung. Besorgen Sie sich eine Leiter, die
Zugang zur Rasterdecke ermöglicht.
2. Bestimmen Sie eine geeignete Montageposition an der Rasterdecke, an der die T-
Profile sicher zugänglich sind und die Deckenplatten vorübergehend abgehängt
werden können. Der Adapter für die Deckenmontage wird an den dünneren
Querschienen befestigt, nicht an den dickeren und längeren Haupttrageschienen.
Um ungehindert arbeiten zu können, heben Sie die Deckenplatten mit zwei Stiften
oder Stäben nach oben aus dem Deckenraster. So erhalten Sie einfachen Zugang
zum Befestigen der Halterung.
3. Befestigen Sie die größere Halterung am Deckenraster. Achten Sie dabei auf die
Breite der Schiene, um die richtige Positionierung für die kleinere Halterung zu
bestimmen, die anschließend installiert wird.
4. Montieren Sie die kleinere Halterung so an der größeren, dass sie ineinander
greifen, und klemmen Sie die beiden Halterungen zusammen. Die Montagelaschen
an der kleineren Halterung passen in die Schlitze an der größeren Halterung. So
können die beiden Halterungen sicher arretiert und um die Deckenschiene herum
montiert werden. Wenn Sie die beiden Halterungen richtig miteinander verbunden
haben, passt die unverlierbare Schraube an der kleineren Halterung in das Gewinde
in der größeren Halterung. Sichern Sie die unverlierbare Schraube mit einem
Schraubendreher. Es ist sehr wichtig, die beiden Halterungen auf diese Weise zu
sichern, damit sie sich nicht voneinander lösen. Ziehen Sie die unverlierbare
Schraube fest an.
Deutsch
26 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
5. Befestigen Sie den Access Point an der Halterung. Richten Sie die
Sicherungslaschen am Access Point an den Längsschlitzen an der
Deckenhalterung aus, und schieben Sie den Access Point vorsichtig auf die
montierte Deckenhalterung. Wenn der Access Point richtig auf die Deckenhalterung
aufgesetzt ist, kann die unverlierbare Daumenschraube auf dem Access Point in
das Gewinde an der Deckenhalterung geschraubt werden.
Deckenmontage eines Access Points (Rasterdecke)
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 27
6. Stellen Sie die elektrischen Verbindungen her, und bringen Sie die Deckenplatten
wieder an.
Abdeckung für Ethernet-Port
Sie haben auch die Möglichkeit, den Ethernet-Port und das Ethernet-Kabel mit einer
Abdeckung zu schützen, die Sie am Access Point aufstecken. Um diese optionale Abdeckung
zu befestigen, müssen Sie zunächst die oben liegenden Klemmstücke am oberen Rand des
Gehäuses des Access Points einhaken. Drücken Sie die Abdeckung anschließend in die
Montagelöcher am unteren Rand des Gehäuses des Access Points.
Deutsch
28 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
Sicherheitshinweise
Caution:
Die Frequenzempfänger für den Avaya WLAN Access Point 8120 sind standardmäßig
deaktiviert und können nur von einem Systemadministrator aktiviert werden.
Warning:
Dieser Zustand bzw. diese Bedingung kann zu Verletzungen führen.
Warning:
Hochspannung. Dieser Zustand bzw. diese Bedingung kann aufgrund von Stromschlag zu
Verletzungen führen.
Warning:
Die Installation darf nur von qualifiziertem Wartungspersonal durchgeführt werden. Lesen
Sie alle Warnhinweise und Anweisungen auf dem Gerät bzw. in der Dokumentation.
Warning:
Installieren Sie das Gerät so, dass zwischen den Strahlungselementen und allen Personen
ein Abstand von mindestens 20 cm gewährleistet ist. Diese Sicherheitswarnung entspricht
den FCC-Grenzwerten für Hochfrequenzstrahlung.
Sicherheitshinweise
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 29
Warning:
Setzen Sie den Access Point nicht in der Nähe von ungeschützten Zündkapseln oder in
anderen Umgebungen mit Explosionsgefahr ein, es sei denn, das Gerät wurde von
qualifiziertem Personal für einen solchen Einsatz modifiziert.
Warning:
Berühren oder bewegen Sie den Access Point nicht beim Senden oder Übertragen von
Funksignalen.
Warning:
Informieren Sie sich vor der Verwendung eines Wireless-Geräts in einer
Gefahrenumgebung über regionale und überregionale Vorschriften zu
Nutzungsbeschränkungen sowie die Sicherheitsrichtlinien für den jeweiligen Standort.
Deutsch
30 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
Chapter 4: Español
Al momento de instalar los puntos de acceso WLAN AP 8120 de Avaya, tenga en cuenta el procedimiento
y la información que se presentan a continuación.
Requisitos del cable
Los puertos Ethernet del punto de acceso no admiten cables CAT-5 con terminación de
recubrimiento irregular, como el que se muestra en la siguiente imagen. En caso de usar uno
de estos cables, el conector RJ-45 no encajará bien en la toma del punto de acceso. En su
lugar, utilice cables CAT-5 con terminación de recubrimiento uniforme.
Montaje en la pared de un punto de acceso inalámbrico para
redes LAN
El soporte de montaje está concebido para adosarse a la pared con tacos para pared (también
denominados "tarugos" o "taquetes") cuyas secciones roscadas presenten un diámetro de
entre 3,5 y 4,5 mm. Si los tacos para pared cuentan con diámetros de rosca superiores a
3,5 mm, sólo pueden utilizarse los dos orificios marcados con la letra A. En cambio, si los tacos
cuentan con diámetros de rosca inferiores a 3,5 mm, pueden utilizarse tanto los orificios
marcados con la letra A como los marcados con la letra B. El diámetro de la cabeza de los
tacos no debe exceder los 10 mm; en caso contrario, no podrán pasarse por los orificios del
soporte para la instalación.
A continuación, se presentan los pasos para montar en una pared un punto de acceso
inalámbrico para redes LAN:
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 31
Procedure
1. Encuentre el lugar indicado para poner los tacos. La distancia entre los tacos debe
ser de 95 mm en sentido horizontal y de 80 mm en sentido vertical.
El soporte de pared puede adosarse con un mínimo de 2 tacos y con un máximo
de 4.
2. Cuando llegue el momento de colocar los tornillos en los tacos, no los atornille del
todo: deje un espacio de al menos 2 mm entre la cabeza del tornillo y la pared.
3. Coloque el soporte de pared por sobre las cabezas de los tornillos y muévalo hacia
la derecha (desde la perspectiva de alguien ubicado de frente a la pared).
Español
32 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
4. Termine de ajustar los tornillos hasta que el soporte quede bien sujeto contra la
pared.
5. Alinee las lengüetas de montaje ubicadas en la parte inferior de la caja metálica
del punto de acceso con las ranuras verticales con forma de cerradura del soporte
de montaje.
6. Inserte el punto de acceso y llévelo hacia abajo hasta que las lengüetas de montaje
queden apoyadas en el extremo inferior de las ranuras con forma de cerradura.
7. Asegure el punto de acceso en el soporte de montaje y apriete los tornillos de ajuste
manual.
8. Asegúrese de que el punto de acceso quede bien sujeto tanto al soporte como a
la pared.
Montaje en la pared de un punto de acceso inalámbrico para redes LAN
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 33
Instalación de un punto de acceso con un adaptador para
estructuras de techos desmontables
El adaptador para estructuras de techos desmontables incluye un soporte de dos piezas que
van conectadas entre sí. La pieza más grande tiene ranuras con forma de cerradura que
coinciden con lengüetas ubicadas en la superficie inferior del punto de acceso, además de
contar con un orificio roscado para el tornillo imperdible de ajuste manual del punto de acceso.
La más pequeña también incluye un tornillo imperdible y puede orientarse de dos maneras
distintas con respecto a la pieza de mayor tamaño a fin de adaptarse a estructuras de techos
desmontables angostas y anchas.
Para instalar el punto de acceso con un adaptador para estructuras de techos desmontables,
siga los pasos que se presentan a continuación:
Procedure
1. Tome las medidas necesarias para garantizar la seguridad del lugar de trabajo.
Consiga una escalera que le permita llegar fácilmente a la estructura del techo
desmontable.
2. Localice un lugar adecuado en la estructura del techo desmontable donde pueda
accederse sin correr riesgos a los perfiles en T y donde las placas del cielorraso
puedan levantarse y quitarse momentáneamente del sector de trabajo. El
adaptador sirve para perfiles delgados de techos desmontables, no para los perfiles
más gruesos que se utilizan para cubrir distancias mayores. A fin de poder acceder
al punto de instalación, utilice un par de lápices o palitos para mantener levantadas
las placas del cielorraso de la estructura. De esta manera, resulta fácil llegar con
las manos y las herramientas para sujetar bien el soporte a la estructura.
3. Coloque la pieza más grande en la estructura. Mientras lo hace, fíjese cuál es el
ancho del perfil con objeto de determinar la orientación adecuada de la pieza
pequeña, que debe instalarse a continuación.
Español
34 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
4. Monte la pieza pequeña en la grande y ajuste ambas a la estructura. La pieza
pequeña cuenta con lengüetas que encajan en ranuras ubicadas en la pieza más
grande. Por ende, al poner una contra la otra, ambas piezas quedan conectadas y
se sujetan con firmeza a la estructura del techo desmontable. Si ambas piezas del
adaptador quedaron bien colocadas, el tornillo imperdible de la pieza pequeña tiene
que quedar alineado con el orificio roscado de la pieza grande. Utilice un
destornillador para ajustar el tornillo imperdible. Es muy importante sujetar ambas
piezas del soporte de esta manera para impedir que se suelten. Ajuste bien el
tornillo imperdible.
Instalación de un punto de acceso con un adaptador para estructuras de techos desmontables
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 35
5. Monte el punto de acceso en el soporte. Alinee las lengüetas del punto de acceso
con las ranuras con forma de cerradura del adaptador para estructuras de techos
desmontables e inserte con cuidado el punto de acceso en el adaptador. Si tanto
el punto de acceso como el adaptador están bien colocados, el tornillo imperdible
de ajuste manual del punto de acceso tiene que coincidir con la lengüeta roscada
del adaptador para estructuras de techos desmontables. Ajústelo.
6. Realice las conexiones eléctricas necesarias y vuelva a colocar las placas del
cielorraso.
Cubierta del puerto Ethernet
Usted puede elegir colocar una cubierta desmontable para proteger el puerto Ethernet y el
cable Ethernet añadido al punto de acceso. Para agregar esta cubierta opcional, enganche
los clips superiores en el borde superior del compartimiento del punto de acceso. Cierre a
presión la cubierta en los orificios de montaje del borde inferior del compartimiento del punto
de acceso.
Español
36 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
Advertencias de seguridad
Caution:
Las radios del punto de acceso WLAN 8120 de Avaya se encuentran desactivadas de
manera predeterminada, y sólo puede activarlas un administrador de sistemas.
Warning:
Esta situación o estado puede provocar lesiones.
Warning:
Alta tensión. Esta situación o estado puede provocar lesiones por descarga eléctrica.
Warning:
La instalación debe dejarse en manos de personal de servicio técnico especializado. Lea y
respete todas las advertencias de seguridad e instrucciones que figuren en el producto o
en la documentación pertinente.
Warning:
Instale este dispositivo de modo que quede una separación de como mínimo 20 cm
(7,9 pulg.) entre las personas y todo lo que emita señales de radiofrecuencia. Esta
advertencia de seguridad se ajusta a los límites de exposición a señales de radiofrecuencia
que dicta la FCC.
Advertencias de seguridad
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 37
Warning:
No utilice el punto de acceso cerca de detonadores sin blindaje ni en ningún tipo de lugar
en que exista riesgo de explosión a menos que personal especializado haya adaptado el
dispositivo para dicho fin.
Warning:
No toque ni mueva el punto de acceso cuando las antenas estén transmitiendo o recibiendo
información.
Warning:
Antes de utilizar un dispositivo inalámbrico en un entorno peligroso, familiarícese con las
normativas locales y nacionales, y consulte al encargado de seguridad del lugar para estar
al tanto de los usos permitidos.
Español
38 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
Chapter 5: Français
Utilisez les procédures et informations suivantes lors de l'installation des points d'accès WLAN AP 8120
d'Avaya.
Configuration requise pour les câbles
Les câbles CAT-5 dotés d'une gaine irrégulière, comme illustré ci-dessous, ne sont pas
adaptés aux ports Ethernet du point d'accès. Sur ce type de câble, le connecteur RJ-45 ne
s'insère pas correctement dans le logement du point d'accès. Utilisez plutôt un câble CAT-5
doté d'une gaine régulière.
Montage mural du point accès WLAN
Le support de montage est conçu pour utiliser des dispositifs d'ancrage au mur équipés de
diamètres de filetage de sections allant de 3,5 à 4,5 mm. Si le diamètre de filetage des
dispositifs d'ancrage au mur est supérieur à 3,5 mm, seuls les deux trous de montage marqués
par la lettre A peuvent être utilisés. Si le diamètre de filetage des dispositifs d'ancrage au mur
est inférieur à 3,5 mm, les trous marqués par les lettres A et B peuvent être utilisés. Tous les
dispositifs d'ancrage au mur doivent posséder un diamètre de tête inférieur à 10 mm, sinon ils
ne peuvent pas prendre en charge l'installation du support de montage mural.
Pour monter un point d'accès WLAN sur un mur, procédez comme suit :
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 39
Procedure
1. Localisez l'emplacement adéquat pour les dispositifs d'ancrage au mur. Les
dispositifs d'ancrage au mur doivent être écartés de 95 mm horizontalement et
80 mm verticalement.
Le support mural est conçu pour utiliser entre 2 et 4 dispositifs d'ancrage.
2. Insérez les vis dans les dispositifs d'ancrage au mur sans les serrer complètement :
laissez un espace de 2 mm au moins entre la tête de la vis et le mur.
3. Glissez le support mural sur les têtes des vis, puis faites-le glisser vers la droite (en
regardant le mur).
Français
40 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
4. Serrez les vis afin de fixer solidement le support de montage mural au mur.
5. Alignez les languettes de montage de la partie inférieure du boîtier en tôle du point
d'accès avec les encoches en trous de serrure du support de montage, orientées
à la verticale.
6. Faites glisser le point d'accès dans les encoches en trous de serrure en veillant à
ce que ses languettes de montage soient correctement installées dans la partie
inférieure des encoches.
7. Fixez solidement le point d'accès au support de montage mural et serrez les vis.
8. Vérifiez que le point d'accès est solidement fixé au support et au mur.
Installation du point accès avec un adaptateur pour grille de
plafond
L'adaptateur pour grille de plafond est fourni avec deux pièces de support croisées. Le grand
support est doté d'encoches en trous de serrure, adaptées aux languettes situées sur la face
Installation du point accès avec un adaptateur pour grille de plafond
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 41
inférieure du point d'accès, et d'un trou taraudé adapté à la vis captive du point d'accès. Le
petit support est également doté d'une fixation captive et peut être orienté dans deux directions
différentes par rapport au grand support, s'adaptant ainsi aux grilles de plafond étroites ou
larges.
Pour installer le point d'accès avec un adaptateur pour grille de plafond, procédez comme suit :
Procedure
1. Sécurisez votre environnement de travail. Munissez-vous d'une échelle afin
d'accéder facilement à la grille de plafond.
2. Déterminez un emplacement approprié sur la grille de plafond où les barres en T
sont accessibles en toute sécurité et où les dalles de plafond peuvent être
temporairement soulevées et retirées de l'espace de travail. Le dispositif
d'adaptateur de support est conçu pour être utilisé avec les coulisseaux de la grille
de la section fine et non avec ceux de la section plus épaisse, conçus pour le
croisement des grandes travées. Afin de disposer d'espace pour vos mains et vos
outils, utilisez des crayons ou des bâtonnets pour maintenir les dalles de plafond
éloignées de la grille. Ainsi, vous bénéficiez d'une large ouverture pour fixer le
support à la grille.
3. Montez le grand support sur la grille. Lors de l'installation, prêtez attention à la
largeur du lattis afin de déterminer l'orientation appropriée pour l'installation du petit
support à l'étape suivante.
4. Montez le petit support croisé sur le grand support et serrez les deux éléments
ensemble sur la grille. Le petit support est doté de languettes qui dans lesquelles
s'insèrent les encoches du grand support. Ainsi, les deux éléments glissent
Français
42 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
simultanément et sont maintenus l'un contre l'autre. Une fois cette action effectuée,
les deux supports sont resserrés sur la grille de plafond. Lorsque les deux moitiés
du support coulissent correctement l'une contre l'autre, les filets du grand support
doivent s'insérer dans la fixation captive du petit support. Utilisez un tournevis pour
serrer la fixation captive. Il est indispensable de fixer les deux supports de cette
manière afin d'éviter qu'ils ne se détachent l'un de l'autre. Serrez solidement la vis
de la fixation captive.
5. Fixez le point d'accès au support. Alignez les languettes de fixation du point d'accès
avec les encoches en trous de serrure du support de la grille de plafond, puis faites
glisser le point d'accès sur le dispositif de support de la grille de plafond avec soin.
Si le point d'accès et le système de support sont correctement rattachés, il doit être
possible d'insérer la vis captive du point d'accès dans la languette filetée du support
de la grille de plafond.
Installation du point accès avec un adaptateur pour grille de plafond
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 43
6. Effectuez les raccordements électriques et remettez les dalles de plafond en
place.
Couvercle du port Ethernet
Vous avez la possibilité de fixer un couvercle clipsable pour protéger le port Ethernet et le
câble Ethernet raccordé au point d'accès. Pour fixer ce couvercle, positionnez les crochets
situés en haut du couvercle au-dessus du port du point d'accès. Clipsez le couvercle dans les
trous de fixation situés en dessous du port du point d'accès.
Français
44 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
Messages de sécurité
Caution:
Les radios des points d'accès WLAN 8120 d'Avaya sont désactivés par défaut et peuvent
uniquement être activés par un administrateur système.
Warning:
Cette situation ou condition peut provoquer des blessures.
Warning:
Tension élevée. Cette situation ou condition peut provoquer des blessures en cas
d'électrocution.
Warning:
Seul le personnel de service qualifié est autorisé à effectuer l'installation. Lisez
attentivement et respectez toutes les notes d'avertissement et instructions figurant sur le
produit ou dans la documentation.
Warning:
Installez l'appareil en veillant à conserver une distance d'au moins 20 cm entre les éléments
rayonnants et les personnes. Cet avertissement de sécurité est conforme aux limites
d'exposition définies par la norme FCC relative aux fréquences radio.
Messages de sécurité
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 45
Warning:
N'utilisez pas ce point d'accès à proximité de détonateurs non blindés ou dans d'autres
environnements où des risques d'explosion existent, sauf si l'appareil a été modifié pour
une telle utilisation par une personne qualifiée.
Warning:
Ne touchez pas et ne déplacez pas le point d'accès lorsque les antennes sont en cours de
transmission ou de réception.
Warning:
Avant d'utiliser un périphérique sans fil sur un site dangereux, consultez les réglementations
locales et nationales et interrogez les responsables de la sécurité du site afin de connaître
les contraintes d'utilisation.
Français
46 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
Chapter 6: Português do Brasil
Use os seguintes procedimentos e informações ao instalar os pontos de acesso do Avaya WLAN AP
8120.
Requisitos de cabo
As portas Ethernet no ponto de acesso não podem aceitar um cabo CAT-5 com um
revestimento irregular como mostrado abaixo. O conector RJ-45 do cabo não se ajustará
adequadamente ao receptáculo no ponto de acesso. Em vez disso, use um cabo CAT-5 com
um revestimento uniforme.
Instalando um ponto de acesso LAN sem fio em uma
parede
O suporte de montagem foi projetado para usar fixadores com diâmetros de seção
aparafusados entre 3,5 mm e 4,5 mm. Se os fixadores tiverem diâmetros aparafusados
maiores de 3,5 mm, somente os dois furos marcados "A" poderão ser usados. Se os fixadores
tiverem diâmetros menores de 3,5 mm, os furos marcados "A" e "B" poderão ser usados.
Todos os fixadores de parede devem ter um diâmetro de cabeça menor de 10 mm ou não será
possível instalar o suporte de montagem sobre eles.
Execute o seguinte procedimento para instalar um ponto de acesso LAN sem fio em uma
parede:
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 47
Procedure
1. Localize a posição apropriada dos fixadores. Os fixadores devem ficar distantes
aproximadamente 95 mm horizontalmente e 80 mm verticalmente.
O suporte de parede foi projetado para usar um mínimo de 2 fixadores e um máximo
de 4.
2. Instale os parafusos nos fixadores , mas não os ajuste completamente. Deixe uma
folga de pelo menos 2 mm entre a cabeça do parafuso e a parede.
3. Deslize o suporte de parede sobre as cabeças dos parafusos e escorregue-o para
a direita, voltado para a parede.
Português do Brasil
48 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
4. Aperte os parafusos para segurar com firmeza o suporte de montagem contra a
parede.
5. Alinhe as presilhas de montagem na parte inferior do invólucro de metal do ponto
de acesso com os slots do suporte de montagem orientados verticalmente.
6. Permita que os pontos de acesso passem pelos slots, assegurando que as
presilhas estejam fixadas na parte inferior do slot.
7. Prenda o ponto de acesso ao suporte de montagem e ajuste os parafusos.
8. Verifique se os pontos de acesso estão fixos no suporte e na parede.
Instalando um ponto de acesso com um adaptador de grade
de teto
O adaptador de grade de teto vem com duas peças de travamento de suporte. A peça maior
inclui slots moldados que se encaixam às presilhas na superfície inferior do AP (Painel de
acesso) e um orifício aparafusado que se encaixa a um parafuso cativo no AP. A peça menor
Instalando um ponto de acesso com um adaptador de grade de teto
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 49
inclui também um prendedor cativo e pode ser orientado com relação à peça maior de duas
maneiras diferentes, de acordo com grades de teto mais amplas ou mais estreitas.
Execute o seguinte procedimento para instalar o ponto de acesso com um adaptador de grade
de teto:
Procedure
1. Garanta a segurança do ambiente de trabalho. Utilize uma escada que permita fácil
acesso ao sistema de grade de teto.
2. Identifique um local apropriado na grade onde as barras T sejam acessíveis de
forma segura e onde o revestimento do teto possa ser temporariamente suspenso
e tirado da área de trabalho. O conjunto de adaptador é para ser usado com
deslizadores de grade de seção mais finos, não os mais grossos, usados para
atravessar grandes extensões. Para fornecer acesso às mãos e às ferramentas,
use pincéis ou varetas para afastar o revestimento da grade. Isso garantirá acesso
fácil para prender o suporte à grade.
3. Instale o suporte maior na grade. Durante a instalação, preste atenção à largura
da tira da grade para determinar a orientação apropriada do suporte menor
instalado na sequência.
4. Instale o suporte de travamento menor sobre o suporte maior e acople as duas
peças à grade. O suporte menor contém presilhas moldadas que prendem os slots
à presilha maior. Isso permite que as duas partes deslizem juntas e se fixem uma
à outra. Quando isso é feito, os dois suportes se juntam em volta da grade de teto.
Quando as duas partes do suporte deslizam juntas corretamente, o prendedor
cativo do suporte menor deve se ajustar aos fios do suporte maior. Use uma chave
Português do Brasil
50 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
de fenda para ajustar o prendedor cativo. Prender os dois suportes dessa maneira
é essencial para evitar que se soltem. Ajuste firmemente o prendedor cativo.
5. Prenda o ponto de acesso ao suporte. Alinhe as presilhas de segurança do ponto
de acesso aos slots no suporte e deslize cuidadosamente o ponto de acesso no
conjunto de suporte de grade de teto. Se o ponto de acesso e o conjunto de suporte
forem acoplados corretamente, o parafuso cativo dos pontos de acesso deverá se
ajustar à presilha fornecida no suporte da grade de teto.
Instalando um ponto de acesso com um adaptador de grade de teto
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 51
6. Faça as conexões elétricas e coloque o revestimento do teto no lugar.
Tampa da porta Ethernet
Você pode optar por prender uma tampa com clipe para proteger a porta Ethernet e o cabo
Ethernet ligado ao ponto de acesso. Para prender essa tampa opcional, enganche os clipes
ao longo da borda superior da carcaça do ponto de acesso. Encaixe a tampa nos furos de
montagem na borda inferior da carcaça do ponto de acesso.
Português do Brasil
52 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
Mensagens de segurança
Caution:
Os rádios do ponto de acesso WLAN 8120 da Avaya são desativados por padrão e só
podem ser ativados pelo administrador do sistema.
Warning:
Esta situação ou condição pode causar danos.
Warning:
Alta voltagem. Esta situação ou condição pode causar dano por choque elétrico.
Warning:
Somente pessoas qualificadas devem realizar a instalação. Leia e siga todas as instruções
e advertências marcadas no produto ou incluídas na documentação.
Warning:
Instale este dispositivo de forma a manter um mínimo de 20 cm (7,9 polegadas) de distância
entre os elementos de radiação e todas as pessoas. Este aviso de segurança está de acordo
com os limites de exposição à frequência de rádio da FCC.
Warning:
Não opere o ponto de acesso próximo a pontos de sobrecarga desprotegidos nem em outro
ambiente com risco de explosão a menos que o dispositivo tenha sido modificado para tal
uso por pessoal qualificado.
Mensagens de segurança
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 53
Warning:
Não toque nem mova o ponto de acesso quando as antenas estiverem transmitindo ou
recebendo.
Warning:
Antes de usar um dispositivo sem fio em um local perigoso, consulte os códigos locais,
nacionais e os responsáveis pela segurança do local para obter informações sobre
restrições de uso.
Português do Brasil
54 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 55
Chapter 7: Simplified Chinese
Chinese
Simplified Chinese
56 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
Chinese
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 57
Simplified Chinese
58 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
Chinese
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 59
Simplified Chinese
60 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
Chinese
Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011 61
Simplified Chinese
62 Avaya WLAN 8100 Regulatory Information - WLAN AP 8120 October 2011
Comments? infodev@avaya.com
