Benq MP780ST Digital Projector User Manual MP780 ST MW860USTi en

Benq Corporation Digital Projector MP780 ST MW860USTi en

UserMan_JVPMP780ST 3

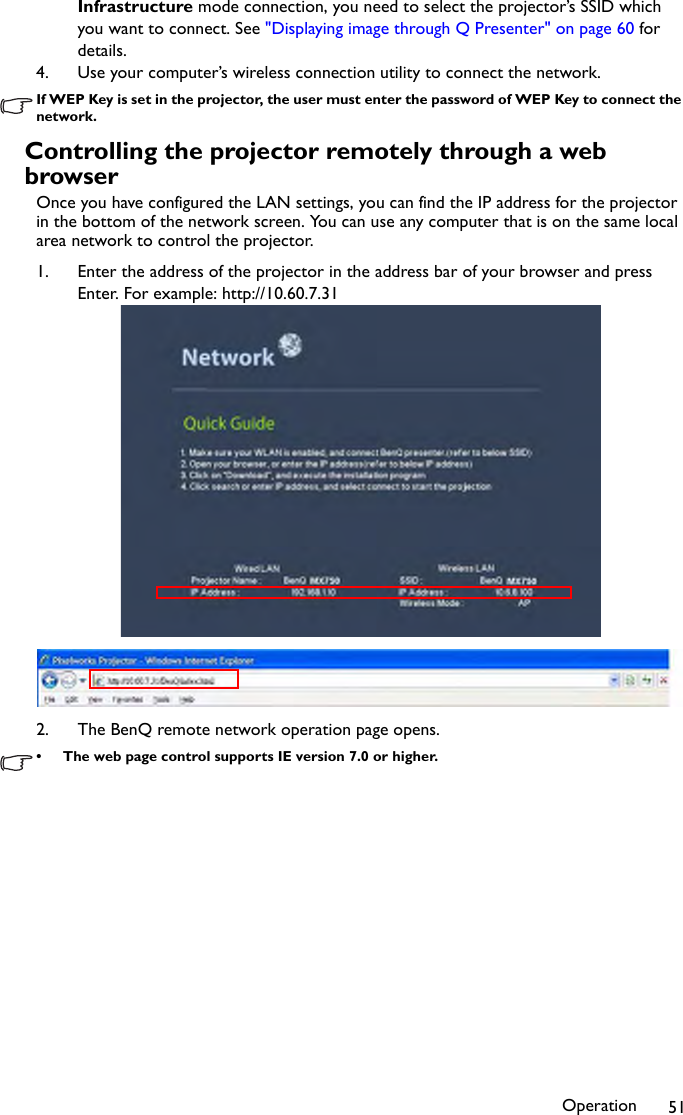

Operation 51Infrastructure mode connection, you need to select the projector’s SSID which you want to connect. See "Displaying image through Q Presenter" on page 60 for details.4. Use your computer’s wireless connection utility to connect the network.If WEP Key is set in the projector, the user must enter the password of WEP Key to connect the network.Controlling the projector remotely through a web browserOnce you have configured the LAN settings, you can find the IP address for the projector in the bottom of the network screen. You can use any computer that is on the same local area network to control the projector.1. Enter the address of the projector in the address bar of your browser and press Enter. For example: http://10.60.7.312. The BenQ remote network operation page opens.• The web page control supports IE version 7.0 or higher.
Operation52• The illustrations in web page control, Q Presenter and USB Reader sections are for the purpose of explanation and may differ from the actual design of your projector.3. Click Download to save Q Presenter software on your computer.You can also link to the web page control from Q Presenter > Settings > Advanced Setting > Control projector via web page on page 63. 4. Execute the program installation.5. Open Q Presenter, search and connect a network display. See "Displaying image through Q Presenter" on page 60 for details.The Virtual Keypad page allows you to operate the projector as if you were using the remote control or control panel on the projector. ii

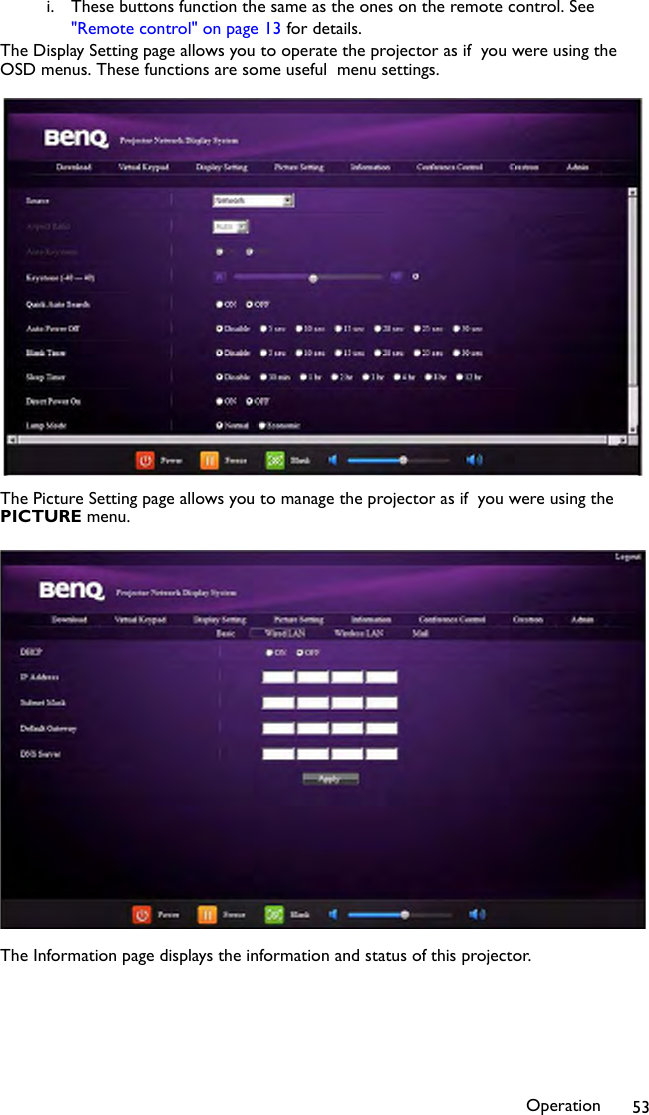

Operation 53i. These buttons function the same as the ones on the remote control. See "Remote control" on page 13 for details.The Display Setting page allows you to operate the projector as if you were using the OSD menus. These functions are some useful menu settings.The Picture Setting page allows you to manage the projector as if you were using the PICTURE menu.The Information page displays the information and status of this projector.

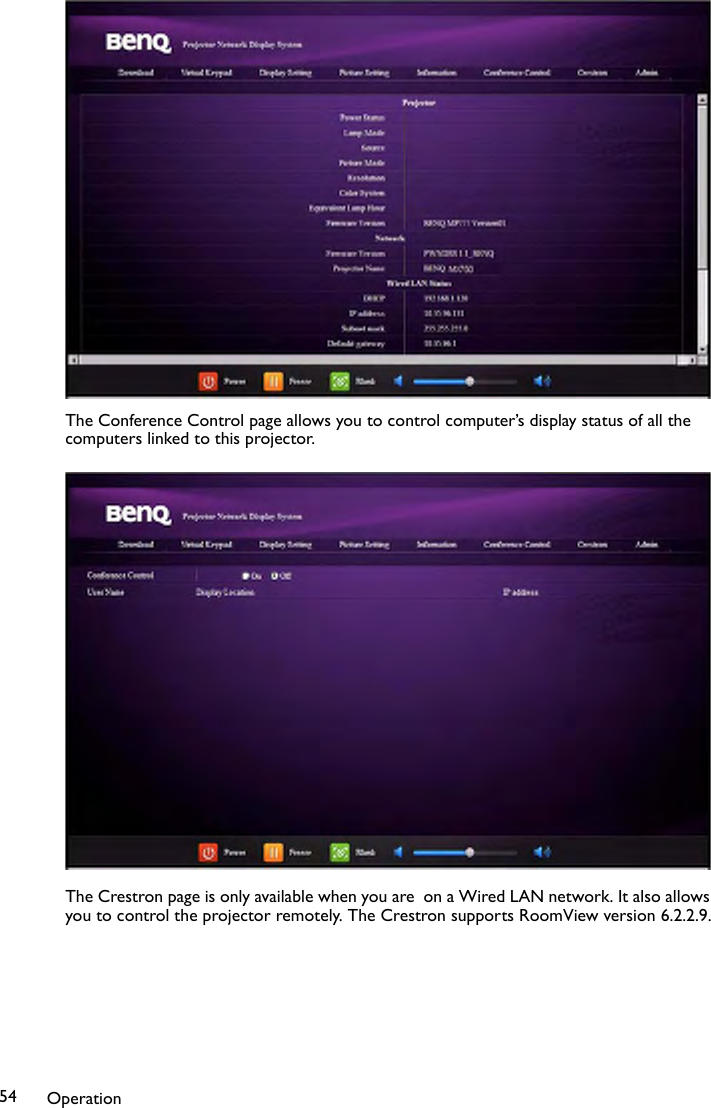

Operation54The Conference Control page allows you to control computer’s display status of all the computers linked to this projector.The Crestron page is only available when you are on a Wired LAN network. It also allows you to control the projector remotely. The Crestron supports RoomView version 6.2.2.9.

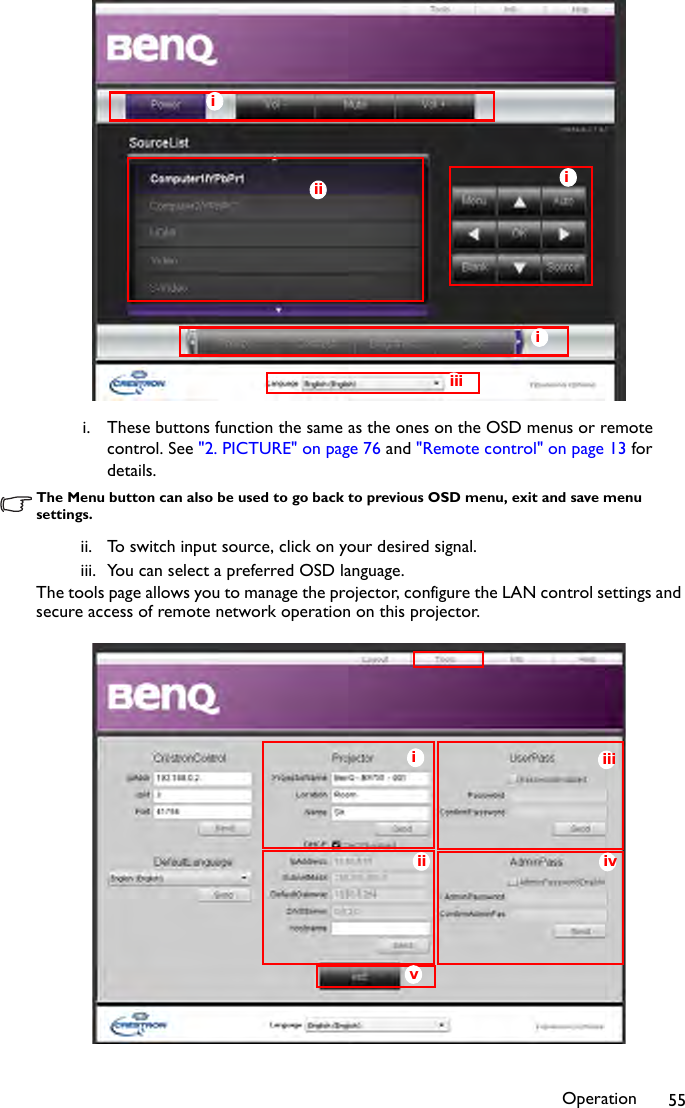

Operation 55i. These buttons function the same as the ones on the OSD menus or remote control. See "2. PICTURE" on page 76 and "Remote control" on page 13 for details.The Menu button can also be used to go back to previous OSD menu, exit and save menu settings.ii. To switch input source, click on your desired signal.iii. You can select a preferred OSD language.The tools page allows you to manage the projector, configure the LAN control settings and secure access of remote network operation on this projector.iiiiiiiiiiiii ivvi

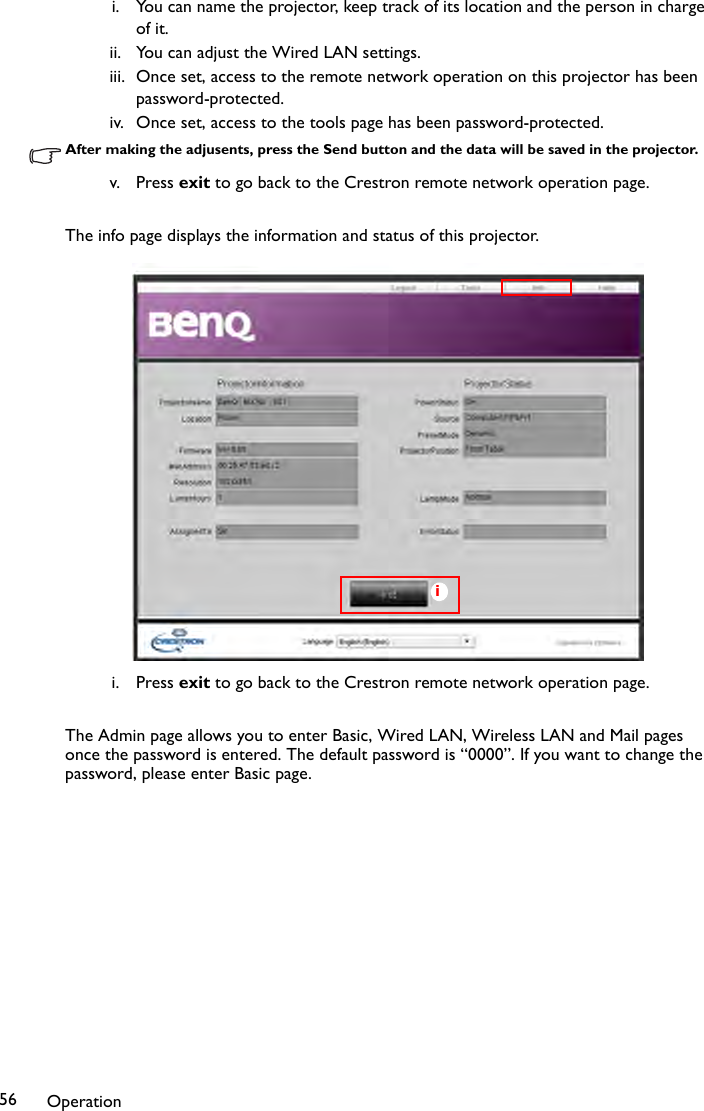

Operation56i. You can name the projector, keep track of its location and the person in charge of it.ii. You can adjust the Wired LAN settings.iii. Once set, access to the remote network operation on this projector has been password-protected.iv. Once set, access to the tools page has been password-protected.After making the adjusents, press the Send button and the data will be saved in the projector.v. Press exit to go back to the Crestron remote network operation page.The info page displays the information and status of this projector.i. Press exit to go back to the Crestron remote network operation page.The Admin page allows you to enter Basic, Wired LAN, Wireless LAN and Mail pages once the password is entered. The default password is “0000”. If you want to change the password, please enter Basic page.i
Operation 57The Basic page allows you to change the password and select connected persons. The number of connected persons may affect the network display performance.

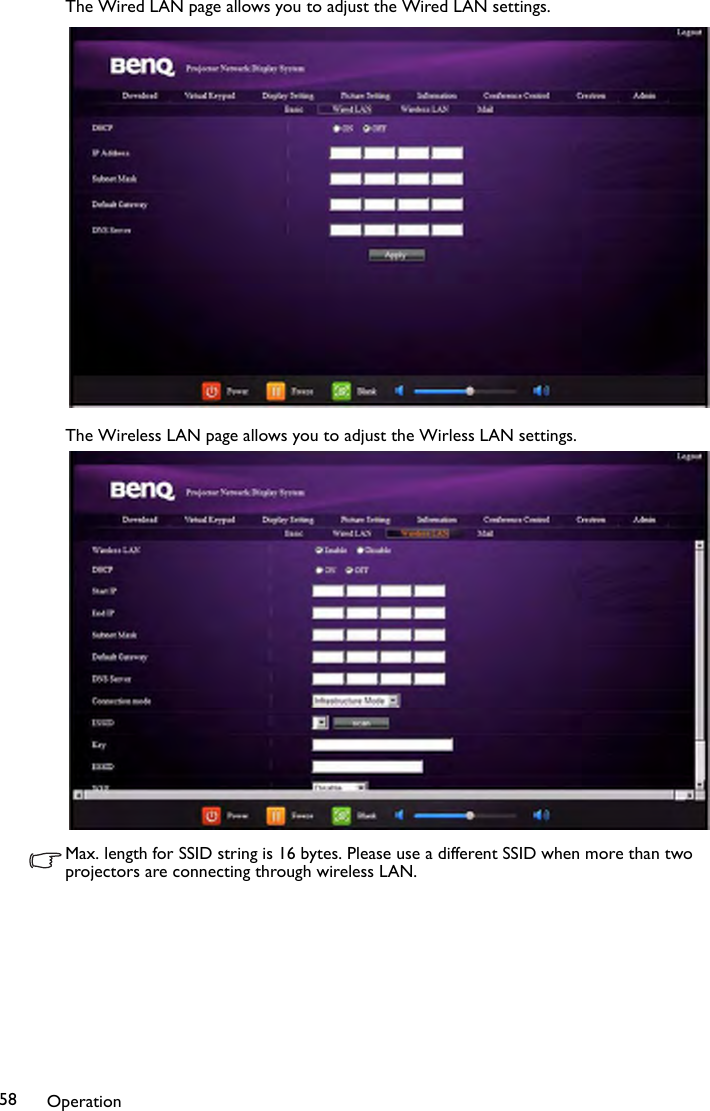

Operation58The Wired LAN page allows you to adjust the Wired LAN settings.The Wireless LAN page allows you to adjust the Wirless LAN settings.Max. length for SSID string is 16 bytes. Please use a different SSID when more than two projectors are connecting through wireless LAN.

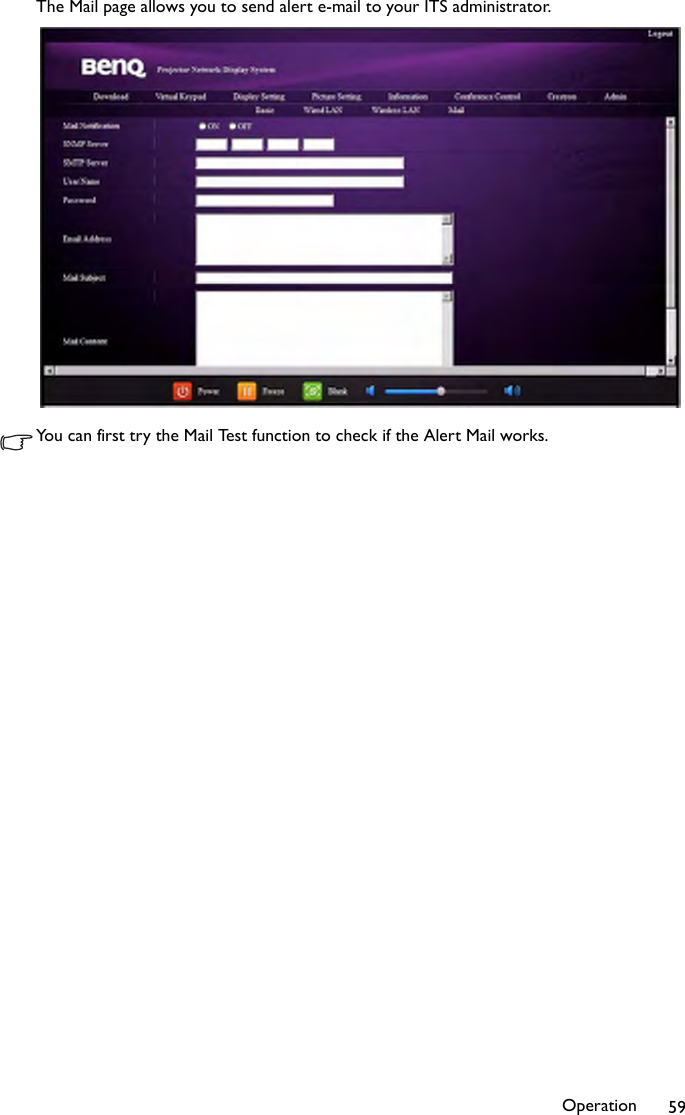

Operation 59The Mail page allows you to send alert e-mail to your ITS administrator.You can first try the Mail Test function to check if the Alert Mail works.

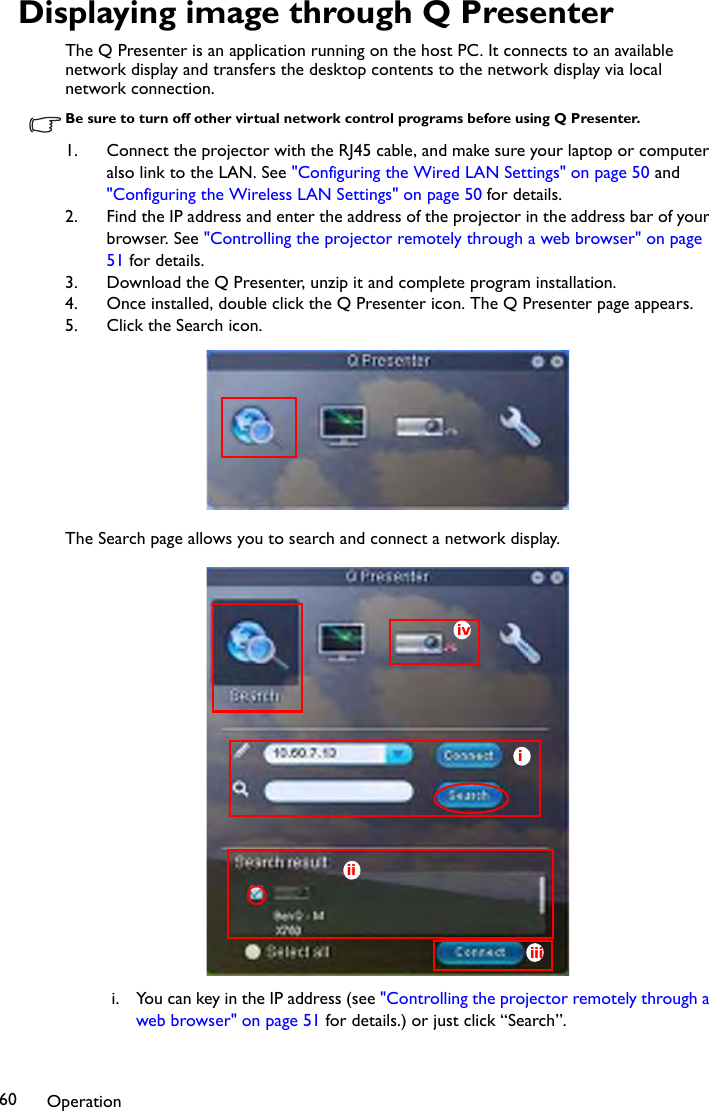

Operation60Displaying image through Q PresenterThe Q Presenter is an application running on the host PC. It connects to an available network display and transfers the desktop contents to the network display via local network connection.Be sure to turn off other virtual network control programs before using Q Presenter.1. Connect the projector with the RJ45 cable, and make sure your laptop or computer also link to the LAN. See "Configuring the Wired LAN Settings" on page 50 and "Configuring the Wireless LAN Settings" on page 50 for details.2. Find the IP address and enter the address of the projector in the address bar of your browser. See "Controlling the projector remotely through a web browser" on page 51 for details. 3. Download the Q Presenter, unzip it and complete program installation.4. Once installed, double click the Q Presenter icon. The Q Presenter page appears.5. Click the Search icon.The Search page allows you to search and connect a network display.i. You can key in the IP address (see "Controlling the projector remotely through a web browser" on page 51 for details.) or just click “Search”.iiiiiiiv
Operation 61ii. Projectors linked in the LAN will be found. Then select the projector you want to link.iii. Click “Connect”. Then you should be able to see the image on projector.iv. You can click to disconnect all connected projectors..The Special Feature page allows you to have some advanced functions to manage the display image on your projector.i. Full Screen: whole image display on the projector. Selectable: a square will pop-up then you can move and drag the area you want to show the audience.iiiiii

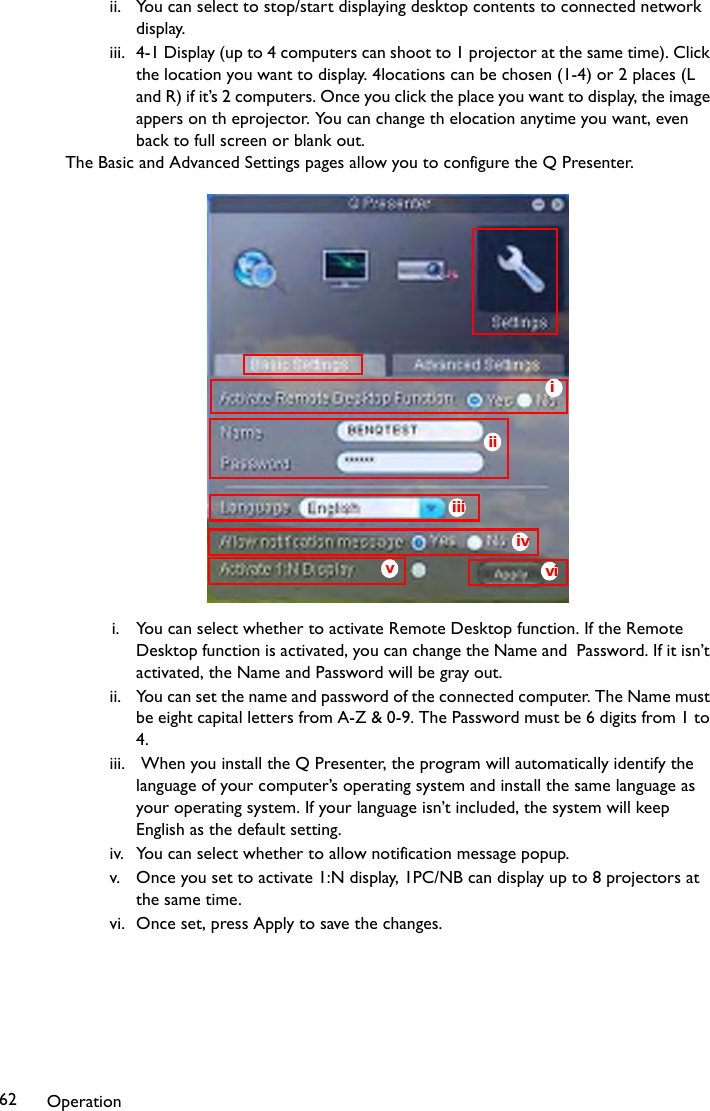

Operation62ii. You can select to stop/start displaying desktop contents to connected network display.iii. 4-1 Display (up to 4 computers can shoot to 1 projector at the same time). Click the location you want to display. 4locations can be chosen (1-4) or 2 places (L and R) if it’s 2 computers. Once you click the place you want to display, the image appers on th eprojector. You can change th elocation anytime you want, even back to full screen or blank out.The Basic and Advanced Settings pages allow you to configure the Q Presenter.i. You can select whether to activate Remote Desktop function. If the Remote Desktop function is activated, you can change the Name and Password. If it isn’t activated, the Name and Password will be gray out. ii. You can set the name and password of the connected computer. The Name must be eight capital letters from A-Z & 0-9. The Password must be 6 digits from 1 to 4.iii. When you install the Q Presenter, the program will automatically identify the language of your computer’s operating system and install the same language as your operating system. If your language isn’t included, the system will keep English as the default setting.iv. You can select whether to allow notification message popup.v. Once you set to activate 1:N display, 1PC/NB can display up to 8 projectors at the same time.vi. Once set, press Apply to save the changes.iviiiiiivvi

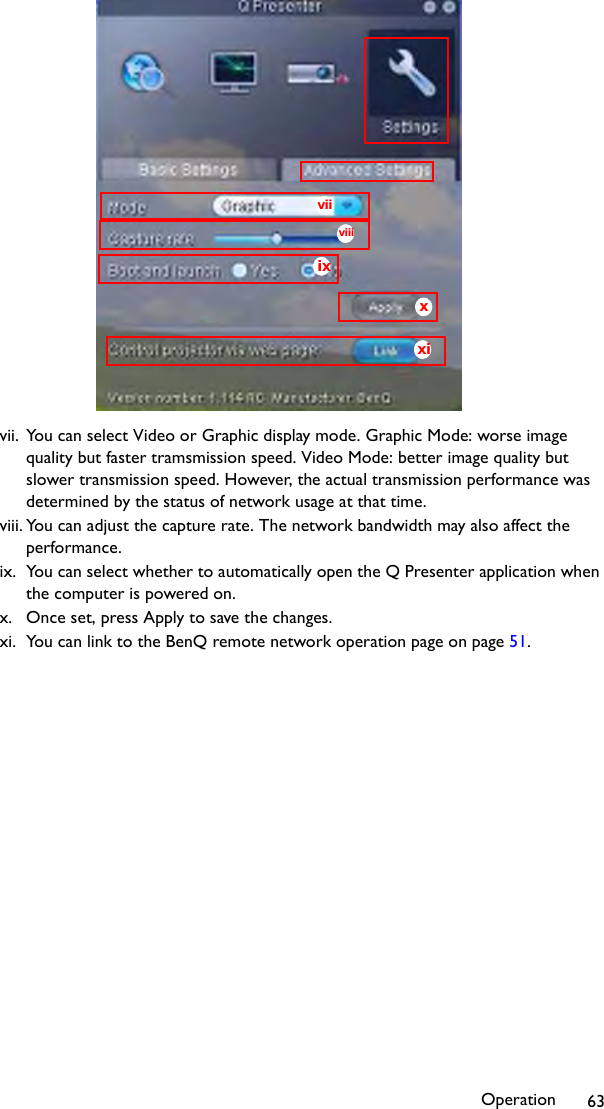

Operation 63vii. You can select Video or Graphic display mode. Graphic Mode: worse image quality but faster tramsmission speed. Video Mode: better image quality but slower transmission speed. However, the actual transmission performance was determined by the status of network usage at that time.viii. You can adjust the capture rate. The network bandwidth may also affect the performance.ix. You can select whether to automatically open the Q Presenter application when the computer is powered on.x. Once set, press Apply to save the changes.xi. You can link to the BenQ remote network operation page on page 51.ixxxiviiviii

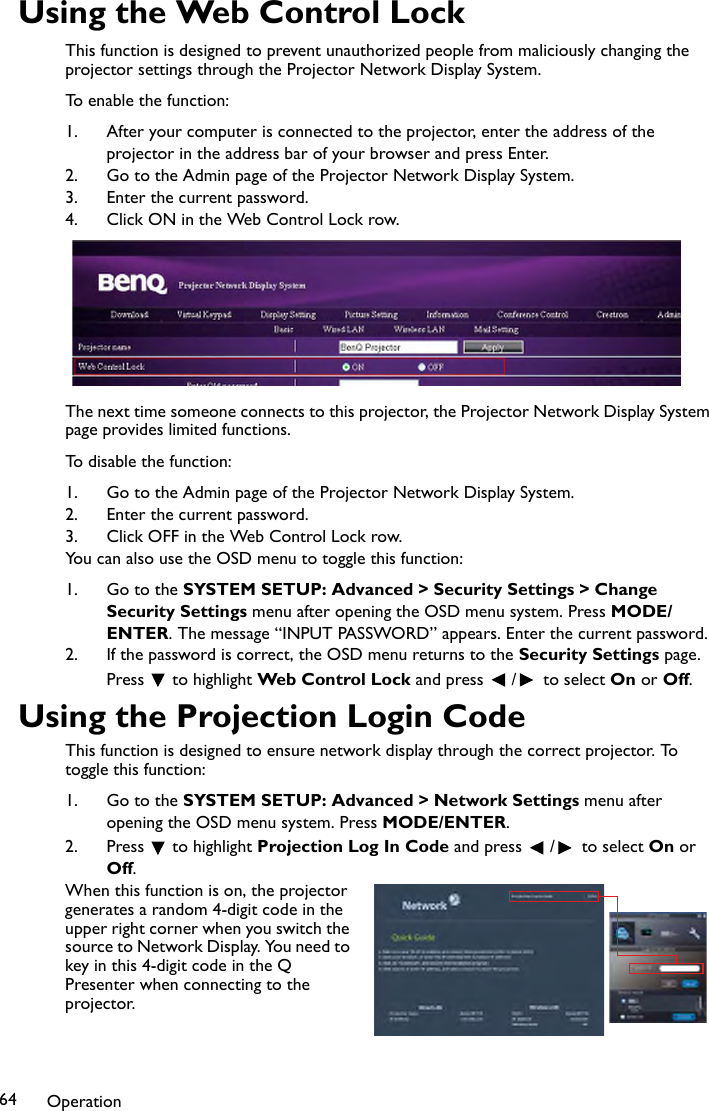

Operation64Using the Web Control LockThis function is designed to prevent unauthorized people from maliciously changing the projector settings through the Projector Network Display System. To enable the function:1. After your computer is connected to the projector, enter the address of the projector in the address bar of your browser and press Enter.2. Go to the Admin page of the Projector Network Display System.3. Enter the current password.4. Click ON in the Web Control Lock row.The next time someone connects to this projector, the Projector Network Display System page provides limited functions.To disable the function:1. Go to the Admin page of the Projector Network Display System.2. Enter the current password.3. Click OFF in the Web Control Lock row.You can also use the OSD menu to toggle this function:1. Go to the SYSTEM SETUP: Advanced > Security Settings > Change Security Settings menu after opening the OSD menu system. Press MODE/ENTER. The message “INPUT PASSWORD” appears. Enter the current password.2. If the password is correct, the OSD menu returns to the Security Settings page. Press to highlight Web Control Lock and press / to select On or Off.Using the Projection Login CodeThis function is designed to ensure network display through the correct projector. To toggle this function:1. Go to the SYSTEM SETUP: Advanced > Network Settings menu after opening the OSD menu system. Press MODE/ENTER.2. Press to highlight Projection Log In Code and press / to select On or Off.When this function is on, the projector generates a random 4-digit code in the upper right corner when you switch the source to Network Display. You need to key in this 4-digit code in the Q Presenter when connecting to the projector.

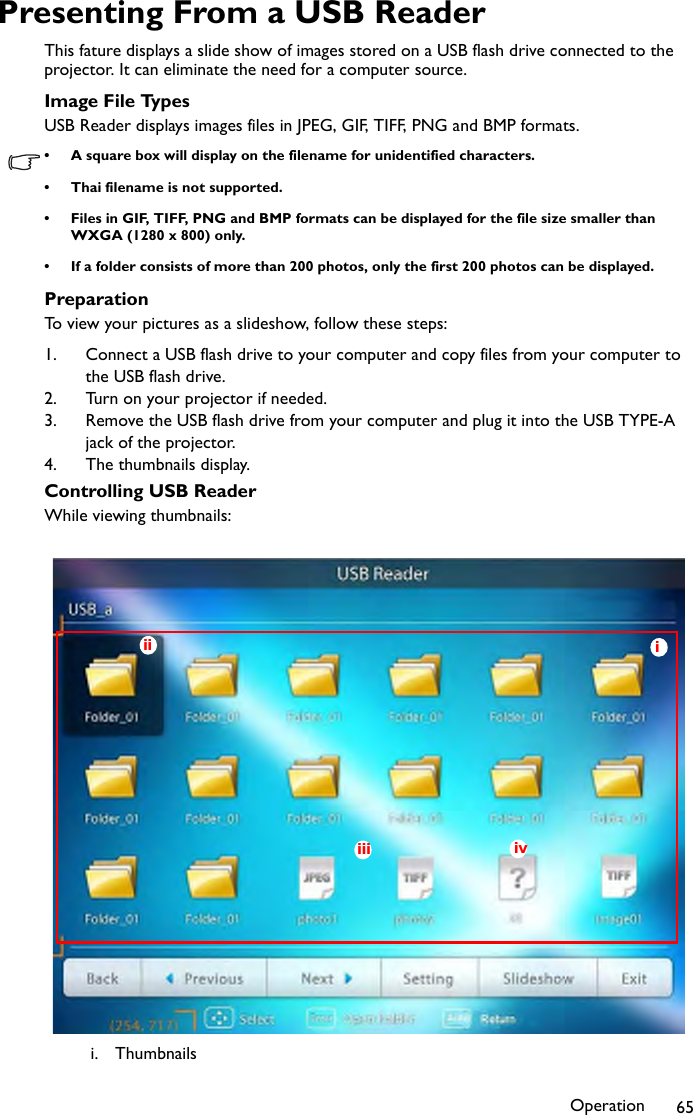

Operation 65Presenting From a USB ReaderThis fature displays a slide show of images stored on a USB flash drive connected to the projector. It can eliminate the need for a computer source.Image File TypesUSB Reader displays images files in JPEG, GIF, TIFF, PNG and BMP formats.• A square box will display on the filename for unidentified characters.• Thai filename is not supported.• Files in GIF, TIFF, PNG and BMP formats can be displayed for the file size smaller than WXGA (1280 x 800) only.• If a folder consists of more than 200 photos, only the first 200 photos can be displayed. PreparationTo view your pictures as a slideshow, follow these steps:1. Connect a USB flash drive to your computer and copy files from your computer to the USB flash drive.2. Turn on your projector if needed.3. Remove the USB flash drive from your computer and plug it into the USB TYPE-A jack of the projector.4. The thumbnails display.Controlling USB ReaderWhile viewing thumbnails:i. Thumbnailsiiii ivii

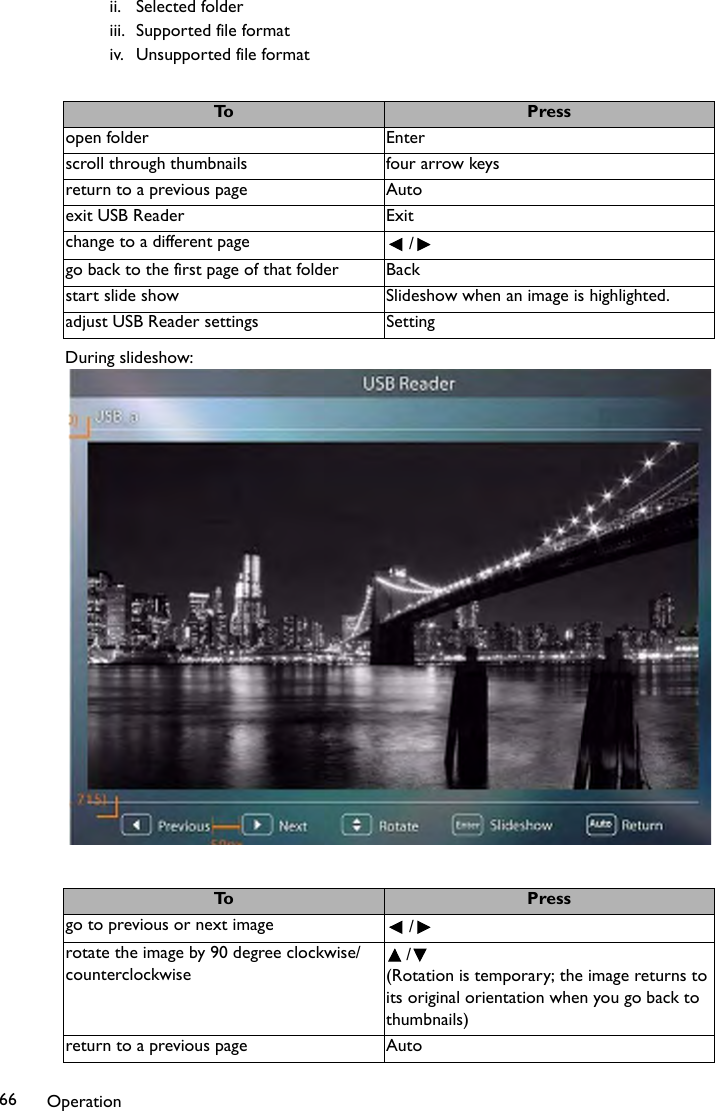

Operation66ii. Selected folderiii. Supported file formativ. Unsupported file formatDuring slideshow:To Pressopen folder Enterscroll through thumbnails four arrow keysreturn to a previous page Autoexit USB Reader Exitchange to a different page / go back to the first page of that folder Backstart slide show Slideshow when an image is highlighted.adjust USB Reader settings SettingTo Pressgo to previous or next image / rotate the image by 90 degree clockwise/counterclockwise/(Rotation is temporary; the image returns to its original orientation when you go back to thumbnails)return to a previous page Auto

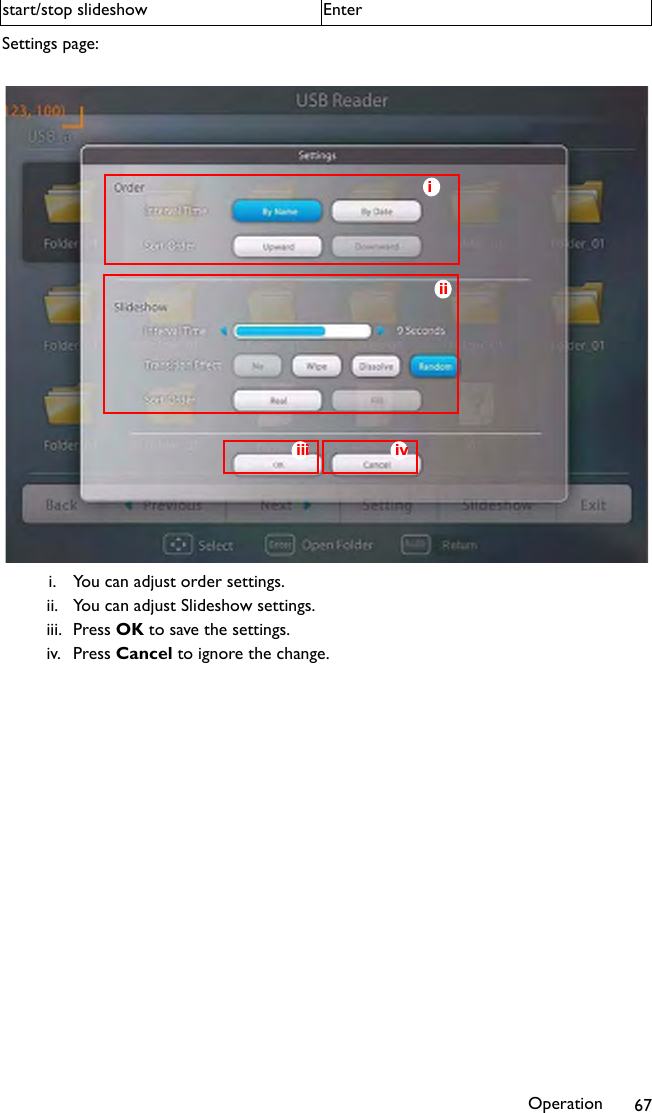

Operation 67Settings page:i. You can adjust order settings.ii. You can adjust Slideshow settings.iii. Press OK to save the settings.iv. Press Cancel to ignore the change.start/stop slideshow Enteriiiii ivi

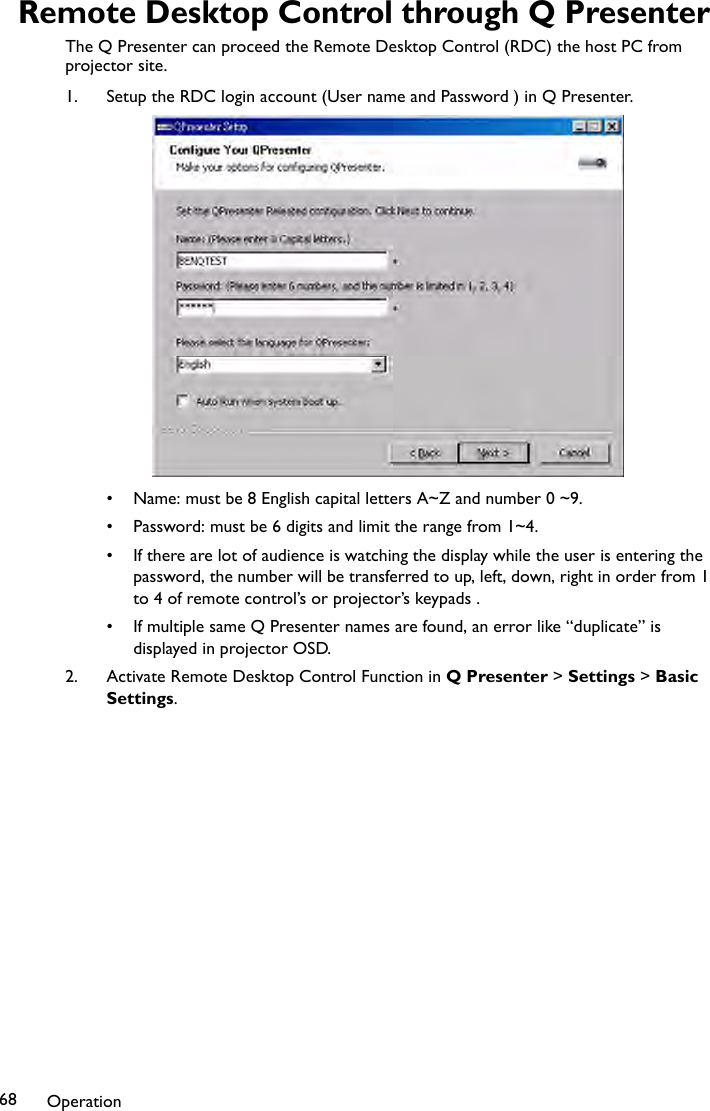

Operation68Remote Desktop Control through Q PresenterThe Q Presenter can proceed the Remote Desktop Control (RDC) the host PC from projector site.1. Setup the RDC login account (User name and Password ) in Q Presenter.• Name: must be 8 English capital letters A~Z and number 0 ~9.• Password: must be 6 digits and limit the range from 1~4.• If there are lot of audience is watching the display while the user is entering the password, the number will be transferred to up, left, down, right in order from 1 to 4 of remote control’s or projector’s keypads .• If multiple same Q Presenter names are found, an error like “duplicate” is displayed in projector OSD.2. Activate Remote Desktop Control Function in Q Presenter > Settings > Basic Settings.

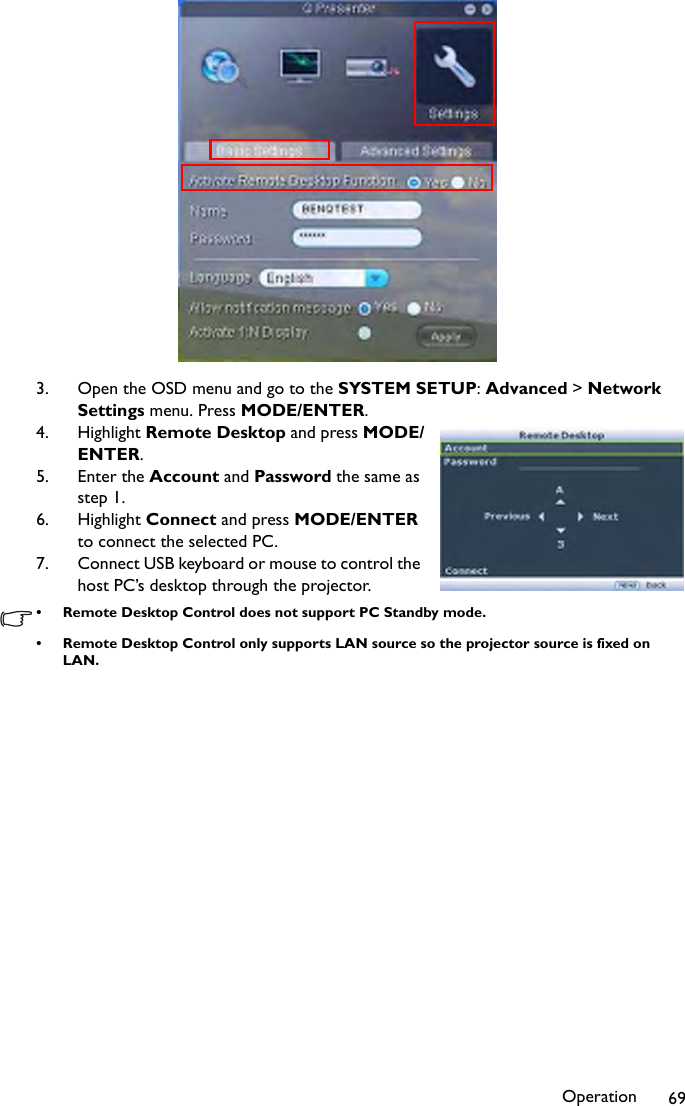

Operation 693. Open the OSD menu and go to the SYSTEM SETUP: Advanced > Network Settings menu. Press MODE/ENTER.4. Highlight Remote Desktop and press MODE/ENTER.5. Enter the Account and Password the same as step 1.6. Highlight Connect and press MODE/ENTER to connect the selected PC.7. Connect USB keyboard or mouse to control the host PC’s desktop through the projector.• Remote Desktop Control does not support PC Standby mode.• Remote Desktop Control only supports LAN source so the projector source is fixed on LAN.
Operation70PointDraw™ Pen 2.0The PointDraw™ pen works like a wireless mouse - but one that works in midair, not on your desktop. Just hold the pen in your hand, and point it at the projected image to point, click and drag.1. Make sure the PointDraw™ pen’s battery is charged.The charging time will take approximate 2.5 hours and will allow 30-35 hours of pen use.• Do not use the PointDraw™ pen while the pen’s battery is charging.• Do not disassemble the PointDraw™ pen yourself. Refer all servicing to qualified service personnel.• The lithium battery is only rechargeable, and not user replaceable. Not user serviceable.2. Connect the projector and your computer with the supplied USB B type to A type cable. If a pop-up window appears on the computer’s screen for requiring to provide a driver, please use the original driver in your computer or the driver recommended by your computer.3. Turn on the projector and make sure it's displaying the computer's screen - set the source to VGA 1, VGA 2, or HDMI (press SOURCE button on the projector or remote control if needed - you may need to press it several times).4. Point the pen at the screen to point, click, and drag - just like a normal mouse.PUSHPUSHorUSB mini-B type to A type cable

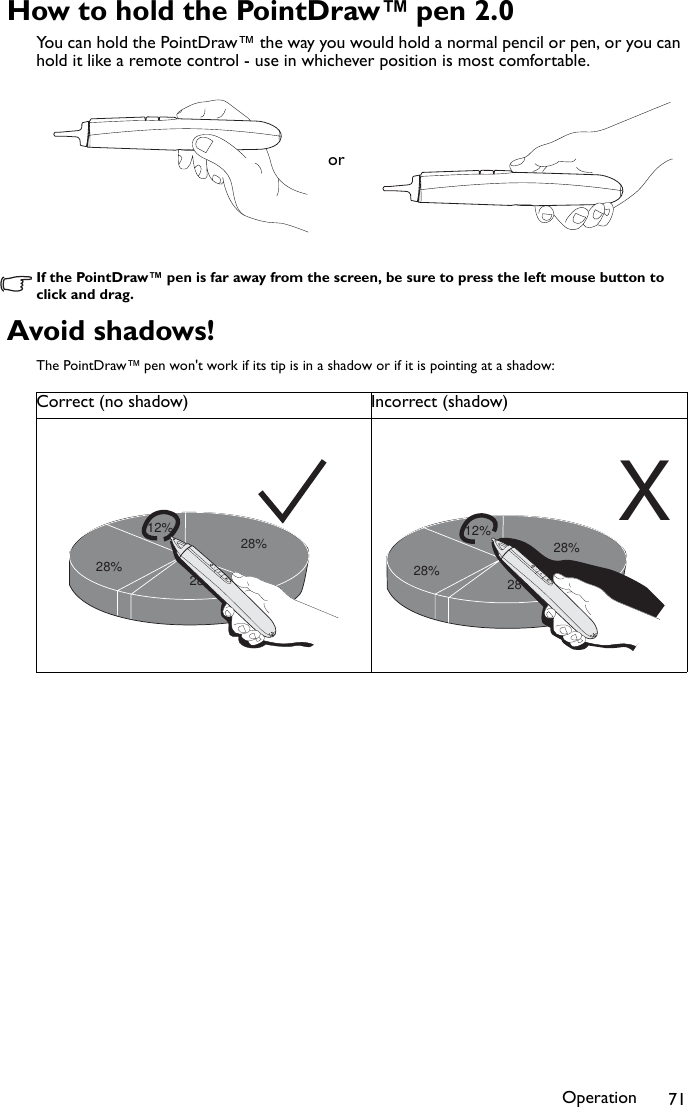

Operation 71How to hold the PointDraw™ pen 2.0You can hold the PointDraw™ the way you would hold a normal pencil or pen, or you can hold it like a remote control - use in whichever position is most comfortable.If the PointDraw™ pen is far away from the screen, be sure to press the left mouse button to click and drag.Avoid shadows!The PointDraw™ pen won't work if its tip is in a shadow or if it is pointing at a shadow:orCorrect (no shadow) Incorrect (shadow)28%12%28%28%28%12%28%X28%

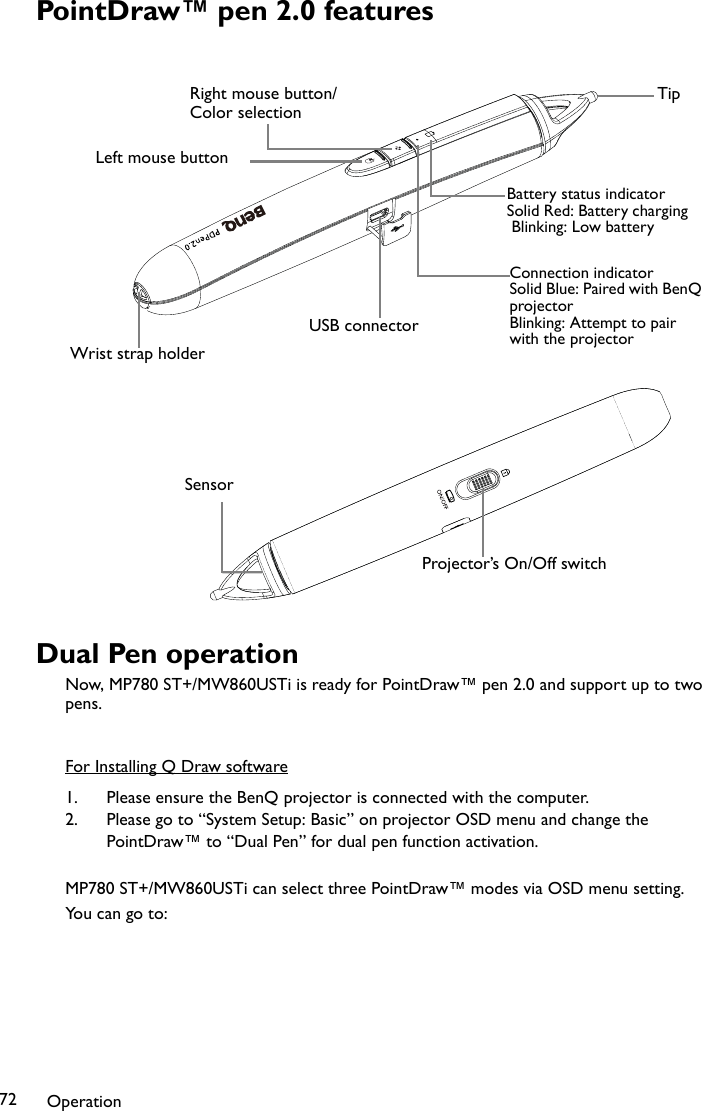

Operation72PointDraw™ pen 2.0 featuresDual Pen operationNow, MP780 ST+/MW860USTi is ready for PointDraw™ pen 2.0 and support up to two pens.For Installing Q Draw software1. Please ensure the BenQ projector is connected with the computer.2. Please go to “System Setup: Basic” on projector OSD menu and change the PointDraw™ to “Dual Pen” for dual pen function activation.MP780 ST+/MW860USTi can select three PointDraw™ modes via OSD menu setting.You can go to: Right mouse button/Color selectionLeft mouse buttonTipBattery status indicatorSolid Red: Battery charging Blinking: Low batteryConnection indicatorSolid Blue: Paired with BenQ projectorBlinking: Attempt to pair with the projectorUSB connectorWrist strap holderProjector’s On/Off switchSensor

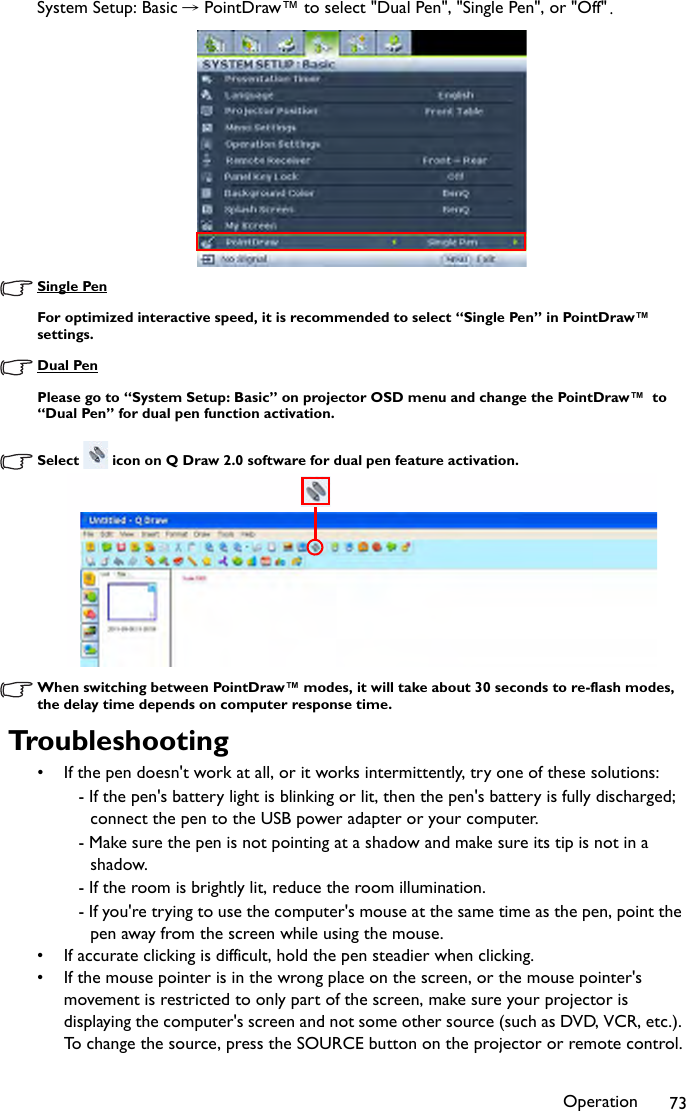

Operation 73System Setup: Basic →PointDraw™ to select "Dual Pen", "Single Pen", or "Off".Single PenFor optimized interactive speed, it is recommended to select “Single Pen” in PointDraw™ settings.Dual PenPlease go to “System Setup: Basic” on projector OSD menu and change the PointDraw™ to “Dual Pen” for dual pen function activation.Select icon on Q Draw 2.0 software for dual pen feature activation.When switching between PointDraw™ modes, it will take about 30 seconds to re-flash modes, the delay time depends on computer response time.Troubleshooting• If the pen doesn't work at all, or it works intermittently, try one of these solutions:- If the pen's battery light is blinking or lit, then the pen's battery is fully discharged; connect the pen to the USB power adapter or your computer.- Make sure the pen is not pointing at a shadow and make sure its tip is not in a shadow.- If the room is brightly lit, reduce the room illumination.- If you're trying to use the computer's mouse at the same time as the pen, point the pen away from the screen while using the mouse.• If accurate clicking is difficult, hold the pen steadier when clicking.• If the mouse pointer is in the wrong place on the screen, or the mouse pointer's movement is restricted to only part of the screen, make sure your projector is displaying the computer's screen and not some other source (such as DVD, VCR, etc.). To change the source, press the SOURCE button on the projector or remote control.

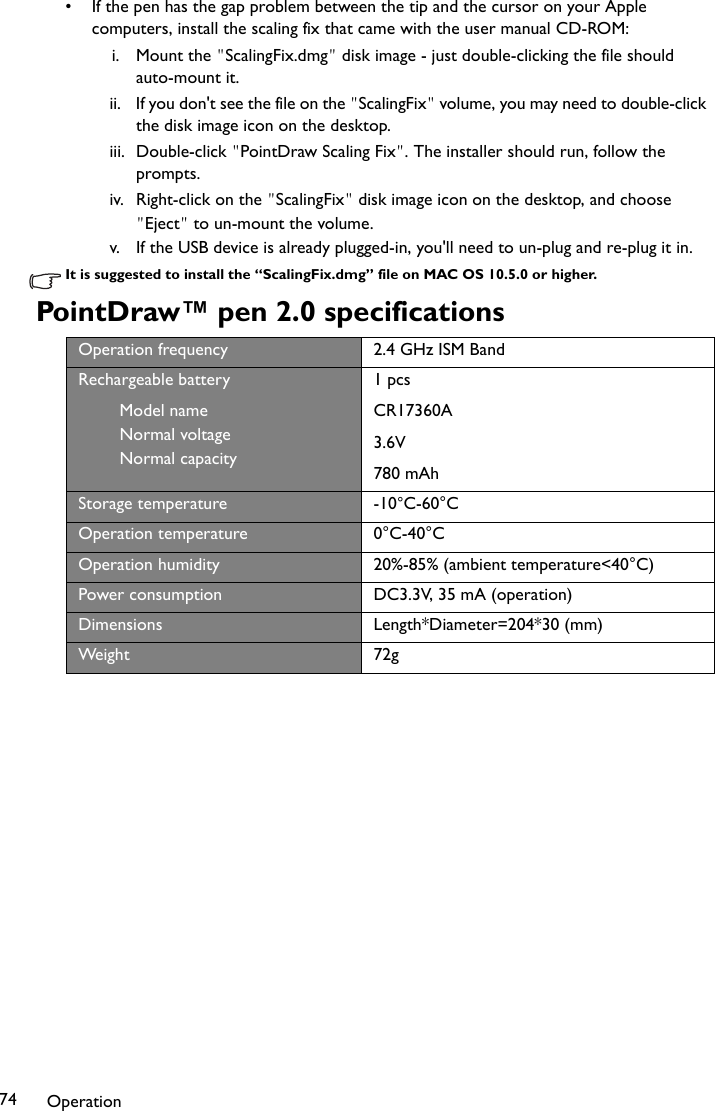

Operation74• If the pen has the gap problem between the tip and the cursor on your Apple computers, install the scaling fix that came with the user manual CD-ROM: i. Mount the "ScalingFix.dmg" disk image - just double-clicking the file should auto-mount it.ii. If you don't see the file on the "ScalingFix" volume, you may need to double-click the disk image icon on the desktop.iii. Double-click "PointDraw Scaling Fix". The installer should run, follow the prompts.iv. Right-click on the "ScalingFix" disk image icon on the desktop, and choose "Eject" to un-mount the volume.v. If the USB device is already plugged-in, you'll need to un-plug and re-plug it in.It is suggested to install the “ScalingFix.dmg” file on MAC OS 10.5.0 or higher.PointDraw™ pen 2.0 specificationsOperation frequency 2.4 GHz ISM BandRechargeable batteryModel nameNormal voltageNormal capacity1 pcsCR17360A3.6V780 mAhStorage temperature -10°C-60°COperation temperature 0°C-40°COperation humidity 20%-85% (ambient temperature<40°C)Power consumption DC3.3V, 35 mA (operation)Dimensions Length*Diameter=204*30 (mm)Weight 72g

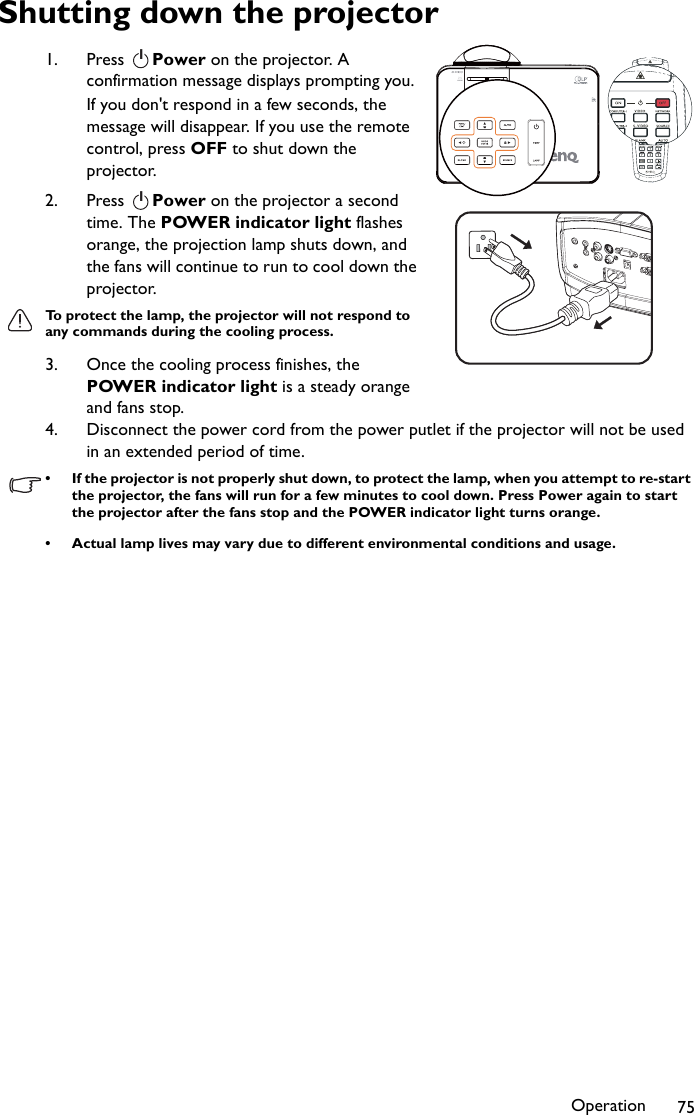

Operation 75Shutting down the projector1. Press Power on the projector. A confirmation message displays prompting you. If you don't respond in a few seconds, the message will disappear. If you use the remote control, press OFF to shut down the projector.2. Press Power on the projector a second time. The POWER indicator light flashes orange, the projection lamp shuts down, and the fans will continue to run to cool down the projector. To protect the lamp, the projector will not respond to any commands during the cooling process.3. Once the cooling process finishes, the POWER indicator light is a steady orange and fans stop.4. Disconnect the power cord from the power putlet if the projector will not be used in an extended period of time.• If the projector is not properly shut down, to protect the lamp, when you attempt to re-start the projector, the fans will run for a few minutes to cool down. Press Power again to start the projector after the fans stop and the POWER indicator light turns orange.• Actual lamp lives may vary due to different environmental conditions and usage.IIII

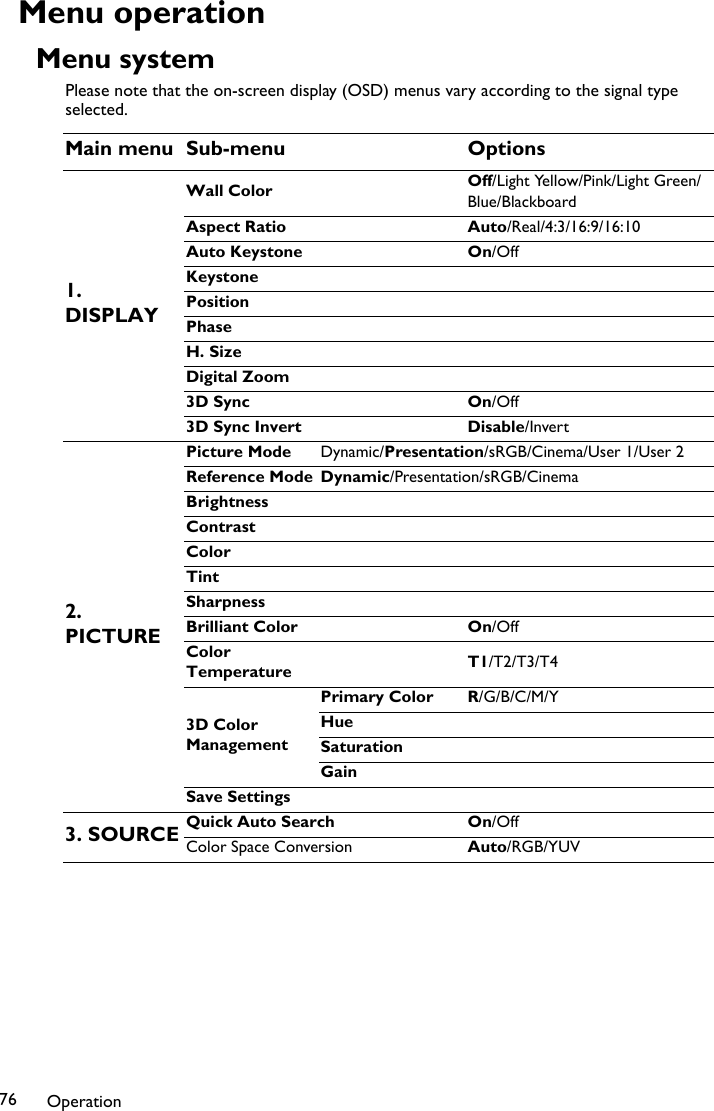

Operation76Menu operationMenu systemPlease note that the on-screen display (OSD) menus vary according to the signal type selected.Main menu Sub-menu Options1. DISPLAYWall Color Off/Light Yellow/Pink/Light Green/Blue/BlackboardAspect Ratio Auto/Real/4:3/16:9/16:10Auto Keystone On/OffKeystonePositionPhaseH. SizeDigital Zoom3D Sync On/Off3D Sync Invert Disable/Invert2. PICTUREPicture Mode Dynamic/Presentation/sRGB/Cinema/User 1/User 2Reference Mode Dynamic/Presentation/sRGB/CinemaBrightnessContrastColorTintSharpnessBrilliant Color On/OffColor Temperature T1/T2/T3/T43D Color ManagementPrimary Color R/G/B/C/M/YHueSaturationGainSave Settings3. SOURCE Quick Auto Search On/OffColor Space Conversion Auto/RGB/YUV

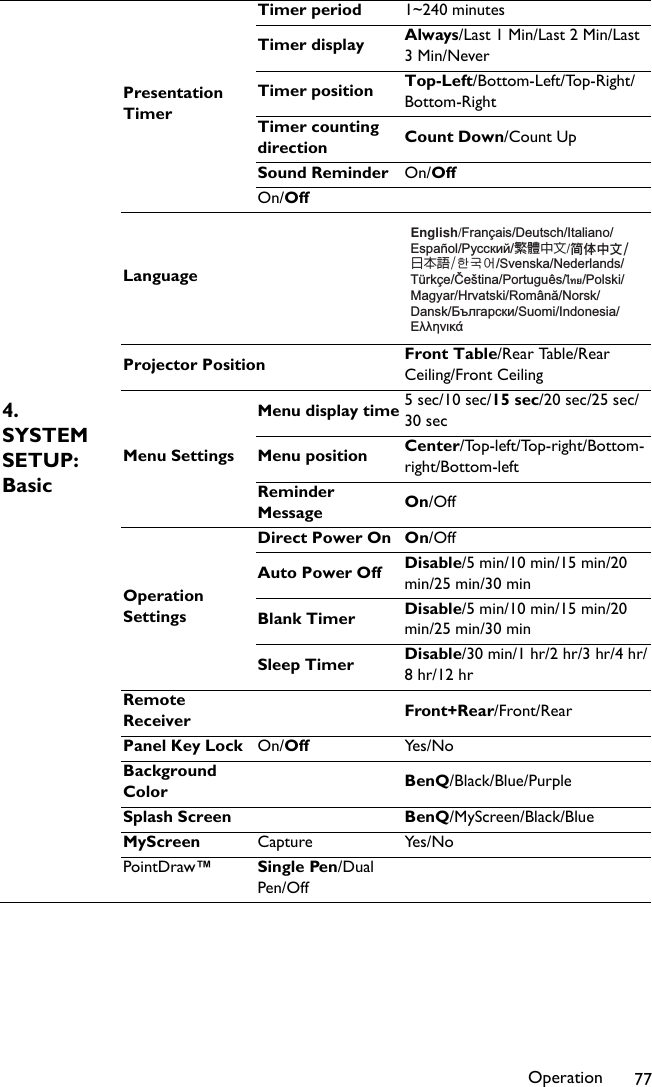

Operation 774. SYSTEM SETUP: BasicPresentation TimerTimer period 1~240 minutesTimer display Always/Last 1 Min/Last 2 Min/Last 3 Min/NeverTimer position Top-Left/Bottom-Left/Top-Right/Bottom-RightTimer counting direction Count Down/Count UpSound Reminder On/OffOn/OffLanguageProjector Position Front Table/Rear Table/Rear Ceiling/Front CeilingMenu SettingsMenu display time 5 sec/10 sec/15 sec/20 sec/25 sec/30 secMenu position Center/Top-left/Top-right/Bottom-right/Bottom-leftReminder Message On/OffOperation SettingsDirect Power On On/OffAuto Power Off Disable/5 min/10 min/15 min/20 min/25 min/30 minBlank Timer Disable/5 min/10 min/15 min/20 min/25 min/30 minSleep Timer Disable/30 min/1 hr/2 hr/3 hr/4 hr/8 hr/12 hrRemote Receiver Front+Rear/Front/RearPanel Key Lock On/Off Ye s / N oBackground Color BenQ/Black/Blue/PurpleSplash Screen BenQ/MyScreen/Black/BlueMyScreen Capture Yes/NoPointDraw™Single Pen/Dual Pen/OffEnglish/Français/Deutsch/Italiano/Español/Русский/ᓄវ͛̚/ᖎᩄ͛̚0͟ώᄬ0䚐ạ㛨/Svenska/Nederlands/Türkçe/Čeština/Português/ไทย/Polski/Magyar/Hrvatski/Română/Norsk/Dansk/Български/Suomi/Indonesia/Ελληνικά

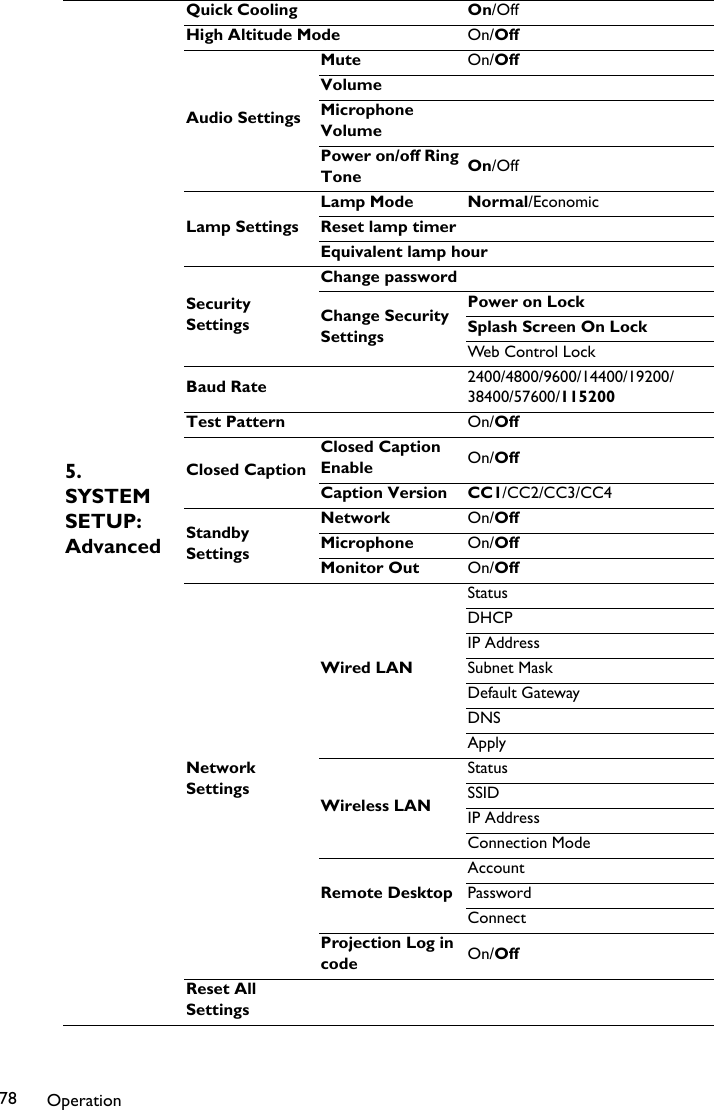

Operation785. SYSTEM SETUP: AdvancedQuick Cooling On/OffHigh Altitude Mode On/OffAudio SettingsMute On/OffVolumeMicrophone VolumePower on/off Ring Tone On/OffLamp SettingsLamp Mode Normal/EconomicReset lamp timerEquivalent lamp hourSecurity SettingsChange passwordChange Security SettingsPower on LockSplash Screen On LockWeb Control LockBaud Rate 2400/4800/9600/14400/19200/ 38400/57600/115200Test Pattern On/OffClosed CaptionClosed Caption Enable On/OffCaption Version CC1/CC2/CC3/CC4Standby SettingsNetwork On/OffMicrophone On/OffMonitor Out On/OffNetwork SettingsWired LANStatusDHCPIP AddressSubnet MaskDefault GatewayDNSApplyWireless LANStatusSSIDIP AddressConnection ModeRemote DesktopAccountPasswordConnectProjection Log in code On/OffReset All Settings

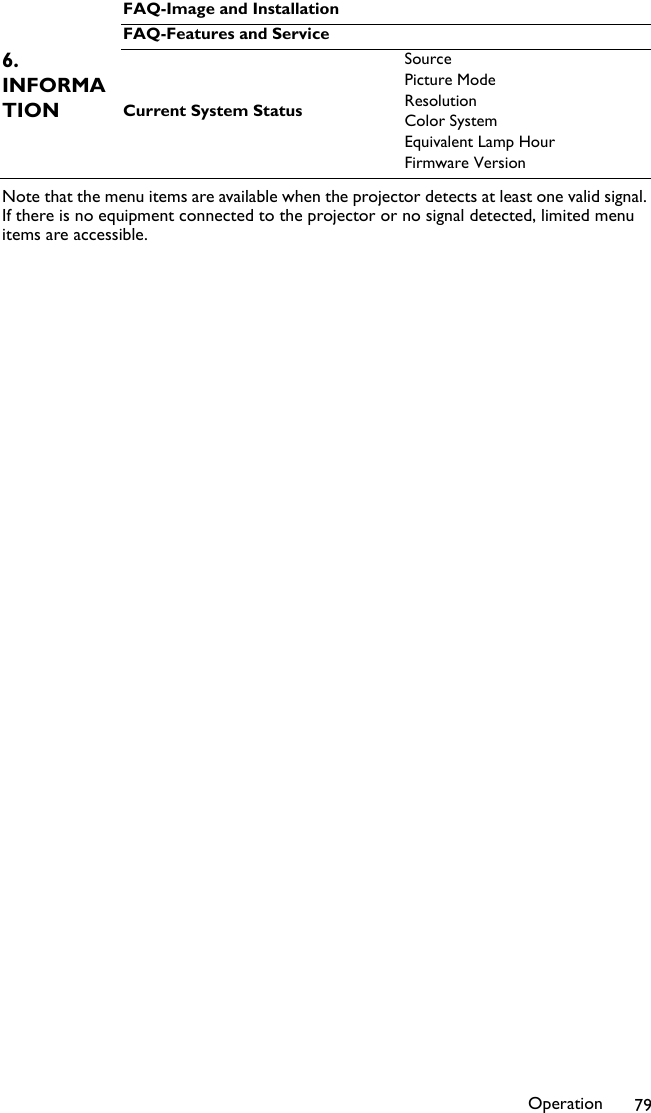

Operation 79Note that the menu items are available when the projector detects at least one valid signal. If there is no equipment connected to the projector or no signal detected, limited menu items are accessible.6. INFORMATIONFAQ-Image and InstallationFAQ-Features and ServiceCurrent System StatusSourcePicture ModeResolutionColor SystemEquivalent Lamp HourFirmware Version

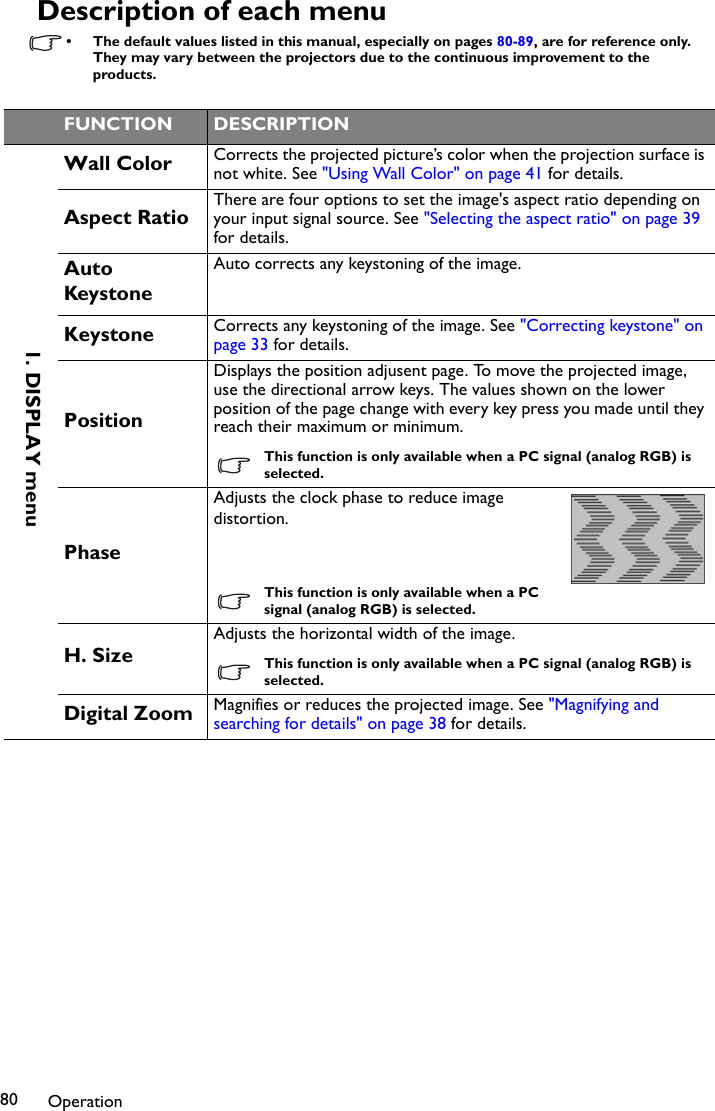

Operation80Description of each menu• The default values listed in this manual, especially on pages 80-89, are for reference only. They may vary between the projectors due to the continuous improvement to the products.FUNCTION DESCRIPTIONWall Color Corrects the projected picture’s color when the projection surface is not white. See "Using Wall Color" on page 41 for details.Aspect Ratio There are four options to set the image's aspect ratio depending on your input signal source. See "Selecting the aspect ratio" on page 39 for details.Auto KeystoneAuto corrects any keystoning of the image.Keystone Corrects any keystoning of the image. See "Correcting keystone" on page 33 for details.PositionDisplays the position adjusent page. To move the projected image, use the directional arrow keys. The values shown on the lower position of the page change with every key press you made until they reach their maximum or minimum.This function is only available when a PC signal (analog RGB) is selected.PhaseAdjusts the clock phase to reduce image distortion.This function is only available when a PC signal (analog RGB) is selected.H. SizeAdjusts the horizontal width of the image.This function is only available when a PC signal (analog RGB) is selected.Digital Zoom Magnifies or reduces the projected image. See "Magnifying and searching for details" on page 38 for details.1. DISPLAY menu

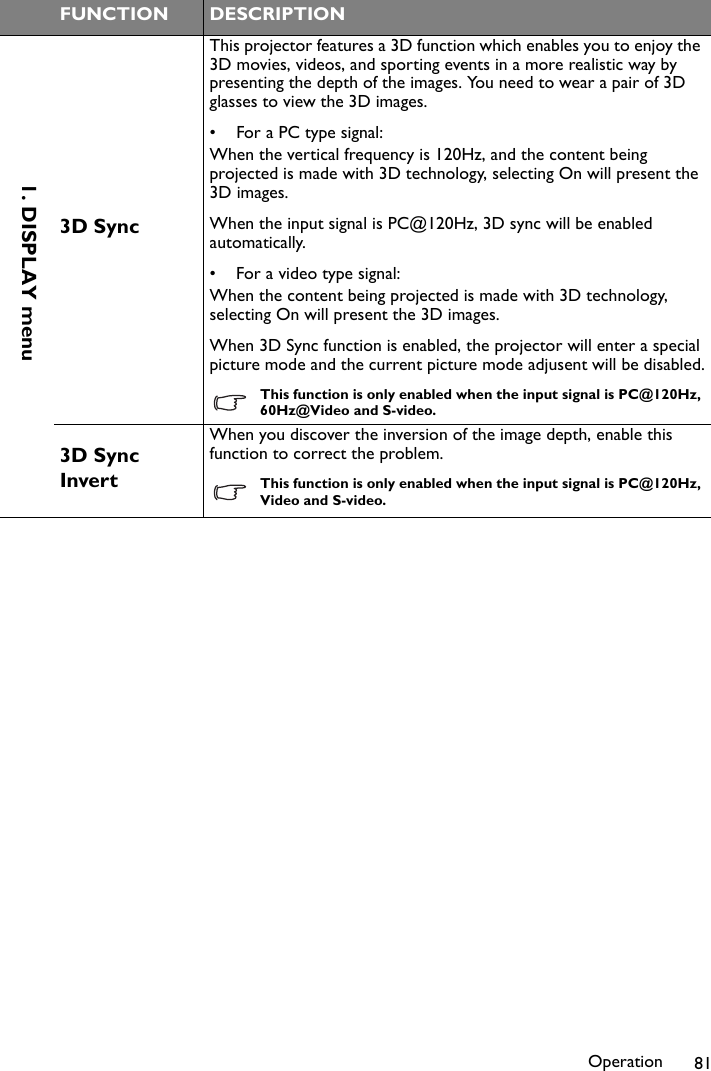

Operation 81FUNCTION DESCRIPTION3D SyncThis projector features a 3D function which enables you to enjoy the 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images. You need to wear a pair of 3D glasses to view the 3D images.• For a PC type signal:When the vertical frequency is 120Hz, and the content being projected is made with 3D technology, selecting On will present the 3D images.When the input signal is PC@120Hz, 3D sync will be enabled automatically. • For a video type signal:When the content being projected is made with 3D technology, selecting On will present the 3D images.When 3D Sync function is enabled, the projector will enter a special picture mode and the current picture mode adjusent will be disabled.This function is only enabled when the input signal is PC@120Hz, 60Hz@Video and S-video.3D Sync InvertWhen you discover the inversion of the image depth, enable this function to correct the problem.This function is only enabled when the input signal is PC@120Hz, Video and S-video. 1. DISPLAY menu

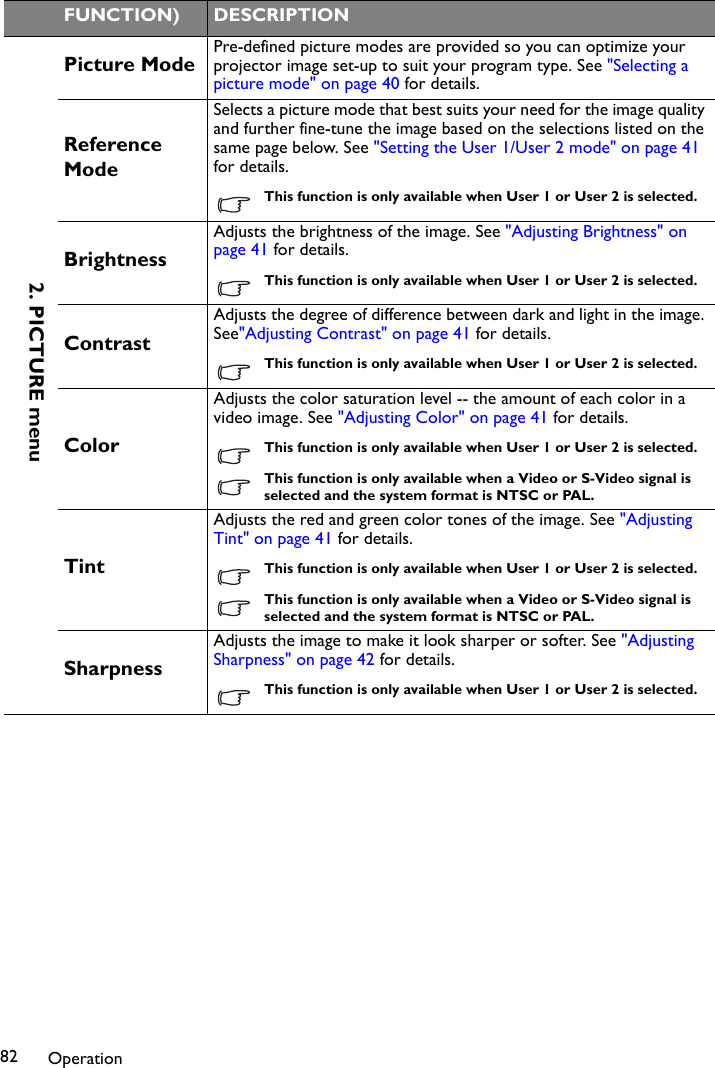

Operation82FUNCTION) DESCRIPTIONPicture Mode Pre-defined picture modes are provided so you can optimize your projector image set-up to suit your program type. See "Selecting a picture mode" on page 40 for details.Reference ModeSelects a picture mode that best suits your need for the image quality and further fine-tune the image based on the selections listed on the same page below. See "Setting the User 1/User 2 mode" on page 41 for details.This function is only available when User 1 or User 2 is selected.BrightnessAdjusts the brightness of the image. See "Adjusting Brightness" on page 41 for details.This function is only available when User 1 or User 2 is selected.ContrastAdjusts the degree of difference between dark and light in the image. See"Adjusting Contrast" on page 41 for details.This function is only available when User 1 or User 2 is selected.ColorAdjusts the color saturation level -- the amount of each color in a video image. See "Adjusting Color" on page 41 for details.This function is only available when User 1 or User 2 is selected.This function is only available when a Video or S-Video signal is selected and the system format is NTSC or PAL.TintAdjusts the red and green color tones of the image. See "Adjusting Tint" on page 41 for details.This function is only available when User 1 or User 2 is selected.This function is only available when a Video or S-Video signal is selected and the system format is NTSC or PAL.SharpnessAdjusts the image to make it look sharper or softer. See "Adjusting Sharpness" on page 42 for details.This function is only available when User 1 or User 2 is selected.2. PICTURE menu

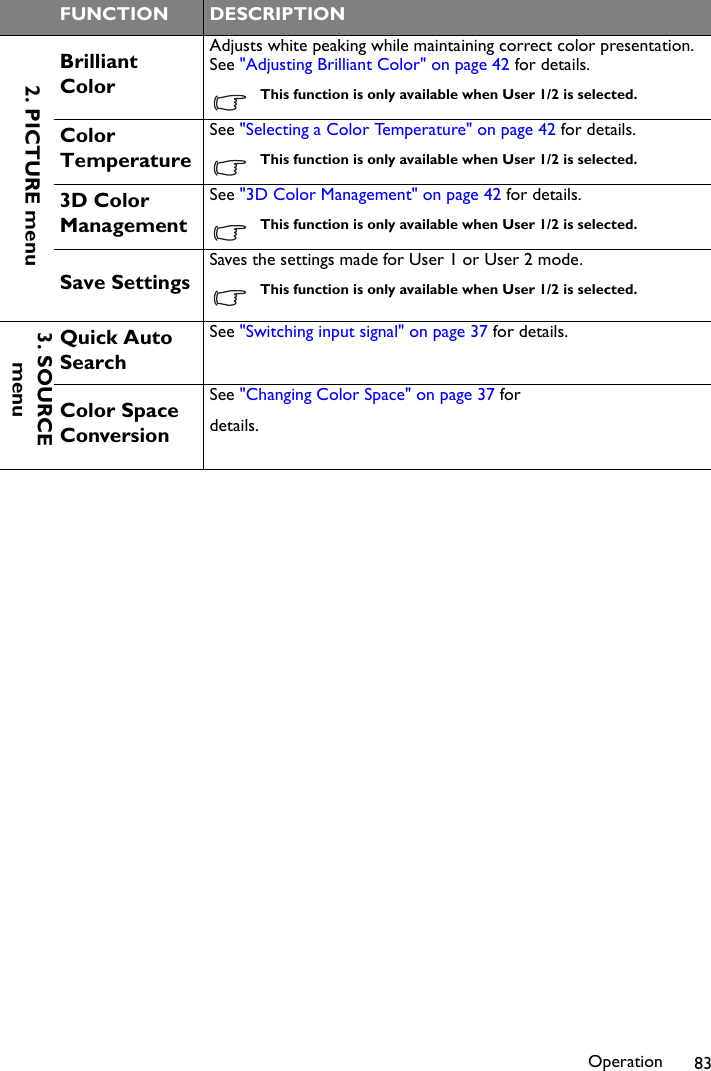

Operation 83FUNCTION DESCRIPTIONBrilliant ColorAdjusts white peaking while maintaining correct color presentation. See "Adjusting Brilliant Color" on page 42 for details.This function is only available when User 1/2 is selected.Color TemperatureSee "Selecting a Color Temperature" on page 42 for details.This function is only available when User 1/2 is selected.3D Color ManagementSee "3D Color Management" on page 42 for details.This function is only available when User 1/2 is selected.Save SettingsSaves the settings made for User 1 or User 2 mode.This function is only available when User 1/2 is selected.Quick Auto SearchSee "Switching input signal" on page 37 for details.Color Space ConversionSee "Changing Color Space" on page 37 fordetails.2. PICTURE menu 3. SOURCE menu
Operation84FUNCTION DESCRIPTIONPresentation TimerReminds the presenter to finish the presentation within a certain time frame. See "Setting the presentation timer" on page 45 for details.Timer periodSets a preferred length of time for presentation.Timer displaySets whether to display the timer on screen.Timer positionSets the position where the timer displays on screen.Timer counting directionSets the timer counting direction.Sound ReminderSets a sound reminder if timer is up.Language Sets the language for the On-Screen Display (OSD) menus. See "Using the menus" on page 34 for details.Projector PositionThe projector can be installed on a ceiling or behind a screen, or with one or more mirrors. See "Choosing a location" on page 16 for details.Menu SettingsMenu display timeSets the length of time the OSD will remain active after your last key press. The range is from 5 to 30 seconds in 5-second increments.Menu positionSets the On-Screen Display (OSD) menu position.Reminder MessageSets whether to display the reminder message.Operation SettingsDirect Power OnSelecting On enables the function. See "Starting up the projector" on page 30 for details.Auto Power OffAllows the projector to turn off automatically if no input signal is detected after a set period of time. See "Setting Auto Power Off" on page 91 for details.Blank TimerSets the image blank time when the Blank feature is activated, once elapsed the image will return to the screen. See "Hiding the image" on page 46 for details.Sleep TimerSets the auto-shutdown timer. The timer can be set to a value between 30 minutes and 12 hours.4. SYSTEM SETUP: Basic menu

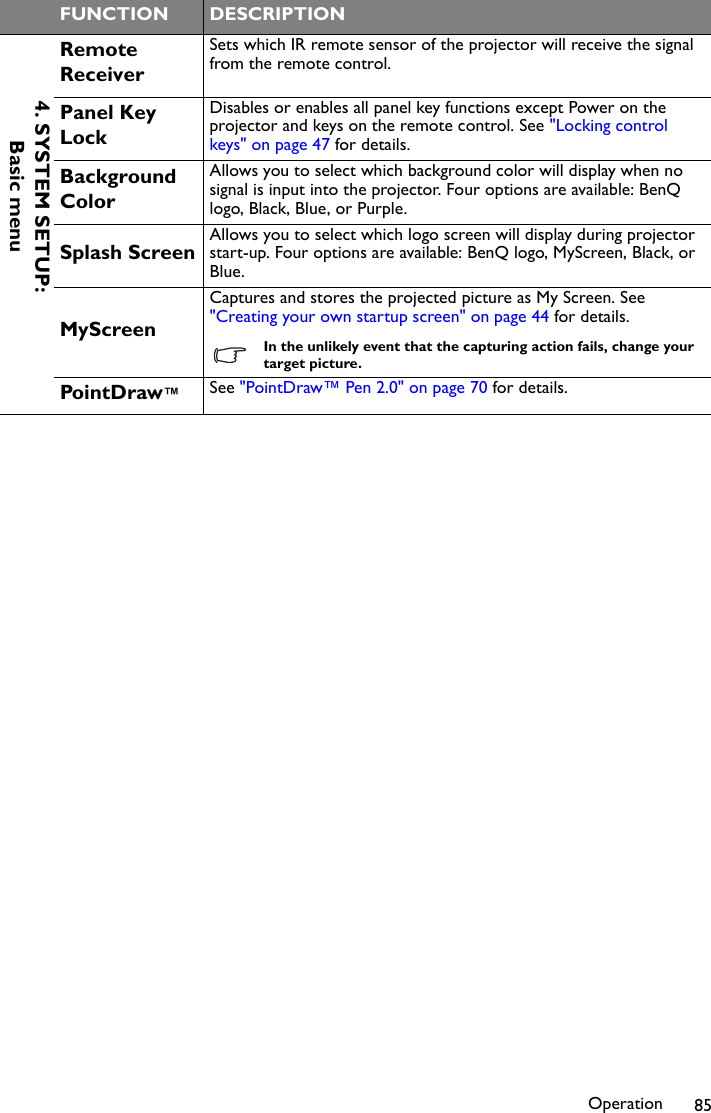

Operation 85FUNCTION DESCRIPTIONRemote ReceiverSets which IR remote sensor of the projector will receive the signal from the remote control. Panel Key LockDisables or enables all panel key functions except Power on the projector and keys on the remote control. See "Locking control keys" on page 47 for details.Background ColorAllows you to select which background color will display when no signal is input into the projector. Four options are available: BenQ logo, Black, Blue, or Purple.Splash Screen Allows you to select which logo screen will display during projector start-up. Four options are available: BenQ logo, MyScreen, Black, or Blue.MyScreenCaptures and stores the projected picture as My Screen. See "Creating your own startup screen" on page 44 for details.In the unlikely event that the capturing action fails, change your target picture.PointDraw™See "PointDraw™ Pen 2.0" on page 70 for details.4. SYSTEM SETUP: Basic menu

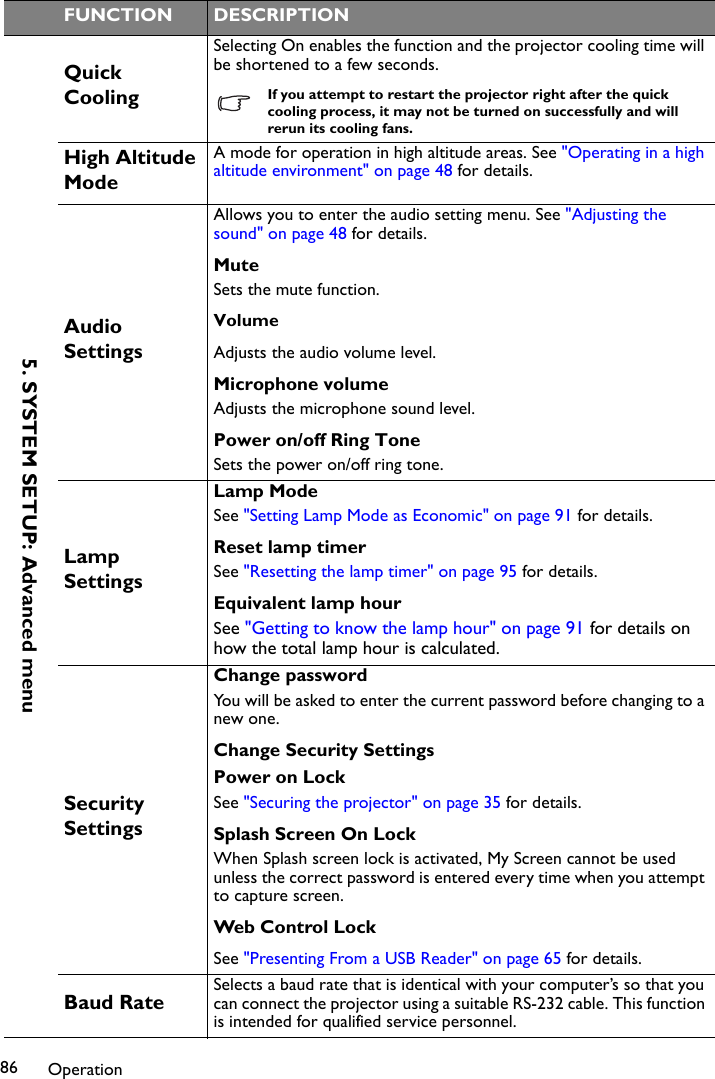

Operation86FUNCTION DESCRIPTIONQuick CoolingSelecting On enables the function and the projector cooling time will be shortened to a few seconds.If you attempt to restart the projector right after the quick cooling process, it may not be turned on successfully and will rerun its cooling fans.High Altitude ModeA mode for operation in high altitude areas. See "Operating in a high altitude environment" on page 48 for details.Audio SettingsAllows you to enter the audio setting menu. See "Adjusting the sound" on page 48 for details.MuteSets the mute function.VolumeAdjusts the audio volume level.Microphone volumeAdjusts the microphone sound level.Power on/off Ring ToneSets the power on/off ring tone. Lamp SettingsLamp ModeSee "Setting Lamp Mode as Economic" on page 91 for details.Reset lamp timerSee "Resetting the lamp timer" on page 95 for details.Equivalent lamp hourSee "Getting to know the lamp hour" on page 91 for details on how the total lamp hour is calculated.Security SettingsChange passwordYou will be asked to enter the current password before changing to a new one.Change Security SettingsPower on LockSee "Securing the projector" on page 35 for details. Splash Screen On LockWhen Splash screen lock is activated, My Screen cannot be used unless the correct password is entered every time when you attempt to capture screen.Web Control LockSee "Presenting From a USB Reader" on page 65 for details. Baud Rate Selects a baud rate that is identical with your computer’s so that you can connect the projector using a suitable RS-232 cable. This function is intended for qualified service personnel.5. SYSTEM SETUP: Advanced menu

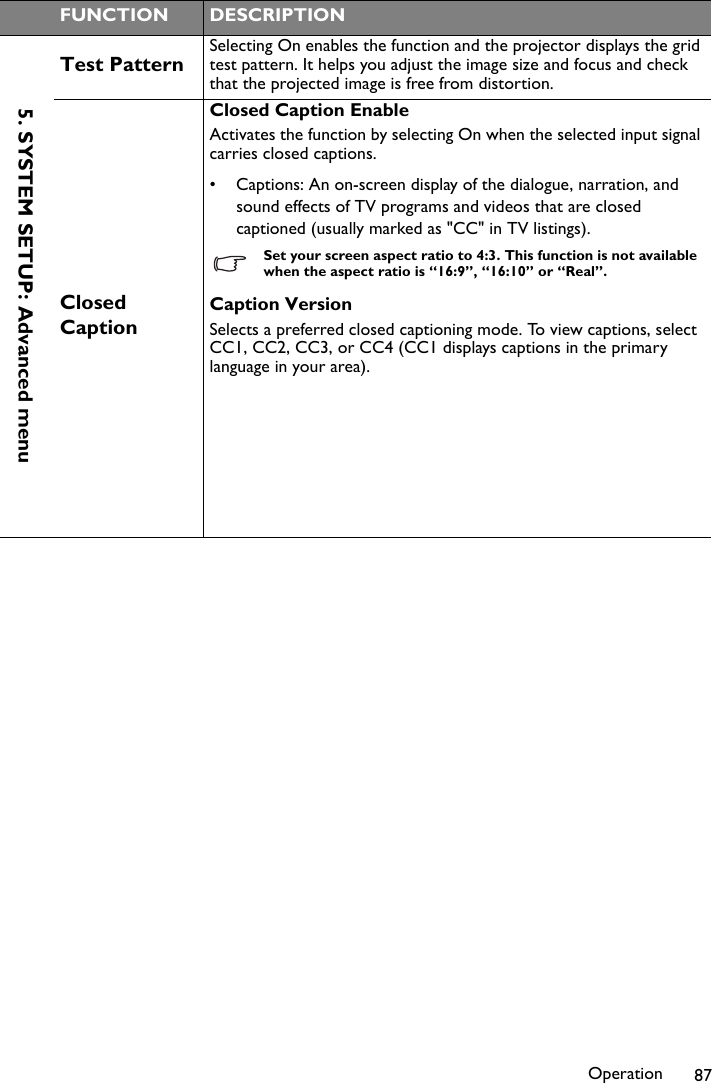

Operation 87FUNCTION DESCRIPTIONTest Pattern Selecting On enables the function and the projector displays the grid test pattern. It helps you adjust the image size and focus and check that the projected image is free from distortion.Closed CaptionClosed Caption EnableActivates the function by selecting On when the selected input signal carries closed captions.• Captions: An on-screen display of the dialogue, narration, and sound effects of TV programs and videos that are closed captioned (usually marked as "CC" in TV listings).Set your screen aspect ratio to 4:3. This function is not available when the aspect ratio is “16:9”, “16:10” or “Real”.Caption VersionSelects a preferred closed captioning mode. To view captions, select CC1, CC2, CC3, or CC4 (CC1 displays captions in the primary language in your area). 5. SYSTEM SETUP: Advanced menu

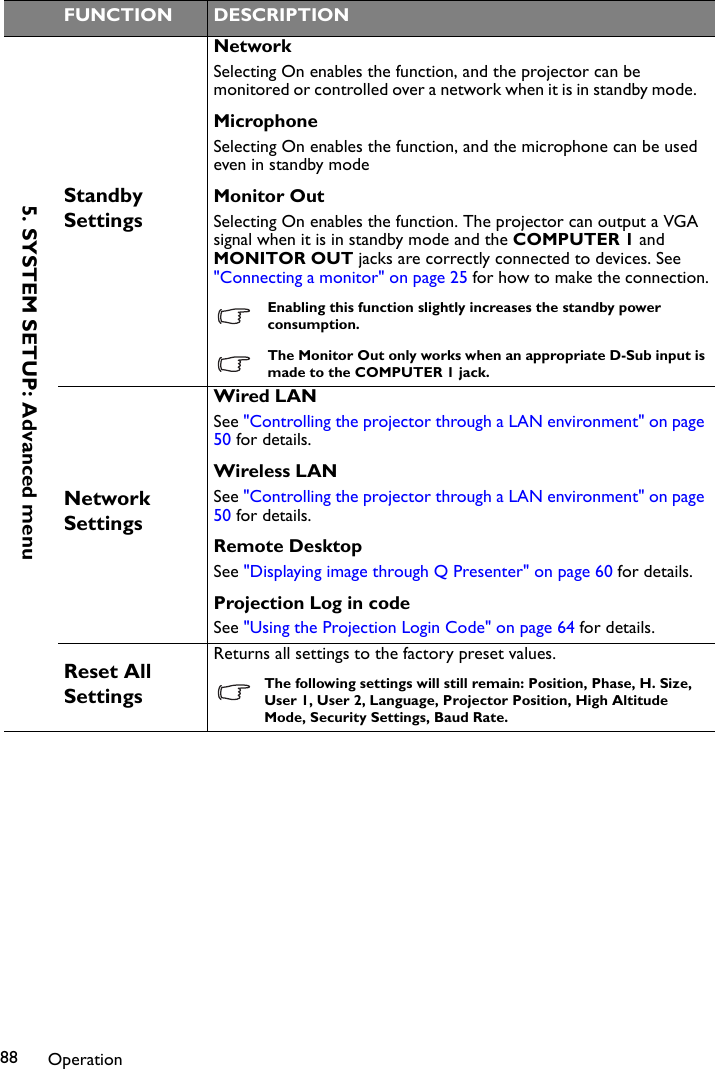

Operation88FUNCTION DESCRIPTIONStandby SettingsNetworkSelecting On enables the function, and the projector can be monitored or controlled over a network when it is in standby mode. MicrophoneSelecting On enables the function, and the microphone can be used even in standby mode Monitor OutSelecting On enables the function. The projector can output a VGA signal when it is in standby mode and the COMPUTER 1 and MONITOR OUT jacks are correctly connected to devices. See "Connecting a monitor" on page 25 for how to make the connection.Enabling this function slightly increases the standby power consumption.The Monitor Out only works when an appropriate D-Sub input is made to the COMPUTER 1 jack.Network SettingsWired LANSee "Controlling the projector through a LAN environment" on page 50 for details.Wireless LANSee "Controlling the projector through a LAN environment" on page 50 for details.Remote DesktopSee "Displaying image through Q Presenter" on page 60 for details.Projection Log in codeSee "Using the Projection Login Code" on page 64 for details.Reset All SettingsReturns all settings to the factory preset values.The following settings will still remain: Position, Phase, H. Size, User 1, User 2, Language, Projector Position, High Altitude Mode, Security Settings, Baud Rate.5. SYSTEM SETUP: Advanced menu

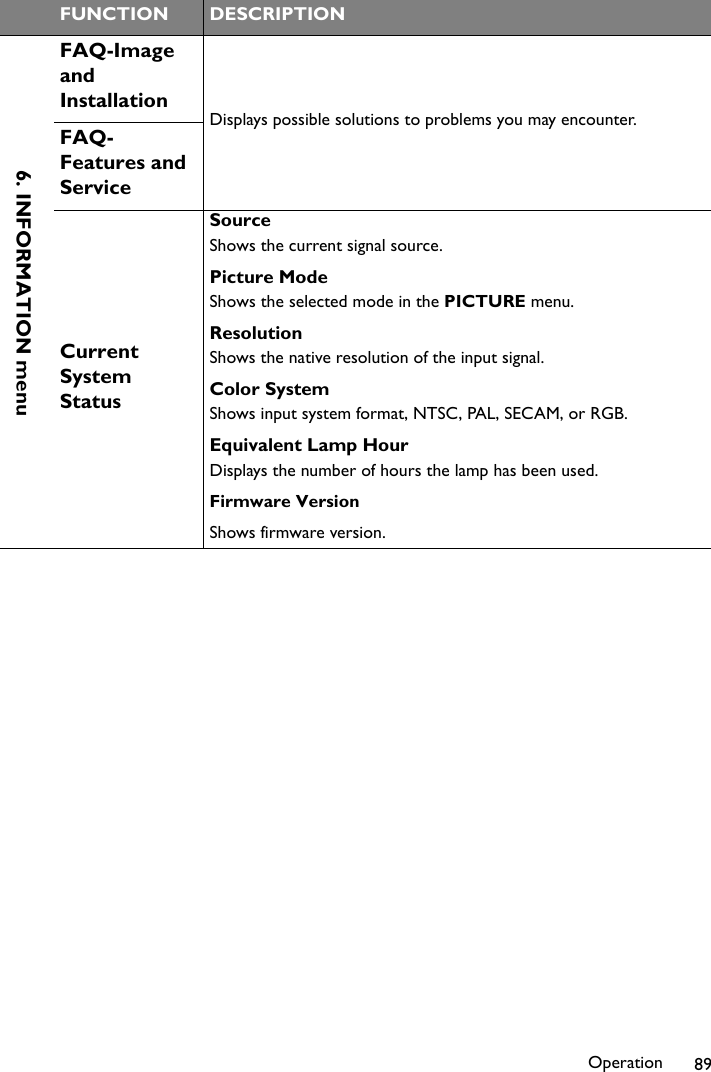

Operation 89FUNCTION DESCRIPTIONFAQ-Image and InstallationDisplays possible solutions to problems you may encounter.FAQ-Features and ServiceCurrent System StatusSourceShows the current signal source.Picture ModeShows the selected mode in the PICTURE menu.ResolutionShows the native resolution of the input signal.Color SystemShows input system format, NTSC, PAL, SECAM, or RGB.Equivalent Lamp HourDisplays the number of hours the lamp has been used.Firmware VersionShows firmware version.6. INFORMATION menu

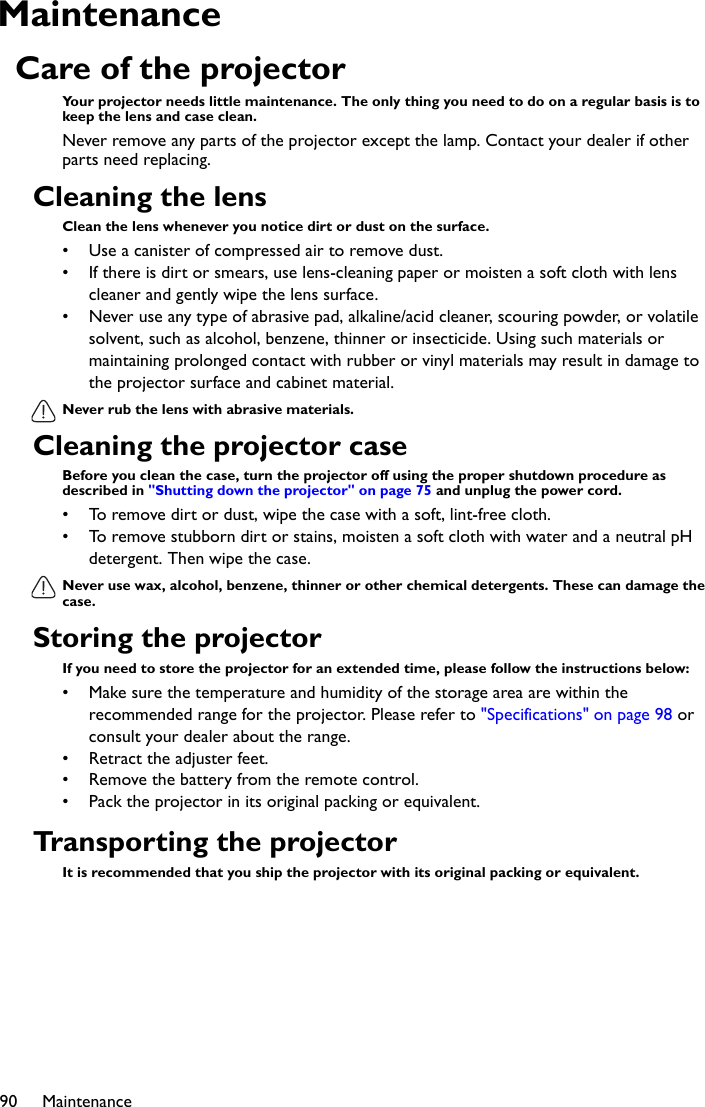

Maintenance90MaintenanceCare of the projectorYour projector needs little maintenance. The only thing you need to do on a regular basis is to keep the lens and case clean.Never remove any parts of the projector except the lamp. Contact your dealer if other parts need replacing.Cleaning the lensClean the lens whenever you notice dirt or dust on the surface. • Use a canister of compressed air to remove dust. • If there is dirt or smears, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently wipe the lens surface.• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the projector surface and cabinet material.Never rub the lens with abrasive materials.Cleaning the projector caseBefore you clean the case, turn the projector off using the proper shutdown procedure as described in "Shutting down the projector" on page 75 and unplug the power cord.• To remove dirt or dust, wipe the case with a soft, lint-free cloth.• To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral pH detergent. Then wipe the case.Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the case.Storing the projectorIf you need to store the projector for an extended time, please follow the instructions below:• Make sure the temperature and humidity of the storage area are within the recommended range for the projector. Please refer to "Specifications" on page 98 or consult your dealer about the range.• Retract the adjuster feet.• Remove the battery from the remote control.• Pack the projector in its original packing or equivalent.Transporting the projectorIt is recommended that you ship the projector with its original packing or equivalent.

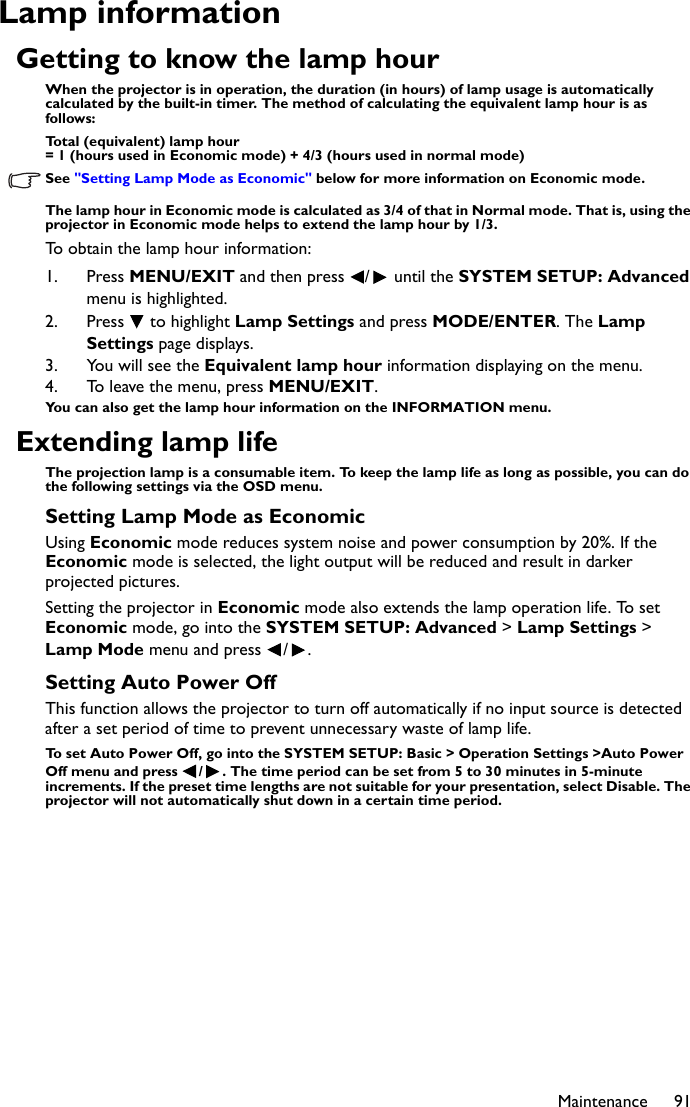

Maintenance 91Lamp informationGetting to know the lamp hourWhen the projector is in operation, the duration (in hours) of lamp usage is automatically calculated by the built-in timer. The method of calculating the equivalent lamp hour is as follows:Total (equivalent) lamp hour= 1 (hours used in Economic mode) + 4/3 (hours used in normal mode)See "Setting Lamp Mode as Economic" below for more information on Economic mode.The lamp hour in Economic mode is calculated as 3/4 of that in Normal mode. That is, using the projector in Economic mode helps to extend the lamp hour by 1/3.To obtain the lamp hour information:1. Press MENU/EXIT and then press / until the SYSTEM SETUP: Advanced menu is highlighted.2. Press to highlight Lamp Settings and press MODE/ENTER. The Lamp Settings page displays.3. You will see the Equivalent lamp hour information displaying on the menu.4. To leave the menu, press MENU/EXIT.You can also get the lamp hour information on the INFORMATION menu.Extending lamp lifeThe projection lamp is a consumable item. To keep the lamp life as long as possible, you can do the following settings via the OSD menu.Setting Lamp Mode as EconomicUsing Economic mode reduces system noise and power consumption by 20%. If the Economic mode is selected, the light output will be reduced and result in darker projected pictures.Setting the projector in Economic mode also extends the lamp operation life. To set Economic mode, go into the SYSTEM SETUP: Advanced > Lamp Settings > Lamp Mode menu and press / .Setting Auto Power OffThis function allows the projector to turn off automatically if no input source is detected after a set period of time to prevent unnecessary waste of lamp life.To set Auto Power Off, go into the SYSTEM SETUP: Basic > Operation Settings >Auto Power Off menu and press / . The time period can be set from 5 to 30 minutes in 5-minute increments. If the preset time lengths are not suitable for your presentation, select Disable. The projector will not automatically shut down in a certain time period.
Maintenance92Timing of replacing the lampWhen the Lamp indicator lights up red or a message appears suggesting it is time to replace the lamp, please install a new lamp or consult your dealer. An old lamp may cause a malfunction in the projector and in some instances the lamp may explode.The Lamp indicator light and Temperature warning light will light up if the lamp becomes too hot. See "Indicators" on page 96 for details.The following lamp warning displays will remind you to change the lamp.The warning messages below are for reference only. Please follow the actual on-screen instructions to prepare and replace the lamp.Status MessageInstall a new lamp for optimal performance. If the projector is normally run with Economic selected (see "Getting to know the lamp hour" on page 91), you may continue to operate the projector until the next lamp warning appears.Press ENTER to dismiss the message.It is strongly recommended that you replace the lamp at this stage. The lamp is a consumable item. The lamp brightness diminishes with use. This is a normal lamp behavior. You can replace the lamp whenever you notice that the brightness level has significantly diminished.Press ENTER to dismiss the message.The lamp MUST be replaced before the projector will operate normally.Press ENTER to dismiss the message.

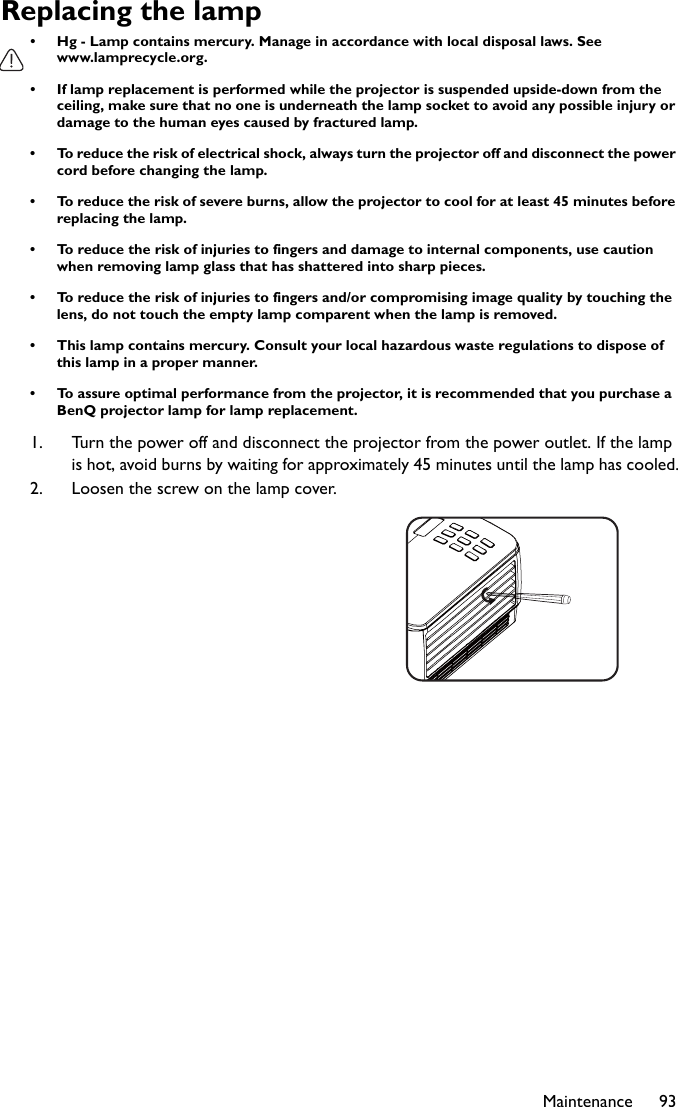

Maintenance 93Replacing the lamp• Hg - Lamp contains mercury. Manage in accordance with local disposal laws. See www.lamprecycle.org.• If lamp replacement is performed while the projector is suspended upside-down from the ceiling, make sure that no one is underneath the lamp socket to avoid any possible injury or damage to the human eyes caused by fractured lamp.• To reduce the risk of electrical shock, always turn the projector off and disconnect the power cord before changing the lamp. • To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp.• To reduce the risk of injuries to fingers and damage to internal components, use caution when removing lamp glass that has shattered into sharp pieces.• To reduce the risk of injuries to fingers and/or compromising image quality by touching the lens, do not touch the empty lamp comparent when the lamp is removed.• This lamp contains mercury. Consult your local hazardous waste regulations to dispose of this lamp in a proper manner.• To assure optimal performance from the projector, it is recommended that you purchase a BenQ projector lamp for lamp replacement.1. Turn the power off and disconnect the projector from the power outlet. If the lamp is hot, avoid burns by waiting for approximately 45 minutes until the lamp has cooled.2. Loosen the screw on the lamp cover.

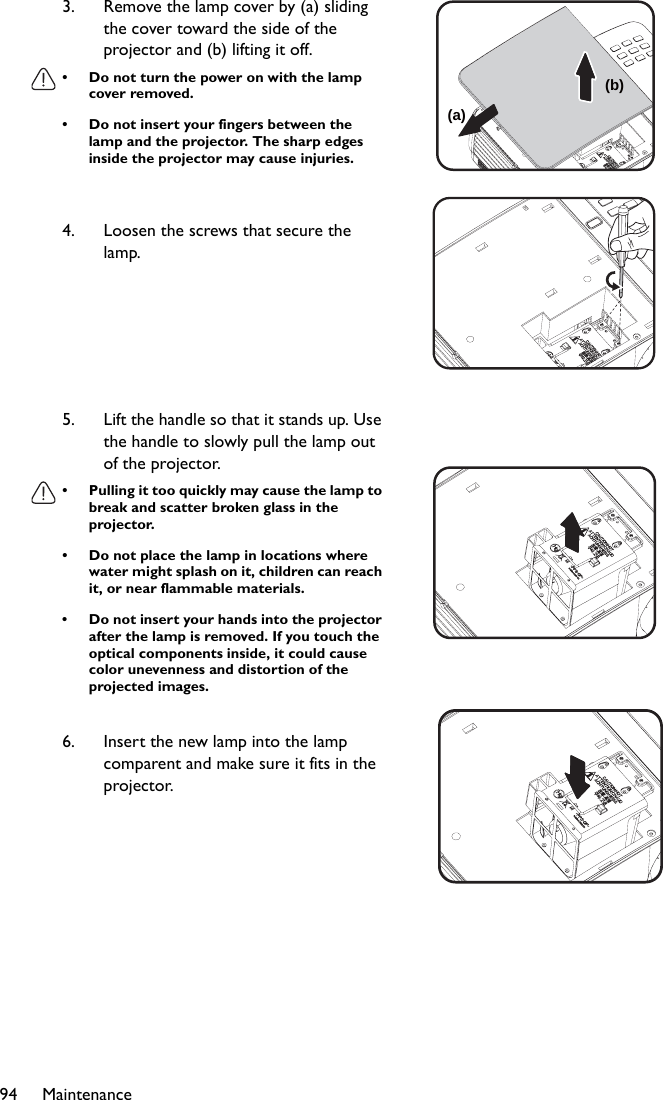

Maintenance943. Remove the lamp cover by (a) sliding the cover toward the side of the projector and (b) lifting it off.• Do not turn the power on with the lamp cover removed.• Do not insert your fingers between the lamp and the projector. The sharp edges inside the projector may cause injuries.4. Loosen the screws that secure the lamp.5. Lift the handle so that it stands up. Use the handle to slowly pull the lamp out of the projector.• Pulling it too quickly may cause the lamp to break and scatter broken glass in the projector.• Do not place the lamp in locations where water might splash on it, children can reach it, or near flammable materials.• Do not insert your hands into the projector after the lamp is removed. If you touch the optical components inside, it could cause color unevenness and distortion of the projected images.6. Insert the new lamp into the lamp comparent and make sure it fits in the projector.(b)(a)
Maintenance 9511. Restart the projector.Do not turn the power on with the lamp cover removed.Resetting the lamp timer12. After the startup logo, open the On-Screen Display (OSD) menu. Go to the SYSTEM SETUP: Advanced > Lamp Settings menu. Press MODE/ENTER. The Lamp Settings page displays. Press to highlight Reset lamp timer and press MODE/ENTER. A warning message displays asking if you want to reset the lamp timer. Highlight Reset and press MODE/ENTER. The lamp time will be reset to '0'.Do not reset if the lamp is not new or replaced as this could cause damage. 7. Tighten the screws that secure the lamp.• Loose screw may cause a bad connection, which could result in malfunction.• Do not over tighten the screws.8. Ensure the handle is fully laid flat and locked in place.9. Replace the lamp cover by sliding it into place.10. Tighten the screw that secures the lamp cover. • Loose screw may cause a bad connection, which could result in malfunction.• Do not over tighten the screw.(a)(b)

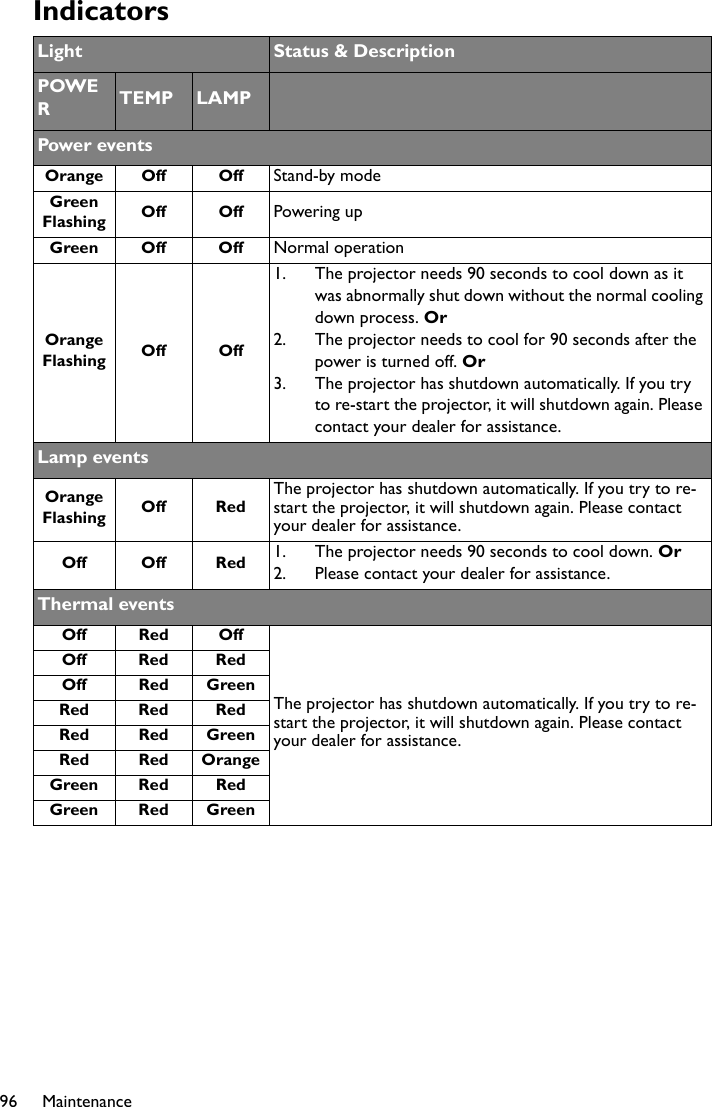

Maintenance96IndicatorsLight Status & DescriptionPOWERTEMP LAMPPower eventsOrange Off Off Stand-by modeGreenFlashing Off Off Powering upGreen Off Off Normal operationOrangeFlashing Off Off1. The projector needs 90 seconds to cool down as it was abnormally shut down without the normal cooling down process. Or2. The projector needs to cool for 90 seconds after the power is turned off. Or3. The projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance.Lamp eventsOrangeFlashing Off RedThe projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance.Off Off Red 1. The projector needs 90 seconds to cool down. Or2. Please contact your dealer for assistance.Thermal eventsOff Red OffThe projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance.Off Red RedOff Red GreenRed Red RedRed Red GreenRed Red OrangeGreen Red RedGreen Red Green

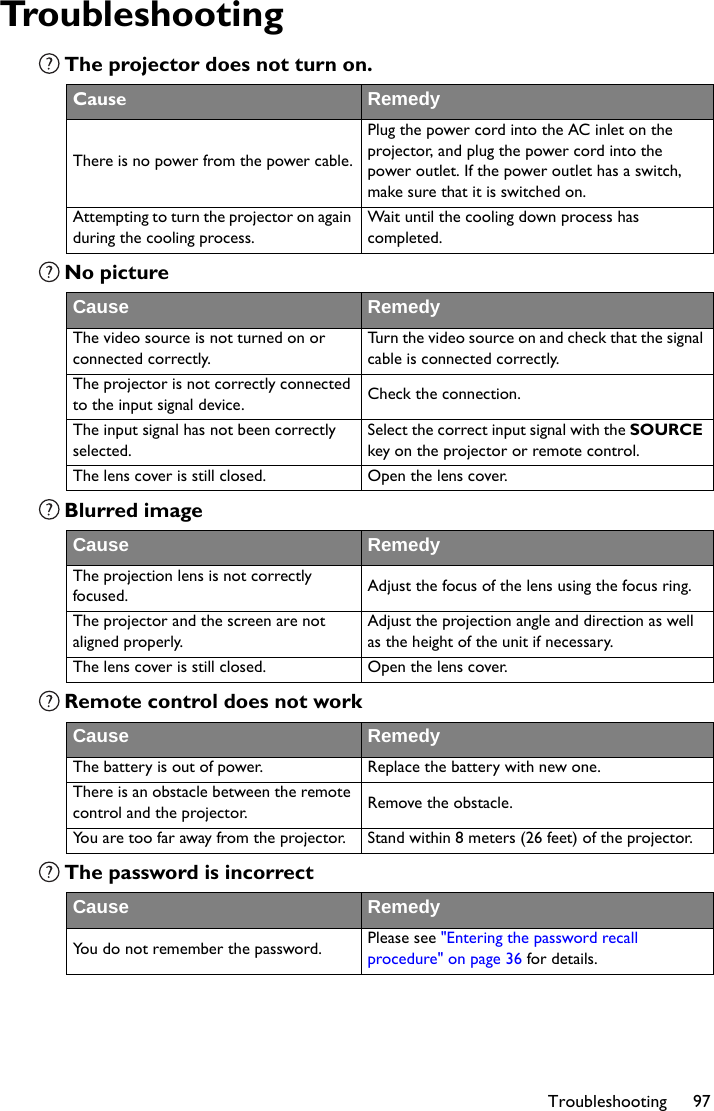

Troubleshooting 97TroubleshootingThe projector does not turn on.No pictureBlurred imageRemote control does not workThe password is incorrectCause RemedyThere is no power from the power cable.Plug the power cord into the AC inlet on the projector, and plug the power cord into the power outlet. If the power outlet has a switch, make sure that it is switched on.Attempting to turn the projector on again during the cooling process.Wait until the cooling down process has completed.Cause RemedyThe video source is not turned on or connected correctly.Turn the video source on and check that the signal cable is connected correctly.The projector is not correctly connected to the input signal device. Check the connection.The input signal has not been correctly selected.Select the correct input signal with the SOURCE key on the projector or remote control.The lens cover is still closed. Open the lens cover.Cause RemedyThe projection lens is not correctly focused. Adjust the focus of the lens using the focus ring.The projector and the screen are not aligned properly.Adjust the projection angle and direction as well as the height of the unit if necessary.The lens cover is still closed. Open the lens cover.Cause RemedyThe battery is out of power. Replace the battery with new one.There is an obstacle between the remote control and the projector. Remove the obstacle.You are too far away from the projector. Stand within 8 meters (26 feet) of the projector.Cause RemedyYou do not remember the password. Please see "Entering the password recall procedure" on page 36 for details.

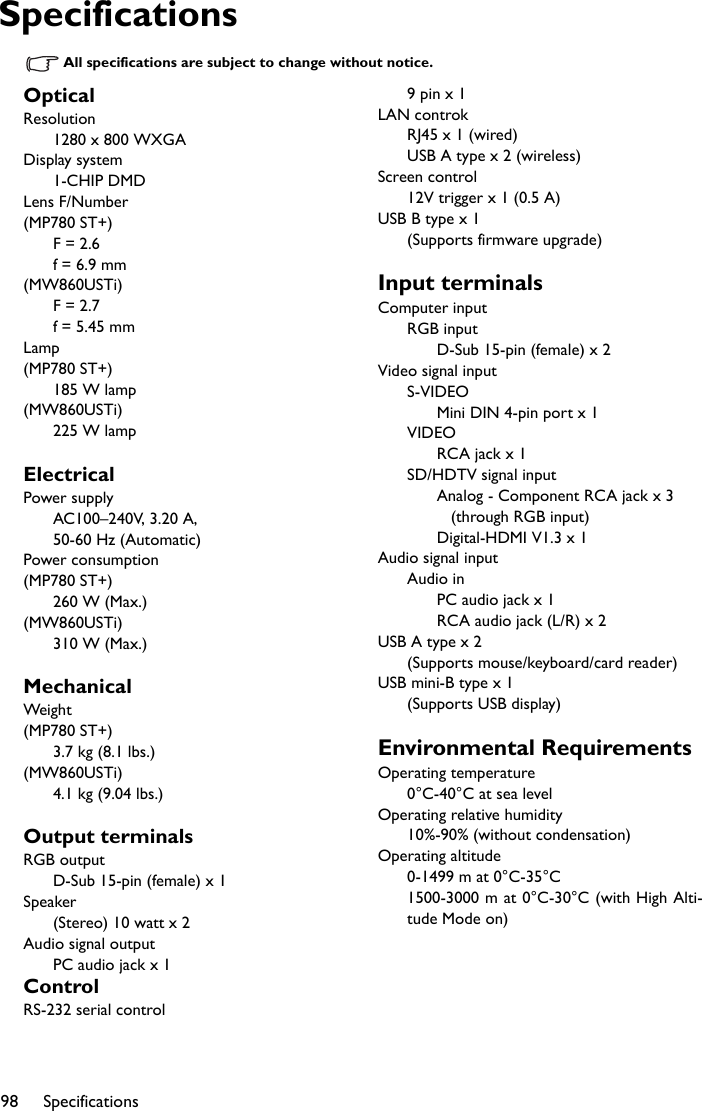

Specifications98SpecificationsAll specifications are subject to change without notice. OpticalResolution1280 x 800 WXGADisplay system1-CHIP DMDLens F/Number(MP780 ST+)F = 2.6 f = 6.9 mm(MW860USTi)F = 2.7 f = 5.45 mmLamp(MP780 ST+)185 W lamp(MW860USTi)225 W lampElectricalPower supplyAC100–240V, 3.20 A,50-60 Hz (Automatic)Power consumption(MP780 ST+)260 W (Max.)(MW860USTi)310 W (Max.)MechanicalWeight(MP780 ST+)3.7 kg (8.1 lbs.)(MW860USTi)4.1 kg (9.04 lbs.)Output terminalsRGB outputD-Sub 15-pin (female) x 1Speaker(Stereo) 10 watt x 2Audio signal outputPC audio jack x 1ControlRS-232 serial control 9 pin x 1LAN controkRJ45 x 1 (wired)USB A type x 2 (wireless)Screen control12V trigger x 1 (0.5 A)USB B type x 1(Supports firmware upgrade)Input terminalsComputer inputRGB inputD-Sub 15-pin (female) x 2Video signal inputS-VIDEOMini DIN 4-pin port x 1VIDEORCA jack x 1SD/HDTV signal inputAnalog - Component RCA jack x 3 (through RGB input)Digital-HDMI V1.3 x 1Audio signal inputAudio inPC audio jack x 1RCA audio jack (L/R) x 2USB A type x 2(Supports mouse/keyboard/card reader)USB mini-B type x 1(Supports USB display)Environmental RequirementsOperating temperature0°C-40°C at sea levelOperating relative humidity10%-90% (without condensation)Operating altitude0-1499 m at 0°C-35°C1500-3000 m at 0°C-30°C (with High Alti-tude Mode on)

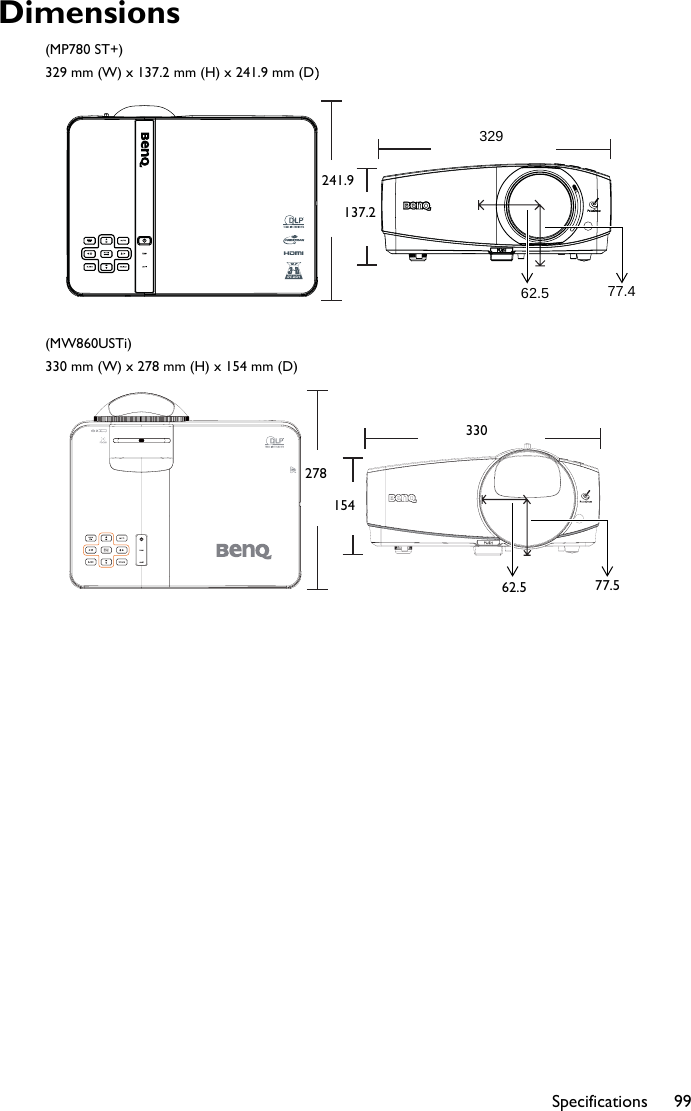

Specifications 99Dimensions(MP780 ST+)329 mm (W) x 137.2 mm (H) x 241.9 mm (D)(MW860USTi)330 mm (W) x 278 mm (H) x 154 mm (D)329241.9137.262.5 77.433027815462.5 77.5

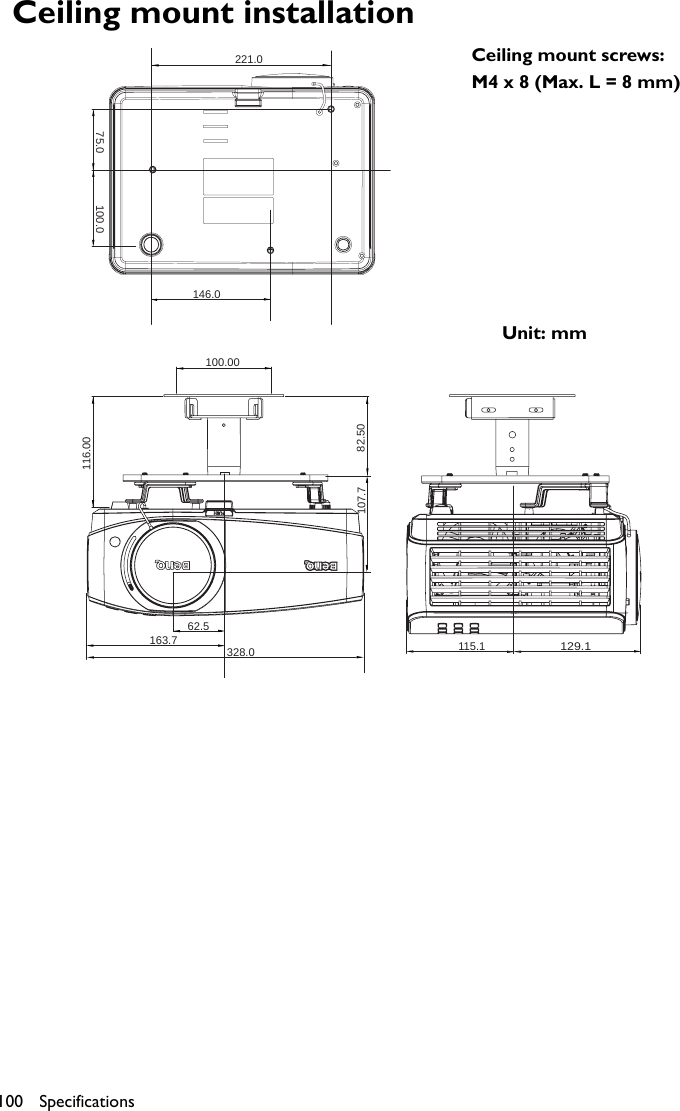

Specifications100Ceiling mount installation75.0221.0100.00116.0082.50107.7328.0163.762.5115.1129.1100.0146.0Ceiling mount screws:M4 x 8 (Max. L = 8 mm)Unit: mm

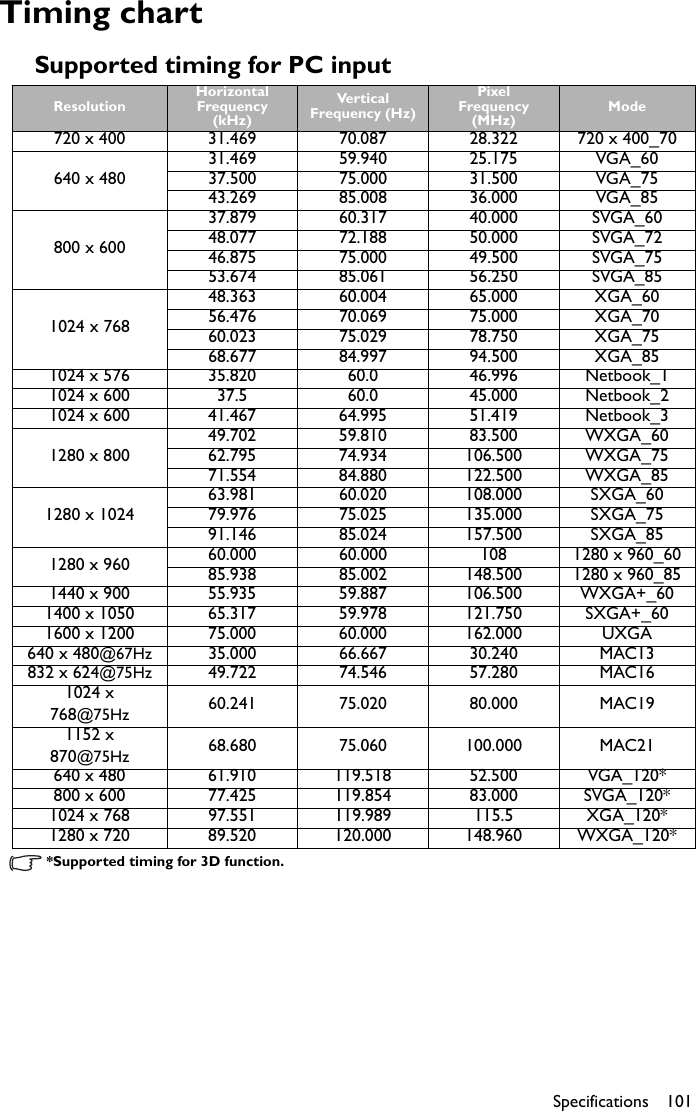

Specifications 101Timing chartSupported timing for PC input*Supported timing for 3D function.ResolutionHorizontal Frequency (kHz)Ver t ical Frequency (Hz)Pixel Frequency (MHz)Mode720 x 400 31.469 70.087 28.322 720 x 400_70640 x 48031.469 59.940 25.175 VGA_6037.500 75.000 31.500 VGA_7543.269 85.008 36.000 VGA_85800 x 60037.879 60.317 40.000 SVGA_6048.077 72.188 50.000 SVGA_7246.875 75.000 49.500 SVGA_7553.674 85.061 56.250 SVGA_851024 x 76848.363 60.004 65.000 XGA_6056.476 70.069 75.000 XGA_7060.023 75.029 78.750 XGA_7568.677 84.997 94.500 XGA_851024 x 576 35.820 60.0 46.996 Netbook_11024 x 600 37.5 60.0 45.000 Netbook_21024 x 600 41.467 64.995 51.419 Netbook_31280 x 80049.702 59.810 83.500 WXGA_6062.795 74.934 106.500 WXGA_7571.554 84.880 122.500 WXGA_851280 x 102463.981 60.020 108.000 SXGA_6079.976 75.025 135.000 SXGA_7591.146 85.024 157.500 SXGA_851280 x 960 60.000 60.000 108 1280 x 960_6085.938 85.002 148.500 1280 x 960_851440 x 900 55.935 59.887 106.500 WXGA+_601400 x 1050 65.317 59.978 121.750 SXGA+_601600 x 1200 75.000 60.000 162.000 UXGA640 x 480@67Hz 35.000 66.667 30.240 MAC13832 x 624@75Hz 49.722 74.546 57.280 MAC161024 x 768@75Hz 60.241 75.020 80.000 MAC191152 x 870@75Hz 68.680 75.060 100.000 MAC21640 x 480 61.910 119.518 52.500 VGA_120*800 x 600 77.425 119.854 83.000 SVGA_120*1024 x 768 97.551 119.989 115.5 XGA_120*1280 x 720 89.520 120.000 148.960 WXGA_120*

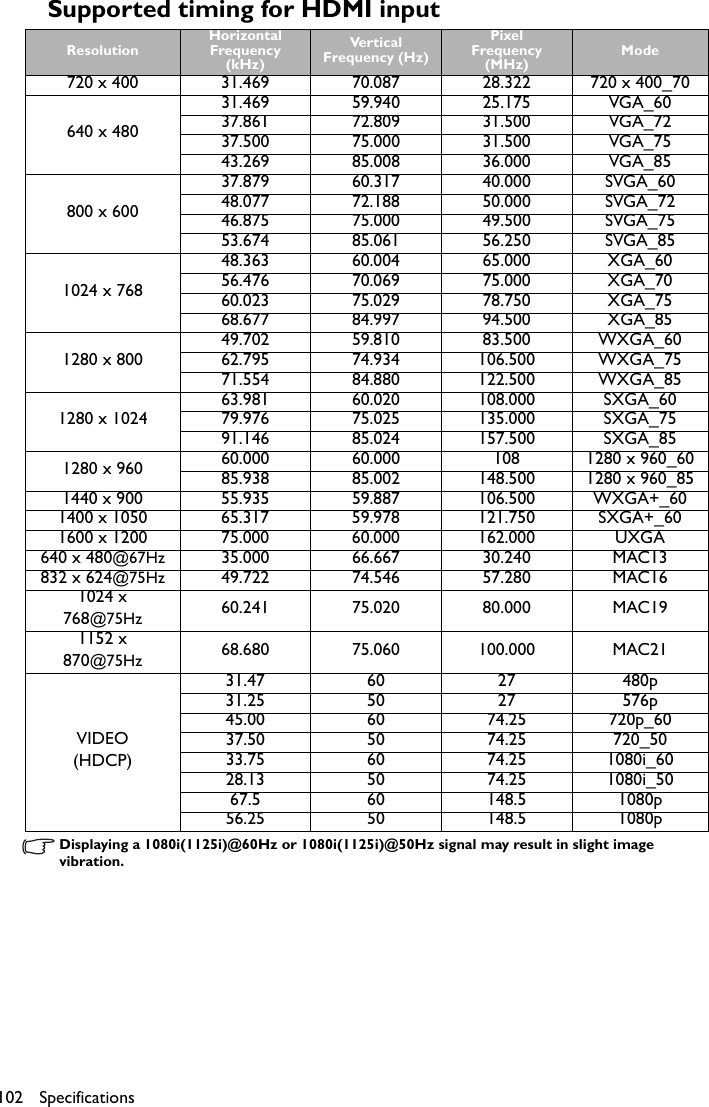

Specifications102Supported timing for HDMI inputDisplaying a 1080i(1125i)@60Hz or 1080i(1125i)@50Hz signal may result in slight image vibration.ResolutionHorizontal Frequency (kHz)Ver t ical Frequency (Hz)Pixel Frequency (MHz)Mode720 x 400 31.469 70.087 28.322 720 x 400_70640 x 48031.469 59.940 25.175 VGA_6037.861 72.809 31.500 VGA_7237.500 75.000 31.500 VGA_7543.269 85.008 36.000 VGA_85800 x 60037.879 60.317 40.000 SVGA_6048.077 72.188 50.000 SVGA_7246.875 75.000 49.500 SVGA_7553.674 85.061 56.250 SVGA_851024 x 76848.363 60.004 65.000 XGA_6056.476 70.069 75.000 XGA_7060.023 75.029 78.750 XGA_7568.677 84.997 94.500 XGA_851280 x 80049.702 59.810 83.500 WXGA_6062.795 74.934 106.500 WXGA_7571.554 84.880 122.500 WXGA_851280 x 102463.981 60.020 108.000 SXGA_6079.976 75.025 135.000 SXGA_7591.146 85.024 157.500 SXGA_851280 x 960 60.000 60.000 108 1280 x 960_6085.938 85.002 148.500 1280 x 960_851440 x 900 55.935 59.887 106.500 WXGA+_601400 x 1050 65.317 59.978 121.750 SXGA+_601600 x 1200 75.000 60.000 162.000 UXGA640 x 480@67Hz 35.000 66.667 30.240 MAC13832 x 624@75Hz 49.722 74.546 57.280 MAC161024 x 768@75Hz 60.241 75.020 80.000 MAC191152 x 870@75Hz 68.680 75.060 100.000 MAC21VIDEO(HDCP)31.47 60 27 480p31.25 50 27 576p45.00 60 74.25 720p_6037.50 50 74.25 720_5033.75 60 74.25 1080i_6028.13 50 74.25 1080i_5067.5 60 148.5 1080p56.25 50 148.5 1080p

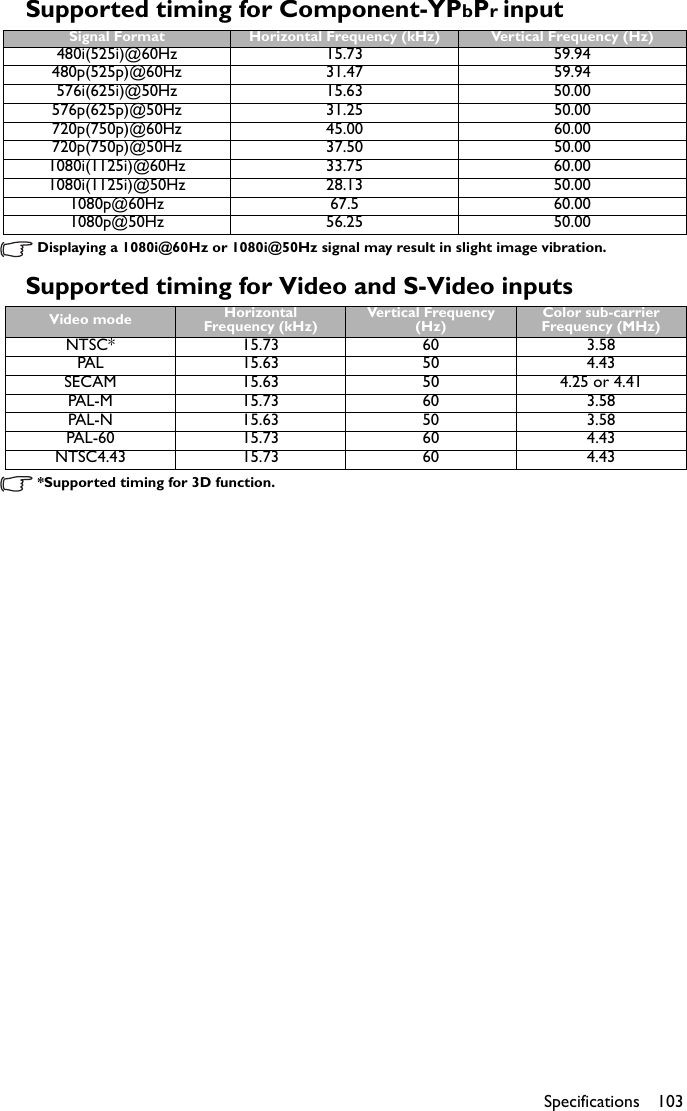

Specifications 103Supported timing for Component-YPbPr inputDisplaying a 1080i@60Hz or 1080i@50Hz signal may result in slight image vibration.Supported timing for Video and S-Video inputs*Supported timing for 3D function.Signal Format Horizontal Frequency (kHz) Vertical Frequency (Hz)480i(525i)@60Hz 15.73 59.94480p(525p)@60Hz 31.47 59.94576i(625i)@50Hz 15.63 50.00576p(625p)@50Hz 31.25 50.00720p(750p)@60Hz 45.00 60.00720p(750p)@50Hz 37.50 50.001080i(1125i)@60Hz 33.75 60.001080i(1125i)@50Hz 28.13 50.001080p@60Hz 67.5 60.001080p@50Hz 56.25 50.00Video mode Horizontal Frequency (kHz)Vertical Frequency (Hz)Color sub-carrier Frequency (MHz)NTSC* 15.73 60 3.58PAL 15.63 50 4.43SECAM 15.63 50 4.25 or 4.41PAL-M 15.73 60 3.58PAL-N 15.63 50 3.58PAL-60 15.73 60 4.43NTSC4.43 15.73 60 4.43

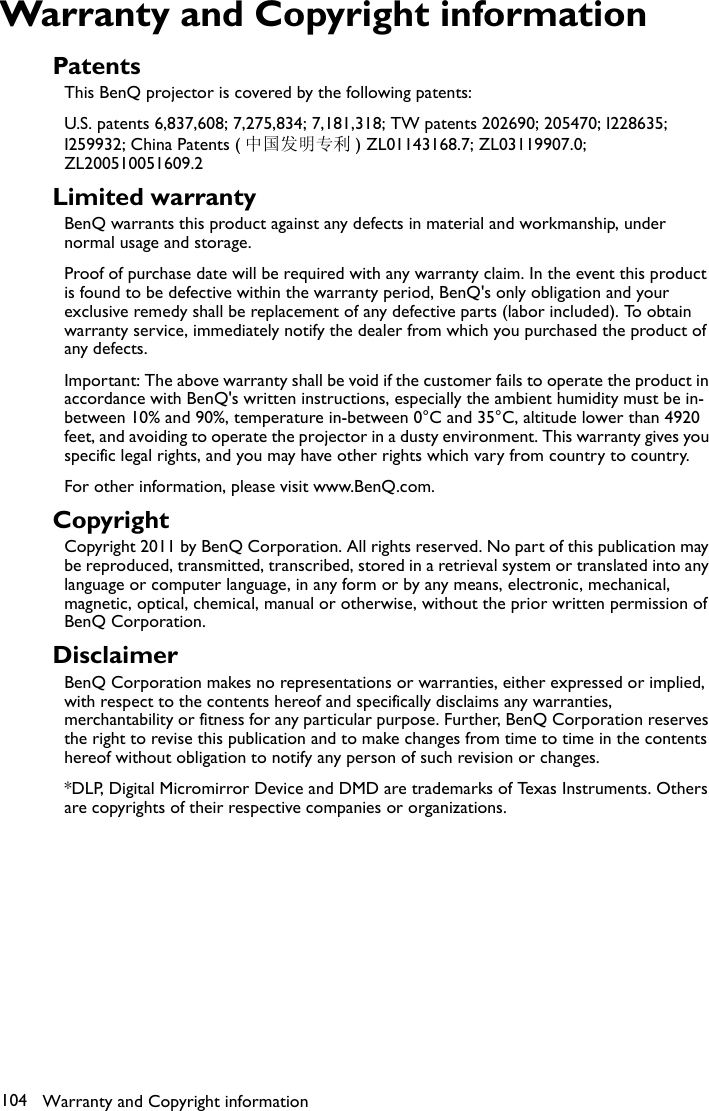

Warranty and Copyright information104Warranty and Copyright informationPatentsThis BenQ projector is covered by the following patents:U.S. patents 6,837,608; 7,275,834; 7,181,318; TW patents 202690; 205470; I228635; I259932; China Patents ( 中国发明专利 ) ZL01143168.7; ZL03119907.0; ZL200510051609.2Limited warrantyBenQ warrants this product against any defects in material and workmanship, under normal usage and storage.Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, BenQ's only obligation and your exclusive remedy shall be replacement of any defective parts (labor included). To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects.Important: The above warranty shall be void if the customer fails to operate the product in accordance with BenQ's written instructions, especially the ambient humidity must be in-between 10% and 90%, temperature in-between 0°C and 35°C, altitude lower than 4920 feet, and avoiding to operate the projector in a dusty environment. This warranty gives you specific legal rights, and you may have other rights which vary from country to country.For other information, please visit www.BenQ.com.CopyrightCopyright 2011 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation.DisclaimerBenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.*DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments. Others are copyrights of their respective companies or organizations.
