HP EliteBook 2740p User Guide
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
© Copyright 2010 Hewlett-Packard
Development Company, L.P.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Intel is a trademark
of Intel Corporation in the U.S. and other
countries or regions. Java is a U.S.
trademark of Sun Microsystems, Inc.
Microsoft, Windows, and Windows Vista are
U.S. registered trademarks of Microsoft
Corporation. SD Logo is a trademark of its
proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: February 2010
Document Part Number: 599104-001
Product notice
This user guide describes features that are
common to most models. Some features
may not be available on your computer.
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a
hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact
the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the
AC adapter comply with the user-accessible surface temperature limits defined by the International
Standard for Safety of Information Technology Equipment (IEC 60950).
iii
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
iv Safety warning notice
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Table of contents
1 Features
Identifying hardware ............................................................................................................................. 1

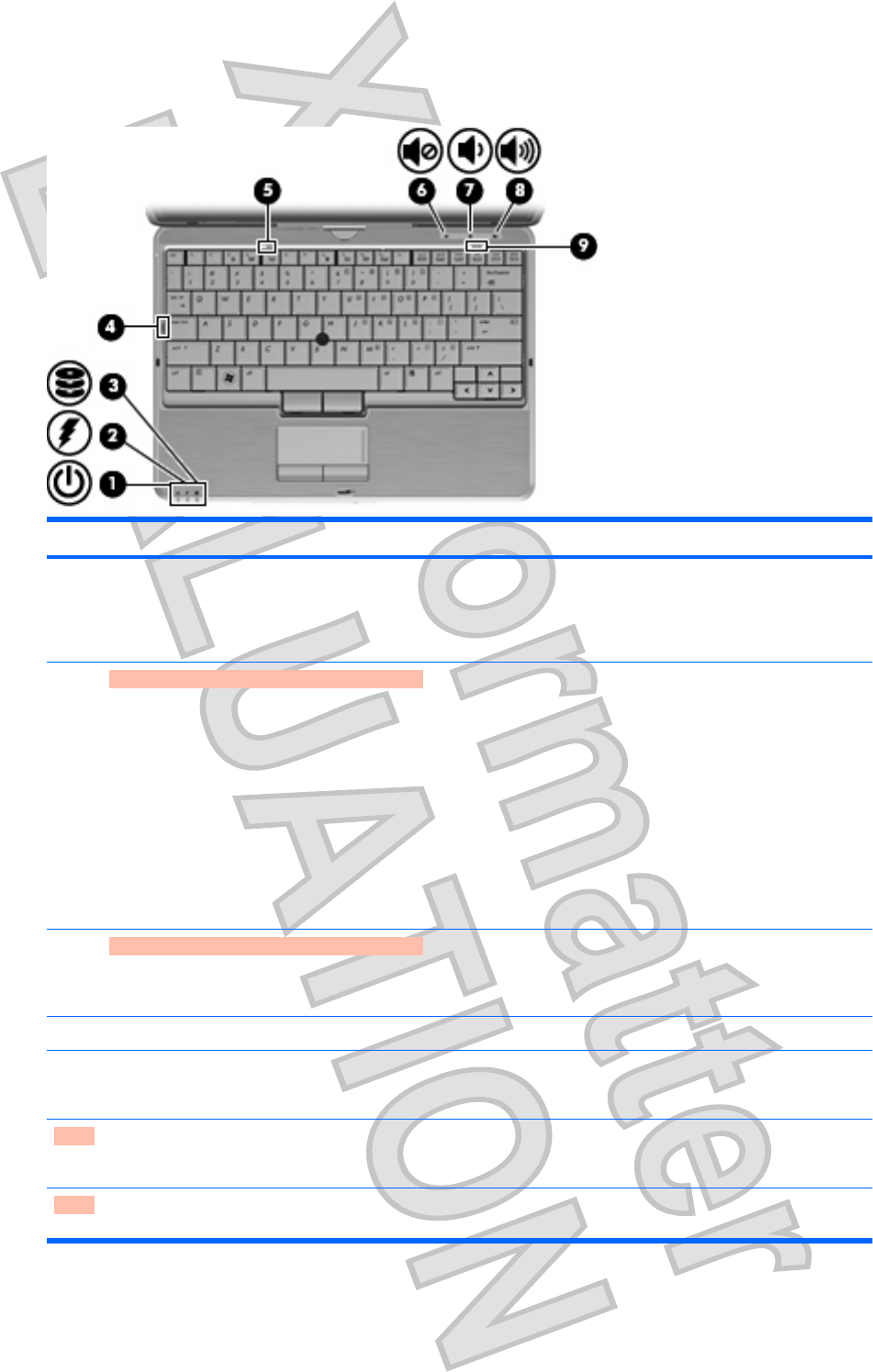

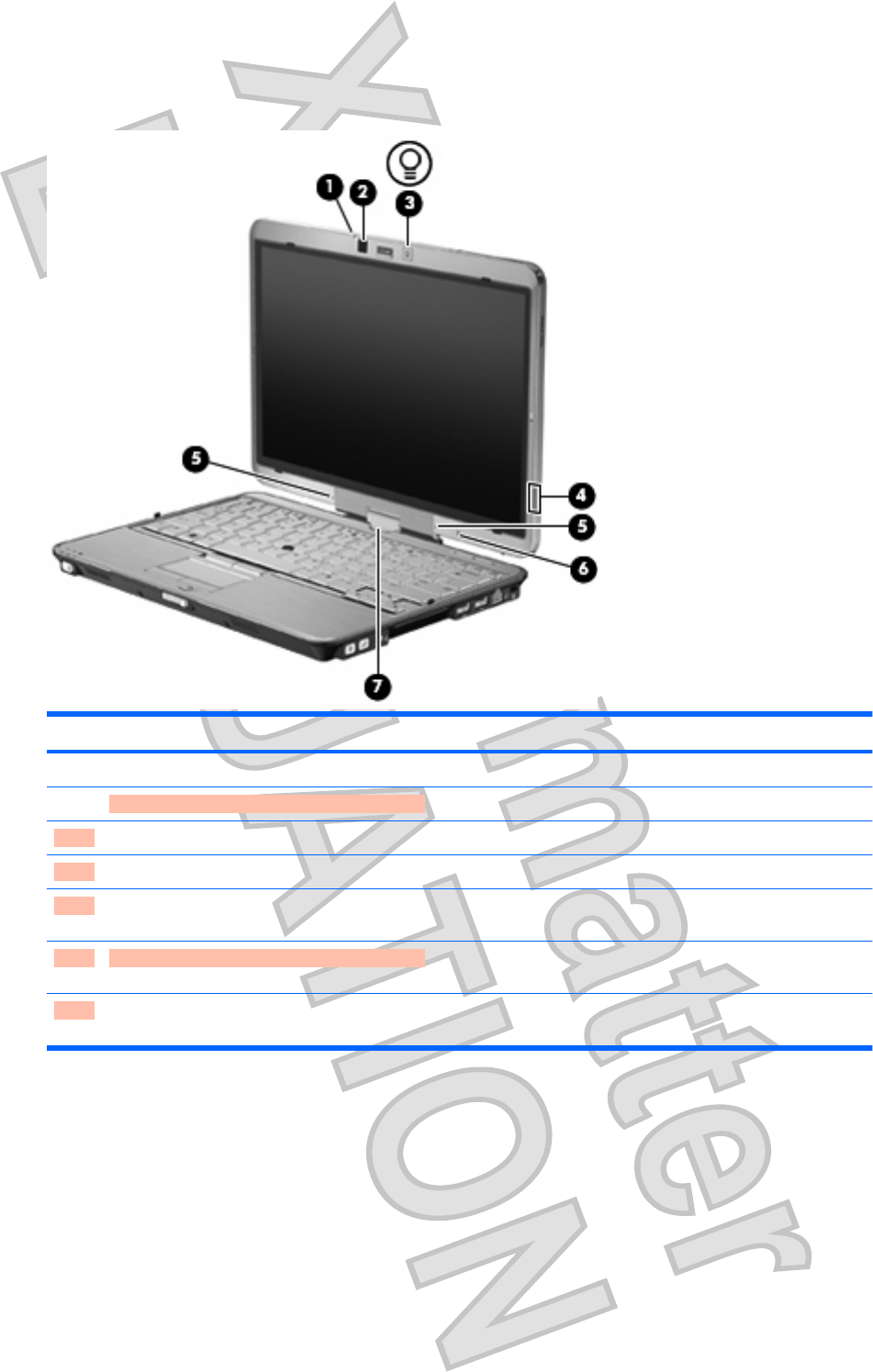

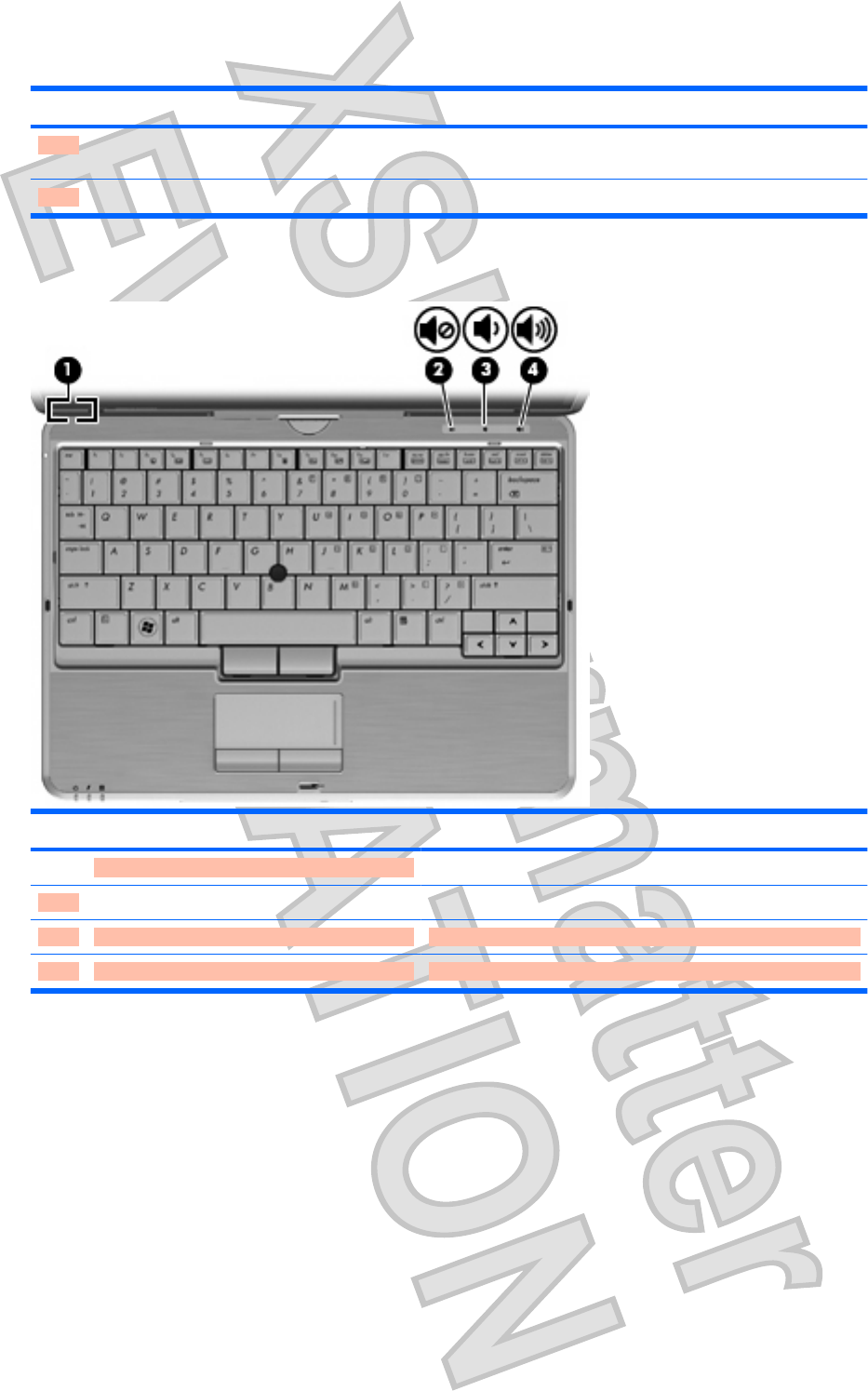

Top components .................................................................................................................. 1

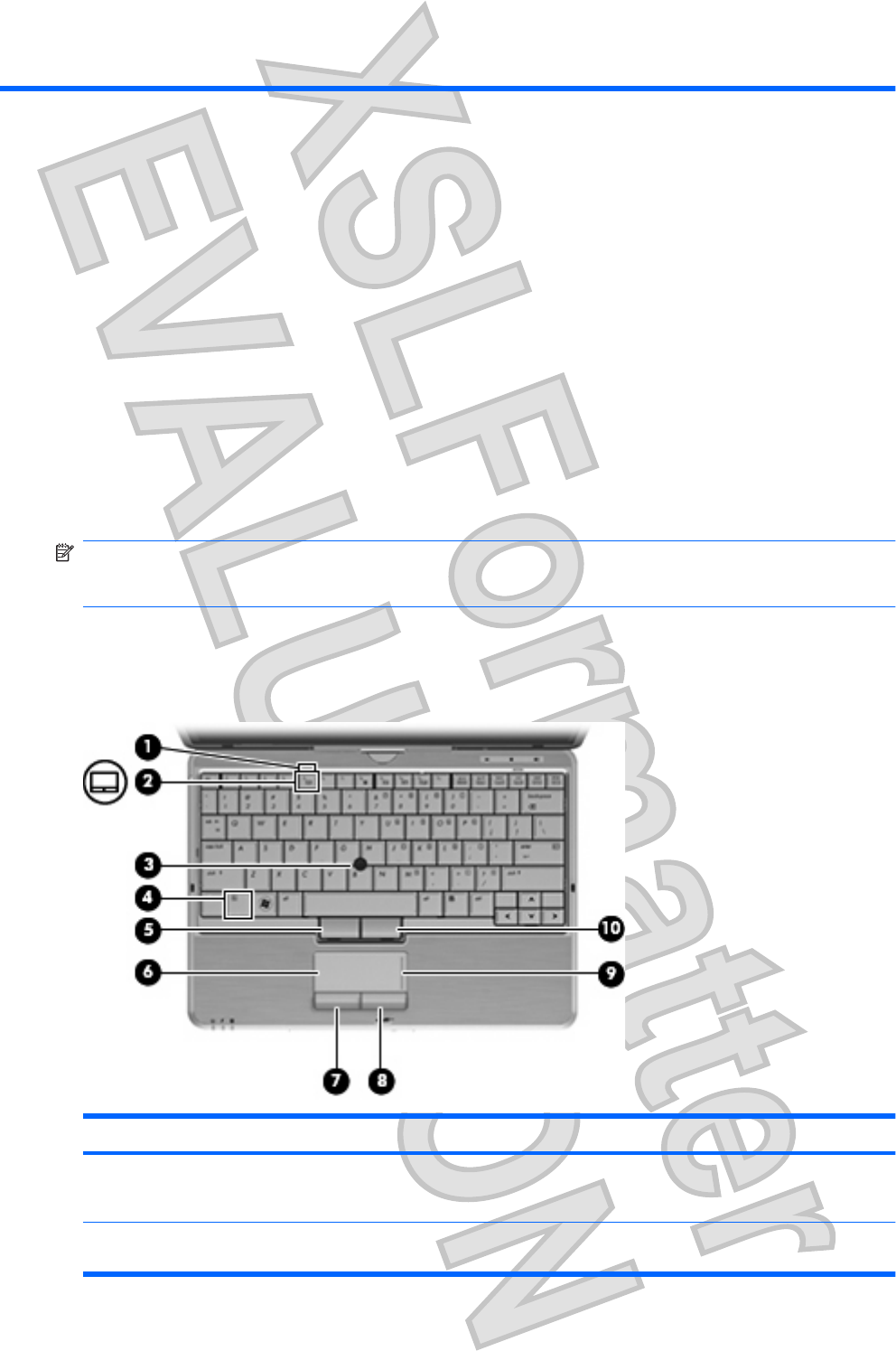

Pointing devices .................................................................................................. 1
Lights ................................................................................................................... 3
Buttons and switches .......................................................................................... 4
Keys .................................................................................................................... 5

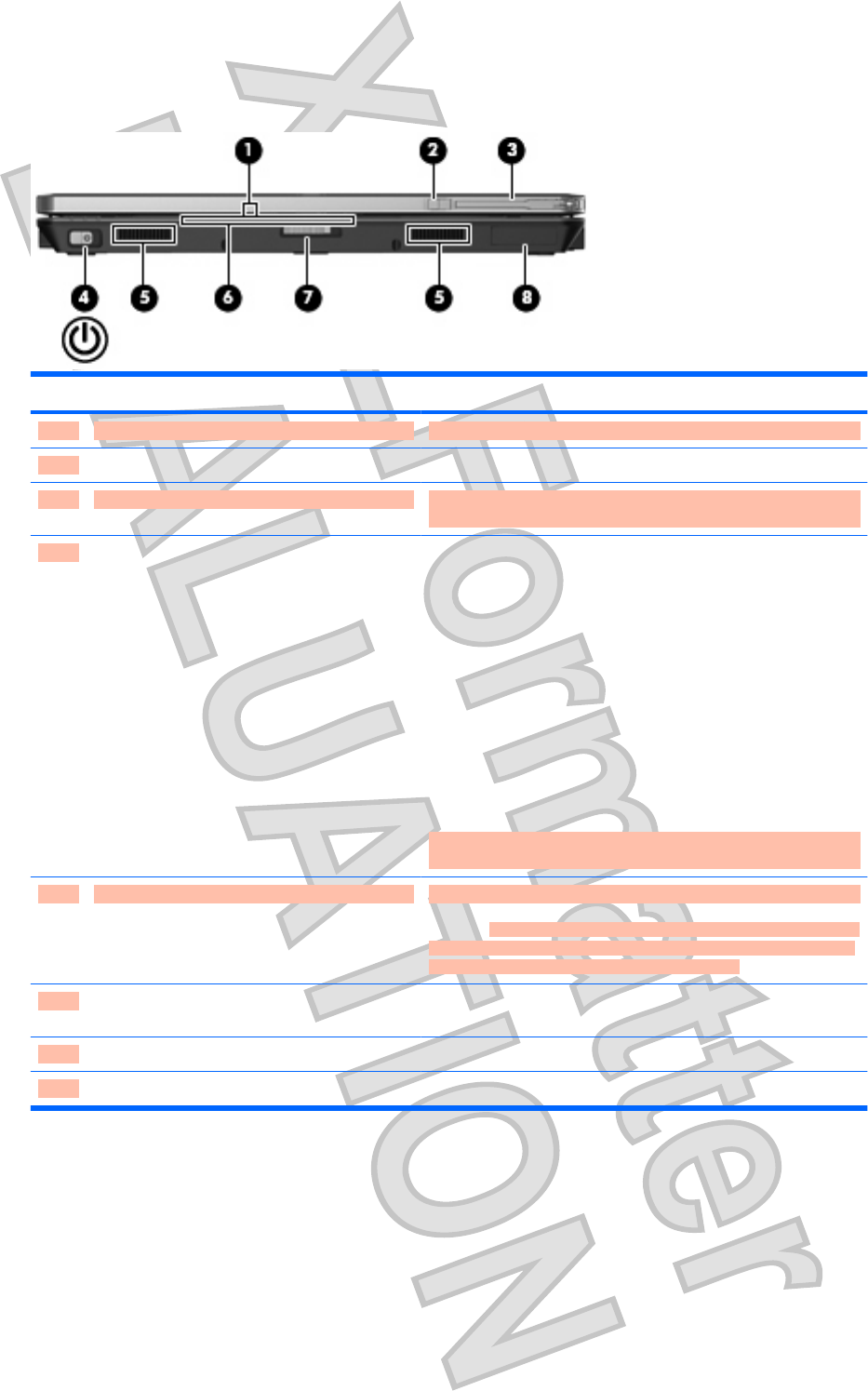

Front components ................................................................................................................ 6

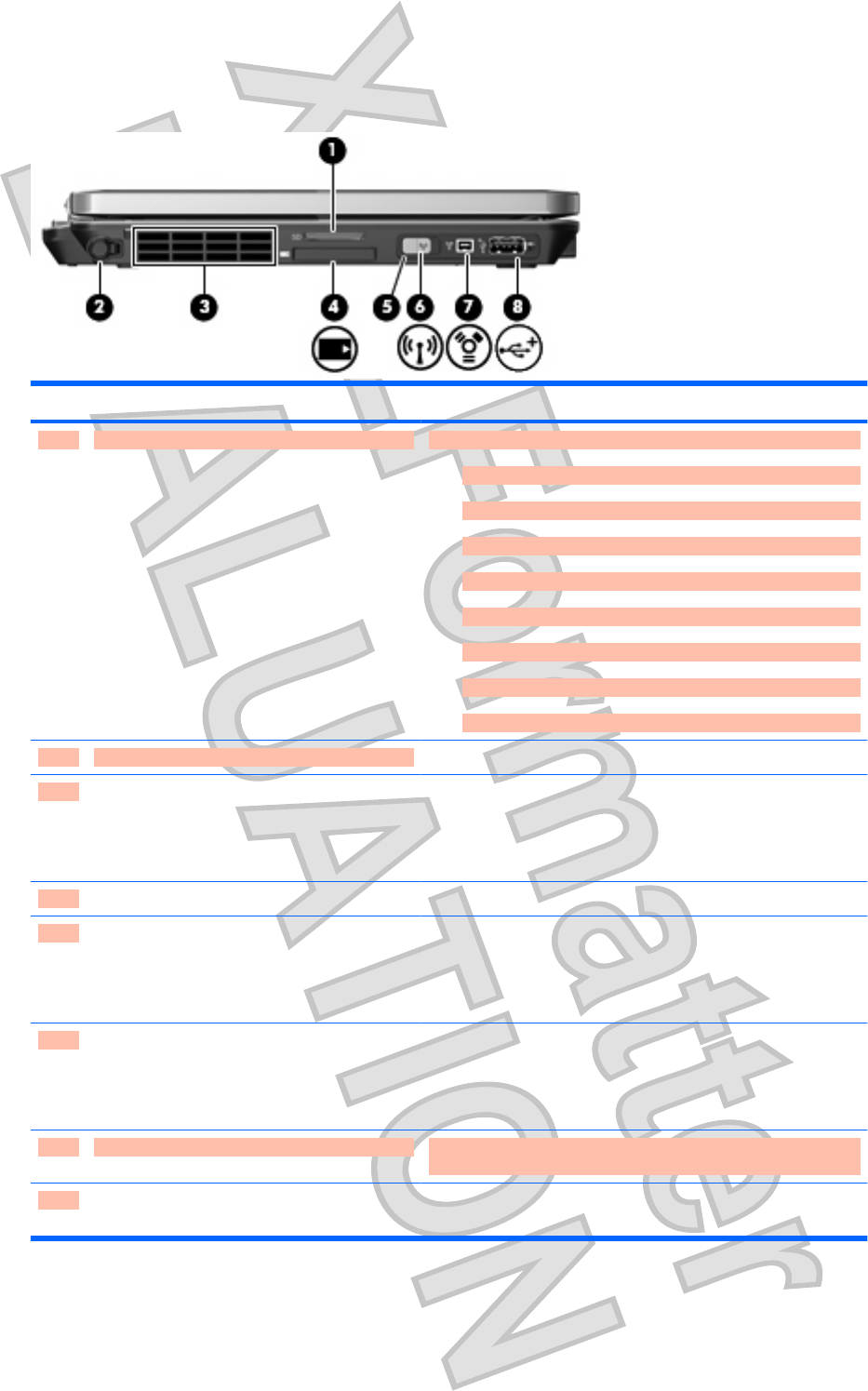

Right-side components ........................................................................................................ 7
Left-side components .......................................................................................................... 8

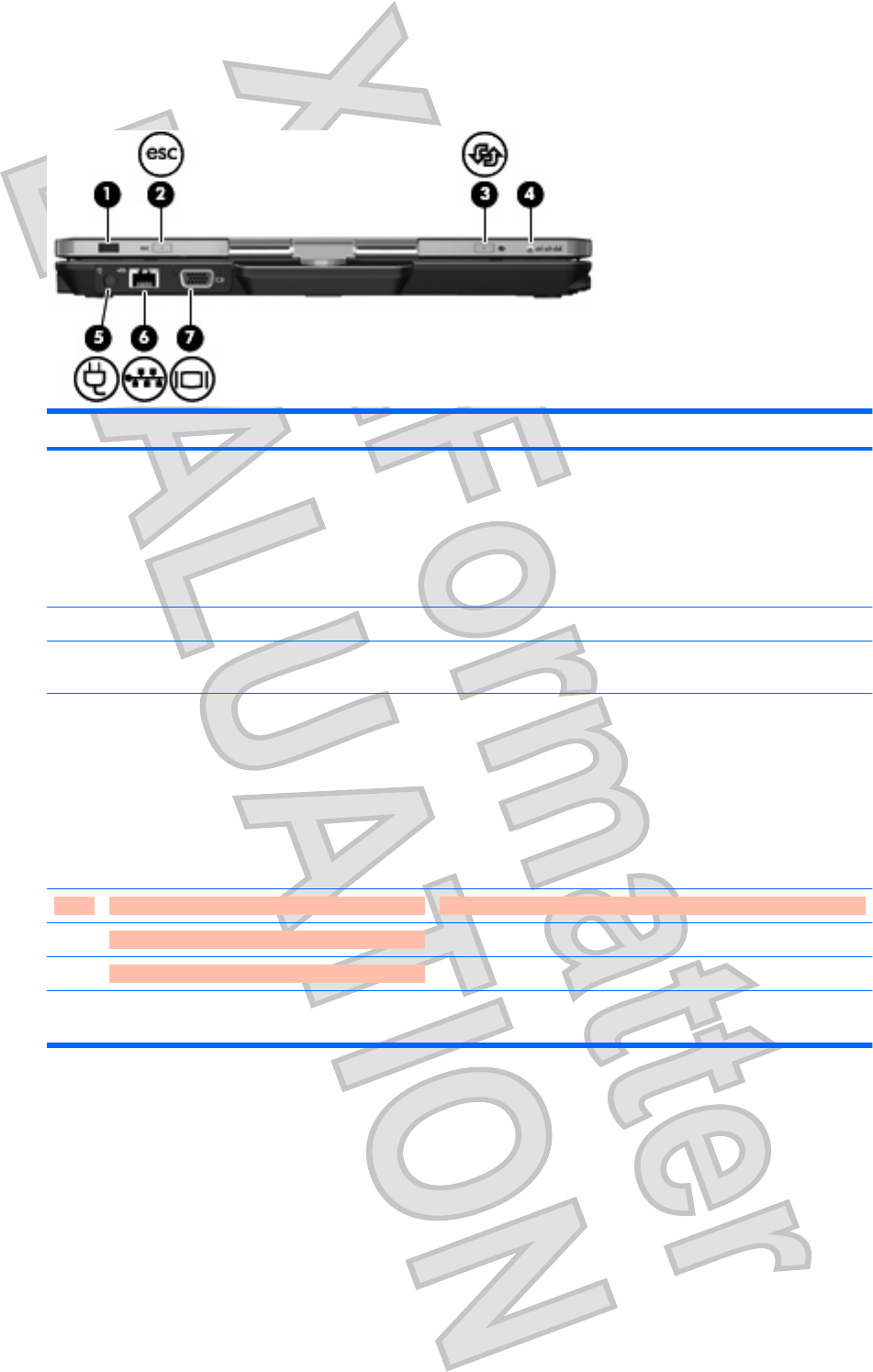

Rear components ................................................................................................................ 9

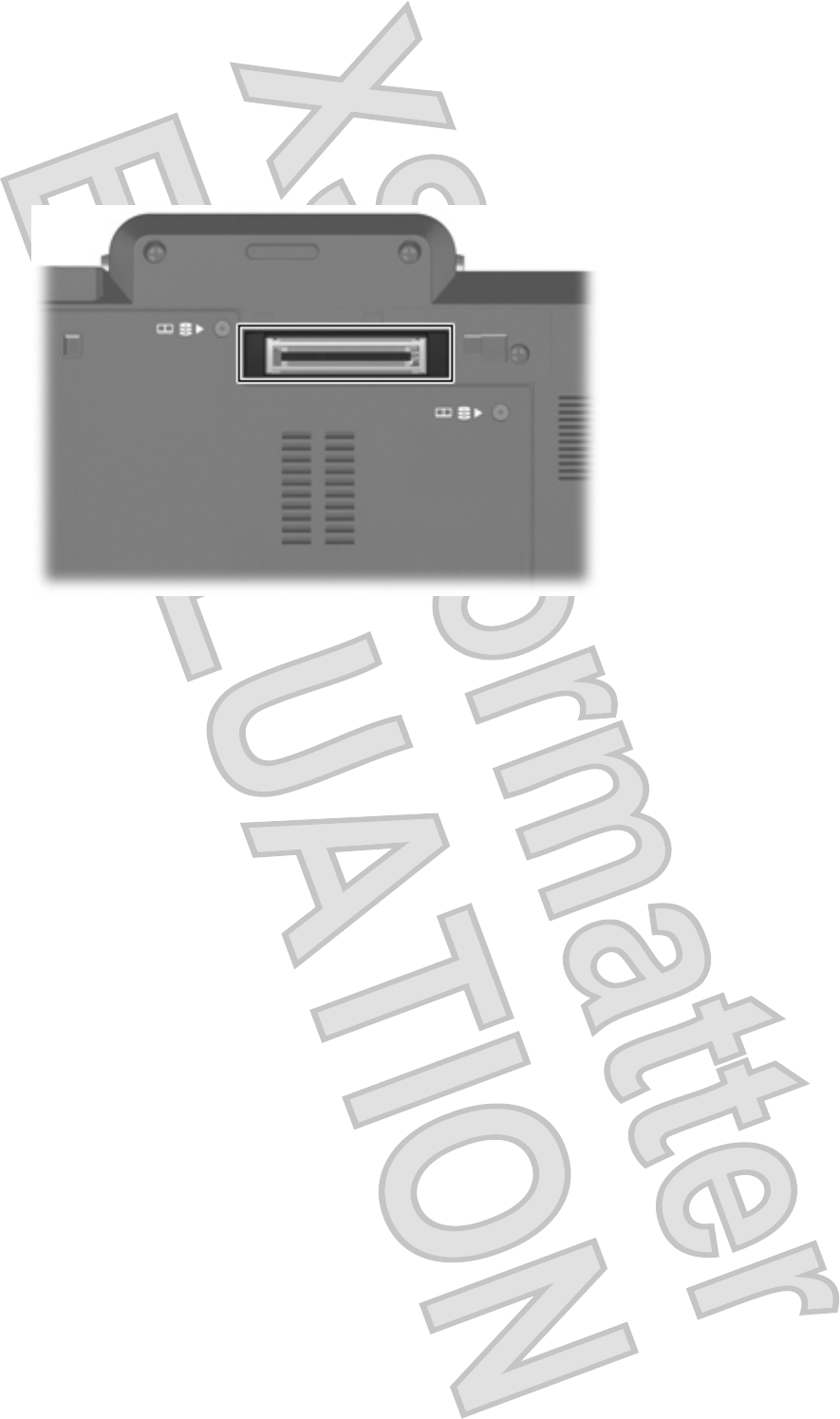

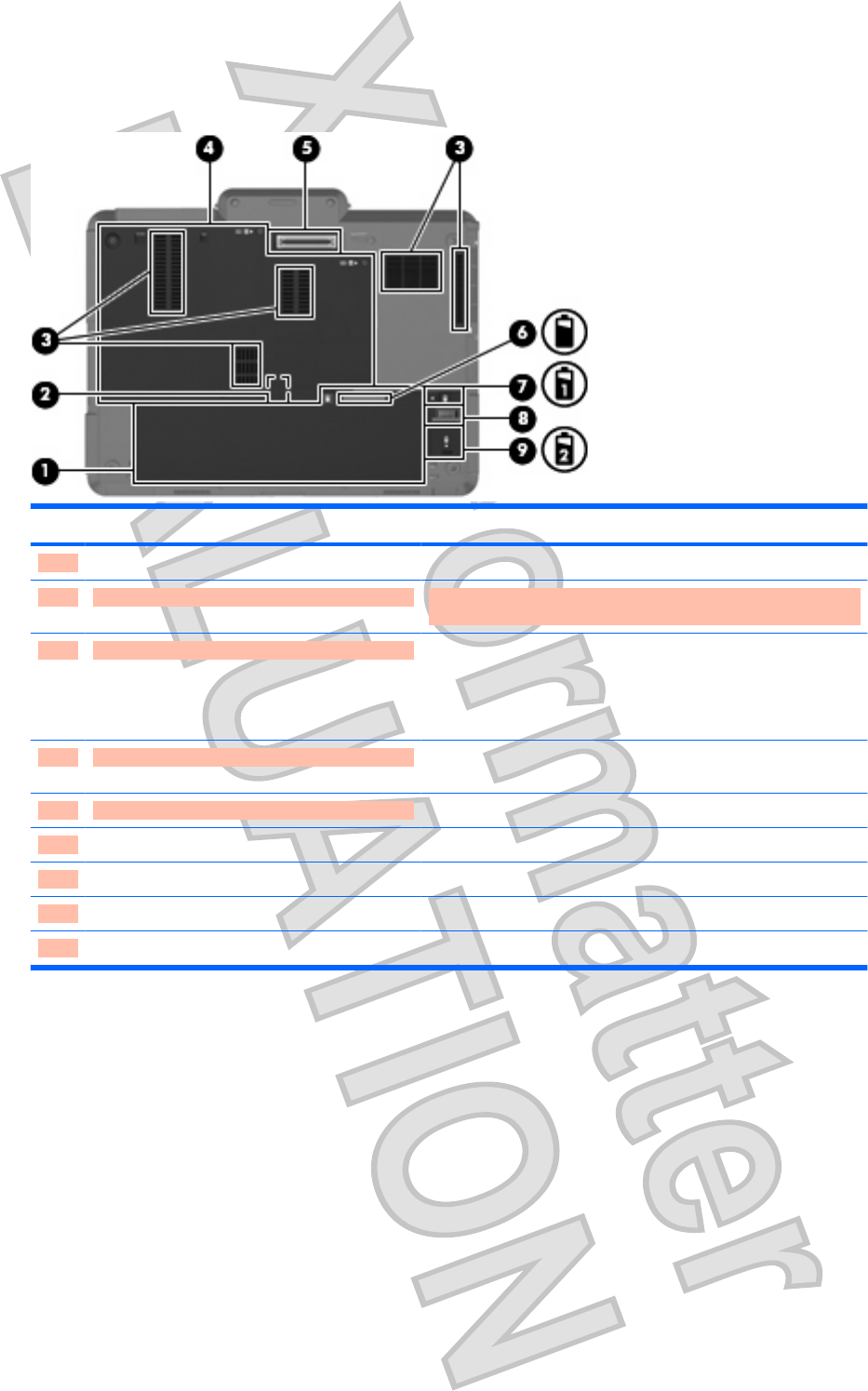

Bottom components ........................................................................................................... 10
Display ............................................................................................................................... 11
Wireless antennas (select models only) ............................................................................ 12

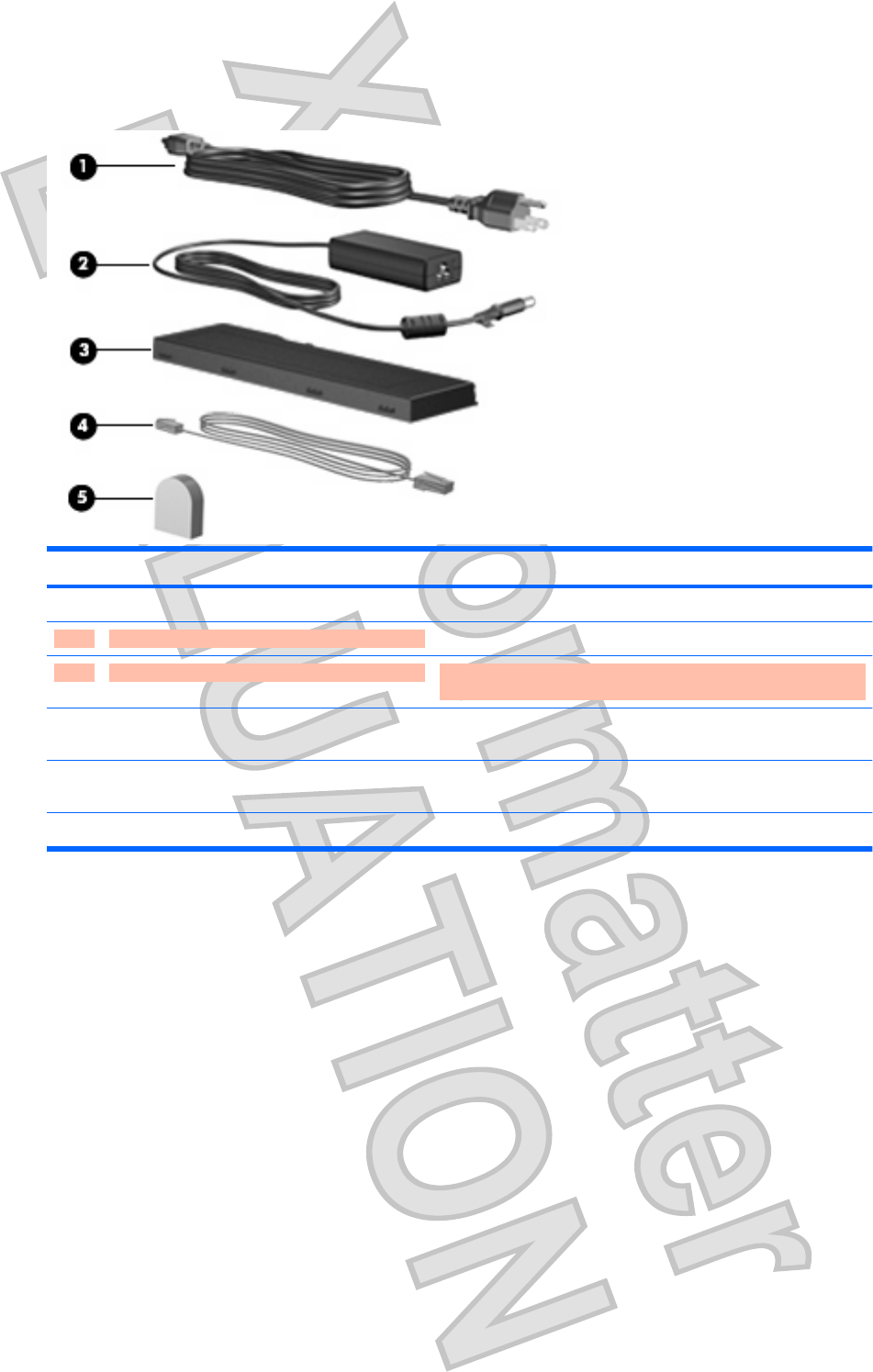

Additional hardware components ...................................................................................... 13

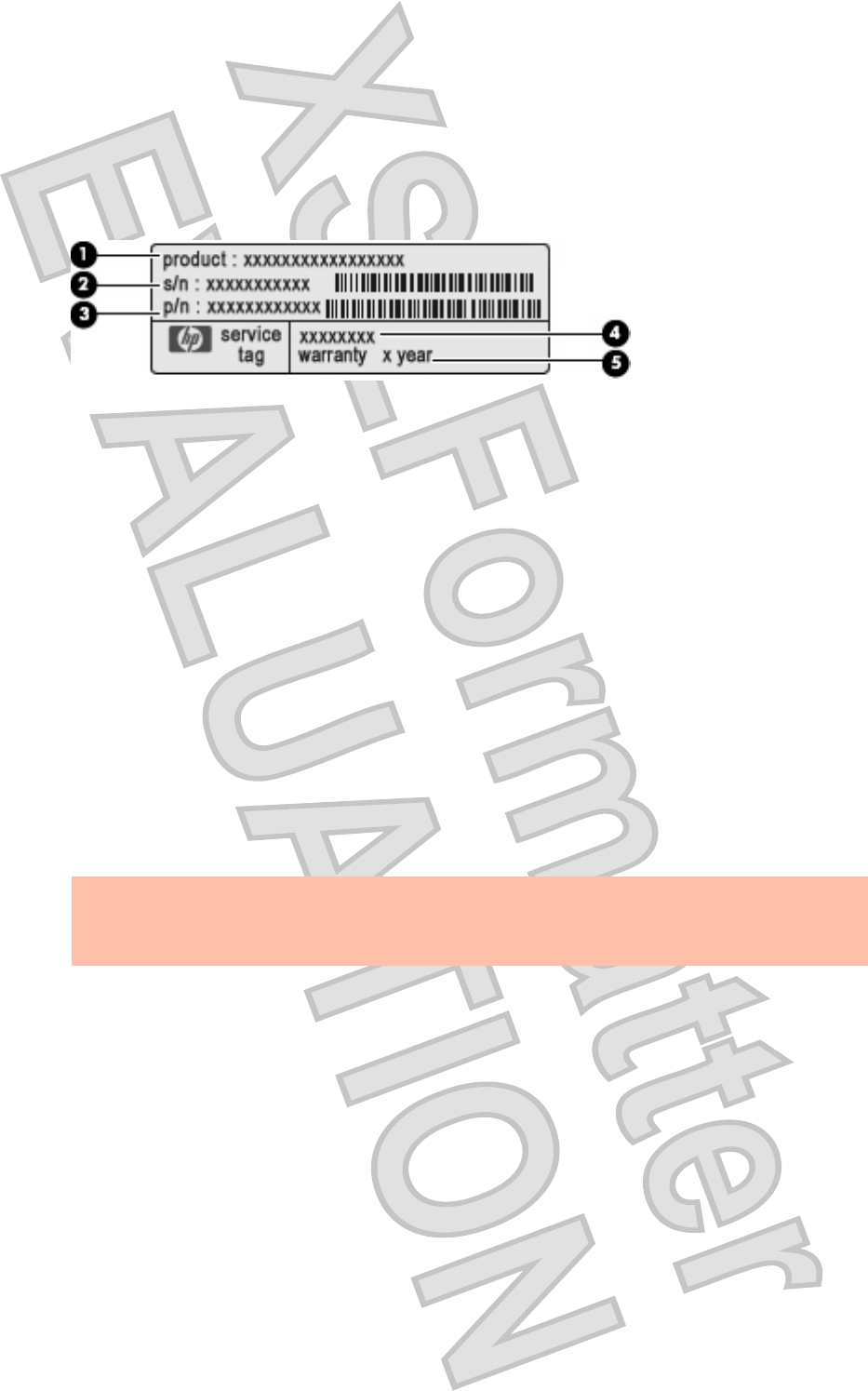

Identifying the labels ........................................................................................................................... 14
2 Using the tablet
Tablet display components ................................................................................................................. 15

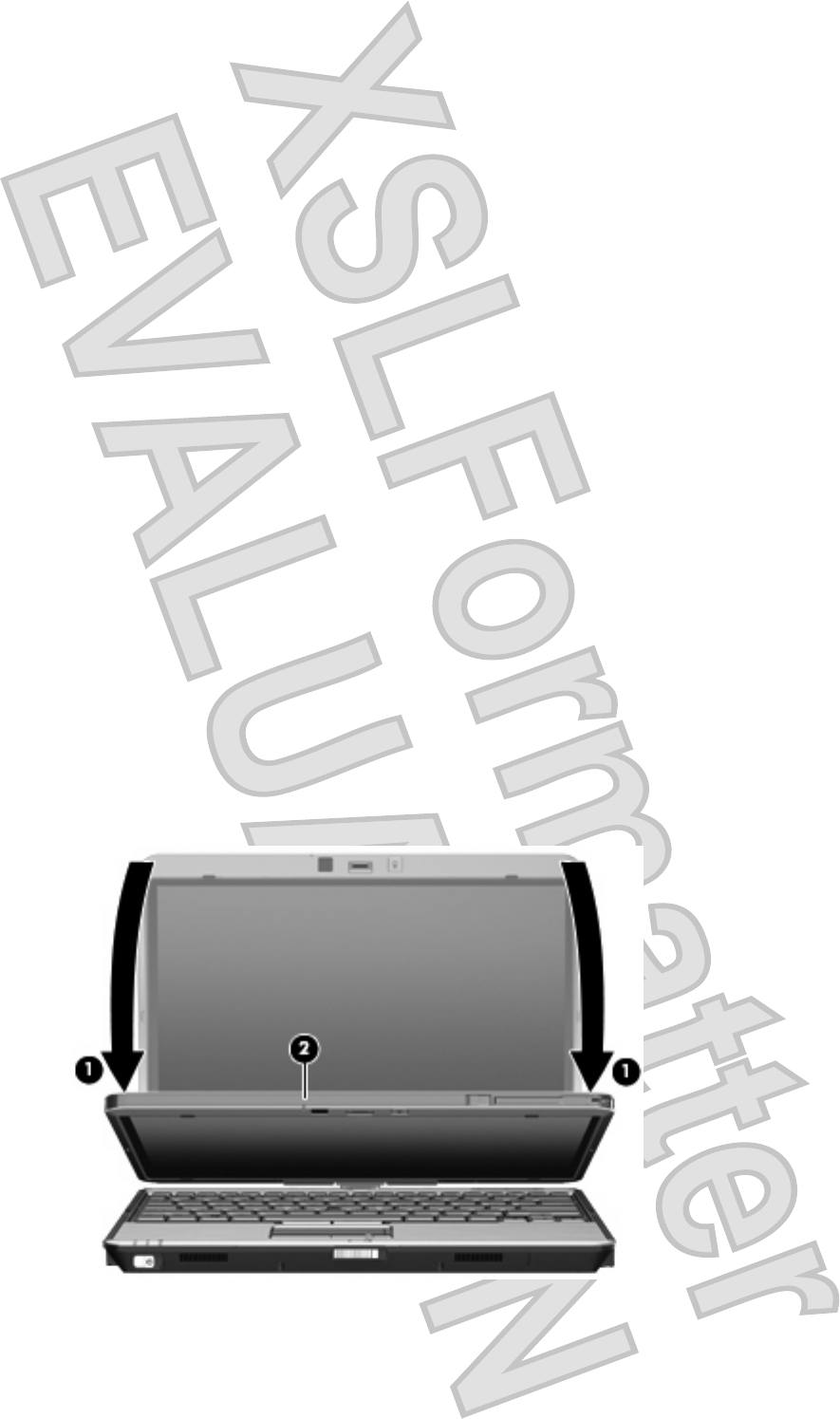

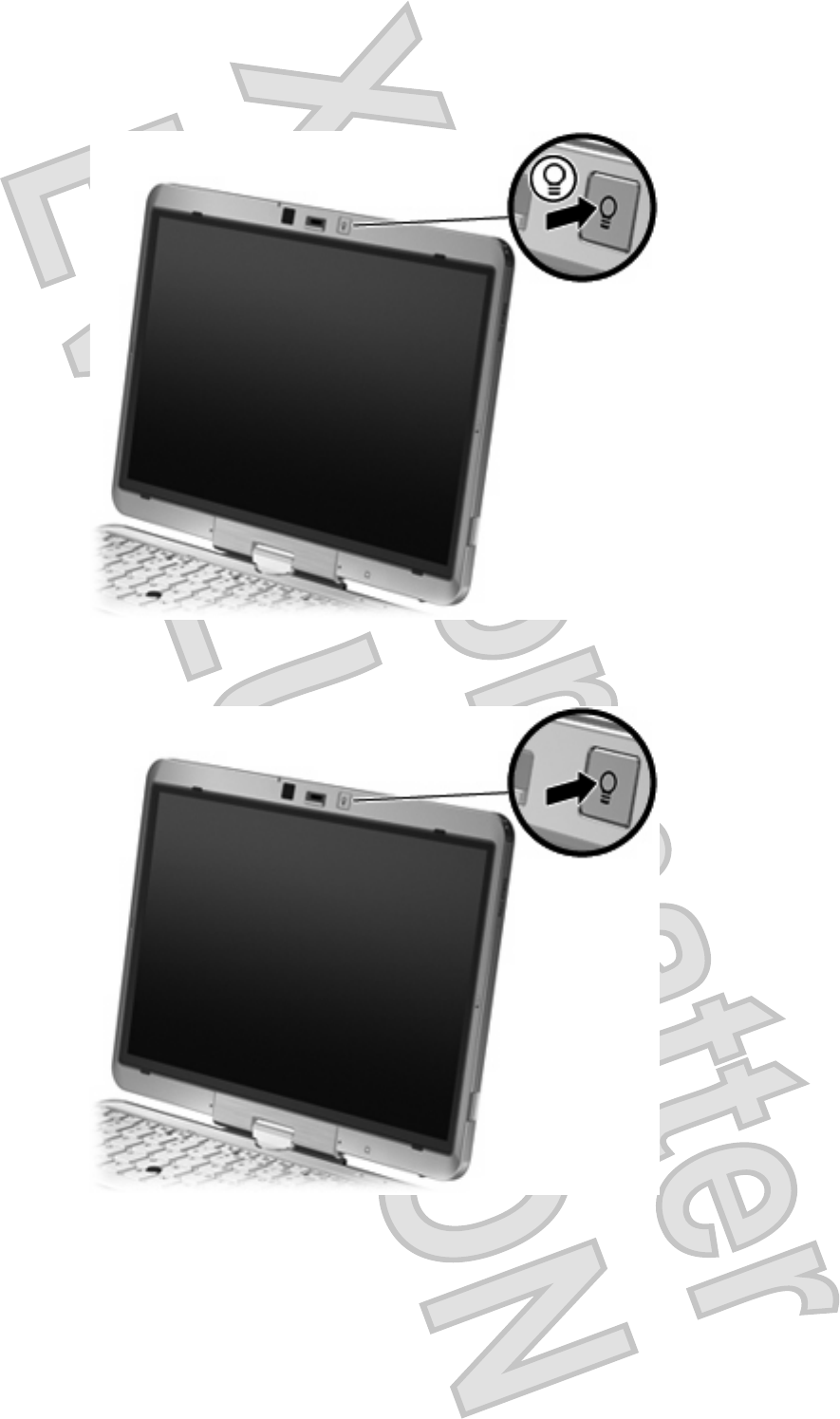

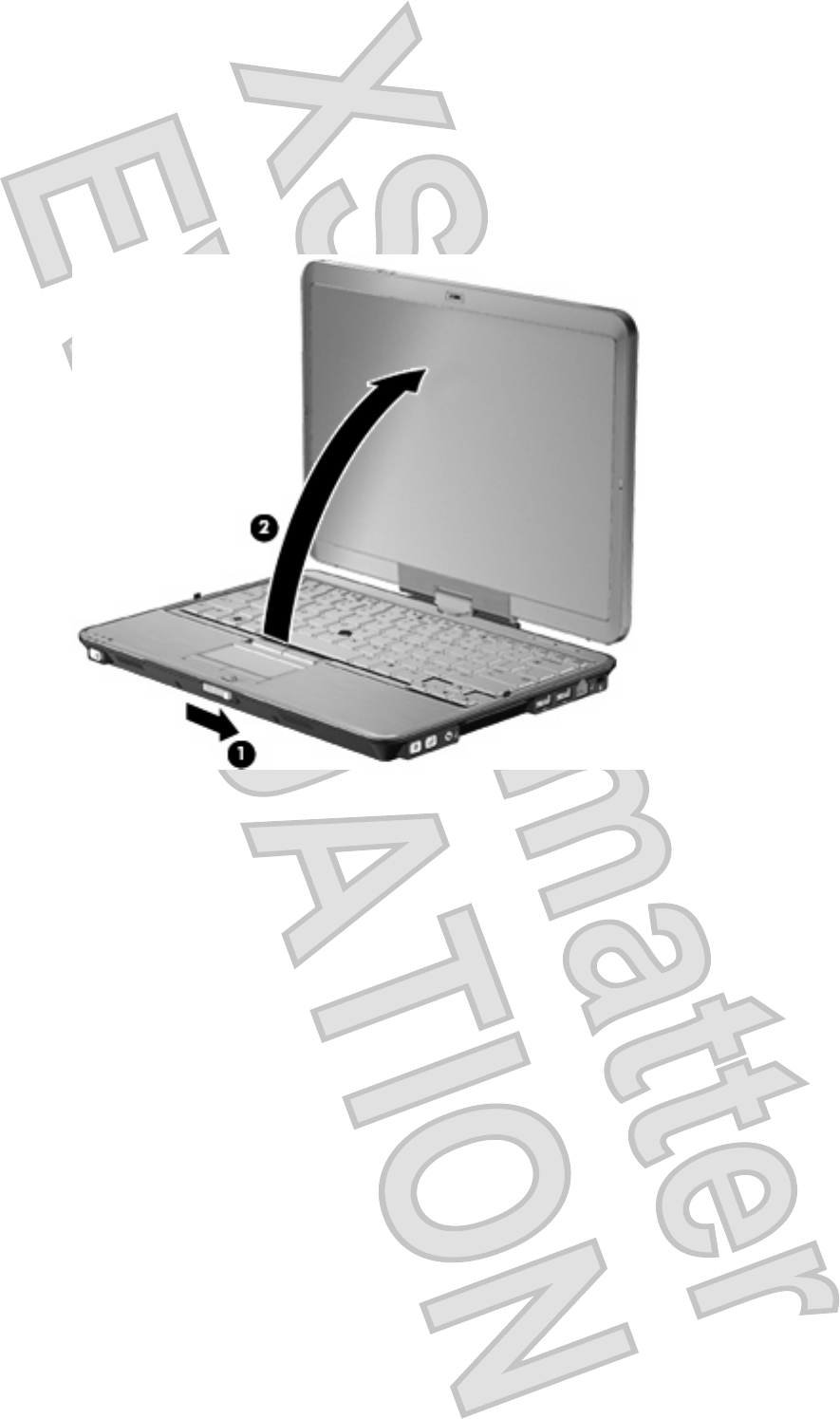

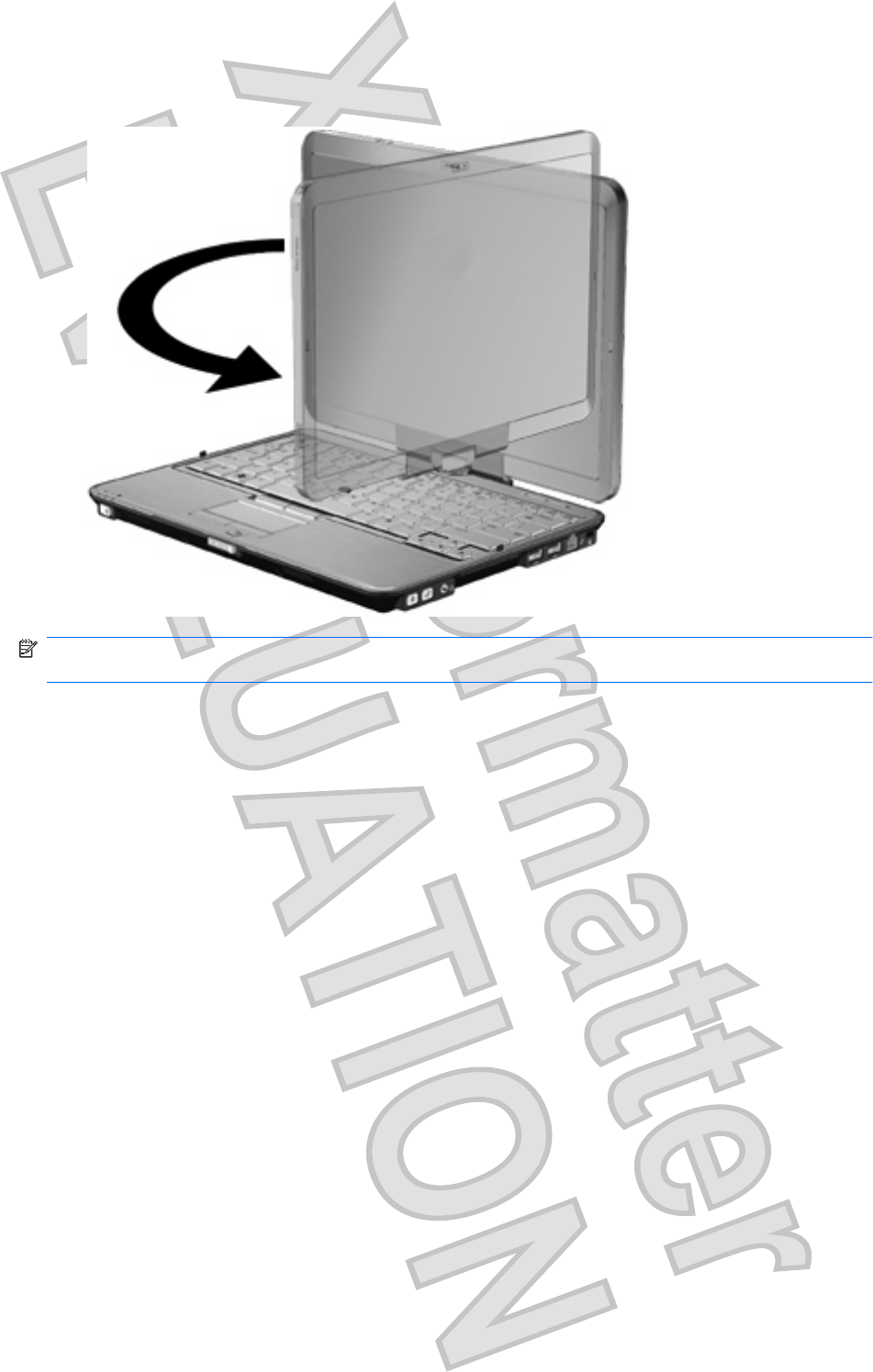

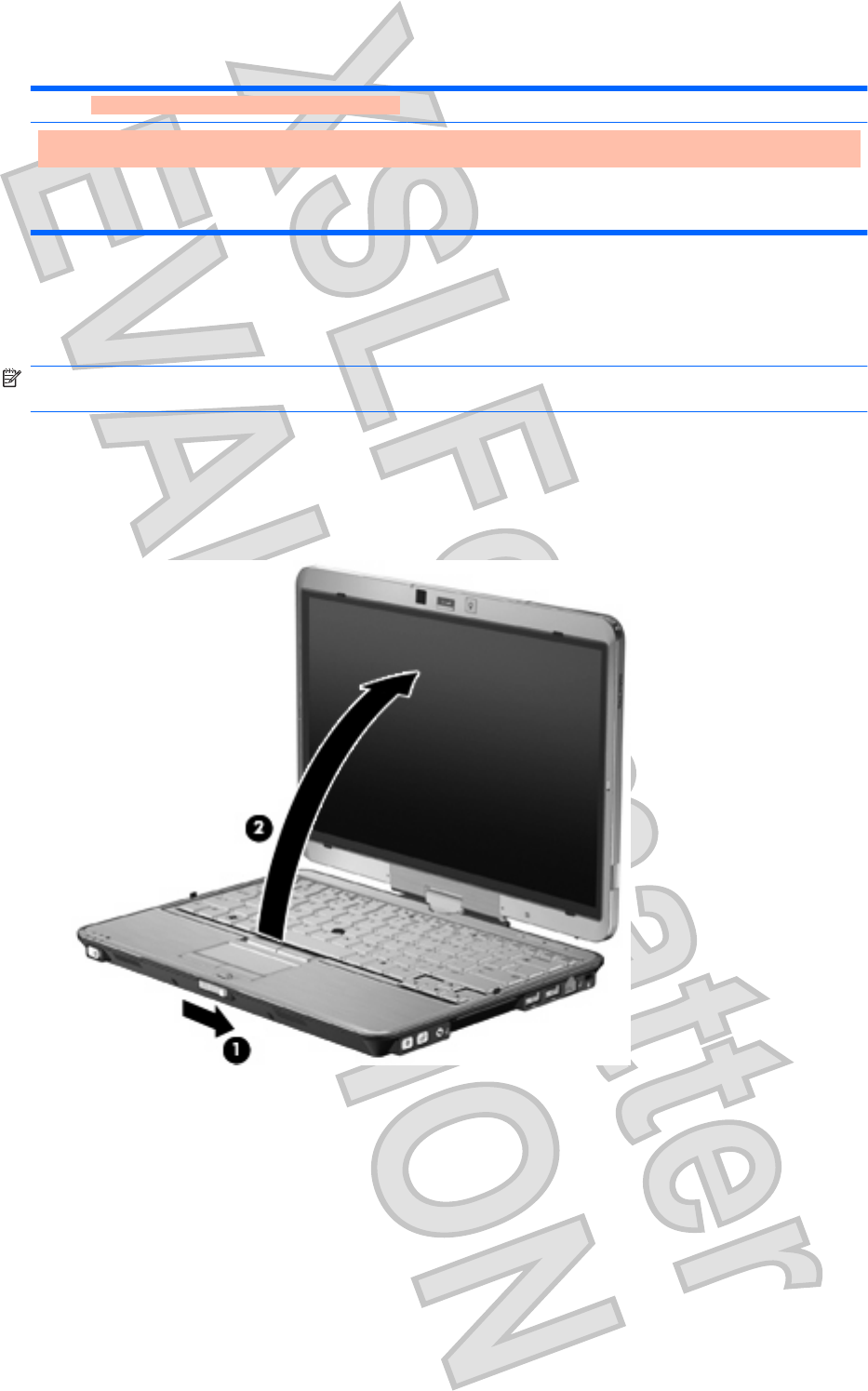

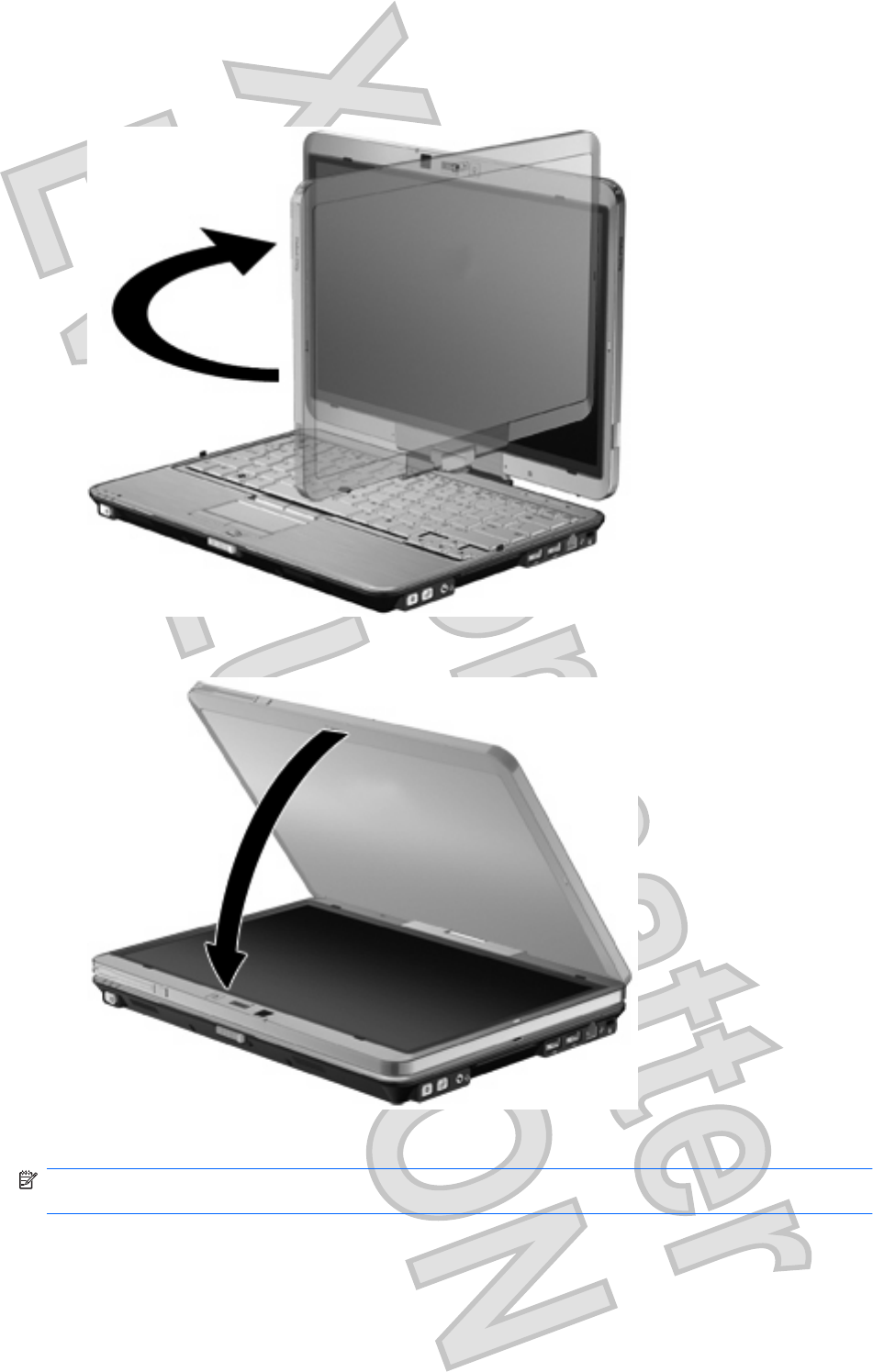

Rotating the display ............................................................................................................................ 16
Tablet mode ....................................................................................................................... 16
Notebook mode ................................................................................................................ 18
3 Wireless, modem, and local area network
Using wireless devices (select models only) ...................................................................................... 20
Identifying wireless and network icons .............................................................................. 21
Using the wireless controls ................................................................................................ 21
Using the wireless button ................................................................................................... 21
Using Wireless Assistant software (select models only) .................................................... 22
Using HP Connection Manager (select models only) ........................................................ 22
Using operating system controls ........................................................................................ 23
Using a WLAN .................................................................................................................................... 24

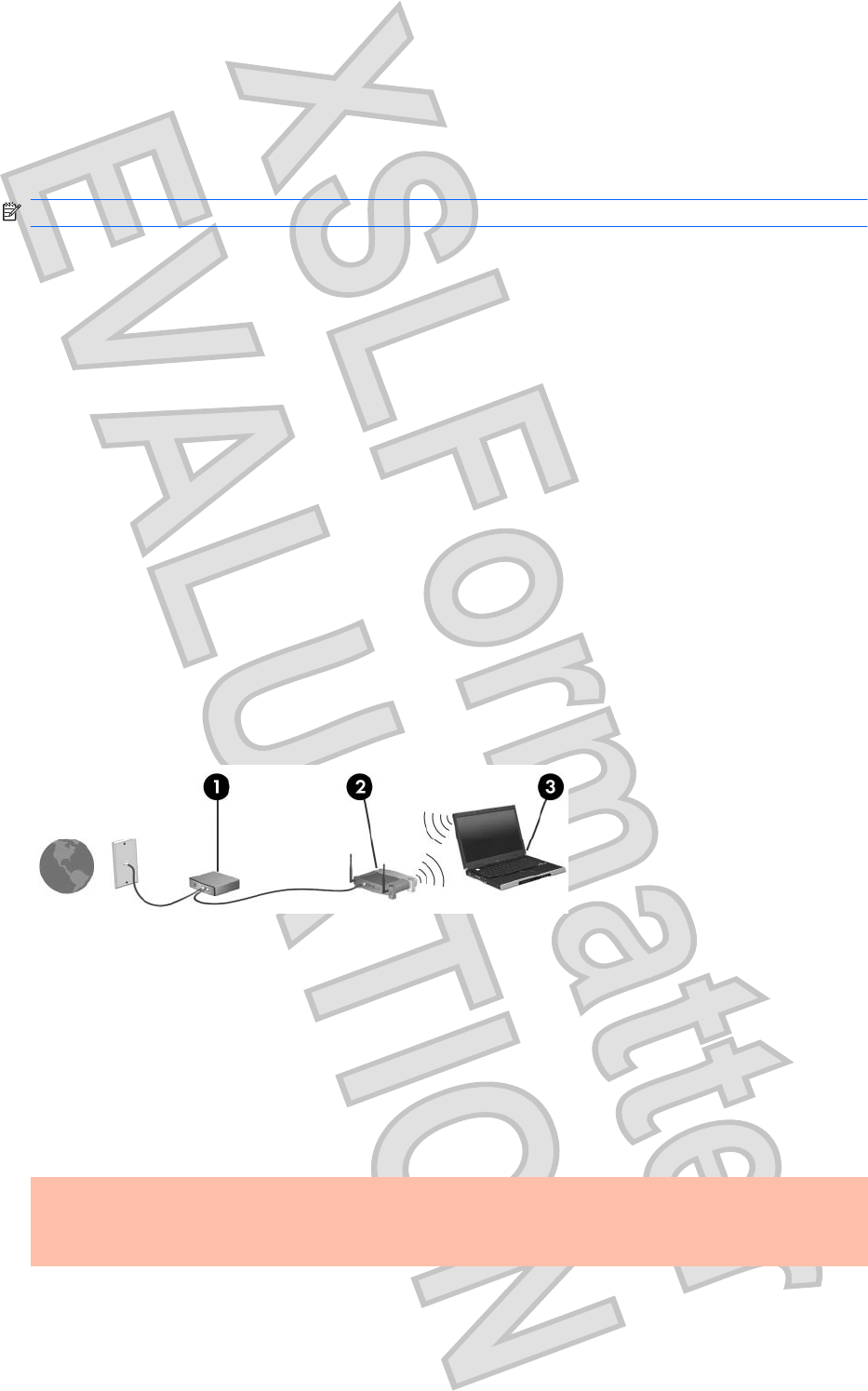

Setting up a WLAN ............................................................................................................ 24
Protecting your WLAN ....................................................................................................... 24
v
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Connecting to a WLAN ...................................................................................................... 25
Roaming to another network .............................................................................................. 26
Using HP Mobile Broadband (select models only) ............................................................................. 27

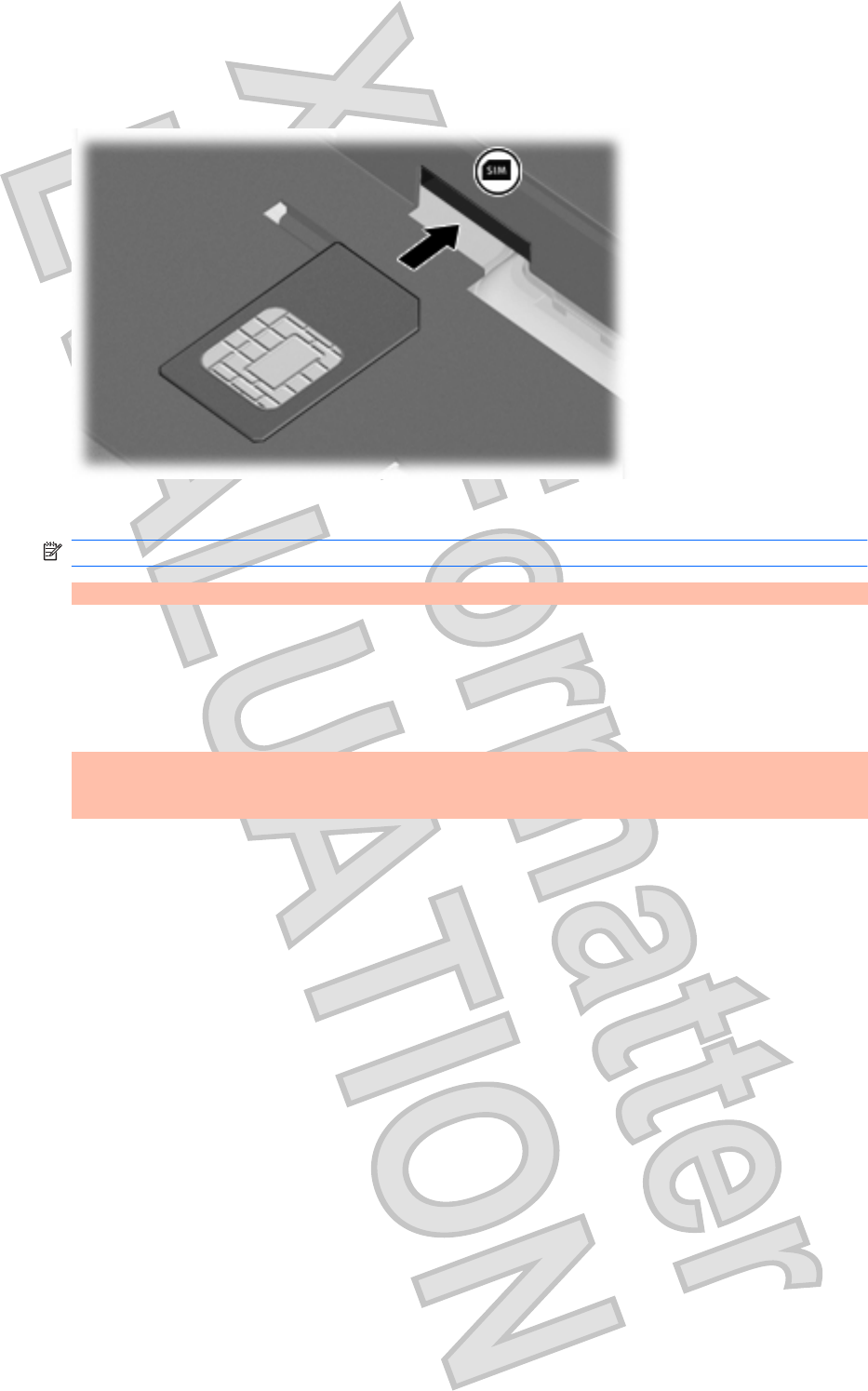

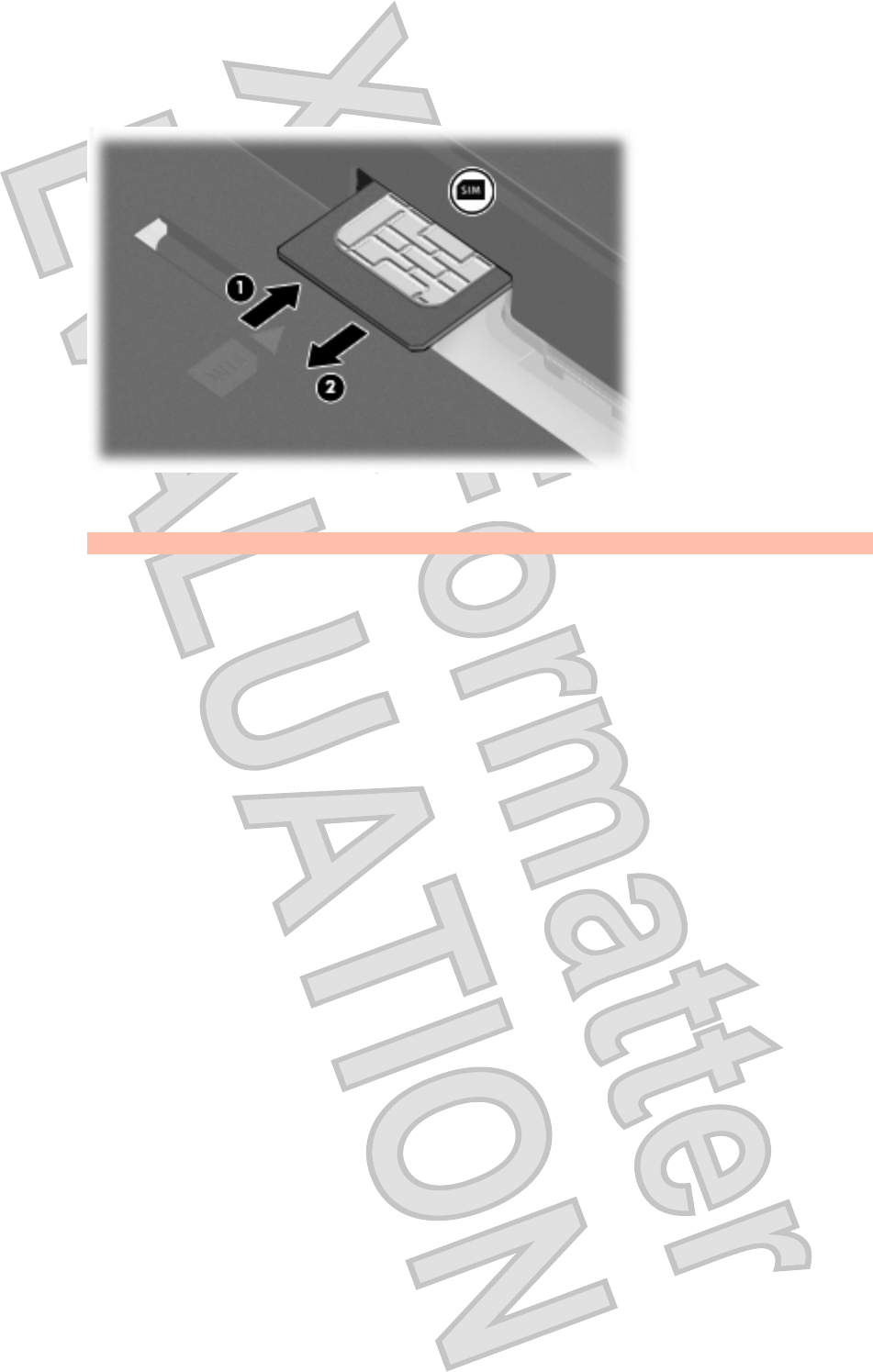

Inserting a SIM ................................................................................................................... 27
Removing a SIM ................................................................................................................ 28
Using Bluetooth wireless devices (select models only) ...................................................................... 30
Bluetooth and Internet Connection Sharing (ICS) ............................................................. 30
Troubleshooting wireless connection problems ................................................................................. 31
Cannot create a WLAN connection ................................................................................... 31
Cannot connect to a preferred network ............................................................................. 32
Network icon is not displayed ............................................................................................ 32
Current network security codes are unavailable ................................................................ 32
WLAN connection is very weak ......................................................................................... 33
Cannot connect to the wireless router ............................................................................... 33
Using the modem (select models only) .............................................................................................. 34

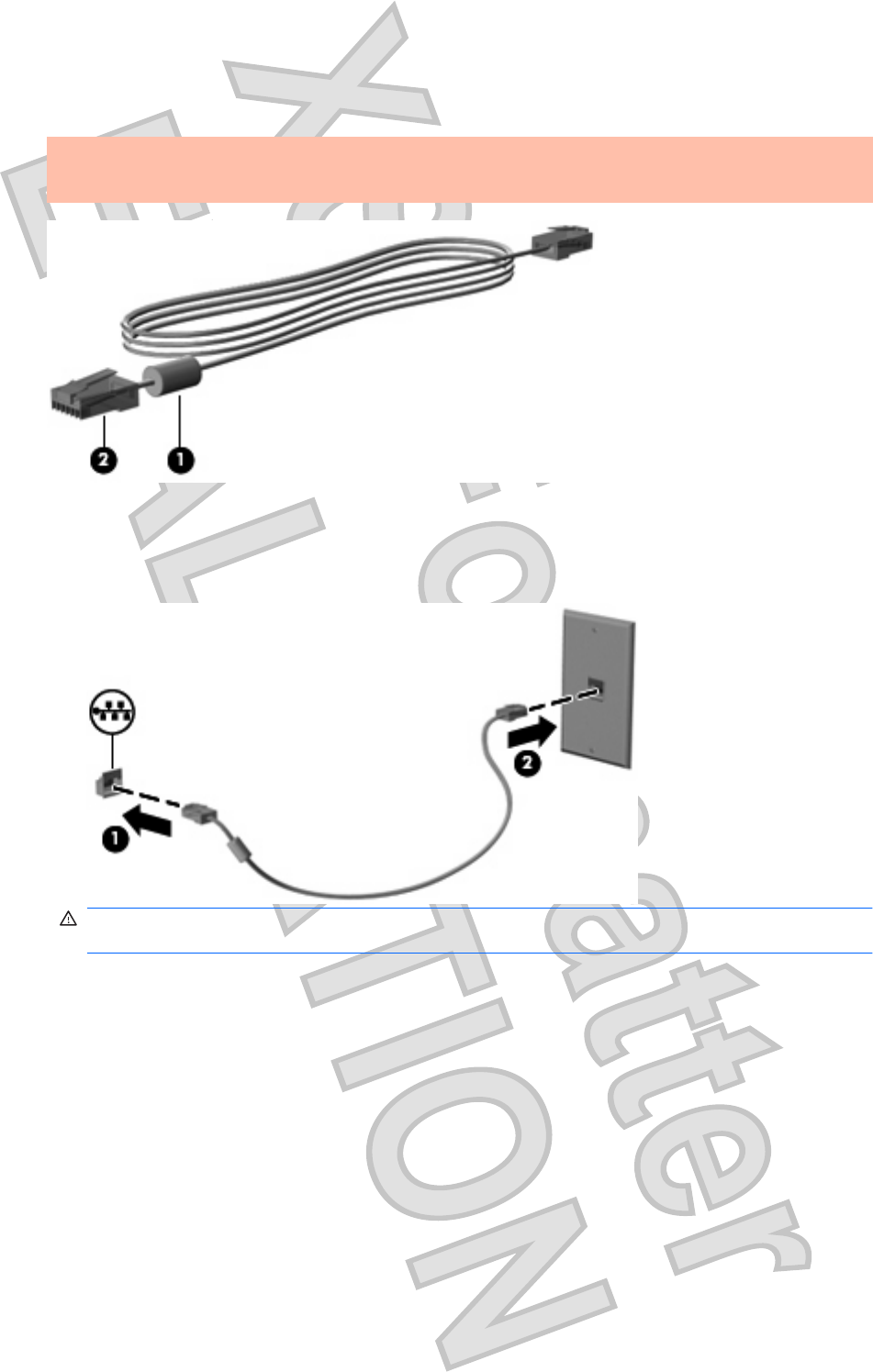

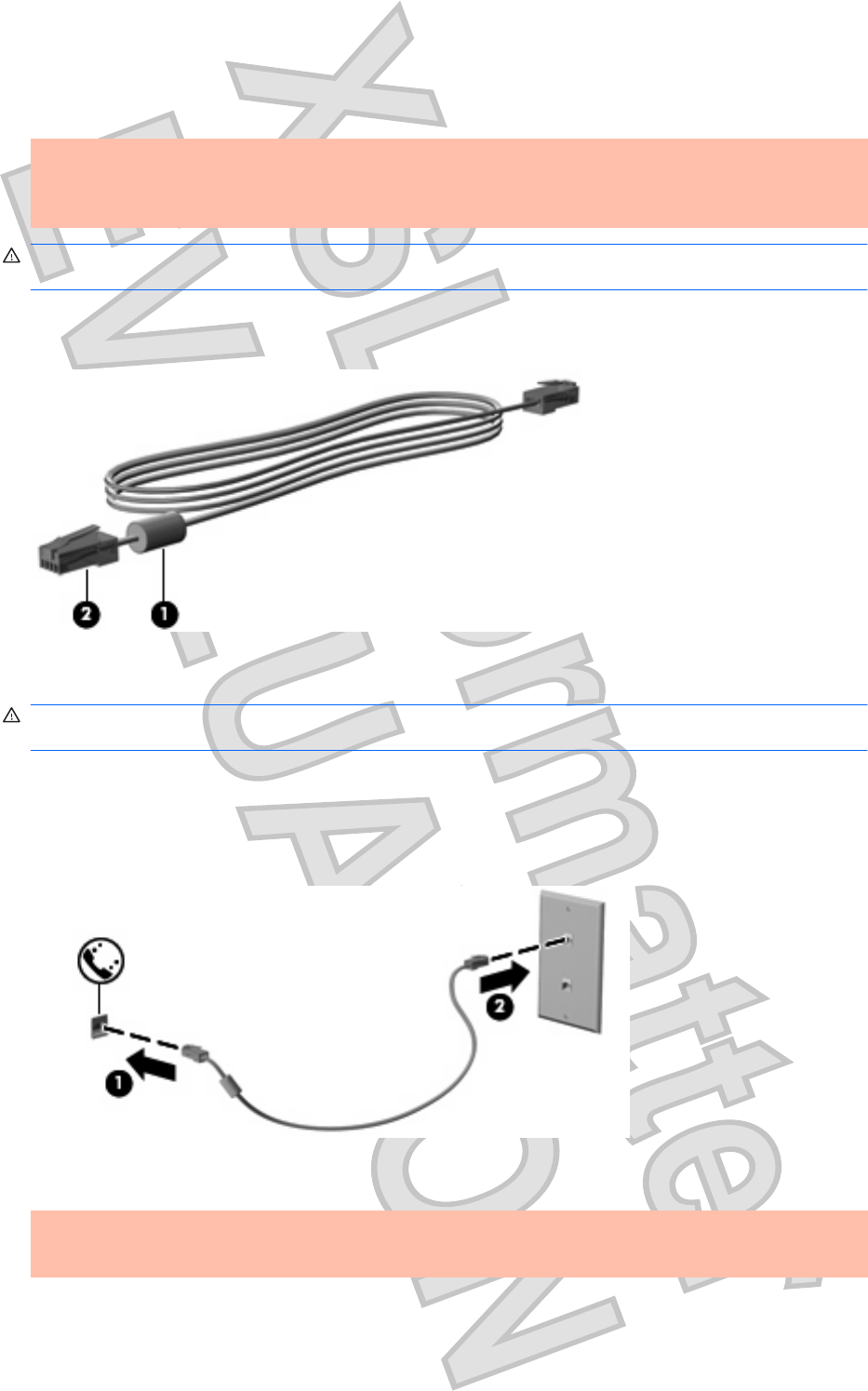

Connecting a modem cable ............................................................................................... 34

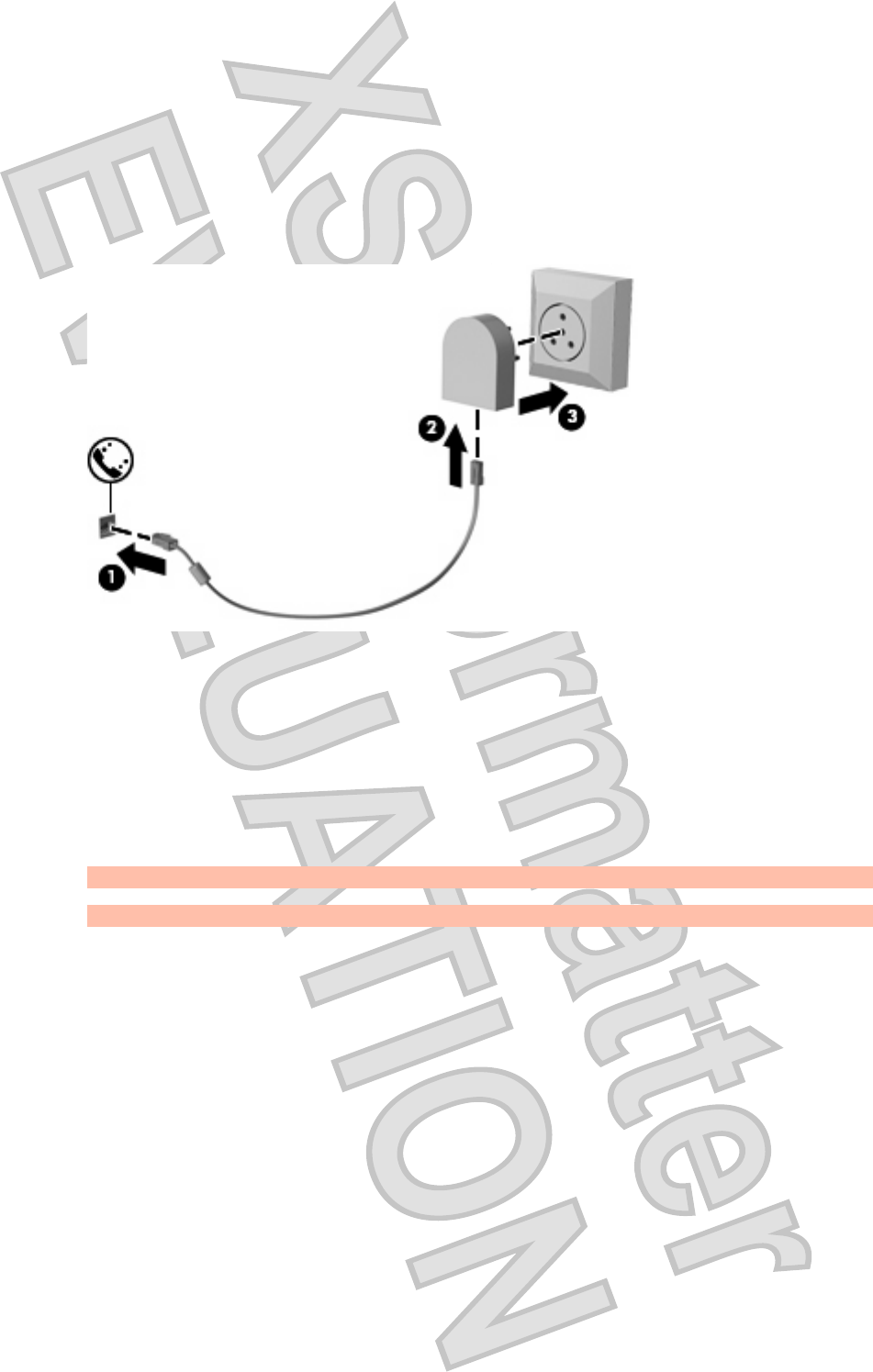

Connecting a country-specific modem cable adapter ........................................................ 34
Selecting a location setting ................................................................................................ 35
Viewing the current location selection ............................................................... 35
Adding new locations when traveling ................................................................ 36
Solving travel connection problems .................................................................. 37
Connecting to a local area network (LAN) .......................................................................................... 39
4 Pointing devices and keyboard
Using pointing devices ....................................................................................................................... 40
Setting pointing device preferences ................................................................................... 40
Using the TouchPad .......................................................................................................... 40
Using the pointing stick ...................................................................................................... 40
Connecting an external mouse .......................................................................................... 40
Using the keyboard ............................................................................................................................ 40
Using the keyboard light .................................................................................................... 40

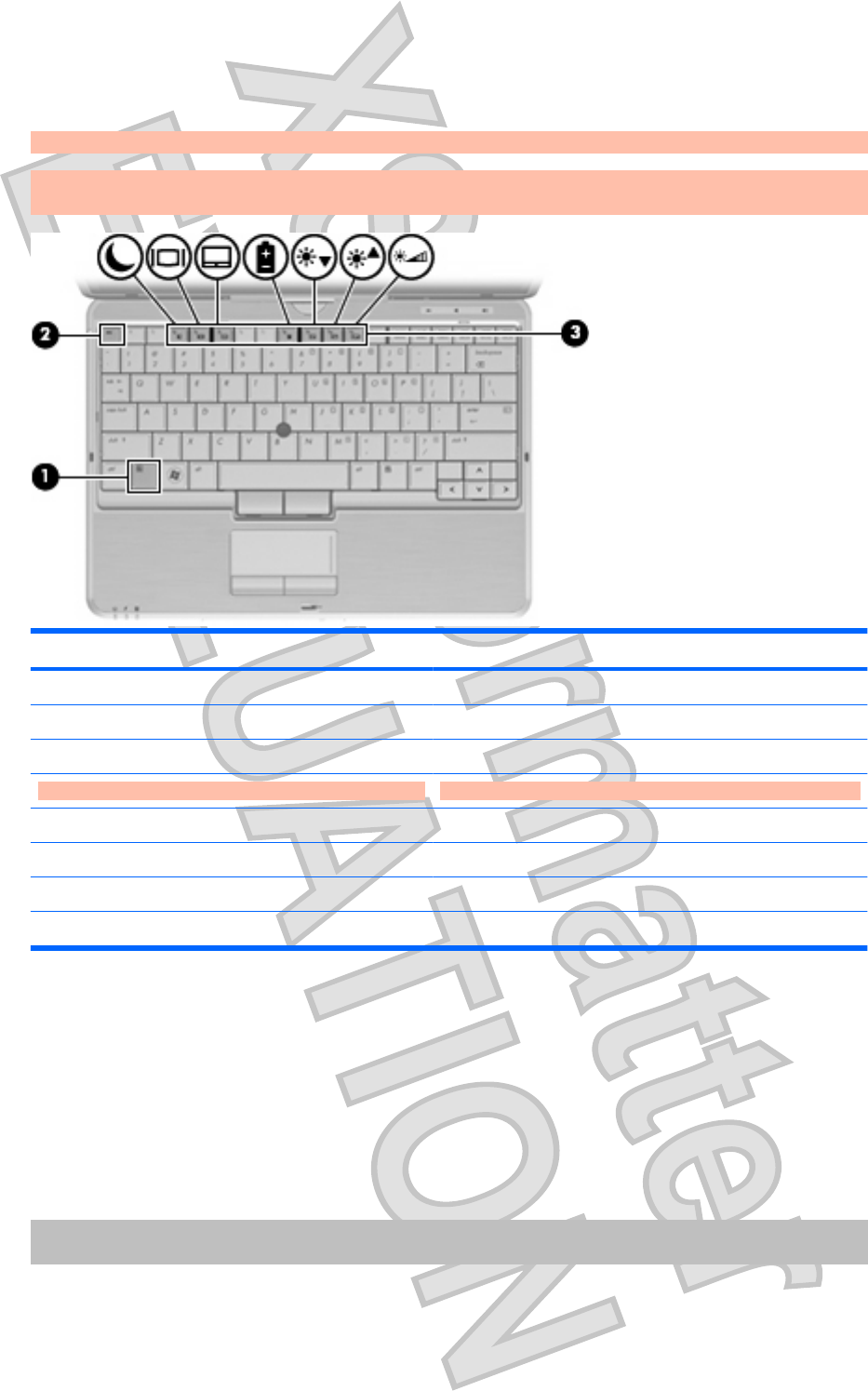

Using hotkeys .................................................................................................................... 42
Displaying system information .......................................................................... 42
Initiating Sleep ................................................................................................... 43
Switching the screen image .............................................................................. 43
Viewing battery charge information ................................................................... 44
Enabling/disabling the TouchPad (fn+f5) .......................................................... 44
Decreasing screen brightness ........................................................................... 44
Increasing screen brightness ............................................................................ 44
Activating the ambient light sensor .................................................................. 44
Using QuickLook (select models only) ............................................................................................... 45
Installing QuickLook ........................................................................................................... 45
Using HP Quick Launch Buttons ........................................................................................................ 46
vi
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Opening the Quick Launch Buttons control panel .............................................................................. 47
Using HP QuickLook 3 ....................................................................................................................... 48
Using the pen ..................................................................................................................................... 48

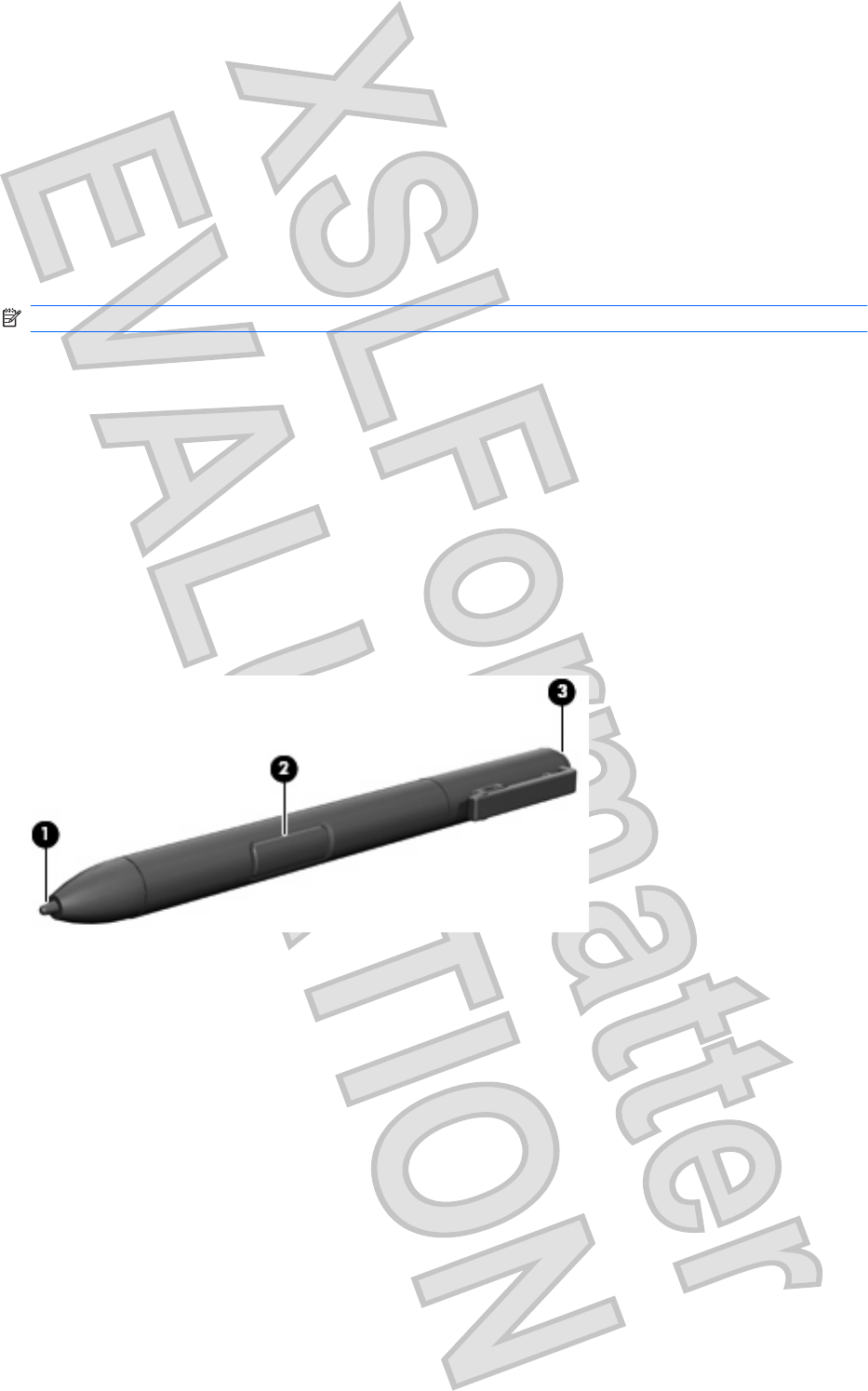

Identifying the pen components ......................................................................................... 48
Holding the pen .................................................................................................................. 48
Performing mouse clicks with the pen ............................................................................... 49
Performing other procedures with the pen ......................................................................... 49
Pressure sensitivity ............................................................................................................ 49
Calibrating the pen ............................................................................................................. 50

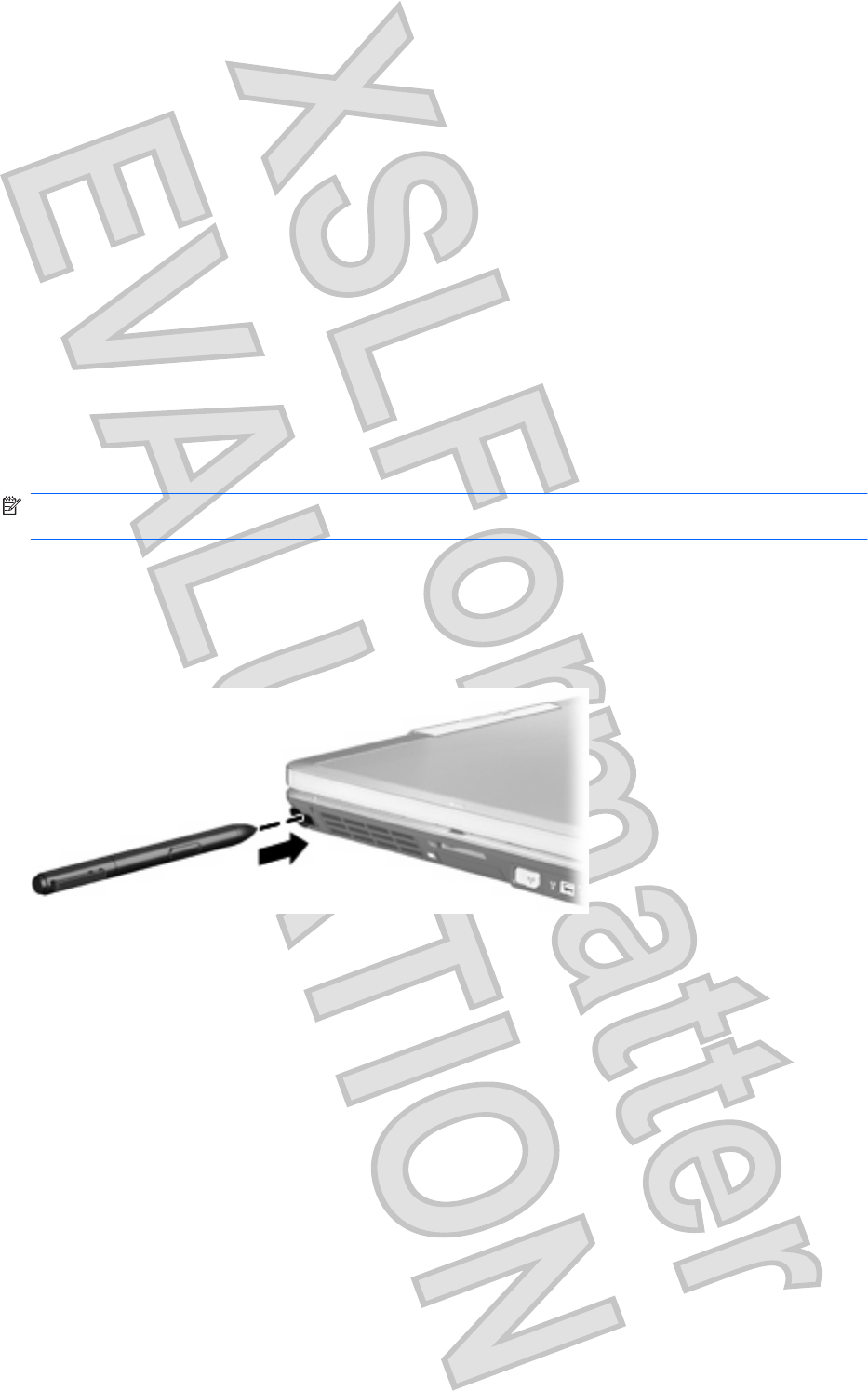

Using the pen holder .......................................................................................................... 50
Setting pen preferences ..................................................................................................... 51
Using the embedded numeric keypad ................................................................................................ 51
Using the embedded numeric keypad ............................................................................... 51
Enabling and disabling the embedded numeric keypad .................................... 51
Switching key functions on the embedded numeric keypad ............................. 51

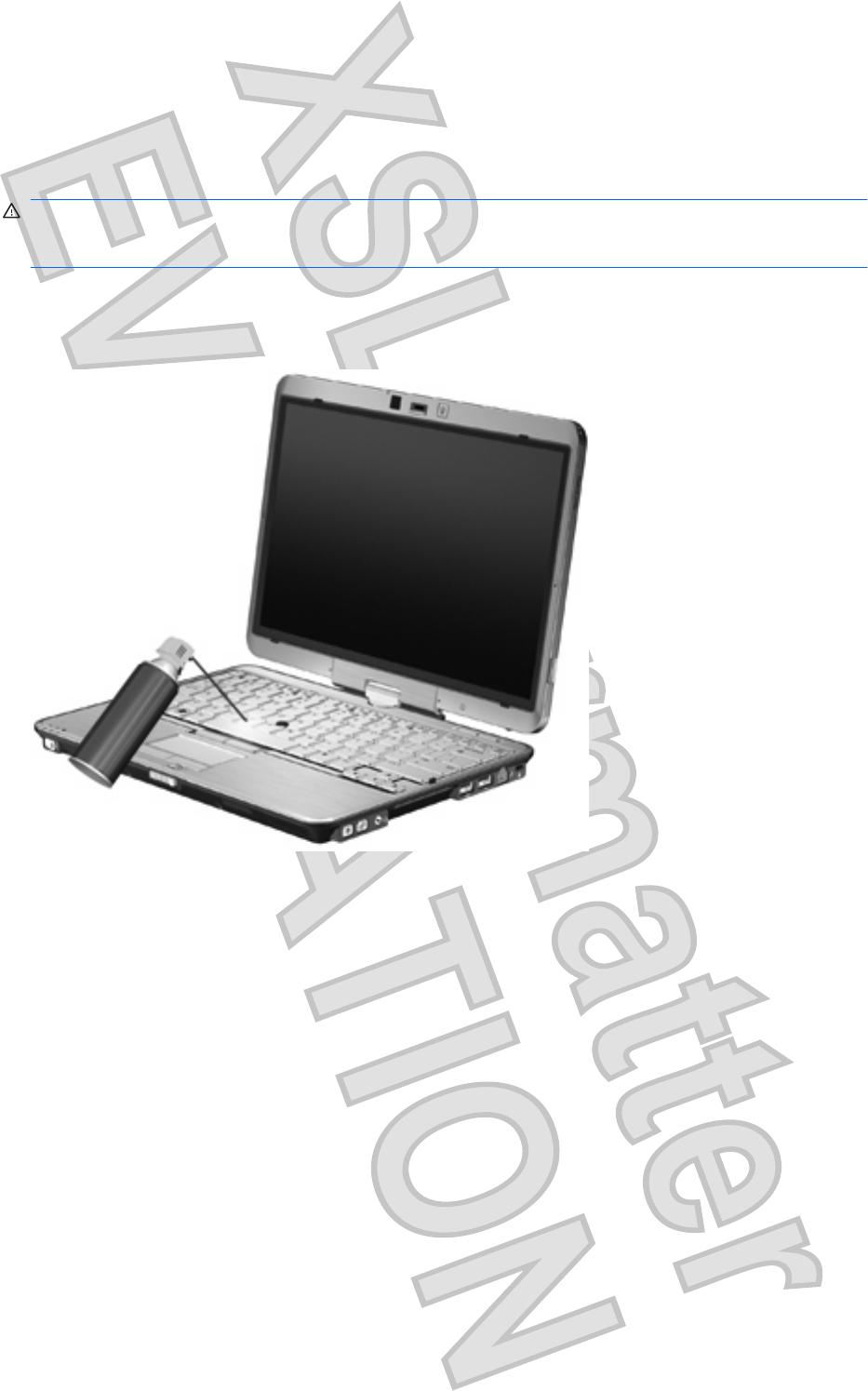

Cleaning the TouchPad and keyboard ............................................................................................... 52
5 Multimedia
Multimedia features ............................................................................................................................ 53

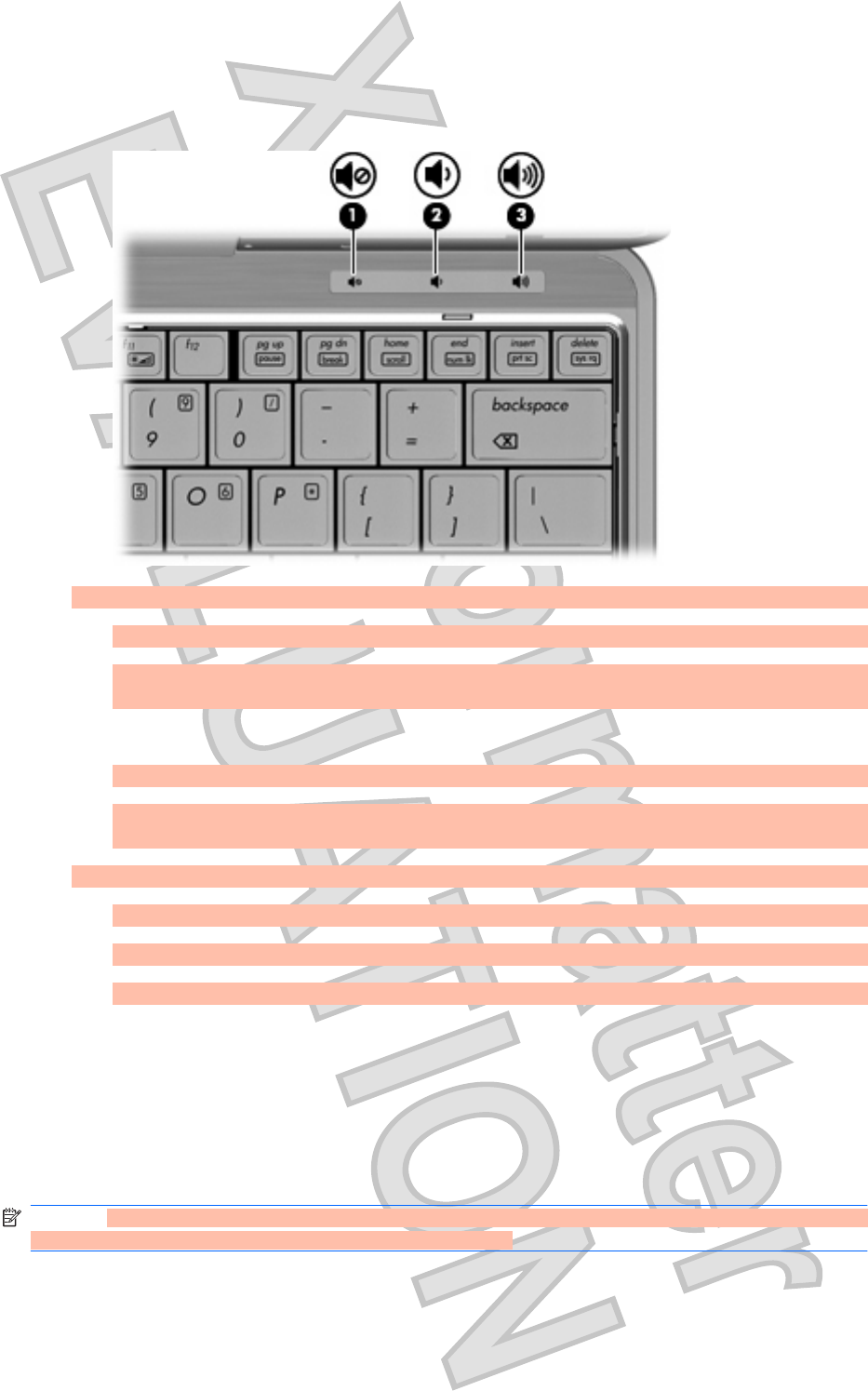

Adjusting the volume ......................................................................................................... 53
Multimedia software ........................................................................................................................... 54
Accessing your preinstalled multimedia software .............................................................. 55
Installing your preloaded multimedia software ................................................................... 55
Installing multimedia software from a disc ......................................................................... 55
Audio .................................................................................................................................................. 56
Connecting external audio devices .................................................................................... 56
Checking your audio functions ........................................................................................... 56
Video .................................................................................................................................................. 58
Connecting an external monitor or projector ...................................................................... 58

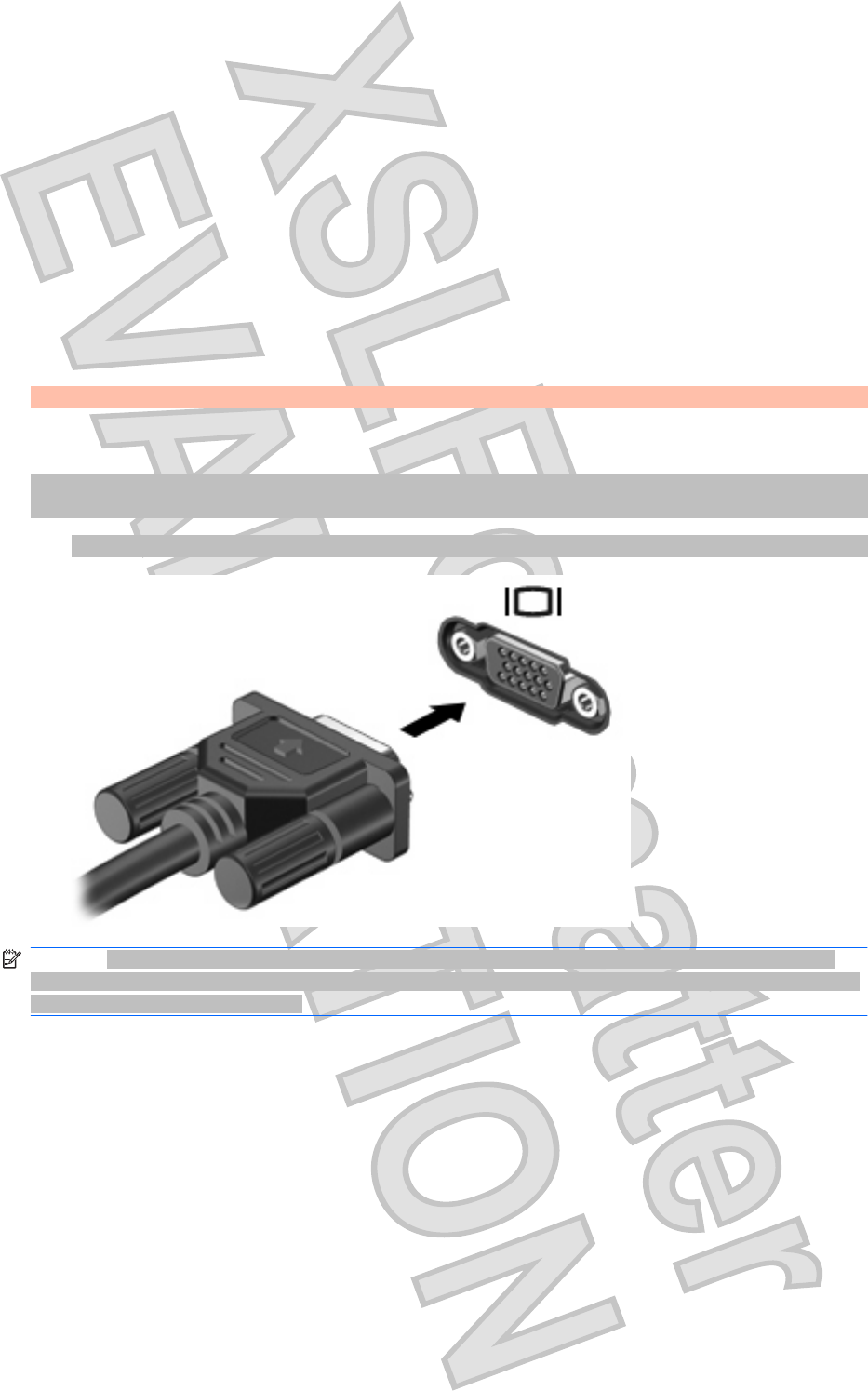

Using the external monitor port ......................................................................... 58
Using the DreamColor display (select models only) ......................................... 58
Webcam ............................................................................................................................................. 59
Webcam tips ...................................................................................................................... 59
Adjusting webcam properties ............................................................................................. 59
Capturing business card images ....................................................................................... 60
6 Power management
Setting power options ......................................................................................................................... 62
Using power-saving states ................................................................................................. 62
Initiating and exiting Sleep ................................................................................ 62
Initiating and exiting Hibernation ....................................................................... 63
Using the battery meter ..................................................................................................... 63
Using power plans ............................................................................................................. 63
vii
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Viewing the current power plan ......................................................................... 64
Selecting a different power plan ........................................................................ 64
Customizing power plans .................................................................................. 64
Setting password protection on wakeup ............................................................................ 64
Using external AC power .................................................................................................................... 65

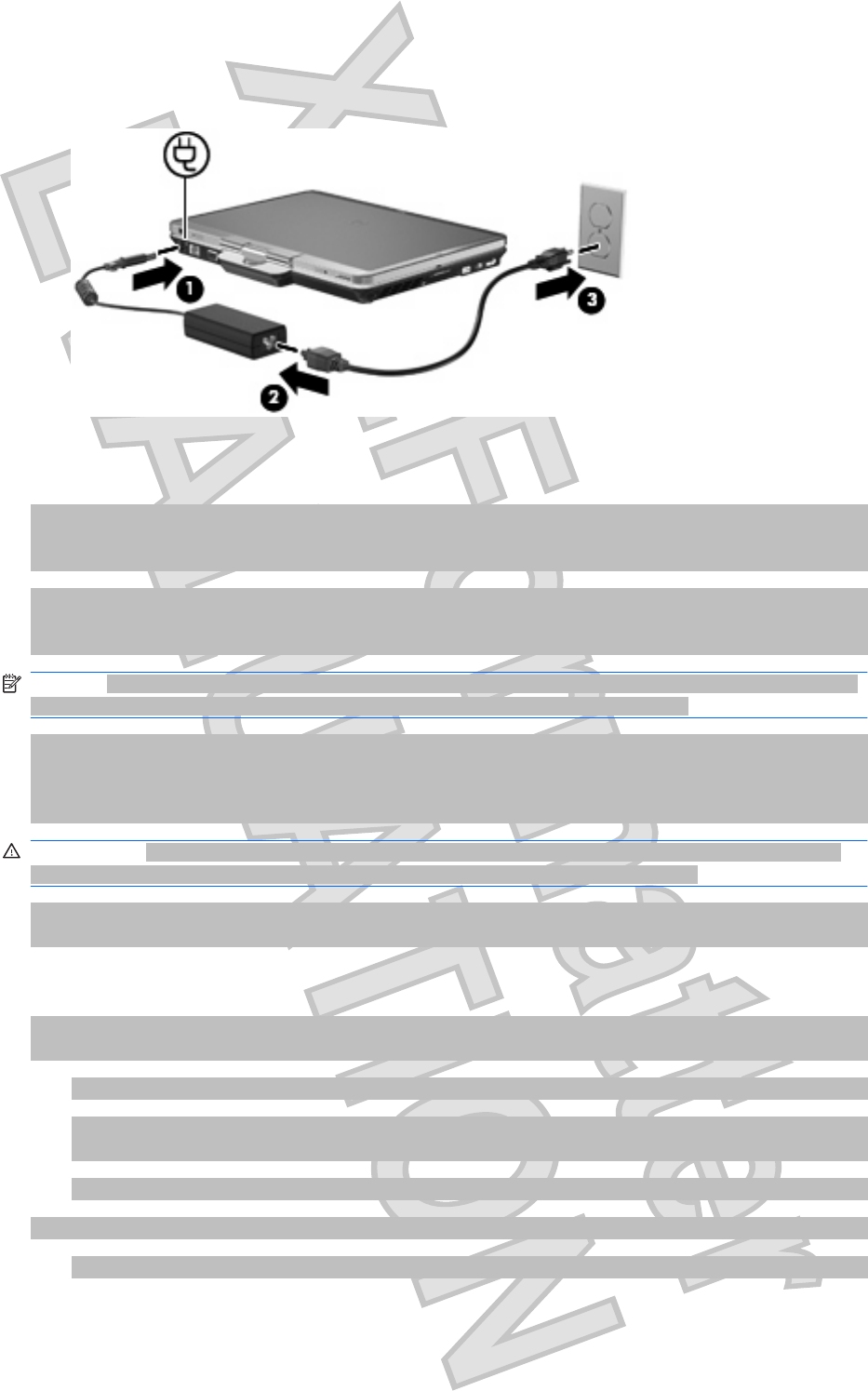

Connecting the AC adapter ............................................................................................... 65
Using battery power ........................................................................................................................... 66
Finding battery information in Help and Support ............................................................... 66
Using Battery Check .......................................................................................................... 67
Displaying the remaining battery charge ........................................................................... 67

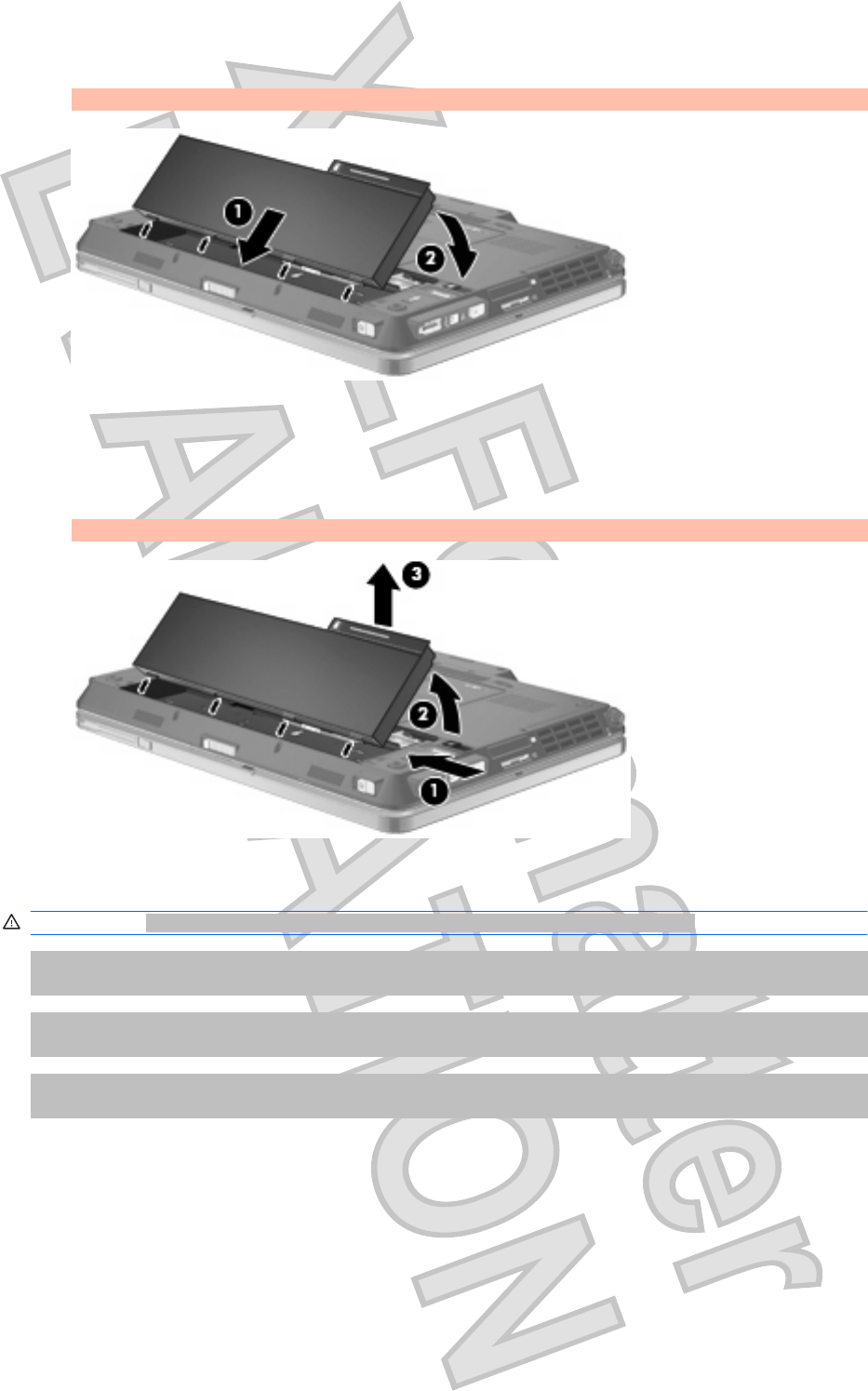

Inserting or removing the battery ....................................................................................... 67
Charging a battery ............................................................................................................. 68
Maximizing battery discharge time .................................................................................... 69
Managing low battery levels .............................................................................................. 69
Identifying low battery levels ............................................................................. 69
Resolving a low battery level ............................................................................. 71
Resolving a low battery level when external power is available ....... 71
Resolving a low battery level when a charged battery is
available ........................................................................................... 71
Resolving a low battery level when no power source is
available ........................................................................................... 71
Resolving a low battery level when the computer cannot exit
Hibernation ....................................................................................... 71
Calibrating a battery ........................................................................................................... 71
Step 1: Fully charge the battery ........................................................................ 71
Step 2: Disable Hibernation and Sleep ............................................................. 72
Step 3: Discharge the battery ............................................................................ 72
Step 4: Fully recharge the battery ..................................................................... 73
Step 5: Reenable Hibernation and Sleep .......................................................... 73
Conserving battery power .................................................................................................. 73
Storing a battery ................................................................................................................ 74
Disposing of a used battery ............................................................................................... 74
Replacing the battery ........................................................................................................ 74
Testing an AC adapter ....................................................................................................................... 75
Shutting down the computer ............................................................................................................... 75
7 Drives
Identifying installed drives .................................................................................................................. 77
Handling drives ................................................................................................................................... 78
Improving hard drive performance ..................................................................................................... 79
Using Disk Defragmenter ................................................................................................... 79
Using Disk Cleanup ........................................................................................................... 79
Using HP 3D DriveGuard .................................................................................................................. 80
Identifying HP 3D DriveGuard status ................................................................................. 80
viii
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using HP 3D DriveGuard software .................................................................................... 81

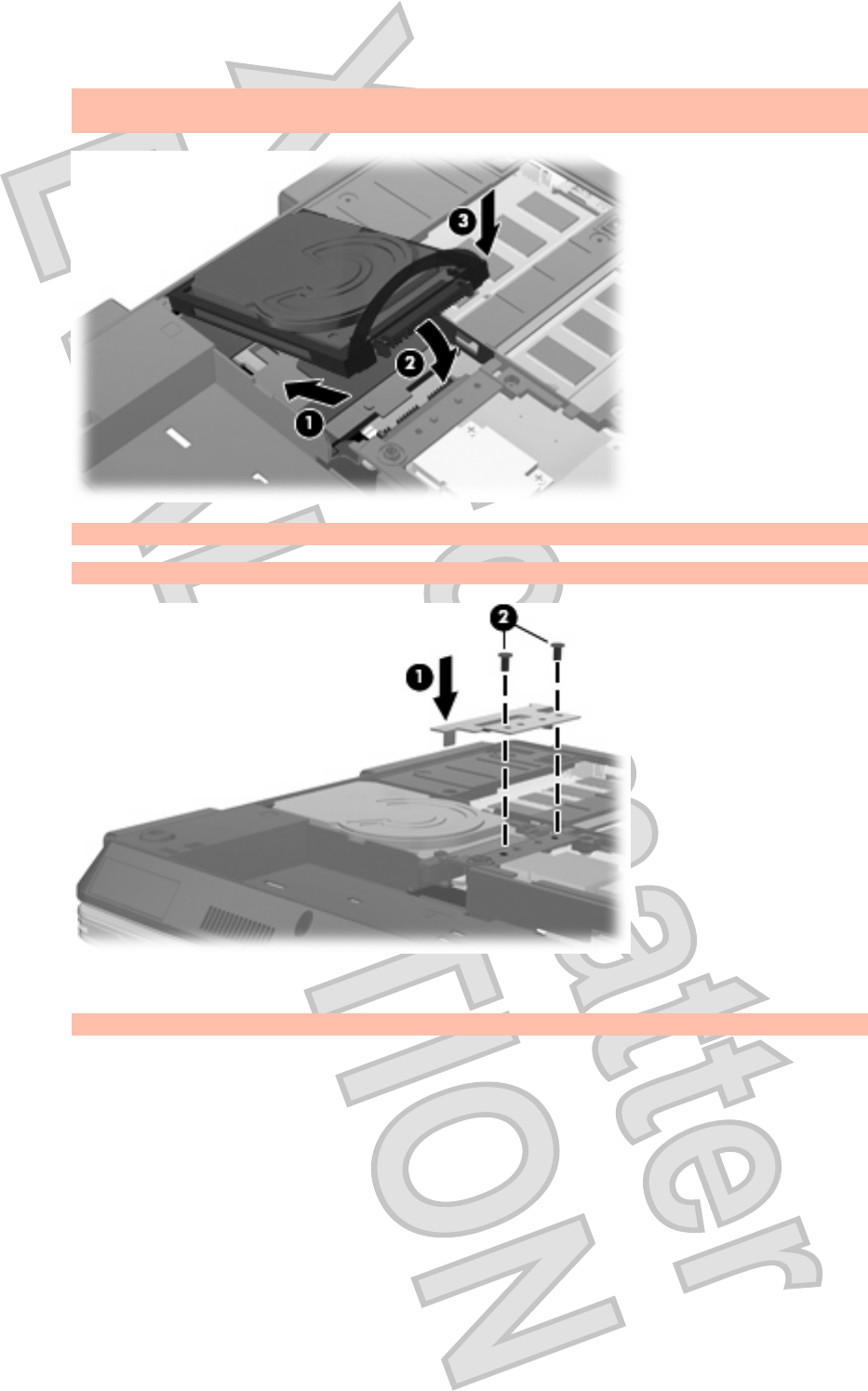

Replacing the hard drive in the hard drive bay ................................................................................... 82
8 External devices
Using a USB device ........................................................................................................................... 86

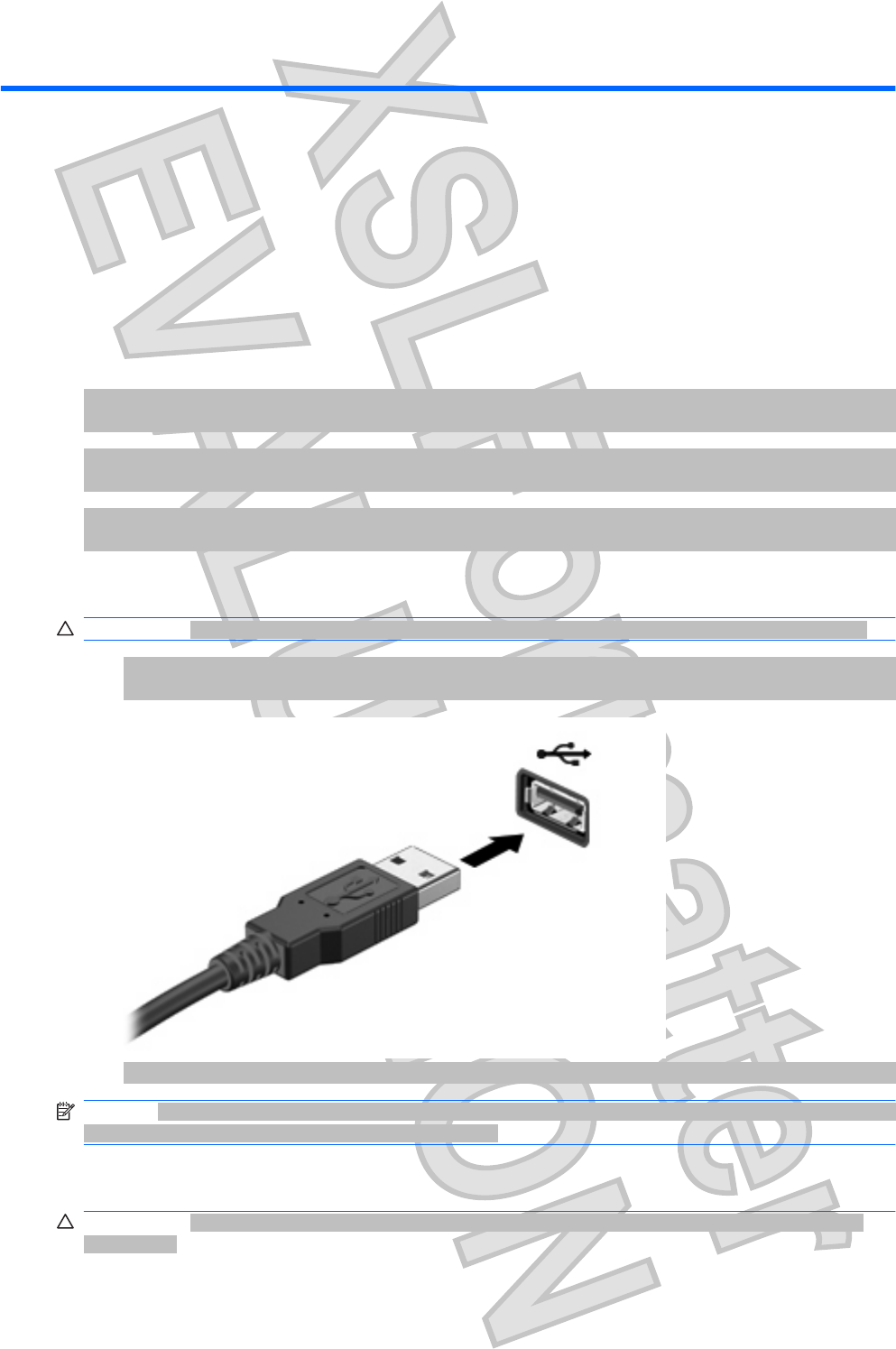

Connecting a USB device .................................................................................................. 86
Stopping and removing a USB device ............................................................................... 86
Using USB legacy support ................................................................................................. 87
Using a 1394 device ........................................................................................................................... 88

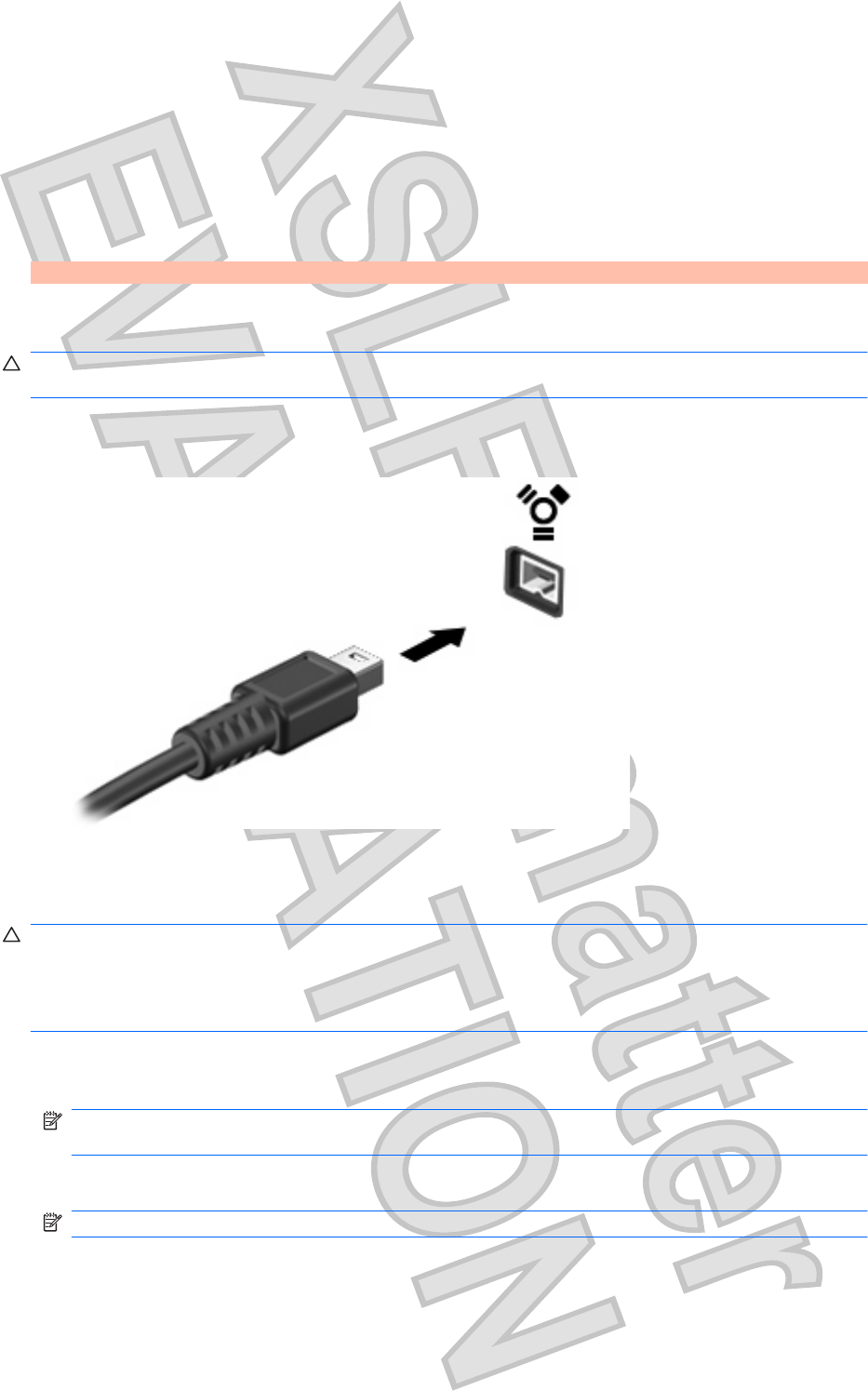

Connecting a 1394 device ................................................................................................. 88
Stopping and removing a 1394 device .............................................................................. 88
Using external drives .......................................................................................................................... 89
Using optional external devices ......................................................................................... 89
Using the docking connector .............................................................................................................. 90
9 External media cards
Using Media Card Reader cards ........................................................................................................ 91
Inserting a digital card ........................................................................................................ 91
Stopping and removing a digital card ................................................................................ 92
Using ExpressCards (select models only) .......................................................................................... 93
Configuring an ExpressCard .............................................................................................. 93

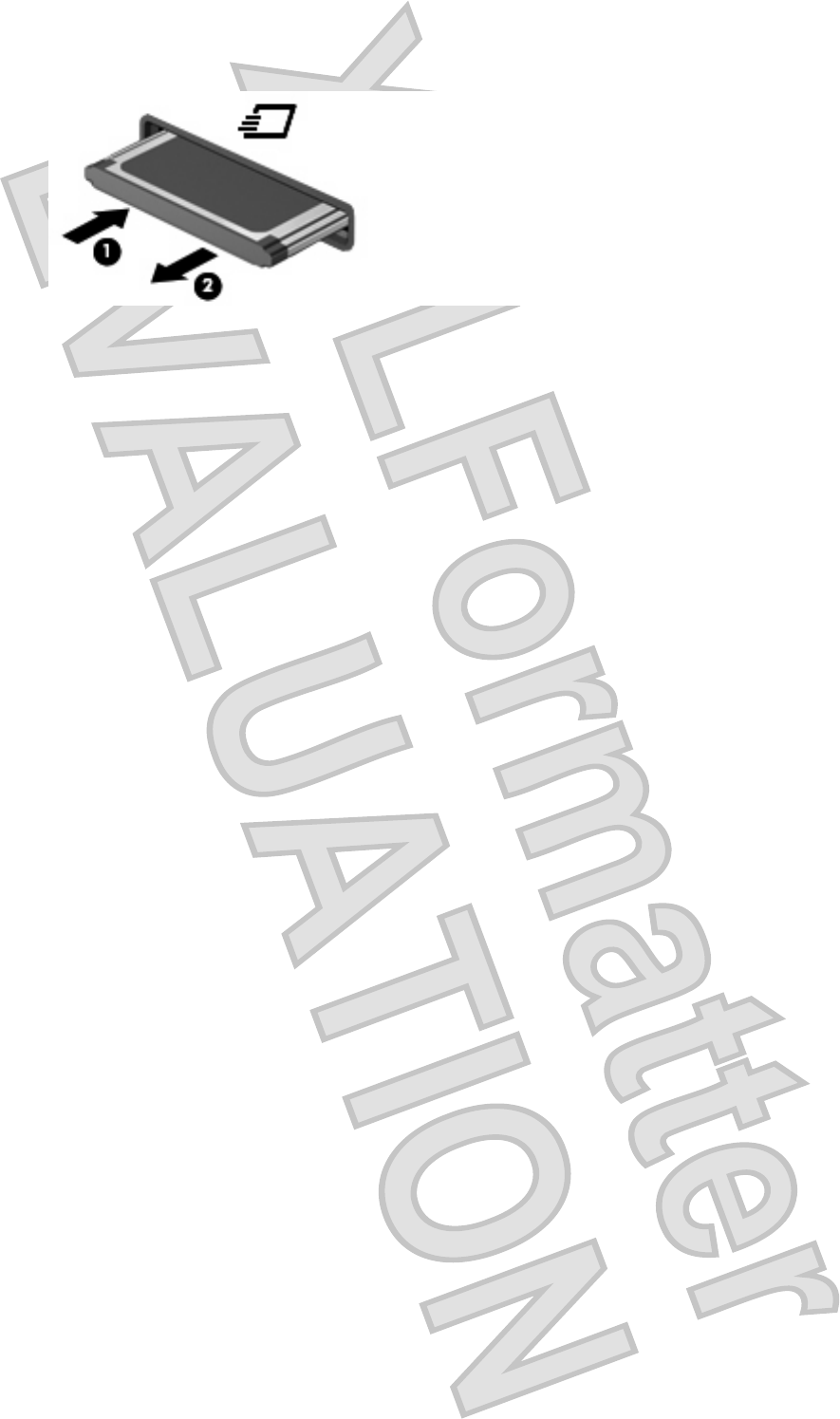

Inserting an ExpressCard .................................................................................................. 93
Stopping and removing an ExpressCard ........................................................................... 94
Using Smart Cards (select models only) ............................................................................................ 96

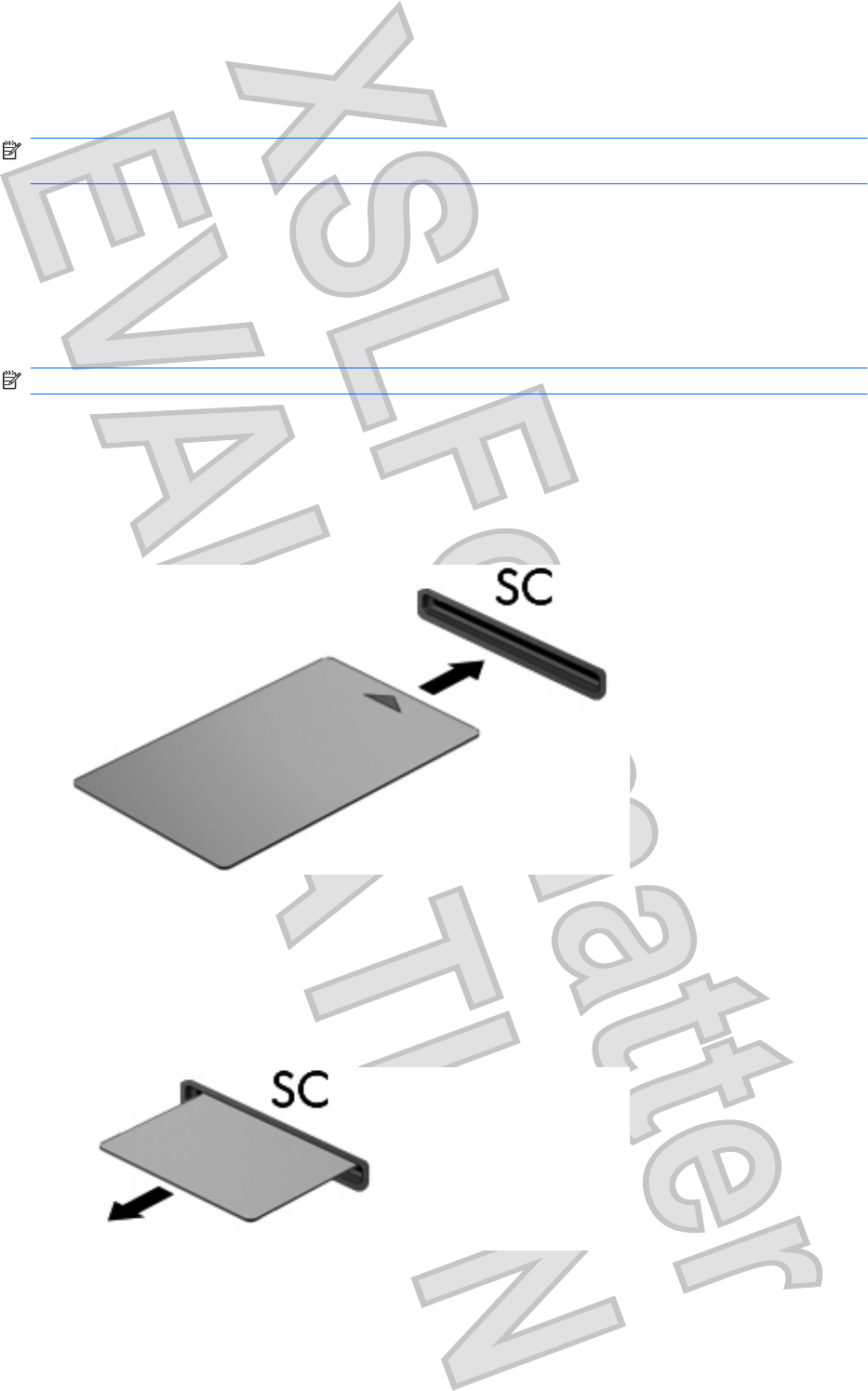

Inserting a smart card ........................................................................................................ 96
Removing a smart card ...................................................................................................... 96
10 Memory modules

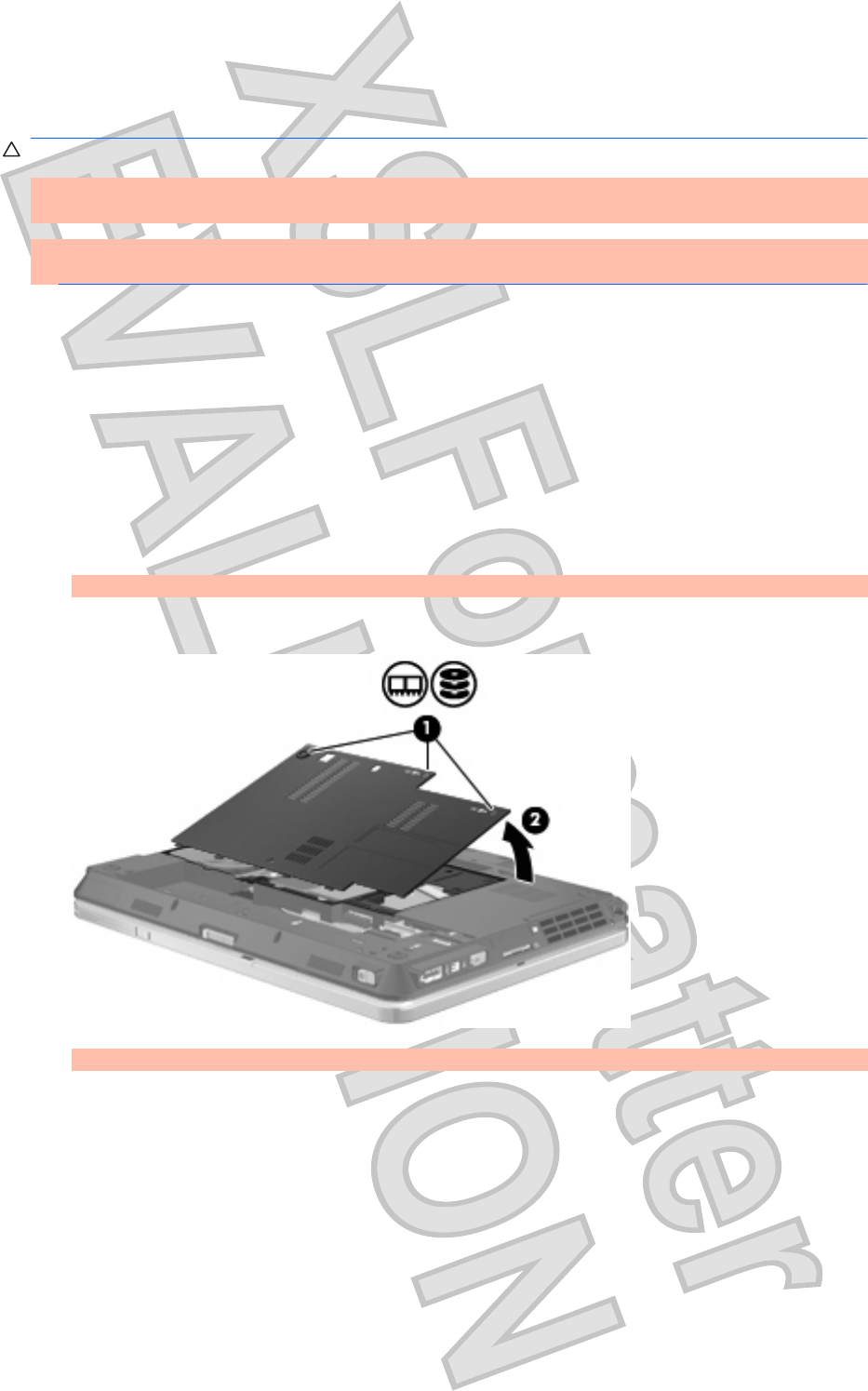

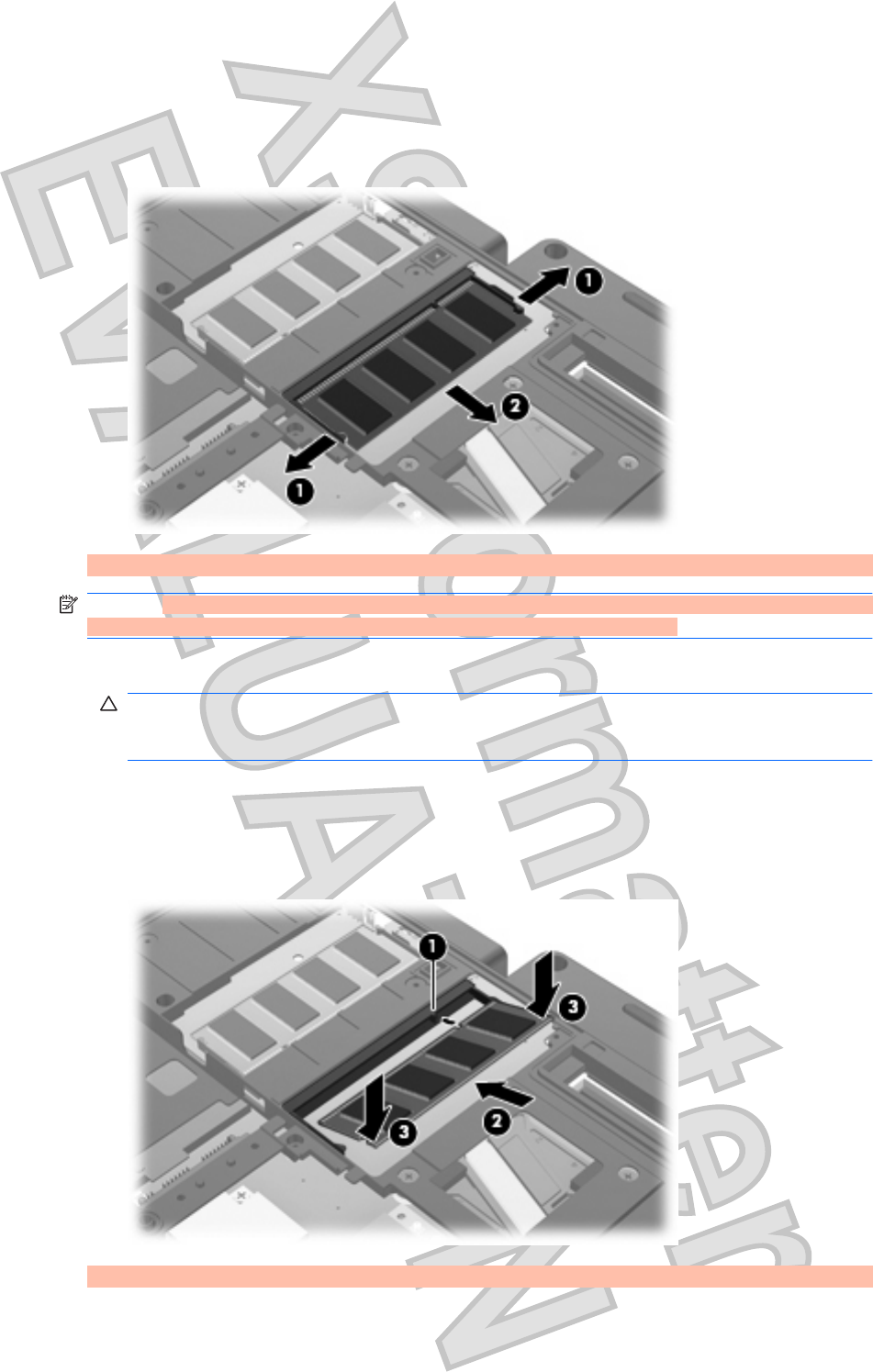

Adding or replacing a memory module .............................................................................................. 98
11 Security
Protecting the computer ................................................................................................................... 101
Using passwords .............................................................................................................................. 102
Setting passwords in Windows ........................................................................................ 102
Setting passwords in Computer Setup ............................................................................ 102
BIOS administrator password .......................................................................................... 103
Managing a BIOS administrator password ...................................................... 104
Entering a BIOS administrator password ........................................................ 105
Using Computer Setup DriveLock ................................................................................... 105
Setting a DriveLock password ......................................................................... 106
Entering a DriveLock password ...................................................................... 106
Changing a DriveLock password .................................................................... 106
Removing DriveLock protection ...................................................................... 107
ix
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using Computer Setup Auto DriveLock ........................................................................... 107
Entering an Automatic DriveLock password ................................................... 108
Removing Automatic DriveLock protection ..................................................... 108
Using Computer Setup security features .......................................................................................... 109
Securing system devices ................................................................................................. 109
Viewing Computer Setup System Information ................................................................. 109
Using Computer Setup System IDs ................................................................................. 110
Using antivirus software ................................................................................................................... 111
Using firewall software ..................................................................................................................... 112
Installing critical updates .................................................................................................................. 113
Using HP ProtectTools Security Manager (select models only) ....................................................... 114

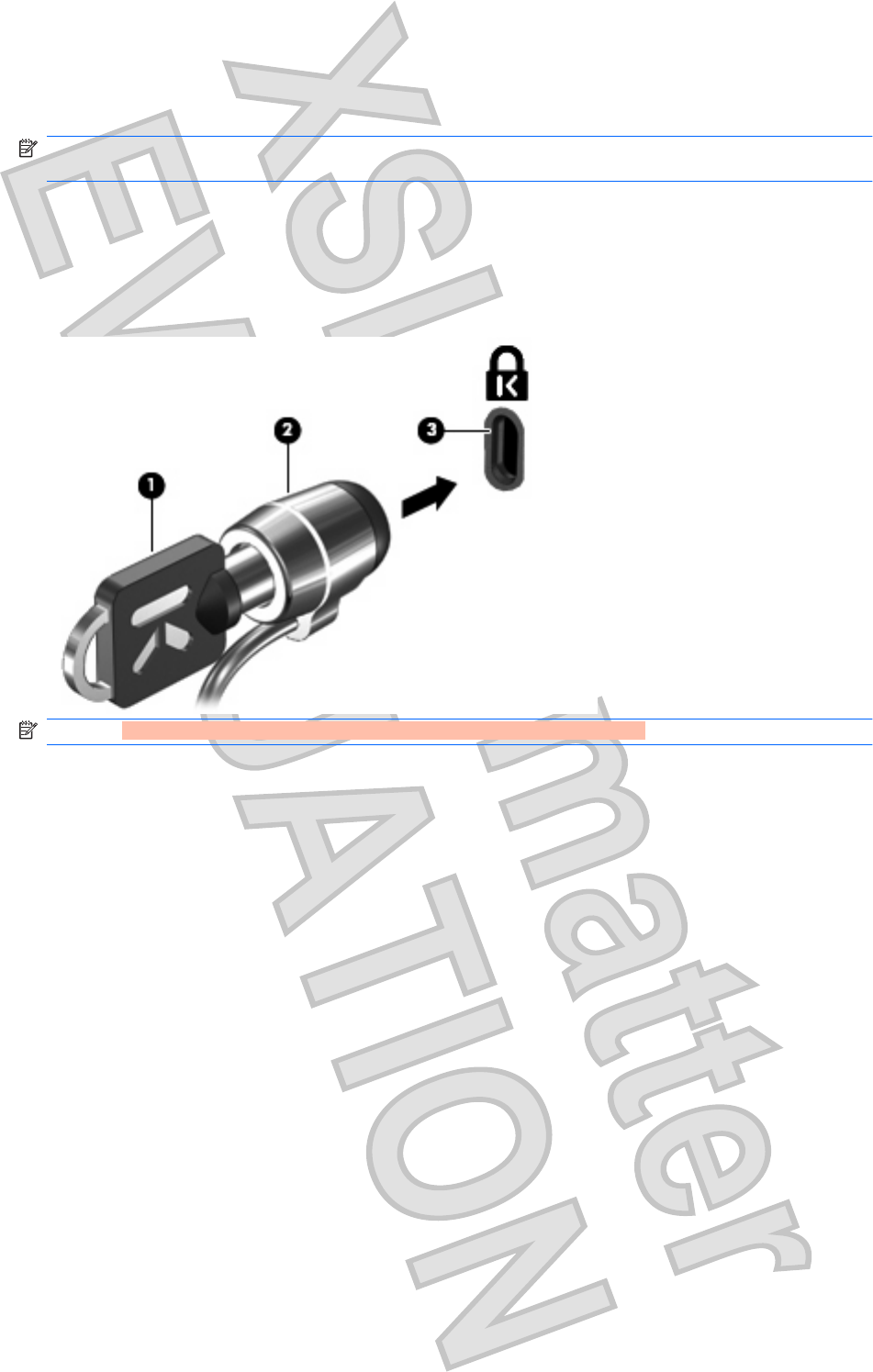

Installing a security cable ................................................................................................................. 115
12 Software updates
Updating software ............................................................................................................................ 116
Updating the BIOS ........................................................................................................................... 118
Determining the BIOS version ......................................................................................... 118
Downloading a BIOS update ........................................................................................... 119
Updating programs and drivers ........................................................................................................ 121
Using SoftPaq Download Manager .................................................................................................. 122
13 Backup and recovery
Backing up your information ............................................................................................................. 124
Performing a recovery ...................................................................................................................... 126
Using the Windows recovery tools ................................................................................... 126
Using f11 .......................................................................................................................... 127
Using a Windows 7 operating system DVD (purchased separately) .............................. 127
14 Computer Setup
Starting Computer Setup .................................................................................................................. 129
Using Computer Setup ..................................................................................................................... 129
Navigating and selecting in Computer Setup ................................................................... 129
Restoring factory settings in Computer Setup ................................................................. 130
Computer Setup menus ................................................................................................................... 130
File menu ......................................................................................................................... 131
Security menu .................................................................................................................. 131
Diagnostics menu ............................................................................................................ 132
System Configuration menu ............................................................................................ 133
15 MultiBoot
About the boot device order ............................................................................................................. 136
Enabling boot devices in Computer Setup ....................................................................................... 138
Considering boot order changes ...................................................................................................... 139
x
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Choosing MultiBoot preferences ...................................................................................................... 140
Setting a new boot order in Computer Setup ................................................................... 140
Dynamically choosing a boot device using the F9 prompt ............................................... 140
Setting a MultiBoot Express prompt ................................................................................ 141
Entering MultiBoot Express preferences ......................................................................... 141
16 Management and printing
Using Client Management Solutions ................................................................................................ 142
Configuring and deploying a software image ................................................................... 142
Managing and updating software ..................................................................................... 143
HP Client Manager for Altiris (select models only) .......................................... 143
HP CCM (Client Configuration Manager) (select models only) ....................... 144
HP SSM (System Software Manager) ............................................................. 144
Using Intel Active Management Technology (select models only) ................................................... 146
Enabling the iAMT solution .............................................................................................. 146
Using the MEBx setup utility menus ................................................................................ 146
Using the HP Universal Print Driver (select models only) ................................................................ 148
Index ................................................................................................................................................................. 149
xi
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
xii
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
1 Features

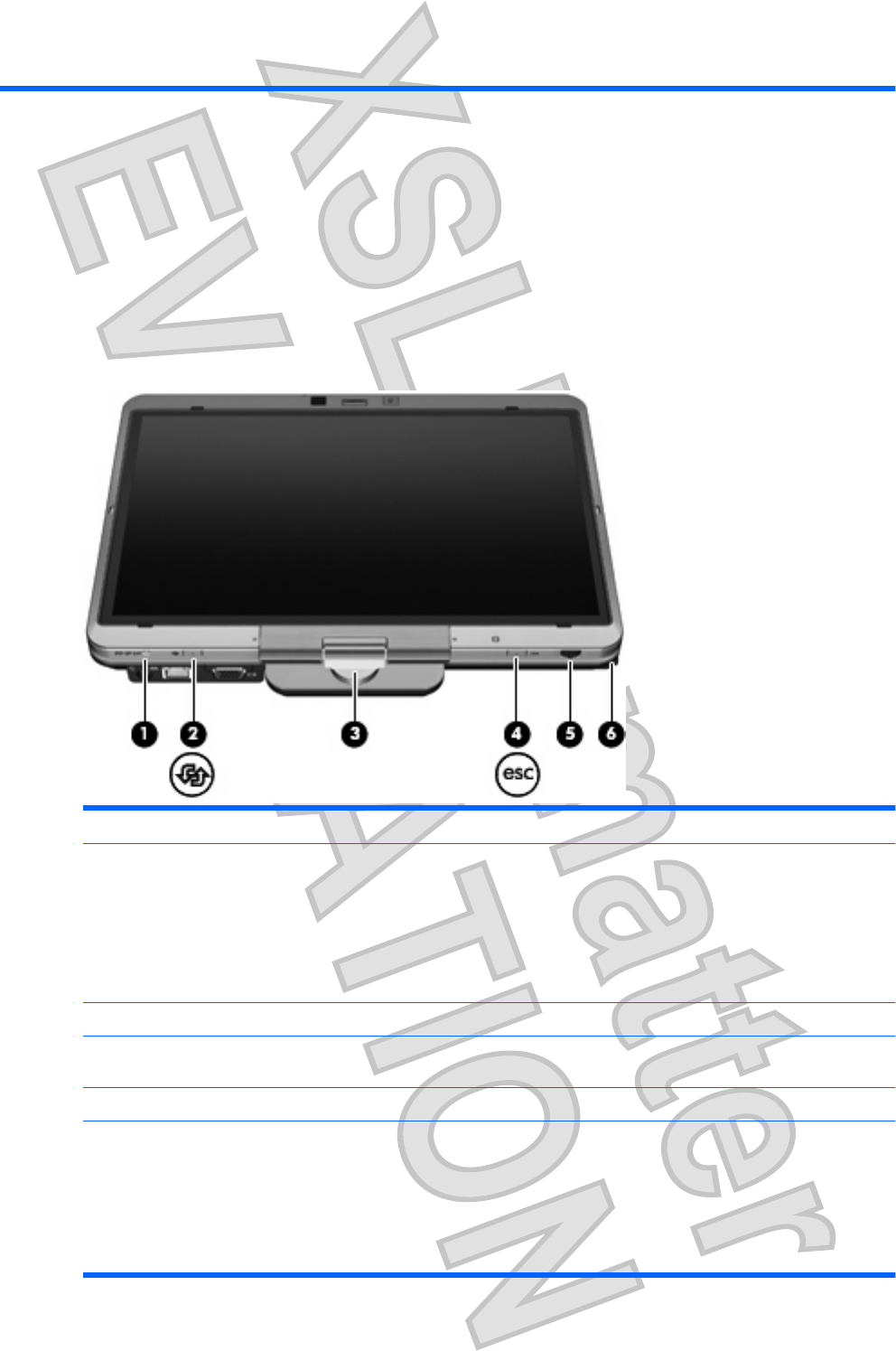

Identifying hardware
To see a list of hardware installed in the computer, follow these steps:
1. Select Start > Computer > System properties.
2. In the left pane, click Device Manager.
You can also add hardware or modify device configurations using Device Manager.
NOTE: Windows® includes the User Account Control feature to improve the security of your computer.
You may be prompted for your permission or password for tasks such as installing applications, running
utilities, or changing Windows settings. Refer to Windows Help for more information.
Top components
Pointing devices
Component Description
(1) TouchPad light łOff: TouchPad is enabled.
łAmber: TouchPad is disabled.
(2) TouchPad on/off control Enables/disables the TouchPad when pressed in combination with
the fn key.
Identifying hardware 1
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Component Description
(3) Pointing stick* Moves the pointer and selects or activates items on the screen.
(4) fn key Enables/disables the TouchPad when pressed in combination with
the f5 key.
(5) Left pointing stick button* Functions like the left button on an external mouse.
(6) TouchPad* Moves the pointer and selects or activates items on the screen.
(7) Left TouchPad button* Functions like the left button on an external mouse.
(8) Right TouchPad button* Functions like the right button on an external mouse.
(9) TouchPad scroll zone* Scrolls up or down.
(10) Right pointing stick button* Functions like the right button on an external mouse.
*This table describes factory settings. To view or change pointing device preferences, select Start > Control Panel > Hardware
and Sound > Mouse.
2 Chapter 1 Features
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Lights
Component Description
(1) Power light łOn: The computer is on.
łBlinking: The computer is in the Sleep state.
łOff: The computer is off or in Hibernation.
(2) Battery light łAmber: A battery is charging.
łTurquoise: A battery is close to full charge capacity.
łBlinking amber: A battery that is the only available power
source has reached a low battery level. When the battery
reaches a critical battery level, the battery light begins blinking
rapidly.
łOff: If the computer is plugged into an external power source,
the light turns off when all batteries in the computer are fully
charged. If the computer is not plugged into an external power
source, the light stays off until the battery reaches a low
battery level.
(3) Drive light łBlinking turquoise: The hard drive is being accessed.
łAmber: HP 3D DriveGuard has temporarily parked the internal
hard drive.
(4) Caps lock light On: Caps lock is on.
(5) TouchPad light łOff: TouchPad is enabled.
łAmber: TouchPad is disabled.
(6) Volume mute light łTurquoise: Computer sound is on.
łAmber: Computer sound is off.
(7) Volume down light Blinking: The volume scroll zone is being used to decrease speaker
volume.
Identifying hardware 3
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Component Description
(8) Volume up light Blinking: The volume scroll zone is being used to increase speaker
volume.
(9) Num lock light On: Num lock is on or the embedded numeric keypad is enabled.
Buttons and switches
Component Description
(1) Internal display switch Turns off the display if the display is closed while the power is on.
(2) Volume mute button Mutes and restores speaker sound.
(3) Volume down button Decreases computer volume.
(4) Volume up button Increases computer volume.
4 Chapter 1 Features
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/

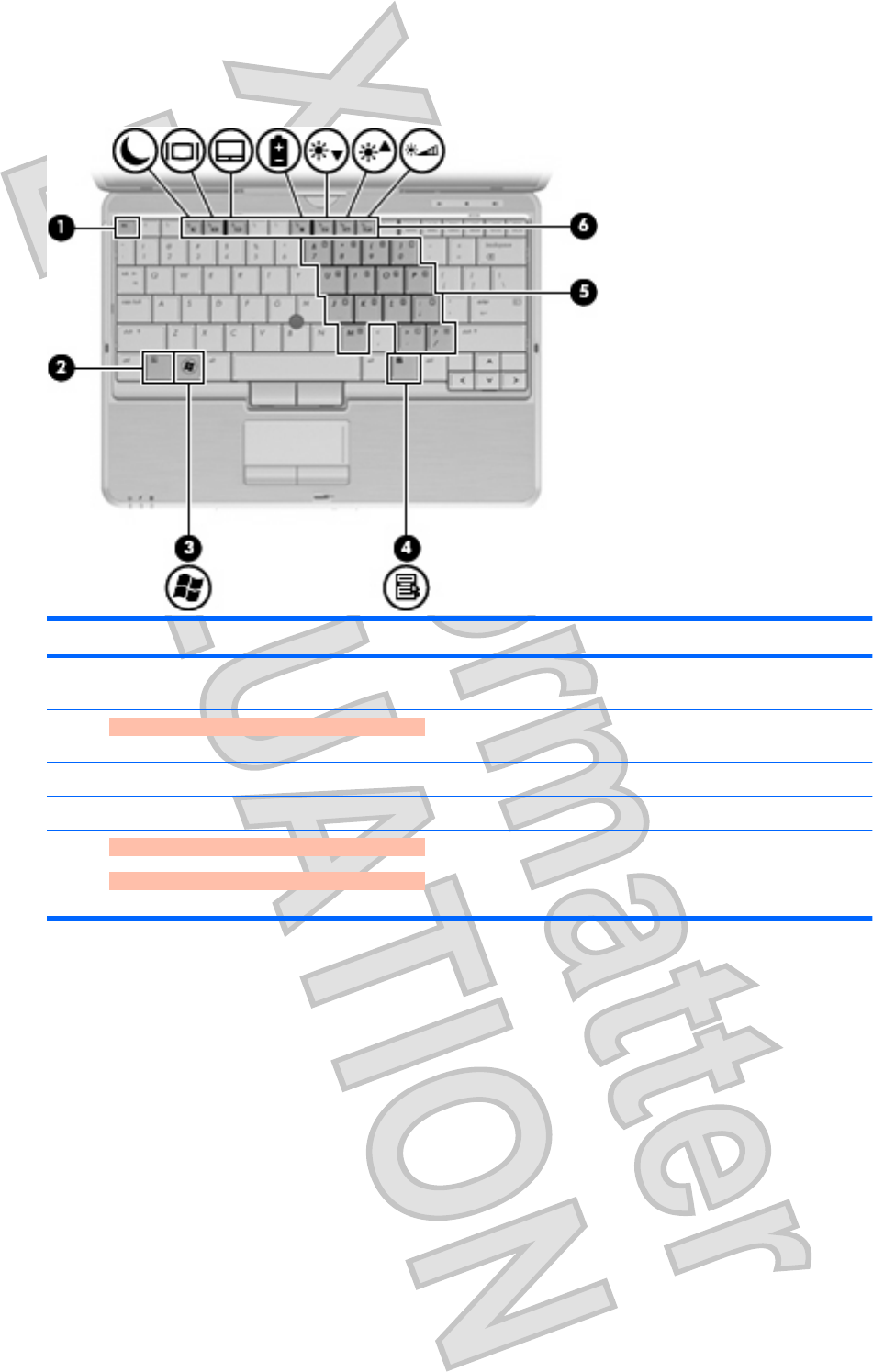

Keys
Component Description
(1) esc key Displays system information when pressed in combination with the
fn key.
(2) fn key Executes frequently used system functions when pressed in
combination with a function key or the esc key.
(3) Windows logo key Displays the Windows Start menu.
(4) Windows applications key Displays a shortcut menu for items beneath the pointer.
(5) Embedded numeric keypad keys Can be used like the keys on an external numeric keypad.
(6) Function keys Execute frequently used system functions when pressed in
combination with the fn key.
Identifying hardware 5
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Front components
Component Description
(1) Webcam light On: The webcam is in use.
(2) External WWAN antenna button Opens the external WWAN antenna.
(3) External WWAN antenna Sends and receives wireless signals to communicate with
WWANs.
(4) Power switch łWhen the computer is off, slide the switch to the right to turn
on the computer.
łWhen the computer is on, slide the switch to the right to shut
down the computer.
łWhen the computer is in the Sleep state, slide the switch to
the right briefly to exit Sleep.
łWhen the computer is in Hibernation, slide the switch to the
right briefly to exit Hibernation.
If the computer has stopped responding and Windows® shutdown
procedures are ineffective, slide the switch to the right and hold for
at least 5 seconds to turn off the computer.
To learn more about your power settings, select Start > Control
Panel > System and Maintenance > Power Options.
(5) Vents (2) Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
(6) Business card slot Holds a business card in position so that the webcam can capture
an image.
(7) Display release latch Opens the computer.
(8) Bluetooth® compartment Contains an optional Bluetooth device.
6 Chapter 1 Features
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/

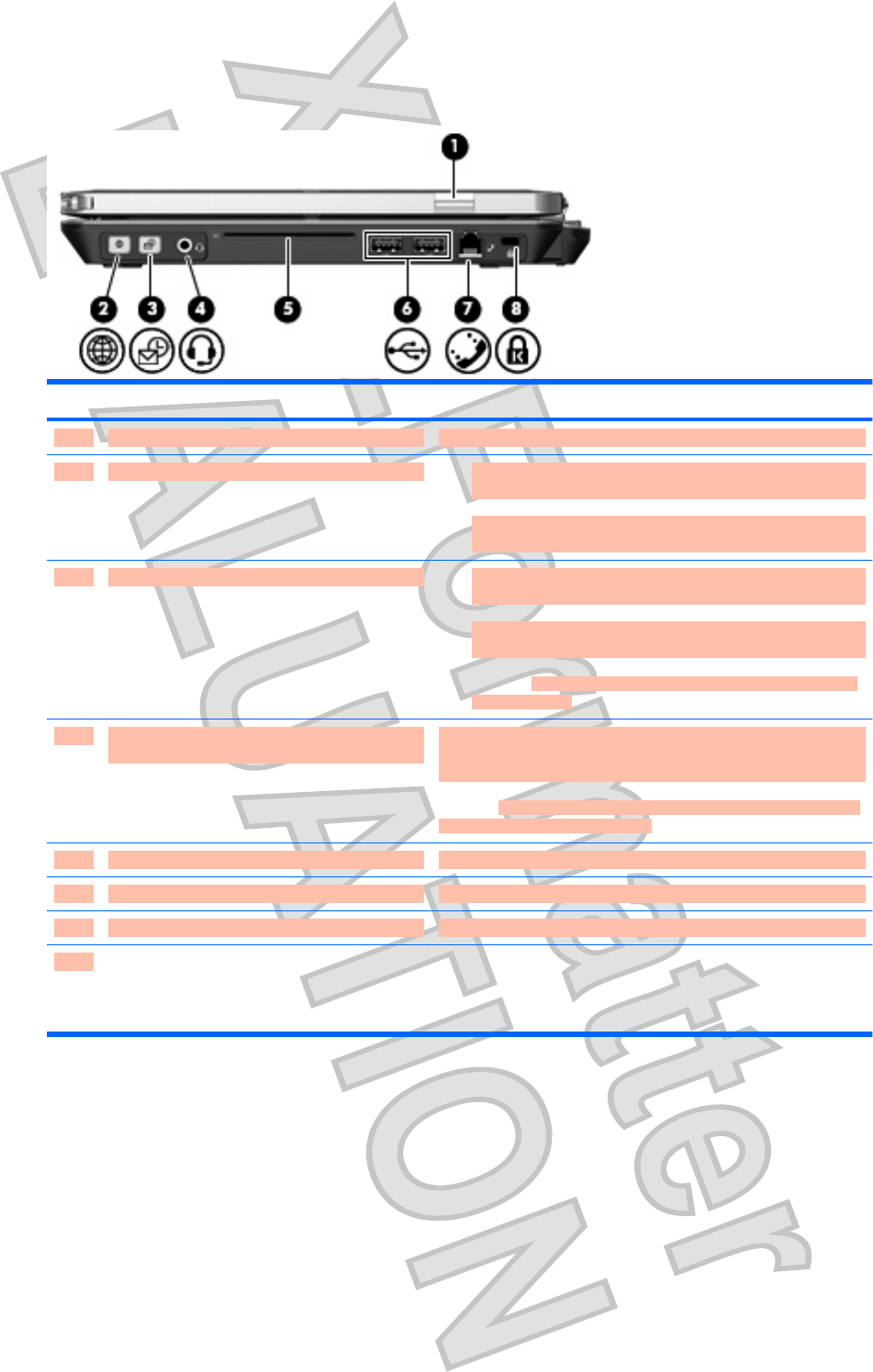

Right-side components
Component Description
(1) HP Fingerprint Sensor (fingerprint reader) Allows a fingerprint logon to Windows instead of a password logon.

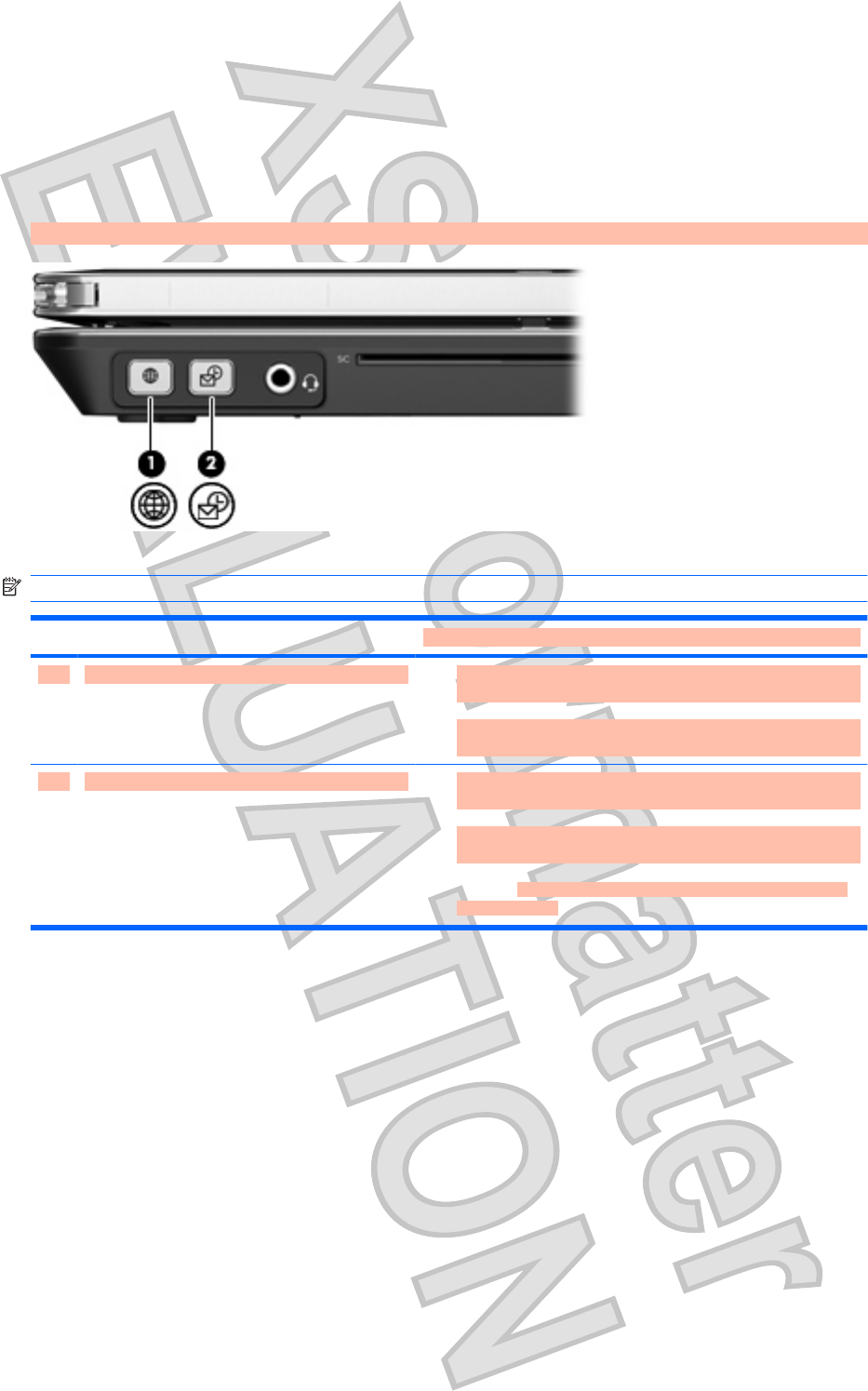

(2) QuickWeb button łWhen the computer is off, press the button to open HP
QuickWeb.
łWhen the computer is on, press the button to open the default
Web browser.
(3) QuickLook button łWhen the computer is off, press the button to open HP
QuickLook.
łWhen the computer is on, press the button to open Software
Setup.
NOTE: If Software Setup is not available, the default Web
browser opens.
(4) Audio-out (headphone) jack/Audio-in
(microphone) jack
Produces sound when connected to optional powered stereo
speakers, headphones, ear buds, a headset, or television audio.
Also connects an optional headset microphone.
NOTE: When a device is connected to the headphone jack, the
computer speakers are disabled.
(5) Smart card reader Supports optional smart cards and Java™ Cards.
(6) USB ports (2) Connect optional USB devices.
(7) RJ-11 (modem) jack Connects a modem cable.
(8) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent, but
it may not prevent the computer from being mishandled or stolen.
Identifying hardware 7
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Left-side components
Component Description
(1) Media Card Reader Supports the following optional digital card formats:
łMemory Stick
łMemory Stick Duo (adapter required)
łMemory Stick Pro (adapter required)
łSecure Digital (SD) Memory Card
łMultiMediaCard (MMC)
łxD-Picture Card
łxD-Picture Card Type H
łxD-Picture Card Type M
(2) Pen holder Stores the pen.
(3) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
(4) ExpressCard slot (select models only) Supports optional ExpressCards.
(5) Wireless light łBlue: An integrated wireless device, such as a wireless local
area network (WLAN) device, the HP Mobile Broadband
Module, and/or a Bluetooth device, is on.
łAmber: All wireless devices are off.
(6) Wireless switch Turns the wireless feature on or off, but does not create a wireless
connection.
NOTE: A wireless network must be set up in order to establish a
wireless connection.
(7) 1394 port Connects an optional IEEE 1394 or 1394a device, such as a
camcorder.
(8) Powered USB port Provides power to a USB device, such as an optional external
MultiBay, if used with a powered USB cable.
8 Chapter 1 Features
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Rear components
Component Description
(1) Jog dial In tablet mode, functions like the enter key and the up and down
arrows on a standard keyboard.
łPress inward to enter a command.
łRotate up to scroll up.
łRotate down to scroll down.
(2) Esc button In tablet mode, allows you to exit or escape out of an application.
(3) Rotate button In tablet mode, switches the image between landscape and portrait
orientation.
(4) Ctrl+alt+del button In tablet mode:
łWhile Windows is running, press the button with the pen to
enter the ctrl+alt+del command.*
łWhile the Computer Setup utility is running, press the button
with the pen to enter the reset command. The computer resets
and all unsaved information is lost. The reset function can be
used to restore functionality when the system has become
unresponsive.
(5) Power connector Connects an AC adapter.
(6) RJ-45 (network) jack Connects a network cable.
(7) External monitor port Connects an external VGA monitor or projector.
*To protect your work and the system, the ctrl+alt+delete command cannot be entered using the ctrl,alt, and del keys on the
on-screen keyboard.
Identifying hardware 9
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Bottom components
Component Description
(1) Battery bay Holds the battery and subscriber identity module (SIM).
(2) SIM slot Contains a wireless subscriber identity module (SIM) (select
models only). The SIM slot is located inside the battery bay.
(3) Vents (5) Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.

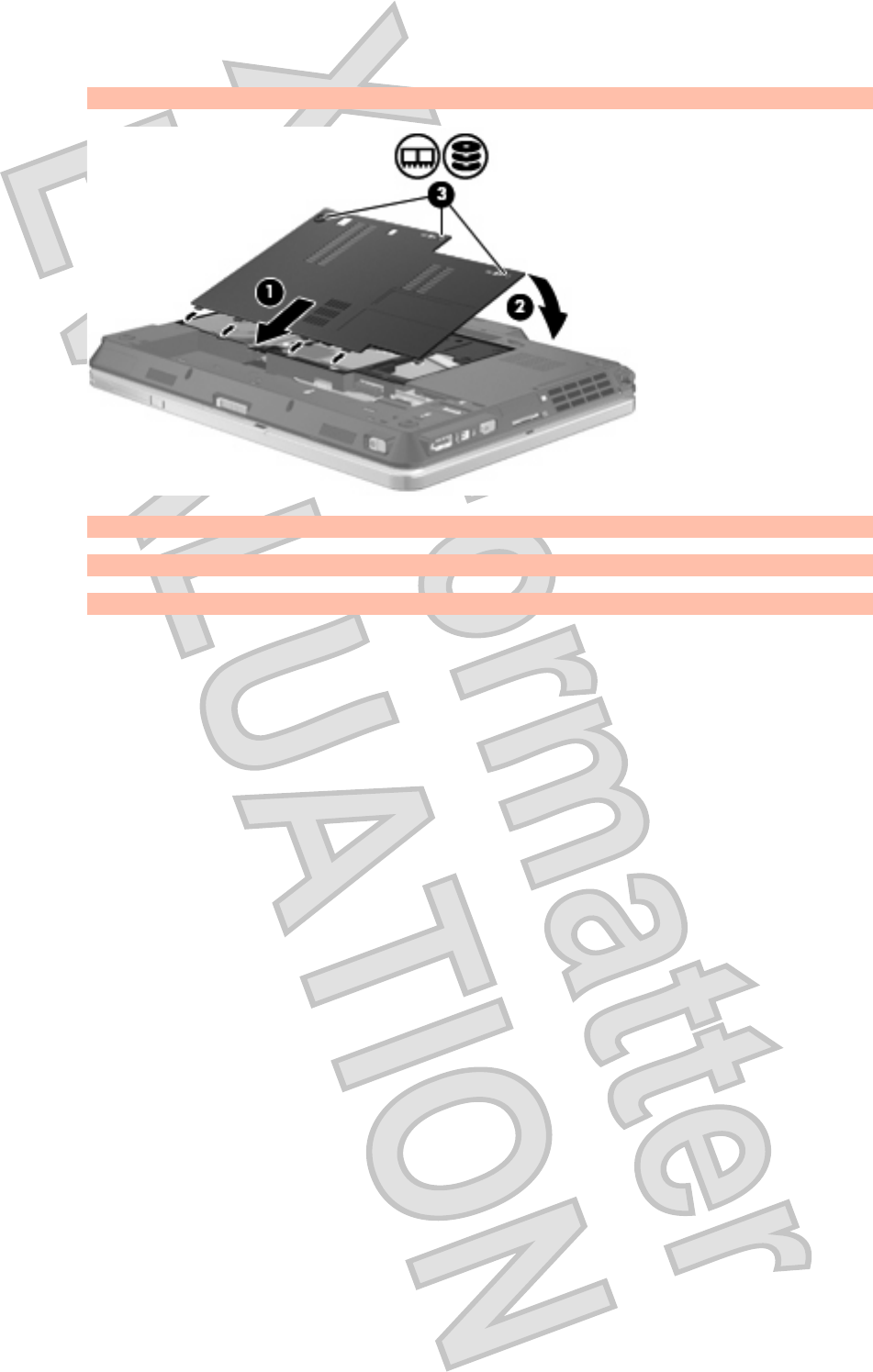

(4) Hard drive bay Holds the hard drive, memory module slots, WLAN module (select
models only), and WWAN module (select models only).
(5) Docking connector Connects an optional docking device.
(6) Charge level indicator Displays the approximate remaining battery charge.
(7) Battery release latch Releases the battery from the battery bay.
(8) Accessory battery connector Connects an optional accessory battery.
(9) Accessory battery connector door Slides open to expose the accessory battery connector.
10 Chapter 1 Features
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Display
Component Description
(1) Webcam light (select models only) On: The webcam is in use.
(2) Webcam (select models only) Records audio and video and captures still photographs.
(3) Keyboard light button Opens and turns on the keyboard light.
(4) HP Fingerprint Sensor (fingerprint reader) Allows a fingerprint logon to Windows instead of a password logon.
(5) Internal microphones (2) Record sound and transmit sound for video conferencing and Voice
Over IP (VoIP).
(6) Ambient light sensor Automatically adjusts the display brightness based on the lighting
conditions in your environment.
(7) Convertible hinge Swivels the display and converts the computer from traditional
notebook mode into tablet mode or vice versa.
Identifying hardware 11
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/

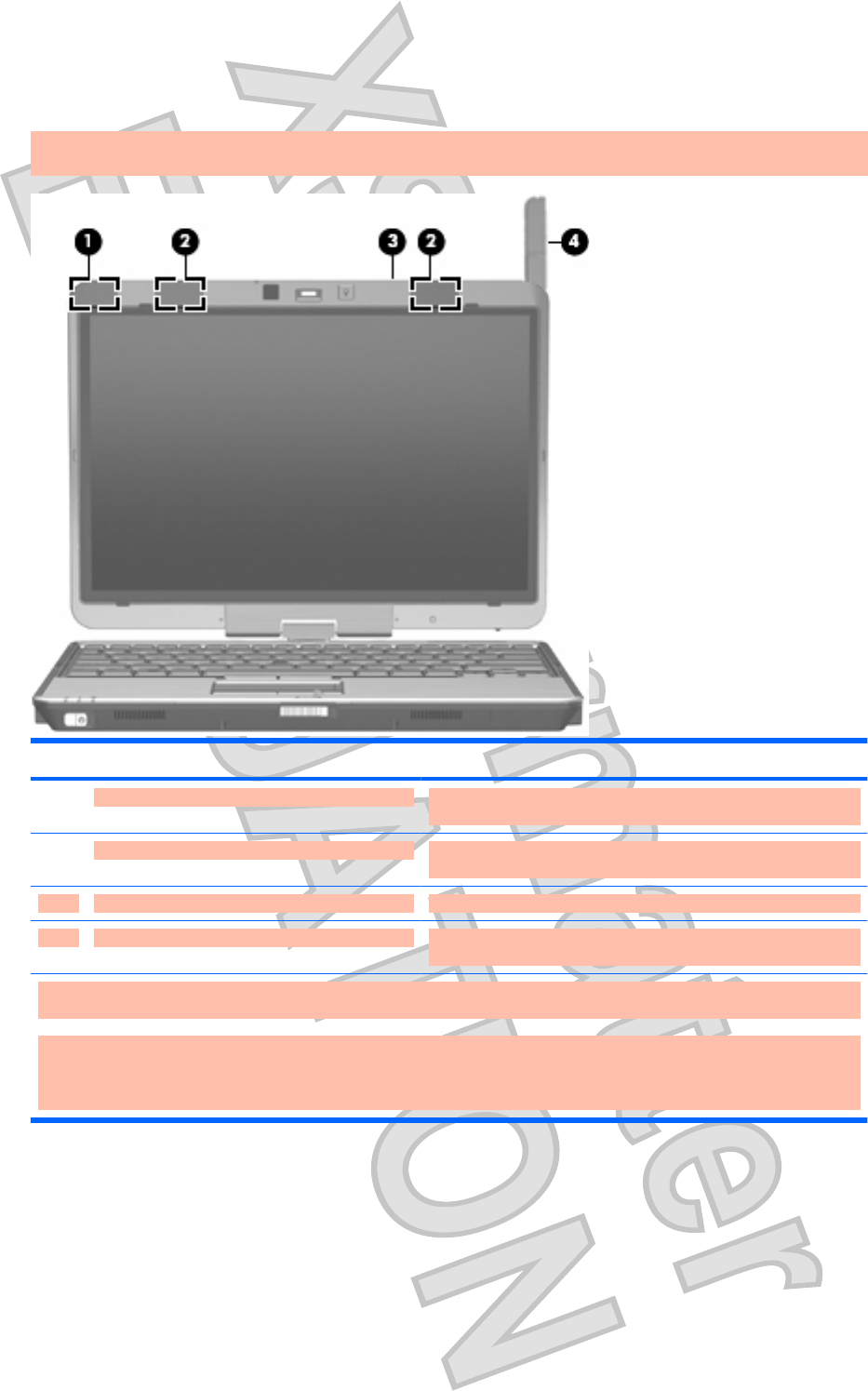

Wireless antennas (select models only)
The antennas send and receive signals from one or more wireless devices. These antennas are not
visible from the outside of the computer.
Component Description
(1) WWAN antenna (1)* Sends and receives wireless signals to communicate with wireless
wide area networks (WWANs).
(2) WLAN antennas (2)* Send and receive wireless signals to communicate with wireless
local area networks (WLANs).
(3) External WWAN antenna button** Press to open the external WWAN antenna.
(4) External WWAN antenna** Sends and receives wireless signals to communicate with
WWANs.
*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around
the antennas free from obstructions.
**Before connecting to a WWAN, press the WWAN antenna button to open the external WWAN antenna to a vertical position.
The external WWAN antenna allows you to connect to a WWAN, and then to the Internet, using the integrated HP Broadband
Wireless Module and service from a supported Cellular network operator. Do not close the external WWAN antenna if you are
connected to a WWAN.
To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental
Notices that applies to your country or region. These notices are located in Help and Support.
12 Chapter 1 Features
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Additional hardware components
Component Description
(1) Power cord* Connects an AC adapter to an AC outlet.
(2) AC adapter Converts AC power to DC power.
(3) Battery* Powers the computer when the computer is not plugged into an
external power source.
(4) Modem cable (select models only)* Connects the internal modem to an RJ-11 telephone jack or to a
country- or region-specific modem cable adapter.
(5) Country- or region-specific modem cable adapter
(select models only)*
Adapts the modem cable to a non-RJ-11 telephone jack.
*Modem cables, batteries, modem cable adapters, and power cords vary in appearance by country or region.
Identifying hardware 13
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Identifying the labels
The labels affixed to the computer provide information you may need when you troubleshoot system
problems or travel internationally with the computer:
łService tag—Provides important information, including the following:
ŃProduct Name (1). This is the product name affixed to the front of your computer.
ŃSerial Number (s/n) (2). This is an alphanumeric identifier that is unique to each product.
ŃPart number/Product number (p/n) (3). This number provides specific information about the
product's hardware components. The part number helps a service technician to determine
what components and parts are needed.
ŃModel description (4). This is an alphanumeric identifier used to locate documents, drivers,
and support for your computer.
ŃWarranty period (5). This number describes the duration (in years) of the warranty period for
this computer.
Have this information available when you contact technical support. The service tag label is affixed
to the bottom of the computer.
łMicrosoft® Certificate of Authenticity—Contains the Windows Product Key. You may need the
Product Key to update or troubleshoot the operating system. This certificate is affixed to the bottom
of the computer.
łRegulatory label—Provides regulatory information about the computer. The regulatory label is
affixed inside the battery bay.
łModem approval label—Provides regulatory information about the modem and lists the agency
approval markings required by some of the countries in which the modem has been approved for
use. You may need this information when traveling internationally. The modem approval label is
affixed inside the memory module compartment.
łWireless certification label(s) (select models only)—Provide information about optional wireless
devices and the approval markings of some of the countries or regions in which the devices have
been approved for use. An optional device may be a wireless local area network (WLAN) device
or an optional Bluetooth device. If your computer model includes one or more wireless devices,
one or more certification labels are included with your computer. You may need this information
when traveling internationally. Wireless certification labels are affixed to the bottom of the
computer.
łSIM (subscriber identity module) label (select models only)—Provides the ICCID (Integrated Circuit
Card Identifier) of your SIM. This label is located inside the battery bay.
łHP Mobile Broadband Module serial number label (select models only)—Provides the serial
number of your HP Mobile Broadband Module. This label is located inside the battery bay.
14 Chapter 1 Features
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
2 Using the tablet
Tablet display components
Component Description
(1) Ctrl+alt+del button* łWhile Windows is running, press the button with the pen to enter
the ctrl+alt+delete command.
†
łWhile the Computer Setup utility is running, press the button
with the pen to enter the reset command. The computer resets
and all unsaved information is lost. The reset function can be
used to restore functionality when the system has become
unresponsive.
(2) Rotate button Switches the image between landscape and portrait orientation.
(3) Convertible hinge Swivels the display and converts the computer from traditional
notebook mode into tablet mode or vice versa.
(4) Esc button Allows you to exit or escape out of a program.
(5) Jog dial* Functions like the enter key and the up and down arrow keys on a
standard keyboard:
łPress to enter a command.
łRotate up to scroll up.
łRotate down to scroll down.
Tablet display components 15
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
(6) Pen holder Stores the pen.
*This table describes default settings. For information about changing the functions of the Ctrl+alt+del button and jog dial, select
Start > Control Panel > Hardware and Sound > Tablet PC Settings.
†
To protect your work and the system, the ctrl+alt+delete command cannot be entered using the ctrl,alt, and del keys on the
on-screen keyboard.
Rotating the display
The computer display can rotate from traditional notebook mode to tablet mode.
NOTE: When the computer is docked in either notebook mode or tablet mode, the display will not
rotate.
Tablet mode
To change the computer from notebook mode to tablet mode:
1. Slide the display release latch to release the display (1), and then open the computer display (2).
16 Chapter 2 Using the tablet
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
2. Rotate the computer display clockwise until it snaps into place facing away from the keyboard.
3. Tilt the computer display downward onto the keyboard until it snaps into place.
In tablet mode, the screen display automatically rotates from portrait to landscape as it is being turned.
NOTE: If antennae on the computer are held in close proximity to the body, the antennae may disable
automatic rotation of the screen display.
Rotating the display 17
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Notebook mode
To change the computer from tablet mode to notebook mode:
1. Slide the display release latch (1).
2. Open the computer display (2).
18 Chapter 2 Using the tablet
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
3. Rotate the computer display counterclockwise until it snaps into place facing the keyboard.
NOTE: To prevent a lack of response when you turn on the computer, be sure that the battery is firmly
seated.
Rotating the display 19
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
3 Wireless, modem, and local area
network
Using wireless devices (select models only)
Wireless technology transfers data across radio waves instead of wires. Your computer may be
equipped with one or more of the following wireless devices:
łWireless local area network (WLAN) device—Connects the computer to wireless local area
networks (commonly referred to as Wi-Fi networks, wireless LANs, or WLANs) in corporate offices,
your home, and public places such as airports, restaurants, coffee shops, hotels, and universities.
In a WLAN, each mobile wireless device communicates with a wireless router or a wireless access
point.
łHP Mobile Broadband Module—A wireless wide area network (WWAN) device that provides
access to information wherever mobile network operator service is available. In a WWAN, each
mobile device communicates to a mobile network operator’s base station. Mobile network operators
install networks of base stations (similar to cell phone towers) throughout large geographic areas,
effectively providing coverage across entire states, regions, or even countries.
łBluetooth device—Creates a personal area network (PAN) to connect to other Bluetooth-enabled
devices such as computers, phones, printers, headsets, speakers, and cameras. In a PAN, each
device communicates directly with other devices, and devices must be relatively close together—
typically within 10 meters (approximately 33 feet) of each other.
Computers with WLAN devices support one or more of the following IEEE industry standards:
ł802.11b, the first popular standard, supports data rates of up to 11 Mbps and operates at a
frequency of 2.4 GHz.
ł802.11g supports data rates of up to 54 Mbps and operates at a frequency of 2.4 GHz. An 802.11g
WLAN device is backward compatible with 802.11b devices, so they can operate on the same
network.
ł802.11a supports data rates of up to 54 Mbps and operates at a frequency of 5 GHz.
NOTE: 802.11a is not compatible with 802.11b and 802.11g.
ł802.11n supports data rates of up to 450 Mbps and may operate at 2.4 GHz or 5 GHz, making it
backward compatible with 802.11a, b, and g.
NOTE: The specifications for the 802.11n WLAN are draft specifications and are not final. If the
final specifications differ from the draft specifications, it may affect the ability of the computer to
communicate with other 802.11n WLAN devices.
20 Chapter 3 Wireless, modem, and local area network
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
For more information on wireless technology, refer to the information and Web site links provided in
Help and Support.
Identifying wireless and network icons
Icon Name Description
Wireless (connected) Identifies the location of the wireless lights and the wireless buttons on
the computer. Also identifies the Wireless Assistant software on the
computer and indicates that one or more of the wireless devices are
on.
Wireless
(disconnected)
Identifies the Wireless Assistant software on the computer and
indicates that all of the wireless devices are off.
HP Connection
Manager
Opens HP Connection Manager, which enables you to create a
connection with an HP Mobile Broadband device (select models only).
Wired network
(connected)
Indicates that one or more of your network drivers are installed and one
or more network devices are connected to the network.
Network (connected) Indicates that one or more of your network drivers are installed, one or
more network devices are connected to a wireless network, and one
or more network devices may be connected to a wired network.
Network
(disconnected)
Indicates that one or more of your network drivers are installed and
wireless connections are available, but no network devices are
connected to a wired or wireless network.
Network (disabled/
disconnected)
Indicates that one or more of your network drivers are installed, no
wireless connections are available or all wireless network devices are
disabled by the wireless button or Wireless Assistant, and no network
devices are connected to a wired network.
Wired network
(disabled/
disconnected)
Indicates that one or more of your network drivers are installed, all
network devices or all wireless devices are disabled in Windows
Control Panel, and no network devices are connected to a wired
network.
Using the wireless controls
You can control the wireless devices in your computer using these features:
łWireless button or wireless switch (referred to in this guide as the wireless button)
łWireless Assistant software (select models only)
łHP Connection Manager software (select models only)
łOperating system controls
Using the wireless button
The computer has a wireless button, one or more wireless devices, and one or two wireless lights,
depending on the model. All of the wireless devices on your computer are enabled at the factory, so the
wireless light is on (blue) when you turn on the computer.
Using wireless devices (select models only) 21
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
The wireless light indicates the overall power state of your wireless devices, not the status of individual
devices. If the wireless light is blue, at least one wireless device is on. If the wireless light is off, all
wireless devices are off.
NOTE: On some models, the wireless light is amber when all wireless devices are off.
Because the wireless devices are enabled at the factory, you can use the wireless button to turn on or
turn off the wireless devices simultaneously. Individual wireless devices can be controlled through
Wireless Assistant software (select models only) or through Computer Setup.
NOTE: If the wireless devices are disabled by Computer Setup, the wireless button will not work until
you reenable your devices.
Using Wireless Assistant software (select models only)
A wireless device can be turned on or off using the Wireless Assistant software. If a wireless device is
disabled by Computer Setup, it must be reenabled by Computer Setup before it can be turned on or off
using Wireless Assistant.
NOTE: Enabling or turning on a wireless device does not automatically connect the computer to a
network or a Bluetooth-enabled device.
To view the state of the wireless devices, click the Show hidden icons icon, the arrow at the left of the
notification area, and position the cursor over the wireless icon.
If the wireless icon is not displayed in the notification area, complete the following steps to change the
Wireless Assistant properties:
1. Select Start > Control Panel > Hardware and Sound > Windows Mobility Center.
2. Click the wireless icon in the Wireless Assistant tile, which is located in the bottom row of Windows
Mobility Center.
3. Click Properties.
4. Select the check box next to HP Wireless Assistant icon in notification area.
5. Click Apply.
6. Click Close.
For more information, refer to the Wireless Assistant software Help:
1. Open Wireless Assistant by clicking the wireless icon in Windows Mobility Center.
2. Click the Help button.
Using HP Connection Manager (select models only)
You can use HP Connection Manager to connect to WWANs using the HP Mobile Broadband device in
your computer (select models only).
To start Connection Manager, click the Connection Manager icon in the notification area, at the far
right of the taskbar.
– or –
Select Start > All Programs > HP Connection Manager > HP Connection Manager.
22 Chapter 3 Wireless, modem, and local area network
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
For more details about using Connection Manager, refer to the Connection Manager software Help.
Using operating system controls
Some operating systems also offer a way to manage integrated wireless devices and the wireless
connection. For example, Windows provides the Network and Sharing Center that allows you to set up
a connection or network, connect to a network, manage wireless networks, and diagnose and repair
network problems.
To access the Network and Sharing Center, select Start > Control Panel > Network and Internet >
Network and Sharing Center.
For more information, refer to Windows Help and Support. Select Start > Help and Support.
Using wireless devices (select models only) 23
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using a WLAN
With a WLAN device, you can access a wireless local area network (WLAN), which is composed of other
computers and accessories that are linked by a wireless router or a wireless access point.
NOTE: The terms wireless router and wireless access point are often used interchangeably.
łA large-scale WLAN, such as a corporate or public WLAN, typically uses wireless access points
that can accommodate a large number of computers and accessories and can separate critical
network functions.
łA home or small office WLAN typically uses a wireless router, which allows several wireless and
wired computers to share an Internet connection, a printer, and files without requiring additional
pieces of hardware or software.
To use the WLAN device in your computer, you must connect to a WLAN infrastructure (provided through
a service provider or a public or corporate network).
Setting up a WLAN
To set up a WLAN and connect to the Internet, you need the following equipment:
łA broadband modem (either DSL or cable) (1) and high-speed Internet service purchased from an
Internet service provider (ISP)
łA wireless router (purchased separately) (2)
łThe wireless computer (3)
The illustration below shows an example of a wireless network installation that is connected to the
Internet.
As your network grows, additional wireless and wired computers can be connected to the network to
access the Internet.
For help in setting up your WLAN, refer to the information provided by your router manufacturer or your
ISP.
Protecting your WLAN
Because the WLAN standard was designed with only limited security capabilities—basically to foil casual
eavesdropping rather than more powerful forms of attack—it is essential to understand that WLANs are
vulnerable to well-known and well-documented security weaknesses.
WLANs in public areas, or “hotspots,” like coffee shops and airports, may not provide any security. New
technologies are being developed by wireless manufacturers and hotspot service providers that make
the public environment more secure and anonymous. If you are concerned about the security of your
computer in a hotspot, limit your network activities to noncritical e-mail and basic Internet surfing.
24 Chapter 3 Wireless, modem, and local area network
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
When you set up a WLAN or access an existing WLAN, always enable security features to protect your
network from unauthorized access. The common security levels are Wi-Fi Protected Access (WPA) and
Wired Equivalent Privacy (WEP). Because wireless radio signals travel outside the network, other WLAN
devices can pick up unprotected signals and either connect to your network (uninvited) or capture
information being sent across it. However, you can take precautions to protect your WLAN:
łUse a wireless transmitter with built-in security
Many wireless base stations, gateways, and routers provide built-in security features such as
wireless security protocols and firewalls. With the correct wireless transmitter, you can protect your
network from the most common wireless security risks.
łWork behind a firewall
A firewall is a barrier that checks both data and requests for data that are sent to your network and
then discards any suspicious items. Firewalls are available in many varieties, both software and
hardware. Some networks use a combination of both types.
łUse wireless encryption
A variety of sophisticated encryption protocols is available for your WLAN. Find the solution that
works best for your network security:
ŃWired Equivalent Privacy (WEP) is a wireless security protocol that uses a WEP key to
encode or encrypt all network data before it is transmitted. Usually, you can allow the network
to assign the WEP key. Alternatively, you can set up your own key, generate a different key,
or choose other advanced options. Without the correct key, others will not be able to use the
WLAN.
ŃWPA (Wi-Fi Protected Access), like WEP, uses security settings to encrypt and decrypt data
that is transmitted over the network. However, instead of using one static security key for
encryptions as WEP does, WPA uses temporal key integrity protocol (TKIP) to dynamically
generate a new key for every packet. It also generates different sets of keys for each computer
on the network.
Connecting to a WLAN
To connect to the WLAN, follow these steps:
1. Be sure that the WLAN device is on. If it is on, the wireless light is on. If the wireless light is off,
press the wireless button.
NOTE: On some models, the wireless light is amber when all wireless devices are off.
2. Click the network icon in the notification area, at the far right of the taskbar.
3. Select your WLAN from the list.
4. Click Connect.
If the network is a security-enabled WLAN, you are prompted to enter a network security key, which
is a security code. Type the code, and then click OK to complete the connection.
NOTE: If no WLANs are listed, you are out of range of a wireless router or access point.
NOTE: If you do not see the network you want to connect to, click Open Network and Sharing
Center, and then click Set up a new connection or network. A list of options is displayed. You
can choose to manually search for and connect to a network or to set up a new network connection.
Using a WLAN 25
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
After the connection is made, place the mouse pointer over the network icon in the notification area, at
the far right of the taskbar, to verify the name and status of the connection.
NOTE: The functional range (how far your wireless signals travel) depends on WLAN implementation,
router manufacturer, and interference from other electronic devices or structural barriers such as walls
and floors.
More information about using a WLAN is available through the following resources:
łInformation from your ISP and the manufacturer's instructions included with your wireless router
and other WLAN equipment
łInformation and Web site links provided in Help and Support
For a list of public WLANs near you, contact your ISP or search the Web. Web sites that list public
WLANs include Cisco Internet Mobile Office Wireless Locations, Hotspotlist, and Geektools. Check with
each public WLAN location for cost and connection requirements.
For additional information on connecting your computer to a corporate WLAN, contact your network
administrator or IT department.
Roaming to another network
When you move your computer within range of another WLAN, Windows attempts to connect to that
network. If the attempt is successful, your computer is automatically connected to the new network. If
Windows does not recognize the new network, follow the same procedure you used initially to connect
to your WLAN.
26 Chapter 3 Wireless, modem, and local area network
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using HP Mobile Broadband (select models only)
HP Mobile Broadband enables your computer to use wireless wide area networks (WWANs) to access
the Internet from more places and over larger areas than it can by using WLANs. Using HP Mobile
Broadband requires a network service provider (called a mobile network operator), which in most cases
is a mobile phone network operator. Coverage for HP Mobile Broadband is similar to mobile phone voice
coverage.
When used with mobile network operator service, HP Mobile Broadband gives you the freedom to stay
connected to the Internet, send e-mail, or connect to your corporate network whether you are on the
road or outside the range of Wi-Fi hotspots.
HP supports the following technologies:
łHSPA (High Speed Packet Access), which provides access to networks based on the Global
System for Mobile Communications (GSM) telecommunications standard.
łEV-DO (Evolution Data Optimized), which provides access to networks based on the code division
multiple access (CDMA) telecommunications standard.
You may need the HP Mobile Broadband Module serial number to activate mobile broadband service.
The serial number is printed on a label inside the battery bay of your computer.
Some mobile network operators require the use of a subscriber identity module (SIM). A SIM contains
basic information about you, such as a PIN, as well as network information. Some computers include a
SIM that is preinstalled in the battery bay. If the SIM is not preinstalled, it may be provided in the HP
Mobile Broadband information provided with your computer or the mobile network operator may provide
it separately from the computer.
For information on inserting and removing the SIM, refer to the “Inserting a SIM” and “Removing a SIM”
sections in this chapter.
For information on HP Mobile Broadband and how to activate service with a preferred mobile network
operator, refer to the mobile broadband information included with your computer. For additional
information, see the HP Web site at http://www.hp.com/go/mobilebroadband (US only).
Inserting a SIM
CAUTION: To prevent damage to the connectors, use minimal force when inserting a SIM.
To insert a SIM:
1. Shut down the computer. If you are not sure whether the computer is off or in Hibernation, turn the
computer on by sliding the power switch to the right. Then shut down the computer through the
operating system.
2. Close the display.
3. Disconnect all external devices connected to the computer.
4. Unplug the power cord from the AC outlet.
5. Turn the computer upside down on a flat surface, with the battery bay toward you.
6. Remove the battery.
Using HP Mobile Broadband (select models only) 27
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
7. Insert the SIM into the SIM slot, and gently push the SIM into the slot until it is firmly seated.
8. Replace the battery.
NOTE: HP Mobile Broadband will be disabled if the battery is not replaced.
9. Turn the computer right-side up, and then reconnect external power and external devices.
10. Turn on the computer.
Removing a SIM
To remove a SIM:
1. Shut down the computer. If you are not sure whether the computer is off or in Hibernation, turn the
computer on by sliding the power switch to the right. Then shut down the computer through the
operating system.
2. Close the display.
3. Disconnect all external devices connected to the computer.
4. Unplug the power cord from the AC outlet.
5. Turn the computer upside down on a flat surface, with the battery bay toward you.
6. Remove the battery.
28 Chapter 3 Wireless, modem, and local area network
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
7. Press in on the SIM (1), and then remove it from the slot (2).
8. Replace the battery.
9. Turn the computer right-side up, and then reconnect external power and external devices.
10. Turn on the computer.
Using HP Mobile Broadband (select models only) 29
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using Bluetooth wireless devices (select models only)
A Bluetooth device provides short-range wireless communications that replace the physical cable
connections that traditionally link electronic devices, such as the following:
łComputers (desktop, notebook, PDA)
łPhones (cellular, cordless, smart phone)
łImaging devices (printer, camera)
łAudio devices (headset, speakers)
Bluetooth devices provide peer-to-peer capability that allows you to set up a personal area network
(PAN) of Bluetooth devices. For information on configuring and using Bluetooth devices, refer to the
Bluetooth software Help.
Bluetooth and Internet Connection Sharing (ICS)
HP does not recommend setting up one computer with Bluetooth as a host and using it as a gateway
through which other computers may connect to the Internet. When two or more computers are connected
using Bluetooth, and Internet Connection Sharing (ICS) is enabled on one of the computers, the other
computers may not be able to connect to the Internet using the Bluetooth network.
The strength of Bluetooth is in synchronizing information transfers between your computer and wireless
devices including cellular phones, printers, cameras, and PDAs. The inability to consistently connect
two or more computers to share the Internet through Bluetooth is a limitation of Bluetooth and the
Windows operating system.
30 Chapter 3 Wireless, modem, and local area network
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Troubleshooting wireless connection problems
Some possible causes for wireless connection problems include the following:
łWireless device is not installed correctly or has been disabled.
łWireless device or router hardware has failed.
łNetwork configuration (SSID or security) has been changed.
łWireless device encountered interference from other devices.
NOTE: Wireless networking devices are included with select computer models only. If wireless
networking is not listed in the feature list on the side of the original computer package, you may add
wireless networking capability to the computer by purchasing a wireless networking device.
Before working your way through the sequence of possible solutions to your network connection
problem, be sure that device drivers are installed for all wireless devices.
Use the procedures in this chapter to diagnose and repair a computer that does not connect to the
network you want to use.
Cannot create a WLAN connection
If you have a problem connecting to a WLAN, confirm that the integrated WLAN device is properly
installed on your computer:
NOTE: Windows includes the User Account Control feature to improve the security of your computer.
You may be prompted for your permission or password for tasks such as installing software, running
utilities, or changing Windows settings. Refer to Windows Help and Support for more information.
1. Select Start > Control Panel > System and Security.
2. In the System area, click Device Manager.
3. Click the arrow next to Network adapters to expand the list and show all adapters.
4. Identify the WLAN device from the Network adapters list. The listing for a WLAN device may include
the term wireless,wireless LAN,WLAN,Wi-Fi, or 802.11.
If no WLAN device is listed, either your computer does not have an integrated WLAN device, or
the driver for the WLAN device is not properly installed.
For more information on troubleshooting WLANs, refer to the Web site links provided in Help and
Support.
Troubleshooting wireless connection problems 31
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Cannot connect to a preferred network
Windows can automatically repair a corrupted WLAN connection:
łIf there is a network icon in the notification area, at the far right of the taskbar, right-click the icon,
and then click Troubleshoot problems.
Windows resets your network device and attempts to reconnect to one of the preferred networks.
łIf there is no network icon in the notification area, follow these steps:
1. Select Start > Control Panel > Network and Internet > Network and Sharing Center.
2. Click Troubleshoot problems and select the network you wish to repair.
Network icon is not displayed
If the network icon is not displayed in the notification area after you configure the WLAN, the software
driver is either missing or corrupted. A Windows “Device not Found” error message may also be
displayed. The driver must be reinstalled.
To get the latest version of the WLAN device software for your computer, follow these steps:
1. Open your Internet browser and go to http://www.hp.com/support.
2. Select your country or region.
3. Click the option for software and driver downloads, and then type your computer model number in
the search box.
4. Press enter, and then follow the on-screen instructions.
NOTE: If the WLAN device you are using was purchased separately, consult the manufacturer's Web
site for the latest software.
Current network security codes are unavailable
If you are prompted for a network key or a name (SSID) when connecting to a WLAN, the network is
protected by security. You must have the current codes to make a connection on a secure network. The
SSID and network key are alphanumeric codes that you enter into your computer to identify your
computer to the network.
łFor a network connected to your personal wireless router, review the router user guide for
instructions on setting up the same codes on both the router and the WLAN device.
łFor a private network, such as a network in an office or at a public Internet chat room, contact the
network administrator to obtain the codes, and then enter the codes when prompted to do so.
Some networks change the SSID or network keys used in their routers or access points on a regular
basis to improve security. You must change the corresponding code in your computer accordingly.
32 Chapter 3 Wireless, modem, and local area network
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
If you are provided with new wireless network keys and SSID for a network, and if you have previously
connected to that network, follow the steps below to connect to the network:
1. Select Start > Control Panel > Network and Internet > Network and Sharing Center.
2. Click Manage wireless networks in the left panel.
A list showing the available WLANs is displayed. If you are in a hotspot where several WLANs are
active, several will be displayed.
3. Select the network in the list, right-click the network, and then click Properties.
NOTE: If the network you want is not listed, check with the network administrator to be sure that
the router or access point is operating.
4. Click the Security tab, and then enter the correct wireless encryption data into the Network
security key field.
5. Click OK to save these settings.
WLAN connection is very weak
If the connection is very weak, or if your computer cannot make a connection to a WLAN, minimize
interference from other devices, as follows:
łMove your computer closer to the wireless router or access point.
łTemporarily disconnect other wireless devices such as a microwave, cordless phone, or cellular
phone to be sure that they are not interfering.
If the connection does not improve, try forcing the device to reestablish all connection values:
1. Select Start > Control Panel > Network and Internet > Network and Sharing Center.
2. Click Manage wireless networks in the left panel.
A list showing the available WLANs is displayed. If you are in a hotspot where several WLANs are
active, several will be displayed.
3. Click a network, and then click Remove.
Cannot connect to the wireless router
If you are trying to connect to the wireless router and are unsuccessful, reset the wireless router by
removing power from the router for 10 to 15 seconds.
If the computer still cannot make a connection to a WLAN, restart the wireless router. For details, refer
to the router manufacturer's instructions.
Troubleshooting wireless connection problems 33
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using the modem (select models only)
The modem must be connected to an analog telephone line using a 6-pin, RJ-11 modem cable (included
with select models only). In some countries, a country-specific modem cable adapter (included with
select models only) is also required. Jacks for digital PBX systems may resemble analog telephone
jacks, but they are not compatible with the modem.
WARNING! Connecting the internal analog modem to a digital line can permanently damage the
modem. Immediately disconnect the modem cable if you accidentally connect it to a digital line.
If the modem cable contains noise suppression circuitry (1), which prevents interference from TV and
radio reception, orient the circuitry end (2) of the cable toward the computer.
Connecting a modem cable
WARNING! To reduce the risk of electric shock, fire, or damage to the equipment, do not plug a modem
cable (included with select models only) or telephone cable into the RJ-45 (network) jack.
To connect a modem cable:
1. Plug the modem cable into the modem jack (1) on the computer.
2. Plug the modem cable into the RJ-11 telephone wall jack (2).
Connecting a country-specific modem cable adapter
Telephone jacks vary by country. To use the modem and the modem cable (included with select models
only) outside the country in which you purchased the computer, you must obtain a country-specific
modem cable adapter (included with select models only).
34 Chapter 3 Wireless, modem, and local area network
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
To connect the modem to an analog telephone line that does not have an RJ-11 telephone jack, follow
these steps:
1. Plug the modem cable into the modem jack (1) on the computer.
2. Plug the modem cable into the country-specific modem cable adapter (2).
3. Plug the country-specific modem cable adapter (3) into the telephone wall jack.
Selecting a location setting
Viewing the current location selection
To view the current location setting for the modem, follow these steps:
1. Select Start > Control Panel.
2. Click Clock, Language, and Region.
3. Click Region and Language.
4. Click the Location tab to display your location.
Using the modem (select models only) 35
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Adding new locations when traveling
By default, the only location setting available to the modem is a location setting for the country in which
you purchased the computer. As you travel to different countries, set the internal modem to a location
setting that meets the operating standards of the country in which you are using the modem.
As you add new location settings, they are saved by the computer so that you can switch among settings
at any time. You can add multiple location settings for any country.
CAUTION: To prevent losing your home country settings, do not delete your current modem country
settings. To enable modem use in other countries while preserving your home country configuration,
add a new configuration for each location in which you will use the modem.
CAUTION: To prevent configuring the modem in a way that violates the telecommunications
regulations and laws of the country you are visiting, select the country in which the computer is located.
The modem may not function properly if the correct country selection is not made.
To add a location setting for the modem, follow these steps:
1. Select Start > Devices and Printers.
2. Right-click the device that represents your computer, and click Modem settings.
NOTE: You must set up an initial (current) location area code before you can view the Dialing
Rules tab. If you do not have a location set up, you will be prompted to enter the location when you
click Modem settings.
3. Click the Dialing Rules tab.
4. Click New. (The New Location window is displayed.)
5. In the Location name box, type a name (such as “home” or “work”) for the new location setting.
6. Select a country or region from the Country/region drop-down list. (If you select a country or region
that is not supported by the modem, the Country/region selection for USA or UK is displayed by
default.)
7. Enter the area code, a carrier code (if necessary), and the number to access an outside line (if
necessary).
8. Next to Dial using, click Tone or Pulse.
9. Click OK to save your new location setting. (The Phone and Modem window is displayed.)
10. Do one of the following:
łTo set your new location setting as the current location, click OK.
łTo select another location setting as the current location setting, select your preference from
the settings in the Location list, and then click OK.
NOTE: You can use the preceding procedure to add location settings for places within your own
country as well as in other countries. For example, you could add a setting named “Work” that
includes dialing rules for accessing an outside line.
36 Chapter 3 Wireless, modem, and local area network
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Solving travel connection problems
If you experience modem connection problems when using the computer outside of the country in which
you purchased it, try the following suggestions:
łCheck the telephone line type.
The modem requires an analog, not a digital, telephone line. A line described as a PBX line is
usually a digital line. A telephone line described as a data line, fax machine line, modem line, or
standard telephone line is usually an analog line.
łCheck for pulse or tone dialing.
An analog telephone line supports one of two dialing modes: pulse dialing or tone dialing. These
dialing mode options are selected in the Phone and Modem settings. The dialing mode option
selected must match the dialing mode supported by the telephone line in your location.
To determine the dialing mode supported by a telephone line, dial a few digits on the telephone,
and then listen for clicks (pulses) or tones. Clicks indicate that the telephone line supports pulse
dialing. Tones indicate that the telephone line supports tone dialing.
To change the dialing mode in your current modem location setting, follow these steps:
1. Select Start > Devices and Printers.
2. Right-click the device that represents your computer, and click Modem settings.
3. Click the Dialing Rules tab.
4. Select your modem location setting.
5. Click Edit.
6. Click either Tone or Pulse.
7. Click OK twice.
łCheck the telephone number you are dialing and the response of the remote modem.
Dial a telephone number, make sure there is a response from the remote modem, and then hang
up.
łSet the modem to ignore dial tones.
If the modem receives a dial tone it does not recognize, it does not dial and displays a “No Dial
Tone” error message.
To set the modem to ignore all dial tones before dialing, follow these steps:
1. Select Start > Devices and Printers.
2. Right-click the device that represents your computer, and click Modem settings.
3. Click the Modems tab.
4. Click the listing for the modem.
5. Click Properties.
6. Click Modem.
Using the modem (select models only) 37
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
7. Clear the check box for Wait for dial tone before dialing.
8. Click OK twice.
38 Chapter 3 Wireless, modem, and local area network
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Connecting to a local area network (LAN)
Connecting to a local area network (LAN) requires an 8-pin, RJ-45 network cable (purchased
separately). If the network cable contains noise suppression circuitry (1), which prevents interference
from TV and radio reception, orient the circuitry end of the cable (2) toward the computer.
To connect the network cable:
1. Plug the network cable into the network jack (1) on the computer.
2. Plug the other end of the cable into a network wall jack (2).
WARNING! To reduce the risk of electric shock, fire, or damage to the equipment, do not plug a
modem or telephone cable into the RJ-45 (network) jack.
Connecting to a local area network (LAN) 39
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
4 Pointing devices and keyboard
Using pointing devices
Setting pointing device preferences
Use Mouse Properties in Windows® to customize settings for pointing devices, such as button
configuration, click speed, and pointer options.
To access Mouse Properties, select Start > Control Panel > Hardware and Sound > Mouse.
Using the TouchPad
To move the pointer, slide your finger across the TouchPad surface in the direction you want the pointer
to go. Use the TouchPad buttons like the corresponding buttons on an external mouse. To scroll up and
down using the TouchPad vertical scroll zone, slide your finger up or down over the lines.
NOTE: If you are using the TouchPad to move the pointer, you must lift your finger off the TouchPad
before moving it to the scroll zone. Simply sliding your finger from the TouchPad to the scroll zone will
not activate the scrolling function.
Using the pointing stick
Press the pointing stick in the direction you want to move the pointer on the screen. Use the left and
right pointing stick buttons as you would the left and right buttons on an external mouse.
Connecting an external mouse
You can connect an external USB mouse to the computer using one of the USB ports on the computer.
A USB mouse can also be connected to the system using the ports on an optional docking device.
Using the keyboard
Using the keyboard light
The keyboard light illuminates the computer keyboard in low light conditions.
40 Chapter 4 Pointing devices and keyboard
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
䦱To open and turn on the keyboard light, press the keyboard light button.
䦱To turn off and close the keyboard light, gently press the keyboard light button until it clicks into
place.
Using the keyboard 41
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using hotkeys
Hotkeys are combinations of the fn key (1) and either the esc key (2) or one of the function keys (3).
The icons on the f3 through f5, and f8 through f11 keys represent the hotkey functions. Hotkey functions
and procedures are discussed in the following sections.
Function Hotkey
Display system information. fn+esc
Initiate Sleep. fn+f3
Switch the screen image. fn+f4
Enable/disable the TouchPad Fn+f5
Display battery information. fn+f8
Decrease screen brightness. fn+f9
Increase screen brightness. fn+f10
Activate the ambient light sensor. fn+f11
To use a hotkey command on the computer keyboard, follow either of these steps:
łBriefly press the fn key, and then briefly press the second key of the hotkey command.
– or –
łPress and hold down the fn key, briefly press the second key of the hotkey command, and then
release both keys at the same time.
Displaying system information
Press fn+esc to display information about system hardware components and the system BIOS version
number.
42 Chapter 4 Pointing devices and keyboard
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
In the Windows fn+esc display, the version of the system BIOS (basic input-output system) is displayed
as the BIOS date. On some computer models, the BIOS date is displayed in decimal format. The BIOS
date is sometimes called the system ROM version number.
Initiating Sleep
CAUTION: To reduce the risk of information loss, save your work before initiating Sleep.
Press fn+f3 to initiate Sleep.
When Sleep is initiated, your information is stored in system memory, the screen is cleared, and power
is conserved. While the computer is in the Sleep state, the power lights blink.
The computer must be on before you can initiate Sleep.
NOTE: If a critical battery level occurs while the computer is in the Sleep state, the computer initiates
Hibernation and the information stored in memory is saved to the hard drive. The factory setting for
critical battery action is Hibernate, but this setting can be changed using Power Options in Windows
Control Panel.
To exit Sleep, briefly slide the power switch to the right.
The function of the fn+f3 hotkey can be changed. For example, you can set the fn+f3 hotkey to initiate
Hibernation instead of Sleep.
NOTE: In all Windows operating system windows, references to the sleep button apply to the fn+f3
hotkey.
Switching the screen image
Press fn+f4 to switch the screen image among display devices connected to the system. For example,
if a monitor is connected to the computer, pressing fn+f4 alternates the screen image from computer
display to monitor display to simultaneous display on both the computer and the monitor.
Most external monitors receive video information from the computer using the external VGA video
standard. The fn+f4 hotkey can also alternate images among other devices receiving video information
from the computer.
The following video transmission types, with examples of devices that use them, are supported by the
fn+f4 hotkey:
łLCD (computer display)
łExternal VGA (most external monitors)
łS-Video (televisions, camcorders, DVD players, VCRs, and video capture cards with S-Video-in
jacks)
łHDMI (televisions, camcorders, DVD players, VCRs, and video capture cards with HDMI ports)
łComposite video (televisions, camcorders, DVD players, VCRs, and video capture cards with
composite-video-in jacks)
NOTE: Composite video devices can be connected to the system only by using an optional
docking device.
Using the keyboard 43
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Viewing battery charge information
Press fn+f8 to display charge information for all installed batteries. The display indicates which batteries
are charging and reports the amount of charge remaining in each battery.
Enabling/disabling the TouchPad (fn+f5)
Press fn+f5 to enable or disable the TouchPad.
Decreasing screen brightness
Press fn+f9 to decrease screen brightness. Hold down the hotkey to decrease the brightness level
incrementally.
Increasing screen brightness
Press fn+f10 to increase screen brightness. Hold down the hotkey to increase the brightness level
incrementally.
Activating the ambient light sensor
Press fn+f11 to activate and deactivate the ambient light sensor.
44 Chapter 4 Pointing devices and keyboard
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using QuickLook (select models only)
NOTE: QuickLook must be installed before you can view the QuickLook information.
QuickLook saves Inbox e-mails and calendar, contact, and task information from Microsoft® Outlook to
your computer's hard drive. When the computer is off, in the Sleep state, or in Hibernation, you can
quickly view this information by pressing the info button on the computer.
NOTE: If you have set a Windows logon password, you will be prompted to enter your password when
you press the info button while the computer is off, in the Sleep state, or in Hibernation.
NOTE: For additional information about QuickLook and setting preferences, refer to the online Help.
Installing QuickLook
To install QuickLook:
1. Select Start > All Programs > Software Setup.
2. Clear all check boxes.
3. Expand Optional Software Applications, and then select HP QuickLook.
4. Click Install.
Using QuickLook (select models only) 45
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using HP Quick Launch Buttons
The HP Quick Launch Buttons enable you to quickly open programs, files, or Web sites you use
frequently. You can use the factory settings, which are described in the following table. Or you can
reprogram the buttons by opening the Q Menu in the Quick Launch Buttons control panel.
The Quick Launch Buttons include the QuickWeb button (1), and the QuickLook button (2) .
The following table describes the factory settings for the Quick Launch Buttons.
NOTE: Button functions vary, depending on the software installed on your computer.
Component Description
(1) QuickWeb button łWhen the computer is off, press the button to open HP
QuickWeb.
łWhen the computer is on, press the button to open the default
Web browser.
(2) QuickLook button łWhen the computer is off, press the button to open HP
QuickLook .
łWhen the computer is on, press the button to open Software
Setup.
NOTE: If Software Setup is not available, the default Web
browser opens.
46 Chapter 4 Pointing devices and keyboard
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Opening the Quick Launch Buttons control panel
You can open the HP Quick Launch Buttons control panel in any of the following ways:
łSelect Start > Control Panel > Hardware and Sound > Quick Launch Buttons.
łDouble-click the HP Quick Launch Buttons icon in the notification area, at the far right of the
taskbar.
łRight-click the HP Quick Launch Buttons icon in the notification area, and click Adjust HP Quick
Launch Buttons Properties.
NOTE: On some models, an icon is displayed on the desktop.
Opening the Quick Launch Buttons control panel 47
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using HP QuickLook 3
QuickLook 3 allows you to save calendar, contact, inbox, and task information from Microsoft Outlook
to the hard drive of your computer. Then, when the computer is off or in Hibernation, you can press the
QuickLook button on the computer to view this information without waiting for the operating system to
restart.
Use QuickLook 3 to manage contact information, calendar events, e-mail information, and tasks without
restarting your computer.
NOTE: QuickLook 3 does not support the Sleep state in Windows.
For more information about setting up and using QuickLook 3, refer to the QuickLook 3 software Help.
Using the pen
You can write with the pen in pen-specific programs such as the Tablet PC Input Panel, in all Microsoft®
Office applications, and in most other Windows programs and utilities. The information you write on the
screen with the pen can be filed, searched, and shared among most Windows programs.
Identifying the pen components
The pen interacts with the tablet PC whenever the tip (1) or eraser (3) of the pen is approximately 1.27
cm (0.5 inch) from the screen. The pen button (2) emulates the functions of the right button on an external
mouse.
Holding the pen
Hold the pen as if you were writing with a standard pen or pencil. Position the pen in your hand so that
you will not accidentally press the pen button.
As you monitor the movements of the pen, focus on the pointer, not on the tip of the pen.
48 Chapter 4 Pointing devices and keyboard
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Performing mouse clicks with the pen
䦱To select an item on the screen as you would with the left button of an external mouse, tap the
item with the tip of the pen.
䦱To double-click an item on the screen as you would with the left button of an external mouse, tap
the item twice with the tip of the pen.
䦱To select an item as you would with the right button of an external mouse, press and hold down
the pen button, and then tap the item with the tip of the pen.
Performing other procedures with the pen
In addition to emulating mouse clicks, the pen can be used for the following tasks:
łTo display the pointer location, hold the pen tip immediately over any location on the tablet PC
screen without touching the screen with the pen tip.
łTo display the menu options related to an item on the screen, tap the screen with the pen tip.
łTo write with the pen, write on the screen with the tip of the pen.
łTo press a pen-activated button, tap the button with the tip of the pen.
łTo erase with the pen, hold the pen with the eraser side down and move the eraser over the writing
that you want to delete.
Pressure sensitivity
The tablet PC pen is equipped with a pressure-sensitive feature. This means that you can manipulate
the pen to create lines of various thickness, depending upon the amount of pressure you use to write.
NOTE: This feature is available only if the Tablet PC Input Panel software is enabled.
Using the pen 49
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Calibrating the pen
The pen can function at the default calibration or at a calibration set by another user. However, HP highly
recommends that you use the pen only while it is calibrated to your personal handwriting and mouse
action motions. Calibration optimizes pen performance for all users and particularly for left-handed
users.
To calibrate the pen:
1. Select Start > Control Panel > Hardware and Sound > Tablet PC Settings.
2. At the bottom of the General tab, tap the Calibrate button.
3. Follow the instructions on the screen.
łTap the pen in the exact center of each of the calibration markers. The calibration markers
are displayed on the screen as plus signs (+).
łBe sure to calibrate the pen for use in both portrait and landscape orientations.
NOTE: You can display information about any setting in the Tablet PC Settings window by selecting
the Help button in the upper-right corner of the window, and then selecting a setting.
Using the pen holder
To remove the pen from the pen holder on the computer, press the pen in to eject it.
To protect the pen when you are not using it, insert the pen, tip first, into the pen holder on the computer.
50 Chapter 4 Pointing devices and keyboard
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Setting pen preferences
Pen preferences are set in the Tablet PC Settings window of the operating system. The preferences
include setting the location of on-screen menus for either right-handed or left-handed users, calibrating
the screen for pen use, and optimizing handwriting recognition.
To access pen preferences:
䦱Select Start > Control Panel > Hardware and Sound > Tablet PC Settings.
Pen options are set in the Pen and Input Devices window. The options include speed settings for double-
tapping and press–and–hold pen use, pen pointer options, and flick settings.
To access pen options:
䦱Select Start > Control Panel > Hardware and Sound > Pen and Input Devices.
The preferences and options you set in the Tablet PC Settings and the Pen and Input Devices window
are specific to the pen and the tablet PC. Pointing device preferences, such as pointer speed, click
speed, and mouse trails, are set in the Mouse Properties window. These preferences apply to any
pointing device in the system.
To access Mouse Properties:
䦱Select Start > Control Panel > Hardware and Sound > Mouse.
Using the embedded numeric keypad
Using the embedded numeric keypad
The 15 keys of the embedded numeric keypad can be used like the keys on an external keypad. When
the embedded numeric keypad is turned on, each key on the keypad performs the function indicated by
the icon in the upper-right corner of the key.
Enabling and disabling the embedded numeric keypad
Press fn+num lk to enable the embedded numeric keypad. Press fn+num lk again to return the keys to
their standard keyboard functions.
NOTE: The embedded numeric keypad will not function while an external keyboard or numeric keypad
is connected to the computer.
Switching key functions on the embedded numeric keypad
You can temporarily alternate the functions of keys on the embedded numeric keypad between their
standard keyboard functions and their keypad functions by using the fn key or the fn+shift key
combination.
łTo change the function of a keypad key to keypad functions while the keypad is off, press and hold
the fn key while pressing the keypad key.
łTo use the keypad keys temporarily as standard keys while the keypad is on:
ŃPress and hold the fn key to type in lowercase.
ŃPress and hold fn+shift to type in uppercase.
Using the embedded numeric keypad 51
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Cleaning the TouchPad and keyboard
Dirt and grease on the TouchPad can cause the pointer to jump around on the screen. To avoid this,
clean the TouchPad with a damp cloth, and wash your hands frequently when using the computer.
WARNING! To reduce the risk of electric shock or damage to internal components, do not use a
vacuum cleaner attachment to clean the keyboard. A vacuum cleaner can deposit household debris on
the keyboard surface.
Clean the keyboard regularly to prevent keys from sticking and to remove dust, lint, and particles that
can become trapped beneath the keys. A can of compressed air with a straw extension can be used to
blow air around and under the keys to loosen and remove debris.
52 Chapter 4 Pointing devices and keyboard
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
5Multimedia
Multimedia features
Your computer includes multimedia features that allow you to listen to music, watch movies, and view
pictures. Your computer may include the following multimedia components:
łOptical drive for playing audio and video discs
łIntegrated speakers for listening to music
łIntegrated microphone for recording your own audio
łIntegrated webcam that allows you to capture and share video
łPreinstalled multimedia software that allows you to play and manage your music, movies, and
pictures
łHotkeys that provide fast access to multimedia tasks
NOTE: Your computer may not include all of the components listed.
The following sections explain how to identify and use the multimedia components included with your
computer.
Adjusting the volume
You can adjust the volume using the following controls:
łComputer volume buttons:
ŃTo mute or restore volume, press the mute button (1).
ŃTo decrease volume, press and hold the volume down button (2) until the desired volume
level is reached.
Multimedia features 53
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
ŃTo increase volume, press and hold the volume up button (3) until the desired volume level
is reached.
łWindows volume control:
a. Click the Speakers icon in the notification area, at the far right of the taskbar.
b. Increase or decrease the volume by moving the slider up or down. Click the Mute
Speakers icon to mute the volume.
– or –
a. Right-click the Speakers icon in the notification area, and then click Open Volume Mixer.
b. In the Speakers column, you can increase or decrease the volume by moving the Volume
slider up or down. You can also mute the volume by clicking the Mute Speakers icon.
If the Speakers icon is not displayed in the notification area, follow these steps to add it:
a. Right-click the Show hidden icons icon (the arrow at far left of the notification area).
b. Click Customize notification icons.
c. Under Behaviors, select Show icon and notifications for the Volume icon.
d. Click OK.
łProgram volume control:
Volume can also be adjusted within some programs.
Multimedia software
NOTE: To use optical discs (CDs and DVDs), you must use the optional HP 2740 Ultra-Slim Expansion
Base or an optional external MultiBay with an optical drive.
The computer includes preinstalled multimedia software. Some computer models also include additional
multimedia software on an optical disc.
54 Chapter 5 Multimedia
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Depending on the hardware and software included with the computer, the following multimedia tasks
may be supported:
łPlaying digital media, including audio and video CDs, audio and video DVDs, and Internet radio
łCreating or copying data CDs
łCreating, editing, and burning audio CDs
łCreating, editing, and burning a video or movie to a DVD or video CD
CAUTION: To prevent loss of information or damage to a disc, observe the following guidelines:
Before writing to a disc, connect the computer to a reliable external power source. Do not write to a disc
while the computer is running on battery power.
Before writing to a disc, close all open programs except the disc software you are using.
Do not copy directly from a source disc to a destination disc or from a network drive to a destination
disc. Instead, copy from a source disc or network drive to your hard drive, and then copy from your hard
drive to the destination disc.
Do not use the computer keyboard or move the computer while the computer is writing to a disc. The
write process is sensitive to vibration.
NOTE: For information about using software included with the computer, refer to the software
manufacturer's instructions that may be provided on disc, as online Help files, or on the software
manufacturer's Web site.
Accessing your preinstalled multimedia software
To access your preinstalled multimedia software:
䦱Select Start > All Programs, and then open the multimedia program you want to use.
NOTE: Some programs may be located in subfolders.
NOTE: For details about using software included with the computer, refer to the software
manufacturer’s instructions, which may be provided with the software, on disc, or on the manufacturer’s
Web site.
Installing your preloaded multimedia software
To install your preloaded software from your hard drive, select Start > All Programs > HP Software
Setup, and then follow the instructions on the screen.
Installing multimedia software from a disc
1. Insert the disc into the optical drive.
2. When the installation wizard opens, follow the on-screen instructions.
3. Restart the computer if prompted to do so.
Multimedia software 55
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Audio
Your computer enables you to use a variety of audio features:
łPlay music using your computer speakers and/or connected external speakers
łRecord sound using the internal microphone or connect an external microphone
łDownload music from the Internet
łCreate multimedia presentations using audio and images
łTransmit sound and images with instant messaging programs
łStream radio programs (select models only) or receive FM radio signals
łCreate or “burn” audio CDs (select models only)
Connecting external audio devices
WARNING! To reduce the risk of personal injury, adjust the volume before putting on headphones,
earbuds, or a headset. For additional safety information, refer to the Regulatory, Safety and
Environmental Notices.
To connect external devices such as external speakers, headphones, or a microphone, refer to the
information provided with the device. For best results, remember the following tips:
łBe sure that the device cable is securely connected to the correct jack on your computer. (Cable
connectors are normally color-coded to match the corresponding jacks on the computer.)
łBe sure to install any drivers required by the external device.
NOTE: A driver is a required program that acts like a translator between the device and the
programs that use the device.
Checking your audio functions
To check the system sound on your computer, follow these steps:
1. Select Start > Control Panel.
2. Click Hardware and Sound.
3. Click Sound.
4. When the Sound window opens, click the Sounds tab. Under Program Events, select any sound
event, such as a beep or alarm, and click the Test button.
You should hear sound through the speakers or through connected headphones.
To check the record functions of the computer, follow these steps:
1. Select Start > All Programs > Accessories > Sound Recorder.
2. Click Start Recording and speak into the microphone. Save the file to your desktop.
3. Open Windows Media Player and play back the sound.
56 Chapter 5 Multimedia
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
NOTE: For best results when recording, speak directly into the microphone and record sound in a
setting free of background noise.
To confirm or change the audio settings on your computer, select Start > Control Panel > Hardware
and Sound > Sound.
Audio 57
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Video
Your computer enables you to use a variety of video features:
łWatch movies
łPlay games over the Internet
łEdit pictures and video to create presentations
łConnect external video devices
Connecting an external monitor or projector
Your computer has an external monitor port that allows you to connect external monitors and projectors.
Using the external monitor port
The external monitor port connects an external display device, such as an external monitor or a projector,
to the computer.
䦱To connect a display device, connect the device cable to the external monitor port.
NOTE: If a properly connected external display device does not display an image, press fn+f4 to
transfer the image to the device. Repeatedly pressing fn+f4 alternates the screen image between the
computer display and the device.
Using the DreamColor display (select models only)
Computer models with the HP DreamColor display include the preinstalled HP Mobile Display Assistant
software. You can use this program to adjust display color settings such as preset color space, white
point/color temperature, and luminance/brightness.
䦱To access Mobile Display Assistant, click the Mobile Display Assistant icon in the notification area,
at the far right of the taskbar or select Start > All Programs > Mobile Display Assistant.
For more information on using Mobile Display Assistant, refer to the software Help.
58 Chapter 5 Multimedia
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Webcam
NOTE: This section describes features that are common to most models. Some features may not be
available on your computer.
Your computer includes an integrated webcam, located at the top of the display. With the preinstalled
software, you can use the webcam to take a photo, record a video, or make an audio recording. You
can preview the photo, video recording, or audio recording, and save it on your computer hard drive.
To access the webcam and HP Webcam software, select Start > All Programs > HP Webcam
Application.
The webcam software enables you to experiment with the following features:
łVideo—Record and play back webcam video.
łAudio—Record and play back audio.
łStreaming video—Use with instant message software solutions that support UVC (Universal Video
Class) cameras.
łSnapshots—Take still photos.
łHP Presto! Bizcard (select models only)—Use to transform business cards into a usable database
of contact information.
Webcam tips
For optimum performance, observe the following guidelines while using the webcam:
łBe sure that you have the latest version of an instant message program before starting a video
conversation.
łThe webcam may not work properly across some network firewalls.
NOTE: If you are having trouble viewing or sending multimedia files to someone on another LAN
or outside your network firewall, temporarily disable the firewall, perform the task you want to
perform, and then reenable the firewall. To permanently resolve the problem, reconfigure the
firewall as necessary, and adjust the policies and settings of other intrusion detection systems. For
additional information, contact your network administrator or IT department.
łWhenever possible, place bright light sources behind the webcam and out of the picture area.
NOTE: For details about using your webcam, refer to the webcam software Help.
Adjusting webcam properties
You can adjust webcam properties using the Properties dialog box, which is accessible from various
programs that use the integrated webcam, usually from a configuration, settings, or properties menu:
łBrightness—Controls the amount of light that is incorporated into the image. A higher brightness
setting creates a brighter image; a lower brightness setting creates a darker image.
łContrast—Controls the difference between lighter and darker areas on the image. A higher
contrast setting intensifies the image; a lower contrast setting maintains more of the original
information’s dynamic range, but leads to a flatter image.
Webcam 59
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
łHue—Controls the aspect of color that distinguishes it from another color (what makes a color red,
green, or blue). Hue is distinct from saturation, which measures the intensity of the hue.
łSaturation—Controls the strength of color in the final image. A higher saturation setting creates a
bolder image; a lower saturation setting creates a more subtle image.
łSharpness—Controls the definition of edges in an image. A higher sharpness setting creates a
more defined image; a lower sharpness setting creates a softer image.
łGamma—Controls the contrast affecting the mid-level grays or midtones of an image. Adjusting
the gamma of an image allows you to change the brightness values of the middle range of gray
tones without dramatically altering the shadows and highlights. A lower gamma setting makes
grays look black, and makes dark colors even darker.
For information about using the webcam, select Start > Help and Support.
Capturing business card images
You can use the webcam with the Presto! BizCard program to capture business card images and export
the text to many types of address book software, such as Microsoft® Outlook Contacts.
To capture a business card image:
1. Open Presto! BizCard by selecting Start > All Programs > NewSoft > Presto! BizCard > Presto!
BizCard.
2. To capture one business card, select File > Snap One Card and Recognize.
– or –
To capture multiple business cards, select File > Snap Cards and Recognize.
The Preview window opens.
3. Slowly lower the display (1) until the webcam light (2) stops blinking and you hear a sound.
The webcam is now in focus.
60 Chapter 5 Multimedia
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/

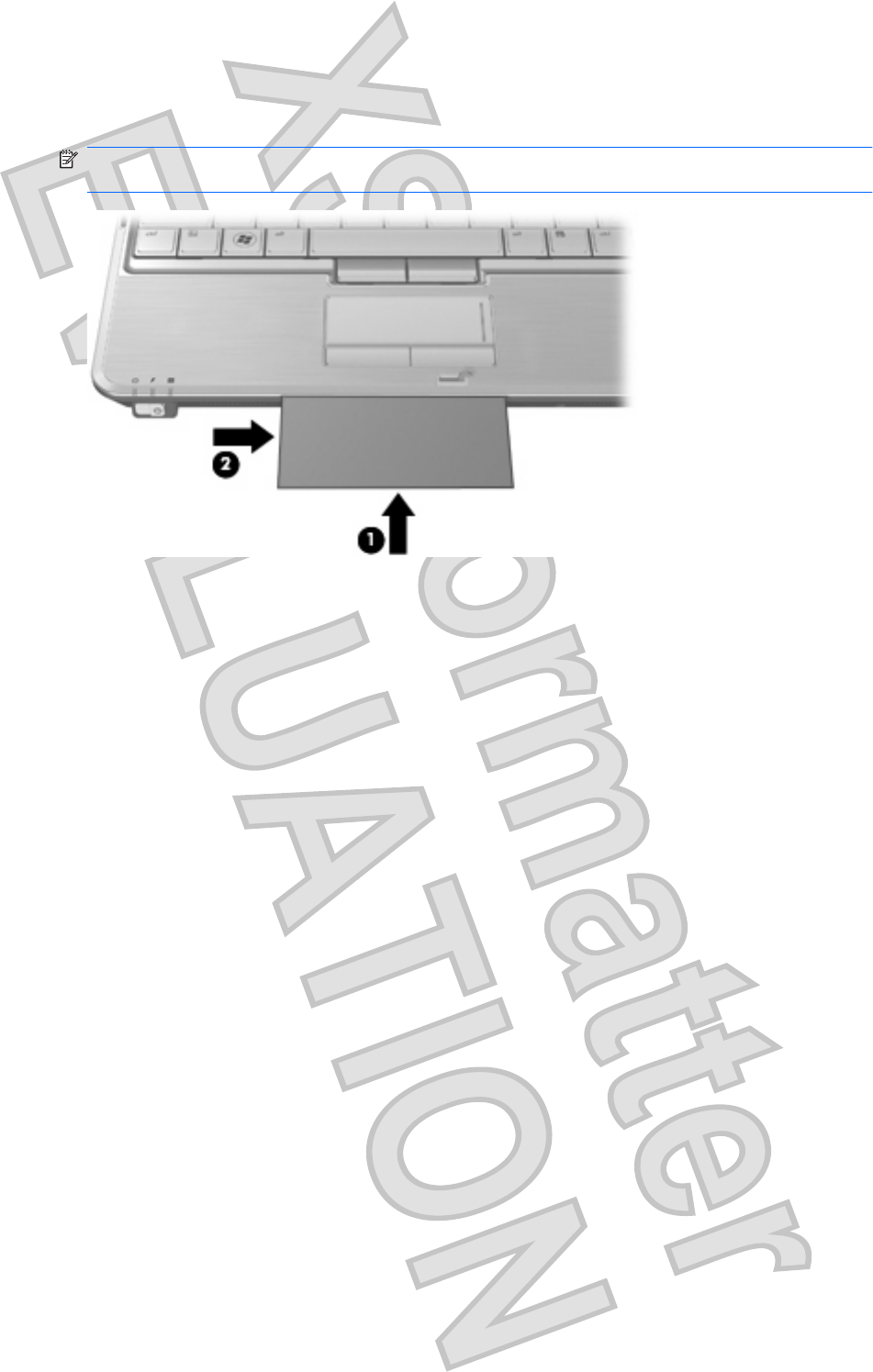

4. Insert a business card into the business card slot on the front of the computer (1) and slide the card
to the right (2) to align it with the webcam.
NOTE: Be sure that text on the bottom of the card is not obscured by the slot. If any text is
obscured by the slot, rotate the card 180 degrees.
The webcam captures the business card image and the webcam light turns off.
5. If you are capturing multiple business card images, remove the business card and insert another
one. The webcam light turns on when the card is in focus. The webcam then captures the business
card image and the webcam light turns off.
Repeat this step for additional business cards.
6. When you have finished capturing one or more business card images, remove the business card
from the slot and raise the display.
7. Review the data captured by Presto! BizCard to be sure that it is complete.
For more information on using Presto! BizCard, refer to the software Help.
Webcam 61
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
6 Power management
Setting power options
Using power-saving states
The computer has two power-saving states enabled at the factory: Sleep and Hibernation.
When Sleep is initiated, the power lights blink and the screen clears. Your work is saved to memory.
Exiting Sleep is faster than exiting Hibernation. If the computer is in the Sleep state for an extended
period or if the battery reaches a critical battery level while in the Sleep state, the computer initiates
Hibernation.
When Hibernation is initiated, your work is saved to a hibernation file on the hard drive and the computer
turns off.
CAUTION: To prevent possible audio and video degradation, loss of audio or video playback
functionality, or loss of information, do not initiate Sleep or Hibernation while reading from or writing to
a disc or an external media card.
NOTE: You cannot initiate any type of networking connection or perform any computer functions while
the computer is in the Sleep state or in Hibernation.
NOTE: When HP 3D DriveGuard has parked a drive, the computer will not initiate Sleep or Hibernation,
and the display will be turned off.
Initiating and exiting Sleep
The system is set at the factory to initiate Sleep after 15 minutes of inactivity when running on battery
power and 30 minutes of inactivity when running on external power.
Power settings and timeouts can be changed using Power Options in Windows® Control Panel.
With the computer on, you can initiate Sleep in any of the following ways:
łPress fn+f3.
łClick Start, and then click the Power button.
łClick Start, click the arrow next to the Lock button, and then click Sleep.
To exit Sleep:
䦱Briefly slide the power switch to the right.
When the computer exits Sleep, the power lights turn on and your work returns to the screen where
you stopped working.
62 Chapter 6 Power management
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
NOTE: If you have set a password to be required when the computer exits Sleep, you must enter your
Windows password before your work will return to the screen.
Initiating and exiting Hibernation
The system is set at the factory to initiate Hibernation after 1080 minutes (18 hours) of inactivity when
running on battery power, 1080 minutes (18 hours) of inactivity when running on external power, or when
the battery reaches a critical battery level.
Power settings and timeouts can be changed using Power Options in Windows Control Panel.
To initiate Hibernation:
1. Click Start, and then click the arrow next to the Lock button.
2. Click Hibernate.
To exit Hibernation:
䦱Briefly slide the power switch to the right.
The power lights turn on and your work returns to the screen where you stopped working.
NOTE: If you have set a password to be required when the computer exits Hibernation, you must enter
your Windows password before your work will return to the screen.
Using the battery meter
The battery meter is located in the notification area, at the far right of the taskbar. The battery meter
allows you to quickly access power settings, view remaining battery charge, and select a different power
plan.
łTo display the percentage of remaining battery charge and the current power plan, move the pointer
over the battery meter icon.
łTo access Power Options, or to change the power plan, click the battery meter icon and select an
item from the list.
Different battery meter icons indicate whether the computer is running on battery or external power. The
icon also displays a message if the battery has reached a critical battery level.
To hide or display the battery meter icon:
1. Right-click the taskbar, and then click Properties.
2. Click the Notification Area tab.
3. Under System icons, clear the Power check box to hide the battery meter icon, or select the
Power check box to display the battery meter icon.
4. Click OK.
Using power plans
A power plan is a collection of system settings that manages how the computer uses power. Power
plans can help you conserve power or maximize performance.
You can change power plan settings or create your own power plan.
Setting power options 63
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Viewing the current power plan
䦱Move the pointer over the battery meter icon in the notification area, at the far right of the taskbar.
– or –
Select Start > Control Panel > System and Maintenance > Power Options.
Selecting a different power plan
䦱Click the battery meter icon in the notification area, and then select a power plan from the list.
– or –
Select Start > Control Panel > System and Maintenance > Power Options, and then select a
power plan from the list.
Customizing power plans
1. Click the battery meter icon in the notification area and then click More power options.
– or –
Select Start > Control Panel > System and Maintenance > Power Options.
2. Select a power plan, and then click Change plan settings.
3. Change the Turn off the display and Put the computer to sleep timeout settings, as needed.
4. To change additional settings, click Change advanced power settings and make your changes.
Setting password protection on wakeup
To set the computer to prompt for a password when the computer exits Sleep or Hibernation, follow
these steps:
1. Select Start > Control Panel > System and Maintenance > Power Options.
2. In the left pane, click Require a password on wakeup.
3. Click Change Settings that are currently unavailable.
4. Click Require a password (recommended).
5. Click Save changes.
64 Chapter 6 Power management
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using external AC power
External AC power is supplied through one of the following devices:
WARNING! To reduce potential safety issues, use only the AC adapter provided with the computer,
a replacement AC adapter provided by HP, or a compatible AC adapter purchased from HP.
łApproved AC adapter
łOptional docking device
Connect the computer to external AC power under any of the following conditions:
WARNING! Do not charge the computer battery while you are onboard aircraft.
łWhen you are charging or calibrating a battery
łWhen you are installing or modifying system software
łWhen you are writing information to a CD or DVD
When you connect the computer to external AC power, the following events occur:
łThe battery begins to charge.
łIf the computer is turned on, the battery meter icon in the notification area changes appearance.
When you disconnect external AC power, the following events occur:
łThe computer switches to battery power.
łThe display brightness is automatically decreased to save battery life. To increase display
brightness, press the fn+f10 hotkey or reconnect the AC adapter.
Connecting the AC adapter
WARNING! To reduce the risk of electric shock or damage to the equipment:
Plug the power cord into an AC outlet that is easily accessible at all times.
Disconnect power from the computer by unplugging the power cord from the AC outlet (not by
unplugging the power cord from the computer).
If provided with a 3-pin attachment plug on the power cord, plug the cord into a grounded (earthed) 3-
pin outlet. Do not disable the power cord grounding pin, for example, by attaching a 2-pin adapter. The
grounding pin is an important safety feature.
To connect the computer to external AC power:
1. Plug the AC adapter into the power connector (1) on the computer.
2. Plug the power cord into the AC adapter (2).
Using external AC power 65
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
3. Plug the other end of the power cord into an AC outlet (3).
Using battery power
When a charged battery is in the computer and the computer is not plugged into external power, the
computer runs on battery power. When the computer is plugged into external AC power, the computer
runs on AC power.
If the computer contains a charged battery and is running on external AC power supplied through the
AC adapter, the computer switches to battery power if the AC adapter is disconnected from the
computer.
NOTE: The display brightness is decreased to save battery life when you disconnect AC power. To
increase display brightness, use the fn+f10 hotkey or reconnect the AC adapter.
You can keep a battery in the computer or in storage, depending on how you work. Keeping the battery
in the computer whenever the computer is plugged into AC power charges the battery and also protects
your work in case of a power outage. However, a battery in the computer slowly discharges when the
computer is off and unplugged from external power.
WARNING! To reduce potential safety issues, use only the battery provided with the computer, a
replacement battery provided by HP, or a compatible battery purchased from HP.
Computer battery life varies, depending on power management settings, programs running on the
computer, display brightness, external devices connected to the computer, and other factors.
Finding battery information in Help and Support
The Battery information section of the Help and Support Learning Center provides the following tools
and information:
łBattery Check tool to test battery performance
łInformation on calibration, power management, and proper care and storage to maximize battery
life
łInformation on battery types, specifications, life cycles, and capacity
To access Battery information:
䦱Select Start > Help and Support > Learning Center > Battery information.
66 Chapter 6 Power management
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using Battery Check
Battery Check provides information on the status of the battery installed in the computer.
To run Battery Check:
1. Connect the AC adapter to the computer.
NOTE: The computer must be connected to external power for Battery Check to function properly.
2. Select Start > Help and Support > Troubleshoot > Power, Thermal and Mechanical, and then
click the Power tab.
Battery Check examines the battery and its cells to see if they are functioning properly, and then reports
the results of the examination.
Displaying the remaining battery charge
䦱Move the pointer over the battery meter icon in the notification area, at the far right of the taskbar.
– or –
View the estimated number of minutes of battery charge remaining in Windows Mobility Center:
䦱Click the battery meter icon, and then click Windows Mobility Center.
– or –
Select Start > Control Panel > Mobile PC > Windows Mobility Center.
The time shown indicates the approximate running time remaining on the battery if the battery
continues to provide power at the current level. For example, the time remaining will decrease
when a DVD is playing and will increase when a DVD stops playing.
Inserting or removing the battery
CAUTION: Removing a battery that is the sole power source can cause loss of information. To prevent
loss of information, save your work, and initiate Hibernation or shut down the computer through Windows
before removing the battery.
To insert the battery:
1. Turn the computer upside down on a flat surface, with the battery bay toward you.
2. Align the tabs (1) on the battery with the notches on the battery bay.
Using battery power 67
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
3. Press the battery (2) into the battery bay until the battery clicks into place.
To remove the battery:
1. Turn the computer upside down on a flat surface, with the battery bay toward you.
2. Slide the battery release latch (1) to release the battery.
3. Pivot the battery upward (2), and remove the battery from the computer (3).
Charging a battery
WARNING! Do not charge the computer battery while you are onboard aircraft.
The battery charges whenever the computer is plugged into external power through an AC adapter, an
optional power adapter, an optional expansion product, or an optional docking device.
The battery charges whether the computer is off or in use, but it charges faster when the computer is
off.
Charging may take longer if a battery is new, has been unused for 2 weeks or more, or is much warmer
or cooler than room temperature.
68 Chapter 6 Power management
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
To prolong battery life and optimize the accuracy of battery charge displays, follow these
recommendations:
łIf you are charging a new battery, charge it fully before turning on the computer.
łCharge the battery until the battery light turns off.
NOTE: If the computer is on while the battery is charging, the battery meter in the notification
area may show 100 percent charge before the battery is fully charged.
łAllow the battery to discharge below 5 percent of a full charge through normal use before charging
it.
łIf the battery has been unused for one month or more, calibrate the battery instead of simply
charging it.
The battery light displays charge status:
łOn: The battery is charging.
łBlinking: The battery has reached a low battery level or critical battery level and is not charging.
łOff: The battery is fully charged, in use, or not installed.
Maximizing battery discharge time
Battery discharge time varies, depending on the features you use while on battery power. Maximum
discharge time gradually shortens as the battery storage capacity naturally degrades.
Tips for maximizing battery discharge time:
łLower the brightness on the display.
łCheck the Power saver setting in Power Options.
łRemove the battery from the computer when it is not being used or charged.
łStore the battery in a cool, dry location.
Managing low battery levels
The information in this section describes the alerts and system responses set at the factory. Some low-
battery alerts and system responses can be changed using Power Options in Windows Control Panel.
Preferences set using Power Options do not affect lights.
Identifying low battery levels
When a battery that is the sole power source for the computer reaches a low battery level, the battery
light blinks.
If a low battery level is not resolved, the computer enters a critical battery level, and the battery light
blinks rapidly.
Using battery power 69
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
The computer takes the following actions for a critical battery level:
łIf Hibernation is enabled and the computer is on or in the Sleep state, the computer initiates
Hibernation.
łIf Hibernation is disabled and the computer is on or in the Sleep state, the computer remains briefly
in the Sleep state, and then shuts down and loses any unsaved information.
70 Chapter 6 Power management
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Resolving a low battery level
CAUTION: To reduce the risk of losing information when the computer reaches a critical battery level
and has initiated Hibernation, do not restore power until the power lights turn off.
Resolving a low battery level when external power is available
䦱Connect one of the following devices:
łAC adapter
łOptional expansion product or docking device
łOptional power adapter
Resolving a low battery level when a charged battery is available
1. Turn off the computer or initiate Hibernation.
2. Remove the discharged battery, and then insert a charged battery.
3. Turn on the computer.
Resolving a low battery level when no power source is available
䦱Initiate Hibernation.
– or –
Save your work and shut down the computer.
Resolving a low battery level when the computer cannot exit Hibernation
When the computer lacks sufficient power to exit Hibernation, follow these steps:
1. Insert a charged battery or plug the computer into external power.
2. Exit Hibernation by briefly sliding the power switch to the right.
Calibrating a battery
Calibrate a battery under the following conditions:
łWhen battery charge displays seem inaccurate
łWhen you observe a significant change in battery run time
Even if a battery is heavily used, it should not need to be calibrated more than once a month. It is also
not necessary to calibrate a new battery.
Step 1: Fully charge the battery
WARNING! Do not charge the computer battery while you are onboard aircraft.
NOTE: The battery charges whether the computer is off or in use, but it charges faster when the
computer is off.
Using battery power 71
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
To fully charge the battery:
1. Insert the battery into the computer.
2. Connect the computer to an AC adapter, optional power adapter, optional expansion product, or
optional docking device, and then plug the adapter or device into external power.
The battery light on the computer turns on.
3. Leave the computer plugged into external power until the battery is fully charged.
The battery light on the computer turns off.
Step 2: Disable Hibernation and Sleep
1. Click the battery meter icon in the notification area, and then click More power options.
– or –
Select Start > Control Panel > System and Security > Power Options.
2. Under the current power plan, click Change plan settings.
3. Record the Turn off the display and Put the computer to sleep settings listed in the On
battery column so that you can reset them after the calibration.
4. Change the Turn off the display and Put the computer to sleep settings to Never.
5. Click Change advanced power settings.
6. Click the plus sign (+) next to Sleep, and then click the plus sign (+) next to Hibernate after.
7. Record the On battery setting under Hibernate after so that you can reset it after the calibration.
8. Change the On battery setting to Never.
9. Click OK.
10. Click Save changes.
Step 3: Discharge the battery
The computer must remain on while the battery is being discharged. The battery can discharge whether
or not you are using the computer, but the battery will discharge faster while you are using it.
łIf you plan to leave the computer unattended during the discharge, save your information before
beginning the discharge procedure.
łIf you use the computer occasionally during the discharge procedure and have set energy-saving
timeouts, expect the following performance from the system during the discharge process:
ŃThe monitor will not turn off automatically.
ŃHard drive speed will not decrease automatically when the computer is idle.
ŃSystem-initiated Hibernation will not occur.
72 Chapter 6 Power management
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
To discharge a battery:
1. Unplug the computer from its external power source, but do not turn off the computer.
2. Run the computer on battery power until the battery is discharged. The battery light begins to blink
when the battery has discharged to a low battery level. When the battery is discharged, the battery
light turns off and the computer shuts down.
Step 4: Fully recharge the battery
To recharge the battery:
1. Plug the computer into external power and maintain external power until the battery is fully
recharged. When the battery is recharged, the battery light on the computer turns off.
You can use the computer while the battery is recharging, but the battery will charge faster if the
computer is off.
2. If the computer is off, turn it on when the battery is fully charged and the battery light has turned
off.
Step 5: Reenable Hibernation and Sleep
CAUTION: Failure to reenable Hibernation after calibration may result in a full battery discharge and
information loss if the computer reaches a critical battery level.
1. Click the battery meter icon in the notification area, and then click More power options.
– or –
Select Start > Control Panel > System and Security > Power Options.
2. Under the current power plan, click Change plan settings.
3. Reenter the settings that you recorded for the items in the On battery column.
– or –
Click Restore default settings for this plan, and then follow the on-screen instructions.
NOTE: If you restore default settings, omit steps 4 through 8.
4. Click Change advanced power settings.
5. Click the plus sign (+) next to Sleep, and then click the plus sign (+) next to Hibernate after.
6. Reenter the setting that you recorded for On battery.
7. Click OK.
8. Click Save changes.
Conserving battery power
łSelect low power-use settings through Power Options in Windows Control Panel.
łTurn off wireless and local area network (LAN) connections and exit modem applications when you
are not using them.
Using battery power 73
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
łDisconnect external devices that are not plugged into an external power source, when you are not
using them.
łStop, disable, or remove any external media cards that you are not using.
łUse the fn+f9 and fn+f10 hotkeys to adjust screen brightness as needed.
łIf you leave your work, initiate Sleep or Hibernation, or shut down the computer.
Storing a battery
CAUTION: To prevent damage to a battery, do not expose it to high temperatures for extended periods
of time.
If a computer will be unused and unplugged from external power for more than two weeks, remove the
battery and store it separately.
To prolong the charge of a stored battery, place it in a cool, dry place.
NOTE: A stored battery should be checked every six months. If the capacity is less than 50 percent,
recharge the battery before returning it to storage.
Calibrate a battery before using it if it has been stored for one month or more.
Disposing of a used battery
WARNING! To reduce the risk of fire or burns, do not disassemble, crush, or puncture a battery; short
the external contacts on a battery; or dispose of a battery in fire or water. Do not expose a battery to
temperatures above 60˚C (140˚F). Replace the battery only with a battery approved for this computer.
Refer to the Regulatory, Safety and Environmental Notices for battery disposal information.
Replacing the battery
Computer battery life varies, depending on the power management settings, programs running on the
computer, display brightness, external devices connected to the computer, and other factors.
Battery Check notifies you to replace the battery when an internal cell is not charging properly, or when
the battery storage capacity has reached a “weak” condition. A message refers you to the HP Web site
for more information about ordering a replacement battery. If the battery is possibly covered by an HP
warranty, instructions include a warranty ID.
NOTE: To ensure that you always have battery power when you need it, HP recommends purchasing
a new battery when the storage capacity indicator turns green-yellow.
74 Chapter 6 Power management
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Testing an AC adapter
Test the AC adapter if the computer exhibits any of the following symptoms:
łThe computer will not turn on when connected to the AC adapter.
łThe display does not turn on when the computer is connected to the AC adapter and external
power.
łThe power light is off when the computer is connected to the AC adapter.
To test the AC adapter:
1. Remove the battery from the computer.
2. Connect the AC adapter to the computer and to an AC outlet.
3. Turn on the computer.
łIf the power light turns on, the AC adapter is functioning properly.
łIf the power light remains off, the AC adapter is not functioning and should be replaced.
Contact technical support for information on obtaining a replacement AC power adapter. Select
Start > Help and Support > Get assistance.
Shutting down the computer
CAUTION: Unsaved information will be lost when the computer is shut down.
The Shut down command closes all open programs, including the operating system, and then turns off
the display and computer.
Shut down the computer under any of the following conditions:
łWhen you need to replace the battery or access components inside the computer
łWhen you are connecting an external hardware device that does not connect to a USB port
łWhen the computer will be unused and disconnected from external power for an extended period
Although you can shut down the computer with the power switch, the recommended procedure is to use
the Windows Shut down command.
To shut down the computer, follow these steps:
NOTE: If the computer is in the Sleep state or in Hibernation, you must first exit Sleep or Hibernation
before shutdown is possible.
1. Save your work and close all open programs.
2. Click Start.
3. Click Shut down.
Testing an AC adapter 75
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
If the computer is unresponsive and you are unable to use the preceding shutdown procedures, try the
following emergency procedures in the sequence provided:
łSlide the power switch to the right and hold it for at least 5 seconds.
łDisconnect the computer from external power and remove the battery.
76 Chapter 6 Power management
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
7Drives
Identifying installed drives
Your computer includes a hard drive (with a rotating disc) or a solid-state drive (SSD) with solid-state
memory. Because it has no moving parts, an SSD does not generate as much heat as a hard drive.
To view the drives installed on the computer, select Start > Computer.
NOTE: Windows includes the User Account Control feature to improve the security of your computer.
You may be prompted for your permission or password for tasks such as installing applications, running
utilities, or changing Windows settings. Refer to Help and Support for more information.
Identifying installed drives 77
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Handling drives
Drives are fragile computer components that must be handled with care. Refer to the following cautions
before handling drives. Additional cautions are included with the procedures to which they apply.
CAUTION: To reduce the risk of damage to the computer, damage to a drive, or loss of information,
observe these precautions:
Before you move a computer or external hard drive from one location, initiate Sleep, and allow the screen
to clear.
Before handling a drive, discharge static electricity by touching the unpainted metal surface of the drive.
Do not touch the connector pins on a removable drive or on the computer.
Handle a drive carefully; do not drop a drive or place items on it.
Before removing or inserting a drive, shut down the computer. If you are unsure whether the computer
is off or in Hibernation, turn the computer on and then shut it down through the operating system.
Do not use excessive force when inserting a drive into a drive bay.
Do not type on the keyboard or move the computer while the optical drive is writing to a disc. The write
process is sensitive to vibration.
When the battery is the only source of power, be sure that the battery is sufficiently charged before
writing to media.
Avoid exposing a drive to temperature or humidity extremes.
Avoid exposing a drive to liquids. Do not spray the drive with cleaning products.
Remove media from a drive before removing the drive from the drive bay, or traveling with, shipping, or
storing a drive.
If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective packaging
and label the package “FRAGILE.”
Avoid exposing a drive to magnetic fields. Security devices with magnetic fields include airport walk-
through devices and security wands. The airport security devices that check carry-on luggage, such as
conveyor belts, use X-rays instead of magnetism and will not damage a drive.
78 Chapter 7 Drives
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Improving hard drive performance
Using Disk Defragmenter
As you use the computer, files on the hard drive become fragmented. Disk Defragmenter consolidates
the fragmented files and folders on the hard drive so that the system can run more efficiently.
After you start Disk Defragmenter, it works without supervision. Depending on the size of your hard drive
and the number of fragmented files, Disk Defragmenter may take more than an hour to complete. You
may want to set it to run during the night or another time when you do not need access to your computer.
HP recommends defragmenting your hard drive at least once a month. You may set Disk Defragmenter
to run on a monthly schedule, but you can defragment your computer manually at any time.
To run Disk Defragmenter:
1. Select Start > All Programs > Accessories > System Tools > Disk Defragmenter.
2. Click Defragment disk.
NOTE: Windows includes the User Account Control feature to improve the security of your
computer. You may be prompted for your permission or password for tasks such as installing
software, running utilities, or changing Windows settings. Refer to Help and Support for more
information.
For additional information, access the Disk Defragmenter software Help.
Using Disk Cleanup
Disk Cleanup searches the hard drive for unnecessary files that you can safely delete to free up disk
space and help the computer to run more efficiently.
To run Disk Cleanup:
1. Select Start > All Programs > Accessories > System Tools > Disk Cleanup.
2. Follow the on-screen instructions.
Improving hard drive performance 79
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using HP 3D DriveGuard
HP 3D DriveGuard protects the hard drive by parking the drive and halting I/O requests under either of
the following conditions:
łYou drop the computer.
łYou move the computer with the display closed while the computer is running on battery power.
A short time after the end of one of these events, HP 3D DriveGuard returns the hard drive to normal
operation.
NOTE: If the upgrade bay contains a hard drive, the hard drive is protected by HP 3D DriveGuard.
Hard drives installed in optional docking devices or connected to USB ports are not protected by HP 3D
DriveGuard.
Because solid-state drives lack rotating parts, protection by HP 3D DriveGuard is unnecessary.
For more information, refer to the HP 3D DriveGuard software Help.
Identifying HP 3D DriveGuard status
The drive light on the computer changes to an amber color to show that the drive is parked. To determine
whether drives are currently protected or whether a drive is parked, select Start > Control Panel >
Hardware and Sound > Windows Mobility Center:
łIf the software is enabled, a green check mark is superimposed over the hard drive icon.
łIf the software is disabled, a white diagonal line is superimposed over the hard drive icon.
łIf the drives are parked, a yellow moon is superimposed over the hard drive icon.
NOTE: The icon in the Mobility Center may not show the most up-to-date status for the drive. For
immediate updates after a change in status, you need to enable the notification area icon.
To enable the notification area icon:
1. Select Start > Control Panel > Hardware and Sound > HP 3D DriveGuard.
NOTE: If prompted by User Account Control, click Yes.
2. On the Icon in system tray row, click Show.
3. Click OK.
If HP 3D DriveGuard has parked the drive, the computer will behave in the following ways:
łThe computer will not shut down.
łThe computer will not initiate Sleep or Hibernation, except as described in the following Note.
NOTE: If the computer is running on battery power and reaches a critical battery level, HP 3D
DriveGuard allows the computer to initiate Hibernation.
Before you move the computer, HP recommends that you either shut it down, or initiate Sleep or
Hibernation.
80 Chapter 7 Drives
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using HP 3D DriveGuard software
The HP 3D DriveGuard software enables you to perform the following tasks:
łEnable and disable HP 3D DriveGuard.
NOTE: Permission to enable or disable HP 3D DriveGuard is dependent on certain user
privileges. Members of an Administrator group can change privileges for non-Administrator users.
łDetermine whether a drive in the system is supported.
To open the software and change settings, follow these steps:
1. In Mobility Center, click the hard drive icon to open the HP 3D DriveGuard window.
– or –
Select Start > Control Panel > Hardware and Sound > HP 3D DriveGuard.
NOTE: If prompted by User Account Control, click Yes.
2. Click the appropriate button to change settings.
3. Click OK.
Using HP 3D DriveGuard 81
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Replacing the hard drive in the hard drive bay
CAUTION: To prevent information loss or an unresponsive system:
Shut down the computer before removing the hard drive from the hard drive bay. Do not remove the
hard drive while the computer is on, in the Sleep state, or in Hibernation.
If you are not sure whether the computer is off or in Hibernation, turn the computer on by sliding the
power switch to the right. Then shut down the computer through the operating system.
To remove a hard drive:
1. Save your work.
2. Shut down the computer and close the display.
3. Disconnect all external hardware devices connected to the computer.
4. Unplug the power cord from the AC outlet.
5. Turn the computer upside down on a flat surface, with the hard drive bay toward you.
6. Remove the battery from the computer.

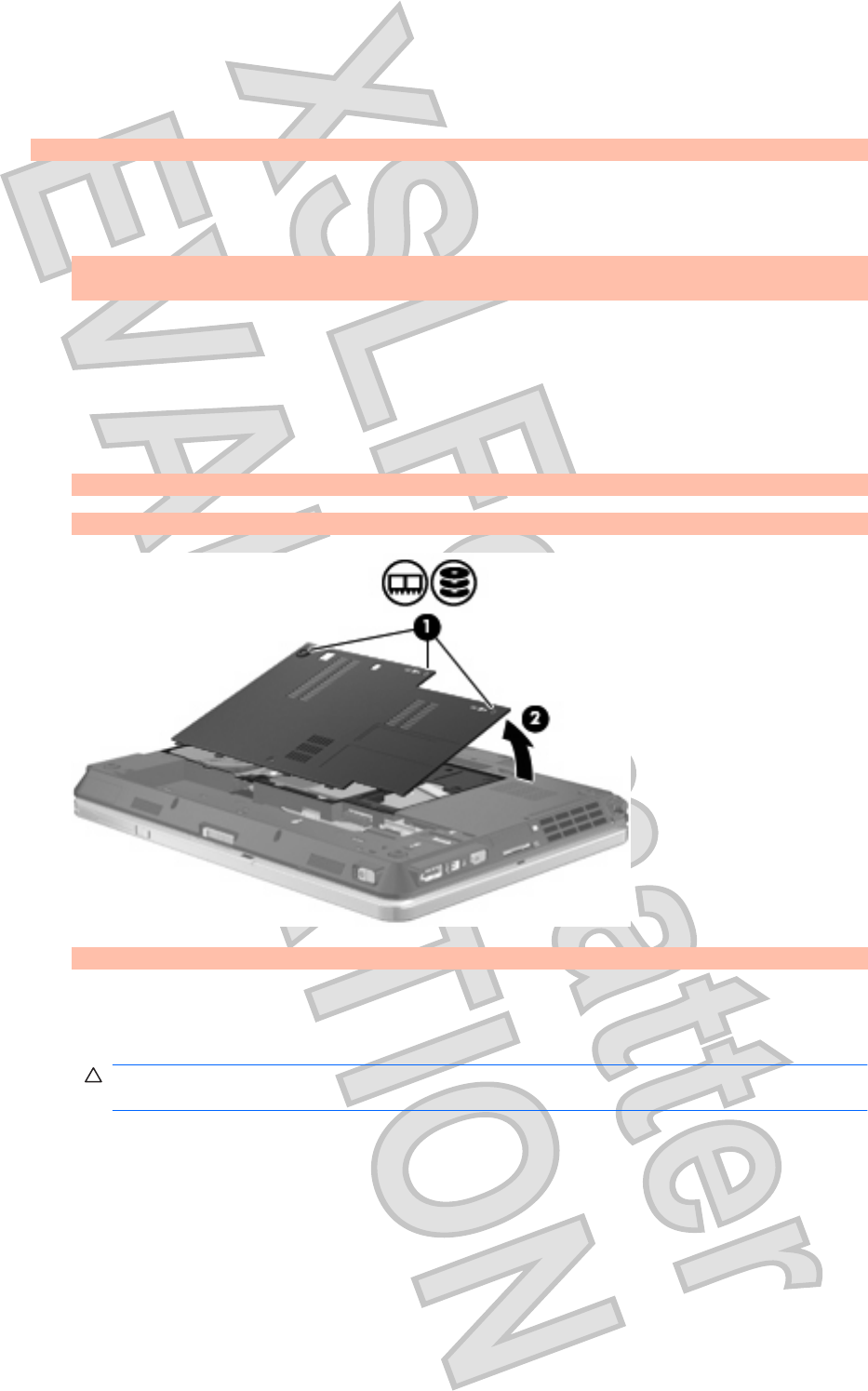

7. Loosen the 3 hard drive cover screws (1).
8. Remove the hard drive cover (2).
9. Remove the 2 hard drive bracket screws (1).
82 Chapter 7 Drives
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
10. Remove the hard drive bracket (2).
11. Grasp the mylar tab on the hard drive and pull upward (1) until the hard drive is at a 45-degree
angle.
12. With the hard drive at a 45-degree angle, pull it forward (2) until the rear of the hard drive is clear
of the computer back edge.
13. Lift the hard drive (3) out of the hard drive bay.
To install a hard drive:
1. Insert the rear of the hard drive at a 45-degree angle into the back of the hard drive bay (1).
Replacing the hard drive in the hard drive bay 83
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
2. Lower the front of the hard drive down onto the system board connector (2), and then press down
(3) to connect the hard drive.
3. Replace the hard drive bracket (1).
4. Replace the 2 hard drive bracket screws (2).

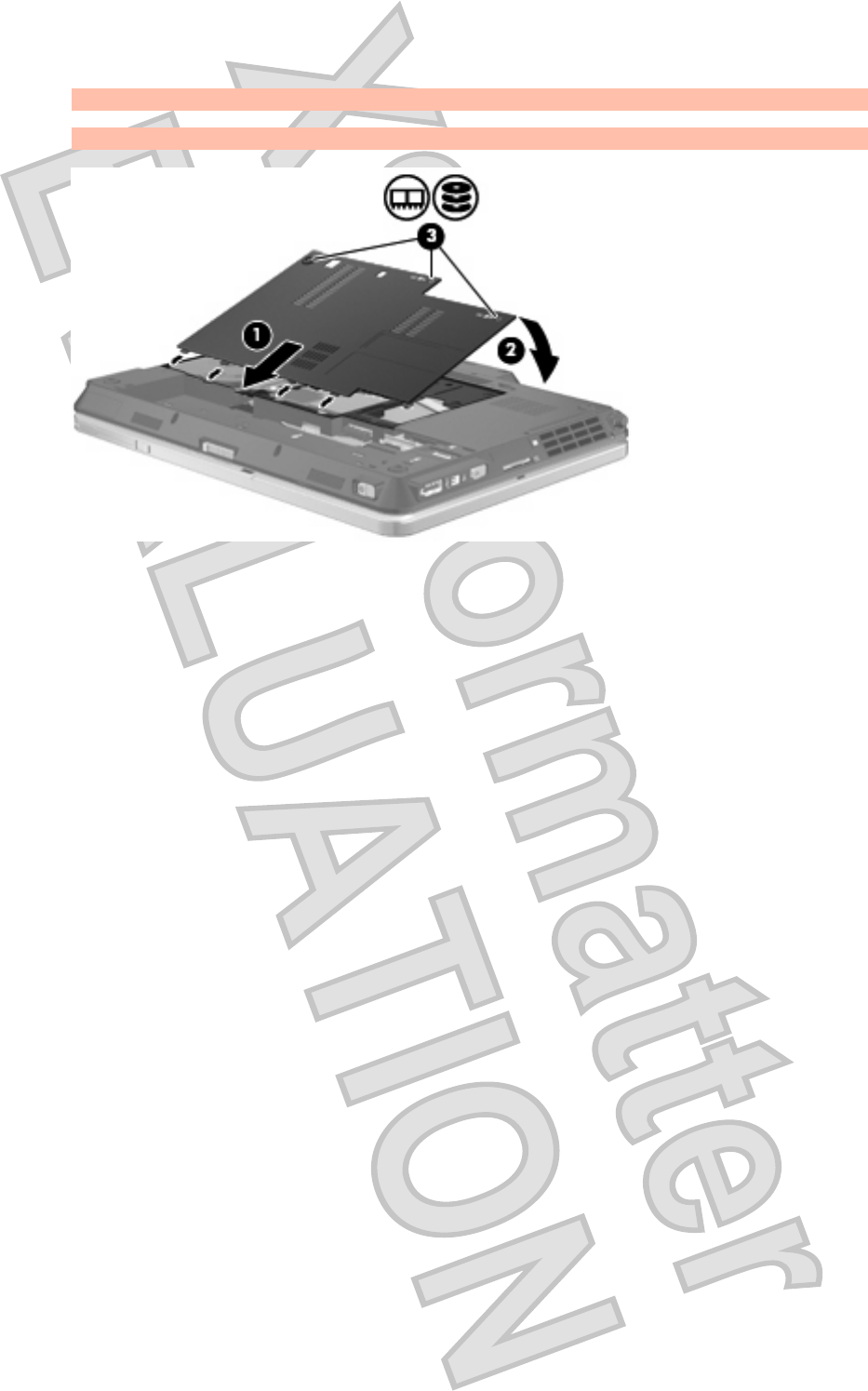

5. Align the tabs (1) on the hard drive cover with the notches on the computer.
6. Close the cover (2).
84 Chapter 7 Drives
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
7. Tighten the 3 hard drive cover screws (3).
8. Replace the battery.
9. Turn the computer right-side up, and then reconnect external power and external devices.
10. Turn on the computer.
Replacing the hard drive in the hard drive bay 85
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
8 External devices
Using a USB device
Universal Serial Bus (USB) is a hardware interface that can be used to connect an optional external
device, such as a USB keyboard, mouse, drive, printer, scanner, or hub.
Some USB devices may require additional support software, which is usually included with the device.
For more information about device-specific software, refer to the manufacturer's instructions.
Your computer model has 3 USB ports, which support USB 1.0, USB 1.1, and USB 2.0 devices. A USB
hub provides additional USB ports that can be used with the computer.
Connecting a USB device
CAUTION: To prevent damage to a USB connector, use minimal force to connect a USB device.
䦱To connect a USB device to the computer, connect the USB cable for the device to the USB
port.
You will hear a sound when the device has been detected.
NOTE: The first time you connect a USB device, a message is displayed in the notification area to let
you know the device is recognized by the computer.
Stopping and removing a USB device
CAUTION: To prevent loss of information or an unresponsive system, stop a USB device before
removing it.
86 Chapter 8 External devices
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
CAUTION: To prevent damage to a USB connector, do not pull on the cable to remove the USB device.
To stop and remove a USB device:
1. Double-click the Safely Remove Hardware icon in the notification area, at the far right of the
taskbar.
NOTE: To display the Safely Remove Hardware icon, click the Show Hidden Icons icon (< or
<<) in the notification area.
2. Click the name of the device in the list.
NOTE: If the USB device is not listed, you do not have to stop the device before you remove it.
3. Click Stop, and then click OK.
4. Remove the device.
Using USB legacy support
USB legacy support (enabled at the factory) permits the following actions:
łUsing a USB keyboard, mouse, or hub connected to a USB port on the computer during startup or
in an MS-DOS-based program or utility
łStarting or restarting from an optional external MultiBay or an optional USB bootable device
To disable or reenable USB legacy support in Computer Setup, follow these steps:
1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
2. Press f10 to enter the BIOS Setup.
3. Use a pointing device or the arrow keys to select System Configuration, and then select Device
Configurations.
4. To disable USB legacy support, click Disabled next to USB legacy support. To reenable USB
legacy support, click Enabled next to USB legacy support.
5. To save your changes and exit Computer Setup, click Save in the lower-left corner of the screen,
and then follow the on-screen instructions.
– or –
Use the arrow keys to select File > Save changes and exit, and then follow the on-screen
instructions.
Your changes go into effect when the computer restarts.
Using a USB device 87
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using a 1394 device
IEEE 1394 is a hardware interface that connects a high-speed multimedia or data storage device to the
computer. Scanners, digital cameras, and digital camcorders often require a 1394 connection.
Some 1394 devices may require additional support software, which is usually included with the device.
For more information about device-specific software, refer to the manufacturer's instructions.
The 1394 port also supports IEEE 1394a devices.
Connecting a 1394 device
CAUTION: To prevent damage to a 1394 port connector, use minimal force when connecting a 1394
device.
䦱To connect a 1394 device to the computer, connect the 1394 cable for the device to the 1394
port.
You will hear a sound when the device has been detected.
Stopping and removing a 1394 device
CAUTION: To prevent loss of information or an unresponsive system, stop the 1394 device before
removing it.
CAUTION: To prevent damage to a 1394 connector, do not pull on the cable to remove the 1394
device.
1. Double-click the Safely Remove Hardware icon in the notification area, at the far right of the
taskbar.
NOTE: To display the Safely Remove Hardware icon, click the Show Hidden Icons icon (< or
<<) in the notification area.
2. Click the name of the device in the list.
NOTE: If the device is not listed, you do not have to stop the device before you remove it.
3. Click Stop, and then click OK.
4. Remove the device.
88 Chapter 8 External devices
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using external drives
Removable external drives expand your options for storing and accessing information. A USB drive can
be added by connecting the drive to a USB port on the computer.
USB drives include the following types:
ł1.44-megabyte diskette drive
łHard drive module (a hard drive with an adapter attached)
łDVD-ROM Drive
łDVD/CD-RW Combo Drive
łDVD±RW/CD-RW Combo Drive
Using optional external devices
NOTE: For more information about required software and drivers, or to learn which computer port to
use, refer to the manufacturer's instructions.
To connect an external device to the computer:
CAUTION: To reduce the risk of damage to the equipment when connecting a powered device, be
sure that the device is turned off and the AC power cord is unplugged.
1. Connect the device to the computer.
2. If you are connecting a powered device, plug the device power cord into a grounded AC outlet.
3. Turn on the device.
To disconnect an unpowered external device, turn off the device, and then disconnect it from the
computer. To disconnect a powered external device, turn off the device, disconnect it from the computer,
and then unplug the AC power cord.
Using external drives 89
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using the docking connector
The docking connector connects the computer to an optional docking device. An optional docking device
provides additional ports and connectors that can be used with the computer.
90 Chapter 8 External devices
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
9 External media cards
Using Media Card Reader cards
Optional digital cards provide secure data storage and convenient data sharing. These cards are often
used with digital media–equipped cameras and PDAs as well as with other computers.
The Digital Media Slot supports the following digital card formats:
łMemory Stick (MS)
łMemory Stick Pro (MSP)
łMultiMediaCard (MMC)
łSecure Digital Input/Output (SD I/O)
łSecure Digital (SD) Memory Card
łxD-Picture Card (XD)
łxD-Picture Card (XD) Type H
łxD-Picture Card (XD) Type M
Inserting a digital card
CAUTION: To avoid damaging the digital card or the computer, do not insert any type of adapter into
the SD Card Reader.
CAUTION: To prevent damage to the digital card connectors, use minimal force to insert a digital card.
1. Hold the digital card label-side up, with the connectors facing the computer.
Using Media Card Reader cards 91
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
2. Insert the card into the Media Card Reader, and then push in on the card until it is firmly seated.
You will hear a sound when the device has been detected, and a menu of available options may
be displayed.
Stopping and removing a digital card
CAUTION: To prevent loss of data or an unresponsive system, stop a digital card before removing it.
1. Save your information and close all programs associated with the digital card.
NOTE: To stop a data transfer, click Cancel in the operating system Copying window.
2. Stop the digital card:
a. Double-click the Safely Remove Hardware icon in the notification area, at the far right of the
taskbar.
NOTE: To display the Safely Remove Hardware icon, click the Show Hidden Icons icon
(< or <<) in the notification area.
b. Click the name of the digital card in the list.
c. Click Stop, and then click OK.
3. Press in on the digital card (1), and then remove the card from the slot (2).
92 Chapter 9 External media cards
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using ExpressCards (select models only)
An ExpressCard is a high-performance PC Card that is inserted into the ExpressCard slot.
Like standard PC Cards, ExpressCards are designed to conform to the standard specifications of the
Personal Computer Memory Card International Association (PCMCIA).
Configuring an ExpressCard
Install only the software required for your device. If you are instructed by the ExpressCard manufacturer
to install device drivers:
łInstall only the device drivers for your operating system.
łDo not install other software, such as card services, socket services, or enablers, supplied by the
ExpressCard manufacturer.
Inserting an ExpressCard
CAUTION: To prevent damage to the computer and external media cards, do not insert a PC Card
into an ExpressCard slot.
CAUTION: To prevent damage to the connectors:
Use minimal force when inserting an ExpressCard.
Do not move or transport the computer when an ExpressCard is in use.
The ExpressCard slot may contain a protective insert. To remove the insert:
1. Press in on the insert (1) to unlock it.
2. Pull the insert out of the slot (2).
To insert an ExpressCard:
1. Hold the card label-side up, with the connectors facing the computer.
Using ExpressCards (select models only) 93
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
2. Insert the card into the ExpressCard slot, and then push in on the card until it is firmly seated.
You will hear a sound when the device has been detected, and a menu of options may be displayed.
NOTE: The first time you insert an ExpressCard, a message is displayed in the notification area
to let you know the device is recognized by the computer.
NOTE: An inserted ExpressCard uses power even when idle. To conserve power, stop or remove an
ExpressCard when it is not in use.
Stopping and removing an ExpressCard
CAUTION: To prevent loss of data or an unresponsive system, stop an ExpressCard before removing
it.
1. Save your information and close all programs associated with the ExpressCard.
NOTE: To stop a data transfer, click Cancel in the operating system Copying window.
2. Stop the ExpressCard:
a. Double-click the Safely Remove Hardware icon in the notification area, at the far right of the
taskbar.
NOTE: To display the Safely Remove Hardware icon, click the Show Hidden Icons icon
(< or <<) in the notification area.
b. Click the name of the ExpressCard in the list.
c. Click Stop, and then click OK.
3. Release and remove the ExpressCard:
a. Gently press in on the ExpressCard (1) to unlock it.
b. Pull the ExpressCard out of the slot (2).
94 Chapter 9 External media cards
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using ExpressCards (select models only) 95
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using Smart Cards (select models only)
NOTE: The term smart card is used throughout this chapter to refer to both smart cards and Java™
Cards.
A smart card is a credit card–sized accessory that carries a microchip containing memory and a
microprocessor. Like personal computers, smart cards have an operating system to manage input and
output, and they include security features to protect against tampering. Industry-standard smart cards
are used with the smart card reader (select models only).
A PIN is needed to gain access to the contents of the microchip. For more information about smart card
security features, refer to Help and Support.
NOTE: Your computer may look slightly different from the illustrations in this chapter.
Inserting a smart card
To insert a smart card:
1. Holding the smart card label-side up, gently slide the card into the smart card reader until the card
is seated.
2. Follow the on-screen instructions for logging on to the computer using the smart card PIN.
Removing a smart card
To remove a smart card:
䦱Grasp the edge of the smart card, and pull it out of the smart card reader.
96 Chapter 9 External media cards
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
10 Memory modules
The computer has one memory module compartment located on the bottom of the computer.
The memory capacity of the computer can be upgraded by adding a memory module to the vacant
expansion memory module slot or by upgrading the existing memory module in the memory module
slot.
WARNING! To reduce the risk of electric shock and damage to the equipment, unplug the power cord
and remove all batteries before installing a memory module.
CAUTION: Electrostatic discharge (ESD) can damage electronic components. Before beginning any
procedure, touch a grounded metal object to be sure that you are discharged of static electricity.
97
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Adding or replacing a memory module
To add or replace a memory module in the memory module slot, follow these steps:
1. Save your work.
2. Shut down the computer.
If you are not sure whether the computer is off or in Hibernation, turn the computer on by sliding
the power switch to the right. Then shut down the computer through the operating system.
3. Disconnect all external devices connected to the computer.
4. Unplug the power cord from the AC outlet.
5. Turn the computer upside down on a flat surface.
6. Remove all batteries from the computer.
7. Loosen the 3 hard drive compartment cover screws (1).
8. Lift the hard drive compartment cover away from the computer (2).
9. If you are replacing a memory module, remove the existing memory module:
a. Pull away the retention clips (1) on each side of the memory module.
The memory module tilts up.
CAUTION: To prevent damage to the memory module, hold the memory module by the
edges only. Do not touch the components on the memory module.
98 Chapter 10 Memory modules
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
b. Grasp the edge of the memory module (2), and gently pull the module out of the memory
module slot.
To protect a memory module after removal, place it in an electrostatic-safe container.
10. Insert a memory module:
NOTE: If you are inserting a memory module and both memory module slots are vacant, be sure
that you insert the memory module into the primary memory module slot.
a. Align the notched edge (1) of the memory module with the tab in the memory module slot.
CAUTION: To prevent damage to the memory module, hold the memory module by the
edges only. Do not touch the components on the memory module and do not bend the memory
module.
b. With the memory module at a 45-degree angle from the surface of the memory module
compartment, press the module (2) into the memory module slot until it is seated.
c. Gently press the memory module (3) down, applying pressure to both the left and right edges
of the memory module, until the retention clips snap into place.
11. Align the tabs (1) on the hard drive compartment cover with the notches on the computer.
Adding or replacing a memory module 99
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
12. Close the cover (2).
13. Tighten the 3 hard drive compartment cover screws (3).
14. Replace the batteries.
15. Turn the computer right-side up, and then reconnect external power and external devices.
16. Turn on the computer.
100 Chapter 10 Memory modules
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
11 Security
Protecting the computer
NOTE: Security solutions are designed to act as deterrents. These deterrents may not prevent a
product from being mishandled or stolen.
NOTE: Your computer supports CompuTrace, which is an online security-based tracking and recovery
service available in select regions. If the computer is stolen, CompuTrace can track the computer if the
unauthorized user accesses the Internet. You must purchase the software and subscribe to the service
in order to use CompuTrace. For information about ordering the CompuTrace software, go to the HP
Web site at http://www.hpshopping.com.
Security features provided with your computer can protect the computer, personal information, and data
from a variety of risks. The way you use your computer will determine which security features you need
to use.
The Windows operating system offers certain security features. Additional security features are listed
in the following table. Most of these additional security features can be configured in the Computer Setup
utility (referred to hereafter as Computer Setup).
To protect against Use this security feature
Unauthorized use of the computer HP ProtectTools Security Manager, in combination with a
password, smart card, and/or fingerprint reader
Unauthorized access to Computer Setup (f10)BIOS administrator password in Computer Setup*
Unauthorized access to the contents of a hard drive DriveLock password in Computer Setup*
Unauthorized startup from an optical drive, diskette drive, or
internal network adapter
Boot options feature in Computer Setup*
Unauthorized access to a Windows user account HP ProtectTools Security Manager
Unauthorized access to data łFirewall software
łWindows updates
łDrive encryption for HP ProtectTools
Unauthorized access to Computer Setup settings and other
system identification information
BIOS administrator password in Computer Setup*
Unauthorized removal of the computer Security cable slot (used with an optional security cable)
*Computer Setup is a preinstalled, ROM-based utility that can be used even when the operating system is not working or will
not load. You can use either a pointing device (TouchPad, pointing stick, or USB mouse) or the keyboard to navigate and make
selections in Computer Setup.
Protecting the computer 101
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using passwords
Most security features use passwords. Whenever you set a password, write down the password and
store it in a secure location away from the computer. Note the following password considerations:
łSetup and DriveLock passwords are set in Computer Setup and are managed by the system BIOS.
łThe embedded security password, which is an HP ProtectTools Security Manager password, can
be enabled in Computer Setup to provide BIOS password protection in addition to their normal HP
ProtectTools functions. The embedded security password is used with the optional embedded
security chip.
łWindows passwords are set only in the Windows operating system.
łIf you forget the BIOS administrator password set in Computer Setup, you can use HP SpareKey
to access the utility.
łIf you forget both the DriveLock user password and the DriveLock master password set in Computer
Setup, the hard drive that is protected by the passwords is permanently locked and can no longer
be used.
You can use the same password for a Computer Setup feature and for a Windows security feature. You
can also use the same password for more than one Computer Setup feature.
Use the following tips for creating and saving passwords:
łWhen creating passwords, follow requirements set by the program.
łWrite down your passwords and store them in a secure place away from the computer.
łDo not store passwords in a file on the computer.
The following tables list commonly used Windows and BIOS administrator passwords and describe their
functions.
Setting passwords in Windows
Windows passwords Function
Administrator password* Protects access to a Windows administrator-level account.
User password* Protects access to a Windows user account.
*For information about setting a Windows administrator password or a Windows user password, select Start > Help and
Support.
Setting passwords in Computer Setup
BIOS administrator passwords Function
BIOS administrator password Protects access to Computer Setup.
DriveLock master password Protects access to the internal hard drive that is protected by
DriveLock. It is also used to remove DriveLock protection. This
password is set under DriveLock Passwords during the enable
process.
102 Chapter 11 Security
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
BIOS administrator passwords Function
DriveLock user password Protects access to the internal hard drive that is protected by
DriveLock, and is set under DriveLock Passwords during the
enable process.
TPM embedded security password When enabled as a BIOS administrator password, protects
access to the computer contents when the computer turns on,
restarts, or exits Hibernation.
This password requires the optional embedded security chip
to support this security feature.
BIOS administrator password
The Computer Setup BIOS administrator password protects the configuration settings and system
identification information in Computer Setup. After this password is set, it must be entered to access
Computer Setup and to make changes using Computer Setup.
Note the following characteristics of the BIOS administrator password:
łIt is not interchangeable with a Windows administrator password, although both passwords can be
identical.
łIt is not displayed as it is set, entered, changed, or deleted.
łIt must be set and entered with the same keys. For example, a BIOS administrator password set
with keyboard number keys will not be recognized if you enter it thereafter with embedded numeric
keypad number keys.
łIt can include any combination of up to 32 letters and numbers and is not case sensitive unless
mandated by the administrator.
Using passwords 103
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Managing a BIOS administrator password
A BIOS administrator password is set, changed, and deleted in Computer Setup.
To set or change this password in Computer Setup, follow these steps:
1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
2. Press f10 to enter BIOS Setup.
3. Use a pointing device or the arrow keys to select Security > Change Password, and then press
enter.
4. When prompted, type your current password.
5. When prompted, type your new password.
6. When prompted, type your new password again to confirm.
7. To save your changes and exit Computer Setup, click Save in the lower-left corner of the screen,
and then follow the on-screen instructions.
– or –
Use the arrow keys to select File > Save changes and exit, and then press enter.
Your changes go into effect when the computer restarts.
To delete this password in Computer Setup, follow these steps:
1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
2. Press f10 to enter BIOS Setup.
3. Use a pointing device or the arrow keys to select Security > Change Password, and then press
enter.
4. When prompted, type your current password.
5. When prompted for the new password, leave the field empty, and then press enter.
6. Read the warning. To continue, select YES.
7. When prompted to type your new password again, leave the field empty, and then press enter.
8. To save your changes and exit Computer Setup, click Save in the lower-left corner of the screen,
and then follow the on-screen instructions.
– or –
Use the arrow keys to select File > Save changes and exit, and then press enter.
Your changes go into effect when the computer restarts.
104 Chapter 11 Security
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Entering a BIOS administrator password
At the BIOS administrator password prompt, type your password (using the same kind of keys you
used to set the password), and then press enter. After three unsuccessful attempts to enter the BIOS
administrator password, you must restart the computer and try again.
Using Computer Setup DriveLock
CAUTION: To prevent the DriveLock-protected hard drive from becoming permanently unusable,
record the DriveLock user password and the DriveLock master password in a safe place away from your
computer. If you forget both DriveLock passwords, the hard drive will be permanently locked and can
no longer be used.
DriveLock protection prevents unauthorized access to the contents of a hard drive. DriveLock can be
applied only to the internal hard drive(s) of the computer. After DriveLock protection is applied to a drive,
a password must be entered to access the drive. The drive must be inserted into the computer or an
advanced port replicator in order for it to be accessed by the DriveLock passwords.
To apply DriveLock protection to an internal hard drive, a user password and a master password must
be set in Computer Setup. Note the following considerations about using DriveLock protection:
łAfter DriveLock protection is applied to a hard drive, the hard drive can be accessed only by entering
either the user password or the master password.
łThe owner of the user password should be the day-to-day user of the protected hard drive. The
owner of the master password may be either a system administrator or the day-to-day user.
łThe user password and the master password can be identical.
łYou can delete a user password or master password only by removing DriveLock protection from
the drive. DriveLock protection can be removed from the drive only with the master password.
Using passwords 105
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Setting a DriveLock password
To set a DriveLock password in Computer Setup, follow these steps:
1. Turn on the computer, and then press esc while the “Press the ESC key for Startup Menu” message
is displayed at the bottom of the screen.
2. Press f10 to enter BIOS Setup.
3. Use a pointing device or the arrow keys to select Security > DriveLock passwords, and then
press enter.
4. Use a pointing device to click the hard drive you want to protect.
– or –
Use the arrow keys to select the hard drive you want to protect, and then press enter.
5. Read the warning. To continue, select YES.
6. Type your master password in the New password and Verify new password fields, and then
press enter.
7. Type your user password in the New password and Verify new password fields, and then press
enter.
8. To confirm DriveLock protection on the drive you have selected, type DriveLock in the
confirmation field, and then press enter.
NOTE: The DriveLock confirmation is case sensitive.
9. To save your changes and exit Computer Setup, click Save in the lower-left corner of the screen,
and then follow the on-screen instructions.
– or –
Use the arrow keys to select File > Save changes and exit, and then press enter.
Your changes go into effect when the computer restarts.
Entering a DriveLock password
Be sure that the hard drive is inserted into the computer (not into an optional docking device or external
MultiBay).
At the DriveLock Password prompt, type your user or master password (using the same kind of keys
you used to set the password), and then press enter.
After two incorrect attempts to enter the password, you must shut down the computer and try again.
Changing a DriveLock password
To change a DriveLock password in Computer Setup, follow these steps:
1. Turn on the computer, and then press esc while the “Press the ESC key for Startup Menu” message
is displayed at the bottom of the screen.
2. Press f10 to enter BIOS Setup.
106 Chapter 11 Security
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
3. Use a pointing device or the arrow keys to select Security > DriveLock passwords, and then
press enter.
4. Use a pointing device to select an internal hard drive.
– or –
Use the arrow keys to select an internal hard drive, and then press enter.
5. Use a pointing device or the arrow keys to select the password you want to change.
6. Type your current password in the Old password field, type a new password in the New
password and Verify new password fields, and then press enter.
7. To save your changes and exit Computer Setup, click Save in the lower-left corner of the screen,
and then follow the on-screen instructions.
– or –
Use the arrow keys to select File > Save changes and exit, and then press enter.
Your changes go into effect when the computer restarts.
Removing DriveLock protection
To remove DriveLock protection in Computer Setup, follow these steps:
1. Turn on the computer, and then press esc while the “Press the ESC key for Startup Menu” message
is displayed at the bottom of the screen.
2. Press f10 to enter BIOS Setup.
3. Use a pointing device or the arrow keys to select Security > DriveLock password, and then press
enter.
4. Use a pointing device or the arrow keys to select an internal hard drive, and then press enter.
5. Use a pointing device or the arrow keys to select Disable protection.
6. Type your master password, and then press enter.
7. To save your changes and exit Computer Setup, click Save in the lower-left corner of the screen,
and then follow the on-screen instructions.
– or –
Use the arrow keys to select File > Save changes and exit, and then press enter.
Your changes go into effect when the computer restarts.
Using Computer Setup Auto DriveLock
In a multiple-user environment, you can set an Automatic DriveLock password. When the Automatic
DriveLock password is enabled, a random user password and a DriveLock master password will be
created for you. When any user passes the password credential, the same random user and DriveLock
master password will be used to unlock the drive.
NOTE: You must have a BIOS administrator password before you can access the Automatic
DriveLock features.
Using passwords 107
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Entering an Automatic DriveLock password
To enable an Automatic DriveLock password in Computer Setup, follow these steps:
1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
2. Press f10 to enter BIOS Setup.
3. Use a pointing device or the arrow keys to select Security > Automatic DriveLock, and then press
enter.
4. Use a pointing device or the arrow keys to select an internal hard drive, and then press enter.
5. Read the warning. To continue, select YES.
6. To save your changes and exit Computer Setup, click Save in the lower-left corner of the screen,
and then follow the on-screen instructions.
– or –
Use the arrow keys to select File > Save changes and exit, and then press enter.
Removing Automatic DriveLock protection
To remove DriveLock protection in Computer Setup, follow these steps:
1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
2. Press f10 to enter BIOS Setup.
3. Use a pointing device or the arrow keys to select Security > Automatic DriveLock, and then press
enter.
4. Use a pointing device or the arrow keys to select an internal hard drive, and then press enter.
5. Use a pointing device or the arrow keys to select Disable protection.
6. To save your changes and exit Computer Setup, click Save in the lower-left corner of the screen,
and then follow the on-screen instructions.
– or –
Use the arrow keys to select File > Save changes and exit, and then press enter.
108 Chapter 11 Security
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using Computer Setup security features
Securing system devices
You can disable or enable system devices from the following menus in Computer Setup:
łBoot Options
łDevice Configurations
łBuilt-In Device Options
łPort Options
To disable or reenable system devices in Computer Setup, follow these steps:
1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
2. Press f10 to enter BIOS Setup.
3. Use a pointing device or the arrow keys to select System Configuration > Boot Options, or
System Configuration > Device Configurations or, System Configuration > Built-In Device
Options, or System Configuration > Port Options.
4. Press enter.
5. To disable an option, use a pointing device to click Disabled next to the option.
– or –
Use the arrow keys to select Disabled next to the option, and then press enter.
6. To reenable an option, use a pointing device to click Enabled next to the option.
– or –
Use the arrow keys to select Enabled next to the option, and then press enter.
7. To save your changes and exit Computer Setup, click Save in the lower-left corner of the screen,
and then follow the on-screen instructions.
– or –
Use the arrow keys to select File > Save changes and exit, and then press enter.
Your changes go into effect when the computer restarts.
Viewing Computer Setup System Information
The System Information feature in Computer Setup provides two types of system information:
łIdentification information about the computer model and the batteries
łSpecification information about the processor, cache, memory, ROM, video revision, and keyboard
controller revision
Using Computer Setup security features 109
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
To view this general system information in Computer Setup, follow these steps:
1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
2. Press f10 to enter BIOS Setup.
3. Use a pointing device or the arrow keys to select File > System Information, and then press
enter.
NOTE: To prevent unauthorized access to this information, you must create a BIOS administrator
password in Computer Setup.
Using Computer Setup System IDs
The System IDs feature in Computer Setup allows you to display or enter the computer asset tag and
ownership tag.
NOTE: To prevent unauthorized access to this information, you must create a BIOS administrator
password in Computer Setup.
To manage this feature in Computer Setup, follow these steps:
1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
2. Press f10 to enter BIOS Setup.
3. Use a pointing device or the arrow keys to select Security > System IDs, and then press enter.
4. Use a pointing device or the arrow keys to select Notebook Asset Tag or Notebook Ownership
Tag, and then enter the information.
5. Press enter when finished.
6. To save your changes and exit Computer Setup, click Save in the lower-left corner of the screen,
and then follow the on-screen instructions.
– or –
Use the arrow keys to select File > Save changes and exit, and then press enter.
Your changes go into effect when the computer restarts.
110 Chapter 11 Security
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using antivirus software
When you use the computer to access e-mail, a network, or the Internet, you expose the computer to
computer viruses. Computer viruses can disable the operating system, programs, or utilities, or cause
them to function abnormally.
Antivirus software can detect most viruses, destroy them, and in most cases, repair any damage they
have caused. To provide ongoing protection against newly discovered viruses, antivirus software must
be kept up to date.
McAfee Total Protection antivirus software is either preinstalled or preloaded on the computer.
If the antivirus software is preinstalled, select Start > All Programs > McAfee > Managed
Services > Total Protection.
If the software is preloaded, select Start > All Programs > HP Software Setup, and then follow the
instructions on the screen to load the McAfee Total Protection software.
For more information about computer viruses, type viruses in the Search box in Help and Support.
Using antivirus software 111
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using firewall software
When you use the computer to access e-mail, a network, or the Internet, unauthorized persons may be
able to gain access to the computer, your personal files, and information about you. Use the firewall
software preinstalled on the computer to protect your privacy. McAfee Total Protection antivirus software
is preinstalled on the computer. To access your software, select Start > All Programs > McAfee >
Managing Services > Total Protection.
Firewall features include logging and reporting of network activity, and automatic monitoring of all
incoming and outgoing traffic. For more information, refer to the software manufacturer’s instructions.
These instructions may be provided with the software, on disc, or on the manufacturer’s Web site.
NOTE: Under some circumstances a firewall can block access to Internet games, interfere with printer
or file sharing on a network, or block authorized e-mail attachments. To temporarily resolve the problem,
disable the firewall, perform the task that you want to perform, and then reenable the firewall. To
permanently resolve the problem, reconfigure the firewall as necessary, and adjust the policies and
settings of other intrusion detection systems. For additional information, contact your network
administrator or IT department.
112 Chapter 11 Security
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Installing critical updates
CAUTION: Microsoft sends alerts regarding critical updates. To protect the computer from security
breaches and computer viruses, install all critical updates from Microsoft as soon as you receive an
alert.
Updates to the operating system and other software may have become available after the computer
was shipped. To be sure that all available updates are installed on the computer, observe these
guidelines:
łRun Windows Update monthly to install the latest software from Microsoft.
łObtain updates, as they are released, from the Microsoft Web site and through the updates link in
Help and Support.
Installing critical updates 113
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using HP ProtectTools Security Manager (select models
only)
HP ProtectTools Security Manager software is preinstalled on select computer models. This software
can be accessed through Windows Control Panel. It provides security features that help protect against
unauthorized access to the computer, networks, and critical data. For more information, refer to the HP
ProtectTools online Help.
114 Chapter 11 Security
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Installing a security cable
NOTE: A security cable is designed to act as a deterrent, but it may not prevent the computer from
being mishandled or stolen.
1. Loop the security cable around a secured object.
2. Insert the key (1) into the cable lock (2).
3. Insert the cable lock into the security cable slot on the computer (3), and then lock the cable lock
with the key.
NOTE: The location of the security cable slot varies by computer model.
Installing a security cable 115
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
12 Software updates
Updating software
Updated versions of the software provided with your computer are available either through the HP
Assistant utility or on the HP Web site.
HP Assistant automatically checks for updates from HP. The utility runs at a specified interval and
provides a list of support alerts, such as security enhancements, and optional software and driver
updates.
You can manually check for updates at any time by selecting Start > Help and Support > Maintain,
and then follow the on-screen instructions.
Most software on the HP Web site is packaged in compressed files called SoftPaqs. Some BIOS updates
may be packaged in compressed files called ROMPaqs.
Some download packages contain a file named Readme.txt, which contains information regarding
installing and troubleshooting the file. (Readme.txt files included with ROMPaqs are provided in English
only.)
You can also access software updates by obtaining the Support Software disc (purchased separately).
This disc includes device drivers, BIOS updates, and utilities.
To purchase the current Support Software disc or a subscription that provides both the current version
and future versions of the disc, follow these steps:
1. Open your Internet browser, and go to http://www.hp.com/support.
2. Select your country or region.
3. Click the option for software and driver downloads, and then type your computer model number in
the product box.
4. Press enter.
5. Follow the on-screen instructions.
To update the software using a Support Software disc, follow these steps:
1. Insert the Support Software disc into the optical drive.
2. Follow the on-screen instructions.
116 Chapter 12 Software updates
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
To update the software using the HP Web site, follow these steps:
1. Identify your computer model, product category, and series or family. Prepare for a system BIOS
update by identifying the BIOS version currently installed on the computer. For details, refer to the
"Determining the BIOS version" section.
If your computer is connected to a network, consult the network administrator before installing any
software updates, especially system BIOS updates.
NOTE: The computer system BIOS is stored on the system ROM. The BIOS initializes the
operating system, determines how the computer will interact with the hardware devices, and
provides for data transfer among hardware devices, including the time and date.
NOTE: Windows includes the User Account Control feature to improve the security of your
computer. You may be prompted for your permission or password for tasks such as installing
software, running utilities, or changing Windows settings. Refer to Help and Support for more
information.
2. Open your Internet browser, and go to http://www.hp.com/support.
3. Select your country or region.
4. Click the option for software and driver downloads, and then type your computer model number in
the product box.
5. Press enter.
6. Follow the on-screen instructions.
Updating software 117
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Updating the BIOS
To update the BIOS, first determine what BIOS version you currently have, and then download and
install the new BIOS.
Determining the BIOS version
BIOS version information (also known as ROM date and System BIOS) can be displayed by pressing
fn+esc (if you are already in Windows) or by using Computer Setup.
To use Computer Setup for displaying BIOS information, follow these steps:
1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
2. Press f10 to enter BIOS Setup.
3. Use a pointing device or the arrow keys to select File > System Information.
4. Press esc to return to the File menu.
5. Click Exit in the lower-left corner of the screen, and then follow the on-screen instructions.
– or –
Use the arrow keys to select File > Ignore changes and exit, and then press enter.
118 Chapter 12 Software updates
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Downloading a BIOS update
CAUTION: To prevent damage to the computer or an unsuccessful installation, download and install
a BIOS update only when the computer is connected to reliable external power using the AC adapter.
Do not download or install a BIOS update while the computer is running on battery power, docked in an
optional docking device, or connected to an optional power source. During the download and installation,
follow these guidelines:
Do not disconnect power from the computer by unplugging the power cord from the AC outlet.
Do not shut down the computer or initiate Sleep or Hibernation.
Do not insert, remove, connect, or disconnect any device, cable, or cord.
To download a BIOS update:
NOTE: BIOS updates are posted as needed. A newer BIOS update may not be available for your
computer. It is recommended that you check the HP Web site periodically for BIOS updates.
1. Open your Internet browser, go to http://www.hp.com/support, and then select your country or
region.
2. Click the option for software and driver downloads, type your computer model number in the product
box, and then press enter.
3. Click your specific product from the models listed.
4. Click your operating system.
5. Follow the on-screen instructions to access the BIOS update you want to download. Make a note
of the download date, name, or other identifier. You may need this information to locate the update
later, after it has been downloaded to your hard drive.
6. At the download area, perform these steps:
a. Identify the BIOS update that is newer than the BIOS version currently installed on your
computer.
b. Follow the instructions on the screen to download your selection to the hard drive.
Make a note of the path to the location on your hard drive where the BIOS update will be
downloaded. You will need to access this path when you are ready to install the update.
NOTE: If you connect your computer to a network, consult the network administrator before installing
any software updates, especially system BIOS updates.
BIOS installation procedures vary. Follow any instructions that are displayed on the screen after the
download is complete. If no instructions are displayed, follow these steps:
1. Open Windows Explorer by selecting Start > Computer.
2. Double-click your hard drive designation. The hard drive designation is typically Local Disk (C:).
3. Using the hard drive path you recorded earlier, open the folder on your hard drive that contains the
update.
4. Double-click the file that has an .exe extension (for example, filename.exe).
The BIOS installation begins.
Updating the BIOS 119
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
NOTE: Windows includes the User Account Control feature to improve the security of your
computer. You may be prompted for your permission or password for tasks such as installing
software, running utilities, or changing Windows settings. Refer to Help and Support for more
information.
5. Complete the installation by following the on-screen instructions.
NOTE: After a message on the screen reports a successful installation, you may delete the
downloaded file from your hard drive.
120 Chapter 12 Software updates
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Updating programs and drivers
1. Open your Internet browser, go to http://www.hp.com/support, and then select your country or
region.
2. Click the option for software and driver downloads, type your computer model number in the product
box, and then press enter.
– or –
If you want a specific SoftPaq, type the SoftPaq number in the Search box, at the top-right corner
of the screen. Then press enter, and follow the instructions provided. Proceed to step 6.
3. Click your specific product from the models listed.
4. Click your operating system.
5. When the list of updates is displayed, click an update to open a window containing additional
information.
6. Click Download.
7. Click Run to install the updated software without downloading the file.
– or –
Click Save to save the file to your computer. When prompted, select a storage location on your
hard drive.
After the file is downloaded, navigate to the folder where the file was stored, and then double-click
the file to install the update.
8. If prompted to do so, restart your computer after the installation is complete.
Updating programs and drivers 121
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using SoftPaq Download Manager
HP SoftPaq Download Manager (SDM) is a tool that provides quick access to SoftPaq information for
HP business computers without requiring the SoftPaq number. Using this tool, you can easily search
for SoftPaqs and then download and unpack them.
SoftPaq Download Manager works by reading and downloading, from the HP FTP site, a published
database file containing computer model and SoftPaq information. SoftPaq Download Manager allows
you to specify one or more computer models to determine which SoftPaqs are available for download.
SoftPaq Download Manager checks the HP FTP site for updates to the database and software. If
updates are found, they are downloaded and applied automatically.
SoftPaq Download Manager is available on the HP Web site. To use SoftPaq Download Manager to
download SoftPaqs, you must first download and install the program. Go to the HP Web site at
http://www.hp.com/go/sdm, and follow the instructions to download and install SoftPaq Download
Manager.
To download SoftPaqs:
1. Click Start > All Programs > HP > HP SoftPaq Download Manager.
2. When the SoftPaq Download Manager opens for the first time, a window is displayed asking if you
want to show only software for the computer you are using or to show the software for all supported
models. Select Show software for all supported models. If you have used HP SoftPaq Download
Manager previously, go to Step 3.
a. Select your operating system and language filters in the Configuration Options window. The
filters limit the number of options that are listed in the Product Catalog pane. For example, if
only Windows 7 Professional is selected in the operating system filter, the only operating
system that is displayed in the Product Catalog is Windows 7 Professional.
b. To add other operating systems, change the filter settings in the Configuration Options
window. Refer to the HP SoftPaq Download Manager software Help for more information.
3. In the left pane, click the (+) sign to expand the model list, and then select the model or models of
the products you want to update.
4. Click Find Available SoftPaqs to download a list of available SoftPaqs for the selected computer.
5. Select from the list of available SoftPaqs, and then click Download Only if you have many SoftPaqs
to download, because the SoftPaq selection and Internet connection speed determine how long
the download process will take.
If you want to download only one or two SoftPaqs and have a high-speed Internet connection, click
Download & Unpack.
6. Right-click Install SoftPaq in the SoftPaq Download Manager software to install the selected
SoftPaqs on the computer.
122 Chapter 12 Software updates
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
13 Backup and recovery
To protect your information, use Windows Backup and Restore to back up individual files and folders,
back up your entire hard drive (select models only), create system repair discs (select models only), or
create system restore points. In case of system failure, you can use the backup files to restore the
contents of your computer.
Windows Backup and Restore provides the following options:
łCreating a system repair disc (select models only)
łBacking up individual files and folders
łCreating a system image (select models only)
łScheduling automatic backups (select models only)
łCreating system restore points
łRecovering individual files
łRestoring the computer to a previous state
łRecovering information using recovery tools
NOTE: For detailed instructions, perform a search for these topics in Help and Support.
NOTE: In case of system instability, HP recommends that you print the recovery procedures and save
them for later use.
123
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Backing up your information
Recovery after a system failure is as complete as your most current backup. You should create system
repair discs (select models only) and your initial backup immediately after software setup. As you add
new software and data files, you should continue to back up your system on a regular basis to maintain
a reasonably current backup. The system repair discs (select models only) are used to start up (boot)
the computer and repair the operating system in case of system instability or failure. Your initial and
subsequent backups allow you to restore your data and settings if a failure occurs.
You can back up your information to an optional external hard drive, a network drive, or discs.
Note the following when backing up:
łStore personal files in the Documents library, and back it up regularly.
łBack up templates that are stored in their associated programs.
łSave customized settings that appear in a window, toolbar, or menu bar by taking a screen shot
of your settings. The screen shot can be a time-saver if you have to reset your preferences.
To create a screen shot:
1. Display the screen you want to save.
2. Copy the screen image:
To copy only the active window, press alt+fn+prt sc.
To copy the entire screen, press fn+prt sc.
3. Open a word-processing document, and then select Edit > Paste.
The screen image is added to the document.
4. Save the document.
łWhen backing up to discs, use any of the following types of discs (purchased separately): CD-R,
CD-RW, DVD+R, DVD+R DL, DVD-R, DVD-R DL, or DVD±RW. The discs you use will depend on
the type of optical drive installed in your computer.
NOTE: DVDs and DVDs with double-layer (DL) support store more information than CDs, so
using them for backup reduces the number of recovery discs required.
łWhen backing up to discs, number each disc before inserting it into the optical drive of the computer.
To create a backup using Backup and Restore, follow these steps:
NOTE: Be sure that the computer is connected to AC power before you start the backup process.
NOTE: The backup process may take over an hour, depending on file size and the speed of the
computer.
1. Select Start > All Programs > Maintenance > Backup and Restore.
2. Follow the on-screen instructions to set up your backup, create a system image (select models
only), or create a system repair disc (select models only).
124 Chapter 13 Backup and recovery
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
NOTE: Windows includes the User Account Control feature to improve the security of your
computer. You may be prompted for your permission or password for tasks such as installing
software, running utilities, or changing Windows settings. Refer to Help and Support for more
information.
Backing up your information 125
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Performing a recovery
In case of system failure or instability, the computer provides the following tools to recover your files:
łWindows recovery tools: You can use Windows Backup and Restore to recover information you
have previously backed up. You can also use Windows Startup Repair to fix problems that might
prevent Windows from starting correctly.
łf11 recovery tools: You can use the f11 recovery tools to recover your original hard drive image.
The image includes the Windows operating system and software programs installed at the factory.
NOTE: If you are unable to boot (start up) your computer and you cannot use the system repair discs
you previously created (select models only), you must purchase a Windows 7 operating system DVD
to reboot the computer and repair the operating system. For additional information, refer to the “Using
a Windows 7 operating system DVD (purchased separately)” section in this guide.
Using the Windows recovery tools
To recover information you previously backed up, follow these steps:
1. Select Start > All Programs > Maintenance > Backup and Restore.
2. Follow the on-screen instructions to recover your system settings, your computer (select models
only), or your files.
NOTE: Windows includes the User Account Control feature to improve the security of your computer.
You may be prompted for your permission or password for tasks such as installing software, running
utilities, or changing Windows settings. Refer to Help and Support for more information.
To recover your information using Startup Repair, follow these steps:
CAUTION: Using Startup Repair completely erases hard drive contents and reformats the hard drive.
All files you have created and any software installed on the computer are permanently removed. When
reformatting is complete, the recovery process restores the operating system, as well as the drivers,
software, and utilities from the backup used for recovery.
1. If possible, back up all personal files.
2. If possible, check for the presence of the Windows partition and the HP Recovery partition.
To check for the Windows partition, select Start > Computer.
To check for the HP Recovery partition, select Start, right-click Computer, click Manage, and then
click Disk Management.
NOTE: If the Windows partition and the HP Recovery partition are not listed, you must recover
your operating system and programs using the Windows 7 operating system DVD and the Driver
Recovery disc (both purchased separately). For additional information, refer to the “Using a
Windows 7 operating system DVD (purchased separately)” section in this guide.
3. If the Windows partition and the HP Recovery partition are listed, restart the computer, and then
press f8 before the Windows operating system loads.
4. Select Startup Repair.
5. Follow the on-screen instructions.
126 Chapter 13 Backup and recovery
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
NOTE: For additional information on recovering information using the Windows tools, perform a search
for these topics in Help and Support.
Using f11
CAUTION: Using f11 completely erases hard drive contents and reformats the hard drive. All files you
have created and any software installed on the computer are permanently removed. The f11 recovery
tool reinstalls the operating system and HP programs and drivers that were installed at the factory.
Software not installed at the factory must be reinstalled.
To recover the original hard drive image using f11, follow these steps:
1. If possible, back up all personal files.
2. If possible, check for the presence of the HP Recovery partition: select Start, right-click
Computer, click Manage, and then click Disk Management.
NOTE: If the HP Recovery partition is not listed, you must recover your operating system and
programs using the Windows 7 operating system DVD and the Driver Recovery disc (both
purchased separately). For additional information, refer to the “Using a Windows 7 operating
system DVD (purchased separately)” section in this guide.
3. If the HP Recovery partition is listed, restart the computer, and then press esc while the “Press the
ESC key for Startup Menu” message is displayed at the bottom of the screen.
4. Press f11 while the “Press <F11> for recovery” message is displayed on the screen.
5. Follow the on-screen instructions.
Using a Windows 7 operating system DVD (purchased separately)
If you are unable to boot (start up) your computer and you cannot use the system repair discs you
previously created (select models only), you must purchase a Windows 7 operating system DVD to
reboot the computer and repair the operating system. Make sure that your most recent backup (stored
on discs or on an external drive) is easily accessible. To order a Windows 7 operating system DVD, go
to http://www.hp.com/support, select your country or region, and then follow the on-screen instructions.
You can also order the DVD by calling technical support. For contact information, refer to the Worldwide
Telephone Numbers booklet included with the computer.
CAUTION: Using a Windows 7 operating system DVD completely erases hard drive contents and
reformats the hard drive. All files you have created and any software installed on the computer are
permanently removed. When reformatting is complete, the recovery process helps you restore the
operating system, as well as drivers, software, and utilities.
To initiate recovery using a Windows 7 operating system DVD, follow these steps:
NOTE: This process takes several minutes.
1. If possible, back up all personal files.
2. Restart the computer, and then insert the Windows 7 operating system DVD into the optical drive
before the Windows operating system loads.
3. When prompted, press any keyboard key.
4. Follow the on-screen instructions.
5. Click Next.
Performing a recovery 127
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
6. Select Repair your computer.
7. Follow the on-screen instructions.
128 Chapter 13 Backup and recovery
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
14 Computer Setup
Starting Computer Setup
Computer Setup is a preinstalled, ROM-based utility that can be used even when the operating system
is not working or will not load.
NOTE: Some of the Computer Setup menu items listed in this guide may not be supported by your
computer.
NOTE: An external keyboard or mouse connected to a USB port can be used with Computer Setup
only if USB legacy support is enabled.
To start Computer Setup, follow these steps:
1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
2. Press f10 to enter BIOS Setup.
Using Computer Setup
Navigating and selecting in Computer Setup
The information and settings in Computer Setup are accessed from the File, Security, Diagnostics, and
System Configuration menus.
To navigate and select in Computer Setup, follow these steps:
1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
łTo select a menu or a menu item, use the tab key and the keyboard arrow keys, and then
press enter, or use a pointing device to click the item.
łTo scroll up and down, click the up arrow or the down arrow in the upper-right corner of the
screen, or use the up arrow key or the down arrow key.
łTo close open dialog boxes and return to the main Computer Setup screen, press esc, and
then follow the on-screen instructions.
NOTE: You can use either a pointing device (TouchPad, pointing stick, or USB mouse) or the
keyboard to navigate and make selections in Computer Setup.
2. Press f10 to enter BIOS Setup.
3. Select the File,Security,Diagnostics, or System Configuration menu.
Starting Computer Setup 129
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
To exit Computer Setup menus, choose one of the following methods:
łTo exit Computer Setup menus without saving your changes, click the Exit icon in the lower-left
corner of the screen, and then follow the on-screen instructions.
– or –
Use the tab key and the arrow keys to select File > Ignore changes and exit, and then press
enter.
– or –
łTo save your changes and exit Computer Setup menus, click the Save icon in the lower-left corner
of the screen, and then follow the on-screen instructions.
– or –
Use the tab key and the arrow keys to select File > Save changes and exit, and then press
enter.
Your changes go into effect when the computer restarts.
Restoring factory settings in Computer Setup
NOTE: Restoring defaults will not change the hard drive mode.
To return all settings in Computer Setup to the values that were set at the factory, follow these steps:
1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
2. Press f10 to enter BIOS Setup.
3. Use a pointing device or the arrow keys to select File > Restore defaults.
4. Follow the on-screen instructions.
5. To save your changes and exit, click the Save icon in the lower-left corner of the screen, and then
follow the on-screen instructions.
– or –
Use the arrow keys to select File > Save changes and exit, and then press enter.
Your changes go into effect when the computer restarts.
NOTE: Your password settings and security settings are not changed when you restore the factory
settings.
Computer Setup menus
The menu tables in this section provide an overview of Computer Setup options.
NOTE: Some of the Computer Setup menu items listed in this chapter may not be supported by your
computer.
130 Chapter 14 Computer Setup
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
File menu
Select To do this
System Information łView identification information for the computer and the
batteries in the system.
łView specification information for the processor, cache
and memory size, system ROM, video revision, and
keyboard controller version.
Set System Date and Time Set or change the date and time on the computer.
Restore defaults Replace the configuration settings in Computer Setup with the
original factory settings. (Hard drive mode, password settings,
and security settings are not changed when you restore the
factory settings.)
Ignore changes and exit Cancel any changes entered during the current session. Then
exit and restart the computer.
Save changes and exit Save any changes entered during the current session. Then
exit and restart the computer. Your changes go into effect
when the computer restarts.
Security menu
NOTE: Some of the menu items listed in this section may not be supported by your computer.
Select To do this
Setup BIOS Administrator Password Set up a BIOS administrator password.
User Management (requires a BIOS administrator password) łCreate a new BIOS user account.
łView a list of ProtectTools users.
Password Policy (requires a BIOS administrator password) Revise password policy criteria.
HP SpareKey Enable/disable HP SpareKey (enabled by default).
Always Prompt for HP SpareKey Enrollment Enable/disable HP SpareKey enrollment (enabled by default).
Fingerprint Reset on Reboot (if present) Reset/clear the fingerprint reader ownership (select models
only; disabled by default).
Allow Reset of HP ProtectTools security keys Enable/disable reset of HP ProtectTools security keys.
Change Password Enter, change, or delete a BIOS administrator password.
HP SpareKey Enrollment Enroll or reset HP SpareKey, which is a set of security
questions and answers used if you forget your password.
DriveLock Passwords łEnable/disable DriveLock on any computer hard drive
(enabled by default).
łChange a DriveLock user password or master password.
NOTE: DriveLock settings are accessible only when you
enter Computer Setup by turning on (not restarting) the
computer.
Computer Setup menus 131
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Select To do this
TPM Embedded Security Enable/disable support for Trusted Platform Module (TPM)
Embedded Security, which protects the computer from
unauthorized access to owner functions available in
Embedded Security for ProtectTools. For more information,
refer to the ProtectTools software Help.
NOTE: You must have a setup password to change this
setting.
Automatic DriveLock Enable/disable Automatic DriveLock support.
Disk Sanitizer Run Disk Sanitizer to destroy all existing data on the primary
hard drive or the drive in the upgrade bay.
CAUTION: If you run Disk Sanitizer, the data on the selected
drive is destroyed permanently.
System IDs Enter a user-defined computer asset tracking number and
ownership tag.
Diagnostics menu
Select To do this
System Diagnostics menu Displays the following information:
łSystem Information
ŃIdentification information for the computer and the
batteries in the system.
ŃSpecification information for the processor, cache
and memory size, system ROM, video revision, and
keyboard controller version.
łStart-up Test—Verifies the system components needed
for starting the computer.
łRun-In Test—Runs a comprehensive check on system
memory.
łHard Disk Test—Runs a comprehensive self-test on any
hard drive in the system.
łMemory Test—Runs a comprehensive test on any
memory installed in the computer.
łBattery Test—Runs a comprehensive test on any
batteries installed in the computer.
łError Log—Displays a log file if any errors have
occurred.
132 Chapter 14 Computer Setup
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
System Configuration menu
NOTE: Some of the listed System Configuration options may not be supported by your computer.
Select To do this
Language Change the Computer Setup language.
Boot Options łSet a Startup Menu delay (in seconds).
łEnable/disable Custom Logo (disabled by default).
łEnable/disable Display Diagnostic URL (enabled by
default).
łEnable/disable CD-ROM boot (enabled by default).
łEnable/disable SD Card boot (enabled by default).
łEnable/disable floppy boot (enabled by default).
łEnable/disable PXE Internal NIC boot (enabled by
default).
łSet the Express Boot Popup delay in seconds.
łSet the boot order.
Device Configurations łEnable/disable USB legacy support (enabled by default).
When enabled, USB legacy support allows the
following:
ŃUse of a USB keyboard in Computer Setup even
when a Windows operating system is not running.
ŃStartup from bootable USB devices, including a hard
drive, diskette drive, or optical drive connected by a
USB port to the computer.
łSelect a parallel port mode: ECP (Enhanced Capabilities
Port), standard, bidirectional, or EPP (Enhanced Parallel
Port).
łEnable/disable fan always on while connected to an AC
outlet (enabled by default).
łEnable/disable LAN Power Save (select models only).
When enabled, saves power by turning off the LAN when
not in use (enabled by default).
łEnable/disable Data Execution Prevention. When
enabled, the processor can disable some virus code
execution, which helps to improve computer security.
łSATA (Serial Advanced Technology Attachment) device
mode. The following options are available:
ŃAHCI (Advanced Host Controller Interface)
ŃIDE (Integrated Drive Electronics)
ŃRAID (Redundant Array of Independent Disks)
(select models only)
Computer Setup menus 133
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Select To do this
NOTE: Availability of the options above varies by
computer model.
łEnable/disable secondary battery fast charge (enabled by
default).
łEnable/disable HP QuickLook 2 (enabled by default).
łEnable/disable Virtualization Technology (select models
only; disabled by default).
łEnable/disable TXT (Intel® Trusted Execution
Technology) (select models only; disabled by default).
łEnable/disable Dual Core CPU (select models only;
enabled by default).
łEnable/Disable Unified Extensible Firmware Interface
(UEFI) mode (disabled by default).
Built-In Device Options łEnable/disable the wireless button state (enabled by
default).
łEnable/disable embedded WWAN device radio (select
models only; enabled by default).
łEnable/disable embedded Bluetooth device radio
(enabled by default).
łEnable/disable the Network Interface Controller (LAN)
(enabled by default).
łSet the wake on LAN state. Options include the
following:
ŃDisabled
ŃBoot to Network (set by default)
ŃFollow Boot Order
łEnable/disable the fingerprint device (enabled by
default).
łEnable/disable a modem device (enabled by default).
łEnable/disable the embedded WLAN device (enabled by
default).
łEnable/disable LAN/WLAN switching (disabled by
default).
łEnable the ambient light sensor (enabled by default).
łEnable/disable the Notebook Multibay device (enabled by
default).
łEnable/disable the integrated camera (select models
only; enabled by default).
134 Chapter 14 Computer Setup
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Select To do this
Port Options NOTE: All port options are enabled by default.
łEnable/disable the Smart Card slot.
łEnable/disable the ExpressCard slot.
łEnable/disable the serial port.
łEnable/disable the parallel port.
łEnable/disable the flash media reader.
łEnable/disable the USB port.
CAUTION: Disabling the USB port also disables
MultiBay devices and ExpressCard devices on the
advanced port replicator.
łEnable/disable the 1394 port.
AMT Options NOTE: All AMT options are disabled by default.
łEnable/disable Firmware Verbosity.
łEnable/disable AMT Setup Prompt (CTRL-P).
łEnable/disable USB Key Provisioning Support.
łEnable/disable Unconfigure AMT on Next Boot.
łEnable/disable Terminal Emulation Mode
łEnable/disable Firmware Progress Event Support.
łEnable/disable include TYPE-131 in SMBIOS.
Set Security Level Change, view, or hide security levels for all BIOS menu items.
Restore Security Defaults Restore the default security settings.
Computer Setup menus 135
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
15 MultiBoot
About the boot device order
As the computer starts, the system attempts to boot from enabled boot devices. The MultiBoot utility,
which is enabled at the factory, controls the order in which the system selects a boot device. Boot devices
can include optical drives, diskette drives, a network interface card (NIC), hard drives, and USB devices.
Boot devices contain bootable media or files that the computer needs to start and operate properly.
NOTE: Some boot devices must be enabled in Computer Setup before they can be included in the
boot order.
The factory setting is for the computer to select the boot device by searching enabled boot devices and
drive bay locations in the following order:
NOTE: Some of the boot devices and drive bay locations listed may not be supported on your
computer.
łNotebook MultiBay
łInternal hard drive
łUSB diskette drive
łUSB CD-ROM
łUSB hard drive
łNotebook Ethernet
łSecure Digital (SD) Memory Card
łDocking station MultiBay
łExternal SATA drive
You can change the order in which the computer searches for a boot device by changing the boot order
in Computer Setup. You can also press esc while the “Press the ESC key for Startup Menu” message
is displayed at the bottom of the screen, and then press f9. Pressing f9 displays a menu that shows the
current boot devices and allows you to select a boot device. Or, you can use MultiBoot Express to set
the computer to prompt you for a boot location each time the computer turns on or restarts.
If MultiBoot is disabled, the computer uses a fixed boot order that consists of first searching for a drive
A boot device. If none is found, the computer looks for a drive C boot device. Drive A boot devices
include optical drives and diskette drives. Drive C boot devices include optical drives and hard drives.
The NIC does not have an assigned drive letter.
136 Chapter 15 MultiBoot
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
NOTE: An optical drive (such as a CD-ROM drive) can boot either as drive A or drive C, depending
on the format of the boot CD.
The following list describes the factory setting for boot order in which drive letters A and C are assigned
when MultiBoot is disabled. (The actual order varies by configuration.)
łBoot order for drive A boot devices:
1. Optical drive in an optional docking device or in an optional external MultiBay that contains a
disc formatted as drive A
2. Optical drive in the internal MultiBay (select models only) that contains a disc formatted as
drive A
3. Diskette drive in an optional docking device or in an optional external MultiBay
łBoot order for drive C boot devices:
1. Optical drive in an optional docking device or in an optional external MultiBay that contains a
disc formatted as drive C
2. Optical drive in the internal MultiBay (select models only) that contains a disc formatted as
drive C
3. Hard drive in the computer hard drive bay
4. Hard drive in an optional docking device or in an optional external MultiBay
NOTE: Because no drive letter is associated with the NIC, changing the boot order of a NIC does not
affect the drive letters of the other devices.
About the boot device order 137
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Enabling boot devices in Computer Setup
The computer will boot to a USB device or a NIC device only if the device has first been enabled in
Computer Setup.
To start Computer Setup and enable a USB device or a NIC device as a boot device, follow these steps:
1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
2. Press f10 to enter BIOS Setup.
3. To enable bootable media in USB drives or in drives inserted into an optional docking device (select
models only), use a pointing device or the arrow keys to select System Configuration > Device
Configurations. Confirm that Enabled is selected next to USB legacy support.
NOTE: The USB Port option must be enabled in order to use USB legacy support. It is enabled
at the factory. If the port becomes disabled, reenable it by selecting System Configuration > Port
Options, and then clicking Enabled next to USB Port.
– or –
To enable a NIC device, select System Configuration > Boot Options, and then click Enabled
next to PXE Internal NIC boot.
4. To save your changes and exit Computer Setup, click Save in the lower-left corner of the screen,
and then follow the on-screen instructions.
– or –
Use the arrow keys to select File > Save changes and exit, and then press enter.
Your changes go into effect when the computer restarts.
NOTE: To connect a NIC to a Preboot eXecution Environment (PXE) or Remote Program Load (RPL)
server without using MultiBoot, press esc while the “Press the ESC key for Startup Menu” message is
displayed at the bottom of the screen, and then quickly press f12.
138 Chapter 15 MultiBoot
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Considering boot order changes
Before changing the boot order, note the following considerations:
łWhen the computer restarts after the boot order has been changed, the computer attempts to start
using the new boot order.
łIf there is more than one type of boot device, the computer attempts to boot using the first of each
type of boot device (except for optical devices). For example, if the computer is connected to an
optional docking device (select models only) that contains a hard drive, this hard drive will be shown
in the boot order as a USB hard drive. If the system attempts to boot from this USB hard drive and
fails, it will not attempt to boot to the hard drive in the hard drive bay. Instead, it will try to boot to
the next type of device in the boot order. However, if there are two optical devices, and the first
optical device does not boot (either because it does not contain media or the media is not a boot
disc), the system will try to boot to the second optical device.
łChanging the boot order also changes the logical drive designations. For example, if you start up
from a CD-ROM drive with a disc formatted as drive C, that CD-ROM drive becomes drive C and
the hard drive in the hard drive bay becomes drive D.
łThe computer will boot from a NIC device only if the device has been enabled in the Built-In Device
Options menu of Computer Setup and if booting from the device has been enabled in the Boot
Options menu of Computer Setup. Booting from a NIC does not affect logical drive designations
because no drive letter is associated with the NIC.
łDrives in an optional docking device (select models only) are treated like external USB devices in
the boot order.
Considering boot order changes 139
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Choosing MultiBoot preferences
You can use MultiBoot in the following ways:
łTo set a new boot order that the computer uses each time it is turned on, by changing the boot
order in Computer Setup.
łTo dynamically choose the boot device, by pressing esc while the “Press the ESC key for Startup
Menu” message is displayed at the bottom of the screen, and then pressing f9 to enter the Boot
Device Options menu.
łTo use MultiBoot Express to set variable boot orders. This feature prompts you for a boot device
each time the computer is turned on or restarted.
Setting a new boot order in Computer Setup
To start Computer Setup and set a boot device order that the computer uses each time it is turned on
or restarted, follow these steps:
1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
2. Press f10 to enter BIOS Setup.
3. Use a pointing device or the arrow keys to select System Configuration > Boot Options. Confirm
that Enabled is selected next to MultiBoot.
NOTE: MultiBoot is enabled at the factory.
4. Use a pointing device or the arrow keys to select a device in the list.
5. To move the device up in the boot order, use a pointing device to click the plus sign (+) or press
the + key.
– or –
To move the device down in the boot order, click the minus sign (-) or press the - key.
6. To save your changes and exit Computer Setup, click Save in the lower-left corner of the screen,
and then follow the on-screen instructions.
– or –
Use the arrow keys to select File > Save changes and exit, and then press enter.
Your changes go into effect when the computer restarts.
Dynamically choosing a boot device using the F9 prompt
To dynamically choose a boot device for the current startup sequence, follow these steps:
1. Open the Select Boot Device menu by turning on or restarting the computer, and then pressing
esc while the “Press the ESC key for Startup Menu” message is displayed at the bottom of the
screen.
2. Press f9.
3. Use a pointing device or the arrow keys to select a boot device, and then press enter.
140 Chapter 15 MultiBoot
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Your changes go into effect immediately.
Setting a MultiBoot Express prompt
To start Computer Setup and set the computer to display the MultiBoot startup location menu each time
the computer is started or restarted, follow these steps:
1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
2. Press f10 to enter BIOS Setup.
3. Use a pointing device or the arrow keys to select System Configuration > Boot Options, and
then press enter.
4. In the Express Boot Popup Delay (Sec) field, enter the length of time in seconds that you want
the computer to display the startup location menu before it defaults to the current MultiBoot setting.
(When 0 is selected, the Express Boot startup location menu is not displayed).
5. To save your changes and exit Computer Setup, click Save in the lower-left corner of the screen,
and then follow the on-screen instructions.
– or –
Use the arrow keys to select File > Save changes and exit, and then press enter.
Your changes go into effect when the computer restarts.
Entering MultiBoot Express preferences
When the Express Boot menu displays during startup, you have the following choices:
łTo specify a boot device from the Express Boot menu, select your preference within the allotted
time, and then press enter.
łTo prevent the computer from defaulting to the current MultiBoot setting, press any key before the
allotted time expires. The computer will not start until you select a boot device and press enter.
łTo allow the computer to start according to the current MultiBoot settings, wait for the allotted time
to expire.
Choosing MultiBoot preferences 141
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
16 Management and printing
Using Client Management Solutions
Client Management Solutions software provides standards-based solutions for managing client (user)
desktop, workstation, notebook, and tablet computers in a networked environment.
Client management includes the following key capabilities and features:
łInitial software image deployment
łRemote system software installation
łSoftware management and updates
łROM updates
łTracking and security of computer assets (the hardware and software installed on the computer)
łFault notification and recovery of certain system software and hardware components
NOTE: Support for specific features described in this section may vary, depending on computer model
and/or version of management software installed on the computer.
Configuring and deploying a software image
The computer is shipped with a preinstalled system software image. The initial software image is
configured during the first-time setup of the computer. After a brief software "unbundling" occurs, the
computer is ready to be used.
A customized software image can be deployed (distributed) in one of the following ways:
łInstalling additional software applications after unbundling the preinstalled software image
łUsing software deployment tools, such as Altiris Deployment Solutions, to replace the preinstalled
software with a customized software image
łUsing a disk-cloning process to copy the contents from one hard drive to another
The deployment method you use depends on your organization's technology environment and
processes.
NOTE: The Computer Setup utility and other system features provide further assistance with
configuration management and troubleshooting, power management, and the recovery of system
software.
142 Chapter 16 Management and printing
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Managing and updating software
HP provides several tools for managing and updating software on client computers:
łHP Client Manager for Altiris (select models only)
NOTE: To download HP Client Manager for Altiris or to obtain more information about HP Client
Manager for Altiris, see the HP Web site at http://www.hp.com.
łHP CCM (Client Configuration Manager) (select models only)
łHP SSM (System Software Manager)
HP Client Manager for Altiris (select models only)
HP Client Manager for Altiris integrates Intelligent Manageability technology into Altiris software. HP
Client Manager for Altiris provides superior hardware management capabilities for HP devices:
łDetailed views of hardware inventory for asset management
łSystem Checkup monitoring and diagnostics
łWeb-accessible reporting of business-critical details such as thermal warnings and memory alerts
łRemote updating of system software such as device drivers and the system BIOS
NOTE: Additional functionality can be added when HP Client Manager for Altiris is used with optional
Altiris Solutions software (purchased separately).
When HP Client Manager for Altiris (installed on a client computer) is used with Altiris Solutions software
(installed on an administrator computer), HP Client Manager for Altiris provides increased management
functionality and centralized hardware management of client devices for the following IT life-cycle areas:
łInventory and asset management
ŃSoftware license compliance
ŃComputer tracking and reporting
ŃComputer lease contract information and fixed asset tracking
łSystem software deployment and migration
ŃWindows migration
ŃSystem deployment
ŃPersonality (personal user settings) migration
Using Client Management Solutions 143
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
łHelp desk and problem resolution
ŃManagement of help desk tickets
ŃRemote troubleshooting
ŃRemote problem resolution
ŃClient disaster recovery
łSoftware and operations management
ŃOngoing client management
ŃHP system software deployment
ŃApplication self-healing (the ability to identify and repair certain application problems)
Altiris Solutions software provides easy-to-use software distribution capabilities. HP Client Manager for
Altiris enables communication with the Altiris Solutions software, which can be used to complete new
hardware deployment or personality migration to a new operating system using easy-to-follow wizards.
HP Client Manager for Altiris is available for download from the HP Web site.
When Altiris Solutions software is used in conjunction with HP System Software Manager or HP Client
Manager for Altiris, administrators can also update the system BIOS and device driver software from a
central console.
HP CCM (Client Configuration Manager) (select models only)
HP CCM (Client Configuration Manager) automates the management of software such as operating
systems, programs, software updates, and content and configuration settings to ensure that each
computer is maintained in the correct configuration. With these automated management solutions, you
can manage software throughout the life cycle of the computer.
CCM enables you to perform the following tasks:
łCollect hardware and software inventory across multiple platforms
łPrepare a software package and conduct impact analysis prior to distribution
łTarget individual computers, workgroups, or entire populations of computers for deployment and
maintenance of software and content according to policies
łProvision and manage operating systems, applications, and content on distributed computers from
any location
łIntegrate CCM with help desks and other system management tools for seamless operations
łLeverage a common infrastructure for management of software and content on standard computing
devices across any network for all enterprise users
łScale to meet enterprise needs
HP SSM (System Software Manager)
HP SSM (System Software Manager) lets you remotely update system-level software on multiple
systems simultaneously. When executed on a client computer, SSM detects versions of both hardware
and software, and then updates designated software from a central repository, known as a file store.
Driver versions that are supported by SSM are denoted with a special icon on the HP driver download
144 Chapter 16 Management and printing
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Web site and on the Support Software CD. To download the SSM utility or to obtain more information
on SSM, see the HP Web site at http://www.hp.com/go/ssm (English only).
Using Client Management Solutions 145
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using Intel Active Management Technology (select models
only)
Intel® Active Management Technology (iAMT) allows discovery, repair, and protection of networked
computing assets. With iAMT, computers can be managed whether they are on or off. The iAMT solution
is available on computers with Intel Centrino® with vPro mobile technology.
Features of iAMT include:
łHardware inventory information
łEvent notification
łPower management
łRemote diagnosis and repair
łHardware-based isolation and recovery—limit or cut off computer network access if virus-like
activity is detected
Enabling the iAMT solution
To configure iAMT settings:
NOTE: The ctrl+p prompt is visible only if the AMT Setup Prompt option is enabled in Computer Setup.
1. Turn on or restart the computer.
2. Before Windows starts up, press ctrl+p.
NOTE: If you do not press ctrl+p at the appropriate time, you must repeat steps 1 and 2 to access
the MEBx setup utility.
3. Enter the ME password. The factory setting for the password is admin.
The MEBx setup utility opens. Use the arrow keys to navigate.
4. Choose to configure Intel ME, configure iAMT, or change the Intel ME password.
5. When you have made your selections, select Exit to close the MEBx setup utility.
Using the MEBx setup utility menus
NOTE: For more information on iAMT, go to the Intel Web site at http://www.intel.com, and then search
for iAMT.
Intel ME Configuration
Select To do this
Intel ME State Control Disable/enable the management engine.
Intel ME Firmware Local Update Disable/enable local management of firmware updates.
LAN Controller Disable/enable the integrated network controller.
Intel ME Features Control Enable AMT or none.
Intel ME Power Control Configure the management engine power policies.
146 Chapter 16 Management and printing
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
iAMT Configuration
Select To do this
Host Name Assign a host name to the computer.
TCP/IP Disable/enable network interface or DHCP (assigns an IP
address if DHCP has been disabled) or change the domain
name.
Provision Model Assign Enterprise or Small Business iAMT model.
Setup and Configuration Set options to control remote configuration of AMT.
Un-Provision Reset the AMT configuration to factory defaults.
SOL/IDE-R Enable remote boot control to IDE diskette or CD-ROM and
assign a user name and password.
Password Policy Set options to control requirements for the network password
and the MEBx password.
Secure Firmware Update Enable or disable updating firmware remotely.
Set PRTC Set the real-time clock.
Idle Timeout Set a time-out value.
Change Intel ME Password
Select To do this
Change ME Password Change the password.
NOTE: The default password is admin.
Using Intel Active Management Technology (select models only) 147
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using the HP Universal Print Driver (select models only)
The HP Universal Print Driver Series for Windows is a single intelligent driver that replaces individual
drivers for HP networked printers.
NOTE: The HP Universal Print Driver is preinstalled on select computer models only. To download
the HP Universal Print Driver or obtain more information about using it, see the HP Web site at
http://www.hp.com/go/universalprintdriver (English only).
To print using the HP Universal Print Driver:
1. Select File > Print from any application.
2. Select HP Universal Printing PS from the list of printers.
3. Click Print.
4. Enter the printer's IP address or network path.
NOTE: If you cannot identify the printer's IP address or network path, contact your IT
administrator for help.
5. Select the Make a permanent instance of this printer in my Printers folder check box.
6. Click Print.
148 Chapter 16 Management and printing
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Index
Symbols/Numerics
1394 cable, connecting 88
1394 devices
connecting 88
stopping 88
1394 port
identifying 8
using 88
A
AC adapter
connecting 65
identifying 13
accessory battery connector,
identifying 10
Active Management Technology,
Intel 146
administrator password 102
airport security devices 78
Altiris Deployment Solutions 142
ambient light sensor
hotkey 44
identifying 11
AMT options
AMT setup prompt
(CTRL-P) 135
firmware progress event
support 135
firmware verbosity 135
terminal emulation mode 135
TYPE-131 in SMBIOS 135
unconfigure AMT on next
boot 135
USB key provisioning
support 135
antennas
external WWAN 12
WLAN 12
WWAN 12
applications key, Windows 5
audio devices, connecting
external 56
audio functions, checking 56
audio-in (microphone) jack,
identifying 7
audio-out (headphone) jack,
identifying 7
Automatic DriveLock password
entering 108
removing 108
B
backing up files 124
Backup and Restore 123, 124
battery
calibrating 71
charging 68, 71
conserving power 73
disposing 74
identifying 13
inserting 67
low battery levels 69
recharging 73
removing 67
replacing 74
storing 74
battery bay 10, 14
battery charge information 44
battery charge, maximizing 69
battery light 3, 68, 69
battery power 66
battery release latch,
identifying 10, 67
battery temperature 74
battery test 132
bays
battery 10, 14
hard drive 10
BIOS administrator
password 131
BIOS update
downloading 119
installing 119
Bluetooth compartment,
identifying 6
Bluetooth device 20, 30
Bluetooth label 14
boot devices, enabling 138
boot options 133
boot order 133
built-in device
ambient light sensor 134
Bluetooth device radio 134
embedded WLAN 134
fingerprint reader 134
integrated camera 134
LAN/WLAN switching 134
modem 134
Network Interface Controller
(LAN) 134
Notebook Multibay 134
Wake on LAN 134
wireless button 134
WWAN device radio 134
built-in device options 134
business card reader software 60
business card slot 6
buttons
ctrl+alt+del 9, 15
esc 9, 15
external WWAN antenna 6,
12
keyboard light 11
pointing stick 2
Quick Launch 46
QuickLook 7, 46
QuickWeb 7, 46
rotate 9, 15
TouchPad 2
Index 149
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
volume down 4
volume mute 4, 53
volume up 4
C
cables
1394 88
LAN 39
modem 34
USB 86
calibrating battery 71
caps lock light, identifying 3
CD
protecting 55
writing to 55
CD drive 89
Certificate of Authenticity label 14
changing boot order 140
charge level indicator,
identifying 10
charging batteries 68, 71
checking audio functions 56
components
additional hardware 13
bottom 10
display 11
front 6
left-side 8
rear 9
right-side 7
top 1
composite video 43
computer information 118
Computer Setup
BIOS administrator
password 103
device security 109
Diagnostics menu 132
DriveLock password 105
enabling bootable
devices 138
File menu 131
navigating and selecting 129
restoring factory settings 130
Security menu 131
setting boot order 140
setting MultiBoot Express
prompt 141
System Configuration
menu 133
Computer Setup utility 142
configuring ExpressCards 93
connecting to a LAN 39
connecting to a WLAN 25
Connection Manager icon 21
connection, external power 65
connector, power 9
conservation, power 73
convertible hinge, identifying 11,
15
cord, power 13
corporate WLAN connection 25
country- or region-specific modem
cable adapter, identifying 13
country-specific modem cable
adapter 34
creating a backup 124
critical battery level 70
ctrl+alt+del button 9, 15
D
deployment, software 142
device configurations 133
device security 109
Diagnostics menu 132
digital card
inserting 91
removing 92
stopping 92
Disk Cleanup software 79
Disk Defragmenter software 79
Disk Sanitizer 132
diskette drive 89
display
image, switching 43
notebook mode 18
rotating 16
screen brightness hotkeys 44
tablet mode 16
display release latch,
identifying 6
display switch, identifying 4
docking connector
identifying 10
using 90
drive light
identifying 3
status 80
drive media 62
DriveLock password
changing 106
description 105
entering 106
removing 107
setting 106
DriveLock, automatic 132
drives
boot order 133, 136
caring for 78
diskette 89
external 89
hard 82, 83, 89
optical 89
Dual Core CPU 134
DVD
protecting 55
writing to 55
DVD drive 89
E
encryption 25
error log 132
esc button 9, 15
esc key, identifying 5
Execution Disable 133
ExpressCard
configuring 93
inserting 93
removing 94
removing insert 93
stopping 94
ExpressCard slot 8
external audio devices,
connecting 56
external drive 89
external monitor port
identifying 9
using 58
external WWAN antenna button,
identifying 6
F
f11 recovery 127
File menu 131
fingerprint reader, identifying 7,
11
firewall 25
150 Index
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
fn key
identifying 5
using 2
function keys
identifying 5
using 42
H
hard disk drive
HP 3D DriveGuard 80
installing 83
replacing 82
hard disk test 132
hard drive
external 89
HP 3D DriveGuard 80
installing 83
replacing 82
hard drive bay, identifying 10
hard drive recovery 127
HDMI 43
headphone (audio-out) combo
jack 7
Hibernation
exiting 63
initiated during critical battery
level 70
initiating 63
hinge, convertible 11, 15
holder, pen 16
hotkeys
ambient light sensor 44
battery charge information 44
decreasing screen
brightness 44
description 42
displaying system
information 42
enabling/disabling the
TouchPad 42
increasing screen
brightness 44
initiating Sleep 43
switching screen image 43
using 42
HP 3D DriveGuard 80
HP Client Configuration
Manager 143, 144
HP Client Manager for
Altiris 143
HP Connection Manager
software 22
HP Mobile Broadband
Module 27
HP QuickLook 2 134
HP SpareKey enrollment 131
HP System Software
Manager 143, 144
HP Universal Print Driver,
using 148
hubs 86
I
icons
Connection Manager 21
network 32
network status 21
wireless 21
IEEE 1394 port, identifying 8
image, computer 142
inserting a memory module 99
Intel Centrino Pro
technology 146
interference, minimizing 33
internal display switch,
identifying 4
internal microphone,
identifying 11
Internet connection setup 24
J
jacks
audio-in (microphone) 7
audio-out (headphone) 7
RJ-11 (modem) 7
RJ-45 (network) 9
Java Card
defined 96
inserting 96
removing 96
jog dial 9, 15
K
keyboard hotkeys, identifying 42
keyboard light
using 40
keyboard light button,
identifying 11
keypad keys, identifying 5
keypad, embedded
enabling and disabling 51
switching key functions 51
using 51
keys
esc 5
fn 5
function 5
keypad 5
Windows applications 5
Windows logo 5
L
labels
Bluetooth 14
HP Mobile Broadband
Module 14
Microsoft Certificate of
Authenticity 14
modem approval 14
regulatory 14
service tag 14
SIM 14
wireless certification 14
WLAN 14
LAN Power Save 133
LAN, connecting 39
language, changing in Computer
Setup 133
latch, battery release 10
legacy support, USB 129, 133
lights
battery 3
caps lock 3
drive 3, 80
keyboard 40
mute 3
num lock 4
power 3
TouchPad 1, 3
volume down 3
volume mute 3
volume up 4
webcam 6, 11
wireless 8
local area network (LAN)
cable required 39
connecting cable 39
logical drive designations 139
low battery level 69
Index 151
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
M
maintenance
Disk Cleanup 79
Disk Defragmenter 79
McAfee Total Protection 111,
112
Media Card Reader, identifying 8
memory module
adding 98
inserting 99
removing 98
replacing 98
memory test 132
microphone (audio-in) combo
jack 7
microphone, internal 11
Microsoft Certificate of Authenticity
label 14
minimizing interference 33
modem approval label 14
modem cable
connecting 34
country-specific cable
adapter 34
noise suppression circuitry 34
modem cable adapter,
identifying 13
modem cable, identifying 13
modem software
setting/adding location 35
travel connection problems 37
monitor port, external 9
monitor, connecting 58
mouse, external
connecting 40
setting preferences 40
MultiBoot Express 136, 141
multimedia software
accessing 55
mute button, identifying 4, 53
mute light, identifying 3
N
network cable
connecting 39
noise suppression circuitry 39
network icon 32
network key 32
network security codes
network key 32
SSID 32
Network Service Boot 138
network status icon 21
NIC boot device 136, 138
noise suppression circuitry
modem cable 34
network cable 39
num lock light, identifying 4
O
operating system
Microsoft Certificate of
Authenticity label 14
Product Key 14
optical disc
writing to 55
optical drive
protecting 55
P
parallel port mode 133
passwords
administrator 102
BIOS administrator 103
DriveLock 105
user 102
pen
calibrating 50
identifying 48
setting preferences 51
using 48
pen holder
identifying 8, 16
using 50
pointing devices
setting preferences 40
using 40
pointing stick
identifying 2
using 40
pointing stick buttons,
identifying 2
port options
1394 port 135
ExpressCard slot 135
flash media reader 135
parallel port 135
serial port 135
Smart Card slot 135
USB port 135
ports
1394 8, 88
external monitor 9, 58
USB 7, 86
power
connecting 65
conserving 73
power connector, identifying 9
power cord, identifying 13
power light, identifying 3
power plans 63
power switch, identifying 6
Product Key 14
product name and number,
computer 14
projector, connecting 58
public WLAN connection 25
PXE server 138
Q
Quick Launch Buttons 46
Quick Launch Buttons control
panel 46
QuickLook button, identifying 7,
46
QuickWeb button, identifying 7,
46
R
RAID (Redundant Array of
Independent Disks)
devices 133
readable media 62
reader, fingerprint 7, 11
recovery partition 127
regulatory information
modem approval label 14
regulatory label 14
wireless certification labels 14
release latch, battery 10, 67
replacing a memory module 98
restore security defaults 135
restore the factory settings 131
restoring the hard drive 127
RJ-11 (modem) jack,
identifying 7
RJ-45 (network) jack,
identifying 9
152 Index
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
rotate button 9, 15
run-in test 132
S
S-Video 43
SATA (Serial Advanced
Technology Attachment) devices
AHCI (Advanced Host Controller
Interface) 133
IDE (Integrated Drive
Electronics) 133
screen brightness hotkeys 44
screen image, switching 43
scroll zone, TouchPad 2
Secondary Battery Fast
Charge 134
security cable slot, identifying 7
Security menu
allow reset of HP ProtectTools
security keys 131
always prompt for HP SpareKey
enrollment 131
Automatic DriveLock 132
change password 131
Disk Sanitizer 132
DriveLock 131
fingerprint reader reset 131
HP Sparekey 131
HP Sparekey enrollment 131
password policy 131
set up BIOS administrator
password 131
System IDs 132
user management 131
security, wireless 24
serial number, computer 14
service tag 14
set security level 135
setup of WLAN 24
setup utility
Diagnostics menu 132
File menu 131
navigating and selecting 129
restoring factory settings 130
Security menu 131
System Configuration
menu 133
setup, computer 1
shutdown 75
shutting down 75
SIM
inserting 27
removing 28
SIM slot, identified 10
Sleep
exiting 62
initiating 62
Sleep hotkey 43
slots
business card 6
ExpressCard 8
Media Card Reader 8
memory 97
memory module 10
security cable 7
SIM 10
smart card reader 7
smart card
defined 96
inserting 96
removing 96
smart card reader, identifying 7
SoftPaqs, downloading 121, 122
software
BIOS update 119
business card reader 60
deployment 142
Disk Cleanup 79
Disk Defragmenter 79
HP Connection Manager 22
recovery 142
updates 143
updating programs and
drivers 121
Wireless Assistant 22
start-up test 132
storing battery 74
switches
internal display 4
power 6
wireless 8
System Configuration menu 133
system date and time 131
System Diagnostics menu 132
system fan 133
system IDs 132
system information 131
system information hotkey 42
T
tablet display components 15
temperature 74
tips, webcam 59
TouchPad
buttons 2
enabling/disabling 42
identifying 2
scroll zone 2
using 40
TouchPad light 1, 3
TouchPad on/off control 1
TPM Embedded Security 132
traveling with the computer
modem approval label 14
troubleshooting 31
troubleshooting modem 37
turning off the computer 75
TXT (Intel® Trusted Execution
Technology) 134
U
Unified Extensible Firmware
Interface (UEFI) mode 134
Universal Print Driver, using 148
unresponsive system 75
updates, software 143
USB cable, connecting 86
USB devices
connecting 86
description 86
removing 86
stopping 86
USB hubs 86
USB legacy support 87, 129,
133
USB port, powered 8
USB ports, identifying 7, 86
user password 102
using the webcam 59
V
vents, identifying 6, 8, 10
video transmission types 43
Virtualization Technology 134
volume buttons 53
volume down button,
identifying 4
volume down light, identifying 3
Index 153
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
volume mute button,
identifying 4, 53
volume mute light, identifying 3
volume up button, identifying 4
volume up light, identifying 4
volume, adjusting 53
W
Web sites
HP System Software
Manager 145
HP Universal Print Driver 148
Intel Centrino Pro 146
Intel Pro technology for
AMT 146
webcam
capturing business cards 60
identifying 11
tips 59
using 59
webcam light, identifying 6, 11
webcam properties, adjusting 59
Windows 7 operating system
DVD 127
Windows applications key,
identifying 5
Windows logo key, identifying 5
wireless antennas 12
Wireless Assistant software 21,
22
wireless button 21
wireless certification label 14
wireless controls
button 21
Connection Manager
software 21
operating system 21
Wireless Assistant
software 21
wireless devices
location 10
types 20
wireless icon 21
wireless light, identifying 8, 21
wireless network (WLAN)
connecting 25
corporate WLAN
connection 25
described 20
equipment needed 24
functional range 26
public WLAN connection 25
security 24
using 24
wireless switch, identifying 8
wireless wide area network
(WWAN) 27
WLAN antennas, identifying 12
WLAN device 14, 20, 24
WLAN label 14
writable media 62
WWAN antenna button,
external 12
WWAN antenna, external 6, 12
WWAN antennas, identifying 12
WWAN device 20, 27
154 Index
