SETUP GUIDE
INSPIRON™
Model PP19S
INSPIRON™ Mini 10
SETUP GUIDE
Notes, Cautions and Warnings
NOTE: A NOTE indicates important information that helps you make better use of your
computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells
you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
__________________
Information in this document is subject to change without notice.
© 2008 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text:
Dell
, the
DELL
logo,
Inspiron
, and
YOURS IS HERE
are trademarks of Dell Inc.;
Intel
and
Atom
are registered trademarks of Intel Corporation in the U.S. and other countries;
Microsoft
,
Windows
, and
Windows Vista
are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries;
Bluetooth
is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and
names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
November 2008 P/N R891K Rev. A00
3
INSPIRON
Setting Up Your Inspiron™ Mini 10
Laptop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Before Setting Up Your Computer . . . . . . . . . 5
Connect the AC Adapter . . . . . . . . . . . . . . . .6
Connect the Network Cable (Optional) . . . . . 7
Press the Power Button . . . . . . . . . . . . . . . . .8
Enable or Disable Wireless. . . . . . . . . . . . . . . 9
Ubuntu® Information . . . . . . . . . . . . . . . . . . . .9
Microsoft® Windows® Setup . . . . . . . . . . . . . 9
Connect to the Internet (Optional) . . . . . . . . 10
Setting up the TV Tuner (Availability
Varies by Regions). . . . . . . . . . . . . . . . . . . . . 13
Using Your Inspiron Laptop. . . . . . . . . . . . .14

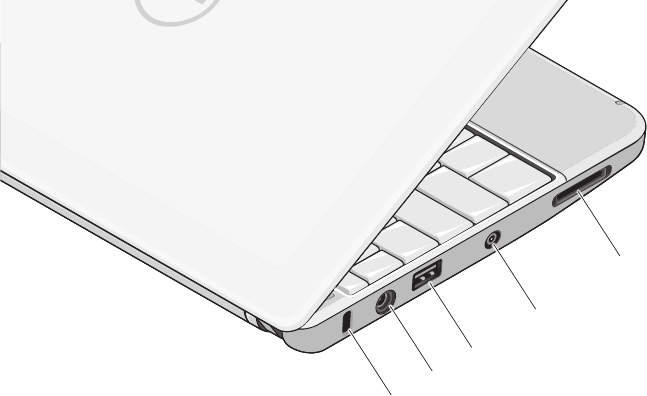

Left Side Features . . . . . . . . . . . . . . . . . . . . . 16

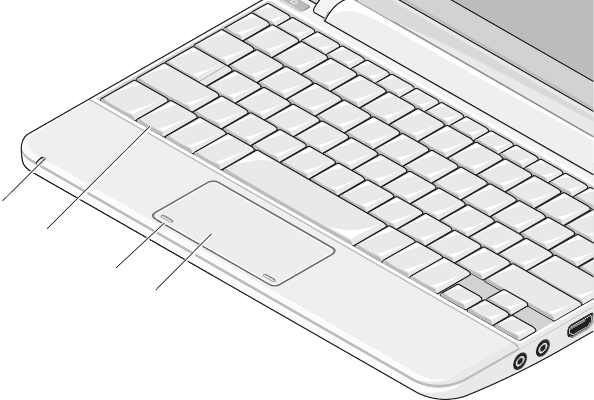

Computer Base and Keyboard
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

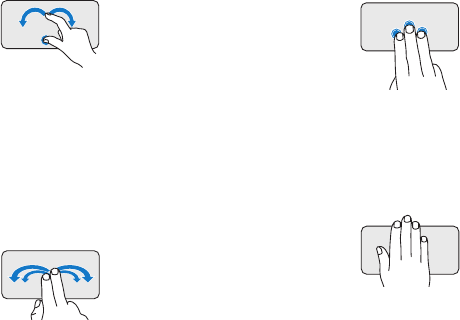

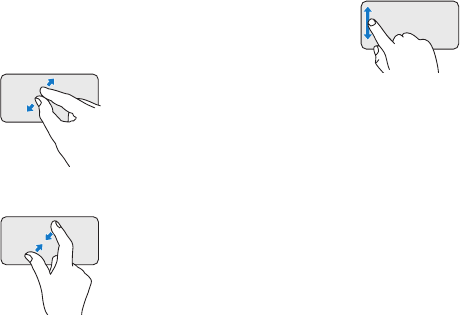

Touch pad Gestures. . . . . . . . . . . . . . . . . . . . 20
Display Features . . . . . . . . . . . . . . . . . . . . . . 24
Removing and Replacing the Battery . . . . . 25
Software Features . . . . . . . . . . . . . . . . . . . . . 26
Solving Problems . . . . . . . . . . . . . . . . . . . . .28
Network Problems . . . . . . . . . . . . . . . . . . . . . 28
Power Problems . . . . . . . . . . . . . . . . . . . . . . 29
Memory Problems . . . . . . . . . . . . . . . . . . . . . 30
Lockups and Software Problems . . . . . . . . . 30
Dell Support Center . . . . . . . . . . . . . . . . . . . . 33
Using Support Tools. . . . . . . . . . . . . . . . . . .33
System Messages . . . . . . . . . . . . . . . . . . . . . 34
Hardware Troubleshooter. . . . . . . . . . . . . . . 35
Dell Diagnostics . . . . . . . . . . . . . . . . . . . . . . 36
Contents
4
Restoring Your Operating System . . . . . . .38
System Restore . . . . . . . . . . . . . . . . . . . . . . . 38
Windows XP: Using Dell™ PC Restore . . . . . 40
Dell Factory Image Restore . . . . . . . . . . . . . 42
Operating System Reinstallation . . . . . . . . . 43
Getting Help . . . . . . . . . . . . . . . . . . . . . . . . .45
Technical Support and Customer
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Online Services . . . . . . . . . . . . . . . . . . . . . . . 46
AutoTech Service. . . . . . . . . . . . . . . . . . . . . . 47
Product Information. . . . . . . . . . . . . . . . . . . . 47
Before You Call. . . . . . . . . . . . . . . . . . . . . . . . 48
Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . . 49
Finding More Information and
Resources . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Basic Specifications . . . . . . . . . . . . . . . . . .52
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
5
INSPIRON
Setting Up Your Inspiron™ Mini 10 Laptop
This section provides information about setting
up your Inspiron Mini 10 laptop and connecting
peripherals.
Before Setting Up Your Computer
When positioning your computer, ensure that
you allow easy access to a power source,
adequate ventilation, and a level surface to
place your computer.
Restricting airflow around your Inspiron
laptop may cause it to overheat. To prevent
overheating ensure that you leave at least
10.2 cm (4 in) at the back of the computer and a
minimum of 5.1 cm (2 in) on all other sides. You
should never put your computer in an enclosed
space, such as a cabinet or drawer when it is
powered on.
WARNING: Do not block, push objects into,
or allow dust to accumulate in the air vents.
Do not store your Dell™ computer in a
low-airflow environment, such as a closed
briefcase, while it is running. Restricting
the airflow can damage the computer or
cause a fire.
CAUTION: Placing or stacking heavy or
sharp objects on the computer may result
in permanent damage to the computer.
6
Setting Up Your Inspiron™ Mini 10 Laptop

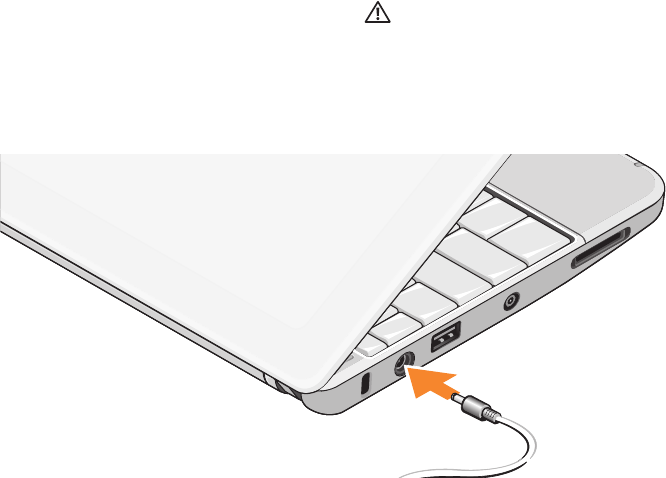

Connect the AC Adapter
Connect the AC adapter to the computer and
then plug it into a wall outlet or surge protector.
WARNING: The AC adapter works with
electrical outlets worldwide. However,
power connectors and power strips vary
among countries. Using an incompatible
cable or improperly connecting the cable to
a power strip or electrical outlet may cause
fire or equipment damage.
7
Setting Up Your Inspiron™ Mini 10 Laptop

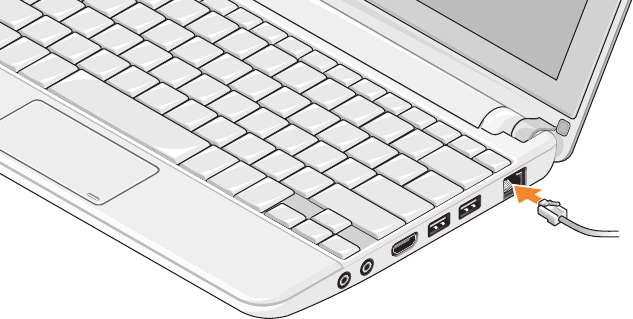

Connect the Network Cable
(Optional)
To use a wired network connection, plug in the
network cable.
8
Setting Up Your Inspiron™ Mini 10 Laptop

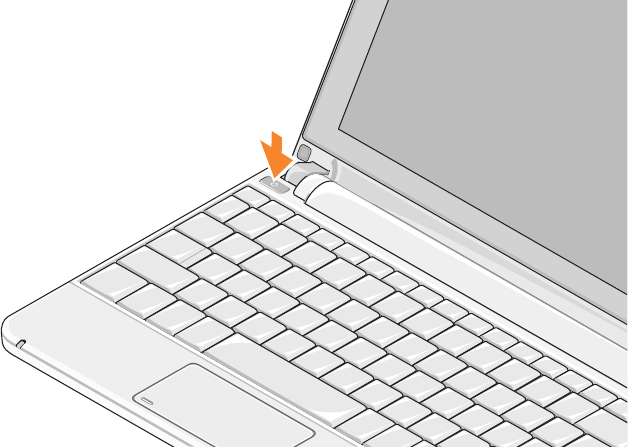

Press the Power Button
9
Setting Up Your Inspiron™ Mini 10 Laptop
Enable or Disable Wireless
To turn on wireless, with the computer turned
on:
Press <Fn><F2> or double-click the wireless 1.
icon on the system tray.
The Wireless Enable/Disable dialog box is
displayed.
Select one of the following:2.
Enable Bluetooth –
Enable Wireless LAN –
Enable Wireless WAN/GPS –
Click 3. OK.
To turn off wireless, press <Fn><F2> again to
turn off all radios.
Ubuntu® Information
Your Dell computer is preconfigured with the
Ubuntu operating system if you requested for
it while ordering. See the
Ubuntu Quick Start
Guide
that shipped with your computer for more
operating system specific information.
Microsoft® Windows® Setup
Your Dell computer is preconfigured with
Microsoft Windows operating system if
you requested for it while ordering. To set
up Windows for the first time, follow the
instructions on the screen. These steps are
mandatory and may take up to 15 minutes to
complete. The screens will take you through
several procedures including accepting license
agreements, setting preferences, and setting up
an Internet connection.
CAUTION: Do not interrupt the operating
system’s setup process. Doing so may
render your computer unusable.
10
Setting Up Your Inspiron™ Mini 10 Laptop
Connect to the Internet (Optional)
NOTE: ISPs and ISP offerings vary by
country.
To connect to the Internet, you need an external
modem or network connection and an Internet
service provider (ISP).
Setting Up a Wired Internet Connection
If you are using a dial-up connection, connect
the telephone line to the external USB modem
(optional) and to the telephone wall jack
before you set up your Internet connection.
If you are using a DSL or cable/satellite modem
connection, contact your ISP or cellular
telephone service for setup instructions.
Setting Up a Wireless Connection
Before you can use your wireless Internet
connection, you need to connect to your
wireless router. To set up your connection to a
wireless router:
Save and close any open files, and exit any 1.
open programs.
Click 2. Start→ Connect To.
Follow the instructions on the screen to 3.
complete the setup.
Setting Up Your Internet Connection
To set up an Internet connection with a provided
ISP desktop shortcut:
Save and close any open files, and exit any 1.
open programs.
Double-click the ISP icon on the Microsoft2. ®
Windows® desktop.
Follow the instructions on the screen to 3.
complete the setup.
If you do not have an ISP icon on your desktop
or if you want to set up an Internet connection
with a different ISP, perform the steps in the
following section.
NOTE: If you cannot connect to the Internet
but have successfully connected in the
11
Setting Up Your Inspiron™ Mini 10 Laptop
past, the ISP might have a service outage.
Contact your ISP to check the service
status, or try connecting again later.
NOTE: Have your ISP information ready.
If you do not have an ISP, the Connect to
the Internet wizard can help you get one.
Windows Vista
Save and close any open files, and exit any 1.
open programs.
Click 2. Start → Control Panel.
Under 3. Network and Internet, click Connect
to the Internet.
The Connect to the Internet window appears.
Click either 4. Broadband (PPPoE) or Dial-up,
depending on how you want to connect:
Choose a. Broadband if you will use a
DSL, satellite modem, cable TV modem,
or Bluetooth® wireless technology
connection.
Chose b. Dial-up if you will use an optional
USB dial-up modem or ISDN.
NOTE: If you do not know which type of
connection to select, click Help me choose
or contact your ISP.
Follow the instructions on the screen and 5.
use the setup information provided by your
ISP to complete the setup.
Windows XP
Save and close any open files, and exit any 1.
open programs.
Click 2. Start → Internet Explorer.
The New Connection Wizard appears.
12
Setting Up Your Inspiron™ Mini 10 Laptop
Click 3. Connect to the Internet.
In the next window, select the appropriate 4.
option:
If you do not have an ISP and want to –
select one, click Choose from a list of
Internet service providers (ISPs).
If you have already obtained setup –
information from your ISP but you did
not receive a setup CD, click Set up my
connection manually.
If you have a CD, click – Use the CD I got
from an ISP.
Click 5. Next.
If you selected Set up my connection
manually, continue to step 6. Otherwise,
follow the instructions on the screen to
complete the setup.
NOTE: If you do not know which type of
connection to select, contact your ISP.
Select the appropriate option under 6. How do
you want to connect to the Internet?, and
then click Next.
Use the setup information provided by your 7.
ISP to complete the setup.
13
Setting Up Your Inspiron™ Mini 10 Laptop
Set up the TV Tuner (Availability
Varies by Regions)
You can set up the TV Tuner through
PowerCinema.
To set up the TV Tuner for the first time:
Click the PowerCinema icon in 1. Start→ All
Programs.
Go to 2. Main Menu→ Entertainment → Live
TV and follow the instructions on the screen.
To re-configure your TV tuner settings:
Click the PowerCinema icon in 1. Start→ All
Programs.
Go to 2. Main Menu→ Entertainment→ Live
TV.
Click 3. Advanced in the control menu.
Select 4. Settings.
Click 5. Run Setup Wizard and follow the
instructions on the screen.
INSPIRON
14
Using Your Inspiron Laptop
Your Inspiron Mini 10 has indicators, buttons,
and features that provide information at-a-
glance and time-saving shortcuts for common
tasks.

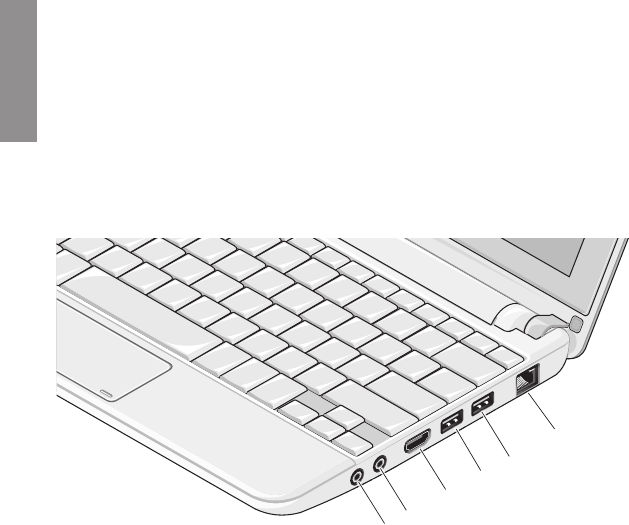

Right Side Features
5
4
3
2
1
6
15
Using Your Inspiron Laptop
1 Audio Out/ Headphone
connector – Connects to a pair of
headphones, or sends audio to a powered
speaker or sound system.
2 Audio In/ Microphone connector –
Connects to a microphone or input signal
for use with audio programs.
3 HDMI connector – Connects to a TV
for both 5.1 audio and video signals.
NOTE: When used with a monitor, only
the video signal will be read.
4 USB 2.0 connector – Connects to
USB devices, such as a mouse, keyboard,
printer, external drive, or MP3 player.
5 Power USB connector – Connects to
USB devices, such as a mouse, keyboard,
printer, external drive, or MP3 player. This
port can support up to 2 ampere current
loading.
6 Network connector – If you are
using a cabled network signal, this
connects your computer to a network or
broadband device.
16
Using Your Inspiron Laptop
Left Side Features
1
2
3
4
5
17
Using Your Inspiron Laptop
1Security cable slot – Attaches a
commercially available antitheft device to
the computer.
NOTE: Before you buy an antitheft
device, ensure that it works with the
security cable slot on your computer.
2 AC adapter connector – Connects to
the AC adapter to power on the computer
and charge the battery.
3 USB 2.0 connector – Connects to
USB devices, such as a mouse, keyboard,
printer, external drive, or MP3 player.
4 Antenna In connector (on supported
models) – Connects to an external antenna,
through a MCX connector, to view programs
using the TV Tuner card (optional). For more
details on TV Tuner card setup, see “Setting
up the TV Tuner (Availability Varies by
Regions)” on page 13.
5SD/SDHC/MMC/MS/MSPro – 3-in-1
media card reader – Provides a fast and
convenient way to view and share digital
photos, music, videos, and documents
stored on the following digital memory
cards:
Secure Digital (SD) memory card•
Secure Digital High Capacity •
(SDHC) card
Multimedia Card (MMC)•
Memory Stick•
Memory Stick PRO•
18
Using Your Inspiron Laptop
Computer Base and Keyboard
Features
4
3
2
1
19
Using Your Inspiron Laptop
1Power/Battery indicator light – Turns
on steadily or blinks to indicate battery
charge status. If the computer is
connected to an electrical outlet, the light
operates as follows:
On AC Adapter
Solid white: The system is on and the •
battery is charging.
Flashing white: The system is in •
standby mode.
Off: The system is off and the battery is •
adequately charged.
On Battery
Solid white: The system is on.•
Flashing white: The system is in •
standby mode.
Flashing amber: The battery charge •
is low. Connect to an AC adapter to
charge the battery.
Off: The system is off.•
2Keyboard – The settings for this keyboard
can be personalized by using the system
setting utility.
3Touch pad buttons – Provides left- and
right-click functions like those on a mouse.
4Touch pad – Provides the functionality
of a mouse. It supports the Scroll, Flick,
Zoom, Rotate, Desktop, and My Favorites
features. For more details , see Touch pad
Gestures on page 20.
20
Using Your Inspiron Laptop
Touch pad Gestures
Scroll Features
Scrolling allows you to navigate through
content.
Pan Scroll – Allows you move the focus of the
visible area. To use the pan scroll feature:
Place two fingers next to 1.
each other on the touch pad.
Move both fingers in the 2.
direction you wish to move the
focus of the visible area.
Auto Scroll Vertical – Allows scrolling in an
upward, or downward direction.
Place two fingers next to 1.
each other on the touch pad.
Move both fingers 2.
downward or upward at a fast
pace to activate auto scrolling.
Tap on the touch pad to stop auto scrolling. 3.
Auto Scroll Horizontal – Allows scrolling in a
left-to-right, or right-to-left direction.
Place two fingers next to 1.
each other on the touch pad.
Move both fingers left or 2.
right at a fast pace to activate
auto scrolling.
Tap on the touch pad to stop auto scrolling. 3.
Traditional Scroll – Allows you to scroll up or
scroll down.
Place one finger in the 1.
vertical scroll zone (extreme
right of the touch pad).
Move your finger upward 2.
or downward to scroll through
the active window.
21
Using Your Inspiron Laptop
Circular Scroll – Allows you to scroll up and
down, or right and left.
To scroll up and down:
Place one finger in the 1.
vertical scroll zone (extreme
right of the touch pad).
Move your finger in a 2.
clockwise circular direction
to scroll downwards or
counterclockwise to scroll
upwards.
To scroll right and left:
Place one finger in the 1.
horizontal scroll zone (extreme
bottom of the touch pad).
Move your finger in a 2.
clockwise circular direction
to scroll right or move your
finger in a counterclockwise
direction to scroll left.
Flick Feature
Flick allows you to flip your focus on content
forward or backward based on the direction of
the flick.
Place three fingers next to 1.
each other on the touch pad.
Move your fingers quickly 2.
in the direction you wish
to flip content. The screen
content changes based on the
application that is open.
22
Using Your Inspiron Laptop
Zoom Features
Zoom allows you to increase or decrease the
magnification of the screen content. The zoom
features include:
Pinch Zoom – Allows you to zoom in or zoom out
by moving two fingers apart or bringing them
closer together on the touch pad.
Place two fingers close 1.
together on the touch pad.
Move your fingers apart to 2.
enlarge the view (zoom in) of
the active content.
Alternately, moving two 3.
fingers that are apart back
together minimizes the view
(zoom out) of the active
window on the screen.
Zone Zoom – Allows you to zoom in or zoom out
using one finger in the zoom zone (extreme left
of the touch pad).
To zoom in or zoom out using the zoom zone:
Place one finger in the 1.
zoom zone.
Move your finger upward 2.
and downward to zoom in and
out.
Rotate Features
Rotate allows you to rotate the active content
on the screen. This feature includes Twist and
Arc.
23
Using Your Inspiron Laptop
Twist Rotate – Allows you to rotate active
content in 90-degree increments using two
fingers where one finger is anchored and the
other rotates.
Place two fingers on the 1.
touch pad.
Keeping the lower finger in 2.
place, move one finger in and
arched direction right or left to rotate the
selected item 90 degrees.
Arc Rotate – Allows you to rotate active content
by moving two fingers in an arched direction.
Place two fingers on the touch pad. 1.
Move both fingers in an 2.
arched direction to the left or
right to rotate active content.
My Favorites Feature
My Favorites allows you to open your favorite
applications.
Tap three fingers that are
apart on the touch pad. The
applications that you select in
the touch pad configuration
tool launch.
Desktop Feature
Desktop allows you to minimize all open
windows together so that the
Desktop is visible.
Place a hand on the touch pad
in any orientation and briefly
hold in place.
24
Using Your Inspiron Laptop
Display Features
The display panel holds a camera and a camera
activity light.
34
2
1
1Microphone – Provides quality sound for
video chatting and voice recording.
2Camera activity light – Indicates when the
camera is on or off.
3Camera – Built-in camera for video
capture, conferencing, and chat.
4Display – Your display can vary based on
selections you made when purchasing
your computer. For more information about
displays, see the Dell Technology Guide.
25
Using Your Inspiron Laptop

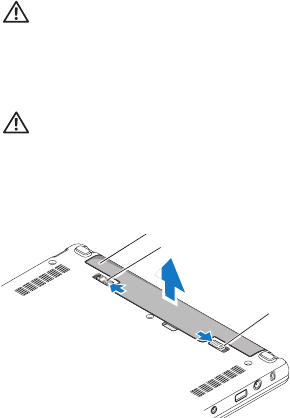

Removing and Replacing the
Battery
WARNING: Using an incompatible battery
may increase the risk of fire or explosion.
This computer should only use a battery
purchased from Dell. Do not use batteries
from other computers.
WARNING: Before removing the battery,
shut down the computer, and remove
external cables (including the AC adapter).
To remove the battery:
Shut down the computer and turn it over. 1.
Slide the battery lock latch until it clicks into 2.
place.
Slide the battery release latch to unlock 3.
position.
Pull the battery up and out of the battery bay.4.
To replace the battery, slide it into the bay until
it clicks into place. Then slide the battery lock
latch to the lock position.
1Battery
2Battery release latch
3Battery lock latch
3
12
26
Using Your Inspiron Laptop
Software Features
NOTE: For more information about the
features described in this section, see
the Dell Technology Guide on your hard
drive or on the Dell Support website at
support.dell.com.
Productivity and Communication
You can use your computer to create
presentations, brochures, greeting cards,
fliers, and spreadsheets depending on the
applications installed in your computer. Check
your purchase order for software installed on
your computer.
After connecting to the Internet, you can access
websites, setup an e-mail account, upload and
download files, and so on.
Entertainment and Multimedia
You can use your computer to watch videos,
play games, listen to music and internet radio
stations.
Customizing the Desktop in Windows Vista
You can customize your desktop to change the
appearance, resolution, wallpaper, screensaver,
and so on by accessing the Personalize
appearance and sounds window.
To access the display properties window:
Right-click an open area of the desktop.1.
Click 2. Personalize, to open the Personalize
appearance and sounds window and learn
more about your customization options.
Customizing the Desktop in Windows XP
You can customize your desktop to change the
appearance, resolution, wallpaper, screensaver,
and so on by accessing the Display Properties
window.
To access the display properties window:
Right-click an open area of the desktop.1.
Click 2. Properties, to open the Display
Properties window and learn more about
your customization options.
27
Using Your Inspiron Laptop
Customizing Your Energy Settings
You can use the power options in your operating
system to configure the power settings on your
computer. Windows provides three default
options:
Balanced• — This power option offers full
performance when you need it and saves
power during periods of inactivity.
Power saver• — This power option saves
power on your computer by reducing system
performance to maximize the life of the
computer and by reducing the amount of
energy consumed by your computer over its
lifetime.
High performance• — This power option
provides the highest level of system
performance on your computer by adapting
processor speed to your activity and by
maximizing system performance.
Backing Up Your Data on Windows Vista
It is recommended that you periodically back
up files and folders on your computer. To back
up files:
Click 1. Start → Control Panel→ System
and Maintenance→ Welcome Center→
Transfer files and settings.
Click 2. Back up files or Back up computer.
Click 3. Continue on Your User Account Control
dialog box and follow the instructions in the
Back up Files wizard.
Backing Up Your Data on Windows XP
It is recommended that you periodically back
up files and folders on your computer. To back
up files:
Click 1. Start→ All Programs→ Accessories→
System Tools→ Backup.
Follow the instructions in the Back up Files 2.
wizard.
INSPIRON
28
WARNING: Only trained service personnel
should remove the computer cover. See
the
Service Manual
on the Dell Support
website at support.dell.com for advanced
service and troubleshooting instructions.
Network Problems
Wireless Connections
If the wireless network connection is lost
The wireless router is offline or wireless has
been disabled on the computer.
Check your wireless router to ensure it is •
powered on and connected to your data
source (cable modem or network hub).
Interference may be blocking or interrupting •
your wireless connection. Try moving the
computer closer to your wireless router.
Re-establish your connection to the wireless •
router:
Save and close any open files, and exit a.
any open programs.
Click b. Start→ Connect To.
Follow the instructions on the screen c.
to complete the setup.
Wired Connections
If the network connection is lost — The cable
is loose or damaged.
Check the cable to ensure it is plugged in •
and not damaged.
The link integrity light on the integrated network
connector lets you verify that your connection is
working and provides information on the status:
Green — A good connection exists between •
a 10-Mbps network and the computer.
Solving Problems
29
Solving Problems
Orange — A good connection exists between •
a 100-Mbps network and the computer.
Off — The computer is not detecting a •
physical connection to the network.
NOTE: The link integrity light on the network
connector is only for the wired cable
connection. The link integrity light does not
provide status for wireless connections.
Power Problems
If the power light is off — The computer is
either turned off or is not receiving power.
If the computer is plugged into a power strip, •
ensure that the power strip is plugged into
an electrical outlet and that the power strip
is turned on. Also bypass power protection
devices, power strips, and power extension
cables to verify that the computer turns on
properly.
Ensure that the electrical outlet is working •
by testing it with another device, such as a
lamp.
Check the AC adapter cable connections. •
If the AC adapter has a light, ensure that the
light on the AC adapter is on.
If the power light is solid white and the
computer is not responding — The display may
not be responding. Press the power button until
the computer turns off and then turn it back on.
If the power light is blinking white — The
computer is in standby mode. Press a key on
the keyboard, move the pointer using the touch
pad or a connected mouse, or press the power
button to resume normal operation.
If the power light is solid amber — The
computer has a power problem or an internal
device malfunction. For assistance contact Dell,
see “Contacting Dell” on page 49.
If the power light is blinking amber — The
computer is receiving electrical power, but a
device might be malfunctioning or incorrectly
installed.
30
Solving Problems
If you encounter interference that hinders
reception on your computer — An unwanted
signal is creating interference by interrupting or
blocking other signals. Some possible causes of
interference are:
Power, keyboard, and mouse extension •
cables.
Too many devices connected to a power •
strip.
Multiple power strips connected to the same •
electrical outlet.
Memory Problems
If you receive an insufficient memory
message—
Save and close any open files and exit any •
open programs you are not using to see if
that resolves the problem.
See the software documentation for •
minimum memory requirements. If
necessary, install additional memory
(See the Service Manual on the Dell Support
website at support.dell.com).
If you experience other memory problems —
Ensure that you are following the memory •
installation guidelines (see the Service
Manual on the Dell Support website at
support.dell.com).
Run the Dell Diagnostics (see “Dell •
Diagnostics” on page 35).
Lockups and Software Problems
If the computer does not start up — Ensure
that the power cable is firmly connected to the
computer and to the electrical outlet.
If a program stops responding — End the program:
Press <Ctrl><Shift><Esc> simultaneously.1.
Click 2. Applications.
Click the program that is no longer 3.
responding
Click 4. End Task.
31
Solving Problems
If a program crashes repeatedly — Check the
software documentation. If necessary, uninstall
and then reinstall the program.
NOTE: Software usually includes installation
instructions in its documentation or on the
media (CD or DVD).
NOTE: Your computer may or may not have
an optical drive. Use an external optical
drive or any external storage device for the
procedures that involve media.
If the computer stops responding —
CAUTION: You might lose data if you are
unable to perform an operating system
shutdown.
Turn the computer off. If you are unable to get a
response by pressing a key on your keyboard or
moving your mouse, press the power button for
at least 8 to 10 seconds until the computer turns
off and then restart your computer.
If a program is designed for an earlier
Microsoft® Windows® operating system —
Run the Program Compatibility Wizard. The
Program Compatibility Wizard configures a
program so that it runs in an environment similar
to non-Windows Vista/non-XP operating system
environments.
Windows Vista
Click 1. Start → Control Panel→
Programs→ Use an older program with this
version of Windows.
In the welcome screen, click 2. Next.
Follow the instructions on the screen.3.
Windows XP
Click 1. Start→ All Programs→ Accessories→
Program Compatibility Wizard.
In the welcome screen, click 2. Next.
Follow the instructions on the screen.3.
If a solid blue screen appears — Turn the
computer off. If you are unable to get a response
32
Solving Problems
by pressing a key on your keyboard or moving
your pointer or mouse, press and hold the power
button for at least 8 to 10 seconds until the
computer turns off. Then restart your computer.
If you have other software problems —
Back up your files immediately.•
Use a virus-scanning program to check the •
hard drive or CDs.
Save and close any open files or programs •
and shut down your computer through the
Start menu.
Check the software documentation or •
contact the software manufacturer for
troubleshooting information:
Ensure that the program is compatible –
with the operating system installed on
your computer.
Ensure that your computer meets the –
minimum hardware requirements needed
to run the software. See the software
documentation for information.
Ensure that the program is installed and –
configured properly.
Verify that the device drivers do not –
conflict with the program.
If necessary, uninstall and then reinstall –
the program, Dell Support Center.
Write down any error message that is –
displayed to help in troubleshooting when
Contacting Dell.
33
INSPIRON
NOTE: The instructions in this section
are for computers with Windows Vista
operating system installed.
Dell Support Center
The Dell Support Center helps you find
the service, support, and system-specific
information you need. For more information
about Dell Support Center and available support
tools, click the Services tab at support.dell.com.
Click the icon in the taskbar to run the
application. The home page provides links to
access:
Self Help (Troubleshooting, Security, System •
Performance, Network/Internet, Backup/
Recovery, and Windows operating system)
Alerts (technical support alerts relevant to •
your computer)
Assistance from Dell (Technical Support with •
DellConnect™, Customer Service, Training
and Tutorials, How-To Help with Dell on Call,
and Online Scan with PCCheckUp)
About Your System (System Documentation, •
Warranty Information, System Information,
Upgrades & Accessories)
The top of the Dell Support Center home page
displays your computer’s model number along
with its service tag and express service code.
For more information about the Dell Support
Center, see the
Dell Technology Guide
on your
hard drive or on the Dell Support website at
support.dell.com.
Using Support Tools
34
Using Support Tools
System Messages
If your computer has an issue or error, it may
display a System Message that will help you
identify the cause and action needed to resolve
the issue.
NOTE: If the message you received is not
listed in the following examples, see the
documentation for either the operating
system or the program that was running
when the message appeared. Alternatively
see the
Dell Technology Guide
on your hard
disk or the Dell Support website at support.
dell.com.
Alert! Previous attempts at booting this system
have failed at checkpoint [nnnn]. For help
in resolving this problem, please note this
checkpoint and contact Dell Technical
Support — The computer failed to complete
the boot routine three consecutive times for the
same error see “Contacting Dell” on page 49 for
assistance.
CMOS checksum error — Possible motherboard
failure or RTC battery low. Replace the battery.
(See the Dell Technology Guide on your hard
disk or the Dell Support website at support.dell.
com or see “Contacting Dell” on page 49 for
assistance.
Hard-disk (HDD) drive failure — Possible hard
disk drive failure during POST, see “Contacting
Dell” on page 49 for assistance.
Hard-disk (HDD) drive read failure — Possible
hard disk drive failure during HDD boot test see
“Contacting Dell” on page 49 for assistance.
Keyboard failure — Keyboard failure or loose
cable.
No boot device available — No bootable
partition on hard disk drive, the hard disk drive
connector is loose, or no bootable device exists.
If the hard drive is your boot device, ensure •
that the connector is connected and that the
drive is installed properly and partitioned as
a boot device.
35
Using Support Tools
Enter system setup and ensure that the boot •
sequence information is correct (see the Dell
Technology Guide on your hard disk or the
Dell Support website at support.dell.com).
No timer tick interrupt — A chip on the system
board might be malfunctioning or motherboard
failure (see “Contacting Dell” on page 49).
USB over current error — Disconnect the USB
device. Your USB device needs more power for
it to function properly. Use an external power
source to connect the USB device, or if your
device has two USB cables, connect both of
them.
NOTICE - Hard Drive SELF MONITORING
SYSTEM has reported that a parameter has
exceeded its normal operating range. Dell
recommends that you back up your data
regularly. A parameter out of range may or may
not indicate a potential hard drive problem —
S.M.A.R.T error, possible hard disk drive failure.
This feature can be enabled or disabled in the
BIOS setup (see “Contacting Dell” on page 49
for assistance).
Hardware Troubleshooter
If a device is either not detected during
the operating system setup or is detected
but incorrectly configured, you can use the
Hardware Troubleshooter to resolve the
incompatibility.
To start the Hardware Troubleshooter:
Click 1. Start → Help and Support.
Type 2. hardware troubleshooter in
the search field and press <Enter> to start
the search.
In the search results, select the option that 3.
best describes the problem and follow the
remaining troubleshooting steps.
36
Using Support Tools
Dell Diagnostics
If you experience a problem with your
computer, perform the checks in “Lockups and
Software Problems” on page 30 and run the
Dell Diagnostics before you contact Dell ( see
“Contacting Dell” on page 49) for technical
assistance.
It is recommended that you print these
procedures before you begin.
CAUTION: Dell Diagnostics works only on
Dell computers.
NOTE: The
Drivers and Utilities
media
is optional and may not ship with your
computer.
To review your computer’s configuration
information, and ensure that the device that
you want to test displays in the system setup
program and is active. See the System Setup
section in the Dell Technology Guide.
Start the Dell Diagnostics from your hard drive
or from the
Drivers and Utilities
media.
Starting Dell Diagnostics From Your Hard Drive
The Dell Diagnostics is located on a hidden
diagnostic utility partition on your hard drive.
NOTE: If your computer cannot display a
screen image, see “Contacting Dell” on
page 49.
Ensure that the computer is connected to an 1.
electrical outlet that is known to be working
properly.
Turn on (or restart) your computer.2.
When the DELL3. ™ logo appears, press <F12>
immediately. Select Diagnostics from the
boot menu and press <Enter>.
NOTE: If you wait too long and the operating
system logo appears, continue to wait until
you see the Microsoft® Windows® desktop;
then, shut down your computer and try again.
NOTE: If you see a message stating that no
diagnostics utility partition has been found,
run the Dell Diagnostics from the
Drivers
and Utilities
media.
37
Using Support Tools
Press any key to start the Dell Diagnostics 4.
from the diagnostics utility partition on your
hard drive.
Starting Dell Diagnostics From the Drivers and
Utilities Media
NOTE: Your computer may or may not have
an optical drive. Use an external optical
drive or any external storage device for the
procedures that involves media.
Insert the1.
Drivers and Utilities
media.
Shut down and restart the computer. 2.
When the DELL logo appears, press <F2>
immediately.
NOTE: If you wait too long and the
operating system logo appears, continue to
wait until you see the Microsoft® Windows®
desktop; then, shut down your computer
and try again.
NOTE: The next steps change the boot
sequence for one time only. On the next
start-up, the computer boots according to
the devices specified in the system setup
program.
When the boot device list appears, highlight 3.
CD/DVD/CD-RW and press <Enter>.
Select the 4. Boot from CD-ROM option from
the menu that appears and press <Enter>.
Type 1 to start the CD menu and press 5.
<Enter> to proceed.
Select 6. Run the 32 Bit Dell Diagnostics from
the numbered list. If multiple versions are
listed, select the version appropriate for your
computer.
When the Dell Diagnostics 7. Main Menu
appears, select the test you want to run.
INSPIRON
38
You can restore your operating system in the
following ways:
System • Restore returns your computer to an
earlier operating state without affecting data
files. Use System Restore as the first solution
for restoring your operating system and
preserving data files.
Dell • Factory Image Restore returns your hard
drive to the operating state it was in when
you purchased the computer. This procedure
permanently deletes all data on the hard
drive and removes any programs installed
after you received the computer. Use Dell
Factory Image Restore only if System
Restore did not resolve your operating
system problem.
If you received an Operating System disc •
with your computer, you can use it to restore
your operating system. However, using the
Operating System disc also deletes all data
on the hard drive. Use the disc only if System
Restore did not resolve your operating
system problem.
System Restore
The Windows operating systems provide
a System Restore option which allows
you to return your computer to an earlier
operating state (without affecting data files)
if changes to the hardware, software, or other
system settings have left the computer in an
undesirable operating state. Any changes that
System Restore makes to your computer are
completely reversible.
CAUTION: Make regular backups of your
data files. System Restore does not monitor
your data files or recover them.
Restoring Your Operating System
39
Restoring Your Operating System
NOTE: The procedures in this document
were written for the Windows default view,
so they may not apply if you set your Dell™
computer to the Windows Classic view.
Starting System Restore in Windows Vista
Click 1. Start .
In the 2. Start Search box, type System
Restore and press <Enter>.
NOTE: The User Account Control window
may appear. If you are an administrator on
the computer, click Continue; otherwise,
contact your administrator to continue the
desired action.
Click 3. Next and follow the remaining prompts
on the screen.
In the event that System Restore did not resolve
the issue, you may undo the last system restore.
Starting System Restore in Windows XP
Click 1. Start→ All Programs→ Accessories→
System Tools→ System Restore.
In the welcome screen, click 2. Next.
Follow the instructions on the screen.3.
Undoing the Last System Restore in
Windows Vista
NOTE: Before you undo the last system
restore, save and close all open files and
exit any open programs. Do not alter, open,
or delete any files or programs until the
system restoration is complete.
Click 1. Start .
In the 2. Start Search box, type System
Restore and press <Enter>.
Click 3. Undo my last restoration and click
Next.
Undoing the Last System Restore in
Windows XP
NOTE: Before you undo the last system
restore, save and close all open files and
exit any open programs. Do not alter, open,
or delete any files or programs until the
40
Restoring Your Operating System
system restoration is complete.
Click 1. Start→ All Programs→ Accessories→
System Tools→ System Restore.
In the welcome screen, click 2. Undo my last
restoration and then click Next.
Follow the instructions on the screen.3.
Using Dell™ PC Restore in
Windows XP
CAUTION: Using Dell PC Restore
permanently deletes all data on the hard
drive and removes any programs or
drivers installed after you received your
computer. If possible, back up the data
before using these options. Use PC Restore
only if System Restore did not resolve your
operating system problem.
NOTE: Dell PC Restore by Symantec and
Dell Factory Image Restore may not be
available in certain countries or on certain
computers.
Use Dell PC Restore only as the last method to
restore your operating system. These options
restore your hard drive to the operating state
it was in when you purchased the computer.
Any programs or files added since you received
your computer—including data files—are
permanently deleted from the hard drive. Data
files include documents, spreadsheets, e-mail
messages, digital photos, music files, and so
on. If possible, back up all data before using PC
Restore.
Using PC Restore:
Turn on the computer.1.
During the boot process, a blue bar with
www.dell.com appears at the top of the
screen.
Immediately upon seeing the blue bar, press 2.
<Ctrl><F11>. If you do not press <Ctrl><F11>
in time, let the computer finish starting, and
then restart the computer again.
41
Restoring Your Operating System
CAUTION: If you do not want to proceed
with PC Restore, click Reboot.
Click 3. Restore and click Confirm.
The restore process takes approximately 6 to
10 minutes to complete.
When prompted, click 4. Finish to reboot the
computer.
NOTE: Do not manually shut down the
computer. Click Finish and let the computer
completely reboot.
When prompted, click 5. Yes.
The computer restarts. Because the
computer is restored to its original operating
state, the screens that appear, such as
the End User License Agreement, are the
same ones that appeared the first time the
computer was turned on.
Click 6. Next.
The System Restore screen appears and the
computer restarts.
After the computer restarts, click OK.
42
Restoring Your Operating System
Dell Factory Image Restore
CAUTION: Using Dell Factory Image
Restore permanently deletes all data on
the hard drive and removes any programs
or drivers installed after you received
your computer. If possible, back up the
data before using these options. Use Dell
Factory Image Restore only if System
Restore did not resolve your operating
system problem.
NOTE: Dell Factory Image Restore may
not be available in certain countries or on
certain computers.
Use Dell Factory Image Restore only as the
last method to restore your operating system.
These options restore your hard drive to the
operating state it was in when you purchased
the computer. Any programs or files added
since you received your computer—including
data files—are permanently deleted from
the hard drive. Data files include documents,
spreadsheets, e-mail messages, digital photos,
music files, and so on. If possible, back up all
data before using Factory Image Restore.
Dell Factory Image Restore
Turn on the computer. When the Dell logo 1.
appears, press <F8> several times to access
the Vista Advanced Boot Options Window.
Select 2. Repair Your Computer.
The 3. System Recovery Options window
appears.
Select a keyboard layout and click 4. Next.
To access the recovery options, log on as a 5.
local user. To access the command prompt,
type administrator in the User name
field, then click OK.
Click 6. Dell Factory Image Restore. The Dell
Factory Image Restore welcome screen
appears.
43
Restoring Your Operating System
NOTE: Depending upon your configuration,
you may need to select Dell Factory Tools,
then Dell Factory Image Restore.
Click 7. Next. The Confirm Data Deletion
screen appears.
CAUTION: If you do not want to proceed
with Factory Image Restore, click Cancel.
Select the checkbox to confirm that you 8.
want to continue reformatting the hard drive
and restoring the system software to the
factory condition, then click Next.
The restore process begins and may take
five or more minutes to complete. A message
appears when the operating system and
factory-installed applications have been
restored to factory condition.
Click 9. Finish to reboot the system.
Operating System Reinstallation
Before you Begin
If you are considering reinstalling the Windows
operating system to correct a problem with a
newly installed driver, first try using Windows
Device Driver Rollback. If Device Driver
Rollback does not resolve the problem, then use
System Restore to return your operating system
to the operating state it was in before you
installed the new device driver. See “System
Restore” on page 38.
CAUTION: Before performing the
installation, back up all data files on your
primary hard drive. For conventional hard
drive configurations, the primary hard drive
is the first drive detected by the computer.
To reinstall Windows, you need the following
items:
Dell Operating System
• media
Dell Drivers and Utilities
• media
44
Restoring Your Operating System
NOTE: The
Dell Drivers and Utilities
media
contains drivers that were installed during
the assembly of the computer. Use the
Dell Drivers and Utilities media to load any
required drivers. Depending on the region
from which you ordered your computer,
or whether you requested the media,
the
Dell Drivers and Utilities
media and
Operating System
media may not ship with
your computer.
Reinstalling Windows
The reinstallation process can take 1 to 2 hours
to complete. After you reinstall the operating
system, you must also reinstall the device
drivers, virus protection program, and other
software.
NOTE: Your computer may or may not have
an optical drive. Use an external optical
drive or any external storage device for the
procedures that involve media.
Save and close any open files and exit any 1.
open programs.
Insert the 2.
Operating System
disc.
Click 3. Exit if the Install Windows message
appears.
Restart the computer.4.
When the DELL logo appears, press <F2> 5.
immediately.
NOTE: If you wait too long and the
operating system logo appears, continue to
wait until you see the Microsoft® Windows®
desktop; then, shut down your computer
and try again.
NOTE: The next steps change the boot
sequence for one time only. On the next
start-up, the computer boots according to
the devices specified in the system setup
program.
When the boot device list appears, highlight 6.
CD/DVD/CD-RW Drive and press <Enter>.
Press any key to 7. Boot from CD-ROM.
Follow the instructions on the screen to
complete the installation.
45
INSPIRON
If you experience a problem with your computer,
you can complete the following steps to
diagnose and troubleshoot the problem:
See “Solving Problems” on page 1. 28 for
information and procedures that pertain to
the problem your computer is experiencing.
See “Dell Diagnostics” on page 2. 35 for
procedures on how to run Dell Diagnostics.
Fill out the “Diagnostic Checklist” on 3.
page 48.
Use Dell’s extensive suite of online services 4.
available at Dell Support (support.dell.com)
for help with installation and troubleshooting
procedures. See “Online Services” on
page 46 for a more extensive list of Dell
Support online.
If the preceding steps have not resolved the 5.
problem, see “Before You Call” on page 47
and then “Contacting Dell” on page 49.
NOTE: Call Dell Support from a telephone
near or at the computer so that the support
staff can assist you with any necessary
procedures.
NOTE: Dell’s Express Service Code system
may not be available in all countries.
When prompted by Dell’s automated telephone
system, enter your Express Service Code to
route the call directly to the proper support
personnel. If you do not have an Express
Service Code, open the Dell Accessories folder,
double-click the Express Service Code icon, and
follow the directions.
NOTE: Some of the services mentioned
below are not always available in all
locations outside the continental U.S.
Call your local Dell representative for
information on availability.
Getting Help
46
Getting Help
Technical Support and Customer
Service
Dell’s support service is available to answer
your questions about Dell hardware. Our
support staff use computer-based diagnostics to
provide fast, accurate answers.
To contact Dell’s support service, see “Before
You Call” on page 47 and then see the contact
information for your region or go to support.dell.com.
Online Services
You can learn about Dell products and services
on the following websites:
www.dell.com•
www.dell.com/ap• (Asian/Pacific countries
only)
www.dell.com/jp• (Japan only)
www.euro.dell.com• (Europe only)
www.dell.com/la• (Latin American and
Caribbean countries)
www.dell.ca• (Canada only)
You can access Dell Support through the
following websites and e-mail addresses:
Dell Support websites
support.dell.com•
support.jp.dell.com• (Japan only)
support.euro.dell.com• (Europe only)
Dell Support e-mail addresses
mobile_support@us.dell.com•
support@us.dell.com•
la-techsupport@dell.com• (Latin America and
Caribbean countries only)
apsupport@dell.com• (Asian/Pacific
countries only)
Dell Marketing and Sales e-mail addresses
apmarketing@dell.com• (Asian/Pacific
countries only)
sales_canada@dell.com• (Canada only)
47
Getting Help
Anonymous file transfer protocol (FTP)
ftp.dell.com•
Log in as user: anonymous, and use your
e-mail address as your password.
AutoTech Service
Dell’s automated support service–AutoTech–
provides recorded answers to the questions
most frequently asked by Dell customers about
their portable and desktop computers.
When you call AutoTech, use your touch-tone
telephone to select the subjects that correspond
to your questions. For instructions on accessing
the telephone number to call your region, see
“Contacting Dell” on page 49.
Automated Order-Status Service
To check on the status of any Dell products that
you have ordered, you can go to support.dell.
com, or you can call the automated order-
status service. A recording prompts you for the
information needed to locate and report on your
order. For the telephone number to call your
region, see “Contacting Dell” on page 49 for
problems with your order.
If you have a problem with your order, such as
missing parts, wrong parts, or incorrect billing,
contact Dell for customer assistance. Have your
invoice or packing slip handy when you call. For
the telephone number to call for your region,
see “Contacting Dell” on page 49.
Product Information
If you need information about additional
products available from Dell, or if you would like
to place an order, visit the Dell website at
www.dell.com. For the telephone number to call
for your region or to speak to a sales specialist,
see “Contacting Dell” on page 49.
48
Getting Help
Before You Call
NOTE: Have your Express Service Code
ready when you call. The code helps Dell’s
automated-support telephone system direct
your call more efficiently. You may also be
asked for your Service Tag (located on the
back or bottom of your computer).
Remember to fill out the following Diagnostics
Checklist. If possible, turn on your computer
before you call Dell for assistance and call from
a telephone at or near the computer. You may be
asked to type some commands at the keyboard,
relay detailed information during operations, or
try other troubleshooting steps possible only at
the computer itself. Ensure that the computer
documentation is available.
Diagnostic Checklist
Name:•
Date:•
Address:•
Phone number:•
Service Tag (bar code on the back or bottom •
of the computer):
Express Service Code:•
Return Material Authorization Number (if •
provided by Dell support technician):
Operating system and version:•
Devices:•
Expansion cards:•
Are you connected to a network? Yes /No•
Network, version, and network adapter:•
Programs and versions:•
49
Getting Help
See your operating system documentation
to determine the contents of the computer’s
start-up files. If the computer is connected to
a printer, print each file. Otherwise, record the
contents of each file before calling Dell.
Error message, beep code, or diagnostic •
code:
Description of problem and troubleshooting •
procedures you performed:
Contacting Dell
For customers in the United States, call
800-WWW-DELL (800-999-3355).
NOTE: If you do not have an active
Internet connection, you can find contact
information on your purchase invoice,
packing slip, bill, or Dell product catalog.
Dell provides several online and telephone-
based support and service options. Availability
varies by country and product, and some
services may not be available in your area.
To contact Dell for sales, technical support, or
customer service issues:
Visit 1. support.dell.com.
Verify your country or region in the 2. Choose
A Country/Region drop-down menu at the
bottom of the page.
Click 3. Contact Us on the left side of the page.
Select the appropriate service or support link 4.
based on your need.
Choose the method of contacting Dell that is 5.
convenient for you.
INSPIRON
50
Finding More Information and Resources
If you need to: See:
reinstall your operating system. the Operating System media.
run a diagnostic program for your computer,
reinstall desktop system software, or update
drivers for your computer, and readme files.
the
Drivers and Utilities
media.
NOTE: Drivers and documentation updates
can be found on the Dell™ Support website
at support.dell.com.
learn more about your operating system,
maintaining peripherals, RAID, Internet,
Bluetooth®, networking, and e-mail.
the Dell Technology Guide installed on your
hard drive.
upgrade your computer with new or additional
memory, or a new hard drive.
reinstall or replace a worn or defective part.
the Service Manual on the Dell Support website
at support.dell.com
NOTE: In some countries, opening and
replacing parts of your computer may void
your warranty. Check your warranty and
return policies before working inside your
computer.
51
Finding More Information and Resources
If you need to: See:
find safety best practices information for your
computer
review Warranty information, Terms and
Conditions (U.S. only), Safety instructions,
Regulatory information, Ergonomics
information, and End User License Agreement.
the safety and regulatory documents that
shipped with your computer and also see the
Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
find your Service tag/Express Service Code—
You must use the service tag to identify your
computer on support.dell.com or to contact
technical support.
the back or bottom of your computer.
find drivers and downloads.
access technical support and product help.
check on your order status for new purchases.
find solutions and answers to common
questions.
locate information for last-minute updates
about technical changes to your computer or
advanced technical-reference material for
technicians or experienced users.
the Dell™ Support website at
support.dell.com.
INSPIRON
52
Basic Specifications
System Model
Dell Inspiron Mini 10
This section provides basic information that you
may need when setting up, updating drivers for,
and upgrading your computer.
NOTE: Offerings may vary by region.
For more information regarding the
configuration of your computer, click
Start→ Help and Support and select the
option to view information about your
computer.
Processor
Type Intel® Silverthorne
CPU Intel® Atom™ Z520
or Z530 or Z540
L2 Cache 512 MB
External bus frequency 533-MT/S @ 133
MHz
Memory
Connectors none
Capacities 1 GB and 2 GB
Memory type DDR2-800 (Run @
DDR2-533/ 266 MHz)
Memory
configuration
possible
1024 MB, 2048 MB
53
Basic Specications
Computer Information
System Chipset Intel LPIA (Low
Power Intel
Architecture) Poulsbo
US15W
Data bus width 64 bits
DRAM bus width single channel
64-bit buses
Processor address
bus width
32 bits
Flash EEPROM 1 MB
Internal Storage 2.5” HDD SATA:
120/160/250 GB 5400
rpm
Communications
Modem type External V.92 56K
USB Modem
Modem interface Universal Serial Bus
(USB)
Network adapter 10/100 Ethernet LAN
on system board
Wireless WLAN, WiMax,
WWAN/GPS (3G
Mini-Card that can
activate 3G, or GPS,
or both), Bluetooth®
wireless technology,
internal TV tuner
module
54
Basic Specications
Video
video controller Intel LPIA Poulsbo
video memory 8 MB system
memory (shared)
LCD interface LVDS
Audio
Audio type 2 channel High
Definition Audio
Audio controller ALC269
Stereo conversion 24-bit (analog-to-
digital and digital-to-
analog)
Internal Interface Intel High Definition
Audio
Audio
External Interface integrated analog
microphone,
microphone-in
connector, stereo
headphones/
speakers connector,
digital MIC with
camera module
(optional)
Speaker two 1.0 watt speaker
Internal speaker
amplifier
1 watt per channel
Volume controls software program
controlled
55
Basic Specications
Ports and Connectors
Audio integrated analog
microphone,
integrated analog
speaker, microphone
connector, one stereo
headphone/speakers
connector, digital
MIC with camera
module (optional)
Mini-Card two full size Mini
Card slots and
one half size Mini
Card slot, the half
slot supports dual
interface and the full
slots support USB
only
Network adapter RJ-45 port
USB three 4-pin USB
2.0-compliant
connectors
Video 19-pin type A HDMI
connector
Display
Type (TrueLight) 10.1 inch WSVGA AG
10.1 inch HD AG
Dimensions:
Height 222.72 mm (8.76 in)
WSVGA AG
222.73 mm (8.76 in)
HD AG
Width 125.28 mm (4.93 in)
WSVGA AG
125.22 mm (4.92 in)
HD AG
Diagonal 255.52 mm (10.06 in)
56
Basic Specications
Maximum resolution 1024 x 576 WSVGA
AG
1366 x 768 HD AG
Refresh rate 60 Hz
Operating angle 0° (closed) to 135°
Luminance 180 min. 200 typ.
cd/m² (5 point avg)
WSVGA AG
230 min. 250 typ. cd/
m² (5 point avg) HD
AG
Viewing Angles:
Horizontal ±40° (CR≥10) typ..
WSVGA AG
±60° (CR≥10) typ..
HD AG
Vertical +10° - +30° (CR≥10)
typ. WSVGA AG
+50° (CR≥10) typ.
HD AG
Pixel pitch 0.2175 x 0.2175 mm
WSVGA AG
0.16305 x 0.16305 mm
HD AG
Controls brightness can be
controlled through
keyboard shortcuts
(see
Dell Technology
Guide
for more
information.)
Keyboard
Number of keys 82 (U.S. and Canada);
83 (Europe); 86
(Japan); 82 (Korea)
57
Basic Specications
Camera
Pixel 1.3 megapixel
Video resolution 320x240 ~1280x1024
(640x480 at 30fps)
Diagonal viewing
angle
66°
Touch pad
X/Y position
resolution (graphics
table mode)
240 cpi
Size:
Width 78.5 mm (3.09 in)
sensor-active area
Height 38 mm (1.49 in)
rectangle
AC Adapter
Input voltage 100–240 VAC
Input current
(maximum)
1.0 A
Input frequency 50–60 Hz
Output power 30 W
Output current 1.58 A (maximum)
Rated output voltage 19.0 VDC
Dimensions:
30 W (APD)
Height 59.2 mm (2.33 in)
Width 34.0 mm (1.34 in)
Depth 85.0 mm (3.35in)
Weight (with cables) 0.15 kg (0.33 lb)
58
Basic Specications
AC Adapter
30 W (PI)
Height 70.0 mm (2.76 in)
Width 36.0 mm (1.42 in)
Depth 78.0 mm (3.07in)
Weight (with cables) 0.156 kg (0.34 lb)
Physical
Height 25.3 mm to 28.0 mm
(0.99 in to 1.10 in)
Width 261 mm (10.27 in)
Depth 182.5 mm (7.18 in)
Weight (with 3-cell
battery):
Configurable to less
than 1.30 kg (2.86 lbs)
Computer Environment
Temperature range:
Operating 0° to 35°C (32° to
95°F)
Storage –20° to 65°C (–4° to
149°F)
Relative humidity (maximum):
Operating 10% to 90%
(noncondensing)
Storage 5% to 90%
(noncondensing)
Maximum vibration (using a random-vibration
spectrum that simulates user environment):
Operating 0.66 GRMS
Storage 1.3 GRMS
59
Basic Specications
Computer Environment
Maximum shock (measured with hard drive
in head-parked position and a 2-ms half-sine
pulse):
Operating 110 G
Storage 160 G
INSPIRON
60
A
AC adapter
size and weight 57, 58
airflow, allowing 5
AutoTech 47
B
backups
creating 27
C
calling Dell 48
chipset 53
computer, setting up 5
connect(ing)
to the Internet 9
conserving energy 27
Contacting Dell online 49
customer service 46
customizing
your energy settings 27
D
damage, avoiding 5
data, backing up 27
Dell Factory Image Restore 38
Dell Support Center 33
Dell support website 51
Dell Technology Guide
for further information 50
Diagnostic Checklist 48
drivers and downloads 51
Index
61
Index
E
e-mail addresses
for technical support 46
energy
conserving 27
expansion bus 53
F
finding more information 50
FTP login, anonymous 47
H
hardware problems
diagnosing 35
Hardware Troubleshooter 35
help
getting assistance and support 45
I
Internet connection 10
ISP
Internet Service Provider 10
M
memory problems
solving 30
memory support 52
N
network connection
fixing 28
network speed
testing 28
O
order status 47
62
Index
P
power problems, solving 29
power strips, using 6
problems, solving 28
processor 52
products
information and purchasing 47
R
reinstalling Windows 38
resources, finding more 50
restoring factory image 42
S
setup, before you begin 5
software features 26
software problems 30
solving problems 28
specifications 52
support e-mail addresses 46
support sites
worldwide 46
System Messages 34
system reinstall options 38
System Restore 38
T
technical support 46
V
ventilation, ensuring 5
W
Windows, reinstalling 38
Windows Vista®
Program Compatibility Wizard 31
reinstalling 44
setup 9
63
Index
Windows XP 31
wired network
network cable, connecting 7
wireless network connection 28
Printed in China.
Printed on recycled paper.
www.dell.com | support.dell.com

Navigation menu
